Symmetricom EDGE CLOCK 1000, EDGE CLOCK 1100, TimeProvider 1000, TimeProvider 1100 User Manual

Download

TimeProvider 1000 and 1100

Edge Clock

User’s Guide

Revision G – April 2008

Part Number 097-58001-02

Symmetricom, Inc.

2300 Orchard Parkway

San Jose, CA 95131-1017

U.S.A.

http://www.symmetricom.com

All product names, service marks, trademarks, and registered trademarks

used in this document are the property of their respective owners.

Table of Contents

Contents

How to Use This Guide

Purpose of This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Who Should Read This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Structure of This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Conventions Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Warnings, Cautions, Recommendations, and Notes . . . . . . . . . . . . . . . . . . . . . . . . . 16

Related Documents and Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Where to Find Answers to Product and Document Questions. . . . . . . . . . . . . . . . . . 17

What’s New in This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 1 Overview of the TimeProvider

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Expansion Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Performance Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Phase Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

MTIE Calculations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

TDEV Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

FFOFF Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

NTP Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

SNMP – Simple Network Management Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Physical Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Communication Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Local Craft Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Remote Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Reference Input Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Selecting the Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

SSMs and Quality Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

GPS Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Clock Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Output Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Retimer Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 3

Table of Contents

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Synchronization Status Messages (SSMs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

SmartClock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

BesTime. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Normal Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

GPS Holdover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Chapter 2 Engineering and Ordering Procedures

Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Model 1000 Front Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Model 1100 Rear Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Expansion Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Front Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Rear Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Input Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Output Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

IMC and IOC Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

GPS Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Ordering and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Ordering the Cable Management Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Ordering an NTP or SNMP License. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Chapter 3 Installing the TimeProvider

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Pre-Installation Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Performing a Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Gathering the Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Unpacking the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Rack Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Making Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Making Ground Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Making Power Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Verifying Power and Grounding Connections. . . . . . . . . . . . . . . . . . . . . . . . . . 62

Making Input Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Making Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Making Retimer Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Making Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Making GPS Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Making Communications Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Changing Communications Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Installing Connections to the Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Powering Up the Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

4 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Table of Contents

Working With Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Properly Handling Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Inserting Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Removing Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Firmware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Chapter 4 Provisioning the TimeProvider

TL1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

TL1 Command Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

TL1 Response Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Autonomous Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Starting the TimeProvider for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Logging In for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Setting Communications Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Setting RS-232 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Setting Ethernet Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Checking Communication Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Defining the Security Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Defining a User at the Security Access Level . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Managing the User List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Logging Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Adding a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Changing the Current User’s Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Displaying a User’s Access Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Editing a User’s Access Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Deleting A User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Retrieving Current Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Using SynCraft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Starting SynCraft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Creating a Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Opening a Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Closing a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Provisioning the IOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Setting the System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Setting the IOC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Provisioning the Input Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Setting the Input State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Setting the GPS Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Setting the Input Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Setting the Input Frame Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Controlling Automatic Reference Switching . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Setting the Input Quality Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Setting the Input Priority Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Manually Selecting the Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Provisioning the SSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 5

Table of Contents

Enabling CRC4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Using Performance Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Provisioning the Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Enabling and Disabling the Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Provisioning the Output Framing Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Provisioning Retimer Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Enabling and Disabling the Retimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Provisioning the LBO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Provisioning Cut-thru Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Provisioning NTP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Activating NTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Editing NTP Peer Server Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Enabling NTP Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Setting the NTP Authentication Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Provisioning Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Provisioning the Alarm Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Provisioning System-Level Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Retrieving Current Alarm Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Retrieving Current Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Displaying Alarm Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Clearing Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Provisioning SNMP Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Activating SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Adding a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Changing A User’s Security Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Displaying the Connected Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Deleting a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Setting Up SNMP Traps, Informs, and Notifications . . . . . . . . . . . . . . . . . . . . 137

System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Displaying Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Displaying the Configuration of the TimeProvider. . . . . . . . . . . . . . . . . . . . . . 139

Restarting the TimeProvider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Saving Provisioning Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Chapter 5 Testing the TimeProvider

Testing the TimeProvider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Test Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Test Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Verifying Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Testing Alarm Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Testing the IOC Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Testing the Reference Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Testing the Non-Revertive Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Testing the Revertive Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Testing the Power Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Detecting Input Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

6 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Table of Contents

Testing the Communication Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Testing the Local Craft Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Testing the Remote Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Testing the Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Testing the Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Test Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Chapter 6 Maintaining and Troubleshooting the TimeProvider

Preventive Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

ESD Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Diagnosing the IOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Reading LED Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Interpreting Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Removing the IOC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Replacing the IOC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Diagnosing the IMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Reading LED Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Interpreting Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Replacing the IMC or IMC/TPIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Diagnosing the External TPIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Diagnosing the Retimer Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Replacing Output Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Replacing the Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Troubleshooting the TimeProvider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Using Events to Troubleshoot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Using Alarm Codes to Troubleshoot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Repairing the TimeProvider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Obtaining Technical Assistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Upgrading the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Upgrading the IMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Upgrading the IOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Returning the TimeProvider. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Repacking the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Equipment Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Manual Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Chapter 7 Specifications of the TimeProvider

Communications Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

LAN Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 7

Table of Contents

Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Input Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Output Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Roof Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Mechanical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

TimeProvider 1000 Front-Access Shelf. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

TimeProvider 1100 Rear-Access Shelf. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Default Command Access Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Alarm Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Default Equipment Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Default Input Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Default Output Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Default Retimer Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Installing SynCraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Index

8 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Table of Contents

Figures

1-1 TimeProvider 1000 ETSI-style Shelf. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1-2 TimeProvider 1100 Rear Access Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1-3 TimeProvider 1100 Expansion Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1-4 Front Panel of the TimeProvider 1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

1-5 Rear Panel of the TimeProvider 1100 – Old Version . . . . . . . . . . . . . . . . . . 29

1-6 Rear Panel of the TimeProvider 1100 – New Version. . . . . . . . . . . . . . . . . . 30

1-7 Block Diagram of the TimeProvider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

1-8 The TimeProvider Interface Unit (TPIU). . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

1-9 The Integrated IMC/TPIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3-1 Installing the Model 1000 Shelf, Expansion Panel, and Cable Management

tray – 19-inch Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3-2 Installing the Model 1100 Shelf, Cable Management tray, and Expansion

Panel – 19-inch Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

3-3 Installing the Model 1000 Shelf and Expansion Panel – 23-inch Rack. . . . . 59

3-4 Installing the Model 1100 Shelf and Expansion Panel – 23-inch Rack. . . . . 60

3-5 Power Terminal Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

3-6 Assembling the ETSI (Front Access) Power Connector. . . . . . . . . . . . . . . . 62

3-7 BNC Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

3-8 Wire-Wrap Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

3-9 DB9 Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

3-10 BT43 Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3-11 Metric (Siemens) Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3-12 BNC and Wire-Wrap Output Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

3-13 DB9 Output Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

3-14 BT43 and Metric (Siemens) Output Modules . . . . . . . . . . . . . . . . . . . . . . . . 68

3-15 B-422 Output Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

3-16 Front Panel of the T1 (wire-wrap) and E1 (BNC) Retimer Modules . . . . . . . 69

3-17 Sample Installation Schematic for a Retimer . . . . . . . . . . . . . . . . . . . . . . . . 69

3-18 DB-25 Alarm Connector (Front View). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

3-19 Locating the GPS Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

3-20 Antenna-to-Shelf Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

3-21 Installing the Antenna Bracket on a Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

3-22 Installing the Antenna Bracket on a Post . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

3-23 Attaching the Antenna to the Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

3-24 Assembling the Lightning Suppressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

3-25 Mounting the TPIU and Expansion Panel on the Same Rack Ears . . . . . . . 78

3-26 Mounting the TPIU with a Model 1000 ETSI-Style Shelf . . . . . . . . . . . . . . . 78

4-1 The SynCraft Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

4-2 The Create New Connection Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

4-3 Logical View of the TimeProvider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 9

Table of Contents

10 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Table of Contents

Tables

1-1 Typical Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

1-2 SSU-Based Reference Selection Scenarios. . . . . . . . . . . . . . . . . . . . . . . . . . .37

1-3 Subtending-Based Reference Selection Scenarios . . . . . . . . . . . . . . . . . . . . .37

1-4 ANSI SSM Quality Level Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

1-5 ITU SSM Quality Level Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

2-1 Input Modules Available for the TimeProvider . . . . . . . . . . . . . . . . . . . . . . . . .47

2-2 Output Modules and Accessories Available for the TimeProvider . . . . . . . . . .47

2-3 IOC and IMC Modules Available for the TimeProvider . . . . . . . . . . . . . . . . . . .48

2-4 GPS Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

2-5 TimeProvider Shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

3-1 Power Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

3-2 Input Connector Modules Available for the IOC . . . . . . . . . . . . . . . . . . . . . . . .63

3-3 Pinout for the DB9 Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

3-4 Output Connector Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

3-5 Pinout for the DB9 Output Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

3-6 Alarm Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

3-7 Connector Pinouts for the Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

3-8 Ethernet Communications Port Signal Connections. . . . . . . . . . . . . . . . . . . . .81

3-9 Installation Completeness Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

3-10 Firmware Feature Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

4-1 TL1 Syntax Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

4-2 Default Mask Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

4-3 Alarm Conditions and Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

4-4 Provisioning Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

5-1 LED Conditions for the IOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

5-2 LED Conditions for the IMC and IMC/TPIU . . . . . . . . . . . . . . . . . . . . . . . . . .147

5-3 Record of Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

6-1 Preventive Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

6-2 LED Conditions for the IOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

6-3 LED Conditions for the IMC and IMC/TPIU . . . . . . . . . . . . . . . . . . . . . . . . . .162

6-4 LED Conditions for the External TPIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164

6-5 Event Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

6-6 Set and Clear Conditions for Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

6-7 Alarm Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

6-8 Conditions Causing an Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184

7-1 Serial Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

7-2 Holdover Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

7-3 Hold-in and Pull-in Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196

7-4 Input Signal Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197

7-5 Output Signal Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198

7-6 Output Alarm Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 11

Table of Contents

7-7 Typical Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200

7-8 Antenna Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201

A-1 Default Access Levels for TL1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . .204

A-2 Default Alarm Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205

A-3 Default Equipment Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .208

A-4 Default Input Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209

A-5 Default Output Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210

A-6 Default Retimer Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211

12 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

How to Use This Guide

This section describes the format, layout, and purpose of this guide.

In This Preface

 Purpose of This Guide  Who Should Read This Guide  Structure of This Guide  Conventions Used in This Guide  Warnings, Cautions, Recommendations, and Notes  Related Documents and Information  Where to Find Answers to Product and Document Questions  What’s New in This Guide

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 13

How to Use This Guide

Purpose of This Guide

The TimeProvider User’s Guide describes the procedures for unpacking, installing, using, maintaining, and troubleshooting the Symmetricom TimeProvider. It also includes appendixes that describe default values and how to install the included software application SynCraft.

Who Should Read This Guide

Chapter 1, Overview of the TimeProvider, and Chap ter 2, Engineering and Ordering Procedures, are written for non-technical audiences who need general information

about the product. Chapter 3, Installing the TimeProvider and subsequent chapters contain technical information about the product. Other chapters and appendixes describe installation, maintenance, and configuration instructions or det ails primarily intended for qualified maintenance personnel.

Structure of This Guide

This guide contains the following sections and appendixes:

Chapter, Title Description

Chapter 1, Overview of the TimeProvider

Chapter 2, Engineering and Ordering Procedures

Chapter 3, Installing the TimeProvider

Chapter 4, Provisioning the TimeProvider

Chapter 5, Testing the TimeProvider

Chapter 6, Maintaining and Troubleshooting the TimeProvider

Provides an overview of the product, describes the major hardware and software features, and lists the system specifications.

Lists the part number and ordering procedure for all TimeProvider parts and accessories.

Contains procedures for unpacking and installing the product.

Describes TimeProvider after installing the unit.

Provides checklist-based commissioning tests that should be performed after completing turn-up and softwa re con figur ation to ensure the system is ready for normal operation.

Contains preventive and corrective maintenance, and troubleshooting procedures for the product.

the TL1 commands required to provision the

Chapter 7, Specifications of the TimeProvider

Appendix A, Factory Default Values

14 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Lists the specifications for the TimeProvider

Includes a list of the factory default values for ha rd wa re and software parameters.

Chapter, Title Description

Conventions Used in This Guide

How to Use This Guide

Appendix B, CRAFT Software Reference

Index

Describes how to use the CRAFT software interface with the TimeProvider.

Provides references to individual topics within this guide.

Conventions Used in This Guide

This guide uses the following conventions:

 Acronyms and Abbreviations – Terms are spelled out the first time they appear

in text. Thereafter, only the acronym or abbreviation is used.

 Revision Control – The title page lists the printing date and versions of the

product this guide describes.

 Typographical Conventions – This guide uses the typographical conventions

described in the table below.

When text appears

this way...

... it means:

TimeProvider User’s Guide The title of a document. SSU

An operating mode, alarm state, status, or chassis label. CRITICAL IOC1

Select File, Open... Click the Open option on the File menu. Press

Press ;

Enter

A named keyboard key.

The key name is shown as it appears on the keyboard. An

explanation of the key’s acronym or function imme diately follows

the first reference to the key, if required.

TimeProvider Username:

PING STATUS

Text in a source file or a system prompt or other text that appears

on a screen.

A command you enter at a system prompt or text you enter in

response to a program prompt. You must enter commands for

case-sensitive operating systems exactly as shown. A re-timing application A word or term being emphasized. Symmetricom does not

A word or term given special emphasis. recommend...

Structure of This Guide, on

page 14

The blue text, when viewed in a pdf file, indicates a hyperlink to the

indicated text.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 15

How to Use This Guide

Warnings, Cautions, Recommendations, and Notes

Warnings, Cautions, Recommendations, and Notes attract attention to essential or critical information in this guide. The types of information included in each are explained in the following examples.

Warning: To avoid serious personal injury or death, do not disregard warnings. All warnings use this symbol. Warnings are installation, operation, or maintenance procedures, practices, or statements, that if not strictly observed, may result in serious personal injury or even death.

Caution: To avoid personal injury, do not disregard cautions. All cautions use this symbol. Cautions are installation, operation, or maintenance procedures, practices, conditions, or statements, that if not strictly observed, may result in damage to, or destruction of, the equipment. Cautions are also used to indi cat e a lon g- te rm health hazard.

ESD Caution: To avoid personal injury and electrostatic discharge (ESD) damage to equipment, do not disregard ESD cautions. All ESD cautions use this symbol. ESD cautions are installation, operation, or maintenance procedures, practices, conditions, or statements that if not strictly observed, may result in possible personal injury , electrostatic discharge damage to, or destruction of, static sensitive components of the equipment.

Electrical Shock Caution: To avoid electrical shock and possible personal injury, do not disregard electrical shock cautions. All electrical shock cautions use this symbol. Electrical shock cautions are practices, procedures, or statements, that if not strictly observed, may result in possible personal injury, electr ical shock damage to, or destruction of components of the equipment.

Recommendation: All recommendations use this symbol. Recommendations indicate manufacturer-tested methods or known functionality. Recommendations contain installation, operation, or maintenance procedures, practices, conditions, or statements, that provide important information for optimum performance results.

Note: All notes use this symbol. Notes contain installation, operation, or maintenance procedures, practices, conditions, or statements, that alert you to importa nt information, which may make your task easier or increase your understanding.

16 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Related Documents and Information

How to Use This Guide

Where to Find Answers to Product and Document

Questions

For additional information about the products described in this guide, please cont act your Symmetricom representative or your local sales office. You can also contact us on the web at www.symmetricom.com.

What’s New in This Guide

No Revision F of this guide has been issued. Revision G of this guide includes the following new information:

 Added SNMP – Simple Network Management Protocol, on page 28.  Corrected the Transit Node traceable row in Table 1-4.  Added the Synchronized - Traceability Unknown row to Table 1-5.  Revised Ordering an NTP or SNMP License, on page 51, to include SNMP.  Updated Table 3-10 to include the latest firmware release.  Renamed IP Subnet address to Subnet mask and removed IP Host entries from

Table 4-4.

 Removed the shims from the drawing in Figure 3-23 and the text in step 5 on

page 74.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 17

How to Use This Guide

What’s New in This Guide

 Added the latest firmware revisions to Table 3-10.  Revised the order of the steps in Starting the TimeProvider for the First Time, on

page 88.

 Revised the text in the first paragraph of Logging In for the First Time, on page

89.

 Added the 115200 baud rate to Setting the Baud Rate, on page 91, and Table

6-5.

 Corrected the length of the password in Managing the User List, on page 96.  Added metric values to the table in Provisioning the LBO, on page 121.  Corrected the EXDSC alarm description in Table 4-3.  Added the GPSCLRDEL and GPSFLTDEL keywords to the table in Provisioning

System-Level Alarms, on page 130.

 Added Provisioning SNMP Parameters, on page 136.  Added the GPSCLRDEL and GPSFLTDEL keywords to Table 4-4.  Added “GPS faults” to the list in Detecting Input Errors, on page 151.  Added GPSCLRDEL and GPSFLTDEL to Table 6-5, Table 6-8, and Table A-4.

18 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

This chapter describes the TimeProvider product.

In This Chapter

 Overview  Operating Modes  Performance Monitoring  NTP Operation  SNMP – Simple Network Management Protocol  Physical Description  Functional Description  System Power  Communication Ports  Reference Input Signals  Clock Performance  Output Signals  Alarms  Synchronization Status Messages (SSMs)  SmartClock  BesTime

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 19

Chapter 1 Overview of the TimeProvider

Overview

The TimeProvider is Synchronization Supply Unit (SSU) designed specifically to meet the needs at the network edge. In small offices where core office synchronization solutions are critical, an edge clock like the TimeProvider is ideal because of its compact size and flexibility. Using the integrated GPS features, you can use the TimeProvider in a “small” Central Office to act as a Primary Reference Source (PRS).

The TimeProvider’s unique design incorporates the input, output, and clock functions in a single card, available with either a Rubidium or quartz oscillator. This allows you to simplify the storage inventory required for future expansion needs. The TimeProvider shelf requires only three plug-in cards to operate with full redundancy: dual Input/Output/Clock cards (IOCs) and a single Information Management Card (IMC), which serves as a communications/alarm interface. When dual IOCs are installed, you can mix any combination of Rubidium and quartz oscillators (for example, Rb/Rb, Rb/Qz, or Qz/Qz) to the needs of the network. The main shelf provides up to 32 redundant universal timing outputs; an optional Expansion Panel provides an additional 32 redundant outputs.

Using Symmetricom’s SmartClock™ technology design, the oscillators within the IOCs are enhanced with improved performance and accuracy. Using intelligent firmware algorithms, SmartClock “learns” the effects of t he ageing of the clock while it is locked to a reference signal and stores this information in its memory. If the reference signals are lost or disqualified, SmartClock uses the stored data to compensate for frequency changes while the TimeProvider continues to distribute highly stable synchronization signals.

The TimeProvider also uses Symmetricom’s BesTime

algorithm when the GPS input is activated. By using other inputs as references, Bestime calculates and determines a weighting factor for each of the inputs and ensembles them in the overall timing scheme to provide very accurate timing outputs. In the event of GPS signal loss, BesTime continues to predict GPS timing info rmation to provide reliable system timing outputs and holdover performance, ensuring that system reliability is maintained. See BesTime, on page 43 for more information.

Shelves

The TimeProvider is available in two shelf models. Each shelf supports up to 32 redundant output channels.

 The TimeProvider 1000 is a 175 mm tall ETSI shelf that meets the requirements

of ETSI 300 1 19-4 January 1994 . Figure 1-1 shows the TimeProvider 1000 shelf.

 The TimeProvider 1100 is a 130 mm tall rear-access shelf; indicators are on the

front panel and connections are available on the rear panel. Figure 1-2 shows the front panel of the TimeProvider 1100.

20 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

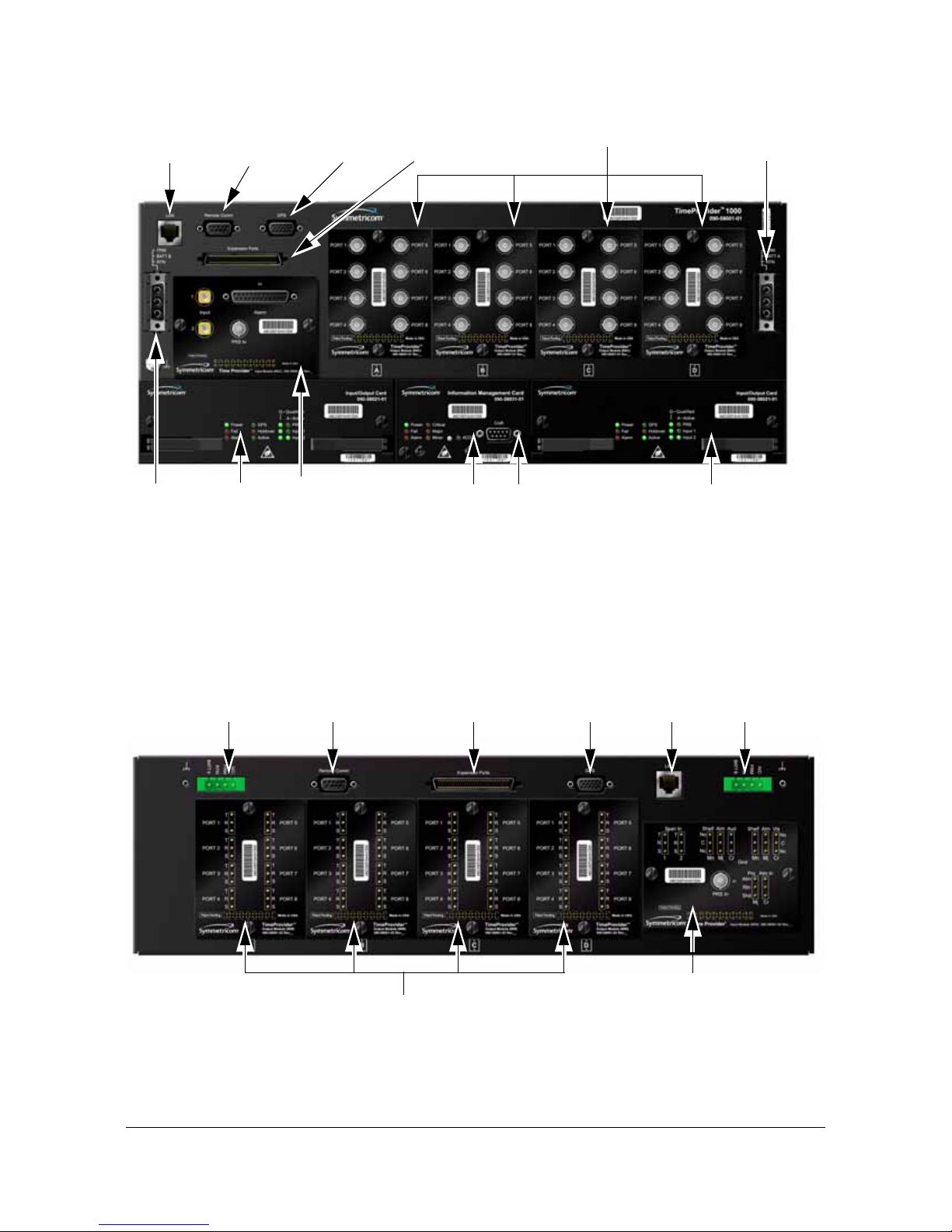

Figure 1-1. TimeProvider 1000 ETSI-style Shelf

Chapter 1 Overview of the TimeProvider

Overview

Figure 1-2. TimeProvider 1100 Rear Access Shelf

Expansion Panel

The TimeProvider has an optional Exp ansion Panel that d oubles (to 64) the number of output channels available. Figure 1-3 shows the rear-access version of the Expansion Panel. The Expansion Panel receives timing signals from the TimeProvider main shelf through an expansion cable. The Expansion Panel provides four groups (A through D) of eight signals; each group is automatically provisioned to the same output signal type as the corresponding group on the main shelf.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 21

Chapter 1 Overview of the TimeProvider

Overview

Figure 1-3. TimeProvider 1100 Expansion Panel

Inputs

The TimeProvider accepts the following types of input signals:

 Primary Reference Signals (PRS): 1.544 MHz, 2.048 MHz, 5 MHz, 6.312 MHz, or

10 MHz

 Span input signals:

– E1 or 2.048 MHz analog; user-selectable CAS or CCS framing – T1 D4, Extended Superframe (ESF) – 1.544 and 6.312 MHz – Composite Clock, including Japan Composite Clock (JCC) and Japan

Composite Clock with 400 Hz (JCC4) signals

 GPS input:

– GPS signal from the stand-alone TimeProvider Interface Unit (TPIU) – GPS signal into the TPIU integrated with the IMC (IMC/TPIU card)

The TimeProvider qualifies the input reference signals and detects the following errors: Loss of Signal (LOS), Alarm Indication Signal (AIS), Loss of Framing, and Synchronization Status Messages (SSM) where applicable. Reference Input

Signals, on page 34, describes the inputs in more detail.

Outputs

The TimeProvider produces a variety of outputs to meet different signal standards. Output signal types include 8 kHz, 1.544 MHz, 2.048 MHz, 6.312 MHz, E1, T1, CC, JCC, JCC4, and TIA/EIA-B-422 (1.544 and 2.048 MHz). The E1 and T1 signals can be provisioned with standard framing that meets G.703 formats. The SSM bit location is user-selectable on E1 outputs; CRC4 mu st be enabled in order to provide output SSMs. These outputs are available through one of several different connector panels. See Output Signals, on page 39, for more information on output signals.

22 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

The TimeProvider outputs are arranged into four groups of eight outputs per group in the Main shelf and four groups of eight outputs per group in the optional Expansion panel. Each group is labeled A, B, C, and D, and can be configured independently.

Operating Modes

Communication

Three communications ports provide access to the TimeProvider: Ethernet, local Craft serial port, and a Remote serial port. These ports are described in detail in

Communication Ports, on page 34.

Clocks

The TimeProvid er’s clock design includes a highly stable ovenized Quart z crystal or Rubidium oscillator with Direct Digital Synthesis (DDS) to produce accurate synchronization outputs. In a dual-IOC configuration, the clock function is redunda nt to provide protection, and you can mix and choose any combination of Quartz and Rubidium oscillator to meet the needs of the network. Each IOC qualifies the input signal and filters jitter and wander noise elements that may exist. In the event that all input references are lost or disqualified, the TimeProvider’s clock design, together with the SmartClock technology, goes into holdover mode with the oscillator providing the system reference.

The Rubidium IOC meets Stratum 2/Type II performance; the Quartz IOC meets Stratum 3E/Type I performance.

Operating Modes

You can configure the TimeProvider to operate in one of three modes: Synchronization Supply Unit (SSU), Subtending (SUB) as defined by Telcordia GR-378 Section 7, or Primary Reference Receiver (PRR) when the GPS input is available. Each mode is unique in its operation, and is defined in the following paragraphs.

SSU Mode

This is the TimeProvider’s default operating mode. You can select the system reference from any valid input on the PRS, INP1, INP2, or GPS connectors.

The GPS input operates as another input reference to the TimeProvider and is treated in the same manner as all other input references (PRS, INP1, or INP2). If the GPS input is active but later becomes disqualified, then the TimeProvider switches to the next available input reference according to the switching rules (Priority, SSM, etc.). If there are no other qualified inputs, then the TimeProvider enters the holdover state until an input is requalified.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 23

Chapter 1 Overview of the TimeProvider

Performance Monitoring

In the SSU mode, the INP1 and INP2 inputs cannot be provisioned to receive Composite Clock (CC) signals, including JCC or JCC4. The method of selecting the system reference is described in Selecting the Input, on page 35.

SUB Mode

This mode allows the TimeProvider to operate as a Remote shelf where phase is critical. When you select the SUB mode, INP1 and INP2 are automatically set for CC inputs (including JCC and JCC4). Outputs provisioned for CC are phase-aligned with the selected CC input reference. Other output types comply with G.703 and GR-1244.

To configure the TimeProvider for Subtending mode, see Setting the System Mode, on page 105.

PRR Mode

In PRR mode, the GPS is automatically selected as the system reference input. This requires that you connect a GPS signal to the TimeProvider through either:

 the standalone TPIU (used with Antenna Kits 990-58545-01 or 990-58545-02) or  the integrated IMC/TPIU card (used with Antenna Kits 990-58545-03 or

990-58545-04)

This mode complies with ITU-T G.811 and Telcordia GR-2830 requirements for Primary Reference Receivers/Clocks. Valid signals on the PRS, INP1, or INP2 connectors are used in conjunction with BesTime to extend compliance with GR-2830/G.811 standards.

The PRR mode uses Symmetricom’s BesTime servo control that allows the TimeProvider to continue providing outputs in case GPS tracking is lost, the GPS data loses integrity, or if the IMC is removed from the shelf. BesTime, on page 43 provides more information on the BesTime technology.

To configure the TimeProvider for PRR mode, see Setting the System Mode, on page 105.

Performance Monitoring

The TimeProvider can monitor a nd qualify all enabled input signals based on phase measurements. It measures the phase differences between the inputs and the output of the corrected clock. From these phase measurements, the TimeProvider computes frequency offset and wander of the input signals. Wander is reported in terms of Maximum Time Interval Error (MTIE) and Time Deviation (TDEV) and creates phase, MTIE, TDEV, and Fractional Frequency Offset (FFOFF) reports. Performance data is automatically gathered on all enabled or monitored inputs.

24 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

Using MTIE and FFOFF data, the TimeProvider qualifies inputs based on these metrics. You can specify thresholds to disqualify inputs and generate corresponding alarms, causing the TimeProvider to switch references or enter the Holdover mode.

For more information on performance monitoring, see Using Performance

Monitoring, on page 116. The TimeProvider TL1 Reference Guide contains a

section describing the TL1 commands related to performance monitoring.

Performance Monitoring

Phase Measurements

The IOC measures and transfers 1-second phase data with 100 ns resolution from each enabled input to the IMC or IMC/TPIU every 10 seconds. This phase data is averaged to a 1 ns resolution, which is used to produce a 1-minute phase data sample. The 1 ns data sample is the basis for MTIE, TDEV, and FFOFF calculations. The phase data is not used to qualify an input reference source.

TL1 commands are available to display the 60 most recent phase data (at 100 pS resolution) measurements, the previous 86400 1 ns data averages, and the previous 10080 samples of 1-minute 1 ns-resolution data.

MTIE Calculations

MTIE is a measure of the relative noisiness of an input signal that relates to frequency offsets and phase transients. The TimeProvider automatically calculates MTIE for each enabled input from the 600 most recent 1-second phase updates. From this calculation, you can retrieve MTIE values for 1, 5, 10, 50, 100, and 500-second windows. You can set an alarm threshold for each of these windows; if the MTIE value exceeds this threshold and the alarm level is set to Minor or higher, the TimeProvider generates an alarm.

You can use the automatic MTIE calculations to qualify each input with user-defined qualification thresholds. If an input exceeds the threshold, then the input reference automatically switches to the next-best input.

You can also set thresholds using pre-defined masks according to ANSI T1.101 (for PRS inputs), ITU-T G.811 (for PRC input s), or ITU-T G.812 (for Type I and T ype II/III inputs). The TimeProvider performs a second MTIE calculation using the previous 24-hour period; this calculation is not used to qualify inputs.

TDEV Calculations

TDEV is a measure of the relative noisiness of an input signal that relates to its spectral content. The TDEV for each enabled input is automatically calculated from the previous 24-hour period. The TDEV value is used for monitoring only and is not used for qualifying an input signal.

You can retrieve the TDEV values for the following integration times: 1, 5, 10, 100, 500, 1000, 5000, and 7200 (84000/12) seconds.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 25

Chapter 1 Overview of the TimeProvider

NTP Operation

FFOFF Calculations

FFOFF is a measure of the frequency deviation of the input signal against the system reference, expressed as a ratio. The TimeProvider automatically calculates FFOFF for each enabled input from the 600 most recent 1-second phase updates.

You can use the automatic FFOFF calculations to qualify each input with user-defined qualification thresholds. If an input exceeds the threshold and the alarm level is set to Minor or higher, then the input reference automatically switches to the next-best input.

The TimeProvider stores historical FFOFF measurements for each enabled input every 60 seconds. You can retrieve FFOFF data for the prior 24 hours, depending on the number of faults that have occurred.

NTP Operation

The Network Timing Protocol (NTP) function is implemented in the IMC card or IMC/TPIU card. You can activate the NTP feature by issuing a unique key generated by Symmetricom, based on the serial number of the IMC card or the IMC/TPIU card, or you can order the TimeProvider with the NTP option factoryinstalled and activated. Once activated, the NTP function cannot be deactivated.

NTP operates in all three operating modes of the TimeProvider. In the Subtending mode, the NTP server is supported when the system reference is a signal other than GPS. The NTP data is transmitted by the Ethe rnet port on the shelf, and meets the following standards and specifications:

 NTP V3  MD5 Authentication (RFC 1321)  NTP Leap Second correction based on GPS  NTP supports a 10baseT connection under a 40% loading condition, and can

handle up to 100 requests per second (RPS) on average

 Typical unencrypted response time from the TimeProvider on an unloaded

network is < 10 ms

 Typical encrypted (MD5) response time from the TimeProvider on an unloaded

network is < 50 ms

 The client time accuracy is typically 2 ms between the internal NTP clocks of two

machines on the same 10 Mb/s Ethernet LAN with a 40% loading condition

Note: NTP over a LAN topology depends on network conge stion, and can be up to 50 ms accuracy.

26 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

NTP Operation

The NTP implementation in the Ti meProvider supports full NTP server and client mode operations, and works with or without GPS reference signals. The TimeProvider supports the following NTP modes:

 Mode 1: GPS available, Server mode – The NTP application defaults to GPS as

the master time reference; only NTP Server mode is supported.

 Mode 2: GPS available, No Client mode – NTP Client mode is not supported

when GPS is available; only NTP Server mode is supported.

 Mode 3: GPS not available, Client mode – When GPS is not available, the

TimeProvider will go into client mode to search for time references from user-programmed timeservers with valid IP addresses.

The user can input up to eight IP addresses of other timeservers. If there are multiple timeservers, the TimeProvider performs an ensembling of all the timeservers to determine the system time based on the averaging of all the valid timeservers. The user can also manually select which of the timeservers available to be the prime. The user can set how often to request an update from each individual timeserver from the eight IP addresses, ranging from 16 seconds to 1024 seconds, incrementing in powers of 2.

At any instance in client mode, the time reference within the TimeProvider is totally derived from the ensembling of the timeservers, and is not reliant on the IOC for time ticks.

 Mode 4: GPS not available, Server mode – The TimeProvider can be enabled or

disabled for server mode operation. This mode is supported o nly when the Client mode has found and validated the time stamp from the ensembling of the timeservers.

MD5 authentication is included in the NTP implementation. The user can enable or disable the MD5 feature, and is available in server and client modes. Client configuration for MD5 operation requires Server IP, MD5 Authentication Key, and Key ID.

The user can enter an MD5 Authentication Key of up to 32 ASCII characters that is not case-sensitive. In addition, there is also a key ID ranging from 0 to 65534 in the MD5 authentication process. When MD5 is enabled and a client requests NTP information but the MD5 key cannot be authenticated or is missing the MD5 key altogether in the request, then the TimeProvider does not process the client’s request. The TimeProvider does not provide any response or events in these two scenarios.

If MD5 is disabled, a client request is returned with the proper NTP time stamp regardless of whether the client has an MD5 key attached in the request.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 27

Chapter 1 Overview of the TimeProvider

SNMP – Simple Network Management Protocol

The TimeProvider offers two versions of SNMP: v2 and v3. SNMP v3 software offers additional security with authentication and privacy parameters. The security feature allows secure transactions to provide protection against modification of information, masquerade, and message stream modification.

Simple Network Management Protocol (SNMP) is based on a client-server query-response mode. A manager is the client generating the queries, while an agent is the server generating the responses.

The TimeProvider SNMP is an SNMP agent that requires Ethernet connectivity. If SNMP is present, port 161 becomes the port of standard SNMP interactive communications, while port 162 becomes the trap port. Since the TimeProvider SNMP supports all existing functions, full system control of the TimeProvider is maintained through SNMP.

The TimeProvider implements an SNMP agent. A Management Information Base (MIB) browser or the SNMP Manager is used to access, retrieve, and query information defined by the MIB.

All reports, queries, autonomous messages, control, provisioning, and administration (except for communication port parameters, Set User ID/Password, Set IP assignments, Reset connection, and SNMP community settings) are available through SNMP. Refer to information.

Physical Description

The TimeProvider consists of a shelf, plug-in cards, connector adapter panels for the cards, cables, hardware, and software. The TimeProvider is available in two configurations: front access (Model 1000) and rear access (Model 1100), as shown in Figure 1-1 and Figure 1-2.

Figure 1-4 illustrates the location of the connectors, cards, and modules in the

TimeProvider 1000.

the TimeProvider TL1 Reference Guide

for more

28 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

Physical Description

Ethernet Output Modules Connector

Power Connector

Remote Serial

Connector

GPS

Connector

Expansion Connector

Input

Module

Figure 1-4. Front Panel of the TimeProvider 1000

Local Craft Connector

Power Connector

IOC 2IOC 1 IMC

Figure 1-5 illustrates the location of the connectors, cards, and modules on the rear

panel of the TimeProvider 1100. The chassis in Figure 1-5 is the older version that uses a 3-pin power connector.

Power

Connector

Remote Serial

Connector

Expansion

Connector

GPS

Connector

Ethernet

Connector

Power

Connector

Input

Output Modules

Module

Figure 1-5. Rear Panel of the TimeProvider 1100 – Old Version

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 29

Chapter 1 Overview of the TimeProvider

Functional Description

Figure 1-6 illustrates the location of the connectors, cards, frame ground lugs, and

modules on the rear panel of the TimeProvider 1100. The chassis in Figure 1-6 is the newer version that uses a terminal block for power connections.

Power

Connector

Remote Serial

Connector

Frame

Ground Lugs

Figure 1-6. Rear Panel of the TimeProvider 1100 – New Version

Output Modules

Functional Description

Expansion

Connector

GPS

Connector

Ethernet

Connector

Module

Power

Connector

Input

The TimeProvider consists of a main shelf and slots for two IOCs and o ne IMC. One plug-in Input module and up to four plug-in Output modules complete the main shelf, which provides up to 32 outputs. The optional Expansion Panel can provide up to 32 additional outputs, to provide a total of 64 outputs.

This section describes the components and block diagram of the T imeProvider. The block diagram, shown in Figure 1-7, contains the following major blocks:

 Shelf  Input module  IMC or integrated IMC/TPIU  IOC  Output module  Expansion Panel required for ports 33 through 64  TimeProvider Interface Unit (TPIU)

30 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

Functional Description

Figure 1-7. Block Diagram of the TimeProvider

Shelf

Both the front-access and rear-access shelf provides a chassis for mounting the Input module, one IMC or one IMC/TPIU, two IOCs, and up to four Output modules. A backplane provides connections between the modules.

Input Module

The Input module receives the incoming reference signals and contains the alarm input/output connector. A variety of connector modules allows you to select the connector style and input impedance to match the wiring system at the installation site.

Information Management Card (IMC)

The Information Management Card, known as the IMC, contains a processor that manages communications between the two IOCs and the serial and Ethernet communications ports. It also provides communication to the GPS receiver in the antenna; if the IMC fails or is removed, GPS operations cease.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 31

Chapter 1 Overview of the TimeProvider

Functional Description

Integrated Information Management Card with TimeProvider Interface Unit (IMC/TPIU)

For users who use the GPS feature, the integrated IMC/TPIU combines the features of the IMC card with the TPIU into the same size footprint as a stand-alone IMC card (see the descriptions of the IMC and TPIU). The IMC/TPIU reduces rack sp ace requirements by eliminating the rack mounted stand-alone TPIU. Functionally, the IMC/TPIU supports the same functions as the IMC card, controlling all communication channels within the TimeProvider and managing GPS control processes. If the IMC/TPIU fails or is removed, GPS operations cease.

Input/Output and Clock Module (IOC)

The TimeProvider operates with one or two IOCs. A second IOC in the shelf provides protection should the primary IOC fail. The IOC accepts the incoming reference signal and decodes the SSM, if present.

With the system properly provisioned and a reference signal selected, the local oscillator in the IOC operates in one of the following states:

 Warm-up – For up to 20 minutes after applying power to the shelf, the IOC

operates in warm-up mode.

 Fast-lock – After warm-up is complete, the IOC enters the fast-lock state, where it

quickly frequency-locks the local oscillator to the reference input.

 Normal lock – After the IOC has completed the fast-lock cycle, it enters the

normal lock mode, in which the TimeProvider uses the proper amount of filtering for the selected mode. When set to the SSU mode and locked to an active input traceable to a Primary Reference Source (PRS), the TimeProvider co mplies with the G.811 and GR-2830-CORE standards.

 Holdover – If the reference signal is lost, then the clock enters the holdover

mode. The accuracy of the T imeProvide r output is the n depende nt on the quality level of the oscillator in the IOC.

 Free-run – If the IOC starts without a system reference, the TimeProvider enters

the free-run state after warm-up. If a reference is applied, then the TimeProvider enters the fast-lock and then the normal-lock states.

 Bridging – In the event that all input references are lost, the TimeProvider goes

into the bridging mode where the outputs continue to provide accurate timing outputs for a user-defined amount of time. If the inputs have not been requa lified before the bridging time has elapsed, then the TimeProvider enters the holdover mode.

After the IOC has been in the Normal lock mode for at least three days, SmartClock holdover mode becomes available. Compared to the normal holdover mode, this mode provides a superior output quality.

32 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

System Power

Output Module

The Output module provides the output connectors for the TimeProvider. Like the Input module, each Output module uses one of a variety of connectors that match the wiring system at the installation site. Making Output Connections, on page 66, describes the Output Modules available for the TimeProvider and the Expansion Panel.

Expansion Panel

The Expansion Panel provides up to 32 additional outputs that the TimeProvider can generate. See Expansion Panel, on page 21 and Rack Mounting, on page 56 for more information.

TimeProvider Interface Unit

The TimeProvider Interface Unit (TPIU) provides power, communication, and a composite timing reference signal between the antenna and the T ime Provider main shelf. The TPIU is an external, stand-alone rack mounted assembly included in Antenna Kits 990-58545-01 and 990-58545-02. The TPIU can be used only with IMC card 090-58031-01. During antenna installation, you can use the LEDs on the TPIU to detail the status of the received power and antenna communication. See

Making GPS Connections, on page 71 for more information.

System Power

The TimeProvider main shelf has redundant –48v DC inputs. The inputs are diode or’d; in the event that one supply fails, the other takes over. The –48v returns are isolated from the chassis and circuit grounds. A 5 A fuse on the IOC protects the TimeProvider; the shelf is protected from damage in case the connections are reversed.

The power supply range is from –36 to –72 V DC. The power requirements vary according to the type of IOC installed;

Table 1-1. Typical Power Consumption

IOC Type

Crystal 40 30 Rubidium 60 40

Table 1-1

Max Power (W)

per IOC

lists the power requirements.

Typical Power (W)

per IOC

(70 with two Rb IOCs)

The procedure for installing power is described in Making Power Connections, on page 61.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 33

Chapter 1 Overview of the TimeProvider

Communication Ports

The TimeProvider contains three communications ports that allow you to provision, monitor, and troubleshoot the shelf. The Ethernet and Remote serial ports are located on the shelf, and the local Craft serial port is located on the IMC. You communicate with the TimeProvider using the TL1 protocol.

You can select one of four security levels for each user; each level has varying levels of access to provisioning parameters. See Defining the Security Parameters, on page 94.

Ethernet

An Ethernet connector provides connectivity to an Ethernet local area network. Each main shelf has a unique internet protocol (IP) address. Once the IP address is set and a connection is made to a LAN, you can access the TimeProvider on an intranet.

The Ethernet port supports up to 10 simultaneous connections to port 5000.

Local Craft Serial Port

This EIA-232 port supports local control; you can configure the TimeProvider with TL1 commands using a terminal or personal computer (PC) with terminal emulation software or Symmetricom’s craft software, SynCraft. The connector is located on the front panel of the IMC or IMC/TPIU card. The default specifications are 9600-8-N-1. The Local port is configured as a DCE interface.

Remote Serial Port

The Remote serial connector can be used in the same manner as the local Craft serial port. The Remote port has additional control support to manage an external modem for remote access. The Remote port is configured as a DTE interface.

Reference Input Signals

The Input module accepts one or two E1, 2.048 MHz analog, T1, and Composite Clock (including JCC and JCC4) inputs on ports INP1 and INP2. The CC inputs are used solely for Subtending mode; if you provision INP1 or INP2 to a CC type, then Subtending mode is automatically enabled. You can also connect a 2.048, 5, or 10 MHz or Japan-specific 1.544 MHz or 6.312 MHz input reference signal on the PRS port. The TimeProvider accepts full-level signals or bridged signals (–20 dB); the inputs are terminated per G.703. You can also connect a GPS antenna via the TimeProvider Interface Unit (TPIU) to the GPS Input port on the shelf, or via the integrated IMC/TPIU card.

34 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 1 Overview of the TimeProvider

Reference Input Signals

Make the input connections using the procedures described in Making Input

Connections, on page 63, then provision the inputs using the software commands

described in Provisioning the Input Reference, on page 108.

Input State

You can provision each input to one of three states:

 Disabled – the input is not used  Monitor – the system monitors the input for signal faults and performance data,

but it cannot be selected as the system reference

 Enabled – the system monitors the input for signal faults and performance data.

The input can be selected as the system reference in SSU or SUB mode or as a backup reference in PRR mode.

Selecting the Input

Many considerations influence which system reference you choose:

 SSM or User-assigned Quality Level  User-assigned Priority Level  Switching mode  User-assigned Input State  Active alarms on an input

You can provision the TimeProvider to automatically select the highest-quality input based on priority and performance qualification, or you can manually select the input signal you want to use. If that signal becomes disqualified for any reason, the local oscillator goes into the Holdover mode.

Revertive Switching

Telcordia GR-378 and GR-1244 define two reference selection modes: Revertive and Non-revertive. In the revertive mode, when an input used as the system reference is disqualified (for any reason), if that input returns, it reverts to the system reference when the disqualifying reason is removed. The system reference switches two times: once when the disqualifying event occurs, and again when the input is no longer disqualified. In the non-revertive mode, the system reference does not revert to the initial input when the reason for disqualification is removed. The system reference switches only once when the disqualifying event occurs.

Quality Level and Priority Level

When the REFMODE parameter is provisioned to AUT O, the system reference switches when the input signal is disqualified. When the input signal is re-qualified, the TimeProvider can either keep the current reference or switch back to the re-qualified signal. When the REFMODE parameter is set to FORCED, then the reference does not switch and remains locked to that reference and the local oscillator enters Holdover mode if the input is not re-qualified. You may also

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 35

Chapter 1 Overview of the TimeProvider

Reference Input Signals

provision the REFMODE parameter to FORCED to select an input as the system reference regardless of the priority levels of other outputs. If this input is lost or is disqualified, then the REFMODE automatically changes to AUTO and the next available reference based on priority and QLEVEL becomes the system reference. If no other input references are available, the TimeProvider enter the Holdover mode.

The QLEVEL (Setting the Input Quality Level, on page 112) and the PRIORITY (Setting the Input Priority Level, on page 113) parameters work together with SSMs to determine the switching strategy for the inputs when the unit is in the SSU mode. If the active/primary input becomes unavailable, the switching strategy determines which input to use: the TimeProvider uses the input with the next highest QLEVEL. If all inputs have the same QLEVEL, then the TimeProvider uses the input with the highest PRIORITY.

To provision the TimeProvid er as non-revertive, you m ust provision the user-assigned Priority Level on all inputs to the same value. To provision the TimeProvider as revertive, you provision any one of the inputs to a different Priority Level.

If the original primary input becomes available again, the REFMODE, QLEVEL and PRIORITY parameters determine whether the TimeProvider switches back to that input. If REFMODE is set to AUTO, then the reference switches according to the QLEVEL and PRIORITY settings. If the QLEVEL and/or PRIORITY parameter of the original input is higher than the current input, the TimeProvider reverts back to the original input. If the QLEVEL parameter is the same for all inputs, then the TimeProvider does not revert back to the original input.

SSMs and Quality Level

Synchronization Status Messages (SSMs) can be included in the bit stream of the incoming signal to indicate its quality level. You must provision the input to read the SSM, and you must provision the bit position of the incoming SSM.

If the incoming signal does not include SSMs, or if you disable them, then you can provision the Quality Level to an appropriate value. The QLEVEL value is used in the same manner as the incoming SSM to determine which input is used when the active input is disqualified. SSMs are described in more detail in Synchronization

Status Messages (SSMs), on page 41.

SSU Mode

Table 1-2 illustrates which input is the active system reference under several

different input conditions when the TimeProvider is in the SSU mode.

36 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Table 1-2. SSU-Based Reference Selection Scenarios

Chapter 1 Overview of the TimeProvider

Reference Input Signals

Active Reference

Revertive

Sequence

QLevel on

PRS

QLevel on

INP1

QLevel on

INP2

Non-Revertive

1222PRS INP1 2422INP1 INP1 3442INP2 INP2 4444INP2 INP1 5442INP2 INP2 6422INP2 INP1 7222INP2 INP1 822LOSPRS INP1 92LOS2PRS PRS 10 LOS LOS 2 INP2 INP2 11 LOS LOS LOS Holdover Holdover 12 LOS LOS 2 INP2 INP2 13 2 LOS 2 INP2 PRS 14 2 2 2 INP2 INP1

Note:

Non-revertive example. Priority Levels set to: PRS = 3, INP1 = 3, and INP2 = 3

Revertive example. Priority Levels set to: PRS = 2, INP1 = 1, and INP2 = 2

Subtending Mode

Table 1-3 illustrates which input is the active system reference under several

different input conditions when the TimeProvider is in the Subtending mode.

Table 1-3. Subtending-Based Reference Se lection Scenarios

Active Reference

Revertive

Sequence

QLevel on

INP1

QLevel on

INP2

Non-Revertive

111INP1 INP1 221INP2 INP2 322INP2 INP1 421INP2 INP2 511INP2 INP1 6 1 LOS INP1 INP1

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 37

Chapter 1 Overview of the TimeProvider

Reference Input Signals

Table 1-3. Subtending-Based Reference Se lection Scenarios (Continued)

Active Reference

Revertive

Sequence

QLevel on

INP1

QLevel on

INP2

Non-Revertive

7 LOS LOS Holdover Holdover 8LOS1INP2 INP2 911INP2 INP1

Note:

Non-revertive example. Priority Levels set to: INP1 = 3, and INP2 = 3

Revertive example. Priority Levels set to: INP1 = 1, and INP2 = 2

GPS Inputs

Symmetricom provides a complete GPS antenna system for the T imeProvider. This includes the Symmetricom GPS Antenna, the TimeProvider Interface Unit (TPIU), and associated cables. An integrated IMC/TPIU is available for installations where rack space is at a premium. Figure 1-8 illustrates the TPIU, and Figure 1-9 illustrates the integrated IMC/TPIU. See Making GPS Connections, on page 71 for more information on installing the GPS Antenna and the TPIU or IMC/TPIU.

Figure 1-8. The TimeProvider Interface Unit (TPIU)

Figure 1-9. The Integrated IMC/TPIU

38 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Clock Performance

Two IOCs are available:

 A Rubidium-based version that meets ST2/Type II standards. This IOC meets or

exceeds the ST2 requirements in ANSI T1.101 and Telcordia GR-1244, as well as the ITU-T G.812 Type II specification.

 A Quartz-based version that meets ST3E/Type I standards. This IOC meets or

exceeds the ST3E requirements in ANSI T1.101 and Telcordia GR-1244, as well as the ITU-T G.812 TYPE III specification and ITU-T G.812 Type I specification.

Output Signals

The main shelf has 32 output connections arranged in four groups of eight outputs; each group is labeled A through D. The optional Expansion Panel also has four groups of eight outputs that correspond to each group in the main shelf; using the Expansion Panel, the TimeProvider supports up to 64 outputs. The outputs are “universal:” you can select from E1, 2.048 MHz, T1, 8 kHz, CC, JCC, JCC4, 1.544 MHz, and 6.312 MHz. You can provision E1 and T1 signals with standard framing and G.703 formats. Additionally, TIA/EIA B-422 (1.544 and 2.048 MHz) output signals are available using the TIA/EIA B-422 Output module; this module can be installed only in the main shelf and cannot be installed in the Expansion panel.

Chapter 1 Overview of the TimeProvider

Clock Performance

The output types provisioned in each group of the Master shelf are automatically provisioned in the corresponding group of the Expansion panel and cannot be configured differently.

When you install a Retimer module or a TIA/EIA B-422 Output module in a main shelf output group, then you can provision the corresponding group in the Expansion panel to any desired output type.

The TimeProvider uses int erchangeable Output modules, allowing you to select the connector and termination impedance. Output modules are available with the following connectors and output impedance:

 BNC – 75 Ω  DB9 (4 connectors, 2 outputs per connector) – 120 Ω  DB9 (8 connectors, 1 output per connector) – 120 Ω  Metric (Siemens) 1.6/5.6 – 75 Ω  Metric (Siemens) 1.0/2.3 – 75 Ω  Wirewrap – 100 Ω/133Ω  BT43 – 75 Ω  TIA/EIA B-422 Wirewrap – 100 Ω (installed in main shelf only)

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 39

Chapter 1 Overview of the TimeProvider

Retimer Modules

Each Output module plugs into a slot labeled A through D on the main shelf and on the Expansion Panel and provides connectors and terminations for eight outputs. Make the output connections using the procedures described in Making Output

Connections, on page 66. You can install the TIA/EIA B-422 Output module in any

of the four groups on the Main shelf only. You provision the output signal type for each Output module using the software commands described in Provisioning the

Outputs, on page 118.

Retimer Modules

Symmetricom provides E1 and T1 Retimer modules for the TimeProvider. Each module supports two full E1 or T1 circuits (signal types cannot be mixed on a single Retimer module). The Retimer modules plug into one of the four slots for Output modules in the main shelf. Retimer modules cannot be used in an Expansion Panel. The TimeProvider meets system NEBS Level 3 and CE Class B requirement s for all configurations with a Retimer module.

The E1 Retimer module is only available with BNC connectors. The T1 Retimer module is available only with wire-wrap connections.

Each Retimer module consists of two bi-directional circuits. Side 1 of the circuit provides Reamplifying, Reshaping, and Retiming, or 3R. Side 2 of the circuit provides Reamplifying and Reshaping only. Both Side 1 and Side 2 line interfaces accept signals that are up to 16 dB down from DSX levels.

The TimeProvider generates an alarm when the Retimer exceeds a user-selected slip rate. The default alarm level is NA (No Alarm), and the default slip rate is 4 slips in a 24-hour period. A TL1 command allows you to clear the slip counter associated with each Retimer port.

Should the TimeProvider or the Retimer module ever fail, a “cut-thru” capability provides a relay bypass of the retiming circuit. The cut-thru feature automatically engages under any of the following conditions:

 User command – Disabling a port using TL1 commands  Retiming failure – A failure in the electronics (for example, power supply), or if th e

module is physically removed from the shelf

 All IOCs in the TimeProvider fail – IOC fault, physical removal, or shelf-level

power failure

When a cut-thru condition is detected, an autonomous event or alarm is generated; the default alarm level is MN (Minor).

40 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Alarms

Chapter 1 Overview of the TimeProvider

Alarms

The TimeProvider uses alarms to notify yo u when cert ain conditions are

deteriorating below user-specified levels. These alarms are indicated by shelf and card status lamps (LEDs) and by TL1 messages reported over the serial/EIA-232 or LAN communication ports. In addition, the input panel has a connector that provides contact closures to activate external alarms.

You can provision the alarm level for most alarms to one of the following levels: non-reportable (NR), non-alarm event (NA), minor (MN), major (MJ), or critical (CR). Alarms related to the inputs are special cases; you can only provision input alarms for minor, major, or critical. To help prevent spurious or transient input alarms, a delay timer (FL TDELAY) allows you to provision a waiting period that starts after the alarm condition occurs; the alarm is set at the end of the period. A similar timer (CLRDELAY) clears the alarm after the alarm condition is no longer present.

Recommendation: To prevent Non-Service Affecting LOS alarms, Symmetricom recommends that you provision unused inputs to the Disabled state.

For more information on connecting alarms, see Making Alarm Connections, on page 70. For information on provisioning alarm levels, see Provisioning the Alarm

Levels, on page 126.

Synchronization Status Messages (SSMs)

The TimeProvider supports input and output SSMs. SSMs provide a method for providing clock quality information to any equipment that uses synchronization inputs. Table 1-4 describes the ANSI SSM values and the traceability associated with each value. Table 1-5 describes the ITU SSM values and the traceability associated with each value.

Table 1-4. ANSI SSM Quality Level Definitions

Description Quality Level Abbreviation

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 41

Chapter 1 Overview of the TimeProvider

Synchronization Status Messages (SSMs)

Table 1-4. ANSI SSM Quality Level Definitions (Continued)

Description Quality Level Abbreviation

SONET Minimum Clock traceable (20 ppm clock)

Stratum 4 traceable (32 ppm clock) 8 ST4 Do Not Use for synchronization 9 DUS

Table 1-5. ITU SSM Quality Level Definitions

Description Quality Level Abbreviation

Synchronized – Traceability Unknown 0 UNK Primary Reference Clock 2 PRC Transit Node 4 SSUT Local Node 8 SSUL Synchronization Equipment Clock 11 SEC Do Not Use for synchronization 15 DNU

7SMC

The TimeProvider handles SSMs in accordance with T1X1.3 TR33, T1.101-1999, GR-253, and GR-378.

Input SSMs

The TimeProvider extracts and decodes the SSM (if present) on the available inputs. Using this information, the TimeProvider can automatically select the input with the higher quality level.

You can manually provision the input quality level for those signals that do not have SSM information or you can provision INP1 and INP2 to read the SSM on the input; in either case the quality level of the reference input becomes the system’s quality level, which is passed through to the outputs in the output SSM. If the IOC enters the Free-run or Holdover mode, the system’s quality level is determined by the CLKTYPE parameter for the local oscillator on the selected IOC module. You can provision the CLKTYPE parameter to Type I, Type II, ST2, or ST3E.

Output SSMs

You must provision the TimeProvider’s outputs according to the type of SSM operation you are using:

 For ANSI SSM operation, set the output type to Extended SuperFrame (ESF) for

ANSI SSM operation.



For ITU SSM operation, set the output type to Channel Associated Signaling (CAS) or Common Channel Signaling (C CS) with CRC4 framing. The SSM bit location can be set by the user.

42 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

These output formats automatically generate SSMs. The quality level of the TimeProvider’s output depends on the quality level of the input signal or the quality level of the local oscillator. During normal operation, when a qualified input is used as the active timing reference, the TimeProv ider copies the input’s quality level to all DS1 ESF outputs and E1 CAS4 or CCS4 outputs. T1 SSM messages are mapped to the corresponding equivalent E1 SSM message and vice versa.

If the IOC is operating in Holdover mode for any reason, the SSM quality is the internal level of the oscillator installed in the IOC.

SmartClock

The TimeProvider uses Symmetricom’s SmartClock technology, which predicts frequency changes due to aging of the local oscillator in the IOC; this offsets this deterministic behavior by steering the output with a corrected deviation.

The TimeProvider begins the learning process as soon as yo u apply a valid external reference source. The SmartClock technology is enabled after 24 hours of continuous lock; the TimeProvider then issues an event message similar to this:

Chapter 1 Overview of the TimeProvider

SmartClock

IOC1,EQPT,NA,SCAVAIL,NSA,04-12-14,12:13:14:\”SMARTCLOCK ALGOR ITHM, ENABLED\”

If you reset the IOC or if the oscillator becomes less stable (for example, due to extreme temperature swings), the TimeProvider disable s SmartClock and issues an event message similar to this:

IOC1,EQPT,NA,SCAVAIL,NSA,04-12-17,15:16:17:\”SMARTCLOCK ALGORITHM, DISABLED\”

The TimeProvider automatically restarts SmartClock, which then begins to determine a new aging rate for the oscillator.

BesTime

The TimeProvider uses Symmetricom’s BesTime algorithm when it is in the PRR mode to provide enhanced GR-2830-CORE performance during bridging or holdover situations. BesTime minimizes the effect of transients on the reference signal on the outputs of the Ti meProvider by comparing them against the system reference to produce the most stable outputs from the TimeProvider.

The BesTime algorithm is based on Symmetricom’s patented use of multiple-input phase-locked loops (MPLLs) to generate a correction signal for the local oscillator (LO) in the IOC. With GPS as the primary input signal in PRR mode, the signals on the PRS, INP1 and INP2 inputs may be enabled and used in the BesTime ensembling algorithm to generate output signals derived from the optimum weighting of each input.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 43

Chapter 1 Overview of the TimeProvider

BesTime

Two weighting algorithms - tracking and holdover - determine which of the inputs are used as the ensembled reference. The tracking algorithm is used during normal operation. If the GPS becomes disqualified, BesTime uses the holdover weighting algorithm to determine what the GPS input would have been had it not been lost. Y ou can use the RT RV -BESTIME-STATS command to view the current weighting for each input.

The BesTime control loops are designed so that the short-term (under 10 minutes) stability is controlled by the LO, medium-term (10 minutes to several hours) st ability is controlled by the ensembled reference, and long-term stability and accuracy is determined by the GPS control input.

The control loops can use either measurement data or prediction data. The inpu ts are measured for phase, frequency , and drift transients. When the input to either loop is determined to be valid, then the measured data is used to generate the correction signal to the local oscillator . If BesT ime detect s a transient on the input, it switches to the prediction data before the transient can start to affect the correction signal.

Normal Tracking

During normal GPS tracking, the GPS input provides the source of long-term stability for all inputs to the ensembling algorithm. The ensembling improves the medium-term stability of the output signals.

GPS Holdover

If GPS signals are lost, then all inputs to the ensembling algorithm have lost their source of long-term traceability. BesTime substitutes the inputs with calibration predictions with respect to GPS. Each input is weighted according to the estimated prediction error over 24 hours.

44 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 2 Engineering and Ordering Procedures

This chapter describes the items available with the TimeProvider, and lists the part number for each item.

In This Chapter

 Shelf  Expansion Panel  Input Modules  Output Modules  IMC and IOC Modules  GPS Antenna  Ordering and Parts List  Ordering the Cable Management Option  Ordering an NTP or SNMP License

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 45

Chapter 2 Engineering and Ordering Procedures

Shelf

The TimeProvider is available in two configurations: Mode l 1000 Front Access and Model 1100 Rear Access.

Model 1000 Front Access

The ETSI-style shelf (990-58001-01) complies with ETSI 300-119 shelf projections. Each shelf accepts one IMC or IMC/TPIU and one or two IOCs; the shelf also supports one Input module and from one to four Output modules. Each Output module terminates eight output timing signals. Alarms terminate on wire-wrap or DB-25 connectors, depending on the Input module used. The minimum configuration is one IMC or IMC/TPIU and one IOC for non-protected operation. Using two IOC modules provides protection in case one of the IOC modules fail. See Table 2-5 for part numbers for front-access shelf systems.

Model 1100 Rear Access

The NEBS-style shelf (990-58101-01) accepts one IMC or IMC/TPIU and one or two IOCs; the shelf also supports one Input module and from one to four Output modules. Each Output module terminates eight output timing signals. Alarms terminate on wire-wrap or DB-25 connectors, depending on the Input module used. The minimum configuration is one IMC or IMC/TPIU and one IOC for non-protect ed operation. Using two IOC modules provides protection in case one of the IOC modules fail. See Table 2-5 for part numbers for rear-access shelf systems.

Expansion Panel

The available Expansion Panel provides additional output s from the main shelf. Like the main shelf, it comes in two configurations: Model 1000 Front Access and Model 1100 Rear Access. The Expansion Panel supports up to 32 additional output channels. Both panel kits contain rack moun ting ears and extenders for 19-inch and 23-inch racks.

Front Access

The front-access Expansion Panel (part number 990-58002-01) provides an additional 32 outputs, for a system total of 64 outputs. The ETSI-style Expansion Panel supports up to four additional Output Modules with various connector types; each Output Module provides up to eight output signals. See Table 2-2 for part numbers for Output modules.

46 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Rear Access

The rear-access Expansion Panel (part number 990-58102-01) provides an additional 32 outputs, for a system total of 64 outputs. The NEBS-style Expansion Panel supports up to four additional Output Modules with various connector types; each Output Module provides up to eight output signals. See Table 2-2 for part numbers for Output modules.

Input Modules

Six Input modules are available to match the wiring scheme and termination impedance requirements at the installation site. Select one of these Input modules for use with your TimeProvider system. Table 2-1 lists the Input modules available for the TimeProvider.

Table 2-1. Input Modules Available for the TimeProvider

Chapter 2 Engineering and Ordering Procedures

Input Modules

Part Number Description

090-58061-01 BNC Input module 090-58061-02 Wire-wrap Input module 090-58061-03 DB9 Input module 090-58061-04 SMZ/BT43 Input module 090-58061-05 Metric (Sie m en s) 1.0/ 2.3 Input module 090-58061-06 Metric (Sie m en s) 1.6/ 5.6 Input module

Output Modules

Symmetricom has eight Output modules available for the TimeProvider that allow you to select the proper termination for your application. You can install any combination of up to four Output modules in the main shelf or in the available Expansion Panel. Table 2-2 lists the Output modules available for the Ti mePro vid er.

Table 2-2. Output Modules and Accessories Available for the TimeProvider

Part Number Description

090-58091-01 BNC Output module 090-58091-02 Wire-wrap Output module 090-58071-02 WW Output module for TIA/EIA-B-422 (installed in Main shelf only)

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 47

Chapter 2 Engineering and Ordering Procedures

IMC and IOC Modules

Table 2-2. Output Modules and Accessories Available for the TimeProvider (Continued)

Part Number Description

090-58091-03 DB9 Output module – four connectors 090-58091-04 SMZ/BT43 Output module 090-58091-05 Metric (Siemens) 1.0/2.3 Output module 090-58091-06 Metric (Siemens) 1.6/5.6 Output module 090-58091-07 DB9 Output module – eight connectors 090-58081-02 T1 Retimer module spare, WW (installed in the main shelf only) 090-58082-01 E1 Retimer module spare, BNC (installed in the main shelf only 090-58091-99 Blank module (cover for any unused Output module locations) 093-58091-07 Backshell and pin kit for the DB9 Output module (8 sets)

IMC and IOC Modules

Symmetricom has several modules available for the TimeProvider that provide varying levels of clock stability. You can install any combination of IOC modules in the main shelf (Rb-Rb, Rb-Qtz, Qtz-Qtz, Qtz-Rb). Table 2-3 lists the IOC and IMC modules available for the TimeProvider.

Table 2-3. IOC and IMC Modules Available for the TimeProvider

Part Number Description

090-58021-01 Quartz IOC, single-oven 090-58022-01 Rubidium IOC 090-58031-01 IMC 090-58041-01 IMC with Integrated TimeProvider Interface Unit (IMC/TPIU) 090-58021-99 Blank Clock Module cover

48 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

GPS Antenna

The following table identifies the parts available for the GPS antenna.

Table 2-4. GPS Parts and Accessories

Part Number Description

990-58545-01 TimeProvider Integrated GPS Anten na Kit, Rear Access, for use with

990-58545-02 TimeProvider Integrated GPS Antenna Kit, Front Access, for use

Chapter 2 Engineering and Ordering Procedures

GPS Antenna

IMC card (090-58031-01, sold separately) Kit includes the following items:

 090-58545-01 – TimeProvider GPS Antenna  090-58545-21 – TPIU Assembly  090-58544-03 – Rear access TPIU interconnect cable, 1 m (3 ft)

with right-angle connectors

 093-72010-71 – Antenna mounting hardware  043-00018-01 Lightning suppressor

with IMC card (090-58031-01, sold separately) Kit includes the following items:

 090-58545-01 – TimeProvider GPS Antenna  090-58545-21 – TPIU Assembly  090-58543-03 – Front access TPIU interconnect cable, 1 m (3 ft)

with straight connectors

 093-72010-71 – Antenna mounting hardware  043-00018-01 Lightning suppressor

990-58545-03 TimeProvider GPS Antenna Kit, Rear Access, for use with the

integrated IMC/TPIU (090-58041-01, sold separately) Kit includes the following items:

 090-58545-01 – TimeProvider GPS Antenna  060-58041-03 – Rear access converter cable, 1 m (3 ft) with

right-angle connectors

 093-72010-71 – Antenna mounting hardware  043-00018-01 Lightning suppressor

990-58545-04 TimeProvider GPS Antenna Kit, Front Access, for use with the

integrated IMC/TPIU (090-58041-01, sold separately) Kit includes the following items:

 090-58545-01 – TimeProvider GPS Antenna  060-58042-03 – Front access converter cable, 1 m (3 ft) with

straight connectors

 093-72010-71 – Antenna mounting hardware  043-00018-01 Lightning suppressor

090-58545-01 TimeProvider GPS Antenna 090-58545-21 Standalone TPIU for Front or Rear Access shelf

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 49

Chapter 2 Engineering and Ordering Procedures

GPS Antenna

Table 2-4. GPS Parts and Accessories (Continued)

Part Number Description

090-58041-01 IMC with TimeProvider Interface Unit card (IMC/TPIU) 060-58041-03 Right angle converter cable, 1 m (3 ft). For use with IMC/TPIU card. 060-58042-03 Straight converter cable, 1 m (3 ft). For use with IMC/TPIU card. 060-58543-03

060-58543-10 060-58543-20 060-58543-50

060-58544-03 060-58544-10 060-58544-20 060-58544-50

060-58545-01 060-58545-02 060-58545-05 060-58545-10 060-58545-20 060-58545-30 060-58545-50 060-58545-60 060-58545-80 060-58545-99

Front Access TPIU Interconnect cable, 1 m (3 ft) Front Access TPIU Interconnect cable, 3 m (10 ft) Front Access TPIU Interconnect cable, 6 m (20 ft) Front Access TPIU Interconnect cable, 15 m (50 ft) Note: These cables for use with IMC (090-58031-01) and with

standalone TPIU (090-58545-21). Rear Access TPIU Interconnect cable, 1 m (3 ft)

Rear Access TPIU Interconnect cable, 3 m (10 ft) Rear Access TPIU Interconnect cable, 6 m (20 ft) Rear Access TPIU Interconnect cable, 15 m (50 ft) Note: These cables for use with IMC (090-58031-01) and with

standalone TPIU (090-58545-21). RG-58 cable, 3 m (10 ft)

RG-58 cable, 6 m (20 ft) RG-58 cable, 15 m (50 ft) RG-58 cable, 30 m (100 ft) RG-58 cable, 60 m (200 ft) RG-58 cable, 90 m (300 ft) RG-58 cable, 150 m (500 ft) RG-58 cable, 180 m (600 ft) RG-58 cable, 240 m (800 ft) RG-58 cable, 300 m (1000 ft) Note: Order two (2) cable per installation: one cable from antenna to

lightning suppressor and one cable from lightning suppressor to the

TimeProvider system. 154-00023-01 Crimp tool for RG-58 cable 371-001 TNC connectors for RG-58 cable

50 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Ordering and Parts List

Use Table 2-5 to identify the available TimeProvider shelf types. The front and rear access main shelf includes a free copy of the TimeCraft craft GUI (990-46770-99) with each system. All IOCs, IMCs, and Input and Output Connector modules are sold separately.

Table 2-5. TimeProvider Shelves

Model Outputs Part Number

Chapter 2 Engineering and Ordering Procedures

Ordering and Parts List

1000 Front Access Main Shelf

1000 Front Access Expansion Panel

1100 Rear Access Main Shelf

1100 Rear Access Expansion Panel

8 to 32 (1 to 4 Output Connector modules)

33 to 64 (1 to 4 Output Connector modules)

8 to 32 (1 to 4 Output Connector modules)

33 to 64 (1 to 4 Output Connector modules)

Ordering the Cable Management Option

Symmetricom offers a cable management kit made of ABS plastic to ensure a neat installation. This kit is 1 RU (Rack Unit) high, and includes two cable trays per kit. The part number is 093-55595-11.

Ordering an NTP or SNMP License

990-58001-01

990-58002-01

990-58101-01

990-58102-01

To enable the NTP or SNMP option within the TimeProvide r system, you must enter a key into the IMC or IMC/TPIU card. This key is unique to each system and is based on the serial number of the IMC or IMC/TPIU card.

 To order the NTP option with a new TimeProvider system, or for an

already-installed unit, include part number 920-58000-01.

 To order the SNMP option with a new TimeProvider system, or for an

already-installed unit, include part number 920-58002-01.

For an already-installed system, you must also provide the serial numb er of the IMC or IMC/TPIU card with the order to generate the required password.

Once the order is received, a certificate will be issued to the user to indicate the password with the associated TL1 command to activate the NTP option.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 51

Chapter 2 Engineering and Ordering Procedures

Ordering an NTP or SNMP License

52 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

This chapter describes the procedures for installing the TimeProvider shelf and the available Expansion Panel.

In This Chapter

 Getting Started  Unpacking the Unit  Rack Mounting  Making Connections  Installing Connections to the Ethernet Port  Installation Check List  Powering Up the Shelf  Working With Cards  Firmware Features

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 53

Chapter 3 Installing the TimeProvider

Getting Started

Before beginning the installation, complete the pre-installation check described in

Pre-Installation Check, on page 54, perform the site survey in Performing a Site Survey, on page 54, and gather the necessary tools and materials described in Gathering the Tools, on page 55.

Caution: All telecom signal wiring (including I/O, clocks and Ethernet) must be installed with shielded cabling only and appropriately grounded.

Cabling shall be installed in compliance with intra-building surge, lightning, and EMC requirements.

This section describes the preliminary activities you need to perform before you install the TimeProvider.

Pre-Installation Check

Before installing the TimeProvider, ensure that the following preparations are in place:

 The equipment rack is grounded properly  A fused power panel is present (–48 V DC at 5 Amp)

Performing a Site Survey

Physical Space

The TimeProvider is designed to mount in a 19-inch (48 cm) rack. Rack ears are available to mount the shelf in a 23-inch (58 cm) rack. The ETSI front-access shelf is 6.875 inches tall (177 mm), or 4 RU (Rack Units, where 1 RU = 1.75 in/44.45 mm). For ventilation, plan on leaving a 1 RU space below the shelf. The NEBS rearaccess shelf is 5.25 inches tall (133 mm), or 3 RU. For ventilation, plan for a 2 RU space above the shelf and a 1 RU space below the shelf.

The Expansion Panel also mounts in a 19-inch (48 cm) rack, and it is 3.5 inches (89 mm, or 2 RU) tall. The Expansion Panel does not require ventilation spaces above or below it.

You can mount the shelf so that it protrudes 2 inches (5 cm) or 5 inches (12.7 cm) from the front of the rack, or you can mount it flush with the front of the rack.

Be sure that the installation site is secured. Access to the location can only be gained by service personnel or users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken. Access is through use of a tool or lock and key, or other means of security, and is controlled by the authority responsible for the location.

54 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Getting Started

Environmental Requirements

To prevent the unit from interfering with other equipment, install and operate the unit according to the following guidelines:

 Use only shielded cable for all signal wiring, including I/O, clocks and Ethernet,

and ground appropriately at both ends, or as required by local standards.

 Secure all cable screws to their corresponding connectors.

Caution: To avoid interference to the TimeProvider, you must consider the electromagnetic compatibility (EMC) of nearby equipment when preparing to install the TimeProvider.

Electromagnetic interference can adversely affect the operation of nearby equipment.

Gathering the Tools

These standard tools and materials are not supplied, but may be required for installing the TimeProvider:

 Standard tool kit  ESD wrist strap  Cable ties, waxed string or acceptable cable clamps

 No. 16 AWG (minimum) wire (1.31 mm

) for –48 V DC, return, and Frame

Ground

 Telecom signal wiring (including I/O, clock, and Ethernet) uses shielded cabling

of the appropriate impedance required by the specific signal type

 Mating connectors for terminating signal wiring  For wire-wrap connections only: No. 22 AWG (0.326 mm

) shielded twisted pair wire-wrap cable of the appropriate impedance for the specific signal requirements

 Wire-wrap tool (wire-wrap modules only)  Fasteners for mounting the equipment in rack  Digital Voltmeter (DVM) for verifying power connections  Soldering iron and solder for alarm connectors and the ETSI-version power

connectors

 DB-9 M to DB-9 F cable for connecting to the local Craft port  Laptop computer with communications software such as HyperTerminal,

ProComm Plus, etc. for provisioning the TimeProvider

 Optional dual-channel oscilloscope with 100 MHz minimum bandwidth for

verifying input and output signals and waveforms

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 55

Chapter 3 Installing the TimeProvider

Unpacking the Unit

The TimeProvider and accessories are packaged to protect from normal shock, vibration, and handling damage.

Caution: To avoid electrostatic discharge (ESD) damage to p art s that are packaged with the TimeProvider, observe the following procedures.

Unpack and inspect the unit as follows:

1. Wear a properly grounded protective wrist strap or other ESD device.

2. Inspect the container for signs of damage. If the container appears to be damaged, notify both the carrier and your Symmetricom distributor. Retain the shipping container and packing material for the carrier to inspect.

3. Open the container, being careful to cut only the packaging tape.

4. Locate and set aside the printed information and paperwork that is included in the container.

5. Remove the unit from the container and place it on an anti-static surface.

6. Locate and set aside small parts which may be packed in the container.

7. Remove the accessories from the container.

8. Remove the anti-static packaging from the unit and accessories.

9. V erify that the mo del and item number shown on the shipp ing list agrees with the model and item number on the equipment. The item number can be found on a label affixed to the TimeProvider. Contact your Symmetricom distributor if the model or item number do not match.

For a complete listing of TimeProvider item numbers and configuration options, contact your Symmetricom distributor.

Rack Mounting

The installation procedure described in this section provides general guidelines for installing the shelf and the optional Expansion panel and Cable Management tray. Always follow applicable local electrical codes.

Main Shelf

The main shelf (Model 1000 and 1100) mounts to either a 19-inch or 23-inch rack using reversible mounting ears.

56 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Rack Mounting

Expansion Panel

The optional Expansion panel uses a bracket to position the panel at the same depth as the shelf; expansion brackets are used for 23-inch racks.

Cable Management Tray

The optional Cable Management tray (093-55595-11) allows you to neatly bundle input and output cables from the rear-access TimeProvider Model 1100. A sample installation with the cable management tray is shown in Figure 3-2.

1. Attach the rack mounting ears to the shelf using 8-32 x 3 /8-inch screws. Ensure that the ears are attached at equal distances from the front of the unit, as shown in Figure 3-1 or Figure 3-2.

2. Mount the shelf to the front of the equipment rack rails with four screws and associated hardware. Use the proper screws for the equipment rack.

3. Mount the optional Expansion p anel and/or Ca ble Manageme nt tray as shown in the following figures.

Figure 3-1. Installing the Model 1000 Shelf, Expansion Panel, and Cable Management tray –

19-inch Rack

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 57

Chapter 3 Installing the TimeProvider

Rack Mounting

Figure 3-2. Installing the Model 1100 Shelf, Cable Management tray, and Expansion Panel – 19-inch

Rack

58 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Rack Mounting

Figure 3-3. Installing the Model 1000 Shelf and Expansion Panel – 23-inch Rack

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 59

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-4. Installing the Model 1100 Shelf and Expansion Panel – 23-inch Rack

Making Connections

Making Ground Connections

Use the procedure in this section for both the main shelf and the Expansion panel. After installing the TimeProvider shelf and/or the Expansion panel into the rack, make the grounding connections as follows.

Recommendation: Although there are a number of methods for connecting the equipment to earth ground, Symmetricom recommends running a cable of the shortest possible length from the ground lug to earth ground.

Front Access Shelf

To connect Chassis Ground on the front access chassis, connect a cable from the frame ground lug on the left side of the front panel to the proper grounding zone or master ground bar.

Rear Access Shelf

To connect Chassis Ground on the rear access shelf, insert a grounding terminal block to one of the ground posts located on the lower left side at the rear of the shelf to the proper grounding zone or master ground bar.

60 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Expansion Panel

All connections to the Expansion Panel, including chassis ground, are made using the interconnection cable.

Making Power Connections

Electrical Shock Caution: To avoid possible injury from shock, make sure that the fuses are removed from the fuse panel or power supply before connecting or applying power to the unit.

Warning: For continued fire protection, replace power supply fuse(s) with the specified type and a 5 A rating. There are no user-serviceable fuses in the TimeProvider shelf.

This unit must be grounded. Refer all servicing to qualified personnel.

To install the TimeProvider power connections:

1. Assemble a power connector appropriate for the type of shelf. Table 3-1 lists the pin-out for each type of connector.

Rear-access shelf: Crimp a No. 16 AWG (minimum) wire (1.31 mm lug, then slide the spade lug under the terminal and tighten.

Front-access shelf: Assemble the power connector as shown in Figure 3-6.

Solder a No. 16 AWG (1.31 mm

) (minimum) wire to each pin. Slip the

appropriate grommet over the wires, and screw the shell together.

2. Attach the connector to the Power A and Power B connectors on the shelf.

Table 3-1. Power Connections

Model 1100 Rear Access (NEBS) Shelf Model 1000 Front Access (ETSI) Shelf

Signal Terminal Signal Terminal

48 Volt Negative Lead 1 Frame Ground 1 48 Volt Positive Lead (return) 2 48 Volt Negative Lead 2

) to a spade

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 61

48 Volt Positive Lead (return) 3

Chapter 3 Installing the TimeProvider

Making Connections

Rear Access Shelf Front Access Shelf

Pin 1: -48 V DC Battery

Pin 2: -48 V DC RTN

Figure 3-5. Power Terminal Connectors

Pin 1: Frame ground Pin 2: -48 V DC negative lead Pin 3: Return

Figure 3-6. Assembling the ETSI (Front Access) Power Connector

Expansion Panel

All connections to the Expansion Panel, including power, are made using the interconnection cable, part number 060-58002-03.

Verifying Power and Grounding Connections

To verify power and grounding connections:

1. Using a DVM, measure the voltage between pins 1 and 2 on the rear access (NEBS) connector or between pins 2 and 3 of the front access (ETSI) connector.

2. Verify that voltage is –36 to –72 V DC. The inputs are protected against reverse polarity.

62 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Making Input Connections

You connect the input signals to the TimeProvider using one of the Input modules listed in Table 3-2. Connect the Input module to the shelf before you attach cables.

Table 3-2. Input Connector Modules Available for the IOC

Item Number Description Alarm Connector Reference

090-58061-01 BNC Input module DB-25 (see Table 3-6) Figure 3-7 090-58061-02 Wire-wrap Input module Wire-wrap Figure 3-8 090-58061-03 DB9 Input module DB-25 (see Table 3-6) Figure 3-9 090-58061-04 BT43 Input module DB-25 (see Table 3-6) Figure 3-10 090-58061-05 Metric (Siemens) 1.0/2.3

Input module

090-58061-06 Metric (Siemens) 1.6/5.6

Input module

DB-25 (see Table 3-6) Figure 3-11

Installing the Input Module

Attach the Input module to the shelf and secure it by tightening the screws on each side of the module.

Figure 3-7. BNC Input Module

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 63

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-8. Wire-Wrap Input Module

Figure 3-9. DB9 Input Module

The pinout for the DB9 Input module is shown in Table 3-3.

Table 3-3. Pinout for the DB9 Input Module

Pin Description

3 Chassis ground 4 Span Input Tip 8 Span Input Ring

64 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Figure 3-10. BT43 Input Module

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-11. Metric (Siemens) Input Module

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 65

Chapter 3 Installing the TimeProvider

Making Connections

Making Output Connections

You make the output signal connections using one of the Output modules listed in

Table 3-4. Attach the module to the shelf before you connect cables.

Table 3-4. Output Connector Modules

Item Number Description Reference

090-58091-01 BNC Output module Figure 3-12 090-58091-02 Wire-wrap Output module Figure 3-12 090-58091-03 DB9 Output module – four connectors Figure 3-13 090-58091-07 DB9 Output module – eight connectors Figure 3-13 090-58091-04 SMZ/BT43 Output module Figure 3-14 090-58091-05 Metric (Siemens) 1.0/2.3 Output module Figure 3-14 090-58091-06 Metric (Siemens) 1.6/5.6 Output module Figure 3-14 090-58071-02 Wire-wrap TIA/EIA-B-422 Output module Figure 3-15

Installing the Output Module

Attach the Output module to the shelf and secure it using the screws at the top and bottom of the module.

Table 3-5 lists the pinout for the DB9 four-connector Output module (090-58091-03),

and the DB9 eight-connector Output module (090-58091-07) which are shown in

Figure 3-13.

Table 3-5. Pinout for the DB9 Output Module

4-Connector Output Module 8-Connector Output Module

Pin Description Pin Description

1 Port A Tip 1 Chassis Ground 2 Port A Ring 2 Tip (or Ring) 4, 5, and 6 Chassis Ground 6 Ring (or Tip) 8 Port B Tip 3, 4, 5 Not used 9 Port B Ring 7, 8, 9 Not used

66 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-12. BNC and Wire-Wrap Output Modules

Figure 3-13. DB9 Output Modules

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 67

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-14. BT43 and Metric (Siemens) Output Modules

Figure 3-15. B-422 Output Module

68 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Making Retimer Connections

The front panel of the E1 Retimer module and T1 Retimer module (shown in

Figure 3-16) indicates the input and output connections for a typical installation.

Side 1 of the Retimer provides 3R (Re-shape, Re-amplify, and Re-time) for the E1 or T1 signal to a client Network Element.

Figure 3-16. Front Panel of the T1 (wire-wrap) and E1 (BNC) Retimer Modules

Figure 3-17 illustrates a sample schematic for connecting a Retimer connected to

both sides of a DSX-1 panel in a Central Office.

Figure 3-17. Sample Installation Schematic for a Retimer

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 69

Chapter 3 Installing the TimeProvider

Making Connections

Making Alarm Connections

To install alarm connections on the Input Module, use a customer-supplied DB-25 connector to build an alarm connection to the TimeProvider. Table 3-6 lists the pinout for the DB-25 Alarm connector found on all the Input modules (except the wire-wrap version).

Table 3-6. Alarm Connector Pinout

Pin Description

1 No Connection 2 Minor Normally Closed (NC) Audible 3 Minor Common Audible 4 Minor NC Visual 5 Minor Common Visual 6 Major NC Audible 7 Major Common Audible 8 Major NC Visual 9 Major Common Visual 10 Critical NC Audible 11 Critical Common Audible 12 Critical NC Visual 13 Critical Common Visual 14 Ground 15 Minor Normally Open (NO) Audible 16 Critical PRS Input NO 17 Minor NO Visual 18 Critical PRS Input Common 19 Major NO Audible 20 Major PRS Input NO 21 Major NO Visual 22 Major PRS Input Common 23 Critical NO Audible 24 No Connection 25 Critical NO Visible

70 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Pin 1

Pin 25

Figure 3-18. DB-25 Alarm Connector (Front View)

Making GPS Connections

To connect a GPS signal to the TimeProvider, you must install a GPS antenna with either the standalone TimeProvider Interface Unit (TPIU) and an IMC or the integrated IMC/TPIU card using the procedures in this section.

Installing the GPS Antenna

These installation procedures are to be used in support of local company procedures and the Installation Job Specification.

Prior to installing the antenna, you should plan the site, antenna location, lightning suppressor location, cable route, and all other details. Use Figure 3-19 as a guide to locating the antenna.

Figure 3-19. Locating the GPS Antenna

To install the antenna, refer to Figure 3-20, and perform the procedure in this section. Ensure all user-supplied materials are available. The maximum distance between the antenna and the shelf is 1000 feet (304 m).

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 71

Chapter 3 Installing the TimeProvider

Making Connections

Warning: To prevent arcing, ensure that the lightning suppressor is

installed away from electrical devices and cabling.

Warning: To prevent possible damage to the TimeProvider, use only the lightning suppressor supplied with the antenna kit.

Note: Use the following antenna installation instructions as a guideline only. Install the antenna using company-approved techniques, and follow all appropriate local building and electrical codes.

Note: To achieve optimum results, the TimeProvider GPS rooftop antenna requires a minimum cable length of 8 meters (27 feet) from the antenna to the TimeProvider system; this overall length includes the cable section to the lightning suppressor.

Recommendation: Symmetricom recommends that you use one of the following grounding points:

 Valid roof ring ground system.  Cad weld to building structural steel.  Central office ground plate within 15 m of antenna cable entrance

into building.

Order two cables, or a single cable run can be made from the antenna to the TimeProvider shelf. The cable can then be cut at the lightning suppressor location, and TNC connectors attached to the cut ends of the cable. The “xx” in the part number indicates the cable length.

72 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-20. Antenna-to-Shelf Cabling

To install the antenna:

1. Attach the antenna mounting bracket to a 1-inch (2.5 cm) diameter pipe or wood post.

– If you are mounting the bracket to a pipe, assemble as shown in

Figure 3-21. Slide the two V-bolts over th e pipe, an d through the mounting

bracket slots; then place the provided four washers and four nut s over the V-bolts, against the mounting bracket. Leave the V-bolts loose enough to allow for final adjustments.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 73

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-21. Installing the Antenna Bracket on a Pipe

– If you are mounting the bracket to a wood post, assemble as shown in

Figure 3-22. Install the provided two self-tapping screws in two diagonally

positioned mounting bracket slots, and attach to the post.

Figure 3-22. Installing the Antenna Bracket on a Post

Mount the antenna and mast assembly to the “L” bracket.

2. Connect the mast to the flange using PVC glue.

Feed an RG58 (060-58545-xx) cable through the bottom of the mast as illustrated. See Table 2-4 for specific cable lengths.

4. Connect the cable to the antenna “pigtail” and pull the cable back through the mast.

5. Mount the antenna to the mast.

74 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

6. Mount the antenna and mast assembly to the “L” bracke t using the supplied nut s, bolts, and washers, as shown in Figure 3-23.

Figure 3-23. Attaching the Antenna to the Bracket

7. Using a plumb line or bubble level, ensure the antenna is within 5° of vertical (perpendicular to the horizon), and tighten the mounting bracket bolts.

8. Bolt the lightning suppressor mounting plate to a flange that is att ached to a valid earth ground. The roof ring ground system, a Central Office grounding plate, and building structural steel are examples of valid earth ground points. If the mounting plate cannot be bolted to a valid earth ground, bolt the mounting plate to a point within 15 feet (4.6 m) of the chosen valid earth ground. If the mou nting plate is to be installed in a nonmetallic junction box, perform the installation and bolt the assembly near the chosen valid earth ground.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 75

Chapter 3 Installing the TimeProvider

Making Connections

Note: A junction box must have inside dimensions of at least 7 cm by

7 cm by 4 cm to hold the mounting plate and attached components.

9. Assemble the lightning suppressor as shown in Figure 3-24.

Figure 3-24. Assembling the Lightning Suppressor

10.Install 1.5 inch (3.8 cm) nonmetallic conduit from the antenna to the lightning suppressor, and from the lightning suppressor to the cable entrance into the building.

11.Install a user-supplied bracket, preferably non-metallic, to support the vertical section of conduit to the antenna.

12.Route the antenna cable through the conduit, and connect the cable to the lightning suppressor. See Table 2-4 for specific cable lengths.

13.If the lightning suppressor is not mounted directly to a valid earth grou nd, crimp a length of 4.115 mm (6 AWG) ground cable to the two-hole terminal, slide the terminal over any two of the three threaded posts on the lightning suppressor mounting plate, and attach the terminal to the mounting plate with two KEPS nuts. Use the two posts that allow the least bending of the cable.

76 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

14.Connect an RG58 (060-58545-xx) cable between the lightning suppressor and the TPIU. See Table 2-4 for specific cable lengths.

If you are using the integrated IMC/TPIU, install the appropriate converter cable (060-58041-03, 1 m/3 ft, right angle connector or 060-58042-03, 1 m/3 f t, straight connector) to the DB15 GPS connector on the main shelf. Connect the othe r end of the converter cable to the RG58 cable from the lightning suppressor.

15.Install fire-stopping material in all holes opened in the roof and/or walls during this procedure.

16.Check all connections for tightness to prevent arcing and intermittent operation.

17.Coat all exposed connectors with an electrically conductive antioxidant compound (e.g. Kopr-Shield spray).

Installing the Integrated IMC/TPIU

You install the integrated IMC/TPIU in the IMC slot in either TimeProvider main shelf, as shown in Figure 1-4. Use the installation procedure described in Replacing

the IMC or IMC/TPIU, on page 163.

Installing the TPIU

You mount the TPIU on a rack near the TimeProvider main shelf. Symmetricom supplies the connecting cable (060-58543-xx or 060-58544-xx) in several lengths, as listed in Table 2-4. The Integrated GPS Antenna kit (990-58545-01 or 990-58545-02) is delivered with a 1m/3 ft. interconnect cable. Mount the TPIU to t he rear rails of the rack using the provided rack ears. Install the TPIU so that the front panel is on the same side as the Output modules. Figure 3-25 and Figure 3-26 illustrate alternate mounting schemes.

To connect the TPIU to the shelf, attach the DB15 interconnect cable (060-58 543-03 or 060-58544-03) to the connector labeled “GPS” on the TimeProvider shelf. This connector is on the front panel of the Model 1000 and on the rear p anel of the Model

1100. Connect the other end of the cable to the DB15 connector on the TPIU.

To use the GPS signal, set the TimeProvider to the PRR mode, as described in

Provisioning the IOC, on page 105, or enable the GPS input when in SSU mode.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 77

Chapter 3 Installing the TimeProvider

Making Connections

Figure 3-25. Mounting the TPIU and Expansion Panel on the Same Rack Ears

Figure 3-26. Mounting the TPIU with a Model 1000 ETSI-Style Shelf

78 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Making Connections

Making Communications Connections

The TimeProvider has one Ethernet and two serial ports available. The Ethernet connector is on the front panel of the Front Access shelf and on the rear p anel of the Rear Access shelf; the local Craft serial port is on the faceplate of the IMC or IMC/TPIU, and the Remote port is on the shelf.

The local Craft serial port is used for control and monitoring of the unit, and is configured as a DCE device. The Remote port can be used for remote dial-in connection to the unit, and is configured as a DTE device.

Connecting to the Local Craft and Remote Serial Ports

To connect a device to the local Craft or the Remote serial port, perform the following steps:

1. Connect a 9-pin serial cable to the desired port.

2. Connect the other end of the cable to the serial port of the PC or terminal device. Use the procedure described in Starting the TimeProvider for the First Time, on page 88, to connect to the TimeProvider.

The default settings for the local Craft serial port are DCE, 9600 Baud, 8 bits, no parity, 1 stop bit, echo on, and handshaking disabled. Table 3-7 lists the signal connections for the serial ports.

Table 3-7. Connector Pinouts for the Serial Ports

Local Craft Connector Remote Connector

Signal Pin Signal Pin

Local CD 1 CD 1 Local RD (Received Data) 2 RD 3 Local TD (Transmitted Data) 3 TD 2 Local DTR (Data Terminal Ready) 4 DTR 6 Ground 5 GND 5 Local DSR (Data Set Ready) 6 DCE 4 Local RTS (Request to Send) 7 RTS 8 Local CTS (Clear to Send) 8 CTS 7 Local RI (Ring Indicator) 9 RI 9

The default settings for the Remote serial port are DTE, 9600 Baud, 8 bits, 1 stop bit, no parity (also known as 8-1-N), echo on, and handshaking disabled. The local port settings revert to factory default values when you reset the IMC.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 79

Chapter 3 Installing the TimeProvider

Installing Connections to the Ethernet Port

Changing Communications Settings

To change the communication settings for the local or remote serial ports:

1. Connect a PC or laptop with terminal emulation software, such as Windows Hilgraeve HyperTerminal

or ProComm Plus™ to the port and log in. For a complete description of this procedure, see Setting Communications

Parameters, on page 91.

2. Use the ED-EQPT command to change the communicat ions settings for the port as required. See Setting Communications Parameters, on page 91, and also refer to the TimeProvider TL1 Reference Guide for a description of TL1 commands.

Installing Connections to the Ethernet Port

You can connect a PC or terminal to the TimeProvider using the LAN connector for local monitoring or control, or you can connect the TimeProvider to a network for monitoring and control from a remote site.

Note: The TimeProvider can be controlled through a TCP/IP network connection, but before you can use it, you must configure the Ethernet settings using a serial connection. Refer to

Setting Ethernet Parameters, on page 93.

Direct Ethernet Connection

You use a direct Ethernet connection when a service technician is on-site. Y ou must configure the Ethernet settings using TL1 commands over a serial connection before you can use the Ethernet connection. Use the direct connection to troubleshoot a LAN connection.

To connect the TimeProvider to a PC or terminal, perform the following steps:

1. Connect an RJ-45 Ethernet crossover cable to the LAN connector on the shelf.

2. Connect the other end of the cable to the PC or terminal.

3. Start a terminal emulation program such as HyperTerminal or ProComm Plus. Configure the program for a telnet session and enter the IP address of the TimeProvider. Use Port 5000 to connect.

4. Type

; (semicolon). If the TimeProvider responds with a Deny response, you

have established communications. If you do not receive the Deny response, check the connections, the cable, and the program settings.

80 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Installing Connections to the Ethernet Port

Chapter 3 Installing the TimeProvider

Network Connection

You can use a network connection for routine monitoring and control of the TimeProvider from a remote site. Perform the following steps to connect the TimeProvider to a network.

1. Connect one end of an RJ-45 cable to the LAN outlet. Connect the other end of the cable to the LAN connector on the TimeProvider.

2. To connect the PC or laptop to the LAN, connect one end of the RJ-45 cable to the Ethernet port of the PC or laptop. Connect the other end of the cable to the LAN outlet.

3. Use a remote monitoring software application such as SynCraft or TimePictra to connect to and monitor the TimeProvider. See Appendix B, CRAFT Software

Reference, for more information on installing and using SynCraft.

Table 3-8 lists the Ethernet communications port signal connections.

Table 3-8. Ethernet Communications Port Signal Connections

Name Pin

TX+ (Positive Side of Transmitted Data) 1 TX- (Negative Side of Transmitted Data) 2 RX+ (Positive Side of Received Data) 3 Not Used 4 Not Used 5 RX- (Negative Side of Received Data) 6 Not Used 7 Not Used 8

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 81

Chapter 3 Installing the TimeProvider

Installation Check List

To verify that the installation of the TimeProvider is complete, perform the following checks and procedures in Table 3-9.

Table 3-9. Installation Completeness Checklist

Operation/Indication Complete

Verify that all power and ground wires are installed correctly and securely. Verify that all communications cables are properly installed. Verify that all input and output cables are properly installed.

Powering Up the Shelf

There is no power switch on the TimeProvider. When you apply power to the unit, it enters the warm-up state. See S t arting the TimeProvider for the First Time, on page 88, for more information on powering up the shelf.

Working With Cards

This section describes how to install, remove, and handle the card s associated with the TimeProvider.

Properly Handling Cards

When handling any of the cards, observe the following precautions:

 Use proper static control precautions when handling cards! Protect the

equipment against ESD (electrostatic discharge) by using a grounded protective wrist strap and normal equipment grounding.

 Avoid touching component leads and edge connectors.  Avoid placing the card on an ungrounded surface.  Avoid allowing the card to come in contact with insulated surfaces.

82 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 3 Installing the TimeProvider

Working With Cards

Inserting Cards

This procedure is common for all cards.

Note: Cards can be removed and inserted while system power is supplied without damaging modules; however, system performance may be affected.

Caution: For continued EMC compliance, replace all deformed module gaskets with the same type. Clean gaskets and mating surfaces. Secure all cards with captive screws.

To insert a card into the shelf:

1. Align the card edges within the guides of the selected slot.

2. Slide the card into the chassis and press firmly until it seats fully into its backplane edge connector.

3. Tighten the captive screws located on each side of the panel.

Caution: To avoid possible damage or intermittent failures, ensure that you have completely inserted the card into the chassis and that you have securely tightened the captive screws.

Removing Cards

To remove an IOC, lift the tabs on the front panel and slide it out of the shelf. Be sure to place the card on a static-free surface.

To remove the IMC or IMC/TPIU, loosen the captive screws and pull on the U-shaped handle.

To remove the Input, or Output modules, loosen and then pull out on the captive screws.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 83

Chapter 3 Installing the TimeProvider

Firmware Features

Table 3-10 describes the features provided in recent releases of the operating

firmware for the IOC and IMC.

Table 3-10. Firmware Feature Matrix

IMC Release IOC Release Features Added

1.01.04 1.01.02

1.02.01 1.02.12

1.03.03 1.03.04

1.04.02 1.04.02

1.04.02 1.04.06

 E1/T1/2.048 MHz signals  Quartz IOC  SSMs

 GPS  Rubidium IOC  Japanese input/output signals  Composite Clock signals

 T1 Retimer  Input/output port labeling  Enhanced event log management

 NTP  TIA/EIA-B-422 output signals  Integrated IMC with TPIU

(IMC/TPIU)

 Programmable E1 SSM bit position  Programmable CAS/CCS framing

on inputs and outputs

 E1 Retimer  8-Port DB9 Output module  Improved Pull-in/Hold-in range

1.05.04 1.05.00

84 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

 SNMP

Chapter 4 Provisioning the TimeProvider

This chapter describes the procedures for provisioning the TimeProvider and the available Expansion Panel. Use the procedures in this chapter after you have installed the TimeProvider (see Chapter 3, Installing the TimeProvider).

For detailed information on the syntax and format for each available TL1 command, refer to the TimeProvider TL1 Reference Guide, part number 097-58001-01.

In This Chapter

 TL1 Overview  Starting the TimeProvider for the First Time  Setting Communications Parameters  Defining the Security Parameters  Managing the User List  Using SynCraft  Provisioning the IOC  Provisioning the Input Reference  Provisioning the Outputs  Provisioning NTP Parameters  Provisioning Alarms  Provisioning SNMP Parameters  System Commands  Saving Provisioning Data

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 85

Chapter 4 Provisioning the TimeProvider

TL1 Overview

The TimeProvider uses the TL1 syntax; this chapter and the TimeProvider TL1 Reference Guide describes command lines and responses. For a complete

description of the TL1 syntax, refer to Telcordia (Bellcore) Technical Reference TR-NWT-00831 and TR-NWT-00833.

TL1 Command Structure

The TL1 commands you issue to the TimeProvider use the following structure:

verb-modifier:|tid|:|aid|:[<ctag>]::|<keyword>|=<value||;

where: : (colon) is a block separator , (comma) is a parameter field separator ; (semicolon) is the terminating character for commands and responses [ ] (square brackets) indicate optional parameters

Adjacent colons indicate unused fields. If an unused field is the last p arameter in the list, for example the general block or the parameter block, you can omit the colon and simply type the semicolon.

If you enter a space in the command string, the TimeProvider ignores it. TL1 commands are not case-sensitive.

Table 4-1 describes the syntax used in this manual.

Table 4-1. TL1 Syntax Conventions

Symbol Description

^ Space character (ASCII 0x20) <cr> Carriage return (ASCII 0x0D) <lf> Line feed (ASCII 0x0A) [ ... ] Optional command parameter or data < ... > ASCII characters sent in commands or returned in response ( ... ) Numeric data that can be positive or negative

86 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 4 Provisioning the TimeProvider

TL1 Overview

TL1 Response Format

Normal Response

For each TL1 command described in this chapter there is a normal response, an in-process response, or an error response. The TimeProvider response is always upper-case. The format of a normal response is:

<cr><lf><lf> ^^^sid^date^time<cr><lf> M ^ctag^COMPLD<cr><lf> ;

The time and date is in the Telcordia GR-833 format. A sample normal response is:

TIMEPROVIDER 03-08-28 11:23:54 M 1 COMPLD ;

In-Process Response

The TimeProvider sends an in-process response only if it cannot respond to the command within two seconds. The response terminates with a less-than character (<) with no semicolon until after the TimeProvider sends the requested output response message. The format of the in-process message is:

<cr><lf><lf> ^^^sid^date^time<cr><lf> IP^ctag<cr><lf> <

A sample in-process response is:

TIMEPROVIDER 03-08-28 11:24:15 IP^2 <

Error Response

If you mis-type a command or issue an invalid command, the TimeProvider sends an error message. The format of the error response is:

<cr><lf><lf> ^^^sid^date^time<cr><lf> M ^ctag^DENY<cr><lf> ^^^<errcde><cr><lf> ;

A sample error message is shown below:

TIMEPROVIDER 08-28-03 11:32:12 M 3 DENY

ICNV ;

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 87

Chapter 4 Provisioning the TimeProvider

Starting the TimeProvider for the First Time

The TL1 command may generate an event message specific to the command. This event message accompanies the command description in this chapter.

Autonomous Messages

In addition to the TL1 response messages described in the above sections, the TimeProvider returns Autonomous Messages to report alarms, configuration changes, or condition changes. Frequently, an Autonomous Message is returned at approximately the same time as the TL1 response message that is associated with a command, because the command happens to change the unit’s state. Autonomous Messages are not directly correlated with commands, and therefore they do not contain a correlation tag (ctag).

The TimeProvider can generate an Autonomous Message at any time, whether to report that a user-initiated change has occurred, to report that an active alarm condition exists, or to report that an alarm has been cleared. The format of the Autonomous message is as follows; note that the text REP T identifies the re sponse as a Autonomous Message.

sid date time <cr><lf> almcde atag REPT reptype aidtype<cr><lf>

aid,aditype:ntfcncde,condtype,srveff,ocrdat,ocrtim:condscr ”<cr><lf> ;

Refer to the TimeProvider TL1 Reference Guide for more information on Autonomous Messages.

Starting the TimeProvider for the First Time

The TimeProvider is delivered with a copy of SynCraft, Symmetricom’s network management application. Before you can use SynCraft or other network management software, you must provision the following parameters, as described in this section and in Setting Communications Parameters, on page 91:

 Source ID (sid)  Date and time  Ethernet parameters  Security-level user

Appendix B, CRAFT Software Reference, provides procedures and instructions to

get started using the SynCraft application.

88 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 4 Provisioning the TimeProvider

Starting the TimeProvider for the First Time

Powering Up the TimeProvider

To power up the TimeProvider, perform one of the following tasks, as appropriate:

 Connect the power leads from the power supply (see Making Power

Connections, on page 61)

 Install the fuse in the fuse panel  Turn on the power supply

LED Indications on Power-up

The LEDs on the IMC, IOC, and TPIU (if present) illuminate in the following sequence: The LEDs on the TPIU remain off until the Master shelf has completed it s power-on

testing and the GPS input has been enabled. The TPIU and Antenna Power LEDs light green and the Antenna Signal LED lights red. When the Master shelf completes its power-on testing, the Antenna Signal LED lights green, indicating that the TPIU is receiving a valid signal from the antenna.

Logging In for the First Time

To log in to the TimeProvider for the first time, you must create a username and password using the TL1 commands described below. Once you create a username and password, you can connect to the TimeProvider using the SynCraft application as described in Using SynCraft, on page 102, or using the TL1 commands in this section.

1. Connect a straight-through DB-9-to-DB-9 serial cable to the local Craft port located on the front panel of the IMC or IMC/TPIU card. Connect the other end of the cable to a computer.

2. Start a terminal emulation program such as HyperTerminal or ProComm Plus. Configure the program for 9600 baud, 8 data bits, No parity, and 1 stop bit, which are the TimeProvider’s default communication parameter values.

3. Type

; (semicolon). If the TimeProvider responds with a Deny response, you

have established communications. If you do not receive the Deny response, check the connections, the cable, and the program settings.

Changing the Echo Mode

To view the keystrokes you enter in the terminal emulation program, you need to set the Echo mode to Enable. Issue the following command:

ED-EQPT::COML:TS1000::ECHO=ENABLE;

The TimeProvider responds with:

TIMEPROVIDER 07-08-24 10:15:04 M TS1000 COMPLD ;

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 89

Chapter 4 Provisioning the TimeProvider

Starting the TimeProvider for the First Time

This command is described in detail in Changing the Echo Mode, on page 89.

Setting the Source ID <sid>

Use the SET-SID command to change the name of the TimeProvider. This name appears in normal and error response messages sent by the unit. The default is TimeProvider.

SET-SID:::TS1000::SIDCHG=TP-SSU;

This command sets the <sid> to TP-SSU. Symmetricom recommends that you use unique names for each TimeProvider in the network. Record the name you chose for the TimeProvider in Table 4-4.

If you include the “_” (underscore) character in the name, then the TimeProvider returns the SID in quote marks.

The TimeProvider responds with:

TP-SSU 07-08-24,10:22:03 A 1167 REPT EVT

“IMC,EQPT:NA,SIDCHG,NSA,07-08-24,10-22-03:\”SYSTEM’S SOURCE ID HAS CHANGED,TP-SSU\”” ;

Setting the Response Format

Release 3.2 of the TimeProvider provides two formats for the autonomous and response messages: Legacy and GR833. Use the following TL1 command to set the response format to GR833:

ED-EQPT::SYS:TS1000::EVTFORMAT=GR833;

The TimeProvider responds with:

TP-SSU 07-08-24,10:24:13 A 1167 REPT EVT

“SYS,BROADCAST,TC,07-08-24,10-24-13:\”AUTONOMOUS MESSAGE FORMAT HAS CHANGED,GR833\”” ;

Setting the Date and Time

Use the following TL1 command to set the date and time in the IMC.

ED-DAT::SYS:TS1000::DATCHG=07-08-24;

The TimeProvider responds with:

TP-SSU 07-08-24 10:25:28 A 1168 REPT EVT

SYS,EQPT:NA,DATCHG,NSA,03-10-24,10-25-28:\"SYSTEM DATE HAS CHANGED,2007-08-24\”” ;

90 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Setting Ethernet Parameters

Set up the Ethernet port, if you are using it, by following the procedure in Setting

Ethernet Parameters, on page 93.

Setting User Security

Set up the user security (usernames and passwords), if you are using it, by following the procedure in Defining the Security Parameters, on page 94.

Setting Communications Parameters

If you want to change the communications parameter values, use the ED-EQPT command. The following sections describe the commands for performing each individual task. For detailed information on the ED-EQPT command, see the TimeProvider TL1 Reference Guide. Record the values you provision in Table 4-4.

Setting RS-232 Parameters

Chapter 4 Provisioning the TimeProvider

Setting Communications Parameters

This section describes how to set the baud rate, the handshaking mode, and echo modes on the local and remote ports. The default values are 9600 baud, No flow control, echo mode disabled, tidquiet disabled.

Setting the Baud Rate

Use the ED-EQPT command to provision the baud rate o n the Lo cal o r Rem ote p ort.

ED-EQPT:[<tid>]:<aid>:[<ctag>]::<keyword>=<value>;

This command has a default access level of ADMIN.

<aid> <keyword> <value> Description Default value

COMp p = L | R

BAUD 2400 | 9600 | 19200 |

28800 | 38400 | 57600 | 115200

Baud rate 9600

Sample Command

ED-EQPT::COML:TS1000::BAUD=9600;

This command sets the local Craft communications port to 9600 baud.

Normal Response

TIMEPROVIDER 03-10-24 10:10:25 M TS1000 COMPLD ;

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 91

Chapter 4 Provisioning the TimeProvider

Setting Communications Parameters

Setting the Handshaking (Flow) Mode

Use the ED-EQPT command to provision the handshaking mode on the local Craft or Remote port to None, Hardware, Software, or Hardware/Software.

ED-EQPT:[<tid>]:<aid>:[<ctag>]::<keyword>=<value>;

This command has a default access level of ADMIN.

<aid> <keyword> <value> Description Default value

COMp p = L | R

FLOW NONE | SW |

HW | SWHW

Flow control NONE

Sample Command

ED-EQPT::COML:TS1000::FLOW=HW;

Normal Response

TIMEPROVIDER 03-10-24 10:12:33 M TS1000 COMPLD ;

Setting the Echo Mode

Use the ED-EQPT command to provision the echo mode on the local Craft or Remote port to On or Off. When set to ENABLE, characters you type at the keyboard also appear on the monitor. If one keystroke generates two characters on the monitor, set this parameter to DISABLE.

You can also use ED-EQPT to echo the <tid> in the resp onse from the TimeProvider.

ED-EQPT:[<tid>]:<aid>:[<ctag>]::<keyword>[=<value>];

This command has a default access level of ADMIN.

<aid> <keyword> <value> Description Default value

COMp p = L | R

ECHO ENABLE | DISABLE Input echo DISABLE TIDQUIET ENABLE | DISABLE Enables or disables the

Sample Command

ED-EQPT::COML:TS1000::ECHO=ENABLE;

Normal Response

TIMEPROVIDER 03-10-24 10:15:04 M TS1000 COMPLD ;

92 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

DISABLE echo of the <tid>. This is a session setting.

Chapter 4 Provisioning the TimeProvider

Setting Communications Parameters

Setting Ethernet Parameters

Before you can begin using the Ethernet port, you must provision the addresses using the local Craft or Remote serial port.

Note: To avoid unexpected interruptions in NTP service, you must restart the IMC card after you change either the Subnet Mask or the IP Address when NTP is active.

If you are not planning to use the Ethernet port, you do not have to provision the parameters in this section.

Setting the IP Addresses

Use the ED-EQPT command to provision the following IP addresses for the TimeProvider:

 IP Gateway address  IP address  IP subnet Mask

ED-EQPT:[<tid>]:<aid>:[<ctag>]::<keyword>=<value>;

This command has a default access level of ADMIN.

<aid> <keyword> <value> Description Default

COMI IPGATE 1.0.0.1

254.255.255.254

IPADDR 1.0.0.1

254.255.255.254

IPSUBNET 1.0.0.1

255.255.255.254

IP address of the default gateway 127.0.0.1

IP address of the Network Element

Subnet mask IP address 255.255.

Sample Command

ED-EQPT::COMI:TS1000::IPGATE=127.0.0.1;

This command sets the IP Gate address to 127.0.0.1. Use an appropriate gateway address for your network, and record the address in Table 4-4.

Autonomous Message

TP-SSU 03-10-24 10:15:04

A 1169 REPT EVT

“COMI:NA,IPGATE,NSA,03-10-24 10-15-04:\”IP GATEWAY ADDRESS HAS CHANGED\”” ;

127.0.0.1

255.0

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 93

Chapter 4 Provisioning the TimeProvider

Defining the Security Parameters

Checking Communication Links

Two commands allow you to check the communication links from a computer or network to the TimeProvider: PING and RTRV-HDR.

Ping

Use the PING command to check an Ethernet connection to the TimeProvider.

PING:[<tid>]::[<ctag>]::<ipaddr>;

This command has a default access level of USER.

<ipaddr> Value Description

IP address of host to be pinged 1.0.0.1 – 254.254.254.254 Pings the host system

Sample Command

PING:::TS1000::192.168.12.10;

Normal Response

TP-SSU 03-05-15 09:59:09 M TS1000 COMPLD “Host 192.168.12.10 is alive. Roundtrip time was 165 ms” ;

Retrieve Header

Use the RTRV-HDR command to display the response header, which includes the system identification <sid>, date, and time. You can also use this command to verify that the communication link to the TimeProvider is working properly.

This command has a default access level of NONE.

Sample Command

RTRV-HDR:::TS1000;

Normal Response

TP-SSU 03-05-15 09:59:25 M TS1000 COMPLD ;

Defining the Security Parameters

The TimeProvider supports users at the following four access levels:

 None – Anyone with access to a serial or Ethernet port on the TimeProvider can

issue commands set to this access level. If no Security-level users are defined, then anyone connected to the TimeProvider can issue every command available

94 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 4 Provisioning the TimeProvider

Defining the Security Parameters

 User – Users entered into the user list at the User level can issue commands set

at the User access level

 Admin – Users entered into the user list at the Admin level can issue commands

set at the Admin access level

 Security – Users at this access level can issue every command available

You can edit the commands available at each access level using the ED-CMDSECU command. You can display the current access level for each command by issuing the RTRV-CMD-SECU command. See the TimeProvider TL1 Reference Guide for details on these commands. Record the values you provision in Table 4-4.

The first person to log into the TimeProvider is automatically assigned the Security access level (described in Defining a User at the Security Access Level, on page

95); this person normally performs the initial provisioning and defines users and their appropriate access levels.

Defining a User at the Security Access Level

Recommendation: To avoid a possible service call to unlock the TimeProvider, Symmetricom recommends that you enable the security feature by defining a user at the Security access level.

TimeProvider Access Levels

The security measures built into the TimeProvider are based on a list of users authorized to access the unit. Each user has their own password and is assigned to one of the following access levels: NONE, USER, ADMIN, or SECURITY. Users can issue the TL1 commands available at their access level. Managing the User List, on page 96, describes how to manage the user list.

If you do not define a Security-level user, the security features are not enabled and an unauthorized user could gain access to the TimeProvider and compromise the security of your network.

Note: The factory default security setting is None, which allows all users to access the system.

If you define a user at a level other than Security before you define a Security-level user, you cannot execute Security-level commands. You will need to contact Symmetricom Global Services (see Obtaining Technical Assistance, on page 187) to correct this problem.

Recommendation: Symmetricom recommends that you record and store the Security-level user’s name and password in a secure location.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 95

Chapter 4 Provisioning the TimeProvider

Managing the User List

Adding a User at the Security Access Level

To define a user at the Security access level, issue the following TL1 command. The user and password you create is the same user and password used to access the TimeProvider using the SynCraft application (see Using SynCraft, on page 102).

Sample Command

ENT-USER-SECU::DEPTHEAD:TS1000::TP01!,SECURITY;

This sample command creates a user with the name DEPTHEAD and a password of TP01!; this user is at the Security access level. See Adding a User, on page 98, for more information on the ENT-USER-SECU command.

Autonomous Message

TP-SSU 03-05-15 09:59:09

A 1166 REPT EVT

“IMC:NA,USRADD,NSA,03-05-15,09-59-09:\”USER HAS BEEN ADDED\””

;

Logging In

You can now log in using the ACT-USER command and the new user name and password to continue with the provisioning process.

Sample Command

ACT-USER::DEPTHEAD:TS1000::TP01!;

Normal Response

TP-SSU 03-05-15 09:59:15 M TS1000 COMPLD ;

Users with the Security access level can issue any of the TL1 commands described in this chapter and in the TimeProvider TL1 Reference Guide.

Managing the User List

Use the procedures in this section to manage the users that are authorized to access the TimeProvider.

Logging In

Use the following TL1 command to log existing users into the system.

ACT-USER:[<tid>]:<uid>:[<ctag>]::<pid>;

This command has a default access level of NONE.

96 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 4 Provisioning the TimeProvider

Parameter <uid> Value Description

<uid> <username> Up to 20 case-insensitive characters Assigned user

Managing the User List

name

<pid> password Up to 20 case-sensitive characters. Must include

at least two non- alphabetic and one special character (any printing character other than a letter, number, comma, colon, or semicolon. For case-sensitive passwords, enclose the <pid> in quotes, for example “sYmm!23”

Sample Command

ACT-USER::TECHNICIAN:TS1000::TECH01!;

This command logs in the user named Technician.

Autonomous Message

TP-SSU 03-10-24 10-18-24 A 1170 REPT EVT

“IMC:NA,LOGIN,NSA,03-10-24 10-18-24:\”USER LOGGED IN, TECHNICIAN\”” ;

Error Response

TP-SSU 03-10-24 10-18-24 M 04 DENY

”UNAUTHORIZED ACCESS TO THIS SYSTEM IS PROHIBITED.” ;

Assigned password

Logging Out

Use the following TL1 command to terminate a session and log out of the system. Security-level users can terminate any other user. The username is not case-sensitive, but it must be spelled exactly as assigned.

CANC-USER:[<tid>]:[<uid>]:[<ctag>];

This command has a default access level of USER.

<uid> Value Description

null Terminates the current user’s session and

logs the user off the system

<uid> Up to 20 case-

insensitive characters

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 97

Allows a user at the ADMIN or SECURITY level to terminate another user’s session

Chapter 4 Provisioning the TimeProvider

Managing the User List

Sample Command

CANC-USER::TECHNICIAN:TS1000;

This command logs out the user named Technician.

Autonomous Message

TP-SSU 03-10-24 10:25:31 A 1171 REPT EVT

“IMC,EQPT:NA,LOGOUT,NSA,03-10-24 10-25-31:\”USER LOGGED OUT,TECHNICIAN\”” ;

Adding a User

You can store up to 20 users in the TimeProvider’s user list. Each user has a name of up to 20 case-insensitive alphanumeric characters, a password of up to 20 case-sensitive characters, and one of the four defined access levels.

Use the following TL1 command to add a user to the user list. If more than 20 users are defined in the user list, the DENY response is sent. Only a Security-level user can add to the user list.

ENT-USER-SECU:[<tid>]:<uid>:[<ctag>]::<pid>,<uap>;

This command always has an access level of SECURITY.

Parameter Value Description

<uid> <username> Up to 20 case-insensitive alphanumeric characters <pid> <user password> Up to 20 case-sensitive characters. You must include at

least two non-alphabetic and one special character (other than a letter , number, comma, colon, or semicolon). For case-sensitive passwords, enclose the <pid> in quotes.

<uap> NONE | USER |

ADMIN | SECURITY

The access level for the user specified by the <uid>

Sample Command

ENT-USER-SECU::TECHNICIAN:TS1000::TECH01!,USER;

This command creates a user named TECHNICIAN with a password of TECH01! at the User access level.

Autonomous Message

TP-SSU 03-10-24 10:28:24 A 1172 REPT EVT

“IMC:NA,USRADD,NSA,03-10-24 10-28-24:\”USER HAS BEEN ADDED\”” ;

98 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008

Chapter 4 Provisioning the TimeProvider

Managing the User List

Changing the Current User’s Password

The ED-PID command changes the specified user’s password.

ED-PID:[<tid>]:[<uid>]:[<ctag>]::<oldpid>,<newpid>;

This command has a default access level of USER.

Keyword Value Description

<uid> <username> Up to 20 case-insensitive

alphanumeric characters

<oldpid> Must match existing value or

DENY is issued for the command

<newpid> Up to 20 case-sensitive

characters

Old password for the specified user

New password for the specified user

Sample Command

ED-PID::TECHNICIAN:TS1000::TECH01!,#Tech02;

This command changes the current user’s password from TECH01! to #Tech02.

Autonomous Message

TP-SSU 03-10-24 10:30:01 A 1173 REPT EVT

“IMC:NA,PIDCHG,NSA,03-10-24 10-30-01:\”USER PASSWORD HAS CHANGED\”” ;

Displaying a User’s Access Level

Use the following TL1 command to display the access level for a specified user or for all users.

RTRV-USER-SECU::[<uid>]:[<ctag>];

This command always has an access level of SECURITY.

Parameter Description

<uid> Assigned user name. Displays the access level of the specified

null Displays the access level for all assigned user names.

097-58001-02 Revision G – April 2008 TimeProvider User’s Guide 99

user.

Chapter 4 Provisioning the TimeProvider

Managing the User List

The response format is:

<cr><lf><lf> ^^^sid^date^time<cr><lf> M ^ctag^COMPLD<cr><lf> ^^^”username,access”<cr><lf> ^^^”username,access”<cr><lf>

. ^^^”username,access”<cr><lf> ;

Response Value Description

<username> Up to 20 case- insensitive characters Assigned user name <access> NONE | USER | ADMIN | SECURITY Access level

Sample Command

RTRV-USER-SECU::TS1000;

Normal Response

TP-SSU 03-10-24 10:31:31

M TS1000 COMPLD

“TECHNICIAN,USER” “DEPTHEAD,SECURITY” “DAVID,ADMIN”

;

Editing a User’s Access Level

Use the following TL1 command to change the access level for a specified user.

ED-USER-SECU:[<tid>]:<uid>:[<ctag>]::<keyword>=<value>;

This command always has an access level of SECURITY.

Parameter <keyword> <value> Description

<uid> Up to 20 case-insensitive characters Assigned user name

ACCLVL NONE | USER | ADMIN | SECURITY New access level for

the specified user

Sample Command

ED-USER-SECU::TECHNICIAN:TS1000::ACCLVL=ADMIN;

This command changes the access level for the TECHNICIAN user to ADMIN.

100 TimeProvider User’s Guide 097-58001-02 Revision G – April 2008
