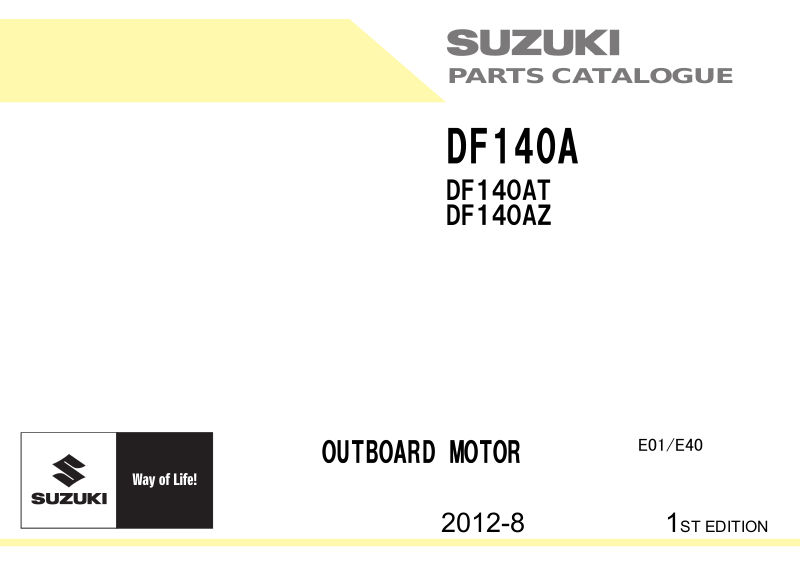

PARTS CATALOGUE

DF140A

DF140AT
DF140AZ

OUTBOARD MOTOR

2012-8 1ST EDITION

E01/E40

DF140A E01 013 - 1 -

PREFACE

When it becomes necessary to replace parts on SUZUKI OUTBOARD MOTORS, always
use SUZUKI GENUINE PARTS which have passed a strict inspection which guarantees
quality and performance.
This parts catalogue covers the list of all service parts for SUZUKI DF140A
production start 2012.

INSTRUCTIONS FOR QUOTING THE CATALOGUE

1. DIMENSIONS
Dimensions of the parts in this catalogue are indicated in unit millimeters.

2. ABBREVIATIONS
Abbreviations used in this catalogue are as follows:
AR : As required NT : Number of teeth
ASSY : Assembly OPT : Optional
E.NO. : Engine number OS : Over size
F.NO. : Frame number STD : Standard
D : Diameter of material T : Thickness
ID : Inside diameter US : Under size
OD : Outside diameter W : Width
L : Length W/ : With
LH(PORT) : Left hand side S,L,X,LL : Transom type
RH(STBD) : Right hand side SUS : Stainless steel
～123456 : Up to E.NO.14002F-123456 PTT : Power trim and tilt
123456～ : From E.NO.14002F-123456

12 x 34 x 5.6

........

Figures in the description column
| | | show the dimensions of parts.
ID OD T(or W,L)

→12345-56781 (Parts No.) : indicates that the parts number was
changed to 12345-56781 and the new parts are interchangeable with
the former ones but the former ones are not interchangeable with
new ones.

←12345-56781 (Parts No.)

: indicates that the former and new

parts are interchangeable with each other and both are usable.

DF140A E01 013 - 2 -

3. INNER PARTS OF ASSEMBLY
Part name with a dot (.) in front as shown in the description column indicates
the component of the assembly also available individually.

4. MODIFICATION NOTICE
A parts bulletin will be sent to you on all occasions when changes in parts
occur, including interchangeable modifications between new parts and old ones.

5. NOTE
5-1. There are some different parts from those of production models among
spare parts for the administrative reasons and common use of them with
other models.

5-2. In respect of rubber hoses and vinyl tubes, please be sure to use them
by cutting off according to the length mentioned on parts catalogue or
what is actually required on the vehicle.

5-3. Note that the drawings on the illustration page are for ready reference
of spare parts number, not to be used as an assembly manual.
When assembling, use "SUZUKI SERVICE MANUAL".

6. MODEL NAME AND ENGINE NUMBER

MODEL DESTINATION TYPE TRANSOM ENGINE No.
DF140AT E01,E40 14002F L,X 14003F-310001～

DF140AZ E01,E40 14002Z L,X 14003Z-310001～

ＭＩＬＬＩＭＥＴＥＲ → ＩＮＣＨ ＣＯＮＶＥＲ ＳＩＯＮ ＣＨＡＲＴ

1

Ｈｏｗ ｔｏ ｒｅａｄ

0 2 3 4 5 6 7 8 9

00 .000 .039 .079 .118 .157 .197 .236 .276 .315 .354

10 .394 .433 .472 .512 .551 .591 .630 .669 .709 .748

20 .787 .827 .866 .906 .945 .984 1.024 1.063 1.102 1.142

30 1.181 1.220 1.260 1.299 1.339 1.378 1.417 1.457 1.496 1.535

40 1.575 1.614 1.654 1.693 1.732 1.772 1.811 1.850 1.890 1.929

50 1.969 2.008 2.047 2.087 2.126 2.165 2.205 2.214 2.283 2.323

60 2.362 2.402 2.441 2.480 2.520 2.559 2.598 2.638 2.677 2.717

70 2.756 2.795 2.835 2.874 2.913 2.953 2.992 3.031 3.071 3.110

80 3.150 3.189 3.228 3.268 3.307 3.346 3.386 3.425 3.465 3.504

90 3.543 3.583 3.622 3.661 3.701 3.740 3.780 3.819 3.858 3.898

00 … … … … …

10 … … … … …

20 …

… … 0.906

…

30 … … … … …

23 m ill imet ers equ al 0 .906 in ch

Content s ar e subje ct t o ch ang e wi thout n otic e or ob liga tio n.

0 1 2 3 4

-1-

-2-

-3-

-4-

-5-

-6-

-7-

-8-

-9-

-10-

-11-

-12-

FIG.1 (1-B-2) CYLINDER HEAD

REF NO. PART NO. DESCRIPTION

1 11100-90J06 HEAD, CYLINDER 1
2 09103-06266 .BOLT (6X40) 21
3 09206-08001 .PIN (8X11) 18
4 11115-85FA1-001 GUIDE, VALVE (OS) 16 OPT
5 11261-93J00 COVER, PROTECTION ANODE 2
6 09280-22019 O RING (D:1.9,ID:21.8) 2
7 55321-87J00 ANODE, PROTECTION 2
8 09103-06281 BOLT (6X14) 2
9 01550-08207 BOLT 2
10 11117-89J00 BOLT, CYL HEAD 10
11 11141-92J01 GASKET, CYL HEAD 1
12 09116-08125 BOLT (8X50) 8
13 04211-13189 PIN 2
14 11170-90J10 COVER, CYLINDER HEAD 1
15 11173-90J00 PLATE, BREATHER 1
16 11179-90J00 GASKET, SPARK PLUG HOLE 4
17 11189-90J00 GASKET, CYLINDER HEAD COVER 1
18 11382-99E00 CAP, OIL FILLER 1
19 18498-90J20 PROTECTOR, BREATHER HOSE 1
20 09280-26006 O RING (D:3.1, ID:26.4) 1
21 09355-13207-00B HOSE (13X20X2000) 1 L:2000->660
22 09401-20409 CLIP 2
23 01547-06257 BOLT 11
24 01547-06557 BOLT 4
25 02112-0612A SCREW 7
26 09482-00427 SPARK PLUG (NGK, BKR6E) 4

Q'TY

REMARKS

DF140A_E01_013

FIG.2 (1-B-3) CYLINDER BLOCK

REF NO. PART NO. DESCRIPTION

1 11291-90J10 HOOK, ENGINE 1
2 01550-12307 BOLT 2
3 11300-92J30 BLOCK, CYLINDER 1
4 11117-90J10 .BOLT, CRANKCASE 10
5 11216-77E00 .GASKET, OIL GALLERY PLUG 3
6 09248-18011 .PLUG (18X8) 3
7 11330-90J00 .COVER, CRANKCASE WTR JKT 1
8 11332-90J00 .O RING, CRKC WTR JKT COVER 1
9 09206-13019 .PIN (10.4X13X16) 5
10 01550-06207 .BOLT 8
11 01550-08407 .BOLT 10
12 11112-90J00 .PLUG, OIL VENTURI 1
13 09246-05006 PLUG 1

Q'TY

REMARKS

DF140A_E01_013

FIG.3 (1-B-4) RING GEAR COVER (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 11510-90J00 COVER, RING GEAR 1
2 11512-99E00 CUSHION, RING GEAR COVER 2
3 01550-06207 BOLT 1
4 61472-93E40 LABEL, MAG COVER 1
5 69711-93E10 LABEL, CAUTION 1
6 61493-90J00 LABEL, CLEARANCE 1
7 61494-90J00 LABEL, OIL 1

Q'TY

REMARKS

DF140A_E01_013

FIG.4 (1-B-5) RING GEAR COVER (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 11510-90J00 COVER, RING GEAR 1
2 11512-99E00 CUSHION, RING GEAR COVER 2
3 01550-06207 BOLT 1
4 61472-93E32 LABEL, MAG COVER 1
5 69711-93E10 LABEL, CAUTION 1
6 61493-90J00 LABEL, CLEARANCE 1
7 61494-90J00 LABEL, OIL 1

Q'TY

REMARKS

DF140A_E01_013

FIG.5 (1-B-6) RING GEAR COVER (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 11510-90J00 COVER, RING GEAR 1
2 11512-99E00 CUSHION, RING GEAR COVER 2
3 01550-06207 BOLT 1
4 61472-93E40 LABEL, MAG COVER 1
5 69711-93E10 LABEL, CAUTION 1
6 61493-90J00 LABEL, CLEARANCE 1
7 61494-90J00 LABEL, OIL 1

Q'TY

REMARKS

DF140A_E01_013

FIG.6 (1-B-7) RING GEAR COVER (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 11510-90J00 COVER, RING GEAR 1
2 11512-99E00 CUSHION, RING GEAR COVER 2
3 01550-06207 BOLT 1
4 61472-93E32 LABEL, MAG COVER 1
5 69711-93E10 LABEL, CAUTION 1
6 61493-90J00 LABEL, CLEARANCE 1
7 61494-90J00 LABEL, OIL 1

Q'TY

REMARKS

DF140A_E01_013

FIG.7 (1-B-8) CRANKSHAFT

REF NO. PART NO. DESCRIPTION

1 12111-92J00 PISTON 4
2 12140-92J01 RING SET, PISTON 4
3 12151-86FA0 PIN, PISTON 4
4 09381-21002 CIRCLIP 8
5 12160-92J10 CONNROD ASSY 4
6 12163-35F00 .BOLT, CONNROD 8
7 04221-04089 .PIN 8
8-1 12100-92841-0A0 BEARING SET, CONNROD (GREEN) 4
8-2 12100-92840-025 BEARING SET, CONNROD (US:0.25) 4 OPT
9 12220-92J00 CRANKSHAFT 1
10 09202-05027 .PIN (5X8.8) 1
11-1 12340-85FB3-0A0 BEARING SET, CRANKSHAFT 5 GREEN
11-2 12340-85FB3-0B0 BEARING SET, CRANKSHAFT 5 BLACK
11-3 12340-85FB3-0C0 BEARING SET, CRANKSHAFT 5 NON
11-4 12340-85FB3-0D0 BEARING SET, CRANKSHAFT 5 YELLOW
11-5 12340-85FB3-0E0 BEARING SET, CRANKSHAFT 5 BLUE
11-6 12300-85854-0AA BEARING SET, CRANKSHAFT 5 OPT

(US:0.25) (RED/GREEN)

11-7 12300-85854-0BA BEARING SET, CRANKSHAFT 5 OPT

(US:0.25) (RED/BLACK)

11-8 12300-85854-0CA BEARING SET, CRANKSHAFT 5 OPT

(US:0.25) (RED)

11-9 12300-85854-0DA BEARING SET, CRANKSHAFT 5 OPT

(US:0.25) (RED/YELLOW)

11-10 12300-85854-0EA BEARING SET, CRANKSHAFT 5 OPT

(US:0.25) (RED/BLUE)

12-1 12300-85830 BEARING SET, CRANK THRUST 1
12-2 12300-85830-012 BEARING SET, CRANK THRUST 1 OPT

(OS:0.12)

13 09283-52004 OIL SEAL (52X70X10) 1
14 12100-92J01-050 PISTON SET (OS:0.50) 4 OPT
15 12140-92J01-050 .RING SET, PISTON (OS:0.50) 4 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.8 (1-B-9) TIMING CHAIN

REF NO. PART NO. DESCRIPTION

1 12732-90J00 GEAR, DRIVEN (NT:18) 1
2 12741-90J01 SPROCKET, CAM SHAFT TIMING 2

(NT:29)

3 09103-12049 BOLT (12X25) 2
4 12733-90J00 PLUG, DRIVEN GEAR 1
5 04221-05109 PIN 2
6 09262-35068 BEARING (35X62X14) 1 UPPER
7 09280-22022 O RING (D:1.9, ID:21.8) 1
8 08331-41269 CIRCLIP 1
9 12761-90J00 CHAIN, TIMING 1
10 12771-90J00 GUIDE, TIMING CHAIN 1
11 12810-90J00 TENSIONER, TIMING CHAIN 1
12 12813-73G00 .PAD, TIMING CHAIN TENSIONER 1
13 12812-90J00 SPACER, TIMING CHAIN TENSIONER 1
14 12831-90J02 ADJUSTER, TENSIONER 1
15 01421-0616A STUD BOLT 1
16 01550-0616A BOLT 2
17 01550-0620A BOLT 1
18 01550-0835A BOLT 1
19 08316-1006A NUT 1

Q'TY

REMARKS

DF140A_E01_013

FIG.9 (1-B-10) CAMSHAFT (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 12711-92J00 CAMSHAFT, INTAKE 1
2 12720-92J10 CAMSHAFT, EXHAUST 1
3 12891-69G00 TAPPET 16
4-1 12892-69G10-218 SHIM, TAPPET (T:2.175) AR
4-2 12892-69G10-220 SHIM, TAPPET (T:2.200) AR
4-3 12892-69G10-223 SHIM, TAPPET (T:2.225) AR
4-4 12892-69G10-225 SHIM, TAPPET (T:2.250) AR
4-5 12892-69G10-228 SHIM, TAPPET (T:2.275) AR
4-6 12892-69G10-230 SHIM, TAPPET (T:2.300) AR
4-7 12892-69G10-233 SHIM, TAPPET (T:2.325) AR
4-8 12892-69G10-235 SHIM, TAPPET (T:2.350) AR
4-9 12892-69G10-238 SHIM, TAPPET (T:2.375) AR
4-10 12892-69G10-240 SHIM, TAPPET (T:2.400) AR
4-11 12892-69G10-243 SHIM, TAPPET (T:2.425) AR
4-12 12892-69G10-245 SHIM, TAPPET (T:2.450) AR
4-13 12892-69G10-248 SHIM, TAPPET (T:2.475) AR
4-14 12892-69G10-250 SHIM, TAPPET (T:2.500) AR
4-15 12892-69G10-253 SHIM, TAPPET (T:2.525) AR
4-16 12892-69G10-255 SHIM, TAPPET (T:2.550) AR
4-17 12892-69G10-258 SHIM, TAPPET (T:2.575) AR
4-18 12892-69G10-260 SHIM, TAPPET (T:2.600) AR
4-19 12892-69G10-263 SHIM, TAPPET (T:2.625) AR
4-20 12892-69G10-265 SHIM, TAPPET (T:2.650) AR
4-21 12892-69G10-268 SHIM, TAPPET (T:2.675) AR
4-22 12892-69G10-270 SHIM, TAPPET (T:2.700) AR
4-23 12892-69G10-273 SHIM, TAPPET (T:2.725) AR
4-24 12892-69G10-275 SHIM, TAPPET (T:2.750) AR
4-25 12892-69G10-278 SHIM, TAPPET (T:2.775) AR
4-26 12892-69G10-280 SHIM, TAPPET (T:2.800) AR
4-27 12892-69G10-283 SHIM, TAPPET (T:2.825) AR
4-28 12892-69G10-285 SHIM, TAPPET (T:2.850) AR
4-29 12892-69G10-288 SHIM, TAPPET (T:2.875) AR
4-30 12892-69G10-290 SHIM, TAPPET (T:2.900) AR
4-31 12892-69G10-293 SHIM, TAPPET (T:2.925) AR

Q'TY

REMARKS

DF140A_E01_013

FIG.9 (1-B-11) CAMSHAFT (DF140AT E01)

REF NO. PART NO. DESCRIPTION

4-32 12892-69G10-295 SHIM, TAPPET (T:2.950) AR
4-33 12892-69G10-298 SHIM, TAPPET (T:2.975) AR
4-34 12892-69G10-300 SHIM, TAPPET (T:3.000) AR
5 12911-86FA1 VALVE, INTAKE 8
6 12915-86FA1 VALVE, EXHAUST 8
7 12921-90J00 SPRING, VALVE 16
8 12931-90J00 RETAINER, VALVE SPRING 16
9 12932-85FA0 COTTER, VALVE 32
10 12933-86510 SEAT, VALVE SPRING 16
11 09289-06003 OIL SEAL (6X12.8X10.2) 16

Q'TY

REMARKS

DF140A_E01_013

FIG.10 (1-B-12) CAMSHAFT (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 12711-92J00 CAMSHAFT, INTAKE 1
2 12720-92J10 CAMSHAFT, EXHAUST 1
3 12891-69G00 TAPPET 16
4-1 12892-69G10-218 SHIM, TAPPET (T:2.175) AR
4-2 12892-69G10-220 SHIM, TAPPET (T:2.200) AR
4-3 12892-69G10-223 SHIM, TAPPET (T:2.225) AR
4-4 12892-69G10-225 SHIM, TAPPET (T:2.250) AR
4-5 12892-69G10-228 SHIM, TAPPET (T:2.275) AR
4-6 12892-69G10-230 SHIM, TAPPET (T:2.300) AR
4-7 12892-69G10-233 SHIM, TAPPET (T:2.325) AR
4-8 12892-69G10-235 SHIM, TAPPET (T:2.350) AR
4-9 12892-69G10-238 SHIM, TAPPET (T:2.375) AR
4-10 12892-69G10-240 SHIM, TAPPET (T:2.400) AR
4-11 12892-69G10-243 SHIM, TAPPET (T:2.425) AR
4-12 12892-69G10-245 SHIM, TAPPET (T:2.450) AR
4-13 12892-69G10-248 SHIM, TAPPET (T:2.475) AR
4-14 12892-69G10-250 SHIM, TAPPET (T:2.500) AR
4-15 12892-69G10-253 SHIM, TAPPET (T:2.525) AR
4-16 12892-69G10-255 SHIM, TAPPET (T:2.550) AR
4-17 12892-69G10-258 SHIM, TAPPET (T:2.575) AR
4-18 12892-69G10-260 SHIM, TAPPET (T:2.600) AR
4-19 12892-69G10-263 SHIM, TAPPET (T:2.625) AR
4-20 12892-69G10-265 SHIM, TAPPET (T:2.650) AR
4-21 12892-69G10-268 SHIM, TAPPET (T:2.675) AR
4-22 12892-69G10-270 SHIM, TAPPET (T:2.700) AR
4-23 12892-69G10-273 SHIM, TAPPET (T:2.725) AR
4-24 12892-69G10-275 SHIM, TAPPET (T:2.750) AR
4-25 12892-69G10-278 SHIM, TAPPET (T:2.775) AR
4-26 12892-69G10-280 SHIM, TAPPET (T:2.800) AR
4-27 12892-69G10-283 SHIM, TAPPET (T:2.825) AR
4-28 12892-69G10-285 SHIM, TAPPET (T:2.850) AR
4-29 12892-69G10-288 SHIM, TAPPET (T:2.875) AR
4-30 12892-69G10-290 SHIM, TAPPET (T:2.900) AR
4-31 12892-69G10-293 SHIM, TAPPET (T:2.925) AR

Q'TY

REMARKS

DF140A_E01_013

FIG.10 (1-B-13) CAMSHAFT (DF140AT E40)

REF NO. PART NO. DESCRIPTION

4-32 12892-69G10-295 SHIM, TAPPET (T:2.950) AR
4-33 12892-69G10-298 SHIM, TAPPET (T:2.975) AR
4-34 12892-69G10-300 SHIM, TAPPET (T:3.000) AR
5 12911-86FA1 VALVE, INTAKE 8
6 12915-86F50 VALVE, EXHAUST 8
7 12921-90J00 SPRING, VALVE 16
8 12931-90J00 RETAINER, VALVE SPRING 16
9 12932-85FA0 COTTER, VALVE 32
10 12933-86510 SEAT, VALVE SPRING 16
11 09289-06003 OIL SEAL (6X12.8X10.2) 16

Q'TY

REMARKS

DF140A_E01_013

FIG.11 (1-B-14) CAMSHAFT (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 12711-92J00 CAMSHAFT, INTAKE 1
2 12720-92J10 CAMSHAFT, EXHAUST 1
3 12891-69G00 TAPPET 16
4-1 12892-69G10-218 SHIM, TAPPET (T:2.175) AR
4-2 12892-69G10-220 SHIM, TAPPET (T:2.200) AR
4-3 12892-69G10-223 SHIM, TAPPET (T:2.225) AR
4-4 12892-69G10-225 SHIM, TAPPET (T:2.250) AR
4-5 12892-69G10-228 SHIM, TAPPET (T:2.275) AR
4-6 12892-69G10-230 SHIM, TAPPET (T:2.300) AR
4-7 12892-69G10-233 SHIM, TAPPET (T:2.325) AR
4-8 12892-69G10-235 SHIM, TAPPET (T:2.350) AR
4-9 12892-69G10-238 SHIM, TAPPET (T:2.375) AR
4-10 12892-69G10-240 SHIM, TAPPET (T:2.400) AR
4-11 12892-69G10-243 SHIM, TAPPET (T:2.425) AR
4-12 12892-69G10-245 SHIM, TAPPET (T:2.450) AR
4-13 12892-69G10-248 SHIM, TAPPET (T:2.475) AR
4-14 12892-69G10-250 SHIM, TAPPET (T:2.500) AR
4-15 12892-69G10-253 SHIM, TAPPET (T:2.525) AR
4-16 12892-69G10-255 SHIM, TAPPET (T:2.550) AR
4-17 12892-69G10-258 SHIM, TAPPET (T:2.575) AR
4-18 12892-69G10-260 SHIM, TAPPET (T:2.600) AR
4-19 12892-69G10-263 SHIM, TAPPET (T:2.625) AR
4-20 12892-69G10-265 SHIM, TAPPET (T:2.650) AR
4-21 12892-69G10-268 SHIM, TAPPET (T:2.675) AR
4-22 12892-69G10-270 SHIM, TAPPET (T:2.700) AR
4-23 12892-69G10-273 SHIM, TAPPET (T:2.725) AR
4-24 12892-69G10-275 SHIM, TAPPET (T:2.750) AR
4-25 12892-69G10-278 SHIM, TAPPET (T:2.775) AR
4-26 12892-69G10-280 SHIM, TAPPET (T:2.800) AR
4-27 12892-69G10-283 SHIM, TAPPET (T:2.825) AR
4-28 12892-69G10-285 SHIM, TAPPET (T:2.850) AR
4-29 12892-69G10-288 SHIM, TAPPET (T:2.875) AR
4-30 12892-69G10-290 SHIM, TAPPET (T:2.900) AR
4-31 12892-69G10-293 SHIM, TAPPET (T:2.925) AR

Q'TY

REMARKS

DF140A_E01_013

FIG.11 (1-B-15) CAMSHAFT (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

4-32 12892-69G10-295 SHIM, TAPPET (T:2.950) AR
4-33 12892-69G10-298 SHIM, TAPPET (T:2.975) AR
4-34 12892-69G10-300 SHIM, TAPPET (T:3.000) AR
5 12911-86FA1 VALVE, INTAKE 8
6 12915-86FA1 VALVE, EXHAUST 8
7 12921-90J00 SPRING, VALVE 16
8 12931-90J00 RETAINER, VALVE SPRING 16
9 12932-85FA0 COTTER, VALVE 32
10 12933-86510 SEAT, VALVE SPRING 16
11 09289-06003 OIL SEAL (6X12.8X10.2) 16

Q'TY

REMARKS

DF140A_E01_013

FIG.12 (1-C-2) CAMSHAFT (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 12711-92J00 CAMSHAFT, INTAKE 1
2 12720-92J10 CAMSHAFT, EXHAUST 1
3 12891-69G00 TAPPET 16
4-1 12892-69G10-218 SHIM, TAPPET (T:2.175) AR
4-2 12892-69G10-220 SHIM, TAPPET (T:2.200) AR
4-3 12892-69G10-223 SHIM, TAPPET (T:2.225) AR
4-4 12892-69G10-225 SHIM, TAPPET (T:2.250) AR
4-5 12892-69G10-228 SHIM, TAPPET (T:2.275) AR
4-6 12892-69G10-230 SHIM, TAPPET (T:2.300) AR
4-7 12892-69G10-233 SHIM, TAPPET (T:2.325) AR
4-8 12892-69G10-235 SHIM, TAPPET (T:2.350) AR
4-9 12892-69G10-238 SHIM, TAPPET (T:2.375) AR
4-10 12892-69G10-240 SHIM, TAPPET (T:2.400) AR
4-11 12892-69G10-243 SHIM, TAPPET (T:2.425) AR
4-12 12892-69G10-245 SHIM, TAPPET (T:2.450) AR
4-13 12892-69G10-248 SHIM, TAPPET (T:2.475) AR
4-14 12892-69G10-250 SHIM, TAPPET (T:2.500) AR
4-15 12892-69G10-253 SHIM, TAPPET (T:2.525) AR
4-16 12892-69G10-255 SHIM, TAPPET (T:2.550) AR
4-17 12892-69G10-258 SHIM, TAPPET (T:2.575) AR
4-18 12892-69G10-260 SHIM, TAPPET (T:2.600) AR
4-19 12892-69G10-263 SHIM, TAPPET (T:2.625) AR
4-20 12892-69G10-265 SHIM, TAPPET (T:2.650) AR
4-21 12892-69G10-268 SHIM, TAPPET (T:2.675) AR
4-22 12892-69G10-270 SHIM, TAPPET (T:2.700) AR
4-23 12892-69G10-273 SHIM, TAPPET (T:2.725) AR
4-24 12892-69G10-275 SHIM, TAPPET (T:2.750) AR
4-25 12892-69G10-278 SHIM, TAPPET (T:2.775) AR
4-26 12892-69G10-280 SHIM, TAPPET (T:2.800) AR
4-27 12892-69G10-283 SHIM, TAPPET (T:2.825) AR
4-28 12892-69G10-285 SHIM, TAPPET (T:2.850) AR
4-29 12892-69G10-288 SHIM, TAPPET (T:2.875) AR
4-30 12892-69G10-290 SHIM, TAPPET (T:2.900) AR
4-31 12892-69G10-293 SHIM, TAPPET (T:2.925) AR

Q'TY

REMARKS

DF140A_E01_013

FIG.12 (1-C-3) CAMSHAFT (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

4-32 12892-69G10-295 SHIM, TAPPET (T:2.950) AR
4-33 12892-69G10-298 SHIM, TAPPET (T:2.975) AR
4-34 12892-69G10-300 SHIM, TAPPET (T:3.000) AR
5 12911-86FA1 VALVE, INTAKE 8
6 12915-86F50 VALVE, EXHAUST 8
7 12921-90J00 SPRING, VALVE 16
8 12931-90J00 RETAINER, VALVE SPRING 16
9 12932-85FA0 COTTER, VALVE 32
10 12933-86510 SEAT, VALVE SPRING 16
11 09289-06003 OIL SEAL (6X12.8X10.2) 16

Q'TY

REMARKS

DF140A_E01_013

FIG.13 (1-C-4) INTAKE MANIFOLD

REF NO. PART NO. DESCRIPTION

1 13110-90J10 MANIFOLD, INTAKE 1
2 13119-90J00 GASKET, INTAKE MANIFOLD 1
3 18134-77E00 GASKET, IAC VALVE 1
4 18137-77E00 VALVE, IAC 1
5 18141-90J00 HOSE, IAC 1
6 09329-12004 CUSHION 1
7 01421-08357 STUD BOLT 1
8 01421-08507 STUD BOLT 1
9 01550-06207 BOLT 2
10 01550-08407 BOLT 8
11 01550-08757 BOLT 1
12 04211-11129 PIN 2
13 08316-10087 NUT 2
14 18148-90J00 FILTER, IAC HOSE 1

Q'TY

REMARKS

DF140A_E01_013

FIG.14 (1-C-5) SILENCER

REF NO. PART NO. DESCRIPTION

1 13710-99E00 ARRESTER, FLAME 1
2 13810-90J01 SILENCER 1
3 13813-92J00 HOLDER, FLAME ARRESTER 1
4 13840-90J00 DUCT, SILENCER 1
5 13851-90J00 GROMMET, SILENCER 1
6 09169-06075 WASHER 5
7 09320-09039 CUSHION 5
8 09116-06215 BOLT (6X30) 5

Q'TY

REMARKS

DF140A_E01_013

FIG.15 (1-C-6) FUEL VAPOR SEPARATOR (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 15600-92J00 SEPARATOR ASSY, FUEL VAPOR 1
2 13370-88L00 .VALVE ASSY, NEEDLE 1
3 15200-92J00 .PUMP ASSY, FUEL 1
4 15626-92J00 .SEAL 1
5 15628-99E00 .SCREW (L:15) 5
6 15629-99E10 .SCREW, DRAIN 1
7 15641-88L00 .SPACER 1
8 15642-88L00 .FILTER ASSY 1
9 15650-99E00 .FLOAT 1
10 15654-88L00 .PIN 1
11 15683-87J00 .HOSE, DRAIN (L:120) 1
12 15760-88L00 .REGULATOR ASSY 1
13 15644-88L00 .O RING 1
14 15645-88L00 .HOLDER, REGULATOR 1
15 02112-0408A .SCREW 1
16 15648-92J00 .RING 1
17 15643-88L00 .JOINT 1
18 15641-88L20 .BUSH 1
19 15641-88L40 .BUSH 1
20 15642-88L10 .FILTER 1
21 15612-99E01 .COVER 1
22 15613-88L00 .O RING 1
23 15614-99E00 .SCREW, VAPOR SEPARATOR COVER 3
24 02142-0408B .SCREW 1
25 09116-06202 BOLT (6X25) 3
26 09169-06090 WASHER 3
27 09320-08076 GROMMET 1
28 09320-09053 CUSHION 3
29 09352-50823-00B HOSE (5X8.2X2000) 1 L:2000->680
30 09401-08412 CLIP 1
31 18498-88L00 PROTECTOR, EVAP HOSE (L:610) 1
32 09403-13408 CLAMP 2
33 09408-00302 CLAMP 1
34 01550-06127 BOLT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.16 (1-C-7) FUEL VAPOR SEPARATOR (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 15600-92J10 SEPARATOR ASSY, FUEL VAPOR 1
2 13370-88L10 .VALVE ASSY, NEEDLE 1
3 15200-92J10 .PUMP ASSY, FUEL 1
4 15626-92J10 .SEAL 1
5 15628-99E00 .SCREW (L:15) 5
6 15629-99E10 .SCREW, DRAIN 1
7 15641-88L10 .SPACER 1
8 15642-88L00 .FILTER ASSY 1
9 15650-99E00 .FLOAT 1
10 15654-88L00 .PIN 1
11 15683-87J00 .HOSE, DRAIN (L:120) 1
12 15760-88L00 .REGULATOR ASSY 1
13 15644-88L10 .O RING 1
14 15645-88L00 .HOLDER, REGULATOR 1
15 13614-89J00 .SCREW 1
16 13614-93J00 .SCREW 1
17 15643-88L00 .JOINT 1
18 15641-88L30 .BUSH 1
19 15641-88L50 .BUSH 1
20 15642-88L10 .FILTER 1
21 15612-99E01 .COVER 1
22 15613-88L00 .O RING 1
23 15614-99E00 .SCREW, VAPOR SEPARATOR COVER 3
24 15648-92J00 .RING 1
25 09116-06202 BOLT (6X25) 3
26 09169-06090 WASHER 3
27 09320-08076 GROMMET 1
28 09320-09053 CUSHION 3
29 09352-50823-00B HOSE (5X8.2X2000) 1 L:2000->680
30 09401-08412 CLIP 1
31 18498-88L00 PROTECTOR, EVAP HOSE (L:610) 1
32 09403-13408 CLAMP 2
33 09408-00302 CLAMP 1
34 01550-06127 BOLT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.17 (1-C-8) FUEL VAPOR SEPARATOR (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 15600-92J00 SEPARATOR ASSY, FUEL VAPOR 1
2 13370-88L00 .VALVE ASSY, NEEDLE 1
3 15200-92J00 .PUMP ASSY, FUEL 1
4 15626-92J00 .SEAL 1
5 15628-99E00 .SCREW (L:15) 5
6 15629-99E10 .SCREW, DRAIN 1
7 15641-88L00 .SPACER 1
8 15642-88L00 .FILTER ASSY 1
9 15650-99E00 .FLOAT 1
10 15654-88L00 .PIN 1
11 15683-87J00 .HOSE, DRAIN (L:120) 1
12 15760-88L00 .REGULATOR ASSY 1
13 15644-88L00 .O RING 1
14 15645-88L00 .HOLDER, REGULATOR 1
15 02112-0408A .SCREW 1
16 15648-92J00 .RING 1
17 15643-88L00 .JOINT 1
18 15641-88L20 .BUSH 1
19 15641-88L40 .BUSH 1
20 15642-88L10 .FILTER 1
21 15612-99E01 .COVER 1
22 15613-88L00 .O RING 1
23 15614-99E00 .SCREW, VAPOR SEPARATOR COVER 3
24 02142-0408B .SCREW 1
25 09116-06202 BOLT (6X25) 3
26 09169-06090 WASHER 3
27 09320-08076 GROMMET 1
28 09320-09053 CUSHION 3
29 09352-50823-00B HOSE (5X8.2X2000) 1 L:2000->680
30 09401-08412 CLIP 1
31 18498-88L00 PROTECTOR, EVAP HOSE (L:610) 1
32 09403-13408 CLAMP 2
33 09408-00302 CLAMP 1
34 01550-06127 BOLT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.18 (1-C-9) FUEL VAPOR SEPARATOR (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 15600-92J10 SEPARATOR ASSY, FUEL VAPOR 1
2 13370-88L10 .VALVE ASSY, NEEDLE 1
3 15200-92J10 .PUMP ASSY, FUEL 1
4 15626-92J10 .SEAL 1
5 15628-99E00 .SCREW (L:15) 5
6 15629-99E10 .SCREW, DRAIN 1
7 15641-88L10 .SPACER 1
8 15642-88L00 .FILTER ASSY 1
9 15650-99E00 .FLOAT 1
10 15654-88L00 .PIN 1
11 15683-87J00 .HOSE, DRAIN (L:120) 1
12 15760-88L00 .REGULATOR ASSY 1
13 15644-88L10 .O RING 1
14 15645-88L00 .HOLDER, REGULATOR 1
15 13614-89J00 .SCREW 1
16 13614-93J00 .SCREW 1
17 15643-88L00 .JOINT 1
18 15641-88L30 .BUSH 1
19 15641-88L50 .BUSH 1
20 15642-88L10 .FILTER 1
21 15612-99E01 .COVER 1
22 15613-88L00 .O RING 1
23 15614-99E00 .SCREW, VAPOR SEPARATOR COVER 3
24 15648-92J00 .RING 1
25 09116-06202 BOLT (6X25) 3
26 09169-06090 WASHER 3
27 09320-08076 GROMMET 1
28 09320-09053 CUSHION 3
29 09352-50823-00B HOSE (5X8.2X2000) 1 L:2000->680
30 09401-08412 CLIP 1
31 18498-88L00 PROTECTOR, EVAP HOSE (L:610) 1
32 09403-13408 CLAMP 2
33 09408-00302 CLAMP 1
34 01550-06127 BOLT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.19 (1-C-10) FUEL INJECTOR (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 15681-92J00 HOSE, FUEL (SEPARATOR TO DLVY) 1
2 15710-82K50 INJECTOR, FUEL 4
3 15716-65DT0 .GROMMET SET 4
4 15735-58B00 INSULATOR, DELIVERY PIPE 2
5 15751-92J00 PIPE, DELIVERY 1
6 18498-99E20 PROTECTOR 1 L:450->190
7 09168-12013 GASKET (11.8X22X1.2) 3
8 09320-08062 CUSHION 4
9 09360-12008 UNION 1
10 09363-08004 UNION 1
11 09401-11425 CLIP 2
12 01421-08407 STUD BOLT 2
13 01550-12167 BOLT 1
14 08316-10087 NUT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.20 (1-C-11) FUEL INJECTOR (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 15681-92J00 HOSE, FUEL (SEPARATOR TO DLVY) 1
2 15710-82K50 INJECTOR, FUEL 4
3 15716-65DT0 .GROMMET SET 4
4 15735-58B00 INSULATOR, DELIVERY PIPE 2
5 15751-92J00 PIPE, DELIVERY 1
6 18498-99E20 PROTECTOR 1 L:450->190
7 15762-90J00 GASKET, UNION 3
8 09320-08062 CUSHION 4
9 09360-12013 UNION 1
10 15830-90J00 JOINT, FUEL MAIN 1
11 09401-11425 CLIP 2
12 01421-08407 STUD BOLT 2
13 09247-12013 PLUG (12X16) 1
14 08316-10087 NUT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.21 (1-C-12) FUEL INJECTOR (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 15681-92J00 HOSE, FUEL (SEPARATOR TO DLVY) 1
2 15710-82K50 INJECTOR, FUEL 4
3 15716-65DT0 .GROMMET SET 4
4 15735-58B00 INSULATOR, DELIVERY PIPE 2
5 15751-92J00 PIPE, DELIVERY 1
6 18498-99E20 PROTECTOR 1 L:450->190
7 09168-12013 GASKET (11.8X22X1.2) 3
8 09320-08062 CUSHION 4
9 09360-12008 UNION 1
10 09363-08004 UNION 1
11 09401-11425 CLIP 2
12 01421-08407 STUD BOLT 2
13 01550-12167 BOLT 1
14 08316-10087 NUT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.22 (1-C-13) FUEL INJECTOR (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 15681-92J00 HOSE, FUEL (SEPARATOR TO DLVY) 1
2 15710-82K50 INJECTOR, FUEL 4
3 15716-65DT0 .GROMMET SET 4
4 15735-58B00 INSULATOR, DELIVERY PIPE 2
5 15751-92J00 PIPE, DELIVERY 1
6 18498-99E20 PROTECTOR 1 L:450->190
7 15762-90J00 GASKET, UNION 3
8 09320-08062 CUSHION 4
9 09360-12013 UNION 1
10 15830-90J00 JOINT, FUEL MAIN 1
11 09401-11425 CLIP 2
12 01421-08407 STUD BOLT 2
13 09247-12013 PLUG (12X16) 1
14 08316-10087 NUT 2

Q'TY

REMARKS

DF140A_E01_013

FIG.23 (1-C-14) FUEL PUMP

REF NO. PART NO. DESCRIPTION

1 15100-90J11 PUMP, FUEL 1
2 15190-92J00 HOSE, FUEL (JOINT TO FILTER) 1
3 09343-70503-600 HOSE (7X12X600) 1 600->60

4 15410-92J00 FILTER, FUEL 1
5 15412-92J00 .FILTER. FUEL 1
6 15411-92J00 .CAP, FUEL FILTER 1
7 15413-92J00 .CASE, FUEL FILTER 1
8 15415-92J00 .SEAL, FUEL FILTER 1
9 09408-00050 CLIP 1
10 15421-92J00 BRACKET, FUEL FILTER 1
11 18498-96J20 PROTECTOR, FUEL HOSE (370) 2
12 18498-99E10 PROTECTOR, FUEL HOSE (610) 1 L:610->180
13 09280-26005 O RING (D:2.4,ID:26.2) 1
14 15192-92J00 HOSE, FUEL (PUMP TO SEPARATOR) 1
15 09401-11423 CLIP 5
16 01550-08207 BOLT 1
17 01550-06257 BOLT 2
18 08316-10087 NUT 1

Q'TY

FILTER TO PUMP

REMARKS

DF140A_E01_013

FIG.24 (1-C-15) WATER PUMP (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 17410-92J00 CASE, WATER PUMP 1
2 17461-90J01 IMPELLER, WATER PUMP 1
3 17471-92J00 PANEL, PUMP CASE UNDER 1
4 17472-87E10 GASKET, PUMP CASE PANEL 1
5-1 17561-90J02 TUBE, WATER (L) 1 W/TRANSOM(L)
5-2 17561-90J12 TUBE, WATER (X) 1 W/TRANSOM(X)
6 17562-90J00 BUSH, WATER TUBE UPPER 1
7 17563-87D00 BUSH, WATER TUBE LOWER 1
8 17564-87D00 BUSH, WATER PUMP CASE 1
9 17631-90J00 FILTER, WATER PORT SIDE 1
10 17632-90J00 FILTER, WATER STBD SIDE 1
11 17635-90J00 PLUG, SUB WATER TUBE 1
12 09116-08131 BOLT (8X45) 4
13 09125-05046 SCREW (5X12) 2
14 09161-16008 WASHER (15.8X26X1) 1
15 09202-06031 PIN (6X12) 2
16 09420-05009 KEY 1
17 09132-04034 SCREW (4X18) 2
18 17413-92J01 SLEEVE, WATER PUMP CASE 1
19 17416-92J10 SEALING, WATER PUMP CASE 1
20 17612-90J00 SPACER, WATER TUBE (X) 1 W/TRANSOM(X)
21 17400-92J21 WATER PUMP REPAIR KIT 1 OPT
22 17500-90J10 KIT, WATER SUB TUBE 1 OPT
23 17520-90J00 .TUBE COMP,WATER SUB 1 OPT
24 17563-87D00 .BUSH, WATER TUBE LOWER 1 OPT
25 17635-87E00 .FILTER, WATER SUB 1 OPT
26 55332-87D01 .RUBBER, EXHAUST SEAL 1 OPT
27 55333-87D02 .PLATE, EXHAUST SEAL 1 OPT
28 09125-06063 .SCREW (6X10) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.25 (1-D-2) WATER PUMP (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 17410-92J00 CASE, WATER PUMP 1
2 17461-90J01 IMPELLER, WATER PUMP 1
3 17471-92J10 PANEL, PUMP CASE UNDER 1
4 17472-87E10 GASKET, PUMP CASE PANEL 1
5-1 17561-90J02 TUBE, WATER (L) 1 W/TRANSOM(L)
5-2 17561-90J12 TUBE, WATER (X) 1 W/TRANSOM(X)
6 17562-90J00 BUSH, WATER TUBE UPPER 1
7 17563-87D00 BUSH, WATER TUBE LOWER 1
8 17564-87D00 BUSH, WATER PUMP CASE 1
9 17631-90J00 FILTER, WATER PORT SIDE 1
10 17632-90J00 FILTER, WATER STBD SIDE 1
11 17635-90J00 PLUG, SUB WATER TUBE 1
12 09116-08131 BOLT (8X45) 4
13 09125-05046 SCREW (5X12) 2
14 09161-16008 WASHER (15.8X26X1) 1
15 09202-06031 PIN (6X12) 2
16 09420-05009 KEY 1
17 09132-04034 SCREW (4X18) 2
18 17413-92J11 SLEEVE, WATER PUMP CASE 1
19 17416-92J10 SEALING, WATER PUMP CASE 1
20 17612-90J00 SPACER, WATER TUBE (X) 1 W/TRANSOM(X)
21 17400-92J21 WATER PUMP REPAIR KIT 1 OPT
22 17500-90J10 KIT, WATER SUB TUBE 1 OPT
23 17520-90J00 .TUBE COMP,WATER SUB 1 OPT
24 17563-87D00 .BUSH, WATER TUBE LOWER 1 OPT
25 17635-87E00 .FILTER, WATER SUB 1 OPT
26 55332-87D01 .RUBBER, EXHAUST SEAL 1 OPT
27 55333-87D02 .PLATE, EXHAUST SEAL 1 OPT
28 09125-06063 .SCREW (6X10) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.26 (1-D-3) WATER PUMP (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 17410-92J00 CASE, WATER PUMP 1
2 17461-90J01 IMPELLER, WATER PUMP 1
3 17471-92J00 PANEL, PUMP CASE UNDER 1
4 17472-87E10 GASKET, PUMP CASE PANEL 1
5-1 17561-90J02 TUBE, WATER (L) 1 W/TRANSOM(L)
5-2 17561-90J12 TUBE, WATER (X) 1 W/TRANSOM(X)
6 17562-90J00 BUSH, WATER TUBE UPPER 1
7 17563-87D00 BUSH, WATER TUBE LOWER 1
8 17564-87D00 BUSH, WATER PUMP CASE 1
9 17631-90J00 FILTER, WATER PORT SIDE 1
10 17632-90J00 FILTER, WATER STBD SIDE 1
11 17635-90J00 PLUG, SUB WATER TUBE 1
12 09116-08131 BOLT (8X45) 4
13 09125-05046 SCREW (5X12) 2
14 09161-16008 WASHER (15.8X26X1) 1
15 09202-06031 PIN (6X12) 2
16 09420-05009 KEY 1
17 09132-04034 SCREW (4X18) 2
18 17413-92J01 SLEEVE, WATER PUMP CASE 1
19 17416-92J10 SEALING, WATER PUMP CASE 1
20 17612-90J00 SPACER, WATER TUBE (X) 1 W/TRANSOM(X)
21 17400-92J21 WATER PUMP REPAIR KIT 1 OPT
22 17500-90J10 KIT, WATER SUB TUBE 1 OPT
23 17520-90J00 .TUBE COMP,WATER SUB 1 OPT
24 17563-87D00 .BUSH, WATER TUBE LOWER 1 OPT
25 17635-87E00 .FILTER, WATER SUB 1 OPT
26 55332-87D01 .RUBBER, EXHAUST SEAL 1 OPT
27 55333-87D02 .PLATE, EXHAUST SEAL 1 OPT
28 09125-06063 .SCREW (6X10) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.27 (1-D-4) WATER PUMP (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 17410-92J00 CASE, WATER PUMP 1
2 17461-90J01 IMPELLER, WATER PUMP 1
3 17471-92J10 PANEL, PUMP CASE UNDER 1
4 17472-87E10 GASKET, PUMP CASE PANEL 1
5-1 17561-90J02 TUBE, WATER (L) 1 W/TRANSOM(L)
5-2 17561-90J12 TUBE, WATER (X) 1 W/TRANSOM(X)
6 17562-90J00 BUSH, WATER TUBE UPPER 1
7 17563-87D00 BUSH, WATER TUBE LOWER 1
8 17564-87D00 BUSH, WATER PUMP CASE 1
9 17631-90J00 FILTER, WATER PORT SIDE 1
10 17632-90J00 FILTER, WATER STBD SIDE 1
11 17635-90J00 PLUG, SUB WATER TUBE 1
12 09116-08131 BOLT (8X45) 4
13 09125-05046 SCREW (5X12) 2
14 09161-16008 WASHER (15.8X26X1) 1
15 09202-06031 PIN (6X12) 2
16 09420-05009 KEY 1
17 09132-04034 SCREW (4X18) 2
18 17413-92J11 SLEEVE, WATER PUMP CASE 1
19 17416-92J10 SEALING, WATER PUMP CASE 1
20 17612-90J00 SPACER, WATER TUBE (X) 1 W/TRANSOM(X)
21 17400-92J21 WATER PUMP REPAIR KIT 1 OPT
22 17500-90J10 KIT, WATER SUB TUBE 1 OPT
23 17520-90J00 .TUBE COMP,WATER SUB 1 OPT
24 17563-87D00 .BUSH, WATER TUBE LOWER 1 OPT
25 17635-87E00 .FILTER, WATER SUB 1 OPT
26 55332-87D01 .RUBBER, EXHAUST SEAL 1 OPT
27 55333-87D02 .PLATE, EXHAUST SEAL 1 OPT
28 09125-06063 .SCREW (6X10) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.28 (1-D-5) THERMOSTAT

REF NO. PART NO. DESCRIPTION

1 11196-90J00 HOSE, WATER RETURN 1
2 17611-90J00-0EP COVER, WATER PRESS VALVE 1

(BLACK)

3 17660-90J00 VALVE, WATER PRESSURE 1
4-1 17670-90J20 THERMOSTAT (50C) 1
4-2 17670-90J10 THERMOSTAT (71C) 1 OPT
5 17681-90J01 COVER, THERMOSTAT 1
6 17711-90J00 3 WAY, WATER HOSE 1
7 09116-06121 BOLT (6X25) 2
8 09280-26006 O RING (D:3.1, ID:26.4) 1
9 09352-11153-600 HOSE (11X15X600) 1 L:600->50

10 09352-50903-600 HOSE (5X9X600) 1 L:600->440

11 09352-50903-600 HOSE (5X9X600) 1 L:600->180

12 09352-50903-600 HOSE (5X9X600) 1 L:600->580

13 09352-50903-00B HOSE (5X9X2000) 1 L:2000->820

14 09401-08413 CLIP 8
15 09401-14409 CLIP 2
16 09401-31407 CLIP 2
17 09408-00024 CLIP (ID:23) 1
18 01550-06257 BOLT 3

Q'TY

HOLDER TO 3 WAY

3 WAY TO CRKC LOWER

3 WAY SEPARATOR

SEPARATOR TO HLDR

CRKC UPPER TO IND

REMARKS

DF140A_E01_013

FIG.29 (1-D-6) THROTTLE BODY

REF NO. PART NO. DESCRIPTION

1 13300-92J00 BODY ASSY, THROTTLE 1
2 13421-90J01 GASKET, THROTTLE BODY 1
3 01550-08557 BOLT 4
4 13510-90J00 ROD, THROTTLE 1
5 09205-02006 .SPRING PIN (2X12) 1
6 19115-90J00 HOLDER, THROTTLE LEVER 1
7 19121-90J00 LEVER, THROTTLE NO.1 1
8 19130-92J00 ROD, THROTTLE NO.2 1
9 19131-95502 CONNECTOR, THROTTLE ROD 1
10 19140-92J00 LEVER, THROTTLE NO.2 1
11 67473-89J00 PIN, CONNECTOR 1
12 09119-05010 PIVOT 1
13 09140-05005 NUT 1
14 09160-06046 WASHER (6.5X20X1.5) 2
15 09180-06186 SPACER (6.2X12.6X21) 1
16 01550-06167 BOLT 3
17 01550-06357 BOLT 1

Q'TY

REMARKS

DF140A_E01_013

FIG.30 (1-D-7) OIL PUMP

REF NO. PART NO. DESCRIPTION

1 12632-92J11 GEAR, OIL PUMP DRIVE (NT:41) 1
2 16113-92J11 GEAR, OIL PUMP DRIVEN (NT:20) 1
3 16400-90J00 PUMP ASSY, OIL 1
4 16440-99E00 VALVE, OIL RELIEF 1
5 16451-90J00 O RING, OIL PUMP 1
6 16520-90J00 STRAINER, OIL PUMP 1
7 09168-16002 GASKET (16X22X2) 1
8 09181-12158 SHIM (12X20X0.5) 1
9 09261-05006 PIN (5X18) 1
10 09280-22020 O RING (D:2.4,ID:21.8) 2
11 01547-06257 BOLT 1
12 01547-06357 BOLT 2
13 01550-0616A BOLT 3
14 08331-3112A CIRCLIP 1

Q'TY

REMARKS

DF140A_E01_013

FIG.31 (1-D-8) OIL FILTER

REF NO. PART NO. DESCRIPTION

1 11241-73003 STAND, OIL FILTER 1
2 16510-61A31 FILTER, OIL 1

Q'TY

REMARKS

DF140A_E01_013

FIG.32 (1-D-9) OIL PAN

REF NO. PART NO. DESCRIPTION

1 11489-90J00 GASKET, OIL PAN 1
2 11501-90J04-0EP PAN, OIL (BLACK) 1
3 17913-99E11 PLUG, WATER 1
4 43112-99E00 PIPE, EXHAUST 1
5 61150-99E00 COVER, WATER INDICATOR 1
6 09280-09005 .O RING (D:1.9,ID:8.6) 1
7 61155-99E01 TUBE, WATER INDICATOR 1
8 09116-08128 BOLT (8X40) 3
9 09116-10129 BOLT (10X160) 8
10 09168-12012 GASKET (12.5X20X2.5) 1
11 09248-12009 PLUG (12X18.65) 1
12 09280-13005 O RING (D:3.5,ID:12.8) 1
13 16910-90J10 GAUGE, OIL LEVEL 1
14 16930-90J01 GUIDE, OIL LEVEL 1
15 09280-09008 O RING (D:2.1,ID:8.8) 1
16 01550-06127 BOLT 1

Q'TY

REMARKS

DF140A_E01_013

FIG.33 (1-D-10) CLUTCH SHAFT

REF NO. PART NO. DESCRIPTION

1 21110-92J00 LEVER, CLUTCH 1
2 21151-92J00 HOLDER, CLUTCH LEVER 1
3 21210-92J00 SHAFT, CLUTCH 1
4 21230-92J00 ARM, CLUTCH SHAFT 1
5 22511-99011 NIPPLE, GREASE 1
6-1 23111-90J02 ROD, CLUTCH (L) 1 W/TRANSOM(L)
6-2 23111-90J12 ROD, CLUTCH (X) 1 W/TRANSOM(X)
7 23115-92J00 LINK, CLUTCH LEVER 1
8 09160-06094 WASHER (6.5X15X1.5) 2
9 09204-01006 PIN 2
10 09248-12011 PLUG (12X9) 1
11 09306-06004 BUSH 2
12 09306-10001 BUSH 2
13 09383-08004 E RING 1
14 01550-06307 BOLT 2
15 11118-95J00 PLUG, NOTCH SPRING 1
16 21131-93J00 BUSH, CLUTCH LEVER 1
17 09205-10006 SPRING PIN (10.2X10) 1
18 09260-10005 BALL 1
19 09403-13408 CLAMP 1
20 09440-07071 SPRING 1
21 01550-06127 BOLT 1

Q'TY

REMARKS

DF140A_E01_013

FIG.34 (1-D-11) CLUTCH ROD (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 25131-92J00 YOKE, SHIFTER 1
2 25141-92J00 HOUSING, SHIFT ROD GUIDE 1
3 25222-92J00 COVER, SFT GUIDE HSG OIL SEAL 1
4 25232-90J00 MAGNET, GEAR CASE 1
5 25321-92J10 SLIDER, SHIFT HORIZONTAL 1
6-1 25111-92J00 ROD ASSY, SHIFT (L) 1 W/TRANSOM(L)
6-2 25111-92J10 ROD ASSY, SHIFT (UL) 1 W/TRANSOM(X)
7 29116-93J00 BOLT (6X20) 2
8 09205-04014 SPRING PIN (4X14) 2
9 09280-69001 O RING (D:3.1,ID:68.5) 1
10 09283-10011 OIL SEAL (10X22X8) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.35 (1-D-12) CLUTCH ROD (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 25131-92J00 YOKE, SHIFTER 1
2 25141-92J00 HOUSING, SHIFT ROD GUIDE 1
3 25222-92J00 COVER, SFT GUIDE HSG OIL SEAL 1
4 25232-90J00 MAGNET, GEAR CASE 1
5 25321-92J10 SLIDER, SHIFT HORIZONTAL 1
6-1 25111-92J00 ROD ASSY, SHIFT (L) 1 W/TRANSOM(L)
6-2 25111-92J10 ROD ASSY, SHIFT (UL) 1 W/TRANSOM(X)
7 29116-93J00 BOLT (6X20) 2
8 09205-04014 SPRING PIN (4X14) 2
9 09280-69001 O RING (D:3.1,ID:68.5) 1
10 09283-10011 OIL SEAL (10X22X8) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.36 (1-D-13) CLUTCH ROD (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 25131-92J00 YOKE, SHIFTER 1
2 25141-92J00 HOUSING, SHIFT ROD GUIDE 1
3 25222-92J00 COVER, SFT GUIDE HSG OIL SEAL 1
4 25232-90J00 MAGNET, GEAR CASE 1
5 25321-92J20 SLIDER, SHIFT HORIZONTAL 1
6-1 25111-92J00 ROD ASSY, SHIFT (L) 1 W/TRANSOM(L)
6-2 25111-92J10 ROD ASSY, SHIFT (UL) 1 W/TRANSOM(X)
7 29116-93J00 BOLT (6X20) 2
8 09205-04014 SPRING PIN (4X14) 2
9 09280-69001 O RING (D:3.1,ID:68.5) 1
10 09283-10011 OIL SEAL (10X22X8) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.37 (1-D-14) CLUTCH ROD (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 25131-92J00 YOKE, SHIFTER 1
2 25141-92J00 HOUSING, SHIFT ROD GUIDE 1
3 25222-92J00 COVER, SFT GUIDE HSG OIL SEAL 1
4 25232-90J00 MAGNET, GEAR CASE 1
5 25321-92J20 SLIDER, SHIFT HORIZONTAL 1
6-1 25111-92J00 ROD ASSY, SHIFT (L) 1 W/TRANSOM(L)
6-2 25111-92J10 ROD ASSY, SHIFT (UL) 1 W/TRANSOM(X)
7 29116-93J00 BOLT (6X20) 2
8 09205-04014 SPRING PIN (4X14) 2
9 09280-69001 O RING (D:3.1,ID:68.5) 1
10 09283-10011 OIL SEAL (10X22X8) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.38 (1-D-15) TRANSMISSION (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1-1 57110-92J60 SHAFT ASSY, DRIVE (L) 1 W/TRANSOM(L)
1-2 57110-92J70 SHAFT ASSY, DRIVE (X) 1 W/TRANSOM(X)
2 57133-90J01 COLLAR, DRIVE SHAFT 1
3 09265-25040 BEARING (25X52X29.25) 1
4 57300-92860 PINION/GEAR SET 1
5 09140-14024 NUT 1
6 57500-87873 SHIM SET, DRIVE SHAFT 1
7-1 09181-40186 .SHIM (T:0.50) 1
7-2 09181-41002 .SHIM (T:0.55) 1
7-3 09181-41003 .SHIM (T:0.60) 1
7-4 09181-41004 .SHIM (T:0.65) 1
7-5 09181-41005 .SHIM (T:0.70) 1
7-6 09181-41006 .SHIM (T:0.75) 1
7-7 09181-40190 .SHIM (T:0.80) 1
7-8 09181-41008 .SHIM (T:0.85) 1
7-9 09181-41009 .SHIM (T:0.90) 1
7-10 09181-41010 .SHIM (T:0.95) 1
7-11 09181-40195 .SHIM (T:1.00) 1
7-12 09181-41012 .SHIM (T:1.05) 1
7-13 09181-41013 .SHIM (T:1.10) 1
7-14 09181-41014 .SHIM (T:1.15) 1
8 57500-87861 SHIM SET, PROP SHAFT REV 1
9-1 08211-30382 .WASHER (T:1.5) 1
9-2 09160-30036 .WASHER (T:1.7) 1
9-3 09160-30037 .WASHER (T:1.9) 1
9-4 09160-30038 .WASHER (T:2.1) 1
9-5 09160-30039 .WASHER (T:2.3) 1
9-6 09160-30041 .WASHER (T:2.4) 1
9-7 09160-30042 .WASHER (T:2.6) 1
9-8 09160-30043 .WASHER (T:2.7) 1
9-9 09160-30044 .WASHER (T:2.8) 1
10 09160-70002 WASHER (70X95X5.25) 1 FWD GEAR
11-1 09181-45003 SHIM (T:1.0) 1 REV GEAR
11-2 09181-45004 SHIM (T:1.1) 1 REV GEAR

Q'TY

REMARKS

DF140A_E01_013

FIG.38 (1-E-2) TRANSMISSION (DF140AT E01)

REF NO. PART NO. DESCRIPTION

11-3 09181-45005 SHIM (T:1.2) 1 REV GEAR
11-4 09181-45006 SHIM (T:1.3) 1 REV GEAR
11-5 09181-45007 SHIM (T:1.4) 1 REV GEAR
11-6 09181-45008 SHIM (T:1.5) 1 REV GEAR
11-7 09181-45009 SHIM (T:1.6) 1 REV GEAR
12 57500-92813 SHIM SET, FWD GEAR 1 FWD GEAR
13-1 09181-70001 .SHIM (T:0.70) 1 FWD GEAR
13-2 09181-70002 .SHIM (T:0.80) 1 FWD GEAR
13-3 09181-70003 .SHIM (T:0.90) 1 FWD GEAR
13-4 09181-70004 .SHIM (T:1.00) 1 FWD GEAR
13-5 09181-70006 .SHIM (T:0.60) 1 FWD GEAR
13-6 09181-70009 .SHIM (T:0.65) 1 FWD GEAR
13-7 09181-70010 .SHIM (T:0.75) 1 FWD GEAR
13-8 09181-70011 .SHIM (T:0.85) 1 FWD GEAR
13-9 09181-70012 .SHIM (T:0.95) 1 FWD GEAR
14 09269-70001 BEARING (70X95X4) 1
15 57610-92J20 SHAFT ASSY, PROPELLER 1
16 57621-92J10 SHIFTER, CLUTCH DOG 1
17 09202-07002 PIN (7X48) 1
18 57631-92J00 PIN, CONNECTOR 1
19 09440-09040 SPRING 1
20 06111-07004 BALL 2 NO.1
21 06111-11004 BALL 2 NO.2
22 09440-49004 SPRING 1
23 57616-90J00 SPACER, CLUTCH DOG FWD 1
24 56120-92J01-0EP HOUSING, PROP SFT BRG (BLACK) 1
25 56123-92J00 .WASHER, OIL SEAL PROTECTOR 1
26 09263-30051 .BEARING (30X37X26) 1
27 09280-97001 .O RING (D:3.5,ID:95) 1
28 09282-30007 .OIL SEAL (30X50X6) 2
29 08113-62090 .BEARING 1
30 09387-52001 .RING 1
31 09117-08047 BOLT (8X30) 2
32 56130-90J00 HOUSING 1

Q'TY

REMARKS

DF140A_E01_013

FIG.38 (1-E-3) TRANSMISSION (DF140AT E01)

REF NO. PART NO. DESCRIPTION

33 09280-46004 .O RING (D:3.5,ID:45.7) 1
34 09282-24004 .OIL SEAL (24X40X7) 2
35 09117-08110 BOLT (8X25) 4
36 56140-92J00 HOUSING, FWD GEAR BRG 1
37 09206-09012 .PIN (7.4X9X10) 1
38 09263-50001 .BEARING (50X62X25) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.39 (1-E-4) TRANSMISSION (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1-1 57110-92J60 SHAFT ASSY, DRIVE (L) 1 W/TRANSOM(L)
1-2 57110-92J70 SHAFT ASSY, DRIVE (X) 1 W/TRANSOM(X)
2 57133-90J01 COLLAR, DRIVE SHAFT 1
3 09265-25040 BEARING (25X52X29.25) 1
4 57300-92860 PINION/GEAR SET 1
5 09140-14024 NUT 1
6 57500-87873 SHIM SET, DRIVE SHAFT 1
7-1 09181-40186 .SHIM (T:0.50) 1
7-2 09181-41002 .SHIM (T:0.55) 1
7-3 09181-41003 .SHIM (T:0.60) 1
7-4 09181-41004 .SHIM (T:0.65) 1
7-5 09181-41005 .SHIM (T:0.70) 1
7-6 09181-41006 .SHIM (T:0.75) 1
7-7 09181-40190 .SHIM (T:0.80) 1
7-8 09181-41008 .SHIM (T:0.85) 1
7-9 09181-41009 .SHIM (T:0.90) 1
7-10 09181-41010 .SHIM (T:0.95) 1
7-11 09181-40195 .SHIM (T:1.00) 1
7-12 09181-41012 .SHIM (T:1.05) 1
7-13 09181-41013 .SHIM (T:1.10) 1
7-14 09181-41014 .SHIM (T:1.15) 1
8 57500-87861 SHIM SET, PROP SHAFT REV 1
9-1 08211-30382 .WASHER (T:1.5) 1
9-2 09160-30036 .WASHER (T:1.7) 1
9-3 09160-30037 .WASHER (T:1.9) 1
9-4 09160-30038 .WASHER (T:2.1) 1
9-5 09160-30039 .WASHER (T:2.3) 1
9-6 09160-30041 .WASHER (T:2.4) 1
9-7 09160-30042 .WASHER (T:2.6) 1
9-8 09160-30043 .WASHER (T:2.7) 1
9-9 09160-30044 .WASHER (T:2.8) 1
10 09160-70002 WASHER (70X95X5.25) 1 FWD GEAR
11-1 09181-45003 SHIM (T:1.0) 1 REV GEAR
11-2 09181-45004 SHIM (T:1.1) 1 REV GEAR

Q'TY

REMARKS

DF140A_E01_013

FIG.39 (1-E-5) TRANSMISSION (DF140AT E40)

REF NO. PART NO. DESCRIPTION

11-3 09181-45005 SHIM (T:1.2) 1 REV GEAR
11-4 09181-45006 SHIM (T:1.3) 1 REV GEAR
11-5 09181-45007 SHIM (T:1.4) 1 REV GEAR
11-6 09181-45008 SHIM (T:1.5) 1 REV GEAR
11-7 09181-45009 SHIM (T:1.6) 1 REV GEAR
12 57500-92813 SHIM SET, FWD GEAR 1 FWD GEAR
13-1 09181-70001 .SHIM (T:0.70) 1 FWD GEAR
13-2 09181-70002 .SHIM (T:0.80) 1 FWD GEAR
13-3 09181-70003 .SHIM (T:0.90) 1 FWD GEAR
13-4 09181-70004 .SHIM (T:1.00) 1 FWD GEAR
13-5 09181-70006 .SHIM (T:0.60) 1 FWD GEAR
13-6 09181-70009 .SHIM (T:0.65) 1 FWD GEAR
13-7 09181-70010 .SHIM (T:0.75) 1 FWD GEAR
13-8 09181-70011 .SHIM (T:0.85) 1 FWD GEAR
13-9 09181-70012 .SHIM (T:0.95) 1 FWD GEAR
14 09269-70001 BEARING (70X95X4) 1
15 57610-92J20 SHAFT ASSY, PROPELLER 1
16 57621-92J10 SHIFTER, CLUTCH DOG 1
17 09202-07002 PIN (7X48) 1
18 57631-92J00 PIN, CONNECTOR 1
19 09440-09040 SPRING 1
20 06111-07004 BALL 2 NO.1
21 06111-11004 BALL 2 NO.2
22 09440-49004 SPRING 1
23 57616-90J00 SPACER, CLUTCH DOG FWD 1
24 56120-92J01-0EP HOUSING, PROP SFT BRG (BLACK) 1
25 56123-92J00 .WASHER, OIL SEAL PROTECTOR 1
26 09263-30051 .BEARING (30X37X26) 1
27 09280-97001 .O RING (D:3.5,ID:95) 1
28 09282-30007 .OIL SEAL (30X50X6) 2
29 08113-62090 .BEARING 1
30 09387-52001 .RING 1
31 09117-08047 BOLT (8X30) 2
32 56130-90J00 HOUSING 1

Q'TY

REMARKS

DF140A_E01_013

FIG.39 (1-E-6) TRANSMISSION (DF140AT E40)

REF NO. PART NO. DESCRIPTION

33 09280-46004 .O RING (D:3.5,ID:45.7) 1
34 09282-24004 .OIL SEAL (24X40X7) 2
35 09117-08110 BOLT (8X25) 4
36 56140-92J00 HOUSING, FWD GEAR BRG 1
37 09206-09012 .PIN (7.4X9X10) 1
38 09263-50001 .BEARING (50X62X25) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.40 (1-E-7) TRANSMISSION (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 56120-92J12-0EP HOUSING, PROP SFT BRG (BLACK) 1
2 56123-92J00 .WASHER, OIL SEAL PROTECTOR 1
3 09263-30051 .BEARING (30X37X26) 1
4 09263-50001 .BEARING (50X62X25) 1
5 09280-97001 .O RING (D:3.5,ID:95) 1
6 09282-30007 .OIL SEAL (30X50X6) 2
7 09387-52001 .CIRCLIP 1
8 56130-90J00 HOUSING, DRIVE SHAFT BRG 1
9 09280-46004 .O RING (D:3.5,ID:45.7) 1
10 09282-24004 .OIL SEAL (24X40X7) 2
11 56140-92J30 HOUSING, REV GEAR BRG 1
12 09206-09012 .PIN (7.4X9X10) 1
13 09263-45004 .BEARING (45X52X16) 1
14 09117-08047 BOLT (8X30) 2
15 09117-08110 BOLT (8X25) 4
16-1 57110-92J60 SHAFT, DRIVE (L) 1 W/TRANSOM(L)
16-2 57110-92J70 SHAFT, DRIVE (X) 1 W/TRANSOM(X)
17 57133-90J01 COLLAR, DRIVE SHAFT 1
18 09265-25040 BEARING (25X52X29.25) 1
19 57300-92870 PINION/GEAR SET 1
20 09140-14024 NUT 1
21 57500-87873 SHIM SET, DRIVE SHAFT 1
22-1 09181-40186 .SHIM (T:0.50) 1
22-2 09181-41002 .SHIM (T:0.55) 1
22-3 09181-41003 .SHIM (T:0.60) 1
22-4 09181-41004 .SHIM (T:0.65) 1
22-5 09181-41005 .SHIM (T:0.70) 1
22-6 09181-41006 .SHIM (T:0.75) 1
22-7 09181-40190 .SHIM (T:0.80) 1
22-8 09181-41008 .SHIM (T:0.85) 1
22-9 09181-41009 .SHIM (T:0.90) 1
22-10 09181-41010 .SHIM (T:0.95) 1
22-11 09181-40195 .SHIM (T:1.00) 1
22-12 09181-41012 .SHIM (T:1.05) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.40 (1-E-8) TRANSMISSION (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

22-13 09181-41013 .SHIM (T:1.10) 1
22-14 09181-41014 .SHIM (T:1.15) 1
23-1 09160-35015 WASHER (T:0.60) 1 PROP SAFT REV
23-2 09160-35014 WASHER (T:0.70) 1 PROP SAFT REV
23-3 09160-35013 WASHER (T:0.80) 1 PROP SAFT REV
23-4 09160-35006 WASHER (T:0.90) 1 PROP SAFT REV
23-5 09160-35008 WASHER (T:0.95) 1 PROP SAFT REV
23-6 09160-35002 WASHER (T:1.00) 1 PROP SAFT REV
23-7 09160-35009 WASHER (T:1.05) 1 PROP SAFT REV
23-8 09160-35003 WASHER (T:1.10) 1 PROP SAFT REV
23-9 09160-35010 WASHER (T:1.15) 1 PROP SAFT REV
24 09160-60011 WASHER (60X85X3) 1 REV GEAR
25-1 09160-60008 WASHER (T:0.8) 1 REV GEAR
25-2 09160-60009 WASHER (T:0.9) 1 REV GEAR
25-3 09160-60003 WASHER (T:1.0) 1 REV GEAR
25-4 09160-60004 WASHER (T:1.1) 1 REV GEAR
25-5 09160-60005 WASHER (T:1.2) 1 REV GEAR
25-6 09160-60006 WASHER (T:1.3) 1 REV GEAR
25-7 09160-60007 WASHER (T:1.4) 1 REV GEAR
26 09160-70005 WASHER (70X95X2) 1 FWD GEAR
27 57500-92813 SHIM SET, FWD GEAR 1 FWD GEAR
28-1 09181-70006 .SHIM (T:0.60) 1 FWD GEAR
28-2 09181-70009 .SHIM (T:0.65) 1 FWD GEAR
28-3 09181-70001 .SHIM (T:0.70) 1 FWD GEAR
28-4 09181-70010 .SHIM (T:0.75) 1 FWD GEAR
28-5 09181-70002 .SHIM (T:0.80) 1 FWD GEAR
28-6 09181-70011 .SHIM (T:0.85) 1 FWD GEAR
28-7 09181-70003 .SHIM (T:0.90) 1 FWD GEAR
28-8 09181-70012 .SHIM (T:0.95) 1 FWD GEAR
28-9 09181-70004 .SHIM (T:1.00) 1 FWD GEAR
29 09269-60001 BEARING (60X85X3) 1 REV
30 09269-70001 BEARING (70X95X4) 1 FWD
31 57610-92J31 SHAFT, PROPELLER 1
32 57621-92J10 SHIFTER, CLUTCH DOG 1

Q'TY

REMARKS

DF140A_E01_013

FIG.40 (1-E-9) TRANSMISSION (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

33 57631-92J00 PIN, CONNECTOR 1
34 09440-09040 SPRING 1
35 06111-07004 BALL 2 NO.1
36 06111-11004 BALL 2 NO.2
37 09202-07002 PIN (7X48) 1
38 09440-49004 SPRING 1
39 57616-92J00 SPACER, CLUTCH DOG FWD 1
40 09160-30055 WASHER (30X47X6) 1 PROP SAFT REV
41 09160-30056 WASHER (32X47X3) 1 PROP SAFT REV
42 09269-30014 BEARING (30X47X2) 1 PROP SAFT REV

Q'TY

REMARKS

DF140A_E01_013

FIG.41 (1-E-10) TRANSMISSION (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 56120-92J12-0EP HOUSING, PROP SFT BRG (BLACK) 1
2 56123-92J00 .WASHER, OIL SEAL PROTECTOR 1
3 09263-30051 .BEARING (30X37X26) 1
4 09263-50001 .BEARING (50X62X25) 1
5 09280-97001 .O RING (D:3.5,ID:95) 1
6 09282-30007 .OIL SEAL (30X50X6) 2
7 09387-52001 .CIRCLIP 1
8 56130-90J00 HOUSING, DRIVE SHAFT BRG 1
9 09280-46004 .O RING (D:3.5,ID:45.7) 1
10 09282-24004 .OIL SEAL (24X40X7) 2
11 56140-92J30 HOUSING, REV GEAR BRG 1
12 09206-09012 .PIN (7.4X9X10) 1
13 09263-45004 .BEARING (45X52X16) 1
14 09117-08047 BOLT (8X30) 2
15 09117-08110 BOLT (8X25) 4
16-1 57110-92J60 SHAFT, DRIVE (L) 1 W/TRANSOM(L)
16-2 57110-92J70 SHAFT, DRIVE (X) 1 W/TRANSOM(X)
17 57133-90J01 COLLAR, DRIVE SHAFT 1
18 09265-25040 BEARING (25X52X29.25) 1
19 57300-92870 PINION/GEAR SET 1
20 09140-14024 NUT 1
21 57500-87873 SHIM SET, DRIVE SHAFT 1
22-1 09181-40186 .SHIM (T:0.50) 1
22-2 09181-41002 .SHIM (T:0.55) 1
22-3 09181-41003 .SHIM (T:0.60) 1
22-4 09181-41004 .SHIM (T:0.65) 1
22-5 09181-41005 .SHIM (T:0.70) 1
22-6 09181-41006 .SHIM (T:0.75) 1
22-7 09181-40190 .SHIM (T:0.80) 1
22-8 09181-41008 .SHIM (T:0.85) 1
22-9 09181-41009 .SHIM (T:0.90) 1
22-10 09181-41010 .SHIM (T:0.95) 1
22-11 09181-40195 .SHIM (T:1.00) 1
22-12 09181-41012 .SHIM (T:1.05) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.41 (1-E-11) TRANSMISSION (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

22-13 09181-41013 .SHIM (T:1.10) 1
22-14 09181-41014 .SHIM (T:1.15) 1
23-1 09160-35015 WASHER (T:0.60) 1 PROP SAFT REV
23-2 09160-35014 WASHER (T:0.70) 1 PROP SAFT REV
23-3 09160-35013 WASHER (T:0.80) 1 PROP SAFT REV
23-4 09160-35006 WASHER (T:0.90) 1 PROP SAFT REV
23-5 09160-35008 WASHER (T:0.95) 1 PROP SAFT REV
23-6 09160-35002 WASHER (T:1.00) 1 PROP SAFT REV
23-7 09160-35009 WASHER (T:1.05) 1 PROP SAFT REV
23-8 09160-35003 WASHER (T:1.10) 1 PROP SAFT REV
23-9 09160-35010 WASHER (T:1.15) 1 PROP SAFT REV
24 09160-60011 WASHER (60X85X3) 1 REV GEAR
25-1 09160-60008 WASHER (T:0.8) 1 REV GEAR
25-2 09160-60009 WASHER (T:0.9) 1 REV GEAR
25-3 09160-60003 WASHER (T:1.0) 1 REV GEAR
25-4 09160-60004 WASHER (T:1.1) 1 REV GEAR
25-5 09160-60005 WASHER (T:1.2) 1 REV GEAR
25-6 09160-60006 WASHER (T:1.3) 1 REV GEAR
25-7 09160-60007 WASHER (T:1.4) 1 REV GEAR
26 09160-70005 WASHER (70X95X2) 1 FWD GEAR
27 57500-92813 SHIM SET, FWD GEAR 1 FWD GEAR
28-1 09181-70006 .SHIM (T:0.60) 1 FWD GEAR
28-2 09181-70009 .SHIM (T:0.65) 1 FWD GEAR
28-3 09181-70001 .SHIM (T:0.70) 1 FWD GEAR
28-4 09181-70010 .SHIM (T:0.75) 1 FWD GEAR
28-5 09181-70002 .SHIM (T:0.80) 1 FWD GEAR
28-6 09181-70011 .SHIM (T:0.85) 1 FWD GEAR
28-7 09181-70003 .SHIM (T:0.90) 1 FWD GEAR
28-8 09181-70012 .SHIM (T:0.95) 1 FWD GEAR
28-9 09181-70004 .SHIM (T:1.00) 1 FWD GEAR
29 09269-60001 BEARING (60X85X3) 1 REV
30 09269-70001 BEARING (70X95X4) 1 FWD
31 57610-92J31 SHAFT, PROPELLER 1
32 57621-92J10 SHIFTER, CLUTCH DOG 1

Q'TY

REMARKS

DF140A_E01_013

FIG.41 (1-E-12) TRANSMISSION (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

33 57631-92J00 PIN, CONNECTOR 1
34 09440-09040 SPRING 1
35 06111-07004 BALL 2 NO.1
36 06111-11004 BALL 2 NO.2
37 09202-07002 PIN (7X48) 1
38 09440-49004 SPRING 1
39 57616-92J00 SPACER, CLUTCH DOG FWD 1
40 09160-30055 WASHER (30X47X6) 1 PROP SAFT REV
41 09160-30056 WASHER (32X47X3) 1 PROP SAFT REV
42 09269-30014 BEARING (30X47X2) 1 PROP SAFT REV

Q'TY

REMARKS

DF140A_E01_013

FIG.42 (1-E-13) STARTING MOTOR

REF NO. PART NO. DESCRIPTION

1 31100-90J01 STARTING MOTOR 1
2 31131-90J01 .BRUSH SET, PLUS 1
3 31135-90J00 .SPRING 4
4 31151-90J00 .CASE, GEAR 1
5 31152-90J00 .PLATE, CENTER 1
6 31153-90J00 .BRACKET, PLANET GEAR 1
7 31171-90J00 .COVER KIT, DUST 1
8 31173-90J01 .HOLDER, BRUSH 1
9 31191-90J00 .LEVER, SHIFT 1
10 31220-90J00 .SWITCH, MAGNET 1
11 31310-90J00 .ARMATURE 1
12 31320-90J00 .PINION 1
13 31341-90J00 .SHAFT, PINION 1
14 31343-90J00 .INTERNAL GEAR 1
15 31344-90J00 .GEAR, PLANETARY 3
16 31360-90J00 .WASHER SET 1
17 31170-90J00 .COVER ASSY, REAR 1
18 31912-90J00 BAND, STARTING MOTOR 1
19 31918-90J10 DAMPER, LOWER 1
20 01550-08207 BOLT 2
21 01550-10507 BOLT 2
22 04211-13149 PIN 2

Q'TY

REMARKS

DF140A_E01_013

FIG.43 (1-E-14) MAGNETO

REF NO. PART NO. DESCRIPTION

1 32102-92J20 FLYWHEEL 1
2 32120-92J00 COIL, BATTERY CHARGING 1
3 32160-92J00 COIL, IGNITION TIMING 1
4 33220-50M10 SENSOR, CAM POSITION 1
5 33833-91J00 TUBE 1 L:250->100
6 09103-06231 BOLT (6X35) 4
7 09103-16004 BOLT (16X50) 1
8 09160-16048 WASHER (16.5X60X7) 1
9 01547-06167 BOLT 1
10 09106-05030 BOLT (5X10) 2
11 08341-31059 KEY 1

Q'TY

REMARKS

DF140A_E01_013

FIG.44 (1-E-15) RECTIFIER

REF NO. PART NO. DESCRIPTION

1 11261-87E10 COVER, PROTECTION ANODE 2
2 11265-87E10 GASKET, PROTECTION COVER 2
3-1 55321-87J00 ANODE, PROTECTION 2
3-2 55321-87J10 ANODE (MAGNESIUM) 2 OPT
4 09103-06281 BOLT (6X14) 2
5 14151-90J00 GASKET, RECTIFIER 1
6 32800-92J00 RECTIFIER & REGULATOR 1
7 32890-92J00 HOLDER, ELECTRIC PARTS 1
8 09160-06054 WASHER (6.5X22X1.6) 1
9 09320-10008 CUSHION 2
10 09320-12011 CUSHION 1
11 09329-01007 CUSHION 1
12 29404-93J10 CLAMP 1
13 01550-06167 BOLT 1
14 01550-06207 BOLT 4
15 01550-06307 BOLT 9
16 02162-06127 BOLT 1

Q'TY

REMARKS

DF140A_E01_013

FIG.45 (1-F-2) IGNITION COIL

REF NO. PART NO. DESCRIPTION

1 33410-90J00 COIL ASSY, IGNITION 1
2 33710-90J00 .CORD, HIGH TENSION 1 NO.1
3 33740-90J00 .CORD, HIGH TENSION 1 NO.4
4 33420-90J00 COIL ASSY, IGNITION 1
5 33720-90J00 .CORD, HIGH TENSION 1 NO.2
6 33730-90J00 .CORD, HIGH TENSION 1 NO.3
7 09408-00035 CLIP 2
8 01550-06257 BOLT 4
9 08322-01067 WASHER 4

Q'TY

REMARKS

DF140A_E01_013

FIG.46 (1-F-3) SENSOR

REF NO. PART NO. DESCRIPTION

1 13650-52G00 SENSOR, INLET AIR TEMP 1
2 13655-87J00 GROMMET, AIR TEMP SENSOR 1
3 18590-68H00 SENSOR, PRESSURE 1
4 34830-87J20 SENSOR ASSY, EXHAUST TEMP 2
5 18640-78G00 SENSOR ASSY, NOCK 1
6 34840-98J03 SENSOR ASSY, TRIM 1
7 18213-98J00 SENSOR, OXYGEN 1
8 34841-92J00 LEVER, TRIM SENSOR 1
9 34842-92J00 CAM, TRIM SENSOR UPPER 1
10 34843-87L00 CAM, TRIM SENSOR LOWER 1
11 37820-99E01 SWITCH, OIL PRESSURE 1
12 34845-92J00 BRACKET, TRIM SENSOR 1
13 02162-05207 SCREW 2
14 09103-06093 BOLT (6X20) 1
15 09125-05046 SCREW (5X12) 1
16 09407-10404 CLAMP (L:100) 1
17 09407-11401 CLAMP (L:95) 1
18 09407-14407 CLAMP (L:145) 2
19 09407-18402 CLAMP (L:165) 1
20 34846-87L00 WASHER, TRIM SENSOR 1

Q'TY

REMARKS

DF140A_E01_013

FIG.47 (1-F-4) HARNESS

REF NO. PART NO. DESCRIPTION

1 33810-90J10 CABLE, STARTER MOTOR 1
2 08316-10087 NUT 1
3 36610-92J00 HARNESS, ASSY WIRING 1
4 33634-96J00 .CAP, SERVICE CONNECTOR 1
5 38860-76F01 .RELAY ASSY 2
6 36618-43410 .CAP, OIL PRESSURE SWITCH 1
7 36721-96J00 ..O RING, UPPER COVER 1
8 36737-96J00 ..PULLER, FUSE 1
9 36738-88L00 ..COVER, FUSE CASE UPPER 1
10 09320-08021 ..CUSHION 2
11 09481-15501 .FUSE (15A) 3
12 09481-30501 .FUSE (30A) 3
13 09481-60401 .FUSE (60A) 3
14 36612-96J00 CAP, TERMINAL 1
15 36611-92J00 HARNESS ASSY, WIRING SUB 1
16 36616-90J10 HOLDER, REMOCON CONNECTOR 1
17 36617-93J10 BRACKET, HARNESS 1
18 09408-00111 CLAMP 1
19 02142-06167 SCREW 2
20 08310-00067 NUT 1
21 08321-01067 WASHER 1
22 09407-10404 CLAMP (L:100) 2

Q'TY

REMARKS

DF140A_E01_013

FIG.48 (1-F-5) PTT SWITCH/ENGINE CONTROL UNIT

REF NO. PART NO. DESCRIPTION

1 37850-99E04 SWITCH, ASSY PTT 1
2 38410-93J20 RELAY, PTT 1
3 38415-93J20 HOLDER, PTT RELAY 1
4 33920-92J80 UNIT, ENGINE CONTROL 1
5 33925-92J00 CUSHION, ENGINE CONTROL UNIT 1
6 37721-93J00 SWITCH ASSY, NEUTRAL 1
7 37726-90J10 BRACKET, NEUTRAL SWITCH 1
8 09137-04004 SCREW (4X16) 2
9 09403-06316 CLIP 1

Q'TY

REMARKS

DF140A_E01_013

FIG.49 (1-F-6) CLAMP BRACKET (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 41111-92J03-0EP BRACKET, CLAMP STBD (BLACK) 1
2 41121-92J20-0EP BRACKET, CLAMP PORT (BLACK) 1
3 41130-92J30 SHAFT, CLAMP BRKT 1
4 41135-92J00 WASHER, CLAMP BRACKET SHAFT 1
5 41153-94500 CAP, TRANSOM BOLT 4
6 55320-94900 ZINC, PROTECTION 1
7 09116-06121 .BOLT (6X25) 2
8-1 09100-12090 BOLT (12X150) 4
8-2 09100-12091 BOLT (12X115) 1 OPT
9 09125-06063 SCREW (6X10) 1
10 09159-12014 NUT 4
11 09159-22006 NUT 1
12 09160-12044 WASHER (12.5X35X3.2) 4
13 09160-12110 WASHER (12.5X22X3) 4
14 09106-10065 BOLT (10X20) 2
15 09160-10082 WASHER (10.5X19X2) 2
16 45421-87D02 PIN, TILT LOCK 1
17 09159-14020 NUT 2
18 29404-93J10 CLAMP 1
19 09116-08137 BOLT (8X22) 1
20 48140-93J01 CAM, TILT LIMIT SWITCH 1 OPT
21 55321-94910 ANODE (MAGNESIUM) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.50 (1-F-7) CLAMP BRACKET (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 41111-92J03-0EP BRACKET, CLAMP STBD (BLACK) 1
2 41121-92J20-0EP BRACKET, CLAMP PORT (BLACK) 1
3 41130-92J30 SHAFT, CLAMP BRKT 1
4 41135-92J00 WASHER, CLAMP BRACKET SHAFT 1
5 41153-94500 CAP, TRANSOM BOLT 4
6 55320-94900 ZINC, PROTECTION 1
7 09116-06121 .BOLT (6X25) 2
8 09100-12090 BOLT (12X150) 4
9 09125-06063 SCREW (6X10) 1
10 09159-12014 NUT 4
11 09159-22006 NUT 1
12 09160-12044 WASHER (12.5X35X3.2) 4
13 09160-12110 WASHER (12.5X22X3) 4
14 09106-10065 BOLT (10X20) 2
15 09160-10082 WASHER (10.5X19X2) 2
16 45421-87D02 PIN, TILT LOCK 1
17 09159-14020 NUT 2
18 29404-93J10 CLAMP 1
19 09116-08137 BOLT (8X22) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.51 (1-F-8) CLAMP BRACKET (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 41111-92J03-0EP BRACKET, CLAMP STBD (BLACK) 1
2 41121-92J20-0EP BRACKET, CLAMP PORT (BLACK) 1
3 41130-92J30 SHAFT, CLAMP BRKT 1
4 41135-92J00 WASHER, CLAMP BRACKET SHAFT 1
5 41153-94500 CAP, TRANSOM BOLT 4
6 55320-94900 ZINC, PROTECTION 1
7 09116-06121 .BOLT (6X25) 2
8-1 09100-12090 BOLT (12X150) 4
8-2 09100-12091 BOLT (12X115) 1 OPT
9 09125-06063 SCREW (6X10) 1
10 09159-12014 NUT 4
11 09159-22006 NUT 1
12 09160-12044 WASHER (12.5X35X3.2) 4
13 09160-12110 WASHER (12.5X22X3) 4
14 09106-10065 BOLT (10X20) 2
15 09160-10082 WASHER (10.5X19X2) 2
16 45421-87D02 PIN, TILT LOCK 1
17 09159-14020 NUT 2
18 29404-93J10 CLAMP 1
19 09116-08137 BOLT (8X22) 1
20 48140-93J01 CAM, TILT LIMIT SWITCH 1 OPT
21 55321-94910 ANODE (MAGNESIUM) 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.52 (1-F-9) CLAMP BRACKET (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 41111-92J03-0EP BRACKET, CLAMP STBD (BLACK) 1
2 41121-92J20-0EP BRACKET, CLAMP PORT (BLACK) 1
3 41130-92J30 SHAFT, CLAMP BRKT 1
4 41135-92J00 WASHER, CLAMP BRACKET SHAFT 1
5 41153-94500 CAP, TRANSOM BOLT 4
6 55320-94900 ZINC, PROTECTION 1
7 09116-06121 .BOLT (6X25) 2
8 09100-12090 BOLT (12X150) 4
9 09125-06063 SCREW (6X10) 1
10 09159-12014 NUT 4
11 09159-22006 NUT 1
12 09160-12044 WASHER (12.5X35X3.2) 4
13 09160-12110 WASHER (12.5X22X3) 4
14 09106-10065 BOLT (10X20) 2
15 09160-10082 WASHER (10.5X19X2) 2
16 45421-87D02 PIN, TILT LOCK 1
17 09159-14020 NUT 2
18 29404-93J10 CLAMP 1
19 09116-08137 BOLT (8X22) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.53 (1-F-10) SWIVEL BRACKET

REF NO. PART NO. DESCRIPTION

1 22511-99011 NIPPLE, GREASE 4
2 36894-95201 LEAD (CLAMP TO SWIVEL) 1
3 36894-87D00 LEAD (SWIVEL TO MOUNT BRKT) 1
4-1 43111-92J80-0EP BRACKET, SWIVEL (L) (BLACK) 1 W/TRANSOM(L)
4-2 43111-92J90-0EP BRACKET, SWIVEL (UL) (BLACK) 1 W/TRANSOM(X)
5 43211-93J00 BUSH, CLAMP SHAFT SWIVEL 2
6 43711-97E00 BUSH, STEERING 2
7-1 43750-90J22-0EP BRACKET, STEERING (L) (BLACK) 1 W/TRANSOM(L)
7-2 43750-90J32-0EP BRACKET, STEERING (X) (BLACK) 1 W/TRANSOM(X)
8 09125-05050 SCREW (5X8) 3
9 09125-06063 SCREW (6X10) 2
10 09160-39001 WASHER (39.5X64X1) 2
11 09169-28003 WASHER 2
12 09181-39001 SHIM (39.5X64X0.3) 4
13 09250-10001 CAP (OD:14) 2
14 09282-39001 OIL SEAL (39X51X5) 1
15 09380-38003 CIRCLIP 1
16 29404-93J10 CLAMP 2
17 41220-95E13 LEVER, TILT LOCK 1
18 41221-95E40 LEVER, TILT LOCK PORT 1
19 41224-95E01 BUSH, TILT STOPPER ROD 2
20 41225-94400 RUBBER, TILT LOCK LEVER 1
21 41228-90J00 SPRING, TILT LOCK LEVER 1
22 41230-95E00 LINK, TILT LOCK LEVER 1
23 41233-95E10 BRACKET, TILT LOCK SPRING 1
24 09125-06063 SCREW (6X10) 1
25 09140-10032 NUT 1
26 09160-06082 WASHER (6.5X13X1.0) 1
27 09204-01006 PIN 1
28 09440-19028 SPRING 1

Q'TY

REMARKS

DF140A_E01_013

FIG.54 (1-F-11) TRIM CYLINDER

REF NO. PART NO. DESCRIPTION

1 48503-96J03 MANIFOLD SUB ASSY 1
2 48401-96J01 .PISTON ASSY 1
3 48601-94900 .PISTON / RAM ASSY 2
4 48627-95E00 .O RING SET 3
5 48630-96J02 .HEAD, TRIM CYLINDER 2
6 48633-94900 .O RING SET (2PCS) 2
7 48641-96J02 .MANIFOLD, PTT 1
8 48650-94900 .PISTON, FREE 1
9 48405-87D00 ..O RING 1
10 48615-97E00 ..RING SET, PISTON 1
11 48570-95E01 RESERVOIR 1
12 48572-95E00 .CAP 1
13 48861-92J01 BOLT, RESERVOIR 3
14 48121-92J00 SHAFT, TILT CYLINDER LOWER 1
15 48311-96J10 PAD, TRIM CYLINDER RAM 2
16 48321-87D03 SHAFT, TILT CYLINDER UPPER 1
17 48326-95E00 BUSH, TILT CYLINDER LOWER 2
18 09116-10174 BOLT (10X35) 2
19 09140-10031 NUT 2
20 09162-10005 LOCK WASHER 2
21 09306-17001 BUSH 2
22 09380-17009 CIRCLIP 2
23 36894-87D00 LEAD, PTT TO ANODE (L165) 1
24 09125-06063 SCREW (6X10) 1
25 36895-87D10 LEAD, PTT TO ANODE (L310) 1
26 09125-05050 SCREW (5X8) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.55 (1-F-12) PTT MOTOR

REF NO. PART NO. DESCRIPTION

1 38100-96J01 MOTOR ASSY, PTT 1
2 31111-94900 .SCREW, YOKE 3
3 31173-94910 .HOLDER, BRUSH 1
4 31123-94910 ..O RING 1
5 31133-90J00 ..BRUSH SET, PLUS 1
6 31133-94900 ...BRUSH, PLUS 1
7 31135-94900 ..SPRING 2
8 31136-90J10 ..BREAKER 1
9 33799-97E00 ..OIL SEAL 1
10 31311-94900 .ARMATURE 1
11 31281-92J10 BOLT 4
12 48502-96J05 PUMP ASSY 1
13 48582-95E01 .FILTER 1
14 48864-96J10 .VALVE, MANUAL 1
15 48583-95E00 JOINT, DRIVE 1
16 48585-95E00 O RING 1
17 48588-94900 O RING SET (6PCS) 1
18 48862-92J20 BOLT 1
19 48862-92J30 BOLT 2
20 29404-93J10 CLAMP 1

Q'TY

REMARKS

DF140A_E01_013

FIG.56 (1-F-13) ENGINE HOLDER

REF NO. PART NO. DESCRIPTION

1 51110-90850-0EP HOLDER SET, ENGINE (BLACK) 1
2 09262-17019 .BEARING (17X35X8) 1
3 09282-24003 .OIL SEAL (24X36X6) 2
4 09283-32044 .OIL SEAL (32X47X6) 1
5 09289-18001 .OIL SEAL (18X30X8) 1
6 08331-41359 .CIRCLIP 1
7 09262-35069 .BEARING (35X62X16) 1
8 51115-90J00 UNION, WATER RETURN 1
9 51211-90J22 GASKET, ENGINE HOLDER 1
10 09116-08160 BOLT (8X70) 4
11 09116-08128 BOLT (8X40) 4
12 09206-08001 PIN (8X11) 2
13 09280-26006 O RING (D:3.1, ID:26.4) 1
14 01550-06257 BOLT 1
15 29117-93J10 BOLT, ENGINE HOLDER 1
16 09160-08059 WASHER (8.5X18X1.6) 1
17 04211-11129 PIN 3
18 51122-90J00 COVER, MOUNT CASE 1
19 51123-90J01 GASKET, MOUNT CASE COVER 1
20 01550-0825A BOLT 4
21 54123-90J00 PLATE, UPPER MOUNT 1
22 54112-90J21 BOLT, UPPER MOUNT 2
23 54130-90J40 MOUNT, UPPER 2
24 09159-12014 NUT 2
25 54114-90J01 WASHER (12.5X22X3) 2
26 54125-90J10 MOUNT, UPPER THRUST 1
27 54148-90J11-0EP COVER, UPPER MOUNT (BLACK) 2
28 09116-10176 BOLT (10X44) 4
29 09159-12014 NUT 2
30 09160-12110 WASHER (12.5X22X3) 2

Q'TY

REMARKS

DF140A_E01_013

FIG.57 (1-F-14) DRIVE SHAFT HOUSING

REF NO. PART NO. DESCRIPTION

1-1 52111-90J02-0EP HOUSING, DRIVE SHAFT (BLACK) 1 W/TRANSOM(L)
1-2 52111-90J12-0EP HOUSING, DRIVE SHAFT (BLACK) 1 W/TRANSOM(X)
2 09116-10176 BOLT (10X44) 8
3 09202-08006 PIN (8X12) 2
4 09387-45001 RING 1 W/TRANSOM(X)
5 57130-92J01 BUSH, DRIVE SHAFT 1 W/TRANSOM(X)
6 09125-06063 SCREW (6X10) 2
7 36895-87D10 LEAD (SWIVEL TO HSG) 1
8 54121-87D00 DAMPER, REVERSE STOPPER LOWER 2
9 54160-90J20 MOUNT, LOWER 2
10 54166-90J11 BOLT (12X231) 2
11 09159-12014 NUT 2
12 09160-12112 WASHER (12X40X3) 2
13 54114-90J01 WASHER (12.5X22X3.0) 2
14 54151-90J00 MOUNT, LOWER THRUST 1
15 54211-90J01-0EP BRACKET, LOWER MOUNT (BLACK) 1
16 54221-90J02-0EP COVER, LOWER MOUNT (BLACK) 2
17 09116-10176 BOLT (10X44) 6
18 09160-12113 WASHER (12.5X30X2.5) 2

Q'TY

REMARKS

DF140A_E01_013

FIG.58 (1-F-15) GEAR CASE (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 55110-90J15-0EP CASE, GEAR (BLACK) 1
2 09263-28016 .BEARING (28.6X38X31.8) 1
3 55125-90J01 TAB, TRIM 1
4 55127-87D00 UNION, SPEEDOMETER HOSE 1
5 55321-90J01 ANODE, GEAR CASE 1
6 55332-87D11 RUBBER, EXHAUST SEAL 1
7 55333-87D10 PLATE, EXHAUST SEAL 1
8 09100-06131 BOLT (6X12) 1
9 09116-08137 BOLT (8X22) 1
10 09116-10150 BOLT (10X55) 6
11 09117-10039 BOLT (10X80) 1
12 09160-06085 WASHER (6.5X15X1) 1
13 09168-10022 GASKET (10X17X1.5) 2
14 09202-08006 PIN (8X12) 2
15 09248-10008 PLUG (10X7.5) 2
16 09355-40805-00B HOSE (4X8X2000) 1 L:2000->1100
17 09362-09008 UNION 1
18 09407-10404 CLAMP (L:100) 2
19-1 58100-90JA0-019 PROPELLER (3X14X17) (BLACK) 1
19-2 58100-90JB0-019 PROPELLER (3X14X19) (BLACK) 1
19-3 58100-90JC0-019 PROPELLER (3X14X21) (BLACK) 1
19-4 58100-90JD0-019 PROPELLER (3X14X23) (BLACK) 1
19-5 58100-90JE0-019 PROPELLER (3X13.5X15) (BALCK) 1
19-6 58200-92J40 PROPELLER (3X13.875X15) 1 OPT
19-7 58200-92J50 PROPELLER (3X13.875X17) 1 OPT
19-8 58200-92J60 PROPELLER (3X13.875X19) 1 OPT
19-9 58200-92J70 PROPELLER (3X13.875X21) 1 OPT
19-10 58200-92J80 PROPELLER (3X13.875X23) 1 OPT
19-11 58200-92J90 PROPELLER (3X13.875X25) 1 OPT
20 58105-90J00 .BUSH 1

Q'TY

REMARKS

DF140A_E01_013

FIG.58 (1-G-2) GEAR CASE (DF140AT E01)

REF NO. PART NO. DESCRIPTION

21-1 58200-90J00 PROPELLER (3X14.25X18) 1 OPT
21-2 58200-90J10 PROPELLER (3X14.25X20) 1 OPT
21-3 58200-90J20 PROPELLER (3X14.25X22) 1 OPT
21-4 58200-90J30 PROPELLER (3X14.25X24) 1 OPT
22 58120-90J00 .BUSH 1 OPT
23 57633-90J02 SPACER, PROPELLER NUT 1
24 57635-92J01 STOPPER, PROPELLER BUSH 1
25 09141-18005 NUT 1
26 09160-18028 WASHER (18.5X31X1) 1
27 09204-03003 COTTER PIN 1
28 55116-87E00 PLUG 1 OPT
29 57630-90J00 KIT, PROPELLER NUT 1 OPT
30 25700-92J00 SEALING KIT, GEAR CASE 1 OPT

Q'TY

NOT ILLUSTRATED

REMARKS

DF140A_E01_013

FIG.59 (1-G-3) GEAR CASE (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 55110-90J15-0EP CASE, GEAR (BLACK) 1
2 09263-28016 .BEARING (28.6X38X31.8) 1
3 55125-90J01 TAB, TRIM 1
4 55127-87D00 UNION, SPEEDOMETER HOSE 1
5 55321-90J01 ANODE, GEAR CASE 1
6 55332-87D11 RUBBER, EXHAUST SEAL 1
7 55333-87D10 PLATE, EXHAUST SEAL 1
8 09100-06131 BOLT (6X12) 1
9 09116-08137 BOLT (8X22) 1
10 09116-10150 BOLT (10X55) 6
11 09117-10039 BOLT (10X80) 1
12 09160-06085 WASHER (6.5X15X1) 1
13 09168-10022 GASKET (10X17X1.5) 2
14 09202-08006 PIN (8X12) 2
15 09248-10008 PLUG (10X7.5) 2
16 09355-40805-00B HOSE (4X8X2000) 1 L:2000->1100
17 09362-09008 UNION 1
18 09407-10404 CLAMP (L:100) 2
19-1 58100-90JA0-019 PROPELLER (3X14X17) (BLACK) 1
19-2 58100-90JB0-019 PROPELLER (3X14X19) (BLACK) 1
19-3 58100-90JC0-019 PROPELLER (3X14X21) (BLACK) 1
19-4 58100-90JD0-019 PROPELLER (3X14X23) (BLACK) 1
19-5 58100-90JE0-019 PROPELLER (3X13.5X15) (BALCK) 1
20 58105-90J00 .BUSH 1
21 57633-90J02 SPACER, PROPELLER NUT 1
22 57635-92J01 STOPPER, PROPELLER BUSH 1
23 09141-18005 NUT 1
24 09160-18028 WASHER (18.5X31X1) 1
25 09204-03003 COTTER PIN 1
26 25700-92J00 SEALING KIT, GEAR CASE 1 OPT

Q'TY

NOT ILLUSTRATED

REMARKS

DF140A_E01_013

FIG.60 (1-G-4) GEAR CASE (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 55110-92J00-0EP CASE, GEAR (BLACK) 1
2 09263-28016 .BEARING (28.6X38X31.8) 1
3 55125-92J00 TAB, TRIM 1
4 55127-87D00 UNION, SPEEDOMETER HOSE 1
5 55321-90J01 ANODE, GEAR CASE 1
6 55332-87D11 RUBBER, EXHAUST SEAL 1
7 55333-87D10 PLATE, EXHAUST SEAL 1
8 09100-06131 BOLT (6X12) 1
9 09116-08137 BOLT (8X22) 1
10 09116-10150 BOLT (10X55) 6
11 09117-10039 BOLT (10X80) 1
12 09160-06085 WASHER (6.5X15X1) 1
13 09168-10022 GASKET (10X17X1.5) 2
14 09202-08006 PIN (8X12) 2
15 09248-10008 PLUG (10X7.5) 2
16 09355-40805-00B HOSE (4X8X2000) 1 L:2000->1100
17 09362-09008 UNION 1
18 09407-10404 CLAMP (L:100) 2
19-1 58200-92J00 PROPELLER (3X14.25X18, C/R) 1 OPT
19-2 58200-92J10 PROPELLER (3X14.25X20, C/R) 1 OPT
19-3 58200-92J20 PROPELLER (3X14.25X22, C/R) 1 OPT
19-4 58200-92J30 PROPELLER (3X14.25X24, C/R) 1 OPT
20 58120-90J00 .BUSH 1 OPT
21-1 58200-92JA0 PROPELLER (3X13.875X17, C/R) 1 OPT
21-2 58200-92JB0 PROPELLER (3X13.875X19, C/R) 1 OPT
21-3 58200-92JC0 PROPELLER (3X13.875X21, C/R) 1 OPT
21-4 58200-92JD0 PROPELLER (3X13.875X23, C/R) 1 OPT
22 58105-90J00 .BUSH 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.60 (1-G-5) GEAR CASE (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

23 57633-90J02 SPACER, PROPELLER 1
24 57635-92J01 STOPPER, PROPELLER BUSH 1
25 09141-18005 NUT 1
26 09160-18028 WASHER (18.5X31X1) 1
27 09204-03003 COTTER PIN 1
28 55116-87E00 PLUG 1 OPT
29 57630-90J00 KIT, PROPELLER NUT 1 OPT
30 25700-92J00 SEALING KIT, GEAR CASE 1 OPT

Q'TY

NOT ILLUSTRATED

REMARKS

DF140A_E01_013

FIG.61 (1-G-6) GEAR CASE (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 55110-92J00-0EP CASE, GEAR (BLACK) 1
2 09263-28016 .BEARING (28.6X38X31.8) 1
3 55125-92J00 TAB, TRIM 1
4 55127-87D00 UNION, SPEEDOMETER HOSE 1
5 55321-90J01 ANODE, GEAR CASE 1
6 55332-87D11 RUBBER, EXHAUST SEAL 1
7 55333-87D10 PLATE, EXHAUST SEAL 1
8 09100-06131 BOLT (6X12) 1
9 09116-08137 BOLT (8X22) 1
10 09116-10150 BOLT (10X55) 6
11 09117-10039 BOLT (10X80) 1
12 09160-06085 WASHER (6.5X15X1) 1
13 09168-10022 GASKET (10X17X1.5) 2
14 09202-08006 PIN (8X12) 2
15 09248-10008 PLUG (10X7.5) 2
16 09355-40805-00B HOSE (4X8X2000) 1 L:2000->1100
17 09362-09008 UNION 1
18 09407-10404 CLAMP (L:100) 2
19-1 58200-92J00 PROPELLER (3X14.25X18, C/R) 1 OPT
19-2 58200-92J10 PROPELLER (3X14.25X20, C/R) 1 OPT
19-3 58200-92J20 PROPELLER (3X14.25X22, C/R) 1 OPT
19-4 58200-92J30 PROPELLER (3X14.25X24, C/R) 1 OPT
20 58120-90J00 .BUSH 1 OPT
21-1 58200-92JA0 PROPELLER (3X13.875X17, C/R) 1 OPT
21-2 58200-92JB0 PROPELLER (3X13.875X19, C/R) 1 OPT
21-3 58200-92JC0 PROPELLER (3X13.875X21, C/R) 1 OPT
21-4 58200-92JD0 PROPELLER (3X13.875X23, C/R) 1 OPT
22 58105-90J00 .BUSH 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.61 (1-G-7) GEAR CASE (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

23 57633-90J02 SPACER, PROPELLER 1
24 57635-92J01 STOPPER, PROPELLER BUSH 1
25 09141-18005 NUT 1
26 09160-18028 WASHER (18.5X31X1) 1
27 09204-03003 COTTER PIN 1
28 25700-92J00 SEALING KIT, GEAR CASE 1 OPT

Q'TY

NOT ILLUSTRATED

REMARKS

DF140A_E01_013

FIG.62 (1-G-8) SIDE COVER (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1 61134-90J20 SEAL, SIDE COVER 1
2 61810-90J10-0EP COVER, SIDE STBD (BLACK) 1
3 61817-89J00 PLUG, SIDE COVER 1
4 61820-90J10-0EP COVER, SIDE PORT (BLACK) 1
5 61827-90J00 HOLDER, SIDE COVER 1
6 61831-90J12-0EP PANEL, FRONT (BLACK) 1
7 09118-08127 BOLT (8X40) 2
8 09136-06148 SCREW (6X35) 7
9 09136-06149 SCREW (6X55) 2
10 09169-08039 WASHER 2
11 09320-11013 CUSHION 2
12 09321-08022 CUSHION 2
13 09409-05302-5PK CLIP (BLACK) 2
14 09403-20308 CLIP 1
15 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
16 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
17 61637-90J10 HOOK, ENGINE COVER RR STBD 1
18 61638-90J10 HOOK, ENGINE COVER RR PORT 1
19 61641-87D00 HOOK, ENGINE COVER FR 1
20 61645-90J01-0EP LEVER, HOOK FR (BLACK) 1
21 09116-06127 BOLT (6X12) 3
22 09160-13014 WASHER (13.2X25X1) 3
23 09164-14008 WASHER 3
24 09306-13008 BUSH 2
25 09307-13006 BUSH 1
26 61124-90J30 GROMMET, REMOCON CABLE 1
27 09407-25402 CLAMP (L:248) 1
28 67341-90J32 HOLDER, REMOCON CABLE 1
29 67343-90J20 STOPPER, REMOCON CABLE 1
30 67344-90J00 CUSHION, REMOCON CABLE HLDR 1
31 01550-06167 BOLT 2
32 01580-08257 BOLT 1
33 67300-90J00 KIT, HOSE ADAPTER 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.63 (1-G-9) SIDE COVER (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1 61134-90J20 SEAL, SIDE COVER 1
2 61810-90J10-0EP COVER, SIDE STBD (BLACK) 1
3 61817-89J00 PLUG, SIDE COVER 1
4 61820-90J10-0EP COVER, SIDE PORT (BLACK) 1
5 61827-90J00 HOLDER, SIDE COVER 1
6 61831-90J12-0EP PANEL, FRONT (BLACK) 1
7 09118-08127 BOLT (8X40) 2
8 09136-06148 SCREW (6X35) 7
9 09136-06149 SCREW (6X55) 2
10 09169-08039 WASHER 2
11 09320-11013 CUSHION 2
12 09321-08022 CUSHION 2
13 09409-05302-5PK CLIP (BLACK) 2
14 09403-20308 CLIP 1
15 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
16 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
17 61637-90J10 HOOK, ENGINE COVER RR STBD 1
18 61638-90J10 HOOK, ENGINE COVER RR PORT 1
19 61641-87D00 HOOK, ENGINE COVER FR 1
20 61645-90J01-0EP LEVER, HOOK FR (BLACK) 1
21 09116-06127 BOLT (6X12) 3
22 09160-13014 WASHER (13.2X25X1) 3
23 09164-14008 WASHER 3
24 09306-13008 BUSH 2
25 09307-13006 BUSH 1
26 61124-90J30 GROMMET, REMOCON CABLE 1
27 09407-25402 CLAMP (L:248) 1
28 67341-90J32 HOLDER, REMOCON CABLE 1
29 67343-90J20 STOPPER, REMOCON CABLE 1
30 67344-90J00 CUSHION, REMOCON CABLE HLDR 1
31 01550-06167 BOLT 2
32 01580-08257 BOLT 1
33 17917-87L00 CONNECTOR, FLUSH WATER 1
34 67300-90J00 KIT, HOSE ADAPTER 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.64 (1-G-10) SIDE COVER (DF140AZ E01)

REF NO. PART NO. DESCRIPTION

1 61134-90J20 SEAL, SIDE COVER 1
2 61810-90J10-0EP COVER, SIDE STBD (BLACK) 1
3 61817-89J00 PLUG, SIDE COVER 1
4 61820-90J10-0EP COVER, SIDE PORT (BLACK) 1
5 61827-90J00 HOLDER, SIDE COVER 1
6 61831-90J12-0EP PANEL, FRONT (BLACK) 1
7 09118-08127 BOLT (8X40) 2
8 09136-06148 SCREW (6X35) 7
9 09136-06149 SCREW (6X55) 2
10 09169-08039 WASHER 2
11 09320-11013 CUSHION 2
12 09321-08022 CUSHION 2
13 09409-05302-5PK CLIP (BLACK) 2
14 09403-20308 CLIP 1
15 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
16 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
17 61637-90J10 HOOK, ENGINE COVER RR STBD 1
18 61638-90J10 HOOK, ENGINE COVER RR PORT 1
19 61641-87D00 HOOK, ENGINE COVER FR 1
20 61645-90J01-0EP LEVER, HOOK FR (BLACK) 1
21 09116-06127 BOLT (6X12) 3
22 09160-13014 WASHER (13.2X25X1) 3
23 09164-14008 WASHER 3
24 09306-13008 BUSH 2
25 09307-13006 BUSH 1
26 61124-90J30 GROMMET, REMOCON CABLE 1
27 09407-25402 CLAMP (L:248) 1
28 67341-90J32 HOLDER, REMOCON CABLE 1
29 67343-90J20 STOPPER, REMOCON CABLE 1
30 67344-90J00 CUSHION, REMOCON CABLE HLDR 1
31 01550-06167 BOLT 2
32 01580-08257 BOLT 1
33 67300-90J00 KIT, HOSE ADAPTER 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.65 (1-G-11) SIDE COVER (DF140AZ E40)

REF NO. PART NO. DESCRIPTION

1 61134-90J20 SEAL, SIDE COVER 1
2 61810-90J10-0EP COVER, SIDE STBD (BLACK) 1
3 61817-89J00 PLUG, SIDE COVER 1
4 61820-90J10-0EP COVER, SIDE PORT (BLACK) 1
5 61827-90J00 HOLDER, SIDE COVER 1
6 61831-90J12-0EP PANEL, FRONT (BLACK) 1
7 09118-08127 BOLT (8X40) 2
8 09136-06148 SCREW (6X35) 7
9 09136-06149 SCREW (6X55) 2
10 09169-08039 WASHER 2
11 09320-11013 CUSHION 2
12 09321-08022 CUSHION 2
13 09409-05302-5PK CLIP (BLACK) 2
14 09403-20308 CLIP 1
15 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
16 61633-90J02-0EP LEVER, HOOK REAR (BLACK) 1
17 61637-90J10 HOOK, ENGINE COVER RR STBD 1
18 61638-90J10 HOOK, ENGINE COVER RR PORT 1
19 61641-87D00 HOOK, ENGINE COVER FR 1
20 61645-90J01-0EP LEVER, HOOK FR (BLACK) 1
21 09116-06127 BOLT (6X12) 3
22 09160-13014 WASHER (13.2X25X1) 3
23 09164-14008 WASHER 3
24 09306-13008 BUSH 2
25 09307-13006 BUSH 1
26 61124-90J30 GROMMET, REMOCON CABLE 1
27 09407-25402 CLAMP (L:248) 1
28 67341-90J32 HOLDER, REMOCON CABLE 1
29 67343-90J20 STOPPER, REMOCON CABLE 1
30 67344-90J00 CUSHION, REMOCON CABLE HLDR 1
31 01550-06167 BOLT 2
32 01580-08257 BOLT 1
33 17917-87L00 CONNECTOR, FLUSH WATER 1
34 67300-90J00 KIT, HOSE ADAPTER 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.66 (1-G-12) ENGINE COVER

REF NO. PART NO. DESCRIPTION

1 61400-90850-0EP COVER SET, ENGINE (BLACK) 1
2 61621-87D20 .BRACKET, FASTENER FR 1
3 61644-90J20 .BRACKET, FASTENER RR 2
4 09229-04025 .RIVET 4
5 09229-04025 .RIVET 3
6 61431-92J10-0EP .HANDLE, TILT UP (BLACK) 1
7 61438-92J10 .SEAL, TILT UP HANDLE 1
8 61439-92J10 .SEAL, TILT UP HANDLE 1
9 61680-90J01 .FASTENER, REAR STBD 1
10 61690-90J01 .FASTENER, REAR PORT 1
11 09329-10022 .CUSHION 2
12 09329-10023 .CUSHION 2
13 01550-06127 .BOLT 3
14 03542-06169 .SCREW 4
15 61443-87L20 .STRIPE, ENGINE COVER STBD 1
16 61453-87L20 .STRIPE, ENGINE COVER PORT 1
17 61446-87L12 .DECAL, EFI 1
18 77811-63J00-0PG .EMBLEM (S) (CHROME) 1
19 61112-92J00 .RUBBER, SIDE COVER 1
20 61610-93J00 .FASTENER 1
21 61422-92J12 MARK, EMBLEM FRONT 1
22 61435-92J22 MARK, EMBLEM REAR 1
23 61471-98J00 DECAL, LEAN BURN 1
24 61458-99E70 LABEL, ENGINE COVER 1
25 09800-81840 TOOL SET 1
26 68110-87L00 COVER, WEATHER 1 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.67 (1-G-13) FUEL TANK

REF NO. PART NO. DESCRIPTION

1 65000-95D01 TANK ASSY, FUEL (25L) 1
2 65520-95D00 .CAP ASSY, FUEL TANK 1
3 65561-95D00 .GASKET, TANK CAP 1
4 65831-95D00 .FILTER, OUTLET 1
5 65890-95D00 .OUTLET ASSY 1
6 65892-95D00 .O RING, FUEL OUTLET 1
7 65740-95D01 .PLUG, FUEL CONNECTOR 1
8 09401-11423 CLIP 1
9 09251-07003 CAP 1
10 09367-08001 JOINT 1
11 65700-90J13 HOSE, FUEL (TANK TO ENGINE) 1
12 65750-95500 .SOCKET, FUEL HOSE 1
13 65770-90J10 .PUMP, SQUEEZE 1

Q'TY

REMARKS

DF140A_E01_013

FIG.68 (1-G-14) DRAG LINK

REF NO. PART NO. DESCRIPTION

1 41161-94400 SEAL, STEERING CABLE 1
2 67701-90J00 LINK, DRAG 1
3 67721-99E00 .SPACER 1
4 67725-99E00 .BOLT, DRAG LINK 1
5 67726-99E00 .NUT 2
6 67728-99E00 .WASHER 4
7 67467-89J01 CONNECTOR, REMOCON CABLE 2
8 09385-06012 CLIP 2
9 09160-06055 WASHER (7X12X1) 2
10 67600-90J00 KIT, TIE ROD 1 OPT
11 67631-90J00 .BRACKET, TIE ROD 2 OPT
12 67725-99E10 .BOLT 2 OPT
13 67726-99E00 .NUT 2 OPT
14 09100-12081 .BOLT (12X25) 4 OPT
15 09160-12066 .WASHER (12.5X22X2.5) 4 OPT
16 09180-09022 .SPACER (9.6X18X12) 2 OPT

Q'TY

REMARKS

DF140A_E01_013

FIG.69 (1-G-15) METER (DF140AT E01)

REF NO. PART NO. DESCRIPTION

1-1 34200-93J00 TACHOMETER ASSY 1 BLACK
1-2 34200-93J11 TACHOMETER ASSY 1 WHITE
2 36615-96300 .TERMINAL, RESIN 4
3 09471-12077 .BULB (12V, 1.7W) 1
4-1 34800-93J00 METER ASSY, TRIM 1 BLACK
4-2 34800-93J11 METER ASSY, TRIM 1 WHITE
5 09471-12103 .BULB (12V, 3.4W) 1

Q'TY

REMARKS

DF140A_E01_013

FIG.70 (1-H-2) METER (DF140AT E40)

REF NO. PART NO. DESCRIPTION

1-1 34200-93J00 TACHOMETER ASSY 1 BLACK
1-2 34200-93J11 TACHOMETER ASSY 1 WHITE
2 36615-96300 .TERMINAL, RESIN 4
3 09471-12077 .BULB (12V, 1.7W) 1
4-1 34800-93J00 METER ASSY, TRIM 1 BLACK
4-2 34800-93J11 METER ASSY, TRIM 1 WHITE
5 09471-12103 .BULB (12V, 3.4W) 1
6-1 34500-93J00 METER ASSY, HOUR 1 BLACK
6-2 34500-93J11 METER ASSY, HOUR 1 WHITE
7 09471-12103 .BULB (12V, 3.4W) 1

Q'TY

REMARKS

DF140A_E01_013
