Superwinch Husky series, Husky 8514, Husky 8515 Owner Manual And Fitting Instructions
Owner’s Manual / Fitting Instructions
Kit Nos. 8514 & 8515
ELECTRICALLY
POWERED
HUSKY WINCH
Owner’s Manual / Fitting Instructions
Kit Nos.
8514 & 8515
These instructions cover kits from
16/07/1997
01 INTRODUCTION
02 GENERAL SPECIFICATION DATA
INTERMITTENT DUTY
INSTALLATION
03 WINCH

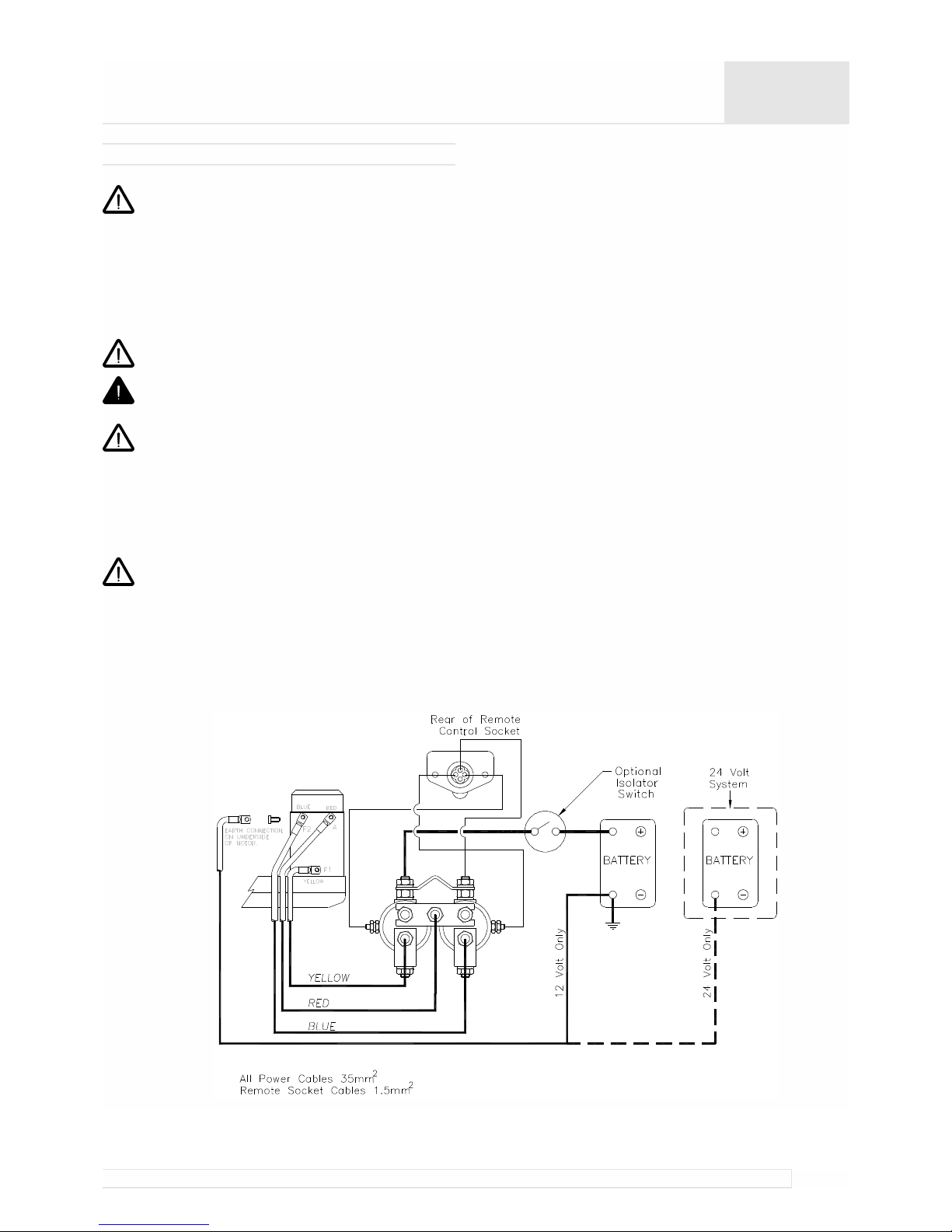

04 ELECTRICAL

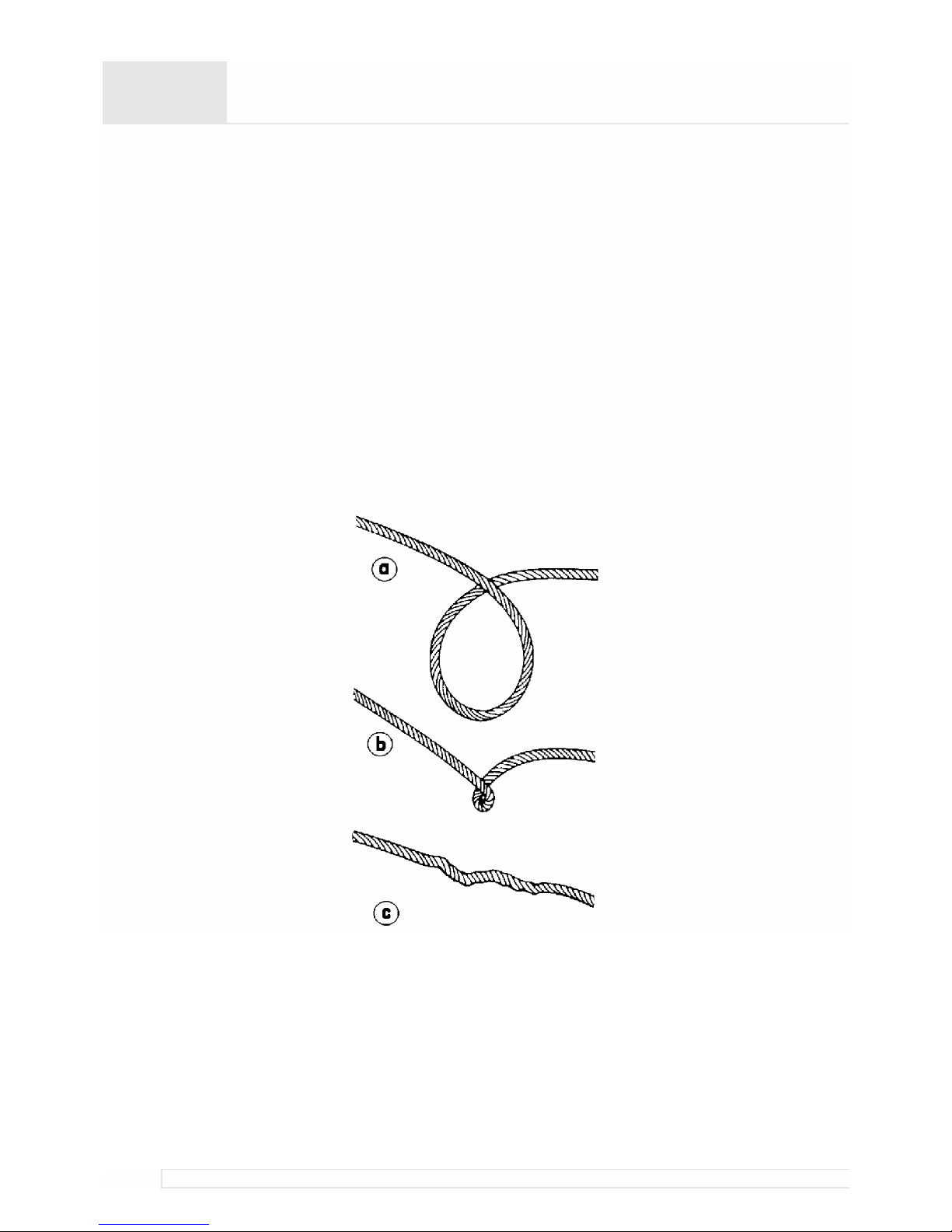

05 WIRE ROPE
COMMISSIONING AND USE
06 TIPS FOR EXTENDING THE LIFE OF YOUR WINCH
07 FREESPOOL USE
REMOTE CONTROL OPERATION
MAINTENANCE
08 RUNNING IN, MAINTENANCE AND REPAIRS
LUBRICATION
09 TROUBLESHOOTING
MISCELLANEOUS

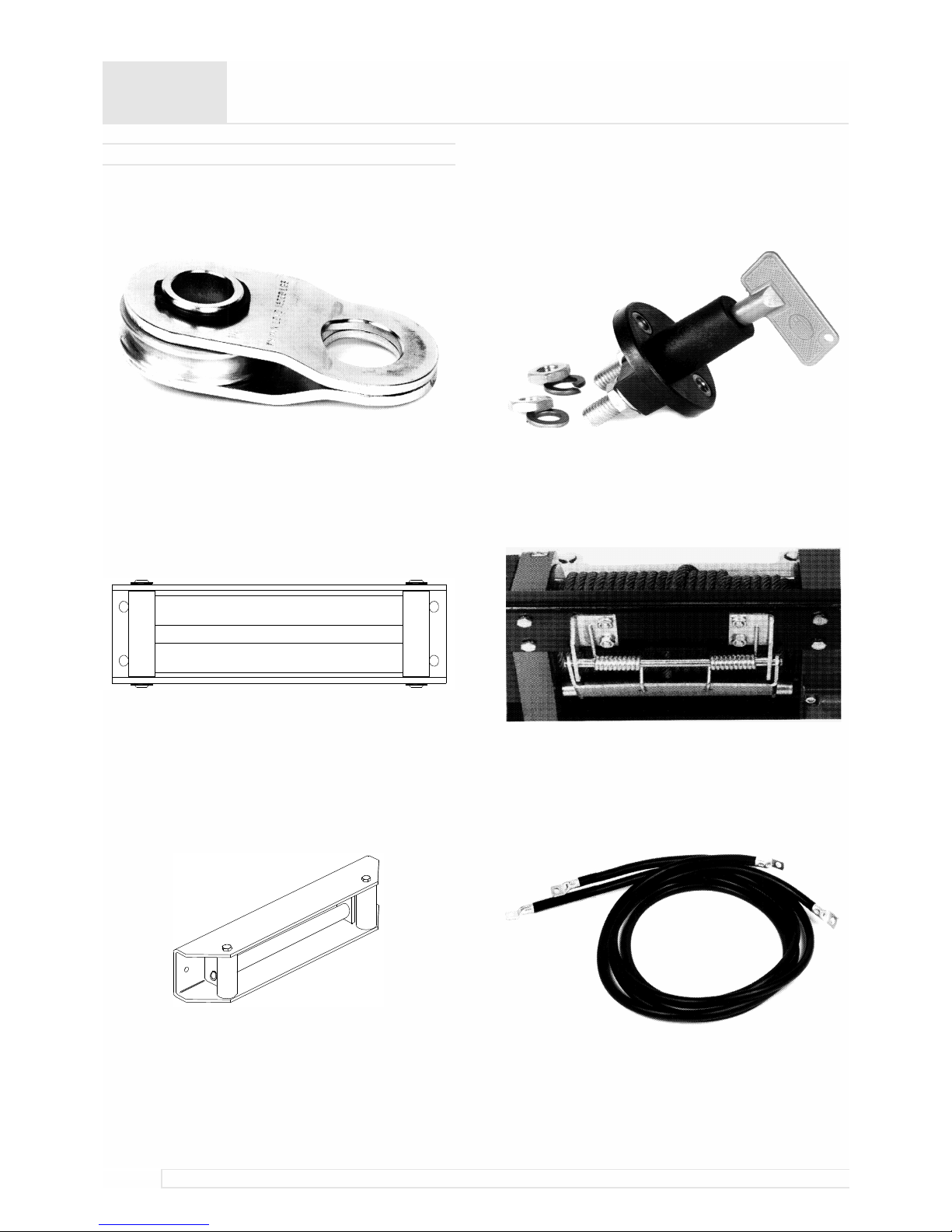

10 ACCESSORIES
For all your requirements please contact your Superwinch agent:
i
INTRODUCTION
INTRODUCTION
Please read and understand this owner’s manual before installing your Husky winch. Your Husky winch is a very powerful machine. If used
unsafely or improperly, there is a possibility that property damage or personal injury can result. We have included several unique features in the
Husky winch to minimize this possibility; however, your safety ultimately depends on your caution when using the product.
Correct installation of your Husky winch is a requirement for proper operation.
Please Note: The Superwinch Husky winch is designed for total reliability during vehicle recovery operations. This winch is not designed to be
used in hoisting applications and Superwinch does not warrant it suitable for such use.
Superwinch reserve the right to alter model specifications without prior notice.
PLEASE RETAIN THIS HANDBOOK WITH THE WINCH.
Pay particular attention to the caution noted preceded with the symbols shown here. The notes contain advice for your protection.
WARNINGS, CAUTIONS AND NOTES
These are given through these instructions in the following form :
WARNING : Procedures which must be followed precisely in order to avoid the possibility of personal injury.
CAUTION : This calls attention to procedures which must be followed to avoid damage to components.
NOTE : This calls attention to methods which make a job easier or gives helpful information.
USAGE OF WINCH
This winch is designed for use in applications such as:
* Pulling * Hauling * Lifting (Vehicle Recovery ONLY) * and other associated uses.
POISONOUS SUBSTANCES
Many liquids and other substances used should under no circumstances be consumed, and should be kept away from open wounds. These
substances include (among others) hydraulic oil.
SYNTHETIC RUBBER
Many ‘O’ ring seals, flexible pipes and similar items, when subjected to fire or heat can become highly corrosive. Handle with seamless industrial
gloves only. Should skin contact occur, remove contaminated clothing immediately and obtain medical assistance without delay. Meanwhile, wash
the affected area with copious amounts of cold water or limewater for 15 to 60 minutes.
RECYCLING AND THE ENVIRONMENT
It is illegal to dispose of used oil in the ground, down sewers or drains or into waterways.
Dispose of used oil through authorised waste disposal contractors. If in doubt contact your local Authority for advice on disposal facilities.
WINCHING TECHNIQUES
Before using your winch it is very important that you read the booklet sent to you with your winch entitled the ‘Handbook of Winching Techniques
for Vehicle Recovery’. Please read and understand this handbook before using your Superwinch and it’s accessories. It has been supplied with
your winch to encourage safe operation - if used unsafely or improperly, there is a possibility that property damage or personal injury can result,
since your safety ultimately depends on your caution when using these products.
01
01-1 INTRODUCTION
SUPERWINCH winches are not to be used to lift, support or otherwise transport personnel. Any such use shall be considered to
invalidate the warranty and Superwinch shall not be responsible for any claims arising from such use.
GENERAL SPECIFICATION DATA
WINCH
Type ................................................ Husky
Gear Reduction .............................. Wormwheel
Gear Ratio ...................................... 294:1 (12v) & 229:1 (24v)
Drum ............................................... Fabricated steel running in copolymer maintenance free bearings with spring loaded brakes to prevent
overrun when pulling out the rope.
Braking ............................................ The irreversible action of the worm and wormgear provides for substantial braking action.
Freespool ........................................ Operated by an easy action lever which disengages the gear box to allow the wire rope to be pulled out
without using electric power. A spring loaded drag mechanism reduces backlash and snarling when
pulling out the wire rope.
Control Solenoids (relays) .............. Boxed pair of solenoids can be mounted direct on winch or remotely as required.
Remote Switch ............................... 3.5m hand held pendant switch assembly.
Model Designation........................... Husky Husky
Part No ........................................... 8514 8515
Electric Motor .................................. 12v 1.4 Kw (1.9 hp) 24v 1.6 Kw (2.1 hp)
Rated Line Pull Bottom Layer ......... 37.8 kN (8500 lbs) 37.8 kN (8500 lbs)
Line Speed 1st Layer (No Load) ..... 6.9 m/min (22 ft/min) 6.9 m/min (22 ft/min)
Rope Diameter (Recommended) .... 9 mm 9 mm
Rope Length ................................... 30 m (100 ft) 30 m (100 ft)
Drum Diameter ............................... 76.2 mm (3”) 76.2 mm (3”)
Current Draw at Rated Line Pull .... 340 A 180 A
Weight ............................................. 38 kg (84 lbs) 38 kg (84 lbs)
8514
Fig. 1
0
2
GENERAL SPECIFICATION DATA 02-1
0 100 200 300 400
0
10
20
30
40
MOTOR CURRENT (Amps)
LINE P ULL (kN)
0 100 200 300 400
0
2
4
6
8
10
Thousands
MOTOR CURRENT (Amps)
LINE P ULL (lbf)
0 10 20 30 40
0
2
4
6
8
LINE PULL (kN)
LI NE S P EE D ( m/ mi n)
0 2 4 6 8 10
0
5
10
15
20
25
Thousands
LINE PULL (lbf)
LINE SPEED (ft/min)
GENERAL SPECIFICATION DATA
8515
Fig. 2
INTERMITTENT DUTY
All electric winches of this size are rated for intermittent use because of the electric motor efficiency and the electric power available from the
vehicle battery and alternator. This means that the winch must only be used for short periods of time then allowed to cool down.
If the motor becomes uncomfortably hot to touch, stop winching and alow the motor to cool.
If the winch motor stalls do not continue to apply power to the winch.
The performance rating of all electric winches is based on the first layer of rope on the drum. The winch pulling capacity decreases as each
successive layer of rope wraps onto the drum.
Cable Hawse Motor
Drum Fairlead Worm Cover
Gearbox
Drum
Clutch
Lever
Motor
Support Housing Spur Gearbox
Fig. 3
02
02-2 GENERAL SPECIFICATION DATA
0 50 100 150 200
0
10
20
30
40
MOTOR CURRENT (Amps)
LINE P ULL (kN)
0 50 100 150 200
0
2
4
6
8
10
Thousands
MOTOR CURRENT (Amps)
LINE P ULL (lbf)
0 10 20 30 40
0
2
4
6
8
LINE PULL (kN)
LI NE S P EE D ( m/ mi n)
0 2 4 6 8 10
0
5
10
15
20
25
Thousands
LINE PULL (lbf)
LINE SPEED (ft/min)

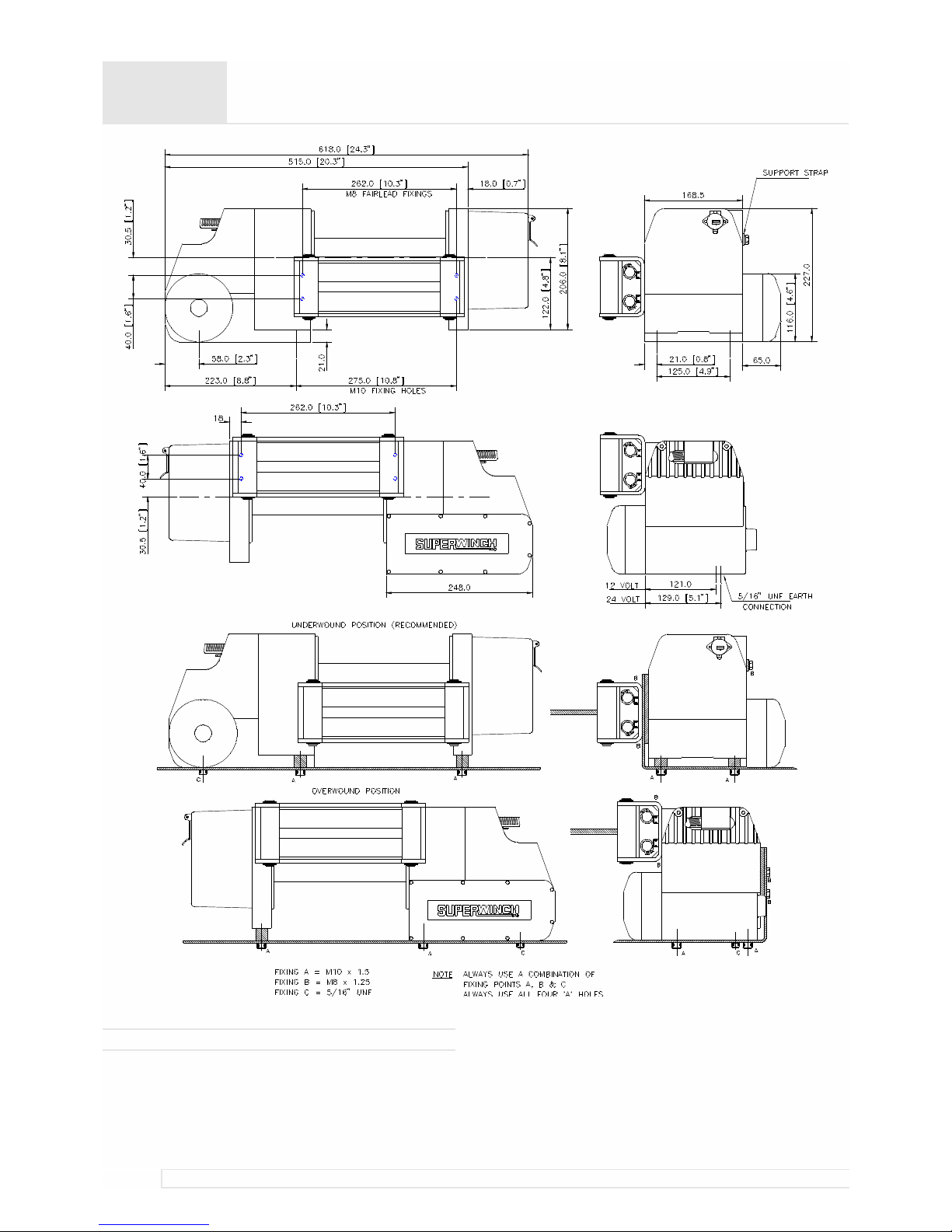

WINCH INSTALLATION
WINCH INSTALLATION
The kit must be used in conjunction with the included wiring kit. Before commencing installation identify the contents of the following:
Contents, Cardboard Container
Item Qty PART No. Description
1 1 Husky Winch Assembly
2 1 9134 / 207 Power Cable 0.7m Red
3 1 9134 / 307 Power Cable 0.7m Blue
4 1 9134 / 407 Power Cable 0.7m Yellow
5 1 8903 (12v) Control Box
1 8904 (24v) Control Box
6 1 Plastic Bag
7 1 8857 Remote Control, 6m
Contents, Bag 1
Item Qty PART No. Description
8 2 Plastic Bags
9 1 8057 Handsaver Bar
10 1 5-001-078 Owners Manual
11 1 5-010-080 Winching Techniques
12 1 Certificate of Conformity
Contents, Bag 2
Item Qty PART No. Description
13 4 7804 Spacer
14 4 4-33-1005032 Bolt, M10 x 50mm
15 4 4-36-0803522 Cap Head Set Screw M8 x 35mm
16 1 351 Bolt, 5/16” UNF x 3/4”
17 4 4-50-1023 Washer, Plain, M10
18 4 4-50-0823 Washer, Plain, M8
19 5 4-51-0823 Washer, Spring, M8
20 4 4-51-1023 Washer, Spring, M10
Contents, Bag 3
Item Qty PART No. Description
21 1 4-122-1083 Hexagon Socket Set Wrench 1/4”
22 1 4-122-2053 Hexagon Socket Set Wrench 4mm
23 1 4-122-2073 Hexagon Socket Set Wrench 6mm
0
3
WINCH INSTALLATION 03-1
