Introduction

Create expansive soundscapes and evolving,
otherworldly tones. Add layers upon layers of
harmonic and rhythmic complexity within an
enveloping stereo field. Infuse your rack with
vintage warmth and retrofuturistic soul.

Packed with powerful features while maintaining
intuitive playability, Magneto is a stereo multi-head
tape delay that also functions as a looper, phrase
sampler, vintage spring reverb unit, phase-aligned
clock multiplier, chaotic oscillator, zero latency
suboscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex
orchestrations. Create new oscillator tones using
self-oscillation. Add rich stereo dimension to your
sound, and enjoy the inherent warmth and sweet,
subtle distortion characteristics of magnetic tape.
Magneto transforms even the smallest rack into a
fully expressive, immersive instrument.

®

Features

• Tape-Voiced Delay machine with four playback
heads, one record head

• Processor-intense dTape algorithm delivers
meticulously nuanced recreations of vintage
tape echo systems

• Three operational modes: Echo, Sound-on­Sound Looper, Phrase Sampler

• Varispeed algorithm with dynamic machine
mechanics, 8:1 speed range

• Input record level (REC LVL) for clean
reproduction to warm, fat saturation

• Maximum Delay/Loop Time: 15 seconds at max
Speed, two minutes at min Speed

• Self-oscillating for tone generation

• Transport controls (buttons and CV inputs) for
real-time performance options

• Independent Spring Reverb

• Individual Playback Head Level controls

• Individual Head feedback assignment
independent of playback level

• Phase aligned clock out (CLK OUT) CVs
synched with clock in (CLK IN) CV

• Clock In CV Range: 50ms – 15s

• TAP Button Range: 50ms – 15s

• TAP CV Range: 10ms – 15s

pg 3

MAGNETO - Four Head dTape Echo & Looper

MODES & TAP Button

MODE TAP

®

The MODES button toggles between ECHO, LOOP
and SAMPLE.

ECHO mode: (GREEN LED) Four head tape delay,
with four playback heads and one record head.

NOTE: The delay TAP range is 50ms-15s,
regardless of tape speed setting.

LOOP mode: (AMBER LED) Sound-on-Sound looper.
Tape head 4 is the looper playback head while tape
heads 1-3 provide delay repeats for the incoming
signal.

The FEEDBACK ON/OFF button for Playback Head 4
must be ON to enable S.O.S. loop playback.

Press the TAP button once to Splice In. Press TAP a
second time to Splice Out and begin loop playback.
Pressing TAP a third time will clear the recorded
loop.

The REPEATS knob controls regeneration strength.
Set lower REPEATS level for loops that evolve over
time.

The TAP button changes the head spacing to achieve
the desired delay time at the current machine speed.

Tap a delay time with two successive presses.

=

+

Tap to splice in

Tap again to splice out and begin loop
playback.

Tap a third time to clear loop

Delay Time at Head 4

pg 4

MAGNETO - Four Head dTape Echo & Looper

MODES & TAP Button (cont.)

MODE TAP

SAMPLE mode: (RED LED) Phrase sampler records
an audio phrase between two taps of the TAP button.
Transport RESTART ( ) triggers phrase playback.

®

Tap to start sample record

Press the TAP button once to start sample recording,
again to stop recording, and a third time to clear the
sample memory.

Trigger sample playback with the RESTART transport
button or RESTART CV input.

TIP: Connect CLK OUT 4 to RESTART CV for
continuous re-triggering of the recorded sample.

NOTE: In LOOP and SAMPLE mode, the
maximum time between SPLICE IN and SPLICE
OUT (or SAMPLE START and SAMPLE END) is
determined by the tape Speed.

30s

1 min

Tap again to stop recording

Press RESTART ( ) in the Transport to
playback the sample once

Tap a third time to clear the sample memory

2 min

15s

pg 5

MAGNETO - Four Head dTape Echo & Looper

SPEED/PITCH & Delay Time

®

Setting Delay Time with TAP & SPEED/PITCH

The delay time for any analog tape delay is
determined by a combination of two factors – the
distance between the heads and the speed of the
tape. On Magneto, both of these can be adjusted
independently.

Magneto’s TAP button adjusts the delay time by
changing the distance between the heads and does
not affect the pitch or fidelity of the delay signal.

The SPEED/PITCH knob adjusts the delay time by
controlling the speed of the tape. Magneto features a
true varispeed tape system with pitch artifacts as the
SPEED/PITCH knob is adjusted faster (higher pitch,
shorter delay time) or slower (lower pitch, longer
delay time). Higher tape speeds result in higher
fidelity delay repeats, while lower lower tape speeds
yield lower fidelity delay. With slower tape speeds,
the CRINKLE and WOW & FLUTTER controls affect
the sound much more than at faster speeds.

NORMAL

HALF

QUARTER

(Lowest Fidelity)

DOUBLE

(Highest Fidelity)

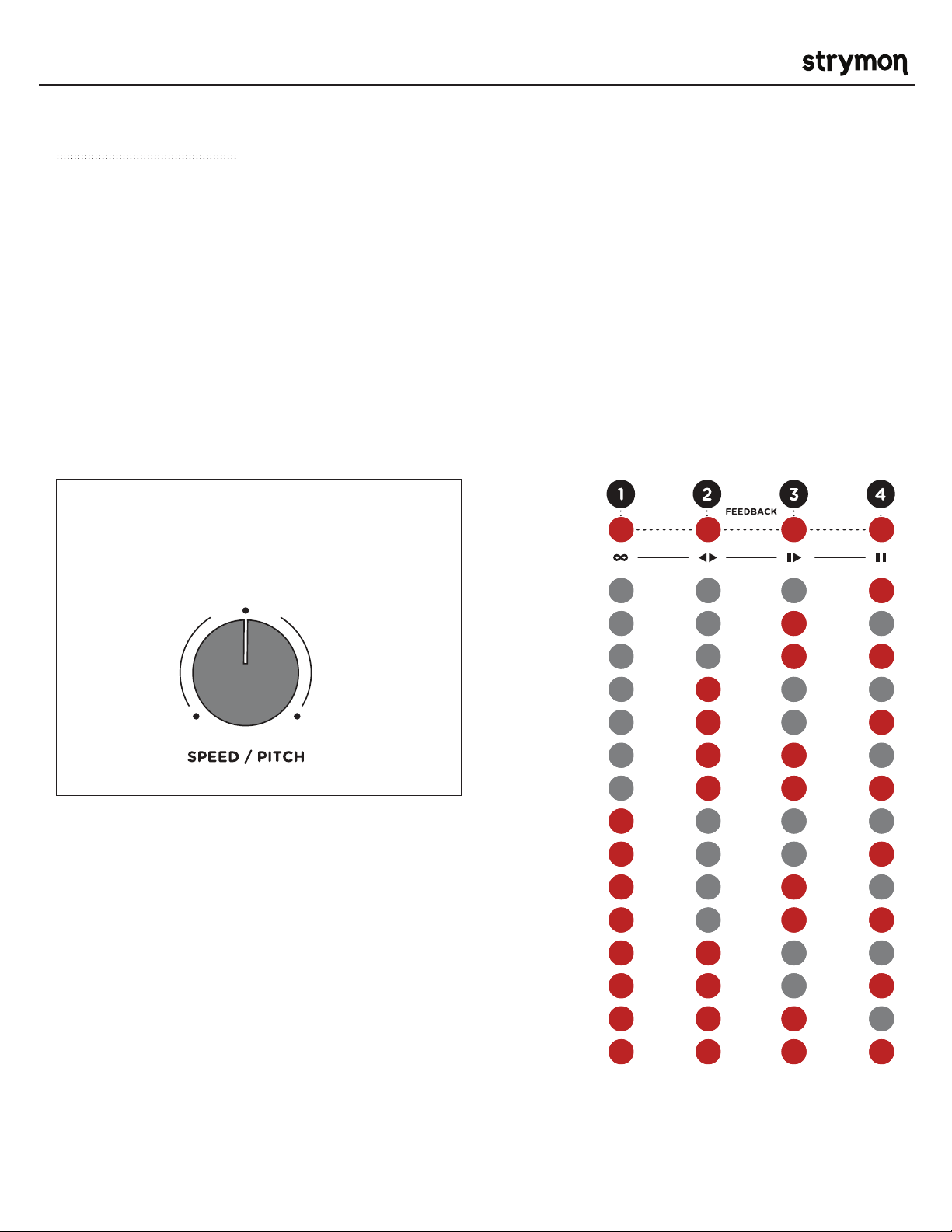

The total range of the SPEED/PITCH knob is a
factor of 8, where 12 o’clock noon position is normal
speed, max SPEED/PITCH knob setting is 2x speed,
minimum SPEED/PITCH knob setting is 1/4 speed,
and 1/2 speed is available at about 9 o’clock on the

SPEED/PITCH knob.

Delay RANGE: 200s minimum, 120 seconds max.

NOTE: The maximum delay time is achieved by
tapping in a 15 second delay with the SPEED/
PITCH knob at maximum (double SPEED).

Reducing the speed to minimum will multiply
this delay time by a factor of 8, resulting in a 2
minute (240 second) delay at HEAD 4.

NOTE: The minimum delay time is achieved
by applying a 10ms clock to the TAP CV
with the SPEED/PITCH knob at minimum
(quarter SPEED). Turning the SPEED/PITCH
to maximum will divide this delay time by a
factor of 8, resulting in a delay time of 1.25ms
at HEAD 4. Selecting HEAD 1 in TRIPLET mode
further divides this by a factor of 6, resulting in
a delay of 200s.

pg 6

MAGNETO - Four Head dTape Echo & Looper

Audio I/O

INS AND OUTS FEEDBACK LOOP

®

LEFT/RIGHT IN: Left and Right audio
inputs. Use LEFT IN for mono input.

LEFT/RIGHT OUT: Left and Right audio
outputs. If only one output is connected,
Delay output sums to mono.

SEND: Delay repeats generated
by Magneto are sent out to be
processed by other devices.

RETURN: Processed delay repeats
are returned back to be mixed in
with the dry input signal.

Delay repeats are summed to mono when SEND/
RETURN jacks are connected, dry signal retains
stereo image.

MOD

IN

OUT

pg 7

MAGNETO - Four Head dTape Echo & Looper

PLAYBACK LEVEL & FEEDBACK ON/OFF

PLAYBACK LEVEL FEEDBACK ON/OFF

®

Knobs 1-4: Controls the individual level of the
delay repeats for each of the four tape heads.

WET: Sets the overall delay signal
level sent to the output after the
Playback Level knobs.

REPEATS: Controls the feedback
level of the delay repeats for the tape
heads that have their FEEDBACK
toggle set to ON.

Enables or disables FEEDBACK of the corresponding
tape head signal to the record head. Buttons are

GREEN during this operation.

Example 1: If FEEDBACK button 1 is OFF, this will

disable the feedback of Playback Head 1 back into the
delay line.

Example 2: If FEEDBACK button 1 is ON, the delay
signal at Playback Head 1 will feed back into the
delay line.

NOTE: A head can be fed back to the input even
if its PLAYBACK LEVEL knob is set to zero.

pg 8

MAGNETO - Four Head dTape Echo & Looper

Playback Head Mechanics

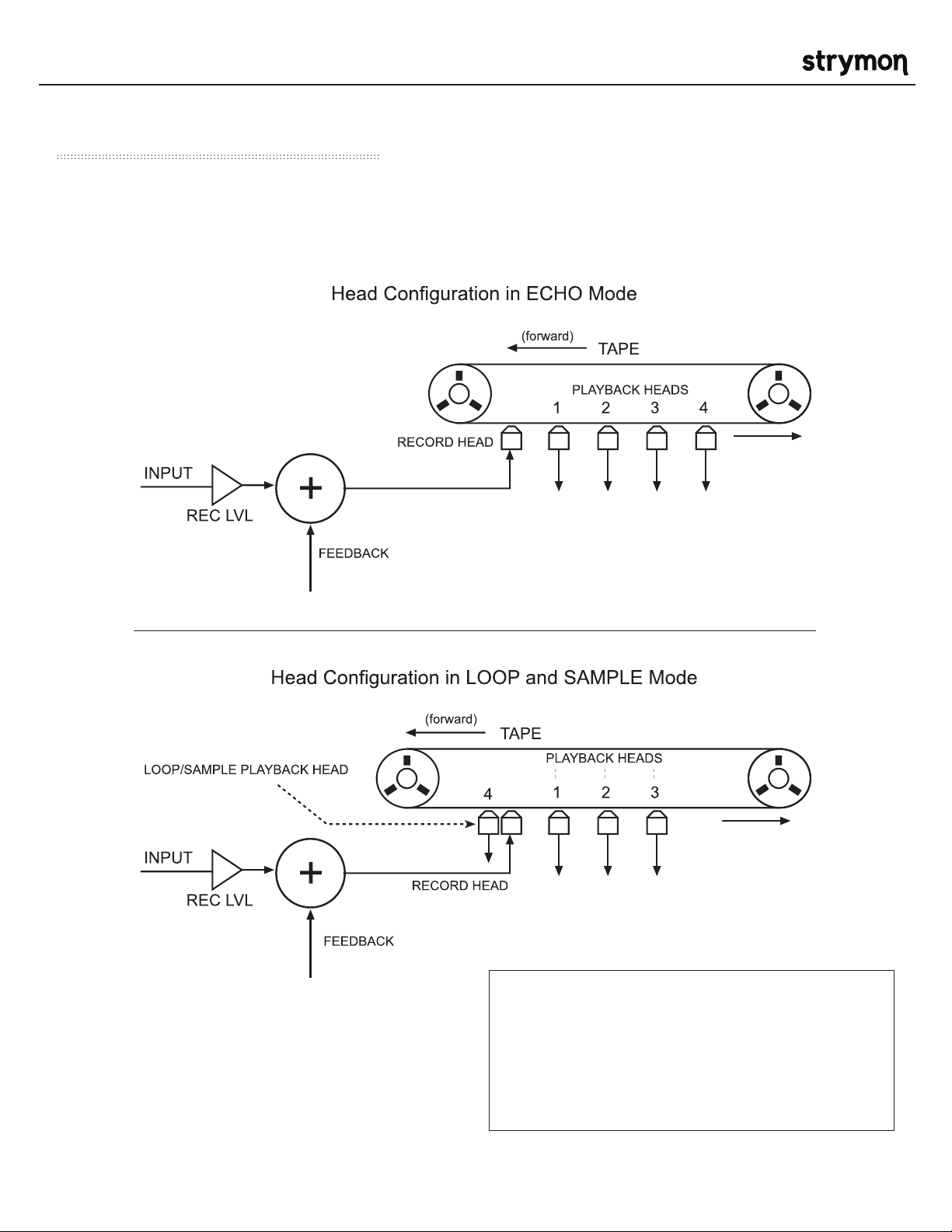

The following diagrams illustrate the difference between how Head 4
functions in ECHO mode and in LOOP and SAMPLE modes.

®

NOTE: The LOOP or SAMPLE time is determined
by the TAP IN/TAP OUT interval, while the Delay
time of the HEADS 1, 2, and 3 is determined by
the Delay Time when entering LOOP or SAMPLE
mode, or by the CLOCK IN CV.

pg 9

MAGNETO - Four Head dTape Echo & Looper

Playback Head Spacing In ECHO Mode

HEADS: Selects between three different modes for the tape heads.
Even spacing, triplet spacing, and rhythmic shifted pitches.

EVEN: Sets the Playback heads with even spacing
between each other.

Head 1: 1/16th note delay
Head 2: 1/8th note delay
Head 3: dotted 8th note delay
Head 4: quarter note delay

®

TRIPLET: Sets the Playback heads with triplet
spacing between each other.

Head 1: 1/16th note triplet delay
Head 2: 1/8th note triplet delay
Head 3: quarter note triplet delay
Head 4: quarter note delay

SHIFT: Changes the playback speed of each of the

four Playback heads with varispeed resulting in pitch­shifted delay repeats. In LOOP and SAMPLE modes,
SHIFT head configuration results in playback at the
speed and pitches noted below.

Head 1: +1 octave+5th; 3x speed
Head 2: +1 octave; 2x speed
Head 3: -1 octave; half speed
Head 4: No shift; quarter note repeats

3

+1 octave

+5th

3x speed

3

+1 octave

2x speed

3

-1 octave

half speed

No shift;

quarter note

repeats

NOTE: In LOOP and SAMPLE modes, HEAD 1, 2
and 3 Delay times are determined by the Delay
Time when entering LOOP or SAMPLE mode.
Head 4 time is determined by the TAP IN/TAP
OUT action.

pg 10

MAGNETO - Four Head dTape Echo & Looper

Effect Level

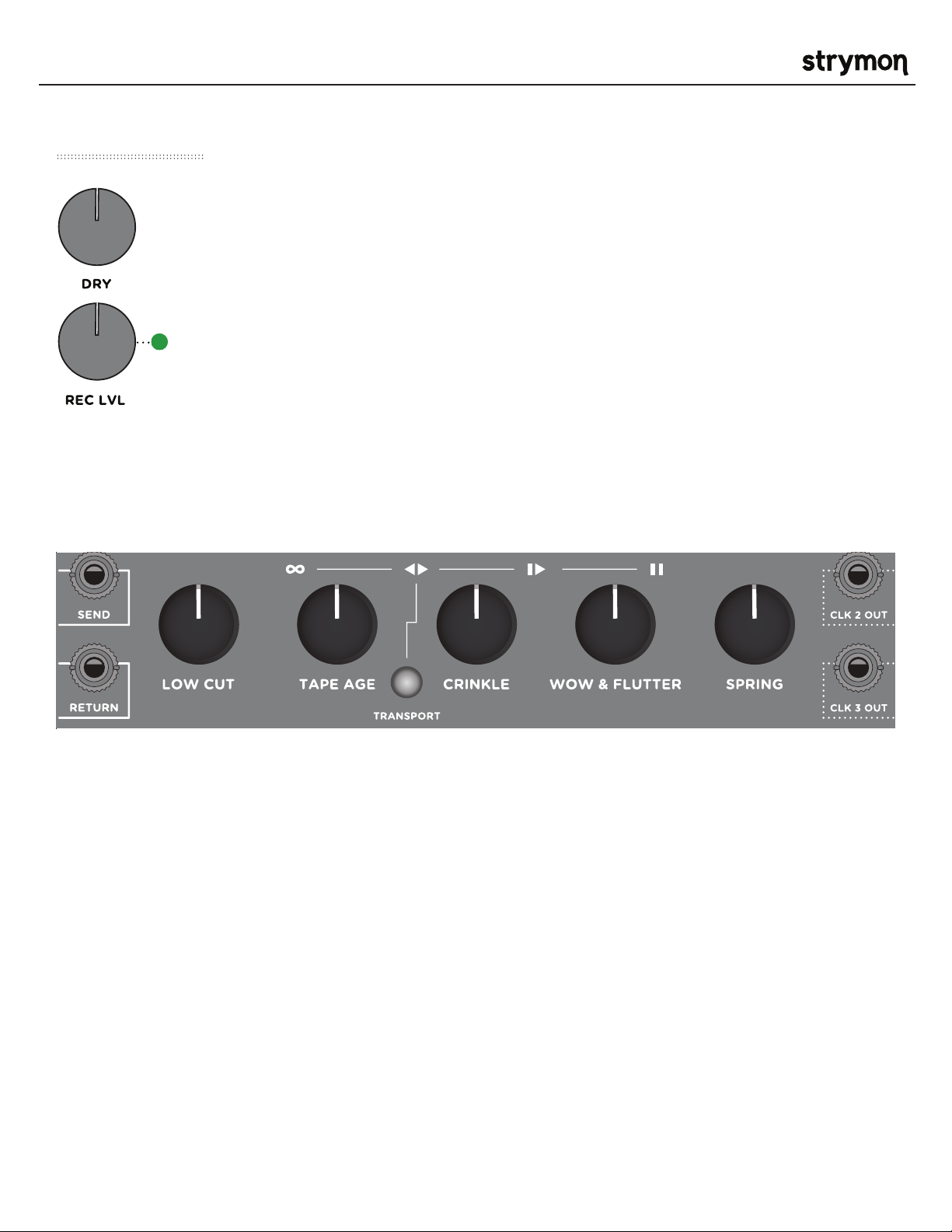

DRY: Sets the level of DRY (input) signal sent to the output. Controls the
output level of the incoming unprocessed signal from the LEFT and RIGHT
INPUTS to the LEFT and RIGHT OUTPUTS. With a mono input connected to
LEFT INPUT, the dry signal will appear simultaneously at both the LEFT and
RIGHT OUTPUTS.

REC LVL: Controls the level of the incoming unprocessed signal fed into
the Delay Line Record head. LED shows signal level feeding into the tape
machine with BLUE LED indicating zero gain (no signal sent to RECORD
HEAD), GREEN LED indicating low signal (clean), AMBER LED indicating
onset of saturation, and RED LED indicating the input signal is significantly
saturating the record head. With high levels of saturation (RED LED), fat and
rounded harmonically rich tones are sent into the delay line.

TAPE MECHANICS AND REVERB

®

LOW CUT: Controls the low frequency shaping of
the echo repeats. Set to minimum for extended low
frequency bandwidth. Set to maximum for extremely
high-passed, magnetic drum style repeats with a
peaking response.

TAPE AGE: Controls the bandwidth of the tape. Set
to minimum for a fresh, full bandwidth tape. Turn
clockwise for warmer repeats. At maximum setting,
a mildly peaking filter response creates atmospheric
repeats at high feedback settings.

CRINKLE: Controls the amount and severity of tape
irregularities including friction, creases, splices,
and contaminants. Set to minimum for a fresh,
clean tape. Set to maximum for a tape that has been
mangled and chewed.

WOW & FLUTTER: Controls the amount of
mechanically related tape speed fluctuations. Turn
the knob fully counterclockwise for a perfectly tuned
tape machine or fully clockwise for a tape machine in
need of service.

SPRING: Controls the output mix of the integrated
spring reverb tank. The DRY and WET knobs control
the signals feeding into the spring reverb effect.

pg 11

MAGNETO - Four Head dTape Echo & Looper

Preset Panning Options

PAN: Selects between three different stereo panning modes for the tape
heads. When only one output jack is connected, all head signals will
appear at that output summed to mono.

LRRL: Tape heads 1 and 4 are panned 100% to the
LEFT, and tape heads 2 and 3 are panned 100% to
the RIGHT.

®

CENTER: All tape heads are centered, and a psycho­acoustic stereo image is produced when using stereo
monitoring.

LRLR: Tape heads 1 and 3 are panned 100% to the
LEFT, and tape heads 2 and 4 are panned 100% to
the RIGHT.

LEFT

CENTER

LEFT

RIGHT

CENTER

RIGHT

RIGHT

CENTER

LEFT

LEFT

CENTER

RIGHT

pg 12

MAGNETO - Four Head dTape Echo & Looper

Custom Panning

The panning for all four tape heads can be set manually when PAN switch
is set to CENTER. To set the panning for each of the playback heads, turn
the PLAYBACK LEVEL knob while pressing and holding down that head’s
corresponding FEEDBACK button while in FEEDBACK (GREEN) mode. Turn
left for left panning, right for right panning, or set to 12 o’clock noon for
center panning.

To adjust the panning for Playback Head 1:

1. Set PAN to CENTER

®

2. Press and hold GREEN FEEDBACK ON/OFF
button under PLAYBACK LEVEL 1 knob.

3. While holding down FEEDBACK ON/OFF,
turn PLAYBACK LEVEL 1 knob to adjust
panning for PLAYBACK HEAD 1.

L R

NOTE: All four tape heads are centered.
A psycho-acoustic image is produced when
monitoring in stereo.

pg 13

MAGNETO - Four Head dTape Echo & Looper

TRANSPORT CONTROLS

®

Allows for control of the corresponding transport
function. To activate transport controls press
TRANSPORT button below. Buttons are RED during
this operation.

INFINITE: Disables the Record head and
continuously plays the most recent delay cycle
or loop length audio.

FORWARD/REVERSE: Reverses the playback
direction of the tape from the moment the
function is engaged.

In ECHO mode, the entire tape length is heard in
reverse until REVERSE is pressed again.

In LOOP or SAMPLE Mode, the loop or sample is
played in reverse.

SCRUB AUDIO: When tape is paused, the SPEED/
PITCH knob scrubs audio.

NOTE: The audio in the scrub buffer

represents about 1 foot of tape, so the length
of audio in the buffer depends on the SPEED
knob position when PAUSE is engaged.
Slower speeds result in more recorded audio
in the scrub buffer.

MOMENTARY MODE: Power up Magneto while
holding the desired transport control button to
change between Momentary (flashes RED) and Latch
(flashes GREEN) for that transport function. CV
control will also be changed for the desired function
to either Gate (RED) or Trigger (GREEN).

Example: Tape playback is reversed only while
pressing and holding REVERSE button.

RESTART is always trigger regardless of custom
settings. By default, transport controls are all
latching switches except for RESTART.

RESTART: Restarts the playback of the loop
or sample from the starting point in LOOP or

SAMPLE mode. Aligns shifted head audio in
ECHO operation. Restarts deck immediately
from PAUSE, without mechanical lag.

PAUSE: Stops/Starts the playback of the tape
with mechanical slowdown/startup effect. The
speed of the slowdown/startup effect can be
adjusted by PLAYBACK LEVEL 4 knob when
the TRANSPORT and PAUSE buttons are RED
(transport is paused).

pg 14

MAGNETO - Four Head dTape Echo & Looper

NORMAL

Pitch Quantize

®

Press and hold the TAP button at any time to enter
PITCH QUANTIZE mode (AMBER TAP LED).

This mode restricts the SPEED/PITCH knob values to
relative speeds corresponding to the pitch intervals
of user selectable scales.

To select a scale, press and hold the TRANSPORT
button and turn the SPEED/PITCH knob to scroll
through the 15 available scales. The currently
selected scale will be displayed via the four
FEEDBACK/TRANSPORT button LEDs, according to
the table below.

NOTE: When Pitch Quanitize is active, the
SPEED/PITCH range is 2 octaves (4:1 speed

range).

SPEED CV voltages are quantized to ½ steps when in
PITCH QUANTIZE mode.

SPEED CV responds to -3V to +3V, dependent on the

position of the SPEED/PITCH knob. All scales have a
two octave range, except for Chromatic which has a

1.2 octave range.

Pentatonic

Minor Blues

HALF

nd

Octave1st Octave

2

DOUBLE

Major

Dorian

Phrygian

Lydian

Mixolydian

Aeolian

Locrian

Harmonic Minor 5

Harmonic Minor

Whole Tone

Major in Octave jumps

Harmonic Series

Chromatic (1.2 octaves)

th

pg 15

MAGNETO - Four Head dTape Echo & Looper

Self-Oscillation

®

Self-oscillation can create an infinite variety of
inspiring sonic textures and can allow you to play
Magneto like a musical instrument. To use self­oscillation, turn the SPEED/PITCH knob fully
counter-clockwise, turn REPEATS up to 100%, and
tap a very short delay.

No input signal is necessary for Magneto to self­oscillate. However, the tonality of the sound can be
impacted in interesting ways if an input signal is
present.

While Magneto is in self-oscillation, try adjusting the
SPEED/PITCH knob, as well as the tape mechanics
knobs (LOW CUT, TAPE AGE, CRINKLE, WOW &
FLUTTER). The oscillating sound will evolve and
change, moving through different pitches and
tonalities as the knobs are adjusted.

To lock in the pitch of the oscillating tone, press the
INFINITE transport control button. Although the
sound will still be affected by adjustments to the tape
mechanics knobs while INFINITE is engaged, the
pitch will remain locked. That is, the pitch will stop
evolving, but can be controlled with the SPEED/PITCH
knob and/or the SPEED CV input. Note that you have
the option to use PITCH QUANTIZE mode whether or
not INFINITE is engaged.

SPEED CV Input and Self-Oscillation

The SPEED CV input is calibrated for 1V/octave over
a range of -3V to +3V. When voltage is supplied to
the SPEED CV input, the SPEED/PITCH knob still
influences the the resultant speed/pitch, and the
incoming CV is added to the knob position. Zero volts
at the SPEED CV input will not cause the speed/pitch
to deviate from the knob position value. The SPEED/
PITCH knob’s effective voltage is 0V at minimum, and
+3V at maximum. The SPEED CV input adds to this
effective voltage, being limited at the top end to +3V
(fastest speed/highest pitch), and limited to -3V at
the bottom end. By using the SPEED CV input, you
can achieve a six octave range, allowing you to go
three octaves lower than would be possible using the
SPEED/PITCH knob alone without any incoming CV.

Stereo Panning and Self-Oscillation

With the PAN switch set to CENTER (and no custom
panning set), your self-oscillating tone will remain in
the center of the stereo image. However, if the PAN
switch is set to LRLR or LRRL, the self-oscillating
tone will be stereoized in a manner that depends
in part on the volume levels of each playback head.
This can be great for creating a wide stereo sound.
However, one should be aware that, for instance, with
PAN set to LRLR and PLAYBACK LEVEL knobs for
heads 2 and 4 set to minimum, the self-oscillating
tone would primarily be heard on the left side of the
stereo image.

TIP: When engaging INFINITE with very short
delay times, the rapid fading between
the endpoints of the delay buffer can add an
additional harmonic element to the captured
oscillation.

TIP: Let Chaos Reign! Using self-oscillation
is an interactive experience where Magneto
takes on a life of its own, and a kind of
feedback loop is created between Magneto
and you. Rather than aiming to dial in a
specific sound, try just setting the process in
motion and experimenting. You are likely to
discover unexpected textures and tonalities
that will lead you into inspiring new sonic
territory.

pg 16

MAGNETO - Four Head dTape Echo & Looper

Control Voltage Inputs

®

CONTINUOUS CV INPUTS (5V TO +5V)

SPEED: Controls the tape speed. (-3V to +3V,
calibrated for 1V/octave).

WET: Modifies the WET level.

REPEATS: Modifies the REPEATS level.

SPRING: Modifies the SPRING reverb level.

TIP: Connecting the GATE signal from a source
to the RESTART CV will create a zero-latency
suboctave from HEAD 3 with Magneto in SHIFT
mode.

CV INPUTS (05V RISING EDGE TRIGGER)

CLK IN: Sets the delay time in quarter notes. (0 – 5v
rising edge trigger) Clock period range – 50ms to
15s.

REC GATE: Toggles the record head ON and OFF,
REC LVL LED lit BLUE when input signal to the delay

line is muted.

SHIFT: Toggles the SHIFT effect for the Playback
heads on and off.

INFINITE ( ): Toggles INFINITE transport control on
and off.

FORWARD/REVERSE ( ): Toggles the FORWARD/
REVERSE transport function.

RESTART ( ): Engages the RESTART transport
function.

TIP: The knob corresponding to the continuous
CV inputs acts as an offset that is mixed with
the CV input.

PAUSE ( ): Toggles the PAUSE transport function.

TAP: Controls the function of the physical TAP button.

Sets delay time in ECHO mode. Sets splice in/out/
clear in LOOP mode. Sets sample record start/stop/
clear in SAMPLE mode.

TIP: When using the SHIFT head mode with a
sequenced or clocked system, sending a
synchronous clock (or divided clock) to the
RESTART CV will align the Shift pointers and
create rhythmic pitched delays that are in
synch with the input.

pg 17

MAGNETO - Four Head dTape Echo & Looper

Control Voltage Clock Outputs

CLK 1- 4 OUTs send clock outputs of Playback heads
1-4. Dependent on the HEADS switch setting and the
ECHO/LOOP/SAMPLE mode setting, output clocks are

always at 50% duty cycle and are phase aligned with
incoming Clock or Tap signals. Examples below are for
a clocked or tapped delay time of 1000ms.

ECHO MODE

EVEN:

CLK 1 OUT: 1/16 note clock output (ex. 250ms)

®

CLK 2 OUT: 1/8 note clock output (ex. 500ms)
CLK 3 OUT: dotted 1/8 note clock output (ex. 750ms)
CLK 4 OUT: 1/4 note clock output (ex. 1000ms)

TRIPLET:

CLK 1 OUT: 1/16 note triplet clock output (ex. 167ms)
CLK 2 OUT: 1/8 note triplet clock output (ex. 333ms)
CLK 3 OUT: 1/4 note triplet clock output (ex. 667ms)
CLK 4 OUT: 1/4 note clock output (ex. 1000ms)

SHIFT:

CLK 1 OUT: 1/8 note triplet clock output (ex. 333ms; 3x speed)
CLK 2 OUT: 1/8 note clock output (ex. 500ms; 2x speed)
CLK 3 OUT: 1/2 note clock output (ex. 2000ms; half speed)
CLK 4 OUT: 1/4 note clock output (ex 1000ms; full speed)

In LOOP and SAMPLE modes, CLK1, CLK2, and CLK3 are the
same as in ECHO mode, but CLK4 is the loop or sample length
clock output.

pg 18

MAGNETO - Four Head dTape Echo & Looper

ON

1 2

DIP Switches

®

DIP switches are located on the back of the unit.
Adjusting these switches will likely require Magneto
to be removed from the rack.

S1 - FEEDBACK CV MODE:

ON: Allows CV trigger control of the FEEDBACK ON/
OFF buttons when transport CV jack is plugged in

while Transport LED is OFF. Also provides CV control
of the Transport controls when a CV jack is plugged
in when Transport LED is RED. Each transport CV can
be assigned to either Transport or Feedback ON/OFF.

OFF: Standard CV control of transport whenever
transport CV jacks are plugged in. (DEFAULT is OFF.)

S2 - DUAL SPLIT MODE:

ON: Selects Dual Split mode where LEFT audio IN/
OUT is a mono four head tape delay, and RIGHT audio
IN/OUT is mono spring reverb.

OFF: Standard stereo IN/OUT with the delay signal
feeding into the Spring reverb. (DEFAULT is OFF.)

LEFT IN – Delay Input

RIGHT IN – Reverb Input

LEFT OUT – Delay Output

RIGHT OUT – Reverb Output

pg 19

MAGNETO - Four Head dTape Echo & Looper

Block Diagram

TRANSPORT CONTROL AND MECHANICS

SPEED WOW & FLUTTER CRINKLE

®

INPUT

REC LVL

RECORD HEAD

FEEDBACK

SWITCHES

REPEATS

(LEVEL)

TAPE

PLAYBACK HEADS

1 2 3 4

TAPE AGE

LOW CUT

1 2 3 4

PLAYBACK

LEVELS

DRY

(LEVEL)

OUTPUT

REVERB

SPRING
(LEVEL)

P
A
N

WET

(LEVEL)

SEND

RETURN

MONO SIGNAL

STEREO SIGNAL

pg 20

MAGNETO - Four Head dTape Echo & Looper

Specifications

• Power

• +12V rail: 210mA

• -12V rail: 210mA

• +5V rail: 0mA

• Rack Width: 28hp

• Rack Depth: 41mm, 1.61”

• Sampling Rate: 96kHz

• Audio Input Impedance: 22 kOhm

• Maximum Audio Input Level: 20 Vpp

• Audio Output Impedance: 1 kOhm

• Maximum Audio Output Level: 20 Vpp

• Signal To Noise Ratio: 114dB typical

®

pg 21

MAGNETO - Four Head dTape Echo & Looper

Questions?

For additional help with setup, connections, power, and mounting, please visit strymon.net/support/magneto
or email us at [e-mail].

STRYMON NONTRANSFERRABLE LIMITED WARRANTY

Warranty

Strymon warranties the product to be free from defects in material and workmanship for a period of two (2)
years from the original date of purchase when bought new from an authorized dealer in the United States of
America or Canada. If the product fails within the warranty period, Strymon will repair or, at our discretion,
replace the product at no cost to the original purchaser. Please contact your dealer for information on warranty
and service outside of the USA and Canada.

Exclusions

This warranty covers defects in manufacturing discovered while using this product as recommended by
Strymon. This warranty does not cover loss or theft, nor does the coverage extend to damage caused by
misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters.

®

Limits of Liability

In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the
preceding paragraphs. Strymon will not be held liable to any party for damages that result from the failure of
this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage
to other equipment, and incidental or consequential damages arising from the use, or inability to use this
product. In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the
current retail price of the product. Strymon disclaims any other warranties, expressed or implied. By using the
product, the user accepts all terms herein.

How to Obtain Service Under this Warranty

For North American customers: Contact Strymon through our website at strymon.net/support for Return
Authorization and information. Proof of original ownership may be required in the form of a purchase receipt.

For International Customers: Contact the Strymon dealer from which the product was purchased from in order
to arrange warranty repair service.

REV A - 01.24.2018

pg 22
