Strymon DIG User Manual

QUICK START GUIDE

TOP PANEL FUNCTIONS

TYPE

24/96 – Modern, clean,

and pure delay with subtle
dynamics processing.

MOD

Sets the amount of modulation
added to the delay lines.

adm – Early ‘80s adaptive delta
modulation process, providing
snappy, percussive delays.

12-bit – Mid ‘80s 12-bit conversion
method giv
and warmer delays.

es you slightly dark

er

MIX

Controls wet/dry mix for Delay 1. Full
clockwise is 100% wet.

TIME

Controls the delay time for Delay

1. Acts as a master time control for
both delays.

TIME 2

Sets rhythmic subdivision relationship
between Delay 1 and Delay 2.

MIX 2

Controls wet/dry mix for Delay 2. Full
clockwise is 100% wet.

REPEATS

Increases the number of repeats for
both delays.

BYPASS

TAP

Tap to set the master delay time.
The TAP LED will flash to indicate
the tempo. Hold TAP footswitch
to engage circular repeats.

Engages and disengages eect. LED
ON indicates the eect is engaged.

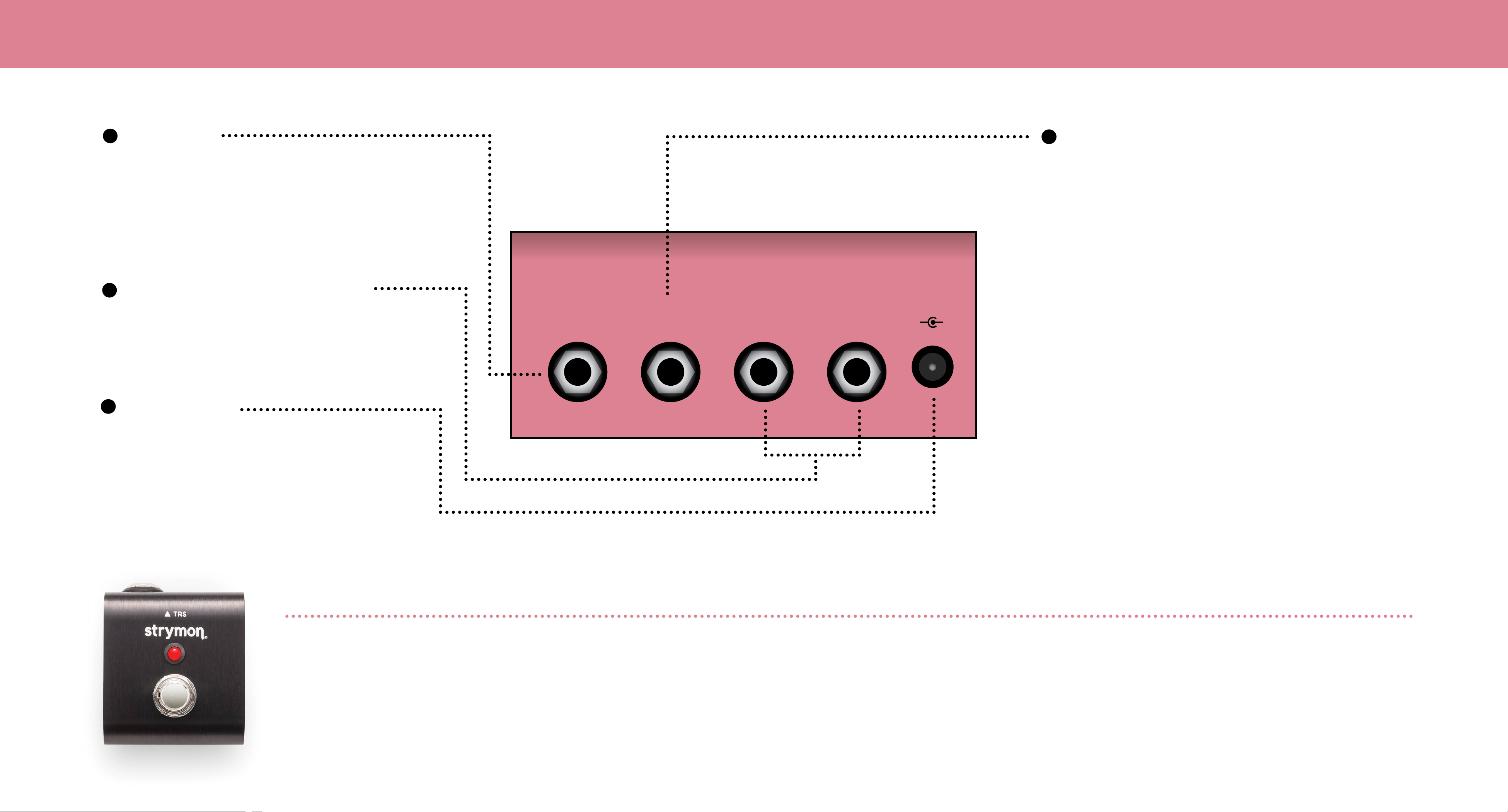

REAR PANEL CONNECTIONS

EXP

INPUT

9VDC

+

-

RIGHT OUTLEFT OUT

INPUT

High impedance mono or TRS
stereo input (internal jumper
configurable).

STEREO OUTPUTS

Use left output for mono
operation.

EXP

Connect a standard TRS
expression pedal for continuous
control over any selectable knob
parameter. To select the knob
controlled by the expression
pedal, hold the TAP footswitch
during power up. The first knob

POWER

Use an adapter with the
following rating: 9VDC
center negative. 250mA
minimum.

turned is then assigned to the
expression pedal. The maximum
position the knob is turned up to
becomes the expression pedal
“toe down” maximum value.

ADD EVEN MORE CONTROL & FLEXIBILITY

Connect the optional Strymon Miniswitch to remotely tap tempo or to quickly access a saved
favorite setting. See strymon.net/support for more details.

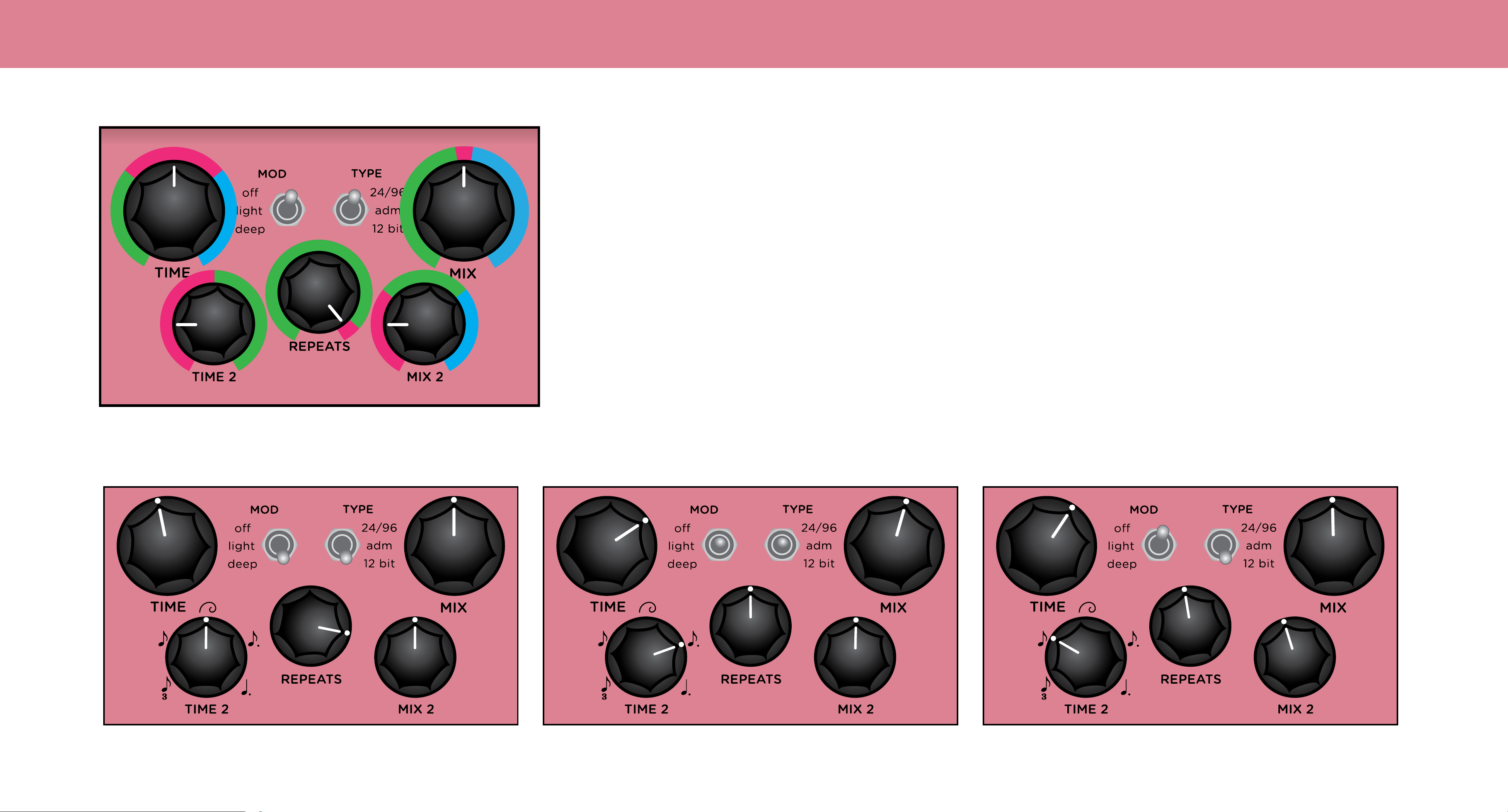

SECONDARY FUNCTIONS & SAMPLE SETTINGS

1. DELAY 1 SUBDIVISION Sets the tap tempo subdivision for Delay 1.

Left for Dotted Eighth, center for Quarter note, right for Half note.

1

2

3

4

5

2. SYNC/FREE MODE In Sync Mode (left) by default, Free Mode (right)

disconnects Delay 2’s tempo for independent time control.

3. DELAY 2 REPEATS Sets the Delay 2 repeats. Turn fully right to Track

Repeats which ties Delay 1 and Delay 2 repeats together.

4. CONFIG Turn left for Series, center for Ping Pong, or right for Parallel.

5. FILTER Sets the feedback filter response. Turn left for High Cut,

center for Flat response, right for Low Cut.

NOTE: Secondary functions are accessed by holding both footswitches while turning control knobs.

CAVERNOUS DOTTED ‘80S DELICATE 12 BIT
