Stryker Stair-PRO 6251, Stair-PRO 6252 Maintenance Manual

SSttaaiirr--PPRROO®® SSttaaiirr CChhaaiirr

MMaaiinntteennaannccee MMaannuuaall

6251
6252

6252-009-002 Rev B.0

EN

2018/05

SSyymmbboollss





Operating instructions/Consult instructions for use

CE mark

European authorized representative

General warning

Caution

Catalogue number

Lot (batch) code

Serial number

For US Patents see www.stryker.com/patents

Manufacturer

Date of manufacture

Safe working load

6252-009-002 Rev B.0 EN

TTaabbllee ooff CCoonntteennttss

Warning/Caution/Note Definition ..............................................................................................................................3

Summary of safety precautions................................................................................................................................4

Introduction ...............................................................................................................................................................5

Product description .................................................................................................................................................5

Indications for use...................................................................................................................................................5

Expected service life ...............................................................................................................................................5

Contraindications ....................................................................................................................................................5

Specifications .........................................................................................................................................................5

Product illustration ..................................................................................................................................................6

Contact information.................................................................................................................................................7

Serial number location.............................................................................................................................................8

Date of manufacture................................................................................................................................................8

Setup .....................................................................................................................................................................8

Cleaning....................................................................................................................................................................9

Cleaning the track frame (Model 6252) .....................................................................................................................9

Suggested cleaners ................................................................................................................................................9

Preventive maintenance .........................................................................................................................................11

Maintenance record ..............................................................................................................................................12

Training record ..................................................................................................................................................... 13

Quick reference replacement parts ........................................................................................................................15

Service ....................................................................................................................................................................16

Wheel locking force adjustment.............................................................................................................................. 16

Vinyl seat replacement .......................................................................................................................................... 16

Track belt replacement .......................................................................................................................................... 17

Track belt reconditioning........................................................................................................................................ 19

Rear wheel replacement........................................................................................................................................21

Upper control handle cable replacement ................................................................................................................. 21

Chair assembly ....................................................................................................................................................... 23

6251 Main frame assembly.....................................................................................................................................32

6252 Main frame assembly.....................................................................................................................................33

Upper extension handle- 6252-001-012.................................................................................................................36

Track frame assembly, standard belt ..................................................................................................................... 37

Internal latch assembly - 6252-001-014 ................................................................................................................. 39

Internal latch assembly - 6252-001-015 ................................................................................................................. 40

Cable and pin assembly - 6252-001-016................................................................................................................41

6 in. molded wheel assembly - 6060-002-010........................................................................................................ 42

Optional locking flip-up handle ...............................................................................................................................43

Foot tube assembly - 6250-001-012.......................................................................................................................44

6251/6252 Foot support assembly - 6251-001-012 ...............................................................................................45

6251/6252 Standard lower lift handle/no foot rest .................................................................................................. 46

6251/6252 Optional extended lower lift handle ...................................................................................................... 47

Extension handle assembly, right - 6250-001-014 .................................................................................................48

Extension handle assembly, left - 6250-001-015 ...................................................................................................49

6251/6252 Foot rest option..................................................................................................................................... 50

6252 Extended handle/no foot rest option..............................................................................................................51

6252 Extended handle/foot rest option................................................................................................................... 52

Seat section assembly - 6250-001-013 ..................................................................................................................53

Flip-up handle assembly - 6250-001-016 ...............................................................................................................54

6252-009-002 Rev B.0 1 EN

Lock mechanism assembly - 6250-001-017...........................................................................................................55

6251/6252 Vinyl seat option ................................................................................................................................... 56

6251/6252 ABS seat option ....................................................................................................................................57

Seat and back rest options .....................................................................................................................................58

6252 Head support options.....................................................................................................................................59

Restraint set, non-absorbent/metal buckles option ................................................................................................60

Restraint set, polyester/metal buckles option.........................................................................................................61

Restraint set, polypropylene/plastic buckles option ...............................................................................................62

Optional vinyl head support - 6252-001-140 ..........................................................................................................63

Optional elastic oxygen bottle holder - 6250-140-000............................................................................................ 64

EN 2 6252-009-002 Rev B.0

WWaarrnniinngg//CCaauuttiioonn//NNoottee DDeeffiinniittiioonn

The words WWAARRNNIINNGG, CCAAUUTTIIOONN, and NNOOTTEE carry special meanings and should be carefully reviewed.

WWAARRNNIINNGG -- Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also
describe potential serious adverse reactions and safety hazards.

CCAAUUTTIIOONN -- Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury to the user or patient or damage to the product or other property. This includes special care necessary for the safe
and effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.

NNoottee -- Provides special information to make maintenance easier or important instructions clearer.

6252-009-002 Rev B.0 3 EN

SSuummmmaarryy ooff ssaaffeettyy pprreeccaauuttiioonnss

Always read and strictly follow the warnings and cautions listed on this page. Service only by qualified personnel.

WWAARRNNIINNGG

• Always use any appropriate personal protective equipment while power washing to avoid inhaling contagion. Power
washing equipment may aerate contamination.

• Always wipe the product with clean water and dry after cleaning. Some cleaning products are corrosive in nature and
may cause damage to the product. Failure to properly rinse and dry the product leaves a corrosive residue on the
surface of the product and may cause premature corrosion of critical components.

• Do not sand the track teeth. Deformation of the teeth can cause unpredictable chair performance.

CCAAUUTTIIOONN

• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in this
manual.

• Do not modify the product or any components of the product. Modifying the product can cause unpredictable operation
resulting in injury to patient or operator. Modifying the product also voids its warranty.

• Do not steam clean or ultrasonically clean the product.

• Do not exceed 180 °F (82 °C) as the maximum water temperature.

• Do not exceed 1500 psi (130.5 bar) as the maximum water pressure. If you are using a hand held wand to wash the
product, keep the pressure nozzle at a minimum of 24 in. (61 cm) from the product.

• Always allow to air dry.

• Do not clean, service, or perform maintenance while the product is in use.

EN 4 6252-009-002 Rev B.0

IInnttrroodduuccttiioonn

This manual assists you with the operation or maintenance of your Stryker product. Read this manual before operating or
maintaining this product. Set methods and procedures to educate and train your staff on the safe operation or maintenance
of this product.

CCAAUUTTIIOONN

• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in this
manual.

• Do not modify the product or any components of the product. Modifying the product can cause unpredictable operation
resulting in injury to patient or operator. Modifying the product also voids its warranty.

NNoottee

• This manual is a permanent part of the product and should remain with the product even if the product is sold.

• Stryker continually seeks advancements in product design and quality. This manual contains the most current product
information available at the time of printing. There may be minor discrepancies between your product and this manual. If
you have any questions, contact Stryker Customer Service or Technical Support at 1-800-327-0770.

PPrroodduucctt ddeessccrriippttiioonn

The SSttaaiirr--PPRROO® stair chair is a manual transport device. The SSttaaiirr--TTRREEAADD™ feature allows the product to transport the
body of a human occupant in a seated position down a set of stairs. Front and rear wheels allow operators to transport the
occupant on flat surfaces.

IInnddiiccaattiioonnss ffoorr uussee

The Model 6251 and Model 6252 SSttaaiirr--PPRROO stair chair is a manual transport device. The product transports the body of a
human occupant in a seated position up or down a set of stairs. The chair holds adult, adolescent, or child occupants who
can remain seated in the chair while secured by the patient restraints. The SSttaaiirr--TTRREEAADD system on Model 6252 controls
the speed of descent of the occupant-loaded chair. Front and rear wheels allow operators to transport the occupant on flat
surfaces. The SSttaaiirr--PPRROO is intended for use in pre-hospital environments, in emergency and non-emergency applications.
The product supports a maximum capacity of 500 lb. Operate the product by trained professionals only. This includes
emergency medical service and medical first responders.

EExxppeecctteedd sseerrvviiccee lliiffee

The SSttaaiirr--PPRROO stair chair has a seven year expected service life under normal use conditions and with appropriate
periodic maintenance.

CCoonnttrraaiinnddiiccaattiioonnss

Do not use the SSttaaiirr--PPRROO stair chair to transport occupants who may have cervical, spinal, or fracture injuries.

SSppeecciiffiiccaattiioonnss

MMooddeell 66225511 66225522

500 lb 228 kg 500 lb 228 kg

Maximum load

Height 36 in. 91 cm 37.5 in. 95.25 cm

Width 20.5 in. 52 cm 20.5 in. 52 cm

6252-009-002 Rev B.0 5 EN

1

MMooddeell 66225511 66225522

A

B

C

D

E

2

Depth

Folded depth 8 in. 20 cm 8 in. 20 cm

28 in. 71 cm 28 in. 71 cm

Weight

Dimensions are measured from the outermost edges of the main frame. Specifications are rounded. Conversions are
calculated before rounding.

Model 6252 is compliant to BS EN 1865-4:2010 standard with the one-piece vinyl seat option (6250-020-000) and without
the footrest option (6252-027-000).

1

weight of the occupant, equipment, and accessories when they determine the total load on the product.

2

3

Stryker reserves the right to change specifications without notice.

The yellow and black color scheme is a proprietary trademark of Stryker Corporation.

3

Maximum load capacity is total weight distributed in accordance to basic human anatomy. Operators must consider the

Depth dimensions are measured with extendable handles retracted.

The weight of the 6252 model includes the one-piece vinyl seat option, but does not include the footrest option.

23 lb 10 kg 32.8 lb 14.9 kg

PPrroodduucctt iilllluussttrraattiioonn

FFiigguurree 11 –– 66225511

A Wheel lock D Lock bar

B Caster E Head end lift handles

C Foot end lift handle

EN 6 6252-009-002 Rev B.0

A

B

C

D

E

F

G

H

I

J

FFiigguurree 22 –– 66225522

A Wheel lock F

B Caster G Lift handle release lever

C Foot end lift handle H

D Lock bar I

E Foot end lift handle button

Upper control handle release cable

Upper control handle

SSttaaiirr--TTRREEAADD system

CCoonnttaacctt iinnffoorrmmaattiioonn

Contact Stryker Customer Service or Technical Support at: 1-800-327-0770.

Stryker Medical
3800 E. Centre Avenue

Portage, MI 49002
USA

To view your operations or maintenance manual online, see https://techweb.stryker.com/.

Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical Support.
Include the serial number in all written communication.

6252-009-002 Rev B.0 7 EN

SSeerriiaall nnuummbbeerr llooccaattiioonn

A

DDaattee ooff mmaannuuffaaccttuurree

The year of manufacture is the first 2 digits of the serial number.

SSeettuupp

During setup, unpack the cartons and check all items for proper operation. Make sure that the product operates before you
place it into service.

Remove all the shipping and packaging materials from the product before use.

The vehicle patient compartment where the product will be used must be large enough to accommodate the folded
dimensions of the chair.

When necessary, modify the vehicle to fit the chair. Do not modify the chair.

EN 8 6252-009-002 Rev B.0

CClleeaanniinngg

WWAARRNNIINNGG -- Always use any appropriate personal protective equipment while power washing to avoid inhaling contagion.
Power washing equipment may aerate contamination.

CCAAUUTTIIOONN

• Do not steam clean or ultrasonically clean the product.

• Do not exceed 180 °F (82 °C) as the maximum water temperature.

• Do not exceed 1500 psi (130.5 bar) as the maximum water pressure. If you are using a hand held wand to wash the
product, keep the pressure nozzle at a minimum of 24 in. (61 cm) from the product.

• Always allow to air dry.

• Do not clean, service, or perform maintenance while the product is in use.

The product is power washable. The product may show some signs of oxidation or discoloration from continuous washing.
No degradation of the product’s performance will occur from power washing as long as you follow the proper procedures.

• Follow the cleaning solution manufacturer’s dilution recommendations exactly.

• The preferred method Stryker Medical recommends for power washing the product is with the standard hospital surgical
cart washer or hand held wand unit.

• Clean VVeellccrroo® after each use. Saturate VVeellccrroo® with disinfectant and allow disinfectant to evaporate. Appropriate
disinfectant for nylon VVeellccrroo® should be determined by the service.

• Immersing restraint strap metal buckles can cause buckle corrosion and is not recommended. Rinse with clean water
and allow to air dry to reduce chance of corrosion. Replace restraints if metal buckles are corroded.

• The elastic oxygen bottle holder is made with high quality woven elastic. Make sure that you clean the elastic oxygen
bottle holder regularly.

CClleeaanniinngg tthhee ttrraacckk ffrraammee ((MMooddeell 66225522))

If a foreign material gets between the SSttaaiirr--TTRREEAADD system belt and track frame on Model 6252, you must clean the track
frame.

To clean the track frame:

1. Loosen the track belts.

2. Remove the rear wheels.

3. Clean the track frame with rubbing alcohol.

4. Use water at high pressure to rinse the belts. Clean both the inside and outside belt surfaces.

5. Allow the belts to completely dry.

6. Reassemble the track belts and the rear wheels.

7. Following the appropriate warnings and cautions, test the performance of the chair with a simulated occupant weight
while you descend a flight of stairs.

If performance does not return to the original conditions, you may need to recondition or replace the belts.

SSuuggggeesstteedd cclleeaanneerrss

In general, when used in concentrations recommended by the manufacturer, either phenolic type or quaternary (excluding
VViirreexx® TB) type disinfectants can be used. Iodophor type disinfectants are not recommended for use because staining
may occur.

WWAARRNNIINNGG -- Always wipe the product with clean water and dry after cleaning. Some cleaning products are corrosive in
nature and may cause damage to the product. Failure to properly rinse and dry the product leaves a corrosive residue on
the surface of the product and may cause premature corrosion of critical components.

6252-009-002 Rev B.0 9 EN

Suggested cleaners include:

• Quaternary cleaners (active ingredient - ammonium chloride)

• Phenolic cleaners (active ingredient - o-phenylphenol)

• Chlorinated bleach solution (5.25% - less than 1 part bleach to 100 parts water)

Avoid over saturation. Do not allow the product to stay wet longer than the chemical manufacturer's guidelines for proper
disinfecting.

NNoottee -- Failure to follow the above directions when using these types of cleaners may void this product’s warranty.

EN 10 6252-009-002 Rev B.0

PPrreevveennttiivvee mmaaiinntteennaannccee

Remove product from service before you perform the preventive maintenance inspection. Check all items listed during
annual preventive maintenance for all Stryker Medical products. You may need to perform preventive maintenance checks
more often based on your level of product usage. Service only by qualified personnel.

NNoottee -- Clean and disinfect the exterior of the support surface before inspection, if applicable.

OOppeerraattiioonn SScchheedduullee PPrroocceedduurree

Cleaning and disinfecting Each use See cleaning

Inspection For 1-25 calls per month, inspect chair

every 6 months

For 26-200 calls per month, inspect
chair every 3 months

For 201+ calls per month, inspect
chair monthly

SSttaaiirr--TTRREEAADD system belt
reconditioning (6252)

Inspect the following items:

All fasteners secure (reference all assembly drawings)

All welds intact, not cracked or broken

No bent or broken tubing or sheet metal

No debris in wheels

All wheels secure and rolling

Front casters secure, rolling, and swiveling (if equipped)

Wheel locks hold wheels securely when on and clear the wheels when off

Chair unfolds and locks properly

No rips or cracks in seat or backrest

Restraint straps intact and working

Foot end carrying handles extend and lock in place

Head end carrying handles fold and unfold

Upper control handle extends and locks in all positions

SSttaaiirr--TTRREEAADD system mechanism unfolds and locks in place (if equipped)

SSttaaiirr--TTRREEAADD system belt rolls (if equipped)

SSttaaiirr--TTRREEAADD system belt inner cords not showing; replace if necessary (if equipped)

SSttaaiirr--TTRREEAADD system performs as desired; recondition belts if necessary (if equipped)

No lubricants present on the SSttaaiirr--TTRREEAADD system belts or the track frame surfaces

Upper release handle cable not worn or frayed; replace if necessary (Model 6252)

Optional accessories intact and operating properly

After usage on approximately 500
flights of stairs or if the SSttaaiirr--TTRREEAADD
system performance is sluggish

See checklist below

See track belt reconditioning in the
maintenance manual

6252-009-002 Rev B.0 11 EN

Product serial number:

Completed by:

Date:

MMaaiinntteennaannccee rreeccoorrdd

DDaattee MMaaiinntteennaannccee ooppeerraattiioonn

ppeerrffoorrmmeedd

BByy HHoouurrss

EN 12 6252-009-002 Rev B.0

DDaattee MMaaiinntteennaannccee ooppeerraattiioonn

ppeerrffoorrmmeedd

BByy HHoouurrss

TTrraaiinniinngg rreeccoorrdd

TTrraaiinniinngg ddaattee

TTrraaiinneeee nnaammee BBaassiicc ttrraaiinniinngg RReeffrreesshheerr uuppddaattee OOwwnneerr’’ss mmaannuuaall,, iinn--

sseerrvviiccee,, ffoorrmmaall ccllaassss,, eettcc..

6252-009-002 Rev B.0 13 EN

TTrraaiinniinngg ddaattee

TTrraaiinneeee nnaammee BBaassiicc ttrraaiinniinngg RReeffrreesshheerr uuppddaattee OOwwnneerr’’ss mmaannuuaall,, iinn--

sseerrvviiccee,, ffoorrmmaall ccllaassss,, eettcc..

EN 14 6252-009-002 Rev B.0

QQuuiicckk rreeffeerreennccee rreeppllaacceemmeenntt ppaarrttss

These parts are currently available for purchase. Call Stryker Customer Service: 1-800-327-0770 for availability and pricing.

NNaammee NNuummbbeerr

Back rest, molded abs 6250-001-116

Belt, track 6252-001-085

Cable, upper handle release 6252-001-016

Caster, front (6251/6252) 6251-001-083

Handle grip 6250-001-089

Restraint, ankle 6250-001-127

Restraint, chest, black 6250-001-126

Restraint, chest, green 6250-001-125

Restraint set, polypropylene 6250-160-000

Restraint set, vinyl 6250-001-019

Seat, molded abs 6250-021-000

Seat, vinyl 6250-020-000

Touch-up paint (yellow) 6060-199-010

Touch-up paint (black) 6060-199-011

Wheel, rear, 5" (6252) 6252-001-114

Wheel, rear, 6" (6251) 6060-002-010

Wheel lock pedal 6080-200-030

6252-009-002 Rev B.0 15 EN

SSeerrvviiccee

WWhheeeell lloocckkiinngg ffoorrccee aaddjjuussttmmeenntt

TToooollss rreeqquuiirreedd::

• 5/32'' hex wrench

• 7/16'' combination wrench or socket

1. Using the 5/32" hex wrench and 7/16" combination wrench or socket, remove the socket screw from the center of the
lock pedal. The wheel lock is initially assembled with the pedal set at the minimum locking force. The marker on the
pedal (A) is aligned with the marker on the octagonal sleeve (B) (Wheel locking force adjustment).

2. Remove the sleeve (B). Rotate the sleeve counterclockwise to increase the pedal locking force and clockwise to
decrease the locking force. Insert the sleeve into the pedal (Wheel locking force adjustment).

3. Using the 5/32" hex wrench and 7/16" combination wrench or socket, reinstall the socket screw.

4. Test the pedal locking force and make sure that the pedal holds properly before returning it to service.

FFiigguurree 33 –– WWhheeeell lloocckkiinngg ffoorrccee aaddjjuussttmmeenntt

VViinnyyll sseeaatt rreeppllaacceemmeenntt

TToooollss rreeqquuiirreedd::

• None

1. Place the seat section on the frame, wrap it around the seat tube, and fit the slots in the seat section (Figure 4) over the
clips on the underside of the seat tube. Be sure the “shiny” side of the seat is on the inside.

FFiigguurree 44 –– SSeeaatt sseeccttiioonn ooff tthhee vviinnyyll sseeaatt

2. Tip the chair on its back to allow access to the bottom of the seat tube.

3. Insert both ends of the front strap through the loops in the seat section.

4. Thread the end of the back strap through the buckle and pull it tight.

5. Tip the chair up on its wheels.

6. Wrap the back section (Figure 5) around the back tube.

EN 16 6252-009-002 Rev B.0

FFiigguurree 55 –– BBaacckk sseeccttiioonn ooff tthhee vviinnyyll sseeaatt

7. Insert both ends of the top strap through the loops in the back section.

8. Thread the end of the bottom strap through the buckle and pull it tight.

TTrraacckk bbeelltt rreeppllaacceemmeenntt

TToooollss rreeqquuiirreedd::

• (2) 7/16'' wrench

• 3/16'' hex key

• 1/2'' wrench

• 5/32'' hex key

1. Using a 7/16'' wrench and a 3/16'' hex key, remove the socket head cap screw, nut, and washer from the track support
bracket on only one side of the chair (Figure 6).

FFiigguurree 66 –– RReemmoovvee tthhee ssccrreeww,, nnuutt,, aanndd wwaasshheerr

2. Turn the chair upside down so it is resting on the seat frame and back frame (Figure 7).

3. Using a 1/2'' wrench and a 3/16'' hex key, remove the button head cap screw, nut, spacers, and wheel from the frame on
the same side as the parts removed in step one (Figure 8).

6252-009-002 Rev B.0 17 EN

FFiigguurree 77 –– TTuurrnn tthhee cchhaaiirr uuppssiiddee ddoowwnn

FFiigguurree 88 –– RReemmoovvee tthhee wwhheeeell aasssseemmbbllyy

FFiigguurree 99 –– RReemmoovvee tthhee ttrraacckk ssppaacceerr ppiivvoottss

4. Using a 5/32'' hex key, remove the two button head cap screws from the track spacer pivots and remove the pivots
(Figure 9).

5. Using two 7/16'' wrenches, remove the hex head cap screw, nut, and washers from both head end track rollers to
remove the rollers (Figure 10).

FFiigguurree 1100 –– RReemmoovvee tthhee rroolllleerrss

FFiigguurree 1111 –– RReemmoovvee tthhee wwoorrnn bbeellttss

6. Remove the belts by threading them through the wheel support plate on the side where the parts were removed (Figure

11).

7. Thread the new belts through the wheel support plate (Figure 12).

FFiigguurree 1133 –– UUssee wwrreenncchheess ttoo aappppllyy tteennssiioonn ttoo tthhee

bbeellttss

FFiigguurree 1122 –– AAttttaacchh tthhee nneeww ttrraacckk bbeelltt

8. Replace the track rollers, washers, hex head cap screws, and nuts (Figure 13).

9. Use two 7/16'' wrenches to apply the desired tension to each belt and tighten securely (Figure 14).

EN 18 6252-009-002 Rev B.0

FFiigguurree 1144 –– PPrrooppeerr bbeelltt tteennssiioonn

NNoottee -- To check the tension, pull up on the center of the belt until it is taut. The gap between the belt and the track frame
should measure between 3/8” and 1”.

10.Spin the belts to make sure that they roll freely.

TTrraacckk bbeelltt rreeccoonnddiittiioonniinngg

TToooollss rreeqquuiirreedd::

• (2) 7/16'' wrenches

• Permanent marker

• 50 grit sandpaper

• Sanding block

1. Extend the upper control handle, open the SSttaaiirr--TTRREEAADD system tracks.

2. Turn the chair upside down so it is resting on the handle and the seat frame (Figure 15).

FFiigguurree 1155 –– TTiipp tthhee cchhaaiirr ffoorrwwaarrdd

FFiigguurree 1166 –– RReemmoovvee tthhee wwhheeeell ssppaacceerr iinn tthhee ddiirreeccttiioonn

ooff tthhee fflloooorr

3. Using two 7/16'' wrenches, remove the hex head bolt, hex nut, two washers, spacer, and wheel from both sides of the
track frame. Remove the wheel and spacer by pulling down in the direction of the floor (Figure 16).

4. Turn both belts over so the small internal teeth are on the outside. Put the belts on the track frame for support while
sanding them (Figure 17).

6252-009-002 Rev B.0 19 EN

FFiigguurree 1177 –– MMaarrkk aa bbeelltt ttooootthh ffoorr rreeffeerreennccee

A

B

NNoottee -- New track belts must be installed if the inner cords are exposed on the wear surfaces.

5. For a start or end point of reference while sanding, use a permanent marker to color a tooth on the belt (Figure 17).

6. Using a sanding block with 50 grit sandpaper, sand both wear surfaces (B) (Figure 18) on the outside edges of each belt
(Figure 19). The purpose is to roughen the surface of the belt just enough to remove the shiny spots caused by normal
wear. Do not over sand the belts.

FFiigguurree 1188 –– SSaanndd tthhee wweeaarr ssuurrffaacceess

FFiigguurree 1199 –– BBeelltt ssaannddiinngg ssuurrffaacceess

WWAARRNNIINNGG -- Do not sand the track teeth. Deformation of the teeth can cause unpredictable chair performance.

7. Remove all sanding debris from the belts and the track frame.

8. Turn both belts back over so the large teeth are on the outside.

9. Replace the hex head bolt, hex nut, two washers, spacer, and wheel on both sides of the track frame.

10.Using two 7/16'' wrenches, apply the desired tension to each belt and tighten securely (Figure 20).

EN 20 6252-009-002 Rev B.0

FFiigguurree 2200 –– UUssee wwrreenncchheess ttoo aappppllyy tteennssiioonn ttoo tthhee bbeelltt

NNoottee -- To check the tension, pull up on the center of the belt until it is taut. The gap between the belt and the track frame
should measure between 3/8 in. and 1 in. (Figure 21).

11.Spin the belts to make sure that they roll freely.

FFiigguurree 2211 –– PPrrooppeerr bbeelltt tteennssiioonn

RReeaarr wwhheeeell rreeppllaacceemmeenntt

TToooollss rreeqquuiirreedd::

• 1/2'' wrench

• 3/16'' hex key

1. Turn the chair upside down so it is resting on the seat frame and back frame (Figure 22).

FFiigguurree 2222 –– TTuurrnn tthhee cchhaaiirr uuppssiiddee ddoowwnn

2. Using a 1/2'' wrench and a 3/16'' hex key, remove the button head cap screw, nut, spacers, and wheel from the frame.
Discard the cap screw and nut (Figure 23).

3. Using the supplied fasteners, attach the supplied wheel to the frame.

4. Repeat steps for the other wheel, if necessary.

5. Verify proper operation of the product before returning it to service.

FFiigguurree 2233 –– RReemmoovvee tthhee wwhheeeell aasssseemmbbllyy

UUppppeerr ccoonnttrrooll hhaannddllee ccaabbllee rreeppllaacceemmeenntt

TToooollss rreeqquuiirreedd::

• 5/8'' wrench

1. Pull the cable and raise the extendable upper control handle to the fully extended position (Figure 24).

6252-009-002 Rev B.0 21 EN

FFiigguurree 2255 –– RReemmoovvee oonnee ssiiddee ooff tthhee ccaabbllee

FFiigguurree 2244 –– RRaaiissee tthhee eexxtteennddaabbllee hhaannddllee

2. Using a 5/8'' wrench, remove one side of the cable (Figure 25).

3. Place the washer on the end of the new cable (Figure 26).

FFiigguurree 2277 –– AAttttaacchh oonnee ssiiddee ooff tthhee nneeww ccaabbllee

FFiigguurree 2266 –– PPllaaccee tthhee wwaasshheerr oonn tthhee nneeww ccaabbllee

4. Using a 5/8'' wrench, attach one side of the new cable to the chair frame in the hole where the old cable was removed
(Figure 27).

5. Repeat steps 2-4 for the other end of the cable.

6. Verify proper operation of the product before returning it to service.

EN 22 6252-009-002 Rev B.0

CChhaaiirr aasssseemmbbllyy

6251

6252

6250-001-005 Rev V (Reference only)

6252-009-002 Rev B.0 23 EN

EN 24 6252-009-002 Rev B.0

6252-009-002 Rev B.0 25 EN

EN 26 6252-009-002 Rev B.0

6252-009-002 Rev B.0 27 EN

EN 28 6252-009-002 Rev B.0

6252-009-002 Rev B.0 29 EN

MMooddeell 66225511 AAsssseemmbbllyy 66225511--000011--001100 RReevv BB ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
BA 6250-001-020 Common components 1
BB 6251-001-012 Caster foot support assembly 1
BC 6251-001-137 6251 spec label 1

MMooddeell 66225522 AAsssseemmbbllyy 66225522--000011--001100 RReevv CC ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
CA 6250-001-020 Common components 1
CB 6251-001–012 1
CC 6252-001-137 6252 spec label 1
CD 6252-001-138 Label, track release 1
CE 6252-001-139 Label, do not lubricate 2

66225500 CChhaaiirr aasssseemmbbllyy -- ccoommmmoonn ccoommppoonneennttss -- 66225500--000011--002200 RReevv KK ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
DA 0001-167-000 Flat socket head screw 2
DB 0004-204-000 Button head cap screw 2
DC 0004-163-000 Button head cap screw 2
DD 0004-235-000 Socket head cap screw 2
DG 0014-020-000 Washer 4

EN 30 6252-009-002 Rev B.0

66225500 CChhaaiirr aasssseemmbbllyy -- ccoommmmoonn ccoommppoonneennttss -- 66225500--000011--002200 RReevv KK ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
DH 0014-099-000 Washer 2
DJ 0016-028-000 Nylock hex nut 10
DL 0025-172-000 Blind rivet 2
DM 6060-090-002 Serial number tag 1
DN 6250-001-013 Seat section assembly - 6250-001-013 1
DP 6250-001-016 Flip-up handle assembly - 6250-001-

2

016

DR 6250-001-017 Lock mechanism assembly - 6250-001-

1

017

DS 6250-001-098 Pivot spacer 4
DT 6250-001-111 Flip-up handle pivot spacer 2
DU 6250-001-140 Label, SSttaaiirr--PPRROO 2
DV 6082-090-042 Label, 8'' Stryker 2
DW 0011-209-000 Washer 2
DY 0011-159-000 Washer 2
DBA 0004-517-000 Socket head cap screw 2
DBB 0004-204-000 Button head cap screw 2
DBC 0016-028-000 Nylock nut 2
DBD 6250-001-113 Trigger, flip-up handle 2
DBE 6250-001-114 Single spring 2

66225511 MMaaiinn ffrraammee aasssseemmbbllyy ooppttiioonn -- 66225500--002222--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
EA 6250-001-011 6251 Main frame assembly 1

EExxtteennddeedd mmaaiinn ffrraammee aasssseemmbbllyy ooppttiioonn -- 66225500--002233--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
FA 6250-003-011 Main frame assembly, extended 1

66225522 MMaaiinn ffrraammee aasssseemmbbllyy ooppttiioonn -- 66225522--002222--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
GA 6252-001-011 6252 Main frame assembly 1

EExxtteennddeedd mmaaiinn ffrraammee aasssseemmbbllyy ooppttiioonn -- 66225522--002233--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
HA 6252-003-011 Main frame assembly, extended 1

NNoo IIVV bbaagg cclliipp ooppttiioonn -- 66225522--002244--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
CAA 6252-001-012 Upper extension handle 1

IIVV bbaagg cclliipp ooppttiioonn -- 66225522--002255--000000 RReevv AA ((RReeffeerreennccee oonnllyy))
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
DAA 6252-001-212 IV clip upper extension handle 1
DAB 6252-001-153 IV strap 1

6252-009-002 Rev B.0 31 EN

66225511 MMaaiinn ffrraammee aasssseemmbbllyy

6250-001-011 Rev F (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0003-033-000 Hex head cap screw 2
B 0004-235-000 Button head cap screw 6
C 0004-511-000 Button head cap screw 2
D 0015-016-000 Square nut 2
E 0025-172-000 Blind rivet 8
F 0016-139-000 Nylock nut 2
G 0016-028-000 Nylock hex nut 6
H 6060-002-010 6 in. molded wheel assembly - 6060-

002-010

J 6080-300-030 Adjustable caster lock pedal 2
K 6080-200-041 Hex sleeve 2
L 6250-001-055 Frame weldment 1
M 6250-001-086 Outer extrusion end cap 2
N 6250-001-102 Outer wheel support spacer 2
P 6250-001-103 Inner wheel support spacer 2
R 6250-001-104 Wheel support 4
S 6250-001-118 Lock retaining spring 2
T 6250-001-131 Spring 2
U 6250-001-132 Seat spacer 2
V 6250-001-134 Rivet back plate 2
W 0025-079-000 Blind rivet 4
Y 0011-209-000 Washer 6

2

EN 32 6252-009-002 Rev B.0

66225522 MMaaiinn ffrraammee aasssseemmbbllyy

6252-001-011 Rev J (Reference only)

6252-009-002 Rev B.0 33 EN

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-235-000 Button head cap screw 4
B 0004-468-000 Button head cap screw 4
C 0004-511-000 Button head cap screw 2
D 0004-512-000 Button head cap screw 2
E 0025-079-000 Blind rivet 4
F 0004-514-000 Socket head cap screw 2
G 0011-045-000 Washer 4
H 0011-209-000 Washer 10
J 0011-423-000 Spacer 4
K 0011-455-000 Washer 2
P 0015-016-000 Square nut 2
R 0016-028-000 Nylock nut 8
S 0016-316-000 Centerlock hex jam nut 2
T 0025-172-000 Blind rivet 4

EN 34 6252-009-002 Rev B.0

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
U 6250-001-055 Frame weldment 1
V 6250-001-102 Wheel support spacer, outer 2
W 6250-001-103 Wheel support spacer, inner 2
X 6250-001-118 Lock retaining spring 2
Z 6252-001-013 Track frame assembly, standard belt 1
AA 6252-001-016 Cable and pin assembly - 6252-001-016 1
AB 6252-001-084 Track belt roller spacer 2
AC 6252-001-124 Track support offset bracket 1
AD 6252-001-125 Track support offset bracket 1
AE 6252-001-088 Track support strut 2
AF 6252-001-089 Track support cross bar 1
AG 6252-001-094 Upper extension handle dead stop 2
AH 6252-001-096 Track lock post 2
AJ 6252-001-104 Wheel support 4
AK 6252-001-106 Track spacer pivot 4
AL 6252-001-113 Track tube spacer 1
AM 6252-001-114 5'' wheel 2
AN 6252-001-120 Track sleeve spacer 2
AR 0004-028-000 Socket head cap screw 2
AS 0004-204-000 Button head cap screw 2
AT 0011-064-000 Washer 4
AV 6250-001-124 Flange bearing 2

6252-009-002 Rev B.0 35 EN

UUppppeerr eexxtteennssiioonn hhaannddllee-- 66225522--000011--001122

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0025-133-000 Blind rivet 4
B 6250-001-085 Internal slide bushing 2
C 6250-001-087 Outer extension handle bushing 2
D 6252-001-090 Upper internal handle 1
E 6252-001-145 Handle reinforcer 2

EN 36 6252-009-002 Rev B.0

TTrraacckk ffrraammee aasssseemmbbllyy,, ssttaannddaarrdd bbeelltt

6252-001-013 Rev E (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0003-358-000 Hex head cap screw 2
B 0003-365-000 Hex head cap screw 2
D 0004-483-000 Button head cap screw 4
E 0004-511-000 Button head cap screw 8
F 0008-063-000 Socket head cap screw 2
G 0011-209-000 Washer 14
H 0014-099-000 Washer 2
J 0016-028-000 Hex nut 8
L 0025-172-000 Blind rivet 4
M 6080-300-030 Adjustable caster lock pedal 2
N 6080-200-041 Hex sleeve 2

6252-009-002 Rev B.0 37 EN

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
P 6252-001-014 Internal latch assembly - 6252-001-014 1
R 6252-001-015 Internal latch assembly - 6252-001-015 1
S 6252-001-050 Track frame weldment 1
T 6252-001-083 Track belt roller 4
U 6252-001-084 Track belt roller spacer 4
V 6252-001-085 Track belt 2
W 6252-001-102 Wheel support stamping 1
X 6252-001-103 Wheel support stamping 1
Y 6252-001-105 Lock mechanism cross bar 1
Z 6252-001-110 Latch 1
AA 6252-001-111 Latch 1
BB 6252-001-112 Spring 4
CC 6252-001-121 Lock pivot internal spacer 2

EN 38 6252-009-002 Rev B.0

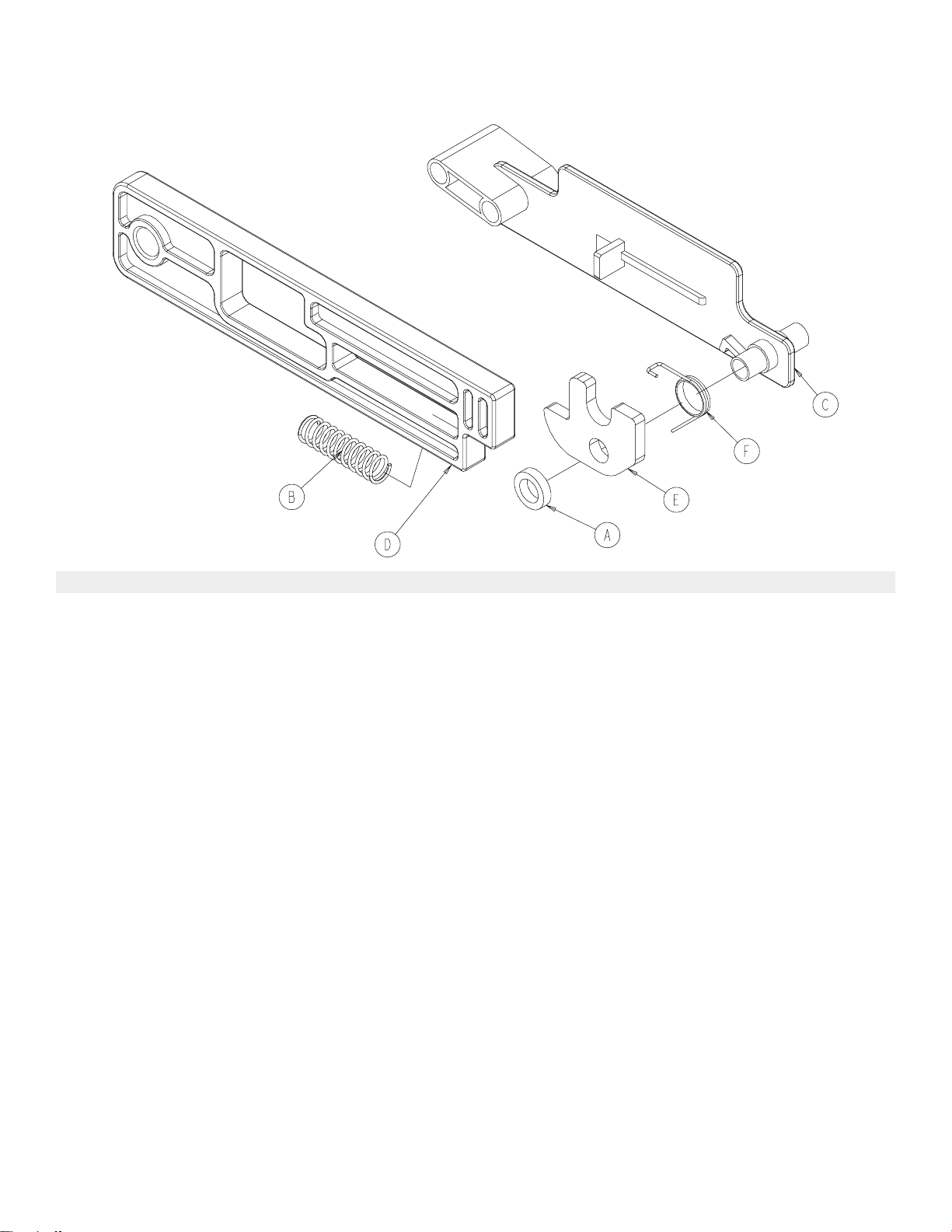

IInntteerrnnaall llaattcchh aasssseemmbbllyy -- 66225522--000011--001144

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0014-098-000 Washer 1
B 0038-506-000 Compression spring 1
C 6252-001-097 Latch retainer block 1
D 6252-001-098 Latch release slide 1
E 6252-001-099 Track latch lock 1
F 6252-001-101 Single spring 1

6252-009-002 Rev B.0 39 EN

IInntteerrnnaall llaattcchh aasssseemmbbllyy -- 66225522--000011--001155

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0014-098-000 Washer 1
B 0038-506-000 Compression spring 1
C 6252-001-097 Latch retainer block 1
D 6252-001-098 Latch release slide 1
E 6252-001-099 Track latch lock 1
F 6252-001-100 Single spring 1

EN 40 6252-009-002 Rev B.0

CCaabbllee aanndd ppiinn aasssseemmbbllyy -- 66225522--000011--001166

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0038-507-000 Compression spring 2
B 6252-001-115 Pull pin 2
C 6252-001-116 Pull pin bolt 2
D 6252-001-119 Cable 1

6252-009-002 Rev B.0 41 EN

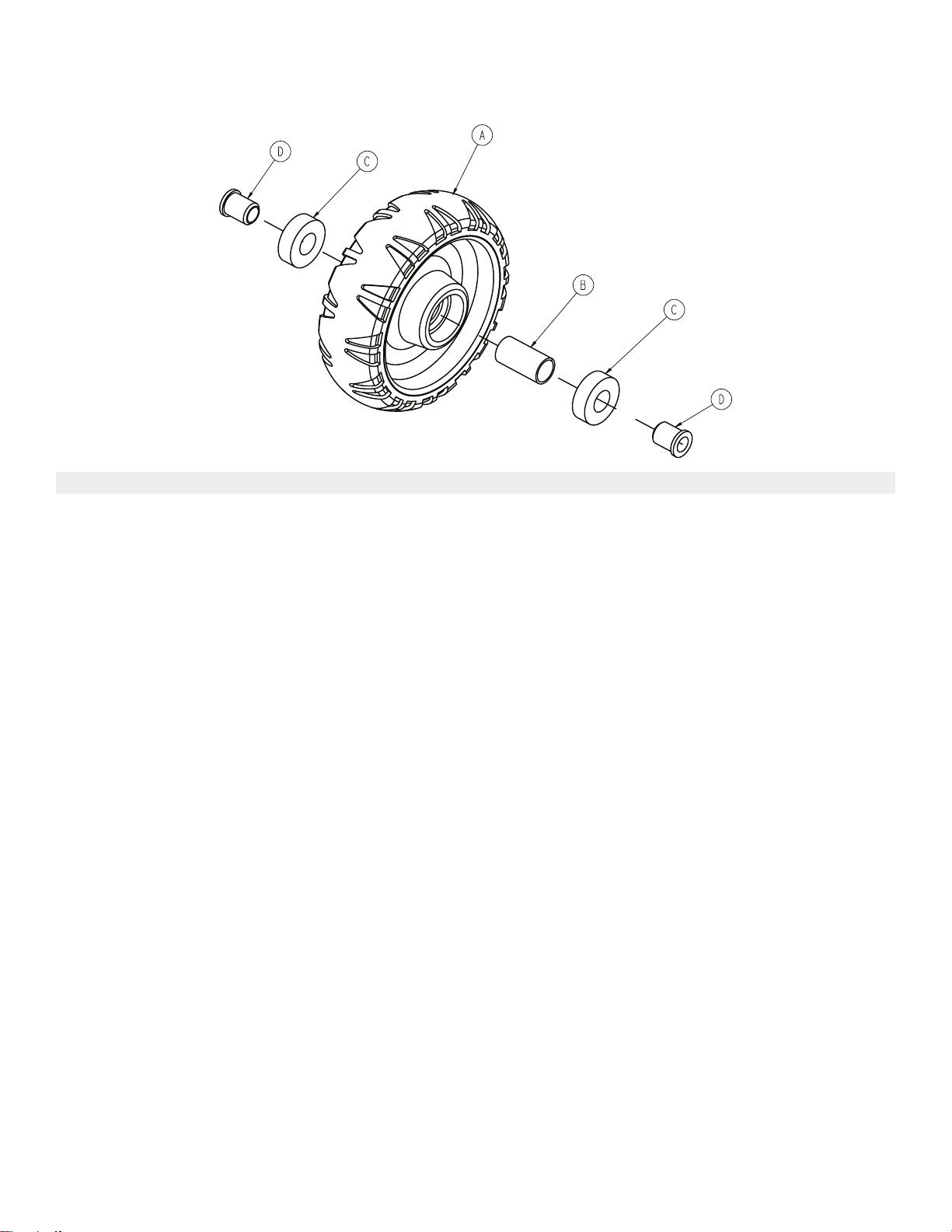

66 iinn.. mmoollddeedd wwhheeeell aasssseemmbbllyy -- 66006600--000022--001100

Rev D (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6060-002-045 6 in. molded wheel 1
B 6060-002-046 Bearing spacer 1
C 0081-226-000 Bearing 2
D 0715-001-255 Wheel bushing 2

EN 42 6252-009-002 Rev B.0

OOppttiioonnaall lloocckkiinngg fflliipp--uupp hhaannddllee

6250-031-000 Rev E (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
PA 0004-204-000 Button head cap screw 2
PB 0016-028-000 Nylock nut 2
PC 6250-001-111 Flip-up handle pivot spacer 2
PD 6250-001-113 Flip-up handle trigger 2
PE 6250-001-114 Single spring 2

6252-009-002 Rev B.0 43 EN

FFoooott ttuubbee aasssseemmbbllyy -- 66225500--000011--001122

Rev A (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6250-001-090 Foot section end cap 2
B 6250-001-091 Foot section tube 1
C 6250-001-096 Foot/seat section end cap 2

EN 44 6252-009-002 Rev B.0

66225511//66225522 FFoooott ssuuppppoorrtt aasssseemmbbllyy -- 66225511--000011--001122

Rev A (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0016-064-000 Nylock hex nut 2
B 6250-001-090 Foot section end cap 2
C 6250-001-096 Foot/seat section end cap 2
D 6251-001-050 Foot section weldment 1
E 6251-001-083 Caster 2

6252-009-002 Rev B.0 45 EN

66225511//66225522 SSttaannddaarrdd lloowweerr lliifftt hhaannddllee//nnoo ffoooott rreesstt

6250-024-000 Rev C / 6252-028-000 Rev C

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
JB 6250-001-014 Extension handle, right 1
JC 6250-001-015 Extension handle, left 1
JE 6250-001-129 Pivot spacer 2
JF 6250-001-133 Spacer 2

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy

YD 6250-001-098 Pivot spacer 2

EN 46 6252-009-002 Rev B.0

66225511//66225522 OOppttiioonnaall eexxtteennddeedd lloowweerr lliifftt hhaannddllee

6250-025-000 Rev C (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
KB 6250-003-014 Extension extended handle, right 1
KC 6250-003-015 Extension extended handle, left 1
KE 6250-003-129 Pivot spacer 2
KF 6250-003-133 Spacer, extension handle locator 2
KG 6250-003-134 Spacer, extension handle locator 2

6252-009-002 Rev B.0 47 EN

EExxtteennssiioonn hhaannddllee aasssseemmbbllyy,, rriigghhtt -- 66225500--000011--001144

Rev E (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0001-138-000 Flat head socket screw 1
B 0004-136-000 Button head cap screw 1
C 0004-509-000 Button head cap screw 3
D 0015-016-000 Square nut 1
E 0025-079-000 Blind rivet 2
F 0025-132-000 Blind rivet 2
G 0026-323-000 Coiled spring pin 1
H 0038-462-000 Compression spring 1
J 0056-022-000 Bumper 1
K 6100-031-065 Push button 1
L 6250-001-080 Pivot lock lever 1
M 6250-001-081 Internal extension handle 1
N 6250-001-082 Pivot bracket 1
P 6250-001-083 Lock pin 1
R 6250-001-085 Internal slide bushing 1
S 6250-001-086 Outer end cap 1
T 6250-001-087 Outer bushing 1
U 6250-001-089 Hand grip 1
V 6250-001-112 Dead stop 1
W 6250-001-121 Extension outer handle, right 1

EN 48 6252-009-002 Rev B.0

EExxtteennssiioonn hhaannddllee aasssseemmbbllyy,, lleefftt -- 66225500--000011--001155

Rev E (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0001-138-000 Flat head socket screw 1
B 0004-136-000 Button head cap screw 1
C 0004-509-000 Button head cap screw 3
D 0015-016-000 Square nut 1
E 0025-079-000 Blind rivet 2
F 0025-132-000 Blind rivet 2
G 0026-323-000 Coiled spring pin 1
H 0038-462-000 Compression spring 1
J 0056-022-000 Bumper 1
K 6100-031-065 Push button 1
L 6250-001-080 Pivot lock lever 1
M 6250-001-081 Internal extension handle 1
N 6250-001-082 Pivot bracket 1
P 6250-001-083 Lock pin 1
R 6250-001-085 Internal slide bushing 1
S 6250-001-086 Outer end cap 1
T 6250-001-087 Outer bushing 1
U 6250-001-089 Hand grip 1
V 6250-001-112 Dead stop 1
W 6250-001-122 Extension outer handle, left 1

6252-009-002 Rev B.0 49 EN

66225511//66225522 FFoooott rreesstt ooppttiioonn

6252-027-000 Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
WD 6250-003-098 Pivot spacer 2
WE 6252-001-017 Foot support assembly 1

EN 50 6252-009-002 Rev B.0

66225522 EExxtteennddeedd hhaannddllee//nnoo ffoooott rreesstt ooppttiioonn

6252-030-000 Rev C (Reference only) / 6250-001-005 Rev V (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
BAD 6250-003-098 Pivot spacer 2

6252-009-002 Rev B.0 51 EN

66225522 EExxtteennddeedd hhaannddllee//ffoooott rreesstt ooppttiioonn

6252-029-000 Rev B (Reference only) / 6250-001-005 Rev V (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
AAD 6250-009-099 Pivot spacer 2
AAE 6252-007-017 Foot support assembly 1

EN 52 6252-009-002 Rev B.0

SSeeaatt sseeccttiioonn aasssseemmbbllyy -- 66225500--000011--001133

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0025-120-000 Rivet 4
B 6250-001-165 Clip 2
C 6250-001-050 Seat frame weldment 1
D 6250-001-096 Foot/seat section end cap 2

6252-009-002 Rev B.0 53 EN

FFlliipp--uupp hhaannddllee aasssseemmbbllyy -- 66225500--000011--001166

Rev A (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0025-132-000 Blind rivet 2
B 6250-001-052 Flip-up handle weldment 1
C 6250-001-089 Hand grip 1

EN 54 6252-009-002 Rev B.0

LLoocckk mmeecchhaanniissmm aasssseemmbbllyy -- 66225500--000011--001177

Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-515-000 Button head cap screw 4
B 6250-001-094 Lock mechanism strut 2
C 6250-001-095 Cross bar 1
D 6250-001-124 Flange bearing 2

6252-009-002 Rev B.0 55 EN

66225511//66225522 VViinnyyll sseeaatt ooppttiioonn

6250-020-000 Rev E (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
LA 0004-517-000 Socket head cap screw 2
LB 0011-064-000 Washer 2
LC 0011-209-000 Washer 2
LD 0016-028-000 Nylock hex nut 2
LE 6250-001-098 Pivot spacer 2
LF 6250-001-135 Vinyl seat 1

EN 56 6252-009-002 Rev B.0

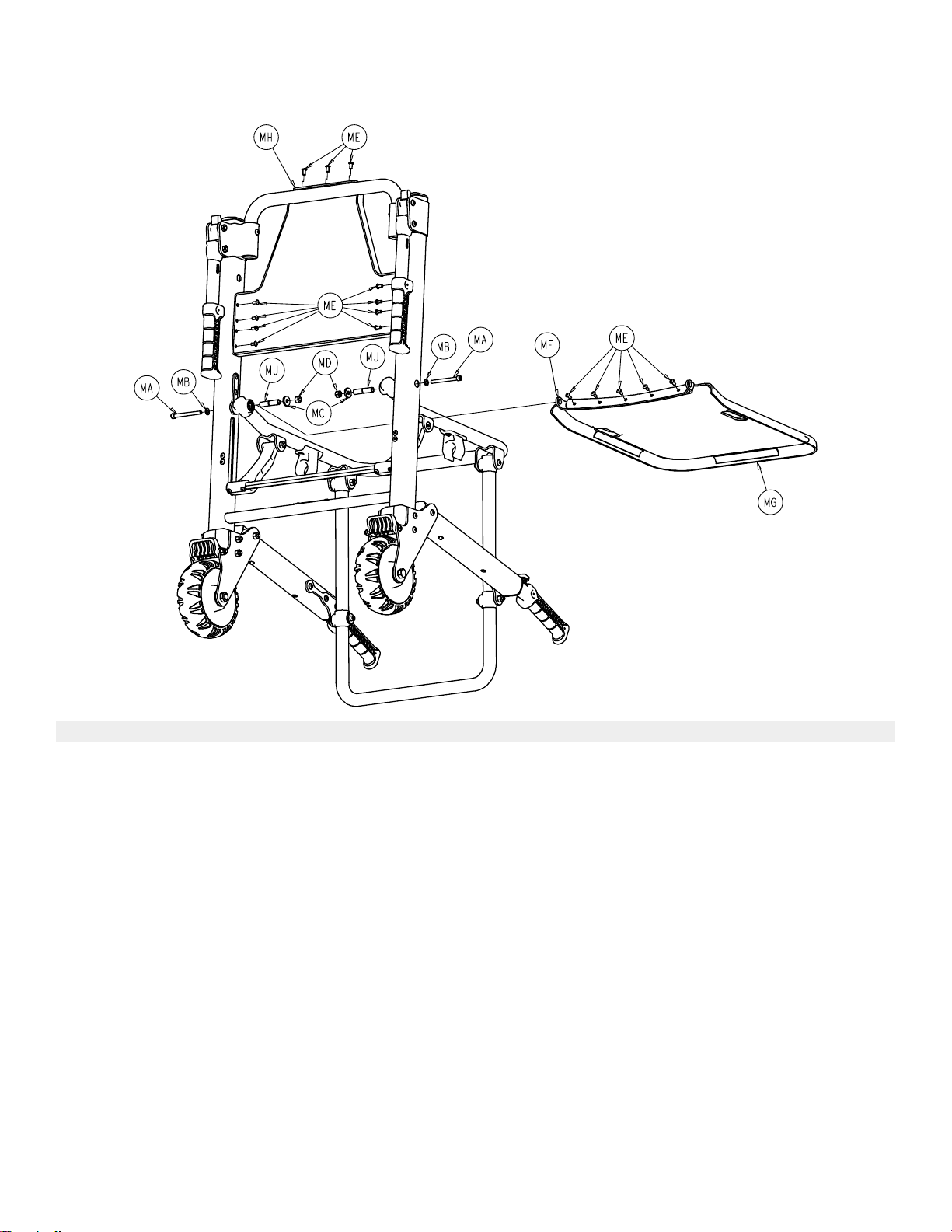

66225511//66225522 AABBSS sseeaatt ooppttiioonn

6250-021-000 Rev D (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
MA 0004-517-000 Socket head cap screw 2
MB 0011-064-000 Washer 2
MC 0011-209-000 Washer 2
MD 0016-028-000 Nylock hex nut 2
ME 0025-172-000 Blind rivet 16
MF 6250-001-099 Seat support bracket 1
MG 6250-001-115 Plastic seat 1
MH 6250-001-116 Plastic back rest 1
MJ 6250-001-128 Pivot spacer 2

6252-009-002 Rev B.0 57 EN

SSeeaatt aanndd bbaacckk rreesstt ooppttiioonnss

ABS seat - 6250-001-115 (Rev C)

ABS seat option - 6250-021-000 (Rev D)

ABS backrest - 6250-001-116 (Rev C)

Vinyl seat - 6250-001-135 (Rev B)

Vinyl seat option - 6250-020-000 (Rev E)

EN 58 6252-009-002 Rev B.0

66225522 HHeeaadd ssuuppppoorrtt ooppttiioonnss

6252-001-122 Rev D / 6252-001-140 Rev C (Reference only)

HHeeaadd ssuuppppoorrtt ooppttiioonn -- 66225500--004400--000000 RReevv BB
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
SA 6252-001-122 Head support 1

VViinnyyll hheeaadd ssuuppppoorrtt ooppttiioonn -- 66225500--004411--000000 RReevv BB

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy

TA 6252-001-140 Vinyl head support 1

6252-009-002 Rev B.0 59 EN

RReessttrraaiinntt sseett,, nnoonn--aabbssoorrbbeenntt//mmeettaall bbuucckklleess ooppttiioonn

56” 15”

54”

6250-161-000 Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6250-001-143 Vinyl chest restraint strap 2
B 6250-001-144 Vinyl ankle restraint strap 1

EN 60 6252-009-002 Rev B.0

RReessttrraaiinntt sseett,, ppoollyyeesstteerr//mmeettaall bbuucckklleess ooppttiioonn

55” 25.25”

6250-162-000 Rev B (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6060-160-044 Lap belt assembly 2
B 6250-001-127 Ankle restraint strap 1
C 6250-001-163 Restraint buckle 2

6252-009-002 Rev B.0 61 EN

RReessttrraaiinntt sseett,, ppoollyypprrooppyylleennee//ppllaassttiicc bbuucckklleess ooppttiioonn

15”

56”

15”

56”

54”

6250-160-000 Rev D (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6250-001-018 Restraint strap set 1
B 6250-001-163 Restraint buckle 2

EN 62 6252-009-002 Rev B.0

OOppttiioonnaall vviinnyyll hheeaadd ssuuppppoorrtt -- 66225522--000011--114400

10.00”

36.25”

Rev C (Reference only)

6252-009-002 Rev B.0 63 EN

OOppttiioonnaall eellaassttiicc ooxxyyggeenn bboottttllee hhoollddeerr -- 66225500--114400--000000

Rev A (Reference only)

IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 6250-140-080 Elastic oxygen bottle holder 1

EN 64 6252-009-002 Rev B.0

Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA

6252-009-002 Rev B.0
WCR: AA.5

2018/05
