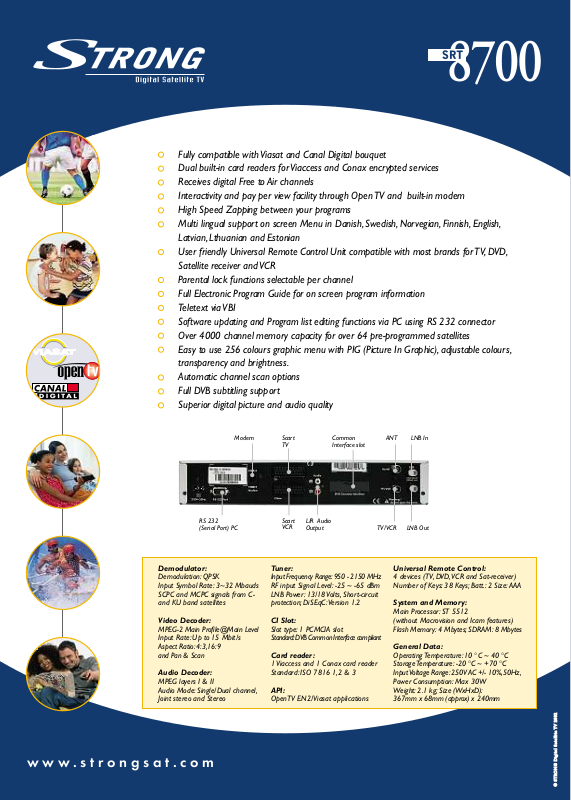

Strong SRT 8700 BROCHURE
www.strongsat.com
Fully compatible with Viasat and Canal Digital bouquet
Dual built-in card readers for Viaccess and Conax encrypted services
Receives digital Free to Air channels
Interactivity and pay per view facility through Open TV and built-in modem
High Speed Zapping between your programs
Multi lingual support on screen Menu in Danish, Swedish, Norvegian, Finnish, English,
Latvian, Lthuanian and Estonian
User friendly Universal Remote Control Unit compatible with most brands for TV, DVD,
Satellite receiver and VCR
Parental lock functions selectable per channel
Full Electronic Program Guide for on screen program information
Teletext via VBI
Software updating and Program list editing functions via PC using RS 232 connector
Over 4000 channel memory capacity for over 64 pre-programmed satellites
Easy to use 256 colours graphic menu with PIG (Picture In Graphic), adjustable colours,
transparency and brightness.
Automatic channel scan options
Full DVB subtitling support
Superior digital picture and audio quality
© STR© STRONG Digital Satellite ONG Digital Satellite TV 2002TV 2002
Technical alterations reserved.
Demodulator:
Demodulation: QPSK
Input Symbol Rate: 3~32 Mbauds
SCPC and MCPC signals from Cand KU band satellites
Video Decoder:
MPEG-2 Main Profile@Main Level
Input Rate: Up to 15 Mbit/s
Aspect Ratio: 4:3,16:9
and Pan & Scan
Audio Decoder:
MPEG layers I & II
Audio Mode: Single/Dual channel,
Joint stereo and Stereo
Tuner:
Input Frequency Range: 950 - 2150 MHz
RF input Signal Level: -25 ~ -65 dBm
LNB Power: 13/18 Volts, Short-circuit
protection; DiSEqC:Version 1.2
CI Slot:
Slot type: 1 PCMCIA slot
Standard: DVB Common Interface compliant
Card reader:
1 Viaccess and 1 Conax card reader
Standard: ISO 7816 1,2 & 3
API:
OpenTV EN2/Viasat applications
Universal Remote Control:
4 devices (TV, DVD,VCR and Sat-receiver)
Number of Keys: 38 Keys; Batt.: 2 Size: AAA
System and Memory:
Main Processor: ST 5512
(without Macrovision and Icam features)
Flash Memory: 4 Mbytes; SDRAM: 8 Mbytes
General Data:
Operating Temperature:10 °C ~ 40 °C
Storage Temperature: -20 °C ~ +70 °C
Input Voltage Range:250V AC +/- 10%, 50Hz,
Power Consumption: Max 30W
Weight: 2.1 kg; Size (WxHxD):
367mm x 68mm (approx) x 240mm
Scart
TV
LNB In
RS 232
(Serial Port) PC
Scart
VCR
L/R Audio
Output
Modem
Common
Interface slot
ANT
TV/VCR
LNB Out
Viaccess and Conax embedded
Enjoy the full interactivity and your Pay TV programs through
the built in Open TV Software
Universal remote Control for TV, DVD, Satellite receiver & VCR
Over 4000 channels capacity
Define personalized program lists for you and your family with
up to 16 Favourite program lists for TV and Radio
Two in one
Viasat and Canal Digital in one Set Top Box
