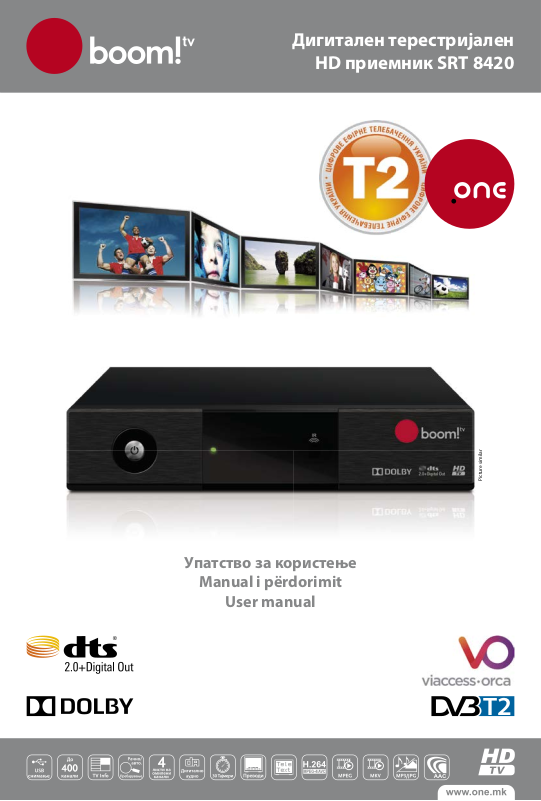

Strong SRT 8420 User Manual

T2
Дигитален терестријален
HD приемник SRT 8420
Упатство за користење
Manual i përdorimit
User manual
Picture similar
Email: support_at@strong.tv
18 Nov 2014 17:39
TABLE OF CONTENT
1.0 INTRODUCTION 2
1.1 Safety Instructions 2
1.2 Storage 3
1.3 Equipment Set-up 3
1.4 Accessories 3
1.5 Usage of external USB devices 4
2.0 YOUR RECEIVER 4
2.1 Front panel 4
2.2 Rear panel 4
2.3 Remote control 5
2.4 Installing the batteries 6
2.5 Using the remote control 6
3.0 CONNECTIONS 6
3.1 Connecting to your aerial antenna 6
3.2 Connecting to TV with HDMI cable 6
3.3 Connecting to TV with SCART cable 7
3.4 Connecting to TV with cinch cable 7
3.5 Connecting to a digital audio amplifier 7
3.6 Connecting to a digital A/V receiver and TV using HDMI 7
3.7 Connecting an external USB storage device 7
4.0 STARTING UP FOR THE FIRST TIME 7
5.0 QUICK GUIDE TO USING YOUR RECEIVER 8
5.1 Inserting smart card 8
5.2 Changing channels 8
5.3 Adjusting volume and audio 9
5.4 Info Banner 9
5.5 Electronic TV Programme Guide (EPG) 10
5.6 Selecting subtitle language 10
5.7 Displaying Teletext 11
5.8 Using external USB storage devices 11
5.9 Instant Recording 11
5.10 Playback of recording 11
6.0 MAIN MENU 12
6.1 Channel Organizer 12
6.2 System Setup 14
6.3 Tools 16
6.4 Multimedia 18
6.5 CA Status 21
7.0 TROUBLESHOOTING 22
8.0 TECHNICAL SPECIFICATION 24
9.0 APPENDIX 26
English
STRONG declares that this item complies with the basic requirements and other relevant regulations of directives CE 2004/108/EC and 73/23/EC, RoHS 2002/95/EC
Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. Viaccess is a trademark of France Telecom. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Dolby and the double-D symbol are
18 Nov 2014 17:31
registered trademarks of Dolby Laboratories. All other product names are trademarks or registered trademarks of their respective owners.
© STRONG 2014. All rights reserved.
1
Licenses
ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado 80111 U.S.A.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
If degraded picture quality is observed while viewing copy-protected pay-per-view programmes, connect the set-top box directly to the TV set. Do not connect through a VCR.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
1.0 INTRODUCTION
1.1 Safety Instructions
DO NOT INSTALL YOUR RECEIVER
In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a
surface which might obstruct the ventilation slots.
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES
To direct sunlight or any other equipment that generates heat; to rain or intense moisture; to
intense vibration and to any shock which may cause permanent damage to your receiver or to any magnetic objects, such as loudspeakers, transformers, etc.
Do not use a damaged power cord. It may cause a fire or an electric shock. Do not touch a
power cord with wet hands. It may cause an electric shock.
When the receiver is not used for a long period of time, you should unplug the power cord
from the wall socket.
Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may clean
your receiver with a soft lint-free cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply. Make sure no foreign objects fall through the ventilation slots because this could cause fire or an electric shock.
2
Do not place any objects on top of the receiver because this might prevent proper cooling of
the components inside.
Safety Precautions
Never open the receiver cover. It is dangerous to touch the inside of the receiver due to high
voltages. Opening the receiver will void the warranty of the product. Refer all maintenance or servicing to suitably qualified personnel.
When you are connecting cables, be sure that the receiver is disconnected from the mains
supply voltage. Wait a few seconds after switching off the receiver before you move the receiver or disconnect any equipment.
It is a necessity that you only use an approved extension and compatible wiring that is
suitable for the electrical power consumption of the installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate
at the back of the receiver. If the receiver does not operate normally, even after strictly following the instructions in this user manual, it is recommended to consult your local dealer or contact the appropriate service.
1.2 Storage
Your receiver and its accessories are stored and delivered in a packaging designed to protect against electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep the packaging away from children. When transporting the receiver from one place to another or if you are returning it under warranty conditions, make sure to repack the receiver in its original packaging with its accessories. Failing to comply with such packaging procedures could damage the product and void your warranty.
1.3 Equipment Set-up
We recommend you consult a professional installer to set up your equipment. Otherwise, please follow the instructions below:
Refer to the user manual of your TV and your antenna.Make sure that all the connections, cables and outdoor components are in a good condition
and all the connections are well shielded and from good quality. We recommend using high
quality HDMI cables. This manual provides complete instructions for installing and using this receiver. The following symbols will serve as follow:
WARNING: Indicates warning information.
NOTE: Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver.
(Bold characters)
Move to Represents a menu item within a window.
(Italic characters)
1.4 Accessories
Receiver - 1 pc.User Manual - 1 pc.Remote control - 1 pc.Batteries (AAA) - 2 pcs.HDMI cable – 1 pc.RCA cable – 1 pc.
English
3
WARNING: The batteries should not be recharged, disassembled, electrically short- circuited, be mixed or used with other types of batteries.
If rechargeable accumulators instead of batteries are going to be used, we recommend using (e.g. NiMH) types with low self-discharge to ensure long time operation of your remote control.
1.5 Usage of external USB devices
It is recommended to use USB 2.0 storage devices. If your device is not compatible to USB 2.0
specifications, recording and multimedia functions of your receiver would not work properly.
For recording please ensure that the USB device is already formatted to FAT/FAT32. If this is
not the case, please format the USB device via your receiver. For details please refer to chapter
6.4.8 Format. NTFS is supported only for data read/write, not supported formatting of USB device in NTFS.
If you are going to use external USB HDD (Hard Disk Drive) please consider that it might be
the case that the power specifications exceed the supported output of your receiver (5V/500 mA). If so, please connect your USB HDD to a corresponding external power adapter.
STRONG cannot guarantee compatibility to all types of USB storage devices.It is advised not to store important information on USB storage devices used with the
receiver. Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information.
2.0 YOUR RECEIVER
2.1 Front panel
Fig. 1
1. q: Switches the receiver between standby (off) and operating mode.
2. Standby indicator:
3. Infrared sensor: Receives signals from the remote control.
4. Slot for smart card:
Green light in operating mode and red light in standby mode.
Insert Viaccess smart card to the slot by golden contacts up.
2.2 Rear panel
1. ANT IN To connect to your aerial using a standard antenna cable.
2. ANT OUT To connect to your TV or additional receiver via a standard antenna cable.
3. AUDIO L/R To connect to your TV or VCR, alternatively you can connect to an amplifier or
HIFI system using an RCA cable.
4. VIDEO To connect to your TV or VCR using an RCA cable.
5. S/PDIF To connect to a digital home theatre or audio amplifier with an audio cinch cable.
6. USB To connect your USB storage device (stick, HDD, etc.)
7. HDMI To connect to the HDMI input of your TV using a good quality HDMI cable.
8. TV SCART To connect your receiver with your TV set using a SCART cable
9. POWER CORD To connect your receiver to the local power supply system, supporting a
voltage range of ~ 100– 240 V 50/60 Hz.
4
Fig. 2
2.3 Remote control
1. q To switch the receiver between standby and working mode
2. ! To disable/enable the audio outputs of the receiver.
3. 09 In viewing mode: to switch to a channel by entering its number
4. AV Toggles SCART output between AV and TV modes
5. TV/R Toggles between TV and RADIO mode
6. MENU To access the main menu and in menu to return to viewing mode
7. EXIT Exits from the menu, sub-menu or cancels actions
8. pq In viewing mode: to change to the next/previous channel
9. tu In viewing mode: to decrease/increase the volume
10. OK In viewing mode: to open the channel list or confirm displayed messages
11. EPG To enter the Electronic Programme Guide.
12.
Shows the current channel information (2x extended info)
13. V+/V To increase/decrease the volume level
14. FAV To open the favourite group selection
15. AUDIO To open the list of audio languages and settings
16. To open a list of messages sent by the operator
17. P+/P In viewing mode: to switch through the channels
18. RED/V.F In viewing mode: to switch the resolution between 576i, 576p, 720p, 1080i
19. GREEN/TEXT In viewing mode: to open videotext (if broadcasted)
20. YELLOW/SUB In viewing mode: to select a subtitle language (if subtitles are broadcasted)
21. BLUE/RCL In viewing mode: to toggle between the two last watched channels
22. 2 In viewing mode: to pause live TV
23. : For multimedia playback: to start playback of the previous file
24. " For multimedia playback: to start playback of the next file
25. 4 To start record of current programme
26. 1 In viewing mode: to enter the list of the recordings
27. 5 For all playback modes: starts fast rewind, supported modes are: 2x, 4x, 8x,
28. 6 For all playback modes: starts fast forward, supported modes are: 2x, 4x, 8x,
29. 3 In recording mode: to stop the recording
In menu mode: to enter numeric values
In menu and channel list mode: to move the cursor up/down.
In menu mode: for navigation and to change settings in specific menus
In menu mode: to open the menus and to confirm settings or changes
In menu/channel list: to scroll page up/down
and 1080p (50Hz) In menu and videotext mode: depends on the menu context
In menu and videotext t mode: depends on the menu context
In menu and videotext mode: depends on the menu context
In menu and videotext mode: depends on the menu context
In multimedia mode: to pause playback of a file
In multimedia mode: to start playback
16x and 32x
16x and 32x
For multimedia playback: to stop playback of a file
Fig. 3
English
5
2.4 Installing the batteries
Open the cover on the remote control and insert 2x AAA batteries into the compartment.
Correct position of the polar diagram shows the batteries inside the compartment.
1. Open the cover
2. Insert the batteries
3. Close the lid
WARNING: The batteries should not be recharged, disassembled, electrically short- circuited, be mixed or used with other types of batteries. If rechargeable accumulators will be used instead of batteries, we recommend using (e.g. NiMH) types with low self-discharge to ensure long time operation of the remote control.
2.5 Using the remote control
To use the remote control, point it towards the front of your receiver. The remote control supports a range of up to 7 meters distance to the receiver at an angle of up to approx. +-30 degrees.
NOTE: Managing the receiver will be limited or not possible if there are obstacles between the remote control sensor (at the front panel of the receiver) and the remote control. Direct sunlight or very bright light can reduce or disturb the reception of the remote control signals.
3.0 CONNECTIONS
Fig. 4
Fig. 5
WARNING: Please make sure that connection devices are disconnected from their main power supplies before connecting these to the receiver.
3.1 Connecting to your aerial antenna
Fig. 6
To receive digital broadcast signals, your receiver has to be connected to a terrestrial indoor or outdoor antenna. Use the antenna cable to connect the aerial with the ANT IN connector on the back of your receiver. Please ensure that a properly shielded antenna cable and suitable connectors are used.
The ANT OUT connector allows you to loop the antenna signal to a second receiver or TV set.
3.2 Connecting to TV with HDMI cable
Fig. 6
We recommend connecting your TV set with the receiver using a good quality HDMI cable (not included). This connection supports the highest possible quality.
6
