Digital Terrestrial Receiver SRT 8010

User Manual

PART 1 • English

* €0.12/Min. from Aust rian wired line

* €0.14/Min. from Germ an wired line

per Februar y 2008

TABLE OF CONTENTS

1.0 INTRODUCTION 2

1.1 Safety Instructions 2

1.2 Storage 2

1.3 Equipment Set-up 3

1.4 Features & Accessories

2.0 YOUR RECEIVER 4

2.1 Front panel

2.2 Rear panel 5

2.3 Remote control 6

3.0 CONNECTION 7

3.1 Connecting to terrestrial antenna. 7

3.2 Connecting to TV set.

3.3 Connecting to digital audio ampliﬁer

3.4 Connecting of external USB memory device

English

7 8 8

4.0 FIRST TIME INSTALLATION

4.1 Language select 8

4.2 Terrestrial settings

4.3 Preferences 9

4.4 Adjust antenna 9

4.5 Channel setup 9

5.0 MAIN MENU 10

5.1 Channel organiser 1

5.2 Installation 12

5.3 Preferences 1

5.4 Setup 1

6.0 DAILY OPERATIONS

6.1 Electronic Program Guide (EPG) 1

6.2 Channel information 1

6.3 Channel list and view mode 1

A.1 TROUBLE SHOOTING 18

A.2 SPECIFICATION

4 5

6 7 7

PART 1 • English

1.0 INTRODUCTION

1.1 Safety Instructions

DO NOT INSTALL YOUR RECEIVER:

n In a closed or poorly ventilated cabinet; directly on top of or under any another equipment; on a

surface which might obstruct the ventilation slots

DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:

n To direct sunlight or near any other equipment that generates heat; to rain or intense moisture;

to intense vibration and to any shock which may cause permanent damage to your receiver or to any magnetic objects, such as loudspeakers, transformers, etc

n Do not use a damaged power cord. It may cause a ﬁre or an electrical shock. Do not touch a

power cord with wet hands. It may cause an electric shock

n Never open the cover. It is dangerous to touch the inside of the receiver due to high voltage currents

and possible electrical hazards. Your warranty will be void if the receiver has been opened

n When the receiver is not used for a long period of time, you should unplug the power cord from

the wall socket

n Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may clean

your receiver with a soft lint-free cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply. Make sure no foreign objects fall through the ventilation slots because this could cause ﬁre or an electric shock

n Do not place any objects on top of the receiver because this might prevent proper cooling of the

components inside

SAFETY PRECAUTIONS

n Do not open the receiver cover, as you will be exposed to a shock hazard. It will also void your

warranty. Refer all maintenance or servicing to suitably qualiﬁed personnel

n When you are connecting the cables, be sure that the receiver is disconnected from the mains

supply voltage. Wait a few seconds after switching off the receiver before you move the receiver or disconnect any equipment

n It is a necessity that you only use an approved extension and compatible wiring that is suitable for

the electrical power consumption of the installed equipment. Please ensure that the electrical power

supply corresponds with the voltage on the electrical identiﬁcation plate at the back of the receiver If the receiver does not operate normally even after strictly following the instructions in this user manual, it is recommended to consult your dealer.

1.2 Storage

Your receiver and its accessories are stored and delivered in a packaging designed to protect against electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep the packaging away from children. When transporting the receiver from one place to another or if you are returning it under warranty make sure to repack the receiver in its original packaging with its accessories. Failing to comply with such packaging procedures could void your warranty.

PART 1 • English

1.3 Equipment Set-up

We recommend you consult a professional installer to set up your equipment. Otherwise, please follow the instructions below:

n Refer to the user manual of your TV and your antenna n Make sure that the SCART cable and outdoor components are in a good condition and the

SCART connections are well shielded This manual provides complete instructions for installing and using this receiver. The following symbols will serve as follow.

Warning Indicates warning information.

Tips Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the receiver Move to Represents a menu item within a window

1.4 Features & Accessories

English

Features:

n For all digital Free-To-Air TV and Radio programmes (with outdoor or indoor terrestrial antenna) n Support of MPEG-4 and MPEG-2 standards in standard deﬁnition n DVB-T compliant, Digital UHF/ VHF Tuner with Loop-through function n Set-up support for ﬁrst time installation n Quick and easy installation & user-friendly menu n Multi-lingual support on screen Menu n Excellent Audio and Video quality n Digital audio output through optical S/PDIF n Automatic and manual channel scan options n Support of active antenna by 5 V output n Support of channel numbering deﬁned by broadcaster n 500 channels memory capacity n Favourite lists for TV and Radio n Parental lock function for menu, selectable per channel n Electronic Program Guide (EPG) for present / following event information and up to 7 days for

on screen programme information1

n 3 Operation Modes (Digital TV, Digital Radio, Favourite) n Support of Teletext (OSD & VBI) n Multi-lingual subtitling and audio track support n Timer programmable via EPG n Edit function for channel names n Connections: ANT IN (antenna input), TO TV (Loop through output), TV SCART with support of RGB

and Composite video, 3 RCA (Video, Audio Left, Audio Right), USB, S/PDIF optical, power switch

Subject of local broadcast conditions

PART 1 • English

Package content:

n 1x Receiver n 1x User manual n 1x Remote control n 2x batteries (AAA type)

Tips: The batteries should not be recharged, disassembled, electrically short-circuited or be

mixed or used with other types of batteries.

2.0 YOUR RECEIVER

2.1 Front panel

1. STANDBY

Switch your receiver ON and OFF.

2. INFO

Displays information banner (program details).

3. CH pq

For channel zapping in live view mode, navigation up and down in menu mode.

4. Mode indicator

Red color indicates stand-by mode; green color indicates active mode.

PART 1 • English

2.2 Rear panel

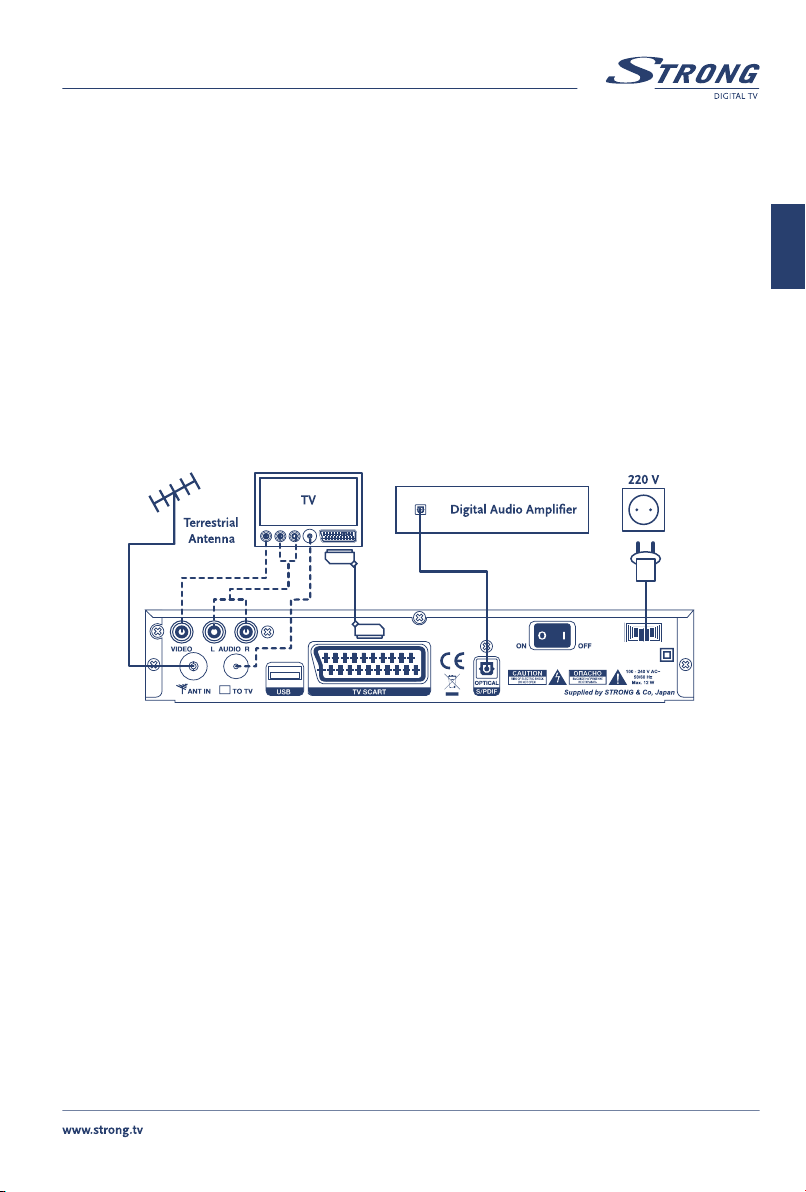

1. ANT IN

To connect a terrestrial antenna for receiving broadcasting signal.

2. TO TV

To connect a TV set to receive analogue channels or to connect an extra receiver.

3. USB

To connect an external USB memory device.

4. TV SCART

To connect your receiver with your TV set using a SCART cable.

5. S/PDIF

To connect your receiver to digital audio ampliﬁer..

6. VIDEO

This connector has a constant video signal for connection to TV set without SCART connector or to VCR.

7. AUDIO

These connectors give you the possibility to connect the audio signal to an external ampliﬁer or to the audio input of your TV.

8. Main power switch

Power OFF and ON your receiver.

9. Power cord

Your receiver requires a voltage of 100 – 240 V AC (Auto-selectable), 50 ~ 60 Hz +/-5 %. Make sure to check the power speciﬁcation before connecting your receiver to the wall outlet.

English

Warning: Make sure all connections are made in correct order before connecting your receiver to

the mains power. Always at ﬁrst power on your receiver, then TV set.

2.3 Remote control

13. RED (RCL)

Switches back to to previous watched channel in live view mode, content dependent function in Menu mode.

14. GREEN (Pause)

Freeze/resume picture in live view mode, content dependent function in Menu mode.

15. YELLOW (Sub)

Displays list of available subtitles languages in live view mode, content dependent function in Menu mode.

16. BLUE (Text)

Switches to Teletext mode in live view mode, content dependent function in Menu mode.

PART 1 • English

1. MUTE

Mutes audio outputs of the receiver.

POWER

Turns receiver On/Stand-by.

V+/V- Increase/decrease volume level.

4. AV

toggles SCART output between TV and AV modes.

AUDIO

Shows list of available audio languages for the channel you are watching. In addition it sets the current channel audio to stereo, leftmono or right-mono.

P+/P- For zapping to next/previous channel in live view mode and for Page up and down in menu lists.

Displays Main menu of the receiver.

INFO

Displays information about current channel.

EXIT

Exits from the menu or sub-menu and cancels the progressing function if applicable.

10.

p/q For zapping to next previous channel in live view mode, for navigation up/down in Menu mode.

11.

t/u For increasing/decreasing volume level in live view mode, for change selected option in Menu mode.

12.

OK Displays channel list in live view mode, to conﬁrm selection in Menu mode.
