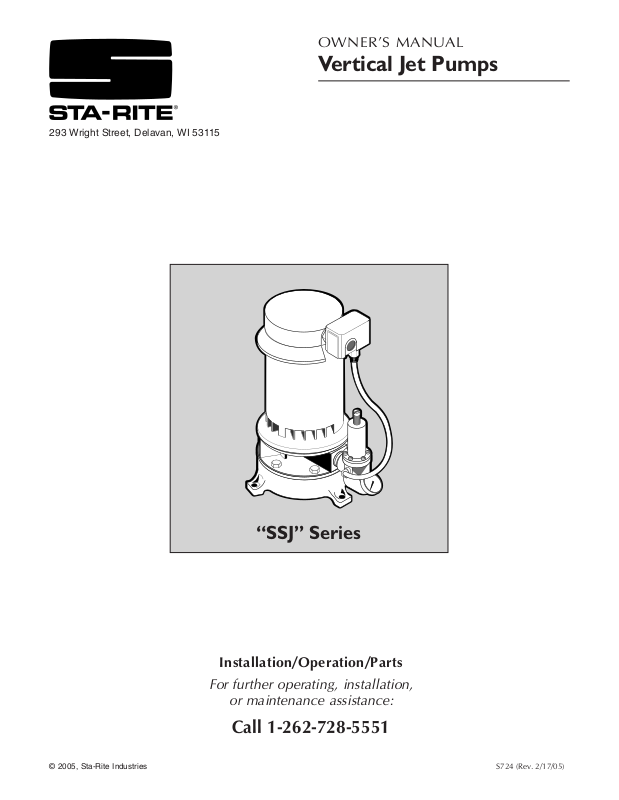

Sta-Rite J212-19E Installation Manual
293 Wright Street, Delavan, WI 53115
OWNER’S MANUAL
Vertical Jet Pumps
“SSJ” Series
Installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
Call 1-262-728-5551
© 2005, Sta-Rite Industries S724 (Rev. 2/17/05)
Safety 2
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for
one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that will cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if
ignored.
warns about hazards that will or can cause
minor personal injury or property damage if ignored.
The label NOTICE indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
Make workshops childproof; use padlocks and master
switches; remove keys.
ELECTRICAL SAFETY
Capacitor voltage may be hazardous. To
discharge motor capacitor, hold insulated handle screwdriver BY THE HANDLE and short capacitor terminals
together. Do not touch metal screwdriver blade or
capacitor terminals. If in doubt, consult a qualified
electrician.
GENERAL SAFETY
Do not touch an operating motor. Modern
motors can operate at high temperatures. To avoid burns
when servicing pump, allow it to cool for 20 minutes
after shut-down before handling.
Do not allow pump or any system component to freeze.
To do so will void warranty.
Pump only water with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on pumps.
Keep work area clean, uncluttered and properly lighted;
store all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
Pump body may explode if used as a
booster pump unless relief valve capable of passing full
pump flow at 75 psi is installed.
WARNING
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect power
before working on pump,
motor or tank.
Wire motor for correct
voltage. See “Electrical” section of this manual
and motor nameplate.
Ground motor before
connecting to power
supply.
Meet National Electri-
cal Code, Canadian
Electrical Code, and local
codes for all wiring.
Follow wiring instruc-
tions in this manual
when connecting motor to
power lines.
WARNING
Hazardous pressure!
Install pressure relief
valve in discharge pipe.
Release all pressure on
system before working on
any component.
Ta ble of Contents 3
Thank you for purchasing a top quality, factory tested pump.
Page
General Safety .....................................................................................................2
Warranty..............................................................................................................3
Installation........................................................................................................4-6
Electrical ...........................................................................................................7,8
Operation .......................................................................................................9,10
Maintenance.................................................................................................10-12
Repair Parts ..................................................................................................13,14
Troubleshooting..................................................................................................15
LIMITED WARRANTY
Sta-Rite Industries warrants to the original consumer of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period from the date of original installation or manufacture as noted.
Product Warranty Period
Water Systems Products – jet pumps, whichever occurs first:
small centrifugal pumps, submersible pumps 1 year from date of original installation, or
and related accessories 2 years from date of manufacture
Hydro-Flow Filters 1 year from date of purchase
Signature 2000®Fibrewound Tanks 5 years from date of original installation
Pro-SourceTMSteel Pressure Tanks 5 years from date of original installation
Pro-Source
Sump/Sewage/Effluent Products 1 year from date of original installation, or
Our warranty will not apply to any product that has been subject to negligence, misapplication, improper installation or maintenance. In the
event a three phase submersible motor is operated with single phase power through a phase converter, or if three-leg ambient compensated, extra-quick trip overload relays of recommended size are not used, our warranty is void.
Buyer’s only remedy and Sta-Rite Industries’ only duty is to repair or replace defective products (at Sta-Rite Industries’ choice). Buyer agrees
to pay all labor and shipping charges associated with this warranty and to request warranty service through the installing dealer as soon as
a problem is discovered. If warranty service is requested more than 30 days after the Warranty Period has ended, it will not be honored.
STA-RITE INDUSTRIES SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE WARRANTY PERIOD PROVIDED HEREIN.
Certain states do not permit the exclusion or limitation of incidental or consequential damages or the placing of limitations on the duration
of an implied warranty, therefore, the limitations or exclusions herein may not apply. This warranty sets forth specific legal rights and obligations, however, additional rights may exist, which may vary from state to state.
Supersedes all previous publications.
TM
Epoxy-Lined Tanks 3 years from date of original installation
2 years from date of manufacture
Sta-Rite Industries, 293 Wright St., Delavan, WI 53115
Installation 4
Pump
Gasket
Adapter Flange
Sanitary
Well Seal
Steel Pipe Nipple
Coupling
1" Plastic Drive Pipe
1-1/4" Plastic Suction Pipe
Special 1-1/4" Plastic Pipe
Adapter. (Supplied with Ejector)
1" Plastic Pipe Adapter
Ejector Assembly
Foot Valve & Strainer
A-OFFSET INSTALLATION
PLASTIC PIPE SHOWN
Threadless
Coupling
BEFORE YOU INSTALL YOUR PUMP
NOTE: For proper performance, pump MUST be matched to ejector and to
well depth. This pump is designed for wells from 25 ft. to 130 ft. depth
from well head to water.
• Long runs and many fittings increase friction and reduce flow. Locate
pump as close to well as possible: use as few elbows and fittings as
possible.
• Be sure well is clear of sand. Sand will plug the pump and void the
warranty.
• Protect pump and all piping from freezing. Freezing will split pipe, dam-
age pump and void the warranty. Check locally for frost protection
requirements (usually pipe must be 12" below frost line and pump must
be insulated).
• Be sure all pipes and foot valve are clean and in good condition.
• Remove air pockets in suction pipe.
• Make sure there are no leaks in the suction pipe. Use Teflon tape or
Plasto-Joint Stik to seal pipe joints.
• Unions installed near pump and well will aid in servicing. Leave room
to use wrenches.
• Plug 1" drive port when installing on shallow well.
IMPORTANT: Your well must be able to replenish the water level faster
than the flow out through pump!
Figure 1: Offset Installation
Gasket
Adapter Flange
Threadless Coupling
Sanitary
Well Seal
1" Drive Pipe
1-1/4" Suction Pipe
Ejector Assembly
Foot Valve & Strainer
474 0194
B-OVER THE WELL INSTALLATION
STEEL PIPE SHOWN
Figure 2: Over the Well Installation
PIPING IN THE DEEP WELL
See Figures 1 and 2.
NOTE: Deep well installations are either single pipe (2" wells) or double
pipe (4" and larger wells). In a double pipe installation, the larger pipe is
the suction pipe and the smaller pipe is the drive pipe (very deep wells may
use suction and drive pipes of the same diameter).
Plastic pipe is ideal for double pipe installations. Due to its light weight, it
is easy to handle and does not usually require a block and tackle for installation and removal.
PLASTIC PIPE INSTALLATION – DOUBLE PIPE
NOTE: Use Teflon tape on all male threads on plastic pipe and fittings to
prevent air leaks in suction piping.
1. Inspect ejector to make sure that nozzle and venturi openings are clean
and clear.
2. Inspect pipe for any foreign matter or obstructions.
IMPORTANT: Make sure that no foreign matter enters pipe openings while
installing pump.
3. Make sure foot valve operates freely: attach to ejector with a close nipple. Use Teflon tape on male threads.
4. Install nozzle and venturi in deep well ejector.
5. Using Teflon tape on male threads, install special plastic pipe adapter
(supplied with ejector) by screwing adapter into 1-1/4" tapped hole in
ejector body (see Figure 1).
6. Thread a 1" plastic pipe adapter into the 1" tapped hole in ejector body
(see Figure 1).
Installation 5
Pump
mounted
on Casing
Adapter
Casing Adapter
(Use gasket
between adapter
and pump flange)
Well Casing
serves as
Drive Pipe
Suction
Pipe
Venturi
Nozzle
Ejector
Cup
Leathers
2357d 0797
Figure 3
Water level
with pump
running
24
32P
ET NO
10 to 20 Feet
5 Feet
or more
7. Install enough plastic pipe in well casing to put ejector at the proper
depth. (Ask your well driller for this information.)
IMPORTANT: As a guide, the ejector should be set at least 10 to 20 feet
below the lowest water level with pump running, if possible, but always at
least five feet from the bottom of the well.
8. Tighten all hose clamps securely on plastic pipe. Use two clamps per
joint to prevent air leaks into suction pipe. Clamp screws should be on
opposite sides of the pipe. Fill pipes with water to make sure that foot
valve and connections do not leak.
9. Install sanitary well seal on top of well casing; use steel nipple through
well seal as shown in Figure 2.
IMPORTANT: Align locating lugs on adapter flange and pump base so that
pump discharge aligns with piping.
10.Install 1" (1-1/4") nipple in one side of adapter flange. Slide threadless
coupling down over drive pipe from well. Thread adapter flange onto
suction pipe from well and align nipple and drive pipe.
11. Slide threadless coupling up and secure nipple to drive pipe.
12.Remove paper backing from adhesive gasket. Apply gasket to adapter
flange, making sure that holes line up.
13.Align locating lugs on pump base with lugs on adapter flange; attach
pump to flange with cap screws provided.
14.See “Discharge Pipe Sizes” for information regarding correct discharge
pipe size.
SINGLE PIPE EJECTOR INSTALLATION
Single pipe installations require (see Figure 3):
a. Galvanized steel pipe
b. Leather packer-type ejector with built-in foot valve
c. Turned couplings (supplied with packer-type ejector)
d. Well casing adapter.
1. Connect ejector to first length of pipe. Use pipe joint compound sparingly on male threads. Consult Table II for proper venturi and nozzle.
2. Lower pipe into casing. Use special turned couplings (included with 2”
single pipe ejector package) to increase water flow. Use pipe joint compound sparingly on male couplings threads.
NOTE: Fill pipe with water as each length is added to be sure foot valve
and connections do not leak.
3. Add lengths of pipe until the ejector reaches the proper depth. (Your
well driller should supply this information.)
IMPORTANT: As a guide, the ejector should be set at least 10 to 20 feet
below the lowest water level with pump running, if possible, but always at
least 5 feet above the bottom of the well.
4. To properly seat the cup seals, after the ejector is correctly positioned,
move the assembly up and down slightly. Water pressure in the casing
will then soak the cup seals. They should seal within 2-3 hours after
installation.
5. With ejector set, install well casing adapter. Align locating lugs and
tighten adapter to form seal with well casing.
