Cooling Towers
■ Heavy industrial
■
■
Chemical processing, refining
Power generation
Natural Draft Cooling Tower—Concrete natural draft counterflow
tower of varying sizes and configurations. Exceptionally efficient and
reliable, most commonly used in power generation. Each tower is
custom designed for flow rates up to 500,000 GPM or more.
Counterflow Field-Erected Cooling Tower—The ultimate in versatility,
efficiency, and quality for large scale HVAC, power and industrial
facilities. Each tower is customized to meet your exact specifications
for performance, structure, drift, and sound. Available in pultruded
structural fiberglass, wood (Douglas fir or redwood), or concrete for
unsurpassed quality and reliability. Tower cells available from 1300 to
30,000 GPM.
Round Forced-Draft Counterflow Cooling Tower—Reduced power
consumption, favorable space requirements, minimized recirculation
effects, optimum operational behavior for salt water application and
the aesthetic look are only some advantages of round concrete cooling
towers with forced draft fans.
Crossflow Field-Erected Cooling Tower—Large splash-fill towers
proven in hundreds of installations over the last fifty years. Available
in pultruded structural fiberglass or wood (Douglas fir or redwood) for
unsurpassed quality and reliability A variety of fill options makes this
the most versatile tower for heavy industrial use. Tower cells available
from 930 to 35,000 GPM.
3
Cooling Towers
■ HVAC
■
■
Refrigeration
Light to medium industrial

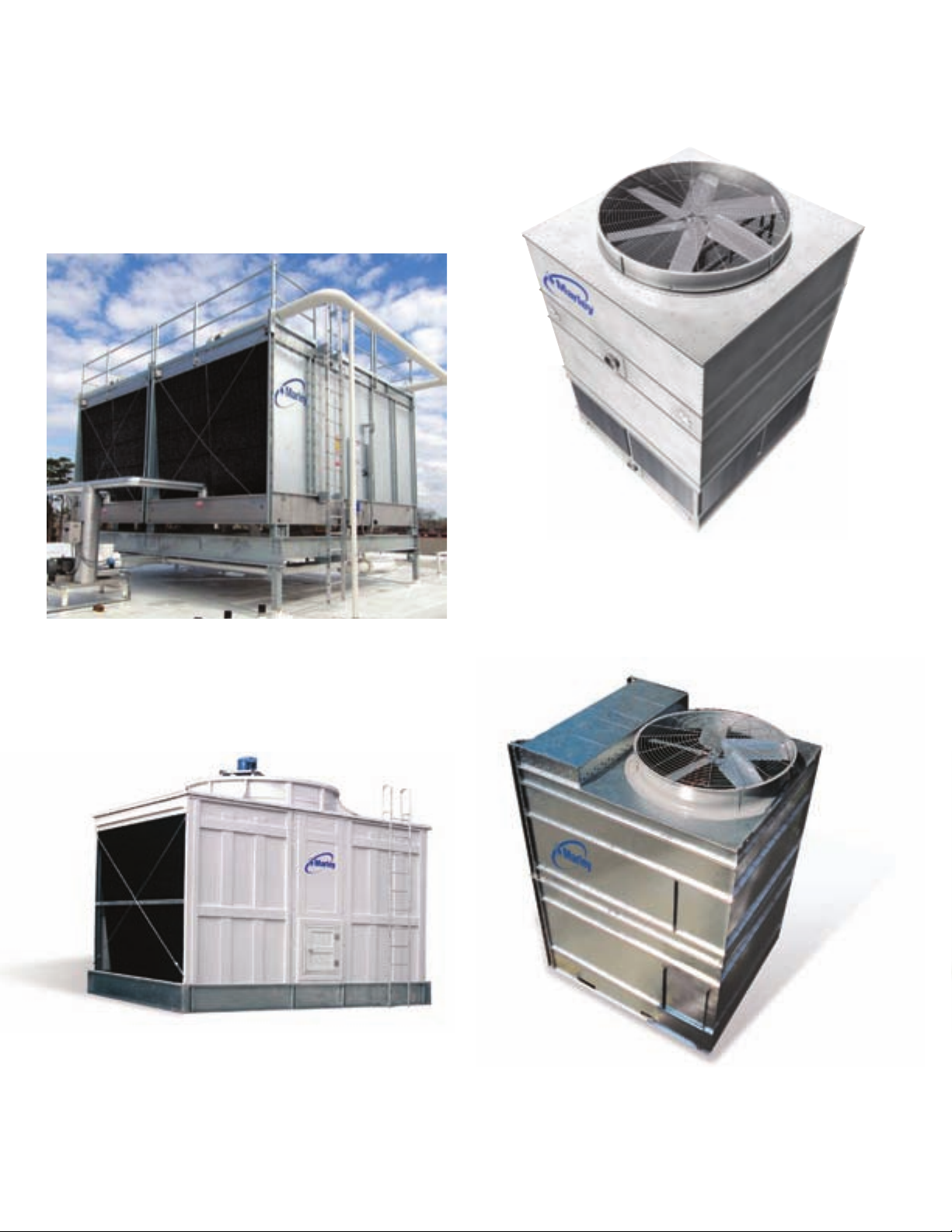

Marley MS Cooling Tower—For those installations where aesthetics
preclude the use of a conventional cooling tower. Each tower is custom
designed to meet the needs of the individual installation. Available in a
wide range of flow rates.
Ceramic Unilite® Cooling Tower—Combined with superior composite
fiberglass materials and advanced heat transfer technology, the result
is a high-quality, cost-effective cooling tower that excels across a broad
range of HVAC and industrial applications. Tower cells available from
700 to 5,140 GPM. FM approval available.
Balcke CP Cooling Tower—Induced draft, counterflow cooling tower
design. The ideal solution for larger space-sensitive applications.
Its corrosion resistant fiberglass construction makes it an excellent
alternative to stainless steel products. Available in Europe, the Middle
East and Africa.
Marley Class 160 Cooling Tower—Similar in design to the Sigma,
these highly-efficient, low-maintenance towers offer a wide choice
of solutions for heavy industrial plants and large HVAC applications.
Available in wood (Douglas fir or redwood). Tower cells range from
1,500 to 11,660 GPM capacities.
4
Cooling Towers
■ HVAC
■
■
Refrigeration
Light to medium industrial
Marley Series 10/Series 15 Cooling Tower—Splash-fill design for use
at high temperature or where poor water quality prevents the use of
film fill. Wood structure available in treated Douglas Fir or redwood.
Tower cells available from 215 to 4,800 GPM.
Marley Sigma Cooling Tower—These highly-efficient, low-
maintenance towers offer a wide choice of solutions for medium to
heavy industrial plants and large HVAC applications. Available in wood
(Douglas fir or redwood), steel (stainless or galvanized), or pultruded
structural fiberglass for unsurpassed quality and reliability. Tower cells
range from 380 to 10,100 GPM capacities.
Marley QuadraFlow® Cooling Tower—The first in the industry
protected by a five-year total product warranty covering virtually every
part of the tower. These fiberglass and stainless steel towers are field
assembled to facilitate siting, and are available from 129 to 1,047
tons per cell. CTI Certified.
Marley SRC Cooling Tower—Induced draft, counterflow design.
Fiberglass field-erected structure. Stainless steel sub-structure option.
Not available in the US, Canada or Europe.
5
Cooling Towers
■ HVAC
■
■
Marley NC
warranty and guaranteed thermal performance. Factory assembly and
G-235 galvanized steel construction are standard. Cells available from
99 to 1,300 tons per cell. The all stainless steel option enhances the
versatility of the NC Class line. Factory Mutual Approval standard on
most models and available on all models. CTI Certified.
Refrigeration
Light to medium industrial
®
Class Cooling Tower—Five-year mechanical equipment
Marley MD Cooling Tower—Counterflow, induced-draft design
requires less plan area than crossflow towers. Factory assembly and
G-235 galvanized steel construction are standard. Tower available
from 165 to 500 tons per cell. The all stainless steel option enhances
the versatility of the MD. Five-year mechanical equipment warranty.
CTI Certified.
Marley NC® Fiberglass Cooling Tower—Fiberglass and galvanized
steel, field-erected, crossflow cooling tower designed to serve air
conditioning and refrigeration systems as well as light or medium
industrial process loads on clean water. Stainless steel structure option
available. Cells available from 105 to 942 tons per cell.
CTI Certified. Not available in the US, Canada or Europe.
6
Marley AV Cooling Tower—Singleflow, induced-draft crossflow design
offers pump and fan energy savings in a small footprint installation.
Factory assembly and G-235 galvanized steel construction are
standard. Tower cells available from 117 to 390 tons per cell. The all
stainless steel option enhances the versatility of the AV. CTI Certified.
Cooling Towers
■ HVAC
■
■
Marley Aquatower® Cooling Tower—Reliable performance has made
this design the industry standard for more than 50 years. G-235
galvanized steel factory assembled structure. Also available in 300
series stainless steel. Capacities from 8 to 126 tons per cell.
CTI Certified and FM Approved.
Refrigeration
Light to medium industrial
Recold JT Cooling Tower—Forced-draft, low profile design.
G-235 galvanized steel factory assembled structure. Also available in
300 series stainless steel. Capacities from 30 to 415 tons per cell.
Marley MCW Cooling Tower—Maximizes forced-draft, counterflow
technology and high-performance. The ideal solution for urban and
industrial applications. Available in G-235 galvanized or 300 series
stainless steel construction. Capacities from 142 to 489 tons per cell.
CTI Certified.
Marley CTF Series Cooling Tower—Forced draft, counterflow design.
Fiberglass factory assembled modular structure. Film-fill or splash-fill
option. Available in Europe only.
7
Fluid Coolers
■ HVAC
■
■
Refrigeration
Light to medium industrial

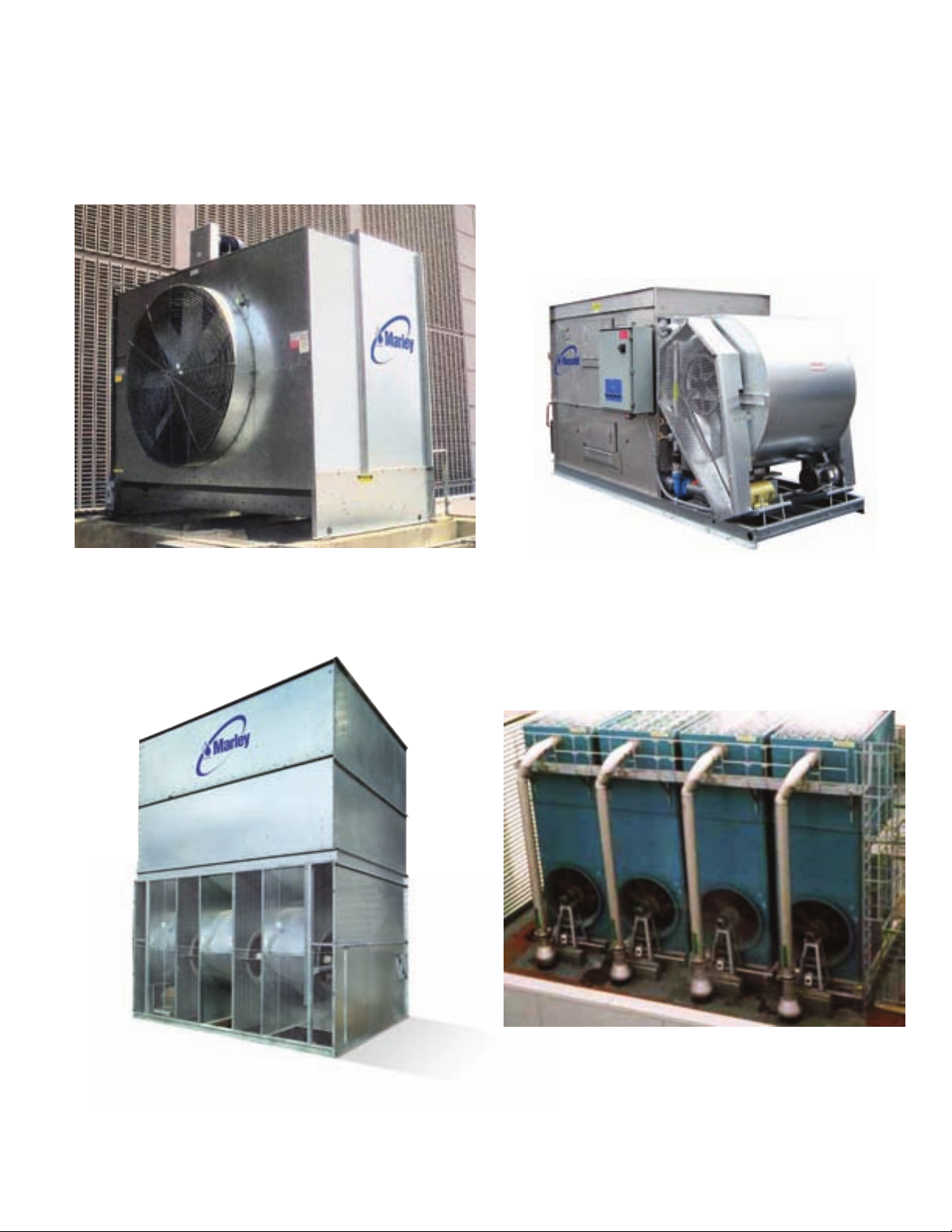

Marley MC Fluid Cooler—Forced draft, counterflow design.
G-235 galvanized steel factory assembled structure. Also available in
300 series stainless steel. The ideal solution for sound- and spacesensitive applications. CTI Certified.
Marley MH Fluid Cooler—The MH Fluid Cooler with CoolBoost
Technology is the most efficient system on the market. It incorporates
fill media and more circuits of coil to increase performance as much
as 10 percent over other systems and still maintain a space-saving
footprint. CTI Certified.
Recold JW Fluid Cooler—Forced-draft, low profile design. G-235
galvanized steel factory assembled structure. Also available in 300
series stainless steel. Proven copper coil technology.
Recold MW Fluid Cooler—Induced draft, counterflow design. G-235
galvanized steel factory assembled structure. Also available in 300
series stainless steel. Proven copper coil technology.
8
Evaporative Condensers
■ HVAC
■
Refrigeration
Recold MC Evaporative Condenser—Induced draft, counterflow
design. G-235 galvanized steel factory assembled structure. Also
available in 300 series stainless steel. Proven copper coil technology.
Recold JC Evaporative Condenser—Forced-draft, low profile design.
G-235 galvanized steel factory assembled structure. Also available in
300 series stainless steel. Proven copper coil technology.
9
Dry Cooling
■
■
Power generation
Steam condensing
Air Cooled Condenser—The modularized A-Frame design is used
on power plants of all sizes. The integral features are long-term
mechanical and thermal integrity, excellent corrosion and freeze
resistance, low fan power consumption, reliable operation and low
maintenance. Over 800 installations world-wide.
10
Hexacool® Air Cooled Condenser—Smaller power and industrial
applications. Standardized modular system that is low cost, easy to
erect and robust in performance.
Special Applications
■ Heavy industrial
■
■
Chemical processing, refining
Power generation
Wet-Dry Hybrid Cooling—The wet-dry hybrid cooling tower offers
efficient cold water temperatures with reduced visible plume and
enhanced water conservation.
AirFin™ Air Cooled Heat Exchangers—Innovative technology for
petrochemical, process and power applications. AirFin heat exchangers
have been designed, manufactured and supplied worldwide for over
40 years.
Indirect Dry Cooling—An indirect dry natural draft condensing
system, in the example above, couples a dry cooling tower with a
steam surface condenser. Such a condensing system is particularly
suited for large power plants. The concept can also be applied with
mechanical draft dry towers over a wide range of plant sizes.
11
Parts and Accessories
■ Quality engineered
■
■
You can count on us for your cooling parts. We design, manufacture,
and stock all primary cooling components, including:
•Fans •Fill
•Gearboxes •Nozzles
•Driveshafts •Drifteliminators
•Beltdrivecomponents •Valves
•Fancylinders •Structuralcomponents
We are uniquely able to meet almost any repair or parts need on any
size or type of cooling tower regardless of its age or manufacturer.
Precision crafted
Available for virtually any tower
Note SPX purchases and stocks specially designed cooling tower
motors from a number of qualified suppliers.
12
Reconstruction and Services
■ Repair and reconstruction
■
■

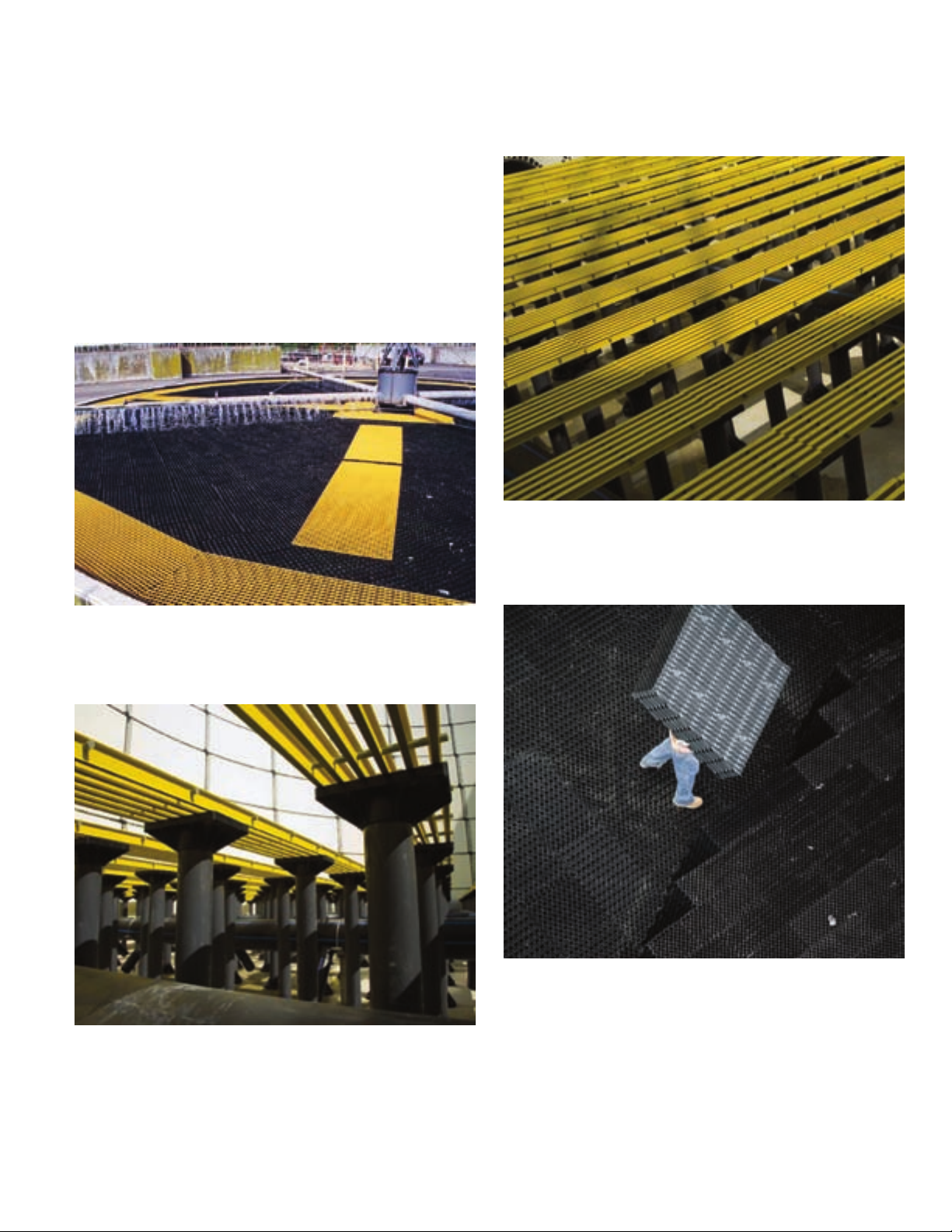

Let our reconstruction experts rebuild your tower to enhance its
performance; whatever its manufacture; whether it’s large or small,
crossflow or counterflow.
Inspections and condition reports
Performance testing
Cooling Tower Reconstruction For many older towers, reconstruction
is a cost-effective alternative to replacement. Our reconstruction
experts work with our engineering staff to make old towers as good as
new—if not better!
Services
Concrete Tower Repair and Reconstruction Our skilled task
force of engineering, production and construction specialists stands
ready to upgrade, refurbish and repair your concrete cooling tower,
whether manufactured by Balcke, Marley or others. Tap into our
extensive concrete experience—going back over 70 years to the very
first concrete natural draft hyperbolic tower.
Inspections and Condition Reports Our reconstruction
specialists have been trained to analyze the condition of your cooling
equipment—and its capability to be successfully repaired, rebuilt, or
upgraded. Your SPX Cooling Technologies sales representative can
arrange an inspection of your cooling system.
Maintenance Let our cooling system experts help your maintenance
experts. We can contract with you to provide as much “hands-on”
maintenance assistance as you need.
Performance Testing You can’t know how much any reconstruction
effort has improved your tower unless you know how your tower is
performing now. Our staff of Testing and Ratings Engineers can help
you to gain that vital information.
13
Temporary Cooling
■ Disaster response
■
■
Maintenance outages
Repair/replacement cooling
A sense of urgency that gives new meaning
to the word “fleet.”
In this business, every minute of cool water flow, and every minute
variation in water temperature counts, regardless of whether you
provide emergency backup or increase production capacity.
Because it all equates to profits.
Marley Temporary Cooling Solutions is geared entirely toward making
your performance our priority—including a fleet of ultra-efficient
induced-draft towers, and regional support teams who are on the
ground and ready to move.
14
Biomedia Systems
■ Municipal wastewater
■
Industrial wastewater
■
Upgrade existing rock trickling filters
The Marley Biomedia System—A set a products specially designed
to work together for waste water treatment applications. Make your
projects and expansions as simple as possible with MarDek, MarGrid,
MarPier, and MarPak.
MarDek™—A high-strength grating support system designed to
accommodate all loads associated with trickling filter operation.
With cross-bar construction, MarDek allows the grating panel to be
easily cut and modified to fit almost any tank configuration. MarDek
can be supported by MarPier, concrete piers, or concrete blocks.
MarPier™—A specialized support system for the Biomedia System
that can be configured to accommodate various media loads, support
heights, and floor slopes. MarPier provides a firm foundation for all
common filter configurations. MarPier installs quickly and is designed
specifically to be used in conjunction with MarDek to provide a strong,
versatile, and reliable support for years of trouble-free operation.
MarPak®—A modular PVC corrugated fill media specifically designed
for biological treatment applications as part of the Biomedia System.
15
7401 WEST 129 STREET
OVERLAND PARK, KANSAS 66213
UNITED STATES
913 664 7400
spxcooling@spx.com
spxcooling.com
In the interest of technological progress,
all products are subject to design and/or
material change without notice.
©2008 SPX Cooling Technologies, Inc.
Printed in USA | G-08A
Loading...
