We’ve built our reputation by providing high performance parts counting products. GSE precision parts counting
systems are designed to provide years of reliable performance in a variety of environments and applications. Intuitive,
easy to use counting and weighing routines range from one keystroke operation to cycle counting with data acquisition
for a complete inventory management solution.

Accuracy is important whether your counting application is document distribution, shipping and receiving, job picking
or factory-wide inventory management. Inaccurate counts can be costly for customers in a shortage situation or costly
for you in an overage situation.

GSE precision parts counters provide a variety of features for improving counting accuracy and efficiency.

Df[\c*.'GXikj:flek`e^JZXc\

Designed as an entry-level to mid-level unit, weighing and counting parts has never been
easier with the Model 370 Parts Counting Scale. Basic one key operation allows for quick
and efficient counting and improved productivity in applications where APW (average piece

weights) are established frequently.

FEATURES

Model 370

Parts Counting Scale

• Simple one button operation immediately improves counting efficiencies and virtually

eliminates the need for operator training. Basic counting instructions printed on front
panel enable even a novice to quickly count parts.

• Bright, LED display

•

One keystroke toggling between parts counting mode and weighing mode.

• Convenient carrying handles facilitate mobility for counting or weighing in different

areas within a facility.

• Communicate

format tickets and labels, or create custom labels with the Custom Transmit Table™.
Labels can be created to contain bar code data with APW and TARE (container)
weights.

• Counting accuracy

resolution for counting, and weighing data, and APW calculations.

•

Wide range of capacities allows you to select the right scale for the right application.

• Further increase counting efficiencies

scanner for scanning APW and TARE weight information.

• Easily integrates

and exporting processes.

is easy to read in any light situation.

with printers, computers, and other peripheral devices using fixed

is ensured with one million counts (1/1,000,000d) of internal

and expedite counting by connecting a bar code

with UPS Worldship® for streamlining shipping, receiving, importing,

Df[\c*.,GXikj:flek`e^JZXc\

The Model 375 has the same versatile features as the
Model 370 plus numeric keys for manual entry of

TARE weight or APW.

See ‘Specifications’ table for options.

Model 375
Parts Counting Scale

Df[\c-.,Gi\Z`j`fe:flek`e^JZXc\

The Model 675 fits well into demanding mid-level counting applications
or sophisticated, factory-wide inventory management systems. With all
of the available option modules, on-board configuration selections, a
1/1,000,000d internal counting resolution and 25 years of experience
in refining our counting algorithms, counting accuracy is ensured from

electronic parts to expensive machined parts.

FEATURES

Model 675
Precision Counting Scale

Custom Transmit Tables

Input Interpreter Tables

Aluminum Die Cast Housing

Carrying Handles

Quick Change Load Cells

• APW Enhance Mode

count large samples for an accurate APW (average piece weight).

• Alphanumeric keypad

Product information can also be transmitted to the Model 675 via bar code scanners,
card readers and computers.

• The standard 250 item memory

and Lot #. Memory can be easily reconfigured with up to 98 columns of associated
Product # information.

TM

TM

•

Database Modules can expand memory storage capabilities to include thousands
of products. The actual number of products is directly related to the scope of
information that will be stored with each Product #; for example, Time and Date of
Transaction, Bin#, Employee#, Job#, and etc. can be stored per your application
requirements.

• Convenient carrying handles

•

Local scale capacities range from 6 lb to 100 lb. Connect a range of remote
platforms (500 g up to 100,000 lb) to the standard remote scale input. Two
additional remote platforms can be connected for a total of 4 scales.

• Barcode scanners and printer ports

picking efficiencies. Advanced communication protocols allow the Model 675 to
integrate into most factory networks.

• Accuracy settings from 90% to 99.96%

within acceptable tolerances.

• LCD Graphic Display

be modified to adapt to your application requirements.

• Easily integrates with UPS Worldship

and exporting processes.

improves accuracy while you count and eliminates the need to

allows manual entry of product numbers and descriptions.

stores and recalls Product #, Description, APW,

facilitate mobility during battery operation.

are available to improve cycle counting and job

are available to ensure products are counted

provides detailed operator prompts. Prompts and operation can

®

for streamlining shipping, receiving, importing,

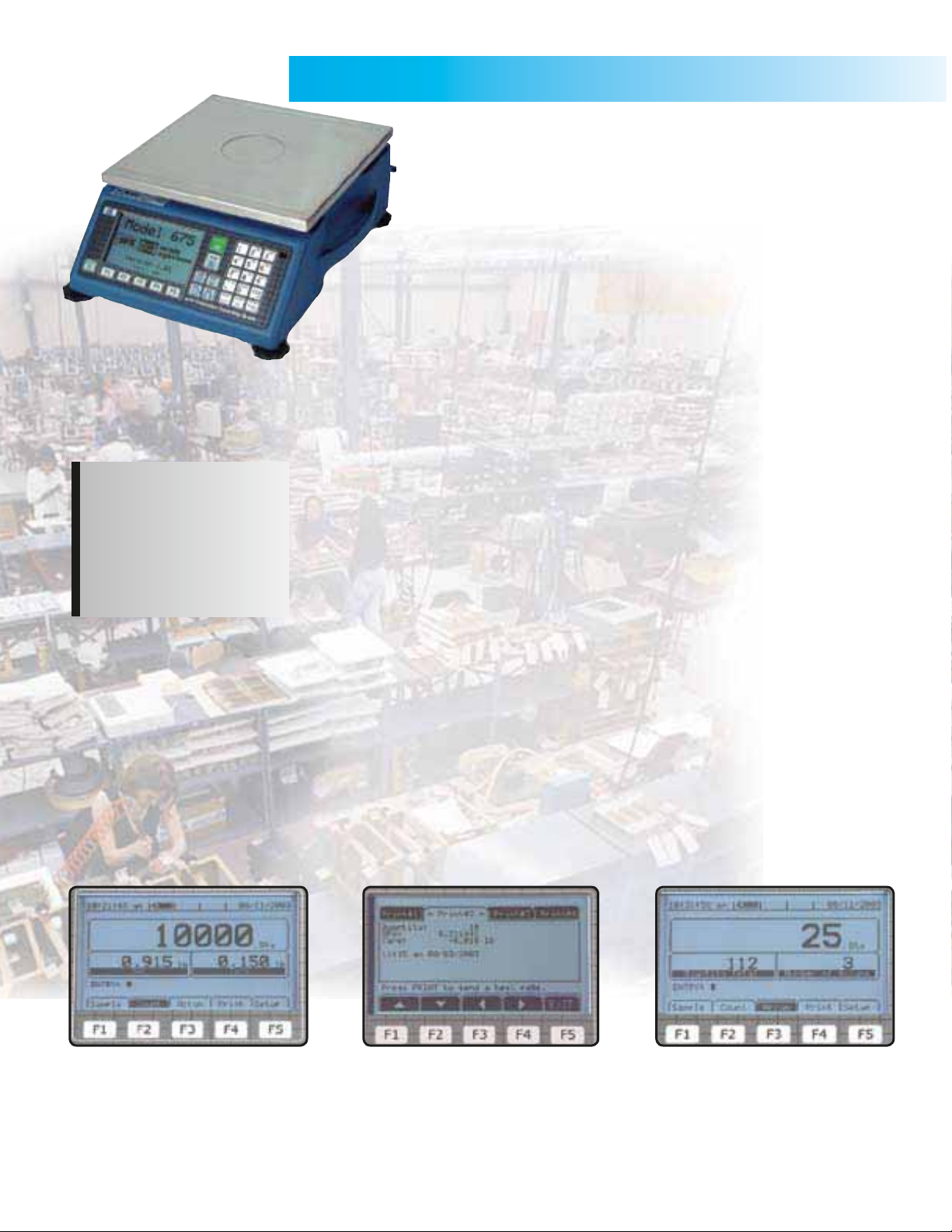

Application Display Styles

Multiple display style selections are
available

.

Easy View Data Output

Multiple onscreen printer and
computer formats make data output

selection easy.

Quick Count

Single menu soft-key operation
makes counting parts simple

and efficient.

Df[\c-.,@ek\^iXk\jn`k_PfliE\knfib

Using versatile communication protocols, the Model 675 communicates via
point-to-point or standard fieldbus networks in a variety of formats to exchange
plant floor data; minimizing maintenance costs and integration time.

Via Ethernet, RS232, RS485, and 20mA current loop, Custom Transmit Tables™

and Input Interpreter Tables™

instrument communication.

The Ethernet Module supports DHCP Server, fixed IP address, Telnet Server or
client, Modbus TCP/IP slave, and FTP client. A dynamic on board web server
makes network configuration fast and simple, and provides instant remote
access to scale weight and process data.

provide flexible system integration and weighing

The DeviceNet™ and Profibus
enabling access to all weight data and user defined process data. An on board
auto configuration utility expedites setup by matching both EDS and GSD files.

®

Modules provide flexible I/O assemblies

OPTIONS

Battery Operation: Two rechargeable Battery Modules provide continuous

40 hour or 13 hour operation. To operate with 8 standard D-cells, a battery tray
kit is available for 80 hours of continuous operation.

Multi Scale Module(s):

4 scales by adding 2 MS modules.

Comm 3/4:

Database Module(s): Up to 2MB additional database memory for data storage.

Computer Keyboard Module:

to scale.

Adds 2 additional RS232 full duplex communication ports.

The 675 2 scale standard system can be expanded to

Connects standard computer keyboard

APPLICATIONS

Inventory Control

QA Inspection

Checkweighing

Parts Counting

Shipping

Negative Counting

RS485 Module:

4000 feet (1200 m). Utilizes RS232 port 1.

20 mA Current Loop:

feet (300 m). Utilizes RS232 port 1.

Ethernet Module:

client, Modbus TCP/IP slave, and FTP client.

Analog Output Module:

and full scale values are programmable, 16 bit resolution.

Setpoint Option Module:

or outputs.

Wedge Software:

Extract, store, modify, and return data to the instrument easily.

Multi drop up to 251 devices in half or full duplex to a distance of

TX active or passive, RX-Passive, 9600 bps, 12 VDC, 1000

Supports DHCP Server, fixed IP address, Telnet Server/

0-10 VDC, 0-20 mA, or 4-20 mA, absolute zero

Connect up to 128 optically isolated inputs

A database mining tool for viewing and updating stored data.

Df[\c-.)Gi\Z`j`fe:flek`e^JZXc\

Specifically designed for counting and weighing small, lightweight
product, the Model 672 brings a new level of sophistication to lightweight
applications. Basic weighing and counting routines make the 672 easy to
use for everyday weighing and counting, while programmable features
expand the applications to tolerance check weighing, precision
formulation and lot sampling.

FEATURES

• A standard remote scale input port is available for connecting a higher

capacity scale for counting bulk product.

•

Local scale capacities are 500 g (1 lb) and 1000 g (2 lb).

• Industrial overload protection

accidental overload. The stainless steel loading surface is designed to
transfer an overload to the cast aluminum housing, while the innovative
overload pin provides redundant overload protection.

• APW Enhance Mode improves accuracy as you count while eliminating

the need to count large samples for an accurate APW (average piece
weight). Alphanumeric keypad allows manual entry of product numbers
and descriptions.

•

Product information can also be transmitted to the Model 672 via bar
code scanners, card readers and computers.

• A convenient carrying handle

• Accuracy settings from 90% to 99.96% are available to ensure product is

counted within acceptable tolerances.

helps prevent load sensor damage due to

facilitates mobility.

Precision Counting Scale

Model 672

APPLICATIONS

Quality Assurance Verification

Part Tolerance Checkweighing

Parts Counting and Accumulation

Lot Sampling with Data Collection

Precision Formulation and Batching

OPTIONS

Database Module: 256K, 1MB, or 2MB

Ethernet Module:

Telnet Server/Client, Modbus TCP/IP slave and FTP client.

Wedge Software:

updating stored data. Extract, store, modify, and return data
to the instrument easily.

Supports DHCP Server, fixed IP address,

A database mining tool for viewing and

PERFORMANCE

Capacities (lb)

Internal Resolution

A/D Filtering

Non-Linearity

Overload Protection

Warranty

COMMUNICATION

Ports 1–4

Protocols

Baud Rate

ELECTRICAL

Power Requirements

Excitation Voltage

Excitation Power

Excitation Current

Input Signal Connect

Fuse

Battery (options)

PHYSICAL

Housing Material

Count/Weigh Surface

Display

Keypad

Dimensions

Number of Scales

Time Date Clock

FRAM Standard Data­base Memory

OPTIONS

Multi Scale Module

Database Module

Computer Keyboard
Module w/ Comm
Port 3 & 4

RS485 Module

20 mA Current Loop

Ethernet Module

GSE ReFlash

Analog Output Module

Setpoint Option Module

I/O Relays

Jg\Z`ÔZXk`fej

Model 370 / 375 Model 672 Model 675

6 lb, 15 lb, 30 lb, 60 lb, 100 lb

1,000,000d

GSE FIR (Finite Impulse Response)

0.017 % max, 350 ohm load cell dependent

5 Point Overload Protection

2 Year Limited

1 Bi-directional RS232 port

ASCII Standard

150–115K bps (port 1)

120 VAC 60 Hz Wall transformer Incl. or 12 to 36

10 VDC, Short circuit protected

(1) 350 ohm load cell

200 mA, Short Circuit protected

6 Conductors with Sense Leads

2A

30 Hour NiMH Battery.
Tray for 8 D-Cells - 60 hours (batteries not included).

Powder Coat Cast Aluminum

12” x 12” Stainless Steel (6 lb, 8” x 10”)

0.8” LED Display

6 Key (370), 18 Key (375) International, Tactile mem-

14.38” W (at handles) x 17.30” L x 5.63” H

1 Local

Non-Volatile Battery Backed

Not Available

N/A

N/A

N/A

Half/Full Duplex up to 4000 ft, 115K bps max (uses

Isolated TX-Active/Passive, RX-Passive, 9600 bps max,
12 VDC, 1000 ft (uses port 1)

N/A

Download new firmware via RS232 port

16 bit, 0–10 VDC, 0–20 mA, or 4–20 mA

Available

1A AC, 2A DC, Optically isolated

500 g (1 lb), 1000 g (2 lb)

1,000,000d

GSE FIR (Finite Impulse Response)

0.02 % of Full Scale

Redundant overload system w/ ltd travel suspension
protects scale from overloads >200 lb

2 Year Limited

2 Bi-directional RS232 Full Duplex, SW & HW Hand­shake ports, Optional Ethernet

Modbus RTU and ASCII Standard

150–58K bps (port 1)
150–38.4 bps (port 2)

120 VAC 60 Hz Wall transformer Incl. or 12 to 36

10 VDC, Short circuit protected

(5) 350 ohm load cells

200 mA Short Circuit protected

4 or 6 Conductors with Sense Leads

2A

N/A

Powder Coat Cast Aluminum

4.75” Stainless Steel w/ Shock Protection

8 line x 40 character LCD backlit graphic display

26 Key, Polymeric membrane plate

9.50” W x 11.62” L x 3.52” H

1 Local + 1 Remote Input Standard

Volatile

Up to 16K

N/A

256K, 1 MB or 2 MB

N/A

N/A

N/A

Supports DHCP Server, fixed IP address, Telnet Server/
Client, Modbus TCP/IP slave, and FTP client

Download new firmware via RS232 port

N/A

N/A

N/A

6 lb, 15 lb, 30 lb, 60 lb, 100 lb

1,000,000d

GSE FIR (Finite Impulse Response)

0.017 % max, 350 ohm load cell dependent

5 Point Overload Protection

2 Year Limited

2 Bi-directional RS232 Full Duplex, SW & HW Hand­shake ports, Optional expansion to 4 ports,
Optional Ethernet

Modbus RTU and ASCII Standard

150–115K bps (port 1)
150–38.4 bps (port 2, 3, 4)

90–250 VAC, 10–32 VDC

10 VDC, Short circuit protected

(14) 350 ohm load cells

400 mA, Short Circuit protected

4 or 6 Conductors with Sense Leads

0.8 A slow-blow (when using AC power)

40 or 13 Hour NiMH Battery w/quick charge circuit.
Tray for 8 D-Cells - 80 hours (batteries not included).

Powder Coat Cast Aluminum

12” x 12” Stainless Steel (6 lb, 8” x 10”)

16 line x 40 character EDT LCD Graphic with
White LED Backlight

27 Key, Polymeric membrane plate

14.38” W (at handles) x 17.30” L x 5.63” H

1 Local + 1 Remote Input Standard,
Optional Total 4 with Multi-Scale option

Non-Volatile Battery Backed

Up to 56K

2 additional scale inputs (installed internally)

256K, 1 MB or 2 MB

Keyboard connection (uses port 4)

Half/Full Duplex up to 4000 ft, 115K bps max (uses

Isolated TX-Active/Passive, RX-Passive,
9600 bps max, 12 VDC, 1000 ft (uses port 1)

Supports DHCP Server, fixed IP address,
Telnet Server/Client, Modbus TCP/IP slave,
and FTP client (disables port 3)

Download new firmware via RS232 port

16 bit, 0–10 VDC, 0–20 mA, or 4–20 mA

Available

1A AC, 2A DC, Optically isolated

PRODUCT LINE

• Parts Counting • Airline Systems

• Floor Scales • Hazardous Area Weighing

• Portable Scales • Software/Peripherals

• Bench Platforms • Checkweighers

• Indicators • Tank & Vessel Weighing Assembly

• Overhead Weighing • Heavy Capacity Vehicle Scales

Your local Distributor is:

SPX GSE

1525 Fairlane Circle
Allen Park, Michigan 48101
Toll Free: 800-755-7875
Phone: [phone] • Fax: [phone]
www.gse-inc.com

Lüripper Straße 62
41065 Mönchengladbach Germany
Phone: [phone]-11
Fax: [phone]-20
www.gse-europe.de

08/06 10M Bulletin #RPI102
