Spektrum SPMAR6410T User Manual [en, de, fr, it]

AR6410T User Guide

AR6410T Bedienungsanleitung

AR6410T Guide de l’utilisateur

AR6410T Guida per l’utente

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with

the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS

Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Age Recommendation: Not for children under 14 years. This is not a toy.

NOTICE: This product is only intended for use with unmanned, hobby-grade, re-

mote-controlled vehicles and aircraft. Horizon Hobby disclaims all liability outside of the intended purpose and will not provide warranty service related thereto.

WARRANTY REGISTRATION

Visit www.spektrumrc.com/registration today to register your product.

DSMX

Spektrum launched the 2.4GHz RC revolution with its DSM2™ technology. Since then, millions of hobbyists the world over have come to embrace 2.4 as the way to ﬂy. Spektrum leads the way yet again with DSMX—the world’s ﬁrst wideband, frequency-agile 2.4GHz signal protocol.

How Does DSMX Work?

It’s a crowded 2.4GHz world out there and every 2.4GHz system faces the same challenges. DSMX better equips you for these challenges by combining the superior data capacity and interference resistance of a wideband signal (like that used in DSM2) with the agility of frequency shifts.

Compared to the wideband signal of DSMX, the narrow band signal of other frequency hopping 2.4 transmitters is more likely to suffer data loss in the event of on-channel interference. Think of it as a river vs. a stream. It takes more interference to dam a river than it does a stream.

As more and more 2.4 transmitters vie for the same number of available channels, there is more interference and more of a risk for data loss. By adding the agility of frequency shifts to the superior interference resistance of a wideband signal, DSMX is far less likely to suffer signiﬁcant data loss from on-channel interference. The result is quicker connection times and superior response in even the most crowded 2.4GHz environment.

DSMX Operational Differences

DSMX transmitters and receivers function nearly identically to Spektrum DSM2 systems. Binding, setting the failsafe, recording ﬂight log data, as well as general use of the system is no different than using any current Spektrum system.

Following are the operational differences:

Brownout Detection - Not Available on DSMX Receivers DSM2 receivers feature Brownout Detection that ﬂashes the receiver’s LED if a power interruption occurs. While DSMX receivers have QuickConnect a power interruption, the architecture of DSMX prevents Brownout Detection when operating in DSMX mode.

Flight Log Recording-Fades Higher than DSM2

Note that DSMX hops through the band while DSM2 ﬁnds two quiet channels and remains on those channels. Consequently because DSMX operates on quiet and noisy channels, it’s common to have more Antenna Fades than when using DSM2, when used in busy 2.4GHz environments. When taking ﬂight log data readings, the Frames and Hold Data are important and should be used a reference while Fades are insigniﬁcant due to the nature of frequency hopping. A 10-minute ﬂight will typically result in less than 50 Frame Losses and no Holds.

Just How Good is DSMX?

In multiple tests, 100 DSMX systems were operated simultaneously for extended periods of time. During these tests each of the 100 systems was monitored in ﬂight and on the ground. In every test not a single case of RF link loss, latency increase or control degradation was experienced or recorded.

™

technology and recover instantly from

Is DSMX Compatible with DSM2?

Yes. DSMX is fully compatible with all DSM2 hardware. In fact, many pilots may ﬁnd the DSM2 equipment they have now is all they will ever need. Even if a new DSMX transmitter eventually comes along that they really want, all the DSM2 receivers they have now will work with it.

It is important to note, however, that while DSMX is compatible with DSM2, the only way to experience the full beneﬁts of DSMX in a busy 2.4 environment is by pairing a DSMX transmitter with a DSMX receiver.

Are DSM2 Transmitters Eligible for a DSMX Add-on? Yes. DX8 owners can simply download Spektrum AirWare

™

software from spektrumrc.com and update the ﬁrmware using their SD card. All DSM2 transmitters, except the DX5e, are eligible for the add-on by going to https://community.spektrumrc.com/ for details. DSM2 receivers and transmitter modules are not eligible for the DSMX add-on.

™

Does DSMX have ModelMatch

and ServoSync™?

Yes. DSMX will provide you with these and other exclusive Spektrum advantages you already enjoy with DSM2. Want to know more about DSMX? Visit spektrumrc. com for complete details on this as well as the many other reasons Spektrum is the leader in 2.4.

Note: DSMX receivers are not compatible with DSM2 remote receivers and DSM2 receivers are not compatible with DSMX remote receivers.

• DSMX transmitters are compatible with all DSM2 and DSMX receivers and will

operate in the mode noted below.

• DSM2 transmitters are compatible with all DSM2 and DSMX receivers and will

operate in the mode noted below.

• DSMX technology is active only when both transmitter and receiver are DSMX

enabled.

Note 1: DSMX upgraded DX5e and DX6i transmitters are compatible with all DSMX receivers except the high-speed DSM2 receivers (like the AR7600, AR9000, etc.). When using a high-speed DSM2 receiver with the DX5e or DX6i, it’s necessary to manually put these transmitters into DSM2 mode. See the Spektrum website for details on DX5e/DX6i DSM2 mode for details.

Transmitter-Receiver Compatibility

Transmitter

DSMX DSM2

DX5e

DX6i

DX7

DX7SE

DX8

DX10t

Modules

DX5e

DX6i

DX7

DX7SE

DX8

DX10t

AR500 AR600 AR6100 AR6110/e AR6200 AR6255

DSM2 DSMX

Set Tx to DSM2 only **note 1

DSM2 DSM2

AR6300 AR6400/ALL AR7000 AR7100/R AR7600 AR8000 AR9000 AR9100 AR9200 AR9300 AR12000 AR12100

DSM2 DSMX

Receiver

AR600 AR6115/e AR6210 AR6255 AR7010 AR7110/R AR7610 AR8000 AR9010 AR9110 AR9210 AR9310 AR10000 AR12010 AR12110

AR6410T User Guide

The AR6410T 6-channel ultra micro receiver with integrated servos, speed control and X-Port™ technology is designed for ultra micro aircraft. Featuring DSM2™/ DSMX® technology the AR6410T is compatible with all Spektrum™, JR®, E-ﬂite® and ParkZone® 2.4GHz DSM2 technology transmitters.

NOTICE: The AR6410T receiver is not compatible with the DX6 park ﬂyer radio system.

Features

• 6-channel Ultra micro receiver

• Two integrated linear long throw servos (elevator and rudder)

• Two integrated brushed speed controllers

• Weighs just 4.7 grams

• Compatible with optional Spektrum ultra micro linear servos

• Smart Bind™ technology

• X-Port allows for future expansion

Applications

The AR6410T is designed for ultra micro aircraft and is ideal for scratch-built ultra micro projects that require dual brushed ESC output. The AR6410T is designed to utilize a single-cell LiPo battery. Two integrated brushed speed controllers can be used to power brushed motors up to 2 amps of continuous current. An integrated X-Port feature allows for future expansion.

Note: When X-Port is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.

Speciﬁcations: AR6410T

Type: DSM2/DSMX Ultra micro receiver with dual integrated brushed speed controllers and two linear long throw servos Channels: 6 channels or 4 channels plus X-Port Modulation: DSM2/DSMX Dimension (WxLxH): 27.8 x 38.0 x 8.1mm Weight: 4.7 g Input Voltage Range: 3.2 to 4.2V 1-cell LiPo Antenna Length: 31mm Resolution: DSM2/DSMX 1024 Compatibility: All DSM2/DSMX aircraft transmitters

Servos Force: 2.8 oz (79 g) Stroke: 7.4mm Speed: 0.14 sec

Speed Controllers: Type: Two Integrated brushed Max continuous current: 2.0 amps

AR6410T Features and Ports

+ - + -

Antenna

Rudder (CH4) servo

Dual Brushed Motor output

Battery input

Aileron (CH2)

Reversed Aileron (CH2) or Aux1 (CH6)

Elevator (CH3) servo

+ -

ESC Brushed

ReceiverInstallation

It is recommended to use double-sided foam tape strips and/or minimal hot glue in the corners to install your receiver in the fuselage. The servos need to be in the appropriate position to attach to and drive the elevator and rudder pushrods. Installation will vary depending upon application.

X-Port (all 4 pins) OR Gear (CH5) (lower 3 pins)

Servos

The AR6410T incorporates integrated servos, but optional Spektrum servos are

also available. Using any servo other than a Spektrum servo will cause damage to

the receiver and/or the servo and may void the warranty.

Optional Servoa

Installing and Plugging in the Optional Servos

Use double-sided foam tape strips and/or minimal hot glue to mount the servos

in place. The servos need to be in the appropriate position to attach to the corresponding pushrods. Plug the servo leads into the appropriate servo ports in the receiver noting the polarity of the servo connector. Installation will vary depending upon application.

Smart Bind™

The AR6410T receiver must be bound to the transmitter before it will operate. Binding is the process of programming the receiver of the control unit to recognize

the GUID (Globally Unique Identier) code of a single specic transmitter. The

AR6410T features Smart Bind. When the receiver is ﬁrst powered, the receiver will look for the signal of its previously bound transmitter for 5 seconds. If no signal is found, the receiver will automatically go into bind mode, indicated by the ﬂashing LED.

Binding

1. Make sure the ﬂight battery is fully charged.

2. Conﬁrm the ﬂight battery is disconnected from the receiver/ESC unit and the

transmitter is turned off.

3. Plug the ﬂight battery into the receiver’s battery connector. After 5 seconds the

LED on the receiver unit will begin ﬂashing, indicating it is in bind mode.

4. After verifying the LED is ﬂashing on the receiver, follow the steps necessary that

allow your transmitter to enter bind mode. (See your transmitter’s manual)

LED

5. If you entered bind mode correctly, you will see a solid LED within about 10

seconds. You should now be bound to the transmitter and have full control and function.

After Binding

Once the system is bound, the transmitter should always be turned on ﬁrst and then the receiver to prevent the receiver from re-entering bind mode. If your receiver inadvertently enters bind mode, simply unplug the battery from the receiver and reinstall with the transmitter remaining on.

Advanced Programming Features The following programming features are only recommended for advanced radio users. To safely accomplish advanced programming feature changes, please enlist the use of a helper; one person to hold the aircraft to prevent unintended ﬂyaways, and a second person to make the changes on the transmitter. The procedures below apply to all compatible transmitters. Prior to making any advanced programming feature changes it is necessary to:

Computer Radios like the DX6i, DX7 amd DX8

1. Choose an empty model location

2. Select model type ACRO

3. Perform a model reset

4. Set all channels to normal reversing

5. Ensure a successful bind has been established NOTICE: All changes made in advanced programming must start with the receiver

powered down to prevent the motor from running unexpectedly.

Reversing Servos

Servo reversing may be achieved using the servo reversing function of your transmitter, or as certain advanced applications require it, you may reverse the actual servos by following the instructions and diagrams below.

Reversing The Servos on the Receiver Board

This feature reverses the servos at the board level, making it useful for implementing features (such as elevons) while using transmitters with limited programming options.

NOTICE: All changes made in advanced programming must start with the receiver powered down to prevent the motor from running unexpectedly.

To safely accomplish advanced programming feature changes, please enlist the use of a helper. One to hold the aircraft to prevent unintended ﬂyaways, and one to make the changes on the transmitter.

Sticks must be held in this position while the transmitter is on and the receiver is off.

1. Ensure a successful bind was completed

2. Turn transmitter on

3. Move THRO stick to full throttle position

4. Move control sticks to the corresponding position for the servo to be reversed (see illustration)

5. While holding this position, plug the battery into the receiver; power receiver

6. The LED on the receiver will go solid and within 5 seconds the LED will ﬂash 3

times quickly, indicating servo is now reversed

7. Disconnect battery from receiver

8. Turn transmitter off

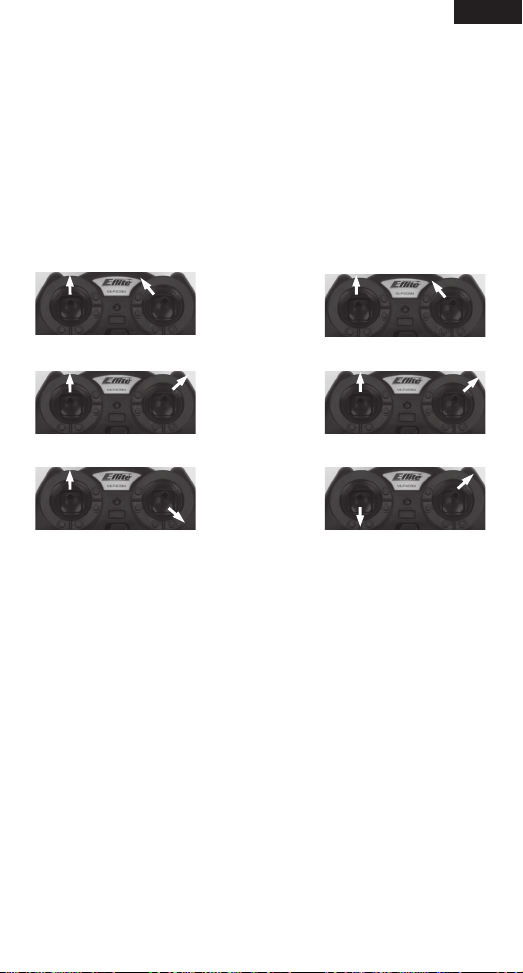

Mode 1 Mode 2

CH2

1. Full THRO

2. Down ELEV

THRO/RUDD ELEV/AILE

3. Left AILE

ELEV/RUDD THRO/AILE

CH3

1. Full THRO

2. Down ELEV

THRO/RUDD ELEV/AILE

3. Right AILE

ELEV/RUDD THRO/AILE

CH4

1. Full THRO

2. Up ELEV

THRO/RUDD ELEV/AILE

3. Right AILE

ELEV/RUDD THRO/AILE

Reversing Optional Linear Servos

Reversing the servo is useful when implementing certain installations, such as dual ailerons, ﬂaps, etc. Spektrum offers a servo reversing lead that can be plugged between the receiver and the optional servo.

To safely accomplish advanced programming feature changes, please enlist the use of a helper. One to hold the aircraft to prevent unintended ﬂyaways, and one to make the changes on the transmitter.

To reverse the servo using the reversing lead:

1. Plug the reversing lead into the servo

2. Plug servo into CH2 or Reversed CH2/CH6 ports

3. Power receiver using a charged battery

4. Once receiver connects, the servo is now reversed

5. Disconnect battery from receiver

6. Remove servo reversing lead and store it in a safe place for future use

7. Reinstall servo lead into servo port

To Change Channel 6 to a Reversed Channel 2 for Dual Ailerons or Reversed Channel 2 to Channel 6

To safely accomplish advanced programming feature changes, please enlist the use of a helper. One to hold the aircraft to prevent unintended ﬂyaways, and one to make the changes on the transmitter.

Sticks must be held in this position while the transmitter is on and the receiver is off.

1. Ensure a successful bind was completed

2. Turn transmitter on

3. Move THRO stick to full throttle position

4. Move Control sticks to the corresponding position to change between the

available options (see illustration)

5. While holding this position, plug the battery into the receiver; power receiver

6. The LED on the receiver will go solid and within 5 seconds the LED will ﬂash 3

times quickly, indicating the option is now changed

7. Disconnect ﬂight pack from receiver

8. Turn transmitter off

Mode 1 Mode 2

Rev. CH2/CH6

1. Full THRO

2. Up ELEV

THRO/RUDD ELEV/AILE

3. Left AILE

ELEV/RUDD THRO/AILE

To Change Channel 5 to X-port or X-port to Channel 5

When X-Port is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.

To safely accomplish advanced programming feature changes, please enlist the use of a helper. One to hold the aircraft to prevent unintended ﬂyaways, and one to make the changes on the transmitter.

Sticks must be held in this position while the transmitter is on and the receiver is off.

1. Ensure a successful bind was completed

2. Plug the X-Port accessory or the optional servo into the X-Port/CH5

3. Turn the transmitter on

4. Move the THRO stick to the full throttle position

5. Move Control sticks to the corresponding position to change between the

available options. (see illustration)

6. While holding this position, plug the battery into the receiver; power receiver

7. The LED on the receiver will go solid and within 5 seconds the LED will ﬂash 3

times quickly, indicating the option is now changed

8. Disconnect battery from receiver

9. Turn transmitter off

Mode 1 Mode 2

CH5/X-port

1. Full THRO

2. Right RUDD

THRO/RUDD ELEV/AILE

ELEV/RUDD THRO/AILE

Troubleshooting Guide

Problem Possible Cause Solution

Aircraft will not “throttle up”but all other controls seem to function.

LED on aircraft remains ﬂashing and cannot be controlled by transmitter.

User did not lower throttle

trim and throttle stick prior to initializing theaircraft.

Throttle channel is reversed. Note: Futaba transmitters

(equipped with Spektrum modules) may require you to reverse the throttle channel.

User did not wait at least

5 seconds after powering the transmitter prior to connecting the ﬂight battery to the aircraft.

User bound the aircraft to a

different transmitter.

Transmitter was too close to aircraft during the initialization process

Lower throttle stick and throttle trim to their lowest settings.

Reverse throttle channel on speciﬁc transmitter if applicable.

Unplug, then reconnect

ﬂight battery. Rebind aircraft to your desired compatible transmitter.

Rebind aircraft to your desired compatible transmitter.

Move transmitter (powered on) a few feet from the aircraft prior to reconnecting the ﬂight battery.

Problem Possible Cause Solution

Controls appear to be reversed after binding to a different transmitter.

Aircraft does not function after connecting ﬂight battery and aircraft smells burnt.

The system will not connect

Receiver quits responding during operation

User did not initially set up

transmitter prior to binding to the aircraft.

User may have accidentally

plugged the ﬂight battery in the wrong polarity.

Your transmitter and receiver are too close together. They should be 8 to 12 feet apart.

You are around metal objects.

Model selected is not the model bound to.

Your transmitter was accidentally put into bind mode and is not bound to your receiver anymore.

Inadequate battery voltage Charge batteries This

Loose or damaged wires or connectors between battery and receiver

See the “Advanced Programming” section of this manual.

Replace AR6410T board and ensure marks are facing the same direction when connecting the ﬂight battery to the AR6410T board.

Move transmitter 8 to 12 feet from receiver.

Move to an area with less metal.

Check model selected and ensure you are bound to that model

Rebind your transmitter and receiver.

receiver requires at least 3.2V to operate. An inadequate power supply can allow voltage to momentarily drop below 3.2V and cause the receiver to brown out and reconnect.

Check the wires and connection between battery and receiver. Repair or replace wires and/or connectors

the RED polarity

1-Year Limited Warranty

What this Warranty Covers

Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁcation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, or (v) Products not purchased from an authorized Horizon dealer.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED

WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLA-

CEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT,

WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF

LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁnal assembly, modiﬁcation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂict of law principals). This warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please direct your email to productsupport@horizonhobby.com, or call

877.504.0233 toll free to speak to a Product Support representative. You may also ﬁnd information on our website at www.horizonhobby.com.

Inspection or Services

If this Product needs to be inspected or serviced, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com under the Support tab. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

Notice: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been

met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty service will be completed and payment will be required without notiﬁcation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost.

By submitting the item for service you are agreeing to payment of the service without notiﬁcation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashiers checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/Service/Request/.

Warranty and Service Contact Information

Country of Purchase

United

States of America

United

Kingdom

Germany

France

China

Horizon Hobby Address

Horizon Service Center

(Electronics and engines)

Horizon Product Support (All other products)

Horizon Hobby Limited

Horizon Technischer Service

Horizon Hobby SAS

Horizon Hobby – China

4105 Fieldstone Rd Champaign, Illinois

61822 USA

4105 Fieldstone Rd Champaign, Illinois

61822 USA

Units 1-4 Ployters Rd

Staple Tye Harlow, Essex CM18 7NS

United Kingdom

Christian-JungeStraße 1 25337 Elmshorn Germany

14 Rue Gustave Eiffel Zone d’Activité du Réveil Matin 91230 Montgeron

Room 506, No. 97 Changshou Rd. Shanghai, China 200060

Phone Number/Email Address

877-504-0233 Online Repair Request: visit www.horizonhobby.com/ service

877-504-0233 productsupport@ horizonhobby.com

+44 (0) 1279 641 097 sales@horizonhobby.co.uk

+49 (0) 4121 2655 100 service@horizonhobby.de

+33 (0) 1 60 47 44 70 infofrance@horizonhobby. com

+86 (021) 5180 9868 info@horizonhobby.com.cn

Customer Service Information

Country of Purchase

United

States of America

United

Kingdom

Germany

Horizon Hobby Address

Sales

Horizon Hobby Limited

Horizon Hobby GmbH

4105 Fieldstone Rd Champaign, Illinois

61822 USA

Units 1-4 Ployters Rd

Staple Tye Harlow, Essex CM18 7NS

United Kingdom

Christian-JungeStraße 1 25337 Elmshorn Germany

Phone Number/Email Address

(800) 338-4639 sales@horizonhobby.com

+44 (0) 1279 641 097 sales@horizonhobby.co.uk

+49 4121 46199 60 service@horizonhobby.de

Country of Purchase

France

China

Horizon Hobby Address

Horizon Hobby SAS

Horizon Hobby – China

14 Rue Gustave Eiffel Zone d’Activité du Réveil Matin 91230 Montgeron

Room 506, No. 97 Changshou Rd. Shanghai, China 200060

Phone Number/Email Address

+33 (0) 1 60 47 44 70 infofrance@horizonhobby. com

+86 (021) 5180 9868 info@horizonhobby. com.cn

FCC Information

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: responsible for compliance could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

Changes or modiﬁcations not expressly approved by the party

Compliance Information for the European Union

Declaration of Conformity

(in accordance with ISO/IEC 17050-1) No. HH2012011502 Product(s): AR6410T Rx

Item Number(s): SPMAR6410T Equipment class: 1

The objects of declaration described above are in conformity with the requirements of the speciﬁcations listed below, following the provisions of the European R&TTE directive 1999/5/EC:

EN 301 489-1 V1.7.1: 2006 EN 301 489-17 V1.3.2: 2008

Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA 1/15/2015

International Operations and Risk Management

Steven A. Hall

Vice President

Horizon Hobby, Inc.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic

separate collection and recyclin

will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁce, your household waste disposal service or where you purchased the product.

g of your waste equipment at the time of disposal

equipment. The

DE DE

Alle Anweisungen, Garantien und anderen zugehörigen Dokumente können im eigenen Ermessen von Horizon Hobby, Inc. jederzeit geändert werden. Die aktuelle Produktliteratur finden Sie auf horizonhobby.com unter der Registerkarte „Support“ für das betreffende Produkt.

Die folgenden Begriffe werden in der gesamten Produktliteratur verwendet, um auf unterschiedlich hohe Gefahrenrisiken beim Betrieb dieses Produkts hinzuweisen: HINWEIS: Wenn diese Verfahren nicht korrekt befolgt werden, können sich möglicherweise Sachschäden UND geringe oder keine Gefahr von Verletzungen ergeben. ACHTUNG: Wenn diese Verfahren nicht korrekt befolgt werden, ergeben sich wahrscheinlich Sachschäden UND die Gefahr von schweren Verletzungen. WARNUNG: Wenn diese Verfahren nicht korrekt befolgt werden, ergeben sich wahrscheinlich Sachschäden, Kollateralschäden und schwere Verletzungen ODER mit hoher Wahrscheinlichkeit oberflächliche Verletzungen.

WARNUNG: Lesen Sie die GESAMTE Bedienungsanleitung, um sich vor

dem Betrieb mit den Produktfunktionen vertraut zu machen. Wird das Produkt nicht korrekt betrieben, kann dies zu Schäden am Produkt oder persönlichem Eigentum führen oder schwere Verletzungen verursachen. Dies ist ein hochentwickeltes Hobby-Produkt. Es muss mit Vorsicht und gesundem Menschenverstand betrieben werden und benötigt gewisse mechanische Grundfähigkeiten. Wird dieses Produkt nicht auf eine sichere und verantwortungsvolle Weise betrieben, kann dies zu Verletzungen oder Schäden am Produkt oder anderen Sachwerten führen. Dieses Produkt eignet sich nicht für die Verwendung durch Kinder ohne direkte Überwachung eines Erwachsenen. Versuchen Sie nicht ohne Genehmigung durch Horizon Hobby, Inc., das Produkt zu zerlegen, es mit inkompatiblen Komponenten zu verwenden oder auf jegliche Weise zu erweitern. Diese Bedienungsanleitung enthält Anweisungen für Sicherheit, Betrieb und Wartung. Es ist unbedingt notwendig, vor Zusammenbau, Einrichtung oder Verwendung alle Anweisungen und Warnhinweise im Handbuch zu lesen und zu befolgen, damit es bestimmungsgemäß betrieben werden kann und Schäden oder schwere Verletzungen vermieden werden.

WARNUNG ZU GEFÄLSCHTEN PRODUKTEN

Vielen Dank, dass Sie sich dieses Spektrum Produkt gekauft haben. Bitte kaufen Sie Ihre Spektrum Produkte immer von einem autorisiertem Händler um sicherzu stellen, dass Sie ein authentisches hochqualitatives original Spektrum Produkt gekauft haben. Horizon Hobby lehnt jede Unterstützung, Service oder Garantieleistung von gefälschten Produkten oder Produkten ab die von sich in Anspruch nehmen kompatibel mit Spektrum oder DSM zu sein.

Nicht geeignet für Kinder unter 14 Jahren. Dies ist kein Spielzeug. HINWEIS: Dieses Produkt ist ausschließlich für die Verwendung in unbemannten

ferngesteuerten Fahrzeugen und Fluggeräten im Hobbybereich vorgesehen. Horizon Hobby lehnt jede Haftung und Garantieleistung ausserhalb der vorgesehen Verwendung ab.

GARANTIE REGISTRIERUNG Registrieren Sie bitte Ihr Produkt unter www.spektrumrc.com/registration.

HINWEIS

Spezielle Bedeutungen

DSMX

Spektrum hat die RC Technologie mit dem DSM2 System revolutioniert und damit Millionen von RC Hobbyfreunden zu zufriedenen Nutzern des 2,4 Ghz Systems gemacht. Spektrum setzt jetzt mit dem DSMX System wieder Meilensteine. DSMX ist weltweit das erste Breitband Frequenz agile 2,4 Ghz Signalprotokoll.

Wie arbeitet DSMX ?

Die Nutzer des 2,4 GHz Frequenzbereich werden immer mehr und durch diese Menge steht jedes System vor der Herrausforderung auch in Zukunft eine sichere Übertragung zu gewährleisten. Das DSMX ist für diese Herausforderungen besser gewappnet, kombiniert es die excellente Datenkapazität und Sicherheit vor Störungen eines Breitbandsignales (wie bei DSM2) genutzt mit der Frequenzagilität.

Verglichen mit dem Breitbandsignal des DSMX neigen die Signale anderer Frequenzhoppingsysteme dazu Daten bei Kanalstörungen zu verlieren. Stellen Sie sich einfach das DSMX System wie einen breiten mächtigen Fluss vor und die Frequenzhoppingsysteme wie einen Bach. Es braucht erheblich mehr Einﬂuß einen großen Strom zu stören als einen Bach.

Die Zahl der Nutzer der 2.4Ghz Systeme steigt ständig bei gleichbleibender Zahl der zur Verfügung stehender Kanäle. Daraus ergibt sich ein höheres Risiko für Datenverluste. Zusammen mit der Frequenzagilität und der hervorragenden Störsicherheit des Breitbandsignales ist das DSMX System die sicherste Wahl. Weitere Vorteile des Systems sind schnelle Verbindungszeiten und excellente Resonanz auch in dichtester 2,4 Ghz Umgebung.

Unterschiede im DSMX Betrieb

DSMX Sender und Empfänger arbeiten nahezu indentisch wie das Spektrum DSM2 System. Der Bindevorgang, Einstellen des Failsafe, Aufzeichnen der Flight Log Daten und der allgemeine Betrieb des Systems mach keinen Unterschied zu dem bestehenden Spektrum System.

Die Systemunterschiede

Brownout Detection (Spannungsabfalldetektion): Diese Funktion steht bei DSMX Empfängern nicht mehr zu Verfügung. DSM2 Empfänger sind mit einer Brownout Detection ausgestattet ,die eine LED zur Erkennung des Spannungsabfall blinken läßt. DSMX Empfänger sind mit der Quick Connect Funktion ausgestattet, die sich unverzüglich nach einer Stromunterbrechung wieder verbindet. Die Architektur von DSMX verhindert so den Brownout im DSMX Mode.

Flight Log Aufzeichnungen - Mehr Ausblendungen als bei DSM2

Bitte beachten Sie, dass DSMX sich in den Kanälen bewegt, während DSM2 sich zwei ruhige Kanäle sucht und auf ihnen bleibt. Da DSMX auf beiden Kanaltypen arbeitet ist es normal, dass es mehr Antennenausblendungen (Fades) gibt. Bei dem Auslesen der Flight Log Daten sind die angezeigten Frames Losses und Hold Daten wichtig und sollten als Referenz verwendet werden. Die Angaben der Fades (Ausblendungen) können aufgrund der Natur der Frequenzagilität als unwesentlich eingestuft werden. Ein 10 Minuten Flug kann typischweise weniger als 50 Frame Losses aufweisen und keine Holds.

Wie gut ist DSMX ?

In multiplen Tests wurden für einen langen Zeitraum 100 DSMX Systeme gleichzeitig betrieben. Während der Tests wurde jedes DSMX System im Flug und am Boden überwacht. In jedem Test wurde kein Verlust der RF Verbindung, Verringerung der Latenzzeit oder ein Qualitätsverlust der Verbindung aufgezeichnet.

Ist DSMX kompatibel mit DSM ?

Ja, DSMX ist voll kompabitel zu DSM2. Viele Piloten haben mit ihrer DSM2 Ausrüstung das gefunden was sie für Ihr Hobby brauchen. Da ist es gut zu wissen, dass auch ein neuer DSMX Sender mit den vorhandenen DSM2 Empfängern kompatibel ist. Wichtig zu bemerken ist, dass trotz der Kompatibilität von DSMX zu DSM2 alle Vorteile des DSMX nur dann zum Tragen kommen, wenn ein DSMX Sender mit einem DMX Empfänger betrieben wird.

Sind DSM2 Sender für eine DSMX Erweiterung geeignet ?

Ja, DX8 Besitzer können Ihre Anlage aufrüsten mit dem Download der Spektrum Air Ware v2.0 Software von Spektrum RC, die über die SD Karte in die Firmware der Anlage übertragen wird. Alle DSM2 Sender mit Ausnahme der DX5e können mit einer DSMX Erweiterung über den technischen Service von Horizon Hobby für Euro: 79,99 ausgerüstet werden. DSM2 Empfänger und Module sind für diese Erweiterung nicht geeignet.

Hat DSMX ModellMatch und ServoSync ?

Ja, DSMX hat dieses beiden und andere exklusive Funktionen, die Sie schon mit Ihrem DSM2 System schätzen. Wollen Sie mehr über DSMX wissen? Besuchen Sie spektrumrc.com für alle Details und viele andere Gründe warum Spektrum führend im Bereich 2.4 Ghz ist.

Hinweis: DSMX Empfänger sind nicht kompatibel mit DSM2 Satellitenempfänger und DSM2 Empfänger sind nicht kompatibel mit DSMX Satellitenempfänger.

• DSMX Sender sind kompatibel mit allen DSM2 und DSMX Empfängern und

arbeiten in dem unten aufgeführten Modes.

• DSM2 Sender sind kompatibel mit allen DSM2 und DSMX Empfängern und

arbeiten in dem unten aufgeführten Modes.

• Die DSMX Technologie ist nur dann aktiv, wenn bei dem Sender und Empfänger

diese Funktion aktiviert wurde.

Hinweis 1: DX5e und DX6i Sender die mit der DSMX Funktion aufgerüstet wurden, sind mit allen DSMX Empfängern kompatibel , mit Ausnahme den ultraschnellen DSM2 Empfängern wie zum Beispiel: AR7610, AR9010. Wenn Sie so einen ultraschnellen Empfänger mit einer DX5e oder DX6i verwenden, ist es erforderlich diese Sender manuell in den DSM2 Mode zu bringen. Bitte sehen Sie für weitere Details auf der Spektrum Website unter DX5e und DX6i DSM2 Mode nach.

+ 48 hidden pages
