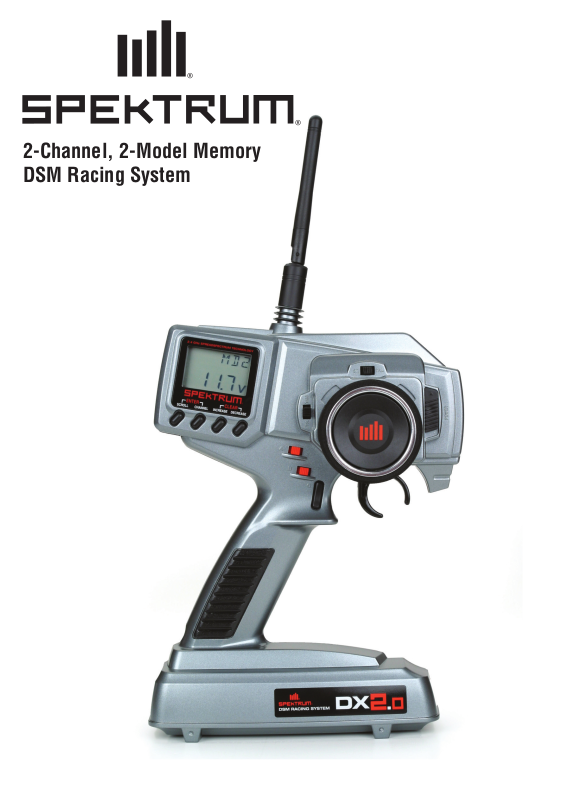

Spektrum SPM20200 DX2.0 User Manual

2-Channel, 2-Model Memory
®
®
DSM Racing System
Table of Contents
Alternate Languages ...............................................................................................2
Introduction............................................................................................................ 3
DX2.0 Quick Start Setup......................................................................................... 3
DX2.0 with Digital Spectrum Modulation ............................................................... 5
Binding ..................................................................................................................6
Antenna ..................................................................................................................7
Direct Trim Access ................................................................................................. 8
Control Identification and Location ........................................................................9
System Features ...................................................................................................10
R/C Safety Precautions......................................................................................... 10
Steering Tension Adjustment ................................................................................10
Receiver Connections and Installation.................................................................. 11
Servo Layout ........................................................................................................ 12
Charging Jack ...................................................................................................... 12
Key Input and Display ..........................................................................................12
Display Screens ...................................................................................................13
Accessing the System Mode ................................................................................14
Model Name Entry (System Mode) ...................................................................... 16
Data Reset (System Mode) ................................................................................... 17
Accessing the Function Mode .............................................................................. 18
Sub-Trim (Function Mode) ...................................................................................20
Accessing the Direct Trim Mode ...........................................................................22
Steering Trim (STC) ............................................................................................. 23
Throttle Trim (THC) ..............................................................................................24
Grip Lever B: Steering Dual Rate Trim Adjustment STG ........................................25
Grip Lever A: Brake Endpoint Adjustment BRK Brake Endpoint Adjustment ......... 26
Alternate Languages
2
ITALIAN: Per la versione italiana di questo manuale vi preghiamo di vistare il sito
www.spektrumrc.com
FRENCH: Pour consulter ce manuel en français, visiter le site www.spektrumrc.com
GERMAN: Zur Ansicht der Bedienunsanleitung in den Deutsch besuchen Sie bitte
www.spektrumrc.com
SPANISH: Para ver este manual en Español entra en www.spektrumrc.com
Introduction
Thank you for purchasing Spectrum’s DX2.0 radio system. The DX2.0 is designed to provide R/C racers with a bulletproof 2.4GHz spread spectrum radio link. With the DX2.0 DSM system you’ll no longer have to wait for a frequency clip, worry about radio interference from noisy motors or ESCs or be concerned that someone may turn on a radio on your channel causing interference. In addition, the DX2.0’s programming is user-friendly and offers the most important features and functions that racers demand. It’s important that you carefully read this manual before attempting to operate your DX2.0 system. For your convenience, a blank data sheet has been included in the back of this manual. Once you have input all the necessary data for a particular model, we recommend that you write that information down on the data sheet provided. This insures that, in the rare case of a memory failure, you will not lose your models’ setup data.
For those who would like to get out to the track quickly with just the basic radio setup, please refer to the Quick Start section that follows.
DX2.0 Quick Start Setup
Included in this manual are in-depth instructions detailing all the steps and procedures needed to correctly program each of the DX2.0’s features. Quick Start covers the basic programming information necessary to get you to the fast track. Later, when you want to learn more about the specific features of the DX2.0, refer to the appropriate page(s) in this manual for more detailed programming information.
Binding
It’s necessary to program the receiver to a specific transmitter so that the receiver will only recognize that transmitter, ignoring signals from any other sources. If the receiver is not bound to a transmitter, the system will not operate. Also, during the binding process, the servo fail-safe positions are set.
1. Make sure the transmitter and receiver are turned off.
2. With the receiver off, press and hold the bind button on the receiver while turning on the receiver.
3. Release the bind button when the LED flashes green.
4. With the transmitter off, place the transmitter steering wheel and the throttle trigger in their desired fail-safe positions (normally brake and straight ahead steering).
5. Press and hold the bind button on the transmitter while turning on the transmitter.
6. Release the bind button after the green LED flashes.
After several seconds, the LED on the receiver and the LED on the transmitter will quit flashing and remain solid, indicating that the binding process was successful. Once binding is complete, the system will automatically connect.
Note: See page 6 for a detailed description of the binding process.
3
DX2.0 Quick
Servo Reversing
Start Setup
(continued)
–
st
REV • NORM
–
1. With the transmitter power switch on, press the
SCROLL key to enter the Function mode.
2. Press the SCROLL key until “REV.NORM” appears on the screen.
The “ST” indicates the steering servo reversing screen.
3. Press the INCREASE or DECREASE key to move the cursor
to the desired servo direction (REV.NORM).
4. Press the CHANNEL key once to access the throttle servo reversing screen.
5. To select the direction of the throttle servo, repeat Step 3 above.
Indicates Current Channel ST = Steering TH = Throttle
Indicates Current Servo Direction
ENtER
SCROLL
ChaNNEL
End-Point (Travel) Adjustment
Indicates Current Adjustment Position STR = Steering Right STL = Steering Left FWD = Forward Trigger BRM = Reverse (brake) Trigger
E P A
–
st
INCREaSE
CLEaR
DECREaSE
100
1. From the Servo Reverse function, press the SCROLL key once to access
the End-Point (Travel) Adjustment function (the EPA screen with “ST” will appear).
Indicates Current Value
Steering Adjustment
2. Rotate the steering wheel in the desired direction (left or right) to be adjusted.
3. Press the INCREASE or DECREASE keys to select the
desired travel value.
Throttle Adjustment
4. Press the CHANNEL key once. TH will appear on the screen.
5. Pull the trigger for forward or push the trigger for brake adjustment.
6. Press the INCREASE or DECREASE keys to select the desired travel value.
4
DX2.0 with Digital Spectrum Modulation
The DSM® system operates in the 2.4GHz band (that’s 2400MHz). This high frequency offers a significant advantage as it’s well out of the range of model-generated radio interference (like motor and ESC noise). All the complex issues that now exist using 27 and 75MHz radios with model-generated interfering noise are eliminated with this system. The DSM system uses Direct Sequencing Spread Spectrum modulation to generate a wide signal on a single frequency. The FCC requires that these systems be “smart”– incorporating collision avoidance such that when a system is turned on, it scans the 2.4GHz band and selects a channel that is not being used, then begins transmitting on that unused channel. 79 channels are available and the odds of one DSS spread spectrum system interfering with another are astronomically remote. The 2.4GHz spectrum has a capacity of 79 channels. In the unlikely event that the spectrum is full, the 80th system will not connect or cause any interference going into hold scan until a channel is free.
5
43
"69
5)3
3Y
453
#"55&-
%4.(I[
463'"$&64&0/-:
ª)PSJ[PO)PCCZ*OD
Binding
During the first installation, the receiver(s) must be bound to the transmitter. Binding is necessary to program the receiver(s) to distinguish its corresponding transmitter from others. Also fail-safe positions are transferred from the transmitter to the receiver during binding. See binding below for more details.
It is necessary to bind the receiver to the transmitter during the first installation, and is recommended when the receiver is moved from one vehicle to another. Receivers can be re-bound to the same transmitter or to other transmitters an infinite number of times. Also multiple receivers can be bound to a single transmitter, common when using one transmitter to operate several models.
Only bound receivers and transmitters can connect. During power-up, the transmitter scans for a free channel while the receiver scans for its bound transmitter. During the scanning process, LEDs on both the transmitter and receiver flash rapidly. When control is achieved, the LED remains on continuously.
In the unlikely event that the link is lost during use, the receiver will drive the servos to their fail-safe positions that were preset during the binding process. If the receiver is turned on prior to turning on the transmitter, the receiver will enter the fail-safe mode, driving the servos to their preset fail-safe position. When the transmitter is turned on, normal control is resumed.
To bind the receiver to the transmitter
1. Make sure the transmitter and receiver are turned off
Bind Button
LED
6
Binding
(continued)
2. With the receiver off, press and hold the bind button on the receiver while turning on the receiver.
3. Release the bind button when the LED flashes green.
4. With the transmitter off, place the transmitter steering wheel and throttle trigger channels in their desired fail-safe positions (normally brake and straight­ahead steering).
LED and Bind Button
Antenna
5. Press and hold the bind button on the transmitter while turning on the transmitter.
6. Release the bind button after the green LED flashes.
After several seconds the LED on the receiver and the LED on the transmitter will quit flashing and remain solid, indicating that the binding process was successful. Once binding is complete, the system will automatically connect.
At 8.5 inches in length, the receiver antenna is significantly shorter than conventional antennas. The receiver has provisions that allow the antenna to exit the top of the receiver or at the end of the receiver. To switch antenna positions, it is necessary to open the case to change the antenna exit position. Like all antennas, it’s important to mount the antenna vertically. In most cases the antenna can be mounted inside the body with no loss of range. Mount the receiver antenna as recommended by the manufacturer of the vehicle, however, it may be necessary to trim the plastic antenna tube (included with your vehicle) to allow the antenna to extend at least 1/2” past the tip of the tube.
Note: If desired, the antenna can be shortened (cut) to exactly 3.6” with negligible loss of
range, and in some applications the short 3.6” length will make installation easier.
7
Direct Trim
Steering and Throttle Trim Adjustment
Access
TR IM
TR IM
–
STC
0
THC
Indicates Steering Trim Function
Indicates Current Value
Indicates Throttle Trim Function
Indicates Current Value
0
E P A
R/ B
Steering Servo Trim Adjustment:
1. With the transmitter power switch on, move the digital steering trim lever in the desired position to be adjusted. The steering trim value screen will appear automatically.
BRK
50
Brake Function
Indicates Current Value
Throttle Servo Trim Adjustment:
2. With the transmitter power switch on, move the digital throttle trim lever in the desired position to be adjusted. The throttle trim value screen will appear automatically.
Steering Trim
Throttle Trim
8
Control Identification and Location
Antenna
Multidata LCD Display
Digital Voltage Reading
Channel Button
Enter Function
Scroll Button
Increase Button
Clear Function
Decrease Button
Electronic Digital
Throttle Trim Lever
Electronic Digital
Grip Lever A
Three Character
Name Input
Grip Button C
Electronic Digital
Steering Trim Lever
Power Switch
Steering Wheel
Throttle Trigger
Adjustable
Steering
Tension
Electronic Digital
Grip Lever B
Charge Jack
Battery cover *
(8 “AA” Batteries Required
* To remove the Battery Cover, press down where it says “press” and push the cover in the direction of the arrow. Remove the battery cover and install 8 “AA” batteries in the direction as molded into the battery case. If the transmitter voltage fails to register, check for correct battery installation and review voltage again.
9
System Features
• DSM 2.4GHz Spread Spectrum Modulation
• Two channels
• Easy-to-read LCD graphics display
• Two-model memory
• Three-character model name entry
• Electronic digital trim levers for throttle and steering
• Two assignable electronic grip levers
• Direct display trim function
• Sub-trim
• Steering rate adjustment
• Independent steering endpoint adjustments
• Brake/throttle endpoint adjustment
• Low battery alarm
• Charge jack receptacle (rechargeable batteries not included; order JRPB958)
R/C Safety Precautions
For safe and reliable performance of your R/C model, please carefully read and follow these guidelines:
1. Radio control models are not toys. They are capable of inflicting serious injury to people and property. Use caution at all times when operating your model.
2. You are responsible for the safe operation of your R/C model. You must properly install, test and operate your model with a clear sense of that responsibility. Do not take risks that might endanger yourself or others.
3. Running an R/C car in the streets is very dangerous to both drivers and models. Avoid running your model in areas occupied by full-size automobiles. To locate areas where you can safely operate your model, you should contact your local hobby shop for R/C tracks or clubs in your area.
4. When running an R/C boat, keep it away from any swimmers, full-size boats, or wildlife. Also, watch carefully for fishing lines that can get tangled in the propeller.
5. If at any time while operaing your RC model you sense abnormal model functioning, end your operation immediately. Do not operate your model again until you are certain the problem has been corrected.
CAUTION: Control of your model is impossible without sufficient voltage for the
transmitter and receiver. A weak transmitter battery will decrease your range of operation and a weak receiver battery will slow servo movement and decrease your range of operation. Check your receiver pack voltage often to avoid losing control of your model.
Steering Tension Adjustment
10
Steering tension is adjustable via the recessed screw located beneath the steering wheel (see page 9 for exact location). Turning the screw clockwise increases the steering tension.
