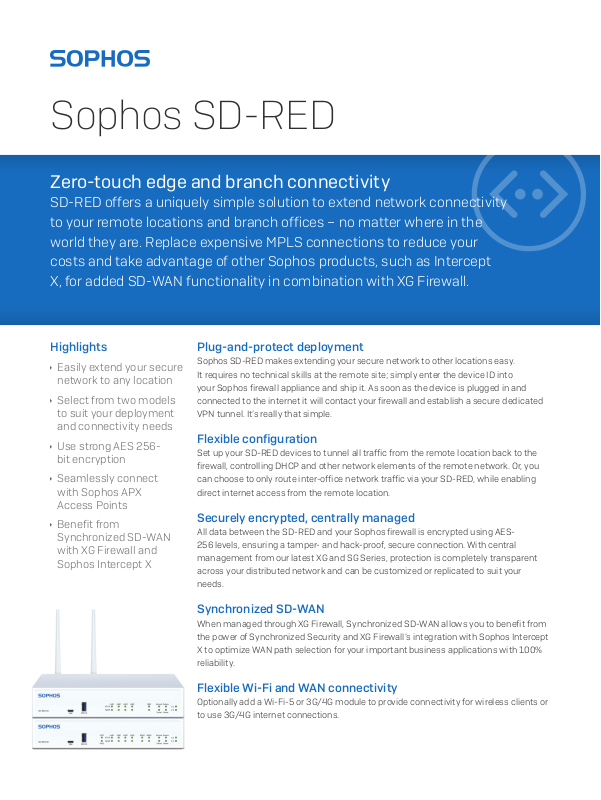

Sophos SD-RED

Zero-touch edge and branch connectivity

SD-RED offers a uniquely simple solution to extend network connectivity
to your remote locations and branch offices – no matter where in the
world they are. Replace expensive MPLS connections to reduce your
costs and take advantage of other Sophos products, such as Intercept
X, for added SD-WAN functionality in combination with XG Firewall.

Highlights

Ì Easily extend your secure

network to any location

Ì Select from two models

to suit your deployment
and connectivity needs

Ì Use strong AES 256-

bit encryption

Ì Seamlessly connect

with Sophos APX
Access Points

Ì Benefit from

Synchronized SD-WAN
with XG Firewall and
Sophos Intercept X

Plug-and-protect deployment

Sophos SD-RED makes extending your secure network to other locations easy.
It requires no technical skills at the remote site; simply enter the device ID into
your Sophos firewall appliance and ship it. As soon as the device is plugged in and
connected to the internet it will contact your firewall and establish a secure dedicated
VPN tunnel. It’s really that simple.

Flexible configuration

Set up your SD-RED devices to tunnel all traffic from the remote location back to the
firewall, controlling DHCP and other network elements of the remote network. Or, you
can choose to only route inter-office network traffic via your SD-RED, while enabling
direct internet access from the remote location.

Securely encrypted, centrally managed

All data between the SD-RED and your Sophos firewall is encrypted using AES­256 levels, ensuring a tamper- and hack-proof, secure connection. With central
management from our latest XG and SG Series, protection is completely transparent
across your distributed network and can be customized or replicated to suit your
needs.

Synchronized SD-WAN

When managed through XG Firewall, Synchronized SD-WAN allows you to benefit from
the power of Synchronized Security and XG Firewall’s integration with Sophos Intercept
X to optimize WAN path selection for your important business applications with 100%
reliability.

Flexible Wi-Fi and WAN connectivity

Optionally add a Wi-Fi-5 or 3G/4G module to provide connectivity for wireless clients or
to use 3G/4G internet connections.

Sophos SD-RED

Choose your RED

Our SD-RED devices are built on the latest enterprise-class, high-speed networking platforms. They work with your Sophos
SG UTM/XG Firewall appliance (hardware, software, virtual, or cloud). Our range of Sophos APX Series Access Points are also
compatible with Sophos SD-RED for secure, high-speed wireless connectivity.

Licensing

To use a Sophos SD-RED you will need an active Network Protection subscription for either Sophos SG UTM or Sophos XG
Firewall. To use Wi-Fi with SG UTM, you will additionally need a valid UTM Wireless Protection subscription.

Technical specifications

Model Name SD-RED 20 SD-RED 60

Product Support Added SFOS 17.5 MR 11, SFOS 18.0 MR 1, UTM 9.7 MR 3

Maximum Throughput 250 Mbps 850 Mbps

Physical Interfaces (Built-in)

LAN Interfaces 4 x 10/100/1000 Base-TX (1 GbE Copper)

WAN Interfaces 1 x 10/100/1000 Base-TX (shared with SFP)

SFP Interfaces 1x SFP Fiber (shared port with WAN) 1x SFP Fiber (shared port with WAN1)

Power-over Ethernet Ports None 2 PoE Ports (total power 30W)

USB Ports 2 x USB 3.0 (front and rear)

COM Ports 1 x Micro-USB

Optional Connectivity

Modular Bay 1 (for use with optional Wi-Fi OR 4G/LTE Card)

Optional Wi-Fi Module

Optional 3G/4G LTE Module MC7430/MC7455 Sierra Wireless Card

Optional VDSL Modem Optional SFP Modem (support in an upcoming release)

Physical Specifications

Dimensions

Weight

Power Redundancy Support Yes, optional 2nd power supply Yes, optional 2nd power supply

Power Consumption

Temperature (operational) 0°C to 40°C (32°F to 104°F)

Temperature (storage) -20°C to 70°C (-4°F to 158°F)

Humidity 10-90% RH, non-condensing

Certifications (Safety,
EMC, Radio)

225 x 44 x 150 (w*h*d) mm

8.86 x 1.73 x 5.91 (w*h*d) inches

0.9 kg/1.8 kg (1.98 lbs/3.97 lbs)

Full Load: 22.6Watt/77.114 BTU

802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable

2x2 MIMO 2 antennas

Unpacked/Packed

Idle: 6.1Watt/20.814 BTU

CE/FCC/IC/RCM/VCCI/CB/UL/CCC/KC/ANATEL

Full Load without PoE: 25.33 Watt/86.429 BTU

2 x 10/100/1000 Base-TX

(WAN1 shared port with SFP)

225 x 44 x 150 (w*h*d) mm

8.86 x 1.73 x 5.91 (w*h*d) inches

1.0 kg/2.2 kg (2.2 lbs/4.85 lbs)
Unpacked/Packed

Idle: 11.88 Watt/40.536 BTU

Full Load with PoE: 62.48 Watt/213.190 BTU
