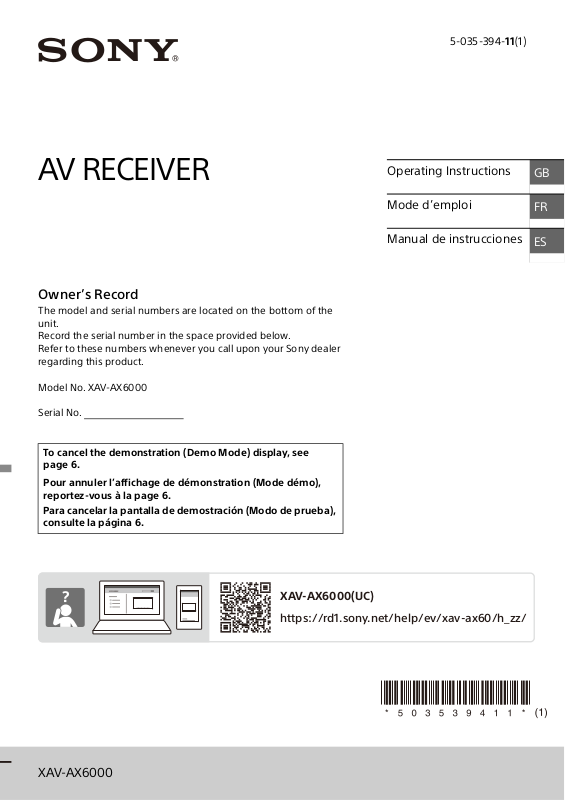

AV RECEIVER
Owner’s Record
The model and serial numbers are located on the bottom of the
unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. XAV-AX6000
Serial No.
To cancel the demonstration (Demo Mode) display, see
page 6.
Pour annuler l’affichage de démonstration (Mode démo),
re
Para cancelar la pantalla de demostración (Modo de prueba),
con
portez-vous à la page 6.
sulte la página 6.
Operating Instructions
Mode d’emploi
Manual de instrucciones
GB
FR
ES
XAV-AX6000
Warning
For safety, be sure to install this unit in the
dashboard of the car as the rear side of the unit
becomes hot during use.
For details, see “Connection/Installation”
(page 9).
The nameplate indicating operating voltage, etc., is
located on the bottom of the chassis.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
FOR THE CUSTOMERS IN THE USA. NOT
APPLICABLE IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
This device complies with part 15 of FCC Rules and
Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operated
in conjunction with any other antenna or
transmitter.
This equipment complies with FCC/ISED radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the ISED
radio frequency (RF) Exposure rules. This
equipment should be installed and operated
keeping the radiator at least 20 cm or more away
from person’s body.
Data transmission is always initiated by software,
which is the passed down through the MAC,
through the digital and analog baseband, and
finally to the RF chip. Several special packets are
initiated by the MAC. These are the only ways the
digital baseband portion will turn on the RF
transmitter, which it then turns off at the end of the
packet. Therefore, the transmitter will be on only
while one of the aforementioned packets is being
transmitted. In other words, this device
automatically discontinue transmission in case of
either absence of information to transmit or
operational failure.
If you have any questions about this product:
Visit: https://www.sony.com/electronics/support
Contact: Sony Customer Information Service Center
at 1-800-222-7669
Write: Sony Customer Information Service Center
12451 Gateway Blvd., Fort Myers, FL 33913
Supplier’s Declaration of Conformity
Trade Name: SONY
Model: XAV-AX6000
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego, CA 92127
U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
2GB
Warning if your car’s ignition has no ACC
position
Do not install this unit in a car that has no ACC
position. The display of the unit does not turn off
even after turning the ignition off, and this
causes battery drain.
Disclaimer regarding services offered by third
parties
Services offered by third parties may be changed,
suspended, or terminated without prior notice.
Sony does not bear any responsibility in these sorts
of situations.
Important notice
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY
INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR OTHER DAMAGES INCLUDING,
WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF THE
PRODUCT OR ANY ASSOCIATED EQUIPMENT,
DOWNTIME, AND PURCHASER’S TIME RELATED TO
OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS
HARDWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio
tra
nsmitter.
Please check your vehicle operation manual or
co
ntact the manufacturer of your vehicle or your
vehicle dealer, before you install this product into
your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic
device connected to the handsfree operate using
radio signals, cellular, and landline networks as well
as user-programmed function, which cannot
guarantee connection under all conditions.
Therefore do not rely solely upon any electronic
de
vice for essential communications (such as
medical emergencies).
On BLUETOOTH communication
• Microwaves emitting from a BLUETOOTH device
may affect the operation of electronic medical
devices. Turn off this unit and other BLUETOOTH
devices in the following locations, as it may cause
an accident.
– where inflammable gas is present, in a hospital,
train, airplane, or petrol station
– near automatic doors or a fire alarm
• This unit supports security capabilities that
comply with the BLUETOOTH standard to provide
a secure connection when the BLUETOOTH
wireless technology is used, but security may not
be enough depending on the setting. Be careful
when communicating using BLUETOOTH wireless
technology.
• We do not take any responsibility for the leakage
of information during BLUETOOTH
communication.
If you have any questions or problems concerning
your unit that are not covered in this manual,
consult your nearest Sony dealer.
3GB
Guide to Parts and Controls
ȩȪ ȬȫȭȮȯ
Ƕ
ǷǸ
ǹ
Ǻ
ǹǻ
Ǽ
Main Unit
Screen Displays
Playback screen:
Ǵǵ
The VOL (volume) + button has a tactile dot.
HOME
Displays the HOME screen.
STANDBY
Press and hold to turn off the unit.
Press and hold for more than 10 seconds to reset
the unit.
VOL (volume) +/–
Custom
Registers functions (Mute, Disp. Off, Source
Change).
To register, select [Settings]
[Custom Button].
Receptor for the remote commander
/ (previous/next)
Functions differently depending on the selected
source:
– [Radio]: select a preset station.
– [SiriusXM]: select a preset channel.
– [USB]/[Bluetooth Audio]: move to the
previous/next content.
– [Apple CarPlay]/[Android Auto]: move to the
previous/next content.
Press and hold to:
– [Radio]: tune into a station automatically
(SEEK+/SEEK–).
– [USB]/[Bluetooth Audio]: fast-reverse/fast-
forward.
VOICE
Activates the voice command function for Apple
CarPlay and Android Auto™.
Display/touch screen
[Customize]
HOME1 screen:
HOME2 screen:
4GB
Status indication (left side)
(back) Returns to the previous display.
(list) Opens the list. The available
lists differ depending on the
source.
Status indication (right side)
Clock Displays the time which was set
on the Date/Time setting.
(mute) Lights up when the sound is
muted.
(option) Opens the source option menu.
The available items differ
depending on the source.
(device) Displays the device’s name to
connect to the unit.
(antenna) Indicates the signal strength
status of the connected mobile
phone.
(battery) Indicates the remaining battery
status of the connected mobile
phone.
Application specific area
Displays playback controls/indications or show
the unit’s status. Displayed items differ
depending on the source.
(Apple CarPlay)/ (Android Auto)
Displays when connecting Apple CarPlay/
Android Auto.
Clock
Displays the date and time which were set on
the Date/Time setting.
Apps area (Favorite)
Up to 5 Apps can be set. Apps can be changed.
You can set your Favorite Apps.
All Apps
Opens the HOME2 screen.
Close
Returns to the HOME1 screen.
Apps area
Displays all Apps except for Favorite Apps.
Apps icon list
Android
Auto
SiriusXM
Settings USB HDMI
Devices Phone Gauges*1*
Park
2
Assist*1*
Satellite
1*2*3
Radio*
*1 When connecting the iDataLink Maestro module (not
supplied), the icon is displayed.
*2 Available functions differ according to your car type.
*3 The display may be different.
Apple
CarPlay
Bluetooth
Vehi cle
2
Info*1*
BT
1*2*3
Audio*
Radio
RearCam
Climate*1*
Media
Player*
2
2
1*2*3
5GB
Basic Operations
Using Apple CarPlay Wirelessly
When using Apple CarPlay for the first time, device
registration is required. Follow the procedure in
“Pairing with a Bluetooth® Device” (page 6).
Note
Make sure the GPS antenna (aerial) is connected. For details,
see “Installing the GPS antenna (aerial)” (page 12).
Using Android Auto
When using Android Auto wirelessly for the first
time, device registration is required. Follow the
procedure in “Pairing with a Bluetooth® Device”
(page 6).
When using Android Auto with a USB cable,
conne
ct the Android Auto compatible Android™
phone to the unit with the USB cable.
Pairing with a Bluetooth® Device
When connecting a BLUETOOTH device for the first
time, mutual registration (called “pairing”) is
required. Pairing enables this unit and other devices
to recognize each other.
When turning on the unit, the unit sends the
BLUETOOTH signal.
To pair from the settings of this unit
1 Press HOME, then touch [Settings].
If [Settings] is not set in the Favorite area, touch
[All Apps] to display the HOME2 screen, then
select [Settings].
2 Touch [Device Connection].
3 Touch [+Add New Device].
4 Operate the BLUETOOTH device according to
its message on the [Add New Device]
screen.
If a passkey input is required on the BLUETOOTH
device, input [0000].
The registered device name appears on the
[Device Connection] screen.
You can connect or disconnect the registered
device on this screen.
To pair from the BLUETOOTH device
When setting the BLUETOOTH setting of the
BLUETOOTH device to [ON], select “XAV-AX6000”
on the setting screen of your BLUETOOTH device
and then proceed to the pairing steps. Follow the
instructions on the screen of the unit.
Canceling the Demonstration
Mode
1 Press HOME, then touch [Settings].
If [Settings] is not set in the Favorite area, touch
[All Apps] to display the HOME2 screen, then
select [Settings].
2 Touch [System], then touch [Demo Mode] to
set to [Off].
3 To exit the setup menu, touch (back)
twice.
Updating the Firmware
To update the firmware, visit the support site, then
follow the online instructions.
URL: https://www.sony.com/am/support
To update the firmware with USB tethering
mode
When using the smartphone with tethering
function, you can update the firmware with USB
tethering mode.
Connect your smartphone to the USB port, then
fol
low the instructions on the screen of the unit.
Notes
• During the update with a USB connection, do not
disconnect the USB cable or USB device.
• A network connection may be required, and high packet
communication fees may be incurred.
6GB
Additional Information
Precautions
Note on safety
Comply with your local traffic rules, laws, and
regulations.
About iPhone
•Compatible iPhone models:
iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11,
iPhone XS Max, iPhone XS, iPhone XR, iPhone X,
iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7,
iPhone SE, iPhone 6s Plus, iPhone 6s,
iPhone 6 Plus, iPhone 6, iPhone 5s
•Use of the Made for Apple badge means that an
accessory has been designed to connect
specifically to the Apple product(s) identified in
the badge, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with an
Apple product may affect wireless performance.
•Check the Apple CarPlay website for supported
iOS versions. Update to the latest iOS version
before use.
If you have any questions or problems concerning
your unit that are not covered in this Operating
Instructions, consult your nearest Sony dealer.
Specifications
FOR THE CUSTOMERS IN THE USA. NOT
APPLICABLE IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
AUDIO POWER SPECIFICATIONS
Monitor section
Display type: Wide LCD color monitor
Dimensions: 17.6 cm/ 6.95 in
System: TFT active matrix
Number of pixels:
Radio section
FM
Tuning range: 87.5 MHz – 107.9 MHz
Usable sensitivity: 7 dBf
Signal-to-noise ratio: 70 dB (mono)
Separation at 1 kHz: 45 dB
AM
Tuning range: 530 kHz – 1,710 kHz
Sensitivity: 32 µV
USB player section
Interface: USB Type-C® (Hi-speed)
Maximum current: 3.0 A
HDMI section*
Input format: 480p, 576p, 720p
* HDMI output is not available.
BLUETOOTH section
Communication System:
Output:
Maximum communication range*
Frequency band:
Modulation method: FHSS
CTA2006 Standard
Power Output: 20 Watts RMS × 4
Channels at 4 Ohms and ≤ 1% THD+N
Signal to Noise Ratio: 80 dBA (reference:
1 Watt into 4 Ohms)
1,152,000 pixels (800 × 3 (RGB) × 480)
BLUETOOTH Standard version 5.0
BLUETOOTH Standard Power Class 1
(Max. Conducted +7.5 dBm)
Line of sight approx. 10 m (33 ft)
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
1
:
7GB
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile) 1.3.1
AVRCP (Audio Video Remote Control Profile) 1.6.1
HFP (Handsfree Profile) 1.7.1
PBAP (Phone Book Access Profile) 1.2
Corresponding codec: SBC, AAC, LDAC™
*1 The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a
microwave oven, static electricity, reception sensitivity,
antenna (aerial) performance, operating system,
software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of
BLUETOOTH communication between devices.
Wi-Fi section
Compatible standards:
IEEE802.11 a/n/ac
Radio frequency:
5 GHz band (5.725 GHz - 5.850 GHz)
Output power:
Max. conducted 16 dBm
Frequency Tolerance: 20 ppm
Power amplifier section
Outputs: Speaker outputs
Speaker impedance: 4 – 8
Maximum power output: 55 W × 4 (at 4 )
General
Power requirements:
12 V DC car battery (negative ground (earth))
Rated current consumption: 10 A
Dimensions (maximum):
Approx. 178 mm × 100 mm × 132 mm
1
(7
/8 in × 4 in × 5 1/4 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 111 mm × 115 mm
1
(7
/4 in × 4 3/8 in × 4 5/8 in) (w/h/d)
Mass: Approx. 1.0 kg (2 lb 4 oz)
Package contents:
Main unit (1)
Parts for installation and connections (1 set)
Optional accessories/equipment:
Remote commander: RM-X400
SiriusXM Connect Vehicle Tuner: SXV100, SXV200,
SXV300
iDataLink Maestro RR module
iDataLink Maestro RR2 module
Ask the dealer for detailed information.
Design and specifications are subject to change
without notice.
Copyrights
SiriusXM-Ready® allows you to Listen to ad-free
music, plus all the sports, talk, comedy, news
coverage, all in one place. (SiriusXM Connect Tuner
and subscription required. Sold separately.) For
more information, visit www.siriusxm.com.
SiriusXM and all related marks and logos are
t
r
ademarks of Sirius XM Radio, Inc. All rights
reserved.
The Bluetooth® word mark and logos are registered
tr
ademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Sony Group Corporation and
its subsidiaries is under license. Other trademarks
and trade names are those of their respective
owners.
Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft Corporation. Use or
distribution of such technology outside of this
product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
Apple and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Apple CarPlay is a trademark of Apple Inc.
IOS is a trademark or registered trademark of Cisco
in the U.S. and other countries and is used under
license.
Android and Android Auto are trademarks of
Google LLC.
The Wi-Fi CERTIFIED™ Logo is a certification mark of
Wi-Fi Alliance®.
LDAC and LDAC logo are trademarks of Sony
Corporation.
USB Type-C® and USB-C® are registered trademarks
of USB Implementers Forum.
The terms HDMI, HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc.
All other trademarks are trademarks of their
respective owners.
8GB
Connection/Installation
Cautions
•Do not install this unit in a car that has no ACC
position. The display of the unit does not turn off
even after turning the ignition off, and this causes
battery drain.
•Run all ground (earth) leads to a common
ground (earth) point.
•Do not get the leads trapped under a screw or
caught in moving parts (e.g., seat railing).
•Before making connections, turn the car ignition
off to avoid short circuits.
•Connect the yellow and red power supply leads
only after all other leads have been connected.
•Be sure to insulate any loose unconnected leads
with electrical tape for safety.
•Choose the installation location carefully so that
the unit will not interfere with normal driving
operations.
• Avoid installing the unit in areas subject to dust,
dirt, excessive vibration, or high temperature, such
as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a
safe and secure installation.
•Be sure to use the supplied USB extension cables.
•To avoid injury, be careful not to drop the display
during installation.
• When installing, be careful not to cut off your
fingers with the metal parts of the brackets and
mounting base.
•Do not pinch your fingers when attaching the
display to the unit.
• When using the unit for a long period of time,
there may be a possibility that the screws securing
the display may come loose. Periodically tighten
these screws.
• Do not make any changes or modifications to the
unit other than those described in this manual.
Note on the power supply lead (yellow)
When connecting this unit in combination with other stereo
components, the amperage rating of the car circuit to which
the unit is connected must be higher than the sum of each
component’s fuse amperage rating.
Note on installing in cars with a start-stop system
The unit may restart when starting the engine from startstop. In this case, turn off the start-stop system of your car.
Note on installing in cars with electric parking brake
system
For cars with electric parking brakes, some related functions
(such as video blocking function) may not work properly.
Mounting angle adjustment
Adjust the mounting angle to less than 30°.
Parts List for Installation
Power supply leads ( 1) Connection cables
Mounting screw
(5 × max. 9 mm
(7/32 × max. 3/8 in)) (4)
Flat-mount base (1) Double-sided tape (1)
USB Type-C extension cable
(1)
GPS anten na (aerial) (1) Metal plat e (1)
Cable tie (2)
This parts list does not include all the package
contents.
(Audio/Camera) (1)
Microphone (1)
Cable for steering wheel
remote input (RC-SR1) (1)
9GB
Connection
FUSE 10A
*
3
*
3
*
3
Rear view
camera*
1
from a steering wheel remote control*
6
White
White/black striped
Gray
Gray/black stripe d
Green
Green/black striped
Purple
Purple/black striped
Black
Yel l o w
Red
Blue/white striped
Orange/white striped
Light green
Purple/white striped
from a car antenna (aerial)*
7
For details, see “Making
connections” (page 11).
Front speaker*1*
2
Rear speaker*1*
2
Satellite radio tuner (SiriusXM)*1*
10
*8*
9
*
13
Pink
*13
Red
Black
Blue
Smartphone, USB device (for audio
playback)*
1
iDataLink Maestro modul e*1*11*
12
*
3
*
4
*
4
*
4
*
5
• To prevent short circuits, insulate leads with a cover or tape.
• Note that the unit may be damaged if it is connected incorrectly or by short circuits at the leads.
HDMI Type-D (Micro-HDMI)*
1
10GB
*1 Not supplied
Parking brake switch lead
Hand brake type Foot brake type
*2 Speaker impedance: 4 to 8 × 4
*3 RCA pin cord (not supplied)
*4 Power amplifier (not supplied)
*5 Subwoofer (not supplied)
*6 Depending on the type of car, use an adaptor for a
steering wheel remote control (not supplied).
For details on using the steering wheel remote control,
see “Using the steering wheel remote control” (page 13).
*7 Depending on the type of car, use an adaptor (not
supplied) if the antenna (aerial) connector does not fit.
*8 Whether in use or not, route the microphone input cord
so it does not interfere with driving operations. Secure
the cord with a clamp, etc., if it is installed around your
feet.
*9 For details on installing the microphone, see “Installing
the microphone” (page 12).
*10
For more information on how to install the SiriusXM
Connect Vehicle Tuner, consult the installation guide
supplied with the tuner.
*11
When connecting the iDataLink Maestro module (not
supplied), do not connect any device to the REMOTE IN
terminal (blue). Likewise, when connecting a device to
the REMOTE IN terminal (blue), do not connect the
iDataLink Maestro module (not supplied) to the IDATA
LINK I/F terminal (black).
*12
Use the connection cable supplied with the iDataLink
Maestro module (not supplied).
*13
Connect when using Apple CarPlay with a wireless
connection.
To the parking brake switch lead
The mounting position of the parking brake
switch lead depends on your car.
Be sure to connect the parking brake lead (light
green) of the power supply leads to the
parking brake switch lead.
To the +12 V power terminal of the car’s rear
lamp lead (only when connecting the rear
view camera)
To a car’s speed pulse signal
When using Apple CarPlay with a wireless
connection, it is necessary to connect to keep
the accurate location of your car.
The mounting position of the speed pulse
output lead depends on your car.
Making connections
To a common ground (earth) point
First connect the black ground (earth) lead then
connect the yellow and red power supply leads.
To the +12 V power terminal which is
energized at all times
Be sure to first connect the black ground (earth)
lead to a common ground (earth) point.
To the +12 V power terminal which is
energized when the ignition switch is set to
the accessory position
Be sure to first connect the black ground (earth)
lead to a common ground (earth) point.
To the power antenna (aerial) control lead or
the power supply lead of the antenna (aerial)
booster
It is not necessary to connect this lead if there is
no power antenna (aerial) or antenna (aerial)
booster, or with a manually-operated telescopic
antenna (aerial).
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers and a
power antenna (aerial). Connecting any other
system may damage the unit.
Note
It will take about 10 seconds to shut down the output of
REM OUT after the unit is turned off.
To a car’s illumination signal
Be sure to first connect the black ground (earth)
lead to a common ground (earth) point.
Rear View Camera Connection
Installation of a rear view camera (not supplied) is
required before use.
Connect a rear view camera power cord (lead) to
th
e accessory power terminal.
Memory hold connection
When the yellow power supply lead is connected,
power will always be supplied to the memory
circuit even when the ignition switch is turned off.
Speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ,
and with adequate power handling capacities to
avoid damage.
11GB
Installing the microphone
Clip (not supplied)
To capture your voice during handsfree calling, you
need to install the microphone .
Cautions
•It is extremely dangerous if the cord becomes
wound around the steering column or gearstick.
Be sure to keep it and other parts from interfering
with your driving operations.
• If airbags or any other shock-absorbing
equipment are in your car, contact the store where
you purchased this unit or the car dealer before
installation.
Notes
• When mounting on the dashboard, remove the visor clip
carefully from the microphone , then attach the flatmount base to the microphone .
• Before attaching the double-sided tape , clean the
surface of the dashboard with a dry cloth.
A
Installing the GPS antenna (aerial)
•Choose a location where no obstacle blocks GPS
satellite reception so as to achieve the best
reception.
•Make sure the GPS antenna (aerial) does not
interfere with the operation of car equipment.
• Some types of front windshields (windscreens)
block GPS satellite radio waves. Make sure the
signal reception is not blocked.
• When using Apple CarPlay with a wireless
connection, make sure the GPS antenna (aerial)
is connected.
1 Decide the installation location on the
dashboard, then clean the attachment
surface.
Choose a flat surface where:
the GPS antenna (aerial) can be positioned
horizontally.
operation of the passenger-side airbag is not
impeded.
GPS satellite reception is not blocked by
anything inside the car or the windshield
(windscreen) wipers.
2 Remove the tape of the metal plate , then
attach it on the dashboard.
3 Remove the tape of the GPS antenna (aerial)
, then attach it on the metal plate .
Cautions
•It is extremely dangerous if the cord becomes
wound around the steering column or gearstick.
Be sure to keep it and other parts from interfering
with your driving operations.
•If airbags or any other shock-absorbing
equipment are in your car, contact the store where
you purchased this unit or the car dealer before
installation.
Notes
• Be sure to use the metal plate , otherwise signal
reception may be poor.
• Do not install the GPS antenna (aerial) close to other
electrical equipment, otherwise signal reception may be
unstable.
• If the surface of the metal plate is cold, the tape may
not stick firmly. Warm up its surface with a hair dryer, etc.,
before applying the tape.
• If there is no flat surface on which to install the GPS
antenna (aerial) , bend the metal plate to fit a curved
surface before installing.
12GB
Using the steering wheel remote
GND
Input 1
Input 2
REMOTE IN
Black
Green
Brown
*
control
When using the steering wheel remote
control
Installation of the connection cable RC-SR1 is
required before use.
1 Select [Settings] [System] [Steering
Wheel Settings].
2 Set the [Custom] switch to [On].
You can make the registration to enable the
steering wheel remote control.
When the registration is complete, the steering
wheel remote control becomes available.
Notes on installing the connection cable
RC-SR1
• Refer to the support site for details, then connect
each lead properly to the appropriate leads.
Making an improper connection may damage the
unit.
URL: https://www.sony.com/am/support
•Consulting the dealer or an experienced
technician for help is recommended.
•When connecting the iDataLink Maestro module
(not supplied), do not connect any device to the
REMOTE IN terminal (blue). Likewise, when
connecting a device to the REMOTE IN terminal
(blue), do not connect the iDataLink Maestro
module (not supplied) to the IDATA LINK I/F
terminal (black).
When using an adaptor for the steering wheel
remote control
Depending on the type of car, use an adaptor for
the steering wheel remote control (not supplied).
1 Select [Settings] [System] [Steering
Wheel Settings].
2 Set the [Custom] switch to [Off].
The adaptor for the steering wheel remote
control is enabled.
Using a USB device and/or an HDMI
device
Installation of the USB Type-C extension cable
an
d/or an HDMI cable (HDMI Type-D or Micro-
HDMI) (not supplied) is required before use.
1 Connect the USB Type-C extension cable
to the USB port and/or an HDMI cable (not
supplied) to the HDMI terminal at the back
panel of the unit.
2 Pass the cable tie through the cable
holder, then tie cable tie around the USB
Type-C extension cable and/or HDMI
cable (not supplied).
The USB Type-C extension cable and HDMI
cable (not supplied) are secured to the unit.
* HDMI cable (HDMI Type-D or Micro-HDMI) (not
supplied)
3 Connect the installed USB Type-C extension
cable to a USB device and/or HDMI cable
to an HDMI device.
4 Press HOME, then touch [USB] or [HDMI].
13GB
Installation
to dashboard/center console
Bracket
Bracket
Existing parts supplied
with your car
Fuse (10 A)
Mounting the unit in a Japanese car
You may not be able to install this unit in some
makes of Japanese cars. In such a case, consult your
Sony dealer.
Example
When mounting this unit to the preinstalled
brackets of your car, use the mounting screws in
the appropriate screw holes based on your car:
T for TOYOTA and N for NISSAN.
Note
To prevent malfunction, install only with the mounting
screws .
Fuse replacement
When replacing the fuse, be sure to
use one matching the amperage
rating stated on the original fuse.
If the fuse blows, check the power
co
nnection and replace the fuse.
If the fuse blows again after
re
placement, there may be an
internal malfunction. In such a case, consult your
nearest Sony dealer.
14GB
About License
END USER LICENSE AGREEMENT
IMPORTANT:
BEFORE USING THE SOFTWARE, PLEASE READ THIS
END USER LICENSE AGREEMENT (“EULA”)
CAREFULLY. BY USING THE SOFTWARE YOU ARE
ACCEPTING THE TERMS OF THIS EULA. IF YOU DO
NOT ACCEPT THE TERMS OF THIS EULA, YOU MAY
NOT USE THE SOFTWARE.
This EULA is a legal agreement between you and
S
ny Electronics Inc. (“SONY”). This EULA governs
o
your rights and obligations regarding the AV
Receiver firmware of SONY and/or its third party
licensors (including SONY’s affiliates) and their
respective affiliates (collectively, the “THIRD-PARTY
SUPPLIERS”), together with any updates/upgrades
provided by SONY, any printed, on-line or other
electronic documentation for such software, and
any data files created by operation of such software
(collectively, the “SOFTWARE”).
Notwithstanding the foregoing, any software in the
SOFTWARE having a separate end user license
agreement (including, but not limited to, GNU
General Public license and Lesser/Library General
Public License) shall be covered by such applicable
separate end user license agreement in lieu of the
terms of this EULA to the extent required by such
separate end user license agreement (“EXCLUDED
SOFTWARE”).
SOFTWARE LICENSE
The SOFTWARE is licensed, not sold. The
SOFTWARE is protected by copyright and other
intellectual property laws and international treaties.
COPYRIGHT
All right and title in and to the SOFTWARE
(including, but not limited to, any images,
photographs, animation, video, audio, music, text
and “applets” incorporated into the SOFTWARE) is
owned by SONY or one or more of the THIRDPARTY SUPPLIERS.
GRANT OF LICENSE
SONY grants you a limited license to use the
SOFTWARE solely in connection with your
compatible device (“DEVICE”) and only for your
individual, non-commercial use. SONY and the
THIRD-PARTY SUPPLIERS expressly reserve all
rights, title and interest (including, but not limited
to, all intellectual property rights) in and to the
SOFTWARE that this EULA does not specifically
grant to you.
REQUIREMENTS AND LIMITATIONS
You may not copy, publish, adapt, redistribute,
attempt to derive source code, modify, reverse
engineer, decompile, or disassemble any of the
SOFTWARE, whether in whole or in part, or create
any derivative works from or of the SOFTWARE
unless such derivative works are intentionally
facilitated by the SOFTWARE. You may not modify
or tamper with any digital rights management
functionality of the SOFTWARE. You may not
bypass, modify, defeat or circumvent any of the
functions or protections of the SOFTWARE or any
mechanisms operatively linked to the SOFTWARE.
You may not separate any individual component of
the SOFTWARE for use on more than one DEVICE
unless expressly authorized to do so by SONY. You
may not remove, alter, cover or deface any
trademarks or notices on the SOFTWARE. You may
not share, distribute, rent, lease, sublicense, assign,
transfer or sell the SOFTWARE. The software,
network services or other products other than
SOFTWARE upon which the SOFTWARE’S
performance depends might be interrupted or
discontinued at the discretion of the suppliers
(software suppliers, service suppliers, or SONY).
SONY and such suppliers do not warrant that the
SOFTWARE, network services or other products will
continue to be available, or will operate without
interruption or modification.
EXCLUDED SOFTWARE AND OPEN SOURCE
COMPONENTS
Notwithstanding the foregoing limited license
grant, you acknowledge that the SOFTWARE may
include EXCLUDED SOFTWARE. Certain EXCLUDED
SOFTWARE may be covered by open source
software licenses (“OPEN SOURCE COMPONENTS”),
which means any software licenses approved as
open source licenses by the Open Source Initiative
or any substantially similar licenses, including but
not limited to any license that, as a condition of
distribution of the software licensed under such
license, requires that the distributor make the
software available in source code format. If and to
the extent disclosure is required, please visit
oss.sony.net/Products/Linux or other SONYdesignated web site for a list of applicable OPEN
SOURCE COMPONENTS included in the SOFTWARE
from time to time, and the applicable terms and
conditions governing its use. Such terms and
conditions may be changed by the applicable third
party at any time without liability to you. To the
extent required by the licenses covering EXCLUDED
SOFTWARE, the terms of such licenses will apply in
lieu of the terms of this EULA. To the extent the
terms of the licenses applicable to EXCLUDED
SOFTWARE prohibit any of the restrictions in this
EULA with respect to such EXCLUDED SOFTWARE,
such restrictions will not apply to such EXCLUDED
SOFTWARE. To the extent the terms of the licenses
15GB
applicable to OPEN SOURCE COMPONENTS require
SONY to make an offer to provide source code in
connection with the SOFTWARE, such offer is
hereby made.
USE OF SOFTWARE WITH COPYRIGHTED
MATERIALS
The SOFTWARE may be capable of being used by
you to view, store, process and/or use content
created by you and/or third parties. Such content
may be protected by copyright, other intellectual
property laws, and/or agreements. You agree to
use the SOFTWARE only in compliance with all such
laws and agreements that apply to such content.
You acknowledge and agree that SONY may take
appropriate measures to protect the copyright of
content stored, processed or used by the
SOFTWARE. Such measures include, but are not
limited to, counting the frequency of your backup
and restoration through certain SOFTWARE
features, refusal to accept your request to enable
restoration of data, and termination of this EULA in
the event of your illegitimate use of the SOFTWARE.
CONTENT SERVICE
PLEASE ALSO NOTE THAT THE SOFTWARE MAY BE
DESIGNED TO BE USED WITH CONTENT AVAILABLE
THROUGH ONE OR MORE CONTENT SERVICES
(“CONTENT SERVICE”). USE OF THE SERVICE AND
THAT CONTENT IS SUBJECT TO THE TERMS OF
SERVICE OF THAT CONTENT SERVICE. IF YOU
DECLINE TO ACCEPT THOSE TERMS, YOUR USE OF
THE SOFTWARE WILL BE LIMITED. YOU
ACKNOWLEDGE AND AGREE THAT CERTAIN
CONTENT AND SERVICES AVAILABLE THROUGH THE
SOFTWARE MAY BE PROVIDED BY THIRD PARTIES
OVER WHICH SONY HAS NO CONTROL. USE OF THE
CONTENT SERVICE REQUIRES AN INTERNET
CONNECTION. THE CONTENT SERVICE MAY BE
DISCONTINUED AT ANY TIME.
INTERNET CONNECTIVITY AND THIRD
PARTY SE RVICES
You acknowledge and agree that access to certain
SOFTWARE features may require an Internet
connection for which you are solely responsible.
Further, you are solely responsible for payment of
any third party fees associated with your Internet
connection, including but not limited to Internet
service provider or airtime charges. Operation of
the SOFTWARE may be limited or restricted
depending on the capabilities, bandwidth or
technical limitations of your Internet connection
and service. The provision, quality and security of
such Internet connectivity are the sole
responsibility of the third party providing such
service.
EXPORT AND OTHER REGULATIONS
You agree to comply with all export and re-export
restrictions and regulations of the Department of
Commerce and other United States agencies and
authorities, and not to transfer, or authorize the
transfer, of the SOFTWARE to a prohibited country
or otherwise in violation of any such restrictions or
regulations.
U.S. GOVERNMENT RESTRICTED RIGHTS
Use, duplication, or disclosure by the United States
Government is subject to restriction as set forth in
subparagraph (c) (1) and (2) of the Commercial
Computer Software-Restricted Rights at 48 C.F.R. §
52.227-19, as applicable. The manufacturer solely
for purposes of this section is Sony Electronics Inc.,
16530 Via Esprillo, San Diego, CA 92127.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and is not
designed, manufactured or intended for use or
resale as on-line control equipment in hazardous
environments requiring fail-safe performance, such
as in the operation of nuclear facilities, aircraft
navigation or communication systems, air traffic
control, direct life support machines, or weapons
systems, in which the failure of the SOFTWARE
could lead to death, personal injury, or severe
physical or environmental damage (“HIGH RISK
ACTIVITIES”). SONY, each of the THIRD-PARTY
SUPPLIERS, and each of their respective affiliates
specifically disclaim any express or implied
warranty, duty or condition of fitness for HIGH RISK
ACTIVITIES.
EXCLUSION OF WARRANTY ON SOFTWARE
You acknowledge and agree that use of the
SOFTWARE is at your sole risk and that you are
responsible for use of the SOFTWARE. The
SOFTWARE is provided “AS IS,” without warranty,
duty or condition of any kind.
SONY AND EACH OF THE THIRD-PARTY SUPPLIERS
(for
purposes of this Section, SONY and each of the
THIRD-PARTY SUPPLIERS shall be collectively
referred to as “SONY”) EXPRESSLY DISCLAIM ALL
WARRANTIES, DUTIES OR CONDITIONS, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT WARRANT
OR MAKE ANY CONDITIONS OR REPRESENTATIONS
(A) THAT THE FUNCTIONS CONTAINED IN ANY OF
THE SOFTWARE WILL MEET YOUR REQUIREMENTS
OR THAT THEY WILL BE UPDATED, (B) THAT THE
OPERATION OF ANY OF THE SOFTWARE WILL BE
CORRECT OR ERROR-FREE OR THAT ANY DEFECTS
WILL BE CORRECTED, (C) THAT THE SOFTWARE WILL
NOT DAMAGE ANY OTHER SOFTWARE, HARDWARE
OR DATA, (D) THAT ANY SOFTWARE, NETWORK
16GB
SERVICES (INCLUDING THE INTERNET) OR
PRODUCTS (OTHER THAN THE SOFTWARE) UPON
WHICH THE SOFTWARE’S PERFORMANCE DEPENDS
WILL CONTINUE TO BE AVAILABLE, UNINTERRUPTED
OR UNMODIFIED, AND (E) REGARDING THE USE OR
THE RESULTS OF THE USE OF THE SOFTWARE IN
TERMS OF ITS CORRECTNESS, ACCURACY,
RELIABILITY, OR OTHERWISE.
NO ORAL OR WRITTEN INFORMATION OR ADVICE
GIVEN BY SONY OR AN AUTHORIZED
REPRESENTATIVE OF SONY SHALL CREATE A
WARRANTY, DUTY OR CONDITION OR IN ANY WAY
INCREASE THE SCOPE OF THIS WARRANTY. SHOULD
THE SOFTWARE PROVE DEFECTIVE YOU ASSUME
THE ENTIRE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES, SO THESE EXCLUSIONS MAY NOT
APPLY TO YOU.
LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY SUPPLIERS
(for purposes of this Section, SONY and each of the
THIRD-PARTY SUPPLIERS shall be collectively
referred to as “SONY”) SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR UNDER ANY OTHER LEGAL
THEORY RELATED TO THE SOFTWARE, INCLUDING,
BUT NOT LIMITED TO, ANY DAMAGES ARISING OUT
OF LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF
DATA, LOSS OF USE OF THE SOFTWARE OR ANY
ASSOCIATED HARDWARE, DOWN TIME AND USER’S
TIME, EVEN IF ANY OF THEM HAVE BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY
CASE, EACH AND ALL OF THEIR AGGREGATE
LIABILITY UNDER ANY PROVISION OF THIS EULA
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID
FOR THE SOFTWARE. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY
TO YOU.
ENTIRE AGREEMENT, WAIVER,
SEVERABILITY
This EULA and SONY’s privacy policy, each as
amended and modified from time to time, together
constitute the entire agreement between you and
SONY with respect to the SOFTWARE. The failure of
SONY to exercise or enforce any right or provision of
this EULA shall not constitute a waiver of such right
or provision. If any part of this EULA is held invalid,
illegal, or unenforceable, that provision shall be
enforced to the maximum extent permissible so as
to maintain the intent of this EULA, and the other
parts will remain in full force and effect. The United
Nations Convention on Contracts for the
International Sale of Goods shall not apply to the
SOFTWARE or this EULA. Furthermore, this EULA will
not be governed or interpreted in any way by
referring to any law based on the Uniform
Computer Information Transactions Act (UCITA) or
any other act derived from or related to UCITA.
BINDING ARBITRATION (ONLY FOR UNITED
STATES RESIDENTS)
ANY “DISPUTE” THAT IS NOT RESOLVED THROUGH
THE INFORMAL NEGOTIATION PROCESS
DESCRIBED ABOVE SHALL BE RESOLVED
EXCLUSIVELY THROUGH BINDING ARBITRATION.
“DISPUTE” is defined as any disagreement, cause of
action, claim, controversy, or proceeding between
you and any Sony entity related to or arising out of
the SOFTWARE or this EULA. DISPUTE is to be given
the broadest possible meaning that will be
enforced. If a DISPUTE arises, you agree to first give
notice to SONY by contacting Sony Electronics Inc.
at 16530 Via Esprillo, MZ 1105, San Diego, CA 92127,
Attn: Legal Department, and engaging in good
faith negotiations to attempt to resolve any
DISPUTE for at least 14 days, except that you or
Sony (or any of its affiliates) may skip this informal
negotiation procedure for DISPUTE enforcing,
protecting, or concerning the validity of intellectual
property rights.
ARBITRATION INSTRUCTIONS (ONLY FOR
UNITED STATES RESIDENTS)
To begin arbitration, either you or SONY must make
a written demand to the other for arbitration. The
arbitration will take place before a single arbitrator.
It will be administered in keeping with the
Expedited Procedures of the Commercial
Arbitration Rules, and the Supplementary
Proceedings for Consumer-Related disputes when
applicable (“Rules”) of the American Arbitration
Association (“AAA”) in effect when the claim is filed.
You may get a copy of AAA’s Rules by contacting
AAA at (800) 778-7879 or visiting www.adr.org. The
filing fees to begin and carry out arbitration will be
shared between you and SONY, but in no event
shall your fees ever exceed the amount allowable
by the special rules for Consumers Disputes
provided for by AAA, at which point SONY will cover
all additional administrative fees and expenses.
This does not prohibit the arbitrator from giving the
winning party their fees and expenses of the
arbitration when appropriate pursuant to the Rules.
Unless you and SONY agree differently, the
arbitration will take place in the county and state
where you live, and applicable federal or state law
shall govern the substance of any DISPUTE. The
Federal Arbitration Act, 9 U.S.C. § 1, et seq., will
govern the arbitration itself and not any state law
on arbitration. The arbitrator’s decision will be
binding and final, except for a limited right of
appeal under the Federal Arbitration Act. The
arbitrator may award declaratory or injunctive relief
17GB
Loading...
