AV RECEIVER
Operating Instructions
GB
ID
To switch the FM/AM tuning step, see page 14.
Untuk mengubah tingkat penalaan FM/AM, lihat halaman 15.
IMKG.622.03.2021
A
Warning
The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.
To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or terminated without prior notice.
Important notice
Caution
IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HAR DWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio transmitter. Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).
On BLUETOOTH communication
• Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident. – where inflammable gas is present, in a hospital,
train, airplane, or petrol station
– near automatic doors or a fire alarm
• This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
• We do not take any responsibility for the leakage of information during BLUETOOTH communication.
2GB
Table of Contents
Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting Started
Guide to Parts and Controls . . . . . . . . . . . . . . . . . . 4
Performing Initial Settings. . . . . . . . . . . . . . . . . . . . 6
Preparing a Bluetooth® Device . . . . . . . . . . . . . . . . 6
Using the Rear Camera . . . . . . . . . . . . . . . . . . . . . . 7
Radio
Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . 8
Using Radio Option Functions . . . . . . . . . . . . . . . . 8
Playback
Playing a USB Device . . . . . . . . . . . . . . . . . . . . . . . . 9
Playing a BLUETOOTH Device . . . . . . . . . . . . . . . . . 9
Playing an A/V Device . . . . . . . . . . . . . . . . . . . . . . . 9
Searching and Playing Tracks . . . . . . . . . . . . . . . . 10
Other Settings During Playback . . . . . . . . . . . . . . 10
Handsfree Calling
Preparing a Mobile Phone. . . . . . . . . . . . . . . . . . . . 11
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Available Operations During a Call . . . . . . . . . . . . . 12
Useful Functions
Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Android Auto™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
WebLink™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using Gesture Command . . . . . . . . . . . . . . . . . . . . 13
Additional Information
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . 16
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connection
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Settings
Basic Setting Operation . . . . . . . . . . . . . . . . . . . . . 14
General Settings (General) . . . . . . . . . . . . . . . . . . 14
Sound Settings (Sound). . . . . . . . . . . . . . . . . . . . . 14
Visual Settings (Visual) . . . . . . . . . . . . . . . . . . . . . . 15
BLUETOOTH Settings (Bluetooth) . . . . . . . . . . . . . . 15
3GB
Getting Started
Guide to Parts and Controls
Main unit
Display/touch screenHOME
Displays the HOME screen.
(attenuate)
Press and hold for 1 second to attenuate the sound. To cancel, press and hold again, or press VOL +.
VOL (volume) +/–Microphone
In order for the handsfree function to work properly, do not cover the microphone with tape, etc.

4GB
/ (previous/next)
Functions differently depending on the selected source:
– [Radio]: select a preset station. – [USB]/[Bluetooth]: move to the previous/next
file.
Press and hold to:
– [Radio]: tune into a station automatically
(SEEK+/SEEK-).
– [USB]/[Bluetooth]: fast-reverse/fast-forward.
OPTION
Displays the OPTION screen (page 5).
VOICE
Press and hold to activate the voice command function for Apple CarPlay and Android Auto.
T

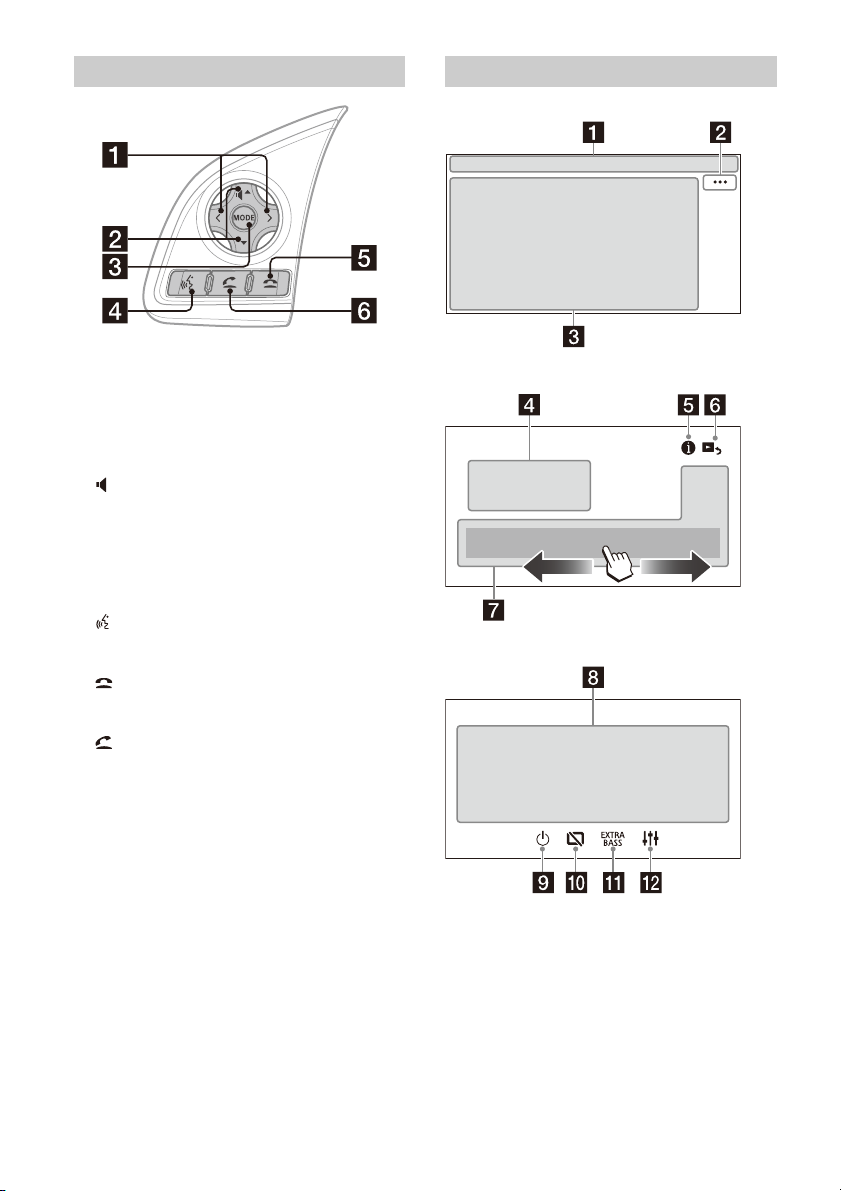

Steering wheel remote control Screen displays
Playback screen:
/
[Radio]:
Tune in preset radio stations. Press and hold to tune automatically.
[USB]/[Bluetooth]:
Skip a track. Press and hold to fast-reverse/fast­forward a track.
(volume) /
Adjusts the volume. Press and hold to continue adjusting the volume.
MODE
Changes the source. Selecting the radio band/transferring a call are not available with this button.
(speech)
Activates the voice command function for Apple CarPlay and Android Auto.
(on hook)
Ends a call/rejects an incoming call.
(off hook)
Answers a call.
HOME screen:
OPTION screen:
Status indication
Lights up when the sound is attenuated.
Lights up when the audio device is playable by enabling the A2DP (Advanced Audio Distribution Profile).
5GB
Lights up when handsfree calling is available by enabling the HFP (Handsfree Profile).
Indicates the signal strength status of the connected mobile phone.
Indicates the remaining battery status of the connected mobile phone.
Lights up when the BLUETOOTH signal is on. Flashes when the connection is in progress.
(source option)
Opens the source option menu. The available items differ depending on the source.
Application specific area
Displays playback controls/indications or show the unit’s status. Displayed items differ depending on the source.
Clock
Displays the time which are set on the Date/ Time setting (page 14).
(instruction for smartphone connection)
Displays the instruction for connecting Apple CarPlay, Android Auto or WebLink™.
(return to the playback screen)
Switches from the HOME screen to the playback screen.
Sources and Settings select keys
Changes the source or make various settings. Flick to select the setting icon and other icons. Touch the source icon you want to select.
Android Auto*
Bluetooth Phone USB
WebLink* A/V I N
Settings
* It may not be available in your country or region.
Sound select keys
Changes the sound.
 (standby)
Turns the unit in standby mode (USB charging is still available). To resume, press any buttons.
(monitor off)
Turns off the monitor. When the monitor is turned off, touch any part of the display to turn it back on.
(EXTRA BASS)
Changes the EXTRA BASS setting (page 14).
(EQ10/Subwoofer)
Changes the EQ10/Subwoofer setting (page 14).
Apple CarPlay*
Radio
Rear Camera
Performing Initial Settings
You need to perform initial settings before operating the unit for the first time, after replacing the ca r batter y, or changing connections. If the initial settings screen does not appear when you turn on the unit, perform the factory reset (page 14) to initialize the unit.
1 Touch [Language], then set the display
language.
2 Touch [Set Date/Time], then set the date
and time.
3 Touch [Tuning Steps], then set the FM/AM
tuning step.
4 To return to the previous display, touch ,
then touch [OK].
The startup caution appears.
5 Read through the startup caution, then if
you accept all conditions, touch [Close].
The setting is complete.
This setting can be further configured in the setting menu (page 14).
Preparing a Bluetooth® Device
You can enjoy music or perform handsfree calling depending on the BLUETOOTH compatible device such as smartphones, mobile phones, and audio devices (hereafter “BLUETOOTH device” if not otherwise specified). For details on connecting, refer to the operating instructions supplied with the device. Before connecting the device, turn down the volume of this unit; otherwise, a loud sound may result.
6GB
Pairing and connecting with a BLUETOOTH device
When connecting a BLUETOOTH device for the first time, mutual registration (called “pairing”) is required. Pairing enables this unit and other devices to recognize each other.
Connecting with a paired BLUETOOTH device
To use a paired device, connection with this unit is required. Some paired devices will connect automatically.
1 Place the BLUETOOTH device within 1 m
(3 ft) of this unit.
2 Press HOME, then touch [Settings]. 3 Touch [Bluetooth]. 4 Touch [Bluetooth Connection], then set the
signal to [ON].
The BLUETOOTH signal is turned on and lights up on the status bar of the unit.
5 Touch [Pairing].
flashes while the unit is in pairing standby
mode.
6 Perform pairing on the BLUETOOTH device
so it detects this unit.
7 Select [Xpander] shown in the display of the
BLUETOOTH device.
Repeat from step 5 if your model name does not appear. If the connection confirmation display appears, operate the BLUETOOTH device to approve the connection, then touch [OK] on the unit and/or the BLUETOOTH device.
8 If passkey* input is required on the
BLUETOOTH device, input [0000].
* Passkey may be called “passcode,” “PIN code,” “PIN
number,” “password,” etc., depending on the BLUETOOTH device.
When pairing is made, stays lit.
9 Select this unit on the BLUETOOTH device to
establish the BLUETOOTH connection.
or lights up when the connection is made.
Notes
• The unit can only be connected with one BLUETOOTH device at a time.
• To disconnect the BLUETOOTH connection, turn the connection off from either the unit or the BLUETOOTH device.
• BLUETOOTH pairing is not possible while Apple CarPlay or Android Auto is running.
1 Press HOME, then touch [Settings]. 2 Touch [Bluetooth]. 3 Touch [Bluetooth Connection], then touch
[ON].
Make sure that lights up on the status bar of the unit.
4 Activate the BLUETOOTH function on the
BLUETOOTH device.
5 Operate the BLUETOOTH device to connect
to this unit.
or lights up on the status bar.
To connect the last-connected device from this unit
When the ignition is turned to on with the BLUETOOTH signal activated, this unit searches for the last-connected BLUETOOTH device, and connection is made automatically.
Note
While streaming BLUETOOTH audio, you cannot connect from this unit to the mobile phone. Connect from the mobile phone to this unit instead.
Using the Rear Camera
The picture from a rear camera connected to the CAMERA IN terminal is displayed when: the back lamp of your car lights up (or the shift
lever is set to the R (reverse) position).
you press HOME, then touch [Rear Camera].
7GB
Radio
Listening to the Radio
Tuning step setting is required (page 14). Press HOME, then touch [Radio].
Reception controls/indications
Current band
Change the band (FM1, FM2, FM3, AM1 or AM2).
Current frequency, program service name*,
RDS (Radio Data System) indication*
* Only available during RDS reception.
(radio option)
Open the radio option menu.
SEEK-/SEEK+
Tune in automatically.
/
Tune in manually. Touch and hold to continuously skip frequencies.
Preset numbers
Select a preset station. Swipe right/left to show the other preset stations. Touch and hold to store the current frequency in that preset.
Tuning
1 Select the desired band (FM1, FM2, FM3,
AM1 or AM2).
2 Perform tuning.
To t un e a utomati cal ly
Touc h S EE K-/ SE EK +. Scanning stops when the unit receives a station.
To tune manually
Touch and hold / to locate the approximate frequency, then touch / repeatedly to finely adjust to the desired frequency.
Storing manually
1 While receiving the station that you want to
store, touch and hold the desired preset number.
Receiving stored stations
1 Select the band, then touch the desired
preset number.
Using Radio Option Functions
The following functions are available by touching
.
BTM (Best Tuning Memory)
Stores stations in order of frequency on the preset numbers. 18 stations can be stored for FM and 12 stations for AM as preset stations.
PTY
Select a program type from the PTY list to search for a station broadcasting the selected program type. (Only available during FM reception.)
8GB
Playback
Playing a USB Device
MSC (Mass Storage Class) type USB devices* compliant with the USB standard can be used.
* e.g., a USB flash drive, digital media player, Android™
phone
Notes
• For details on the compatibility of your USB device, visit the support site on the back cover.
• For details on the supported file formats, see “Supported formats for USB playback” (page 17).
1 Turn down the volume on the unit. 2 Connect the USB device to the USB port. 3 Press HOME, then touch [USB].
Playback starts.
To rem ov e t he de vi ce
Turn the unit off or turn the ignition switch to the ACC off position, then remove the USB device.
Playing a BLUETOOTH Device
You can play contents on a connected device that supports BLUETOOTH A2DP (Advanced Audio Distribution Profile).
Playing an A/V Device
1 Tur n off the A /V device. 2 Turn down the volume on the unit. 3 Connect the A/V device to the A/V IN
terminal on the unit.
4 Press HOME, then touch [A/V IN]. 5 Tu rn on t he A/V device.
Playback starts.
1 Make a BLUETOOTH connection with the
audio device (page 7).
2 Press HOME, then touch [Bluetooth]. 3 Operate the audio device to start playback.
Notes
• Depending on the audio device, information such as title, track number/time, and playback status may not be displayed on this unit.
• Even if the source is changed on this unit, playback of the audio device does not stop.
• BLUETOOTH pairing is not possible while Apple CarPlay is running.
To match the volume level of the BLUETOOTH device to other sources
You can reduce the volume level differences between this unit and the BLUETOOTH device: During playback, touch , then set [Input Level] between –6 and +6.
9GB
Searching and Playing Tracks
Repeat play and shuffle play
1 During playback, touch (repeat) or
(shuffle) repeatedly until the desired play mode appears.
Playback in the selected play mode may take time to start.
Available play modes differ depending on the selected sound source and connected device.
Searching for a file from the list screen
1 During USB playback, touch .
The list screen from the currently played item appears.
Other Settings During Playback
When playing back a video from an A/V device connected to the A/V IN terminal, or from a USB device connected to the USB port, further settings are available by touching (option). The available items differ depending on the source.
Picture EQ
Adjusts the picture quality according to your taste: [Dynamic], [Standard], [Theater], [Custom].
Aspect
Selects an aspect ratio for the screen of the unit.
Normal
Displays a 4:3 picture in its original size, with side bars to fill the 16:9 screen.
Zoom
Displays a 16:9 picture that has been converted into 4:3 letter box format.
Full
Displays a 16:9 picture in its original size.
Captions
Enlarges the picture horizontally, while fitting captions in the screen.
Audio Input Level
Adjusts the volume level differences between this unit and the connected device: -10 to +15.
Furthermore, touch (audio) or (video) to list up by file type.
2 To uch th e d es ired item.
Playback starts.
10GB
Note
To prevent an accident, park your car in a safe place when adjusting the settings.
Handsfree Calling
Preparing a Mobile Phone
To use a mobile phone, connect it with this unit. For details, see “Preparing a Bluetooth® Device” (page 6).
Note
The handsfree calling functions are not available when the Apple CarPlay or Android Auto function is activated. In this case, use the handsfree calling functions on its application.
Receiving a Call
1 Touch when a call is received.
The phone call starts.
Note
The ringtone and talker’s voice are output from the front speakers. To select the speakers for handsfree calling, press HOME, then touch [Settings] and select [Phone Call Sound] in [Sound] (page 15).
To reject/end a call
Touch .
(redial)
Make a call automatically to the last contact you made.
(contacts)*
Select a contact from the name list/number list. To search for the desired contact in alphabetical order from the name list, touch
.
(dialpad)
Enter the phone number.
Favorites
Select the stored contact. To store the contact, see “Adding phone numbers to Favorites” (page 11).
* The mobile phone needs to support PBAP (Phone Book
Access Profile).
3 Tou ch .
The phone call starts.
Adding phone numbers to Favorites
You can store up to 6 contacts in the Favorites.
1 On the phone screen, touch (contacts)
and select a phone number you want to store in the Favorites.
The confirmation display appears.
2 Touch [Add to Favorites]. 3 Touch the desired preset in the Favorites to
store the phone number.
The contact is stored in the Favorites.
Making a Call
1 Press HOME, then touch [Phone]. 2 Touch one of the call icons on the
BLUETOOTH phone display.
(call history)*
Select a contact from the call history list. The unit stores the last 20 calls.
11GB
Available Operations During a Call
Useful Functions
To adjust the ringtone volume
Press VOL +/– while receiving a call.
To adjust the talker’s voice volume
Press VOL +/– during a call.
To adjust the volume for the other party (Mic gain adjustment)
During a handsfree call, touch , then set [MIC Gain] to [High], [Middle], or [Low].
To reduce echo and noise (Echo/noise canceler mode)
During a call, touch , then set [Speech Quality] to [Mode 1] or [Mode 2].
To switch between handsfree mode and handheld mode
During a call, touch to switch the phone call audio between the unit and mobile phone.
Note
Depending on the mobile phone, this operation may not be available.
To answer an incoming call automatically
Touch , then set [Auto Answer] to [ON].
Apple CarPlay
Apple CarPlay lets you use your iPhone in the car in a way that allows you to stay focused on the road.
Notes on using Apple CarPlay
• Check the Apple CarPlay website for supported iOS versions. Update to the latest iOS version before use.
• For details about Apple CarPlay, refer to the manual supplied with your iPhone, or visit the Apple CarPlay website.
• Since the GPS on your iPhone is used, place your iPhone where it can easily receive a GPS signal.
• Apple CarPlay may not be available in your country or region.
1 Connect your iPhone to the USB port.
To connect an iPhone, use a USB connection cable for iPhone (not supplied).
2 Press HOME, then touch [Apple CarPlay].
Your iPhone’s display appears on the display of the unit. Touch and control the applications.
Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone may affect wireless performance.
Android Auto™
Android Auto extends the Android platform into the car in a way that’s purpose-built for driving.
Notes on using Android Auto
• Check the Android Auto website for supported OS versions. Update to the latest OS version before use.
• Your Android phone needs to support Android Auto.
• Download the Android Auto app on Google Play.
• For details about Android Auto, refer to the manual supplied with your Android phone, or visit the Android Auto website.
• Since the GPS on your Android phone is used, place your Android phone where it can easily receive a GPS signal.
• Android Auto may not be available in your country or region.
12GB
1 Connect your Android phone to the USB
port.
To connect an Android phone, use an appropriate connection cable (not supplied).
2 Press HOME, then touch [Android Auto].
The Android Auto interface will be displayed full­screen on the display of the unit. Touch and control the applications.
WebLink™
The “WebLink Host” app allows you to enjoy the “WebLink Apps” such as a video or music player on the connected iPhone/Android phone.
Notes on using WebLink™
• Check the WebLink™ website for supported OS versions. Update to the latest OS version before use.
• For details on compatible models, refer to the compatibility list on the following site: http://abaltatech.com/WL
• Download the “WebLink Host” app available on Google Play for your Android phone, and available on the App Store for your iPhone.
• A network connection may be required when configuring settings, such as during the initial connection setup. Make sure that a network connection is available on your iPhone/Android phone.
• When using the Cast function, settings on your iPhone/Android phone may be required.
• For details about the “WebLink Apps”, visit the website for the “WebLink Apps”.
• The WebLink™ function and/or a certain “WebLink Apps” may not be available in your country or region.
• When using the Cast function and connecting the iPhone, the display direction is the same as the display of the iPhone.
1 Connect your iPhone/Android phone with
main unit via BLUETOOTH.
2 Connect your iPhone/Android phone to the
USB port.
To connect an iPhone, use a USB connection cable for iPhone (not supplied). To connect an Android phone, use an appropriate connection cable (not supplied).
3 Press HOME, then touch [WebLink].
The WebLink™ display appears on the unit. Touch and control the apps.
Tip
You can switch the app between Apple CarPlay/Android Auto and WebLink™ if these apps are installed on your iPhone/Android phone.
Using Gesture Command
You can perform frequently-used operations by swiping your finger on the reception/playback display.
Note
The gesture commands explained below are not available on the screens of Apple CarPlay, Android Auto and WebLi nk™.
Do this To
Radio reception:
seek forward stations. (The same as pressing and holding .)
Swipe left to right
Swipe right to left
Swipe upwards
Swipe downwards
Video/audio playback: skip forward a file/track. (The same as .)
Radio reception: seek backward stations. (The same as pressing and holding .)
Video/audio playback: skip backward a file/track. (The same as .)
Radio reception: receive stored stations (go forward).
Radio reception: receive stored stations (go backward).
13GB
Settings
Basic Setting Operation
You can set items in the following setup categories: General Settings (General), Sound Settings (Sound), Visual Settings (Visual), BLUETOOTH Settings (Bluetooth)
1 Press HOME, then touch [Settings]. 2 Touch one of the setup category.
The items that can be set differ depending on the source and settings.
3 Move the scrollbar up and down to select
the desired item.
To return to the previous display
Tou ch .
To switch to the playback screen
Tou ch .
General Settings (General)
Language
Selects the display language: [English], [Español], [Français], [Deutsch], [Italiano], [Português], [Русский], [ ], [ ], [ ], [ ], [ ], [Indonesia].
Date/Time
Set Date/Time
Sets the date and clock time: [Auto(RDS)], [Manual].
Date Format
Selects the format: [DD-MM-YYYY], [MM-DD­YYYY], [YYYY-MM-DD].
Time Format
Selects the format: [12-hour], [24-hour].
Beep
Activates the operation sound: [OFF], [ON].
Rear Camera
Selects the image from the rear camera: [OFF], [ON].
Rear Camera Guide Line
Displays the rear camera guide lines: [OFF], [ON]. (Available only when [Rear Camera] is set to [ON].)
Driving Position
Selects the driving position to optimize usability of Apple CarPlay, Android Auto, and microphone receiver: [Left Side], [Right Side]
MIC Adjust
Sets the microphone parameters according to the size of the car: [Small Cabin], [Medium Cabin], [Large Cabin].
Tuning Steps
Sets the FM/AM tuning step of your country: [50kHz/9kHz], [100kHz/10kHz], [200kHz/10kHz]. (Available only while the source is off and the clock is displayed.)
Factory Reset
Initializes all the settings to the factory settings.
Firmware Version
Updates and confirms the firmware version.
Open Source Licenses
Displays the software licenses.
Sound Settings (Sound)
EXTRA BASS
Reinforces bass sound in synchronization with the volume level: [OFF], [1], [2].
EQ10/Subwoofer
Selects an equalizer curve and adjusts the subwoofer level.
EQ10
Selects the equalizer curve: [Xpander], [R&B], [Rock], [Pop], [Dance], [Hip-Hop], [EDM], [Jazz], [Salsa], [Custom], [OFF]. [Custom] adjusts the equalizer curve: –6 to +6.
Subwoofer
Adjusts the volume level of the subwoofer: [OFF], –10 to +10.
Balance/Fader
Adjusts the balance/fader level.
Balance
Adjusts the sound balance between the left and right speakers: [L15] to [R15].
Fader
Adjusts the sound balance between the front and rear speakers: [Front 15] to [Rear 15].
Crossover
Adjusts the cut-off frequency and subwoofer phase.
High Pass Filter
Selects the cut-off frequency of the front/rear speakers: [OFF], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].
Low Pass Filter
Selects the cut-off frequency of the subwoofer: [OFF], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].
Subwoofer Phase
Selects the subwoofer phase: [Normal], [Reverse].
14GB
DSO (Dynamic Stage Organizer)
Enhances audio output: [OFF], [Low], [Middle], [High].
Volu me Settings
Adjusts the volume level of each source.
Media
Adjusts the volume of media: 0 to 50.
Phone Call
Adjusts the volume of phone calls: 0 to 50.
Ring Tone
Adjusts the volume of the ring tone: 0 to 50.
Voice Recognition
Adjusts the volume of voice recognition: 0 to 50.
Navigation Guidance
Adjusts the volume of navigation guidance: 0 to
50.
Note
When adjusting the volume settings, park your car in a safe place as it may be too loud to hear the surrounding sounds.
Phone Call Sound
Selects the speakers for handsfree calling: [Front], [Rear], [All].
Guidance during Call
Activates the notices of Apple CarPlay through navigation guidance or alert sounds during a phone call: [ON], [OFF]. (Not available when Android Auto is connected.)
BLUETOOTH Settings (Bluetooth)
Bluetooth Connection
Activates the BLUETOOTH signal: [OFF], [ON], [Pairing] (enters into pairing standby mode).
Bluetooth Device Info
Displays the information of the device connected to the unit. (Available only when [Bluetooth Connection] is set to [ON] and a BLUETOOTH device is connected to the unit.)
Bluetooth Reset
Initializes all BLUETOOTH-related settings such as pairing information, call history, history of connected BLUETOOTH devices, etc.
Visual Settings (Visual)
Wallpaper
Changes the wallpaper by touching the desired color or sets your favorite photo data in a MSC (Mass Storage Class) type USB device as a wallpaper. (Available only when photo data are JPEG files of 6 MB or less.)
To set a photo data
When connecting the USB device to the USB port, [You can import a photo from a USB device] appears on the screen. Touch [Import], and select your favorite photo.
Dimmer for Monitor & Illum.
Dims the display and the button illumination: [OFF], [Auto], [ON]. ([Auto] is available only when the illumination control lead is connected and works when the head light is turned on.)
adjusts the brightness level when the
dimmer is activated: -5 to +5.
Illum. Level on Monitor OFF
Dims the button illumination when the monitor is turned off: [OFF], [1], [2], [3], [4].
15GB
Additional Information
Updating the Firmware
To update the firmware, visit the support site on the back cover, then follow the online instructions.
Note
During the update, do not remove the USB device.
Notes on LCD panel
• Do not get the LCD panel wet or expose it to liquids. This may cause a malfunction.
Precautions
• Power antenna (aerial) extends automatically.
• When you transfer ownership or dispose of your car with the unit installed, initialize all the settings to the factory settings by performing the factory reset (page 14).
• Do not splash liquid onto the unit.
Notes on safety
• Comply with your local traffic rules, laws, and regulations.
• While driving – Do not watch or operate the unit, as it may lead
to distraction and cause an accident. Park your car in a safe place to watch or operate the unit.
– Do not use the setup feature or any other
function which could divert your attention from the road.
– When backing up your car, be sure to look back
and watch the surroundings carefully for your safety even if the rear camera is connected. Do not depend on the rear camera exclusively.
• While operating – Do not insert your hands, fingers, or foreign
objects into the unit as it may cause injury or
damage to the unit. – Keep small articles out of the reach of children. – Be sure to fasten seatbelts to avoid injury in the
event of sudden movement of the car.
Preventing an accident
Do not operate the unit or watch the monitor while driving.
• Do not press down hard on the LCD panel as doing so can distort the picture or cause a malfunction (i.e., the picture may become unclear or the LCD panel may be damaged).
• Do not touch the panel with objects other than with your finger as it may damage or break the LCD p anel.
• Clean the LCD panel with a dry soft cloth. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray.
• Do not use the unit outside the temperature range 0 ºC – 40 ºC (32 ºF – 104 ºF).
• If your car was parked in a cold or hot place, the picture may not be clear. However, the monitor is not damaged and the picture will become clear after the temperature in your car becomes normal.
• Some stationary blue, red, or green dots may appear on the monitor. These are called “bright spots” and can happen with any LCD. The LCD panel is precision-manufactured with more than
99.99% of its segments functional. However, it is possible that a small percentage (typically 0.01%) of the segments may not light up properly. This will not, however, interfere with your viewing.
Notes on the touch screen
• This unit uses a capacitive touch screen. Touch the screen directly with your fingertip.
• Multi-touch operation is not supported on this unit.
• Do not touch the screen with sharp objects such as a needle, pen, or fingernail. Operation with a stylus is not supported on this unit.
• Touching the screen with a gloved finger may cause the unit to operate incorrectly or not respond.
• Do not let any objects contact the touch screen. If the screen is to uched by an o bject othe r than y our fingertip, the unit may not respond correctly.
• Since glass material is used for the screen, do not subject the unit to strong shock. If cracking or chipping occurs on the screen, do not touch the damaged part as it may cause injury.
• Keep other electrical devices away from the touch screen. They may cause the touch screen to malfunction.
• If there are water droplets on the touch screen, or if you touch the screen with wet fingertips, the touch screen may not react correctly.
16GB
Supported formats for USB playback About iPhone
WMA (.wma)*1*
Bit rate: 48 kbps – 192 kbps (Supports variable bit rate (VBR))* Sampling frequency*4: 44.1 kHz
MP3 (.mp3)*
Bit rate: 48 kbps – 320 kbps (Supports variable bit rate (VBR))* Sampling frequency*4: 32 kHz, 44.1 kHz, 48 kHz
AAC (.m4a)*
Bit rate: 40 kbps – 320 kbps (Supports variable bit rate (VBR))*
2
3
1*2
3
1*2
3
Sampling frequency*4: 8 kHz – 48 kHz Bit per sample (Quantization bit): 16 bits
FLAC (.flac)*
1*6
Sampling frequency*4: 8 kHz – 48 kHz Bit per sample (Quantization bit): 16 bits
WAV (.wav)*
1
Sampling frequency*4: 8 kHz – 48 kHz Bit per sample (Quantization bit): 16 bits, 24 bits
Xvid (.avi)
Video codec: MPEG-4 Advanced Simple Profile Audio codec: MP3 (MPEG-1 Layer3) Bit rate: Max. 4 Mbps Frame rate: Max. 30 fps (30p/60i) Resolution: Max. 1280 × 720*
5
MPEG-4 (.mp4)
Video codec: MPEG-4 Advanced Simple Profile, AVC Baseline Profile Audio codec: AAC Bit rate: Max. 4 Mbps Frame rate: Max. 30 fps (30p/60i) Resolution: Max. 1280 × 720*
WMV (.wmv, .avi)*
1
5
Video codec: WMV3, WVC1 Audio codec: MP3, WMA Bit rate: Max. 6 Mbps Frame rate: Max. 30 fps Resolution: Max. 720 × 480*
5
MKV (.mkv)
Video codec: MPEG-4 Advanced Simple Profile, AVC Baseline Profile Audio codec: MP3, AAC Bit rate: Max. 5 Mbps Frame rate: Max. 30 fps Resolution: Max. 1280 × 720*
*1 Copyright-protected files and multi-channel audio files
cannot be played back.
*2 DRM (Digital Rights Management) files cannot be played
back.
*3 Non-standard bit rates or non-guaranteed bit rates are
included depending on the sampling frequency. *4 Sampling frequency may not correspond to all encoders. *5 These numbers indicate the maximum resolution of
playable video and do not indicate the player’s display
resolution. The display resolution is 800 × 480. *6 Displaying the tag information is not supported.
Note
Some files may not be played back even though their fi le formats are supported by the unit.
5
Compatible iPhone models: iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
Notice on license
This product contains software that Sony uses under a licensing agreement with the owner of its copyright. We are obligated to announce the contents of the agreement to customers under requirement by the owner of copyright for the software. For details on software licenses, see page 14.
17GB
Specifications
Monitor section
Display type: Wide LCD color monitor Dimensions: 20.3 cm/ 8 in System: TFT active matrix Number of pixels:
1,152,000 pixels (800 × 3 (RGB) × 480)
Color system: PAL/NTSC
Radio section
FM
Tuning range:
87.5 MHz – 108.0 MHz (at 50 kHz step)
87.5 MHz – 108.0 MHz (at 100 kHz step)
87.5 MHz – 107.9 MHz (at 200 kHz step)
FM tuning step:
50 kHz/100 kHz/200 kHz switchable Usable sensitivity: 7 dBf Signal-to-noise ratio: 70 dB (mono) Separation at 1 kHz: 45 dB
AM
Tuning range:
531 kHz – 1,602 kHz (at 9 kHz step)
530 kHz – 1,710 kHz (at 10 kHz step) AM tuning step:
9 kHz/10 kHz switchable Sensitivity: 32 μV
USB player section
Interface: USB port (Hi-speed) Maximum current: 1.5 A
A/V IN section
Color system: PAL/NTSC
Wireless communication
Communication System:
BLUETOOTH Standard version 3.0 Output:
BLUETOOTH Standard Power Class 2
(Max. Conducted +1 dBm) Maximum communication range*
Line of sight approx. 10 m (33 ft) Frequency band:
2.4 GHz band (2.4000 GHz – 2.4835 GHz) Modulation method: FHSS Compatible BLUETOOTH Profiles*
A2DP (Advanced Audio Distribution Profile) 1.3 AVRCP (Audio Video Remote Control Profile) 1.3 HFP (Handsfree Profile) 1.6 PBAP (Phone Book Access Profile) 1.1
Corresponding codec: SBC, AAC
1
:
2
:
*1 The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial) performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of
BLUETOOTH communication between devices.
Power amplifier section
Outputs: Speaker outputs Speaker impedance: 4 Ω – 8 Ω Maximum power output: 55 W × 4 (at 4 Ω)
General
Power requirements: 12 V DC car battery
(negative ground (earth)) Rated current consumption: 10 A Dimensions:
Approx. 206 mm × 136 mm × 133 mm
1
/8 in × 5 3/8 in × 5 1/4 in) (w/h/d)
(8 Mass: Approx. 1.3 kg (2 lb 14 oz) Package contents:
Main unit (1)
Ask the dealer for detailed information.
Design and specifications are subject to change without notice.
18GB
Copyrights
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Group Corporation and its subsidiaries is under license. Other trademarks and trade names are those of their respective owners.
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
Apple, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. Apple CarPlay is a trademark of Apple Inc.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
Android, Android Auto, Google and Google Play are trademarks of Google LLC.
WebLink is a registered trademark of Abalt a Technologies,Inc. in the U.S. and a trademark in the other count ries.
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON­COMMERCIAL USE OF A CONSUMER FOR DECODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON­COMMERCIAL USE OF A CONSUMER TO (i)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE AND VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO DECODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR THE VC-1 STANDARD (“VC-1 VIDEO”) THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO AND/OR VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
All other trademarks are trademarks of their respective owners.
Troubleshooting
The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. If the problem is not solved, visit the support site on the back cover.
General
There is no beep sound.
An optional power amplifier is connected and
you are not using the built-in amplifier.
The fuse has blown. The unit makes noise when the position of the ignition is switched.
The leads are not matched correctly with the car’s
accessory power connector.
The display disappears from/does not appear on the monitor.
The monitor off function is activated (page 6).
– Touch anywhere on the display to turn the
display back on.
Menu items cannot be selected.
Unavailable menu items are displayed in gray.
The USB functions do not work properly.
Do not use a USB extension cable as it may cause
deterioration of signal quality. – Use a shorter USB cable when connecting the
USB device, or replace the USB cable with a new one.
The unit cannot be operated.
Restart the unit.
– On the steering wheel remote control, press
and hold MODE for 10 seconds, then press and hold (off hook) for 2 seconds when a confirmation message appears.
– For your safety, do not restart the unit while you
are driving.
The clock set automatically is not accurate.
The clock data on radio waves is not accurate.
– Set the clock manually (page 14).
19GB
Touch screen operation
The touch screen does not react to your touch correctly.
Touch one part of the touch screen at a time. If
two or more parts are touched simultaneously, the touch screen will not react correctly.
Touch the pressure sensitive screen firmly.The touch screen does not react when touching
with a wet fingertip or when water droplets are on the touch screen. – Dry your wet fingertips well, or fully wipe water
droplets off of the touch screen.
Multi-touch is not recognized.
Multi-touch operation is not supported on this
unit.
Radio reception
The radio reception is poor. Static noise occurs.
Connect the antenna (aerial) firmly.
The stations cannot be received.
The tuning step setting has been erased.
– Set the tuning step again (page 14).
RDS
PTY displays [PTY not found.].
The current station is not an RDS station, or the
radio reception is poor.
There is no picture/picture noise occurs.
A connection has not been made correctly.
– Check the connection between this unit and
other equipment, and set the input selector of the equipment to the source corresponding to this unit.
Installation is not correct.
– Install the unit at an angle of less than 30° in a
sturdy part of the car.
The picture does not fit in the screen.
The aspect ratio is fixed on the playback source.
Sound
There is no sound/sound skips/sound cracks.
A connection has not been made correctly.Check the connection between this unit and the
connected equipment and set the input selector of the equipment to the source corresponding to this unit.
Installation is not correct.
– Install the unit at an angle of less than 30° in a
sturdy part of the car.
The unit is in pause/reverse/fast-forward mode.
The settings for the outputs are not made
correctly.
The volume is too low.The attenuate function is activated.The format is not supported.
– Check if the format is supported by this unit
(page 17).
Sound is noisy.
Keep cords and cables away from each other.
USB playback
Items cannot be played.
Reconnect the USB device.
The USB device takes longer to play.
The USB device contains large-sized files or files
with a complicated tree structure.
Audio files cannot be played.
USB devices formatted with file systems other
tha n FAT12, FAT16, FAT32 or exFAT are unsupported.*
* This unit supports FAT12, FAT16, FAT32 and exFAT, but
some USB device may not support all of these. For details, refer to the operating instructions of each USB device or contact the manufacturer.
The smartphone connected to the USB port cannot be played.
The USB connection is only available for Android
phones and USB devices in MSC mode.
When using a smartphone other than an Android
phone, make a BLUETOOTH connection (page 6).
BLUETOOTH function
The other BLUETOOTH device cannot detect this unit.
Set [Bluetooth Connection] to [ON] (page 15).While connecting to a BLUETOOTH device, this
unit cannot be detected by another device. Terminate the current connection and search for this unit from the other device.
Depending on your smartphone or mobile
phone, you may need to delete this unit from the history of the connected smartphone or mobile phone then pair them again (page 6).
Connection is not possible.
Check the pairing and connection procedures in
the manual of the other device, etc., and perform the operation again.
The name of the detected device does not appear.
Depending on the status of the other device, it
may not be possible to obtain the name.
20GB
There is no ringtone.
Raise the volume while receiving a call.The speakers are not connected to the unit.
– Connect the speakers to the unit. To select the
speakers for ringtone, press HOME, then touch [Settings] and select [Phone Call Sound] in [Sound] (page 15).
The talker’s voice volume is low.
Raise the volume during a call.
The other party says that the volume is too low or high.
Adjust the [MIC Gain] level (page 12).
Echo or noise occurs during call conversations.
Reduce the volume.Set [Speech Quality] to [Mode 1] or [Mode 2].
(page 12).
If ambient noise other than the phone call sound
is loud, try reducing this noise. – Shut the window if road noise is loud. – Lower the air conditioner if the air conditioner is
loud.
The phone sound quality is poor.
Phone sound quality depends on reception
conditions of the mobile phone. – Move your car to a place where you can
enhance the mobile phone’s signal if the reception is poor.
The volume of the connected BLUETOOTH device is low or high.
Volume level will differ depending on the
BLUETOOTH device. – Reduce the volume level differences between
this unit and the BLUETOOTH device (page 9).
The sound skips during audio streaming or the BLUETOOTH connection fails.
Reduce the distance between the unit and the
BLUETOOTH device.
If the BLUETOOTH device i s stored in a case which
interrupts the signal, remove the case while using the device.
Several BLUETOOTH devices or other devices (e.g.
ham radio devices) which emit radio waves are used nearby. – Turn off the other devices. – Increase the distance between the unit and
other devices.
Playback sound stops momentarily when this
unit is connecting to a mobile phone. This is not a malfunction.
The connected BLUETOOTH device cannot be controlled during audio streaming.
Check that the connected BLUETOOTH device
supports AVRCP.
Some functions do not work.
Check that the connecting device supports the
functions in question.
A call is answered unintentionally.
The connecting phone is set to start a call
automatically.
[Auto Answer] of this unit is set to [ON] (page 12).
Pairing failed due to time out.
Depending on the connecting device, the time
limit for pairing may be short. Try completing the pairing within the time.
Cannot pair.
The unit may not be able to pair with a previously
paired BLUETOOTH device after initializing the unit if the pairing information of the unit is on the BLUETOOTH device. In t his c ase, delete the pairing information of the unit from the BLUETOOTH device, and then pair them again.
The BLUETOOTH function cannot be operated.
Turn the ignition off. Wait for a while, then turn
the ignition to the ACC position.
No sound is output from the car speakers during a handsfree call.
If the sound is output from the mobile phone, set
the mobile phone to output the sound from the car speakers.
Apple CarPlay
The Apple CarPlay icon does not appear on the HOME screen.
Your iPhone is not compatible with Apple
CarPlay. – Refer to the manual supplied with your iPhone,
or visit the Apple CarPlay website.
Disconnect your iPhone from the USB port and
reconnect it again.
Apple CarPlay may not be available in your
country or region.
Make sure a certified Lightning cable is used to
connect your iPhone and the unit.
21GB
Android Auto
The Android Auto icon does not appear on the HOME screen.
Check your Android phone and accept the
disclaimers and permission requests required to use Android Auto on your Android phone.
There is no Android Auto application installed on
your Android phone. – Download and install the Android Auto
application onto your Android phone.
Your Android phone is not compatible with
Android Auto. – Your Android phone needs to support Android
Auto. Refer to the manual supplied with your Android phone, or visit the Android Auto website.
Disconnect your Android phone from the USB
port and reconnect it again.
Android Auto may not be available in your
country or region.
WebLink ™
WebLink™ cannot be used.
Installing the “WebLink Host” app to your
iPhone/Android phone is required. – Check the following site, and install the
“WebLink Host” app. http://abaltatech.com/WL
– Check your iPhone/Android phone and accept
the disclaimers and permission to use WebLink™ on your iPhone/Android phone.
Disconnect your iPhone/Android phone from the
USB port and reconnect it again.
Restart your iPhone/Android phone.WebLink™ may not be available in your country
or region.
There is no sound./The sound is low.
Your iPhone/Android phone is not connected to
the unit via BLUETOOTH. – Make a BLUETOOTH connection.
The volume level of [Bluetooth] is low.
– Adjust the volume level of [Bluetooth].
Messages
General
Cannot play this content.
The currently selected content cannot be played
back, or skipped to the next one. – The content is not in a supported file format.
Check supported file formats (page 17).
Device no response
The unit does not recognize the connected USB
device. – Reconnect the USB device. – Check that the USB device is supported by the
unit.
No Playable Data
The USB device has no playable data.
– Load music data/files into the USB device.
Overcurrent caution on USB.
The USB device is overloaded.
– Disconnect the USB device. – Indicates that the USB device is out of order, or
an unsupported device is connected.
USB device not supported
For details on the compatibility of your USB
device, visit the support site on the back cover.
USB hub not supported
USB hubs are not supported on this unit.
BLUETOOTH
Bluetooth device is not found.
The unit cannot detect a connectable
BLUETOOTH device. – Check the BLUETOOTH setting of the
connecting device.
No device is in the list of registered BLUETOOTH
devices. – Perform pairing with a BLUETOOTH device
(page 6).
Handsfree device is not available.
A mobile phone is not connected.
– Connect a mobile phone (page 7).
22GB
WebLink™
Please install and start the WebLink Host app on your phone. For more information visit www.abaltatech.com/wl
Visit www.abaltatech.com/wl, and check the
detail.
Connection
CAMERA IN
USB
A/V IN
from an A/V device (not supplied)
from a car antenna (aerial)*
5
*
3
*
4
*
2
USB cable from the car
*1
from the rear camera
Connection
*1 Do not use a USB extension cable. *2 Subwoofer (not supplied) *3 Power amplifier (not supplied) *4 RCA pin cord (not supplied) *5 Depending on the type of car, use an adaptor (not
supplied) if the antenna (aerial) connector does not fit.
23GB
Petunjuk Pemeliharaan
Peringatan
Pelat nama yang berisi voltase operasional, dll., terletak di bagian bawah chassis.
Untuk mengurangi risiko kebakaran, jangan menutup rongga ventilasi pada perangkat dengan koran, taplak meja, ritai, dill. Jauhkan perangkat dari sumber api (misalnya api lilin).
PERINGATAN
Untuk mencegah bahaya kebakaran atau sengatan listrik, jangan paparkan unit ke hujan atau kelembapan.
Untuk menghindari sengatan listrik, jangan buka kabinet. Serahkan servis kepada personel yang berkualifikasi saja.
Penolakan mengenai servis yang ditawarkan oleh pihak ketiga
Servis yang diberikan oleh pihak ketiga mungkin diubah, ditangguhkan, atau dihentikan tanpa pemberitahuan sebelumnya.
Pemberitahuan penting
Perhatian
DALAM KEJADIAN APA PUN KAMI TIDAK AKAN BERTANGGUNG JAWAB ATAS GANTI RUGI INSIDENTAL, TIDAK LANGSUNG, ATAU KONSEKUENSIAL ATAU TERMASUK GANTI RUGI LAINNYA, TIDAK TERBATAS, HILANGNYA KEUNTUNGAN, HILANGNYA PENDAPATAN, HILANGNYA DATA, HILANGNYA PEMANFAATAN PRODUK ATAU PERALATAN TERKAIT, MASA TIDAK BERFUNGSI, DAN WAKTU PEMBELIAN YANG TERKAIT ATAU TIMBUL DARI PENGGUNAAN PRODUK INI, PERANGKAT KERAS DAN/ATAU PERANGKAT LUNAKNYA.
Pelanggan yth, produk ini mencakup pemancar radio. Harap pelajari buku panduan operasi kendaraan atau hubungi produsen kendaraan atau dealer kendaraan, sebelum Anda memasang produk ini ke kendaraan.
Panggilan darurat
Perangkat handsfree mobil BLUETOOTH dan perangkat elektronik yang tersambung dengan handsfree ini beroperasi dengan sinyal radio, jaringan seluler, dan telepon rumah serta fungsi yang diprogram pengguna, yang tidak dapat menjamin sambungan dalam semua kondisi. Oleh karena itu, jangan semata-mata mengandalkan perangkat elektronik ini untuk komunikasi yang sangat penting (seperti kondisi medis darurat).
Ten ta ng ko mu ni ka si BL UETOO TH
• Gelombang mikro yang memancar dari perangkat
BLUETOOTH mungkin memengaruhi pengoperasian perangkat medis elektronik. Matikan unit ini dan perangkat BLUETOOTH lain dalam lokasi berikut ini, karena dapat menyebabkan kecelakaan. – lokasi yang terdapat di gas yang mudah
terbakar, di rumah sakit, kereta api, pesawat,
atau SPBU
– di dekat pintu otomatis atau alarm kebakaran
• Unit ini mendukung kemampuan keamanan yang
mematuhi standar BLUETOOTH untuk menghadirkan sambungan aman saat teknologi nirkabel BLUETOOTH digunakan, tetapi keamanan mungkin tidak cukup yang tergantung pada pengaturan ini. Berhati-hatilah saat berkomunikasi dengan teknologi nirkabel BLUETOOTH.
• Kami tidak bertanggung jawab atas kebocoran
informasi selama komunikasi BLUETOOTH.
2ID
Daftar Isi
Peringatan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Memulai
Panduan terhadap Komponen dan Kontrol. . . . . . 4
Melakukan Pengaturan Awal . . . . . . . . . . . . . . . . . 6
Menyiapkan Perangkat Bluetooth® . . . . . . . . . . . . 7
Menggunakan Kamera Belakang . . . . . . . . . . . . . . 8
Radio
Mendengarkan Radio . . . . . . . . . . . . . . . . . . . . . . . 8
Menggunakan Fungsi Opsi Radio. . . . . . . . . . . . . . 9
Pemutaran
Memutar Perangkat USB . . . . . . . . . . . . . . . . . . . . . 9
Memutar Perangkat BLUETOOTH . . . . . . . . . . . . . . 9
Memutar Perangkat A/V . . . . . . . . . . . . . . . . . . . . 10
Mencari dan Memutar Trek . . . . . . . . . . . . . . . . . . 10
Pengaturan Lain selama Pemutaran . . . . . . . . . . . 11
Panggilan Handsfree
Menyiapkan Ponsel . . . . . . . . . . . . . . . . . . . . . . . . . 11
Menerima Panggilan . . . . . . . . . . . . . . . . . . . . . . . . 11
Melakukan Panggilan . . . . . . . . . . . . . . . . . . . . . . . 11
Operasi yang Tersedia selama Panggilan . . . . . . . 12
Fungsi-fungsi yang Berguna
Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Android Auto™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
WebLink™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Menggunakan Perintah Gerak-Isyarat . . . . . . . . . 14
Pengaturan
Operasi Pengaturan Dasar . . . . . . . . . . . . . . . . . . 14
Pengaturan Umum (Umum) . . . . . . . . . . . . . . . . . 14
Pengaturan Suara (Suara) . . . . . . . . . . . . . . . . . . . . 15
Pengaturan Visual (Visual). . . . . . . . . . . . . . . . . . . 16
Pengaturan BLUETOOTH (Bluetooth) . . . . . . . . . . 16
Informasi Tambahan
Memperbarui Firmware . . . . . . . . . . . . . . . . . . . . . 16
Tindakan Pencegahan . . . . . . . . . . . . . . . . . . . . . . 16
Spesifikasi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Pemecahan Masalah . . . . . . . . . . . . . . . . . . . . . . . 20
Pesan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Koneksi
Koneksi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3ID
Memulai
Panduan terhadap Komponen dan Kontrol
Unit utama
Layar/layar sentuhHOME
Menampilkan layar HOME.
(mengurangi volume)
Tekan dan tahan selama 1 detik untuk mengurangi volume suara. Untuk membatalkan, tekan dan tahan lagi, atau tekan VOL +.
VOL (volume) +/–Mikrofon
Agar mode bebas genggam berfungsi dengan baik, jangan lapisi mikrofon menggunakan isolasi, dll.

4ID
/ (sebelumnya/berikutnya)
Berfungsi secara berbeda, yang tergantung
pada sumber yang dipilih:
– [Radio]: memilih stasiun yang sudah diatur
sebelumnya.
– [USB]/[Bluetooth]: berpindah ke file
sebelumnya/berikutnya.
Tekan dan tahan untuk:
– [Radio]: menala ke suatu stasiun secara
otomatis (SEEK+/SEEK–).
– [USB]/[Bluetooth]: mundur cepat/maju cepat.
OPTION
Menampilkan latar OPTION (halaman 5).
VOICE
Tekan dan tahan untuk mengaktifkan fungsi
perintah suara untuk Apple CarPlay dan Android
Auto.
Remote control roda kemudi Tampilan layar
Layar pemutaran:
/
[Radio]:
Lakukan penalaan pada stasiun radio preset. Tekan dan tahan untuk menala secara otomatis.
[USB]/[Bluetooth]:
Lompati trek. Tekan dan tahan untuk secara cepat memundurkan/memajukan trek.
(volume) /
Menyetel volume. Tekan dan tahan untuk melanjutkan penyetelan volume.
MODE
Mengubah sumber. Memilih pita radio/mentransfer panggilan tidak tersedia dengan tombol ini.
(ucapan)
Mengaktifkan fungsi perintah suara untuk Apple CarPlay dan Android Auto.
(tutup telepon)
Mengakhiri panggilan/menolak panggilan masuk.
(angkat telepon)
Menjawab panggilan.
Layar HOME:
Layar OPTION:
5ID
Indikasi status
Menyala jika suara dikurangi.
Menyala jika perangkat audio dapat diputar dengan mengaktifkan A2DP (Profil Distribusi Audio Tingkat Lanjut).
Menyala jika panggilan handsfree tersedia dengan mengaktifkan HFP (Profil Handsfree).
Menunjukkan status kekuatan sinyal ponsel yang tersambung.
Menunjukkan status baterai tersisa dari ponsel yang tersambung.
Menyala jika sinyal BLUETOOTH menyala. Berkedip jika sambungan sedang berlangsung.
(opsi sumber)
Membuka menu opsi sumber. Item yang tersedia berbeda-beda tergantung sumbernya.
Area khusus aplikasi
Menampilkan kontrol/indikasi pemutaran atau memperlihatkan status unit. Item yang ditampilkan berbeda-beda tergantung sumbernya.
Jam
Menampilkan waktu yang ditetapkan di pengaturan Tanggal/Waktu (halaman 14).
(petunjuk untuk menyambungkan
smartphone)
Menampilkan petunjuk untuk menyambungkan Apple CarPlay, Android Auto, atau WebLink™.
(kembali ke layar pemutaran)
Mengalihkan dari layar HOME ke layar pemutaran.
Tombol pemilihan Sumber dan Pengaturan
Mengubah sumber atau melakukan berbagai pengaturan. Geser untuk memilih ikon pengaturan dan ikon lain. Sentuh ikon sumber yang ingin Anda pilih.
Android Auto*
Bluetooth Ponsel USB
WebLink* A/V I N
Pengaturan
* Ini mungkin tidak tersedia di negara atau wilayah
Anda.
Tombol pemilihan suara
Mengubah suara.
Apple CarPlay*
Radio
Kam Belakng
 (siaga)
Mengubah unit ke dalam mode siaga (pengisian
daya USB masih tersedia). Untuk melanjutkan,
tekan tombol mana pun.
(monitor mati)
Mematikan monitor. Jika monitor mati, sentuh di
bagian mana pun pada layar untuk kembali
menghidupkannya.
(EXTRA BASS)
Mengubah pengaturan EXTRA BASS
(halaman 15).
(EQ10/Subwoofer)
Mengubah pengaturan EQ10/Subwoofer
(halaman 15).
Melakukan Pengaturan Awal
Anda perlu melakukan pengaturan awal sebelum mengoperasikan unit ini untuk pertama kalinya, setelah mengganti aki mobil, atau mengganti sambungan. Jika layar pengaturan awal tidak muncul saat Anda menyalakan unit, lakukan pengaturan ulang pabrik (halaman 15) untuk memulai pengoperasian unit.
1 Sentuh [Bahasa], lalu atur bahasa tampilan. 2 Sentuh [Atur Tanggal/Waktu], lalu atur
tanggal dan waktu.
3 Sentuh [Tingkat Penalaan], lalu atur tingkat
penalaan FM/AM.
4 Untuk kembali ke tampilan sebelumnya,
sentuh , lalu sentuh [OK].
Peringatan mulai akan muncul.
5 Baca peringatan mulai dengan teliti. Jika
Anda setuju dengan semua syarat, sentuh
[Tutup].
Pengaturan selesai.
Pengaturan ini dapat dikonfigurasi lebih lanjut di menu pengaturan (halaman 14).
6ID
Menyiapkan Perangkat Bluetooth®
Anda dapat menikmati musik atau melakukan panggilan handsfree yang tergantung pada perangkat yang kompatibel dengan BLUETOOTH seperti smartphone, ponsel, dan perangkat audio (selanjutnya disebut "perangkat BLUETOOTH" jika tidak ditentukan sebaliknya). Untuk informasi selengkapnya tentang penyambungan, baca petunjuk pengoperasian yang disertakan dengan perangkat tersebut. Sebelum menyambungkan perangkat, kurangi volume suara unit ini. Jika tidak, mungkin suara yang ditimbulkan unit akan terlalu lantang.
Menyandingkan dan menyambungkan dengan perangkat BLUETOOTH
Saat menyambungkan perangkat BLUETOOTH untuk pertama kali, pendaftaran bersama (yang disebut "penyandingan") perlu dilakukan. Dengan melakukan penyandingan, unit ini dan perangkat lain dapat saling mengenali.
1 Letakkan perangkat BLUETOOTH dalam
jarak 1 m dari unit ini.
2 Tekan HOME, lalu sentuh [Pengaturan]. 3 Sentuh [Bluetooth]. 4 Sentuh [Koneksi Bluetooth], lalu atur sinyal
ke [NYALA].
Sinyal BLUETOOTH dinyalakan dan menyala pada bilah status unit ini.
5 Sentuh [Pemasangan].
berkedip saat unit sedang berada dalam
mode siaga penyandingan.
6 Lakukan penyandingan pada perangkat
BLUETOOTH sehingga perangkat mendeteksi unit ini.
7 Pilih [Xpander] yang ditampilkan di layar
perangkat BLUETOOTH.
Ulangi dari langkah 5 jika nama model tidak muncul. Jika layar konfirmasi sambungan muncul, operasikan perangkat BLUETOOTH untuk menyetujui koneksi, lalu sentuh [OK] pada unit dan/atau perangkat BLUETOOTH.
8 Jika kunci sandi* perlu dimasukkan pada
perangkat BLUETOOTH, masukkan [0000].
* Kunci sandi mungkin saja disebut "kode sandi", "kode
PIN", "nomor PIN", "kata sandi", dll., yang tergantung pada perangkat BLUETOOTH-nya.
Saat tersanding, terus menyala.
9 Pilih unit ini di perangkat BLUETOOTH untuk
menjalin sambungan BLUETOOTH.
atau menyala jika sambungan dibuat.
Catatan
• Unit hanya dapat disambungkan dengan satu perangkat BLUETOOTH pada waktu bersamaan.
• Untuk memutuskan sambungan BLUETOOTH, matikan sambungan baik dari unit maupun perangkat BLUETOOTH.
• Penyandingan BLUETOOTH tidak memungkinkan saat Apple CarPlay atau Android Auto sedang menyala.
Menyambungkan dengan perangkat BLUETOOTH yang tersanding
Untuk menggunakan perangkat yang tersanding, perangkat tersebut perlu disambungkan dengan unit ini. Beberapa perangkat yang tersanding akan tersambung secara otomatis.
1 Tekan HOME, lalu sentuh [Pengaturan]. 2 Sentuh [Bluetooth]. 3 Sentuh [Koneksi Bluetooth], lalu sentuh
[NYALA].
Pastikan menyala pada bilah status unit.
4 Aktifkan fungsi BLUETOOTH pada perangkat
BLUETOOTH.
5 Operasikan perangkat BLUETOOTH agar
tersambung dengan unit ini.
atau menyala di bilah status.
Untuk menyambungkan perangkat yang tersambung terakhir dari unit ini
Apabila kunci kontak diputar ke posisi on sementara sinyal BLUETOOTH masih aktif, unit ini akan mencari perangkat BLUETOOTH yang tersambung terakhir, dan sambungan akan dijalin secara otomatis.
Catatan
Selama streaming audio BLUETOOTH, Anda tidak dapat melakukan penyambungan dari unit ini ke ponsel. Sebaliknya, sambungkan dari ponsel ke unit ini.
7ID
Menggunakan Kamera Belakang
Kamera belakang (tidak disertakan) perlu dipasang sebelum digunakan. Gambar dari kamera belakang yang tersambung ke terminal CAMERA IN ditampilkan jika: lampu belakang mobil menyala (atau tuas
persneling diatur ke posisi R (mundur)).
Anda tekan HOME, lalu sentuh [Kam Belakng].
Radio
Mendengarkan Radio
Diperlukan pengaturan tingkat penalaan (halaman 15). Tekan HOME, lalu sentuh [Radio].
Kontrol/indikasi penerimaan
Pita saat ini
Mengubah pita (FM1, FM2, FM3, AM1, atau AM2).
Indikasi frekuensi saat ini, nama layanan
program*, RDS (Sistem Data Radio)*
* Hanya tersedia selama penerimaan RDS.
(opsi radio)
Membuka menu opsi radio.
SEEK-/SEEK+
Melakukan penalaan otomatis.
/
Melakukan penalaan manual. Sentuh dan tahan untuk secara terus menerus melompati frekuensi.
Nomor preset
Memilih stasiun preset. Geser kanan/kiri untuk menampilkan stasiun preset lainnya. Sentuh dan tahan untuk menyimpan frekuensi saat ini dalam preset tersebut.
8ID
Menala
1 Memilih pita yang diinginkan (FM1, FM2,
FM3, AM1, atau AM2).
2 Melakukan penalaan.
Untuk menala secara otomatis
Sentuh SEEK-/SEEK+. Pemindaian berhenti saat unit menerima stasiun.
Untuk menala secara manual
Sentuh dan tekan / untuk menemukan frekuensi terdekat, lalu sentuh / secara berulang untuk menyetel ke frekuensi yang diinginkan.
Menyimpan secara manual
1 Saat menerima stasiun yang ingin Anda
simpan, sentuh dan tahan nomor preset yang diinginkan.
Menerima stasiun yang diinginkan
1 Pilih pita, lalu sentuh nomor preset yang
diinginkan.
Pemutaran
Memutar Perangkat USB
Perangkat U SB jenis MSC (Kelas Penyim panan Massal)* yang sesuai dengan standar USB dapat digunakan.
* Misalnya, flash drive USB, pemutar media digital, ponsel
Android™
Catatan
• Untuk informasi selengkapnya tentang kompatibilitas perangkat USB, kunjungi situs dukungan yang terdapat pada sampul belakang.
• Untuk informasi selengkapnya tentang format file yang didukung, lihat "Format yang didukung untuk pemutar USB" (halaman 17).
1 Kurangi volume pada unit. 2 Sambungkan perangkat USB ke port USB. 3 Tekan HOME, lalu sentuh [USB].
Pemutaran dimulai.
Untuk melepaskan perangkat
Matikan unit atau putar kunci kontak ke posisi off ACC, lalu lepas perangkat USB.
Menggunakan Fungsi Opsi Radio
Fungsi berikut tersedia dengan menyentuh .
BTM (Memori Penalaan Terbaik)
Menyimpan stasiun sesuai urutan frekuensi pada nomor preset. 18 stasiun dapat disimpan untuk FM dan 12 stasiun untuk AM sebagai stasiun preset.
PTY
Pilih jenis program dari daftar PTY untuk mencari stasiun siaran jenis program yang dipilih. (Hanya tersedia selama penerimaan FM.)
Memutar Perangkat BLUETOOTH
Anda juga dapat memutar isi perangkat tersambung yang mendukung A2DP (Profil Distribusi Audio Tingkat Lanjut) BLUETOOTH.
1 Buat sambungan BLUETOOTH dengan
perangkat audio (halaman 7).
2 Tekan HOME, lalu sentuh [Bluetooth]. 3 Operasikan perangkat audio untuk memulai
pemutaran.
Catatan
• Tergantung pada perangkat audio, informasi seperti judul, nomor/waktu trek, dan status pemutaran mungkin tidak ditampilkan pada unit ini.
• Meskipun sumber diubah pada unit ini, pemutaran perangkat audio tidak akan dihentikan.
• Penyandingan BLUETOOTH tidak memungkinkan saat Apple CarPlay sedang berjalan.
Untuk mencocokkan level volume perangkat BLUETOOTH dengan sumber lain
Anda dapat mengurangi perbedaan level volume antara unit ini dan perangkat BLUETOOTH: Selama pemutaran, sentuh , lalu atur [Level Input] antara –6 dan +6.
9ID
Memutar Perangkat A/V
1 Matikan perangkat A/V. 2 Kurangi volume di unit. 3 Sambungkan perangkat A/V ke terminal
A/V IN pada unit.
4 Tekan HOME, lalu sentuh [A/V IN]. 5 Nyalakan perangkat A/V.
Pemutaran dimulai.
Mencari dan Memutar Trek
Ulangi pemutaran dan acak pemutaran
1 Selama pemutaran, sentuh (ulang) atau
(acak) secara berulang sampai mode
pemutaran yang diinginkan muncul.
Dalam mode pemutaran tertentu, mungkin perlu waktu untuk memulai pemutaran.
Mode pemutaran yang tersedia bergantung pada sumber suara yang dipilih dan perangkat yang tersambung.
Mencari file dari layar daftar
1 Selama pemutaran USB, sentuh .
Layar daftar dari item yang diputar saat ini muncul.
Selanjutnya, sentuh (audio) atau (video) untuk didaftarkan berdasarkan jenis file.
2 Sentuh item yang diinginkan.
Pemutaran dimulai.
10ID
Pengaturan Lain selama Pemutaran
Saat memutar video dari perangkat A/V yang tersambung ke terminal A/V IN, atau dari perangkat USB yang tersambung ke port USB, tersedia pengaturan lebih lanjut dengan menyentuh (opsi). Item yang tersedia berbeda-beda tergantung sumbernya.
Picture EQ
Menyetel kualitas gambar sesuai yang Anda inginkan: [Dinamis], [Standar], [Teater], [Kustom].
Aspek
Memilih rasio aspek untuk layar unit.
Normal
Menampilkan gambar 4:3 dalam ukuran aslinya, dengan bilah samping untuk ditampilkan secara pas di layar 16:9.
Zoom
Menampilkan gambar 16:9 yang telah dikonversi ke format kotak surat 4:3.
Penuh
Menampilkan gambar 16:9 dalam ukuran aslinya.
Ketera ngan
Memperbesar gambar secara horizontal, dengan keterangan yang ditampilkan secara pas di layar.
Level Input Audio
Menyetel selisih level volume antara unit ini dan perangkat yang tersambung: -10 hingga +15.
Catatan
Untuk mencegah kecelakaan, parkir mobil Anda di tempat yang aman saat menyetel pengaturan ini.
Panggilan Handsfree
Menyiapkan Ponsel
Untuk menggunakan ponsel, sambungkan ponsel tersebut dengan unit ini. Untuk informasi selengkapnya, lihat "Menyiapkan Perangkat Bluetooth®" (halaman 7).
Catatan
Fungsi panggilan handsfree tidak tersedia saat fungsi Apple CarPlay atau Android Auto diaktifkan. Dalam kasus ini, gunakan fungsi panggilan handsfree pada aplikasi ponsel.
Menerima Panggilan
1 Sentuh saat panggilan diterima.
Panggilan telepon dimulai.
Catatan
Nada dering dan suara pembicara dikeluarkan dari speaker depan. Untuk memilih speaker panggilan handsfree, tekan HOME, lalu sentuh [Pengaturan] dan pilih [Suara Panggilan Telepon] di [Suara] (halaman 15).
Untuk menolak/mengakhiri panggilan
Sentuh .
Melakukan Panggilan
1 Tekan HOME, lalu sentuh [Ponsel]. 2 Sentuh salah satu ikon panggilan pada layar
ponsel BLUETOOTH.
(riwayat telepon)*
Pilih salah satu kontak dari daftar riwayat panggilan. Unit ini menyimpan 20 panggilan terakhir.
11ID
(panggil kembali)
Lakukan panggilan secara otomatis ke kontak yang terakhir Anda hubungi.
(kontak)*
Pilih salah satu kontak dari daftar nama/ daftar nomor. Untuk mencari kontak yang diinginkan sesuai urutan alfabet dari daftar nama, sentuh .
(tombol panggil)
Masukkan nomor telepon.
Favorit
Pilih kontak yang disimpan. Untuk menyimpan kontak, lihat "Menambahkan nomor telepon ke Favorit" (halaman 12).
* Ponsel perlu mendukung PBAP (Profil Akses Buku
Tel ep on ).
3 Sentuh .
Panggilan telepon dimulai.
Menambahkan nomor telepon ke Favorit
Anda dapat menyimpan hingga 6 kontak di dalam Favorit.
1 Pada layar ponsel, sentuh (kontak) lalu
pilih nomor telepon yang ingin Anda simpan di dalam Favorit.
Layar konfirmasi muncul.
2 Sentuh [Tambahkan ke Favorit]. 3 Sentuh preset yang diinginkan di dalam
Favorit untuk menyimpan nomor telepon.
Kontak tersimpan di dalam Favorit.
Operasi yang Tersedia selama Panggilan
Untuk menyetel volume nada dering
Tekan VOL +/– saat menerima panggilan.
Untuk menyetel volume suara pembicara
Tekan VOL +/– selama panggilan.
Untuk menyetel volume untuk lawan bicara (Penyetelan gain mik)
Selama panggilan handsfree, sentuh , lalu atur [MIC Gain] ke [Tinggi], [Sedang], atau [Rendah].
Untuk mengurangi echo dan kebisingan (Mode pembatal echo/kebisingan)
Selama panggilan, sentuh , lalu atur [Kualitas Ucapan] ke [Mode 1] atau [Mode 2].
Untuk beralih antara mode handsfree dan mode genggam
Selama panggilan, sentuh untuk mengalihkan audio panggilan ponsel antara unit dan ponsel.
Catatan
Tergantung pada ponsel, pengoperasian ini mungkin tidak tersedia.
Untuk menjawab panggilan masuk secara otomatis
Sentuh , lalu atur [Jawab Otomatis] ke [NYALA].
12ID
Fungsi-fungsi yang Berguna
Apple CarPlay
Apple CarPlay memungkinkan Anda menggunakan iPhone dan tetap fokus menyetir.
Catatan penggunaan Apple CarPlay
• Periksa versi iOS apa yang didukung di situs web Apple CarPlay. Perbarui ke versi iOS terbaru sebelum menggunakan.
• Untuk detail tentang Apple CarPlay, baca panduan yang disertakan dengan iPhone Anda, atau kunjungi situs web Apple CarPlay.
• Karena GPS pada iPhone digunakan, letakkan iPhone di tempat yang dapat menerima sinyal GPS dengan mudah.
• Apple CarPlay mungkin tidak tersedia di negara atau wilayah Anda.
1 Sambungkan iPhone Anda ke USB port.
Untuk menyambungkan iPhone, gunakan kabel koneksi USB untuk iPhone (tidak disertakan).
2 Tekan HOME, lalu sentuh [Apple CarPlay].
Tampilan iPhone Anda muncul pada layar unit. Sentuh dan atur aplikasi.
Dengan penggunaan logo Apple CarPlay, berarti antarmuka pengguna kendaraan memenuhi standar kinerja Apple. Apple tidak bertanggung jawab atas pengoperasian kendaraan ini atau kepatuhannya terhadap standar keselamatan dan peraturan. Perlu diperhatikan bahwa penggunaan produk ini dengan iPhone mungkin memengaruhi kinerja nirkabel.
Android Auto™
Android Auto memperluas platform Android ke mobil dengan cara yang dikhususkan untuk berkendara.
Catatan penggunaan Android Auto
• Periksa versi OS apa yang didukung di situs web Android Auto. Perbarui ke versi OS terbaru sebelum menggunakan.
• Ponsel Android Anda perlu mendukung Android Auto.
• Unduh aplikasi Android Auto di Google Play.
• Untuk informasi selengkapnya tentang Android Auto, baca panduan yang disertakan dengan ponsel Android Anda, atau kunjungi situs web Android Auto.
• Karena GPS ponsel Android Anda digunakan, letakkan ponsel Android di tempat yang dapat menerima sinyal GPS dengan mudah.
• Android Auto mungkin tidak tersedia di negara atau wilayah Anda.
1 Sambungkan ponsel Android Anda ke USB
port.
Untuk menyambungkan ponsel Android, gunakan kabel koneksi yang sesuai (tidak disertakan).
2 Tekan HOME, lalu sentuh [Android Auto].
Antarmuka Android Auto akan ditampilkan secara penuh pada layar unit. Sentuh dan atur aplikasi.
WebLink™
Aplikasi "WebLink Host" memungkinkan Anda untuk menikmati "WebLink Apps" seperti pemutar video atau musik pada ponsel iPhone/Android yang tersambung.
Catatan penggunaan WebLink™
• Periksa versi OS apa yang didukung di situs web WebLink™. Perbarui ke versi OS terbaru sebelum menggunakan.
• Untuk detail tentang model-model yang kompatibel, lihat daftar kompatibilitas di situs berikut ini: http://abaltatech.com/WL
• Unduh aplikasi "WebLink Host" yang tersedia di Google Play untuk ponsel Android Anda, dan yang tersedia di App Store untuk iPhone.
• Mungkin diperlukan koneksi jaringan saat mengonfigurasi pengaturan, seperti selama konfigurasi koneksi awal. Pastikan tersedia koneksi jaringan di ponsel iPhone/Android Anda.
• Saat menggunakan fungsi Cast, pengaturan di ponsel iPhone/Android mungkin diperlukan.
• Untuk detail tentang aplikasi "WebLink Apps", kunjungi situs web aplikasi "WebLink Apps".
• Fungsi WebLink™ dan/atau aplikasi "WebLink Apps" tertentu mungkin tidak tersedia di negara atau wilayah Anda.
• Saat menggunakan fungsi Cast dan menyambungkan iPhone, arah tampilan sama dengan tampilan iPhone.
1 Sambungkan iPhone/ponsel Android Anda
dengan unit utama melalui BLUETOOTH.
2 Sambungkan iPhone/ponsel Android Anda
ke USB port.
Untuk menyambungkan iPhone, gunakan kabel koneksi USB untuk iPhone (tidak disertakan). Untuk menyambungkan ponsel Android, gunakan kabel koneksi yang tepat (tidak disertakan).
3 Tekan HOME, lalu sentuh [WebLink].
Tampilan WebLink™ akan muncul di unit. Sentuh dan kontrol aplikasi.
Tips
Anda dapat beralih antara Apple CarPlay/Android Auto dan WebLink™ jika aplikasi-aplikasi ini diinstal pada iPhone/ ponsel Android Anda.
13ID
Menggunakan Perintah Gerak­Isyarat
Anda dapat menjalankan operasi yang sering digunakan dengan menggeser tampilan penerimaan/pemutar menggunakan jari.
Catatan
Perintah gerak-isyarat yang dijelaskan di bawah ini tidak tersedia pada layar Apple CarPlay, Android Auto dan WebL ink ™.
Lakukan ini Untuk
Peneri maan radio:
mencari maju stasiun. (Sama seperti menekan dan
Menggeser kiri ke kanan
Menggeser kanan ke kir i
Menggeser ke atas
Menggeser ke bawah
menahan .)
Pemutar video/audio: melompati maju file/trek. (Sama seperti .)
Peneri maan radio: mencari mundur stasiun. (Sama seperti menekan dan menahan .)
Pemutar video/audio: melompati mundur file/trek. (Sama seperti .)
Peneri maan radio: menerima stasiun yang disimpan (maju).
Peneri maan radio: menerima stasiun yang disimpan (mundur).
Pengaturan
Operasi Pengaturan Dasar
Anda dapat mengatur item dengan kategori konfigurasi berikut ini: Pengaturan Umum (Umum), Pengaturan Suara (Suara), Pengaturan Visual (Visual), Pengaturan BLUETOOTH (Bluetooth)
1 Tekan HOME, lalu sentuh [Pengaturan]. 2 Sentuh salah satu kategori konfigurasi.
Item-item yang dapat diatur berbeda-beda tergantung pada sumber dan pengaturannya.
3 Gerakkan tombol gulir ke atas dan ke
bawah untuk memilih item yang diinginkan.
Untuk kembali ke layar sebelumnya
Sentuh .
Untuk beralih ke layar pemutaran
Sentuh .
Pengaturan Umum (Umum)
Bahasa
Memilih bahasa tampilan: [English], [Español], [Français], [Deutsch], [Italiano], [Português], [Русский], [ ], [ ], [ ], [ ], [ ], [Indonesia].
Tanggal/Waktu
Atur Tanggal/Waktu
Mengatur tanggal dan waktu: [Otomatis (RDS)], [Manual].
Format Tanggal
Memilih format: [DD-MM-YYYY], [MM-DD-YYYY], [YYYY-MM-DD].
Format Waktu
Memilih format: [12 jam], [24 jam].
Bunyi
Mengaktifkan bunyi pengoperasian: [MATI], [NYALA].
Kam Belakng
Memilih gambar dari kamera belakang: [MATI], [NYALA].
Garis Panduan Kamera Belakang
Menampilkan garis panduan kamera belakang: [MATI], [NYALA]. (Tersedia hanya jika [Kam Belakng] diatur ke [NYALA].)
14ID
Posisi Mengemudi
Memilih posisi mengemudi untuk mengoptimalkan penggunaan Apple CarPlay, Android Auto, dan penerima mikrofon: [Sisi Kiri], [Sisi Kanan]
Penyetelan MIC
Mengatur parameter mikrofon sesuai dengan ukuran mobil: [Kabin Kecil], [Kabin Sedang], [Kabin Besar].
Tingkat Penalaan
Mengatur tingkat penalaan FM/AM negara Anda: [50kHz/9kHz], [100kHz/10kHz], [200kHz/10kHz]. (Tersedia hanya saat sumber off dan jam ditampilkan.)
Pengaturan Ulang Pabrikan
Menginisialisasi semua pengaturan ke pengaturan pabrik.
Versi Firmware
Memperbarui dan mengonfirmasi versi firmware.
Lisensi Sumber Terbuka
Menampilkan lisensi perangkat lunak.
Pengaturan Suara (Suara)
EXTRA BASS
Memperkuat suara bass agar sinkron dengan level volume: [MATI], [1], [2].
EQ10/Subwoofer
Memilih kurva ekualizer dan menyetel level subwoofer.
EQ10
Memilih kurva ekualizer: [Xpander], [R&B], [Rock], [Pop], [Dance], [Hip-Hop], [EDM], [Jazz], [Salsa], [Kustom], [MATI]. [Kustom] menyetel kurva ekualizer: –6 hingga +6.
Subwoofer
Menyetel level volume subwoofer: [MATI], –10 hingga +10.
Balance/Pelesap
Menyetel level keseimbangan/fader.
Balance
Menyetel keseimbangan suara antara speaker kiri dan kanan: [Ki15] hingga [Ka15].
Pelesap
Menyetel keseimbangan suara antara speaker depan dan belakang: [Depan 15] hingga [Belakang 15].
Crossover
Menyetel frekuensi cut-off dan fase subwoofer.
Penyaring High Pass
Memilih frekuensi cut-off dari speaker depan/ belakang: [MATI], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].
Penyaring Low Pass
Memilih frekuensi cut-off pada subwoofer: [MATI], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].
Fase Subwoofer
Memilih fase subwoofer: [Normal], [Balik].
DSO (Pengelola Area Dinamis)
Meningkatkan output audio: [MATI], [Rendah], [Sedang], [Tinggi].
Pengaturan Volume
Menyetel level volume dari setiap sumber.
Media
Menyetel volume media: 0 hingga 50.
Panggilan Telepon
Menyetel volume panggilan telepon: 0 hingga
50.
Nada Dering
Menyetel volume nada dering: 0 hingga 50.
Pengenalan Suara
Menyetel volume pengenalan suara: 0 hingga
50.
Panduan Navigasi
Menyetel volume panduan navigasi: 0 hingga
50.
Catatan
Saat menyetel pengaturan volume, parkir mobil di tempat aman karena suaranya mungkin terlalu lantang sehingga suara sekitar tidak terdengar.
Suara Panggilan Telepon
Pilih speaker untuk panggilan handsfree: [Depan], [Belakang], [Semua].
Panduan selama Menelepon
Mengaktifkan pemberitahuan Apple CarPlay melalui panduan navigasi atau suara peringatan selama panggilan telepon: [NYALA], [MATI]. (Tidak tersedia saat Android Auto tersambung.)
15ID
Pengaturan Visual (Visual)
Wallpaper
Mengubah gambar latar dengan menyentuh warna yang diinginkan atau mengatur data foto favorit dalam perangkat USB jenis MSC (Kelas Penyimpanan Massal) sebagai gambar latar. (Tersedia hanya jika data foto adalah file JPEG berukuran 6 MB atau kurang.)
Untuk mengatur data foto
Saat menyambungkan perangkat USB ke port USB, [Anda dapat mengimpor foto dari perangkat USB] akan muncul pada layar. Sentuh [Impor], dan pilih foto favorit Anda.
Peredup Monitor & Cahaya
Meredupkan layar dan pencahayaan tombol: [MATI], [Otomatis], [NYALA]. ([Otomatis] tersedia hanya jika kabel kontrol pencahayaan tersambung dan berfungsi saat lampu depan menyala.)
menyetel level kecerahan saat peredup
diaktifkan: -5 hingga +5.
Level Pencahayaan di Monitor OFF
Meredupkan pencahayaan tombol saat monitor dimatikan: [MATI], [1], [2], [3], [4].
Pengaturan BLUETOOTH (Bluetooth)
Koneksi Bluetooth
Mengaktifkan sinyal BLUETOOTH: [MATI], [NYALA], [Pemasangan] (memasuki mode siaga penyandingan).
Info Perangkat Bluetooth
Menampilkan informasi perangkat yang tersambung dengan unit. (Tersedia hanya jika [Koneksi Bluetooth] diatur ke [NYALA] dan perangkat BLUETOOTH tersambung ke unit.)
Pengaturan Ulang BT
Menginisialisasi semua pengaturan yang terkait BLUETOOTH seperti informasi penyandingan, riwayat panggilan, riwayat perangkat BLUETOOTH yang tersambung, dll.
Informasi Tambahan
Memperbarui Firmware
Untuk memperbarui firmware, kunjungi situs dukungan pada sampul belakang, lalu ikuti petunjuk online.
Catatan
Selama proses pembaruan, jangan melepas perangkat USB.
Tindakan Pencegahan
• Antena berbantuan daya memanjang otomatis.
• Jika Anda memindahkan kepemilikan atau menyerahkan mobil Anda untuk dihancurkan sementara unit terpasang di dalamnya, inisialisasi semua pengaturan ke pengaturan pabrik (halaman 15).
• Jangan percikkan cairan ke dalam unit.
Catatan tentang keselamatan
• Patuhi aturan, undang-undang, dan peraturan lalu lintas setempat.
• Saat sedang mengemudi – Jangan tonton atau operasikan unit, karena
dapat mengganggu konsentrasi dan menyebabkan kecelakaan. Parkir kendaraan di tempat yang aman untuk menonton atau mengoperasikan unit.
– Jangan gunakan fitur konfigurasi atau fungsi lain
yang dapat mengalihkan perhatian Anda terhadap jalan.
– Saat memundurkan mobil, pastikan untuk
melihat ke belakang dan memantau area sekitar dengan hati-hati demi keselamatan, meskipun kamera belakang sudah tersambung. Jangan mengandalkan kamera belakang saja.
• Saat mengoperasikan – Jangan masukkan tangan, jari Anda, atau benda
asing ke dalam unit, karena dapat menyebabkan cedera diri atau kerusakan unit.
– Jauhkan benda-benda kecil dari jangkauan
anak-anak.
– Pastikan Anda memasang sabuk untuk
menghindari cedera jikalau mobil tiba-tiba bergerak.
Mencegah kecelakaan
Jangan operasikan unit atau tonton monitor saat sedang mengemudi.
16ID
Catatan tentang panel LCD
• Jangan sampai panel LCD basah atau terpapar cairan. Hal itu dapat menyebabkan kerusakan.
• Jangan tekan panel LCD dengan keras karena dapat menyebabkan distorsi pada gambar atau menyebabkan kerusakan (yaitu, gambar mungkin tidak jelas, atau panel LCD mungkin rusak).
• Jangan sentuh panel tersebut dengan benda selain jari, karena dapat merusak atau memecahkan panel LCD.
• Bersihkan panel LCD dengan kain lembut yang kering. Jangan gunakan pelarut, seperti benzena, thinner, pembersih yang dijual bebas, atau semprotan antistatis.
• Jangan gunakan unit di luar rentang suhu 0 ºC – 40 ºC.
• Jika mobil Anda diparkir di tempat yang dingin atau panas, gambar mungkin tidak jernih. Namun, monitor tidak akan rusak dan gambar akan menjadi lebih jernih setelah suhu di dalam mobil kembali normal.
• Beberapa titik biru, merah, atau hijau yang tidak bergerak mungkin muncul di monitor. Titik-titik ini disebut "titik-titik terang" dan dapat terjadi pada semua LCD. Panel LCD ini diproduksi secara presisi dengan lebih dari 99,99% segmennya berfungsi. Namun, ada kemungkinan bahwa persentase segmen yang kecil (biasanya 0,01%) mungkin tidak menyala dengan baik. Namun, masalah ini tidak akan mengganggu pengalaman Anda menonton.
Catatan tentang layar sentuh
• Unit ini menggunakan layar sentuh kapasitif. Sentuh layar secara langsung menggunakan ujung jari.
• Pengoperasian multi-sentuh tidak didukung pada unit ini.
• Jangan sentuh layar menggunakan benda tajam seperti jarum, pena, atau kuku. Penggunaan stylus tidak didukung pada unit ini.
• Menyentuh layar saat menggunakan sarung tangan dapat mengakibatkan unit tidak beroperasi dengan benar atau tidak merespons.
• Jangan biarkan benda lain bersentuhan dengan layar sentuh. Jika layar disentuh menggunakan benda selain ujung jari, unit mungkin tidak merespons dengan benar.
• Karena layar menggunakan bahan kaca, jangan biarkan unit terkena goncangan kuat. Jika terdapat retakan atau garis potongan pada layar, jangan sentuh bagian yang rusak karena dapat menyebabkan cedera.
• Jauhkan perangkat listrik lainnya dari layar sentuh. Perangkat listrik lain dapat merusak layar sentuh.
• Jika terdapat tetesan air pada layar sentuh, atau jika Anda menyentuh layar dengan jari yang basah, layar sentuh mungkin tidak bereaksi dengan benar.
Format yang didukung untuk pemutar USB
WMA (.wma)*
Laju bit: 48 kbps – 192 kbps (Mendukung laju bit variabel (VBR))* Frekuensi sampel*4: 44,1 kH z
MP3 (.mp3)*
Laju bit: 48 kbps – 320 kbps (Mendukung laju bit variabel (VBR))* Frekuensi sampel*4: 32 kHz, 44,1 kHz, 48 kHz
AAC (.m4a)*
Laju bit: 40 kbps – 320 kbps (Mendukung laju bit variabel (VBR))* Frekuensi sampel*4: 8 kHz – 48 kHz Bit per sampel (Bit kuantisasi): 16 bit
FLAC (.flac)*
Frekuensi sampel*4: 8 kHz – 48 kHz Bit per sampel (Bit kuantisasi): 16 bit
WAV (.wav)*
Frekuensi sampel*4: 8 kHz – 48 kHz Bit per sampel (Bit kuantisasi): 16 bit, 24 bit
Xvid (.avi)
Codec video: MPEG-4 Profil Sederhana Tingkat Lanjut Codec audio: MP3 (MPEG-1 Layer3) Laju bit: Maks. 4 Mbps Laju bingkai: Maks. 30 fps (30p/60i) Resolusi: Maks. 1280 × 720*
MPEG-4 (.mp4)
Codec video: MPEG-4 Profil Sederhana Tingkat Lanjut, Profile Garis Dasar AVC Codec audio: AAC Laju bit: Maks. 4 Mbps Laju bingkai: Maks. 30 fps (30p/60i) Resolusi: Maks. 1280 × 720*
WMV (.wmv, .avi)*
Codec video: WMV3, WVC1 Codec audio: MP3, WMA Laju bit: Maks. 6 Mbps Laju bingkai: Maks. 30 fps Resolusi: Maks. 720 × 480*
1*2
3
1*2
3
1*2
3
1*6
1
5
5
1
5
17ID
MKV (.mkv)
Codec video: MPEG-4 Profil Sederhana Tingkat Lanjut, Profil Garis Dasar AVC Code audio: MP3, AAC Laju bit: Maks. 5 Mbps Laju bingkai: Maks. 30 fps Resolusi: Maks. 1280 × 720*
*1 File yang dilindungi hak cipta dan file audio multi-saluran
tidak dapat diputar kembali.
*2 File DRM (Manajemen Hak Digital) tidak dapat diputar
kembali.
*3 Laju bi t non-standar atau laju bit yang tida k dijamin
disertakan, tergantung pada frekuensi sampelnya.
*4 Frekuensi sampel mungkin tidak sesuai dengan semua
enkoder.
*5 Angka-angka ini menunjukkan resolusi maksimal video
yang dapat diputar dan tidak menunjukkan resolusi tampilan pemutar. Resolusi layarnya adalah 800 × 480.
*6 Menampilkan informasi tag tidak didukung.
Catatan
Beberapa file mungkin tidak diputar meskipun format filenya didukung oleh unit.
5
Tentang iPhone
Model iPhone yang kompatibel: iPhone SE (generasi ke-2), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s
• Penggunaan lencana Made for Apple berarti aksesori telah dirancang untuk disambungkan secara khusus dengan produk Apple yang diidentifikasi dengan lencana, dan telah disertifikasi oleh pengembang untuk memenuhi standar kinerja Apple. Apple tidak bertanggung jawab atas pengoperasian perangkat ini atau kepatuhannya terhadap standar keselamatan dan peraturan. Perlu diingat bahwa penggunaan aksesori ini dengan produk Apple dapat memengaruhi kinerja nirkabel.
Pemberitahuan tentang lisensi
Produk ini berisi perangkat lunak yang digunakan oleh Sony berdasarkan perjanjian lisensi dengan pemilik hak cipta. Kami wajib memberitahukan isi perjanjian kepada pelanggan seperti yang disyaratkan oleh pemilik hak cipta perangkat lunak tersebut. Untuk detail tentang lisensi perangkat lunak, baca halaman 15.
18ID
Spesifikasi
Bagian monitor
Jenis layar: Monitor LCD lebar berwarna Ukuran: 20,3 cm/ 8 inci Sistem: matriks TFT aktif Jumlah piksel:
1.152.000 piksel (800 × 3 (RGB) × 480)
Sistem warna: PAL/NTSC
Bagian radio
FM
Rentang penalaan:
87,5 MHz – 108,0 MHz (pada tingkat 50 kHz) 87,5 MHz – 108,0 MHz (pada tingkat 100 kHz) 87,5 MHz – 107,9 MHz (pada tingkat 200 kHz)
Tingkat penalaan FM:
50 kHz/100 kHz/200 kHz yang dapat diubah Sensitivitas yang dapat digunakan: 7 dBf Rasio sinyal-terhadap-kebisingan: 70 dB (mono) Pemisahan pada 1 kHz: 45 dB
AM
Rentang penalaan:
531 kHz – 1.602 kHz (pada tingkat 9 kHz)
530 kHz – 1.710 kHz (pada tingkat 10 kHz) Tingkat penalaan AM:
9 kHz/10 kHz yang dapat diubah Sensitivitas: 32 μV
Bagian pemutar USB
Antarmuka: USB port (Kecepatan tinggi) Arus maksimal: 1,5 A
Bagian A/V IN
Sistem warna: PAL/NTSC
Komunikasi nirkabel
Sistem Komunikasi:
Standar BLUETOOTH versi 3.0 Output:
Daya Standar BLUETOOTH Kelas 2
(Maks. Terkonduksi +1 dBm) Jarak komunikasi maksimal*
Garis arah sekitar 10 m Pita frekuensi:
Pita 2,4 GHz (2,4000 GHz – 2,4835 GHz) Metode modulasi: FHSS Profil BLUETOOTH yang Kompatibel*
A2DP (Profil Distribusi Audio Tingkat Lanjut) 1.3
AVRCP (Profile Kontrol Jarak Jauh Video Audio)
1.3
HFP (Profil Handsfree) 1.6
PBAP (Profil Akses Buku Telepon) 1.1 Codec yang terkait: SBC, AAC
1
:
2
:
*1 Jarak aktualnya akan berbeda-beda yang tergantung
pada faktor-faktor seperti rintangan antar perangkat, medan magnet di sekitar oven microwave, listrik statis, sensitivitas penerimaan, kinerja antena, sistem operasi, aplikasi perangkat lunak, dll.
*2 Profil standar BLUETOOTH menunjukkan tujuan
komunikasi BLUETOOTH antar perangkat.
Bagian amplifier daya
Output: Output speaker Impedansi speaker: 4 Ω – 8 Ω Output daya maksimal: 55 W × 4 (pada 4 Ω)
Umum
Persyaratan daya: aki baterai DC 12 V
(ground negatif) Konsumsi arus terhitung: 10 A Ukuran:
Sekitar 206 mm × 136 mm × 133 mm (l/t/d) Masa: Sekitar 1,3 kg Isi kemasan:
Unit utama (1)
Tanyakan kepada dealer untuk informasi selengkapnya.
Desain dan spesifikasi bisa berubah tanpa pemberitahuan.
19ID
Hak Cipta
Merek kata dan logo Bluetooth® adalah merek dagang terdaftar yang dimiliki oleh Bluetooth SIG, Inc. dan penggunaan merek tersebut oleh Sony Group Corporation dan anak perusahaannya berdasarkan lisensi. Merek dagang dan nama dagang lain adalah milik pemiliknya masing-masing.
Windows Media adalah merek dagang terdaftar atau merek dagang Microsoft Corporation di Amerika Serikat dan/atau negara lain.
Produk ini dilindungi oleh hak kekayaan intelektual tertentu dari Microsoft Corporation. Dilarang menggunakan atau mendistribusikan teknologi semacam ini di luar produk ini tanpa lisensi dari Microsoft atau anak perusahaan Microsoft yang berwenang.
Apple, iPhone, dan Lightning adalah merek dagang A pple Inc., yang terdaftar di AS dan negara-negara l ain. Apple CarPlay adalah merek dagang Apple Inc.
IOS merupakan merek dagang atau merek dagang terdaftar Cisco di AS dan negara lain dan digunakan berdasarkan lisensi.
Android, Android Auto, Google dan Google Play adalah merek dagang Google LLC.
WebLink adalah merek dagang terdaftar Abalta Technologies, Inc. di Amerika Serikat dan merek dagang di negara lain.
PRODUK INI DILISENSIKAN BERDASARKAN LISENSI PORTOFOLIO PATEN VISUAL MPEG-4 UNTUK PENGGUNAAN PRIBADI DAN NON-KOMERSIAL PERANGKAT KONSUMSI UNTUK MELAKUKAN DECODING VIDEO SESUAI DENGAN STANDAR VISUAL MPEG-4 ("VIDEO MPEG-4") YANG DI­ENCODING OLEH KONSUMEN YANG TERLIBAT DALAM AKTIVITAS PRIBADI DAN NONKOMERSIAL DAN/ATAU DIPEROLEH DARI PENYEDIA VIDEO YANG DILISENSIKAN OLEH MPEG LA UNTUK MENGHADIRKAN VIDEO MPEG-4. TIDAK ADA LISENSI YANG DIBERIKAN ATAU DISIRATKAN UNTUK PENGGUNAAN LAIN. INFORMASI TAMBAHAN TERMASUK YANG TERKAIT DENGAN PENGGUNAAN PROMOSI, INTERNAL DAN KOMERSIAL DAN LISENSI MUNGKIN DIPEROLEH DARI MPEG LA, LLC. LIHAT HTTP://WWW.MPEGLA.COM
Semua merek dagang lain adalah merek dagang dari pemiliknya masing-masing.
Pemecahan Masalah
Daftar periksa berikut ini akan membantu Anda mengatasi masalah yang mungkin Anda hadapi pada unit ini. Sebelum mengecek daftar periksa di bawah ini, periksa prosedur penyambungan dan pengoperasian. Jika masalah tidak teratasi, kunjungi situs dukungan pada sampul belakang.
Umum
Tidak ada suara bip.
Amplifier daya opsional tersambung dan Anda
tidak menggunakan amplifier bawaan.
Sekring rusak. Unit menimbulkan kebisingan saat posisi kunci kontak diputar.
Kabel tidak dipasangkan dengan benar dengan
konektor daya aksesori mobil.
Tampilan ini lenyap dari/tidak muncul pada monitor.
Fungsi pematian monitor diaktifkan (halaman 6).
– Sentuh di mana saja pada layar untuk
menyalakan layar kembali.
Item menu tidak dapat dipilih.
Item menu yang tidak tersedia ditampilkan
dalam warna abu-abu.
Fungsi USB tidak bekerja dengan benar.
Jangan menggunakan kabel ekstensi USB karena
akan mengurangi kualitas sinyal. – Gunakan kabel USB pendek saat
menyambungkan perangkat USB, atau mengganti kabel USB dengan yang baru.
Unit tidak dapat dioperasikan.
Nyalakan ulang unit.
– Pada remote control di roda kemudi, tekan dan
tahan MODE selama 10 detik, lalu tekan dan tahan (tutup telepon) selama 2 detik saat pesan konfirmasi muncul.
– Demi keselamatan, jangan nyalakan ulang unit
saat sedang mengemudi.
Jam yang diatur secara otomatis tidak akurat.
Data jam pada gelombang radio tidak akurat.
– Atur jam secara manual (halaman 14).
20ID
Pengoperasian layar sentuh
Layar sentuh tidak merespons sentuhan Anda dengan benar.
Sentuh satu bagian layar saja pada saat
bersamaan. Jika dua bagian atau lebih disentuh secara bersamaan, layar tidak akan merespons dengan benar.
Sentuh layar yang peka tekanan dengan kuat.Layar sentuh tidak merespons jika disentuh
dengan jari yang basah atau jika terdapat tetesan air pada permukaan layar sentuh. – Keringkan jari Anda terlebih dahulu, atau seka
tetesan air pada layar sentuh sampai bersih.
Multi-sentuh tidak dikenali.
Pengoperasian multi-sentuh tidak didukung
pada unit ini.
Penerimaan radio
Penerimaan radio lemah. Muncul gangguan statis.
Sambungkan antena dengan kencang.
Stasiun tidak dapat diterima.
Pengaturan tingkat penalaan telah dihapus.
– Atur lagi tingkat penalaan (halaman 15).
RDS
PTY menampilkan [PTY tidak ditemukan.].
Stasiun saat ini bukan stasiun RDS, atau
penerimaan radio lemah.
Gambar
Tidak ada gambar/terjadi kebisingan gambar.
Sambungan belum dibuat dengan benar.
– Periksa sambungan antara unit ini dan
peralatan lain, lalu atur selektor input peralatan ke sumber yang sesuai dengan unit ini.
Pemasangan tidak benar.
– Pasang unit pada sudut kurang dari 30° di
bagian yang stabil pada mobil.
Gambar tidak pas di layar.
Rasio aspek ditetapkan pada sumber pemutaran.
Suara
Tidak ada suara/suara dilompati/suara terbelah.
Sambungan belum dibuat dengan benar.Periksa sambungan antara unit ini dan peralatan
yang tersambung, lalu atur selektor input peralatan ke sumber yang sesuai dengan unit ini.
Pemasangan tidak benar.
– Pasang unit pada sudut kurang dari 30° di
bagian yang stabil pada mobil.
Unit berada dalam mode jeda/mundur/maju
cepat.
Pengaturan output tidak dilakukan dengan
benar.
Volume terlalu rendah.Fungsi pengurangan suara diaktifkan.
Format tidak didukung.
– Periksa apakah format ini didukung oleh unit ini
(halaman 17).
Suaranya bising.
Jauhkan kabel cord dan kabel satu sama lain.
Pemutaran USB
Item tidak dapat diputar.
Sambungkan ulang perangkat USB.
Perangkat USB perlu waktu lebih lama untuk diputar.
Perangkat USB berisi file yang berukuran besar
atau file dengan struktur pohon yang rumit.
File audio tidak dapat diputar.
Perangkat USB yang diformat dengan sistem file
se lain FAT12, FAT1 6, FAT3 2, at au exFAT t ida k didukung.*
* Unit in i mendu kung FAT12 , FAT16, FAT32 dan exFAT tetap i
beberapa perangkat USB mungkin tidak mendukung format terseb ut. Untuk selengkapnya, baca petunjuk pengoperasian dari tiap perangkat USB atau hubungi produsennya.
Smartphone yang tersambung ke port USB tidak dapat diputar.
Sambungan USB hanya tersedia untuk ponsel
Android dan perangkat USB dalam mode MSC.
Saat menggunakan smartphone selain ponsel
Android, buat sambungan BLUETOOTH (halaman 7).
Fungsi BLUETOOTH
Perangkat BLUETOOTH lain tidak dapat mendeteksi unit ini.
Atur [Koneksi Bluetooth] ke [NYALA]
(halaman 16).
Saat menyambungkan ke perangkat BLUETOOTH,
unit ini tidak dapat dideteksi oleh perangkat lain. Putuskan sambungan yang sedang terjalin dan cari unit ini dari perangkat lain.
Tergantung pada smartphone atau ponselnya,
Anda mungkin perlu menghapus unit ini dari riwayat smartphone atau ponsel yang tersambung, lalu sandingkan lagi (halaman 7).
Sambungan tidak memungkinkan.
Periksa prosedur pemasangan dan
penyambungan di buku panduan perangkat lain, dll., lalu lakukan operasi tersebut lagi.
Nama perangkat yang tersambung tidak muncul.
Tergantung pada status perangkat lain, nama
mungkin saja tidak dapat diperoleh.
Tidak ada nada dering.
Naikkan volume saat menerima panggilan.Speaker tidak tersambung dengan unit ini.
21ID
– Sambungkan speaker ke unit ini. Untuk memilih
speaker nada dering, tekan HOME, lalu sentuh [Pengaturan], lalu pilih [Suara Panggilan Telepon] di [Suara] (halaman 15).
Volume suara pembicara rendah.
Naikkan volume selama melakukan panggilan.
Lawan bicara berkata bahwa volume terlalu rendah atau terlalu tinggi.
Setel level [MIC Gain] (halaman 12).
Echo atau kebisingan terjadi selama percakapan dalam panggilan.
Kurangi volume.Atur [Kualitas Ucapan] ke [Mode 1] atau [Mode 2].
(halaman 12).
Jika kebisingan sekitar selain suara panggilan
telepon kencang, coba kurangi kebisingan tersebut. – Tutup jendela jika kondisi jalan terlalu bising. – Turunkan level AC jika suara AC lantang.
Kualitas suara telepon buruk.
Kualitas suara telepon tergantung pada kondisi
penerimaan ponsel. – Pindahkan mobil ke tempat yang
memungkinkan Anda meningkatkan sinyal ponsel jika penerimaannya buruk.
Volume perangkat BLUETOOTH yang tersamb ung rendah atau tinggi.
Level volume akan berbeda-beda tergantung
perangkat BLUETOOTH-nya. – Kurangi perbedaan level volume antara unit ini
dan perangkat BLUETOOTH (halaman 9).
Suara dilompati selama streaming audio atau sambungan BLUETOOTH gagal.
Kurangi jarak antara unit ini dan perangkat
BLUETOOTH.
Jika perangkat BLUETOOTH disimpan di kotak
yang mengganggu sinyal, keluarkan dari kotak sambil menggunakan perangkat tersebut.
Beberapa perangkat BLUETOOTH atau perangkat
lain (misalnya, perangkat radio HT) yang memancarkan gelombang radio digunakan di lokasi terdekat. – Matikan perangkat lain tersebut. – Tambah jarak antara unit ini dan perangkat lain
tersebut.
Suara pemutaran berhenti untuk sementara
waktu saat unit ini tersambung ke ponsel. Hal ini bukan kerusakan.
Perangkat BLUETOOTH yang tersambung tidak dapat dikontrol selama streaming audio.
Periksa apakah perangkat BLUETOOTH yang
tersambung mendukung AVRCP atau tidak.
Beberapa fungsi tidak bekerja.
Periksa apakah perangkat yang tersambung
mendukung fungsi yang dimaksud atau tidak.
Panggilan dijawab tanpa sengaja.
Ponsel yang tersambung diatur untuk memulai
panggilan secara otomatis.
[Jawab Otomatis] dari unit ini diatur ke [NYALA]
(halaman 12).
Penyandingan gagal karena waktu habis.
Tergantung pada perangkat yang tersambung,
batas waktu pemasangan mungkin pendek. Coba selesaikan penyandingan dalam periode waktu tersebut.
Tidak dapat menyandingkan.
Unit mungkin tidak dapat menyandingkan
dengan perangkat BLUETOOTH yang disandingkan sebelumnya setelah inisialisasi unit jika informasi penyandingan unit muncul pada perangkat BLUETOOTH. Dalam kasus ini, hapus informasi penyandingan unit dari perangkat BLUETOOTH, lalu sandingkan lagi.
Fungsi BLUETOOTH tidak dapat dioperasikan.
Matikan kunci kontak. Tunggu sebentar, lalu
putar kunci kontak ke posisi ACC.
Tidak ada suara yang dikeluarkan dari speaker mobil selama panggilan handsfree.
Jika suara keluar dari ponsel, atur ponsel agar
mengeluarkan suara dari speaker mobil.
Apple CarPlay
Ikon Apple CarPlay tidak muncul pada layar HOME.
iPhone Anda tidak kompatibel dengan Apple
CarPlay. – Baca panduan yang disertakan dengan iPhone
Anda, atau kunjungi situs web Apple CarPlay.
Putuskan sambungan iPhone Anda dari USB port
lalu sambungkan kembali.
Apple CarPlay mungkin tidak tersedia di negara
atau wilayah Anda.
Pastikan Anda menggunakan kabel Lightning
yang bersertifikasi untuk menyambungkan iPhone dengan unit.
Android Auto
Ikon Android Auto tidak muncul pada layar HOME.
Periksa ponsel Android dan terima penafian dan
permintaan izin yang diperlukan untuk menggunakan Android Auto pada ponsel Android.
Tidak ada aplikasi Android Auto yang terinstal
pada ponsel Android Anda.
22ID
– Unduh dan instal aplikasi Android Auto ke
ponsel Android.
Ponsel Android Anda tidak kompatibel dengan
Android Auto. – Ponsel Android Anda perlu mendukung
Android Auto. Baca panduan yang disertakan dengan ponsel Android Anda, atau kunjungi situs web Android Auto.
Putuskan sambungan ponsel Android Anda dari
USB port lalu sambungkan kembali.
Android Auto mungkin tidak tersedia di negara
atau wilayah Anda.
WebLink™
WebLink™ tidak dapat digunakan.
Wajib menginstal aplikasi "WebLink Host" ke
iPhone/ponsel Android. – Periksa situs berikut lalu instal aplikasi
"WebLink Host". http://abaltatech.com/WL
– Periksa iPhone/ponsel Android dan terima
penafian dan izin untuk menggunakan WebLink™ di iPhone/ponsel Android.
Putuskan sambungan iPhone/ponsel Android
Anda dari USB port lalu sambungkan kembali.
Nyalakan ulang ponsel iPhone/Android.WebLink™ mungkin tidak tersedia di negara atau
kawasan Anda.
Tidak ada suara./Suara rendah.
Ponsel iPhone/Android tidak tersambung ke unit
via BLUETOOTH. – Buat koneksi BLUETOOTH.
Tingkat volume [Bluetooth] rendah.
– Setel tingkat volume [Bluetooth].
Pesan
Umum
Tidak dapat memutar konten ini.
Konten yang dipilih saat ini tidak dapat diputar,
atau dilompati ke konten selanjutnya. – Konten tidak dalam format file yang didukung.
Periksa format file yang didukung (halaman 17).
Perangkat tidak merespons
Unit tidak mengenali perangkat USB yang
tersambung. – Sambungkan ulang perangkat USB. – Periksa apakah perangkat USB didukung oleh
unit ini.
Tak Ada Data yang Dapat Diputar
Perangkat USB tidak memiliki data yang dapat
diputar. – Muat data/file musik ke dalam perangkat USB.
Peringatan Arus Berlebih di USB
Perangkat USB diberi muatan berlebih.
– Putuskan sambungan perangkat USB. – Menunjukkan bahwa perangkat USB rusak, atau
perangkat yang tersambung tidak didukung.
Perangkat USB tidak didukung
Untuk informasi selengkapnya tentang
kompatibilitas perangkat USB, kunjungi situs dukungan yang terdapat pada sampul belakang.
Hub tidak didukung.
Hub USB tidak didukung pada unit ini.
BLUETOOTH
Perangkat Bluetooth tidak ditemukan.
Unit ini tidak dapat mendeteksi perangkat
BLUETOOTH yang dapat disambungkan. – Periksa pengaturan BLUETOOTH dari perangkat
yang melakukan sambungan.
Tidak ada perangkat di dalam daftar perangkat
BLUETOOTH yang terdaftar. – Lakukan penyandingan dengan perangkat
BLUETOOTH (halaman 7).
Perangkat bebas tangan tidak tersedia.
Ponsel tidak tersambung.
– Sambungkan ponsel (halaman 7).
WebL ink™
Instal dan jalankan aplikasi WebLink Host di ponsel Anda. Untuk informasi lebih lanjut, kunjungi www.abaltatech.com/wl
Kunjungi www.abaltatech.com/wl, dan periksa
informasi selengkapnya.
23ID
Koneksi
CAMERA IN
USB
A/V IN
dari perangkat A/V (tidak disertakan)
dari antena mobil*
5
*
3
*
4
*
2
kabel USB dari mobil
*1
dari kamera belakang
Koneksi
*1 Jangan gunakan kabel ekstensi USB. *2 Subwoofer (tidak disertakan) *3 Amplifier daya (tidak disertakan) *4 Kabel konektor RCA (tidak disertakan) *5 Tergantung pada jenis mobil, gunakan adaptor (tidak
disertakan) jika konektor antena tidak sesuai.
24ID
Situs dukungan
Jika Anda punya pertanyaan atau ingin mendapatkan informasi dukungan terbaru tentang produk ini, harap kunjungi situs web di bawah ini:
Support site
If you have any questions or for the latest support information on this product, please visit the web site below:
https://www.sony-asia.com/support
For more information on this model, refer to XAV-AX5160 on the support sites.
Untuk informasi selengkapnya tentang model ini, baca XAV-AX5160 di situs pendukung.
©2021 Printed in Thailand
Loading...
