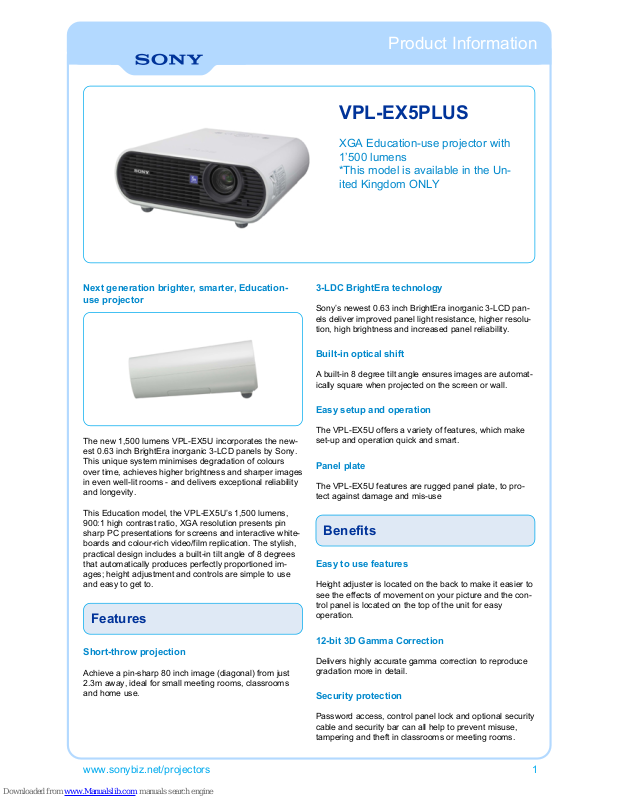

Sony VPL-EX5PLUS Product Information
VPL-EX5PLUS
XGA Education-use projector with
1’500 lumens
*This model is available in the United Kingdom ONLY
Next generation brighter, smarter, Educationuse projector
The new 1,500 lumens VPL-EX5U incorporates the newest 0.63 inch BrightEra inorganic 3-LCD panels by Sony.
This unique system minimises degradation of colours
over time, achieves higher brightness and sharper images
in even well-lit rooms - and delivers exceptional reliability
and longevity.
This Education model, the VPL-EX5U’s 1,500 lumens,
900:1 high contrast ratio, XGA resolution presents pin
sharp PC presentations for screens and interactive whiteboards and colour-rich video/film replication. The stylish,
practical design includes a built-in tilt angle of 8 degrees
that automatically produces perfectly proportioned images; height adjustment and controls are simple to use
and easy to get to.
Features
Short-throw projection
Achieve a pin-sharp 80 inch image (diagonal) from just
2.3m away, ideal for small meeting rooms, classrooms
and home use.
3-LDC BrightEra technology
Sony’s newest 0.63 inch BrightEra inorganic 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.
Built-in optical shift
A built-in 8 degree tilt angle ensures images are automatically square when projected on the screen or wall.
Easy setup and operation
The VPL-EX5U offers a variety of features, which make
set-up and operation quick and smart.
Panel plate
The VPL-EX5U features are rugged panel plate, to protect against damage and mis-use
Benefits
Easy to use features
Height adjuster is located on the back to make it easier to
see the effects of movement on your picture and the control panel is located on the top of the unit for easy
operation.
12-bit 3D Gamma Correction
Delivers highly accurate gamma correction to reproduce
gradation more in detail.
Security protection
Password access, control panel lock and optional security
cable and security bar can all help to prevent misuse,
tampering and theft in classrooms or meeting rooms.
Product Information
www.sonybiz.net/projectors 1
Zoom in detail
4 x digital zoom enables close examination of detail in
any presentation.
Low-cost ownership
Power Saving and power consumption reduction save energy and enhance longevity.
Freeze frame functionality
The freeze image feature allows images to be held while
new presentations are loaded.
Low noise
The front ventilation and quiet fan technology design
means heat and minimal noise are deflected forward
away from participants.
Quick start, fast finish
The projector is ready to display PC or video images just
4 seconds* from power on and can be unplugged and removed from a room soon after power off.
Dynamic Detail Enhancer (DDE)
This technology generates high quality images through
the Interlace/Progressive conversion processor, resulting
in extremely accurate image reproduction.
6 picture modes
Presentation, Dynamic, Standard, Game, Living and
Cinema modes enable you to get optimum performance
for lighting in room and media being projected.
On Site Engineer De-Install & Re-Install
Warranty*
3 years total engineer service solution cover and peace of
mind from Sony.
3 year unlimited lamp warranty* providing total cost of
ownership for 3 years from the date of purchase of your
EX5PLUS.
Current Offer: Free Upgrade to 5 year PrimeSupport cover until December 31st (Years 4 and 5 - hardware only
without engineer or lamp warranty)
* - For public sector organisations only.
Technical Specifications
--Overview--
Native Resolution XGA (1024 x 768 x 3)
Panel Type BrightEra Inorganic 0.63-inch TFT LCD, 2,359,296 pixels
Projection System 3 LCD panels, 1 lens system
Brightness 1500 ANSI lumen
Contrast Ratio 900:1
Weight Approx. 3kg
Dimensions (W x H x D) 314 x 109 x 269 mm
--General--
Standard Lens Zoom 1.2 times (Manual)
Vertical Keystone Correction +/- 30°
Lamp Type 190W Ultra High Pressure
Lamp Life (Replacement time) 3000 H
Filter Cleaning Time 3000 H
Speaker 1W Mono
Max Power Consumption 260W
Standby Power Consumption 3W
Body Colour White
--Throwing Distance--
Min - Max Screen Size (diagonally) 40-300 inch
40-inch / 1m screen 1.1 – 1.4m
80-inch / 2m screen 2.3 – 2.8m
100-inch / 2.5m screen 2.9 – 3.5m
200-inch / 5.1m screen 5.8 – 7.0m
300-inch / 7.6m screen 8.8 - 10.5m
VPL-EX5PLUS
www.sonybiz.net/projectors 2
