UWP Series
UHF Wireless Microphone Package
www.sony.com/ProAudio
New UWP Series – Evolving with Extra
Robustness and Functionality
The Sony UWP Series UHF Wireless Microphone Package, introduced in 2003, set a
milestone in the history of wireless microphone systems with its uncompromised ease
of operation. It brought a number of significant benefits to wireless applications,
including highly stable audio reception by utilizing a space diversity reception system
and proven interference-free multi-channel operation. Since its introduction, the
UWP Series has been widely adopted around the world for a variety of applications
such as news-gathering, interviewing, professional video production, entertainment,
live events, and conferences to name just a few.
Now, Sony has further evolved the UWP Series by introducing five new packages –
the UWP-V1, UWP-V2, UWP-V6, UWP-X7, and UWP-X8 – for a much higher level of
stability, mobility, robustness, and operational convenience than their predecessors.
Each package comes with both a transmitter and a receiver, allowing you to get up
and running straight from the box.
The UWP-V Series models – the UWP-V1, UWP-V2, and UWP-V6 – come with a
transmitter and portable-type receiver, suitable for use with Sony’s camcorders for
ENG and EFP applications, while the UWP-X Series models – the UWP-X7 and UWP-X8
– come with a transmitter and a tuner module that can be installed into a mixer or
tuner base unit, ideal for PA applications. The transmitters include the UTX-B2
bodypack transmitter, the UTX-H2 handheld microphone, and the UTX-P1 plug-on
transmitter, while the receivers include the URX-P2 portable tuner and the URX-M2
tuner module.
One of the most outstanding features of the new UWP Series is its extremely robust
metal chassis, which enables it to withstand even harsh operational environments
and makes it perfect for use out in the field. In addition, various functionalities have
been enhanced on the new UWP Series, such as auto channel scanning, selectable
MIC/LINE input, and extended operating time.
With a wide choice of packages, stable transmission/reception capability, and
enhanced operability, the UWP Series is an ideal choice for all types of wireless
sound-gathering microphone applications.
2
Common Features
Compact, Lightweight, and Robust Design
All components of the UWP Series – the bodypack
transmitter, handheld microphone, plug-on transmitter,
portable receiver, and tuner module – utilize an extremely
robust metal chassis, which is ideal for heavy-duty wireless
operations. The metal body also allows for an extremely
compact and lightweight design, providing the high level
of mobility required for ENG and EFP operations. What’s
more, the black body complements Sony’s professional
camcorders extremely well.
Stable Transmission and Reception
The UWP Series Wireless Microphone Package uses three
core technologies to provide stable transmission and
reception:
PLL Synthesized System
The UWP Series employs a UHF PLL (Phase Locked Loop)
frequency synthesized system, which provides a stable
carrier signal that helps to avoid interference with other
frequency channels and allows for easy access to multiple
frequencies. The PLL-controlled system provides highly
stable, user-selectable frequencies in increments of
125 kHz. Users can choose from 188 frequencies on U models,
189 frequencies on CE models, and 102 frequencies on AU
models.
Space Diversity Reception System
Typically, wireless microphone transmission systems can be
subject to interruptions in reception (signal dropout), but
the UWP Series reduces this to a minimum. Utilizing a space
diversity reception system, it achieves stable reception by
using dual-antenna inputs/reception circuits. These receive
signals over two different paths and automatically select
the stronger RF signal for output. The angle of the
antennas on the portable receiver can also be adjusted,
which helps to further eliminate signal dropout.
Tone Squelch Circuitry
The UWP Series transmitters transmit a 32-kHz pilot-tone
signal along with the audio signal. The tuner’s squelch
circuit recognizes this tone signal, and outputs the audio
signal only when this tone signal is received. This function
virtually prevents the output of unwanted signals and noise
from other signal transmissions in the air, as well as the
RF noise and popping noise that occur when the
transmitter is powered on or off.
Pre-programmed Operating Frequencies
The transmitters and tuners included in the UWP Series
incorporate groups of intermodulation-free
preprogrammed frequencies that have been carefully
calculated and practically tested. By selecting from these
preprogrammed frequency groups, users can quickly and
easily operate up to 16 wireless microphones
simultaneously.
The UWP Series operates within the following frequency
ranges:
Operating frequencies Selectable
U model U3032
CE model CE62
AU model AU66 792 MHz to 806 MHz
566 MHz to 590 MHz
(TV 30 to 33 channels)
U4244
638 MHz to 662 MHz
(TV 42 to 45 channels)
798 MHz to 822 MHz
(TV 62 to 64 channels)
CE67
838 MHz to 862 MHz
(TV 67 to 69 channels)
(TV 66 to 67 channels)
frequencies
188 (in 125-kHz steps)
188 (in 125-kHz steps)
189 (in 125-kHz steps)
/960 (in 25-kHz steps)
189 (in 125-kHz steps)
/960 (in 25-kHz steps)
102 (in 125-kHz steps)
Auto Channel Scanning Function
The URX-P2 portable receiver and URX-M2 tuner module
provide a convenient auto channel scanning function that
allows for fast, easy, and safe frequency channel changes.
These models automatically detect unoccupied channels,
allowing operators easily to select the most appropriate
channel to use.
3

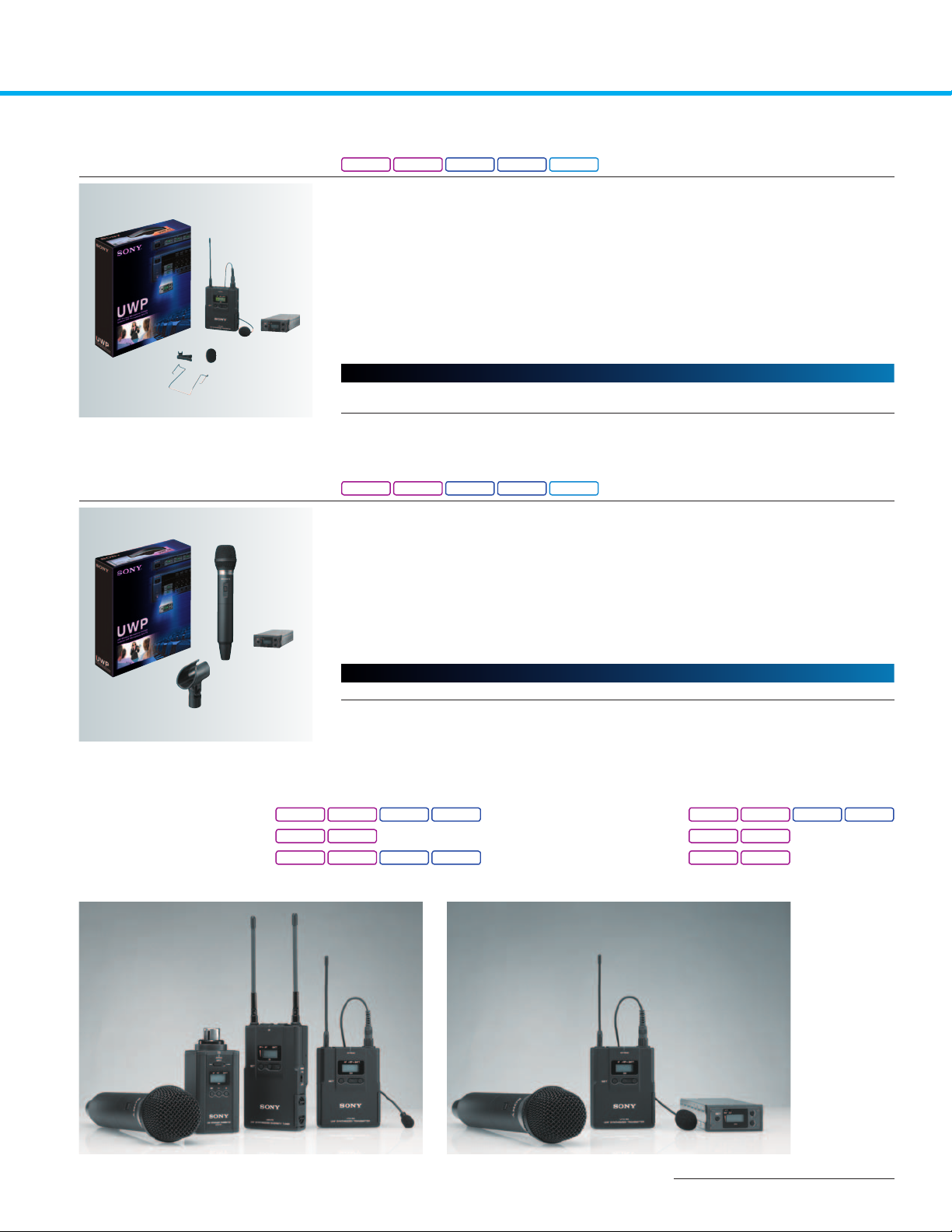

UWP Series Package Lineup
UWP-V1
UWP-V2
U3032
•Consists of UTX-B2 bodypack transmitter and URX-P2 portable receiver
•UTX-B2 bodypack transmitter
– Extremely compact, lightweight, and robust metal body
– Switchable MIC/LINE input level and adjustable attenuator (0 to 21 dB, 3-dB steps)
– Supplied omni-directional lavalier microphone utilizes a newly developed miniature
•URX-P2 portable receiver
– Compact, lightweight, and robust metal body – well-suited for use with Sony’s
– Convenient auto channel scanning function, allowing automatic search for
Supplied accessories
UTX-B2
URX-P2 Shoe-mount adapter (x1), belt clip (x1), cables (3-pole locking mini plug/XLR type and
U3032 U4244 CE62 CE67 AU66
•Consists of UTX-H2 handheld microphone and URX-P2 portable receiver
•UTX-H2 handheld microphone
– Incorporates a uni-directional dynamic microphone capsule with minimized
•URX-P2 portable receiver
– Compact, lightweight, and robust metal body – well-suited for use with Sony’s
– Convenient auto channel scanning function, allowing automatic search for
Supplied accessories
UTX-H2 Microphone holder (x1)
URX-P2 Shoe-mount adapter (x1), belt clip (x1), cables (3-pole locking mini plug/XLR type and
U4244
metal body
professional camcorders
unoccupied channels
popping and wind noise
professional camcorders
unoccupied channels
CE62
Omni-directional lavalier microphone (x1), windscreen (x3), microphone holder clip (x1), belt clip (x1)
3-pole locking mini plug/stereo mini plug) (x1 each)
3-pole locking mini plug/stereo mini plug) (x1 each)
CE67
AU66
UWP-V6
4
U3032
• Consists of UTX-B2 bodypack transmitter, UTX-P1 plug-on transmitter, and URX-P2
portable receiver
•UTX-B2 bodypack transmitter
– Extremely compact, lightweight, and robust metal body
– Switchable MIC/LINE input level and adjustable attenuator (0 to 21 dB, 3-dB steps)
– Supplied omni-directional lavalier microphone utilizes a newly developed miniature
•UTX-P1 plug-on transmitter
–
•URX-P2 portable receiver
– Compact, lightweight, and robust metal body – well-suited for use with Sony’s
– Convenient auto channel scanning function, allowing automatic search for
Supplied accessories
UTX-B2
UTX-P1 Soft case (x1)
URX-P2 Shoe-mount adapter (x1), belt clip (x1), cables (3-pole locking mini plug/XLR type and
U4244
metal body
Converts a wired microphone to a wireless microphone via an XLR-type connector
professional camcorders
unoccupied channels
CE62
Omni-directional lavalier microphone (x1), windscreen (x3), microphone holder clip (x1), belt clip (x1)
3-pole locking mini plug/stereo mini plug) (x1 each)
CE67
UWP-X7
U3032
U4244
CE62
CE67
AU66
•Consists of UTX-B2 bodypack transmitter and URX-M2 tuner module
•UTX-B2 bodypack transmitter
– Extremely compact, lightweight, and robust metal body
– Switchable MIC/LINE input level and adjustable attenuator (0 to 21 dB, 3-dB steps)
– Comes with a uni-directional lavalier microphone
•URX-M2 tuner module

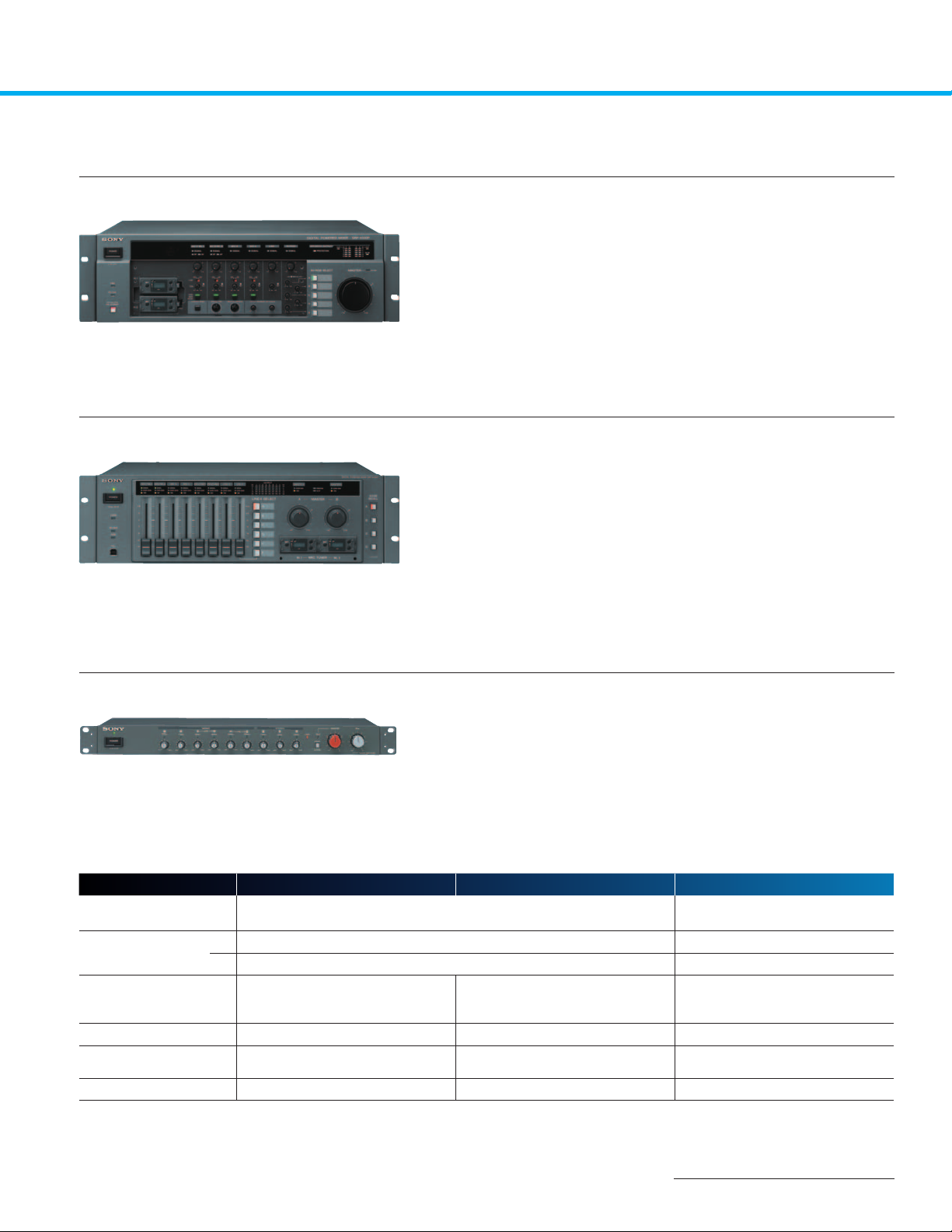

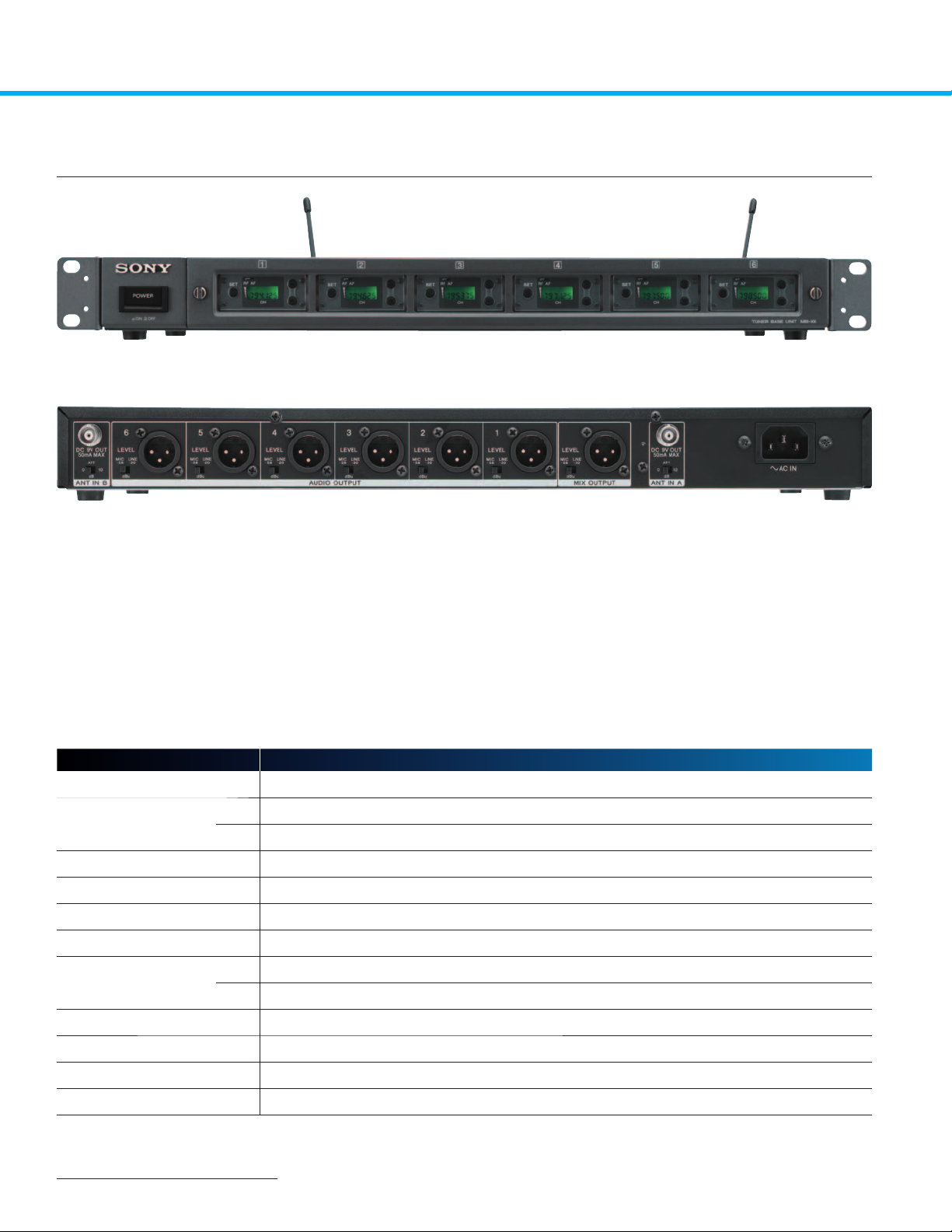

– Installed into the MB-X6 tuner base unit or the SRP-X500P/X700P all-in-one type
presentation mixer/amplifier
– Convenient auto channel scanning function, allowing automatic search for
unoccupied channels
Supplied accessories
UTX-B2 Uni-directional lavalier microphone (x1), windscreen (x1), microphone holder clip (x1),
belt clip (x1)
UWP-X8
U3032
U4244
CE62
•Consists of UTX-H2 handheld microphone and URX-M2 tuner module
•UTX-H2 handheld microphone
– Incorporates a uni-directional dynamic microphone capsule with minimized
popping and wind noise
•URX-M2 tuner module
– Installed into the MB-X6 tuner unit or the SRP-X500P/X700P all-in-one type
presentation mixer/amplifier
– Convenient auto channel scanning function, allowing automatic search for
unoccupied channels
Supplied accessories
UTX-H2 Microphone holder (x1)
Each product is also offered separately from the packages listed
here, and they are available for the following frequency ranges:
UTX-B2V Bodypack Transmitter
UTX-B2X Bodypack Transmitter
UTX-H2 Handheld Microphone
U3032 U3032
U3032 U3032
U3032 U3032
U4244 U4244
U4244 U4244
U4244 U4244
CE62 CE62
CE62
CE67 CE67
CE67
CE67
AU66

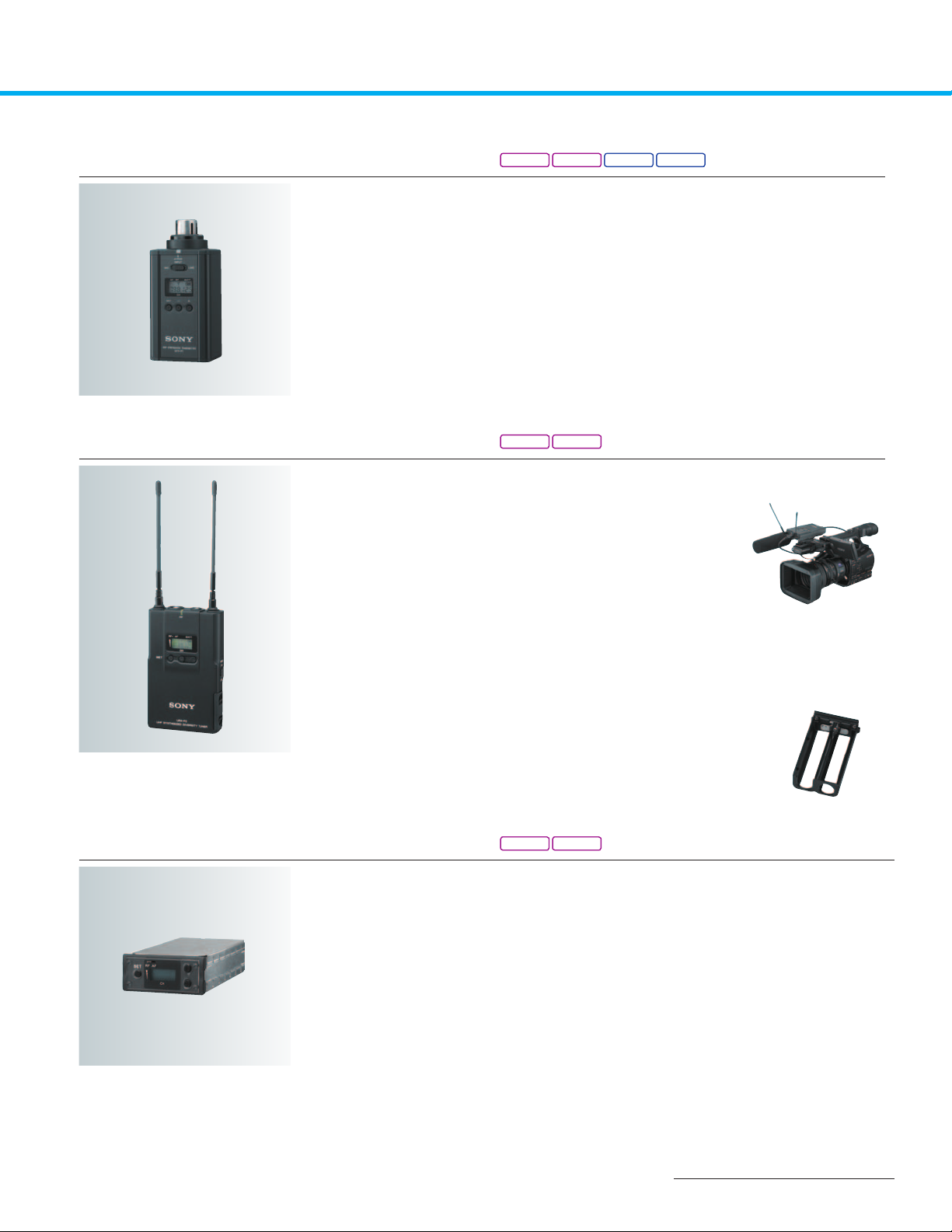

UTX-P1 Plug-on Transmitter
URX-P2 Portable Receiver
URX-M2 Tuner Module
UWP-V Series UWP-X Series
5

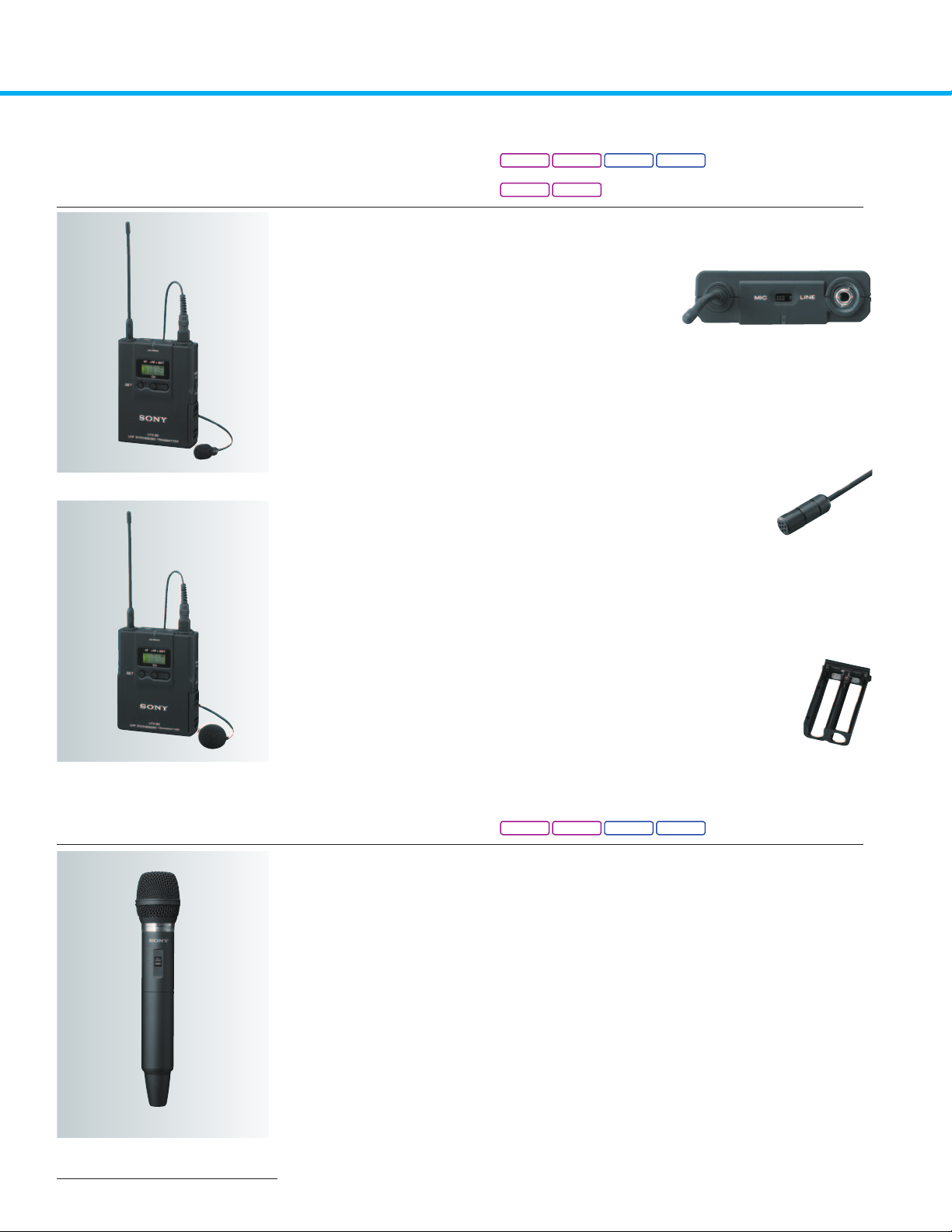

Product Features
UTX-B2V Bodypack Transmitter
UTX-B2X Bodypack Transmitter
•Extremely compact, lightweight, and robust metal body
– 2 1/2 × 3 1/4 × 3/4 inches (63 × 82.5 × 18.7 mm) excluding the antennas
– Approx. 5.1 oz (145 g) including batteries
• Switchable MIC/LINE input level and adjustable
attenuator: 0 to 21 dB, 3-dB steps
• Selectable RF output power: 5 mW for multi-channel
operations or 30 mW for long-distance transmission
•Backlit LCD with an extensive information display
– Operating channel number and its frequency in MHz, attenuator level, RF output level
setting (High/Low), audio input status, RF output status, transmitter battery status, and
accumulated operating time
• Approximately eight hours of continuous operation with two AA-size alkaline (LR6)
batteries (at 77 °F (25 °C) at 30-mW output power)
•Equipped with a 3-pole mini-jack connector with lock mechanism
• UTX-B2V*: Comes with a newly developed miniature metal body omni-
UTX-B2V
directional lavalier microphone ( 6.8 mm)
– Clear and crisp sound pick up with minimized popping and
wind noise
– 3.9 feet (1.2 m) microphone cable
– Supplied with a microphone windscreen (x3), microphone holder clip,
and belt clip
•UTX-B2X*: Comes with a uni-directional lavalier microphone ( 11.5 mm)
– 3.9 feet (1.2 m) microphone cable
– Supplied with a microphone windscreen (x1), microphone holder clip, and belt clip
• Supplied battery cartridge is compatible with those of URX-P2 and Sony’s WL-800 Series,
allowing quick and easy battery exchange between these models
U3032
U3032 U4244
U4244
CE62
CE67
Omni-directional
lavalier microphone
UTX-B2X
UTX-H2 Handheld Microphone
•Compact, lightweight, and robust metal body
– 1 15/16 × 10 inches (49 x 253 mm)
– Approx. 11 oz (308 g) including batteries
• Incorporates a uni-directional dynamic microphone capsule that minimizes popping
and wind noise
• Selectable RF output power: 5 mW for multi-channel operations or 30 mW for long-
distance transmission
• Attenuator function allows adjustment of audio input level to suit each user’s voice: 0 to
21 dB, 3-dB steps
•Internal LCD with an extensive information display
– Operating channel number and its frequency in MHz, attenuator level, RF output level
setting (High/Low), audio input status, RF output status, transmitter battery status, and
accumulated operating time
• Approximately eight hours of continuous operation with two AA-size alkaline (LR6)
batteries (at 77 °F (25 °C) at 30-mW output power)
•Supplied with a microphone holder
6
U3032
U4244
CE62
CE67
UTX-P1 Plug-on Transmitter
• Converts a wired microphone to a wireless microphone via an XLR connector
• Compact, lightweight, and robust metal body, providing great balance when handling
• Switchable MIC/LINE input level
• 50-mW RF output power for stable and long-distance transmission
• Attenuator function allows adjustment of the microphone input level: 0 to 21 dB, 3-dB
steps
• Durable connecting mechanism with a microphone for dependable operation
• Backlit LCD with an extensive information display
– Operating channel number and its frequency in MHz, attenuator level, audio input
status, RF output status, transmitter battery status, and accumulated operating time
– Approximately six hours of continuous operation with two AA-size alkaline (LR6) batteries
(at 77 °F (25 °C) at 50-mW output power)
– Supplied with a soft case
U3032 U4244 CE62 CE67
URX-P2 Portable Receiver
• Compact, lightweight, and robust metal body
– 2 1/2 × 4 1/8 × 7/8 inches (63 × 104.5 × 22 mm) (including the audio input connector)
– Approx. 7.2 oz (205 g) including batteries
• Space diversity reception system for stable RF reception
• Auto channel scanning function, allowing automatic search for
unoccupied channels
• Angle-adjustable antennas to help eliminate signal dropout,
allowing for flexible mount on Sony’s professional camcorders
• Backlit LCD with an extensive information display
– Operating channel number and its frequency in MHz, audio output status, RF input level,
receiver battery status, and accumulated operating time
• Approximately six hours of continuous operation with two AA-size alkaline (LR6) batteries
(at 77 °F (25 °C))
• Equipped with a stereo mini-jack with monitor volume control
• Supplied battery cartridge that is compatible with the UTX-B2 and
Sony’s WL-800 Series allows quick and easy battery exchange
between these products
• Supplied with a shoe-mount adapter, belt clip, output cables (3-pole
locking mini plug/XLR-type, 3-pole locking mini plug/stereo mini plug)
URX-M2 Tuner Module
• Compact, plug-in diversity tuner module
• Robust metal body
• Used with the MB-X6 tuner base unit or the SRP-X500P/X700P all-in-one type presentation
mixer/amplifier
• Space diversity reception system for stable RF reception
• Auto channel scanning function automatically searches for unoccupied channels and
tunes to those channels when the module is used with the MB-X6 tuner base unit
• Backlit LCD with an extensive information display
– Operating channel number and its frequency in MHz, audio output status, and RF input level
U3032 U4244
U3032 U4244
7
Optional Accessories
MB-X6 Tuner Base Unit
MB-X6 with six URX-M2 tuner modules installed
The MB-X6 is a tuner base unit that accommodates up to six URX-M2
tuner modules, and allows up to six channels of simultaneous operation
• Easy mechanism for attaching and detaching tuner modules
• RF input attenuator switch (10 dB/0 dB)
• Balanced XLR output connector for each tuner and mix output
• Selectable output level: -58 dBu (for MIC) or -20 dBu (for LINE) at ±5-kHz
deviation and 1-kHz modulation
• Supplied with passive antennas
• Modular, 1U high, 19-inch rack unit
Specifications
MB-X6
Receiving channels Six channels when accommodating six URX-M2 tuner modules included in the UWP-X7/X8 package
Receiving frequencies
Audio output connector XLR-3-32 type (x7), balanced
Audio output level -20 dBu (LINE level) or -58 dBu (MIC level)
Antenna attenuator level 0 dB or 10 dB
Antenna connectors BNC-R type (x2), 50
Power requirements
Power consumption 30 W when accommodating six URX-M2 tuner modules included in the UWP-X7/X8 package
U 566 MHz to 806 MHz (TV 30 to 69 channels)
CE 758 MHz to 862 MHz (TV 62 to 69 channels)
Ω
U AC 120 V, 60 Hz
CE AC 230 V, 50/60 Hz
Dimensions (W x H x D) 19 x 1 3/4 x 11 1/4 inches (482 x 44 x 285 mm)
Weight Approx. 12 lb 2 oz (5.5 kg)
Supplied accessories Antennas (1 pair), AC power cord (x1), operating instructions (x1)
8
SRP-X500P Digital Powered Mixer
•
5 x 1-AV switcher contains two RGB/component video inputs and three
composite video inputs (each with stereo audio)
•
Integrated high-quality audio mixer with four microphone inputs and one
stereo line input
•
Mounting slots built in for two URX-M2 or WRU-806A/806B diversity receiver
modules
•
Audio-signal processing includes digital equalizer and dynamics
processing for each microphone channel, plus on-board digital feedback
SRP-X500P with two URX-M2 tuner modules installed
reducer
•
Built-in four-channel digital power amplifier
SRP-X700P Digital Powered Mixer
•
6 x 1-AV switcher contains two RGB/component video inputs (with 5.1
surround sound), one RGB input (with stereo audio), and three composite/
S-video inputs (with stereo audio)
•
Integrated high-quality six-input mixer comprised of four microphone, two
microphone/line, and two line inputs
•
Mounting slots built in for two URX-M2 or WRU-806A/806B diversity receiver
modules
•
Audio-signal processing includes digital equalizer and dynamics
processing for each microphone channel, plus on-board digital feedback
SRP-X700P with two URX-M2 tuner modules installed
reducer
•
Built-in 200 W + 200 W (4 Ω), 150 W + 150 W (8 Ω), max. 150 W (70 V line)
digital power amplifier
SRP-X100 Rack Mount Audio Mixer
•
19-inch rack-mountable design
•
Two microphone inputs (channel 1 to 2)
•
Four mono inputs (channels 3 to 6, MIC/LINE switchable)
•
Three stereo line inputs (channel 7 to 9)
•
Master L and R outputs, switchable to mono outputs
•
L/R Rec output carries all inputs (except channel 9 input to avoid
feedback)
•
Two mono sub outputs
Specifications
SRP-X500P SRP-X700P SRP-X100P
Receiving channels Two channels when accommodating two URX-M2 tuner modules included in
Receiving frequencies
Power requirements
Power consumption
Dimensions (W x H x D) 19 x 5 1/4 x 14 inches
Weight Approx. 26 lb 3 oz (12 kg) Approx. 28 lb 11 oz (13 kg) Approx. 5 lb 12 oz (2.6 kg)
the UWP-X7/X8 package
U 566 MHz to 806 MHz (TV 30 to 69 channels)
CE 758 MHz to 862 MHz (TV 62 to 69 channels)
AC 120 V, 60 Hz (for U.S.A and Canada)
AC 220 V, 50/60 Hz (for China)
AC 230 V, 50/60 Hz (for other countries)
120 W 150 W 19 W
(482 x 132 x 357 mm)
AC 120/220/230 V, 50/60 Hz AC 120/230 V, 50/60 Hz (CED/U2)
19 x 5 1/4 x 13 7/8 inches
(482 x 132 x 350 mm)
—
—
—
19 x 1 3/4 x 7 inches
(482 x 44 x 175 mm)
9

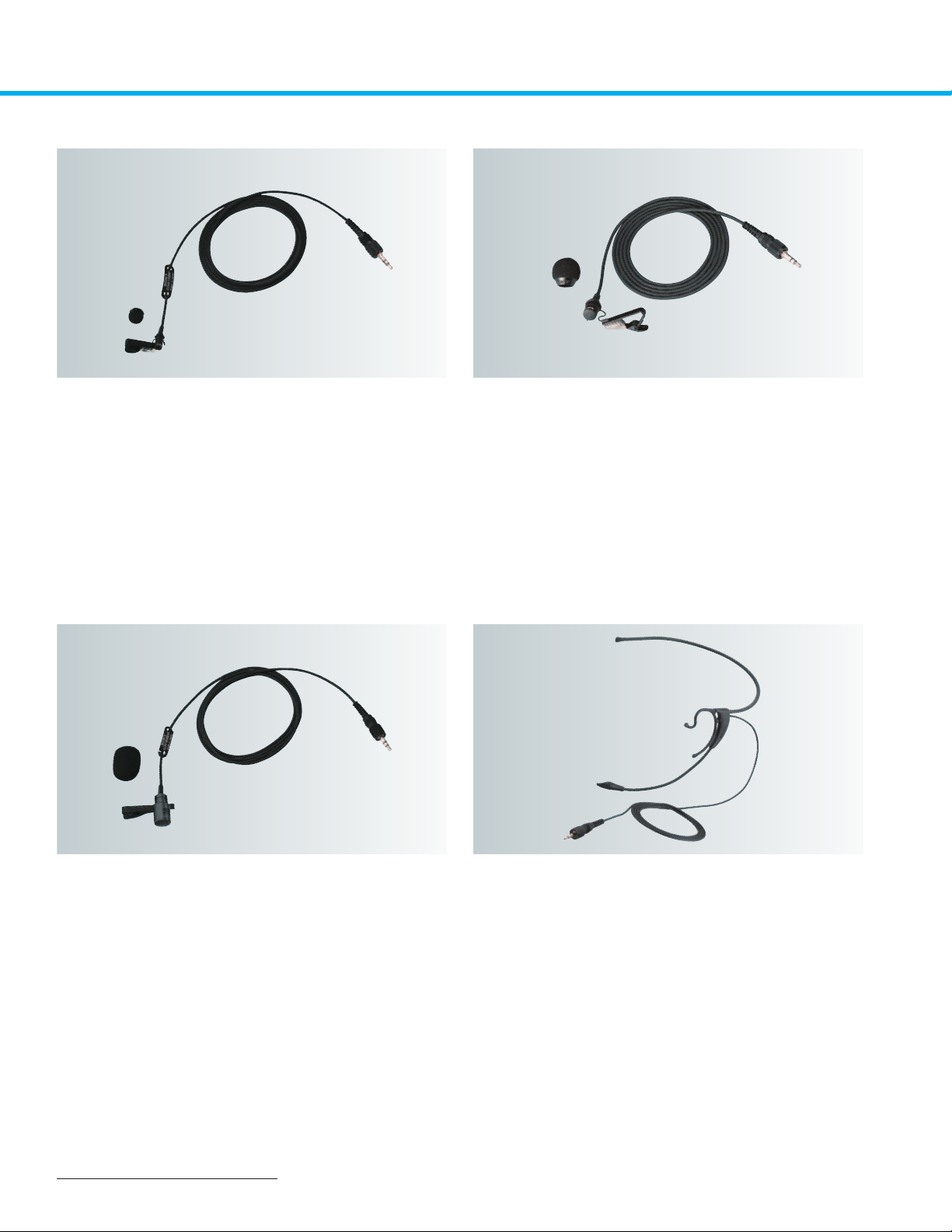

ECM-77BMP Lavalier Microphone
• High-performance, miniature, omni-directional electret
condenser microphone
• Frequency response: 40 Hz to 20 kHz
• Sensitivity: -39.0 dB (11.2 mV) (0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 1/4 inch (5.6 mm) dia. x 1/2 inches (12.5
mm), approx. 0.05 oz (1.5 g)
• Cable length: 3.9 feet (1.2 m)
• Supplied with a 3-pole locking mini plug for use with the
UWP Series
• Supplied accessories: single/horizontal tie clip (x1), metalmesh windscreen (x1), operating instructions (x1)
ECM-44BMP Lavalier Microphone
• Omni-directional, electret condenser microphone
• Frequency response: 40 Hz to 15 kHz
• Sensitivity: -40 dB (10 mV) (0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 11/32 inch (8.5 mm) dia. x 19/32 inches
(14.5 mm), approx. 0.07 oz (2 g)
• Cable length: 3.9 feet (1.2 m)
• Supplied with a 3-pole locking mini plug for use with the UWP Series
• Supplied accessories: single/horizontal tie clip (x1), urethane
windscreen (x1), operating instructions (x1)
ECM-166BMP Lavalier Microphone
• Uni-directional, electret condenser microphone
• Resistant to howling by rejecting indirect sound
• Frequency response: 100 Hz to 10 kHz
• Sensitivity: -45 dB (5.6 mV) (0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 1/2 inch (12.5 mm) dia. x 15/16 inches
(23.5 mm), approx. 0.12 oz (3.5 g)
• Cable length: 3.9 feet (1.2 m)
• Supplied with a 3-pole locking mini plug for use with the
UWP Series
• Supplied accessories: single/horizontal tie clip (x1), urethane
windscreen (x1), operating instructions (x1)
10
ECM-322BMP Headset Microphone
•
Headset microphone for multimedia presentation applications
• Omni-directional microphone capsule for clear voice pickup
from any direction
• Extra-light weight of only 0.4 oz (10 g), excluding connector
• Can be worn on either the left or right ear
• Adjustable microphone position
• Secure and comfortable fit with the adjustable soft-texture
ear hook and detachable headband
• Frequency response: 50 Hz to 18 kHz
• Sensitivity: -42 dB (7.94 mV) ±3 dB (0 dB = 1V/Pa, at 1 kHz)
• Cable length: 3.9 feet (1.2 m)
• Equipped with a 3-pole locking mini plug for use with the
UWP Series
• Supplied accessories: headband (x1), clip (x1), carrying case
(x1), operating instructions (x1)

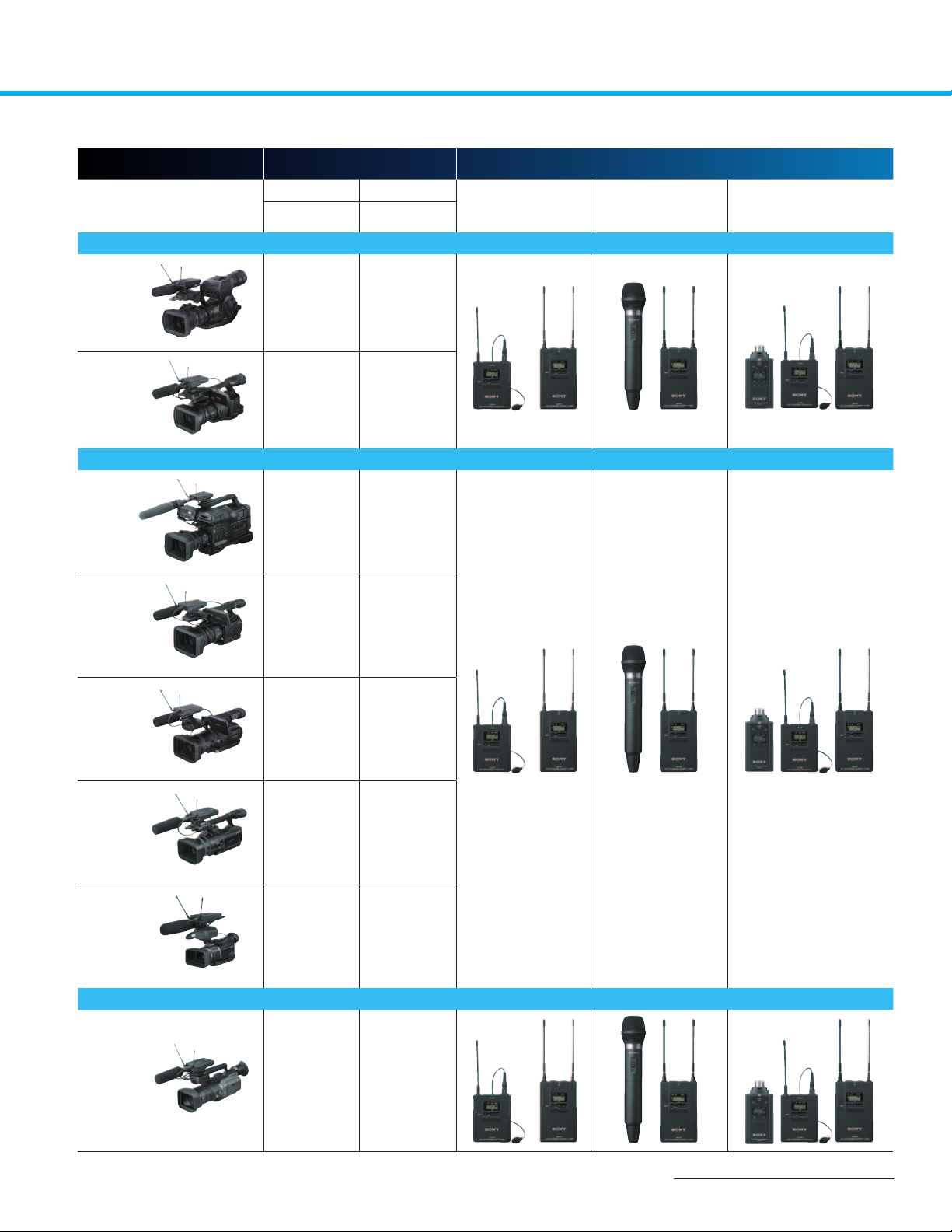

Wireless Microphone and Camcorder Combination
Camcorder Interface for
Microphone
XDCAM EX™ Camcorders
PMW-EX3
PMW-EX1 XLR 3-pin (x2)
HDV™ Camcorders
HVR-S270
Front Rear
Mic Input
Connector
XLR 3-pin (x2)
XLR 3-pin (x2) XLR 3-pin (x2)
Mic/Line Input
Connector
—
—
Applicable Wireless Microphone Packages
UWP-V1 UWP-V2 UWP-V6
HVR-Z7 XLR 3-pin (x2)
HVR-Z1
HVR-V1 XLR 3-pin (x2)
HVR-A1
DVCAM™ Camcorder
XLR 3-pin (x2)
XLR 3-pin (x2)
Stereo
mini-jack (x1)
—
—
—
—
DSR-PD170 XLR 3-pin (x2)
—
11
Specifications
Oscillator Crystal-controlled PLL Synthesizer —
UTX-B2V/B2X Bodypack Transmitter UTX-H2 Handheld Microphone UTX-P1 Plug-on Transmitter
Type of emission F3E
Carrier
frequencies
RF power output 30 mW/5 mW (selectable) 50 mW
Antenna 1/4 wave length wire 1/4 wave length wire (internal) Integral type
Pilot tone signal 32 kHz
Frequency response 40 Hz to 18 kHz (typical) 50 Hz to 18 kHz (typical)
Reference deviation ±7 kHz (-60 dBV, 1-kHz input) ±7 kHz (94 dB SPL, 1-kHz input) ±10 kHz (-60 dBV, 1-kHz input)
Signal-to-noise ratio 60 dB or more (±7-kHz deviation at 1-kHz modulation, A-weighted) 60 dB or more (±10-kHz deviation at 1-kHz modulation,
Microphone capsule
Audio attenuator adjustment range
Audio input level MIC: -60 dBV (at 0-dB attenuator level)
Audio input connector 3-pole mini jack — XLR-3-11C type
Max. input sound pressure level
Indicators LCD Operating channel number/frequency, attenuator level, RF output level (High/Low), audio input status,
Power requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Battery life Approx. eight hours with Sony’s AA-size alkaline (LR6) batteries at 77 °F (25 °C) at 30-mW output Approx. six hours with Sony’s AA-size alkaline (LR6)
Dimensions (W x H x D) 2 1/2 × 3 1/4 × 3/4 inches (63 × 82.5 × 18.7 mm)
Weight Approx. 5.1 oz (145 g), including batteries Approx. 11 oz (308 g), including batteries Approx. 6.5 oz (185 g), including batteries
Supplied accessories UTX-B2V: Omni-directional lavalier microphone,
U3032 566 MHz to 590 MHz (TV 30 to 33 channels), selectable from 188 frequencies (in 125-kHz steps)
U4244 638 MHz to 662 MHz (TV 42 to 45 channels), selectable from 188 frequencies (in 125-kHz steps)
CE62 798 MHz to 822 MHz (TV 62 to 64 channels), selectable from 189 frequencies (in 125-kHz steps)/960 frequencies (in 25-kHz steps)
CE67 838 MHz to 862 MHz (TV 67 to 69 channels), selectable from 189 frequencies (in 125-kHz steps)/960 frequencies (in 25-kHz steps)
AU66 792 MHz to 806 MHz (TV 66 to 67 channels), selectable from 102 frequencies (in 125-kHz steps)
Electret condenser, omni-directional (UTX-B2V)
Electret condenser, uni-directional (UTX-B2X)
0 dB to 21 dB (in 3-dB steps): Mic input 0 dB to 21 dB (in 3-dB steps) 0 dB to 21 dB (in 3-dB steps): Mic input
LINE: +4 dBu
— 151-dB SPL (at 21-dB attenuator level) —
transmitter battery status, and accumulated operating time
LED Audio input status Power status Audio input status
excluding the antennas
windscreen (x3), microphone holder clip (x1), belt clip
(x1), operating instructions (x1)
UTX-B2X: Uni-directional lavalier microphone (x1),
windscreen (x1), microphone holder clip (x1), belt clip
(x1), operating instructions (x1)
Dynamic, uni-directional
—
1 15/16 × 10 inches49 x 253 mm (49 x 253 mm) 1 3/4 x 4 x 1 7/16 inches (44 x 99 x 36 mm)
Microphone holder (x1), operating instructions (x1) Soft case (x1), operating instructions (x1)
A-weighted)
—
MIC: -60 dBV (at 0-dB attenuator level)
LINE: +4 dBu
Operating channel number/frequency, attenuator
level, audio input status, RF output status, transmitter
battery status, and accumulated operating time
batteries at 77 °F (25 °C) at 50-mW output
Oscillator Crystal-controlled PLL Synthesizer
URX-P2 Portable Receiver URX-M2 Tuner Module
Type of reception Space diversity
Receiving
frequencies
Antenna 1/4 wave length wire
Pilot tone signal 32 kHz
RF squelch level 15 dBµ 25 dBµ
Frequency response 40 Hz to 18 kHz (typical)
Reference deviation ±5 kHz (at 1-kHz modulation)
Signal-to-noise ratio
Audio output connector
Audio output level -58 dBm —
Monitor output connector 5/32 inch (3.5 mm) dia., stereo mini jack —
Monitor output level
Indicators LCD Operating channel number/frequency, audio output status, RF input level, tuner battery status, and
Power requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 9.0 V
Battery life Approx. six hours with Sony’s AA-size alkaline (LR6) batteries at 77 °F (25 °C) —
Dimensions (W x H x D) 2 1/2 x 4 1/8 x 7/8 inches (63 x 104.5 x 22 mm), excluding the antennas
Weight Approx. 7.2 oz (205 g), including batteries Approx. 5.3 oz (150 g)
Supplied accessories Shoe-mount adapter (x1), belt clip (x1), output cable (x1 each, 3-pole locking mini plug/XLR-type, 3-pole
Use of wireless devices from Sony in the United States of America is regulated by the Federal
Communications Commission as described in Parts 15 and 74 of the FCC regulations.
Authorized users are thereby required to obtain an appropriate license
U3032 566 MHz to 590 MHz (TV 30 to 33 channels), selectable from 188 frequencies (in 125-kHz steps)
U4244 638 MHz to 662 MHz (TV 42 to 45 channels), selectable from 188 frequencies (in 125-kHz steps)
CE62 798 MHz to 822 MHz (TV 62 to 64 channels), selectable from 189 frequencies (in 125-kHz steps)/960 frequencies (in 25-kHz steps)
CE67 838 MHz to 862 MHz (TV 67 to 69 channels), selectable from 189 frequencies (in 125-kHz steps)/960 frequencies (in 25-kHz steps)
AU66 792 MHz to 806 MHz (TV 66 to 67 channels), selectable from 102 frequencies (in 125-kHz steps)
60 dB or more (±5-kHz deviation at 1-kHz modulation, A-weighted)
3-pole mini jack, unbalanced-
5 mW (at 16 Ω) —
accumulated operating time
LED RF input status
locking mini plug/stereo mini plug), operating instructions (x1)
Operating channel number/frequency, audio output
status, RF input level
2 1/4 x 1 1/16 x 4 7/8 inches (57 x 26 x 121 mm)
Operating instructions (x1)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/ProAudio
12
A-1171 (MK10474V1)
Reproduction in whole or in part without written permissions is prohibited.
©2008 Sony Electronics Inc. All rights reser ved.
Features, design, and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, XDCAM EX, and DVCAM are trademarks of Sony.
HDV and HDV logo are trademarks of Sony Corporation and Victor
Company of Japan, Limited (JVC).
Printed in USA (4/08)
Loading...
