UHF Wireless Microphone Package
UWP-D Series
(
UWP-D11 , UWP-D12 , UWP-D16
)
The Ultimate in Hybrid Digital Sound
Innovation in Sound -- Introducing the new UWP-D Series wireless microphone system,
which realizes high-quality sound and stable wireless transmission utilizing true diversity reception system.
Since its introduction in 2003, the UWP Series has been widely used in a broad range of applications,
not only for ENG (electronic news gathering) and EFP (electronic field production), but also for live concerts, sporting events,
documentaries, and weddings.
High-quality Sound
Sony’s Hybrid Digital Processing technology improves transient response performance, and realizes high-quality sound.
Superior Operability
Performs channel settings via Automatic Channel Setting mode.
Low Profile and Lightweight
The small body size and lightweight design are ideal for use in small camcorders or interchangeable-lens digital cameras.
UW P - D11 UWP- D12 UWP- D16
2
UWP-D Series
Easy-to-use Automatic Channel Setting ModeSony’s Hybrid Digital Processing
Sound quality is the most important issue in wireless transmission. Conventional
analog systems make use of companders to provide the required dynamic
range. However, while compander systems have improved over time, their
inherent problems with sound quality and transient response performance
have yet to be completely solved.
Sony’s newly developed Hybrid Digital Processing, which uses DSP (digital
signal processing) for digital companding, realizes high sound quality.
CONVENTIONAL ANALOG SYSTEM
Input
SONY’S HYBRID DIGITAL PROCESSING
Input
Analog
Compander
Transmitter Receiver
24-bit digital processing 24-bit digital processing
Digital
AD ADDA DA
Compander
Transmitter Receiver
RF
modulation
modulation
Analog FM Modulation
Analog FM Modulation
RF
modulation
RF
modulation
RF
Analog
Expander
Digital
Expander
Output
Output
DSP optimizes the audio signal processing applied between the transmitter
and receiver. It provides superb transient response performance. While analog
companding systems cannot reproduce sounds such as a bell or tee shot with
precision, Sony’s Hybrid Digital Processing can reproduce them very accurately.
Choose the AUTO SET menu on the receiver
Scans and determines available channel
Then automatically sends setting information to the
transmitter via IR (infrared) connection
Complete the channel setting of transmitter and
receiver
Clear Channel Scan & Active Channel Scan
The Clear Channel Scan function searches for a channel that is not being
used by another wireless device or by a TV station. This makes it easy to
find an available channel so the wireless microphone can be used without
interference. The Active Channel Scan function detects Sony’s wireless
transmitter from the channel lists within a selected group.
IR Sync
Dynamic Response
Original Sound Analog System Hybrid Digital Processing
DSP also can correct characteristics of frequency response in the transmission
process for precise reproduction of original sounds.
The receiver can transfer the desired frequency to the transmitter via IR
connection, and allows for quick and simple setup.
Wide Frequency Coverage
The system’s operating bandwidth (up to 72 MHz*
to cover a wide area and provide more channel options.
*1 Depends on the country or frequency version.
1
) achieves great mobility
3
UWP-D Series

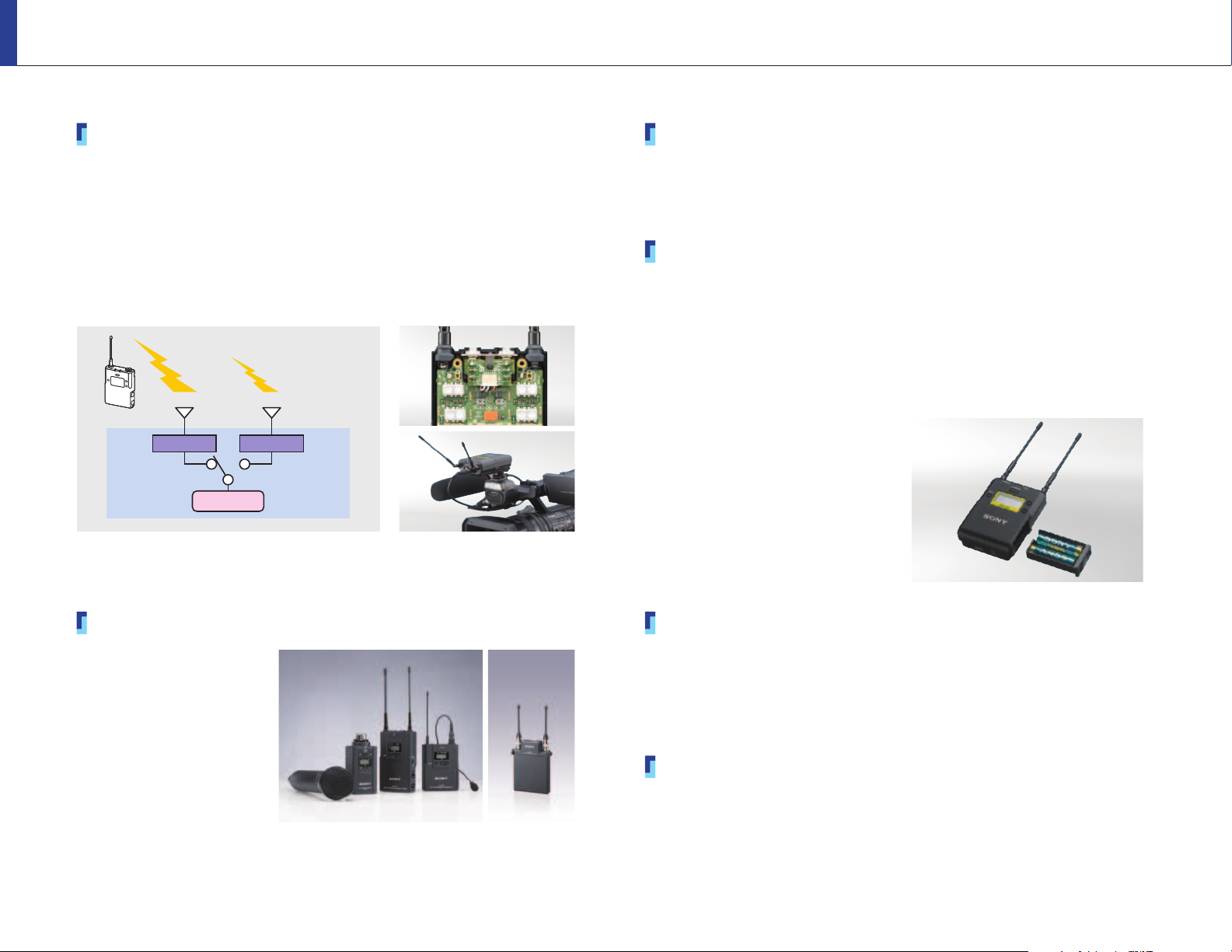

True Diversity Reception System for Stable Reception
Typically, wireless microphone transmission systems are subject to interruptions in
reception (RF signal dropout), but the UWP-D Series reduces this to a minimum.
Utilizing a true diversity reception system, it achieves highly stable reception
because of its two receiving antennas, each with RF circuits. RF signals from the
two antennas are compared and the stronger signal is automatically selected for
output. The angle of the antennas on the portable receiver can also be adjusted,
which helps to further eliminate signal dropout.
Antenna a
level : high level : low
Tuner 1 Tuner 2
switching
receiver
Antenna b
Audio out
Headphone Output for Monitoring
Sound can be monitored directly from the receiver. This is especially
convenient when using a camera that does not have a headphone output.
Smart Battery Operation
USB for Power Supply or Charging Batteries
A DC power drive can be utilized for long-term use or as an emergency
1
power supply*
Ni-MH batteries*2.
*1 Excludes the UTX- M03. *2 Not supplied.
Cartridge-type Battery Case
The supplied battery cartridge is
compatible with Sony’s DWZ Series,
and allows for quick and easy
battery exchange.
*3 For the UTX-B03, UTX- P03, and URX- P03 only.
. Rechargeable battery operation is also available with
3
*
Compatibility with UWP Series / WL-800 Series
DSP enables a digital com-
pander to match Sony’s
analog wireless system.
The UWP-D transmitter can
be used with a UWP Series
or WL-800 Series receiver,
and a UWP Series or WL-800
Series transmitter can be
used with a UWP-D receiver.
4
Output Level Control
This receiver function enables control of the receiver output sound level:
±12 dB. This is useful because some video cameras don’t offer manual
input level control.
Line Input Available for Body Pack Transmitter
Switchable MIC or LINE input level and adjustable attenuators allow the
user to select proper audio input levels.
UWP-D Series

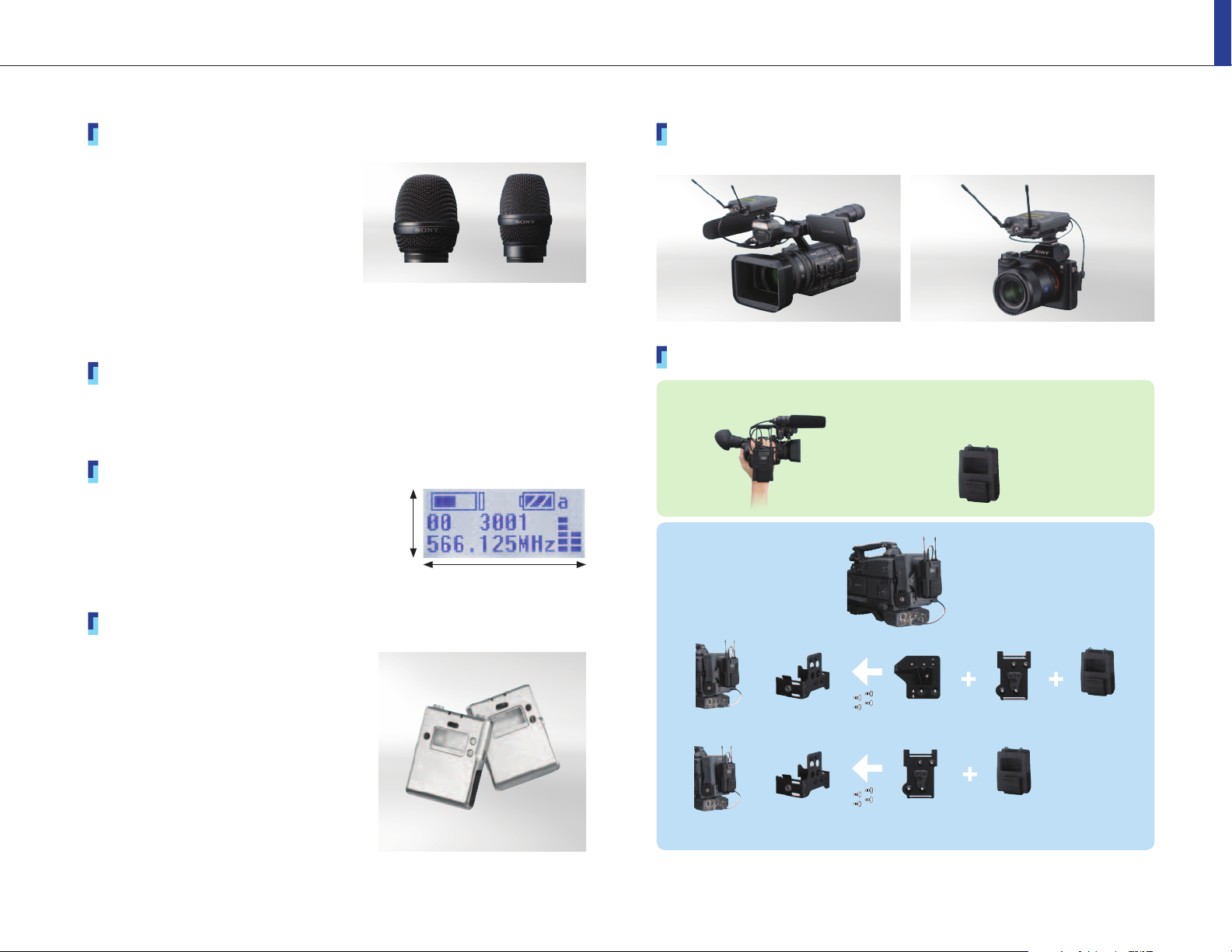

Interchangeable Microphone Capsules
The supplied high-quality dynamic
cardioid microphone capsule can be
used with the handheld microphone.
Alternatively, any of Sony’s DWX Series
capsules such as the CU-C31, F31,
or F32 can also be used (the thread
CU - C31 CU-F31, F32
pitch is 1.25”/28 (31.3 mm/pitch 1.0
mm threading))*1.
*1 Use of third-par ty capsules may cause RFI or EMF noise.
+48 V Power Supply for Plug-on Transmitter
This function enables direct connection of condenser microphones
requiring DC 48 V powering.
Large Display and Advanced Selectable Menu
An easy-to-read large LCD and
sophisticated yet easy-to-operate
menu allows for secure and speedy
settings.
11. 5 m m
(15/32 i nch)
27.8mm
(1 1/8 inches)
Sony’s UWP-D Series is ideal for compact video
cameras and interchangeable-lens digital cameras
How to Attach the Soft Case (LCS-URXP3)
For Handheld Camcorders
LCS-URXP3
On the Grip Belt
For Shoulder Camcorders
Soft Case
Compact, Lightweight, and Robust Design
All components of the UWP-D Series –
the body pack transmitter, handheld
microphone, plug-on transmitter, and
portable receiver – utilize an extremely
robust metal chassis that is ideal for
heavy-duty wireless operation. The metal
body also allows for an extremely compact
and lightweight design, providing the
high level of mobility required for ENG
and EFP operations.
V-Shoe Mount
Direct Mount
A-8278-057-B
Mounting Bracket
A-8278-057-B
Mounting Bracket
On Top of the Battery
A-1528-515-A
Mounting Plate
SMAD-V1
V-Shoe Mount Adaptor
* Remove the V-Shoe part
SMAD-V1
V-Shoe Mount Adaptor
LCS-URXP3
Soft Case
LCS-URXP3
Soft Case
5
UWP-D Series
*1 566 MHz to 608 MHz and 614 MHz to 638 MHz

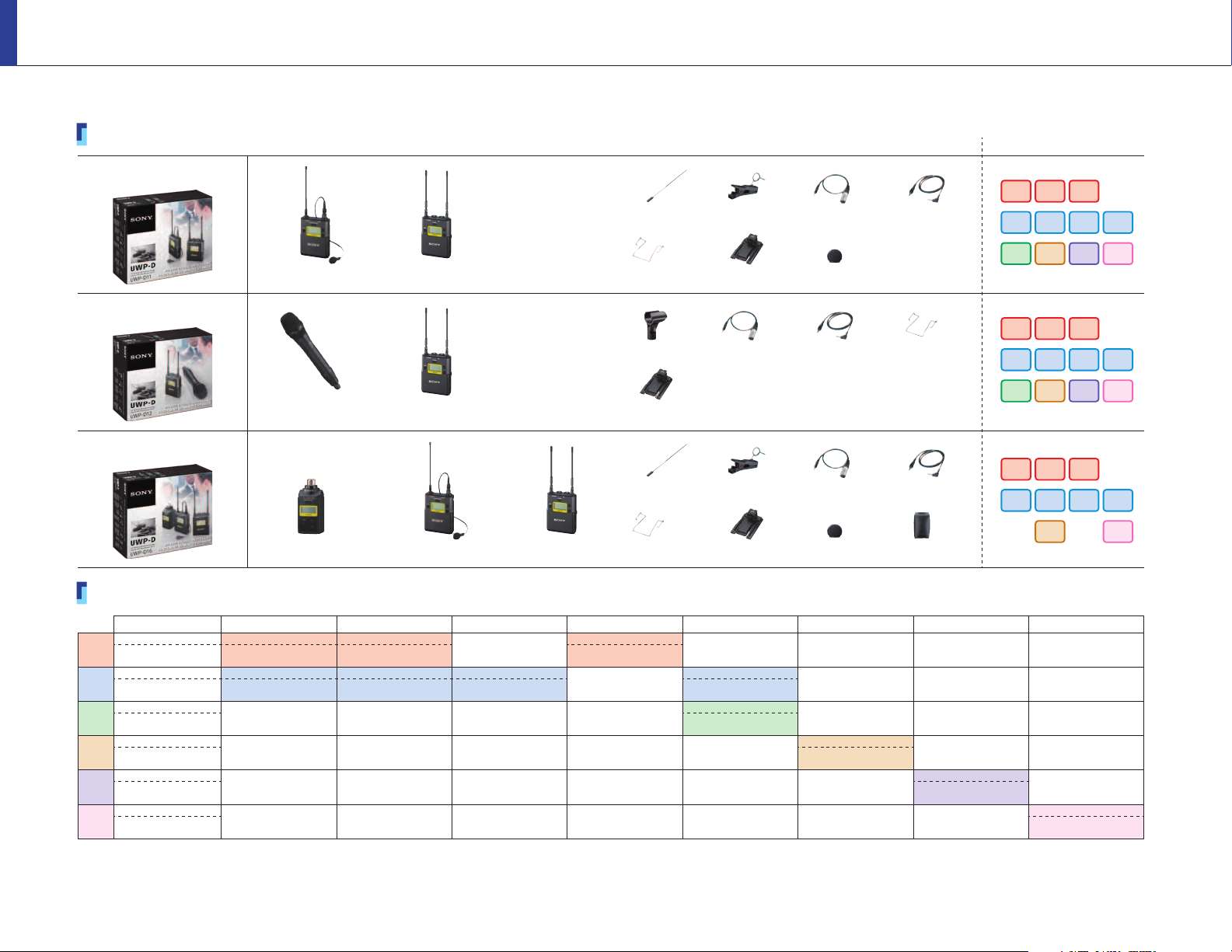

Package Lineup
UWP-D11
UWP-D12
UWP-D16
UTX-B03 :
Bodypack Transmitter
UTX-M03 :
Handheld Wireless
Microphone
UTX-P03 :
Plug-on Transmitter
URX-P03 :
Portable Receiver
URX-P03 :
Portable Receiver
UTX-B03 :
Bodypack Transmitter
URX-P03 :
Portable Receiver
Omni-directional
Lavalier Microphone
Belt Clip Shoe Mount
Microphone
Holder
Shoe Mount
Adapter
Omni-directional
Lavalier Microphone
Belt Clip Shoe Mount
Microphone
Holder Clip
Adapter
XLR-BMP
Cable
Microphone
Holder Clip
Adapter
XLR-BMP
Cable
Windscreen
Stereo MiniBMP Cable
XLR-BMP
Cable
Stereo MiniBMP Cable
Belt Clip
Stereo MiniBMP Cable
Soft CaseWindscreen
Frequencies as follows
UC14 UC30 UC42
CE21 CE33 CE42 CE51
CN38 E JB KR3
UC14 UC30 UC42
CE21 CE33 CE42 CE51
CN38 E JB
UC14 UC30 UC42
CE21 CE33 CE42 CE51
E
KR3
KR3
Frequencies
Operating frequencies
UC
CE
CN
E
J
KR3
6
version
Selectable frequencies
version
Selectable frequencies
version
Selectable frequencies
version
Selectable frequencies
version
Selectable frequencies
version
Selectable frequencies
470 MHz to 542 MHz
UC14
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
CE21
567 (in 125-kHz steps)
2880 (in 25-kHz steps)
566 MHz to 638 MHz
517 (in 125-kHz steps)
2541 (in 25-kHz steps)
504 (in 125-kHz steps)
2560 (in 25-kHz steps)
UC30*
CE33
1
638 MHz to 694 MHz
CE42
441 (in 125-kHz steps)
2240 (in 25-kHz steps)
638 MHz to 698 MHz
UC42
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
710 MHz to 782 MHz
CE51
567 (in 125-kHz steps)
2880 (in 25-kHz steps)
CN38
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
794 MHz to 806 MHz
E
94 (in 125-kHz steps)
806 MHz to 810 MHz
JB
30 (in 125-kHz steps)
925 MHz to 937 MHz
KR3
99 (in 125-kHz steps)

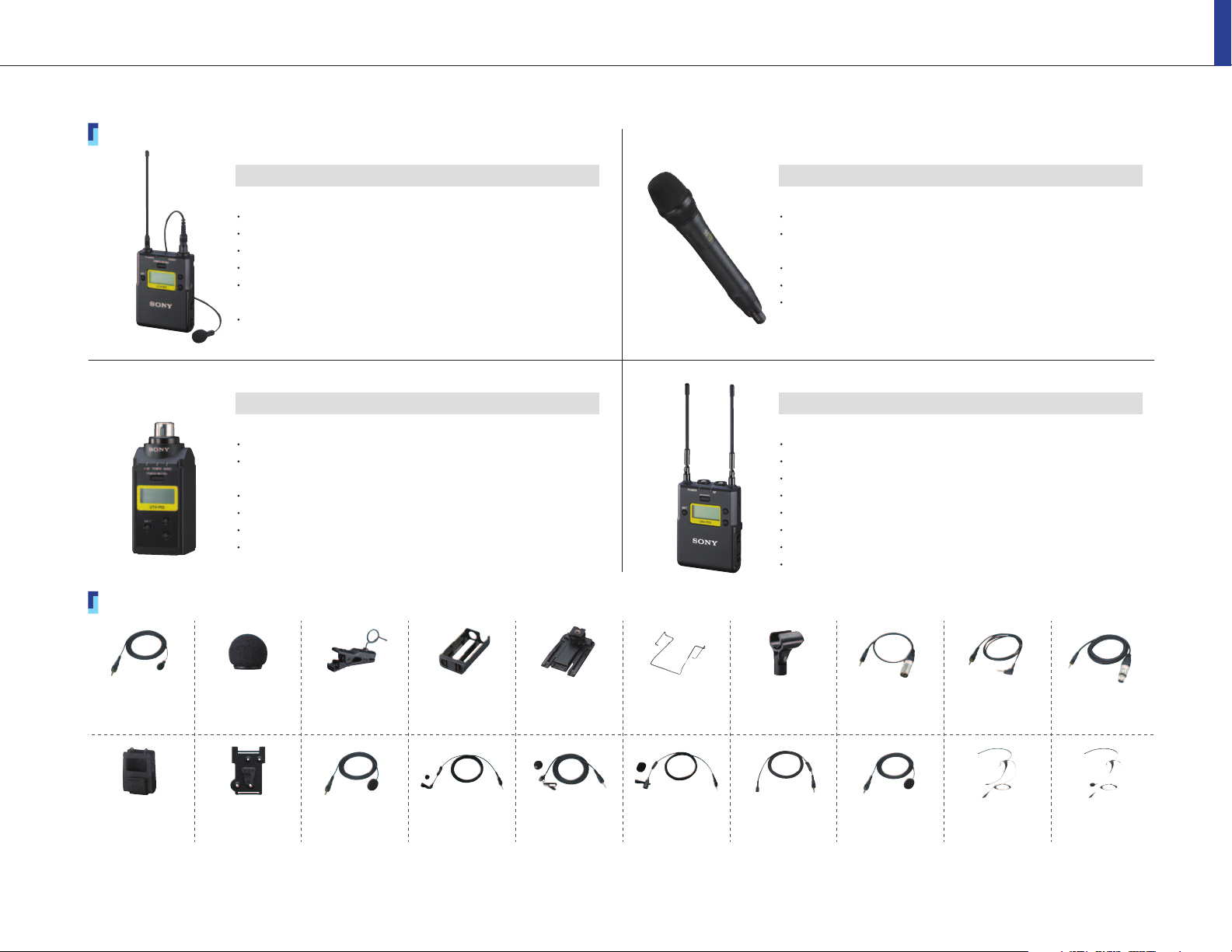

Products
UWP-D Series
Accessories
UTX-B03 Bodypack Transmitter
Sony’s Hybrid Digital Processing
Compatibility with UWP Series / WL-800 Series
Extremely compact, lightweight, and robust metal body
USB for power supply or charging batteries
Switchable MIC/LINE input level and adjustable
attenuator (0 dB to 21 dB, 3-dB steps)
Supplied with omni-directional lavalier microphone
UTX-P03 Plug-on Transmitter
Sony’s Hybrid Digital Processing
Converts a wired microphone to a wireless microphone
via an XLR-type connector
Compatibility with UWP Series / WL-800 Series
USB for power supply or charging batteries
Extremely compact, lightweight, and robust metal body
+48 V power supply
UTX-M03 Handheld Wireless Microphone
Sony’s Hybrid Digital Processing
Incorporates an all-metal, robust, uni-directional dynamic
microphone capsule with minimized popping and wind noise
Compatibility with UWP Series / WL-800 Series
USB for charging batteries
Interchangeable microphone capsule
URX-P03 Portable Receiver
Sony’s Hybrid Digital Processing
Easy-to-use Automatic Channel Setting mode
Space Diversity Reception System for stable reception
Compatibility with UWP Series / WL-800 Series
Headphone output for monitoring
Extremely compact, lightweight, and robust metal body
USB for power supply or charging batteries
Output level control
ECM-V1BMP
Omni-directional
Lavalier Microphone
LCS-URXP3
Soft Case
AD-RV1B2
Windscreen Pack
(5PCS)
SMAD-V1
V-Shoe Mount
Adaptor
SAD-HV1B2
Holder Clip Pack
(4PCS)
ECM-X7BMP
Lavalier Microphone
BATC-3AA
Battery Case
ECM-77BMP
Omni-directional
Lavalier Microphone
SMAD-P2
Shoe Mount Adaptor
ECM-44BMP
Omni-directional
Lavalier Microphone
BLC-BP2
Belt Clip (2PCS)
ECM-166BMP
Uni-directional
Lavalier Microphone
SAD-M01
Microphone Holder
ECM-FT5BMP
Omni-directional
Lavalier Microphone
EC-0.46BX
3-pole Locking Mini
Plug-XLR(M) Cable
ECM-LZ1UBMP
Uni-directional
Lavalier Microphone
EC-0.8BM
3-pole Locking Mini
Plug-Stereo Mini
Plug Cable
ECM-322BMP
Omni-directional
Headset Microphone
EC-1.5BX
3-pole Locking Mini
Plug-XLR(F) Cable
ECM-HZ1UBMP
Uni-directional
Headset Microphone
7

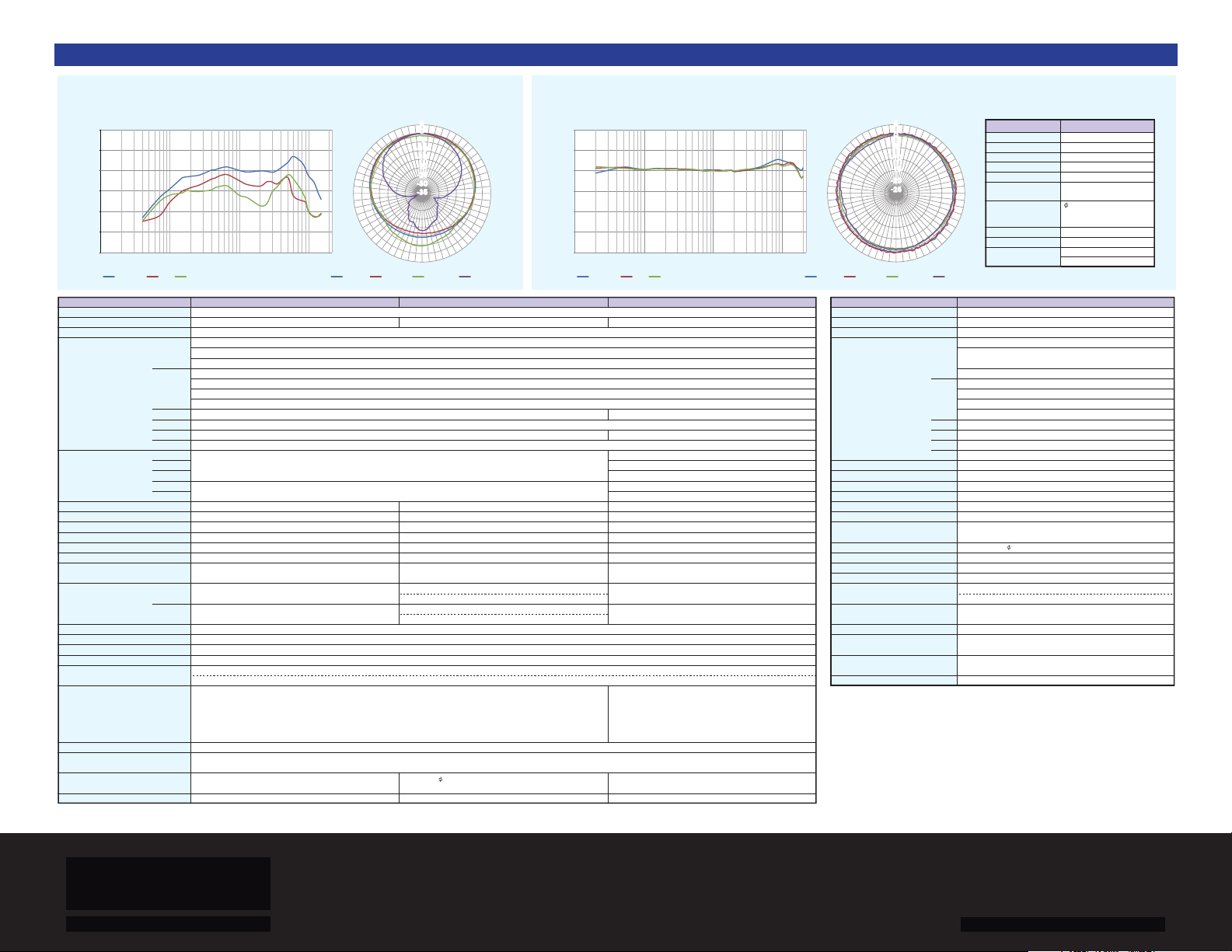

SPECIFICATIONS
UTX-M03 ECM-V1BMP
Frequency Response Characteristics Frequency Response Characteristics
20.0
10.0
0.0
-10.0
Gain[dB]
-20.0
-30.0
-40.0
10 100 1 k 10 k
On axis
Oscillator Type
Antenna Type
Type of Emission
Carrier Frequencies
RF Power
Capsule Type
Directivity
Input Connector
Phantom Power Voltage
Reference Input Level
Maximum Input Level
Audio Attenuator
Adjustment Range
Frequency Response
Signal-to-Noise Ratio
Audio Delay
Pilot Tone Signal
Display
Power Requirements
Battery Operating Time
Operating Temperature
Storage/
Transport Temperature
Dimensions
Weight
Frequency[Hz]
180°
90°
UTX-B03 Bodypack transmitter UTX-M03 Handheld wireless microphone UTX-P03 Plug-on transmitter
1/4 wave length wire 1/4 wave length wire (internal) Integral type
UC
CE7
CN
E
J JB: 806.125 MHz to 809.750 MHz
KR3
UC
CE7
CN
J
KR3/E
UC/CE7/
CN/KR3/E
J
MIC: -60 dBV (at 0-dB attenuator level) / LINE: +4 dBu
Electret condenser Dynamic
Omni-directional Uni-directional
3-pole locking mini jack -
- -
-
0 dB to 21 dB (in 3-dB steps): Mic input 0 dB to 21 dB (in 3-dB steps)
Transmission: 23 Hz to 18 kHz (typical)
Transmission: 40 Hz to 15 kHz (typical)
UC/CE7/CN: Approx. eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
E/KR3/J: Approx. 10 hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
2 1/2 x 3 1/4 x 13/16 inches (63 x 82 x 20 mm)
(excluding the anntenas) (W x H x D)
Approx. 5.3 oz (149 g) (including batteries) Approx. 10 oz (296 g) (including batteries)
Directivity
Characteristics (1 kHz)
60
90
120
150
400 Hz
CN38 : 710.025 MHz to 782.000 MHz
30 mW / 5 mW
10 mW / 2 mW
0
5
5
30
00
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
-30
-30
-35
-35
180
4,000 Hz 8,000 Hz
1,000 Hz
Crystal-controlled PLL Synthesizer
UC30 : 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz
UC14 : 470.125 MHz to 541.875 MHz
UC42 : 638.125 MHz to 697.875 MHz
CE21 : 470.025 MHz to 542.000 MHz
CE33 : 566.025 MHz to 630.000 MHz
CE42 : 638.025 MHz to 694.000 MHz
CE51 : 710.025 MHz to 782.000 MHz
E: 794.125 MHz to 805.875 MHz
KR3: 925.125 MHz to 937.500 MHz
151 dB SPL (at 21-dB attenuator level)
Transmission: 23 Hz to 18 kHz (typical)
Transmission: 23 Hz to 15 kHz (typical)
96 dB (max deviation, A-weighted)
32 kHz / 32.382 kHz / 32.768 kHz
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
-4°F to +131°F (-20°C to +55°C)
1 15/16 x 10 1/4 inches (48 x 260 mm)
30
60
90
120
150
F3E
-
Capsule Unit: 70 Hz to 18 kHz
Capsule Unit: 70 Hz to 18 kHz
Approx. 0.35 msec
LCD
DC 5.0 V (via USB micro-B)
32°F to 122°F (0°C to 50°C)
(diameter / length)
20.0
10.0
0.0
-10.0
Gain[dB]
-20.0
-30.0
-40.0
10 100 1 k 10 k
On axis
Frequency[Hz]
180°
90°
-
-
50 mW / 5 mW
30 mW / 5 mW
-
-
10 mW / 2 mW
-
-
XLR-3-11C (female)
MIC: -60 dBV (at 0-dB attenuator level) / LINE: +4 dBu
0 dB to 21 dB (in 3-dB steps): Mic input
Transmission: 23 Hz to 18 kHz (typical)
UC: Approx. six hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 50-mW output
CE7: Approx. eight hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 30-mW output
E/KR3: Approx. 10 hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 10-mW output
1 11/16 x 1 11/16 x 4 1/8 inches (42 x 42 x 102 mm)
Approx. 6.9 oz (197 g) (including batteries)
+48 V
-
-
(W x H x D)
Directivity
Characteristics (1 kHz)
60
90
120
150
400 Hz
Oscillator Type
Reception Type
Antenna Type
Carrier Frequencies
Frequency Response
Signal-to-Noise Ratio
Distortion (T.H.D)
Audio Delay
Analog Output
Analog Output Level
Analog Output
Adjust Range
Headphone Output
Headphone Output Level
Pilot Tone Signal
Display
Power Requirements
Battery Operating Time
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage/
Transport Temperature
Dimensions
Weight
30
1,000 Hz
0
55
30
00
-5
-5
-10
-10
-15
-15
-20
-20
-25
-25
150
180
4,000 Hz 8,000 Hz
UC
CE7
CN
KR3
Model Code
Frequency Response
Directivity
60
Capsule Type
Sensitivity
Dynamic Range
Maximum Input
90
Sound Pressure Level
Microphone Head
120
Mic Cable
Power Requirements
Supplied Accessories
URX-P03 Portable receiver
Crystal-controlled PLL Synthesizer
True diversity
1/4 wave length wire
UC14 : 470.125 MHz to 541.875 MHz
UC30 : 566.125 MHz to 607.875 MHz and
614.125 MHz to 637.875 MHz
UC42 : 638.125 MHz to 697.875 MHz
CE21 : 470.025 MHz to 542.000 MHz
CE33 : 566.025 MHz to 630.000 MHz
CE42 : 638.025 MHz to 694.000 MHz
CE51 : 710.025 MHz to 782.000 MHz
CN38 : 710.025 MHz to 782.000 MHz
E
J
E: 794.125 MHz to 805.875 MHz
JB: 806.125 MHz to 809.750 MHz
KR3: 925.125 MHz to 937.500 MHz
23 Hz to 18 kHz (tyipcal)
96 dB (max deviation, A-weighted)
0.9% or less (-60 dBV, 1 kHz input)
Approx. 0.35 msec
3-pole mini jack, unbalanced
-60 dBV (at ±5 kHz deviation)
-12 dB to +12 dB (3-dB step)
3.5 mm (5/32 inch) stereo mini jack
5 mW (at 16-ohm load)
32 kHz / 32.382 kHz / 32.768 kHz
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0 V (via USB micro-B)
Approx. six hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F)
-4°F to +131°F (-20°C to +55°C)
2 1/2 x 3 1/4 x 15/16 inches (63 x 82 x 23.8 mm)
(excluding the anntenas) (W x H x D)
Approx. 6.2 oz (176 g) (including batteries)
LCD
ECM-V1BMP
40 Hz to 20 kHz
Omni-directional
Condenser
–43.0 dB ±3.0 dB (1 kHz/Pa)
86 dB or more
120 dB SPL
9/32 X 25/32 inches
(6.8 x 19.5 mm)
(diameter/length)
3.9 feet (1.2 m)
DC 5 V
Windscreen (1)
Horizontal Clip (1)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/proaudio
A-1200 (MK11109V1)
©2014 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.“SONY” is a trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
Printed in USA (1/14)
Loading...
