Sony UTXM03A, UTXP03A, UTXB03A User Manual
4-530-735-16 (1)
Wireless Microphone
Package
Operating Instructions
Before operating the unit, please read this manual thoroughly and retain it for future reference.
UWP-D11/D12/D16
UTX-B03
UTX-M03
UTX-P03
URX-P03
© 2014 Sony Corporation
Table of Contents |
|
Configuration of the Packages .................. |
3 |
UWP-D11 ..................................................... |
3 |
UWP-D12 ..................................................... |
4 |
UWP-D16 ..................................................... |
5 |
Models available separately.......................... |
6 |
Features ....................................................... |
7 |
UWP-D11 ..................................................... |
7 |
UWP-D12 ..................................................... |
7 |
UWP-D16 ..................................................... |
7 |
Name and Function of Parts....................... |
8 |
Body-pack transmitter (UTX-B03)............... |
8 |
Hand-held microphone (UTX-M03)............. |
9 |
Plug-on transmitter (UTX-P03).................. |
11 |
Portable diversity tuner (URX-P03) ........... |
12 |
Power Supply............................................. |
14 |
Inserting the batteries.................................. |
14 |
Supplying power from a USB connector.... |
15 |
Charging nickel metal hydride batteries..... |
16 |
Attaching Accessories.............................. |
16 |
Attaching accessories to the body-pack |
|
transmitter (UTX-B03)...................... |
16 |
Attaching accessories to the hand-held |
|
microphone (UTX-M03) ................... |
17 |
Attaching accessories to the plug-on |
|
transmitter (UTX-P03) ...................... |
17 |
Attaching accessories to the portable |
|
diversity tuner (URX-P03) ................ |
18 |
Operation ................................................... |
19 |
If noise is generated.................................... |
19 |
Tuner Settings ........................................... |
20 |
Menu structure and operation ..................... |
20 |
Setting the receive channel ......................... |
21 |

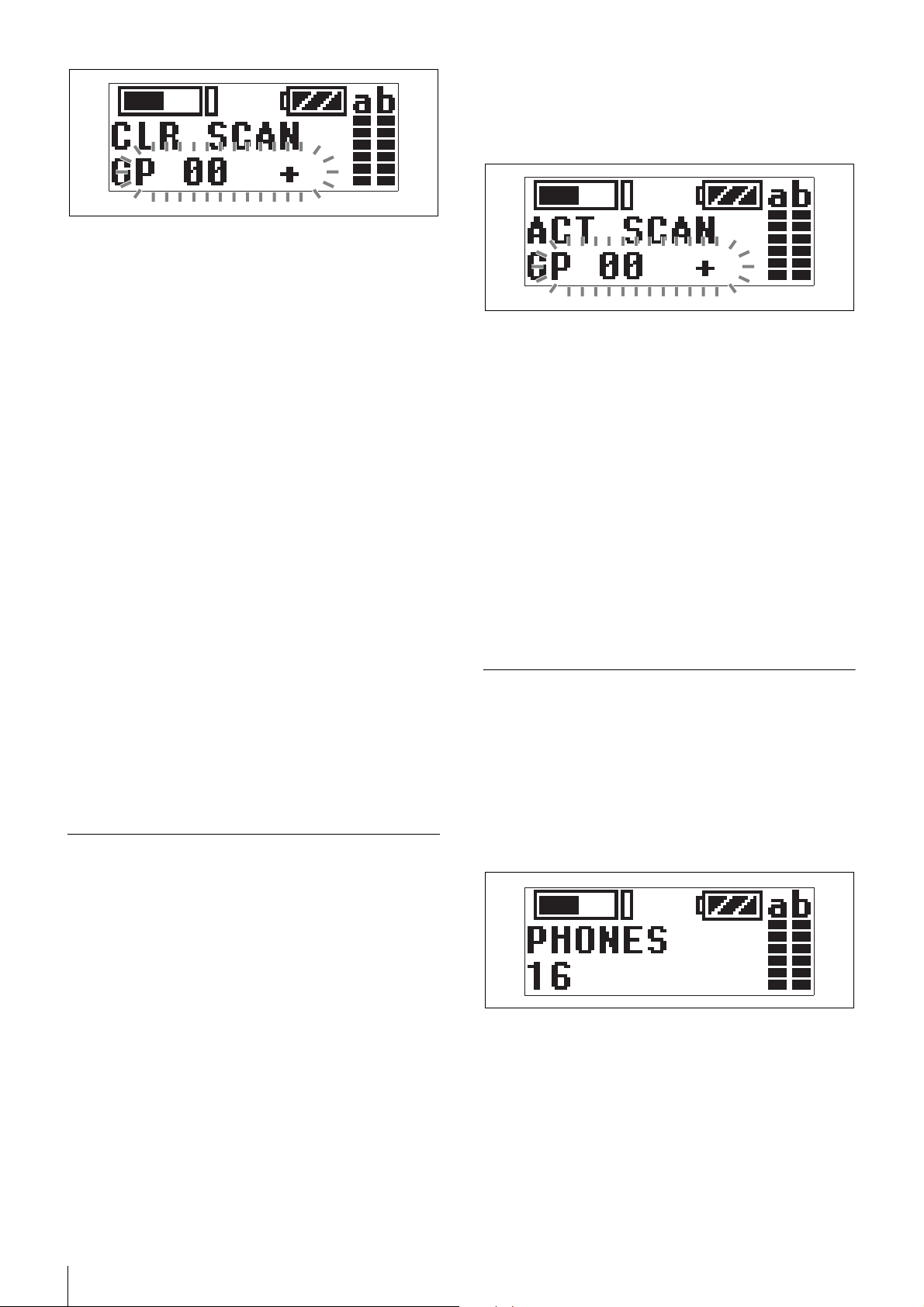

Searching for available channels within a |
|
group (Clear Channel Scan) .............. |
21 |
Searching for active channels within a group |
|
(Active Channel Scan) ...................... |
22 |
Adjusting the monitor audio level .............. |
22 |
Configuration menu.................................... |
23 |
Transmitter Settings ................................. |
25 |
Menu structure and operation ..................... |
25 |
Setting the transmit channel........................ |
26 |
Configuration menu.................................... |
27 |
System Configuration Examples ............. |
30 |
Error Messages ......................................... |
31 |
Troubleshooting........................................ |
32 |
Important Notes on Use............................ |
34 |
Usage and storage ....................................... |
34 |
Cleaning...................................................... |
34 |
Specifications............................................ |
34 |
Transmitter (UTX-B03/M03/P03).............. |
34 |
Tuner........................................................... |
36 |
2 |
Table of Contents |
|
|
Configuration of the Packages
This manual is for the UWP-D11/D12/D16 Wireless Microphone Packages. The contents of each package are described below.
Note
Some of the packages may not be available in certain countries or areas.
For details, consult your Sony dealer.
UWP-D11
The package consists of a body-pack transmitter (UTX-B03), a portable diversity tuner (URX-P03), and their accessories. When used in conjunction with a compact camcorder, a mobile system for ENG (Electronic News Gathering) or EFP (Electronic Field Production) applications can be constructed.
Body-pack transmitter |
Portable diversity tuner |
(UTX-B03) (1) |
(URX-P03) (1) |
Supplied accessories
Omni-directional lavalier microphone (1) |
Wind screen (1) |
Holder clip (1) |
Shoe mount adapter (1) |
Belt clip (2) |
XLR-BMP conversion output cable |
Stereo mini plug-BMP conversion |
|||||||||
for the URX-P03 (1) |
cable (1) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Battery case (1) (Chinese model only) Before Use (1) Quick Start Guide (1) CD-ROM (1) Warranty card (1)
(North American and Korean models only)
Configuration of the Packages |
|
3 |
|
||
|
|
|
UWP-D12
The package consists of a hand-held microphone (UTX-M03), a portable diversity tuner (URX-P03), and their accessories. When used in conjunction with a compact camcorder, a mobile system for ENG (Electronic News Gathering) or EFP (Electronic Field Production) applications can be constructed.
Hand-held microphone |
Portable diversity tuner |
||
(UTX-M03) (1) |
(URX-P03) (1) |
||
|
|
|
|
Supplied accessories
Microphone holder (1) |
Belt clip (1) |
XLR-BMP conversion output cable |
Stereo mini plug-BMP conversion |
||||||||||
for the URX-P03 (1) |
cable (1) |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Shoe mount adapter (1)
Battery case (1) (Chinese model only) Before Use (1) Quick Start Guide (1) CD-ROM (1) Warranty card (1)
(North American and Korean models only)
4 |
Configuration of the Packages |
|
|
UWP-D16
The UWP-D16 consists of a plug-on transmitter (UTX-P03), a body-pack transmitter (UTX-B03), a portable diversity tuner (URX-P03), and their accessories. When used in conjunction with a compact camcorder, a mobile system for ENG (Electronic News Gathering) or EFP (Electronic Field Production) applications can be constructed.
Plug-on transmitter |
Body-pack transmitter |
Portable diversity tuner |
||||||||||||||
(UTX-P03) (1) |
(UTX-B03) (1) |
(URX-P03) (1) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Supplied accessories
Omni-directional lavalier microphone (1) |
Wind screen (1) |
Holder clip (1) |
Soft case (1) |
Shoe mount adapter (1) |
Belt clip (2) |
Stereo mini plug-BMP |
XLR-BMP conversion output cable for the |
||||||||
conversion cable (1) |
URX-P03 (1) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Before Use (1)
Quick Start Guide (1)
CD-ROM (1)
Warranty card (1) (North American and Korean models only)
Configuration of the Packages |
|
5 |
|
||
|
|
|
Models available separately
The transmitter and tuner in each package are available for purchase separately. The components provided with each product are given below.
UTX-B03
•Body-pack transmitter (UTX-B03) (1)
•Omni-directional lavalier microphone (1)
•Wind screen (1)
•Holder clip (1)
•Belt clip (1)
•Battery case (1) (Chinese model only)
•Before Use (1)
•CD-ROM (1)
•Warranty card (1) (North American and Korean models only)
UTX-M03
•Hand-held microphone (UTX-M03) (1)
•Microphone holder (1)
•Before Use (1)
•CD-ROM (1)
•Warranty card (1) (North American and Korean models only)
UTX-P03
•Plug-on transmitter (UTX-P03) (1)
•Soft case (1)
•Before Use (1)
•CD-ROM (1)
•Warranty card (1) (North American and Korean models only)
URX-P03
•Portable diversity tuner (URX-P03) (1)
•Shoe mount adapter (1)
•Belt clip (1)
•XLR-BMP conversion output cable for the URX-P03
(1)
•Stereo mini plug-BMP conversion cable (1)
•Battery case (1) (Chinese model only)
•Before Use (1)
•CD-ROM (1)
•Warranty card (1) (North American and Korean models only)
6 |
Configuration of the Packages |
|
|
Features
The UWP-D11/D12/D16 (UWP-D series) Wireless Microphone Packages comprise a transmitter (body-pack transmitter (UTX-B03), hand-held microphone (UTX-M03), or plug-on transmitter (UTX-P03)) and a receiver (portable diversity tuner (URX-P03)). In combination with a compact camcorder or interchangeable-lens digital camera, the packages can be used for various purposes, such as ENG (Electronic News Gathering), EFP (Electronic Field Production), sports events, and weddings.
They are equipped with a DSP for transmission of highquality sound using digital compander processing. They can be used in combination with current Sony analog wireless microphone systems (UWP series, WRT series, WRR series, WRU series) by switching the compander mode.
The frequency and compander mode set on the tuner can be sent to the transmitter using an infrared communications link. Used in combination with the Clear Channel Scan function of the tuner, this greatly reduces the time required to set channels.
The contents of each package are described below.
UWP-D11
Body-pack transmitter (UTX-B03)
This transmitter is a lightweight, compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type microphone input connector. The RF power output can be switched between high and low. It is also equipped with a MIC/LINE input switching function to support a variety of input levels.
Portable diversity tuner (URX-P03)
This tuner employs a true diversity method featuring little signal dropout and an angle-adjustable antenna. It comes with an adapter for mounting on a compact camcorder (HXR-NX3, etc.). It also features a Clear Channel Scan function to search for available channels automatically.
UWP-D12
Hand-held microphone (UTX-M03)
This microphone features a robust, metallic body. It has a muting function and attenuator adjustment function to support a wide audio input level range.
It can be used in diverse applications simply by changing the microphone capsule. It has a built-in antenna.
*Microphone unit mounting dimensions: 31.3 mm diameter, 1.0 mm pitch
Portable diversity tuner (URX-P03)
This tuner employs a true diversity method featuring little signal dropout and an angle-adjustable antenna. It comes with an adapter for mounting on a compact camcorder (HXR-NX3, etc.). It also features a Clear Channel Scan function to search for available channels automatically.
UWP-D16
Plug-on transmitter (UTX-P03)
This transmitter is a lightweight, compact plug-on type transmitter that employs a crystal-controlled PLL synthesizer. It has a muting function and an XLR-type microphone input connector that can supply +48 V power for connecting a wide range of microphones. It is also equipped with a MIC/LINE switching function to support a variety of input levels.
Body-pack transmitter (UTX-B03)
This transmitter is a lightweight, compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type microphone input connector. The RF power output can be switched between high and low. It is also equipped with a MIC/LINE input switching function to support a variety of input levels.
Portable diversity tuner (URX-P03)
This tuner employs a true diversity method featuring little signal dropout and an angle-adjustable antenna. It comes with an adapter for mounting on a compact camcorder (HXR-NX3, etc.). It also features a Clear Channel Scan function to search for available channels automatically.
Features 7
Name and Function of
Parts
Body-pack transmitter (UTX-B03)
aAntenna
bPOWER indicator
Displays the battery level and charging status.
Indicator display |
Status |
On (green) |
Sufficient battery level |
|
|
Flashing (green) |
Battery is getting low |
|
|
On (orange) |
Charging (when nickel metal hydride |
|
rechargeable batteries are inserted |
|
and power is turned off) |
|
|
Off |
Power is off or battery is empty |
|
|
cAUDIO (audio input level) indicator
Turns on or off according to the audio input level as follows.
On (red): Audio input level is too high. If the sound is distorted, adjust the attenuation level to decrease the audio input level (page 27).
On (green): Audio input level is appropriate.
Off: There is no audio input or the input level is too low. Flashing (orange): Audio is muted (i.e., disabled).
dAudio input connector (BMP type)
Connect to the supplied lavalier microphone.
Notes
•When the audio input level is set to MIC, a voltage for the lavalier microphone power supply is applied to the audio input connector. Special electrical wiring is used inside the audio input connector for this purpose.
•If a lavalier microphone other than the one supplied is connected, the proper performance may not be obtained.
ePOWER/MUTING button
Turns the power on/off. You also use this button to turn the muting function on/off.
Function |
Operation |
Supply ON |
Press button for one second or longer |
|
|
Supply OFF |
Press button until the indicator turns |
|
off |
|
|
Muting ON |
Press button |
|
|
Muting OFF |
|
|
|
fUSB connector (Micro B type)
Connect to a commercially available USB portable power supply.
When a USB portable power supply is connected while the power is turned on, the unit automatically operates with power supplied by the USB portable power supply. When a USB portable power supply is connected while nickel metal hydride batteries are inserted and the power is turned off, the batteries are charged by the USB portable power supply.
Note
Alkaline batteries and lithium batteries cannot be recharged.
gBattery compartment
Accepts two AA batteries (alkaline, nickel metal hydride, or lithium batteries).
For details on how to insert batteries, see “Power Supply” (page 14).
h+ or – button
Selects functions or values shown on the display.
8 Name and Function of Parts
iDisplay section |
kInfrared detector |
|
Receives the frequency and compander mode set on the |
|
tuner. |
|
Hand-held microphone (UTX-M03) |
ARF transmission indicator
Displays the current transmission status.
: Transmitting
– : Transmission stopped
BRF transmission power indicator
Indicates the current transmission power setting. You can change the setting with the RF transmission power setting function.
For details on the RF transmission power setting function, see “Setting the transmit output level (RF POWER)” (page 27).
CAudio input level meter
Displays the audio input level.
DPeak indicator
Lights up when the signal is 3 dB below the level at which distortion begins as a warning of excessive input level.
EInput level indicator
Displays the input level status.
: Microphone input
: Line input
FBattery level indicator
Displays the battery level. Displays “EXT” when power is supplied from the USB connector.
For details, see “Battery level indicator” (page 15).
GMenu display section
Displays various functions. Press the + or – button to switch functions.
For details, see “Configuration menu” (page 23).
jSET button
Adjusts displayed function settings and enters the displayed value.
Holding down the SET button while turning on the power turns the transmitter on without transmitting a signal (transmission stopped mode).
Inside the grip
aMicrophone unit
The standard-equipped microphone unit can be interchanged with another microphone unit having a diameter of 31.3 mm and a pitch of 1.0 mm.
For details on attaching and removing the microphone unit, see “Replacing the microphone unit” (page 17).
bPOWER indicator
Displays the battery level, charging status, and audio muting (i.e., audio enabled or disabled) status.
Indicator display |
Status |
On (green) |
Sufficient battery level |
|
|
Flashing (green) |
Battery is getting low |
|
|
On (orange) |
Charging (when nickel metal hydride |
|
rechargeable batteries are inserted |
|
and power is turned off) |
|
|
Off |
Power is off or battery is empty |
|
|
Flashing (orange) |
Audio is muted (i.e., disabled) |
|
|
Name and Function of Parts 9
cPOWER/MUTING button
Turns the power on/off. You also use this button to turn the muting function on/off.
Function |
Operation |
Supply ON |
Press button for one second or longer |
|
|
Supply OFF |
Press button until the indicator turns |
|
off |
|
|
Muting ON |
Press button |
|
|
Muting OFF |
|
|
|
dBattery compartment
Accepts two AA batteries (alkaline, nickel metal hydride, or lithium batteries).
For details on how to insert batteries, see “Power Supply” (page 14).
eAntenna section
fDisplay section
ARF transmission indicator
Displays the current transmission status.
: Transmitting
– : Transmission stopped
BRF transmission power indicator
Indicates the current transmission power setting. You can change the setting with the RF transmission power setting function.
For details on the RF transmission power setting function, see “Setting the transmit output level (RF POWER)” (page 27).
CAudio input level meter
Displays the audio input level.
DPeak indicator
Lights up when the signal is 3 dB below the level at which distortion begins as a warning of excessive input level.
EBattery level indicator
Displays the battery level.
For details, see “Battery level indicator” (page 15).
FMenu display section
Displays various functions. Press the + or – button to switch functions.
For details, see “Configuration menu” (page 23).
gInfrared detector
Receives the frequency and compander mode set on the tuner.
hSET button
Adjusts displayed function settings and enters the displayed value.
Holding down the SET button while turning on the power turns the transmitter on without transmitting a signal (transmission stopped mode).
iUSB connector (Micro B type)
Connect to a commercially available USB portable power supply.
When a USB portable power supply is connected while nickel metal hydride batteries are inserted and the power is turned off, the batteries are charged by the USB portable power supply.
Note
Alkaline batteries and lithium batteries cannot be recharged. Also, power cannot be supplied from a USB portable power supply.
j+ or – button
Selects functions or values shown on the display.
10 Name and Function of Parts
Plug-on transmitter (UTX-P03)
Front
Bottom
aAudio input connector (XLR type)
Connect to a microphone or the line output of an audio mixer or other device.
b+48V (+48 V supply) indicator
Lights up when the unit is set to LINE input and is supplying power to the connected microphone.
cPOWER indicator
Displays the battery level and charging status.
Indicator display |
Status |
On (green) |
Sufficient battery level |
|
|
Flashing (green) |
Battery is getting low |
|
|
On (orange) |
Charging (when nickel metal hydride |
|
rechargeable batteries are inserted |
|
and power is turned off) |
|
|
Off |
Power is off or battery is empty |
|
|
dAUDIO (audio input level) indicator
Turns on or off according to the audio input level as follows.
On (red): Audio input level is too high. If the sound is distorted, adjust the attenuation level to decrease the audio input level (page 27).
On (green): Audio input level is appropriate.
Off: There is no audio input or input level is too low.
Flashing (orange): Audio is muted (i.e., disabled).
ePOWER/MUTING button
Turns the power on/off. You also use this button to turn the muting function on/off.
Function |
Operation |
Supply ON |
Press button for one second or longer |
|
|
Supply OFF |
Press button until the indicator turns |
|
off |
|
|
Muting ON |
Press button |
|
|
Muting OFF |
|
|
|
fDisplay section
ARF transmission indicator
Displays the current transmission status.
: Transmitting
– : Transmission stopped
BRF transmission power indicator
Indicates the current transmission power setting. You can change the setting with the RF transmission power setting function.
For details on the RF transmission power setting function, see “Setting the transmit output level (RF POWER)” (page 27).
CAudio input level meter
Displays the audio input level.
DPeak indicator
Lights up when the signal is 3 dB below the level at which distortion begins as a warning of excessive input level.
EInput level indicator
Displays the input level status.
: Microphone input
: Line input
FBattery level indicator
Displays the battery level. Displays “EXT” when power is supplied from the USB connector.
For details, see “Battery level indicator” (page 15).
Name and Function of Parts 11
GMenu display section
Displays various functions. Press the + or – button to switch functions.
For details, see “Configuration menu” (page 23).
g+ or – button
Selects functions or values shown on the display.
hSET button
Adjusts displayed function settings and enters the displayed value.
Holding down the SET button while turning on the power turns the transmitter on without sending a signal (transmission stopped mode).
iInfrared detector
Receives the frequency and compander mode set on the tuner.
jUSB connector (Micro B type)
Connect to a commercially available USB portable power supply.
When a USB portable power supply is connected while the power is turned on, the unit automatically operates with power supplied by the USB portable power supply. When a USB portable power supply is connected while nickel metal hydride batteries are inserted and the power is turned off, the batteries are charged by the USB portable power supply.
Note
Alkaline batteries and lithium batteries cannot be recharged.
kBattery compartment
Accepts two AA batteries (alkaline, nickel metal hydride, or lithium batteries).
For details on how to insert batteries, see “Power Supply” (page 14).
Portable diversity tuner (URX-P03)
Front
Bottom
aAntenna
bPHONES (monitor) connector (3.5-mm diameter, stereo mini jack)
Connect to headphones to monitor the audio output.
Note
Do not connect headphones with a monaural mini jack. This may short-circuit the headphone outputs, resulting in distorted sound output.
cPOWER indicator
Displays the battery level and charging status.
Indicator display |
Status |
On (green) |
Sufficient battery level |
|
|
Flashing (green) |
Battery is getting low |
|
|
On (orange) |
Charging (when nickel metal hydride |
|
rechargeable batteries are inserted |
|
and power is turned off) |
|
|
Off |
Power is off or battery is empty |
|
|
12 Name and Function of Parts
Loading...
