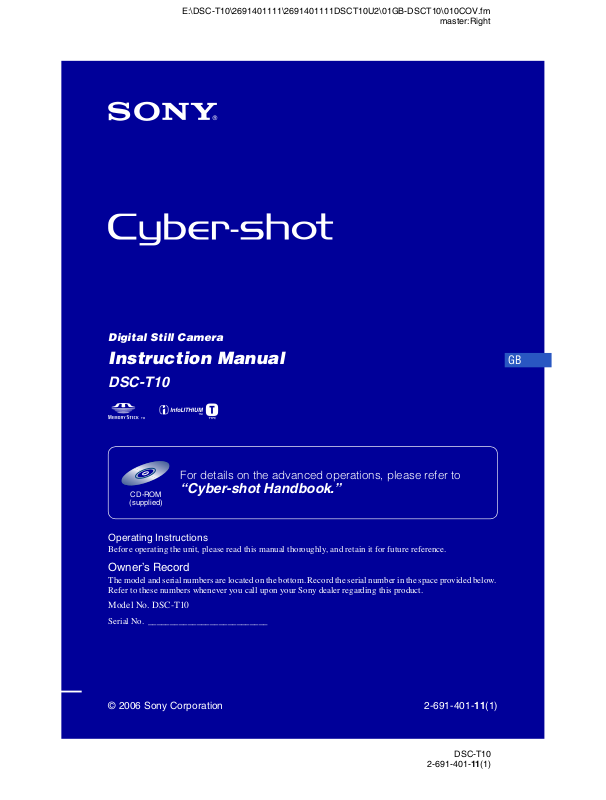

Digital Still Camera
Instruction Manual
DSC-T10
For details on the advanced operations, please refer to
CD-ROM
(supplied)
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. DSC-T10
Serial No. ___________________________
© 2006 Sony Corporation 2-691-401-11(1)
“Cyber-shot Handbook.”
GB
WARNING
To reduce fire or shock hazard, do
not expose the unit to rain or
moisture.
For Customers in the U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product's enclosure that may
be of sufficient magnitude
to constitute a risk of
electric shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
IMPORTANT
SAFEGUARDS
For your protection, please read these safety
instructions completely before operating
the appliance, and keep this manual for
future reference.
Carefully observe all warnings, precautions
and instructions on the appliance, or the one
described in the operating instructions and
adhere to them.
Use
[ Power Sources
This set should be operated only from the type of
power source indicated on the marking label. If
you are not sure of the type of electrical power
supplied to your home, consult your dealer or
local power company. For those sets designed to
operate from battery power, or other sources, refer
to the operating instructions.
[ Polarization
This set may be equipped with a polarized ac
power cord plug (a plug having one blade wider
than the other).
This plug will fit into the p ower outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the polarized
plug by forcing it in.
[ Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
[ Object and Liquid Entry
Never push objects of any kind into the set
through openings as they may touch dangerous
voltage points or short out parts that could result
in a fire or electric shock. Never spill liquid of any
kind on the set.
[ Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
2
[ Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid cleaners
or aerosol cleaners. Use a cloth lightly dampened
with water for cleaning the exterior of the set.
Installation
[ Water and Moisture
Do not use power-line operated sets near water –
for example, near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool, etc.
[ Power-Cord Protection
Route the power cord so that it is not likely to be
walked on or pinched by items placed upon or
against them, paying particular attention to the
plugs, receptacles, and the point where the cord
exits from the appliance.
[ Accessories
Do not place the set on an unstable cart, stand,
tripod, bracket, or table. The set may fall, causing
serious injury to a child or an adult, and serious
damage to the set. Use only a cart, stand, tripod,
bracket, or table recommended by the
manufacturer.
[ Ventilation
The slots and openings in the cabinet are provided
for necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must never
be blocked or covered.
–Never cover the slots and openings with a cloth
or other materials.
–Never block the slots and openings by placing
the set on a bed, sofa, rug, or other similar
surface.
–Never place the set in a confined space, such as a
bookcase, or built-in cabinet, unless proper
ventilation is provided.
–Do not place the set near or over a radiator or
heat register, or where it is exposed to direct
sunlight.
[ Lightning
For added protection for this set during a lightning
storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system.
This will prevent damage to the set due to
lightning and power-line surges.
Service
[ Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
–When the power cord or plug is damaged or
frayed.
–If liquid has been spilled or objects have fallen
into the set.
–If the set has been exposed to rain or water.
–If the set has been subject to excessive shock by
being dropped, or the cabinet has been damaged.
–If the set does not operate normally when
following the operating instructions. Adjust only
those controls that are specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the set to normal operation.
–When the set exhibits a distinct change in
performance – this indicates a need for service.
[ Servicing
Do not attempt to service the set yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
[ Replacement parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original parts.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
[ Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer)
to determine that the set is in safe operating
condition.
3
Read this first
CAUTION
Replace the battery with the specified type
only. Otherwise, fire or injury may result.
For Customers in the U.S.A. and
Canada
[ RECYCLING LITHIUM-ION
BATTERIES
Lithium-Ion batteries are
recyclab le.
You can help preserve our
environment by returning your
used rechargeable batteries to
the collection and recycling
location nearest you.
For more information regarding recycling of
rechargeable batteries, call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.
For Customers in the U.S.A.
If you have any questions about this product, you
may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related matters
only.
[ Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-T10
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
[ CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
4
[ Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
The supplied interface cable must be used with the
equipment in order to comply with the limits for a
digital device pursuant to Subpart B of Part 15 of
FCC Rules.
For Customers in Europe
This product has been tested and found compliant
with the limits set out in the EMC Directive for
using connection cables shorter than 3 meters (9.8
feet).
[ Attention
The electromagnetic fields at the specific
frequencies may influence the picture and sound
of this camera.
[ Notice
If static electricity or electromagnetism causes
data transfer to discontinue midway (fail), restart
the application or disconnect and connect the
communication cable (USB, etc.) again.
[ Disposal of Old Electrical &
Electronic Equipment (Applicable
in the European Union and other
European countries with separate
collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate waste
handling of this product. The recycling of
materials will help to conserve natural resources.
For more detailed information about recycling of
this product, please contact your local Civic
Office, your household waste disposal service or
the shop where you purchased the product.
Notice for customers in the
United Kingdom
A moulded plug complying with BS 1363 is fitted
to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be
replaced, a fuse of the same rating as the supplied
one and approved by ASTA or BSI to BS 1362,
(i.e., marked with an or mark) must be
used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the fuse
cover after you change the fuse. Never use the
plug without the fuse cover. If you should lose the
fuse cover, please contact your nearest Sony
service station.
5
Notes on using your camera
[ Internal memory and “Memory
Stick Duo” back up
Do not turn off the camera or remove the
battery pack or “Memory Stick Duo” while
the access lamp is lighted, as the internal
memory data or “Memory Stick Duo” data
may be destroyed. Always protect your data
by making a back up copy.
[ Notes on recording/playback
• This camera is neither dust-proof, nor splashproof, nor water-proof. Read “Precautions”
(page 30) before operating the camera.
• Before you record one-time events, make a trial
recording to make sure that the camera is
working correctly.
• Be careful not to get the camera wet. Water
entering the inside of the camera may cause
malfunctions which in some cases may not be
repairable.
• Do not aim the camera at the sun or other bright
light. It may cause the malfunction of your
camera.
• Do not use the camera near a location that
generates strong radio waves or emits radiation.
The camera may not be able to record or play
back properly.
• Using the camera in sandy or dusty locations
may cause malfunctions.
• If moisture condensation occurs, remove it
before using the camera (page 30).
• Do not shake or strike the camera. In addition to
malfunctions and an inability to record images,
this may render the recording medium unusable,
or cause image data breakdown, damage or loss.
• Clean the flash surface before use. The heat of
flash emission may cause dirt on the flash
surface to become discolored or to stick to the
flash surface, resulting in insufficient light
emission.
[ Notes on the LCD screen
• The LCD screen is manufactured using
extremely high-precision technology so over
99.99% of the pixels are operational for
effective use. However, there may be some tiny
black points and/or bright points (white, red,
blue or green in color) that constantly appear on
the LCD screen. These points are normal in the
manufacturing process and do not affect the
recording in any way.
[ On image data compatibility
• This camera conforms with DCF (Design rule
for Camera File system) universal standard
established by JEITA (Japan Electronics and
Information Technology Industries
Association).
• Playback of images recorded with your camera
on other equipment and playback of images
recorded or edited with other equipment on your
camera are not guaranteed.
[ Warning on copyright
Television programs, films, videotapes, and other
materials may be copyrighted. Unauthorized
recording of such materials may be contrary to the
provisions of the copyright laws.
[ No compensation for contents of
the recording
The contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera or recording media, etc.
6
Table of contents
IMPORTANT SAFEGUARDS ..................................................................... 2
Read this first ............................................................................................ 4
Notes on using your camera .................................................................... 6
Getting started ................................................................................. 8
Checking the accessories supplied ......................................................... 8
1 Preparing the battery pack .................................................................... 9
2 Inserting the battery pack/a “Memory Stick Duo” (not supplied) ........ 10
3 Turning the camera on/setting the clock ............................................. 12
Shooting images easily (Auto adjustment mode) ...................... 13
Viewing/deleting images ............................................................... 16
Indicators on the screen ............................................................... 18
Changing the settings – Menu/Setup .......................................... 20
Menu items ............................................................................................. 21
Setup items ............................................................................................. 22
Enjoying your computer ............................................................... 24
Supported Operating Systems for USB connection and application
software (supplied) ................................................................................. 24
Viewing “Cyber-shot Handbook” ............................................................ 24
Battery life and memory capacity ................................................ 25
Battery life and number of images that can be recorded/viewed .......... 25
Number of still images and recording time of movies ............................ 26
Troubleshooting ............................................................................. 28
Battery pack and power ......................................................................... 28
Shooting still images/movies .................................................................. 29
Viewing images ...................................................................................... 29
Precautions ....................................................................................30
Specifications ................................................................................31
7
Getting started
Checking the accessories supplied
• Battery charger BC-CS3 (1)
• Power cord (mains lead) (1)
(not supplied in the USA and Canada)
• Rechargeable battery pack NP-FT1 (1)/Battery
case (1)
Attach the strap to prevent the camera
from damage by being dropped, etc.
• USB, A/V, DC IN cable for multi-use terminal
(1)
• Wrist strap (1)
• CD-ROM (Cyber-shot application software/
“Cyber-shot Handbook”) (1)
• Instruction Manual (this manual) (1)
Hook
8
1 Preparing the battery pack
For customers in the USA and
Canada
plug
ɟ
CHARGE lamp
For customers other than those in the USA
and Canada
ɟ
CHARGE lamp
Power cord (mains lead)
1Insert the battery pack into the battery charger.
2Connect the battery pack to the wall outlet (wall socket).
The CHARGE lamp lights on, and charging starts.
When the CHARGE lamp turns off, charging is finished (Practical charge).
If you continue charging the battery pack for about one more hour (until it is fully charged), the charge
will last slightly longer.
• Connect the battery charger to an easily accessible wall outlet (wall socket) close by.
• Even if the CHARGE lamp is not lit, the battery charger is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the
battery charger, immediately shut off the power by disconnecting the plug from the wall outlet (wall
socket).
• When charging is finished, disconnect the power cord (mains lead) from the wall outlet (wall socket), and
remove the battery pack from the battery charger.
• The time required to fully charge the supplied battery pack from when it is completely discharged at a
temperature of 25°C (77°F) is approximately 220 min., and the practical charging time is approximately
160 min. Charging may take longer under certain circumstances or conditions.
9
2 Inserting the battery pack/a “Memory Stick Duo” (not
supplied)
ɟ ɠ
Battery/“Memory Stick
Duo” cover
Insert the “Memory
Stick Duo” with the
terminal side facing the
LCD screen.
Battery eject
lever
Insert the battery pack while
pressing the battery eject lever
with the tip of the battery pack.
1Open the battery/“Memory Stick Duo” cover.
2Insert the “Memory Stick Duo” (not supplied) all the way in until it clicks.
3Insert the battery pack.
4Close the battery/“Memory Stick Duo” cover.
[ When there is no “Memory Stick Duo” inserted
The camera records/plays back images using the internal memory (approx. 56 MB).
[ To check the remaining battery time
Open the lens cover or press the POWER button to turn on and check the time on the LCD
screen.
Remaining indicator
Remaining time
LCD screen
• It takes about one minute until the correct battery
remaining time appears.
• The displayed time remaining may not be correct under
certain circumstances.
• When you turn on the power for the first time, the Clock
Set screen appears (page 12).
10
[ To remove the battery pack/“Memory Stick Duo”
Open the battery/“Memory Stick Duo” cover.
Battery pack“Memory Stick Duo”
Make sure that the access lamp is
not lit, then push the “Memory Stick
Duo” in once.
Slide the battery eject lever.
• Be sure not to drop the battery pack.
• Never remove the battery pack when
the access lamp is lit.
11
3 Turning the camera on/setting the clock
Mode switch
POWER button
Lens
Lens cover
ɟ
Control button
23
1Select with the mode switch, then press the POWER button or slide the
lens cover downward.
2Set the clock with the control button.
1 Select the date display format with v/V, then press z.
2 Select each item with b/B and set the numeric value with v/V, then press z.
3 Select [OK] with B, then press z.
1
[ To change the date and time
Select [Clock Set] in the (Setup) screen (page 20).
[ When you turn on the power
• Unless you set the clock, the Clock Set screen appears each time the camera is turned on.
• If the camera is running on battery power and you do not operate the camera for about three
minutes, the camera turns off automatically to prevent wearing down the battery pack (Auto
power-off function).
12
Shooting images easily (Auto adjustment mode)
AE/AF lock indi
Microphone
Mode switch
(Screen display
switch) button
Tripod receptacle
(bottom)
(Image Size)
button
ɠ
button
Zoom (W/T) button
Control button
1Select a mode with the mode switch.
Still image:
Movie: Select .
Select .
2Hold the camera steady, keeping your arm at your side.
Position the subject
in the center of the
focus frame.
3Shoot with the shutter button.
Still image:
1 Press and hold the shutter button
halfway down to focus.
The z (AE/AF lock) indicator (green)
flashes, a beep sounds, the indicator stops
flashing and remains lit.
2 Press the shutter button fully down.
The shutter sounds.
cator
Shutter button
(STEADY SHOT)
(EV) button
Movie:
Press the shutter button fully down.
To stop recording, press the shutter button fully down again.
13
[ Using the zoom
Press the zoom button.
• When the zoom scale exceeds 3×, the camera
uses the Digital Zoom function.
• The camera zooms slowly while shooting a
movie.
[ Quick Review (Checking the
last still image you shot)
Press b ( ) on the control button.
To cancel, press b again.
[ Flash (Selecting a flash mode
for still images)
Press v ( ) on the control button repeatedly
until the desired mode is selected.
(No indicator): Flash Auto
Strobes when there is insufficient light or
backlight (default setting)
: Flash forced on
: Slow synchro (Flash forced on)
SL
The shutter speed is slow in a dark place to
clearly shoot the background that is out of
flash light.
: Flash forced off
[ Macro/Magnifying Glass
(Shooting close-up)
Press B ( ) on the control button
repeatedly until the desired mode is
selected.
(No indicator): Macro off
: Macro on (W side: Approx. 8 cm or farther
(3 1/4 inches or farther), T side: Approx. 25 cm or
farther (9 7/8 inches or farther))
:Magnifying Glass on (Locked to the W side:
Approx. 1 to 20 cm (13/32 to 7 7/8 inches))
[ Using the self-timer
Press V ( ) on the control button
repeatedly until the desired mode is
selected.
(No indicator): Not using the self-timer
: Setting the 10-second delay self-timer
: Setting the 2-second delay self-timer
Press the shutter button, the self-timer lamp
flashes, and a beep sounds until the shutter
operates.
[ Anti-blur function
The anti-blur function is always activated
when (Camera) is set to [Auto].
To confirm that the anti-blur function is
activated, press the shutter button halfway
down and look for a (STEADY SHOT)
icon on the screen.
Other than [Auto] adjustment mode:
Press the (STEADY SHOT) button to
cancel the anti-blur function. To activate the
anti-blur function, press the button
again.
[ EV (Adjusting the
exposure)
Press the (EV) button, then press
v/V to adjust the exposure.
Toward +: Brightens an image.
Toward –: Darkens an image.
To turn off the EV adjustment bar, press the
button again.
14
[ To change the image size
Press the (Image Size) button, then
press v/V to select the size.
To turn off the Image Size menu, press the
button again.
Still images
Image size Guidelines
: 7M
7M
: 3:2 Match 3:2 Aspect Ratio
3:2
: 5M Up to A4/8×10" print
5M
: 3M Up to 13×18cm /5×7" print
3M
: 2M Up to 10×15cm /4×6" print
2M
: VGA For E-mail
VGA
: 16:9 Display On 16:9 HDTV
16:9
Up to A3/11×17" print
Movies
Image size Guidelines
FINE
: 640(Fine)
6 40
Display on TV (high
quality)
STD
:
6 40
Display on TV (standard)
640(Standard)
160
: 160 For E-mail
[ On the recordable number of still
images and recordable time of
movies
Recordable number of still images and
recordable time of movies vary depending
on the selected image size.
Still images
Maximum number of recordable images
Movies
Maximum recordable time
• The number of recordable images and time can
differ according to shooting conditions.
15
Viewing/deleting images
Mode switch
(Delete) button
(Index)/ (playback
zoom) button
(playback zoom)
button
ɟ
Control button
Multi connector
(bottom)
(Slide Show)
button
1Select with the mode switch.
2Select an image with b/B on the control button.
Movie:
Press z to play back a movie. (Press z again to stop playback.)
Press b/B to rewind/fast forward. (Press z to return to normal playback.)
Press v/V to adjust the volume.
[ To delete images
1 Display the image you want to delete and press (Delete).
2 Select [Delete] with v, then press z.
• You can delete an image during Quick Review (page 14).
[ To view an enlarged image (playback zoom)
Press while displaying a still image.
To undo the zoom, press .
Adjust the portion: v/V/b/B
Cancel playback zoom: z
[ Viewing an index screen
Press (Index) and select an image with v/V/b/B. To display the next (previous) index
screen, press b/B.
To return to the single-image screen, press z.
16
[ To delete images in index mode
1 While an index screen is displayed, press (Delete) and select [Select] with v/V on
the control button, then press z.
2 Select the image you want to delete with v/V/b/B, then press z to display the (Delete)
indicator on the selected image.
3 Press (Delete).
4 Select [OK] with B, then press z.
[ To play back a series of images (Slide Show)
While playing back still images, press (Slide Show). To cancel, press again.
[ To view images on TV screen
1 Connect the camera to the TV with the cable for multi-use terminal (supplied).
2 Set the switch on the cable for multi-use terminal to “TV.”
To the multi connector To audio/video input jacks
Cable for multi-use terminal
17
Indicators on the screen
[ When shooting still images
[ When shooting movies
[ When playing back
A
60min
z AE/AF lock
M
BRK Recording mode
WB
STBY
REC
SL
1.3
ON
VIVID
NATURAL
SEPIA B&W
- Protect
1.3
Step
12/16
N Playback
Battery remaining
White balance
Standby/Recording a movie
Camera mode (Scene
Selection)
Camera mode (Program)
Flash mode
Flash charging
Zoom scaling
Red-eye reduction
Sharpness
Contrast
AF illuminator
Metering mode
Color mode
Print order (DPOF) mark
Zoom scaling
Frame by frame playback
Vo l u m e
18
B
Macro/Magnifying Glass
S AF M A F
AF mode
AF range finder frame
indicator
1.0m Focus preset distance
EV adjustment bar
V Darker
v Brighter
Adjusting EV
STEADY SHOT
101-0012 Folder-file number
Playback bar
C
PictBridge connecting
7M 5M
3:2
3M
2M
VGA
16:9
FINE
STD
6 40
6 40
Image size
1M
160
FINE STD Image quality
101
Recording folder
Change folder
101
Playback folder
Remaining internal
memory capacity
Remaining “Memory
Stick” capacity
00:00:00
[00:28:05]
Recording time [maximum
recordable time]
1/30" Multi Burst interval
400 Remaining number of
recordable images
Self-timer
C:32:00 Self-diagnosis display
ISO number
±0.7EV Bracket Step value
12/12 Image number/Number of
images recorded in selected
folder
00:00:12 Counter
D
Vibration warning
E Low battery warning
PictBridge connecting
+2.0EV Exposure Value
ISO number
Metering mode
Flash
WB
White balance
+ Spot metering cross hair
AF range finder frame
500 Shutter speed
F3.5 Aperture value
E
Histogram
• appears when histogram
display is disabled.
NR slow shutter
125 Shutter speed
F3.5 Aperture value
+2.0EV Exposure Value
2006 1 1
9:30 AM
PAUSE
z
z PLAY
BACK/
Recorded date/time of the
playback image
Playing back Multi Burst
images in series
Select images
NEXT
VOLUME Adjust volume
Menu
19
Changing the settings – Menu/Setup
Mode switch
ɟ
MENU button
ɠ
Control button
1Set the mode switch.
Different items are available depending on the position of the mode switch and the (Camera) menu
settings.
2Press MENU to display the menu.
3Select the desired menu item with b/B on the control button.
• If the desired item is invisible, keep pressing b/B until the item appears on the screen.
•Press z after selecting an item when the mode switch is set to .
4Select a setting with v/V.
The setting you select is zoomed and set.
5Press MENU to turn off the menu.
[ To select a Setup item
Press and hold MENU, or select
(Setup) in step 3 and then press B.
Select the item to set with v/V/b/B, then
press z.
20
For details on the operation 1 page 20
Menu items
The available menu items vary depending on the mode switch position and the (camera)
menu settings. Only the available items are displayed on the screen.
Menu for shooting
(Camera) Selects the still image camera mode.
COLOR (Color Mode) Changes the brightness of the image.
9 (Focus) Changes the focus method.
(Metering Mode) Selects the metering mode.
WB (White Bal) Adjusts the color tones.
ISO Selects a luminous sensitivity.
(P.Quality) Selects the still image quality.
Mode (REC Mode) Selects the continuous shooting method.
BRK (Bracket Step) Shifts the EV when the REC Mode is set to [Exp Brktg].
M
(Interval) Selects the frame interval when the REC Mode is set to [Multi
(Flash Level) Adjusts the amount of flash light.
(Contrast) Adjusts the contrast of the image.
(Sharpness) Adjusts the sharpness of the image.
(Setup) Changes Setup items.
Auto: Allows easy shooting with the settings adjusted
Program: Allows you to shoot with the exposure adjusted
Scene Selection mode:
Burst].
automatically.
automatically (both the shutter speed and the
aperture value). Also you can select various settings
using the menu.
Allows you to shoot with the preset settings according
to the scene.
21
For details on the operation 1 page 20
Menu for viewing
(Folder) Selects the folder for viewing images.
- (Protect) Prevents accidental erasure.
DPOF Adds a Print order mark.
(Print) Prints images using a PictBridge compliant printer.
(Slide) Plays back a series of images.
(Resize) Changes the image size of a recorded image.
(Rotate) Rotates a still image.
(Divide) Cuts movies.
(Setup) Changes Setup items.
Trimming Records an enlarged image. (Available only for playback
zoom.)
Setup items
Camera 1
AF Mode Selects the auto focus operation mode.
Digital Zoom Selects the digital zoom mode.
Function Guide Displays the description of functions when you operate the
Red Eye Reduction Reduces the red-eye phenomenon when using the flash.
AF Illuminator Supplies fill light to focus more easily on a subject in dark
Auto Review Displays the recorded image on the screen for approximately
camera.
surroundings.
two seconds immediately after shooting a still image.
Camera 2
STEADY SHOT Selects the anti-blur mode.
Internal Memory Tool
Format Formats the internal memory.
22
For details on the operation 1 page 20
Memory Stick Tool
Format Formats the “Memory Stick Duo”.
Create REC. Folder Creates a folder in a “Memory Stick Duo” for recording images.
Change REC. Folder Changes the folder currently used for recording images.
Copy Copies all images in the internal memory to a “Memory Stick
Duo”.
Setup 1
Download Music Downloads the music to be played for the Slide show.
Format Music Erases all the Music files.
LCD Backlight Selects the brightness of the LCD backlight when using the
Beep Selects the sound produced when you operate the camera.
Language Selects the language to be used to display the menu items,
Initialize Initializes the setting to the default setting.
camera with battery pack.
warnings, and messages.
Setup 2
File Number Selects the method used to assign file numbers to images.
USB Connect Selects the USB mode to be used when connecting the camera
Video Out Sets the video signal output according to the TV color system of
Clock Set Sets the date and time.
to a computer or a PictBridge compliant printer using the cable
for multi-use terminal.
the connected video equipment.
23
Enjoying your computer
You can display images shot with the camera on the computer. Also, you can use still images
and movies from the camera more than ever by taking advantage of the software. For details,
refer to “Cyber-shot Handbook.”
Supported Operating Systems for USB connection and application
software (supplied)
For Windows users For Macintosh users
USB connection
Application software
“Picture Motion
Browser”
• Must be installed with above OS at delivery.
• If your OS does not support USB connections, use a Memory Stick Reader/Writer (not supplied).
• For further details on the operating environment of “Picture Motion Browser,” refer to “Cyber-shot
Handbook.”
Viewing “Cyber-shot Handbook”
Windows Millennium Edition,
Windows 2000 Professional,
Windows XP Home Edition or
Windows XP Professional
Windows Millennium Edition,
Windows 2000 Professional,
Windows XP Home Edition or
Windows XP Professional
Mac OS 9.1/9.2/ Mac OS X(v10.1
to v10.4)
not compatible
[ For Windows users
1 Turn on your computer, and insert the CD-
ROM into the CD-ROM (supplied) drive.
The screen below appears.
When you click the [Cyber-shot Handbook]
button, the screen for copying “Cyber-shot
Handbook” appears. Follow the on-screen
instructions to copy.
2 After the installation is complete, double-
click the shortcut created on the desktop.
24
[ For Macintosh users
1 Turn on your computer, and insert the CD-
ROM into the CD-ROM (supplied) drive.
Select the “Handbook” folder and copy
“Handbook.pdf” stored in the “GB” folder to
your computer.
2 After copying is complete, double-click
“Handbook.pdf.”
Battery life and memory capacity
Battery life and number of images that can be recorded/viewed
The tables show the approximate number of
images that can be recorded/viewed and the
battery life when you shoot images in
[Normal] mode with the battery pack
(supplied) at full capacity and at an ambient
temperature of 25°C (77°F). The numbers
of images that can be recorded or viewed
take into account changing the “Memory
Stick Duo” as necessary.
Note that the actual numbers may be less
than those indicated in the table depending
on the conditions of use.
• Battery capacity decreases as you use it more, as
the time passes.
• The number of images that can be recorded/
viewed and the battery life are decreased under
the following conditions:
– The surrounding temperature is low.
– The flash is used frequently.
– The camera has been turned on and off many
times.
– The zoom is used frequently.
– The brightness of LCD Backlight is set to up.
– [AF Mode] is set to [Monitor].
– [STEADY SHOT] is set to [Continuous].
– The battery power is low.
[ When shooting still images
No. of images Battery life (min.)
Approx. 250 Approx. 125
• Shooting in the following situations:
– (P.Quality) is set to [Fine].
– [AF Mode] is set to [Single].
– [STEADY SHOT] is set to [Shooting].
– Shooting once every 30 seconds.
– The zoom is switched alternately between the
W and T ends.
– The flash strobes once every two times.
– The power turns on and off once every ten
times.
• The measurement method is based on the CIPA
standard.
(CIPA: Camera & Imaging Products
Association)
• The number of images/battery life does not
change, regardless of image size.
[ When viewing still images
No. of images Battery life (min.)
Approx. 4800 Approx. 240
• Viewing single images in order at about three
second intervals
[ When shooting movies
Battery life (min.)
Approx. 110
• Shooting movies continuously with an image
size of [160]
25
Number of still images and recording time of movies
The number of still images and the length of time for movies may vary depending on the
shooting conditions.
• For details on the image size, see page 15.
[ The approximate number of still images (The image quality is [Fine] on
the upper line and [Standard] on the lower line.)
(Units: Images)
Capacity
Size
7M 16 18 37 67 137 279 573
3:2 16 18 37 67 137 279 573
5M 23 25 51 92 188 384 789
3M 37 41 82 148 302 617 1266
2M 60 66 133 238 484 988 2025
VGA 357 394 790 1428 2904 5928 12154
16:9 60 66 133 238 484 988 2025
Internal
memory
Approx.
56MB
33 36 73 132 268 548 1125
33 36 73 132 268 548 1125
43 48 96 174 354 723 1482
67 74 149 264 537 1097 2250
111 123 246 446 907 1852 3798
892 985 1975 3571 7261 14821 30385
111 123 246 446 907 1852 3798
“Memory Stick Duo” formatted with this camera
64MB 128MB 256MB 512MB 1GB 2GB
• The number of images listed is for when [Mode] is set to [Normal].
• When the number of remaining shootable images is greater than 9,999, the “>9999” indicator appears.
• You can resize the images later ([Resize], page 22).
26
[ The approximate recording time of movies
(Units: hour : minute : second)
Size
Capacity
Internal
memory
Approx.
56MB
64MB 128MB 256MB 512MB 1GB 2GB
“Memory Stick Duo” formatted with this camera
640(Fine) – – – 0:02:50 0:06:00 0:12:20 0:25:10
640(Standard) 0:02:30 0:02:50 0:05:50 0:10:40 0:21:40 0:44:20 1:31:00
160 0:42:40 0:45:30 1:31:30 2:51:20 5:47:00 11:44:20 24:18:20
• Movies with the size set to [640(Fine)] can only be recorded on a “Memory Stick PRO Duo”.
• When images recorded using earlier Sony models are played back on this camera, the display may differ
from the actual image size.
27
Troubleshooting
If you experience trouble with your camera, try the following solutions.
1 Check the items below, and refer to “Cyber-shot Handbook.”
If a code such as “C/E:ss:ss” appears on the screen, refer to “Cyber-shot
Handbook.”
2 Remove the battery pack, and insert the battery pack again after about one
minute, and turn on the power.
3 Initialize the settings (page 23).
4 Consult your Sony dealer or local authorized Sony service facility.
Please understand that you give your consent that the contents of the internal memory, Music
files may be checked when you send your camera to be repaired.
Battery pack and power
The battery pack cannot be installed.
• Install the battery pack correctly using the tip of the battery pack to push the battery eject lever
(page 10).
Cannot turn on the camera.
• Install the battery pack correctly (page 10).
• The battery pack is discharged. Install charged battery pack (page 9).
• The battery pack is dead. Replace it with a new one.
• Use a recommended battery pack (page 8).
The power turns off suddenly.
• If you do not operate the camera for about three minutes while the power is on, the camera
turns off automatically to prevent wearing down the battery pack. Turn on the camera again
(page 12).
• The battery pack is dead. Replace it with a new one.
28
The battery remaining indicator is incorrect.
• This phenomenon occurs when you use the camera in an extremely hot or cold location.
• The displayed battery remaining differs from the current one. Fully discharge and then charge
the battery pack to correct the display.
• The battery pack is discharged. Install the charged battery pack (page 9).
• The battery pack is dead. Replace it with a new one.
Shooting still images/movies
Your camera cannot record images.
• Check the free capacity of the internal memory or “Memory Stick Duo” (pages 26, 27). If it is
full, do one of the following:
– Delete unnecessary images (page 16).
– Change the “Memory Stick Duo”.
• You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position.
• You cannot record images while charging the flash.
• Set the mode switch to when shooting still images.
• Set the mode switch to when shooting movies.
• The image size is set to [640(Fine)] when recording movies. Do one of the following:
– Set the image size to other than [640(Fine)].
– Insert a “Memory Stick PRO Duo”.
Viewing images
Your camera cannot play back images.
• The folder/file name has been changed on your computer.
• When an image file has been processed by a computer or when the image file was recorded
using a model other than that of your camera, playback on your camera is not guaranteed.
• The camera is in USB mode. Delete the USB connection.
29
Precautions
[ Do not use/store the camera in
the following places
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the
camera body may become deformed and this
may cause a malfunction.
• Under direct sunlight or near a heater
The camera body may become discolored or
deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near strong magnetic place
• In sandy or dusty places
Be careful not to let sand or dust get into the
camera. This may cause the camera to
malfunction, and in some cases this malfunction
cannot be repaired.
[ On carrying
Do not sit down in a chair or other place with the
camera in the back pocket of your trousers or
skirt, as this may cause malfunction or damage the
camera.
[ On cleaning
Cleaning the LCD screen
Wipe the screen surface with an LCD cleaning kit
(not supplied) to remove fingerprints, dust, etc.
Cleaning the lens
Wipe the lens with a soft cloth to remove
fingerprints, dust, etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly
moistened with water, then wipe the surface with
a dry cloth. Do not use the following as they may
damage the finish or the casing.
• Chemical products such as thinner, benzine,
alcohol, disposable cloths, insect repellent,
sunscreen or insecticide, etc.
• Do not touch the camera with the above on your
hand.
• Do not leave the camera in contact with rubber
or vinyl for a long time.
[ On operating temperatures
Your camera is designed for use under the
temperatures between 0°C and 40°C (32°F and
104°F). Shooting in extremely cold or hot places
that exceed this range is not recommended.
[ On moisture condensation
If the camera is brought directly from a cold to a
warm location, moisture may condense inside or
outside the camera. This moisture condensation
may cause a malfunction of the camera.
If moisture condensation occurs
Turn off the camera and wait about an hour for the
moisture to evaporate. Note that if you attempt to
shoot with moisture remaining inside the lens, you
will be unable to record clear images.
[ On the internal rechargeable
backup battery
This camera has an internal rechargeable battery
for maintaining the date and time and other
settings regardless of whether the power is on or
off.
This rechargeable battery is continually charged
as long as you are using the camera. However, if
you use the camera for only short periods, it
discharges gradually, and if you do not use the
camera at all for about one month it becomes
completely discharged. In this case, be sure to
charge this rechargeable battery before using the
camera.
However, even if this rechargeable battery is not
charged, you can still use the camera as long as
you do not record the date and time.
Charging method of the internal
rechargeable backup battery
Insert charged battery pack in the camera, or
connect the camera to a wall outlet (wall socket)
using the AC Adaptor (not supplied), and leave
the camera for 24 hours or more with the power
off.
30
Specifications
Trad
Camera
[System]
Image device: 7.20 mm (1/2.5 type) color CCD,
Primary color filter
Total pixel number of camera:
Approx. 7 410 000 pixels
Effective pixel number of camera:
Approx. 7 201 000 pixels
Lens: Carl Zeiss Vario-Tessar 3× zoom lens f =
6.33 – 19.0 mm (38 – 114 mm when
converted to a 35 mm still camera) F3.5 – 4.3
Exposure control: Automatic exposure, Scene
Selection (9 modes)
White balance: Automatic, Daylight, Cloudy,
Fluorescent, Incandescent, Flash
File format (DCF compliant):
Still images: Exif Ver. 2.21 JPEG compliant,
DPOF compatible
Movies: MPEG1 compliant (Monaural)
Recording media: Internal Memory (approx.
56 MB), “Memory Stick Duo”
Flash: Recommended distance (ISO set to Auto):
approx. 0.1 to 2.8 m (4 inches to 9 feet 2 1/4
inches) (W)/approx. 0.25 to 2.3 m (9 7/8
inches to 7 feet 6 5/8 inches) (T)
[Input and Output connectors]
Multi connector
USB communication: Hi-Speed USB (USB 2.0
compliant)
[LCD screen]
LCD panel: 6.2 cm (2.5 type) TFT drive
Total number of dots: 230 400 (960×240) dots
[Power, general]
Power: Rechargeable battery pack NP-FT1, 3.6 V
AC-LS5K AC Adaptor (not supplied), 4.2 V
Power consumption (during shooting): 1.0 W
Operating temperature: 0 to 40°C (32 to 104°F)
Storage temperature: –20 to +60°C (–4 to +140°F)
Dimensions: 89.7×54.9×20.6 mm (3 5/8×
2 1/4×13/16 inches) (W/H/D, excluding
protrusions)
Mass: Approx. 165 g (5.8 oz) (including NP-FT1
battery pack and wrist strap, etc.)
Microphone: Monaural
Speaker: Monaural
Exif Print: Compatible
PRINT Image Matching III: Compatible
PictBridge: Compatible
BC-CS3 battery charger
Power requirements: AC 100 to 240 V, 50/60 Hz,
3.2 W
Output voltage: DC 4.2 V, 500 mA
Operating temperature: 0 to 40°C (32 to 104°F)
Storage temperature: –20 to +60°C (–4 to +140°F)
Dimensions: Approx. 66×23×91 mm (2 5/8×
29/32×3 5/8 inches) (W/H/D)
Mass: Approx. 70 g (2.7 oz)
Rechargeable battery pack NP-FT1
Used battery: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Capacity: 2.4 Wh (680 mAh)
Design and specifications are subject to change
without notice.
emarks
• is a trademark of Sony
Corporation.
• “Memory Stick”, , “Memory Stick PRO”,
Duo”, , “MagicGate”,
and are trademarks of Sony
Corporation.
• “InfoLITHIUM” is a trademark of Sony
Corporation.
• Microsoft, Windows and DirectX are either
registered trademarks or trademarks of
Microsoft Corporation in the United States and/
or other countries.
• Macintosh, Mac OS, iMac, iBook, PowerBook,
Power Mac and eMac are trademarks or
registered trademarks of Apple Computer, Inc.
• Intel, MMX, and Pentium are trademarks or
registered trademarks of Intel Corporation.
• In addition, system and product names used in
this manual are, in general, trademarks or
registered trademarks of their respective
developers or manufacturers. However, the ™ or
® marks are not used in all cases in this manual.
, “Memory Stick Duo”,
, “Memory Stick PRO
31
Additional information on this product and answers
to frequently asked questions can be found at our
Customer Support Website.
Printed on 100% recycled paper using VOC (Volatile
Organic Compound)-free vegetable oil based ink.
Printed in Japan
Loading...
