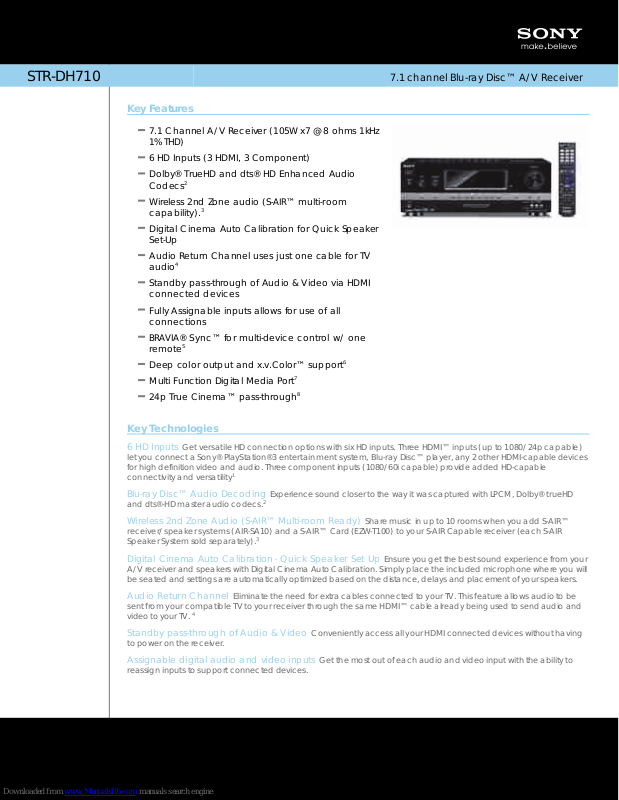

Page 1
STR-DH710
7.1 channel Blu-ray Disc
™
A/V Receiver
Key Features
7.1 Channel A/V Receiver (105W x7 @ 8 ohms 1kHz
1% THD)
6 HD Inputs (3 HDMI, 3 Component)
Dolby® TrueHD and dts® HD Enhanced Audio
Codecs
2
Wireless 2nd Zone audio (S-AIR
™ multi-room
capability).
3
Digital Cinema Auto Calibration for Quick Speaker
Set-Up
Audio Return Channel uses just one cable for TV
audio
4
Standby pass-through of Audio & Video via HDMI
connected devices
Fully Assignable inputs allows for use of all
connections
BRAVIA® Sync™ for multi-device control w/ one
remote
5
Deep color output and x.v.Color™ support
6
Multi Function Digital Media Port
7
24p True Cinema™
pass-through
8
Key Technologies
6 HD Inputs Get versatile HD connection options with six HD inputs. Three HDMI™ inputs (up to 1080/24p capable)
let you connect a Sony® PlayStation®3 entertainment system, Blu-ray Disc™ player, any 2 other HDMI-capable devices
for high definition video and audio. Three component inputs (1080/60i capable) provide added HD-capable
connectivity and versatility
1
Blu-ray Disc™ Audio Decoding Experience sound closer to the way it was captured with LPCM, Dolby
®
trueHD
and dts®-
HD master audio codecs.
2
Wireless 2nd Zone Audio (S-AIR
™ Multi-room Ready) Share music in up to 10 rooms when you add S
-
AIR™
receiver/speaker systems (AIR-SA10) and a S-AIR™
Card (EZW-T100) to your S-AIR Capable receiver (each S-AIR
Speaker System sold separately).
3
Digital Cinema Auto Calibration - Quick Speaker Set Up Ensure you get the best sound experience from your
A/V receiver and speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will
be seated and settings are automatically optimized based on the distance, delays and placement of your speakers.
Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be
sent from your compatible TV to your receiver through the same HDMI™
cable already being used to send audio and
video to your TV.
4
Standby pass-through of Audio & Video Conveniently access all your HDMI connected devices without having
to power on the receiver.
Assignable digital audio and video inputs Get the most out of each audio and video input with the ability to
reassign inputs to support connected devices.
Page 2
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 02/18/2010
STR-DH710
7.1 channel Blu-ray Disc
™
A/V Receiver
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
Audio
dts® Decoding: Yes (dts® HD Master
Audio)
Dolby® TrueHD Decoding: Yes
Dolby® Digital Decoding: Yes
Dolby® Digital EX Decoding: Yes
dts®-
ES Decoding:
Yes (MATRIX 6.1,
DISCRETE 6.1)
dts® 96/24 Decoding: Yes
dts® NEO:6 Decoding: Yes
Dolby® Pro Logic® Decoding: Yes
Dolby® Pro Logic® II Decoding: Yes
Dolby® Pro Logic® IIX Decoding:
Yes
Dolby® Digital Dual Mono: Yes
Digital Cinema Sound™
Technology:
Yes
96k/24Bit PCM: Yes
Cinema Studio EX. A/B/C mode: Yes
LPCM:
Yes
Dolby Digital +: Yes
2nd Zone: Yes (S-AIR™ Wireless Ready)
Convenience
Digital Cinema Auto Calibration: 6 Band
(auto) w/ included mic
Specifications
Audio
Impedance: 8 Ohms
Channel Power Rating: 7.1 Channel Power
Rating: 105W x 7 Amp Power (8 ohms,
1KhzTHD 1.0%)
Sound Fields: Cinema - 8; Music - 10; Auto
Format Decoding - 2; 2 Channel - 2;
Headphone - 2
Tuner Type: Auto Tuning, Direct Tuning,
Station Name
A/V Sync:
Yes (Variable)-300msec/96kHz
Equalizer:
BASS and Treble control
Sub Woofer Crossover: 17 Point (40-200Hz)
Bi-AMP: Yes
Bravia® Sync™:
Yes
Convenience
Preset Memory: 60 (30 FM, 30 AM)
AM/FM Memory Presets: 30 AM, 30 FM
Auto Tuning: Yes
Direct Tuning: Yes (Remote)
Sleep Timer: Yes
Station Name Display: Yes
Inputs and Outputs
Digital Media Port: 1 (Rear)
HDMI™ Connection Output(s): 1 (Rear)
HDMI™ Connection Input(s): 3 (Rear)
Optical Audio Input(s): 2 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
HD Component Video Input(s): 3 (Rear -
Y/Pb/Pr)
HD Component Video Output(s): 1 (Rear -
Y/Pb/Pr)
Composite Video Input(s): 4 (1 Front/3
Rear)
Composite Video Output(s): 1 (Rear)
RCA Audio Input(s): 5 (Rear)
RCA Audio Output(s): 2 (Rear)
Subwoofer Output(s): 1 (Rear)
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s): Yes (Gold)
Digital Audio Input(s): Assignable
(Optical, Coax)
Power
Power Requirements: 120V 60Hz
Power Consumption (in Operation): 240W
Power Consumption (in Standby): 0.3W
Hardware
Remote Control: Pre-programmed Remote
Speaker
Speaker Terminal Type: Front
(Screw)/Others(Push)
Weights and Measurements
Weight (Approx.): 17.6 lbs. (8kg)
Dimensions (Approx.): 16.9 x 6.2 x 12.6 in
(430 x 157.5 x 322mm)
Color:
Black
UPC Code:
027242779976
1. HDMI cable required and sold separately.
2. Dolby®
True-HD and dts®-
HD Master Audio decoding require HDMI
™
cable and capable source device (both sold separately).
3. Transmits up to 164 feet. Signal and sound quality may vary.
4. Requires compatible HDTV connected by HDMI cable (both sold
separately). Sound quality will vary depending on source.
5. Works with other BRAVIA® Sync or Theatre Sync™
labeled home
audio/video products when connected via HDMI
™
interface.
6. Deep Color and x.v. Color
™
technology are supported only when
source product, HDMI
™
cable, media and HDTV all support those
features.
7. iPod® support is limited to the following players with the optional dock:
iPod® touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation,
iPod
® 4th& 5th generation & iPod® Mini. The TDM-IP50 dock will
support iPhone® as well.
8. 24p playback capable device required, sold separately.
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, BRAVIA, BRAVIA
Sync, x.v. Color,
and their respective logos are trademarks of Sony. Blu
ray Disc is a trademark. Dolby is a registered trademark of Dolby
Laboratories. dts is a trademark of dts Inc. All other trademarks are
trademarks of their respective owners. Features and specifications are
subject to change without notice. Non-metric weights and measures are
approximate.
