Sony STR-DH540 Schematic

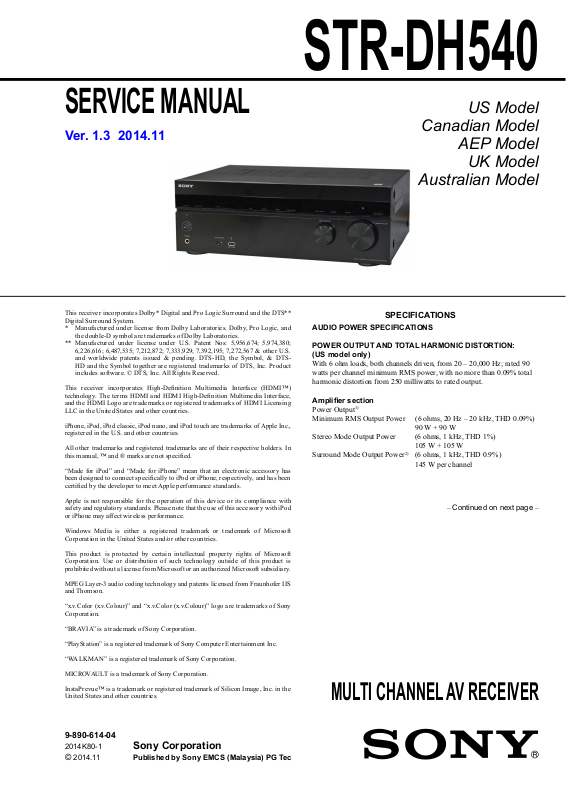

STR-DH540

SERVICE MANUAL

Ver. 1.3 2014.11

This receiver incorporates Dolby* Digital and Pro Logic Sur round and the DTS** Digital Surround System. * Manufa ctu red under lice nse from Dolby Lab oratories. Dolby, Pro Logic, a nd

the double -D symbol are t rademarks of Dolby Laborator ies.

** Manufact ured u nder license u nder U.S. Patent Nos: 5,956,674; 5,974,380;

6, 226 ,616 ; 6 ,4 87,535; 7, 21 2, 872; 7,333,9 29 ; 7, 39 2,195; 7, 27 2 ,5 67 & o the r U .S . and worldwide patents issued & pending. DTS-HD, the Sy mbol, & DTSHD and the Symbol together are registered trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reser ved.

This receiver incorporates High-Deﬁnit ion Multi media I nterface (H DMI™ ) technology. The ter ms HDM I and HDM I High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other cou ntries.

iPhone, i Pod, iPod classic, i Pod nano, and iPod touch are t rademark s of Apple Inc., registered in the U.S. and ot her countries.

All other tra demarks and registered trademarks a re of their respe ctive holders. In this manual, ™ and ® marks are not speci ﬁed.

“Made for i Pod” and “ Made for i Phone” mean that an elect ronic accessory has been designed to connect speciﬁcally t o iPod or i Phone, re spectively, and has been certiﬁed by the developer to meet Apple performa nce standards.

Apple is not re sponsible for the operation of this device or its compliance with safety an d reg ulat ory st andar ds. Pl ease no te th at th e use of t his a ccessor y wit h iPo d or iPhone may affect wireless performa nce.

Windows Media is either a registered trademark or tra demark of Microsoft Corporation i n the United States and/or other countries.

This product is protected by certain intellect ual property rig hts of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from M icrosof t or an authorized Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

“x.v.Color (x.v.Colour)” and “x.v.Color (x.v.Colour)” logo are tr ademarks of Sony Corporation.

“BRAVIA” is a trademark of Sony Corporation.

“PlayStation” is a reg istered trademark of Sony Computer Entertainment Inc.

“WALKMA N” is a registered tradema rk of Sony Cor poration.

MICROVAULT is a trademark of Sony Corporation.

InstaPrevue™ is a trademark or registe red trademark of Silicon Image, Inc. in the United States and other cou ntries.

US Model

Canadian Model

AEP Model

UK Model

Australian Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION: (US model only)

With 6 ohm loads, both channels driven, from 20 – 20,000 Hz; rated 90 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output.

Ampliﬁ er section

Power Output Minimum RMS Output Power (6 ohms, 20 Hz – 20 kHz, THD 0.09%) 90 W + 90 W Stereo Mode Output Power (6 ohms, 1 kHz, THD 1%) 105 W + 105 W Surround Mode Output Power2) (6 ohms, 1 kHz, THD 0.9%) 145 W per channel

1)

– Continued on next page –

MULTI CHANNEL AV RECEIVER

9-890-614-04

2014K80-1

2014.11

©

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

STR-DH540

Ver. 1.1

1)

Measured under the following conditions:

Area Power requirements

US, CND 120 V AC, 60 Hz AEP, UK, AUS 230 V AC, 50 Hz

2)

Reference power output for front, center and surround speakers. Depending on the sound ﬁeld settings and the source, there may be no sound output.

Frequency response Analog 10 Hz – 100 kHz, +0.5/–2 dB (with sound ﬁ eld and equalizer bypassed) Input Analog Sensitivity: 500 mV/50 kilohms S/N3): 105 dB (A, 500 mV4)) Digital (Coaxial) Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) Digital (Optical) S/N: 100 dB (A, 20 kHz LPF) Output (Analog) SUBWOOFER Voltage: 2 V/1 kilohm Equalizer Gain levels ±10 dB, 1 dB step

3)

INPUT SHORT (with sound ﬁeld and equalizer bypassed).

4)

Weighted network, input level.

FM tuner section

Tuning range 87.5 MHz – 108.0 MHz Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced

AM tuner section

Tuning range

Area Tuning scale

10 kHz step 9 kHz step

US, CND 530 kHz – 531 kHz – 1,710 kHz 1,710 kHz

AEP, UK, AUS – 531 kHz – 1,602 kHz

General

Power requirements

Area Power requirements

US, CND 120 V AC, 60 Hz AEP, UK 230 V AC, 50/60 Hz AUS 230 V AC, 50 Hz

Power consumption 200 W Power consumption (during standby mode)

0.3 W (When “Control for HDMI” and “Pass Through” are set to “Off”.) Dimensions (width/height/depth) (Approx.) 430 mm × 156 mm × 329.4 mm (17 in × 6

1/4 in × 13 in) including

projecting parts and controls Mass (Approx.) 7.7 kg (16 lb 16 oz)

Design and speciﬁcations are subject to change without notice.

Supplied accessories

•

Operating Instructions Quick Setup Guide (1)

•

• Remote control (RM-AAU168) (1)

• R6 (size AA) batteries (2)

• FM wire antenna (aerial) (1)

• AM loop antenna (aerial) (1)

• Optimizer microphone (ECM-AC2) (1)

Design and speciﬁcations are subject to change without notice.

Antenna (aerial) Loop antenna (aerial)

Video section

Inputs/Outputs Video: 1 Vp-p, 75 ohms

iPod/iPhone section

DC 5V 1.0 A MAX

USB section

Supported format* MP3 (MPEG 1 Audio Layer-3): 32 kbps – 320 kbps, VBR WMA: 48 kbps – 192 kbps AAC: 48 kbps – 320 kbps WAV: 8 kHz – 48 kHz 16 bit PCM

* Compatibility with all encoding/writing software, recording devices and recording media cannot be guaranteed.

Transfer speed Full-speed Supported USB device Mass Storage Class Maximum current 500 mA

• Halogenated ﬂame retardants are not used in the certain printed wiring boards.

Abbreviation AUS : Australian model CND : Canadian model

2

STR-DH540

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments.

2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)

To Exposed Metal Parts on Set

AC

1.5 kΩ0.15 μF

Earth Ground

voltmeter (0.75 V)

Fig. A. Using an AC voltmeter to check AC leakage.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SERVICING NOTES

MODEL IDENTIFICATION –BACK PANEL–

Model Part No.

US, Canadian

AEP, UK

Australian

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C. Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to ﬂ ow) than

ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

Part No.

4-442-874-0[]

4-442-874-1[]

4-442-874-2[]

NOTE OF REPLACING THE IC3506 AND IC4100 ON THE DIGITAL BOARD

IC3506 and IC4100 on the DIGITAL board cannot exchange with single. When these parts on the DIGITAL board are damaged, exchange the entire mounted board.

NOTE OF REPLACING THE COMPLETE DIGITAL BOARD

When the COMPLETE DIGITAL BOARD is exchanged, please perform the following procedures.

a) RESET MODEL AND DESTINATION SETTING

1. Press the [?/1] button to turn on the main power.

2. While pressing [DISPLAY] button, press and release the [A.F.D.], [MOVIE], [MUSIC] button in order, the message “SPECIALIZE” appears.

3. Press the [ M ] or [ m ] key of the remote commander, the message “<SPECIAL>” appears.

4. Press the [ Special Menu List.

5. Press the [ M ] or [ m ] key of the remote commander to select “MODEL&AREA” then press [ ] key of the remote commander.

6. Press the [ M ] or [ m ] key of the remote commander to select “MD.DST.UNFIX”, press [ ] key of the remote commander for resetting the model and destination.

b) FIX MODEL AND DESTINATION

Please refer to “FIX MODEL AND DESTINATION MODE” in page 12 for ﬁ xing the model and destination of set.

] key of the remote commander to enter the

Note: Refer to SUPPLEMENT-1 for adding SERVICING NOTES

(TROUBLESHOOTING)

4

This set can be disassemble according to the following sequence.

Note:

SET

2-1. CASE (ENTRY) (Page 5)

STR-DH540

SECTION 2

DISASSEMBLY

2-2. FRONT PANEL SECTION (Page 6)

Follow the disassembly procedure in the numerical order given.

Note:

2-3. DCDC BOARD, STANDBY BOARD (Page 7)

2-4. BACK PANEL SECTION (Page 8)

2-5. MAIN BOARD SECTION (Page 8)

2-6. MAIN BOARD (Page 9)

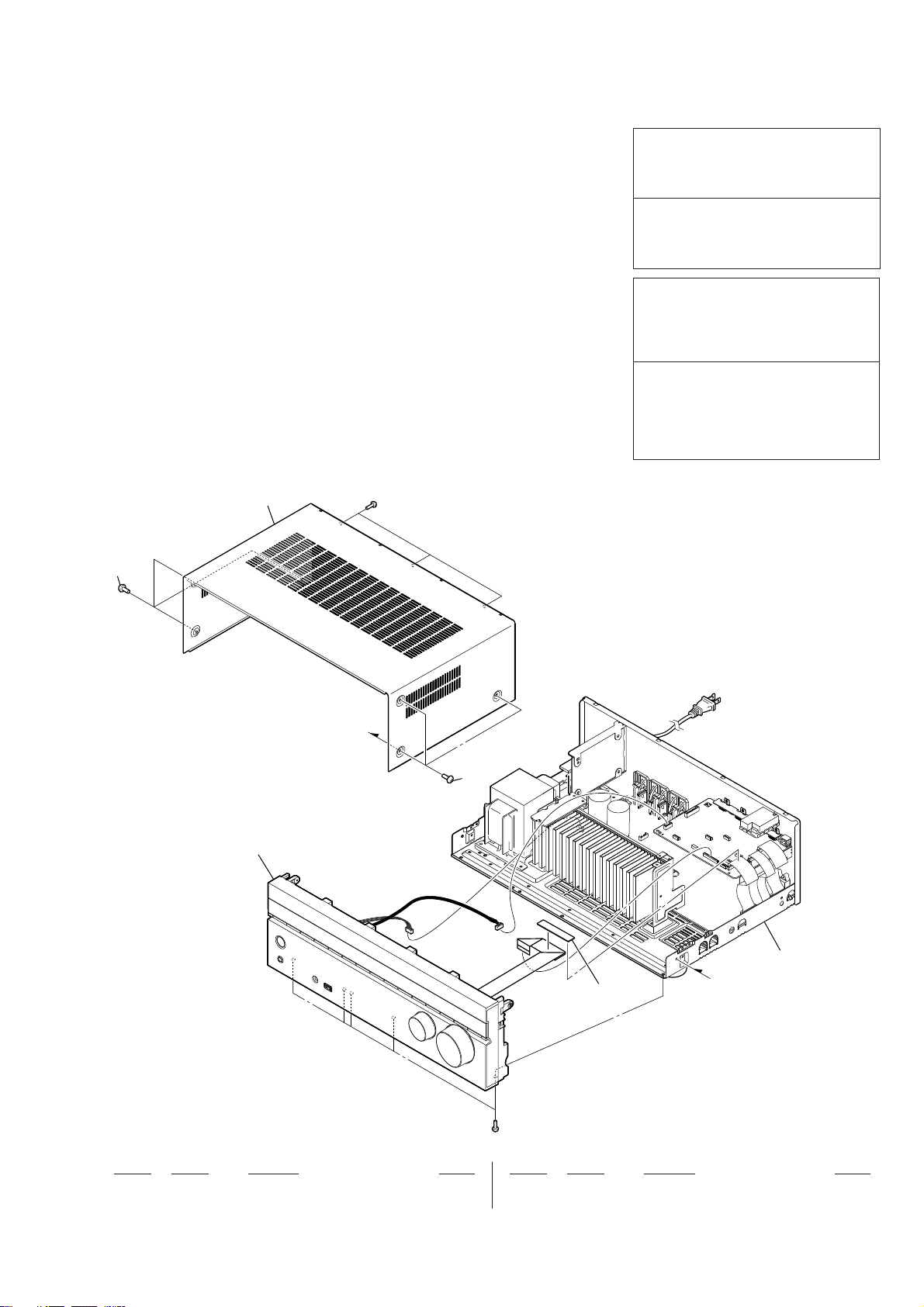

2-1. CASE (ENTRY)

1 three screws (B-TYPE 4 u 8)

4

3 three screws

(+BVTP 3 u 8)

4

2 three screws

(B-TYPE 4 u 8)

5 case (entry)

5

STR-DH540

2-2. FRONT PANEL SECTION

:LUHVHWWLQJ

pin, lead

heat sink

front side

USB WIRE INSULATION PC board

7 front panel section

5 CN391 (4P)

1 Wire is removed

from the pin, lead.

2 CN4000 (5P)

4 cushion (R)

3 wire (flat type) (25 core) (CN2101)

6 five screws

(+BVTP 3 u 8)

6

2-3. DCDC BOARD, STANDBY BOARD

:LUHVHWWLQJ

DCDC board

back panel

STR-DH540

Process so that lead wire

Note:

does not contact with power cord.

Process so that lead wire

Note:

does not contact with power transformer.

6 CN901 (2P)

qd four screws

(+BVTP 3 u 8)

qf STANDBY board

7 two screws

(+BVTP 3 u 8)

9 bracket, DCDC

8 two screws

(+BVTP 3 u 8)

2 cushion (R)

1 one screw

(+BVTP 3 u 8)

3 CN1500 (10P)

4 Wire is removed

from the pin, lead.

0 DCDC board

8 two screws

(+BVTP 3 u 8)

qs CN951 (2P)

qa CN953 (3P)

5 CN941 (4P)

7

STR-DH540

2-4. BACK PANEL SECTION

5 five screws (+BVTP 3 u 8)

7 back panel section

2-5. MAIN BOARD SECTION

6 eight screws (+BVTP 3 u 8)

3 wire (flat type) (25 core) (CN2014)

2 wire (flat type) (17 core) (CN2011)

1 wire (flat type) (25 core) (CN2015)

4 CN2004 (2P)

:LUHVHWWLQJ

rear side

pin, lead

5 USB WIRE INSULATION PC board

MAIN board

power transformer (T901)

6 two screws (+BVTP 3 u 8)

4 one screw (+BVTP 3 u 8)

1 Wire is removed from the pin, lead.

7 two screws (+BVTP 3 u 8)

8 MAIN board section

3 CNP930 (5P)

2 CNP920 (5P)

8

2-6. MAIN BOARD

Note: This illustration sees the MAIN board from back side.

3 heat sink section

1 Remove the

thirty solders.

STR-DH540

4 MAIN board

2 two screws

(+BVTP 3 u 8)

9

STR-DH540

SECTION 3

TEST MODE

TUNER AM STEP CHANGE MODE (US and Canadian models only)

Either the 9 kHz step or 10 kHz step can be selected for the AM channel step.

Procedure:

1. Press the [

2.

Turn the [INPUT SELECTOR] knob to select the “AM TUNER”.

] button to turn on the main power.

?/1

3. Press the [?/1] button to turn off the main power.

4. While pressing the [TUNING MODE] button, press the [?/1] button to turn on the main power.

5. Either the message “10K Step” or “9K Step” appears.

6. Repeat step (4) to select desired step.

VACUUM FLOURESCENT DISPLAY TEST MODE

All ﬂ ourescent segments are tested. When this test is activated, all segments light on at the same time, then each segment lights on one after another.

Procedure:

While pressing [SPEAKERS] and [DIMMER] buttons simultaneously, press the [

] button to turn on the main power.

?/1

1. ALL segments light on.

HDMI ARC PARTY S.OPTIMIZER D.C.A.C. USB BT UPDATE A.P.M.ZONE 2 3 COAX OPT

PLII x z NE O: 6 X D. R. C. D. L.L. EQ MEM RPT

True HD DTS-HD SPA+B ST

HDMI OUT

A + B

SLEEP

MHz k Hz dB

2. Press the [DISPLAY] button to conﬁ rm display as below.

HDMI PARTY D.C.A.C. USB UPDATE ZONE 3

OPT

True HD -HD A B

II z 6 D.R .C. MEM

ST

A + B

SLEEP

MHz

Hz

3. Press the [DISPLAY] button to conﬁ rm display as below.

ARC S.OPTIMIZER

BT A.P.M. 2

COAX

PL x NEO: X D.L.L. RPT

DTS SP +

EQ

HDMI OUT

k dB

A + B

4. Press the [DISPLAY] button, all segments light off.

SOUND FIELD CLEAR MODE

The preset sound ﬁ eld is cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair.

Procedure:

1. While pressing [MUSIC] button, press the [

] button to

?/1

turn on the main power.

2.

The message “S.F CLEAR” appears for a moment and initialization is performed.

SOFTWARE VERSION DISPLAY MODE

The software version is displayed.

Procedure:

1. While pressing [A.F.D.] and [PURE DIRECT] buttons simultaneously, press the [

] button to turn on the main power.

?/1

2. The message “H54 XXX” appears.

XXX: Area display Each time the [DISPLAY] button is pressed, “SYS vX.XXX”, “MAIN vX.XX”, “VIDEO vX.XX”, “OSD vX.XX” and

“SFLASHvX.XX” appear in this order, and returns to the “H54 XXX” display.

X.XX: Software version

KEY CHECK MODE

Each button can be checked.

Procedure:

1. While pressing [SPEAKERS] and [PURE DIRECT] buttons simultaneously, press the [

] button to turn on the main

?/1

power.

2. The message “REST 12” appears.

Every pressing of any button other than the [

?/1

] counts

down the buttons.

3. The buttons which are already counted once are not counted again.

4. When all buttons are pressed, “REST 00” appears.

SWAP ALL MODE

The signal will be swap to all channels so that all speakers will have sound output.

Procedure:

1. While pressing [PURE DIRECT] and [MOVIE] buttons simultaneously, press the [

] button to turn on the main

?/1

power.

2. “SWAP MODE” appears.

INITIALIZE MODE

All preset contents are cleared when this mode is activated. Use this mode before returning the product to clients upon completion of repair.

(a) SHIPMENT MODE

Procedure:

1. While pressing [A.F.D.] and [DIMMER] buttons simultaneously, press the [

] button to turn on the main power.

?/1

2. The message “CLEARING” appears and the memories are reset to the default values.

3. When done, the message “CLEARED !” appears, the set will power off.

(b) ALL CLEAR INITIALIZE

Procedure:

1. While pressing [A.F.D.] and [DISPLAY] buttons, press the [?/1] button to turn on the main power.

2. The message “CLEARING” appears and the memories are reset to the default values.

3. When done, the message “CLEARED !” appears, the set will power on.

(c) USER INITIALIZE

Procedure:

1. Hold the [

] button for 5 seconds.

?/1

2. The message “CLEARING” appears on the display.

3. After few seconds, “CLEARED !” appears.

PROTECTOR AUTO OFF

To disable auto off after protector occur.

Procedure:

1. While pressing [DISPLAY] and [MOVIE] buttons simultaneously, press the [

] button to turn on the main power.

?/1

2. “PROTEVER” appears and switch on the set.

DCAC TEST MODE

To test audio output from mic input and speakers.

Procedure:

1. While pressing [MUSIC] and [DIMMER] buttons simultaneously, press the [

] button to turn on the main power.

?/1

2. The message “MIC” appears.

MIC: mode that output audio from mic input

10

STR-DH540

HISTORY MODE

The state that the set is used is memorized.

Procedure:

1. While pressing [TUNING MODE] and [DISPLAY] buttons simultaneously, press the [

] button to turn on the power and

?/1

“HISTORY” is displayed.

2. Each time the [ M ] [ m ] key of remote commander is pressed,

the item is switched in order as follows.

Items Display

Protector Count C O U N T x x x

Total Power ON time T x x x x x H x x M

Main Power On M x x x x x H x x M

Protector type P R O T x x x x

Sound Field S N D F I E L D

Function F U N C T I O N

Input Mode I N P M O D E

Digital Select D I G S E L E C T

Stream S T R E A M I N F O

Channel Conﬁg C O N F x x x x x

Headphone H E A D P H x x x

Volume V O L : x x

Muting M U T I N G : x x

Bass B A S S x x x

Treble T R E B L E x x x

Front Level F x x x / x x x

Center Level C x x x / x x x

Surround Level S x x x / x x x

Temperature T E M P :

Total Power On T x x x x x H x x M

Main Power On M x x x x x H x x M

Power On Count R E B O X : x x

USB UPDATE TEST MODE

To update micontroller software through USB.

Procedure:

1. Plug in USB device in power off condition.

2. While pressing [TUNING MODE] and [PURE DIRECT] buttons simultaneously, press the [?/1] button to turn on the main power.

3. The message “UPDATING” appears.

4. If the updating progress succeeds, the message “COMPLETE” appears.

5. If the updating progress fails, the message “ERROR” appears.

USB UPDATE VERSION MODE

Function that displays the version number to check whether USB update is necessary or not.

Procedure:

1. While pressing [TUNING MODE] and [DIMMER] buttons, press the [?/1] button to turn on the main power.

2. The message “VER X.XXX” is displayed. “X.XXX” is calculated by adding all ﬁ rmware version.

Example: (MCU ver. + VIDEO ver. + DSP ver. + OSD ver. + 6)/10 = Displayed USB Update version MCU = 1.01, VIDEO = 1.04, DSP = 1.02, OSD = 1.03 ↓ (1.01 + 1.04 + 1.02 + 1.03 + 6)/10 = 1.010

1.010 = X.XXX

11

STR-DH540

Ver. 1.3

FIX MODEL AND DESTINATION MODE

This mode is to ﬁx the set for model & destination. When turning on the set, the message below appears if the setting is not ﬁxed with its model or destination or both (model & destination).

Items Display

MODEL & AREA NOT FIX

MODEL NOT FIX M O D E L. U N F I X

AREA/DESTINATION NOT FIX

M D. D S T. U N F I X

D E S T. U N F I X

Procedure:

1. Press the [?/1] button to turn on the main power.

2. While pressing [DISPLAY] button, press and release the [A.F.D.], [MOVIE], [MUSIC] button in order, the message “SPECIALIZE” appears.

3. Press the [ M ] or [ m ] key of the remote commander, the message “<SPECIAL>” appears.

4. Press the [

] key of the remote commander to enter the

Special Menu List.

5. Each time the [ M ] or [ m ] key of the remote commander is pressed, the item is switched in order as follows.

Items Display

SYSTEM VERSION S Y S v X. X X X

MAIN VERSION M A I N v X. X X

VIDEO VERSION V I D E O v X. X X

OSD VERSION O S D v X. X X

DSP SFLASH1 VER S F L A S H v X. X X

MODEL setting M O D E L

DESTINATION setting D E S T I N Y

MODEL & DESTINATION check

M O D E L & A R E A

6. Go to MODEL setting and press the [ ] key of remote commander.

7. Either one of the message as below appears.

Items Display

Model not ﬁx yet M O D E L. U N F I X

Model STR-H54 ﬁx H 5 4 f i x

Model STR-H74 ﬁx H 7 4 f i x

8. Press the [ M ] or [ m ] key of remote commander to set model info as “H54 ﬁ x” if message “MODEL UNFIX” appears.

9. Press the [ ] key of remote commander to select the model.

10. The message “MODEL” appears.

11. Go to DESTINATION setting and press the [

] key of

remote commander.

12. Either one of the display below appears according to the destination of the set.

Items Display

Destination D E S T U N F I X

Destination UCA ﬁx U C A f i x

Destination J ﬁx J f i x

Destination TW ﬁx T W f i x

Destination SP/CN ﬁx C N f i x

Destination KR ﬁx K R f i x

Destination E2/E3 ﬁx C H 3 f i x

Destination CEL ﬁx C E L f i x

Destination AU ﬁx A U f i x

Destination SP ﬁx S P f i x

Destination E51 ﬁx E 5 1 f i x

Destination BR ﬁx B R f i x

Destination AR ﬁx A R f i x

Destination MX ﬁx M X f i x

13. Press the [ M ] or [ m ] key of remote commander to set destination info if message “DEST UNFIX” appears.

14. Press the [ ] key of remote commander to select the destination.

15. The message “DESTINY” appear.

16. Go to MODEL & DESTINATION check and press the [ ] key of remote commander.

17. Either one of the message as below appears.

Items Display

MODEL & AREA NOT FIX M D. D S T. U N F I X

MODEL NOT FIX M O D E L. U N F I X

DESTINATION NOT FIX D E S T. U N F I X

STR-H54 H 5 4 x x x

MODEL & DESTINATION RESET

M D. D S T. U N F I X

xxx: Area display

18. Repeat step (6) onwards if message “MD.DST.UNFIX” appears.

19. Repeat step (6) until step (9) and continue with step (16) onwards if message “MODEL.UNFIX” appears.

20. Repeat step (13) onwards if message “DEST. UNFIX” appears.

21. Set need to be reset and updated again if the message appeared incorrectly.

22. Press the [ M ] or [ m ] key of remote commander goes to “MD. DST.UNFIX”.

23. Press the [ ] key of remote commander.

24. The set will power off and then power on by itself.

25. Start the setting again from step (1) onwards.

26. Perform SHIPMENT MODE if the message appears correctly.

27. The set will be power off itself and can be used as normal by pressing [?/1] button.

12

FM AUTO STOP CHECK

STR-DH540

SECTION 4

FM TUNER CHECK

generator

set

Procedure:

1. Turn on the set.

2. Input the following signal from Signal Generator to FM antenna input directly.

* Carrier Frequency: A=87.5 MHz, B=98 MHz, C=108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF)

Note: Use 75 ohm “coaxial cable” to connect SG and the set. You cannot use video cable for checking. Please use SG whose output impedance is 75 ohm.

3. Set to FM tuner function and scan the input FM signal with automatic scanning.

4. Conﬁ rm that input Frequency of A, B and C are detected and automatic scanning stops.

OUT (75 Ω)

The stop of automatic scanning means “The station signal is received in good condition.”

13

STR-DH540

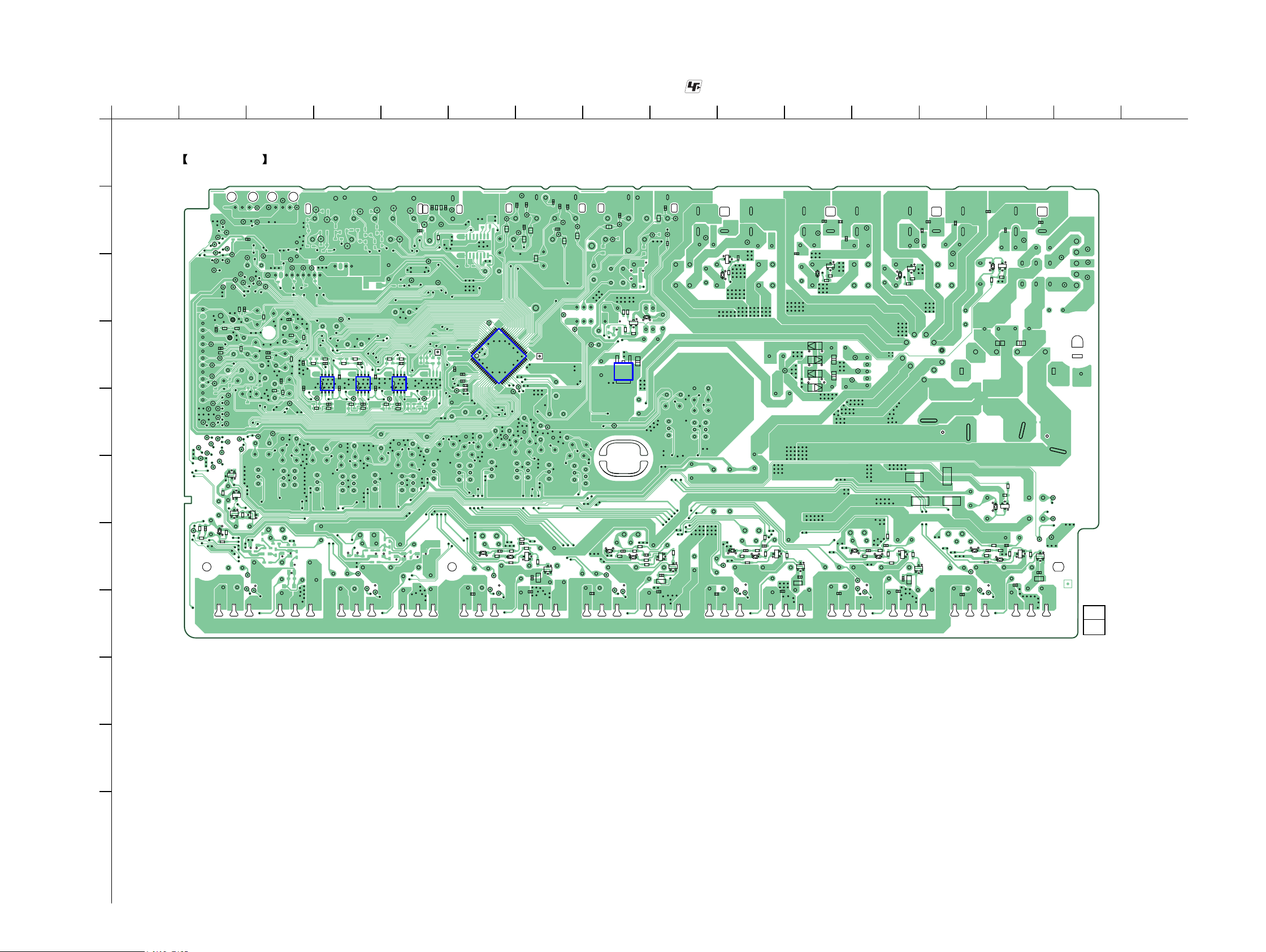

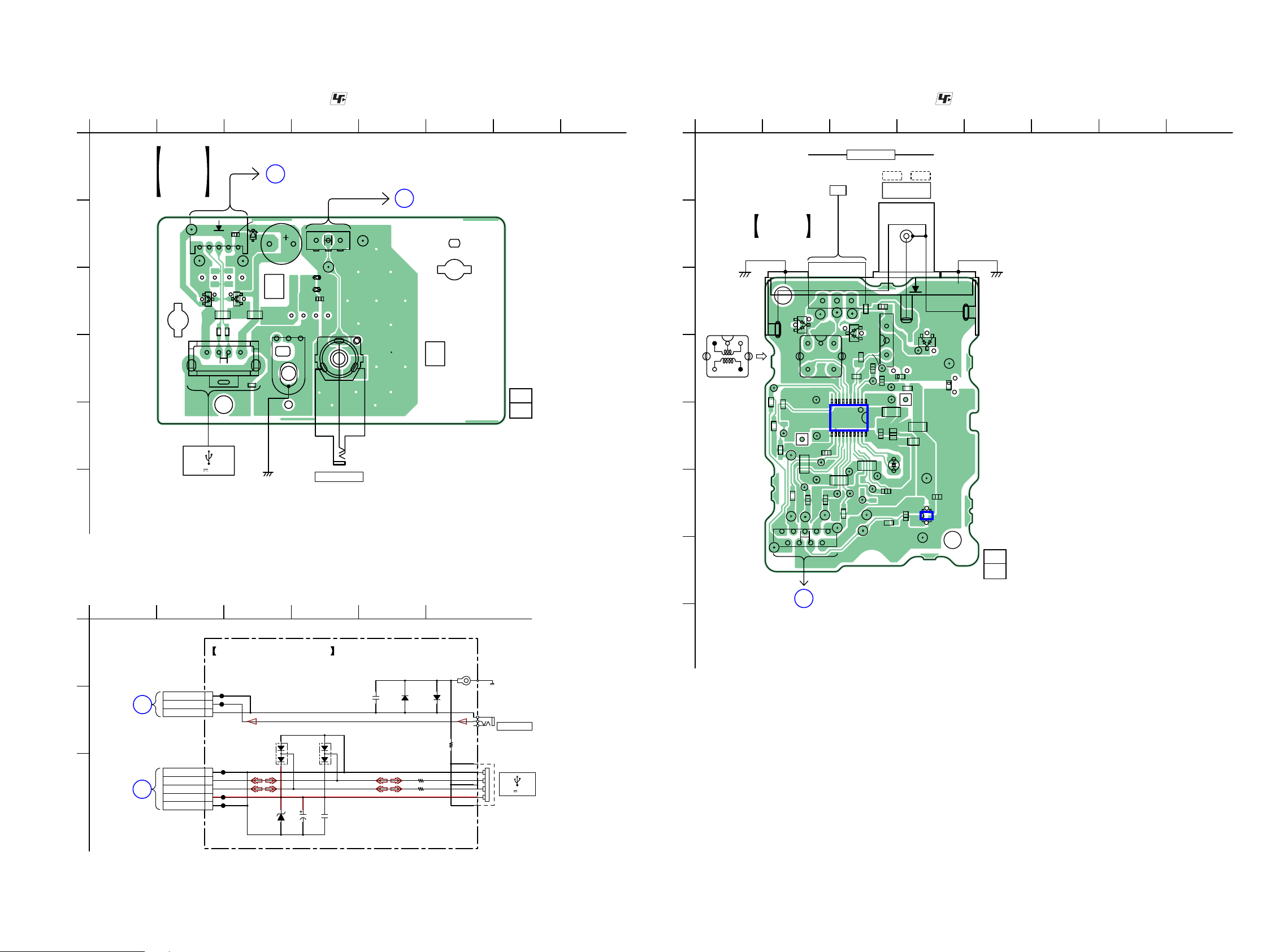

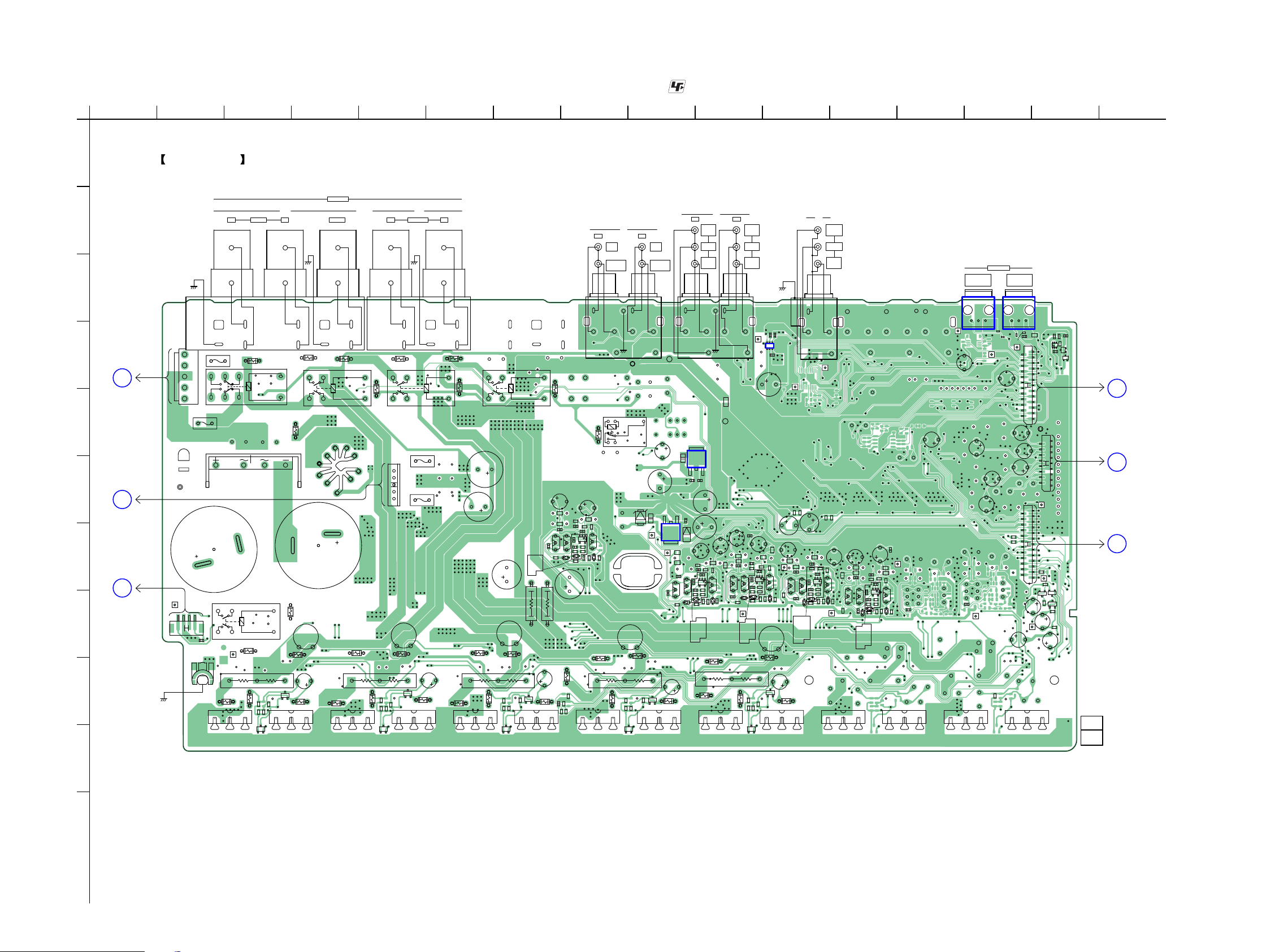

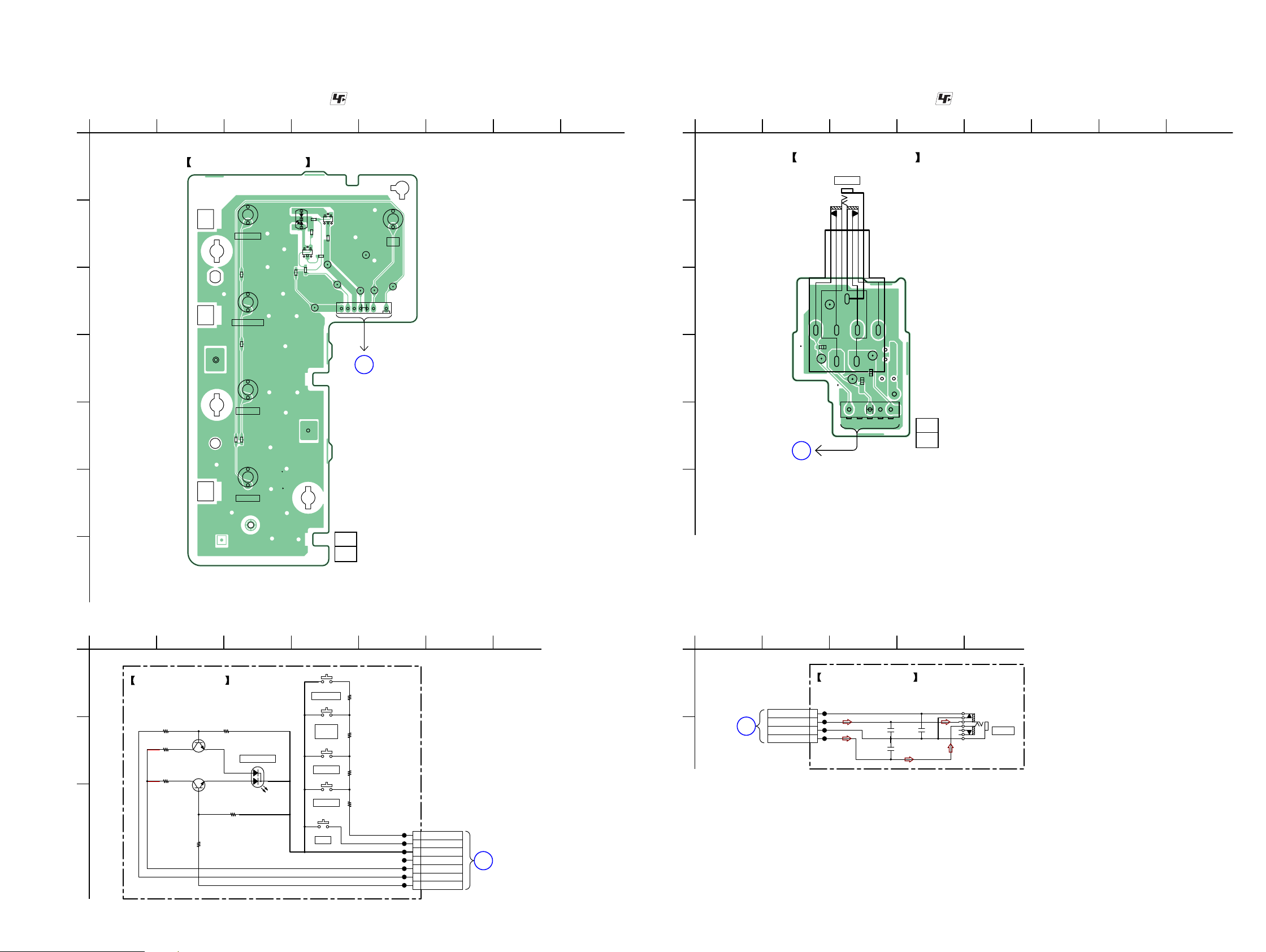

• Circuit Boards Location

POWER KEY board

SECTION 5

DIAGRAMS

DCDC board

MAIN board

STANDBY board

DIGITAL board

TUNER1 board

HEADPHONE board

FRONT JACK PWB board

DISPLAY board

14

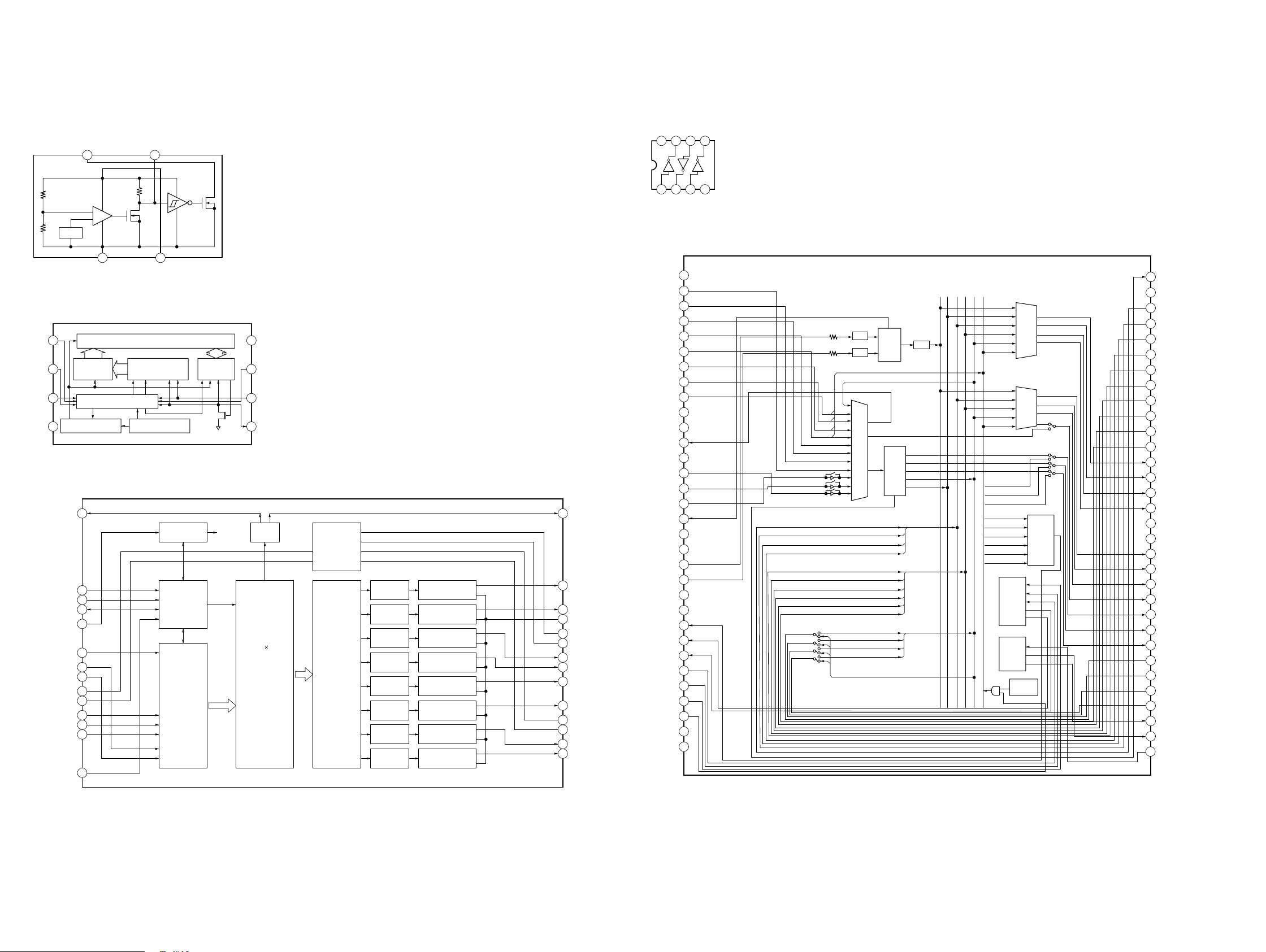

5-1. BLOCK DIAGRAM – ANALOG AUDIO Section –

J402 (1/2)

AUDIO

TV IN

AUDIO

SA-CD/CD IN

AUDIO

VIDEO IN

AUDIO

SAT/CATV IN

L

R

J401

L

R

L

R

L

R

5FK

SL OUT

STR-DH540

Ver. 1.2

DIR FUNCTION SELECT

IC400

INL11

43

5FK

6

LINE AMP

IC411

2

7

5FK

1

5FK5FK

INR11

44

ADCLOUT

76

ADCROUT

51

INL7

INR7

52

47

INL9

INR9

48

45

INL10

INR10

46

FLOUT

FROUT

5FK

75

14

5FK

13

L-IN

FL

A

DIGITAL SECTION (Page 16)

AMP

SLOUT

18

SLIN-2 OUT2

68

SRIN-1 OUT1

69

SROUT

5FK

17

SL

B

SECTION (Page 17)

ANTENNA

FM

75ȍCOAXIAL

AM

AUTO CAL

US, CND

CN104

CN102

AEP, UK, AUS

CN103

J100

MIC

FRF1

4

ARF2

7

ARF1

6

FM RECEIVER

IC101

LOUT

ROUT

IIC/RDSI

COUT

SWOUT

16

15

DIGITAL SECTION (Page 16)

AUDIO AMP

IC100

75

15

14

13

DA

10

CK

8

5FK

C

C OUT

SW OUT

FL OUT

13

6

LINE AMP

IC413

2

6

LINE AMP

IC410

2

7

1

7

5FK

1

5FK5FK

5FK

CIN-2 OUT2

70

SWIN-1 OUT1

71

INL1-2 OUT2

63

INR1-1 OUT1

64

INL3

59

INR3

60

INL4

57

INR4

58

CLKEVOL_CLK

11

10

C

J402 (2/2)

RELAY

DRIVER

Q301

RY301

L

R

AUDIO

SUBWOOFER OUT

STR-DH540

12

11

10

TUNER_CLK

TUNER_MOSI

TUN_RDS_SIGNAL

SYSTEM

CONTROL

IC2100 (1/6)

2

3

89

6LJQDOSDWK

: AUDIO

: TUNER

EV OL_ DATA DATA

: MIC

5FKLVRPLWWHGGXHWR VDPHDV/FK

ZONE2_PREOUT_SW_RY

1515

STR-DH540

Ver. 1.1

5-2. BLOCK DIAGRAM – DIGITAL Section –

OPTICAL

ANALOG VIDEO/USB

COAXIAL

SA-CD/CD

(ASSIGNABLE) IN

IN 1

(SAT/CATV

ASSIGNABLE)

IN 2

(TV ASSIGNABLE)

ANALOG AUDIO

SECTION (Page 15)

SECTION (Page 18)

J2100

DIGITAL OPTICAL

RECEIVER

IC2351

1

OUT

DIGITAL OPTICAL

RECEIVER

IC2352

1

OUT

6

A

D

L-IN

USB

WAVE SHAPER

IC2105

5

12

11

6

7 8

D/A CONVERTER

DATA3

DATA2

DATA1

BCK LRCK

SCK

IC2104

MC/SCL/DEMP

MD/SDA/MUTE

45

3

VOUT1

VOUT2

VOUT5

VOUT6

VOUT3

VOUT4

27

26

R-CH

20

19

R-CH

22

21

FL OUT

SL OUT

C OUT

SW OUT

ANALOG AUDIO

C

SECTION (Page 15)

DSP

IC2502

ADINL

45

R-ch

23

44

ADINR

59

RXIN5

58

RXIN6

62 RXIN2

RXIN1

63

DIGITAL AUDIO

INTERFACE RECEIVER

IC2107

DATAOUT

MPOUT4

MPOUT1

MPOUT2

MCKOUT

LRCKOUT

BCKOUT

16

22

19

20

13

15

14

63

65

57

40

58

54

59

42

L/R_IN

DIR_IN

A/D_2CH

SL/SR_IN

C/SW_IN

MCLK_IN

LRCLK_IN

BCLK_IN

SL/SR_OUT

C/SW1_OUT

L/R_OUT

CLKIN

XTAL

BCLK_OUT

LRCLK_OUT

MOSI

SPICLK

MISO

DSP_CS

41

56

48

12

X2500

25MHz

13

60 61

SERIAL FLASH

IC2503

SCK6SO2CE#

SI

1

5

19 21 20 24

E

DIGITAL VIDEO

SECTION (Page 19)

SP_SERIES

MUTE

CEC

XOUT

X2102

24.576MHz

9

MUTE

PROTECTION

Q2100

31

32

XIN

3 - 960, 61

10

MPIN4

XMCK 30

MUTEB

A1

BY

24

1

CKAQ4B

BINARY

COUNTER

IC 2111

8

14

DIR FSRATE

D2104

19

DIR_SIGNAL

25

SELECT

6

MUTING

IC2112

CEC DATA

SWITCH

Q2102 ~ Q2105

18

DIR_XSTATE

56 36

HDMI_CECIN

HDMI_CECOUT

SYSTEM

CONTROL

IC2100 (2/6)

16 38

15

DAC_IIC_SDL

DAC_IIC_SCA

INITX

E2P_DATA

E2P_SCL

RESET IC2101

4

VOUT

EEPROM

IC2102

95

94

SDA

5

SCL

6

6LJQDOSDWK

: AUDIO

: AUDIO (DIGITAL)

5FKLVRPLWWHGGXHWR VDPHDV/FK

STR-DH540

1616

5-3. BLOCK DIAGRAM – AMP Section –

STR-DH540

ANALOG AUDIO

SECTION (Page 15)

B

POWER AMP

FL

FR

SL

SR

Q620

Q622

Q624

Q625

Q670

Q672

Q674

Q675

POWER AMP

Q720

Q722

Q724

Q725

Q770

Q772

Q774

Q775

LIMITER

Q602, Q603

LIMITER

Q652, Q653

LIMITER

Q702, Q703

LIMITER

Q752, Q753

BOOSTER

Q600

BOOSTER

Q601

BOOSTER

Q650

BOOSTER

Q651

BOOSTER

Q700

BOOSTER

Q701

BOOSTER

Q750

BOOSTER

Q751

CURRENT

DETECT

Q604

CURRENT

DETECT

Q654

CURRENT

DETECT

Q704

CURRENT

DETECT

Q754

CURRENT

DETECT

Q605

CURRENT

DETECT

Q655

CURRENT

DETECT

Q705

CURRENT

DETECT

Q755

D650

D700

D750

D600

RELAY

DRIVER

Q375

RELAY

DRIVER

Q350

RELAY

DRIVER

Q355

RY921

RY350

RY355

TB501 (1/2)

TB502

+

L

+

R

-

+

L

-

+

R

-

J101

PHONES

FRONT

SURROUND

SPEAKERS

POWER AMP

C

Q570

Q572

Q574

Q575

LIMITER

Q552, Q553

BOOSTER

Q550

BOOSTER

Q551

TH251

TH252

67 68 92 66 86 90 91

CURRENT

DETECT

Q554

CURRENT

DETECT

Q555

PROTECTOR Q320 ~ Q325

D550

RELAY

DRIVER

Q365

D2119

D2118

D2120

89

RY365

TB501 (2/2)

+

-

4

CENTER

6LJQDOSDWK

: AUDIO

TEMP_SENSOR_2

TEMP_SENSOR_1

SYSTEM CONTROL

IC2100 (3/6)

PROTECT

HP_RY

LIMITER

HP_DET

C/SL_SR_RY

FRONT_SPK_RY

ZONE2_PREOUT_SW_RY

5FKLVRPLWWHGGXHWR VDPHDV/FK

STR-DH540

1717

STR-DH540

5-4. BLOCK DIAGRAM – ANALOG VIDEO/USB Section –

VIDEO

VIDEO IN

VIDEO

SAT/CATV IN

DC5V 1A MAX

J218 (1/2)

CN106

D

J218 (2/2)

DIGITAL SECTION (Page 16)

VIDEO

MONITOR OUT

VIN1

4

5

VIN2

VIDEO DRIVER

IC2354

DECODER

+D

-D

22

21

USBDP

USBDM

IC4100

KEY_ROW3/SDA

KEY_ROW2/SCL

9 8 7 6 4 2

KEY_ROW1/BUSY

LED_PLAY/LRCK/SPDIF

KEY_COL3/MCHNG

KEY_COL1/IRPTO

XOUT_PLL

RESETX

OUT

VSW

XIN_PLL

1

SYSTEM CONTROL

IC2100 (4/6)

MUTE

PROTECTION

Q281 ~ Q283

6

25

15

14

X4100

16.9344MHz

V_MUTE

8

V_SEL_SW2

6

USB

POWER CONTROL

IC4102

EN

FAULTEN

OVER VOLTAGE CONTROL

IC4101

636664 70 65 68 69

USB_SCL

USB_SDA

5

USB_PCONT

5943

USB_OVC

USB_BUSY

USB_MCHNG

HDMI CONTROLLER

IC3000 (1/2)

USB_IRPTO

USB_RESET

USB_IP_Reset

USB_IP_SDA

USB_IP_SCL

USB MEMORY

IC3002

56

54

55

4

13

12

RESET

I2C_SDA

I2C_SCL

6LJQDOSDWK

: AUDIO (DIGITAL)

: VIDEO

: USB

STR-DH540

1818

5-5. BLOCK DIAGRAM – DIGITAL VIDEO Section –

IC3506

HDMI RECEIVER

STR-DH540

Ver. 1.1

HDMI

BD IN 4K

DVD IN

GAME IN 4K

CN3504

1 3

4 6 7

9 10 12 15 16 19 13 18

CN3503

1

3

4

6

7

9 10 12 15 16 19 13 18

CN3502

1

3

4

6

7

9 10 12 15 16 19 13 18

DATA2+ DATA2– DATA1+ DATA1– DATA0+ DATA0– CLOCK+ CLOCK– SCL (5V) SDA (5V)

HOT PLUG DET

CEC +5V POWER

DATA2+ DATA2– DATA1+ DATA1– DATA0+ DATA0– CLOCK+ CLOCK– SCL (5V) SDA (5V)

HOT PLUG DET

CEC +5V POWER

DATA2+ DATA2– DATA1+ DATA1– DATA0+ DATA0– CLOCK+ CLOCK– SCL (5V) SDA (5V)

HOT PLUG DET

CEC +5V POWER

35

R2X2+

34

R2X2-

33

R2X1+

32

R2X1-

31

R2X0+

30

R2X0R2XC+

29

R2XC-

28

DSCL2

85

DSDA2

84

CBUS_HPD2

86

R2PWR5V87

46

R3X2+

45

R3X2-

44

R3X1+

43

R3X1-

42

R3X0+

41

R3X0-

40

R3XC+

39

R3XC-

89

DSCL3

88

DSDA3

90

CBUS_HPD3

R3PWR5V91

54

R4X2+

53

R4X2-

52

R4X1+

51

R4X1-

50

R4X0+

49

R4X0-

48

R4XC+

47

R4XC-

93

DSCL4

92

DSDA4

94

CBUS_HPD4

R4PWR5V95

T0X2+

T0X2-

T0X1+

T0X1-

T0X0+

T0X0-

T0XC+

T0XC-

TXDSCL0

TXDSDA0

TX_HPD0

MUTEOUT/GPIO9

RESET 69

159 158 157 156 155 154 153 152 107 106 105

121-122, 124-128, 130, 136

129

+5V

RESET SW

HOT PLUG DET

+5V POWER

D3002

RESET IC3001

Q3000

Q3001

DATA2+ DATA2– DATA1+ DATA1– DATA0+

DATA0– CLOCK+ CLOCK– SCL (5V)

SDA (5V)

CEC

38

4

9

INITX

CN3200

1 3

4 6 7 9

TV OUT

10

ARC 12 15 16

19 13 18

SYSTEM CONTROL

IC2100 (5/6)

42

D3005

HDMI

VCOM_RESET

D3006

D3003

HDMI CONTROLLER

IC3000 (2/2)

HDMI_MUTE

31

INITX

38

MU_RST

14

Sparta_RST

29

5VPWR_A

CEC

SP_SERIES

MUTE

32

DIGITAL

SECTION

E

(Page 16)

+5V REG.

1 4

IC3500

+5V

STR-DH540

SAT/CATV IN

4K

CN3501

1 3

4 6 7

9 10 12 15 16 19 13 18

DATA2+ DATA2– DATA1+ DATA1– DATA0+ DATA0– CLOCK+ CLOCK– SCL (5V) SDA (5V)

HOT PLUG DET CEC +5V POWER

64

RX52+

63

RX52-

62

RX51+

61

RX51-

60

RX50+

59

RX50-

58

RX5C+

57

RX5C-

98

DSCL5

97

DSDA5

99

CBUS_HPD5

R5PWR5V

100

SS/GPIO2

SCLK/GPIO3

SD0/GPIO4

SD1/GPIO5

XTALIN

XTALOUT

117

118

119

120

113

114

X3501 27MHz

SPSF_SPI_CS

45

ADV8003_SPSF_DIN

42

ADV8003_SPSF_SCK

43

ADV8003_SPSF_DOUT

44

EEPROM

IC3502

/CS

1

SCK

6

DO

2

DI

5

6LJQDOSDWK

: AUDIO (DIGITAL)

: VIDEO

1919

STR-DH540

5-6. BLOCK DIAGRAM – DISPLAY/POWER Section –

VACUUM FLOURESCENT

DISPLAY

ND100

424038

REMOTE CONTROL

SIGNAL RECEVER

IC101

MASTER

VOLUME

INPUT

SELECTOR

ROTARY

ENCODER

S121

ROTARY

ENCODER

S120

F1

F2

53 FL_LAT

55 FL_CLK 54 FL_DATA

59 SIRCS_IN

63 VOLUME_JOG

52 INPUT_JOG

BRIDGEABLE_RY

SYSTEM CONTROL

IC2100 (6/6)

IC2106

IC2110

RELAY DRIVE

Q920

RECT

D921

+7V REG.

IC351

+7V REG.

IC350

-7V REG. IC352

RY920

RECT

D910-913

F912

F913

F910

F911

POWER

TRANSFORMER

(MAIN)

T901

87

+HV

(VCC)

TO

F1 F2

DC CONVERTER TRANSFORMER

T100

+5V

+6V (DCDC)

SWITCHING

TRANSISTOR

Q102

+5V REG.

IC3503

SWITCHING

TRANSISTOR

CONTROL

Q103 ~ Q104

AUDIO AMP

SECTION

+6V REG.

IC1904

-HV

(VCC)

+7V

+5V

+3.3V

+7V

+5V REG.

+3.3V REG.

IC102

-7V

S115

S108 ~ S110, S111 ~ S114

S101 ~ S105

X2100

4MHz

65 POWER_KEY

57 AD_KEY1

58 AD_KEY2

48 PE2/X0

49 PE3/X1

FL_ENABLE

WHITE_LED

FLASH_CLK/POWER_LED

STDBY_LED

POWER_RY

AC_CUT

9

64

71

82

+2V (DCDC)

+1.2V

98

93

+1.2V REG.

IC3508

+1.2V REG.

IC2500

+3.6V (DCDC)

LED DRIVER

Q105

LED DRIVER

Q110

LED DRIVER

Q111

+2V REG.

IC1903

+3.6V REG.

IC1902

LED

(PURE DIRECT)

D104

LED

(ON/STBY)

D110

STBY +3.3V

RELAY DRIVER

Q901

+3.3V REG.

IC902

AC OFF DETECT

Q900

RECT

D923

+15V

RECT

D900 ~ D901,

D904 ~ D905

D902

F940

F941

RY951

POWER

TRANSFORMER

(SUB)

T902

F901

AC IN

STR-DH540

2020

STR-DH540

Ver. 1.1

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• f : internal component.

• : Pattern from the side which enables seeing.

Caution:

Pattern face side: (Conductor Side) Parts face side: (Component Side)

• Abbreviation AUS : Australian model CND : Canadian model

Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated.

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in  and 1/4 W or less unless otherwise speciﬁ ed.

• f : internal component.

•

• C : panel designation.

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground

• Voltages are taken with VOM (Input impedance 10 M).

Voltage variations may be noted due to normal production

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

• Circled numbers refer to waveforms.

• Signal path.

F : AUDIO f : TUNER L : USB E : VIDEO J : AUDIO (DIGITAL) N : MIC

• Abbreviation

AUS : Australian model CND : Canadian model

: nonﬂ ammable resistor.

2

: fusible resistor.

5

Note:

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

under no-signal (detuned) conditions. no mark

: FM

tolerances.

Note:

Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spéciﬁ é.

• Waveforms

– DIGITAL Board –

1 IC2100 rk (PE2/X0)

4.0 MHz

500 mV/DIV, 100 ns/DIV

2 IC2107 3 (MCKIN)

60 ns

200 mV/DIV, 25 ns/DIV

3 IC2107 4 (BCKIN)

60 ns

200 mV/DIV, 25 ns/DIV

4 IC2107 qf (BCKOUT)

3.0 Vp-p

952 mVp-p

10 mVp-p

6 IC2502 rs (BCLK_IN)

320 ns

500 mV/DIV, 100 ns/DIV

7 IC3000 rl (X1)

4.0 MHz

500 mV/DIV, 100 ns/DIV

8 IC3506 <zzv (XTALOUT)

27.0 MHz

50 mV/DIV, 10 ns/DIV

104 mVp-p

9 IC4100 qg (XOUT_PLL)

2.2 Vp-p

2.8 Vp-p

3.06 MHz

500 mV/DIV, 100 ns/DIV

5 IC2107 ea (XOUT)

24.5 MHz

500 mV/DIV, 10 ns/DIV

3.22 Vp-p

1.5 Vp-p

16.9 MHz

200 mV/DIV, 25 ns/DIV

1.0 Vp-p

STR-DH540

2121

STR-DH540

Ver. 1.2

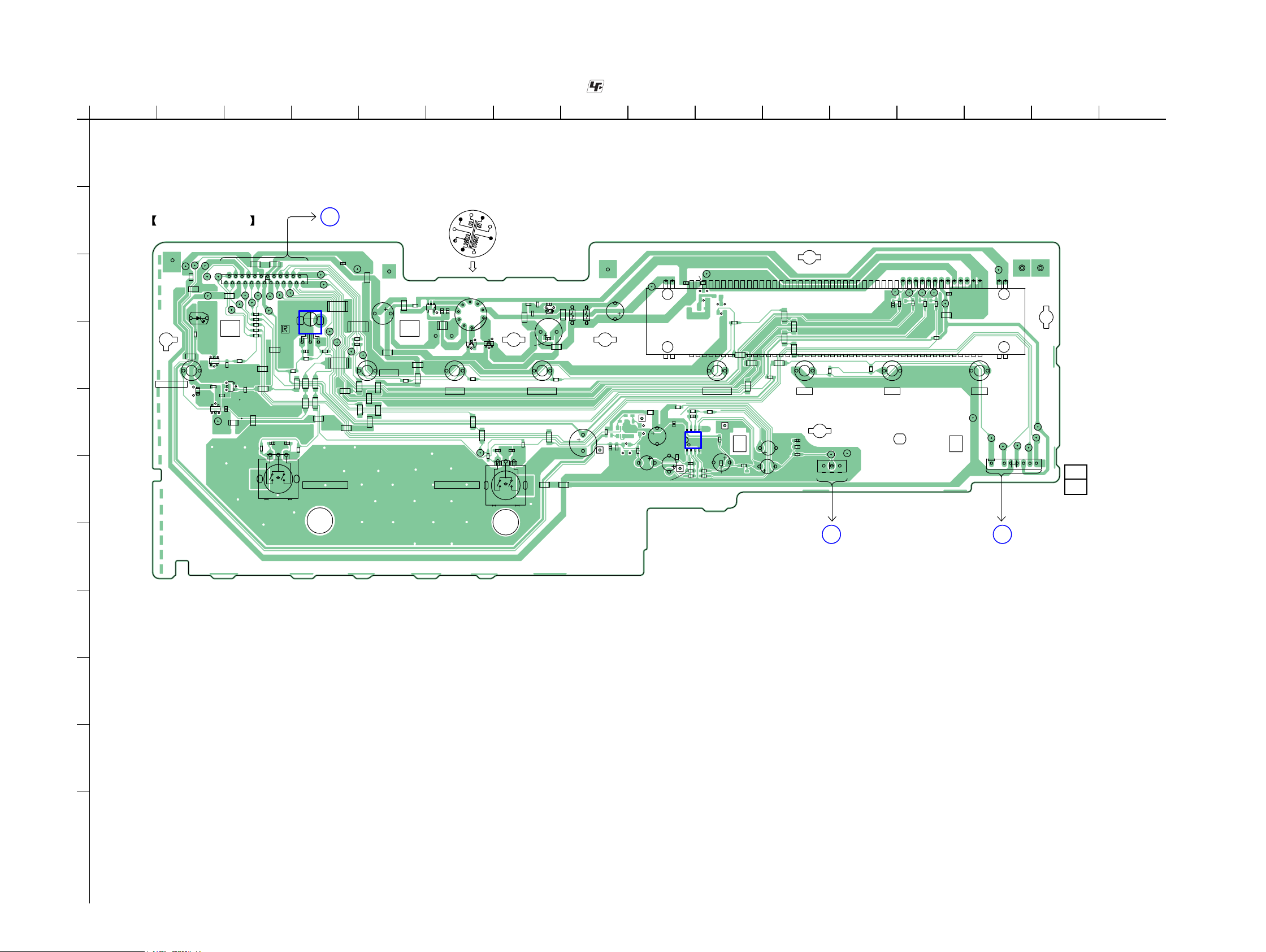

5-7. PRINTED WIRING BOARD – DIGITAL Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

1

A

B

C

D

STANDBY

BOARD

CN940

(Page 41)

A

E

B

DCDC

F

BOARD CN1901

(Page 39)

G

H

C

FRONT

I

JACK

PWB

BOARD

CN104

(Page 43)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

J2100

COAXIAL

SA-CD/CD

C2130

C2152

C2156

R2139

R2140

R2141

C2144

D2118

1

17

(ASSIGNABLE) IN

C2145

D2103

2

CN2001

16

D2119

D2120

R2189

IC2106

CN2004

ET2000

12

C2108

(CHASSIS)

H

MAIN BOARD

CN2014

(Page 31)

G

MAIN BOARD

CN2011

(Page 31)

FLASH

PROGRAMMING

TUNER1 BOARD

CN101

(Page 43)

F

(CHASSIS)

E

MAIN BOARD

CN2015

(Page 31)

DIGITAL BOARD (COMPONENT SIDE)

(CHASSIS)

CL1506

ET1500

C1508

C1501

CN1500

C1503

C1505

C1507

110

C4003

R4183

C4005

R4009

JL4106

VD4101

FB4100

R4104

JL4104

VD4100

JL4105

R4010

JL4103

C4004

R4008

C4106

R4105 R4106

IC4100

30

31 40

C4101

JL4102

JL4101

R4007 R4006

X4100

R4103

IC4101

R4187

CN4000

15

JL4107

R4117

1120

R4102

1021

CN3200

TV OUT

ARC

(CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS)

1

RB3204

RB3205

JL3228

JR1500

JR1501

19

C3359

JL3225

IC3500

C3361

IC3002

1

5

6

20

10 16

11 15

R3106

R3086

C4107

RB4000

1

JL4100

R3108

R3054

R3062

C4109

R3109

R4108

R3097

R4110

R3095

R3029

R4115

C4110

R4116

R3034

RB3002

PROGRAMMING JIG

(HDMI KSV)

17

R3045

6

C3578

R3365

C3556

X3000

R3033

50

51

RB3001

75

76

JL3002

RB3000

R3038

CN3000

IC3508

15

IC3001

R3065

R3067

R3087

R3088

R3091

R3089

IC3000

JL3024

JL3021

JL3022

JL3020

R3648

R3111

R3642

R3059

JL3023

R3647

12

R3082

CN3501

SAT/CATV IN 4K GAME IN 4K BD IN 4K

C3561

JL3513

C3530

D3002

R3028

R3027

R3621

C3531

JL3016

R3593

R3616 R3618

R3628

X3501

R3626

JL3015

JL3013

IC3503

R3599

FB3503

R3003

JL3011

D3004

R2550

JL3514

R3594

89

C3550 R3625

R3624

C3549

R3620

R3623

132

R3627

133 176

R3629

R3637

R2552

76

R2554

R2551

R2553 R2530

R2529

R2517

100

Q3000

C2546

R2556

JL2512

1

R2549

R2528

R2548

R3025

C3570

C3566

FB3504

C3016

D3005

D3006

D3501

34

C3019

D3003

R3011

R3060

26

25

JL3014

JL3012

JL3009

R3017

R3016 R3015

1

100

R3113

R3024

JL2503

R2558

R2532

C2507

JL2502

R2547

IC2502

R2512

X2500

34

C2149

IC2101

IC3506

R2545

R2546

R2544

R2511

C2506

12

R2536

R2543

CN3502

JL2501

R2119

R2531

R2535

R3567

FB2502

C2111

CL2502

R2538

R2539

R3568

R2534

R3569

R2542

5175

25

HDMIHDMI

CN3503

DVD IN

CN3504

IC2105

R2280

R2279

R2277

4588

44

R2151 R2153 R2154

RB2101

R2143

R2188

R2287

FB2105

R2147

R2284

R2142

R2101

D2104

C2107

1

R3570

IC 2111

R2236

X2100

R2199

R2196

RB2104

RB2105

R2210

CN2101

R2207

R2201

R2235

26

R2204

IC2100

50

R2110

51 RB2106

R2212

R2214

R2118

R2213

R2215

R2200

FB2117

R2541

R2540 R2537

CL2507

50

R2503

26

CL2503

JL2500

R2533

R2507

R2506

R2505

R2504

R2559 CL2505

25

R2509

24

R2124

R2131

R2203

R2198

R2223

C2125

R2281

R2104

C2124

1

16

17 32

R2111

RB2102

R2108

C2106

R2144

RB2100

R2155

R2238

R2211

RB2110

R2117

RB2107

2

R2185

R2126

C2160

1

R2278

IC2107

X2102

R2208

R2113

125

100

76

75

D2113

R2240

R2224

R2114

R2168

R2276

4964

48

R2283

33

R2186

FB2116

R2187

C2159

C2181

C2180

R2288

IC2112

R2225

C2150

C2157

R2228 R2227

R2226

R2239

28

R2150

CN2100

FB2113

R2152 R2146

FB2115

R2128

RB2109

RB2108

R2159

D2112

R2229

C2179

C2129

R2193

R2282

C2128

FB2109

R2192

R2184

R2222

C2154

R2230

R2178

R2177

91

R2221

R2231

191191191191

C2132

C2135

R2136

R2138

R2137

1

2

CN2000

24

25

114

C2172

C2178

IC2104

C2155

15 28

1

2

CN2002

24

25

21

J

(CHASSIS)

X2100X3000

D

1-887-588-

DISPLAY BOARD

CN102

K

(Page 37)

(21)

STR-DH540

Note: IC3506 and IC4100 on the DIGITAL board cannot exchange

with single. When these parts on the DIGITAL board are damaged, exchange the entire mounted board.

2222

5-8. PRINTED WIRING BOARD – DIGITAL Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH540

Ver. 1.2

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

DIGITAL BOARD (CONDUCTOR SIDE)

B

R3372

C3364

R3370

R3373

R3377

C3032

R3380

C3036

R3376

C3363

R3374

C3358

R3386

R3387

CL1502

CL1501

CL1500

JL3523

FB4000

R4001

R4002

C4000

C4111

C4001

C4108

R4100

R4101

C4104

C4100

D4000

JL2506

C4102

C4105

C4112

IC4102

C4103

CL4002

CL4003

R4004

CL1505

CL1504

CL1503

R4005

R4003

C4002

CL4001

21

1-887-588-

(21)

JL3008

JL3010

C3026

R3112

C3021

FB2500

FB3001

JL3001

C3027

R3063

C3020

C3018

R3110

C3011

C3013

R3102

JL3006

JL3005

R3041

C3030

R3013

CL2500

C3010

C3028

C3005

JL3007

JL3019

R3039

C3014

JL3003

C3006

R3014

R3012

C3009

C3012

C3029

FB3004

C3008

JL3525

R3055

R3036

R3104

C3031

C3033

R3096

R3107

R3053

R3094

C4113

CL4000

C2109

R2161

CL2125

CL2127

C2169

C2123

R2181

R2121

R2122

C2175

FB2108

C2117

CL2116

R2216

R2195

C2163

C2168

CL2130

C2136

C2165

CL2136

R2232

C2138

C2147

R3504

C2143

C2105

R2134

R2109

R2218

C2126

R2241

R3505

R2237

R2125

C2141

CL2117

C2148

Q2100

C2197

FB2106

R2296

R2103

CL2137

R3515

C2139

R2105

R2194

CL2114

R3510

C2112

R3520

CL2138

R2292

C2186

CL2140

C2119

CL2128

C2205

C2137

C2140

C2142

R2133

CL2123

CL2100

CL2113

CL2118

R2260

CL2126

R2135

FB3501

C2544

C2550

C2547

C3533

C3540

R2500

C2539

C2531

C2540

C2545

C3551

R3572

C3548

C3553

R2502

JL3516

C2552

R3595

C3525

R3588

C2542

C2548

R3602

C3546

C2541

JL2504

R2501

C3527

JL3515

JL3527

R3613

R2520

JL2510

R3508

R3596

C2511

R2510

C2576

R3509

R2515

R2521

R3611

R3612

R2585

JL2507

R2516

C2505

R3518

R3519

R3598

R3597

C3532

R3615

R2514

IC2503

JL3004

R3601

R3600

CL2501

JL2508

R3524

C2501

R2522

C2509

C2508

JL2509

R2526

JL2511

C2504

R2518

R2513

R2519

C3567

JL2505

R2527

JL3000

C3569

C3568

C3023

JL3518

Q3001

JL3519

L3500

C3024

C3022

C3025

R3507

R3506

R3516

R3517

R3523

R2293

JL3508

R2291

R3589 R3590

JL3521

C3518

C3519

R3560

C2521

C2518

C3526

C3552

C3528

C3529

R3549

CL2504

CL2120

Q2105

C3543

C3545

C2530

C2526

FB2102

C2500

R3622

C2522

R3619

C3562

R3555R3556

C3554

JL3510

C2519 C2514

C2532

C3555

JL3511

R3552

C2520

C2523C2524

C2513

R3551

C2529

C3559

C3513

C3520

C3523

R3643

JL3506

C2534

C2516

C3564 C3557

C3542

C3544

C3560

IC3502

CL2506

R2508

C2113

C2206

Q2104

E

R2295

E

D2123

CL2139

C2535

R3591

R3644

C3563

JL3509

C2536

C2515

C2517

R3645

C2525

R3583

C3565 C3558

C2538

R3584

R3646

C2533

C3517

C3516

R3579

R3585

C3541

R3606

C3538

R3636

IC2500

C2527

C2528

R3582

C3534

C3536

R3632

C2551

C2502

D2500

C2503

C2553

C2537

C2543

C2549

FB3505

R3640

R3578

R3573

R3576

JL3505

JL3507

C2161

C2198

C2191

CL1134

C2110

R2289

Q2102

E

R2290

CL2112

R2294

E

Q2103

CL2115

CL2119

CL2122

C2122

C2182

FB2110

D2109

CL2051

CL2104

C2121

C2183

R3513

FB2101

JL2106

R3514

FB2107

FB2111

C2199

CL2110

CL2107

CL2103

CL2135

R3522

FB2112

CL2101

JL2102

R2217

CL2105

R3805

C2177 C2170

R2127

R2112

C2151

JL2103

CL2109

JL2104

R2129

CL2108

JL3512

CL2012

CL2011

CL2009

C2184

C2185

FB2118

FB2114

C2204

JL2101

IC2102

CL2124

C2166

R2220

JL2127

CL2102

C2167

R2242

C2171

C2127

CL2111

IC2110

C2208

D2110

C2164 R2115

R2191

R2120

R2107

CL2121

R3503

CL2015

CL2040

CL2053

CL2014

CL2020

C2133

CL2064

CL2061

C2173

CL2044

JL2105

CL2041

JL3526

CL2038

CL2045

CL2047

CL2052

CL2013

CL2030

D2101

C2101

D2102

CL2049

CL2065

FB2100

C2100

JL2108

JL2107

R3502

CL2037 CL2039

CL2106

CL2067

JL2109

C

D

E

F

CL2023

CL2070

CL2026

CL2028

CL2021

CL2022

CL2031

CL2024

CL2025

CL2027

CL2010

CL2019

CL2069

CL2029

FB2103

C2153

C2036

FB2001

C2174

CL2068

CL2063

CL2016

CL2017

CL2066

G

CL2062

CL2059

CL2058

CL2042

CL2043

CL2046

CL2048

CL2050

CL2060

H

I

J

K

STR-DH540

2323

STR-DH540

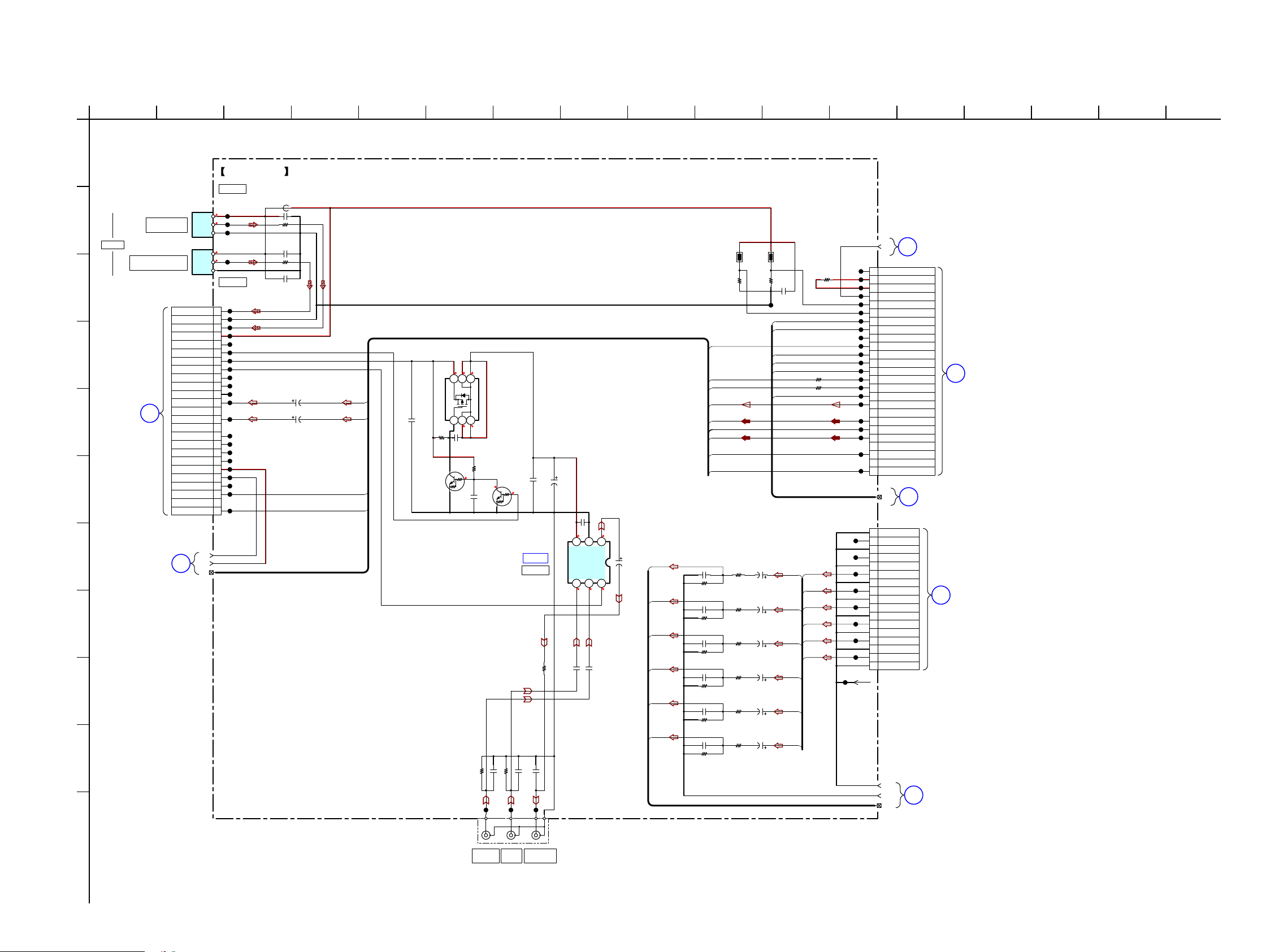

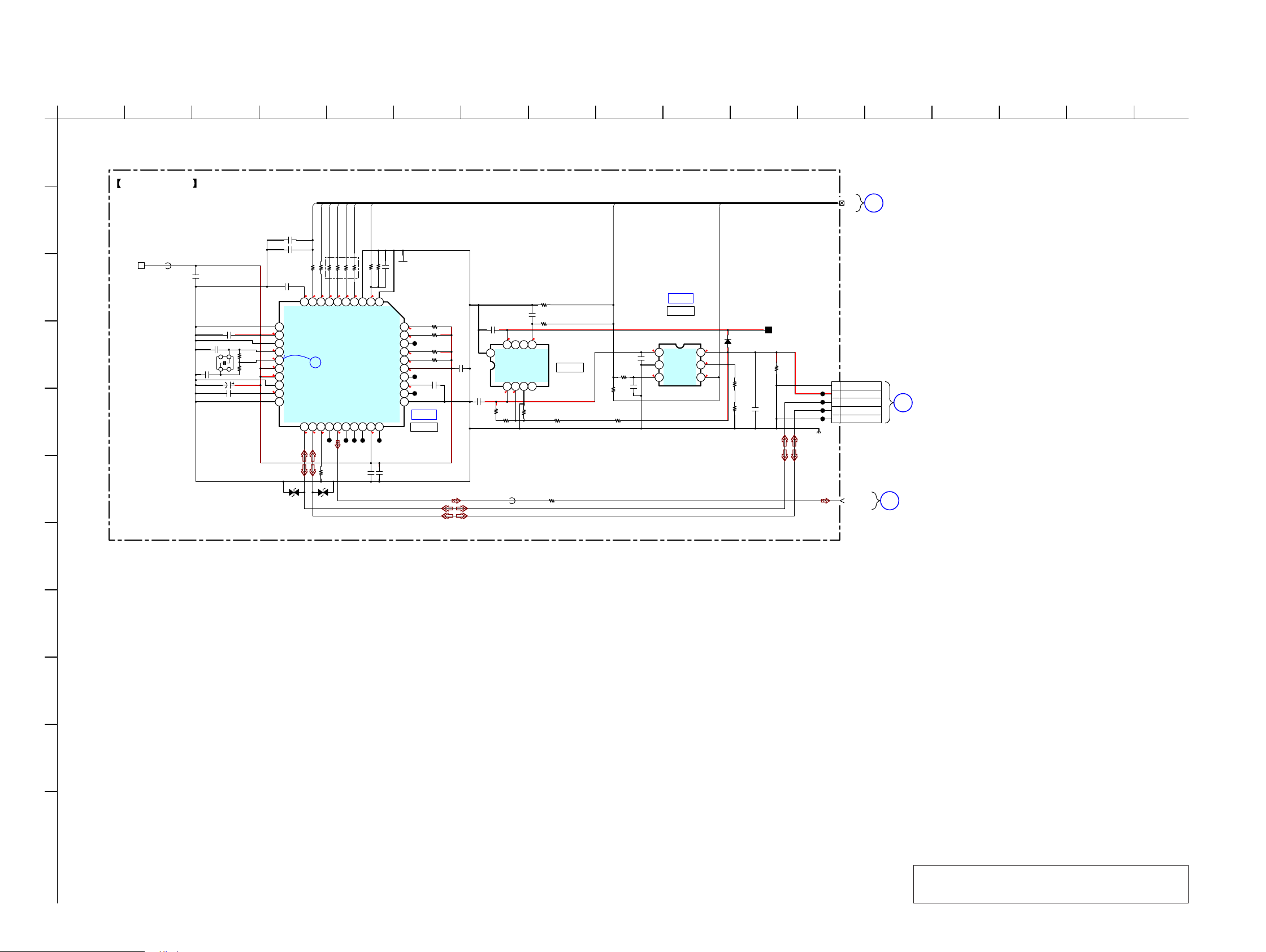

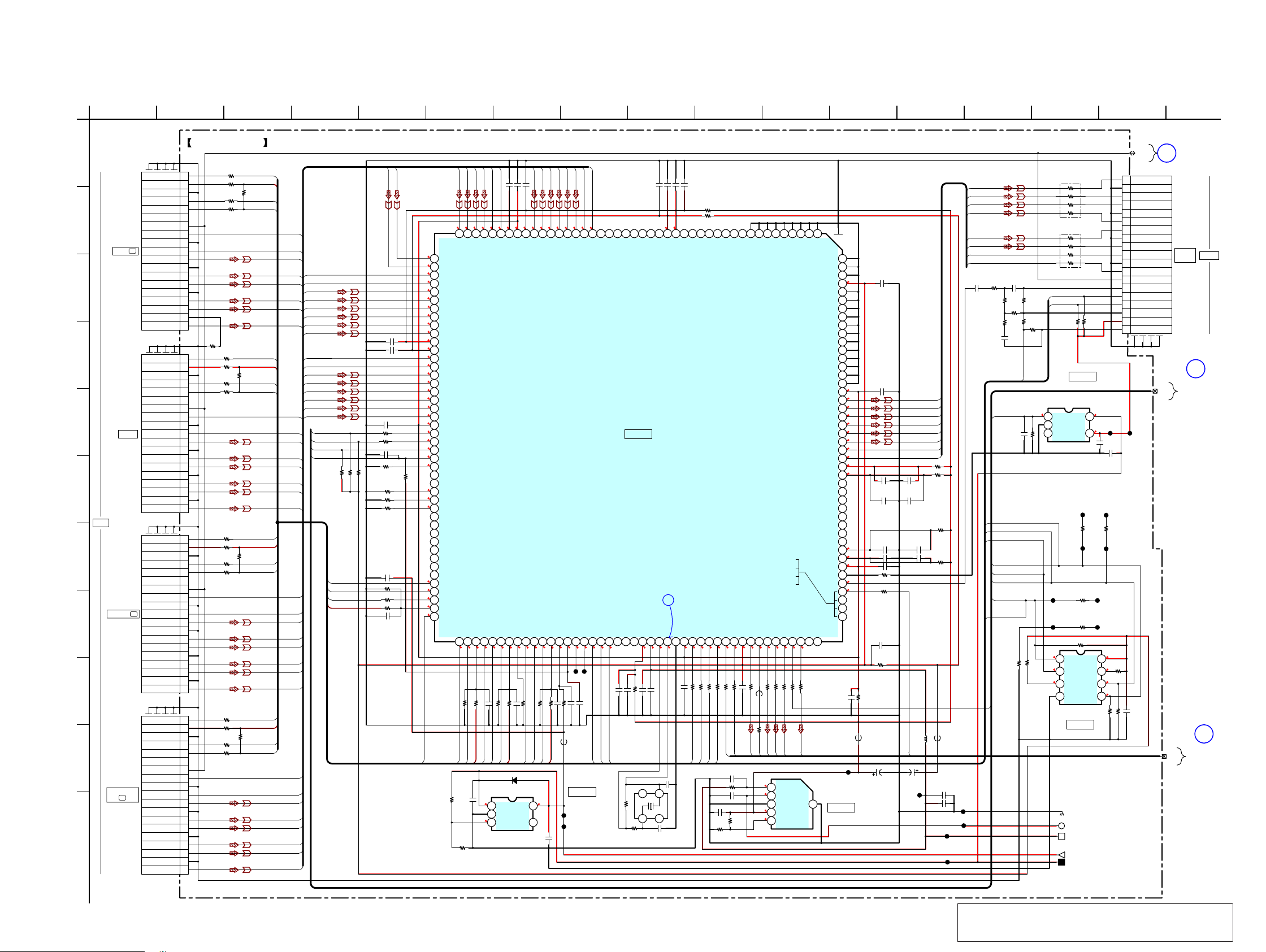

5-9. SCHEMATIC DIAGRAM – DIGITAL Board (1/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

DIGITAL BOARD (1/7)

B

DIGITAL BOARD

(7/7)

(Page 30)

USB_SPDIF

1

C

D

C2177

DIGITAL BOARD

E

(2/7)

(Page 25)

DIGITAL BOARD

(2/7), (3/7) (Page 25),

F

(Page 26)

1

2

3

L_IN

R_IN

DIR_INT

DIR_MISO

DIR_MOSI

DIR_SPICLK

DIR_CE

DIR_RST

0.01

C2170

0.1

C2129 0.1

C2121 100 10V

FB2100

R2178 1k

R2177 1k

G

H

IC2 111

TC74VHC393FT (ELK)

IC B/D

I

IC2111

BINARY

COUNTER

J

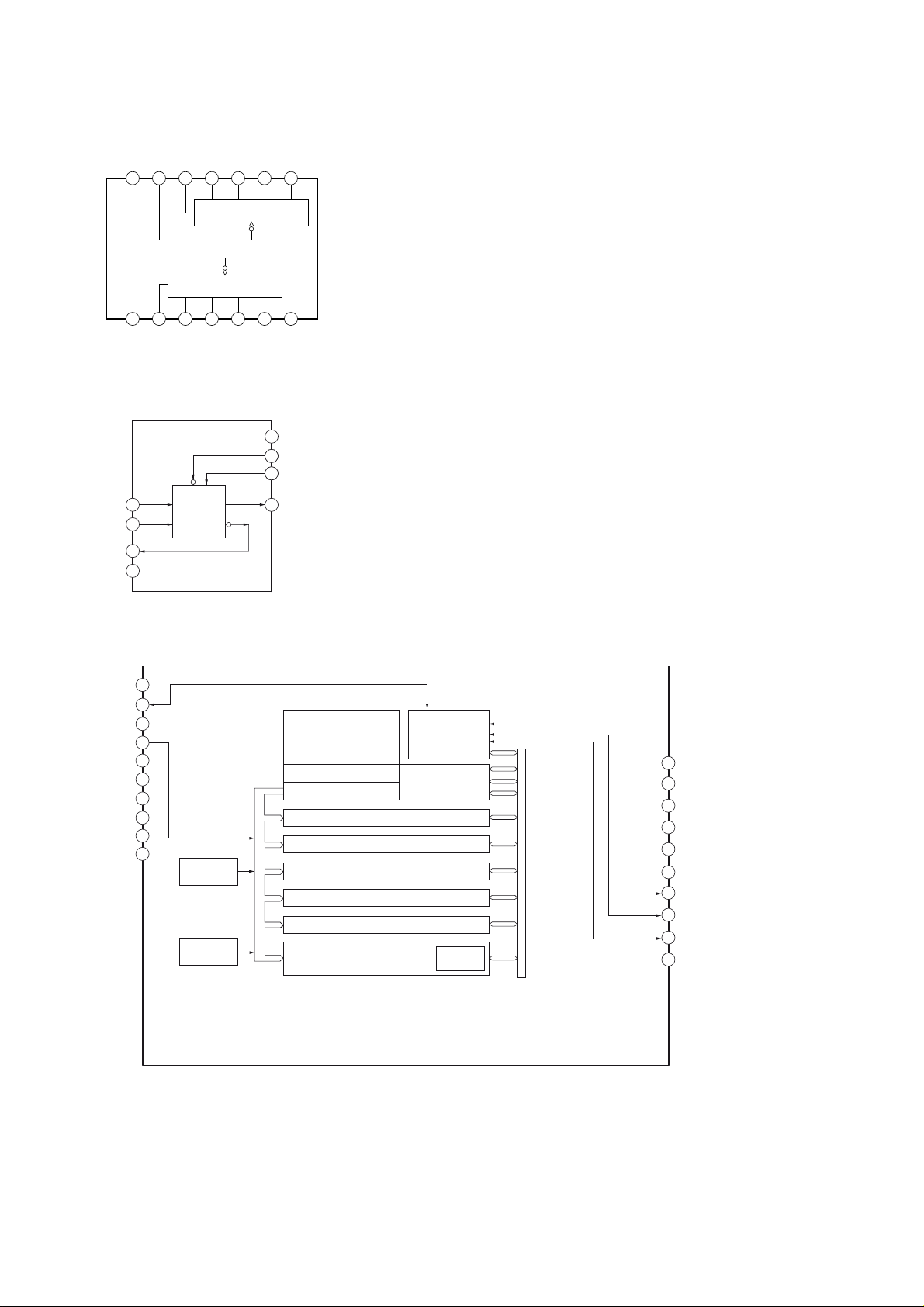

• See page 21 for Waveforms. • See page 46 for IC Block Diagrams.

C2122

100 10V

R2283

1k

C2128

0.1

C2127

0.1

R2127 10k

R2112 10k

R2221 0

R2222 0 R2220 10k

C2179 0.1

R2282 47k

1.6

1

2

3

4

5

1.6

6

7

C2167

0.1

R2284

0

CKA

RDA

Q1A

Q2A

Q3A

Q4A

GND8Q4B

IC B/D

2.5

5

2.5

3.3

3.1

0

3.3

C2159

X2102

24.576MHz

C2160

VCC

CKB

RDB

Q1B

Q2B

Q3B

C2166 0.1

56

52

53

54

XMCK

FB2116

2.5kohm

R2185

330

DGND

MPIO4

RXOUT

MPIO3

55

DVDD

DGND

IC2107

LC89075WA-H

IC2107

DIGITAL AUDIO

INTERFACE RECEIVER

MPIO1

MPIO2

JL2127

49

RXIN3A50RXIN2A51RXIN1A

VREF

48

AGND

47

AVDD

46

ADINL

45

ADINR

44

DGND

43

42

DVDD

DSTATE

41

INTB

40

SO

39

SI

38

SCK

37

CSB

36

XMODE

35

DVDD

34

5

DGND

33

XOUT

XIN

32 31 30 29 28 27 26 25 24 23 22 21 20 191817

1.5 1.6 1.4 0 0 0 3.33.1 3.1 0 0

R2186

7p

1M

R2187

220

7p

3.3

14

1.6

C2106

13

12

11

10

0.1

9

1.6

COAXIAL IN

0

R22760R22780R2281

2.4 2.4 3.3 03.3 3.3 0 3.3

RXIN857RXIN758RXIN6

ERRF

MUTEB

NPCMF

10kR2191

OPTICAL_TV

OPTICAL_SAT

0

R2279

R22770R2280

59

RXIN560RXIN461RXIN362RXIN263RXIN1

2

3

4

MPOUT1

MPOUT2

MPOUT3

MPOUT4

RB2102

64

MCKOUT

LRCKOUT

DATAOUT

DVDD

100

C2168 0.1

PVDD

PGND

MCKIN

BCKIN

LRCKIN

DATAIN

MPIN1

MPIN2

MPIN3

MPIN4

MPIN5

MPIN6

BCKOUT

DGND

C2169

0.1

C2126

FB2106

0.1

2.7kohm

C2123

100 10V

R2104

100

C2124

0.001

RB2101

100

330R2143

330R2188

R2111

D2104

DA2J10100L

1MR2101

C2107 470p

C2125

0.068

47R2151

330R2153

470R2154

10kR2195

R2147

0R2287

R2142

1k

LPF

1

0

2

3

1.5

4

0

5

0

6

0

7

0

8

0

9

0

10

2.9

11

0

12

3.1

13

1.6

FB2105

14

1.6

15

1.6

16

1.2

4

5

ARC_SPDIF

SP_SPDIF

5

6

SP_MCK

SP_SCK

SP_WS

SP_SD0

SP_SD1

SP_SD2

HDMI_MUTE

SP_SD3

HDMI_MUTE

220

680

3

R2109

10k

0.1

Q2100

DRC5114E0L

MUTE

PROTECTION

NON_LPCM

HDMI_MUTE

6

7

(6/7)

(Page 29)

DIGITAL BOARD

(2/7)

(Page 25)

DIGITAL BOARD

(3/7), (5/7) (Page 26),

(Page 28)

DIGITAL BOARD

(3/7), (4/7) (Page 26),

8

(Page 27)

DIR_SIGNAL

DIR_XSTATE

R2108

100

MCLK_IN

BCLK_IN

LRCLK_IN

DSP_ERROR

DSP_NONAU

7

DIGITAL BOARD

SBL/SBR_IN

47R2208

L/R_IN

SL/SR_IN

C/SW_IN

DSD_IN

8

9

9 10

11

10

12

13

(4/7)

(Page 27)

DIGITAL BOARD

(2/7)

(Page 25)

K

STR-DH540

DIGITAL BOARD

(3/7)

(Page 26)

3

4

DIR_FSRATE

2424

STR-DH540

Ver. 1.1

5-10. SCHEMATIC DIAGRAM – DIGITAL Board (2/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

C

D

E

G

H

F

I

J

MAIN

BOARD

(3/4)

CN2015

(Page 35)

TUNER1

BOARD

CN101

(Page 44)

DIGITAL BOARD

(1/7)

(Page 24)

A

ZONE2_PREOUT_SW_RY

B

DIGITAL BOARD

(1/7)

(Page 24)

6

NW_L_VOLIC_OUT

NW_R_VOLIC_OUT

TUNER_R

TUNER_GND

TUNER_L

DCAC_IN

EVOL_CLK

EVOL_DATA

PROTECT

C/SL_SR_RY

FRONT_SPK_RY

SBL_SBR_RY

BRIDGEABLE_RY

TEMP_SENSOR_1

TEMP_SENSOR_2

AUDIO L/LRCK

AUDIO R/BCK

IIC/RDSI

10

DIGITAL BOARD (2/7)

5

CL2061

1

2

A_GND

HP_DET

HP_RY

LIMITER

+3.3V

IISD

VDD

GND

NC

CE

DA

CK

9

11

12

10

13

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

CN2002

1

2

3

4

5

6

7

8

9

CN2100

CL2062

CL2037

CL2038

CL2039

CL2040

CL2041

CL2042

CL2043

CL2044

CL2045

CL2046

CL2047

CL2048

CL2049

CL2050

CL2051

CL2052

CL2053

CL2058

CL2059

CL2060

25P

FB2118

0uH

JL2101

JL2102

JL2103

JL2104

JL2105

JL2106

JL2107

JL2108

9P

TUNER_GND

FB2108

0uH

10kR2181

C2175 1

TUNER_GND

C2204

0.1

+STANDBY_3.3V

7

FB2115

FB2114

FB2113

FB2112

FB2 111

FB2110

1

2

3

R2230

R2231

VDD

GND

CE

C2182

100p

1k

D2110

CES521

+7V

VOUT

NC

C2183

• See page 46 for IC Block Diagrams.

(ASSIGNABLE) IN

J2100

1P

TUNER_R

R2189

C2130

47 6.3V

2.4

2

1.2

4

C2132

C2133 220 6.3V

ZONE2_PREOUT_SW_RY

5

4

C2199

100p

TUNER_L

DCAC_IN

HP_DET

EVOL_CLK

EVOL_DATA

PROTECT

C/SL_SR_RY

FRONT_SPK_RY

SBL_SBR_RY

BRIDGEABLE_RY

HP_RY

TEMP_SENSOR_1

TEMP_SENSOR_2

LIMITER

C2171

1

IC2110

MM3411A50NRE

IC2110

+5V REG.

0.1 TUNER_L

TUNER_R

TUNER_CE

TUNER_MOSI

TUNER_RDS_SIGNAL

TUNER_CLK

+7V

COAXIAL IN

R2184

100

COAXIAL

SA-CD/CD

JL2109

75

C2135

IC2105

TC7WHU04FK

IC B/D

IC2105

WAVE SHAPER

IN1

OUT3

IN2

GND

0.1

VCC

OUT1

IN3

OUT2

DA2J10100L

R2193

220

D2109

FB2107

81

7

63

5

0uH

DAC_IIC_SCL

DAC_IIC_SDA

R2138

3.3

1.1

DIGITAL BOARD

C2150

0.1

C2154

0.001

C2157

0.001

C2151

100 10V

FB2101

R2136

470

DGND

470k

R2137

47k

+3.3V

(4/7)

(Page 27)

11

14

L/R_OUT

BCLK_OUT

LRCLK_OUT

C/SW1_OUT

SL/SR_OUT

SBL/SBR_OUT

0uH

R2288

0

FB2109

0uH

R2225

R2228

D2101 CES521

D2102 CES521

R2140

R2141

22k

33k

FUSE_DET

100R2192

C2180

0.001

C2181

0.1

DIGITAL BOARD (5/7)

(Page 28)

12

COMP_DET

ET2000

CL2009

CL2010

CL2011

CL2012

CL2013

CL2014

CL2015

CL2016

CL2017

CL2019

CL2020

CL2069

CL2021

CL2065

CL2066

CL2067

CL2068

CL2029

CL2030

CL2031

CL2063

CL2064

CL2022

CL2023

CL2024

CL2070

CL2025

CL2026

CL2027

CL2028

E

DGND

IC2104

PCM1681PWPR

IC B/D

IC2104

D/A CONVERTER

29

ZR1/FMT0

1

MS/ADR/FMT1

2

MC/SCL/DEMP

3

3.3

MD/SDA/MUTE

4

3.3

SCK

5

1.6

100

100R2227

100R2226

2200pC2100

0.001C2101

C2144

1

1.6

3.3

MM3411A50NRE

1

VDD

7

2

GND

CE

3

7

IC2112

TC7WH157FK

DATA1

6

0

BCK

7

LRCK

8

VDD

9

DGND

10

DATA2

11

0

DATA3

12

0

DATA4

13

0

MSEL

14

IC2106

+5V REG.

D2103

CES521

VOUT

10kR2139

28

ZR2

2.4

27

VOUT1

2.4

26

VOUT2

2.4

25

VCOM

24

AGND2

5

23

VCC2

2.4

22

VOUT3

2.4

21

VOUT4

2.4

20

VOUT5

2.4

19

VOUT6

18

AGND1

5

17

VCC1

2.4

16

VOUT7

2.5

15

VOUT8

C2145

5

4

NC

4.7

5

C2108

100

10V

C2173

0.1

C2178

0.01

C2152

C2174

100 10V

C2172

0.1

C2155

C2156

0.001

FB2103

0uH

C2153

100 10V

A+5V

0.01

0.1

DAC_FL

DAC_FR

SW

SR

SBL

SBR

C

SL

OPTICAL_SAT

OPTICAL_TV

V_MUTE

V_SEL_SW2

V_COMP_SW2

L_IN

R_IN

DAC_FL

DAC_FR

C

SW

SL

SR

SBR

SBL

DGND

+3.3V

+6V

0uHFB2001

V_GND

-7V

IC B/D

IC2112

MUTING

1.6

5

3.1

6

7

3.3

8

Y

SELECT

STROBE

VCC

GND

4

3

Y

1.6

2

B

1.6

1

A

C2036

(CHASSIS)

CN2000

25P

1

OPTICAL_SAT

2

DGND

3

OPTICAL_TV

4

+3.3V

5

COMP_DET

0.1 6

V_MUTE

7

+6V_DCDC

8

V_SEL_SW2

9

V_COMP_SW2

10

CN2001

17P

CN2004

2P

V2_VIDEO

11

V_GND

12

L_IN

13

A_GND

14

R_IN

15

A_GND

16

LCH_N

17

LCH_P

18

RCH_P

19

RCH_N

20

+7V

21

-7V

22

STDBY_SUPPLY

23

NW_L_VOLIC_IN

24

A_GND

25

NW_R_VOLIC_IN

1

A_GND

2

DAC_FL

3

A_GND

4

DAC_FR

5

A_GND

C

6

A_GND

7

8

SW

A_GND

9

SL

10

A_GND

11

12

SR

A_GND

13

SBR

14

15

A_GND

16

SBL

17

A_GND

1

AGND

2

DIGITAL BOARD

3

MAIN

BOARD

D

CN2014

(Page 35)

MAIN

BOARD

C

CN2011

(Page 35)

FLASH

PROGRAMMING

(1/7), (3/7)

(3/4)

(Page 24),

(Page 26)

1

DIGITAL BOARD

2

(1/7)

(Page 24)

K

STR-DH540

16

1715

18

13

DIGITAL BOARD (3/7)

(Page 26)

2525

STR-DH540

Ver. 1.2

5-11. SCHEMATIC DIAGRAM – DIGITAL Board (3/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

C

DIGITAL

BOARD

(1/7)

(Page 24)

4

DIGITAL BOARD (3/7)

3

D

3

4

C2149

0.1

3.3

2.7

0

3.3

C2198

0.001

3.3

D2123

RB751V40, 115

Q2105

PDTC114ET

CEC DATA

SWITCH

R2293

10k

+STANDBY_3.3V

DSP_INT

DSP_SFLASH_HOLD

DSP_RST

DSP_NONAU

DSP_ERROR

DSP_CS

DSP_MISO

DSP_MOSI

DSP_SPICLK

C2191

0.1

FB2102

R2294

27k

3.3

0uH

R2295

R2260

10k

C2206

0.1

220

0.1

E

F

G

H

I

J

K

DIGITAL

BOARD (1/7), (4/7) (Page 24),

(Page 27)

DIGITAL

BOARD (1/7), (5/7) (Page 24),

(Page 28)

DIGITAL BOARD

(6/7)

(Page 29)

14

7

8

IC2101

R2119

C2111

10k

0.1

BU4229F-TR

3.3

2

VDD

CT

1

GND

VOUT

IC B/D

IC2101

RESET

6

7

MU_RST

VU_RST

MiCom_VURX

MiCom_VUTX_VUSDA

Prog_MUTX

Prog_MURX

R2291

22k

R2290

3.3

1k

3

0.1

Q2102

2PB709BSL

CEC DATA

SWITCH

R2289

R2292

10k

22k

CEC

MU_MD0

1.7

R2223

Q2104

2PD601ART

CEC DATA

SWITCH

Q2103

3

2PD601ART

CEC DATA

SWITCH

2.7

C2205

0.1

1k

• See page 21 for Waveforms. • See page 46 for IC Block Diagrams. • See page 51 for IC Pin Function Descriptions.

DIGITAL BOARD

DIGITAL BOARD (2/7)

(Page 25)

13

DIR_CE

DIR_RST

20

21

DIR_CE

DIR_RST

DIR_MISO

FL_CLK56HDMI_CECIN

55

100

100R2212

C2112 0.1

10kR2133

AD_KEY1

16

DIR_SIGNAL

DIR_XSTATE

19

18

DIR_SIGNAL

DIR_XSTATE

AD_KEY158AD_KEY2

57

100R2214

100R2118

10k

R2105

AD_KEY2

SIRCS

R2125

10k

TUNER_CE

DIR_INT

DIR_FSRATE

DAC_IIC_SCL

DAC_IIC_SDA

2.2k

R2237

R2241

100

R2238

R2236

R2235

14

15

13

16

17

DIR_INT

DIR FSRATE

DAC_IIC_SDL

DAC_IIC_SCA

IC2100

MB9AF116NAPMC-G-JNE2

IC2100

SYSTEM CONTROL

AVSS

AVCC61AVRH

SIRCS_IN

59

62

63

60

0.1 100R2213

C2141 0.1

C2139

C2148 0.001

VOL_JOG

C2197

0.001

TUNER_CLK

V_MUTE

TUNER_MOSI

TUNER_RDS_SIGNAL

2.2k

100p

C2184

R2239

R2240

100

R2144

10

11

12

TUNER_CE

TUNER_MOSI

TUN_RDS_SIGNAL

P02/TDI/SOT8_0/TIOB14_2/MCSX6_0

VOLUME_JOG64WHITE_LED65POWER_KEY66LIMITER 67TEMP_SENSOR_2

100R2211

100R2117

0.1C2163

10k

R2103

R2194

WHITE_LED

POWER_KEY

100p

10k

C2185

R2218

R2232

100

RB2100

R2155

8

7

9

V_MUTE

FL_ENABLE

V_SEL_SW1

TUNER_CLK

TEMP_SENSOR_1

DCAC_MUTE70FL_BK71FLASH_CLK/POWER_LED

68

69

100

RB2110

0.1C2164

10C2105

1MR2115

1MR2134

DCAC_MUTE

V_SEL_SW2

100

6

V_SEL_SW2

0.1C2165

FL_BK

10k

R2216

5

MHL_MD0 (EXT INT 15)

RB2107

10kR2129

HP_DET

EVOL_DATA

0.1

C2147

100R2126

4

3

HP_DET

EVOL_DATA

72SO73SI74

100

Prog_MURX

Prog_MUTX

EVOL_CLK

100R2150

100R2113

1

2

EVOL_CLK

BT_MUTE75VSS

C2143

0.1

VCC

100VSS

99FUSE_DET

2.8

98POWER_RY

3.3

97VCC

3.3

96V_COMP_SW2

0

95E2P_SDA

3.3

94E2P_SCL

3.3

93AC_CUT

0

92PROTECT

3.3

91C/SL_SR_RY

3.3

90FRONT_SPK_RY

3.3

89ZONE2_PREOUT_SW_RY

3.3

88SBL_SBR_RY

3.3

87BRIDGEABLE_RY

3.3

86HP_RY

0

85PWR_SW_A

84PWR_SW_B

83PWR_SW_C

82STDBY_LED

0

81P04/TDO/SWO

3.3

80P03/TMS/SWDIO

3.3

79

3.3

78P01/TCK/SWCLK

0.4

77WF_HDMI_SEL

76VCC

3.3

D2113

CES521

R2161

10k

3.3

VCC

26

0

DSP_INT

27

0

DSP_SFLASH_HOLD

28

3.3

DSP_RST

29

NW_ADC_RST

30

0

DSP_NPCM

31

3.1

DSP_ERROR

32

1.2

C

33

VSS

34

3.3

VCC

35

0

36

HDMI_CECOUT

3.3

DSP_SPICS

37

3.3

INITX

38

3.3

39

DSP_MISO

3.3

40

DSP_MOSI

3.3

41

DSP_SPICLK

3.3

42

VCOM_RESET

CEC_PCONT

43

3.3

VCOM_SDA (OUT)

44

3.3

MU UART IN

45

2.8

MD1

46

0

MD0

47

1.6

PE2/X0

48

1.6

PE3/X1

49

VSS

50

C2142 0.1

17

DIR_MISO

DIR_MOSI

DIR_SPICLK

100

R2207

R2201

0 3.3 0 3.3 3.3 2.8 3.1 3.1 3.3 3.3 1.6 3.3 3.3 3.3 3.3 0 03.3 0 0 0 0 0 3.3

22

25

23

24

VSS

DIR_MOSI

DIR_SPICLK

1

VCC52INPUT_JOG53FL_LAT54FL_DATA

51

3.3 3.3 0 3.3 3.3 0 3.3 3.3 3.3 3.3 3.3 0.61.2 0 3.3 0 0.6 0 0.2 3.3 3.3 1.3

RB2106

0.1

100R2215

C2110 0.001

10k

R2135

0R2229

INPUT_JOG

C2119

FL_LAT

FL_DATA

FL_CLK

15 18

C2140

0.1

100R2204

470R2131

RB2104

100

C2161 4.7

C2137 0.1

C2186 0.001

C2113

47 6.3V

X2100

4MHz

2.2kR2124

100R2198

100R2210

100R2199

10kR2296

RB2105

100

CL2140

R2110

1k

Update_LED

100R2203

470R2196

C2136

C2109 0.1

RB2109

2.2k

C2208 0.1

RB2108

100

100R2128

0.1

10kR2121

100R2152 100R2146

100R2224

2.2kR2114

100R2168

10kR2159

0.1C2138

CES521

D2112

R2217

10k

10kR2120

10kR2242

ZONE2_PREOUT_SW_RY

(1/7), (2/7)

(Page 24), (Page 25)

3

2

V_COMP_SW2

PROTECT

C/SL_SR_RY

FRONT_SPK_RY

SBL_SBR_RY

D2119 BAV70

D2120 BAV70

D2118

DA2J10100L

BRIDGEABLE_RY

HP_RY

TEMP_SENSOR_2

TEMP_SENSOR_1

LIMITER

+7V

DCAC_IN

POWON_LED

10kR2107

3.3kR2122

STDBY_LED

+6V

+3.3V

+2V

3.3

STDBY_LED

POWON_LED

FL_BK

DCAC_MUTE

WHITE_LED

VOL_JOG

POWER_KEY

SIRCS

AD_KEY2

AD_KEY1

INPUT_JOG

FL_LAT

FL_DATA

FL_CLK

SDA

5

SCL

6

WP

7

VCC

8

C2117 0.1

DGND

GND

A2

A1

A0

FB2117

0uH

CN1500

10P

CL1503

CL1504

CL1505

CL1500

0JR1501

0JR1500

C1507 0.1

4

3

2

1

C1505 0.1

C1503 0.1

DGND

IC2102

BR24T64FJ-WE2

IC B/D

IC2102

EEPROM

AGND

+6V

R2200

220

CL1501

CL1502

0.1

C1501

C1508

47p

CL2135

CL2124

CL2125

CL2127

CL2130

CL2116

CL2117

CL2137

CL2136

CL1134

CL2128

CL2121

CL2120

CL2113

CL2114

CL2115

CL2118

CL2119

CL2138

CL2122

CL2123

CL2139

CL2126

CL2100

CL2112

ET1500

CN2101

E

25P

1

2

3

4

5

6

7

8

9

10

1

LED_STBY

2

LED_ON

3

FL_BK

4

NC

5

+7V (7807)

6

AGND

7

FL_EN

8

DCAC_SIGNAL

9

MIC_MUTE

10

DGND

11

PURE_DIRECT

12

DGND

+3.3V_STBY

13

FL_GND

14

FL_GND

15

+6V_DCDC

16

VOLUME_JOG

17

POWER_SW

18

SIRC

19

AD2

20

AD1

21

INPUT_JOG

22

FL_LAT

23

FL_DIN

24

FL_CK

25

POWER_RELAY

STOP

STBY_+3.3V

DCDC_+6V

DCDC_+3.6V

DCDC_+2V

(CHASSIS)

E

F

G

STANDBY

BOARD

CN940

(Page 42)

DCDC BOARD CN1901

(Page 40)

DISPLAY

BOARD

CN102

(Page 38)

STR-DH540

2626

STR-DH540

Ver. 1.1

5-12. SCHEMATIC DIAGRAM – DIGITAL Board (4/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

DIGITAL BOARD (4/7)

B

DIGITAL

BOARD

(1/7), (3/7)

(Page 24),

C

(Page 26)

7

8

D

E

CL2503

DIGITAL

BOARD

F

(2/7)

(Page 25)

11

14

CL2504

CL2505

CL2506

DIGITAL

BOARD

(1/7)

G

(Page 24)

H

8

9

SL/SR_IN

SL/SR_OUT

L/R_OUT

SBL/SBR_OUT

BCLK_IN

I

• See page 21 for Waveforms. • See page 51 for IC Pin Function Descriptions.

C2509

C2501

0.1

10

C2511

C2505

10

R2517

R2528

R2510

0.1

0.1C2545

0.1C2546

1k

0.1C2547

10k

0.1C2549

0.1C2548

10k

0R2529

0.1C2550

0.1C2542

0R2530

22R2553

22R2554

0.1C2544

0.1C2543

0.1C2541

DSP_CS

DSP_MISO

DSP_MOSI

DSP_SPICLK

JL2500

22R2533

CL2502

3.3

25

23

10C2500

0.1C2518

0.1C2519

10kR2508

10kR2509

100R2559

0.1C2526

0.1C2524

0.1C2523

22R2504

220R2503

22R2505

0.1C2522

0.1C2521

0.1C2520

220R2506

220R2507

3.3

4

1.2

3.3

1.2

0

1.2

3.3

1.2

0

24

MD

VDD_EXT

26

DPI_P08

27

RESET_MAIN

28

VDD_INT

29

UART_OUT

30

UART_IN

31

LED

32

DPI_P12

33

DPI_P13

34

DAI_P03

35

36

DPI_P14

VDD_INT

37

VDD_INT

38

39

VDD_INT

40

SL/SR_IN

41

SL/SR_OUT

42

BCLK_IN

OPTION_L/OPTION_R_OUT

43

FRONTHI_L/R_OUT

44

VDD_INT

45

VDD_EXT

46

VDD_INT

47

L/R_OUT

48

49

50

ZONE_L/R

51

52

CL2507

C2530 0.1

DSP_CS

6

VDD_INT53VDD_EXT54MCLK_IN55VDD_INT56C/SW1_OUT

1.2 3.3 1.7 1.2 0 1.2 0 1.6 1.6 1.6 0 1.2 1.2 1.2 1.2 1.2 1.5 1.4 3.3 1.2 1.2 1.2 1.2

22R2538

22R2536

22R2531

22R2535

0.1C2513

3.3 1.2 3.3 3.2 3 1.2 3.2 1.2 1.2 3.3 1.6 1.6 1.2 0 3 1.2 3.3 3.2 0 1.2

19

22

21

MOSI20MISO

SPICLK

DPI_P05

VDD_INT

MID/SW2_OUT SBL/SBR_OUT

A/D_2CH

57

220R2537

22R2540

22R2534

C2529 0.1

C2532 0.1

1

X2500

25MHz

2

13

22R2544

XTAL

1MR2512

12

C2533 0.1

CLKIN

0.1C2525

11

VDD_INT

22R2546

C2507

10kR2558

10

CLK_CFG0

C2535 0.1

22p

8

7

NC9NC

GND

100R2547

C2536 0.1

C2506

R2511

10p

1k

0.1C2517

0.1C2516

0.1C2515

0.1C2514

JL2501

15

18

14

17

16

VDD_INT

VDD_EXT

RESETOUT/RUNRSTIN

IC2502

ADSST-AVR-3045

IC2502

DSP

LRCLK_IN60BCLK_OUT

C/SW_IN

LRCLK_OUT62SBL/SBR_IN63L/R_IN64VDD_INT65DIR_IN66VDD_INT67VDD_INT68GND69THD_M70THD_P71VDD_THD72VDD_INT73VDD_INT74VDD_INT75VDD_INT

58

59

61

330R2543

22R2545

22R2541

22R2539

FB2502

22R2532

0.1C2527

6

5

VDD_INT

BOOT_CFG1

100R2548

C2534 0.1

0.1C2528

10kR2549

4

VDD_EXT

C2537 0.1

JL2512

10kR2556

3

2

CLK_CFG1

BOOT_CFG0

C2539 0.1

C2538 0.1

0.1C2531

1

VDD_INT

0.1

C2540

10C2552

100VDD_INT

1.2

99TMS

98RESET

3.8

97VDD_INT

1.2

96TCK

0

95TDI

94VDD_INT

1.2

93VDD_EXT

3.3

92TDO

91EMU

90TRST

0.7

89MLBSO

88VDD_INT

1.2

87MLBSIG

86VDD_EXT

3.3

85MLBDO

84MLBDAT

83MLBCLK

82FLAG3

81FLAG2

0

80FLAG1

3.1

79VDD_INT

1.2

78VDD_INT

1.2

77FLAG0

0

76VDD_INT

1.2

R2516

100k

C2553

220

6.3V

C2503

JL2504

R2522

R2520

22

R2585

C2576

HOLD#

3.33.33.3

CL2500

10k

CL2501

C2551

0.1

C2504

R2521

SCK

Vss SI

D2500

CES521

9

1VOUT

FB

2

GND

3

NC5EN

4

IC2500

BD00IC0WEFJ-E2

IC2500

+1.2V REG.

GND

8VIN

NC

7

NC

6

FB2500

0uH

IC2503

W25Q80BVSSIG

IC2503

SERIAL FLASH

R2515

10k

R2514

22

R2513

22

R2527

10k

2

3.1

R2526

R2519

10k

R2518

10k

22

C2502

0.1

3.3 0 3.3 3.3

Vdd

CE#SOWP#

1.2

R2501

10k

DSP_INT

0.9

DSP_SPICLK

DSP_MOSI

DSP_SFLASH_HOLD

DSP_MISO

DSP_CS

R2500

3.9k

R2502

220

0.1

10kR2550

DSP_NONAU

DSP_ERROR

10kR2551

2.2kR2552

10

2.2k

C2508

0.1

+3.3V

+2V

DGND

J

K

STR-DH540

MCLK_IN

C/SW1_OUT

DSD_IN

C/SW_IN

330

R2542

LRCLK_IN

BCLK_OUT

LRCLK_OUT

SBL/SBR_IN

L/R_IN

JL2502

JL2503

2727

STR-DH540

Ver. 1.1

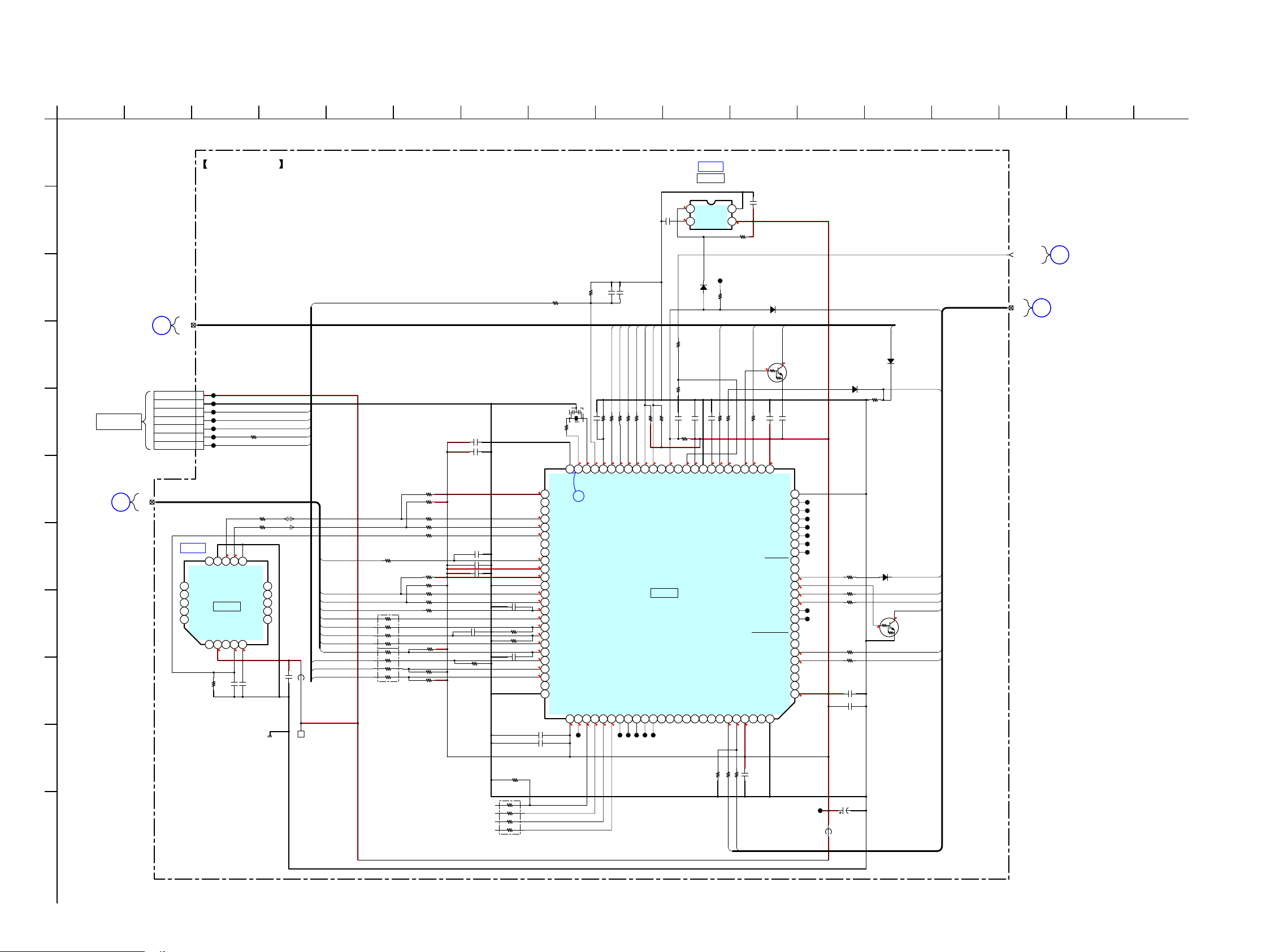

5-13. SCHEMATIC DIAGRAM – DIGITAL Board (5/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

DIGITAL BOARD (5/7)

B

C

VU_MD0

DIGITAL

BOARD

(6/7)

15

19

(Page 29)

D

CN3000

7P

JL3003

3.3V

7

SCK

MD0

NC

JL3004

6

JL3005

5

JL3006

4

JL3007

3

JL3008

2

JL3010

1

NC

MODE0

IC3002

MFI341S2162

IC3002

USB MEMORY

NC

MODE1

12345

3.3 3.33.1

C3032

R3107

0.01

10k

3.3 3.3

I2C_SCL

I2C_SDA

NC

1112131415

RESET

R3108

R3086 10

VSS

NC

VCC

C3033

0.1

Prog_VURX

Prog_VUSCK

Prog_VUTX

JIG_RESET

100R3045

VU_MD0

10

USB_OVC

10

9

8

7

6

DGND

C3036 10

+3.3V

FB3004 0uH

USB_SDA

USB_SCL

USB_MCHNG

USB_PCONT

USB_SEARCH

USB_IRPTO

USB_RESET

USB_BUSY

Prog_VUSCK

Prog_VUTX

Prog_VURX

GND

Prog_VURX

Prog_VUTX

RESET

20

DIGITAL

BOARD

(7/7)

PROGRAMMING JIG

(HDMI KSV)

16

E

F

(Page 30)

IC B/D

G

16

17

18

19

H

20

I

J

• See page 21 for Waveforms. • See page 46 for IC Block Diagrams. • See page 51 for IC Pin Function Descriptions.

IC B/D

IC3001

RESET

1

2

3.3

R3059

10k

100

100R3011

31

29

30

HDMI_MUTE

MHL_PCONT

VURX/P60

VU_SDA_VUTX

9594

97

96

100R3025

100R3024

C3019

0.1

Sparta_INT

0.1

100R3060

28

27

MHL_OVC

Sparta_INT

Sparta_RST

UPDATE_LED

UPDATE_SELB

UPDATE_SELA_ST

UPDATE_SELA

UPDATE_VUTX

UPDATE_VURX

NC

VCC

98

99

C3021 0.1

D3006

CES521

C3022 0.1

26

VCC

Tes t_ 7

Tes t_ 6

Tes t_ 5

Tes t_ 4

Tes t_ 3

Tes t_ 2

Tes t_ 1

SEL_JIG_ST

SEL_JIG

MU_MD0

MU_RST

NON_LPCM

TEST_SDA

TEST_SCK

VSS

100

Sparta_RST

3.3

DRC5114E0L

RESET SW

C3023 4.7

VSS

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

NC

VCC

Q3001

9

8

7

6

5

4

3

2

1

RX_Mute

D3002

CES521

D3003

CES521

R3003

10k

JL3016

JL3015

JL3014

JL3013

JL3012

JL3011

JL3009

D3004

CES521

C3025 0.1

C3026 4.7

100R3017

100R3016

100R3015

3.3

0

1kR3028

1kR3027

0

3.1

0

JL3001

JL3000

0.9

3.3

RB3001

100

RB3002

100

0

4

IC3001

0

D3005

CES521

R3111

100

R3112

10k

R3063

C3018 0.001

10k

38

36

37

INITX

VU_MHL_CD0

MHL_CD0 (5V Tolerant)

BT_VUTX_BTRX

88

9089

BU4229F-TR

3

C3020 0.1

35

34

VCC

COMP_DET

VURTS-Out_BTCTS

VUCTS-IN_BTRTS

91

92

C3027 4.7

33

VSS

BT_RST

93

R3034

5VPWR_A

100R3082

32

C

5VPWR_A

VU_SCK

BT_PCONT

10kR3113

C3016

0.001

C3012

0.1

C3013 0.001

TDI

2.2kR3041

46

80797877

MD147MD0

TMS

C3014

0.001

SPSF_SPI_CS

ADV8003_SPI_DIN

ADV8003_SPSF_SCK

ADV8003_SPSF_DOUT

100R3089

100R3088

100R3091

100R3087

42

43

45

44

SPSF_SPI_CS

ADV8003_SPSF_SCK

ADV8003_SPSF_DOUT

NC

TDO

8483

81

82

JL3020

JL3021

HDMI_SCK

HDMI_SDA

47R3065

47R3067

40

39

41

NC

HDMI_SCK

HDMI_SDA

ADV8003_SPSF_DIN

IC3000

MB9BF116NPMC-G-JNE2

IC3000

HDMI CONTROLLER

BT_VURX_BTTX

NC

8786

85

JL3022

JL3023

JL3024

R3039

10k

1kR3036

X3000

4MHz

R3033

3.3

3.2

0.4

0

3.3

0

1

3.2

0

3.2

C3010 0.1

C3011 4.7

1k

1.6 1.6 0 0 0 0 0 0 1.6 1.6 3.2 0 3.3 1.2 3.2 3.1 0 3.3 3.3

50

49

48

X0

X1

VSS

VCC

51

7

NC

52

NC

53

USB_IP_SDA

54

USB_IP_SCL

55

USB_IP_Reset

56

NC

57

NC

58

USB_OVC

59

AVCC

60

AVRH

61

AVSS

62

USB_SDA

63

USB_SCL

64

USB_MCHNG

65

USB_PCONT

66

USB_SEARCH

67

USB_IRPTO

68

USB_RESET

69

USB_BUSY

70

Prog_VU_SCK

71

Prog_VUTX

72

Prog_VURX

73

NC

74

VSS

75

TCK

TRXTS (No Use)

VCC

76

3.3 3.2 0.4 3.2 3.2 3.2 1.4 3.2 3.3

JL3002

C3008 4.7

C3009 0.1

R3055

2.2k

2.2kR3053

47R3106

47R3054

100R3062

2.2kR3109

3.3kR3094

3.3kR3096

330R3095

330R3029

100R3097

10kR3104

R3014 10k

R3012 10k

C3029

0.001

C3005

C3006

C3030 0.001

R3013 10k

0.1

C3028 0.001

10kR3110

10kR3102

C3031 0.001

10kR3038

HDMI_MUTE

NON_LPCM

Update_LED

Q3000

DRC5114E0L

RESET SW

Prog_MURX

Prog_MUTX

VU_RST

MU_MD0

MU_RST

COMP_DET

6

DIGITAL BOARD

12

DIGITAL BOARD

(1/7), (3/7)

7

(Page 24),

(Page 26)

(2/7)

(Page 25)

K

STR-DH540

RB3000

100

MiCom_VURX

MiCom_VUTX_VUSDA

JL3019

FB3001

0uH

C3024

100 10V

2828

STR-DH540

Ver. 1.2

5-14. SCHEMATIC DIAGRAM – DIGITAL Board (6/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DIGITAL BOARD (6/7)

A

2021

22

23

HOT PLUG DET

DDC/CEC GND

BD IN 4K

DVD IN

RESERVE(NC)

CLOCK SHIELD

DATA0 SHIELD

DATA1 SHIELD

HOT PLUG DET

DDC/CEC GND

RESERVE(NC)

CLOCK SHIELD

DATA0 SHIELD

DATA1 SHIELD

DATA2 SHIELD

HOT PLUG DET

DDC/CEC GND

RESERVE(NC)

CLOCK SHIELD

DATA0 SHIELD

DATA1 SHIELD

DATA2 SHIELD

B

C

D

E

F

HDMI

G

GAME IN 4K

H

I

HOT PLUG DET

DDC/CEC GND

J

SAT/CATV IN

K

RESERVE(NC)

CLOCK SHIELD

4K

DATA0 SHIELD

DATA1 SHIELD

DATA2 SHIELD

+5V POWER

SDA(5V)

SCL(5V)

CLOCK-

CLOCK+

DATA0-

DATA0+

DATA1-

DATA1+

DATA2-

MHL_MD0

DATA2+

+5V POWER

SDA(5V)

SCL(5V)

CLOCK-

CLOCK+

DATA0-

DATA0+

DATA1-

DATA1+

DATA2-

DATA2+

+5V POWER

SDA(5V)

SCL(5V)

CLOCK-

CLOCK+

DATA0-

DATA0+

DATA1-

DATA1+

DATA2-

DATA2+

+5V POWER

SDA(5V)

SCL(5V)

CLOCK-

CLOCK+

DATA0-

DATA0+

DATA1-

DATA1+

DATA2-

DATA2+

19

18

17

16

15

14

CEC

13

12

11

10

9

8

7

6

5

4

3

2

1

CN3504

R3805

19P

0

CEC

CN3503

19P

CEC

CN3502

19P

CEC

CN3501

19P

IN4_HPD

0R3502

IN4_5VP

0R3503

R3522

47k

IN4_SDA

22R3513

IN4_SCL

22R3514

IN4_CK-

IN4_CK+

IN4_D0-

IN2_CK-

IN4_D0+

IN2_CK+

IN4_D1-

IN2_D0-

IN2_D0+

IN4_D1+

IN2_D1-

IN4_D2-

IN2_D1+

IN2_D2-

IN4_D2+

IN2_D2+

IN3_CK-

IN3_CK+

IN3_D0-

IN3_D0+

IN3_D1-

IN3_D1+

IN3_D2-

IN3_D2+

IN2_CK-

IN2_CK+

IN2_D0-

IN2_D0+

IN2_D1-

IN2_D1+

IN2_D2-

IN2_D2+

IN1_CK-

IN1_CK+

IN1_D0-

IN1_D0+

IN1_D1-

IN1_D1+

IN1_D2-

IN1_D2+

IN1_CK-

IN1_CK+

IN1_D0-

IN1_D0+

IN1_D1-

IN1_D1+

IN1_D2-

IN1_D2+

HDMI_SCK

HDMI_SDA

Sparta_INT

Sparta_RST

3.3kR3573

IN4_SDA

IN4_SCL

IN4_HPD

IN4_5VP

2.2kR3576

2.2kR3578

IN3_HPD

0R3504

IN3_5VP

0R3505

R3520

47k

IN3_SDA

22R3515

IN3_SCL

22R3510

IN2_HPD

0R3506

IN2_5VP

0R3507

R3523

47k

IN2_SDA

22R3516

IN2_SCL

22R3517

IN1_HPD

0R3508

IN1_5VP

0R3509

R3524

47k

IN1_SDA

22R3518

IN1_SCL

22R3519

• See page 21 for Waveforms. • See page 51 for IC Pin Function Descriptions.

IN4_D0-

IN4_D1-

C3529 0.1

C3528 0.1

35

36

37

AVDD12

CVCC12

DSDA598DSCL599CBUS_HPD5

97

4.7kR3599

4.7

C3527

IN1_SDA

IN1_SCL

5

VOUT

C3530

IN4_D2+

34

R2X2+

4.7kR3600

IN1_HPD

5

1

R2X2-

IN4_D2-

33

R2X1+

R5PWR5V

100

10

R3601

IN1_5VP

IN4_D1+

32

R2X1-

SBVCC5V

101

4.7

C3532

31

R2X0+

VCC33OUT

102

0R3602

C3533 10

FB3501 220ohm

IC3503

JL3513

JL3514

IN4_D0+

IN4_CK+

28

29

30

R2X0-

R2XC+

MHL_CD0/GPIO0

MHL_CD1/GPIO1

103

104

105

JL3515

JL3516

C3534 1

+5V REG.

IN4_CK-

27

R2XC-

R1X2+

TX_HPD0

TXDSDA0

106

107

OUT0_HPD

OUT0_SDA

26

R1X2-

TXDSCL0

25

108

OUT0_SCL

23

24

R1X1-

R1X1+

IC3506

SII9573CTUC

IC3506

HDMI RECEIVER

TX_HPD1

TXDSDA1

109

110

R3606 0

C3538 10

C3536 0.1

130kR3624

R3625

100

22

R1X0-

R1X0+

APLL12

TXDSCL1

111

C3540 0.1

1

C3542 0.1

C3544 0.1

C3543 10

C3545 10

R3619

0

R3622

0

11

12

13

14

15

16

17

18

20

21

R0X0-

R0X1-

R0X2-

R1XC+

R1XC-

R0X1+

R0X2+

AVDD1219AVDD33

R0X0+

SD1_IN/SD1_OUT/SPDIF1_IN/SPDIF1_OUT

8

XTALVCC33

XTALOUT

XTALGND

CVCC12

SS/GPIO2

SD1/GPIO5

XTALIN

112

113

114

115

116

117

220R3611

C3546 0.1

C3541 10

SF_CS

C3549

3p

2

X3501 27MHz

C3550

3p

SCLK/GPIO3

118

119

47R3612

47R3613

SF_SCK

SF_SO

WS0_OUT/DR0

SD0/GPIO4

120

121

47R3616

220R3615

SP_WS

SF_SI

C3570 0.01

C3561

10

R3648

3.3k

122

100R3618

SP_SCK

R3647

C3518 0.1

C3519 0.1

C3520

C3523 0.1

C3516 4.7

C3517 4.7

IN3_D2+

0.1

47R3589

47R3590

4.7kR3583

R3591

10k

10kR3584

10kR3585

0R3579

4.7kR3582

0R3572

10R3588

IN3_D2-

IN3_D0-

IN3_D1-

IN3_CK-

IN3_D0+

IN3_D1+

IN3_CK+

C3526 0.1

1.2 1.2 1.2 1.2 1.2 1.2 3.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 3.3 1.2

43

44

R3X1-

1.2

3.3

1.2

1.6

3.3

0

0.5

2.2

0

2

IN3_SDA

R3X1+

R3X2-

45 D13

R3X2+

46

R4XC-

47

R4XC+

48

R4X0-

49

R4X0+

50

R4X1-

51

R4X1+

52

R4X2-

53

R4X2+

54

AVDD12

55

AVDD33

56

RX5C-

57

RX5C+

58

RX50-

59

RX50+

60

RX51-

61

RX51+

62

RX52-

63

RX52+

64

CVCC12

65

CSCL

66

CSDA

67

INT

68

RESET

69

TPWR_CI2CA

70

CEC_A1

71

CEC_A0WAKEUP

72

DSDA6

73

DSCL6

74

LPSVCC33

75

DSDA0

76

DSCL0

77

CBUS_HPD0

78

R0PWR5V

79

DSDA1

80

DSCL1

81

CBUS_HPD1

82

R1PWR5V

83

DSDA2

84

DSCL2

85

CBUS_HPD2

86

R2PWR5V

87

DSDA3

88

DSCL390CBUS_HPD391R3PWR5V92DSDA4

89

0 0 0 1.7 0 0 0 1.7 0 0553.3 0 0 1.2 3.3 1.5 1.50 0 0 5 1.2 3 0 0 0 0 0 00000003.3

4.7kR3595

IN3_HPD

IN3_SCL

R3593

C3531

1k

1

R3594

10k

42

R3X0+

10

R3596

IN3_5VP

5.4

41

R3X0-

4.7

IN2_SDA

6

40

R3XC+

DSCL4

93

C3525

IN2_SCL

1

2

3

38

39

R3XC-

AVDD33

CBUS_HPD495R4PWR5V96RSVDL

94

4.7kR3597

10

R3598

IN2_HPD

IN2_5VP

D3501 CES521

IC3503

MM3411A50NRE

VDD

GND

CE4NC

10

R0XC-

R0XC+

SCK0/DDCK

IOVCC33

123

124

47R3620

C3548 0.1

R3621

220

SP_SD0

1kR3642

10C3556

2.2k

7DE8

9

VSYNC

HSYNC

WS1_IN/WS1_OUT

SCK1_IN/SCK1_OUT

SD0_IN/SPDIFO_IN

SD0_0/DL0

MCLK

SD0_2/DL1/GPIO7

SD0_1/DR1/GPIO6

125

126

127

47R3623

FB3503 470ohm

SP_MCK

SP_SD1

SP_SD2

3.3

1

CE

2

VDD

3

GND

1.2

4

VOUT

0.8

5

VFB

4

5

D186D19

D17

SD0_3/DR2/GPIO8

MUTEOUT/GPIO9

SPDIF0_OUT/DL2

128

129

130

47R3628

47R3627

47R3626

SP_SD3

SP_SPDIF

BodyGnd

131

47R3629

2

D153D16

WS0_IN/GPIO11

132

6

1

D14

SCK0_IN/GPIO10

C3551

IC3508

RP108J081D-FE

IC3508

+1.2V REG.

176

175D12

174D11

173IOVCC33

172IDCK

171D10

170D9

169D8

168D7

167D6

166D5

165D4

164D3

163D2

162D1

161D0

160CVCC12

159T0X2+

158T0X2-

157T0X1+

156T0X1-

155T0X0+

154T0X0-

153T0XC+

152T0XC-

151TDVDD12

150TPVDD12

149T1X2+

148T1X2-

147T1X1+

146T1X1-

145T1X0+

144T1X0-

143T1XC+

142T1XC-

141TDVDD12

140TPVDD12

139CVCC12

138ARC1

137ARC0

136

135

134

133

10

FB3504

30ohm

JL3518

DIGITAL

22

14

23

19

TV OUT

(Page 28)

4

BOARD

(3/7)

(Page 26)

HDMI

ARC

15

DIGITAL

BOARD

(5/7)

5

DIGITAL

BOARD

(1/7)

(Page 24)

CEC

CN3200

R3387

10kR3552

VCC

1.8k

5

4

JL3509

47R3570

47R3569

SCK

19P

DATA2+

1

DATA2 SHIELD

2

DATA2-

3

DATA1+

4

DATA1 SHIELD

5

DATA1-

6

DATA0+

7

DATA0 SHIELD

8

DATA0-

9

CLOCK+

10

CLOCK SHIELD

11

CLOCK-

12

CEC

13

RESERVE(NC)

14

SCL(5V)

15

SDA(5V)

16

DDC/CEC GND

17

+5V POWER

18

HOT PLUG DET

19

20 21

6

JL3225

5

C3359

JL3228

1

C3361

1

3.3

8

3.3

7

R3555

0

1k

6

0

5

DI

10kR3556

10kR3560

0.1C3513

RB3204

3.1

OUT0_SCL

OUT0_SDA

IC3500

MM1839A50NRE

1

CONT

2

GND

3

NC

JL3511

JL3510

3.3

1

0

2

3.3

3

4

W25Q16CVSSIG-R

DGND

0

RB3205

0

R3386

1.8k

IC3500

+5V REG.

VIN

VOUT

R356747R3568

47

JL3508

/CS

/HOLD

DO

/WP

GND

IC3502

EEPROM

+2V

+3.3V

+5V +6V

OUT0_D2+

OUT0_D2-

OUT0_D1+

OUT0_D1-

OUT0_D0+

OUT0_D0-

OUT0_CK+

OUT0_CK-

C3552

0.1

3.3

C3553

0.1

1.2

1.5

1.6

1.5

0.6

1.2

C3554

0.1

C3555

0.1

C3557

0.1

1.2

C3558 0.1

1.2

C3559 0.1

0

C3560

10

R3640

0

R3632

0

C3566

220 6.3V

0R3636

47R3637

OUT0_D2+

OUT0_D2-

OUT0_D1+

OUT0_D1-

OUT0_D0+

OUT0_D0-

OUT0_CK+

OUT0_CK-

C3562

10

C3563

10

C3564

10

C3565 10

L3500 10uH

ARC_SPDIF

C3567

220 6.3V

JL3519

R3643

R3644

C3568 4.7

C3569 1

JL3526

JL3523

0

R3645

R3646

0

FB3505 220ohm

RX_Mute

JL3527

JL3525

C3358

1

C3364

R3370

1

300

R3372

62

R3373

0

R3374

62

C3363

1

5VPWR_A

SF_SI

SF_SCK

SF_SO

ADV8003_SPSF_DOUT

ADV8003_SPI_DIN

ADV8003_SPSF_SCK

SPSF_SPI_CS

SF_CS

OUT0_HPD

C3578 0.001

10kR3551

10kR3549

R3376

47k

R3377

47k

R3380

1k

R3365 10k

STR-DH540

Note: IC3506 on the DIGITAL board cannot exchange with

2929

single. When this part on the DIGITAL board is damaged, exchange the entire mounted board.

STR-DH540

Ver. 1.2

5-15. SCHEMATIC DIAGRAM – DIGITAL Board (7/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

DIGITAL BOARD (7/7)

B

C4113 68p

C4112 68p

C4109

0.1

+3.3V

FB4000

0uH

C4111

10

C

11 S D_ CS

DVSSIO

R4106

R4105

1.5k

1M

3.3

12

DVDDIO

13

TEST1

1.4

14

XIN_PLL

1.4

15

XOUT_PLL

3.3

16

TEST2

3.3

17 SEL_COD/TEST3

18

SEL_SLAVE

3.3

19

AVDDC

20

AVSSC

C4108 0.1

C4107 9p

D

X4100

16.9344MHz

C4106

9p

2

C4105 220 6.3V

C4104 0.1

1

E

F

VD4100

USB_SCL

USB_SDA

USB_BUSY

330R4108

330R4110

1.6 3.3 3.1 0 0 0 0 3.1

7

8

9

10

DVDD_M

KEY_ROW2/SCL

KEY_ROW3/SDA

KEY_ROW1/BUSY

BU94502AMUV

9

USBDM22USBDP23REXTI24LED_ERROR/CLK24MI

21

0 0

0 0 3.3

JL4107

R4104

12k

VD4101

• See page 21 for Waveforms. • See page 46 for IC Block Diagrams.

USB_IRPTO

USB_RESET

USB_MCHNG

USB_SEARCH

100R4115

100

RB4000

2

3

4

5

6

TMODE

KEY_COL1/IRPTO

KEY_COL3/MCHNG

KEY_COL2/SEARCH

IC4100

LED_PLAY/LRCK/SPDIF26LED_PSD/BCK27LED_PUSB/DATA28LED_REPEAT/MCLK29DVDDIO

25

JL4104

JL4106

JL4105

C4103

0.001

10kR4116

1

RESETX

30

0.1C4110

DVSSIO

AMUTE

JL4103

C4102

0.1

40

39SD_DI

38SD_CLK

37SD_DO

36SD_CON

35DAVDD

34LDACO

33VCDACO

32RDACO

31DAVSS

3.3

JL4100

3.3

JL4101

C4101 10

1.6

JL4102

IC B/D

IC4100

DECODER

R4001

10k

C4000

R4002

0.1

C4100

C4001

2.2

9

C4002

FIN

1234

5 1

2.2

R4003

R4004

68k

4.7k

FB4100 470ohm

0.1

10kR4100

10kR4101

10kR4102

10kR4103

0

6

3.1

5678

IC4102

EN

NCGND

NC

VIN

FBNCVOUT

R4005

12k

BD00HC5WEFJ-E2

IC4102

POWER

CONTROL

R4183

150k

R4117

470

R4006

100k

USB_PCONT

C4003

R4007

1k

C4004

0.1

R4187

560k

5

10

3.1

IC4101

TPS2553DBVR

IC B/D

IC4101

OVER VOLTAGE

CONTROL

1Vin

2GND

3EN4FAULT

DIGITAL

16

BOARD

(5/7)

(Page 28)

H

FRONT JACK PWB

BOARD

CN104

(Page 43)

20

USB_OVC

D4000

CES521

5

6Vout

0.4

ILIM

5

3.1

R4008

R4010

+6V

R4009

10k

C4005

10k

10

CL4001

CL4002

CL4003

CL4000

DGND

CN4000

5P

5

GND

4

VBUS

3

D-

2

D+

1

GND

DIGITAL

USB_SPDIF

BOARD

1

(1/7)

(Page 24)

G

H

I

J

K

Note: IC4100 on the DIGITAL board cannot exchange with single.

When this part on the DIGITAL board is damaged, exchange the entire mounted board.

STR-DH540

3030

5-16. PRINTED WIRING BOARD – MAIN Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH540

Ver. 1.1

A

B

C

D

POWER

TRANSFORMER

(MAIN)

E

(Page 41)

F

POWER

TRANSFORMER

(MAIN)

(Page 41)

G

HEADPHONE

BOARD

CN107

H

(Page 45)

I

J

1

I

T901

J

T901

K

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN BOARD (COMPONENT SIDE)

SPEAKERS

(CHASSIS)

L

+

(CHASSIS)

CNP920

15

LP401

14

CN391

–

F912

RY920

F913

HS921

D921

C930

RY921

C322

ET301

R553

R558

Q551

TB501 TB502

R

FRONT CENTER

+

–

RR11

R920

R377

R551

R550

C558

Q552

E

R567

132 132 132 132 132 132 132 132 132 132 132 132 132 132

R556

E

Q553

R554

R381

R566

Q550

R555

+

(CHASSIS) (CHASSIS)

–

RR12

RY350

L550

RR13

W001

GP801

C931

R701

R703

R708

Q701

L

+

–

RR14

RY365

R351

15

CNP930

L700

R700

Q702

R716

R717

R387

Q700

R706

R705

E

Q703

SURROUND

E

R

+

–

RR15

RY355

R365

F910

F911

C708

R704

C912

C913

C933

L600

R601

R600

R603

R608

R617

Q601

R386

R616

Q600

R605

R606

E

Q603

R356

C563

C560

R563

R561

R562

R579

C564

C582

C581

E

Q574

C586

Q575

D572

R578

Q570

C585

C570

R576 R575

R577 D571

R543

Q602

E

R572

R571

C932

R542

R758

C618

R604

R252

C250

R251

Q751

TH251

TH252

J402

L R

AUDIO

TV IN

AUDIO

SUBWOOFER

OUT

RY301

R302

R560

R574

E

Q572

R570

R573

D570

R751

R753

R767

AUDIO

TV IN

AUDIO

SUBWOOFER

OUT

(CHASSIS) (CHASSIS)

W002

D356

C352

L750

R750

Q752

R385

E

R766

Q750

R756

R755

E

Q753

C359

C301

O

IC352

C736

R728

C758

R754

I

R713

R712

C732

E

Q724

L R

IC350

C350

C354

C358

C355

D352

C713

R711

C712

Q725

E

D722

R722

C731 Q720

C735

C720

R726

R727

R725

D721

R653

Q651

AUDIO SAT/

CATV IN

AUDIO

VIDEO IN

AUDIO

SA-CD/

CD IN

OI

C353

R729

R721

R658

J401

AUDIO

SAT/

CATV IN

AUDIO

VIDEO IN

AUDIO

SA-CD/

CD IN

(CHASSIS)

C2371

C2372

64

IC2354

13

C2374

C2373

R315

C351

C634

C613

C710

R613

R710

R612

C633

L612

R724

E

Q624

Q722

C636

R628

R723

R720

D720

R651

R667

L610

C610

R610

C612

R763

R629

R624

R611

E

Q625

D622

C620 R627

D621

Q622

R622

R621

R620

R623

D620

C631

Q620

C635

R626 R625

L650

R650

C658

E

R666

Q652

R384

Q650

R655

R656

E

Q653

J218

VIDEO

SAT/

CATV IN

VIDEO

VIDEO IN

VIDEO

MONITOR

OUT

C546

R312

R310

C310

C763

R762

C782

E

Q774

R778

C786

R761

C770 R777

D771

R654

R311

R313

C311

R760

C760

C762

E

Q775

R772

D772

R779 C781

Q770

C785

R776 R775

C663

R774

L662

E

C683

Q772

Q674

Q675

E

R773

R771

R770

D770

R678

C686

C670 R677

D671

Q801

C684

C660

L660

R663

C662

R662

R660

R679

R661

R674

E

Q672

R672

D672

C681 Q670

C685

R676 R675

C836

R671

R673

D670

R670

Q800

C886

Q851

IN 2

(TV ASSIGNABLE)

IC2352

C203

C553

OPTICAL

ASSIGNABLE)

IC2351

VCCOUT GND VCCOUT GND

C2354

R2354

C2351

C547

C703

C753

R449

R450

R866

Q850

IN 1

(SAT/CATV

R2351

C603

C503

C323

FB2890

R282

C281

CN2014

CN2015

C283

R281

Q281

E

C282

25

Q283

E

1

W003

17

16

CN2011

2

1

25

R332

1

R327

D327

D326

Q325

E

C320

R325

R326

C325

R328

C545

C2370

24

2

C653

24

2

1-887-628-

Q282

H

DIGITAL BOARD

CN2000

(Page 22)

G

DIGITAL BOARD

CN2001

(Page 22)

E

DIGITAL BOARD

CN2002

(Page 22)

11

(11)

K

STR-DH540

3131

STR-DH540

5-17. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

1

A

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN BOARD (CONDUCTOR SIDE)

JL2868

JL2870

JL2871

CL241

CL239

B

CL242

CL218

CL222

CL220

CL419

C

D

E

CL412

C655

CL405

CL403

CL402

CL401

CL399

CL408

CL393

CL390

CL392

CL387

CL389

CL382

CL381

CL379

CL378

CL351

F

R549

C548

CL380

R548

CL240

CL219

C284

CL217

CL221

CL418

CL216

CL223

CL417

CL234

CL415

CL413

CL407

R681

CL406

C505 R532

CL404

CL400

CL397

CL385

CL383

CL350

Q320

R320

Q324

D536

R547

R544

CL416

CL410

CL414

CL411

R632

C605

R631

R682

R531

C705

R732

R782

CL398

CL395

CL391

E

CL438

CL388

CL386

CL384

Q321

Q323

R323

E

CL227

JL2869

CL224

CL257

CL215

CL236

CL238

CL235

C555

R582

R581

R731

C422

R634

IC410

C755

C421

R781

CL421

CL396

R684

CL230

CL226

CL228

CL409

R633

R584

C606

IC413

C428

C427

C656

R534

R683

CL233

CL229

CL231

R734

R583

C556

IC411

C424

CL425

C423

CL427

C756

C506

R784

R533

R783

R211

R213

C208

CL232

C221

CL237

R733 C706

C210

CL246

CL247

CL245

R215

CL258

CL225

80 41

1

C489

C449

C450

C499 C487

CL431

CL423

D650

G

CL852

CL851

CL850

CL802

CL801

CL800

CL652

C692

H

CL339

CC51

CL338

R451

CL375

CL420

61 60

IC400

CL442

20 21

CL430

CL433

R668

C654

R657

D651

R659

R669

CL651

CL650

C401

CC53

CC01

CC03

CL341

CL337

R453

CC57

R457

R401

40

CL340

CC07

CL374

R407

R403

CL440

CL441

CL434

CC58

CL345

R458

CL377

R307

Q301

R301

OI

IC351

CL437

C678

R664

E

R665

Q655

Q654

E

C651

R652

C691

CL435

C754

R757

D750

R759

D751

CL752

CL751

C792

CL750

CC08

CL344

R408

CL376

D301

R308

E

R304

C357

R768

Q754

C778

E

R764

R769

C751

R752

C791

CL355

CL348

R309

R765

Q755

E

CL356

Q355

R358

E

D355

R355

C604

D600

R609

R619

CL602

CL601

C642

CL600

CC15

CL365

R618

C628

R607

Q604E

R614

D601

C641

CC64

CC61

CL358

CL357

CC14

Q365

E

D365

R366

R367

D910

D912

CL366

C910

D911

D913

R615

Q605

E

C601

R602

CL367

C911

CL368

R718

C728

D700

R707

C704

R709

D701

CL702

C742

CL701

R719

CL700

CC60

CC13

CL359

Q350

D350

Q704

E

R714

C701

C741

CL360

E

R353

R350

R392

R715

Q705

R702

R393

R394

R395

E

CC65

CC12

Q920

D920

R925

R921

C934

D375

R568

C554

D550

R557

R559

R569

CL552

C592

D551

CL551

CL550

CC66

CC11

CL361

E

C935

R375

R378

Q375E

C578

R564

C591

CL362

CL363

CL354

CL364

Q554

Q555

R565

E

C551

R552

CL370

CL369

CL371

CL373

CL372

11

1-887-628-

(11)

STR-DH540

I

J

K

3232

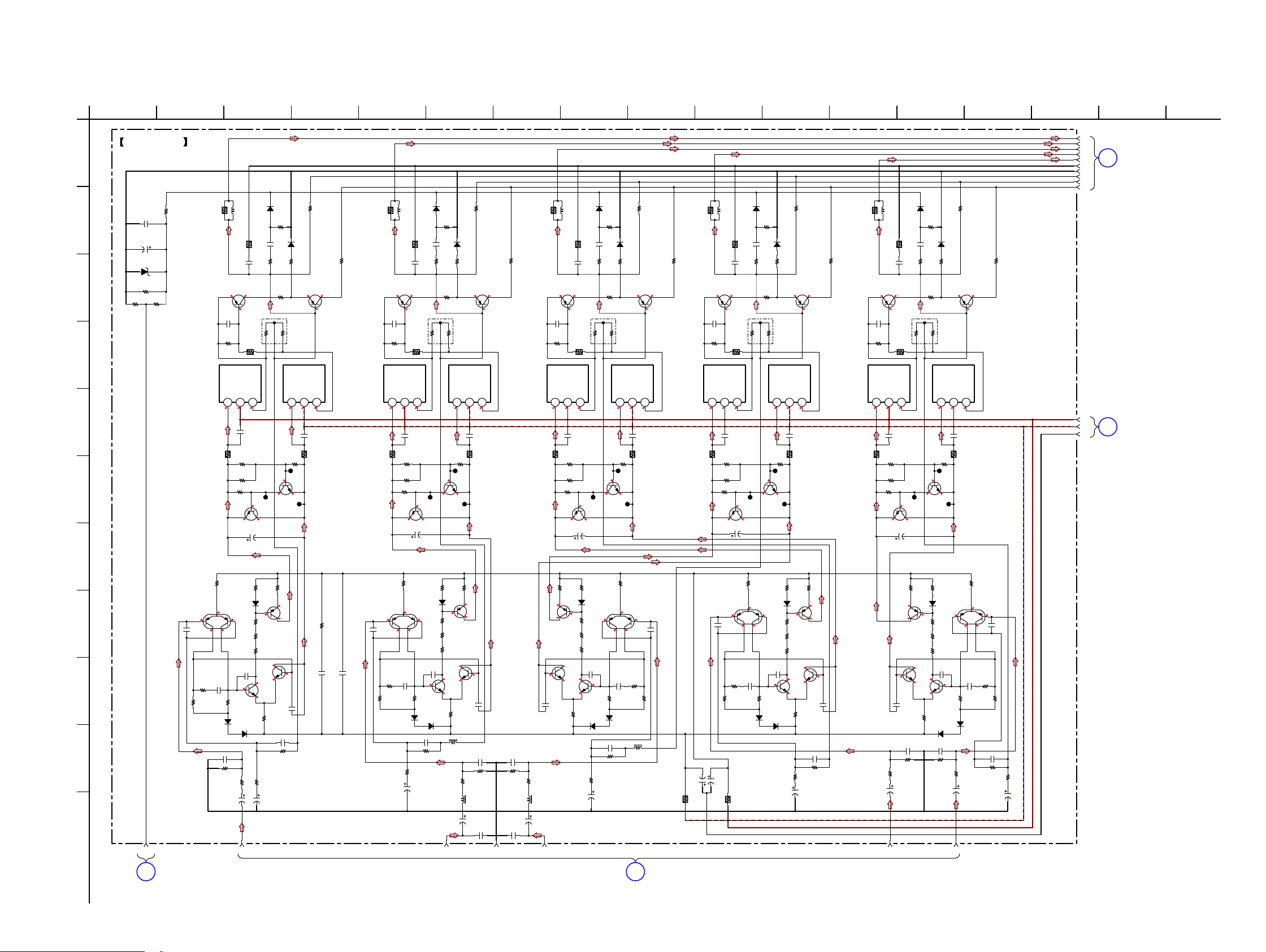

5-18. SCHEMATIC DIAGRAM – MAIN Board (1/4) –

STR-DH540

1

MAIN BOARD

A

C548

B

C

0.1

C545

47

35V

D536

DZ2J051M0L

R547

6.8k

R549

22k

R548

22k

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

R544

(1/4)

L550

1.7uH

R551

10

C578

0.022

Q555

2SA1514KT146S

CURRENT DETECT

-1.60

0

C551 220p

R552

4.7k R558

6.2k

[C]

C554

0.01

R557

47k

R550

0

4.7

R565

R559 100k

1.5k

D550

R564

15k

R568

47k

DA2J10100L

D551

2SA1514KT146S

CURRENT DETECT

R553

0.22

DA2J10100L

Q554

0

R650

4.7

R569

68k

-62-1.6

L650

1.7uH

R651

10

C678

0.022

Q655

2SA1514KT146S

CURRENT DETECT

-1.80

0

C651 220p

R652

4.7k R658

6.2k

[FR]

C654

0.01

R657

47k

R665

R659 100k

1.5k

D650

R664

15k

R668

47k

DA2J10100L

CURRENT DETECT

R653

0.22

D651

DA2J10100L

Q654

2SA1514KT146S

0

R750

4.7

R669

68k

-62-2

L750

1.7uH

R751

10

C778

0.022

Q755

2SA1514KT146S

CURRENT DETECT

-1.80

0

C751

220p

R752

4.7k R758

6.2k

[SR]

C754

0.01

R757

47k

R765

R759

1.5k

D750

100k

R764

DA2J10100L

15k

R753

0.22

R768

47k

D751

DA2J10100L

Q754

2SA1514KT146S

CURRENT DETECT

0

R600

4.7

R769

68k

-62-2

CURRENT DETECT

L600

1.7uH

R601

10

C628

0.022

Q605

2SA1514KT146S

0

C601 220p

R602

4.7k R608

[FL]

C604

0.01

R607

47k

-1.60

6.2k

R609 100k

R615

1.5k

D600

R614

15k

R618

47k

DA2J10100L

CURRENT DETECT

R603

0.22

D601

DA2J10100L

Q604

2SA1514KT146S

0

R700

4.7

R619

68k

-62-1.6

CURRENT DETECT

L700

1.7uH

R701

10

C728

0.022

Q705

2SA1514KT146S

0

C701 220p

R702

4.7k R708

[SL]

C704

0.01

R707

47k

-1.60

6.2k

R715

R709 100k

1.5k

D700

R714

15k

R718

47k

DA2J10100L

R703

0.22

D701

DA2J10100L

Q704

2SA1514KT146S

CURRENT DETECT

-62-1.6

0

R719

68k

1 2 3 4 5 6 7 8 9 10

1

MAIN

BOARD

(2/4)

(Page 34)

D

MP1620-OPY-MK

-0.6

0.4

CL702

CL700

SL -VE

Q701

BOOSTER BCE

123

C741

47p

R717

R716

100

560

Q703

2SD2114K

LIMITER

-1

11 12

13

MAIN

BOARD

2

(2/4)

(Page 34)

R704

Q702

2SA1162-G

LIMITER

MN2488-OPY-MK

BOOSTER

BCE

123

100

SL +VE

Q700

C742

47p

R705

22k

R706

2.2k

R387

6.8k

0.4

1

C708 47 35V

CL701

-1

MP1620-OPY-MK

BCE

R616

CL600

-0.6

0.4

CL602

FL -VE

Q601

BOOSTER

123

C641

47p

R617

100

560

Q603

2SD2114K

LIMITER

-1

-0.6

0.4

CL752

MP1620-OPY-MK

R766

CL750

SR -VE

Q751

BOOSTER BCE

123

C791

47p

R767

100

560

Q753

2SD2114K

LIMITER

-1

R754

100

Q752

2SA1162-G

LIMITER

SR +VE

Q750

MN2488-OPY-MK

BOOSTER

BCE

123

C792

47p

R755

22k

R756

2.2k

R385

6.8k

1

C758 47 35V

CL751

0.4

-1

-0.6

0.4

CL652

MP1620-OPY-MK

CL650

FR -VE

Q651

BOOSTER

BCE

123

C691

47p

R667

R666

100

560

Q653

2SD2114K

LIMITER

-1

R654

100

Q652

2SA1162-G

LIMITER

FR +VE

Q650

MN2488-OPY-MK

BOOSTER BCE

123

C692

47p

R655

22k

R656

2.2k

R384

6.8k

1

C658 47 35V

CL651

0.4

-1

C +VE

Q550

MN2488-OPY-MK

BOOSTER

BCE

123

621 0 -62-1 0 621 0 -62-1 0 621 0 -62-1 0 621 0 -62-1 0 621 0 -62-1 0

E

F

Q552

2SA1162-G

LIMITER

R554

100

C592

47p

R555

22k

R556

2.2k

R381

CL551

6.8k

0.4

1

-1

C558 47 35V

MP1620-OPY-MK

BCE

123

R566

560

CL550

-0.6

0.4

CL552

C -VE

Q551

BOOSTER

-1

C591

47p

R567

100

Q553

2SD2114K

LIMITER

R604

Q602

2SA1162-G

LIMITER

MN2488-OPY-MK

BOOSTER

BCE

123

100

FL +VE

Q600

C642

47p

R605

22k

R606

2.2k

R386

6.8k

0.4

1

C618 47 35V

CL601

-1

G

H

I

J

K

STR-DH540

HN4A06J-GRBL (TE85R)

3

MAIN BOARD (3/4)

(Page 35)

Q570

PWR AMP.

C581

0.5

4p

R575

R579

56k

0

R576

470

2.2k

D571

DA2J10100L

0

-60

C570 3300p

R577

2.2k

C564 100p

R560

C560

10 50V

D570

-60

Q574

KTC3206-Y

PWR AMP.

D572

DA2J10100L

68kR561

1k

[C]

15 16 17 18 19 2014

R573

R570

R571

R572

C586

Q720

HN4A06J-GRBL (TE85R)

PWR AMP.

Q670

PWR AMP.

C681

0.5

4p

R676

R675

2.2k

R679

56k

0

470

D671

DA2J10100L

R663

C663

220 10V

R574

220

61

1.1

C585

R866

560

C886

47p

-60

47p

68kR562

4.7k Q572

KTA1024-Y PWR AMP.

4.7k

Q575

KTC3206-Y

4.7k

PWR AMP.

-1

47p

15

-60

R578

270

C582 4p

R563

2.2k

C563

220 10V

C836

47p

HN4A06J-GRBL (TE85R)

R673

R674

220

D670

DA2J10100L

0

-60

R670

4.7k

-60

R671

4.7k

R672

4.7k

C686

47p

C670

3300p

-60

R677

Q674

2.2k KTC3206-Y

PWR AMP.

D672

DA2J10100L

C683 4p

68kR662

2.2k

61

KTA1024-Y PWR AMP.

16

-60

L662

220ohm

L660

220ohm

[FR]

Q672

Q675

KTC3206-Y

PWR AMP.

-1

-60

C685

47p

R678

270

R660

61

1.1

-60

C662 100p

1k

C660

10 50V

C684 10p

C612 100p

R610

L610

220ohm

C610

10 50V

C634 10p

KTC3206-Y

PWR AMP.

-60

68kR61168kR661

1k

61

1.1

Q622 KTA1024-Y PWR AMP.

Q625

C635

47p

R628

R623

R624

220

DA2J10100L

61

R620

4.7k

R621

4.7k

R622

4.7k

C636

-1

47p

15

-60

Q624

KTC3206-Y

PWR AMP.

D622

270

DA2J10100L

D620

-60

C633 4p

R613

2.2k

C613

220 10V

R629

56k

HN4A06J-GRBL (TE85R)

0

-60

C620

R626

3300p

470

R625

R627

2.2k

D621

DA2J10100L

68kR612

220ohm

PWR AMP.

0.5

C631

2.2k

L612

Q620

4p

R542

4.7

HN4A06J-GRBL (TE85R)

C932

100

100V

Q770

PWR AMP.

C781

C933

100

100V

0.5

4p

R776

470

R775

2.2k

DA2J10100L

R543

R779

56k

0

D771

4.7

C770 3300p

R777

0

2.2k

D770

DA2J10100L

-60

KTC3206-Y

PWR AMP.

DA2J10100L

-60

C786

Q774

D772

R773

220

R770

4.7k

R771

4.7k

R772

4.7k

47p

C763

220 10V

R763

2.2k

61

KTA1024-Y PWR AMP.

15

-60

R774

220

Q772

Q775

KTC3206-Y

PWR AMP.

-1

-60

R778

270

C782 4p

C785

R723

R724

220

61

1.1

-60

47p

68kR762

61

1.1

Q722 KTA1024-Y PWR AMP.

Q725

KTC3206-Y

PWR AMP.

-60

C735

47p

C762 100p

R760

1k

C760

10 50V

R728

270

-1

-60

DA2J10100L

61

R720

4.7k

R721

4.7k

R722

4.7k

C736

15

-60

Q724 KTC3206-Y PWR AMP.

D722

DA2J10100L

C712 100p

47p

C710

10 50V

R710

D720

68kR71168kR761

R729

56k

0

Q720

-60

C720

3300p

R727

2.2k

DA2J10100L

[SL][SR][FL]

0

D721

C732 4p

R726

470

R725

2.2k

0.5

C713

220 10V

R713

C731

68kR712

2.2k

4p

-60

1k

4

MAIN BOARD (4/4)

(Page 36)

3333

STR-DH540

Ver. 1.1

5-19. SCHEMATIC DIAGRAM – MAIN Board (2/4) –

1

A

B

MAIN BOARD

C

(Page 33)

D

E

F

MAIN BOARD

G

(Page 33)

MAIN BOARD

(Page 36)

H

FOR REFER

I

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MAIN BOARD

6

(3/4)

(Page 35)

HEADPHONE

I

TRANSFORMER

J

TRANSFORMER

K

(1/4)

(4/4)

INDICATION

1

2

5

PROTECTOR

B,FL,V,RY

ACLASS

SBL/SBR

SR/SL

FL/FR

CHASIS

PHASE

MAIN BOARD (2/4)

8

7

9

10

6

2 4 1

3

5

12

11 13

21

22

23

24

1

2

3

4

5

6

C

7

W001

8

9

10

DIG

GP801

10P

SL_OUT

SR_OUT

2SA1514KT146S

PROTECTOR

R355

R358

47k

0.2

2PD601ART

RELAY DRIVER

Q323

D326

BAV70

1k

0.8

Q355

D355

DA2J10100L

RY355

12V

1

3

5

2SA1514KT146S

PROTECTOR

R356

33

2

4

6

CC15

0.01

RR15

10

Q320

E

ET301

CNP930

CNP920

CN391

4P

5P

25

1

HP DETECT

R-CH

2

GND

3

4

LCH

1

R2 AC

2

3

CENTER TAP

NC

4

R2 AC

5

R1 (UPPER TAP)

5

R1 (LOWER TAP)

4

R1 GND

3

R1 (LOWER TAP)

2

R1 (UPPER TAP)

1

Q321

2PD601ART

-62

0

-62

R327

10k

CC14

0.01

RR14

PROTECTOR

3.3

0

C320

R320

220

22k

10V

C323

R323

220

22k

10V

0

D327

3.3

C325

0.2

BAV70

-62

10

50V

C_SUR

R367

1k

R366

47k

0.8

Q365

2PD601ART

RELAY DRIVER

D365

DA2J10100L

RY365

12V

1

3

5

CC13

0.01

RR13

10

R325

6.8k

3.3

-62

R365

33

2

4

6

Q325

2SC2713-G

PROTECTOR

FL_OUT

CC12

0.01

RR12

10

0.2

FR_OUT

LR

R350

2.2k

R353

47k

0.8

Q350

2PD601ART

RELAY DRIVER

D350

DA2J10100L

RY350

12V

1

3

5

R351

33

2

4

6

CC11

0.01

RR11

10

Q324

2PD601ART

PROTECTOR

R326

R328

39k

1k

C_OUT

10

PROTECT

BRIDGE

HP_DET

HP

FR_OUT

FL_OUT

R392

330

R394

330

Q375

2PD601ART

RELAY DRIVER

R393

330

R395

330

56

3

4

1

2

RY921

12V

D375

DA2J10100L

14

0

R377

33

R378

47k

R375

2.2k

C912

2200

25V

C913

1000

25V

C930 6800

71V

C931 6800

71V

D910 - D913

1SR154-400TE-25

D910

D913

D921

D5SBA60-F

R920

R921

C910

D912D911

0.47

C911

0.47

C934

0.1

R925

47k

6

3

1

RY920

D920

DA2J10100L

0.8

7

8

4

5

2

C935

0.1

33

2.2k

0.1

2PD601ART

RELAY DRIVER

2.5A 250V

Q920

C322

F910

F911

0.01

6.3A 250V

F912

F913

CL354

CL363

CL366

CL367

CL368

CL364

CL362

CL369

CL370

CL371

CL373

CL372

BOARD

CN107

(Page 45)

POWER

(MAIN)

T901

(Page 42)

POWER

(MAIN)

T901

(Page 42)

J

K

STR-DH540

CC64 220p

CL357

SR

1234

+-+

R L

SURROUND

+-+

R L

FRONT

CL360

CC66 220p

CL361

TB501

8

6P

-

CC65 220p

CC61 220p

CL358

SL

TB502

5

4P

-

SPEAKERS

CC60 220p

CL359

CFLFR

7

123456

-

+

CENTER

3434

STR-DH540

Ver. 1.1

5-20. SCHEMATIC DIAGRAM – MAIN Board (3/4) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

MAIN BOARD (3/4)

IC2352

OPTICAL

DIGITAL

IC2352

RECEIVER

JSR1124

3.3

JL2870

VCC

3.3

GND

DGND

+3.3V

L_IN

R_IN

LCH_P

OUT

VCC

OUT

+7V

-7V

NC

26

27

28

JL2869

JL2868

3.3

JL2871

IC2351

DIGITAL OPTICAL

RECEIVER

CL242

25

CL241

24

CL240

23

CL239

22

CL217

21

CL222

20

CL221

19

CL220

18

CL223

17

CL219

16

CL218

15

CL419

14

13

CL418

12

11

CL417

10

CL416

9

CL415

8

CL414

7

CL413

6

CL412

5

CL411

4

CL410

3

2

CL409

1

CN2014

25P

B

OPTICAL

C

D

DIGITAL

BOARD

(2/7)

E

CN2000

(Page 25)

F

G

MAIN BOARD

(Page 36)

IN 2

(TV ASSIGNABLE)

IN 1

(SAT/CATV ASSIGNABLE)

D

(4/4)

IC2351

JSR1124

OPTICAL_SAT

OPTICAL_TV

COMP_DET

V_MUTE

+6V_DCDC

V_SEL_SW2

V_COMP_SW2

V2_VIDEO

V_GND

A_GND

LCH_N

RCH_P

RCH_N

NW_L_VOLIC_IN

A_GND

NW_R_VOLIC_IN

7

FB2890

C2354

C2351

C2370

C546 10 50V

C547 10 50V

0uH

0.1

100R2354

0.1

100R2351

10

NW_L_VOLIC_IN

NW_R_VOLIC_IN

H

I

J

K

• See page 46 for IC Block Diagrams.

6 6

6

654

L_IN

R_IN

C281

0.1

Q282

DRC5114E0L

MUTE

PROTECTION

R281

10k

SD D

321

6 6

C282

0.01

Q281

PMG85XP

MUTE

PROTECTION

DDG

R282

4.7k

0

Q283

DRC5114E0L

MUTE

PROTECTION

75R213

C208 47p

CL246CL245

0

NJM41010F1

IC2354

VIDEO DRIVER

C210 47p

CL247

C283

0.01

75R211

C284

IC2354

IC B/D

R215

75

C221 47p

14

TH252

R252

2.2k

SW

DATA

CLK

DCAC_IN

TUNER_L

TUNER_GND

TUNER_R

NW_R_VOLIC_OUT

C655 2700p

R682 100k

C605 2700p

R632 100k

C505 2700p

R532 100k

C555 2700p

R582 100k

C755 2700p

R782 100k

C705 2700p

R732 100k

NW_L_VOLIC_OUT

R681

7.5k

R631

7.5k

R531

7.5k

R581

7.5k

R781

7.5k

R731

7.5k

C203

47

0.1 35V

C2374

0.1

6

1.5

2

3

1

OUT

VCC

GND

C2373

1000

FR_FIL

2 02

C2372

6.3V

FL-FIL

SW_FIL

0.1

C_FIL

SR_FIL

SL_FIL

C2371

J218

3P

0.1

VIN15VIN26VSW

4

CL378

C653

10 50V

C603

10 50V

C503

10 50V

C553

10 50V

C753

10 50V

C703

10 50V

R251

TH251

C250

2.2k

0.1

HP

BRIDGE

LR

C_SUR

PROTECT

HP_DET

FR-IN

FL-IN

SW-IN

SR-IN

SL-IN

R332

R450

220

220R449

SR-IN

SL-IN

SW-IN

C-IN

FR-IN

FL-IN

C-IN

CN2015

25P

CL350

0

CL351

CL379

CL380

CL381

CL382

CL383

CL384

CL385

CL386

CL387

CL388

CL389

CL390

CL391

CL392

CL393

CL395

CL396

CL397

CL398

CL399

CL400

CL401

CL402

CL403

CL404

CL405

CL406

CL407

CL408

CN2011

17P

W003

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

NC

Destination

+3.3V Stby

LIMITER

TEMP_SENSOR_2

TEMP_SENSOR_1

HP_RY

BRIDGEABLE_RY

SBL_SBR_RY

ZONE2_PREOUT_SW_RY

FRONT_SPK_RY

C/SL_SR_RY

PROTECT

EVOL_DATA

EVOL_CLK

HP_DET

DCAC_IN

A_GND

TUNER_L

TUNER_GND

TUNER_R

A_GND

NW_R_VOLIC_OUT

A_GND

NW_L_VOLIC_OUT

25

A_GND

SBL

A_GND

SBR

A_GND

SR

A_GND

SL

A_GND

SW

A_GND

C

A_GND

DAC_FR

A_GND

DAC_FL

A_GND

29

30

31

3

6

8

(1/4)

(Page 33)

A

MAIN BOARD

(2/4)

(Page 34)

DIGITAL

BOARD

C

CN2001

(Page 25)

MAIN

BOARD

(4/4)

(Page 36)

DIGITAL

BOARD

(2/7)

CN2002

(Page 25)

(2/7)

MAIN BOARD

STR-DH540

VIDEO

SAT/CATV IN

VIDEO

VIDEO IN

VIDEO

MONITOR OUT

3535

STR-DH540

Ver. 1.2

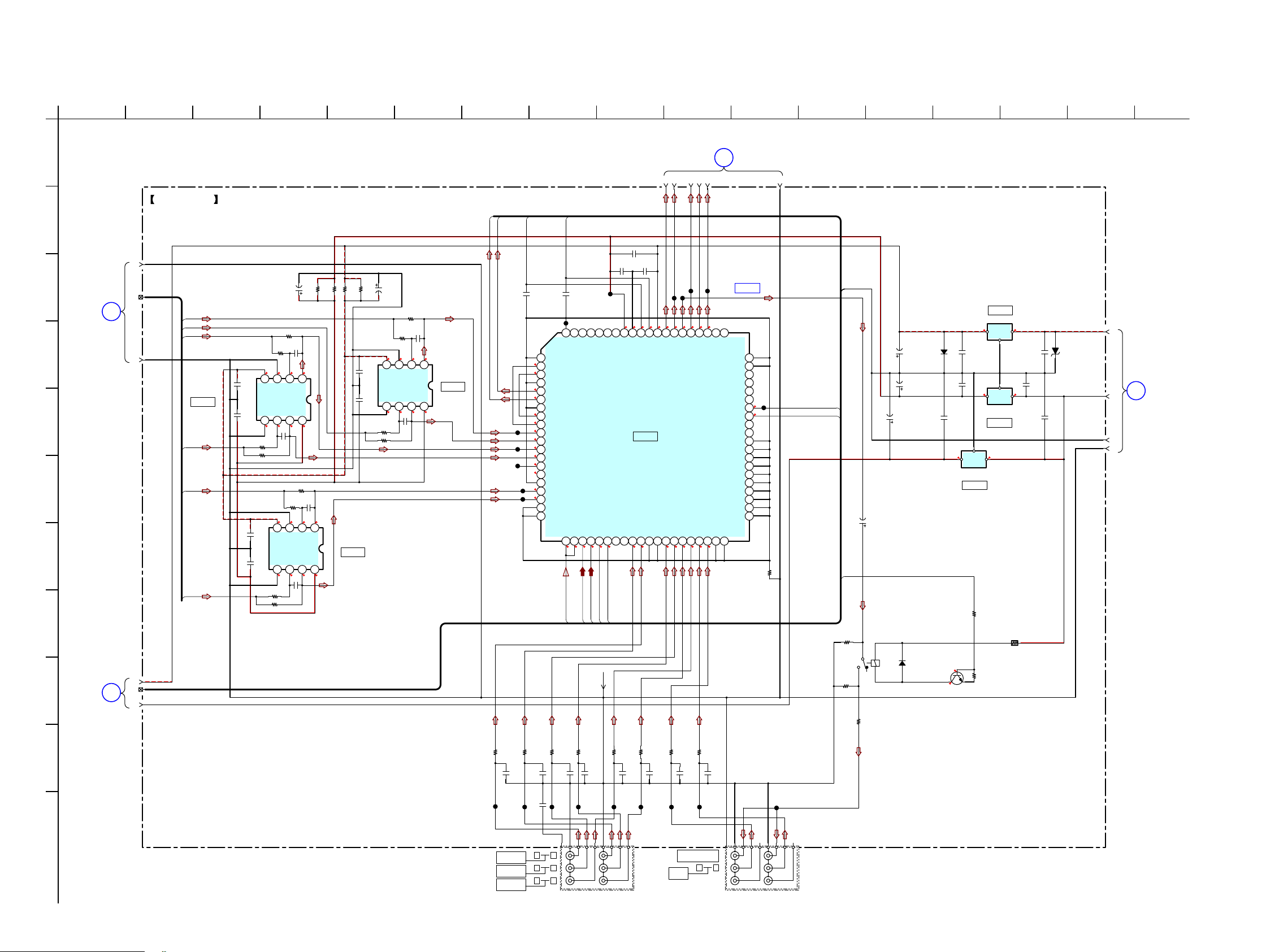

5-21. SCHEMATIC DIAGRAM – MAIN Board (4/4) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

MAIN BOARD (4/4)

B

29

R31222R31022R31122R313

43

56

C423

1000p

C424

1000p

R633 820

R634 15k

-7 0

VSS+2

C310

470 10V

R784

R783

820

+1

-2

C706

270p

R684

-7 0

43

VSS+2

5 6

2

7

R683

820

15k

0 0

-1

OUT2

+1

-2

C606 270p

1

8

2

7

C756 270p

OUT1

VCC

0 0

-1

OUT2

C

D

E

F

G

MAIN

BOARD

(3/4)

(Page 35)

31

8

30

SW_FIL

C_FIL

SR_FIL

IC411

NJM4565M (TE2)

IC411

LINE AMP

SL_FIL

FR_FIL

FL-FIL

C421

1000p

C422

1000p

R733 820

R734 15k

H

I

MAIN

BOARD

(3/4)

(Page 35)

26

28

7

27

• See page 46 for IC Block Diagrams.

C427

1000p

C428

1000p

R583 820

R584 15k

C311

470 10V

-7 0

43

VSS+2

56

R534

R533

820

+1

-2

C556

270p

2

7

15k

0 0

-1

OUT2

C506 270p

1

OUT1

VCC

8

70 00

IC413

NJM4565M (TE2)

IC413

LINE AMP

22

70 00

15k

C656 270p

1

8

OUT1

VCC

70 00

IC410

NJM4565M (TE2)

IC410

LINE AMP

R_IN

MAIN BOARD (1/4)

(Page 33)

4

1516 1718 19 20

L_IN

DATA

CL427

CL425

CL423

CL421

CL420

CLK

C487

0.1

C489

C499

2200p

CL435 C449 100p

0

C450

CL431

100p

CL430

1

2

3

GND

HPFN

DCAC_IN

LPF014LPF02

00

TUNER_L

TUNER_R

W002

GND

80

SUB1 L

79

SUB1 R

78

GND

77

ADCLOUT

76

ADCROUT

75

GND

74

FRIN

73

FLIN

72

SWIN

71

CIN

70

SRIN

69

SLIN

68

SBRIN

67

SBLIN

66

GND

65

INR1

64

INL1

63

INR2

62

INL2

61 GND

7 0

-7

0 0 0 0 0 0

0 0

8

5

7

9

10

11

12

13

CLK

VEE

VCC

DATA

DGND

LPFN26LPFN1

SWVOL

DIR FUNCTION SELECT

00 0 0 0 00 0 0 0

00

NW_R_VOLIC_IN

NW_L_VOLIC_IN

A_GND

IC400

BD3470KS2

IC400

FROUT

CL433

14

15

FLOUT

CL434

SWOUT

CL437

16

17

18

19

COUT

SLOUT

SROUT

20

SBROUT

41

SBLOUT

INL1242INR1243INL1144INR1145INL1046INR1047INL948INR949INL850INR851INL752INR753INL654INR655INL556INR557INL458INR459INL360INR3

IC B/D

21GND

22GND

23SUB2L

24SUB2R

25RECL3

26RECR3

27RECL2

28RECR2

29RECL1

30RECR1

31GND

32SBL IN2

33SBR IN2

34SL IN2

35SR IN2

36C IN2

37SW IN2

38FL IN2

39FR IN2

40

TUNER_GND

IC352

KIA7907F-RTF/P

IC352

-7V REG.

G

IC350

KIA7807AF-RTF/P

IC350

+7V REG.

15

IO

-15

IO

C352

1

C350

1

15

IO

R302

100

C357

1

D356

P6SMBJ33A-5

21

MAIN

22

(2/4)

BOARD

5

(Page 34)

23

24

-7

C353

D352

470

1SR154-400TE-25

10V

C351

470 10V

CL442

0

R315

0

NW_R_VOLIC_OUT

NW_L_VOLIC_OUT

R307

R308

47k

C359

470 10V

C301

10

50V

SW

100k

RY301

R309

1k

D301

DA2J10100L

C358 470p

C354 470p

7

KIA7807AF-RTF/P

Q301

2PD601ART

RELAY DRIVER

0.7

0

C355

470p

IC351

+7V REG.

R301

1k

IC351

7

G

R304

47k

J

K

STR-DH540

R401

1k

CL337

AUDIO

SA-CD/CD IN

AUDIO

VIDEO IN

AUDIO

SAT/CATV IN

CC01

100p

CC51

CL338

R451

100p

1k

C401 2200p

L R

R403

CC03

100p

1k

CL340

R453

1k

CC53

100p

CL341

WHT RED

CL374

R407

R457

1k

CC57

CC07

100p

CL344

CL375

J401

6P

1k

CC08

100p

AUDIO

SUBWOOFER OUT

AUDIO

TV IN

1k

CL345

L R

CC58

100p

CL348

BLK BLK

WHT RED

J402

4P

R458

R408

3636

5-22. PRINTED WIRING BOARD – DISPLAY Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH540

Ver. 1.2

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

T100

DC CONVERTER

DIGITAL

BOARD

C122 R129

JR159

242

251

VCC O

JR

JR132

JR155

R143

D

CL116

CL115

JR133

CL121

CL117

R136

JR124

JR125

JR

JR113

JR

JR107

JR

MASTER VOLUME

CN2101

(Page 22)

C136

CL130

JR

JR137

JR

JR114

JR

JR160

JR

CL120

JR143

JR148

JR104 R130 CL122

JR

JR162

JR136

JR

JR119

JR128

R137

JR

C126

JR103

JR

JR127

JR

S102

DISPLAY

JR

JR157

JR126

R128

JR

JR144

B

C

D

E

DISPLAY BOARD

CL133

CL124

CL135

CL139

D105

CL141

Q105

R154 R153

E

JR147

E

CL140

CL138

CN102

CL134

JR

JR152 JR138 JR150 JR151 JR108

R144

R147

Q103

E

C135

R159

JR122

S101

PURE DIRECT

D104

JR146

FB102

JR

CL136

CL137

R146

KA

Q104

JR JR

JR115

CL131

CL132

JR

JR121

JR

JR131

JR

JR130

JR145

R145

JR111

CL126

CL119

CL129

CL123

IC101

JR118

JR

R135

JR

C130

C132

F

TRANSFORMER

9

1

CL108

R155

1 542 535038

C117

CL107

C127

R123

R122

C112

R124

R125

JR116

JR

D101

JR

JR117

R121

C113

C116

JR

JR100

R126

JR129

JR

R138

JR106

JR110

JR JR

C123

JR

JR141

C115

R101

R112

C109

C105

C107

C104

IC100

R113

C106

R111

R110

R104

FB100

R115

C110

R116

C108

R108

R109

R103

C102

JR134

R107

JR

JR123

JR

JR158

JR

R105

JR149

C103

C101

JR135

JRJR

JR154

JR140

JR JR

JR

JR102

JR

Q102

C124

C125

L100

T100

D102

D103

R127

S103 S104 S105 S108S109S110

DIMMER INPUT MODE NIGHT MODE MUSIC MOVIE A.F.D.

JR

JR156

JR

JR161

C129

R139

CL118

S120S121

INPUT SELECTOR

ND100

VACUUM FLOURESCENT DISPLAY

JR153

JR109

R117

C100 R102

R100

CL128

CL125

13

CN101

CL113

CL111

CL112

CL110

R133

R134

R132

C121

JR139

R114

CN100

CL103

LP101LP103

CL105

CL104

CL106

CL109

C114

CL114

JR101

R131

JR

CL102

CL100

CL101

183

21

1-887-711-

(21)

L

G

FRONT JACK

PWB BOARD

CN105

(Page 43)

M

POWER KEY

BOARD

CN103

(Page 45)

H

I

J

K

STR-DH540

3737

STR-DH540

Ver. 1.2

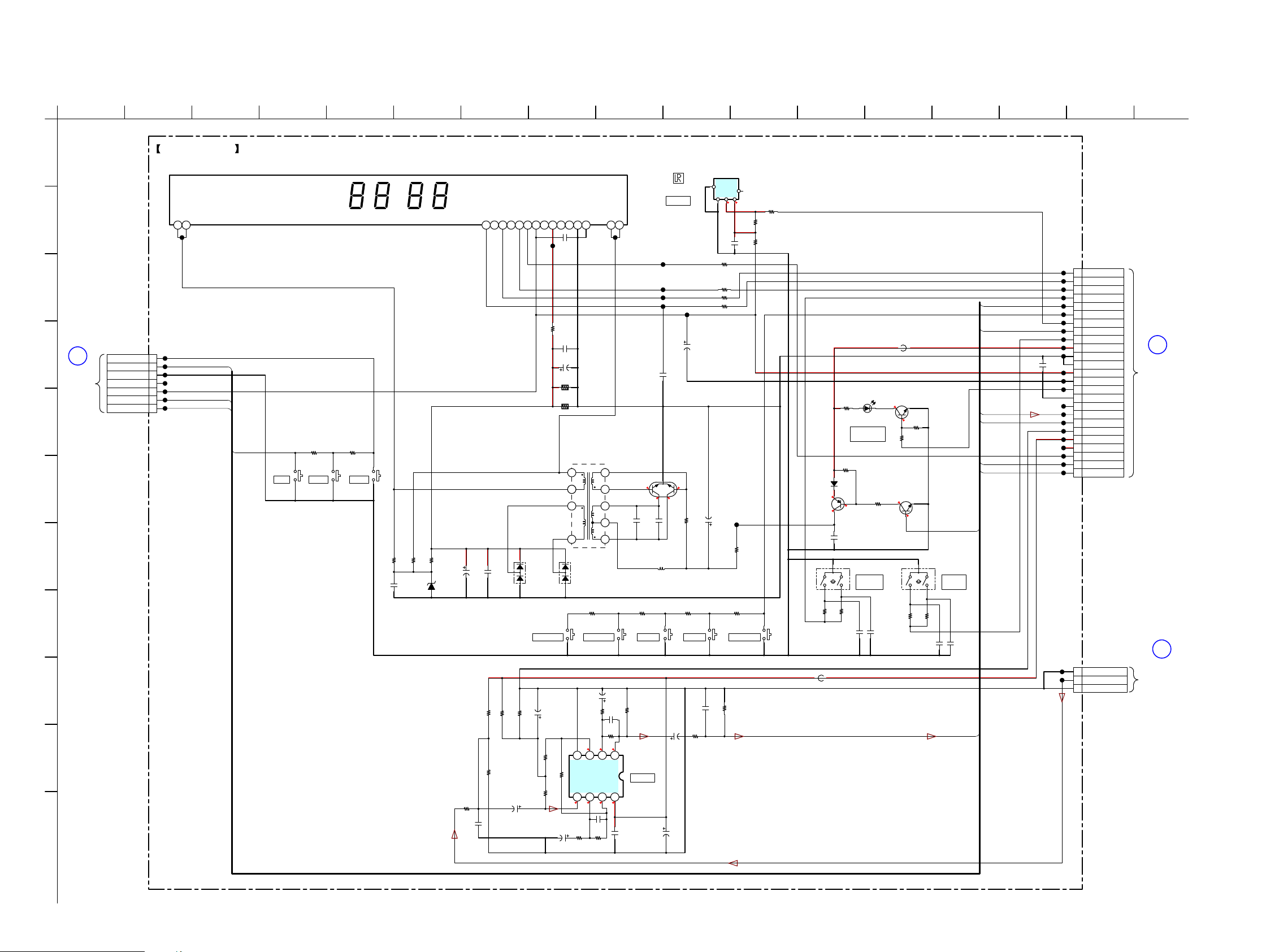

5-23. SCHEMATIC DIAGRAM – DISPLAY Board –

A

B

C

D

E

F

G

H

I

J

K

L

POWER

KEY

BOARD

CN103

(Page 45)

1

POWER_BUTTON

DGND

+3.3V_STBY

LED_ON

LED_STBY

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DISPLAY BOARD

ND100

VACUUM FLOURESCENT DISPLAY

IC101

PNA4823M03S0

IC101

REMOTE CONTROL

C125

0.022

R127

2.2k

S103

DIMMER

R113

6.8k

IC100

NJM2904M

IC100

AUDIO AMP

0

CL111

CL112

CL113

CL110

0 4.7

L100 47uH

SIGNAL RECEIVER

BK

LATCH

CLOCK

SI/DATA

CL114

C121

33p

Q102

QS5W2TR

SWITCHING

TRANSISTOR

4.7

R137

680

R128

2.2k

DISPLAY

C108

1

50V

C109

47

16V

C123 1000

6.3V

S102

C110

0.0022

R115

1k

VDD

C126

220

6.3V

SI/DATA

CLOCK

R102

C116

0.01

4.7k

R103

4.7k

C101

1

50V

LATCHBKVDD

F1

2 53 5449 5047 4845 4643 444240 4138 391

CL107

CN100

8P

CL100

AD1

1

3

4

NC

5

6

7

8

CL101

CL102

CL103

CL104

CL105

CL106

POWER_BUTTON

LED_ON

LED_STBY

VH +30V

S109

R117

2.2k

S110

MUSIC

R121

100

C112

R123

R122

33k

100

0.1

D101

DZ2J062M0L

R100

C113

47

50V

R101

4.7k

100

C100

100p

R114

AD1

S108

A.F.D.

1k

MOVIE

BAV99-215

R107

4.7k

R155

0

D102

S105

NIGHT MODE

C102

10

50V

R105

R104

R108

47k

VH

CL108

10 50V

47k

1k

C103

PGND

C114

0.1

C117

0.1

C115

R124

8.2k

R125

8.2k

DC CONVERTER

TRANSFORMER

7

8

1

D103

BAV99-215

4

GND

2+62-72OUT

5

3.5 3.5 3.5 7

22

16V

R109

10k

LGNDF2F2

T100

R126

4.7k

S104

INPUT MODE

C105

22

16V

R111

6.2k

3.5 3.5 3.5

3

2

1+

C104

33p

R110

47k

CL109

6

5

49

C124

3

4700p

2

AGND

C106

33p

R112

56k

1

1-

1OUT

Vcc

8

C107

0.1

R116

100k

GND

CL141

R159

0

VCC

OUT

3.3 3.3

R129

33k

C122

10

100R131

47R132

47R133

100R134

R130

1k

S101

PURE DIRECT

R135

R136

100

10

CN102

25P

DGND

D105

SA10QA04

5.3

5V Out

R139

R138

10k

FB100 1kohm

CL115

CL116

CL117

C136

CL118

CL119

CL120

CL121

CL122

CL123

CL124

CL126

10

CL129

CL130

CL131

CL132

CL133

CL134

CL135

CL136

CL137

CL138

CL139

CL140

CL128

CL125

AD1

POWER_BUTTON

FB102 0uH

Q105

D104

LED

S120

INPUT

SELECTOR

R153

680

C129

3300p

2PD601ART

LED DRIVER

5

R144

10k

Q103 PDTC114ET SWITCHING

TRANSISTOR

CONTROL

3.3

R143

10k

DCAC_SIGNAL

C132

3300p

FL_EN

LED_ON

LED_STBY

0

R147 100k

0.1

1

S121

MASTER VOLUME

23

R145

22k

C130

3300p

DCAC_SIGNAL

R146

680

SLI-325DCT31W

(PURE DIRECT)

R154

470

4.6

Q104

5

2SB1710TL

SWITCHING

TRANSISTOR

CONTROL

C135

0.1

1

23

22k

C127

3300p

CN101

3P

FL_CK

25

FL_DIN

24

FL_LATCH

23

INPUT_JOG

22

AD1

21

AD2

20

SIRC

19

POWER_BUTTON

18

VOLUME_JOG

17

+6V_DCDC

16

FL_GND

15

FL_GND

14

+3.3V_STBY

13

DGND

12

PURE_DIRECT

11

DGND

10

MIC_MUTE

9

DCAC_SIGNAL

8

FL_EN

7

AGND

6

+7V (7807)

5

+3.3V_DCDC

4

FL_BK

3

LED_ON

2

LED_STBY

1

3

AGND

2

MIC_JACK

1

AGND

G

DIGITAL BOARD

(3/7)

CN2101

(Page 26)

M

FRONT

JACK PWB

BOARD

CN105

(Page 43)

STR-DH540

3838

5-24. PRINTED WIRING BOARD – DCDC Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH540

Ver. 1.2

1

A

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DCDC BOARD (COMPONENT SIDE)

DCDC BOARD (CONDUCTOR SIDE)

B

POWER

TRANSFORMER

(MAIN)

T901

14

(Page 41)

C

D

N

O

STANDBY

CN941

12

CN901

BOARD

CN940

(Page 41)

L1909

R1933

E

C1947

R1947 R1946

111

F

B

DIGITAL

G

BOARD CN1500

(Page 22)

CN1901

H

R1948

R1928

IC1904

C1942

R1918

R1919

C1922

F940

F941

C1937

C1932

R1914

C1912

R1940

C1927

L1907

C1945

C1960

R1915C1915

C1965

IC1902

R1965

R1942

D923

L1904

C1935

R1926

C1907

C1930

C1925

R1907

C1910

C1961

L1902

C1966

L1903

C1936

C1905

C1976

L1908

R1927

C1906

C1911

C1967

IC1903

C1962

C1926

R1916 C1916

R1945

C1946

C1931

R1911

R1944

R1943

C1973

C1952

C1956

CL948

CL946

CL947

C902

C907

C908

C1949

C1972

CL941

CL942

CL943

CL949

C1951

C1971

C1957

CL950

CL910

CL911

CL909

C1955

I

J

K

STR-DH540

1-887-631-

11

(11)

11

1-887-631-

(11)

3939

STR-DH540

Ver. 1.2

5-25. SCHEMATIC DIAGRAM – DCDC Board –

A

B

C

TRANSFORMER

(Page 42)

D

E

1

POWER

(MAIN)

T901

STANDBY

BOARD

CN940

(Page 42)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

N

O

R3 AC (Yellow)

CENTER

R3 AC (Green)

STBY GND

DCDC BOARD

CN941

4P

1

2

NC

3

4

CN901

2P

1

2

CL941

CL942

CL943

F940

3.15A 250V

F941

3.15A 250V

C907

0.047

C908

0.047

D923

D5SBA60-F

C902

L1904

10uH

3SW4

C1922

2200p

R1914

1k

GND

5FB6

0 1.6 14 2.6

R1918

1k

R1919

10k

R1907

1k

C1915 3300p

C1907

C196510C196010C1912

100

25V

CL946

C1976

3300

0.1 25V

CL947

W1901

L1902 10uH

C1905

C196610C196110C1910

100 25V

0.1

6 15 10

1

2

VIN

COMP7EN

8

C1927 0.01

3SW4

GND

5FB6

0 0.8 15 2.6

R1915

7.5k

BOOT

SS

C1932 0.1

3.6 15 8

1

2

VIN

COMP7EN8SS

C1925 0.01

R1928

C1937

22

0.1

IC1904

BD9329AEFJ-BZSE2

IC1904

+6V REG.

9

R1926

22

BD9329AEFJ-BZSE2

BOOT

9

C1930 0.1

C1935

IC1902

+3.6V REG.

0.1

IC1902

L1907

10uH

R1933

4.7

C1942

0.001

L1909 10uH

R1942

R1940

R1965

R1948

0

C1947

R1946

68k

R1947

12k

0

27k

10k

C1945

100 10V

C195122C1971

C194922C1972

22 0.1

C1957

W1900

C1955

CL949

CL950

CL909

CL910

CL91

1 +6V

2

NC

3

+6V

+DCDC_NW

4

+DCDC_NW

5

+3.6V

6

+3.6V

7

+2V

8

+2V

9

+1.8V

10

1

+1.8V

11

CN1901

11P

F

DIGITAL

BOARD

(3/7)

CN1500

(Page 26)

L1903

10uH

F

C1906

C196710C196210C1911

100 25V

0.1

R1911

G

1k

3SW4

GND

5FB6

0.8 1.4 15 2.6

R1916

7.5k

C1916

3300p

2 15 7

2

VIN

COMP7EN8SS

C1926 0.01

R1927

1

BOOT

9

C1931 0.1

C1936

22

0.1

IC1903

BD9329AEFJ-BZSE2

IC1903

+2V REG.

L1908 10uH

R1945

R1943

22k

R1944

18k

0

C1946

100 10V

C195222C1973

C1956

22 0.1

H

I

J

K

STR-DH540

4040

5-26. PRINTED WIRING BOARD – STANDBY Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH540

1

A

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

DCDC

BOARD

O

CN901

(Page 39)

STANDBY BOARD

A

DIGITAL

BOARD CN1500

(COMPONENT SIDE)

B

STANDBY BOARD (CONDUCTOR SIDE)

(Page 22)

CN940

IC902

C

C993

R913

C994

R953

R952

C982

D

R914

TRANSFORMER

T902

POWER

(SUB)

173

E

Q900

R900

C984

R902

R901

D902

D901

C985

D900

CL900

D904

C986

CL901

D905

CL904

CL908

C983

CL905

R904

R903

Q901

E

CN951

14

D903

CL953

F

~ AC IN

G

CN953

13

RY951

F901

17

CN952

FH901FH902

R951

CL957

CL956

CL952

CL955

CL951

CL954

H

11

1-887-629-

I

T901

J

POWER

TRANSFORMER

(MAIN)

MAIN BOARD

I

MAIN BOARD

J

CNP920

(Page 31)

CNP930

(Page 31)

(11)

1-887-629-

11

(11)

K

STR-DH540

DCDC BOARD

N

CN941

(Page 39)

4141

STR-DH540

Ver. 1.1

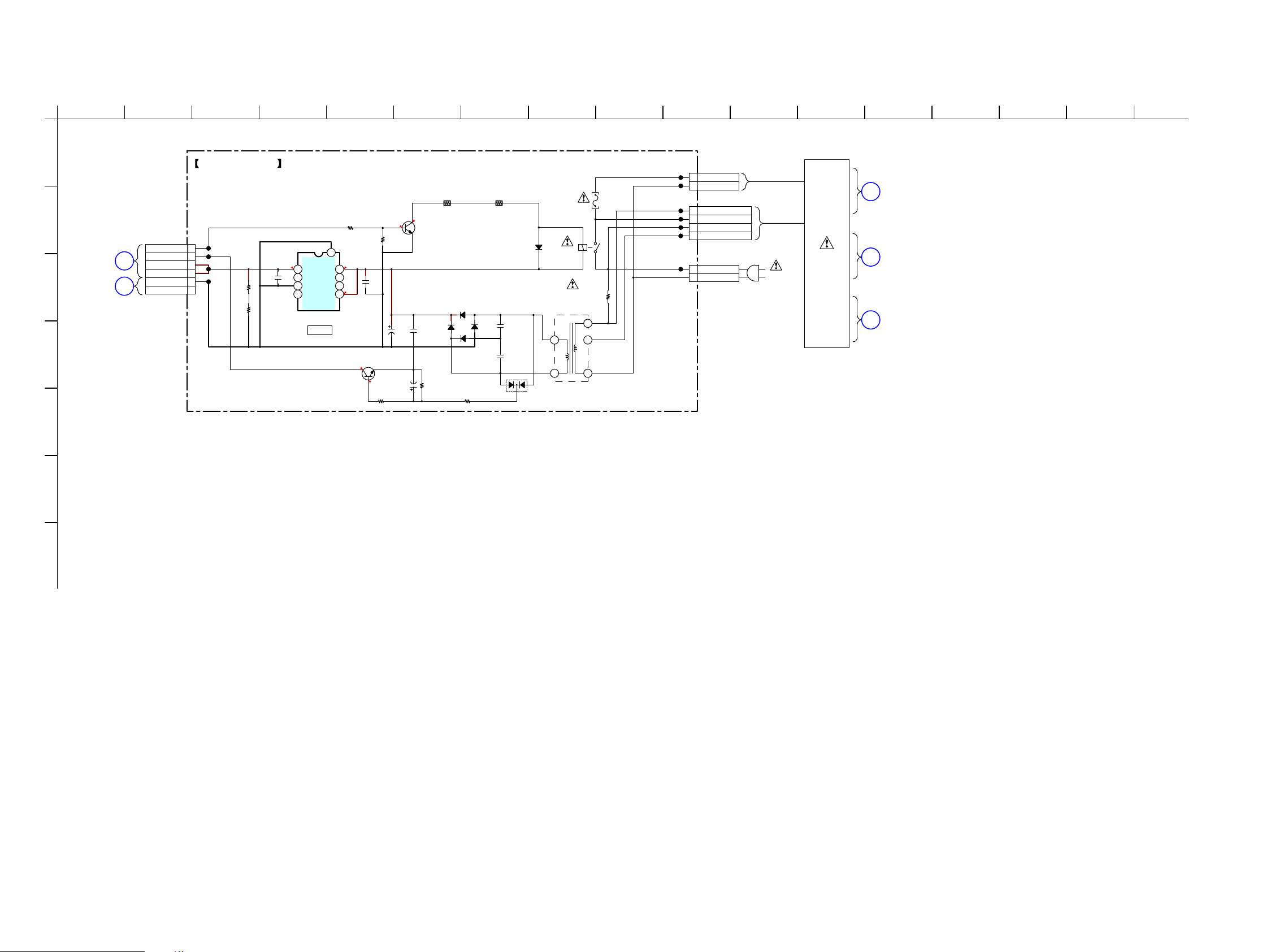

5-27. SCHEMATIC DIAGRAM – STANDBY Board –

1

A

DIGITAL

B

BOARD

(3/7)

CN1500

(Page 26)

C

DCDC

E

O

BOARD

CN901

(Page 40)

D

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

CL951

CL952

CL953

CL954

CL955

CL956

CL957

CN951

CN952

CN953

4P

1

4

7P

1

3

5

7

3P

1

3

LIVE

NEUTRAL

220V/240V TO SUB PT AC IN AFTER PRIMARY RY FOR MAIN PT

AC IN FOR SUB PT 120V/127V

TO SUB PT

LIVE

NEUTRAL

~ AC IN

T901

POWER

TRANSFORMER

(MAIN)

MAIN BOARD

K

(Page 34)

MAIN BOARD

J

(Page 34)

DCDC BOARD

N

(2/4)

CNP920

(2/4)

CNP930

CN941

(Page 40)

POWER_Relay

AC_CUT

Stby 3.3V

Stby GND

STANDBY BOARD

CN940

7P

CL900

1

CL901

3

4

CL904

5

6

CL905

R952

R953

75k

24k

7Stby GND

C993

T902

POWER

(SUB)

F901

FH902

FH901

R951

0

4

3

1

D903

D902

BAV70

T3.15AL 250V

(AEP, UK, AUS)

8A 125V

(US, CND)

RY951

5V, TV-8

TRANSFORMER

6

8

R913

4.7

R903

2.2k

R904

9

1Vo

2FB

3

GND

4NC5EN

IC902

BD00GC0WEFJ-SE2

IC902

+3.3V REG.

GND

2PD601ART

AC OFF DETECT

3.3

0.1

47k

8

8Vcc

7NC

C994

0.1

6NC

8

0

Q900

0.6

R900

10k

0.7

C982

3300

0

Q901

2PD601ART

Y

DRIVER

RELA

D900 ~ D901, D904 ~ D905

1SR154-400TE-25

D901

D905

C983

0.1

16V

C984

1

50V

R901

10k

D904

R902

4.7k

D900

R914

22

DA2J10100L

C985

0.1

C986

0.1

E

F

G

STR-DH540

4242

STR-DH540

Ver. 1.1

5-28. PRINTED WIRING BOARD – FRONT JACK PWB Board –

• See page 14 for Circuit Boards Location.

1

2 3 4 5 6 78

FRONT

A

JACK PWB BOARD

B

C

D

CL171

15

CL172

D130

JR200

CN104

R191

CL170

JR

R192

14

567

R190

C152

D126

D129

JR

C

JR201

DIGITAL

BOARD CN4000

(Page 22)

C151

ET101

•

: Uses unleaded solder.

13

CN105

CL173

D133

D134

C150

DISPLAY BOARD

CN101

(Page 37)

L

CL175

E

DC5V 1A MAX

CN106

(CHASSIS)

AUTO CAL MIC

J100

F

5-29. SCHEMATIC DIAGRAM – FRONT JACK PWB Board –

1-887-713-

21

(21)

5-30. PRINTED WIRING BOARD – TUNER1 Board –

• See page 14 for Circuit Boards Location.

1

2 3 4 5 6 7 8

A

CN103

AM

ANTENNA

CN102 CN104

ȍ&2$;,$/

•

86&1'$(38.$86

FM

TUNER1

B

C

D

E

F

G

1S123

64

BOARD

A001

(CHASSIS) (CHASSIS)

L101

13

D101

S2

R113

R103

9

JL132

R101

8

JL103

JL130

JL125

JL104

R105

R104

JL102

JL122

JL106

JR

JL131

JL121

L101

C101

JR109

JL126

C102

JL108

CN101

JR112

C103

JL116

JL124

1

2

JL117

IC101

JL123

JR

R106

JL118

JR101

JL110

JR

JL134

JL127

JL107

R107

JR102

JL129

JR

D102

C106

JL128

JR106

JL133

JL114

JL109

C109

FL101

C107

C105

C108

JL111

R110

IGO

D103

JL112

JL135

L103

R109

R108

L105

JL115

43

12

JL105

L104

C111

IC102

JL113

JR105

JR

C110

X101

C112

1-885-134-

: Uses unleaded solder.

11

(11)

A

B

C

STR-DH540

1

DISPLAY

BOARD

CN101

(Page 38)

DIGITAL

BOARD

(7/7)

CN4000

(Page 30)

M

H

2 3 4 56

FRONT JACK PWB BOARD

R190

GND

VBUS

E

(CHASSIS)

ET101

AUTO CAL MIC

0

CN106

4

3

2

1

4P

D+

D-

AGND

MIC_JACK

AGND

CN105

3

2

1

CN104

1GND

2DP

3DM

4VBUS

5SHIELD BUS

3P

CL175

CL173

C151

220 10V

D130

BAV99-215

C152

0.1

D129

CL170

CL171

CL172

BAV99-215

D126

DZ2J062M0L

5P

C150

0.1

CES521

0R191

0R192

D134

D133

J100

DC5V 1A MAX

F

DIGITAL BOARD

CN2100

H

4343

(Page 22)

STR-DH540

Ver. 1.1

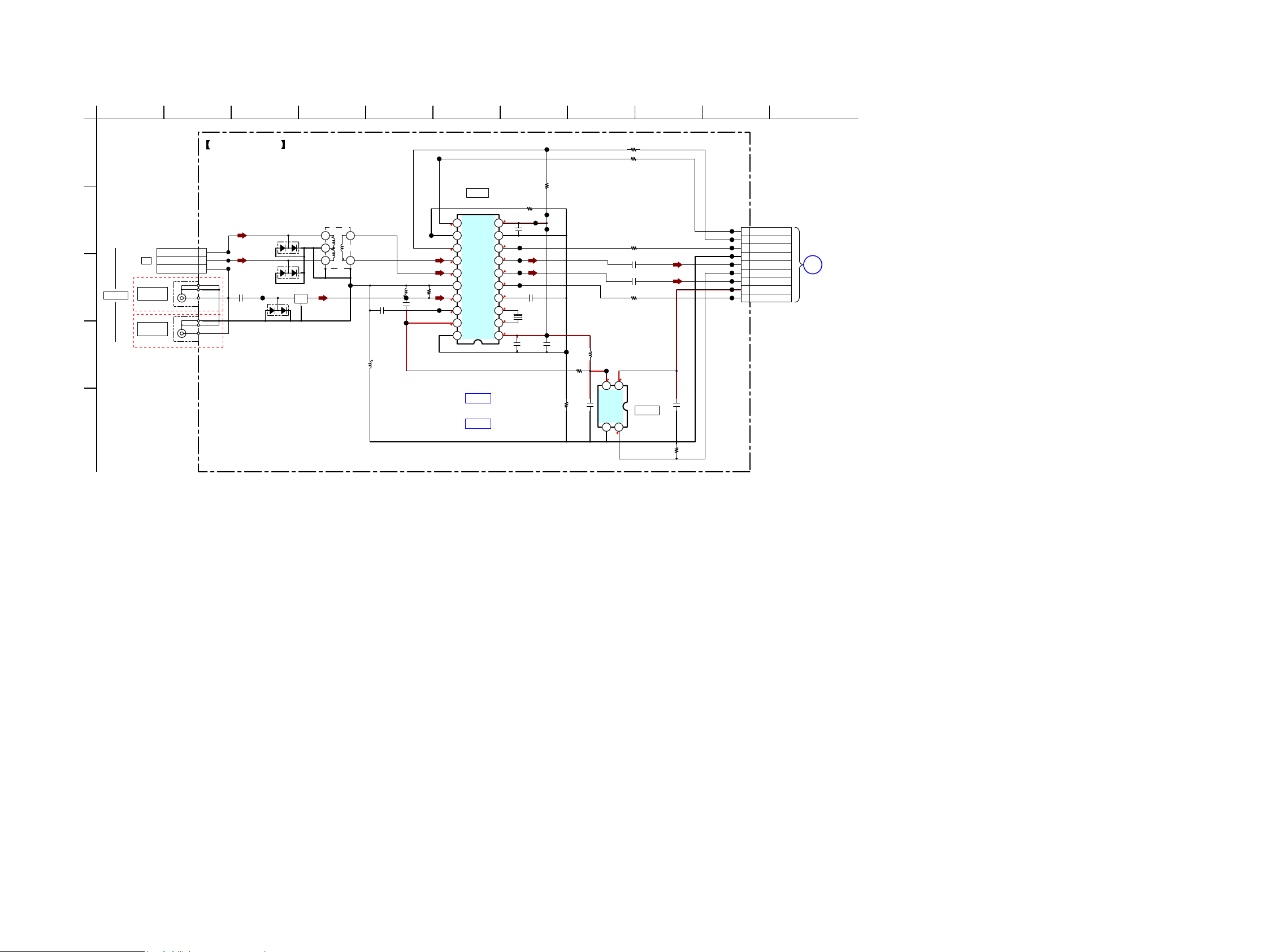

5-31. SCHEMATIC DIAGRAM – TUNER1 Board –

1

A

B

AM

AEP, UK, AUS

C

ANTENNA

D

&2$;,$/

US, CND

FM

2 3 4 5 6 7 8 9 10 11

TUNER1 BOARD

D101

D102

MC2837

JL135

D103

MC2837

FL101

BPF

CN103

3P

JL116

1

AM

JL117

2

AM

JL118

3

FM

CN102

CN104

C109

3P

0.1

3P

600uH

1

2

3 4

E

• See page 46 for IC Block Diagrams.

JL130

IC101

FM RECEIVER

L101

ARF1

6

ARF2

JL112

C106

0.047

L104

220nH

47nH C108

L103

JL131

R107

100

JL133

2.2

JL113

JL134

10

0

9

8

0

7

0

6

0

5

4

0

3

0

2

3.3

1

CK

VDD

LA

GND

IIC/RDSI

ARF2

ROUT

ARF1

LOUT

GNDRF

IISD

FRF1

CP1

CP2

VDDRF

VDD

GND

IC101

RZ5B801-0001E2

(US, CND)

IC B/D

RZ5B801-0002E2

(AEP, UK)

IC B/D

11

12

DA

13

14

15

16

17

18

X1

19

X2

20

3.3

1.6

0

3.3

C101 470p

JL124

JL125

JL126

JL127

C105 1

32.768kHz

C107

0.047

JL123

X101

JL132

R113

10k

0R104

JL121

JL122

JL111

C110

R108

10

0

JL114

R109

C111

L105

4.7uH

JL115

0

1

3

2

3.3 5

Vout

GND

3.3

4

Vdd

CE

1

100R101

22R103

22R105

1C102

1C103

100R106

IC102

MM3404A33URE

IC102

+3.3V REG.

R110

C112

10k

CN101

9P

JL102

JL103

JL104

JL105

JL106

JL107

JL108

JL109

JL110

1

CK (for IIC)

9

IIC/RDSI

8

DA (for IIC)

7

GND

6

AUDIO R/BCK

5

CE (p con)

4

AUDIO L/LRCK

3

VDD

2

IISD (data audio)

1

B

DIGITAL

BOARD

(2/7)

CN2100

(Page 25)

STR-DH540

4444

STR-DH540

Ver. 1.1

5-32. PRINTED WIRING BOARD – POWER KEY Board –

R178

D110

GO

R179

R176

E

Q110

R174

R173

CL166

•

: Uses unleaded solder.

Q111

E

R175

CL162

CL164

CL163

CL165

CN103

M

DISPLAY

BOARD

CN100

(Page 37)

• See page 14 for Circuit Boards Location.

1

A

B

2 3 4 5 6 78

POWER KEY BOARD

S114

SPEAKERS

R177

C

S113

TUNING MODE

R170

LP110

D

S112

TUNING –

E

R171

R172

CL161

S115

&/1

CL160

183

5-34. PRINTED WIRING BOARD – HEADPHONE Board –

• See page 14 for Circuit Boards Location.

1

A

2 3 4 5 6 7 8

HEADPHONE BOARD

J101

PHONES

•

: Uses unleaded solder.

B

C

CL187

C162

153

CN107

CL188

C161

C160

1-887-714-

21

(21)

D

E

MAIN BOARD

CN391

(Page 31)

CL185

CL186

K

S111

F

TUNING +

21

1-887-712-

(21)

G

5-33. SCHEMATIC DIAGRAM – POWER KEY Board –

1

A

POWER KEY BOARD

B

2 3 4 5 67

S114

R174

R176

R175

2.2k

47

100

Q111

2PD601ART

LED DRIVER

Q110

2PD601ART

LED DRIVER

R179 100k

R178 100k

D110

SML78423C-TP15

LED (ON/STBY)

G

O

SPEAKERS

TUNING –

TUNING +

S113

TUNING

MODE

S112

S111

R177

R170

R172

10k

4.7k

R171

2.2k

22k

C

S115

"/1

LED_ON

R173

10k

CL160

CL161

CL162

CL163

CL164

CL165

CL166

CN103

8P

1

AD1

3

POWER_BUTTON

4

DGND

5

NC

6

+3.3V_STBY

LED_ON

7

LED_STBY

8

L

DISPLAY

BOARD

CN100

(Page 38)

F

5-35. SCHEMATIC DIAGRAM – HEADPHONE Board –

A

B

1

MAIN

BOARD

(2/4)

CN391

(Page 34)

I

2 3 45

HEADPHONE BOARD

CN107

5P

CL185

1

HP_DETECT

HP_GND

HP_R

HP_L

CL186

3

CL187

4

CL188

5

C160 1000p

C161 1000p

C162 1000p

J101

PHONES

STR-DH540

4545

STR-DH540

• IC Block Diagrams

IC2101 BU4229F-TR (DIGITAL BOARD (3/7)) IC3001 BU4229F-TR (DIGIT

Vout CT

4

BOARD (5/7))

AL

3

IC2105 TC7WHU04FK (DIGITAL BOARD (2/7))

VCC OUT1 IN3 OUT2

8 7

5

6

– +

Vref

12

GND VDD

IC2102 BR24T64FJ-WE2 (DIGITAL BOARD (3/7))

A0

1

A1

A2

GND

ADDRESS

2

DECODER

3

HIGH VOLTAGE GEN Vcc LEVEL DETECT

4

13bit

START

CONTROL LOGIC

64Kbit EEPROM ARRAY

WORD

ADDRESS REGISTER

STOP

ACK

8bit

DATA

REGISTER

8

7

6

5

IC2104 PCM1681PWPR (DIGITAL BOARD (2/7))

ZR1/FMT0 1

MS/ADR/FMT1 2 MC/SCL/DEMP 3

MD/SDA/MUTE 4

SCK 5

DATA1

BCK 7

LRCK 8

VDD

DGND

DATA2 11 DATA3 12 DATA4 13

MSEL 14

SYSTEM CLOCK

MANAGER

FUNCTION CONTROL

INTERFACE

6

9

10

SERIAL

INPUT

INTERFACE

SYSTEM

CLOCK

DETECT

OVERSAMPLING

DIGITAL FILTER

FUNCTION

CONTROLLER

Vcc

WP

SCL

SDA

ZERO

8

WITH

POWER SUPPLY

ENHANCED

MULTILEVEL

DELTA-SIGMA

MODULATOR

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

OUTPUT AMP AND LOW-PASS FILTER

1 2

IN1 OUT3 IN2 GND

4

3

IC2107 LC89075WA-H (DIGITAL BOARD (1/7))

PVDD

64

63

RXIN1

Group: C

Group: B

ADC DIR

Group: A Group: B Group: C Group: D

ADC Group: A Group: B Group: C Group: D

MPIN4 (Error) MPIN5 (Data mute) MPIN6 (Non-PCM)

ADC data DIR data Group: A data Group: B data Group: C data Group: D data

Micro

Controller

interface

Oscillation

Amplifier

Power-on

Group: D

MUX

(4x6):4

MUX

(4x5):4

Reset

Output

Data Level

Detector

62

RXIN2

61

RXIN3

RXIN4

60

59

RXIN5

58

RXIN6

57

RXIN7

56

RXIN8

55

DGND

54

DVDD

53

RXOUT

52

DGND

51

RXIN1A

50

RXIN2A

49

ZR228

27

VOUT1

VOUT226 VCOM25

AGND224 VCC223

VOUT322 VOUT421

VOUT520

VOUT619

AGND118

17

VCC1

VOUT716 VOUT815

RXIN3A

VREF

AGND

AVDD

ADINL

ADINR

DGND

DVDD

DSTATE

INTB

SCK

CSB

XMODE

DVDD

DGND

48

47

46

45

44

43

42

41

40

39

SO

38

SI

37

36

35

34

33

Master clock Bit clock LR clock II DSD 2ch data II DSD

Master clock Bit clock LR clock II DSD 1,2/6ch data II DSD 3,4/6ch data 5,6/6ch data

PGA

Stereo

ADC

PGA

Group: D (Input) Group: C (Input)

S/PDIF

MUX

15.3

II 1,2/8ch data

II 3,4/8ch data II 5,6/8ch data II 7,8/8ch data II Error II Data mute II Non-PCM

Master clock Bit clock LR clock II DSD II S/PDIF 2ch data II DSD II S/PDIF

ADC data II C bit info

II S/PDIF II S/PDIF

ATT

Error Data mute

.

Non

PCM

DIR

C bit info Clock & data

Group: A (Input)

Group: B (Input)

Group: C (Input)

Group: C (output)

ADC

DIR

Group: A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

LPF

PGND

MCKIN

BCKIN

LRCKIN

DATAIN

MPIN1

MPIN2

MPIN3

MPIN4

MPIN5

MPIN6

MCKOUT

BCKOUT

LRCKOUT

DATAOUT

DGND

DVDD

MPOUT1

MPOUT2

MPOUT3

MPOUT4

ERRF

MUTEB

NPCMF

MPIO1

MPIO2

MPIO3

MPIO4

XMCK

XOUT

XIN

STR-DH540

4646

IC2111 TC74VHC393FT (ELK) (DIGITAL BOARD (1/7))

Q3B

RDB

CKB

VCC

14 13 12 11 10 9 8

Q2B

Q1B

QA QB QC QD

CLEAR

A

STR-DH540

CLEAR

1 2 3 4 5 6 7

CKA

RDA

A

QA QB QC QD

Q1A

Q2A

Q3A

Q4A

GND Q4B

IC2112 TC7WH157FK (DIGITAL BOARD (2/7))

8

VCC

117

STROBE

116

SELECT

A

B

EN G

Y

5

Y

GND

1

A

2

B

3

Y

4

IC3002 MFI341S2162 (DIGITAL BOARD (5/7))

1NC

2

MODE1

3NC

4RESET

5VCC

6NC

7NC

Internal address bus

8

NC

9

NC

10

NC

Power-on

reset circuit

On-chip

oscillator

HB/300H CPU

System control

Security logic

ROM (112 kbytes)

RAM (4 kbytes)

EEPROM (16 kbytes + 2 kbytes)

Interval timer 1

Interval timer 2

Modular multiplication

coprocessor

I/O port

RNG WDT

FMU

Voltage monitoring circuit

Register

(612 bytes)

Internal data bus

20

19

18

17

16

15

14

13

12

11

NC

MODE0

12C_SDA

12C_SCL

VSS

47

STR-DH540

IC4100 BU94502AMUV (DIGITAL BOARD (7/7))

DAVSS

RDACO

VCDACO

LDACO

DAVDD

SD_CON

SD_DO

SD_CLK

SD_DI

SD_CS

AMUTE29DVDDIO28LED_REPEAT/MCLK

30

31

32

Audio

DAC

33

34

35

36

37

SD Card

38

Controller

39

40

1

2

DVSSIO

RESETX

Effecter

3

TMODE

LED_PUSB/DATA

LED_PSD/BCK25LED_PLAY/LRCK/SPDIF

27

26

LED Driver

Sound

FAT

File system

4

5

KEY_COL1/IRPTO

KEY_COL2/SEARCH

LED_ERROR/CLK24MI

24

MP3/WMA

/AAC

Decoder

System

Controller

6

7

KEY_ROW1/BUSY

KEY_COL3/MCHNG

REXTI22USBDP21USBDM

23

USB

Controller

PLL

(Oscillator)

LDO

8

9

10

KEY_ROW2/SCL

KEY_ROW3/SDA

DVDD_M

20

AVSSC

19

AVDDC

18

SEL_SLAVE

17

SEL_COD/TEST3

16

TEST2

15

XOUT_PLL

14

XIN_PLL

13

TEST1

12

DVDDIO

11

DVSSIO

IC4101 TPS2553DBVR (DIGITAL BOARD (7/7))

REVERSE VOLTAGE

COMPARATOR

–

+

CURRENT

SENSE

CURRENT

LIMIT

8-ms

DEGLITCH

GND

IN

1

2

EN

3

CHARGE

PUMP

UNDERVOLTAGE

LOCKOUT

DRIVER

THERMAL

SENSE

4-ms

DEGLITCH

6OUT

5 ILLM

4FAULT

48

IC400 BD3470KS2 (MAIN BOARD (4/4))

INR3

INL3

INR4

INL4

INR5

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

INL5

INR6

INL6

INR7

INL7

INR8

INL8

INR9

INL9

INR10

INL10

INR11

INL11

INR12

STR-DH540

INL12

INL2

INR2

INL1

INR1

GND

SBLIN1

SBRIN1

SLIN1

SRIN1

CIN

SWIN1

FLIN

FRIN

GND

ADCROUT

ADCLOUT

GND

SUB1 R

SUB1 L

GND

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

ADC

Sub1

Main

Sub1

FR

VolumeFLVolume

MainR

Mode

selector

MainL

Mode

selector

SW

VolumeCVolumeSRVolumeSLVolume

EQ

Mode

selector

Multi2

Multi1

SBR

Volume

SubR2

Mode

selector

SBL

Volume

SubR1

SubL2

SubL1

Main

Sub2

Rec

Sub2

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

GND

FR IN2

FL IN2

SW IN2

C IN2

SR IN2

SL IN2

SBR IN2

SBL IN2

GND

RECR1

RECL1

RECR2

RECL2

RECR3

RECL3

SUB2R

SUB2L

GND

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

GND

HPFN

LPF01

LPF02

LPFN2

LPFN1

IC2354 NJM41010F1 (MAIN BOARD (3/4))

VCC

3

CLAMP

456

VIN1 VIN2 VSW

GND OUT

21

6dB 75: Driver

+ –

SWVOL

VCC

DGND

Logic

DATA

CLK

VEE

FROUT

FLOUT

SWOUT

COUT

SROUT

SLOUT

SBROUT

SBLOUT

49

STR-DH540

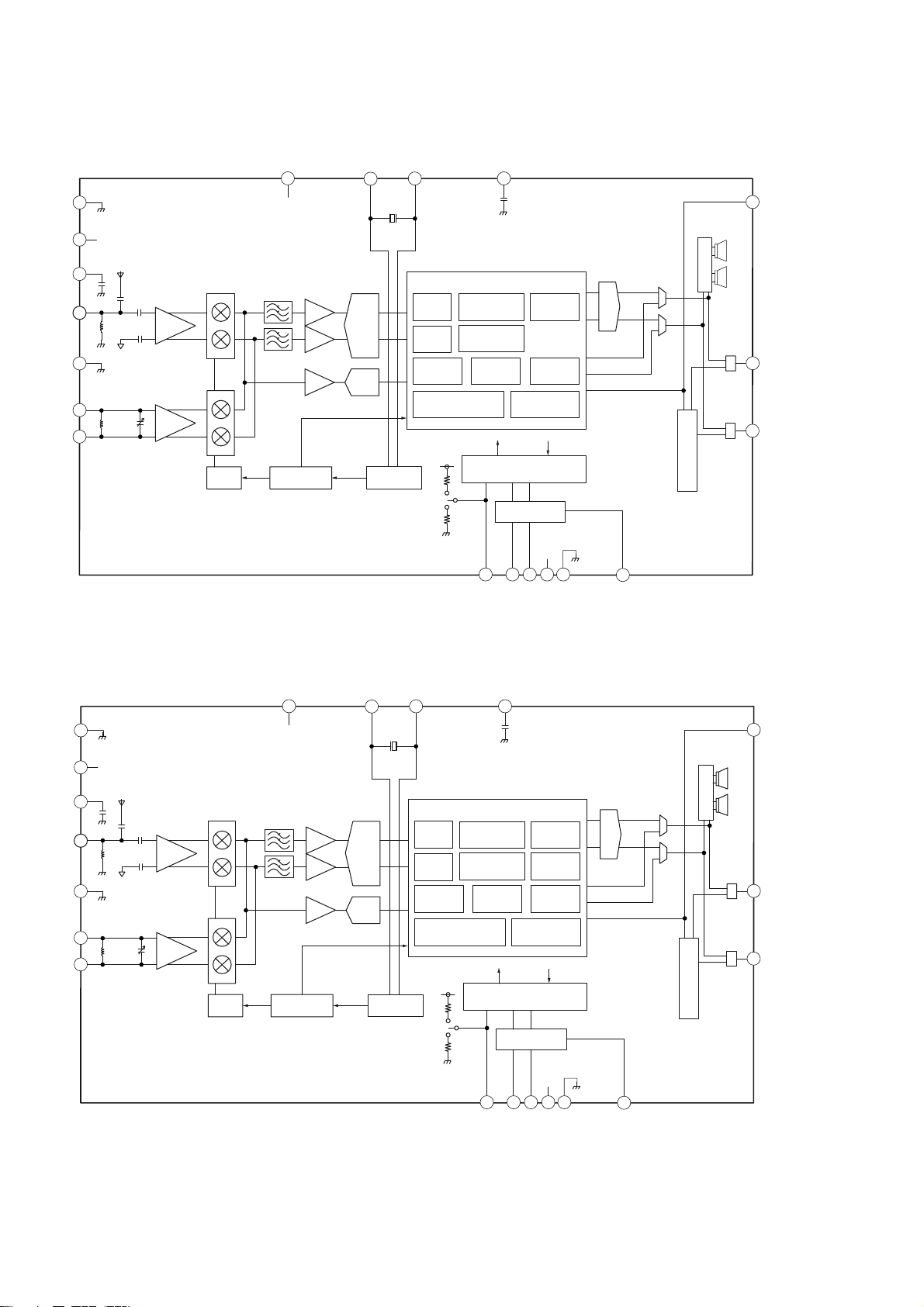

IC101 RZ5B801-0001E2 (TUNER1 BOARD) (US and Canadian models)

1

GND

1

VDDRF VDD

2

3

CP2

3

FRF1

4

GNDRF

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

TUNE

VDD

20

VDD

Filter

AGC

FM LNA

AM LNA

AM

LOSC

AMP

AGC AMP

AMP

Clock

Generator

ADC

X2

X1

18

19

Digital Signal Process

Digital

MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

RSSI

Calculation

HOST Controller

LA

CK

DSI

Generator

VDD

Stereo

IIS

VDD

IISD

16

Lch

Amplifier

LRCK

BCLK

IIS Controller

Rch

SW

LRCK / LOUT

15

BCLK / ROUT

14

LOUT

DAC

ROUT

LRCK

BCLK

IISD

12111098

GND

13

DA

IC101 RZ5B801-0002E2 (TUNER1 BOARD) (AEP and UK models)

1

GND

1

VDDRF VDD

2

3

CP2

3

FRF1

4

GNDRF

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

AM

TUNE

FM LNA

AM LNA

LOSC

Filter

VDD

20

VDD

Clock

Generator

AGC AMP

AMP

ADC

X2

X1

18

19

Digital Signal Process

Digital MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

Calculation

HOST Controller

LA

CK

DSI

Decoder

Generator

RSSI

VDD

Stereo

RDS

IIS

VDD

IISD

16

Lch

Amplifier

LRCK

BCLK

IIS Controller

Rch

SW

LRCK / LOUT

15

BCLK / ROUT

14

LOUT

DAC

ROUT

LRCK

BCLK

IISD

12111098

GND

13

DA

50

• IC Pin Function Descriptions DIGITAL BOARD (3/7) IC2100 MB9AF116NAPMC-G-JNE2 (SYSTEM CONTROL)

Pin No. Pin Name I/O Description

1 VCC - Power supply pin (+3.3V)

2 EVOL_CLK O Serial data transfer clock signal output to the electrical volume

3 EVOL_DATA O Serial data output to electrical volume

4 HP_DET I Headphone detection signal input

5 No_Use - Not used

6 V_SEL_SW2 O Composite video output signal switch

7 V_SEL_SW1 O Composite video output signal switch

8 V_MUTE O Video muting control signal output to the video ampliﬁ er

9 FL_ENABLE I Enable control for FL DISPLAY DRIVER IC

10 TUNER_CLK O Serial data transfer clock signal output to the tuner (FM/AM)

11 TUNER_MOSI I/O

12 TUN_RDS_SIGNAL I RDS data signal input (for destination that support RDS only)

13 TUNER_CE O Serial data latch pulse signal output to the tuner (FM/AM)

14 DIR FSRATE I Sampling rate frequency from the digital audio interface receiver

15 DAC_IIC_SDL I IIC clock signal input from the D/A converter

16 DAC_IIC_SCA I/O IIC data input from the D/A converter

17 DIR_INT I DIR interrupt

18 DIR_XSTATE I Clock selection signal input from the digital audio interface receiver

19 DIR_SIGNAL I Audio serial data input from the digital audio interface receiver

20 DIR_RST O Reset signal output to the digital audio interface receiver

21 DIR_CE O Chip enable signal output to the digital audio interface receiver

22 DIR_MISO I Serial data input from digital audio interface receiver

23 DIR_SPICLK O Serial clock output to digital audio interface receiver

24 DIR_MOSI O Serial data output to digital audio interface receiver

25 VSS - Ground terminal

26 VCC - Power supply pin (+3.3V)

27 DSP_INT I Interrupt status signal input from DSP

28 DSP_SFLASH_HOLD O Hold signal output to the serial ﬂ ash

29 DSP_RST O System reset signal output to the DSP “L” reset

30 NW_ADC_RST O Network: Disable (mute) the ADC

31 DSP_NPCM I SPDIF / IIS NPCM signal input from digital audio interface receiver / HDMI receiver

32 DSP_ERROR I SPDIF / IIS Error signal input from digital audio interface receiver / HDMI receiver

33 C - Regulator stabilization capacity connecting pin

34 VSS - Ground terminal

35 VCC - Power supply pin (+3.3V)

36 HDMI_CECOUT O CEC serial data output to the HDMI connector

37 DSP_SPICS O Chip select signal output to DSP

38 INITX - Main Micom Reset port

39 DSP_MISO I Serial data input from the serial ﬂ ash and DSP

40 DSP_MOSI O Serial data output to the serial ﬂ ash and DSP

41 DSP_SPICLK O Serial data transfer clock signal output to the serial ﬂ ash and DSP

42 VCOM_RESET O Video Micom Ext Reset Input Pin

43 No_Use - Not used

44 VCOM_SDA (OUT) O IIC data output to the video micom

45 MU UART IN I IIC data input from the video micom

46 MD1 - Selection of micon operation mode (Connect to VSS)

47 MD0 - Selection of micon operation mode (Connect to VSS)

48 X0

49 X1 - Main oscillator connecting pin

50 VSS - Ground terminal

51 VCC - Power supply pin (+3.3V)

52 INPUT_JOG I Function encoder signal input

53 FL_LAT O Latch signal output for FL DISPLAY DRIVER IC

54 FL_DATA O Serial data output for FL DISPLAY DRIVER IC

Serial data output to the tuner (FM/AM)

Main oscillator connecting pin

-

STR-DH540

51

STR-DH540

Pin No. Pin Name I/O Description

55 FL_CLK O Clock signal output for FL DISPLAY DRIVER IC

56 HDMI_CECIN I CEC serial data input from the HDMI connector

57 AD_KEY1 I Key signal input (A/D port)

58 AD_KEY2 I Key signal input (A/D port)

59 SIRCS_IN I SIRCS signal input

60 AVCC - Analog power supply pin for A/D converter

61 AVRH - Standard power supply pin for A/D converter

62 AVSS - Analog ground for A/D converter

63 VOLUME_JOG I MASTER VOLUME encoder signal input

64 White_LED O White LED control port

65 POWER_KEY I Power switch input terminal

66 LIMITER I Limiter signal input

67 TEMP_SENSOR_2 I Thermal detection signal input from the thermal sensor

68 TEMP_SENSOR_1 I Thermal detection signal input from the thermal sensor

69 DCAC_MUTE O DCAC MIC Mute

70 FL_BK O Blanking period signal output to the ﬂ uorescent indicator tube

71

72 SO O Serial data output terminal (use for Firmware Flash Program)

73 SI I Serial data input terminal (use for Firmware Flash Program)

74 BT_MUTE I Bluetooth: Mute request from BT device to Video uCOM

75 VSS - Ground terminal

76 VCC - Power supply pin (+3.3V)

77 WF_HDMI_SEL O Audio selection between NETWORK and HDMI block

78 TCK - Test clock signal input terminal (for JTAG)

79 TDI - Test data input terminal (for JTAG)

80 TMS - Test mode selection signal input terminal (for JTAG)

81 TDO - Test data output terminal (for JTAG)

82 STDBY_LED O Standby LED

83 PWR_SW_C O Power control port C

84 PWR_SW_B O Power control port B

85 PWR_SW_A O Power control port A

86 HP_RY O Relay drive signal (for headphone) output terminal “H”: relay on

87 BRIDGEABLE_RY O Relay drive signal (for power supply) output terminal “H”: relay on

88 SBL_SBR_RY O Relay drive signal (for surround back) output terminal “H”: relay on

89

90 FRONT_SPK_RY O Relay drive signal (for front) output terminal “H”: relay on

91 C/SL_SR_RY O Relay drive signal (for center and surround) output terminal “H”: relay on

92 PROTECT I Protect detection signal input terminal

93 AC_CUT I AC off detection signal input

94 E2P_SCL O Serial data transfer clock signal output to the EEPROM

95 E2P_SDA I/O Two-way data bus with the EEPROM

96 V_COMP_SW2 O Component video selection signal output to the video ampliﬁ er

97 VCC - Power supply pin (+3.3V)

98 POWER_RY O Relay drive signal (for main power) output terminal “H”: relay on

99 FUSE_DET I Fuse open detect signal input

100 VSS - Ground terminal

FLASH_CLK/POWER_

LED

ZONE2_PREOUT_

SW_RY

O Power on/standby LED control port

O Relay drive signal (for sub woofer) output terminal “H”: relay on

52

DIGITAL BOARD (4/7) IC2502 ADSST-AVR-3045 (DSP)

Pin No. Pin Name I/O Description

1 VDD_INT - Power supply terminal (+1.2V) (for core)

Core to CLKIN Ratio Control. These pins set the start up clock frequency. Note that the operating frequency can be changed by programming the PLL multiplier and divider in the

2 CLK_CFG1 I

3 BOOT_CFG0 I Boot Conﬁ guration Select. These pins select the boot mode for the processor.

4 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

5 VDD_INT - Power supply terminal (+1.2V) (for core)

6 BOOT_CFG1 I Boot Conﬁ guration Select. These pins select the boot mode for the processor.

7 GND - Ground terminal

8 NC - Not used

9 NC - Not used

10 CLK_CFG0 I

11 VDD_INT - Power supply terminal (+1.2V) (for core)

12 CLKIN I

13 XTAL O Crystal Oscillator Terminal. Used in conjunction with CLKIN to drive an external crystal.

14 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

15, 16 VDD_INT - Power supply terminal (+1.2V) (for core)

17 RESETOUT/RUNRSTIN I/O

18 VDD_INT - Power supply terminal (+1.2V) (for core)

19 MOSI I Serial data input from the main system controller

20 MISO O Serial data output to the main system controller

21 SPICLK I Serial data transfer clock signal input from the main system controller

22 VDD_INT - Power supply terminal (+1.2V) (for core)

23 DPI_P05 I/O

24 DSP_CS I Chip select signal input from the main system controller

25 MD - Not used

26 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

27 DPI_P08 - Not used

28 RESET_MAIN I Reset signal input terminal

29 VDD_INT - Power supply terminal (+1.2V) (for core)

30 UART_OUT O Serial data output terminal

31 UART_IN I Serial data input terminal

32 LED - Not used

33, 34 DPI_P12, DPI_P13 - Not used

35 DAI_P03 - Not used

36 DPI_P14 - Not used

37 to 39 VDD_INT - Power supply terminal (+1.2V) (for core)

40 SL/SR_IN I Audio signal input terminal for SL/SR

41 SL/SR_OUT O Audio signal output to the DSP2 for SL/SR

42 BCLK_IN I Bit clock signal input terminal

43

44 FRONTHI_L/R_OUT - Not used

OPTION_L/

OPTION_R_OUT

PMCTL register at any time after the core comes out of reset. The allowed values are: 00 = 8:1 01 = 32:1 10 = 16:1 11 = reserved

Core to CLKIN Ratio Control. These pins set the start up clock frequency. Note that the operating frequency can be changed by programming the PLL multiplier and divider in the PMCTL register at any time after the core comes out of reset. The allowed values are: 00 = 8:1 01 = 32:1 10 = 16:1 11 = reserved

Local Clock In. Used in conjunction with XTAL. CLKIN is the clock input. It conﬁ gures the processors to use either its internal clock generator or an external clock source.

Reset Out/Running Reset In. The default setting on this pin is reset out. This pin also has a second function as RUNRSTIN which is enabled by setting bit 0 of the RUNRSTCTL register. For more information, see the ADSP-214xx SHARC Processor Hardware Reference.

Digital Peripheral Interface. These pins provide the physical interface to the DPI SRU. The DPI SRU conﬁ guration registers deﬁ ne the combination of on-chip peripheral inputs or outputs connected to the pin and to the pin’s output enable. The conﬁ guration registers of these peripherals then determines the exact behavior of the pin. Any input or output signal present in the DPI SRU may be routed to any of these pins.

- Not used

STR-DH540

53

STR-DH540

Pin No. Pin Name I/O Description

45 VDD_INT - Power supply terminal (+1.2V) (for core)

46 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

47 VDD_INT - Power supply terminal (+1.2V) (for core)

48 L/R_OUT O Audio signal output to the DSP2 for L/R

49 MID/SW2_OUT O Audio signal output terminal

50 SBL/SBR_OUT O Audio signal output to the DSP2 for SBL/SBR

51 ZONE_L/R - Not used

52 VDD_INT - Power supply terminal (+1.2V) (for core)

53 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

54 MCLK_IN I Master clock signal input from the frequency multiplier

55 VDD_INT - Power supply terminal (+1.2V) (for core)

56 C/SW1_OUT O Audio signal output to the DSP2 for C/SW

57 A/D_2CH I Audio signal input terminal for L/R

58 C/SW_IN I Audio signal input terminal for C/SW

59 LRCLK_IN I L/R sampling clock signal input terminal

60 BCLK_OUT O Bit clock signal output to the DSP2

61 LRCLK_OUT O L/R sampling clock signal output to the DSP2

62 SBL/SBR_IN I Audio signal input terminal for SBL/SBR

63 L/R_IN I Audio signal input terminal for Analog L/R from DIR IC

64 VDD_INT - Power supply terminal (+1.2V) (for core)

65 DIR_IN I Audio signal input terminal

66, 67 VDD_INT - Power supply terminal (+1.2V) (for core)

68 GND - Ground terminal

69 THD_M - Not used

70 THD_P - Not used

71 VDD_THD - Thermal diode power supply

72 to 76 VDD_INT - Power supply terminal (+1.2V) (for core)

77 FLAG0 I/O DSP Interrupt

78, 79 VDD_INT - Power supply terminal (+1.2V) (for core)

80 FLAG1 I/O DSP Error

81 FLAG2 I/O DSP Non Audio

82 FLAG3 - Not used

83 MLBCLK - Not used

84 MLBDAT - Not used

85 MLBDO O

86 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

87 MLBSIG I/O

88 VDD_INT - Power supply terminal (+1.2V) (for core)

89 MLBSO O

90 TRST I

91 EMU O

92 TDO O Test Data Output (JTAG). Serial scan output of the boundary scan path.

93 VDD_EXT - Power supply terminal (+3.3V) (for I/O)

94 VDD_INT - Power supply terminal (+1.2V) (for core)

95 TDI I Test Data Input (JTAG). Provides serial data for the boundary scan logic.

96 TCK I

97 VDD_INT - Power supply terminal (+1.2V) (for core)

Media Local Bus Data Output (in 5 pin mode). This pin is used only in 5-pin MLB mode. This serves as the output data pin in 5-pin mode. When the MLB controller is not used, this pin should be connected to ground.

Media Local Bus Signal. This is a multiplexed signal which carries the Channel/Address generated by the MLB Controller, as well as the Command and RxStatus bytes from MLB devices. In 5-pin mode, this pin is input only. When the MLB controller is not used, this pin should be grounded.

Media Local Bus Signal Output (in 5 pin mode). This pin is used only in 5-pin MLB mode. This serves as the output signal pin in 5-pin mode. When the MLB controller is not used, this pin should be connected to ground.

Test Reset (JTAG). Resets the test state machine. TRST must be asserted (pulsed low) after power-up or held low for proper operation of the processor.

Emulation Status. Must be connected to the ADSP-2148x Analog Devices DSP Tools product line of JTAG emulators target board connector only.

Test Clock (JTAG). Provides a clock for JTAG boundary scan. TCK must be asserted (pulsed low) after power-up or held low for proper operation of the device.

54

Pin No. Pin Name I/O Description

Processor Reset. Resets the processor to a known state. Upon deassertion, there is a 4096

98 RESET I

99 TMS I Test Mode Select (JTAG). Used to control the test state machine.

100 VDD_INT - Power supply terminal (+1.2V) (for core)

CLKIN cycle latency for the PLL to lock. After this time, the core begins program execution from the hardware reset vector address. The RESET input must be asserted (low) at powerup.

STR-DH540

55

STR-DH540

DIGITAL BOARD (5/7) IC3000 MB9BF116NPMC-G-JNE2 (HDMI CONTROLLER)

Pin No. Pin Name I/O Description

1 VCC O Power supply pin (+3.3V)

2 to 4 No_Use - Not used

5 UPDATE_VURX O Update to MAIN Micom data input

6 UPDATE_VUTX O Update to MAIN Micom data output

7 to 9 No_Use - Not used

10 TEST_SCK O Not used

11 TEST_SDA O Not used

12 UPDATE_LED O USB Update: USB Update LED Control / NW Update LED Control

13 NON_LPCM O HDMI: Non LPCM Stream Info Line Notiﬁ cation

14 MU_RST O USB Update: USB Update Main Micom Reset

15 MU_MD0 O USB Update: USB Update MD0 select

16, 17 No_Use - Not used

18 Test_1 O Test Pad 1 (for designer evaluation only)

19 Test_2 O Test Pad 2 (for designer evaluation only)

20 Test_3 O Test Pad 3 (for designer evaluation only)

21 Test_4 O Test Pad 4 (for designer evaluation only)

22 Test_5 O Test Pad 5 (for designer evaluation only)

23 Test_6 O Test Pad 6 (for designer evaluation only)

24 Test_7 O Test Pad 7 (for designer evaluation only)

25 VSS - Ground terminal

26 VCC - Power supply pin (+3.3V)

27 No_Use - Not used

28 Sparta_INT I HDMI device interrupt port

29 Sparta_RST O HDMI device reset control port

30 No_Use - Not used

31 HDMI_MUTE O HDMI: Audio Mute Request

32 5VPWR_A O HDMI: 5V Power for HDMI-Tx Device

33 C - Regulator stabilization capacity

34 VSS - Ground terminal

35 VCC - Power supply pin (+3.3V)

36, 37 No_Use - Not used

38 INITX - Video Micom reset port

39 No_Use - Not used

40 HDMI_SDA I/O HDMI: Communication Line - I2C SDA for HDMI-Rx, HDMI-Tx, EDID device

41 HDMI_SCK O HDMI: Communication Line - I2C SCK

42 to 45 No_Use - Not used

46, 47 MD1, MD0 - UCOM Mode setting terminal

48, 49 X0, X1 - Clock signal output (4MHz)

50 VSS - Ground terminal

51 VCC - Power supply pin (+3.3V)

52, 53 No_Use - Not used

54 USB_IP_SDA I/O USB: Data Communication line - I2C SDA for iPod certiﬁ cation IC

55 USB_IP_SCL O USB: Data Communication line - I2C SCL for iPod certiﬁ cation IC

56 USB_IP_Reset O USB: RESET for iPod certiﬁ cation IC

57, 58 No_Use - Not used

59 USB_OVC I USB: Overcurrent Detection

60 AVCC - A/D converter power supply terminal / Analog power supply pin for A/D converter

61 AVRH - ADC analog reference voltage input / Standard power supply pin for A/D converter

62 AVSS - A/D converter terminal GND / Analog ground for A/D converter

63 USB SDA I/O USB: Communication Line I2C SDA

64 USB_SCL O USB: Communication Line I2C SDL

65 USB_MCHNG I USB: MCHNG (change of music ﬁ le being playback) from USB Device BU94604BKV

66 USB_PCONT I USB: Power control for USB device

67 USB_SEARCH I USB: SEARCH signal communication between USB board

56

Pin No. Pin Name I/O Description

68 USB_IRPTO I

69 USB_RESET O USB: RESET for USB Device BU94604BKV

70 USB_BUSY I BUSY signal communication between USB board

71 Prog_VU_SCK O PROGRAMMING CLOCK

72 Prog_VUTX O PROGRAMMING UART TX

73 Prog_VURX I PROGRAMMING UART RX

74 No_Use - Not used

75 VSS - Ground terminal

76 VCC - Power supply pin (+3.3V)

77 TRXTS (No Use) - Not used

78 TCK - Test clock signal input terminal (for JTAG)

79 TDI - Test data input terminal (for JTAG)

80 TMS - Test mode selection signal input terminal (for JTAG)

81 TDO - Test data output terminal (for JTAG)

82 to 94 No_Use - Not used

95 VU_SDA_VUTX O Communication data with MAIN Micom: Transmit data

96 VURX I Communication data with MAIN Micom: Receive data

97 VCC - Power supply pin (+3.3V)

98, 99 No_Use - Not used

100 VSS - Ground terminal

USB: IRPTO (notiﬁ cation that two USB conﬁ guration descriptor or more is connected) from USB Device BU94604BKV

STR-DH540

57

STR-DH540

DIGITAL BOARD (6/7) IC3506 SII9573CTUC (HDMI RECEIVER)

Pin No. Pin Name I/O Description

1 to 6 D14 to D19 I Digital video signal input from the video deinterlacing

7 DE I Data enable signal input from the video deinterlacing

8 VSYNC O Vertical sync signal input from the video deinterlacing

9 HSYNC O Horizontal sync signal input from the video deinterlacing

10 R0XC– I TMDS clock (negative) signal input from the HDMI IN connector Not used

11 R0XC+ I TMDS clock (positive) signal input from the HDMI IN connector Not used

12 R0X0– I TMDS data (negative) input from the HDMI IN connector Not used

13 R0X0+ I TMDS data (positive) input from the HDMI IN connector Not used

14 R0X1– I TMDS data (negative) input from the HDMI IN connector Not used

15 R0X1+ I TMDS data (positive) input from the HDMI IN connector Not used

16 R0X2– I TMDS data (negative) input from the HDMI IN connector Not used

17 R0X2+ I TMDS data (positive) input from the HDMI IN connector Not used

18 AVDD12 - Power supply terminal (+1.2V)

19 AVDD33 - Power supply terminal (+3.3V)

20 R1XC– I TMDS clock (negative) signal input from the HDMI IN connector Not used

21 R1XC+ I TMDS clock (positive) signal input from the HDMI IN connector Not used

22 R1X0– I TMDS data (negative) input from the HDMI IN connector Not used

23 R1X0+ I TMDS data (positive) input from the HDMI IN connector Not used

24 R1X1– I TMDS data (negative) input from the HDMI IN connector Not used

25 R1X1+ I TMDS data (positive) input from the HDMI IN connector Not used

26 R1X2– I TMDS data (negative) input from the HDMI IN connector Not used

27 R1X2+ I TMDS data (positive) input from the HDMI IN connector Not used

28 R2XC– I TMDS clock (negative) signal input from the HDMI IN (BD) connector

29 R2XC+ I TMDS clock (positive) signal input from the HDMI IN (BD) connector

30 R2X0– I TMDS data (negative) input from the HDMI IN (BD) connector

31 R2X0+ I TMDS data (positive) input from the HDMI IN (BD) connector

32 R2X1– I TMDS data (negative) input from the HDMI IN (BD) connector

33 R2X1+ I TMDS data (positive) input from the HDMI IN (BD) connector

34 R2X2– I TMDS data (negative) input from the HDMI IN (BD) connector

35 R2X2+ I TMDS data (positive) input from the HDMI IN (BD) connector

36 AVDD12 - Power supply terminal (+1.2V)

37 CVDD12 - Power supply terminal (+1.2V)

38 AVDD33 - Power supply terminal (+3.3V)

39 R3XC– I TMDS clock (negative) signal input from the HDMI IN (DVD) connector

40 R3XC+ I TMDS clock (positive) signal input from the HDMI IN (DVD) connector

41 R3X0– I TMDS data (negative) input from the HDMI IN (DVD) connector

42 R3X0+ I TMDS data (positive) input from the HDMI IN (DVD) connector

43 R3X1– I TMDS data (negative) input from the HDMI IN (DVD) connector

44 R3X1+ I TMDS data (positive) input from the HDMI IN (DVD) connector

45 R3X2– I TMDS data (negative) input from the HDMI IN (DVD) connector

46 R3X2+ I TMDS data (positive) input from the HDMI IN (DVD) connector

47 R4XC– I TMDS clock (negative) signal input from the HDMI IN (GAME) connector

48 R4XC+ I TMDS clock (positive) signal input from the HDMI IN (GAME) connector

49 R4X0– I TMDS data (negative) input from the HDMI IN (GAME) connector

50 R4X0+ I TMDS data (positive) input from the HDMI IN (GAME) connector

51 R4X1– I TMDS data (negative) input from the HDMI IN (GAME) connector

52 R4X1+ I TMDS data (positive) input from the HDMI IN (GAME) connector

53 R4X2– I TMDS data (negative) input from the HDMI IN (GAME) connector

54 R4X2+ I TMDS data (positive) input from the HDMI IN (GAME) connector

55 CVDD12 - Power supply terminal (+1.2V)

56 AVDD33 - Power supply terminal (+3.3V)

57 R5XC– I TMDS clock (negative) signal input from the HDMI IN (SAT/CATV) connector

58 R5XC+ I TMDS clock (positive) signal input from the HDMI IN (SAT/CATV) connector

59 R5X0– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector

60 R5X0+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector

58

STR-DH540

Pin No. Pin Name I/O Description

61 R5X1– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector

62 R5X1+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector

63 R5X2– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector

64 R5X2+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector

65 CVCC12 - Power supply terminal (+1.2V)

66 CSCL I/O Two-way I2C clock bus with the video system controller

67 CSDA I/O Two-way I2C data bus with the video system controller

68 INT O Interrupt signal output to the video system controller

69 RESET I Reset signal input from the video system controller “L”: reset

70 TPWR_CI2CS I Not used

71 CEC_A1 O Not used

72 CEC_A0WAKEUP O Not used

73 DSDA6 I/O Two-way I2C serial data bus terminal Not used

74 DSCL6 I I2C serial data transfer clock signal input terminal Not used

75 LPSVCC33 I Not used

76 DSDA0 I/O Two-way I2C serial data bus with the HDMI IN connector Not used

77 DSCL0 I I2C serial data transfer clock signal input from the HDMI IN connector Not used

78 CBUS_HPD0 O Hot plug detection control signal output to the HDMI IN connector Not used

79 R0PWR5V I Power supply voltage (+5V) input terminal

80 DSDA1 I/O Two-way I2C serial data bus with the HDMI IN connector Not used

81 DSCL1 I I2C serial data transfer clock signal input from the HDMI IN connector Not used

82 CBUS_HPD1 O Hot plug detection control signal output to the HDMI IN connector Not used

83 R1PWR5V I Power supply voltage (+5V) input terminal

84 DSDA2 I/O Two-way I2C serial data bus with the HDMI IN (BD) connector

85 DSCL2 I I2C serial data transfer clock signal input from the HDMI IN (BD) connector

86 CBUS_HPD2 O Hot plug detection control signal output to the HDMI IN (BD) connector

87 R2PWR5V I Power supply voltage (+5V) input terminal

88 DSDA3 I/O Two-way I2C serial data bus with the HDMI IN (DVD) connector

89 DSCL3 I I2C serial data transfer clock signal input from the HDMI IN (DVD) connector

90 CBUS_HPD3 O Hot plug detection control signal output to the HDMI IN (DVD) connector

91 R3PWR5V I Power supply voltage (+5V) input terminal

92 DSDA4 I/O Two-way I2C serial data bus with the HDMI IN (GAME) connector

93 DSCL4 I I2C serial data transfer clock signal input from the HDMI IN (GAME) connector

94 CBUS_HPD4 O Hot plug detection control signal output to the HDMI IN (GAME) connector

95 R4PWR5V I Power supply voltage (+5V) input terminal

96 RSVDL I Not used

97 DSDA5 I/O Two-way I2C serial data bus with the HDMI IN (SAT/CATV) connector

98 DSCL5 I I2C serial data transfer clock signal input from the HDMI IN (SAT/CATV) connector

99 CBUS_HPD5 O Hot plug detection control signal output to the HDMI IN (SAT/CATV) connector

100 R4PWR5V I Power supply voltage (+5V) input terminal

101 SBVCC5V - Power supply terminal (+1.2V)

102 VCC33OUT O Power supply (+3.3V) output terminal

103, 104 GPIO0, GPIO1 I/O Not used

105 TX_HPD0 I Hot plug detection signal input from the HDMI OUT A ARC connector

106 TXDSDA0 I/O Two-way I2C serial data bus with the HDMI OUT A ARC connector

107 TXDSCL0 O I2C serial data transfer clock signal output to the HDMI OUT A ARC connector

108 TX_HPD1 I Hot plug detection signal input from the HDMI OUT B connector Not used

109 TXDSDA1 I/O Two-way I2C serial data bus with the HDMI OUT B connector Not used

110 TXDSCL1 O I2C serial data transfer clock signal output to the HDMI OUT B connector Not used

111 APLL12 - Power supply terminal (+1.2V)

112 XTALVCC33 - Power supply terminal (+3.3V)

113 XTALIN I System clock signal input terminal (27 MHz)

114 XTALOUT O System clock signal output terminal Not used

115 XTALGND - Ground terminal

116 CVCC12 - Power supply terminal (+1.2V)

117 to 120 GPIO2 to GPIO5 I/O Not used

59

STR-DH540

Pin No. Pin Name I/O Description

121 WS0_OUT O Word select signal output to the digital audio interface receiver

122 SCK0 O Serial data transfer clock signal output to the digital audio interface receiver

123 IOVCC33 - Power supply terminal (+3.3V)

124 SD0_0 I Serial data output to the digital audio interface receiver

125 MCLK I Master clock signal output to the digital audio interface receiver

126 to 128 SD0_1 to SD0_3 I Serial data output to the digital audio interface receiver

129 MUTEOUT O HDMI muting control signal output terminal

130 SPDIF0_OUT I S/PDIF audio signal output to the digital audio interface receiver

131, 132 GPIO11, GPIO10 I/O Not used

133 SPDIFO_IN I S/PDIF audio signal input terminal Not used

134 SCK1_OUT O Serial data transfer clock signal output terminal Not used

135 WS1_OUT O Word select signal output terminal Not used

136 SPDIF1_OUT I S/PDIF audio signal output terminal Not used

137 ARC0 I Audio signal input from the HDMI OUT A ARC connector

138 ARC1 I Audio signal input terminal Not used

139 CVCC12 - Power supply terminal (+1.2V)

140, 141 TPVDD12 - Power supply terminal (+1.2V)

142 T1XC– O TMDS clock (negative) output to the HDMI OUT B connector Not used

143 T1XC+ O TMDS clock (positive) output to the HDMI OUT B connector Not used

144 T1X0– O TMDS data (negative) output to the HDMI OUT B connector Not used

145 T1X0+ O TMDS data (positive) output to the HDMI OUT B connector Not used

146 T1X1– O TMDS data (negative) output to the HDMI OUT B connector Not used

147 T1X1+ O TMDS data (positive) output to the HDMI OUT B connector Not used

148 T1X2– O TMDS data (negative) output to the HDMI OUT B connector Not used

149 T1X2+ O TMDS data (positive) output to the HDMI OUT B connector Not used

150, 151 TPVDD12 - Power supply terminal (+1.2V)

152 T0XC– O TMDS clock (negative) output to the HDMI OUT A ARC connector

153 T0XC+ O TMDS clock (positive) output to the HDMI OUT A ARC connector

154 T0X0– O TMDS data (negative) output to the HDMI OUT A ARC connector

155 T0X0+ O TMDS data (positive) output to the HDMI OUT A ARC connector

156 T0X1– O TMDS data (negative) output to the HDMI OUT A ARC connector

157 T0X1+ O TMDS data (positive) output to the HDMI OUT A ARC connector

158 T0X2– O TMDS data (negative) output to the HDMI OUT A ARC connector

159 T0X2+ O TMDS data (positive) output to the HDMI OUT A ARC connector

160 CVCC12 - Power supply terminal (+1.2V)

161, 162 D0, D1 O Digital video signal output terminal Not used

163 to 170 D2 to D9 I Digital video signal input from the video deinterlacing

171 D10 O Digital video signal output terminal Not used

172 IDCK I Output data clock signal input from the video deinterlacing

173 IOVCC33 - Power supply terminal (+3.3V)

174 D11 O Digital video signal output terminal Not used

175, 176 D12, D13 I Digital video signal input from the video deinterlacing

60

Note:

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• Abbreviation

AUS : Australian model CND : Canadian model

6-1. CASE (ENTRY) SECTION

2

SECTION 6

EXPLODED VIEWS

• The mechanical parts with no reference number in the exploded views are not supplied.

• Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE) . . . (RED) R R

• Accessories are given in the last of the electrical parts list.

#1

Parts Color Cabinet’s Color

STR-DH540

Ver. 1.1

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é.

The components identiﬁ ed by mark 9 contain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced.

Les composants identiﬁ és par la marque

contiennent des informations conﬁ denti-

9

elles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé.

1

A

1

front panel section

DCDC BOARD section

not supplied

A

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 4-448-295-01 SCREW B-TYPE 4X8 2 4-442-873-12 CASE (ENTRY)

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

61

STR-DH540

Ver. 1.2

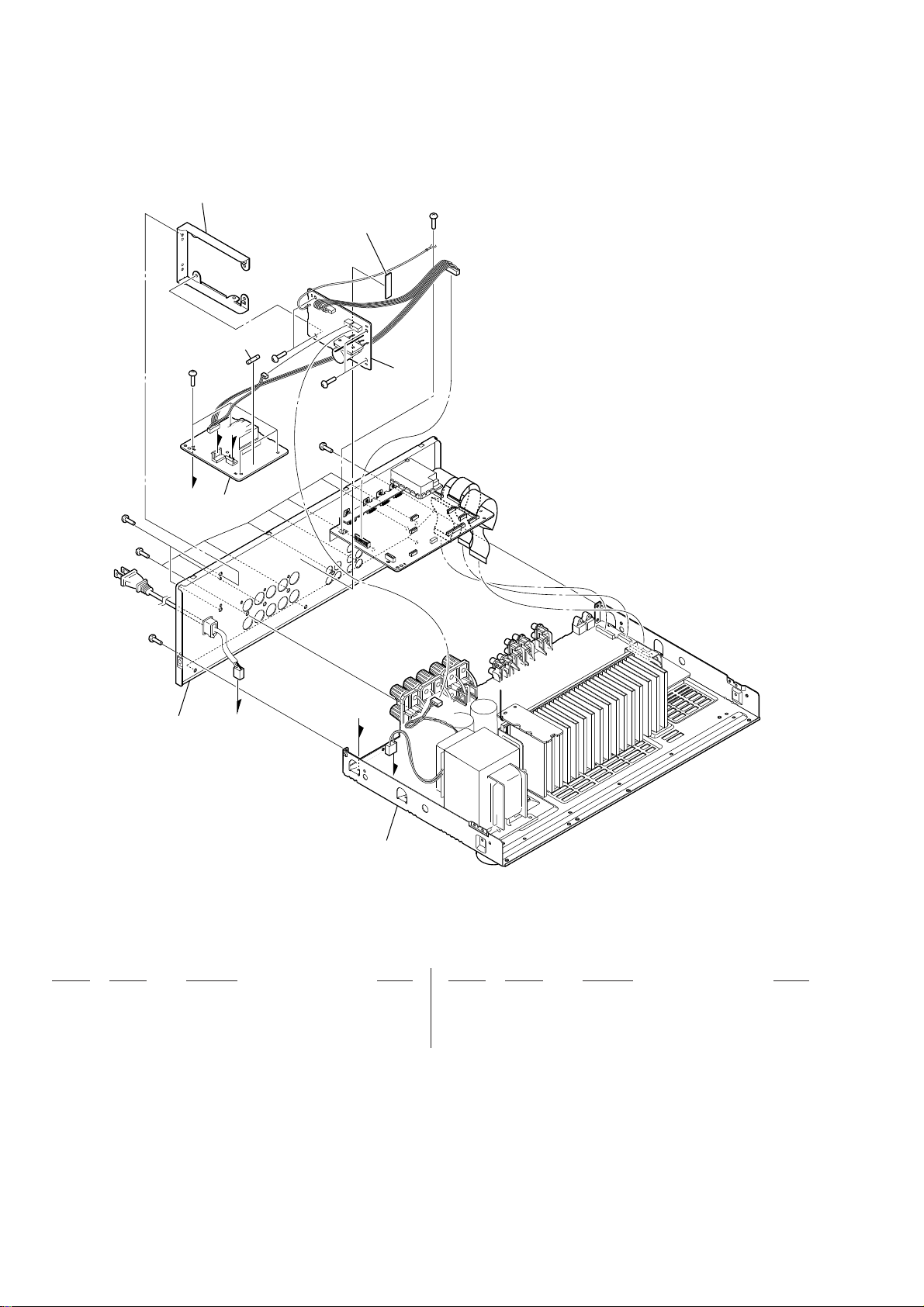

6-2. DCDC BOARD SECTION

#1

not supplied

F901

#1

D

B

52

C

#1

not supplied

#1

51

#1

back panel section

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 A-1910-917-A DCDC BOARD, COMPLETE 52 A-1906-372-A STANDBY BOARD, COMPLETE (US, CND) 52 A-1906-873-A STANDBY BOARD, COMPLETE (AEP, UK, AUS)

F901 1-532-465-32 FUSE (T3.15AL/250V) (AEP, UK, AUS)

0

C

B

D

chassis section

F901 1-533-311-12 FUSE, GLASS (DIA.5) (8A/125V) (US, CND)

0

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

62

6-3. FRONT PANEL SECTION

STR-DH540

Ver. 1.1

not supplied (HP SUPPORT board)

not supplied (HEADPHONE board)

supplied with S120

105

104

106

104

ND100

S120

104

S121

108

107

102

supplied with

103

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 X-2586-107-1 FRONT PANEL ASSY (US, CND) 101 X-2586-120-1 FRONT PANEL ASSY (AEP, UK, AUS) 102 4-442-859-01 KNOB, MENU 103 4-442-860-01 KNOB, VOLUME 104 3-087-053-01 +BVTP2.6 (3CR)

105 A-1906-380-A POWER KEY BOARD, COMPLETE 106 A-1906-381-A FRONT JACK PWB BOARD, COMPLETE

S121

101

Note: If wire (ﬂ at type) is replaced, install it after bending

it in the same form as that before replacement.

107 A-1906-447-A DISPLAY BOARD, COMPLETE 108 1-828-393-61 WIRE (FLAT TYPE) (25 CORE) ND100 1-811-724-11 VACUUM FLOURESCENT DISPLAY

S120 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR) S121 1-418-725-41 ENCODER, ROTARY (12 TYPE)

(MASTER VOLUME)

63

STR-DH540

Ver. 1.1

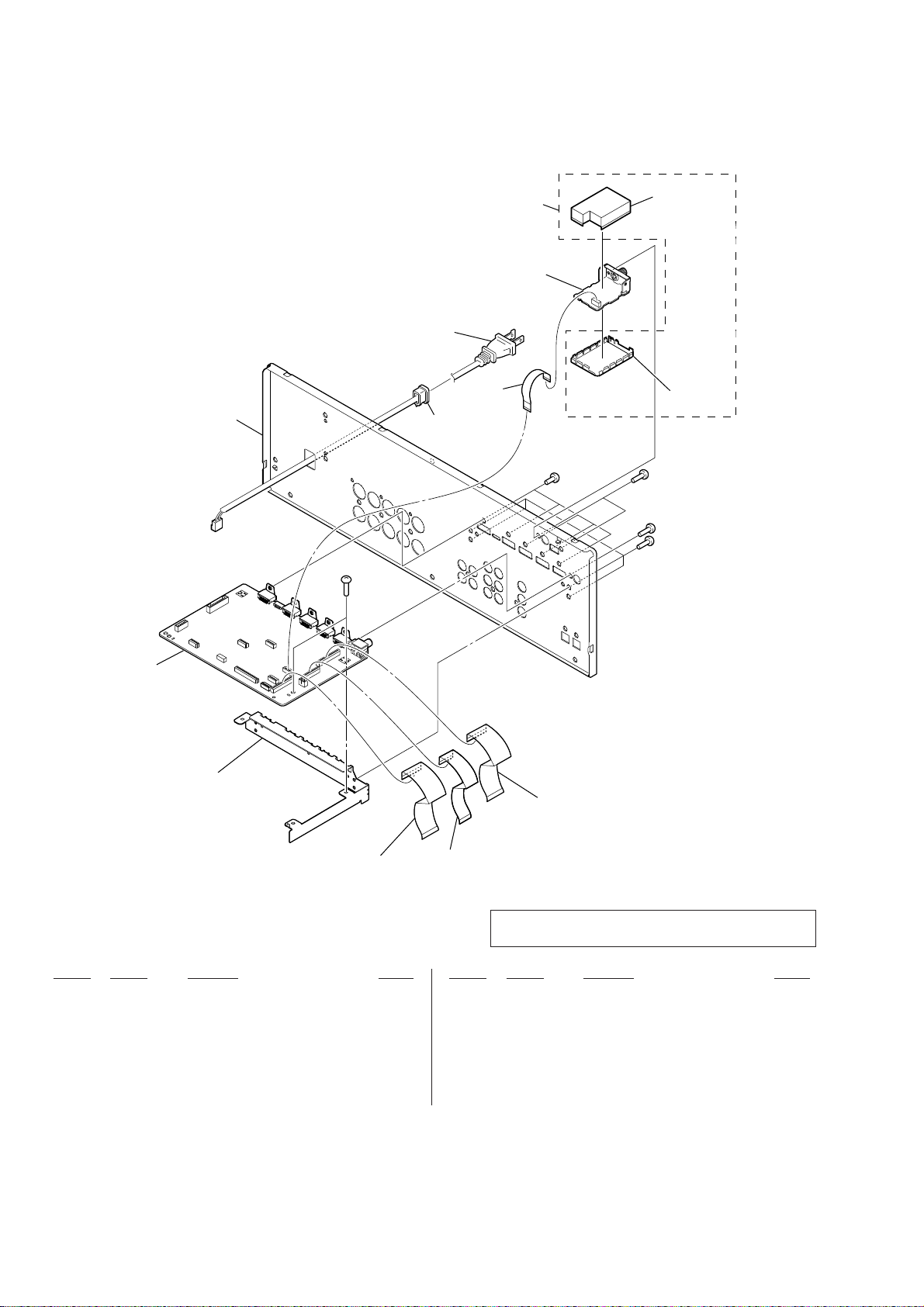

6-4. BACK PANEL SECTION

not supplied

#1

not supplied (TUNER1 board)

151

156

152

157

#2

not supplied

#1

153

not supplied

154

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 1-777-071-83 CORD, POWER (AEP)

0

151 1-833-566-21 POWER-SUPPLY CORD (AUS)

0

151 1-837-308-11 CORD, POWER-SUPPLY (US, CND)

0

151 1-839-999-21 POWER-SUPPLY CORD (UK)

0

152 4-966-267-12 BUSHING (FBS001), CORD

0

153 A-1910-627-A DIGITAL BOARD, COMPLETE 154 1-828-390-61 WIRE (FLAT TYPE) (25 CORE)

155

Note: If wire (ﬂ at type) is replaced, install it after bending

it in the same form as that before replacement.

155 1-828-350-61 WIRE (FLAT TYPE) (17 CORE) 156 1-828-307-61 WIRE (FLAT TYPE) (9 CORE) 157 A-1846-561-A TUNER1AMPR ASSY (AEP, UK, AUS)

157 A-1846-564-A TUNER1AMF ASSY (US, CND) #1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-682-546-09 SCREW +B 3X5

64

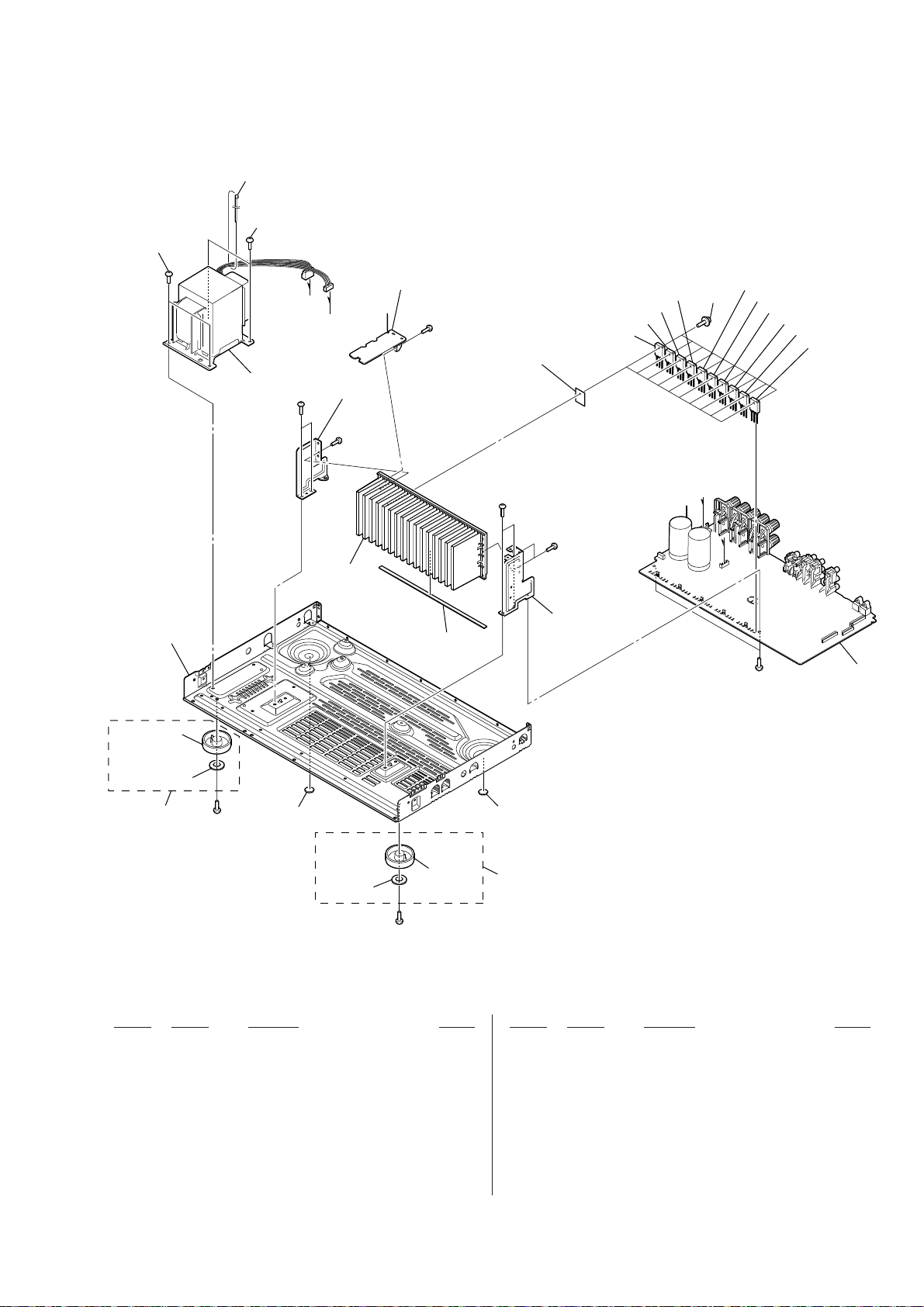

6-5. CHASSIS SECTION

not supplied

201

T901

E

F

not supplied

#1

not supplied (USB WIRE INSULATION PC board)

#1

supplied with Q550, Q551, Q600, Q601, Q650, Q651, Q700, Q701, Q750, Q751

#1

Q550

Q551

Q701

Q700

202

STR-DH540

Q601

Q600

Q751

Q750

Q651

Ver. 1.2

Q650

not supplied

205

#1

204

not supplied

#1

204

205

#1

not supplied

E

F

#1

203

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 4-249-675-02 +BV SUMITITE S 4X6 ROUND 202 3-905-609-31 SCREW (TRANSISTOR) 203 A-1907-006-A MAIN BOARD, COMPLETE 204 4-447-491-01 CUSHION, FOOT 205 X-2583-799-2 ASSY, FOOT

Q550 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q551 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q600 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q601 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q650 6-702-390-01 TRANSISTOR MN2488-OPY-MK

Q651 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q700 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q701 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q750 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q751 6-702-391-01 TRANSISTOR MP1620-OPY-MK

T901 1-697-231-11 POWER TRANSFORMER (MAIN) (AEP, UK, AUS)

0

T901 1-697-232-11 POWER TRANSFORMER (MAIN) (US, CND)

0

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

65

STR-DH540

Ver. 1.1

DCDC

Note:

• Due to standardization, replacements in the parts list may be different from the parts speciﬁ ed in the diagrams or the com- ponents used on the set.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• RESISTORS

All resistors are in ohms. METAL: Metal-ﬁ lm resistor. METAL OXIDE: Metal oxide-ﬁ lm resistor. F: nonﬂ ammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

ELECTRICAL PARTS LIST

• CAPACITORS uF: μF

• COILS uH: μH

• SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. .

• Abbreviation AUS : Australian model CND : Canadian model

When indicating parts by reference number, please include the board name.

SECTION 7

The components identiﬁ ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speciﬁ ed.

Les composants identiﬁ és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spéciﬁ é.

The components identiﬁ ed by mark 9 contain conﬁ dential information. Strictly follow the instructions whenever the components are repaired and/or replaced.

Les composants identiﬁ és par la marque

contiennent des informations conﬁ denti-

9

elles. Suivre scrupuleusement les instructions chaque fois qu’un composant est remplacé et / ou réparé.

A-1910-917-A DCDC BOARD, COMPLETE *********************

< CAPACITOR >

C902 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C907 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V C908 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V C1905 1-104-665-11 ELECT 100uF 20% 25V C1906 1-104-665-11 ELECT 100uF 20% 25V

C1907 1-104-665-11 ELECT 100uF 20% 25V C1910 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1911 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1912 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1915 1-114-802-11 CERAMIC CHIP 0.0033uF 10% 50V

C1916 1-114-802-11 CERAMIC CHIP 0.0033uF 10% 50V C1922 1-112-775-11 CERAMIC CHIP 0.0022uF 10% 50V C1925 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C1926 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C1927 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V

C1930 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C1931 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C1932 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C1935 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1936 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C1937 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1942 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C1945 1-104-658-91 ELECT 100uF 20% 10V C1946 1-104-658-91 ELECT 100uF 20% 10V C1947 1-104-658-91 ELECT 100uF 20% 10V

C1949 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C1951 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C1952 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C1955 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1956 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C1966 1-116-865-11 CERAMIC CHIP 10uF 10% 25V C1967 1-116-865-11 CERAMIC CHIP 10uF 10% 25V C1971 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C1972 1-116-713-11 CERAMIC CHIP 22uF 20% 10V C1973 1-116-713-11 CERAMIC CHIP 22uF 20% 10V

C1976 1-126-944-11 ELECT 3300uF 20% 25V

< CONNECTOR >

CN901 1-770-469-21 PIN, CONNECTOR (PC BOARD) 2P * CN941 1-564-507-11 PLUG, CONNECTOR 4P CN1901 1-794-032-21 PIN, CONNECTOR (PC BOARD) 11P

< DIODE >

D923 8-719-061-07 DIODE D5SBA60-F

< FUSE >

0 F940 1-523-086-11 FUSE (3.15A/250V) 0 F941 1-523-086-11 FUSE (3.15A/250V)

< IC >

IC1902 6-716-554-21 IC BD9329AEFJ-BZSE2

IC1903 6-716-554-21 IC BD9329AEFJ-BZSE2

IC1904 6-716-554-21 IC BD9329AEFJ-BZSE2

< COIL >

L1902 L1903 1-457-995-11 INDUCTOR 10uH L1904 1-457-995-11 INDUCTOR 10uH L1907 1-457-995-11 INDUCTOR 10uH L1908 1-457-995-11 INDUCTOR 10uH

L1909 1-457-995-11 INDUCTOR 10uH

< RESISTOR >

1-457-995-11 INDUCTOR 10uH

C1957 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1960 1-116-865-11 CERAMIC CHIP 10uF 10% 25V C1961 1-116-865-11 CERAMIC CHIP 10uF 10% 25V C1962 1-116-865-11 CERAMIC CHIP 10uF 10% 25V C1965 1-116-865-11 CERAMIC CHIP 10uF 10% 25V

66

R1907 1-218-953-11 METAL CHIP 1K 5% 1/16W R1911 1-218-953-11 METAL CHIP 1K 5% 1/16W R1914 1-218-953-11 METAL CHIP 1K 5% 1/16W R1915 1-208-908-11 METAL CHIP 7.5K 0.5% 1/16W R1916 1-208-908-11 METAL CHIP 7.5K 0.5% 1/16W

STR-DH540

Ver. 1.2

DCDC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R1918 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R1919 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R1926 1-218-933-11 METAL CHIP 22 5% 1/16W R1927 1-218-933-11 METAL CHIP 22 5% 1/16W R1928 1-218-933-11 METAL CHIP 22 5% 1/16W

C2144 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C2145 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C2147 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2148 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2149 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

DIGITAL

R1933 1-220-803-81 METAL CHIP 4.7 5% 1/16W R1940 1-218-970-11 METAL CHIP 27K 5% 1/16W R1942 1-218-990-81 SHORT CHIP 0 R1943 1-208-715-11 METAL CHIP 22K 0.5% 1/16W R1944 1-208-713-11 METAL CHIP 18K 0.5% 1/16W

R1945 1-218-990-81 SHORT CHIP 0 R1946 1-208-931-11 METAL CHIP 68K 0.5% 1/16W R1947 1-208-709-11 METAL CHIP 12K 0.5% 1/16W R1948 1-218-990-81 SHORT CHIP 0 R1965 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

************************************************************

A-1910-627-A DIGITAL BOARD, COMPLETE (for SERVICE) ***********************

< CAPACITOR >

C1501 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1503 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1505 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1507 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C1508 1-118-435-11 CERAMIC CHIP 47PF 5% 50V

C2036 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2100 1-112-775-11 CERAMIC CHIP 0.0022uF 10% 50V C2101 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V * C2105 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C2106 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2107 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C2108 1-128-995-21 ELECT CHIP 100uF 20% 10V C2109 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2110 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2111 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2150 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2151 1-100-669-11 ELECT CHIP 100uF 20% 10V C2152 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2153 1-100-669-11 ELECT CHIP 100uF 20% 10V C2154 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V

C2155 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C2156 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2157 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2159 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 50V C2160 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 50V

C2161 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V C2163 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2164 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2165 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2166 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2167 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2168 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2169 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2170 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2171 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

C2172 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2173 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2174 1-100-669-11 ELECT CHIP 100uF 20% 10V C2175 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C2177 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V

C2178 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V C2179 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2180 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2181 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2182 1-164-874-11 CERAMIC CHIP 100PF 5% 50V

C2112 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2113 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C2117 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2119 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2121 1-128-995-21 ELECT CHIP 100uF 20% 10V

C2122 1-128-995-21 ELECT CHIP 100uF 20% 10V C2123 1-128-995-21 ELECT CHIP 100uF 20% 10V C2124 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2125 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C2126 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2127 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2128 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2129 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2130 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C2132 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2133 1-100-354-21 ELECT CHIP 220uF 20% 6.3V C2135 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2136 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2137 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2138 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2139 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2140 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2141 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2142 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2143 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2183 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C2184 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C2185 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C2186 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2191 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2197 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2198 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C2199 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2204 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2205 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2206 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2208 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C2500 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V * C2501 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2502 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2503 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C2504 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V * C2505 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2506 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C2507 1-164-858-11 CERAMIC CHIP 22PF 5% 50V

C2508 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2509 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2511 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2513 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2514 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

67

STR-DH540

Ver. 1.2

DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C2515 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2516 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2517 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2518 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2519 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3028 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3029 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3030 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3031 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3032 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V

C2520 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2521 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2522 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2523 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2524 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2525 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2526 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2527 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2528 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2529 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2530 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2531 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2532 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2533 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2534 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2535 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2536 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2537 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2538 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2539 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2540 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2541 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2542 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2543 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2544 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C2545 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2546 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2547 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2548 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2549 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3033 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C3036 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C3358 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3359 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3361 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

C3363 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3364 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3513 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3516 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3517 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

C3518 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3519 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3520 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3523 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3525 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

C3526 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3527 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3528 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3529 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3530 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

C3531 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3532 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V * C3533 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3534 1-116-737-11 CERAMIC CHIP 1uF 20% 10V C3536 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C3538 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3540 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C3541 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3542 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C3543 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

C2550 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C2551 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V * C2552 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2553 1-100-354-21 ELECT CHIP 220uF 20% 6.3V C2576 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3005 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3006 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3008 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3009 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3010 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3011 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3012 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3013 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3014 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3016 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V

C3018 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V C3019 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3020 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3021 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3022 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3023 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3024 1-165-492-21 ELECT CHIP 100uF 20% 10V C3025 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3026 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3027 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

C3544 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C3545 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3546 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3548 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3549 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V

C3550 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V * C3551 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3552 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3553 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3554 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C3555 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C3556 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V C3557 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3558 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C3559 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C3560 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V * C3561 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V * C3562 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V * C3563 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V * C3564 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

* C3565 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

C3566 1-100-354-21 ELECT CHIP 220uF 20% 6.3V C3567 1-100-354-21 ELECT CHIP 220uF 20% 6.3V C3568 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V C3569 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

68

STR-DH540

Ver. 1.2

DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C3570 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V C3578 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V

C4000 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C4001 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V C4002 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V * C4003 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C4004 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C4005 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C4100 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C4101 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C4102 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C4103 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V

C4104 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C4105 1-100-354-21 ELECT CHIP 220uF 20% 6.3V C4106 1-164-849-11 CERAMIC CHIP 9PF 0.5PF 50V C4107 1-164-849-11 CERAMIC CHIP 9PF 0.5PF 50V C4108 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

C4109 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C4110 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V * C4111 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V C4112 1-164-870-11 CERAMIC CHIP 68PF 5% 50V C4113 1-164-870-11 CERAMIC CHIP 68PF 5% 50V

< CONNECTOR >

CN1500 1-770-468-21 PIN, CONNECTOR (PC BOARD) 10P CN2000 1-820-123-51 CONNECTOR, FFC/FPC 25P CN2001 1-820-116-51 CONNECTOR, FFC/FPC 17P CN2002 1-820-123-51 CONNECTOR, FFC/FPC 25P CN2004 1-770-469-21 PIN, CONNECTOR (PC BOARD) 2P

CN2100 1-820-112-51 CONNECTOR, FFC/FPC 9P CN2101 1-820-123-51 CONNECTOR, FFC/FPC 25P CN3000 1-784-859-51 CONNECTOR, FFC (LIF (NON-ZIF)) 7P CN3200 1-821-398-41 HDMI CONNECTOR (HDMI TV OUT ARC) CN3501 1-821-398-41 HDMI CONNECTOR (HDMI SAT/CATV IN 4K)

CN3502 1-821-398-41 HDMI CONNECTOR (HDMI GAME IN 4K) CN3503 1-821-398-41 HDMI CONNECTOR (HDMI DVD IN) CN3504 1-821-398-41 HDMI CONNECTOR (HDMI BD IN 4K) CN4000 1-779-993-11 PIN, CONNECTOR (PWB) 5P

< DIODE >

D2101 6-503-738-01 DI CES521 D2102 6-503-738-01 DI CES521 D2103 6-503-738-01 DI CES521 D2104 6-502-961-01 DI DA2J10100L D2109 6-502-961-01 DI DA2J10100L

D2110 6-503-738-01 DI CES521 D2112 6-503-738-01 DI CES521 D2113 6-503-738-01 DI CES521 D2118 6-502-961-01 DI DA2J10100L D2119 6-500-514-01 DIODE BAV70

D2120 6-500-514-01 DIODE BAV70 D2123 6-503-759-01 DI RB751V40, 115 D2500 6-503-738-01 DI CES521 D3002 6-503-738-01 DI CES521 D3003 6-503-738-01 DI CES521

D3004 6-503-738-01 DI CES521 D3005 6-503-738-01 DI CES521 D3006 6-503-738-01 DI CES521 D3501 6-503-738-01 DI CES521 D4000 6-503-738-01 DI CES521

< EARTH TERMINAL >

* ET1500 1-780-408-11 TERMINAL, LUG * ET2000 1-780-408-11 TERMINAL, LUG

< FERRITE BEAD >

FB2001 1-400-862-11 BEAD, FERRITE FB2100 1-500-445-21 FERRITE, EMI (SMD) (2012) FB2101 1-400-862-11 BEAD, FERRITE FB2102 1-400-862-11 BEAD, FERRITE FB2103 1-400-862-11 BEAD, FERRITE

FB2105 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2106 1-500-445-21 FERRITE, EMI (SMD) (2012) FB2107 1-400-862-11 BEAD, FERRITE FB2108 1-400-862-11 BEAD, FERRITE FB2109 1-400-862-11 BEAD, FERRITE

FB2110 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2111 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2112 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2113 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2114 1-469-125-21 FERRITE, EMI (SMD) (1608)

FB2115 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2116 1-469-125-21 FERRITE, EMI (SMD) (1608) FB2117 1-400-862-11 BEAD, FERRITE FB2118 1-400-862-11 BEAD, FERRITE FB2500 1-400-862-11 BEAD, FERRITE

FB2502 1-469-139-21 FERRITE, EMI (SMD) (2012) FB3001 1-400-862-11 BEAD, FERRITE FB3004 1-400-862-11 BEAD, FERRITE FB3501 1-481-348-21 EMI FERRITE (SMD) (1608) FB3503 1-400-921-21 FERRITE, EMI (SMD)

FB3504 1-414-772-11 FERRITE. EMI (SMD) (2012) FB3505 1-481-348-21 EMI FERRITE (SMD) (1608) FB4000 1-400-862-11 BEAD, FERRITE FB4100 1-481-218-21 FERRITE, EMI (SMD) (1608)

< IC >

IC2100 A-1910-630-A IC MB9AF116NAPMC-G-JNE2 (for SERVICE)

IC2101 6-719-856-01 IC BU4229F-TR IC2102 6-720-177-01 IC BR24T64FJ-WE2 IC2104 6-720-530-01 IC PCM1681PWPR IC2105 6-709-888-01 IC TC7WHU04FK

IC2106 6-719-139-01 IC MM3411A50NRE IC2107 6-717-987-11 IC LC89075WA-H IC2110 6-719-139-01 IC MM3411A50NRE IC2111 6-718-383-01 IC TC74VHC393FT (ELK) IC2112 8-759-680-48 IC TC7WH157FK

IC2500 6-717-680-01 IC BD00IC0WEFJ-E2 IC2502 6-718-924-01 IC ADSST-AVR-3045 IC2503 A-1910-631-A IC W25Q80BVSSIG (for SERVICE) IC3000 A-1910-628-A IC MB9BF116NPMC-G-JNE2 (for SERVICE) IC3001 6-719-856-01 IC BU4229F-TR

IC3002 6-713-560-01 IC MFI341S2162 IC3500 6-718-999-01 IC MM1839A50NRE IC3502 A-1910-629-A IC W25Q16CVSSIG-R (for SERVICE) IC3503 6-719-139-01 IC MM3411A50NRE 9 IC3506 (Not supplied) IC SII9573CTUC

IC3508 6-718-379-01 IC RP108J081D-FE IC4100 (Not supplied) IC BU94502AMUV IC4101 6-715-164-01 IC TPS2553DBVR IC4102 6-717-006-01 IC BD00HC5WEFJ-E2

Note: IC3506 and IC4100 on the DIGITAL board cannot exchange

with single. When these parts on the DIGITAL board are damaged, exchange the entire mounted board.

69

STR-DH540

Ver. 1.2

DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< JACK >

J2100 1-784-431-11 JACK, PIN 1P

(COAXIAL SA-CD/CD (ASSIGNABLE) IN)

< JUMPER RESISTOR >

JR1500 1-216-864-11 SHORT CHIP 0 JR1501 1-216-864-11 SHORT CHIP 0

< COIL >

L3500 1-469-525-91 INDUCTOR 10uH

< TRANSISTOR >

Q2100 6-552-430-01 TR DRC5114E0L Q2102 6-553-358-01 TR 2PB709BSL Q2103 6-553-266-01 TR 2PD601ART Q2104 6-553-266-01 TR 2PD601ART Q2105 6-553-268-01 TR PDTC114ET

Q3000 6-552-430-01 TR DRC5114E0L Q3001 6-552-430-01 TR DRC5114E0L

< RESISTOR >

R2146 1-218-941-81 METAL CHIP 100 5% 1/16W R2147 1-218-945-11 METAL CHIP 220 5% 1/16W

R2150 1-218-941-81 METAL CHIP 100 5% 1/16W R2151 1-218-937-11 METAL CHIP 47 5% 1/16W R2152 1-218-941-81 METAL CHIP 100 5% 1/16W R2153 1-218-947-11 METAL CHIP 330 5% 1/16W R2154 1-218-949-11 METAL CHIP 470 5% 1/16W

R2155 1-218-941-81 METAL CHIP 100 5% 1/16W R2159 1-218-965-11 METAL CHIP 10K 5% 1/16W R2161 1-218-965-11 METAL CHIP 10K 5% 1/16W R2168 1-218-941-81 METAL CHIP 100 5% 1/16W R2177 1-218-953-11 METAL CHIP 1K 5% 1/16W

R2178 1-218-953-11 METAL CHIP 1K 5% 1/16W R2181 1-218-965-11 METAL CHIP 10K 5% 1/16W R2184 1-218-941-81 METAL CHIP 100 5% 1/16W R2185 1-218-947-11 METAL CHIP 330 5% 1/16W R2186 1-218-989-11 METAL CHIP 1M 5% 1/16W

R2187 1-208-871-81 METAL CHIP 220 0.5% 1/16W R2188 1-218-947-11 METAL CHIP 330 5% 1/16W R2189 1-208-860-81 METAL CHIP 75 0.5% 1/16W R2191 1-218-965-11 METAL CHIP 10K 5% 1/16W R2192 1-218-941-81 METAL CHIP 100 5% 1/16W

R2101 1-218-989-11 METAL CHIP 1M 5% 1/16W R2103 1-218-965-11 METAL CHIP 10K 5% 1/16W R2104 1-218-941-81 METAL CHIP 100 5% 1/16W R2105 1-218-965-11 METAL CHIP 10K 5% 1/16W R2107 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2108 1-218-941-81 METAL CHIP 100 5% 1/16W R2109 1-218-965-11 METAL CHIP 10K 5% 1/16W R2110 1-218-953-11 METAL CHIP 1K 5% 1/16W R2111 1-218-953-11 METAL CHIP 1K 5% 1/16W R2112 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2113 1-218-941-81 METAL CHIP 100 5% 1/16W R2114 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2115 1-218-989-11 METAL CHIP 1M 5% 1/16W R2117 1-218-941-81 METAL CHIP 100 5% 1/16W R2118 1-218-941-81 METAL CHIP 100 5% 1/16W

R2119 1-218-965-11 METAL CHIP 10K 5% 1/16W R2120 1-218-965-11 METAL CHIP 10K 5% 1/16W R2121 1-218-965-11 METAL CHIP 10K 5% 1/16W R2122 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R2124 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R2125 1-218-965-11 METAL CHIP 10K 5% 1/16W R2126 1-218-941-81 METAL CHIP 100 5% 1/16W R2127 1-218-965-11 METAL CHIP 10K 5% 1/16W R2128 1-218-941-81 METAL CHIP 100 5% 1/16W R2129 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2131 1-218-949-11 METAL CHIP 470 5% 1/16W R2133 1-218-965-11 METAL CHIP 10K 5% 1/16W R2134 1-218-989-11 METAL CHIP 1M 5% 1/16W R2135 1-218-965-11 METAL CHIP 10K 5% 1/16W R2136 1-218-949-11 METAL CHIP 470 5% 1/16W

R2193 1-218-945-11 METAL CHIP 220 5% 1/16W R2194 1-218-965-11 METAL CHIP 10K 5% 1/16W R2195 1-218-965-11 METAL CHIP 10K 5% 1/16W R2196 1-218-949-11 METAL CHIP 470 5% 1/16W R2198 1-218-941-81 METAL CHIP 100 5% 1/16W

R2199 1-218-941-81 METAL CHIP 100 5% 1/16W R2200 1-218-945-11 METAL CHIP 220 5% 1/16W R2201 1-218-941-81 METAL CHIP 100 5% 1/16W R2203 1-218-941-81 METAL CHIP 100 5% 1/16W R2204 1-218-941-81 METAL CHIP 100 5% 1/16W

R2207 1-218-941-81 METAL CHIP 100 5% 1/16W R2208 1-218-937-11 METAL CHIP 47 5% 1/16W R2210 1-218-941-81 METAL CHIP 100 5% 1/16W R2211 1-218-941-81 METAL CHIP 100 5% 1/16W R2212 1-218-941-81 METAL CHIP 100 5% 1/16W

R2213 1-218-941-81 METAL CHIP 100 5% 1/16W R2214 1-218-941-81 METAL CHIP 100 5% 1/16W R2215 1-218-941-81 METAL CHIP 100 5% 1/16W R2216 1-218-965-11 METAL CHIP 10K 5% 1/16W R2217 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2218 1-218-965-11 METAL CHIP 10K 5% 1/16W R2220 1-218-965-11 METAL CHIP 10K 5% 1/16W R2221 1-218-990-81 SHORT CHIP 0 R2222 1-218-990-81 SHORT CHIP 0 R2223 1-218-953-11 METAL CHIP 1K 5% 1/16W

R2224 1-218-941-81 METAL CHIP 100 5% 1/16W R2225 1-218-941-81 METAL CHIP 100 5% 1/16W R2226 1-218-941-81 METAL CHIP 100 5% 1/16W R2227 1-218-941-81 METAL CHIP 100 5% 1/16W R2228 1-218-941-81 METAL CHIP 100 5% 1/16W

R2137 1-218-973-11 METAL CHIP 47K 5% 1/16W R2138 1-218-985-11 METAL CHIP 470K 5% 1/16W R2139 1-218-965-11 METAL CHIP 10K 5% 1/16W R2140 1-218-969-11 METAL CHIP 22K 5% 1/16W R2141 1-218-971-81 METAL CHIP 33K 5% 1/16W

R2142 1-218-951-11 METAL CHIP 680 5% 1/16W R2143 1-218-947-11 METAL CHIP 330 5% 1/16W R2144 1-218-941-81 METAL CHIP 100 5% 1/16W

70

R2229 1-218-990-81 SHORT CHIP 0 R2230 1-218-953-11 METAL CHIP 1K 5% 1/16W R2231 1-218-953-11 METAL CHIP 1K 5% 1/16W R2232 1-218-965-11 METAL CHIP 10K 5% 1/16W R2235 1-218-941-81 METAL CHIP 100 5% 1/16W

R2236 1-218-941-81 METAL CHIP 100 5% 1/16W R2237 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2238 1-218-941-81 METAL CHIP 100 5% 1/16W

STR-DH540

Ver. 1.2

DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R2239 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2240 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R2539 1-218-933-11 METAL CHIP 22 5% 1/16W R2540 1-218-933-11 METAL CHIP 22 5% 1/16W

R2241 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2242 1-218-965-11 METAL CHIP 10K 5% 1/16W R2260 1-218-965-11 METAL CHIP 10K 5% 1/16W R2276 1-218-990-81 SHORT CHIP 0 R2277 1-218-990-81 SHORT CHIP 0

R2278 1-218-990-81 SHORT CHIP 0 R2279 1-218-990-81 SHORT CHIP 0 R2280 1-218-990-81 SHORT CHIP 0 R2281 1-218-990-81 SHORT CHIP 0 R2282 1-218-973-11 METAL CHIP 47K 5% 1/16W

R2283 1-218-953-11 METAL CHIP 1K 5% 1/16W R2284 1-218-990-81 SHORT CHIP 0 R2287 1-216-864-11 SHORT CHIP 0 R2288 1-216-864-11 SHORT CHIP 0 R2289 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2290 1-218-953-11 METAL CHIP 1K 5% 1/16W R2291 1-218-969-11 METAL CHIP 22K 5% 1/16W R2292 1-218-969-11 METAL CHIP 22K 5% 1/16W R2293 1-218-965-11 METAL CHIP 10K 5% 1/16W R2294 1-218-970-81 METAL CHIP 27K 5% 1/16W

R2295 1-218-945-11 METAL CHIP 220 5% 1/16W R2296 1-218-965-11 METAL CHIP 10K 5% 1/16W R2500 1-208-697-11 METAL CHIP 3.9K 0.5% 1/16W R2501 1-250-519-11 METAL CHIP 10K 1% 1/16W R2502 1-208-871-81 METAL CHIP 220 0.5% 1/16W

R2503 1-218-945-11 METAL CHIP 220 5% 1/16W R2504 1-218-933-11 METAL CHIP 22 5% 1/16W R2505 1-218-933-11 METAL CHIP 22 5% 1/16W R2506 1-218-945-11 METAL CHIP 220 5% 1/16W R2507 1-218-945-11 METAL CHIP 220 5% 1/16W

R2541 1-218-933-11 METAL CHIP 22 5% 1/16W R2542 1-218-947-11 METAL CHIP 330 5% 1/16W R2543 1-218-947-11 METAL CHIP 330 5% 1/16W R2544 1-218-933-11 METAL CHIP 22 5% 1/16W R2545 1-218-933-11 METAL CHIP 22 5% 1/16W

R2546 1-218-933-11 METAL CHIP 22 5% 1/16W R2547 1-218-941-81 METAL CHIP 100 5% 1/16W R2548 1-218-941-81 METAL CHIP 100 5% 1/16W R2549 1-218-965-11 METAL CHIP 10K 5% 1/16W R2550 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2551 1-218-965-11 METAL CHIP 10K 5% 1/16W R2552 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2553 1-218-933-11 METAL CHIP 22 5% 1/16W R2554 1-218-933-11 METAL CHIP 22 5% 1/16W R2556 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2558 1-218-965-11 METAL CHIP 10K 5% 1/16W R2559 1-218-941-81 METAL CHIP 100 5% 1/16W R2585 1-218-965-11 METAL CHIP 10K 5% 1/16W R3003 1-218-965-11 METAL CHIP 10K 5% 1/16W R3011 1-218-941-81 METAL CHIP 100 5% 1/16W

R3012 1-218-965-11 METAL CHIP 10K 5% 1/16W R3013 1-218-965-11 METAL CHIP 10K 5% 1/16W R3014 1-218-965-11 METAL CHIP 10K 5% 1/16W R3015 1-218-941-81 METAL CHIP 100 5% 1/16W R3016 1-218-941-81 METAL CHIP 100 5% 1/16W

R3017 1-218-941-81 METAL CHIP 100 5% 1/16W R3024 1-218-941-81 METAL CHIP 100 5% 1/16W R3025 1-218-941-81 METAL CHIP 100 5% 1/16W R3027 1-218-953-11 METAL CHIP 1K 5% 1/16W R3028 1-218-953-11 METAL CHIP 1K 5% 1/16W

R2508 1-218-965-11 METAL CHIP 10K 5% 1/16W R2509 1-218-965-11 METAL CHIP 10K 5% 1/16W R2510 1-218-965-11 METAL CHIP 10K 5% 1/16W R2511 1-218-953-11 METAL CHIP 1K 5% 1/16W R2512 1-218-989-11 METAL CHIP 1M 5% 1/16W

R2513 1-218-933-11 METAL CHIP 22 5% 1/16W R2514 1-218-933-11 METAL CHIP 22 5% 1/16W R2515 1-218-965-11 METAL CHIP 10K 5% 1/16W R2516 1-218-977-11 METAL CHIP 100K 5% 1/16W R2517 1-218-953-11 METAL CHIP 1K 5% 1/16W

R2518 1-218-933-11 METAL CHIP 22 5% 1/16W R2519 1-218-965-11 METAL CHIP 10K 5% 1/16W R2520 1-218-933-11 METAL CHIP 22 5% 1/16W R2521 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R2522 1-218-933-11 METAL CHIP 22 5% 1/16W

R2526 1-218-965-11 METAL CHIP 10K 5% 1/16W R2527 1-218-965-11 METAL CHIP 10K 5% 1/16W R2528 1-218-965-11 METAL CHIP 10K 5% 1/16W R2529 1-218-990-81 SHORT CHIP 0 R2530 1-218-990-81 SHORT CHIP 0

R2531 1-218-933-11 METAL CHIP 22 5% 1/16W R2532 1-218-933-11 METAL CHIP 22 5% 1/16W R2533 1-218-933-11 METAL CHIP 22 5% 1/16W R2534 1-218-933-11 METAL CHIP 22 5% 1/16W R2535 1-218-933-11 METAL CHIP 22 5% 1/16W

R2536 1-218-933-11 METAL CHIP 22 5% 1/16W R2537 1-218-945-11 METAL CHIP 220 5% 1/16W R2538 1-218-933-11 METAL CHIP 22 5% 1/16W

R3029 1-218-947-11 METAL CHIP 330 5% 1/16W R3033 1-218-953-11 METAL CHIP 1K 5% 1/16W R3034 1-218-941-81 METAL CHIP 100 5% 1/16W R3036 1-218-953-11 METAL CHIP 1K 5% 1/16W R3038 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3039 1-218-965-11 METAL CHIP 10K 5% 1/16W R3041 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R3045 1-218-941-81 METAL CHIP 100 5% 1/16W R3053 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R3054 1-218-937-11 METAL CHIP 47 5% 1/16W

R3055 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R3059 1-218-965-11 METAL CHIP 10K 5% 1/16W R3060 1-218-941-81 METAL CHIP 100 5% 1/16W R3062 1-218-941-81 METAL CHIP 100 5% 1/16W R3063 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3065 1-218-937-11 METAL CHIP 47 5% 1/16W R3067 1-218-937-11 METAL CHIP 47 5% 1/16W R3082 1-218-941-81 METAL CHIP 100 5% 1/16W R3086 1-218-929-11 METAL CHIP 10 5% 1/16W R3087 1-218-941-81 METAL CHIP 100 5% 1/16W

R3088 1-218-941-81 METAL CHIP 100 5% 1/16W R3089 1-218-941-81 METAL CHIP 100 5% 1/16W R3091 1-218-941-81 METAL CHIP 100 5% 1/16W R3094 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R3095 1-218-947-11 METAL CHIP 330 5% 1/16W

R3096 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R3097 1-218-941-81 METAL CHIP 100 5% 1/16W R3102 1-218-965-11 METAL CHIP 10K 5% 1/16W

71

STR-DH540

Ver. 1.2

DIGITAL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R3104 1-218-965-11 METAL CHIP 10K 5% 1/16W R3106 1-218-937-11 METAL CHIP 47 5% 1/16W

R3590 1-218-937-11 METAL CHIP 47 5% 1/16W R3591 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3107 1-218-965-11 METAL CHIP 10K 5% 1/16W R3108 1-218-929-11 METAL CHIP 10 5% 1/16W R3109 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R3110 1-218-965-11 METAL CHIP 10K 5% 1/16W R3111 1-218-941-81 METAL CHIP 100 5% 1/16W

R3112 1-218-965-11 METAL CHIP 10K 5% 1/16W R3113 1-218-965-11 METAL CHIP 10K 5% 1/16W R3365 1-218-965-11 METAL CHIP 10K 5% 1/16W R3370 1-208-874-81 METAL CHIP 300 0.5% 1/16W R3372 1-220-168-81 METAL CHIP 62 5% 1/16W

R3373 1-218-990-81 SHORT CHIP 0 R3374 1-220-168-81 METAL CHIP 62 5% 1/16W R3376 1-218-973-11 METAL CHIP 47K 5% 1/16W R3377 1-218-973-11 METAL CHIP 47K 5% 1/16W R3380 1-218-953-11 METAL CHIP 1K 5% 1/16W

R3386 1-218-956-11 METAL CHIP 1.8K 5% 1/16W R3387 1-218-956-11 METAL CHIP 1.8K 5% 1/16W R3502 1-218-990-81 SHORT CHIP 0 R3503 1-218-990-81 SHORT CHIP 0 R3504 1-218-990-81 SHORT CHIP 0

R3505 1-218-990-81 SHORT CHIP 0 R3506 1-218-990-81 SHORT CHIP 0 R3507 1-218-990-81 SHORT CHIP 0 R3508 1-218-990-81 SHORT CHIP 0 R3509 1-218-990-81 SHORT CHIP 0

R3510 1-218-933-11 METAL CHIP 22 5% 1/16W R3513 1-218-933-11 METAL CHIP 22 5% 1/16W R3514 1-218-933-11 METAL CHIP 22 5% 1/16W R3515 1-218-933-11 METAL CHIP 22 5% 1/16W R3516 1-218-933-11 METAL CHIP 22 5% 1/16W

R3593 1-218-953-11 METAL CHIP 1K 5% 1/16W R3594 1-218-965-11 METAL CHIP 10K 5% 1/16W R3595 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R3596 1-218-929-11 METAL CHIP 10 5% 1/16W R3597 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R3598 1-218-929-11 METAL CHIP 10 5% 1/16W R3599 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R3600 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R3601 1-218-929-11 METAL CHIP 10 5% 1/16W R3602 1-218-990-81 SHORT CHIP 0

R3606 1-216-864-11 SHORT CHIP 0 R3611 1-218-945-11 METAL CHIP 220 5% 1/16W R3612 1-218-937-11 METAL CHIP 47 5% 1/16W R3613 1-218-937-11 METAL CHIP 47 5% 1/16W R3615 1-218-945-11 METAL CHIP 220 5% 1/16W

R3616 1-218-937-11 METAL CHIP 47 5% 1/16W R3618 1-218-941-81 METAL CHIP 100 5% 1/16W R3619 1-216-864-11 SHORT CHIP 0 R3620 1-218-937-11 METAL CHIP 47 5% 1/16W R3621 1-218-945-11 METAL CHIP 220 5% 1/16W

R3622 1-216-864-11 SHORT CHIP 0 R3623 1-218-937-11 METAL CHIP 47 5% 1/16W R3624 1-220-208-81 METAL CHIP 130K 5% 1/16W R3625 1-218-941-81 METAL CHIP 100 5% 1/16W R3626 1-218-937-11 METAL CHIP 47 5% 1/16W

R3627 1-218-937-11 METAL CHIP 47 5% 1/16W R3628 1-218-937-11 METAL CHIP 47 5% 1/16W R3629 1-218-937-11 METAL CHIP 47 5% 1/16W R3632 1-216-864-11 SHORT CHIP 0 R3636 1-218-990-81 SHORT CHIP 0

R3517 1-218-933-11 METAL CHIP 22 5% 1/16W R3518 1-218-933-11 METAL CHIP 22 5% 1/16W R3519 1-218-933-11 METAL CHIP 22 5% 1/16W R3520 1-218-973-11 METAL CHIP 47K 5% 1/16W R3522 1-218-973-11 METAL CHIP 47K 5% 1/16W

R3523 1-218-973-11 METAL CHIP 47K 5% 1/16W R3524 1-218-973-11 METAL CHIP 47K 5% 1/16W R3549 1-218-965-11 METAL CHIP 10K 5% 1/16W R3551 1-218-965-11 METAL CHIP 10K 5% 1/16W R3552 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3555 1-218-953-11 METAL CHIP 1K 5% 1/16W R3556 1-218-965-11 METAL CHIP 10K 5% 1/16W R3560 1-218-965-11 METAL CHIP 10K 5% 1/16W R3567 1-218-937-11 METAL CHIP 47 5% 1/16W R3568 1-218-937-11 METAL CHIP 47 5% 1/16W

R3569 1-218-937-11 METAL CHIP 47 5% 1/16W R3570 1-218-937-11 METAL CHIP 47 5% 1/16W R3572 1-218-990-81 SHORT CHIP 0 R3573 1-218-959-11 METAL CHIP 3.3K 5% 1/16W R3576 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R3578 1-218-957-11 METAL CHIP 2.2K 5% 1/16W R3579 1-218-990-81 SHORT CHIP 0 R3582 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R3583 1-218-961-11 METAL CHIP 4.7K 5% 1/16W R3584 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3585 1-218-965-11 METAL CHIP 10K 5% 1/16W R3588 1-218-929-11 METAL CHIP 10 5% 1/16W R3589 1-218-937-11 METAL CHIP 47 5% 1/16W

R3637 1-218-937-11 METAL CHIP 47 5% 1/16W R3640 1-216-864-11 SHORT CHIP 0 R3642 1-218-953-11 METAL CHIP 1K 5% 1/16W R3643 1-216-864-11 SHORT CHIP 0 R3644 1-216-864-11 SHORT CHIP 0

R3645 1-216-864-11 SHORT CHIP 0 R3646 1-216-864-11 SHORT CHIP 0 R3647 1-208-895-81 METAL CHIP 2.2K 0.5% 1/16W R3648 1-208-695-11 METAL CHIP 3.3K 0.5% 1/16W R3805 1-218-990-81 SHORT CHIP 0

R4001 1-218-965-11 METAL CHIP 10K 5% 1/16W R4002 1-216-864-11 SHORT CHIP 0 R4003 1-208-931-11 METAL CHIP 68K 0.5% 1/16W R4004 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W R4005 1-208-709-11 METAL CHIP 12K 0.5% 1/16W

R4006 1-218-977-11 METAL CHIP 100K 5% 1/16W R4007 1-218-953-11 METAL CHIP 1K 5% 1/16W R4008 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R4009 1-218-965-11 METAL CHIP 10K 5% 1/16W R4010 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R4100 1-218-965-11 METAL CHIP 10K 5% 1/16W R4101 1-218-965-11 METAL CHIP 10K 5% 1/16W R4102 1-218-965-11 METAL CHIP 10K 5% 1/16W R4103 1-218-965-11 METAL CHIP 10K 5% 1/16W R4104 1-218-873-11 METAL CHIP 12K 0.5% 1/10W

R4105 1-218-955-11 METAL CHIP 1.5K 5% 1/16W R4106 1-218-989-11 METAL CHIP 1M 5% 1/16W R4108 1-218-947-11 METAL CHIP 330 5% 1/16W

72

STR-DH540

Ver. 1.2

DIGITAL DISPLAY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R4110 1-218-947-11 METAL CHIP 330 5% 1/16W R4115 1-218-941-81 METAL CHIP 100 5% 1/16W

R4116 1-218-965-11 METAL CHIP 10K 5% 1/16W R4117 1-218-949-11 METAL CHIP 470 5% 1/16W R4183 1-208-939-11 METAL CHIP 150K 0.5% 1/16W R4187 1-208-953-11 METAL CHIP 560K 0.5% 1/16W VD4100 1-811-155-11 ELEMENT, ESD PROTECT

VD4101 1-811-155-11 ELEMENT, ESD PROTECT

< COMPOSITION CIRCUIT BLOCK >

RB2100 1-234-372-11 RES, NETWORK 100 (1005X4) RB2101 1-234-372-11 RES, NETWORK 100 (1005X4) RB2102 1-234-372-11 RES, NETWORK 100 (1005X4) RB2104 1-234-372-11 RES, NETWORK 100 (1005X4) RB2105 1-234-372-11 RES, NETWORK 100 (1005X4)

RB2106 1-234-372-11 RES, NETWORK 100 (1005X4) RB2107 1-234-372-11 RES, NETWORK 100 (1005X4) RB2108 1-234-372-11 RES, NETWORK 100 (1005X4) RB2109 1-234-376-11 RES, NETWORK 2.2K (1005X4) RB2110 1-234-372-11 RES, NETWORK 100 (1005X4)

RB3000 1-234-372-11 RES, NETWORK 100 (1005X4) RB3001 1-234-372-11 RES, NETWORK 100 (1005X4) RB3002 1-234-372-11 RES, NETWORK 100 (1005X4) RB3204 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB3205 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

C123 1-126-916-11 ELECT 1000uF 20% 6.3V C124 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V C125 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V C126 1-124-635-00 ELECT 220uF 20% 6.3V C127 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V

C129 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V C130 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V C132 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V C135 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C136 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

< CONNECTOR >

CN102 1-779-293-11 CONNECTOR, FFC (LIF (NON-ZIF)) 25P

< DIODE >

D101 6-502-968-01 DI DZ2J062M0L D102 6-500-400-01 DIODE BAV99-215 D103 6-500-400-01 DIODE BAV99-215 D104 6-500-424-01 DIODE SLI-325DCT31W D105 6-502-398-01 DI SA10QA04

< FERRITE BEAD >

FB100 1-469-152-11 FERRITE, EMI (SMD) (2012) FB102 1-400-862-11 BEAD, FERRITE

< IC >

RB4000 1-234-372-11 RES, NETWORK 100 (1005X4)

< VIBRATOR>

X2100 1-781-646-21 VIBRATOR, CERAMIC (4MHz) X2102 1-814-350-11 QUARTZ CRYSTAL UNITS (24.576MHz) X2500 1-814-242-11 VIBRATOR, CRYSTAL (25MHz) X3000 1-781-646-21 VIBRATOR, CERAMIC (4MHz) X3501 1-814-595-11 QUARTS CRYSTAL UNIT (27MHz)

X4100 1-814-482-11 QUARTZ CRYSTAL UNIT (16.9344MHz)

************************************************************

A-1906-447-A DISPLAY BOARD, COMPLETE ***********************

< CAPACITOR >

C100 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C101 1-115-871-11 ELECT 1uF 20% 50V C102 1-126-795-11 ELECT 10uF 20% 50V C103 1-126-514-11 ELECT 22uF 20% 16V C104 1-162-921-11 CERAMIC CHIP 33PF 5% 50V

C105 1-126-514-11 ELECT 22uF 20% 16V C106 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C107 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V C108 1-115-871-11 ELECT 1uF 20% 50V C109 1-126-786-11 ELECT 47uF 20% 16V

C110 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V * C112 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C113 1-119-943-91 ELECT 47uF 20% 50V C114 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

IC100 8-759-701-01 IC NJM2904M

IC101 6-600-768-01 IC PNA4823M03S0

< JUMPER RESISTOR >

JR100 1-216-296-11 SHORT CHIP 0 JR101 1-216-296-11 SHORT CHIP 0 JR102 1-216-296-11 SHORT CHIP 0 JR103 1-216-296-11 SHORT CHIP 0 JR104 1-216-864-11 SHORT CHIP 0

JR106 1-216-296-11 SHORT CHIP 0 JR107 1-216-296-11 SHORT CHIP 0 JR108 1-216-864-11 SHORT CHIP 0 JR109 1-216-296-11 SHORT CHIP 0 JR110 1-216-296-11 SHORT CHIP 0

JR111 1-216-296-11 SHORT CHIP 0 JR113 1-216-296-11 SHORT CHIP 0 JR114 1-216-296-11 SHORT CHIP 0 JR115 1-216-296-11 SHORT CHIP 0 JR116 1-216-296-11 SHORT CHIP 0

JR117 1-216-296-11 SHORT CHIP 0 JR118 1-216-296-11 SHORT CHIP 0 JR119 1-216-296-11 SHORT CHIP 0 JR121 1-216-864-11 SHORT CHIP 0 JR122 1-216-296-11 SHORT CHIP 0

JR123 1-216-296-11 SHORT CHIP 0 JR124 1-211-950-11 SHORT CHIP 0 JR125 1-216-296-11 SHORT CHIP 0 JR126 1-216-296-11 SHORT CHIP 0 JR127 1-216-296-11 SHORT CHIP 0

C115 1-126-795-11 ELECT 10uF 20% 50V C116 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V C117 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V C121 1-162-921-11 CERAMIC CHIP 33PF 5% 50V * C122 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

JR128 1-216-296-11 SHORT CHIP 0 JR129 1-216-296-11 SHORT CHIP 0 JR130 1-216-296-11 SHORT CHIP 0 JR131 1-216-296-11 SHORT CHIP 0 JR132 1-216-296-11 SHORT CHIP 0

73

STR-DH540

Ver. 1.2

DISPLAY FRONT JACK PWB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

JR133 1-211-950-11 SHORT CHIP 0 JR134 1-216-864-11 SHORT CHIP 0 JR135 1-216-864-11 SHORT CHIP 0 JR136 1-216-296-11 SHORT CHIP 0 JR137 1-211-950-11 SHORT CHIP 0

R121 1-250-592-11 METAL CHIP 100 1% 1/10W R122 1-250-592-11 METAL CHIP 100 1% 1/10W R123 1-250-652-11 METAL CHIP 33K 1% 1/10W R124 1-249-428-11 CARBON 8.2K 5% 1/4W R125 1-249-428-11 CARBON 8.2K 5% 1/4W

JR138 1-216-864-11 SHORT CHIP 0 JR139 1-216-864-11 SHORT CHIP 0 JR140 1-216-296-11 SHORT CHIP 0 JR141 1-216-864-11 SHORT CHIP 0 JR143 1-216-296-11 SHORT CHIP 0

JR144 1-216-296-11 SHORT CHIP 0 JR145 1-216-296-11 SHORT CHIP 0 JR146 1-216-296-11 SHORT CHIP 0 JR147 1-216-296-11 SHORT CHIP 0 JR148 1-216-296-11 SHORT CHIP 0

JR149 1-216-296-11 SHORT CHIP 0 JR150 1-216-864-11 SHORT CHIP 0 JR151 1-216-864-11 SHORT CHIP 0 JR152 1-216-864-11 SHORT CHIP 0 JR153 1-216-296-11 SHORT CHIP 0

JR154 1-216-296-11 SHORT CHIP 0 JR155 1-216-296-11 SHORT CHIP 0 JR156 1-216-296-11 SHORT CHIP 0 JR157 1-216-296-11 SHORT CHIP 0 JR158 1-216-296-11 SHORT CHIP 0

JR159 1-216-296-11 SHORT CHIP 0 JR160 1-216-296-11 SHORT CHIP 0 JR161 1-216-296-11 SHORT CHIP 0 JR162 1-216-296-11 SHORT CHIP 0

< COIL >

L100 1-481-781-21 INDUCTOR 47uH

< FLOURESCENT INDICATOR TUBE >

ND100 1-811-724-11 VACUUM FLOURESCENT DISPLAY

< TRANSISTOR >

Q102 6-552-713-01 TR QS5W2TR Q103 6-553-268-01 TR PDTC114ET Q104 6-551-728-01 TRANSISTOR 2SB1710TL Q105 6-553-266-01 TR 2PD601ART

< RESISTOR >

R100 1-216-809-11 METAL CHIP 100 5% 1/10W R101 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R102 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R103 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R104 1-216-841-11 METAL CHIP 47K 5% 1/10W

R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R107 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R108 1-216-821-11 METAL CHIP 1K 5% 1/10W R109 1-216-833-11 METAL CHIP 10K 5% 1/10W R110 1-216-841-11 METAL CHIP 47K 5% 1/10W

R111 1-218-866-11 METAL CHIP 6.2K 0.5% 1/10W R112 1-216-842-11 METAL CHIP 56K 5% 1/10W R113 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R114 1-250-616-11 METAL CHIP 1K 1% 1/10W R115 1-216-821-11 METAL CHIP 1K 5% 1/10W

R126 1-250-632-11 METAL CHIP 4.7K 1% 1/10W R127 1-250-624-11 METAL CHIP 2.2K 1% 1/10W R128 1-250-624-11 METAL CHIP 2.2K 1% 1/10W R129 1-250-652-11 METAL CHIP 33K 1% 1/10W R130 1-250-616-11 METAL CHIP 1K 1% 1/10W

R131 1-250-592-11 METAL CHIP 100 1% 1/10W R132 1-250-584-11 METAL CHIP 47 1% 1/10W R133 1-250-584-11 METAL CHIP 47 1% 1/10W R134 1-250-592-11 METAL CHIP 100 1% 1/10W R135 1-250-568-11 METAL CHIP 10 1% 1/10W

R136 1-250-592-11 METAL CHIP 100 1% 1/10W R137 1-250-612-11 METAL CHIP 680 1% 1/10W R138 1-250-640-11 METAL CHIP 10K 1% 1/10W R139 1-250-648-11 METAL CHIP 22K 1% 1/10W R143 1-250-640-11 METAL CHIP 10K 1% 1/10W

R144 1-250-640-11 METAL CHIP 10K 1% 1/10W R145 1-250-648-11 METAL CHIP 22K 1% 1/10W R146 1-250-612-11 METAL CHIP 680 1% 1/10W R147 1-250-664-11 METAL CHIP 100K 1% 1/10W R153 1-250-612-11 METAL CHIP 680 1% 1/10W

R154 1-250-608-11 METAL CHIP 470 1% 1/10W R155 1-216-864-11 SHORT CHIP 0 R159 1-216-296-11 SHORT CHIP 0

< SWITCH >

S101 1-762-875-21 SWITCH, TACTILE (PURE DIRECT) S102 1-762-875-21 SWITCH, TACTILE (DISPLAY) S103 1-762-875-21 SWITCH, TACTILE (DIMMER) S104 1-762-875-21 SWITCH, TACTILE (INPUT MODE) S105 1-762-875-21 SWITCH, TACTILE (NIGHT MODE)

S108 1-762-875-21 SWITCH, TACTILE (A.F.D.) S109 1-762-875-21 SWITCH, TACTILE (MOVIE) S110 1-762-875-21 SWITCH, TACTILE (MUSIC) S120 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR) S121 1-418-725-41 ENCODER, ROTARY (12 TYPE)

< TRANSFORMER >

T100 1-443-645-11 TRANSFORMER, DC CONVERTER

************************************************************

A-1906-381-A FRONT JACK PWB BOARD, COMPLETE *******************************

< CAPACITOR >

C150 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C151 1-126-176-11 ELECT 220uF 20% 10V C152 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V

< CONNECTOR >

CN104 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P CN106 1-819-866-11 USB CONNECTOR (A) (

< DIODE >

(MASTER VOLUME)

DC5V 1A MAX)

R116 1-216-845-11 METAL CHIP 100K 5% 1/10W R117 1-250-624-11 METAL CHIP 2.2K 1% 1/10W

74

D126 6-502-968-01 DI DZ2J062M0L D129 6-500-400-01 DIODE BAV99-215

STR-DH540

Ver. 1.2

FRONT JACK PWB

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

D130 6-500-400-01 DIODE BAV99-215 D133 6-503-738-01 DI CES521 D134 6-503-738-01 DI CES521

< JACK >

J100 1-822-453-11 SMALL TYPE JACK (3.5MM) (AUTO CAL MIC)

< JUMPER RESISTOR >

JR200 1-216-296-11 SHORT CHIP 0 JR201 1-216-296-11 SHORT CHIP 0

< RESISTOR >

R190 1-216-864-11 SHORT CHIP 0 R191 1-216-864-11 SHORT CHIP 0 R192 1-216-864-11 SHORT CHIP 0

************************************************************

HEADPHONE BOARD *****************

C421 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C422 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C423 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C424 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C427 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C428 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C449 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C450 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C487 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C489 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C499 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V C503 1-126-964-11 ELECT 10uF 20% 50V C505 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C506 1-164-388-91 CERAMIC CHIP 270PF 5% 50V

C545 1-126-947-11 ELECT 47uF 20% 35V C546 1-126-964-11 ELECT 10uF 20% 50V C547 1-126-964-11 ELECT 10uF 20% 50V C548 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C551 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

HEADPHONE

MAIN

< CAPACITOR >

C160 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C161 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V C162 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

< JACK >

J101 1-822-967-12 JACK (PHONES)

************************************************************

A-1907-006-A MAIN BOARD, COMPLETE ********************

7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

< CAPACITOR >

C203 1-126-947-11 ELECT 47uF 20% 35V C208 1-118-435-11 CERAMIC CHIP 47PF 5% 50V C210 1-118-435-11 CERAMIC CHIP 47PF 5% 50V C221 1-118-435-11 CERAMIC CHIP 47PF 5% 50V C250 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C281 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C282 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V C283 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V C284 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C301 1-126-964-11 ELECT 10uF 20% 50V

C310 1-126-925-91 ELECT 470uF 20% 10V C311 1-126-925-91 ELECT 470uF 20% 10V C320 1-126-923-91 ELECT 220uF 20% 10V C322 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C323 1-126-923-91 ELECT 220uF 20% 10V

C553 1-126-964-11 ELECT 10uF 20% 50V C554 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C555 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C556 1-164-388-91 CERAMIC CHIP 270PF 5% 50V C558 1-126-947-11 ELECT 47uF 20% 35V

C560 1-126-964-11 ELECT 10uF 20% 50V C563 1-126-923-91 ELECT 220uF 20% 10V C564 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C570 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V C578 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

C581 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C582 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C585 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C586 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C591 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C592 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C601 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C603 1-126-964-11 ELECT 10uF 20% 50V C604 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C605 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V

C606 1-164-388-91 CERAMIC CHIP 270PF 5% 50V C610 1-126-964-11 ELECT 10uF 20% 50V C612 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C613 1-126-923-91 ELECT 220uF 20% 10V C618 1-126-947-11 ELECT 47uF 20% 35V

C620 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V C628 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V C631 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C633 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C634 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V

C325 1-126-964-11 ELECT 10uF 20% 50V C350 1-114-507-11 CERAMIC CHIP 1uF 10% 50V C351 1-126-925-91 ELECT 470uF 20% 10V C352 1-114-507-11 CERAMIC CHIP 1uF 10% 50V C353 1-126-925-91 ELECT 470uF 20% 10V

C354 1-100-155-91 CERAMIC CHIP 470PF 5% 100V C355 1-100-155-91 CERAMIC CHIP 470PF 5% 100V C357 1-114-507-11 CERAMIC CHIP 1uF 10% 50V C358 1-100-155-91 CERAMIC CHIP 470PF 5% 100V C359 1-126-925-91 ELECT 470uF 20% 10V

C401 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V

C635 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C636 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C641 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C642 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C651 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C653 1-126-964-11 ELECT 10uF 20% 50V C654 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C655 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C656 1-164-388-91 CERAMIC CHIP 270PF 5% 50V C658 1-126-947-11 ELECT 47uF 20% 35V

C660 1-126-964-11 ELECT 10uF 20% 50V

75

STR-DH540

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C662 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C663 1-126-923-91 ELECT 220uF 20% 10V C670 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V C678 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

C2371 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2372 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C2373 1-126-916-11 ELECT 1000uF 20% 6.3V C2374 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C681 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C683 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C684 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C685 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C686 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C691 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C692 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C701 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C703 1-126-964-11 ELECT 10uF 20% 50V C704 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

C705 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C706 1-164-388-91 CERAMIC CHIP 270PF 5% 50V C708 1-126-947-11 ELECT 47uF 20% 35V C710 1-126-964-11 ELECT 10uF 20% 50V C712 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

C713 1-126-923-91 ELECT 220uF 20% 10V C720 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V C728 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V C731 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C732 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

C735 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C736 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C741 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C742 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C751 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C753 1-126-964-11 ELECT 10uF 20% 50V C754 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V C755 1-162-979-11 CERAMIC CHIP 0.0027uF 10% 50V C756 1-164-388-91 CERAMIC CHIP 270PF 5% 50V C758 1-126-947-11 ELECT 47uF 20% 35V

C760 1-126-964-11 ELECT 10uF 20% 50V C762 1-118-291-11 CERAMIC CHIP 100PF 5% 50V C763 1-126-923-91 ELECT 220uF 20% 10V C770 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V C778 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

C781 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C782 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V C785 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C786 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C791 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C792 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C836 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C886 1-114-128-91 CERAMIC CHIP 47PF 5% 100V C910 1-118-119-91 CERAMIC CHIP 0.47uF 10% 100V C911 1-118-119-91 CERAMIC CHIP 0.47uF 10% 100V

C912 1-126-943-11 ELECT 2200uF 20% 25V C913 1-126-942-61 ELECT 1000uF 20% 25V C930 1-165-946-11 ELECT (BLOCK) 6800uF 20% 71V C931 1-165-946-11 ELECT (BLOCK) 6800uF 20% 71V C932 1-128-563-11 ELECT 100uF 20% 100V

C933 1-128-563-11 ELECT 100uF 20% 100V C934 1-165-554-91 CERAMIC CHIP 0.1uF 10% 100V C935 1-165-554-91 CERAMIC CHIP 0.1uF 10% 100V C2351 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V C2354 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V

* C2370 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

CC01 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC03 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC07 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC08 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC11 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V

CC12 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V CC13 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V CC14 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V CC15 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V CC51 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

CC53 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC57 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC58 1-118-291-11 CERAMIC CHIP 100PF 5% 50V CC60 1-100-153-91 CERAMIC CHIP 220PF 5% 100V CC61 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

CC64 1-100-153-91 CERAMIC CHIP 220PF 5% 100V CC65 1-100-153-91 CERAMIC CHIP 220PF 5% 100V CC66 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

< CONNECTOR >

CN391 1-764-250-21 PIN, CONNECTOR (PC BOARD) 4P CN2011 1-820-116-51 CONNECTOR, FFC/FPC 17P CN2014 1-820-123-51 CONNECTOR, FFC/FPC 25P CN2015 1-820-123-51 CONNECTOR, FFC/FPC 25P CNP920 1-564-242-00 PIN, CONNECTOR (3.96mm PITCH) 5P

* CNP930 1-564-508-11 PLUG, CONNECTOR 5P

< DIODE >

D301 6-502-961-01 DI DA2J10100L D326 6-500-514-01 DIODE BAV70 D327 6-500-514-01 DIODE BAV70 D350 6-502-961-01 DI DA2J10100L D352 8-719-053-18 DIODE 1SR154-400TE-25

D355 6-502-961-01 DI DA2J10100L D356 6-500-885-01 DIODE P6SMBJ33A-5 D365 6-502-961-01 DI DA2J10100L D375 6-502-961-01 DI DA2J10100L D536 6-503-015-01 DI DZ2J051M0L

D550 6-502-961-01 DI DA2J10100L D551 6-502-961-01 DI DA2J10100L D570 6-502-961-01 DI DA2J10100L D571 6-502-961-01 DI DA2J10100L D572 6-502-961-01 DI DA2J10100L

D600 6-502-961-01 DI DA2J10100L D601 6-502-961-01 DI DA2J10100L D620 6-502-961-01 DI DA2J10100L D621 6-502-961-01 DI DA2J10100L D622 6-502-961-01 DI DA2J10100L

D650 6-502-961-01 DI DA2J10100L D651 6-502-961-01 DI DA2J10100L

D670 6-502-961-01 DI DA2J10100L D671 6-502-961-01 DI DA2J10100L

D672 6-502-961-01 DI DA2J10100L

D700 6-502-961-01 DI DA2J10100L D701 6-502-961-01 DI DA2J10100L D720 6-502-961-01 DI DA2J10100L

76

STR-DH540

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

D721 6-502-961-01 DI DA2J10100L D722 6-502-961-01 DI DA2J10100L

D750 6-502-961-01 DI DA2J10100L D751 6-502-961-01 DI DA2J10100L D770 6-502-961-01 DI DA2J10100L D771 6-502-961-01 DI DA2J10100L D772 6-502-961-01 DI DA2J10100L

D910 8-719-053-18 DIODE 1SR154-400TE-25 D911 8-719-053-18 DIODE 1SR154-400TE-25 D912 8-719-053-18 DIODE 1SR154-400TE-25 D913 8-719-053-18 DIODE 1SR154-400TE-25 D920 6-502-961-01 DI DA2J10100L

D921 8-719-061-07 DIODE D5SBA60-F

< EARTH TERMINAL >

* ET301 1-780-408-11 TERMINAL, LUG

< FUSE >

0 F910 1-523-085-11 FUSE (2.5A/250V) 0 F911 1-523-085-11 FUSE (2.5A/250V) 0 F912 1-523-080-11 FUSE (6.3A/250V) 0 F913 1-523-080-11 FUSE (6.3A/250V)

< FERRITE BEAD >

FB2890 1-400-862-11 BEAD, FERRITE

< TRANSISTOR >

Q281 6-553-007-01 TR PMG85XP Q282 6-552-430-01 TR DRC5114E0L Q283 6-552-430-01 TR DRC5114E0L Q301 6-553-266-01 TR 2PD601ART Q320 6-550-327-01 TR 2SA1514KT146S

Q321 6-553-266-01 TR 2PD601ART Q323 6-550-327-01 TR 2SA1514KT146S Q324 6-553-266-01 TR 2PD601ART Q325 8-729-271-31 TRANSISTOR 2SC2713-G Q350 6-553-266-01 TR 2PD601ART

Q355 6-553-266-01 TR 2PD601ART Q365 6-553-266-01 TR 2PD601ART Q375 6-553-266-01 TR 2PD601ART Q552 8-729-216-22 TRANSISTOR 2SA1162-G Q553 8-729-023-22 TRANSISTOR 2SD2114K

Q554 6-550-327-01 TR 2SA1514KT146S Q555 6-550-327-01 TR 2SA1514KT146S Q570 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R) Q572 6-553-334-01 TR KTA1024-Y Q574 6-553-335-01 TR KTC3206-Y

Q575 6-553-335-01 TR KTC3206-Y Q602 8-729-216-22 TRANSISTOR 2SA1162-G Q603 8-729-023-22 TRANSISTOR 2SD2114K Q604 6-550-327-01 TR 2SA1514KT146S Q605 6-550-327-01 TR 2SA1514KT146S

< IC >

IC350 6-718-129-01 IC KIA7807AF-RTF/P

IC351 6-718-129-01 IC KIA7807AF-RTF/P IC352 6-718-108-01 IC KIA7907F-RTF/P IC400 6-716-394-01 IC BD3470KS2 IC410 8-759-274-71 IC NJM4565M (TE2)

IC411 8-759-274-71 IC NJM4565M (TE2) IC413 8-759-274-71 IC NJM4565M (TE2) IC2351 6-600-827-01 IC JSR1124

IC2352 6-600-827-01 IC JSR1124 (OPTICAL (TV) (ASSIGNABLE) IN 2) IC2354 6-720-355-01 IC NJM41010F1

< JACK >

J218 1-843-567-11 JACK, PIN 3P

J401 1-843-547-11 JACK, PIN 6P

J402 1-843-546-11 JACK, PIN 4P

< COIL >

L550 1-420-872-52 COIL, AIR-CORE L600 1-420-872-52 COIL, AIR-CORE

* L610 1-400-973-21 INDUCTOR (EMI FERRITE) * L612 1-400-973-21 INDUCTOR (EMI FERRITE)

L650 1-420-872-52 COIL, AIR-CORE

* L660 1-400-973-21 INDUCTOR (EMI FERRITE) * L662 1-400-973-21 INDUCTOR (EMI FERRITE)

L700 1-420-872-52 COIL, AIR-CORE L750 1-420-872-52 COIL, AIR-CORE

(OPTICAL (SAT/CATV) (ASSIGNABLE) IN 1)

(VIDEO SAT/CATV IN/VIDEO IN/MONITOR OUT)

(AUDIO SAT/CATV IN L/R /VIDEO IN L/R /

SA-CD/CD IN L/R)

(AUDIO TV IN L/R /SUBWOOFER OUT)

Q620 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R) Q622 6-553-334-01 TR KTA1024-Y Q624 6-553-335-01 TR KTC3206-Y Q625 6-553-335-01 TR KTC3206-Y Q652 8-729-216-22 TRANSISTOR 2SA1162-G

Q653 8-729-023-22 TRANSISTOR 2SD2114K Q654 6-550-327-01 TR 2SA1514KT146S Q655 6-550-327-01 TR 2SA1514KT146S Q670 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R) Q672 6-553-334-01 TR KTA1024-Y

Q674 6-553-335-01 TR KTC3206-Y Q675 6-553-335-01 TR KTC3206-Y Q702 8-729-216-22 TRANSISTOR 2SA1162-G Q703 8-729-023-22 TRANSISTOR 2SD2114K Q704 6-550-327-01 TR 2SA1514KT146S

Q705 6-550-327-01 TR 2SA1514KT146S Q720 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R) Q722 6-553-334-01 TR KTA1024-Y Q724 6-553-335-01 TR KTC3206-Y Q725 6-553-335-01 TR KTC3206-Y

Q752 8-729-216-22 TRANSISTOR 2SA1162-G Q753 8-729-023-22 TRANSISTOR 2SD2114K Q754 6-550-327-01 TR 2SA1514KT146S Q755 6-550-327-01 TR 2SA1514KT146S Q770 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)

Q772 6-553-334-01 TR KTA1024-Y Q774 6-553-335-01 TR KTC3206-Y Q775 6-553-335-01 TR KTC3206-Y Q920 6-553-266-01 TR 2PD601ART

< RESISTOR >

R211 1-211-990-11 METAL CHIP 75 0.5% 1/10W R213 1-211-990-11 METAL CHIP 75 0.5% 1/10W R215 1-211-990-11 METAL CHIP 75 0.5% 1/10W

77

STR-DH540

Ver. 1.1

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R251 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R252 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R547 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R548 1-216-837-11 METAL CHIP 22K 5% 1/10W

R281 1-216-833-11 METAL CHIP 10K 5% 1/10W R282 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R301 1-216-821-11 METAL CHIP 1K 5% 1/10W R302 1-249-405-11 CARBON 100 5% 1/4W R304 1-216-841-11 METAL CHIP 47K 5% 1/10W

R307 1-216-845-11 METAL CHIP 100K 5% 1/10W R308 1-216-841-11 METAL CHIP 47K 5% 1/10W R309 1-216-821-11 METAL CHIP 1K 5% 1/10W R310 1-216-801-11 METAL CHIP 22 5% 1/10W R311 1-216-801-11 METAL CHIP 22 5% 1/10W

R312 1-216-801-11 METAL CHIP 22 5% 1/10W R313 1-216-801-11 METAL CHIP 22 5% 1/10W R315 1-216-296-11 SHORT CHIP 0 R320 1-216-837-11 METAL CHIP 22K 5% 1/10W R323 1-216-837-11 METAL CHIP 22K 5% 1/10W

R325 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R326 1-216-840-11 METAL CHIP 39K 5% 1/10W R327 1-216-833-11 METAL CHIP 10K 5% 1/10W R328 1-216-821-11 METAL CHIP 1K 5% 1/10W R332 1-216-864-11 SHORT CHIP 0

R350 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R351 1-249-399-11 CARBON 33 5% 1/4W R353 1-216-841-11 METAL CHIP 47K 5% 1/10W R355 1-216-821-11 METAL CHIP 1K 5% 1/10W R356 1-249-399-11 CARBON 33 5% 1/4W

R358 1-216-841-11 METAL CHIP 47K 5% 1/10W R365 1-249-399-11 CARBON 33 5% 1/4W R366 1-216-841-11 METAL CHIP 47K 5% 1/10W R367 1-216-821-11 METAL CHIP 1K 5% 1/10W R375 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R549 1-216-837-11 METAL CHIP 22K 5% 1/10W R550 1-249-389-11 CARBON 4.7 5% 1/4W R551 1-249-393-11 CARBON 10 5% 1/4W R552 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R553 1-234-182-11 ENCAPSULATED COMPONENT

R554 1-249-405-11 CARBON 100 5% 1/4W R555 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R556 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R557 1-216-841-11 METAL CHIP 47K 5% 1/10W R558 1-240-855-91 CARBON 6.2K 5% 1/4W

R559 1-216-845-11 METAL CHIP 100K 5% 1/10W R560 1-208-437-41 RES-CHIP 1K 2% 1/10W R561 1-216-843-11 METAL CHIP 68K 5% 1/10W R562 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R563 1-208-445-41 RES-CHIP 2.2K 2% 1/10W

R564 1-216-835-11 METAL CHIP 15K 5% 1/10W R565 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R566 1-218-841-11 METAL CHIP 560 0.5% 1/10W R567 1-249-405-11 CARBON 100 5% 1/4W R568 1-216-841-11 METAL CHIP 47K 5% 1/10W

R569 1-216-843-11 METAL CHIP 68K 5% 1/10W R570 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R571 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R572 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R573 1-216-813-11 METAL CHIP 220 5% 1/10W

R574 1-216-813-11 METAL CHIP 220 5% 1/10W R575 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R576 1-216-817-11 METAL CHIP 470 5% 1/10W R577 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R578 1-216-814-11 METAL CHIP 270 5% 1/10W

R377 1-249-399-11 CARBON 33 5% 1/4W R378 1-216-841-11 METAL CHIP 47K 5% 1/10W R381 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R384 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R385 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R386 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R387 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R392 1-218-632-11 METAL CHIP 330 5% 1W R393 1-218-632-11 METAL CHIP 330 5% 1W R394 1-218-632-11 METAL CHIP 330 5% 1W

R395 1-218-632-11 METAL CHIP 330 5% 1W R401 1-208-437-41 RES-CHIP 1K 2% 1/10W R403 1-208-437-41 RES-CHIP 1K 2% 1/10W R407 1-208-437-41 RES-CHIP 1K 2% 1/10W R408 1-208-437-41 RES-CHIP 1K 2% 1/10W

R449 1-216-813-11 METAL CHIP 220 5% 1/10W R450 1-216-813-11 METAL CHIP 220 5% 1/10W R451 1-208-437-41 RES-CHIP 1K 2% 1/10W R453 1-208-437-41 RES-CHIP 1K 2% 1/10W R457 1-208-437-41 RES-CHIP 1K 2% 1/10W

R458 1-208-437-41 RES-CHIP 1K 2% 1/10W R531 1-218-344-11 METAL CHIP 7.5K 5% 1/10W R532 1-216-845-11 METAL CHIP 100K 5% 1/10W R533 1-216-820-11 METAL CHIP 820 5% 1/10W R534 1-216-835-11 METAL CHIP 15K 5% 1/10W

R542 1-216-377-11 METAL OXIDE 4.7 5% 2W R543 1-216-377-11 METAL OXIDE 4.7 5% 2W R544 1-216-864-11 SHORT CHIP 0

R579 1-216-842-11 METAL CHIP 56K 5% 1/10W R581 1-218-344-11 METAL CHIP 7.5K 5% 1/10W R582 1-216-845-11 METAL CHIP 100K 5% 1/10W R583 1-216-820-11 METAL CHIP 820 5% 1/10W R584 1-216-835-11 METAL CHIP 15K 5% 1/10W

R600 1-249-389-11 CARBON 4.7 5% 1/4W R601 1-249-393-11 CARBON 10 5% 1/4W R602 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R603 1-234-182-11 ENCAPSULATED COMPONENT R604 1-249-405-11 CARBON 100 5% 1/4W

R605 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R606 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R607 1-216-841-11 METAL CHIP 47K 5% 1/10W R608 1-240-855-91 CARBON 6.2K 5% 1/4W R609 1-216-845-11 METAL CHIP 100K 5% 1/10W

R610 1-208-437-41 RES-CHIP 1K 2% 1/10W R611 1-216-843-11 METAL CHIP 68K 5% 1/10W R612 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R613 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R614 1-216-835-11 METAL CHIP 15K 5% 1/10W

R615 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R616 1-218-841-11 METAL CHIP 560 0.5% 1/10W R617 1-249-405-11 CARBON 100 5% 1/4W R618 1-216-841-11 METAL CHIP 47K 5% 1/10W R619 1-216-843-11 METAL CHIP 68K 5% 1/10W

R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R621 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R622 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

78

STR-DH540

Ver. 1.1

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R623 1-216-813-11 METAL CHIP 220 5% 1/10W R624 1-216-813-11 METAL CHIP 220 5% 1/10W

R715 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R716 1-218-841-11 METAL CHIP 560 0.5% 1/10W

R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R626 1-216-817-11 METAL CHIP 470 5% 1/10W R627 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R628 1-216-814-11 METAL CHIP 270 5% 1/10W R629 1-216-842-11 METAL CHIP 56K 5% 1/10W

R631 1-218-344-11 METAL CHIP 7.5K 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-820-11 METAL CHIP 820 5% 1/10W R634 1-216-835-11 METAL CHIP 15K 5% 1/10W R650 1-249-389-11 CARBON 4.7 5% 1/4W

R651 1-249-393-11 CARBON 10 5% 1/4W R652 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R653 1-234-182-11 ENCAPSULATED COMPONENT R654 1-249-405-11 CARBON 100 5% 1/4W R655 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R656 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R657 1-216-841-11 METAL CHIP 47K 5% 1/10W R658 1-240-855-91 CARBON 6.2K 5% 1/4W R659 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-208-437-41 RES-CHIP 1K 2% 1/10W

R661 1-216-843-11 METAL CHIP 68K 5% 1/10W R662 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R663 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R664 1-216-835-11 METAL CHIP 15K 5% 1/10W R665 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R666 1-218-841-11 METAL CHIP 560 0.5% 1/10W R667 1-249-405-11 CARBON 100 5% 1/4W R668 1-216-841-11 METAL CHIP 47K 5% 1/10W R669 1-216-843-11 METAL CHIP 68K 5% 1/10W R670 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R717 1-249-405-11 CARBON 100 5% 1/4W R718 1-216-841-11 METAL CHIP 47K 5% 1/10W R719 1-216-843-11 METAL CHIP 68K 5% 1/10W R720 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R721 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R722 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R723 1-216-813-11 METAL CHIP 220 5% 1/10W R724 1-216-813-11 METAL CHIP 220 5% 1/10W R725 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R726 1-216-817-11 METAL CHIP 470 5% 1/10W

R727 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R728 1-216-814-11 METAL CHIP 270 5% 1/10W R729 1-216-842-11 METAL CHIP 56K 5% 1/10W R731 1-218-344-11 METAL CHIP 7.5K 5% 1/10W R732 1-216-845-11 METAL CHIP 100K 5% 1/10W

R733 1-216-820-11 METAL CHIP 820 5% 1/10W R734 1-216-835-11 METAL CHIP 15K 5% 1/10W R750 1-249-389-11 CARBON 4.7 5% 1/4W R751 1-249-393-11 CARBON 10 5% 1/4W R752 1-216-214-00 RES-CHIP 4.7K 2% 1/8W

R753 1-234-182-11 ENCAPSULATED COMPONENT R754 1-249-405-11 CARBON 100 5% 1/4W R755 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R756 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R757 1-216-841-11 METAL CHIP 47K 5% 1/10W

R758 1-240-855-91 CARBON 6.2K 5% 1/4W R759 1-216-845-11 METAL CHIP 100K 5% 1/10W R760 1-208-437-41 RES-CHIP 1K 2% 1/10W R761 1-216-843-11 METAL CHIP 68K 5% 1/10W R762 1-208-826-11 METAL CHIP 68K 0.5% 1/10W

R671 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R672 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R673 1-216-813-11 METAL CHIP 220 5% 1/10W R674 1-216-813-11 METAL CHIP 220 5% 1/10W R675 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R676 1-216-817-11 METAL CHIP 470 5% 1/10W R677 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R678 1-216-814-11 METAL CHIP 270 5% 1/10W R679 1-216-842-11 METAL CHIP 56K 5% 1/10W R681 1-218-344-11 METAL CHIP 7.5K 5% 1/10W

R682 1-216-845-11 METAL CHIP 100K 5% 1/10W R683 1-216-820-11 METAL CHIP 820 5% 1/10W R684 1-216-835-11 METAL CHIP 15K 5% 1/10W R700 1-249-389-11 CARBON 4.7 5% 1/4W R701 1-249-393-11 CARBON 10 5% 1/4W

R702 1-216-214-00 RES-CHIP 4.7K 2% 1/8W R703 1-234-182-11 ENCAPSULATED COMPONENT R704 1-249-405-11 CARBON 100 5% 1/4W R705 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R706 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R707 1-216-841-11 METAL CHIP 47K 5% 1/10W R708 1-240-855-91 CARBON 6.2K 5% 1/4W R709 1-216-845-11 METAL CHIP 100K 5% 1/10W R710 1-208-437-41 RES-CHIP 1K 2% 1/10W R711 1-216-843-11 METAL CHIP 68K 5% 1/10W

R712 1-208-826-11 METAL CHIP 68K 0.5% 1/10W R713 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R714 1-216-835-11 METAL CHIP 15K 5% 1/10W

R763 1-208-445-41 RES-CHIP 2.2K 2% 1/10W R764 1-216-835-11 METAL CHIP 15K 5% 1/10W R765 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R766 1-218-841-11 METAL CHIP 560 0.5% 1/10W R767 1-249-405-11 CARBON 100 5% 1/4W

R768 1-216-841-11 METAL CHIP 47K 5% 1/10W R769 1-216-843-11 METAL CHIP 68K 5% 1/10W R770 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R771 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R772 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R773 1-216-813-11 METAL CHIP 220 5% 1/10W R774 1-216-813-11 METAL CHIP 220 5% 1/10W R775 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R776 1-216-817-11 METAL CHIP 470 5% 1/10W R777 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R778 1-216-814-11 METAL CHIP 270 5% 1/10W R779 1-216-842-11 METAL CHIP 56K 5% 1/10W R781 1-218-344-11 METAL CHIP 7.5K 5% 1/10W R782 1-216-845-11 METAL CHIP 100K 5% 1/10W R783 1-216-820-11 METAL CHIP 820 5% 1/10W

R784 1-216-835-11 METAL CHIP 15K 5% 1/10W R866 1-218-841-11 METAL CHIP 560 0.5% 1/10W R920 1-249-399-11 CARBON 33 5% 1/4W R921 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R925 1-216-841-11 METAL CHIP 47K 5% 1/10W

R2351 1-218-941-81 METAL CHIP 100 5% 1/16W R2354 1-218-941-81 METAL CHIP 100 5% 1/16W RR11 1-249-393-11 CARBON 10 5% 1/4W

79

STR-DH540

Ver. 1.2

MAIN STANDBYPOWER KEY TUNER1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

RR12 1-249-393-11 CARBON 10 5% 1/4W RR13 1-249-393-11 CARBON 10 5% 1/4W

RR14 1-249-393-11 CARBON 10 5% 1/4W RR15 1-249-393-11 CARBON 10 5% 1/4W

< RELAY >

RY301 1-755-267-11 RELAY RY350 1-755-307-21 RELAY RY355 1-755-307-21 RELAY RY365 1-755-307-21 RELAY RY920 1-755-593-11 RELAY

C984 1-126-960-11 ELECT 1uF 20% 50V C985 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C986 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C993 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C994 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

< CONNECTOR >

* CN951 1-565-792-11 PIN, CONNECTOR (3.96mm PITCH) 2P * CN953 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P

< DIODE >

RY921 1-755-307-21 RELAY

< TERMINAL >

TB501 1-854-007-11 TERMINAL BOARD, SPEAKER 6P

(SPEAKERS FRONT L/R, SPEAKERS CENTER)

TB502 1-854-006-11 TERMINAL BOARD, SPEAKER 4P

(SPEAKERS SURROUND L/R)

< THERMISTOR >

TH251 1-804-045-11 THERMISTOR TH252 1-804-045-11 THERMISTOR

************************************************************

A-1906-380-A POWER KEY BOARD, COMPLETE **************************

< DIODE >

D110 8-719-057-29 DIODE SML78423C-TP15

< TRANSISTOR >

Q110 6-553-266-01 TR 2PD601ART Q111 6-553-266-01 TR 2PD601ART

< RESISTOR >

R170 1-250-640-11 METAL CHIP 10K 1% 1/10W R171 1-250-624-11 METAL CHIP 2.2K 1% 1/10W R172 1-250-632-11 METAL CHIP 4.7K 1% 1/10W R173 1-250-640-11 METAL CHIP 10K 1% 1/10W R174 1-250-624-11 METAL CHIP 2.2K 1% 1/10W

R175 1-250-592-11 METAL CHIP 100 1% 1/10W R176 1-250-584-11 METAL CHIP 47 1% 1/10W R177 1-250-648-11 METAL CHIP 22K 1% 1/10W R178 1-250-664-11 METAL CHIP 100K 1% 1/10W R179 1-250-664-11 METAL CHIP 100K 1% 1/10W

< SWITCH >

S111 1-762-875-21 SWITCH, TACTILE (TUNING +) S112 1-762-875-21 SWITCH, TACTILE (TUNING -) S113 1-762-875-21 SWITCH, TACTILE (TUNING MODE) S114 1-762-875-21 SWITCH, TACTILE (SPEAKERS) S115 1-762-875-21 SWITCH, TACTILE (I/1)

************************************************************

D900 8-719-053-18 DIODE 1SR154-400TE-25 D901 8-719-053-18 DIODE 1SR154-400TE-25 D902 6-500-514-01 DIODE BAV70 D903 6-502-961-01 DI DA2J10100L D904 8-719-053-18 DIODE 1SR154-400TE-25

D905 8-719-053-18 DIODE 1SR154-400TE-25

< FUSE HOLDER >

FH901 1-533-217-41 HOLDER, FUSE FH902 1-533-217-41 HOLDER, FUSE

< IC >

IC902 6-716-739-01 IC BD00GC0WEFJ-SE2

< TRANSISTOR >

Q900 Q901 6-553-266-01 TR 2PD601ART

< RESISTOR >

R900 1-216-833-11 METAL CHIP 10K 5% 1/10W R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R903 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R904 1-216-841-11 METAL CHIP 47K 5% 1/10W

R913 1-249-389-11 CARBON 4.7 5% 1/4W R914 1-249-397-11 CARBON 22 5% 1/4W R951 1-211-950-11 SHORT CHIP 0 R952 1-218-892-11 METAL CHIP 75K 0.5% 1/10W R953 1-208-920-81 METAL CHIP 24K 0.5% 1/16W

< RELAY >

0 RY951 1-755-541-11 RELAY

< TRANSFORMER >

0 T902 1-443-517-31 POWER TRANSFORMER (SUB) (AEP, UK, AUS) 0 T902 1-445-635-21 POWER TRANSFORMER (SUB) (US, CND)

************************************************************

TUNER1AMF BOARD (US, CND) TUNER1AMPR BOARD (AEP, UK, AUS) ******************

6-553-266-01 TR 2PD601ART

A-1906-372-A STANDBY BOARD, COMPLETE (US, CND) A-1906-873-A STANDBY BOARD, COMPLETE (AEP, UK, AUS) ************************

< CAPACITOR >

C982 1-126-936-11 ELECT 3300uF 20% 16V C983 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

80

< CAPACITOR >

C101 1-100-155-91 CERAMIC CHIP 470PF 5% 100V C102 1-116-734-11 CERAMIC CHIP 1uF 20% 16V C103 1-116-734-11 CERAMIC CHIP 1uF 20% 16V C105 1-116-734-11 CERAMIC CHIP 1uF 20% 16V C106 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

STR-DH540

Ver. 1.2

TUNER1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C107 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C108 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V C109 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V C110 1-116-717-11 CERAMIC CHIP 10uF 20% 10V C111 1-116-734-11 CERAMIC CHIP 1uF 20% 16V

C112 1-116-734-11 CERAMIC CHIP 1uF 20% 16V

< CONNECTOR >

CN101 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P * CN103 1-506-680-11 PLUG, CONNECTOR (2.5MM) 3P (ANTENNA AM) CN104 1-780-920-11 TERMINAL (FMAMF) (US, CND)

(ANTENNA FM 75Ω COAXIAL)

0 151 1-777-071-83 CORD, POWER (AEP) 0 151 1-833-566-21 POWER-SUPPLY CORD (AUS)

0 151 1-837-308-11 CORD, POWER-SUPPLY (US, CND) 0 151 1-839-999-21 POWER-SUPPLY CORD (UK)

154 1-828-390-61 WIRE (FLAT TYPE) (25 CORE) 155 1-828-350-61 WIRE (FLAT TYPE) (17 CORE) 156 1-828-307-61 WIRE (FLAT TYPE) (9 CORE)

157 A-1846-561-A TUNER1AMPR ASSY (AEP, UK, AUS) 157 A-1846-564-A TUNER1AMF ASSY (US, CND) Q550 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q551 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q600 6-702-390-01 TRANSISTOR MN2488-OPY-MK

< DIODE >

D101 6-501-579-01 DIODE MC2837 D102 6-501-579-01 DIODE MC2837 D103 6-501-579-01 DIODE MC2837

< FILTER >

FL101 1-236-711-21 FILTER, BAND PASS

< IC >

IC101 6-717-980-01 IC RZ5B801-0001E2

IC102 6-715-134-01 IC MM3404A33URE

< JUMPER RESISTOR >

JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-296-11 SHORT CHIP 0 JR105 1-216-296-11 SHORT CHIP 0 JR106 1-216-864-11 SHORT CHIP 0 JR109 1-216-296-11 SHORT CHIP 0

JR112 1-216-296-11 SHORT CHIP 0

< COIL >

L101 1-457-998-11 COIL, AM ANTENNA L103 1-414-576-41 INDUCTOR 47nH L104 1-481-330-21 INDUCTOR 220nH L105 1-481-523-11 INDUCTOR 4.7uH

< RESISTOR >

Q601 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q650 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q651 6-702-391-01 TRANSISTOR MP1620-OPY-MK Q700 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q701 6-702-391-01 TRANSISTOR MP1620-OPY-MK

Q750 6-702-390-01 TRANSISTOR MN2488-OPY-MK Q751 6-702-391-01 TRANSISTOR MP1620-OPY-MK

0 T901 1-697-231-11 POWER TRANSFORMER (MAIN) (AEP, UK, AUS) 0 T901 1-697-232-11 POWER TRANSFORMER (MAIN) (US, CND)

************************************************************

ACCESSORIES ************

1-492-049-11 REMOTE COMMANDER (RM-AAU168)

1-542-830-11 MEASUREMENT MIC (MONO)

1-754-741-11 LOOP ANTENNA (AM loop antenna (aerial)) 1-793-184-41

4-448-425-13 INSTRUCTION MANUAL (ENGLISH)

4-448-425-23 INSTRUCTION MANUAL (FRENCH)

4-448-425-32 INSTRUCTION MANUAL (SPANISH) (AEP) 4-448-425-42 INSTRUCTION MANUAL (GERMAN, DUTCH)

4-448-425-52 INSTRUCTION MANUAL (ITALIAN, POLISH) (AEP) 4-448-426-12 INSTRUCTION MANUAL (WEB MANUAL)

CONNECTOR (F TYPE ADAPTOR)

(including BATTERY LID)

(Optimizer microphone (ECM-AC2))

(FM wire antenna (aerial))

(UK, US, CND, AUS)

(AEP, US, CND)

(AEP)

(US, CND)

R101 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-801-11 METAL CHIP 22 5% 1/10W R104 1-216-864-11 SHORT CHIP 0 R105 1-216-801-11 METAL CHIP 22 5% 1/10W R106 1-216-809-11 METAL CHIP 100 5% 1/10W

R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-216-296-11 SHORT CHIP 0 R109 1-216-864-11 SHORT CHIP 0 R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W

< VIBRATOR >

X101 1-767-317-11 VIBRATOR, CRYSTAL (32.768kHz)

************************************************************

MISCELLANEOUS **************

0 F901 1-532-465-32 FUSE (T3.15AL/250V) (AEP, UK, AUS) 0 F901 1-533-311-12 FUSE, GLASS (DIA.5) (8A/125V) (US, CND)

108 1-828-393-61 WIRE (FLAT TYPE) (25 CORE)

4-448-426-21 INSTRUCTION MANUAL (PORTUGUESE) (AEP) 4-448-426-31 INSTRUCTION MANUAL (DANISH, FINNISH)

(AEP) 4-448-426-41 INSTRUCTION MANUAL (GREEK) (AEP) 4-448-426-51 INSTRUCTION MANUAL (TURKISH) (AEP) 4-448-426-61 INSTRUCTION MANUAL (HUNGARIAN, CZECH)

(AEP)

4-448-426-71 INSTRUCTION MANUAL (SLOVAKIAN, SWEDISH)

(AEP)

Note: If wire (ﬂ at type) is replaced, install it after bending it in the

same form as that before replacement.

81

STR-DH540

MEMO

82

SERVICE MANUAL

STR-DH540

US Model

Canadian Model

AEP Model

UK Model

Ver. 1.1 2013.04

Australian Model

SUPPLEMENT-1

File this supplement with the service manual.

Subject: Addition of SERVICING NOTES (TROUBLESHOOTING)

9-890-614-81

1

STR-DH540

SECTION 1

SERVICING NOTES

NG

OK

Check that between the +59 V line/–59 V line and

the ground does not short-circuit. (Main Board)

NG

1. Check the R2140, R2141 Short or Open circuit?

2. Check Main Board +7 V Regulator.

NG

Digital Board: Check R2115, R2134, C2164, C2165,

Short to Gnd?

Main Board: Check TH251, TH252

Check that the following fuses are not damaged.

MAIN board: F912, F913

STANDBY board: F901

NG

Check the surrounding circuit of power transistor

OK

Check that the power transistor (example: Q600 on the

NG

Check the surrounding circuit, and exchange the

(example: Q600 on the MAIN board) and the

surrounding circuit of power amplifier on the MAIN

board, and exchange the defective parts.

NG

OK

MAIN board), the power amplifier circuit and the

surrounding circuit are not defect.

defective parts.

NG

Check that the surrounding circuit of current detect

(example: Q605 and Q604 on the MAIN board) is not

Measure the power transistor (example: Q600 on

the MAIN board) with a tester, and check the

following things.

1. Check that the circuit does not short-circuit.

OK

defect.

Check the surrounding circuit of protector

(example: Q320 on the MAIN board), and exchange the

defective parts.

OK

Check the surrounding circuit, and exchange

the defective parts.

2. Check that resistance is normal.

NG

not short-circuit.

Measure the power amplifier circuit (example: FL on the MAIN

board) with a tester, and check the following things.

1. Check that between the power supply line and the ground does

2. Check that resistance is normal.

OK

Check that voltage of the follow pin 2.8 V.

Digital Board: IC2100 Pin 99 (Fuse_Det)

NG

START

Check that the “PROTECT” is not

displayed on the fluorescent

TROUBLESHOOTING

Flow of Repair (when sound is not outputted) (1/5)

Check that voltage of the follow pin 0.6 V.

OK

indicator tube.

OK

Digital Board: IC2100 Pin 67, 68

(Temp_Sensor_1&2)

Check that voltage of the following pin is 3.3 V.

DIGITAL board: IC2100 pin 92 (PROTECT)

OK

DIGITAL board.

Check that the defect is not improved, even if you

do the following works.

1. Short-circuit the both ends of the C2186 on the

OK

page 10 on the original service manual).

2. Perform the “SHIPMENT MODE” (refer to

Check the IC2100 on the DIGITAL board and the

surrounding circuit, and exchange the defective

parts.

Check the surrounding circuit of power transistor (example:

Q600 on the MAIN board) and the surrounding circuit of

power amplifier circuit (example: FL on the MAIN board),

and exchange the defective parts.

– Continued on

page 3 –

2

NG

OK

Check that voltage of pins of the IC2502 on the

DIGITAL board is the following value.

pin 5: 1.1 V pin 4: 3.3 V

Check the following parts and the surrounding

circuit, and exchange the defective parts.

DIGITAL board: IC2100, IC2502, IC2503, X2500

Check the following parts and the surrounding

circuit, and exchange the defective parts.

DIGITAL board: IC2100, IC2107, X2102

Check the following parts and the surrounding

circuit, and exchange the defective parts.

DIGITAL board: IC2500

DCDC board: IC1902, IC1903

STR-DH540

OK

NG

OK

Check that data is outputted from the following pins.

Check the following parts and the surrounding circuit, and

DIGITAL board: IC2107 pin 16, 19, 20, 21

NG

OK

NG

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC2100 HP board: J101

MAIN board: Q375, RY921

Perform the “SOFTWARE VERSION DISPLAY MODE”

(refer to page 10 on the original service manual), and

check that the DSP version is not “0.00”.

NG

OK

exchange the defective parts.

DIGITAL board: IC2100, IC2502

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC2100, IC2104

NG

OK

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC2100

MAIN board: IC400

NG

OK

Check that sound occurs from the RY921 on the

MAIN board by inserting and removing headphone.

NG

Press the [A.F.D.] button to select

Flow of Repair (when sound is not outputted) (2/5)

the “MULTI ST”, and check that the

Press the [MUTING] button on the remote

commander once, and check that the sound is

outputted from this unit.

OK

sound by various source (example:

coaxial input, analog input) is

outputted from all the channels (FL/

FR/SL/SR/SBL/SBR/C/SW).

Explain the settings of this unit to the customer.

Check that data is outputted from the following

pins.

DIGITAL board: IC2502 pin 48, 50, 41, 56

Check that data is outputted from the following

pins.

DIGITAL board: IC2104

pin 15, 16, 19, 20, 21, 22, 26, 27

Check that data is inputted to the following pins.

MAIN board: IC400

pin 63, 64, 66 ~ 73

Check the surrounding circuit of power transistor

(example: Q600 on the MAIN board) and the

surrounding circuit of power amplifier circuit, and

exchange the defective parts.

– Continued on

page 4 –

3

STR-DH540

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC2105, IC2107

NG

OK

Check that “COAX” is displayed on the fluorescent

indicator tube.

NG

Check the following parts and the surrounding

circuit, and exchange the defective parts.

OK

Check the following parts and the surrounding circuit, and

exchange the defective parts.

MAIN board: IC2351, IC2352

DIGITAL board: IC2107

NG

OK

Check that “OPT” is displayed on the fluorescent

NG

indicator

Check the following parts and the surrounding

circuit, and exchange the defective parts.

NG

OK

DIGITAL board: IC2104

MAIN board: IC400, J401, J402

OK

Check that the sound from the coaxial input is

Flow of Repair (when sound is not outputted) (3/5)

outputted.

Check that the sound from the optical input is

outputted.

4

– Continued on

Check that the sound from the analog input is

outputted, when the sound field is “A.F.D. AUTO”.

page 5 –

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DCDC board: IC1902, IC1903, IC1904, F940, F941

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC3506

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC3001, IC2100

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: X3000

STR-DH540

NG

Check that voltages of the connector pins on the Digital

board are the following value.

DIGITAL board:

CN1500 pin 3, 4: +3.3 V

CN1500 pin 5, 6: +6 V

CN1500 pin 7, 8: +3.6 V

CN1500 pin 9, 10: +2 V

NG

OK

NG

OK

Check that voltage of the following pin is 3.3 V, 1.3 V

DIGITAL board: IC3506

OK

pin 112, 173: 3.3 V

pin 18, 111, 116: 1.3 V

NG

Check that voltage of the following pin is 3.3 V.

DIGITAL board: IC3000

pin 38: 3.3 V (INITX)

NG

OK

Check that the X3000 on the DIGITAL board is oscillated

normally.

Check the following parts and the surrounding circuit, and

exchange the defective parts.

DIGITAL board: IC3000

Perform the “SOFTWARE VERSION

DISPLAY MODE” (refer to page 10 on the

original service manual), and check that the

video micro-processor version is not “0.00”.

NG

OK

Check that the sound from the

Flow of Repair (when sound is not outputted) (4/5)

HDMI input is outputted.

– Continued on

page 6 –

5

STR-DH540

Explain the settings of this unit to the customer. Check that the speaker pattern setting is normal.

NG

OK

Check the surrounding circuit of power transistor of

the channel to which data is not outputted

(example: Q600 on the MAIN board) and the

surrounding circuit of power amplifier circuit, and

exchange the defective parts.

NG

Check that the sound is outputted from each

Flow of Repair (when sound is not outputted) (5/5)

speaker, when the sound field is “A.F.D. AUTO”

6

STR-DH540

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.0 2013.01 New

1.1 2013.04 Addition of Australian Model.

Addition of C136 on DISPLA

Addition of note in SERVICING NOTES (page 4).

Addition of SERVICING NOTES (TROUBLESHOOTING) (SUPPLEMENT-1).

Change of DISPLAY board, POWER KEY board and HEADPHONE board (Sufﬁ x 21).

Change illustration of Front Panel (page 63).

Change service code of IC1902, IC1903 and IC1904.

Change P/N of C902, C907, C908, C1910, C1911, C1912, C1935, C1936, C1937, C1955, C1956, C1957

and R1956 of DCDC board.

Change P/N of C1501, C1503, C1505, C1507 and R3647 on DIGITAL board.

Change P/N of C112, C114 and C117 on DISPLAY board.

Change P/N of C150 on FRONT JACK PWB board.

Change P/N of C250, C281, C284, C487, C548, C2371, C2372 and C2374 on MAIN board.

Change P/N of C983, C985, C986, C993 and C994 on STANDBY board.

Change P/N of C109 on TUNER1 board.

Change P/N of INSTRUCTION MANUAL in page 81.

Change P/N and description of C110, C124 and R146 on DISPLAY board.

Change P/N and description of C489 and C499 on MAIN board.

Change P/N and description of R174 and R176 on POWER KEY board.

Delete of CN2102, CN2103, CN2500, CN2501, CN3001 and CN3509 on DIGITAL board.

Delete of D122 and D123 on FRONT JACK PWB board.

1.2 2014.03 Add “*” for C3533, C3538, C3541, C3543, C3545, C3551, C3556, C3560, C3561, C3562, C3563, C3564

and C3565 on DIGIT

Add “*” mark for C2370 on MAIN board for Electrical Part List section (Service code changed).

Add “*” mark for C122 on DISPLAY board for Electrical Part List section (Service code changed).

Add JR1500, JR1501 and R2296 on DIGITAL board.

Add C3549, C3550 and X3501 on DIGITAL board for Electrical Part List section (Service code changed).

Add R1965 on DCDC board.

Add Servicing Notes for IC4100 on DIGITAL board.

Change of DIGITAL board (Sufﬁ x 21).

Change P/N of R2141 and R2294 on DIGITAL board.

Change P/N of C150 on FRONT JACK PWB board.

Change P/N of C250, C281, C284, C487, C548, C2371, C2372, C2374, RY350, RY355, RY365 and

RY921 on MAIN board.

Change P/N of C983, C985, C986, C993 and C994 on STANDBY board.

Change P/N of Ref. No. 201 in page 65.

Change P/N and description of IC410, IC411 and IC413 on MAIN board.

Change sufﬁ x of F901 in page 62 and page 81.

Delete of R1941 and R1956 on DCDC board.

Delete of D1500, D1501 and R3371 on DIGITAL board.

Delete of C111, D100, Q100, Q101, R118, R119 and R120 on DISPLAY board.

AL board for Electrical Part List section (Service code changed).

Y board.

STR-DH540

Ver. Date Description of Revision

1.3 2014.11 Add servicing note “NOTE OF REPLACING THE COMPLETE DIGITAL BOARD” in page 4.

Change contents of FIX MODEL

AND DESTINATION MODE in page 12.

Sony STR-DH540 Schematic

TABLE OF CONTENTS

SERVICING NOTES

DISASSEMBLY

2-1. CASE (ENTRY)

2-2. FRONT PANEL SECTION

2-3. DCDC BOARD, STANDBY BOARD

2-4. BACK PANEL SECTION

2-5. MAIN BOARD SECTION

2-6. MAIN BOARD

TEST MODE

FM TUNER CHECK

DIAGRAMS

5-1. BLOCK DIAGRAM – ANALOG AUDIO Section –

5-2. BLOCK DIAGRAM – DIGITAL Section –

5-3. BLOCK DIAGRAM – AMP Section –

5-4. BLOCK DIAGRAM – ANALOG VIDEO/USB Section –

5-5. BLOCK DIAGRAM – DIGITAL VIDEO Section –

5-6. BLOCK DIAGRAM – DISPLAY/POWER Section –

5-7. PRINTED WIRING BOARD – DIGITAL Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-8. PRINTED WIRING BOARD – DIGITAL Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-9. SCHEMATIC DIAGRAM – DIGITAL Board (1/7) –

5-10. SCHEMATIC DIAGRAM – DIGITAL Board (2/7) –

5-11. SCHEMATIC DIAGRAM – DIGITAL Board (3/7) –

5-12. SCHEMATIC DIAGRAM – DIGITAL Board (4/7) –

5-13. SCHEMATIC DIAGRAM – DIGITAL Board (5/7) –

5-14. SCHEMATIC DIAGRAM – DIGITAL Board (6/7) –

5-15. SCHEMATIC DIAGRAM – DIGITAL Board (7/7) –

5-16. PRINTED WIRING BOARD – MAIN Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-17. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-18. SCHEMATIC DIAGRAM – MAIN Board (1/4) –

5-19. SCHEMATIC DIAGRAM – MAIN Board (2/4) –

5-20. SCHEMATIC DIAGRAM – MAIN Board (3/4) –

5-21. SCHEMATIC DIAGRAM – MAIN Board (4/4) –

5-22. PRINTED WIRING BOARD – DISPLAY Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-23. SCHEMATIC DIAGRAM – DISPLAY Board –

5-24. PRINTED WIRING BOARD – DCDC Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-25. SCHEMATIC DIAGRAM – DCDC Board –

5-26. PRINTED WIRING BOARD – STANDBY Board – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

5-27. SCHEMATIC DIAGRAM – STANDBY Board –

5-28. PRINTED WIRING BOARD – FRONT JACK PWB Board –

5-29. SCHEMATIC DIAGRAM – FRONT JACK PWB Board –

5-30. PRINTED WIRING BOARD – TUNER1 Board –

5-31. SCHEMATIC DIAGRAM – TUNER1 Board –

5-32. PRINTED WIRING BOARD – POWER KEY Board –

5-34. PRINTED WIRING BOARD – HEADPHONE Board –

5-33. SCHEMATIC DIAGRAM – POWER KEY Board –

5-35. SCHEMATIC DIAGRAM – HEADPHONE Board –

6-1. CASE (ENTRY) SECTION

EXPLODED VIEWS

6-2. DCDC BOARD SECTION

6-3. FRONT PANEL SECTION

6-4. BACK PANEL SECTION

6-5. CHASSIS SECTION

DCDC

ELECTRICAL PARTS LIST

DIGITAL

DIGITAL DISPLAY

DISPLAY FRONT JACK PWB

HEADPHONE

MAIN

MAIN STANDBYPOWER KEY TUNER1

SUPPLEMENT-1

SERVICING NOTES

REVISION HISTORY
