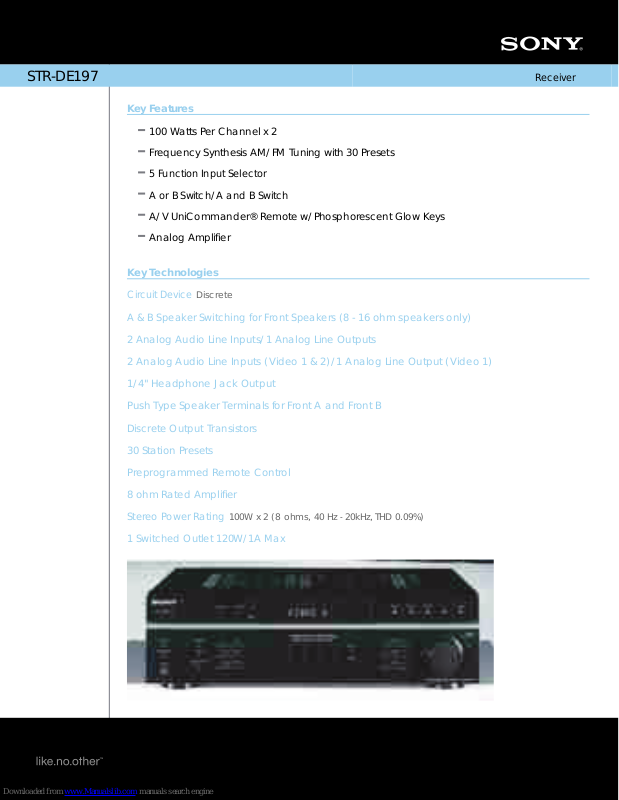

Sony STR-DE197 Marketing Specifications

STR-DE197

Receiver

Key Features

100 Watts Per Channel x 2

Frequency Synthesis AM/FM Tuning with 30 Presets

5 Function Input Selector

A or B Switch/A and B Switch

A/V UniCommander® Remote w/Phosphorescent Glow Keys

Analog Amplifier

Key Technologies

Circuit Device

Discrete

A & B Speaker Switching for Front Speakers (8

- 16 ohm speakers only)

2 Analog Audio Line Inputs/1 Analog Line Outputs

2 Analog Audio Line Inputs (Video 1 & 2)/1 Analog Line Output (Video 1)

1/4" Headphone Jack Output

Push Type Speaker Terminals for Front A and Front B

Discrete Output Transistors

30 Station Presets

Preprogrammed Remote Control

8 ohm Rated Amplifier

Stereo Power Rating

100W x 2 (8 ohms, 40 Hz

-

20kHz, THD 0.09%)

1 Switched Outlet 120W/1A Max

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 08/04/2008

STR-DE197

Receiver

Please visit the Dealer Network for current

information at www.sony.com/dn

Specifications

Speaker

Front Speaker Terminal: Yes (A & B)
Surround Speaker Terminal: Screw Binding

Posts

Speaker Terminal Type: Spring Clips (A &

B)

Audio

Impedance: 8 Ohms
Channel Power Rating: 2 Channel Power

Rating: 100W x 2 Amp Power (8 ohms,
40Hz-20kHz, THD 0.09%)

Tuner Type: Auto Tuning, Direct Tuning,

Station Name

Convenience

AM/FM Memory Presets: 20 FM - 10 AM

Inputs and Outputs

RCA Audio Input(s): 4 (Rear)
RCA Audio Output(s): 2 (Rear)
AC Outlet: 1 Switched
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s): 1 (Front)

Hardware

Remote Control: Yes

Power

Power Requirements: AC120V, 60 Hz
Power Consumption (in Operation): 190W
Power Consumption (in Standby): 0.5W

Dimensions

Weight: 15 lbs 7 oz (7Kg)
Measurements: 16 15/16 x 5 1/4 x 11

15/16" (430 x 132.5 x 302mm)

Supplied Accessories

Instruction Manual
FM Wire Antenna
Remote Commander® Remote Control

(RM-US185)
AM Loop Antenna
Size AA Batteries (2)

Color:

Black

UPC Code:

027242644250

1. Playback may not be compatible with all discs, depending on
recording conditions.

©2004 Sony Electronics Inc.
Sony and its logo are trademarks of Sony. All other trademarks are
property of their respective owners.
All rights reserved. Features and specifications are subject to change
without notice.
