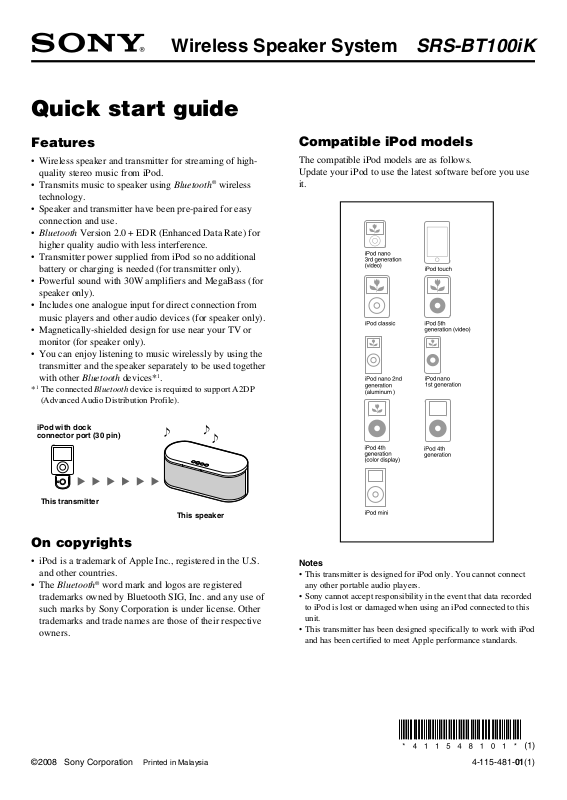

Sony SRS-BT100IK Quick start guide

Quick start guide

Features

• Wireless speaker and transmitter for streaming of high-

quality stereo music from iPod.

• Transmits music to speaker using Bluetooth

wireless

technology.

• Speaker and transmitter have been pre-paired for easy

connection and use.

• Bluetooth Version 2.0 + EDR (Enhanced Data Rate) for

higher quality audio with less interference.

• Transmitter power supplied from iPod so no additional

battery or charging is needed (for transmitter only).

• Powerful sound with 30W amplifiers and MegaBass (for

speaker only).

• Includes one analogue input for direct connection from

music players and other audio devices (for speaker only).

• Magnetically-shielded design for use near your TV or

monitor (for speaker only).

• You can enjoy listening to music wirelessly by using the

transmitter and the speaker separately to be used together

with other Bluetooth devices*

The connected Bluetooth device is required to support A2DP

(Advanced Audio Distribution Profile).

SRS-BT100iK

iPod with dock

connector port (30 pin)

This speaker

This transmitter

Notes

• This transmitter is designed for iPod only. You cannot connect

any other portable audio players.

• Sony cannot accept responsibility in the event that data recorded

to iPod is lost or damaged when using an iPod connected to this

unit.

• This transmitter has been designed specifically to work with iPod

and has been certified to meet Apple performance standards.

Compatible iPod models

The compatible iPod models are as follows.

Update your iPod to use the latest software before you use

it.

Wireless Speaker System

On copyrights

• iPod is a trademark of Apple Inc., registered in the U.S.

and other countries.

• The Bluetooth

word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any use of

such marks by Sony Corporation is under license. Other

trademarks and trade names are those of their respective

owners.

Getting started

Hooking up the speaker

Connect the supplied AC power adaptor to the speaker.

Hooking up the transmitter

Connect the transmitter to the dock connector port of an

iPod firmly.

Listening to sound

1 Press the 1 (power) button of the

speaker to turn it on.

The power indicator (green) of the speaker lights

up.

Dock connector

port (30 pin)

Power button

1 (power) button

2 Press the power button of the transmitter

for about 1 second to turn it on, or start

playback on the iPod.

The indicator of the transmitter flashes twice

(Playback will start automatically).

When the Bluetooth connection is made

properly, both the power indicator (green) and

communication status indicator (blue) of the

speaker light up indicating that pairing is

completed.

Notes

• If the Bluetooth connection is not established within about 5

minutes. The transmitter automatically turns itself off. In

this case, start over from step 2.

• If playback cannot start automatically, try to start playback

on the iPod.

• If the source device has a bass boost function or equalizer

function, set them to off. If these functions are on, sound

may be distorted.

3 Adjust the volume.

Press the VOLUME + or - button on the speaker.

Note

A beep sounds when the volume is set to minimum or

maximum.

To finish listening

Terminate the Bluetooth connection by any of the

operations below.

• To turn off the transmitter, press and hold the transmit-

ter’s power button for about 1 second. The indicator of

the transmitter flashes once and the power turns off.

• To turn off the speaker, press and hold the speaker’s 1

(power) button for about 1 second. The power indicator

of the speaker goes off.

• Turn off the iPod.

To wall outlet

AC power adaptor (supplied)

To DC IN 12 V

jack

(rear)
