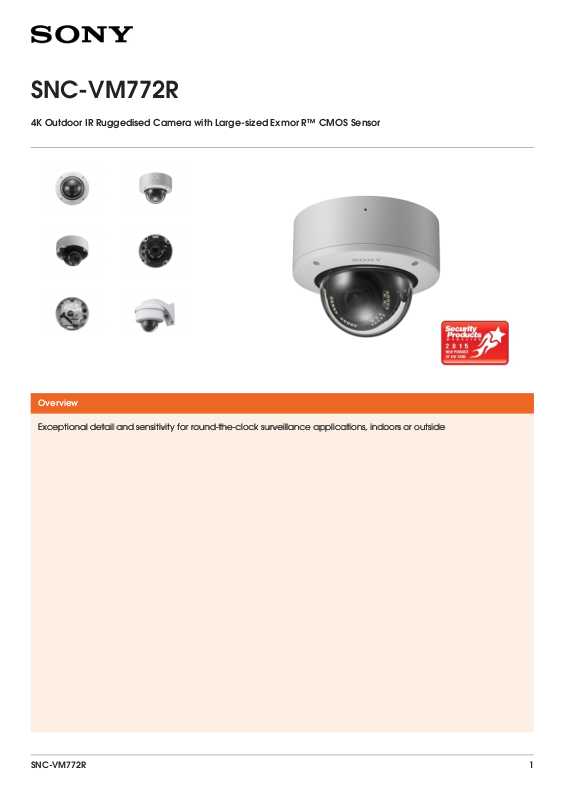

Sony SNC-VM772R Specsheet

SNC-VM772R

4K Outdoor IR Ruggedised Camera with Large-sized Exmor R™ CMOS Sensor

Overview

Exceptional detail and sensitivity for round-the-clock surveillance applications, indoors or outsideExceptional detail and sensitivity for round-the-clock surveillance applications, indoors or outside

SNC-VM772R 1

Extraordinary sensitivity with 4KExtraordinary sensitivity with 4K
With four times the resolution of Full HD, Sony's first 4K network security camera brings industry-leading clarity and
sensitivity to critical video monitoring and surveillance applications.
Thanks to the camera's large, highly sensitive 1.0-type back-illuminated Exmor R™ CMOS image sensor, high-speed
image processing engine and high-quality zoom lens, the SNC-VM772R captures detail-packed 4K/30 fps video
footage with a minimum illumination of 0.06 lx - even in near darkness.

Automatic selection of picture settingsAutomatic selection of picture settings
Picture settings are automatically selected to suit a wide range of operating environments, such as weather, time,
and lighting conditions, providing the best picture quality for the scene. They can also be manually adjusted for
even more flexible operation.

Various output modesVarious output modes
The increased resolution of 4K opens up exciting new monitoring possibilities. Traditional video surveillance requires
a PTZ camera or several box cameras to survey a wide area. The SNC-VM772R can stream an overall low-resolution
situational view, plus cropped original 4K resolution views of specific areas of interest in the scene, with Multi
Tracking to chase moving subjects. The 20 megapixel sensor also enables high-quality still image recording at
beyond 4K resolution to allow close examination of a scene for evidence purposes.

Other key featuresOther key features

• Excellent low-light capabilities are further enhanced with in-built IR illuminators for true night-time coverage.

• Edge Storage (onboard recording with memory cards) safeguards recordings during network outrage.

• The camera's outstanding image performance is enhanced with features, including Optical Image Stabilisation
for steadier pictures.

• Quick, simple installation and set-up is aided by a smartphone or tablet PC app for remote field of view
adjustment (SNC toolbox mobile).

• The discreetly styled minidome camera features a ruggedised vandal- and weather-resistant design that is ideal
for tough round-the-clock video security and surveillance assignments, indoors or outside (IK10, IP66).

SNC-VM772R 2

Features

See and analyse more with 4K detail

With a resolution of 20 megapixels (5,472 x 3,648), the camera's large 1.0-type back-illuminated Exmor R™
CMOS sensor captures 4K (3,840 x 2,160) video with exceptional detail.

•

Excellent low-light sensitivity

The large 1.0-type image sensor captures more incident light than conventional security camera sensors,
allowing the SNC-VM772R to function effectively at minimum illumination levels as low as 0.06 lx in colour
mode.

•

High quality 2.9x optical zoom lens for detailed close-ups

The motorised Sony lens can zoom in to areas of interest for extremely high resolution close-ups.

•

Best picture settings to suit any conditions

Intelligent Scene Capture automatically selects optimum picture settings responding to environments such
as weather, time, and lighting conditions and providing the best picture quality for the scene. Picture settings
can also be adjusted manually, or set according to time schedules, external triggers and lighting conditions.

•

Efficient use of network bandwidth with Intelligent Coding

Intelligent Coding gives selected of-interest areas maximum detail, while reducing bit-rates in the other
areas of the image to save network bandwidth by up to 50% and minimize storage costs.

•

Efficient use of network bandwidth with Intelligent Cropping

Simultaneously observe specific areas of interest in captured images with VGA or Full HD view with an
original 4K resolution, while overviewing the entire image at lower (Full HD) resolution, reducing network
bandwidth by up to 50% and minimizing storage costs.

•

Multi Tracking

A single camera can automatically 'chase' multiple objects in its field of view, tracking each one
independently with VGA or Full HD-cropped view with an original 4K resolution. It's a cost-effective
alternative to using multiple PTZ cameras to track several objects simultaneously.

•

20 megapixel Evidence Shot for high-resolution still image capture

High-quality recording of 20 megapixel (5,472 x 3,648) still images can be triggered by the camera’s motion
detection capability, or by external inputs from third-party equipment such as motion detectors and door
sensors.

•

HDMI interface support

Includes HDMI digital video output

•

Optimum performance under varying network conditions

Select VBR (variable bit-rate) with Cap or CBR (constant bit-rate) compression modes for optimised
recording quality and balanced network load depending on IP network conditions.

•

Smart analytics

DEPA Advanced Intelligent Video Analytics trigger alarm events based on user-defined rules, including
intelligent motion detection, crossing line filter and object detection capabilities.

•

Steadier, more stable images

•

SNC-VM772R 3

On-board Optical Image Stabiliser keeps video images steady and blur-free, even if the camera's subjected
to buffeting from wind or traffic vibration on a pole, fence or road bridge.

Always ready for action, even in the dark

Built-in IR (infrared) illuminators give a clear view in complete darkness (0 lx) of objects at a distance of up to
50m from the camera.

•

Accurately exposed night-time viewing, near or far

Adaptive IR assures high-quality B/W night-time images without overexposure, even with objects that are
close to the camera or highly reflective.

•

Better pictures, day or night

True D/N (Day/Night) function automatically switches the camera to Day or Night mode, depending on
ambient light levels.

•

Automatic recording to memory card

Edge Storage records video and audio directly to an optional SD card for later examination. Recording can
be triggered manually or automatically in response to alarm events, by the camera's analytics features, or if
network connection is temporarily lost.

•

Clearer views in fog, smog and haze

Defog Image Processing feature uses powerful image processing to enhance pictures in fog, smog and
haze conditions for clearer video images.

•

Highlight Compensation

Detects and masks intensely localised light sources, such as car headlights and flashlights in dark conditions.

•

Speedy, simple setup with SNC toolbox mobile app

Save time and integration costs with wireless adjustment of the camera’s field view from a smartphone or
tablet PC, using an optional IFU-WLM3, USB Wireless LAN Module.

•

Built to handle tough conditions

The camera’s vandal-resistant design meets IK10 standards (protection against mechanical impact). IP66­rated water-resistant and dust-tight, it's ideal for all-weather outdoor surveillance, as well as damp or humid
indoor environments.

•

ONVIF (Open Network Video Interface Forum) compliance

ONVIF Profile S-conformance ensures greater interoperability and flexibility in multi-vendor systems.

•

Versatile powering options

Choose PoE system, AC 24 V or DC 12 V power for easier, more flexible installation.

•

SNC-VM772R 4

Technical Specifications

Camera

•

Image Sensor 1.0-type progressive scan Exmor R CMOS sensor

•

Number of Effective Pixels Approx. 20 Megapixels

•

Sync System Internal synchronization

•

Minimum Illumination (50 IRE)

Color: 0.1 lx (F1.8, 1/30 s)
B/W: 0 lx (IR LED On, F1.8, 1/30 s)

•

Minimum Illumination (30 IRE)

Color: 0.06 lx (F1.8, 1/30 s)
B/W: 0 lx (IR LED On, F1.8, 1/30 s)

•

Dynamic Range Equivalent to 90 dB with View-DR Technology

•

Gain Auto/Manual (0 dB to +48 dB)

•

Shutter Speed 1/1 s to 1/10,000 s

•

Exposure Control Exposure compensation, AGC, Shutter speed, Iris

•

White Balance

ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor,
Outdoor

•

Lens Built-in zoom lens

•

Easy Zoom Yes

•

Zoom Ratio

Optical zoom 2.9x
Clear Image Zoom 2.0x
Digital zoom 2.0x
Total zoom 11.6x

•

Easy Focus for Setup Yes

•

Horizontal Viewing Angle

70.7 ° to 27.5 ° (16:9 aspect ratio)

76.6 ° to 29.8 ° (3:2 aspect ratio)

•

Vertical Viewing Angle

39.9 ° to 15.7 ° (16:9 aspect ratio)

51.5 ° to 20.1 ° (3:2 aspect ratio)

•

Focal Length f = 8.8 mm to 25.7 mm

•

F-Number F1.8 (Wide) to F2.8 (Tele)

•

Minimum Object Distance 300 mm

•

Pan/Tilt/Rotation Angle

(manual)

±192 °

-10 ° to +81 °

-100 ° to +100 °

•

IR Illuminator

Yes
Wave length (typical): 850 nm, IR LED: 30 pieces

•

IR Working Distance

50 m (30 IRE)

164.0 ft. (30 IRE)

Camera Features

•

Day/Night True D/N

•

Day/Night linked with Easy

Focus

Yes

•

e-Flip Yes

•

Wide-D View-DR

•

Tone Correction Visibility Enhancer

SNC-VM772R 5

•

Defog Image Processing

Yes

•

Highlight Compensation Yes

•

Flicker Reduction Yes

•

Distortion Correction Yes

•

Noise Reduction XDNR

•

Image Stabilizer Optical

•

Intelligent Scene Capture Yes

•

Privacy Masking (number) 24

•

Privacy Masking (shape) Quadrangle formed by any four corner points

•

Privacy Masking

(color/effect)

Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

•

Edge Storage Yes

•

Vandal Resistant IK10

•

Ingress Protection IP66

•

Superimpose Number 4 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark

•

Superimpose Language English

•

Menu Language

English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi,
Vietnamese, Thai, Turkish, Polish

Video

•

Resolution

5472 x 3648, 3840 x 2160, 2880 x 2160, 1920 x 1080, 1440 x 1080, 1440 x 960, 1280 x 720, 960 x 720, 640 x 480, 640 x 360, 320 x 240, 320 x
180

•

Compression Format

H.264 (High/Main Profile), JPEG
H.264 (B-picture) is supproted for 3840 x 2160 and 2880 x 2160 resolution.

•

Maximum Frame Rate

H264: 30 fps (3840 x 2160)/10 fps (1920 x 1080)
JPEG: 2.5 fps (5472 x 3648)

•

Bitrate Control Mode CBR/VBR with Cap (selectable)

•

Range of Bit Rate Setting 64 Kbps to 32 Mbps

•

Intelligent Cropping (Mode) Dynamic/Static

•

Intelligent Cropping (Number) 2 (1920 x 1080), 4 (640 x 480)

•

Intelligent Coding (Mode) Auto/Manual

•

Intelligent Coding (Number) Up to 8 (up to 4 for Auto mode)

•

Evidence Shot 20 Megapixels (5472 x 3648)

•

Multi streaming Capability Yes (5)

•

Number of Clients 20

Intelligent Video/Audio Analytics

•

Analytics Architecture DEPA Advanced

•

Intelligent Motion Detection Yes

SNC-VM772R 6

•

Face Detection

Yes

•

Tamper Alarm Yes

•

Scene Analytics Intrusion, Passing, Existing, Disappearance, Capacity, Left object, Removed object

•

Multi Tracking Up to 4

Audio

•

Compression Format

G.711 (bit rate: 64 kbps, sampling frequency: 8 kHz)
G.726 (bit rate: 40, 32, 24, 16 kbps, sampling frequency: 8 kHz)
AAC-LC (bit rate: 64 kbps, sampling frequency: 16 kHz)
AAC-LC (bit rate: 128 kbps, sampling frequency: 48 kHz)

System Requirements

•

Operating System

Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)

•

Processor

Intel Core i7 3.4GHz or higher*
*For 4K (3840 x 2160) output at 30 fps, a GPU capable of 3840 x 2160 resolution and decoding 4K/H.264 is required.

•

Memory 8 GB or more

•

Web Browser

Microsoft Internet Explorer Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
Firefox Ver. 29.0
Safari Ver. 5.34
Google Chrome Ver. 39.0

•

SNC toolbox Yes

•

SNC toolbox mobile Yes

Network

•

Protocols

IPv4, IPv6, TCP, UDP, ARP, ICMP, ICMPｖ 6, IGMP*, MLD*, HTTP, DHCP, DHCPv6, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP {client},
HTTPS, FTP (client), SNMP (v1, v2c, v3), TLS {v1.0}
*SSM (Source Specific Multicast) is supported.

•

Number of IP Address/Mac

ADDRESS

1

•

QoS DSCP

•

Multicast Streaming

Support

Yes

•

ONVIF Conformance Profile S

•

Wireless Network Yes for setup (IEEE802.11b/g/n with optional IFU-WLM3)

•

Authentication IEEE802.1X

Interface

•

Analog Video Output No

•

Analog Monitor Output for Setup No

•

Digital Video Output HDMI (type A) x1

•

Microphone Input Mini jack (monaural, 2.2 kΩ , plug-in-power)

•

Line Input Mini jack (monaural)

•

Line Output

No*
* supported by future version-up

•

Network Port 10BASE-T/100BASE-TX (RJ-45)

•

Alarm Input (Sensor Input) x2, make contact, break contact

SNC-VM772R 7

•

Alarm Output

x2, Max. AC 12 V/DC 24 V, 0.4 A
(solid-state relay outputs electrically isolated from the camera)

•

Wireless LAN Terminal Yes

•

Card Slots SD x1

•

Confirmed SD Card Type SDHC/SDXC (Max. 128 GB)

•

SD off Switch Yes

General

•

Power Requirements IEEE 802.3af compliant (PoE) Class 3, DC 12 V ± 10 %, AC 24 V ± 20 %, 50/60 Hz

•

Power Consumption Max. 12.95 W

•

Operating Temperature

-40 °C to +50 °C

-40 °F to +122 °F

•

Cold Start Temperature

-40 °C to +50 °C

-40 °F to +122 °F

•

Storage Temperature

-20 ℃ to + 60 ℃

-4 °F to + 140 °F

•

Operating Humidity 20 % to 90 % (no condensation)

•

Storage Humidity 20 % to 80 % (no condensation)

•

Built-in Heater Yes

•

Dimensions *1

φ 190 x 146.7 mm
ø7 1/2 inches x 5 7/8 inches

•

Mass

Approx. 1900 g
Approx. 4 lb 3 oz
Approx. 2100 g (with Bracket)
Approx. 4 lb 10 oz (with Bracket)

•

External Material

Upper case: AL Die-cast
Lower case: AL Die-cast
Dome cover: PC
Cap:PC

•

External Color Munsell 4.4BG 8.4/0.2 (White)

•

Fire Retardant UL2044

•

Safety Regulations

JATE Technical Standard (LAN)
UL2044, IEC/EN60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A)
Immunity: EN55024 + EN50130-4
Emission: AS/NZS CISPR22 (Class A)
MSIP
EMC-TR

•

Supplied Accessories

Bracket (1)
Template (1)
Wrench (1)
Screw (M4 × 8) (1)
Sealing rubber (1)
Multi connector cable (1)
Read This First (1)
Safety Regulations (1)
Warranty booklet (1)

•

Optional Accessories IFU-WLM3 (USB wireless LAN module)

Notes

•

*1 The values for dimensions are approximate.

SNC-VM772R 8

UNI-MDPBKPLT1/T

Ceiling mount bracket for
UNI-MDPPOLE1/T

UNI-MDPEM600

Pendant Mount Adaptor

UNI-MDPVM772

Pendant Mount Bracket for
SNC-VM772R camera

UNI-WMB4

Gooseneck Wall Mount
Bracket

Mounting Hardware

UNI-WMB7

Wall Mount Bracket for SNC­VM772R camera

SCA-M30

High quality, ceiling
microphone for IP security
cameras.

SD Cards For IP Security
Cameras

Sony’s Edge Storage
Solution for IP Security
Cameras

IFU-WLM3

USB wireless LAN module

Other Accessories

SD Cards for IP Security Cameras

Wireless TX/RX Accessories

Accessories

© 2016 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.

Features and specifications are subject to change without notice. The values for mass and dimension are approximate.

All trademarks are the property of their respective owners.

SNC-VM772R

9
