Sony SNC-VM630-R Specsheet

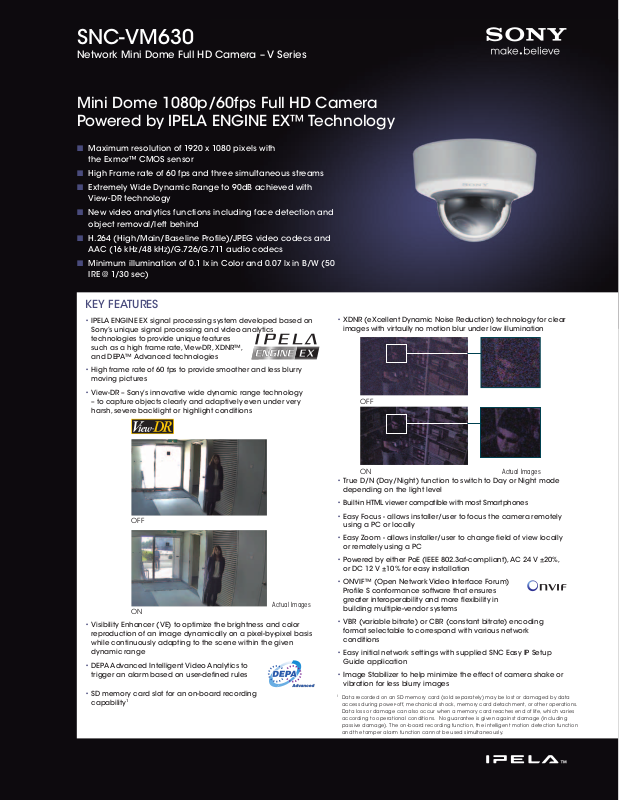

SNC-VM630

Network Mini Dome Full HD Camera – V Series

Mini Dome 1080p/60fps Full HD Camera Powered by IPELA ENGINE EX™ Technology

n Maximum resolution of 1920 x 1080 pixels with

the Exmor™ CMOS sensor

n High Frame rate of 60 fps and three simultaneous streams

n Extremely Wide Dynamic Range to 90dB achieved with

View-DR technology

n New video analytics functions including face detection and

object removal/left behind

n H.264 (High/Main/Baseline Profile)/JPEG video codecs and

AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs

n Minimum illumination of 0.1 lx in Color and 0.07 lx in B/W (50

IRE @ 1/30 sec)

KEY FEATURES

• IPELA ENGINE EX signal processing system developed based on

Sony’s unique signal processing and video analytics technologies to provide unique features such as a high frame rate, View-DR, XDNR™, and DEPA™ Advanced technologies

• High frame rate of 60 fps to provide smoother and less blurry

moving pictures

• View-DR – Sony’s innovative wide dynamic range technology

– to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions

• XDNR (eXcellent Dynamic Noise Reduction) technology for clear

images with virtaully no motion blur under low illumination

OFF

• Visibility Enhancer (VE) to optimize the brightness and color

reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range

• DEPA Advanced Intelligent Video Analytics to

trigger an alarm based on user-defined rules

• SD memory card slot for an on-board recording

capability

Actual Images

• True D/N (Day/Night) function to switch to Day or Night mode

depending on the light level

• Built-in HTML viewer compatible with most Smartphones

• Easy Focus - allows installer/user to focus the camera remotely

using a PC or locally

• Easy Zoom - allows installer/user to change field of view locally

or remotely using a PC

• Powered by either PoE (IEEE 802.3af-compliant), AC 24 V ±20%,

or DC 12 V ±10% for easy installation

• ONVIF™ (Open Network Video Interface Forum)

Profile S conformance software that ensures greater interoperability and more flexibility in building multiple-vendor systems

• VBR (variable bitrate) or CBR (constant bitrate) encoding

format selectable to correspond with various network conditions

• Easy initial network settings with supplied SNC Easy IP Setup

Guide application

• Image Stabilizer to help minimize the effect of camera shake or

vibration for less blurry images

Data recorded on an SD memory card (sold separately) may be lost or damage d by data

access during power-off, mechanical shock, me mory card detachment, or other operations. Data loss o r damag e can also o ccur whe n a memor y card reaches end o f life, whi ch varies according to operational conditions. No guarantee is given against damage (including passive damage). The on- board recording function, the intelligent motion detection function and the tamper alarm function cannot be used simultaneously.

Actual Images

SPECIFICATIONS

Camera

Image Sensor 1/2.9-type progressive scan Exmor CMOS sensor Image Sensor (Number of Effective Pixels) Approx. 2.14 Megapixels Signal System NTSC color system Minimum Illumination (50 IRE) Color: 0.1 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

Minimum Illumination (30 IRE) Color: 0.06 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

Dynamic Range Equivalent to 90 dB with View-DR technology S/N Ratio More than 50 dB (Gain 0 dB) Gain Auto Shutter Speed 1/1 s to 1/10000 s Sync System Internal synchronization Exposure Control Exposure compensation, AGC, Shutter speed, Iris White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual Lens Built-in vari-focal lens Powered Zoom Yes (Easy Zoom) Zoom Ratio Optical zoom 3x, Digital zoom 2x Powered Focus Yes (Easy Focus) Horizontal Viewing Angle 105.2 °to 35.4° Vertical Viewing Angle 57° to 20° Focal Length f = 3.0 mm to 9.0 mm F-Number F1.2 (Wide), F2.1 (Tele) Minimum Object Distance 300 mm Horizontal Resolution 700 TV lines (analog video) * Preset Position 8 Tour 5

Camera Features

Day/Night Yes Wide-D Yes (View-DR) Image Enhancement Visibility Enhancer (VE) Noise Reduction XDNR technology Image Stabilizer Yes *


Codec Image Size (H x V) 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184

Video Compression Format H.264 (High/Main/Baseline Profile), JPEG Codec Streaming Capability Triple Streaming * Maximum Frame Rate H.264: 60 fps (1920 x 1080)

Audio

Audio Compression Format G.711/G.726/AAC (16 kHz, 48 kHz)

Scene Analytics

Intelligent Motion Detection Yes Face Detection Yes * Rule-based Filter DEPA Advanced

Network

Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SMTP, IPv6 * ONVIF Conformance Yes (Profile S) * Number of Clients 20 Authentication IEEE 802.1X

Interface

Analog Video Output BNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative Analog Monitor Output Phono jack x1 Line Input Mini jack (monaural) Line Output Mini jack (monaural), Maximum output level: 1 Vrms Network Port 10BASE-T/100BASE-TX (RJ-45) Sensor Input x 2, make contact, break contact Alarm Output x 2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera) Microphone Input Mini jack (monaural) Card Slots SD Card x 1

System Requirements

Operating System Windows

Processor Intel Core i7 2.8 GHz or higher Memory 2 GB or more Web Browser Microsoft Internet Explorer

General

Power Requirements PoE system (IEEE 802.3af compliant), DC 12 V ± 10%, AC 24 V ± 20% Power Consumption 6.0 W max. Operating Temperature 14°F to 122°F (-10°C to +50°C) Starting Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature -4°F to +140°F (-20°C to +60°C) Operating Humidity 20% to 80% Storage Humidity 20% to 95% Dimensions (W x H x D) ø5 7/8 inches x 4 3/8 inches (ø148 x 108 mm) Weight Approx. 1 lb 11 oz (760 g) Safety Regulations JATE Technical standard (LAN)

Supplied Accessories CD-ROM (supplied programs) (1), Installation Manual (1), Template (1), Audio cable (1), I/O cable (1), BNC cable (1),

*1 Triple streaming (any combination with JPEG/H.264, including multiple streams of the same format) *2 Monitor display ratio 4:3 *3 Version 1.4 or later *4 Default setting: OFF

SNC-VM630

B/W: 0.07 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

B/W: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)

(H.264, JPEG)

, CBR/VBR (selectable)

JPEG: 60 fps (1280 x 720)

XP (32 bit) Professional Edition Windows Vista® (32 bit) Ultimate, Business Edition Windows 7 (32/64 bit) Ultimate, Professional Edition

Firefox® Ver. 3.5 (Plug-in free viewer only) Safari® Ver. 4.0 (Plug-in free viewer only) Google Chrome™ Ver. 4.0 (Plug-in free viewer only)

UL2044, IEC60950-1 (CB) VCCI (Class A), FCC (Class A), IC (Class A) Emission: EN55022 (Class A) + EN50130-4 Immunity: EN55022 (Class A) + EN55024 Emission: AS/NZS CISPR22 (Class A)

Power input cable (1), Screw M3 (1), Bracket (1), Wire rope (1), Safety regulations (1)

Ver. 7.0, Ver. 8.0, Ver. 9.0

, HTTPS, SNMP (MIB-2)

SYSTEM CONFIGURATION

HD monitor

SNC-VM630

Recording Server

Network

Recording Software

IMZ-NS100 Series

SNC-VM630

DIMENSIONS

ø5 7/8 (148)

NSR-500

4 3/8 (108)

Unit: inches (mm)
