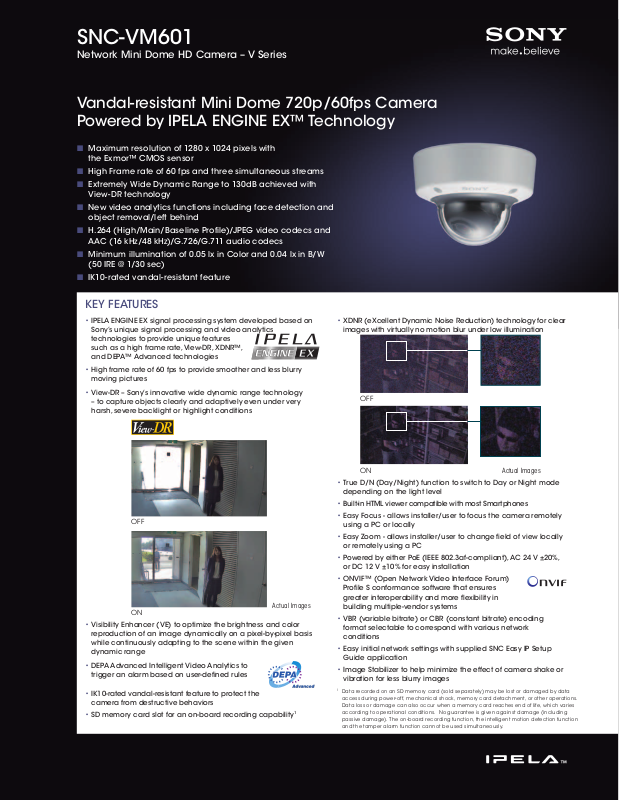

SNC-VM601
Network Mini Dome HD Camera – V Series
Vandal-resistant Mini Dome 720p/60fps Camera
Powered by IPELA ENGINE EX™ Technology
n Maximum resolution of 1280 x 1024 pixels with
the Exmor™ CMOS sensor
n High Frame rate of 60 fps and three simultaneous streams
n Extremely Wide Dynamic Range to 130dB achieved with
View-DR technology
n New video analytics functions including face detection and
object removal/left behind
n H.264 (High/Main/Baseline Profile)/JPEG video codecs and
AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
n Minimum illumination of 0.05 lx in Color and 0.04 lx in B/W
(50 IRE @ 1/30 sec)
n IK10-rated vandal-resistant feature
KEY FEATURES
• IPELA ENGINE EX signal processing system developed based on
Sony’s unique signal processing and video analytics
technologies to provide unique features
such as a high frame rate, View-DR, XDNR™,
and DEPA™ Advanced technologies
• High frame rate of 60 fps to provide smoother and less blurry
moving pictures
• View-DR – Sony’s innovative wide dynamic range technology
– to capture objects clearly and adaptively even under very
harsh, severe backlight or highlight conditions
• XDNR (eXcellent Dynamic Noise Reduction) technology for clear
images with virtually no motion blur under low illumination
OFF
OFF
ON
• Visibility Enhancer (VE) to optimize the brightness and color
reproduction of an image dynamically on a pixel-by-pixel basis
while continuously adapting to the scene within the given
dynamic range
• DEPA Advanced Intelligent Video Analytics to
trigger an alarm based on user-defined rules
• IK10-rated vandal-resistant feature to protect the
camera from destructive behaviors
• SD memory card slot for an on-board recording capability
Actual Images
1
ON
• True D/N (Day/Night) function to switch to Day or Night mode
depending on the light level
• Built-in HTML viewer compatible with most Smartphones
• Easy Focus - allows installer/user to focus the camera remotely
using a PC or locally
• Easy Zoom - allows installer/user to change field of view locally
or remotely using a PC
• Powered by either PoE (IEEE 802.3af-compliant), AC 24 V ±20%,
or DC 12 V ±10% for easy installation
• ONVIF™ (Open Network Video Interface Forum)
Profile S conformance software that ensures
greater interoperability and more flexibility in
building multiple-vendor systems
• VBR (variable bitrate) or CBR (constant bitrate) encoding
format selectable to correspond with various network
conditions
• Easy initial network settings with supplied SNC Easy IP Setup
Guide application
• Image Stabilizer to help minimize the effect of camera shake or
vibration for less blurry images
1
Data recorded on an SD memory card (sold separately) may be lost or damaged by data
access during power-off, mechanical shock, memory card detachment, or other operations.
Data loss o r damag e can also o ccur wh en a memor y card reaches end o f life, whi ch varie s
according to operational conditions. No guarantee is given against damage (including
passive damage). The on-board recording function, the intelligent motion detection function
and the tamper alarm function cannot be used simultaneously.
Actual Images
![](/html/77/773e/773e424b7e3716c690f64978b98c0ad416e06218ca5f107fe19fe4cbb6c2850f/bg2.png)
SPECIFICATIONS
Camera
Image Sensor 1/3-type progressive scan Exmor CMOS
Image Sensor (Number of Effective Pixels) Approx. 1.37 Megapixels
Signal System NTSC color system
Minimum Illumination (50 IRE) Color: 0.05 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Minimum Illumination (30 IRE) Color: 0.03 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Dynamic Range Equivalent to 130 dB with View-DR technology
S/N Ratio More than 50 dB (Gain 0 dB)
Gain Auto
Shutter Speed 1/1 s to 1/10000 s
Sync System Internal synchronization
Exposure Control Exposure compensation, AGC, Shutter speed, Iris
White Balance ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual
Lens Built-in vari-focal lens
Powered Zoom Yes (Easy Zoom)
Zoom Ratio Optical zoom 3x, Digital zoom 2x
Powered Focus Yes (Easy Focus)
Horizontal Viewing Angle 93.0° to 31.6°
Vertical Viewing Angle 50.6° to 17.8°
Focal Length f = 3.0 mm to 9.0 mm
F-Number F1.2 (Wide), F2.1 (Tele)
Minimum Object Distance 300 mm
Horizontal Resolution 600 TV lines (analog video) *
Preset Position 8
Tour 5
Camera Features
Day/Night Yes
Wide-D Yes (View-DR)
Image Enhancement Visibility Enhancer (VE)
Noise Reduction XDNR technology
Image Stabilizer Yes *
Codec Image Size (H x V) 1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288,
Video Compression Format H.264 (High/Main/Baseline Profile), JPEG
Codec Streaming Capability Triple Streaming *
Maximum Frame Rate H.264: 60 fps (1280 x 1024)
Audio
Audio Compression Format G.711/G.726/AAC (16 kHz, 48 kHz)
Scene Analytics
Intelligent Motion Detection Yes
Face Detection Yes *
Rule-based Filter DEPA Advanced
Network
Protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SMTP, IPv6 *
ONVIF Conformance Yes (Profile S) *
Number of Clients 20
Authentication IEEE 802.1X
Interface
Analog Video Output BNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative
Analog Monitor Output Phono jack x1
Line Input Mini jack (monaural)
Line Output Mini jack (monaural), Maximum output level: 1 Vrms
Network Port 10BASE-T/100BASE-TX (RJ-45)
Sensor Input x 2, make contact, break contact
Alarm Output x 2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)
Microphone Input Mini jack (monaural)
Card Slots SD Card x 1
System Requirements
Operating System Windows
Processor Intel Core i7 2.8 GHz or higher
Memory 2 GB or more
Web Browser Microsoft Internet Explorer
General
Power Requirements PoE system (IEEE 802.3af compliant), DC 12 V ± 10%, AC 24 V ± 20%
Power Consumption 6.0 W max.
Operating Temperature 14°F to 122°F (-10°C to +50°C)
Starting Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to +140°F (-20°C to +60°C)
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Vandal Resistant Ye s
Dimensions (W x H x D) ø5 7/8 inches x 4 3/8 inches (ø148 x 108 mm)
Weight Approx. 1 lb 12 oz (800 g)
Safety Regulations JATE Technical standard (LAN)
Supplied Accessories CD-ROM (supplied programs) (1), Installation Manual (1), Template (1), Audio cable (1), I/O cable (1), BNC cable (1),
*1 Triple streaming (any combination with JPEG/H.264, including multiple streams of the same format)
*2 Monitor display ratio 4:3 *3 Version 1.4 or later *4 Default setting: OFF
SNC-VM601
B/W: 0.04 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.02 lx (F1.2, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
2
4
320 x 240 (H.264, JPEG)
1
,CBR/VBR (selectable)
JPEG: 60 fps (1280 x 1024)
3
3
3
®
XP (32 bit) Professional Edition
Windows Vista® (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
®
Firefox® Ver. 3.5 (Plug-in free viewer only)
Safari® Ver. 4.0 (Plug-in free viewer only)
Google Chrome™ Ver. 4.0 (Plug-in free viewer only)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
Power input cable (1), Screw M3 (1), Wrench (1), Bracket (1), Wire rope (1), Safety regulations (1)
Ver. 7.0, Ver. 8.0, Ver. 9.0
, HTTPS, SNMP (MIB-2)
SYSTEM CONFIGURATION
HD monitor
SNC-VM601
Recording Server
Network
Recording Software
IMZ-NS100 Series
SNC-VM601
DIMENSIONS
ø5 7/8 (148)
NSR-500
PC
4 3/8 (108)
Unit: inches (mm)
