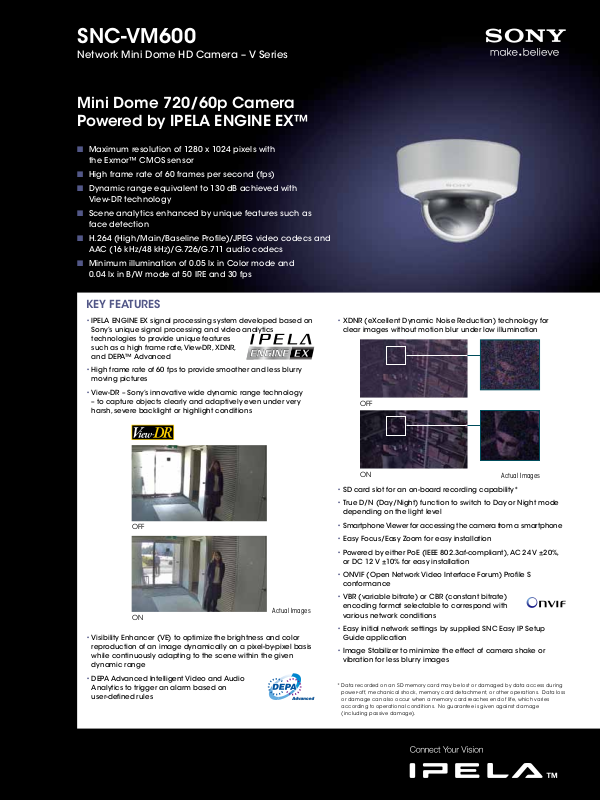

SNC-VM600
Network Mini Dome HD Camera – V Series
Mini Dome 720/60p Camera Powered by IPELA ENGINE EX™
νMaximum resolution of 1280 x 1024 pixels with the Exmor™ CMOS sensor
νHigh frame rate of 60 frames per second (fps)
νDynamic range equivalent to 130 dB achieved with View-DR technology
νScene analytics enhanced by unique features such as face detection
νH.264 (High/Main/Baseline Profile)/JPEG video codecs and AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
νMinimum illumination of 0.05 lx in Color mode and 0.04 lx in B/W mode at 50 IRE and 30 fps
Key Features
• IPELA ENGINE EX signal processing system developed based on Sony’s unique signal processing and video analytics technologies to provide unique features
such as a high frame rate,View-DR, XDNR, and DEPA™ Advanced
•High frame rate of 60 fps to provide smoother and less blurry moving pictures
•View-DR – Sony’s innovative wide dynamic range technology
– to capture objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
OFF
Actual Images
ON
•Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
•DEPA Advanced Intelligent Video and Audio
Analytics to trigger an alarm based on user-defined rules
•XDNR (eXcellent Dynamic Noise Reduction) technology for clear images without motion blur under low illumination
OFF
|
|
|
|
|
|
|
|
|
ON |
|
Actual Images |
•SD card slot for an on-board recording capability*
•True D/N (Day/Night) function to switch to Day or Night mode depending on the light level
•Smartphone Viewer for accessing the camera from a smartphone
•Easy Focus/Easy Zoom for easy installation
•Powered by either PoE (IEEE 802.3af-compliant),AC 24 V ±20%, or DC 12 V ±10% for easy installation
•ONVIF (Open Network Video Interface Forum) Profile S conformance
•VBR (variable bitrate) or CBR (constant bitrate)
encoding format selectable to correspond with various network conditions
•Easy initial network settings by supplied SNC Easy IP Setup Guide application
•Image Stabilizer to minimize the effect of camera shake or vibration for less blurry images
*Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies according to operational conditions. No guarantee is given against damage (including passive damage).
SPECIFICATIONS
Camera |
SNC-VM600 |
|
|
Image Sensor |
1/3-type progressive scan Exmor CMOS |
Image Sensor (Number of Effective Pixels) |
Approx. 1.37 Megapixels |
Signal System |
NTSC color system / PAL color system (switchable) |
Minimum Illumination (50 IRE) |
Color: 0.05 lx (F1.2,View-DR OFF,VE OFF, AGC ON, 1/30 s, 30 fps) |
|
B/W: 0.04 lx (F1.2,View-DR OFF,VE OFF,AGC ON, 1/30 s, 30 fps) |
Minimum Illumination (30 IRE) |
Color: 0.03 lx (F1.2,View-DR OFF,VE OFF, AGC ON 1/30 s, 30 fps) |
|
B/W: 0.02 lx (F1.2,View-DR OFF,VE OFF,AGC ON, 1/30 s, 30 fps) |
Dynamic Range |
Equivalent to 130 dB with View-DR technology |
S/N Ratio |
More than 50 dB (Gain 0 dB) |
Gain |
Auto |
Shutter Speed |
1/1 s to 1/10000 s |
Sync System |
Internal synchronization |
Exposure Control |
Exposure compensation, AGC, Shutter speed, Iris |
White Balance |
ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual |
Lens |
Built-in varifocal lens |
Powered Zoom |
Yes (Easy Zoom) |
Zoom Ratio |
Optical zoom 3x, Digital zoom 2x *3 |
Powered Focus |
Yes (Easy Focus) |
Horizontal Viewing Angle |
93.0° to 31.6° |
Vertical Viewing Angle |
50.6° to 17.8° |
Focal Length |
f = 3.0 mm to 9.0 mm |
F-Number |
F1.2 (Wide), F2.1 (Tele) |
Minimum Object Distance |
300 mm |
Horizontal Resolution |
600 TV lines (analog video) *2 |
Preset Position |
8 |
Tour |
5 |
Camera Features |
|
Day/Night |
Yes |
Wide-D |
Yes (View-DR) |
Image Enhancement |
Visibility Enhancer (VE) |
Noise Reduction |
XDNR |
Image Stabilizer |
Yes *3 *6 |
Image |
|
Codec Image Size (H x V) |
1280 x 1024, 1280 x 960, 1024 x 768, 1280 x 720, 800 x 600, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 352 x 288, |
|
320 x 240 (H.264, JPEG) |
Video Compression Format |
H.264 (High/Main/Baseline Profile), JPEG |
Codec Streaming Capability |
Triple Streaming *1, CBR/VBR (selectable) *4 |
Maximum Frame Rate |
H.264: 60 fps (1280 x 1024) |
Audio |
JPEG: 60 fps (1280 x 1024) |
|
|
Audio Compression Format |
G.711/G.726/AAC (16 kHz, 48 kHz) |
Scene Analytics |
|
Intelligent Motion Detection |
Yes |
Face Detection |
Yes *5 |
Rule-based Filter |
DEPA Advanced *3 |
Network |
IPv4,TCP, UDP,ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SMTP, IPv6 *5, HTTPS *4, SNMP (MIB-2) *4 |
Protocols |
|
ONVIF Conformance |
Yes (Profile S) *5 |
Number of Clients |
20 |
Authenticatoin |
IEEE 802.1X *4 |
Interface |
|
Analog Video Output |
BNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative |
Analog Monitor Output |
Phono jack x1 |
Line Input |
Mini jack (monaural) |
Line Output |
Mini jack (monaural), Maximum output level: 1 Vrms |
Network Port |
10BASE-T/100BASE-TX (RJ-45) |
Sensor Input |
x 2, make contact, break contact |
Alarm Output |
x 2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera) |
Microphone Input |
Mini jack (monaural) |
Card Slots |
SD Card x 1 |
System Requirements |
|
Operating System |
Windows XP (32 bit) Professional Edition |
|
Windows Vista (32 bit) Ultimate, Business Edition |
|
Windows 7 (32/64 bit) Ultimate, Professional Edition |
Processor |
Intel Corei7 2.8 GHz or higher |
Memory |
2 GB or more |
Web Browser |
Microsoft Internet Explorer Ver. 7.0,Ver. 8.0,Ver. 9.0 |
|
Firefox Ver. 3.5 (Plug-in free viewer only) |
|
Safari Ver. 4.0 (Plug-in free viewer only) |
General |
Google Chrome Ver. 4.0 (Plug-in free viewer only) |
|
|
Power Requirements |
PoE system (IEEE 802.3af compliant), DC 12 V ± 10%, AC 24 V ± 20% |
Power Consumption |
6.0 W max. |
Operating Temperature |
-10 °C to +50 °C (14°F to 122°F) |
Starting Temperature |
0 °C to 50 °C (32°F to 122°F) |
Storage Temperature |
-20 °C to +60 °C (-4°F to +140°F) |
Operating Humidity |
20% to 80% |
Storage Humidity |
20% to 95% |
Dimensions (W x H x D) |
ø148 mm x 108 mm (ø5 7/8 inches x 4 3/8 inches) |
Mass |
Approx. 760 g (1 lb 11 oz) |
Safety Regulations |
JATE Technical standard (LAN) |
|
UL2044, IEC60950-1 (CB) |
|
VCCI (Class A), FCC (Class A), IC (Class A) |
|
Emission: EN55022 (Class A) + EN50130-4 |
|
Immunity: EN55022 (Class A) + EN55024 |
|
Emission:AS/NZS CISPR22 (Class A) |
Supplied Accessories |
CD-ROM (supplied programs) (1), Installation Manual (1),Template (1), Audio cable (1), I/O cable (1), BNC cable (1), |
|
Power input cable (1), Screw M3 (1), Bracket (1), Wire rope (1), Safety regulations (1) |
*1 |
Triple streaming (any combination with JPEG/H.264, including multiple streams of the same format) |
*2 |
Monitor display ratio 4:3 *3 Version 1.2 or later *4 Version 1.3 or later *5 Version 1.4 or later *6 Default setting: OFF |
SYSTEM CONFIGURATION
|
HD monitor |
SNC-VM600 |
|
|
Recording Server |
|
NSR-500 |
Network |
Recording Software |
IMZ-NS100 Series |
|
SNC-VM600 |
PC |
DIMENSIONS
ø148 (5 7/8)
108 (4 3/8)
Unit: mm (inches)
