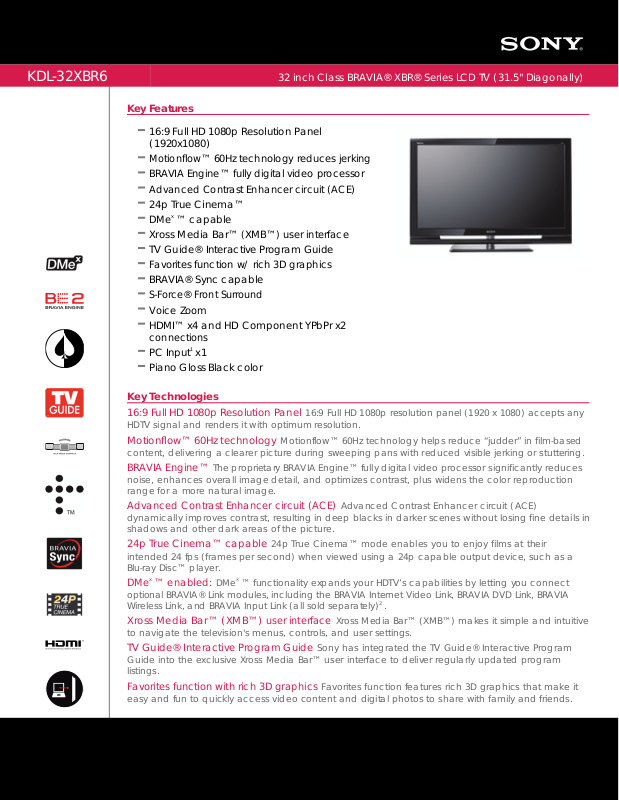

KDL-

32XBR6

32 inch Class BRAVIA® XBR® Series LCD TV (31.5" Diagonally)

Key Features

16:9 Full HD 1080p Resolution Panel (1920x1080)

Motionflow

™

60Hz technology reduces jerking

BRAVIA Engine

™

fully digital video processor

Advanced Contrast Enhancer circuit (ACE)

24p True Cinema™

DMe

™ capable

Xross Media Bar™ (XMB™) user interface

TV Guide® Interactive Program Guide

Favorites function w/ rich 3D graphics

BRAVIA® Sync capable

S-Force® Front Surround

Voice Zoom

HDMI™ x4 and HD Component YPbPr x2 connections

PC Input x1

Piano Gloss Black color

Key Technologies

16:9 Full HD 1080p Resolution Panel 16:9 Full HD 1080p resolution panel (1920 x 1080) accepts any

HDTV signal and renders it with optimum resolution.

Motionflow™ 60Hz technology Motionflow™ 60Hz technology helps reduce “judder” in film

based

content, delivering a clearer picture during sweeping pans with reduced visible jerking or stuttering.

BRAVIA Engine

™ The proprietary BRAVIA Engine™ fully digital video processor significantly reduces

noise, enhances overall image detail, and optimizes contrast, plus widens the color reproduction range for a more natural image.

Advanced Contrast Enhancer circuit (ACE)

dynamically improves contrast, resulting in deep blacks in darker scenes without losing fine details in shadows and other dark areas of the picture.

24p True Cinema™ capable 24p True Cinema™ mode enables you to enjoy films at their

intended 24 fps (frames per second) when viewed using a 24p capable output device, such as a Blu-ray Disc™ player.

DMe

™

enabled:

DMe

™ functionality expands your HDTV’s capabilities by letting you connect

optional BRAVIA® Link modules, including the BRAVIA Internet Video Link, BRAVIA DVD Link, BRAVIA Wireless Link, and BRAVIA Input Link (all sold separately) .

x x 2

Xross Media Bar™ (XMB™ )

user interface

Xross Media Bar™ (XMB™ ) makes it simple and intuitive

to navigate the television's menus, controls, and user settings.

TV Guide®

Interactive Program Guide

Sony has integrated the TV Guide

Interactive Program

Guide into the exclusive Xross Media Bar™ user interface to deliver regularly updated program listings.

Favorites function with rich 3D graphics

Favorites function features rich 3D graphics that make it

easy and fun to quickly access video content and digital photos to share with family and friends.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 05/21/2009

KDL-

32XBR6

32 inch Class BRAVIA® XBR® Series LCD TV (31.5" Diagonally)

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

General

Closed Caption Button: Yes Closed Captions (CC): Yes On-Screen Display: Enhanced GUI + XMB® Auto CC on Mute: Yes BRAVIA® Link Module support: Yes

Display

Backlight Type: CCFL Panel Type: LCD Display Technology:

LCD (178° wide viewing angle LCD

display panels)

Video

Video Processing: Bravia Engine Technology CineMotion® Reverse 3:2 Pulldown Technology: Yes Game Mode: Yes Wide Mode: Wide Zoom, Normal, Full, H Stretch, Zoom 3D Comb Filter: Yes MPEG Noise Reduction: Yes Auto Wide: Yes 4:3 Default: Yes 24p True Cinema™ Technology: Yes Picture Mode: Vivid, Standard, Cinema, Custom; Photo-

Vivid, Photo-Standard, Photo-Original, Photo-Custom

Advanced Contrast Enhancer (ACE): Yes

Audio

Digital Amplifier:

Yes

Voice Zoom: Yes Auto SAP:

Yes

Auto Mute (on no signal): Yes Steady Sound® Automatic Volume Control: Yes Audio Out: Yes Sony Original Surround: S-Force® Stereo System: MTS Dolby

®:

Dolby® Digital

Alternate Audio (Digital):

Yes

Sound Booster: Yes

5.1 Channel Audio Out: Yes Sound Mode: Dynamic, Standard, Clear Voice

Convenience

Channel Jump: Yes Favorite Channel: Yes Program Guide Access: Yes Multiple Language Display: English, Spanish, French Info Banner: Yes Sleep Timer: Yes Input Skip: Yes (Auto) Channel Surf: Yes Channel Block (with password): Yes Edit Channel Labels: Yes Label Inputs: Yes ID-1 Detection: Yes Initial Setup: Yes On/Off Timer: Yes PAP (Picture & Picture):

Yes

Swap Sound: Yes Theatre Mode (Theatre Button): Yes Show/Hide Channels: Yes PAP (Fixed or Variable):

Fixed

BRAVIA® Sync™ : Yes Parental Control: Yes BRAVIA® Sync™ Menu Button: Yes On-Screen Display for External Input: Yes

PIP (Picture in Picture): PC Input Channel Labels: Yes On-Screen Clock: Yes TV Guide On-Screen: Yes

Specifications

General

Television Type: Flat Panel LCD HDTV

Display

Viewing Angle (Right/Left):

178

Viewing Angle (Up/Down):

178

On-screen Contrast Ratio:

2,500:1

Dynamic Contrast Ratio:

25,000:1

Screen Size (measured diagonally):

32" Class (31.5")

Native Resolution:

1920 x 1080

Display Resolution:

1920 x 1080p (Full HD)

TV System

Tuner (Cable): QAM Tuner Tuner (Terrestrial): ATSC / NTSC TV System (Analog): NTSC Number of Tuners (Analog):

Number of Tuners (Digital):

TV System (Digital): ATSC

Video

Video Signal:

480/60i, 480/60p, 720p, 1080/60i, 1080/24p

(HDMI™

only), 1080/60p (HDMI

™ / Component)

Audio

Audio Power Output: 10W + 10W

Inputs and Outputs

Component Video (Y/Pb/Pr ) Input(s): 2 (Rear) Composite Video Input(s): 3 (1 Side/2 Rear) Digital Audio Output(s):

Optical Digital Output

- 1 (Rear)

RF Connection Input(s): 1 (Rear) S

-Video Input(s): 1 (Rear) Analog Audio Input(s) (Total): 6 (5 Rear/1 Side) Audio Out: 1 (Rear) HDMI™ Connection(s) (Total): 4 (1 Side/3 Rear) PC In (D-Sub) + Audio In (Stereo Mini): 1 (Rear) HDMI™ PC Input: Yes S

-Video Detection: Yes

Power

Power Consumption (in Standby): 0.1W Power Requirements:

AC 120V

Power Consumption (in Operation) max.:

160W

Regulation and Standard Compliance

VESA

® Hole Spacing Compatible: Yes

VESA® Hole Pitch:

200 x 200 mm, M6 Screw Type, 16mm

Screw Length

Service and Warranty Information

Limited Warranty Term: 1 Year Parts / 1 Year Labor

Energy Saving & Efficiency

LightSensor™ Technology: Yes Power Saving Modes: Yes Energy Star® compliant: Yes

Dimensions

Weight: 34 lbs. (15kg) with pedestal; 28 lbs. (12.5kg)

without pedestal

Measurements:

31 1/4 x 22 3/4 x 9 5/8 in (794 x 577 x 242mm) with pedestal; 31 1/4 x 21 3/8 x 4 in (794 x 540 x 99mm) without pedestal

Supplied Accessories

RM-YD023 Remote Control Batteries (2 x AA) AC Power Cord (attached) Operating Instructions Quick Setup Guide Warranty Card On-line Registration Card Cable Clamper Pedestal (separate)

Optional Accessories

SU-FL300M Stand SU-FL71M Stand SU-WL500 Wallmount Bracket

Color:

Piano Black

UPC Code:

027242736573

1. Limited to resolutions supported by both the PC and the Sony TV. See Sony TV users manual and PC documentation for the supported resolutions.

2. Broadband internet connection speed of at least 2.5 Mbps recommended; 10 Mbps required for HD content. Video quality and picture size varies and is dependent on broadband speed and delivery by content provider. Content subject to change.

3. BRAVIA Sync works with select Sony HDTVs and home theater products.
