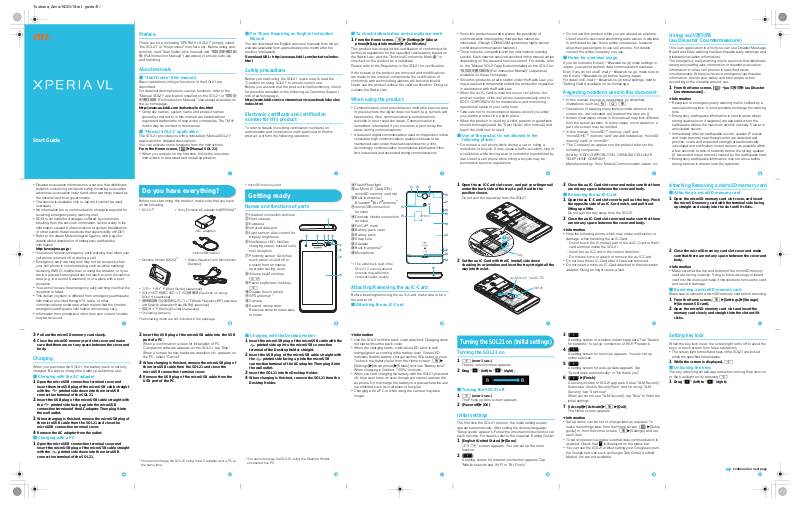

Start Guide

Preface

Thank you for purchasing "XPERIA VL SOL21" (simply called "the SOL21" or "this product" from here on). Before using your

terminal, read "Start Guide" (this manual) and "取扱説明書詳細版 (Full Instruction Manual)" (Japanese) to ensure safe use and handling.

About manuals

■ "Start Guide" (this manual)

Basic operations of major functions of the SOL21 are described. For detailed descriptions on various functions, refer to the "Manual SOL21" application installed on the SOL21 or "取扱説明書詳細版 (Full Instruction Manual)" (Japanese) available on the au homepage.

http://www.au.kddi.com/torisetsu/index.html

･ Company names, system name and product names

generally referred to in this manual are trademarks or registered trademarks of respective companies. The TM,® marks may be omitted in this manual.

■ "Manual SOL21" application：

The SOL21 provides you with preinstalled "Manual SOL21" application for detailed descriptions. You can activate some functions from the instructions.

From the Home screen, [ ]X[Manual SOL21]

･ When you activate for the first time, follow the onscreen

instructions to download and install application.

■ For Those Requiring an English Instruction Manual

You can download the English version of manuals from the au website (available from approximately one month after the product is released).

Download URL: http://www.au.kddi.com/torisetsu/index. html

Safety precautions

Before you start using the SOL21, make sure to read the "Cautions on using SOL21" to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage:

http://www.kddi.com/customer/service/au/trouble/kosho/ index.html

Electronic certificate and certification number for this product

To refer to details (including certification numbers) on authorization and compliance mark particular to the this product, perform the following operation.

■ To check authorization and compliance mark

1 From the Home screen, tX[Settings]X[About

phone]X[Legal information]X[Certificates]

This product has acquired the certification of conformity with technical regulations for the specified radio station based on the Radio Law, and the "Technical Conformity Mark " is checked on the product as a certificate. Please refer to the Regulatory in the SOL21 for certification.

If the screws of the product are removed and modifications are made to the internal components, the certification of conformity with technical regulations will become invalid. Never use the product without the valid certification. Doing so violates the Radio Law.

When using the product

･ Communication is not possible even inside the service area

in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications.

･ A feature of digital communications used on the product is that

consistent, high communications quality continues to be maintained even under the weak signal down to a limit. Accordingly, communication is sometimes interrupted if this limit is reached and exceeded during communications.

･ Since this product uses radio waves, the possibility of

communication intercepts by third parties cannot be eliminated. (Though CDMA/GSM system has highly secure confidential communication features.)

･ This product is compatible with the international roaming

service. Each network service described in this manual varies depending on the area and service content. For details, refer to the "Manual SOL21" application installed on the SOL21 or "取扱説明書詳細版 (Full Instruction Manual)" (Japanese) available on the au homepage.

･ Since this product is a radio station under the Radio Law, you

may be asked to temporarily submit the product for inspection in accordance with the Radio Law.

･ When the au IC-Card is inserted in your cell phone, the

product number of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone.

･ Take care not to inconvenience people around you when

you use the product in a public place.

･ When the product is used by a child, parents or guardians

should thoroughly read the "Start Guide" (this manual) and teach the child how to use it.

■ Use of the product is not allowed in the following places!

･ Do not use a cell phone while driving a car or riding a

motorbike or bicycle. It may cause a traffic accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.

･ Do not use this product while you are aboard an airplane.

Use of electric devices transmitting radio waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.

■ Notes for overseas usage

If you do not make E-mail (〜@ezweb.ne.jp) initial settings in Japan, you cannot perform data communication overseas.

Even if you do not use E-mail (〜@ezweb.ne.jp), make sure to set E-mail (〜@ezweb.ne.jp) before leaving Japan. For detail on E-mail (〜@ezweb.ne.jp) initial settings, refer to "Setting Guide" available on au homepage.

Regarding notations used in this document

･ In this manual, keys are represented by simplified

illustrations such as x, y, t.

･ Operations of tapping menu items/icons/buttons on the

screen etc. are indicated as [(name of the item etc.)].

･ Screen illustrations shown in this manual may look different

from the actual screens. In some cases, minor details or a part of a screen may be omitted.

･ In this manual, "microSD™ memory card" and

"microSDHC™ memory card" are abbreviated as "microSD memory card" or "microSD".

･ "The Company" as appears on the product refers to the

following companies: Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Sony Mobile Communication Japan, Inc.

Using au災害対策 (au Disaster Countermeasure)

This is an application in which you can use Disaster Message Board and Early warning mail (earthquake early warnings and disaster/evacuation information). The emergency early warning mail is a service that distributes emergency earthquake information or disaster evacuation information to all au cell phones in specified areas simultaneously. When you receive emergency earthquake information, ensure your safety and take proper action according to the situation around you.

1 From the Home screen, [ ]→[au災害対策 (au Disaster

Countermeasure)].

❖Information

･ Reception of emergency early warning mail is notified by a

special warning tone. It is not possible to change the warning tone.

･ Emergency earthquake information is sent to areas where

strong quakes (over 4 degrees) are expected when the earthquake whose the maximum seismic intensity 5 lower is anticipated occurs.

･ Immediately after an earthquake occurs, quakes (P waves

and initial tremors) near the epicenter are detected and position, scale, and expected strength are automatically calculated and notification is sent as soon as possible within a few seconds to tens of seconds before the strong quakes (S waves and major tremors) caused by the earthquake start.

･ Emergency earthquake information may not arrive before

strong tremors in arrears near the epicenter.

･ Disaster evacuation information is a service that distributes

bulletins concerning residents' safety including evacuation advisories, evacuation orders and other warnings issued by the national and local governments.

･ The service is available only in Japan (it cannot be used

overseas).

･ No information fee or communication charge is required for

receiving emergency early warning mail.

･ KDDI is not liable for damages suffered by customers

resulting from the service's information, lack or delay in the information caused by transmission or system breakdowns, or other events that are outside the responsibility of KDDI.

･ Refer to the Japan Meteorological Agency web page for

details about distribution of emergency earthquake information.

http://www.jma.go.jp/

･ You cannot receive emergency early warning mail when your

cell phone is turned off or during a call.

･ Emergency early warning mail may not be received when

your cell phone is communicating such as while sending/ receiving SMS (C-mail)/e-mail or using the browser, or if you are in a place where signal does not reach even in the service area (e.g. in a tunnel, basement) or in a place with a poor reception.

･ You cannot receive the emergency early warning mail that the

reception is failed.

･ This delivery system is different from emergency earthquake

information provided through TV, radio, or other communication procedures, which means that the time the emergency earthquake information arrives may vary.

･ Information from someplace other than your current location

may be received.

Do you have everything?

Before you start using this product, make sure that you have all the following.

･ SOL21

･ Desktop Holder (DK25)

･スタートガイド (Start Guide) (Japanese) ･ SOL21 のご利用にあたっての注意事項 (Cautions on using

SOL21) (Japanese)

･

携帯電話機の比吸収率などについて

and Specific Absorption Rate (SAR))

･設定ガイド (Setting Guide) (Japanese) *1 Including warranty

The following items are not included in the package.

･ Sony Ericsson AC adapter 04 (EP800A)

･ Stereo Headset with Microphone

(Sample)

(Radio Frequency (RF) exposure

(Japanese)

･ microSD memory card

Getting ready

Names and functions of parts

a Headset connection terminal b Front camera c Earpiece d Infrared data port e Light sensor: Auto-control for

display brightness

f Notification LED: Notifies

charging status, missed calls, mail reception.

g Proximity sensor: Switches

touch panel on and off to prevent from erroneous operation during a call.

h Volume key/Zoom key:

i Power key/Screen lock key:

j Display (touch panel) k GPS antenna* l Camera m Second microphone:

Reduces noise to make easy to listen.

d e

bcdef

nFlash/Photo light oau Micro IC Card(LTE)/

microSD memory card slot

pBuilt-in antenna /

qmicroUSB connection

rDesktop Holder connection

sFeliCa™ mark tBattery pack cover uBattery pack vStrap hole wSpeaker

xBuilt-in antenna

yMicrophone

*1 The antenna is built in the

Bluetooth

terminal

SOL21. Covering around antenna may affect the communication quality.

/Wi-Fi®antenna

Attaching/Removing the au IC-Card

Before inserting/removing the au IC-Card, make sure to turn the power off.

■ Attaching the au IC-Card

1 Open the au IC-Card slot cover , and put your fingernail

under the back side of the tray to pull it out to the

r s

v w

position shown.

Do not pull the tray away from the SOL21.

Tray

2 Set the au IC-Card with the IC (metal) side down

checking its orientation and inset the tra y straight all the way into the slot.

auMicroICCard（LTE）

Notch

3 Close the au IC-Card slot cover and make sure that there

are not any space between the cover and body.

■ Removing the au IC-Card

1 Open the au IC-Card slot cover to pull out the tray. Pinch

the opposite side of au IC-Card notch, and pull it out lifting up a little.

Do not pull the tray away from the SOL21.

2 Close the au IC-Card slot cover and make sure that there

are not any space between the cover and body.

❖Information

･ Note the following points, which may cause malfunction or

damage, when handling the au IC-Card. ･ Do not touch the IC (metal) part of the au IC-Card or the IC

card terminal inside the SOL21.

･ Insert the au IC-Card in the correct direction. ･ Do not use force to attach or remove the au IC-Card.

･ Do not lose the au IC-Card after it has been removed. ･ Do not insert a micro au IC-Card attached to the conversion

adapter. Doing so might cause a fault.

Attaching/Removing a microSD memory card

■ Attaching a microSD memory card

1 Open the microSD memory card slot cover, and insert

the microSD memory card with the te rm inal si de faci ng up straight and slowly into the slot until it clicks.

2 Close the microSD memory card slot cover and make

sure that there are not any space between the cover and body.

❖Information

･ Make sure that the top and bottom of the microSD memory

card are facing correctly. Trying to force a wrongly oriented card into the slot could make it impossible to remove the card and result in damage.

■ Removing a microSD memory card

Make sure to unmount a microSD memory card before removing.

1 From the Home screen,tX[Settings]X[Storage]

X[Unmount SD card].

2 Open the microSD memory card slot and insert the

memory card slowly and str aight i nto t he sl ot until it clicks.

ijklmgh

3 Pull out the microSD memory card slo wly . 4 Close the microSD memory card slot cover and make

sure that there are not any space betwe en t he co v er a nd body.

Charging

When you purchase the SOL21, the battery pack is not fully charged. Be sure to charge the battery pack before use.

■ Charging with the AC adapter

1 Open the microUSB connection terminal cover and

insert the microUSB plug of the microUSB cable straight with the printed side down into the microUSB connection terminal of the SOL21.

2 Insert the USB plug of the microUSB cable straight with

the printed side facing up into the microUSB connection terminal of the AC ada pter. Then plug it into the wall outlet.

3 When charging is finished, remove the microUSB plug of

the microUSB cable from the SOL21 and close the microUSB connection terminal cover.

4 Remove the AC adapter from the outlet.

■ Charging with a PC

1 Open the microUSB connection terminal cover and

insert the microUSB plug of the microUSB cable straight with the printed side down into the microUSB connection terminal of the SOL21.

2 Insert the USB plug of the microUSB cable into the USB

port of a PC.

When a confirmation screen for installation of PC Companion software appears on the SOL21, tap "Skip". When a screen for new hardware detection etc. appears on the PC, select "Cancel".

3 When charging is finished, remove the microUSB plug of

the microUSB cable from the SOL21 and close the microUSB connection terminal cover.

4 Remove the USB plug of the microUSB cable from the

USB port of the PC.

* You cannot charge the SOL21 using the AC adapter and a PC at

the same time.

■ Charging with the Desktop Holder

1 Insert the microUSB plug of the microUSB cable with the

printed side up into the microUSB connection

terminal of the Desktop Holder straight.

2 Insert the USB plug of the microUSB cable straight with

the printed side facing up into the microUSB connection terminal of the AC adapter. Then plug it into the wall outlet.

3 Insert the SOL21 into the Desktop Holder. 4 When charging is finished, remove the SOL21 from the

Desktop Holder.

* You cannot charge the SOL21 using the Desktop Holder

connected to a PC.

pqrstno

❖Information

･ Use the SOL21 with the back cover attached. Charging does

not start without the back cover.

･ When the charging starts, notification LED turns in red/

orange/green according to the battery level. Green LED indicates that the battery charge reaches 90 percent or more. To check the battery level, from the Home screen, tX [Settings]X[About phone]X[Status] and see "Battery level". When charging is finished, "100%" is shown.

･ When you start charging the battery with the SOL21 powered

off, the power turns on even though you cannot operate the au phone. Do not charge the battery in a place where the use is prohibited such as in airplane or hospital.

･ Charging with a PC or while using the camera may take

longer.

Turning the SOL21 on (Initial settings)

Turning the SOL21 on

1 p (over 1 sec.)

The key unlock screen appears.

2 Drag " " (left) to " " (right ).

■ Turning the SOL21 off

1 p (over 1 sec.)

The Phone options screen appears.

2 [Power off]X[OK]

Initial settings

The first time the SOL21 turns on, the initial setting screen appears automatically. After setting the display language, "Setup guide" appears. Follow the onscreen instructions to set each function. For details, refer to the supplied "Setting Guide".

1 [English (United States)]X[Done]

"ようこそ" screen appears. You can set up the main function.

2 []

A setting screen for Internet connection appears.Tap "Mobile network and Wi-Fi" or "Wi-Fi only".

3 []

A setting screen of wireless network appears. Tap "Search for networks" to set up connection of Wi-Fi

network.

4 []

A setting screen for services appears. You can set up online services.

5 []

A setting screen for auto-update appears. Tap "Synchronize automatically" or "No thank you".

6 []X[Finish]

A security screen of SOL21 appears. Set up "3LM Security". Subscribe "Anshin Security Pack" and for using "3LM Security", tap "Start now". When you do not use "3LM Security", tap "Skip" to finish the initial settings.

7 [I Accept]X[Activate]XtX[Quit]

The Home screen appears.

❖Information

･ Set up items can be set or change later as required. To

make the settings later, from the Home screen, [ ]X[Setup guide] or from the Home screen, tX[Settings] and set each item.

･ To set online service, make sure that data communication is

enabled. Check that is displayed on the status bar.

･ You can use the SOL21 without setting your Google account,

the Google services such as Google Talk, Gmail, Android Market, etc. are not available.

Setting key lock

When the key lock is set, the screen light turns off to avoid the keys or touch screen from false operations. ･ The screen light turns off and keys of the SOL21 are locked

when the specified time elapses.

1 While the screen is displayed, p

■ Unlocking the keys

The key unlocking screen appears when turning the power on or the backlight on by pressing p.

1 Drag " " (left) to " " (right).

Continued on next page

Basic operation

Key operation

The followings are the main functions of x, y, t keys located under the screen.

Back

Home

Return to the previous screen. Close a dialog box, menu, or the Notification panel.

Display the Home screen. Long-touch to open an application window recently closed.

Display options menu available on the current screen or application. When entering characters, long-touch to show/ hide the software keyboard. From the Home screen, long-touch to show the QWERTY keyboard and tap any key to activate Google Search.

Using the touch panel

The display on the SOL21 is a touch panel operated by touching it with your finger.

■ Tap/Double-tap

Lightly touch and release your finger. Double-tap: Tap the same position twice.

■ Long-touch

Keep touching an item etc.

■ Slide

Lightly touch and trace to the desired direction.

■ Flick

Quickly move (flicking) your finger up, down, right, or left.

■ Pinch

Touch the screen with two fingers and widen (pinch-out)/ narrow (pinch-in) the fingers' distance.

■ Drag

Keep touching an item or icon, trace it to the desired direction.

Home screen

The Home screen consists of five screens, the center screen and two for each side. The center screen is the default screen to operate the SOL21. Tapping y returns to the Home screen at any time. a Home screen position

Indicates which screen of the five home screens you are in.

b Widgets c Wallpapers d Application key e Media folders (Gallery, Music,

FM radio, Camera)

f Shortcuts (Applications)

■ Switching the Home screen

Slide or flick the Home screen to move to adjacent home screens.

■ Adding shortcuts and widgets on the Home screen

You can change wallpaper or theme of the Home screen and add, delete, move shortcuts of applications, widgets or folders on the Home screen.

1 From the Home screen, tX[Add] 2

Widgets Select widget to add.

e f

wxyzA

Applications Add a shortcut of application.

Folder Add a folder.

Shortcuts Add a shortcut of contact you call or send

Wallpapers Select wallpaper from Gallery/Live

Themes Set background image for the Home

❖Information

･ Long-touch shortcut, widget, or folder icon to move.

■ Deleting shortcuts/widgets/folders

1 From the Home screen, long-touch icon to be deleted.

appears at the bottom of the screen.

mail frequently, etc.

wallpapers/Xperia™ wallpapers to replace.

screen or settings screen.

2 Drag the icon to " " then release your finger.

Using the Applications screen

You can call up functions from the Applications screen. Application icons installed to the SOL21 are also displayed.

■ Activating an application

When you tap an application icon to use function, communication fees may be charged depending on the function.

1 From the Home screen, [ ].

The Applications screen appears. Slide/Flick left or right to switch the Applications screen.

2 Tap an icon of application to use.

❖Information

･ Main applications preinstalled by default

, Phone, Contacts Market

, E-mail,

SMS (C-mail)

Browser Maps

Settings Google Search

, Camera, Gallery Manual SOL21

■ Downloading applications

You can download applications such as convenient tools and games from the Android market and install them to use on the SOL21. ･ To use Android Market, you need to set a Google account.

For details, refer to the "Setting Guide".

■ Deleting (uninstalling) applications

Before deleting installed applications, back up contents related to the application that you want to save including data saved in the application.

❖Information

･ Some applications cannot be deleted.

, Alarm and Clock,

Calendar

Viewing the status of the SOL21

■ Status bar

The status bar is located at the top of the SOL21 screen. Notification icons which inform missed calls, new mail, operations in progress, etc. appear on the left of the status bar, and status icons which indicate the status of the SOL21 appear on the right.

❖Information

･ Main icons displayed on the status bar

Notification icon Status icon

New Gmail message USB is connected.

New PC mail message

New Email message , Signal level, Out of

New SMS (C-mail) , Battery level,

Calling Silent mode set

Missed call Airplane mode is set.

Green Heart energy saving icon (Remove the AC adapter from the power outlet.)

Receiving/ Downloading data

service area

Charging

■ Notification panel

If any notification icons are displayed, slide down the status bar to open the Notification panel. You can check details of notification icons or start corresponding applications.

■ Notification LED

Notification LED informs charging prompt, battery level while charging, missed calls, mail arrival, etc. by turning on or flashing.

Status Description

Red The battery is charging when the

remaining battery level is 10% or lower.

Orange The battery is charging when the

remaining battery level is 11%−89%.

Green The battery is charging when the

remaining battery level is 90% or higher.

Flashing red The battery level is not enough for

activating the cell phone when turning on.

Flashing green New Email, new Gmail are notified while

backlight is off.

Flashing blue Missed calls, new PC mail, new SMS

(C-mail) messages are notified while the backlight is off.

■ Checking own phone number

1 From the Home screen, tX[Settings]. 2 [About phone]X[Status].

Your phone number is shown under "My phone number".

■ Setting the Silent mode

Set the ringtone volume to "0". Setting the Silent mode on the SOL21 mutes the ringtone, operation tone, notification tones. However, the playback sound of videos and music, alarm sound, etc. are not muted.

1 From the Home screen, tX[Settings]X[Sound]. 2 Mark "Silent mode".

❖Information

･ Alternatively, p (over 1 sec.)→[Silent mode] to switch the

Silent mode on or off.

■ Setting Airplane mode

When airplane mode is set, all wireless functions (phone, packet communication, Wi-Fi turned off.

, Bluetooth® function) are

1 From the Home screen, tX[Settings]X[Wireless &

networks].

2 Mark "Airplane mode".

❖Information

･ Alternatively, p (over 1 sec.)→[Airplane mode] to switch

the Airplane mode on or off.

Entering characters

When entering characters, use the software keyboard displayed when tapping a character input box for adding contacts, creating a message, etc.

■ Switching keyboard

To input Japanese, use "Xperia™ Japanese keyboard" switching four input types of "Phonepad", "QWERTY keyboard", "Japanese syllabary", "Handwriting".

1 Tap a character input box. 2 Long-touch " " X[]/[]/[]/[].

The keyboard switches to Phonepad/QWERTY keyboard/ Japanese syllabary/Handwriting.

❖Information

･ Word suggestions or direct conversion candidates for the

entered characters appear. Tap a word to enter.

･ Tap " " to delete the character before the cursor. ･ Long-touch " " to enter pictograms (only for SMS (C-mail)),

symbols (single byte/double byte), face marks from the displayed list.

･ Flick up/down/left/right to enter characters in each column of

kana syllabary on the Phonepad. Characters can be entered without repeatedly tapping the key (flick input).

･ Ta p x to stop entering characters and return to the

previous screen.

DEFGHBC

Support

Peripheral devices

For details, refer to the instruction manual for each device.

･ Sony Ericsson AC adapter 04 (EP 8 00A) ･ Desktop Holder (DK25)

❖Information

･ For the latest information on peripheral devices, visit the au

homepage (http://www.au.kddi.com/) or contact the Customer Service Center.

･ The peripheral devices introduced on the page can be

purchased on the au Online Shop.

http://auonlineshop.kddi.com/

Troubleshooting

Before you assume that the product is malfunctioning, check the following:

Symptom What you should check

Cannot turn on power.

The power turns off unintentionally.

The power turns off while activation screen is displayed.

Is the SOL21 charged? Is p pressed for over 1 second?

Is the battery empty?

Symptom What you should check

(out of range)

appears.

Cannot charge the battery.

Cannot operate touch panel as intended.

Cannot operate key/ touch panel.

The screen reacts slowly when the screen is tapped or a key is pressed.

A warning to charge appears.

Are you out of the service area or in an area with poor signal strength?

Is the built-in antenna covered with your finger, etc.?

Is the power plug of the AC adapter surely inserted into the outlet?

Is the microUSB plug of the microUSB cable surely inserted into the SOL21?

Is the temperature of the SOL21 raised or very low?

Are you operating with gloved hands?

Are you operating with a fingernail or foreign object on the screen?

Is the key lock set?

Is "Screen lock" set?

Turn off the power and then turn it on again.

When large amount of data is saved in the SOL21 or transferring large-size data between the SOL21 and microSD memory card, the reactions on the screen may be delayed.

The battery is almost empty.

Symptom What you should check

Battery usage time is short.

The display backlight turns off in a short while.

Display is dark. Is "Brightness" set to dark?

The screen is frozen. Cannot turn the power off.

Cannot recognize a microSD memory card.

For more details, visit au Customer Support site of au homepage.

http://www.kddi.com/customer/service/au/trouble/kosho/ index.html

Is the SOL21 charged enough? Charge the SOL21 until the notification LED turns green.

Is the built-in battery end-of-life?

Is the SOL21 left in a place where (out of range) appears for a long period?

Is set "Screen timeout" period too short?

Is the proximity sensor covered by sticker?

Try to "Reboot" or "Force-quit".

Is the microSD memory card inserted properly?

Is the microSD memory card unmounted?

Attaching the back cover

If the back cover is removed, attach the cover in the following steps.

1 Check the orientation of the back cover and attach it to

fit the SOL21 body. Push each tab to close firmly .

Rebooting/Force-quitting the SOL21

The battery of the SOL21 is built in and cannot be removed. To reboot the SOL21, perform the following steps.

■ Rebooting the SOL21

1 Press p and upper of m at the same time for

approximately 5 seconds, and release your finger after the SOL21 vibrates once.

■ Force-quitting the SOL21

1 Press p and upper of m at the same time for

approximately 10 se conds, a nd rele ase your finger after the SOL21 vibrates 3 times.

Forinquiries,call:CustomerServiceCenter

Forgeneralinformationandcharges(tollfree)

Fromﬁxe d-li nepho nes:



007 7-7-111

Forloss,theftordamageandoperationinformation(tollfree)

Fromﬁxe d-li nepho nes:



0077-7-113

Incaseabovenumbersarenotavailable,(tollfree)



0120-977- 033



0120-977- 699

Soldby:KDDICORPORATION, OKINAWACELLULARTELEPHONECOMPANY Manufacturedby:SonyMobileCommunicationsJapan,Inc

Fromaucellphones:

157

withoutareacode

Fromaucellphones:

113

withoutareacode



(exceptOkinawa)

(Okinawa)

CellphoneandPHSoperatorscollectand recycleunusedtelephones, batteriesandbatterychargersatstoresbearingthelogoregardless of brand and manufacturer to protect the environment andreuse valuableresources.

February2012,1stEdition

1261-5912.1

Updating software

You can update the SOL21 to the most recent software for optimal performance and to get the latest enhancements. ･ You are charged for data communication when connecting

to the Internet from the SOL21 by using packet communication.

･ You are recommended to back up your data before

updating software.

･ For details, visit http://www.sonymobile.co.jp/support/ or

refer to the "Manual SOL21" application or "取扱説明書詳細版 (Full instruction manual)" (Japanese) available on au homepage.

■ Downloading and updating software

Update files can be downloaded from the Internet web site via wireless communication into the SOL21 directly. ･ To download software updates only via Wi-Fi

screen, [ ]X[Update center]XtX[Settings]X[Allow automatic update:] and select "Via Wi-Fi only". If you set to "Via 3G/Wi-Fi" for updating, note that if Wi-Fi becomes unstable, packet communication may take over place automatically, which applies communication fees.

1 From the Home screen, [ ]X[Update center]. 2 [System]XtX[Refresh].

■ Connecting to a PC for updating software

You can update software using PC Companion which can be installed from the SOL21. ･ Install PC Companion to your PC beforehand.

, from the Home

communication

After-sales service

■ When asking for repair

For repair, contact Secure cell phone support center.

During the warranty period

Outside the warranty period

❖Information

･ Before handing in the product for repair, make a backup of

the contents of memory since they may disappear during repair. Note that the Company shall not be liable for any damages and loss of income should the contents of memory be altered or lost.

･ Recycled parts that meet the Company's quality standards

are sometimes used for repair.

･ Collected au cell phones by Replacement cell phone delivery

service which you used before are recycled to cell phones for replacement after repairs. Also replaced parts by au aftersales service are collected and recycled by KDDI. They are not returned to customers.

■ Performance parts for repair

The Company retains performance parts for repair of the SOL21 main unit and its peripherals for six years after discontinuation of production. "Performance parts for repair" refers to parts required for maintaining the functions of the product.

Repairs will be done based on the terms of services of the free-of-charge repair warranty described on the warranty card.

We shall repair the product for a charge as requested by the customer if repair renders it usable.

JKLMN

■ Warranty card

At the store of purchase, thoroughly check and read the name of the retailer, date of purchase and other necessary details filled in on the warranty card, and be sure to keep it in a safe place.

■ Secure cell phone support plus

An after-sales service membership program on a monthly basis called "Secure cell phone support plus" (monthly fee: 399 yen including tax) is available for using your au cell phone for a long time without worries. This service expands coverage for many troubles including malfunction, theft and loss. For details of this service, refer to au homepage or contact Secure cell phone support center.

❖Information

･ You can apply for membership only at the time of purchasing

your au cell phone.

･ Once you cancel the membership, you cannot reapply for it

until you purchase an au cell phone next time.

･ Note that when changing the model or purchasing an extra

cell phone, this service only covers the most recently purchased au cell phone.

･ When an au cell phone is handed over to you or someone

else, the Secure cell phone suport plus membership is also handed over to the successor of the cell phone.

･ When you get a new au cell phone by changing the model or

purchasing an extra cell phone, the "Secure cell phone support plus" membership for the old au cell phone is automatically canceled.

･ Service contents are subject to change without notice.

■ au IC-Card

The au IC-Card is lent to you by au. In case of loss or damage, the card will be replaced at your expense. When malfunction is suspected, or in case of theft or loss, contact an au shop or PiPit.

■ After-sales service

If you are unsure about anything regarding after-sales service, contact the following service contact.

Customer Service Center (for service canceling procedure or operation in case of loss or theft)

From a land-line phone, 0077-7-113 (toll-free) From an au cell phone, 113 without area code (toll free)

Secure cell phone support center (for loss, theft, damage)

From a land-line phone/From an au cell phone,

0120-925-919 (toll-free)

Business hours 9:00−21:00 (7 days a week)

■ au after-sales service information

Replacement cell phone delivery service

Secure cell phone support plus members

Spontaneous failure 1st year Free of charge Spontaneous failure after

2nd year Partially damage, water

soak, irreparable damage, theft or loss

Non-Secure cell phone support plus member

Spontaneous failure 1st year No recompense Spontaneous failure after

2nd year Partially damage, water

soak, irreparable damage, theft or loss

* Charge amounts are all tax-included.

Customer charge 1st: 5,250 yen 2nd: 8,400 yen

Holding over and repair

Secure cell phone support plus members

Spontaneous failure 1st year Free of charge Spontaneous failure after

2nd year Partially damage Customer charge

Water soak, irreparable damage

Theft, loss

Non-Secure cell phone support members

Spontaneous failure 1st year Free of charge Spontaneous failure after

2nd year Partially damage Water soak, irreparable

damage Theft, loss

* Charge amounts are all tax-included.

❖Information Replacement cell phone delivery service

･ When you have trouble with your au cell phone,

replacement cell phone (same model, same color, including new battery) is delivered to the specified place by calling to. Return your damaged cell phone within 14 days after replacement cell phone is delivered.

･ Available up to twice in a year from the day you use this

service as a start day. If you do not use this service in the past year at the subscription to this service, it will be 1st and if you use, it will be 2nd.

* For details, refer to au homepage.

Free of charge (three-year warranty)

Upper limit: 5,250 yen No recompense

Actual cost

No recompense (model change)

Holding over and repair

･ Repairs due to water soak and irreparable damage are not

covered by this service.

･ Damages and malfunctions intentionally caused by the

customer as well as those due to modification (e.g. disassembly, change of parts, painting, etc.) by the customer are not covered by this service.

･ You cannot receive a refund for replacement of the outer casing

due to stains, scratches, paint removal, etc. on the outer casing.

Main specifications

Display Approx. 4.3 inches TFT 16,777,216

Weight Approx. 149 g (with internal battery) Dimension (W x H x T) Continuous

call time

Continuous stand-by time

❖Information

･ The continuous talk time and continuous standby time may

drop to less than half depending on the battery charging status, usage environment such as temperature, reception condition at the location where the product is used, and the function settings.

In Japan Approx. 570 minutes Overseas

(GSM) In Japan Approx. 330 hours (3G)

Overseas (GSM)

colors 720 × 1,280 dots

Approx. 66 mm× 126 mm ×11.9 mm

Approx. 490 minutes

Approx. 230 hours (3G and Wireless LAN (Wi-Fi

Approx. 440 hours

) function)

+ 4 hidden pages
