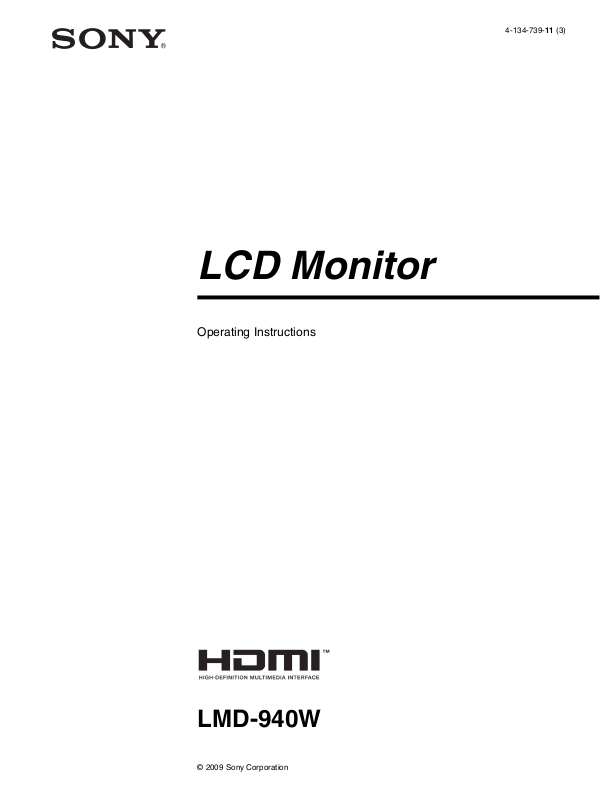

LCD Monitor

4-134-739-11 (3)

Operating Instructions

LMD-940W

Owner’s Record

The model and serial numbers are located at the rear. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING THIS APPARATUS MUST BE EARTHED.

Model No.____________________ Serial No.____________________

Important Safety Instructions

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socketoutlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Attention-when the product is installed in Rack:

1. Prevention against overloading of branch circuit

When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.

2. Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

3. Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

4. Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

5. Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the specifications of the Operation Manual.

6. When performing the installation, keep the following space away from walls in order to obtain proper exhaust and radiation of heat.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING:

Using this unit at a voltage other than 120 V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

Upper : 4.4 cm (1 3/4 inches) or more Lower (when not using the stand) : 1.7 cm (11/16 inches) or more Rear : 10.0 cm (4 inches) or more

CAUTION

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING

Excessive sound pressure from earphones and headphones can cause hearing loss. In order to use this product safely, avoid prolonged listening at excessive sound pressure levels.

For kundene i Norge

Dette utstyret kan kobles til et ITstrømfordelingssystem.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe

This product with the CE marking complies with both the EMC Directive and the Low Voltage Directive issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European standards:

• EN60065 : Product Safety

• EN55103-1 : Electromagnetic Interference (Emission)

• EN55103-2 : Electromagnetic Susceptibility (Immunity)

This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio).

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

For the customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org).

Table of Contents

Precaution .............................................................. 5

On Safety ............................................................ 5

On Installation .................................................... 5

Handling the LCD Screen .................................. 5

About the Fluorescent Tube ............................... 5

On Cleaning ....................................................... 5

On Repacking ..................................................... 6

On Mounting on a Rack ..................................... 6

On Fan Error ...................................................... 6

On AC Adaptor Terminal .................................. 6

Features .................................................................. 6

Location and Function of Parts and Controls .... 8

Front Panel ......................................................... 8

Input Signals and Adjustable/Setting Items ..... 10

Rear/Bottom Panel ........................................... 11

Installing to the Rack (Using MB-531) .............. 12

Power Supply ....................................................... 13

Attaching the AC Adaptor ............................... 13

Connecting the AC Power Cord ....................... 13

Selecting the Default Settings ............................. 14

Selecting the Menu Language ............................ 15

Using the Menu .................................................... 16

Adjustment Using the Menus ............................. 18

Items ................................................................. 18

Adjusting and Changing the Settings ............... 18

STATUS menu............................................. 18

COLOR TEMP/SPACE menu..................... 18

USER CONTROL menu.............................. 19

USER CONFIG menu.................................. 20

REMOTE menu ........................................... 24

KEY INHIBIT menu.................................... 25

Troubleshooting ................................................... 26

Specifications ....................................................... 26

Dimensions ........................................................... 29

Table of Contents

Precaution

On Safety

• Operate the unit only with a power source as specified in the “Specifications” section.

• A nameplate indicating operating voltage, etc., is located on the bottom.

• Should any solid object or liquid fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• Do not drop or place heavy objects on the power cord. If the power cord is damaged, turn off the power immediately. It is dangerous to use the unit with a damaged power cord.

• Unplug the unit from the wall outlet if it is not to be used for several days or more.

• Disconnect the power cord from the AC outlet by grasping the plug, not by pulling the cord.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• If the unit is used in a cold place, horizontal lines or a residual image may appear on the screen. This is not a malfunction. When the monitor becomes warm, the screen returns to normal.

• If a fixed picture such as a frame of a divided picture or time code, or a still picture is displayed for a long time, an image may remain on the screen and be superimposed as a ghosting image.

• The screen and the cabinet become warm during operation. This is not a malfunction.

About the Fluorescent Tube

A specially designed fluorescent tube is installed as the lighting apparatus for this unit. If the LCD screen becomes dark, unstable or does not turn on, consult your Sony dealer.

On Cleaning

Before cleaning

Be sure to disconnect the AC power cord from the AC outlet.

On Installation

• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.

• Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

Handling the LCD Screen

• The LCD panel fitted to this unit is manufactured with high precision technology, giving a functioning pixel ratio of at least 99.99%. Thus a very small proportion of pixels may be “stuck”, either always off (black), always on (red, green, or blue), or flashing. In addition, over a long period of use, because of the physical characteristics of the liquid crystal display, such “stuck” pixels may appear spontaneously. These problems are not a malfunction.

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the unit by a window.

• Do not push or scratch the LCD monitor’s screen. Do not place a heavy object on the LCD monitor’s screen. This may cause the screen to lose uniformity.

On cleaning the monitor screen

The monitor screen surface is especially treated to reduce reflection of light. As incorrect maintenance may impair the performance of the monitor, take care with respect to the following:

• Wipe the screen gently with a soft cloth such as a cleaning cloth or glass cleaning cloth.

• Stubborn stains may be removed with a soft cloth such as a cleaning cloth or glass cleaning cloth lightly dampened with water.

• Never use solvent such as alcohol, benzene or thinner, or acid, alkaline or abrasive detergent, or chemical cleaning cloth, as they will damage the screen surface.

On cleaning the cabinet

• Clean the cabinet gently with a soft dry cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution, followed by wiping with a soft dry cloth.

• Use of alcohol, benzene, thinner or insecticide may damage the finish of the cabinet or remove the indications on the cabinet. Do not use these chemicals.

• If you rub on the cabinet with a stained cloth, the cabinet may be scratched.

• If the cabinet is in contact with a rubber or vinyl resin product for a long period of time, the finish of the cabinet may deteriorate or the coating may come off.

Precaution

On Repacking

Do not throw away the carton and packing materials. They make an ideal container which to transport the unit.

On Mounting on a Rack

Leave 1U space empty above and below the monitor to ensure adequate air circulation or install a fan to maintain the monitor’s performance.

If you have any questions about this unit, contact your authorized Sony dealer.

On Fan Error

The fan for cooling the unit is built in. When the fan stops and the 1 (standby) switch indicator on the front panel blinks in green for fan error indication, turn off the power and contact an authorized Sony dealer.

Features

The LMD-940W (9 type) is a multiple format LCD monitor for broadcast or business use featuring a precise image and high performance. It supports both digital or analog main broadcast signal and HDMI also equipped with functions to adjust for various objects or use.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

High brightness LCD panel

Because of precise image, wide viewing angle technology and high speed response, real color image can be reproduced. Use the light intercepting hood, connector protector and carrying handle (optional Sony VF-510 Monitor ENG Kit) for outdoor use.

Multi-format

The monitor supports video, HDMI, SDI (3G/HD/SD) signals and NTSC/PAL color systems.

input. It is

On AC Adaptor Terminal

The AC adaptor terminal of this unit (the connector for AC adaptors) is a consumable part. The unit may not operate properly if the pins of the AC adaptor terminal are bent or deformed by shock or vibrations, or if they become corroded due to prolonged outdoor use. Periodic inspections are recommended to keep the unit working properly and to prolong its usable lifetime. Contact your dealer or a Sony service representative for more information about inspections.

For more information, see “Available signal formats” on page 28.

External remote function

The input signal is selected or various items are adjusted by use of the serial (Ethernet) remote function. Up to 32 monitors and control units (max. 4) can be connected by the Ethernet (10BASE-T/100BASE-TX) connection and controlled remotely on the network. You can control individual monitors or monitor groups simply by entering the monitor ID or group ID number. You can also execute the same operation on all connected monitors, or put all connected monitors into the same setup and adjustment state.

For more information, see SERIAL REMOTE of REMOTE menu on page 24.

Refer to the Operation Manual of the BKM-15R Monitor Control Unit.

Rack mount monitors

Using the optional MB-531 Mounting Bracket, up to two monitors may be mounted on the EIA-standard 19inch rack. A height of 4U space-saving design allows more equipment to be installed in tight space, such as an outdoor broadcasting van.

Monitor stand

You can set the monitor display in 15° by using the stand.

Features

Protection plate

You can attach and detach the LCD screen’s protection plate easily with the four screws.

Strong, slim and lightweight

The strong, slim, and lightweight design of the aluminum die-cast chassis makes the monitor suitable for use with rack mounts or as a portable monitor. This reduces the weight burden on an outdoor broadcasting van, and allows for a wider working space.

Two power systems

This unit can also be operated by DC 12V or its exclusive AC power adaptor. The AC power adaptor can be mounted on the rear of the monitor for easy use.

Input signal waveform and audio level display

The waveform of the input signal or the audio level (embedded audio only) can be displayed.

For more information, see SUB INPUT SELECT of “WFM/ALM (waveform monitor and audio level meter) DISPLAY SETTING” on page 21.

Camera focus

This function sharpens the edges of the image more than the amount set by the upper limit of the aperture value in the USER CONTROL menu. This is convenient for focusing with the camera.

With this, scaling to correct the screen aspect ratio is done to the horizontal direction of SD signals with nonsquare pixels (number of horizontal pixels of the signal system is 720 or 1440) or 640 × 480 SD signal of HDMI video.

Select color temperature mode

You can select the color temperature from among two settings (9300 K, 6500 K).

Color space function

You can select one from among three color space settings (SMPTE-C/EBU/ITU-R BT.709).

On-screen menus

You can set the appropriate settings according to the connected system by using the on-screen menus.

Select language display

You can select from seven display languages, English, French, German, Spanish, Italian, Japanese and Chinese.

Key inhibit function

You can inhibit a key function to prevent misoperation.

Monaural speaker

The monitor has a monaural speaker to reproduce sound.

Auto chroma/phase function

The chroma and phase of the decoder are automatically adjusted with the auto chroma/phase function.

Blue only mode

In the blue only mode, a monochrome display is obtained with all three of the R/G/B picture elements driven with a blue signal. This mode is convenient for chroma and phase adjustments and monitoring of VCR noise.

H/V delay mode

The horizontal and vertical sync signals can be monitored simultaneously.

Select marker/scan display

Various items for broadcast use can be displayed. The center marker, aspect marker or display size (scan), etc are displayed by selecting according to use.

For more information, see “MARKER SETTING” on page 21 and SCAN of “FUNCTION BUTTON SETTING” on page 22.

Scan setting /native display

When video signals are input, you can set the display size to 0% scan (normal), 5% over scan (over) or zoom mode (full screen). A native display function that maps the pixel of the signal to the panel in one-to-one mode is also equipped.

Features

Location and Function of Parts and Controls

4 96 7 853

Front Panel

1 2

a Tally lamp

You can check the status of the monitor by the color of the tally lamp. The tally lamp lights in red, green or amber according to the setting of PARALLEL REMOTE in the REMOTE menu.

b Protection plate

You can detach the protection plate by removing the four screws.

c i (headphones) jack

The audio signal which is selected by the input select button is output in stereo sound.

d Speaker

The audio signal which is selected by the input select button is output in monaural sound (L + R). When SDI signals are input, the audio signal of the channel which is selected in AUDIO SETTING of the USER CONFIG menu is output (see page 20). The audio signals from the speaker are output from the AUDIO OUT connector on the rear (see page 11). Audio signals will not be output when headphones are connected to the i jack.

e Stand

Pull the stand toward you to tilt the monitor screen by 15°. When using the optional VF-510 Monitor ENG Kit, set the stand at positions B and C. (see “Using the stand” on page 9).

f Input select buttons

Press to monitor the signal input to each connector.

SDI button: to monitor the signal through the SDI IN connector HDMI button: to monitor the signal through the HDMI connector COMPOSITE button: to monitor the signal through the COMPOSITE IN connector

g Function buttons

You can turn the assigned function on or off. The factory setting is as follows;

F1 button: BRIGHTNESS F2 button: CONTRAST F3 button: CHROMA F4 button: SCAN F5 button: H/V DELAY F6 button: VOLUME F7 button: I/P MODE

You can assign various functions in FUNCTION BUTTON SETTING of the USER CONFIG menu.

Location and Function of Parts and Controls

For details of the function assigned to the function button, see page 22.

Move the mounting screws on the underside of the stand to positions A and C, or positions B and C.

h Menu operation buttons

Displays or sets the on-screen menu.

MENU SEL (menu selection) control

When the menu is displayed, turn the control to select a menu item or setting value, and then press the control to confirm the setting. When the menu is not displayed, press the control to light up the characters that represent the names of the buttons. Press the control again to turn off the lights.

ENTER button

Press to confirm a selected item on the menu. When the menu is not displayed, press the button to display the distinguished signal format.

RETURN button

When the menu is displayed, press the button to reset the value of an item to the previous value. When the menu is not displayed, press the button to display the names of the functions selected in FUNCTION BUTTON SETTING of the USER CONFIG menu on the side of the F1 to F7 buttons.

MENU button

Press to display the on-screen menu. Press again to clear the menu.

i 1 (standby) switch and indicator

Press to turn on the power when this unit is in standby mode. The indicator lights in green. Press the switch again to set the monitor in standby mode. The indicator goes out. When fan error occurs, the indicator blinks in green. In power saving mode, it lights in amber.

ACB

A and C: Sets the stand towards the back. B and C: Sets the stand towards the front.

When using the optional VF-510 Monitor ENG Kit, set the stand at positions B and C.

Using the stand

Pull the stand toward you to tilt the monitor screen by 15°.

The mounting position of the stand can be changed.

Location and Function of Parts and Controls

Input Signals and Adjustable/Setting Items

Input signal

Item

CONTRAST*

BRIGHT*

CHROMA*

PHASE*

APERTURE

COLOR TEMP

COLOR SPACE

AUTO CHROMA/PHASE

ACC

CTI

V SHARPNESS

NTSC SETUP

SCAN

ASPECT

MARKER

BLUE ONLY

MONO

H/V DELAY

SHIFT

POWER SAVING

I/P MODE*

WFM/ALM*

CAMERA FOCUS

RGB RANGE*

a : Adjustable/can be set

× : Not adjustable/cannot be set

Video B & W

SD HD 3G SD HD

aaaaaaa aaaaaaa a a

(NTSC)

ЧЧЧЧЧЧ

aaaaa

aaaaaaa aaaaaaa aaaaaaa a

a a

ЧЧЧЧЧЧ ЧЧЧЧЧЧ Ч

aaa a

(NTSC)a(480/60I)

ЧЧЧЧЧ

aaaaaaa aaa aaaaaaa a

× ×

aaaaa

aaaaa aaaaa×× aaaaaaa

aaaaaaa aaaa aaaaaaa

aaaaaaa

ЧЧЧЧЧ

SDI HDMI

×××× ××

××

a ×

*1 Adjustment of SUB CONTROL is the same. *2 Only the interlace signal is input. *3 The audio levels of WFM or ALM are displayed when SDI

signal is input. Select the displayed audio level channels in SDI AUDIO SETTING (see “WFM/ALM SELECT” on page

22).

*4 Adjustable when RGB format of HDMI signals are input.

Location and Function of Parts and Controls

Rear/Bottom Panel

4 5 9 06 7 8

a SDI (3G/HD/SD) input and output connectors

(BNC)

IN connector

Input connector for serial digital component signals.

OUT connector

Output connector for serial digital component signals.

Note

The signal from the OUT connector does not satisfy the ON-LINE signal specifications.

b COMPOSITE input and output connectors

(BNC)

IN connector

Input connector for composite video signals or audio signals.

OUT connector

Loop-through output connector.

Note

When inputting a video signal with the jitters, etc. the picture may be disturbed. We recommend using the TBC (time base corrector).

c AUDIO input and output connectors (stereo

mini jack)

IN connector

Connect to the audio outputs of external equipment such as a VCR.

OUT connector

Outputs the audio signal which is selected by the input select button on the front panel. When SDI signal is selected, the audio signal of the channel which is selected in AUDIO SETTING of the USER CONFIG menu is output.

d PARALLEL REMOTE connector (modular

connector, 8-pin)

Forms a parallel switch and controls the monitor externally.

For details on the pin assignment and factory setting function assigned to each pin, see page 28.

CAUTION

For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.

e SERIAL REMOTE connector (RJ-45)

Connect to the network or Sony BKM-15R Monitor Control Unit by using a 10BASE-T/100BASE-TX LAN cable (shielded type, optional).

For details, refer to the Interface Manual for Programmers (saved in the supplied CD-ROM, Japanese and English only).

Location and Function of Parts and Controls

CAUTION

• For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.

• When an optional LAN cable is connected, use a shield type cable to prevent miss-operation due to noises.

• The connection speed may be affected by the network system. This unit does not guarantee the communication speed or quality of 10BASE-T/ 100BASE-TX.

f HDMI input connector

Input connector for HDMI signals. HDMI (High-Definition Multimedia Interface) is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High-bandwidth Digital Content Protection), a copy protection technology that incorporates coding technology for digital video signals.

Note

Use HDMI compliant cable (optional) with HDMI logo.

Installing to the Rack (Using MB-531)

You can attach up to two monitors to the rack by using the optional MB-531 Mounting Bracket.

Attach the mounting bracket to the monitor.

For details on attaching the mounting bracket, refer to the Mounting Instructions of the MB-531.

Attach the unit to the rack with four screws.

Note

The screws are not supplied. Prepare screws according to the rack.

g EJECT button

While sliding this button, remove the AC adaptor.

h Tripod socket hole (1/4-20UNC, 3/8-16UNC)

When using a tripod, secure it to the monitor with this hole.

i AC adaptor attachment

The monitor can also be operated with AC power by attaching the AC adaptor.

j DC 12V IN jack (XLR-type, 4-pin)

Connects the DC 12V external power source to use the monitor.

Installing to the Rack (Using MB-531)

Power Supply

Attaching the AC Adaptor

Connecting the AC Power Cord

Attach the AC adaptor to the monitor, and then connect the supplied AC power cord.

Attaching

Removing

AC power cord (supplied)

AC plug holder (supplied) Attach the AC plug holder to the AC power cord, and connect it to the AC IN connector so that the cord does not come loose.

Notes

• The AC adaptor is for LMD-940W only. It cannot be used with other products.

• To remove the AC adaptor, first unplug the AC power cord and then remove the AC adaptor.

Power Supply

Selecting the Default Settings

When you turn on the unit for the first time after purchasing it, select the area where you intend to use this unit from among the options.

The default setting values for each area

NTSC

SETUP

COLOR SPACE

1NORTH AMERICA D65 7.5 SMPTE-C

2LATIN AMERICA

PAL&PAL-N AREA

NTSC&PAL-M AREA

3AFRICA AUSTRALASIA

EUROPE MIDDLE-EAST

4ASIA EXCEPT

JAPAN

5JAPAN D93 0 EBU

COLOR

TEMP

ARGENTINA D65 0 EBU

PARAGUAY D65 0 EBU

URUGUAY D65 0 EBU

OTHER AREA D65 7.5 SMPTE-C

D65 0 EBU

NTSC AREA D65 7.5 SMPTE-C

PAL AREA D65 0 EBU

Press the 1 (standby) switch.

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

ENTER RETURN MENU

The unit is turned on and the SELECT SETTING screen appears.

1North America

S E L E C T S E T T I N G

N O R T H _ A M E R I C A

L A T I N A M E R I C A A F R I C A A U S T R A L A S I A E A S I A E X C E P T J A P A N J A P A N

Turn the MENU SEL control to select the area

2Latin America

3Africa, Australia/New

Zealand, Europe, Middle East, Russia

4Asia Except Japan

5Japan

where you intend to use the unit and press the MENU SEL control or the ENTER button.

If you select either 1, 3 or 5

The confirmation screen is displayed. Confirm the selected area. When the setting is wrong, press the RETURN button to return to the previous screen.

12~3

Selecting the Default Settings

S E L E C T T H I S A R E A ?

N O R T H A M E R I C A

[ E N T E R ] Y E S

[ R E T U R N ] NO

If you select either 2 or 4

One of the following screens appears. Turn the MENU SEL control to narrow the area further and then press the MENU SEL control or the ENTER button. The confirmation screen is displayed. Confirm the selected area. If the setting is wrong, press the RETURN button to return to the previous screen.

2 If LATIN AMERICA is selected:

PAL&PAL-N area

L A T I N A M E R I C A

P A L & P A L - N _ A R E A

A R G E N T I N A P A R A G U A Y U R U G U A Y

N T S C & P A L - M A R E A O T H E R A R E A

Argentina Paraguay

Uruguay

NTSC&PAL-M area

Other area

4 If ASIA EXCEPT JAPAN is selected:

Customers who will use this unit in the shaded areas shown in the map below should select NTSC AREA. Other customers should select PAL AREA.

Selecting the Menu Language

You can select one of seven languages (English, French, German, Spanish, Italian, Japanese, Chinese) for displaying the menu and other on-screen displays. “ENGLISH (English)” is selected in the default setting. The current settings are displayed in place of the x marks on the illustrations of the menu screen.

A S I A E X C E P T J A P A N

N T S C _ A R E A

P A L A R E A

Press the MENU SEL control or the ENTER

NTSC area

PAL area

button.

The SELECT SETTING screen disappears and the menu item settings suitable for the selected area are applied.

Turn on the unit.

Press the MENU button.

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

ENTER RETURN MENU

The menu appears. The menu presently selected is shown in yellow.

STATUS 1 / 2

FORMAT xxxxxxxxx

xxxxxxxx

COLOR TEMP xxx HDMI FORMAT xxxxx NTSC SETUP x SCAN MODE xxxxxxxx POWER SAVING xx I/P MODE xxxxxxx

123~5

Note

When you have selected the wrong area, set the following items using the menu.

• COLOR TEMP (on page 19)

• NTSC SETUP (on page 20)

• COLOR SPACE (on page 19) See “The default setting values for each area” (page 14) on the setting value.

Turn the MENU SEL control to select SYSTEM SETTING of the USER CONFIG (user configuration) menu, then press the MENU SEL control or the ENTER button.

Selecting the Menu Language

The setting items (icons) in the selected menu are displayed in yellow.

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx LANGUAGE: ENGLISH POWER SAVING: xxxxxx I/P MODE: xxxxxxx LED BRIGHTNESS: xxxxxx RGB RANGE: xxxxxx

Turn the MENU SEL control to select “LANGUAGE”, then press the MENU SEL control or the ENTER button.

The selected item is displayed in yellow.

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx I/P MODE: xxxxxxx LED BRIGHTNESS: xxxxxx RGB RANGE: xxxxxx

Using the Menu

The unit is equipped with an on-screen menu for making various adjustments and settings such as picture control, input setting, set setting change, etc. You can also change the menu language displayed in the on-screen menu.

To change the menu language, see “Selecting the Menu Language” on page 15.

The current settings are displayed in place of the x marks on the illustrations of the menu screen.

COMPOSITEHDMISDI F1 F2 F3 F4 F5 F6 F7 ENTER RETURN MENU

ENTER RETURN MENU

Turn the MENU SEL control to select a language, then press the MENU SEL control or the ENTER button.

The menu changes to the selected language.

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx I/P MODE: xxxxxxx LED BRIGHTNESS: xxxxxx RGB RANGE: xxxxxx

To clear the menu

Press the MENU button. The menu disappears automatically if a button is not pressed for one minute.

12~4

RETURN button

Press the MENU button.

The menu appears. The menu presently selected is shown in yellow.

STATUS 1/2

FORMAT

COLOR TEMP HDMI FORMAT NTSC SETUP SCAN MODE POWER SAVING I/P MODE

Turn the MENU SEL control to select a menu, then press the MENU SEL control or the ENTER button.

xxxxxxxxx

xxxxxxxx

xxx

xxxxx

xxxxxxxx

xxxxxxx

Using the Menu

The menu icon presently selected is shown in yellow and setting items are displayed.

The menu disappears automatically if a button is not pressed for one minute.

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx FORMAT DISPLAY: xxxxxx

LANGUAGE: ENGLISH

POWER SAVING: xxxxxx I/P MODE: xxxxxxx LED BRIGHTNESS: xxxxxx RGB RANGE: xxxxxx

Select an item.

Turn the MENU SEL control to select the item, then press the MENU SEL control or the ENTER button. The item to be changed is displayed in yellow. If the menu consists of multiple pages, turn the MENU SEL control to go to the desired menu page.

Make the setting or adjustment on an item.

When changing the adjustment level:

To increase the number, turn the MENU SEL control right. To decrease the number, turn the MENU SEL control left. Press the MENU SEL control or the ENTER button to confirm the number, then restore the original screen.

When changing the setting:

Turn the MENU SEL control to change the setting, then press the MENU SEL control or the ENTER button to confirm the setting.

When returning the adjustment or setting to the previous value:

Press the RETURN button before pressing the MENU SEL control or the ENTER button.

About the memory of the settings

The settings are automatically stored in the monitor memory.

Notes

• An item displayed in black cannot be accessed. You can access the item if it is displayed in white.

• If the key inhibit has been turned on, all items are displayed in black. To change any of the items, turn the key inhibit to OFF first.

For details on the key inhibit, see page 25.

To return the display to the previous screen

Press the RETURN button.

To clear the menu

Press the MENU button.

Using the Menu

Adjustment Using the Menus

Items

The screen menu of this monitor consists of the following items.

STATUS (the items indicate the

current settings.)

FORMAT COLOR TEMP HDMI FORMAT NTSC SETUP SCAN MODE POWER SAVING I/P MODE Model name and serial number

F1 BUTTON F2 BUTTON F3 BUTTON F4 BUTTON F5 BUTTON F6 BUTTON F7 BUTTON

AUDIO SETTING

SDI AUDIO SETTING

REMOTE

PARALLEL REMOTE SERIAL REMOTE

KEY INHIBIT

Adjusting and Changing the Settings

COLOR TEMP/SPACE

COLOR TEMP MANUAL ADJUSTMENT COLOR SPACE

USER CONTROL

SUB CONTROL AUTO CHROMA/PHASE PICTURE CONTROL INPUT SETTING

USER CONFIG

SYSTEM SETTING

NTSC SETUP FORMAT DISPLAY LANGUAGE POWER SAVING I/P MODE LED BRIGHTNESS RGB RANGE

MARKER SETTING

MARKER ENABLE MARKER SELECT CENTER MARKER MARKER LEVEL

MARKER MAT WFM/ALM (waveform monitor and audio level meter) DISPLAY SETTING

WFM/ALM

WFM/ALM SELECT

POSITION

TRANSPARENCY FUNCTION BUTTON SETTING

STATUS menu

The STATUS menu is used to display the current status of the unit. The following items are displayed:

STATUS 1/2

FORMAT xxxxxxxxx

xxxxxxxx

COLOR TEMP xxx HDMI FORMAT xxxxx NTSC SETUP x SCAN MODE xxxxxxxx POWER SAVING xx I/P MODE xxxxxxx

STATUS 2/2

LMD-940W xxxxxxx

• Signal format

• Color temperature

• HDMI format

•NTSC setup

• Scan mode

• Power saving

• I/P mode

• Model name and serial number

COLOR TEMP/SPACE menu

The COLOR TEMP/SPACE menu is used for adjusting the picture white balance or color space.

Adjustment Using the Menus

You need to use the measurement instrument to adjust the white balance. Recommended: Konica Minolta color analyzer CA-210

COLOR TEMP/SPACE

COLOR TEMP: xxxxxx

MANUAL ADJUSTMENT ADJUST GAIN: ADJUST BIAS: COPY FROM: xxx COLOR SPACE: x

Submenu Setting

COLOR TEMP Selects the color temperature from

among D65, D93 and USER setting.

MANUAL ADJUSTMENT

If you set the COLOR TEMP to USER setting, the item displayed is changed from black to white, which means you can adjust the color temperature. The set values are memorized.

• ADJUST GAIN: Adjusts the

color balance (GAIN).

• ADJUST BIAS: Adjusts the

color balance (BIAS).

• COPY FROM: If you select D65

or D93, the white balance data for the selected color temperature will be copied in the USER setting.

COLOR SPACE Selects the color space from among

EBU, SMPTE-C, ITU-709 and OFF. OFF sets the color space to the original color reproduction of the LCD panel.

USER CONTROL menu

The USER CONTROL menu is used for adjusting the picture. Items that cannot be adjusted depending on the input signal are displayed in black.

For details of input signal and adjustable / setting items, see page 10.

USER CONTROL 1/3

SUB CONTROL CONTRAST: x BRIGHTNESS: x CHROMA: x PHASE: x APERTURE: x BACKLIGHT: x VOLUME: x

USER CONTROL 2/3

AUTO CHROMA/PHASE

AUTO ADJ VALUE: xx

START:

USER CONTROL 3/3

PICTURE CONTROL ACC: xx CTI: x V SHARPNESS: x

INPUT SETTING SHIFT H: xxx SHIFT V: xx

Submenu Setting

SUB CONTROL Adjusts finely the adjustment range

of the function buttons which CONTRAST, BRIGHTNESS, CHROMA and PHASE are assigned.

• CONTRAST: Adjusts the

picture contrast.

• BRIGHTNESS: Adjusts the

picture brightness.

• CHROMA: Adjusts color

intensity. The higher the setting, the greater the intensity. The lower the setting, the lower the intensity.

• PHASE: Adjusts color tones.

The higher the setting, the more greenish the picture. The lower the setting, the more purplish the picture.

• APERTURE: Adjusts the picture

sharpness. The higher the setting, the sharper the picture. The lower the setting, the softer the picture. APERTURE does not work when the camera focus function is activated.

• BACKLIGHT: Adjusts the

backlight. When the setting is changed, the brightness of the backlight is changed.

• VOLUME: Adjusts the volume.

Adjustment Using the Menus

Submenu Setting

AUTO CHROMA/ PHASE

Adjusts color intensity (CHROMA) and tones (PHASE).

• AUTO ADJ VALUE: Selects

ON or OFF of the auto adjustment. When you set to OFF, this parameter is reset to the factory setting. When you set to ON, the automatically adjusted value is enabled.

• START: The auto adjustment

starts when you display the color bar signals (Full/ SMPTE/EIA) on the screen and press the ENTER button. After adjusting the color intensity, press the MENU button to clear the adjustment screen. After the adjustment is done correctly, the AUTO ADJ VALUE is automatically set to ON.

PICTURE CONTROL Adjusts the picture.

• ACC (Auto Color Control):

Sets ACC circuit on or off. To check the fine adjustment, select OFF. Normally select ON.

• CTI (Chroma Transient Improvement): When a low color resolution signal is input, a crisp image can be displayed. When the setting is higher, the picture becomes even more crisp.

• V SHARPNESS: A crisp image can be displayed. When the setting is higher, the picture becomes even more crisp.

INPUT SETTING • SHIFT H: Adjusts the position of

the picture. As the setting increases, the picture moves to the right, and as the setting decreases, the picture moves to the left.

• SHIFT V: Adjusts the position of the picture. As the setting increases, the picture moves up, and as the setting decreases, the picture moves down.

USER CONFIG menu

The USER CONFIG menu is used for setting the system, marker, WFM/ALM display, function button, and audio.

USER CONFIG

SYSTEM SETTING: MARKER SETTING: WFM/ALM DISPLAY SETTING: FUNCTION BUTTON SETTING: AUDIO SETTING:

SYSTEM SETTING

USER CONFIG – SYSTEM SETTING

NTSC SETUP: xxxxxx

FORMAT DISPLAY: xxxxxx LANGUAGE: ENGLISH POWER SAVING: xxxxxx I/P MODE: xxxxxxx LED BRIGHTNESS: xxxxxx RGB RANGE: xxxxxx

Submenu Setting

NTSC SETUP Selects the NTSC setup level from

two modes. The 7.5 setup level is used mainly in North America. The 0 setup level is used mainly in Japan.

FORMAT DISPLAY Selects the display mode of the

signal format and scan mode.

• ON: The format and scan mode

are always displayed.

• OFF: The display is hidden.

• AUTO: The format and scan

mode are displayed for about 10 seconds when the input of the signal starts.

LANGUAGE Selects the menu or message

language from among seven languages.

• ENGLISH: English

• FRANÇAIS: French

• DEUTSCH: German

• ESPAÑOL: Spanish

• ITALIANO: Italian

• : Japanese

•: Chinese

POWER SAVING Sets the power saving mode on or

off. When you set to ON, the monitor goes into power saving mode if no signal is input for about one minute.

Adjustment Using the Menus

Submenu Setting

I/P MODE (picture delay minimum)

Selects to set the delay by the picture processing to the minimum level when the interlace signal is input.

• INTER-FIELD: Mode for

giving precedence to the picture quality. Performs interpolation depending on the movement of the images between the fields. It takes longer than “FIELD MERGE” or “LINE DOUBLER” for processing the picture. “INTERFIELD” is the factory setting.

• FIELD MERGE: The

processing time is shorter. Combines the lines in the odd fields and even fields alternately regardless of the movement of images. Suitable for viewing still images.

• LINE DOUBLER: The

processing time is shorter. Performs interpolation by repeating each line in the data receiving sequence regardless of the field. As the line flicker is displayed in this mode, it is available for checking the line flicker of the telop work and so on.

LED BRIGHTNESS Sets the brightness of the LED of

the buttons.

• 0: The LED becomes brighter.

• 1: The LED becomes darker.

RGB RANGE Sets the black level and white level

for the RGB format of HDMI signals.

• FULL: 0 (black level) to 255

(white level)

• LIMITED: 16 (black level) to

235 (white level)

MARKER SETTING

USER CONFIG – MARKER SETTING

MARKER ENABLE: xxx

MARKER SELECT: xxx CENTER MARKER: xx MARKER LEVEL: x MARKER MAT: xxx

Submenu Setting

MARKER ENABLE Selects ON to display the marker

and OFF not to display.

Note

When NATIVE is selected in the SCAN setting, the marker is not displayed. To display the marker, select a setting other than NATIVE.

MARKER SELECT Selects the aspect ratio according to

the film, when the frame of the film is displayed on the screen.

When 16:9 aspect ratio is selected with the button which the aspect function is assigned

You can select from among 4:3, 15:9, 14:9, 13:9, 1.85:1,

2.35:1, 1.85:1 & 4:3 and OFF.

When 4:3 aspect ratio is selected with the button which the aspect function is assigned

You can select 16:9 or OFF.

CENTER MARKER Selects ON to display the center

mark of the picture and OFF not to display.

MARKER LEVEL Sets the luminance to display the

MARKER SELECT and CENTER MARKER. You can select from among 1 to 3. When the setting is low, the marker is displayed dark.

MARKER MAT Selects whether you put mat on the

outside of the marker display.

• OFF: No mat is put.

• HALF: Gray mat is put.

• BLACK: Black mat is put.

WFM/ALM (waveform monitor and audio level meter) DISPLAY SETTING

USER CONFIG – WFM/ALM DISPLAY SETTING

WFM/ALM: xx

WFM/ALM SELECT: xxx POSITION: x TRANSPARENCY: x

Submenu Setting

WFM/ALM Selects ON to display the WFM/ALM

display and OFF not to display.

Note

When the WFM/ALM display is enabled, the marker display is not available.

Adjustment Using the Menus

Submenu Setting

WFM/ALM

• WFM: A waveform monitor is

SELECT

• ALM: An audio level meter is

When WFM is selected, the waveform and audio level are displayed. When ALM is selected, the audio level is displayed in eight channels. The audio levels of WFM or ALM are displayed when SDI signal is input. Select the displayed audio level channels in SDI AUDIO SETTING. The indications of the waveform (only when WFM is selected) and audio level signify as illustrated below, although the percentage of the waveform, units and values of the scale for the audio level do not appear on the display.

displayed.

Submenu Setting

POSITION Sets the position of the WFM/ALM

display. You can select from among 1 to

• 1: Bottom left

• 2: Bottom right

• 3: Top right

• 4: Top left

TRANSPARENCY Selects from black and half (transparent)

for the background of the WFM/ALM display.

• BLACK: The background is black.

Displayed image is hidden behind the background.

• HALF: The background is

transparent. Displayed image can be seen indistinctly behind the WFM/ALM display.

When WFM is selected

109%

100%

75%

50%

25%

-4%

Channel number (The channel number which is selected in SDI AUDIO SETTING is displayed.)

When ALM is selected

Audio level

(dB)

OVER 0

-10

Audio levelWaveform

(dB)

OVER 0

-10

-20

-30

-60

FUNCTION BUTTON SETTING

USER CONFIG –

F1 BUTTON: xxxx

F2 BUTTON: xxxx F3 BUTTON: xxxx F4 BUTTON: xxxx F5 BUTTON: xxxx F6 BUTTON: xxxx F7 BUTTON: xxxx

Submenu Setting

F1 BUTTON to F7 BUTTON

FUNCTION BUTTON SETTING

Assigns the function to the function buttons of the front panel and turns the function on or off. You can assign the function from among SCAN, ASPECT, BLUE ONLY, MONO, MARKER, I/P MODE and WFM/ALM.

Factory setting

• F1 button: BRIGHTNESS

• F2 button: CONTRAST

• F3 button: CHROMA

• F4 button: SCAN

• F5 button: H/V DELAY

• F6 button: VOLUME

• F7 button: I/P MODE

-20

-30

-60

12345678

Channel number (Displayed in eight channels, including the channel which is selected in SDI AUDIO SETTING.)

Adjustment Using the Menus

About the function assigned to the function button

SCAN

Press the button to change the scan size of the picture. With every press of the button for the 4:3 display, the picture switches in the sequence NORMAL scan t OVER scan t NATIVE. With every press of the button for the 16:9 display, the picture switches in the sequence NORMAL scan t OVER scan t FULL screen t NATIVE (see “Scan mode image” on page 23).

ASPECT

Press the button to set the aspect ratio of the picture, 4:3 or 16:9.

Note

The panel of the monitor is 15:9. When the 16:9 signal is displayed, black bars appear in the upper and lower positions of the display. This is not a malfunction (see “Scan mode image” on page 23).

BLUE ONLY

Press the button to eliminate the red and green signals. Only blue signal is displayed as an apparent monochrome picture on the screen. This facilitates “chroma” and “phase” adjustments and observation of VCR noise.

FIELD t FIELD MERGE t LINE DOUBLER with every press of the button (see “I/P MODE” on page 21).

PHASE

Press the button to adjust the color tones. Turn the MENU SEL control right to increase the green tone and turn left to increase the purple tone.

APERTURE

Press the button to adjust the picture sharpness. Turn the MENU SEL control right to make the picture sharper and turn left to make the picture softer.

CAMERA FOCUS

Press the button to confirm the camera focus. An image with sharpened edges is displayed.

MONO

Press the button to display a monochrome picture. When the buttons is pressed again, the monitor switches automatically to color mode.

MARKER

Press the button to display the marker. Set the aspect marker in the MARKER SETTING menu (see page 21).

H/V DELAY

Press the button to observe the horizontal and vertical sync signals at the same time.

WFM/ALM

Press the button to display the WFM/ALM display. Set the WFM/ALM display setting in the WFM/ALM DISPLAY SETTING menu (see page 21).

BRIGHTNESS

Press the button to adjust the picture brightness. Turn the MENU SEL control right to increase the brightness and turn left to decrease it.

CONTRAST

Press the button to adjust the picture contrast. Turn the MENU SEL control right to increase the contrast and turn left to decrease it.

Scan mode image

INPUT

4:3

(zeroscan)

NORMAL

OVER

(5% over scan)

FULL

640 × 480 800 × 450

–

16:9

800 × 480

CHROMA

Press the button to adjust the color intensity. Turn the MENU SEL control right to increase the intensity and turn left to decrease it.

VOLUME

Press the button to adjust the volume. Turn the MENU SEL control right to increase the volume and turn left to decrease it.

I/P MODE

Press the button to set the delay by the picture processing to the minimum level when interlace signal is input. The mode switches in the sequence INTER-

(1080i)

NATIVE

(720P)

NATIVE

Screen frame

–

800 × 480

–

800 × 480

Adjustment Using the Menus

)

INPUT

–

NATIVE

(480i, 575i,

480P, 576P

645 × 480 (480i, 480P)

768 × 480 (575i, 576P)

The image is scaled horizontally to display in an aspect ratio of 4:3.

AUDIO SETTING

USER CONFIG – AUDIO SETTING

SDI AUDIO SETTING: xxx

3G/HD/SD: xxx

Submenu Setting

SDI AUDIO SETTING Sets the audio channel when SDI

signal is input.

• 3G/HD/SD: Selects from among channels CH1 to CH16, odd channel + even channel (CH1+CH2, CH3+CH4···CH15+CH16) and OFF.

You can display the L/R audio levels of the selected channels on the display when the WFM/ALM display is enabled (see “WFM/ ALM (waveform monitor and audio level meter) DISPLAY SETTING” on page 21).

Submenu Setting

PARALLEL REMOTE Selects the PARALLEL REMOTE

connector pins for which you want to change the function. You can assign various functions to 1 to 4 pins and 6 to 8 pins. The following lists the functions you can assign to the pins.

• – – – (“– – –”: No function is assigned.)

•COMPOSITE

•SDI

• HDMI

• OVERSCAN

•FULL

• NORMAL

• NATIVE

•4:3

•16:9

• TALLY R

• TALLY G

• BLUE ONLY

• MONO

• H/V DELAY

• 16:9 MARKER

• 15:9 MARKER

• 14:9 MARKER

• 13:9 MARKER

•1.85:1 MARKER

•2.35:1 MARKER

• 1.85:1 & 4:3 MARKER

•4:3 MARKER

• CENTER MARKER

• MARKER MAT HALF

• MARKER MAT BLACK

•WFM/ALM

Notes

• If you use the PARALLEL

REMOTE function, you need to connect cables. For more details, see page 28.

• Set MARKER ENABLE

(page 21) to ON to control the aspect marker and center marker.

REMOTE menu

REMOTE

PARALLEL REMOTE:

SERIAL REMOTE: xxxxxxx MONITOR: CONTROLLER: CONNECTION: xxx

Adjustment Using the Menus

Submenu Setting

SERIAL REMOTE

MONITOR

CONTROLLER

CONNECTION

Selects the mode to be used.

• OFF: SERIAL REMOTE does

• ETHERNET: The monitor is

• BKM-15R: Sets BKM-15R. Sets the monitor setting.

Sets the address of the remote controller.

Sets the connection of the monitor and the controller.

not function.

controlled by the command of Ethernet.

MONITOR ID: Sets the ID of the monitor. GROUP ID: Sets the group ID of the monitor. IP ADDRESS: Sets the IP address. SUBNET MASK: Sets the subnet mask. (255.255.255.000) DEFAULT GATEWAY: Sets the default gateway on or off. ADDRESS: Sets the default gateway. CANCEL: Selects to cancel the setting. CONFIRM: Selects to save the setting.

IP ADDRESS: Sets the IP address. SUBNET MASK: Sets the subnet mask. (255.255.255.000) DEFAULT GATEWAY: Sets the default gateway on or off. ADDRESS: Sets the default gateway. CANCEL: Selects to cancel the setting. CONFIRM: Selects to save the setting.

PEER TO PEER: for one to one connection LAN: for connection via a network

KEY INHIBIT menu

KEY INHIBIT

KEY INHIBIT: xx

You can lock the setting so that they cannot be changed by an unauthorized user. Select OFF or ON. If you set to ON, all items are displayed in black, indicating the items are locked.

Adjustment Using the Menus

Troubleshooting

Specifications

This section may help you isolate the cause of a problem and as a result, eliminate the need to contact technical support.

• The unit cannot be operated t The key protection

function works. Set the KEY INHIBIT setting to OFF in the KEY INHIBIT menu. Or, a function that does not work is assigned. Press the RETURN button to check the assigned functions.

• The black bars appear at the upper and lower positions of the display t When the signal aspect ratio is different from that of the panel, the black bars appear. This is not a failure of the unit.

• Adjustments and settings cannot be made t Adjustments and settings may not be possible depending on the input signals and the status of the unit. See “Input Signals and Adjustable/Setting Items” (page 10).

Picture performance

LCD panel a-Si TFT Active Matrix Pixel efficiency 99.99% Picture size 9 type Viewing angle (up/down/left/right, contrast > 10:1)

85°/85°/85°/85° (typical)

Scan Normal 0%

Over scan 5%

Efficient picture size

195 × 117, 227 mm

/4 × 45/8, 9 inches) Resolution H 800 dots, V 480 lines Aspect ratio 15:9

Input

Composite input (NTSC/PAL) connector

BNC type (1) 1 Vp-p ± 3 dB sync negative

SDI input connector

BNC type (1)

HDMI input connector

HDMI (1)

Audio input connector

Stereo mini jack (1) –5 dBu

Remote input connector

Parallel remote

Modular connector 8-pin (1)

Serial remote

RJ-45 modular connector

DC IN connector

DC 12 V (output impedance 0.05 Ω or

47 kΩ or higher

(ETHERNET) (1)

less)

Troubleshooting / Specifications

Output

SDI (3G/HD/SD) output connector

BNC type (1) Output signal amplitude: 800 mVp-p

±10%

Output impedance: 75 Ω unbalanced

Composite output connector

BNC type (1) Loop-through, with 75 Ω automatic

terminal function

Audio monitor output connector

Stereo mini jack (1)

Built-in speaker output

0.5 W Monaural

Headphones output connector

Stereo mini jack (1)

General

Power AC 100 to 240 V, 50/60 Hz, 0.5 A to

0.3 A

DC 12 V, 1.9 A

Power consumption

Maximum: approx. 27 W

Peak inrush current

(1) Power ON, current probe method:

30 A (100 V), 60 A (240 V)

(2) Hot switching inrush current,

measured in accordance with European standard EN55103-1: 14 A (230 V)

Dimensions Approx. 222.4 × 183.5 × 161.8 mm

Mass Approx. 2.0 kg (4 lb 6 oz)

Operating conditions

Temperature

Recommended temperature

Humidity 30% to 85% (no condensation) Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature

Humidity 0% to 90% Pressure 700 hPa to 1060 hPa

Accessories supplied

Optional accessories

/8 × 71/4 × 63/8 inches)

(w/h/d)

Approx. 2.6 kg (5 lb 12 oz) (when AC

adaptor is installed)

0 °C to 40 °C (32 °F to 104 °F)

20 °C to 30 °C (68 °F to 86 °F)

–20 °C to +60 °C (–4 °F to +140 °F)

AC power cord (1) AC power adaptor (1) AC plug holder (1) Operating Instructions (1) CD-ROM (1) Using the CD-ROM Manual (1) Warranty book (1)

Mounting bracket

MB-531

Mounting panel

MB-532

Monitor ENG kit

VF-510

Note Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Design and specifications are subject to change without notice.

Specifications

Pin assignment

PARALLEL REMOTE connector

Modular connector (8-pin)

Pin number Functions

5 GND

6 Setting tally lamp red ON/OFF

7 Selecting over scan

8 Selecting normal scan

Pin number Functions

1 Designating SDI input signal

2 Designating HDMI input signal

3 Designating composite input signal

4 Setting tally lamp green ON/OFF

(see page 24).

Wiring required to use the Remote Control

Connect the function you want to use with a Remote Control to the Ground (Pin 5).

Available signal formats

The unit is applicable to the following signal formats.

You can allocate functions using the REMOTE menu

Signal standard

–

––

–

SMPTE RP211

SMPTE-274M CEA-861

SMPTE-296M CEA-861

SMPTE-274M CEA-861

CEA-861

–

2*3

Total lines

1125 1080 24 Progressive(sF) 16:9

1125 1080 25 Progressive(sF) 16:9

1125 1080 24 Progressive 16:9

1125 1080 30 Progressive 16:9

1125 1080 30 2:1 interlace 16:9

1125 1080 50 Progressive 16:9

1125 1080 60 Progressive 16:9

System

575/50I(PAL) 625 575 25 2:1 interlace 16:9/4:3 PAL:ITU-R BT.470 SMPTE-259M CEA-861

480/60I(NTSC)

576/50P 625 576 50 Progressive 16:9/4:3

480/60P

640 × 480/60P

1080/24PsF

1080/25PsF *

1080/24P *

1080/25P 1125 1080 25 Progressive 16:9

1080/30P

1080/50I 1125 1080 25 2:1 interlace 16:9

1080/60I

720/50P 750 720 50 Progressive 16:9

720/60P

1080/50P

1080/60P

*1 The format on the screen is displayed as 1080/48I. *2 The format on the screen is displayed as 1080/50I. *3 The frame rate is also compatible with 1/1.001. *4 The format is compatible with 4:2:2 YCbCr 10-bit of 3G-SDI.

*3*

*1*

Active

lines

525 483 30 2:1 interlace 16:9/4:3 NTSC:SMPTE-170M SMPTE-259M CEA-861

525 483 60 Progressive 16:9/4:3

525 480 60 Progressive 4:3

750 720 60 Progressive 16:9

Frame

rate*

Scanning

Aspect

ratio

Analog SDI (3G/HD/SD) HDMI

Specifications

Dimensions

Front

222.4 (87/8)

Top

31.2

/4)

100 (4)

/4)

/8)

166 (6

/32)

183.5 (7

Side

/32)

13 (

Bottom

(Without the stand)

161.8 (6

148.8 (57/8)

130 (51/8)

70 (27/8) 60 ( 23/8)

161.5 (63/8)

/8)

17.5 (

/4)

5.6 (

Side

(When the stand is moved)

38 (11/2)

149.6 (6)

Unit: mm (inches)

1/4-20UNC Maximum depth 6 mm (1/4 inch)

)

(21/32)

55.2 (2

173.6 (67/8)

3/8-16UNC Maximum depth 6 mm (1/4 inch)

33.2

4-M3 Maximum depth 6 mm (1/4 inch)

)

(1)

Dimensions

Sony Corporation

Sony LMD-940W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Precaution

On Safety

About the Fluorescent Tube

On Cleaning

On Installation

Handling the LCD Screen

On Repacking

On Mounting on a Rack

On Fan Error

Features

On AC Adaptor Terminal

Location and Function of Parts and Controls

Front Panel

Input Signals and Adjustable/Setting Items

Rear/Bottom Panel

Installing to the Rack (Using MB-531)

Power Supply

Attaching the AC Adaptor

Connecting the AC Power Cord

Selecting the Default Settings

Selecting the Menu Language

Using the Menu

Adjustment Using the Menus

Items

Adjusting and Changing the Settings

STATUS menu

COLOR TEMP/SPACE menu

USER CONTROL menu

USER CONFIG menu

REMOTE menu

KEY INHIBIT menu

Troubleshooting

Specifications

Dimensions
