3-858-355-22 (1)
Trinitron Color TV
Operating Instructions
Mode d´emploi
####
####
EN
F
PR
A
KV-E29
1996 by Sony Corporation
MF,MH
20 mm
3.8 mm
2
VIDEO 3 INPUT
AUTO PROGR
S VIDEO
(MONO)
AUT O P ROGRAM
PR: 0 1
TV SYS: B / G
VHF L O W
L–AUDIO–R MENU AUTO PROGR
ENTERVIDEO
123
456
789
1
3
4
WARNING Table of contents
• Dangerously high voltages are present inside the TV.
• Operate the TV only at 110-240 V AC.
• Do not open the cabinet and the rear cover of the TV.
Refer servicing to qualified personnel.
• To prevent fire or shock hazard, do not expose the TV
to rain or moisture.
• Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by qualified
personnel only.
• Do not block the ventilation openings.
• Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
• Do not install the TV in hot, humid or excessively
dusty places.
• Do not install the TV where it may be exposed to
mechanical vibrations.
• Do not keep the TV plugged in if you are not going to
use it for several days.
• Do not pull the power cord to disconnect the TV. Pull
it out by the plug.
• Use only the supplied screws (as shown on page 2) to
fasten the TV to the TV stand or to stabilize the TV
against a wall or a pillar. Use of other screws may
damage the TV.
Note on the remote commander
• The supplied remote commander is used on several models of
the TV. If you do not find instructions for some controls that
are on the remote commander, that means your TV does not
employ the features of those controls, e.g. TEXT.
Notes
• When you turn on the TV, you may hear the “boon” sound
that is caused by the demagnetization of the TV. This does not
indicate a malfunction.
• The picture color may become abnormal if you change the
direction of your TV. To obtain the normal picture color, press
MAIN POWER or POWER on the TV to turn off the TV for five
minutes and then turn it on again.
Getting Started
6 Connections
8 Getting to know the remote commander
9 Introducing the menus
10 Changing the menu language
11 Presetting channels
Operations

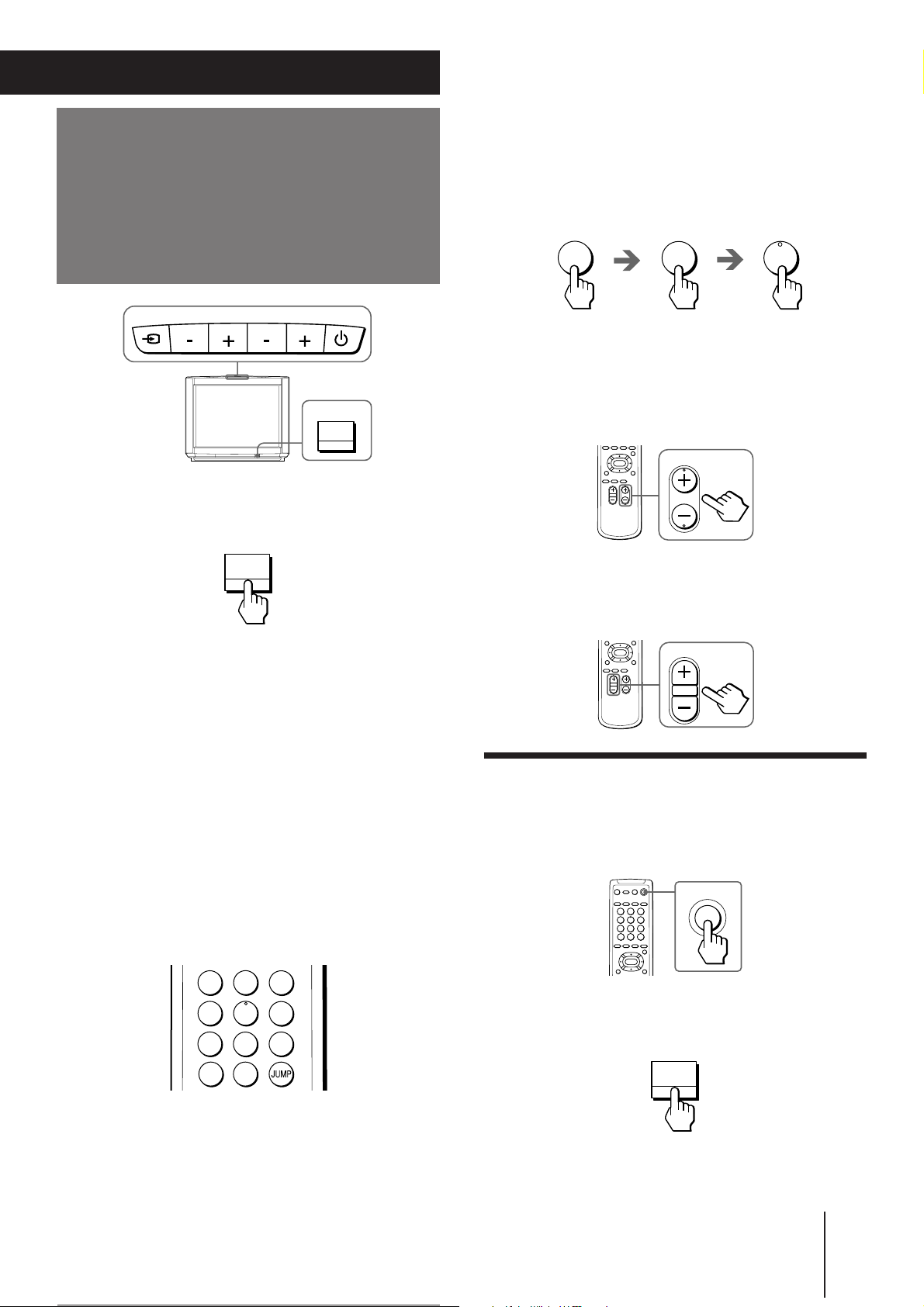

13 Watching the TV
16 Adjusting the picture and sound
18 Listening to the POWER BASSO sound
19 Listening to the surround sound (HYPER
SURROUND)
20 Selecting a stereo or bilingual program

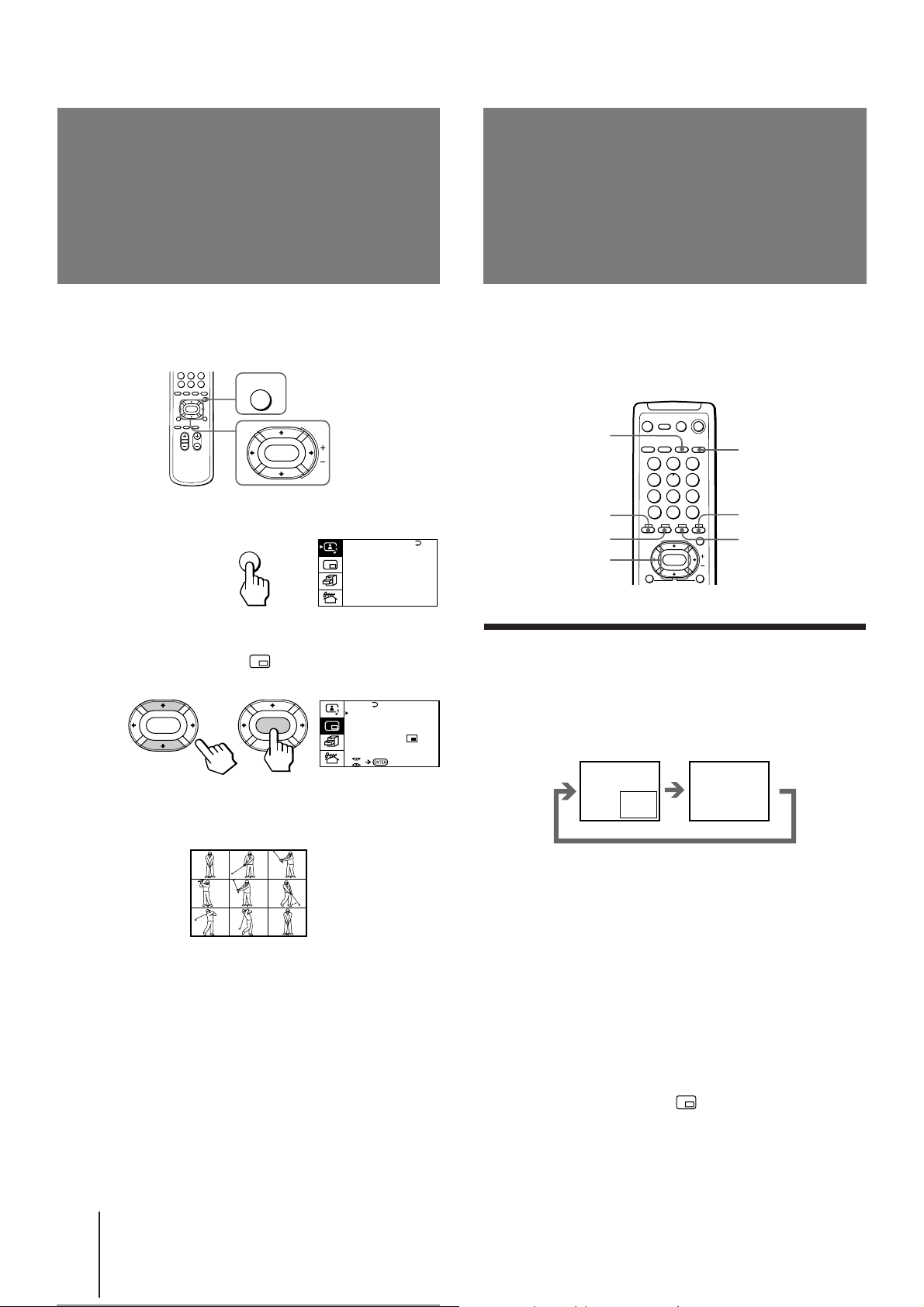

21 Viewing multiple programs at the same time
(PROGRAM INDEX)
22 Displaying frame-by-frame pictures (STROBE)

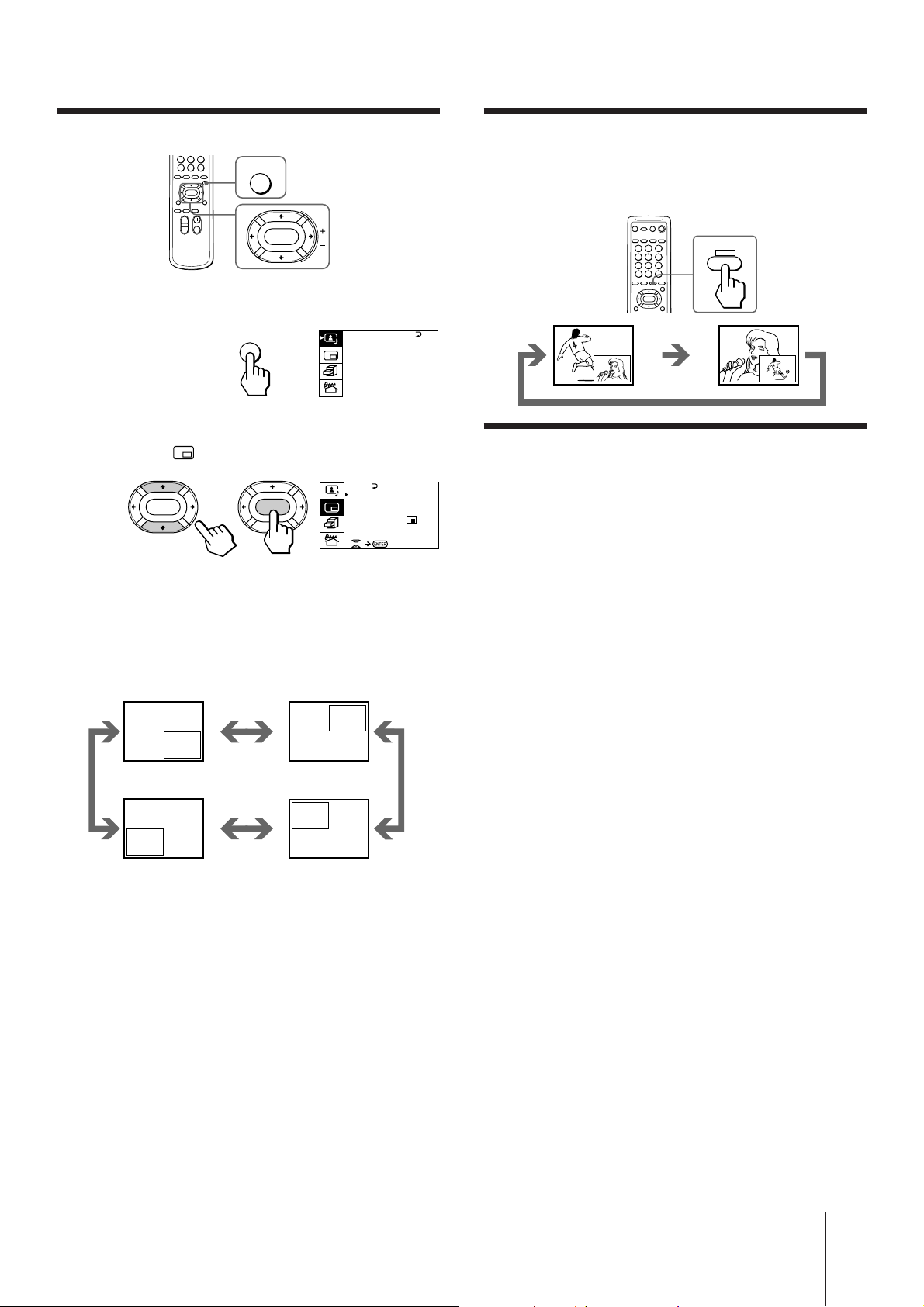

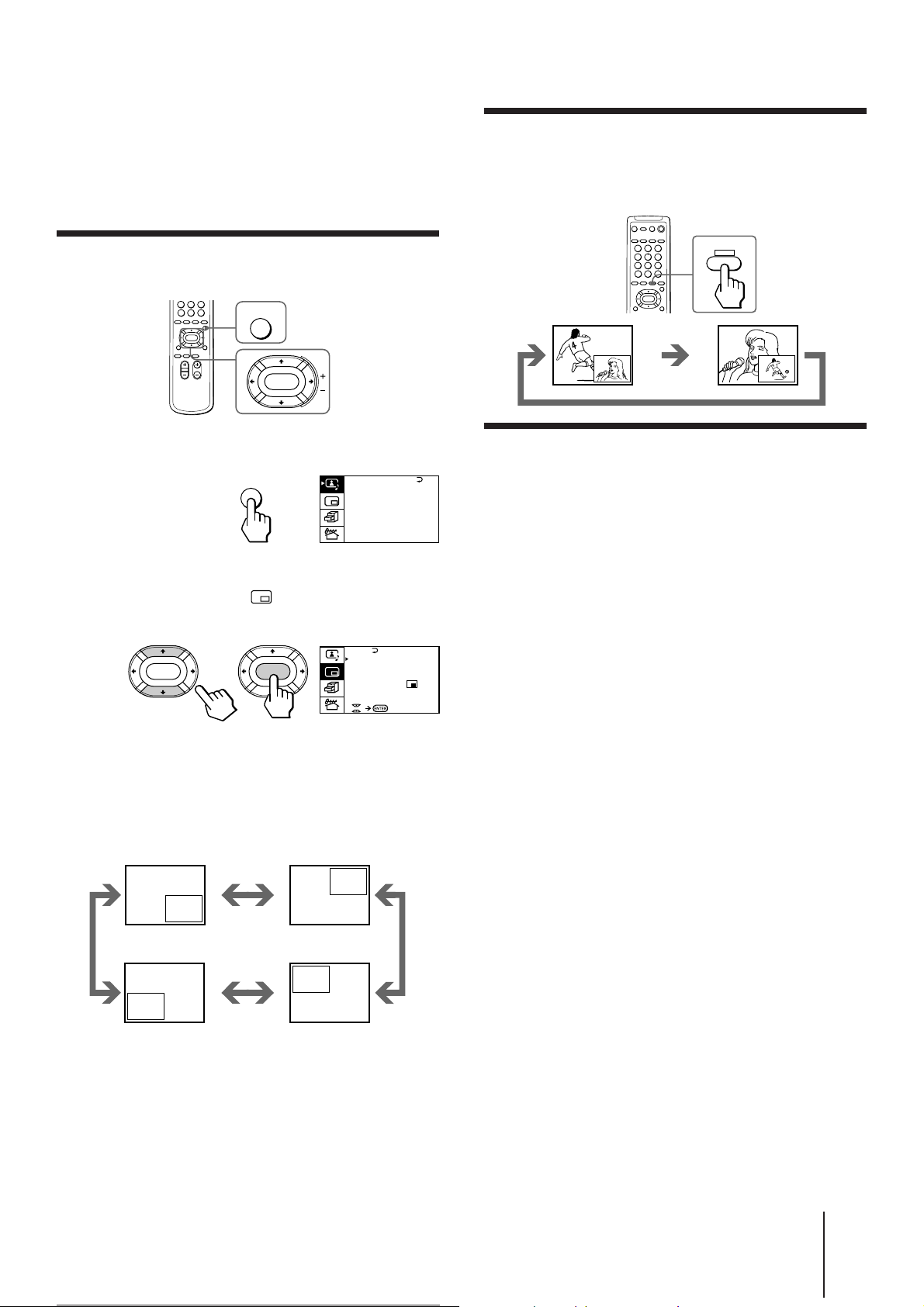

22 Using the Picture-in-Picture (PIP) features
24 Viewing Teletext
26 Displaying Teletext on the PIP screen (PIP TEXT)
27 Viewing a video game screen (GAME MODE)
28 Customizing the TV
Additional Information
29 Troubleshooting
Back Specifications
cover
All contents are subject to change without notice.
Design and specifications are subject to change without
notice.
EN
Getting Started
-EN
5
Getting Started
Connections
Connecting a VHF antenna or a combination VHF/UHF antenna
— 75-ohm coaxial cable (round)
Attach an optional IEC antenna connector to the 75-ohm coaxial cable.
Plug the connector into the (antenna) socket at the rear of the TV.
Rear of TVRear of TV
On a wall
or
Connecting optional equipment
You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video
game or stereo system.
Connecting video equipment using video input jacks
Rear of TV
Getting Started
-EN
6
to
antenna
socket
to
S Video
input
VIDEO IN MON/TV
123
S VIDEO
OUT
VIDEO
(MONO)
L
AUDIO
R
VCR
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
to
S Video
output
to
antenna
output
to video and
audio outputs
: Signal flow
Front of TV
VIDEO 3 INPUT
Camcorder
to video and
audio outputs
S VIDEO
VIDEO
(MONO)
L–AUDIO–R
to S video output
: Signal flow
When connecting a monaural VCR
Connect the yellow plug to VIDEO and the black plug to AUDIO-L (MONO).
When connecting video game equipment
Connect video game equipment to the VIDEO 3 INPUT jacks at the front of your TV or the VIDEO IN 3 jacks at the rear of your TV.
When connecting a VCR to the (antenna) terminal
Preset the signal output from the VCR to the program position 0.
When connecting video equipment to the VIDEO 3 INPUT jacks or the VIDEO IN 3 jacks
Do not connect video equipment to the VIDEO 3 INPUT jacks at the front and the VIDEO IN 3 jacks at the rear of your TV simultaneously;
otherwise the picture will not be displayed properly on the screen.
If both S Video and video signals are input simultaneously
The S Video input signal is selected. To view a video input signal, disconnect the S Video connection.
Note on the video input
When no signal is input, the screen becomes blue.
Connecting audio/video equipment using MON/TV OUT jacks
Rear of TV
to
antenna
socket
VIDEO IN MON/TV
123
S VIDEO
OUT
VIDEO
L
(MONO)
AUDIO
R
VCR
to
antenna
output
to video and
audio inputs
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Audio system
or
to audio
inputs
: Signal flow
Getting Started
-EN
7

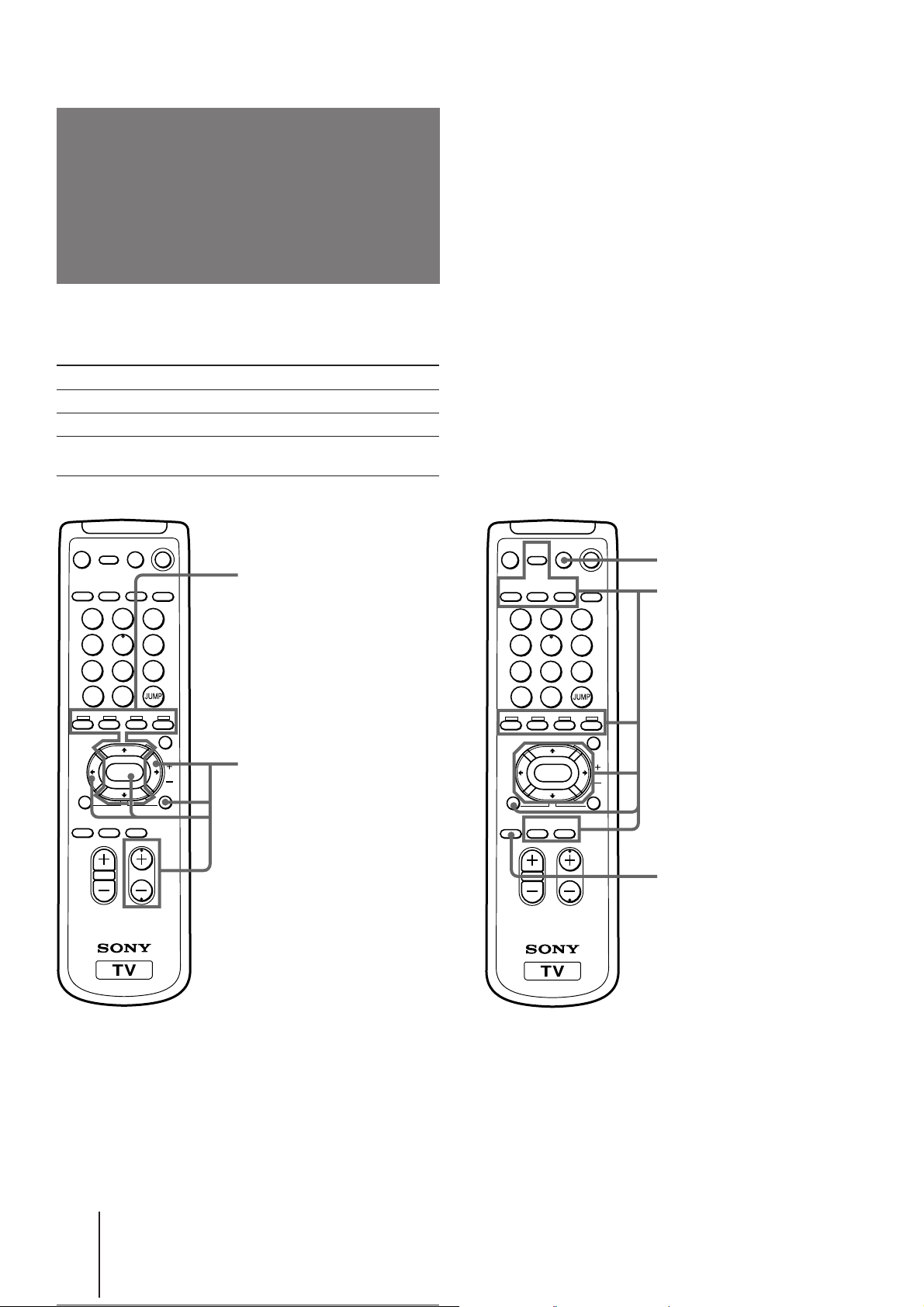

Getting to know the
remote commander
Names of buttons on the remote commander are indicated in different colors to represent the available functions.
Label color Button function
White For general TV operations.
Green For Teletext operations.
Yellow For PIP and PROGRAM INDEX operations.
MUTING
TEXT
TV/VIDEO
PIP
TEXT
POWER
BASSO
DISPLAY
1
4
7
-/--
WAKE UP
GAME
REVEAL
A/B
VIDEO
ENLARGE
HOLD
2
5
8
0
FREEZE SWAP
PIP PROGR
ENTER
SLEEP
INDEX
TEXT CLR
2
5
8
0
ENTER
GAME
VIDEO
HOLD
PIP PROGR
SLEEP
TEXT CLR
PROGRVOL
3
6
9
POWER
TV
PIP
MENU
PROGR
INDEX
GAME (page 27)
Teletext operation buttons
TEXT (page 24, 25)
ENLARGE (page 25)
REVEAL (page 25)
HOLD (page 24)
[] – Red (page 24)
[] – Green (page 24)
[] – Yellow (page 24)
[] – Blue (page 24)
INDEX (page 24)
TEXT CLR (page 25)
PIP TEXT (page 26)
V/b/v/B/ ENTER (page 26)
POWER
TV
PIP operation buttons
TV/VIDEO (page 22)
MUTING
TEXT
DISPLAY
REVEAL
A/B
ENLARGE
FREEZE (page 23)
3
6
9
SWAP (page 23)
PIP (page 22)
V/v/ENTER
– for PIP PROGR (page 22)
1
4
7
-/--
FREEZE SWAP
PIP
MENU
TV/VIDEO
PROGRAM INDEX
PROGR
INDEX
operation buttons
PROGR INDEX (page 21)
V/b/v/B/ENTER (page 21)
PROGR +/– (page 21)
PROGRVOL
PIP
TEXT
POWER
BASSO
WAKE UP
INDEX
POWER BASSO (page 18)
Note
• The Teletext operation buttons and the A/B button are used for KV-E29MH11 only.
Getting Started
-EN
8
Introducing the
TV SYS: B /G
AUT O PROGRAM
VHF LO
W
PR: 01
PRESET
SKIP:
PR02 OFF
TV SYS: B /G
COL
SYS : AUTO
ENGL I SH
AUT O PROGRAM
MANUA L P ROGRAM
L A NGUA GE / # # #
:
menus
You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen
menus. You can use the buttons on both the remote commander and the TV to operate the menus.
V I DEO ADJUST
P I CTURE
COLOR
BR I GHT
HUE
SHARP
VM: HIGH
A/V CONTROL
A / V CONTROL
DYNAMIC
STANDARD
SOFT
PERSONAL
V I DEO ADJUST
AUDIO ADJUST
T I LT CORRECT: 0
100
45
40
0
0
80
AUDIO ADJUST
BASS
TREBLE
BALANCE
PIP
PIP
PROGR I ND E X
PIP TEXT
STR OBE
POS I TION:
PIP: OFF
80
80
00
(∗ KV-E29MH11 only)
Getting back to the previous menu
(except for AUTO PROGRAM)
Press V or v to move the cursor (z) to the first
line (N) of each menu, and press ENTER.
Cancelling the menu screen
Press MENU.
FEATURES
FEATURES
GAME MODE
∗
HYPER SURROUND :
OFF
AV OUT :
MONITOR
PRESET
MANUA L PROGRAM
PR: 01
TV SYS: B /G
AT T : OFF
VHF
LOW
Notes (except for AUTO PROGRAM)
• When a menu is selected after pressing ENTER, the color of
both the menu and the menu symbol change and the cursor
(z) appears beside the first item of the menu.
• When an item on the menu is selected after pressing ENTER,
the color of the item changes.
• You can refer to the guide (
) at the bottom of the
menus (except for the A/V CONTROL and PRESET menus)
for the basic operations of the menu.
• If more than approximately 60 seconds elapse after you press a
button, the menu screen disappears automatically.
Getting Started
-EN
9
Changing the menu
4 Make sure the cursor (z) appears beside
LANGUAGE/####, and press ENTER.
language
If you prefer Arabic to English, you can change the
menu language. You can use buttons on both the
remote commander and the TV.
MENU
ENTER
MAIN POWER
5 Press V/b/v/B to select ####, and press
ENTER.
PRESET
LANGUAGE/####
ENTER ENTER
CH I NE S E
AUT O P ROGRAM
MANUA L PROGRAM
TV SYS: B / G
COL SYS : AUTO
SKIP: PR02 OFF
All of the menus change to Arabic.
6 Press MENU to return to the normal screen.
MENU
:
ENTER MENU
1 Press MAIN POWER to turn on the TV.
MAIN POWER
2 Press MENU.
MENU
A / V CONTROL
DYNAMIC
STANDARD
SOFT
PERSONAL
V I DEO ADJ UST
AUDIO ADJUST
T I L T CORRECT: 0
3 Press V or v to move the cursor (z) to the
PRESET menu ( ), and press ENTER.
PRESET
LANGUAGE/####
ENTER ENTER
ENGL I SH
AUT O P ROGRAM
MANUA L PROGRAM
TV SYS: B / G
COL SYS : AUTO
SKIP: PR02 OFF
:
10
Getting Started
-EN
Presetting channels
PRESET
SKIP: PR02 OFF
TV SYS: B / G
COL SYS : AUTO
ENGL I SH
AUT O P ROGRAM
MANUA L PROGRAM
LANGUAGE/####
:
ENTER ENTER
A / V CONTROL
DYNAMIC
SOFT
STANDARD
PERSONAL
V I DEO ADJ UST
AUDIO ADJUST
T I L T CORRECT: 0
MENU
MENU
ENTER
You can preset TV channels easily by storing all the
receivable channels automatically. You can also preset
channels manually or disable program positions (see
page 12 ).
Note
• If you want to return to the normal screen while the nine sub
screens are being displayed, you can press PROGR INDEX on
the remote commander.

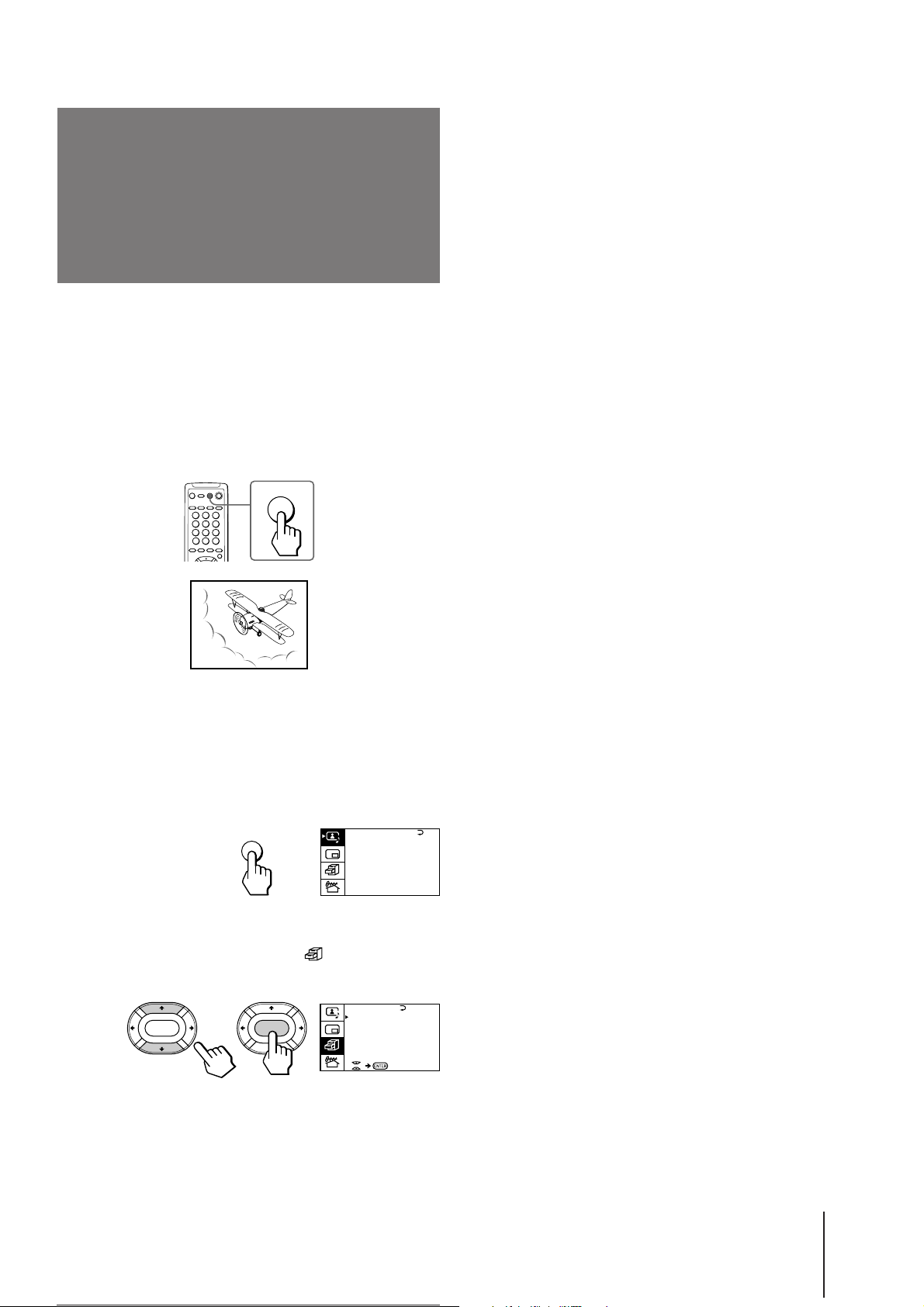

To preset channels automatically using
the menu
1 Press MENU.
2 Press V or v to move the cursor (z) to the
PRESET menu ( ), and press ENTER.
3 Press V or v to move the cursor (z) to AUTO
PROGRAM, and press ENTER.
Presetting channels automatically
You can preset up to 100 TV channels in numerical
sequence from the program position 1. You can preset
channels automatically using the button on the TV or
the menu.
MAIN POWER
ENTER MENU
AUTO PROGR
1 Press MAIN POWER to turn on the TV.
MAIN POWER
Presetting channels manually
To change the program position for a channel or to
receive a channel with a weak signal which you cannot
receive by automatic presetting, preset the channel
manually.
1 Press MENU.
2 Press V or v to move the cursor (z) to the
PRESET menu ( ), and press ENTER.
2 Press AUTO PROGR.
AUT O P ROGRAM
PR: 0 1
TV SYS:B/G
VHF LO
The TV starts scanning and presetting channels
automatically. When all of the receivable channels
are stored, the AUTO PROGRAM menu disappears
and the first nine preset TV programs appear on the
nine sub screens. The nine sub screens disappear
after being displayed for several seconds.
AUTO PROGR
123
W
456
789
3 Select your local TV system.
(1) Press V or v to move the cursor (z) to TV SYS, and
press ENTER.
(2) Press V/b/v/B until your local TV system appears
on the menu, and press ENTER.
Getting Started
11
-EN
4 Press V or v to move the cursor (z) to
MANUAL PROGRAM, and press ENTER.
MANUA L PROGRAM
ENTER ENTER
PR: 0 1
TV SYS:B/G
AT T : OFF
LOW
VHF
5 Select the program position to which you
want to preset a channel.
(1) Make sure the cursor (z) appears beside PR, and
press ENTER.
(2) Press V/b/v/B until the program position you
want appears on the menu, and press ENTER.
Disabling program positions
By disabling unused or unwanted program positions,
you can skip those positions when you press PROGR
+/–.
1 Press MENU.
2 Press V or v to move the cursor (z) to the
PRESET menu ( ), and press ENTER.
3 Press V or v to move the cursor (z) to SKIP,
and press ENTER.
6 Select the desired channel.
(1) Press V or v to move the cursor (z) to VHF LOW,
and press ENTER.
(2) Press V/b/v/B until the desired channel picture
appears on the TV screen, and press ENTER.
7 Press MENU to return to the normal screen.
If the TV signal is too strong
The picture may be distorted. You can reduce the
picture distortion as described below.
1 Display the PRESET menu.
2 Press V or v to move the cursor (z) to MANUAL
PROGRAM, and press ENTER.
3 Press V or v to move the cursor (z) to ATT, and
press ENTER.
4 Press V/b/v/B to select ON, and press ENTER.
If the TV system is not properly selected
The picture color may be poor and/or the sound may
be noisy. In this case, select the appropriate TV system.
4 Press V or v until the unused or unwanted
program position appears on the menu,
and press ENTER.
5 Press V/b/v/B to select ON, and press ENTER.
6 To disable other program positions, repeat
steps 4 and 5.
7 Press MENU to return to the normal screen.
To cancel the skip setting
1 Display the PRESET menu.
2 Press V or v to move the cursor (z) to SKIP, and
press ENTER.
3 Press V or v until the program position you want to
cancel the skip setting appears, and press ENTER.
4 Press V/b/v/B to select OFF, and press ENTER.
1 Press PROGR +/– or the number buttons to select
the program position.
2 Display the PRESET menu.
3 Press V or v to move the cursor (z) to TV SYS, and
press ENTER.
4 Press V/b/v/B until the appropriate TV system
appears, and press ENTER.
Notes
• The TV system and the ATT (attenuator) settings are
memorized for each program position.
• If you do not know your local TV system, consult your nearest
Sony dealer or authorized service center.
Getting Started
-EN
12
PROGR
VOL
POWER
VIDEO
HOLD
VIDEO 1 VIDEO 2 VIDEO 3 1

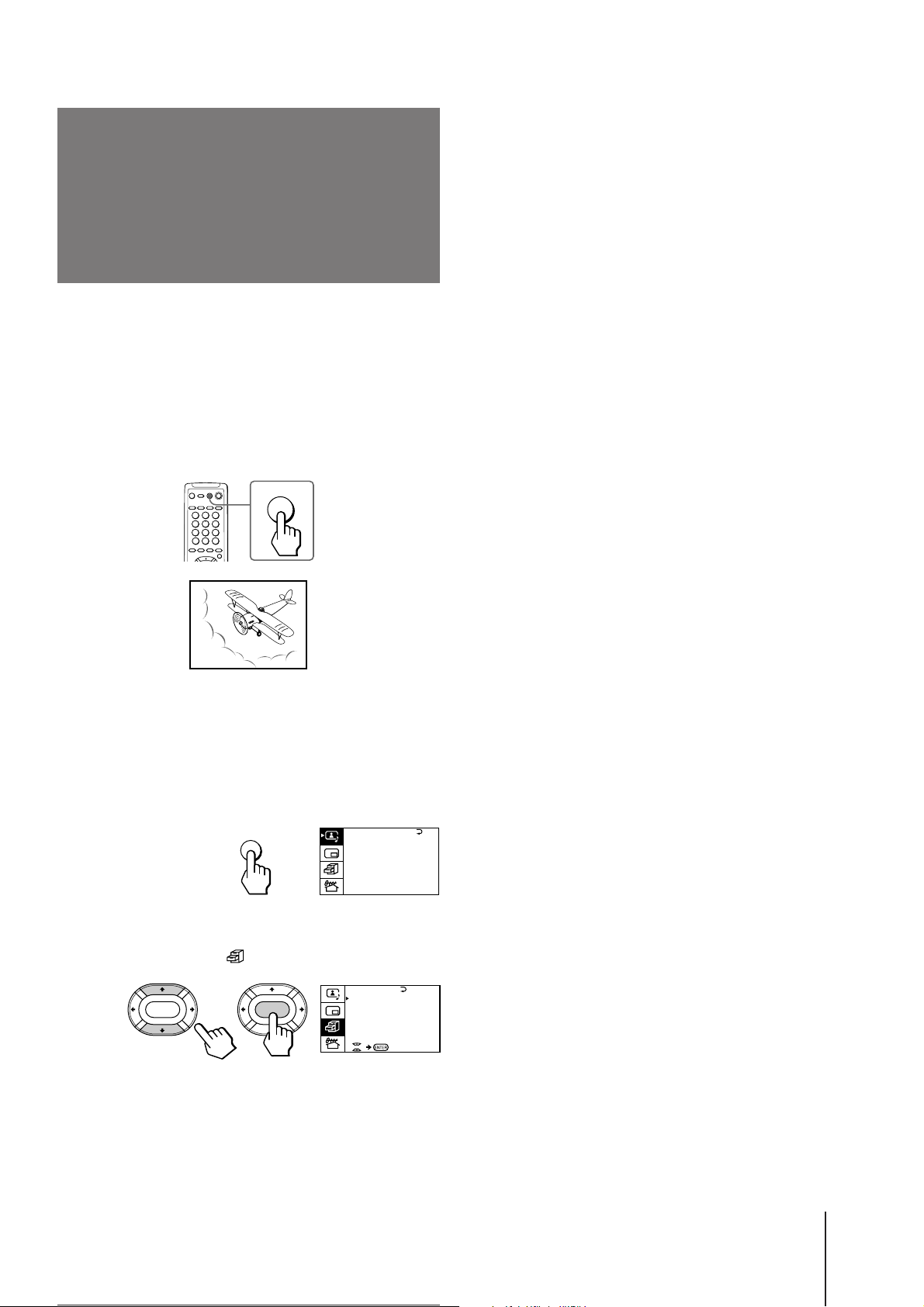

Operations
Watching the TV

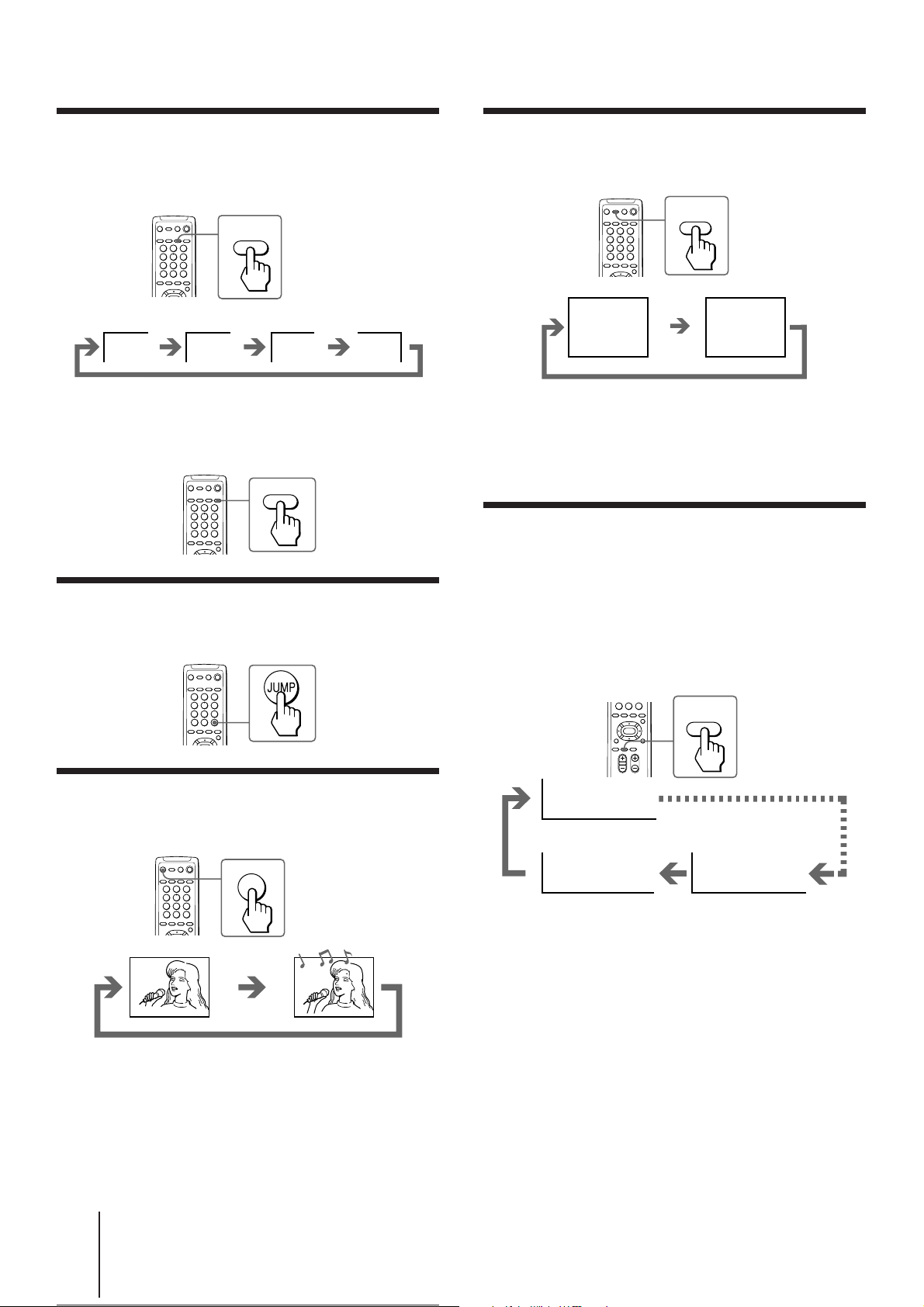

To scan through program positions
Press PROGR +/– on the remote commander or the
TV until the program position you want appears.
TV/VIDEO VOLUME PROGR POWER
MAIN POWER
1 Press MAIN POWER to turn on the TV.
MAIN POWER
When the TV is turned on in the standby mode, the
POWER indicator on the TV lights up. To turn on
the TV completely, press POWER on the remote
commander or the TV. When the TV is turned on
completely, the PROGR +/–, VOLUME +/–, and
TV/VIDEO indicators on the TV light up.
3 Press VOL +/– on the remote commander or
VOLUME +/– on the TV to adjust the volume.
Turning off the TV
To turn off the TV temporarily
Press POWER on the remote commander or the TV.
The STANDBY indicator lights up.
To turn off the TV completely
Press MAIN POWER on the TV.
2 Select the TV program you want to watch.
To select a program position directly
Press the number button.
2
1
4
7
-/--
To select a two-digit program position, press “÷”
before the number buttons.
For example: to select program position 25, press
“÷,” then “2” and “5.”
-/--
3
5
6
9
8
0
2
5
MAIN POWER
Watching the video input
Press VIDEO/HOLD on the remote commander
or TV/VIDEO on the TV.
Operations
13
-EN
To watch TV
WAKE UP
INDEX
WAKE UP TIMER:10M
WAKE UP TIMER:OFF
WAKE UP TIMER:12H00M
Press TV on the remote commander or TV/VIDEO on
the TV.
TV
Switching back quickly to the previous
channel
Press JUMP.
Setting the Wake Up Timer
You can set the TV to turn on automatically after the
period of time you want.
1 Press WAKE UP/INDEX repeatedly to set the
timer.
The on-screen display appears.
After 10 minutes
Muting the sound
Press MUTING.
MUTING
MUTING
Displaying the on-screen information
Press DISPLAY/REVEAL.
DISPLAY
REVEAL
8
DYNAMIC
POWER BASSO: ON
No Wake Up Timer
After 12 hours
2 If you want a particular TV program or
video mode to be displayed using the Wake
Up Timer, select the TV program or video
mode.
3 Press POWER on the remote commander or
the TV, or set the Sleep Timer to turn off
the TV in the standby mode.
The WAKE UP indicator lights up in amber color.
To cancel the Wake Up Timer, press WAKE UP/
INDEX repeatedly until “WAKE UP TIMER: OFF”
appears, or turn off the main power of the TV.
Notes
• The Wake Up Timer starts immediately after the on-screen
display disappears.
• The last TV program position or video mode just before the TV
turns into the standby mode will appear when the TV is turned
on using the Wake Up Timer.
• If no buttons or controls are pressed for more than two hours
after the TV is turned on using the Wake Up Timer, the TV
automatically turns into the standby mode. If you want to
continue watching the TV, press any button or control on the
TV or remote commander.
Note
• The on-screen display shows the program position or the video
mode, the picture and sound information. The on-screen
display for the picture and sound information disappear after
being displayed for approximately three seconds.
-EN
Operations
14

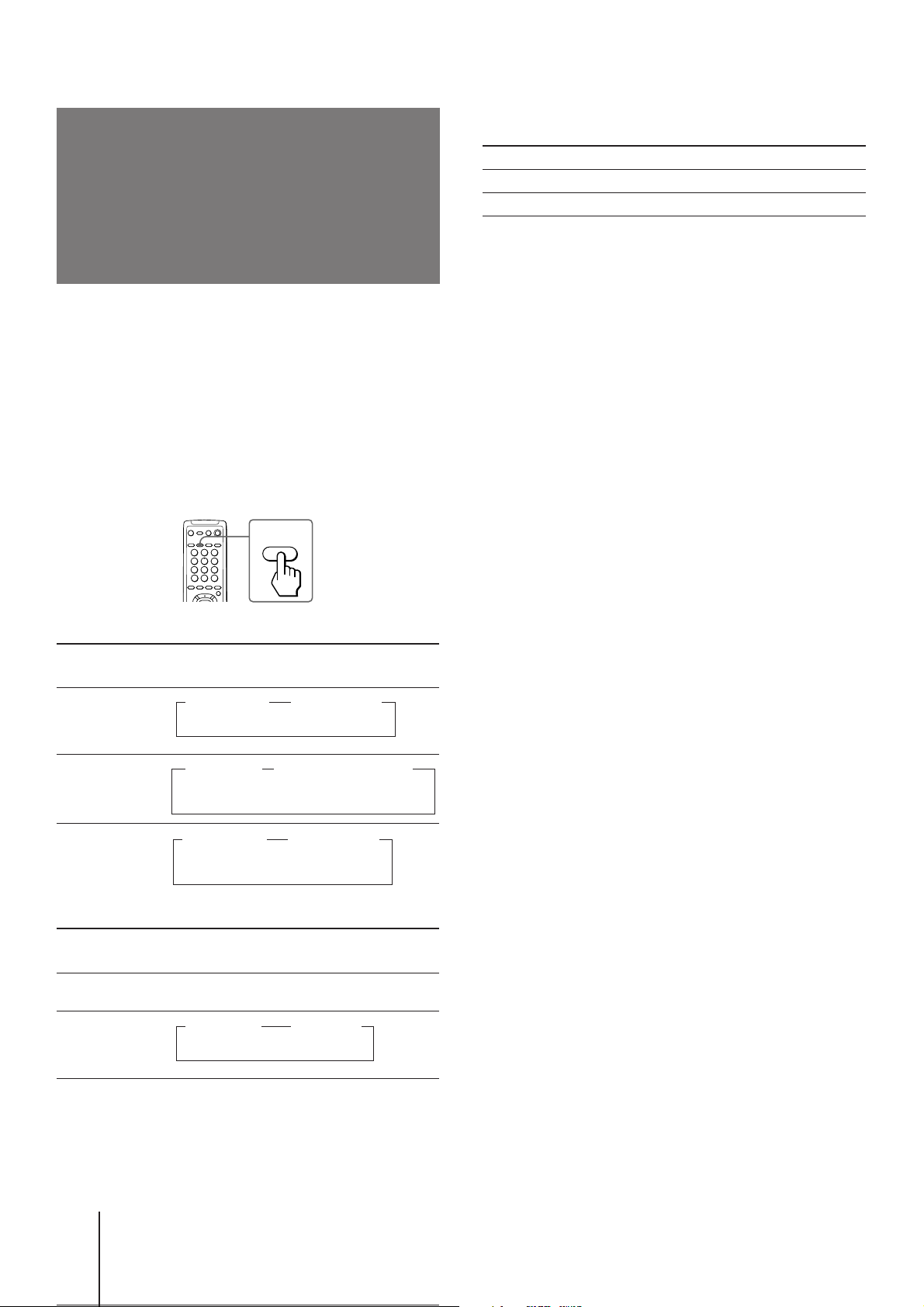

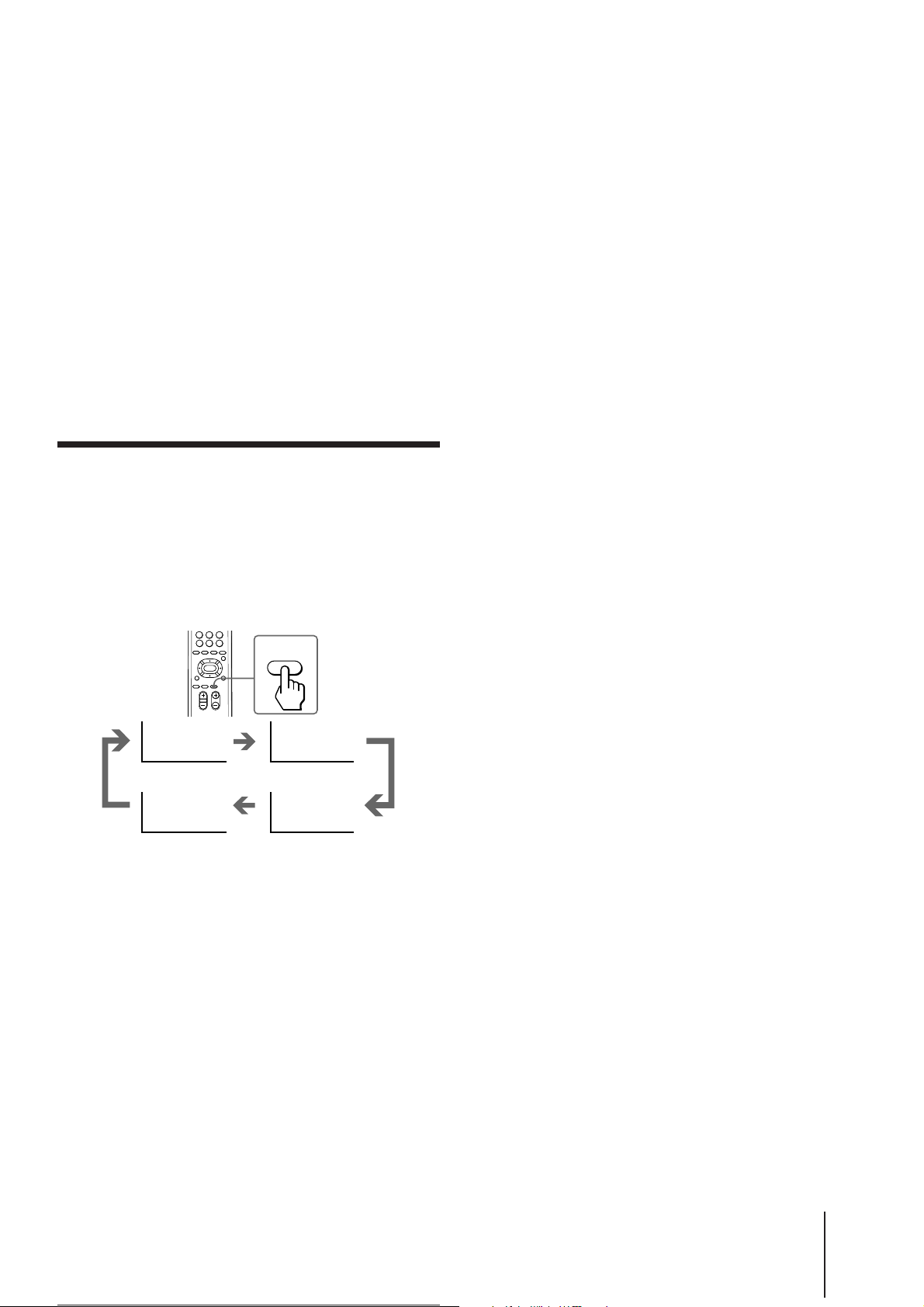

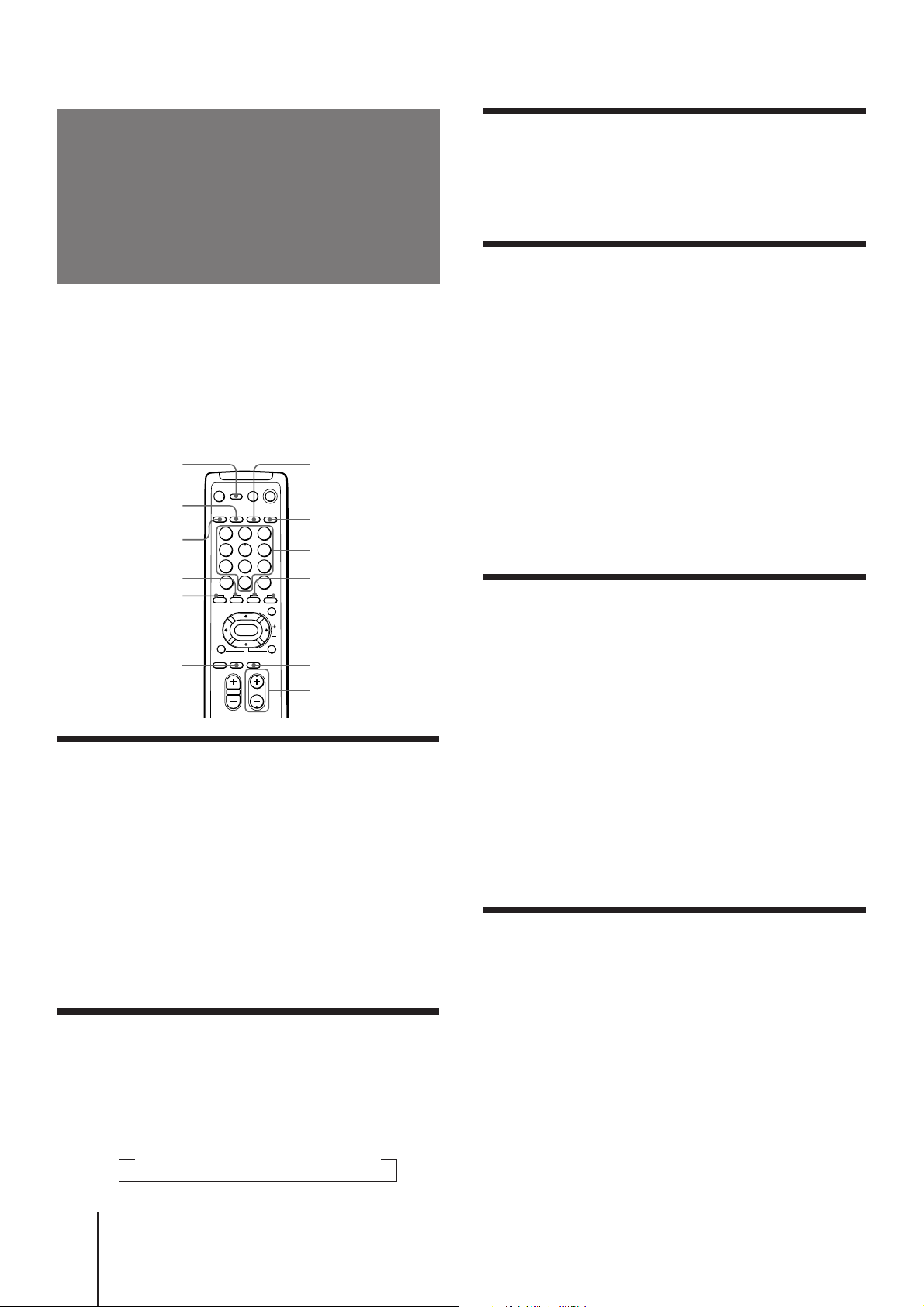

Setting the Sleep Timer
You can set the TV to turn off automatically after the
period of time you want.
Press SLEEP.
SLEEP
TEXT CLR
SLEEP TIMER:30M SLEEP TIMER:60M
After 30 minutes After 60 minutes
SLEEP TIMER:OFF SLEEP TIMER:90M
No Sleep Timer
To cancel the Sleep Timer, press SLEEP repeatedly
until “SLEEP TIMER: OFF” appears, or turn the TV off.
After 90 minutes
Operations
15
-EN
Loading...
