Page 1

2-022-233-11 (1)

Tr initron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

KV-DR29

M80 M50

Page 2

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

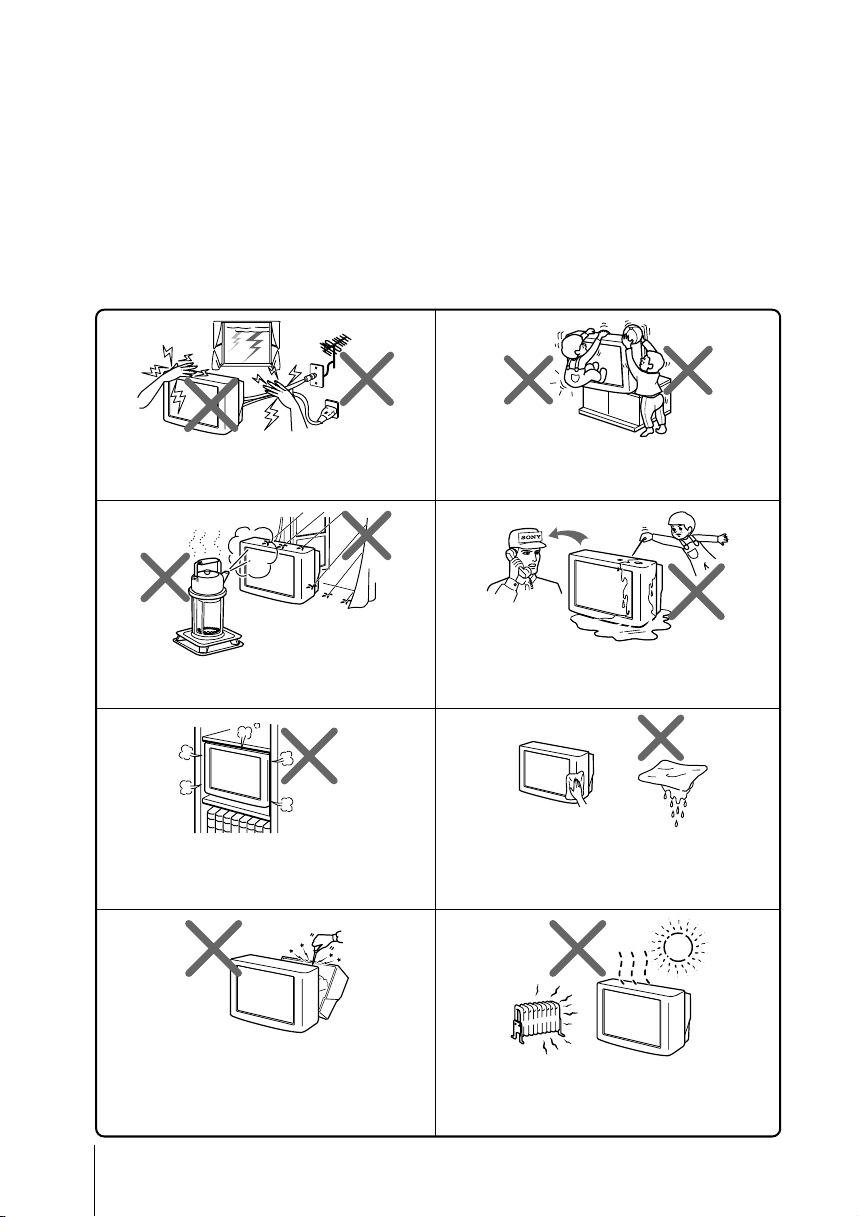

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

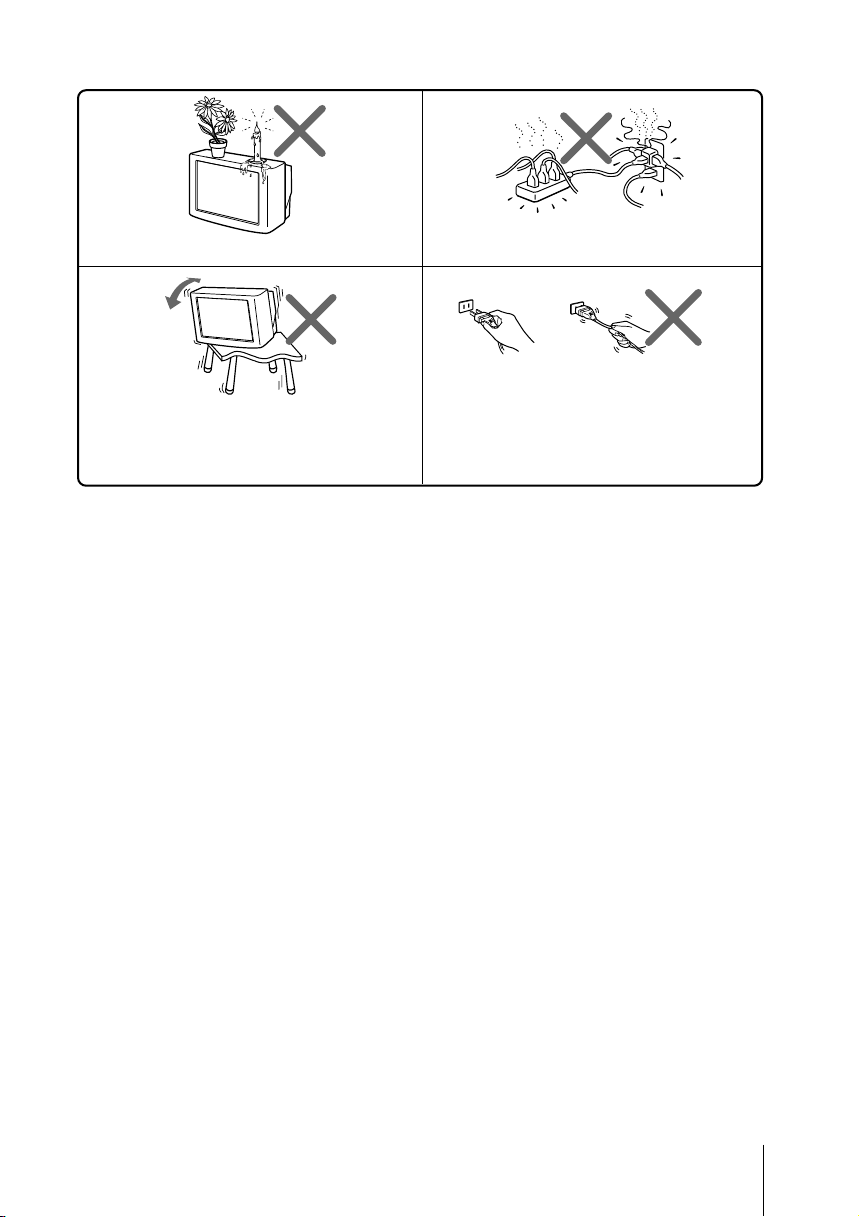

Page 3

Do not place any objects on the TV.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

Page 4

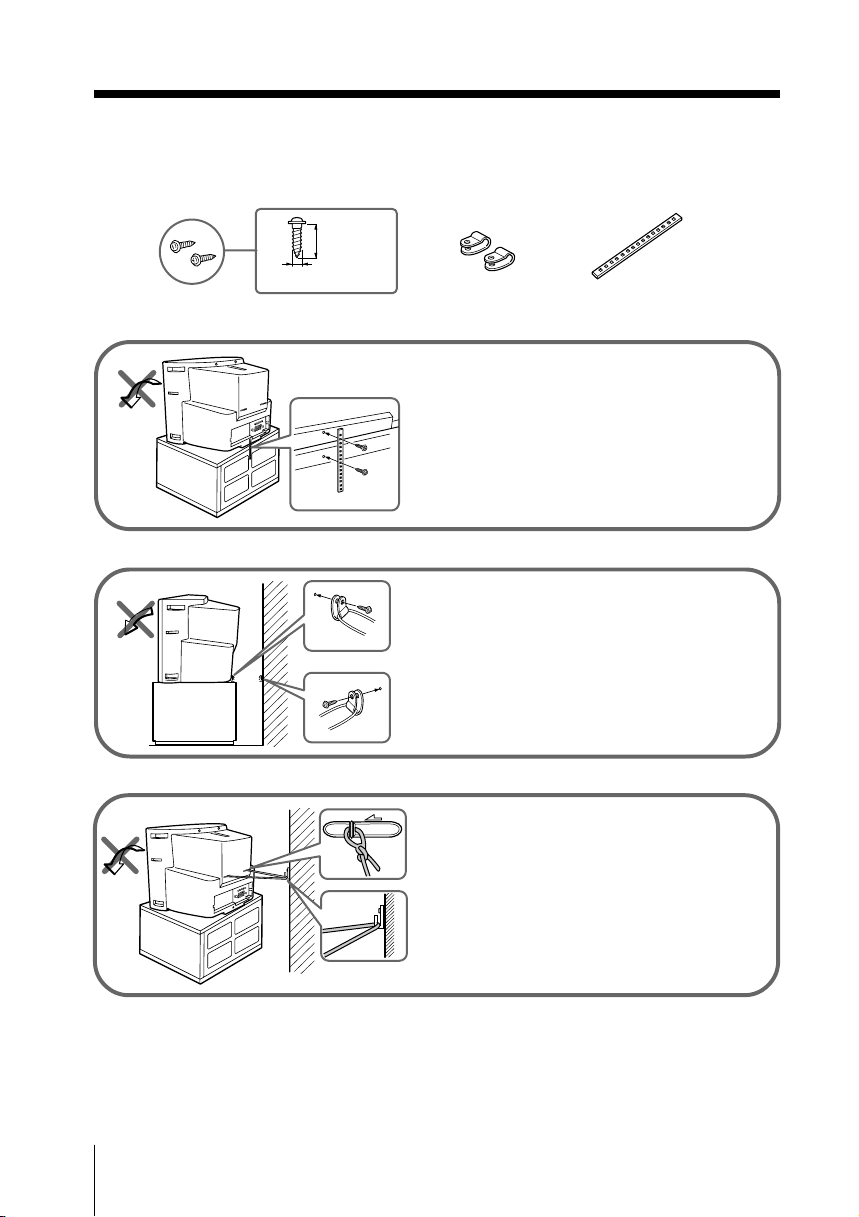

x Securing the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Page 5

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“INITIAL SETUP”) ............................. 7

Overview of Controls

TV front and rear panels ..................... 8

Remote control ..................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing higher quality pictures

with DRC-MF ..................................... 12

Viewing the picture in wide mode .. 12

Listening with surround sound ....... 13

Setting the timers ............................... 14

Menu Adjustment

Introducing the menu system .......... 15

Changing the “PICTURE” setting ... 18

Changing the “SOUND” setting ..... 20

Changing the “SETUP” setting ........ 22

Changing the Channel Preset

(“CH PRESET”) setting ..................... 24

Additional Information

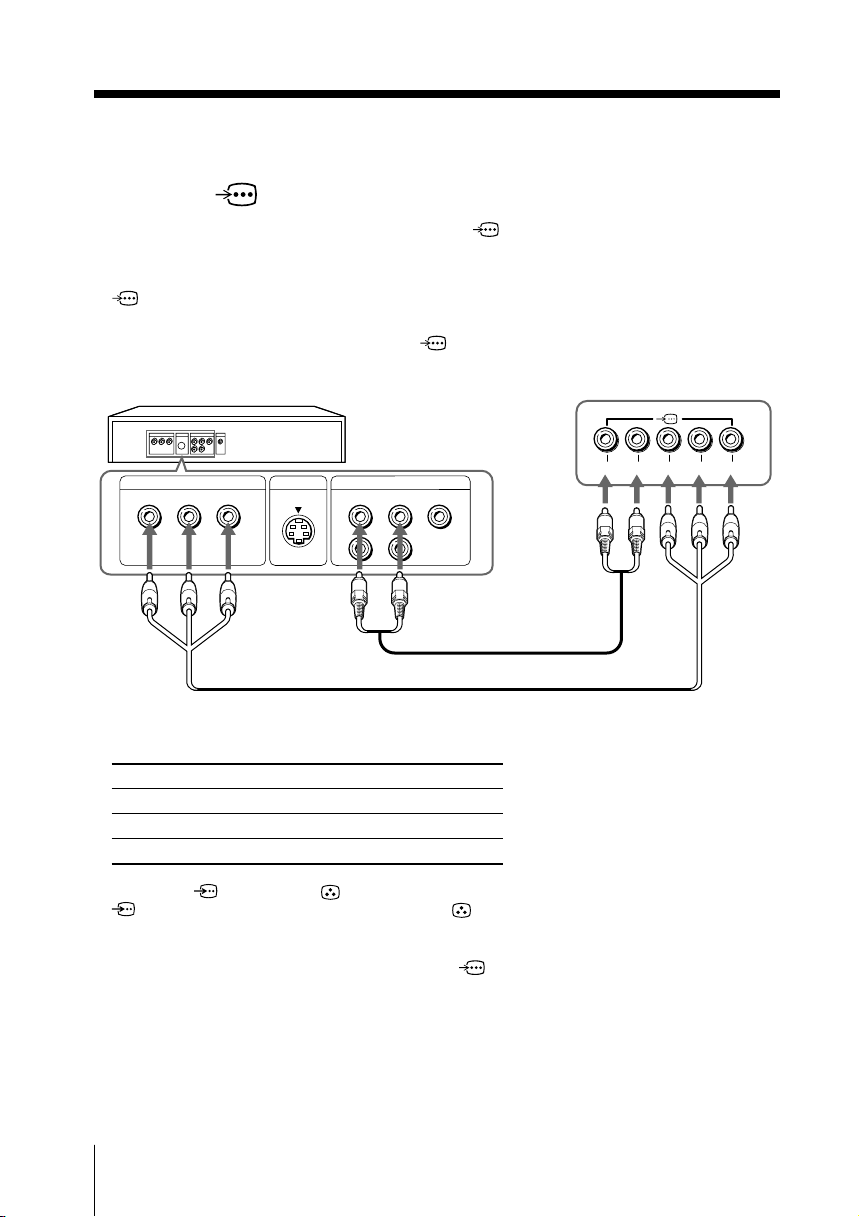

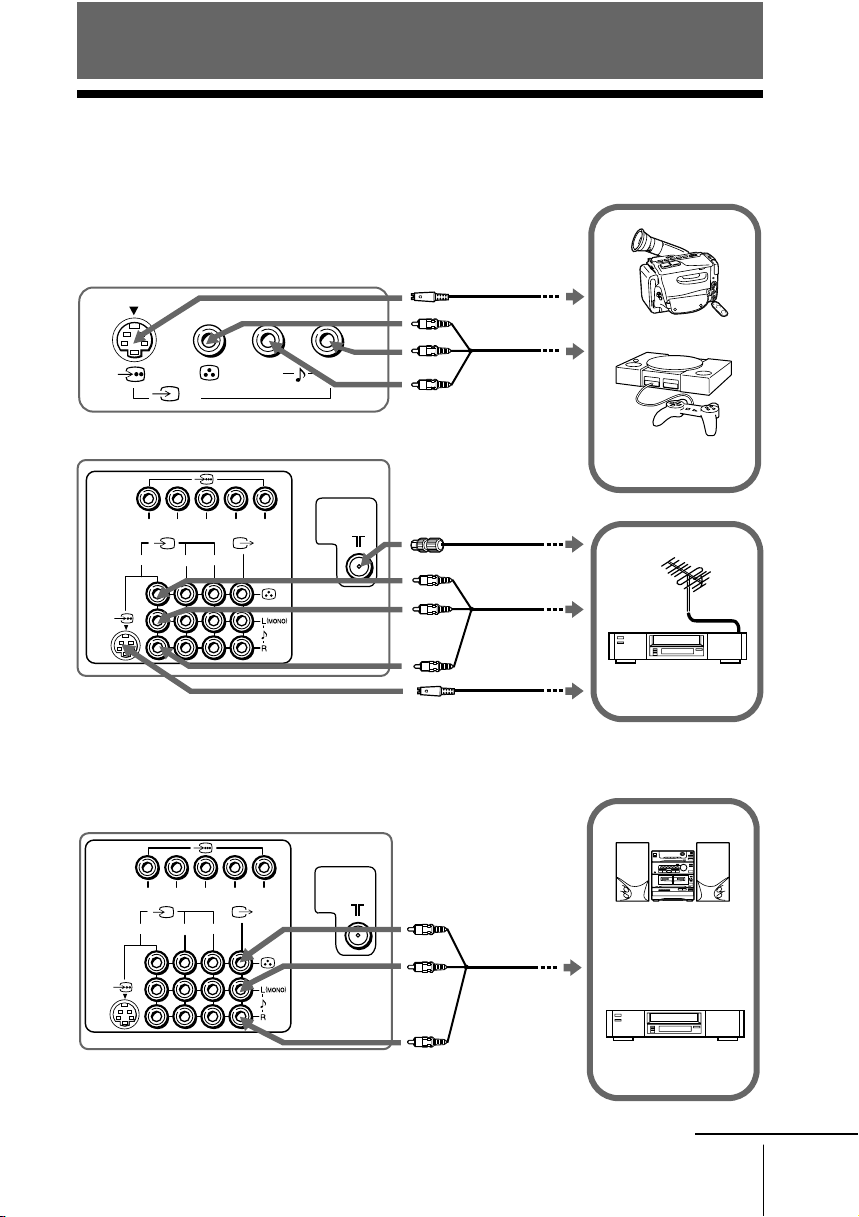

Connecting optional components ... 27

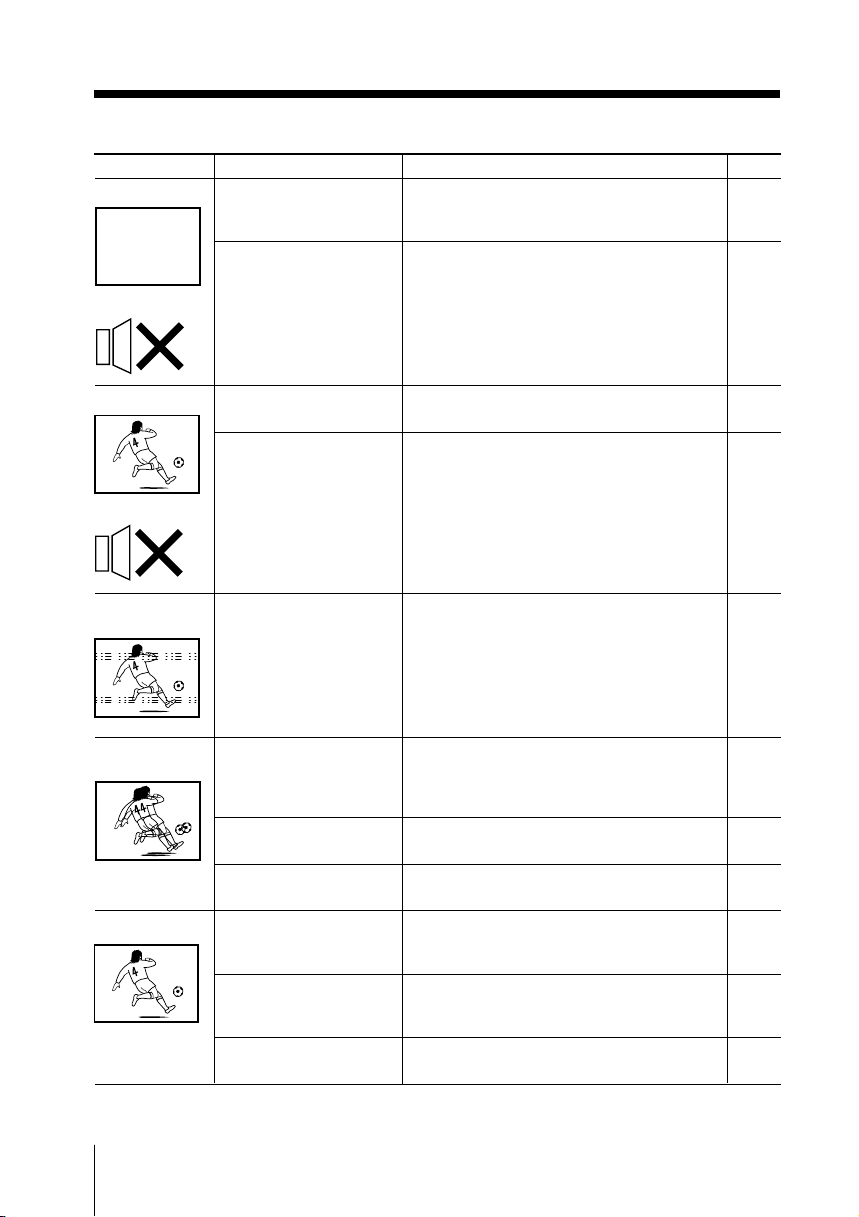

Troubleshooting ................................. 29

Specifications ...................... Back cover

Page 6

Installation

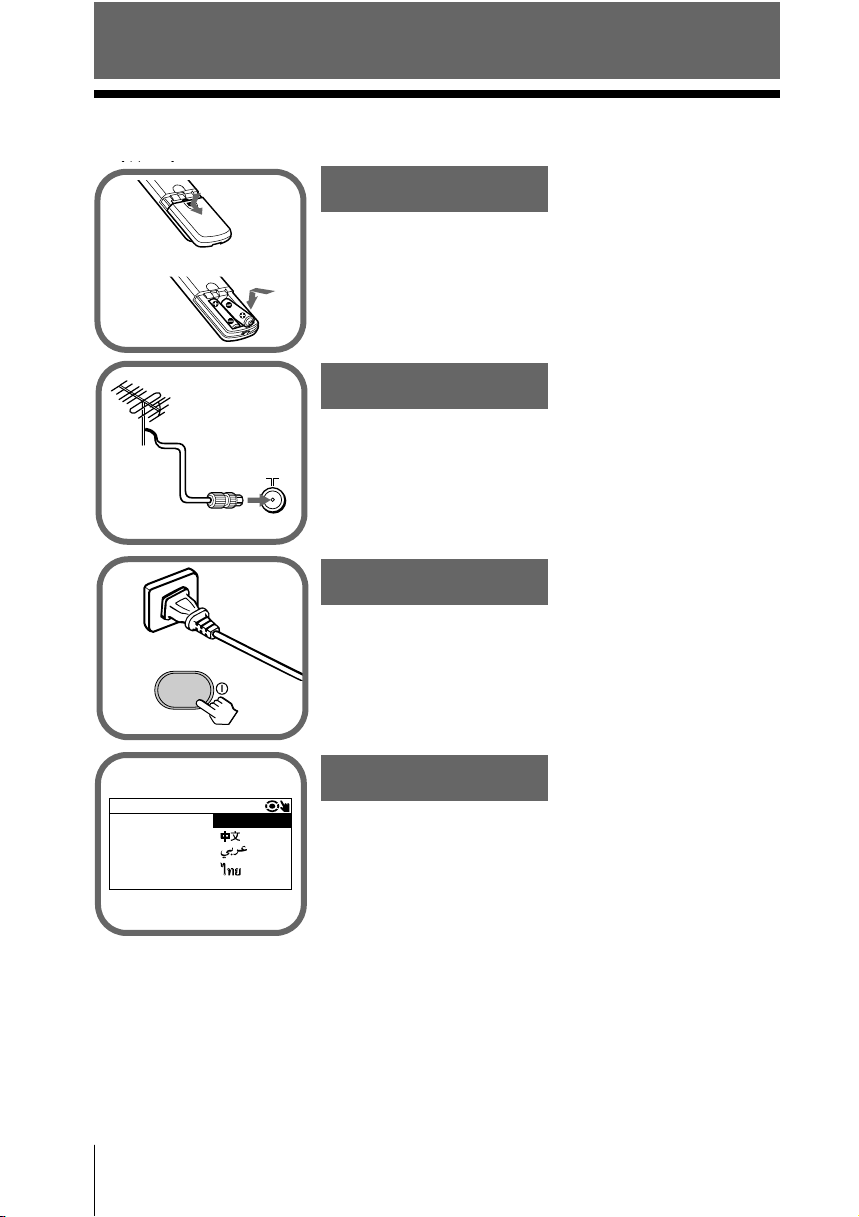

x Getting Started

Step 1

INITIAL SET

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components (see page 27).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Step 4

ENG ILSHLAN UGAGE

Set up the TV by following the instructions of the “INITIAL SETUP”menu (see page 7).

6 Installation

Page 7

PIC

MODE

DRC-MF

SOUND

PIP PROGR

ENTER

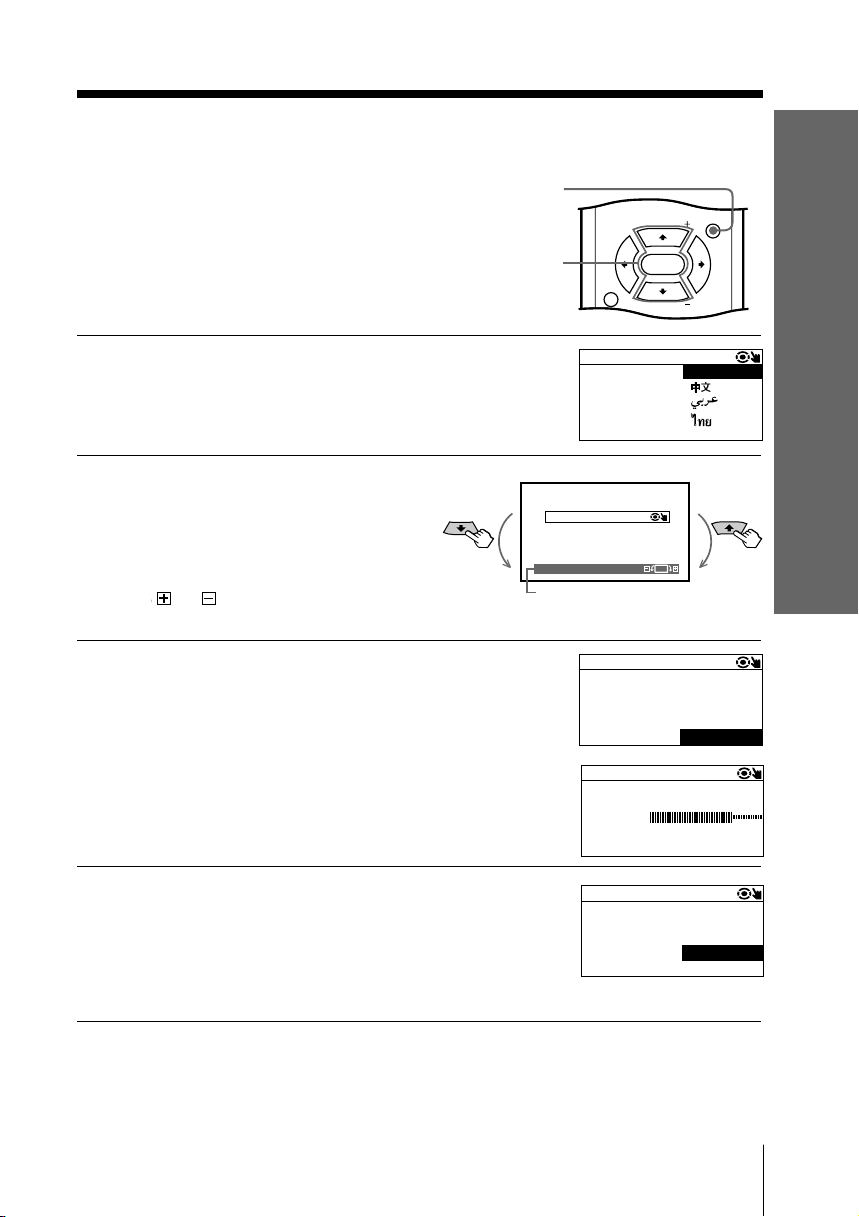

Setting up your TV

(“INITIAL SETUP”)

When you turn on your TV for the first time, the “INITIAL SETUP” menu will appear. This menu allows you to change the menu language, adjust the picture position and preset the TV channels automatically.

V/v/ ENTER

Installation

Press V or v to select the desired menu

language (e.g.,”ENGLISH”), then press ENTER.

The selected menu language appears.

If the “PIC ROTATION” bar is

slanted, press V or v to adjust it, then press ENTER.

If no adjustment is necessary, then press ENTER.

or icon on the screen

The flashes while adjusting.

Press V or v to select “YES”, then press

ENTER to preset the channels automatically (see page 24).

The screen will indicate automatic presetting is in progress.

To skip automatic channel presetting, select “NO”, then press ENTER.

Press V or v to select “NO”, then press

ENTER. The “INITIAL SETUP” menu will not appear again the next time you turn on the TV by pressing !.

To allow this menu to appear again, select “YES”, then press ENTER.

Rotate anti-

clockwise

INITIAL SET

PIC ROTATI ON

Refer to this bar when adjusting.

INITIAL SET

AUTO PROGRAM

START NOW?

INITIAL SET

PR : 09

TV AUTOS

LOWV

INITIAL SET DIS PAL NEX T T IME?

Y T ENUM

ENG ILSHLAN UGAGE

Rotate

clockwise

Tip

•You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.

•You can also set up your TV using the menu system (see page 15).

Installation

Page 8

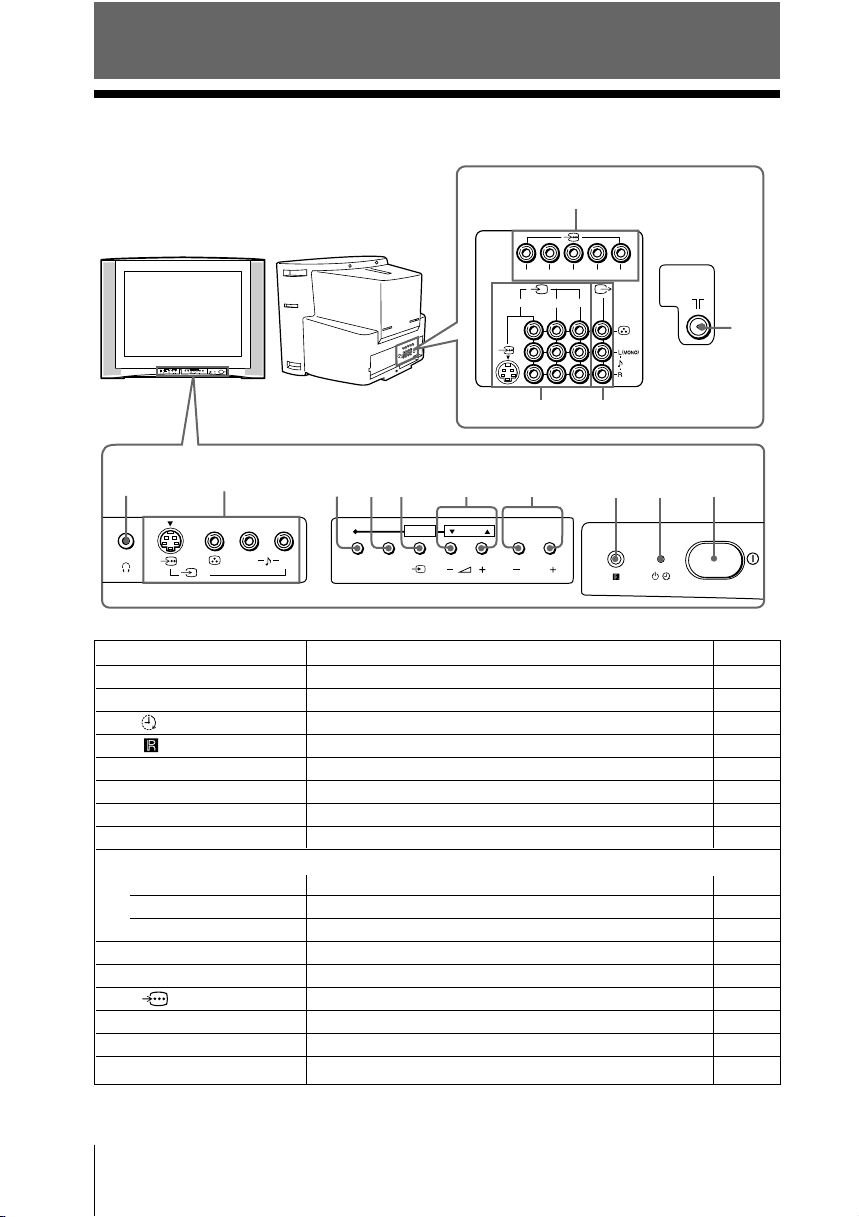

Overview of Controls

x TV front and rear panels

TV rear panel

RLY

123

ENTER SELECT

AUTO

PROGR

PROGRMENU

L(MONO) R

B/CB PR/CR

TV front panel

L(MONO) R

AUTO

PROGR

ENTER SELECT

PROGRMENU

Button/Terminal Function Page

1 ! Turn off or turn on the TV. – 2 1 Standby indicator. – 2 Wake Up indicator. 14 3 Remote control sensor. – 4 PROGR +/– Select program number. – 5 2 +/– Adjust volume. – 6 t Select TV or video input. – 7 AUTO PROGR Preset channels automatically. –

Menu operations

5 SELECT V/v Select and adjust items. 17 6 ENTER Confirm selected items. 17

8 MENU Display or cancel the menu. 17 9 t4Video input terminal 4. 27 0 i Headphone jack. – qa Component video input terminal. 28 qs 8 Antenna input terminal. 27 qd T Monitor output terminal. 27 qf t1, t2, t3Video input terminal 1, 2, 3. 27

8 Overview of Controls

Page 9

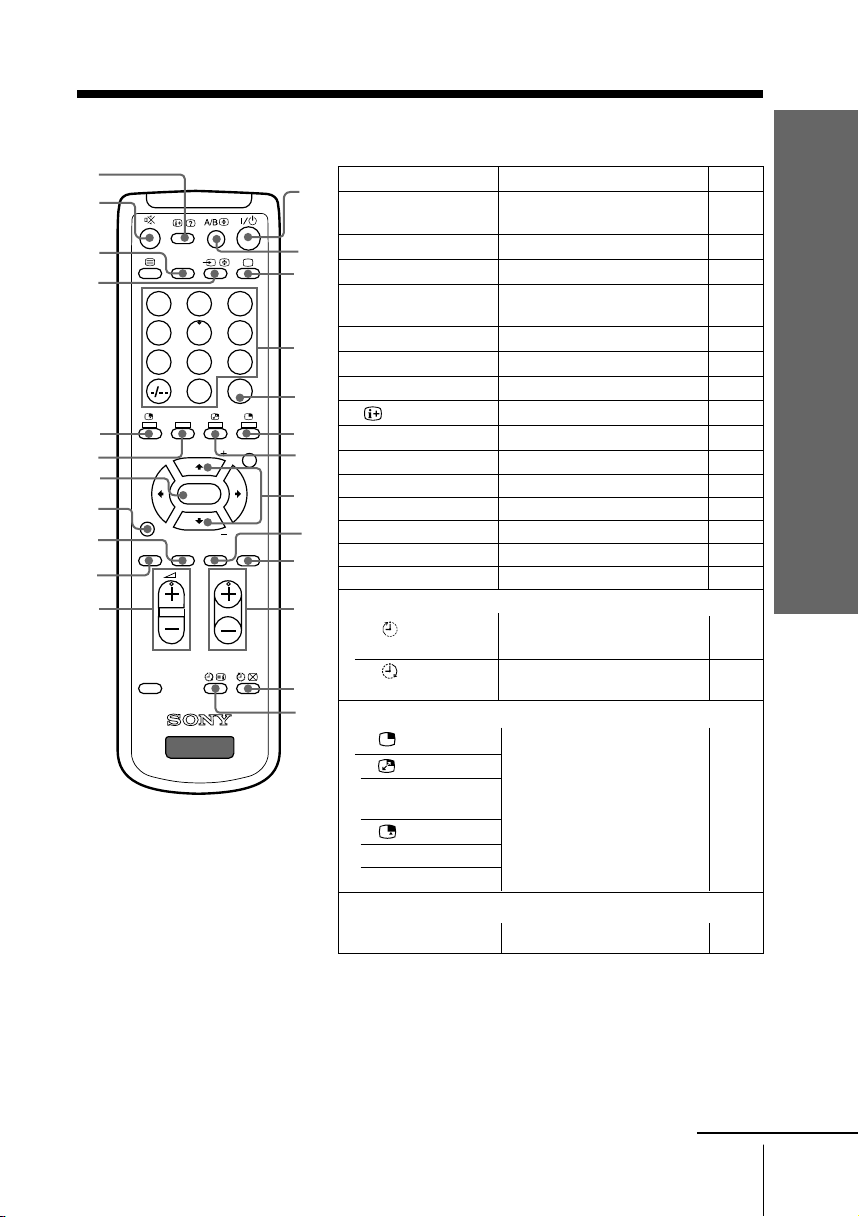

x Remote control

qf qg

qh qj

qk ql w;

wa ws

wd wf

DRC-MF

MODE

RESET

Button Function Page

1 ?/1 Turn off temporarily or –

3 a Display the TV input. –

WIDE MODE

4 0 – 9, - Input numbers. –

5 JUMP Jump to previous program –

9 SURROUND Select surround mode. 13

0 WIDE MODE Select wide-mode (16:9). 12 qa PROGR +/– Select program number. –

qg % Mute the sound. –

qh DVD Select DVD input. 28 qj t

wa DRC-MF Select DRC-MF mode. 12 ws SOUND MODE Select sound mode. 11

wd PIC MODE Select picture mode. 11

wf 2 +/– Adjust volume. –

Timer operations

qs Set TV to turn off 14

qd Set TV to turn on 14

DVD

231

564

897

JUMP

SOUND

PIP PROGR

ENTER

PIP PROGR

PIC

SOUND

SURROUND

MODE

PROGR

PIP operations (yellow label)

6 7 8 PIP PROGR +/

PIP PROGR –

qk ql SOUND

w; ENTER

Stereo/bilingual operations

2 A/B

turn on the TV.

number.

Display on-screen information

Select TV or video input. 27

automatically.

Not function for your TV. –

.–

Overview of Controls

continue

Overview of Controls

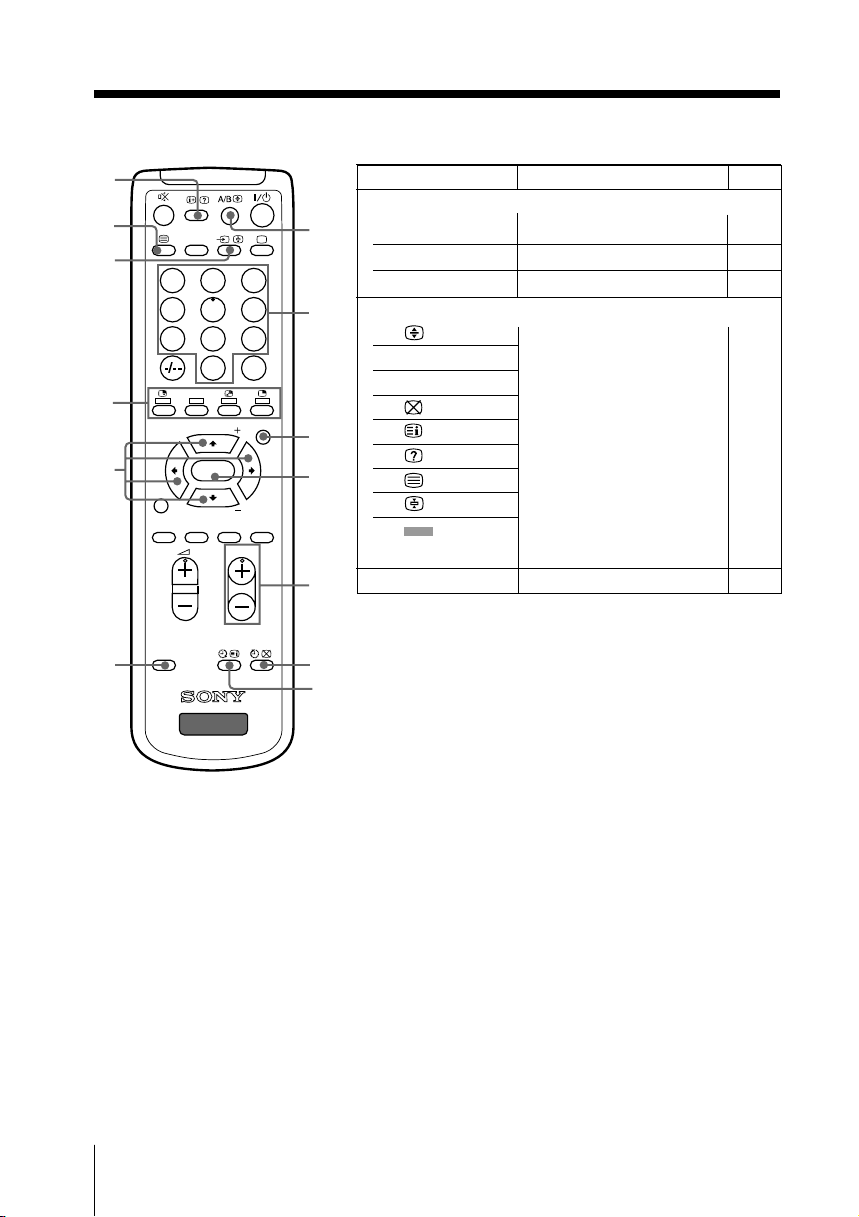

Page 10

continued

ed ef

DRC-MF

MODE

RESET

Button Function Page

Menu operations

DVD

wj MENU Display or cancel the menu. 17 wk ENTER Confirm selected items. 17

231

564

897

JUMP

SOUND

PIP PROGR

ENTER

PIP PROGR

PIC

SOUND

SURROUND

MODE

PROGR

WIDE MODE

eh V, v, B , b Select and adjust items. 17

Teletext operations (green label)

wg wh 0 – 9

wl PROGR +/– e; ea es

Not function for your TV. –

ed ef eg (red, green,

yellow, blue)

ej RESET Set TV to factory setting. 29

e; ea

10 Overview of Controls

Page 11

Advanced Operations

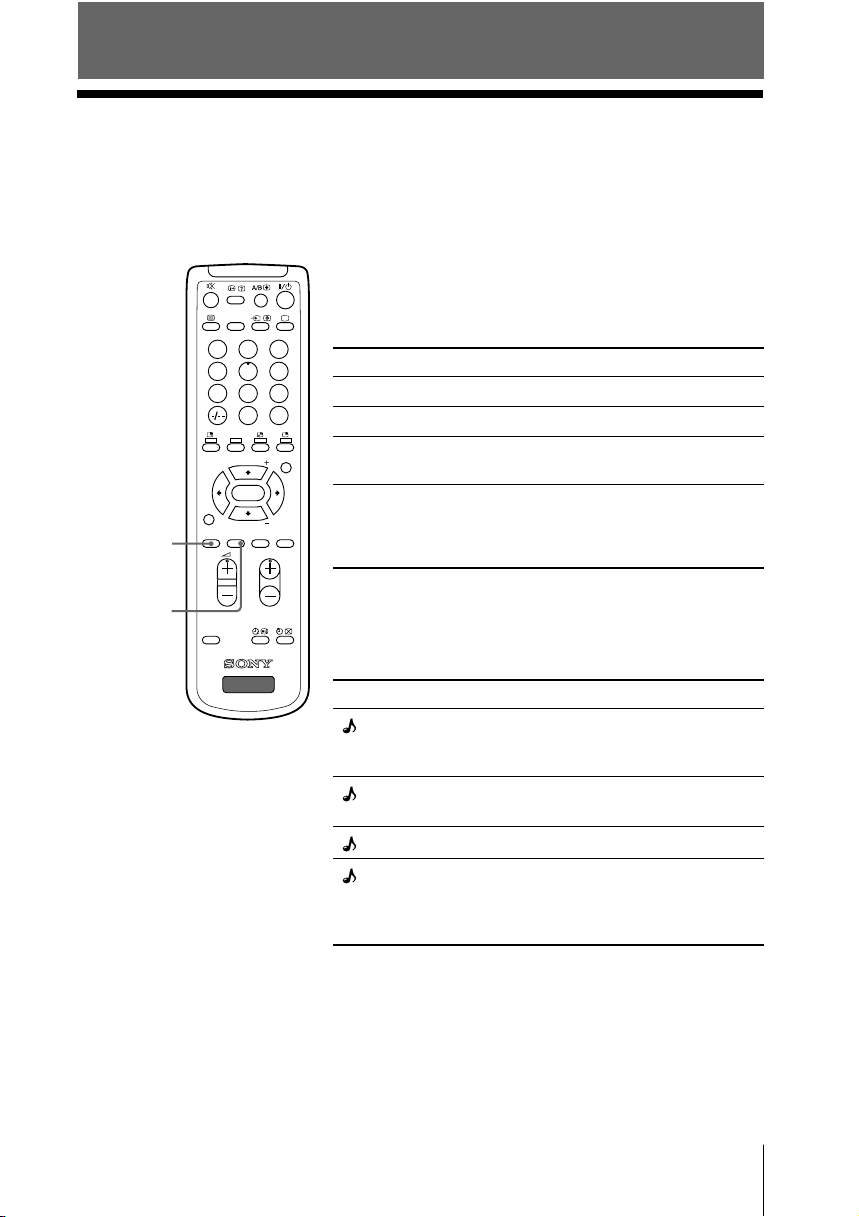

x Selecting the picture and sound

modes

You can select picture and sound modes and adjust the setting to your preference in the “PERSONAL” option.

Selecting the picture mode

Press PIC MODE to select the desired picture mode.

Select To

“DYNAMIC” view high contrast pictures.

“STANDARD” view normal pictures.

“HI-FINE” view higher density pictures

“PERSONAL” receive the last adjusted picture

WIDE

MODE

with mild contrast.

setting from the “ADJUST” option in the “PICTURE” menu (see page 19).

PIC MODE

DRC-MF

DVD

231

564

897

JUMP

SOUND

PIP PROGR

ENTER

PIP PROGR

PIC

SOUND

SURROUND

MODE

PROGR

SOUND

MODE

RESET

Selecting the sound mode

Press SOUND MODE to select the desired sound mode.

Select To

“ DYNAMIC” listen to dynamic and clear

sound that emphasizes both the low and high tones.

“ DRAMA” listen to sound that emphasizes

voice and high tones.

“ SOFT” listen to soft sound.

“ PERSONAL” receive the last adjusted sound

setting from the “ADJUST” option in the “SOUND” menu (see page 21).

Advanced Operations

Page 12

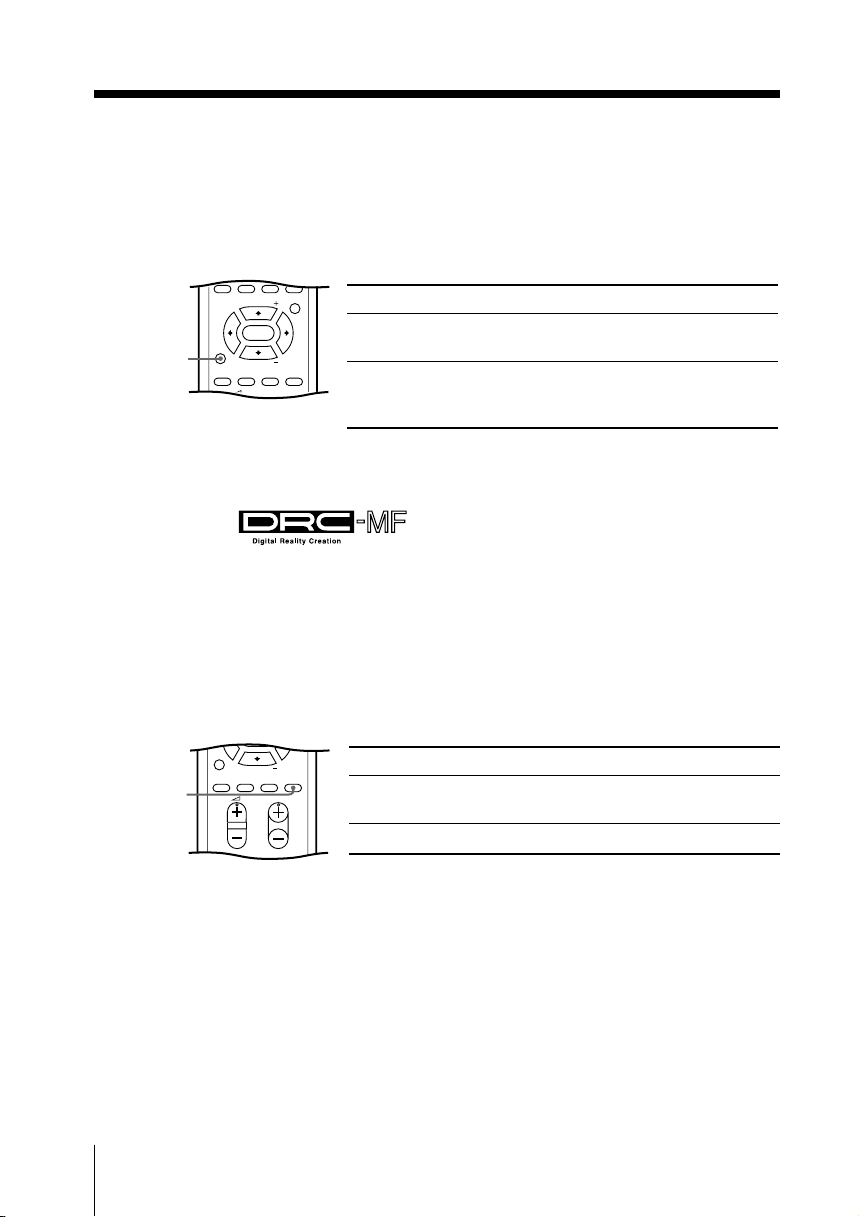

x Viewing higher quality pictures

with DRC-MF

The Digital Reality Creation-Multi Function (DRC-MF) feature allows you to enjoy higher quality pictures on your TV. You can use the DRC-MF button to select “DRC1250” or “DRC PROGRESSIVE”.

SOUND

PIP PROGR

ENTER

DRC-MF

PIP PROGR

PIC

SOUND

SURROUND

MODE

PROGR

Note

• The DRC-MF mode is not selectable when the “GAME MODE” mode is turned on.

The DRC-MF logo ( ) and “DRC-MF” are trademarks of Sony Corporation.

Select To

“DRC1250” view super real (higher density)

pictures.

WIDE MODE

“DRC PROGRESSIVE” reduce jitter of any small areas or

scanning lines (e.g., letters or the edge of objects) on the screen.

x Viewing the picture in wide mode

When receiving a wide-mode (16:9) signal, the picture will appear “squeezed” (compressed) on your screen. Use the WIDE MODE button to view the picture with the optimal effect.

ENTER

WIDE

MODE

DRC-MF

PIP PROGR

PIC

SOUND

WIDE

SURROUND

MODE

PROGR

Select To

“ON” view the picture in wide-mode

(16:9).

“OFF” cancel wide-mode (16:9).

12 Advanced Operations

Page 13

ENTER

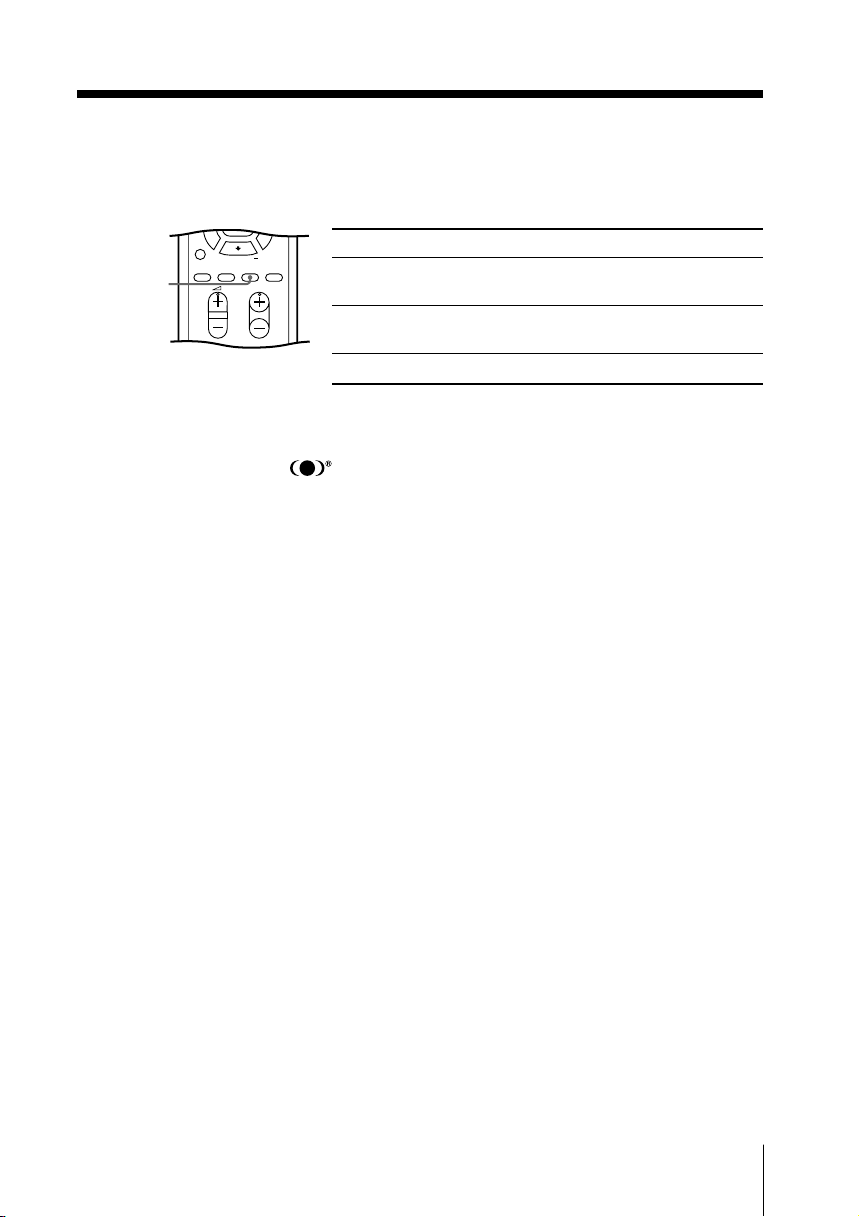

x Listening with surround sound

You can use the SURROUND button to listen to the sound effects of a concert hall or movie theater.

Select To

“TruSurround”* listen to the surround sound that

spreads out to the rear of a room.

SURROUND

DRC-MF

PIP PROGR

PIC

SOUND

WIDE

SURROUND

MODE

PROGR

“SIMULATED” listen to monaural sound with a

stereo-like effect.

RESET

“OFF” cancel surround sound.

The surround of your TV is categorized as TruSurround.

TruSurround, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

Advanced Operations

Page 14

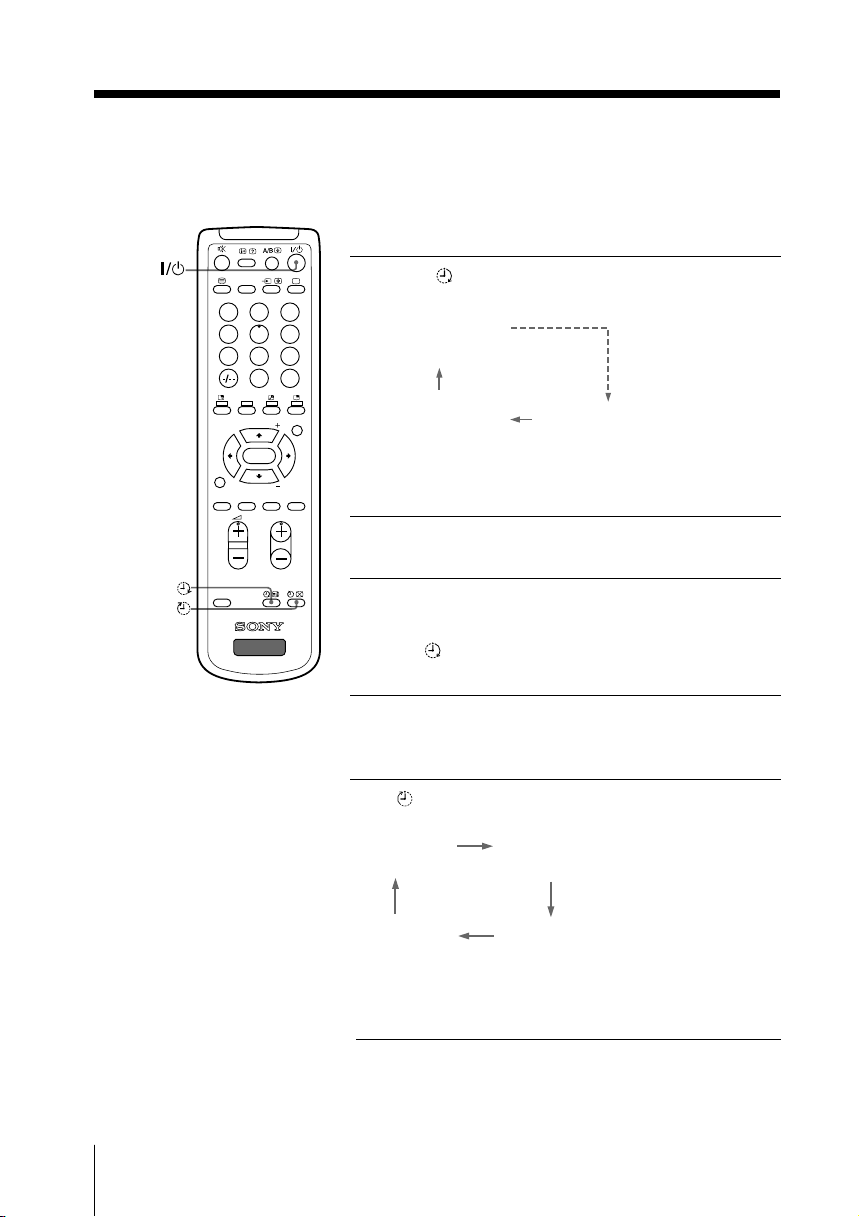

x Setting the timers

You can set your TV to turn on and off automatically by using the WAKE UP and SLEEP timers respectively.

Setting the Wake Up timer

DRC-MF

MODE

RESET

DVD

231

564

897

JUMP

SOUND

PIP PROGR

ENTER

PIP PROGR

PIC

SOUND

WIDE

SURROUND

MODE

PROGR

Press until the desired period of time

appears on the screen.

WAKE UP TIMER:10M

(After 10 minutes)

WAKE UP TIMER:OFF (No Wake Up timer) (After 12 hours)

WAKE UP TIMER:12H00M

The Wake Up timer starts immediately after you have set it.

Select the program number or video input you

want to wake up to.

Press \/1, or set the Sleep timer if you want

the TV to turn off automatically.

indicator on the TV lights up orange

The when the TV goes into standby mode.

Setting the Sleep timer

Press until the desired period of time appears on the screen.

SLEEP TIMER:30M SLEEP TIMER:60M (After 30 minutes)

(After 60 minutes)

SLEEP TIMER:OFF SLEEP TIMER:90M (No Sleep timer)

(After 90 minutes)

The Sleep timer starts immediately after you have set it.

Notes

•You can also cancel the Wake Up and Sleep timers by turning off the TV’s main power.

• If no buttons are pressed for more than two hours after the TV is turned on using the Wake Up timer, the TV automatically goes into standby mode.

14 Advanced Operations

Page 15

Menu Adjustment

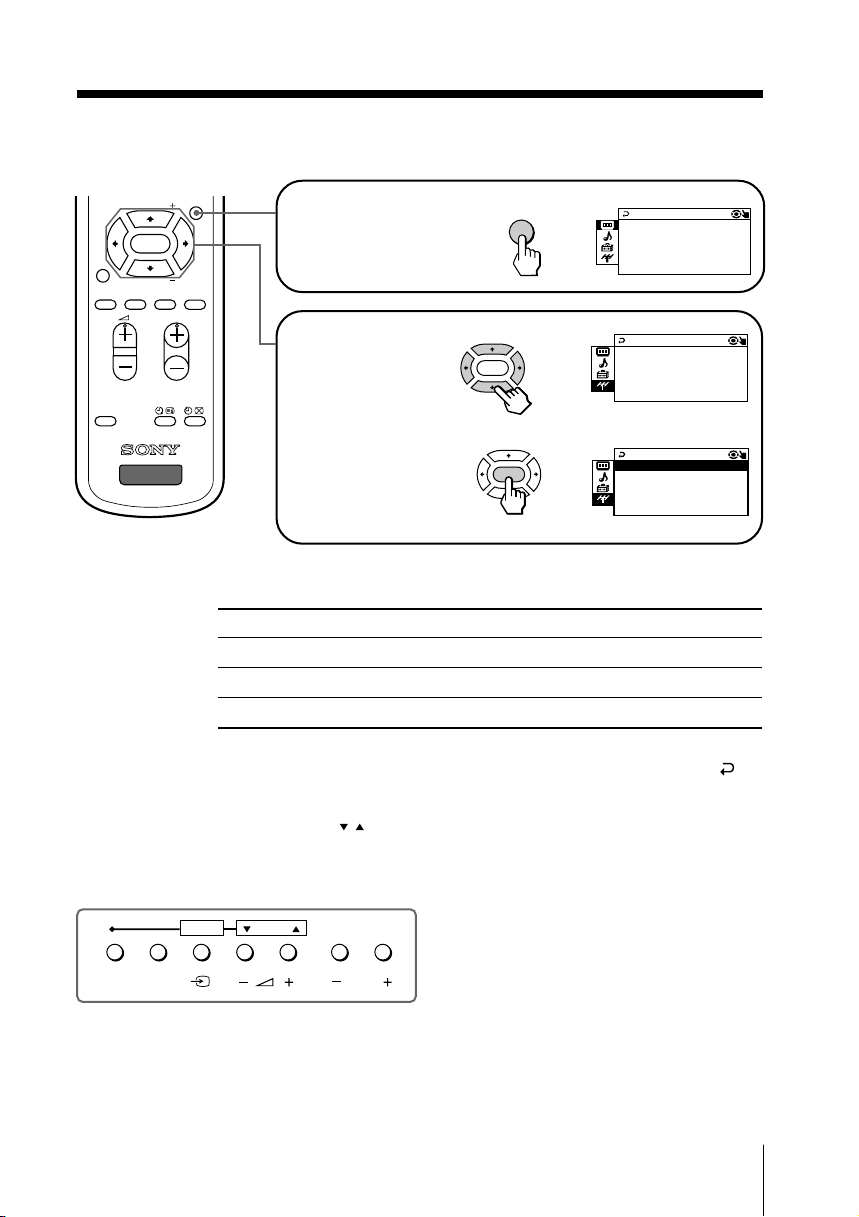

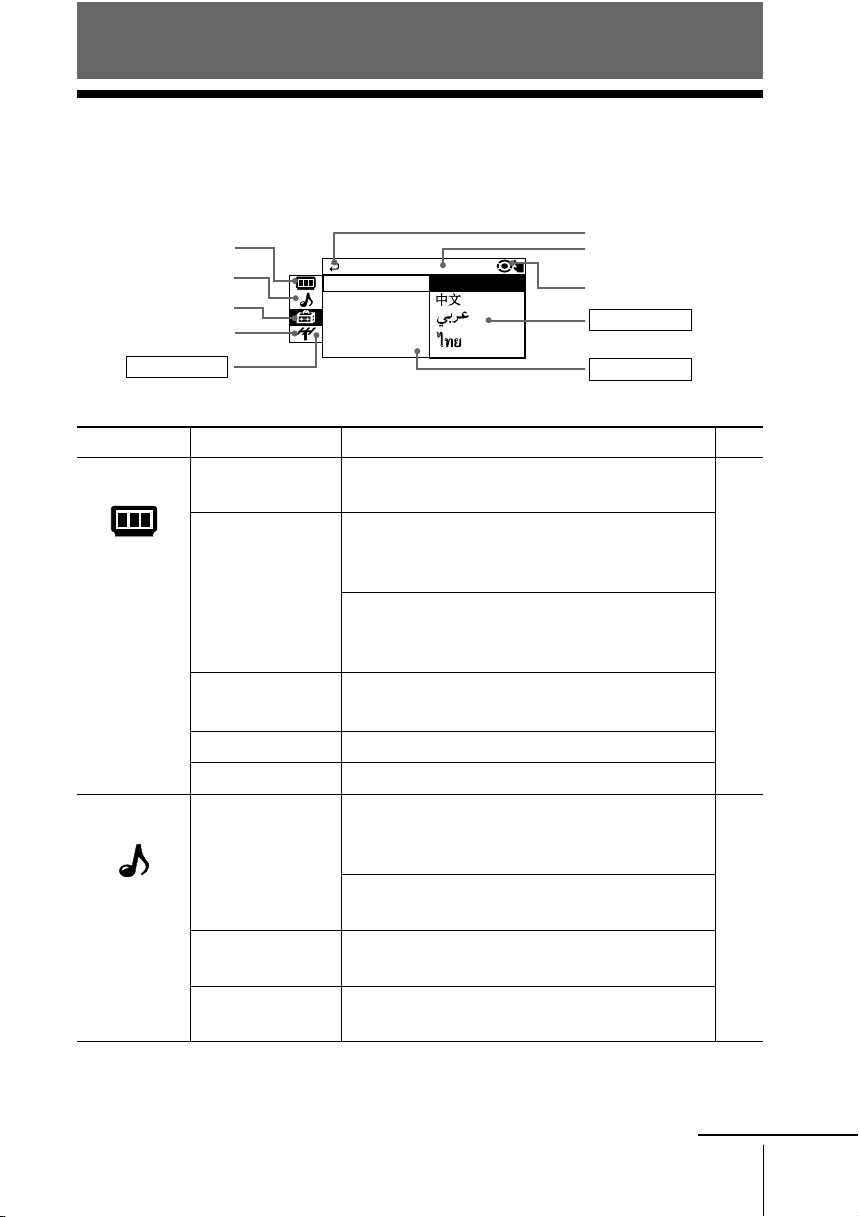

x Introducing the menu system

The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system.

PICTURE icon

SOUND icon

CH PRESET icon

Menu level 1

Level 1

“PICTURE”

“SOUND”

SETUP icon

Level 2

“DRC-MF”

“PICTURE MODE”

“ADJUST”

“3D-NR”

“WIDE MODE”

“GAME MODE”

“SOUND MODE”

“ADJUST”

“SURROUND”

“INTELLIGENT

VOL”

Return icon Name of the current

SETUP

LANGUAGE :

PIC ROTATI

OMEC ODE : O PROGRAM SE COL OR S YS :

Level 3/Function

Select the “DRC-MF” mode:

“DRC1250” t “PROGRESSIVE”

Select the picture mode:

“DYNAMIC” t “STANDARD” t “HI-FINE” t

“PERSONAL” t “ADJUST”

Adjust the “PERSONAL” option:

“PICTURE” t “COLOR” t “BRIGHT” t

“HUE” t “SHARP”

Reduce picture noise:

“ON” t “OFF”

Change the picture size.

Adjust the picture settings for video games.

Select the sound mode:

“DYNAMIC” t “DRAMA” t “SOFT” t

“PERSONAL” t “ADJUST”

Adjust the “PERSONAL” option:

“BASS” t “TREBLE” t “BALANCE” t “BBE”*

Select the “SURROUND” mode:

“TruSurround” t “SIMULATED” t“OFF”

Adjust volume automatically.

ENGL I SH

menu Guide mark icon

Menu level 3

Menu level 2

Page

continue

Menu Adjustment

Page 16

continued

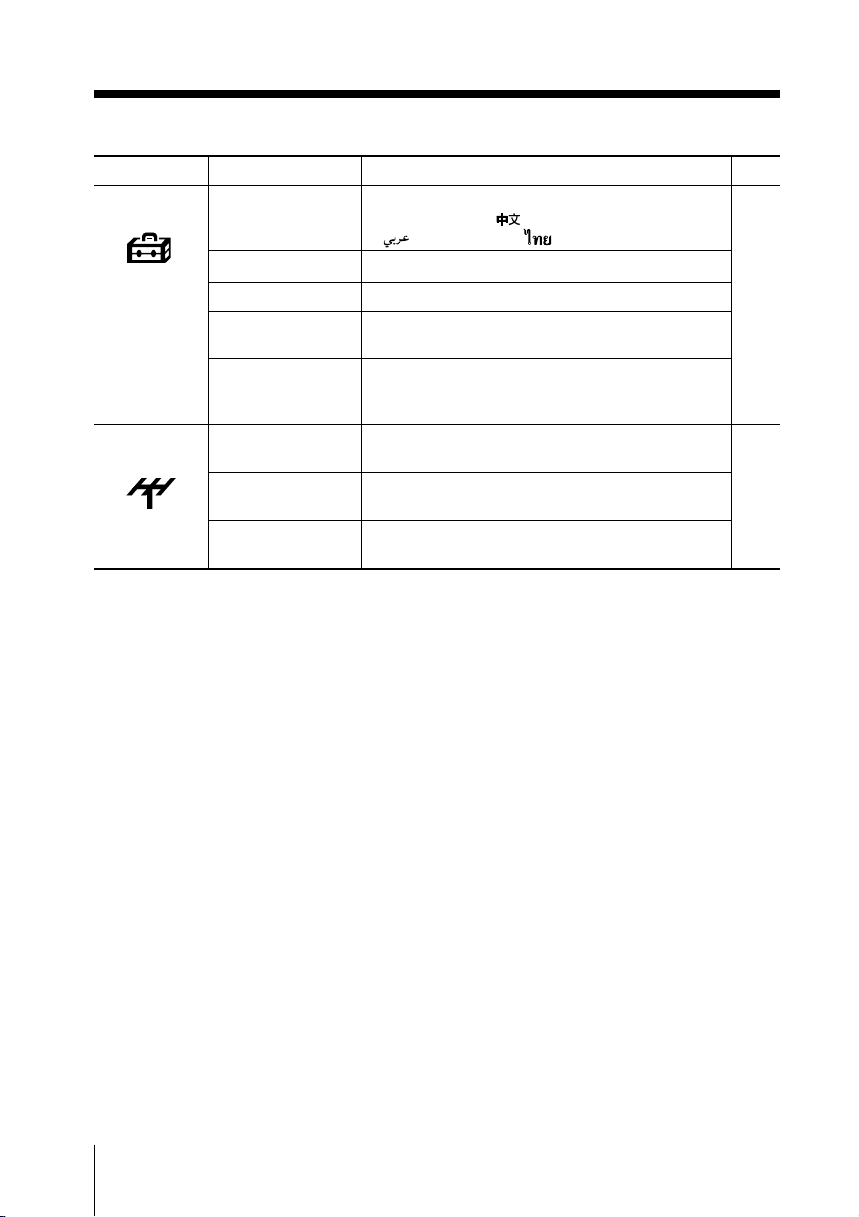

Level 1

“SETUP”

“CH PRESET”

* Licensed by BBE Sound, Inc. under USP4638258, 4482866.

“BBE” and the BBE symbol are the trademarks of BBE Sound, Inc.

Level 2

“LANGUAGE”

“PIC ROTATION”

“ECO MODE”

“PROGRAM SETUP”

“COLOR SYS”

“AUTO PROGRAM”

“MANUAL PROGRAM”

“TV SYS”

Level 3/Function

Change the menu language: “ENGLISH” t “ ”(Chinese) t “ ”(Arabic) t “ ”(Thai)

Adjust the picture position.

Reduce power consumption of your TV.

Adjust each program number settings.

Select the color system: “AUTO” t“ PAL” t “SECAM” t “NTSC3.58” t “NTSC4.43”

Preset channels automatically.

Preset channels manually.

Select the TV system: “B/G” t “I” t “D/K” t “M”

Page

16 Menu Adjustment

Page 17

How to use the menu

DRC-MF

MODE

RESET

PIP PROGR

ENTER

PIP PROGR

PIC

SOUND

MODE

SURROUND

PROGR

WIDE

MODE

Press MENU to display the menu.

Press V or v (or B/b) to select the desired item.

Press ENTER to confirm your selection and go to

ENTER

PICTURE DRC - MF : DRC1 05 0 PICTURE MO C 3D- NR: OFF WI DE MODE: OFF GAME MOD ENNTPIC:OFF

AUTO PROGR CAB L E ON:

SWA P

AUTO PROGR

CABLE ON:

SWA P

CH P RESE T

CH PRE SET

DE : DYNAMI

:OFF

the next level.

Other menu operations

Adjust the setting value

Move to the next/previous menu level

Cancel the menu

Tips

• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is highlighted, then press ENTER.

• Some of the menu items can be operated directly using the remote buttons.

• The MENU, ENTER, and SELECT / buttons on the TV can also be used for the operations above.

Press

V, v, B or b.

B or b.

MENU.

Front of TV

ENTER SELECT

AUTO

PROGR

PROGRMENU

Menu Adjustment

Page 18

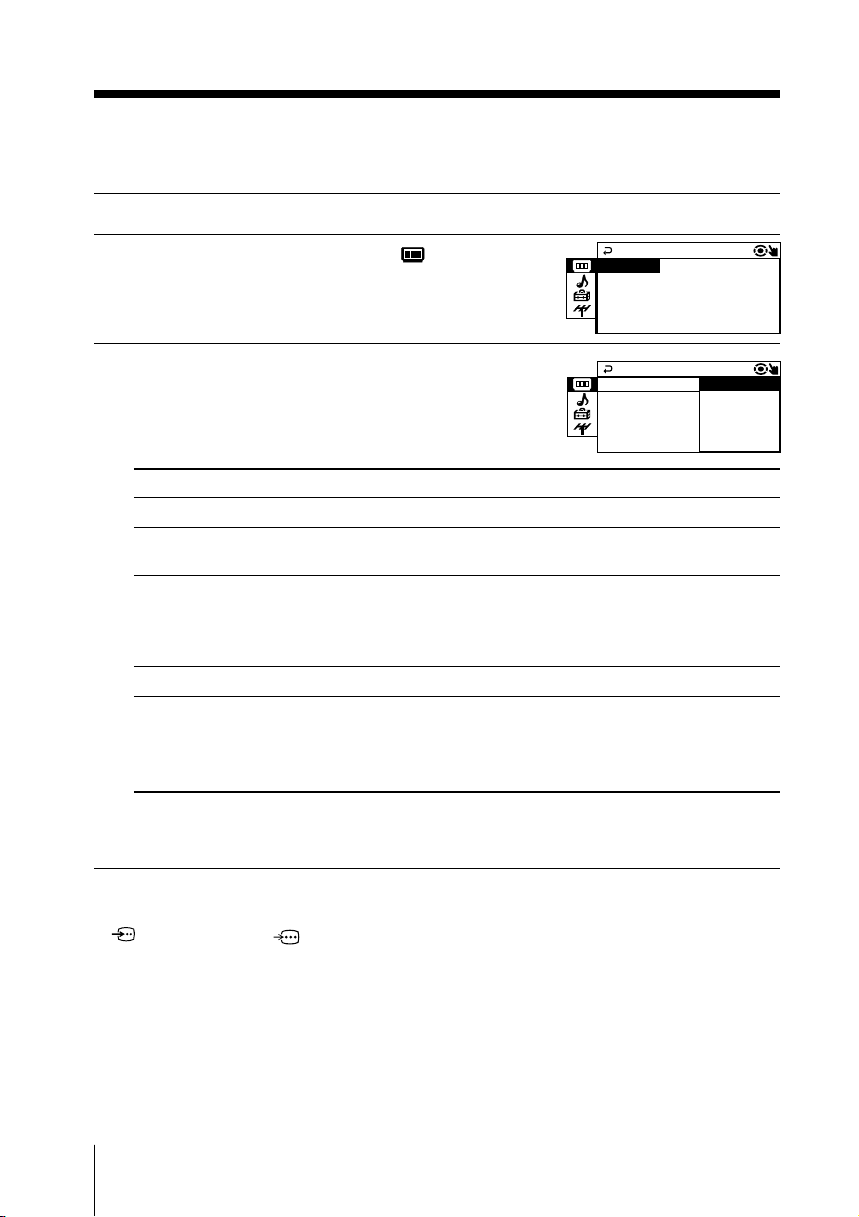

x Changing the “PICTURE” setting

DRC - MF : DRC

GAME MOD E : OF F


WI D E MODE : O FF

3D - NR : O F F

CPICTURE MODE : DYNAMI

1250

DRC - MF :

GAME MOD E : O


WI DE MODE : O

PICTURE MOD

PROGRESSIVE

DRC1 2 5 0

3D - NR : O F F

The “PICTURE” menu allows you to adjust the picture settings.

Press MENU.

Make sure the “PICTURE” icon ( ) is

selected, then press ENTER.

Press V or v to select the desired item

(e.g., “DRC-MF”), then press ENTER.

Select To

“DRC-MF” choose either “DRC1250” or “PROGRESSIVE” (see page 12).

“PICTURE MODE” choose either “DYNAMIC”, “STANDARD”, “HI-FINE”,

“3D-NR” adjust picture signal automatically to reduce noise.

“WIDE MODE” choose either “ON” or “OFF” (see page 12).

“GAME MODE” adjust the picture setting that is suitable to view video games.

“PERSONAL”* or “ADJUST” (see page 11).

Press V or v to select “ON”, then press ENTER.

To cancel, select “OFF”, then press ENTER.

Press V or v to select “ON”, then press ENTER.

* When the “PERSONAL” mode is selected, you can receive the last adjusted picture

settings from the “ADJUST” option (see page 19).

Notes

• “GAME MODE” is available only when receiving signals through t (video input), (S video input), or (component video input).

• The DRC-MF mode is not selectable when GAME MODE is on.

18 Menu Adjustment

To cancel, select “OFF”, then press ENTER.

Page 19

Adjusting the “ADJUST” items under “PICTURE MODE”

Press V or v to select

the desired item (e.g.,“COLOR”), then press ENTER.

COLOR

Adjust the value according to the following table, then press ENTER.

For

“PICTURE”

“COLOR”

“BRIGHT”

“HUE”

“SHARP”

Notes

• “HUE” can be adjusted for the NTSC color system only.

• Reducing sharpness (“SHARP”) can also reduce picture noise.

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “PERSONAL”.

Press v or B to

decrease picture contrast.

decrease color intensity.

darken the picture.

increase red picture tones.

soften the picture.

Press V or b to

increase picture contrast.

increase color intensity.

brighten the picture.

increase green picture tones.

sharpen the picture.

Menu Adjustment

Page 20

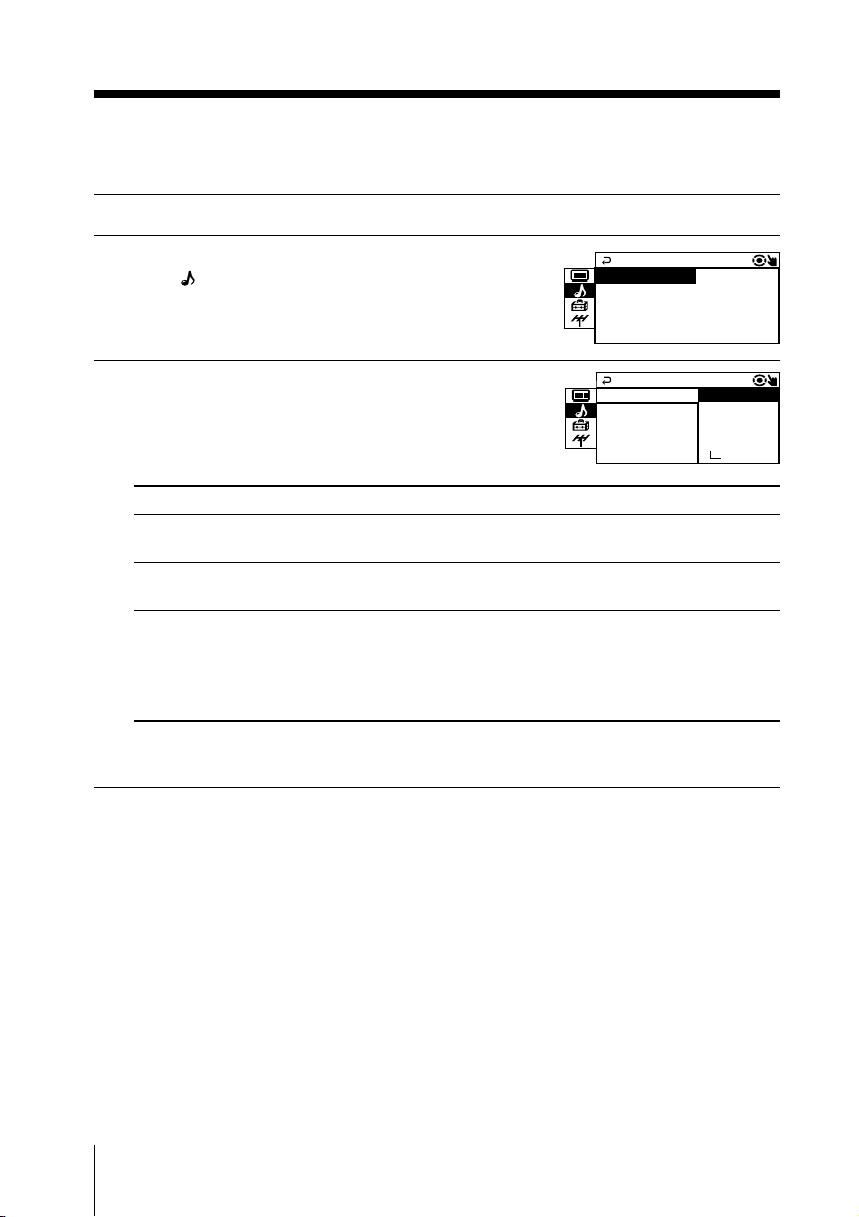

x Changing the “SOUND” setting

SOUND MOD E

SOUND

INTELL I GENT VOL : OFF

SUR ROU ND : O F F

: DYNAM I C

SOUND MOD E

SOUND

RSONAL

INTELLIGENT SOFT

DRAMA

SUR ROU ND : O F

ADJ UST

DYNAMI C

The “SOUND” menu allows you to adjust the sound settings.

Press MENU.

Press V or v to select the “SOUND”

icon (

Press V or v to select the desired item

(e.g., “SOUND MODE”), then press ENTER.

Select To

“SOUND MODE” choose either “DYNAMIC”, “DRAMA”, “SOFT”, “PERSONAL”* or

“SURROUND” choose either “TruSurround”, “SIMULATED” or “OFF”

“INTELLIGENT adjust the volume of all program numbers and video inputs VOL” automatically.

* When the “PERSONAL” mode is selected, you can receive the last adjusted sound

), then press ENTER.

“ADJUST” (see page 11).

(see page 13).

Press V or v to select “ON”, then press ENTER.

To cancel, select “OFF”, then press ENTER.

settings from the “ADJUST” option (see page 21).

20 Menu Adjustment

Page 21

Adjusting the “ADJUST” items under “SOUND MODE”

Press V or v to select

the desired item (e.g., “BALANCE”), then press ENTER.

Adjust the value according to the following table, then press ENTER .

For

“BASS”

“TREBLE”

“BALANCE”

“BBE”

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “PERSONAL”.

Press v or B to Press V or b to

decrease the bass. increase the bass.

decrease the treble. increase the treble.

increase the left speaker’s increase the right speaker’s volume. volume.

select “HIGH” for higher enhancement of sound clarity; select “LOW” for lower enhancement of sound clarity; select “OFF” to cancel BBE sound.

BALANCE

Menu Adjustment

Page 22

COL OR SYS : AUTO

SETUP

PROGRAM SETUP

PIC ROTAT I ON

NGL I SH

ECO MODE : OF F

LANGUAGE :

COL OR SYS : NT

SETUP

SC3 . 5 8

PROGRAM SET N

ECAM

PIC ROTAT I O PAL

N AUTO

ECO MODE : OF S

SC4 . 4 3

LANGUAGE :

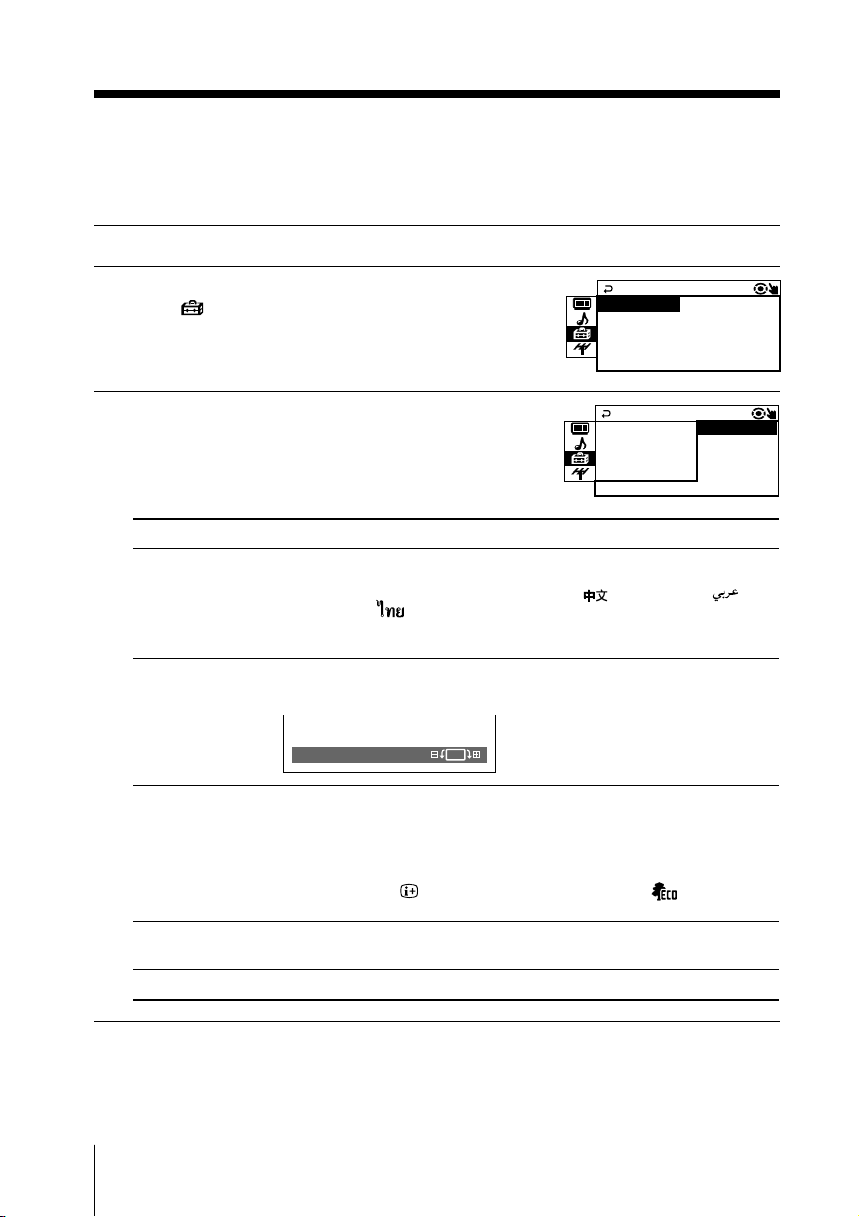

x Changing the “SETUP” setting

The “SETUP” menu allows you to change the menu language, adjust the picture position, reduce your TV power consumption, set up your program numbers and select the color system.

Press MENU.

Press V or v to select the “SETUP”

icon (

Press V or v to select the desired item

(e.g., “COLOR SYS”), then press ENTER.

), then press ENTER.

Select

“LANGUAGE”

“PIC ROTATION”

“ECO MODE”

“PROGRAM SETUP”

“COLOR SYS”

change the menu language.

Press V or v to select either “ENGLISH”, “ ” (Chinese), “ ” (Arabic) or “ ” (Thai) then press ENTER.

The selected menu language appears.

adjust the picture position when it is not aligned with the TV screen.

Press V , b , v or B to adjust the picture position, then press ENTER.

PIC ROTATION

reduce power consumption of your TV to save energy.

Press V or v to select “ON”, then press ENTER.

To cancel, select “OFF”, then press ENTER.

When you press or turn on the TV, ECO MODE ( ) symbol will appear on the screen for awhile.

adjust each program number settings (see Adjusting each program number settings (“PROGRAM SETUP”) on page 23).

Select the color system. Normally, set this to “AUTO”.

Menu Adjustment

Page 23

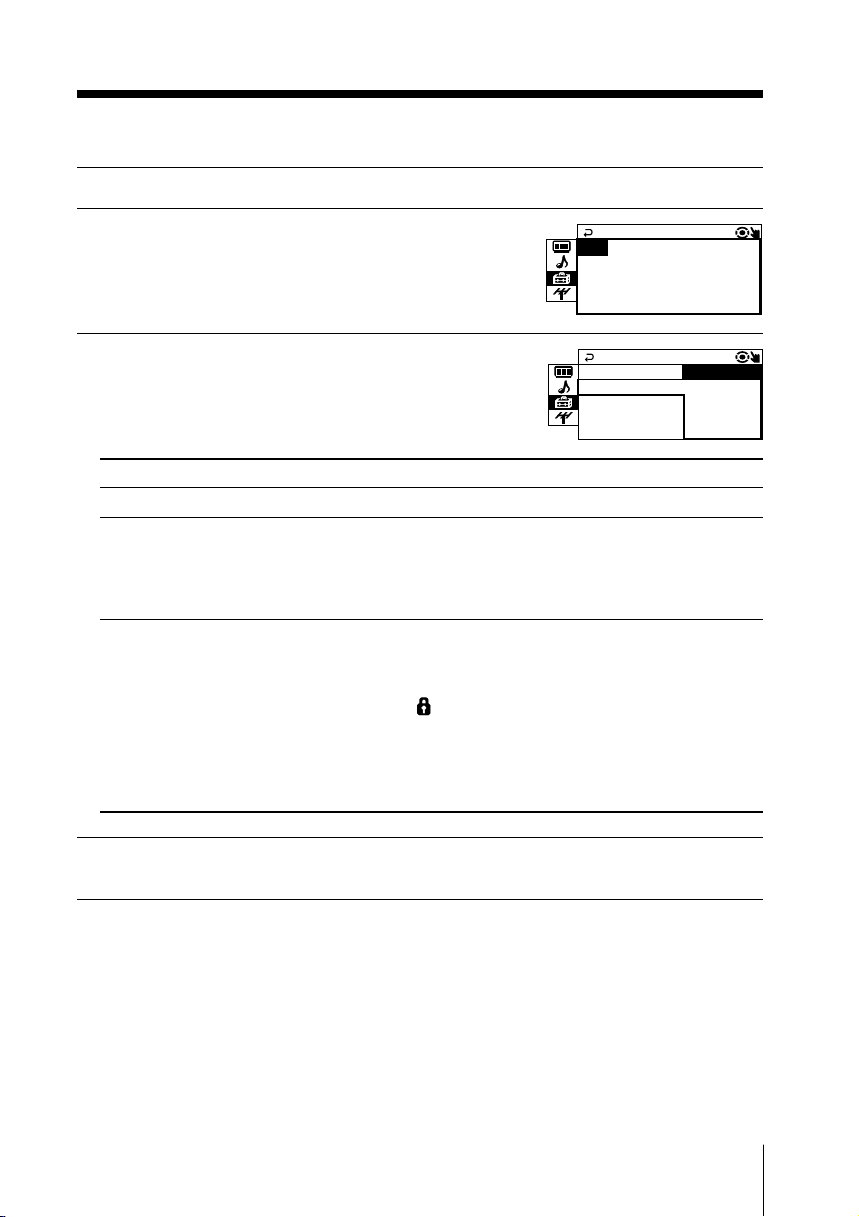

Adjusting each program number settings (“PROGRAM

PROGRAM SET

CH I L D LOCK : OF F

SK I P : OF F

PR : 14

PROGRAM SET

CH I L D LOCK :

SK I P OFF

PR ::14

SETUP”)

Select “PROGRAM SETUP” from the “SETUP” menu.

Select “PR” and press ENTER. Press V or v

to select the desired program number you want to adjust, then press ENTER.

Press V or v to select the desired item

(e.g., “SKIP”), then press ENTER.

Select To

“PR” select the desired program number.

“SKIP” skip unwanted or unused program number.

Press V or v to select “ON”, then press ENTER.

To cancel, select “OFF”, then press ENTER.

“CHILD LOCK” prevent children from watching this selected program number.

Press V or v to select “ON”, then press ENTER.

To continue adjusting other program numbers, press V or v to select “PR”,

then repeat step 2 and 3.

The lock symbol ( ) appears on the screen.

To cancel, select “OFF”, then press ENTER

If you preset a locked program number, that program number will be unlocked automatically.

Menu Adjustment

Page 24

PR : 0 1

AUTO PROGRA

VHF LOW

TV SYS:AUTO

CH PRESE T

TV SYS :B/G

MANU A L PROG RAM

AUTO PROGR

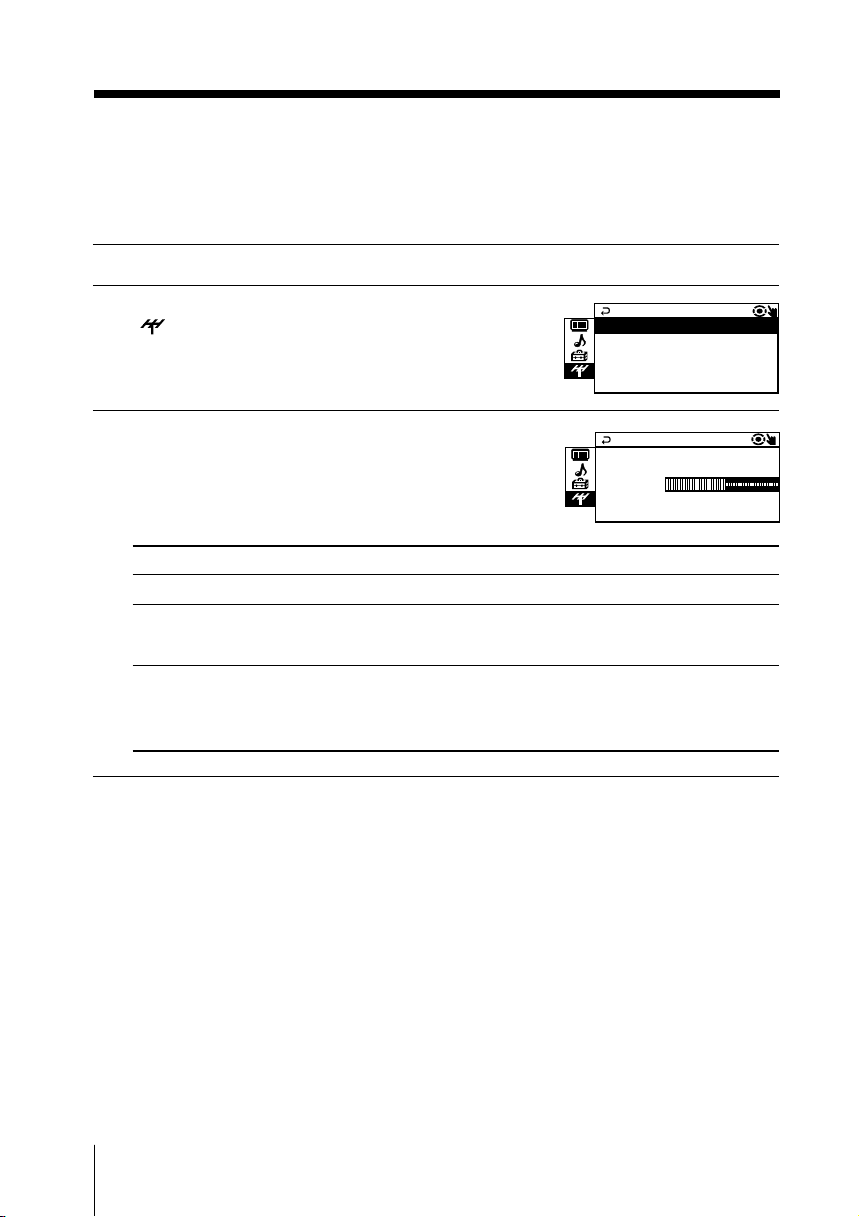

x Changing the Channel Preset

(“CH PRESET”) setting

The “CH PRESET” menu allows you to preset channels automatically, manually preset channels and select the TV system.

Press MENU.

Press V or v to select the “CH PRESET” icon

), then press ENTER.

(

Press V or v to select the desired item (e.g., “AUTO PROGRAM”), then press ENTER.

Select

“AUTO PROGRAM”

“MANUAL PROGRAM”

“TV SYS”

Menu Adjustment

preset channels automatically.

manually preset desired channels and channels that cannot be preset automatically (see Presetting channels manually on page 25).

select the TV system.

Press V or v to select either “B/G”, “I”, “D/K” or “M”, then press ENTER.

Page 25

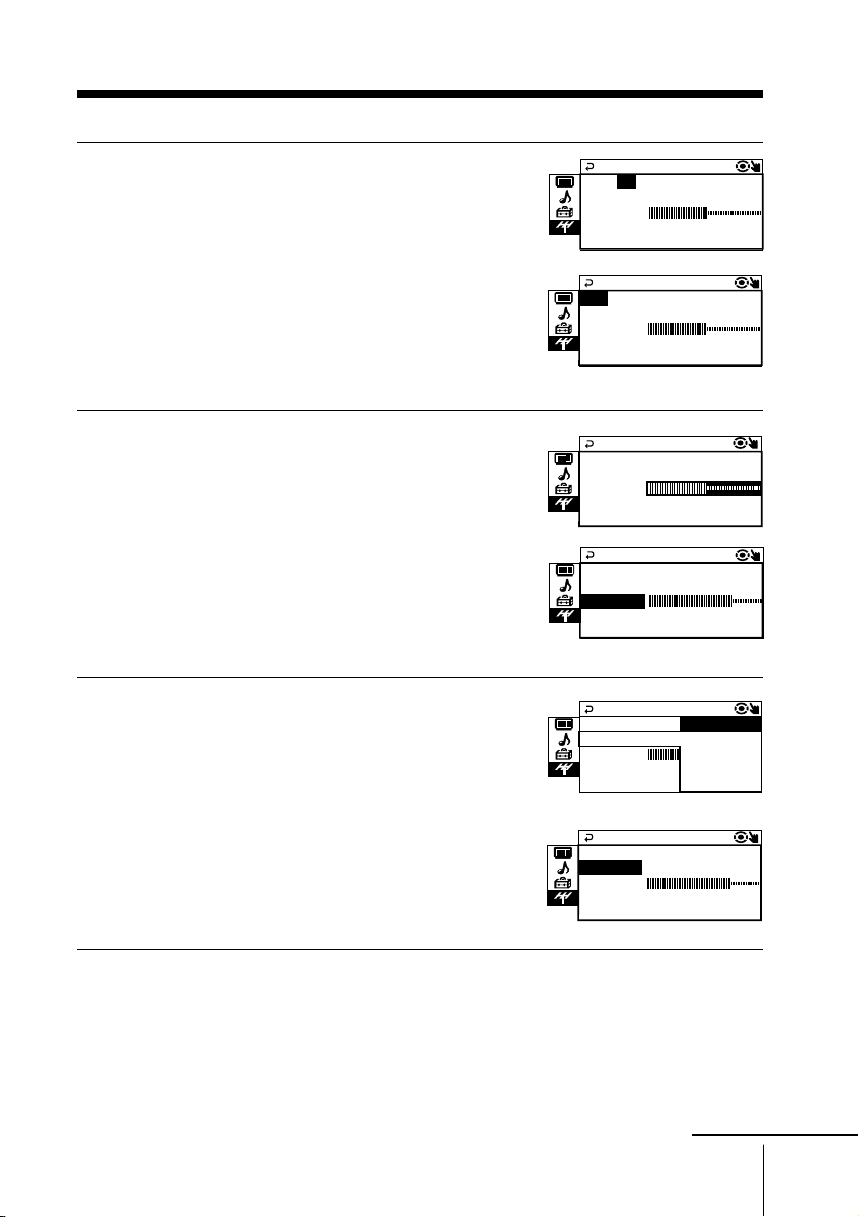

Presetting channels manually

MANU A L PROGR AM PR:06 TV SYS:B/G VHF LOW FINE:AUTO

MANU A L PROGR AM

PR:10

TV SYS:B/G VHF LOW FINE:AUTO

MANU A L PROGR AM PR:10 TV SYS:B/G VHF LOW FINE:AUTO

MANU A L PROGR AM PR:10 TV SYS:B/G

VHF LOW

FINE:AUTO

MANU A L PROGR AM PR:10 B/G TV SYS

VHF LOW

FINE:AUTO

MANU A L PROGR AM PR:10

TV SYS:I

VHF LOW FINE:AUTO

After selecting “MANUAL PROGRAM”,

select the program number to which you want to preset a channel.

(1) Make sure “PR” is selected, then press

ENTER.

(2) Press V or v

you want to preset (e.g., program number “10”) appears on the menu, then press ENTER.

Tip

•You can also select the program number with the PROGR +/– or number buttons.

Select the desired channel.

(1) Press V or v to select either “VHF LOW”,

“VHF HIGH” or “UHF”, then press ENTER.

(2) Press V or v

broadcast appears on the TV screen, then press ENTER.

If the sound of the desired channel is

abnormal, select the appropriate TV system.

(1) Press V or v

press ENTER.

until the program number

until the desired channel’s

to select “TV SYS”, then

(2) Press V or v

normal, then press ENTER.

until the sound becomes

continue

Menu Adjustment

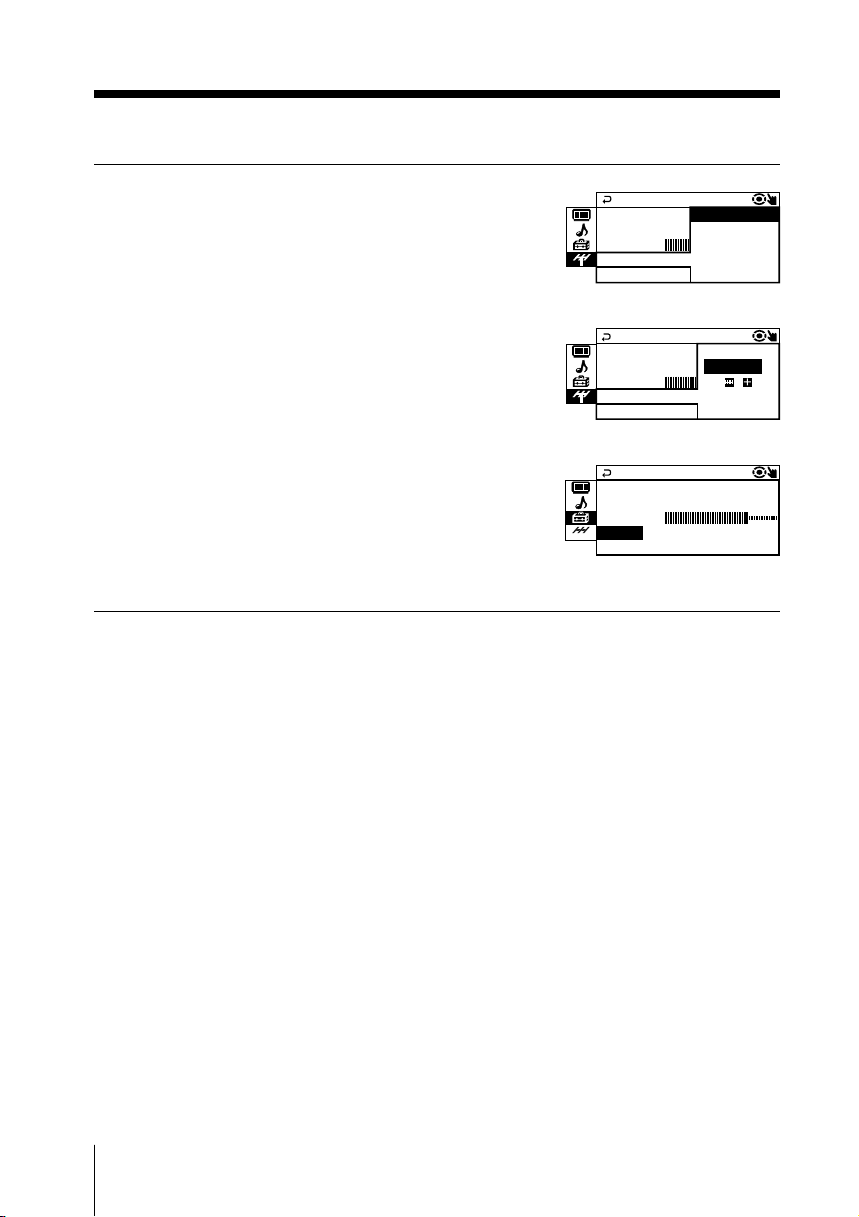

Page 26

MANU A L PROGR AM PR:10 TV SYS:IMANUA L VHF LOW FINE

AUTO

MANU A L PROGR AM PR:10 AUTO TV SYS:I L VHF LOW FINE

MANU A

MANU A L PROGR AM PR:10 TV SYS:I VHF LOW

LFINE:MA ANU

continued

If you are not satisfied with the picture

and sound quality, you may be able to improve them by using the “FINE” tuning feature.

(1) Press V or v to select “FINE”, then press

ENTER.

(2) Press V or v to select “MANUAL”, then

press ENTER.

(3) Press V, v, B or b until the picture and

sound quality are optimal, then press ENTER. The + or – icon on the menu flashes while tuning.

Note

• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the program number 0 on the TV.

Menu Adjustment

Page 27

Additional Information

x Connecting optional components

Connecting to the video input terminal ( t )

TV front panel

L(MONO) R

S Video cable

(not supplied)

Audio/Video cable

(not supplied)

TV rear panel

B/CBPR/CR

RLY

123

Antenna cable

(not supplied)

Audio/Video cable

(not supplied)

S Video cable

(not supplied)

Connecting to the monitor output terminal ( T )

TV rear panel

Camcorder

Video game

equipment

VCR

B/CBPR/CR

RLY

123

Audio/Video cable

(not supplied)

Audio system

VCR

continue

Additional Information

Page 28

continued

Connecting a DVD player to the component video input

terminal (

)

1 Using an audio cable, connect R and L under (component video input) on your

TV to the LINE OUT, AUDIO R and L output connectors on your DVD player.

2 Using a component video cable, connect Y, P

B/CB, and PR/CR under

(component video input) on your TV to the COMPONENT VIDEO OUT Y, CB,

and C

R output connectors on your DVD player.

3Press DVD on the remote to watch the

(component video input) and “DVD”

will appear on your screen.

DVD player

COMPONENT VIDEO OUT

CB CR

S VIDEO OUT

Component video cable (not supplied)

LINE OUT

R-AUDIO-L

VIDEO

Audio cable (not supplied)

Notes

• Some DVD player terminals may be labeled differently:

Connect To (on the DVD player)

Y (green) Y

PB/CB (blue) CB, PB, Cb or B-Y

PR/CR (red) CR, PR, Cr or R-Y

TV rear panel

R L Y PB/CBPR/C

• When both (S video) and (video) for t 1 or t 4 are connected at the same time,

(S video) is automatically selected. To view (video), disconnect the S video cable.

• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not output properly. This does not indicate a malfunction.

• When receiving a progressive signal through the (component video input), “DRC-MF” , “3D-NR” and “GAME MODE” are not selectable.

28 Additional Information

Page 29

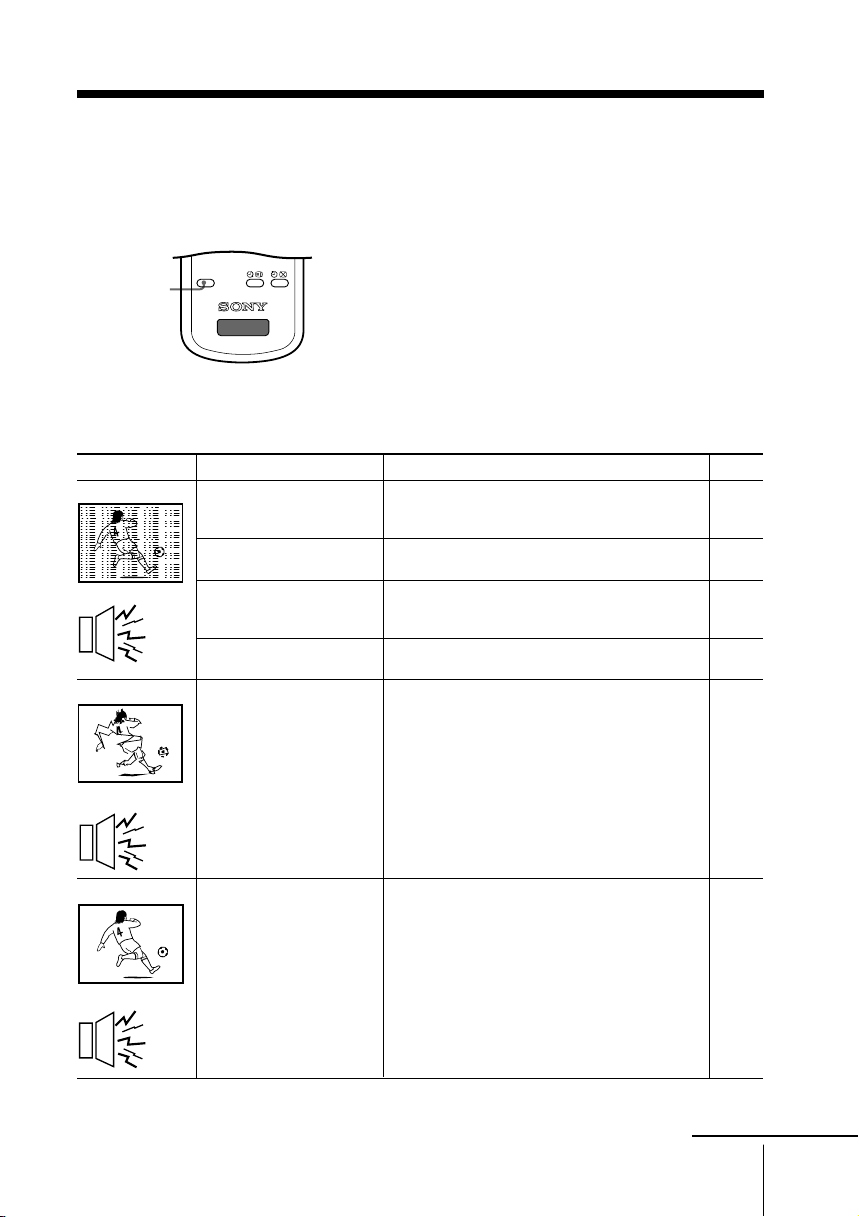

x Troubleshooting

If you have any problem while viewing your TV, you can function or

check the Troubleshooting guide below. If the problem persists,

contact your Sony dealer.

Reset function

RESET

Press the RESET button on your remote control. Your TV will go blank for a few second then the picture will reappear with “RESET” displayed on your TV screen for about 10 seconds.

Pressing RESET will set your TV to the factory setting, but certain problems may be solved.

Troubleshooting guide

Symptom

Snowy picture

Noisy sound

Distorted picture

Possible cause

• The connection is loose or the cable is damaged.

• The antenna setup is inappropriate.

• Channel presetting is inappropriate or incomplete.

• Signal transmission is low.

•Broadcast signals are too strong.

• Check the antenna cable and connection on the TV, VCR and at the wall.

• Check the antenna setup. Contact a Sony dealer for advice.

• Display the “CH PRESET” menu and select “MANUAL PROGRAM” to preset the channel again.

•Try using a booster.

•Turn off or disconnect the booster if it is in use.

either use the Reset

Solutions Page

–

Noisy sound

Good picture

Noisy sound

• The TV system setting is inappropriate.

• Display the “CH PRESET” menu and select the appropriate TV system (“TV SYS”).

Additional Information

continue

Page 30

continued

No picture

No sound

Possible causeSymptom Solutions Page

• The power cord, antenna or VCR is not

• Check the power cord, antenna and VCR connections.

connected.

•Press

?/1

• The TV is not turned on.

•Press ! (main power) on the TV to turn

(power).

off the TV for about five seconds, then turn it on again.

Good picture

No sound

Dotted lines or stripes

Double images or “ghosts”

No color

• The volume level is too low.

• The sound is muted.

• There is local interference from cars, neon signs, hair dryers, power generators, etc.

•Broadcast signals are reflected by nearby mountains or buildings.

• The antenna setup is inappropriate.

• Use of a booster is inappropriate.

• The color level setting is too low.

• The color system setting is inappropriate.

• The antenna setup is inappropriate.

•Press 2 + to increase the volume level.

•Press % to cancel the muting.

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice.

• Use a highly directional antenna.

• Use the fine tuning (“FINE”) function.

• Check the antenna setup. Contact a Sony dealer for advice.

•Turn off or disconnect the booster if it is in use.

•

Display the “PICTURE” menu and select “ADJUST” of “PICTURE MODE”, then adjust the “COLOR” level.

• Display the “SETUP” menu and check the color system (“COLOR SYS”) setting (usually set this to “AUTO”).

• Check the antenna setup. Contact a Sony dealer for advice.

–

30 Additional Information

Page 31

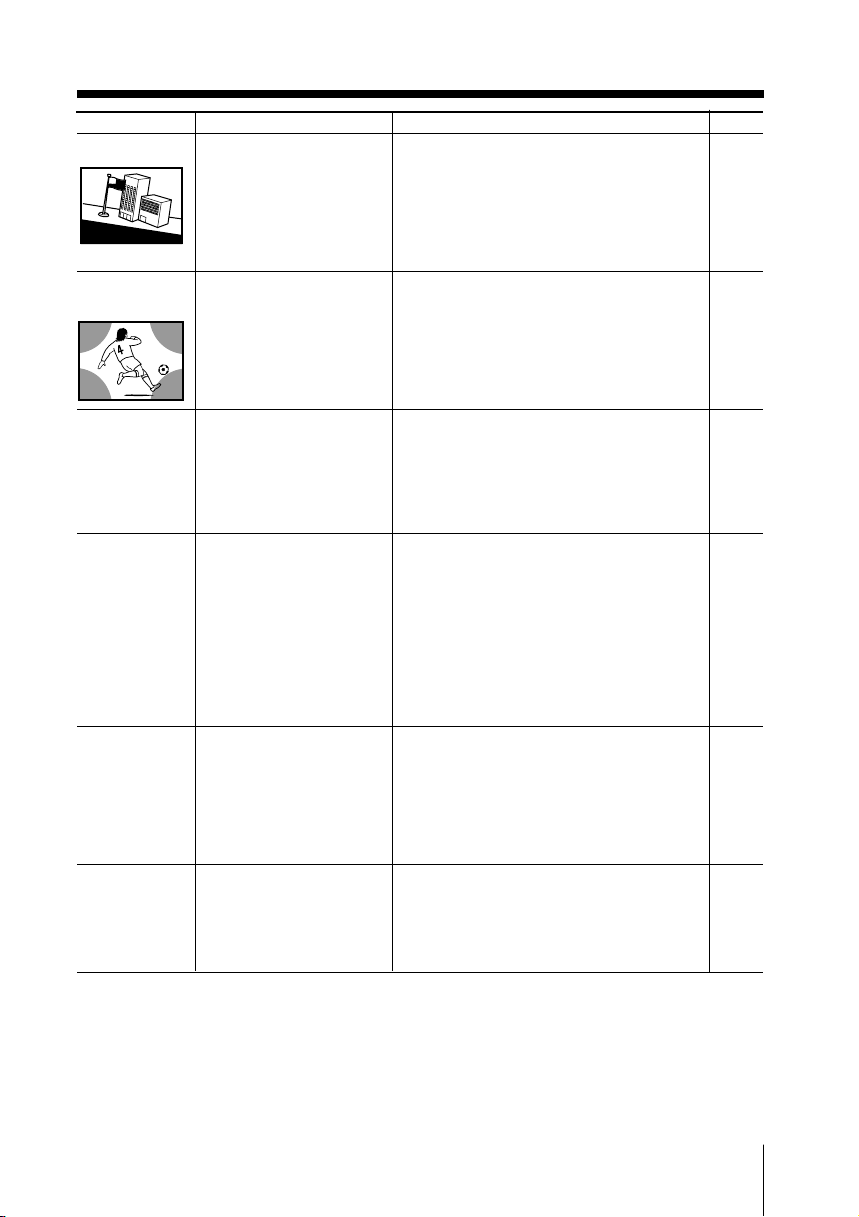

Picture slant

Good morning!

Abnormal color patches

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

Cannot play shooting games.

TV cabinet creaks.

A small “boom” sound is heard when the TV is turned on.

Possible causeSymptom

• The magnetic disturbance from external speakers or other equipment, or the direction of the earth’s magnetic field may affect the TV.

•

Your TV’s self-diagnosis function indicates the possible problems.

• Some shooting games which involve pointing a light beam at the TV screen with an electronic gun or rifle cannot be used with your TV. For details, see the instruction manual supplied with the video game software.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise. This does not indicate a malfunction.

•

The TV’s demagnetizing function is working. This does not indicate a malfunction.

Solutions

• Keep external speakers or other electrical equipment away from the TV.

• Display the “SETUP” menu and adjust “PIC ROTATION” so that the picture position is optimal.

• Keep external speakers or other equipment away from the TV. Do not move the TV while the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15 minutes, then turn it on again to demagnetize the TV.

• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn off your TV. Contact your nearest Sony service center.

—

Page

–

Additional Information

Page 32

x Specifications

Power requirements

Power consumption (W)

Television system

Color system

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(S Video)

(Component

Video)

i (Headphone)

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

KV-DR29M80 KV-DR29M50

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

VHF : E2 to E12 UHF : E21 to E69 CATV : S01 to S03, S1 to S41

UHF : B21 to B68 CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 UHF : C13 to C57, R21 to R60 CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 UHF : A14 to A79 CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

8 W + 8 W

Input: 4 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 4 Output: 1 Phono jacks; 500 mVrms

Input: 2 Y: 1 Vp-p, 75 ohms,

Input: 1 Phono jacks;

Output: 1 Stereo minijack

29 in.

72 Measured diagonally

68 Measured diagonally

786 × 596 × 514

unbalanced, sync negative C: 0.286 Vp-p, 75 ohms

Y: 1 Vp-p, 75 ohms, sync negative P

B/CB: 0.7 Vp-p, 75 ohms

R/CR 0.7 Vp-p, 75 ohms

Audio: 500 mVrms

Note

Design and specifications are subject to change without notice.

Sony Corporation

32 Additional Information
