2-319-485-11 (1)
Tr initron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
KV-DZ29
GB
© 2006 Sony Corporation
M50
A Specifications
KV-DZ29M50
Power requirements
Power consumption (W)
Television system
Color system
Channel coverage
B/G
I
D/K
M
8 (Antenna)
Audio output (Speaker)
Number of terminal
(Video)
(Audio)
(S Video)
(Component
Video)
i (Headphone)
Picture tube
Tube size (cm)
Screen size (cm)
Dimensions (w/h/d, mm)
Mass (kg)
Design and specifications are subject to change without notice.
110-240 V AC, 50/60 Hz
Indicated on the rear of the TV
B/G, I, D/K, M
PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43
VHF : E2 to E12 /UHF : E21 to E69 /
CATV : S01 to S03, S1 to S41
UHF : B21 to B68 /CATV : S01 to S03, S1 to S41
VHF : C1 to C12, R1 to R12 /
UHF : C13 to C57, R21 to R60 /
CATV : S01 to S03, S1 to S41, Z1 to Z39
VHF : A2 to A13 /UHF : A14 to A79 /
CATV : A-8 to A-2, A to W+4, W+6 to W+84
75-ohm external terminal
10 W + 10 W
Input: 3 Output: 1 Phono jacks; 1 Vp-p, 75 ohms
Input: 5 Output: 1 Phono jacks; 500 mVrms
Input: 1 Y: 1 Vp-p, 75 ohms,
Input: 2 Phono jacks;
Output: 1 Stereo minijack
29 in.
72
68
794 × 590 × 507
47
unbalanced, sync negative
C: 0.286 Vp-p, 75 ohms
Y: 1 Vp-p, 75 ohms,
sync negative
P
B/CB: 0.7 Vp-p, 75 ohms
P
R/CR: 0.7 Vp-p, 75 ohms
Note
Measured diagonally
Measured diagonally
B WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
For your own safety, do not touch
any part of the TV, the power cord
and the antenna cable during
lightning storms.
Do not place any objects on the TV.
The apparatus shall not be
exposed to dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
Do not block the ventilation
openings of the TV. Do not install
the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not open the cabinet and the
rear cover of the TV as high
voltages and other hazards are
present inside the TV. Refer
servicing and disposal of the TV
to qualified personnel.
For children’s safety, do not leave
children alone with the TV. Do not
allow children to climb onto it.
Do not operate the TV if any liquid
or solid object falls into it. Have it
checked immediately by qualified
personnel only.
Your TV is recommended for
home use only. Do not use the TV
in any vehicle or where it may be
subject to excessive dust, heat,
moisture or vibrations.
Clean the TV with a dry and soft
cloth. Do not use benzine, thinner,
or any other chemicals to clean the
TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape,
glue) on the painted cabinet of the
TV. Do not scratch the picture
tube.
To prevent fire or shock hazard, do
not expose the TV to rain or
moisture.
Install the TV on a stable TV stand
and floor which can support the
TV set weight. Ensure that the TV
stand surface is flat and its area is
larger than the bottom area of the
TV.
Do not plug in too many
appliances to the same power
socket. Do not damage the power
cord.
Pull the power cord out by the
plug. Do not pull the power cord
itself. Even if your TV is turned
off, it is still connected to the AC
power source (mains) as long as
the power cord is plugged in.
Unplug the TV before moving it
or if you are not going to use it for
several days.
C Securing the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
or
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
or
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
• Use only the supplied screws. Use of other screws may damage the TV.
D Getting Started
1
Step 1
b
b
Insert the batteries (supplied) into the remote.
• Do not use old or different types of batteries together.
Step 2
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
•You can also connect the TV to other optional
components (see F).
Step 3
Plug in the power cord, then press ! on the TV to
turn it on.
• The 1 (standby) indicator flashes green for a few
seconds when turning on the TV. This does not indicate
a malfunction.
Step 4
Set up the TV by following the instructions of the
“
” (“Initial Setup”) menu (see E).
E Setting up your TV (“Initial Setup”)
When you turn on your TV for the first time, the “ “ (“Initial
Setup”) menu will appear. You can adjust settings below using the buttons on
the remote control or TV front panel. Press V, v, B or b to select or adjust items,
then press
Select the desired menu language.
1
.
Select “Yes” to preset the channels automatically.
2
To skip automatic channel presetting, select “No”.
The “Program Sorting/Edit” menu enables
3
you to sort and edit the channels (see N).
Adjust the bars on the top and bottom of the
4
menu if they are slanted.
Adjust the upper and lower bars if they are not
5
equally positioned to the top and bottom of the
screen.
Select
Select
Edit:
Confirm
Confirm
SkipLabel
Off
Off
Off
Off
Off
Confirm
Confirm
Confirm
Select
Select
Program Sorting/Edit
PROG
01
02
03
04
05
Sorting:
Select
End
End
Exit
End
End
To prevent this “Initial Setup” menu from
6
appearing again when you turn on the TV
by pressing !, select “No”.
To allow this menu to appear again, select “Yes”.
Select
•

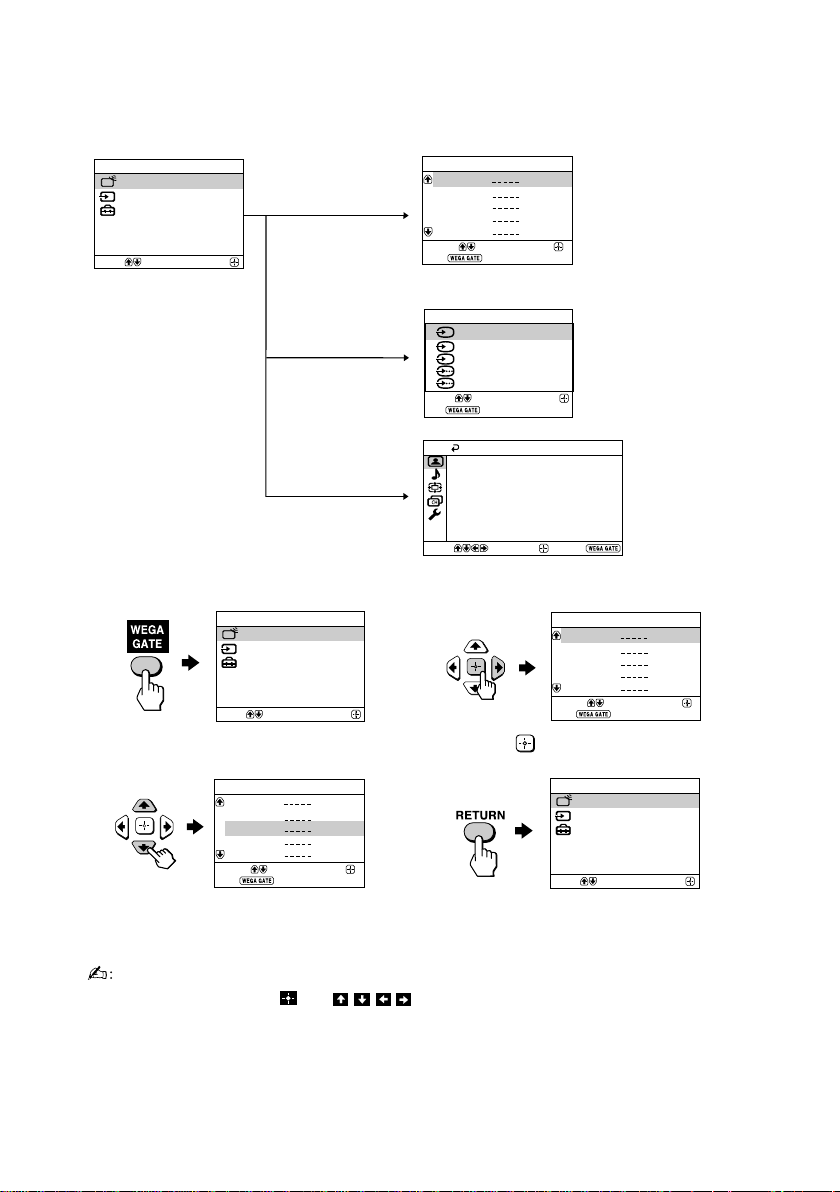

You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.
• Before adjusting “Picture Rotation” and “Picture V-Position”, keep electrical equipment
(external speakers) away from the TV to avoid magnetic disturbance.
Confirm
F Connecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
Connecting to the TV (front)
S Video cable
(MONO)
L
2
Connecting to the TV (rear)
113
L
L
(MONO)
R
Audio/Video cable
R
Camcorder
Headphones
2
Y
P/
B
C
B
P/
R
C
R
L
R
Component
video cable
DVD player
Digital TV receiver
Audio cable
Audio/Video cableAudio/Video cableAntenna cable
VCR DVD player Audio system VCR
•
If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV
•
When both (S video) and (video) for t2 are connected at the same time,
(see N)
.
(S video) is automatically selected. To view (video), disconnect the S video cable.
• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,
Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “HD/DVD 1” or “HD/DVD 2” on your TV screen, the signal from the T
(monitor output) terminals will not be output properly. This does not indicate a
malfunction.
• The TV accepts the following signal formats:
Total scanning line 1125i 750p 625p 625i 525p 525i
Effective scanning line 1080i 720p 576p 576i 480p 480i
fV (Hz) 50/60 50/60 50 50 60 60
