Sony KL-W7000A, KL-W9000A Schematic

SERVICE MANUAL

LJ-2

CHASSIS

MODEL MODEL

RM-Y980

KL-W7000A

RM-Y980USCanadian

KL-W7000A

CHASSIS No. CHASSIS No.COMMANDER DEST. COMMANDER DEST.

SCC-N56D-A

KL-W9000A

SCC-N56D-A

KL-W9000A

RM-Y980

RM-Y980USCanadian

SCC-N56C-A

MICROFILM

Please file according to model size...

*

37

50

KL-W7000A KL-W9000ARM-Y980

LCD PROJECTION DATA MONITOR

KL-W7000A/W9000A

RM-Y980

Specifications

Acceptable signal NTSC video signal, RGB signal Projection system 3 LCD panels, 1 lens projection LCD panel 1.35-inch TFT LCD panel

Lamp XL-100U: HID lamp, 100 W Lens Large diameter hybrid lens F2.4 Screen size (measured diagonally)

Viewable image size (for RGB input)

Deflection frequency

Inputs/outputs VIDEO 1, 2 and 3 IN S VIDEO (VIDEO 1, 3 IN only)

DVD IN VIDEO (phono jacks):

VIDEO OUT S VIDEO (4-pin mini-DIN):

(For details, see page 9.)

system

Approx. 1.54 million dots (512,880 pixels)

1068.5 × 480 dots × 3 panels

KL-W7000A: 37 inches (942 mm) KL-W9000A: 50 inches (1,272 mm)

KL-W7000A: Approx. 36.3 inches (921 mm) (diagonally) Approx. 803 × 452 mm (w/h) KL-W9000A: Approx. 49.1 inches (1247 mm) (diagonally) Approx. 1087 × 611 mm (w/h)

Horizontal: 31.5 to 50 kHz Vertical: 50 to 85 Hz

(4-pin mini-DIN):

Y: 1 Vp-p, 75 ohms unbalanced, sync negative C: 0.286 Vp-p (burst signal), 75 ohms

VIDEO (phono jacks):

1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO (phono jacks):

2 channels, 500 mVrms Impedance: more than 47 kohms

Y: 1 Vp-p, 75 ohms, sync negative

B/PB

: 0.7 Vp-p, 75 ohms

C

R/PR

: 0.7 Vp-p, 75 ohms

C

AUDIO (phono jacks):

500 mVrms (100% modulation) Impedance: 47 kilohms

Y: 1 Vp-p, 75 ohms unbalanced, sync negative C: 0.286 Vp-p (burst signal), 75 ohms

VIDEO (phono jack):

1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO (phono jacks):

2 channels, 500 mVrms Impedance: less than 5 kohms

RGB 1, 2 IN

VIDEO (D-sub 15-pin, female):

R, G, B: 0.7 Vp-p, positive, 75 ohms terminated Sync on Green: 0.286 Vp-p SYNC/HD: Composite sync: TTL, high impedance, sync positive/negative Horizontal sync: TTL, high impedance, sync positive/ negative VD: Vertical sync: TTL, high impedance, sync positive/

negative AUDIO (RGB 1 IN) (phono jacks)

2 channels, 500 mVrms

Impedance: more than 47 kohms AUDIO (RGB 2 IN) (stereo minijack)

500 mVrms

Impedance: more than 47 kohms

Speaker output Front: 5 W × 2 (L/R)

Woofer: 20 W

Power requirement

100 to 120 V AC, 50/60 Hz

Power consumption

190 W (MAX) Standby mode: 2 W

Dimensions KL-W7000A: 920 x 825 x 390 mm

(36

1

/

2

× 15

3

/8 inches)

/

4

× 32

(w/h/d) KL-W9000A: 1,228 × 1,055 × 565

3

5

mm (48

/

8

× 41

/

8

× 22

1

/4 inches)

(w/h/d)

Mass KL-W7000A: Approx. 30 kg

(68 lbs 2 oz) KL-W9000A: Approx. 43 kg (106 lbs 8 oz)

Supplied accessories

Remote control RM-Y980 (1) Size AA (R6) batteries (2) AC power cord (1) RGB signal cable (D-sub 15-pin

˜ D-sub 15-pin) (1) HD15-HD15 (male, without the

No. 9 pin) adaptor (1) Macintosh adaptor (1) Windows Monitor Information

Disk (1) Brackets (2) Screws for brackets (2) Buckle (1) Hexagon head wrench (1)

Optional accessories

Lamp unit XL-100U

Design and specifications are subject to change without notice.

– 2 –

SAFETY CHECK-OUT

(US Model only)

KL-W7000A/W9000A

RM-Y980

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the condition of the monopole antenna (if any). Make sure the end is not broken off, and has the plastic cap on it. Point out the danger of impalement on a broken antenna to the customer, and recommend the antenna’s replacement.

8. Check the B+ and HV to see if they are specified values. Make sure your instruments are accurate; be suspicious of your HV meter if sets always have low HV.

9. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC Leakage. Check leakage as described below.

To Exposed Metal Parts on Set

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or

RCA WT-540A. Follow the manufacturers’ instructions to

use these instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indica-

tion is 0.75 V, so analog meters must have an accurate low-

voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-

amples of a passive VOMs that are suitable. Nearly all battery

operated digital multimeters that have a 2 V AC range are suit-

able. (See Fig. A)

HOW TO FIND A GOOD EARTH GROUND

A cold-water pipe is guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also at earth ground. If the retaining screw is to be used as your earth-ground, verify that it is at ground by measuring the resistance between it and a coldwater pipe with an ohmmeter. The reading should be zero ohms. If a cold-water pipe is not accessible, connect a 60 – 100 watts trouble light (not a neon lamp) between the hot side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side of the line, the lamp should light at normal brilliance if the screw is at ground potential. (See Fig. B)

AC

0.15 µF

1.5 k

W

Earth Ground

Voltmeter (0.75 V)

Fig. A. Using an AC voltmeter to check AC leakage.

– 3 –

Trouble Light

AC Outlet Box

Ohmmeter

Fig. B. Checking for earth ground.

Cold-water Pipe

KL-W7000A/W9000A

RM-Y980

TABLE OF CONTENTS

Section Title Page Section Title Page

1. SELF DIAGNOSIS FUNCTION

1-1. Self Diagnosis Function ...................................... 5

1-2. Self Diagnosis Circuit (A BOARD<1/3>) .......... 6

2. GENERAL .................................................................. 7

3. DISASSEMBLY

3-1. Rear Cover Removal ........................................... 21

3-2. Chassis Assembly Removal ................................ 21

3-3. Service Position ................................................... 21

3-4. U Board Removal ................................................ 21

3-5 Power Block and K Board Removal.................... 22

3-6. Filter Assembly Removal .................................... 22

3-7. Lamp Block Assembly Removal ......................... 23

3-8. HA and HB Boards Removal .............................. 23

3-9-1. Screen Frame Removal [W7000A] ..................... 23

3-9-2. Screen Frame Removal [W9000A] ..................... 23

3-10-1.C Board Removal ................................................ 24

3-10-2.Extension Cable (C Board) .................................. 24

3-11. Optical Unit Removal .......................................... 24

4. CIRCUIT ADJUSTMENTS ................................ 25

5. DIAGRAMS

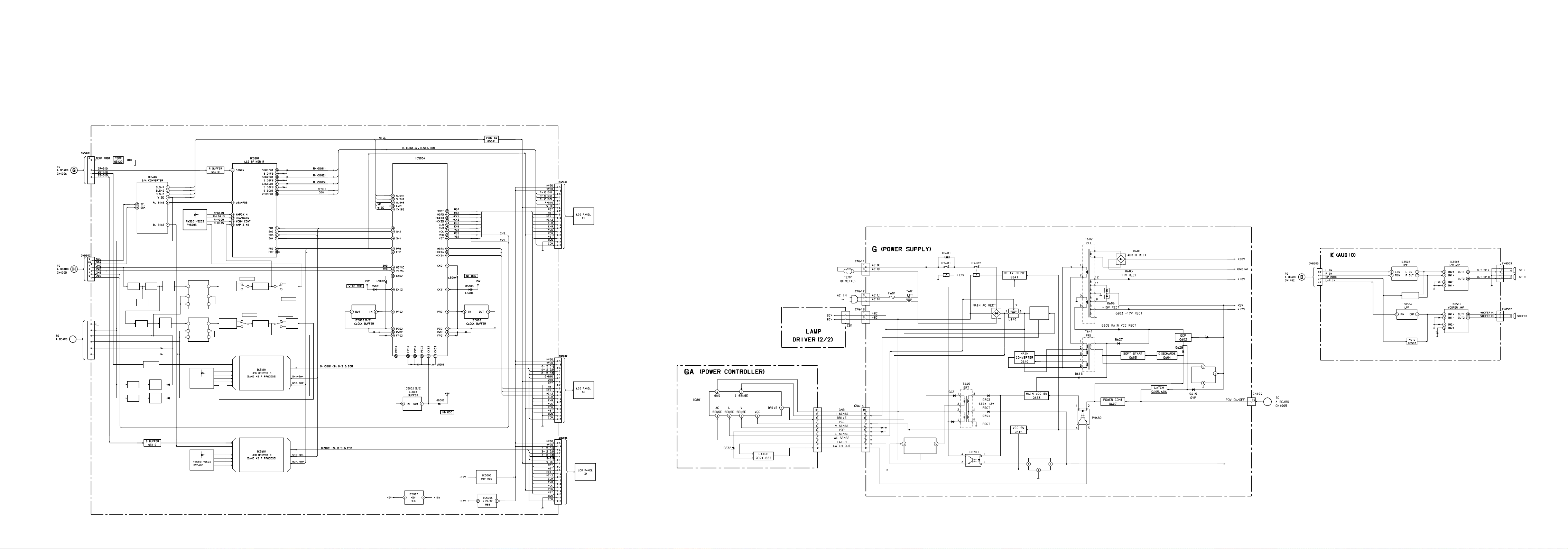

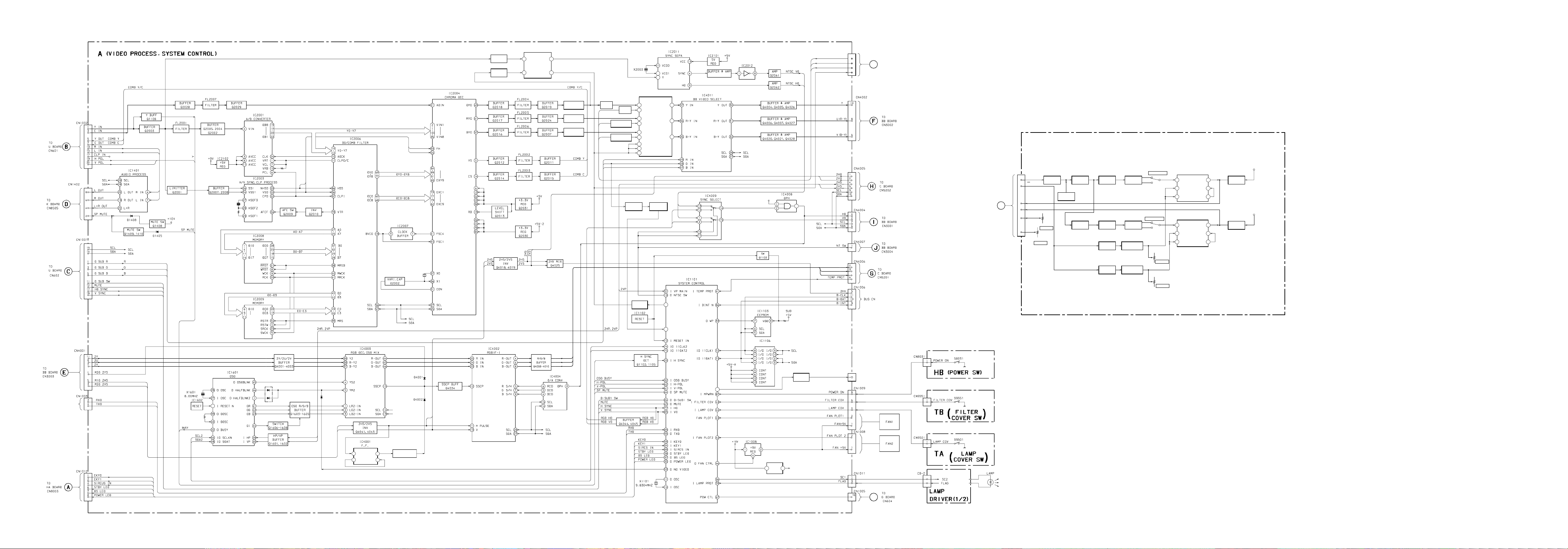

5-1. Block Diagrams ................................................... 47

5-2. Frame Schematic Diagrams................................. 59

5-3. Circuit Boards Location....................................... 63

5-4. Schematic Diagrams and Printed

Wiring Boards ................................................. 64

(1) Schematic Diagrams of HA,HB, K,

TA and TB Boards ........................................... 65

(2) Schematic Diagram of A (1/3) Board ................... 73

(3) Schematic Diagram of A (2/3) Board ................... 77

(4) Schematic Diagram of A (3/3) Board ................... 81

(5) Schematic Diagram of BB Board.......................... 85

(6) Schematic Diagram of U Board............................ 93

(7) Schematic Diagram of C (1/3) Board.................... 97

(8) Schematic Diagram of C (2/3) Board.................... 101

(9) Schematic Diagram of C (3/3) Board.................... 104

(10) Schematic Diagram of CU Board ......................... 107

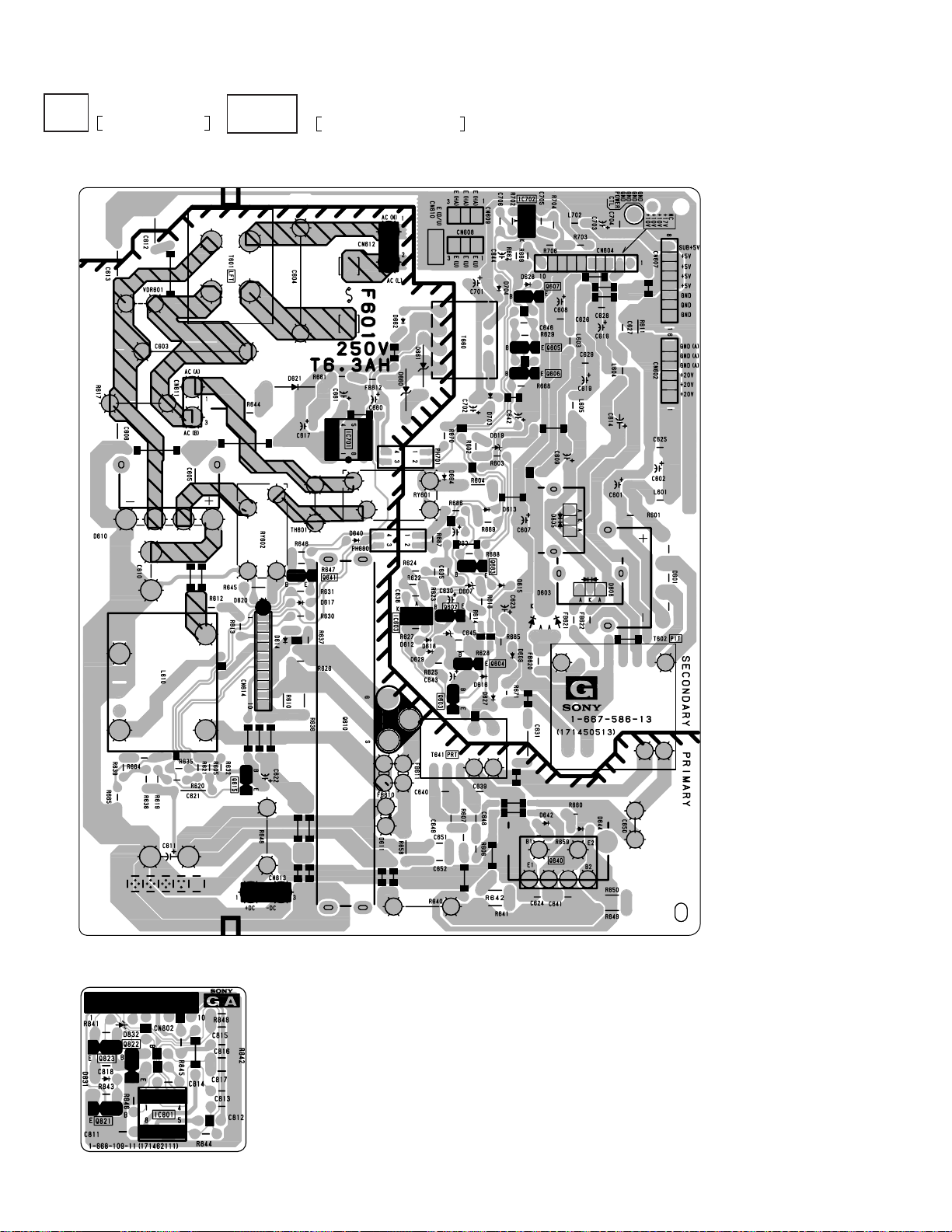

(11) Schematic Diagrams of G and GA Boards ............ 109

5-5. Semiconductors ................................................... 112

6. EXPLODED VIEWS

6-1. Chassis [W7000A]............................................... 115

6-2. Front Cover [W7000A] ....................................... 116

6-3. Screen Mirror Block and Optics Unit [W7000A] 117

6-4. Chassis [W9000A]............................................... 118

6-5. Front Cover [W9000A] ....................................... 119

6-6. Screen Mirror Block and Optics

Unit [W9000A].................................................... 120

7. ELECTRICAL PARTS LIST ............................ 121

SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY SHADING AND MARK ¡ ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AUX COMPOSANTS RELATIFS À LA

SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE MARQUE SÉCURITÉ. NE LES REMPLACER QUE PAR UNE PIÈCE PORTANT LE NUMÉRO SPECIFIÉ. LES RÉGLAGES DE CIRCUIT DONT L’IMPORTANCE EST CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT SONT IDENTIFIÉS DANS LE PRÉSENT MANUEL. SUIVRE CES PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS FONCTIONNE-MENT EST SUSPECTÉ.

¡ SONT CRITIQUES POUR LA

– 4 –

SECTION 1

SELF DIAGNOSIS FUNCTION

KL-W7000A/W9000A

RM-Y980

1-1. SELF DIAGNOSIS FUNCTION

What flashing of the indicators on the front of the monitor means

The u (power) (green), STANDBY (orange) and/or LAMP (red) indicators indicate the conditions of the monitor and warnings by lighting or flashing, as follows.

The u indicator lights.

/ The power of the monitor is on.

The STANDBY indicator lights.

/ The monitor is in standby mode. The

monitor is turned on by pressing POWER on the remote control.

The u and STANDBY indicators light.

/ The Auto Shut Off function works. The

monitor has been turned off when the time you specify has passed after the input of the computer is cut off.

The u indicator flashes.

/ The lamp for the light source is ready to

turn on. You can obtain picture and sound after a while.

The LAMP and STANDBY indicators flash.

/ The air filter or the lamp cover is not

attached securely. When you correct, the STANDBY lamp lights up and the monitor enters the standby mode. (pages 17 and 18)

The LAMP indicator flashes.

/ The lamp for the light source burns out.

Replace it with new one. (page 18)

The LAMP, STANDBY and u indicators flash.

/ The temperature inside the monitor has

risen abnormally, or the fans have stopped. Check that the air filter is not clogged and the ventilation holes are not blocked. After a while turn on the monitor. (page 17)

If the monitor is not recovered after correcting the problems, contact with qualified Sony personnel.

– 5 –

KL-W7000A/W9000A

RM-Y980

1-2. SELF DIAGNOSIS CIRCUIT (A BOARD <1/3>)

IC1101 SYSTEM CONTROL

O POWER LED

O BS LED

O STBY LED

I LAMP PROT

FAN PROT 1

I TMP PROT

POWER LED

LAMP LED

STBY LED

1. Incomplete installation of filter or lump cover

When either S9551 (filter) or S9501 (lump cover) is opened, the voltage of pin $£ and pin $¢ on IC1101 is increased over

D8002 D8005

35

D8007

0 V. The circuit detects that and drops the voltage of pin ^¶ on IC1101 to 0 V.

2. Burnt out of the lump

37

38

(LAMP DRIVER)

39

PROT

LAMP

When the lump is burnt out, the voltage of pin #ª on IC1101 is increased over 5 V. The circuit detects that and drops the voltage of pin ^¶ on IC1101 to 0 V.

3. Rising in temperature

When temperature of inside of the unit rises up, the voltage of pin $¡ on IC1101 is increased over 5 V. The circuit detects that and drops the voltage of pin ^¶ on IC1101 to 0 V.

4. Poor ventilation (Standstill of the fan)

40

41

FAN 1

Q5420 etc. (C BOARD)

TEMP PROT

When the fan stops or is out of order, the voltage of either pin $º or pin $™ on IC1101 is increased over 5 V. The circuit detects that and drops the voltage of pin ^¶ on IC1101 to 0 V.

POW CTL

67

I FAN PROT 2

I FILTER COV

I LAMP COV

42

43

44

G BOARD

FAN 2

S9551 (TB BOARD)

S9501 (TA BOARD)

– 6 –

The operating instructions mentioned here are partial abstracts

4

-US

Welcome!

Precautions

This projection monitor operates on extremely high voltage. To prevent fire or electric shock, please follow the precautions below.

On safety

• Operate the monitor only on 100 V to 120 V AC.

• One blade of the plug is wider than the other for

safety purposes and will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.

• Should any liquid or solid object fall into the

cabinet, unplug the monitor and have it checked by qualified personnel before operating it further.

• Unplug the monitor from the wall outlet if you are

not going to use it for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself.

• The fans inside the monitor continue working for a

while even after the monitor has been turned off. Do not unplug the monitor from the AC outlet while the fans are working.

On installation

• To prevent internal heat build-up, do not block the ventilation openings.

• Do not install the monitor in a hot or humid place, or in a place subject to excessive dust or mechanical vibration.

On screen

The screen surface is easily scratched. Do not rub, touch or tap it with sharp or abrasive objects. Be especially careful when transporting the monitor.

On blanking around the pciture

The monitor displays black masks between the picture and the screen vessel because the monitor under-scans to obtain the necessary space on the screen to display the picture. This is called blanking. Note that the black masks on each vessel are not uniform. The blanking on the video picture will be wider to optimize picture.

On moisture condensation

If the projection monitor is transported directly from a cold to a warm location, or if the room temperature has changed suddenly, the picture may be blurred or show poor color. This is because moisture has condensed on the lenses inside. If this happens, let the moisture evaporate before using the monitor.

On cleaning

• Clean the cabinet of the monitor with a dry soft cloth. Stubborn stains may be removed with a cloth slightly dampened with solution of mild soap and water, then wipe it with a dry soft cloth.

• Do not use any type of solvent such as alcohol, benzine, thinner or insecticide. Such solvent may damage the finish of the monitor or erase the indications on the panel.

• To remove dust from the screen, wipe it gently with a soft cloth.

• Stubborn stains on the screen may be removed with a soft cloth slightly dampened with solution of mild soap and water.

• If the picture becomes dark after using the monitor for a long period of time, it may be necessary to clean the inside of the monitor. Consult qualified service personnel.

Screen vessel


Blanking

Getting Started

5

-US

US

p for KL-W9000A

Vertical viewing area (side view)

Horizontal viewing area (top view)

Getting Started

Step 1: Installing the projection monitor

Optimum viewing area

For the best picture quality, install the monitor as shown below.

p for KL-W7000A

Vertical viewing area (side view)

Horizontal viewing area (top view)

30°

More than 2 m

75°

More than 2 m

35°

75°

More than 1.5 m

from the Operating Instruction Manual. The page numbers of the Operating Instruction Manual remain as in the manual.

– 7 –

SECTION 2

GENERAL

6

-US

Getting Started

2

Pass a strong cord or a chain through each

bracket mounted in step 1, and then secure it to a wall or a pillar, etc.

Using the buckle

You can also use the supplied buckle to secure the monitor to the stand.

1

Attach the buckle to the stand on which the monitor is mounted.

Tighten the supplied screw firmly.

2

Insert the buckle until it clicks.

3

Pull the belt to fasten.

Carrying your monitor

Be sure to grasp the areas indicated by the arrows when carrying the monitor, and to use more than two people. Never grasp the front panel.

p for KL-W7000A

p for KL-W9000A

Stabilizing the monitor Using the brackets

After setting up, secure the monitor to a wall, etc. with the supplied brackets.

1

Mount the two supplied brackets with the

screws to the upper rear sides of the monitor.

Bracket (supplied)

Belt

Getting Started

7

-US

US

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

R

L

AUDIO

VIDEO

OUT

13

Using the rear RGB 1 IN connector

* The HD15–HD15 adaptor (supplied) may be needed for some

models. The male side (without the No. 9 pin) of the adaptor should be connected to the computer.

For customers using the supplied HD15–HD15 adaptor

This monitor uses a No. 9 pin in the video signal connector for DDC1 and DDC2B compatibility. Some PC systems which are not compatible with either DDC1 or DDC2B may not accept the No. 9 pin. If you are not sure whether your PC system accepts the No. 9 pin or not, use the HD15 (Female) – HD15 (Male without the No. 9 pin) adapter (supplied).

Step 2: Hookup

Before making the connection, turn off the power and disconnect the AC power cords of the monitor and the equipment to be connected. Refer to the instruction manual of the equipment you connect.

Connecting to an IBM PC/AT or compatible computer

Connect the RGB 2 IN connector on the front or the RGB 1 IN connector at the rear of the monitor to the video/audio outputs of the computer using the supplied RGB signal cable (D-sub 15 pin ˜ D-sub 15 pin).

Using the front RGB 2 IN connector

Rear of the monitor

RGB signal cable (supplied)

HD15–HD15 adaptor (supplied)*

to video output

Audio connecting cord (phono plug × 2 ˜ stereo minijack) (not supplied)

to audio output

IBM PC/AT or compatible computer

Front of the monitor

RGB signal cable (supplied)

HD15–HD15 adaptor (supplied)*

to video output

Audio connecting cord (stereo minijack ˜ stereo minijack) (not supplied)

to audio output

IBM PC/AT or compatible computer

Male side (without the No.9 pin)

or

INPUT SELECT

VIDEO

R

L

AUDIO

VIDEO 2 IN

RESET

RGB AUDIO

RGB 2 IN

or

– 8 –

8

-US

Getting Started

Connecting to a Macintosh or compatible computer

Connect the RGB 2 IN connector on the front or the RGB 1 IN connector at the rear of the monitor to the video/audio outputs of the computer using the supplied RGB signal cable (D-sub 15 pin ˜ D-sub 15 pin) and the supplied Macintosh adaptor.

Using the front RGB 2 IN connector

Using the rear RGB 1 IN connector

About the supplied Macintosh adaptor

The supplied Macintosh adaptor is compatible with Macintosh LC, Performa, Quadra and Power Macintosh series computers. Macintosh II series and some version of PowerBook models may need an another adaptor with micro switches (not supplied).

Front of the monitor

RGB signal cable (supplied)

Macintosh adaptor (supplied)

to video output

Audio connecting cord (stereo minijack ˜ stereo minijack) (not supplied)

to audio output

Macintosh or compatible computer

Rear of the monitor

RGB signal cable (supplied)

Macintosh adaptor (supplied)

to video output

to audio output

Macintosh or compatible computer

Audio connecting cord (phono plug × 2 ˜ stereo minijack) (not supplied)

INPUT SELECT

VIDEO

R

L

AUDIO

VIDEO 2 IN

RESET

RGB AUDIO

RGB 2 IN

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

R

L

AUDIO

VIDEO

OUT

13

Getting Started

9

-US

US

Preset and user modes

The monitor automatically detects the input signals with the horizontal scanning frequency between 31.5 and 50.0 kHz and the vertical scanning frequency between 50 and 85 Hz. The monitor is capable of a display resolution of up to

1068.5 × 480 dots. When a signal with a higher resolution is input, it will be processed to display the image at 1068.5 × 480 dots.

Preset modes

The monitor has nine factory preset modes for the most popular industry standards as shown below.

No. Resolution Horizontal Vertical Graphics

(dots × frequency frequency mode lines) (kHz) (Hz)

1 640 × 400 31.468 70.086 VGA mode

(Text)

2 640 × 480 31.468 59.94 VGA mode

(Graphics)

3 800 × 600 37.879 60.317 SVGA VESA 4 800 × 600 46.875 75.000 SVGA VESA 5 1024 × 768 48.363 60.004 VESA 6 864 × 480 31.469 59.94 Sony

Wide Resolution*

7 1072 × 600 37.879 60.317 Sony

Wide Resolution*

8 1376 × 768 48.363 60.004 Sony

Wide Resolution*

9 832 × 624 49.727 74.553 Macintosh 16" color

* For the timing chart of the signals, see page 30.

User modes

When using a video mode that is not one of the preset modes, some fine tuning may be required to optimize the display to your preference. Simply adjust the monitor according to the adjustments instructions on pages 17 and 18. The adjustments will be stored automatically and recalled whenever that mode is used.

Recommended horizontal timing conditions

Horizontal sync width should be more than 1.0 µsec. Horizontal blanking width should be more than 3.6 µsec.

When “OUT OF SCAN RANGE” appears on the screen

The monitor receives a signal whose frequency range is not within that specified for the monitor.

Notes

• When projecting any of the three Wide Resolution signals (864

× 480, 1072 × 600, 1376 × 768), set the picture mode to FULL. In NORMAL mode, the picture with aspect ratio 16:9 will be compressed to aspect ratio 4:3 and appear lengthened vertically. For details, see page 16.

• The monitor does not accept an interlace mode signal.

Plug & Play

This monitor complies with the DDC

TM

1 and DDC2B which are the Display Data Channel (DDC) standards of VESA. When a DDC1 host system is connected, the monitor synchronizes with the V. CLK in accordance with the VESA standards and outputs the EDID (Extended Display Identification Data) to the data line. When a DDC2B host system is connected, the monitor automatically switches to each communication.

For customers using Windows 95/98

To maximize the potential of your monitor, install the new model information file from the supplied Windows Monitor Information Disk onto your computer. This monitor complies with the “VESA DDC” Plug & Play standard. If your computer/graphic board complies with DDC, select “Plug & Play Monitor (VESA DDC)” or this monitor’s model name as the monitor type in the “Control Panel” of Windows 95/

98. If your computer/graphic board has difficulty communicating with this monitor, load the Windows Monitor Information Disk and select this monitor’s model name as the monitor type.

For customers using Windows NT4.0

Monitor setup in Windows NT4.0 is different from Windows 95/98 and does not involve the selection of monitor type. Refer to the Windows NT4.0 instruction manual for further details on adjusting the resolution, refresh rate, and number of colors.

Adjusting the monitor’s resolution and color number

Adjust the monitor‘s resolution and color number by referring to your computer’s instruction manual. The color number may vary according to your computer or video board. The color palette setting and the actual number of colors are as follows:

• High Color (16 bit) n 65,536 colors

• True Color (24 bit) n about 16.77 million colors In true color mode (24 bit), speed may be slower.

– 9 –

10

-US

Getting Started

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

R

L

AUDIO

VIDEO

OUT

13

Connecting two VCRs for editing

The monitor outputs the signal, which is input from the VIDEO 1 IN, VIDEO 2 IN or VIDEO 3 IN jacks, through the VIDEO OUT jacks. With two VCRs connected to the VIDEO IN and VIDEO OUT jacks, you can edit the tape.

Notes

• For signals input from the RGB 1 IN, RGB 2 IN and

DVD IN connectors, the monitor outputs only the audio signal.

• Do not connect both the VIDEO IN and VIDEO OUT

jacks on this monitor simultaneously to the video/ audio output and input jacks on a single VCR.

Connecting to video equipment To a VCR not equipped with an S video

connector

You can also use the VIDEO 2 IN jacks on the front of the monitor for the video/audio connections.

To an S video equipped VCR

Rear of the monitor

to VIDEO 1 IN or VIDEO 3 IN

VMC-810S/820S (not supplied)

VCR

to video/audio outputs

Rear of the monitor

VMC-810S/820S (not supplied)

VCR for playback

VMC-810S/820S (not supplied)

VCR for recording

Note

• When you connect the cable to both the VIDEO jack and the S VIDEO connector, the picture from the S VIDEO connector is displayed on the monitor screen.

Rear of the monitor

to video/audio outputs

to video/ audio inputs

to VIDEO OUT

to VIDEO 1 IN or VIDEO 3 IN

YC-810S (not supplied)

VCR

to S video/audio outputs

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

R

L

AUDIO

VIDEO

OUT

13

L

R

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

AUDIO

VIDEO

OUT

13

Getting Started

11

-US

US

L

R

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/P

B

CR/P

R

VIDEO

AUDIO

VIDEO

OUT

13

Connecting a DVD Player

If your DVD player has the component video output connectors*, connect them to the DVD IN (Y, C

B/PB

and CR/PR ) connectors at the rear of the monitor for higher quality picture. For details, see the Instructions supplied with the DVD player.

* Some DVD player terminals may be labeled or

colored differently. If so, connect them as follows:

Connect (on the monitor) To (on a DVD player)

Y (green) Y CB/PB (blue) C

B

, Cb, B-Y or P

B

C

R

/PR (red) C

R

, Cr, R-Y or P

R

Connecting a DVD player with component video output connectors

Rear of the monitor

to DVD IN

VMC-10HG (not supplied)

to audio outputs

to component video outputs

DVD player

Rear of the monitor

to an AC outlet

AC power cord (supplied)

to AC IN

Connecting a DVD player without component video output connectors

L

R

RGB 1 IN

AUDIO

L

R

RGB

VIDEO IN

S VIDEO

VIDEO

DVD

Y

CB/PB

CR/PR

VIDEO

AUDIO

VIDEO

OUT

13

Rear of the monitor

to VIDEO 1 IN or VIDEO 3 IN

VMC810S/ 820S (not supplied)

DVD player

to audio/ video outputs

Note

If you have an S video equipped DVD player, make an S video connection using the S video connecting cord (not supplied) instead of the yellow video connecting cord. If so, you can obtain the high quality picture.

Connecting the AC power cord

Connect the supplied power cord to the AC IN socket of the monitor and to a wall AC outlet.

Note

• The signal input from the DVD IN jacks is not output from the VIDEO OUT jacks.

– 10 –

12

-US

Getting Started

If you prefer Spanish or French to English, you can change the menu language.

1

Press MENU.

2

Press V or v to select OPTION, and press ENTER.

3

Press V or v to select LANGUAGE, and press ENTER.

4

Press V, v, B or b to select your favorite language, “ENGLISH,” “FRANCAIS (French)” or “ESPANOL (Spanish).”

5

Press MENU to return to the original screen.

Notes

• You can operate the menu using the buttons on the monitor. The VOLUME + button functions the same as V and b, and VOLUME – as v and B.

• You cannot use the AUTO SHUT OFF function for the input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN and DVD IN. (See page 24.)

OPTION N AUTO SHUT OFF:OFF LANGUAGE: ENGLISH DOT PHASE: 16

Step 3: Setting up the remote control

Inserting batteries

Insert two size AA (R6) batteries (supplied) by matching the + and – on the battery to the diagram inside the battery compartment.

Notes

• If the remote control does not operate properly, the batteries may be worn out. When replacing batteries, replace both of them with new ones.

• Do not mix old batteries with new ones or mix different types of batteries together.

• If the electrolyte inside the battery should leak, wipe the contaminated area of the battery compartment with a cloth and replace the old batteries with new ones. To prevent the electrolyte from leaking, remove the batteries when you don‘t plan to use the remote control for a long period of time.

• Do not handle the remote control roughly. Do not drop it, step on it, or let it get wet.

• Do not place the remote control in direct sunlight, near a heater, or where the humidity is high.

Changing the menu language

MENU

ENTER

CENTER/ SIZE

VOL

ENTER

MENU

13

-US

Operations

US

1

If the STANDBY indicator on the front of the monitor is lit in orange, press POWER on the remote control to turn on the power.

Press the power switch (green) on the monitor if the STANDBY indicator is not lit.

The green u (power) indicator flashes, then lights up.

2

Turn on the power of the connected equipment.

3

Press RGB or VIDEO to select the input you want to watch.

The selected input indication is displayed on the screen.

To watch a computer picture input from the RGB IN connector

Each time you press RGB, the display changes as follows:

RGB 1 ˜ RGB 2

To watch a video picture input from the VIDEO IN jacks

Each time your press VIDEO, the display changes as follows:

VIDEO 1 n VIDEO 2 n VIDEO 3 n DVD

You can also select the input by pressing INPUT SELECT on the monitor. Each time you press INPUT SELECT, the display changes as follows:

RGB 1 n RGB 2 n VIDEO 1 n VIDEO 2 n VIDEO 3 n DVD

The input signal indication will automatically disappear.

4

Press VOL +/– (VOLUME +/–) to adjust the volume.

Remote control Monitor

Projecting the picture

Operations

CENTER/ SIZE

VOL

ENTER

MENU

VIDEO

MUTING

DISPLAY

POWER

RGB WIDE

POWER

RGB

INPUT SELECT

VIDEO

N

VOL

VOLUME

+

–

MENU

VOLUME

LAMP

INPUT SELECT

STANDBY

ENTER

Power switch (green)

(continued)

– 11 –

14

-US

Operations

Watching the video picture in wide mode

You can enjoy a variety of wide mode picture.

Press WIDE until the mode you want appears on the screen.

Each time you press WIDE, the mode changes as follows:

NORMAL n FULL n ZOOM n SUB TITLE n WIDE ZOOM

To turn off the monitor

Press POWER on the remote control. The monitor enters standby mode and the STANDBY indicator lights up. To turn off the main power, press the power switch (green) on the monitor.

Note

• To protect the lamp mounted as a source of light, if you try to turn on the power more than 5 seconds after the power has been turned off, the u (power) indicator flashes and you cannot obtain the picture and sound soon. If you turn it on back within about 5 seconds after power-off, you can obtain them soon.

Muting the sound

Press MUTING. “MUTING” appears on the screen. To restore the sound, press MUTING again, or press VOL+.

Displaying on-screen information

Press DISPLAY to display the following information on the screen.

To make the on-screen information disappear, press DISPLAY again.

Current input signal

Picture mode (page 15)

Current input signal frequency when the RGB signal* is input

Watching the picture in wide picture mode

N

WIDE

CENTER/ SIZE

MENU

VIDEO

MUTING

DISPLAY

POWER

RGB WIDE

*fh: Horizontal frequency

fv: Vertical frequency “OUT OF SCAN RANGE” appears if the scanning frequency range is not within the acceptable limits. (See page 9.)

NORMAL

RGB 1

fv:75

fh:37.5

15

-US

Operations

US

The wide-format picture is enlarged and the subtitle area is compressed so that the picture is aligned with the screen size.

The picture is enlarged horizontally and vertically and the upper and lower portions of the picture are compressed to the screen size.

Recommended picture mode

When watching a picture with normal aspect ratio 4:3

Select NORMAL.

Select WIDE ZOOM.

When watching a picture recorded after a 16:9 picture has been compressed to aspect ratio 4:3

Select FULL.

When watching a wide-format movie or software with black bands and subtitles (with subtitles inside the picture)

Select ZOOM.

The wide-format picture is enlarged horizontally and vertically to the screen size.

The picture with normal ratio 4:3 is displayed as it is.

When watching a movie or software with subtitles (with subtitles outside the picture)

Select SUB TITLE.

Note

• You can also change the picture mode by using the menu.

Notes on wide picture modes

• Select a picture mode taking into account that one which changes the aspect ratio of the original picture will provide an appear different from that of the original image.

• If the monitor is used for profit or for public viewing, modifying the original picture by changing picture modes may constitute an infringement of the rights of authors or producers which are legally protected by laws.

• When a normal 4:3 picture is watched in WIDE ZOOM mode, the surrounding portions may be cut off or modified. The original picture can be viewed in NORMAL mode.

Hello,Anne.

Good-bye,Jane. Good-bye.

4

3

4

3

16

9

The picture compressed to aspect ratio 4:3 is enlarged horizontally to the screen size.

The picture with aspect ratio 16:9 is enlarged to the screen size as it is.

– 12 –

16

-US

Operations

ASPECT N ASPECT: ZOOM V SCROLL: 0

Adjusting the vertical position of the video picture

You can scroll the picture up or down when:

• the upper or lower portions of the picture in WIDE ZOOM mode are cut off.

• you want to move the picture in ZOOM mode as you like.

• subtitles are lost from the screen in SUB TITLE mode.

Scrolling the picture functions on the WIDE ZOOM, ZOOM and SUB TITLE modes only.

1

Press MENU.

2

Press V or v to select ASPECT, and press ENTER.

3

Press V or v to select V SCROLL, and press ENTER.

4

Press V or v to adjust the vertical position of the picture.

Note

• You can operate the menu using the buttons on the monitor.

The VOLUME + button functions the same as V and b, and VOLUME – as v and B.

The picture with aspect ratio 16:9 is enlarged to the screen size.

Watching the computer picture in wide picture mode

If you set the picture mode to FULL when any of the three Wide Resolution signals (864 × 480, 1072 × 600, 1376 × 768) is received, you can watch the picture with aspect ratio 16:9 as it is. The Wide Resolution signals (864 × 480, 1072 × 600, 1376 × 768) are independently standardized by Sony. When you use the signals with the timing chart on page 30, you can obtain an effective wide mode picture.

Press WIDE to display FULL or NORMAL on the screen.

Each time your press WIDE, you can select FULL and NORMAL alternately.

When the Wide Resolution signals (864 × 480, 1072 × 600, 1376 × 768) are received

NORMAL mode FULL mode

When a conventional VGA, SVGA or XGA signal is received

NORMAL mode FULL mode

Adjusting the position of a computer picture

You can move the picture up, down, right or left to make it easy to watch by using the SIZE/CENTER button. For details, see page 17.

If you watch the Wide Resolution signals (864 × 480, 1072 × 600, 1376 × 768) in NORMAL mode

A 16:9 picture will be compressed horizontally to a 4:3 picture.

MENU

ENTER

to move the picture up

to move the picture down

WIDE

The picture with aspect ratio 4:3 is enlarged horizontally to the screen size.

CENTER/ SIZE

VOL

ENTER

MENU

CENTER/ SIZE

VOL

ENTER

MENU

17

-US

Operations

US

Adjusting the position (CENTER)

After projecting the picture from a computer, you may need to adjust the position of the picture to fit the monitor screen. You can also move the picture as you like. The setting is only for the input signal displayed on the screen.

1

Press CENTER/SIZE until the CENTER adjustment screen appears.

2

Press V, v, B or b to adjust the position.

For horizontal adjustment press B or b. (H CENTER)

For vertical adjustment press V or v. (V CENTER)

CENTER/ SIZE

MENU

VIDEO RGB WIDE

Adjusting the computer picture

CENTER/ SIZE

The CENTER adjustment screen automatically disappears after about 10 seconds if you do not press any button. You can also erase the CENTER adjustment screen by pressing CENTER/SIZE again.

To reset to the factory preset setting

Press RESET on the monitor. At the same time, the picture size (page 18) and video/audio settings (pages 19 to 23) are also reset to the factory preset levels.

Note

• You can adjust the position by using the CENTER/SIZE and

◊/√/ı/∫ buttons on the monitor.

V: to move the picture up v: to move the picture down

b: to move the picture right B: to move the picture left

CENTER

H CENTER

V CENTER

– 13 –

18

-US

Operations

Adjusting the picture size (SIZE)

After projecting the picture from a computer, you may need to adjust the picture size to fit the monitor screen. The setting is only for the input signal displayed on the screen.

1

Press CENTER/SIZE until the SIZE adjustment screen appears.

2

Press V, v, B or b to adjust the picture size.

For horizontal adjustment press B or b. (H SIZE)

For vertical adjustment press V or v. (V SIZE)

The SIZE adjustment screen automatically disappears after about 10 seconds if you do not press any button. You can also erase the SIZE adjustment screen by pressing CENTER/SIZE again.

To reset to the factory preset setting

Press RESET on the monitor. At the same time, the picture position (page 17) and video/audio settings (pages 19 to 23) are also reset to the factory preset levels.

Notes

• For a picture with resolution of 640 × 350, 640 × 400 or 640 ×

480, the vertical size cannot be increased from the size that was projected the first time.

• You can adjust the size using the CENTER/SIZE and ◊/√/ı/

∫ buttons on the monitor.

CENTER/ SIZE

b: to increase horizontal size B: to decrease horizontal size

V: to increase vertical size v: to decrease vertical size

SIZE

H SIZE

V SIZE

Adjusting the clarity of the picture (DOT PHASE)

If the computer picture flickers or blurs, or horizontal noise appears on the screen, adjust DOT PHASE to get a clearer picture. The setting is only for the input signal displayed on the screen.

1

Press MENU.

2

Press V or v to select OPTION, and press ENTER.

3

Press V or v to select DOT PHASE, and press ENTER.

4

Press V, v, B or b to adjust the level to obtain a clear picture.

5

Press MENU to return to the original screen.

Note

• You cannot use this function for the input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN and DVD IN.

OPTION N AUTO SHUT OFF:OFF LANGUAGE: ENGLISH DOT PHASE: 16

CENTER/ SIZE

VOL

ENTER

MENU

VIDEO RGB WIDE

MENU

ENTER

CENTER/ SIZE

ENTER

MENU

VIDEO RGB WIDE

19

-US

Operations

US

VIDEO/AUDIO N PRESENTATION STANDARD MOVIE AV MEMORY VIDEO ADJUST AUDIO ADJUST

The video/audio mode feature allows you to choose four different modes of picture/sound settings. Choose the one that best suits the type of program that you want to watch.

1

Press MENU.

2

Press V or v to select VIDEO/AUDIO, and press ENTER.

3

Press V or v to select the desired item, and press ENTER.

Selecting the preset picture viewing mode

ENTER

To reset to the factory preset setting

Press RESET on the monitor. When watching a computer picture, the mode resets to PRESENTATION. When watching a video picture, the mode resets to STANDARD. At the same time, the position and size of a computer picture (pages 17 and

18) are also reset to the factory preset levels. The

settings in AV MEMORY do not reset.

Note

• You cannot adjust the settings in modes other than AV MEMORY.

Choose To

PRESENTATION Watch the picture input from a

computer.

STANDARD Watch the picture input from video

equipment. MOVIE Watch a movie. AV MEMORY Adjust the quality of the picture/sound

to suit your taste. (For details, see pages

20 to 23.)

4

Press MENU to return to the original screen.

CENTER/ SIZE

VOL

ENTER

MENU

– 14 –

20

-US

Operations

MENU

N

CONTRAST

 BRIGHTNESS COLOR HUE SHARPNESS RESET

VIDEO ADJUST

BRIGHTNESS

VIDEO ADJUST

(2) Press ENTER.

5

Adjust the selected item.

Press V, v, B or b to adjust the item, and press ENTER.

6

To adjust other items, repeat steps 4 and 5.

7

Press MENU to return to the original screen.

To reset to the factory preset setting

Move the cursor (”) to RESET at the bottom of the VIDEO ADJUST menu, and press ENTER.

Notes

• When the RGB signal is input, COLOR and HUE cannot be adjusted.

• You can adjust the items in AV MEMORY for each input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN, RGB 1 IN, RGB 2 IN, and DVD IN.

• You can operate the menu using the buttons on the monitor. VOLUME + functions the same as V and b, and VOLUME – as v and B.

ENTER

Adjusting the picture

(AV MEMORY)

You can adjust the quality of the picture to suit you taste and store the settings into AV MEMORY.

1

Press MENU.

2

Press V or v to select VIDEO/AUDIO, and press ENTER.

3

Press V or v to select VIDEO ADJUST, and press ENTER.

4

Select the item you want to adjust. For example:

(1) To adjust the brightness, press V or v to move

the cursor (”) to BRIGHTNESS.

ENTER

CENTER/ SIZE

VOL

ENTER

MENU

Item

CONTRAST

BRIGHTNESS COLOR

HUE

SHARPNESS

Press v or B to

Decrease picture contrast.

Darken the picture. Decrease color

intensity. Make picture tones

become purplish. Soften the picture.

Press V or b to

Brighten the picture.

Brighten the picture. Increase color intensity.

Make picture tones become greenish.

Sharpen the picture.

ENTER

21

-US

Operations

US

MENU

N

CONTRAST

 BRIGHTNESS COLOR HUE SHARPNESS RESET

VIDEO ADJUST

MENU

N

NR: OFF

 H-WHITE: ON COLOR TEMP: MEDIUM RESET



VIDEO ADJUST

Adjusting the picture in more detail

You can adjust the picture with the NR (noise reduction), H-WHITE and COLOR TEMP (temperature) options.

1

Press MENU.

2

Press V or v to select VIDEO/AUDIO, and press ENTER.

3

Press V or v to select VIDEO ADJUST, and press ENTER.

4

Press V or v to move the cursor (”) to RESET, then press v again.

5

Select the desired item with V or v, then press ENTER.

6

Press V or v to adjust the item, then press ENTER.

7

To adjust other items, repeat steps 5 and 6.

8

Press MENU to return to the original screen.

To reset to the factory preset setting

Move the cursor (”) to RESET at the bottom of the VIDEO ADJUST menu, and press ENTER.

Notes

• You can adjust the items in AV MEMORY for each input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN, RGB 1 IN, RGB 2 IN, and DVD IN.

• You can operate the menu using the buttons on the monitor. VOLUME + functions the same as V and b, and VOLUME – as v and B.

ENTER

Choose

NR (Noise Reduction)

H-WHITE

COLOR TEMP (Color temperature)

To

Reduce picture noise. You can choose LOW or HIGH position.

Emphasize the white color with the ON position.

Make the white color warm (reddish) with the LOW position. Make it cool (bluish) with the HIGH position.

CENTER/ SIZE

VOL

ENTER

MENU

ENTER

– 15 –

22

-US

Operations

You can adjust the quality of the sound to suit you taste and store the settings into AV MEMORY.

1

Press MENU.

2

Press V or v to select VIDEO/AUDIO, and press ENTER.

3

Press V or v to select AUDIO ADJUST, and press ENTER.

4

Select the item you want to adjust. For example:

(1) To adjust the bass, press V or v to move the

cursor (”) to BASS.

(2) Press ENTER.

MENU

N

TREBLE

 BASS BALANCE EFFECT: OFF RESET

AUDIO ADJUST

5

Adjust the selected item.

Press V, v, B or b to adjust the item, and press ENTER.

6

To adjust other items, repeat steps 4 and 5.

7

Press MENU to return to the original screen.

To reset to the factory preset setting

Move the cursor (”) to RESET at the bottom of the AUDIO ADJUST menu, and press ENTER.

Notes

• You can adjust the items in AV MEMORY for each input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN, RGB 1 IN, RGB 2 IN, and DVD IN.

• You can operate the menu using the buttons on the monitor. VOLUME + functions the same as V and b, and VOLUME – as v and B.

Adjusting the sound

(AV MEMORY)

ENTER

Item

TREBLE

BASS

BALANCE

Press V or b to

Increase the treble response.

Increase the bass response.

Emphasize the right speaker’s volume.

Press v or B to

Decrease the treble response.

Decrease the bass response.

Emphasize the left speaker’s volume.

BASS

AUDIO ADJUST

CENTER/ SIZE

VOL

ENTER

MENU

ENTER

23

-US

Operations

US

MENU

N

TREBLE

 BASS BALANCE EFFECT: OFF RESET

AUDIO ADJUST

Audio effect mode allows you to enjoy dynamic sound with surround-like effect.

1

Press MENU.

2

Press V or v to select VIDEO/AUDIO, and press ENTER.

3

Press V or v to select AUDIO ADJUST, and press ENTER.

4

Press V or v to select EFFECT, and press ENTER.

5

Press V or v to select the desired item, and press ENTER.

6

Press MENU to return to the original screen.

To reset to the factory preset setting

Move the cursor (”) to RESET at the bottom of the AUDIO ADJUST menu, and press ENTER.

Notes

• You can adjust the items in AV MEMORY for each input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN, RGB 1 IN, RGB 2 IN, and DVD IN.

• You can operate the menu using the buttons on the monitor. VOLUME + functions the same as V and b, and VOLUME – as v and B.

ENTER

Selecting the audio effect

(EFFECT)

CENTER/ SIZE

VOL

ENTER

MENU

ENTER

Choose

HALL SURROUND 1

HALL SURROUND 2 SIMULATED STEREO

OFF

To

Receive dynamic threedimensional sound.

Watch a movie. Receive monaural sound with

surround-like effect. Cancel audio effect.

ENTER

– 16 –

24

-US

Operations

You can set the monitor to turn off when the time you specify has passed after the input of the sync signal from the computer shut off.

1

Press MENU.

2

Press V or v to select OPTION, and press ENTER.

3

Press V or v to select AUTO SHUT OFF, and press ENTER.

4

Press B or b to select 60 (minutes), 90 (minutes) or 120 (minutes), and press ENTER.

5

Press MENU to return to the original screen.

After the time you specify in step 4 has passed after cancellation of the input of the sync signal, the power turns off and the STANDBY and u indicators will light up. If you press POWER on the remote control or a signal is input from the computer again, the power will turn on.

To cancel the AUTO SHUT OFF function

Select OFF in step 4 above.

Note

• You cannot use this function for the input from VIDEO 1 IN, VIDEO 2 IN, VIDEO 3 IN and DVD IN.

Turning the power off automatically

(AUTO SHUT OFF)

MENU

ENTER

CENTER/ SIZE

VOL

ENTER

MENU

OPTION N AUTO SHUT OFF:OFF LANGUAGE: ENGLISH DOT PHASE: 16

25

-US

Additional Information

US

The air filter should be cleaned once a month. When it becomes difficult to remove the dust, replace the filter with a new one. To clean the filter, follow the steps below.

1

Turn off the power switch on the monitor and unplug the power cord.

2

Remove the front panel from the monitor.

Grasping the left end of the front panel with your fingers, pull the panel towards you. Be careful not to catch your fingernails.

3

Pull the air filter upwards to remove.

Cleaning the air filter

4

Remove the dust from the filter with a vacuum cleaner.

5

Attach a new filter to the monitor.

Fit the six projections securely.

6

Mount the front panel.

Be careful not to injure the speakers.

Notes

• Clean the air filter periodically. Otherwise, the temperature inside the monitor may rise abnormally.

• Do not use a torn filter. Fit the six projections on the filter to the monitor securely. Dust inside the monitor may cause distorted picture and also fire.

• Be sure to attach the air filter securely. Otherwise, the monitor will not turn on.

• Contact your Sony dealer for a new filter.

Hold the monitor tightly.

Additional Information

Vacuum cleaner

– 17 –

26

-US

Additional Information

Replacing a lamp

If the screen becomes dark, the color looks unusual, or the LAMP indicator on the front of the monitor flashes, it is time to replace the lamp with a new one.

Disposal of the Used Lamp

Sony regards protection of the environment as extremely important. Kindly put the used lamp in the new lamp’s package and send it to the sales company whose address appears on the new lamp’s guaranty card.

Before replacement

• Be sure to use the Sony XL-100U lamp unit (not supplied) for replacement. Use of other lamps causes damage to the monitor.

• Do not remove the lamp for any purpose other than replacement.

• Before replacement, be sure to turn off the monitor and unplug the power cord.

• When replacing the lamp, let it cool down completely, as the surface of the lamp remains hot for at least 30 minutes after the power has been switched off.

• Do not leave the removed lamp near the inflammable materials.

• Do not pour water onto the removed lamp, nor put any object inside the lamp.

• Do not put inflammable materials and metal objects inside the lamp receptacle on the monitor, after removing the lamp. Do not touch the receptacle.

• Fit the new lamp securely, otherwise the screen may become dark, or it may cause fire.

1

Turn off the power switch on the monitor and unplug the power cord.

Wait at least 30 minutes to allow the lamp to cool down before replacing it .

2

Remove the front panel.

3

Untighten the screw with a coin or similar object to remove the lamp cover.

4

Loosen the two screws that secure the lamp, then pull out the lamp.

The lamp is very hot immediately after use. Never touch the front glass of the lamp or the surrounding parts.

Loosen the two screws with the hexagon head wrench (supplied with the lamp).

Pull out straight towards you by holding the handle.

Replace the removed lamp into the empty box of the replacement lamp.

5

Mount the new lamp and tighten the two screws securely.

6

Mount the lamp cover and tighten the screw.

7

Mount the front panel.

Be careful not to damage the speakers of the monitor.

Notes

• Do not touch the front glass of a new lamp or the glass of the lamp receptacle. This may reduce picture quality or lamp life.

• Be sure to attach the lamp securely. Otherwise, the monitor will not turn on.

• A loud sound may be heard when the lamp burns. This is not dangerous.

• Consult your Sony dealer for the XL-100U lamp unit.

Grasping the right end of the front panel with your fingers, pull the panel towards you. Be careful not to catch your fingernails.

Hold the monitor tightly.

27

-US

Additional Information

US

Troubleshooting

If the problem persists after trying the methods below, contact your nearest Sony dealer.

No picture

/

Check that the power cord is connected firmly.

/

Is the power of the monitor turned on?

/

Is the air filter mounted securely? (page 25)

/

Is the lamp cover attached securely? (page

26)

/

Check that the power of the connected equipment is turned on.

/

Try to press any key on the connected computer.

/

Check that the RGB signal cable or audio/ video cords are properly connected. (The supplied HD15-HD15 adaptor may be needed for some models of IBM PC/AT or compatible computers. For a Macintosh or compatible computer use the supplied Macintosh adaptor.)

/

Make sure that no pins on the HD15 connectors are bent.

/

Check that the video card is seated completely in the proper bus slot.

/

Check that the frequency range of the input signal is within that specified for the monitor. (If not, “OUT OF SCAN RANGE” appears on the screen.)

/

The monitor does not accept an interlace mode signal.

/

For customers using Windows 95/98 — If “KL-W7000A” or “KL-W9000A” is not displayed as “Monitor type” when selecting “SONY” as “Manufacturer” from the device select screen in Windows 95/98, select “Standard monitor” as “Manufacturer” and “Plug and Play monitor (VESA DDC)” as “Monitor type.”

Picture and sound output are delayed

/

When the green u (power) indicator on the front is flashing, the monitor is warming up.

/

To protect the lamp, it will take some time for the monitor to output the picture and sound if you try to turn on the power more than 5 seconds after the power has been turned off.

Screen lit and cannot see the picture

/

Be sure that you are watching the monitor within the optimum viewing area. (page 5)

Good picture, no sound

/

Press VOL+ (VOLUME+).

/

Press MUTING so that “MUTING” disappears from the screen. (page 14)

/

The volume of the computer may be low.

/

Check that the audio connecting cord is connected firmly to the audio outputs on the computer.

Fuzzy picture

/

Set the NR option in the VIDEO ADJUST menu to LOW or HIGH. (page 21)

/

If you use the monitor in a cold place, moisture condensation may have occurred. Leave the monitor as it is to let moisture evaporate.

Dark picture

/

Replace the lamp for the light source with a new one. (page 26)

No color, abnormal color

/

Adjust the picture in the VIDEO ADJUST menu. (page 20)

Double images

/

Use of an extension cable, excessive cable length or loose connection can produce this symptom.

Computer picture not centered or sized properly

/

Adjust the centering and size so that the picture fits the screen. (pages 17 and 18)

(continued)

– 18 –

30

-US

Additional Information

Wide Resolution 864 × 480 1072 × 600 1376 × 768

Pixel Clock (MHz) 34.238 53.94 87.44 1dot (nsec) 29.207 18.539 11.436 1H (µsec) 31.777 26.4 20.676 H-Active (µsec) 25.235 19.874 15.736 H-Blank (µsec) 6.542 6.526 4.94 H-Front porch (µsec) 0.701 0.89 0.366

(dots) 24 48 32

H-Sync (µsec) 3.738 3.263 2.104

(dots) 128 176 184

H-Back porch (µsec) 2.103 2.373 2.47

(dots) 72 128 216 H-Sync Polarity – – – V-TTI Time (Lines) 525 628 806 V-Addr Time (Lines) 480 600 768 V-Blank Start (Lines) 488 600 768 V-Blank Time (Lines) 29 28 38 V-Sync Start (Lines) 490 601 771 V Bottom Border 8 0 0

(Lines) V Front Porch (Lines) 2 1 3 Ver Sync Time (Lines) 2 4 6 V Back Porch (Lines) 25 23 29 V Top Border (Lines) 8 0 0 V-Sync Polarity + + +

Timing chart for the Wide Resolution signals

28

-US

Additional Information

Distorted picture

/

Check your video card manual for proper monitor setting.

/

Check that the frequency and the graphic mode at which you are trying to input is within the acceptable range. (page 9) Even within the proper range some video cards may have a sync pulse that is too narrow for the monitor to sync correctly.

No picture, no sound from the connected equipment

/

Are all the connecting cables connected?

/

Try to press the RGB or VIDEO button on the remote control. (page 13)

The remote control does not function.

/

Are the batteries worn out?

The humming noise of fans is heard even after the monitor has been turned off.

/

The fans installed inside the monitor are working to prevent internal heat build-up. They will stop about 2 minutes later.

What flashing of the indicators on the front of the monitor means

The u (power) (green), STANDBY (orange) and/or LAMP (red) indicators indicate the conditions of the monitor and warnings by lighting or flashing, as follows.

The u indicator lights.

/

The power of the monitor is on.

The STANDBY indicator lights.

/

The monitor is in standby mode. The monitor is turned on by pressing POWER on the remote control.

The u and STANDBY indicators light.

/

The Auto Shut Off function works. The monitor has been turned off when the time you specify has passed after the input of the computer is cut off.

The u indicator flashes.

/

The lamp for the light source is ready to turn on. You can obtain picture and sound after a while.

The LAMP and STANDBY indicators flash.

/

The air filter or the lamp cover is not attached securely. When you correct, the STANDBY lamp lights up and the monitor enters the standby mode. (pages 25 and 26)

The LAMP indicator flashes.

/

The lamp for the light source burns out. Replace it with new one. (page 26)

The LAMP, STANDBY and u indicators flash.

/

The temperature inside the monitor has risen abnormally, or the fans have stopped. Check that the air filter is not clogged and the ventilation holes are not blocked. After a while turn on the monitor. (page 25)

If the monitor is not recovered after correcting the problems, contact with qualified Sony personnel.

– 19 –

Additional Information

US

31

-US

MENU

VOLUME

LAMP

INPUT SELECT

STANDBY

RGB 2 IN

VIDEO

R

L

AUDIO

VIDEO 2 IN

RESET

ENTER

CENTER/SIZE

RGB AUDIO

1 Remote sensor 2 LAMP indicator (pages 26, 28) 3 STANDBY indicator (pages 13, 24, 28) 4 CENTER/SIZE button (pages 17, 18) 5 ◊/√/ı/∫ buttons (pages 17, 18) 6 VIDEO 2 IN jacks (page 10) 7 RGB 2 IN connector (pages 7, 8)

Identifying the parts

With the front panel attached

With the front panel removed

Front panel

Air filter part (page 25)

Lamp part (page 26)

8 u (power) indicator (pages 13, 24, 28) 9 Power switch (page 13) !º VOLUME +/– buttons (page 13) !¡ MENU button (page 12) !™ ENTER button (page 12) !£ INPUT SELECT button (page 13) !¢ RESET button (pages 17–19)

This section briefly describes the buttons and controls on the monitor and on the remote control. For more information, refer to the pages next to each description.

Projection monitor — Front

(continued)

32

-US

Additional Information

RESET

CENTER/ SIZE

VOL

ENTER

MENU

VIDEO

MUTING

DISPLAY

POWER

RGB WIDE

1 DISPLAY button (page 14) 2 MUTING button (page 14) 3 VIDEO button (page 13) 4 CENTER/SIZE button (pages 17, 18) 5 VOL (volume) +/– buttons (page 13) 6 POWER button (page 13) 7 WIDE button (pages 14, 16) 8 RGB button (page 13) 9 V/v/B/b buttons (pages 12, 17) !º MENU button (page 12) !¡ ENTER button (page 12)

Remote control

– 20 –

SECTION 3

(

)

y

DISASSEMBLY

3-1. REAR COVER REMOVAL 3-3. SERVICE POSITION

2

Rear cover

1

Twelve screws

+BVTP 4 x 16

KL-W7000A/W9000A

RM-Y980

Chassis assembl

3-2. CHASSIS ASSEMBLY REMOVAL

2

Chassis assembly

1

Two screws (+BVTP 4 x 16)

3-4. U BOARD REMOVAL

5

U board

4

Two claws

2

Two claws

3

U bracket

1

Five screws (+BVTP 3 x 12)

– 21 –

KL-W7000A/W9000A

RM-Y980

3-5. POWER BLOCK AND K BOARD REMOVAL

7

Two printed circuit board holders

8

K board

3

4

Two printed circuit board holders

2

Terminal

1

Two screws (+BVTP 3 x 12)

Two screws (+BVTP 4 x 16)

5

Power block

6

Two screws (+BVTP 4 x 16)

3-6. FILTER ASSEMBLY REMOVAL

2

Filter assembly

1

Front panel (L)

– 22 –

KL-W7000A/W9000A

RM-Y980

3-7. LAMP BLOCK ASSEMBLY

REMOVAL

3

2

Screw (Ornamental screw B)

1

Lamp door

Front panel (R)

4

Two screws (Hexagon socket bolt 4 x 12)

5

Lamp block assembly

3-9-1. SCREEN FRAME REMOVAL

[W7000A]

2

Eight screws (+BVTP 4 x 16)

3

Screen frame

1

Two screws (+BVTP 4 x 16)

3-8. HA AND HB BOARDS REMOVAL

5

Two screws (+BVTP 3 x 12)

6

HB board

3

Six screws (+BVTP 3 x 12)

1

Eight screws (+BVTP 4 x 16)

2

Front cover

4

HA board

3-9-2. SCREEN FRAME REMOVAL

[W9000A]

2

Sixteen screws (+BVTP 4 x 16)

3

Screen frame

1

Two screws (+BVTP 4 x 16)

– 23 –

KL-W7000A/W9000A

(

)

RM-Y980

3-10-1. C BOARD REMOVAL 3-11.OPTICAL UNIT REMOVAL

4

Three screws (+BVTP 4 x 16)

1

5

Optical unit

Optical shield

4

C cover

6

C board

2

Screen mirror block

1

Six screws (+BVTP 4 x 16)

3

Four screws (+BVTP 3 x 12)

5

Four printed circuit board holders

3-10-2. EXTENSION CABLE (C BOARD)

CN5003

CN5001

C board

CN5002

Extension cable

2

Three screws

+BVTP 4 x 16

3

Lamp base

– 24 –

SECTION 4

CIRCUIT ADJUSTMENTS

KL-W7000A/W9000A

RM-Y980

ELECTRICAL ADJUSTMENT IN SERVICE MODE

The SERVICE mode cannot be entered with the remote commander RM-Y980 attached to this set. Use the commander of other TV set.

Adjustment in SERVICE mode

Enter SERVICE Mode

If memory IC 1103 were replaced

Write “standard values”

Adjust all items

Replace board

A board

If repair concerning picture quality was executed

Replace LCD

Adjust registration

Function of commander in SERVICE mode

* Example of SERVICE mode using the commander of other

TV set

Write in memory

Item No. up

Item No. down

Write standard values

Press ENTER successively.

Read memory

Press ENTER successively.

MUTING DISPLAY GAME

1 4 7

TV/VIDEO FREEZE DVD MENU

POWER

MTS VIDEO TV

2

3

5

6 9

8 0

SWAP PIP

PIP CH

Quit SERVICE mode

Data up

Data down

Execute reading/writing

MENU

Screen in SERVICE mode

Write in memory

Release SERVICE mode

W/B, screen position

Note: • Write data in the memory each time when one item was

adjusted.

• Adjusted data are not saved if the power is turned off

before they are written in the memory.

Item (register name)

Memory reading status

Item No.

Data

CXZ2011 0 0 0 4 4 G DLVL

G: Memory reading normal

NG: Memory reading failed

– 25 –

KL-W7000A/W9000A

RM-Y980

BASIC ADJUSTMENT IN SERVICE MODE

1. To enter SERVICE mode

1) Turn the POWER switch on the TV set “ON”, then make it in standby status with the remote commander.

2) Operate the remote commander as follows:

Screen display

CH “5”

Volume “+” side

POWER “ON” (remote commander)

2. To read the memory

1) Enter SERVICE mode.

2) Press 0 n ENTER buttons on the remote commander, and the adjusted values and set values of all items written in the memory are read out.

Note: If the memory IC was replaced, do not read the memory before writing standard values.

6. To write +standard values+

1) Enter SERVICE mode.

2) Press 8 button, and green +INIT+ is displayed at the upper right of screen. Successively, press ENTER button while this characters are displayed (within about 3 seconds). Green characters change to red +INIT+, then the screen becomes blank, and after about 5 seconds, the RGB 1 is selected and the operation stops. At this time, green +G+ is displayed. When +standard values+ writing is executed, the standard data in the microprocessor on the selected channel are written in the memory. Thus, the initialization is made. Note: Writing of +standard values+ must be executed

initially, only if the memory IC 2008 and 2009 were replaced.

3. Adjustment of screen

1) Select the item No. to be adjusted using 1 and 4 buttons on the remote commander.

2) Adjust with 3 and 6 buttons so as to satisfy the picture quality and the set values.

4. To write data in the memory

• After adjustment, press “MUTING” ENTER buttons

to write data in the memory. Press ENTER button while green “WRITE” is displayed on the screen (within about 3 seconds).

Color of WRITE characters on screen

When MUTING button ON ... .............. Green

When ENTER button ON ..................... Red

5. To release SERVICE mode

• Turn off the POWER switch on TV set and again turn it

on. As a result, the SERVICE mode display is cleared and normal TV mode is resumed.

• Or, turn off the POWER switch from the remote com-

mander and again turn on the POWER switch on the remote commander in the standby status. As a result, the SERVICE mode display is cleared and normal TV mode is resumed.

– 26 –

SERVICE LIST

CXA2011Q

Item Display Register Name Range Standard Values Typical Standard Values

VIDEO RGB DVD

0 DLVL DRIVE LEVEL 0-63 44 44 2 kinds, RGB 3ch gain control 1 SW2 SW2 0,1 0 0 1 kind 2 SW1 SW1 0,1 0 0 1 kind 3 SW0 SW0 0,1 0 0 1 kind 4 SBOF SUB BRI OFFSET 0-63 23 43 43 3 kinds. Offset of VIDEO/RGB/DVD SUB

BRIGHT 0=–31, · · , 63=+31 5 RDOF R DRIVE OFFSET 0-63 31 31 31 3 kinds. VIDEO/RGB/DVD R DRIVE 6 GDOF G DRIVE OFFSET 0-63 31 31 31 3 kinds. VIDEO/RGB/DVD G DRIVE 7 BDOF B DRIVE OFFSET 0-63 31 31 31 3 kinds. VIDEO/RGB/DVD B DRIVE 8 RDMD R DRIVE OFFSET 0-63 32 32 1 kind. Offset of R color temp.

(color temp. “middle”) “middle” (center value 31)

9 GDMD G DRIVE OFFSET 0-63 31 31 1 kind. Offset of G color temp.

(color temp. “middle”) “middle” (center value 31)

10 BDMD B DRIVE OFFSET 0-63 28 28 1 kind. Offset of B color temp.

(color temp. “middle”) “middle” (center value 31)

11 RDLO R DRIVE OFFSET 0-63 34 34 1 kind. Offset of R color temp. “low”

(color temp. “low”) (center value 31)

12 GDLD G DRIVE OFFSET 0-63 31 31 1 kind. Offset of G color temp. “low”

(color temp. “low”) (center value 31)

13 BDLO B DRIVE OFFSET 0-63 24 24 1 kind. Offset of B color temp. “low”

(color temp. “low”) (center value 31)

KL-W7000A/W9000A

RM-Y980

WB (CXA1315)

Item Display Register Name Range Standard Values Typical Standard Values

0 RCOI Red Cut Off 0-255 124 (VIDEO) 124 (RGB) 124 (DVD) 3 kinds : Red white balance 1 RCOI Green Cut Off 0-255 124 (VIDEO) 124 (RGB) 124 (DVD) 3 kinds : Green white balance

2 BCOI Blue Cut Off 0-255 124 (VIDEO) 124 (RGB) 124 (DVD) 3 kinds : Blue white balance 3 RCOM Red Cut Off OFFSET 0-255 132 Red W/B of color temp.

(color temp. “middle”) “middle” (center value 31)

4 GCOM Green Cut Off OFFSET 0-255 127 Green W/B of color temp.

(color temp. “middle”) “middle” (center value 31)

5 BCOM Blue Cut Off OFFSET 0-255 123 Blue W/B of color temp.

(color temp. “middle”) “middle” (center value 31)

6 RCOL Red Cut Off OFFSET 0-255 138 Red W/B of color temp. “low”

(color temp. “low”) (center value 31)

7 RCOL Green Cut Off OFFSET 0-255 127 Green W/B of color temp.

(color temp. “low”) “low” (center value 31)

8 BCOL Blue Cut Off OFFSET 0-255 118 Blue W/B of color temp.

(color temp. “low”) “low” (center value 31)

(GCO center)

– 27 –

KL-W7000A/W9000A

RM-Y980

BIAS3 (CXA1315)

Item Display Register Name Range Standard Values Typical Standard Values

0 RLBS RL_Bias 0-255 0 (VIDEO) 0 (RGB) 0 (DVD RL Bias (3 systems of VIDEO, RGB, DVD) 1 BLBS RL_Bias 0-255 0 (VIDEO) 0 (RGB) 0 (DVD) BL Bias (3 systems of VIDEO, RGB, DVD) 2 RHBS RL_Bias 0-255 255 (VIDEO) 255 (RGB) 255 (RGB) RH Bias (3 systems of VIDEO, RGB, DVD) 3 BHBS BH_Bias 0-255 255 (VIDEO) 255 (RGB) 255 (RGB) BH Bias (3 systems of VIDEO, RGB, DVD) 4 RLBM RL_Bias off set MID 0-255 131 RL Bias offfset value of color temp.

5 BLBM BL_Bias off set MID 0-255 121 BL Bias offfset value of color temp.

6 RHBM RH_Bias off set MID 0-255 127 RH Bias offfset value of color temp.

7 BHBM BH_Bias off set MID 0-255 127 BH Bias offfset value of color temp.

8 RLBM RL_Bias off set LOW 0-255 136 RL Bias offfset value of color temp.

9 BLBL BL_Bias off set LOW 0-255 115 BL Bias offfset value of color temp.

10 RHBM RH_Bias off set LOW 0-255 127 RH Bias offfset value of color temp.

11 BHBL BH_Bias off set LOW 0-255 127 BH Bias offfset value of color temp.

12 SLSH Sample Phase 0-7

3 (VIDEO 4:3), 3 (RGB 4: 3), 3 (DVD 4: 3),

4 (VIDEO 16:9) 4 (RGB 16: 9) 4 (DVD 16: 9) (NORMAL, FULL)

“middle” (center value 31)

“low” (center value 31)

4 kinds of SLSH (VIDEO, RGB) ×

A_OUT (NVM A2 DATA)

Item Display Register Name Range Standard Values Typical Standard Values

0 RDON NTSC RDOF 0-63 31 NVM A2 Data of address 00 1 GDON NTSC GDOF 0-63 31 Data of address 01 2 BDON NTSC BDOF 0-63 31 Data of address 02 3 RCON NTSC RCOI 0-255 124 Data of address 03 4 GCON NTSC GCOI 0-255 124 Data of address 04 5 BCON NTSC BCOI 0-255 31 Data of address 05 6 RDOH RGB RDOF 0-63 31 Data of address 06 7 GDON RGB GDOF 0-63 31 Data of address 07 8 BDON RGB BDOF 0-63 31 Data of address 08 9 RCON RGB RCOI 0-255 124 Data of address 0B 10 GCOH RGB GCOI 0-255 124 Data of address 0A 11 BCOH RGB BCOI 0-255 124 Data of address 09 12 RDOD DVD RDOF 0-63 31 NVM A2 Data of adress 0C 13 GDOD DVD GDOF 0-63 31 NVM A2 Data of adress 0D 14 BDOD DVD BDOF 0-63 31 NVM A2 Data of adress 0E 15 ROOD DVD RCOI 0-255 124 NVM A2 Data of adress 11 16 GCOD DVD GDOI 0-255 124 NVM A2 Data of adress 10 17 BCOD DVD BCOI 0-255 124 NVM A2 Data of adress 0F

– 28 –

CXA1839

Item Display Register Name Range

0 SHUE SUB-HUE 0-15 8 8 8 3 kinds (VIDEO, RGB, DVD) 1 SBRT SUB-BRT 0-15 8 8 8 3 kinds (VIDEO, RGB, DVD) 2 R-Y/R R-Y/R 0-15 0 0 0 3 kinds (VIDEO, RGB, DVD) 3 R-Y/B R-Y/B 0-15 8 15 15 3 kinds (VIDEO, RGB, DVD) 4 G-Y/R G-Y/R 0-15 15 15 15 3 kinds (VIDEO, RGB, DVD) 5 G-Y/B G-Y/B 0-15 8 0 0 3 kinds (VIDEO, RGB, DVD) 6 SPC2 SUB-CON2 0-15 8 8 8 3 kinds (VIDEO, RGB, DVD) 7 SCL2 SUB-COL2 0-15 8 8 8 3 kinds (VIDEO, RGB, DVD) 8 RGB2 RGB2_LEVEL 0-15 11 1 kind 9 SSHP SUB-SHP 0-3 3/3 1 1 6 kinds (VIDEO, RGB, DVD) × (NORMAL, WIDE) 10 SHPF SHP-F0 0-3 2/2 1 1 6 kinds (VIDEO, RGB, DVD) × (NORMAL, WIDE) 11 PREL PRE_OVER 0-3 3/3 3 3 6 kinds (VIDEO, RGB, DVD) × (NORMAL, WIDE) 12 Y-DC DC-TRAN 0-15 0 0 0 3 kinds, transmission rate of DC. (VIDEO, RGB, DVD) 13 DPIX DYNAMIC-PIC 0-3 0 0 0 3 kinds, Auto pedestal. (VIDEO, RGB, DVD) 14 CECL CEC_LEVEL 0-3 3 1 1 3 kinds, Chroma edge clear. (VIDEO, RGB, DVD) 15 RHUE RGB HUE 0-63 – 31 31 2 kind, Hue adjustment at RGB, DVD input. 16 RCOL RGB COLOR 0-63 – 31 31 2 kind, Color adjustment at RGB, DVD input. 17 RSHP 18 SHPP 19 SHPS SHARP 0-63 31 25 25 1 kind, AI mode, STANDARD sharpness value

20 SHPM SHARP MOVIE 0-63 27 31 31 1 kind, AI mode, MOVIE sharpness value

RGB SHAPNESS SHARP PRESEN.

STANDARD

0-63 – 25 25 1 kind, Sharpness adjustment at RGB input. 0-63 35 25 25 1 kind, AI mode, PRESENTATION sharpness value

Standard Values

VIDEO RGB DVD

Typical Standard Values

KL-W7000A/W9000A

RM-Y980

CXD2052 (Digital Chroma Decoder)

Item Display Register Name Range

0 ACR ACR 0-255 53 35h 1 AKO AKO 0-255 20 24h 2 AKF AKF 0-255 50 32h 3 PKO PKO 0-255 252 FCh 4 PKF PKF 0-255 16 10h 5 OFS OFS 0-255 128 80h 6 BPF1 BPF1 0-1 0(C) 1(S) 2 kinds of S/COMP 7 BPF2 BPF2 0-1 0(C) 0(S) 2 kinds of S/COMP 8 TRAP TRAP 0-1 0 0 9 HPF HFP 0-7 10 FCP FCOP 0-1 0 0 11 DCON DCON 0-1 0 0 12 F2CC F2CCH 0-1 0 0 13 EDTV EDTV 0-1 1 1 14 KILL KILL 0-1 0 0 15 APCO APCOF 0-1 0 0 16 XFH XFH 0-1 0(C) 0(S) 2 kinds of S/COMP 17 TA TA 0-31 16 1ch 18 TB TB 0-63 38(C) 58(C) 2 kinds of S/COMP 19 TD TD 0-63 42(C) 55(C) 2 kinds of S/COMP 20 TE TB 0-63 23(C) 55(S) 2 kinds of S/COMP

Standard Values

VIDEO RGB

4(VIDEO)

2 kinds of VIDEO/RGB

Typical Standard Values

– 29 –

KL-W7000A/W9000A

RM-Y980

3C (3-Dimensional Com µ PD6487)

Item Display Register Name Range Standard Values Typical Standard Values

0 MS MSI, MSO 0-3 0 00 00 : Normal, 01 : 2D, 10 : 3D 1 BPFS BPFS 0-1 0 0 0 : Normal,

2 YDLL YDELAYL 0-7 2/2 1 Kind Output delay designation 3 HRD HRD8-1 0-255 21 21 (2Ah) 21 (2A) : B lock only 4 DYCO DYCOR 0-15 5/5 1 Kind DY detection coaring level 5 DYGA DYGAIN 0-15 8/8 1 Kind DY detection gain 6 DCCO DCCOR 0-15 5/5 1 Kind DC detection coaring level 7 DCGA DCGAIN 0-15 6/6 1 Kind DC detection gain 8 VTR VTR1, VTR0 0-3 0 00 00 : Normal, 01 : Standard,

9 VTRR VTRR 0-31 7/7 1 Kind VTR detection level 10 LDS LDSOFF 0-1 0 0 LD still detect selection 11 HSDR HSDR 0-31 7/7 1 Kind Sync detection level 12 BSDR BSDR 0-31 7 7 Sync detection level 13 WSCO WSCOR 0-7 7/7 1 Kind Weak field detection coaring level 14 WSD1 WSDR1 0-15 15/15 1 Kind Weak field detection level 1 15 WSD2 WSDR2 0-15 15/15 1 Kind Weak field detection level 2 16 VAPG VAPGAIN 0-7 4/4 7/7 0/0 2 Kinds V aperture gain *1 17 VAPI VAPINV 0-31 12/12 20/20 12/12 2 Kinds V aperture inversion point *1

Others

PRESENTATION

MOVIE

1 : Band-pass YC separation

10 : Non-Standard

*1 : 6 kinds of (STANDARD/AV MEMORY, PRESENTATION, MOVIE) × (NORMAL/FULL,

OTHERS)

1C (3-Dimensional Com µ PD6486)

Item Display Register Name Range Standard Values Typical Standard Values

0 MS MS1, MS0 0-3 0 1 BPFS BPFS 0-1 0 2 YDLL YDELAYL 0-7 2/2 3 HRD HRD8-1 0-256 21 4 DYCO DYCOR 0-15 5/5 5 DYGA DYGAIN 0-15 8/8 6 DCCO DCCOR 0-15 5/5 7 DCGA DCGAIN 0-15 6/6 8 VTR VTR1, VTR0 0-3 0 9 VTRR VTRR 0-31 7/7 10 LDS LDSOFF 0-1 0 11 HSDR HSDR 0-31 7/7 12 BSDR BSDR 0-31 7 13 WSCO WSCOR 0-7 7/7 14 WSD1 WSDR1 0-15 15/15 15 WSD2 WSDR2 0-15 15/15 16 VAPG VAPGAIN 0-7 4/4 7/7 0/0 NORMAL, FULL/OTHERS 17 VAPI VAPINV 0-31 12/12 20/20 12/12 NORMAL, FULL/OTHERS

Others Presen. Movie

– 30 –

MID2 (CXD2072Q VIDEO )

Item Register Range Standard Values Typical Standard Values Display Name

0 HSIZ HSIZEA 0-255 88 Every input signal: H size adj. (NTSC) 1 VGAH VGAHS 0-127 0 Every input signal polarity + Wide screen: H

2 HPOS HPOSIA 0-255 36 Every input signal: H position adj. (READ) 3 VSIZ VSIZEA 0-255 F0 38 0 0 Every input signal polarity + Wide screen: V

4 VPOS VPOSIA 0-255 28 Every input signal: V position adj. (READ) 5 HPHS HPHASA 0-255 44 Every input signal polarity + Wide screen: H

6 VPHS VPHASA 0-255 0A 17 17 0F Every input signal polarity + Wide screen: V

7

WONA 8 OSCA OSCA 0-1 1 Every input signal: Masking range switching 9 DLYA DELAYA 0-7 3 Every input signal: Color difference delay adj.

10

HVSW 11YSDY YSDY 0-7 2 Every input signal: YS delay adj. 12DLY DELAY 0-7 4 Every input signal: Color difference delay

13HBLK HBLK 0-255 89 Every input signal: H blanking adj. 14VBLK VBLK 0-255 1F Every input signal: V blanking adj. 15IPVA IPVA 0-1 0 Every input signal: Vertical linear interpolation 16OFST OFFSET 0-255 0 17VSCA VSCA 0-1 0 1 1 1 Every input signal: A ch vertical size 18OSVA OSVA 0-1 1 Every input signal: A ch vertical offset 19PLL1 PLL1 0-7 0 Every input signal: PLL 1 frequency dividing

20YUV YUV 0-3 0 Every input signal: YUV signal sampling ratio 21REF REF 0-7 0 Every input signal: V size reference value 22CLPD CLPDA 0-255 28 Every input signal: A ch clamp position adj. 23HPH0 bit 0 of HPHASA 0-1 0 Every input signal polarity + Wide screen: H

24HPH0 bit 0 of VPHASA 0-1 0 Every input signal polarity + Wide screen: V

25HCOF H CENT OF. 0-63 – Every input signal: H center offset 26H0OF bit 0 of H CENT OF.0-1 – Every input signal: H center offset (bit 0) 27VCOF V CENT OF. 0-63 – Every input signal: V center offset 28V0OF 29HSOF H SIZE OF. 0-63 – Every input signal: H size offset 30VSOF V SIZE OF. 0-255 – Every input signal: V size offset 31HPR3 HPOSIA REF3 0-255 – HPOSIA value when REF=3 of user preset signal 32HPR4 HPOSIA REF4 0-255 – HPOSIA value when REF=4 of user preset signal 33HPR5 HPOSIA REF5 0-255 – HPOSIA value when REF=5 of user preset signal 34SCOF V SCROLL OF. 0-31 – 0A 0A 0A Every wide screen: V scroll offset 35S0OF 36SCRS V SCROLL 0-63 – 17 17 0F Every wide screen: V scroll standard value

37S0RS

WONA 0-1 0 Every input signal: MOVIE/STILL switching

HVSW 0-3 2 Every input signal: Output Sync signal switching

bit 0 of V CENT OF.

bit 0 of V SCROLL OF.

Standard value bit 0 of V SCROLL0-1 – 0 0 0 Every wide screen: V scroll standard value (bit 0)

Standard value

NORMAL/FULL

0-1 – Every input signal: V center offset (bit 0)

0-1 – 0 0 0 Every wide screen: V scroll offset (bit 0)

ZOOM SUBTITLE

WIDEZOOM

size adj. (RGB)

size adj.

posi adj. (WRITE)

(INPUT)

adj. (OUTPUT)

Every input signal: Linear interpolation offset setting

ratio setting

posi adj. (WRITE)

KL-W7000A/W9000A

RM-Y980

– 31 –

KL-W7000A/W9000A

RM-Y980

MID2 (CXD2072Q RGB (1) )

Item Register Range Standard Values Typical Standard Values Display Name VGAT350 VGAG W-VGA VGA72 VGA75

0 HSIZ HSIZEA 0-255 A0 Every input signal: H size adj. (NTSC) 1 VGAH VGAHS 0-127 2F 30 2E 2F 2B Every input signal polarity + Wide screen: H

2 HPOS HPOSIA 0-255 2E 2E 2D 2E 2A Every input signal: H position adj. (READ) 3 VSIZ VSIZEA 0-255 3 Every input signal polarity + Wide screen: V

4 VPOS VPOSIA 0-255 38 1E 1E 1E 1E Every input signal: V position adj. (READ) 5 HPHS HPHASA 0-255 42 42 43 4E 52 Every input signal polarity + Wide screen: H

6 VPHS VPHASA 0-255 3 8 8 6 0 Every input signal polarity + Wide screen: V

7

WONA 8 OSCA OSCA 0-1 1 Every input signal: Masking range switching 9 DLYA DELAYA 0-7 3 Every input signal: Color difference delay adj.

10HVSW HVSW 0-3 1 Every input signal: Output Sync signal switching 11YSDY YSDY 0-7 1 Every input signal: YS delay adj. 12DLY DELAY 0-7 4 Every input signal: Color difference delay

13HBLK HBLK 0-255 A0 Every input signal: H blanking adj. 14VBLK VBLK 0-255 0A 30 30 30 30 Every input signal: V blanking adj. 15IPVA IPVA 0-1 0 Every input signal: Vertical linear interpolation 16OFST OFFSET 0-255 0 17VSCA VSCA 0-1 1 Every input signal: A ch vertical siz 18OSVA OSVA 0-1 1 Every input signal: A ch vertical offset 19PLL1 PLL1 0-7 4 4 4 5 5 Every input signal: PLL 1 frequency dividing

20YUV YUV 0-3 1 Every input signal: YUV signal sampling ratio 21REF REF 0-7 5 Every input signal: V size reference value 22CLPD CLPDA 0-255 6A Every input signal: A ch clamp position adj. 23HPH0 bit 0 of HPHASA 0-1 0 Every input signal polarity + Wide screen: H

24VPH0 bit 0 of VPHASA 0-1 0 Every input signal polarity + Wide screen:

25HCOF H CENT OF. 0-63 26 Every input signal: H center offse 26H0OF 27VCOF V CENT OF. 0-63 0 Every input signal: V center offset 28V0OF bit 0 of V CENT OF. 29HSOF H SIZE OF. 0-63 1F 20 20 1F 1B Every input signal: H size offset 30VSOF V SIZE OF. 0-255 EB Every input signal: V size offset 31HPR3 HPOSIA REF3 0-255 28 HPOSIA value when REF=3 of user preset signal 32HPR4 HPOSIA REF4 0-255 25 HPOSIA value when REF=4 of user preset signal 33HPR5 HPOSIA REF5 0-255 28 HPOSIA value when REF=5 of user preset signal 34SCOF V SCROLL OF. 0-31 – Every wide screen: V scroll offset 35S0OF 36SCRS V SCROLL 0-63 – Every wide screen: V scroll standard value

37S0RS

WONA 0-1 0 Every input signal: MOVIE/STILL switching

bit 0 of H CENT OF.

bit 0 of V SCROLL OF.

Standard value bit 0 of V SCROLL

Standard value

0-1 0 Every input signal: H center offset (bit 0

0-1 0 Every input signal: V center offset (bit 0)

0-1 – Every wide screen: V scroll offset (bit 0)

0-1 – Every wide screen: V scroll standard value(bit 0)

size adj. (RGB)

size adj.

posi adj. (WRITE)

(INPUT)

adj. (OUTPUT)

Every input signal: Linear interpolation offset setting

ratio setting

posi adj. (WRITE)

– 32 –

MID2 (CXD2072Q RGB (2) )

Item Register Range Standard Values Typical Standard Values Display Name VGA85 SVGA56 SVGA60 W-SVGA SVGA72

0 HSIZ HSIZEA 0-255 A0 Every input signal: H size adj. (NTSC) 1 VGAH VGAHS 0-127 2F 26 1A 18 1F Every input signal polarity + Wide screen: H

2 HPOS HPOSIA 0-255 2E 2A 27 27 28 Every input signal: H position adj. (READ) 3 VSIZ VSIZEA 0-255 3 F0 F0 F0 F0 Every input signal polarity + Wide screen: V

4 VPOS VPOSIA 0-255 1D 1F 1F 1F 1F Every input signal: V position adj. (READ) 5 HPHS HPHASA 0-255 3D 45 48 4C 3D Every input signal polarity + Wide screen: H

6 VPHS VPHASA 0-255 4 7 8 8 9 Every input signal polarity + Wide screen: V

7 WONA WONA 0-1 0 Every input signal: MOVIE/STILL switching 8 OSCA OSCA 0-1 1 Every input signal: Masking range switching 9 DLYA DELAYA 0-7 3 Every input signal: Color difference delay

10HVSW HVSW 0-3 1 Every input signal: Output Sync signal switching 11YSDY YSDY 0-7 1 Every input signal: YS delay adj. 12DLY DELAY 0-7 4 Every input signal: Color difference delay

13HBLK HBLK 0-255 A0 Every input signal: H blanking adj. 14VBLK VBLK 0-255 30 Every input signal: V blanking adj. 15IPVA IPVA 0-1 0 Every input signal: Vertical linear interpolation 16OFST OFFSET 0-255 0 17VSCA VSCA 0-1 1 0 0 0 0 Every input signal: A ch vertical size 18OSVA OSVA 0-1 1 Every input signal: A ch vertical offset 19PLL1 PLL1 0-7 5 4 4 4 4 Every input signal: PLL 1 frequency dividing

20YUV YUV 0-3 1 Every input signal: YUV signal sampling ratio 21REF REF 0-7 5 2 2 2 2 Every input signal: V size reference value 22CLPD CLPDA 0-255 6A Every input signal: A ch clamp position adj. 23HPH0 bit 0 of HPHASA 0-1 1 1 0 0 0 Every input signal polarity + Wide screen: H

24HPH0 bit 0 of VPHASA 0-1 0 0 1 1 1 Every input signal polarity + Wide screen: V

25HCOF H CENT OF. 0-63 26 Every input signal: H center offset 26H0OF

bit 0 of H CENT OF. 27VCOF V CENT OF. 0-63 0 Every input signal: V center offset 28V0OF bit 0 of V CENT OF. 29HSOF H SIZE OF. 0-63 1F 16 0A 0A 0F Every input signal: H size offset 30VSOF V SIZE OF. 0-255 EB E7 E7 E7 E7 Every input signal: V size offset 31HPR3 HPOSIA REF3 0-255 28 HPOSIA value when REF=3 of user preset signal 32HPR4 HPOSIA REF4 0-255 25 HPOSIA value when REF=4 of user preset signal 33HPR5 HPOSIA REF5 0-255 28 HPOSIA value when REF=5 of user preset signal 34SCOF V SCROLL OF. 0-31 – Every wide screen: V scroll offset 35S0OF

bit 0 of V SCROLL OF. 36SCRS V SCROLL 0-63 – Every wide screen: V scroll standard value

Standard value

37S0RS

bit 0 of V SCROLL Standard value

0-1 1 1 0 0 0 Every input signal: H center offset (bit 0)

0-1 0 0 1 1 1 Every input signal: V center offset (bit 0)

0-1 – Every wide screen: V scroll offset (bit 0)

0-1 – Every wide screen: V scroll standard value(bit 0)

size adj. (RGB)

size adj.

posi adj. (WRITE)

adj. (INPUT)

adj. (OUTPUT)

Every input signal: Linear interpolation offset setting

ratio setting

posi adj. (WRITE)

KL-W7000A/W9000A

RM-Y980

– 33 –

KL-W7000A/W9000A

RM-Y980

MID2 (CXD2072Q RGB (3) )

Item Register Range Standard Values Typical Standard Values Display Name SVGA75 XGA60 W-XGA MAC13 MAC16

0 HSIZ HSIZEA 0-255 A0 Every input signal: H size adj. (NTSC) 1 VGAH VGAHS 0-127 1A 1D 1C 2F 9 Every input signal polarity + Wide screen: H

2 HPOS HPOSIA 0-255 28 26 26 2E 24 Every input signal: H position adj. (READ) 3 VSIZ VSIZEA 0-255 F0 F0 F0 3 F0 Every input signal polarity + Wide screen: V

4 VPOS VPOSIA 0-255 1F 1F 1F 1E 1F Every input signal: V position adj. (READ) 5 HPHS HPHASA 0-255 51 4C 4C 4A 59 Every input signal polarity + Wide screen: H

6 VPHS VPHASA 0-255 7 8 8 0B 0F Every input signal polarity + Wide screen: V

7 WONA WONA 0-1 0 Every input signal: MOVIE/STILL switching 8 OSCA OSCA 0-1 1 Every input signal: Masking range switching 9 DLYA DELAYA 0-7 3 Every input signal: Color difference delay

10HVSW HVSW 0-3 1 Every input signal: Output Sync signal switching 11YSDY YSDY 0-7 1 Every input signal: YS delay adj. 12DLY DELAY 0-7 4 Every input signal: Color difference delay

13HBLK HBLK 0-255 A0 Every input signal: H blanking adj. 14VBLK VBLK 0-255 30 Every input signal: V blanking adj. 15IPVA IPVA 0-1 0 Every input signal: Vertical linear interpolation 16OFST OFFSET 0-255 0 17VSCA VSCA 0-1 0 0 0 1 0 Every input signal: A ch vertical size 18OSVA OSVA 0-1 1 Every input signal: A ch vertical offset 19PLL1 PLL1 0-7 4 4 4 6 4 Every input signal: PLL 1 frequency dividing

20YUV YUV 0-3 1 Every input signal: YUV signal sampling ratio 21REF REF 0-7 2 4 4 5 3 Every input signal: V size reference value 22CLPD CLPDA 0-255 6A 6A 6A 40 6A Every input signal: A ch clamp position adj. 23HPH0 bit 0 of HPHASA 0-1 1 0 0 0 1 Every input signal polarity + Wide screen: H

24VPH0 bit 0 of VPHASA 0-1 0 1 1 1 0 Every input signal polarity + Wide screen: V

25HCOF H CENT OF. 0-63 26 26 26 26 2E Every input signal: H center offset 26H0OF

bit 0 of H CENT OF. 27VCOF V CENT OF. 0-63 0 Every input signal: V center offset 28V0OF

bit 0 of V CENT OF. 29HSOF H SIZE OF. 0-63 0A 0D 0D 1F 0 Every input signal: H size offset 30VSOF V SIZE OF. 0-255 E7 E7 E7 EB E7 Every input signal: V size offset 31HPR3 HPOSIA REF3 0-255 28 HPOSIA value when REF=3 of user preset signal 32HPR4 HPOSIA REF4 0-255 25 HPOSIA value when REF=4 of user preset signal 33HPR5 HPOSIA REF5 0-255 28 HPOSIA value when REF=5 of user preset signal 34SCOF V SCROLL OF. 0-31 – Every wide screen: V scroll offset 35S0OF

bit 0 of V SCROLL OF.

36SCRS V SCROLL 0-63 – Every wide screen: V scroll standard value

Standard value

37S0RS

bit 0 of V SCROLL Standard value

0-1 1 0 0 0 1 Every input signal: H center offset (bit 0)

0-1 0 1 1 1 0 Every input signal: V center offset (bit 0)

0-1 – Every wide screen: V scroll offset (bit 0)

0-1 – Every wide screen: V scroll standard value(bit 0)

size adj. (RGB)

size adj.

posi adj. (WRITE)

adj. (INPUT)

adj. (OUTPUT)

Every input signal: Linear interpolation offset setting

ratio setting

posi adj. (WRITE)

– 34 –

MID2 (CXD2072Q RGB (4) )

Item Register Range Standard Values Typical Standard Values Display Name VGAT85

0 HSIZ HSIZEA 0-255 A0 Every input signal: H size adj. (NTSC) 1 VGAH VGAHS 0-127 20 1E 1E 2E Every input signal polarity + Wide screen: H

2 HPOS HPOSIA 0-255 26 27 26 2E Every input signal: H position adj. (READ) 3 VSIZ VSIZEA 0-255 3 F0 F0 3 Every input signal polarity + Wide screen: V

4 VPOS VPOSIA 0-255 3A 1E 1E 1E Every input signal: V position adj. (READ) 5 HPHS HPHASA 0-255 41 48 4C 48 Every input signal polarity + Wide screen: H

6 VPHS VPHASA 0-255 6 2 8 5 Every input signal polarity + Wide screen: V

7 WONA WONA 0-1 0 Every input signal: MOVIE/STILL switching 8 OSCA OSCA 0-1 1 Every input signal: Masking range switching 9 DLYA DELAYA 0-7 3 Every input signal: Color difference delay

10HVSW HVSW 0-3 1 Every input signal: Output Sync signal switching 11YSDY YSDY 0-7 1 Every input signal: YS delay adj. 12DLY DELAY 0-7 4 Every input signal: Color difference delay adj.

13HBLK HBLK 0-255 A0 Every input signal: H blanking adj. 14VBLK VBLK 0-255 0C 30 30 30 Every input signal: V blanking adj. 15IPVA IPVA 0-1 0 Every input signal: Vertical linear interpolation 16OFST OFFSET 0-255 0 17VSCA VSCA 0-1 1 0 0 1 Every input signal: A ch vertical size 18OSVA OSVA 0-1 1 Every input signal: A ch vertical offset 19PLL1 PLL1 0-7 4 Every input signal: PLL 1 frequency dividing

20YUV YUV 0-3 1 Every input signal: YUV signal sampling ratio 21REF REF 0-7 5 3 4 5 Every input signal: V size reference value 22CLPD CLPDA 0-255 6A Every input signal: A ch clamp position adj. 23HPH0 bit 0 of HPHASA. 0-1 1 0 0 0 Every input signal polarity + Wide screen: H

24HPH0 bit 0 of VPHASA 0-1 0 Every input signal polarity + Wide screen: V

25HCOF H CENT OF. 0-63 26 33 33 33 Every input signal: H center offset 26H0OF bit 0 of H CENT OF. 27VCOF V CENT OF. 0-63 0 Every input signal: V center offset 28V0OF

bit 0 of V CENT OF.0-1 0 Every input signal: V center offset (bit 0) 29HSOF H SIZE OF. 0-63 10 18 18 18 Every input signal: H size offset 30VSOF V SIZE OF. 0-255 EB E7 E7 EB Every input signal: V size offset 31HPR3 HPOSIA REF3 0-255 28 HPOSIA value when REF=3 of user preset signal 32HPR4 HPOSIA REF4 0-255 25 HPOSIA value when REF=4 of user preset signal 33HPR5 HPOSIA REF5 0-255 28 HPOSIA value when REF=5 of user preset signal 34SCOF V SCROLL OF. 0-31 – Every wide screen: V scroll offset 35S0OF

bit 0 of V SCROLL OF. 36SCRS V SCROLL 0-63 – Every wide screen: V scroll standard value

Standard value 37S0RS

bit 0 of V SCROLL

Standard value

0-1 1 0 0 0 Every input signal: H center offset (bit 0)

0-1 – Every wide screen: V scroll offset (bit 0)

0-1 – Every wide screen: V scroll standard value(bit 0)

OTHERS

REF=3 REF=4 REF=5

size adj. (RGB)

size adj.

posi adj. (WRITE)

adj. (INPUT)

(OUTPUT)

Every input signal: Linear interpolation offset setting

ratio setting

posi adj. (WRITE)

KL-W7000A/W9000A

RM-Y980

AP (TA8776N)

Item Display Register Name Range Standard Values Typical Standard Values

0 SBAS SUB_BASS 0-63 10 10 1 STRE SUB_TRABLE 0-63 2 2

– 35 –

KL-W7000A/W9000A

RM-Y980

OP (Others)

Item Register Name Range Standard Values Typical Standard Values Display

0 OSDH Display H Position 0-63 10 (VIDEO) 7(RGB) 7(DVD) 3 Kinds (VIDEO, RGB, DVD) 1 OSDV Display V Position 0-63 7 (VIDEO) 7(RGB) 7 (DVD) 3 Kinds (VIDEO, RGB, DVD) 2 ASHT Auto Shut Off 0,1 Not used 0: OFF, 1: ON 3 CPWR CH Power ON Not used Not used 4 AGCH AGC Voltage High 0-15 Not used Not used 5 AGCL AGC Voltage Low 0-15 Not used Not used 6 DBSS DBS Category Yes/No Not used Not used 7 EDCK EDTV FULL Mode Detection 0,1 Not used Not used 8 AION AI AUTO 0,1 Not used Not used 9 K Picture Adjusting Variable K 0-7 1 Don't set “0” (Actual value is

10 L Picture Adjusting Variable L 0-7 0 0~7 is converted into 1~8 in actual use. 11 LENS Display only 0 – Lens focus adj. 12 PANEL 0:Green, 1:Red, 2:Blue, 3:White 0-3 – Panel position adj. 13 WHITE APL 0-1 – White balance adj. (0: GAIN, 1: BIAS) 14 WIND Display only 0 – Window signal 15 STEP Display only 0 00: Normal, 01: Pattern 1,

16 EDFL EDTV FULL Detection ON 0,1 Not used Not used 17 BC g_bs_search [0] 1-15 Not used Not used 18 TIME Lamp Counting Timer Current time count and 0 time are

19 FMTL fh of distinction difference range 0 ± ((3+FHTL) ×0.2) kHz 20 FVTL fv of distinction difference range 0 ± (1.0+FVTL) Hz 21HV1 Threshold of scanning line 0-15 (505+ (5×HV1)) lines

22 HV2 Threshold of scanning line 0-15 (555+ (5×HV2)) lines 23 MINH fh of the frequency correspond 0-31 20+ ((3+FHTL) ×0.2) kHz 24 MAXH fh of the frequency correspond 0-31 42+ ((3+FHTL) ×0.2) kHz 25 MINV fv of the frequency correspond 0-15 (42+MINV) Hz 26 MAXV fv of the frequency correspond 0-15 (77+MAXV) Hz 27 FHAG Equivalence frequency of fh 0-15 FHAG (20×FHAGms) 28 FVAG Equivalence frequency of fv 0-15 FHAG (20×FVAGms) 29 NSAG Equivalence frequency of 0-15 Not used 30 FHMJ fh difference range of before 0-7 ± ((1+FHMJ) ×0.2) kHz 31 FVMJ fv difference range of before 0-7 ± ((3+FVMJ)

distinction (low) distinction (high) to MIN to MAX to MIN to MAX changed detection changed detection non-signal detection (on signal) the signal distinction the signal distinction

1/8~7/8)

02: Pattern 2

displayed alternately with UP/DOWN

TP (Model Discrimination)

Item Display Register Name Range Standard Values Typical Standard Values

0 WIDE HH 0,1 Not used

1 TIME TIMER 0,1 0,1 Fan stop time switching

2 KL37 KL-W7000 model 0,1 0,1 0: KL-W9000 1: KL-W7000

0: 10 min (normal), 1: 10 sec

– 36 –

KL-W7000A/W9000A

RM-Y980

C Board Adjustment

1. PLL fo adjustment

1) WIDE mode

1. Select WIDE mode.

2. Open the CN5202 pin 1, H.SYNC input.

3. Connect IC5004 pin 2 to the GND (TP5009) via 100 resistance.

4. Connect frequency counter to the pin 1 of IC5004.

5. Adjust L5002 so as to satisfy the specified value (13.67±0.10 MHz).

6. Input H.SYNC for NT double speed, and confirm the waveform at the TP with oscilloscope.

2) NORMAL mode

1. Select NORMAL mode.

2. Open the CN5202 pin 1, H.SYNC input.

3. Connect IC5004 pin 2 to the GND (TP5009) via 100 resistance.

4. Connect frequency counter to the pin 1 of IC5004.

5. Adjust L5004 so as to satisfy the specified value (10.22±0.05 MHz).

6. Input H.SYNC for NT double speed

7. Confirm the waveform at the TP5004 with oscilloscope.

Fig. 1

2.39±0.1µs

31.78µs

Fig. 2

2.3±0.3 V



Use TP5009 as



reference GND.

5.0Vp-p



Use TP5009 as



reference GND.

2. IC Level Adjustment

2

1. Using I

C bus encoder, set the NT-WIDE mode.

2. Enter NT double speed 10-step signal of bias 2.2V and amplitude 1.8Vp-p to the CN5201 pins 2~4.

1.8 ± 0.02 Vp-p

100 IRE

$

10

IRE

4

GND

 



Use TP5201,



TP5401 and TP5601

 

as reference GND



respectively.

2.2 ± 0.02 V

    

Fig. 3

1) R channel

1. Set the RLBS level of BIAS 3 to “00”, make the TP5611 voltage 0V.

2. Connect oscilloscope to TP5203, and adjust RV5205 so that 10 IRE ~ 100 IRE (A) becomes

1.35±0.02Vp-p.

3. Adjust RV5201 so that the forward 10 IRE ~ reverse 10 IRE (B) becomes 5.70±0.02Vp-p at TP5203.

4. Confirm that a difference in voltage amplitude of forward 10 IRE ~ 100 IRE and forward 10 IRE ~ reverse 10 IRE between waveform at TP5202,

 

TP5204 and waveform at TP5203 is within ±150mV.

10 IRE

– 37 –

A : 1.35±0.02Vp-p B : 5.70±0.02Vp-p

Fig. 4

100 IRE

A

B

IRE

10

KL-W7000A/W9000A

RM-Y980

2) G channel

1. Adjust the RV5402 (GLBS) so that the TP5411 becomes 0V.

2. Connect oscilloscope to TP5403, and adjust RV5407 so that 10 IRE ~ 100 IRE (A) becomes

1.35±0.02Vp-p.

3. Adjust RV5403 so that the forward 10 IRE ~ reverse 10 IRE (B) becomes 6.10±0.02Vp-p at TP5403.

4. Confirm that a difference in voltage amplitude of forward 10 IRE ~100 IRE and forward 10 IRE~ reverse 10 IRE between waveform at TP5602, 5604 and waveform at TP5603 is within ±150mV.

100 IRE

A

B

A : 1.35±0.02Vp-p B : 6.10±0.02Vp-p

10 IRE

IRE

10

3) B channel

1. Set the BLBS level of BIAS 3 to “00”, make the TP5611 voltage 0V.

2. Connect oscilloscope to TP5603, and adjust RV5605 so that 10 IRE ~ 100 IRE (A) becomes

1.35±0.02Vp-p.

3. Adjust RV5601 so that the forward 10 IRE ~ reverse 10 IRE (B) becomes 5.90±0.02Vp-p at TP5603.

4. Confirm that a difference in voltage amplitude of forward 10 IRE ~ 100 IRE and forward 10 IRE ~ reverse 10 IRE between waveform at TP5602, TP5604 and waveform at TP5603 is within ±150mV.

100 IRE

A

A : 1.35±0.02Vp-p

10 IRE

B

10

IRE

Fig. 5

B : 5.90±0.02Vp-p

Fig. 6

– 38 –

KL-W7000A/W9000A

RM-Y980

3. r Curve Adjustment

• C board input signal level setting

1. Using I2C bus encoder, set the NT-WIDE mode.

2. Enter NT double speed (10 step) signal of bias 2.2V and amplitude 1.8Vp-p to the CN5201 pins 1~3.

• After adjusting the amplitude of 1.8V, adjust the

bias level of 2.2V.

1.8 ± 0.02 Vp-p

100 IRE

$

10

IRE

4

GND

2.2 ± 0.02 V

Use TP5201, TP5401 and TP5601 as reference GND respectively.

• G channel

1. Connect oscilloscope to TP5403.

2. DC power, apply 3.60±0.02V to TP5411.

3. Adjust RV so that 10 IRE ~ 20 IRE becomes 700±20mV.

4. Stop the voltage application to *TP5411.

20 IRE

10 IRE

10 IRE~20 IRE : 700±20 mV

Fig. 9

Fig. 7

• R channel

1. Connect oscilloscope to TP5203.

2. DC power, apply 3.60±0.02V to TP5211.

3. Adjust RV5203 so that 10 IRE ~ 20 IRE becomes 600±20mV. Adjustment is no good when 0 IRE ~10 IRE voltage is below 100 mV.

4. Confirm that forward 10 IRE ~ reverse 10 IRE voltage is over 6.5V.

20 IRE

10 IRE

10 IRE~20 IRE : 600±20 mV

Fig. 8

– 39 –

KL-W7000A/W9000A

RM-Y980

5. Adjust RV so that the forward 10 IRE ~ reverse 10 IRE (A) becomes 8.30±0.02Vp-p. Adjustment is no good when 0 IRE ~ 10 IRE voltage is below 100mV.

6. Confirm that forward 100 IRE ~ reverse 100 IRE (B) is

3.45±0.10Vp-p.

10 IRE

B

10 IRE

A

100 IRE

A : 8.30±0.02Vp-p B : 3.45±0.10Vp-p

Fig. 10

• B channel

1. Connect oscilloscope to TP5603.

2. DC power, apply 3.60±0.02V to TP5611.

3. Adjust RV so that 10 IRE ~ 20 IRE becomes 800±20mV. Confirm that 0 IRE ~ 10 IRE voltage is over 7.1V.

4. Vcom Adjustment

• Using I

2

C bus encoder, set the NT-WIDE mode.

• Enter NT double speed 10-step signal of bias 2.2V and

amplitude 1.8Vp-p to the CN5201 pins 2~4.

1. Measure voltage at the TP5203 with digital voltmeter.

2. Adjust RV5202 so that the voltage at TP5205 becomes (Value in 1) – 0.60±0.02V.

3. Measure voltage at the TP5403 with digital voltmeter.

1.8 ± 0.02 Vp-p

100 IRE

$

10

4

GND

2.2 ± 0.02 V



Use TP5201,



TP5401 and TP5601

 

as reference GND



respectively.

    

Fig. 12

4. Adjust RV5404 so that the voltage at TP5405 becomes (Value in 3) –0.50±0.02V.

5. Measure voltage at the TP5603 with digital voltmeter.

6. Adjust RV5602 so that the voltage at TP5605 becomes (Value in 5) – 0.80±0.02V.

IRE

20 IRE

10 IRE

10 IRE ~20 IRE : 800±20mV

Fig. 11

A Board Adjustment

1. Enter 1Vp-p 10-step signal from the Video1 input.

2. Set the user control to the RESET of AV MEMORY, PIX to maximum, and H WHITE to OFF.

3. Connect oscilloscope to TP4002.

– 40 –

KL-W7000A/W9000A

RM-Y980

4. In the SERVICE mode, adjust CXA1839 No.6 SPC2 so that 0 IRE ~ 100 IRE becomes almost 2.0Vp-p.

5. In the same manner, adjust CXA1839 No.1 SBRT so that the 0IRE level becomes 2.8Vdc.

6. Save the data.

100 IRE

0 IRE

• Hue and Color Adjustment (NTSC)

1. Enter 75% Full Field Color Bar from the RGB1 input.

2. Connect oscilloscope to TP4003.

3. In the SERVICE mode, adjust CXA1839 No.7 SCL2 so that the peak level of two pulses on both sides becomes almost equal.

4. In the same manner, adjust CXA1839 No.0 SHUE so that the peak level of central two pulses becomes almost equal.

5. Save the data.

* Adjust No.7 SCL2 to

attain same level

* Adjust No.0 SHUE to attain same level

0 IRE-100IRE : 2.0Vp-p

0 IRE : 2.8Vdc

Fig. 13

0 V

Fig. 14

– 41 –

KL-W7000A/W9000A

RM-Y980

CU Board Adjustment

• White uniformity Adjustment

1. Input NTSC all white signal to Video Input.

2. Set the screen full mode.

• Adjustment when the left side of the screen is magenda.

A

1) Adjust with RV5804

2) SW5801 n

M

B

1) Adjust with RV5806

2) SW5809 n

RV5805

RV5803

SW5801

D

1) Adjust with RV5804

2) SW5801 N

VR Position

RV5804 RV5806

CU

SW5802

M

C

1) Adjust with RV5804 and RV5806

2) SW5801 n

M

E

1) Adjust with RV5804 and RV5806

2) SW5801 N

M

– 42 –

KL-W7000A/W9000A

RM-Y980

• Adjustment when the left side of the screen is cyan.

A

1) Adjust with RV5803

2) SW5802

n

Cy

B

1) Adjust with RV5805

2) SW5802

n n

Cy

E

1) Adjust with RV5805

2) SW5802

Cy

n

C

1) Adjust with RV5803 and RV5805

2) SW5802

Cy

D

1) Adjust with RV5803

2) SW5802

n

Cy

– 43 –

KL-W7000A/W9000A

RM-Y980

Sub BRT, Sub PIX Adjustments

1. RGB mode Adjustment.

1) Input 10 step signal to RGB1 Input.

2) Select wide mode CONT : 65% H white : OFF COL : 40% (CXA 1839) HUE : 50% 12 : Y-DC “000” BRT : 50% 13 : DPIX “000” SHP : 80%

3) Connect oscilloscope to TP5403 (G Sig-2), Ad-

just the amplitude A to 3.20V±0.02Vp-p with service data CXA2011: DLVL, and the amplitude B to 8.40V±0.02Vp-p with the service data CXA2011: SBOF.

4) Save it in memory.

100 IRE

A

100 IRE

3. DVD mode Sub BRT Adjustment.

1) Select DVD mode.

2) Input the same values as CXA2011 DLVL and CXA2011SBOF at NT mode Sub BRT Adjustment to DVD mode.

10

IRE

B

Fig. 15

2. NT mode Sub BRT Adjustment.

1) Input 10 step signal to VIDEO 1.

2) Select wide zoom. CONT :90% H white : OFF COL : 50% CXA 1839 HUE : 50% 12 : Y-DC “000” BRT :50% 13 : D-PIX “000” SHP : 50%

3) Connect oscilloscope to TP5403 (G Sig-2), adjust

the amplitude A to 2.9V ± 0.02Vp-p with the service data CXA2011: DLVL, and the amplitude B to 8.50V± 0.02Vp-p with CXA2011: SBOF.

4) Save it in memory.

01 IRE

100 IRE

A

100 IRE

B

0

IRE

Fig. 16

01

IRE

– 44 –

Registration Adjustment

Preparation

W7000A W9000A Projected picture size 36.3 inch 49.1 inch Projection distance 529.7 mm 726.2 mm Aspect ratio 16:9 16:9 Picture quality adjusting menu STANDARD STANDARD

Note: To make the registration adjustment

The registration locking blocks are fixed with an adhesive, thus requiring the registration adjusting block kit for service (4-047-337-01).

• Tools and Kit

Hex. wrench keys (2mm, 5mm)

KL-W7000A/W9000A

G

B

θ

Rotate with respect to the bottom right

X

B

RM-Y980

G

1. Enter G monochrome crosshatch signal and also B monochrome crosshatch signal, then adjust registration between G and B. Adjusting regi. adjusting screws in the order of θ → X → Y, overlap the B picture on the G picture as shown in figure.

2. Enter all black signal to the B panel and also R monochrome crosshatch signal, then adjust the registration between R and G.

3. Tighten tentatively the registration locking screws on the R and B panels, and fix the registration blocks A and B with an adhesive.

4. Tighten the regi. locking screws.

To replace G panel

1. Attach the G panel.

2. Enter G monochrome crosshatch signal.

3. Confirm that the center vertical line of crosshatch and that of screen almost coincide.

4. Loosen two screws on the θ G panel, insert an adjusting rod into a θ adjusting hole and rotate it to adjust the θ within specification.

5. Adjust registration of R and B.

a1

a2

a1+a2=Less

than 1.3mm

B

Y

G

Adjust θ

Adjust X (horizontal)

No

Adjust Y (vertical)

Within specification?

Yes

Lock the registration

Fig. 17

– 45 –

KL-W7000A/W9000A

RM-Y980

White Balance Adjustment

Preparation Set as follows.

PIX : 90% BRT = CENT H WHITE = OFF

1. NTSC and RGB mode color temperature ... HIGH

1) Set the color temperature to “H”, and enter 30 IRE flat field signal to the input, and select the SERVICE mode.

2) White balance in SERVICE mode Adjust RCOI and BCOI to satisfy the specification. (WB: For GCOI, fix to 31)

(NTSC 30 IRE)

W7000A W9000A X : 0.257 ±0.005 0.257±0.005 Y : 0Z.281±0.005 0.281±0.005

(VGA 30 IRE)

W7000A W9000A X : 0.253 ±0.005 0.248±0.005 Y : 0.263±0.005 0.265±0.005

3) Enter 70 IRE flat field signal to the input, and select the SERVICE mode. Adjust CXA2011 No.5 RDOF and No.7 BDOF to satisfy the specification. (Fix CXA2011 No.6 GDOF to 31) (NTSC 70 IRE)

W7000A W9000A X : 0.267 ±0.003 0.267±0.003 Y : 0.293 ±0.003 0.293±0.003

(VGA 70 IRE)

W7000A W9000A X : 0.257 ±0.003 0.251±0.003 Y : 0.283 ±0.003 0.276±0.003

Lens Focus Adjustment

1) Loosen a focus locking screw.

2) Adjust the lens focus.

4) Repeating the steps 2) and 3), adjust so that 30 IRE and 70 IRE satisfy the specification.

5) Enter 10 IRE flat field signal to the input, and select the SERVICE mode. Adjust BIAS3 No.00 RLBS and No.01 BLBS to satisfy the specification. (NTSC 10 IRE)

W7000 W9000 X : 0.276 0.266 Y : 0.289 0.265

(VGA 10 IRE)

W7000 W9000 X : 0.271 0.253 Y : 0.275 0.263

6) In the SERVICE mode, set CXA1839 No.12 Y-DC to “1”, and CXA1839 No.13 DPIX to “2”.

7) Enter 10-step signal to the input, and confirm that the color at each step of 0 IRE to 100 IRE is homogeneous and not extremely different from other parts.

8) Save the data.

2. DVD White Balance Adjustment.

1) Select DVD mode.

2) Input the same values as NTSC White Balance Ad-

justment to DVD mode.

– 46 –

5-1. BLOCK DIAGRAMS

SECTION 5

DIAGRAMS

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

D-SUB2 L D-SUB2 R

FRONT V FRONT L FRONT R

L R

SW1

L R

SW3

DVD Y DVD B-Y DVD R-Y

DVD ON

KL-W7000A/W9000A

RM-Y980

Y

U

V

CN5

2 4 6

7

TO A BOARD

L

CN4401

KL-W7000A/W9000A

IC3013

CK Q

D

IC3012

D-FF

1

5

2

3

4

RM-Y980

AINY0-AINY7

IC3201

AMP & BUFF

Q3213-3216

2Y

2U

2V

3

Z1 Z

5

Z0

YS SW

RGB/NT SW

4

9

C

MID 2YS

MID 2VS

2U

LAMP LED

DVD Y DVD B-Y DVD R-Y

J102

WADE

RCLK

BXAD

IC101

SW

3

Z1 Z

5

Z0

1

Y1

2

Y0

13

X1

12

Y/B-Y/ R/Y BUFF Q101-103

L R

Y B-Y R-Y

X0

11

A

10

B

9

C

INV

Q105

4

15

Y

14

X

2

V

2 1

RCLK RXAD RADE

REA

RXAD RADE

RCLK

RADE

RRB RXIB

REB

WADE

WRB

WEB

WXIB

– 47 – – 48 –

B-SS618.<U/C>-BD1-05

– 49 – – 50 –

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

X2001

503kHz

IC2301

BUFFER

Q2301

BUFFER

Q2302

FV

EXY1

VDI

X2001

28.6MHz

VIDEO SW

3 7

IN2

OUT

1 2

IN1

SW

AMP, BUFF

Q2020, 2021

AMP, BUFF

Q2037

AMP, BUFF

Q2035

BUFF

Q2036

BUFF

Q4403

BUFF

Q4401, 4404

BUFF

Q4402, 4405

SOG DET

Q1303

16

1

11 14

8 9

2

12

7

IC4401

VIDEO SW

IN1A IN1B

IN2A IN2B

IN3A IN3B

CTL1 CTL2 CTL3

10

2

BUFF

Q1304

OUT1

OUT2

OUT3

Q2050-2052

3

5

6

NTSC HD

RGB HD

NTSC VD

RGB VD

HD

VD

+5V

4

2R-SIG 2G-SIG 2B-SIG

DVD Y DVD B-Y DVD R-Y

DVD ON

4

CN4401

2 4 6 7

TO

L

U BOARD CN5

CU

(UNIFOMITY CORRECTION)

CLAMP

Q5816

CLAMP

Q5818

+5V

TO C BOARD CN5901

CN5801

3

V SYNC

SWITCH

W/N

RU-V GU-V

RU-H

GU-H

RV5806 G-H GAIN

RV5805 R-H GAIN

Q5801

4

N

5

6

8

9

SWITCH

Q5802

BUFF

Q5803

BUFF

Q5804

SLICE Q5805

SLICE Q5806

INV

Q5813

INV

Q5811

BUFF

Q5807

BUFF

Q5808

GAIN SELECT

Q5814

GAIN SELECT

Q5812

SW5801

UP/DOWN SEL

SW5802

UP/DOWN SEL

RV5803 R-V GAIN

RV5804 G-V GAIN

IC5801

VOLUME

1 5

OUT2

IN1

2

CONT1

IN2

6

OUT1

CONT2

IC5802

VOLUME

1 5

OUT2

IN1

2

CONT1

IN2

6

OUT1

CONT2

7

3

7

3

L1602

INV

Q1301

DI3

Y

BUFFER

Q4035

OR

BLK

D1601

OR

D1606

OR

30

12

A2Q2Q1

10

B1

SCL SDA

6

5

18

21

D DVD ON

ICK

(O XGA ON)

O LAMP CTRL

NP

BUS SW

POW CTL

CN1007

2

K

INV

Q1302

16

IC1007

+9V REG

+9V

1 3

XGA ON

B-SS618.<U/C>-BD2-05

– 51 – – 52 –

– 53 – – 54 –

C

(LCD DRIVE, LCD CONTROL,

UNIFOMITY CORRECTION)

TH5401

2 3 4

KL-W7000A/W9000A

RM-Y980

LCD CONTROL

7

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

CN5801

SH3

7

8

IC5901

BUFF

Q5902

G BUFEER

Q5410

GAIN SELECT Q5912

GAIN SELECT Q5911

BUFF Q5909, Q5920

BUFF

Q5905,

Q5919

D5901

D5902

SWITCH

Q5901

SWITCH

Q5906

CN5901

V.SYNC

3

W/N

4

RUV

5

N

GUV

6

RUH

8

GUH

9

Q5913

Q5914

BUFF

Q5910

INV

1

IN1 OUT2

2

CONT1

6

CONT2

1

IN1 OUT2

CONT1

2

6

CONT2

VOLUME

IN2

OUT1

IC5902

VOLUME

IN2

OUT1

RV5402-5405 RV5407

5

7

3

5

7

3

G-GAIN G-LGAIN B-VCOM GLBS G-BIAS

B-GAIN B-LGAIN B-VCOM B-BIAS

SLICE, P/N

Q5915,

Q5903 (1/2)

SLICE, P/N

Q5916,

Q5907 (1/2)

SW5901 (1/2)

CLAMP SEL

SW5902 (1/2)

CLAMP SEL

BUFF

Q5903 (2/2)

BUFF

Q5907 (2/2)

CLAMP Q5904,

SW5901 (2/2)

CLAMP SEL

SW5902 (2/2)

CLAMP SEL

CLAMP Q5908,

Q5917

Q5918

POWER FACTOR

CN802

IC701

SW POWER CONT.

DRAIN

CONT

SOURSE

D662

D610

SUB+5V

POWER

FACTOR SW

Q610

IC702

SHUNT REG

K

A

13

14

10

D607

7 8

MUTE

Q8501, 8502

B-SS618.<U/C>-BD3-05

IC603

SHUNT REG.

OF+5V

K

R

SUB+5V

– 55 –

– 56 –

– 57 – – 58 –

5-2. FRAME SCHEMATIC DIAGRAMS

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

(3CH 8BIT A/D,MID)

A GND

VP

A GND

HP

A GND

SDA SCL

CN3003 CN4001

MID 2YS

D GND

MID 2VS

D GND

MID 2HS

D GND

2V

D GND

2U

D GND

2Y

CN3002 CN4002

D GND

+5V +5V

V

D GND

U

D GND

NT SW

CLP IN

D GND

TO K BOARD

(CN8505)

HA

VIDEO 2 IN,

VIDEO PROCESS, SYSTEM CONTROL

1 2 3 4 5 6 7

1 2 3 4 5 6 7 8

9 10 11

1

2

3

4

5

6

7

8

9 10

1

2

3

1

A GND

2

VP

3

A GND

4

HP

5

A GND

6

SDA

7

SCL

1

MID 2YS

2

D GND

3

MID 2VS

4

D GND

5

MID 2HS

6

D GND

7

2V

8

D GND

9

2U

10

D GND

11

2Y

1

D GND

2

+3.3V+3.3V

3

D GND

4

+5V

5

+5V

6

V

7

D GND

8

U

9

D GND

10

YY

CN4007CN3004

1

NT SW

2

CLP OUT

3

D GND

CN1102

1

HP ON

2

SP MUTE

3

+9V

4

L+R OUT

5

GND

6

R OUT

7

GND

8

L OUT

CN1402 CN4401

8

L OUT

7

GND

6

R OUT

5

GND

4

L+R OUT

3

+9V

2

SP MUTE

1

HP ON

CN1001CN4004CN3001

D-SUB R

GND

D-SUB G

GND

D-SUB B

GND GND GND GND GND

D-SUB1 SW

MUTE

GND SDA SCL

GND H SYNC V SYNC

+5V SUB+5V

CN1002

Y IN

GND

C IN

GND

Y OUT

GND

C OUT

+9V

GND

VIDEO IN

GND

R IN

GND

L IN

GND CLP IN

GND

H POL V POL

FAN+9V

FAN PROT2

GND

DVD Y

GND

DVD B-Y

GND

DVD R-Y

DVD ON

GND

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15 16 17 18 19 20

1

2

3

1

2

3

4

TO U BOARD

5

(CN5)

6

7

8

TO U BOARD (CN602)

TO U BOARD (CN601)

TO G BOARD

(CN604)

TO FAN2

TO LAMP

NC

DRIVER

CN1003

1

GND

2

SUB+5V

3

RXD

4

TXD

CN1016

1

GND

CN1007

1

GND

2

XGA ON

3

GND

CN1006

1

GND

2

B-INT2

3

B-DAT2

4

B-CLK2

5

2HV

6

NC

7

NC

8

GND

9

B-INT

10

B-DAT

11

B-CLK

CN1005

1

NC

2

+17V

3

+10V

4

+10V

5

+10V

6

GND

7

GND

8

GND

9

GND

10

POWER CTL

CN1011CN1008

1

FLAG

2

GND

3

SCI

CN4006

GND 2R-SIG 2G-SIG 2B-SIG

GND

TEMP PROT

+10V

GND

+17V

CN4005

2HD

2VD

GND

2HS

2VS

GND

+9V

GND

SCL

SDA

CN1003

GND

+5V

+5V SUB+5V

CN1012

KEY 0 KEY 1

GND

SIRCS IN

SUB+5V

STBY LED LAMP LED

POWER LED

P SAVE LED

CN1009

FAN+9V

FAN PROT1

GND

LAMP COV

GND

FILTER COV

GND

POWER ON

GND

1 2 3 4 5 6 7 8 9

10

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 9

1

GND

2

2R-SIG

3

2G-SIG

4

2B-SIG

5

GND

6

TEMP PROT

7

+10V

8

GND

9

+17V

1

2HD

2

2VD

3

GND

4

2HS

5

2VS

6

GND

7

+9V

8

GND

9

SCL

10

SDA

TO G BOARD (CN607)

TO HA BOARD (CN8003)

TO FAN

LCD DRIVER,LCD CONTROL, UNIFOMITY CORRECTION

CABB

CN5201

CN5202

CN5001 CN5002 CN5003

20

S OUT

19

COM

18

VVDD

17

DWN

16

VST

15

POG

14

VCK

13

ENB

12

CLR

11

HCK2

10

HCK1

9

VSS

8

HST

7

RGT

6

WID

5

HVDD

R-SID

4 3 2 1

R-(SIG3) R-(SIG1) R-(SIG2)

LCD R LCD G LCD B

TA TB HB

SENSOR SENSOR <LAMP COVER>

CN9501 CN9551

1

LAMP COV

2

NC

3

GND

CN5901 CN5801

G-(SIG2) G-(SIG1) G-(SIG3)

+5V GND

V.SYNC

W/

N RU-V GU-V

GND RU-H GU-H

G-SID

HVDD

WID

RGT

HST

VSS HCK1 HCK2

CLR

ENB

VCK

PCG

VST

DWN VVDD

COM

S OUT

1 2 3 4 5 6 7 8 9

20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

1 2 3 4 5 6 7 8 9

1

FILTER COV

2

NC

3

GND

+5V GND V.SYNC

NW/ RU-V GU-V GND RU-H GU-H

B-(SIG3) B-(SIG1) B-(SIG2)

1 2 3

CU

UNIFOMITY CORRECTION

20

S OUT

19

COM

18

VVDD

17

DWN

16

VST

15

PCG

14

VCK

13

ENB

12

CLP

11

HCK2

10

HCK1

9

VSS

8

HST

7

RGT

6

WID

5

HVDD

4 3 2 1

B-SID

(POWER SW)

CN8031

POWER ON NC GND

B-SS617.<U/C>-KESSENZU-P1

VIDEO 2 IN

J8002

MINI J

(RGB 2 AUDIO)

D-SUB15 (RGB 2)

TO G BOARD

(CN603)

J8001

J8004

1 2 3

CN8002

E(HA) E(HA) E(HA)

USER CONTROL

CN8005

D-VSUB2 R

D-SUB2 G

D-SUB2 B D-SUB2 C SYNC D-SUB2 C SYNC

CN8006

DDC-DATA

HOST+5V DDC-CLK

R GND

G GND

B GND

GND

NC

1 2 3 4 5 6 7 8 9

1 2 3 4 5

1 2 3

1 2 3 4

TO U BOARD (CN3)

TO U BOARD (CN4)

(AUDIO)

K

CN8502

WOOFER(+) NC WOOFER(-)

CN8503

A GND OUT SP L A GND OUT SP R

CN8001

MINI J SW

D-SUB2 L

GND

D-SUB2 R

GND

FRONT V

GND

FRONT L

GND

FRONT R

CN8003

KEY0 KEY1

GND

SIRCS IN

STBY+5V STBY LED LAMP LED

POWER LED

NC

CN8505

L IN

GND

R IN

GND

L+R IN

+9V

SP MUTE

HP ON

CN8501

+20V +20V

D GND

+5V +5V

V

1 2 3 4 5 6 7 8 9

10

1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8

1 2 3 4 5 6

TO A BOARD (CN1012)

TO A BOARD (CN1402)

TO G BOARD (CN602)

TO LAMP

DRIVER

TO U BOARD

(CN2)

TO HA BOARD

(CN8002)

TO O/U

TO BIMETAL

TO AC IN

1 2 3

1

1 2 3

1 2

CN614

CN613

+DC NC

-DC

CN608

E(U) E(U) E(U)

CN609

E(HA) E(HA) E(HA)

CN610

E(U)

CN611

AC(A) NC AC(B)

CN612

AC(L) AC(N)

123456789

L/O

LATCH

AC SENSE

VCC

O VP

V SENSE

L SENSE

DRIVE

I SENCE

POWER CTL

G

(POWER SUPPLY)

10

GND

CN602

A GND A GND A GND

CN604

CN607

SUB+5V

10

GND

9

I SENSE

8

DRIVE

7

VCC

6

V SENSE

5

O VP

4

L SENSE

3

AC SENSE

2

LATCH

1

LATCH OUT

+20V +20V +20V

NC +17V +10V +10V +10V

GND GND GND GND

GND GND GND +5V +5V +5V +5V

10

GA

POWER CONTROLLER

CN802

1 2 3

TO K BOARD

4

(CN8501)

5 6

1 2 3 4 5

TO A BOARD

6

(CN1005)

7 8 9

1 2 3 4

TO A BOARD

5

(CN4003)

6 7 8

TO G BOARD

(CN608)

TO A BOARD

(CN1002)

TO A BOARD

(CN1001)

TO A BOARD

(CN4401)

TO HA BOARD

1

MINI J SW

2

D-SUB2 L

3

GND

4

D-SUB2 R

5

GND

6

FRONT V

7

GND

8

FRONT L

9

GND

10

FRONT R

1

E(U)

2

E(U)

3

E(U)

1

Y OUT

2

GND

3

C OUT

4

GND

5

Y IN

6

GND

7

G IN

8

+9V

9

GND

10

GND

11

VIDEO OUT

12

GND

13

R OUT

14

GND

15

L OUT

16

GND

17

CLP OUT

18

GND

19

H POL

20

V POL

1

D-SUB R

2

GND

3

D-SUB G

4

GND

5

D-SUB B

6

GND

7

GND

8

GND

9

GND

10

GND

11

D-SUB1 SW

12

MUTE

13

GND

14

SDA

15

SCL

16

GND

17

HD SYNC

18

V SYNC

19

+5V

20

SUB+5V

1

GND

2

DVD Y

3

GND

4

DVD B-Y

5

GND

6

DVD R-Y

7

DVD ON

8

GND

1

+20V

2

+20V

3

+20V

4

A GND

5

A GND

U

IN/OUT TERMINAL, AV INPUT SELECT

CN1

CN2

CN601

CN602

CN5

CN3

R GND

D-SUB2 R

CN4

G GND

D-SUB2 G

B GND D-SUB2 B D-SUB2 C SYNC D-SUB2 C SYNC

GND

CN603

D-SUB15 (RGB 1)

J101

AUDIO (RGB 1)

J1

34

12

VIDEO 1 IN

34

12

VIDEO 3 IN

J301

34

12

VIDEO OUT

J102

DVD IN

1 2 3 4 5

TO HA BOARD

6 7 8 9

– 59 –

– 60 –

B-SS617.<U/C>-KESSENZU-P2

– 61 – – 62 –

5-3. CIRCUIT BOARDS LOCATION

TB

CU

HB

TA

HA

Power block

C

GA

P110

KL-W7000A/W9000A

RM-Y980

K

U

BB

A

G

– 63 –

P110

KL-W7000A/W9000A

RM-Y980

5-4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS

Note:

• All capacitors are in µF unless otherwise noted. (pF: µµF) Capacitors without voltage indication are all 50 V.

• Indication of resistance, which does not have one for rating electrical power, is as follows.

Pitch: 5 mm Rating electrical power 1/4 W (CHIP : 1/10 W)

• All resistors are in ohms.

f : nonflammable resistor.

•

• Ï : fusible resistor.

¢ : internal component.

•

p : panel designation, and adjustment for repair.

•

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

e : earth-ground.

•

• E : earth-chassis.

• All voltages are in V.

• Readings are taken with a 10 M digital multimeter.

• Readings are taken with a color-bar signal input.

• Voltage variations may be noted due to normal production tolerances.

: Can not be measured.

*

• Circled numbers are waveform references.

s : B + bus.

•

• S : B – bus.

m : Signal path.

•

Reference information

RESISTOR : RN METAL FILM

COIL : LF-8L MICRO INDUCTOR CAPACITOR : TA TANTALUM

Note: The components identified by shading and mark

Note: Les composants identifiés per un tramé et une

: RC SOLID : FPRD NONFLAMMABLE CARBON : FUSE NONFLAMMABLE FUSIBLE : RW NONFLAMMABLE WIREWOUND : RS NONFLAMMABLE METAL OXIDE : RB NONFLAMMABLE CEMENT

: PS STYROL : PP POLYPROPYLENE : PT MYLAR : MPS METALIZED POLYESTER : MPP METALIZED POLYPROPYLENE : ALB BIPOLAR : ALT HIGH TEMPERATURE : ALR HIGH RIPPLE

¡ are critical for safety. Replace only with part

number specified.

marque ¡ sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

Terminal name of semiconductors in silk screen printed circuit ( )

Device Printed symbol Terminal name

Transistor

1

Transistor

2

3

Diode

4

Diode

5

Diode

6

Diode

7

8

Diode

9

Diode

0

Diode

!¡

Diode

!™

Transistor

!£

(FET) Transistor

!¢

(FET) Transistor

!∞

(FET)

Transistor

!§

Transistor

!¶

Transistor

!•

Transistor

!ª

Transistor

@º

Transistor

@¡

Transistor

@™

Transistor

@£

Discrete semiconductot

–

(Chip semiconductors that are not actually used are included.)

*

Collector

Base

Collector

Base

Cathode

Anode

Cathode

Anode

Common

Anode

Common

Anode Cathode

Common

Anode

Common

Anode Anode

Common

Cathode

Common

Cathode

Anode Anode

Cathode

Drain

B1 E1C2 B2 C1E2

B2 E2C1 B1 C2E1

B2 E2C1

B1 C2E1

E2

B1 E1

(B2)

E1

B1

(B2)

E1

E2

Emitter

Anode

(NC)

Cathode

Anode

Cathode

Anode Anode

Source

Gate Source

Gate

Source Drain Gate

Emitter Collector Base

C1(B2)C2

E2 C2C1

B1 C1C2

Circuit

D

G

D

S

B1

D

G

S

D

G

C1

E1

C1

E1

C1

E2

C1

G

S

C2

B2

E2

C2

B2

E2

B2

C2

C2C1(B2)

E2 E2E1(B2)

C2 C2E1(B2)

C2

Ver.1.5

– 64 –

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

(1) Schematic Diagrams of HA, HB, K, TA and TB Boards

123456

TO U BOARD TO G BOARD

A

B

C

D

E

VIDEO 2 IN

VIDEO

AUDIORL

HEADPHONE

J8001

3P

R8121 :CHIP

FB131

V

FB134

R8122

0 :CHIP

220k

:CHIP

L

FB132

FB135 FB133

R

FB136

R8123 :CHIP

J8002

FB137

IC8001

SBX1780-51

SIRCS IN

1 2 3

5.2

R8019 :CHIP

C8001

10

16V

:AL-CP

:S-MICRO

C8101

75

:AL-CP

C8102

:AL-CP

C8103

:AL-CP

220k

FB138

FB140

D8005

TLR124

LAMP

0

10P

WHT-L

1

STAND BY

R8003

330

:CHIP

D8007

TLO124

CN1 CN6011

GND

FRONT V

D-SUB2 R

D8008

STZ6.8T

FRONT L

MINI-JSW

D-SUB2 L

123456789

FB139

0

:CHIP

STBY+5V

R8004

R8002

100

330

:CHIP

D8002

TLG124A

POWER

GND

FRONT R

10

D8009

STZ6.8T

D8011

STZ6.8T

R8020 R8006 R8008 R8010 R8012 R8013

12k

:CHIP

RESET

INPUT SELECT

CN8006

5P

WHT-L

:S-MICRO

F

123456789

STBY+5V

STBY LED

LAMP LED

POWER LED

CN8031

3P

RED-L

:S-MICRO

POWER ON

NC

GND

TO A BOARD CN1009

89

GND

TO U BOARD TO U BOARD

G

H

CN8003

9P

WHT-L

:S-MICRO

(POWER SW)

HB

S8031

POWER

GND

KEY0

KEY1

TO A BOARD

SIRCS IN

CN1012

1 2 3

I

B-SS530.<U/C>-HB.

CN8002CN8001

3P

WHT-L

:S-MICRO

E(HA)

123

D8017

STZ6.8T

D8018

STZ6.8T

C8006

1

:AL-CP

R8021R8022

220k

:CHIP

4.7k

1.8k

:CHIP

:CHIP1k:CHIP

S8001S8013 S8003 S8005 S8008 S8010

ENTER

123

12345

NC

GND

HOST 5V

DDC-CLK

DDC-DATA

CN4

220k

:CHIP

R8009 R8011 R8014 R8015 R8016

4.7k

1.8k

:CHIP

:CHIP1k:CHIP

680

:CHIP0:CHIP

VOL(-) VOL(+)

MENU

123456789

CN8005

9P

R.GND

RED-L

:S-MICRO

D SUB R

TA

(SENSOR<LAMP COVER>)

G.GND

D SUB G

CN3

C8005

1

:AL-CP

680

:CHIP0:CHIP

S8011S8009S8007S8004 S8012

SIZE/CENTER

B.GND

D SUB B

D SUB C SYNC

D SUB V SYNC

GND

S9501

B-SS530.<U/C>-TA.

CN8004

RGB 2 IN

D-SUB15

DDC-DATA

FL8005

EMI

:EMI-CP

R8101

47

:CHIP

D8301

STZ6.8T

1

FL8008

MEM2012T25R0

25M:EMI-CP

EMI

R8107

150

:CHIP

R8108

150

:CHIP

7

SIGNAL IN

R

G

B

E(R)

E(G)

E(B)

R8105

150

:CHIP

FL8004

190P :EMI-CP

EMI

R8106

150

:CHIP

H SYNC

190P

D8302

FL8007

MEM2012T25R0

25M:EMI-CP

8 9 10 11 12 13

DDC-DLK

HOST 5V

EMI

FL8003

190P

:EMI-CP

D8303

STZ6.8T

FL8006

MEM2012T25R0

25M:EMI-CP

EMI

2

R8103

150

:CHIP

R8104

150

:CHIP

FL8001

190P

:EMI-CP

D8304

STZ6.8T

EMI

FL8002

190P

:EMI-CP

D8305

STZ6.8T

EMI

R8102 :CHIP

3

47

HA

(VIDEO 2 IN,USER CONTROL)

B-SS617.<U/C>-HA.

1

LAMP COV

2

NC

3

GND

CN9501

3P

BLK-L

:S-MICRO

TO A BOARD CN1009

4

5

TB

(SENSOR<FILTER COVER>)

CN8505

8P

RED-L

:S-MICRO

L IN

GND

R IN

GND

IN

L+R

+9V

SP MUTE

HP ON

TO A BOARD

CN1402

S9551

AUDIO(L)

AUDIO(R)

C8531

0.015 :PT

C8553

0.0022 B

C8554

0.0022

8 7 6 5 4 3 2 1

B

C8551

0.1 25V X:CCS

B-SS530.<U/C>-TB.

C8509

0.022 :PT

C8510

0.022 :PT

R8512

R8516

C8518

0.022 :PT

C8517

0.022 :PT

R8517

R8532

47k :RN

R8540

270k

C8538

0.0022 B

C8540

47 16V

C8552

1

FILTER COV

2

NC

3

GND

:S-MICRO

R8509

27k :RN

56k :RN

µPC4558C

56k :RN

5 6 7 8

AUDIO(R) AUDIO(L)

R8545 R8544

27k

10k

:RN

C8528

0.015

0.033

:PT

R8533

47k

C8532

:RN

0.015 :PT

µPC4558C

5 6 7 8

R8538

10k

CN9551

3P

YEL-L

TO A BOARD CN1009

6

7

IC8502

HPF

8.2k :RN

C8550

:PT

IC8504

LPF

R8539

10k

AUDIO(L)

R8510

10k

1234

C8516

47

16V

R8531

10k

1234

+9V

C8541

47

25V

Q8501

R8519

C8508

10

C8515

0.0022

R8515

10k

C8520 C8521

10 2.2

2SC3311A

1k

MUTE

:RN

R8514

3.3k

B

Q8502

2SC3311A

MUTE

R8518

1k :RN

AUDIO(R)

R8520

3.3k

C8529

R8501

10

1k :RN

R8535

3.3k

Q8503

2SC3311A

MUTE

C8539

0.0022 B

1 2 3 4 5 6 7 8 9 10 11

C8501

47

16V

C8502

47

16V

R8513

1k

:RN

C8511

1 2 3 4 5 6 7 8 9 10 11

AUDIO(R)

C8527

47

16V

R8536

1k

C8535

:RN

(AUDIO)

K

22

14

IC8501

TDA2009A

WOOFER AMP

C8503

47

16V

C8512

47

16V

IC8503

TDA2009A

L/R AMP

2.2

C8519

AUDIO(L)

C8522

47

16V

R8537

1k

:RN

C8513

1

AUDIO(L)

C8536

1

15 16 17 18

CN8501

6P

WHT

:S-MICRO

1

+20V

2

+20V

3

+20V

4

GND

(A)

5

(A)

GND

6

GND

(A)

TO G BOARD CN602

CN8502

3P

RED-L

:S-MICRO

1

WOOFER(+)

2

NC

3

WOOFER(-)

TO SP

CN8503

4P

WHT-L

:S-MICRO

1

GND(A)

2

OUT SP L

3

GND(A)

4

OUT SP R

TO SP

IC8504 1 4.8

Q8501 B 0.5

Q8502 B 0.5

Q8503 B 0.5

PS8501

2A

PS8502

2A

1.2k :RN

33 :RN

27

:RN

AUDIO(R)

R8521

R8525

C8504

0.1

:MPS

R8502

2.2k :RN

+20V

D8501

RD30ES

R8503

1k

:RN

C8505

2200

35V

R8506

2.2k

R8505

2.2

:FPRD

R8522

C8523

0.1

:MPS

R8526

4.7

:FPRD

1.2k :RN

C8524

470 25V

R8527 R8529

2.2k

D8502

RD30ES

C8507

R8508

2.2

C8526

4.7

B-SS530.<U/C>-K..

2200

35V

2.2k

470 25V

2.2k

C8537

2200

C8506

0.1

:MPS

R8511R8504

27

:RN

C8525

0.1

:MPS

R8534

33

:RN

R8507 :FPRD

R8528 :FPRD

• K BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

IC8501 1 1.5

IC8502 1 4.8

IC8503 1 1.5

2 0.9 3 12.2 4 0.9 5 1.5 8 10.5

10 10.6

2 4.8 3 4.8 5 4.8 6 4.8 7 4.8

2 0.9 3 12.2 4 0.9

(L)

(R)

5 1.5 8 10.7

10 10.6

2 4.8 3 4.7 5 4.8 6 4.8 7 4.8

E0

— K BOARD —

K

AUDIO

— HB BOARD —

HB

POWER SW

HA

VIDEO2 IN, USER CONTROL

— HA BOARD (Conductor Side) —

— HA BOARD (Component Side) —

— TA BOARD —

TA

SENSOR <LAMP COVER>

— TB BOARD —

TB

SENSOR <FILTER COVER>

HA BOARD Terminal name of semiconductors in silk screen printed circuit (

Ref.

D8017, D8018, D8302, D8303, D8305 D8008, D8009, D8011, D8301, D8304

:Refer to Terminal name of

*

semiconductors in silk screen printed circuit (see page 64)

8

9

)

*

– 65 –

– 66 –

– 67 –

– 68 –

Schematic diagrams

Ò HA HB K TA TB boards

— A BOARD (Conductor Side) —

1

A

B

C

D

E

KL-W7000A/W9000A

RM-Y980

A

SYSTEM CONTROL, VIDEO PROCESS

2

KL-W7000A/W9000A

RM-Y980

3

4

• A BOARD SEMICONDUCTOR LOCATION

56

IC1007 E–3 E–4 IC1008 E–3 E–4 IC1101 E–5 IC1102 E–5 IC1103 D–5 IC1106 D–5 IC1401 D–5 D–2 IC1601 D–5 IC1602 D–2 IC2001 B–3 IC2003 B–2 IC2004 A–3 IC2006 B–4 IC2007 B–3 IC2008 B–4 IC2009 B–3 IC2011 B–3 IC2012 B–3 IC2101 A–3 IC2102 B–3 IC2301 B–1 IC4001 B–6 IC4002 A–5 IC4003 C–6 IC4004 A–6 IC4008 A–2 IC4009 A–2 IC4011 E–2 IC4401 E–1

Q1101 D–5 !• Q1102 E–6 2 Q1103 D–5 2 Q1105 E–5 2 Q1108 C–1 2 Q1301 D-2 1 Q1302 D-4 2 Q1303 D-3 2 Q1304 D-2 2 Q1408 D–3 2 Q1409 D–3 2 Q1410 D–3 2 Q1601 D–2 1 Q1602 D–2 1 Q1603 C–6 2 Q1604 C–6 2 Q1605 C–6 2 Q1606 C–6 2 Q1607 C–6 2 Q1608 C–6 2 Q2001 C–2 2 Q2002 C–3 2 Q2003 B–5 1 Q2004 C–5 1 Q2005 B–2 2 Q2007 B–4 1 Q2008 B–4 1 Q2009 B–4 1 Q2010 B–3 2 Q2011 A–4 1 Q2012 A–4 1 Q2013 A–3 1 Q2014 B–4 1 Q2015 A–4 1 Q2016 B–4 1 Q2017 B–4 1 Q2018 B–5 1 Q2019 B–5 1 Q2020 B–5 1 Q2021 B–5 1 Q2024 B–4 1 Q2027 B–4 1 Q2028 B–5 1

:Refer to Terminal name of semiconductors in silk

*

screen printed circuit (see page 64)

IC

Component

Conductor

()

Side

TRANSISTOR

Component

Conductor

()

Side

Q2029 B–5 1 Q2030 B–3 1 Q2031 A–3 1 Q2035 B–5 1 Q2036 B–5 1 Q2037 B–5 1 Q2050 B–4 1 Q2051 B–4 1 Q2052 B–4 1 Q2061 A–5 1 Q2062 A–5 1 Q2301 C–1 2 Q2302 B-5 1 Q4001 C–3 1 Q4002 C–3 1 Q4003 C–3 1 Q4004 E–2 2 Q4005 E–5 1 Q4006 E–2 2 Q4007 E–5 1 Q4008 A–1 1 Q4009 A–1 1 Q4010 A–1 1 Q4018 B–1 1 Q4019 B–1 1 Q4020 E–2 2 Q4021 E–4 1 Q4025 B–6 !• Q4026 E–3 2 Q4027 E–4 1 Q4028 E–4 1 Q4034 B–6 2 Q4035 B–1 1 Q4041 C–3 2 Q4043 C–3 2 Q4044 A–2 2 Q4045 A–2 2

*

Q4401 E-5 1 Q4402 E-5 1 Q4403 E-5 1 Q4404 E-5 2 Q4405 E-5

DIODE

Conductor

()

D1011 E–3 3 D1025 E–3 3 D1031 D–6 3 D1032 D–6 3 D1102 E–5 3 D1103 E–5 3 D1104 E–2 3 D1105 E–2 3 D1301 D-2 3 D1401 D–5 3 D1402 D–5 3 D1405 D–3 3 D1406 D–3 3 D1407 D–2 3 D1408 D–3 3 D1601 C–2 8 D1605 C–6 3 D1606 C–2 3 D2001 B–3 3 D2002 A–4 3 D2004 B–3 3 D2005 A–3 3 D2006 B–4 3 D2008 B–3 3 D2009 B–3 3 D2010 B–3 3 D2011 B–3 3 D2012 B–4 3 D4001 C–1 3 D4002 B–6 3 D4005 B–2 3 D4006 B–2 3 D4007 B–2 3

Side

D4008 B–2 3 D4009 B–2 3 D4010 B–2 3 D4011 B–2 3 D4012 B–2 3

X1101 D–2 D–5 X1601 D–2 D–5 X2001 A–4 A–3 X2002 B–4 B–3 X2003 B–4 B–3

Component

()

*

Side

CRYSTAL

Component

Conductor

()

Side

KL-W7000A/W9000A

— A BOARD (Component Side) —

1

A

B

C

D

E

RM-Y980

KL-W7000A/W9000A

RM-Y980

2

3

4

56

– 69 –

– 70 –

– 71 – – 72 –

(2) Schematic Diagram of A (1/3) Board

M

A

B

C

D

E

F

G

H

K

L

N

O

123456

7

8 9 10 11 12 13

14

15 16 17 18 19 20 21 22

• A(1/3) BOARD IC1602 S-80743AL-A7

IN

TO U BOARD

.BLK042E

1 2

D1401

0

D1402

RD10SB

C1416

4.7

C1417

C1418

0.0047 B:CHIP

R1410

0 :CHIP

R1411

330

:CHIP

R1412

330 :CHIP

C1419

100

:CHIP

C1108

470 10V

.BLK045E

1

C1103

R1301

1k

:CHIP

Q1302

DTC114EKA

SUB+5V

3

GND

POWER LED

RD10SB

SCL

SDA

10

AUDIO PROCESSOR

.BLK042D

LOUT

ROUT

10

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

+9V

L1101

47µH

C1110

0.01

B:CHIP

81 82 83

I SIRCS N

84

O D-SUB1 SW

85

I VD

86

I BINT N

87

I MPWR N 88 89

I RXD 90

O TXD 91

I VP MAIN 92

ADVCC 93

I KEY0 94

I KEY1 95 96 97 98 99

100

R1304

1k

:CHIP

INV

IC1401

TA8776N

MUTE

+9V

R1200R1201R1202

100

:CHIP

C1113

0.01

B:CHIP

VCC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

R1413 :CHIP

R1414

0 :CHIP

AUDIO(L)

CN1402

8P

RED

:S-MICRO

L OUT

8

GND

7

R OUT

6

GND

5

L+R OUT

4

+9V

3

SP MUTE

2

HP ON

CN8505

+10V

+9V

+5V-A

SUB+5V

CN1003

4P

BLK

GND

SUB+5V

RXD TXD

+17V

CN1005

10P RED

NC

+17V +10V +10V +10V

GND GND GND GND

CN 604

2VP

CN1007

3P

YEL

:S-MICRO

GND

XGA ON

GND

1

1 2 3 4

1 2 3 4 5 6 7 8 9

10

1 2 3

Q1410 2SB709A MUTE-SW

D1011 MA111

PROT

C1001

47

25V

R1005

100

:CHIP

R1448

220

R1447

:CHIP

22k

:CHIP

Q1409

2SD601A

AMP

1

123

IC1007

µPC2409AHF

9VREG

R1006

100

:CHIP

RD5.6SB-T1

TO K BOARD

(3/3)

(2/3) (3/3) (3/3)

.BLK0481

:S-MICRO

(3/3)

:S-MICRO

I

POWER CTL

TO G BOARD

(3/3)

J

DVD ON

(2/3,3/3)

NTSC SW (3/3)

R1446

10k

:CHIP

C1443 220p

CH:CHIP

3

D1104

PROT

D1405 MA111

OR

D1408 MA111

R1444

4.7k

:CHIP

R1445

47k

:CHIP

+10V

2

C1004

47

16V

D1105

RD5.6SB-T1

PROT

OR

C1007

0.1 25V

F:CHIP

C1442

220 16V

R1443

:CHIP

D1406 MA111

100

+9V

Q1408 2SB709A MUTE-SW

R1105

220 :CHIP

CN1016

1

GND

CN1006

11P

BUS CN

1

GND

2

B-INT2

3

B-DAT2

4

B-CLK2

5

2HV

6

NC

7

NC

8

GND B-INT B-DAT B-CLK

TO G BOARD

CN6007

9 10 11

2HV

(3/3)

R1002 R1003 R1004

100 :CHIP 100 :CHIP 100 :CHIP

1 2

:S-MICRO

TO HA BOARD

CN1012

9P

WHT

CN8003

AUDIO(R)

D1407 MA111

R1442

100

:CHIP

100

:CHIP

C1104

100p CH:CHIP

R1104

1k :CHIP

RB1103

220x2 :CHIP

43 21

R1101

4.7k

:CHIP

R1102

4.7k

:CHIP

123456789

GND

KEY 0

KEY 1

SIRCS IN

C1107

100p

CH:CHIP

R1106

220 :CHIP

C1102

100p CH:CHIP

Q1301

DTC114EKA

INV

1

2

BS LED

SUB+5V

STBY LED

C1435

0.033 :PT

123456789101112131415

C1436

0.1 :PT

C1437

0.033 :PT

C1438

0.033 :PT

C1434

0.001 B:CHIP

C1409

C1440

0.1 25V

F:CHIP

RB1105

100x2 :CHIP

I HD

AVSS

2.2

C1410

2.2

R1405

390k :CHIP

C1411

1

C1412

1

C1413

10

C1414

10

C1415

10

C1439

47

25V

1

2

1

IO IICLK 1

IO IIDAT 1

IO IICLK 2

IO IIDAT 2

TEST

O SUBOSC

I SUBOSC

VSS

R1439

330 :RS

RB1106

LIN

RIN

2

R1111

1M :CHIP

X1101

9.8304MHz

C1114 C1117

27p CH:CHIP 27p CH:CHIP

R1112

10k :CHIP

IC1102

PST9143NL

RESET

.BLK0585

1 2 3

C1401

47 16V

C1404

1000 16V

1W

+17V

RB1107

100x2 :CHIP

220x2 :CHIP

C1121

100p

CH:CHIP

VSS

HD6473947

-IT2-OTP

SYSTEM CONTROL

I OSC

O OSC

I RESET N

I NMI N

.BLK0462

R1303 :CHIP

R1113

10k

:CHIP

45

VCC

RESETGND

R1402

0 :CHIP

R1403

0 :CHIP

L1401

22µH

0.1 25V F:CHIP

L1402

22µH

R1115

1k

:CHIP

O MUTE

POW CTL

IC1101

(O XGA ON)

R1302

100

:CHIP

C1302

100p

CH:CHIP

C1301

100p CH:CHIP

C1120

0.47 16V

B:CHIP

+10V

AUDIO(L)

AUDIO(R)

C1402

C1403

I H-POL

O SPMUTE

O NTSC SW

O DVD ON

D1025 MA111

C1013

47

25V

PQ09RF11

RB1101

220x2 :CHIP

SUB+5V

I V-POL

I CK

I H SYNC

3

R1122

100

:CHIP

PROT

4

1 2

3

IC1008

9VREG

R1011

220

:CHIP

R1154

100

:CHIP

O 3DB DWN

C1014

47

25V

C1015

0.1 25V

F:CHIP

123

GND

:S-MICRO

FAN +9V

TO FAN 2

FAN PROT2

(LAMP)

5

515253545556575859606162636465666768697071727374757677787980

O NO VIDEO

O FAN CTRL

I LAMP COV I FILTER COV I FAN PROT2

I TMP PROT

FAN PROT1

I LAMP PROT

O STBY LED

O BS LED

O LAMP CTRL

O POWER LED

O WP

I OSD BUSY

O OSD RST

VSS

R1012

1k

:CHIP

1

4

C1016

0.1 25V

F:CHIP

3P

WHT

:S-MICRO

VCC

+9V

9P

BLK

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

TO FAN1

R1314

100

:CHIP

R1168

4.7k

:CHIP

1

1 2 3 4 5 6 7

R1119

220 :CHIP

C1128

100p CH:CHIP

C1129

100p CH:CHIP

C1130

0.1 25V B:CHIP C1131

100p CH:CHIP

C1132

0.1 25V B:CHIP C1133

100p CH:CHIP

C1134

100p CH:CHIP

C1135

100p CH:CHIP

C1136

100p CH:CHIP

C1137

100p CH:CHIP

R1120

220

:CHIP

6

C1017

0.1 25V

F:CHIP

220 :CHIP

R1014

R1013

R1015

123456789

FAN +9V

FAN PROT1

GND

LAMP COV

GND

FILTER COV

GND

POWER ON

0.01

:CHIP

IC1106

TC74HC4066AF

BUS SW

2

891011121314

VCCIC4C

4I/0

40/I

30/I

3I/0

1I/0

10/I

20/I

2I/02C3C

GND

RB1113

220x2 :CHIP

RB1111

220x2 :CHIP

43 21

RB1114

220x2 :CHIP

R1016

220

:CHIP

CN1011CN1009CN1008

3P

RED

:S-MICRO

GND

TO HB BOARD CN8031 TO TB BOARD CN9551 TO TA BOARD CN9501

C1126C1127

10V

RB1110

220x2 :CHIP

RB1112

220x2 :CHIP

7

GND

FLAG

SUB +5V

CN602

20

47

R1167

4.7k

:CHIP

1 2

3

8

5

3

R1018

220

:CHIP

R1017

220

:CHIP

123

SCI

(3/3)

TEMP

TO LAMP DRIVER (CB-2)

NC

19

2

C1018

F:CHIP

SCL

V SYNC

H SYNC

GND

15

16

17

18

+5V

1

2 3 4 5 6 7

8

0.1 25V

SDA

MUTE

GND

12

13

14

2

1

3

C1019

0.1 25V

F:CHIP

GND

D SUB1 SW

10

11

R1130

220

:CHIP

C1140

220p

CH:CHIP

C1020

0.1 25V

F:CHIP

GND

C1141

0.047

B:CHIP

GND

R1132

100k

:CHIP

R1133

1M

:CHIP

C1021

0.1 25V

F:CHIP

GND

D SUB B

D SUB G

B(PC)

G(PC)

R(PC)

R1307

1k

:CHIP

C1303

100 16V

R1309 R1310 :CHIP

2SB709A

10k

:CHIP

C1022

0.1 25V

F:CHIP

D1031

RD5.6SB-T1

PROT

D SUB R

123456789

Q1303 2SB709A SOG DET

C1304

820

100k

:CHIP

1

2

R1108 :CHIP

Q1102

AMP

R1140

C1142

1

:CHIP

10k

:CHIP

D1032

RD5.6SB-T1

PROT

+9V

1k

:CHIP

Q1304

2SB709A

BUFF

47

16V

SUB+5V

R1128

4.7k :CHIP

R1129

4.7k :CHIP

R1134 R1138

47

:CHIP47:CHIP

10k

Q1105

2SB709A

BUFF

4.7k

C1145R1139R1135 220p

CH:CHIP

D1301 MA111

R1312R1308

33k

:CHIP

C1305

47

16V

R1313

68k

:CHIP

VSS

IC1103

24LC16BT

NVM

(-TR)

SDA

SCL

5 6 7 8

TP1101

TP1102

Q1103

2SB709A

BUFF

R1141

4.7k

:CHIP

D1102 MA111

PROT

D1103 MA111

PROT

NP

R1311

1k

:CHIP

1234

VDD

C1144

0.01

B:CHIP

C1146

1

TP1103

R1156

1k

:CHIP

L1102

47µH

R1107 :CHIP

330

R1157

0

:CHIP

1 2

+5V

FB1601

BLM41A01

L1601

22µH

FB1602

BLM41A01

Q1601

2SB709A

BUFF

Q1108

2SB709A

C1601

47

10V

BUFF

C1602

0.01

B:CHIP

R1603

10k

:CHIP

V POL

H POL

GND

20

18

19

AUDIO(L)

R1606 :CHIP

C1604

22p

CH:CHIP

R1604

10k

:CHIP

R1607

1k

:CHIP

Q1602

2SB709A

BUFF

R1605

1k

:CHIP

GND

CLP IN

16

17

C1603

47

10V

Q1603

2SB709A

BUFF

220

GND

L IN

14

15

R

R1610

270

:CHIP

R1611

270

:CHIP

R1608

2.2k

:CHIP

R1609

2.2k :CHIP

52 53 54 55 56 57 58 59 60 61 62 63 64

C1605

47p

CH:CHIP

GND

10

GND

+9V

GND

C OUT

Y OUT

R IN

GND

11

12

13

.BLK042F

R1155

100

:CHIP

VIDEO

AUDIO(R)

G

R1613

270

:CHIP

R1615

R1614

270

:CHIP

D1601

MA152WK

OR

1

RB1602

100x2 :CHIP

22p

C1608

C1609

CH:CHIP

IO SDAT

1k

:CHIP

2SB709A

O OSDBLNK

O HALFBLNK

R1612

1k

:CHIP

Q1604

2SB709A

BUFF

2

RB1601

100x2 :CHIP

22p

C1610

CH:CHIP

IO SCLK N

GND SET5V SET5V GND

4

I HP I VP

5

O HALF BLNK2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

(SYSTEM CONTROL)

CN1002CN1001

20P20P

TO U BOARD

GND

C IN

Y IN

CN601

123456789

B

R1618

270

1k

:CHIP

R1616 :CHIP

Q1605

BUFF

R1617

270

:CHIP

G

I

B

R

D1606 MA111

5

C1614

100p

CH:CHIP

RB1603

L1602

100x2 :CHIP

3.3µH

C1616

100p

RB1604

CH:CHIP

100x2 :CHIP

C1613

C1611

C1612

22p CH:CHIP

O I

O B

O G

O R

I CS

I DOSC

O DOSC

IC1601

CXP85324A-260Q

OSD

(1/3)

A

R1619

390

:CHIP

R1620

390

:CHIP

R1621

390

:CHIP

OR

R1622

680

:CHIP

Q1606

2SD601A

AMP

R1623

680

:CHIP

Q1607

2SD601A

AMP

R1624

680

:CHIP

Q1608

2SD601A

AMP

R1625

1k

:CHIP

+5V

33343536373839404142434445464748495051

O BUSY

I RESET N

I OSC

6

O OSC

GND

Y

C

R(PC)

G(PC)

B(PC)

I

C1617

100p

CH:CHIP

R1626

10k

:CHIP

C1618

100p

CH:CHIP

R1627

10k

:CHIP

C1619

100p

CH:CHIP

R1628

10k

:CHIP

D1605 MA111

3

32 31 30 29 28 27 26 25 24 23 22 21 20

B-SS617.<U/C>-A..-P1

PROT

R1630

0

:CHIP

R1629 :CHIP

10k

X1601

8.00MHz

R1646

1k

:CHIP

IC1602

S-80743AL-

A7

RESET

1 2 3

C1621

0.01

B:CHIP

C1620

0.01

B:CHIP

YCV C COMB Y COMB C

CLP≠≠≠≠≠ RGB HD RGB VD

SDA

(2/3)

SCL

(2/3)

R

(3/3)

G

(3/3)

B

(3/3)

OSD B OSD G OSD R

YM

(3/3)

YS

(3/3)

2HP 2VP

(3/3)

(2/3) (2/3) (2/3) (2/3)

(3/3) (3/3) (3/3)

G

H

K

M

N

O

A

2

B

–

1

+

C

D

3

E

F

• A (1/3) BOARD WAVEFORMS

1

4.7 Vp-p (V)

4

4.4 Vp-p (1/2 H)

2

3.9 Vp-p (9.83 MHz)

5

3

4.4 Vp-p (H)

6

4.5 Vp-p (V) 5.2 Vp-p (8 MHz)

I

J

• A (1/3) BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

IC1008 4 5.0 IC1101 10 2.3

11 2.4 12 5.0 13 19 4.9

*

20 0 32 0 33 0 35 0.2

L

36 4.7 37 0.2

IC1102 4 5.0 IC1103 5 4.8

38 5.0 39 0.2 40 0.1

IC1401 1 4.4

41 0.1 42 0 43 0 44 0 46 50 53 0 55 0 61 0 62 0 64 0 65 0 67 4.6 72 4.8 73 4.8 74 5.1 75 5.1 77 4.6 83 5.0 84 4.7

85 4.7 86 5.0 87 0 89 2.5 90 4.9 91 0 93 5.0 94 5.0

6 4.8 7 0.2

2 4.4 3 4.4 4 4.4 5 4.4 6 4.4 7 4.4 8 1.8

9 4.4 10 4.3 11 4.4 13 2.9 14 2.6 15 12.2 18 4.4 19 5.0 20 4.9 22 5.1 25 1.4 26 6.0 27 2.1

IC1601 1 0

IC1602 1 5.2

Q1102 B 5.2

Q1105 B 0

Q1301 B 4.8

Q1302 B 0

28 5.0 29 5.0

28 2.6 29 2.2 30 5.2 32 0 37 5.1 39 2.7 40 2.7 41 0 42 0 43 0 44 0 45 0 46 0 48 5.2 50 5.2 59 0.9 60 0.8

2 5.2

C 0.9

E 0.7

C0

Ref. Pin No. Voltage [V]

Q1408 B 9.2

C –0.5

Q1409 B 0

C 9.0

Q1410 B 9.0

C –1.1

Q1601 B 0

E 0.8

Q1602 B 0.2

E 0.9

Q1603 B 0

E 0.7

Q1604 B 0

E 0.7

Q1605 B 0

E 0.7

Q1606 B 0

Q1607 B 0

C 0.7

Q1608 B 0

C 0.7

– 73 –

– 74 –

– 75 –

– 76 –

(3) Schematic Diagram of A (2/3) Board

123456

7

8 9 10 11 12 13

14

• A(2/3) BOARD IC2001 µPC659AGS

7 8 1 10 5

15 16 17 18 19 20 21 22

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Schematic diagram

Ò A (1/3) board

Q2301

2SD601A

270

:CHIP

DVD ON

(1/3)

BUFF

R2302

220

:CHIP

C2301

10

R2301

4.7k

:CHIP

C2305

47p

CH:CHIP

R2307R2303

1.8k

:CHIP

C2302

10

1234

IN 1 GND SW IN 2 NC

IC2301

NJM2233BM

VIDEO SW

OUT VCC

NC

R2006

47

:CHIP

R2175 :CHIP

D2006 MA111

SPEED UP

R2174

:RN-CP

C2126

47 16V

5 6 7 8

C2303

0.01

B:CHIP

C2078

100k

68k

C2304

47

16V

(1/3)

YCV

Y

R2001

22k

:CHIP

C2006

22

25V

R2013

12k

:CHIP

R2081

0.1 25V B:CHIP

+5V

R2173

:RN-CP

CH:CHIP

C2127

0.1 25V

F:CHIP

(3/3)

Q2003

2SD601A

BUFF

1

+5V

L2006

1.2µH

L2007

1.2µH

1 2 3 4 5 6 7 8 9 10 11 12 13 14

A0 A1 A2 A3

A4 A5 A6

0 :CHIP

A7

C2125

B:CHIP

R2176

33k

:RN-CP

D2008 MA111

PROT

AMP

Q2051

2SB709A

R2178

4.7k

:CHIP

12k

C2120 1000p

IO

G

IC2101

µPC78L05T

5VREG

+9V

NTSC VD

NTSC HD

R2002

10

:CHIP

R2010

560

:RN-CP

CH:CHIP

R2017

470

:RN-CP

C2012

10

L2002

1.2µH

C2116

0.01

B:CHIP

IC2008

µPD42280GU

MEMORY

DI1 DI2 DI3 WE GND TEST WRST WCK VDD DI4 DI5 DI6 DI7

R2183

270k

:RN-CP

0.01

R2184

10k

:RN-CP

D2009

MA111 PROT

R2181

82k

:RN-CP R2179

10k

:CHIP

Q2052

2SB709A BUFF

:RN-CP

Q2050

2SD601A

BUFF

R2177

10k

:RN-CP

C2096

47

10V

+5V

C2104

0.0022 B:CHIP

C2001

0.01

B:CHIP

C2007

R2014

300

:RN-CP

1 2 3

C2009

C2057

B:CHIP

R2180

150k

C2097

F:CHIP

FL2001

TYV-288

15p

L2001

8.2µH

C2013

0.01

B:CHIP

C2036

0.01

B:CHIP

C2037

0.01

B:CHIP

C2040

0.01

B:CHIP

C2043

0.01

B:CHIP

0.01

B:CHIP

0.1 25V

C2058C2062

B:CHIP

B0

DO0DI0

B1

DO1

B2

DO2

B3

DO3

RE

GND

OE

RRST

RCK VDD

B4

DO4

B5

DO5

B6

DO6

1516171819202122232425262728

B7

DO7

D2011

C2131

MA111

0.001

PROT

CH:CHIP

C2123

0.1 16V

:PPS-CP

IC2012

TC74VHC04F

1 2 3 4 5 6 7

D2010 MA111

PROT

C2121

0.1 16V

:PPS-CP

R2103 :CHIP

C2085

C2086

0.01 1

R2099

2.2k

:CHIP

NC

VCC

AFC

IC2011

LA7217M SYNC SEP

NCYF.BVDGND

1 2 3 4 5 6 7

C2107

1

C2108

0.056 25V

B:CHIP

R2192

R2194

1k

:CHIP

Q2062

2SD601A

AMP

R2003

C2002

1k

47

:CHIP

16V

10

Q2005 Q2004

2SB709A

BUFF

R2016

5.6k

:RN-CP

R2019

R2018

46

10

100k

:CHIP

Q2007

2SD601A

BUFF

C2034

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

SCO

0.01

B:CHIP

CVCC1 TINT

VSS1

2

CIN ACCF CKO CKF

SGND

COUT

HSOF1

APCF

HSOF2

3

CGND

HSOF3

SCOF1

ASCF

SCOF2

SVCC SCOF3 CVCC2

NHS0

4

CVCC3 CVOO DIVS

5

ESC1

C2079

0.01

B:CHIP

R2163

330k

:RN-CP

891011121314

C2122

0.001

B:CHIP

R2182

10k

:CHIP

IC2003 µPC1862GS B-CLK-GEN

R2082

0

:CHIP

C2087

820p

B:CHIP

D0

D1 D2 D3

0.01

560

X2003

CSB500F9

9

891011121314

HD

DET

VCO0

VCO1

EXC

SYNC

C2106

0.022

B:CHIP

R2135

150k

:CHIP

470

R2196

15k

:CHIP

R2193 :CHIP

B:CHIP

1k

Q2061

2SD601A

AMP

C2190

0.01

R2198 :CHIP

10k

R2191

470

:CHIP

Q2001

2SD601A

R2027 :CHIP

R2031

1k

:CHIP

SS1 CS0

HDF H00 HK0

HS0

CP0 F10 VSO

192021222324252627282930313233343536

N/P

D2012 MA111

PROT

MSM514222B

1 2 3 4 5 6 7 8 9 10 11 12 13 14

NC NC WE RSTW SWCK Din NC

NC Din Din

Din

NC

NC NC

VSS

R2197

10k

:CHIP

R2195

15k

:CHIP

R2004

15k

:CHIP

Y

R2015

3.3k

:CHIP

R2144

0

:CHIP

2SB709A

1k

R2039

2.7k

:CHIP

R2042

C2046

R2141

100

:CHIP

C2051

47

10V

IC2009 MEMORY

0

Dout

1

Dout

2

Dout

3

Dout

R2011

100

:CHIP

Q2008

BUFF

R2029

47k

:CHIP

C2028

0.001

B:CHIP

C2038

220p

CH:CHIP

R2040

2.2k

:CHIP

270 :CHIP

4.7

C2052

0.01

B:CHIP

VCC

NC NC

RE RSTR SRCK

NC NC

0 1 2 3

1516171819202122232425262728

NC

C2069

+5V

Schematic diagram

A (2/3) board l

R2005

1.8k

:CHIP

C2022

1

R2032

220

:CHIP

C2112

0.001

B:CHIP

C2039

0.0015

CH:CHIP

X2002

503KHz

R2044

8.2k :CHIP

R2045

1.5k

:CHIP

Q2009

2SD601A

AFC SW

R2061

0

:CHIP

0.1 25V

C2080

B:CHIP

2SB709A

R2030

47k

:CHIP

C2035

0.01

B:CHIP

R2037

100k

:CHIP

C2045

0.01

B:CHIP

R2083

0

:CHIP

0.1 25V

BUFF

C2023

R2033

220

:CHIP

B5 B4 B3 B2 B1 B0

R2069

R2072

R2077

E0 E1 E2 E3

+5V-A

R2021

390

:CHIP

1

2SD601A

82 :CHIP

D3 D2 D1 D0

E3 E2 E1 E0

0 :CHIP

C2076

B:CHIP

(3/3)

Q2002

2SD601A

BUFF

R2022

390

:CHIP

R2024

22k

:RN-CP

R2046

10k

:CHIP

Q2010

AFC SW

0.1 25V

L2009

18µH

L2010

8.2µH

C2093

0.01

C2101

47

16V

+9V

+5V

C2010

10

IC2001

1 2 3 4 5 6 7

VRT NC AVCC VIN AGND PCL VCL

8

AVCC AGND

109 11 12

VRB AVCC AGND

C2130

0.1 25V

F:CHIP

A7

98765

11

10

TES1(RST)

DC0

DC1

µPC659AGS

A/D-CONV

6

IC2102

µPC78L05T

SV REG

Y0Y1Y2Y3Y4Y5Y6

0

IC2006

µPD6487GF

3D-COMB FILTER

DC DY

DC2

DC3

DC4

CLK

OVER

DB1 DB2

DB3 DGND DVCC

DB4

DB5

DB6

DB7

DB8

G

0H

DC5

DC6

131415161718192021222324

IO

DC7

R2026 :CHIP

C2129

0.1 25V

F:CHIP

DC8

82

C2128

47

16V

Y7

7654321

DY0

CLPO/C

DY1

C2021

0.1 25V B:CHIP

L2004

1.2µH

0

ADCK

DY2

DY3

DY4

DY5

C2015

C2014

100 10V

R2047

10k

:CHIP

31

DVDD

32

9

33

8

34

7

35

6

36

5

37

4

38

MRSB

39

MRS

40

MWCK

41

MRCK

42

3

43

2

44

1

45

0

46

3

47

2

48

1

49

0

50

DVDD

R2035

3.9k

:RN-CP

0.1

R2025

25V

10k

B:CHIP

:RN-CP

C2017

0.1 25V

B:CHIP

Y

B6

DGND

FMI10

OUT

IN

MD0

DGND 515253545556575859606162636465666768697071727374757677787980

D2001 MA111

PROT

C2024

0.1 25V

B:CHIP

C2031

0.1

C2026

25V

0.1

B:CHIP

25V

B:CHIP

C2033

0.1 25V

B:CHIP

C2042

47

10V

A0A1A2A3A4A5A6

B7

4

FMI11

MD1

MD2

MD3

SCL

SDA

+5V

C2084

C2083

0.01

47

10V

L2011

C2102

0.01

B:CHIP

18µH

B:CHIP

C2103

0.01

B:CHIP

C2117

0.01

B:CHIP

FL2015

TU01M

EMI

C2090

47

10V

C2091

0.01

B:CHIP

+9V

(1/3)

C2025

47

10V

DY6

Y7 Y6 Y5

Y4 Y3 Y2 Y1 Y0

DY7

876543210876543210TES2

DY8

CLAMP

4

A

(1/3)

COMB CCCOMB Y

C

+5V

B

5V

Q2030

R2157

R2158

2SD601A

330

3.3VREG

:CHIP

C2019

47

Y

10V

C2020

0.01 B:CHIP

C2118

10

R2159

100k :CHIP

D2004

DTZ3.9B

3.3VREG

C2029

47 10V

C2030

0.01 B:CHIP

+5V

Y

Y7 Y6 Y5 Y4 Y3 Y2

C2060

0.01

B:CHIP

+5V

+9V

C2049

47 10V

C2050

B:CHIP

R2160

330

:CHIP

0.01

R2161

Q2031

330

2SD601A

:CHIP

3.3VREG

R2162 100k :CHIP

C2119

10

D2005

DTZ3.9B

3.3VREG

C2059

47

10V

B:CHIP

DC7 DC8

DY0 DY1 DY2 DY3 DY4 DY5

DY6 DY7 DY8

3.3V-2

C2003

0.1 25V

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100

DC6

EXC7

EXC8 EXC9 EXY0 EXY1 EXY2 EXY3 EXY4 EXY5 EXY6 VSS3 EXY7 EXY8 EXY9 EDTV VIN8 VIN7 VIN6 VIN5 VIN4 VIN3

VIN2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Y1

+5V

R2048

1k

R2053

:CHIP

VTR

7654321

7

8

CTL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

DGND

BVCO DVDD

KIL

CLPI

VDI

AGND

IOY AVDD COMP VREF IREF AVDD

IOC AGND

HSS

REF DGND

HPD DVDD HVCO

DGND

C2099

B:CHIP

100 99 98 97 96

180 :CHIP

95 94 93 92 91 90

1.5k :CHIP

89 88 87 86 85 84 83 82 81

FL2019

TX14271NB

EMI EMI

FL2021

TX14271NB

0.1 25V

R2212

R2215

R2216

180

:CHIP

C2075

100p

CH:CHIP

C2077

0.1 25V

B:CHIP

TX14271NB

R2064

47k

:CHIP

R2214

39k

:CHIP

.BLK03F9

R2078

0

:CHIP

FL2020

TX14271NB

FL2022

B:CHIP

R2213

4.7k

:CHIP

C2072

0.1 25V

B:CHIP

5V-2

SCL

(1/3)

C2070

0.1 25V

C2071

B:CHIP

C2098

B:CHIP

L2008

1.2µH

C2073

47

10V

Y

SDA

(1/3)

0.1 25V

2SB709A

BUFF

Y

R-Y

(3/3)

5V

1k

:CHIP

B-Y

(3/3)

SDA SCL

2SB709A

BUFF

R-Y B-Y

R2201

270

:CHIP

R1203

1k

:CHIP

R2204R2205

1k

:CHIP

820

:CHIP

C

2SB709A

R2150

100

:CHIP

C2140

47p

CH:CHIP

R2304

820

:CHIP

R2305 R2306

1.2k

:CHIP

Q2302

2SB709A

BUFF

R2203

1k

:CHIP

Q2035Q2036Q2037

2SB709A

BUFF

R2202

1.2k

:CHIP

R1205R1204

1k

:CHIP

15k

:CHIP

R2056

220

:CHIP

R2151

1k

:CHIP

Q2028

BUFF

R2211

4.7k

:CHIP

R2200

270

:CHIP

18

560

:CHIP

Q2012

2SB709A

BUFF

R2152

560

:CHIP

C2115

CH:CHIP

1 6

FL2002

TCV-3227

811

1 2 3

FL2007

TYV-288

15p

R2090

+5V

560

:CHIP 200

Y

1 6

FL2004

TCV-3227

811

R-Y

B-Y

1 2 3

FL2005

TYV-287

1 2 3

FL2006

TYV-287

R2112 :CHIP

46

R2111

560

:CHIP

560

:CHIP

R2153

1.5k

:CHIP

46

0

R2130R2129 :CHIP

R2113

5.6k

:CHIP

0

R2131

5.6k

:CHIP

R2062

5.6k

:CHIP

R2155 :CHIP

R2154

3.9k

:CHIP

R2094

5.6k

:CHIP

2SB709A

1k

R2100

820

:CHIP

+3.3V

DC5

DC4

DC3

DC2

DC1

DC0

B:CHIP

EXC6

VDD3

EXC5

EXC4

EXC3

EXC2

EXC1

10 11

YSNCVG

VIN1

VIN0

AVSY

AVDY

Y0

C2053

0.1 25V

B:CHIP

3.3V

Q2011

R2049

2.7k

:CHIP

BUFF

19

R2054

2.7k

R2051

:CHIP

100

:CHIP

B:CHIP

C

C2110

0.01

B:CHIP

Q2029

2SB709A

BUFF

R2088

820

:CHIP

R2089

0

:CHIP

Y

Q2019

2SB709A

BUFF

26

Q2024

2SB709A

BUFF

27

R2125

820

:CHIP

2SB709A

B-Y

C2008

0.1 25V

EXC0

VRF

B:CHIP

C2067

0.1 25V

R2108 R2145

470

:RN-CP68:RN-CP

Q2027

BUFF

R2007

C2004

3.3k

AVSD

:CHIP

R2008

2.2k

:CHIP

VBC

IRFC

B:CHIP

R2012

VRFC

0.1 25V

3.3k

:CHIP

NC

VGC

RYONCBYO

AVDR

AVSR

AVSB

AVDB

NCFVFH

C2005

0.1 25V

B:CHIP

Y

NC

DYO

AVDD

17 16 15 14 13

IC2004

CXD2052Q

CROMA DEC

VBNCCSNCNCGRRB

IRF

AVDC

AVSC

C2044

0.1 25V

B:CHIP

R2043

3.6k :CHIP

C2054

0.1 25V

+5V

R2055

1.2k

:CHIP

C2055

B:CHIP

R2052

2.2k

:CHIP

C2068

0.1 25V

B:CHIP

0.1 25V

C2048

B:CHIP

R2050 :CHIP

R2057

1k

:CHIP

0.1 25V

2.2k

Q2013

2SB709A

AVS

ADIN

AVD

C

C2065

0.01

B:CHIP

FB2002

BK2125HM601

RT

TST0

SDA

VDD0

C2047

0.1 25V

B:CHIP

R2059 R2060

0

:CHIP0:CHIP

SDA

+5V

20

Q2014

2SB709A

BUFF

R2096 R2097

1k

:RN-CP

R2065

1k :CHIP

R2071 :CHIP

1 6

33k

:CHIP

Q2020

2SD601A

BUFF

560

FL2003

TCV-2219

C2081

0.01

B:CHIP

7

C2082

10

Q2015

2SB709A

BUFF

+9V

C2109

47

10V

B-Y

R-Y

Y

2SD601A

R2073

220

:CHIP

Q2021

AMP

25

R2109 R2101

220

:CHIP

10k

:CHIP

C2088

10

R2102

1k

:CHIP

R-Y

Y

B-Y

R2132 R2133

0

:CHIP0:CHIP

R-Y

Y

SCL

C2063

0.1 25V

B:CHIP

SCL

R2066

2.7k

:CHIP

R2074

5.6k

:CHIP

VSS

CLP

12

AVSM

515253545556575859606162636465666768697071727374757677787980

TST3

TST2 TST1

NC VSS VDD

NC VDD

FSC8

FSC

FSC4 FS4I VSS1 AVDO

XO

XI

AVSO AVDM VRTM

ADJ CON

VRBM

+3.3V

5V

C2064

21

R2068

100

:CHIP

22

Q2016

2SB709A

BUFF

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

47

10V

R2076 :CHIP

Q2017

2SB709A

C2066

0.01

B:CHIP

1k

BUFF

23

R-Y

C2011

0.1 25V

B:CHIP

C2018

0.1 25V

B:CHIP

+3.3V

R2034

100k

:RN-CP

C2032 X2001

680p

CH:CHIP

R2038

56k

:RN-CP

FB2037

BK2125HM601

CLOCK BUFF

1 2 3 4 5 6 7

R2080

1k

:CHIP

B-Y

Q2018

2SB709A

BUFF

(2/3)

A

B-Y

R2036

1k :RN-CP

L2003

0.82µH

28.6MHz

:CHIP

D2002

HVU359

C2041

330p

CH:CHIP

+5V

IC2007

MC74F08M

R2087

1k

:CHIP

24

R-Y

C2027

CH:CHIP

891011121314

Y

10p

R2079

:RN-CP

R2084

:RN-CP

200

R2091

:RN-CP

B-Y

R-Y

C

• A (2/3) BOARD WAVEFORMS

1

D

8

!∞

Y

E

@™

F

G

H

I

J

K

L

M

N

(VIDEO PROCESS)

B-SS617.<U/C>-A..-P2

O

5

TIMING

24

GENERATOR

2.3 Vp-p (H)

4.4 Vp-p (H)

1.2 Vp-p (H) 1.0 Vp-p (H) 1.7 Vp-p (H) 0.8 Vp-p (H) 0.8 Vp-p (H) 0.8 Vp-p (H) 0.7 Vp-p (H)

1.2 Vp-p (H) 1.0 Vp-p (H) 1.7 Vp-p (H) 1.5 Vp-p (H) 0.8 Vp-p (H) 0.8 Vp-p (H)

• A (2/3) BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC2001 1 3.5

IC2003 3 2.8

IC2004 1 2.1

4 2.9 6 0.4

7 2.8 10 2.5 13 2.0 14 2.1 15 2.3 16 2.5 17 3.0 20 2.3 21 1.8 22 1.6 24 2.3

4 3.4

50

7 3.7

9 2.8 18 3.9 20 4.5 22 0.4 23 4.3 26 3.5 27 3.0 28 4.1 29 4.1 33 4.4 34 3.2 36 3.2

2 2.0

5 0.5

8 1.7

9 1.2 10 1.2 11 0.6 14 0.6 19 1.9 21 2.7 25 5.4 27 5.4 31 2.5 36 1.9 37 2.1 40 2.0 41 1.7 56 5.4 57 1.2 61 1.1 64 3.0 65 2.2 66 2.2 67 0.6 69 0.9 73 2.7 74 2.6 75 2.5 76 2.5 77 2.6 78 3.6 79 2.6 80 2.6 81 2.5 82 2.9 84 2.7 85 2.7 86 2.6 87 3.0 88 2.4 89 3.0 91 2.7 92 2.3 93 1.8

S/H

SAMPLE-HOLD

FLASH A/D CONVERTER

5

ADDER

5

2

34

1.2 Vp-p (H) 0.7 Vp-p (503 kHz)

9

!º !¡

0.7 Vp-p (500 kHz) 0.9 Vp-p (H)

!§

@£

IC2006 10 2.3

IC2007 1 1.7

!¶ !•

@¢ @∞

Ref. Pin No. Voltage [V]

95 1.6 96 1.8 97 2.3 98 3.0 99 2.5

100 2.3

11 2.6 12 1.6 13 1.8 14 2.3 15 3.0 16 2.5 17 2.3 18 2.1 19 2.0 20 1.8 21 2.1 22 2.8 23 3.5 24 2.7 25 2.7 26 2.7 27 2.9 28 1.5 29 1.6 32 2.7 33 3.3 34 2.5 35 2.4 36 2.3 37 2.8 38 5.4 39 0 40 1.3 41 1.3 42 3.0 43 2.8 44 2.6 45 2.6 46 3.5 47 3.3 48 2.9 49 2.7 56 5.4 57 5.4 60 2.6 61 2.5 62 2.5 63 2.5 64 2.5 65 2.5 66 2.5 67 2.5 68 2.8 69 2.6 70 2.6 71 2.6 72 3.0 73 2.4 74 3.0 75 2.7 76 2.4 77 1.8 78 0 86 4.3 96 4.5 79 0.4 98 0 99 5.4

100 2.0

3 2.0

+ –

D/A

FLASH A/D CONVERTER

LATCH

4.4 Vp-p (H)

0.8 Vp-p (H)

Ref. Pin No. Voltage [V]

IC2008 1 2.9

11 3.5 12 2.8 13 2.1 14 1.8 15 1.5 16 1.6 17 2.7 18 3.3 20 1.3 21 5.4 25 2.5 26 2.4 27 2.3 28 2.8

IC2009 3 5.4

10 2.8 11 3.0 17 3.5 18 3.3 19 2.9 20 2.7 23 1.3 24 0

IC2011 2 2.6

10 4.3 11 3.0 12 2.4

IC2012 1 1.9

10 0.3 11 4.8 12 4.8 13 0.3

IC2301 1 5.4

Q2002 B 2.6

Q2003 B 3.3

Q2004 B 1.9

Q2005 B 1.2

Q2007 B 2.3

3

1314151617202122231918

2 2.7 3 2.7 4 2.7

Q2008 B 1.6

Q2009 B 0.8

8 5.4 9 1.3

Q2010 B 0

Q2011 B 1.1

Q2012 B 0.5

Q2013 B 1.2

Q2014 B 0.6

Q2015 B 1.2

40 5 1.3 6 2.6 9 2.6

Q2016 B 1.2

Q2017 B 1.2

Q2018 B 0.9

Q2019 B 1.4

Q2020 B 4.4

3 3.5 4 4.2 7 5.2

Q2021 B 2.2

9 4.4

Q2024 B 1.7

Q2027 B 1.7

2 4.0 3 4.0 4 4.1 5 4.2 6 0.2 8 4.8 9 0.3

Q2028 B 2.8

Q2029 B 2.3

Q2030 B 4.3

Q2031 B 4.3

20 3 5.5 40 50 7 4.7

E 1.9

E 2.6

E 1.9

Q2035 B 1.7

Q2036 B 1.2

Q2037 B 1.6

Q2050 B 3.2

Q2051 B 4.4

Q2052 B 5.0

E 1.6

5

6

7

4.4 Vp-p (V) 0.9 Vp-p (H) 4.4 Vp-p (V)

!™

0.8 Vp-p (28.6 MHz)

!ª

@§

Ref. Pin No. Voltage [V]

E 2.3

C0

C 0.8

E 1.8

E 1.2

E 1.9

E 1.3

E 1.9

E 1.8

E 1.6

E 2.2

E 3.7

C 4.4 E 1.5

E 2.4

E 3.5

E 3.0

C 5.4 E 3.6

E 2.3

E 1.9

E 2.3

C 4.4 E 2.7

C 5.0

E 1.9

!£

4.5 Vp-p (H) 4.5 Vp-p (V)

@º

@¶

Ref. Pin No. Voltage [V]

Q2061 B 0.7

Q2062 B 0.5

Q2301 B 2.3

Q2302 B 4.0

!¢

@¡

C 0.4

E 1.7

E 4.5

– 77 –

– 79 –– 78 –

– 80 –

(4) Schematic Diagram of A (3/3) Board

A

B

C

D

E

F

G

H

K

L

M

N

O

123456

7

8 9 10 11 12 13

14

15 16 17 18 19 20 21 22

A

C4230

HVU359

DPH

+5V

A

INH

+5V

10k

:CHIP

10k

R4304 :CHIP

10k

R4314 :CHIP

10k

R4324 :CHIP

HVU359

DPH

B

VEE

82

150

+5V

2SD601A

150

0.1 25V

B:CHIP

HVU359

DPH

910111213141516

C

VSS

Q4026

2SD601A

BUFF

10

R4342

470

:CHIP

Q4027

2SD601A

BUFF

C4212

10

R4352

470

:CHIP

Q4028

BUFF

C4222

10

R4362

470

:CHIP

D4011

HVU359

DPH

R4340

10k

:CHIP

Y

R4341C4202

10k

:CHIP

R4350

10k

:CHIP

R-Y

R4351

10k

:CHIP

R4360

10k

:CHIP

B-Y

R4361

10k

:CHIP

HVU359

JR4001

:CHIP

C4213

16V

Y

D4012

DPH

0

C4204R4308R4301

0.01

B:CHIP

47

16V

47

C4223

47

16V

R-Y

10

Y

R4325 :CHIP

B-Y

D GND

U(R-Y)

R4370 R4369

680k

:CHIP

C4205

100 16V

R4305C4203

0

:CHIP

R4315

0

:CHIP

C4225

100 16V

L4009

22µH

0

5V

D GND

V(B-Y)

3.3V

D GND

C4231

0.1 25V

B:CHIP4716V

L4001L4008

C4018

C4224

0.01

B:CHIP

Y

R-Y

B-Y

123456789

CN4002

D GND

10P

CN3002

100 16V

C4232

C4019

0.01

B:CHIP18µH22µH

+9V

100

:CHIP

L4002

10µH

+9V

R4089

100 :CHIP

R4090

C4056

0.01

C4055

B:CHIP

10

C4009

10

C4010

1

1k :CHIP

R4042

C4022

0.01 B:CHIP

C4028

0.01

B:CHIP

20 21 22 23 24 25

100 :CHIP

26 27 28 29

7

30 31 32

9

+5V

C4002

R4002

22p

10k

CH:CHIP

:RN-CP

RS2

IC4001

MC14528BF

C2/R2

MULTI VIBRATOR

RS1A1B1

19

20

21

22

VS

BGP

C BLK

FF TIM.

IC4003

CXA1839Q

RGB MRX

Y2 INNCI-REF

C-OFF

R4050

27k

:CHIP

SSCP

B S/H

AKB GND

H PULSE

IC4011

CXA2011Q

SIGNAL SW

PR IN 2

IN 2 GND

Y IN 1

PB IN 1

R-Y

A2

R4081

10k

:CHIP

R4018

2.2k

:CHIP

R4023

100

:CHIP

17

18 VEQ

V BLK

DA-TEST

R-OUT

2R2G2B

M4M5M6

B OUT

PB IN 2

HD Y IN 2

Y

C4045

0.33

B:CHIP

C4044

0.33

B:CHIP

GND

C1/R1

1 2 3 4 5 6 7 8

C4051

68p

CH:CHIP

R4013

10k

:RN-CP

23

24

CLP1

P-MUTE

A PED-C

252627282930313233343536

CLP-C VM-OUT SP-MUTE VM-MUTE YUV-SW 9V-1 GND-1

SUB

C4025

BY1-IN RY1-IN Y1-IN

23 45

NC

B-Y2

R-Y2

3738394041424344454647

1

NC

TEST OUT

P ABL FILTER ABL FILTER ABL IN B IN G IN R IN D GND SDA SCL ADDRESS Y-OUT

8

R-Y OUT B-Y OUT

IN 0 GND

SW GND

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

C4035

0.33 16V

B:CHIP

V BLK

SW1(CS/YG)

SW2(WY/SW1)

SW3(COLOFF)

SW0(P&P/PIP)

PR IN 1

IN 1 GND

Y IN 0

R-Y IN 0

B-Y IN 0

C4037

0.33 16V

B:CHIP

101112 13

C4036

0.33 16V

B:CHIP

B-Y

B2

Q1

Z1

15

16

SSCP

V-TIM

TEXT

OSD

G-OUT

B-OUT

6

R S/H

G OUT

G S/H

14 15

HD B IN

IN 3 GND

B(PC)

16V

B

(1/3)

910111213141516

Q2

Q1

Q4035

2SD601A

BUFF

D4002 MA111

R4019 :CHIP

Z2

R4024

100

:CHIP

13

14

SDA

SCL

YS2

YS1 LB1-IN LG1-IN

LR1-N GND-2

9V-2

YM2

YS2 LB2-IN LG2-IN LR2-IN

ABL

ABL MUTE 48

0.01 B:CHIP

IK IN

R OUT

VIDEO HS OUT VIDEO VS OUT

HD R IN

HD G IN

SW 9V

R(PC)

G(PC)

C4046

0.33 16V

B:CHIP

R

G

(1/3)

R4140

1k

:CHIP

R4142

1k

:CHIP

R4143

0

:CHIP

D4001 MA111

OR

270

1 2 3 4 5 6 7 8 9 10 11 12

C4048

0.01

B:CHIP

C4049

C4050

0.01

B:CHIP

12345678910111213141516171819

I REF

AKB 9V

SS GND

HS IN VS IN

VS FILTER

VS OUT

HS OUT EXT VS IN EXT HS IN EXT CS IN

HD SYNC IN

SYNC OUT

SS9V

C4096

0.01

B:CHIP

2Y

64 63 62 61 60 59 58 57 56 55 54 53 52

C4097

100 16V

OUT3

CTL3

IN 3A

IN 2A

GND3

IN 3B

9 10 11 12 13 14 15 16

B-Y(DVD)

C4406 C4405 C4410

10 10 10

B-Y

(2/3)

R-Y

(2/3)

DVD ON

(1/3)

100 :CHIP

2R-Y

2B-Y

+9V

L4006

22µH

OUT2

CTL2

R4063

C4015

0.01 B:CHIP

2Y

C4098

0.01

B:CHIP

IC4401 NJM2283M VIDEO SW

12345678

CTL1

OUT1

GND2

GND1

IN 2B

VCC

R4373

0

:CHIP

R4035

0

:CHIP

CN4004

7P

SCL SDA A GND HD A GND VD A GND

TO BB BOARD

CN3001

CN4007

3P

A GND

CLP

NT SW

TO BB BOARD

CN3004

I

OUT

Z1

7

Z2

6 5 4 3 2 1

3 2 1

(1/3) (1/3)

(1/3)

(2/3)

(1/3)

(2/3)

(1/3)

R4353

1k

:CHIP

C4039

0.001 :CH

CLP≠≠≠≠≠ NTSC SW

RGB HD

NTSC HD

RGB VD NTSC VD SUB+5V

C4100

0.1 25V

Q4044

2SB709A

BUFF

R4330

18k

:CHIP

R4331 :CHIP

Y

L4011

10µH

C4099

100 16V

18k

R-Y

L4004

10µH

R4333

10k

:CHIP

R4334 :CHIP

IC4008

TC7S08F

AND GATE

45

D4005 D4007 D4009

HVU359

DOT PHASE

1 2 3

DOT PHASE

C4032

C4031

0.1

47

25V

16V

B:CHIP

Y

X

Y0

Z1

R4302

1k

:CHIP

X1

IC4009

MC74HC4053F

SYNC SW

Z

R4354

1k

:CHIP

Q4045

2SB709A

BUFF

Y

VDD

Y1

1 2 3 4 5 6 7 8

Q4004

2SD601A

BUFF

C4201

10

R4303

0

:CHIP

+5V

Q4006

2SD601A

BUFF

10k

C4211

10

R4313

0

:CHIP

R4312

1k

:CHIP

R-Y

HVU359

DPH

D4006 D4008 D4010

HVU359

X0

Z0

470

:CHIP

Q4005

2SD601A

AMP

R4309

R4306

0

:CHIP

R4307

470

:CHIP

R4311

470

:CHIP

R4318 :CHIP

Q4007

2SD601A

AMP

R4319

R4316

0

:CHIP

R4317

470

:CHIP

J

R4321

470

:CHIP

R4328

R4332

18k

:CHIP

C4221

10

R4335

10k

:CHIP

(3/3)

A

Q4020

2SD601A

BUFF

R4323

0

:CHIP

R4322

1k

:CHIP

B-Y

Q4021

2SD601A

AMP

R4326

0

:CHIP

R4327

470

:CHIP

R4329 :CHIP

(VIDEO PROCESS)

N5 N4 N3 N2 N1

2V

IN 1B

IN 1A

C4408

10

C4409

10

YR-Y

Y

(2/3)

(1/3)

OSD R

N1N2N3N4N5

Q4034

2SB709A

BUFF

R4044 R4046 C4026 C4029 C4030

47

Y(DVD)

16V

C4407

10

(1/3)

YS

OSD G

OSD B

R4020

4.7k

:CHIP

100 :CHIP 100 :CHIP

0.01 B:CHIP

2U

C4402C4401

0.01

B:CHIP

R-Y(DVD)

(1/3)

YM

R4401 :CHIP

Z2 Z1

R4407 :CHIP

(1/3)

SCL

SDA

1k

Q4401

2SD601A

BUFF

27

R4409

100

:CHIP

Q4403

2SB709A

BUFF

R4091

470

:CHIP

Q4041

2SD601A

AMP

R4410

1k

:CHIP

Y(DVD)

CN4401

YEL

:S-MICRO

TO U BOARDTO BB BOARD

C4071

0.01

B:CHIP

R4092

15k

:CHIP

R4403R4402 R4404 R4405

22k

:CHIP

C4403

10

R4411

10k

:CHIP 470

8P

CN5

R4093

10k

:CHIP

C4014

0.47 16V

B:CHIP

C4016

C4011

10

0.1 25V F:CHIP C4021

M6

0.01 B:CHIP C4023

M5

0.01 B:CHIP C4027

M4

0.01 B:CHIP

R4047

100 :CHIP

470

1234567

GND

Q4402

2SD601A

BUFF

Q4404 Q4405

2SD601A

BUFF

47

270

:CHIP

:CHIP R4414

:CHIP 470

GND

DVD Y

R-Y(DVD)

GND

DVD ON

DVD B-Y

DVD R-Y

R4412

1k

:CHIP

8

GND

2Y/2R-Y/2B-Y

R4040

3.3M

:CHIP

20 21 22

2B

23

2G

24

2R

25 26 27 28

R4048

29

100

:CHIP

30 31 32

22k

470

:CHIP

C4404

10

R4413

10k

:CHIP

R4417 :CHIP

B-Y(DVD)

DVD ON

(1/3)

+5V

R4094

470

:CHIP

15k

R4003

:RN-CP

C4006

0.1 25V

F:CHIP

R4006

:RN-CP

100

:CHIP

16k :RN-CP

16k

10k

:CHIP

R4004

C4007

0.1 25V

F:CHIP

Q4043

2SD601A

AMP

R4051 R4052

100

:CHIP

2B

100 :CHIP

10k :CHIP

R4029

R4028

R4027

V BLK

SW1(CS/YG)

SW2(WY/SW1)

SW0(P&P/PIP)

PR IN 1

IN 1 GND

Y IN 0

R-Y IN 0

100 :CHIP

R4064

SSCP

AKB GND

H PULSE

IC4002

CXA2011Q

RGB-IF

IN 2 GND

Y IN 1

PB IN 1

+9V

(1/3)

R4032

B OUT

B S/H

16 17

PB IN 2

PR IN 2

10

SDA

SCL

GND

G S/H

HD Y IN 2

10k :CHIP

R4026

NC

TEST OUT

P ABL FILTER ABL FILTER ABL IN B IN G IN R IN D GND SDA SCL ADDRESS Y-OUT R-Y OUT B-Y OUT

2SD601A

R4418 R4419R4416R4415

220

:CHIP22:CHIP

SW3(COLOFF)

B-Y IN 0

IN 0 GND

SW GND

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

BUFF

R4005

16k

:RN-CP

R4007

10k

:RN-CP

0.1 25V F:CHIP

2R

2G

100 :CHIP

R4033

R4034

R S/H

G OUT

18

HD B IN

IN 3 GND

GND

+9V

R4096R4095

10k

:CHIP

:RN-CP

12k :RN-CP

R4011

:RN-CP

R4008

10k

:RN-CP

C4008

0.1 25V

F:CHIP

C4005

C4085

0.01

B:CHIP

12345678910111213141516171819

IK IN

R OUT

AKB 9V

VS FILTER VIDEO HS OUT VIDEO VS OUT

EXT VS IN

EXT HS IN

EXT CS IN

HD SYNC IN

HD R IN

HD G IN

SW 9V

B:CHIP

+9V

TP4005

2VD 2HD

GND

2VS

2HS

R4009

12k

R4012

12k

R4036

15k

:CHIP

I REF

SS GND

64

HS IN

63

VS IN

62 61 60 59

VS OUT

58

HS OUT

57 56 55 54 53

SYNC OUT

52

SS9V

C4047

0.01

CH:CHIP

TP4004

123456789

CN4005

2VD

2HD

:S-MICRO

TO C BOARD CN5202

CXA1315M D/A-CONV

12345678

OFF DPH BCO GCO RCO

GND

C4080

220p

10P WHT

+9V

IC4004

SCL

SDA 0000 0100 0010

C4069

0.01

B:CHIP

+5V

+9V

L4005

22µH

C4052

100 16V

(1/3)

2VP

(1/3)

2HP

Q4018

2SD601A

AMP

R4137

470

:CHIP

Q4019

2SD601A

AMP

9V

C4053

0.01

B:CHIP

R4134 :CHIP

9 10 11 12 13 14 15 16

1k

R4136

47k

:CHIP

R4138

47k

:CHIP

R4065

100

:CHIP

R4066

100

:CHIP

R4067

10k

:CHIP

R4135

47k

:CHIP

R4139

47k

:CHIP

C4081

10

2G

2R

2G

5

6

C4068

100p

CH:CHIP

L4003

22µH

2B

2G

5

6

1

4

L4010

22µH

R4103

100

:CHIP

R4105

100

:CHIP

2B

R4150

10k

:CHIP

3

4

1

(1/3)

(1.2)

+5V-A

+9V

C4013

100 16V

+9V

Q4010

2SB709A

BUFF

2

Q4025

2

XN4401

(1/3)

SUB+5V

2V

2U

2Y

C4012

0.01

B:CHIP

Q4008

2SB709A

BUFF

L4007

47µH

SUB+5V

+5V

Q4009

2SB709A

BUFF

TEMP

+10V

+17V

(1/3)

R4104 :CHIP

R4106

1.2k

:CHIP

1.2k

TP4003

GND

+17V

+10V

TO C BOARD

R4160 :CHIP

R4161

0

:CHIP

Q4001

2SB709A

BUFF

R4164 :CHIP

R4165

0

:CHIP

Q4002

2SB709A

BUFF

R4170 :CHIP

R4171

0

:CHIP

Q4003

2SB709A

BUFF

C4072

0.01

B:CHIP

0.01

B:CHIP

R4108

1.2k :CHIP

R4107

100

:CHIP

2G

2B

2G

TP4002

2B

GND

2B-SIG

TEMP PROT

CN5201

2B-Y

1k

R4162

100

:CHIP

1k

R4166

100

:CHIP

1k

R4172

100

:CHIP

C4090

47

16V

C4066

C4064

C4065C4063

2200

0.01

B:CHIP

10V

C4067

0.01

B:CHIP

2200

10V

2R

2HV

(1/3)

TP4001

2R

123456789

B-SS617.<U/C>-A..-P3

GND

CN4006

9P

2R-SIG

2G-SIG

YEL

:S-MICRO

2R-Y

2Y

C4073

0.01

B:CHIP

CN4001

11P

MID 2YS

1

D GND

2

MID 2VS

3

D GND

4

MID 2HS

5

D GND

6

2V

7

D GND

8

2U

9

D GND

10

2Y

11

TO BB BOARD CN3003

CN4003

8P

WHT

:S-MICRO

1

GND

2

GND

3

GND

4

+5V

5

+5V

6

+5V

7

+5V

8

SUB+5V

TO G BOARD CN607

B

C

D

G

H

K

M

N

O

E

F

• A (3/3) BOARD WAVEFORMS

12

3

0.5 Vp-p (H) 0.5 Vp-p (H) 0.5 Vp-p (H) 1.5 Vp-p (H) 1.5 Vp-p (H) 1.5 Vp-p (H)

7

8

9

0.5 Vp-p (H) 0.5 Vp-p (H) 0.5 Vp-p (H) 0.8 Vp-p (H) 0.8 Vp-p (H) 1.5 Vp-p (H)

I

!£

H

!¢

!∞

H

0.7 Vp-p (H) 0.7 Vp-p (H) 0.7 Vp-p (H) 4.5 Vp-p (H) 4.5 Vp-p (H) 4.5 Vp-p (H)

45

!º !¡

!§

!¶

6

!™

!•

J

• A (3/3) BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC4001 2 4.9

9 5.5 12 1.1 14 5.4

IC4002 1 2.9

3 3.4

4 2.1

5 3.5

6 2.3

7 3.8

L

8 2.5

9 4.0 11 1.0 12 1.3 13 0.5 14 5.6 15 5.6 16 5.6 17 5.6 20 0 21 9.4 22 2.5 23 3.6 24 3.6 25 3.6 27 5.3 28 5.4

IC4003 1 6.6

2 6.6

3 6.6

4 0.2

50

6 9.6 13 5.4 14 5.4 15 0.6 22 0.5 25 4.5 26 4.7

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

30 9.1 33 4.8 34 4.8 35 4.8 37 4.8 38 4.8 39 4.8 41 2.7 44 3.0 45 2.9 46 3.0 47 9.4

IC4004 4 5.3

5 4.8

6 3.5 14 5.4 15 5.4

IC4009 1 0.4

2 0.3

90 10 0 11 0 12 0.8 13 0.4 14 0.8 15 0.3

IC4011 27 5.0

28 5.0 30 6.7 31 6.6 32 6.1 35 4.3 36 4.3 37 4.3 47 4.4 48 4.4 49 4.4

IC4401 1 4.6

Q4002 B 1.8

Q4003 B 1.8

Q4004 B 6.8

Q4005 B 3.3

Q4006 B 6.4

Q4007 B 3.2

Q4008 B 2.3

Q4009 B 2.5

Q4010 B 2.2

Q4018 B 0.5

20 3 3.8 5 3.8 6 3.8 70 8 4.5

9 4.6 11 4.6 12 4.5 14 4.6 16 4.5

E 2.4

E0

C 6.9

E 2.6

E 5.8

C 6.4

E 2.6

E 3.0

E 3.2

E 2.8

C 5.4

Q4019 B 0.4

C 5.1

Q4020 B 6.4

E 5.8

Q4021 B 3.3

C 6.4 E 2.6

Q4025 B1 5.1

E1 5.1 B2 5.1 E2 5.4

Q4026 B 3.4

E 2.7

Q4027 B 3.2

E 2.6

Q4028 B 3.3

E 2.6

Q4034 B 0.7

E 1.3

Q4401 B 6.8

E 6.2

Q4402 B 6.8

E 6.1

Q4403 B 2.0

E 2.6

Q4404 B 2.7

C 6.8 E 2.0

Q4405 B 2.7

C 6.8 E 2.0

– 81 –

– 82 –

– 83 –

– 84 –

(5) Schematic Diagram of BB Board

123456

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Schematic diagram

Ò A (3/3) board

CN3004

3P

WHT-L

:S-MICRO

NT SW NC GND

TO A BOARD

CN4007

7

BB

(MID,3CH 8BIT A/D)

+3.3V

891011121314

IC3013

TC74ACT04F

INVERTER

1 2 3 4 5 6 7

L3304

10µH

:EL0606

C3303

F:CHIP

0.1 25V

C3306

47

16V

Y/R-Y/B-Y

U

R-Y

+5V

V

R3317 R3316

1k

:CHIP

B-Y Y

1k

:CHIP

C3310C3314C3321

101010

+3.3V

100

82

:RN-CP

C3029

0.1 25V

R-Y

C3061

F:CHIP

1k :CHIP

1k :CHIP 1k :CHIP 1k :CHIP

0.1 25V

7

R3271 :CHIP

R3274 :CHIP

R3275

0

:CHIP

F:CHIP

U0 U1 U2 U3 U4 U5 U6 U7

R3214

1.5k

:CHIP

R3215

1.5k

:CHIP

R3213

1.5k

:CHIP

CRB

CRBS

AVDD

AVSS

TEST

CLE

REF3

REF2

REF1

REF0

CLP

CLK

SELSYCTL2

65

AVSS

66

CIN

67

CIO

68

AVDD

69

CRT

70

CRTS

71

DVSS

72

DVSS

73

C0

74

C1

75

C2

76

C3

77

C4

78

C5

79

C6

80

C7

DVDD

DVDDB0B1B2B3B4B5B6B7

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

V0V1V2V3V4V5V6

C3311

0.1 25V

F:CHIP

1k :CHIP

R3368

R3369

R3372

R3370

R3371

+5V

R3216

1k

Y

U

V

Q3206

2SB709A

BUFF

:CHIP

Q3204

2SB709A

BUFF

C3202

33p :CH

R3217 :CHIP

Q3205

2SB709A

BUFF

R3218 :CHIP

1k :CHIP

R3374

R3373

C3204

L3207 :CHIP

C3205

F:CHIP

470 16V

IC3301

CXD2303AQ

A/D CONVERTER

DVSS

DVSSA0A1A2A3A4A5A6A7

V7

R3383

1k

:CHIP

1k :CHIP

R3375

10µH

Y/R-Y/B-Y

Y

R3221 :CHIP

0.1 25V

U

V

CTL1

Y0Y1Y2Y3Y4Y5Y6

1k :CHIP

R3376

R3378

R3377

R3379

220 :CHIP

22

Q3209

2SB709A

BUFF

R3219

22

:CHIP

Q3207

2SB709A

BUFF

R3282

22

:CHIP

Q3305

2SB709A

BUFF

Q3208

2SB709A

BUFF

R3220

22

:CHIP

R3283

22

:CHIP

R3334

0

:CHIP

R3332

33

:CHIP

C3062

0.1 25V

F:CHIP

1 2 3

Y

R-Y

U

B-Y

V

R3204

220

:CHIP

R3201

0

:CHIP

Q3201

2SB709A

BUFF

R3205

220

:CHIP

R3202

0

:CHIP

Q3202

2SB709A

BUFF

R3206

220

:CHIP

R3203

0

:CHIP

Q3203

2SB709A

BUFF

R3305

100

:CHIP

R3360

R3361 R3362 R3363

R3301 :CHIP

R3364 R3365

0

R3366

R3367

1k :CHIP

Y/R-Y/B-Y

R3272

150

:CHIP 0

1 6

FL3215

18MHz

R3273

150

:CHIP 0

1 6

FL3216

7MHz

R3276

150

:CHIP

1 6

FL3217

7MHz

1 2 3 4 5 6 7

Y

R3322R3321R3319R3318

330

100

:RN-CP

CTL0

XCOE

XBOE

XAOE

TEST

TGR

DVDD

Y7

Y/R-Y/B-Y

1k :CHIP

R3381

R3382

R3380

R3227

R3229

1 6

150

:CHIP

R3225 :CHIP

FL3204

220

R3269

150

:CHIP

1 6

FL3218

7MHz

R3228

150 :CHIP

1 2 3

R3280 :CHIP

R3281 :CHIP

FL3205

220

R3253 R3226

150

220

:CHIP

1 6

FL3219

7MHz

R3230 R3232

150

1 2 3

:CHIP

FL3206

220

Q3306

2SB709A

BUFF

8 9 10 11 12 13

C3004

47

16V

C3260

0.1

L3013C3261

25V

B:CHIP

IC3012

TC74ACT74F

FLIP-FLOP

C3322

0.1 25V B:CHIP

414243444546474849505152535455565758596061626364

AVDD

BRBS BRB AVSS BIN BIO AVDD BRT BRTS ARTS ART AVDD AIO AIN AVSS ARB ARBS

DVDD

AVSS

C3318

0.1 25V

F:CHIP

C3244

68p :CH

46

R3289

820

:RN-CP 10

47

16V

IC3010

TC7S32FU

OR GATE

45

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

R3233

1k

:RN-CP

R3236

7

:RN-CP

R3254

680

:RN-CP

7

R3231

680

:RN-CP

R3252

680

:RN-CP

7

680

:RN-CP

R3285

470 :CHIP

10µH

:EL0606

C3234

47

16V

891011121314

L3012

10µH

:CHIP

1 2 3

C3316

47

16V

:RN-CP

C3025

0.1 25V

F:CHIP

B-Y

C3022

0.1 25V

F:CHIP

C3023

0.1 25V

Y

F:CHIP

C3020 C3313

0.1 25V

F:CHIP

+3.3V

R3237

470

:CHIP

470

R3238

470

:CHIP

Q3211

2SB709A

BUFF

R3234

820

:RN-CP

R3284

470

:CHIP

R3288

820

:RN-CP

R3235

820

:RN-CP

2SB709A

R3239

470

:CHIP

Q3212

2SB709A

BUFF

0 :CHIP

R3287

Q3308

BUFF

C3001C3233 R3001

0.1 25V

F:CHIP

L3001 R3002

10µH

:CHIP

C3060

0.1 25V

F:CHIP

C3071

470 16V

R3351

15

R3352

15

R3308 :CHIP

C3021

0.1 25V

F:CHIP

R3241

0

:CHIP

Q3210

2SB709A

BUFF

R3242

0

:CHIP

Q3307

2SB709A

BUFF

R3240

0

:CHIP

C3243

C3003

0.047

680k

:CHIP

B:CHIP

3.3k

:CHIP

C3002

0.1 25V

1 2 3 4 5 6 7

F:CHIP

L3002

10µH

:FL0606

IC3006

TC7SET04FU

INVERTER

(TE-85R)

1 2 3

C3072

0.1 25V

B:CHIP

C3039

16V

R3307

0

:CHIP33

R3302R3306

0

33

:CHIP

R3309

15

:RN-CP

L3303

10µH

:CHIP

C3324

47

16V

2Y

+5V

2R-Y

C3241R3286

10 16V0 :CHIP

C3242

10

16V

IN1A

2B-Y

IN1B

1 2 3 4 5 6 7 8

2B-Y

16V

25V

IC3001

TLC2932IPW-E20

45

R3019

470

:CHIP

R3020

0

:CHIP

R3021

470

:CHIP

L3305

10µH

:CHIP47

R3311

15

:RN-CP

C3221

0.1 25V

B:CHIP

C3240

10

16V

VDD

GND1

IN2B

CTL1

OUT1

GND2

2V

IC3011

NJM2284M

RGB/NTSC SW

0.47 16V

B:CHIP

R3003

1.5k

:CHIP

891011121314

R3004

470

:CHIP

R3005 :CHIP

PLL

+5V

IC3007

TC7SET08FU

AND GATE

45

C3005

0.1 25V

F:CHIP

HP VP

Q3018

2SB709A

BUFF

Q3019

2SB709A

BUFF

R3022

0

:CHIP

47

16V

L3204 :CHIP

C3222

2HS

2VS

10µH

470 16V

2Y

2YS

R3016

100

:CHIP

Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0 U7 U6 U5 U4

C3014

0.1 25V

F:CHIP

U3 U2 U1 U0 V7 V6 V5 V4 V3 V2 V1 V0

C3016 C3017

0.1 25V

F:CHIP

R3018

1k

:CHIP

R3263 :CHIP

R3015

0 :CHIP

R3017

100 :CHIP

C3050

6.3V

Y/R-Y/B-Y

910111213141516

GND3

IN3B

IN2A

CTL2

CTL3

IN3A

OUT2

OUT3

2R-Y

2U

SCL

SDA

FB3205

0

:CHIP

FB3206

0

:CHIP

CN3001 CN3002

7P

WHT-L

:S-MICRO

HP

SCL

SDA

GND

TO A BOARD

CN4004

0

1 2 3

0.1 25V

0

:CHIP

GND

C3235 C3008R3007

680k

C3006

0.1 25V

F:CHIP

47

16V

L3003

10µH

:CHIP

R3008

3.3k

:CHIP

0.047 25V

B:CHIP

TLC2932IPW-E20

C3236

47 16V

+3.3V

208

GND

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

VDD NC XRST NC SASL TESTSW TEST1 TEST2 TEST3 YS HSR VSR NC AINY7 AINY6 AINY5 AINY4 AINY3 AINY2 AINY1 AINY0 AINU7 AINU6 AINU5 AINU4 VDD GND AINU3 AINU2 AINU1 AINU0 AINV7 AINV6 AINV5 AINV4 AINV3 AINV2 AINV1 AINV0 CLP0 ADCLK NC DINC7 DINC6 DINC5 DINC4 DINC3 DINC2 DINC1 DINC0 NC GND

VDDNCNC

5354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899

1 2 3 4 5 6 7

C3007 L3004

10µH

0.1 :CHIP 0

25V

F:CHIP

47

16V

C3054

0.1 25V

F:CHIP

203

204

205

206

207

NC

VSW0

HSW0

DINY7

DINY6

C3053

0.1 25V F:CHIP

C3052

0.1 25V

F:CHIP

L3008C3237

10µH

:CHIP

200

201

202

CLK2

FILTER2

VSS(VCO)

VDD(VCO)

DINY5

DINY4

DINY3

DINY2

+3.3V

C3019

L3005

0.1

10µH

:EL0606

25V

F:CHIP

+3.3V

FL3210

STC332B

FB3202FB3201

0

:CHIP

2Y/2R-Y/B-Y

Y R-Y B-Y

0

Y

VP

0

:CHIP

FB3209FB3208

U

0

:CHIP

FB3210 FB3211FB3212

V

:CHIP0:CHIP0:CHIP

HP

FB3207

:CHIP

123 456

1234567

VP

GND

10P

BLK-L

:S-MICRO

10 Y

GND

V

U

GND

TO A BOARD

CN4002

123456789

NC

5V

GND

IC3002

B:CHIP

PLL

R3264 :CHIP

L3009

10µH

:CHIP

100 :CHIP

C3055

0.1 25V F:CHIP

R3266

197

198

199

DIV2

VSS(PDET)

VDD(PDET)

DINY1

DINY0NCCLKD

EMI

+5V

2Y

0

10

11

2Y

D GND

C3009

0.47 16V

R3009

1.2k

:CHIP

R3010

470 :CHIP

891011121314

HP

VP

SCL

SDA

100 :CHIP

R3267

R3029

193

194

195

196

SDA

SCL

VDD

VSW1

HSDNCNC

C3024

0.1 25V

F:CHIP

C3213L3202

470

10µH

16V

:EL0606

C3228

47

16V

C3229 C3215

0.1 25V

B:CHIP

2U

2V

FB3203

0

:CHIP

2V

2U

D GND

TO A BOARD

CN4001

C3010

F:CHIP

100 :CHIP

R3030

191

192

GND

CKDIV1

IO3

DVSS

L3006

10µH

:EL0606

V

VC

I

2HS

D GND

MID 2HS

0

:CHIP

IC3008

TC7SET08FU

AND GATE

0.1 25V

1 2 3

C3056

C3057

L3010

10µH :CHIP

0.1 25V F:CHIP

C3238

47 16V

187

188

189

190

CLK1

VSS(VCO)

VDD(VCO)

AVDD

DVDD

AVSS

180 :RN-CP

R3032

C3027

0.1 25V

F:CHIP

U

C3214

0.1 25V

B:CHIP

IC3303

PQ3TZ53U

3.3VREG

NC

O

G

2VS

EMI EMI

123456789

D GND

MID 2YS

MID 2VS

:S-MICRO

FILTER

IO2

CN3003

Schematic diagram

14

R3023R3011

0

:CHIP

45

R3265

100

:CHIP

C3026

0.1 25V F:CHIP

L3011

10µH

:CHIP

100 :CHIP

C3058

0.1 25V

R3037

F:CHIP

182

183

184

185

186

NC

HSWI

DIV1

VSS(PDET)

VDD (PDET)

IC3003

CXD2072AQ

MID

AVDD

VG2

IRI2

IRI3

VG3

1k :RN-CP

180 :RN-CP

R3044

R3045

R3038

C3028 C3030 C3032

1

FL3222FL3212

STC221BSTC221B

10V

B:CHIP

C3216

0.1 25V

B:CHIP

2YS

1

10V

B:CHIP

10V

B:CHIP

47

16V

11P

RED-L

F:CHIP

R3047 :CHIP

181

VDD

VG1

1k :RN-CP

R3048

C3031

0.1 25V

R3049 :CHIP

1M

180

C3230

47

16V

C3011

5p

CH:CHIP

R3013

33

:CHIP

0

177

178

179

NC

GND

XTAL1

XTAL0

VR1

VR0

AVSS

IRI1

C3035

10

L3208

C3251

47 16V

C3253

150p CH:CHIP

R3294

10k

:CHIP

R3297

0

:CHIP

176

10µH

15 16 17 18 19 20 21 22

C3013

5p

CH:CHIP

X3001

27MHz

R3014

1M :CHIP

174

175

GND

CLKX

AVDD

IO1

180 :RN-CP

R3051

Y

L3210 10µH :CHIP

H12

173

MOA11

DVSS

F:CHIP

R3298

100

:CHIP

45

H10

H11

172

MOA9

MOA10

DVDDNCNC

C3227

0.1 25V

F:CHIP

C3036

0.1 25V

R3290

1k

:CHIP

C3252

0.1 25V

B:CHIP

R3299

0

:CHIP

H8

H9

170

171

MOA8

B3

SPEED UP

Q3213

2SD601A

C3012

F:CHIP

+3.3V

H7

169

MOA6

MOA7

WXIB

WEB

B2

D3201 MA111

R3291

1k

:CHIP

AMP

0.1 25V

IC3009

TC7SHU04FU

INVERTER

1 2 3

H4

H5

H6

166

167

168

MOA3

MOA4

MOA5

WRBNCMIB11

A12

B1

C3254

47p CH:CHIP

12345678

Y1 Y0 Z1 Z Z0 INH VEE VSS

H2

H3

164

165

MOA1

MOA2

MIB10

MIB9

A10

A11

R3292

1k

:CHIP

2SB709A

VDD

Y X X1 X0 A B C

G2G4G5

H1

162

163

MOA0

MIB8

A8

A9

C3255

470p

CH:CHIP

R3295

10k

:CHIP

Q3215

BUFF

9 10 11 12 13 14 15 16

161

RXAD

MIB7

100

A7

160

RRA

MIB6

101

A6

R3296

10k

:CHIP

RXIA

MIB5NCNC

C3037 C3038

0.1

25V

F:CHIP

157

158

159

NC

VDD

GND

NC GND REA

MIA0 MIA1 MIA2 MIA3 MIA4 MIA5 MIA6 MIA7 MIA8

NC

MIA9 MIA10 MIA11

WXAD

E2

WRA

E4

WEA

E5

WXIA

E6

RCLK

RADE

WCLK

E1

VDD GND

WADE

E3

WOB11 WOB10

WOB9

WOB8

WOB7

WOB6

WOB5

WOB4

WOB3

WOB2

NC WOB1 WOB0

RRB

RXIB

REB MIB0 MIB1 MIB2 MIB3 MIB4

VDD

NC

VDD

GND

102

103

104

D3202 MA111

PROT

Q3214

2SD601A

BUFF

R3293

470

:CHIP

IC3201

MC74HC4053F

YS SW

R3278

0

:CHIP

105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156

R3277

150

:CHIP

+3.3V

Q3216

2SB709A

AMP

F10 F11

F12 E2 E4 E5 E6

E1

E3 C12 C11 C10

C9 C8 C7 C6 C5 C4 C3

C2 C1

A1 A2 A3 A4 A5

C3042

0.1 25V

F:CHIP

C3043

0.1 25V

F:CHIP

L3206 :CHIP

F1 F2 F3 F4 F5 F6 F7 F8 F9

10µH

IC3004

MSM548332

(25TS-K)

MEMORY

DIN6 DIN7 DIN8 DIN9

WCLK WXAD

WE

IE DO11 DO10

VCC DO09 DO08

VSS DO07 DO06

VCC

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

(25TS-K)

DIN6 DIN7 DIN8 DIN9

WCLK WXAD

WE

IE DO11 DO10

VCC DO09 DO08

VSS DO07 DO06

VCC

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

H7 H8

H9 H10 H11 H12

F12 F11

F10

C3046

0.1 25V

F:CHIP

C7

C8

C9 C10 C11 C12

C3048

0.1 25V

F:CHIP47

E1 E2 E3 E4 E5 E6

C3049

E1

E3

C3047

0.1 25V

F:CHIP

0.1 25V

F:CHIP

A12 A11

A10

A9

A8 A7

C3051

47

16V

L3007 :CHIP

B1 B2 B3

10µH

F9

F8 F7

12345678910111213141516171819202122

H6

F1 F2

F3 F4

F5 F6

H5 H4 H3 H2 H1

C3045

0.1 25V

F:CHIP

C6 C5 C4 C3 C2 C1

G6

G1 G2 G3 G4 G5 G6

G1 G3

C3041

0.1 25V

F:CHIP

D1 D2 D3

G1

G3 D1 D2 D3

C3044

0.1

25V

F:CHIP

C3232

47

16V

VSS DIN5 DIN4 DIN3 DIN2

DIN10

DIN1

DIN11 DIN0 RCLK BXAD

WADE/RX

RADE/RX

WR/TR RR RXINC

WXINC RE OE DO0 DO1 VCC D02 DO3 VSS DO4 DO5

+3.3V

IC3005

MSM548332

MEMORY

12345678910111213141516171819202122

VSS DIN5 DIN4 DIN3 DIN2

DIN10 DIN1

DIN11 DIN0 RCLK BXAD

WADE/RX

RADE/RX

WR/TR RR RXINC

WXINC RE OE

A1

DO0

A2

DO1 VCC

A3

D02

A4

DO3 VSS

A5

DO4

A6

DO5

+3.3V

B-SS617.<U/C>-BB.

A

B

C

D

E

F

G

H

J

K

L

M

N

O

• BB BOARD WAVEFORMS

12

2.0 Vp-p (H)

2.0 Vp-p (H) 2.0 Vp-p (H)

45

0.7 Vp-p (H)

0.7 Vp-p (H) 0.7 Vp-p (H)

3

6

• BB BOARD VOLTAGE LIST

I

Ref. Pin No. Voltage [V]

IC3001 3 2.5

4 0.4 5 1.6 6 1.8

70 12 1.8 13 3.0

IC3002 2 0

3 2.4

4 0.6

5 2.5

6 1.8

70

90 11 0 12 1.8 13 3.1

IC3004 2 1.5

3 1.3

4 0.7

5 0.6

6 1.0

7 1.7

80

90 10 0 11 0 12 0 13 2.0 15 1.8 16 1.0 18 0.6 19 0.7 21 1.2 22 1.4 24 1.1 25 1.0 27 0.6 28 0.9 30 1.5 31 1.8 32 3.4 33 0 34 2.0 35 0 36 0 37 0 38 1.8 39 2.1 40 1.6 41 1.2 42 0.7 43 1.0 44 1.0

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

IC3005 2 1.0

3 1.9 4 1.9 5 1.6 6 1.0 7 0.7

8 1.8 10 0 11 0 12 0 13 2.0 15 0.6 16 1.1 18 1.9 19 2.0 21 1.6 22 1.0 24 0.5 25 0.7 27 1.2 28 1.4 30 0.9 31 0.9 32 3.4 33 0 34 2.0 35 0 36 0 38 1.8 39 1.0 40 1.2 41 1.5 42 1.3 43 0.7 44 0.6

IC3006 2 0.2

4 0.4

IC3007 1 5.0

2 1.1

4 1.6

IC3008 1 1.8

2 5.0

4 2.5

IC3009 2 1.7

4 1.2

IC3011 1 2.5

20

3 1.7

5 1.8 11 2.5 12 0 14 2.5

16 2.5

IC3012 1 3.3

2 0.3 3 1.4 4 3.3 5 0.3

14 3.3

IC3013 1 1.6

2 1.4

14 3.3

IC3301 3 1.7

4 1.8 5 2.0 6 1.3 7 1.5 8 2.0

9 1.7 10 1.8 13 1.4 14 0.8 15 1.6 16 1.5 17 1.4 18 1.6 19 1.0 20 0.6 25 0.7 26 0.7 28 1.2 29 1.2 31 2.7 32 2.7 33 2.7 34 2.7 36 1.7 37 1.7 39 0.7 40 0.7 44 0 45 0 46 0 50 3.5 51 4.9 52 1.8 53 3.5 58 4.9 63 0.7 64 0.7 66 1.7 67 1.7 69 2.7 70 2.7 73 1.0

Q3018 B 3.3

Q3201 B 2.0

Q3202 B 2.0

Q3203 B 2.0

Q3204 B 2.4

Q3205 B 2.5

Q3206 B 2.2

Q3207 B 2.5

Q3028 B 2.5

Q3209 B 2.0

Q3210 B 1.1

Q3211 B 1.3

Q3212 B 1.3

Q3305 B 2.4

Q3306 B 2.4

Q3307 B 1.3

Q3308 B 1.3

74 1.7 75 0.9 76 1.6 77 1.4 78 1.6 79 1.2 80 2.1

E 2.7

E 3.1

E 2.7

E 1.8

E 1.9

E 3.1

E 1.9

BB board l

– 85 –

– 86 –

– 87 –

– 88 –

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

— BB BOARD (Conductor Side) —

BB

MID, 3CH 8BIT A/D

— BB BOARD (Component Side) —

BB BOARD Terminal name of semiconductors in silk screen printed circuit (

Q3204, Q3207–Q3209, Q3213–Q3216, Q3305–Q3308

Q3018, Q3019, Q3201–Q3203, Q3205, Q3206, Q3210–Q3212

D3201, D3202

*

Ref.

1

2

3

:Refer to Terminal name of

semiconductors in silk screen printed circuit (see page 64)

)

*

– 90 –– 89 –

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

— U BOARD (Conductor Side) —

U

IN/OUT TERMINAL, AV SW/INPUT SELECT

— U BOARD (Component Side) —

U BOARD Terminal name of semiconductors in silk screen printed circuit (

Ref.

Q101, Q102, Q103, Q308, Q311–Q316 Q801–Q803 Q105, Q301, Q303, Q306, Q309, Q310, Q317, Q602, Q603, Q804

D1, D5–D8, D10, D104, D105, D201–D207, D301–D309, D312–D314, D511–D513

D501, D507, D509 D502–D506,

D508, D510

:Refer to Terminal name of

*

semiconductors in silk screen printed circuit (see page 64)

1

2

3

6

7

)

*

– 92 –– 91 –

(6) Schematic Diagram of U Board

A

B

C

D

E

F

G

H

J

K

L

M

N

O

123456

C3R1

FB312

0

:CHIP

RD10SB-T1

R7

75

:CHIP

R8

220k

:CHIP

R9

220k

:CHIP

0.22 16V B:CHIP

FB317

0

:CHIP

RD10SB-T1

R302

75

:CHIP

R303 220k

:CHIP

R304 220k

:CHIP

R301

75

:CHIP

R101

75

:CHIP

R102

75

:CHIP

R103

75

:CHIP

R104 220k

:CHIP

FB300

R305

68

:CHIP

R306

68

:CHIP

FB302

:CHIP

Q301

2SD601A

MUTE

FL301

190P

:EMI-CP

FL302

190P

:EMI-CP

FL303

190P

:EMI-CP

FL304

190P

:EMI-CP

FL315

190P

EMI

FL316

190P

EMI

FL317

190P

0.4775

R10

1k

:CHIP

R6 75

:CHIP

D1

D301

C10

0.22 16V

B:CHIP

C1

0.22 16V

B:CHIP

C6

0.47

C7

1

RD10SB-T1

C8

1

C307

R311

75

:CHIP

C301

0.22 16V

B:CHIP

C303

0.47

C304

1

C305

1

C302

0.47

RD10SB-T1

D7

RD10SB-T1

R106

C101

0

22

:CHIP

25V

R107

C102

22

:CHIP

25V

R108

C103

22

:CHIP

25V

C104

R109

1

1k

16V

:CHIP

F:CHIP

C105 R105 220k

:CHIP

R307 470k

R308 470k

:CHIP

EMI

R502

:CHIP

R110

1

16V

:CHIP

F:CHIP

R313 470k

:CHIP

R314 470k

:CHIP

R318

22k

:CHIP

D513

DTZ-TT11-5.1B

R200

47

:CHIP

D512

DTZ-TT11-5.1B

B(PC)

B

G(PC)

G

R(PC)

R

FL306

MEM2012T25R0

25M:EMI-CP

FL307

MEM2012T25R0

25M:EMI-CP

D207

MA111

R504

47k

:CHIP

R503

47

:CHIP

47

R501

47

:CHIP

R531

4.7k

:CHIP

D10

D6

R312

1k

:CHIP

D303

D304

D305

D302

0

1k

22k :CHIP

Q303

2SD601A

MUTE

FB327 :CHIP

:CHIP

J1 6P

SW1

R

DVD Y

L

R

VIDEO

R

FB301

J101

2P

CN603

D-SUB15

CN3

9P

RED-L

:S-MICRO

R.GND

D SUB2 R

G.GND

D SUB2 G

B.GND

D SUB2 B

D SUB2 C SYNC

GND

TO HA BOARD

CN8005

CN4

5P

WHT-L

:S-MICRO

GND

DDC-DATA

NC

HOST

DDC-CLK

TO HA BOARD

CN8006

S

34

12

V1

L1

R1

SW2

S

34

12

V2

L2

R2

J102

VG

VB

VR

L

R

J301

3P

S

34

12

V

L

R

R322 470k

:CHIP

R319

68

:CHIP

L

R

FB326

0

:CHIP

1 2 3 4 5 6 7 8 9

1 2 3 4

5V

5

FB313

0

:CHIP

FB314

FB315

FB318

0

:CHIP

FB319

FB320

FB101

0 :CHIP

FB102

0 :CHIP

FB103

0 :CHIP

FB104

FB105

FB321

0

:CHIP

FB322

0

:CHIP

FB323

FB324

RD10SB-T1

C313

470 10V

FB325

0

:CHIP

E(B)

E(G)

E(R)

DP8001

LP3

LP2

FB303

FB304

D314

:EMI-CP

S1 VIDEO

VIDEO 1 IN

VIDEO

AUDIO L

S1 VIDEO

VIDEO 3 IN

VIDEO

AUDIO L

DVD IN

DVD B-Y

DVD R-Y

S1 VIDEO

VIDEO OUT

AUDIO L

I

RD10SB-T1

D8

RD10SB-T1

D312

RD10SB-T1

Y(DVD)

B-Y(DVD)

R-Y(DVD)

D104

RD10SB-T1

D105

RD10SB-T1

C306

1

C308

470 10V

C309

0.47

C310

0.47

R317

R227

220k :CHIP

0

FB328

0

:CHIP

MEM2012T25R0

25M:EMI-CP

EMI

:RN-CP

D202

MA111

5678

SDA SCL VCLK VCC

24LC21T

DDC EEPROM

D5

VIDEO

AUDIO(L)

AUDIO(R)

RD10SB-T1

C413

1

C414

1

R228 220k

FL305

EMI

R208

150

R209

150

:RN-CP

VSS NC NC NC

IC103

Y(DVD)

Q101

2SD601A

BUFF

R117R111

100

22k

:CHIP

R114

10k

:CHIP

R112

R118

22k

:CHIP 100 :CHIP

Q102

2SD601A

R115

10k

BUFF

:CHIP

R113

22k

:CHIP

R119

100

R116

:CHIP10k

:CHIP

R132 470k

:CHIP

R133 470k

:CHIP

R135 470k

:CHIP

R120 470

:CHIP

R134 470k

:CHIP

R121 470

Q103

2SD601A

BUFF

R122

470

:CHIP

C115

0.01

B:CHIP

R123

22

:CHIP

R124

22

:CHIP

C110

0.01

B:CHIP

R127

0

:CHIP

R137 470k

:CHIP

C114

D306

D307

D308

D309

D204

R206

150

:RN-CP

FL308

190P

:EMI-CP

:CHIP

R139 470k

:CHIP

C402

0.01

B:CHIP

C405

47 16V

C407

0.01

B:CHIP

C410

47 16V

R138 470k

R141

1k :CHIP

RD10SB-T1

R142

:RN-CP

D205

RD10SB-T1

C401 R204

0.01 B:CHIP 22 :CHIP

C404

47 16V

R202

R201

150

:RN-CP

R205

150

:RN-CP

EMI

R505

4.7k :CHIP

1 2 3 4

DTZ-TT11-5.1B

D201

DTZ-TT11-5.1B

7

8P

YEL-L

:S-MICRO

C108

47

16V

C109

0.01

B:CHIP

C107

0.01

B:CHIP

R126

1k

:CHIP

47

16V

R125

22

:CHIP

47

16V

R136 470k

:CHIP

C403

0.01 B:CHIP

C406

47

16V

C408

0.01

B:CHIP

C411

47 16V

D206

MA111

R211

47

:CHIP

47 :CHIP

R507

R506

47k

:CHIP

D203D511

MA111

TO A BOARD

CN4401

GND

DVD Y

GND

DVD B-Y

1234567

B-Y(DVD)

C112C111

0.01

B:CHIP

12345678

Y1

Y0

Z1

Z

Z0

INH

VEE

VSS

IC101

MC14053BDTR2

SW

R203

100

:CHIP

R207

22 :CHIP

R210

22

:CHIP

C409

0.01

B:CHIP

C412

47 16V

IC102

24LC21T

DDC EEPROM

5678

SDA SCL VCLK VCC

GND

DVD R-Y

VDD

Y

X

X1

X0

A

B

C

VSS NC NC NC

8 9 10 11 12 13

VIDEO

AUDIO(L)

AUDIO(R)

R610 100k

:CHIP

R332

1k

:CHIP

R331

1k

:CHIP

R329

470

:CHIP

.BLK0670

13 14 15 16 17 18 19 20 21 22 23 24

TO G BOARD

CN6008

E(U)

123

:CHIP

Q312

2SD601A

BUFF

:CHIP

R334

4.7k

:CHIP

Q310

2SB709A

BUFF

Q315

2SD601A

BUFF

R333

4.7k

:CHIP

Q309

2SB709A

BUFF

R330

100

:CHIP

B(PC)

C422

G(PC)

100 16V

R(PC)

BLK-L

:S-MICRO

E(U)

1 16V F:CHIP

R611 100k

R339

1k

R336

100

:CHIP

R349

1k

:CHIP

R403

150 :CHIP

R407

470 :CHIP

CN2CN1CN5

3P

C116

C117

C118

1 16V F:CHIP

R340

22k

:CHIP

47

16V

R350

22k

:CHIP

R337

100

:CHIP

C316

47

16V

R402

0

:CHIP

CH:CHIP

R404

150

:CHIP

100 :CHIP 100 :CHIP

R618

100 :CHIP

R619

100 :CHIP

R620

100 :CHIP

100 :CHIP 100 :CHIP 100 :CHIP

100 :CHIP

R672 120k

:CHIP

R671 120k

:CHIP

R342

820

:CHIP

Q313

2SD601A

AMP

R341

10k

:CHIP

R351

10k

:CHIP

C418

10p

C419

10p

CH:CHIP

R405

150

:CHIP

R401

0

:CHIP

R616

R617

R621 R622 R625

R626

R627

R343

470

:CHIP

R352

820

:CHIP

470

:CHIP

R406

470

:CHIP

Q803

2SB709A

BUFF

R408

:CHIP

C420

10p

CH:CHIP

100 :CHIP

100 :CHIP 100 :CHIP

2SD601A

R344

220

:CHIP

Q316

2SD601A

470

R679

R140

R680

R628

R624 R629

R612 R623

Q314 BUFF

R345C314

470

:CHIP

AMP

R354R353

270

:CHIP

R355

:CHIP

R409

22

:CHIP

Q802

2SB709A

BUFF

R410

22

:CHIP

R411

22

:CHIP

Q804

2SB709A

BUFF

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

L

TV-IN

V

R

1

V

L

Y

V1-IN

R

C

SW1

V

L

.BLK043F

Y

V2-IN

R

.BLK043E

C

SW2

V

L

V3-IN

Y

R

C

IC601

SN76861NJ-09

AV.SW

+9V

R346

22k

:CHIP

R347

10k

:CHIP

R356

22k

:CHIP

Q317

2SD601A

BUFF

R357

10k

:CHIP

470

SUB+5V

Y OUT

DC BIAS

-

BS-IN

C315

22

25V

C317

MUTE

DVD ON

GND

8

R-Y(DVD)

R130

1k

:CHIP

9 10 11 12 13 14 15 16

Q105

DTC144EKA

INV

D501

1SS226

D502

1SS226

R215

22

:CHIP

R219

22

:CHIP

R223

22

:CHIP

R224

100

:CHIP

R225

100

:CHIP

R226

100

:CHIP

1 2 3 4

TO HA BOARD

CN8001

GND

MINI-JSW

D-SUB2 L

D-SUB2 R

123456789

FB330

0

:CHIP

FB331

0

:CHIP

R131

10k

:CHIP

C113

0.001

B:CHIP

R327

470

:CHIP

D503

1SS226

D504

1SS226

D505

1SS226

D506

1SS226

D507

1SS226

D509

1SS226

D510

1SS226

GND

FRONT V

FRONT L

JR11

0

:CHIP

Q306

2SB709A

BUFF

22k

:CHIP

B(PC)

C711 470p

CH:CHIP

G(PC)

R528 470k

:CHIP

R(PC)

D508

1SS226

10P

WHT-L

:S-MICRO

GND

FRONT R

10

+9V

:CHIP

R378

Q311

270

2SB709A

:CHIP

BUFF

R326

100

:CHIP

D313

R325R324

MA111

:CHIP

1234567

B1

DET

G1

GND

R1

GND

B2

8

GND

SYNC OUT

INPUT SEL

G2

10 91112

GND

R2

VD1

IC801

BA7657F-E2

INPUT SELECT

R335

470

1k

HD1

HD2

HD OUT

2

B.OUT

3

G.OUT

G.SYNC

4

R.OUT

VD OUT

VD2

R338

100

:CHIP

R379

270

:CHIP

Q308

2SB709A

BUFF

VCC

C OUT

VCC

Trap

L OUT

Y IN

R OUT

C IN

V GND

MUTE

D GND

SDA

SCL

A GND

SW3

22

25V

.BLK0441

.BLK0440

L

.BLK043D

V

R

2122232425262728293031323334353637383940

R348

100

:CHIP

+9V

R358

100

:CHIP

C612

:CHIP

R633

R634

22 25V

R635

100

:CHIP

R636

100

:CHIP

R637 100k

:CHIP

100 :CHIP

C604

22

25V

R642

1k

:CHIP

R673 120k

SUB+5V

C

Y

AUDIO(L)

AUDIO(R)

C613

100 16V

14

C601

0.1 25V

B:CHIP

15 16 17 18 19 20 21 22

Q602

2SD601A

BUFF

R660R658

10

1k

:CHIP

220

0

:CHIP

PV

HD

IC802

CXA2016S

SYNC-PROCESSOR

PHC

EHC

C712

0.22 16V

B

R525

R526

0

33k

:CHIP

220

:CHIP

0

:CHIP

PH

VIDEO

R524 100k

:CHIP

+9V

CLP-SEL

HD.SE

R523

10k

:CHIP

R522

12k

:RN-CP

R515R513R512R511

1k

:CHIP

CLP-OUT

ISC

:RN-CP

R529

100

:CHIP

R521

12k

R530

100 :CHIP

R516 C703

2.2k

0.01

:CHIP

B:CHIP

1213141516171819202122

V.REF

CLP-OUT

ISJ

GND

SUB+5V

1k

:CHIP

R605

100 :CHIP

R606

100 :CHIP

10k

:CHIP

C708R519

22

25V

R518R517

1k

:CHIP

R520 10k

:CHIP

Q801

2SB709A

BUFF

C709

1

AUDIO(R)

AUDIO(L)

R538

0

:CHIP

R540

0

:CHIP

R(PC)

G(PC)

B(PC)

CN601

Y

C

20P

1

Y OUT

2

GND

3

C OUT

4

GND

5

Y IN

6

GND

7

C IN

8

+9V GND

9

10

GND

11

VIDEO OUT

12

GND

13

R OUT

14

GND

15

L OUT

16

GND

17

CLP OUT

18

GND

19

H POL

20

V POL

TO A BOARD CN1002

CN602

20P

1

D SUB R

2

GND

3

D SUB G

4

GND

5

D SUB B

6

GND

7

GND

8

GND

9

GND

10

GND

11

D SUB1 SW

12

MUTE

13

GND

14

SDA

15

SCL

16

GND

17

HD SYNC

18

V SYNC

19

NC

20

SUB +5V

TO A BOARD CN1001

L601 47µH

C602

47

16V

C705

4.7

Q603

2SD601A

BUFF

R661R659

0.22 16V

B

R509

0

:CHIP

VD

PVC

C713C714

0.22

:CHIP

C707

0.0033

V.IN

EVC

C704

4.7

16V

B

10

R510 R514

2.2k

:CHIP

V.OUT

CS.IN

C706

0.1 25V

B:CHIP

R527

2.2k :CHIP

470

:CHIP

R508

2.2k

:CHIP

C701

47

16V

VCC

VS.IN

1 2 3 4 5 6 7 8 9 10 11

C702

0.001

B:CHIP

U

IN/OUT TERMINAL, AV SW/INPUT SELECT

B-SS617.<U/C>-U..

A

B

C

D

E

G

H

K

M

N

O

F

• U BOARD WAVEFORMS

12

I

2.3 Vp-p (H)

H

0.7 Vp-p (H) 0.9 Vp-p (H)

3

4

H

0.7 Vp-p (H)

J

• U BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC101 1 4.3

2 4.3 3 4.3 4 4.3 5 4.3

9 8.8 10 8.8 11 0 12 2.0 13 0 14 0 15 4.3

L

IC102 5 0.1

6 4.1

7 4.2

IC103 5 0.6

6 4.5

70

IC601 1 4.4

3 4.4

4 2.0

5 4.4

6 2.0

7 4.4

8 3.3

9 5.0 10 2.0 11 4.4 13 4.4 15 5.0 16 2.0 17 4.4 18 2.0 19 4.4 20 3.2

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

21 4.9 22 4.4 24 4.4 26 5.0 27 5.0 29 0 30 3.1 33 3.8 34 1.6 35 3.8 37 4.3 38 3.1 40 3.3

IC801 1 3.6

2 3.5 3 3.6 5 3.6 70

90 11 0 12 4.2 13 0 14 3.6 15 2.1 16 4.9 19 2.1 21 2.1 22 3.0 23 0.1 24 3.7

IC802 1 5.9

2 0.2

3 3.6

4 5.7

5 0.5

6 2.6

7 1.5 8 5.0

9 1.3 10 1.3 12 3.1 13 0.4 14 4.9 15 0 16 4.9 17 4.9 18 0.8 19 1.3 20 1.3 21 0.2

Q101 B 2.6

E 2.0

Q102 B 2.6

E 1.9

Q103 B 2.6

E 2.0

Q105 B 0

C 8.8

Q306 B 3.1

E 3.8

Q308 B 4.7

E 5.4

Q309 B 3.8

E 4.4

Q310 B 3.8

E 4.4

Q311 B 4.6

E 5.3

Q312 B 5.3

E 4.6

Q313 B 2.6

C 5.3 E 2.0

Q314 B 2.7

E 2.0

Q315 B 5.4

E 4.8

Q316 B 2.6

C 5.4 E 2.0

Q317 B 2.7

E 2.0

Q602 B 3.4

E 2.7

Q603 B 3.1

Q801 B 2.5

E 2.4

E 3.2

Q802 B 2.1

E 2.0

Q803 B 2.1

E 2.8

Q804 B 2.1

E 2.8

– 93 –

– 94 –

– 96 –– 95 –

(7) Schematic Diagram of C (1/3) Board

123456

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Schematic diagram

Ò U board

CN5201

9P

YEL-L

:S-MICRO

GND 2R-SIG 2G-SIG 2B-SIG

GND

TEMP PROT

+10V

GND

+17V

TO A BOARD

CN4006

CN5202

10P

WHT-L

:S-MICRO

2HD 2VD

GND

2HS 2VS

GND +9V GND SCL SDA

TO A BOARD

CN4005

+13V

IC5007

NJM78M05FA

IO

G

C5209

47

25V

EMI

FL5016

TU01M

EMI

FB5003

BLM32A07

(1/3)

C

C5210

47

25V

EMI

P.GND

C5601 C5602

47 16V

FB5004

BLM32A07

2R 2G 2B

F:CHIP

10

1 2 3 4 5 6 7 8 9

+5V

R5202

5.6 3W

:RS

FL5017

TU01M

FB5014

BLM41A01

FB5015

BLM41A01

FB5016

BLM41A01

FB5017

BLM41A01

FB5018

BLM41A01

FB5019

BLM41A01

FL5015

TX14131

FL5014

TX14131

(LCD DRIVER)

F:CHIP

C5201

0.1

F:CHIP

0.1

C5202

0.1

L5202

10µH

L5602

10µH

– 97 –

C5203

47

25V

C5204

0.1

F:CHIP

C5205

47

25V

FB5602

BLM41A01

+17V

EMI EMI

+5V A

F:CHIP

FL5013

TX14131

FL5012 TX14131

C5401

0.01

H.SYNC

V.SYNC

2HS

2VS

FB5010

0

:CHIP

R5401

15k

:CHIP

FB5011

0

:CHIP

FB5012

FB5005

BLM32A07

R5402

33k

:CHIP

TH5401

0 :CHIP

SLSH1

SLSH2

SLSH3

NTHD

WIDE

+5V

R5403

100

:CHIP

Q5420

2SD601A TEMP

+5V

R5699

0 :CHIP

R5700

0 :CHIP

R5701

2.7k :CHIP

Schematic diagram

C (1/3) board l

7

+5V

R5210

10

:CHIP

R5410

10

:CHIP

2R

2G

2B

R5610

10

:CHIP

R5687

5.6k

:CHIP

R5688

5.6k

:CHIP

2SD601A

R5280

330

:CHIP

Q5410

2SD601A

BUFF

R5480

330

Q5610

BUFF

R5680 :CHIP

D/A CONVERTER

8 9 10 11 12 13

Q5210

BUFF

330

12345678

SLSHI1

SCL

SLSH2

RL

SDA

BIAS

BL

BIAS

RH

BIAS

BH BIAS

SLSH3

WIDE

NTHD

IC5602

CXA1875AM

+13V

C5260 C5261

0.1

F:CHIP4725V

+5V

FB5201

0

:CHIP

0.1

F:CHIP

C5221C5220

47

10V

R5221

1.2k

:CHIP

RABS

RU-OUT

SID-BI

R5220

5.6k

:CHIP

C5222

0.1

F:CHIP

R5284

0

:CHIP

2R

47

10V

RB5201

10x2 1/16W :CHIP

FB5401

0

:CHIP

R5691

100

:CHIP

R5692

100

:CHIP

FB5601

0

:CHIP

C5633

0.1

F:CHIP

RB5202

10x2 1/16W :CHIP

C5420 C5421

0.1

F:CHIP4710V

R5421

1.2k

:CHIP

GU-OUT

RB5401

10x2 1/16W :CHIP

12 34

RB5402

10x2 1/16W :CHIP

C5620

0.1

F:CHIP

SID-BI

GABS

SID-BI

C5621

47

10V

1.2k

:CHIP

R5420

5.6k

:CHIP

C5422

0.1

F:CHIP

C5622R5621

0.1

F:CHIP

+13V

R5620

5.6k

:CHIP

R5484

0

:CHIP

R5684

0

:CHIP

2G

C5460 C5461

0.1

F:CHIP4725V

+5V

C5440 C5441

10V

C5660 C5661

0.1

F:CHIP4725V

+5V

2B

R5694

10k

:CHIP

SH1A

RB5601

RB5602

SH3A SH2A SH4A

SH1B SH3B SH2B SH4B

47

10V

R5693

10k

:CHIP

9 10 11 12 13 14 15 16

10x2 1/16W :CHIP

12 34

10x2 1/16W :CHIP

R5211

1k

:CHIP

R5283

10 :CHIP

C5241C5240

0.1

F:CHIP

R5411

1k

:CHIP

R5483

10 :CHIP

47

0.1

F:CHIP 10

R5611

1k

:CHIP

R5683

10 :CHIP

C5641C5640

0.1

F:CHIP

+13V

R5226 R5228

0

:CHIP

R5290 :CHIP

+13V

R5690 :CHIP

– 98 –

C5225 C5226

0.1

F:CHIP

10

C5242

0.1

F:CHIP

0.1

F:CHIP

R5490 :CHIP

C5442

0.1

F:CHIP

0

:CHIP

C5625

0.1

F:CHIP

10

C5642

0.1

F:CHIP

6.8k

:CHIP

R5444 :CHIP

14

RLBSRHBS

0.1

F:CHIP

37

HGAMPOS

38

NC SIGCCONT

39

CLP

40

NC

41

SIGIN

42

SHISCONT

43

VCC2

44

VCC2

45

GND

46

GND

47

NC

48

VCCS

GLBS

RV5402

4.7k

R5429C5425 :CHIP

37

HGAMPOS

38

NC SIGCCONT

39

CLP

40

NC

41

SIGIN

42

SHISCONT

43

VCC2

44

VCC2

45

GND

46

GND

47

NC

48

VCCS

BLBSBHBS

R5628 R5630 R5632R5626

6.8k

:CHIP

C5626

0.1

F:CHIP

37

HGAMPOS

38

NC SIGCCONT

39

CLP

40

NC

41

SIGIN

42

SHISCONT

43

VCC2

44

VCC2

45

GND

46

GND

47

NC

48

VCCS

R-BIAS R-LGAIN R-GAINR-VCOM

+5V

R5230

0

:CHIP

RV5201

4.7k

R5231

0

:CHIP

SIDGAIN

AMPBIAS

LGAM

POS

1

GNDS

SH1

1 2 3 4 5 6 7 8 9 10 11 12

R5428

100

:CHIP0

C5426

0.1 F:CHIP

SIDGAIN

AMPBIAS

LGAM

POS

3

GNDS

SH1

1 2 3 4 5 6 7 8 9 10 11 12

+5V

RV5601

4.7k

R5631

0

:CHIP

SIDGAIN

AMPBIAS

LGAM

POS

C5227

0.1 F:CHIP

PRG

NC

SIDBIAS

IC5201

CXA3049AQ

LCD DRIVE R

SH2

SH3

SH4NCNC

+5V

R5430 R5432

0

:CHIP

RV5403 RV5404

4.7k 4.7k

F:CHIP2.2k

R5431

0 :CHIP

FRPFRP FRP

PRG

NC

SIDBIAS

IC5401

CXA3049AQ

LCD DRIVE G

SH2

SH3

SH4NCNC

B-BIAS B-VCOM B-LGAIN B-GAIN

0

:CHIP

RV5602

C5627

0.1

F:CHIP

PRG

NC

SIDBIAS

5

IC5601

CXA3049AQ

LCD DRIVE B

GNDS

SH1

SH2

SH3

1 2 3 4 5 6 7 8 9 10 11 12

SH4NCNC

R5232 :CHIP

RV5202

4.7k

R5233

0

:CHIP

GNDS

SIDOUT

VCCS

NC

LGAMGAIN HGAMGAIN

22

SIG3FB

SIG3OUT

SIG2FB

:CHIP

R5433C5427

0.1 :CHIP

GNDS

SIDOUT

VCCS

NC

LGAMGAIN HGAMGAIN

44

SIG3FB

SIG3OUT

SIG2FB

:CHIP

4.7k

C5628

0.1

F:CHIP

R5633

0

:CHIP

GNDS

SIDOUT

VCCS

NC

LGAMGAIN HGAMGAIN

66

SIG3FB

SIG3OUT

SIG2FB

0

C5228

0.1 F:CHIP

252627282930313233343536

VCOM

CONT

VCOMOUT

AMPGAIN

VCC

VCC GND2 GND2

SIG1OUT

SIG1FB

VCCS

SIG2OUT

GNDS

0

252627282930313233343536

VCOM

CONT

VCOMOUT

AMPGAIN

VCC

VCC GND2 GND2

SIG1OUT

SIG1FB

VCCS

SIG2OUT

GNDS

0

252627282930313233343536

VCOM

CONT

VCOMOUT

AMPGAIN

VCC

VCC GND2 GND2

SIG1OUT

SIG1FB

VCCS

SIG2OUT

GNDS

15 16 17 18 19 20 21 22

R-SIGC

R5234 R5236

2.4k

:RN-CP0:CHIP

R5235

4.3k :RN-CP

24 23 22 21 20 19 18 17 16

2

15 14 13

R

G-SIGC

R5434 R5436

2.4k

:RN-CP0:CHIP

RV5405

4.7k

C5428

R5435

0.1 F:CHIP

4.3k :RN-CP

24 23 22 21 20 19 18 17 16

4

15 14 13

G

B-SIGC

R5634

2.4k

:RN-CP

R5635

4.3k :RN-CP

24 23 22 21 20 19 18 17 16

6

15 14 13

B

C5229

0.1 F:CHIP

C5243

0.1

F:CHIP

C5429

0.1 F:CHIP

C5443

0.1

F:CHIP

C5629

0.1 F:CHIP

C5643

0.1

F:CHIP

RV5203

4.7k

R5237

2.2k :CHIP

R

R5437

2.2k :CHIP

G

R5636

0

:CHIP

R5637

2.2k :CHIP

B

C5230

R

C5430

G

C5630

B

R5244 C5231

0

0.1 F:CHIP :CHIP

F:CHIP

C5244

0.1

F:CHIP

C5245

0.1

F:CHIP

390k

:CHIP

R5253

0

:CHIP C5250

1

35V

:TA-CP

0

:CHIP

0.1 F:CHIP

C5444

0.1

F:CHIP

C5445

0.1

F:CHIP

R5450 :CHIP

R5453

0

:CHIP C5450

1

35V

:TA-CP

R5644 C5631 R5641

0

0.1

0.1 F:CHIP :CHIP

F:CHIP

C5644

0.1

F:CHIP

C5645

0.1

F:CHIP

390k

:CHIP

0

:CHIP C5650 C5651

1

35V

:TA-CP

+5V

0.1

+5V

RV5407

4.7k

C5431R5445

0.1

F:CHIP

+5V

RV5605RV5603

4.7k4.7k

R5241

2.2k

:CHIP

C5246

47

25V

G-GAING-LGAING-VCOMG-BIAS

C5446

47

25V

2.2k

:CHIP

C5646

47

25V

R5240 :CHIP

RV5205

4.7k

R5440 :CHIP

R5441

2.2k :CHIP

R5640 :CHIP

R5651

390k

:CHIP

R5654R5653

0

:CHIP

1

35V

:TA-CP

0

R5451 :CHIP

:TA-CP

0

C5232

0.1

F:CHIP

R5251R5250

390k

:CHIP

R5254

0

:CHIP

1

35V

:TA-CP

C5432

0.1

F:CHIP

390k

R5454

0

:CHIP C5451

1

35V

C5632

0.1

F:CHIP

R5652R5650

390k

:CHIP

R5655 :CHIP C5652

35V

:TA-CP

R

R5270

10

:CHIP

R

R5271

10

:CHIP

R5260

0

:CHIP

R5261

0

:CHIP

C5247

0.1

F:CHIP

R5252 :CHIP

R5255 :CHIP C5252C5251

:TA-CP

390k

0

1

35V

C5248

10

R5324

0

:CHIP

R

R5272

10

:CHIP

R5273

10

:CHIP

R5274

10

:CHIP

G

R5470

10

:CHIP

G

R5471

10

:CHIP

G

R5472

10

:CHIP

R5473

10

:CHIP

R5474

10

:CHIP

B

R5670

10

:CHIP

C5447

0.1

F:CHIP

R5452

390k

:CHIP390k

R5455

0

:CHIP

C5452

1

35V

:TA-CP

R5460

0

:CHIP

R5461

0

:CHIP

C5448

R5524

0

:CHIP

10

B

R5671

10

:CHIP

B

R5672

10

:CHIP

R5660

0

:CHIP

R5661

0

:CHIP

F:CHIP

0

1

C5648C5647

PRG FRP

100.1

R5724 R5673

0

:CHIP

10

:CHIP

R5674

10

:CHIP

R-SIG1

TP5203

R-SIG2

R-SIG3

R-VCOM

R-SID

R.GND

G-SIG1

TP5403

G-SIG2

G-SIG3

G-VCOM

G-SID

G.GND

B-SIG1

TP5603

B-SIG2

B-SIG3

B-SID B-VCOM

B.GND

B-SS617.<U/C>-C..P1

– 99 –

A

B

C

D

E

F

G

H

J

K

L

M

N

O

I

• C (1/3) BOARD WAVEFORMS

1

4.5 Vp-p (H)

4

10.0 Vp-p (H)

• C (1/3) BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC5201 2 1.2

3 1.2 4 5.1 5 1.2 8 6.8

9 6.8 10 6.8 11 6.8 14 6.8 15 6.8 20 3.3 21 0 22 2.7 23 3.2 24 6.3 25 1.4 27 6.8 30 3.4 31 0.3 33 0.9 34 0.9 35 1.3 36 3.7 37 5.1 39 5.1 41 2.6

2

3

10.0 Vp-p (H) 4.5 Vp-p (H)

5

6

4.5 Vp-p (H) 10.0 Vp-p (H)

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

IC5401 2 1.2

3 1.2 4 5.1 5 1.2 8 6.8

9 6.8 10 6.8 11 6.8 14 6.8 15 6.8 20 3.3 21 0 22 2.7 23 3.2 24 6.3 25 1.4 27 6.8 30 3.4 31 0.3 33 0.9 34 0.9 35 1.3 36 3.7 37 5.1 39 5.1 41 2.6

– 100

–

IC5601 2 1.2

3 1.2 4 5.1 5 1.2 8 6.8

9 6.8 10 6.8 11 6.8 14 6.8 15 6.8 20 3.3 21 0 22 2.7 23 3.2 24 6.3 25 1.4 27 6.8 30 3.4 31 0.3 33 0.9 34 0.9 35 1.3 36 3.7 37 5.1 39 5.1 41 2.6

IC5602 1 0

20 3 2.6 4 2.9 7 0.4

9 4.7 10 0 11 5.1 13 5.1 14 4.9 15 5.1

Q5410 B 2.8

E 2.6

Q5420 B 0.7

C0

Q5610 B 2.8

E 2.6

(8) Schematic Diagram of C (2/3) Board

A

B

C

D

E

F

G

H

J

K

L

M

N

123456

7

8 9 10 11 12 13

14

15 16 17 18 19 20 21 22

A

R5989

0

:CHIP

R5992

0 :CHIP

(2/3)

C

B B B

G G G

R R R

G G G

R5991

0 :CHIP

R5995

0 :CHIP

B B B

B-SS617.<U/C>-C..P2

R5101 R5103

4.7k

:CHIP

SLSH1 SLSH2

P.GND

R5001

4.7k

WIDE

+5V

:CHIP

R5002

4.7k

:CHIP

R5003

68k

:CHIP

+5V

R5006

0

:CHIP

SLSH3

R5017

4.7k :CHIP

R5019

68k

:CHIP

R5012

220

:CHIP

R5013

220

:CHIP

I

FL5001

TU01M

EMIEMI

R5028

FL5002

TU01M

6

5

123 4

D5001 1T363

15k

:CHIP

C5003

100p

CH:CHIP

R5030

39k

:CHIP

0.0033 B:CHIP

WIDE

R5029

5.6k

:CHIP

C5004

0.1 25V

B:CHIP

C5005

3.3

10k :CHIP

C5006

R5033

1M :CHIP

R5034

1M :CHIP

R5035

33k

:CHIP

R5031 :CHIP

R5032

D5047 MA111

R5037

C5015

0.0033 B:CHIP

C5012

100p

CH:CHIP

R5038

18k

:CHIP

C5014

3.3

R5041

R5042

R5043

33k

:CHIP

5.6k

:CHIP

C5013

0.1 25V

B:CHIP

1M :CHIP

R5039

1k

:CHIP

R5040

10k

:CHIP

R5036

8.2k :CHIP

+5V

1k

L5003

0.56µH

5

6

47p

123 4

C5011

0.001

B:CHIP

D5002 1T363

IC5002

µPC4082G2

BUFF

1 2 3 4

VCC+

OUT

IN-

IN+

VCC

OUT

IN-

IN+

5678

C5009

0.01

B:CHIP

C5010

UJ:CHIP

D5048 MA111

+5V

P.GND

H.SYNC

V.SYNC

R5123

D5043

:CHIP

MA729

FB5013 C5001

BLM41A01 0.01

0

L5001

4.7µH

B:CHIP

C5002

47

10V

UJ:CHIP

0.001

B:CHIP

C5007

30p

L5002

0.82µH

:CHIP

R5065

1M

:CHIP

R5063

1M

:CHIP

R5007

100

:CHIP

R5064

1M

:CHIP

C5016

43p

UJ:CHIP

C5059

220p

CH:CHIP

R5066

1M

:CHIP

1M

:CHIP

5

L5004

1.2µH

C5017

0.001

B:CHIP

D5003 1T363

FL5003 BMK400

:EMI-CP

EMI

FL5004 BMK400

:EMI-CP

EMI

FL5005 BMK400

:EMI-CP

EMI

R5089

:CHIP

C5056

220p CH:CHIP

C5055

220p

CH:CHIP

SLFR

NTPL

TC1

FPD1

R5087 :CHIP

0

PCGW

PEO1

R5049 :CHIP

R5047 :CHIP

1k

SLAUX

PWM1

1k

10k

RB5011

220x2 1/16W :CHIP

C5054

SLSH1

SLSH2

RPD1

VSS

R5011

220

:CHIP

C5021

0.1 25V

B:CHIP

D5049

MA111

220p CH:CHIP

SH3

SH4

VDD

LCD CONTROL

CKI1

VSS

CKO1

C5040

100p

CH:CHIP

FB5001

BLM32A07

C5027

0.01

B:CHIP

C5050

PRG

VSS

SH1

SH2

XCLP2

IC5004

CXD2412AQ

12

HP1

VSS

HSYNC

VSYNC

0 :CHIP

R5056

R5055

C5041

100p

CH:CHIP

RB5001

220x2 1/16W :CHIP

FB5002

BLM32A07

UDZ-TE-17-4.7B

D5034

UDZ-TE-17-4.7B

1 2 3 4

VCC+

OUT

IN-

OUT

IN-

IN+

VCC

IC5003

µPC4082G2

BUFF

100p CH:CHIP

FRP

XCLP1

HP2

HP3

0 :CHIP

R5058

R5057

D5035

5678

C5018

0.01

B:CHIP

C5049

100p

CH:CHIP

X3DM

VSTP

HP4

HP5

0 :CHIP

R5059

RB5012

220x2 1/16W :CHIP

C5026

C5025

47

0.01

10V

B:CHIP

R5008

100

:CHIP

C5058

CH:CHIP

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100

R5053R5052 :CHIP

6

123 4

C5057

220p

1M

+5V

220p CH:CHIP

VSS

VDD

XHD

SLSH3 TC2 FPD2 PEO2 PWM2 RPD2 VSS CKO2 CKI2 VSS CKO3 CKI3 VSS RPD3 PEO3 PWM3 FPD3 TC3 CP1 CP2

XW1D

VDD

VSS

MCKO

MCKSW

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

C5023

0.01

B:CHIP

R5051

12k

:CHIP

C5022

100p

CH:CHIP

R5050

5.6k

:CHIP

R5048

39k

:CHIP

C5020

3.3

C5019

0.0033 B:CHIP

R5046

1M :CHIP

R5045

1M

:CHIP

R5044

33k

:CHIP

NTHD

R5092

47

:CHIP

R5093

47 :CHIP

R5094

47 :CHIP

QVD

FLD0

WRIT

HP6

TST1

TST2

R5060

0

:CHIP

+17V

C5028

0.01

B:CHIP

VSS

FLD1

TST3

TST4

P.GND

VDD

SLPAL

VDD

VSS

C5024

0.01

B:CHIP

L5005

10µH

C5039

515253545556575859606162636465666768697071727374757677787980

SLMB

VP2 VP1

VST2

DWN VST PCG VCK ENB CLR

HSTB

VSS HCK2B HCK1B HCK2A HCK1A

VDD

HSTA XRGT

RGT

XCLR

TST5

47 25V :CI

+5V

50 49

R5996

0

48

:CHIP

47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

R5998

0

:CHIP

FB5026

BLM32A07

2VS

2HS

R5107C5008

1k

:CHIP

4

1 2

3

IC5005

PQ15RF16

15V REG

R5096

100

:CHIP

R5097

100

:CHIP

C5029

0.1

F:CHIP

C5048

100p CH:CHIP

C5047

100p CH:CHIP

C5046

100p CH:CHIP

C5045

100p CH:CHIP

C5044

100p CH:CHIP

C5043

100p CH:CHIP

C5073

0.01

B:CHIP

C5042

CH:CHIP

RB5002

220x2 1/16W :CHIP

FB5025

BLM32A07

3

4

D5040 MA111

100x2 1/16W :CHIP

100p

15V

SH4B SH1B SH2B

SH4A

SH3A

SH2A

PRG FRP

R5098

33k

:CHIP

Q5001

DTC314TK

WIDE SW

R5130

0

:CHIP

RB5008

100x2 1/16W :CHIP

FL5007 NFM41R

EMI

FL5008 NFM41R

EMI

FL5009 NFM41R

EMI

FL5010 NFM41R

RB5003

100x2 1/16W :CHIP

C5051

220p

CH:CHIP

IC5006

PQ30RV11 13V REG

1 2

C5030

47

25V

R5099 :CHIP

RB5006

R5074 :CHIP

D5041 MA111

4

3

4.7k

56

R5073

56 :CHIP

R5072

180

:CHIP

180 :CHIP

R.GND

R5100

100

:CHIP

RB5007

100x2 1/16W :CHIP

R5071

R5108

3.6k

:RN-CP

R5109

:RN-CP

R5110

:RN-CP

150

390

G.GND

B.GND

+13V

TP5009

(LCD CONTROL)

20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4

R-(SIG3)

3

R-(SIG1)

2

R-(SIG2)

1

TO R LCD

1 2

G-(SIG2)

3

G-(SIG1)

4

G-(SIG3)

5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

TO G LCD

CN5003

20 19 18 17 16 15 14 13 12 11 10

9

8

7

6

5

4

B-(SIG3)

3

B-(SIG1)

2

B-(SIG2)

1

TO B LCD

B-SID

B-SIG2

B-SIG1 B-SIG3 B-VCOM

G-VCOM G-SIG3 G-SIG1 G-SIG2 G-SID

R-SID R-SIG2 R-SIG1 R-SIG3 R-VCOM

SOUT

COM

VVDD

DWN VST PCG VCK ENB

CLR HCK2 HCK1

VSS

HST

RGT

WID HVDD

R-SID

CN5001

20P

CN5002

20P

G-SID

HVDD

WID

RGT

HST

VSS HCK1 HCK2

CLR

ENB

VCK

PCG

VST

DWN VVDD

COM SOUT

20P

SOUT

COM VVDD

DWN

VST

PCG

VCK

ENB

CLR HCK2 HCK1

VSS

HST

RGT

WID HVDD

B-SID

• C (2/3) BOARD WAVEFORMS

1

5.0 Vp-p (H)

3

4.5 Vp-p (H)

2

5.0 Vp-p (V)

4

4.5 Vp-p (H)

• C (2/3) BOARD

VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC5002 1 2.5

IC5003 1 1.3

IC5004 5 0

IC5005 2 16.5

IC5006 1 16.5

Q5001 B 0.2

2 2.5 3 2.5 50 6 4.9 7 4.9

2 1.4 3 0.8 5 1.0 60 7 1.4

60 7 5.0 80

90 11 5.0 12 5.0 16 5.4 17 5.4 20 5.0 21 5.0 22 5.0 31 5.0 32 0 33 4.9 34 0.2 36 2.2 37 2.2 38 1.9 39 1.9 41 0.2 42 0.6 43 4.4 44 2.6 45 0.3 46 0 61 2.5 64 0.4 66 4.9 67 1.2 68 1.2 69 1.2 71 5.0 72 0.2 73 5.0 75 5.0 76 5.2 77 0.2 80 5.2 81 5.3 82 4.7 83 2.5 84 3.3 85 2.5 86 2.5 88 2.5 89 2.5 91 4.9 92 5.0 94 0 95 5.0 96 0 97 0 98 0

4 16.2

4 1.4

C 5.1

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Schematic diagram

Ò C (2/3) board

– 101 – – 103 –

– 102 –

O

Schematic diagram

C (3/3) board l

(9) Schematic Diagram of C (3/3) Board

C

LCD DRIVER, LCD CONTROL, UNIFORMITY CORRECTION

CU

UNIFORMITY CORRECTION

A

B

C

D

E

G

123456

7

8 9 10 11 12

— C BOARD (Conductor Side) —

C5902

L5901

+5V

H.SYNC

WIDE

V.SYNC

CN5901

9P

WHT

:S-MICRO

5V

GND

V.SYNC

W/N RU-V GU-V

GND RU-H GU-H

TO CU BOARD

CN5801

1 2 3 4 5 6 7 8 9

4.7µH

C5901 1000p

R5908 :CHIP

+5V

6.3V

10k

F

Q5901

2SB709A

47

R5910

10k

:CHIP

SWITCH

R5901

10k

:CHIP

C5907

47p

CH:CHIP

R5912

24k

:RN-CP

5

C5915

C5903 C5904 2400p

:CH

R5913

33k

:CHIP

3

6

2

4

1

Q5906

XN4601-TW

0.1

SWITCH

12k

:RN-CP

5V

2400p

:CH

Q5902

2SD601A

BUFFA

R5918

2.2k

:CHIP

R5924

0

:CHIP R5927R5923

3.6k

:RN-CP

C5909

0.1

R5935

2.2k

:CHIP

Q5910

2SB709A

BUFFA

R5948

330 :RN-CP

R5916 R5956

22k

:CHIP

Q5905

2SD601A

BUFF

2.2k

22k

:CHIP

GND

R5930

22k

:CHIP

C5919

0.1

Q5909

2SD601A

BUFF

22k

:CHIP

2SD601A

2.2k

2.7k

:CHIP

Q5919

BUFF

R5941

0

:CHIP

R5914R5919R5911

2.7k

:CHIP

D5901 MA111

R5931

2.7k

:CHIP

Q5920

2SD601A

BUFF

R5945

0

:CHIP

R5939R5944R5937

2.7k

:CHIP

R5949

330

:RN-CP

D5902 MA111

5V

C5905

0.1

R5904

100k

:CHIP

C5916

G-GAIN

R-GAIN

0.1

1234

IN CONT OUT

CXA1211M

1234

IN CONT OUT

CXA1211M

R5907

100k

:CHIP

1

IN2

1

CONT2

1

OUT2

IC5901 VOLUME

C5912

0.1

1

IN2

1

CONT2

1

OUT2

IC5902 VOLUME

C5923

0.1

+5V

R5905 R5960

22k

:CHIP

C5908

0.1

C5910

0.1

22k

:CHIP

5

R5964R5920 :CHIP

5 6 7 8

+5V

R5934 R5961

22k

:CHIP

5

C5918

0.1

5 6 7 8

C5920 R5940

0.1 22k :CHIP

R5965 :CHIP

1k

Q5915

IMX3

SLICE

1

6

Q5916

IMX3

SLICE

1

6

R5966

10k

:CHIP

3

2

R5962

0

:CHIP

R5926

12k

:CHIP

R5967

10k

:CHIP

3

2

R5963

0

:CHIP

R5947

12k

:CHIP

22k

:CHIP

4

C5926 R5925

0.1

F:CHIP

22k

:CHIP

4

C5927

0.1

F:CHIP

R5902

330 :CHIP

R5909

0 :CHIP

4

1

2

3

6

R5915 C5913

0

BUFF

:CHIP

XN4601-TW

R5921

330

:CHIP

22k

:CHIP

R5928

330 :CHIP

R5933

0 :CHIP

BUFF

Q5907 Q5903

4

1

XN4601-TW

2

3

6

R5938 C5922

0

R5942

:CHIP

330

:CHIP

R5946

22k

:CHIP

5

R5903 R5906 R5968

SW5901

CLAMP

SELECT

SW5902

CLAMP

SELECT

2.2k

:CHIP

XN4601-TW

CLAMP

1

R5929

2.2k

:CHIP

XN4601-TW

CLAMP

1

2

2.2k

:CHIP

C5906

0.1

4

1

5

3

6

R5917 R5969

470k

:CHIP

R5936 R5970

2.2k

:CHIP

C5917

0.1

4

1

5

3

6

R5943 R5971

470k

:CHIP

4

2

4

2

Q5917Q5904

XN4601-TW

CLAMP

1

5

3

6

R-OUT

2.2k

:CHIP

Q5918Q5908

XN4601-TW

CLAMP

1

5

3

6

G-OUT

2.2k

:CHIP

470k

:CHIP

TP5901

470k

:CHIP

TP5902

RU-OUT

RABS

GU-OUT

GABS

+5V

R5954 R5955 R5952

10k

2.7k

:RN-CP

Q5911

2SB709A

GAIN

SELECT

R5958 R5959

0

:CHIP

Q5914

2SD601A

INV

:CHIP

Q5913

2SD601A

INV

10k

:CHIP

R5953

2.7k

:RN-CP

Q5912

2SB709A

GAIN

SELECT

0

:CHIP

— C BOARD (Component Side) —

(3/3)

C

P.GND

(UNIFOMITY CORRECTION)

B-SS617.<U/C>-C..-P3

H

C BOARD Terminal name of semiconductors

I

J

K

• C (3/3) BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC5901 1 3.2

2 1.3 3 2.7 5 2.1 6 1.3 7 3.0

IC5902 1 3.3

2 1.2 3 2.4 5 1.5 6 1.2 7 3.6

Q5901 B 4.7

C 3.8

Q5902 B 3.8

E 3.2

Q5903 2 2.1

3 1.5 4 3.6 5 1.5 6 2.1

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

Q5904 2 2.2

3 2.8 4 5.0 5 1.6 6 2.2

Q5905 B 2.5

E 1.9

Q5906 2 2.3

3 1.7 4 3.8 5 1.7 6 2.3

Q5907 2 2.1

3 1.5 4 3.6 5 1.5 6 2.1

Q5908 2 2.0

3 1.5 5 1.3 6 2.0

Q5909 B 2.5

E 1.9

Q5910 B 3.2

E 3.8

Q5911 B 5.0

C0 E 1.4

Q5912 B 5.0

E 1.5

Q5913 B 0

C 5.0

Q5914 B 0

C 5.0

Q5915 1 5.0

2 2.1 3 5.0 4 2.8 5 2.6 6 2.1

Q5916 2 2.1

4 2.8 5 2.6 6 2.1

Q5917 2 1.5

3 1.0 5 1.0 6 1.5

Q5918 2 1.3

3 0.7 5 0.7 6 1.2

Q5919 B 2.5

C 5.0

E 1.9

Q5920 B 1.9

C 3.8

E 1.3

in silk screen printed circuit (

Ref. Q5001, Q5210, Q5410, Q5420, Q5610 Q5901, Q5902, Q5905, Q5909–Q5914, Q5919, Q5920

Q5915, Q5916

Q5903, Q5904, Q5906–Q5908, Q5917, Q5918 D5001–D5003, D5034, D5035, D5040, D5041, D5043, D5047–D5049 D5901, D5902

:Refer to Terminal name of

*

semiconductors in silk screen printed circuit (see page 64)

*

2

!¶

@º

3

)

*

L

M

N

O

– 104 –

– 105 –

CU BOARD Terminal name of semiconductors in silk screen printed circuit (

Q5801, Q5803, Q5804,

Ref.

Q5807, Q5808, Q5811–Q5814, Q5816, Q5818

Q5805, Q5806

Q5802

D5802, D5804

:Refer to Terminal name of

*

semiconductors in silk screen printed circuit (see page 64)

*

2

!¶

@º

3

— CU BOARD (Conductor Side) —

)

*

– 106

— CU BOARD (Component Side) —

–

(10) Schematic Diagram of CU Board

123456

CN5801

9P

WHT

:S-MICRO

A

TO C BOARD

B

+5V GND

V SYNC

W/N RU-V GU-V

GND RU-H GU-H

CN5901

1 2 3 4 5 6 7 8 9

L5801

4.7µH

C5801 1000p

C5802

47

6.3V

+5V

R5808

10k

:CHIP

R5809

10k

:CHIP

2SB709A

C5803

47p

CH:CHIP

R5810

24k

:RN-CP

5

C5804

Q5801

SWITCH

6

1

XN4601-TW

0.1

C

RV5805

10k

D

R-H GAIN

4.7 35V

R5814

33k

:CHIP

3

2

4

Q5802

R5815 :CHIP

R5811 R5816

12k

5V

R5812

3.9k

:CHIP

R5819

0

:CHIP

3.9k

:CHIP

:RN-CP

Q5803

2SD601A

BUFFA

R5822

2.2k

:CHIP

0

R5801

3.9k

:CHIP

RV5806

10k

G-H GAIN

R5818

0

:CHIP

Q5804

2SB709A

BUFFA

22k

:RN-CP

C5809

10

16V

5

R5826

22k

:RN-CP

R5834 :CHIP R5835 :CHIP

2.2k

:CHIP

C5810

10

16V

1

6

100

1k

22k

:RN-CP

5

22k

:RN-CP

Q5805

IMX3

SLICE

3

2

0.1

GND

1

3

6

2

R5838R5833 :CHIP R5839 :CHIP

22k

:CHIP

4

Q5806

IMX3

SLICE

4

C5812

0.1

100

1k

R5843C5811

100

:CHIP

Q5807

2SD601A

R5844R5832R5829

22k

:RN-CP

R5845

100

:CHIP

Q5808

2SD601A

5V

R5806R5842R5825C5805

2.7k

:CHIP

R5807

2.7k

:CHIP

SW5801

U/D SELECT

UP

R5813

2.7k

SW5802

U/D SELECT

DOWN

R5817

2.7k

C5813

10

16V

C5814

G-GAIN

R-GAIN

10

16V

KL-W7000A/W9000A

RM-Y980

7

Q5816

2SD601A

CLAMP

R5883

820

:CHIP

D5802

10

16V

10

16V

5 6 7 8

C5815

0.1

C5816

0.1

MA111

C5819

10

16V

R5855

330k

:CHIP

R5885

820

:CHIP

D5804 MA111

C5820

10

16V

R5857

330k

:CHIP

R5860

330

:CHIP

Q5818

2SD601A

CLAMP

R5858

330

:CHIP

1234

1

IN CONT

1

CONT2

1

OUT

IC5801

CXA1211M

VOLUME

1234

1

IN CONT

1

CONT2

1

OUT

IC5802

CXA1211M

VOLUME

IN2

OUT2

C5817

IN2

OUT2

C5818

P110

E

5V

R5802

R5804

2.2k

2.2k :CHIP

:CHIP

F

10k

RV5804

R5803 R5805

0

:CHIP0:CHIP

G-V GAIN

10k

RV5803

R-V GAIN

G

• CU BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC5801 1 2.7

2 2.6 3 2.1 5 2.2 6 2.7 7 2.7

IC5802 1 2.7

2 2.6 3 2.2 5 2.2 6 2.6 7 2.7

Q5801 B 4.6

C 3.9

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

Q5802 1 0

Q5803 B 4.0

Q5804 B 3.3

Q5805 2 1.8

R5851R5837

330

:RN-CP

R5836

10k

:CHIP

Q5811 Q5813

2SD601A

INV

2 2.2 3 1.3 4 4.0 5 1.7

330

:RN-CP

R5840

2.7k

:RN-CP

Q5812

2SB709A

GAIN

SELECT

0

:CHIP

2SD601A

INV

Q5806 2 1.8

6 2.3

Q5807 B 1.6

E 3.3

E 3.9

4 0 5 2.4

Q5808 B 1.6

Q5811 B 0

R5848 R5852

10k

2.7k

:CHIP

:RN-CP

Q5814

2SB709A

GAIN

SELECT

R5853R5841

0

:CHIP

6 1.8

4 0 5 2.4 6 1.8

C 4.0 E 1.0

C 4.1 E 1.0

(UNIFOMITY CORRECTION)

C 5.0

Q5812 B 5.1

Q5813 B 0

Q5814 B 5.0

Q5816 B 0.7

Q5818 B 0.7

E 2.6

C 5.0

E 2.7

E 1.2

CU

B-SS617.<U/C>-CU.

Schematic diagram

CU board

– 107 –

(11) Schematic Diagrams of G and GA Boards

+15V

0.2

9.5

2.6

19.0 0

0.9

1.2

0.1

1

2

3

4

5

6

7

8

9

10

1 2 3 4

5678

C811

R844

D832

C817 R842

R841

C818

D831

R843

CN802

Q823

Q822

Q821

C814

R846

R845

IC801

C815R847

R848

C816

0.1

22k

RD22ESB2

0.1 10k

10k

0.1

1SS119

10k

10P

2SA1309A

LATCH

2SC3311A

LATCH

2SC3311A

LATCH

0.22

8.2k :RN

47

MC33262P

CONTROLLER

0.01JW(5)

10k

1000p

DRIVE

SENSE

CMPNS

GND

VCCSENSE

V

AC

I

L

GND

I SENSE

DRIVE

VCC

V SENSE

AC SENSE

LATCH

OUP

L SENSE

LATCH OUT TO G BOARD CN614

GA

(POWER CONTROLLER)

B-SS530.<U/C>-GA.-05

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

A

B

C

D

E

F

G

H

J

I

123456

CN613

3P WHT :VH-B

TO LAMP DRIVER

L610

8

9

10

112

D610 D4SB60L AC RECT

C606

0.0047 250V

RY601

0.001

VDR601

R617

C603

1

2 3

C604

0.47 250V

123

AC(N)

2

1

D620

1SS119

D664

1SS119

250V

0.47 250V

4

13456 7

C610

1.0

400V

2SK2195

BOOST SWITCHING

R612 470k

R613 470k

R644

2.2 5W

D621

RM2CS

C617

47

250V

Q610

S

R610

0.22 2W

:RS

CN614

10P

L/O

LATCH

AC SENSE

L SENSE

OVP

V SENCE

VCC

DRIVE

I SENCE

GND

TO GA BOARD

CN802

R645

220

1W

:RS

RELAY DRIVE

R604

220

1W

:RS

FB610

0.45UH

FB611

0.45UH

R636

0.22 2W

:RS

1 2 3 4 5 6 7 8 9

10

Q641

2SA1309A

R626

10k

R637

10

D640

1SS119

R646

10k

R647

10k

R658

100

2W

:RS

C652 470p 1kV

VCC

+17V

D611

D5L60

C651 470p 1kV

C661

100 10V

R619 360k

:RN

R620 360k

:RN

R621 360k

:RN

R661

4.7

:FPRD

CN608

3P

BLK

:S-MICRO

E(U) E(U)

TO U BOARD CN2

TO HA BOARD CN8002

E(U)

CN609

3P

WHT

:S-MICRO

E(HA) E(HA)

E(HA)

CN610

E(O/U)

TO O/U

CN611

3P BLK :VH-B

1P

AC(A)

AC(B)

TO BIMETAL

AC IN

1 2 3

1

1 2 3

TH601

CN612

3P

BLK

:VH-B

C605

0.0047 250V

RY602

C612 C613

0.001

250V

330k 1/2W :SURGE

T601 :LFT

F601

6.3A/250V

NC

AC(L)

– 109 – – 110 – – 111 –

-DC

C622

47

25V

+DC

123

R648

0.1

1/2W

:RF

C611

330

400V

C631 470p 250V

R665

47k :RN

R630

22k

R631

100

FB612

0.45UH

P6KE200AG23

RGP10JPKG23

D1NL40

C660

100 25V

1234

IC701

TOP210PFI

STBY IC

7

R640

0.47 1/2W

:RF

R638 220k

:RN

R641 100k

1W

:RS

R639 270k

R642

:RN

100k

1W

:RS

R664 270k

:RN

Q615

2SA1309A

VCC SW

R632

D617

10k

1SS119

R635

10k

D660

D661

D662

5 6 7 8

Q640

MX0541B-F

MAIN CONVERT

R659

15

1/2W

C624

:FPRD 470p 1kV

:HR

1 8

2

4

3

T660

SRT

PH701

PC123FY2

4

3

D642

1SS119

6

5

8 9 10 11 12 13

FB620

0.45UH

D605

D10SC4M

0.45UH

C609 4700

10V

R614

22k

2SA1309A

R628

4.7k

2SA1309A

LATCH

C642

22

R686

1k

C682

4.7

R688

D601

D10SBS4

AUDIO RECT

C601

0.001 35V

D10SC6M

+17V RECT

C607

470 25V

C614 4700

16V

D607

RD10ES-B1

C630

1

Q602

R618

10k

OCP

D629

1SS119

Q604

2SC3311A

DISCHARGE

R625

D612

1k

1SS119

C645

0.01 :MPS

R603

R668

2.2k

MAIN VCC SW

10k

SUB+5V

R601

4.7k

D603

IC603

µPC1093J

15V REG

1SS119

RD5.6ESB3

1k

R602

1k

Q683

2SA1309A

L603 10µH

L604 10µH

L605 10µH

D613

D619Q605

OVP

L601

3.3µH

C619

47

25V

C636

0.027 :MPS

R622

33k

3

1

2

R627

1.6k :RN

Q607

2SC3311A

POWER CONT

+20V

+17V

+10V

+5V

R623

1.8k :RN

D628

1SS119

R667

2.2k

C602

47

C608

47

25V

C628

47

0.01

25V

G

B

R666

1k

C644

47

25V

(POWER SUPPLY)

C635

0.1

:MPS

R624

1.5k

C629

0.01 B

C616

C641 470p 1kV

:HR

R670

220

1

2

:FPRD

R649

100k 1W :RS

D644

R660

1SS119

15

1/2W

R606 R607

4.7 4.7

C648 C649

0.56 :MPS

D703

D1NL20U

D704

D1NL20U

C701

330 10V

C650

0.033 630V

:PP

R650 100k

1W

:RS

0.56 :MPS

C702

47

25V

C706

0.22 :MPS

R702 100k

3

1

2

IC702 µPC1093J-1 SUB 5V REG

R671

0.47 1/2W

:FPRD

MAIN VCC RECT

1

C639

0.47 :MPS

2

3

4

5

C640

0.47 :MPS

T641

PRT

L702 22µH

R703

10k :RN

R706

10k :RN

1

2

3

4

5

6

D609

D1NL20U

7

6

D615

1SS119

4

3

C703

47

25V

C705

0.01 :MPS

R704

1k

T602

PIT

C623

100

PH680

PC123FY2

7

8

12

11

13

9

14

10

R685

4.7k

D627

1SS119

Q603

2SA1309A

SOFT START

C643

4.7

R669

10k

Q606

2SC3311A

LATCH

R687

1k

1

2

C704

0.01 B

+10V RECT

FB621

FB622

D606

D10SC4M

+5V RECT

D618

RD13ESB1

R629

2.2k

C625

0.01 B

C626

0.01 B

R611

C627

1.2

0.01

1W

:RS

B

B-SS530.<U/C>-G..-05

14

1 2 3 4 5 6

1 2 3 4 5 6 7 8 9

10

1 2 3 4 5 6 7 8

CN602

6P

WHT

:S-MICRO

TO K BOARD CN8501

+20V +20V +20V

GND(A) GND(A) GND(A)

NC

+17V +10V

+10V +10V GND GND GND GND

POWER CTL

CN604

10P RED

:S-MICRO

TO A(1/3)BOARD CN1005

CN607

8P

WHT

:S-MICRO

TO A(3/3)BOARD CN4003

GND GND GND +5V +5V +5V +5V SUB+5V

15 16 17 18 19 20 21 22

• G BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC603 1 2.5

3 9.3

IC701 4 5.8

5 123.6

IC702 1 2.5

3 11.2

PH680 1 1.2

20 30 4 0.2

PH701 1 12.3

2 11.2 3 5.8 4 16.5

Q602 B 10.0

C 0.1 E 10.1

Q603 B 10.2

E 9.3

Q604 B 0.2

C 10.2

Schematic diagrams

Ref. Pin No. Voltage [V]

Q605 B 1.3

C 0.1

E 1.4

Q606 B 0.1

C 1.4

Q607 B 0.7

C0

Q615 B 14.1

E 14.9

Q640 B1 –103.1

C1 0 E1 –101.7 B2 –1.9 C2 101.1 E2 0

Q641 B 15.7

C 16.3

E 16.5

Q683 B 12.3

C 13.1

E 13.2

Ò G GA board

A

B

C

D

E

F

G

H

I

J

P110

KL-W7000A/W9000A

RM-Y980

G

POWER SUPPLY

— G BOARD —

GA

POWER CONTROLLER

— GA BOARD —

– 108 –

(11) Schematic Diagrams of G and GA Boards

+15V

0.2

9.5

2.6

19.0 0

0.9

1.2

0.1

1

2

3

4

5

6

7

8

9

10

1 2 3 4

5678

C811

R844

D832

C817 R842

R841

C818

D831

R843

CN802

Q823

Q822

Q821

C814

R846

R845

IC801

C815R847

R848

C816

0.1

22k

RD22ESB2

0.1 10k

10k

0.1

1SS119

10k

10P

2SA1309A

LATCH

2SC3311A

LATCH

2SC3311A

LATCH

0.22

8.2k :RN

47

MC33262P

CONTROLLER

0.01JW(5)

10k

1000p

DRIVE

SENSE

CMPNS

GND

VCCSENSE

V

AC

I

L

GND

I SENSE

DRIVE

VCC

V SENSE

AC SENSE

LATCH

OUP

L SENSE

LATCH OUT TO G BOARD CN614

GA

(POWER CONTROLLER)

B-SS530.<U/C>-GA.-05

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

KL-W7000A/W9000A

RM-Y980

A

B

C

D

E

F

G

H

J

I

123456

CN613

3P WHT :VH-B

TO LAMP DRIVER

L610

8

9

10

112

D610 D4SB60L AC RECT

C606

0.0047 250V

RY601

0.001

VDR601

R617

C603

1

2 3

C604

0.47 250V

123

AC(N)

2

1

D620

1SS119

D664

1SS119

250V

0.47 250V

4

13456 7

C610

1.0

400V

2SK2195

BOOST SWITCHING

R612 470k

R613 470k

R644

2.2 5W

D621

RM2CS

C617

47

250V

Q610

S

R610

0.22 2W

:RS

CN614

10P

L/O

LATCH

AC SENSE

L SENSE

OVP

V SENCE

VCC

DRIVE

I SENCE

GND

TO GA BOARD

CN802

R645

220

1W

:RS

RELAY DRIVE

R604

220

1W

:RS

FB610

0.45UH

FB611

0.45UH

R636

0.22 2W

:RS

1 2 3 4 5 6 7 8 9

10

Q641

2SA1309A

R626

10k

R637

10

D640

1SS119

R646

10k

R647

10k

R658

100

2W

:RS

C652 470p 1kV

VCC

+17V

D611

D5L60

C651 470p 1kV

C661

100 10V

R619 360k

:RN

R620 360k

:RN

R621 360k

:RN

R661

4.7

:FPRD

CN608

3P

BLK

:S-MICRO

E(U) E(U)

TO U BOARD CN2

TO HA BOARD CN8002

E(U)

CN609

3P

WHT

:S-MICRO

E(HA) E(HA)

E(HA)

CN610

E(O/U)

TO O/U

CN611

3P BLK :VH-B

1P

AC(A)

AC(B)

TO BIMETAL

AC IN

1 2 3

1

1 2 3

TH601

CN612

3P

BLK

:VH-B

C605

0.0047 250V

RY602

C612 C613

0.001

250V

330k 1/2W :SURGE

T601 :LFT

F601

6.3A/250V

NC

AC(L)

– 109 – – 110 – – 111 –

-DC

C622

47

25V

+DC

123

R648

0.1

1/2W

:RF

C611

330

400V

C631 470p 250V

R665

47k :RN

R630

22k

R631

100

FB612

0.45UH

P6KE200AG23

RGP10JPKG23

D1NL40

C660

100 25V

1234

IC701

TOP210PFI

STBY IC

7

R640

0.47 1/2W

:RF

R638 220k

:RN

R641 100k

1W

:RS

R639 270k

R642

:RN

100k

1W

:RS

R664 270k

:RN

Q615

2SA1309A

VCC SW

R632

D617

10k

1SS119

R635

10k

D660

D661

D662

5 6 7 8

Q640

MX0541B-F

MAIN CONVERT

R659

15

1/2W

C624

:FPRD 470p 1kV

:HR

1 8

2

4

3

T660

SRT

PH701

PC123FY2

4

3

D642

1SS119

6

5

8 9 10 11 12 13

FB620

0.45UH

D605

D10SC4M

0.45UH

C609 4700

10V

R614

22k

2SA1309A

R628

4.7k

2SA1309A

LATCH

C642

22

R686

1k

C682

4.7

R688

D601

D10SBS4

AUDIO RECT

C601

0.001 35V

D10SC6M

+17V RECT

C607

470 25V

C614 4700

16V

D607

RD10ES-B1

C630

1

Q602

R618

10k

OCP

D629

1SS119

Q604

2SC3311A

DISCHARGE

R625

D612

1k

1SS119

C645

0.01 :MPS

R603

R668

2.2k

MAIN VCC SW

10k

SUB+5V

R601

4.7k

D603

IC603

µPC1093J

15V REG

1SS119

RD5.6ESB3

1k

R602

1k

Q683

2SA1309A

L603 10µH

L604 10µH

L605 10µH

D613

D619Q605

OVP

L601

3.3µH

C619

47

25V

C636

0.027 :MPS

R622

33k

3

1

2

R627

1.6k :RN

Q607

2SC3311A

POWER CONT

+20V

+17V

+10V

+5V

R623

1.8k :RN

D628

1SS119

R667

2.2k

C602

47

C608

47

25V

C628

47

0.01

25V

G

B

R666

1k

C644

47

25V

(POWER SUPPLY)

C635

0.1

:MPS

R624

1.5k

C629

0.01 B

C616

C641 470p 1kV

:HR

R670

220

1

2

:FPRD

R649

100k 1W :RS

D644

R660

1SS119

15

1/2W

R606 R607

4.7 4.7

C648 C649

0.56 :MPS

D703

D1NL20U

D704

D1NL20U

C701

330 10V

C650

0.033 630V

:PP

R650 100k

1W

:RS

0.56 :MPS

C702

47

25V

C706

0.22 :MPS

R702 100k

3

1

2

IC702 µPC1093J-1 SUB 5V REG

R671

0.47 1/2W

:FPRD

MAIN VCC RECT

1

C639

0.47 :MPS

2

3

4

5

C640

0.47 :MPS

T641

PRT

L702 22µH

R703

10k :RN

R706

10k :RN

1

2

3

4

5

6

D609

D1NL20U

7

6

D615

1SS119

4

3

C703

47

25V

C705

0.01 :MPS

R704

1k

T602

PIT

C623

100

PH680

PC123FY2

7

8

12

11

13

9

14

10

R685

4.7k

D627

1SS119

Q603

2SA1309A

SOFT START

C643

4.7

R669

10k

Q606

2SC3311A

LATCH

R687

1k

1

2

C704

0.01 B

+10V RECT

FB621

FB622

D606

D10SC4M

+5V RECT

D618

RD13ESB1

R629

2.2k

C625

0.01 B

C626

0.01 B

R611

C627

1.2

0.01

1W

:RS

B

B-SS530.<U/C>-G..-05

14

1 2 3 4 5 6

1 2 3 4 5 6 7 8 9

10

1 2 3 4 5 6 7 8

CN602

6P

WHT

:S-MICRO

TO K BOARD CN8501

+20V +20V +20V

GND(A) GND(A) GND(A)

NC

+17V +10V

+10V +10V GND GND GND GND

POWER CTL

CN604

10P RED

:S-MICRO

TO A(1/3)BOARD CN1005

CN607

8P

WHT

:S-MICRO

TO A(3/3)BOARD CN4003

GND GND GND +5V +5V +5V +5V SUB+5V

15 16 17 18 19 20 21 22

• G BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC603 1 2.5

3 9.3

IC701 4 5.8

5 123.6

IC702 1 2.5

3 11.2

PH680 1 1.2

20 30 4 0.2

PH701 1 12.3

2 11.2 3 5.8 4 16.5

Q602 B 10.0

C 0.1 E 10.1

Q603 B 10.2

E 9.3

Q604 B 0.2

C 10.2

Schematic diagrams

Ref. Pin No. Voltage [V]

Q605 B 1.3

C 0.1

E 1.4

Q606 B 0.1

C 1.4

Q607 B 0.7

C0

Q615 B 14.1

E 14.9

Q640 B1 –103.1

C1 0 E1 –101.7 B2 –1.9 C2 101.1 E2 0

Q641 B 15.7

C 16.3

E 16.5

Q683 B 12.3

C 13.1

E 13.2

Ò G GA board

A

B

C

D

E

F

G

H

I

J

KL-W7000A/W9000A

RM-Y980

5-5. SEMICONDUCTORS

BA7657F-E2 µPC659AGS-E2

1

TOP VIEW

24 pin SOP

CXA1211M NJM2233BM µPC4082G2 24LC16BT/SN 24LC21AT/SN 24LC21T/SN

1

TOP VIEW

8 pin SOP

CXA1315M CXA1875AM-T4 MC14053BDTR2 MC14528BF MC74HC4053F NJM2283M NJM2284M

1

TOP VIEW

16 pin SOP

CXA1839Q CXA1839Q-T6 CXA2011Q CXA3049AQ-T6

1

TOP VIEW

48 pin QFP

CXA2016S

1

TOP VIEW

22 pin DIP

CXD2052Q CXD2412AQ HD6473947-IT2-O HD6473947-IT2-OTP

5180

81

INDEX

100

301

CXD2072AQ

1

TOP VIEW

208 pin QFP

CXD2303AQ

65

80

TOP VIEW

4164

241

CXP85324A-260Q

3351

52

64

TOP VIEW

191

LA7217M MC74F08M MC74F08M-T2 MC74HC4066F TC74ACT04F TC74ACT74F TC74HC4066AF TC74VHC04F TLC29321PW

1

TOP VIEW

14 pin SOP

MC33262P PWR-TOP210PFI µPC4558C

50

1

TOP VIEW

8 pin DIP

31

MSM514222B-30GS-KR1 µPD42280GU-30

1

TOP VIEW

28 pin SOP

MSM548332-25TS-K

40

1

25

TOP VIEW

44 pin SOP

NJM78M05FA µPC2409AHF

32

20

SN6861NJ-09

1

TOP VIEW

40 pin DIP

PQ09RA1 PQ09RF11 PQ15RF16 PQ30RV11

PQ3TZ53U

ST9143NL TC7SET04FU TC7SET08FU TC7S08F TC7S08F (TE85R) TC7S32FU (TE85R) TC74SHU04FU

1

5 pin CHIP

S-80743AL-A7-S S-80743AL-A7-T1 µPC78L05T

1

2

3

TA8776N

1

TOP VIEW

30 pin DIP

TDA2009A

µPC1093J-1-T

µPC1862GS-E2

1

TOP VIEW

36 pin SOP

µPD6487GF-3BA

1

TOP VIEW

100 pin QFP

DTC114EK DTC144EKA DTC314TK-T-146 DTC314TKH04 2SA1162G 2SB709A-QRS-TX 2SD601A-Q 2SD601A-QRS-TX

C

B

E

IMX3

4

5

6

3

2

1

2

3

4

– 112 –

KL-W7000A/W9000A

RM-Y980

MX0541B-F

XN4215

3

2

1

XN4401

3

2

DTZ-TT11-3.9B DTZ-TT11-5.1B DTZ3.9B

D5L60

P6KE200AG23

CATHODE

DTZ4.7C DTZ5.1B HVU359TRF MA111 MA111-TX RD10SB-T1 RD10S-B RD5.6SB-T1

1

2

1

2

ANODE

RD5.6S-B UDZ-TE-17-4.7B 1T363

4

5

6

1T363-04-T8A

ANODE

CA THODE

MA152WK STZ6.8T 1SS184

2

1

2

1

3

1SS226

3

2

1

3

2

1

TLG124A TLO124

4

5

D1NL20U RD5.6ESB3

6

RGP10JPKG23 RM2CS

1

S2LA20F

CA THODE

MA729 MA729-TX

ANODE

TLR124

XN4601

4

5

6

3

2

1

2SA1175-HFE 2SA1309A-QRSTA 2SC2785 2SC3311A-QRSTA

LETTER SIDE

E

C

B

2SK2195F04

D

S

G

ANODE

D1NL40-TA2 D1NL40-TR2 D10SBS4 D10SBS4F D4SB60L

+

~

–

+

~

–

D10SC4M D10SC6M

1

2

3

1

2

3

CATHODE

RD10ES-B1 RD13ES-B1 RD22ES-B2 RD30ES-B2 RD30ES-B3 1SS119-25 1SS119-25TD

CA THODE

ANODE

PC123F2 PC123FY2

4

1

2

4

1

2

ANODE

CATHODE

3

– 113 –

KL-W7000A/W9000A

RM-Y980

MEMO

– 114 –

SECTION 6

EXPLODED VIEWS

KL-W7000A/W9000A

RM-Y980

• Items with no part number and no description are not stocked because they are seldom required for routine service.

• The construction parts of an assembled part are indicated with a collation number in the remark column.

6-1. CHASSIS [W7000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16

7

9

8

1

• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

11

10

14

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡ are critical for safety.

¡

sont critiques pour la

17

15

16

2

13

19

18

12

5

6

4

3

2

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

1 *A-1380-551-A K BOARD, COMPLETE 2 *3-703-141-00 HOLDER, PRINTED CIRCURT BOARD 3 ¡ 1-473-545-13 POWER BLOCK 4 *4-051-332-11 BRACKET, MAIN 5 *A-1311-597-A G BOARD, COMPLETE

10 * A-1373-713-AU BOARD, COMPLETE 11 * 4-056-402-21 BRACKET, U 12 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER) 13 ¡ 1-251-662-11 INLET, AC 3P(WITH NOISE FILTE) 14 4-052-345-01 SCREW, (3X8) (+K), TAPPING

6 *A-1311-631-A GA BOARD, COMPLETE 7 *A-1298-732-A A BOARD, COMPLETE 8, 9 8 *3-657-516-00 SUPPORT, PC BOARD 9 *A-1135-929-A BB BOARD, COMPLETE

– 115 –

15 4-329-127-00 CLAMP, CORD 16 4-033-719-01 BUCKLE, A 17 X-4035-090-1 COVER ASSY, REAR 15, 16 18 1-543-653-21 CORE ASSY, BEAD 19 4-062-358-02 COVER, GROMMET

KL-W7000A/W9000A

RM-Y980

6-2. FRONT COVER [W7000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16 π 7-683-421-04 HEXAGON SOCKET BOLT 4X12

63

64

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡ are critical for safety.

¡

sont critiques pour la

66

68

51

71

65

67

70

69

59

58

60

56

61

57

52

53

55

52

70

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

51 X-4033-189-1 PANEL (L) ASSY, FRONT 52 52 4-054-709-01 STRIKE 53 X-4033-188-1 PANEL (R) ASSY, FRONT 52 54 X-4035-092-1 DOOR ASSY, LAMP 70 55 X-4036-147-1 DOOR ASSY

56 3-703-035-11 SHAFT, LID 57 X-4035-093-1 COVER ASSY, FRONT 58-61 58 4-051-286-31 BUTTON, MULTI 59 X-4034-041-1 FILTER ASSY 60 4-051-285-01 BUTTON, POWER

54

61 4-820-917-01 SPRING, COMPRESSION 63 1-505-207-11 SPEAKER (5.7CM) 64 * A-1390-908-ATB BOARD, COMPLETE 65 * A-1390-907-ATA BOARD, COMPLETE 66 * A-1372-569-AHB BOARD, COMPLETE

67 * A-1372-564-AHA BOARD, COMPLETE 68 ¡ A-1501-247-A LAMP BLOCK ASSY 69, 70 69 3-901-261-01 WASHER 70 * 3-650-537-00 WASHER 71 4-314-871-00 CUSHION

– 116 –

KL-W7000A/W9000A

RM-Y980

6-3. SCREEN MIRROR BLOCK AND OPTICS UNIT

[W7000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16

7-685-167-19 WASHER HEAD SCREW +P 4X35

π

105

107

104

103

102

101

106

108

105

110

111

112

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡ are critical for safety.

¡

sont critiques pour la

109

126

124

106

128

120

116

113

127

114

101 X-4035-101-1 FRAME ASSY, SCREEN 102 4-057-969-11 SCREEN, CONTRAST 103 4-203-837-01 PLATE (L), DUFFUSION 104 4-203-836-01 PLATE (F), DUFFUSION 105 4-049-644-01 HOLDER, SCREEN (S1)

106 *4-033-782-02 HOLDER (S), SCREEN 107 *4-051-296-01 HOLDER, MIRROR 108 4-051-283-01 MIRROR 109 X-4035-102-1 COVER ASSY, MIRROR 110 4-374-745-11 CUSHION (A)

111 4-384-096-01 SCREW (4X16), TAPPING, +P 112 1-505-208-11 SPEAKER (10CM) 113 *A-1335-110-A C BOARD, COMPLETE 127 114 1-543-653-11 CORE ASSY, BEAD(DIVISION TYPE) 115 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD

115

130

128

117

118

128

125

122

129

119

126

REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK

116 A-1501-135-A PANEL BLOCK ASSY (B) 117 A-1501-134-A PANEL BLOCK ASSY (G) 118 A-1501-133-A PANEL BLOCK ASSY (R) 119 ¡*1-475-523-21 OPTICAL UNIT 120 *4-051-825-01 SHIELD, OPTICAL

121 *4-051-343-01 BASE, LAMP 122 ¡ 1-533-746-11 THERMOSTAT 123 X-4035-094-1 CABINET ASSY 124 *4-051-316-02 BRACKET, FAN 125 4-830-092-01 WASHER, FIBER

126 1-698-696-11 FAN, DC 127 *A-1331-875-A CU BOARD, COMPLETE 128 4-047-747-21 SCREW, SPACER HEXAGON 129 *4-061-665-01 PLATE, RECTIFIER 130 *3-703-353-01 HOLDER, PRINTED CIRCUIT BOARD

121

123

– 117 –

KL-W7000A/W9000A

RM-Y980

6-4. CHASSIS [W9000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16

157

158

151

152

159

160

161

162

164

163

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡ are critical for safety.

¡

sont critiques pour la

167

168

171

165

166

155

156

154

153

152

169

170

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

151 *A-1380-551-A K BOARD, COMPLETE 152 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD 153 ¡ 1-473-545-13 POWER BLOCK 154 *4-051-332-11 BRACKET, MAIN 155 *A-1311-597-A G BOARD, COMPLETE

162 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER) 163 ¡ 1-251-662-11 INLET, AC 3P(WITH NOISE FILTE) 165 4-329-127-00 CLAMP, CORD 164 4-052-345-01 SCREW, (3X8) (+K), TAPPING 166 4-033-719-01 BUCKLE, A

156 *A-1311-631-A GA BOARD, COMPLETE 157 *A-1298-732-A A BOARD, COMPLETE 158,159 158 *3-657-516-00 SUPPORT, PC BOARD 159 *A-1135-929-A BB BOARD, COMPLETE 160 *A-1373-713-A U BOARD, COMPLETE

161 *4-056-402-21 BRACKET, U

– 118 –

167 X-4035-090-1 COVER ASSY, REAR 165, 166 168 1-543-653-21 CORE ASSY, BEAD 169 *4-057-132-01 PEDESTAL 170 4-378-522-01 SCREW, TAPPING, HEXAGON HEAD 171 4-062-358-02 COVER, GROMMET

KL-W7000A/W9000A

RM-Y980

6-5. FRONT COVER [W9000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16 π 7-683-421-04 HEXAGON SOCKET BOLT 4X12

213

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡ are critical for safety.

¡

sont critiques pour la

216

218

201

221

209

210

202

203

206

205

202

201 X-4033-189-1 PANEL (L) ASSY, FRONT 202 202 4-054-709-01 STRIKE 203 X-4033-188-1 PANEL (R) ASSY, FRONT 202 204 X-4035-092-1 DOOR ASSY, LAMP 220 205 X-4036-145-1 DOOR ASSY

214

215

217

208

211

207

220

REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK

204

211 4-820-917-01 SPRING, COMPRESSION 213 1-505-207-11 SPEAKER (5.7CM) 214 *A-1390-908-A TB BOARD, COMPLETE 215 *A-1390-907-A TA BOARD, COMPLETE 216 *A-1372-565-A HB BOARD, COMPLETE

220

219

206 3-703-035-11 SHAFT, LID 207 X-4035-093-1 COVER ASSY, FRONT 208-211 208 4-051-286-31 BUTTON, MULTI 209 X-4034-041-1 FILTER ASSY 210 4-051-285-01 BUTTON, POWER

– 119 –

217 *A-1372-564-A HA BOARD, COMPLETE 218 ¡ A-1501-247-A LAMP BLOCK ASSY 219, 220 219 3-901-261-01 WASHER 220 *3-650-537-00 WASHER 221 4-314-871-00 CUSHION

KL-W7000A/W9000A

RM-Y980

The components identified by shading and mark Replace only with part number specified.

¡ are critical for safety.

6-6. SCREEN MIRROR BLOCK AND OPTICS UNIT [W9000A]

r 7-685-648-79 +BVTP 3X12 p 7-685-663-79 +BVTP 4X16

7-685-167-19 WASHER HEAD SCREW +P 4X35

π

258

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

259

251

252

253

254

255

269

255

282

256

257

283

272

273

263

264

265 268

255 278

266

262

267

263

277

261

280

259

276

281

260

284

275

270 271

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

251 X-4035-095-1 FRAME ASSY, SCREEN 252 4-056-485-11 SCREEN, CONTRAST 253 4-067-396-11 PLATE (L), DUFFUSION 254 4-067-397-11 PLATE (F), DUFFUSION 255 *4-055-161-01 HOLDER (50), SCREEN

256 *4-037-351-01 HOLDER, MIRROR 257 4-055-162-11 MIRROR (50) 258 X-4035-096-1 COVER ASSY, MIRROR 259 4-055-165-21 COVER (50), SERVICE 260 X-4035-094-1 CABINET ASSY

261 *X-4033-947-1 HOLDER (R) ASSY, MIRROR 262, 263 262 4-055-164-01 HOLDER (R), MIRROR 263 4-864-324-11 SPACER 264 4-055-163-01 HOLDER (L), MIRROR 265 *X-4033-946-1 HOLDER (L) ASSY, MIRROR 263, 264

266 4-374-745-11 CUSHION (A) 267 1-505-208-11 SPEAKER (10CM) 268 4-384-096-01 SCREW (4X16), TAPPING, +P

274

283285

283

269 *A-1335-110-A C BOARD, COMPLETE 282 270 1-543-653-11 CORE ASSY, BEAD(DIVISION TYPE) 271 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD 272 A-1501-135-A PANEL BLOCK ASSY (B) 273 A-1501-134-A PANEL BLOCK ASSY (G)

274 A-1501-133-A PANEL BLOCK ASSY (R) 275 ¡*1-475-523-11 OPTICAL UNIT 276 1-698-696-21 FAN, DC 277 4-830-092-01 WASHER, FIBER 278 *4-051-825-01 SHIELD, OPTICAL

279 *4-051-343-01 BASE, LAMP 280 ¡ 1-533-746-11 THERMOSTAT 281 *4-051-316-02 BRACKET, MAIN 282 *A-1331-875-A CU BOARD, COMPLETE 283 4-047-747-21 SCREW, SPACER HEXAGON

284 *4-061-665-01 PLATE, RECTIFIER 285 *3-703-353-01 HOLDER, PRINTED CIRCUIT BOARD

276

– 120 –

279

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une

ELECTRICAL PARTS LIST

piéce portant le numéro spécifié.

SECTION 7

¡

sont critiques pour la

KL-W7000A/W9000A

BB

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

NOTE:

The components identified by shading and mark Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board name.

¡ are critical for safety.

¡

sont critiques pour la

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

RESISTORS

• All resistors are in ohms

• F : nonflammable

• CAPACITORS MF: µF

• COILS UH: µH

RM-Y980

REF.NO. PART NO. DESCRIPTION REMARK

*A-1135-929-ABB BOARD, COMPLETE

******************************

C3001 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3002 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3003 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C3004 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V C3005 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3006 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3007 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3008 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C3009 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V C3010 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3011 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C3012 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3013 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C3014 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3016 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3017 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3019 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3020 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3021 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3022 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3023 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3024 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3025 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3026 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3027 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3028 1-109-982-11 CERAMIC CHIP 1MF 10% 10V C3029 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3030 1-109-982-11 CERAMIC CHIP 1MF 10% 10V C3031 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3032 1-109-982-11 CERAMIC CHIP 1MF 10% 10V

C3035 1-126-964-11 ELECT 10MF 20% 50V C3036 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3037 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3038 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3039 1-104-664-11 ELECT 47MF 20% 16V

C3041 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3042 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3043 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3044 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3045 1-163-038-91 CERAMIC CHIP 0.1MF 25V

REF.NO. PART NO. DESCRIPTION REMARK

C3046 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3047 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3048 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3049 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3050 1-127-532-11 ELECT 47MF 20% 6.3V

C3051 1-104-664-11 ELECT 47MF 20% 16V C3052 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3053 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3054 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3055 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3056 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3057 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3058 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3060 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3061 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C3062 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3071 1-126-935-11 ELECT 470MF 20% 16V C3072 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C3202 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C3204 1-126-935-11 ELECT 470MF 20% 16V

C3205 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3213 1-126-935-11 ELECT 470MF 20% 16V C3214 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C3215 1-104-664-11 ELECT 47MF 20% 16V C3216 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C3221 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C3222 1-126-935-11 ELECT 470MF 20% 16V C3227 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3228 1-104-664-11 ELECT 47MF 20% 16V C3229 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C3230 1-104-664-11 ELECT 47MF 20% 16V C3232 1-104-664-11 ELECT 47MF 20% 16V C3233 1-104-664-11 ELECT 47MF 20% 16V C3234 1-104-664-11 ELECT 47MF 20% 16V C3235 1-104-664-11 ELECT 47MF 20% 16V

C3236 1-104-664-11 ELECT 47MF 20% 16V C3237 1-104-664-11 ELECT 47MF 20% 16V C3238 1-104-664-11 ELECT 47MF 20% 16V C3240 1-107-714-11 ELECT 10MF 20% 16V C3241 1-107-714-11 ELECT 10MF 20% 16V

C3242 1-107-714-11 ELECT 10MF 20% 16V C3243 1-107-714-11 ELECT 10MF 20% 16V C3244 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C3251 1-104-664-11 ELECT 47MF 20% 16V

– 121 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

BB

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

C3252 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C3253 1-163-121-00 CERAMIC CHIP 150PF 5% 50V

C3254 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C3255 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C3303 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3306 1-104-664-11 ELECT 47MF 20% 16V

C3310 1-126-964-11 ELECT 10MF 20% 50V C3311 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3313 1-104-664-11 ELECT 47MF 20% 16V C3314 1-126-964-11 ELECT 10MF 20% 50V C3316 1-104-664-11 ELECT 47MF 20% 16V

C3318 1-163-038-91 CERAMIC CHIP 0.1MF 25V C3321 1-126-964-11 ELECT 10MF 20% 50V C3322 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C3324 1-104-664-11 ELECT 47MF 20% 16V

CN3001*1-564-522-11 PLUG, CONNECTOR 7P CN3002*1-564-525-11 PLUG, CONNECTOR CN3003*1-564-526-31 PLUG, CONNECTOR CN3004*1-564-518-11 PLUG, CONNECTOR 3P

<DIODE>

D3201 8-719-404-49 DIODE MA111 D3202 8-719-404-49 DIODE MA111

10P 11P

<IC>

IC3001 8-759-295-09 IC TLC2932IPW IC3002 8-759-295-09 IC TLC2932IPW IC3003 8-752-390-58 IC CXD2072AQ IC3004 8-759-478-46 IC MSM548332-25TS-K IC3005 8-759-478-46 IC MSM548332-25TS-K

IC3006 8-759-478-92 IC TC7SET04FU(TE85R) IC3007 8-759-485-79 IC TC7SET08FU(TE85L) IC3008 8-759-485-79 IC TC7SET08FU(TE85L) IC3009 8-759-271-88 IC TC7SHU04FU IC3010 8-759-058-64 IC TC7S32FU(TE85R)

IC3011 8-759-085-51 IC NJM2284M IC3201 8-759-011-65 IC MC74HC4053F IC3301 8-752-388-98 IC CXD2303AQ IC3303 8-759-431-14 IC PQ3TZ53U

<COIL>

L3001 1-412-029-11 INDUCTOR CHIP 10UH L3002 1-408-603-31 INDUCTOR 10UH L3003 1-412-029-11 INDUCTOR CHIP 10UH L3004 1-412-029-11 INDUCTOR CHIP 10UH L3005 1-408-603-31 INDUCTOR 10UH

L3006 1-408-603-31 INDUCTOR 10UH L3007 1-412-029-11 INDUCTOR CHIP 10UH L3008 1-412-029-11 INDUCTOR CHIP 10UH L3009 1-412-029-11 INDUCTOR CHIP 10UH L3010 1-412-029-11 INDUCTOR CHIP 10UH

FB32011-216-295-91 SHORT 0 FB32021-216-295-91 SHORT 0 FB32031-216-295-91 SHORT 0 FB32051-216-295-91 SHORT 0 FB32061-216-295-91 SHORT 0

FB32071-216-295-91 SHORT 0 FB32081-216-295-91 SHORT 0 FB32091-216-295-91 SHORT 0 FB32101-216-295-91 SHORT 0 FB32111-216-295-91 SHORT 0

FB32121-216-295-91 SHORT 0

FL32041-233-446-11 FILTER, LOW PASS FL32051-233-438-21 FILTER, LOW PASS FL32061-233-438-21 FILTER, LOW PASS FL32101-233-736-21 FILTER, EMI FL32121-234-016-21 FILTER, EMI

FL32151-233-446-11 FILTER, LOW PASS FL32161-234-021-11 FILTER, LOW PASS FL32171-234-021-11 FILTER, LOW PASS FL32181-234-021-11 FILTER, LOW PASS FL32191-234-021-11 FILTER, LOW PASS

FL3222 1-234-016-21 FILTER, EMI

L3011 1-412-029-11 INDUCTOR CHIP 10UH L3012 1-412-029-11 INDUCTOR CHIP 10UH L3202 1-408-603-31 INDUCTOR 10UH L3204 1-412-029-11 INDUCTOR CHIP 10UH L3206 1-412-029-11 INDUCTOR CHIP 10UH

L3207 1-412-029-11 INDUCTOR CHIP 10UH L3208 1-408-603-31 INDUCTOR 10UH L3210 1-412-029-11 INDUCTOR CHIP 10UH L3303 1-412-029-11 INDUCTOR CHIP 10UH L3304 1-408-603-31 INDUCTOR 10UH

L3305 1-412-029-11 INDUCTOR CHIP 10UH

Q3018 8-729-216-22 TRANSISTOR 2SA1162-G Q3019 8-729-216-22 TRANSISTOR 2SA1162-G Q3201 8-729-216-22 TRANSISTOR 2SA1162-G Q3202 8-729-216-22 TRANSISTOR 2SA1162-G Q3203 8-729-216-22 TRANSISTOR 2SA1162-G

Q3204 8-729-216-22 TRANSISTOR 2SA1162-G Q3205 8-729-216-22 TRANSISTOR 2SA1162-G Q3206 8-729-216-22 TRANSISTOR 2SA1162-G Q3207 8-729-216-22 TRANSISTOR 2SA1162-G Q3208 8-729-216-22 TRANSISTOR 2SA1162-G

Q3209 8-729-216-22 TRANSISTOR 2SA1162-G Q3210 8-729-216-22 TRANSISTOR 2SA1162-G Q3211 8-729-216-22 TRANSISTOR 2SA1162-G

– 122 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

BB

RM-Y980

Q3212 8-729-216-22 TRANSISTOR 2SA1162-G Q3213 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3214 8-729-422-27 TRANSISTOR 2SD601A-Q Q3215 8-729-216-22 TRANSISTOR 2SA1162-G Q3216 8-729-216-22 TRANSISTOR 2SA1162-G Q3305 8-729-216-22 TRANSISTOR 2SA1162-G Q3306 8-729-216-22 TRANSISTOR 2SA1162-G

Q3307 8-729-216-22 TRANSISTOR 2SA1162-G Q3308 8-729-216-22 TRANSISTOR 2SA1162-G

R3001 1-216-117-00 RES,CHIP 680K 5% 1/10W R3002 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R3003 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R3004 1-216-041-00 RES,CHIP 470 5% 1/10W R3005 1-216-295-91 SHORT 0

R3007 1-216-117-00 RES,CHIP 680K 5% 1/10W R3008 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R3009 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R3010 1-216-041-00 RES,CHIP 470 5% 1/10W R3011 1-216-295-91 SHORT 0

R3013 1-216-013-00 RES,CHIP 33 5% 1/10W R3014 1-216-121-91 RES,CHIP 1M 5% 1/10W R3015 1-216-295-91 SHORT 0 R3016 1-216-025-91 RES,CHIP 100 5% 1/10W R3017 1-216-025-91 RES,CHIP 100 5% 1/10W

R3018 1-216-049-91 RES,CHIP 1K 5% 1/10W R3019 1-216-041-00 RES,CHIP 470 5% 1/10W R3020 1-216-295-91 SHORT 0 R3021 1-216-041-00 RES,CHIP 470 5% 1/10W R3022 1-216-295-91 SHORT 0

R3023 1-216-295-91 SHORT 0 R3029 1-216-025-91 RES,CHIP 100 5% 1/10W R3030 1-216-025-91 RES,CHIP 100 5% 1/10W R3032 1-216-633-11 METAL CHIP 180 0.50% 1/10W R3037 1-216-025-91 RES,CHIP 100 5% 1/10W

R3038 1-216-633-11 METAL CHIP 180 0.50% 1/10W R3044 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R3045 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R3047 1-216-121-91 RES,CHIP 1M 5% 1/10W R3048 1-216-651-11 METAL CHIP 1K 0.50% 1/10W

R3049 1-216-295-91 SHORT 0 R3051 1-216-633-11 METAL CHIP 180 0.50% 1/10W R3201 1-216-295-91 SHORT 0 R3202 1-216-295-91 SHORT 0 R3203 1-216-295-91 SHORT 0

R3204 1-216-033-00 RES,CHIP 220 5% 1/10W R3205 1-216-033-00 RES,CHIP 220 5% 1/10W R3206 1-216-033-00 RES,CHIP 220 5% 1/10W R3213 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R3214 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R3215 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R3216 1-216-049-91 RES,CHIP 1K 5% 1/10W R3217 1-216-049-91 RES,CHIP 1K 5% 1/10W R3218 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3219 1-216-009-00 RES,CHIP 22 5% 1/10W R3220 1-216-009-00 RES,CHIP 22 5% 1/10W

R3221 1-216-009-00 RES,CHIP 22 5% 1/10W R3225 1-216-033-00 RES,CHIP 220 5% 1/10W R3226 1-216-033-00 RES,CHIP 220 5% 1/10W R3227 1-216-033-00 RES,CHIP 220 5% 1/10W

R3228 1-216-029-00 RES,CHIP 150 5% 1/10W R3229 1-216-029-00 RES,CHIP 150 5% 1/10W R3230 1-216-029-00 RES,CHIP 150 5% 1/10W R3231 1-216-647-11 METAL CHIP 680 0.50% 1/10W R3232 1-216-647-11 METAL CHIP 680 0.50% 1/10W

R3233 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R3234 1-216-649-11 METAL CHIP 820 0.50% 1/10W R3235 1-216-649-11 METAL CHIP 820 0.50% 1/10W R3236 1-216-643-11 METAL CHIP 470 0.50% 1/10W R3237 1-216-041-00 RES,CHIP 470 5% 1/10W

R3238 1-216-041-00 RES,CHIP 470 5% 1/10W R3239 1-216-041-00 RES,CHIP 470 5% 1/10W R3240 1-216-295-91 SHORT 0 R3241 1-216-295-91 SHORT 0 R3242 1-216-295-91 SHORT 0

R3252 1-216-647-11 METAL CHIP 680 0.50% 1/10W R3253 1-216-029-00 RES,CHIP 150 5% 1/10W R3254 1-216-647-11 METAL CHIP 680 0.50% 1/10W R3263 1-216-295-91 SHORT 0 R3264 1-216-295-91 SHORT 0

R3265 1-216-025-91 RES,CHIP 100 5% 1/10W R3266 1-216-025-91 RES,CHIP 100 5% 1/10W R3267 1-216-025-91 RES,CHIP 100 5% 1/10W R3269 1-216-029-00 RES,CHIP 150 5% 1/10W R3271 1-216-295-91 SHORT 0

R3272 1-216-029-00 RES,CHIP 150 5% 1/10W R3273 1-216-029-00 RES,CHIP 150 5% 1/10W R3274 1-216-295-91 SHORT 0 R3275 1-216-295-91 SHORT 0 R3276 1-216-029-00 RES,CHIP 150 5% 1/10W

R3277 1-216-029-00 RES,CHIP 150 5% 1/10W R3278 1-216-295-91 SHORT 0 R3280 1-216-033-00 RES,CHIP 220 5% 1/10W R3281 1-216-033-00 RES,CHIP 220 5% 1/10W R3282 1-216-009-00 RES,CHIP 22 5% 1/10W

R3283 1-216-009-00 RES,CHIP 22 5% 1/10W R3284 1-216-041-00 RES,CHIP 470 5% 1/10W R3285 1-216-041-00 RES,CHIP 470 5% 1/10W R3286 1-216-295-91 SHORT 0 R3287 1-216-295-91 SHORT 0

R3288 1-216-649-11 METAL CHIP 820 0.50% 1/10W R3289 1-216-649-11 METAL CHIP 820 0.50% 1/10W R3290 1-216-049-91 RES,CHIP 1K 5% 1/10W R3291 1-216-049-91 RES,CHIP 1K 5% 1/10W R3292 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3293 1-216-041-00 RES,CHIP 470 5% 1/10W R3294 1-216-073-00 RES,CHIP 10K 5% 1/10W R3295 1-216-073-00 RES,CHIP 10K 5% 1/10W R3296 1-216-073-00 RES,CHIP 10K 5% 1/10W R3297 1-216-295-91 SHORT 0

– 123 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

BB A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

R3298 1-216-025-91 RES,CHIP 100 5% 1/10W R3299 1-216-295-91 SHORT 0 R3301 1-216-295-91 SHORT 0 R3302 1-216-295-91 SHORT 0 R3305 1-216-025-91 RES,CHIP 100 5% 1/10W

R3306 1-216-013-00 RES,CHIP 33 5% 1/10W R3307 1-216-295-91 SHORT 0 R3308 1-216-013-00 RES,CHIP 33 5% 1/10W R3309 1-216-607-11 METAL CHIP 15 0.50% 1/10W R3311 1-216-607-11 METAL CHIP 15 0.50% 1/10W

R3316 1-216-049-91 RES,CHIP 1K 5% 1/10W R3317 1-216-049-91 RES,CHIP 1K 5% 1/10W R3318 1-216-625-11 METAL CHIP 82 0.50% 1/10W R3319 1-216-627-11 METAL CHIP 100 0.50% 1/10W R3321 1-216-627-11 METAL CHIP 100 0.50% 1/10W

R3322 1-216-639-11 METAL CHIP 330 0.50% 1/10W R3325 1-216-295-91 SHORT 0 R3332 1-216-013-00 RES,CHIP 33 5% 1/10W R3334 1-216-295-91 SHORT 0 R3351 1-216-607-11 METAL CHIP 15 0.50% 1/10W

R3352 1-216-607-11 METAL CHIP 15 0.50% 1/10W R3360 1-216-049-91 RES,CHIP 1K 5% 1/10W R3361 1-216-049-91 RES,CHIP 1K 5% 1/10W R3362 1-216-049-91 RES,CHIP 1K 5% 1/10W R3363 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3364 1-216-049-91 RES,CHIP 1K 5% 1/10W R3365 1-216-049-91 RES,CHIP 1K 5% 1/10W R3366 1-216-049-91 RES,CHIP 1K 5% 1/10W R3367 1-216-049-91 RES,CHIP 1K 5% 1/10W R3368 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3369 1-216-049-91 RES,CHIP 1K 5% 1/10W R3370 1-216-049-91 RES,CHIP 1K 5% 1/10W R3371 1-216-049-91 RES,CHIP 1K 5% 1/10W R3372 1-216-049-91 RES,CHIP 1K 5% 1/10W R3373 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3374 1-216-049-91 RES,CHIP 1K 5% 1/10W R3375 1-216-049-91 RES,CHIP 1K 5% 1/10W R3376 1-216-049-91 RES,CHIP 1K 5% 1/10W R3377 1-216-049-91 RES,CHIP 1K 5% 1/10W R3378 1-216-049-91 RES,CHIP 1K 5% 1/10W

R3379 1-216-049-91 RES,CHIP 1K 5% 1/10W R3380 1-216-049-91 RES,CHIP 1K 5% 1/10W R3381 1-216-049-91 RES,CHIP 1K 5% 1/10W R3382 1-216-049-91 RES,CHIP 1K 5% 1/10W R3383 1-216-049-91 RES,CHIP 1K 5% 1/10W

X3001 1-767-262-11 VIBRATOR, CRYSTAL

********************************************************************************

*A-1298-732-AA BOARD, COMPLETE

***************************

*3-657-516-11 SUPPORT, PC BOARD

4-382-854-01 SCREW (M3X8), P, SW (+) (IC1007) <CAPACITOR>

C1001 1-104-664-11 ELECT 47MF 20% 25V C1004 1-104-664-11 ELECT 47MF 20% 16V C1007 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1013 1-104-664-11 ELECT 47MF 20% 25V C1014 1-104-664-11 ELECT 47MF 20% 25V

C1015 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1016 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1017 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1018 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1019 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C1020 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1021 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1022 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1102 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1103 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1104 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1107 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1108 1-126-925-11 ELECT 470MF 20% 10V C1110 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C1113 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C1114 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C1117 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C1120 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V C1121 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1126 1-107-909-11 ELECT 47MF 20% 10V

C1127 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C1128 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1129 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1130 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C1131 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1132 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C1133 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1134 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1135 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1136 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1137 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1140 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1141 1-104-760-11 CERAMIC CHIP 0.047MF 10% 50V C1142 1-126-960-11 ELECT 1MF 20% 50V C1144 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C1145 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C1146 1-126-960-11 ELECT 1MF 20% 50V C1301 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1303 1-126-933-11 ELECT 100MF 20% 16V C1304 1-107-909-11 ELECT 47MF 20% 16V

C1305 1-107-909-11 ELECT 47MF 20% 16V C1401 1-104-664-11 ELECT 47MF 20% 16V C1402 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1403 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1404 1-126-767-11 ELECT 1000MF 20% 16V

– 124 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

A

RM-Y980

C1409 1-126-961-11 ELECT 2.2MF 20% 50V C1410 1-126-961-11 ELECT 2.2MF 20% 50V C1411 1-126-960-11 ELECT 1MF 20% 50V C1412 1-126-960-11 ELECT 1MF 20% 50V C1413 1-126-964-11 ELECT 10MF 20% 50V

C1414 1-126-964-11 ELECT 10MF 20% 50V C1415 1-126-964-11 ELECT 10MF 20% 50V C1416 1-126-963-11 ELECT 4.7MF 20% 50V C1417 1-126-964-11 ELECT 10MF 20% 50V C1418 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C1419 1-126-964-11 ELECT 10MF 20% 50V C1434 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C1435 1-130-489-00 FILM 0.033MF 5% 50V C1436 1-130-495-00 FILM 0.1MF 5% 50V C1437 1-130-489-00 FILM 0.033MF 5% 50V

C1438 1-130-489-00 FILM 0.033MF 5% 50V C1439 1-104-664-11 ELECT 47MF 20% 25V C1440 1-163-038-91 CERAMIC CHIP 0.1MF 25V C1442 1-126-934-11 ELECT 220MF 20% 16V C1443 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C1601 1-104-664-11 ELECT 47MF 20% 10V C1602 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C1603 1-104-664-11 ELECT 47MF 20% 10V C1604 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1605 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C1608 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1609 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1610 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1611 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1612 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C1613 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C1614 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1616 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1617 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1618 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C1619 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C1620 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C1621 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2001 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2002 1-107-909-11 ELECT 47MF 20% 16V

C2003 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2004 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2005 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2006 1-107-715-11 ELECT 22MF 20% 25V C2007 1-126-964-11 ELECT 10MF 20% 50V

C2008 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2009 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C2010 1-107-906-11 ELECT 10MF 20% 50V C2011 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2012 1-107-906-11 ELECT 10MF 20% 50V

C2013 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2014 1-128-526-11 ELECT 100MF 20% 10V C2015 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2017 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2018 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2019 1-107-909-11 ELECT 47MF 20% 10V

C2020 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2021 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2022 1-107-902-11 ELECT 1MF 20% 50V C2023 1-107-902-11 ELECT 1MF 20% 50V

C2024 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2025 1-107-909-11 ELECT 47MF 20% 10V C2026 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2027 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C2028 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C2029 1-107-909-11 ELECT 47MF 20% 10V C2030 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2031 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2032 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C2033 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2034 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2035 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2036 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2037 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2038 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C2039 1-163-145-00 CERAMIC CHIP 0.0015MF 5% 50V C2040 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2041 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C2042 1-107-909-11 ELECT 47MF 20% 10V C2043 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2044 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2045 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2046 1-107-905-11 ELECT 4.7MF 20% 50V C2047 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2048 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2049 1-107-909-11 ELECT 47MF 20% 10V C2050 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2051 1-107-909-11 ELECT 47MF 20% 10V C2052 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2053 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2054 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2055 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2057 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2058 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2059 1-107-909-11 ELECT 47MF 20% 10V

C2060 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2062 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2063 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2064 1-107-909-11 ELECT 47MF 20% 10V C2065 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2066 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2067 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2068 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2069 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2070 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2071 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2072 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2073 1-107-909-11 ELECT 47MF 20% 10V C2075 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2076 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C2077 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2078 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

– 125 –

KL-W7000A/W9000A

RM-Y980

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

C2079 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2080 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2081 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2082 1-107-906-11 ELECT 10MF 20% 50V C2083 1-107-909-11 ELECT 47MF 20% 10V C2084 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2085 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2086 1-107-902-11 ELECT 1MF 20% 50V

C2087 1-163-139-00 CERAMIC CHIP 820PF 10% 50V C2088 1-107-906-11 ELECT 10MF 20% 50V C2090 1-107-909-11 ELECT 47MF 20% 10V C2091 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2093 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2096 1-107-909-11 ELECT 47MF 20% 10V C2097 1-163-038-91 CERAMIC CHIP 0.1MF 25V C2098 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2099 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C2101 1-107-909-11 ELECT 47MF 20% 16V

C2102 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2103 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2104 1-164-161-11 CERAMIC CHIP 0.0022MF10% 50V C2106 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C2107 1-107-902-11 ELECT 1MF 20% 50V

C2108 1-164-343-11 CERAMIC CHIP 0.056MF 10% 25V C2109 1-107-909-11 ELECT 47MF 20% 10V C2110 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2112 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C2115 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C2116 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2117 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2118 1-107-906-11 ELECT 10MF 20% 50V C2119 1-107-906-11 ELECT 10MF 20% 50V C2120 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C2121 1-104-563-11 FILM CHIP 0.1MF 5% 16V C2122 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C2123 1-104-563-11 FILM CHIP 0.1MF 5% 16V C2125 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2126 1-107-909-11 ELECT 47MF 20% 16V C2127 1-163-038-91 CERAMIC CHIP 0.1MF 25V C2128 1-107-909-11 ELECT 47MF 20% 16V

C2129 1-163-038-91 CERAMIC CHIP 0.1MF 25V C2130 1-163-038-91 CERAMIC CHIP 0.1MF 25V C2131 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C2140 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C2190 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C2301 1-126-964-11 ELECT 10MF 20% 50V C2302 1-126-964-11 ELECT 10MF 20% 50V C2303 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C2304 1-104-664-11 ELECT 47MF 20% 16V C2305 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C4002 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4005 1-163-038-91 CERAMIC CHIP 0.1MF 25V C4006 1-163-038-91 CERAMIC CHIP 0.1MF 25V C4007 1-163-038-91 CERAMIC CHIP 0.1MF 25V C4008 1-163-038-91 CERAMIC CHIP 0.1MF 25V

C4009 1-126-964-11 ELECT 10MF 20% 50V

C4010 1-126-960-11 ELECT 1MF 20% 50V C4011 1-163-038-91 CERAMIC CHIP 0.1MF 25V C4012 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4013 1-126-933-11 ELECT 100MF 20% 16V

C4014 1-165-320-11 CERAMIC CHIP 0.47MF 10% 16V C4015 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4016 1-126-964-11 ELECT 10MF 20% 50V C4018 1-126-933-11 ELECT 100MF 20% 16V C4019 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4021 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4022 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4023 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4025 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4026 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4027 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4028 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4029 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4030 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4031 1-107-909-11 ELECT 47MF 20% 16V

C4032 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C4035 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4036 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4037 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4039 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C4044 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4045 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4046 1-110-501-11 CERAMIC CHIP 0.33MF 10% 16V C4047 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4048 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4049 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4050 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4051 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C4052 1-126-933-11 ELECT 100MF 20% 16V C4053 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4055 1-126-964-11 ELECT 10MF 20% 50V C4056 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4063 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4064 1-126-927-11 ELECT 2200MF 20% 10V C4065 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4066 1-126-927-11 ELECT 2200MF 20% 10V C4067 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4068 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C4069 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4071 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4072 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4073 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4080 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C4081 1-126-964-11 ELECT 10MF 20% 50V C4085 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4090 1-104-664-11 ELECT 47MF 20% 16V C4096 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4097 1-126-933-11 ELECT 100MF 20% 16V C4098 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4099 1-126-933-11 ELECT 100MF 20% 16V

C4100 1-163-038-91 CERAMIC CHIP 0.1MF 25V C4201 1-126-964-11 ELECT 10MF 20% 50V

– 126 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

A

RM-Y980

C4202 1-126-964-11 ELECT 10MF 20% 50V C4203 1-104-664-11 ELECT 47MF 20% 16V C4204 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C4205 1-126-933-11 ELECT 100MF 20% 16V C4211 1-126-964-11 ELECT 10MF 20% 50V C4212 1-126-964-11 ELECT 10MF 20% 50V C4213 1-104-664-11 ELECT 47MF 20% 16V C4221 1-126-964-11 ELECT 10MF 20% 50V

C4222 1-126-964-11 ELECT 10MF 20% 50V C4223 1-104-664-11 ELECT 47MF 20% 16V C4224 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4225 1-126-933-11 ELECT 100MF 20% 16V C4230 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C4231 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C4232 1-104-664-11 ELECT 47MF 20% 16V C4401 1-104-664-11 ELECT 47MF 20% 16V C4402 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C4403 1-126-964-11 ELECT 10MF 20% 50V

C4404 1-126-964-11 ELECT 10MF 20% 50V C4405 1-126-964-11 ELECT 10MF 20% 50V C4406 1-126-964-11 ELECT 10MF 20% 50V C4407 1-126-964-11 ELECT 10MF 20% 50V C4408 1-126-964-11 ELECT 10MF 20% 50V

C4409 1-126-964-11 ELECT 10MF 20% 50V C4410 1-126-964-11 ELECT 10MF 20% 50V

D1402 8-719-158-39 ZENER DIODE RD10SB D1405 8-719-404-49 DIODE MA111 D1406 8-719-404-49 DIODE MA111 D1407 8-719-404-49 DIODE MA111 D1408 8-719-404-49 DIODE MA111

D1601 8-719-801-78 DIODE 1SS184 D1605 8-719-404-49 DIODE MA111 D1606 8-719-404-49 DIODE MA111 D2001 8-719-404-49 DIODE MA111 D2002 8-719-031-68 DIODE HVU359TRF

D2004 8-719-976-88 ZENER DIODE DTZ3.9B D2005 8-719-976-88 ZENER DIODE DTZ3.9B D2006 8-719-404-49 DIODE MA111 D2008 8-719-404-49 DIODE MA111 D2009 8-719-404-49 DIODE MA111

D2010 8-719-404-49 DIODE MA111 D2011 8-719-404-49 DIODE MA111 D2012 8-719-404-49 DIODE MA111 D4001 8-719-404-49 DIODE MA111 D4002 8-719-404-49 DIODE MA111

D4005 8-719-031-68 DIODE HVU359TRF D4006 8-719-031-68 DIODE HVU359TRF D4007 8-719-031-68 DIODE HVU359TRF D4008 8-719-031-68 DIODE HVU359TRF D4009 8-719-031-68 DIODE HVU359TRF

D4010 8-719-031-68 DIODE HVU359TRF D4011 8-719-031-68 DIODE HVU359TRF D4012 8-719-031-68 DIODE HVU359TRF

CN1001*1-766-957-11 CONNECTOR, BOARD TO BOARD 20P CN1002*1-766-957-11 CONNECTOR, BOARD TO BOARD 20P CN1003*1-564-507-11 PLUG, CONNECTOR 4P CN1005*1-564-513-11 PLUG, CONNECTOR CN1006 1-764-812-11 CONNECTOR, BOARD TO BOARD 11P

CN1008*1-564-506-11 PLUG, CONNECTOR 3P CN1009*1-564-512-11 PLUG, CONNECTOR 9P CN1011*1-564-506-11 PLUG, CONNECTOR 3P CN1012*1-564-512-11 PLUG, CONNECTOR 9P CN1016 1-695-915-11 TAB (CONTACT)

CN1402*1-564-511-11 PLUG, CONNECTOR 8P CN4003*1-564-511-11 PLUG, CONNECTOR 8P CN4005*1-564-513-11 PLUG, CONNECTOR CN4006*1-564-512-11 PLUG, CONNECTOR 9P CN4401*1-564-511-11 PLUG, CONNECTOR 8P

<DIODE>

D1011 8-719-404-49 DIODE MA111 D1025 8-719-404-49 DIODE MA111 D1031 8-719-158-15 ZENER DIODE RD5.6SB D1032 8-719-158-15 ZENER DIODE RD5.6SB D1102 8-719-404-49 DIODE MA111

D1103 8-719-404-49 DIODE MA111 D1104 8-719-158-15 ZENER DIODE RD5.6SB D1105 8-719-158-15 ZENER DIODE RD5.6SB D1301 8-719-404-49 DIODE MA111 D1401 8-719-158-39 ZENER DIODE RD10SB

10P

FB1601 1-412-364-11FERRITE FB1602 1-412-364-11FERRITE FB2002 1-414-233-22INDUCTOR CHIP FB2037 1-414-233-22INDUCTOR CHIP

FL20011-239-847-11 FILTER, LOW PASS FL20021-233-535-11 FILTER, LOW PASS FL20031-233-534-11 FILTER, LOW PASS FL20041-233-535-11 FILTER, LOW PASS FL20051-233-536-11 FILTER, LOW PASS

FL20061-233-536-11 FILTER, LOW PASS FL20071-239-847-11 FILTER, LOW PASS FL20151-233-539-21 FILTER, EMI FL20191-233-520-21 FILTER, EMI FL20201-233-520-21 FILTER, EMI

FL20211-233-520-21 FILTER, EMI FL20221-233-520-21 FILTER, EMI

<IC>

IC1007 8-759-390-51 IC UPC2409AHF IC1008 8-759-054-12 IC PQ09RA1 IC1101 8-759-564-02 IC HD6473947-IT2-OTP IC1102 8-759-352-91 IC PST9143NL

– 127 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

IC1103 8-759-454-79 IC 24LC16BT/SN IC1106 8-759-013-86 IC MC74HC4066F

IC1401 8-759-172-60 IC TA8776N IC1601 8-752-900-65 IC CXP85324A-260Q IC1602 8-759-042-02 IC S-80743AL-A7-S IC2001 8-759-161-24 IC UPC659AGS-E2

IC2003 8-759-296-53 IC UPC1862GS-E2 IC2004 8-752-376-20 IC CXD2052Q IC2006 8-759-360-80 IC UPD6487GF-3BA IC2007 8-759-033-03 IC MC74F08M IC2008 8-759-167-20 IC UPD42280GU-30

IC2009 8-759-297-80 IC MSM514222B-30GS-KR1 IC2011 8-759-083-11 IC LA7217M IC2012 8-759-081-44 IC TC74VHC04F IC2101 8-759-150-61 IC UPC78L05T IC2102 8-759-150-61 IC UPC78L05T

IC2301 8-759-710-86 IC NJM2233BM IC4001 8-759-009-46 IC MC14528BF IC4002 8-752-072-88 IC CXA2011Q IC4003 8-752-070-54 IC CXA1839Q-T6 IC4004 8-752-058-68 IC CXA1315M

IC4008 8-759-234-20 IC TC7S08F IC4009 8-759-011-65 IC MC74HC4053F IC4011 8-752-072-88 IC CXA2011Q IC4401 8-759-443-11 IC NJM2283M-TE1

L4009 1-408-607-31 INDUCTOR 22UH L4010 1-408-607-31 INDUCTOR 22UH

L4011 1-408-603-31 INDUCTOR 10UH

Q1101 8-729-422-54 TRANSISTOR XN4215 Q1102 8-729-216-22 TRANSISTOR 2SA1162-G Q1103 8-729-216-22 TRANSISTOR 2SA1162-G Q1105 8-729-216-22 TRANSISTOR 2SA1162-G Q1108 8-729-216-22 TRANSISTOR 2SA1162-G

Q1301 8-729-900-53 TRANSISTOR DTC114EK Q1303 8-729-216-22 TRANSISTOR 2SA1162-G Q1304 8-729-216-22 TRANSISTOR 2SA1162-G Q1408 8-729-216-22 TRANSISTOR 2SA1162-G Q1409 8-729-422-27 TRANSISTOR 2SD601A-Q

Q1410 8-729-216-22 TRANSISTOR 2SA1162-G Q1601 8-729-216-22 TRANSISTOR 2SA1162-G Q1602 8-729-216-22 TRANSISTOR 2SA1162-G Q1603 8-729-216-22 TRANSISTOR 2SA1162-G Q1604 8-729-216-22 TRANSISTOR 2SA1162-G

Q1605 8-729-216-22 TRANSISTOR 2SA1162-G Q1606 8-729-422-27 TRANSISTOR 2SD601A-Q Q1607 8-729-422-27 TRANSISTOR 2SD601A-Q Q1608 8-729-422-27 TRANSISTOR 2SD601A-Q Q2001 8-729-422-27 TRANSISTOR 2SD601A-Q

JR40011-216-295-91 SHORT 0

<COIL>

L1101 1-408-611-31 INDUCTOR 47UH L1102 1-408-611-31 INDUCTOR 47UH L1401 1-408-607-31 INDUCTOR 22UH L1402 1-408-607-31 INDUCTOR 22UH L1601 1-408-607-31 INDUCTOR 22UH

L1602 1-408-597-31 INDUCTOR 3.3UH L2001 1-408-602-31 INDUCTOR 8.2UH L2002 1-408-592-11 INDUCTOR 1.2UH L2003 1-412-938-61 INDUCTOR 0.82UH L2004 1-408-592-11 INDUCTOR 1.2UH

L2006 1-408-592-11 INDUCTOR 1.2UH L2007 1-408-592-11 INDUCTOR 1.2UH L2008 1-408-592-11 INDUCTOR 1.2UH L2009 1-408-412-00 INDUCTOR 18UH L2010 1-408-602-31 INDUCTOR 8.2UH

L2011 1-408-412-00 INDUCTOR 18UH L4001 1-408-412-00 INDUCTOR 18UH L4002 1-408-603-31 INDUCTOR 10UH L4003 1-408-607-31 INDUCTOR 22UH L4004 1-408-603-31 INDUCTOR 10UH

L4005 1-408-607-31 INDUCTOR 22UH L4006 1-408-607-31 INDUCTOR 22UH L4007 1-408-611-31 INDUCTOR 47UH L4008 1-408-607-31 INDUCTOR 22UH

Q2002 8-729-422-27 TRANSISTOR 2SD601A-Q Q2003 8-729-422-27 TRANSISTOR 2SD601A-Q Q2004 8-729-216-22 TRANSISTOR 2SA1162-G Q2005 8-729-216-22 TRANSISTOR 2SA1162-G Q2007 8-729-422-27 TRANSISTOR 2SD601A-Q

Q2008 8-729-216-22 TRANSISTOR 2SA1162-G Q2009 8-729-422-27 TRANSISTOR 2SD601A-Q Q2010 8-729-422-27 TRANSISTOR 2SD601A-Q Q2011 8-729-216-22 TRANSISTOR 2SA1162-G Q2012 8-729-216-22 TRANSISTOR 2SA1162-G Q2013 8-729-216-22 TRANSISTOR 2SA1162-G Q2014 8-729-216-22 TRANSISTOR 2SA1162-G Q2015 8-729-216-22 TRANSISTOR 2SA1162-G Q2016 8-729-216-22 TRANSISTOR 2SA1162-G Q2017 8-729-216-22 TRANSISTOR 2SA1162-G

Q2018 8-729-216-22 TRANSISTOR 2SA1162-G Q2019 8-729-216-22 TRANSISTOR 2SA1162-G Q2020 8-729-422-27 TRANSISTOR 2SD601A-Q Q2021 8-729-422-27 TRANSISTOR 2SD601A-Q Q2024 8-729-216-22 TRANSISTOR 2SA1162-G

Q2027 8-729-216-22 TRANSISTOR 2SA1162-G Q2028 8-729-216-22 TRANSISTOR 2SA1162-G Q2029 8-729-216-22 TRANSISTOR 2SA1162-G Q2030 8-729-422-27 TRANSISTOR 2SD601A-Q Q2031 8-729-422-27 TRANSISTOR 2SD601A-Q

Q2035 8-729-216-22 TRANSISTOR 2SA1162-G Q2036 8-729-216-22 TRANSISTOR 2SA1162-G Q2037 8-729-216-22 TRANSISTOR 2SA1162-G Q2050 8-729-422-27 TRANSISTOR 2SD601A-Q Q2051 8-729-216-22 TRANSISTOR 2SA1162-G

– 128 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

A

RM-Y980

Q2052 8-729-216-22 TRANSISTOR 2SA1162-G Q2061 8-729-422-27 TRANSISTOR 2SD601A-Q Q2062 8-729-422-27 TRANSISTOR 2SD601A-Q Q2301 8-729-422-27 TRANSISTOR 2SD601A-Q Q2302 8-729-216-22 TRANSISTOR 2SA1162-G

Q4001 8-729-216-22 TRANSISTOR 2SA1162-G Q4002 8-729-216-22 TRANSISTOR 2SA1162-G Q4003 8-729-216-22 TRANSISTOR 2SA1162-G Q4004 8-729-422-27 TRANSISTOR 2SD601A-Q Q4005 8-729-422-27 TRANSISTOR 2SD601A-Q

Q4006 8-729-422-27 TRANSISTOR 2SD601A-Q Q4007 8-729-422-27 TRANSISTOR 2SD601A-Q Q4008 8-729-216-22 TRANSISTOR 2SA1162-G Q4009 8-729-216-22 TRANSISTOR 2SA1162-G Q4010 8-729-216-22 TRANSISTOR 2SA1162-G

Q4018 8-729-422-27 TRANSISTOR 2SD601A-Q Q4019 8-729-422-27 TRANSISTOR 2SD601A-Q Q4020 8-729-422-27 TRANSISTOR 2SD601A-Q Q4021 8-729-422-27 TRANSISTOR 2SD601A-Q Q4025 8-729-403-27 TRANSISTOR XN4401

Q4026 8-729-422-27 TRANSISTOR 2SD601A-Q Q4027 8-729-422-27 TRANSISTOR 2SD601A-Q Q4028 8-729-422-27 TRANSISTOR 2SD601A-Q Q4034 8-729-216-22 TRANSISTOR 2SA1162-G Q4035 8-729-422-27 TRANSISTOR 2SD601A-Q

Q4041 8-729-422-27 TRANSISTOR 2SD601A-Q Q4043 8-729-422-27 TRANSISTOR 2SD601A-Q Q4044 8-729-216-22 TRANSISTOR 2SA1162-G Q4045 8-729-216-22 TRANSISTOR 2SA1162-G Q4401 8-729-422-27 TRANSISTOR 2SD601A-Q

R1111 1-216-121-91 RES,CHIP 1M 5% 1/10W R1112 1-216-073-00 RES,CHIP 10K 5% 1/10W R1113 1-216-073-00 RES,CHIP 10K 5% 1/10W R1115 1-216-049-91 RES,CHIP 1K 5% 1/10W R1119 1-216-033-00 RES,CHIP 220 5% 1/10W

R1120 1-216-033-00 RES,CHIP 220 5% 1/10W R1122 1-216-025-91 RES,CHIP 100 5% 1/10W R1125 1-216-295-91 SHORT 0 R1128 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1129 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1130 1-216-033-00 RES,CHIP 220 5% 1/10W R1132 1-216-097-91 RES,CHIP 100K 5% 1/10W R1133 1-216-121-91 RES,CHIP 1M 5% 1/10W R1134 1-216-017-91 RES,CHIP 47 5% 1/10W R1135 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1138 1-216-017-91 RES,CHIP 47 5% 1/10W R1139 1-216-073-00 RES,CHIP 10K 5% 1/10W R1140 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1141 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1154 1-216-025-91 RES,CHIP 100 5% 1/10W

R1155 1-216-025-91 RES,CHIP 100 5% 1/10W R1156 1-216-049-91 RES,CHIP 1K 5% 1/10W R1157 1-216-295-91 SHORT 0 R1167 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1168 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1200 1-216-025-91 RES,CHIP 100 5% 1/10W R1201 1-216-025-91 RES,CHIP 100 5% 1/10W R1202 1-216-025-91 RES,CHIP 100 5% 1/10W R1203 1-216-049-91 RES,CHIP 1K 5% 1/10W R1204 1-216-047-91 RES,CHIP 820 5% 1/10W

Q4402 8-729-422-27 TRANSISTOR 2SD601A-Q Q4403 8-729-216-22 TRANSISTOR 2SA1162-G Q4404 8-729-422-27 TRANSISTOR 2SD601A-Q Q4405 8-729-422-27 TRANSISTOR 2SD601A-Q

R1002 1-216-025-91 RES,CHIP 100 5% 1/10W R1003 1-216-025-91 RES,CHIP 100 5% 1/10W R1004 1-216-025-91 RES,CHIP 100 5% 1/10W R1005 1-216-025-91 RES,CHIP 100 5% 1/10W R1006 1-216-025-91 RES,CHIP 100 5% 1/10W

R1011 1-216-033-00 RES,CHIP 220 5% 1/10W R1012 1-216-049-91 RES,CHIP 1K 5% 1/10W R1013 1-216-033-00 RES,CHIP 220 5% 1/10W R1014 1-216-033-00 RES,CHIP 220 5% 1/10W R1015 1-216-033-00 RES,CHIP 220 5% 1/10W

R1016 1-216-033-00 RES,CHIP 220 5% 1/10W R1017 1-216-033-00 RES,CHIP 220 5% 1/10W R1018 1-216-033-00 RES,CHIP 220 5% 1/10W R1101 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1102 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1104 1-216-049-91 RES,CHIP 1K 5% 1/10W R1105 1-216-033-00 RES,CHIP 220 5% 1/10W R1106 1-216-033-00 RES,CHIP 220 5% 1/10W R1107 1-216-037-00 RES,CHIP 330 5% 1/10W R1108 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1205 1-216-049-91 RES,CHIP 1K 5% 1/10W R1301 1-216-049-91 RES,CHIP 1K 5% 1/10W R1302 1-216-025-91 RES,CHIP 100 5% 1/10W R1307 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W R1308 1-216-049-91 RES,CHIP 1K 5% 1/10W R1309 1-216-047-91 RES,CHIP 820 5% 1/10W R1310 1-216-097-91 RES,CHIP 100K 5% 1/10W R1311 1-216-049-91 RES,CHIP 1K 5% 1/10W R1312 1-216-085-00 RES,CHIP 33K 5% 1/10W R1313 1-216-093-00 RES,CHIP 68K 5% 1/10W

R1314 1-216-025-91 RES,CHIP 100 5% 1/10W R1402 1-216-295-91 SHORT 0 R1403 1-216-295-91 SHORT 0 R1405 1-216-111-00 RES,CHIP 390K 5% 1/10W R1410 1-216-295-91 SHORT 0

R1411 1-216-037-00 RES,CHIP 330 5% 1/10W R1412 1-216-037-00 RES,CHIP 330 5% 1/10W R1413 1-216-295-91 SHORT 0 R1414 1-216-295-91 SHORT 0 R1439 1-215-866-11 METAL OXIDE 330 5% 1W F

R1442 1-216-025-91 RES,CHIP 100 5% 1/10W R1443 1-216-025-91 RES,CHIP 100 5% 1/10W R1444 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R1445 1-216-089-91 RES,CHIP 47K 5% 1/10W R1446 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1447 1-216-081-00 RES,CHIP 22K 5% 1/10W R1448 1-216-033-00 RES,CHIP 220 5% 1/10W

– 129 –

KL-W7000A/W9000A

RM-Y980

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

R1603 1-216-073-00 RES,CHIP 10K 5% 1/10W R1604 1-216-073-00 RES,CHIP 10K 5% 1/10W R1605 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1606 1-216-033-00 RES,CHIP 220 5% 1/10W R1607 1-216-049-91 RES,CHIP 1K 5% 1/10W R1608 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R1609 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R1610 1-216-035-00 RES,CHIP 270 5% 1/10W

R1611 1-216-035-00 RES,CHIP 270 5% 1/10W R1612 1-216-049-91 RES,CHIP 1K 5% 1/10W R1613 1-216-035-00 RES,CHIP 270 5% 1/10W R1614 1-216-035-00 RES,CHIP 270 5% 1/10W R1615 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1616 1-216-035-00 RES,CHIP 270 5% 1/10W R1617 1-216-035-00 RES,CHIP 270 5% 1/10W R1618 1-216-049-91 RES,CHIP 1K 5% 1/10W R1619 1-216-039-00 RES,CHIP 390 5% 1/10W R1620 1-216-039-00 RES,CHIP 390 5% 1/10W

R1621 1-216-039-00 RES,CHIP 390 5% 1/10W R1622 1-216-045-00 RES,CHIP 680 5% 1/10W R1623 1-216-045-00 RES,CHIP 680 5% 1/10W R1624 1-216-045-00 RES,CHIP 680 5% 1/10W R1625 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1626 1-216-073-00 RES,CHIP 10K 5% 1/10W R1627 1-216-073-00 RES,CHIP 10K 5% 1/10W R1628 1-216-073-00 RES,CHIP 10K 5% 1/10W R1629 1-216-073-00 RES,CHIP 10K 5% 1/10W R1630 1-216-295-91 SHORT 0

R1646 1-216-049-91 RES,CHIP 1K 5% 1/10W R2001 1-216-081-00 RES,CHIP 22K 5% 1/10W R2002 1-216-001-00 RES,CHIP 10 5% 1/10W R2003 1-216-049-91 RES,CHIP 1K 5% 1/10W R2004 1-216-077-00 RES,CHIP 15K 5% 1/10W

R2005 1-216-055-00 RES,CHIP 1.8K 5% 1/10W R2006 1-216-017-91 RES,CHIP 47 5% 1/10W R2007 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R2008 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R2010 1-216-645-11 METAL CHIP 560 0.50% 1/10W

R2011 1-216-025-91 RES,CHIP 100 5% 1/10W R2012 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R2013 1-216-075-00 RES,CHIP 12K 5% 1/10W R2014 1-216-638-11 METAL CHIP 300 0.50% 1/10W R2015 1-216-061-00 RES,CHIP 3.3K 5% 1/10W

R2016 1-216-669-11 METAL CHIP 5.6K 0.50% 1/10W R2017 1-216-643-11 METAL CHIP 470 0.50% 1/10W R2018 1-216-001-00 RES,CHIP 10 5% 1/10W R2019 1-216-097-91 RES,CHIP 100K 5% 1/10W R2021 1-216-039-00 RES,CHIP 390 5% 1/10W

R2022 1-216-039-00 RES,CHIP 390 5% 1/10W R2024 1-216-683-11 METAL CHIP 22K 0.50% 1/10W R2025 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R2026 1-216-023-00 RES,CHIP 82 5% 1/10W R2027 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2029 1-216-089-91 RES,CHIP 47K 5% 1/10W R2030 1-216-089-91 RES,CHIP 47K 5% 1/10W R2031 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2032 1-216-033-00 RES,CHIP 220 5% 1/10W R2033 1-216-033-00 RES,CHIP 220 5% 1/10W

R2034 1-216-699-11 METAL CHIP 100K 0.50% 1/10W R2035 1-216-665-11 METAL CHIP 3.9K 0.50% 1/10W R2036 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R2037 1-216-097-91 RES,CHIP 100K 5% 1/10W R2038 1-216-693-11 METAL CHIP 56K 0.50% 1/10W

R2039 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R2040 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R2042 1-216-035-00 RES,CHIP 270 5% 1/10W R2043 1-216-062-00 RES,CHIP 3.6K 5% 1/10W R2044 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R2045 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R2046 1-216-073-00 RES,CHIP 10K 5% 1/10W R2047 1-216-073-00 RES,CHIP 10K 5% 1/10W R2048 1-216-049-91 RES,CHIP 1K 5% 1/10W R2049 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R2050 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R2051 1-216-025-91 RES,CHIP 100 5% 1/10W R2052 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R2053 1-216-043-91 RES,CHIP 560 5% 1/10W R2054 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R2055 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R2056 1-216-033-00 RES,CHIP 220 5% 1/10W R2057 1-216-049-91 RES,CHIP 1K 5% 1/10W R2059 1-216-295-91 SHORT 0 R2060 1-216-295-91 SHORT 0

R2061 1-216-295-91 SHORT 0 R2062 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R2064 1-216-089-91 RES,CHIP 47K 5% 1/10W R2065 1-216-049-91 RES,CHIP 1K 5% 1/10W R2066 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R2068 1-216-025-91 RES,CHIP 100 5% 1/10W R2069 1-216-023-00 RES,CHIP 82 5% 1/10W R2071 1-216-043-91 RES,CHIP 560 5% 1/10W R2072 1-216-023-00 RES,CHIP 82 5% 1/10W R2073 1-216-033-00 RES,CHIP 220 5% 1/10W

R2074 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R2076 1-216-049-91 RES,CHIP 1K 5% 1/10W R2077 1-216-295-91 SHORT 0 R2078 1-216-295-91 SHORT 0 R2079 1-216-634-11 METAL CHIP 200 0.50% 1/10W

R2080 1-216-049-91 RES,CHIP 1K 5% 1/10W R2081 1-216-295-91 SHORT 0 R2082 1-216-295-91 SHORT 0 R2083 1-216-295-91 SHORT 0 R2084 1-216-634-11 METAL CHIP 200 0.50% 1/10W

R2087 1-216-049-91 RES,CHIP 1K 5% 1/10W R2088 1-216-047-91 RES,CHIP 820 5% 1/10W R2089 1-216-295-91 SHORT 0 R2090 1-216-043-91 RES,CHIP 560 5% 1/10W R2091 1-216-634-11 METAL CHIP 200 0.50% 1/10W

R2094 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R2096 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R2097 1-216-085-00 RES,CHIP 33K 5% 1/10W R2099 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

– 130 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

A

RM-Y980

R2100 1-216-047-91 RES,CHIP 820 5% 1/10W R2101 1-216-073-00 RES,CHIP 10K 5% 1/10W

R2102 1-216-049-91 RES,CHIP 1K 5% 1/10W R2103 1-216-043-91 RES,CHIP 560 5% 1/10W R2108 1-216-643-11 METAL CHIP 470 0.50% 1/10W R2109 1-216-033-00 RES,CHIP 220 5% 1/10W

R2111 1-216-043-91 RES,CHIP 560 5% 1/10W R2112 1-216-295-91 SHORT 0 R2113 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R2125 1-216-047-91 RES,CHIP 820 5% 1/10W R2129 1-216-043-91 RES,CHIP 560 5% 1/10W

R2130 1-216-295-91 SHORT 0 R2131 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R2132 1-216-295-91 SHORT 0 R2133 1-216-295-91 SHORT 0 R2135 1-216-101-00 RES,CHIP 150K 5% 1/10W

R2141 1-216-025-91 RES,CHIP 100 5% 1/10W R2144 1-216-295-91 SHORT 0 R2145 1-216-623-11 METAL CHIP 68 0.50% 1/10W R2150 1-216-025-91 RES,CHIP 100 5% 1/10W R2151 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2152 1-216-043-91 RES,CHIP 560 5% 1/10W R2153 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R2154 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R2155 1-216-049-91 RES,CHIP 1K 5% 1/10W R2157 1-216-037-00 RES,CHIP 330 5% 1/10W

R2158 1-216-037-00 RES,CHIP 330 5% 1/10W R2159 1-216-097-91 RES,CHIP 100K 5% 1/10W R2160 1-216-037-00 RES,CHIP 330 5% 1/10W R2161 1-216-037-00 RES,CHIP 330 5% 1/10W R2162 1-216-097-91 RES,CHIP 100K 5% 1/10W

R2163 1-218-764-11 METAL CHIP 330K 0.50% 1/10W R2173 1-216-677-11 METAL CHIP 12K 0.50% 1/10W R2174 1-216-695-11 METAL CHIP 68K 0.50% 1/10W R2175 1-216-097-91 RES,CHIP 100K 5% 1/10W R2176 1-216-687-11 METAL CHIP 33K 0.50% 1/10W

R2177 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R2178 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R2179 1-216-073-00 RES,CHIP 10K 5% 1/10W R2180 1-218-756-11 METAL CHIP 150K 0.50% 1/10W R2181 1-216-697-91 METAL CHIP 82K 0.50% 1/10W

R2182 1-216-073-00 RES,CHIP 10K 5% 1/10W R2183 1-218-762-11 METAL CHIP 270K 0.50% 1/10W R2184 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R2191 1-216-041-00 RES,CHIP 470 5% 1/10W R2192 1-216-041-00 RES,CHIP 470 5% 1/10W

R2193 1-216-049-91 RES,CHIP 1K 5% 1/10W R2194 1-216-049-91 RES,CHIP 1K 5% 1/10W R2195 1-216-077-00 RES,CHIP 15K 5% 1/10W R2196 1-216-077-00 RES,CHIP 15K 5% 1/10W R2197 1-216-073-00 RES,CHIP 10K 5% 1/10W

R2198 1-216-073-00 RES,CHIP 10K 5% 1/10W R2200 1-216-035-00 RES,CHIP 270 5% 1/10W R2201 1-216-035-00 RES,CHIP 270 5% 1/10W R2202 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R2203 1-216-049-91 RES,CHIP 1K 5% 1/10W

R2204 1-216-049-91 RES,CHIP 1K 5% 1/10W R2205 1-216-049-91 RES,CHIP 1K 5% 1/10W R2211 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R2212 1-216-031-00 RES,CHIP 180 5% 1/10W R2213 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R2214 1-216-689-11 RES,CHIP 39K 5% 1/10W R2215 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R2216 1-216-031-00 RES,CHIP 180 5% 1/10W R2301 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R2302 1-216-033-00 RES,CHIP 220 5% 1/10W

R2303 1-216-035-00 RES,CHIP 270 5% 1/10W R2304 1-216-047-91 RES,CHIP 820 5% 1/10W R2305 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R2306 1-216-077-00 RES,CHIP 15K 5% 1/10W R2307 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

R4002 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R4003 1-216-680-11 METAL CHIP 16K 0.50% 1/10W R4004 1-216-680-11 METAL CHIP 16K 0.50% 1/10W R4005 1-216-680-11 METAL CHIP 16K 0.50% 1/10W R4006 1-216-675-11 METAL CHIP 10K 0.50% 1/10W

R4007 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R4008 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R4009 1-216-677-11 METAL CHIP 12K 0.50% 1/10W R4011 1-216-677-11 METAL CHIP 12K 0.50% 1/10W R4012 1-216-677-11 METAL CHIP 12K 0.50% 1/10W

R4013 1-216-675-11 METAL CHIP 10K 0.50% 1/10W R4018 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R4019 1-216-035-00 RES,CHIP 270 5% 1/10W R4020 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R4023 1-216-025-91 RES,CHIP 100 5% 1/10W

R4024 1-216-025-91 RES,CHIP 100 5% 1/10W R4026 1-216-073-00 RES,CHIP 10K 5% 1/10W R4027 1-216-073-00 RES,CHIP 10K 5% 1/10W R4028 1-216-073-00 RES,CHIP 10K 5% 1/10W R4029 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4032 1-216-025-91 RES,CHIP 100 5% 1/10W R4033 1-216-025-91 RES,CHIP 100 5% 1/10W R4034 1-216-025-91 RES,CHIP 100 5% 1/10W R4035 1-216-295-91 SHORT 0 R4036 1-216-077-00 RES,CHIP 15K 5% 1/10W

R4040 1-216-133-00 RES,CHIP 3.3M 5% 1/10W R4042 1-216-049-91 RES,CHIP 1K 5% 1/10W R4044 1-216-025-91 RES,CHIP 100 5% 1/10W R4046 1-216-025-91 RES,CHIP 100 5% 1/10W R4047 1-216-025-91 RES,CHIP 100 5% 1/10W

R4048 1-216-025-91 RES,CHIP 100 5% 1/10W R4050 1-216-083-00 RES,CHIP 27K 5% 1/10W R4051 1-216-025-91 RES,CHIP 100 5% 1/10W R4052 1-216-025-91 RES,CHIP 100 5% 1/10W R4063 1-216-025-91 RES,CHIP 100 5% 1/10W

R4064 1-216-025-91 RES,CHIP 100 5% 1/10W R4065 1-216-025-91 RES,CHIP 100 5% 1/10W R4066 1-216-025-91 RES,CHIP 100 5% 1/10W R4067 1-216-073-00 RES,CHIP 10K 5% 1/10W R4081 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4089 1-216-025-91 RES,CHIP 100 5% 1/10W

– 131 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

R4090 1-216-025-91 RES,CHIP 100 5% 1/10W R4091 1-216-041-00 RES,CHIP 470 5% 1/10W R4092 1-216-077-00 RES,CHIP 15K 5% 1/10W R4093 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4094 1-216-041-00 RES,CHIP 470 5% 1/10W R4095 1-216-077-00 RES,CHIP 15K 5% 1/10W R4096 1-216-073-00 RES,CHIP 10K 5% 1/10W R4103 1-216-025-91 RES,CHIP 100 5% 1/10W R4104 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

R4105 1-216-025-91 RES,CHIP 100 5% 1/10W R4106 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R4107 1-216-025-91 RES,CHIP 100 5% 1/10W R4108 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R4134 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4135 1-216-089-91 RES,CHIP 47K 5% 1/10W R4136 1-216-089-91 RES,CHIP 47K 5% 1/10W R4137 1-216-041-00 RES,CHIP 470 5% 1/10W R4138 1-216-089-91 RES,CHIP 47K 5% 1/10W R4139 1-216-089-91 RES,CHIP 47K 5% 1/10W

R4140 1-216-049-91 RES,CHIP 1K 5% 1/10W R4142 1-216-049-91 RES,CHIP 1K 5% 1/10W R4143 1-216-295-91 SHORT 0 R4150 1-216-073-00 RES,CHIP 10K 5% 1/10W R4160 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4161 1-216-295-91 SHORT 0 R4162 1-216-025-91 RES,CHIP 100 5% 1/10W R4164 1-216-049-91 RES,CHIP 1K 5% 1/10W R4165 1-216-295-91 SHORT 0 R4166 1-216-025-91 RES,CHIP 100 5% 1/10W

R4170 1-216-049-91 RES,CHIP 1K 5% 1/10W R4171 1-216-295-91 SHORT 0 R4172 1-216-025-91 RES,CHIP 100 5% 1/10W R4301 1-216-041-00 RES,CHIP 470 5% 1/10W R4302 1-216-049-91 RES,CHIP 1K 5% 1/10W R4303 1-216-295-91 SHORT 0 R4304 1-216-023-00 RES,CHIP 82 5% 1/10W R4305 1-216-295-91 SHORT 0 R4306 1-216-295-91 SHORT 0 R4307 1-216-041-00 RES,CHIP 470 5% 1/10W

R4308 1-216-073-00 RES,CHIP 10K 5% 1/10W R4309 1-216-073-00 RES,CHIP 10K 5% 1/10W R4311 1-216-041-00 RES,CHIP 470 5% 1/10W R4312 1-216-049-91 RES,CHIP 1K 5% 1/10W R4313 1-216-295-91 SHORT 0

R4314 1-216-029-00 RES,CHIP 150 5% 1/10W R4315 1-216-295-91 SHORT 0 R4316 1-216-295-91 SHORT 0 R4317 1-216-041-00 RES,CHIP 470 5% 1/10W R4318 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4319 1-216-073-00 RES,CHIP 10K 5% 1/10W R4321 1-216-041-00 RES,CHIP 470 5% 1/10W R4322 1-216-049-91 RES,CHIP 1K 5% 1/10W R4323 1-216-295-91 SHORT 0 R4324 1-216-029-00 RES,CHIP 150 5% 1/10W

R4325 1-216-295-91 SHORT 0 R4326 1-216-295-91 SHORT 0 R4327 1-216-041-00 RES,CHIP 470 5% 1/10W

R4328 1-216-073-00 RES,CHIP 10K 5% 1/10W R4329 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4330 1-216-079-00 RES,CHIP 18K 5% 1/10W R4331 1-216-079-00 RES,CHIP 18K 5% 1/10W R4332 1-216-079-00 RES,CHIP 18K 5% 1/10W R4333 1-216-073-00 RES,CHIP 10K 5% 1/10W R4334 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4335 1-216-073-00 RES,CHIP 10K 5% 1/10W R4340 1-216-073-00 RES,CHIP 10K 5% 1/10W R4341 1-216-073-00 RES,CHIP 10K 5% 1/10W R4342 1-216-041-00 RES,CHIP 470 5% 1/10W R4350 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4351 1-216-073-00 RES,CHIP 10K 5% 1/10W R4352 1-216-041-00 RES,CHIP 470 5% 1/10W R4353 1-216-049-91 RES,CHIP 1K 5% 1/10W R4354 1-216-049-91 RES,CHIP 1K 5% 1/10W R4360 1-216-073-00 RES,CHIP 10K 5% 1/10W

R4361 1-216-073-00 RES,CHIP 10K 5% 1/10W R4362 1-216-041-00 RES,CHIP 470 5% 1/10W R4369 1-216-025-91 RES,CHIP 100 5% 1/10W R4370 1-216-117-00 RES,CHIP 680K 5% 1/10W R4373 1-216-295-91 SHORT 0

R4401 1-216-049-91 RES,CHIP 1K 5% 1/10W R4402 1-216-081-00 RES,CHIP 22K 5% 1/10W R4403 1-216-041-00 RES,CHIP 470 5% 1/10W R4404 1-216-081-00 RES,CHIP 22K 5% 1/10W R4405 1-216-041-00 RES,CHIP 470 5% 1/10W

R4407 1-216-011-00 RES,CHIP 27 5% 1/10W R4409 1-216-025-91 RES,CHIP 100 5% 1/10W R4410 1-216-049-91 RES,CHIP 1K 5% 1/10W R4411 1-216-073-00 RES,CHIP 10K 5% 1/10W R4412 1-216-049-91 RES,CHIP 1K 5% 1/10W

R4413 1-216-073-00 RES,CHIP 10K 5% 1/10W R4414 1-216-041-00 RES,CHIP 470 5% 1/10W R4415 1-216-035-00 RES,CHIP 270 5% 1/10W R4416 1-216-017-91 RES,CHIP 47 5% 1/10W R4417 1-216-041-00 RES,CHIP 470 5% 1/10W

R4418 1-216-033-00 RES,CHIP 220 5% 1/10W R4419 1-216-009-00 RES,CHIP 22 5% 1/10W

RB1101 1-236-404-11 NETWORK, RES 220 RB1103 1-236-404-11 NETWORK, RES 220 RB1105 1-236-400-11 NETWORK, RES 100 RB1106 1-236-400-11 NETWORK, RES 100 RB1107 1-236-404-11 NETWORK, RES 220

RB1110 1-236-404-11 NETWORK, RES 220 RB1111 1-236-404-11 NETWORK, RES 220 RB1112 1-236-404-11 NETWORK, RES 220 RB1113 1-236-404-11 NETWORK, RES 220 RB1114 1-236-404-11 NETWORK, RES 220

RB1601 1-236-400-11 NETWORK, RES 100 RB1602 1-236-400-11 NETWORK, RES 100 RB1603 1-236-400-11 NETWORK, RES 100 RB1604 1-236-400-11 NETWORK, RES 100

– 132 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

A G

RM-Y980

X1101 1-760-506-11 VIBRATOR, CRYSTAL X1601 1-579-125-11 VIBRATOR, CERAMIC X2001 1-760-892-21 VIBRATOR, CRYSTAL X2002 1-579-583-11 VIBRATOR, CERAMIC X2003 1-577-165-11 VIBLATOR, CERAMIC

********************************************************************************

*A-1311-597-AG BOARD, COMPLETE

****************************

4-382-854-11 SCREW (M3X10), P, SW (+)

(Q610,D601,D605,D606,D610,D611)

7-682-948-01 SCREW +PSW 3X8 (Q640)

C601 1-111-092-11 ELECT 0.001F 20% 35V C602 1-126-967-11 ELECT 47MF 20% 50V C603! 1-104-708-51 FILM 0.47MF 20% 250V C604! 1-104-708-51 FILM 0.47MF 20% 250V C605! 1-113-926-91 CERAMIC 0.0047MF 250V

C606! 1-113-926-91 CERAMIC 0.0047MF 250V C607 1-126-941-11 ELECT 470MF 20% 25V C608 1-104-664-11 ELECT 47MF 20% 25V C609 1-126-929-11 ELECT 4700MF 20% 10V C610 1-137-479-11 FILM 1MF 10% 400V

C646 1-102-129-00 CERAMIC 0.01MF 10% 50V C648 1-137-195-11 FILM 0.56MF 5% 50V C649 1-137-195-11 FILM 0.56MF 5% 50V C650 1-129-720-00 FILM 0.033MF 5% 630V C651 1-104-330-91 CERAMIC 470PF 10% 1KV

C652 1-104-330-91 CERAMIC 470PF 10% 1KV C660 1-104-665-11 ELECT 100MF 20% 25V C661 1-104-665-11 ELECT 100MF 20% 10V C682 1-126-963-11 ELECT 4.7MF 20% 50V C701 1-115-732-11 ELECT 330MF 20% 10V

C702 1-104-664-11 ELECT 47MF 20% 25V C703 1-104-664-11 ELECT 47MF 20% 25V C704 1-102-129-00 CERAMIC 0.01MF 10% 50V C705 1-136-153-00 FILM 0.01MF 5% 50V C706 1-136-169-00 FILM 0.22MF 5% 50V

CN602*1-564-509-11 PLUG, CONNECTOR 6P CN604*1-564-513-11 PLUG, CONNECTOR 10P CN607*1-564-511-11 PLUG, CONNECTOR 8P CN608*1-564-506-11 PLUG, CONNECTOR 3P CN609*1-564-506-11 PLUG, CONNECTOR 3P

CN610 1-695-915-11 TAB (CONTACT) CN611*1-691-960-21 PIN, CONNECTOR (PC BOARD) 3P CN612 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P CN613 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P CN614*1-774-511-11 CONNECTOR, BOARD TO BOARD 10P

<DIODE>

C611 1-113-607-11 ELECT(BLOCK) 330MF 20% 400V C612! 1-117-699-51 CERAMIC 0.001MF 99% 250V C613! 1-117-699-51 CERAMIC 0.001MF 99% 250V C614 1-126-937-11 ELECT 4700MF 20% 16V C616 1-104-664-11 ELECT 47MF 20% 25V C617 1-107-655-11 ELECT 47MF 20% 250V

C619 1-104-664-11 ELECT 47MF 20% 25V C622 1-104-664-11 ELECT 47MF 20% 25V C623 1-126-968-11 ELECT 100MF 20% 50V C624 1-104-330-91 CERAMIC 470PF 10% 1KV C625 1-102-129-00 CERAMIC 0.01MF 10% 50V

C626 1-102-129-00 CERAMIC 0.01MF 10% 50V C627 1-102-129-00 CERAMIC 0.01MF 10% 50V C628 1-102-129-00 CERAMIC 0.01MF 10% 50V C629 1-102-129-00 CERAMIC 0.01MF 10% 50V C630 1-126-960-11 ELECT 1MF 20% 50V

C631! 1-113-900-51 CERAMIC 470PF 10% 250V C635 1-136-165-00 FILM 0.1MF 5% 50V C636 1-136-158-00 FILM 0.027MF 5% 50V C639 1-137-194-81 FILM 0.47MF 5% 50V C640 1-137-194-81 FILM 0.47MF 5% 50V

C641 1-104-330-91 CERAMIC 470PF 10% 1KV C642 1-126-965-11 ELECT 22MF 20% 50V C643 1-126-963-11 ELECT 4.7MF 20% 50V C644 1-104-664-11 ELECT 47MF 20% 25V C645 1-136-153-00 FILM 0.01MF 5% 50V

D601 8-719-052-92 DIODE D10SBS4F D603 8-719-510-09 DIODE D10SC6M D605 8-719-510-12 DIODE D10SC4M D606 8-719-510-12 DIODE D10SC4M D607 8-719-110-16 ZENER DIODE RD10ESB1

D609 8-719-510-64 DIODE S2LA20F D610! 8-719-510-53 DIODE D4SB60L D611 8-719-029-04 DIODE D5L60 D612 8-719-911-19 DIODE 1SS119-25 D613 8-719-911-19 DIODE 1SS119-25

D615 8-719-911-19 DIODE 1SS119-25 D617 8-719-911-19 DIODE 1SS119-25 D618 8-719-110-35 ZENER DIODE RD13ESB1 D619 8-719-109-90 ZENER DIODE RD5.6ESB3 D620 8-719-911-19 DIODE 1SS119-25

D621 8-719-301-18 DIODE RM2CS D627 8-719-911-19 DIODE 1SS119-25 D628 8-719-911-19 DIODE 1SS119-25 D629 8-719-911-19 DIODE 1SS119-25 D640 8-719-911-19 DIODE 1SS119-25

D642 8-719-911-19 DIODE 1SS119-25 D644 8-719-911-19 DIODE 1SS119-25 D660 8-719-059-23 DIODE P6KE200AG23 D661 8-719-947-06 DIODE RGP10JPKG23 D662 8-719-052-90 DIODE D1NL40-TA2

D664 8-719-911-19 DIODE 1SS119-25

– 133 –

KL-W7000A/W9000A

RM-Y980

G

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

D703 8-719-510-64 DIODE S2LA20F D704 8-719-510-64 DIODE S2LA20F

<FUSE>

F601! 1-576-233-11 FUSE (H.B.C.) (6.3A/250V)

1-533-223-11 HOLDER, FUSE; F601

FB610 1-410-396-41 FERRITE 0.45UH FB611 1-410-396-41 FERRITE 0.45UH FB612 1-410-396-41 FERRITE 0.45UH FB620 1-410-396-41 FERRITE 0.45UH FB621 1-410-396-41 FERRITE 0.45UH FB622 1-410-396-41 FERRITE 0.45UH

<IC>

IC603 8-759-198-31 IC UPC1093J-1-T IC701 8-759-426-45 IC PWR-TOP210PFI IC702 8-759-198-31 IC UPC1093J-1-T

<COIL>

L601 1-412-519-11 INDUCTOR 3.3UH L603 1-412-525-31 INDUCTOR 10UH L604 1-412-525-31 INDUCTOR 10UH L605 1-412-525-31 INDUCTOR 10UH L610 1-416-512-11 INDUCTOR 0UH L702 1-412-529-11 INDUCTOR 22UH

R607 1-249-389-11 CARBON 4.7 5% 1/4W R610 1-216-361-00 METAL OXIDE 0.22 5% 2W F R611 1-216-350-11 METAL OXIDE 1.2 5% 1W F R612 1-215-485-00 METAL 470K 1% 1/4W R613 1-215-485-00 METAL 470K 1% 1/4W

R614 1-247-863-91 CARBON 22K 5% 1/4W R617! 1-202-880-91 SOLID 330K 20% 1/2W R618 1-249-429-11 CARBON 10K 5% 1/4W R619 1-215-482-00 METAL 360K 1% 1/4W R620 1-215-482-00 METAL 360K 1% 1/4W

R621 1-215-482-00 METAL 360K 1% 1/4W R622 1-249-435-11 CARBON 33K 5% 1/4W R623 1-215-427-00 METAL 1.8K 1% 1/4W R624 1-249-419-11 CARBON 1.5K 5% 1/4W R625 1-249-417-11 CARBON 1K 5% 1/4W

R626 1-249-429-11 CARBON 10K 5% 1/4W R627 1-215-426-00 METAL 1.6K 1% 1/4W R628 1-249-425-11 CARBON 4.7K 5% 1/4W R629 1-249-421-11 CARBON 2.2K 5% 1/4W R630 1-247-863-91 CARBON 22K 5% 1/4W

R631 1-247-807-31 CARBON 100 5% 1/4W R632 1-249-429-11 CARBON 10K 5% 1/4W R635 1-249-429-11 CARBON 10K 5% 1/4W R636 1-216-361-00 METAL OXIDE 0.22 5% 2W F R637 1-249-393-11 CARBON 10 5% 1/4W

R638 1-215-477-00 METAL 220K 1% 1/4W R639 1-215-479-00 METAL 270K 1% 1/4W R640! 1-220-926-21 FUSIBLE 0.47 10% 1/2W F R641 1-218-642-11 METAL OXIDE 100K 5% 1W F R642 1-218-642-11 METAL OXIDE 100K 5% 1W F

PH680!8-749-010-65 PHOTO COUPLER PC123FY2 PH701!8-749-010-65 PHOTO COUPLER PC123FY2

Q602 8-729-119-76 TRANSISTOR 2SA1175-HFE Q603 8-729-119-76 TRANSISTOR 2SA1175-HFE Q604 8-729-119-78 TRANSISTOR 2SC2785-HFE Q605 8-729-119-76 TRANSISTOR 2SA1175-HFE Q606 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q607 8-729-119-78 TRANSISTOR 2SC2785-HFE Q610 8-729-041-65 TRANSISTOR 2SK2195F04 Q615 8-729-119-76 TRANSISTOR 2SA1175-HFE Q640 8-729-039-65 TRNSISTOR MX0541B-F Q641 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q683 8-729-119-76 TRANSISTOR 2SA1175-HFE

R601 1-249-425-11 CARBON 4.7K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W R603 1-249-417-11 CARBON 1K 5% 1/4W R604 1-215-865-11 METAL OXIDE 220 5% 1W F R606 1-249-389-11 CARBON 4.7 5% 1/4W

R644 1-243-011-11 CEMENTED 2.2 5% 5W F R645 1-215-865-11 METAL OXIDE 220 5% 1W F R646 1-249-429-11 CARBON 10K 5% 1/4W R647 1-249-429-11 CARBON 10K 5% 1/4W R648! 1-220-778-11 FUSIBLE 0.1 10% 1/2W F

R649 1-218-642-11 METAL OXIDE 100K 5% 1W F R650 1-218-642-11 METAL OXIDE 100K 5% 1W F R658 1-215-886-11 METAL OXIDE 100 5% 2W F R659 1-260-306-51 CARBON 15 5% 1/2W R660 1-260-306-51 CARBON 15 5% 1/2W

R661 1-249-389-11 CARBON 4.7 5% 1/4W F R664 1-215-479-00 METAL 270K 1% 1/4W R665 1-215-461-00 METAL 47K 1% 1/4W R666 1-249-417-11 CARBON 1K 5% 1/4W R667 1-249-421-11 CARBON 2.2K 5% 1/4W

R668 1-249-421-11 CARBON 2.2K 5% 1/4W R669 1-249-429-11 CARBON 10K 5% 1/4W R670 1-247-815-91 CARBON 220 5% 1/4W R671 1-260-288-11 CARBON 0.47 5% 1/2W R685 1-249-425-11 CARBON 4.7K 5% 1/4W

R686 1-249-417-11 CARBON 1K 5% 1/4W R687 1-249-417-11 CARBON 1K 5% 1/4W R688 1-249-429-11 CARBON 10K 5% 1/4W R702 1-249-441-11 CARBON 100K 5% 1/4W R703 1-215-445-00 METAL 10K 1% 1/4W

R704 1-249-417-11 CARBON 1K 5% 1/4W

– 134 –

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

G GA CU

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

RM-Y980

R706 1-215-445-00 METAL 10K 1% 1/4W

<RELAY>

RY601!1-755-057-21 RELAY RY602

1-755-057-11 RELAY

T601! 1-429-180-11 TRANSFORMER, LINE FILTER T602! 1-431-624-11 TRANSFORMER, CONVERTER (PIT) T641! 1-429-992-11 TRANSFORMER, CONVERTER (PRT) T660! 1-431-625-11 TRANSFORMER, CONVERTER (SRT)

TH601!1-809-260-11 THERMISTOR, POWER

VDR601!1-801-268-51 VARISTOR TNR14V471K660

*******************************************************************************

*A-1311-631-AGA BOARD, COMPLETE

*****************************

Q823 8-729-119-76 TRANSISTOR 2SA1175-HFE

R841 1-249-429-11 CARBON 10K 5% 1/4W R842 1-249-429-11 CARBON 10K 5% 1/4W R843 1-249-429-11 CARBON 10K 5% 1/4W R844 1-247-863-91 CARBON 22K 5% 1/4W R845 1-249-401-11 CARBON 47 5% 1/4W

R846 1-215-443-00 METAL 8.2K 1% 1/4W R848 1-249-429-11 CARBON 10K 5% 1/4W

*******************************************************************************

*A-1331-875-ACU BOARD, COMPLETE

***************************** <CAPACITOR>

C5801 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C5802 1-126-205-11 ELECT CHIP 47MF 20% 6.3V C5803 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5804 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5805 1-126-603-11 ELECT CHIP 4.7MF 20% 35V

C5809 1-124-779-00 ELECT CHIP 10MF 20% 16V C5810 1-124-779-00 ELECT CHIP 10MF 20% 16V C5811 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5812 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5813 1-124-779-00 ELECT CHIP 10MF 20% 16V

C811 1-136-165-00 FILM 0.1MF 5% 50V C814 1-136-169-00 FILM 0.22MF 5% 50V C815 1-136-153-00 FILM 0.01MF 5% 50V C816 1-130-471-00 FILM 0.001MF 5% 50V C817 1-136-165-00 FILM 0.1MF 5% 50V C818 1-136-165-00 FILM 0.1MF 5% 50V

CN802*1-774-512-11 CONNECTOR, BPARD TO BOARD 10P

<DIODE>

D831 8-719-911-19 DIODE 1SS119-25 D832 8-719-110-57 ZENER DIODE RD22ESB2

<IC>

IC801 8-759-482-62 IC MC33262P

Q821 8-729-119-78 TRANSISTOR 2SC2785-HFE Q822 8-729-119-78 TRANSISTOR 2SC2785-HFE

C5814 1-124-779-00 ELECT CHIP 10MF 20% 16V C5815 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5816 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5817 1-124-779-00 ELECT CHIP 10MF 20% 16V C5818 1-124-779-00 ELECT CHIP 10MF 20% 16V

C5819 1-124-779-00 ELECT CHIP 10MF 20% 16V C5820 1-124-779-00 ELECT CHIP 10MF 20% 16V

CN5801*1-564-512-11 PLUG, CONNECTOR 9P

<DIODE>

D5802 8-719-404-49 DIODE MA111 D5804 8-719-404-49 DIODE MA111

<IC>

IC5801 8-752-053-21 IC CXA1211M IC5802 8-752-053-21 IC CXA1211M

<COIL>

L5801 1-414-753-91 INDUCTOR 4.7UH

– 135 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

CU C

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Q5801 8-729-216-22 TRANSISTOR 2SA1162-G Q5802 8-729-402-84 TRANSISTOR XN4601 Q5803 8-729-422-27 TRANSISTOR 2SD601A-Q Q5804 8-729-216-22 TRANSISTOR 2SA1162-G Q5805 8-729-925-79 TRANSISTOR IMX3

Q5806 8-729-925-79 TRANSISTOR IMX3 Q5807 8-729-422-27 TRANSISTOR 2SD601A-Q Q5808 8-729-422-27 TRANSISTOR 2SD601A-Q Q5811 8-729-422-27 TRANSISTOR 2SD601A-Q Q5812 8-729-216-22 TRANSISTOR 2SA1162-G

Q5813 8-729-422-27 TRANSISTOR 2SD601A-Q Q5814 8-729-216-22 TRANSISTOR 2SA1162-G Q5816 8-729-422-27 TRANSISTOR 2SD601A-Q Q5818 8-729-422-27 TRANSISTOR 2SD601A-Q

R5801 1-216-295-91 SHORT 0 R5802 1-216-295-91 SHORT 0 R5803 1-216-295-91 SHORT 0 R5804 1-216-295-91 SHORT 0 R5805 1-216-295-91 SHORT 0

R5806 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5807 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5808 1-216-073-00 RES,CHIP 10K 5% 1/10W R5809 1-216-073-00 RES,CHIP 10K 5% 1/10W R5810 1-216-684-91 METAL CHIP 24K 0.50% 1/10W

R5811 1-216-677-11 METAL CHIP 12K 0.50% 1/10W R5812 1-216-295-91 SHORT 0 R5813 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5814 1-216-085-00 RES,CHIP 33K 5% 1/10W R5815 1-216-295-91 SHORT 0

R5816 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R5817 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5818 1-216-295-91 SHORT 0 R5819 1-216-295-91 SHORT 0 R5820 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R5821 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5822 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5823 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5824 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5825 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R5826 1-216-683-11 METAL CHIP 22K 0.50% 1/10W R5829 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5832 1-216-683-11 METAL CHIP 22K 0.50% 1/10W R5833 1-216-683-11 METAL CHIP 22K 0.50% 1/10W R5834 1-216-025-91 RES,CHIP 100 5% 1/10W

R5835 1-216-049-91 RES,CHIP 1K 5% 1/10W R5836 1-216-073-00 RES,CHIP 10K 5% 1/10W R5837 1-216-639-11 METAL CHIP 330 0.50% 1/10W R5838 1-216-025-91 RES,CHIP 100 5% 1/10W R5839 1-216-049-91 RES,CHIP 1K 5% 1/10W

R5840 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W R5841 1-216-295-91 SHORT 0 R5842 1-216-081-00 RES,CHIP 22K 5% 1/10W

R5843 1-216-025-91 RES,CHIP 100 5% 1/10W R5844 1-216-683-11 METAL CHIP 22K 0.50% 1/10W

R5845 1-216-025-91 RES,CHIP 100 5% 1/10W R5848 1-216-073-00 RES,CHIP 10K 5% 1/10W R5851 1-216-639-11 METAL CHIP 330 0.50% 1/10W R5852 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W R5853 1-216-295-91 SHORT 0

R5855 1-216-109-00 RES,CHIP 330K 5% 1/10W R5857 1-216-109-00 RES,CHIP 330K 5% 1/10W R5858 1-216-037-00 RES,CHIP 330 5% 1/10W R5860 1-216-037-00 RES,CHIP 330 5% 1/10W R5883 1-216-047-91 RES,CHIP 820 5% 1/10W

R5885 1-216-047-91 RES,CHIP 820 5% 1/10W

RV5803

1-237-412-11 RES, VAR, CARBON 10K (R-V GAIN)

RV5804

1-237-412-11 RES, VAR, CARBON 10K (G-V GAIN)

RV5805

1-237-412-11 RES, VAR, CARBON 10K (R-H GAIN)

RV5806

1-237-412-11 RES, VAR, CARBON 10K (G-H GAIN)

SW5801

1-571-674-11 SWITCH, SLIDE (UP/DOWN SELECT)

SW5802

1-571-674-11 SWITCH, SLIDE (UP/DOWN SELECT)

*******************************************************************************

*A-1335-110-AC BOARD, COMPLETE

4-382-854-01 SCREW (M3X8), P, SW (+)

C5001 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5002 1-104-664-11 ELECT 47MF 20% 10V C5003 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5004 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5005 1-126-962-11 ELECT 3.3MF 20% 50V

C5006 1-164-182-11 CERAMIC CHIP C5007 1-163-104-00 CERAMIC CHIP 30PF 5% 50V C5008 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C5009 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5010 1-163-109-00 CERAMIC CHIP 47PF 5% 50V

C5011 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C5012 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5013 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5014 1-126-962-11 ELECT 3.3MF 20% 50V C5015 1-164-182-11 CERAMIC CHIP

C5016 1-163-108-00 CERAMIC CHIP 43PF 5% 50V C5017 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C5018 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5019 1-164-182-11 CERAMIC CHIP C5020 1-126-962-11 ELECT 3.3MF 20% 50V

****************************

0.0033MF

10% 50V

– 136 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

C

RM-Y980

C5021 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5022 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5023 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5024 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5025 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C5026 1-104-664-11 ELECT 47MF 20% 10V C5027 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5028 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C5029 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5030 1-104-664-11 ELECT 47MF 20% 25V

C5039 1-104-664-11 ELECT 47MF 20% 25V C5040 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5041 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5042 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5043 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C5044 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5045 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5046 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5047 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5048 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C5049 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5050 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5051 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5054 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5055 1-163-259-91 CERAMIC CHIP 220PF 5% 50V

C5056 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5057 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5058 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5059 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C5073 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C5201 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5202 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5203 1-104-664-11 ELECT 47MF 20% 25V C5204 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5205 1-104-664-11 ELECT 47MF 20% 25V

C5209 1-104-664-11 ELECT 47MF 20% 25V C5210 1-104-664-11 ELECT 47MF 20% 25V C5220 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5221 1-104-664-11 ELECT 47MF 20% 10V C5222 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5225 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5226 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5227 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5228 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5229 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5230 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5231 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5232 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5240 1-104-664-11 ELECT 47MF 20% 10V C5241 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5242 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5243 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5244 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5245 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5246 1-104-664-11 ELECT 47MF 20% 25V

C5247 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5248 1-126-964-11 ELECT 10MF 20% 50V C5250 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5251 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5252 1-107-689-21 TANTAL. CHIP 1MF 20% 35V

C5260 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5261 1-104-664-11 ELECT 47MF 20% 25V C5401 1-163-031-11 CERAMIC CHIP 0.01MF 50V C5420 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5421 1-104-664-11 ELECT 47MF 20% 10V

C5422 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5425 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5426 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5427 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5428 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5429 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5430 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5431 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5432 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5440 1-104-664-11 ELECT 47MF 20% 10V

C5441 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5442 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5443 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5444 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5445 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5446 1-104-664-11 ELECT 47MF 20% 25V C5447 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5448 1-126-964-11 ELECT 10MF 20% 50V C5450 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5451 1-107-689-21 TANTAL. CHIP 1MF 20% 35V

C5452 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5460 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5461 1-104-664-11 ELECT 47MF 20% 25V C5601 1-104-664-11 ELECT 47MF 20% 16V C5602 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5620 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5621 1-104-664-11 ELECT 47MF 20% 10V C5622 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5625 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5626 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5627 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5628 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5629 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5630 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5631 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5632 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5633 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5640 1-104-664-11 ELECT 47MF 20% 10V C5641 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5642 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5643 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5644 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5645 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5646 1-104-664-11 ELECT 47MF 20% 25V C5647 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5648 1-126-964-11 ELECT 10MF 20% 50V C5650 1-107-689-21 TANTAL. CHIP 1MF 20% 35V

– 137 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

C

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

C5651 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5652 1-107-689-21 TANTAL. CHIP 1MF 20% 35V C5660 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5661 1-104-664-11 ELECT 47MF 20% 25V C5901 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C5902 1-126-205-11 ELECT CHIP 47MF 20% 6.3V C5903 1-164-691-11 CERAMIC CHIP C5904 1-164-691-11 CERAMIC CHIP

C5905 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5906 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5907 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C5908 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5909 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5910 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5912 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5913 1-126-193-11 ELECT CHIP 1MF 20% 50V C5915 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5916 1-165-319-11 CERAMIC CHIP 0.1MF 50V

C5917 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5918 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5919 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5920 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5922 1-126-193-11 ELECT CHIP 1MF 20% 50V

C5923 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5926 1-165-319-11 CERAMIC CHIP 0.1MF 50V C5927 1-165-319-11 CERAMIC CHIP 0.1MF 50V

0.0024MF

5% 50V 5% 50V

FB5003

1-543-813-21 FERRITE

FB5004

1-543-813-21 FERRITE

FB5005

1-543-813-21 FERRITE

FB5010

1-216-296-91 SHORT 0

FB5011

1-216-296-91 SHORT 0

FB5012

1-216-296-91 SHORT 0

FB5013

1-412-364-11 FERRITE

FB5014

1-412-364-11 FERRITE

FB5015

1-412-364-11 FERRITE

FB5016

1-412-364-11 FERRITE

FB5017

1-412-364-11 FERRITE

FB5018

1-412-364-11 FERRITE

FB5019

1-412-364-11 FERRITE

FB5025

1-543-813-21 FERRITE

FB5026

1-543-813-21 FERRITE

FB5201

1-216-296-91 SHORT 0

FB5401

1-216-296-91 SHORT 0

FB5601

1-216-296-91 SHORT 0

FB5602

1-412-364-11 FERRITE

FL50011-233-539-21 FILTER, EMI FL50021-233-539-21 FILTER, EMI FL50031-233-830-11 FERRITE 37UH FL50041-233-830-11 FERRITE 37UH FL50051-233-830-11 FERRITE 37UH

CN5001

1-691-093-11 CONNECTOR, FFC (ZIF) 20P

CN5002

1-691-093-11 CONNECTOR, FFC (ZIF) 20P

CN5003

1-691-093-11 CONNECTOR, FFC (ZIF) 20P

CN5201

*1-564-524-11 PLUG, CONNECTOR 9P

CN5202

*1-564-525-11 PLUG, CONNECTOR 10P

CN5901

*1-564-512-11 PLUG, CONNECTOR 9P

<DIODE>

D5001 8-719-002-81 DIODE 1T363 D5002 8-719-002-81 DIODE 1T363 D5003 8-719-002-81 DIODE 1T363 D5034 8-719-976-96 ZENER DIODE DTZ4.7C D5035 8-719-976-96 ZENER DIODE DTZ4.7C

D5040 8-719-404-49 DIODE MA111 D5041 8-719-404-49 DIODE MA111 D5043 8-719-420-51 DIODE MA729 D5047 8-719-404-49 DIODE MA111 D5048 8-719-404-49 DIODE MA111

D5049 8-719-404-49 DIODE MA111 D5901 8-719-404-49 DIODE MA111 D5902 8-719-404-49 DIODE MA111

FB5001

1-543-813-21 FERRITE

FB5002

1-543-813-21 FERRITE

FL50071-239-400-11 FILTER, CHIP EMI FL50081-239-400-11 FILTER, CHIP EMI FL50091-239-400-11 FILTER, CHIP EMI FL50101-239-400-11 FILTER, CHIP EMI FL50121-233-513-21 FILTER, EMI

FL50131-233-513-21 FILTER, EMI FL50141-233-513-21 FILTER, EMI FL50151-233-513-21 FILTER, EMI FL50161-233-539-21 FILTER, EMI FL50171-233-539-21 FILTER, EMI

<IC>

IC5002 8-759-103-09 IC UPC4082G2 IC5003 8-759-103-09 IC UPC4082G2 IC5004 8-752-375-83 IC CXD2412AQ IC5005 8-759-324-92 IC PQ15RF16 IC5006 8-759-098-24 IC PQ30RV11

IC5007 8-759-701-56 IC NJM78M05FA IC5201 8-752-083-04 IC CXA3049AQ-T6 IC5401 8-752-083-04 IC CXA3049AQ-T6 IC5601 8-752-083-04 IC CXA3049AQ-T6 IC5602 8-752-072-94 IC CXA1875AM-T4

IC5901 8-752-053-21 IC CXA1211M IC5902 8-752-053-21 IC CXA1211M

<COIL>

L5001 1-410-466-41 INDUCTOR 4.7UH

– 138 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

C

RM-Y980

L5002 1-427-791-21 TRANSFORMER, DETECTOR L5003 1-427-790-21 TRANSFORMER, DETECTOR L5004 1-427-792-21 TRANSFORMER, DETECTOR L5005 1-410-470-11 INDUCTOR 10UH

L5202 1-410-470-11 INDUCTOR 10UH L5602 1-410-470-11 INDUCTOR 10UH L5801 1-414-753-91 INDUCTOR 4.7UH L5901 1-414-753-91 INDUCTOR 4.7UH

Q5001 8-729-920-21 TRANSISTOR DTC314TK-T-146 Q5210 8-729-422-27 TRANSISTOR 2SD601A-Q Q5410 8-729-422-27 TRANSISTOR 2SD601A-Q Q5420 8-729-422-27 TRANSISTOR 2SD601A-Q Q5610 8-729-422-27 TRANSISTOR 2SD601A-Q

Q5901 8-729-216-22 TRANSISTOR 2SA1162-G Q5902 8-729-422-27 TRANSISTOR 2SD601A-Q Q5903 8-729-402-84 TRANSISTOR XN4601 Q5904 8-729-402-84 TRANSISTOR XN4601 Q5905 8-729-422-27 TRANSISTOR 2SD601A-Q

Q5906 8-729-402-84 TRANSISTOR XN4601 Q5907 8-729-402-84 TRANSISTOR XN4601 Q5908 8-729-402-84 TRANSISTOR XN4601 Q5909 8-729-422-27 TRANSISTOR 2SD601A-Q Q5910 8-729-216-22 TRANSISTOR 2SA1162-G

Q5911 8-729-216-22 TRANSISTOR 2SA1162-G Q5912 8-729-216-22 TRANSISTOR 2SA1162-G Q5913 8-729-422-27 TRANSISTOR 2SD601A-Q Q5914 8-729-422-27 TRANSISTOR 2SD601A-Q Q5915 8-729-925-79 TRANSISTOR IMX3

Q5916 8-729-925-79 TRANSISTOR IMX3 Q5917 8-729-402-84 TRANSISTOR XN4601 Q5918 8-729-402-84 TRANSISTOR XN4601 Q5919 8-729-422-27 TRANSISTOR 2SD601A-Q Q5920 8-729-422-27 TRANSISTOR 2SD601A-Q

R5001 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5002 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5003 1-216-093-00 RES,CHIP 68K 5% 1/10W R5006 1-216-295-91 SHORT 0 R5007 1-216-025-91 RES,CHIP 100 5% 1/10W

R5008 1-216-025-91 RES,CHIP 100 5% 1/10W R5011 1-216-033-00 RES,CHIP 220 5% 1/10W R5012 1-216-033-00 RES,CHIP 220 5% 1/10W R5013 1-216-033-00 RES,CHIP 220 5% 1/10W R5017 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R5019 1-216-093-00 RES,CHIP 68K 5% 1/10W R5028 1-216-077-00 RES,CHIP 15K 5% 1/10W R5029 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5030 1-216-689-11 RES,CHIP 39K 5% 1/10W R5031 1-216-049-91 RES,CHIP 1K 5% 1/10W

R5032 1-216-073-00 RES,CHIP 10K 5% 1/10W R5033 1-216-121-91 RES,CHIP 1M 5% 1/10W R5034 1-216-121-91 RES,CHIP 1M 5% 1/10W

R5035 1-216-085-00 RES,CHIP 33K 5% 1/10W R5036 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R5037 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5038 1-216-079-00 RES,CHIP 18K 5% 1/10W R5039 1-216-049-91 RES,CHIP 1K 5% 1/10W R5040 1-216-073-00 RES,CHIP 10K 5% 1/10W R5041 1-216-121-91 RES,CHIP 1M 5% 1/10W

R5042 1-216-121-91 RES,CHIP 1M 5% 1/10W R5043 1-216-085-00 RES,CHIP 33K 5% 1/10W R5044 1-216-085-00 RES,CHIP 33K 5% 1/10W R5045 1-216-121-91 RES,CHIP 1M 5% 1/10W R5046 1-216-121-91 RES,CHIP 1M 5% 1/10W

R5047 1-216-073-00 RES,CHIP 10K 5% 1/10W R5048 1-216-689-11 RES,CHIP 39K 5% 1/10W R5049 1-216-049-91 RES,CHIP 1K 5% 1/10W R5050 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5051 1-216-075-00 RES,CHIP 12K 5% 1/10W

R5052 1-216-121-91 RES,CHIP 1M 5% 1/10W R5053 1-216-121-91 RES,CHIP 1M 5% 1/10W R5055 1-216-295-91 SHORT 0 R5056 1-216-295-91 SHORT 0 R5057 1-216-295-91 SHORT 0

R5058 1-216-295-91 SHORT 0 R5059 1-216-295-91 SHORT 0 R5060 1-216-295-91 SHORT 0 R5063 1-216-121-91 RES,CHIP 1M 5% 1/10W R5064 1-216-121-91 RES,CHIP 1M 5% 1/10W

R5065 1-216-121-91 RES,CHIP 1M 5% 1/10W R5066 1-216-121-91 RES,CHIP 1M 5% 1/10W R5071 1-216-031-00 RES,CHIP 180 5% 1/10W R5072 1-216-031-00 RES,CHIP 180 5% 1/10W R5073 1-216-019-00 RES,CHIP 56 5% 1/10W

R5074 1-216-019-00 RES,CHIP 56 5% 1/10W R5087 1-216-049-91 RES,CHIP 1K 5% 1/10W R5089 1-216-295-91 SHORT 0 R5092 1-216-017-91 RES,CHIP 47 5% 1/10W R5093 1-216-017-91 RES,CHIP 47 5% 1/10W

R5094 1-216-017-91 RES,CHIP 47 5% 1/10W R5096 1-216-025-91 RES,CHIP 100 5% 1/10W R5097 1-216-025-91 RES,CHIP 100 5% 1/10W R5098 1-216-085-00 RES,CHIP 33K 5% 1/10W R5099 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R5100 1-216-025-91 RES,CHIP 100 5% 1/10W R5101 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5103 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R5107 1-216-049-91 RES,CHIP 1K 5% 1/10W R5108 1-216-664-11 METAL CHIP 3.6K 0.50% 1/10W

R5109 1-216-631-11 METAL CHIP 150 0.50% 1/10W R5110 1-216-641-11 METAL CHIP 390 0.50% 1/10W R5123 1-216-295-91 SHORT 0 R5130 1-216-295-91 SHORT 0 R5202 1-216-398-11 METAL OXIDE 5.6 5% 3W F

R5210 1-216-001-00 RES,CHIP 10 5% 1/10W R5211 1-216-049-91 RES,CHIP 1K 5% 1/10W R5220 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5221 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

– 139 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

C

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

R5226 1-216-295-91 SHORT 0 R5228 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R5230 1-216-295-91 SHORT 0 R5231 1-216-295-91 SHORT 0 R5232 1-216-295-91 SHORT 0 R5233 1-216-295-91 SHORT 0

R5234 1-216-660-11 METAL CHIP 2.4K 0.50% 1/10W R5235 1-216-666-11 METAL CHIP 4.3K 0.50% 1/10W R5236 1-216-295-91 SHORT 0 R5237 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5240 1-216-295-91 SHORT 0

R5241 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5244 1-216-295-91 SHORT 0 R5250 1-216-111-00 RES,CHIP 390K 5% 1/10W R5251 1-216-111-00 RES,CHIP 390K 5% 1/10W R5252 1-216-111-00 RES,CHIP 390K 5% 1/10W

R5253 1-216-295-91 SHORT 0 R5254 1-216-295-91 SHORT 0 R5255 1-216-295-91 SHORT 0 R5260 1-216-295-91 SHORT 0 R5261 1-216-295-91 SHORT 0

R5270 1-216-001-00 RES,CHIP 10 5% 1/10W R5271 1-216-001-00 RES,CHIP 10 5% 1/10W R5272 1-216-001-00 RES,CHIP 10 5% 1/10W R5273 1-216-001-00 RES,CHIP 10 5% 1/10W R5274 1-216-001-00 RES,CHIP 10 5% 1/10W

R5280 1-216-037-00 RES,CHIP 330 5% 1/10W R5283 1-216-001-00 RES,CHIP 10 5% 1/10W R5284 1-216-295-91 SHORT 0 R5290 1-216-001-00 RES,CHIP 10 5% 1/10W R5324 1-216-295-91 SHORT 0

R5401 1-216-077-00 RES,CHIP 15K 5% 1/10W R5402 1-216-085-00 RES,CHIP 33K 5% 1/10W R5403 1-216-025-91 RES,CHIP 100 5% 1/10W R5410 1-216-001-00 RES,CHIP 10 5% 1/10W R5411 1-216-049-91 RES,CHIP 1K 5% 1/10W

R5420 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5421 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R5428 1-216-025-91 RES,CHIP 100 5% 1/10W R5429 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5430 1-216-295-91 SHORT 0

R5431 1-216-295-91 SHORT 0 R5432 1-216-295-91 SHORT 0 R5433 1-216-295-91 SHORT 0 R5434 1-216-660-11 METAL CHIP 2.4K 0.50% 1/10W R5435 1-216-666-11 METAL CHIP 4.3K 0.50% 1/10W

R5436 1-216-295-91 SHORT 0 R5437 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5440 1-216-295-91 SHORT 0 R5441 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5444 1-216-295-91 SHORT 0

R5445 1-216-295-91 SHORT 0 R5450 1-216-111-00 RES,CHIP 390K 5% 1/10W R5451 1-216-111-00 RES,CHIP 390K 5% 1/10W R5452 1-216-111-00 RES,CHIP 390K 5% 1/10W R5453 1-216-295-91 SHORT 0

R5454 1-216-295-91 SHORT 0 R5455 1-216-295-91 SHORT 0 R5460 1-216-295-91 SHORT 0 R5461 1-216-295-91 SHORT 0 R5470 1-216-001-00 RES,CHIP 10 5% 1/10W

R5471 1-216-001-00 RES,CHIP 10 5% 1/10W R5472 1-216-001-00 RES,CHIP 10 5% 1/10W R5473 1-216-001-00 RES,CHIP 10 5% 1/10W R5474 1-216-001-00 RES,CHIP 10 5% 1/10W R5480 1-216-037-00 RES,CHIP 330 5% 1/10W

R5483 1-216-001-00 RES,CHIP 10 5% 1/10W R5484 1-216-295-91 SHORT 0 R5490 1-216-001-00 RES,CHIP 10 5% 1/10W R5524 1-216-295-91 SHORT 0 R5610 1-216-001-00 RES,CHIP 10 5% 1/10W

R5611 1-216-049-91 RES,CHIP 1K 5% 1/10W R5620 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5621 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R5626 1-216-295-91 SHORT 0 R5628 1-216-069-00 RES,CHIP 6.8K 5% 1/10W

R5630 1-216-295-91 SHORT 0 R5631 1-216-295-91 SHORT 0 R5632 1-216-295-91 SHORT 0 R5633 1-216-295-91 SHORT 0 R5634 1-216-660-11 METAL CHIP 2.4K 0.50% 1/10W

R5635 1-216-666-11 METAL CHIP 4.3K 0.50% 1/10W R5636 1-216-295-91 SHORT 0 R5637 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5640 1-216-295-91 SHORT 0 R5641 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R5644 1-216-295-91 SHORT 0 R5650 1-216-111-00 RES,CHIP 390K 5% 1/10W R5651 1-216-111-00 RES,CHIP 390K 5% 1/10W R5652 1-216-111-00 RES,CHIP 390K 5% 1/10W R5653 1-216-295-91 SHORT 0

R5654 1-216-295-91 SHORT 0 R5655 1-216-295-91 SHORT 0 R5660 1-216-295-91 SHORT 0 R5661 1-216-295-91 SHORT 0 R5670 1-216-001-00 RES,CHIP 10 5% 1/10W

R5671 1-216-001-00 RES,CHIP 10 5% 1/10W R5672 1-216-001-00 RES,CHIP 10 5% 1/10W R5673 1-216-001-00 RES,CHIP 10 5% 1/10W R5674 1-216-001-00 RES,CHIP 10 5% 1/10W R5680 1-216-037-00 RES,CHIP 330 5% 1/10W

R5683 1-216-001-00 RES,CHIP 10 5% 1/10W R5684 1-216-295-91 SHORT 0 R5687 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5688 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5690 1-216-001-00 RES,CHIP 10 5% 1/10W

R5691 1-216-025-91 RES,CHIP 100 5% 1/10W R5692 1-216-025-91 RES,CHIP 100 5% 1/10W R5693 1-216-073-00 RES,CHIP 10K 5% 1/10W R5694 1-216-073-00 RES,CHIP 10K 5% 1/10W R5699 1-216-295-91 SHORT 0

R5700 1-216-295-91 SHORT 0

– 140 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

KL-W7000A/W9000A

C

RM-Y980

R5701 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5724 1-216-295-91 SHORT 0 R5901 1-216-073-00 RES,CHIP 10K 5% 1/10W R5902 1-216-037-00 RES,CHIP 330 5% 1/10W

R5903 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5904 1-216-097-91 RES,CHIP 100K 5% 1/10W R5905 1-216-081-00 RES,CHIP 22K 5% 1/10W R5906 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5907 1-216-097-91 RES,CHIP 100K 5% 1/10W

R5908 1-216-073-00 RES,CHIP 10K 5% 1/10W R5909 1-216-295-91 SHORT 0 R5910 1-216-073-00 RES,CHIP 10K 5% 1/10W R5911 1-216-081-00 RES,CHIP 22K 5% 1/10W R5912 1-216-684-91 METAL CHIP 24K 0.50% 1/10W

R5913 1-216-085-00 RES,CHIP 33K 5% 1/10W R5914 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5915 1-216-295-91 SHORT 0 R5916 1-216-081-00 RES,CHIP 22K 5% 1/10W R5917 1-216-113-00 RES,CHIP 470K 5% 1/10W

R5918 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5919 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5920 1-216-081-00 RES,CHIP 22K 5% 1/10W R5921 1-216-037-00 RES,CHIP 330 5% 1/10W R5923 1-216-677-11 METAL CHIP 12K 0.50% 1/10W

R5924 1-216-295-91 SHORT 0 R5925 1-216-081-00 RES,CHIP 22K 5% 1/10W R5926 1-216-678-11 METAL CHIP 13K 0.50% 1/10W R5927 1-216-664-11 METAL CHIP 3.6K 0.50% 1/10W R5928 1-216-037-00 RES,CHIP 330 5% 1/10W

R5929 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5930 1-216-081-00 RES,CHIP 22K 5% 1/10W R5931 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R5933 1-216-295-91 SHORT 0 R5934 1-216-081-00 RES,CHIP 22K 5% 1/10W

R5935 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5936 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5937 1-216-081-00 RES,CHIP 22K 5% 1/10W R5938 1-216-295-91 SHORT 0 R5939 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R5940 1-216-081-00 RES,CHIP 22K 5% 1/10W R5941 1-216-295-91 SHORT 0 R5942 1-216-037-00 RES,CHIP 330 5% 1/10W R5943 1-216-113-00 RES,CHIP 470K 5% 1/10W R5944 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R5945 1-216-295-91 SHORT 0 R5946 1-216-081-00 RES,CHIP 22K 5% 1/10W R5947 1-216-678-11 METAL CHIP 13K 0.50% 1/10W R5948 1-216-639-11 METAL CHIP 330 0.50% 1/10W R5949 1-216-639-11 METAL CHIP 330 0.50% 1/10W

R5952 1-216-073-00 RES,CHIP 10K 5% 1/10W R5953 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W R5954 1-216-073-00 RES,CHIP 10K 5% 1/10W R5955 1-216-661-11 METAL CHIP 2.7K 0.50% 1/10W R5956 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R5958 1-216-295-91 SHORT 0 R5959 1-216-295-91 SHORT 0

R5960 1-216-081-00 RES,CHIP 22K 5% 1/10W R5961 1-216-081-00 RES,CHIP 22K 5% 1/10W R5962 1-216-295-91 SHORT 0

R5963 1-216-295-91 SHORT 0 R5964 1-216-049-91 RES,CHIP 1K 5% 1/10W R5965 1-216-049-91 RES,CHIP 1K 5% 1/10W R5966 1-216-073-00 RES,CHIP 10K 5% 1/10W R5967 1-216-073-00 RES,CHIP 10K 5% 1/10W

R5968 1-216-113-00 RES,CHIP 470K 5% 1/10W R5969 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5970 1-216-113-00 RES,CHIP 470K 5% 1/10W R5971 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5989 1-216-295-91 SHORT 0

R5991 1-216-295-91 SHORT 0 R5992 1-216-295-91 SHORT 0 R5995 1-216-295-91 SHORT 0 R5996 1-216-295-91 SHORT 0 R5998 1-216-295-91 SHORT 0

RB5001

1-236-404-11 NETWORK, RES 220

RB5002

1-236-404-11 NETWORK, RES 220

RB5003

1-236-400-11 NETWORK, RES 100

RB5006

1-236-400-11 NETWORK, RES 100

RB5007

1-236-400-11 NETWORK, RES 100

RB5008

1-236-400-11 NETWORK, RES 100

RB5011

1-236-404-11 NETWORK, RES 220

RB5012

1-236-404-11 NETWORK, RES 220

RB5201

1-236-972-11 NETWORK, RES 10

RB5202

1-236-972-11 NETWORK, RES 10

RB5401

1-236-972-11 NETWORK, RES 10

RB5402

1-236-972-11 NETWORK, RES 10

RB5601

1-236-972-11 NETWORK, RES 10

RB5602

1-236-972-11 NETWORK, RES 10

RV5201

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5202

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5203

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5205

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5402

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5403

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5404

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5405

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5407

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5601

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

(R-BIAS) (R-V COM) (R-L GAIN)

(R-GAIN)

(GLBS)

(G-BIAS)

(G-V COM) (G-L GAIN)

(G-GAIN)

(B-BIAS)

– 141 –

KL-W7000A/W9000A

RM-Y980

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

C HA

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

RV5602

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5603

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

RV5605

1-241-394-11 RES, ADJ, METAL GLAZE 4.7K

SW5901

1-571-674-11 SWITCH, SLIDE (CLAMP SELECT)

SW5902

1-571-674-11 SWITCH, SLIDE (CLAMP SELECT)

TH5401 1-806-715-11 THERMISTOR

(B-V COM) (B-L GAIN)

(B-GAIN)

D8304 8-719-016-73 DIODE STZ6.8T D8305 8-719-016-73 DIODE STZ6.8T

FB131 1-414-233-22 INDUCTOR CHIP FB132 1-414-233-22 INDUCTOR CHIP FB133 1-414-233-22 INDUCTOR CHIP FB134 1-216-295-91 SHORT 0 FB135 1-414-233-22 INDUCTOR CHIP

FB136 1-414-233-22 INDUCTOR CHIP FB137 1-414-233-22 INDUCTOR CHIP FB138 1-414-233-22 INDUCTOR CHIP FB139 1-216-295-91 SHORT 0 FB140 1-414-233-22 INDUCTOR CHIP

********************************************************************************

*A-1372-564-AHA BOARD, COMPLETE

4-359-103-00 HOLDER, LED (D8002, D8005, D8007)

C8001 1-124-779-00 ELECT CHIP 10MF 20% 16V C8005 1-126-193-11 ELECT CHIP 1MF 20% 50V C8006 1-126-193-11 ELECT CHIP 1MF 20% 50V C8101 1-126-193-11 ELECT CHIP 1MF 20% 50V C8102 1-126-193-11 ELECT CHIP 1MF 20% 50V

C8103 1-126-193-11 ELECT CHIP 1MF 20% 50V

CN8001

*1-564-525-11 PLUG, CONNECTOR 10P

CN8002

*1-564-518-11 PLUG, CONNECTOR 3P

CN8003

1-564-524-11 PLUG, CONNECTOR 9P

CN8004

1-537-947-12 “TERMINAL BOARD ASST, I/O

CN8005

*1-564-524-11 PLUG, CONNECTOR 9P

CN8006

*1-564-520-11 PLUG, CONNECTOR 5P

******************************

FL80011-233-512-21 FERRITE 37UH FL80021-233-512-21 FERRITE 37UH FL80031-233-512-21 FERRITE 37UH FL80041-233-512-21 FERRITE 37UH FL80051-233-512-21 FERRITE 37UH

FL80061-239-896-12 FILTER, EMI (SMD) FL80071-239-896-12 FILTER, EMI (SMD) FL80081-239-896-12 FILTER, EMI (SMD)

<IC>

IC8001 8-742-088-10 HYB IC SBX1780-51(10)

<JACK>

J8001 1-565-839-11 PIN JACK BLOCK 3P J8002 1-774-753-11 JACK

R8002 1-216-037-00 RES,CHIP 330 5% 1/10W R8003 1-216-037-00 RES,CHIP 330 5% 1/10W R8004 1-216-025-91 RES,CHIP 100 5% 1/10W R8006 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R8008 1-216-055-00 RES,CHIP 1.8K 5% 1/10W

<DIODE>

D8002 8-719-812-43 DIODE TLG124A D8005 8-719-812-41 DIODE TLR124 D8007 8-719-812-44 DIODE TLO124 D8008 8-719-016-73 DIODE STZ6.8T D8009 8-719-016-73 DIODE STZ6.8T

D8011 8-719-016-73 DIODE STZ6.8T D8017 8-719-016-73 DIODE STZ6.8T D8018 8-719-016-73 DIODE STZ6.8T D8301 8-719-016-73 DIODE STZ6.8T D8302 8-719-016-73 DIODE STZ6.8T

D8303 8-719-016-73 DIODE STZ6.8T

R8009 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R8010 1-216-049-91 RES,CHIP 1K 5% 1/10W R8011 1-216-055-00 RES,CHIP 1.8K 5% 1/10W R8012 1-216-045-00 RES,CHIP 680 5% 1/10W R8013 1-216-295-91 SHORT 0

R8014 1-216-049-91 RES,CHIP 1K 5% 1/10W R8015 1-216-045-00 RES,CHIP 680 5% 1/10W R8016 1-216-295-91 SHORT 0 R8019 1-216-295-91 SHORT 0 R8020 1-216-075-00 RES,CHIP 12K 5% 1/10W

R8021 1-216-105-91 RES,CHIP 220K 5% 1/10W R8022 1-216-105-91 RES,CHIP 220K 5% 1/10W R8101 1-216-017-91 RES,CHIP 47 5% 1/10W R8102 1-216-017-91 RES,CHIP 47 5% 1/10W

– 142 –

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

HA HB U

KL-W7000A/W9000A

RM-Y980

R8103 1-216-029-00 RES,CHIP 150 5% 1/10W R8104 1-216-029-00 RES,CHIP 150 5% 1/10W

R8105 1-216-029-00 RES,CHIP 150 5% 1/10W R8106 1-216-029-00 RES,CHIP 150 5% 1/10W R8107 1-216-029-00 RES,CHIP 150 5% 1/10W R8108 1-216-029-00 RES,CHIP 150 5% 1/10W

R8121 1-216-022-00 RES,CHIP 75 5% 1/10W R8122 1-216-105-91 RES,CHIP 220K 5% 1/10W R8123 1-216-105-91 RES,CHIP 220K 5% 1/10W

S8001 1-571-731-11 SWITCH, TACTIL (INPUT SELECT) S8003 1-571-731-11 SWITCH, TACTIL (ENTER) S8004 1-571-731-11 SWITCH, TACTIL (→) S8005 1-571-731-11 SWITCH, TACTIL (MENU) S8007 1-571-731-11 SWITCH, TACTIL (←)

S8008 1-571-731-11 SWITCH, TACTIL (VOL–) S8009 1-571-731-11 SWITCH, TACTIL (↓) S8010 1-571-731-11 SWITCH, TACTIL(VOL+) S8011 1-571-731-11 SWITCH, TACTIL (↑) S8012 1-571-731-11 SWITCH, TACTIL (SIZE/CENTER)

S8013 1-571-731-11 SWITCH, TACTIL (RESET)

********************************************************************************

*A-1372-565-AHB BOARD, COMPLETE

CN8031

*1-564-518-11PLUG, CONNECTOR 3P

S8031 1-570-826-11 SWITCH, PUSH (1 KEY) (POWER)

********************************************************************************

******************************

C101 1-128-551-11 ELECT 22MF 20% 25V C102 1-128-551-11 ELECT 22MF 20% 25V C103 1-128-551-11 ELECT 22MF 20% 25V C104 1-164-346-11 CERAMIC CHIP 1MF 16V

C105 1-164-346-11 CERAMIC CHIP 1MF 16V C107 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C108 1-104-664-11 ELECT 47MF 20% 16V C109 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C110 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C111 1-104-664-11 ELECT 47MF 20% 16V C112 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C113 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C114 1-104-664-11 ELECT 47MF 20% 16V C115 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C116 1-164-346-11 CERAMIC CHIP 1MF 16V C117 1-164-346-11 CERAMIC CHIP 1MF 16V C118 1-164-346-11 CERAMIC CHIP 1MF 16V C301 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V C302 1-126-959-11 ELECT 0.47MF 20% 50V

C303 1-126-959-11 ELECT 0.47MF 20% 50V C304 1-126-960-11 ELECT 1MF 20% 50V C305 1-126-960-11 ELECT 1MF 20% 50V C306 1-109-889-11 ELECT 1MF 20% 50V C307 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V

C308 1-126-925-11 ELECT 470MF 20% 10V C309 1-126-959-11 ELECT 0.47MF 20% 50V C310 1-126-959-11 ELECT 0.47MF 20% 50V C313 1-126-925-11 ELECT 470MF 20% 10V C314 1-104-664-11 ELECT 47MF 20% 16V

C315 1-128-551-11 ELECT 22MF 20% 25V C316 1-104-664-11 ELECT 47MF 20% 16V C317 1-128-551-11 ELECT 22MF 20% 25V C401 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C402 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C403 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C404 1-104-664-11 ELECT 47MF 20% 16V C405 1-104-664-11 ELECT 47MF 20% 16V C406 1-104-664-11 ELECT 47MF 20% 16V C407 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V

C408 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C409 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C410 1-104-664-11 ELECT 47MF 20% 16V C411 1-104-664-11 ELECT 47MF 20% 16V C412 1-104-664-11 ELECT 47MF 20% 16V

*A-1373-713-AU BOARD COMPLETE

***************************

C1 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V C3 1-126-959-11 ELECT 0.47MF 20% 50V C6 1-126-959-11 ELECT 0.47MF 20% 50V C7 1-126-960-11 ELECT 1MF 20% 50V C8 1-126-960-11 ELECT 1MF 20% 50V

C10 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V

C413 1-126-960-11 ELECT 1MF 20% 50V C414 1-126-960-11 ELECT 1MF 20% 50V C418 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C419 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C420 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C422 1-126-933-11 ELECT 100MF 20% 16V C601 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C602 1-104-664-11 ELECT 47MF 20% 16V C604 1-128-551-11 ELECT 22MF 20% 25V C612 1-128-551-11 ELECT 22MF 20% 25V

C613 1-126-933-11 ELECT 100MF 20% 16V C701 1-104-664-11 ELECT 47MF 20% 16V

– 143 –

Sony KL-W7000A, KL-W9000A Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SELF DIAGNOSIS FUNCTION

GENERAL

DISASSEMBLY

CIRCUIT ADJUSTMENTS

DIAGRAMS

EXPLODED VIEWS

ELECTRICAL PARTS LIST
