Sony KDL-55W700B, KDL-55W790B, KDL-55W800B Operating Instruction

0 (0)

4-536-115-12(1)

Television Téléviseur

Operating Instructions (Setup Guide)

Mode d’emploi (Guide d’installation)

Sony Customer Support

U.S.A.: http://www.sony.com/tvsupport Canada: http://www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY Please Do Not Return

the Product to the Store

KDL-55W800B / 55W790B / 55W700B

Service à la clientèle Sony

Canada : http://support.sony.ca/fr États-Unis : http://www.sony.com/tvsupport

Canada États-Unis

1.877.899.SONY 1.800.222.SONY Ne retournez pas le produit au magasin

Owner’s Record

The model and serial numbers are located at the side and rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Operate the TV only on DC 19.5 V (with AC adapter)

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (http://www.sony.com/tvsupport) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• Do not use, store, or leave the 3D Glasses or battery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sunheated cars.

• When using the simulated 3D function, please note that the displayed image is modified from the original due to the conversion done by this television.

Licensing Information

The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“BRAVIA” and , S-Force, Motionflow, BRAVIA Sync, and are trademarks or registered marks of Sony Corporation.

DLNA

, the DLNA Logo and DLNA CERTIFIED marks, or certification marks of the Digital Living Network Alliance.

TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, Gracenote MusicID, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

“Sony Entertainment Network logo” and “Sony Entertainment Network” are trademarks of Sony Corporation.

are trademarks, service

Devices SDK from Opera

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 2013

The Bluetooth are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

word mark and logos

Your BRAVIA TV is ENERGY STAR qualified in the default mode. It meets strict energy

set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices.

Changes to certain features, settings, and functionalities (when available) of this TV (i.e. Picture/Sound, Light Sensor, Power Savings, Picture Scene/Mode, Auto Display, Shop Front Display Settings) can increase or change the power consumption.

The “Auto” and “General” picture scenes are default settings optimized for the input signal selected. Your BRAVIA TV is tested in these settings for ENERGY STAR qualification.

Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qualification in the default mode.

The 55 class has a 54.6 inch viewable image size (measured diagonally).

efficiency guidelines

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV. Labels for the AC adapter Model No. and Serial No. are located on the bottom of the AC adapter.

• Instructions for “Installing the TV to the Wall” are included in this manual.

• The illustrations of the remote control used in this manual are of the RM-YD102 unless otherwise stated.

• The illustrations used in this manual may differ depending on your TV model.

• Retain this manual for future reference.

The BRAVIA® Full HDTV Experience

Thank you for choosing Sony! Your new BRAVIA HDTV Experience.” This document will help you get the most out of your TV. Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com Canada: http://www.sony.ca/registration

Four Steps to a Full HD Experience

Set, Source, Sound, and Setup.

TV opens the door to the “Full

1 Set

Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all accessory contents from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to HD programming.

• Upgrade your signal or content source to high-definition (HD) by contacting your HD service provider.

This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

• Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 11 for sample connection diagrams. To help assure the highest quality for your HD experience, use Sony HDMI (High-Definition Multimedia Interface) cables.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/HDTV Canada: http://www.sony.ca/hdtv

The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.

INPUT VIDEO AUDIO

HDMI

1080/24p/30p

SUPPORTED FORMATS

1080p*11080i

720/24p/30p

720p*1480p 480i PC*

COMPONENT

Audio L/R

VIDEO

*1For details of supported formats, refer to the “Specifications” in this manual. *2For supported PC formats refer to the i-Manual.

Composite video

connection

Audio L/R

About this manual (Operating Instructions)

This manual explains how to setup your TV. For more information on how to use your BRAVIA TV, refer to the “Electronic manual”.

Operating Instructions

Electronic manual

(i-Manual)

Explains how to setup your TV such as connections, initial setup, and basic operations.

For more information, press the i-MANUAL button

Explains how to use all the features. See page 26 on how to use the i-Manual.

Images and illustrations used in this manual may differ from the actual screen.

Table of Contents

Getting Started

Checking the accessories........................................................................8

Inserting batteries into the remote control................................................8

Before setting up your TV.........................................................................9

1: Attaching the Table-Top Stand ..........................................................10

2: Connecting the TV..............................................................................11

3: Securing the TV..................................................................................17

4: Bundling the cables ...........................................................................19

5: Connecting the TV to the Internet.......................................................19

6: Running initial setup...........................................................................20

Watching TV ...........................................................................................21

Using the remote control........................................................................22

Using Your BRAVIA TV

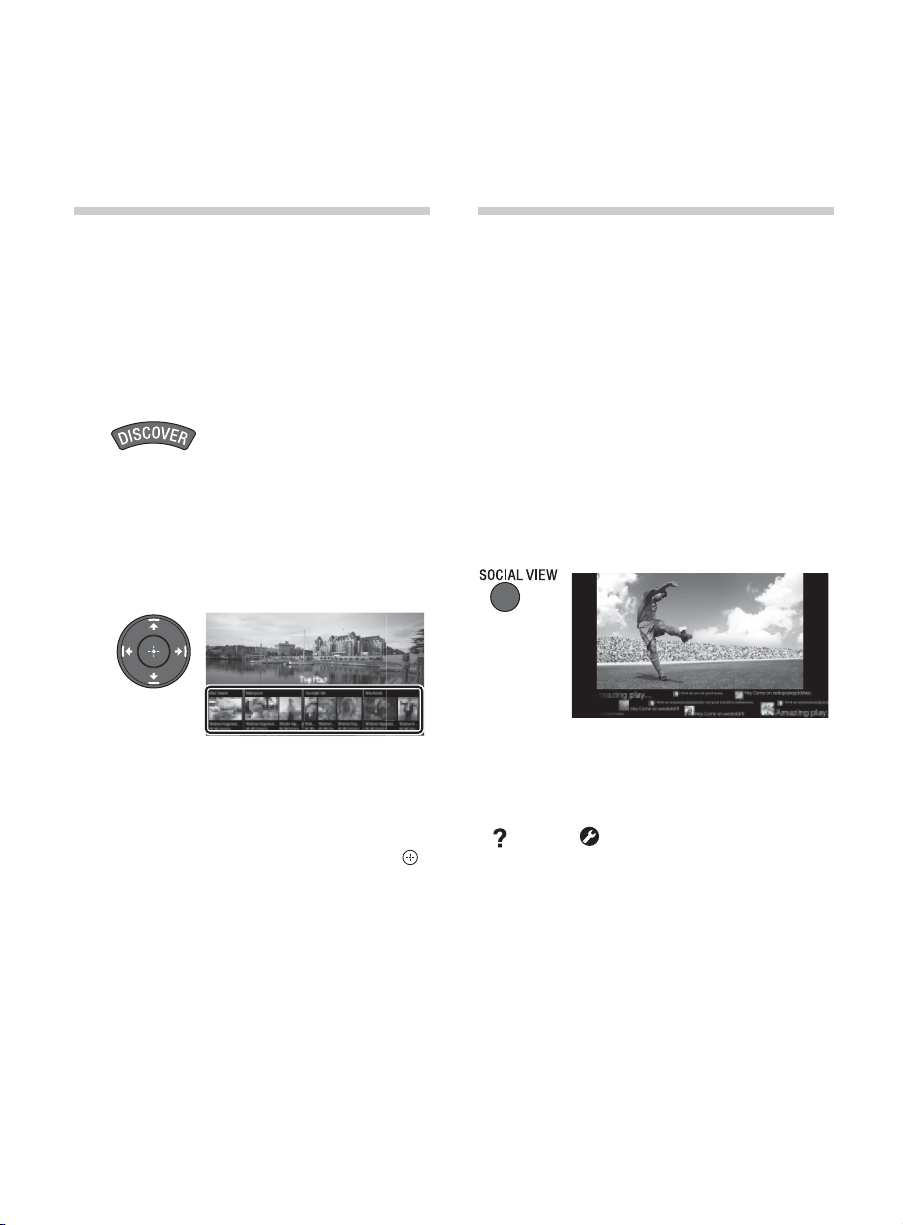

Discovering the contents you like (Discover).........................................23

Enjoying social networking while watching TV (Social Viewing) ............23

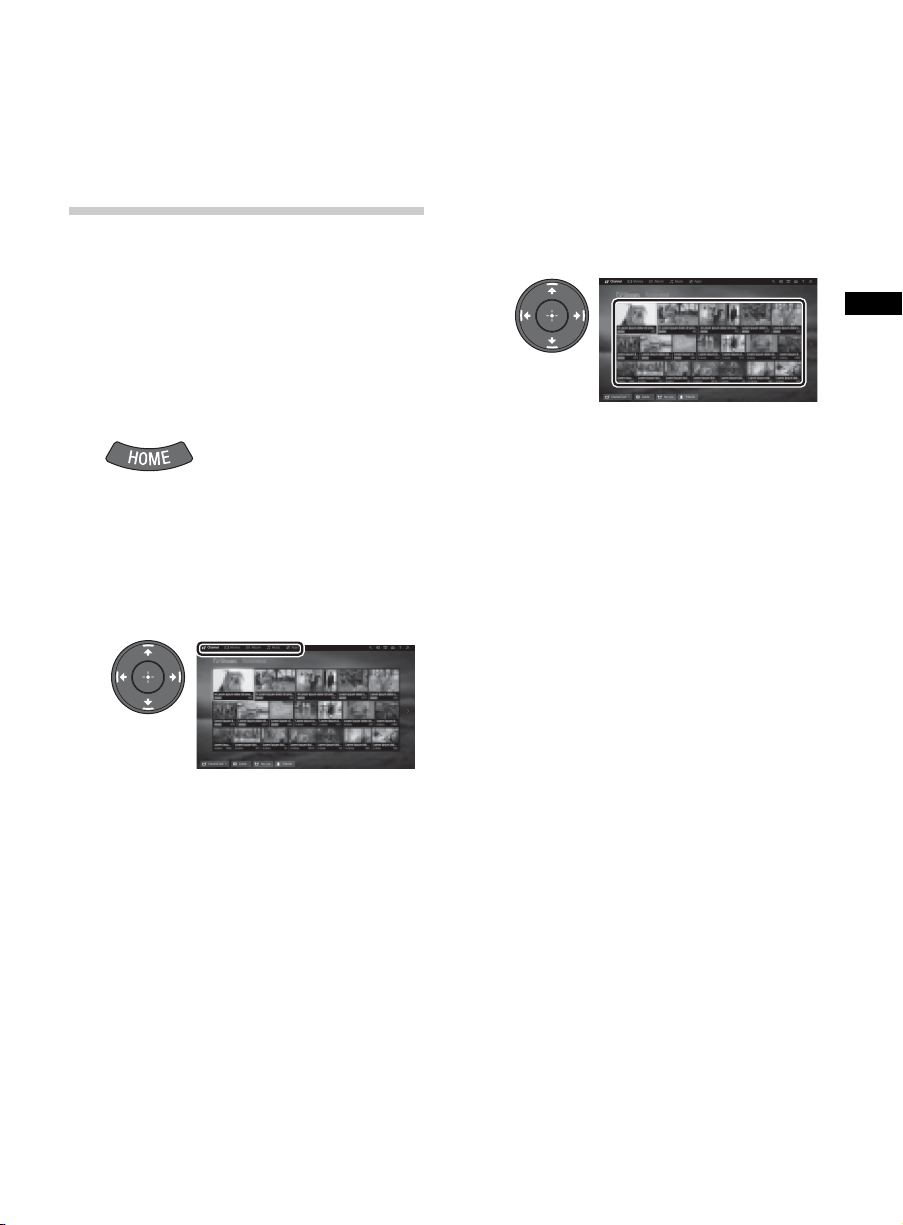

Selecting various contents and tools (Home Menu) ..............................24

Looking for Instructions

Looking for instructions in the electronic manual (i-Manual)

Additional Information

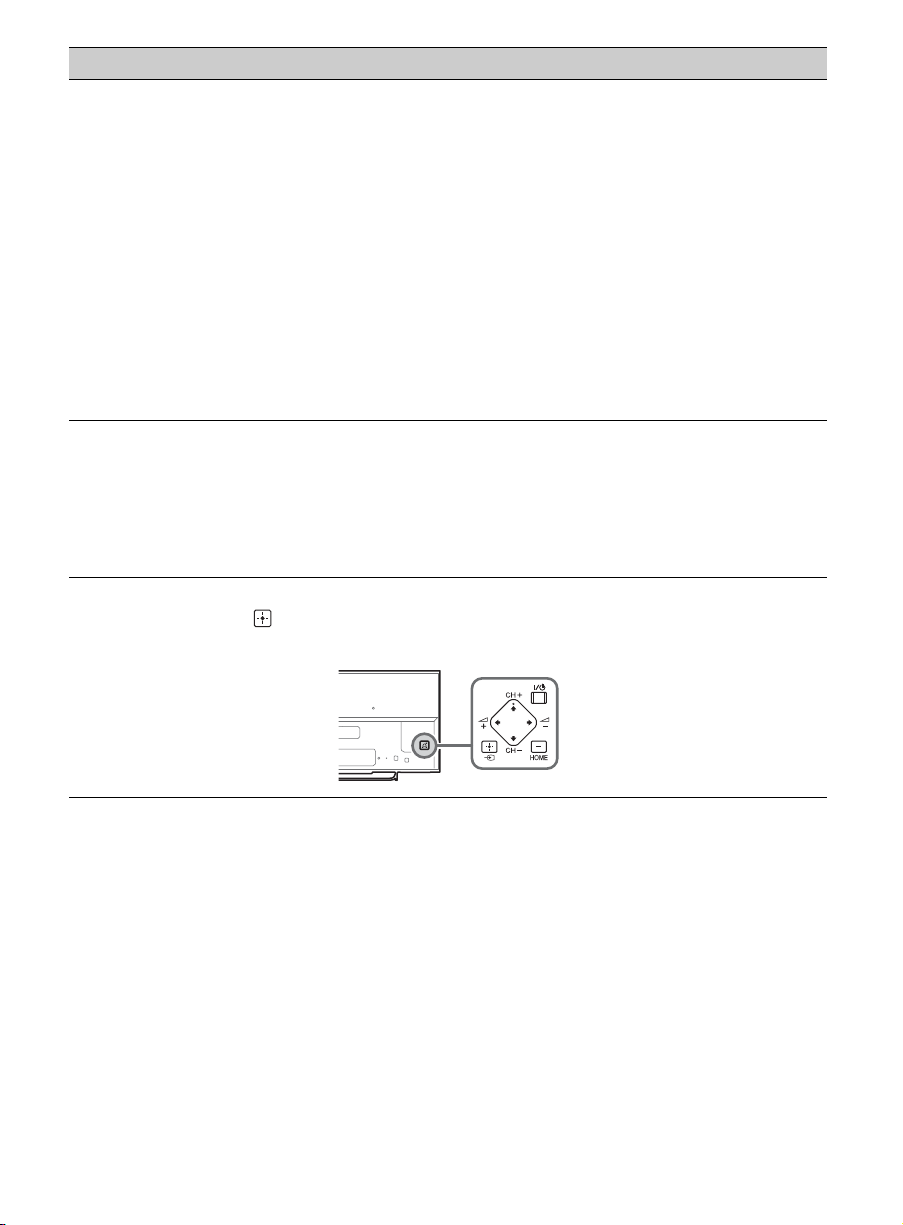

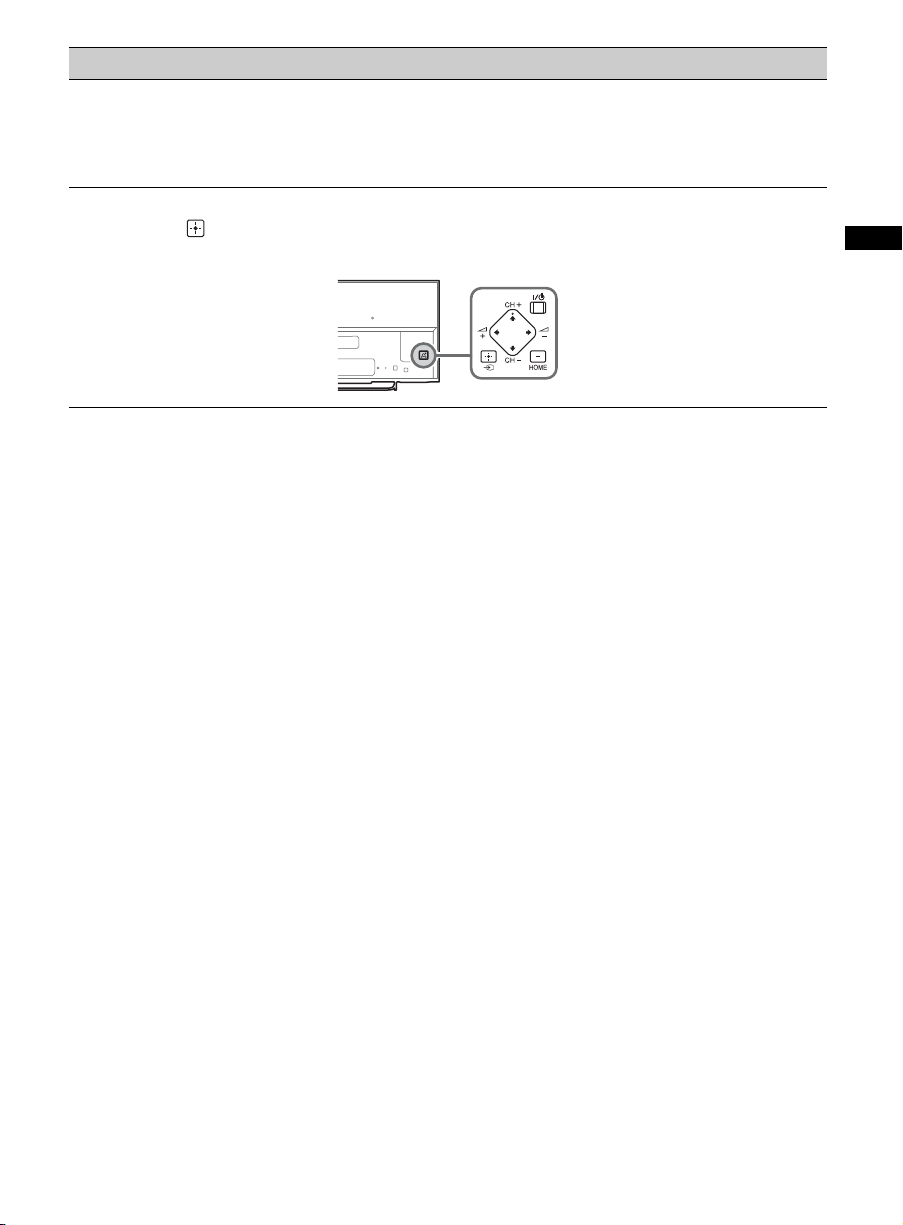

Troubleshooting......................................................................................28

How to care for your BRAVIA TV............................................................30

Specifications.........................................................................................31

Installing the TV to the Wall ....................................................................33

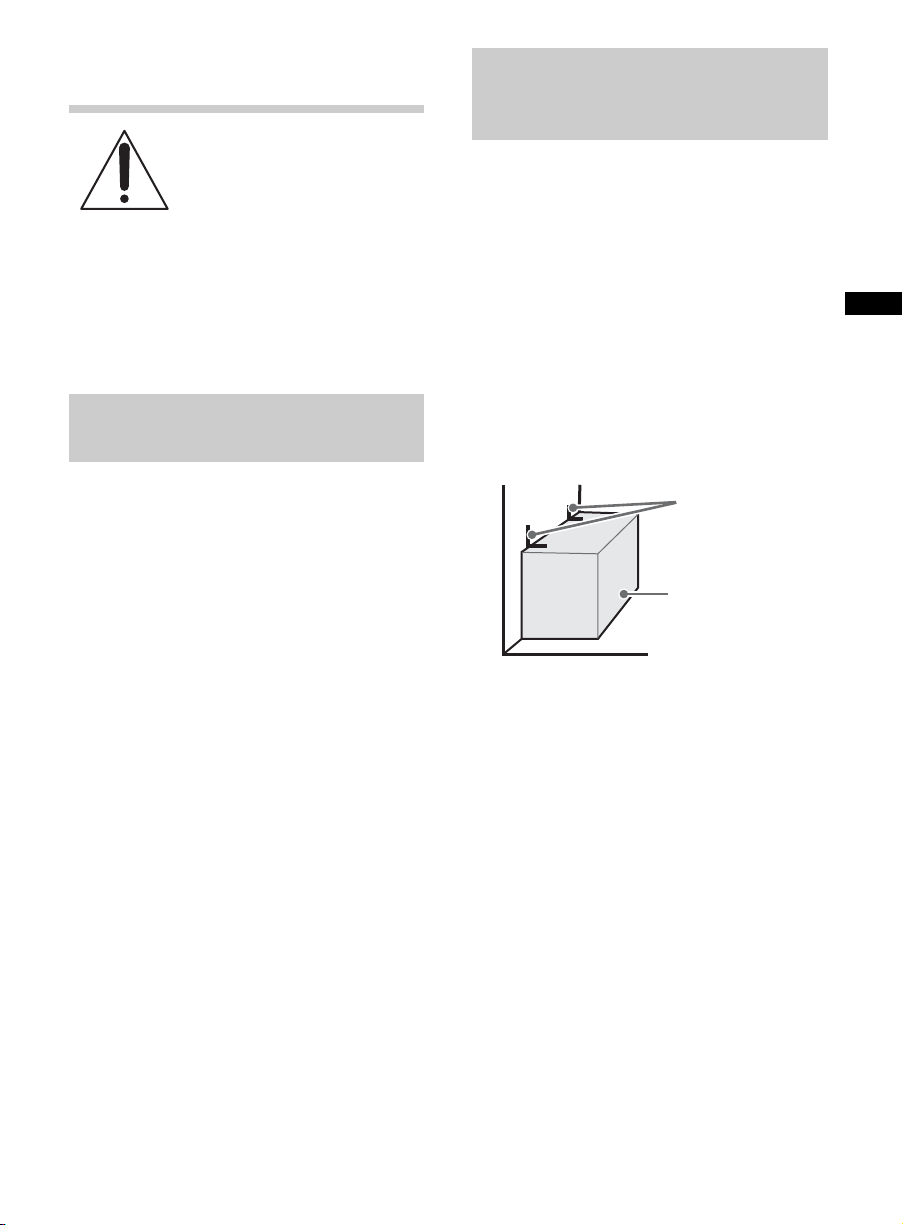

Installing the TV against a wall or enclosed area...................................35

Safety Information...................................................................................36

...wh

Getting Started

Checking the accessories

Remote control (1)* Size AAA batteries (2) AC power cord (1) AC adapter (1) Cable holder (1) Table-Top Stand (1)* Fixing screws for Table-Top Stand (M5 × 16) (2) Assembling screws for Table-Top Stand (M5 x 16) (2) Wall-Mount Attachment (2) Active 3D Glasses (battery included) (2)

(KDL-55W800B, KDL-55W790B only)

Operating Instructions (this manual) and other documents

*1Refer to the model name printed on the remote

control.

*2Assembling the Table-Top Stand is required.

Refer to the supplied Table-Top Stand leaflet to assemble the Table-Top Stand.

Inserting batteries into the remote control

1 Remove the protection sheet. 2 Push and slide the cover to open.

x Guidelines for Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Before setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 33 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task. Look for the supplied Table-Top Stand instruction leaflet. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

• Ensure your TV has adequate ventilation, see page 35.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

(Continued)

• Ensure that there are no objects in front

IR Sensor

3D Sync Transmitter (KDL-55W800B, KDL-55W790B only)

of the TV.

1: Attaching the

Table-Top Stand

Refer to the supplied Table-Top Stand leaflet for proper attachment.

• Do not put stress on the LCD panel or the frame around the screen.

• Be careful to not pinch your hands or the AC power cord when you install the TV set to the Table-Top Stand.

1 Place the TV set on the Table-Top Stand.

2 Fix the TV to the Table-Top Stand using

the supplied screws. The arrow marks

indicate the location of the screw holes used for securing the Table-Top Stand.

Soft cloth

Set Top Box

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Detaching the Table-Top Stand from the TV

To detach the Table-Top Stand from the TV, remove the screws fixed in step 2.

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.

• When removing the Table-Top Stand from the TV, lay the display face down on a stable work surface that is larger than the TV.

• To prevent damaging the surface of the LCD display, make sure to place a soft cloth on the work surface.

• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

2: Connecting the TV

• Use an antenna cable connector no greater than 14 mm thick.

• When connecting the cable to the Cable/ Antenna, input finger tighten only, over tightening the connection can damage the TV.

• Before moving the TV, disconnect all of the cables connected to the TV to prevent damaging the TV when it is moved.

• Use an HDMI cable connector within 12 mm (thickness) × 21 mm (width).

• For more information on connections, refer to the i-Manual.

x Shown with a Set Top Box with

HDMI connection

(Continued)

Recommendation of the F type plug

(Reference drawing of the F type plug)

1.5 mm max.

7 mm max.

Set Top Box

Cable or Antenna

Use authorized MHL 2 CABLE with MHL logo MHL

device

Projection of the inner wire from the connection part must be less than 1.5 mm.

x Shown with a Set Top Box with

COMPONENT connection

x Cable System or VHF/UHF Antenna

System

x Shown with MHL device with MHL

connection

The TV simultaneously charges the MHLcompatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL-compatible device.

• If Auto Input Change (MHL) is set to On, the

TV automatically switches to HDMI IN 1/MHL from other input when MHL-compatible device is connected to HDMI IN 1/MHL jack. The availability of Auto Input Change (MHL) depends on whether the MHL-compatible device can support this feature.

• If Charge MHL during Power Off is set to On, you can continue charging the MHL-

compatible device even when the TV is in standby mode.

(Continued)

x Shown with HD BRAVIA® Sync™ Basic Connection

*1Rear Panel

*1Blu-ray Disc

HD Cable Box or HD Satellite Receiver

A/V Receiver

SAT (Dish)

Cable/Antenna

Optical Connection

*1Rear of TV

*1Signifies a BRAVIA Sync capable device. *2The optical connection is only needed for A/V receivers that do not support ARC (Audio Return Channel).

Set the speaker settings to audio out, press HOME, then select Settings t Sound t Speakers t Audio System. Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections.

x Shown with HD Basic Connection with Home Theater System

VIDEO

Rear Panel

Cable/Antenna

Blu-ray Disc/DVD

SD Cable Box or SD Satellite Receiver

Cable/SAT (Dish)

Home Theater System

*Optical Connection

Rear of TV

* The optical connection is only needed for home theater system that do not support ARC (Audio Return Channel)

when connecting with HDMI. Set the speaker settings to audio out, press HOME, then select Settings t Sound t Speakers t Audio System. Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections.

(Continued)

x Shown with PC Connection with SD VCR/DVD

DVDVCR

Splitter

Cable/Antenna

VCR/DVD Combo

Rear of TV

Notebook PC

Rear Panel

*DVI

* DVI does not support audio signals. Connect the audio output of the PC to the PC speakers or an A/V receiver to

listen to sound from the PC.

3: Securing the TV

Stand

Angle brace (not supplied)

Screw hole on the rear cover

Rope or chain (not supplied)

M6 machine screw (not supplied)

Screw (not supplied)

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on

furniture and TV sets.

• Avoid placing or hanging items on the

TV.

• Never install the TV on:

– slippery, unstable and/or uneven

surfaces.

– furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be pulled,

pushed, or knocked over.

• Route all AC power cords and

connecting cables so that they are not accessible to curious children.

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not supplied):

• M6 machine screw (screwed into the TV’s rear cover)

• A screw or similar (attach it to the Stand)

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand.

(Continued)

The length of the M6 machine screw

Screw M6

Cord

TV’s rear cover

8-12 mm

Anchor bolts (M6) (not supplied)

Wallmount holes

Rope or chain (not supplied)

Wall-anchor (not supplied)

differs depending on the rope or chain diameter. Please see below illustration.

3 Anchor the TV to the wall by using bolts,

wall anchor and chain (or rope).

• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

4: Bundling the

Internet

Modem with router functions

Router

Modem

Internet

5: Connecting the TV

cables

• Do not bundle the AC power cord together with other cables.

to the Internet

When you connect this TV to the Internet, you can enjoy multiple functions. For details on the functions, refer to the i-Manual.

• You will need to contract with an Internet service provider to connect to the Internet.

Preparing a wired network

• For LAN connections, use a Category 7 cable (not supplied).

(Continued)

Preparing a Wi-Fi

Wireless router (access point)

Modem

Internet

connection

The built-in Wi-Fi device allows you to access the Internet and your home network. With this feature, you can connect to a wireless network and enjoy the benefits of networking in a cable-free environment. Before setting up the Wi-Fi function of the TV, be sure to set up a wireless router (access point).

6: Running initial

setup

1 Complete your cable connections before

proceeding with the Initial Setup. Connect the AC power cord to the AC adapter and plug the AC adapter to the TV in the DC IN 19.5 V terminal. Then, connect the AC adapter to your nearest power outlet.

2 Press "/1 on the TV.

The illumination LED will light up in white. When you switch on the TV for the first

time, the Language menu appears on the screen.

• The illumination LED lights up in different colors according to the status of the TV. If you do not wish to light up the illumination LED, you can turn it off later. Press HOME, then select Settings

t Preferences t Front Panel Illumination t Illumination LED t Off. You can also press OPTIONS, then select Illumination LED t Off.

3 Press V/v/B/b to select an item, then

or or

press . Follow the instructions on the screen.

4 Set up the Internet connection by

selecting Wi-Fi or Wired LAN. If you will not be using the network features of the TV, or to set up later, select Skip.

• The TV will automatically detect and setup the network when a wired connection is made before the initial setup.

• For customers who need to setup their network connection with a Static IP address and/or a Proxy server, select Skip. After completing the initial setup, press HOME, then select Settings

t Network t Network Setup t Set up network connection t Expert.

• If you use WEP security, select Wi-Fi t Connect by scan list. Then, select the

network name (SSID) you want to connect to. If you cannot find the required network name, select [Manual Entry] and press to enter network name.

• To perform Network Setup later, press HOME, then select Settings t

Network t Network Setup.

• The TV will automatically search for a software update after the network is setup and will try to automatically detect your region.

Watching TV

1 Turn on the TV.

Press "/1 on the TV or POWER on the remote control to turn on the TV.

2 Select a TV channel or

select an input.

x To select digital channels

Use 0-9 and . For example, to enter channel 2.1: Press , and , then press

5 Scan for available channels using the

TV’s built-in tuner by selecting Built-in Tuner t Auto. If you will be using a

cable box or satellite receiver and do not wish to use the TV’s built-in tuner select Set Top Box. If you do not wish to use the TV’s built-in tuner or a set top box, select Skip.

Using the remote

control

x Frequently used buttons

1 Color buttons

When the color buttons are available, an operation guide appears on the screen.

2 DISPLAY

Displays channel number, program details, and the clock.

3 GUIDE

Displays the digital program guide. (For an Antenna signal only and availability depends on your TV model/ region/country)

4 SUBTITLE/CC

You can turn closed captions/subtitles on/off.

Using Your BRAVIA TV

Discovering the contents you like (Discover)

You can use Discover to search for content (such as TV programs, Internet contents, etc.). Contents that appear in Discover vary depending on your TV model/region/ country.

1 Press DISCOVER.

2 Press V/v to select the

desired category.

Enjoying social networking while watching TV (Social Viewing)

Social Viewing brings the benefits of social networking to your TV viewing experience. Press SOCIAL VIEW to enjoy chatting with friends while watching TV. The available features in Social Viewing may vary depending on your TV model/region/ country. You will need a broadband Internet connection. For details, see page 19 (5: Connecting the TV to the Internet). Then, go to Network Setup and follow the on-screen instructions to connect your TV to the Internet.

3 Press B/b to select the

desired item, then press .

The selected content is displayed.

• You may need to update the TV’s software to

use this function. Press HOME, select

Help t

Software Update.

Customer Support t

+ 53 hidden pages
