SERVICE MANUAL
MODEL NAME REMOTE COMMANDER DESTINATION
KDL-52V4100
KDL-52V4100 KDL-52W4100
KDL-52W4100
KDL-52WL140
RM-YD023 MX/LATIN AMERICA
RM-YD023 US/CND
RM-YD023 MX/LATIN AMERICA
RM-YD023 US/CND
EX1
CHASSIS
9-883-782-05
KDL-52W4100 RM-YD023
LCD DIGITAL COLOR TELEVISION
KDL-52V4100/52W4100/52WL140

TABLE OF CONTENTS

SECTION TITLE PAGE SECTION TITLE PAGE
Specifi cations ................................................................................. 4
Warnings and Cautions - English ................................................... 6
Warnings and Cautions - French .................................................... 7
Safety-Related Component Warning .............................................. 8
Safety Check-Out ......................................................................... 10
Self-Diagnostic Function ................................................................11
SECTION 1: DISASSEMBLY ............................................................... 13
1-1. Rear Cover Removal ............................................................ 13
1-2. Switch Unit Removal (Contains H1 Board) .......................... 13
1-3. Side Jack Bracket, BU Shield and BU Board Removal ........
1-4. G5 Board (Power Unit) and D4Z Board, and D5 Board
Removal .............................................................................. 14
1-5. Table-Top Stand and Under Cover Removal ........................ 15
1-6. AC Inlet Removal ................................................................. 15
1-7. Structural Frames and Brackets Removal ........................... 16
1-8. Speakers, Under Bar, H3E Board,
H4 Board, and Light Guide Removal ................................... 16
1-9. LCD Panel Removal ............................................................. 17
1-9-1. Cleaning the LCD Panel .......................................... 17
1-10. Balancer (ETC-Inverter MT) Board Removal ....................... 18

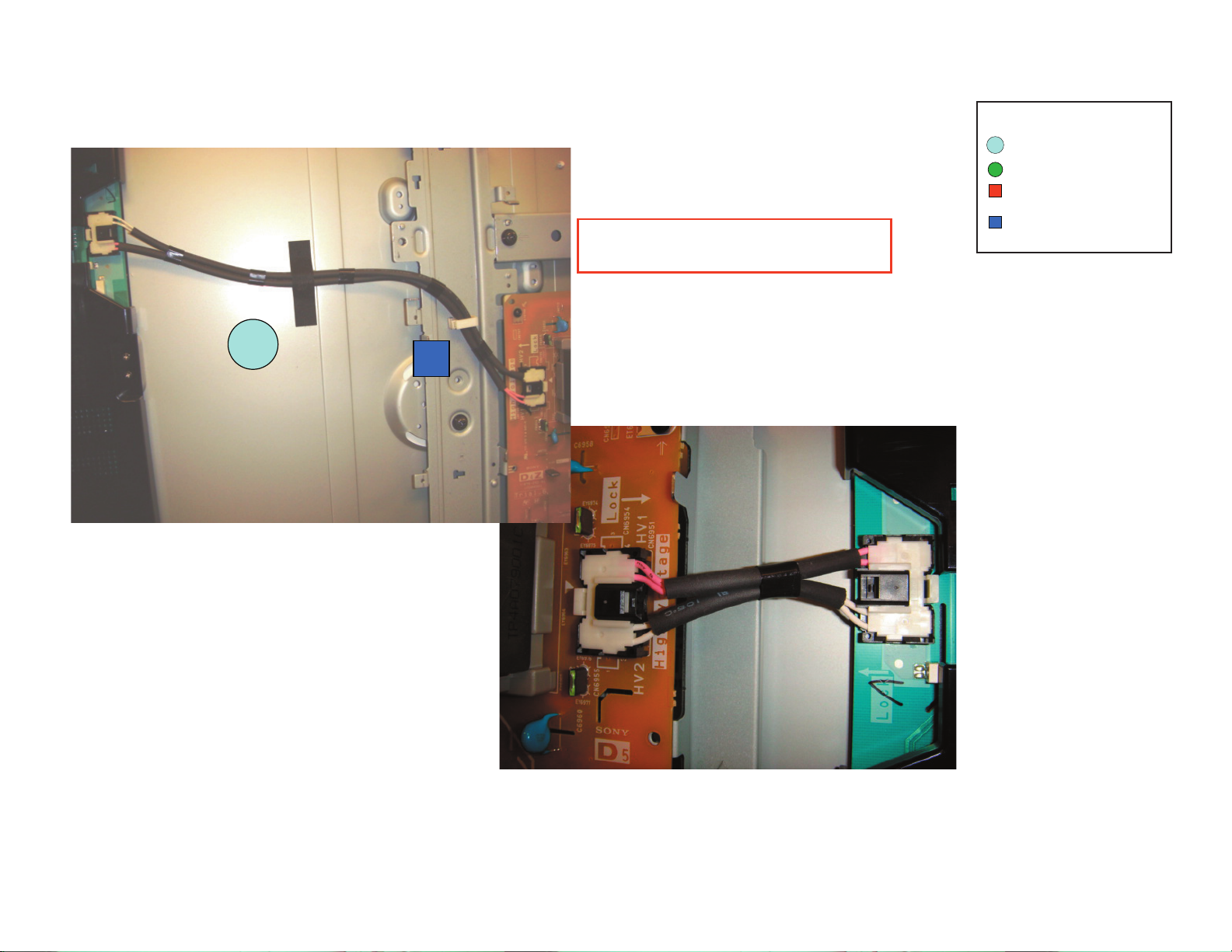

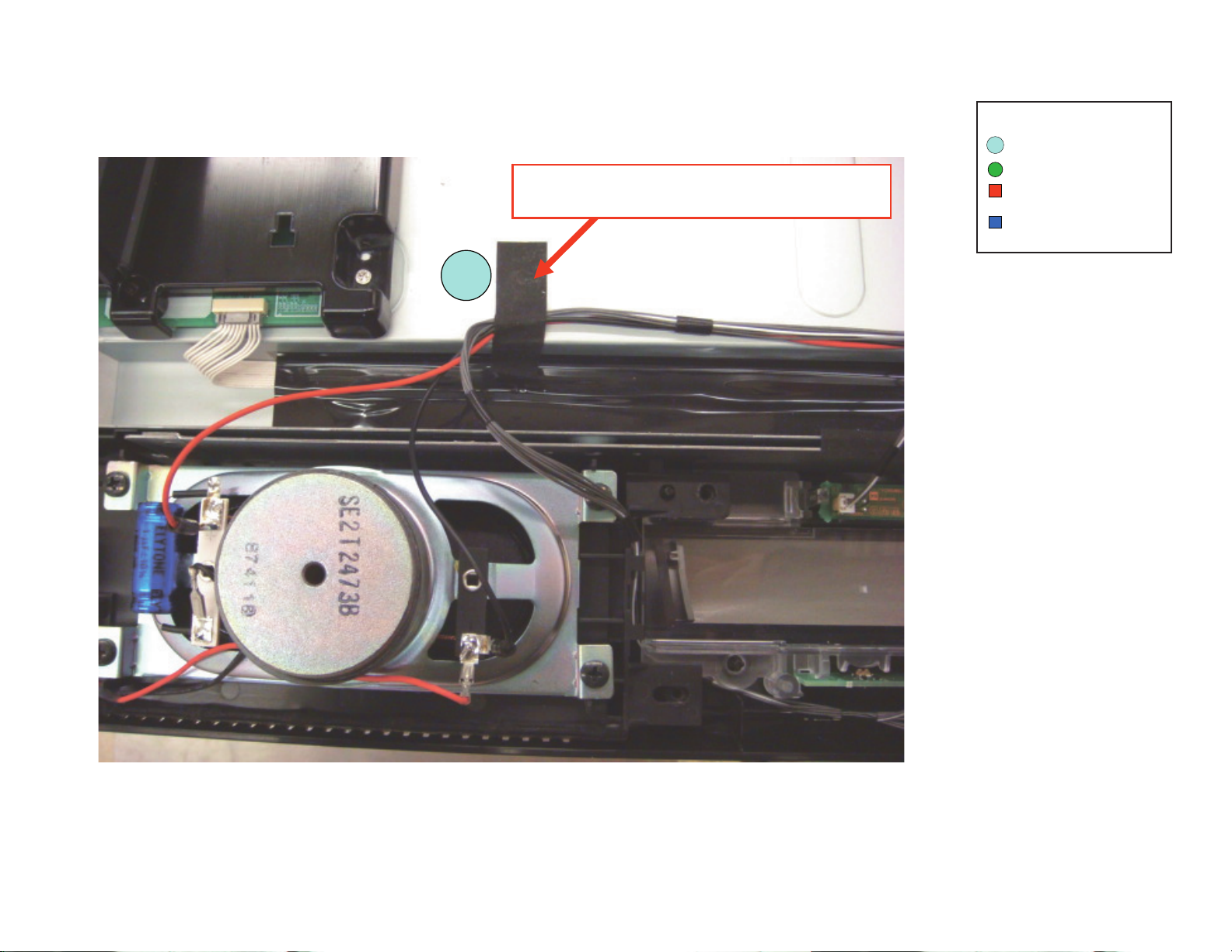

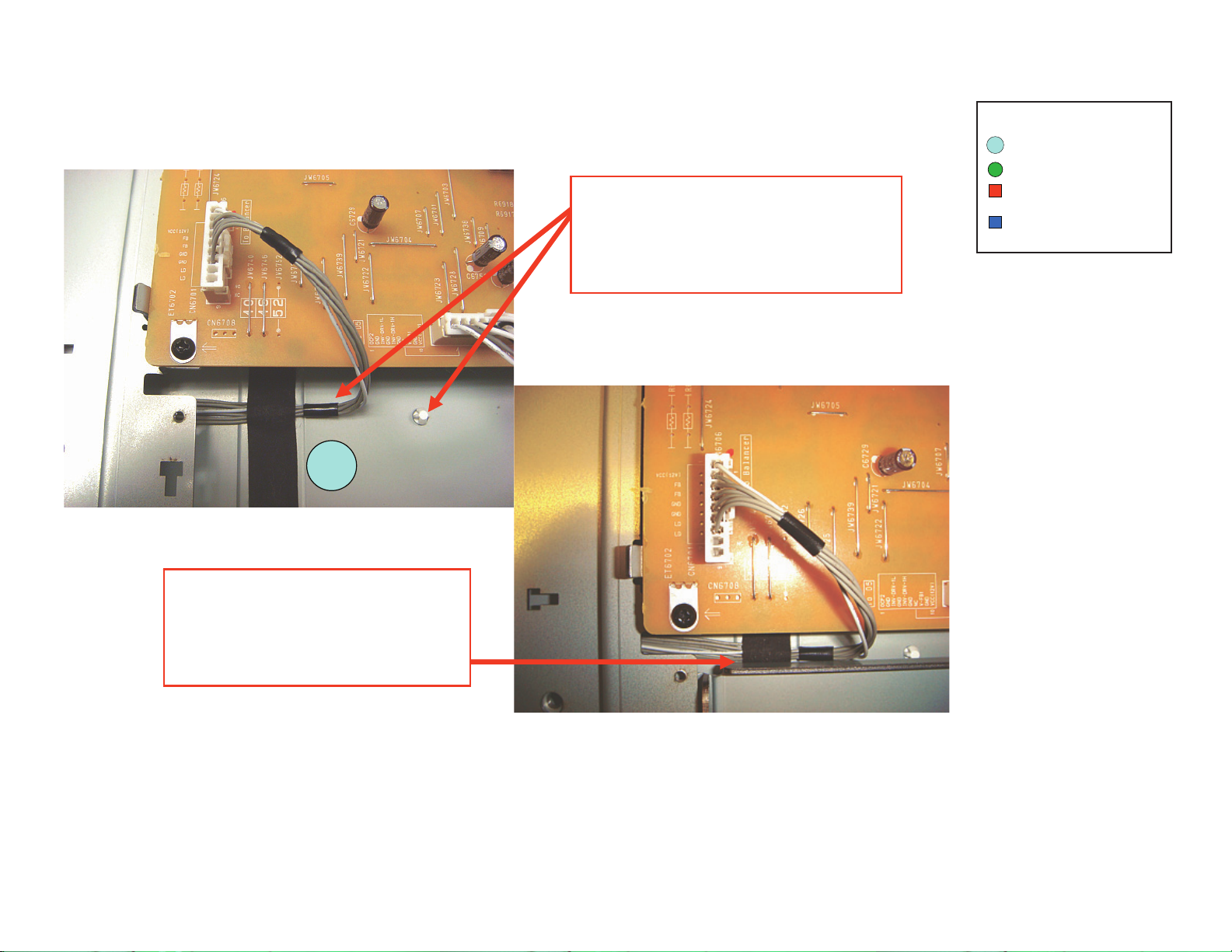

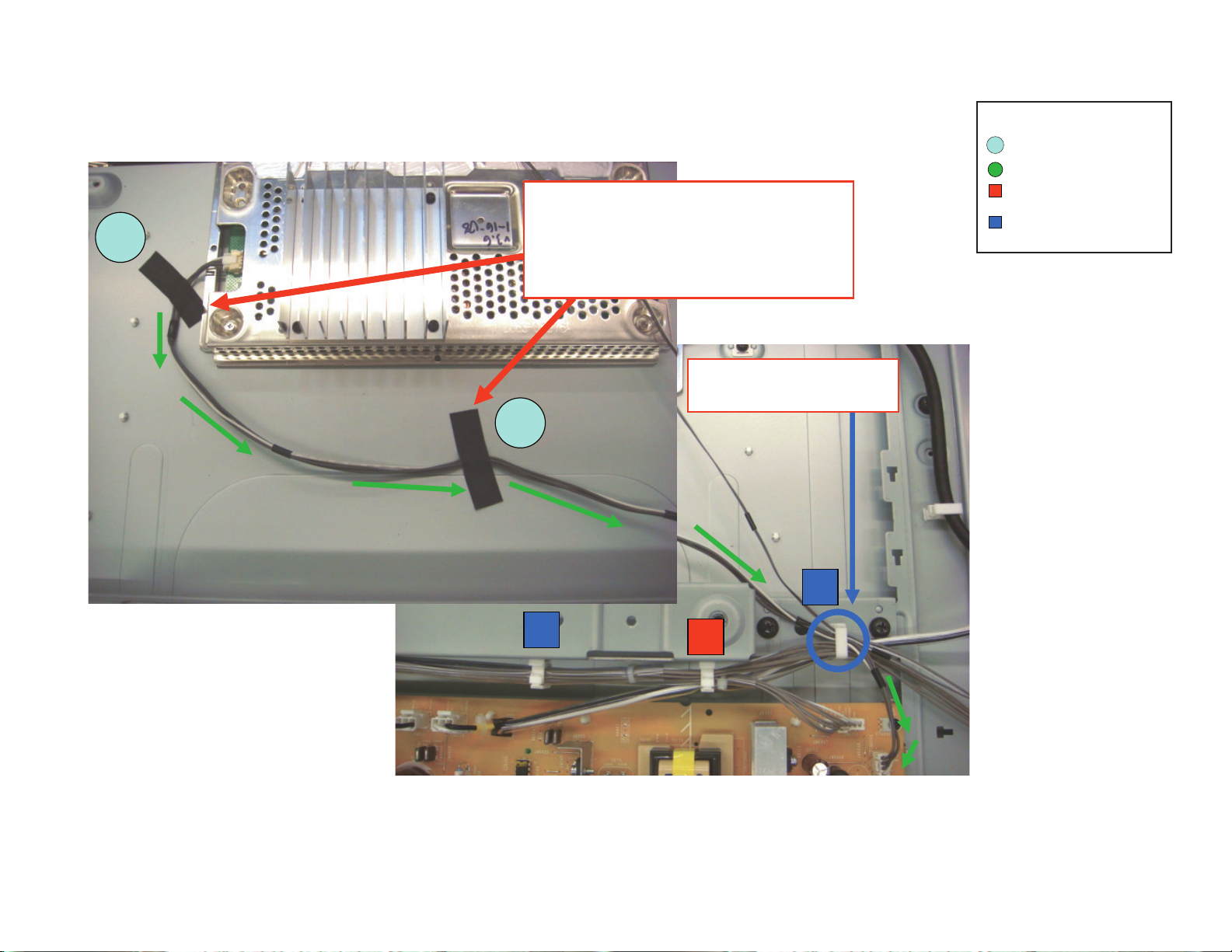

WIRE DRESSING ........................................................................ 19
KDL-52V4100 Only .............................................................. 19
KDL-52W4100/52WL140 Only ............................................. 35
SECTION 2: SERVICE ADJUSTMENTS ............................................. 53
2-1. Viewing Service Adjustment Data ........................................ 53
2-2. Accessing Service Adjustment Mode ................................... 53
2-3. Viewing the Service Menus .................................................. 53
2-4. Using the Remote Commander to View Service Data ......... 54
2-5. Resetting to Factory Defaults ............................................... 54
14
SECTION 3: DIAGRAMS ..................................................................... 55
3-1. Circuit Boards Location ........................................................ 55

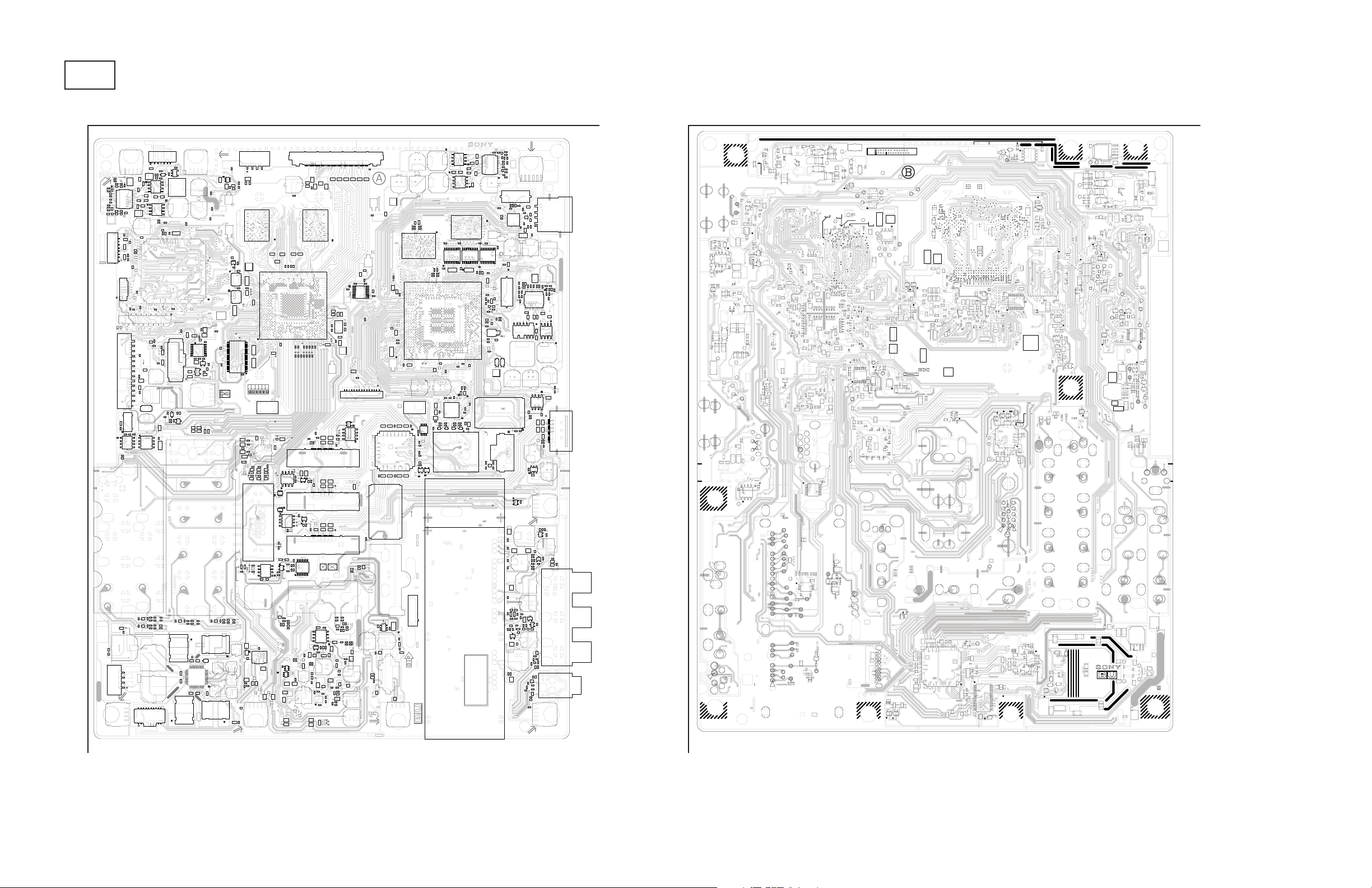

3-2. Printed Wiring Boards and
Schematic Diagrams Information ......................................... 55

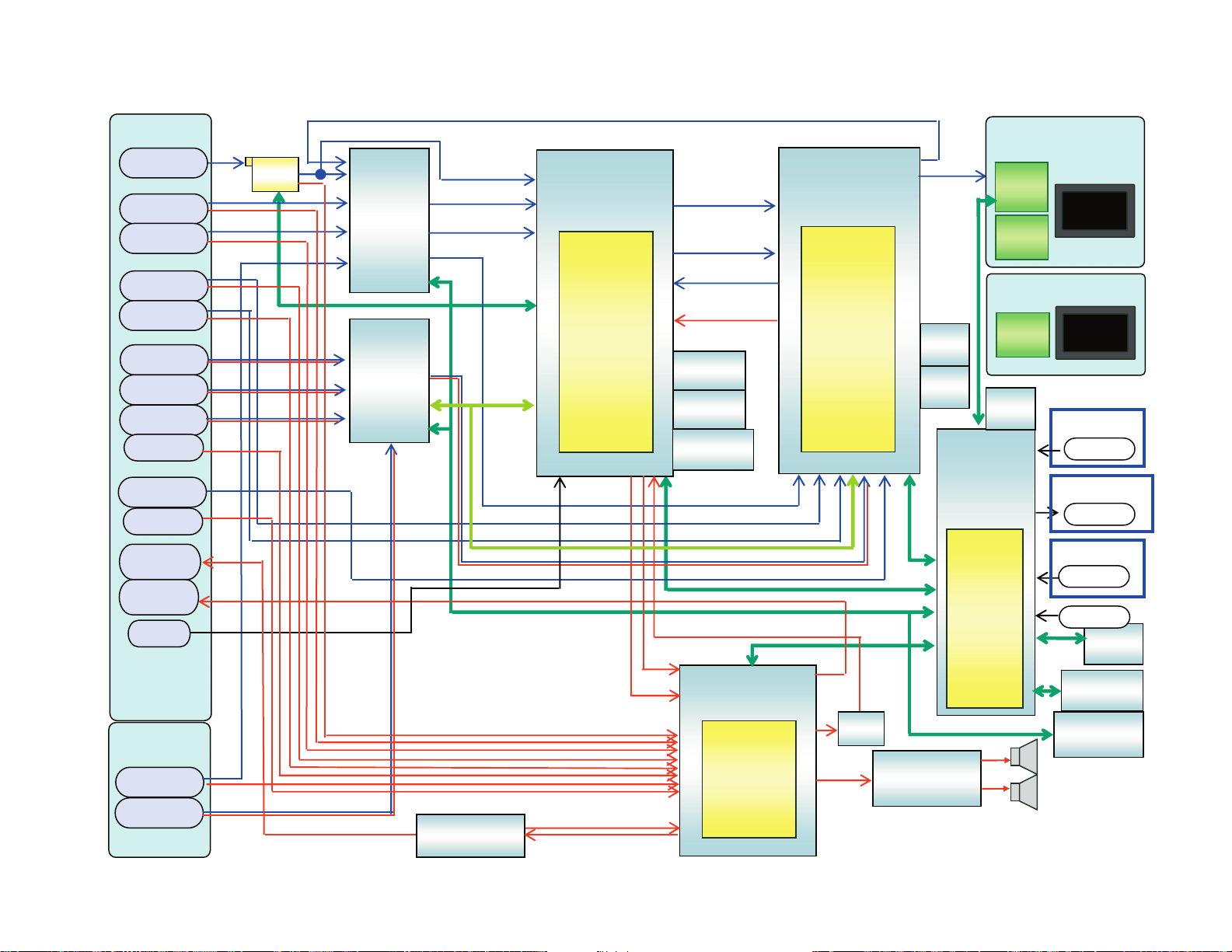

3-3. Block Diagram ...................................................................... 57

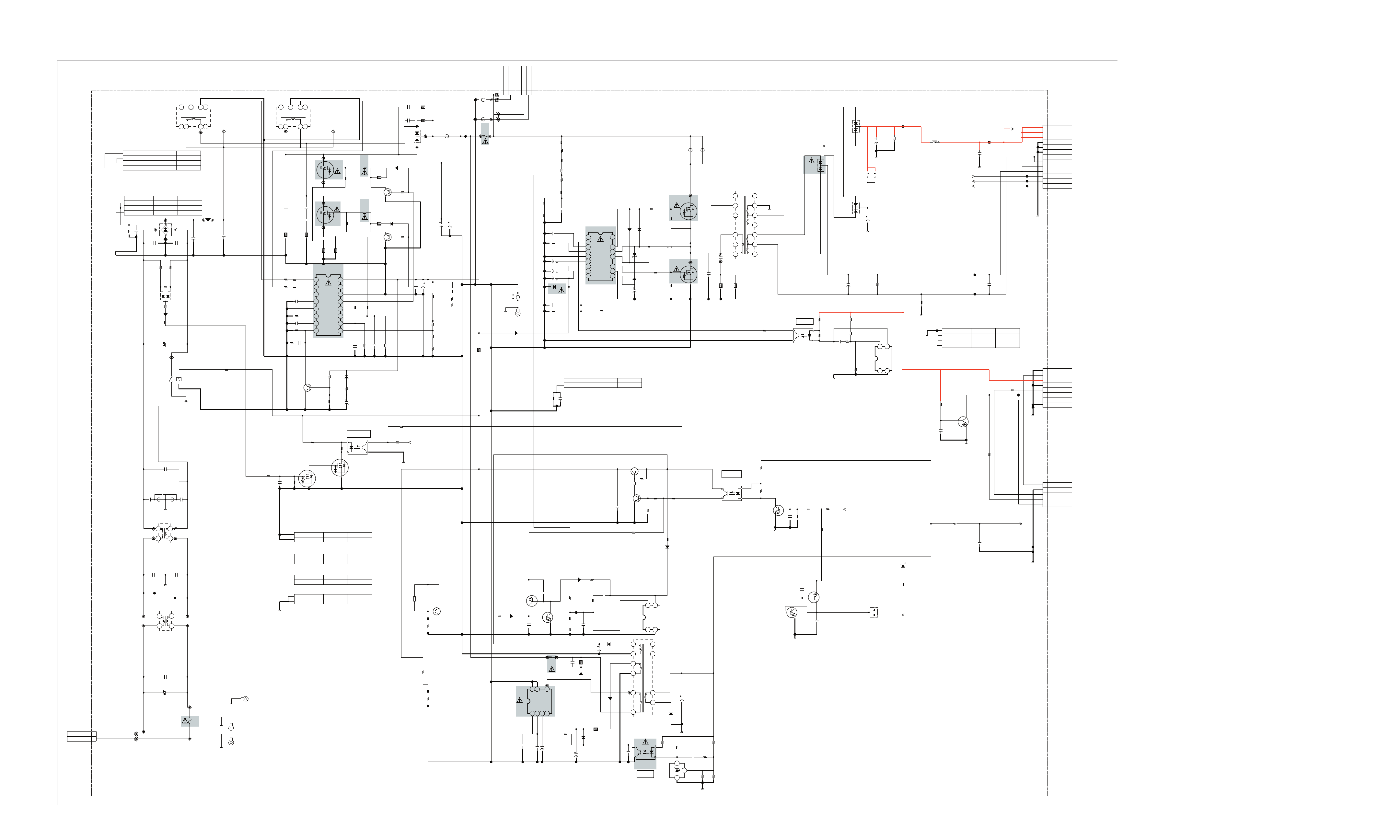

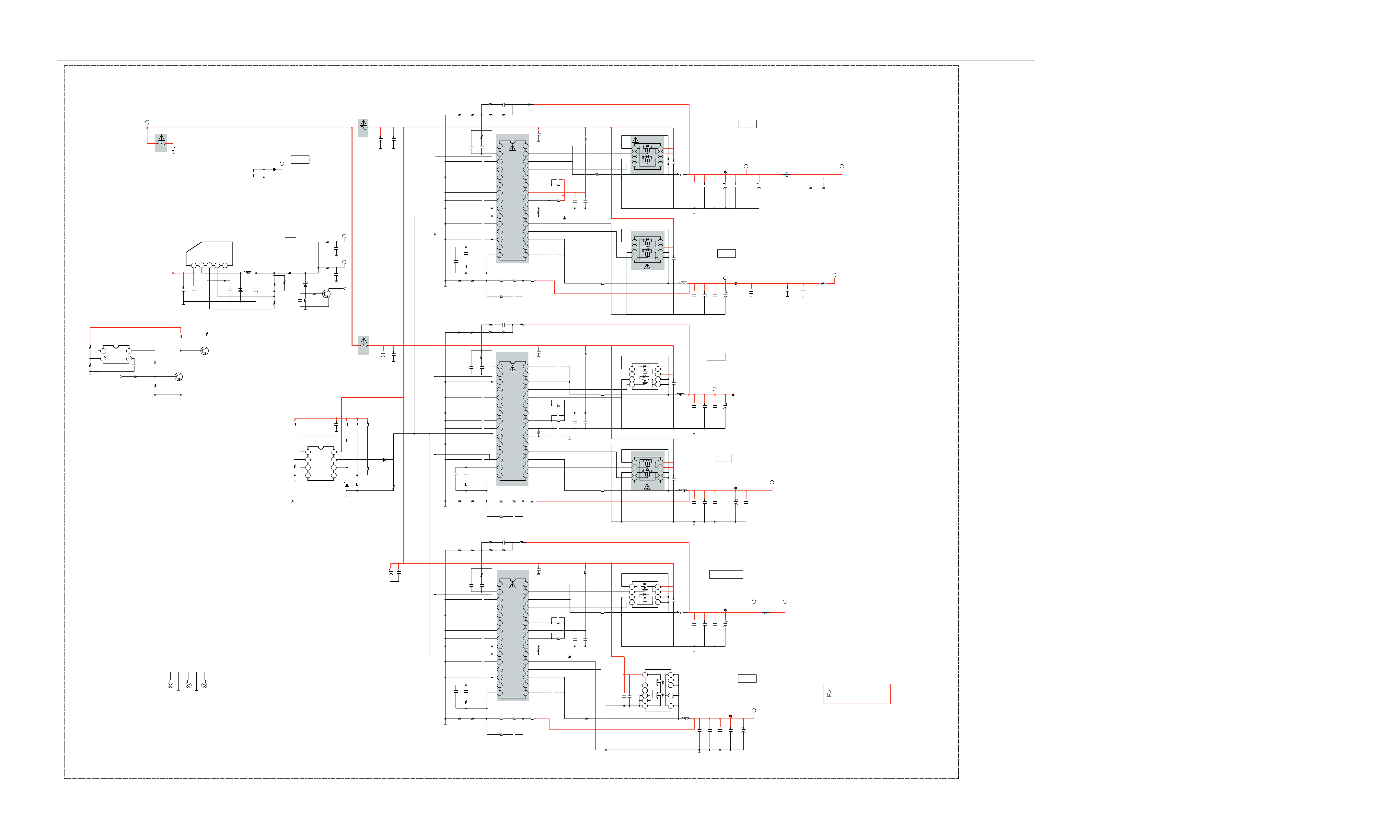

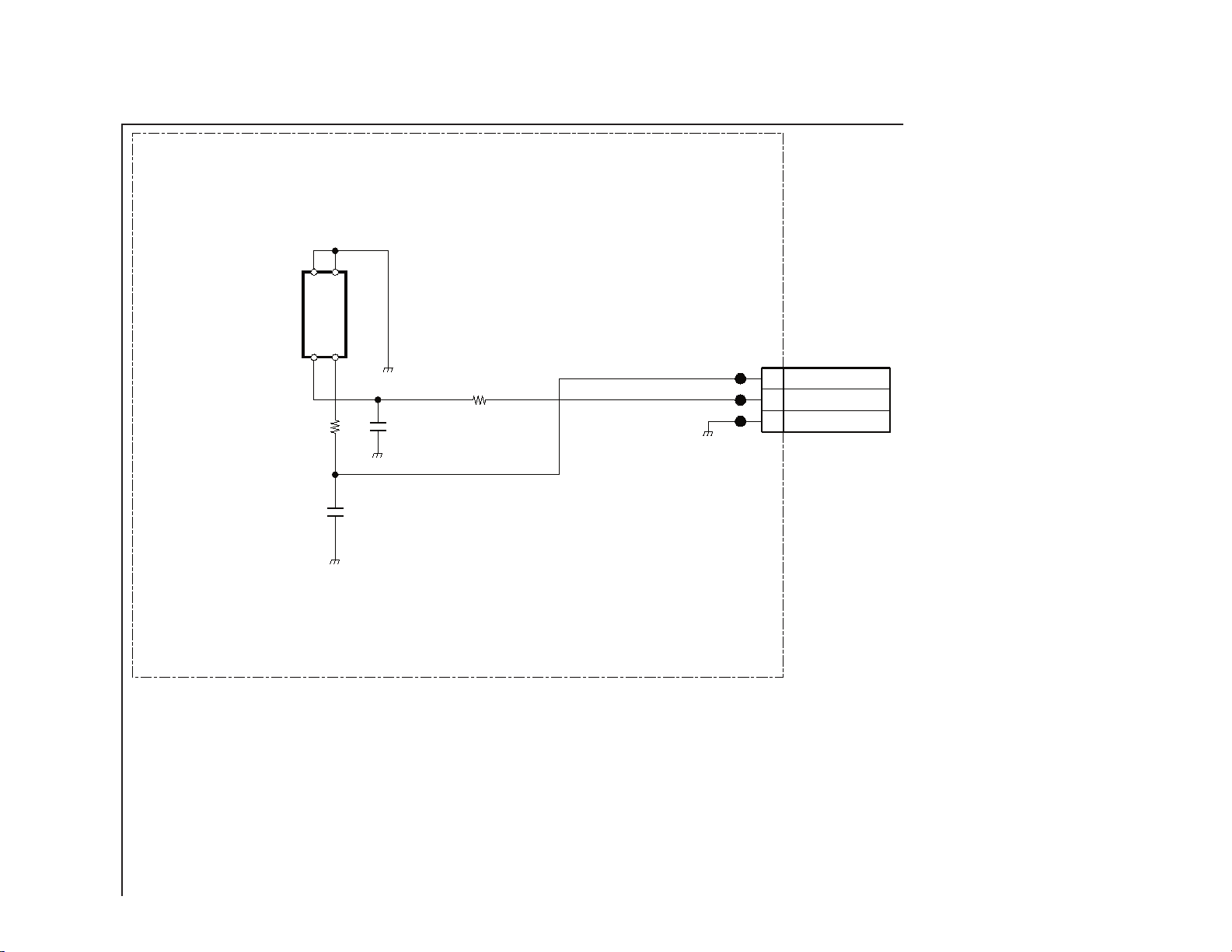

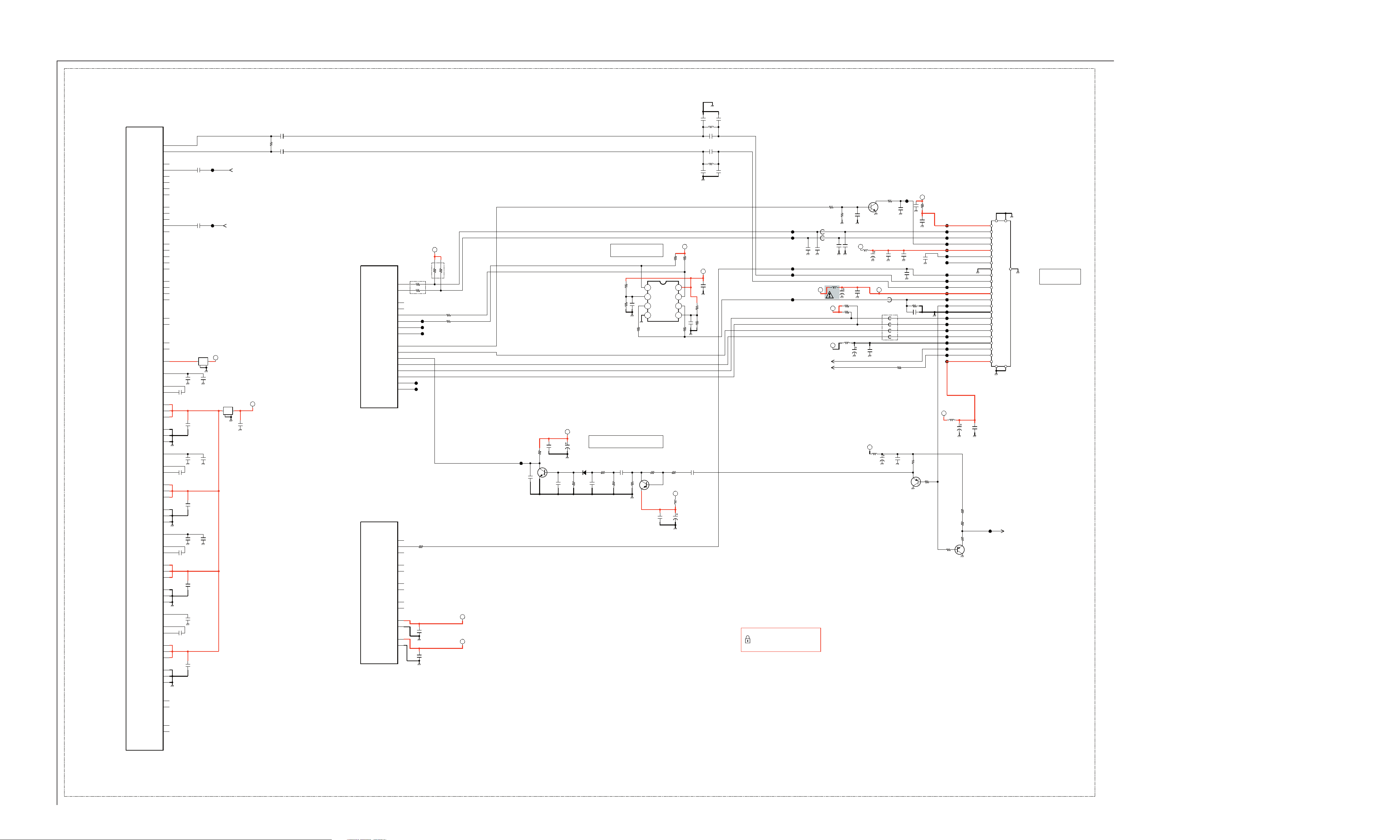

3-4. Schematics and Supporting Information .............................. 58

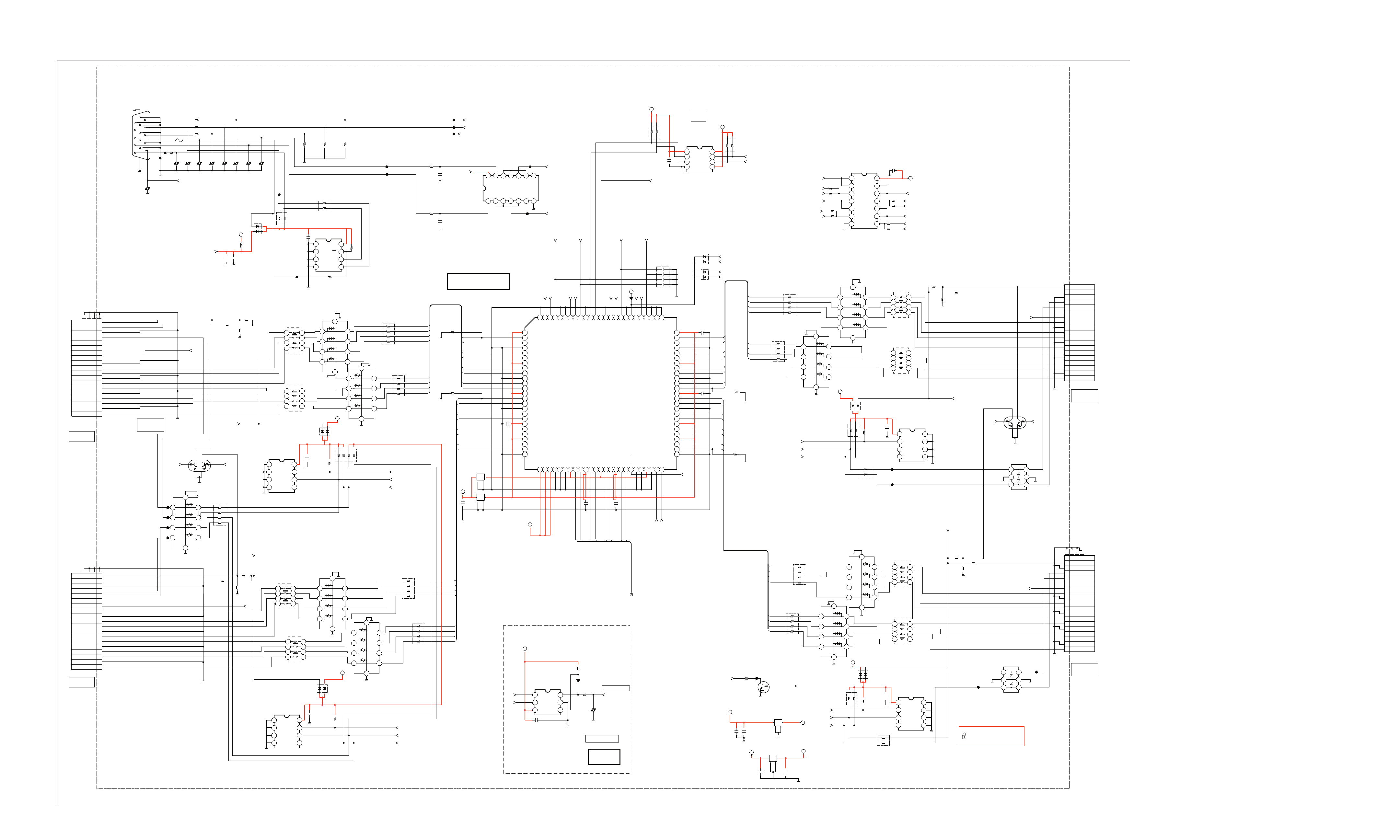

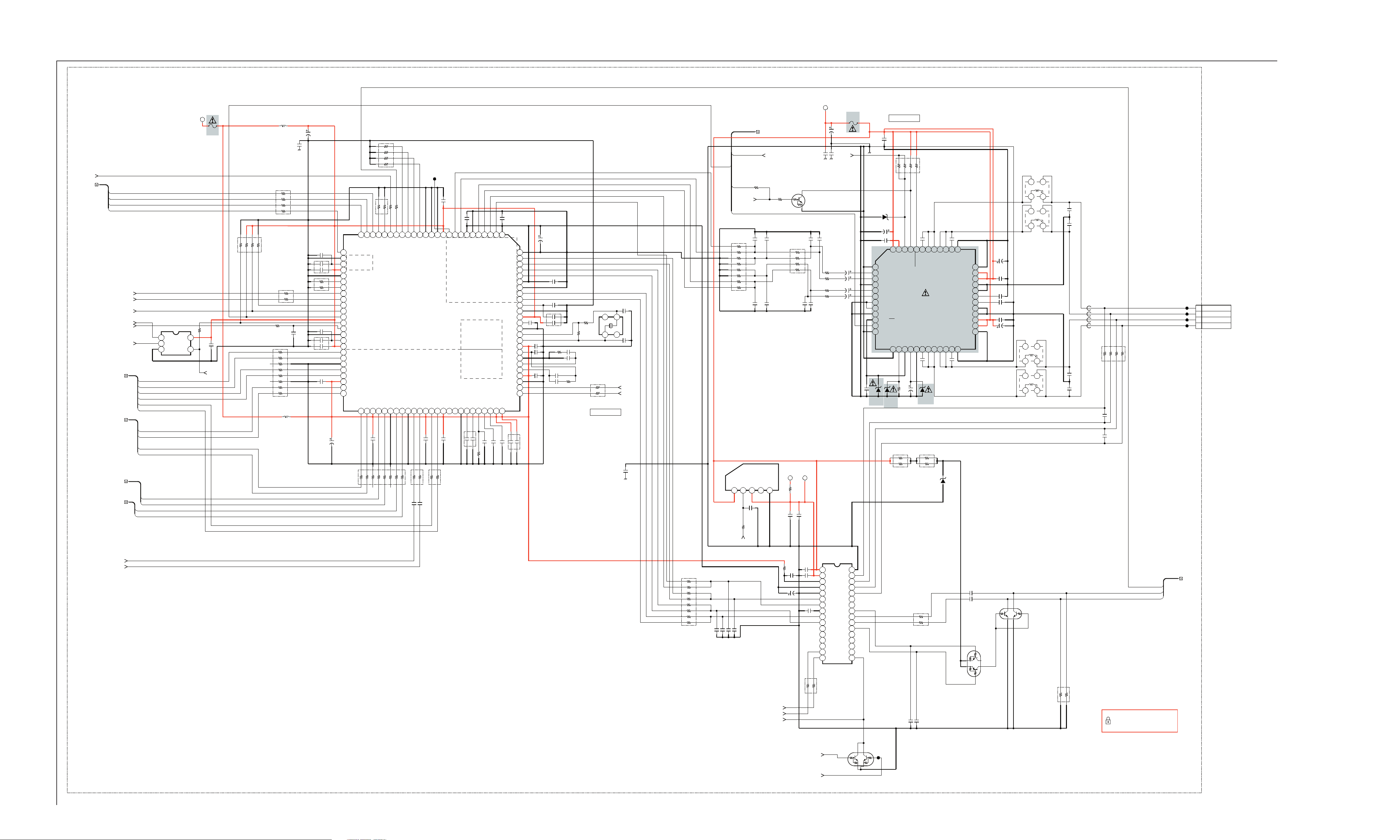

BU Board Schematic Diagram (1 of 12) ............................... 58
BU Board Schematic Diagram (2 of 12) ............................... 59
BU Board Schematic Diagram (3 of 12) ............................... 60
BU Board Schematic Diagram (4 of 12) ............................... 61
BU Board Schematic Diagram (5 of 12) ............................... 62
BU Board Schematic Diagram (6 of 12) ............................... 63
BU Board Schematic Diagram (7 of 12) ............................... 64
BU Board Schematic Diagram (8 of 12) ............................... 65
BU Board Schematic Diagram (9 of 12) ............................... 66
BU Board Schematic Diagram (10 of 12) ............................. 67
BU Board Schematic Diagram (11 of 12) ............................. 68
BU Board Schematic Diagram (12 of 12) ............................. 69

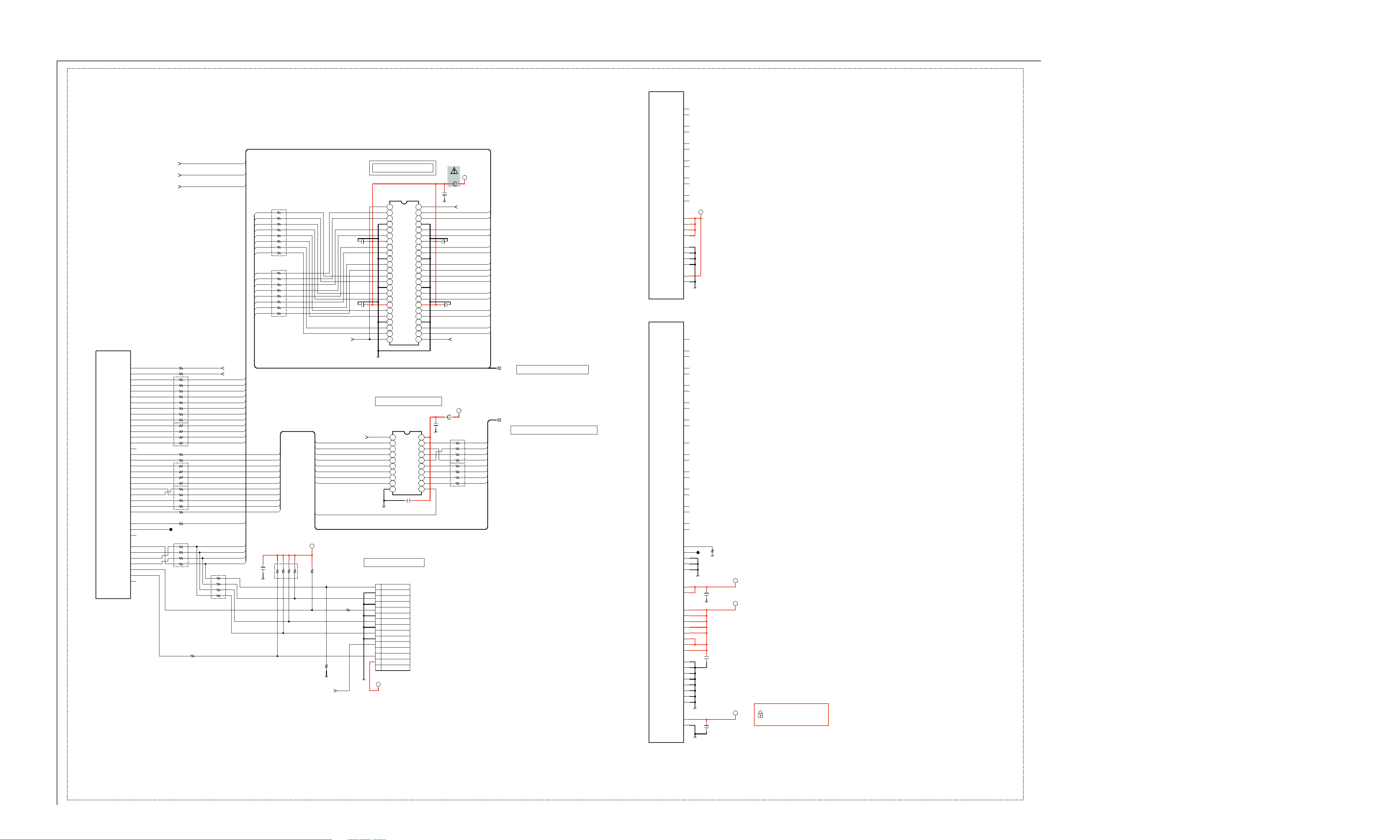

D4Z Board Schematic Diagram ........................................... 71
D5 Board Schematic Diagram .............................................. 73
G5 Board Schematic Diagram ............................................. 75

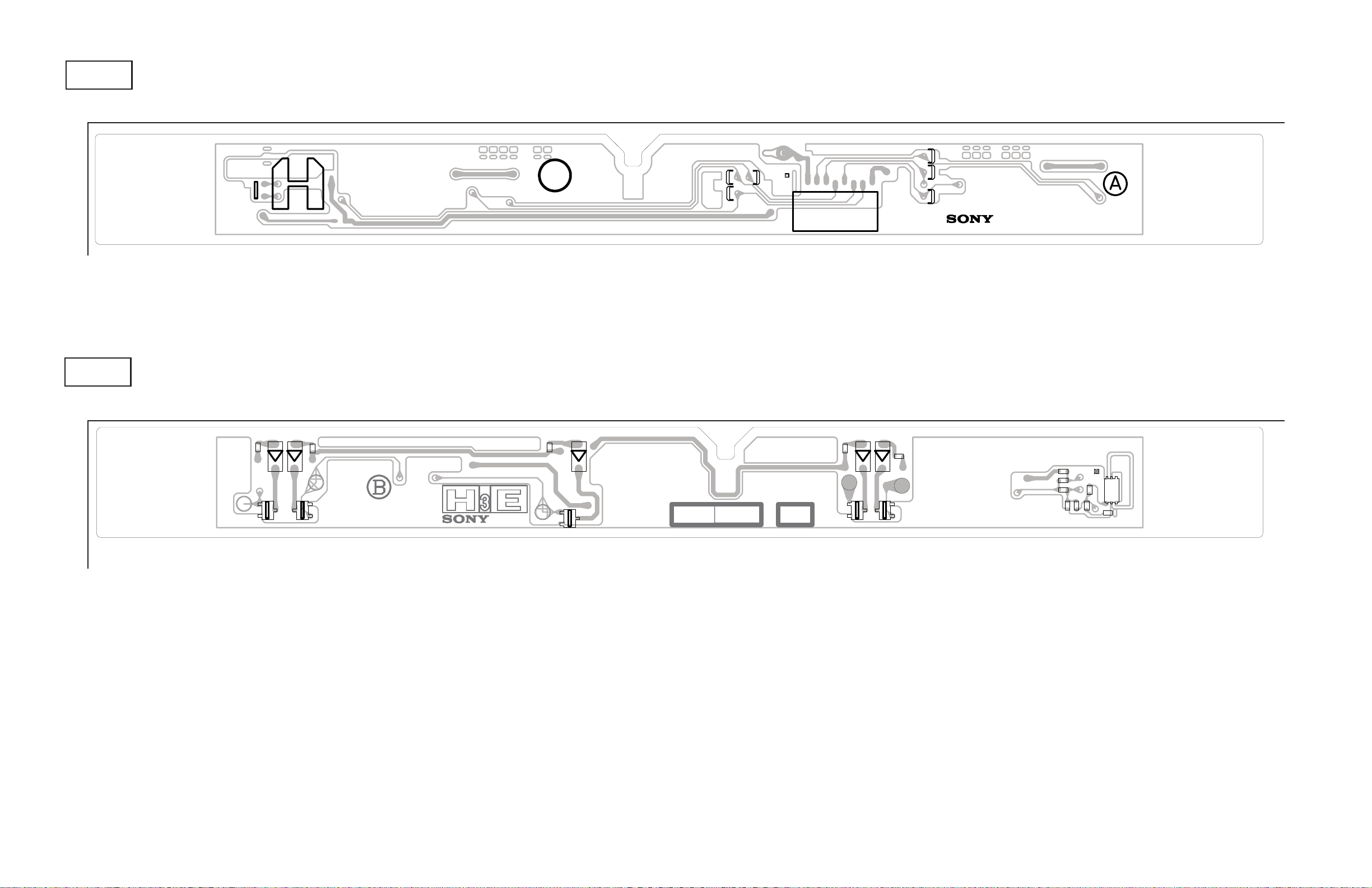

H3E Board Schematic Diagram ........................................... 78
H4 Board Schematic Diagram .............................................. 80

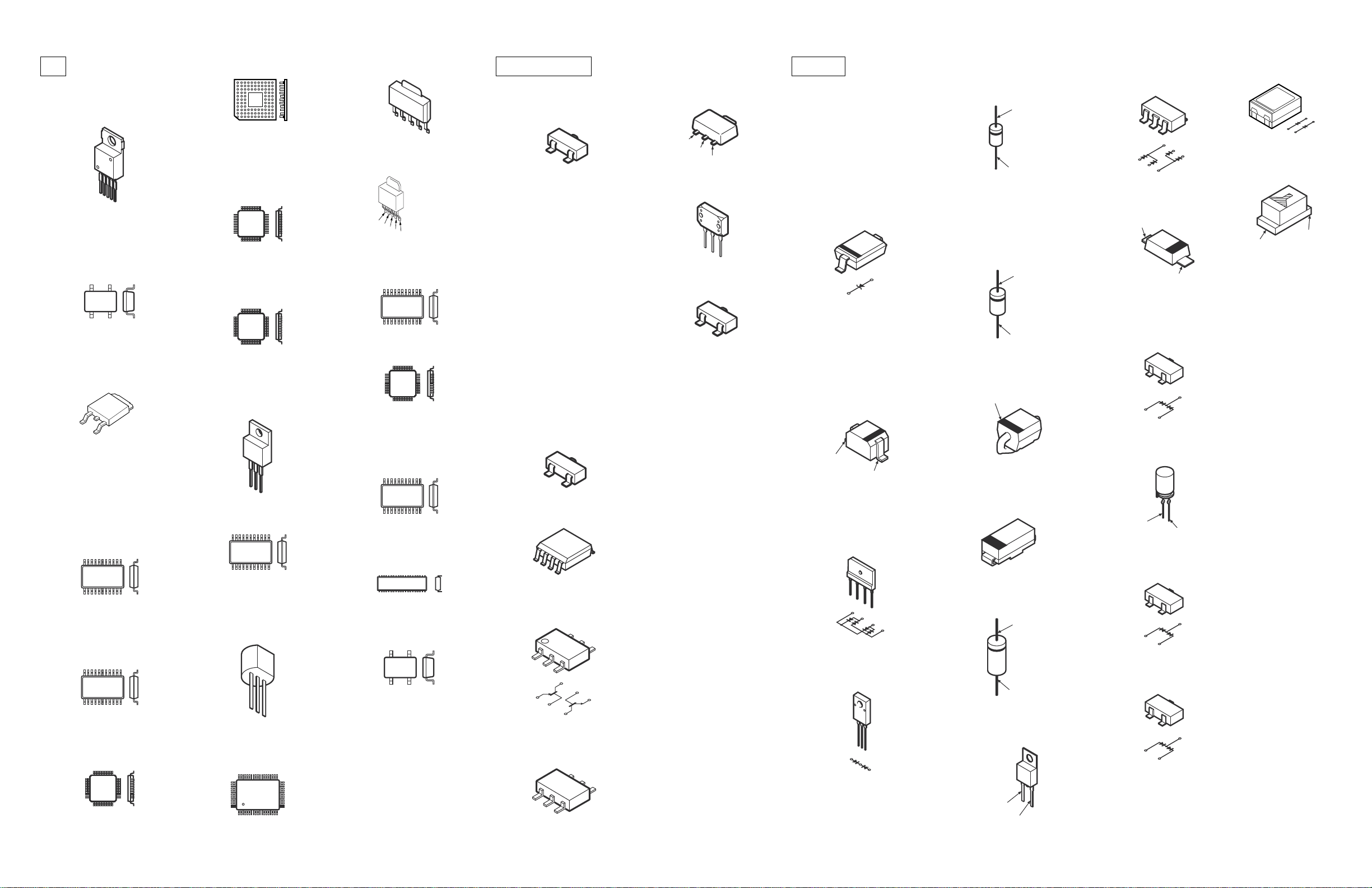

3-5. Semiconductors ................................................................... 82

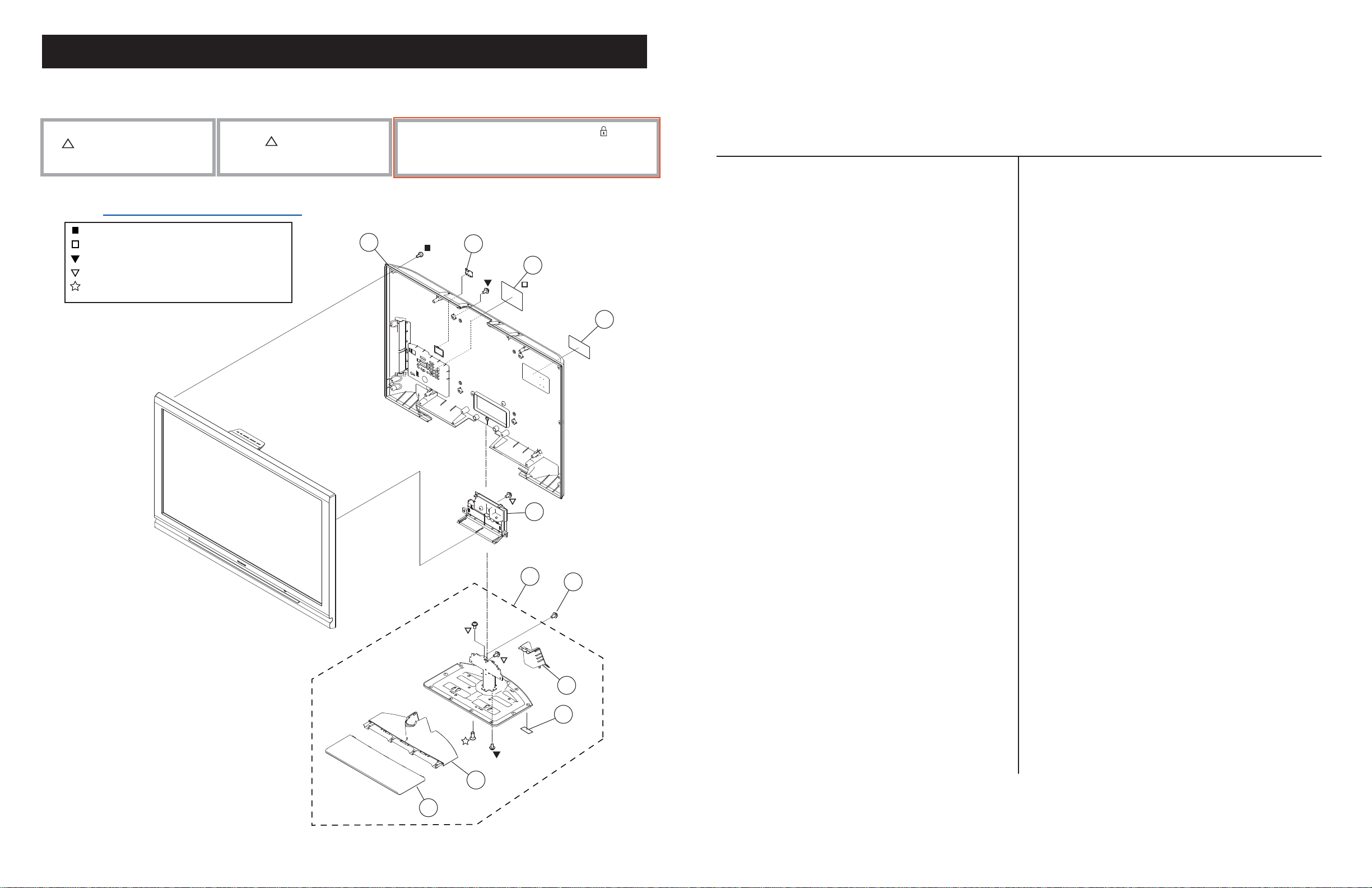

SECTION 4: EXPLODED VIEWS ........................................................ 83
4-1. Rear Cover Assembly and Table-Top Stand Assembly ....... 83

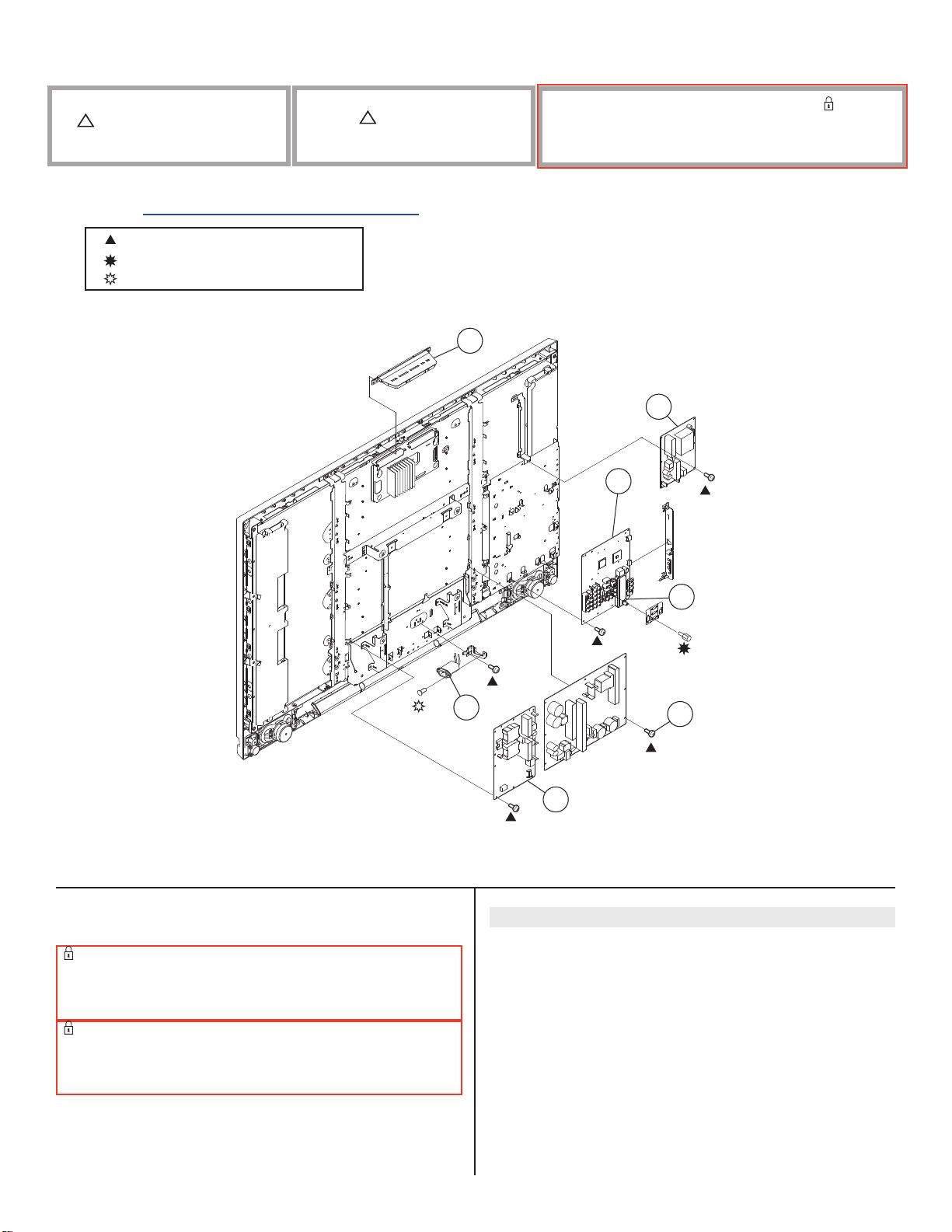

4-2. Chassis ................................................................................ 84
4-3. Connectors ........................................................................... 85
4-4. Bezel Assembly and LCD Panel ......................................... 86
4-5. Screw Legend ...................................................................... 87
SECTION 5: ELECTRICAL PARTS LIST ............................................ 88
APPENDIX A: ENCRYPTION KEY COMPONENTS ..........................A-1
KDL-52V4100/52W4100/52WL140
3

SPECIFICATIONS

KDL-52V4100/52W4100/52WL140
Power Requirements
Power Consumption (W)
In Use (Max)
In Standby
120V AC, 60Hz
285W (KDL-52V4100 Only) 295W (KDL-52W4100/52WL140 Only)
Less than 0.1W
VIDEO (IN) 1/2/3: S Video (4-Pin Mini DIN (VIDEO 1 Only) Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Video
1.0 Vp-p, 75 ohms unbalanced, sync negative
Audio
500 mVrms (100% modulation) Impedance:47 kilohms
COMPONENT IN 1/2: YP
Y:1.0 Vp-p, 75 ohms unbalanced, sync negative PB:0.7 Vp-p, 75 ohms PR:0.7 Vp-p, 75 ohms Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO
500 mVrms (100% modulation) Impedance: 47 kilohms
(Component Video)
BPR
HDMI IN 1/2/3/4: HDMI: Video: 480i, 480p, 720p, 1080i,1080p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO (for HDMI IN 4): 500 mVrms (100% modulation) (Fixed) Impedance: 47 kilohms
AUDIO OUT: 500 mVrms (+/- 3dB typical) More than 1 Vrms at the maximum volume setting (Variable) More than 500 mVrms (Fixed)
DIGITAL OUT (OPTICAL): Optical Digital Audio Output (PCM/Dolby digital)
PC IN: D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
PC AUDIO INPUT: Stereo mini jack, 500 mVrms 1kh Impedance: 47 kilohms
Trademark Information
KDL-52V4100/52W4100/52WL140
Blu-ray Disc is a trademark. “BRAVIA” and , S-Force,
BRAVIA Sync, , DMe trademarks or registered marks of Sony
Corporation.
x
and “x.v. Color” are
“XMB” and “XrossMediaBar” are the trademarks of Sony Corporation and Sony Computer Entertainment Inc.
“PLAYSTATION” is a registered trademark and “PS3” is a trademark of Sony Computer Entertainment Inc.
Adobe is a registered trademark or a trademark of Adobe Systems Incorporated in United States and/or other countries.
Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141
Manufactured under license from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.
Design and specifi cations are subject to change without notice.
In the United States, TV Guide and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affiliates. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc.
The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide International, Inc. and/or one of its affiliates.
The TV Guide On Screen system is protected by one or more of the following United States patents 4,908,713; 6,498,895; 6,850,693; 6,396,546; 5,940,073; 6,239,794 to Gemstar-TV Guide International, Inc. and/or its subsidiaries.
Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system.
4
KDL-52V4100/52W4100/52WL140
3/4
3/8
3/4
Speaker Output
Dimensions (W x H x D)
with stand
without stand
wall-mount hole pattern (mm) 300 x 300 mm
wall-mount screw size (mm)
Mass
with stand
without stand
KDL-52V4100 KDL-52W4100 KDL-52WL140
10W+10W
mm 65 X 150 mm
1/2
in
2
x 5
7/8
in
mm 1,262 x 871 x 347 mm
in
x 34
x 13
in
49
mm 1,262 x 829 x 119 mm
in
49
3/4
x 32
3/4
x 4
3/4
in
M6 X 12 - 18
kg 38 kg
lbs 84 lbs
kg 32 kg
lbs 71 lbs
All measurements are approximations.
Television system
NTSC American TV Standard ATSC (8VSB terrestrial) ATSC compliant 8VSB QAM on cable ANSI/SCTE 07 2000
Channel coverage
Analog 2-69 Terrestrial 1-135 Cable Digital 2-69 Terrestrial 1-135 Cable
Antenna
75-ohm external terminal for RF inputs
Panel System
LCD (Liquid Crystal Display) Panel
Display Resolution (horizontal x vertical)
1,920 dots x 1,080 lines
Screen Size (measured diagonally)
~ 52 inches
Supplied Accessories
Remote Commander RM-YD023 Two Size AA (R6) Batteries AC Power Cord HD15-HD15 Cable Cable Holder (1 attached to the TV) Operating Instructions Quick Setup Guide Installing the Wall-Mount Bracket Warranty Card Online Registration Card Safety and Regulatory Booklet Attaching the Table-Top Stand
Optional Accessories
Connecting Cables Suport Belt Kit Wall-Mount Bracket SU-WL500 TV-Stand WS-S10LS SU-FL300/350L
KDL-52V4100/52W4100/52WL140
5
KDL-52V4100/52W4100/52WL140

WARNINGS AND CAUTIONS - ENGLISH

CAUTION
These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualifi ed to do so.
CARRYING THE TV
Be sure to follow these guidelines to protect your property and avoid causing serious injury.
• Before carrying the TV, disconnect all cables.
• Carrying the large size TV requires two or more people.
• When carrying the TV, place your hand as illustrated and hold it securely. Do not subject the TV to shocks, vibration, or excessive force.
• Lift the TV by placing your palm directly underneath the panel but do not:
• squeeze the speaker grill area
• place your fingers in the groove above the speaker grill area
• put stress on the LCD panel.
• Do not lift the TV from the bottom center.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis. The chassis of this receiver is directly connected to the ac power line.
! SAFETY-RELATED COMPONENT WARNING!!
Components identifi ed by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identifi ed in this manual. Follow these procedures whenever critical components are replaced or improper operation is suspected.
KDL-52V4100/52W4100/52WL140
6
KDL-52V4100/52W4100/52WL140
A

WARNINGS AND CAUTIONS - FRENCH

ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualifi é seulement. Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.
POUR TRANSPORTER LE TÉLÉVISEUR
ssurez-vous de suivre les consignes suivantes pour
protéger votre bien et éviter les blessures graves.
• Avant de transporter le téléviseur, débranchez tous les câbles.
• Le transport d’un téléviseur de grande taille doit être effectué par au moins deux personnes.
• Lorsque vous transportez le téléviseur, placez vos mains tel qu’illustré et tenez solidement l’appareil. Ne soumettez pas le téléviseur à des chocs ou à des vibrations, ni à une force excessive.
Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est directement raccordé à l’alimentation du secteur.
• Soulevez le téléviseur en plaçant la paume de votre main directement en dessous du panneau, mais :
• n’appuyez pas sur la région de la grille de haut-parleur
• ne placez pas vos doigts dans le sillon au­dessus de la région de la grille de haut-parleur
• n’imposez pas de charge sur le panneau ACL.
• ne soulevez pas le téléviseur en plaçant vos mains en dessous au centre.
! ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.
KDL-52V4100/52W4100/52WL140
7

SAFETY-RELATED COMPONENT WARNING

KDL-52V4100/52W4100/52WL140
There are critical components used in LCD color TVs that are important for safety. These components are identifi ed with shading and mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number specifi ed in the electrical parts list to prevent electric shock, fi re, or other hazard.
NOTE: Do not modify the original design without obtaining written permission from the manufacturer or you will void the original parts and labor guarantee.
!
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When installing the LCD panel on a wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
To avoid damaging the LCD panel:
do not press on the panel or frame edge to avoid the risk of electric shock. do not scratch or press on the panel with any sharp objects. do not leave the module in high temperatures or in areas of high humidity for an extended period of time. do not expose the LCD panel to direct sunlight. avoid contact with water. It may cause a short circuit within the module. disconnect the AC adapter when replacing the backlight (CCFL) or inverter circuit.
(High voltage occurs at the inverter circuit at 650Vrms.)
always clean the LCD panel with a soft cloth material. use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short. protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
LEAKAGE CURRENT HOT CHECK CIRCUIT
KDL-52V4100/52W4100/52WL140
8
The circuit boards used in these models have been processed using Lead Free Solder. The boards are identified by the LF logo located close to the board designation e.g. H1 etc [ see example ]. The servicing of these boards requires special precautions to be taken as outlined below.
KDL-52V4100/52W4100/52WL140
example 1
It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints. Lead Free Solder is available under the following part numbers :
rebmuntraP retemaiD skrameR
91-500-046-7mm3.0gK52.0
02-500-046-7mm4.0gK05.0
12-500-046-7mm5.0gK05.0
22-500-046-7mm6.0gK52.0
32-500-046-7mm8.0gK00.1
42-500-046-7mm0.1gK00.1
52-500-046-7mm2.1gK00.1
62-500-046-7mm6.1gK00.1
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.
For more information on the use of Lead Free Solder, please refer to
http://www.sony-training.com
KDL-52V4100/52W4100/52WL140
9

SAFETY CHECK-OUT

KDL-52V4100/52W4100/52WL140
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.
The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale. The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also at earth ground. If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the lamp should light at normal brilliance if the screw is at ground potential (see Figure B).
Leakage Test
0.15 μF
Figure A. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground.
To Exposed Metal Parts on Set
Earth Ground
AC Voltmeter (0.75V)
Trouble Light
AC Outlet Box
Ohmmeter
Cold-water Pipe
KDL-52V4100/52W4100/52WL140
10
KDL-52V4100/52W4100/52WL140

SELF-DIAGNOSTIC FUNCTION

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED indicator will automatically begin to fl ash. The number of times the LED fl ashes translates to a probable source of the problem. A defi nition of the STANDBY LED fl ash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.
1. Diagnostic Test Indicators
When an error occurs, the STANDBY LED indicator will fl ash a set number of times to indicate the possible cause of the problem. If there is more than one error, the indicator will identify the fi rst of the problem areas.
Control Buttons
Self Diagnosis
Supported model
Description of LED Indictors
LED LED Type Description
POWER LED
STANDBY LED
PIC OFF/ TIMER LED
PIC OFF/TIMER STANDBY PO WE
Green LED
Red LED
* Light when the TV set is on
* Lights up in red when TV is in PC standby mode. * If LED blinks continuously, this may indicate that the TV needs servicing.
Green or Orange
LED
* Lights up in green when Picture Off is activated * Lights up in orange when the timer is set When timer is set, the LED remains lit even when the TV is turned off.
2 times
R
LED ON 0.3 sec. LED OFF 0.3 sec.
Viewing the Self Check Diagnostic List
KDL-52V4100/52W4100/52WL140
5 times
LED OFF
3 sec.
11
KDL-52V4100/52W4100/52WL140
LED Indicators
Viewing the Self Check Diagnostic List

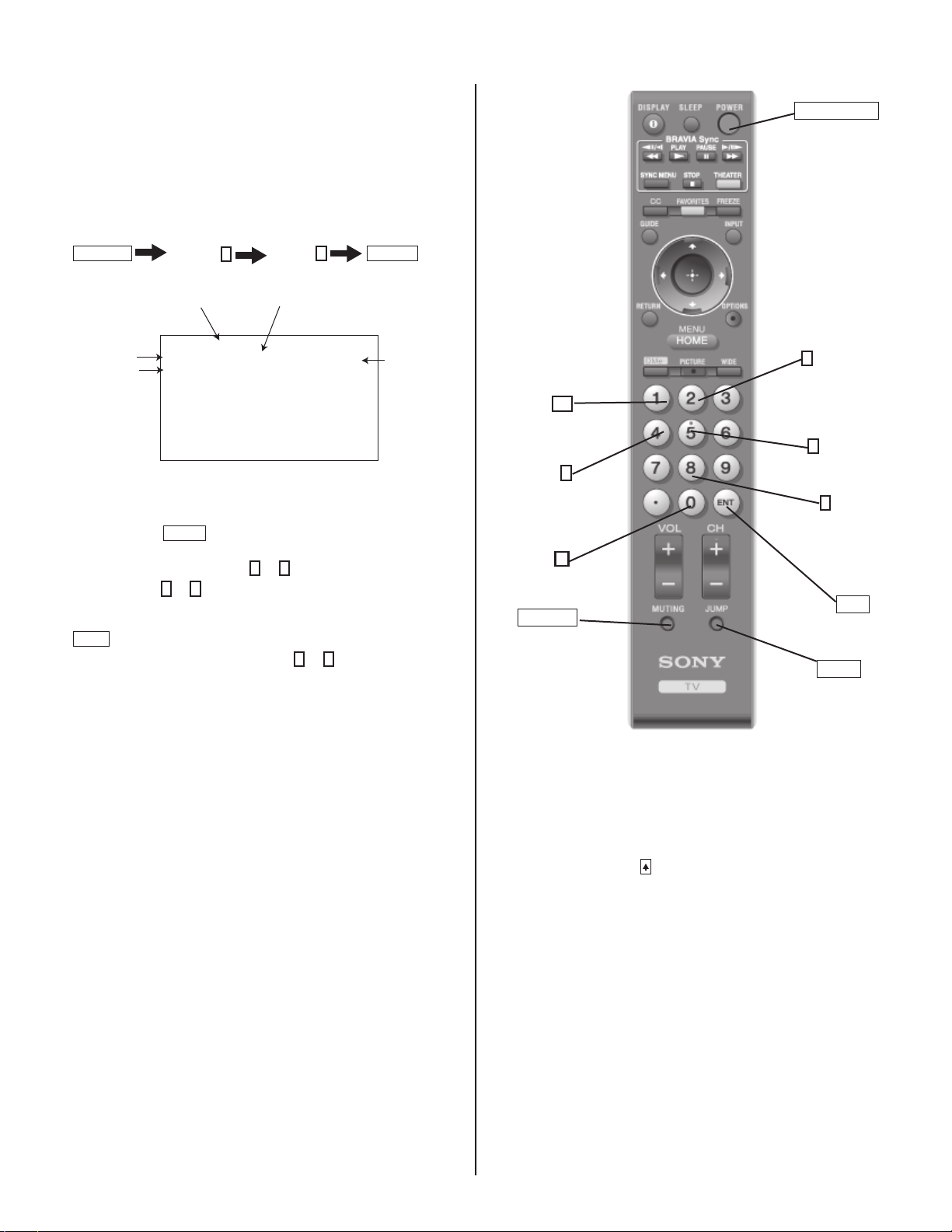

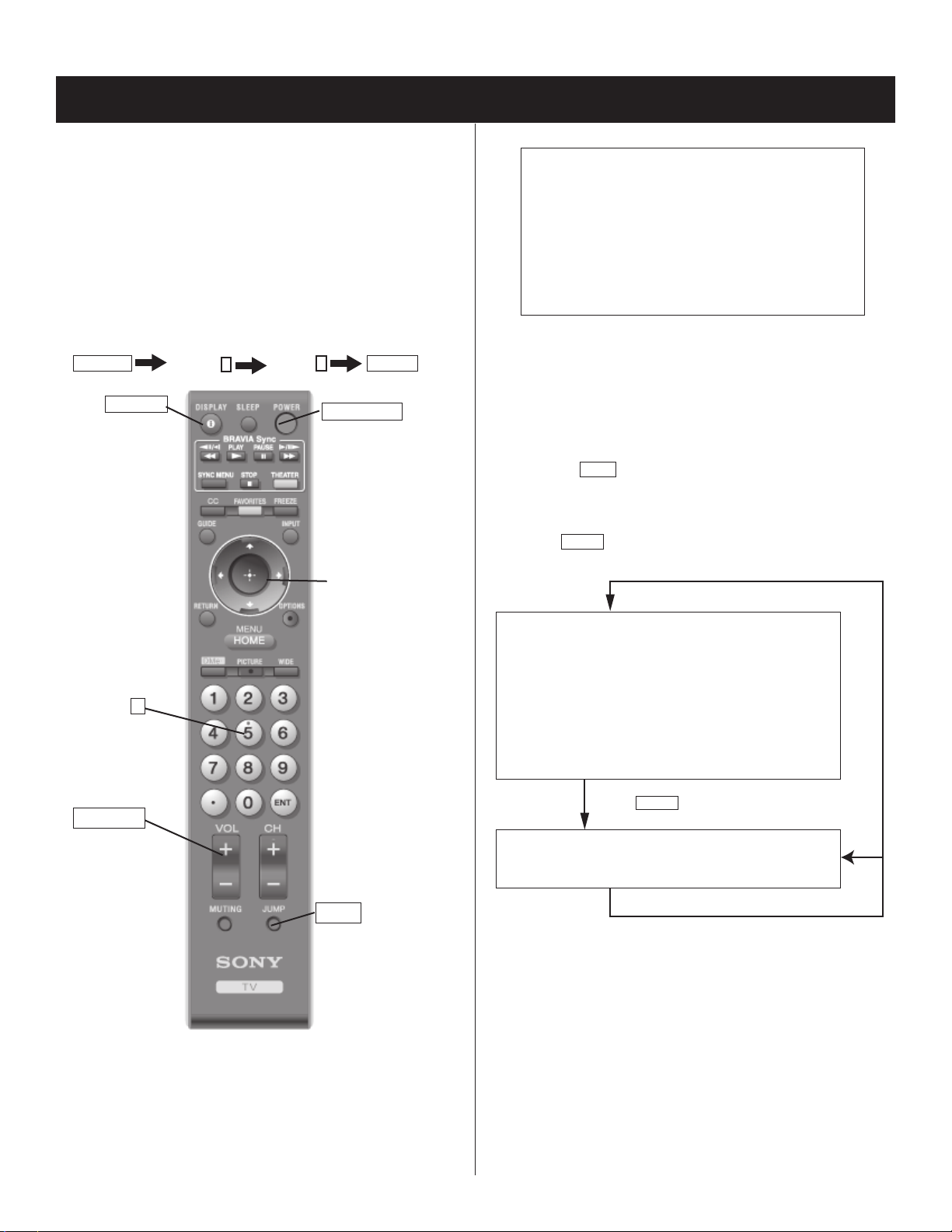

1. TV must be in standby mode. (Power off).
2. Press the following buttons on the Remote Commander within a second of each other:
DISPLAY
The Self Check list displays. This differs from accessing Service Adjustments.
Channel 5 Volume -
Diagnostic Item
Description
Main Power 2 times Power Supply Board
DC Alert 3 times
Panel Alert 5 times LCD Panel
Backlight 6 times
Temp 7 times Main Board
SP Prot 8 times Main Board
Trident IC 11 times Main Board
TCON Error 12 times LCD Panel
Backlight Balance 13 times
HFR Error 14 times LCD Panel
Number of times
STANDBY lamp
flashes
TV POWER
Possible Location
Main Board Power Supply Board
Main Board Power Supply Board Inverter Boards
LCD Panel Inverter Boards Balancer Boards (KDL-52V4100 Only)
.
Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “0”. NOTE: If the Service Menu display text is not completely visible, press the Menu
button on the Remote Commander to refresh the display.
HOME
SELF CHECK PAGE 1
002 MAIN_POWER 01 003 DC_ALERT1 00
Í 1 indicates an error was detected Í 0 indicates no error was detected
005 PANEL_ALERT 00 006 BACKLIGHT 00 013 BACKLIGHT_BALANCE 00
00001 00027 00009 00000
3. Press the Channel 1 button on the Remote Commander to go to Page 2 of the Self Check list.
SELF CHECK PAGE 2
007 TEMP 00 008 SP_PROT 00 011 TRIDENT_IC 00 012 HFR_ERROR 00
Í Displays as 12 Blinks, but is actually 14 Blinks
012 TCON_ERROR 00
00001 00027 00009 00000
ÏÏ Total Panel Hours
Ï
Ï Total Hours of Operation
Ï Ï Boot Count
4. Press the Channel
5. To exit Self Check display, turn the power off.
4
button on the Remote Commander to go back to Page 1 of the Self Check list.
Clearing the Self Check Diagnostic List
1. In Service Mode, press the Channel 8 Channel 0.
KDL-52V4100/52W4100/52WL140
12

1-1. REAR COVER REMOVAL

1
Remove 2 screws from Terminal Position
2
Remove 6 screws
3
Remove 21 screws
KDL-52V4100/52W4100/52WL140

SECTION 1: DISASSEMBLY

Rear Cover
1
3

1-2. SWITCH UNIT REMOVAL (CONTAINS H1 BOARD)

1
Remove Switch Unit from bezel (Contains H1 Board)
2
Disconnect 1 connector
Switch Unit (Contains the H1 Board)
1
2
2
Bezel
KDL-52V4100/52W4100/52WL140
13

1-3. SIDE JACK BRACKET, BU SHIELD AND BU BOARD REMOVAL

1
Release hook and slide out Side Jack Bracket from BU Board
2
Remove 2 HEX screws
3
Disconnect 5 connectors
4
Remove 9 screws
Main Bracket
1
BU Board
Side Jack Bracket
BU Shield
2
KDL-52V4100/52W4100/52WL140
4
3

1-4. G5 BOARD (POWER UNIT) AND D4Z BOARD, AND D5 BOARD REMOVAL

1
Disconnect 3 connectors
2
Remove 4 screws
3
Disconnect 6 connectors (KDL-52V4100 ONLY)
Disconnect 7 connectors (KDL-52W4100/52WL140 ONLY)
4
Remove 6 screws
5
Release 5 Board Holders
6
Disconnect 5 connectors
7
Remove 4 screws
1
2
D5 Board
KDL-52V4100/52W4100/52WL140
3
4
5
6
G5 Board (Power Unit)
D4Z Board
7
14

1-5. TABLE-TOP STAND AND UNDER COVER REMOVAL

1
Remove 4 screws
2
Remove 1 screw
Under Cover
1
KDL-52V4100/52W4100/52WL140
Table-Top Stand Assembly
2

1-6. AC INLET REMOVAL

1
Remove 2 screws
2
Remove 1 screw
AC Bracket
2
AC Inlet
1
Bottom Bracket
KDL-52V4100/52W4100/52WL140
15

1-7. STRUCTURAL FRAMES AND BRACKETS REMOVAL

KDL-52V4100/52W4100/52WL140
1
Remove 1 screw from D5 Support and
LCD Panel
2
Remove 1 screw from D5 Support
Frame
3
Remove 1 screw from Main Bracket and
Bezel
4
Remove 3 screws from Main Bracket
and Spine frame
5
Remove 2 screws from Top Vesa
Bracket
6
Remove 2 screws from G Board Support
7
Remove 2 screws from Center Frame
8
Remove 2 screws from Spine Frames
and Bottom Bracket
9
Remove 8 screws from Spine Frames
10
Remove 2 screws from Spine Frames
and Bezel
11
Remove 4 screws from both Bottom
Vesa Brackets
12
Remove 4 screws from Bottom Bracket
2
D5 Support
Frame
1
Spine Frame
4
3
Center
Frame
10
Main Bracket
6
9
Top Vesa Bracket
5
G Board Suport
8
7
Bottom Vesa Bracket
11
12
Bottom Bracket
1-8. SPEAKERS, UNDER BAR, H3E BOARD, H4 BOARD,
AND LIGHT GUIDE REMOVAL
1
Slide out Speaker (L) unit from Bezel
2
Slide out Speaker (R) unit from Bezel
3
Remove 2 screws from Under Bar
4
Disconnect 1 connector and Slide out
H3E Board from Clear Panel
5
Release hooks and remove from Bezel
6
Remove 1screw and Release hooks from
Clear Panel
7
Disconnect 1 connector and Slide out H4
Board from Light Guide
8
Disconnect 1 connector and
Remove Illumination Module from Bezel. (KDL-52W4100/52WL140 ONLY)
Speaker Unit (L)
1
8
6
7
Illumination
Module
Bezel
3
Under Bar
4
H3E Board
5
Clear Panel
Light Guide
H4 Board
2
Speaker Unit (R)
KDL-52V4100/52W4100/52WL140
Bezel
16

1-9. LCD PANEL REMOVAL

NOTE: The LVDS cable can only be installed one way. There is colored tape on the cable to determine which side is attached to the TCON and which side is attached to the BU Board. Refer to Wire Dressing Illustration on Page 32 for KDL-52V4100 models or Page 50 for KDL-52W4100 & KDL-52WL140 models.
1
Remove 3 screws to detach Heat Sink from LCD Panel (KDL-52W4100 & KDL-52WL140 models only)
2
Gently remove Radiation Sheet (Heat Transfer Pad) (KDL-52W4100 & KDL-52WL140 models only)
CAUTION: The Heat Sink and Radiation Sheet are NOT included on LCD Panel.
For LCD Panel replacement you can reuse the heat sink, but you must replace the radiation sheet.
3
Disconnect 3 connectors
4
Remove 2 screws
1
KDL-52V4100/52W4100/52WL140
3
4
LCD Panel
Heat Sink
Radiation Sheet (Heat Transfer Pad)
2

1-9-1. CLEANING THE LCD PANEL

CAUTION: When cleaning the TV, be sure to unplug the power cord to avoid any chance of electric shock.
1
Clean the cabinet of the TV with a dry soft cloth.
2
Wipe the LCD screen gently with a soft cloth.
Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.
If using a chemically pretreated cloth, please follow the instruction provided on the package.
Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
Bezel
KDL-52V4100/52W4100/52WL140
17

1-10. BALANCER (ETC-INVERTER MT) BOARD REMOVAL

1
Remove 7 screws from each Inverter Cover
2
Pull out the Balancer board from the Lamp Socket.
KDL-52V4100/52W4100/52WL140
Balancer Board
LCD Panel
Shield
1
WARNING
NEVER REMOVE THE SCREWS SECURING THE PLASTIC STRIP HOLDING
THE LAMP SOCKETS
DAMAGE TO TH E
BACKLIGHT TUBES WILL
OCC UR!
2
1
!
.
SHIELD REMOVAL
KDL-52V4100/52W4100/52WL140
REMOVE SCREWS
SECURING
SHIELD
END VIEW
SOCKET
BACKLIGHT
REMOVE
CONNECTORS AND
PULL BOARDS TO
THE RIGHT
BALANCER (ETC-INVERTER) BOARD REMOVAL
Only remove the screws securing the inverter cover which may be metal or plastic. The remaining plastic strip contains sockets for the fluorescent backlights and should never be loosened. The backlights will pop out of the sockets and/or break the backlight requiring a LCD panel replacement.
18

WIRE DRESSING

KDL-52V4100/52W4100/52WL140

KDL-52V4100 ONLY

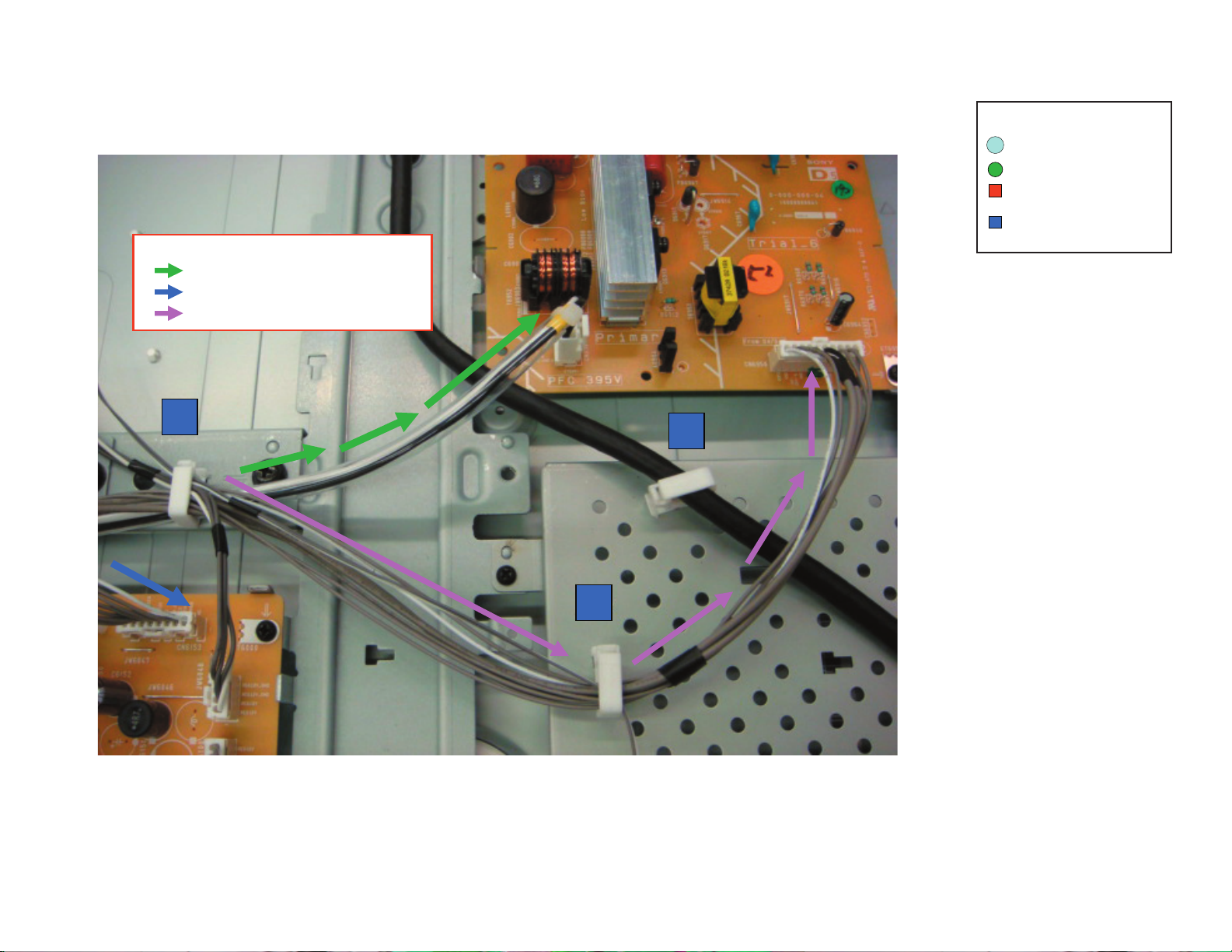

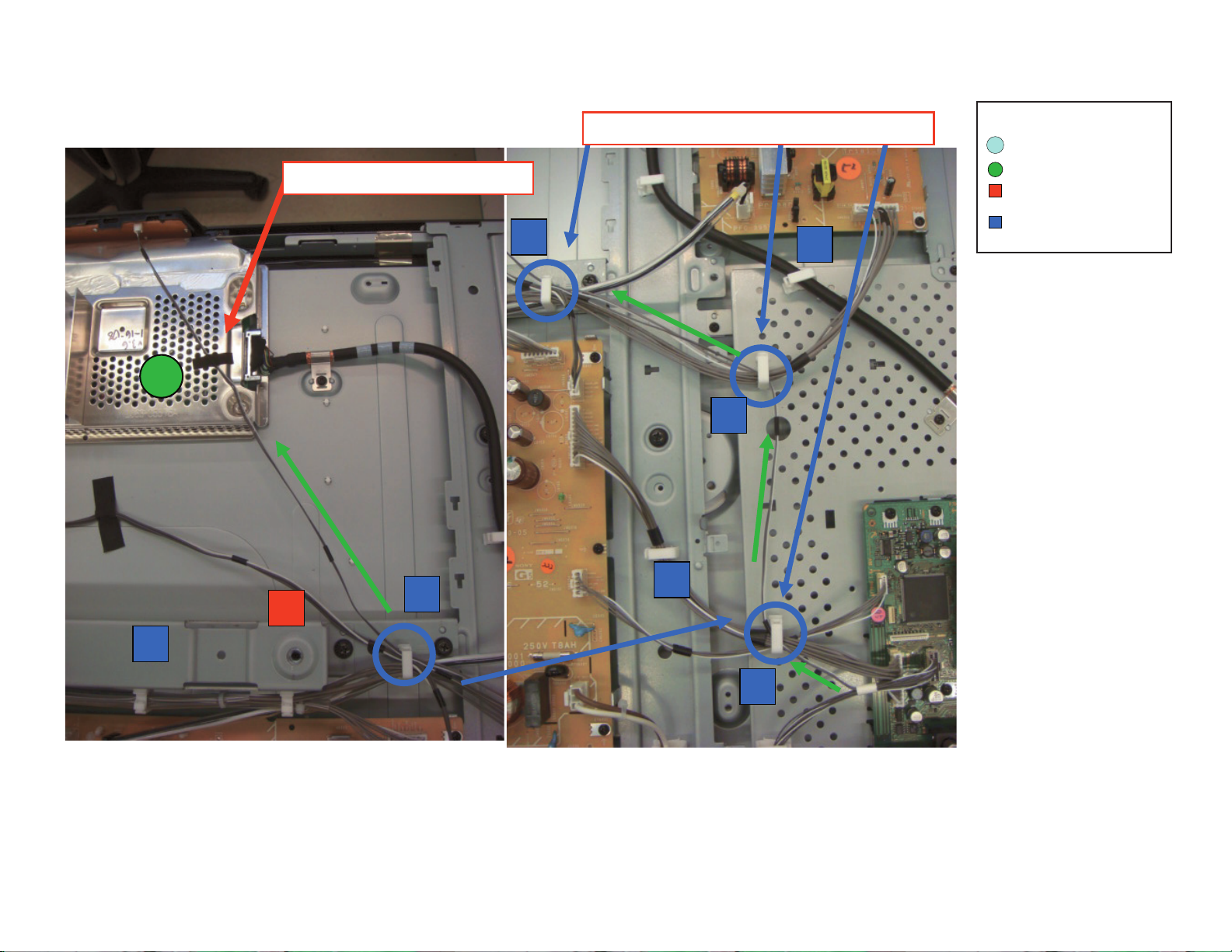

H Boards/Speaker Harness
Apply Sheet Core C over RED UL tape once harness is centered over panel.
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
KDL-52V4100/52W4100/52WL140

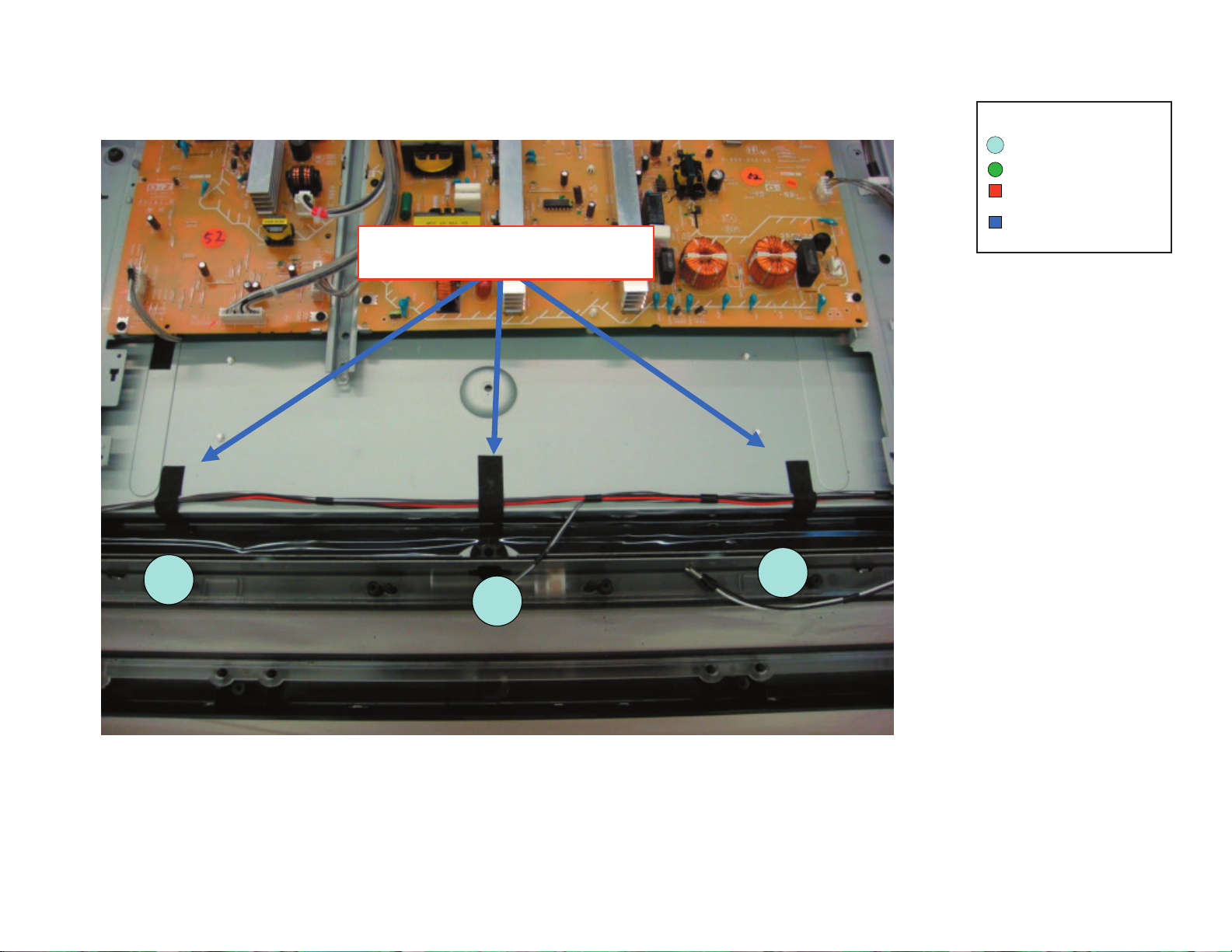

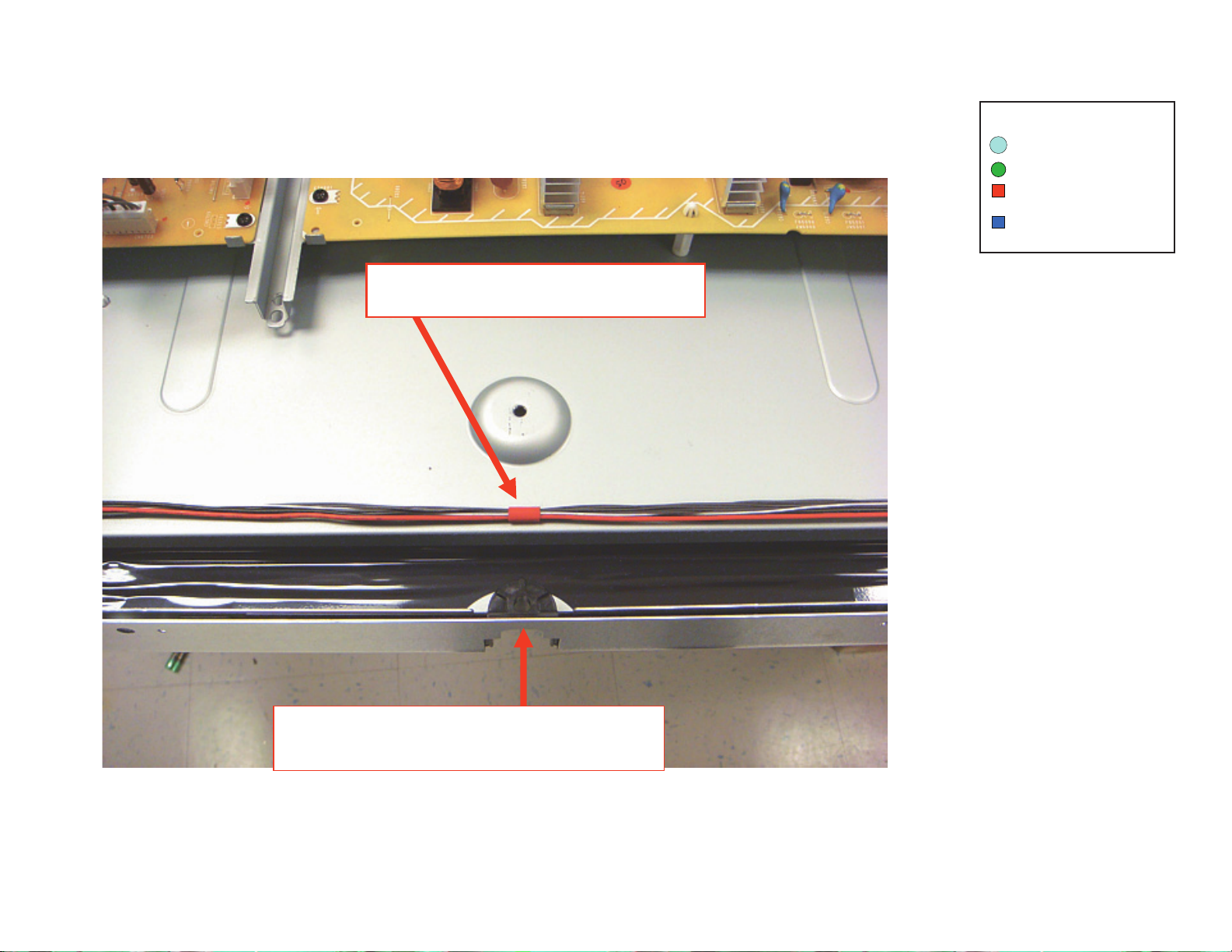

Center RED UL tape on the harness to the Center of the panel. Use Plastic Boss and “dimple” as guides where center of panel is.
19
KDL-52V4100 ONLY

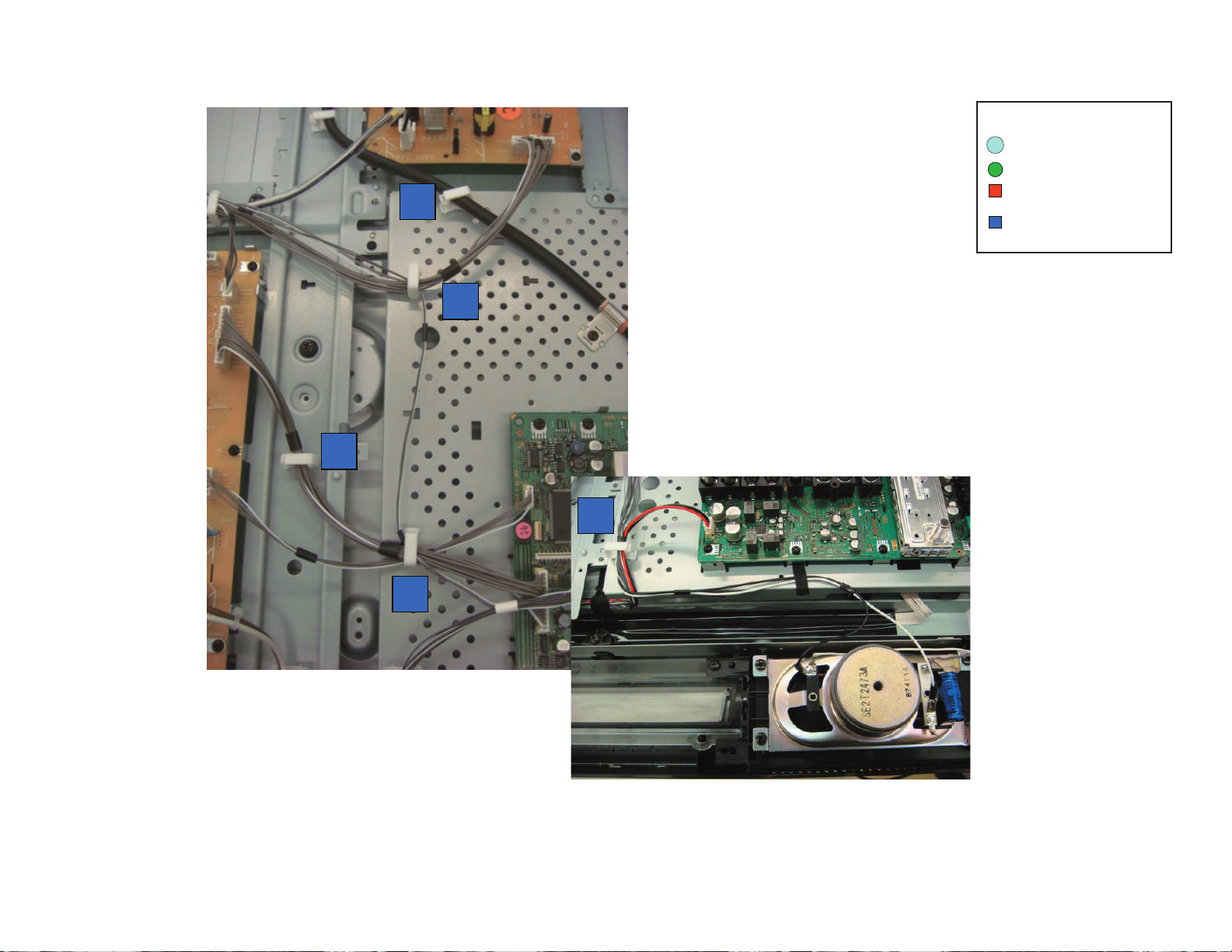

H Boards/Speaker Harness

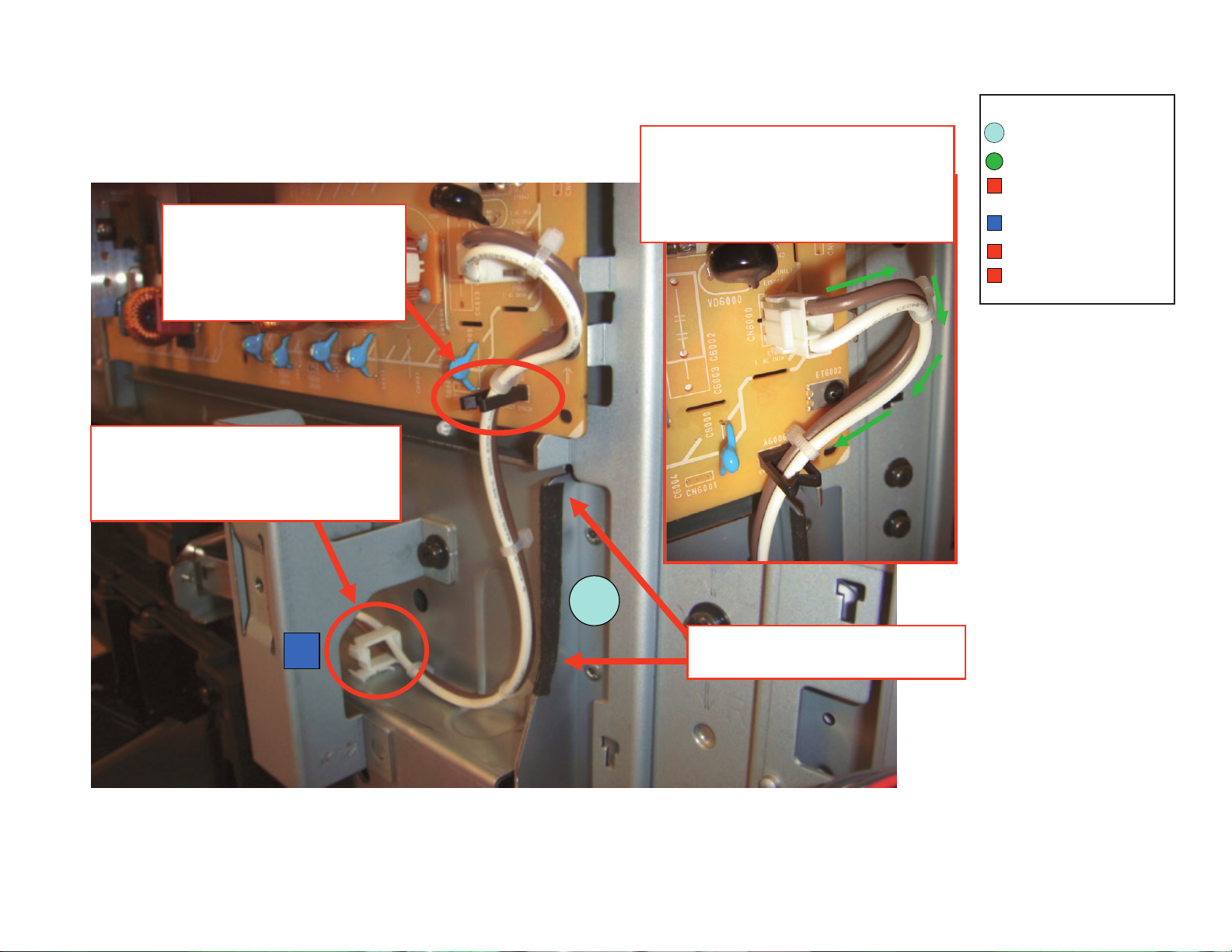

Apply Sheet Core C over UL tape as shown.
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
1
KDL-52V4100/52W4100/52WL140
3
2
20
KDL-52V4100 ONLY

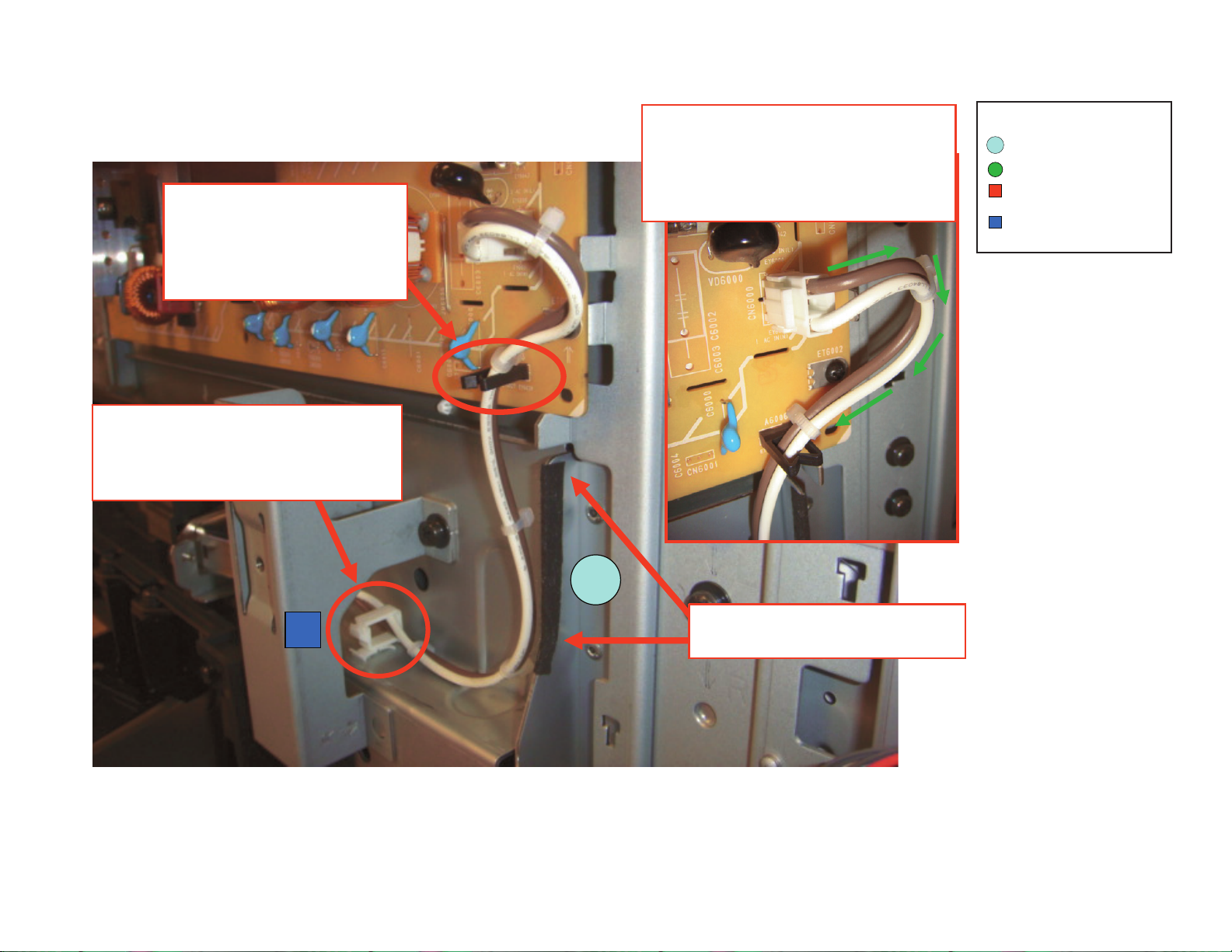

Combination H Boards/Speaker Harness

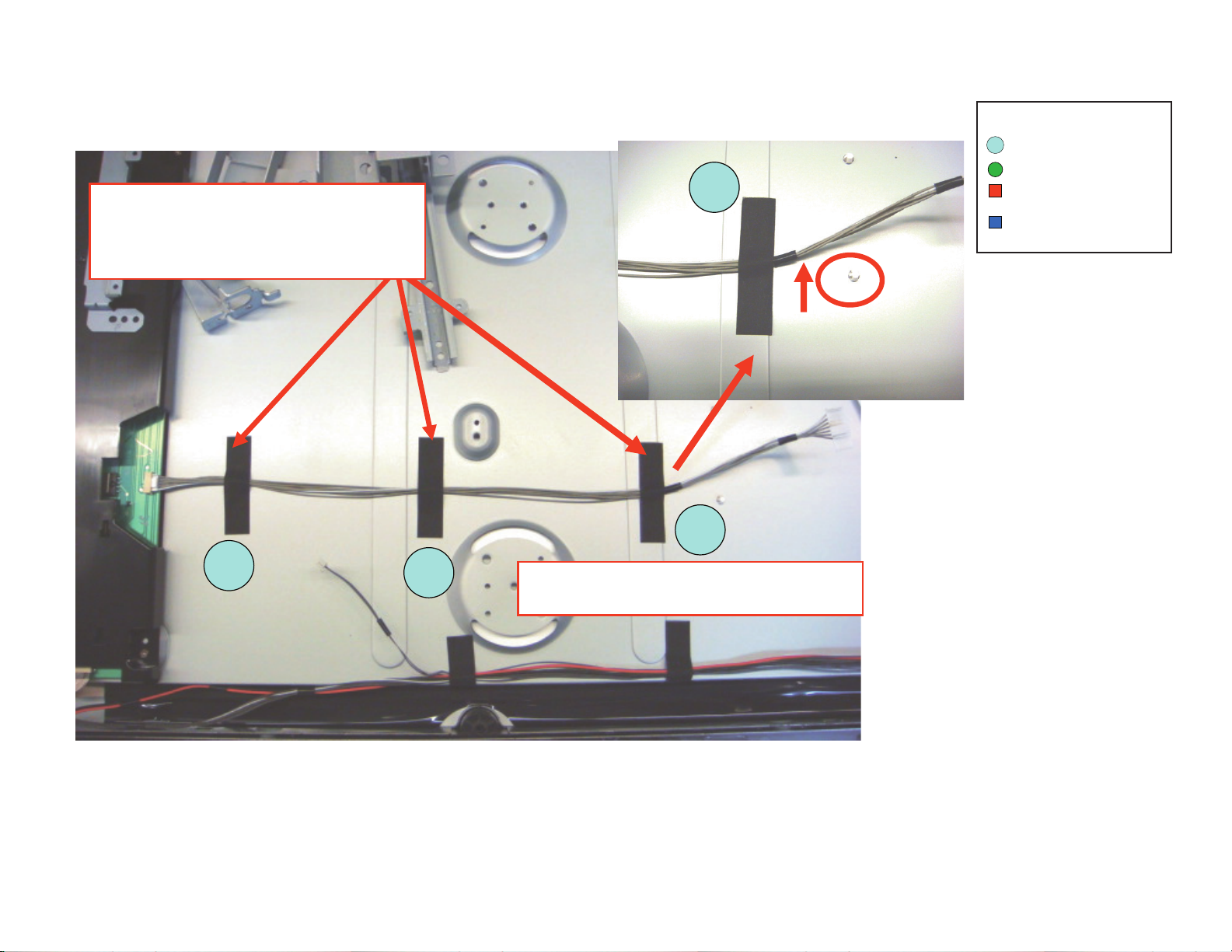

Detail of where to align LCD Tape. Center tape over Cut-out on side of panel edge
Apply Sheet Core C over BLACK UL TAPE on Harness Assy.
4
Apply LCD TAPE over panel sharp edge.
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
KDL-52V4100/52W4100/52WL140
1
2
21
KDL-52V4100 ONLY
Combination H Boards/Speaker Harness

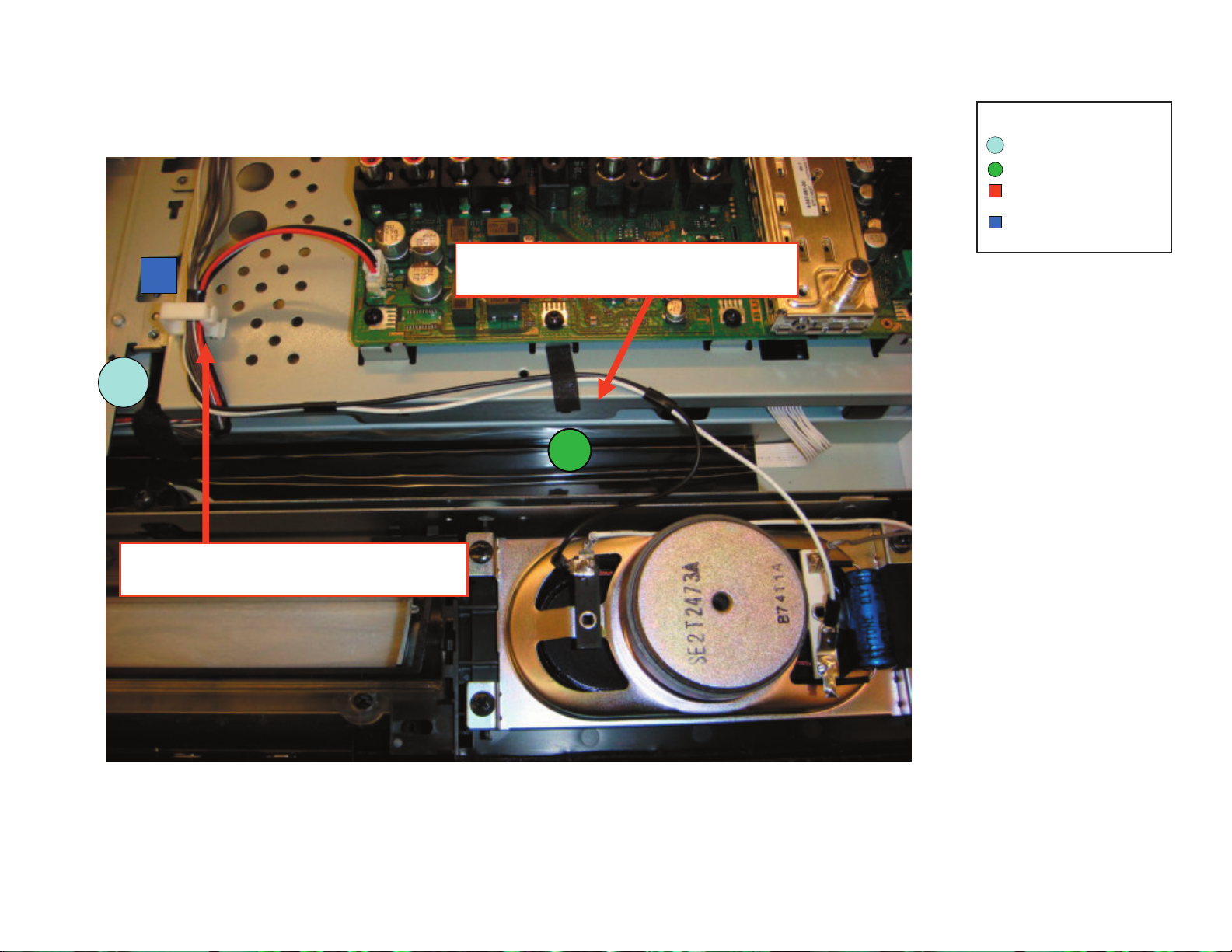

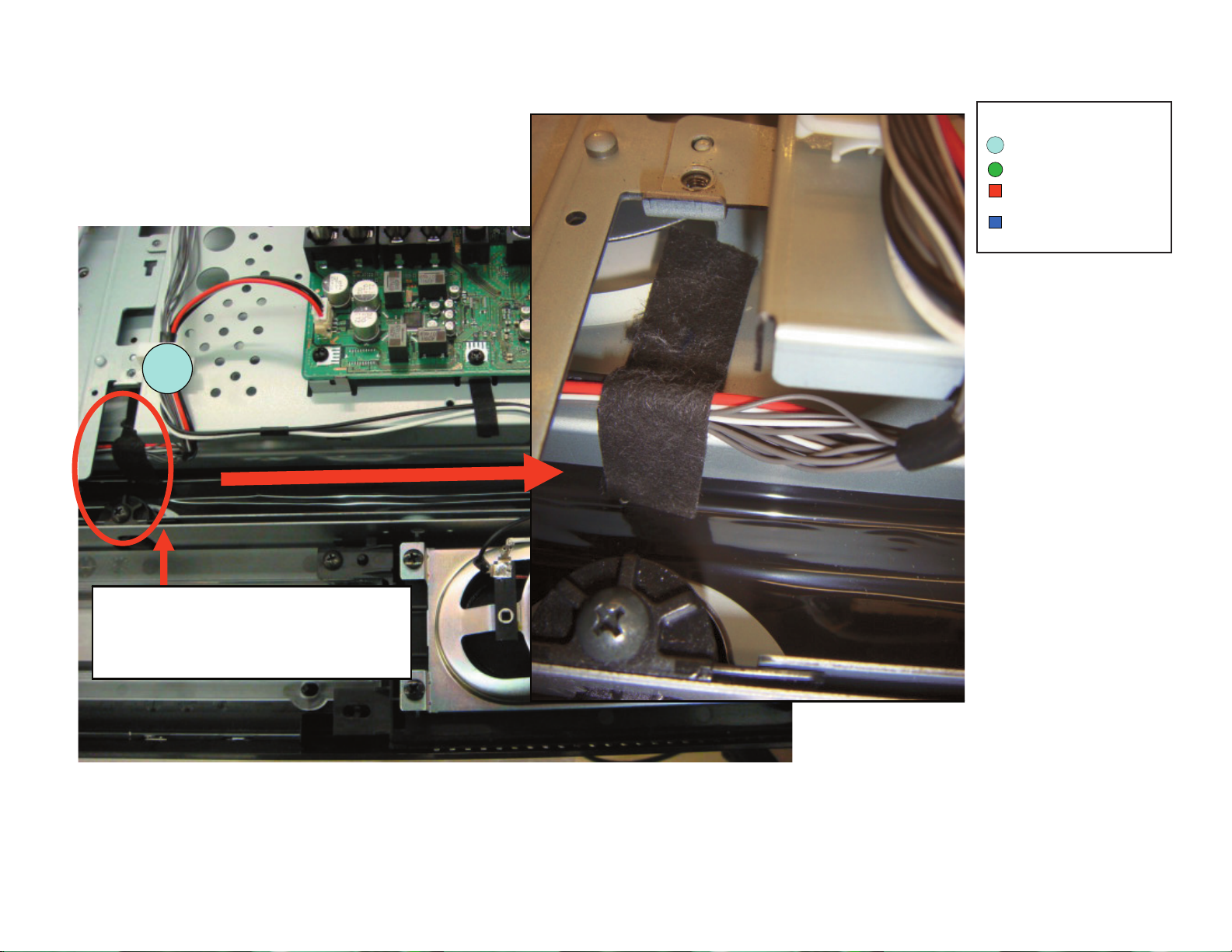

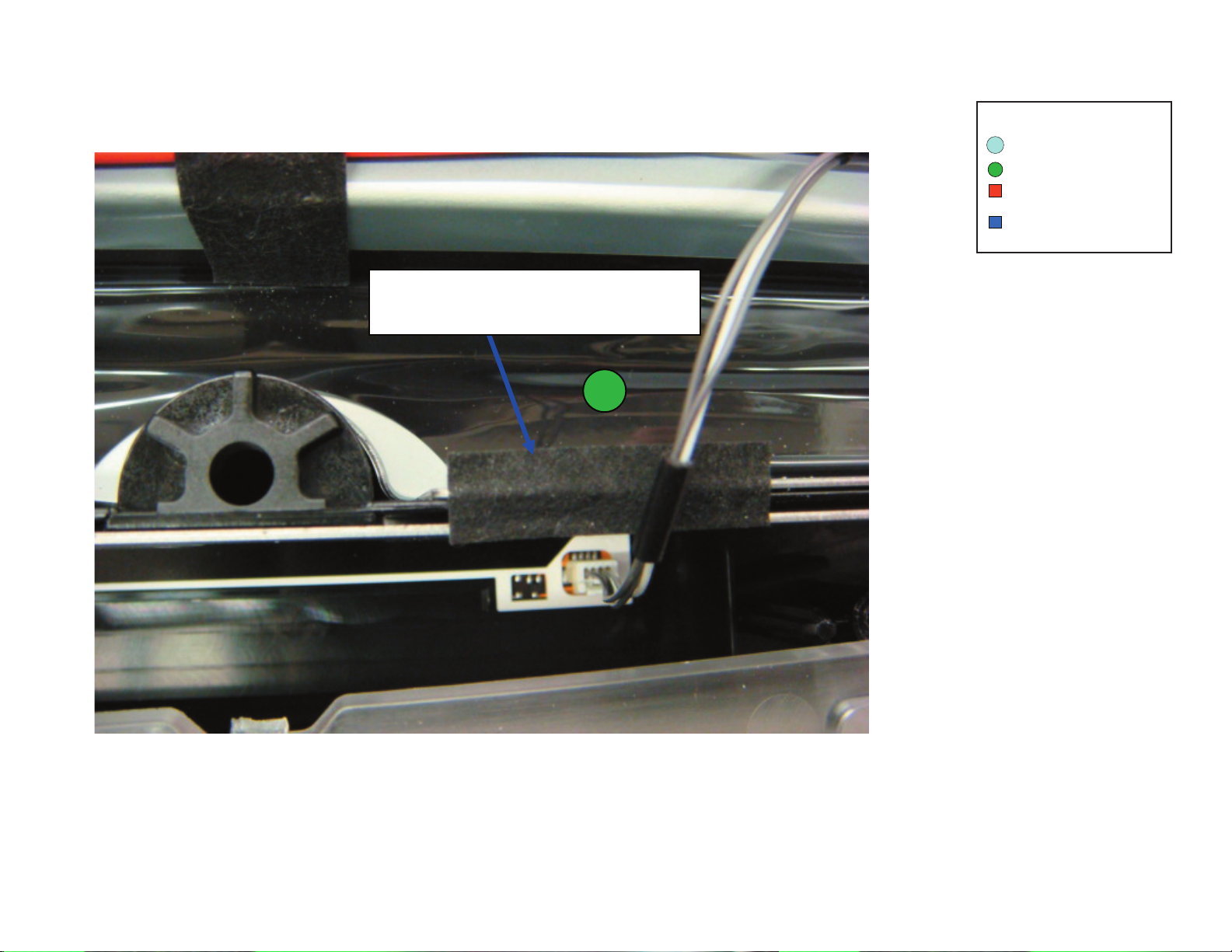

NOTE routing of H3E Board wires. BE CAREFUL of Pinch Points (circled in RED)
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
KDL-52V4100/52W4100/52WL140
22
KDL-52V4100 ONLY

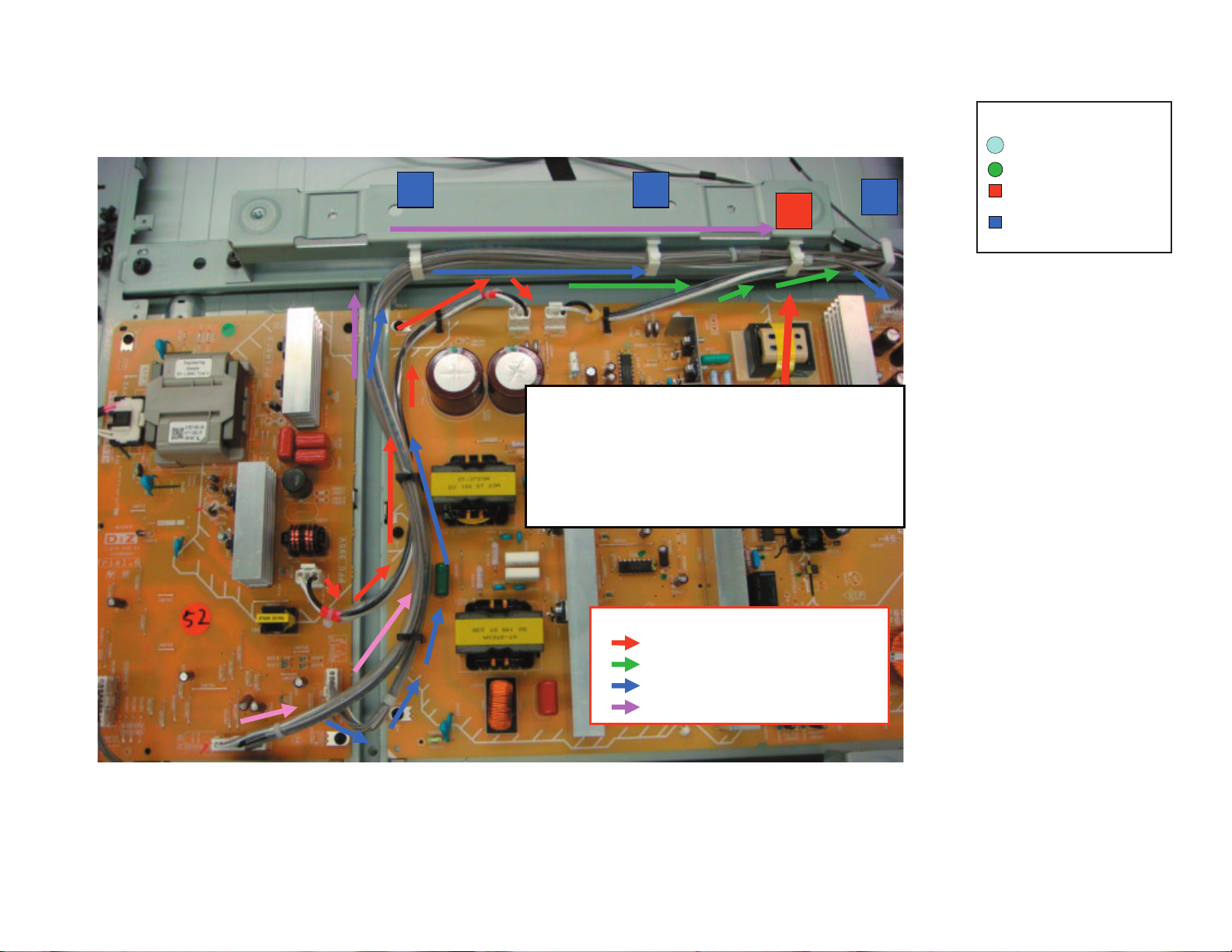

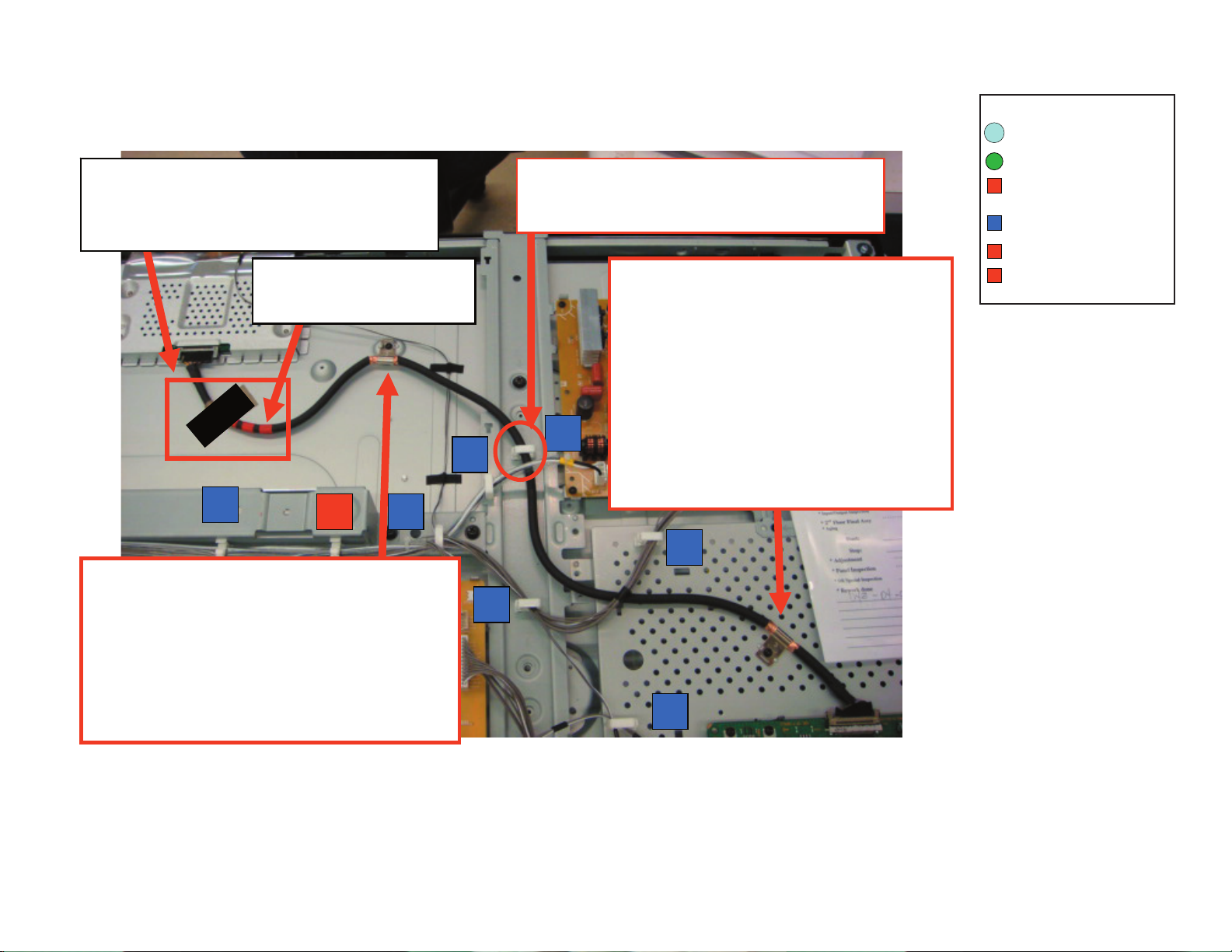

Balancer Board to D4Z Board 9P Conn Assy.
Apply x3 Sheet Core C himelon tape as shown. Use BLACK UL TAPE on the connector assy as guide where To place himelon tape.
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
5
KDL-52V4100/52W4100/52WL140
6
7

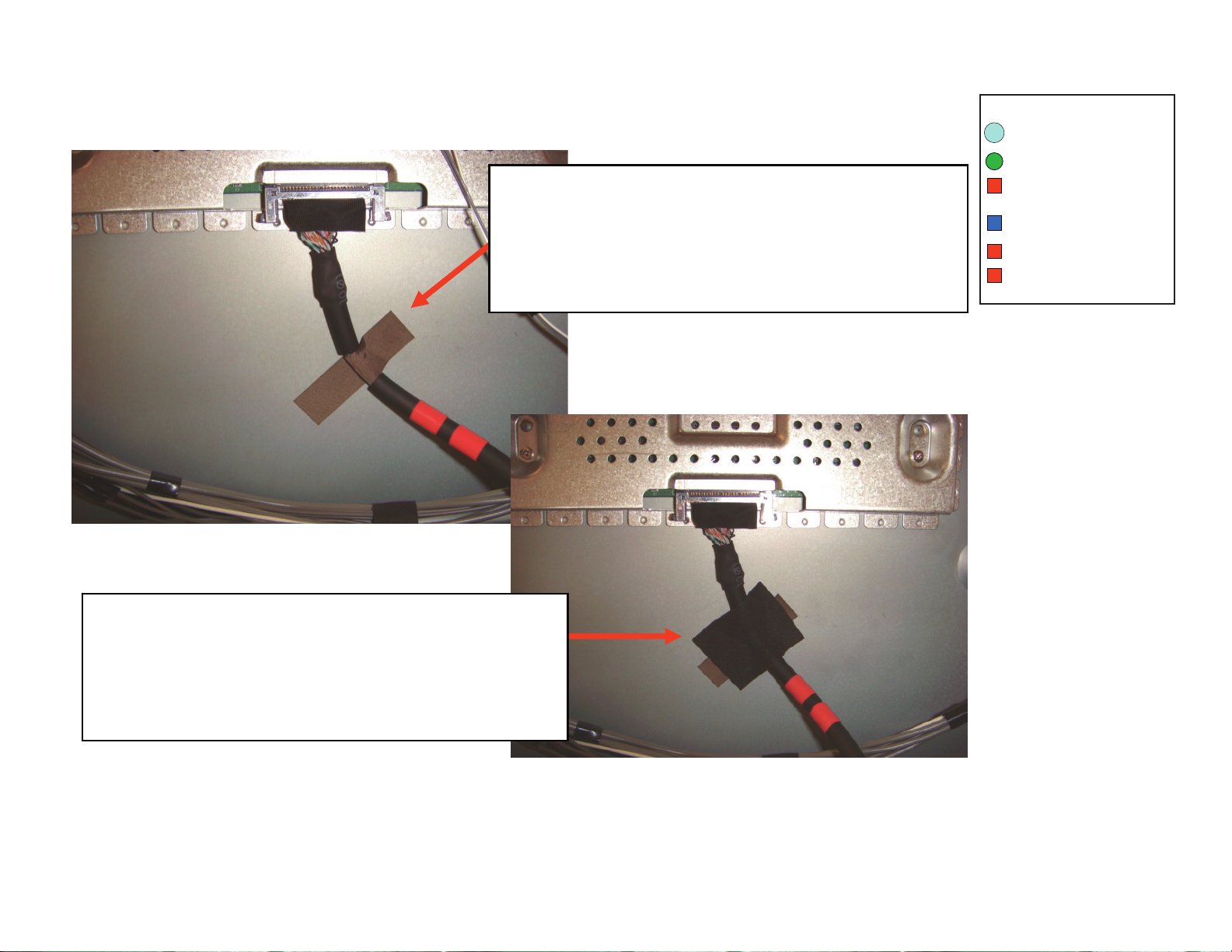

NOTE DETAIL PHOTO of Conn Assy. Wire are ABOVE plastic CLIP on panel.
23
KDL-52V4100 ONLY
Panel Balancer Board Conn Assy. Detail
7
Use Plastic Pin as guide for Black UL Tape position. Wires CANNOT be below level of this Plastic pin (pinch point). Apply Sheet Core C to secure wires.
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
With Lower LCD Bracket installed, Wires will be clear of metal edge as shown if Black UL Tape is Aligned with white plastic pin (as shown)
KDL-52V4100/52W4100/52WL140
24
KDL-52V4100 ONLY
LEFT Speaker Harness
8
Apply LCD Tape to Left Speaker wires. NO NEED to put LCD Tape on Speaker
3
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
Dress Speaker wires and Main Harness In Sheet Core C
KDL-52V4100/52W4100/52WL140
25
KDL-52V4100 ONLY
BU Board Bracket
9
10
2
11
3
1
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
KDL-52V4100/52W4100/52WL140
Side Clamps to hold main harness, D5 and G5 harness
4
5
26
KDL-52V4100 ONLY
BU Board Bracket- II
4
9
3
5
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
KDL-52V4100/52W4100/52WL140
8
27
KDL-52V4100 ONLY
Balancer Board Wire Dressing
D4Z
NEW Hirose MDF-61 Connector on both balancer boards.
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
PANEL Balancer-L
10
Board
6
PANEL Balancer-R
D5 Board
KDL-52V4100/52W4100/52WL140
28
KDL-52V4100 ONLY
INSTALLATION PROCEDURE FOR MDF-61 CONNECTOR
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
STEP1: ALIGN CONNECTOR
STEP4: PULL LOCK BLACK LOCK TAB IN DIRECTION INDICATED ON PWB TO LOCK CONNECTOR.
STEP2: INSTALL CONNECTOR
“HRS” LOGO WILL BE VISIBLE WHEN CONNECTOR IS PROPERLY LOCKED.
STEP3: PUSH DOWN ON BLACK LOCK TAB TO SEAT CONNECTOR. WHEN CONNECTOR IS SEATED IT WILL “CLICK” INTO PLACE.
KDL-52V4100/52W4100/52WL140
29
KDL-52V4100 ONLY

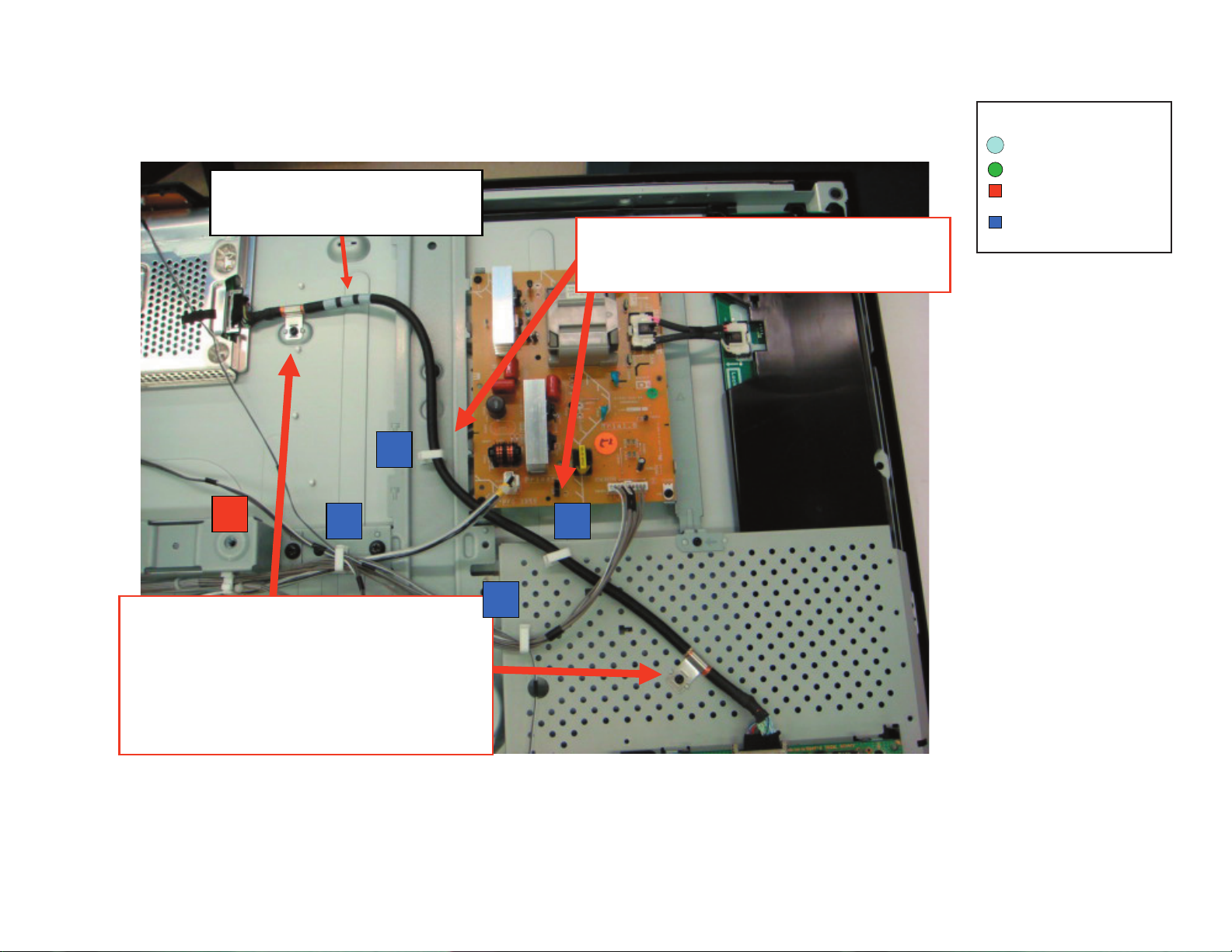

D4Z/D5 & G5 Board Wire Routing
NOTE:
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
11
10
187
9
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
2
KDL-52V4100/52W4100/52WL140
Slide Clamp on end of Upper VESA Support is -01 (larger size). Color of clamp is Black.
(White clamp is shown only as Reference).
ARROW COLOR CODE
D4Z to G5 (3P-RED UL) G5 to D5 (3P-YELLOW UL) D4Z to G5 (8P) D4Z to D5 (10P)
4
30
KDL-52V4100 ONLY
Switch Unit Routing/Dressing
6
5
9
4
2
KDL-52V4100/52W4100/52WL140
LEGEND
SHEET CORE C (2-688-011-01)
QTY=11
LCD TAPE (2-688-062-01)
QTY=6
SLIDE CLAMP (2-650-770-01)
QTY=1 (UPPER VESA
SUPPORT)
SLIDE CLAMP (2-650-770-11)
QTY=12
CHO-FAB TAPE (2-888-494-01)
QTY=1
HIMELON TAPE (2-661-260-01)
QTY=1
4
Apply Tape, LCD (3 Places) as shown.
Apply Slide Clamp (4 Places) as shown.
3
5
KDL-52V4100/52W4100/52WL140
31
Loading...
+ 81 hidden pages
