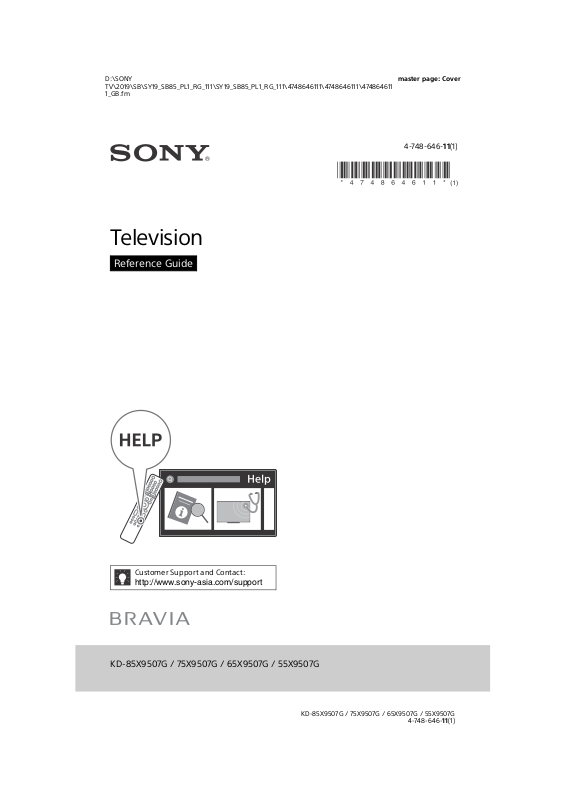

Sony KD-55X9507G Users guide

Television
Reference Guide
4-748-646-11(1)
Customer Support and Contact:
http://www.sony-asia.com/support
To attach the Table-Top Stand, refer to the Setup Guide.
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . .2
Parts and Controls . . . . . . . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . . 4
Using Remote Control . . . . . . . . . . . . . . . . 5
Remote Control Parts Description. . . . . . . . . 5
Connection Diagram . . . . . . . . . . . . . . . . . 7
Installing the TV to the Wall . . . . . . . . . . . 9
Using the optional Wall-Mount Bracket . . . .9
Troubleshooting. . . . . . . . . . . . . . . . . . . . 10
Troubles and Solutions. . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . .11
Introduction
Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and
in it fo r futu re refere nce.
reta
Note
• Before operating the TV, please read the “Safety Information” (page 2).
• Read the supplied Safety Information fo information.
• Instructions about “Installing the TV to the Wall” are included
n this TV’s instruction manual.
withi
• Images and illustrations used in the Setup Guide and this
e for reference only and may differ from the actual
manual ar product.
r additional safety
Help
Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.
Help Guide (Manual)
For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

Safety Information

Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC power outlet (mains socket).
• Place the TV set on a stable, level surface to prevent it from
er and causing personal injury or property damage.
falling ov
• Install the TV where it cannot be pu over.
• Install the TV so that the TV’s Table-Top Stand does not protrude out from the protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.
TV stand (not supplied). If the Table-Top Stand
lled, pushed, or knocked
• Only qualified service personnel should carry out wall-mount
ions.
installat
• For safety reasons, it is strongly recommended that you use
accessories, including:
Sony Wall-Mount Bracket SU-WL450
GB
2
• Be sure to use the screws supplied with the Wall-Mount Bracket
Screw (M6)
Wall-Mount Bracket
TV’s rear cov er
8 mm – 12 mm
8 mm – 12 mm
M6 screw (not
supplied)
Screw (not
supplied)
Cord (not supplied)
1.5 N·m {15 kgf·cm}
when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the
all-M
ount Bracket model.
W Use of screws other than those supplied may result in internal
o the TV set or cause it to fall, etc.
damage t
Tran spo rti ng
• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85X9507G) ded to transport a large TV set.
are nee
• When transporting the TV set by hand, hold it as shown below.
put stress on the LCD panel and the frame around the
Do not screen.
KD-85X9507G
Topple prevention
KD-75/65/55X9507G
• When transporting the TV set, do not subject it to jolts or
excess
ive vib ration.
• When transporting the TV set for repairs or when moving, pack
it using th
e original carton and packing material.
This receiver complies with the minimum requirements as specified in National Telecommunications Commission, Memorandum Circular 02-03-2016, Regarding the Sale and Labeling of ISDB-T Receivers, including Memorandum Circular No. 01-0302017, Amending Certain Provisions of Section 2 of NTC Memorandum Circular No. 02-03-2016 (Sale and Labeling of ISDB-T Receivers).
GB
3

Parts and Controls

ȬȫȪȩ

Controls and Indicators

 (Power) /+/–
When the TV is off,
Press to power on.
When the TV is on,
Press and hold to power off. Press repeatedly to change the function, then press + or – button to:
•Adjust the volume.
• Select the channel.
• Select the input source of TV.
Remote Control sensor*1 / Light
sensor*
1
/ Illumination LED
The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.
Built-in MIC*2*
3
Use the hands-free built-in microphone for voice search. To enable the built-in MIC, follow the on-screen instructions when you press the button.
Built-in MIC LED
The built-in MIC LED lights up in amber when the built-in MIC is enabled. The built-in MIC LED can be disabled.*
3
*1 Do not place anything near the sensor. *2 The voice search requires an Internet connection.
The voic
e search with the built-in MIC is available only on limited region/country/language. Standby power consumption will increase because the
built-in MIC is always listening when the voice
search with the built-in MIC is enabled.
*3 For more information, see the Online Help Guide
(p
age 2).
GB
4

Using Remote Control

MIC
Ȫ
ȫ
Ȭ
ȭ
Ȯ
ȩ

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.
(Microphone)
Use voice search*. (e.g., Search various content by voice.)
//// (Navigation D-Pad)
On screen menu navigation and
election
.
s
 (TV standby)
Turn on or turn off the TV (standby mode).
Number buttons
Use with the 0-9 buttons to select digital channels.
(Text)
Display text information.
Google Play
Access the “Google Play” online service.
TV
Switch to a TV chann display the TV menu.
* The voice search requires an Internet connection.
el or input and
NETFLIX (Only on limited region/ country/TV model)
Access the “NETFLIX” online service.
Color buttons
Execute corresponding function at that time.
GUIDE/
Display the digital program guide.
APPS
Display a list of installed apps.
GB
5
(Input select)
Display and select the input source, etc.
(Quick settings)
Display Quick Settings.
BACK
Return to the previous screen.
HOME
Display the TV Home Menu.
 +/– (Volume)
Adjust the volume.
(Jump)
Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.
(Mute)
Mute the sound. Press again to restore the sound.
Hint
• The accessibility shortcut service can be turned
on or off by pressing and holding .
CH +/–//
In TV mode: Select the channel. In Text mode: Select the next () or previous () page.
AUDIO
Select the sound of multilingual source or dual sound for the program currently being viewed (depend on program source).
(Subtitle setting)
Turn subtitles on or off (when the feature is available).
HELP
Display the Help menu. Help Guide can be accessed from here.
///
Operate media contents on the TV and connected BRAVIA Sync-compatible device.
EXIT
Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.
/ (Info/Text reveal)
Display information.
GB
6

Connection Diagram

Ȭ
ȩ
Ȫ
ȫ
Ȭ
ȫ
<
Digital still camera/ Camcorder/USB storage media
Digital still camera/ Camcorder/USB storage media
VCR/Video game equipment/DVD player/ Camcorder
Audio System with eARC/ ARC/ HDMI Device
HDMI Device
Cable/ Antenna
Router Audio System
with Optical Audio Input
HDMI Device
HDMI Device
Headphone
14 mm
For more information on connections, refer to the Help Guide by pressing HELP on the remote control.
GB
7
/ VIDEO IN
3214
3.5 mm
1: L 2: Video 3: Ground 4: R
<
<
12 mm
21 mm
• For a composite connection, use an Analog Extension Cable (not supplied).
 (Headphone)
• Supports 3-pole stereo mini jack only.
• You cannot output sound from both the headphone and the TV speakers at the same time.
USB 1/2, USB 3
• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
HDMI IN 1/2/3/4
• HDMI interface can transfer the digital video and audio on a single cable.
HDMI IN 3 eARC/ARC (Enhanced Audio
Return Channel/Audio Return Channel)
Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
• Use the HDMI cable with Ethernet to connect audio system with eARC.
• To enjoy high quality 4K 50p/60p tents, connect a Premium High Speed
con HDMI cable and set the [HDMI signal format] to [Enhanced format]. Do this setting individually
for each connected HDMI IN terminal. For details of supported formats, refer to the “Specifications” in this manual (page 11-12).
GB
8

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
For instructions on Wall-Mount Bracket installat product page for your TV model. http://www.sony-asia.com/support
ion, see the Installation Information (Wall-Mount Bracket) on the
Remove the screws from the rear of the TV.
GB
9

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.
1 Restart your TV by pressing the power button
on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the AC power cord (mains lead). Then press the power button on the TV and wait for two minutes, and plug in the AC power cord (mains lead).
2 Refer to the Help menu by pressing HELP on
the remote control.
3 Connect your TV to the Internet and perform
a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information
provided on the front cover of this manual).
When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.
It takes time to initialize the system. Wait for about one minute, then operate it again.
The parental lock for broadcast password has been forgotten.
• Enter 4357 for the password and select [Change password].
The TV surrounds become warm.
• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.

Troubles and Solutions

When the illumination LED is flashing in red.
• Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the AC power cor
d (mains lead) until the illumination LED stopped flashing in red, then turn on the TV. If the problem persists, disconnect the AC power
d (mains lead), and contact your dealer or Sony
cor service center with the number of times the illumination LED flashes.
There is no picture (screen is dark) and no sound.
• Check the antenna/cable connection.
• Connect the TV to the AC p press the power button on the TV or the remote control.
Some programs cannot be tuned.
• Check the antenna/cable connection.
The remote control does not function.
• Replace the batteries.
GB
10
ower (mains), and

Specifications

System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Analog: M Digital: ISDB-T
Color system
NTSC/PAL N (Video only)/PAL M (Video only)
Channel coverage
Analog: UHF/VHF/Cable Digital: UHF/VHF
Sound output
10 W + 10 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n Bluetooth Version 4.2
Input/Output jacks
Antenna/cable
75 ohm external terminal for VHF/UHF
/ VIDEO IN
Video/Audio input (mini jack)
HDMI IN 1/2/3/4 (support 4K resolution, HDCP
2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)*
1
(24 Hz)*
, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 6
0 Hz), 720/24p, 576p, 480p, PC Formats*
Audio:
In eARC (Enhanced Audio Return Channel)
4
mode*
Refer to the Help Guide for details.
Except eARC mode
5.1 channel linear PCM: 32/44.1/48/88.2/96/
176.4/
192 kHz 16/20/24 bits, Dolby Digital,
Dolby Digital Plus, DTS
eARC/ARC (Enhanced Audio Return Channel/ Audio Return Channel) (HDMI IN 3 only)
In eARC mode*
Refer to the Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Do
4
lby Digital Plus, DTS
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)
(Stereo mini jack)
Headphone
1*2
, 4096 × 2160p
1, 2, 3
USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Gen 1)
LAN
10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)
Others
Optional accessories
Wall-Mount Bracket: SU-WL450
Operating temperature
0 ºC – 40 ºC
Power and others
Power requirements
110 V – 240 V AC, 50/60 Hz
Screen size (measured diagonally) (Approx.)
KD-85X9507G: 85 inches / 214.8 cm KD-75X9507G: 75 inches / 189.3 cm KD-65X9507G: 65 KD-55X9507G: 55 inches / 138.8 cm
inches / 163.9 cm
Power consumption
KD-85X9507G: 417 W KD-75X9507G: 350 W KD-65X9507G: 292 W KD-55X9507G: 235 W
Standby power consumption*5*
0.5 W
Display resolution
3
3,840 pixels (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1/2
5 V , 500 mA MAX
USB 3
5 V , 900 mA MAX
Dimensions (Approx.) (w × h × d)
with Table-Top Stand
KD-85X9507G: 1,910 × 1,179 × 412 mm KD-75X9507G: 1,674 × 1,036 × 376 mm KD-65X9507G: 1,447 × 902 × 333 mm KD-55X9507G: 1,228 × 776 × 274 mm
without Table-Top Stand
KD-85X9507G: 1,910 × 1,099 × 73 mm KD-75X9507G: 1,674 × 961 × 73 mm KD-65X9507G: 1,447 × 832 × 69 mm KD-55X9507G: 1,228 × 709 × 69 mm
6
GB
11
Mass (Approx.)
with Table-Top Stand
KD-85X9507G: 49 kg KD-75X9507G: 37.2 kg KD-65X9507G: 24.9 kg KD-55X9507G: 19.1 kg
without Table-Top Stand
KD-85X9507G: 46 kg KD-75X9507G: 35.2 kg KD-65X9507G: 23.5 kg KD-55X9507G: 18 kg
*1 When 4096 × 2160p is input and [Wide mode] is set
to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].
*2 To support 18 Gbps, set [HDMI signal format] to
[E
nced format].
nha *3 Refer to the Help Guide for details. *4 eARC mode is active when [eARC mode] is set to
[
Aut
o], [Speakers] is set to [Audio system] and eARC
compatible audio system is connected.
*5 Specified standby power is reached after the TV
finish
es ne
*6 Standby power consumption will increase when
y
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
wi
cessary internal processes.
is connected to the network.
our TV
out notice.
th
Trademark information
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Dolby, Dolby Vision, Dolby Audio, and the
le-D
doub Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2015 Dolby Laboratories. All rights reserved.
• “BRAVIA”, and BRAVIA Sync are
trademarks or registered marks of Sony Co
• Gracenote, the Gracenote logo and
log either registered trademarks or trademarks of Gracenote, Inc. in the United States and/ or other countries.
• Vewd® Core. Copyright 1995-2019 Vewd
Softw
• Google, Google Play, Chromecast,
YouT marks and logos are trademarks of Google LLC.
symbol are trademarks of Dolby
rp
oration.
otype, “Powered by Gracenote” logo are
e AS. All rights reserved.
ar
ube, Android TV and other related
• Wi-Fi®, Wi-Fi Alliance® and Wi-Fi Direct® are istered trademarks of Wi-Fi Alliance.
eg
r
• The Wi-Fi CERTIFIED™ Logo is a certification
of Wi-Fi Alliance.
mark
• For DTS patents, see http://
at
ents.dts.com. Manufactured under
p license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• The Bluetooth® word mark and logos are
tered trademarks owned by the
egis
r Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Netflix is a registered trademark of Netflix,
.
Inc
• TUXERA is a r
c. in the US and
In
egistered trademark of Tuxera
other countries.
• USB-IF SuperSpeed USB Trident logo is a istered trademark of USB Implementers
reg Forum, Inc.
• All other trademarks are the property of
especti
their r
ve owners.
GB
12
http://rd1.sony.net/help/tv/gusltn2/h_usltn/
http://www.sony.net/
© 2019 Sony Visual Products Inc. Printed in Malaysia
Help Guide
Loading...
