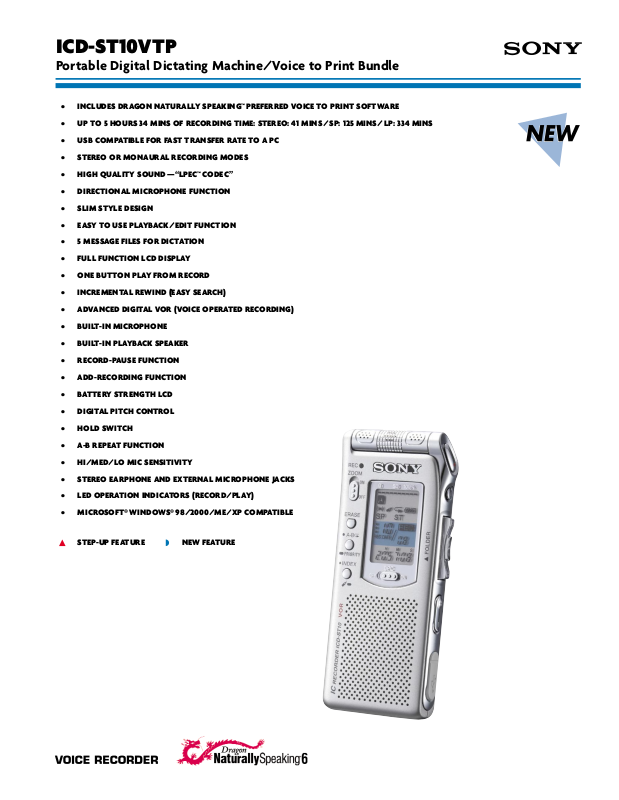

Sony ICD-ST10VTP BROCHURE

ICD-ST10VTP

Portable Digital Dictating Machine/Voice to Print Bundle

•INCLUDES DRAGON NATURALLY SPEAKING™PREFERRED VOICE TO PRINT SOFTWARE

•UP TO 5 HOURS 34 MINS OF RECORDING TIME: STEREO: 41 MINS/SP: 125 MINS/LP: 334 MINS

•USB COMPATIBLE FOR FAST TRANSFER RATE TO A PC

•STEREO OR MONAURAL RECORDING MODES

•HIGH QUALITY SOUND—“LPEC™CODEC”

•DIRECTIONAL MICROPHONE FUNCTION

•SLIM STYLE DESIGN

•EASY TO USE PLAYBACK/EDIT FUNCTION

•5 MESSAGE FILES FOR DICTATION

•FULL FUNCTION LCD DISPLAY

•ONE BUTTON PLAY FROM RECORD

•INCREMENTAL REWIND (EASY SEARCH)

•ADVANCED DIGITAL VOR (VOICE OPERATED RECORDING)

•BUILT-IN MICROPHONE

•BUILT-IN PLAYBACK SPEAKER

•RECORD-PAUSE FUNCTION

•ADD-RECORDING FUNCTION

•BATTERY STRENGTH LCD

•DIGITAL PITCH CONTROL

•HOLD SWITCH

•A-B REPEAT FUNCTION

•HI/MED/LO MIC SENSITIVITY

•STEREO EARPHONE AND EXTERNAL MICROPHONE JACKS

•LED OPERATION INDICATORS (RECORD/PLAY)

•MICROSOFT®WINDOWS®98/2000/ME/XP COMPATIBLE

STEP-UP FEATURE		NEW FEATURE

ICD-ST10VTP

features

•INCLUDES DRAGON NATURALLY SPEAKING™ PREFERRED VOICE TO PRINT SOFTWARE to easily convert your recorded files into text

•UP TO 5 HOURS 34 MINS RECORDING TIME is available on the integrated circuit chip which may be recorded over and used again

•USB COMPATIBLE FOR FAST TRANSFER RATE TO A PC via USB port on a PC

•HIGH QUALITY SOUND—“LPEC™ CODEC” with improved frequency response ensures excellent recorded sound clarity

•DIRECTIONAL MICROPHONE FUNCTION easily adjusts the direction of the microphone to improve the recording quality

•SLIM STYLE DESIGN only one-half inch thick, with Record and Pause controls located on the side of the unit for easy operation; fits neatly into a shirt pocket

•EASY TO USE PLAYBACK/EDIT FUNCTION lets you begin playback with the press of a button, then edit the recordings with equal ease

•HI/MED/LO MIC SENSITIVITY enables the unit to record different situations, from group meeting to individuals, more effectively

•STEREO EARPHONE JACK allows listening through earphones for privacy or transcription

•STEREO MIC JACK allows connection of an external microphone for special recording applications

•LED OPERATION INDICATORS (RECORD/PLAY) indicates Red when unit is recording, Green when in playback mode

•MICROSOFT® WINDOWS® 98/2000/ME/XP COMPATIBLE

specifications

RECORDING MEDIA: Flash Memory Built-In 16mb

PC CONNECTIVITY WITH USB:

SPEAKER: 1 1⁄4" (32mm) dia.

INPUT/OUTPUTS: USB Port, Earphone Jack, DC-in Jack,

Microphone Jack (optical digital input)

POWER REQUIREMENTS: DC 3V with “AAA” x 2 Battery

•5 MESSAGE FILES FOR DICTATION provide separate message areas for different applications such as business memos or personal reminders, for better organization and faster access

•FULL FUNCTION LCD DISPLAY shows number of messages recorded, recording length, date, time, and battery power remaining

•ONE BUTTON PLAY FROM RECORD lets you switch from Recording mode to Play mode with one finger

•INCREMENTAL REWIND (EASY SEARCH) is the equivalent of tape Fast Rewind but without returning all the way to the beginning of each recording, to help locate specific passages

•ADVANCED DIGITAL VOR (VOICE OPERATED RECORDING) stops the recording during silent pauses, saving valuable recording time, then begins recording again without missing a single syllable thanks to the digital buffer

•BUILT-IN MICROPHONE for extra convenience, eliminates the need for an external microphone

•BUILT-IN PLAYBACK SPEAKER for monitoring playback of recordings

•RECORD-PAUSE FUNCTION temporarily stops recording to allow for pauses in dictation or to provide time for reference to documents, then resumes where recording was stopped, at the press of a button

•ADD-RECORDING FUNCTION allows you to insert and add additional information to any message without affecting the original

•BATTERY STRENGTH LCD provides a visible signal when battery strength is low

•DIGITAL PITCH CONTROL allows recordings to be heard at slower than normal speeds without distortion to facilitate transcribing or editing, or faster than normal to move quickly to a desired portion

•HOLD SWITCH prevents accidental operation or changes to settings while carrying the unit in pocket or briefcase

•A-B REPEAT FUNCTION enables a specific segment of the recording to automatically play over and over again

BATTERY LIFE (APPROX.): REC. SP, ST/SP/LP 20 Hours (tentative) CHANNEL: Mono/stereo

LED: REC (Red), PLAY (Green)

RECORDING: ST (41 Minutes) SP (2 Hours 05 Minutes), LP (5 Hours 34 Minutes) DIMENSIONS (WHD): 4" x 1 5⁄8" x 1⁄2" (103.6 x 41.5 x 12.8mm)

WEIGHT: 2 3⁄4 oz (79g) with battery

SUPPLIED ACCESSORIES: Dragon Naturally Speaking™ Preferred Software, PC Download Software, “AAA” Battery x 2, Carrying Case,

Earphone MDR-ED228LP, USB Cable RK-G136

Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony and LPEC are trademarks of Sony. Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Dragon Systems and Dragon Naturally Speaking are trademarks of ScanSoft, Inc.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com

Printed in USA 2/2003
