HD Color Camera

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

HXC-FB75

Page 2

Overview .............................................................................3

Camera System Components ....................................................3

System Configuration ...............................................................4

Name and Function of Parts..............................................7

Front and Left Side ...................................................................7

Front and Right Side .................................................................9

Rear .........................................................................................11

Lens (supplied with the HXC-FB75KC) ................................12

Viewfinder (supplied with the HXC-FB75KC)......................13

Connection and Setup ......................................................14

Connecting to a Camera Control Unit.....................................14

AC Power Supply (Standalone Operation).............................15

Attaching and Adjusting the Viewfinder ................................16

Using the Camera for the First Time ......................................19

Attaching and Adjusting the Lens...........................................20

Preparing the Audio Input.......................................................21

Mounting on a Tripod .............................................................22

Attaching the Shoulder Strap ..................................................23

Adjusting the Shoulder Pad Position ......................................24

Shooting.............................................................................24

Basic Procedure for Shooting .................................................24

Adjustments and Settings ................................................25

Changing the Video Format....................................................25

Adjusting the Black Balance and White Balance ...................25

Setting the Electronic Shutter .................................................27

Setting Automatic Iris.............................................................28

Setting the TLCS Function .....................................................28

Setting the Focus Assist Function...........................................28

Setting the Camera Outputs ....................................................30

Adjusting the Audio Level......................................................30

Setting the Digital Extender Function.....................................31

Menus ................................................................................31

Viewfinder Display Screen .....................................................31

Operating the Menu ................................................................32

Selecting a Page......................................................................33

Setting Menu Items.................................................................34

Editing the USER Menu .........................................................34

OPERATION menu................................................................37

PAINT Menu...........................................................................42

MAINTENANCE Menu.........................................................45

FILE Menu..............................................................................47

DIAGNOSIS Menu.................................................................48

Appendix ........................................................................... 49

Usage Precautions ...................................................................49

Cleaning the Viewfinder .........................................................50

Error Messages........................................................................50

Supported USB Flash Drives ..................................................50

Specifications..........................................................................51

Pin Assignment .......................................................................52

Menu Tree...............................................................................55

Open Software Licenses..........................................................57

Page 3

Overview

The HXC-FB75 HD Color Camera employs a 2/3-inch type “Exmor” CMOS image sensor that achieves a high sensitivity of F12 (1080/59.94i)/F13 (1080/50i) and high S/N ratio of –60 dB. You can use this unit as a studio camera by connecting it to an HXCU-FB70 Camera Control Unit (CCU) using a fiber cable.

Camera System Components

The HXC-FB75 camera system comprises the components shown in the figure below. The operation of the camera head is the same in all cases.

HXC-FB75KC

HXC-FB75H

HXC-FB75 camera head

HDVF-L10 Viewfinder

LensMicrophone

Test chart for flange focal length adjustment

Cable clamp belt

Page 4

System Configuration

Peripherals and related devices for the camera are shown in the figures.

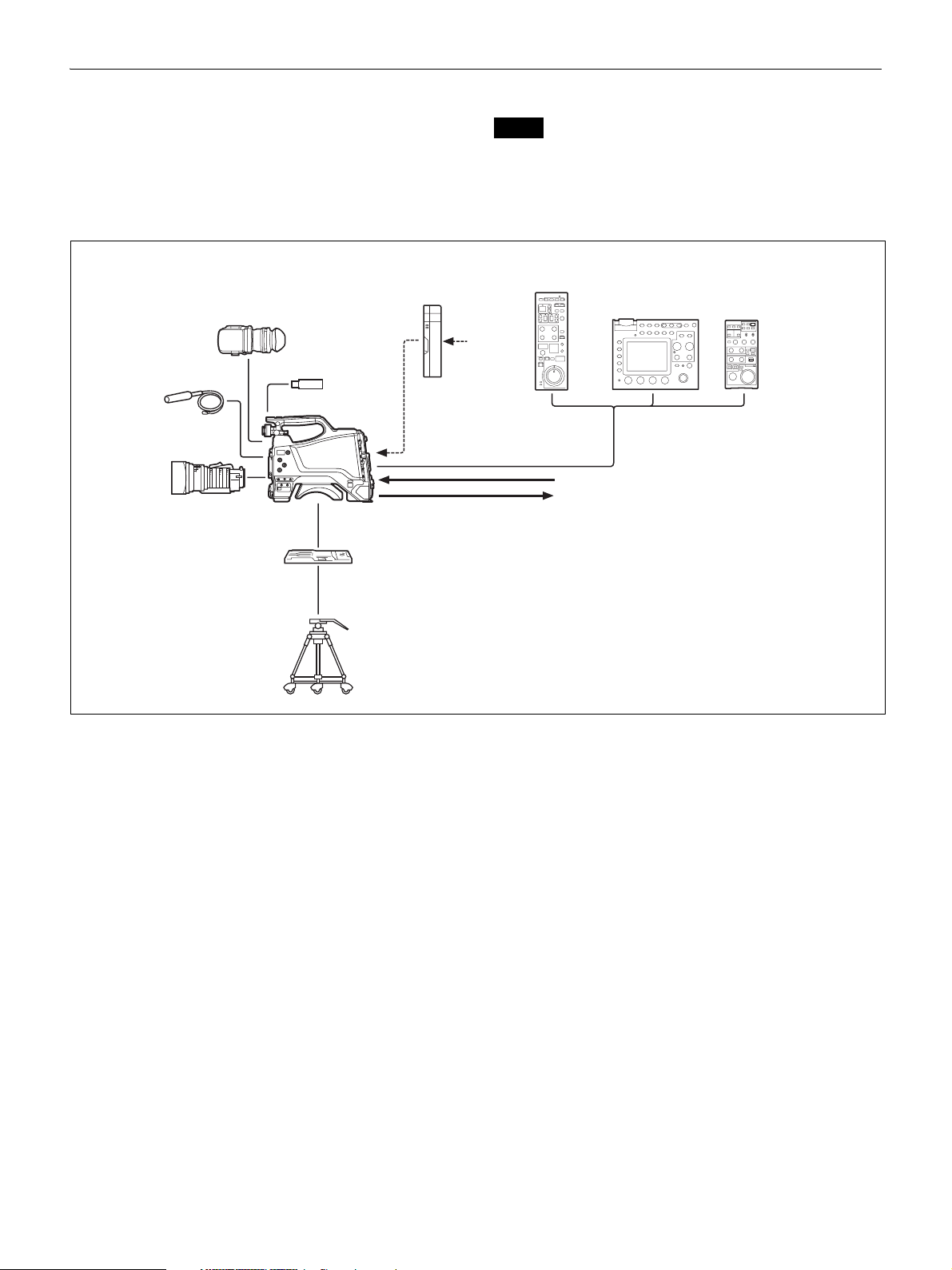

Standalone operation example

AC-DN10 AC Adaptor

Lens

Microphone

VCT-14/U14 Tripod Adaptor

HDVF-L10 Viewfinder

USB flash drive

HXC-FB75

Note

Production of some of the peripherals and related devices shown in the figures may have been discontinued. For advice on choosing devices, please contact your Sony dealer or a Sony service representative.

RCP-1000 series Remote Control Panel

RM-B750/B170 Remote Control Unit

AC power

CCA-5 cable

Sync signal input Video output

HD-SDI/SD-SDI/VBS

Tripod for por table camera

a) No subcarrier phase-lock function with respect to external

reference is available for the VBS signal output from the camera.

Page 5

System operation example: When connected using an optoelectric composite cable

Microphone

Lens

VCT-14/U14 Tripod Adaptor

Tripod for portable camera

HDVF-L10 Viewfinder

USB flash drive

HXC-FB75

Picture monitor

HDVF-L750 Viewfinder

Return video input

Sync signal input Prompter video input

Optoelectric

composite cable

Intercom headset

Prompter video output

HXCU-FB70 HD Camera Control Unit

AC power

CCA-5 cable / LAN cable

HD-SDI/SD-SDI/VBS/HDMI video output

RCP-1000 series Remote Control Panel

a) The maximum transmission distance is approximately 350 m (1,150 ft) when using Sony CCFN-25/50/

100/150/200/250 Hybrid Fiber Cable (with camera head + portable lens).

b) A LAN cable can be used only to connect the RCP-1500/1501. To connect it, power needs to be supplied

via a PoE hub or power needs to be supplied to the EXT DC IN connector of the RCP-1500/1501.

System operation example: When connected using single-mode optical fiber cables

HDVF-L10 Viewfinder

Microphone

Lens

VCT-14/U14 Tripod Adaptor

Tripod for portable camera

HDVF-L750 Viewfinder

USB flash drive

HXC-FB75

Intercom headset

a) The maximum transmission distance is approximately 10 km (6 miles) when using general-purpose

b) A LAN cable can be used only to connect the RCP-1500/1501. To connect it, power needs to be supplied

AC-DN10 AC Adaptor

AC power

Single-mode optical fiber cables (pair)

HXCU-FB70 HD Camera Control Unit

Prompter video output

Return video input

Sync signal input Prompter video input

AC power

CCA-5 cable / LAN cable

Picture monitor

HD-SDI/SD-SDI/VBS/HDMI video output

RCP-1000 series Remote Control Panel

single-mode fiber cables with LC connectors.

via a PoE hub or power needs to be supplied to the EXT DC IN connector of the RCP-1500/1501.

Page 6

System operation example: When connected with HXCE-FB70 Power Supply Unit

Microphone

Lens

VCT-14/U14 Tripod Adaptor

Tripod for portable camera

HDVF-L10 Viewfinder

USB flash drive

HXC-FB75

HDVF-L750 Viewfinder

Optoelectric composite cable

Intercom headset

Prompter video output

HXCE-FB70 Powe r S upp ly Unit

Sync signal input Prompter video input

Single-mode optical fiber cables

AC power

HXCU-FB70 HD Camera Control Unit

Return video input

AC power

CCA-5 cable / LAN cable

Picture monitor

HD-SDI/SD-SDI/VBS/ HDMI video output

RCP-1000 series Remote Control Panel

a) The maximum transmission distance is approximately 350 m (1,150 ft) when using Sony CCFN-25/50/

100/150/200/250 Hybrid Fiber Cable (with camera head + portable lens).

b) The maximum transmission distance is approximately 10 km (6 miles) when using general-purpose

single-mode fiber cables with LC connectors.

c) A LAN cable can be used only to connect the RCP-1500/1501. To connect it, power needs to be supplied

via a PoE hub or power needs to be supplied to the EXT DC IN connector of the RCP-1500/1501.

System operation example: When connected using a triaxial cable

HDVF-L10 Viewfinder

USB flash drive

Microphone

HXC-FB75

Lens

VCT-14/U14 Tripod Adaptor

Tripod for portable camera

HDVF-L750 Viewfinder

CA-TX70 HD Camera Adaptor

Intercom headset

Prompter video output

Intercom headset

Triaxial cable

CAC-6 Return Video Selector

Return video input

Sync signal input Prompter video input

HXCU-TX70 HD Camera Control Unit

HKCU-FP2 Front Control Pane l (Attach to front of HXCU-TX70)

a) For details about transmission distance, refer to the operating instructions for the HXCU-TX70 HD Camera

Control Unit.

b) A LAN cable can be used only to connect the RCP-1500/1501. To connect it, power needs to be supplied

via a PoE hub or power needs to be supplied to the EXT DC IN connector of the RCP-1500/1501.

Intercom headset

AC power

CCA-5 cable / LAN cable

Picture monitor

HD-SDI/SD-SDI/VBS video output

RCP-1000 series Remote Control Panel

Page 7

Name and Function of Parts

Front and Left Side

For the pin assignment of each connector, see “Pin Assignment” (page 52).

a Accessory shoe

Attach to an optional HDVF-L750 viewfinder.

For details about attaching, refer to the operation manual for the HDVF-L750.

b Cable clamp attachment

For details about attaching, see “Attaching the cable clamp belt” (page 14).

c Shoulder strap fitting

For details about attaching, see “Attaching the Shoulder Strap” (page 23).

d Microphone holder attachment

For details about attaching, see “Attaching the microphone holder” (page 22).

e Cable clamp

Clamp the lens cable and microphone cable.

f (USB) connector

For details about how to use a USB flash drive and compatible USB flash drives, see “Supported USB Flash Drives” (page 50).

g Viewfinder front-to-back positioning lock knob

Loosen this knob to adjust the front-to-back position of the viewfinder.

h VF (viewfinder) connector (20-pin, round)

Connect the viewfinder cable.

i Viewfinder left-to-right positioning ring

Loosen this ring to adjust the left-to-right position of the viewfinder.

j 1/4-inch screw-type accessory shoe

k Slide-type accessory shoe

Page 8

l Viewfinder front-to-back positioning lever

Loosen this lever to adjust the front-to-back position of the viewfinder.

m Viewfinder shoe

Attach the HDVF-L10 viewfinder supplied with the HXC-FB75KC.

For details about attaching, see “Attaching and Adjusting the Viewfinder” (page 16).

n Lens mount securing rubber

After locking the lens in position using the lens locking lever, fit this rubber over the lower of the two projections. This secures the lens mount, preventing it from coming loose.

o Lens mount (special bayonet mount)

Attach a lens. Consult your Sony dealer or a Sony service representative for information about available lenses.

For details about attaching, see “Attaching and Adjusting the Lens” (page 20).

p CCU (Camera Control Unit) connector (optoelectric

composite connector)

Connect to the HXCU-FB70 HD Camera Control Unit. When connected with an optoelectric composite cable, all the signals of the camera, comprising the power supply, control signals, video signals, and audio signals, can be transmitted/received with the one optoelectric composite cable. When connected with a pair of single-mode fiber cables, all the signals except the power supply can be transmitted/received with the pair of single-mode fiber cables.

q TRUNK connector (D-sub 9-pin)

Use as the trunk signal input/output connector when connected with the HXCU-FB70. It features an assignable pin that can be used, when connected using a dedicated cable, for a function assigned on the <EXT I/O> page in the MAINTENANCE menu.

r Shoulder pad

Raise the shoulder pad fixing lever to adjust the position in the frontto-rear direction. Adjust the position for maximum convenience when operating the camera on your shoulder.

For details about adjusting the position, see “Adjusting the Shoulder Pad Po si tio n” ( page 2 4).

u Audio input 1 selector switch

Select the audio level input to the AUDIO 1 IN connector.

+48V: To supply +48 V phantom power to condenser microphones MIC: When a microphone-level input is connected LINE: When a line-level (0 dBu) signal source is connected

Select +48V when using the microphone supplied with the HXC-FB75KC.

v Trip od mou nt

For details about attaching, see “Mounting on a Tripod” (page 22).

w Lens locking lever

After inserting the lens in the lens mount, rotate the lens mount ring with this lever to lock the lens in position. After locking the lens, be sure to use the lens mount securing rubber to prevent the lens from becoming detached.

x Lens mount cap

Remove by raising the lens locking lever. When no lens is mounted, keep this cap fitted for protection from dust.

s LENS connector (12-pin)

Connect the lens cable.

Note

When connecting/disconnecting the lens cable, power off the camera first.

t AUDIO 1 IN (audio input 1) connector (XLR type, 3-pin,

female)

Connect to audio equipment or a microphone. When the camera is connected to an HXCU-FB70, the input signal will be output from the AUDIO OUTPUT CH-1 connector. You can configure the camera so that the audio is embedded in the output from the SDI output (MIC1) on the <SDI OUT> page in the MAINTENANCE menu.

For details about connecting the microphone supplied with the HXC-FB75KC, see “Connecting a microphone to the AUDIO 1 IN connector” (page 21).

Page 9

Front and Right Side

Note

When connected to a camera control unit or external remote control device (for example, RCP or RM), the following switch functions are controlled from the connected device. The switches on the camera do not function.

• SHUTTER switch

•WHT/BLK switch

• OUTPUT/AUTO KNEE switch

•WHITE BAL switch

• GAIN switch

a FILTER (filter select) knob

Switch between four built-in ND filters. When this switch is adjusted, the filter setting appears in the viewfinder for about three seconds.

FILTER knob setting ND filter

1Clear

2 1/4 ND (attenuates light to approximately 1/4)

3 1/16 ND (attenuates light to approximately 1/16)

4 1/64 ND (attenuates light to approximately 1/64)

b Shoulder strap fitting

For details about attaching, see “Attaching the Shoulder Strap” (page 23).

c ASSIGN (assignable) 1/2/3 buttons

You can assign functions to these buttons using ASSIGNABLE 1/2/ 3 on the <SWITCH ASSIGN1> page in the OPERATION menu No function is assigned by factory default.

d COLOR TEMP. (color temperature) button

Press the button, turning it on, to change the color temperature for shooting (factory default: 5600K). You can assign a function to this button using ASSIGN CTEMP on the <SWITCH ASSIGN1> page in the OPERATION menu

e SHUTTER switch

Set to the ON position to use the electronic shutter. Set to the SEL position to switch the shutter speed or shutter mode display. When this switch is operated, the shutter settings appear in the viewfinder for about three seconds.

Page 10

f RET (return video) button

Displays the return video signal in the viewfinder while this button is pressed. You can assign a function to this button using FRONT RET on the <SWITCH ASSIGN2> page in the OPERATION menu

Note

The display image may be distorted when the video signal is switched.

g INTERCOM LEVEL knob

When connected with the HXCU-FB70, use this knob to adjust the intercom/earphone volume level. The intercom volume level can also be adjusted using the INTERCOM knob on the rear of the camera. When the camera is used in standalone operation mode, use this knob to set the gain for microphones connected to the AUDIO 1 IN and AUDIO 2 IN connectors. You can assign a function to this knob using FRONT VR on the <VR ASSIGN> page in the OPERATION menu

h Menu control knob (rotary encoder)

Rotate to select settings from menus displayed in the viewfinder and press to confirm settings.

i WHT/BLK (automatic white/black balance adjustment)

switch

Automatically adjusts the white balance and black balance. WHT: Adjust the white balance automatically. If the WHITE BAL

switch is set to A or B, the white balance setting is stored in the corresponding memory (A or B). If the WHITE BAL switch is set to PRST, the adjustment function does not operate.

BLK: Adjust the black set and black balance automatically. You can use the WHT/BLK switch even when the ATW (Auto Tracing White Balance) function is operating. If you push the switch to the WHT position once more during automatic white balance adjustment, the adjustment is canceled and the white balance setting returns to the original setting. If you push the switch to the BLK position once more during the automatic black balance adjustment, the adjustment is canceled and the black balance setting returns to the original setting.

m OUTPUT (output signal select)/AUTO KNEE switch

Select the signal that is output from the camera.

BARS: Output the color bar signal. CAM: Output the video signal being shot. When this is selected, you

can switch the AUTO KNEE function

1) AUTO KNEE function: Against a very bright background with the iris opening adjusted for the subject, objects in the background will be lost in the glare. The AUTO KNEE function suppresses areas of high brightness automatically to reproduce the background more clearly. This is particularly effective in the following cases.

• Shooting people in the shade on a sunny day

• Shooting a subject indoors, against a background through a window

• Any high contrast scene

ON/OFF.

n WHITE BAL (white balance memory select) switch

Set the white balance adjustment method. When this switch is adjusted, the new setting appears in the viewfinder for about three seconds. PRST: Adjust the color temperature to the preset value (factory

default: 3200K). Use this setting when you have no time to adjust the white balance.

A or B: Recall the white balance adjustment value already stored in

memory A or B. Push the WHT/BLK switch to the WHT position to automatically adjust the white balance and save the adjustment value in memory A or memory B.

o CAMERA POWER switch and indicator

Set to one of the following, according to the power supply method.

CCU: When supplying power from the camera control unit EXT: When supplying power on the DC IN connector or camera

adaptor power connector

The indicator lights up in green during operation.

j GAIN switch

Switch the gain of the video amplifier to match the lighting conditions during shooting. When this switch is adjusted, the new setting appears in the viewfinder for about three seconds. The gain values corresponding to the L, M, and H settings are specified using GAIN on the <SWITCH ASSIGN1> page in the OPERATION menu (factory default: L=0 dB, M=6 dB, and H=12 dB).

k STATUS/CANCEL switch

STATUS: Displays camera status information when no menu is

displayed and the DISPLAY/MENU switch is set to DISPLAY.

CANCEL: Cancel changed settings or return the display to the

previous menu when a menu is displayed.

l DISPLAY/MENU switch

Select the display in the viewfinder. DISPLAY: Displays various textual information and markers, such

as messages showing the camera settings and operating status, the center marker, and the safety zone marker, in addition to the camera image.

OFF: Displays the camera image only. MENU: Display the menu, in addition to the camera image.

Page 11

Rear

For the pin assignment of each connector, see “Pin Assignment” (page 52).

For details about removing the rear cover, see “Removing the rear cover” (page 15).

(With rear cover removed)

c RET1 (return video 1) button

Displays the return video 1 signal in the viewfinder while this button is pressed.

d INTERCOM (intercom volume) knob

Adjust the intercom volume level. When connected with the HXCU-FB70, the intercom volume level can also be adjusted using the INTERCOM LEVEL knob on the rear of the camera. In standalone operation mode, you can assign a function to this knob using REAR VR on the <VR ASSIGN> page in the OPERATION menu

e INTERCOM MIC (intercom microphone) switch

The switch function varies depending on the PANEL TYPE setting on the <INTERCOM> page in the OPERATION menu (factory default: CE).

When the PANEL TYPE setting is CE

Functions as the intercom microphone line selector switch.

PROD: Output the microphone on the PROD line. OFF: Turn the microphone OFF. ENG: Output the microphone on the ENG line.

When the PANEL TYPE setting is UCJ

Functions as the intercom line and microphone ON/OFF selector switch.

PROD: Select the PROD line and turn the microphone OFF. OFF: Select the ENG line and turn the microphone OFF. ENG: Select the ENG line and turn the microphone ON (output on

ENG line). You can have a conversation on the selected line while the assignable button on the rear is pressed by assigning the function that turns the intercom microphone ON to the button.

a PGM LEVEL (program level) knob/assignable button

Adjust the intercom PGM audio level. When connected with the HXCU-FB70, this adjusts the PGM audio level input from the camera control unit. In standalone operation mode, this adjusts signal level input on the SDI IN connector. No function is assigned to the assignable button by factory default. You can have a conversation on the intercom line while the button is pressed by assigning the function that turns the intercom microphone ON using REAR ENC SW on the <SWITCH ASSIGN2> page in the OPERATION menu.

b RET2 (return video 2) selector switch

Select the return video signal (2, 3, 4) displayed when the button assigned with the return video 2 function is pressed.

Note

The intercom and microphone of the camera can be used when connected to a CA-TX70. The intercom is connected to the line selected using the INTERCOM switch of the CA-TX70. ENG/PROD cannot be selected on the camera.

f CALL button

When you press this button, the red tally indicators on the connected camera control unit and external control device (for example, RCP or RM) will light up.

g TALLY indicators (red/green)

When the TALLY switch is set to ON, the tally indicator lights up when a tally signal is input to the connected camera control unit or a call signal is generated by pressing the CALL button.

h TALLY s wit c h

Set to ON to activate the TALLY indicator function.

i Camera adaptor attachment

Attach an optional CA-TX70 HD Camera Adaptor and AC-DN10 AC Adaptor.

j EARPHONE jack (stereo, minijack)

Monitor the audio output from the intercom or audio signals input to the AUDIO 1 IN and AUDIO 2 IN connectors. Set the earphone output on the <EARPHONE> page in the OPERATION menu. The earphone volume level can be adjusted using the INTERCOM LEVEL knob.

k Audio input 2 selector switch

Select the audio level input to the AUDIO 2 IN connector.

Page 12

+48V: To supply +48 V phantom power to condenser microphones MIC: When a microphone-level input is connected LINE: When a line-level (0 dBu) signal source is connected

l REMOTE (remote control) connector (8-pin)

Connect a remote control unit for remote control the camera.

Note

Before connecting/disconnecting a remote control unit, power off the camera first.

m TEST OUT connector (BNC type)

Outputs an analog signal. You can select the VBS signal, Y signal of the VF connector, HDSYNC, or SD-SYNC for output in the MAINTENANCE menu.

n SDI OUT connector (BNC type)

Outputs an HD-SDI or SD-SDI signal. You can select the output signal in the MAINTENANCE menu.

o DC IN (DC power supply input) connector (XLR 4-pin,

female)

To operate the camera from an external DC power supply, connect an optional DC power cord to this connector and then connect the cord to an AC-DN10 AC Adaptor or other source.

p INTERCOM connector (XLR 5-pin)

Connect an XLR 5-pin headset for input and output of intercom audio signals.

Lens (supplied with the HXC-FB75KC)

For details about attaching a lens, see “Attaching and Adjusting the Lens” (page 20).

q AUDIO 2 IN (audio input 2) connector (XLR type, 3-pin,

female)

Connect to audio equipment or a microphone. When connected with the HXCU-FB70, the input signal will be output from the AUDIO OUTPUT CH-2 connector. You can configure the camera so that the audio is embedded in the output from the SDI output (MIC2) on the <SDI OUT> page in the MAINTENANCE menu.

r Tail guard

Protects the cables connected to the connectors on the rear.

s DC OUT (DC power supply output) connector (4-pin,

female)

Supplies power to a script light or other device (maximum 1.5 A).

t PROMPTER/GENLOCK (prompter signal output/external

sync signal input) connector (BNC type)

When connected with a CCU, this connector outputs a VBS prompter signal. In standalone operation mode, connect an external sync signal (BB or tri-level sync) for synchronizing the camera. If a VBS signal is input, you can check the input image in the viewfinder by pressing the RET button on the camera.

u SDI IN connector (BNC type)

In standalone operation mode, this displays the HD-SDI signal input on the SDI IN connector in the viewfinder when the RET button is pressed. You can select the input signal to be displayed in the viewfinder on the <EXT RETURN> page in the MAINTENANCE menu.

Notes

• Only HD-SDI signals in the same format specified on the <OUTPUT FORMAT> page in the MAINTENANCE menu can be input on the SDI IN connector.

• Signals input on the SDI IN connector cannot be displayed when SD-SDI is selected on the <SDI OUT> page in the MAINTENANCE menu.

a RET (return video) button

Displays the return video signal in the viewfinder while this button is pressed.

b Zoom see-saw switch

This is enabled when the zoom servo/manual selector knob is in the SERVO position. The zoom speed increases when you push the switch deeper, and decreases when you push less deeply.

W (Wide): Wide angle. T (Telephoto): Telephoto.

c Iris operation mode selector switch

A (Auto): The iris is adjusted automatically. M (Manual): Adjust the iris with the iris ring.

d Iris one-push auto switch

When the iris operation mode selector switch is in the M position for manual adjustment, press this switch for instantaneous auto iris adjustment. The iris is automatically adjusted while the switch is pressed.

Page 13

e Iris gain adjustment trimmer

Adjust the iris gain when the iris operation mode selector switch is in the A (Auto) position. Flip off the rubber cap, and turn the iris gain adjustment trimmer using a screwdriver or similar object. Turn clockwise to increase the gain, and turn counterclockwise to decrease the gain.

f F.B. l o c k scr e w/F.B . a djus t m ent r i n g

Use to adjust the flange back (flange focal length).

g Positioning pin

When attaching a lens, align this pin with the slot in the top center of the lens mount on the camera.

h Macro button/macro ring

Press and hold the macro button and rotate the macro ring to focus (close-up: 10 mm minimum).

i Iris ring

For manual iris adjustment, set the iris operation mode selector switch to the M (manual) position, then rotate this ring.

Note

Always set the iris operation mode selector switch to the M (manual) position before rotating the ring.

j Zoom lever/zoom ring

For manual zoom adjustment, set the zoom servo/manual selector switch to the MANU (manual) position, then operate this lever/ring.

Viewfinder (supplied with the HXC-FB75KC)

For details about attaching the viewfinder, see “Attaching and Adjusting the Viewfinder” (page 16).

k Focus ring

Rotate this ring to adjust the focus.

l Zoom servo/manual selector knob

SERVO: Power (servo) zoom. Control the zoom using the zoom

see-saw switch.

MANU (Manual): Manual zoom. Control the zoom using the zoom

lever/zoom ring.

m Lens cable

Connect to the LENS connector on the camera.

n VTR button

You can assign a function to this button using LENS VTR S/S on the <SWITCH ASSIGN2> page in the OPERATION menu.

o Zoom remote control connector

Connecting an optional zoom servo controller allows remote control of zooming.

a Connector

Connect to the VF connector on the camera.

b Slide stopper

Prevents the viewfinder from coming off the camera when it is slid from side to side.

c Eyecup

d Diopter adjustment ring

Rotate the ring to adjust the image for clear focus.

e Eyepiece

You can raise the eyepiece or remove it when required by the usage situation.

f Viewfinder barrel

You can raise the viewfinder barrel or remove it when required by the usage situation.

g Tally indicator

The indicator lights up when a red tally signal is input to the camera. When an abnormality occurs, the tally indicator flashes to indicate a warning.

Page 14

h PEAKING knob

Rotate clockwise to adjust the picture sharpness to make lens focusing easier. This has no effect on the output signal of the camera.

i CONTRAST knob

Adjust the contrast of the screen. This has no effect on the output signal of the camera.

j BRIGHT knob

Adjust the brightness of the screen. This has no effect on the output signal of the camera.

k TALLY s wit c h

Used to control the tally indicator on the viewfinder.

HIGH: The tally indicator brightness is set to high. OFF: The tally indicator is disabled. LOW: The tally indicator brightness is set to low.

l ZEBRA (zebra pattern) switch

Use to control the zebra pattern display.

ON: Display the zebra pattern. OFF: Do not display the zebra pattern.

m DISPLAY switch

Use to control the display of text information.

ON: Display text information. OFF: Do not display text information.

Also used when switching to full-screen display mode or reduced display mode.

Note

There may be a mismatch between the DISPLAY switch ON/OFF state and the actual ON/OFF operation, depending on the camera settings.

n MIRROR switch

Used to reverse the image display on the monitor screen horizontally or vertically when the viewfinder barrel is raised up or rotated.

L/R (left/right): Reverse the image horizontally. OFF: Do not reverse the image. B/T (bottom/top): Reverse the image vertically.

Connection and Setup

Connecting to a Camera Control Unit

When operating the camera in a system with a camera control unit (CCU), connect the CCU connector of the camera and the CAMERA connector of the CCU using an optoelectric composite cable. When required, secure the cable, using the supplied cable clamp belt.

If connecting an HXCU-TX70 HD Camera Control Unit, refer to the operating instructions for the HXCU-TX70.

Attaching the cable clamp belt

1 Insert the belt bracket C into hole A or B of the cable

clamp belt.

2 1 Remove the screw-hole cover on the top rear of the

camera and 2 secure the cable clamp belt to the camera using the two supplied screws (+B3×10).

o Viewfinder cable

p Microphone holder

Page 15

3 1 Release the buckle, 2 bundle the cable with the belt, 3

then close the buckle again.

4 Adjust the length by pulling down on the end of the belt.

AC Power Supply (Standalone Operation)

Prepare an AC power supply when using the camera in standalone operation mode (without a CCU). For safety, use only the Sony AC adaptor listed below.

• AC adaptor: AC-DN10

If using the DC IN connector

Connect the AC-DN10 AC adaptor to the DC IN output connector on the camera using an optional DC power cord.

Attaching the AC adaptor

Attach an optional AC-DN10 AC adaptor to the camera, then connect to the AC power supply. The AC-DN10 can supply up to 100 W of power.

To AC outlet

To attach the rear cover

Align the guide on the inner side of the rear cover with the camera adaptor mount, and insert the cover.

If attaching the AC adaptor

Remove the rear cover and attach the AC adaptor to the camera.

Removing the rear cover

1 Hold the release button on the camera in, and 2 pull the rear cover up.

Rear cover

Page 16

Attaching and Adjusting the Viewfinder

Warn ing

When the viewfinder is attached, do not leave the camera with the eyepiece facing the sun. Direct sunlight can enter through the eyepiece, be focused in the camera and cause a fire.

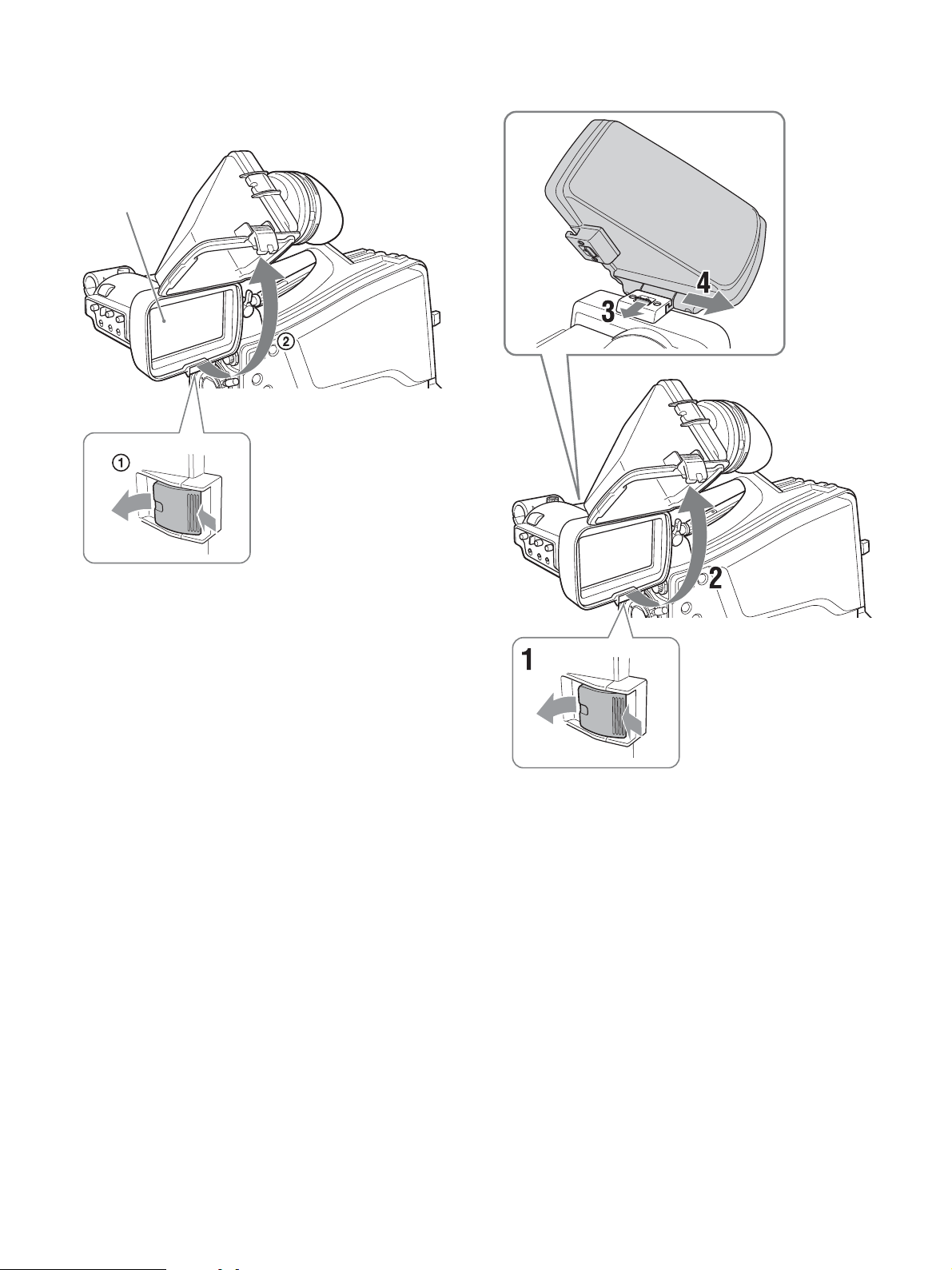

Attaching the viewfinder

Attach the viewfinder supplied with the HXC-FB75KC.

Notes

• Be sure to power off the camera before plugging the viewfinder connector into the VF connector of the camera. If the connector is plugged in while the power is on, the viewfinder may not operate correctly.

• Plug the viewfinder connector all the way into the VF connector of the camera. If the connector is not firmly connected, the image may become distorted or the tally indicator may not operate properly.

Adjusting the position

To adjust the viewfinder left-to-right position, loosen the left-toright positioning ring. To adjust the front-to-back position, loosen the front-to-back positioning lever and lock knob.

Viewfinder left-to-right positioning ring

1 1 Loosen the viewfinder left-to-right positioning ring, 2

attach the viewfinder to the viewfinder shoe, and 3 tighten the viewfinder left-to-right positioning ring.

Slide stopper

2 Connect the viewfinder connector to the VF connector.

VF connector

Viewfinder front-to-back positioning lever and lock knob

Adjusting the angle

You can adjust the angle of the viewfinder.

To reverse the display (image/text indication) vertically

The viewfinder can be rotated as much as 180 degrees so that it is facing the subject. In this case, the image and other information displayed appear upside down on the screen. To restore the normal display, set the MIRROR switch on the viewfinder to the B/T position to flip the display vertically.

To detach the viewfinder

Detach in the reverse procedure of attaching. When detaching the viewfinder from the shoe, lift up the slide stopper on the viewfinder.

Raising the viewfinder barrel or eyepiece

You can view the LCD screen inside the viewfinder or its mirrored image by raising the viewfinder barrel or eyepiece. This section describes how to raise and detach the viewfinder barrel. The eyepiece can also be raised and detached in the same way.

Page 17

To raise the viewfinder barrel

1 Push the clip on the bottom to release it, and 2 flip up the viewfinder barrel. It locks at the 120-degree position.

LCD screen

To detach the viewfinder barrel

Keep in the lock position for normal use. You can also open it farther from the lock position. To set to the 120degree position again, return it to the closed position and then open it again.

1 Push the clip on the bottom to release it. 2 Flip up the viewfinder barrel. 3 Slide the button on the top in the direction opposite to the

viewfinder barrel to unlock the barrel.

4 Detach the viewfinder barrel by sliding it horizontally.

To reverse the display (image/text indication) horizontally

Set the MIRROR switch on the viewfinder to the L/R position to reverse the picture and other information displayed in the viewfinder horizontally.

Page 18

Adjusting the diopter

Rotate the diopter adjustment ring until the viewfinder image is sharpest.

Diopter adjustment ring

Adjusting the screen

Reduced display mode

Displays the camera image at a reduced size, with the tally and other indicators displayed in the spaces above and below the camera image. Use this mode when the clear visibility of the tally and other indicators is more important.

Indicators are located at the top and bottom of the screen to indicate the status of the camera and viewfinder.

a G TALLY (green tally) indicator (green)

Lights up when a green tally signal is input.

b R TALLY (red tally) indicator (red)

Lights up when a red tally signal is input.

c Y TALLY (yellow tally) indicator (yellow)

Not supported by the camera.

You can adjust the following items.

Peaking: Adjust using the PEAKING knob. Contrast: Adjust using the CONTRAST knob. Brightness: Adjust using the BRIGHT knob.

Screen display mode and indicator

The viewfinder screen can be set to full-screen display mode or reduced display mode. To switch the display mode, switch the DISPLAY switch “ON t OFF t ON t OFF” or “OFF t ON t OFF t ON” in quick succession.

Full-screen display mode

Displays the image so that it fills the full-screen display area. Tally and other indicators are superimposed on the camera image. Use this mode when the resolution of the displayed image is more important.

Note

In full-screen display mode, the display position of the tally indicators is fixed in one location. Accordingly, only one R/G/Y tally indicator can be lit at any one time, regardless of the signal that is input. The display priority of the tally indicator is red, green, and yellow, in that order.

d [!] indicator (amber)

Using the ‘!’ IND function, the ‘!’ indicator appears when nonstandard settings are in effect.

e BATT (battery) indicator (red)

Lights up or flashes to indicate the status of the power supply to the camera.

Lit: Significant voltage decrease Flashing: Voltage decrease

f SAVE indicator (amber)

Not supported by the camera.

Page 19

Using the Camera for the First Time

5 Turn the camera off and then back on.

The camera is now ready for use.

The camera is shipped with the area of use setting in an unset state. To use the camera, you need to first set the area of use. Once the area setting is complete, set the current date and time.

Note

The camera cannot be used if the area of use is not set.

Setting the area of use

1 Turn on the camera.

The screen for setting the area of use appears in the viewfinder.

FO MAT SETT ING

C O U N T RRY: NOT SELECT

SYSTEM L INAE:108 SYSTEM SC N: Inter lace

SET FORMAT AND TURN OFF ONCE .

2 Press the menu control knob.

The area of use becomes selectable.

FO MAT S ET T I NG

C O U N T RRY: NOT SELECT

SYSTEM L INAE:108 SYSTEM SC N : I n t e r l ac e

SET FORMAT AND TURN OFF ONCE .

3 Rotate the menu control knob to select the area of use.

Setting Area of use Output

NTSC(J) AREA

NTSC AREA NTSC area (for

PAL A REA PAL a re a PAL s ig nal 50i

NTSC area (Japan)

areas other than Japan)

composite signal

NTSC signal without setup

NTSC signal with setup (7.5IRE)

System frequency

59.94i

4 Change the SYSTEM LINE (video resolution) and

SYSTEM SCAN (video scanning mode) settings according to the video format you are using.

SYSTEM LINE

Setting Resolution (Horizontal × Vertical)

1080 1080 lines (1920×1080)

720 720 lines (1280×720)

To change the area of use

Change the setting using COUNTRY on the <OUTPUT FORMAT> page in the MAINTENANCE menu.

Note

The setting is switched to the CCU setting when a CCU is connected.

Setting the date/time

Set the built-in clock to the current local time on the <DATE> page in the MAINTENANCE menu.

For details about menu operations, see “Menus” (page 31).

1 Turn on the camera. 2 Press and hold the menu control knob and set the

DISPLAY/MENU switch to MENU.

The camera enters menu mode, and “TOP” is displayed at the upper-right corner of the screen.

3 Rotate the menu control knob to align the , pointer with

TOP and press the menu control knob.

The TOP MENU screen is displayed.

USER USER MENU CUSTOMIZE ALL OPERATION PAINT MAINTENANCE FILE DIAGNOSIS

4 Rotate the menu control knob to align the , pointer with

MAINTENANCE and press the menu control knob.

The CONTENTS page of the MAINTENANCE menu appears.

CONTENTS M00 TOP

xx c

01.<AUTO SETUP>

02.<WHITE SHADING>

03.<BLACK SHADING>

04.<AUTO IRIS>

05.<LENS>

06.<CIS COMP>

07.<AUDIO>

08.<CALL/TALLY>

09.<OUTPUT FORMAT>

10.<TEST OUT>

11.<SDI OUT>

12.<TRUNK>

13.<GENLOCK>

14.<DATE>

SYSTEM SCAN

Setting Video scanning mode

Interlace Interlaced

Progressive Progressive

PsF PsF

Supported formats: 1080/59.94i, 1080/50i, 1080/29.97PsF,

1080/25PsF, 720/59.94P, 720/50P

Page 20

5 Rotate the menu control knob to scroll the page and align

the , pointer with <DATE> and press the menu control knob.

The <DATE> page appears. Press the menu control knob to confirm the page selection.

<DATE> M14 TOP

DATE/TIME

2016/04/30 08:32

FILE TIMESTAMP FORMAT : 5 M/D/Y

6 Set the date and time items.

Rotate the menu control knob to select an item, and press the menu control knob. Rotate the menu control knob to change the setting of the selected item, and press the menu control knob to confirm the setting.

7 When finished, set the DISPLAY/MENU switch to OFF to

exit menu mode.

Lens mount securing rubber

Attaching and Adjusting the Lens

For information on handling lenses, refer to the operation manual for the particular lens.

Attaching the lens

Note

Before attaching the lens, power off the camera first.

1 Push the lens locking lever up and remove the lens mount

cap from the lens mount.

2 Align the center pin on the lens with the center slot in the

lens mount, and insert the lens into the mount.

3 Holding the lens in place, push the lens locking lever down

to lock the lens.

Caution

If the lens is not firmly locked, it may come off while the camera is being used. This could cause a serious accident. Make sure the lens is firmly locked. It is recommended that the lens mount securing rubber be put on the lens locking lever as illustrated above.

4 Connect the lens cable to the LENS connector. 5 Secure the lens cable with the cable clamps.

Page 21

When attaching an aberration correction lens

The aberration correction function is activated automatically. Starting the camera with an aberration correction lens may require more time than normal because of data loading at start-up. The lens supplied with the HXC-FB75KC is an aberration correction lens. Contact your Sony dealer or a Sony service representative for information about other aberration correction lenses.

Adjusting the flange back (flange focal length)

If the lens does not stay in focus properly as you zoom from telephoto to wide angle, adjust the flange focal length (the distance from the plane of the lens mounting flange to the imaging plane). This adjustment is required once only after attaching or changing the lens. When carrying out the adjustment, use the supplied flange focal length adjustment chart as the subject.

9 Tighten the F.B. lock screw.

Preparing the Audio Input

Connecting a microphone to the AUDIO 1 IN connector

Attach the microphone supplied with the HXC-FB75KC to the microphone holder on the viewfinder.

1 1 Loosen the screw and 2 open the microphone holder

clamp.

Microphone holder clamp

Approx. 3 m (10 ft)

Notes

• If you use a subject with insufficient contrast, or move the camera or subject during adjustment, this will cause an adjustment error.

• Place the subject (the flange focal length adjustment chart) so that it appears at the center of the screen at the telephoto end. Arrange so that no nearby object (no object closer to the camera than the chart) enters the screen at the wide-angle end.

1 Set the iris to manual, and open the iris. 2 Position the supplied flange focal length adjustment chart

approximately 3 m (10 ft) away from the camera, and arrange the lighting to obtain a satisfactory video output.

3 Loosen the F.B. (flange back) lock ring. 4 Use manual or servo zoom to set the lens to telephoto. 5 Point the camera at the flange focal length adjustment chart

and rotate the focus ring to focus the image.

2 Place the microphone in the microphone holder.

1 Place the microphone in the holder so that “UP” is at the

top.

2 Close the microphone holder.

3 Tighten the screw.

6 Set the zoom ring to wide angle. 7 Rotate the F.B. adjustment ring to focus on the chart.

Take care not to move the focus ring.

8 Repeat steps 4 to 7 until the chart stays in focus all the way

from wide angle to telephoto.

Page 22

3 Connect the microphone cable to the AUDIO 1 IN

connector, and secure with the cable clamp.

Cable clamp

Attaching the microphone holder

1 Remove the screw hole cover from the microphone holder

attachment.

4 Set the audio input 1 selector switch to match the type of

microphone used.

Microphone not requiring a phantom power supply from the camera:

Set to MIC.

Microphone requiring a phantom power supply from the camera:

Set to +48V. Select +48V when using the microphone supplied with the HXC-FB75KC.

Note

The AUDIO 1 IN and AUDIO 2 IN connectors on the camera are female XLR connectors (3-pin) used to provide a phantom 48 V power supply. If the microphone cable has a female connector, use an adaptor.

5 Switch the input level to match the sensitivity of the

microphone used.

The input level in standalone operation mode can be adjusted using the <AUDIO> page setting (factory default: 60 dB) in the MAINTENANCE menu or by assigning the function on the <VR ASSIGN> page in the OPERATION menu.

Note

If the input level on the camera is not at an appropriate setting for the microphone sensitivity, loud sounds may be distorted, and the signalto-noise ratio may be affected.

2 Attach the CAC-12 microphone holder and secure to the

camera using the two supplied screws (+B4×8).

Mounting on a Tripod

Mount the camera on a tripod, using the optional VCT-U14 or VCT-14 Tripod Adaptor.

Notes

• If camera instability still affects shooting when using a tripod with the VCT-U14 Tripod Adaptor, use the VCT-14 Tripod Adaptor for professional use.

• Select an appropriate hole from among those at the bottom of the tripod adaptor, considering the balance of the weight of the camera and the tripod adaptor. If an inappropriate hole is selected, the center of gravity may cause the camera to fall over, resulting in injury.

• Check that the size of the selected hole matches that of the screw of the tripod. If they do not match, the tripod adaptor cannot be attached to the tripod securely.

1 Attach the VCT-14/U14 Tripod Adaptor to the camera

platform.

Tripod adaptor

Connecting a microphone to the AUDIO 2 IN connector

You can connect a monaural microphone to the AUDIO 2 IN connector, using an optional CAC-12 microphone holder.

For details about attaching the microphone, refer to the operation manual for the microphone.

For details about setting the audio input 2 selector switch and input level of the AUDIO 2 IN connector, see steps 4 and 5 in “Connecting a microphone to the AUDIO 1 IN connector” (page 21).

Camera platform

Page 23

2 Place the camera on the tripod adaptor and slide it forward

along the groove of the platform until it clicks into place.

Attaching the Shoulder Strap

Attach an optional shoulder strap (part number: A-6772-374-C) to the camera.

1 Fit one of the clips to the shoulder strap fitting.

Pull up the strap to secure it in place.

3 Move the camera back and forth, and check that it is

securely fixed.

To remove the camera from the tripod adaptor

Hold down the red button and pull the lever in the direction of the arrow.

Red button

Lever

If the pin of the tripod adaptor does not return to its original position

After removing the camera, if the pin of the tripod adapter does not return to its original position (storage position), hold down the red button and move the lever in the direction of the arrow to return the pin to its original position. It is not possible to mount a camera if the pin remains in the center.

Pin storage position

Clip

2 Fit the other clip to the shoulder strap fitting on the other

side of the grip.

To remove the shoulder strap

Press here and pull in the direction shown by the arrow.

Page 24

Adjusting the Shoulder Pad Position

You can slide the shoulder pad forward and backward within a 40 mm (1 5/8 inch) range. This adjustment helps you get the best balance for shooting with the camera on your shoulder.

Lever

Shoulder pad

1 Raise the lever in the center of the shoulder pad to unlock

the shoulder pad.

2 Slide the shoulder pad backward or forward until it is in the

most convenient position.

3 Lower the lever to lock the shoulder pad.

Shooting

Basic Procedure for Shooting

1 Turn the camera on. 2 Set the FILTER knob and COLOR TEMP. button

appropriately for the lighting conditions.

Filter settings

FILTER knob Lighting conditions

1 (Clear) Indoor shooting

2 (1/4 ND) Outdoor (cloudy or rainy) or indoor shooting

when you wish to reduce the depth of field

3 (1/16 ND) Outdoor shooting in daytime

4 (1/64 ND) Outdoor shooting when you wish to reduce the

depth of field, or especially under bright outdoor ambient light

a) Depth of field: This is the range over which the subject is sharply in

focus. If the range is narrow, the depth of field is called “shallow focus.” If the range is wide, the depth of field is called “deep focus.”

From the viewpoint of the characteristics of lenses, shooting with an F-stop value in the range of F4 to F8 is generally recommended for good quality pictures. Set the FILTER knob to bring the iris setting into that range. However, this may not apply when special composition is desired.

5600K setting

The 5600K ON/OFF function is assigned to the COLOR TEMP. button by factory default.

5600K Lighting conditions

OFF Indoor shooting under lighting with lower color

temperature, such as a halogen or tungsten lamp

ON Outdoor shooting in daytime, or indoor shooting

under lighting with higher color temperature

3 Check the settings of the camera.

• Settings of switches/knobs

• Settings in the OPERATION menu (see page 37) and the PAIN T me n u (see page 42)

• Electronic shutter setting (see page 27)

• Settings for the output signals from the camera (see page 30)

• Flange focal length adjustment (see page 21)

4 Adjust the viewfinder diopter, as well as the contrast and

brightness of the viewfinder image (see page 16).

For details about the operation of optional viewfinders, refer to the operation manual for the viewfinder.

5 If required, switch on the center marker, safety zone, and

zebra pattern display in the viewfinder.

Configure in the following menu items.

•<VF MARKER> page (see page 38) in the OPERATION menu

• <ZEBRA> page (see page 38) in the OPERATION menu

Page 25

6 Check the microphone connection and the audio input

selector switch settings (see page 21).

7 Adjust the white balance and black balance (see page 25). 8 Rotate the focus ring on the lens to adjust the focus.

Adjustments and Settings

For details about menu operations, see “Menus” (page 31).

Changing the Video Format

1 Select the <OUTPUT FORMAT> page in the

MAINTENANCE menu.

2 Select the desired format in CURRENT.

Adjusting the Black Balance and White Balance

To ensure excellent image quality when using this camera, conditions may require that both the black balance and the white balance be adjusted. Black balance and white balance adjustment values that are automatically set by the camera and other various settings are stored in the camera memory and retained when the power is turned off.

Note

When connected to a camera control unit or external control device (for example, RCP or RM), the black balance and white balance adjustment functions are controlled from the connected device. They are not controlled using the camera.

For details about operations on the external control device, refer to the operating instructions or operation manual for the device.

Black balance adjustment

The black balance will require adjustment in the following cases.

• When using the camera for the first time

• When the camera has not been used for a long time

• When the camera is used under conditions in which the surrounding temperature has changed greatly

• When the gain values configured for the GAIN switch (L/M/H) have been changed using GAIN on the <SWITCH ASSIGN1> page in the OPERATION menu.

It is not usually necessary to adjust the black balance when using the camera after it has been turned off.

White balance adjustment

Always readjust the white balance when the lighting conditions change.

Adjusting the black balance

In automatic black balance mode, adjustments are performed in the following order: black set and black balance. Manual black balance adjustment can be selected in the menu.

For details about manual black balance adjustment, contact a Sony service representative.

1 Set the OUTPUT/AUTO KNEE switch to CAM.

Page 26

2 Push the WHT/BLK switch to the BLK position and release

the switch.

The message “ABB: EXECUTING” appears during execution, and changes to “ABB: OK” when the adjustment finishes. Adjustment values are saved in memory automatically.

Notes

• During the black balance adjustment, the iris is automatically shielded.

• During the black balance adjustment, the gain selection circuit is automatically activated so you may see flicker in the viewfinder, but this is not a fault.

5 Push the WHT/BLK switch to the WHT position and

release the switch.

If automatic black balance adjustment cannot be made

If the black balance adjustment cannot be completed normally, an error message will appear for about three seconds in the viewfinder. If an error message is displayed, retry the black balance adjustment. If the error message occurs again, consult your Sony dealer or a Sony service representative.

Note

If the lens cable is not firmly connected to the LENS connector, it may not be possible to adjust the lens iris. If this happens, the black balance will be incorrect.

Adjusting the white balance

1 Set the switches as shown below.

• GAIN switch: L (set to a gain value that is as small as possible)

• OUTPUT/AUTO KNEE switch: CAM

• WHITE BAL switch: A or B

2 Set the FILTER knob to suit the lighting conditions. 3 Place a white test card under the same lighting conditions

as for the subject to be shot and zoom up to it.

Alternatively, any white object such as a cloth or a wall can be used. The minimum required white area is as follows.

Rectangle centered on the screen. The lengths of the sides are 70% of the length and width of the screen.

WHT/BLK switch

The message “AWB: EXECUTING” appears during execution, and changes to “AWB: OK” when the adjustment finishes. The adjustment values are saved automatically in the memory selected in step 1 (A or B).

Note

If the camera has a zoom lens with an automatic ir is, the iris may hunt1) during the adjustment. To prevent this, adjust the iris gain knob (labeled IG, IS, or S) on the lens.

1) Hunting: Repeated brightening and darkening of the image, resulting from repeated response to automatic iris control.

For details, refer to the operation manual supplied with the lens.

If the automatic white balance adjustment cannot be made

If the white balance adjustment cannot be completed normally, an error message will appear for about three seconds in the viewfinder. If an error message is displayed, retry the white balance adjustment. If the error message occurs again, consult your Sony dealer or a Sony service representative.

If you have no time to adjust the white balance

Set the WHITE BAL switch to PRST. The white balance can be set to 5600K automatically by pressing the COLOR TEMP. button. You can set the color temperature to 3200K, 4300K, 5600K, or 6300K by assigning the electrical CC filter function to the COLOR TEMP. button.

The white object must be within the rectangle and have an area of at least 10% of the screen.

Note

Make sure there are no bright spots in the rectangle.

4 Adjust the lens iris.

Manually adjustable lens: Set the iris to an appropriate

setting.

Lens with automatic iris: Set the iris automatic/manual

switch on the lens to automatic.

To switch the electrical CC filter

You can assign the electrical CC filter switching function to the ASSIGN 1/2/3 buttons or the COLOR TEMP. button. This allows you to switch between color temperatures (3200K/4300K/5600K/ 6300K) configured for the four positions (A to D) selected with each press of the button.

1 Select the <WHITE FILTER> page in the

MAINTENANCE menu.

2 Select the position to which to assign a CC filter

(ELECTRICAL CC <A> to <D>).

Page 27

3 Set the color temperature (3200K, 4300K, 5600K, or

6300K).

To set no color temperature

You can disable ELECTRICAL CC <C> and <D> by setting the value to “-----.” For example, if one position is disabled, then that position is not displayed and the button switches between the remaining three positions.

4 Repeat steps 2 and 3 as required. 5 Assign the CC filter switching function (ELECTRICAL

CC) to a button on the <SWITCH ASSIGN1> page in the OPERATION menu.

For the ASSIGN 1/2/3 buttons, select ASSIGNABLE 1/2/3 and set to ELECTRICAL CC. For the COLOR TEMP. button, select ASSIGN CTEMP and set to ELECTRICAL CC.

White balance memory

There are two white balance memories: A and B. When you execute automatic white balance adjustment, the adjusted white balance value is stored in the memory (A or B) selected with the WHITE BAL switch. The white balance values stored in memory are retained until the white balance is adjusted again, including when power is turned off. When power is turned on again, the white balance in memory corresponding to the current WHITE BAL switch setting is loaded.

Setting the Electronic Shutter

Note

When connected to a camera control unit or external control device (for example, RCP or RM), the electronic shutter settings are controlled from the connected device. They are not controlled using the camera.

For details about operations on the external control device, refer to the operating instructions or operation manual for the device.

Shutter modes

The shutter modes that can be used with the electronic shutter and the shutter speeds that can be selected are listed below.

Standard mode

Select this mode for shooting fast-moving subjects with little blurring.

System frequency Shutter speed (sec.)

• 59.94i

• 59.94P

• 50i

• 50P

• 29.97PsF 1/40, 1/60, 1/100, 1/120, 1/125, 1/250, 1/500,

• 25PsF 1/33, 1/50, 1/100, 1/125, 1/250, 1/500, 1/1000,

1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000

1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000

1/1000, 1/2000

1/2000

ECS (Extended Clear Scan) mode

Select this mode for obtaining images with no horizontal bands of noise when shooting subjects such as monitor screens.

SYSTEM LINE System frequency Shutter speed (Hz)

1080 59.94i 60.00 to 4300

50i 50.00 to 4700

29.97PsF 30.00 to 2700

25PsF 25.00 to 2300

720 59.94P 59.96 to 4600

50P 50.03 to 4600

SLS (Slow Shutter) mode

Select this mode to shoot dimly lit subjects. You can set the number of accumulated frames to 2, 3, 4, 5, 6, 7, or 8 frames.

Note

In SLS mode, the following limitations apply to automatic functions.

Y: Available, N: Not available

Function Operation in SLS mode

2F 3F/4F/5F/6F/7F/8F

AUTO WHITE Y Y

AUTO BLACK Y 2F setting

AUTO WHITE SHADING N N

AUTO BLACK SHADIN G N N

AUTO LEVEL N N

AUTO HUE N N

AUTO IRIS Y Y

AT W Y Y

AUTO KNEE Y Y

FLARE Y Y

D.EXT Y Y

TLCS (AUTO SHUTTER) Last enabled function takes

precedence

Setting the shutter mode and shutter speed

Notes

• When automatic iris is used, the iris opens wider as the shutter speed increases, reducing the depth of field.

• The selectable shutter speeds vary depending on the current system frequency.

Setting the shutter mode and standard mode shutter speed

Once the shutter speed is selected, it is retained even when the camera power is turned off.

1 Push the SHUTTER switch from ON to SEL.

The current shutter setting indication appears in the viewfinder for about three seconds. Example: SHUTTER: 1/250

Page 28

2 Before the shutter setting indication disappears, push the

SHUTTER switch to SEL again.

Repeat this operation until the desired speed is displayed. To set ECS mode, select “ECS.” To set SLS mode, select “SLS.” All modes and speeds are displayed in the following order. Example: System frequency of 59.94i

1/100

Standard mode

1/5001/2501/125

1/1000

ECS modeSLS mode

1/2000

Setting the TLCS Function

You can maintain the proper exposure by using the TLCS (Total Level Control System) function. This function controls not only the iris, but also the shutter (AUTO SHUTTER) and gain (AGC: Auto Gain Control) automatically. The TLCS function can be assigned to one of the ASSIGN 1/2/3 buttons, and turned on/off by pressing the button. The effective auto control range is set as shown in the following diagram on the <TLCS> in the OPERATION menu.

To set the shutter speed in ECS mode

1 Set the shutter mode to ECS. 2 Rotate the menu control knob and set the desired

frequency.

To set the shutter speed in SLS mode

1 Set the shutter mode to SLS. 2 Rotate the menu control knob and set the desired number

of frames.

Setting Automatic Iris

The automatic iris setting may need to be changed, according to the subject lighting conditions, to aid the shooting of clear pictures of back-lit subjects or to prevent blown-out highlights of subjects illuminated with spotlights. The reference value for the lens iris can be set within the range –99 (equivalent to closing the iris by 2 stops) to 99 (equivalent to opening the iris by 2 stops) with respect to the standard value. You can monitor the current reference value using the F-stop value indicator displayed in the viewfinder. Also, you can set the auto iris target range.

Changing the reference value

The changed reference value is retained until the power of the camera is turned off. Even if the reference value is changed, it reverts to the original value every time the power is turned on.

Bright Subject Dark

Iris closed Iris openAuto iris

Restores auto iris control if the LIMIT value is exceeded.

Notes

• Both AUTO SHUTTER and AGC switch on/off in response to the button assigned with the TLCS function. You can turn them on/off individually on the <TLCS> page in the OPERATION menu.

• SLS mode and AUTO SHUTTER cannot be used at the same time. The last enabled function takes precedence.

Restores auto iris control if the LIMIT value is exceeded.

Setting the Focus Assist Function

The assist functions for easier focus adjustment can be displayed in the viewfinder.

Adding the viewfinder detail signal

Adding a detail signal to sharp edges in the image in the viewfinder makes it easier to check the focus condition by observing changes in the detail signal or in the color converted from the detail signal (color detail). The focus setting where the detail signal becomes strongest is the best focus setting.

1 Select the <AUTO IRIS> page in the MAINTENANCE

menu.

2 Select AUTO IRIS and set to ON. 3 Select OVERRIDE and set the reference value.

Note

Check that the current shutter mode is not ECS before proceeding.

Page 29

1 Select the <VF DETAIL> page in the OPERATION menu.

<VF DETAIL> c 04 TOP

VF DETAIL : ON 8% CRISP : 0 FREQUENCY : 9M FLICKER : OFF AREA : 100% ZOOM LINK : ON 100%

COLOR DETAIL : OFF BLUE PEAK COLOR : OFF CHROMA LEVEL: 25%

RETURN DISABLE : OFF

2 To use the VF detail signal, select VF DETAIL and set to

ON.

Set VF DETAIL to ON to activate the VF detail function to add the detail signal to sharp edges in the image. You can adjust the level in the range of 0% to 100% (factory default: 8%). You can adjust the characteristics of the added detail signal with

the menu items below.

CRISP: Eliminate fine portions of the detail signal. FREQUENCY: Change the detection band of sharp edges. FLICKER: Set the function for flickering the detail signal to

ON/OFF. (Setting the function to ON makes it easier to check the detail signal on the viewfinder screen.)

AREA: Limit the area where to display the detail signal. ZOOM LINK: Set the VF detail level at the full WIDE position.

(The VF detail level changes according to the zoom position. The default setting is no change at the 100% WIDE position, and half at 50%.)

1 Select the <FOCUS ASSIST> page in the OPERATION

menu.

<FOCUS ASSIST> c 05 TOP

INDICATOR : OFF MODE : BOX BTM LEVEL : 40% QUICK GAIN : 50 OFFSET : 50

AREA MARKER: OFF SIZE : MIDDLE POSITION : CENTER POSITION H: 50 POSITION V: 50

2 To use a level indicator, select INDICATOR and set to ON.

Setting INDICATOR to ON displays the level indicator for focusing on the monitor. You can set the display method with the menu items below.

MODE: Set the type and display position of the indicator. LEVEL: Set the density and the response speed of the indicator. GAIN: Set the sensitivity of the indicator. OFFSET: Set the offset of the focus detection value.

1) Normally, the value is automatically set to the optimum value in conjunction with the AREA MARKER SIZE set value. Use this setting when an optimum sensitivity value cannot be obtained, depending on the shooting environment.

2) Normally, the optimum offset is automatically set in conjunction with the AREA MARKER SIZE and MASTER GAIN set values. Use this setting when the optimum offset cannot be obtained, depending on the shooting environment.

3 To use color detail, select COLOR DETAIL and set to ON.

Setting COLOR DETAIL to ON converts the VF detail signal to a color. The display color can be selected in the column next to ON. You can adjust how color is added with the menu items below. PEAK COLOR: Turn the function to change the color where

the detail signal is strongest on/off.

CHROMA LEVEL: Reduce the chroma components of the

video signal.

Displaying the focus assist indicators

The focus assist indicator function extracts the irregularities of a subject and converts the integrated values to a level indicator for display in the viewfinder.

Level indicator (display position and operation can be adjusted)

Area marker to display the detection area of the focus (size and position can be adjusted)

3 To use an area marker, select AREA MARKER and set

to ON.

Setting AREA MARKER to ON displays an area marker indicating the focus detection area on the monitor. You can set the size and position of the detection area with the menu items below. SIZE: Change the size of the detection area. (If the detection

area size is too large, both the subject and the background are included in the area, making the indicator display deviate from the subject.)

POSITION: Roughly set the position of the detection area. POSITION H: Fine adjustment of the position of the detection

area in the horizontal direction.

POSITION V: Fine adjustment of the position of the detection

area in the vertical direction.

Notes

• The level indicator and effect area marker cannot be displayed at the same time. The one that was set to ON last takes precedence.

• The area marker and aspect safety marker cannot be displayed at the same time. The one that was set to ON last takes precedence.

• When displaying the focus assist indicators, check that the flange focal length (flange back) has been precisely adjusted (see page 21).

The focus setting where the indicator shows the maximum level is the best focus setting. (The width of the indicator substantially changes depending on the picture content and shooting environment. Adjust using GAIN and OFFSET, as required.)

Page 30

Setting the Camera Outputs

You can specify video signals directly output from the camera using the menu.

Note

The MAIN (camera picture), RET (return video), or VF (the same picture as that displayed in the viewfinder) settings are common to SD-SDI and VBS. Different signals cannot be output.

The menu pages used for the output settings are registered in the USER menu by factory default.

• <SDI OUT> (U17)

• <TEST OUT> (U16)

For details about the USER menu, see “Editing the USER Menu” (page 34).

Set the items on each page as follows.

Outputting the same image as that in the viewfinder

With HD-SDI, you can obtain a signal that includes the same information as that being displayed in the viewfinder according to the settings for VF MARKER, CHARACTER, VF DETAIL, ZEBRA, etc. The individual ON/OFF and other settings for adding information are common to those for the viewfinder. The output is synchronized with the switching of Y, R, G, B, or return signal in the viewfinder.

To output as HD-SDI

Menu page Page No. Item Setting

<SDI OUT> M11 SDI OUT VF

To output as TEST OUT

Menu page Page No. Item Setting

<TEST OUT> M10 OUTPUT VF

Outputting the signal being shot (camera picture)

The same textual information as that displayed in the viewfinder can be added to the output signal by setting CHARACTER to ON on the <SDI OUT> or <TEST OUT> page.

To output as HD-SDI

Menu page Page No. Item Setting

<SDI OUT> M11 SDI OUT MAIN

To output as SD-SDI

Menu page Page No. Item Setting

<SDI OUT> M11 SDI OUT SD-SDI

DOWN CONVERTER

SELECT

MAIN

To output as VBS

Menu page Page No. Item Setting

<TEST OUT> M10 OUTPUT VBS

DOWN CONVERTER

SELECT

MAIN

Constantly outputting a return video

• When a CCU is connected, one of the signals being supplied to the CCU can be output from the camera.

• The last selected return signal is output.

Outputting a prompter signal

The VBS signal supplied to the PROMPTER connector of the CCU is output from the PROMPTER/GENLOCK connector of the camera.

Adjusting the Audio Level

When the HXCU-FB70 is connected

The input levels from audio sources connected to the AUDIO 1 IN and AUDIO 2 IN connectors can be adjusted using a remote control panel connected to the CCU or the CONFIGURATION menu on the CCU. When the audio input selector switch is set to MIC, the level can be adjusted between 20 dB and 60 dB in steps of 10 dB. When the audio input selector switch is set to LINE, the level cannot be adjusted.

In standalone operation mode

The input level from audio sources connected to the AUDIO 1 IN and AUDIO 2 IN connectors can be adjusted using the INTERCOM LEVEL knob on the front of the camera. When the audio input selector switch is set to MIC, the level can be adjusted between 20 dB and 60 dB in steps of 10 dB. When the audio input selector switch is set to LINE, the level cannot be adjusted. Set the gain to avoid clipping the audio signal by monitoring the audio level meters and waveforms. You can assign a function to the INTERCOM LEVEL knob on the <VR ASSIGN> page in the OPERATION menu.

To output as HD-SDI

Menu page Page No. Item Setting

<SDI OUT> M11 SDI OUT RET

Page 31

Setting the Digital Extender Function

The central area of the screen can be magnified by a factor of 2 or 4 by enabling the digital extender function. To use the digital extender function, assign the function to one of the ASSIGN 1/2/3 buttons. Press the button to magnify the central area of the screen by a factor of 2 or 4, and press again to return to the original image.

1 Select D.EXT ENABLE on the <OTHERS> page in the

MAINTENANCE menu, and set to ENABLE.

2 Assign the digital extender function (D.EXTENDER ×2 or

×4) to a button on the <SWITCH ASSIGN1> page in the OPERATION menu.

Select one of ASSIGNABLE 1/2/3, and set to D.EXTENDER ×2 (2×) or D.EXTENDER ×4 (4×).

Menus

The menus displayed in the viewfinder enable various settings of the camera. The following switches are used to operate the menus. Rotate the menu control knob to select menu items or values, and press it to register (enter) the selection.

Note

When D.EXT ENABLE is set to ENABLE on the <OTHERS> page in the MAINTENANCE menu, video output from the camera is delayed by 1 field.

DISPLAY/MENU switch

STATUS/CANCEL switch

Menu control knob

Rotate to select Press to confirm

Viewfinder Display Screen

Besides the video image, the viewfinder can display text and messages showing the camera settings and operation status, as well as items such as a center marker or safety-zone marker.

When the DISPLAY/MENU switch is set to DISPLAY

Items set to ON using the menu or related switches will be displayed.

EX Z 99 ! D.EX 12.0 TALK CAM

5600

1 A W: A 12dB ECS

1 2

a TALK i ndi c ato r

Displayed when the intercom microphone is ON.

b D.EX indicator

Displayed when the digital extender function is ON.

F 2

RET1

5 V ?

Page 32

c EX (lens extender) indicator

Displayed when using a lens extender.

d Zoom position indicator

Indicates the approximate position of the zoom lens variator between wide angle (0) and telephoto (99).

e ! indicator

Displayed when non-standard settings are configured, using the ‘!’ IND function.

f Focus position indicator

Displays the focus position of a zoom lens as a numeric value (0 to 255 (∞)).

g Voltage indicator

Displays the voltage supplied to the camera.

h DIAG indicator

Displays self-diagnostic information.

i Message area

Displays various types of messages.

When the STATUS/CANCEL switch is set to STATUS

The status display appears when you set the STATUS/CANCEL switch to STATUS with the DISPLAY/MENU switch set to DISPLAY. The status screen displays the video format and non-standard settings of the camera.

1080-59.94i ASSIGNABLE1 :OFF ASSIGNABLE2 :OFF ASSIGNABLE3 :OFF ASSIGN CTEMP :5600K

!ND :2 !WHITE :P !5600K :ON !SHUTT :1/1000 !FAN :MAX !FORMAT :1080-29.97PsF OPT LV CAM: b CCU: b

j 5600K mode indicator

Displayed when the 5600K setting is ON.

k Filter indicator

Displays the type of ND filter (A to D).

l ECC indicator

Displays the type of built-in electrical CC filter (A to D).

m White balance memory indicator

Displays the white balance automatic adjustment memory. This is not displayed when a CCU is connected.

W:A: The WHITE BAL switch is set to A. W:B: The WHITE BAL switch is set to B. W:P: The WHITE BAL switch is set to PRST.

n Gain value indicator

Displays the video gain value (dB) set with the GAIN switch.

o Shutter/ECS indicator

Displays the shutter/ECS setting. Not displayed if the shutter is OFF.

p Audio level meters

Displays the audio levels input to the AUDIO 1 IN and AUDIO 2 IN connectors.

q Return video indicator

Displayed while the RET button is pressed.

r F-stop value indicator

Displays the lens F-stop (iris opening) value.

a Format indicator

Displays the current video format.

b Assignable button function indicators

Displays the functions assigned to the ASSIGN 1/2/3 buttons and COLOR TEMP. button.

For details, see “<SWITCH ASSIGN1>” (page 39) in the OPERATION menu.

c ‘!’ indicator area

This area is used to display non-standard status, using the ‘!’ IND function. Display options can be set using the menu.

For details, see “<‘!’ IND>” (page 37) in the OPERATION menu.

d Optical level indicators

Displays the optical levels using multi-segment indicators.

CAM: Optical level on the CCU connector of the camera CCU: Optical level on the CAMERA connector of the CCU

Operating the Menu

To display a menu page

Set the DISPLAY/MENU switch to MENU. The menu page last accessed will be displayed. If it is the first time, the CONTENTS page of the USER menu will be displayed.

To display the TOP MENU screen

If you set the DISPLAY/MENU switch to MENU while holding the menu control knob pressed, “TOP” is displayed at the upper right corner of the screen. Rotate the menu control knob to move the , pointer on the display to “TOP” and press the menu control knob to display the TOP MENU screen, listing the available menus.

Page 33

USER USER MENU CUSTOMIZE ALL OPERATION PAINT MAINTENANCE FILE DIAGNOSIS

Selecting a Page

To select a page from the CONTENTS page

Rotate the menu control knob to align the , pointer with the desired page and press the menu control knob.

If the screen can be scrolled, arrows will indicate the direction for scrolling.

Menu Function

USER This menu is user defined and can include often-used

USER MENU CUSTOMIZE

ALL This menu permits you to control all items of the

OPERATION

(page 37)

PA IN T

(page 42)

MAINTENANCE

(page 45)

FILE

(page 47)

DIAGNOSIS

(page 48)

menu pages selected from among the OPERATION, PAINT, MAINTENANCE, FILE, and DIAGNOSIS menus. The factory default configuration can be changed using the USER MENU CUSTOMIZE menu.

This menu allows you to edit the USER menu.

For details, see “Editing the USER Menu” (page 34).

OPERATION menu, PAINT menu, MAINTENANCE menu, FILE menu, and DIAGNOSIS menu as a single menu.

This menu contains items for camera operators to operate the camera. It mainly permits viewfinder, intercom, and switch settings.

This menu contains items for making detailed image adjustments while using a waveform monitor to monitor the waveforms output from the camera. Support of a video engineer is usually required to use this menu.

Although you can also use an external control device to set the items in this menu, the menu is effective when using the camera outdoors in standalone operation mode.

This menu contains items for performing camera maintenance operations and for setting infrequently used “paint” items.

This menu is for performing file operations, such as writing or clearing the reference file.

This menu displays self-diagnostic information.

CONTENTS P00 TOP

01.<SW STATUS>

02.<VIDEO LEVEL>

, pointer

03.<COLOR TEMP>

04.<GAMMA>

05.<BLACK GAMMA>

06.<SATURATION>

07.<KNEE>

08.<WHITE CLIP>

09.<DETAIL 1>

10.<DETAIL 2>

11.<SD DETAIL>

12.<SD CROSSCOLOR>

13.<SKIN DETAIL>

14.<USER MATRIX>

The selected page is displayed. Press the menu control knob to confirm the page selection.

Page No.

<GAMMA> P04 TOP

[R] [G] [B] [M] LEVEL :

COARSE : 0.45

0 0 0 0

To change the displayed page

1 Check that the , pointer is located on the left of the page

number and press the menu control knob.

The , pointer changes to a flashing question ? mark.

Flashing

<GAMMA> ?P04 TOP

[R] [G] [B] [M] LEVEL : 0 0 0 0

COARSE : 0.45

To disable the “TOP” indication

Turn the power off then on again, or set the DISPLAY/MENU switch from OFF to MENU while holding the STATUS/CANCEL switch in the CANCEL position. This disables the TOP selection.

To select a menu on the TOP MENU screen

Rotate the menu control knob to align the , pointer with the desired menu and press the menu control knob. The CONTENTS page (page No. 00) or the last accessed page of the selected menu is displayed.

2 Rotate the menu control knob to flip through the pages, and

press the menu control knob when the desired page is displayed.

The ? mark will change back to the , pointer, and operations on the selected page are enabled.

To return to the TOP MENU screen

Align the , pointer with “TOP” at the top right of the menu page and press the menu control knob.

<GAMMA> P04cTOP

[R] [G] [B] [M] LEVEL : 0 0 0 0

COARSE : 0.45

Page 34

Setting Menu Items

If a ? mark is flashing on the left of the page number, press the menu control knob to change it to the , pointer. Operation on the displayed page is enabled.

1 Align the , pointer with the desired item and press the

menu control knob.

The , pointer changes to a flashing question ? mark.

2 Rotate the menu control knob to change the setting value.

When the knob is rotated quickly, the values will change quickly; when rotated slowly, the values will change slowly.

To reset a changed value

If you set the STATUS/CANCEL switch to CANCEL before pressing the menu control knob, the setting will be returned to its previous value.

To interrupt settings

Set the DISPLAY/MENU switch to OFF to turn off the menu screen display. The setting operation can be restarted by setting the DISPLAY/ MENU switch back to MENU.

3 Press the menu control knob.

The ? mark will change back to the , pointer, and the setting will be registered.

4 To change other setting items on the same menu page,

repeat steps 1 to 3.

To specify a character string

When you press the menu control knob with the , pointer aligned with an item for which a character string, such as a file ID, is to be specified, a rectangular cursor and a list of selectable characters are displayed. The cursor can be moved by rotating the menu control knob.

1 Set the cursor to the position where you wish enter a

character, then press the menu control knob.

A cursor appears in the character list.

2 Set the cursor to the character to be entered and press the

menu control knob.

Repeat steps 1 and 2.

• By selecting INS on the line below the character list, you can enter a space at the cursor position.

• Selecting DEL deletes the character at the cursor position.

• You can return to step 1 without changing the character by selecting RET.

• If you enter the permitted maximum number of characters (up to the stop mark at the right end of the line), the cursor moves to ESC below the character list.

3 Select END and press the menu control knob.

The new string you have set is registered.

To restore the previous string

Select ESC and press the menu control knob.

To return a menu item to the standard value

When an item is selected and the , pointer is displayed, pressing and holding the menu control knob for 3 seconds restores the setting value to the state in the reference file. If 10 SEC CLEAR is set to ON on the <FILE CLEAR> page in the FILE menu, pressing the control knob for another 10 seconds restores the reference file value of the selected item to the default state.

To exit menu operations

Set the DISPLAY/MENU switch to OFF.

Editing the USER Menu

You can select desired pages and items from the OPERATION, PAINT, MAINTENANCE, FILE, and DIAGNOSIS menus and register them in the USER menu. If you specify pages or items frequently used for the USER menu, you can easily call and use them. The following pages are included in the USER menu by factory default.

Menu page USER

menu No.

<VF OUT> U01 OPERATION 08

<VF DETAIL> U02 OPERATION 04

<FOCUS ASSIST> U03 OPERATION 05

<VF DISPLAY> U04 OPERATION 01

<‘!’ IND> U05 OPERATION 02

<VF MARKER> U06 OPERATION 03

<CURSOR> U07 OPERATION 07

<ZEBRA> U08 OPERATION 06

<SWITCH ASSIGN1> U09 OPERATION 09

<SWITCH ASSIGN2> U10 OPERATION 10

<LENS FILE> U11 FILE F04

<HEADSET MIC> U12 OPERATION 12

<INTERCOM> U13 OPERATION 13

<AUDIO> U14 MAINTENANCE M07

<OUTPUT FORMAT> U15 MAINTENANCE M09

<TEST OUT> U16 MAINTENANCE M10

<SDI OUT> U17 MAINTENANCE M11

<TRUNK> U18 MAINTENANCE M12

<ROM VERSION> U19 DIAGNOSIS D03

For the items on each page, see “OPERATION menu” (page 37), “MAINTENANCE Menu” (page 45), “FILE Menu” (page 47), or “DIAGNOSIS Menu” (page 48).

The USER MENU CUSTOMIZE menu allows you to configure the USER menu as follows.

• Creating a new menu page and selecting and adding (registering) items that you use very frequently from multiple menu pages.

• Deleting (unregistering) added items.

• Changing the order of added items.

• Adding (registering) a menu page (new page you create or existing menu page) to the USER menu

• Deleting (unregistering) a page from the USER menu

• Changing the order of pages of the USER menu.

Source menu / Page No.

Page 35

Editing by items

The USER MENU CUSTOMIZE menu allows you to create a new page for the USER menu and add any item. While the EDIT page contains factory-preset items, the USER 1 EDIT to USER 19 EDIT pages are all blank in their initial state. Up to 10 items can be selected and registered to these pages from different menu pages.

To add items to a page

1 Select USER MENU CUSTOMIZE on the TOP MENU

screen (see page 32).

If this is the first time the USER MENU CUSTOMIZE menu has been displayed, the CONTENTS page appears.

CONTENTS E00 TOP

01.EDIT PAGE

02.USER 1 EDIT

03.USER 2 EDIT

04.USER 3 EDIT

05.USER 4 EDIT

06.USER 5 EDIT

07.USER 6 EDIT

08.USER 7 EDIT

09.USER 8 EDIT

10.USER 9 EDIT

11.USER 10 EDIT

12.USER 11 EDIT

13.USER 12 EDIT

14.USER 13 EDIT

If the menu has been used before, the page last accessed appears.

2 If the CONTENTS page is displayed, rotate the menu

control knob to move the , pointer to any of USER 1 EDIT to USER 19 EDIT and press the menu control knob to display the page. If a different page is displayed, rotate the menu control knob until the desired page appears, then press the menu control knob to select the page.

Example: If the USER 2 EDIT page is selected

USER 2 EDIT E03 TOP

4 Move the , pointer to INSERT and press the menu

control knob.

The CONTENTS page appears.

CONTENTS ?P00 ESC

01.<VF DISPLAY>

02.<`!' IND>

03.<VF MARKER>

04.<VF DETAIL>

05.<FOCUS ASSIST>

06.<ZEBRA>

07.<CURSOR>

08.<VF OUT>

09.<SWITCH ASSIGN1>

10.<SWITCH ASSIGN2>

11.<VR ASSIGN>

12.<HEADSET MIC>

13.<INTERCOM>

14.<EARPHONE>

5 Add the items.

1 Rotate the menu control knob until the page that has the

desired items appears, and press the menu control knob.

2 Rotate the menu control knob to move the , pointer to the

desired item, and press the menu control knob.

The USER 2 EDIT page appears again, displaying the newly added item.

6 Add the remaining items by repeating steps 3 to 5.

You can add up to 10 items on one page.

To change the order of items on a page

1 Move the , pointer to the item to be moved and press the

menu control knob.

The EDIT FUNCTION screen appears.

2 Select MOVE and press the menu control knob.

The previously displayed page appears again.

3 Move the , pointer to the position where you wish to move

the item and press the menu control knob.

ITEM MOVE ESC

VF DETAIL : ON

COLOR DETAIL : OFF

MARKER : ON CURSOR : OFF xZEBRA : OFF

3 Move the , pointer to the item to be added (this operation

is unnecessary if no item exists on the page, as shown in the figure for the previous step), then press the menu control knob.

The EDIT FUNCTION screen appears.

EDIT FUNCTION ESC

INSERT MOVE DELETE BLANK

~~~END OF PAGE~~~

The item selected in step 1 moves to the position selected in step 3. In the above example, ZEBRA is moved to the top, and the other items are moved down one line.

Page 36

To delete items from a page

1 Move the , pointer to the item to be deleted and press the

menu control knob.

The EDIT FUNCTION screen appears.

2 Select DELETE and press the menu control knob.

The previously displayed page appears again, and the message “DELETE OK? YES,NO” appears.

3 To delete, rotate the menu control knob to move the ,

pointer to YES and press the menu control knob.

4 Select INSERT and press the menu control knob.

The page selection screen appears.

CONTENTS ESC

xx c

01.USER 1

02.USER 2

03.USER 3

04.USER 4

05.USER 5

06.USER 6

07.USER 7

08.USER 8

09.USER 9

10.USER 10

11.USER 11

12.USER 12

13.USER 13

14.USER 14

To insert a blank line

1 Move the , pointer to the position where you wish to

insert a blank line.

The EDIT FUNCTION screen appears.

2 Select BLANK and press the menu control knob.

The previously displayed page appears again, and a blank line is inserted above the position selected in step 1.

Note

You cannot insert a blank line on a page where 10 items have already been registered.

Editing by pages

EDIT PAGE in the USER MENU CUSTOMIZE menu allows you add, delete, and sort new pages and existing pages.

To add a page

1 Select USER MENU CUSTOMIZE on the TOP MENU

screen.

If this is the first time the USER MENU CUSTOMIZE menu has been displayed, the CONTENTS page appears. If the menu has been used before, the page last accessed appears.

2 If the CONTENTS page is displayed, rotate the menu

control knob to move the , pointer to EDIT PAGE and press the menu control knob to display the EDIT PAGE screen. If a different page is displayed, rotate the menu control knob until the EDIT PAGE screen appears. then press the menu control knob to select the page.

EDIT PAGE E00 TOP

01.<VF OUT>

02.<VF DETAIL>

03.<FOCUS ASSIST>

04.<VF DISPLAY>

05.<'!' IND>

06.<VF MARKER>

07.<CURSOR>

08.<ZEBRA>

09.<SWITCH ASSIGN1>

10.<SWITCH ASSIGN2>

11.<LENS FILE>

12.<HEADSET MIC>

13.<INTERCOM>

14.<AUDIO>

5 Move the , pointer to the desired page and press the menu

control knob.

This adds the page above the item selected in step 3. To cancel addition of a page

Before pressing the menu control knob in step 5, rotate the menu control knob to move the , pointer to ESC at the top right of the screen and press the menu control knob. The EDIT PAGE screen appears again.

To delete a page

1 On the EDIT PAGE screen of the USER MENU

CUSTOMIZE menu, move the , pointer to the page to be deleted and press the menu control knob.

The EDIT FUNCTION screen appears.

2 Select DELETE and press the menu control knob.

The previously displayed page appears again, and the message “DELETE OK? YES,NO” appears.

ITEM DELETE ESC DELETE OK? YES

01.<VF OUT>

02.<VF DETAIL>

03.<FOCUS ASSIST> x04.<VF DISPLAY>

05.<'!' IND>

06.<VF MARKER>

07.<CURSOR>

08.<ZEBRA>

09.<SWITCH ASSIGN1>

10.<SWITCH ASSIGN2>

11.<LENS FILE>

12.<HEADSET MIC>

13.<INTERCOM>

14.<AUDIO>

cNO

3 To delete, rotate the menu control knob to move the ,

pointer to YES and press the menu control knob.

To change the order of pages

1 On the EDIT PAGE screen of the USER MENU

CUSTOMIZE menu, move the , pointer to the page to be moved and press the menu control knob.

The EDIT FUNCTION screen appears.

2 Select MOVE and press the menu control knob.

The previously displayed page appears again.

3 Move the , pointer to the position where you wish to add

the page and press the menu control knob.

The EDIT FUNCTION screen appears.

Page 37

3 Move the , pointer to the position where you wish to move

the page and press the menu control knob.

ITEM MOVE ESC

01.<VF OUT>

02.<VF DETAIL>

03.<FOCUS ASSIST>

04.<VF DISPLAY>

05.<'!' IND>

06.<VF MARKER> x07.<CURSOR>

08.<ZEBRA>

09.<SWITCH ASSIGN1>

10.<SWITCH ASSIGN2>

11.<LENS FILE>

12.<HEADSET MIC>

13.<INTERCOM>

14.<AUDIO>

The page selected in step 1 is moved to the position above the page selected in step 3. In the above example, <CURSOR> moves to 04, and <VF DISPLAY> and the following pages move down one line.

OPERATION menu

Note

The following applies to all menus.

ON, OFF, 0: Default settings underlined Page No. nn (Unn): Pages registered in the USER menu by factory

default have USER menu page numbers in parentheses.

Execute using ENTER: Execute by pressing the menu control knob.

Page title Page No.

01 (U04)

Item Setting

EX ON

, OFF

ZOOM ON, OFF

DISP LEFT, RIGT

FOCUS ON, OFF

Valid only when a serial lens is used.

ND ON, OFF

CC ON

5600K ON

IRIS ON

, OFF

WHITE ON, OFF

D.EXT ON, OFF

GAIN ON

SHUTTER ON

, OFF

BATT ON, OFF

RETURN ON, OFF

TA LK ON

AUDIO ON

MESSAGE ALL

, OFF

, AT, WRN, OFF

ALL: Displays all messages. WRN: Displays warning

messages and higher.

AT: Displays auto setup

information and higher.

FRONT/REAR VR ON, OFF

Page title Page No.

<‘!’ IND>

02 (U05)

Item Setting

[IND] Turns the ‘!’ IND indicator function on/off.

[NORMAL] Sets the condition for not displaying the ‘!’ IND indicator when the indicator function is turned on (standard settings).

---: Displayed when not in standalone operation mode (not configurable)

ND IND: ON, OFF

NORMAL: 1

, 2, 3, 4

(combination allowed)

CC IND: ON

NORMAL: A

, OFF

, B, C, D

(combination allowed)

WHITE IND: ON

NORMAL: P, A

, OFF, ---

, B

(combination allowed)

5600K IND: ON

, OFF, ---

NORMAL: ON, OFF

GAIN IND: ON, OFF, ---

NORMAL: H, M, L (combination allowed)

SHUTTER IND: ON

, OFF, ---

NORMAL: ON, OFF

FAN IND: ON, OFF

NORMAL: AUTO 1

AUTO2, MIN, MAX

EXT IND: ON

FORMAT IND: ON

, OFF

NORMAL: 1080-59.94i, 1080-29.97PsF, 1080-50i, 1080-25PsF, 720-59.94P, 720-50P

(Default setting varies with region of use.)

Page 38

Page title Page No.

03 (U06)

04 (U02)

Item Setting

MARKER ON

, OFF

WHITE

, BLACK, DOT

LEVEL 0%, 10%, 20%, 30%, 40%

50%, 60% 70%, 80%, 90%, 100%

CENTER ON, OFF

1, 2, 3, 4

1: Full crosshairs 2: Full crosshairs with hole 3: Center 4: Center with hole

SAFETY ZONE ON, OFF

80.0%, 90.0%, 92.5%, 95.0%

EFFECT ON, OFF

, (FOCUS)

(FOCUS): Displayed when

INDICATOR in <FOCUS ASSIST> is ON.

ASPECT ON, OFF

16:9, 15:9, 14:9, 13:9, 4:3

MASK ON, OFF

0 to 15 12

Set the level to darken outside the aspect area.

SAFETY ON, OFF, (AREA)

For the safety marker in aspect mode.

(AREA): Displayed when

AREA MARKER in <FOCUS ASSIST> is ON.

80.0%, 90.0%, 92.5%, 95.0%

VF DETAIL ON

, OFF

0% to 100% 8%

CRISP –99 to +99 0

FREQUENCY 9M, 14M, 18M

FLICKER ON, OFF

AREA 100%, 70%, 60%, 50%, 40%

ZOOM LINK ON

, OFF

0%, 25%, 50%, 75%, 100%

COLOR DETAIL ON, OFF

BLUE, RED, YELLOW

PEAK COLOR ON, OFF

CHROMA

100%, 50%, 25%, 0%

LEVEL

RETURN DISABLE ON, OFF

Page title

Item Setting

Page No.

<FOCUS

INDICATOR ON, OFF

ASSIST>

05 (U03)

, (EFFECT)

(EFFECT): Displayed when

EFFECT in <VF MARKER> is ON.

MODE BOX, B&W, COL

BTM

, LEFT, TOP, RIGHT

LEVEL 0%, 10%, 20%, 30%, 40%

, 50%, 60% 70%, 80%, 90%, 100%

, SMOOTH

QUICK

GAIN 0 to 99 50

OFFSET 0 to 99 50

AREA MARKER ON, OFF, (ASPECT)

(ASPECT): Displayed when

ASPECT SAFETY in <VF MARKER> is ON.

SIZE SMALL, MIDDLE, LARGE

POSITION LEFT, CENTER

, RIGHT

POSITION H 0 to 99 50

POSITION V 0 to 99 50

<ZEBRA>

06 (U08)

ZEBRA ON, OFF

1, 2, 1&2

ZEBRA1

LEVEL 50% to 109% 70%

WIDTH 0% to 30% 10%

ZEBRA2 50% to 109% 100%

07 (U07)

CURSOR ON, OFF

WHITE, BLACK, DOT

LEVEL 0%, 10%, 20%, 30%, 40%

, 50%, 60% 70%, 80%, 90%, 100%

BOX/CROSS BOX

, CROSS

H POSITION 0 to 99 50

V POSITION 0 to 99 50

WIDTH 0 to 99 50

HEIGHT 0 to 99 50

BOX MEMORY 1/2/3: ON, OFF

H POSI 1/2/3: 0 to 99 50

V POSI 1/2/3: 0 to 99 50

WIDTH 1/2/3: 0 to 99 50

HEIGHT 1/2/3: 0 to 99 50

Page 39

Page title Page No.

08 (U01)

09 (U09)

Item Setting

VF OUT COLOR

, Y, R, G, B

RET MIX VF ON, OFF

MIX DIRECTION MAIN, RET

MIX VF MODE Y-M I X, WIRE (W), WIRE

(B)

MIX VF LEVEL 0% to 80%

CHARACTER

1 to 5 4

LEVEL

PinP ON, OFF

POSITION 1, 2, 3, 4

1: Upper left 2: Upper right 3: Lower right 4: Lower left

SIZE 1/3, 1/4

MODE 1

GAIN L: –3dB, 0dB

to 4

, 3dB, 6dB,

9dB, 12dB

M: –3dB, 0dB, 3dB, 6dB

9dB, 12dB

H: –3dB, 0dB, 3dB, 6dB, 9dB, 12dB

ASSIGNABLE1 OFF, RETURN1 SW,

ASSIGNABLE2

ASSIGNABLE3

RETURN2 SW, RETURN3 SW, RETURN4 SW,

INCOM

, ENGb), PRODb), VF DETAIL, VF COLOR DETAIL, MARKER, CURSOR, ZEBRA, MIX VF, ELETRICAL CC, 5600K, ATW, FAN MAX, D.EXTENDER×2, D.EXTENDER×4, D.EXTENDER, FOCUS ASSIST INDICATOR, TLCS, PinP, VF ASSIGN SW1, VF ASSIGN SW2, RET1 SW TOGGLE, RET2 SW TOGGLE, RET3 SW TOGGLE, RET4 SW TOGGLE, CURSOR ALL OFF

Assigns functions to the ASSIGN 1 button, ASSIGN 2 button, and ASSIGN 3 button, respectively.

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

Page title Page No.

Item Setting

ASSIGN CTEMP OFF, RETURN1 SW,

RETURN2 SW, RETURN3 SW, RETURN4 SW,

INCOM

, ENG b), PROD b), VF DETAIL, VF COLOR DETAIL, MARKER, CURSOR, ZEBRA, MIX VF, ELETRICAL CC, 5600K ATW, FAN MAX, D.EXTENDER×2, D.EXTENDER×4, D.EXTENDER, FOCUS ASSIST INDICATOR, TLCS, PinP, VF ASSIGN SW1, VF ASSIGN SW2, RET1 SW TOGGLE, RET2 SW TOGGLE, RET3 SW TOGGLE, RET4 SW TOGGLE, CURSOR ALL OFF

Assigns a function to the COLOR TEMP. button.

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

RE.ROTATION STD, RVS

Operation mode of the menu control knob

STD: Rotating clockwise

moves the , cursor down or increases value.

RVS: Rotating

counterclockwise moves the , cursor down or increases value.

Page 40

Page title

Item Setting

Page No.

10 (U10)

LENS VTR S/S OFF, VTR S/S, RETURN1

, ENG b),

SW, RETURN2 SW RETURN3 SW, RETURN4 SW, INCOM

PROD

, VF ASSIGN SW1,

VF ASSIGN SW2

Assigns a function to the VTR button on the lens.

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

FRONT RET OFF, VTR S/S, RETURN1

, ENG b),

SW, RETURN2 SW RETURN3 SW, RETURN4 SW, INCOM

, D.EXTENDER×2,

PROD D.EXTENDER×4, D.EXTENDER

Assigns a function to the RET button at the front.

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

REAR ENC SW OFF, INCOMa), ENGb),

PROD

Assigns the function to turn the intercom microphone ON to the assignable button at the rear.

ENG: Output on the ENG

line.

PROD: Output on the PROD

line.

INCOM: Output on the line

selected using the INTERCOM MIC switch.

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

<VR ASSIGN>11FRONT VR MIC GAIN1, MIC GAIN2,

MIC GAIN1+2

, INTERCOM, EARPHONE, OFF

Assigns a function to the INTERCOM LEVEL knob at the front.

When connected to a CCU, INTERCOM is displayed (not configurable)

REAR VR MIC GAIN1, MIC GAIN2,

MIC GAIN1+2,

INTERCOM

, EARPHONE,

OFF

Assigns a function to the INTERCOM knob at the rear.

When connected to a CCU, INTERCOM is displayed (not configurable)

Page title Page No.

12 (U12)

Item Setting

INTERCOM DYNAMIC

, CARBON,

MANUAL

Displayed when a camera adaptor is not connected.

LEVEL –60dB, –40dB, –20dB

( ) display: When set to

DYNAMIC or CARBON (not configurable)

–6dB, 0dB, 6dB

POWER ON, OFF

( ) display: When set to

DYNAMIC or CARBON (not configurable)

UNBAL ON, OFF

( ) display: When set to

CARBON (not configurable)

SIDE TONE MU, 1 to 99 50

INTERCOM1

(CAM)

DYNA MIC , CARBON, MANUAL

Displayed only when a camera adaptor is connected.

LEVEL –60dB, –40dB, –20dB

( ) display: When set to

DYNAMIC or CARBON (not configurable)

–6dB, 0dB, 6dB

POWER ON, OFF

( ) display: When set to

DYNAMIC or CARBON (not configurable)

UNBAL ON, OFF

( ) display: When set to

CARBON (not configurable)

SIDE TONE MU, 1 to 99 50

INTERCOM2

(CA)

DYNA MIC , CARBON, MANUAL

Displayed only when a camera adaptor is connected.

LEVEL –60dB, –40dB, –20dB

( ) display: When set to

DYNAMIC or CARBON (not configurable)

–6dB, 0dB, 6dB

POWER ON, OFF

( ) display: When set to

DYNAMIC or CARBON (not configurable)

UNBAL ON, OFF

( ) display: When set to

CARBON (not configurable)

SIDE TONE MU, 1 to 99 50

Page 41

Page title Page No.

13 (U13)

Item Setting

INTERCOM

SEPARATE

, MIX

RECEIVE SELECT

INTERCOM

When PANEL TYPE is set to UCJ

RIGHT, LEFT, BOTH, ---

0 to 99

ENG

When PANEL TYPE is set to CE

RIGHT, LEFT, BOTH, ---

0 to 99

PROD

When PANEL TYPE is set to CE

RIGHT, LEFT, BOTH, ---

0 to 99

PGM/SDI1 PGM when connected with

a CCU, and SDI1 in standalone operation mode for input audio channel 1 on SDI IN connector

, LEFT, BOTH, ---

RIGHT

0 to 99

SDI2 Displayed in standalone

operation mode

, LEFT, BOTH, ---

RIGHT

0 to 99

SIDE TONE MU, 1 to 99 50

PANEL TYPE UCJ, CE

(Restart required after setting)

Page title

Item Setting

Page No.

<EARPHONE>14EARPHONE

RECEIVE SELECT

INTERCOM

ENG

PROD

PGM/SDI1 PGM when connected with

SDI2 Displayed in standalone

AUDIO1 RIGHT, LEFT, BOTH, ---

AUDIO2 RIGHT, LEFT, BOTH, ---

<TLCS>

MODE BACKLIGHT, STANDARD,

SPEED –99 to 99 0

LEVEL –99 to 99 0

AGC ON, OFF

LIMIT 3dB to 48dB 12dB

CHANGE POINT F5.6, F4.0, F2.8

AUTO SHUTTER ON, OFF

LIMIT 1/100, 1/150, 1/200, 1/250,

CHANGE POINT F5.6, F8.0, F11, F16

See FILE menu F01.

READ (USB

WRITE

tUSB)

(CAM

PRESET Execute using ENTER.

FILE ID Max. 14 characters

CAM CODE Display only

DATE Display only

SEPARATE, MIX

When PANEL TYPE is set to UCJ

RIGHT, LEFT, BOTH, ---

0 to 99

When PANEL TYPE is set to CE

RIGHT, LEFT, BOTH, ---

0 to 99

When PANEL TYPE is set to CE

RIGHT, LEFT, BOTH, ---

0 to 99

a CCU, and SDI1 in standalone operation mode for input audio channel 1 on SDI IN connector

, LEFT, BOTH, ---

RIGHT

0 to 99

operation mode

, LEFT, BOTH, ---

RIGHT

0 to 99

SPOTLIGHT

(3 steps)

1/500, 1/1000, 1/2000

tCAM) Execute using ENTER.

Execute using ENTER.

Page 42

PAIN T Menu

Page title Page No.

P01

P02

P03

Item Setting

FLARE

GAMMA

BLK GAM ON,

ON, OFF

OFF

KNEE ON, OFF

WHT CLIP

DETAIL

LVL D E P

SKIN DTL ON,

ON, OFF

OFF

MATRIX ON, OFF

WHITE R/G/B: –99 to 99 0

BLACK R/G/B/M: –99 to 99 0

FLARE R/G/B/M: –99 to 99 0

GAMMA R/G/B/M: –99 to 99 0

V MOD R/G/B/M: –99 to 99 0

FLARE ON, OFF

V MOD ON

TEST OFF

, OFF

, SAW, 10STEP

WHITE R/G/B: –99 to 99 0

AUTO WHITE

Execute using ENTER.

BALANCE

COLOR TEMP 0K to 65535K 3200K

BALANCE –99 to 99 0

ATW ON, OFF

SPEED 1 to 5 4

MASTER –3.0dB to 12.0dB 0.0dB

Page title Page No.

<GAMMA>

P04

P05

P06

<KNEE>

P07

Item Setting

LEVEL R/G/B/M: –99 to 99 0

COARSE 0.35 to 0.90 0.45

(0.05 steps)

TA BL E STANDARD

, HYPER

With STANDARD selected:

1, 2, 3, 4, 5, 6, 7

(Default setting varies with region of use.)

1: Equivalent to a camcorder 2: 4.5× gain 3: 3.5× gain 4: Equivalent to

SMPTE-240M 5: Equivalent to ITU-R709 6: 5.0× gain 7: 5.0× gain – 709

With HYPER selected:

1, 2, 3, 4

1: 325% to 100% 2: 460% to 100% 3: 325% to 109% 4: 460% to 109%

(When you change the TABLE setting, noise may be generated. This is not a malfunction.)

GAMMA ON, OFF

TEST OFF

, SAW, 10STEP

LEVEL R/G/B/M: –99 to 99 0

RANGE LOW, L.MID, H.MID,

HIGH

ON, OFF

TEST OFF, SAW, 10STEP

SATURATION –99 to 99 0

ON, OFF

LOW KEY SAT –99 to 99 0

RANGE LOW, L.MID, H.MID,

HIGH

ON, OFF

TEST OFF, SAW, 10STEP

K POINT R/G/B/M: –99 to 99 0

K SLOPE R/G/B/M: –99 to 99 0

KNEE ON, OFF

KNEE MAX ON, OFF

KNEE SAT –99 to 99 0

ON, OFF

AUTO KNEE OFF, AUTO

POINT LIMIT –99 to 99 0

SLOPE –99 to 99 0

ABS When highlighted (ABS

mode): K POINT R/G/B, K SLOPE R/G/B, POINT LIMIT, and SLOPE are displayed in absolute values.

Page 43

Page title Page No.

P08

P09

P10

P11

P12

Item Setting

W CLIP –99 to 99 0

ON, OFF

ABS When highlighted (ABS

mode): W CLIP is displayed in absolute values.

DETAIL ON

, OFF

LEVEL –99 to 99 0

LIMITER M: –99 to 99 0

WHT: –99 to 99 0

BLK: –99 to 99 0

CRISP –99 to 99 0

LEVEL DEPEND –99 to 99 0

ON, OFF

ABS When highlighted (ABS

mode): LEVEL, LIMITER WHT, LIMITER BLK, CRISP, and LEVEL DEPEND are displayed in absolute values.

H/V RATIO –99 to 99 0

FREQ –99 to 99 0

MIX RATIO –99 to 99 0

KNEE APT –99 to 99 0

ON, OFF

DTL H/V MODE H/V, V only

ABS When highlighted (ABS

mode): H/V RATIO, FREQ, MIX RATIO, and KNEE APT are displayed in absolute values.

SD DETAIL ON

, OFF

LEVEL –99 to 99 0

CRISPENING –99 to 99 0

LEVEL DEP –99 to 99 0

H/V RATIO –99 to 99 0

FREQ –99 to 99 0

CRS COL REDUCE ON, OFF

LEVEL –99 to 99 0

Page title Page No.

P13

P14

Item Setting

SKIN DTL ON, OFF

SKIN GATE 1, 2, 3, OFF, (MAT)

(MAT): Displayed when

GATE in <MULTI

MATRIX> is ON.

ABS When highlighted (ABS

mode): LEVEL is displayed in an absolute value.

ZOOM LINK ON, OFF

TELE 0 to 99

WIDE 0 to 99

CH SW 1: (ON)

2/3: ON, OFF

Channel 1 is always ON.

HUE 1/2/3: Execute using ENTER.

PHASE 1/2/3: 0

to 359

WIDTH 1/2/3: 0 to 90 29

SAT 1/2/3: –99 to 99 –89

LEVEL 1/2/3: –99 to 99 0

R -G/-B: –99 to 99 0

G -R/-B: –99 to 99 0

B -R/-G: –99 to 99 0

MATRIX ON, OFF

PRESET ON, OFF, - -

- -: Displayed when

MATRIX is OFF (not

configurable)

SMPTE-240M, ITU-709, SMPTE-WIDE, NTSC, EBU, ITU-601, - -

- -: Displayed when

MATRIX is OFF (not

configurable)

USER ON, OFF, - -

- -: Displayed when

MATRIX is OFF (not

configurable)

MULTI ON, OFF, - -

- -: Displayed when

MATRIX is OFF (not

configurable)

ADAPTIVE

ON, OFF

MATRIX

LEVEL 0, 1, 2, 3, 4, 5, 6, 7

Page 44

Page title Page No.

P15

Item Setting

PHASE 0

, 23, 45, 68, 90, 113, 135, 158, 180, 203, 225, 248, 270, 293, 315, 338

Select an axis (angle) for which to adjust the multimatrix function.

HUE –99 to 99 0

Independently set for 16 axes.

SAT –99 to 99 0

Independently set for 16 axes.

ALL CLEAR Execute using ENTER.

The HUE an d SAT values for all PHASE settings are cleared to 0.

GATE ON, OFF, (1 to 3)

(1 to 3): Displayed when

SKIN GATE in <SKIN DETAIL> is set to 1 to 3

MATRIX ON, OFF

PRESET ON, OFF, - -

- -: Displayed when MATRIX is OFF (not configurable)

SMPTE-240M, ITU-709, SMPTE-WIDE, NTSC, EBU, ITU-601, - -

- -: Displayed when MATRIX is OFF (not configurable)

USER ON, OFF, - -

- -: Displayed when MATRIX is OFF (not configurable)

MULTI ON, OFF, - -

- -: Displayed when MATRIX is OFF (not configurable)

Page title Page No.

P16

P17

P18

See FILE menu F02.

Item Setting

SHUTTER ON, OFF

( ) display: In standalone

operation mode, when an external control device (RCP or RM) is not connected

59.94i/59.94P:

, 1/125, 1/250, 1/500,

1/100

1/1000, 1/2000

50i/50P:

, 1/125, 1/250, 1/500,

1/60

1/1000, 1/2000

29.97PsF:

1/40, 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000

25PsF:

1/33, 1/50, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000

ECS FREQ 59.94i:

to 4300Hz

60.00Hz

50i:

to 4700Hz

50.00Hz

59.94P:

59.96Hz to 4600Hz

50P:

50.03Hz to 4600Hz

29.97PsF:

30.00Hz to 2700Hz

25PsF:

25.00Hz to 2300Hz

SLOW SHUTTER ON, OFF

SLS FRAME 2F, 3F, 4F, 5F, 6F, 7F, 8F

SUPPRESSION ON, OFF

1 Store scene files (paint data)

STORE

STANDARD Execute using ENTER.

READ

Execute using ENTER.

(USBtCAM)

WRITE

Execute using ENTER.

(CAMtUSB)

FILE ID Max. 14 characters

CAM CODE Display only

DATE Display only

Page 45

MAINTENANCE Menu

Page title Page No.

M01

M02

M03

Item Setting

AUTO BLACK Execute using ENTER.

AUTO WHITE Execute using ENTER.

AUTO LEVEL Execute using ENTER.

AUTO WHITE SHADING

AUTO BLAC K SHADING

TEST OFF

V SAW R/G/B: –99 to 99 0

V PARA R/G/B: –99 to 99 0

H SAW R/G/B: –99 to 99 0

H PARA R/G/B: –99 to 99 0

WHITE R/G/B: –99 to 99 0

AUTO WHITE SHADING

WHITE SHAD MODE

V SAW R/G/B: –99 to 99 0

V PARA R/G/B: –99 to 99 0

H SAW R/G/B: –99 to 99 0

H PARA R/G/B: –99 to 99 0

BLK SET R/G/B: –99 to 99 0

BLACK R/G/B/M: –99 to 99 0

MASTER GAIN −3dB, 0dB, 3dB, 6dB, 9dB,

AUTO BLAC K SHADING

2D BLACK SHAD ON

BLACK SHADE CLEAR

Execute using ENTER.

, SAW, 10STEP

Execute using ENTER.

RGB, RB

12dB

Execute using ENTER.

, OFF

Execute using ENTER.

Page title Page No.

M04

<LENS>

M05

Item Setting

AUTO IRIS OFF, ON

(ON): Displayed when in

standalone operation mode (not configurable)

WINDOW 1, 2, 3, 4, 5, 6

Selects the auto iris detection window.

123

456

The shaded parts indicate the area where light detection occurs.

OVERRIDE –99 to 99, - - 0

Sets the override to temporarily change the reference value for brightness of the automatic iris level in the range of ±2 stops.

–99: Closed by two stops 99: Opened by two stops

- -: Displayed when AUTO IRES is OFF

The setting returns to 0 when the power is turned off.

IRIS LEVEL –99 to 99 0

±4 stops

APL RATIO –99 to 99 65

IRIS GAIN –99 to 99 0

IRIS CLOSE ON, OFF

F NO. DISP CONTROL, RETURN

Switches the iris indicator on the external control device (for example, RCP or RM) when AUTO IRIS is OFF

CONTROL: Displays the

value from the camera

RETURN: Displays the

value returned from the lens

(When AUTO IRIS is ON, the value returned from the lens is always displayed.)

ALAC OFF, AUTO

With AUTO selected, the status is displayed at the right.

(ACTIVE): Compensation in

progress

(STOP): Compensation is

turned off for a nonapplicable lens

AF DISPLAY ON, OFF

Page 46

Page title Page No.

M06

<AUDIO>

M07 (U14)

M08

M09 (U15)

M10 (U16)

Item Setting

FLICKER REDUCE

MODE AUTO

, ON, OFF

FREQ 60Hz, 50Hz

(Default setting varies with region of use.)

MIC GAIN

AUDIO1 20dB, 30dB, 40dB, 50dB,

AUD IO2

60dB

( ) display: Displayed when

not in standalone operation mode, or in standalone operation mode when <VR ASSIGN> is set to MIC (MIC GAIN1, MIC GAIN2, MIC GAIN1+2) (not configurable)

TEST TONE ON, OFF

CCU CALL ON, OFF

CAM CALL ON, OFF

CURRENT Displays the current format.

In standalone operation mode, the format and region are configurable (restart required).

NTSC AREA or NTSC(J) AREA:

1080: 59.94i, 29.97PsF 720: 59.94P PAL AREA:

1080: 50i, 25PsF 720: 50P

COUNTRY NTSC AREA, PAL AREA,

NTSC(J) AREA

OUTPUT SD-SYNC, HD-SYNC, VF

VBS

SYNC-OUT

Displayed when OUTPUT is SD-SYNC or HD-SYNC

H-PHASE −999 to 999 0

Y-PHASE −999 to 999 0

VBS-OUT

CHARACTER

Displayed when OUTPUT is VBS

ON, OFF

GAIN −99 to 99 0

CHROMA −99 to 99 0

SETUP ON, OFF

Displayed only when NTSC is selected

(Default setting varies with region of use.)

DOWN CONVERTER

Displayed when OUTPUT is VBS

SELECT MAIN, RET, VF

ASPECT SQ

, EC

Page title

Item Setting

Page No.

M11 (U17)

SDI OUT VF, MAIN, RET, SD-SDI,

OFF

CHARACTER ON, OFF

Displayed when SDI OUT is MAIN, RET, or SD-SDI

EMB AUDIO MIC, PGM, OFF

When MIC is selected:

(1-MIC1 2-MIC2)

When PGM is selected, depending on system configuration.

In standalone operation

mode: (1-SDI1 2-SDI2) (3- 4- )

When the HXCU-FB70 is

connected: (1-PGM 2- ) (3-ENG 4-PROD)

When the CA-TX70 is

connected: (1-PGM 2- ) (3-INCOM 4- )

DOWN CONVERTER

Displayed when SDI OUT is SD-SDI.

SELECT MAIN, RET, VF

<TRUNK>

M12 (U18)

ASPECT SQ

TRUNK ON

, EC

, OFF, (OFF)

(OFF): Displayed when in

standalone operation mode (not configurable)

IF 232C, 422A

M13

REFERENCE CCU, INTERNAL,

GENLOCK

Display only

GENLOCK ENABLE, DISABLE

Displayed in standalone operation mode

STATUS

FORMAT

PHASE V: −1024 to 1023 0

H: −1700 to 1700 0

<DATE>

M14

M15

DATE/TIME 31 to 00, 12 to 01, 2099 to

2000, 23 to 00, 59 to 00

FILE TIMESTAMP FORMAT

BEFORE END 11.5V

END 11.0V

1 Y/Mn/D, 2 Mn/D, 3 D/M/Y, 4 D/M, 5 M/D/Y

Y: Yea r Mn: Month (numeric) M: Month (character string) D: Day

, 6 M/D

to 17.0V

to 11.5V

Page 47

Page title Page No.

M16

<EXT I/O> M17

<OTHERS> M18

<EXT RETURN> M19

Item Setting

ECC FILTER A

, B, C, D, –

C and D are displayed only when they are enabled.

–: Displayed when

ELECTRICAL CC is set to DISABLE

ELECTRICAL CC DISABLE, ENABLE

ELECTRICAL CC <A>

ELECTRICAL CC <B>

ELECTRICAL CC <C>

ELECTRICAL CC <D>

PIN 4 OFF

INPUT

PIN 6

INPUT

PIN 7

INPUT

PIN 8

INPUT

PIN 9

INPUT

3200K, 4300K, 5600K, 6300K

3200K, 4300K

, 5600K,

6300K

3200K, 4300K, 5600K 6300K, -----

3200K, 4300K, 5600K,

, -----

6300K

, R TALLY OUT, G TALLY OUT, TALLY OUT, INPUT When INPUT is selected INPUT: OFF

, RETURN1 SW, RETURN2 SW, RETURN3 SW, RETURN4 SW, INCOM PROD

, ENGb),

, VF DETAIL, VF COLOR DETAIL, 5600K, D.EXTENDER×2, D.EXTENDER×4, D.EXTENDER, FOCUS ASSIST INDICATOR, PinP, VF ASSIGN SW1, VF ASSIGN SW2, VTR S/S

a) When PANEL TYPE is set to

UCJ

b) When PANEL TYPE is set to

FAN MODE OFF, AUTO1

, AUTO2, MIN,

MAX

AUTO1: Normal rotation AUTO2: Slow rotation

CAM BARS ON, OFF

WHITE SETUP

AW B, A.LVL

MODE

D.EXT ENABLE ENABLE, DISABLE

D.EXT OFF, ×2, ×4, (OFF)

(OFF): Displayed when

D.EXT ENABLE is set to DISABLE (not configurable)

HDSDI REMOTE I/F OFF

EXT RETURN VBS

, R-TLY

, SDI

SD ASPECT EC, SQ

FILE Menu

Four types of files can be used for easy adjustments of the camera; Operator, Reference, Scene, and Lens files. You can store the items set with the OPERATION menu and customized USER menu in the Operator file.

Page title Page No.

F01

F02

Item Setting

READ (USBtCAM)

WRITE (CAMtUSB)

Execute using ENTER.

Read the operator file from a USB flash drive.

Execute using ENTER.

Write the current settings of the operator file to a USB flash drive.

PRESET Execute using ENTER.

Read operator file preset data stored in internal memory.

STORE PRESET FILE

Execute using ENTER.

Write the current settings of the operator file as preset data to a USB flash drive.

FILE ID Max. 14 characters

Enter a comment for the operator file to be written to a USB flash drive.

See “To specify a character string” (page 34).

CAM CODE Camera code

Display only

DATE Date

Display only

1 Store scene files (paint data):

Select STORE, specify a file number, and execute using ENTER.

When reading, specify the file number.

STORE

STANDARD Execute using ENTER.

Read the standard paint data.

READ (USBtCAM)

WRITE (CAMtUSB)

Execute using ENTER.

Read five scene files from a USB flash drive.

Execute using ENTER.

Write five scene files to a USB flash drive.

FILE ID Max. 14 characters

Enter a comment for the scene files to be written to a USB flash drive.

See “To specify a character string” (page 34).

CAM CODE Camera code

Display only

DATE Date

Display only

Page 48

Page title Page No.

F03

F04 (U11)

Item Setting

STORE FILE Execute using ENTER.

Write the current settings of the reference file to internal memory.

STANDARD Execute using ENTER.

Read the reference file stored in internal memory.

ALL PRESET Execute using ENTER.

Return the reference file stored in internal memory to the default values.

READ (USBtCAM)

WRITE (CAMtUSB)

Execute using ENTER.

Read a reference file from a USB flash drive.

Execute using ENTER.

Write the current settings of the reference file to a USB flash drive.

FILE ID Max. 14 characters

Enter a comment for the reference file to be written to a USB flash drive.

See “To specify a character string” (page 34).

CAM CODE Camera code

Display only

DATE Date

Display only

STORE FILE Execute using ENTER.

Write the current settings of the lens file to internal memory.

No. 1 to 17

1 to 16: When using a non-

serial lens

17: When using a serial lens

NAME Lens file name

Configurable only when using a non-serial lens

F NO F1.0 to F3.4 F1.7

Configurable only when using a non-serial lens

CENTER MARKER

H POS –20 to 20 0

Increasing the value moves it to the right.

V POS –20 to 20 0

Increasing the value moves it downwards.

STORE Execute using ENTER.

Save the center maker position settings.

Page title

Item Setting

Page No.

F05

PRESET OPERATOR

Execute using ENTER.

REFERENCE (ALL) Execute using ENTER.

10 SEC CLEAR ON, OFF

Turn the function for clearing an item selected in a menu on/off.

See “To return a menu item to the standard value” (page 34).

DIAGNOSIS Menu

This menu is only for viewing and no setting is made using this menu.

Page title Page No.

D01

D02

D03 (U19)

D04

D05

Item Indication

OPTICAL LEVEL

CCUtCAM GREEN, YELLOW, RED,

NG, NO SIGNAL

CAMtCCU GREEN, YELLOW, RED,

NG, NO SIGNAL

DC INPUT LEVEL GREEN, YELLOW, RED,

NOT DETECT

OHB OK, NG

DPR OK, NG

SY OK, NG

IF OK, NG

CAMERA APP ROM name, date, and

comment are displayed.

OS Vx.xx date

SY Vx.xx

DPR Vx.xx

MODEL Model name

NO Serial number

Displayed only when a camera adaptor is connected.

CA Camera adaptor model name

SY Vx.xx date

SY PLD Vx.xxx

CD PLD Vx.xx

Page 49

Appendix

Phenomena specific to CMOS image sensors

The following phenomena that may appear in images are specific to CMOS (Complementary Metal Oxide Semiconductor) image sensors. They do not indicate a malfunction.

Usage Precautions

Note on laser beams

Laser beams may damage the CMOS image sensors. If you shoot a scene that includes a laser beam, be careful not to let a laser beam become directed into the CMOS image sensors.

Do not subject to severe shocks

Damage to the case or internal components may result.

After use

Set the power switch to OFF.

Operation and storage environment

Store in a level, ventilated place. If the unit gets wet, make sure it is completely dry before storage. Avoid use or storage in the following places:

• Extremely hot or cold places

• Places with high humidity

• Locations subject to violent vibration

• Near strong magnetic fields

• In places where it receives much direct sunlight, or near heating equipment

White flecks

Although the CMOS image sensors are produced with highprecision technologies, fine white flecks may be generated on the screen in rare cases, caused by cosmic rays, etc. This is related to the principle of CMOS image sensors and is not a malfunction. The white flecks especially tend to be seen in the following cases:

• When operating in high-temperature environment

• When the master gain (sensitivity) has been increased The problem may be alleviated by executing automatic black balance adjustment.

Aliasing

When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.

Flicker

If recording is made under lighting produced by discharge tubes, such as fluorescent, sodium, or mercury-vapor lamps, the screen may flicker, colors may vary, or horizontal stripes may appear distorted.

On condensation

If the unit is suddenly taken from a cold to a warm location, or if ambient temperature suddenly rises, moisture may form on the outer surface of the unit and/or inside of the unit. This is known as condensation. If condensation occurs, turn off the unit and wait until the condensation clears before operating the unit. Operating the unit while condensation is present may damage the unit.

Parts with limited life span

• The fan and battery are consumable parts that will need periodic replacement. When operating at room temperature, a normal replacement cycle will be about 5 years. However, this replacement cycle represents only a general guideline and does not imply that the life expectancy of these parts is guaranteed. For details on parts replacement, contact your dealer.

• The life expectancy of the electrolytic capacitor is about 5 years under normal operating temperatures and normal usage (8 hours per day; 25 days per month). If usage exceeds the above normal usage frequency, the life expectancy may be reduced correspondingly.

In such cases, set the flicker-reduction function to AUTO (see page 46). If the frame rate selected for recording is close to the power-supply frequency, flicker may not be reduced sufficiently even if you activate the Flicker-Reduction function. In such cases, use the electronic shutter.

Focal plane

Owing to the characteristics of the pickup elements (CMOS image sensors) for reading video signals, subjects that quickly move across the screen may appear slightly skewed.

Flash bands

The luminance at the top and bottom of the screen may change when shooting a flashlight beam or a light source that quickly flashes.

To prevent electromagnetic interference from portable communications devices

The use of portable telephones and other communications devices near this camera can result in malfunctions and interference with audio and video signals. It is recommended that the portable communications devices near this camera be powered off.

Page 50

Security

SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM A FAILURE TO IMPLEMENT PROPER SECURITY MEASURES ON TRANSMISSION DEVICES, UNAVOIDABLE DATA LEAKS RESULTING FROM TRANSMISSION SPECIFICATIONS, OR SECURITY PROBLEMS OF ANY KIND.

Depending on the operating environment, unauthorized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely.

Cleaning the Viewfinder

Use a dust blower to clean any dust from the surface of the screen.

Note

Do not use organic solvents, such as thinners.

Error Messages

If a problem occurs during operation, a warning message is displayed.

Note

To display a message, set the DISPLAY/MENU switch to DISPLAY or MENU.

Message Description

TEMP WARNING The internal temperature is extraordinarily

high.

FAN STOP The built-in fan is not rotating properly.

SET SYSTEM CLOCK The time/date of the internal clock have

not been set.

OHB BLOCK NG! A problem was detected in the optical

block.

MSU RPN BUSY RPN compensation was attempted using

the camera menu while being operated from an external device. Consult Sony service personnel.

VF RPN BUSY RPN compensation was attempted from an

external device while being operated using the camera menu. Consult Sony service personnel.

FORMAT ERROR! An access was attempted with an

unformatted USB flash drive.

FILE ERROR An error occurred while reading a file

from a USB flash drive.

OTHER MODEL’S FILE An attempt was made to read a file for

another model that is incompatible.

FILE NOT FOUND The file you attempted to read does not

exist in the USB flash drive.

Supported USB Flash Drives

Connect a USB flash drive to the USB connector to enable saving and loading a configuration data file.

Pocket Bit LX series

USM1GLX, USM2GLX, USM4GLX, USM8GLX, USM16GLX, USM32GLX, USM64GLX

Pocket Bit L series

USM1GL, USM2GL, USM4GL, USM8GL, USM16GL, USM32GL

Pocket Bit N series

USM4GN, USM8GN, USM16GN, USM32GN

Pocket Bit M series

USM4GM, USM8GM, USM16GM, USM32GM

Pocket Bit P series

USM4GP, USM8GP, USM16GP, USM32GP, USM64GP

Pocket Bit R series

USM4GR, USM8GR, USM16GR, USM32GR

Pocket Bit Q series

USM8GQ, USM16GQ, USM32GQ, USM64GQ

Pocket Bit T series

USM8GT, USM16GT, USM32GT, USM64GT

Pocket Bit U series

USM4GU, USM8GU, USM16GU, USM32GU, USM64GU

Pocket Bit V series

USM4GV, USM8GV

Pocket Bit X series

USM8X, USM16X, USM32X, USM64X

Pocket Bit SA1 series

USM8SA1, USM16SA1, USM32SA1, USM64SA1,

Pocket Bit QX series

USM8GQX, USM16GQX, USM32GQX, USM64GQX

Notes

• Non-recommended USB flash drives may not be recognized when connected to the USB connector.

• USB flash drives must be formatted with the FAT16 or FAT32 file system. The recommended drives are pre-formatted, and can be immediately upon purchase.

Page 51

Specifications

General

Power requirements 48 V DC, 1.7 A (max.)

12 V DC (10.5 V to 17.0 V)

Power consumption 18 W (camera head only)

21 W (camera head + HDVF-L10 viewfinder + lens + microphone)

Operating temperature

Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)

Mass Approx. 3.3 kg (7 lb 4.4 oz) (camera head only)

Dimensions Unit: mm (inches)

160 (6 3/8)

144 (5 3/4)

Camera

Imaging element 2/3-inch type CMOS image sensor

Method 3-chip RGB

Optical system F1.4 prism system

ND filters 1: Clear

Sensitivity F12 (system frequency: 59.94i)

Image S/N –57 dB (Noise Suppress OFF)

Horizontal resolution 1000 TVL or higher

Gain –3, 0, 3, 6, 9, 12 dB

Display (viewfinder (supplied with the HXC-FB75KC))

Screen size 8.8 cm diagonal (3.5-inch)

Aspect ratio 16:9

Number of pixels 960 (horizontal) × 540 (vertical) × 3 (RGB)

–10 °C to +45 °C (14 °F to 113 °F)

333 (13 1/8)

224 (8 7/8)

105 (4 1/4)

314 (12 3/8)

Effective resolution: 1920 (H) × 1080 (V)

2: 1/4 ND 3: 1/16 ND 4: 1/64 ND

F13 (system frequency: 50i) (2000 lx, 89.9% reflectance)

–60 dB (Noise Suppress ON)

Inputs/outputs

CCU Optoelectric composite connector (1)

AUDIO 1 IN AUDIO 2 IN

INTERCOM XLR type, 5-pin, female (1)

EARPHONE Stereo minijack (1)

DC IN XLR type, 4-pin (1)

DC OUT 4-pin (1)

SDI IN BNC type (1)

SDI OUT BNC type (1)

TEST OUT BNC type (1)

PROMPTER/ GENLOCK

LENS 12-pin (1)

266 (10 1/2)

TRUNK D-sub 9-pin, female (1)

VF Round type, 20-pin (1)

REMOTE 8-pin (1)

USB USB 2.0 Type A, 4-pin (1)

Lens (supplied with the HXC-FB75KC)

Focal length 8.2 mm to 164 mm

Zoom Servo/Manual selectable

Zoom ratio 20×

Maximum relative aperture

Iris Auto/Manual selectable

Focus Manual

Filter diameter M82 mm, pitch 0.75 mm

Macro mode ON/OFF switchable

Supplied accessories

Viewfinder (supplied with the HXC-FB75KC) (1) Microphone (supplied with the HXC-FB75KC) (1) Windscreen (supplied with the HXC-FB75KC) (1) Lens mount cap (1) Flange focal length (flange back) adjustment chart (1) Lens (supplied with the HXC-FB75KC) (1) Cable clamp belt (1) Operating Instructions (CD-ROM) (1) Before Using this Unit (1 set) Warranty booklet (1)

XLR type, 3-pin, female (1 each) MIC: –60 dBu (Up to –20 dBu can be set by using menu or HXCU-FB70), balanced LINE: 0 dBu, balanced

10.5 V to 17.0 V DC

10.5 V to 17.0 V DC, maximum 1.5 A (May be limited, depending on load and input conditions.)

BNC type (1) 1 Vp-p, 75 Ω

Lens power supply: 10.5 V to 17.0 V DC, maximum rated current 1.0 A

RS-232C

(for USB flash drive)

1:1.9

F1.9 to F16 and C (close)

Range: 900 mm to ∞ (Macro mode OFF), 10 mm to ∞ (Macro mode ON, wide angle)

Page 52

Related equipment

Camera control unit

HXCU-FB70, HXCU-TX70 HD Camera Control Unit

Camera adaptor

CA-TX70 HD Camera Adaptor

Equipment for remote control

RM-B170/B750 Remote Control Unit RCP-1000 series Remote Control Panel

Lens, viewfinder, and related equipment

Lens: 2/3-inch type bayonet mount lenses only HDVF-L10, HDVF-L750 Viewfinder

Power supply and related equipment

AC-DN10 AC Adaptor HXCE-FB70 Power Supply Unit

Audio equipment

ECM-678/674/673/680S Microphone CAC-12 Microphone Holder

Other peripheral devices

VCT-14/U14 Tripod Adaptor Shoulder strap (Part No.: A-6772-374-C)

Design and specifications are subject to change without notice.

Notes

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

• SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.

• SONY WILL NOT BE LIABLE FOR THE TERMINATION OR DISCONTINUATION OF ANY SERVICES RELATED TO THIS UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY KIND.

Pin Assignment

CCU connector

No. Signal

AOptical INPUT

B Optical OUTPUT

1 DC IN (GND)

2NC

3NC

4 DC IN (+48V)

Shell CHASSIS GND

TRUNK connector

No. Signal Input/

output

1– – –

2 RX IN IN Trunk RX

3 TX OUT OUT Trunk TX

4 Assignable1 IN/OUT Digital IO

5 GND – –

6 Assignable2 IN/OUT Digital IO

7 Assignable3 IN/OUT Digital IO

8 Assignable4 IN/OUT Digital IO

9 Assignable5 IN/OUT Digital IO

Specifications

OUT: Open Collector (max. 10 mA)

IN: Contact

OUT: Open Collector (max. 10 mA)

IN: Contact

OUT: Open Collector (max. 10 mA)

IN: Contact

OUT: Open Collector (max. 10 mA)

IN: Contact

OUT: Open Collector (max. 10 mA)

IN: Contact

Page 53

DC IN connector

INTERCOM connector

No. Signal Input/

output

1 EXT DC (C) – GND for DC (+)

2 NC – No connection

3 NC – No connection

4 EXT DC (H) IN +10.5 V to +17 V DC

Specifications

DC OUT connector

No. Signal Input/

output

1 UNREG GND – GND for UNREG OUT

2 NC No connection

3 NC No connection

4 UNREG OUT OUT +10.5 to +17 V DC 1.5 A (max.)

Specifications

AUDIO 1/2 IN connectors

No. Signal Input/

1AUDIO CH1/

2AUDIO CH1/

3AUDIO CH1/

CH2 (G)

CH2 (X)

CH2 (Y)

Specifications

output

– –60 dBu, –50 dBu, –40 dBu, –30 dBu,

–20 dBu, LINE (0 dBu) selectable, Balanced

No. Signal Input/

1Intercom

2Intercom

3 GND – GND

4 Intercom Left OUT 8 dBu (VR max., 250 Ω load)

5Intercom

a) When unbalanced

MIC (Y)/ (GND)

MIC (X)

Right

Specifications

output

IN CARBON: –20 dBu, Unbalanced

OUT 8 dBu (VR max., 250 Ω load)

DYNAMIC: –60 dBu, Balanced/ Unbalanced MANUAL

(0 dBu = 0.775 Vrms)

REMOTE connector

No. Signal Input/

1 TX (+) OUT SERIAL DATA OUT

2 TX (–) OUT SERIAL DATA OUT

3 RX (+) IN SERIAL DATA IN

4 RX (–) IN SERIAL DATA IN

5 TX GND – GND for TX

6 POWER (+)

OUT

7 POWER (–)

OUT

8 VIDEO (X) OUT 75 Ω, 1.0 V p-p

CHASSIS GND

output

OUT RCP POWER

OUT GND for POWER

– CHASSIS GND

Specifications

Page 54

LENS connector

12 11

No. Signal Input/

1 RET VIDEO

ENABLE

2 VTR CTL IN ENABLE: 0 V

3 GND – GND for UNREG

4SERVO MA/ATOUT AUTO: +5 V

5IRIS

POSITION

6 UNREG OUT +10.5 V to +17 V

7IRIS

POSITION

8 IRIS AT/MA OUT AUTO IRIS: 0 V

9 EXTENDER

ON/OFF

10 ZOOM

POSITION

11 FOCUS POSI

(LENS RX)

12 FOCUS POSI

(LENS TX)

output

IN ENABLE: 0 V

OUT +3.4 V (F16) to +6.2 V (F2.8)

IN +3.4 V (F16) to +6.2 V (F2.8)

IN EX 2 ON: GND

IN WIDE: 2 V

IN ∞: 7 V

OUT –

Specifications

DISABLE: +5 V or OPEN

MANU: 0 V or OPEN

MANUAL IRIS: +5 V

EX 0.8 ON: 30 kΩ to GND

OFF: OPEN

TELE: 7 V

min.: 2 V

USB connector

1234

No. Signal Input/

output

1 VBUS OUT USB Vcc (+5 V)

2 D+ IN/OUT USB+

3 D– IN/OUT USB–

4 GND – GND

Specifications

Page 55

Menu Tree

OPERATION

VF DISPLAY (01)

EX ZOOM FOCUS ND

CC 5600K IRIS WHITE D.EXT GAIN SHUTTER BATT RETURN TAL K AUDIO

MESSAGE FRONT/REAR VR

'!' IND (02)

ND CC WHITE 5600K GAIN SHUTTER FAN EXT FORMAT

VF MARKER (03)

MARKER LEVEL CENTER SAFETY ZONE

EFFECT ASPECT

VF DETAIL (04)

VF DETAIL COLOR DETAIL RETURN DISABLE

FOCUS ASSIST (05)

INDICATOR AREA MARKER

ZEBRA (06)

ZEBRA ZEBRA1 ZEBRA2

CURSOR (07)

CURSOR

BOX MEMORY

OUT (08)

VF OUT RET MIX VF MIX DIRECTION MIX VF MODE MIX VF LEVEL CHARACTER LEVEL PinP

SWITCH ASSIGN1 (09)

GAIN

ASSIGNABLE1 ASSIGNABLE2 ASSIGNABLE3 ASSIGN CTEMP RE.ROTATION

SWITCH ASSIGN2 (10)

LENS VTR S/S FRONT RET REAR ENC SW

VR ASSIGN (11)

FRONT VR REAR VR

HEADSET MIC (12)

INTERCOM INTERCOM1 INTERCOM2

INTERCOM (13)

INTERCOM RECEIVE SELECT PANEL TYPE

EARPHONE (14)

EARPHONE RECEIVE SELECT

TLCS (15)

MODE SPEED LEVEL AGC AUTO SHUTTER

OPERATOR FILE (16)

READ (USBtCAM) WRITE (CAMtUSB) PRESET FILE ID CAM CODE

DATE

PA IN T

SW STATUS (P01)

FLARE GAMMA BLK GAM KNEE WHT CLIP DETAIL LVL DEP SKIN DTL MATRIX

VIDEO LEVEL (P02)

WHITE BLACK FLARE GAMMA V MOD FLARE V MOD TEST

COLOR TEMP (P03)

WHITE COLOR TEMP BALANCE AT W

MASTER

GAMMA (P04)

LEVEL COARSE TAB LE GAMMA

TEST

BLACK GAMMA (P05)

LEVEL RANGE TEST

SATURATION (P06)

SATURATION LOW KEY SAT TEST

KNEE (P07)

K POINT K SLOPE KNEE KNEE MAX KNEE SAT AUTO KNEE ABS

WHITE CLIP (P08)

W CLIP ABS

DETAIL 1 (P09)

DETAIL LEVEL LIMITER CRISP LEVEL DEPEND ABS

DETAIL 2 (P10)

H/V RATIO FREQ MIX RATIO KNEE APT DTL H/V MODE ABS

SD DETAIL (P11)

SD DETAIL

LEVEL CRISPENING LEVEL DEP H/V RATIO FREQ

SD CROSS COLOR (P12)

CRS COL REDUCE

SKIN DETAIL (P13)

SKIN DTL SKIN GATE ABS ZOOM LINK CH SW HUE PHASE WIDTH SAT LEVEL

USER MATRIX (P14)

R G B MATRIX

ADAPTIVE MATRIX

MULTI MATRIX (P15)

PHASE HUE SAT ALL CLEAR

GATE MATRIX

SHUTTER (P16)

SHUTTER ECS FREQ SLOW SHUTTER

NOISE SUPPRESSION (P17)

SUPPRESSION

SCENE FILE (P18)

1/2/3/4/5

STORE STANDARD READ (USBtCAM) WRITE (CAMtUSB) FILE ID CAM CODE DATE

Page 56

MAINTENANCE

AUTO SETUP (M01)

AUTO BLACK AUTO WHITE AUTO LEVEL AUTO WHITE SHADING AUTO BLACK SHADING TEST

WHITE SHADING (M02)

V SAW V PARA H SAW H PARA WHITE AUTO WHITE SHADING WHITE SHAD MODE

BLACK SHADING (M03)

V SAW V PARA H SAW H PARA BLK SET BLACK MASTER GAIN AUTO BLACK SHADING 2D BLACK SHAD BLACK SHADE CLEAR

AUTO IRIS (M04)

AUTO IRIS WINDOW

OVERRIDE IRIS LEVEL APL RATIO IRIS GAIN IRIS CLOSE

LENS (M05)

F NO. DISP ALAC AF DISPALY

CIS COMP (M06)

FLICKER REDUCE

AUDIO (M07)

MIC GAIN TEST TONE

CALL/TALLY (M08)

CCU CALL CAM CALL

OUTPUT FORMAT (M09)

CURRENT

TEST OUT (M10)

OUTPUT

SDI OUT (M11)

SDI OUT

TRUNK (M12)

TRUNK IF

GENLOCK (M13)

REFERENCE GENLOCK

DATE (M14)

DATE/TIME FILE TIMESTAMP FORMAT

BATTERY ALARM (M15)

BEFORE END END

WHITE FILTER (M16)

ECC FILTER ELECTRICAL CC ELECTRICAL CC <A> ELECTRICAL CC <B> ELECTRICAL CC <C> ELECTRICAL CC <D>

EXT I/O (M17)

PIN 4 PIN 6 PIN 7 PIN 8 PIN 9

OTHERS (M18)

FAN MOD E CAM BARS

WHITE SETUP MODE D.EXT ENABLE D.EXT HDSDI REMOTE I/F

EXT RETURN (M19)

EXT RETURN SD ASPECT

FILE

OPERATOR FILE (F01)

READ (USBtCAM) WRITE (CAMtUSB) PRESET STORE PRESET FILE FILE ID CAM CODE DATE

SCENE FILE (F02)

1/2/3/4/5 STORE STANDARD READ (USBtCAM) WRITE (CAMtUSB) FILE ID CAM CODE DATE

REFERENCE (F03)

STORE FILE STANDARD READ (USBtCAM) WRITE (CAMtUSB) FILE ID CAM CODE DATE

LENS FILE (F04)

STORE FILE No. NAME F NO CENTER MARKER

FILE CLEAR (F05)

PRESET OPERATOR REFERENCE (ALL)

DIAGNOSIS

TRANSMISSION CONDITION (D01)

OPTICAL LEVEL DC INPUT LEVEL

BOARD STATUS (D02)

OHB DPR SY IF

ROM VERSION (D03)

CAMERA APP

OS SY DPR

SERIAL NO. (D04)

MODEL NO

CA STATUS (D05)

SY SY PLD CD PLD

Page 57

Open Software Licenses

On the basis of license contracts between Sony and the software copyright holders, this product uses open software. To meet the requirements of the software copyright holders, Sony is obligated to inform you of the content of these licenses. For the content of these licenses, see “License1.pdf” in the “License” folder of the supplied CD-ROM. Adobe Reader must be installed on your computer to view PDF files. You can download Adobe Reader free from the Adobe website.

Page 58

Sony HXC-FB75 Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Overview

Name and Function of Parts

Connection and Setup

Shooting

Adjustments and Settings

Menus

Appendix
