Sony HCD-VX8J Schematic

Download

Page 1

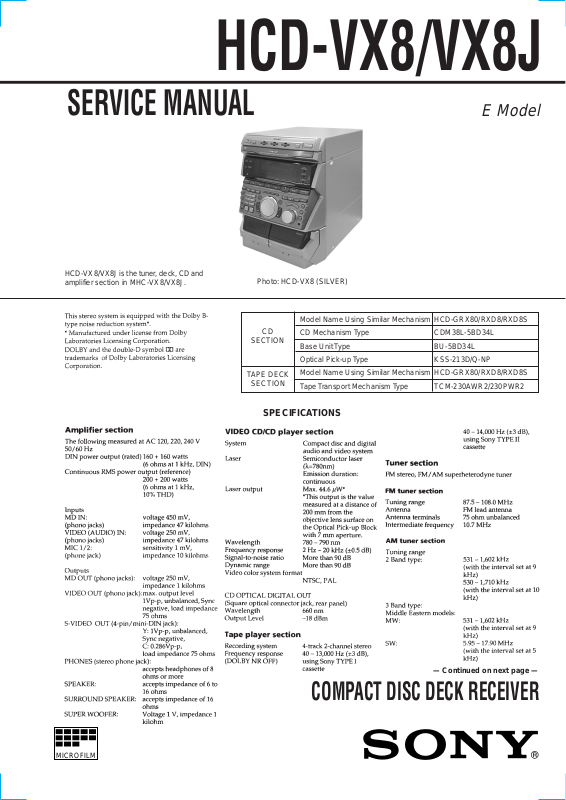

HCD-VX8/VX8J

SERVICE MANUAL

HCD-VX8/VX8J is the tuner, deck, CD and amplifier section in MHC-VX8/VX8J.

Photo: HCD-VX8 (SILVER)

Model Name Using Similar Mechanism HCD-GRX80/RXD8/RXD8S

SECTION

TAPE DECK

SECTION

CD Mechanism Type CDM38L-5BD34L Base Unit Type BU-5BD34L Optical Pick-up Type KSS-213D/Q-NP Model Name Using Similar Mechanism HCD-GRX80/RXD8/RXD8S T ape Transport Mechanism T ype TCM-230AWR2/230PWR2

E Model

SPECIFICATIONS

— Continued on next page —

MICROFILM

COMPACT DISC DECK RECEIVER

– 1 –

Page 2

MODEL IDENTIFICATION — BACK PANEL —

Parts No.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK ! OR DO TTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

PARTS No. MODEL

PRODUCT COUNTRY

4-215-641-0π VX8: EA MALAYSIA 4-215-641-1π VX8: MY, SP MALAYSIA 4-215-641-2π VX8: TW MALAYSIA 4-215-641-3π VX8: E MALAYSIA 4-215-641-4π VX8: IA INDONESIA 4-215-641-5π VX8: HK MALAYSIA 4-215-641-6π VX8J: E JAPAN 4-215-641-7π VX8J: EA JAPAN 4-215-641-8π VX8: TH THAI

• Abbreviation EA : Saudi Arabia model TW : Taiwan model IA : Indonesia model HK : Hong Kong model TH : Thai model MY : Malaysia model SP : Singapore model

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

LASER DIODE AND FOCUS SEARCH OPERATION CHECK

Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output four times.

– 2 –

Page 3

TABLE OF CONTENTS

1. SERVICING NOTE .......................................................... 4

2. GENERAL .......................................................................... 5

3. DISASSEMBLY

3-1. Loading Panel ....................................................................... 7

3-2. Front Panel and Video Board ................................................ 7

3-3. Cassette Lid and Tape Mechanism........................................ 8

3-4. CD SW Board and Panel Board............................................ 8

3-5. Disc Tray............................................................................... 9

4. SERVICE MODE ............................................................ 10

5. TEST MODE ..................................................................... 12

6. MECHANICAL ADJUSTMENTS ..........................13

7. ELECTRICAL ADJUSTMENTS ............................... 13

8. DIAGRAMS

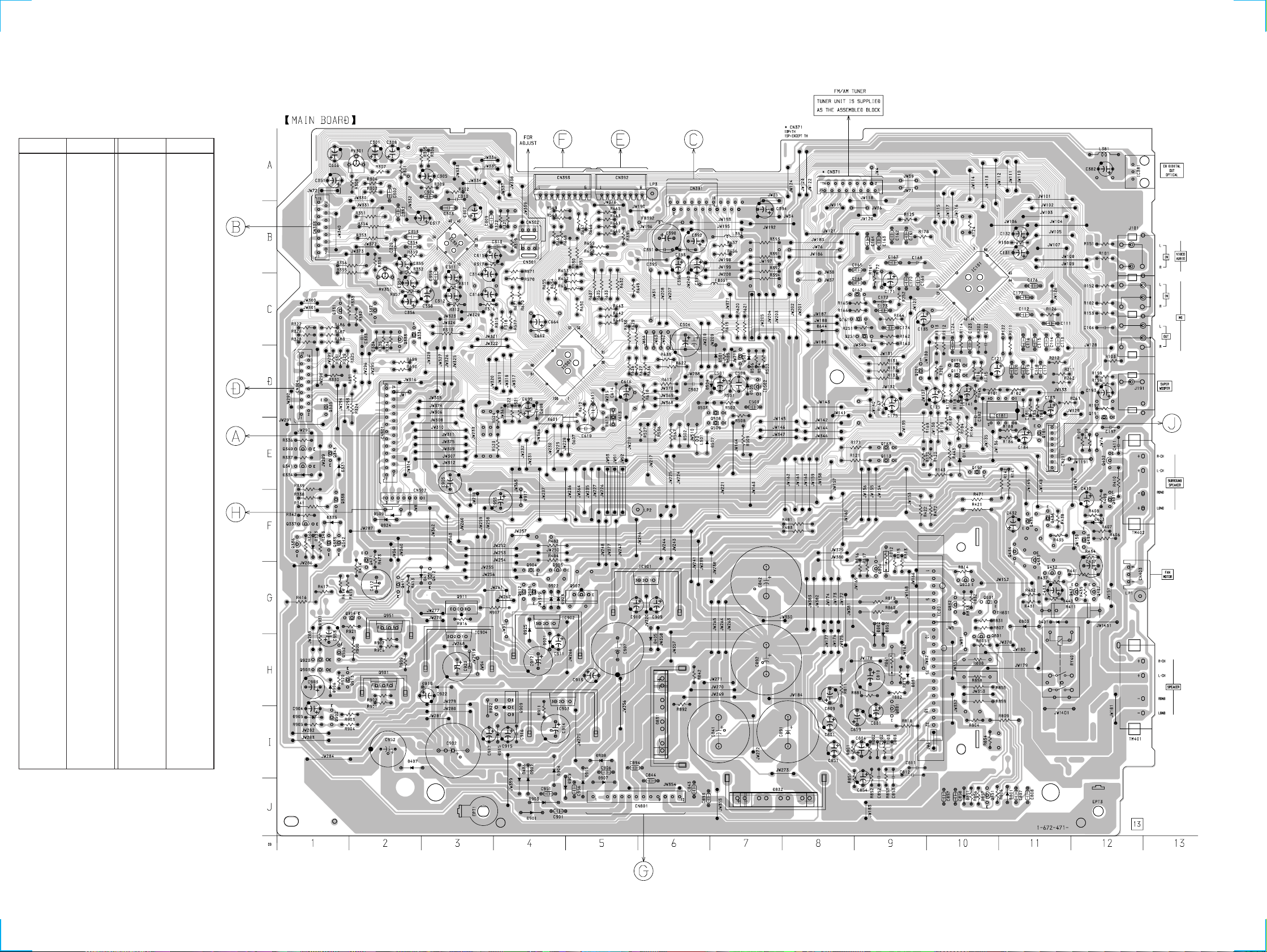

8-1. Circuit Boards Location ...................................................... 18

8-2. Block Diagrams

• CD Section ....................................................................... 19

• Video Section................................................................... 21

• Deck Section .................................................................... 23

• Main Section .................................................................... 25

• Power Section .................................................................. 27

• Display Section ................................................................ 29

8-3. Printed Wiring Board – CD Section –................................. 33

8-4. Schematic Diagram – CD Section – ................................... 35

8-5. Schematic Diagram – Deck Section –................................. 37

8-6. Printed Wiring Board – Deck Section –.............................. 39

8-7. Printed Wiring Board – Video Section – ............................. 41

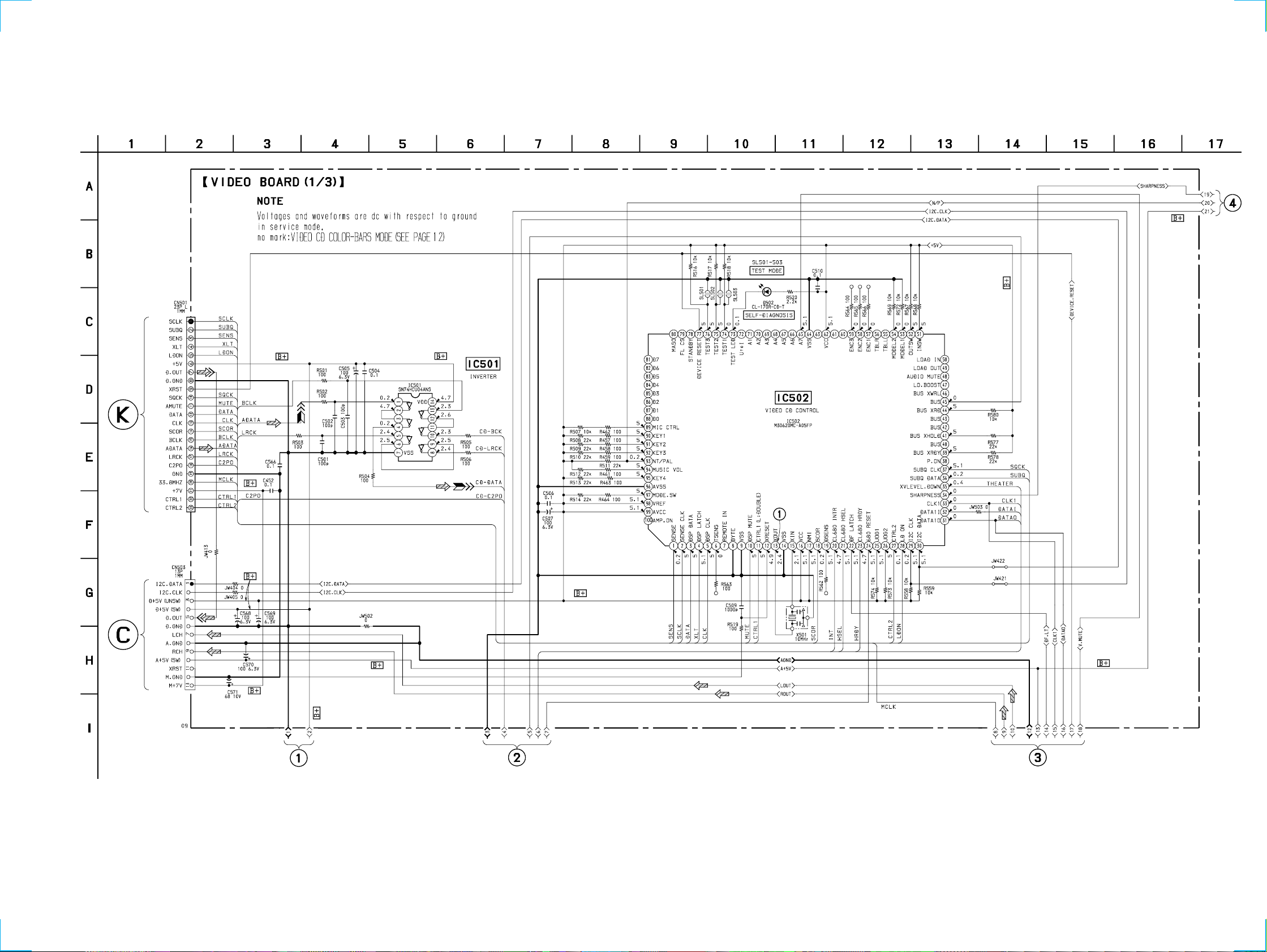

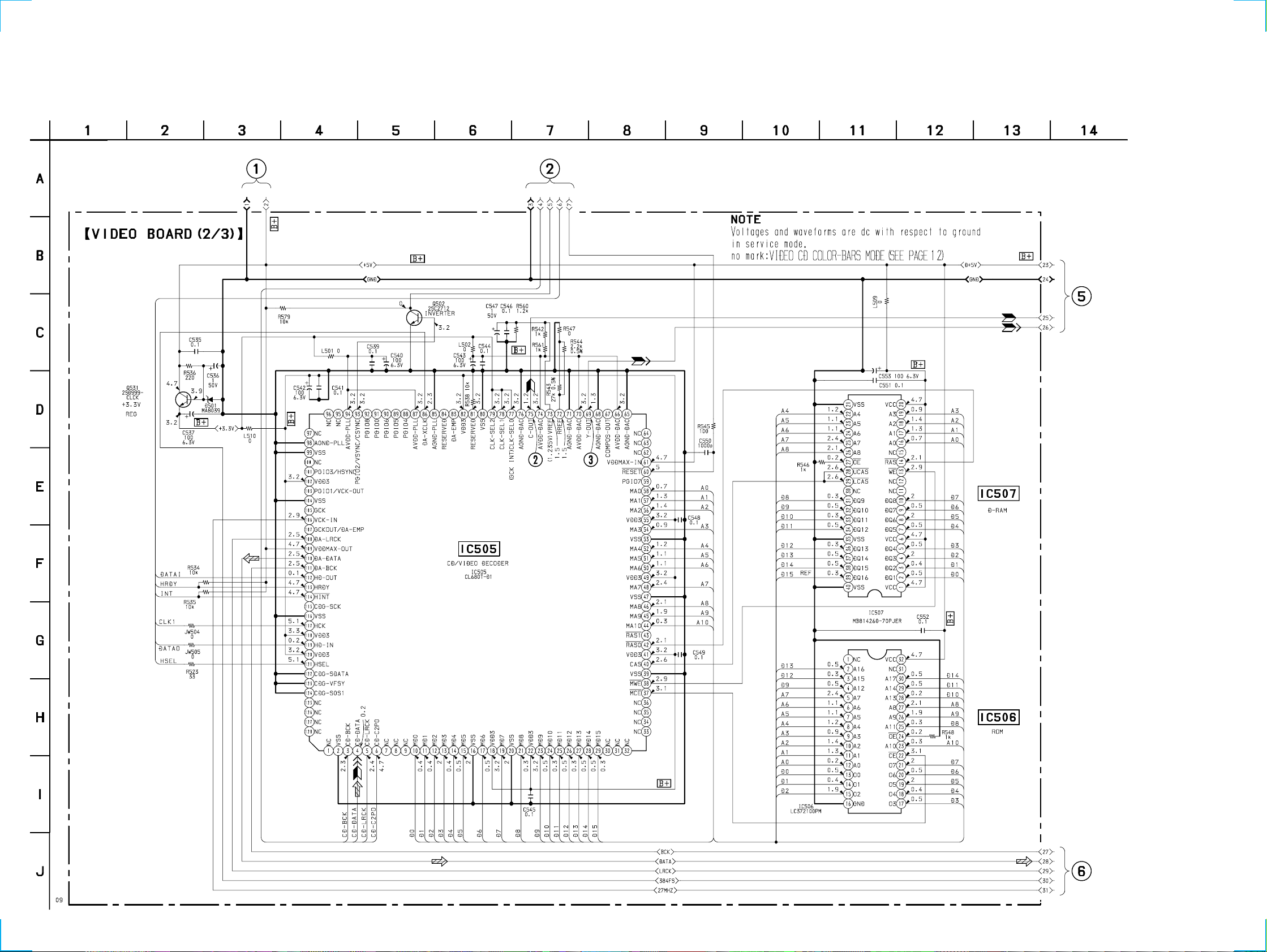

8-8. Schematic Diagram – Video (1/3) Section – ....................... 43

8-9. Schematic Diagram – Video (2/3) Section – ....................... 45

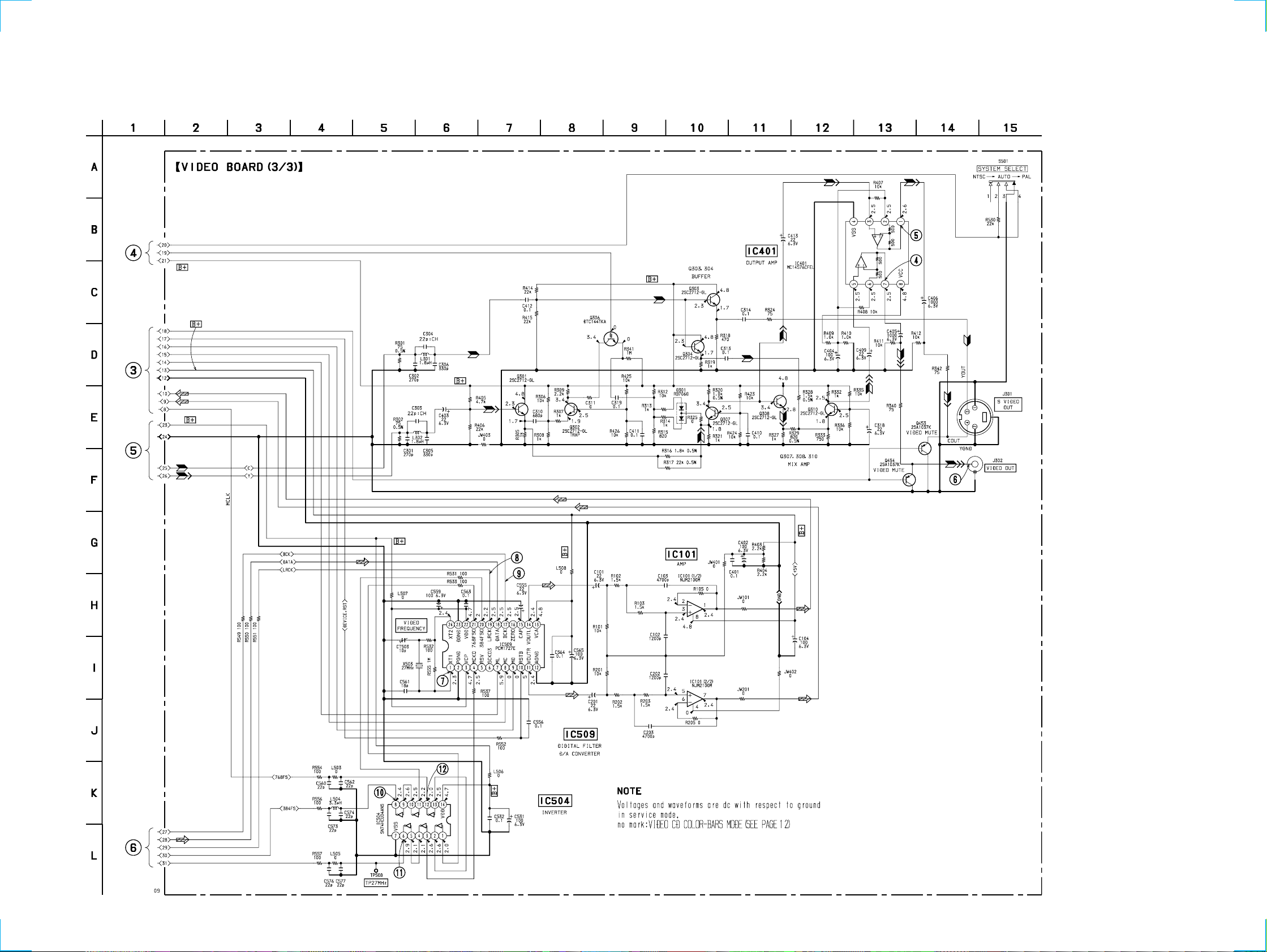

8-10. Schematic Diagram – Video (3/3) Section – .................... 47

8-11. Printed Wiring Board – Main Section – ........................... 49

8-12. Schematic Diagram – Main (1/4) Section – ..................... 51

8-13. Schematic Diagram – Main (2/4) Section – ..................... 53

8-14. Schematic Diagram – Main (3/4) Section – ..................... 55

8-15. Schematic Diagram – Main (4/4) Section – ..................... 57

8-16. Printed Wiring Board – Leaf SW Section – ..................... 59

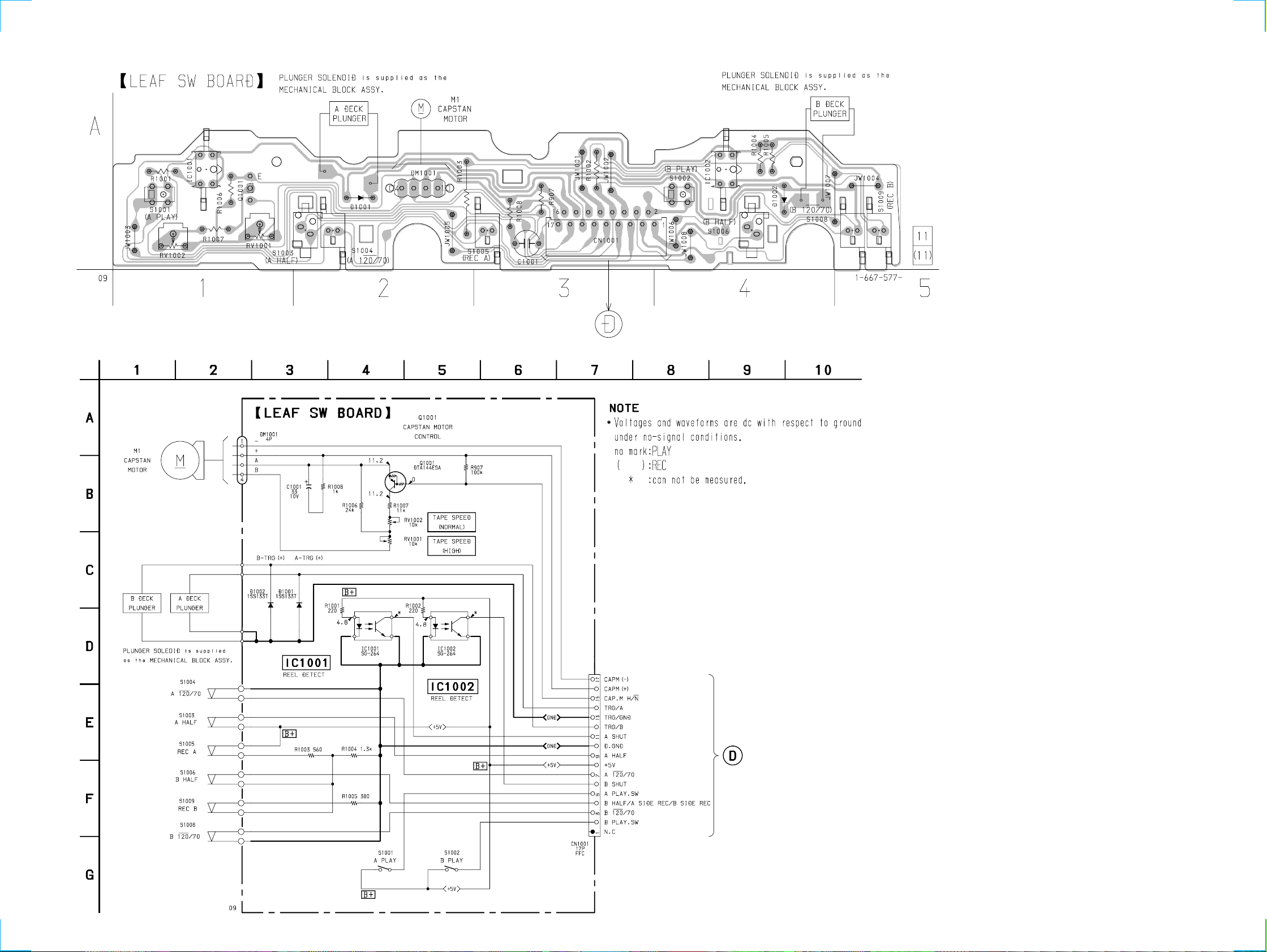

8-17. Schematic Diagram – Leaf SW Section – ........................ 59

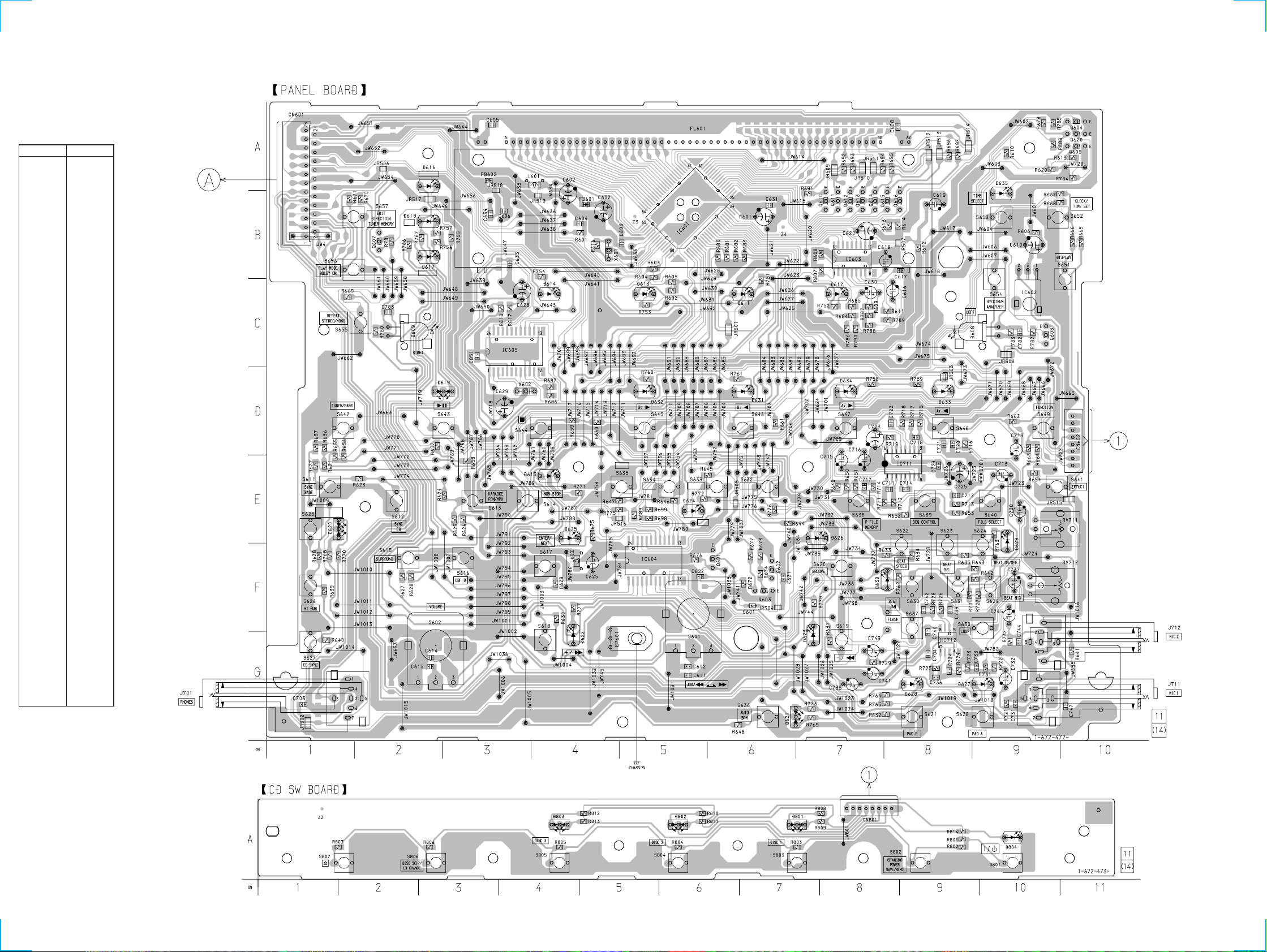

8-18. Printed Wiring Board – Panel Section – ........................... 61

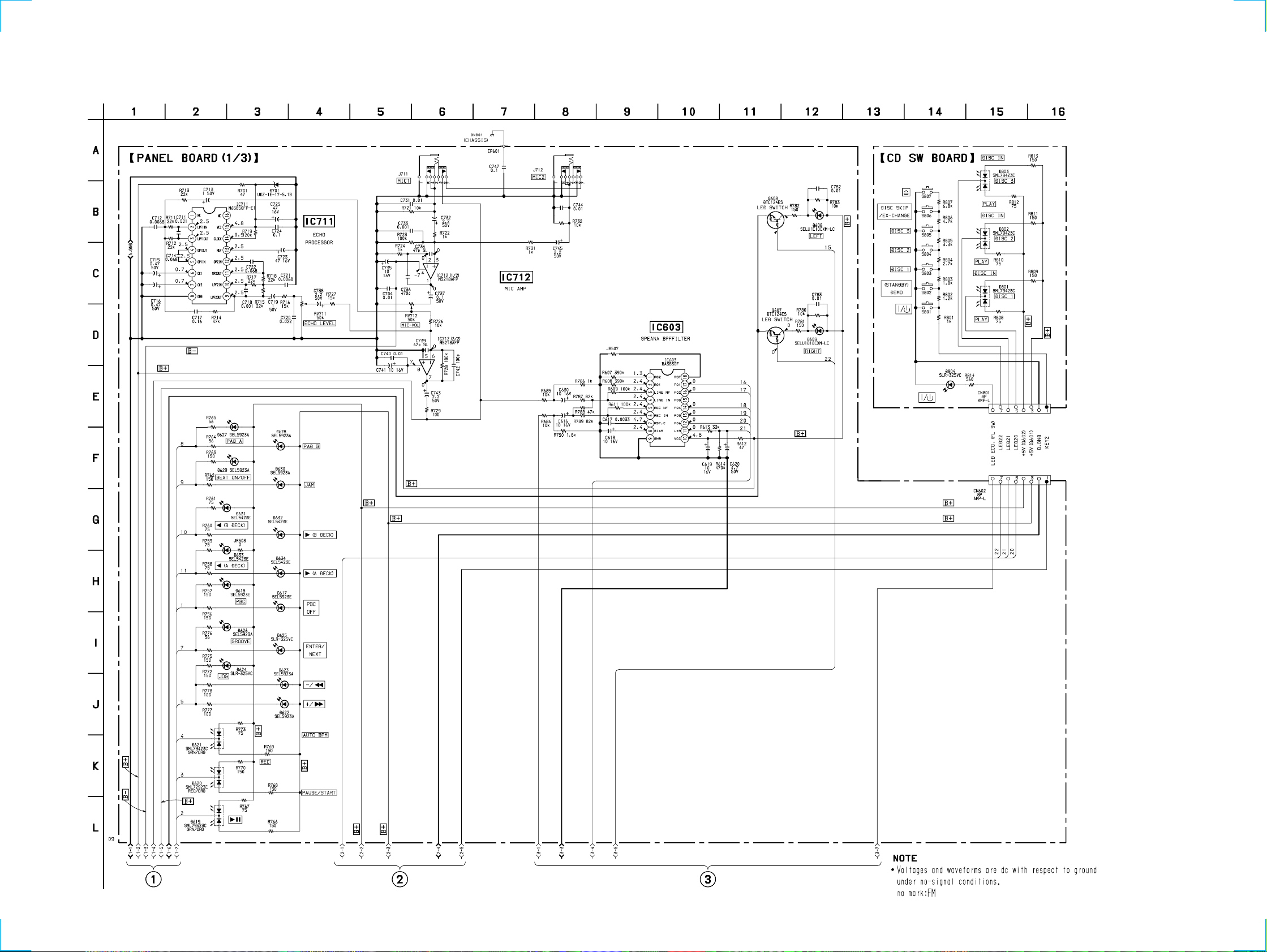

8-19. Schematic Diagram – Panel (1/3) Section –..................... 63

8-20. Schematic Diagram – Panel (2/3) Section –..................... 65

8-21. Schematic Diagram – Panel (3/3) Section –..................... 67

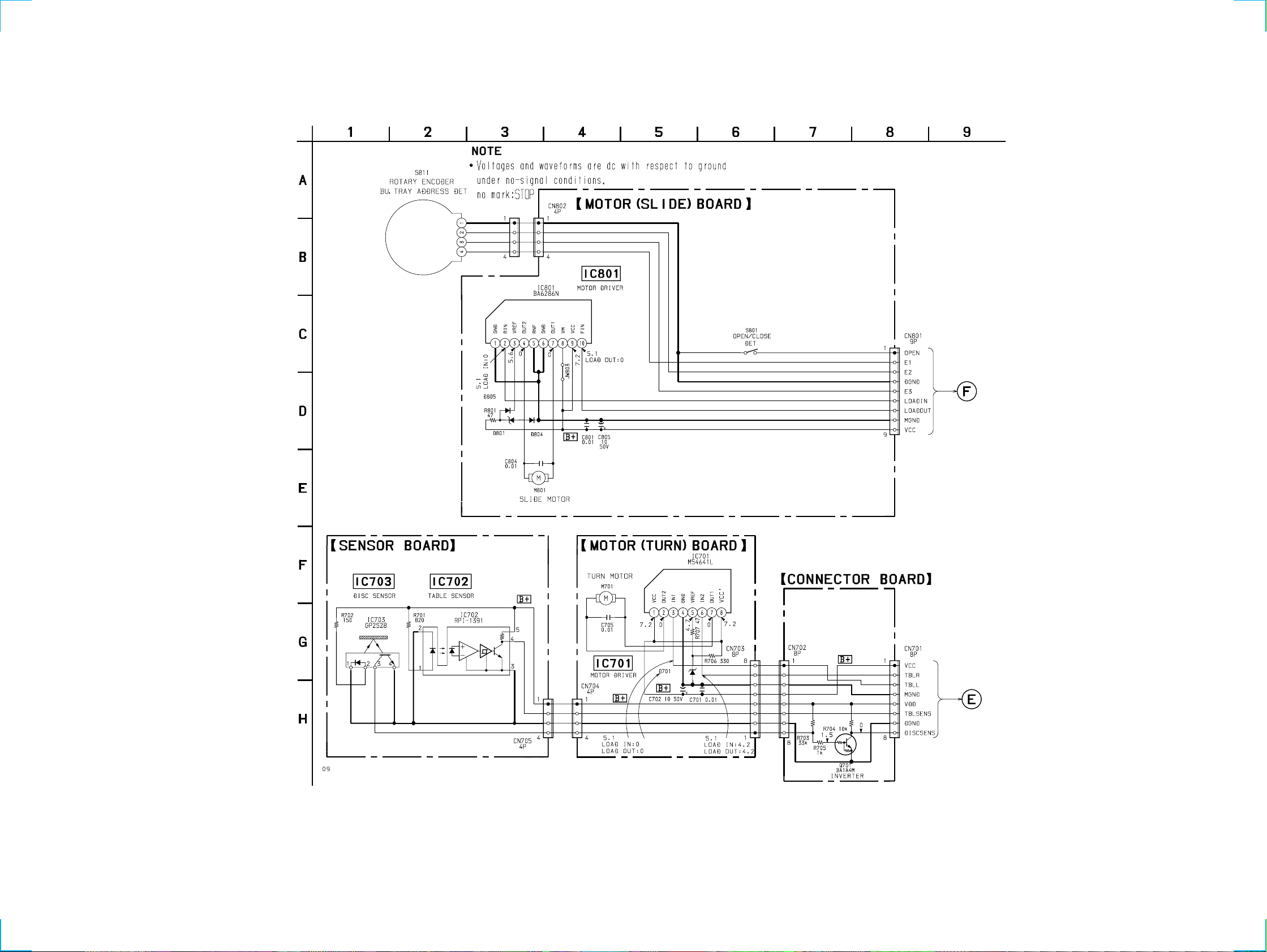

8-22. Schematic Diagram – CD Motor Section –...................... 69

8-23. Printed Wiring Board – CD Motor Section – ................... 71

8-24. Schematic Diagram – Trans Section – ............................. 73

8-25. Printed Wiring Board – Trans Section –........................... 75

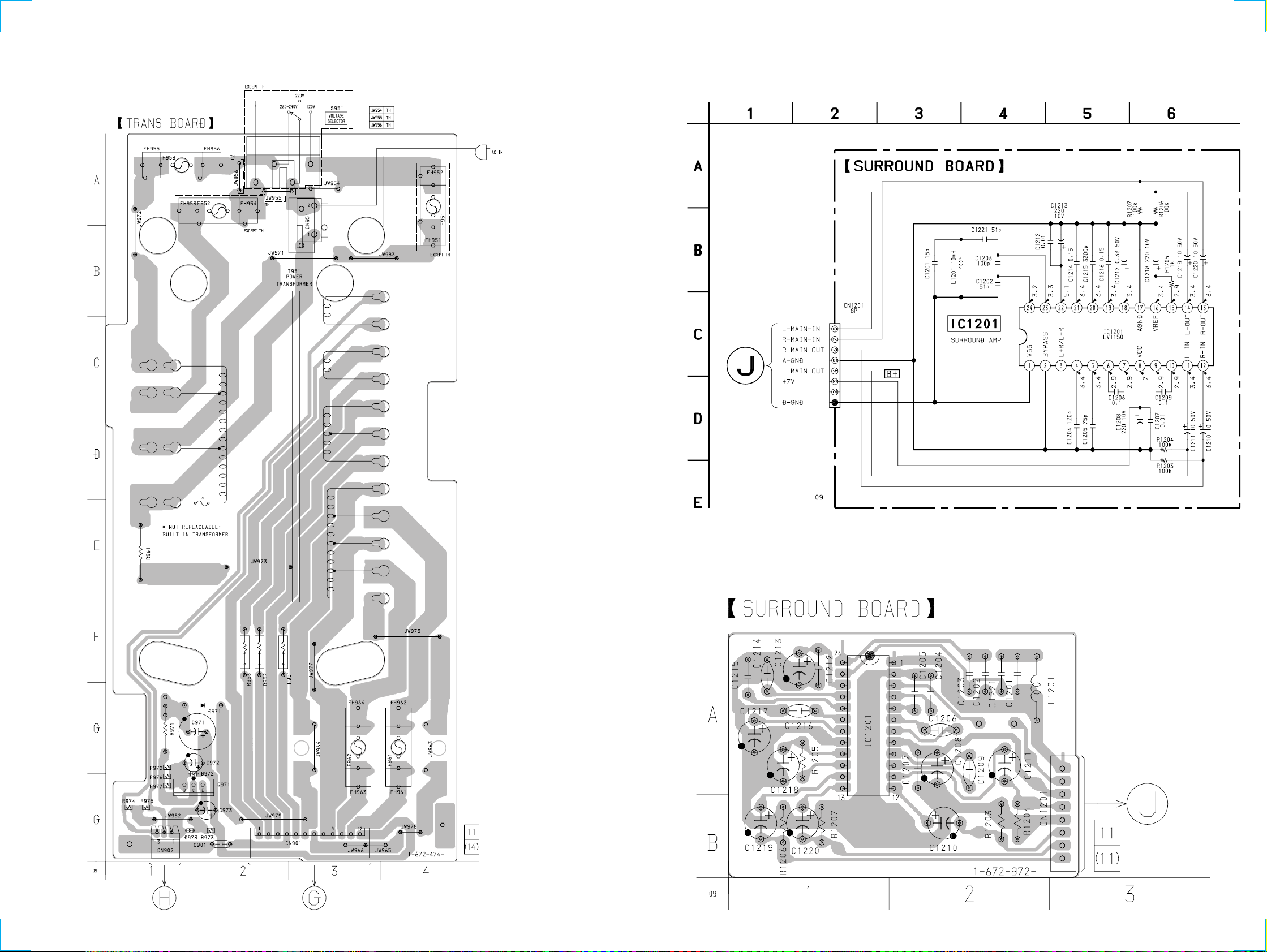

8-26. Schematic Diagram – Surround Section – ....................... 76

8-27. Printed Wiring Board – Surround Section –..................... 76

8-28. IC Block Diagrams ........................................................... 77

8-29. IC Pin Functions ............................................................... 80

9. EXPLODED VIEWS

9-1. Case Section........................................................................ 90

9-2. Chassis Section ................................................................... 91

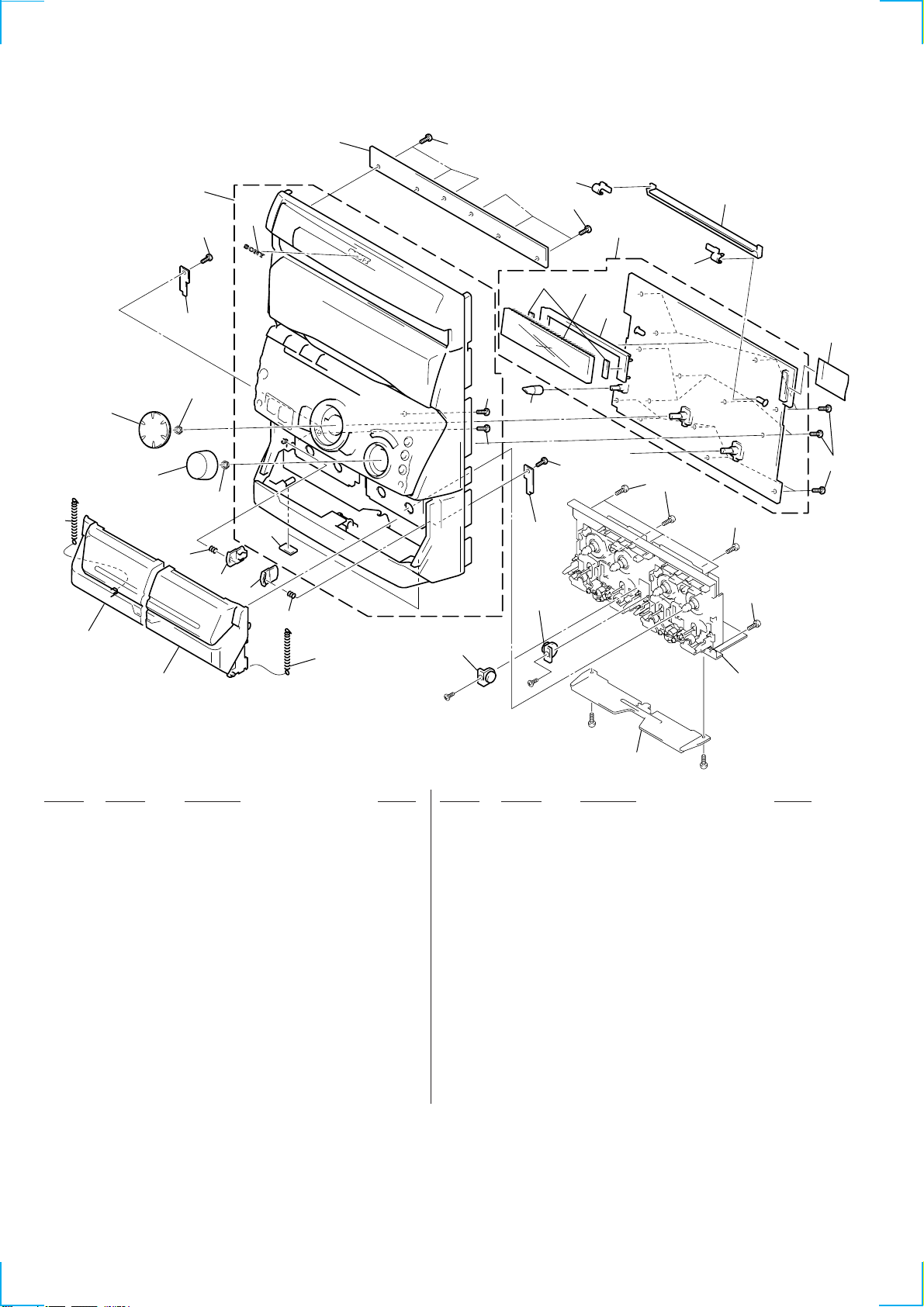

9-3. Front Panel Section ............................................................. 92

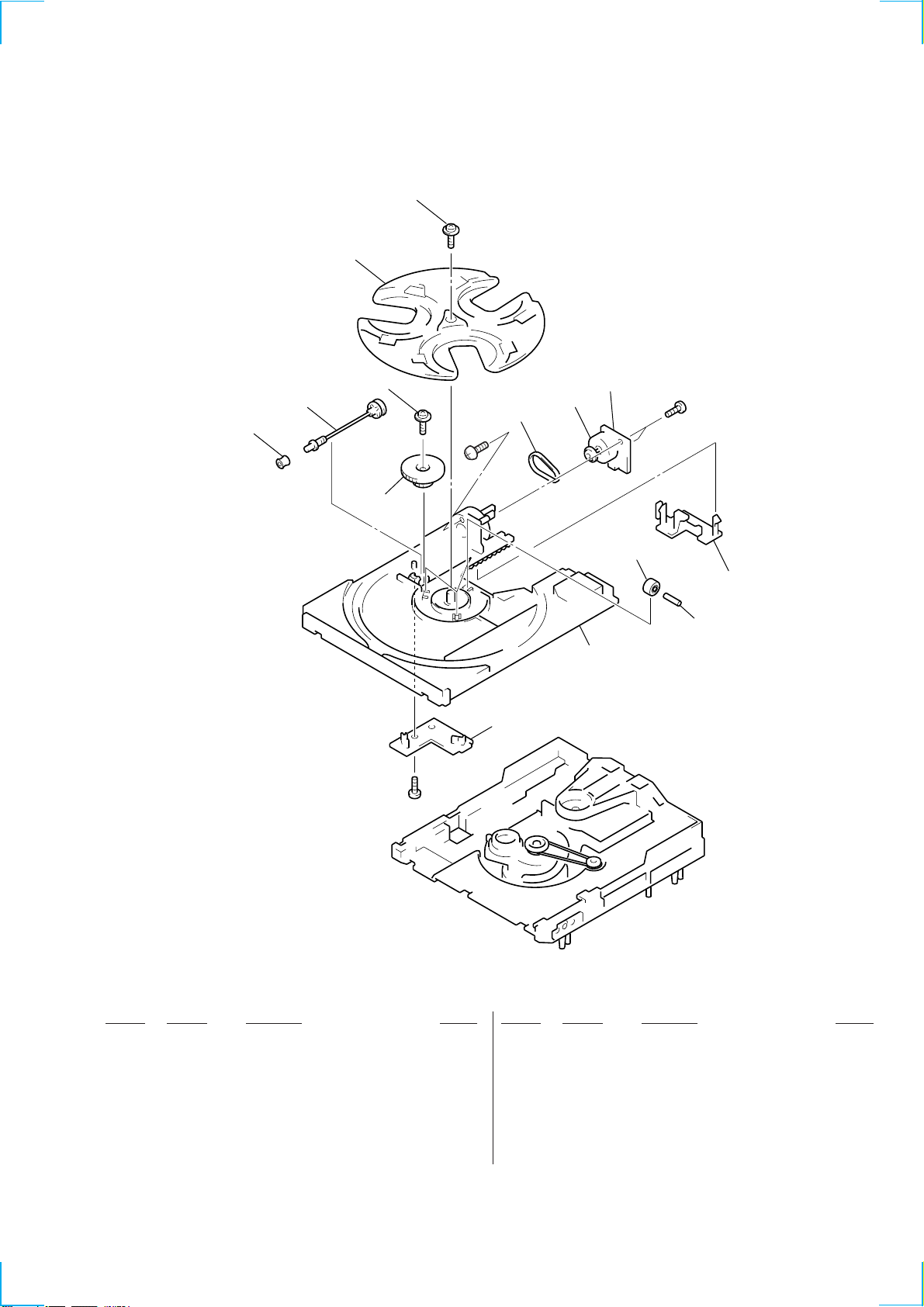

9-4. CD Mechanism Deck Section-1 (CDM38L-5BD34L) ....... 93

9-5. CD Mechanism Deck Section-2 (CDM38L-5BD34L) ....... 94

9-6. Base Unit Section (BU-5BD34L) ....................................... 95

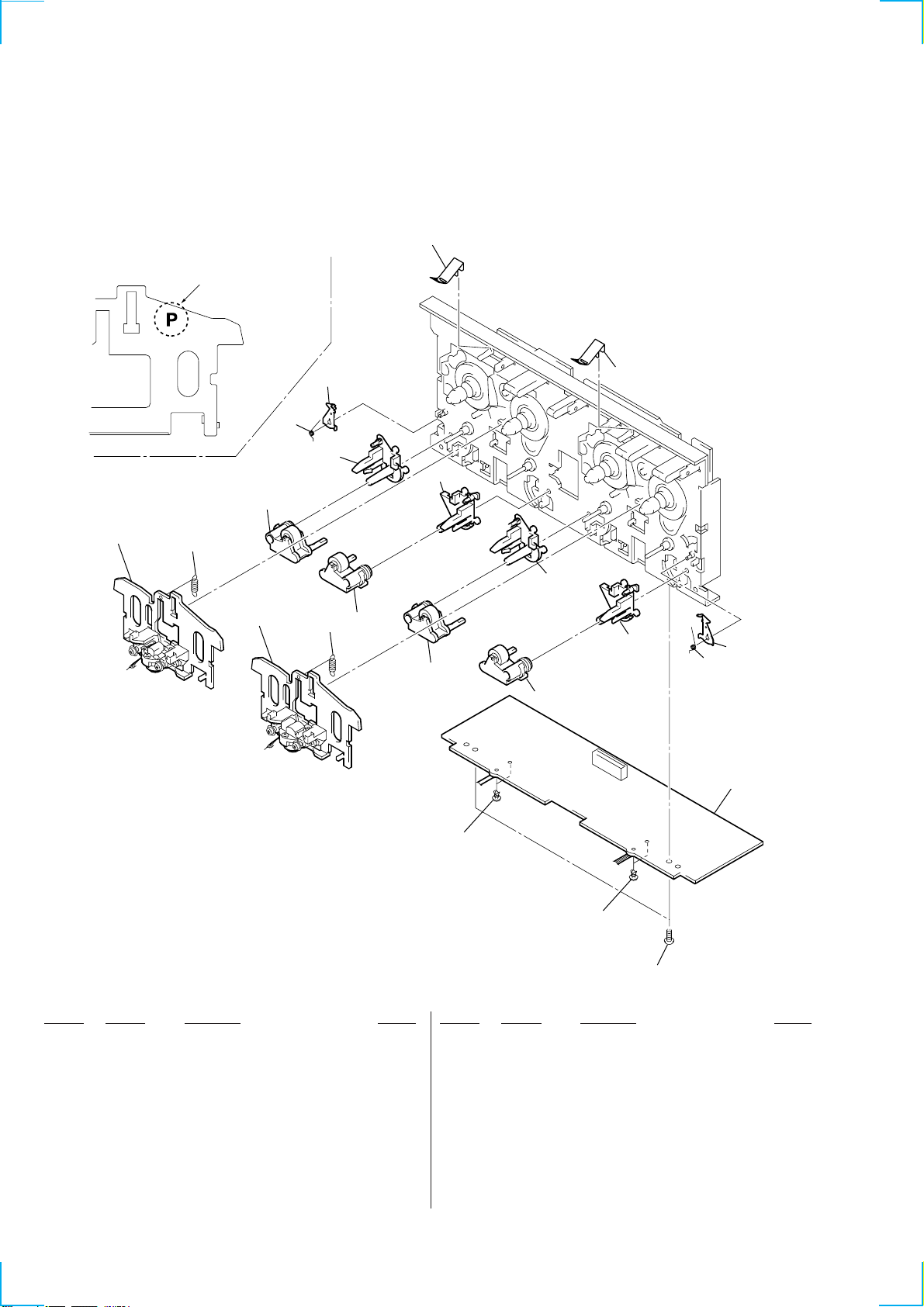

9-7. TC Mechanism Section-1 (TCM230AWR2/230PWR2) .... 96

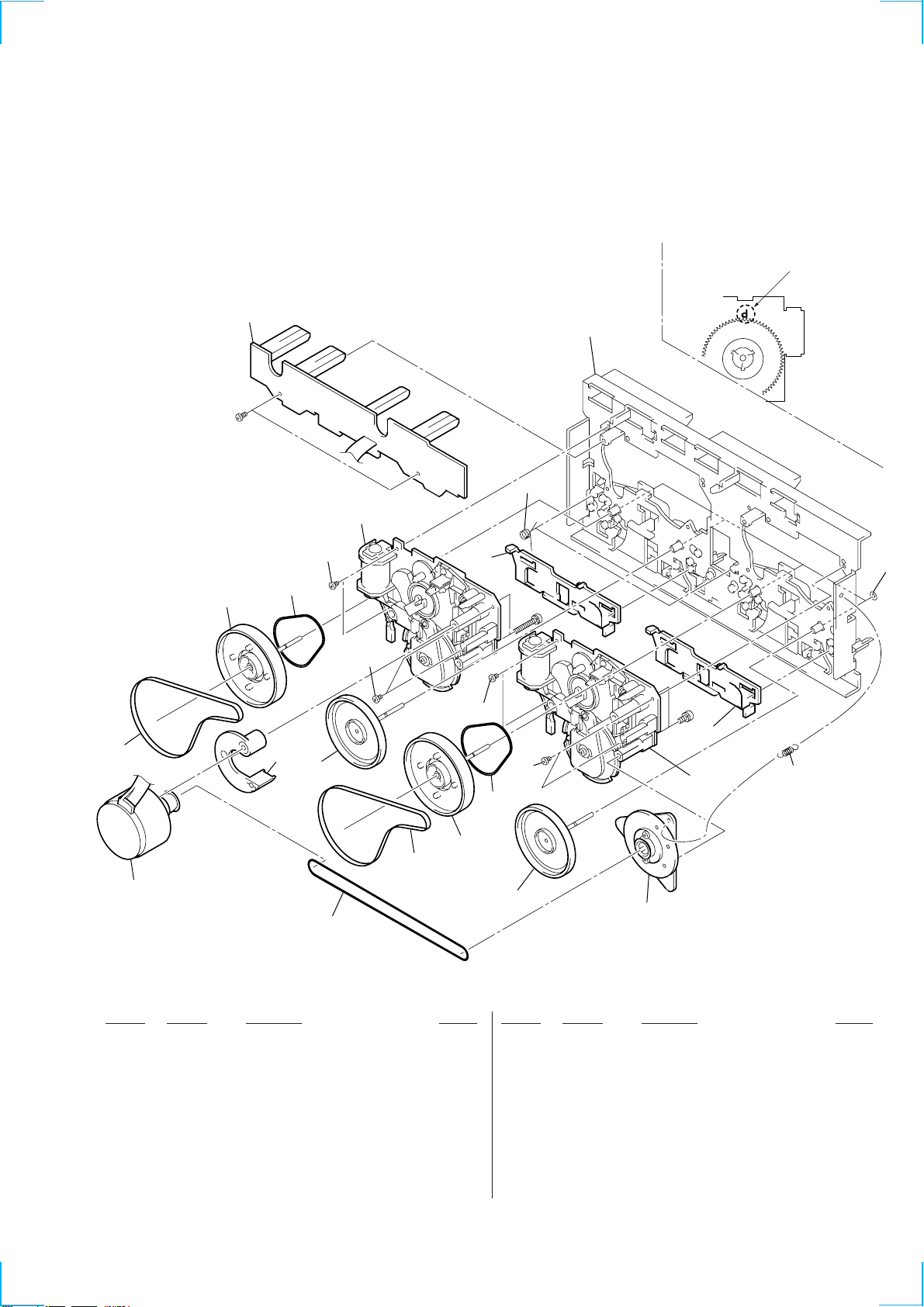

9-8. TC Mechanism Section-2 (TCM230AWR2/230PWR2) .... 97

10. ELECTRICAL PARTS LIST .............................98

– 3 –

Page 4

SECTION 1

SERVICING NOTE

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF

Remove the Case.

Pull-out the disc tray.

Turn the cam to the direction

of arrow.

NOTE FOR INSTALLATION (ROTARY ENCODER)

BU cam

Groove

Section A

Note:When attaching the BU cam, engage the Rotary encoder switch as shown in the figure.

Note:When attaching the Base unit, Insert the section A into the groove of BU cam.

CD-TEXT

This unit is provided with a simple CD-TEXT display function. The CD-TEXT contents of 20 tracks are displayed on the fluorescent display tube. Since the function is simple, some special characters may not be displayed, or may be displayed as other characters.

– 4 –

Page 5

SECTION 2

GENERAL

Front Panel

4849 43

4445 40 39

3233

64 63

62 61

35 34

4647

234 7561

10 11

1715

22 23

LOCATION OF PARTS AND CONTROLS

1 1/u (Power) button and indicator 2 DEMO (STANDBY) button 3 DISC 1 button and indicator 4 DISC 2 button and indicator 5 DISC 3 button and indicator 6 DISC SKIP/EX–CHANGE button 7 § (Eject) button 8 Disc tray 9 EDIT DIRECTION/TUNER MEMORY

button

10 PLAY MODE/DOLBY NR button 11 REPEAT/STEREO/MONO button 12 p button 13 ^ (CD) button and indicator 14 TUNER/BAND button 15 CD NON-STOP button and indicator 16 KARAOKE PON/MPX button 17 SYNC EQ button 18 SYNC BASS button 19 REC PAUSE/START button and

indicator

20 DBFB button

21 SURROUND button 22 HI DUB button 23 CD SYNC button 24 VOLUME knob 25 PHONES jack 26 ENTER/NEXT button 27 ) + button and indicator 28 JOG/0x) dial and indicator 29 GROOVE button and indicator 30 0 – button and indicator 31 AUTO BPM button and indicator 32 PAD B button and indicator 33 PAD A button and indicator 34 MIC 2 jack 35 MIC 1 jack 36 CD FLASH button 37 CD LOOP button 38 MIC LEVEL knob 39 JAM button and indicator 40 LEVEL button 41 MIX button 42 ECHO LEVEL knob

31 30 29

43 BEAT SPEED button 44 BEAT SELECT button 45 BEAT ON/OFF button and indicator 46 P FILE MEMORY button 47 GEQ CONTROL button 48 FILE SELECT 49 EFFECT button 50 NEXT button 51 PREV button 52 RETURN button 53 SELECT button 54 ( (TAPE B) button and indicator 55 9 (TAPE B) button and indicator 56 ( (TAPE A) button and indicator 57 9 (TAPE A) button and indicator 58 FUNCTION button 59 Remote sensor 60 DISPLAY button 61 SPECTRUM ANALYZER button 62 CLOCK/TIME SET button 63 TIMER SELECT button and indicator 64 Display Window

– 5 –

Page 6

– 6 –

This section is extracted from

instruction manual.

Page 7

SECTION 3

)

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

3-1. LOADING PANEL

Claws

Loading panel

Pull-out the disc tray.

Turn the cam to the direction

of arrow.

3-2. FRONT PANEL AND VIDEO BOARD

Flat type wire

Screw (BVTT 3x6)

Screw (BVTP 3x10)

Front panel

Screw (BVTT 3x6)

(CN304)

Lead wires

!¢

Screw (BVTP 3x8)

!™

Flat type wire

(CN303)

(CN503)

Flat type wire

Screw

(BVTP3x10)

Flat type wire

(CN501)

!∞

Video board

!¡

(CN501)

Lead wire

Screw (BVTT 3x6)

Flat type wire

!£

Two screws (BVTP 3x8)

Screw (BVTT 3x6

– 7 –

Page 8

3-3. CASSETTE LID AND TAPE MECHANISM

T ension spring

Cassette holder (L)

assembly

Release

(Refer to order No. 1)

Cassette holder (R)

assembly

Portion

Release

Portion

Tension spring

Tape mechanism

Three screws

(BVTP2.6x8)

Note for installation

Portion

T wo screws

(BVTP2.6x8)

3-4. CD SW BOARD AND PANEL BOARD

CD SW board

Knob (Jog)

Nut

Knob (Vol)

Three screws

(BVTP2.6x8)

Three screws

(BVTP2.6x8)

!™

Panel board

Flat type wire

(CN601)

Four screws

(BVTP2.6x8)

Five screws

(BVTP2.6x8)

!¡

Five screws

(BVTP2.6x8)

– 8 –

Page 9

3-5. DISC TRAY

(Perform after removing the front panel.) Note:When installing the Disc tray, pull around the flat type wire to

Flat type wire (8 core)

Two claws

Pull-out the disc tray.

Remove the disc tray.

pass through the claw

Claw

and claw B, as shown in the figure.

Claw

Turn the cam the

direction of arrow.

– 9 –

Page 10

SECTION 4

SERVICE MODE

MC Cold Reset

• The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer.

Procedure:

1. Press three buttons p , ENTER/NEXT , and 1/u simultaneously.

2. “COLD RESET” is displayed on the fluorescent display tube and reset is executed.

CD Delivery Mode

• This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair .

Procedure:

1. Press 1/u button to turn the set ON.

2. Press LOOP button and 1/u button simultaneously.

3. A message “LOCK” is displayed on the fluorescent indicator tube, and the CD delivery mode is set.

MC Hot Reset

• This mode resets the set with the preset data kept stored in the memory . The hot reset mode functions same as if the po wer cord is plugged in and out.

Procedure:

1. Press three buttons p , ENTER/NEXT , and DISC 1 simultaneously.

2. The fluorescent indicator tube becomes blank instantaneously, and the set is reset.

Sled Servo Mode

• This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pick-up.

Procedure:

1. Press 1/u button to turn the set ON.

2. Press three buttons p , ENTER/NEXT , and § simultaneously.

3. The Sled Servo mode is selected, if “CD” is blanking on the fluorescent indicator tube.

4. With the CD in stop status, When the ) + button is pressed the optical pick-up moves outside. When – 0 button is pressed , it mov es

inside.

5. To exit from this mode, perform as follows:

1) Move the optical pick-up to the most inside track.

2) Execute MC cold reset. (Press the three buttons p , ENTER/NEXT , and 1/u button simultaneously.)

Note:

• Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded.

• Do not run the sled motor excessively, otherwise the gear can be chipped.

Change-over of AM Tuner Step between 9kHz and 10kHz

• A step of AM channels can be changed over between 9kHz and 10kHz.

Procedure:

1. Press 1/u button to turn the set ON.

2. Select the function “TUNER”, and press TUNER/BAND button to select the BAND “AM”.

3. Press 1/u button to turn the set OFF.

4. Press ENTER/NEXT and 1/u buttons simultaneously , and the display of fluorescent indicator tube changes to “AM 9k STEP” or “AM

10k STEP”, and thus the channel step is changed over.

LED and Fluorescent Indicator Tube All Lit, Key Check Mode

Procedure:

1. Press three buttons p , ENTER/NEXT , and DISC 2 simultaneously.

2. LEDs and fluorescent indicator tube are all turned on.

Press DISC 2 button, and the key check mode is activated.

3. In the key check mode, the fluorescent indicator tube displays “K 0 V0 J0”. Each time a button is pressed, “K”value increases . Howe ver ,

once a button is pressed, it is no longer taken into account. “J” Value increases like 1, 2, 3 ... if rotating 0 AMS ) knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in “-” direction. “V” Value increases like 1, 2, 3 ... if rotating VOLUME knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in “-” direction.

4. To exit from this mode, press three buttons in the same manner as step 1, or disconnect the power cord.

– 10 –

Page 11

AMS Test Mode

• This mode is used for checking the AMS operations of the tape deck.

JIG 7-819-039-12 Alignment tape, AMS-110A

Procedure:

1. Press the 1/u button to turn the unit ON.

2. Set the tape (AMS-110A).

3. Press the three buttons p , ENTER/NEXT , and DISC 3 button simultaneously.

4. “TEST MODE” is displayed on the fluorescent display tube.

5. Press the FUNCTION button and switch the function to the deck with the tape (AMS-110A).

6. Press the CD SYNC button. “AMS CHECK” is displayed on the fluorescent display tube and the tape is rewound.

7. AMS starts in the normal direction. If the AMS count is 2 at shut down, proceed to step 8. “NG” is displayed at other times, and the deck stops.

8. AMS starts in the opposite direction. If the AMS count is 2 at shut down again, “OK” is displayed. “NG” is displayed at other times.

Note:The p button of CD section will become effective and the aging of CD section will stop sometime, if the buttons described in step 3

are not pressed simultaneously. In that case, press ^ button and operate the CD section.

– 11 –

Page 12

SECTION 5

TEST MODE

VIDEO CD COLOR-BARS MODE

On this mode, the data of the color-bars signal as a picture signal and the 1kHz sine wave signal as a sound signal are output by the mechanism control microcomputer (IC502) for video CD signal check. When measurement of the voltage and waveform on the VIDEO board, perform it in this mode. For refernce, the color-bars signal can be observed at J302 (VIDEO OUT) and the sound signal can be observed at J101 (VIDEO/MD (AUDIO) OUT) using an oscilloscope.

1. Connect the lead wire to both ends of the land of SL503 of the VIDEO board.

2. Turn the power on. Press FUNCTION button to select CD.

3. After 2 or 3 seconds later, connect the lead wire.

4. After measuring, remove the lead wire connected.

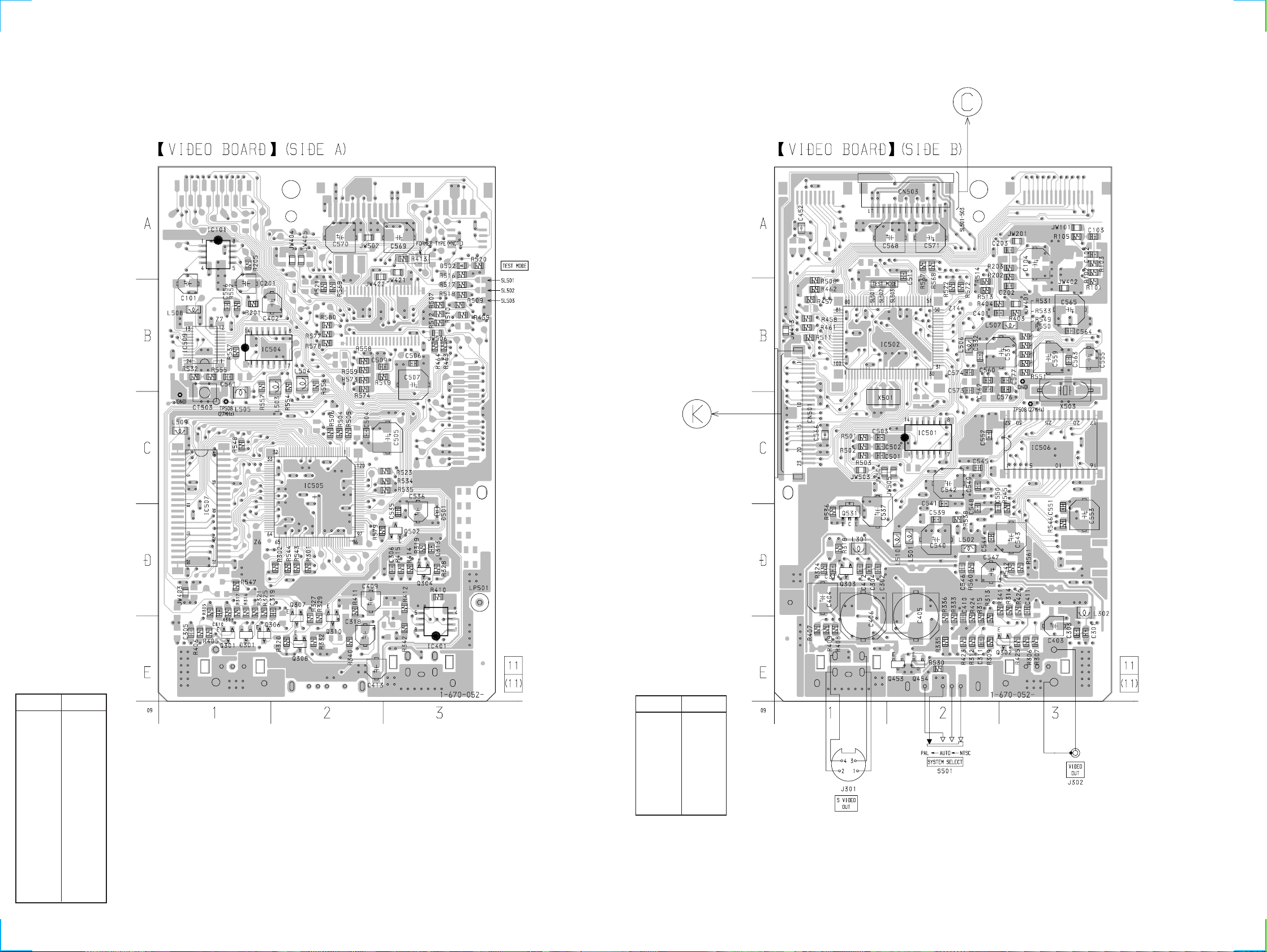

[VIDEO BOARD] (SIDE A)

D502

SL502

SL503

IC505

SL501

TEST MODE

[VIDEO BOARD] (SIDE B)

SL503

TEST

MODE

SL502 SL501

IC502

CT503

VIDEO FREQUENCY

IC507

– 12 –

Page 13

SECTION 6

MECHANICAL ADJUSTMENTS

SECTION 7

ELECTRICAL ADJUSTMENTS

Precaution

1. Clean the following parts with a denatured alcohol-moistened swab:

record/playback heads pinch rollers erase head rubber belts capstan idlers

2. Demagnetize the record/playback head with a head demagnetizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to the parts adjusted.

5. The adjustments should be performed with the rated power supply voltage unless otherwise noted.

Torque Measurement

Mode

FWD FWD

back tension REV

REV back tension

FF/REW

FWD tension

REV tension

Torque meter

CQ-102C

CQ-102RC

CQ-201B

CQ-403A

CQ-403R

Meter reading

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.02 – 0.08 oz • inch)

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.02 – 0.08 oz • inch)

71 to 143 g • cm

(0.98 – 1.99 oz • inch)

100 g or more

(3.53 oz or more)

100 g or more

(3.53 oz or more)

DECK SECTION 0 dB=0.775V

1. Demagnetize the record/playback head with a head damagnetizer.

2. Do not use a magnetized screwdriver for the adjustments.

3. After the adjustments, apply suitable locking compound to the parts adjusted.

4. The adjustments should be performed with the rated power supply voltage unless otherwise noted.

5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.)

6. The adjustments should be performed for both L-CH and R-CH.

7. Switches and controls should be set as follows unless otherwise specified.

Signal

P-4-A100

WS-48B

P-4-L300

10 kHz, –10 dB

3 kHz, 0 dB

315 Hz, 0 dB

Record/Playback Head Azimuth Adjustment (Deck A, Deck B)

Note: Perform this adjustments for both decks.

Procedure:

1. Mode : Playback

Used forTape

Azimuth Adjustment

Tape Speed Adjustment

Level Adjustment

test tape P-4-A100 (10kHz, –10dB)

set

MD OUT

level meter

–

2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1 dB of peak.

L-CH peak

screw position

R-CH peak

output level

within 1 dB

L-CH peak

R-CH peak

within 1dB

screw position

– 13 –

Page 14

3. Mode: Playback Tape Speed Adjustment (Deck A)

)

test tape P-4-A100 (10kHz, –10dB)

oscilloscope

MD OUT

Note: Set the test mode using the following method and begin tape

speed adjustment. In the test mode, the speed will switch to double speed or normal speed each time the HI DUB button is pressed.

set

Waveform of oscilloscope

in phase 45

good

135

wrong

180

4. After the adjustments, apply suitable locking compound to the parts adjusted.

Adjustment Location: Playback Head (Deck A)

Record/Playback/Erase Head (Deck B)

Procedure:

With the power turned ON, press the p button, ENTER/NEXT button, and DISC 3 button simultaneously. (The “CD TYPE INDICA T OR” on the fluorescent display tube will blink while in the test mode.) To exit the test mode, press the 1/u button.

1. Insert the WS-48B into deck B.

2. Press the ( button of deck B.

3. Press the HI DUB button and play the tape at double speed.

4. Adjust RV1001 of the LEAF SW board so that the reading of the frequency counter becomes 6000 ± 180 Hz.

5. Press the HI DUB button and play the tape at normal speed.

6. Adjust RV1002 of the LEAF SW board so that the reading of the frequency counter becomes 3000 ± 90 Hz.

Adjustment Location: LEAF SW board

Sample Value of Wow and flutter

W.RMS (JIS) less than 0.3% (test tape: WS-48B)

Playback Level Adjustment (Deck A, Deck B)

Procedure:

Mode: Playback

Reverse Foward

test tape P-4-L300 (315Hz, 0dB)

set

MD OUT

level meter

Deck A is RV311 (L-CH) and RV411 (R-CH), deck B is RV301 (L-CH) and RV401 (R-CH) so that adjustment within the following adjustment level.

Adjustment level:

CN301 playback level: 301.5 to 338.3 mV (–8.2 to –7.2 dB) level difference between the channels: within ± 0.5 dB Adjustment Location: AUDIO board

Adjustment Location [LEAF SW BOARD]

RV1001(High Speed) RV1002(Normal Speed

RV1002 RV1001

– 14 –

Page 15

Record Bias Adjustment (Deck B)

AF OSC

VIDEO (AUDIO) IN 315Hz 50 mV (–23.8 dB)

blank tape CS-123

set

attenuator

600

Ω

IC301

Record Level (L CH) RV301

CN303

RV351 Record Level (R CH)

Record Level Adjustment (Deck B)

Procedure:

INTRODUCTION

When set to the test mode performed in Tape Speed Adjustment, when the tape is r ewound after recording, the “REC memory

mode” which rewinds only the recorded portion and playback is set. This “REC memory mode” is convenient for performing this adjustment. During recording, the input signal FUNCTION will automatically switch to VIDEO. (After recording, press the – 0 button without stopping will return to the position where recording was started.)

1. Press FUNCTION button to select VIDEO. (This step is not necessary if the above test mode has already been set.)

2. Insert a tape into deck B, press the r REC button, and then press the ( button to start recording.

3. Mode: Record

VIDEO (AUDIO) IN

1) 315 Hz

2) 10 kHz

AF OSC

attenuator

600

Ω

} 50 mV (–23.8 dB)

blank tape CS-123

set

Procedure:

INTRODUCTION

When set to the test mode performed in Tape Speed Adjustment, when the tape is rewound after recording, the “REC memory

1. Press FUNCTION button to select VIDEO 1. (This step is not necessary if the above test mode has already been set.)

2. Insert a tape into deck B, press the r REC button, and then press the ( button to start recording.

3. Mode: Record

4. Mode: Playback

5. Confirm playback the signal recorded in step 2 become adjust-

Adjustment level: The playback output of 10 kHz lev el dif ference

Adjustment Location: AUDIO board

Adjustment Location:

[AUDIO BOARD] (Conductor Side)

recorded position

set

MD OUT

level meter

ment level as follows. If these levels do not adjustment lev el, adjust the R V341 (L-CH) and R V441 (R-CH) on the A UDIO board to repeat steps 3 and 4.

against 315 Hz reference should be ± 1.0 dB.

RV341(Lch),RV441(Rch) Record Bias

RV311(Lch),RV411(Rch) Playback Level (Deck A)

4. Mode: Playback

recorded position

set

MD OUT

level meter

5. Confirm playback the signal recorded in step 2 become adjustment level as follows. If these levels do not adjustment lev el, adjust the R V301 (L-CH) and R V351 (R-CH) on the MAIN board to repeat steps 3 and 4.

Adjustment level:

CN403 playback level: 47.2 to 53.0 mV (–24.3 to –23.3 dB)

Adjustment Location: MAIN board

[MAIN BOARD] (Conductor Side)

RV301 RV401

RV441 RV341

RV301(Lch),RV401(Rch) Playback Level (Deck B)

RV311

RV411

– 15 –

Page 16

CD SECTION

Note:

1. CD Block is basically constructed to operate without adjustment. Therefore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks.

Note: Clear RF signal waveform means that the shape “◊” can be

clearly distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV : 200mV TIME/DIV : 500ns

level : 1.75 ± 0.25 Vp-p

S Curve Check

oscilloscope

BD board

TP (FE) TP (VC)

+ –

Adjustment Location: BD board

Procedure :

1. Connect the oscilloscope to test points TP (FE) and TP (VC).

2. Connect TP (FEI) and GND, and TP (AGCCON) and GND of

the BD board with lead wires.

3. Press the 1/u button to turn the set ON.

4. With the disc (YEDS-18) loaded, press the ^ button and

perform focus search. (Focus search will be performed in the same way even while the disc table is pushed in and out.)

5. Check the symmetry and peak to peak level of the oscilloscope

waveform (S curve) at this time.

S-curve waveform

symmetry

Within 4.0

1.0 Vp-p

6. After check, remove the lead wire connected in step 2.

Note: • Try to measure several times to make sure than the ratio of

A : B or B : A is more than 10 : 7.

• Tak e sweep time as long as possible and light up the brightness to obtain best waveform.

Adjustment Location: BD board

E-F Balance (Traverse) Check

oscilloscope

BD board

TP (TE) TP (VC)

+ –

Adjustment Location: BD board

Procedure :

1. Connect oscilloscpe to test point TP (TE) on BD board.

2. Short-circuit SL502 of the video board to GND.

3. Turned Power switch on. Press FUNCTION button to select CD.

4. Put disc (YEDS-18) in to play the number five track.

5. Press the PLAY MODE/DOLBY NR button. (The tracking servo and the sledding servo are turned OFF.)

6. Check the le vel B of the oscilliscope's w av eform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22%

Traverse waveform

Center of the waveform

level : 1.3 ± 0.6 Vp-p

A (DC voltage)

7. Press the PLAY MODE/DOLBY NR button. (The tracking

servo and sledding servo are turned ON.) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 7.

RF Level Check

oscilloscope

BD board

TP (RF) TP (VC)

+ –

Procedure :

1. Connect oscilloscope to test point TP (RF) and TP (VC) on BD board.

2. Connect TP (AGCCON) and GND of the BD board with lead wires.

3. Press the 1/u button to turn the set ON.

4. Put disc (YEDS-18) in and playback 5track.

5. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not.

6. After check, remove the lead wire connected in step 2.

Traverse waveform

Tracking servo Sled servo OFF

8. Desolder the short-land (SL502) short-circuited at step 2.

Adjustment Location: BD board

– 16 –

C (DC voltage)

Tracking servo Sled servo ON

Page 17

Adjustment Location :

[ BD BOARD ] — SIDE B —

(RF) TP (VC)

(TE)

TP (AGCCON)

(FE)

TP (IOP)

VIDEO SECTION

Frequency adjustment

1. Connect the frequency counter to check point of the VIDEO board.

2. Adjust CT503 of the VIDEO board so that the frequency counter read 27MHz ± 80Hz at STOP condition.

Adjustment Location :

[ VIDEO BOARD ] – SIDE A –

D502

SL502

SL501

TEST MODE

SL503

CT503 VIDEO

FREQUENCY

IC505

(27MHz)

IC507

(GND)

frequency counter

VIDEO board (29 MHz)

[ VIDEO BOARD ] – SIDE B –

TEST

MODE

SL503 SL502 SL501

(27MHz)

(GND)

IC502

IC506

+ –

– 17 –

Page 18

8-1. CIRCUIT BOARDS LOCATION

CD SW board

PANEL board

SECTION 8

DIAGRAMS

VIDEO board

ENCAPSULATED COMPONENT

(EXCEPT THAI)

TUNER unit

(THAI)

TRANS board

SURROUND board

MAIN board

SENSOR board

LEAF SW board

ENCAPSULATED COMPONENT/TUNER unit is supplied as the assembled block.

MOTOR (TURN) board

CONNECTOR board

BD board

MOTOR (SLIDE) board

AUDIO board

– 18 –

Page 19

8-2. BLOCK DIAGRAMS

– CD SECTION –

OPTICAL PICK-UP BLOCK

(D/Q-Np)

DETECTOR

VCC

HCD-VX8/VX8J

IC381

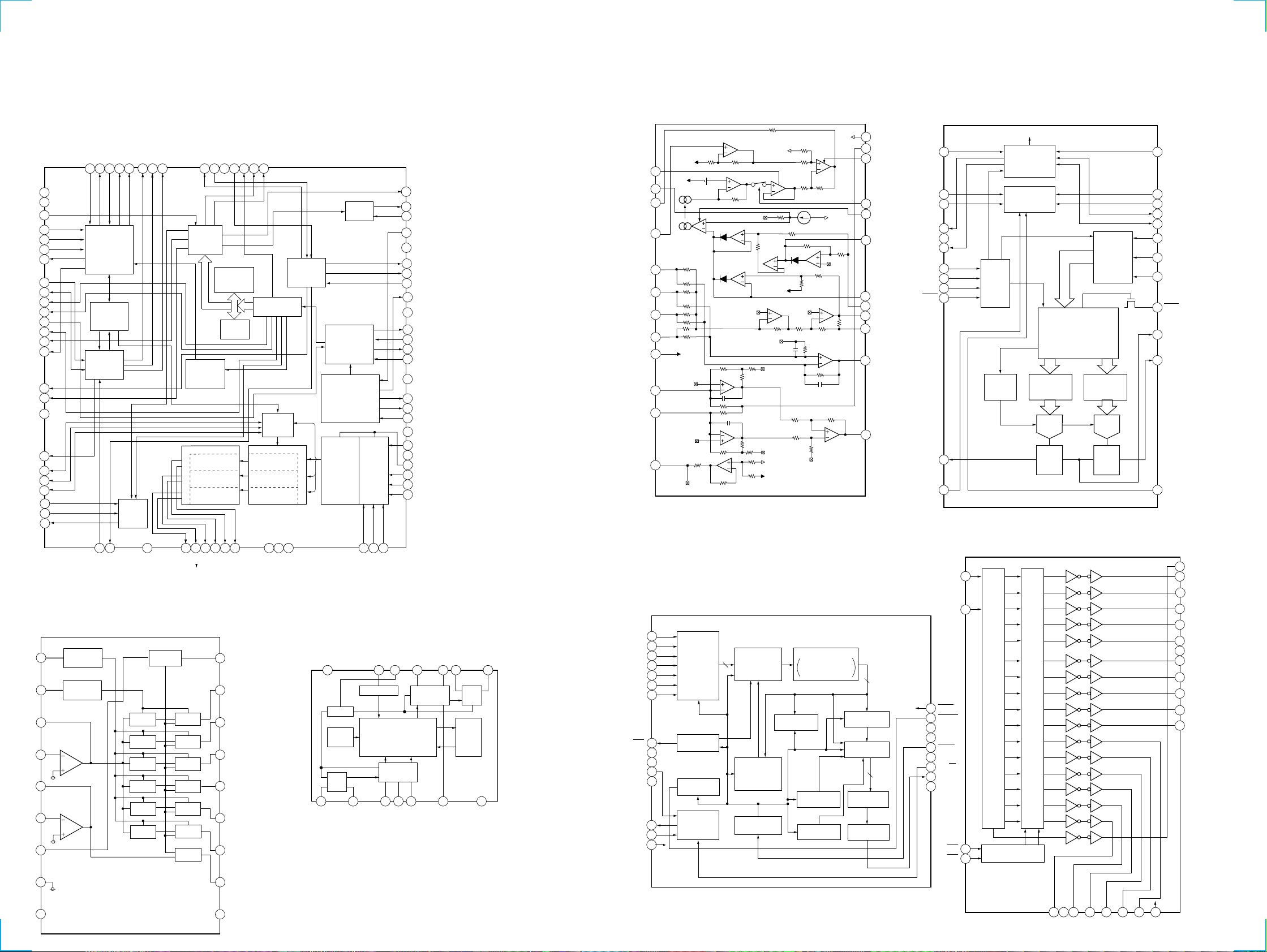

CD DIGITAL

IC101

IC103

RF AMP

SUMMING

AMP

FOCUS

ERROR

AMP

RF EQ

AMP

RFD

RFI

INTEGRATOR

DIGITAL SERVO

DIGITAL SIGNAL PRCESSOR

RF AC

ASYI

ASYO

ASYMMETRY CORRECTION

DEMODULATOR

DIGITAL

PLL

EFM

32K RAM

SUB CODE

PROCESSOR

DATA BUS

ERROR

CORRECTOR

D/A

INTERFACE

DIGITAL

OUT

MD2

D OUT

PCM-D

BCLK

LRCK

C2PO

MUTE

D+5V

OPTICAL

OUT

DOUT

ADATA

BCLK

LRCK

C2PO

MUTE

TRACKING

FOCUS

COIL

LASER

DIODE

POWER

M102

SLED

MOTOR

M101

SPINDLE

MOTOR

E F

DRIVE

Q101

T+

F+

SD+

SP+

FOCUS/TRACKING COIL DRIVE

SPINDLE/SLED MOTOR DRIVE

IC102

APC LD

AMP

TRACKING

ERROR

AMP

TFDR

TRDR

FFDR

FRDR

SFDR

SRDR

BUFFER

REF

LD ON

DIGITAL

CLV

IC104

A+5V

(XTAL 33.8MHz)

MCK

CTRL1

SENS

DATA

XLT

CLK

SCOR

SUBQ

SQCK

SCLK

LPH

XRST

LD ON

• SIGNAL PATH

: CD

: Digital out

: VIDEO

VIDEO

SECTION

(Page 21)

CLOCK

INTEGRATOR

RFDC

TFDR

TRDR

FFDR

FRDR

SFDR

SRDR

MDP

OP AMP

ANALOG SW

PWM

GENERATOR

TRACKING

PWM

GENERATOR

FOCUS

PWM

GENERATOR

SLED

PWM

GENERATOR

CONVERTER

A/D

CONTROL SIGNAL

BLOCK

SERVO

BLOCK

SERVO DSP

TRACKING

SERVO

FOCUS

SERVO

SLED

SERVO

DETECTOR

MIRR DFCT

FOK

GENERATOR

SERVO

AUTO

SEQUENCER

SERVO

INTERFACE

CPU

INTERFACE

XTAI

XTSL

SENS

DATA

XLAT

CLOK

SCOR

SQSO

SQCK

S STOP

SCLK

XRST

S101

LIMIT SW

MUTE

M701 TURN

MOTOR

M801

SLIDE

MOTOR

8 8

– 19 –

MOTOR DRIVER

OUT1 OUT2

MOTOR DRIVER

OUT2 OUT1

TURN

IC701

SLIDE

IC801

IN2

RIN

FIN

IN1

8 8

– 20 –

S801

OPEN/CLOSE

DET

TABLE

SENSOR

IC702

DISC

SENSOR

IC703

ROTARY

ENCODER

S811

Q701

T. SENS

DISC SENS

ENC 1 ENC 2 ENC 3

OPEN

TBL.L TBL.R

LOAD IN

LOAD OUT

MAIN

SECTION

(Page 25

XRST

Page 20

HCD-VX8/VX8J

– VIDEO SECTION –

ADATA

BCLK LRCK

C2P0

SECTION

(Page 20)

DATA

XLT CLK

SENS SCLK

MUTE

CTRL1

LDON

SCOR SUBQ SQCK

(XTAL 33.8MHz)

XRST

MCK

LEVEL SHIFT

IC501

DATAI

DATAO CLK1 HRDY

INT HSEL

RST

CLK1, DATA0

DATA0 DATAI CLK1 INT HSEL HRDY RESET

INVERTER

Q502

RAS

13 14 28 29

38 42 40

MWE WE

RASO

CD-DATA

CD-BCK

CD-LRCK

CD-C2P0

112

HD-OUT

119

HD-IN

117

HCK HRDY

113 114

HINT

121

HSEL

RESET

PGIO2/VSYNC/CSYNC

DATA1O

DATA1I

CLK1 CL680 INT

20 21

CL680 HSEL

CL680 HRDY

680 RESET

BUS

DSP DATA

DSP LATCH

4 5

DSP CLK

SENSE SENSE CLK

DSP MUTE

CTRL1(L:DOUBLE)

CTRL2

LDON

SCOR

SUBQ DATA

SUBQ CLK

DEVICE RESET

UCAS

LCAS

CAS

D-RAM

IC507

16 - 19 22 - 26

MECHA. CONTROL

IC502

DQ1

2 - 10 31 - 39

DQ16

VIDEO/CD DECODER

SHARPNESS

DF LATCH

XIN

XOUT

NT/PAL

TEST LED

P.ON

XRESET

DSENS

U to I

C.CLK

C.DATA

13 - 15 17 - 21

IC505

38 12

19 72

29 30

ROM

IC506

A11

25 4 28 29 3 2 14 10 12 - 5 27 26 23

10 - 29

MD0

MD15

X501

10MHz

+5V

D502

S501

SYSTEM

SELECT

C.DATA

C.CLK

I to U U to I

TXD

11 12

RXD

INTERFACE

IC402

RESET

XOUT

A17

NTSC

AUTO

PAL

XIN

58 - 44

MA0

DA-LRCK

A10

MCE

MA10

Y-OUT

C-OUT

DA-DATA

DA-BCK

VCK-IN

DA-XCLK

X401 8MHz

OUTPUT AMP

IC401

110

108

111 106

BUFFER

Q301

27MHz

TRAP

Q302,306,307

BUFFER

Q303,304

DATA0

CLK1

MIX AMP Q308,310

DIGITAL FILTER & D/A CONVERTER

18 19 17

9 8 7

D/A

CONV

MODE

10 21 20 4

RSTB

IC509

PLM

CLOCK

DIVIDER

MUTE

Q454

R-CH

X503

27MHz

FREQUENCY

LEVEL SHIFT

IC504

CT503

VIDEO

MUTE

Q453

6 8

AMP

IC101

27MHz

384FS 768FS

132

L - CH

XRST

–5V/IIC DATA P. ON/IIC. CLK

J302

VIDEO OUT

J301

S VIDEO OUT

MAIN

SECTION

(Page 25)

MAIN

SECTION

(Page 26)

3.3V REG Q531

+3.3VD5V

• R CH: Same as L ch

• SIGNAL PATH : CD : CHROMA :Y : VIDEO

– 21 –

– 22 –

Page 21

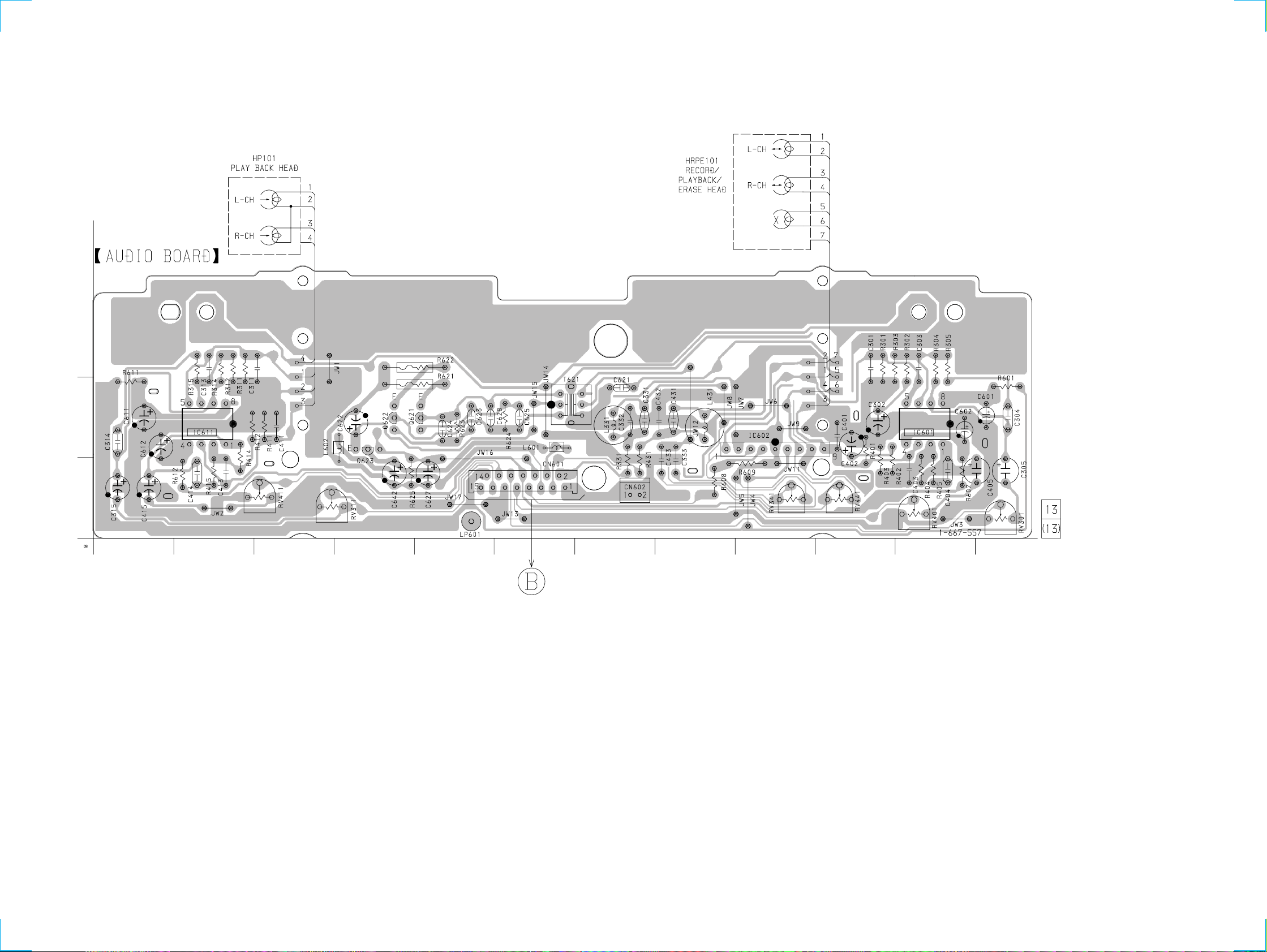

– DECK SECTION –

HCD-VX8/VX8J

HP101 PB HEAD (DECK A)

REC/PB HEAD

(DECK B)

HRPE101

ERASE HEAD

PB A/B

MS OUT

MAIN SECTION

PB L

LM ON/OFF

NORM/HIGH

NR ON/OFF

REC/PB/PASS

REC L

BIAS ON/OFF RM ON/OFF

ALC ON/OFF

RELAY

CAPM CNT1

CAPM CNT2

CAP M H / L

A SHUT

MAIN

SECTION

(Page 25)

DOLBY NR

RECOUT

32 33

S1008 B CrO

B 120/70

PAS

BIAS SW

DOL

DOLBY TYPE B

CAPSTAN

MOTOR

PB OUT

LM ON/

OFF

NORM/

HIGH

NR ON/

OFF

RIN

BIAS ON/OFF

RM ON/OFF

ALC ON/OFF

CAP MOTOR CONTROL Q336-343

CONTROL

RV1002

NORMAL

SPEED

Q1001

20 22 15

RV1001

HIGH

SPEED

SWITCH

Q335

REEL

DETECT

IC1001

S1004 A CrO

RV311

PLAYBACK

LEVEL

DECK A

RV301

PLAYBACK

LEVEL

DECK B

RV341

REC

BIAS

REC BIAS

BIAS OSC

T621, Q621, 622

IC611

R CH

ERASE BIAS

IC601

IC602

REC/PB

PB-A/B

A IN

B IN

REC LEVEL

+7.5V

Q623

EQIN

EQOUT

RV301

A 120/70

120

DOLBY NR IC301

REEL

DETECT

IC1002

S1001 (A PLAY)

• R CH : Same as L ch

• SIGNAL PATH

+5V

S1002 (B PLAY)

: PB (DECK A) : PB (DECK B) : REC (DECK B)

• PLUNGER SOLENOID is supplied as the MECHANICAL BLOCK ASSY.

A DECK/ B DECK PLUNGER

MAIN SECTION

TRIGGER MOTOR CONTROL Q331-334

S1003

(A HALF)

S1005

(REC A)

S1006

(B HALF)

S1009

(REC B)

+5V

B SHUT

A PLAY

B PLAY

A HALF

B HALF/REC A/REC B

B TRIG

A TRIG

– 23 –

– 24 –

Page 22

HCD-VX8/VX8J

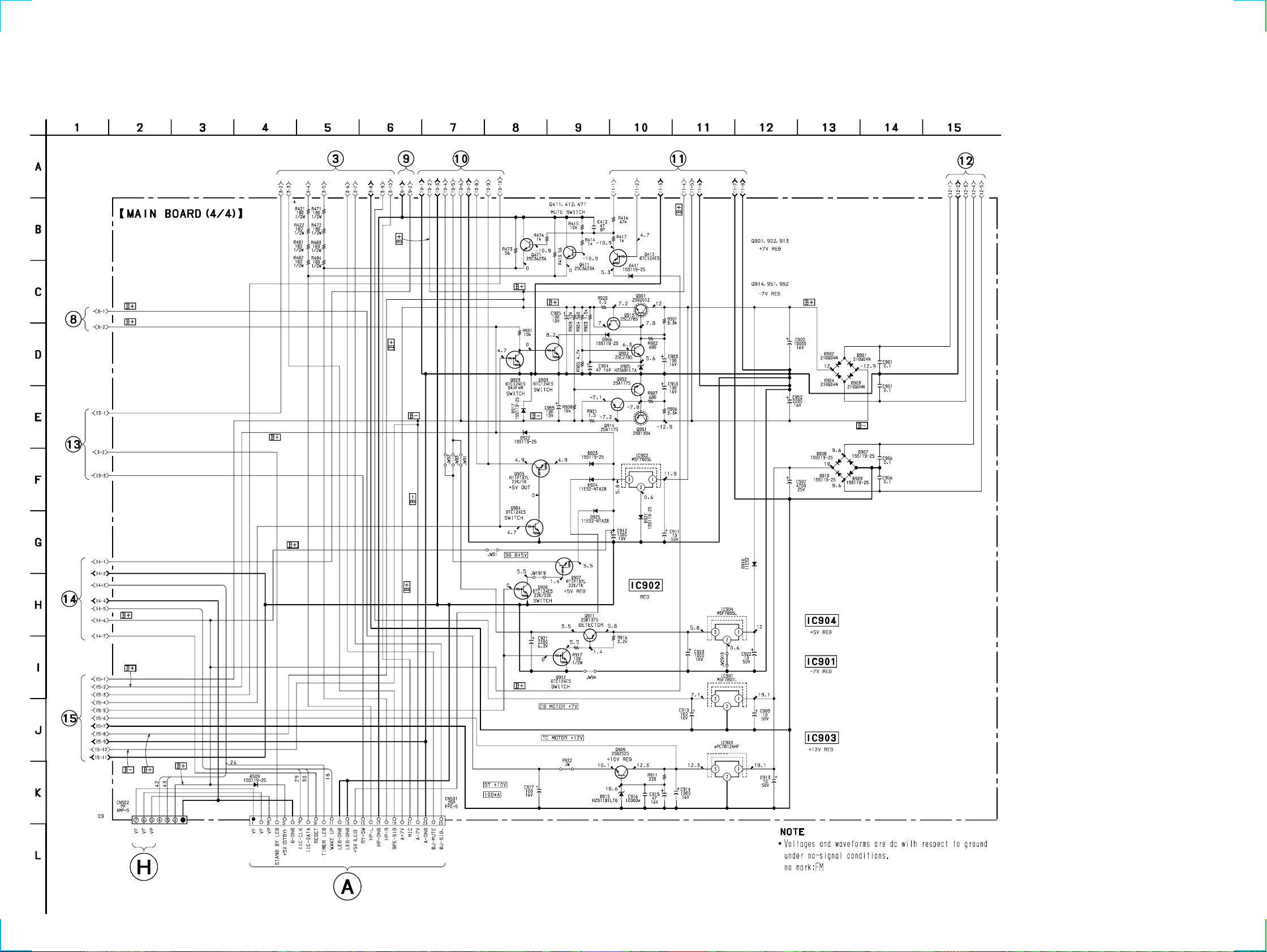

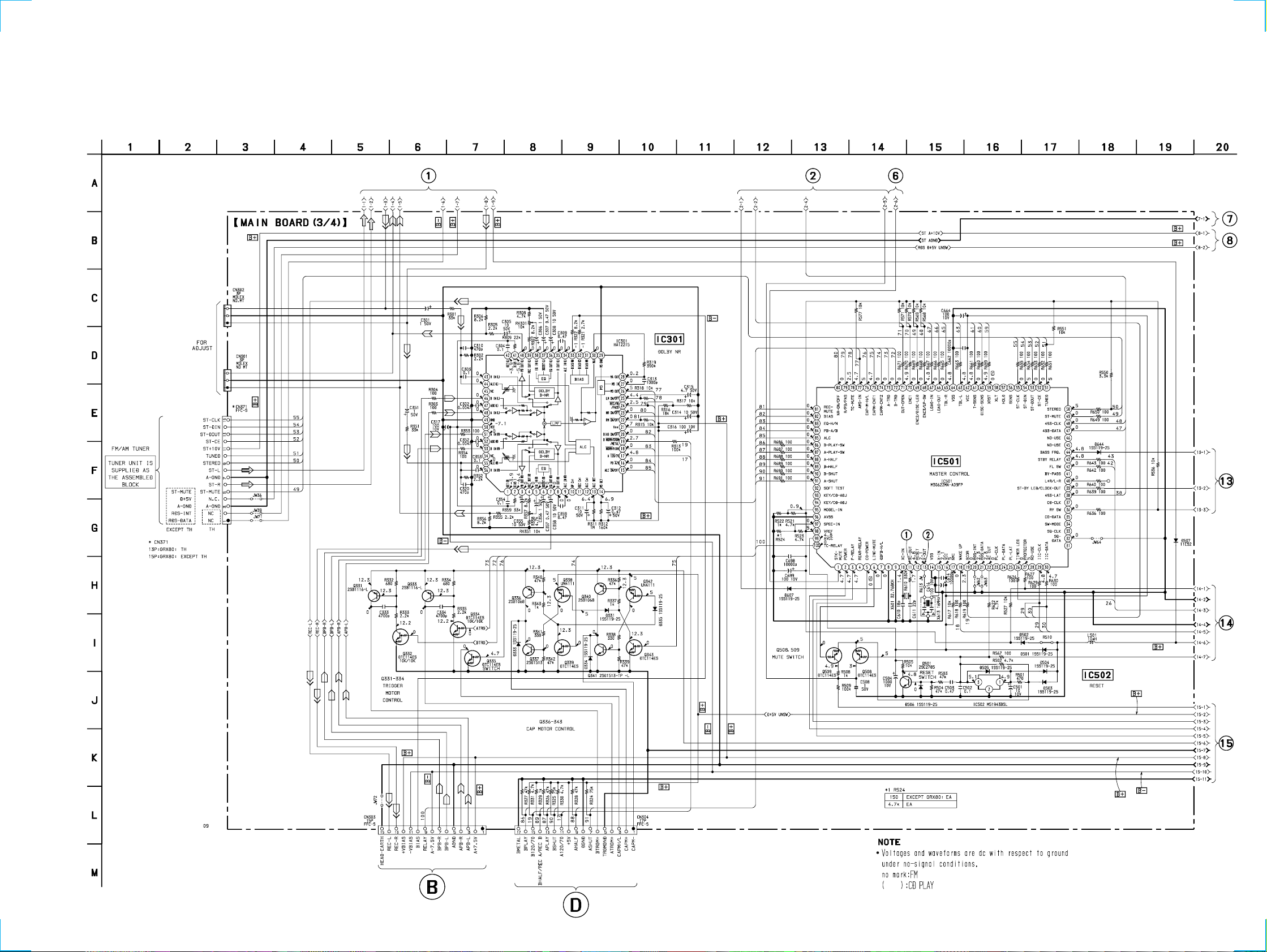

– MAIN SECTION –

(Page 30)

DISPLAY

SECTION

VIDEO/IN

(AUDIO) L

MD IN L

MD/VIDEO

(AUDIO) OUT L

DECK

SECTION

(Page 24)

FM/AM TUNER TUNER UNIT IS SUPPLED AS THE ASSEMBLED BLOCK

J101

B HALF/REC A/REC B

NORM/HIGH

BIAS ON/OFF

RM ON/OFF NR ON/OFF

REC/PB PASS

CAPM CNT1 CAPM CNT2

ALC ON/OFF

LM ON/OFF

CAP M H/L

MS OUT

RDS DATA

TRAY SENS

SECTION

(Page 20)

DISC SENS

OUT-OPEN

DJ-SIG

DJ-MUTE

PB L

REC L

RELAY A SHUT B SHUT

A HALF A PLAY B PLAY

PB A / B

A TRG B TRG

ST L

RDS INT

ST-DOUT

ST-DIN

STEREO

TUNED

ST CE

ST-MUTE

ST-CLK

L CH

TBL. L TBL. R

SCOR

HOLD SENS

X RST

CD CLK

CD DATA

SQ CLK

SQ DATA

X LAT

ENC-1 ENC-2 ENC-3

LD IN

LD OUT

J711 MIX MIC

IC712(1/2)

RV712

MIC

LEVEL

ECHO PROCESSOR IC711

LPF 1 IN LPF 2 OUT

ECHO LEVEL

R-CH

IC712(2/2)

IC181(1/2)

MUTE

Q181

SELECT SWITCH

MICON INTERFACE

33 32

1 2 3

IC181(2/2)

230

R-CH

EQ IC101(1/2)

EQ AMP

SPE SIG

WAKE UP STANDBY LED

IIC DATA

VOLUME IC101(2/2)

Lch

IC1201

SURROUND

L-OUT

L-IN

L+R L-R

1 2 3

1411

L+R/L-R

100

TC RELAY A SHUT

B SHUT

B HALF

A HALF

A PLAY SW

B PLAY SW

PB A/B

EQ H//N BIAS

82 81

REC MUTE

NR ON/OFF R/PB PASS

CAPM CNT1

CAPM CNT2

ALC TC MUTE

CAP M H/L

A TRG

B TRG

AMS IN

493-LAT

493-DATA

493-CLK

ST DIN

54 50

STEREO

TUNED

51 52

ST CE

ST MUTE

ST DOUT

ST CLK

TBL L

TBL R

SCOR

T SENS

HOLD

SENS

XRST

CD CLK

CD DATA

DISC SENS

SQ CLK

SQ DATA

XLT

OUT OPEN

ENC1

ENC2/DISC-LED

ENC3/UP-SW

LOAD IN

LOAD OUT

RDS DATA RDS INT

38 39

DBFB SWITCH Q111,112

ST-BY LED/CLOCK OUT

MASTER CONTROL

IC501

STBY RELAY

Q201

BASS FRQ.

DBFB H/L

LINE MUTE

F RELAY

WAKE UP

IIC DATA

IIC CLK

TIMER LED

RESET

AC CUT

(CHECK)

X-OUT

X-IN

XC-IN

XC-OUT

RY-SW

POWER

CD POWER

FL SW

STK MUTE

PROTECTOR

Lch

MUTE

Q113

MUTE

Q191

7 6

30 29

D503

42 43

RESET

SWITCH

Q501

RESET

IC502

+5.6V

X613

16MHz

X601

32.768KHz

MUTE SW

Q509

MUTE SW

Q508

MUTE

Q192

J191

SUPER WOOFER

IIC CLK TIMER LED RESET

FRONT

DBFB

F RELAY

RY-SW

POWER ON/OFF

CD POWER

STK MUTE

PROTECTOR

DISPLAY SECTION

(Page 29)

POWER

SECTION

(Page 27)

• R CH: Same as L ch

• SIGNAL PATH : FM : CD : PB : REC : VIDEO/MD

• Abbreviation EA : Saudi Arabia model.

– 25 –

– 26 –

Page 23

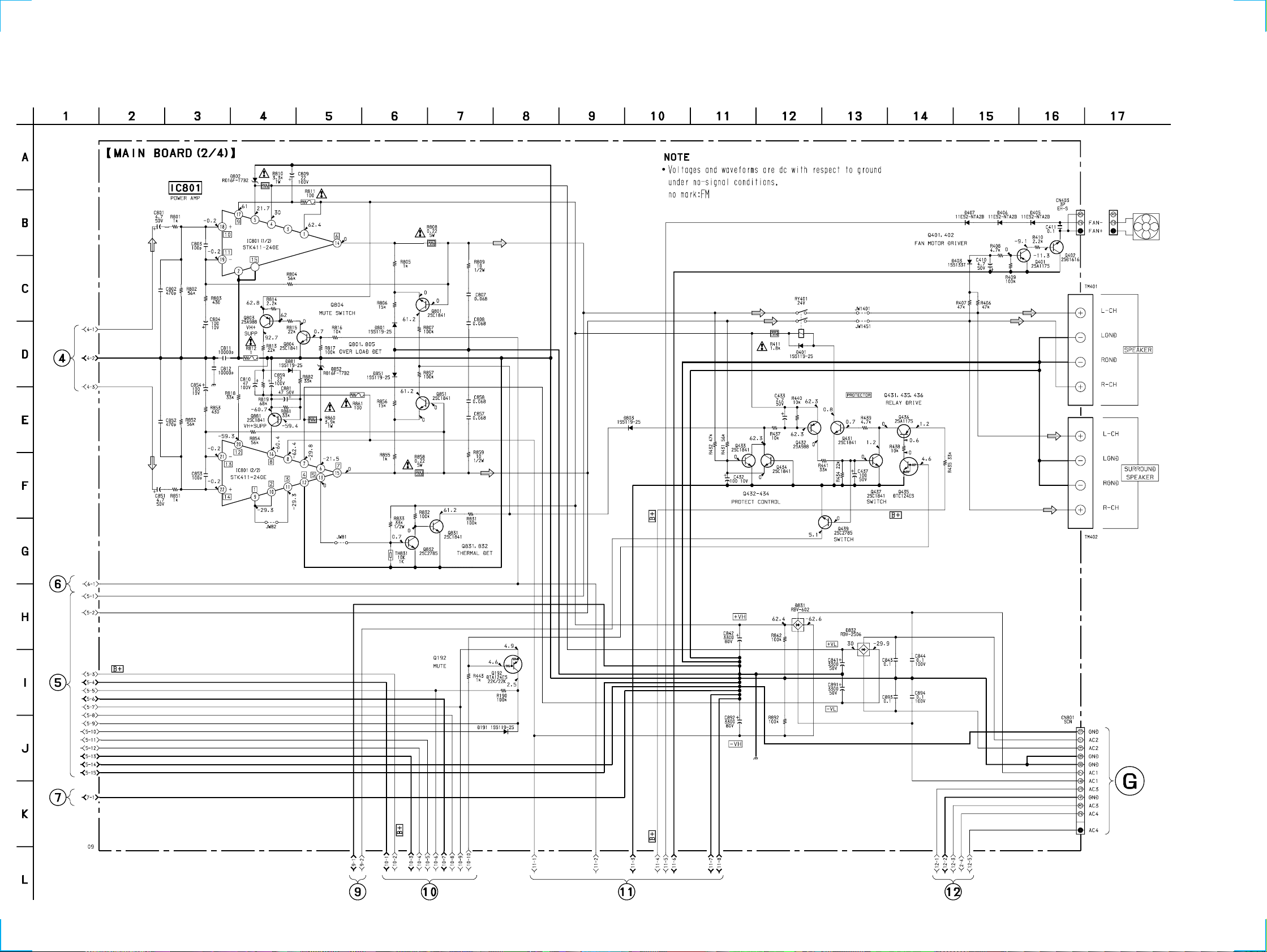

– POWER SECTION –

MAIN

SECTION

(Page 26)

F RELAY

FRONT

VH+

DBFB

STK MUTE

RY-SW

PROTECTOR

POWER ON/OFF

CD POWER

CD D+5V (SW)

CD A+5V (SW)

D+5V UNSW

VH+ SUPP Q803, 881

RECTIFIER

+5.6V (STBY)

+5V (STBY)

(DISPLAY)

+5V REG

Q907

SWITCH

Q908

D507

D509

Lch

RECTIFIER

POWER AMP

IC801

18 14

MUTE

SWITCH

Q804

D925

+5V OUT

Q911

SWITCH

Q912

THERMAL

Q831, 832

OVER LOAD

Rch

JW51

RDS D+5V UN SW

+5V (LED)

(DISPLAY)

D+5VSW

SWITCH

Q904

SWITCH

Q923, 903

IC904

3 1

REG

ST+10V

DET

THP831

Lch

DET

Q801

MUTE

SWITCH

Q412, 411

RECTIFIER

D922

RECTIFIER

D924

+5V OUT

Q905,D923

A+7V

A–7V

CD MOTOR +7V

TC MOTOR +12V

+10V REG

Q909

Rch

VH+

Rch

IC902

3 1

REG

+7V REG

Q901,902,913

–7V REG

Q951,952,914

IC901

3 1

+7V REG

IC903

3 1

+12V REG

RY401

PROTECT CONTROL

Q432 - 434

+VH

–VH

+VL

–VL

Q435, 436, 431

RECT D831

RECT D832

RECT

D901-904

RECT

D907-910

RELAY

DRIVE

SWITCH

Q437

POWER TRANSFORMER

AC1

AC2

AC2 AC1

AC3

AC4

MUTE

SWITCH

Q439

T951

E,EA,MY,SP,HK,TW,IA

VOLTAGE

SELECTOR

S951

Rch

FAN MOTOR

DRIVER

Q401, 402

FRONT

Rch

UNREG –7V

J701

PHONES

TM402 SURROUND

SPEAKER

M901 FAN MOTOR

TM401 FRONT

SPEAKER

HCD-VX8/VX8J

• R CH : Same as L ch

• SIGNAL PATH : FM

• Abbreviation : Saudi Arabia model.

: Singapore model.

: Malaysia model.

: Hong Kong model.

: Taiwan model.

: Indonesia model.

– 27 –

– 28 –

Page 24

HCD-VX8/VX8J

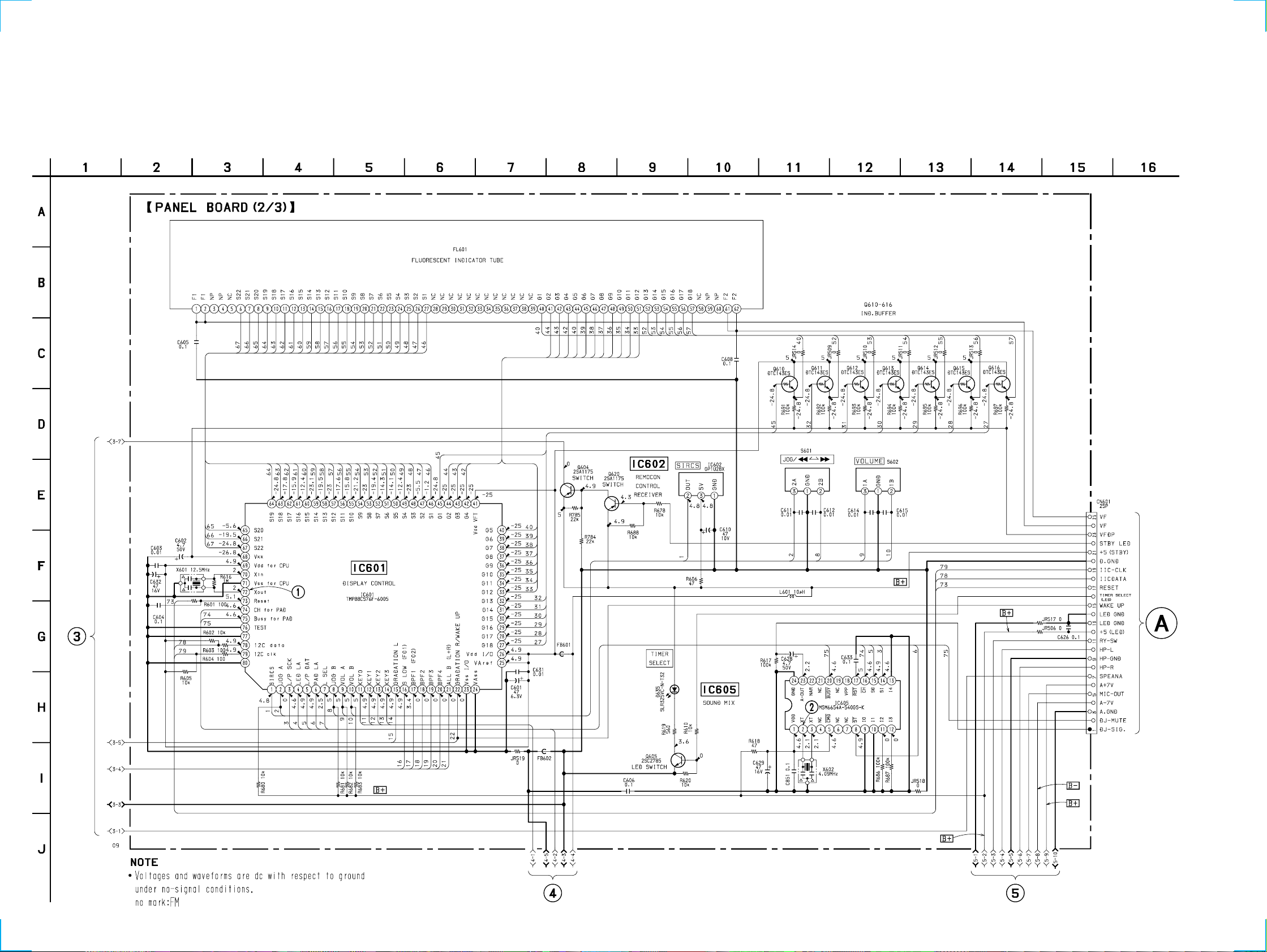

– DISPLAY SECTION –

IIC DATA

IIC CLK

RESET

WAKE UP

MAIN

SECTION

(Page 26)

X601

12.5MHz

C DATA

C CLK

RESET

XOUT

XIN

GRADATION R/WAKE UP

DISPLAY CONTROL

SEG1-SEG22

GR2-GR12

33 - 40, 42 - 4446 - 67

FLUORESCENT INDICATOR TUBE

IC601

FL601

GRADATION L

L/P SCK

LED LA

L/P DAT

L SEL

SIRCS

S LOW (F01)

BPF1 (F02)

ALL B (L+R)

JOG A JOG B

Busy for PAD

PAD LA

CH for PAD

GR1, GR13-GR18

27 - 32, 45

IND BUFF

Q610-616

BPF2 BPF3 BPF4

KEY 0

KEY 3

VOL A VOL B

RIGHT

D637

LED SWITCH

Q607

IC604

3 4 5

1 16 17 18 19 20 21

6 74

9 10

LED

SWITCH

ROTARY

ENCODER

S602

VOLUME

LED SWITCH

Q608

•

LED

CONTROL

Q603

REMOTE CONTROL RECEIVER

IC602

S601 (JOG)

ROTARY ENCODER

KEY

MATRIX

PANEL LED

D638

LEFT

Q601,602

+5V (LED)

SOUND MIX

IC605

BUSY

XT XT

X602

4.09MHz

A.OUT

MUTE SWITCH Q851

DJ MUTE

DJ SIG

MAIN

SECTION

(Page 25)

SPEANA BPF FILTER

IC603

S LOW

F01

BPF1

F02

16 F04 F05 F06 L+R

BPF2

BPF3

BPF4

ALLB

– 30 –

D804

ECO

D635

TIMER SELECT

LINE IN

REC IN

+5V (LED)

SPE SIG

STANDBY LED

TIMER LED

LED SWITCH

Q605

– 29 –

Page 25

HCD-VX8/VX8J

4Vp-p

10MHz

1Vp-p

2Vp-p

1.2

Vp-p

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

For schematic diagrams.

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and 1/ specified.

•

: internal component.

• 2 : nonflammable resistor.

• 1 : fusible resistor.

• C : panel designation.

Note: The components identified by mark ! or dotted line

with mark ! are critical for safety. Replace only with part number specified.

• U : B+ Line.

• V : B– Line.

• H : adjustment for repair.

• Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions.

• Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F : FM g : VIDEO/MD E : PB (DECK A) d : PB (DECK B) G : REC (DECK B) m : CHROMA n : Y o : VIDEO J : CD c : digital out

• Abbreviation EA : Saudi Arabia model. SP : Singapore model. MY : Malaysia model. HK : Hong Kong model. TW : Taiwan model. IA : Indonesian model. TH : Thai model.

W or less unless otherwise

WAVEFORMS – CD SECTION –

IC101 %º RFAC

APPROX 500mVp-p

IC101 $¡ TE

APPROX 200mVp-p

IC101 #ª FE

7.5µsec

IC101 @∞ MDP

1.3Vp-p

2.6Vp-p

2.5V

– VIDEO SECTION –

IC502 !£ XOUT

IC505 &∞ COUT

IC505 ^ª Y OUT

IC401 7 COUT

IC401 1 Y OUT

J302 VOUT

!¡

!™

27MHz

IC509 1 XT1

44.1kHz

IC509 !ª LRCK

2.11MHz

IC509 !¶ BCLK

33.8MHz

IC504 8 384FS

27MHz

IC504 6 27M

33.8MHz

IC504 !™

5.8Vp-p

4.6Vp-p

4.8Vp-p

3.8Vp-p

2.8Vp-p

– MAIN (3/4) SECTION –

5.2Vp-p

32.768kHz

IC501 !¡ XC-OUT

5.5Vp-p

16MHz

IC501 !£ X-OUT

– PANEL (2/3) SECTION –

3.4Vp-p

12.5MHz

IC601 &™ X OUT

3.6Vp-p

4.09MHz

IC605 2 XT

For printed wiring boards.

Note:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

• p : parts mounted on the conductor side.

•

: Through hole.

• b : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts f ace side seen from the (Side A) parts face are indicated.

• Indication of transistor

These are omitte

These are omitted

– 31 – – 32 –

Page 26

HCD-VX8/VX8J

(Page 42)

8-3. PRINTED WIRING BOARD – CD SECTION –

• See page 18 for Circuit Boards Location.

– 33 –

– 34 –

Page 27

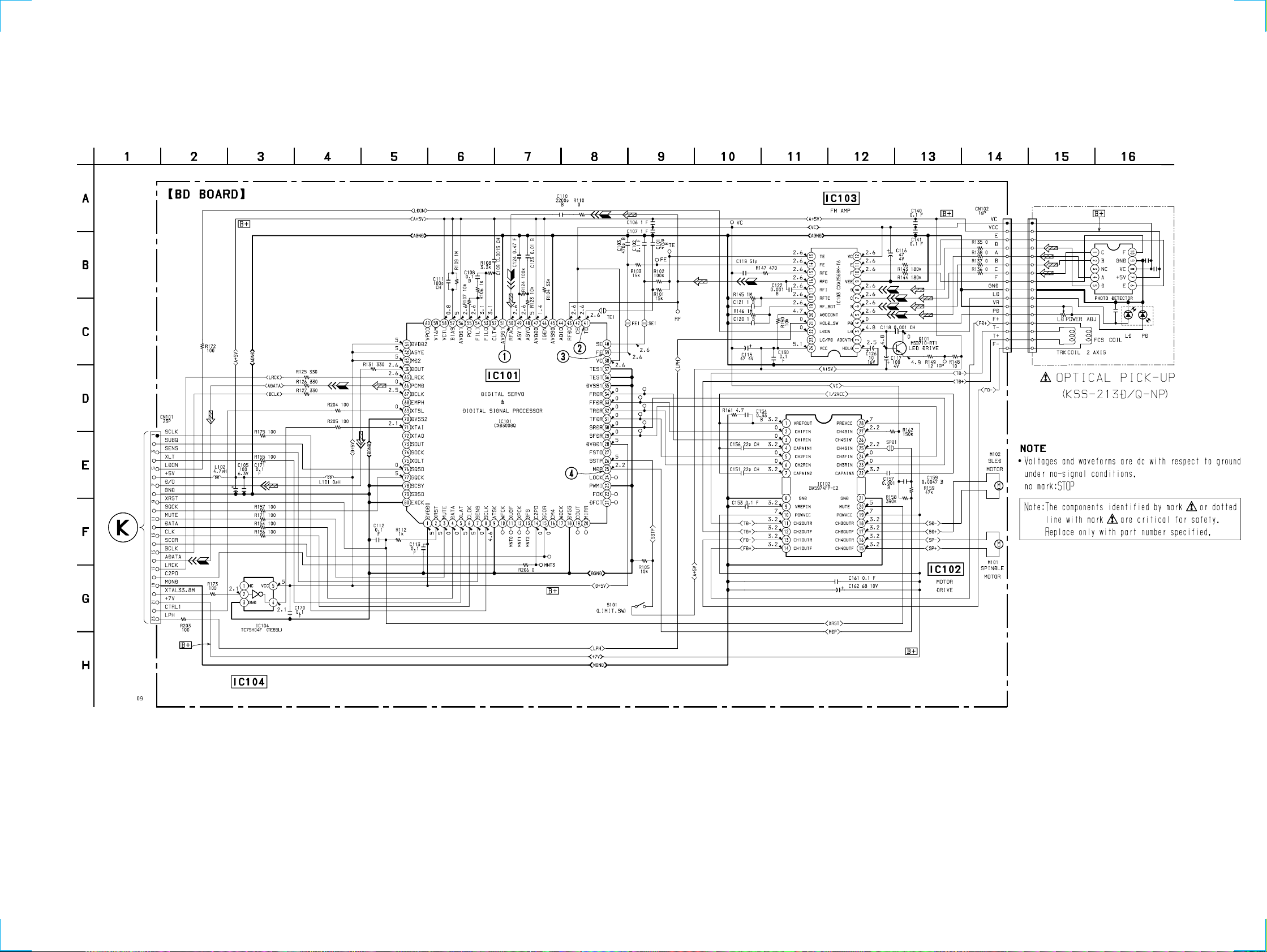

8-4. SCHEMATIC DIAGRAM – CD SECTION –

• See page 31 for Waveforms.

• See page 77 for IC Block Diagrams.

• See page 80 for IC Pin Functions.

HCD-VX8/VX8J

(Page 43)

– 35 –

– 36 –

Page 28

HCD-VX8/VX8J

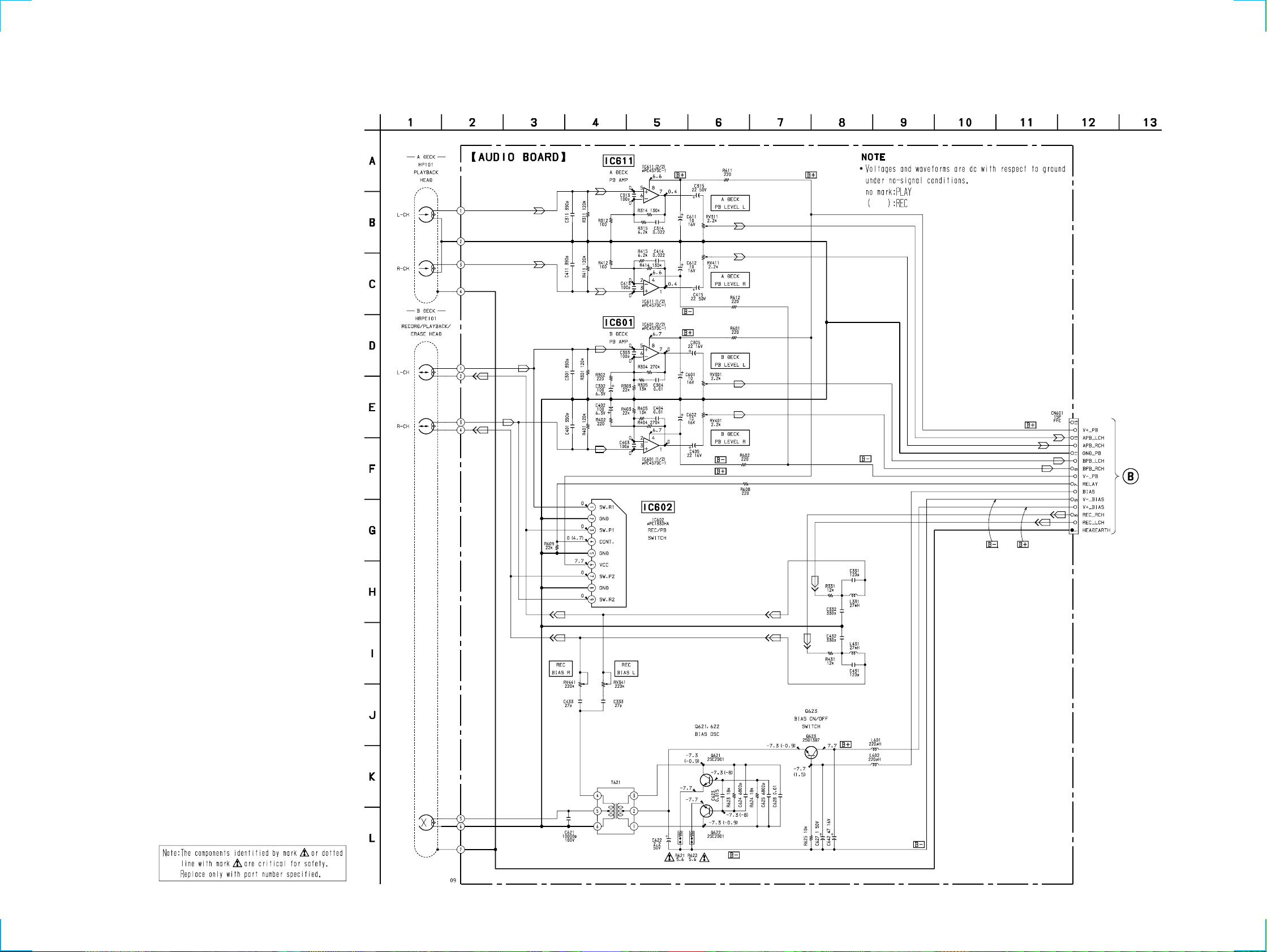

8-5. SCHEMATIC DIAGRAM – DECK SECTION –

(Page 55)

– 37 –

– 38 –

Page 29

8-6. PRINTED WIRING BOARD – DECK SECTION –

• See page 18 for Circuit Boards Location.

HCD-VX8/VX8J

2 3 4 5 6 7 8 9 10 11 12

(Page 49)

– 39 –

– 40 –

Page 30

HCD-VX8/VX8J

8-7. PRINTED WIRING BOARD – VIDEO SECTION –

• See page 18 for Circuit Boards Location.

(Page 50)

• Semiconductor Location

Ref. No. Location D301 E-1

D501 D-3 D502 A-3

IC101 A-1 IC401 E-3 IC504 A-1 IC505 C-2 IC507 C-1 IC509 B-1

(Page 34)

• Semiconductor Location

Ref. No. Location

IC501 C-2 IC502 B-1 IC506 C-3

Q302 E-3 Q303 D-1 Q453 E-2 Q454 E-2 Q531 D-1

Q301 E-1 Q304 D-3 Q306 E-1 Q307 E-2 Q308 E-2 Q310 E-2 Q502 D-3

– 41 –

– 42 –

Page 31

8-8. SCHEMATIC DIAGRAM – VIDEO (1/3) SECTION –

(Page

47)

(Page 47)

(Page 45)

(Page 51)

(Page 35)

• See page 32 for Waveforms.

• See page 82 for IC Pin Functions.

HCD-VX8/VX8J

– 43 –

– 44 –

Page 32

HCD-VX8/VX8J

8-9. SCHEMATIC DIAGRAM – VIDEO (2/3) SECTION –

• See page 31 for Waveforms.

• See page 84 for IC Pin Functions.

(Page 43)

(Page 47)

– 45 –

(Page 47)

– 46 –

Page 33

8-10. SCHEMATIC DIAGRAM – VIDEO (3/3) SECTION –

• See page 32 for Waveforms.

• See page 78 for IC Block Diagrams.

(Page 44)

HCD-VX8/VX8J

(Page 44)

(Page 46)

– 47 –

– 48 –

Page 34

HCD-VX8/VX8J

8-11. PRINTED WIRING BOARD – MAIN SECTION –

• See page 18 for Circuit Boards Location.

• Semiconductor Location

Ref. No. Location D141 E-10

D191 E-10 D331 E-1 D334 E-1 D335 F-1 D401 G-11 D403 F-12 D405 H-6 D406 I-4 D407 I-2 D411 G-3 D501 D-7 D502 E-6 D503 D-6 D504 D-7 D505 D-7 D506 D-7 D507 E-6 D509 F-2 D607 E-5 D644 C-8 D801 J-11 D802 G-9 D803 G-11 D831 I-6 D832 J-7 D851 J-10 D852 G-9 D881 H-9 D901 J-4 D902 I-4 D903 J-4 D904 I-4 D905 I-1 D906 H-1 D907 J-5 D908 I-5 D909 J-5 D910 J-5 D915 I-4 D921 H-4 D922 G-4 D923 G-4 D924 F-2 D925 G4

IC101 B-10 IC181 D-11 IC301 B-3 IC381 A-12 IC501 D-5 IC502 D-7 IC801 G-10 IC901 G-6 IC902 G-4 IC903 I-4 IC904 H-3

Q111 D-10 Q112 D-10

Ref. No. Location Q113 E-9

Q161 C-9 Q162 C-9 Q163 E-9 Q181 E-11 Q191 E-10 Q192 E-10 Q201 D-9 Q251 C-9 Q331 C-1 Q332 C-2 Q333 C-2 Q334 C-2 Q335 D-1 Q336 F-1 Q337 F-1 Q338 F-1 Q339 F-1 Q340 E-1 Q341 E-1 Q342 E-1 Q343 E-1 Q401 F-12 Q402 E-12 Q411 G-2 Q412 G-2 Q431 G-12 Q432 G-11 Q433 F-11 Q434 F-11 Q435 F-11 Q436 F-11 Q437 G-12 Q439 F-12 Q471 F-12 Q501 D-7 Q508 D-7 Q509 E-7 Q801 H-10 Q803 G-10 Q804 G-9 Q831 G-10 Q832 G-10 Q851 J-11 Q881 I-9 Q901 H-2 Q902 I-1 Q903 H-1 Q904 G-4 Q905 G-4 Q907 G-5 Q908 G-4 Q909 I-4 Q911 G-3 Q913 H-1 Q914 G-2 Q923 H-1 Q951 G-2 Q952 H-1

(Page

39)

(Page 59)

(Page 61)

(Page

75)

(Page 71)

(Page 71) (Page 42)

(Page 76)

– 49 –

(Page 75)

– 50 –

Page 35

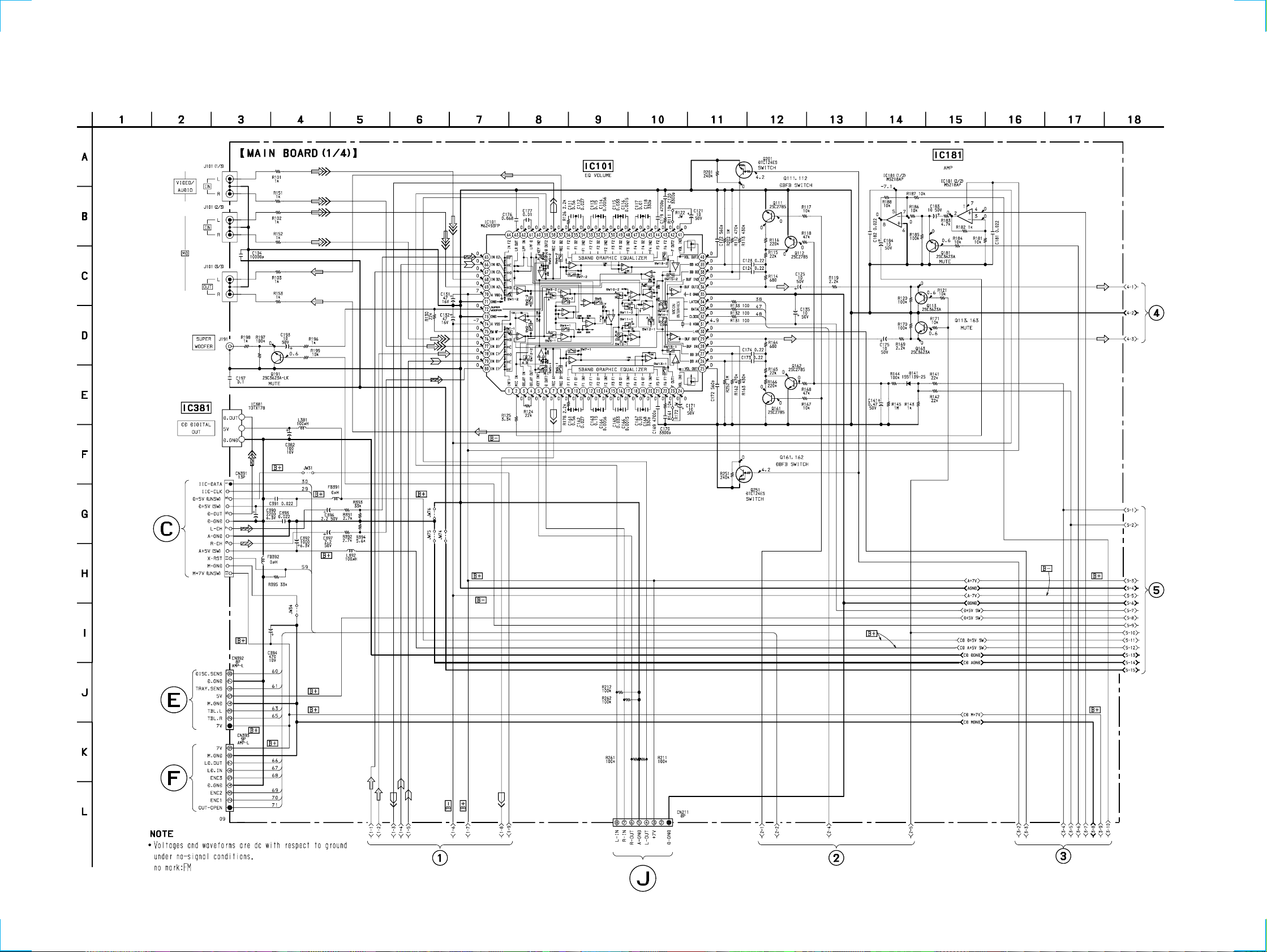

8-12. SCHEMATIC DIAGRAM – MAIN (1/4) SECTION –

HCD-VX8/VX8J

(Page

53)

(Page 43)

(Page 70)

(Page 55)

(Page 56)

(Page

53)

(Page 57)

(Page 76)

– 51 – – 52 –

Page 36

HCD-VX8/VX8J

8-13. SCHEMATIC DIAGRAM – MAIN (2/4) SECTION –

• See page 49 for Printed Wiring Board.

(Page

52)

(Page

56)

(Page

52)

(Page

56)

(Page 57)

– 53 –

(Page 57)

(Page

73)

(Page 58) (Page 58)

– 54 –

Page 37

8-14. SCHEMATIC DIAGRAM – MAIN (3/4) SECTION –

(Page 51)

(Page 38)

(Page 59)

(Page

57)

(Page

57)

(Page

57)

(Page

57)

(Page

53)

(Page 53)(Page 52)

• See page 32 for Waveforms.

• See page 49 for Printed Wiring Board.

• See page 87 for IC Pin Functions.

HCD-VX8/VX8J

– 55 – – 56 –

Page 38

HCD-VX8/VX8J

8-15. SCHEMATIC DIAGRAM – MAIN (4/4) SECTION –

• See page 49 for Printed Wiring Board.

(Page 52)

(Page

56)

(Page 53)

(Page 53) (Page 53, 54)

(Page 54)

(Page

56)

(Page

56)

(Page

56)

(Page 73)

– 57 –

(Page 66)

– 58 –

Page 39

8-16. PRINTED WIRING BOARD – LEAF SW SECTION –

• See page 18 for Circuit Boards Location.

8-17. SCHEMATIC DIAGRAM – LEAF SW SECTION –

HCD-VX8/VX8J

(Page 49)

(Page 55)

– 59 – – 60 –

Page 40

HCD-VX8/VX8J

• Semiconductor Location

Ref. No. Location D601 F-6

D608 C-9 D609 C-2 D611 C-6 D612 C-7 D613 C-5 D614 C-4 D615 E-4 D616 A-2 D617 B-2 D618 B-2 D619 D-3 D620 E-1 D621 G-7 D622 G-4 D623 G-7 D624 E-5 D625 E-4 D626 E-7 D627 G-9 D628 G-8 D629 F-9 D630 F-8 D631 D-6 D632 D-5 D633 D-8 D634 D-7 D635 A-9 D701 E-9

IC601 B-5 IC602 C-9 IC603 B-7 IC604 F-5 IC605 C-4 IC711 E-8 IC712 G-8

(Page 49)

8-18. PRINTED WIRING BOARD – PANEL SECTION –

• See page 18 for Circuit Boards Location.

VIDEO CD

PBC

PBC OFF

REC PAUSE/START

PREY

RETURN SELECT

JOG

Q601 F-6 Q602 F-6 Q603 F-6 Q604 A-10 Q605 A-10 Q607 B-2 Q608 C-9 Q610 B-7 Q611 B-7 Q612 B-7 Q613 B-7 Q614 B-7 Q615 B-8 Q616 B-8 Q620 A-10

– 61 –

– 62 –

Page 41

8-19. SCHEMATIC DIAGRAM – PANEL (1/3) SECTION –

• See page 77 for IC Block Diagrams.

HCD-VX8/VX8J

(Page 67)

(Page 65)

– 63 – – 64 –

Page 42

HCD-VX8/VX8J

8-20. SCHEMATIC DIAGRAM – PANEL (2/3) SECTION –

• See page 34 for Waveforms.

• See page 61 for Printed Wiring Board.

• See page 78 for IC Block Diagrams.

• See page 89 for IC Pin Functions.

(Page

63, 64)

– 65 –

(Page 67)

(Page 57)

(Page 68)

– 66 –

Page 43

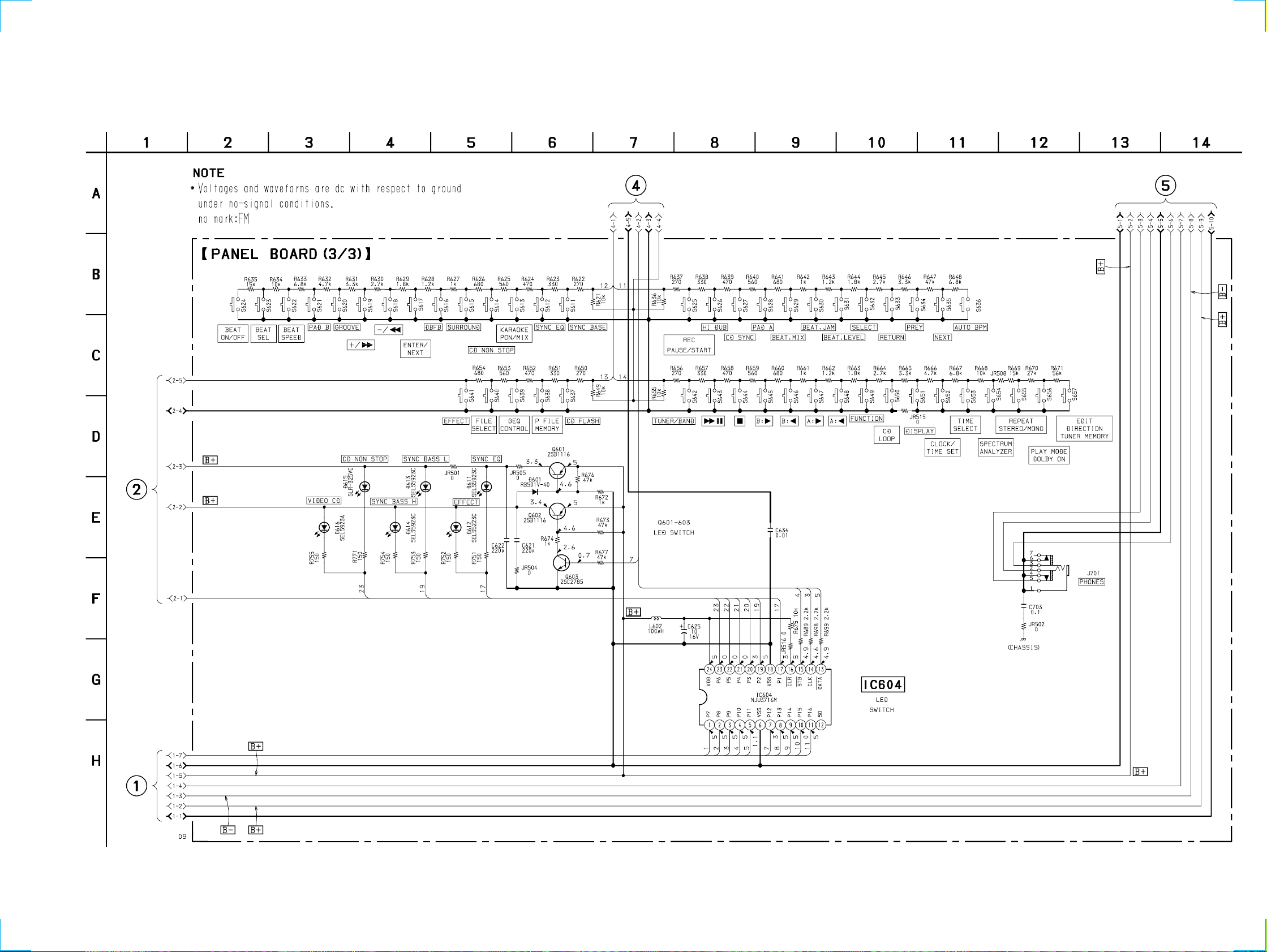

8-21. SCHEMATIC DIAGRAM – PANEL (3/3) SECTION –

(Page 65)

(Page 63)

(Page 66)

• See page 61 for Printed Wiring Board.

• See page 78 for IC Block Diagrams.

HCD-VX8/VX8J

– 67 – – 68 –

Page 44

HCD-VX8/VX8J

8-22. SCHEMATIC DIAGRAM – CD MOTOR SECTION –

1SS119

MTZJ-T-72-5.6C (M)

(Page 51)

1SS119

(Page 51)

MTZJ-T-72-3.6C (M)

– 69 – – 70 –

Page 45

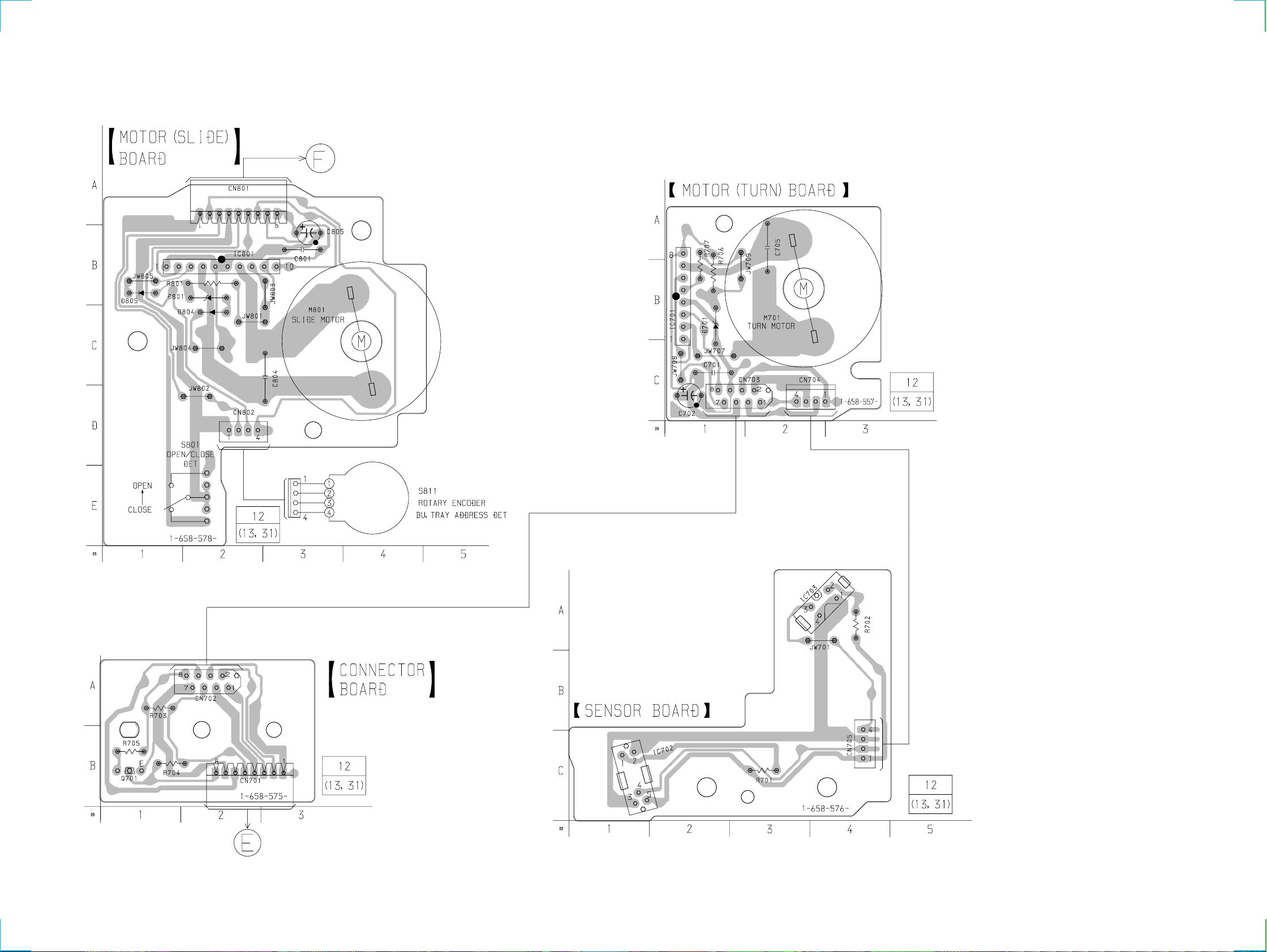

8-23. PRINTED WIRING BOARD – CD MOTOR SECTION –

• See page 18 for Circuit Boards Location.

(Page 49)

HCD-VX8/VX8J

(Page 50)

– 71 – – 72 –

Page 46

HCD-VX8/VX8J

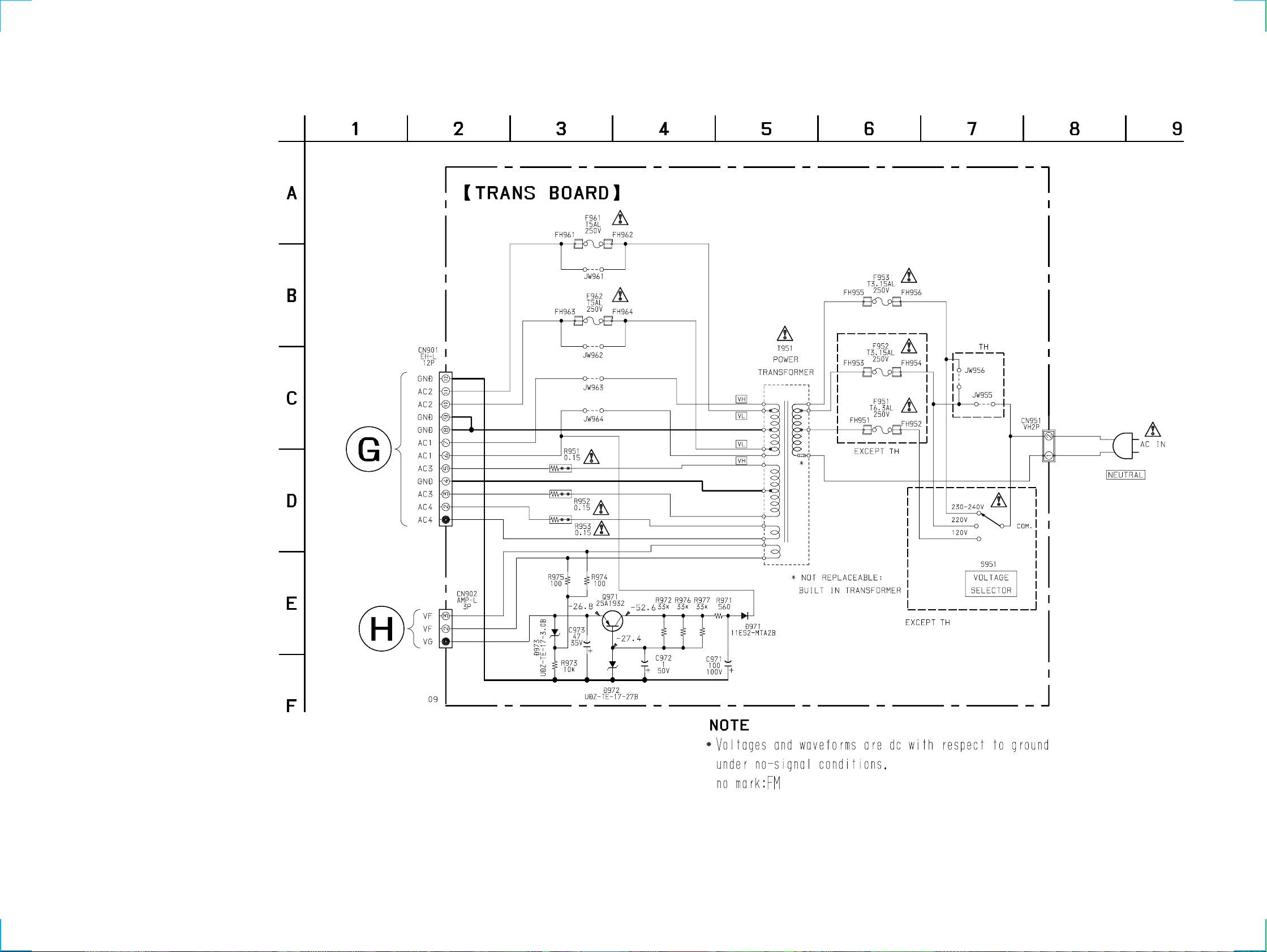

8-24. SCHEMATIC DIAGRAM – TRANS SECTION –

(Page 54)

(Page 57)

– 73 –

– 74 –

Page 47

8-25. PRINTED WIRING BOARD – TRANS SECTION –

(Page 50)

• See page 18 for Circuit Boards Location.

HCD-VX8/VX8J

8-26. SCHEMATIC DIAGRAM – SURROUND SECTION –

• See page 79 for IC Block Diagrams.

(Page 51)

8-27. PRINTED WIRING BOARD – SURROND SECTION –

• See page 20 for Circuit Boards Location.

(Page 49)

(Page 50)

– 75 – – 76 –

Page 48

HCD-VX8/VX8J

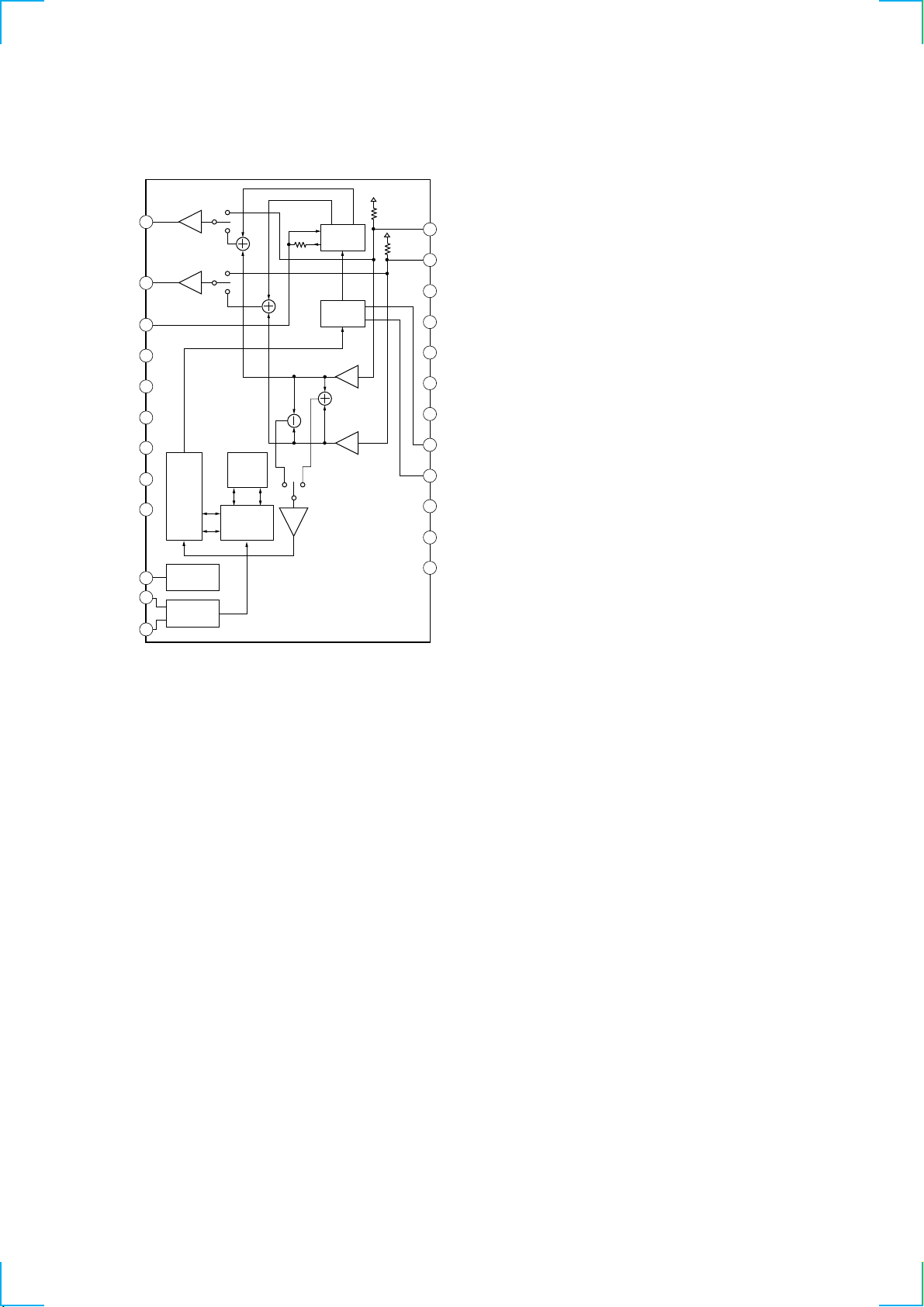

8-28. IC BLOCK DIAGRAMS

• BD Board

IC101 CXD3008Q

XOLT

SOCK

SQSO

SQCK

SCSY

EXCK

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66

VDD

XRST

MUTE

DATA

4 5

XLAT

CLOK

CLOK SENS

SENS

SCLK ATSK

WFCK

XUGF XPCK

GFS C2P0 SCOR

C4M

WDCK

DVSS

COUT

MIRR

DFCT

FDK

PWM1

LOCK

MDP

6 7

9 10 11 12 13 14 15

16 17

20 21 22

23 24 25

CPU

INTERFACE

SERVO

AUTO

SEQUENCER

SERVO

INTERFACE

DIGITAL

PLL

SOUT

PWM GENERATOR

XTA1

XTA0

D/A

INTERFACE

CORRECTOR

SUB

CODE

PROCESSOR

FOCUS PWM GENERATOR

TRACKING PWM

GENERATOR

SLED PWM

GENERATOR

DVSS2

ERROR

32K

RAM

XTSL

EMPH

FOCUS SERVO

SLED SERVO

PCMD

BCK

GENERATOR

EFM

DEMODURATOR

MIRR

DFCT

FOK

SERVO DSP

TRACKING

SERVO

CLOCK

DIGITAL

PLL

ASYMMETY

CORRECTOR

A/D

CONVERTER

OUT

AMP

ANALOG

• BD Board

IC103 CXA2568M-T6

VCC

ERROR AMP FOCUS

TRACKING ERROR AMP

VCC

23 22

21 20

18 17 16

LC/PD LD_ON

HOLD_SW AGCCONT

(50%/30% OFF)

RF_BOT

RFTC RF_1

RFO

RFE

APC PD AMP

VEE

HOLD

LRCK

DOUT

MD2

ASYE

VPC0 V16M

59 58

BIAS

DVDD2

PCO FIL1

54 53

FIL0

CLTV

AVSS1

RFAC

ASY1 ASY0

AVDD

1GEN

AVSS0

AD10 RFDC

43 42

CE TE

AGCVTH

VEE

VC BUFFER

VREF

RF SUMMING AMP RF_EQ_AMP

VCC

APC LD AMP

VEE

VCC

VEE

• VIDEO (3/3) Board

IC509 PCM1727E-2/T2

MODE

CONTROL

BPZ

CONTROL

CLOCK MANAGER

XT1

PGND

VCP

NCKO

RSV

SCKO3

ML MC MC

RSTB

VOUTR

AGND

2 3

4 5 6

7 8 9

384fs

•

DUAL PLL

POWER

SUPPLY

MULTI LEVEL

MODULATOR

8 TIME OVER

SAMPLING DIGITAL

FILTER

FUNCTION CONTROL

∆Σ

5 LEVEL

DAC

CR LPF

•

OUTPUT

AMP

DATA INPUT

INTERFACE

•

MULTI LEVEL

MODULATOR

5 LEVEL

CR LPF

OUTPUT

AUDIO

∆Σ

DAC

AMP

XT2

DGND

23 22

VDD

SCKO1

SCKO2

LRCK

DATA

BCK

ZERO

OPEN

CAP

VOUTL

•

VCA

• PANEL (3/3) Board

• PANEL (1/3) Board

IC603 BA3830F

REFFERENCE

CURRENT

REFFERENCE

CURRENT

R02

P01

LINE

REC

RESET

26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

SSTP

FST0

DVDD1

SFDR

SRDR

TFDR

TRDR

FFDR

FRDR

DVSS1

TES1

IC711 M65850FP-E1

RESET

f01

f02

f03

f04

f05

f06

LPF1IN

VCC

1/2 VCC

AUTO

RESET

LPF1

OSCILLATOR

CLOCK

RESET

2 3

LPF1OUT

BPF

RESET

DET

CLOCK

REF

DO1

MAIN

CONTROL

DO0

A/D

5 6 7

CC1

OP1IN

OP1OUT

OP2IN

D/A

OP2OUT

LPF2IN

20KBIT

CC2

LPF2

SRAM

LPF2OUT

891014 13 12 11

GND

• PANEL (2/3) Board

IC605 MSM6654A-540GS-K

SW3 SW2 SW1 SW0

RND

OSC3

OSC2 OSC1

VDD

14 13

12 11 10

NC NC

3 2 1

8 7 6 5 4

ADDRESS

SWITCHING

CONTROLLER

RANDOM

CIRCUIT

I/O

INTERFACE

OSC

(XT/CR)

(MSM6654A)

MULTIPLEXER

(MSM6654A)

CONTROLLER

17 STAGE

ADDRESS

COUNTTER

TIMING

EDITING ROM &

ADDRESS ROM

CONTAINS 22KBIT

DATA

CONTROLLER

GENERATOR

BEEP TONE

GENERATOR

1M BIT ROM

MELODY

ADPCM

SYNTHESIZER

PCM

SYNTHESIZER

12 BIT

DAC

LPF

IC604 NJU3716M-T2

DATA

CLK

TEST

RESET

BUSY

XT/CR

AOUT

GND

STB CLR

15 16

SHIFT REGISTER

CONTROL

LATCH

SO P16

P15

P14

P13

P12

GND P11

P10

BIAS

GND1

Bias

REC LEVEL

VCC

– 77 –

– 78 –

17 18 19 20 21 22 23 24

GND

VDD

Page 49

• SURROUND Board

IC1201 LV1150

R-OUT

L-OUT

EF-VOL

VREF

AGND

DC-OUT

D/A

A/D

VDD

LC-INB

LC-INE

ADM

VDD

OSC

R +DELAY

ADM-CONT

SRAM

VIRTUAL

L –DELAY

L –R

L.P.F

L +R

50k

R-IN

L-IN

RS-OUT

L-FS-IN

VCC

R-PS-IN

LS-OUT

LPF2

LPF1

SW2

SW1

VSS

– 79 –

Page 50

8-29. IC PIN FUNCTIONS

• IC101 DIGITAL SIGNAL PROCESSOR (CXD3008Q) (BD Board)

Pin No.

1 DVDD0 — Digital power supply 2 XRST I System reset 3 MUTE I Muting selection pin 4 DATA I Serial data input, supplied from CPU 5 XLAT I Latch input, supplied from CPU 6 CLOK I Serial data transfer clock input, supplied from CPU 7 SENS O SENS output 8 SCLK I SENS serial data read-out clock

9 ATSK I/O Input pin for anti-shock (Ground) 10 WFCK O WFCK (Write Frame Clock) output (Not used) 11 XUGF O XUGF output (Not used) 12 XPCK O XPCK output (Not used) 13 GFS O GFS output (Not used) 14 C2P0 O C2PO output 15 SCOR O Sub-code sync output 16 CM4 O 4.2336MHz output (Not used) 17 WDCK O 48-bit slot D/A interface word clock (Not used) 18 DVSS — Digital ground 19 COUT O Numbers of track counted signal output (Not used) 20 MIRR O Mirror signal output (Not used) 21 DFCT O Defect signal output (Not used) 22 FOK O Focus OK output (Not used) 23 PWM1 I (Not used) 24 LOCK I/O GFS in sampled by 460Hz (Not used) 25 MDP O Output to control spindle motor servo 26 SSTP I Input signal to detect disc inner most trak 27 FST0 O 2/3 divider output (Not used) 28 DVDD1 — Digital power supply 29 SFDR O 30 SRDR O 31 TFDR O 32 TRDR O 33 FFDR O 34 FRDR O 35 DVSS1 — Digital ground 36 TEST I 37 TES1 I 38 VC I Center voltage input 39 FE I FOCUS error signal input 40 SE I Sled error signal input

Pin Name

I/O Function

Sled drive output

Tracking drive output

Focus drive output

TEST pin connected normally ground

– 80 –

Page 51

Pin No.

41 TE I Tracking error signal input 42 CE I Center servo analog input 43 RFDC I RF signal input 44 ADI0 O Test pin (Not used) 45 AVSS0 — Analog ground 46 IGEN I Power supply pin operational amplifiers 47 AVDD — Analog power supply 48 ASYO O EFM full swing output 49 ASYI I Asymmetry comparate voltage input 50 RFAC I EFM signal input 51 AVSS1 — Analog ground 52 CLTV I Control voltage input for master VCO 53 FILO O Filter output for master PLL 54 FILI I Filter input for master PLL 55 PCO O Charge-pump output for master PLL 56 AVDD1 — Analog power supply 57 BIAS I Asymmetry circuit constant current input 58 VCTL I Control voltage input for variable pitch PLL 59 V16M I/O 16.9344MHz output (Not used) 60 VPCO O Charge-pump output for variable pitch PLL (Not used) 61 DVDD2 — Digital power supply 62 ASYE I Asymmetry circuit ON/OFF 63 MD2 I Digital-out ON/OFF control 64 DOUT O Digital-out output 65 LRCK O 48-bit slot D/A interface, LR clock output 66 PCMD O 48-bit slot D/A interface, Serial deta output 67 BCLK O 48-bit slot D/A interface, bit clock output 68 EMPH O Playback disc output in emphasis mode (Not used) 69 XTSL I X’tal selection input pin 70 DVSS2 — Digital ground 71 XTAI I X’tal oscillator circuit input 72 XTAO O X’tal oscillator circuit output (Not used) 73 SOUT O 74 SOCK O (Not used) 75 XOCT O 76 SQSO O Sub-Q serial output 77 SQCK I Clock input for SQSO read-out 78 SCSY I Sub-code input 79 SBSO O Sub-P through Sub-W serial output (Not used) 80 EXCR I Clock input for SBSO read-out

Pin Name

I/O Function

– 81 –

Page 52

• IC502 MPEG DECODER, MECHANISM CONTROL (M30620MC-A05FP) (VIDEO (1/3) Board)

Pin No.

1 SENSE I Internal state (SENSE) monitor input (IC101) 2 SENSE CLK O Serial data reading clock output (IC101) 3 DSP DATA O Serial data output (IC101) 4 DSP LATCH O Lach output (IC101) 5 DSP CLK O Serial data clock output (IC101) 6 TSENS I Not used 7 REMOTE IN I Not used 8 BYTE I External bus width change input (Connected to ground) 9 VSS – Ground

10 DSP MUTE O Mute output (IC101) “H” : mute 11 CTRL1 (L : DOUBLE) O Double change output (IC101) “L” : double 12 XRESET I System reset input “L” : reset 13 XOUT O Main clock output (10MHz) 14 VSS – Ground 15 XIN I Main clock input (10MHz) 16 VCC – +5V power supply 17 NMI I Requests mask disable interruption input (Connected to +5V) 18 SCOR I Subcode sync input (IC101) 19 D SENS I Not used 20 CL680 INT I Video CD interruption input (IC505) 21 CL680 HSEL O Video CD select data of the host MPU (IC505) 22 DF LATCH O Digital filter latch output (IC509) 23 CL680 HRDY I Ready signal input for communication to the host MPU (IC505) 24 680 RESET O Video CD reset output (IC505) “L” : reset 25 JOG1 I Not used 26 JOG2 I Not used 27 CTRL2 O Double control output (IC101) “H” : double 28 LD ON O Laser diode ON/OFF output 29 IIC1 I/O 30 IIC0 I/O 31 DATA1O O Serial 1 data output (IC505, 509) 32 DATA1I I Serial 1 data input (IC505, 509) 33 CLK1 O Serial 1 clock output 34 SHARPNESS O Sharpness output L : normal, H : sharpness 35 XVLEVEL. DOWN O Fix the video signal output level output 36 SUBQ DATA I Serial 2 data input for subcode sync reading 37 SUBQ CLK I Serial 2 clock input for subcode sync reading 38 P. ON I Not used 39 BUS XRDY I Not used 40 BUS I Not used 41 BUS XHOLD I Not used

42, 43 BUS I Not used

44 BUS XRD I Model selection input “L” : chinese model, “H” : except chinese model 45 BUS I V sync signal input

Pin Name I/O Function

IIC convertion microcomputer receiv e data (Former type), IIC clock input from master control (New type) IIC convertion microcomputer transmittion data (Former type), IIC data input from master control (New type)

– 82 –

Page 53

Pin No.

46 BUS XWRL I Not used 47 LO. BOOST I Not used 48 AUDIO MUTE O Audio mute output “L” : mute 49 LOAD OUT I Not used 50 LOAD IN I Not used 51 INSW I Not used 52 OUTSW I Not used 53 MODEL 1 I L : System input (Fixed at “L”) 54 MODEL 2 I L : System input (Fixed at “L”) 55 TBLL I Not used 56 TBLR I Not used 57 ENC 1 I Not used 58 ENC 2 I Not used 59 ENC 3 I Not used 60 — I Not used 61 — I Not used 62 VCC – +5V power supply 63 — I Not used 64 VSS – Ground 65 A7 O Video mute output “L”

66 to 71 A6 to A1 I Not used

72 U to I I IIC convertion microcomputor transmittion input 73 TEST LED O TEST LED for MPEG decoder 74 TEST 1 I Test mode for Video CD check 75 TEST 2 I Test mode for servo check 76 TEST 3 I Not used 77 DEVICE RESET O Device system rest output “L” : reset 78 STANDBY I Not used 79 FL CS I Not used 80 FL I Not used

81 to 88 D7 to D0 I Not used

89 MIC CTRL I Not used 90 KEY 1 I Not used 91 KEY 2 I Not used 92 KEY 3 I Not used 93 NY/PAL I NTSC/PAL select switch input 94 MUSIC VOL I Not used 95 KEY 4 I Not used 96 AVSS – A/D converter ground 97 MODE. SW I Not used 98 VREF I A/D converter reference voltage input (Connected to +5V) 99 AVCC – A/D converter +5V power supply

100 AMP. ON I Not used

Pin Name

I/O

Function

– 83 –

Page 54

• IC505 CD DECODER, SYSTEM CONTROL (CL680T-D1) (VIDEO (2/3) Board)

Pin No.

1 NC – Not used 2 VSS – Ground 3 CD-BCK I CD Decode bit clock 4 CD-DATA I CD Decode data 5 CD-LRCK I CD Decode Left or Right channel selection clock 6 CD-C2PO I CD Decode C2 error data 7 NC – Not used 8 NC – Not used 9 NC – Not used

10 MD0 I/O Data bus between Microcode ROM/DRAM and CL680 11 MD1 I/O Data bus between Microcode ROM/DRAM and CL680 12 MD2 I/O Data bus between Microcode ROM/DRAM and CL680 13 MD3 I/O Data bus between Microcode ROM/DRAM and CL680 14 MD4 I/O Data bus between Microcode ROM/DRAM and CL680 15 MD5 I/O Data bus between Microcode ROM/DRAM and CL680 16 VSS – Ground 17 MD6 I/O Data bus between Microcode ROM/DRAM and CL680 18 VDD3 – +3.3V Power supply 19 MD7 I/O Data bus between Microcode ROM/DRAM and CL680 20 VSS – Ground 21 MD8 I/O Data bus between Microcode ROM/DRAM and CL680 22 VDD3 – +3.3V Power supply 23 MD9 I/O Data bus between Microcode ROM/DRAM and CL680 24 MD10 I/O Data bus between Microcode ROM/DRAM and CL680 25 MD11 I/O Data bus between Microcode ROM/DRAM and CL680 26 MD12 I/O Data bus between Microcode ROM/DRAM and CL680 27 MD13 I/O Data bus between Microcode ROM/DRAM and CL680 28 MD14 I/O Data bus between Microcode ROM/DRAM and CL680 29 MD15 I/O Data bus between Microcode ROM/DRAM and CL680 30 NC – Not used 31 NC – Not used 32 NC – Not used 33 NC – Not used 34 NC – Not used 35 NC – Not used 36 NC – Not used 37 MCE O Chip enable signal to Microcode ROM 38 MWE O Write enable signal to DRAM 39 VSS – Ground 40 CAS O Column address strove : Latch the column address to DRAM 41 VDD3 – +3.3V power supply 42 RAS0 O Row address strove : Latch row address to DRAM 43 RAS1 – Not used 44 MA10 O Address data from CL680 to Microcode ROM 45 MA9 O Address data from CL680 to Microcode ROM

Pin Name I/O Function

– 84 –

Page 55

Pin No.

46 MA8 O Address data from CL680 to Microcode ROM/DRAM 47 VSS – Ground 48 MA7 O Address data from CL680 to Microcode ROM/DRAM 49 VDD3 – +3.3V Power supply 50 MA6 O Address data from CL680 to Microcode ROM/DRAM 51 MA5 O Address data from CL680 to Microcode ROM/DRAM 52 MA4 O Address data from CL680 to Microcode ROM/DRAM 53 VSS – Ground 54 MA3 O Address data from CL680 to Microcode ROM/DRAM 55 VDD3 – +3.3V Power supply 56 MA2 O Address data from CL680 to Microcode ROM/DRAM 57 MA1 O Address data from CL680 to Microcode ROM/DRAM 58 MA0 O Address data from CL680 to Microcode ROM/DRAM 59 PGIO7 I/O Not used 60 RESET I Reset signal input from the host MPU 61 VDDMAX-IN I Fix the maxium input voltage each input pin and I/O pin 62 NC – Not used 63 NC – Not used 64 NC – Not used 65 AGND DAC – Ground 66 AVDD DAC – +3.3V Power supply 67 COMPOS OUT O Not used 68 AGND DAC – Ground 69 Y-OUT O Luminance signal out 70 AVDD DAC – +3.3V Power supply 71 AGND DAC – Ground 72 RREF I Fix the video signal output level 73 (1.235V) VREF O Reference voltage (+1.235V) 74 AVDD DAC – +3.3V Power supply 75 C-OUT O Chrominance signal out 76 AGND DAC – Ground 77 (GCK INT) CLK SEL I GCK selection “H”; Internal, “L”; External 78 CLK SEL I DA-XCK selection (1) 79 CLK SEL I DA-XCK selection (2) 80 VSS – Ground 81 RESERVED I Selection the operation clock 42.336MHz 82 VDD3 – +3.3V Power supply 83 DA-EMP – Not used 84 RESERVED – Not used 85 AGND PLL – Ground 86 DA-XCLK I Main reference clock input (16.9344MHz=384fs) 87 AVDD PLL – +3.3V 88 PGIO4 I/O Not used 89 PGIO5 I/O Not used 90 PGIO6 I/O Not used

Pin Name

I/O

Function

– 85 –

Page 56

Pin No.

91 PGIO0 I/O Not used 92 PGIO8 I/O Not used 93 PGIO2/VSYNC/CSYNC O Vertical synchronized signal of video signal 94 AVDD PLL – +3.3V Power supply 95 NC – Not used 96 NC – Not used 97 NC – Not used 98 AGND PLL – Ground

99 VSS – Ground 100 NC – Not used 101 PGIO3/HSYNC I/O Not used 102 VDD3 – +3.3V Power supply 103 PGIO1/VCK-OUT I/O Not used 104 VSS – Ground 105 GCK I Not used 106 VCK-IN I Main clock for video signal processer 107 GCKOUT/DA-EMP O Not used 108 DA-LRCK O Digital Audio Left or Right channel selection clock 109 VDDMAX-OUT O Fix the maxium output voltage certain output pins (Connected to +5V) 110 DA-DA TA O Digital Audio data 111 DA-BCK O Digital Audio bit clock 112 HD-OUT O Serial Data output from CL680 to the host MPU 113 HRDY O Ready signal CL680 is ready for communication to the host MPU 114 HINT O Request signal for interrupting the host MPU 115 CDG-SCK I/O Not used 116 VSS – Ground 117 HCK I Host clock : referance signal for the host bus interface 118 VDD3 – +3.3V Power supply 119 HD-IN I Serial Data output ftom the host MPU to CL680 120 VDD3 – +3.3V Power supply 121 HSEL I Select data or address of the host MPU 122 CDG-SDATA I Ground (Not used) 123 CDG-VFSY I Ground (Not used) 124 CDG-SOS1 I Ground (Not used) 125 NC – Not used 126 NC – Not used 127 NC – Not used 128 NC – Not used

Pin Name

I/O

Function

– 86 –

Page 57

• IC501 MASTER CONTROL (M30622MA-A09FP) (MAIN Board)

Pin No.

1 STK-MUTE O Power amp ON/OFF signal output 2 POWER O Power ON/OFF signal output 3 F-RELAY O Front speaker relay control output 4 REAR-RELAY O Rear speaker relay control output (Not used) 5 CD-POWER O CD power on signal output 6 LINE-MUTE O Line mute ON/OFF selection output 7 DBFB-H/L O DBFB H/L select signal output

8, 9 – – Not used

10 XC-IN I 11 XC-OUT O 12 RESET I Reset signal input 13 X-OUT O X’tal (16MHz) 14 VSS – Ground 15 X-IN I X’tal (16MHz) 16 VCC – Power supply (+5V) 17 NMI I Not used (PULL UP EVER+5V) 18 WAKE UP I WAKE UP (Fixed at fixed at “L”) 19 SCOR I Subcode data request signal output (Not used) 20 RDS-INT I 21 RDS-DATA I 22 AC-CUT I Back up signal input 23 PL-CLK O Clock signal to pro-logic (Not used) 24 PL-DATA O Data signal to pro-logic (Not used) 25 PL-LAT O Latch signal to pro-logic (Not used) 26 TIMER LED I Timer LED ON/OF 27 PROTECT OR I Speaker protect ON/OF 28 – – Not used 29 IIC-CLK O Clock output for IC601 30 IIC-DATA O Data output for IC601 31 – – Not used 32 SQ-DATA I Subcode Q data clock input 33 SQ-CLK I Not used 34 SW-MODE O Not used 35 CD-DATA O CD data output (Not used) 36 RY-SW I Head phone swich detect 37 CD-CLK O CD clock output (Not used) 38 493-LAT O Latch signal output for M62493FP (IC101)

40 L+R/L-R I 41 BY-PASS I 42 FL-SW I FL switch ON/OFF 43 STBY RELAY I Stand by relay ON/OFF 44 BASS FREQ O FREQ high/low signal for SYNC bass

45, 46 – – Not used

47 493-DATA O Data output for M62493FP (IC101) 48 493-CLK O Clock output for M62493FP (IC101) 49 ST-MUTE O Tuned mute signal output

Pin Name

ST-BY LED/ CLOCK-OUT

I/O Function

X’tal (32.768MHz)

RDS data interrupt input

O Clock ond stand by LED signal output

Not used

– 87 –

Page 58

Pin No.

50 STEREO I Stereo detection for tuner

51 TUNED I Tuned detection for tuner

52 ST-CE O Tuner chip enable output

53 ST-DOUT O Tuner data output

54 ST-DIN I Tuner data input

55 ST-CLK O Tuned clock output

56 SENS I BD Condition signal input (Not used)

57 HDLD O Mode hold signal output (Not used)

58 XLT O CD latch signal output (Not used)

59 XRST O CD reset signal output

60 DISC-SENS I Slit sensor of disc table input

61 T-SENS I CD table detection signal input

62 VCC – Power supply (+5V)

63 TBL-L O Table motor control output

64 VSS – Ground

65 TBL-R O Table motor control output

66 LOAD-OUT O

67 LOAD-IN O

68 ENC 3/UP-SW I

69 ENC 2/DISC-LED I

70 ENC 1 I

71 OUT-OPEN O Loading out detection signal output

72 B-TRG O

73 A-TRG O

74 CAP-M-COT2 O Capstan motor control 1(-) signal output

75 CAP-M-COT1 O Capstan motor control 2(-) signal output

76 CAP-M-H/L O Capstan motor H/L speed select signal output

77 AMS-IN I Connected to ground

78 TC-MUTE O TC mute ON/OFF selection output

79 R/PB/PAS O REC/PB/PASS selection output

80 NR-ON/OFF O NR ON/OFF signal output

81 REC-MUTE O REC mute ON/OFF selection output

82 BIAS O Bias ON/OFF selection output

83 EQ-H/N O Equalizer H/N select output

84 PB-A/B O PB Deck A/Deck B select output

85 ALC O ALC ON/OFF output

86 B-PLAY-SW I Deck B play detect

87 A-PLAY-SW I Deck A play detect

88 A-HALF I Deck A cassette detect

89 B-HALF I Deck B cassette detect

90 B-SHUT I B Deck reel pulse detector

91 A-SHUT I A Deck reel pulse detector

92 SOFT-TEST O Software test port

93, 94 KEY/CD-ADJ I CD adjust point port

95 MODEL IN I Version select signal input

96 AVSS – Ground

97 SPEC-IN I Version select signal input

98 VREF I Analog reference voltage input

99 AVCC – Analog power supply

100 TC-RELAY O REC/PB head selection output for IC602

Pin Name

I/O Function

Loading motor control signal output

Disc tray address detect encoder input

Trigger motor control output

– 88 –

Page 59

• IC601 DISPLAY CONTROL (TMP88CS76F-6005) (PANEL Board)

Pin No.

1 SIRCS I Remote commander signal input 2 JOG A I Rotary encoder (S601) pulse input 3 L/P SCK O LED/PAD clock output 4 LED LA O LED latch output 5 L/P DAT O LED/PAD data output 6 PAD LA O PAD latch output 7 L SEL O LED select signal 8 JOG B I Rotary encoder (S601) pulse input 9 VOL A I

10 VOL B I

11 to 14 KEY 0 to KEY 3 I Key input

15 GRADATION L O LED gradation signal (left) 16 S LOW (F01) O Sptctrum analyzer input (Super low flegency) (40Hz) 17 BPF 1 (F02) O Sptctrum analyzer input (100Hz) 18 BPF 2 O Sptctrum analyzer input (400Hz) 19 BPF 3 O Sptctrum analyzer input (2KHz) 20 BPF 4 O Sptctrum analyzer input (6KHz) 21 ALL B (L+R) I Sptctrum analyzer input (all band) 22 GLADATION O

23 VSS I/O – Ground 24 VASS – Ground 25 VAref I Analog reference voltage input 26 VDD I/O – Power supply (+5V)

27 to 40 G 18 to G 5 O FL gride signal output

41 VDD VFT – Power supply (+5V) 42 to 45 G 4 to G 1 O FL gride signal output 46 to 67 S 1 to S 22 O FL segment signal output

68 VKK – Power supply (-30V)

69 VDD for CPU – Power supply (+5V)

70 X IN I X’tal (12.5MHz)

71 VSS for CPU – Ground

72 X OUT O X’tal (12.5MHz)

73 RESET I Reset signal input from main controller

74 CH for PAD O Channel signal output for PAD

75 BUSY for PAD O Busy signal output for PAD

76 TEST I Connected ground

77 – – Not used (to ground)

78 IIC DATA O Data output for IC501

79 IIC CLK O Clock output for IC501

80 – – Not used (to ground)

Pin Name I/O Function

Rotary encoder (S602) pulse input

R/WAKE UP

LED gradation signal (right)/WAKE UP signal

– 89 –

Page 60

SECTION 9

EXPLODED VIEWS

NOTE:

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

• Hardware (# mark) list and accessories and packing materials are given in the last of this parts list.

• Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE)

Cabinets color

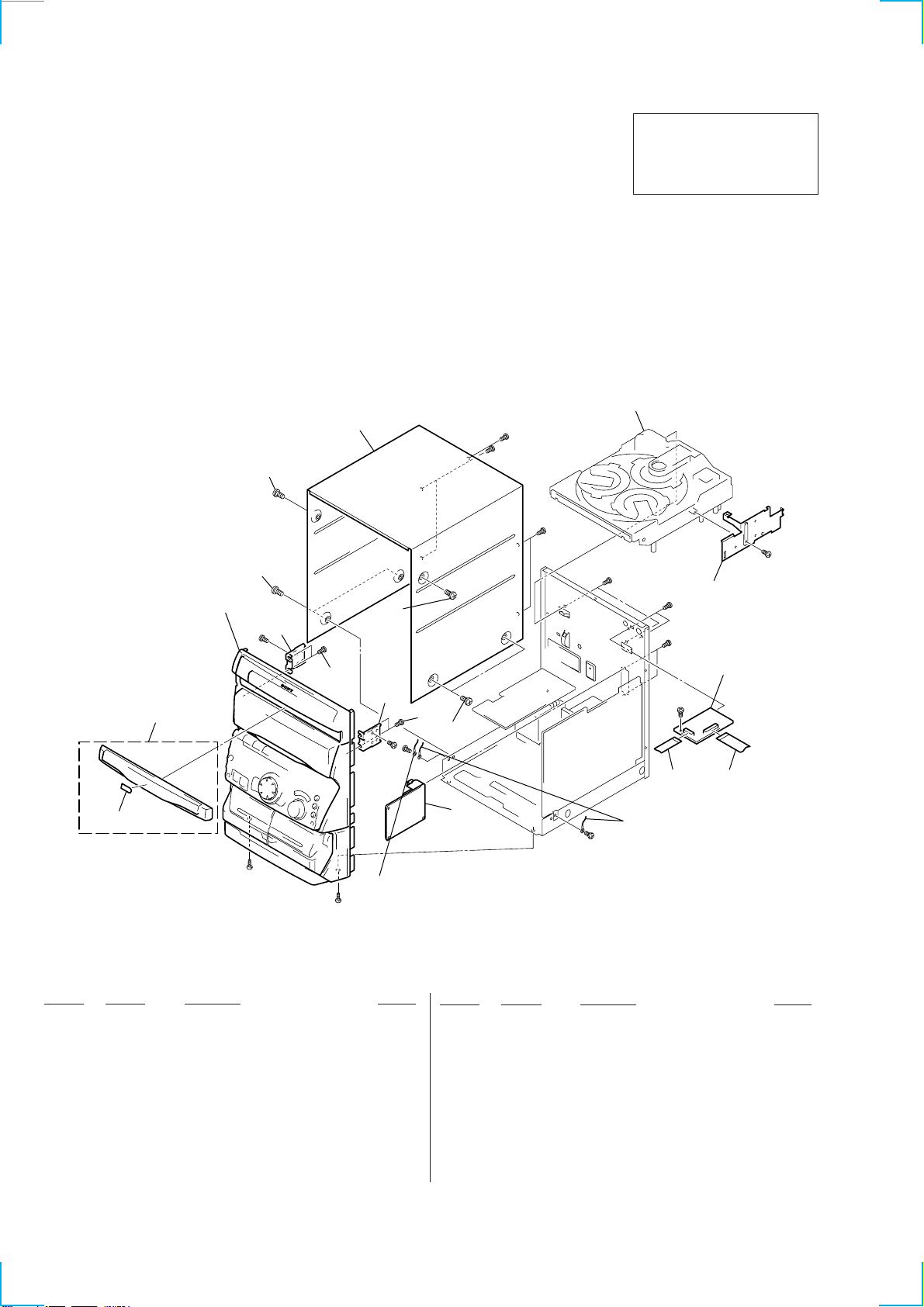

9-1. CASE SECTION

Front panel

#13

• Abbreviation EA : Saudi Arabia model HK : Hong Kong model SP : Singapore model MY : Malaysia model TW : Taiw an model IA : Indonesia model TH : Thai model

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

CDM38L-5BD34L

not supplied

#13

Including T rans board (Ref No. 52)

Ref. No. Part No. Description Remark * 1 4-996-716-01 HOLDER (CDM)

2 3-363-099-41 SCREW (CASE 3 TP2)(GRAY) 2 3-363-099-71 SCREW (CASE 3 TP2)(SILVER) 3 3-363-099-01 SCREW (CASE 3 TP2)(GRAY) 3 3-363-099-11 SCREW (CASE 3 TP2)(SILVER)

* 4 4-221-149-21 CASE (SILVER) * 4 4-221-149-61 CASE (GRAY)

5 1-233-545-11 TUNER UNIT (TH) 5 1-233-546-13 ENCAPSULATED COMPONENT (EXCEPT TH)

Ref. No. Part No. Description Remark

6 4-951-620-01 SCREW (2.6x8), +BVTP

7 X-4950-965-1 PANEL ASSY, LOADING (VX8)(GRAY) 7 X-4951-028-1 PANEL ASSY, LOADING (VX8)(SILVER) 7 X-4951-629-1 PANEL ASSY, LOADING (VX8J)

9 1-790-927-11 WIRE (FLAT TYPE) (13 CORE)

10 1-775-212-11 WIRE (FLAT TYPE) (23 CORE) 11 A-4724-727-A VIDEO BOARD, COMPLETE

Including Panel board (Ref No. 118)

– 90 –

Page 61

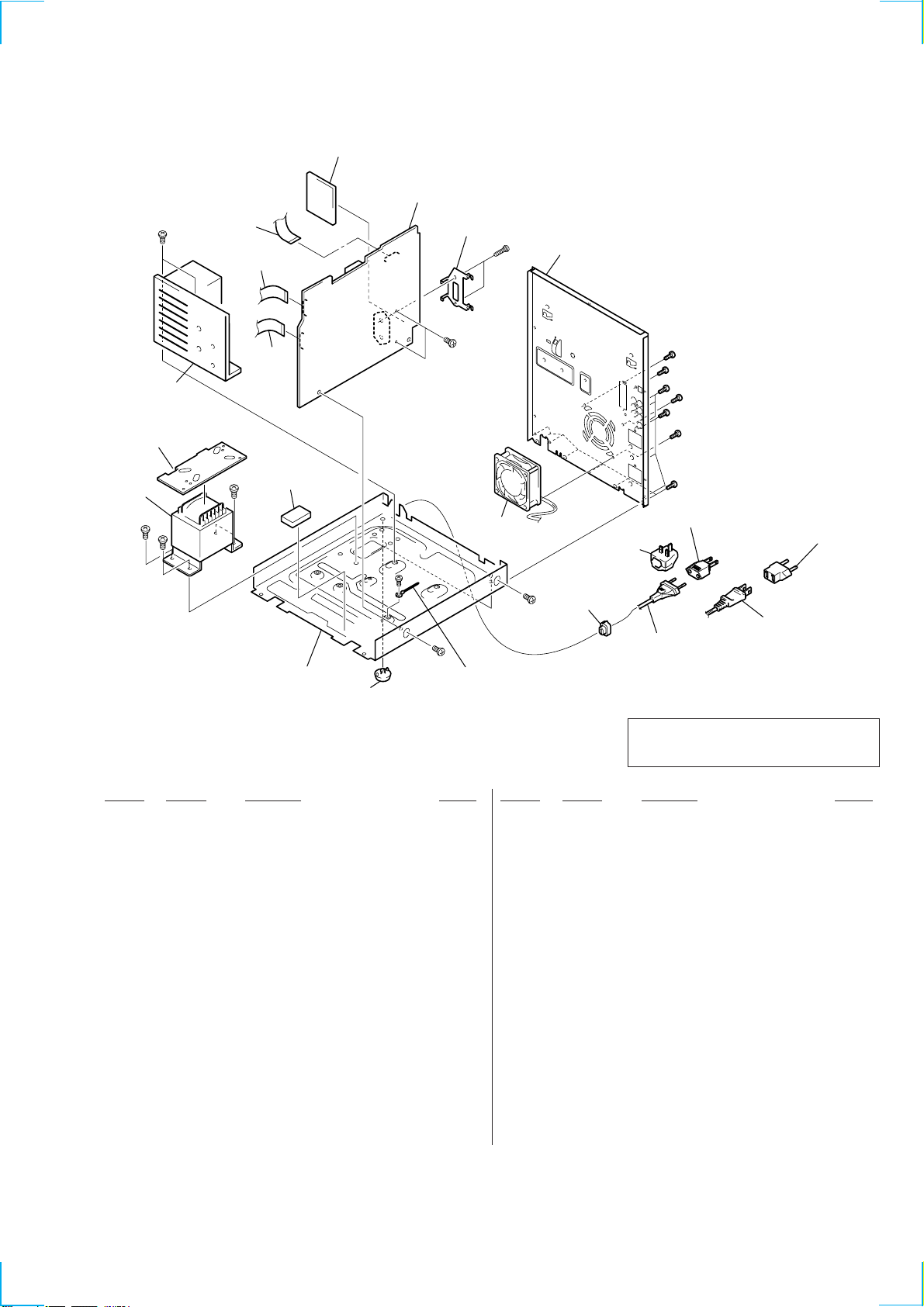

9-2. CHASSIS SECTION

not supplied

T951

not supplied

M901

(HK)

(EA,SP,MY,TW)

(EA,HK,SP,MY,TW)

(E,IA,TH)

(E,IA)

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 4-965-822-01 FOOT

* 52 1-672-474-11 TRANS BOARD

53 A-4419-149-A MAIN BOARD, COMPLETE (EXCEPT TH, EA) 53 A-4419-725-A MAIN BOARD, COMPLETE (EA) 53 A-4426-131-A MAIN BOARD, COMPLETE (TH)

54 A-4419-159-A SURROUND BOARD, COMPLETE 55 1-769-977-11 WIRE (FLAT TYPE)(13 CORE) (TH) 55 1-773-009-11 WIRE (FLAT TYPE)(15 CORE) (150mm)

(EXCEPT TH)

56 1-773-024-11 WIRE (FLAT TYPE)(15 CORE) (320mm)

* 57 3-703-244-00 BUSHING (2104), CORD (EXCEPT E,IA,TH)

57 3-703-571-11 BUSHING (S) (4516), CORD (E,TH) 57 4-966-266-01 BUSHING (S) (FBS002), CORD (IA) 58 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA) 58 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP,MY,TW) 58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)

! 59 1-575-651-11 CORD, POWER (EA,SP,HK,MY,TW) ! 59 1-575-653-11 CORD, POWER (E,IA,TH)

60 1-773-042-11 WIRE (FLAT TYPE)(17 CORE) 61 4-215-641-01 PANEL, BACK (VX8:EA) 61 4-215-641-11 PANEL, BACK (VX8:SP,MY)

61 4-215-641-21 PANEL, BACK (VX8:TW) 61 4-215-641-31 PANEL, BACK (VX8:E) 61 4-215-641-41 PANEL, BACK (VX8:IA) 61 4-215-641-51 PANEL, BACK (VX8:HK) 61 4-215-641-61 PANEL, BACK (VX8J:E)

61 4-215-641-71 PANEL, BACK (VX8J:EA) 61 4-215-641-81 PANEL, BACK (VX8:TH) 62 3-701-822-01 HOLDER, WIRE 63 4-985-642-01 CUSHION M901 1-763-072-11 FAN, D.C.

! T951 1-433-556-11 TRANSFORMER, POWER

– 91 –

Page 62

9-3. FRONT PANEL SECTION

114

109

108

101

106

113

122

Supplied with

S601

107

Supplied with

105

102

109

S602

103

104

112

111

105

108

110

109

115

124

110

123

119

109

121

118

120

FL601

117

116

109

TCM230AWR2 TCM230PWR2

#11

not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 X-4950-697-1 HOLDER (L) ASSY, CASSETTE (SILVER) 101 X-4950-976-1 HOLDER (L) ASSY, CASSETTE (GRAY) 102 X-4950-698-1 HOLDER (R) ASSY, CASSETTE (SILVER) 102 X-4950-977-1 HOLDER (R) ASSY, CASSETTE (GRAY) 103 4-214-760-11 CATCHER (A), PUSH

104 4-214-761-11 CATCHER (B), PUSH 105 4-214-775-01 SPRING, PUSH CATCHER RETURN 106 4-214-383-11 KNOB (JOG)(SILVER) 106 4-214-383-51 KNOB (JOG)(GRAY) 107 4-214-384-11 KNOB (VOL)(SILVER)

107 4-214-384-51 KNOB (VOL)(GRAY) 108 4-219-087-01 SPRING, TENSION 109 4-951-620-01 SCREW (2.6X8), +BVTP 110 4-215-062-01 DAMPER 111 4-930-336-61 FOOT (FELT)

112 4-962-708-71 EMBLEM (4-A), SONY 113 X-4951-031-1 PANEL ASSY, FRONT (SILVER) 113 X-4951-456-1 PANEL ASSY, FRONT (GRAY)

* 114 A-4417-663-A CD SW BOARD, COMPLETE

115 4-214-385-11 KNOB (MIC)(SILVER)

115 4-214-385-51 KNOB (MIC)(GRAY) 116 1-773-223-11 WIRE (FLAT TYPE)(25 CORE)

* 117 4-214-439-11 HOLDER, FL TUBE

118 A-4419-146-A PANEL BOARD, COMPLETE

* 119 4-214-736-11 HOLDER (L)(LED)

* 120 4-214-737-11 HOLDER (R)(LED) * 121 4-214-738-11 INDICATOR (ILLUMINATION 1)

122 1-675-195-11 PUSH CATCH STOPPER (A)

* 123 4-949-935-51 CUSHION (FL)

124 1-675-196-11 PUSH CATCH STOPPER (B)

FL601 1-517-831-31 INDICATOR TUBE, FLUORESCENT

#11

– 92 –

Page 63

9-4. CD MECHANISM DECK SECTION-1 (CDM38L-5BD34L)

201

202

211

203

201

205

204

209

M701

212

206

207

208

210

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

201 4-981-789-21 BRACKET (2), YOKE 202 4-977-945-63 TRAY (TURN) 203 X-4946-665-1 SHAFT ASSY, WORM 204 4-977-943-01 BELT (TURN) (1.2) 205 4-977-956-01 WHEEL, WORM

* 206 1-658-577-11 MOTOR (TURN) BOARD

207 4-988-162-01 ROLLER 208 4-977-941-01 BEARING (WORM)

* 209 1-658-576-11 SENSOR BOARD

210 4-934-376-01 SHAFT (ROLLER)

211 4-981-187-01 COLLAR (WORM) 212 4-977-944-01 TRAY (SLIDE) M701 A-4672-004-A MOTOR ASSY (TURN)

– 93 –

Page 64

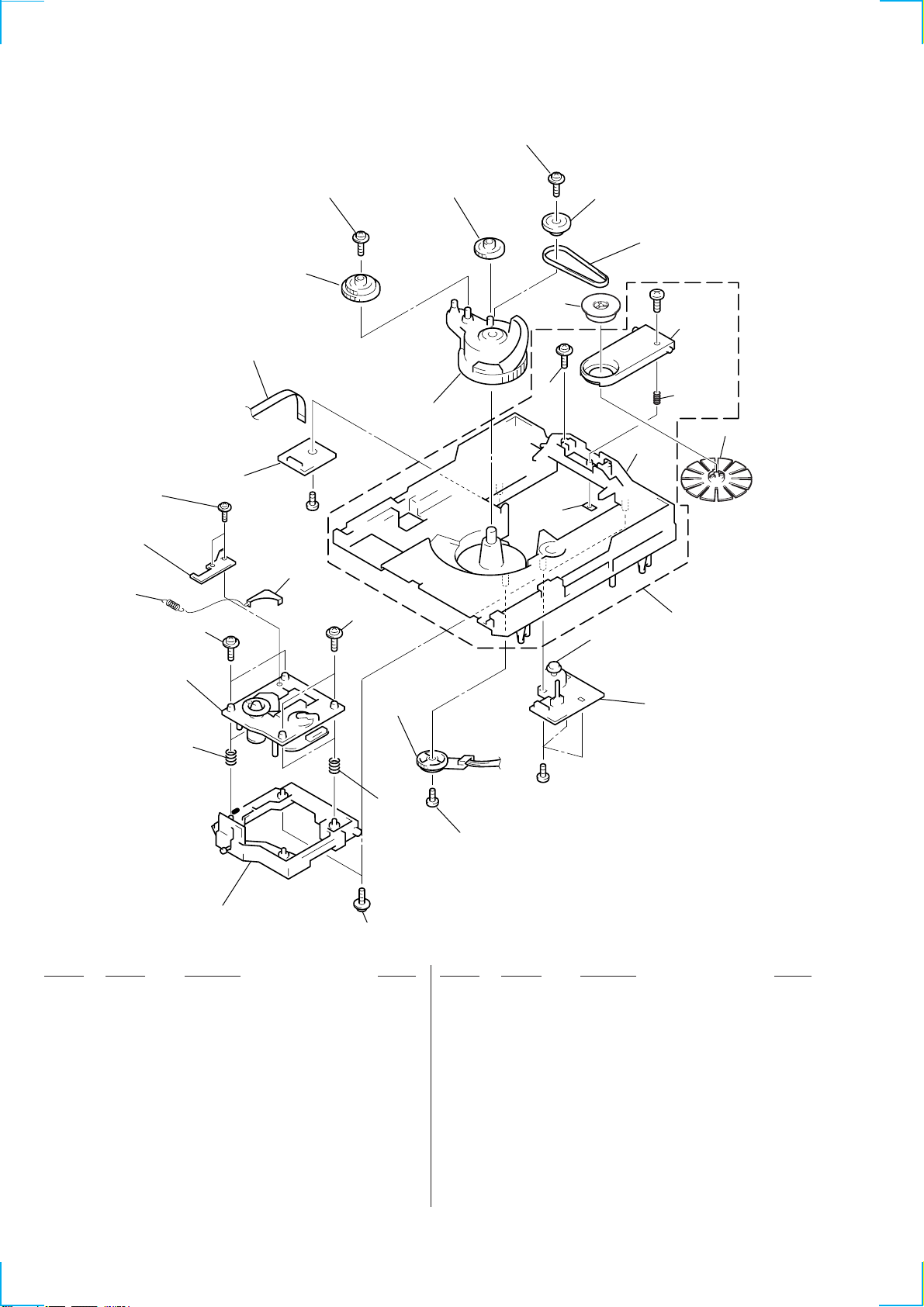

9-5. CD MECHANISM DECK SECTION-2 (CDM38L-5BD34L)

251

267

268

266

261

259

258

254

269

251

261

256

253

257

251

271

252

255

not supplied

260

270

not supplied

272

M801

BU-5BD32L

S811

262

263

264

265

251

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

251 4-981-789-11 BRACKET (2), YOKE 252 4-977-954-01 PULLEY (SL) 253 4-977-953-01 GEAR (SL-A) 254 4-977-955-01 GEAR (SL-B) 255 4-977-942-01 BELT (SL) (1.4)

256 X-4946-667-1 CAM ASSY, BU 257 1-452-925-21 MAGNET ASSY 258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)

* 259 1-658-575-11 CONNECTOR BOARD

260 4-900-743-01 SPRING, COMPRESSION

261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING

* 262 1-658-578-11 MOTOR (SLIDE) BOARD

263 4-982-447-01 SPRING (BU), COMPRESSION 264 4-951-620-41 SCREW (2.6), +BVTP 265 X-4949-570-1 HOLDER (BU) ASSY

266 4-989-494-01 SCREW (SLIDER), STEP 267 4-989-492-11 SLIDER (38) 268 4-989-819-02 SPRING, TENSION 269 4-989-491-11 COVER, LENS 270 4-993-142-21 PULLEY (L), PRESS

* 271 4-900-718-01 BRACKET (ADJUSTMENT)

272 X-4950-020-2 CHASSIS (CDM) ASSY S811 1-473-335-11 ENCODER, ROTARY M801 A-4672-004-A MOTOR ASSY (SLIDE)

– 94 –

Page 65

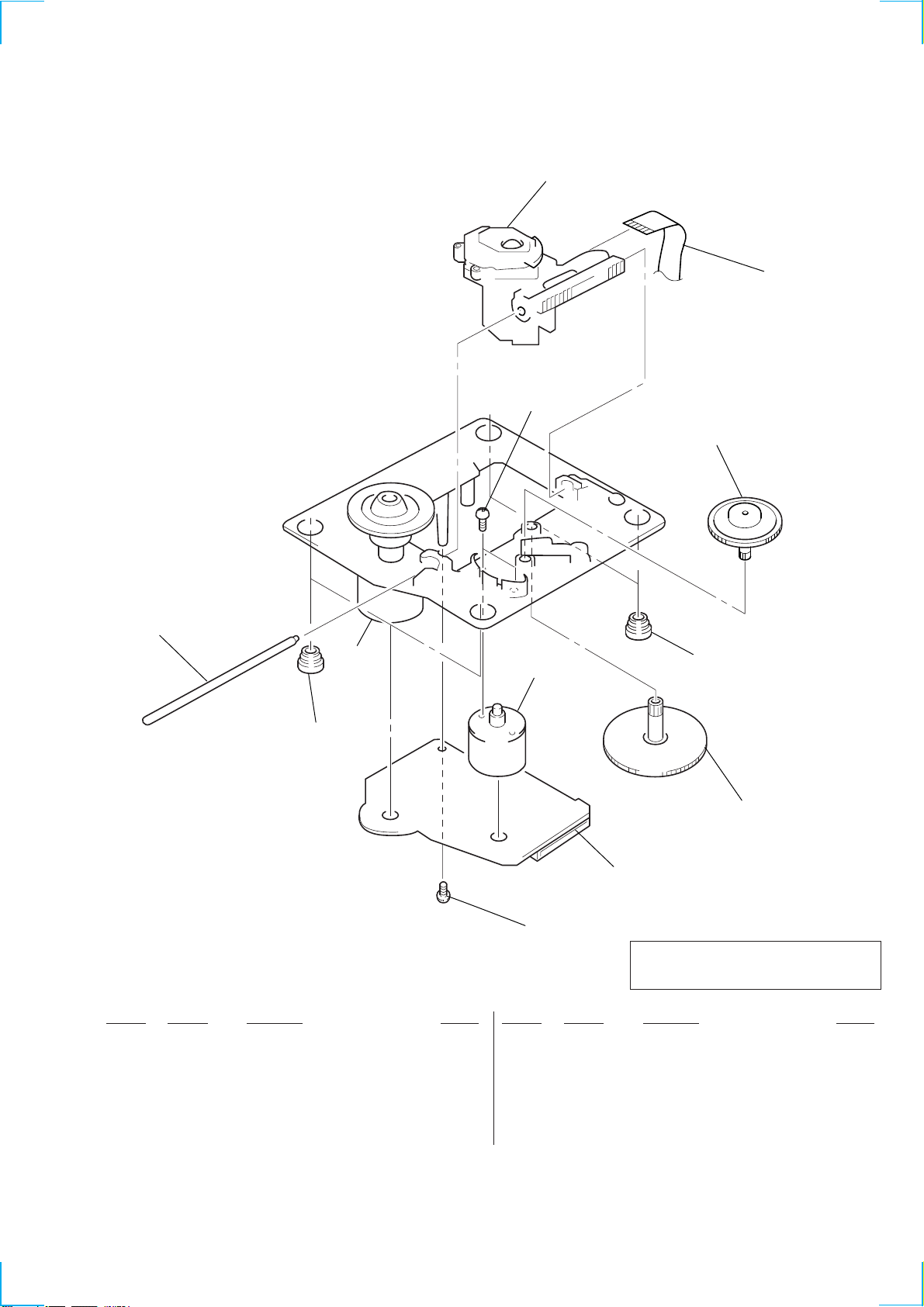

9-6. BASE UNIT SECTION (BU-5BD34L)

301

302

309

303

305

M101

M102

304

306

307

308

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP

302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) 303 4-917-567-01 GEAR (M) 304 4-951-940-01 INSULATOR (BU) 305 4-917-565-01 SHAFT, SLED

306 4-917-564-01 GEAR (P), FLATNESS 307 A-4724-640-A BD BOARD, COMPLETE 308 4-951-620-01 SCREW (2.6X8), +BVTP 309 3-713-786-51 SCREW +P 2X3 M101 X-4917-523-4 MOTOR ASSY (SPINDLE)

– 95 –

M102 X-4917-504-1 MOTOR ASSY (SLED)

Page 66

9-7. TC MECHANISM SECTION-1 (TCM230AWR2/230PWR2)

*NOTE: Two types of parts which are not interchangeable are available

for the Head deck (A) ASSY and Head deck (B) ASSY. When replacing the parts, refer to the following figure, and use the appropriate part.

408

Parts with “P” mark: 230PWR2

Parts without “P” mark: 230AWR2

412

413

407

406

404

HP101

403

HRPE101

403

405

404

407

405

408

406

410

411

409

402

401

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

401 3-376-464-11 SCREW(+PTT 2.6X6),GROUND POINT 402 3-036-914-01 RIVET 403 3-016-574-11 SPRING (HEAD), TENSION 404 X-3374-156-4 PINCH LEVER (REV) ASSY 405 X-3374-155-4 PINCH LEVER (FWD) ASSY

406 3-016-564-01 BASE (PINCH LEVER FWD) 407 3-016-565-01 BASE (PINCH LEVER REV) 408 3-026-892-01 SPRING (CASSETTE), LEAF

* 409 A-2007-731-A AUDIO BOARD, COMPLETE

410 3-016-573-01 LEVER (EJECT PREVENTION R)

411 3-032-810-02 SPRING (R), TORSION 412 3-016-572-01 LEVER (EJECT PREVENTION L) 413 3-032-809-02 SPRING (L), TORSION HP101 A-2056-681-B DECK (A) ASSY, HEAD (230AWR2)(*NOTE) HP101 A-2056-683-B DECK (A) ASSY, HEAD (230PWR2)(*NOTE)

HRPE101 A-2056-682-B DECK (B) ASSY, HEAD (230AWR2)(*NOTE) HRPE101 A-2056-684-B DECK (B) ASSY, HEAD (230PWR2)(*NOTE)

– 96 –

Page 67

9-8. TC MECHANISM SECTION-2 (TCM230AWR2/230PWR2)

455

461

458

465

459

*NOTE: Two types of parts which are not interchangeable are available

for the mechanical block assembly. When replacing the parts, refer to the following figure, and use the appropriate part.

Parts with “P” mark: 230PWR2

Parts without “P” mark: 230AWR2

451

462

460

#10

463

465

460

452

454

456

465

459

464

458

455

452

456

457

453

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 451 X-3374-214-3 CHASSIS ASSY, MAIN

452 3-016-570-01 BELT (CAPSTAN) 453 3-016-569-01 BELT (TENSION) 454 3-017-360-01 BRACKET (MOTOR) 455 X-3376-497-1 FLYWHEEL (FWD) ASSY

456 X-3374-235-1 FLYWHEEL (REV) ASSY 457 X-3374-238-1 PULLEY ASSY, TENSION 458 3-024-405-01 BELT (FR2) 459 A-2004-629-A MECHANICAL BLOCK ASSY (230AWR2)(*NOTE)

459 A-2004-629-B MECHANICAL BLOCK ASSY (230PWR2)(*NOTE)

460 3-016-566-01 SLIDER, REVERSE

* 461 A-2007-732-A LEAF SW BOARD, COMPLETE

462 3-016-575-11 SPRING, TORSION 463 3-019-208-01 WASHER, STOPPER 464 3-027-453-01 SPRING (GROUND), TENSION

465 3-030-823-01 SCREW (+BVTT) (2X3.5) M1 A-2004-628-A MOTOR ASSY, CAPSTAN

– 97 –

Page 68

SECTION 10

AUDIO

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

When indicating parts by reference number, please include the board name.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* A-2007-731-A AUDIO BOARD, COMPLETE

*********************

< CAPACITOR >

C301 1-162-289-31 CERAMIC 390PF 10% 50V C302 1-126-968-11 ELECT 100uF 20% 6.3V C303 1-162-282-31 CERAMIC 100PF 10% 50V C304 1-130-483-00 MYLAR 0.01uF 5% 50V C305 1-107-715-11 ELECT 22uF 20% 16V

C311 1-162-289-31 CERAMIC 390PF 10% 50V C313 1-162-282-31 CERAMIC 100PF 10% 50V C314 1-130-487-00 MYLAR 0.022uF 5% 50V C315 1-126-233-11 ELECT 22uF 20% 50V C331 1-137-427-11 FILM 120PF 5% 50V

C332 1-162-288-31 CERAMIC 330PF 10% 50V C333 1-162-209-31 CERAMIC 27PF 5% 50V C401 1-162-289-31 CERAMIC 390PF 10% 50V C402 1-126-968-11 ELECT 100uF 20% 6.3V C403 1-162-282-31 CERAMIC 100PF 10% 50V

C404 1-130-483-00 MYLAR 0.01uF 5% 50V C405 1-107-715-11 ELECT 22uF 20% 16V C411 1-162-289-31 CERAMIC 390PF 10% 50V C413 1-162-282-31 CERAMIC 100PF 10% 50V C414 1-130-487-00 MYLAR 0.022uF 5% 50V

C415 1-126-233-11 ELECT 22uF 20% 50V C431 1-137-427-11 FILM 120PF 5% 50V C432 1-162-288-31 CERAMIC 330PF 10% 50V C433 1-162-209-31 CERAMIC 27PF 5% 50V C601 1-104-396-11 ELECT 10uF 20% 16V

C602 1-104-396-11 ELECT 10uF 20% 16V C611 1-104-396-11 ELECT 10uF 20% 16V C612 1-104-396-11 ELECT 10uF 20% 16V C621 1-137-150-11 FILM 0.01uF 5% 100V C622 1-126-961-11 ELECT 2.2uF 20% 50V

C623 1-136-155-00 FILM 0.015uF 5% 50V C624 1-130-481-00 MYLAR 0.0068uF 5% 50V C625 1-130-481-00 MYLAR 0.0068uF 5% 50V C627 1-124-903-11 ELECT 1uF 20% 50V C628 1-136-153-00 FILM 0.01uF 5% 50V

C642 1-104-664-11 ELECT 47uF 20% 16V

< CONNECTOR >

ELECTRICAL PARTS LIST

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX, -X mean standardized parts, so they may have some difference from the original one.

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable

• SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µPA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD...

IC601 8-759-111-44 IC UPC4570C-1 IC602 8-759-143-54 IC UPC1330HA IC611 8-759-111-44 IC UPC4570C-1

L331 1-410-780-11 INDUCTOR 27mH L431 1-410-780-11 INDUCTOR 27mH L601 1-414-193-41 INDUCTOR 220uH L602 1-414-193-41 INDUCTOR 220uH

Q621 8-729-142-46 TRANSISTOR 2SC2001-LK Q622 8-729-142-46 TRANSISTOR 2SC2001-LK Q623 8-729-801-93 TRANSISTOR 2SD1387

R301 1-247-881-00 CARBON 120K 5% 1/4W R302 1-249-409-11 CARBON 220 5% 1/4W F R303 1-249-433-11 CARBON 22K 5% 1/4W R304 1-247-889-00 CARBON 270K 5% 1/4W R305 1-247-858-11 CARBON 13K 5% 1/4W

R311 1-247-881-00 CARBON 120K 5% 1/4W R312 1-247-807-31 CARBON 100 5% 1/4W R314 1-247-882-11 CARBON 130K 5% 1/4W R315 1-247-850-11 CARBON 6.2K 5% 1/4W R331 1-249-430-11 CARBON 12K 5% 1/4W

R401 1-247-881-00 CARBON 120K 5% 1/4W R402 1-249-409-11 CARBON 220 5% 1/4W F R403 1-249-433-11 CARBON 22K 5% 1/4W R404 1-247-889-00 CARBON 270K 5% 1/4W R405 1-247-858-11 CARBON 13K 5% 1/4W

R411 1-247-881-00 CARBON 120K 5% 1/4W R412 1-247-807-31 CARBON 100 5% 1/4W R414 1-247-882-11 CARBON 130K 5% 1/4W R415 1-247-850-11 CARBON 6.2K 5% 1/4W R431 1-249-430-11 CARBON 12K 5% 1/4W

R601 1-249-409-11 CARBON 220 5% 1/4W F R602 1-249-409-11 CARBON 220 5% 1/4W F R608 1-249-409-11 CARBON 220 5% 1/4W F R609 1-249-433-11 CARBON 22K 5% 1/4W R611 1-249-409-11 CARBON 220 5% 1/4W F

• CAPACITORS uF : µ F

• COILS uH : µ H

• Abbreviation EA : Saudi Arabia model HK : Hong Kong model SP : Singapore model MY : Malaysia model TW : Taiwan model IA : Indonesia model TH : Thai model

< IC >

< COIL >

< TRANSISTOR >

< RESISTOR >

CN601 1-695-338-11 PIN, CONNECTOR (PC BOARD) 15P

R612 1-249-409-11 CARBON 220 5% 1/4W F

! R621 1-212-851-00 FUSIBLE 5.6 5% 1/4W F

– 98 –

Page 69

AUDIO

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

! R622 1-212-851-00 FUSIBLE 5.6 5% 1/4W F

R623 1-249-432-11 CARBON 18K 5% 1/4W R624 1-249-432-11 CARBON 18K 5% 1/4W

C171 1-163-038-91 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

R625 1-249-429-11 CARBON 10K 5% 1/4W

< VARIABLE RESISTOR >

RV301 1-238-598-11 RES, ADJ, CARBON 2.2K RV311 1-238-598-11 RES, ADJ, CARBON 2.2K RV341 1-241-768-11 RES, ADJ, CARBON 220K RV401 1-238-598-11 RES, ADJ, CARBON 2.2K RV411 1-238-598-11 RES, ADJ, CARBON 2.2K

RV441 1-241-768-11 RES, ADJ, CARBON 220K

< TRANSFORMER >

T621 1-423-980-11 TRANSFORMER, BIAS OSCILLATION

**************************************************************

A-4724-640-A BD BOARD, COMPLETE

******************

< CAPACITOR >

C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C102 1-163-038-91 CERAMIC CHIP 0.1uF 25V C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C105 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C106 1-164-346-11 CERAMIC CHIP 1uF 16V

C107 1-164-346-11 CERAMIC CHIP 1uF 16V C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C109 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C110 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C112 1-163-038-91 CERAMIC CHIP 0.1uF 25V C113 1-163-038-91 CERAMIC CHIP 0.1uF 25V C115 1-126-607-11 ELECT CHIP 47uF 20% 4V C116 1-126-607-11 ELECT CHIP 47uF 20% 4V C117 1-126-209-11 ELECT CHIP 100uF 20% 4V

C118 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C119 1-163-110-00 CERAMIC CHIP 51PF 5% 50V C120 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C121 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C122 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C123 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C124 1-164-005-11 CERAMIC CHIP 0.47uF 25V C126 1-124-779-00 ELECT CHIP 10uF 20% 16V C130 1-163-038-91 CERAMIC CHIP 0.1uF 25V C140 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C141 1-163-038-91 CERAMIC CHIP 0.1uF 25V C151 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C153 1-163-038-91 CERAMIC CHIP 0.1uF 25V C154 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C156 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C157 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C159 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C161 1-163-038-91 CERAMIC CHIP 0.1uF 25V C162 1-128-065-11 ELECT CHIP 68uF 20% 10V C170 1-163-038-91 CERAMIC CHIP 0.1uF 25V

CN101 1-770-706-11 CONNECTOR, FFC/FPC 23P CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P

< IC >

IC101 8-752-397-42 IC CXD3008Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-085-51 IC CXA2568M-T6 IC104 8-759-398-25 IC TC7SH04F(TE85L)

< COIL >

L101 1-414-234-22 INDUCTOR CHIP 0uH L102 1-410-377-31 INDUCTOR CHIP 4.7uH

< TRANSISTOR >

Q101 8-729-010-08 TRANSISTOR MSB710-R

< RESISTOR >

R101 1-216-077-00 METAL CHIP 15K 5% 1/10W R102 1-216-097-91 RES,CHIP 100K 5% 1/10W R103 1-216-077-00 METAL CHIP 15K 5% 1/10W R104 1-216-085-00 METAL CHIP 33K 5% 1/10W R105 1-216-073-00 METAL CHIP 10K 5% 1/10W

R106 1-216-049-91 RES,CHIP 1K 5% 1/10W R107 1-216-073-00 METAL CHIP 10K 5% 1/10W R108 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R109 1-216-121-91 RES,CHIP 1M 5% 1/10W R110 1-216-295-91 SHORT 0

R112 1-216-049-91 RES,CHIP 1K 5% 1/10W R123 1-216-073-00 METAL CHIP 10K 5% 1/10W R124 1-216-097-91 RES,CHIP 100K 5% 1/10W R125 1-216-037-00 METAL CHIP 330 5% 1/10W R126 1-216-037-00 METAL CHIP 330 5% 1/10W

R127 1-216-037-00 METAL CHIP 330 5% 1/10W R131 1-216-037-00 METAL CHIP 330 5% 1/10W R135 1-216-295-91 SHORT 0 R136 1-216-295-91 SHORT 0 R137 1-216-295-91 SHORT 0

R138 1-216-295-91 SHORT 0 R143 1-216-103-00 METAL CHIP 180K 5% 1/10W R144 1-216-103-00 METAL CHIP 180K 5% 1/10W R145 1-216-121-91 RES,CHIP 1M 5% 1/10W R146 1-216-121-91 RES,CHIP 1M 5% 1/10W

R147 1-216-041-00 METAL CHIP 470 5% 1/10W R148 1-216-001-00 METAL CHIP 10 5% 1/10W R149 1-216-003-11 RES,CHIP 12 5% 1/10W R150 1-216-073-00 METAL CHIP 10K 5% 1/10W R154 1-216-025-91 RES,CHIP 100 5% 1/10W

R155 1-216-025-91 RES,CHIP 100 5% 1/10W R156 1-216-025-91 RES,CHIP 100 5% 1/10W R157 1-216-025-91 RES,CHIP 100 5% 1/10W R158 1-216-111-00 METAL CHIP 390K 5% 1/10W R159 1-216-089-91 RES,CHIP 47K 5% 1/10W

R161 1-216-308-00 METAL CHIP 4.7 5% 1/10W

– 99 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Page 70

BD LEAF SW

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R162 1-216-101-00 METAL CHIP 150K 5% 1/10W R171 1-216-025-91 RES,CHIP 100 5% 1/10W R172 1-216-025-91 RES,CHIP 100 5% 1/10W R173 1-216-025-91 RES,CHIP 100 5% 1/10W

R175 1-216-025-91 RES,CHIP 100 5% 1/10W R203 1-216-025-91 RES,CHIP 100 5% 1/10W R204 1-216-025-91 RES,CHIP 100 5% 1/10W R205 1-216-025-91 RES,CHIP 100 5% 1/10W R206 1-216-295-91 SHORT 0

S101 1-572-085-11 SWITCH, LEAF (LIMIT SW)

CD SW CONNECTOR

< TRANSISTOR >

Q701 8-729-900-80 TRANSISTOR DTC114ES

< RESISTOR >

R703 1-249-435-11 CARBON 33K 5% 1/4W R704 1-249-429-11 CARBON 10K 5% 1/4W R705 1-249-417-11 CARBON 1K 5% 1/4W F

**************************************************************

< SWITCH >

* A-2007-732-A LEAF SW BOARD, COMPLETE

************************

**************************************************************

* A-4417-663-A CD SW BOARD, COMPLETE

*********************

< DIODE >

D801 8-719-056-13 DIODE SML79423C-TP15 (DISC 3) D802 8-719-056-13 DIODE SML79423C-TP15 (DISC 2) D803 8-719-056-13 DIODE SML79423C-TP15 (DISC 1) D804 8-719-063-93 DIODE SLR325VC-N-T32 (1/u)

< RESISTOR >

R801 1-216-049-91 RES,CHIP 1K 5% 1/10W R802 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R803 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R804 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R805 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R806 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R807 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R808 1-216-022-00 METAL CHIP 75 5% 1/10W R809 1-216-029-00 METAL CHIP 150 5% 1/10W R810 1-216-022-00 METAL CHIP 75 5% 1/10W

R811 1-216-029-00 METAL CHIP 150 5% 1/10W R812 1-216-022-00 METAL CHIP 75 5% 1/10W R813 1-216-029-00 METAL CHIP 150 5% 1/10W R814 1-216-043-91 RES,CHIP 560 5% 1/10W

< SWITCH >

S801 1-762-875-21 SWITCH, KEYBOARD (1/u) S802 1-762-875-21 SWITCH, KEYBOARD (DEMO (STANDBY)) S803 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S804 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S805 1-762-875-21 SWITCH, KEYBOARD (DISC 3)

S806 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE) S807 1-762-875-21 SWITCH, KEYBOARD (§)

< CAPACITOR >

C1001 1-107-716-11 ELECT 33uF 20% 10V

< CONNECTOR >

CN1001 1-568-860-11 SOCKET, CONNECTOR 17P CN1001 1-784-459-11 CONNECTOR, FFC/FPC 17P

< DIODE >

D1001 8-719-911-19 DIODE 1SS119 D1002 8-719-911-19 DIODE 1SS119

< HOLDER >

* DM1001 1-784-581-11 HOLDER, CABLE (2.5MM PITCH) 4P

< IC >

IC1001 8-749-014-38 IC PHOTO INTERRUPTER SG-264 IC1002 8-749-014-38 IC PHOTO INTERRUPTER SG-264

< TRANSISTOR >

Q1001 8-729-029-56 TRANSISTOR DTA144ESA

< RESISTOR >

R907 1-247-879-11 CARBON 100K 5% 1/4W R1001 1-249-409-11 CARBON 220 5% 1/4W F R1002 1-249-409-11 CARBON 220 5% 1/4W F R1003 1-249-414-11 CARBON 560 5% 1/4W F R1004 1-247-834-11 CARBON 1.3K 5% 1/4W

R1005 1-247-818-11 CARBON 300 5% 1/4W R1006 1-247-864-11 CARBON 24K 5% 1/4W R1007 1-247-856-00 CARBON 11K 5% 1/4W R1008 1-249-417-11 CARBON 1K 5% 1/4W F

< VARIABLE RESISTOR >

**************************************************************

* 1-658-575-11 CONNECTOR BOARD

*****************

< CONNECTOR >

* CN701 1-568-946-11 PIN, CONNECTOR 8P

CN702 1-750-413-11 CONNECTOR, FFC/FPC 8P

– 100 –

RV1001 1-241-785-11 RES, ADJ, CARBON 10K RV1002 1-241-785-11 RES, ADJ, CARBON 10K

< SWITCH >

S1001 1-570-953-11 SWITCH, PUSH (1 KEY)(A PLAY) S1002 1-570-953-11 SWITCH, PUSH (1 KEY)(B PLAY) S1003 1-771-333-11 SWITCH, LEAF (A HALF) S1004 1-771-205-11 SWITCH, LEAF (A 120/70) S1005 1-771-205-11 SWITCH, LEAF (REC A)

Page 71

LEAF SW

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

S1006 1-771-333-11 SWITCH, LEAF (B HALF) S1008 1-771-205-11 SWITCH, LEAF (B 120/70) S1009 1-771-205-11 SWITCH, LEAF (REC B)

**************************************************************

A-4419-149-A MAIN BOARD, COMPLETE (EXCEPT EA,TH)

********************

A-4419-725-A MAIN BOARD, COMPLETE (EA)

********************

A-4426-131-A MAIN BOARD, COMPLETE (TH)

********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

C193 1-126-964-11 ELECT 10uF 20% 50V C197 1-162-306-11 CERAMIC 0.01uF 20% 16V C301 1-126-960-11 ELECT 1uF 20% 50V C302 1-130-479-00 MYLAR 0.0047uF 5% 50V

C303 1-136-165-00 FILM 0.1uF 5% 50V C304 1-136-165-00 FILM 0.1uF 5% 50V C305 1-126-964-11 ELECT 10uF 20% 50V C306 1-126-960-11 ELECT 1uF 20% 50V C307 1-126-959-11 ELECT 0.47uF 20% 50V

C308 1-126-964-11 ELECT 10uF 20% 50V C309 1-137-194-81 FILM 0.47uF 5% 50V C310 1-162-290-31 CERAMIC 470PF 10% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-959-11 ELECT 0.47uF 20% 50V

MAIN

< CAPACITOR >

C104 1-164-159-11 CERAMIC 0.1uF 50V C111 1-137-195-11 FILM 0.56uF 5% 50V C112 1-136-158-00 FILM 0.027uF 5% 50V C113 1-136-167-00 FILM 0.15uF 5% 50V C114 1-130-480-00 MYLAR 0.0056uF 5% 50V

C115 1-136-159-00 FILM 0.033uF 5% 50V C116 1-130-473-00 MYLAR 0.0015uF 5% 50V C117 1-136-153-00 FILM 0.01uF 5% 50V C118 1-162-288-31 CERAMIC 330PF 10% 50V C119 1-130-479-00 MYLAR 0.0047uF 5% 50V

C120 1-130-477-00 MYLAR 0.0033uF 5% 50V C121 1-126-964-11 ELECT 10uF 20% 50V C122 1-162-291-31 CERAMIC 560PF 10% 50V C123 1-136-169-00 FILM 0.22uF 5% 50V C124 1-136-169-00 FILM 0.22uF 5% 50V

C125 1-126-964-11 ELECT 10uF 20% 50V C131 1-104-664-11 ELECT 47uF 20% 16V C132 1-104-664-11 ELECT 47uF 20% 16V C135 1-126-964-11 ELECT 10uF 20% 50V C141 1-126-959-11 ELECT 0.47uF 20% 50V

C161 1-137-195-11 FILM 0.56uF 5% 50V C162 1-136-158-00 FILM 0.027uF 5% 50V C163 1-136-167-00 FILM 0.15uF 5% 50V C164 1-130-480-00 MYLAR 0.0056uF 5% 50V C165 1-136-159-00 FILM 0.033uF 5% 50V

C166 1-130-473-00 MYLAR 0.0015uF 5% 50V C167 1-136-153-00 FILM 0.01uF 5% 50V C168 1-162-288-31 CERAMIC 330PF 10% 50V C169 1-130-479-00 MYLAR 0.0047uF 5% 50V C170 1-130-477-00 MYLAR 0.0033uF 5% 50V

C171 1-126-964-11 ELECT 10uF 20% 50V C172 1-162-291-31 CERAMIC 560PF 10% 50V C173 1-136-169-00 FILM 0.22uF 5% 50V C174 1-136-169-00 FILM 0.22uF 5% 50V C175 1-126-964-11 ELECT 10uF 20% 50V

C176 1-136-495-11 FILM 0.068uF 5% 50V C177 1-136-153-00 FILM 0.01uF 5% 50V C181 1-161-494-00 CERAMIC 0.022uF 25V C182 1-161-494-00 CERAMIC 0.022uF 25V C183 1-126-964-11 ELECT 10uF 20% 50V

C184 1-126-964-11 ELECT 10uF 20% 50V

C313 1-162-294-31 CERAMIC 0.001uF 10% 50V C314 1-126-964-11 ELECT 10uF 20% 50V C315 1-126-963-11 ELECT 4.7uF 20% 50V C316 1-104-665-11 ELECT 100uF 20% 10V C317 1-104-665-11 ELECT 100uF 20% 10V

C320 1-162-290-31 CERAMIC 470PF 10% 50V C333 1-162-600-11 CERAMIC 0.0047uF 30% 16V C334 1-162-600-11 CERAMIC 0.0047uF 30% 16V C351 1-126-960-11 ELECT 1uF 20% 50V C352 1-130-479-00 MYLAR 0.0047uF 5% 50V

C353 1-136-165-00 FILM 0.1uF 5% 50V C354 1-136-165-00 FILM 0.1uF 5% 50V C355 1-126-964-11 ELECT 10uF 20% 50V C356 1-126-960-11 ELECT 1uF 20% 50V C357 1-126-959-11 ELECT 0.47uF 20% 50V

C358 1-126-964-11 ELECT 10uF 20% 50V C359 1-137-194-81 FILM 0.47uF 5% 50V C382 1-104-665-11 ELECT 100uF 20% 10V C390 1-104-656-11 ELECT 2200uF 20% 6.3V C391 1-161-494-00 CERAMIC 0.022uF 25V

C392 1-126-916-11 ELECT 1000uF 20% 6.3V C393 1-161-494-00 CERAMIC 0.022uF 25V C394 1-126-925-11 ELECT 470uF 20% 10V C396 1-126-961-11 ELECT 2.2uF 20% 50V C397 1-126-961-11 ELECT 2.2uF 20% 50V

C410 1-126-963-11 ELECT 4.7uF 20% 50V C411 1-162-306-11 CERAMIC 0.01uF 20% 16V C412 1-107-717-11 ELECT 47uF 20% 50V C432 1-104-665-11 ELECT 100uF 20% 10V C433 1-126-961-11 ELECT 2.2uF 20% 50V

C437 1-126-968-11 ELECT 100uF 20% 50V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-164-159-11 CERAMIC 0.1uF 50V C503 1-136-165-00 FILM 0.1uF 5% 50V C504 1-126-926-11 ELECT 1000uF 20% 10V

C508 1-109-889-11 ELECT 1uF 20% 50V C610 1-102-953-00 CERAMIC 18PF 5% 50V C611 1-102-514-11 CERAMIC 22PF 5% 50V C614 1-162-306-11 CERAMIC 0.01uF 20% 16V C616 1-104-665-11 ELECT 100uF 20% 10V

C662 1-162-306-11 CERAMIC 0.01uF 20% 16V C664 1-104-665-11 ELECT 100uF 20% 10V C698 1-162-306-11 CERAMIC 0.01uF 20% 16V

– 101 –

Page 72

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C699 1-104-665-11 ELECT 100uF 20% 10V C801 1-126-963-11 ELECT 4.7uF 20% 50V

C802 1-162-290-31 CERAMIC 470PF 10% 50V C803 1-162-282-31 CERAMIC 100PF 10% 50V C804 1-104-665-11 ELECT 100uF 20% 10V C807 1-136-495-11 FILM 0.068uF 5% 50V C808 1-136-495-11 FILM 0.068uF 5% 50V

CN391 1-750-745-11 CONNECTOR, FFC/FPC 13P

CN392 1-785-334-11 PIN, CONNECTOR (LIGHT ANGLE)8P CN393 1-785-335-11 PIN, CONNECTOR (LIGHT ANGLE)9P

* CN403 1-564-518-11 PLUG, CONNECTOR 3P * CN501 1-568-841-11 SOCKET, CONNECTOR 25P

< DIODE >

C809 1-128-560-11 ELECT 22uF 20% 100V C810 1-128-578-11 ELECT 1uF 20% 100V C811 1-162-306-11 CERAMIC 0.01uF 20% 16V C812 1-162-306-11 CERAMIC 0.01uF 20% 16V C841 1-127-811-11 ELECT 3300uF 20% 50V

C842 1-127-814-11 ELECT 3300uF 20% 80V C843 1-136-165-00 FILM 0.1uF 5% 50V C844 1-130-777-00 FILM 0.1uF 10% 100V C851 1-126-963-11 ELECT 4.7uF 20% 50V C852 1-162-290-31 CERAMIC 470PF 10% 50V

C853 1-162-282-31 CERAMIC 100PF 10% 50V C854 1-104-665-11 ELECT 100uF 20% 10V C857 1-136-495-11 FILM 0.068uF 5% 50V C858 1-136-495-11 FILM 0.068uF 5% 50V C859 1-128-560-11 ELECT 22uF 20% 100V

C881 1-126-967-11 ELECT 47uF 20% 50V C891 1-127-811-11 ELECT 3300uF 20% 50V C892 1-127-814-11 ELECT 3300uF 20% 80V C893 1-136-165-00 FILM 0.1uF 5% 50V C894 1-130-777-00 FILM 0.1uF 10% 100V

C901 1-136-165-00 FILM 0.1uF 5% 50V C902 1-126-939-11 ELECT 10000uF 20% 16V C903 1-126-933-11 ELECT 100uF 20% 16V C904 1-104-664-11 ELECT 47uF 20% 16V C905 1-104-665-11 ELECT 100uF 20% 10V

D141 8-719-911-19 DIODE 1SS119-25 D191 8-719-911-19 DIODE 1SS119-25 D331 8-719-911-19 DIODE 1SS119-25 D333 8-719-911-19 DIODE 1SS119-25 D334 8-719-911-19 DIODE 1SS119-25

D335 8-719-911-19 DIODE 1SS119-25 D401 8-719-911-19 DIODE 1SS119-25 D403 8-719-911-19 DIODE 1SS119-25 D405 8-719-024-99 DIODE 11ES2-NTA2B D406 8-719-024-99 DIODE 11ES2-NTA2B

D407 8-719-024-99 DIODE 11ES2-NTA2B D411 8-719-911-19 DIODE 1SS119-25 D501 8-719-024-99 DIODE 11ES2-NTA2B D502 8-719-911-19 DIODE 1SS119-25 D503 8-719-911-19 DIODE 1SS119-25

D504 8-719-911-19 DIODE 1SS119-25 D505 8-719-911-19 DIODE 1SS119-25 D506 8-719-911-19 DIODE 1SS119-25 D507 8-719-024-99 DIODE 11ES2-NTA2B D509 8-719-911-19 DIODE 1SS119-25

D607 8-719-911-19 DIODE 1SS119-25 D644 8-719-911-19 DIODE 1SS119-25 D801 8-719-911-19 DIODE 1SS119-25 D802 8-719-118-97 DIODE RD16F-T7B2 D803 8-719-911-19 DIODE 1SS119-25

C906 1-136-165-00 FILM 0.1uF 5% 50V C907 1-128-548-11 ELECT 4700uF 20% 25V C909 1-126-964-11 ELECT 10uF 20% 50V C910 1-104-665-11 ELECT 100uF 20% 10V C911 1-126-964-11 ELECT 10uF 20% 50V

C912 1-126-926-11 ELECT 1000uF 20% 10V C913 1-126-964-11 ELECT 10uF 20% 50V C914 1-126-767-11 ELECT 1000uF 20% 16V C915 1-104-664-11 ELECT 47uF 20% 16V C916 1-162-306-11 CERAMIC 0.01uF 20% 16V

C917 1-126-933-11 ELECT 100uF 20% 16V C921 1-104-656-11 ELECT 2200uF 20% 6.3V C922 1-126-964-11 ELECT 10uF 20% 50V C923 1-126-926-11 ELECT 1000uF 20% 10V C951 1-136-165-00 FILM 0.1uF 5% 50V

C952 1-126-768-11 ELECT 2200uF 20% 16V C953 1-126-933-11 ELECT 100uF 20% 16V C955 1-104-665-11 ELECT 100uF 20% 10V C956 1-136-165-00 FILM 0.1uF 5% 50V

< CONNECTOR >

CN303 1-784-776-11 CONNECTOR, FFC 15P CN304 1-784-778-11 CONNECTOR, FFC 17P

* CN371 1-568-832-11 SOCKET, CONNECTOR 13P (VX8:TH)

CN371 1-568-834-11 SOCKET, CONNECTOR 15P (EXCEPT VX8:TH)

D831 8-719-302-37 DIODE RBV-602 D832 8-719-060-53 DIODE RBV-2506 D851 8-719-911-19 DIODE 1SS119-25 D852 8-719-118-97 DIODE RD16F-T7B2 D881 8-719-911-19 DIODE 1SS119-25

D901 8-719-975-85 DIODE ERB83-004 D902 8-719-975-85 DIODE ERB83-004 D903 8-719-975-85 DIODE ERB83-004 D904 8-719-975-85 DIODE ERB83-004 D905 8-719-933-36 DIODE HZS6B1L

D906 8-719-911-19 DIODE 1SS119-25 D907 8-719-024-99 DIODE 11ES2-NTA2B D908 8-719-024-99 DIODE 11ES2-NTA2B D909 8-719-024-99 DIODE 11ES2-NTA2B D910 8-719-024-99 DIODE 11ES2-NTA2B

D915 8-719-935-69 DIODE HZS11B1LTA D917 8-719-911-19 DIODE 1SS119-25 D918 8-719-024-99 DIODE 11ES2-NTA2B D919 8-719-911-19 DIODE 1SS119-25 D921 8-719-911-19 DIODE 1SS119-25

D922 8-719-911-19 DIODE 1SS119-25 D923 8-719-911-19 DIODE 1SS119-25 D924 8-719-024-99 DIODE 11ES2-NTA2B D925 8-719-024-99 DIODE 11ES2-NTA2B

– 102 –

Page 73

MAIN

Ref. No. Part No. Description Remark

< FERRITE BEAD >

FB391 1-412-493-21 INDUCTOR FB392 1-412-493-21 INDUCTOR

< IC >

IC101 8-759-571-54 IC M62493FP IC181 8-759-634-51 IC M5218AP IC301 8-759-495-26 IC HA12215 IC381 8-749-923-04 IC TOTX178 IC501 8-759-588-91 IC M30622MA-A09FP

IC502 8-759-635-63 IC M51943BSL IC801 8-749-015-37 IC STK411-240E IC901 8-759-604-86 IC M5F7807L IC902 8-759-231-53 IC TA7805S IC903 8-759-088-08 IC UPC7812AHF

IC904 8-759-231-53 IC TA7805S

< JACK >

J101 1-774-411-11 JACK, PIN 6P (VIDEO AUDIO IN, MD IN/OUT) J191 1-774-785-11 JACK, PIN 1P (SUPER WOOFER)

< COIL >

L381 1-410-521-11 INDUCTOR 100uH L392 1-410-521-11 INDUCTOR 100uH L501 1-410-509-11 INDUCTOR 10uH

Ref. No. Part No. Description Remark

Q432 8-729-140-82 TRANSISTOR 2SA988-PAFAEA

Q433 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q434 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q435 8-729-900-36 TRANSISTOR DTC124ES Q436 8-729-119-77 TRANSISTOR 2SA1175-FEK Q437 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q439 8-729-119-79 TRANSISTOR 2SC2785-FEK Q471 8-729-141-30 TRANSISTOR 2SC3623A-LK Q501 8-729-119-78 TRANSISTOR 2SC403SP-51 Q508 8-729-900-63 TRANSISTOR DTA124ES Q509 8-729-900-63 TRANSISTOR DTA124ES

Q801 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q803 8-729-140-82 TRANSISTOR 2SA988-PAFAEA Q804 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q831 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q832 8-729-119-79 TRANSISTOR 2SC2785-FEK

Q851 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q881 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q901 8-729-209-15 TRANSISTOR 2SD2012 Q902 8-729-119-78 TRANSISTOR 2SC403SP-51 Q903 8-729-900-36 TRANSISTOR DTC124ES

Q904 8-729-900-36 TRANSISTOR DTC124ES Q905 8-729-040-20 TRANSISTOR RT1P137L-TP Q907 8-729-141-83 TRANSISTOR 2SB1094-LK Q908 8-729-900-36 TRANSISTOR DTC124ES Q909 8-729-026-68 TRANSISTOR 2SD2525(TP)

< TRANSISTOR >

Q111 8-729-119-78 TRANSISTOR 2SC403SP-51 Q112 8-729-119-78 TRANSISTOR 2SC403SP-51 Q113 8-729-141-30 TRANSISTOR 2SC3623A-LK Q161 8-729-119-78 TRANSISTOR 2SC403SP-51 Q162 8-729-119-78 TRANSISTOR 2SC403SP-51

Q163 8-729-141-30 TRANSISTOR 2SC3623A-LK Q181 8-729-141-30 TRANSISTOR 2SC3623A-LK Q191 8-729-141-30 TRANSISTOR 2SC3623A-LK Q192 8-729-900-63 TRANSISTOR DTA124ES Q201 8-729-900-36 TRANSISTOR DTC124ES

Q251 8-729-900-36 TRANSISTOR DTC124ES Q331 8-729-118-00 TRANSISTOR 2SB1116-L Q332 8-729-900-80 TRANSISTOR DTC114ES Q333 8-729-118-00 TRANSISTOR 2SB1116-L Q334 8-729-900-80 TRANSISTOR DTC114ES

Q335 8-729-900-80 TRANSISTOR DTC114ES Q336 8-729-116-59 TRANSISTOR 2SB1068TP Q337 8-729-045-21 TRANSISTOR 2SD1513TP-LK Q338 8-729-422-57 TRANSISTOR UN4111 Q339 8-729-900-80 TRANSISTOR DTC114ES

Q340 8-729-116-59 TRANSISTOR 2SB1068TP Q341 8-729-045-21 TRANSISTOR 2SD1513TP-LK Q342 8-729-422-57 TRANSISTOR UN4111 Q343 8-729-900-80 TRANSISTOR DTC114ES Q401 8-729-119-77 TRANSISTOR 2SA1175-FEK

Q402 8-729-111-29 TRANSISTOR 2SD1616A-K Q411 8-729-141-30 TRANSISTOR 2SC3623A-LK Q412 8-729-900-63 TRANSISTOR DTA124ES Q431 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA

Q911 8-729-141-83 TRANSISTOR 2SB1094-LK Q912 8-729-900-36 TRANSISTOR DTC124ES Q913 8-729-119-78 TRANSISTOR 2SC403SP-51 Q914 8-729-119-77 TRANSISTOR 2SA1175-FEK Q923 8-729-900-36 TRANSISTOR DTC124ES

Q951 8-729-141-83 TRANSISTOR 2SB1094-LK Q952 8-729-119-77 TRANSISTOR 2SA1175-FEK

< RESISTOR >

R101 1-249-417-11 CARBON 1K 5% 1/4W F R102 1-249-417-11 CARBON 1K 5% 1/4W F R103 1-249-417-11 CARBON 1K 5% 1/4W F R111 1-249-429-11 CARBON 10K 5% 1/4W R112 1-247-895-00 CARBON 470K 5% 1/4W

R113 1-247-894-11 CARBON 430K 5% 1/4W R114 1-249-415-11 CARBON 680 5% 1/4W F R115 1-249-433-11 CARBON 22K 5% 1/4W R116 1-247-887-00 CARBON 220K 5% 1/4W R117 1-249-429-11 CARBON 10K 5% 1/4W

R118 1-249-437-11 CARBON 47K 5% 1/4W R119 1-249-421-11 CARBON 2.2K 5% 1/4W F R120 1-249-441-11 CARBON 100K 5% 1/4W R121 1-249-429-11 CARBON 10K 5% 1/4W R124 1-249-433-11 CARBON 22K 5% 1/4W F

R125 1-247-843-11 CARBON 3.3K 5% 1/4W R126 1-249-421-11 CARBON 2.2K 5% 1/4W F R130 1-249-433-11 CARBON 22K 5% 1/4W R131 1-247-807-31 CARBON 100 5% 1/4W R132 1-247-807-31 CARBON 100 5% 1/4W

R133 1-247-807-31 CARBON 100 5% 1/4W

– 103 –

Page 74

MAIN

Ref. No. Part No. Description Remark

R141 1-249-433-11 CARBON 22K 5% 1/4W R142 1-249-433-11 CARBON 22K 5% 1/4W R143 1-249-417-11 CARBON 1K 5% 1/4W F R144 1-249-441-11 CARBON 100K 5% 1/4W

R145 1-247-903-00 CARBON 1M 5% 1/4W R151 1-249-417-11 CARBON 1K 5% 1/4W F R152 1-249-417-11 CARBON 1K 5% 1/4W F R153 1-249-417-11 CARBON 1K 5% 1/4W F R161 1-249-429-11 CARBON 10K 5% 1/4W

R162 1-247-895-00 CARBON 470K 5% 1/4W R163 1-247-894-11 CARBON 430K 5% 1/4W R164 1-249-415-11 CARBON 680 5% 1/4W F R165 1-249-433-11 CARBON 22K 5% 1/4W R166 1-247-887-00 CARBON 220K 5% 1/4W

R167 1-249-429-11 CARBON 10K 5% 1/4W R168 1-249-437-11 CARBON 47K 5% 1/4W R169 1-249-421-11 CARBON 2.2K 5% 1/4W F R170 1-249-441-11 CARBON 100K 5% 1/4W R171 1-249-429-11 CARBON 10K 5% 1/4W

R178 1-249-421-11 CARBON 2.2K 5% 1/4W F R181 1-249-429-11 CARBON 10K 5% 1/4W R182 1-249-417-11 CARBON 1K 5% 1/4W F R183 1-249-425-11 CARBON 4.7K 5% 1/4W F R184 1-249-429-11 CARBON 10K 5% 1/4W

R185 1-249-441-11 CARBON 100K 5% 1/4W R186 1-249-429-11 CARBON 10K 5% 1/4W R187 1-249-429-11 CARBON 10K 5% 1/4W R188 1-249-429-11 CARBON 10K 5% 1/4W R190 1-249-441-11 CARBON 100K 5% 1/4W

R196 1-249-417-11 CARBON 1K 5% 1/4W F R197 1-249-441-11 CARBON 100K 5% 1/4W R198 1-249-417-11 CARBON 1K 5% 1/4W F R199 1-249-429-11 CARBON 10K 5% 1/4W R201 1-247-888-11 CARBON 240K 5% 1/4W

R202 1-247-903-00 CARBON 1M 5% 1/4W R211 1-249-441-11 CARBON 100K 5% 1/4W R212 1-249-441-11 CARBON 100K 5% 1/4W R251 1-247-888-11 CARBON 240K 5% 1/4W R252 1-247-903-00 CARBON 1M 5% 1/4W

R261 1-249-441-11 CARBON 100K 5% 1/4W R262 1-249-441-11 CARBON 100K 5% 1/4W R301 1-249-435-11 CARBON 33K 5% 1/4W R302 1-249-421-11 CARBON 2.2K 5% 1/4W F R303 1-247-807-31 CARBON 100 5% 1/4W

R304 1-247-807-31 CARBON 100 5% 1/4W R305 1-249-421-11 CARBON 2.2K 5% 1/4W F R306 1-249-428-11 CARBON 8.2K 5% 1/4W F R307 1-249-428-11 CARBON 8.2K 5% 1/4W F R308 1-249-425-11 CARBON 4.7K 5% 1/4W F

R309 1-249-433-11 CARBON 22K 5% 1/4W R311 1-247-903-00 CARBON 1M 5% 1/4W R312 1-247-884-11 CARBON 160K 5% 1/4W R313 1-249-441-11 CARBON 100K 5% 1/4W R315 1-249-429-11 CARBON 10K 5% 1/4W

R316 1-249-432-11 CARBON 18K 5% 1/4W R317 1-249-429-11 CARBON 10K 5% 1/4W R318 1-249-429-11 CARBON 10K 5% 1/4W

Ref. No. Part No. Description Remark

R319 1-247-893-11 CARBON 390K 5% 1/4W R321 1-249-422-11 CARBON 2.7K 5% 1/4W F

R322 1-249-428-11 CARBON 8.2K 5% 1/4W F R324 1-247-876-11 CARBON 75K 5% 1/4W R325 1-247-876-11 CARBON 75K 5% 1/4W R326 1-249-437-11 CARBON 47K 5% 1/4W R327 1-249-437-11 CARBON 47K 5% 1/4W

R328 1-249-437-11 CARBON 47K 5% 1/4W R329 1-249-417-11 CARBON 1K 5% 1/4W F R330 1-249-425-11 CARBON 4.7K 5% 1/4W F R331 1-249-425-11 CARBON 4.7K 5% 1/4W F R332 1-249-415-11 CARBON 680 5% 1/4W F

R333 1-249-421-11 CARBON 2.2K 5% 1/4W F R334 1-249-415-11 CARBON 680 5% 1/4W F R335 1-249-421-11 CARBON 2.2K 5% 1/4W F R336 1-249-437-11 CARBON 47K 5% 1/4W R337 1-249-417-11 CARBON 1K 5% 1/4W F

R338 1-249-411-11 CARBON 330 5% 1/4W R339 1-249-437-11 CARBON 47K 5% 1/4W R340 1-249-437-11 CARBON 47K 5% 1/4W R341 1-249-411-11 CARBON 330 5% 1/4W R342 1-249-437-11 CARBON 47K 5% 1/4W

R343 1-249-417-11 CARBON 1K 5% 1/4W F R351 1-249-435-11 CARBON 33K 5% 1/4W R352 1-249-421-11 CARBON 2.2K 5% 1/4W F R353 1-247-807-31 CARBON 100 5% 1/4W R354 1-247-807-31 CARBON 100 5% 1/4W

R355 1-249-421-11 CARBON 2.2K 5% 1/4W F R356 1-249-428-11 CARBON 8.2K 5% 1/4W F R357 1-249-428-11 CARBON 8.2K 5% 1/4W F R358 1-249-425-11 CARBON 4.7K 5% 1/4W F R359 1-249-435-11 CARBON 33K 5% 1/4W

R391 1-249-422-11 CARBON 2.7K 5% 1/4W R392 1-249-422-11 CARBON 2.7K 5% 1/4W R393 1-249-426-11 CARBON 5.6K 5% 1/4W R394 1-249-426-11 CARBON 5.6K 5% 1/4W R395 1-247-867-11 CARBON 33K 5% 1/4W

R406 1-249-437-11 CARBON 47K 5% 1/4W R407 1-249-437-11 CARBON 47K 5% 1/4W R408 1-249-425-11 CARBON 4.7K 5% 1/4W F R409 1-249-441-11 CARBON 100K 5% 1/4W R410 1-249-421-11 CARBON 2.2K 5% 1/4W F

! R411 1-216-482-11 METAL OXIDE 1.8K 5% 3W F

R413 1-249-402-11 CARBON 56 5% 1/4W F R414 1-249-417-11 CARBON 1K 5% 1/4W F R415 1-249-429-11 CARBON 10K 5% 1/4W R416 1-249-437-11 CARBON 47K 5% 1/4W

R417 1-249-417-11 CARBON 1K 5% 1/4W F R421 1-260-090-11 CARBON 180 5% 1/2W R422 1-260-090-11 CARBON 180 5% 1/2W R431 1-249-438-11 CARBON 56K 5% 1/4W R432 1-249-437-11 CARBON 47K 5% 1/4W

R434 1-249-433-11 CARBON 22K 5% 1/4W R435 1-249-435-11 CARBON 33K 5% 1/4W R437 1-249-429-11 CARBON 10K 5% 1/4W R438 1-249-429-11 CARBON 10K 5% 1/4W R439 1-249-425-11 CARBON 4.7K 5% 1/4W F

– 104 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Page 75

MAIN

Ref. No. Part No. Description Remark

R440 1-249-429-11 CARBON 10K 5% 1/4W R441 1-249-435-11 CARBON 33K 5% 1/4W R443 1-249-417-11 CARBON 1K 5% 1/4W F R471 1-260-090-11 CARBON 180 5% 1/2W R472 1-260-090-11 CARBON 180 5% 1/2W

R473 1-249-402-11 CARBON 56 5% 1/4W F R474 1-249-417-11 CARBON 1K 5% 1/4W F R481 1-260-090-11 CARBON 180 5% 1/2W R482 1-260-090-11 CARBON 180 5% 1/2W R483 1-260-090-11 CARBON 180 5% 1/2W

R484 1-260-090-11 CARBON 180 5% 1/2W R501 1-249-413-11 CARBON 470 5% 1/4W F R502 1-249-425-11 CARBON 4.7K 5% 1/4W F R503 1-249-437-11 CARBON 47K 5% 1/4W R504 1-249-437-11 CARBON 47K 5% 1/4W

R505 1-249-429-11 CARBON 10K 5% 1/4W R508 1-249-417-11 CARBON 1K 5% 1/4W F R509 1-249-441-11 CARBON 100K 5% 1/4W R521 1-249-425-11 CARBON 4.7K 5% 1/4W F R522 1-249-417-11 CARBON 1K 5% 1/4W F

R523 1-249-425-11 CARBON 4.7K 5% 1/4W F R524 1-249-407-11 CARBON 150 5% 1/4W F

(E,MY,SP,HK,TW,IA)

R524 1-249-425-11 CARBON 4.7K 5% 1/4W F

(EA) R527 1-249-429-11 CARBON 10K 5% 1/4W R536 1-249-429-11 CARBON 10K 5% 1/4W

R550 1-247-843-11 CARBON 3.3K 5% 1/4W R551 1-249-429-11 CARBON 10K 5% 1/4W R567 1-247-807-31 CARBON 100 5% 1/4W R568 1-249-429-11 CARBON 10K 5% 1/4W R569 1-249-429-11 CARBON 10K 5% 1/4W

R570 1-249-429-11 CARBON 10K 5% 1/4W R571 1-249-429-11 CARBON 10K 5% 1/4W R577 1-249-429-11 CARBON 10K 5% 1/4W R610 1-247-891-00 CARBON 330K 5% 1/4W R617 1-249-429-11 CARBON 10K 5% 1/4W

R618 1-247-807-31 CARBON 100 5% 1/4W R622 1-249-425-11 CARBON 4.7K 5% 1/4W F R626 1-247-807-31 CARBON 100 5% 1/4W R627 1-247-807-31 CARBON 100 5% 1/4W R629 1-247-807-31 CARBON 100 5% 1/4W

R630 1-247-807-31 CARBON 100 5% 1/4W R636 1-247-807-31 CARBON 100 5% 1/4W R639 1-247-807-31 CARBON 100 5% 1/4W R640 1-247-807-31 CARBON 100 5% 1/4W R642 1-247-807-31 CARBON 100 5% 1/4W

R643 1-247-807-31 CARBON 100 5% 1/4W R649 1-247-807-31 CARBON 100 5% 1/4W R650 1-247-807-31 CARBON 100 5% 1/4W R651 1-247-807-31 CARBON 100 5% 1/4W R652 1-247-807-31 CARBON 100 5% 1/4W

R653 1-247-807-31 CARBON 100 5% 1/4W R654 1-247-807-31 CARBON 100 5% 1/4W R655 1-247-807-31 CARBON 100 5% 1/4W R659 1-247-807-31 CARBON 100 5% 1/4W R660 1-247-807-31 CARBON 100 5% 1/4W

Ref. No. Part No. Description Remark

R661 1-247-807-31 CARBON 100 5% 1/4W R663 1-247-807-31 CARBON 100 5% 1/4W R665 1-247-807-31 CARBON 100 5% 1/4W R666 1-247-807-31 CARBON 100 5% 1/4W R667 1-247-807-31 CARBON 100 5% 1/4W

R668 1-247-807-31 CARBON 100 5% 1/4W R669 1-247-807-31 CARBON 100 5% 1/4W R670 1-247-807-31 CARBON 100 5% 1/4W R671 1-247-807-31 CARBON 100 5% 1/4W R686 1-247-807-31 CARBON 100 5% 1/4W

R687 1-247-807-31 CARBON 100 5% 1/4W R688 1-247-807-31 CARBON 100 5% 1/4W R689 1-247-807-31 CARBON 100 5% 1/4W R690 1-247-807-31 CARBON 100 5% 1/4W R691 1-247-807-31 CARBON 100 5% 1/4W

R801 1-249-417-11 CARBON 1K 5% 1/4W F R802 1-249-438-11 CARBON 56K 5% 1/4W R803 1-247-822-11 CARBON 430 5% 1/4W R804 1-249-438-11 CARBON 56K 5% 1/4W R805 1-249-417-11 CARBON 1K 5% 1/4W F

R806 1-249-431-11 CARBON 15K 5% 1/4W R807 1-249-441-11 CARBON 100K 5% 1/4W

! R808 1-220-893-11 METAL 0.22 10% 5W

R809 1-260-076-11 CARBON 10 5% 1/2W

! R810 1-215-872-11 METAL OXIDE 3.3K 5% 1W F

! R811 1-212-881-11 FUSIBLE 100 5% 1/4W F ! R812 1-202-972-61 FUSIBLE 1 5% 1/4W F

R813 1-249-435-11 CARBON 33K 5% 1/4W R814 1-249-421-11 CARBON 2.2K 5% 1/4W F R815 1-249-433-11 CARBON 22K 5% 1/4W

R816 1-249-429-11 CARBON 10K 5% 1/4W R817 1-249-421-11 CARBON 2.2K 5% 1/4W F R818 1-249-435-11 CARBON 33K 5% 1/4W R819 1-249-439-11 CARBON 68K 5% 1/4W R831 1-249-441-11 CARBON 100K 5% 1/4W

R832 1-249-441-11 CARBON 100K 5% 1/4W R833 1-260-117-11 CARBON 33K 5% 1/2W R842 1-249-441-11 CARBON 100K 5% 1/4W R851 1-249-417-11 CARBON 1K 5% 1/4W F R852 1-249-438-11 CARBON 56K 5% 1/4W

R853 1-247-822-11 CARBON 430 5% 1/4W R854 1-249-438-11 CARBON 56K 5% 1/4W R855 1-249-417-11 CARBON 1K 5% 1/4W F R856 1-249-431-11 CARBON 15K 5% 1/4W R857 1-249-441-11 CARBON 100K 5% 1/4W

! R858 1-220-893-11 METAL 0.22 10% 5W

R859 1-260-076-11 CARBON 10 5% 1/2W

! R860 1-215-872-11 METAL OXIDE 3.3K 5% 1W F ! R861 1-212-881-11 FUSIBLE 100 5% 1/4W F

R881 1-249-435-11 CARBON 33K 5% 1/4W

R882 1-249-435-11 CARBON 33K 5% 1/4W R892 1-249-441-11 CARBON 100K 5% 1/4W R901 1-247-843-11 CARBON 3.3K 5% 1/4W R902 1-249-415-11 CARBON 680 5% 1/4W F R903 1-249-419-11 CARBON 1.5K 5% 1/4W F

R904 1-249-414-11 CARBON 560 5% 1/4W F R905 1-249-425-11 CARBON 4.7K 5% 1/4W F

– 105 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Page 76

MAIN

MOTOR (SLIDE) MOTOR (TURN)

PANEL

Ref. No. Part No. Description Remark

R906 1-247-843-11 CARBON 3.3K 5% 1/4W R907 1-249-415-11 CARBON 680 5% 1/4W F R908 1-249-429-11 CARBON 10K 5% 1/4W

R909 1-249-430-11 CARBON 12K 5% 1/4W R911 1-249-409-11 CARBON 220 5% 1/4W F R916 1-249-421-11 CARBON 2.2K 5% 1/4W F R917 1-260-087-81 CARBON 100 5% 1/2W F R918 1-249-421-11 CARBON 2.2K 5% 1/4W F

R919 1-249-409-11 CARBON 220 5% 1/4W F R920 1-249-383-11 CARBON 1.5 5% 1/6W F R921 1-249-383-11 CARBON 1.5 5% 1/6W F R931 1-249-429-11 CARBON 10K 5% 1/4W

< VARIABLE RESISTOR >

RV301 1-238-600-11 RES, ADJ, CARBON 10K RV351 1-238-600-11 RES, ADJ, CARBON 10K

< RELAY >

RY401 1-755-168-11 RELAY

< THERMISTOR >

TH831 1-807-796-11 THERMISTOR

Ref. No. Part No. Description Remark

< SWITCH >

S801 1-762-527-11 SWITCH, ROTARY (OPEN/CLOSE)

**************************************************************

* 1-658-577-11 MOTOR (TURN) BOARD

******************

< CAPACITOR >

C701 1-162-306-11 CERAMIC 0.01uF 20% 16V C702 1-126-964-11 ELECT 10uF 20% 50V C705 1-162-306-11 CERAMIC 0.01uF 20% 16V

< CONNECTOR >

CN703 1-750-413-11 CONNECTOR, FFC/FPC 8P CN704 1-506-469-11 PIN, CONNECTOR 4P

< DIODE >

D701 8-719-983-66 DIODE MTZJ-T-72-3.6B

< IC >

IC701 8-759-633-65 IC M54641L

< TERMINAL >

TM401 1-537-240-31 TERMINAL BOARD (CHECKER PIN)(SPEAKER) TM402 1-537-240-31 TERMINAL BOARD (CHECKER PIN)

(SURROUND SPEAKER)

< VIBRATOR >

X601 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X613 1-781-107-21 VIBRATOR, SERAMIC (16MHz)

**************************************************************

* 1-658-578-11 MOTOR (SLIDE) BOARD

*******************

< CAPACITOR >

C801 1-162-306-11 CERAMIC 0.01uF 20% 16V C804 1-162-306-11 CERAMIC 0.01uF 20% 16V C805 1-126-964-11 ELECT 10uF 20% 50V

< CONNECTOR >

* CN801 1-568-947-11 PIN, CONNECTOR 9P

< DIODE >

D801 8-719-921-48 DIODE MTZJ-T-72-5.6C (Malaysia PRODUCT) D801 8-719-109-89 DIODE RD5.6ESB2 (Indonesia PRODUCT) D804 8-719-911-19 DIODE 1SS119 D805 8-719-911-19 DIODE 1SS119

< RESISTOR >

R706 1-249-411-11 CARBON 330 5% 1/4W R707 1-249-401-11 CARBON 47 5% 1/4W F

**************************************************************

A-4419-146-A PANEL BOARD, COMPLETE

*********************

* 4-214-439-11 HOLDER, FL TUBE * 4-949-935-51 CUSHION (FL)

< CAPACITOR >

C601 1-124-589-11 ELECT 47uF 20% 16V C602 1-126-163-11 ELECT 4.7uF 20% 50V C603 1-163-031-11 CERAMIC CHIP 0.01uF 50V C604 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C605 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C606 1-168-038-91 CERAMIC CHIP 0.1uF 25V C608 1-165-319-11 CERAMIC CHIP 0.1uF 50V C610 1-124-589-11 ELECT 47uF 20% 16V C611 1-163-031-11 CERAMIC CHIP 0.01uF 50V C612 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C614 1-163-031-11 CERAMIC CHIP 0.01uF 50V C615 1-163-031-11 CERAMIC CHIP 0.01uF 50V C616 1-126-157-11 ELECT 10uF 20% 16V C617 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C618 1-126-157-11 ELECT 10uF 20% 16V

< IC >

IC801 8-759-274-09 IC BA6286N

< RESISTOR >

R801 1-249-401-11 CARBON 47 5% 1/4W F

– 106 –

C619 1-126-157-11 ELECT 10uF 20% 16V C620 1-126-163-11 ELECT 4.7uF 20% 50V C621 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C622 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C625 1-126-157-11 ELECT 10uF 20% 16V

Page 77

PANEL

Ref. No. Part No. Description Remark

C626 1-163-038-91 CERAMIC CHIP 0.1uF 25V C628 1-126-163-11 ELECT 4.7uF 20% 50V C629 1-124-589-11 ELECT 47uF 20% 16V C630 1-126-157-11 ELECT 10uF 20% 16V C631 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C632 1-124-589-11 ELECT 47uF 20% 16V C633 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C634 1-163-031-11 CERAMIC CHIP 0.01uF 50V C703 1-163-038-91 CERAMIC CHIP 0.1uF 25V C704 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C711 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C712 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C713 1-126-160-11 ELECT 1uF 20% 50V C714 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C715 1-124-465-00 ELECT 0.47uF 20% 50V

C716 1-124-465-00 ELECT 0.47uF 20% 50V C717 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C718 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C719 1-126-160-11 ELECT 1uF 20% 50V C720 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C721 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C722 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C723 1-124-589-11 ELECT 47uF 20% 16V C724 1-163-038-91 CERAMIC CHIP 0.1uF 25V C725 1-124-589-11 ELECT 47uF 20% 16V

Ref. No. Part No. Description Remark

D616 8-719-057-97 DIODE SEL5923A-TP15 (VIDEO CD) D617 8-719-057-97 DIODE SEL5923A-TP15 (PBC OFF)

D618 8-719-057-97 DIODE SEL5923A-TP15 (PBC) D619 8-719-056-13 DIODE SML79423C-TP15 (^) D620 8-719-073-47 DIODE SML72923C-TP15 (REC, PAUSE/START D621 8-719-056-13 DIODE SML79423C-TP15 (AUTO BPM) D622 8-719-057-97 DIODE SEL5923A-TP15 (+/))

D623 8-719-057-97 DIODE SEL5923A-TP15 (-/0) D624 8-719-063-93 DIODE SLR325VC-N-T32 (JOG) D625 8-719-063-93 DIODE SLR325VC-N-T32 (ENTER/ENXT) D626 8-719-057-97 DIODE SEL5923A-TP15 (GROOVE) D627 8-719-057-97 DIODE SEL5923A-TP15 (PAD A)

D628 8-719-057-97 DIODE SEL5923A-TP15 (PAD B) D629 8-719-057-97 DIODE SEL5923A-TP15 (BEAT ON/OFF) D630 8-719-057-97 DIODE SEL5923A-TP15 (JAM) D631 8-719-058-03 DIODE SEL5423E-TP15 (9 (B DECK)) D632 8-719-058-03 DIODE SEL5423E-TP15 (( (B DECK))

D633 8-719-058-03 DIODE SEL5423E-TP15 (9 (A DECK)) D634 8-719-058-03 DIODE SEL5423E-TP15 (( (A DECK)) D635 8-719-063-93 DIODE SLR325VC-N-T32 (TIMER SELECT) D701 8-719-976-99 DIODE DTZ5.1B

< GROUND PLATE >

EP601 1-537-770-21 TERMINAL BOARD, GROUND

C731 1-163-031-11 CERAMIC CHIP 0.01uF 50V C732 1-124-257-00 ELECT 2.2uF 20% 50V C733 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C734 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C735 1-126-157-11 ELECT 10uF 20% 16V

C736 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C737 1-124-463-00 ELECT 0.1uF 20% 50V C738 1-124-257-00 ELECT 2.2uF 20% 50V C739 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C740 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C741 1-126-157-11 ELECT 10uF 20% 16V C742 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C743 1-124-257-00 ELECT 2.2uF 20% 50V C744 1-163-031-11 CERAMIC CHIP 0.01uF 50V C745 1-124-257-00 ELECT 2.2uF 20% 50V

C747 1-163-038-91 CERAMIC CHIP 0.1uF 25V C782 1-163-031-11 CERAMIC CHIP 0.01uF 50V C783 1-163-031-11 CERAMIC CHIP 0.01uF 50V C851 1-163-038-91 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

* CN601 1-568-867-11 SOCKET, CONNECTOR 25P

< DIODE >

D601 8-719-058-24 DIODE RB501V-40TE-17 D608 8-719-074-27 DIODE SELUIE10CXM-LC (LEFT) D609 8-719-074-24 DIODE SELUD10CXM-LC (RIGHT) D611 8-719-071-41 DIODE SELS5923C-TP15 (SYNC EQ) D612 8-719-071-44 DIODE SELS5223C-TP15 (EFFECT)

D613 8-719-071-41 DIODE SELS5923C-TP15 (SYNC BASS L) D614 8-719-071-41 DIODE SELS5923C-TP15 (SYNC BASS H) D615 8-719-063-93 DIODE SLR325VC-N-T32 (NON STOP)

< FERRITE BEAD >

FB601 1-414-234-22 INDUCTOR CHIP 0UH FB602 1-414-234-22 INDUCTOR CHIP 0UH

< FLUORESCENT INDICATOR >

FL601 1-517-831-31 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 8-759-589-14 IC TMP88CS76F-6005 IC602 8-749-011-05 IC GP1U28X IC603 8-759-083-77 IC BA3830F IC604 8-759-342-19 IC NJU3716M-T2 IC605 8-759-577-80 IC MSM6654A-540GS-K

IC711 8-759-496-41 IC M65850FP-E1 IC712 8-759-636-55 IC M5218AFP

< JACK >

J701 1-785-569-11 JACK (SMALL TYPE)(PHONES) J711 1-785-569-11 JACK (SMALL TYPE)(MIC 1) J712 1-785-569-11 JACK (SMALL TYPE)(MIC 2)

< JUMPER RESISTOR >

JR501 1-216-296-91 SHORT 0 JR502 1-216-296-91 SHORT 0 JR503 1-216-295-91 SHORT 0 JR504 1-216-295-91 SHORT 0 JR505 1-216-295-91 SHORT 0

JR506 1-216-295-91 SHORT 0 JR507 1-216-295-91 SHORT 0 JR508 1-216-296-91 SHORT 0 JR509 1-216-296-91 SHORT 0

– 107 –

Page 78

PANEL

Ref. No. Part No. Description Remark

JR510 1-216-296-91 SHORT 0

JR511 1-216-296-91 SHORT 0 JR512 1-216-296-91 SHORT 0 JR513 1-216-296-91 SHORT 0 JR514 1-216-296-91 SHORT 0 JR515 1-216-296-91 SHORT 0

JR516 1-216-295-91 SHORT 0 JR517 1-216-296-91 SHORT 0 JR518 1-216-296-91 SHORT 0 JR519 1-216-295-91 SHORT 0

< COIL >

L601 1-412-029-11 INDUCTOR CHIP 10uH L602 1-412-032-11 INDUCTOR CHIP 100uH

< TRANSISTOR >

Q601 8-729-118-00 TRANSISTOR 2SB1116-L Q602 8-729-118-00 TRANSISTOR 2SB1116-L Q603 8-729-119-78 TRANSISTOR 2SC403SP-51 Q604 8-729-119-76 TRANSISTOR 2SA1175-HFE Q605 8-729-119-78 TRANSISTOR 2SC403SP-51

Q607 8-729-900-36 TRANSISTOR DTC124ES Q608 8-729-900-36 TRANSISTOR DTC124ES Q610 8-729-900-74 TRANSISTOR DTC143TS Q611 8-729-900-74 TRANSISTOR DTC143TS Q612 8-729-900-74 TRANSISTOR DTC143TS

Ref. No. Part No. Description Remark

R626 1-216-045-00 METAL CHIP 680 5% 1/10W

R627 1-216-049-91 RES,CHIP 1K 5% 1/10W R628 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R629 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R630 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R631 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R632 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R633 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R634 1-216-073-00 METAL CHIP 10K 5% 1/10W R635 1-216-077-00 METAL CHIP 15K 5% 1/10W R636 1-216-073-00 METAL CHIP 10K 5% 1/10W

R637 1-216-035-00 METAL CHIP 270 5% 1/10W R638 1-216-037-00 METAL CHIP 330 5% 1/10W R639 1-216-041-00 METAL CHIP 470 5% 1/10W R640 1-216-043-91 RES,CHIP 560 5% 1/10W R641 1-216-045-00 METAL CHIP 680 5% 1/10W

R642 1-216-049-91 RES,CHIP 1K 5% 1/10W R643 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R644 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R645 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R646 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R647 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R648 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R649 1-216-073-00 METAL CHIP 10K 5% 1/10W R650 1-216-035-00 METAL CHIP 270 5% 1/10W R651 1-216-037-00 METAL CHIP 330 5% 1/10W

Q613 8-729-900-74 TRANSISTOR DTC143TS Q614 8-729-900-74 TRANSISTOR DTC143TS Q615 8-729-900-74 TRANSISTOR DTC143TS Q616 8-729-900-74 TRANSISTOR DTC143TS Q620 8-729-119-76 TRANSISTOR 2SA1175-HFE

< RESISTOR >

R601 1-216-025-91 RES,CHIP 100 5% 1/10W R602 1-216-073-00 METAL CHIP 10K 5% 1/10W R603 1-216-025-91 RES,CHIP 100 5% 1/10W R604 1-216-025-91 RES,CHIP 100 5% 1/10W R605 1-216-073-00 METAL CHIP 10K 5% 1/10W

R606 1-216-017-91 RES,CHIP 47 5% 1/10W R607 1-216-111-00 METAL CHIP 390K 5% 1/10W R608 1-216-111-00 METAL CHIP 390K 5% 1/10W R609 1-216-097-91 RES,CHIP 100K 5% 1/10W R610 1-216-073-00 METAL CHIP 10K 5% 1/10W

R611 1-216-097-91 RES,CHIP 100K 5% 1/10W R612 1-216-017-91 RES,CHIP 47 5% 1/10W R613 1-216-085-00 METAL CHIP 33K 5% 1/10W R614 1-216-113-00 METAL CHIP 470K 5% 1/10W R616 1-216-121-91 RES,CHIP 1M 5% 1/10W

R617 1-216-097-91 RES,CHIP 100K 5% 1/10W R618 1-216-017-91 RES,CHIP 47 5% 1/10W R619 1-216-043-91 RES,CHIP 560 5% 1/10W R620 1-216-073-00 METAL CHIP 10K 5% 1/10W R621 1-216-073-00 METAL CHIP 10K 5% 1/10W

R622 1-216-035-00 METAL CHIP 270 5% 1/10W R623 1-216-037-00 METAL CHIP 330 5% 1/10W R624 1-216-041-00 METAL CHIP 470 5% 1/10W R625 1-216-043-91 RES,CHIP 560 5% 1/10W

R652 1-216-041-00 METAL CHIP 470 5% 1/10W R653 1-216-043-91 RES,CHIP 560 5% 1/10W R654 1-216-045-00 METAL CHIP 680 5% 1/10W R655 1-216-073-00 METAL CHIP 10K 5% 1/10W R656 1-216-035-00 METAL CHIP 270 5% 1/10W

R657 1-216-037-00 METAL CHIP 330 5% 1/10W R658 1-216-041-00 METAL CHIP 470 5% 1/10W R659 1-216-043-91 RES,CHIP 560 5% 1/10W R660 1-216-045-00 METAL CHIP 680 5% 1/10W R661 1-216-049-91 RES,CHIP 1K 5% 1/10W

R662 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R663 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R664 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R665 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R666 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R667 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R668 1-216-073-00 METAL CHIP 10K 5% 1/10W R669 1-216-077-00 METAL CHIP 15K 5% 1/10W R670 1-216-083-00 METAL CHIP 27K 5% 1/10W R671 1-216-091-00 METAL CHIP 56K 5% 1/10W

R672 1-216-049-91 RES,CHIP 1K 5% 1/10W R673 1-216-089-91 RES,CHIP 47K 5% 1/10W R674 1-216-049-91 RES,CHIP 1K 5% 1/10W R675 1-216-073-00 METAL CHIP 10K 5% 1/10W R676 1-216-089-91 RES,CHIP 47K 5% 1/10W

R677 1-216-089-91 RES,CHIP 47K 5% 1/10W R678 1-216-073-00 METAL CHIP 10K 5% 1/10W R680 1-216-073-00 METAL CHIP 10K 5% 1/10W R681 1-216-073-00 METAL CHIP 10K 5% 1/10W R682 1-216-073-00 METAL CHIP 10K 5% 1/10W

– 108 –

Page 79

PANEL

Ref. No. Part No. Description Remark

R683 1-216-073-00 METAL CHIP 10K 5% 1/10W R684 1-216-073-00 METAL CHIP 10K 5% 1/10W R685 1-216-073-00 METAL CHIP 10K 5% 1/10W R686 1-216-097-91 RES,CHIP 100K 5% 1/10W R687 1-216-097-91 RES,CHIP 100K 5% 1/10W

R688 1-216-073-00 METAL CHIP 10K 5% 1/10W R689 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R691 1-216-097-91 RES,CHIP 100K 5% 1/10W R692 1-216-097-91 RES,CHIP 100K 5% 1/10W R693 1-216-097-91 RES,CHIP 100K 5% 1/10W

R694 1-216-097-91 RES,CHIP 100K 5% 1/10W R695 1-216-097-91 RES,CHIP 100K 5% 1/10W R696 1-216-097-91 RES,CHIP 100K 5% 1/10W R697 1-216-097-91 RES,CHIP 100K 5% 1/10W R698 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R699 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R701 1-216-017-91 RES,CHIP 47 5% 1/10W R711 1-216-081-00 METAL CHIP 22K 5% 1/10W R712 1-216-081-00 METAL CHIP 22K 5% 1/10W R713 1-216-081-00 METAL CHIP 22K 5% 1/10W

R714 1-216-089-91 RES,CHIP 47K 5% 1/10W R715 1-216-081-00 METAL CHIP 22K 5% 1/10W R716 1-216-077-00 METAL CHIP 15K 5% 1/10W R717 1-216-081-00 METAL CHIP 22K 5% 1/10W R718 1-216-081-00 METAL CHIP 22K 5% 1/10W

R719 1-216-099-00 METAL CHIP 120K 5% 1/10W R721 1-216-073-00 METAL CHIP 10K 5% 1/10W R722 1-216-049-91 RES,CHIP 1K 5% 1/10W R723 1-216-097-91 RES,CHIP 100K 5% 1/10W R724 1-216-049-91 RES,CHIP 1K 5% 1/10W

R726 1-216-073-00 METAL CHIP 10K 5% 1/10W R727 1-216-077-00 METAL CHIP 15K 5% 1/10W R728 1-216-103-00 METAL CHIP 180K 5% 1/10W R729 1-216-025-91 RES,CHIP 100 5% 1/10W R731 1-216-049-91 RES,CHIP 1K 5% 1/10W

R732 1-216-073-00 METAL CHIP 10K 5% 1/10W R751 1-216-029-00 METAL CHIP 150 5% 1/10W R752 1-216-029-00 METAL CHIP 150 5% 1/10W R753 1-216-029-00 METAL CHIP 150 5% 1/10W R754 1-216-029-00 METAL CHIP 150 5% 1/10W

R755 1-216-029-00 METAL CHIP 150 5% 1/10W R756 1-216-029-00 METAL CHIP 150 5% 1/10W R757 1-216-029-00 METAL CHIP 150 5% 1/10W R758 1-216-022-00 METAL CHIP 75 5% 1/10W R759 1-216-022-00 METAL CHIP 75 5% 1/10W

R760 1-216-022-00 METAL CHIP 75 5% 1/10W R761 1-216-022-00 METAL CHIP 75 5% 1/10W R762 1-216-029-00 METAL CHIP 150 5% 1/10W R763 1-216-029-00 METAL CHIP 150 5% 1/10W R764 1-216-019-00 METAL CHIP 56 5% 1/10W

R765 1-216-019-00 METAL CHIP 56 5% 1/10W R766 1-216-029-00 METAL CHIP 150 5% 1/10W R767 1-216-022-00 METAL CHIP 75 5% 1/10W R768 1-216-029-00 METAL CHIP 150 5% 1/10W R769 1-216-029-00 METAL CHIP 150 5% 1/10W

R770 1-216-029-00 METAL CHIP 150 5% 1/10W R771 1-216-029-00 METAL CHIP 150 5% 1/10W

Ref. No. Part No. Description Remark

R772 1-216-029-00 METAL CHIP 150 5% 1/10W R773 1-216-022-00 METAL CHIP 75 5% 1/10W R775 1-216-029-00 METAL CHIP 150 5% 1/10W

R776 1-216-019-00 METAL CHIP 56 5% 1/10W R777 1-216-025-91 RES,CHIP 100 5% 1/10W R778 1-216-025-91 RES,CHIP 100 5% 1/10W R780 1-216-073-00 METAL CHIP 10K 5% 1/10W R781 1-216-029-00 METAL CHIP 150 5% 1/10W

R782 1-216-029-00 METAL CHIP 150 5% 1/10W R783 1-216-073-00 METAL CHIP 10K 5% 1/10W R784 1-216-081-00 METAL CHIP 22K 5% 1/10W R785 1-216-081-00 METAL CHIP 22K 5% 1/10W R786 1-216-049-91 RES,CHIP 1K 5% 1/10W

R787 1-216-095-00 METAL CHIP 82K 5% 1/10W R788 1-216-085-00 RES,CHIP 33K 5% 1/10W R789 1-216-091-00 METAL CHIP 56K 5% 1/10W R790 1-216-055-00 METAL CHIP 1.8K 5% 1/10W

< VARIABLE RESISTOR >

RV711 1-225-739-11 RES, VAR 50K (ECHO LEVEL) RV712 1-225-739-11 RES, VAR 50K (MIC-VOL)

< SWITCH >

S601 1-473-534-11 ENCODER, ROTARY (JOG/0 x )) S602 1-473-392-11 ENCODER, ROTARY (VOLUME) S611 1-762-875-21 SWITCH, KEYBOARD (SYNC BASE) S612 1-762-875-21 SWITCH, KEYBOARD (SYNC EQ) S613 1-762-875-21 SWITCH, KEYBOARD (KARAOKE PON/MIX)

S614 1-762-875-21 SWITCH, KEYBOARD (CD NON STOP) S615 1-762-875-21 SWITCH, KEYBOARD (SURROUND) S616 1-762-875-21 SWITCH, KEYBOARD (DBFB) S617 1-762-875-21 SWITCH, KEYBOARD (ENTER/NEXT) S618 1-762-875-21 SWITCH, KEYBOARD (-/0)

S619 1-762-875-21 SWITCH, KEYBOARD (+/)) S620 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S621 1-762-875-21 SWITCH, KEYBOARD (PAD B) S622 1-762-875-21 SWITCH, KEYBOARD (BEAT SPEED) S623 1-762-875-21 SWITCH, KEYBOARD (BEAT SEC)

S624 1-762-875-21 SWITCH, KEYBOARD (BEAT ON/OFF) S625 1-762-875-21 SWITCH, KEYBOARD (REC, PUASE/START) S626 1-762-875-21 SWITCH, KEYBOARD (HI DUB) S627 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S628 1-762-875-21 SWITCH, KEYBOARD (PAD A)

S629 1-762-875-21 SWITCH, KEYBOARD (BEAT MIX) S630 1-762-875-21 SWITCH, KEYBOARD (BEAT JAM) S631 1-762-875-21 SWITCH, KEYBOARD (BEAT LEVEL) S632 1-762-875-21 SWITCH, KEYBOARD (SELECT) S633 1-762-875-21 SWITCH, KEYBOARD (RETURN)

S634 1-762-875-21 SWITCH, KEYBOARD (PREY) S635 1-762-875-21 SWITCH, KEYBOARD (NEXT) S636 1-762-875-21 SWITCH, KEYBOARD (AUTO BPM) S637 1-762-875-21 SWITCH, KEYBOARD (CD FLASH) S638 1-762-875-21 SWITCH, KEYBOARD (P FILE MEMORY)

S639 1-762-875-21 SWITCH, KEYBOARD (GEQ CONTROL) S640 1-762-875-21 SWITCH, KEYBOARD (FILE SELECT) S641 1-762-875-21 SWITCH, KEYBOARD (EFFECT) S642 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)

– 109 –

Page 80

PANEL

SENSOR

SURROUND

TRANS

Ref. No. Part No. Description Remark

S643 1-762-875-21 SWITCH, KEYBOARD (^)

S644 1-762-875-21 SWITCH, KEYBOARD (p) S645 1-762-875-21 SWITCH, KEYBOARD (B:() S646 1-762-875-21 SWITCH, KEYBOARD (B:9) S647 1-762-875-21 SWITCH, KEYBOARD (A:() S648 1-762-875-21 SWITCH, KEYBOARD (A:9)

S649 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S650 1-762-875-21 SWITCH, KEYBOARD (CD LOOP) S651 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S652 1-762-875-21 SWITCH, KEYBOARD (CLOCK/TIME SET) S653 1-762-875-21 SWITCH, KEYBOARD (TIME SELECT)

S654 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM ANALYZER) S655 1-762-875-21 SWITCH, KEYBOARD (REPEAT STERO/MONO) S656 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE DOLBY ON) S657 1-762-875-21 SWITCH, KEYBOARD

(EDIT DIRECTION TUNER MEMORY)

< VIBRATOR >

X601 1-781-312-11 VIBRATOR, CERAMIC (12.5MHz) X602 1-767-353-11 VIBRATOR, CERAMIC (4.09MHz)

**************************************************************

* 1-658-576-11 SENSOR BOARD

************

< IC >

IC702 8-749-924-18 IC PHOTO INTERRUPTER RPI-1391 IC703 8-749-924-30 IC PHOTO REFLECTOR GP2S28

Ref. No. Part No. Description Remark

< CONNECTOR >

CN1201 1-564-788-11 PIN, CONNECTOR 8P

< IC >

IC1201 8-759-579-61 IC LV1150

< COIL >

L1201 1-410-509-11 INDUCTOR 10uH

< RESISTOR >

R1201 1-247-807-31 CARBON 100 5% 1/4W R1203 1-249-441-11 CARBON 100K 5% 1/4W R1204 1-249-441-11 CARBON 100K 5% 1/4W R1205 1-249-417-11 CARBON 1K 5% 1/4W F R1206 1-249-441-11 CARBON 100K 5% 1/4W

R1207 1-249-441-11 CARBON 100K 5% 1/4W

**************************************************************

* 1-672-474-11 TRANS BOARD

***********

< CAPACITOR >

C971 1-128-563-11 ELECT 100uF 20% 100V C972 1-126-960-11 ELECT 1uF 20% 50V C973 1-126-947-11 ELECT 47uF 20% 35V

< CONNECTOR >

**************************************************************

A-4419-159-A SURROUND BOARD, COMPLETE

************************

< CAPACITOR >

C1201 1-162-203-31 CERAMIC 15PF 5% 50V C1202 1-162-216-31 CERAMIC 51PF 5% 50V C1203 1-162-282-31 CERAMIC 100PF 10% 50V C1204 1-162-283-31 CERAMIC 120PF 10% 50V C1205 1-162-279-31 CERAMIC 75PF 10% 50V

C1206 1-136-165-00 FILM 0.1uF 5% 50V C1207 1-162-306-11 CERAMIC 0.01uF 20% 16V C1208 1-126-934-11 ELECT 220uF 20% 10V C1209 1-136-165-00 FILM 0.1uF 5% 50V C1210 1-126-964-11 ELECT 10uF 20% 50V

C1211 1-126-964-11 ELECT 10uF 20% 50V C1212 1-162-306-11 CERAMIC 0.01uF 20% 16V C1213 1-126-934-11 ELECT 220uF 20% 10V C1214 1-136-167-00 FILM 0.15uF 5% 50V C1215 1-162-303-11 CERAMIC 0.0033uF 30% 16V

C1216 1-136-167-00 FILM 0.15uF 5% 50V C1217 1-124-252-00 ELECT 0.33uF 20% 50V C1218 1-126-934-11 ELECT 220uF 20% 10V C1219 1-126-964-11 ELECT 10uF 20% 50V C1220 1-126-964-11 ELECT 10uF 20% 50V

C1221 1-162-216-31 CERAMIC 51PF 5% 50V

* CN901 1-564-527-11 PLUG, CONNECTOR 12P

CN902 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE)3P CN951 1-564-321-00 PIN, CONNECTOR 2P

< DIODE >

D971 8-719-024-99 DIODE 11ES2-NTA2B D972 8-719-056-97 DIODE UDZ-TE-17-27B D973 8-719-056-74 DIODE UDZ-TE-17-3.0B

< FUSE >

! F951 1-532-506-31 FUSE (T6.3AL/250V)(EXCEPT TH) ! F952 1-532-465-31 FUSE (T3.15AL/250V)(EXCEPT TH) ! F953 1-532-465-31 FUSE (T3.15AL/250V) ! F961 1-532-505-31 FUSE (T5AL/250V) ! F962 1-532-505-31 FUSE (T5AL/250V)

< FUSE HOLDER >

FH951 1-533-233-21 HOLDER, FUSE FH952 1-533-233-21 HOLDER, FUSE FH953 1-533-233-21 HOLDER, FUSE FH954 1-533-233-21 HOLDER, FUSE FH955 1-533-233-21 HOLDER, FUSE

FH956 1-533-233-21 HOLDER, FUSE FH961 1-533-233-21 HOLDER, FUSE FH962 1-533-233-21 HOLDER, FUSE FH963 1-533-233-21 HOLDER, FUSE FH964 1-533-233-21 HOLDER, FUSE

– 110 –

Page 81

VIDEOTRANS

Ref. No. Part No. Description Remark

< TRANSISTOR >

Q971 8-729-048-52 TRANSISTOR 2SA1932(TP)

< RESISTOR >

! R951 1-219-120-11 FUSIBLE 0.15 5% 1/4W F ! R952 1-219-120-11 FUSIBLE 0.15 5% 1/4W F ! R953 1-219-120-11 FUSIBLE 0.15 5% 1/4W F ! R971 1-216-455-11 METAL OXIDE 560 5% 2W F

R972 1-216-085-00 METAL CHIP 33K 5% 1/10W

R973 1-216-073-00 METAL CHIP 10K 5% 1/10W R974 1-216-025-91 RES,CHIP 100 5% 1/10W R975 1-216-025-91 RES,CHIP 100 5% 1/10W R976 1-216-085-00 METAL CHIP 33K 5% 1/10W R977 1-216-085-00 METAL CHIP 33K 5% 1/10W

< SWITCH >

! S951 1-771-291-11 SWITCH, POWER (VOLTAGE SELECTOR)

(EXCEPT VX8:TH)

< TRANSFORMER >

! T951 1-433-556-11 TRANSFORMER, POWER

**************************************************************

A-4724-727-A VIDEO BOARD, COMPLETE

*********************

Ref. No. Part No. Description Remark

C413 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C452 1-165-319-11 CERAMIC CHIP 0.1uF 50V C501 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C502 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C503 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C504 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C505 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C506 1-165-319-11 CERAMIC CHIP 0.1uF 50V C507 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C509 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C510 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C531 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C532 1-165-319-11 CERAMIC CHIP 0.1uF 50V C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V C536 1-126-193-11 ELECT 1uF 20% 50V C537 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C539 1-165-319-11 CERAMIC CHIP 0.1uF 50V C540 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C541 1-165-319-11 CERAMIC CHIP 0.1uF 50V C542 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C543 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C544 1-165-319-11 CERAMIC CHIP 0.1uF 50V C545 1-165-319-11 CERAMIC CHIP 0.1uF 50V C546 1-165-319-11 CERAMIC CHIP 0.1uF 50V C547 1-126-193-11 ELECT 1uF 20% 50V C548 1-165-319-11 CERAMIC CHIP 0.1uF 50V

< CAPACITOR >

C101 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C102 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C103 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C104 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C201 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C202 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C203 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C301 1-163-127-00 CERAMIC CHIP 270PF 5% 50V C302 1-163-127-00 CERAMIC CHIP 270PF 5% 50V C303 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C304 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C305 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C306 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C310 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C311 1-216-295-91 SHORT 0

C313 1-165-319-11 CERAMIC CHIP 0.1uF 50V C314 1-165-319-11 CERAMIC CHIP 0.1uF 50V C318 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C319 1-165-319-11 CERAMIC CHIP 0.1uF 50V C401 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C402 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C403 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C404 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C405 1-110-530-11 ELECT CHIP 1000uF 20% 6.3V C406 1-110-530-11 ELECT CHIP 1000uF 20% 6.3V

C409 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C410 1-165-319-11 CERAMIC CHIP 0.1uF 50V C411 1-165-319-11 CERAMIC CHIP 0.1uF 50V C412 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C549 1-165-319-11 CERAMIC CHIP 0.1uF 50V C550 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C551 1-165-319-11 CERAMIC CHIP 0.1uF 50V C552 1-165-319-11 CERAMIC CHIP 0.1uF 50V C553 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C555 1-124-779-00 ELECT CHIP 10uF 20% 16V C556 1-165-319-11 CERAMIC CHIP 0.1uF 50V C559 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C560 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C561 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C562 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C563 1-165-319-11 CERAMIC CHIP 0.1uF 50V C564 1-165-319-11 CERAMIC CHIP 0.1uF 50V C565 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C566 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C568 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C569 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C570 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C571 1-128-065-11 ELECT CHIP 68MF 20% 10V C573 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C574 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C576 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C577 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

< CONNECTOR >

CN501 1-770-706-11 CONNECTOR, FFC/FPC 23P CN503 1-779-416-11 CONNECTOR,FFC(LIF(NON-ZIF))13P

< TRIMMER >

CT503 1-141-539-11 CAP, ADJ 10PF

– 111 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Page 82

VIDEO

Ref. No. Part No. Description Remark

< DIODE >

D301 8-719-054-23 DIODE RB706D-40-T146 D501 8-719-422-12 DIODE MA8039 D502 8-719-018-51 DIODE CL-170R-CD

< IC >

IC101 8-759-701-39 IC NJM3404AM IC401 8-759-262-00 IC MC14576CF IC501 8-759-269-92 IC SN74HCU04ANS-E20 IC502 8-759-587-67 IC M30620MC-A05FP IC504 8-759-269-92 IC SN74HCU04ANS-E20

IC505 8-759-535-48 IC CL680T-D1 IC506 8-759-573-23 IC LC372100PM-J48-TLA IC507 8-759-342-01 IC MB814260-70PJER IC509 8-759-535-62 IC PCM1727E-2/T2

< JACK >

J301 1-537-943-11 TERMINAL, S (S VIDEO OUT) J302 1-774-227-11 JACK, PIN 1P (VIDEO OUT)

< JUMPER RESISTOR >

JW101 1-216-295-91 SHORT 0 JW201 1-216-295-91 SHORT 0 JW401 1-216-295-91 SHORT 0 JW402 1-216-295-91 SHORT 0 JW403 1-216-295-91 SHORT 0

JW404 1-216-295-91 SHORT 0 JW405 1-216-295-91 SHORT 0 JW413 1-216-295-91 SHORT 0 JW421 1-216-295-91 SHORT 0 JW422 1-216-295-91 SHORT 0

JW502 1-216-295-91 SHORT 0 JW503 1-216-295-91 SHORT 0 JW504 1-216-295-91 SHORT 0 JW505 1-216-295-91 SHORT 0

< COIL >

L301 1-410-372-21 INDUCTOR CHIP 1.8uH L302 1-410-372-21 INDUCTOR CHIP 1.8uH L501 1-216-296-91 SHORT 0 L502 1-216-296-91 SHORT 0 L503 1-216-296-91 SHORT 0

L504 1-410-375-11 INDUCTOR CHIP 3.3uH L505 1-216-296-91 SHORT 0 L506 1-216-296-91 SHORT 0 L507 1-216-296-91 SHORT 0 L508 1-216-296-91 SHORT 0

L509 1-216-296-91 SHORT 0 L510 1-216-296-91 SHORT 0

< TRANSISTOR >

Q301 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q302 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q303 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q304 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q306 8-729-027-44 TRANSISTOR DTC114TKA-T146

Ref. No. Part No. Description Remark

Q307 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q308 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q310 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q453 8-729-920-72 TRANSISTOR 2SA1037K-T-146-QR Q454 8-729-920-72 TRANSISTOR 2SA1037K-T-146-QR

Q502 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L Q531 8-729-140-75 TRANSISTOR 2SD999-CLCK

< RESISTOR >

R101 1-216-073-00 METAL CHIP 10K 5% 1/10W R102 1-208-441-61 RES,CHIP 1.5K 2% 1/10W R103 1-208-441-61 RES,CHIP 1.5K 2% 1/10W R105 1-216-295-91 SHORT 0 R201 1-216-073-00 METAL CHIP 10K 5% 1/10W

R202 1-208-441-61 RES,CHIP 1.5K 2% 1/10W R203 1-208-441-61 RES,CHIP 1.5K 2% 1/10W R205 1-216-295-91 SHORT 0 R301 1-216-624-11 METAL CHIP 75 0.5% 1/10W R302 1-216-624-11 METAL CHIP 75 0.5% 1/10W

R305 1-216-049-91 RES,CHIP 1K 5% 1/10W R306 1-216-073-00 METAL CHIP 10K 5% 1/10W R307 1-216-049-91 RES,CHIP 1K 5% 1/10W R308 1-216-049-91 RES,CHIP 1K 5% 1/10W R309 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R312 1-216-073-00 METAL CHIP 10K 5% 1/10W R313 1-216-049-91 RES,CHIP 1K 5% 1/10W R314 1-216-049-91 RES,CHIP 1K 5% 1/10W R315 1-216-047-91 RES,CHIP 820 5% 1/10W R316 1-216-657-11 METAL CHIP 1.8K 0.5% 1/10W

R317 1-216-683-11 METAL CHIP 22K 0.5% 1/10W R318 1-216-033-00 METAL CHIP 220 5% 1/10W R319 1-216-049-91 RES,CHIP 1K 5% 1/10W R320 1-216-651-11 METAL CHIP 1K 0.5% 1/10W R321 1-216-049-91 RES,CHIP 1K 5% 1/10W

R324 1-216-022-00 METAL CHIP 75 5% 1/10W R325 1-216-295-91 SHORT 0 R327 1-216-049-91 RES,CHIP 1K 5% 1/10W R328 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R329 1-216-649-11 METAL CHIP 820 0.5% 1/10W

R332 1-216-651-11 METAL CHIP 1K 0.5% 1/10W R333 1-216-046-00 METAL CHIP 750 5% 1/10W R335 1-216-073-00 METAL CHIP 10K 5% 1/10W R336 1-216-073-00 METAL CHIP 10K 5% 1/10W R340 1-216-022-00 METAL CHIP 75 5% 1/10W

R341 1-216-121-91 RES,CHIP 1M 5% 1/10W R342 1-216-022-00 METAL CHIP 75 5% 1/10W R403 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R404 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R405 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R406 1-216-081-00 METAL CHIP 22K 5% 1/10W R407 1-216-073-00 METAL CHIP 10K 5% 1/10W R408 1-216-073-00 METAL CHIP 10K 5% 1/10W R409 1-216-049-91 RES,CHIP 1K 5% 1/10W R410 1-216-049-91 RES,CHIP 1K 5% 1/10W

R411 1-216-073-00 METAL CHIP 10K 5% 1/10W R412 1-216-073-00 METAL CHIP 10K 5% 1/10W R414 1-216-081-00 METAL CHIP 22K 5% 1/10W

– 112 –

Page 83

VIDEO

Ref. No. Part No. Description Remark

R415 1-216-081-00 METAL CHIP 22K 5% 1/10W R423 1-216-073-00 METAL CHIP 10K 5% 1/10W

R424 1-216-073-00 METAL CHIP 10K 5% 1/10W R425 1-216-073-00 METAL CHIP 10K 5% 1/10W R426 1-216-073-00 METAL CHIP 10K 5% 1/10W R457 1-216-025-91 RES,CHIP 100 5% 1/10W R458 1-216-025-91 RES,CHIP 100 5% 1/10W

R459 1-216-025-91 RES,CHIP 100 5% 1/10W R461 1-216-025-91 RES,CHIP 100 5% 1/10W R462 1-216-025-91 RES,CHIP 100 5% 1/10W R463 1-216-025-91 RES,CHIP 100 5% 1/10W R464 1-216-025-91 RES,CHIP 100 5% 1/10W

R501 1-216-025-91 RES,CHIP 100 5% 1/10W R502 1-216-025-91 RES,CHIP 100 5% 1/10W R503 1-216-025-91 RES,CHIP 100 5% 1/10W R504 1-216-025-91 RES,CHIP 100 5% 1/10W R505 1-216-025-91 RES,CHIP 100 5% 1/10W

R506 1-216-025-91 RES,CHIP 100 5% 1/10W R507 1-216-073-00 METAL CHIP 10K 5% 1/10W R508 1-216-081-00 METAL CHIP 22K 5% 1/10W R509 1-216-081-00 METAL CHIP 22K 5% 1/10W R510 1-216-081-00 METAL CHIP 22K 5% 1/10W

R511 1-216-081-00 METAL CHIP 22K 5% 1/10W R512 1-216-081-00 METAL CHIP 22K 5% 1/10W R513 1-216-081-00 METAL CHIP 22K 5% 1/10W R514 1-216-081-00 METAL CHIP 22K 5% 1/10W R516 1-216-073-00 METAL CHIP 10K 5% 1/10W

Ref. No. Part No. Description Remark

R559 1-216-073-00 METAL CHIP 10K 5% 1/10W R560 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R561 1-216-049-91 RES,CHIP 1K 5% 1/10W R562 1-216-025-91 RES,CHIP 100 5% 1/10W R563 1-216-025-91 RES,CHIP 100 5% 1/10W

R564 1-216-025-91 RES,CHIP 100 5% 1/10W R565 1-216-025-91 RES,CHIP 100 5% 1/10W R566 1-216-025-91 RES,CHIP 100 5% 1/10W R567 1-216-073-00 METAL CHIP 10K 5% 1/10W R568 1-216-073-00 METAL CHIP 10K 5% 1/10W

R569 1-216-073-00 METAL CHIP 10K 5% 1/10W R572 1-216-073-00 METAL CHIP 10K 5% 1/10W R573 1-216-073-00 METAL CHIP 10K 5% 1/10W R574 1-216-073-00 METAL CHIP 10K 5% 1/10W R577 1-216-081-00 METAL CHIP 22K 5% 1/10W

R578 1-216-081-00 METAL CHIP 22K 5% 1/10W R579 1-216-073-00 METAL CHIP 10K 5% 1/10W R580 1-216-073-00 METAL CHIP 10K 5% 1/10W

< SWITCH >

S501 1-571-395-11 SWITCH, SLIDE (SYSTEM SELECTOR)

< VIBRATOR >

X501 1-767-510-11 VIBRATOR, CERAMIC (10MHz) X503 1-767-519-11 VIBRATOR, CRYSTAL (27MHz)

**************************************************************

R517 1-216-073-00 METAL CHIP 10K 5% 1/10W R518 1-216-073-00 METAL CHIP 10K 5% 1/10W R519 1-216-025-91 RES,CHIP 100 5% 1/10W R520 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R523 1-216-013-00 METAL CHIP 33 5% 1/10W

R530 1-216-081-00 METAL CHIP 22K 5% 1/10W R531 1-216-025-91 RES,CHIP 100 5% 1/10W R532 1-216-025-91 RES,CHIP 100 5% 1/10W R533 1-216-025-91 RES,CHIP 100 5% 1/10W R534 1-216-073-00 METAL CHIP 10K 5% 1/10W

R535 1-216-073-00 METAL CHIP 10K 5% 1/10W R536 1-216-033-00 METAL CHIP 220 5% 1/10W R537 1-216-025-91 RES,CHIP 100 5% 1/10W R538 1-216-073-00 METAL CHIP 10K 5% 1/10W R542 1-216-049-91 RES,CHIP 1K 5% 1/10W

R543 1-216-685-11 METAL CHIP 27K 0.5% 1/10W R544 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W R545 1-216-025-91 RES,CHIP 100 5% 1/10W R546 1-216-049-91 RES,CHIP 1K 5% 1/10W R547 1-216-295-91 SHORT 0

R548 1-216-049-91 RES,CHIP 1K 5% 1/10W R549 1-216-025-91 RES,CHIP 100 5% 1/10W R550 1-216-025-91 RES,CHIP 100 5% 1/10W R551 1-216-025-91 RES,CHIP 100 5% 1/10W R552 1-216-025-91 RES,CHIP 100 5% 1/10W

R554 1-216-025-91 RES,CHIP 100 5% 1/10W R555 1-216-121-91 RES,CHIP 1M 5% 1/10W R556 1-216-025-91 RES,CHIP 100 5% 1/10W R557 1-216-025-91 RES,CHIP 100 5% 1/10W R558 1-216-073-00 METAL CHIP 10K 5% 1/10W

MISCELLANEOUS

*************

5 1-233-545-11 TUNER UNIT (TH) 5 1-233-546-13 ENCAPSULATED COMPONENT (EXCEPT TH) 9 1-790-927-11 WIRE (FLAT TYPE) (13 CORE) 10 1-775-212-11 WIRE (FLAT TYPE) (23 CORE) 55 1-769-977-11 WIRE (FLAT TYPE)(13 CORE) (TH)

55 1-773-009-11 WIRE (FLAT TYPE)(15 CORE) (150mm)

(EXCEPT TH) 56 1-773-024-11 WIRE (FLAT TYPE)(15 CORE) (320mm) 58 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA) 58 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP,MY,TW) 58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)

! 59 1-575-651-11 CORD, POWER (EA,SP,HK,MY,TW) ! 59 1-575-653-11 CORD, POWER (E,IA,TH)

60 1-773-042-11 WIRE (FLAT TYPE)(17 CORE) 116 1-773-223-11 WIRE (FLAT TYPE)(25 CORE) 122 1-675-195-11 PUSH CATCH STOPPER (A)

124 1-675-196-11 PUSH CATCH STOPPER (B) 257 1-452-925-21 MAGNET ASSY 258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)

! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP

302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)

FL601 1-517-831-31 INDICATOR TUBE, FLUORESCENT HP101 A-2056-681-B DECK (A) ASSY, HEAD (230AWR2) HP101 A-2056-683-B DECK (A) ASSY, HEAD (230PWR2) HRPE101 A-2056-682-B DECK (B) ASSY, HEAD (230AWR2) HRPE101 A-2056-684-B DECK (B) ASSY, HEAD (230PWR2)

M1 A-2004-628-A MOTOR ASSY, CAPSTAN

– 113 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Page 84

HCD-VX8/VX8J

Ref. No. Part No. Description Remark

M101 X-4917-523-4 MOTOR ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) M701 A-4672-004-A MOTOR ASSY (TURN) M801 A-4672-004-A MOTOR ASSY (SLIDE)

M901 1-763-072-11 FAN, D.C. S811 1-473-335-11 ENCODER, ROTARY

! T951 1-433-556-11 TRANSFORMER, POWER

**************************************************************

*************

HARDWARE LIST

*************

#1 7-685-871-01 SCREW +BVTT 3X6 (S) #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #3 7-685-880-09 SCREW +BVTT 4X6 (S) #4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 #5 7-685-852-04 SCREW +BVTT 2X5 (S)

#7 7-682-553-04 SCREW +P 3X20 #8 7-685-851-04 SCREW +BVTT 2X4 (S) #9 7-628-254-15 SCREW +PS 2.6X6 #10 7-628-254-50 SCREW +PS 2.6X16 #11 7-685-861-01 SCREW +BVTT 2.6X5 (S)

#13 7-685-880-09 SCREW +BVTP 3X10 TYPE2 N-S

9-928-836-11

Sony Corporation

Home A&V Products Company

– 114 –

99E097024-1

Published by Quality Assurance Dept.

(Shinagawa)
