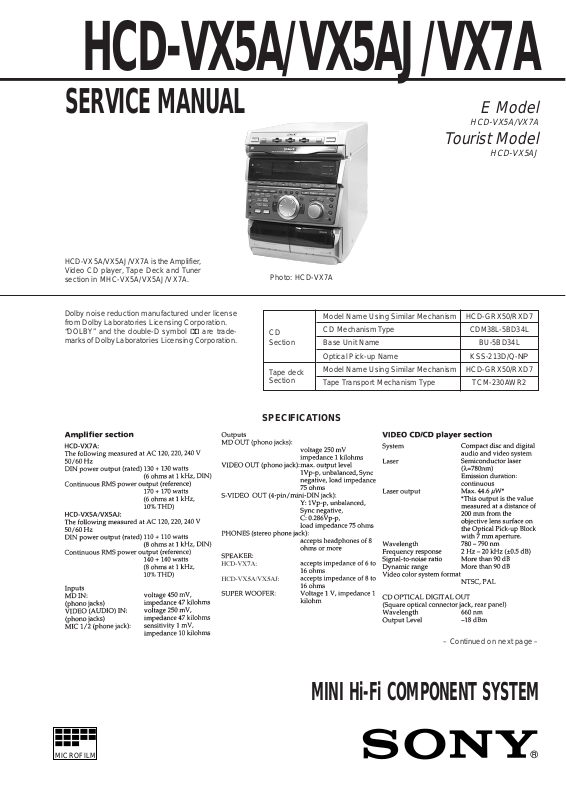

Sony HCD-VX5AJ Service Manual

HCD-VX5A/VX5AJ/VX7A

SERVICE MANUAL

HCD-VX5A/VX5AJ/VX7A is the Amplifier,
Video CD player, Tape Deck and Tuner
section in MHC-VX5A/VX5AJ/VX7A.

Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol a are trade­marks of Dolby Laboratories Licensing Corporation.

Photo: HCD-VX7A

CD
Section

Tape deck
Section

E Model

HCD-VX5A/VX7A

Tourist Model

HCD-VX5AJ

Model Name Using Similar Mechanism HCD-GRX50/RXD7
CD Mechanism Type CDM38L-5BD34L
Base Unit Name BU-5BD34L
Optical Pick-up Name
Model Name Using Similar Mechanism HCD-GRX50/RXD7
Tape Transport Mechanism Type TCM-230AWR2

KSS-213D/Q-NP

SPECIFICATIONS

– Continued on next page –

MICROFILM

MINI Hi-Fi COMPONENT SYSTEM

TABLE OF CONTENTS

1. SERVICING NOTES ............................................... 3

2. GENERAL .................................................................. 6

3. DISASSEMBLY ........................................................ 10

4. TEST MODE............................................................. 13

5. MECHANICAL ADJUSTMENTS ...................... 16

6. ELECTRICAL ADJUSTMENTS

DECK Section................................................................ 16

CD Section ..................................................................... 19

VIDEO Section .............................................................. 20

7. DIAGRAMS

7-1. Block Diagram – CD SERVO Section – ...................... 21

7-2. Block Diagram – AUDIO/VIDEO CD Section – ........ 23

7-3. Block Diagram – TAPE DECK Section –.................... 25

7-4. Block Diagram – MAIN Section –............................... 27

7-5. Block Diagram – DISPLAY/KEY CONTROL/

POWER SUPPLY Section – .......................................... 29

7-6. Note for Printed Wiring Boards and

Schematic Diagrams ...................................................... 31

7-7. Printed Wiring Board – BD Board– ............................. 33

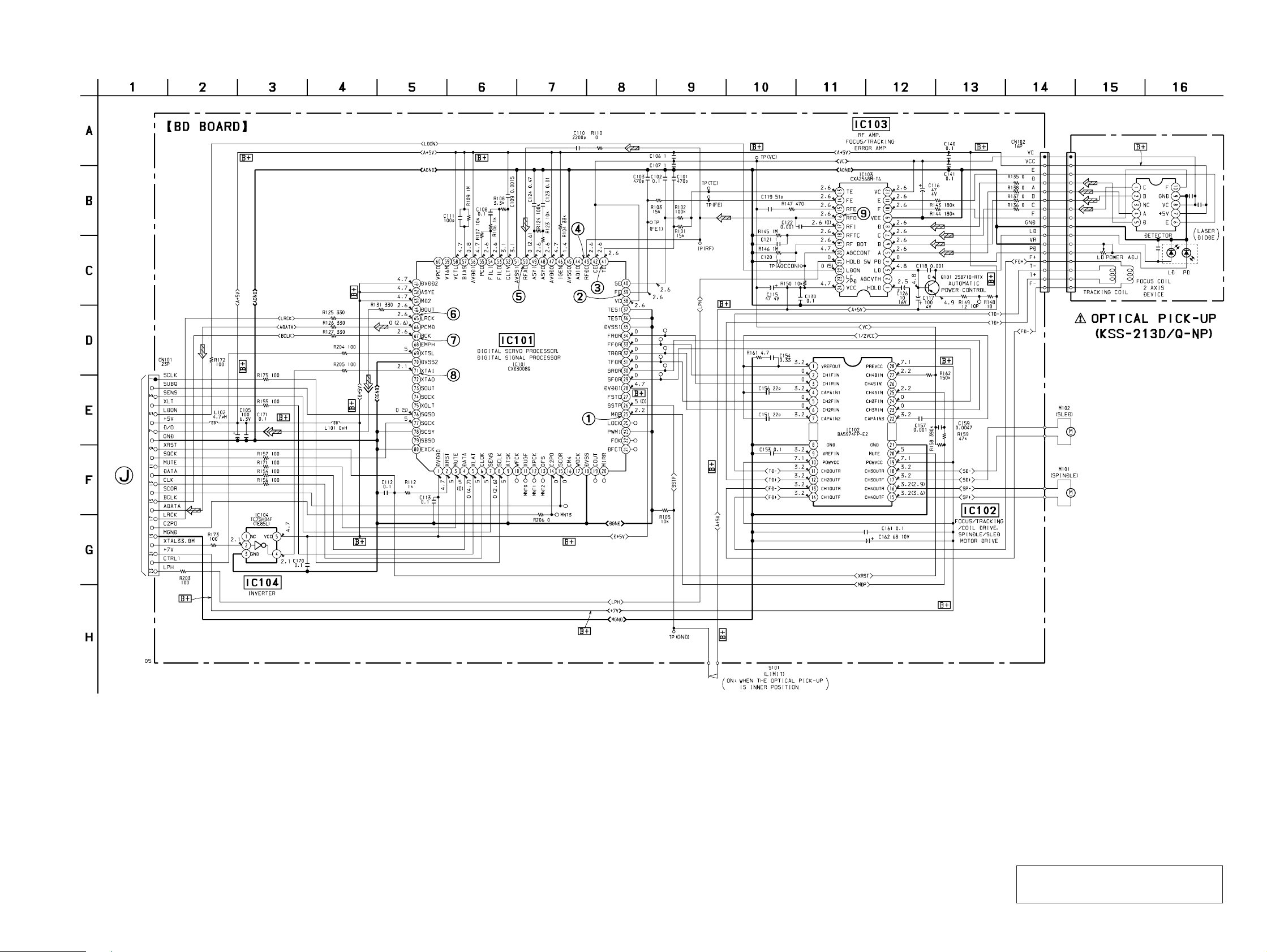

7-8. Schematic Diagram – BD Board– ............................... 35

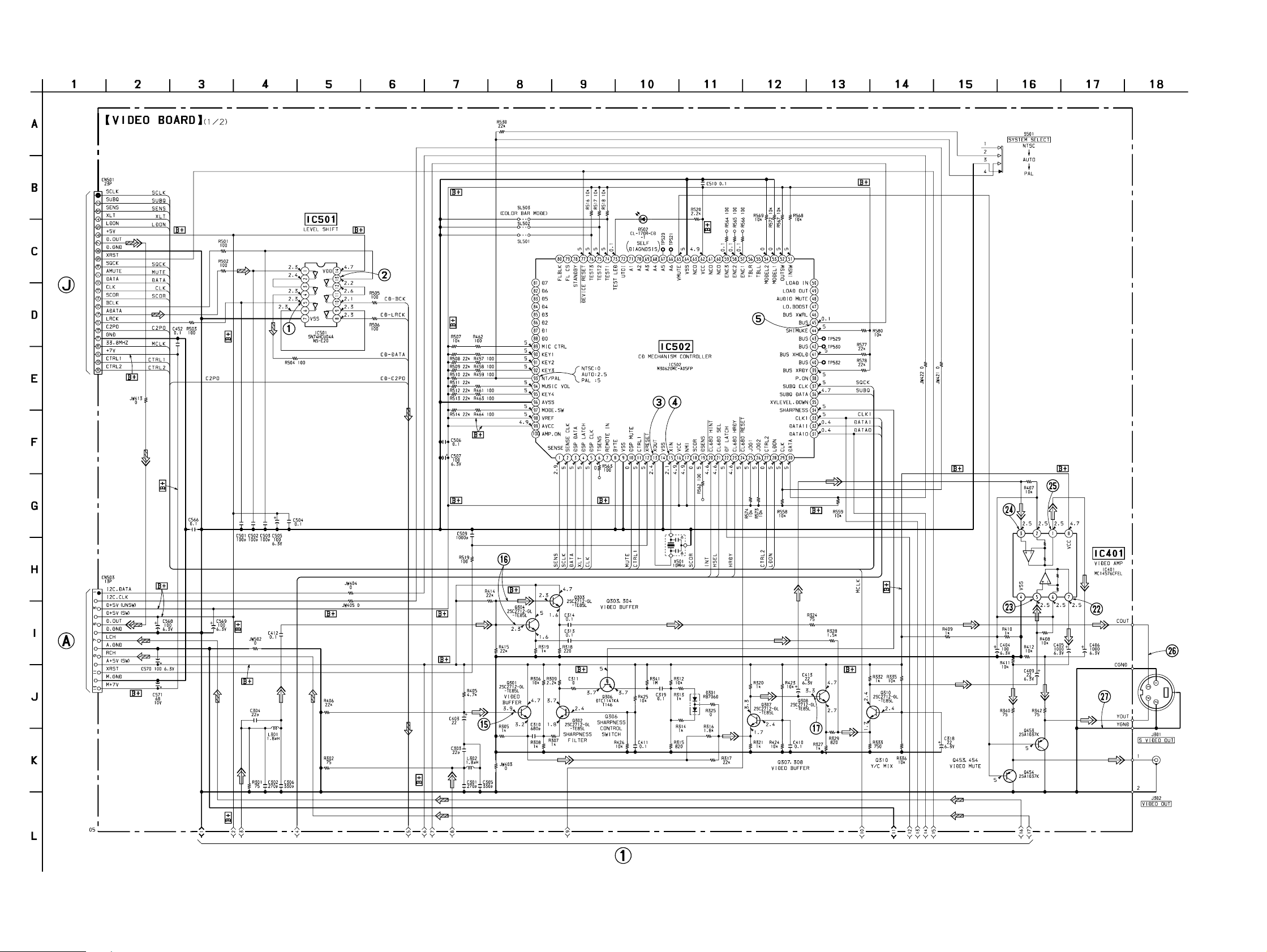

7-9. Schematic Diagram – VIDEO Board (1/2) – .............. 37

7-10. Schematic Diagram – VIDEO Board (2/2) – .............. 39

7-11. Printed Wiring Board –

VIDEO Board –............................................................. 41

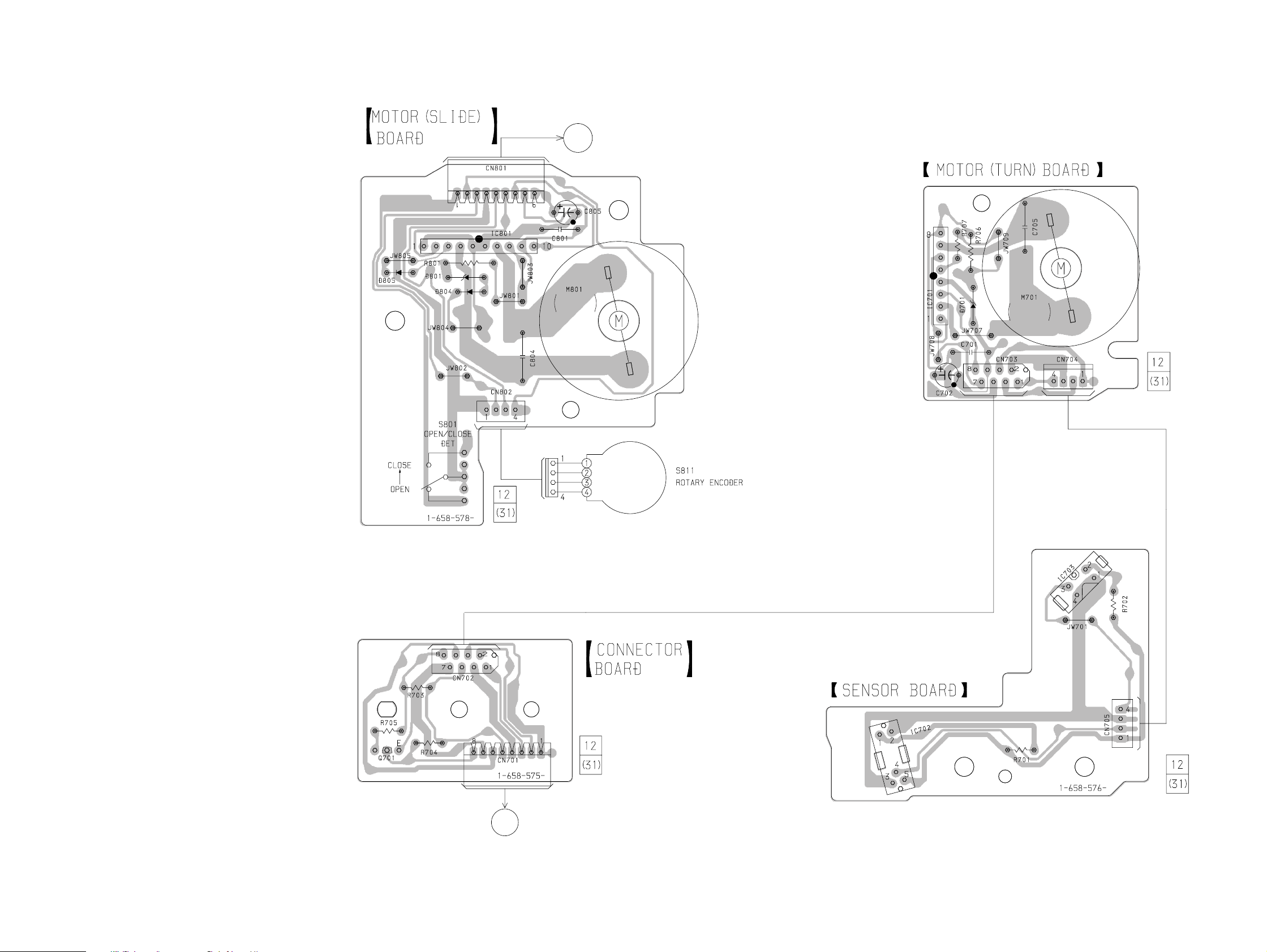

7-12. Printed Wiring Boards – CD MOTOR Section –......... 45

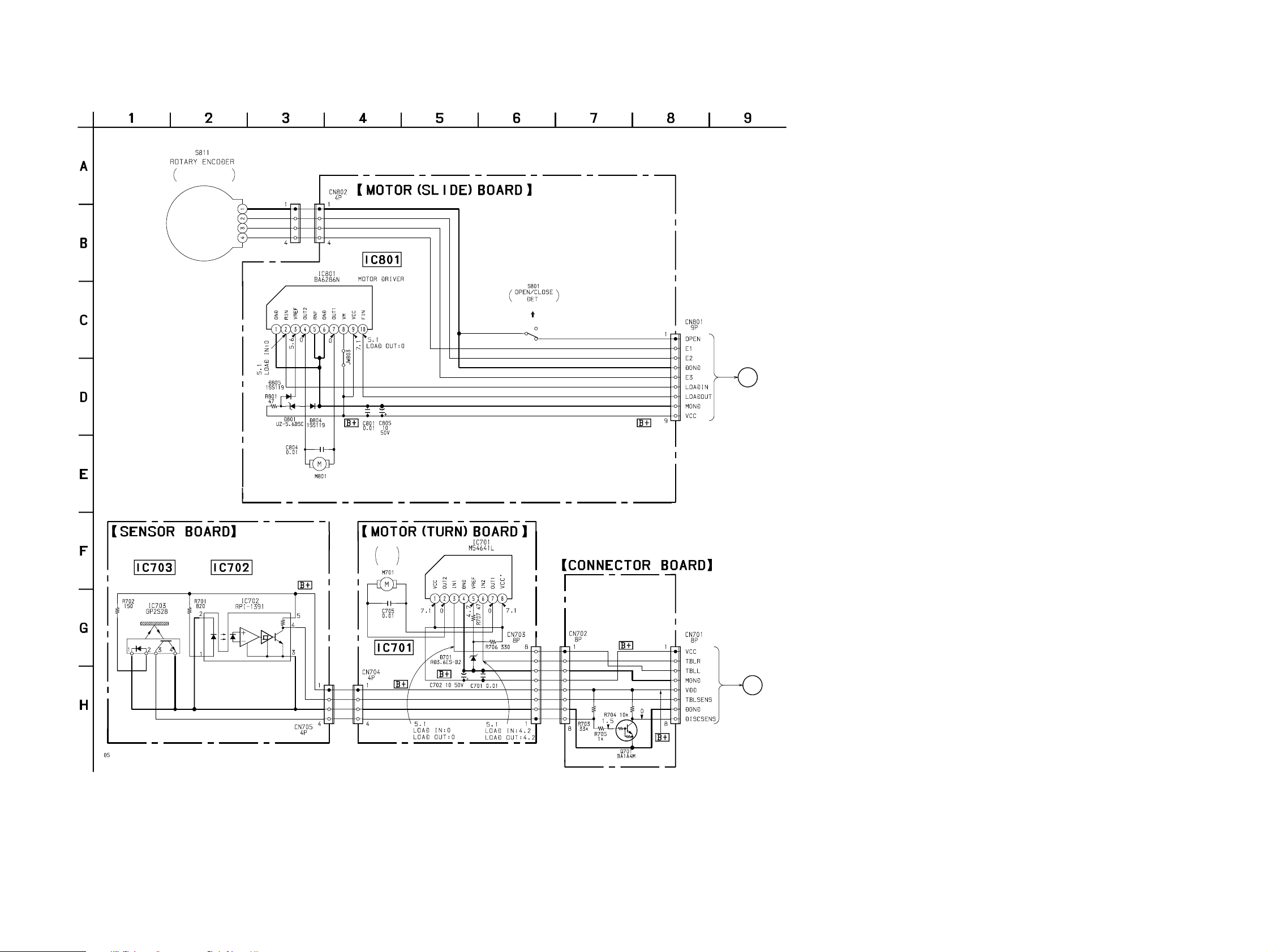

7-13. Schematic Diagram – CD MOTOR Section – ............ 47

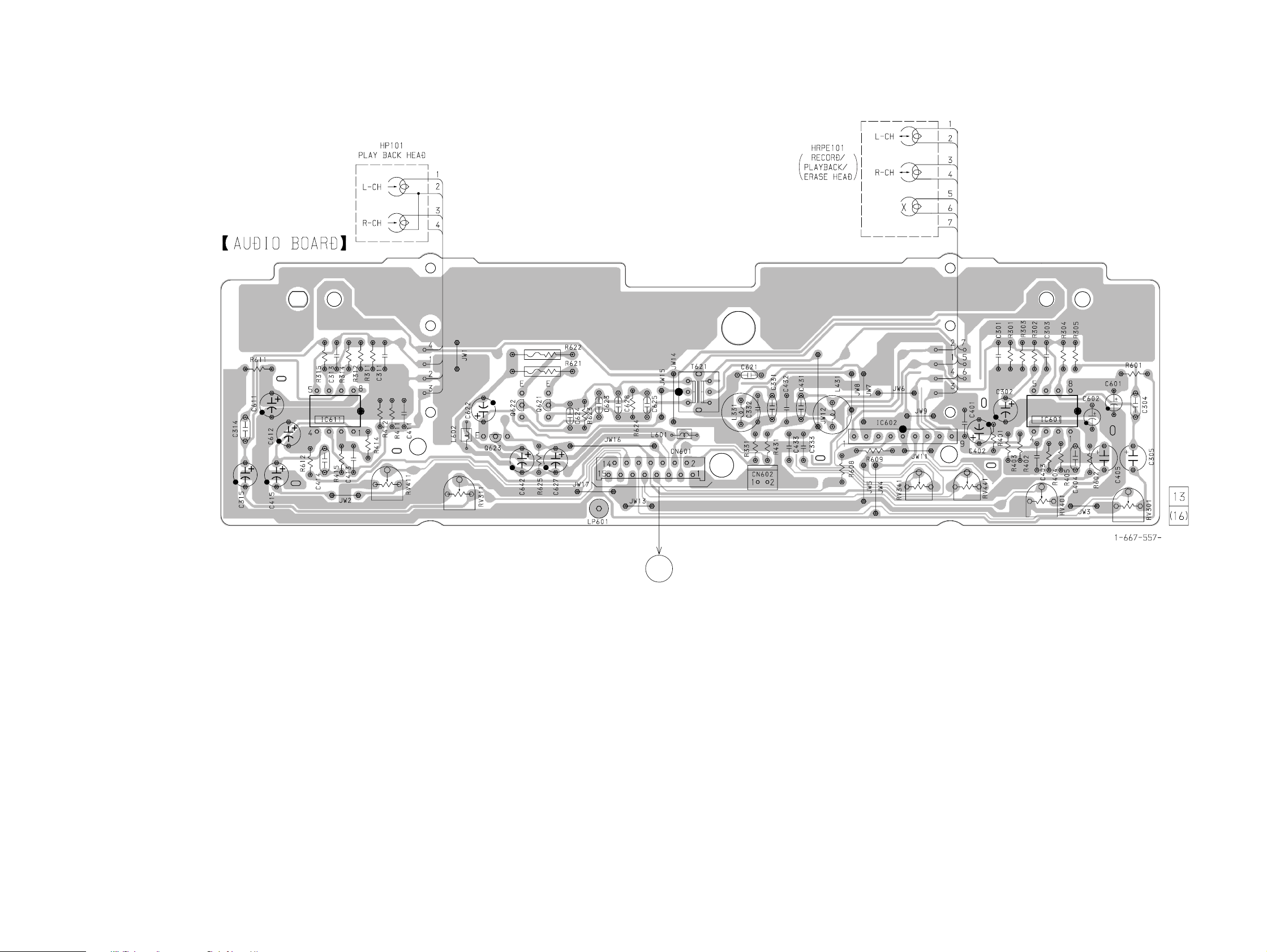

7-14. Printed Wiring Board – AUDIO Board –..................... 49

7-15. Schematic Diagram – AUDIO Board –....................... 51

7-16. Printed Wiring Board – LEAF SW Board –................. 53

7-17. Schematic Diagram – LEAF SW Board – .................. 53

7-18. Printed Wiring Board – MAIN Board – ....................... 55

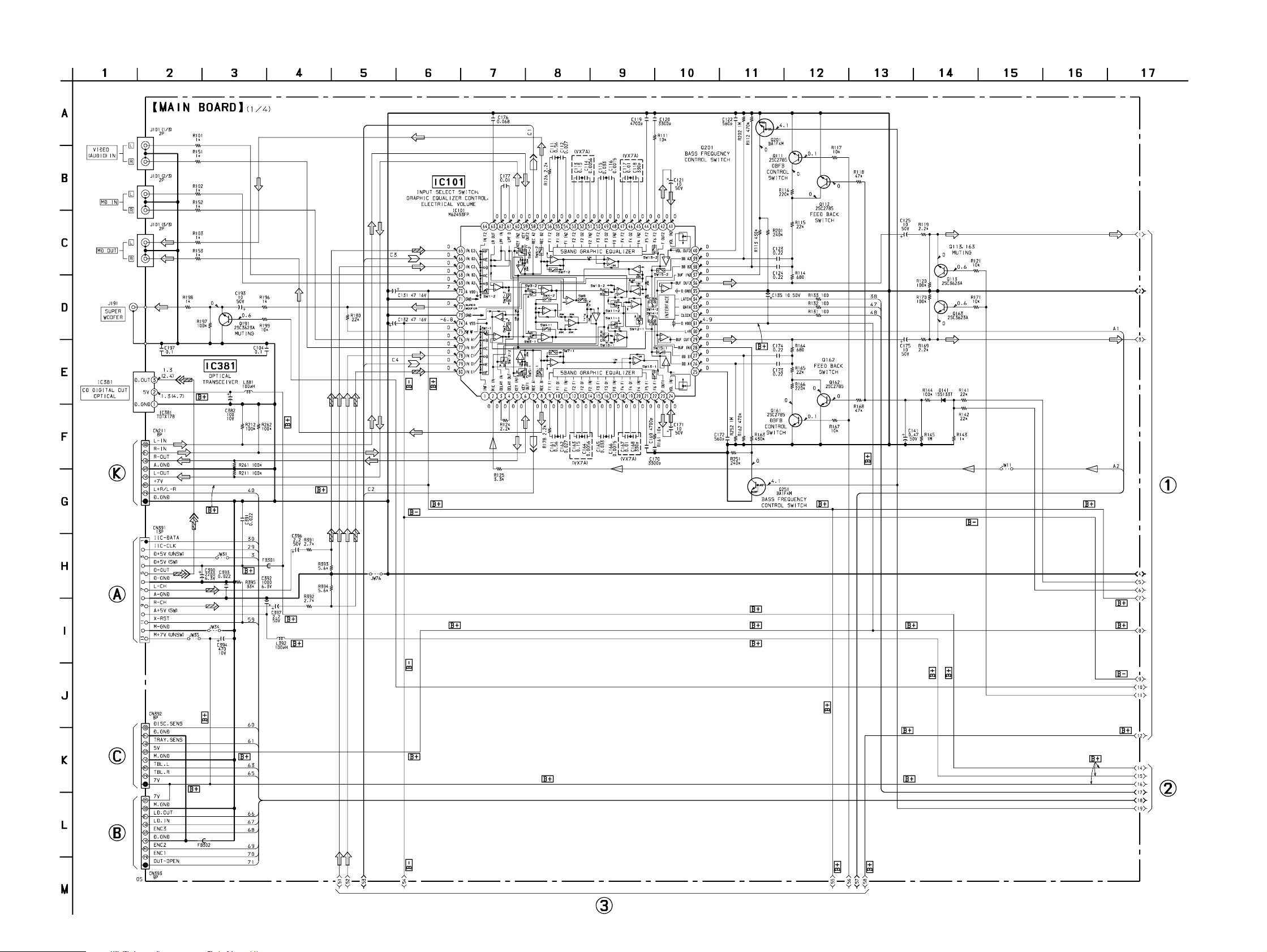

7-19. Schematic Diagram – MAIN Board (1/4) – ................ 57

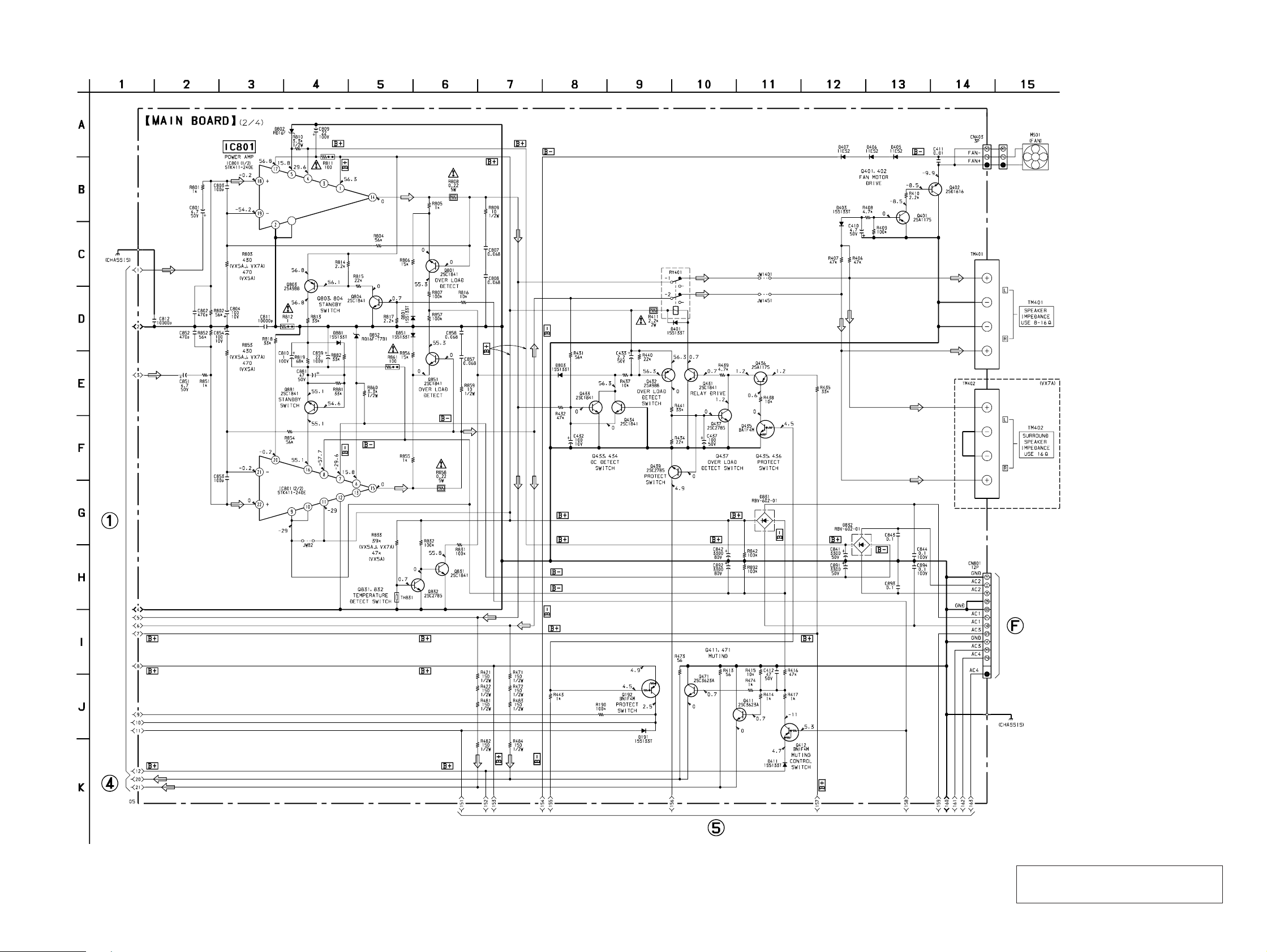

7-20. Schematic Diagram – MAIN Board (2/4) – ................. 59

7-21. Schematic Diagram – MAIN Board (3/4) – ................. 61

7-22. Schematic Diagram – MAIN Board (4/4) – ................. 63

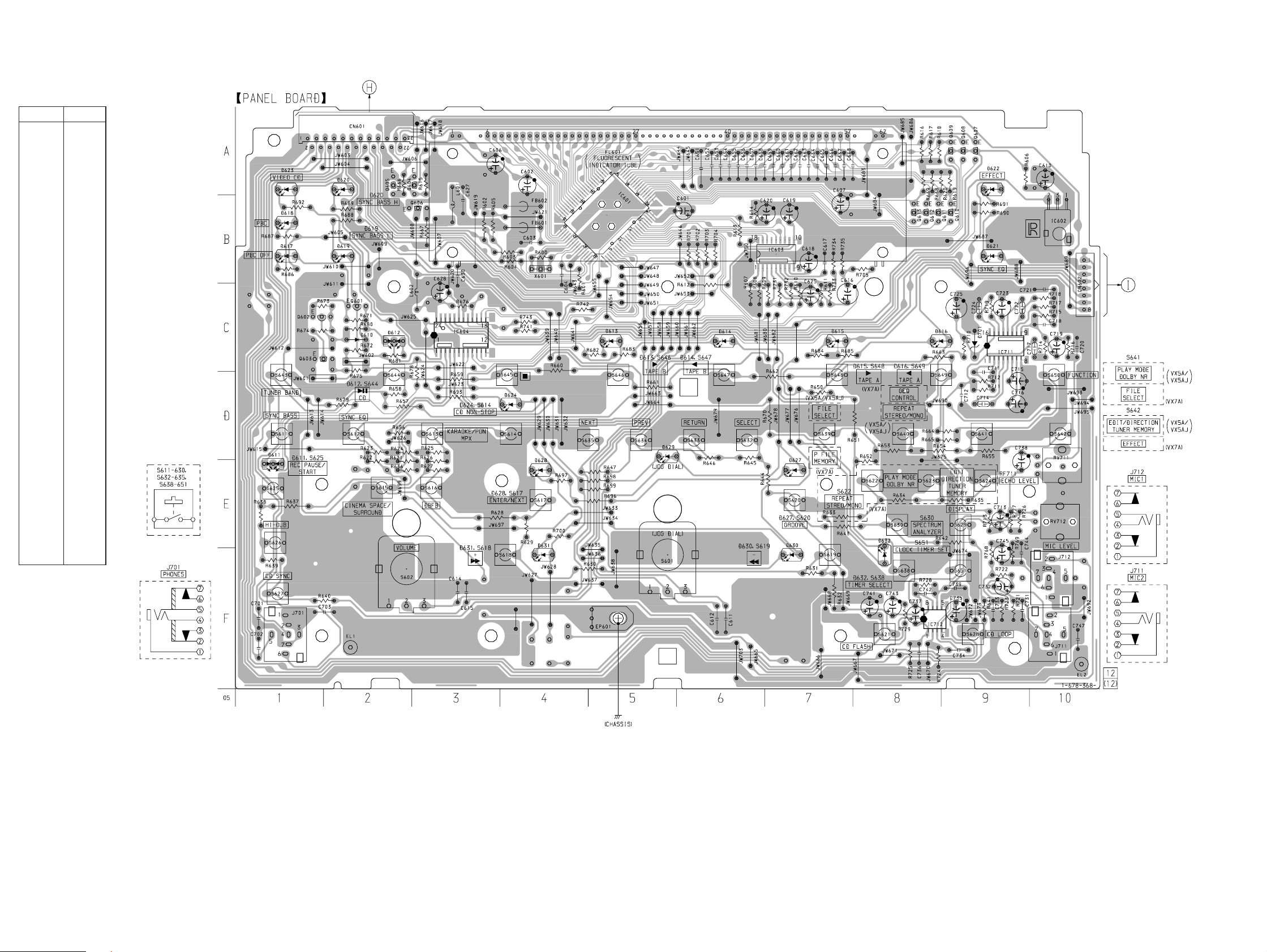

7-23. Printed Wiring Board – PANEL Board – ..................... 65

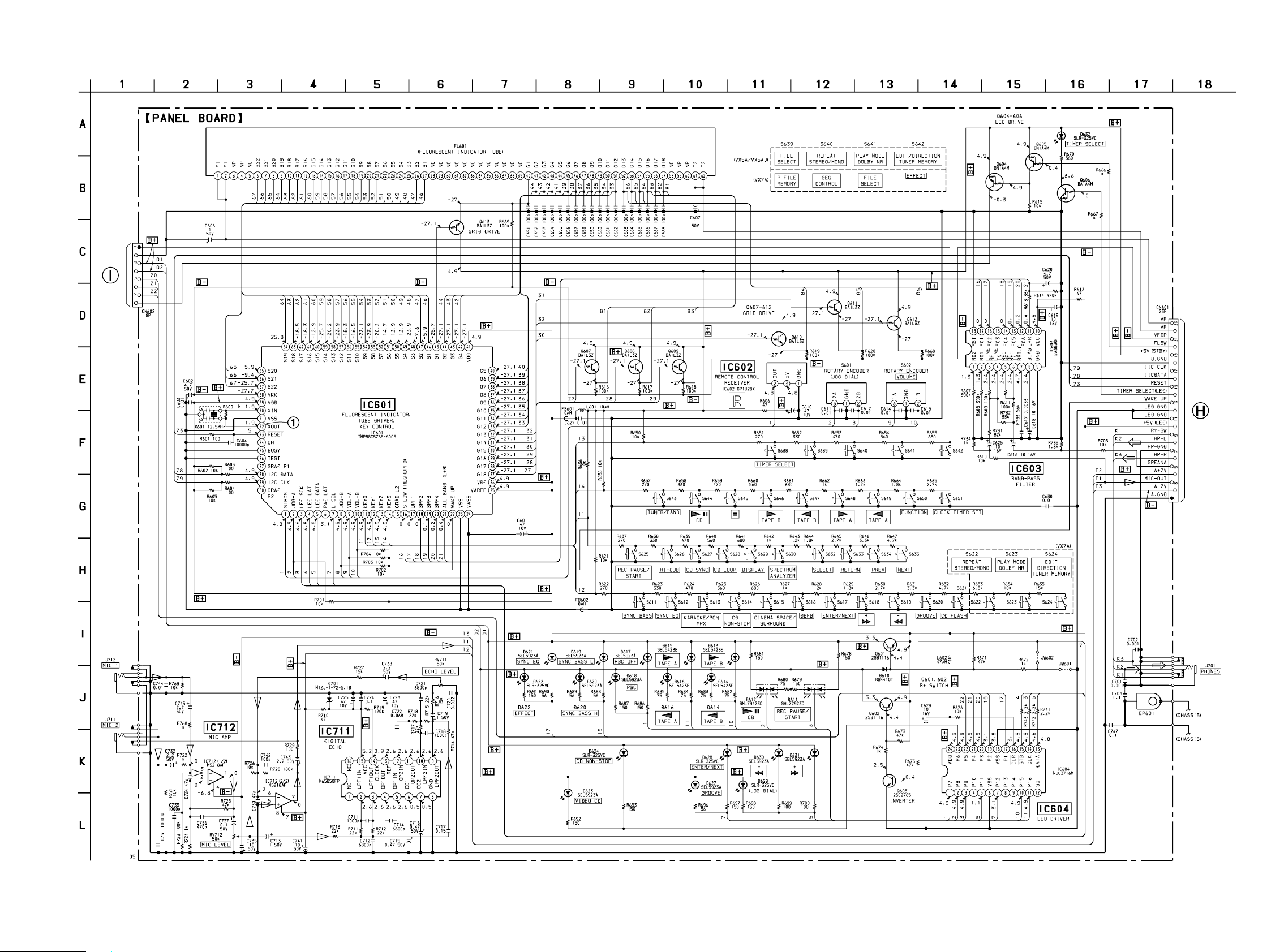

7-24. Schematic Diagram – PANEL Board – ........................ 67

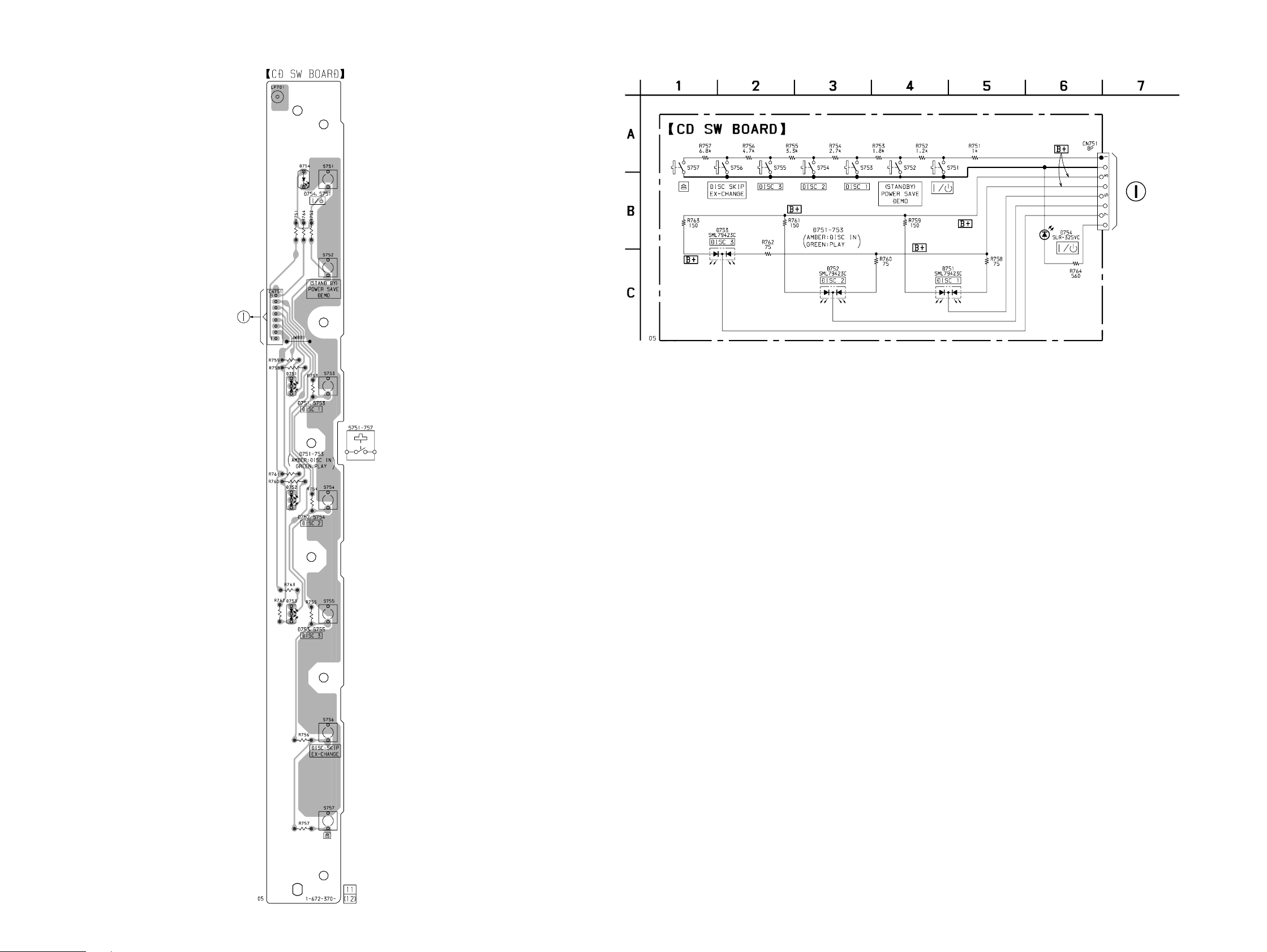

7-25. Printed Wiring Board – CD SW Board – ..................... 69

7-26. Schematic Diagram – CD SW Board – ...................... 70

7-27. Printed Wiring Board

– TRANSFORMER Board– .......................................... 71

7-28. Schematic Diagram

– TRANSFORMER Board – ......................................... 71

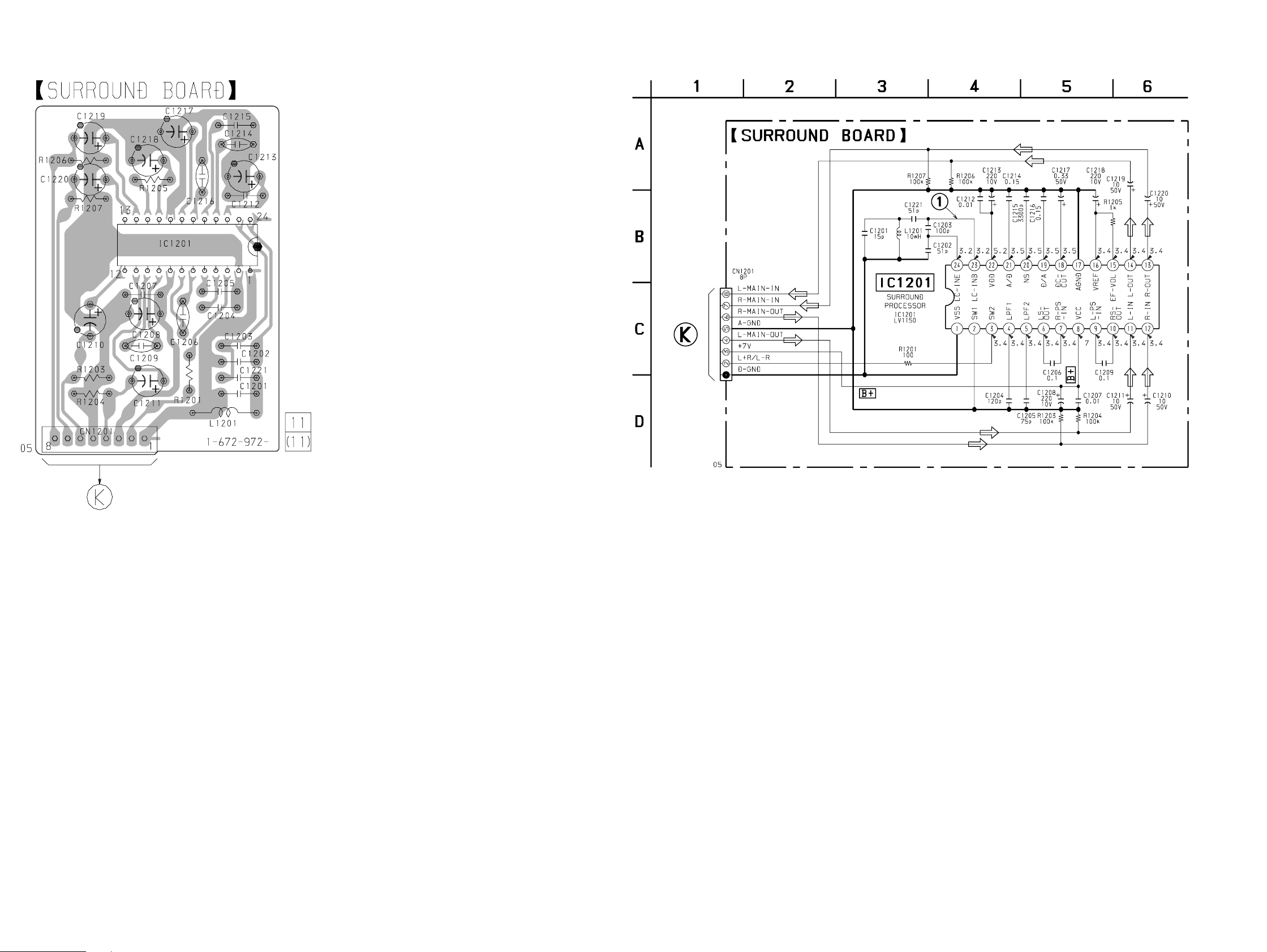

7-29. Printed Wiring Board – SURROUND Board – ........... 73

7-30. Schematic Diagram – SURROUND Board – .............. 74

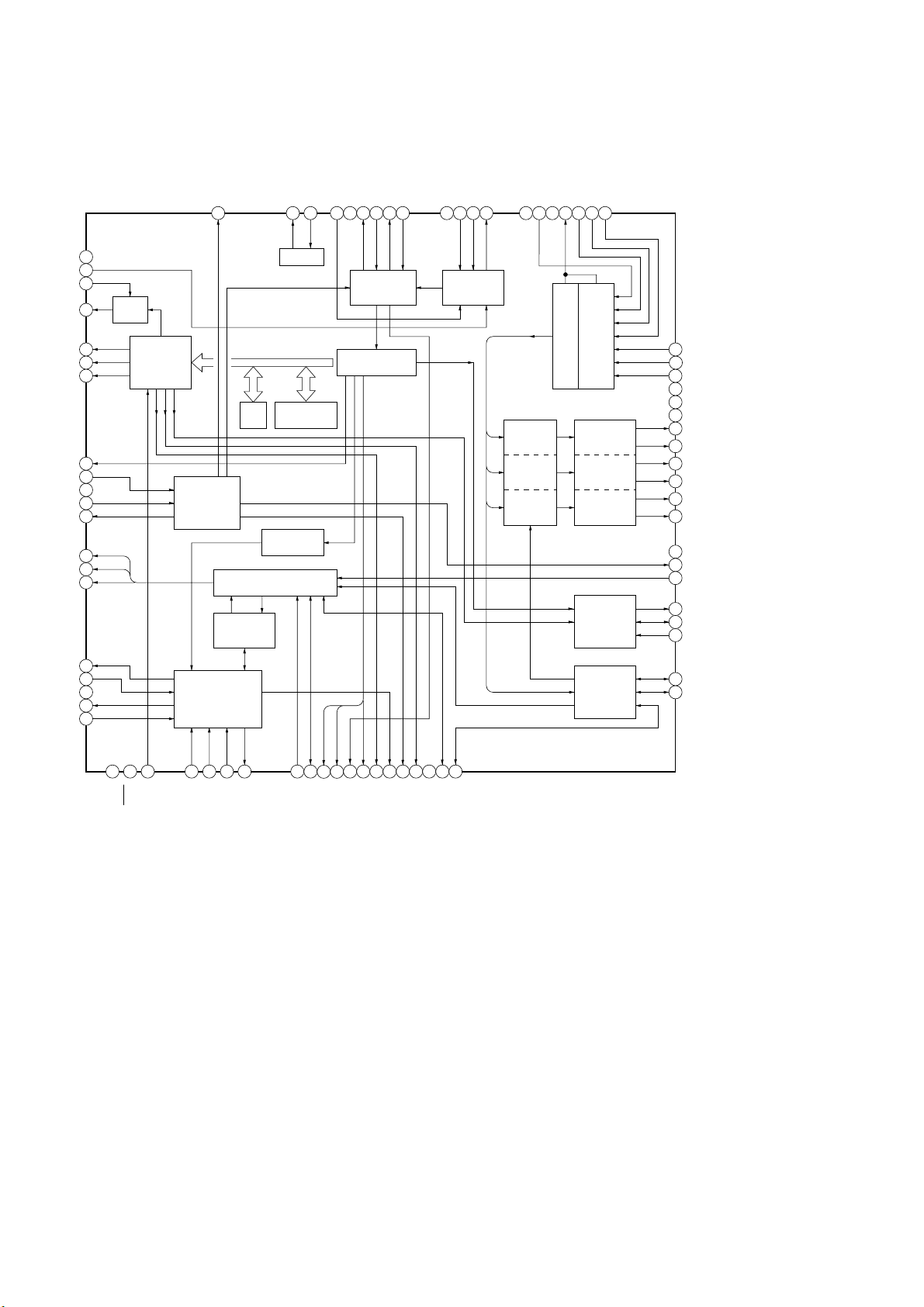

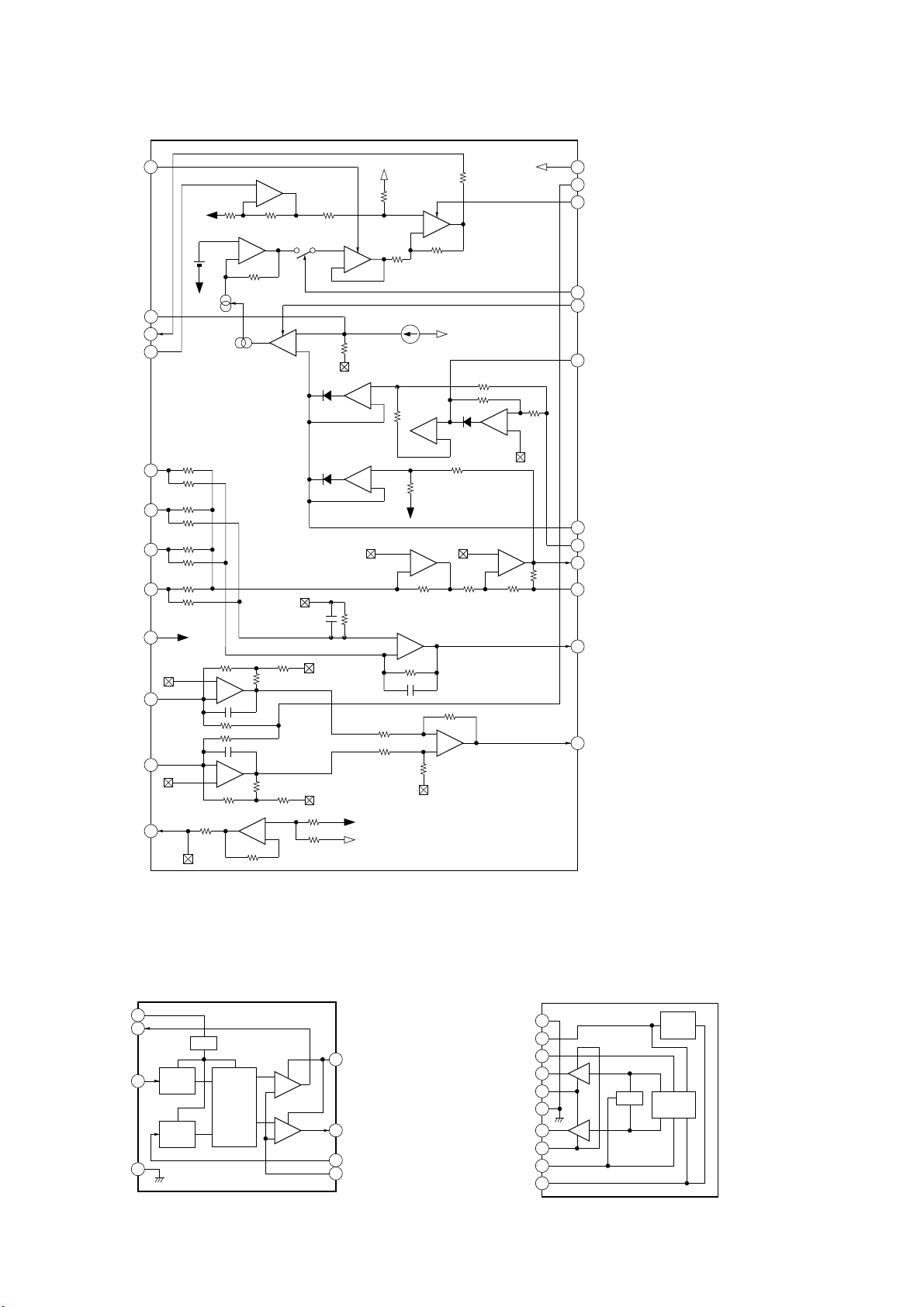

7-31. IC Pin Function Description .......................................... 80

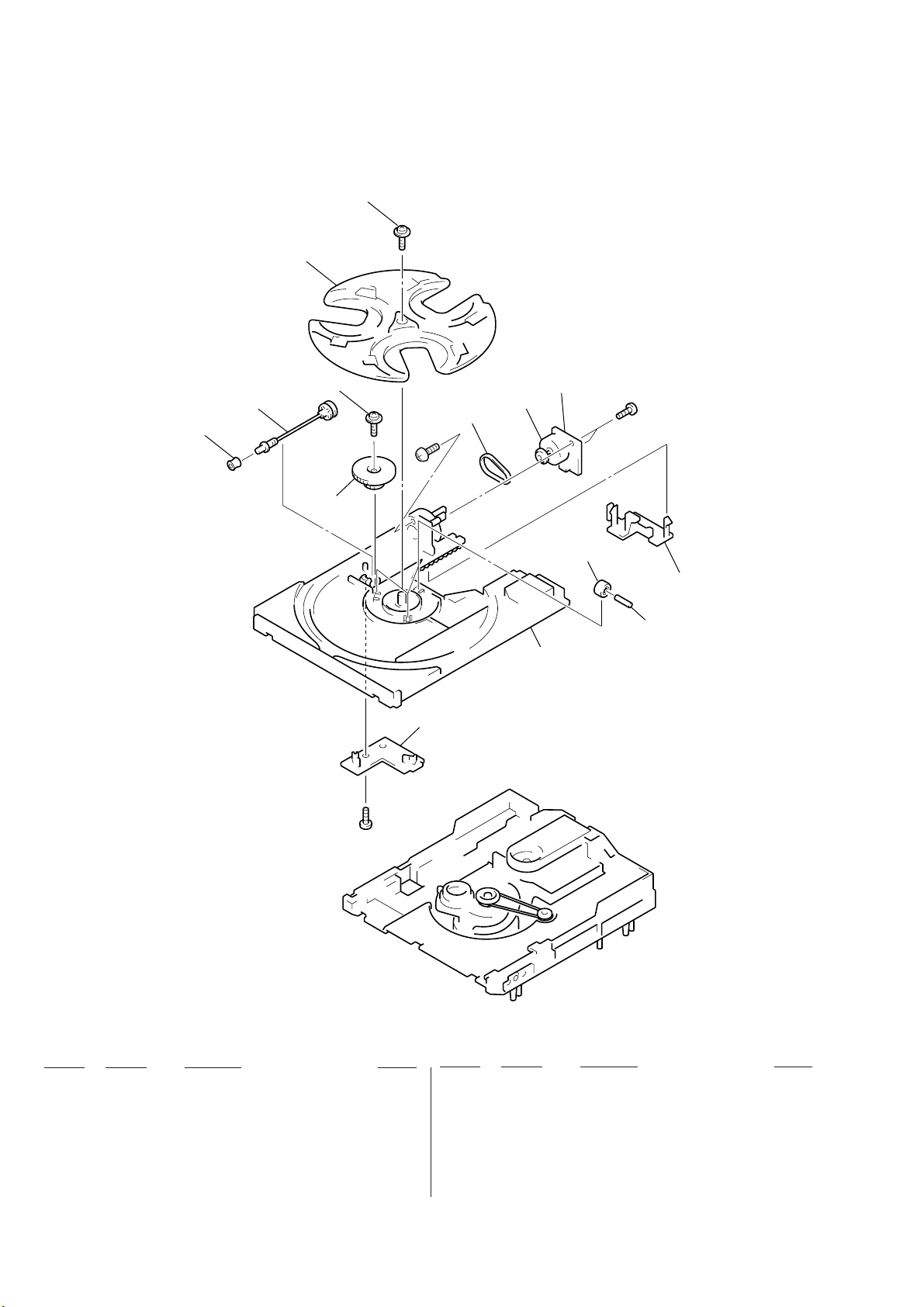

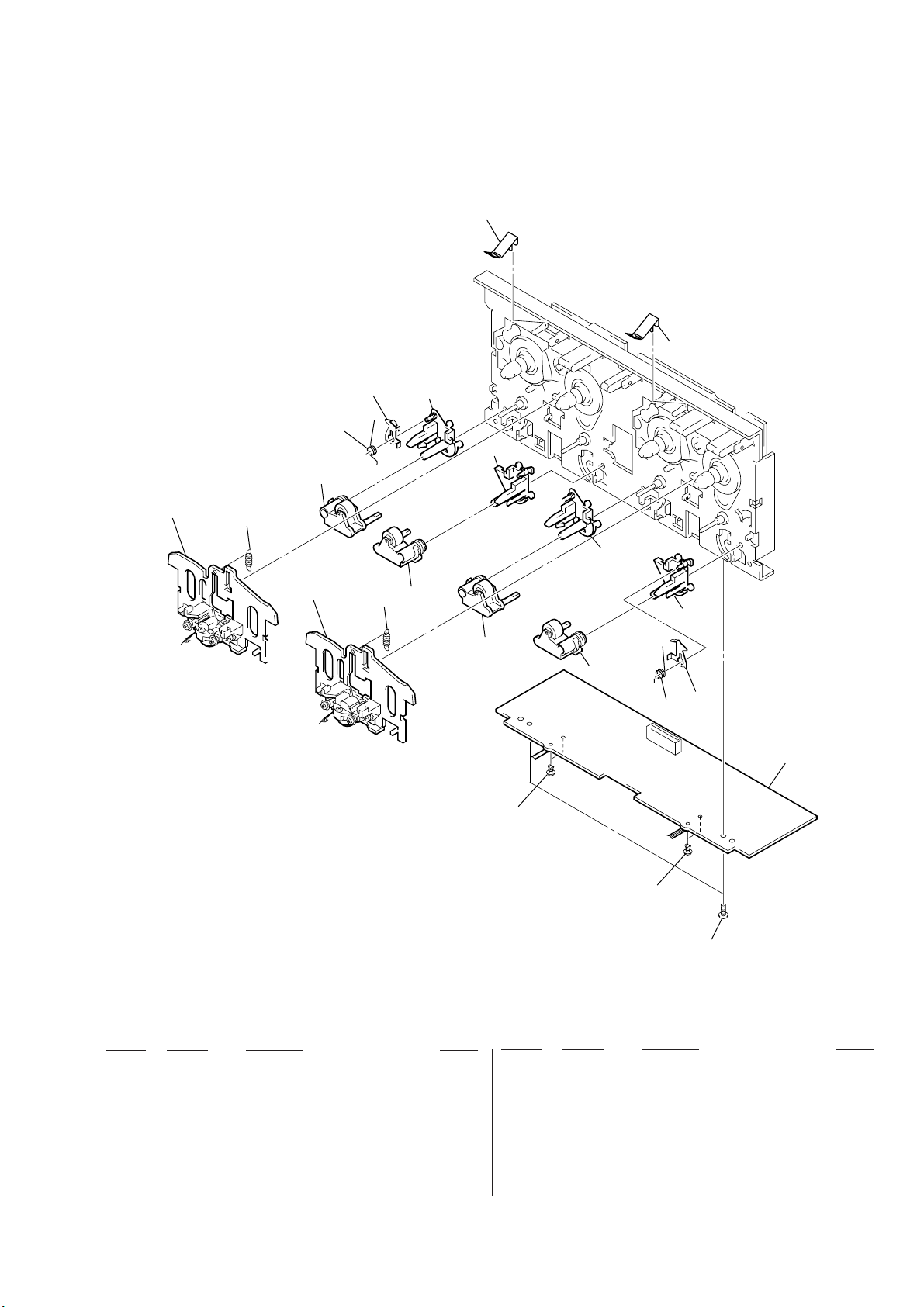

8. EXPLODED VIEWS............................................... 90

9. ELECTRICAL PARTS LIST .............................. 99

– 2 –

SECTION 1

SERVICING NOTES

SELF-DIAGNOSIS

This unit is equipped with a self-diagnosis function.
The function is used for diagnosing the conditions of the circuits
of the VIDEO board.
The circuits can be determined if normal or abnormal by the light­ing of D502 of the VIDEO board.

Lighting of D502

When lit : Operates normally
Blinks repeatedly : The circuit may be faulty.

– VIDEO Board (Side A) –

IC505

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electro­static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis­sion, observe from more than 30 cm away from the objective lens.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam­aged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270 ˚C dur­ing repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

D502

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED
LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANU AL OR IN SUPPLEMENTS PUB­LISHED BY SONY.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra­diation exposure.

This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.

Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.

The following caution label is located inside the unit.

– 3 –

MODEL IDENTIFICATION
– Rear Panel –

PART N o.

MODEL PART No.

VX5A : Saudi Arabia model 4-215-639-0π
VX5A : Malaysia and Singapore models 4-215-639-1π
VX5A : Taiwan model 4-215-639-2π
VX5A : E model 4-215-639-3π
VX5A : Thai model 4-215-639-4π
VX5A : Hong Kong model 4-215-639-5π
VX5A : Indonesia model 4-215-639-6π
VX5AJ: Saudi Arabia model 4-215-639-7π
VX5AJ: Tourist model 4-215-639-8π
VX5AJ: E model 4-215-639-9π
VX7A : Saudi Arabia model 4-215-640-0π
VX7A : Malaysia and Singapore models 4-215-640-1π
VX7A : E, Indonesia and Thai models 4-215-640-4π

– 4 –

1

Remove the Case.

3

Pull-out the disc tray.

2

Turn the cam to the
direction of arrow.

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS’ OFF.

e

NOTE FOR INSTALLATION (ROTARY ENCODER)

BU cam

Section A

Groove

Note:When attaching the Base unit, Insert th
section A into the groove of BU cam.

Note:When attaching the BU cam,
engage the Rotary encoder
switch as shown in the figure.

– 5 –

• LOCATION OF CONTROLS

– Front View –

SECTION 2

GENERAL

!¢
!∞

!§

!¶
!•
!ª
@º

9 0 !¡ !™8 !£

2 3 4 5 6 7

1

1 1/u button
2 (STANDBY) POWER SAVE, DEMO button
3 DISC 1 button
4 DISC 2 button
5 DISC 3 button
6 DISC SKIP, EX-CHANGE button

@¡
@™

@£
@¢

@∞
@§
@¶
@•

#¢#£#™#¡#º@ª

7 § button
8 9 TAPE A button and indicator
9 ( TAPE A button and indicator
0 9 TAPE B button and indicator
!¡ ( TAPE B button and indicator
!™ p button
!£ ^ CD button and indicator
!¢ EFFECT indicator
!∞ SYNC EQ indicator
!§ FUNCTION button
!¶ ECHO LEVEL knob
!• MIC LEVEL knob
!ª MIC 1 jack
@º MIC 2 jack
@¡ VIDEO CD indicator
@™ PBC indicator
@£ PBC OFF indicator
@¢ TUNER BAND button
@∞ REC PAUSE/START button and indicator
@§ HI-DUB button
@¶ CD SYNC button
@• PHONE jack
@ª CD LOOP button
#º CD FLASH button
#¡ – 0 button and indicator
#™ JOG dial and indicator
#£ + ) button and indicator
#¢ VOLUME knob

– 6 –

– Front View –

#∞ #ª

$∞
$§
$¶

#§ #¶ #• $º $¡$™ $£ $¢

%•%§%¢%∞%™

#∞ EFFECT button (VX7A)

EDIT/DIRECTION
TUNER MEMORY button (VX5A/VX5AJ)

#§ FILE SELECT button (VX7A)

PLAY MODE, DOLBY NR button
(VX5A/VX5AJ)

#¶ GEQ CONTROL button (VX7A)

$•
$ª

%º
%¡

%ª%¶%£

REPEAT STEREO/MONO button
(VX5A/VX5AJ)

#• P FILE MEMORY button (VX7A)

FILE SELECT button (VX5A/VX5AJ)

#ª SELECT button
$º RETURN button
$¡ PREV button
$™ NEXT button
$£ CD NON-STOP button and indicator
$¢ KARAOKE PON/MPX button
$∞ PLAY MODE, DOLBY NR button

(VX7A)

$§ EDIT, DIRECTION, TUNER MEMORY

button (VX7A)

$¶ REPEAT, STEREO/MONO button (VX7A)
$• SYNC BASS H indicator
$ª SYNC BASS L indicator
%º SYNC EQ button
%¡ SYNC BASS button
%™ DISPLAY button
%£ CLOCK TIMER SET button
%¢ TIMER SELECT button and indicator
%∞ SPECTRUM ANALYZER button
%§ GROOVE button and indicator
%¶ ENTER/NEXT button and indicator
%• DBFB button
%ª CINEMA SPACE/SURROUND button

– 7 –

– Rear View –

1

4
5

6
7
8

2 3

9

0

1 S VIDEO jack
2 SYSTEM SELECT switch
3 VIDEO OUT jack
4 CD DIGITAL OUT, OPTICAL connector
5 VIDEO (AUDIO) IN jack
6 MD IN jack
7 MD OUT jack
8 SUPER WOOFER jack
9 FM ANTENNA terminals
0 AM ANTENNA terminals
!¡ SURROUND SPEAKER terminals (VX7A)
!™ SPEAKER terminals
!£ VOLTAGE SELECTOR switch

(EXCEPT Thai model)

!£!™!¡

– 8 –

This section is extracted from
instruction manual.

– 9 –

SECTION 3

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

COVER

6

cover

2

screw

3

two screws
(case 3TP2) (3

(case 3TP2) (3

×

8)

×

12)

5

4

4

1

three screws
(BVTP3

2

screw
(case 3TP2) (3

3

two screws
(case 3TP2) (3

×

8)

×

12)

×

8)

LOADING PANEL ASS’Y

A

1

Turn the cam-in the
direction of the arrow

A

.

2

Pull-out
the disc tray.

3

loading panel ass’y

– 10 –

FRONT PANEL SECTION

)

4

screw

×

10)

6

front panel section

(BVTT3

1

wire (flat type)
(15 core) (32 cm) (CN303)

2

screw
(BVTT3

×

3

4

6)

two lugs

screw
(BVTP3

×

10)

3

lug

2

1

wire (flat type)
(23 core) (23 cm) (CN501)

screw
(BVTT3

×

6

1

wire (flat type) (17 core)

5

two screws
(BVTT3

×

6)

(CN304)

VIDEO BOARD, CD MECHANISM DECK SECTION (CDM38L-5BD34L)

8

Remove the CD mechanism
deck (CDM38L-5BD34L)
in the direction of arrows

A

– B.

6

screw
(BVTP3

×

10)

B

A

wire (flat type)

1

(13 core) (17 cm) (CN503)

2

two screws
(BVTP3

7

×

8)

two screws
(BVTP3

5

×

8)

2

chassis

screw
(BVTP3

1

×

8)

3

VIDEO
board

wire (flat type)
(23 core) (18 cm)
(CN501)

4

screw
(BVTP3

×

8)

6

screw
(BVTP3

– 11 –

9

two connectors
(CN392, 393)

×

10)

TAPE MECHANISM DECK SECTION (TCM-230AWR2)

2

Open two
cassette lids.

1

Push the cassette lid.

3

three screws
(BVTP2.6

×

8)

3

two screws
(BVTP2.6

4

tape mechanism deck section
(TCM-230AWR2)

×

8)

MAIN BOARD

2

connector
(CN952)

1

Push the cassette lid.

2

connector
(CN953)

3

two screws
(BVTP3

1

wire (flat type)

13 core (15 cm): EXCEPT Thai

( )

15 core (15 cm): Thai

(CN371)

5

five screws
(BVTP3

×

8)

5

screw
(BVTP3

×

VX7A

×

8)

8)

6

Remove the MAIN board
in the direction of the arrow.

– 12 –

4

two screws
(BVTP3

7

connector
(CN403)

×

8)

SECTION 4

TEST MODE

[MC Cold Reset]

• The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning
the set to the customer.

Procedure:

1. Turn the power ON or set to the DEMO mode.

2. Press three buttons of p , [ENTER/NEXT], and 1/u simulta-

neously.

3. The set is reset, and displays “COLD RESET”, then becomes

DEMO mode.

[MC Hot Reset]

• This mode resets the set with the preset data kept stored in the
memory. The hot reset mode functions same as if the power
cord is plugged in and out.

Procedure:

1. Turn the power ON or set to the DEMO mode.

2. Press three buttons of p , [ENTER/NEXT], and [DISC1] si-

multaneously.

3. The set is reset, and becomes standby state.

[Change-over the AM Tuning Interval]
(EXCEPT Saudi Arabia model)

• The AM tuning interval can be changed over 9 kHz or 10 kHz.

Procedure:

1. Press the 1/u button to turn the power ON.

2. Select the function “TUNER”, and press the [TUNER/BAND]

button to select the BAND “AM (MW)”.

3. Press the 1/u button to turn the power OFF.

4. Press the [ENTER/NEXT] and 1/u buttons simultaneously,

and the display on the fluorescent indicator tube changes to
“AM 9 k STEP” or “AM 10 k STEP”, and thus the tuning
interval is changed over.

[CD Delivery Mode]

• This mode moves the optical pick-up to the position durable to
vibration. Use this mode when returning the set to the customer
after repair.

Procedure:

1. Press the 1/u button to turn the power ON.

2. Press the [CDLOOP] and 1/u buttons simultaneously.

3. A message “LOCK” is displayed on the fluorescent indicator

tube, and the CD delivery mode is set.

[LED and Fluorescent Indicator Tube All Lit, Key Check
Mode]

Procedure:

1. Press three buttons of p , [ENTER/NEXT], and [DISC2] si-

multaneously.

2. LEDs and fluorescent indicator tube are all turned on.

Press the [DISC2] button, and the key check mode is acti­vated.

3. In the key check mode, the fluorescent indicator tube displays

“K 0 J0 V0”. Each time a button is pressed, “K” value in­creases. However , once a button is pressed , it is no longer taken
into account.
“J” value increases like 1, 2, 3 ... if turn the JOG dial clock­wise, or it decreases like 0, 9, 8 ... if turn the JOG dial counter­clockwise.
“V” value increases like 1, 2, 3 ... if turn the [VOLUME] dial
clockwise, or it decreases like 0, 9, 8 ... if turn the JOG dial
counterclockwise.

4. To exit from this mode, press three buttons in the same man-

ner as step 1, or disconnect the power cord.

– 13 –

[Aging Mode]

This mode can be used for operation check of tape deck section.
Tape deck section work in parallel.

• If an error occurred:
The aging operation stops and display then status.

• If no error occurs:
The aging operation continues repeatedly.

Procedure:

1. Load the tapes into the decks A and B respectively.

2. Press the [FUNCTION] button to select the function “CD”.

3. Press the [PLAYMODE] button to set the “ ALL DISCS” mode,

and press the [REPEAT] button to “REPEAT” off.

4. Press three buttons of p , [ENTER/NEXT], and [DISCSKIP/

EX-CHANGE] simultaneously.

5. The aging mode is activated, if the indicator of disc tray num-

ber on the fluorescent indicator tube is blinking.

6. To exit from the aging mode, press the 1/u button to turn the

power OFF and operate the cold reset. (Refer to the “MC Cold
Reset”)

1. Display at the Aging Mode

• Display operating state of tape deck section alternately.

• If an error occurred, stop display.

2. Tape Deck Section

• The sequence during the aging mode is following as below.

• If an error occurred, stop display that step.

Aging mode sequence (Tape deck section) :

Rewind the tape A and B

“T APE A A G-1”

Shut off

FWD play the tape A

“T APE A A G-2”

2 minutes

Fast forward the tape A

“T APE A A G-3”

Shut off or 20 seconds

REV play the tape A

“T APE A A G-4”

2 minutes

Rewind the tape A

“T APE A A G-5”

Shut off

FWD play the tape B

“TAPE B AG-2”

2 minutes

Fast forward the tape B

“TAPE B AG-3”

Shut off or 20 seconds

REV play the tape B

“T APE A A G-4”

2 minutes

Rewind the tape B

“TAPE B AG-5”

Shut off

Note: “TAPE * AG-*” is display of each step.

– 14 –

[VIDEO CD Color-bars Mode]

On this mode, the data of the color-bars signal as a picture signal
and the 1 kHz sine wave signal as a sound signal are output by the
mechanism controller (IC502) for the video CD signal check.
When measurement of the voltage and waveform on the VIDEO
board, perform it in this mode.
For reference, the color-bars signal can be observed at J302
(VIDEO OUT) and the sound signal can be observed at J101
(VIDEO/MD (AUDIO) OUT) using an oscilloscope.

Procedure:

1. Short the both ends of the land of SL503 of the VIDEO board.

2. Turn the power on. Press the [FUNCTION] button to select
CD.

3. The color-bars appears when the CD is in stop status, and it
disappears when the CD goes in play status.

4. After measuring, remove the lead wire connected.

– VIDEO board (Side A) –

D502

SL501

SL503

SL502

– VIDEO board (Side B) –

SL503

CN503

SL502

SL501

IC502

CN501

IC505

– 15 –

SECTION 5

r

MECHANICAL ADJUSTMENTS

SECTION 6

ELECTRICAL ADJUSTMENTS

Precaution

1. Clean the following parts with a denatured alcohol-moistened
swab:

record/playback heads pinch rollers
erase head rubber belts
capstan idlers

2. Demagnetize the record/playback head with a head demagne­tizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to the
parts adjusted.

5. The adjustments should be performed with the rated power sup­ply voltage unless otherwise noted.

Torque Measurement

Mode

FWD
FWD

back tension

REV
REV

back tension
FF/REW

FWD tension

REV tension

Torque meter

CQ-102C

CQ-102C

CQ-102RC

CQ-102RC

CQ-201B

CQ-403A

CQ-403R

Meter reading

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.03 – 0.08 oz • inch)

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.03 – 0.08 oz • inch)

71 to 143 g • cm

(0.99 – 1.99 oz • inch)

100 g or more

(3.53 oz or more)

100 g or more

(3.53 oz or more)

DECK SECTION

0 dB = 0.775 V

1. Demagnetize the record/playback head with a head demagne­tizer.

2. Do not use a magnetized screwdriver for the adjustments.

3. After the adjustments, apply suitable locking compound to the
parts adjust.

4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.

5. The adjustments should be performed in the order given in
this service manual. (As a general rule, playback circuit ad­justment should be completed before performing recording
circuit adjustment.)

6. The adjustments should be performed for both L-CH and R­CH.

7. Switches and controls should be set as follows unless other­wise specified.

8. Set to the DOLBY NR OFF.

9. Set to the test mode.
(1) Press the 1/u button to turn the power ON.
(2) Select the function “TAPE A or B”.
(3) Press the button of p , [ENTER/NEXT], and [DISC3]

simultaneously, to set the tape deck test mode and blink
the indicator of disc tray number on the fluorescent indi­cator tube.

(4) To exit from the test mode, press the 1/u button.

• Test Tape

Tape Signal Used for

P-4-A100 10 kHz, – 10 dB Azimuth Adjustment

WS-48B 3 kHz, 0 dB Tape Speed Adjustment

P-4-L300 315 Hz, 0 dB Level Adjustment

Record/Playback Head Azimuth Adjustment

DECK A DECK B

Note: Perform this adjustments for both decks

Procedure:

1. Mode: Playback (FWD)

test tape
P-4-A100
(10 kHz, – 10 dB)

MAIN board
MD OUT jack (J101)
L-CH, R-CH

level mete

set

+
–

– 16 –

2. Turn the adjustment screw and check output peaks. If the peaks

+
–

set

test tape
WS-48B
(3 kHz, 0 dB)

MAIN board
MD OUT jack (J101)
L-CH, R-CH

frequency counter

do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.

Tape Speed Adjustment DECK B

Mode: Playback

Output
level

within
1dB

L-CH
peak

R-CH
peak

within
1dB

Screw
position

L-CH
peak

Screw
position

R-CH
peak

3. Mode: Playback

MAIN board
test tape
P-4-A100
(10 kHz, – 10 dB)

L-CH

set

R-CH

in phase 45°90°135°180

MD OUT jack (J101)

L-CH

R-CH

waveform of oscilloscope

good

oscilloscope

wrong

H

V

°

4. Repeat step 1 to 3 in playback (REV) mode.

5. After the adjustments, apply suitable locking compound to the
pats adjusted.

1. Insert the WS-48B into the deck B.

2. Press the ( button on the deck B.

3. Press the [HI-DUB] button in playback mode.
Then at HIGH speed mode.

4. Adjust RV1001 on the LEAF SW board do that frequency
counter reads 6,000 ± 180 Hz.

5. Press the [HI-DUB] button.
Then back to NORMAL speed mode.

6. Adjust RV1002 on the LEAF SW board so that frequency
counter reads 3,000 ± 90 Hz.

Adjustment Location: LEAF SW board
Sample value of Wow and Flutter: 0.3% or less W.RMS (JIS)

(WS-48B)

Playback level Adjustment DECK A DECK B

Procedure:

Mode: Playback

test tape
P-4-L300
(315 Hz, 0 dB)

set

MAIN board
MD OUT jack (J101)
L-CH, R-CH

level meter

+
–

Adjustment Location:Playback Head (Deck A).

Record/Playback/Erase Head (Deck B).

forward

reverse

Deck A is RV311 (L-CH) and RV411 (R-CH), Deck B is RV301
(L-CH) and RV401 (R-CH) so that adjustment within specifica­tion values as follows.

Specification Values:

J101 PB level: 301.5 to 338.3 mV (– 8.2 to – 7.2 dB) level
difference between the channels: within ± 0.5 dB

Adjustment Location: AUDIO board

– 17 –

REC Bias Adjustment DECK B

Procedure:

1. Mode: Record
FUNCTION: VIDEO

MAIN board
VIDEO (AUDIO) IN jack (J101)
L-CH, R-CH



50 mV (– 23.8 dB)




600

Ω

AF OSC

1) 315 Hz

2) 10 kHz

attenuator

2. Mode: Playback

set

blank tape
CN-123

Specification values:

J101 PB level: 47.2 to 53.0 mV (– 24.3 to – 23.3 dB)

Adjustment Location: MAIN board

– MAIN BOARD (Conductor Side) –

RV301

L

IC301

RV351

R

REC LEVEL

VIDEO (AUDIO) IN

J101

MD OUT

(L/R)

(L/R)

recorded
portion

set

MAIN board
MD OUT jack (J101)
L-CH, R-CH

level meter

+
–

3. Confirm playback the signal recorded in step 1 become speci­fication values as follows.
If these values are out of specification values, adjust the R V341
(L-CH) and RV441 (R-CH) on the AUDIO board to repeat
steps 1and 2.

Specification values: Playback output of 315 Hz to playback

output of 10 kHz: ± 0.5 dB

Adjustment Location: AUDIO board

REC Level Adjustment DECK B

Procedure:

1. Mode: Record
FUNCTION: VIDEO

MAIN board
VIDEO (AUDIO) IN jack (J101)
L-CH, R-CH

AF OSC

315 Hz, 50 mV (– 23.8 dB)

Ω

attenuator

600

blank tape
CS-123

set

– AUDIO BOARD (Component Side) –

RV441

RV401

RV301

LR





PB LEVEL

– DECK B –



IC602

RV341

RL



REC BIAS

CN601

RV311

LR



PB LEVEL

– DECK A –

– LEAF SW BOARD (Component Side) –

TAPE SPEED



(NORMAL) (HIGH)

RV1002



RV1001

CN1001

RV411





2. Mode: Playback

recorded
portion

set

MAIN board
MD OUT jack (J101)
L-CH, R-CH

level meter

+
–

3. Confirm playback the signal recorded in step 1 become speci­fication values as follows.
If these values are out of specification values, adjust the R V301
(L-CH) and R V351 (R-CH) on the MAIN board to repeat steps
1 and 2.

– 18 –

CD SECTION

V

)

+
–

TP508 (27 MHz)

VIDEO board

frequency counter

Note:

1. CD Block is basically designed to operate without adjustment. There­fore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10 MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.

S-Curve Check

oscilloscope

BD board

TP (FE)
TP (VC)

Procedure:

1. Connect oscilloscope to TP (FE).

2. Connect between TP (FE1) and TP (VC) by lead wire.

3. Connect between TP (AGCCON) and TP (GND) by lead wire.

4. Turn the power ON.

5. Load a disc (YEDS-18) and actuate the focus search. (In con-

sequence of open and close the disc tray, actuate the focus
search)

6. Cofirm that the oscilloscope waveform (S-curve) is symmetri-

cal between A and B. And confirm peak to peak level within
4 ± 1 Vp-p.

S-curve waveform

+
–

symmetry

E-F Balance (1 Track Jump) Check

oscilloscope

BD board

TP (TE)
TP (VC)

+
–

Procedure :

1. Connect oscilloscpe to TP (TE) and TP (VC).

2. Turn the power ON.

3. Load a disc (YEDS-18) and playback the number five track.

4. Press the ^ (CD) button. (Becomes the 1 track jump mode)

5. Confirm that the level B and A (DC voltage) on the oscillo­scope waveform.

1 track jump waveform

B

0V

level = 1.3

Specified level: × 100 = less than ± 22%

±

0.6 Vp-p symmetry

A
B

center of
waveform

A (DC voltage

6. After check, remove the lead wire connected in step 1.

VIDEO SECTION

Frequency Adjustment

Connection:

Procedure:

1. Connect the frequency counter to TP508 (27 MHz) on VIDEO
board.

2. Turned power switch on.

3. Press the [FUNCTION] button to select the CD.

4. Adjust CT503 on the VIDEO board so that the frequency
counter reading 27.0 MHz ± 80 Hz at stop status.

Adjustment Location:

– VIDEO Board (Side A) –

IC507

A

within 4

±

1 Vp-p

B

7. After check, remove the lead wire connected in step 2 and 3.

Note: • Try to measure several times to make sure than the ratio of A : B

or B : A is more than 10 : 7.

• Take sweep time as long as possible and light up the brightness
to obtain best waveform.

RF Level Check

oscilloscope

BD board

TP (RF)
TP (VC)

+
–

Procedure:

1. Connect oscilloscope to TP (RF).

2. Connect between TP (AGCCON) and TP (GND) by lead wire.

3. Turn the power ON.

4. Load a disc (YEDS-18) and press the ^ button to play.

5. Confirm that the oscilloscope waveform is clear and check RF
signal level is correct or not.

6. After check, remove the lead wire connected in step 2.

Note: Clear RF signal waveform means that the shape “≈” can be clearly

distinguished at the center of the waveform.

VOLT/DIV: 200 m
TIME/DIV: 500 ns

Checking Location:

– BD BOARD (Side B) –

TP (AGCCON)

TP (RF)

IC102

TP (TE)

TP (FE)

IC103

TP (VC)

TP (GND)

TP (FE1)

IC101

IC505

TP508

(27 MHz)

CT503

VIDEO

Frequency

Adjustment

level:

1.45

±

0.3 Vp-p

– 19 – – 20 –

HCD-VX5A/VX5AJ/VX7A

7-1. BLOCK DIAGRAM – CD SERVO Section –

DETECTOR

A

B

C

D

F

E

OPTICAL PICK-UP

(KSS-213D/Q-NP)

I-V AMP

10

SECTION 7

DIAGRAMS

CTL2

CTL1

FILTER

RF AMP,

CD A+5V

7

4

2

1

5

6

6

8

10

11

FOCUS/TRACKING ERROR AMP

A

5

B

C

7

D

F

F I-V AMP

E

E I-V AMP

IC103

RF

SUMMING

AMP

RF EQ

AMP

FOCUS

ERROR AMP

TRACKING

ERROR AMP

RFO

HOLD SW

16

FE

14

TE

13

CTL2

21

DIGITAL SIGNAL PROCESSOR

IC101 (1/2)

RFAC

50

49
48

ASYMMETRY

CORRECTOR
ASYI
ASYO

DIGITAL

CLV

PROCESSOR

MDP

25 76 77

53 55

FILI

PCO

FILO

CLTV

DIGITAL PLL

TO SERVO AUTO

SEQUENCER

CPU INTERFACE

SENSE

DATA

CLOK

XLAT

125254

XPCK

EFM

DEMODULATOR

INTERNAL BUS

SUBCODE

PROCESSOR

EXCK

SCOR

SBSO

SQCK

SQSO

79 801574 6 5 10 111368 3

WFCK

XUGF

GFS

EMPH

32K

RAM

ERROR

CORRECTOR

16 69

C4M

CLOCK

GENERATOR

DIGITAL

INTERFACE

MUTE

D/A

XTSL

DIGITAL

OUT

XTAO

XTAI

PCMD

BCK
LRCK
C2PO

WDCK

DOUT

MD2

XRST

72
71

66
67
65
14
17

64

63

2

IC104

DATA

BCK
LRCK
C2PO

CD A+5V

OPTICAL

TRANSCEIVER

IC381

MCLK

33.8MHz

DATA, BCK,

LRCK, C2PO

CD DIGITAL OUT

OPTICAL

A

B

(Page 23)

(Page 23)

(TRACKING)

(FOCUS)

05

LASER DIODE

PD

2-AXIS
DEVICE

LD

M101

(SPINDLE)

M102

(SLED)

AUTOMATIC

POWER CONTROL

Q101

15

M

16

17

M

18

12
11

14
13

LD

APC LD

3

AMP

FOCUS/TRACKING COIL DRIVE,

SPINDLE/SLED MOTOR DRIVE

IC102

CH4OUTF
CH4OUTR

CH3OUTF
CH3OUTR

CH2OUTF
CH2OUTR

CH1OUTF
CH1OUTR

MOTOR

MOTOR

DRIVE

DRIVE

COIL

DRIVE

COIL

DRIVE

MUTE

20

CH4SIN

CH3FIN

CH3RIN

CH2FIN

CH2RIN

CH1FIN

CH1RIN

APC PD

AMP

25

24
23

5
6

2
3

LDON

22

PD

4

SFDR

29

SRDR

30

TFDR

31

TRDR

32

FFDR

33

FRDR

34

DIGITAL SERVO

PROCESSOR

IC101 (2/2)

PWM GENERATOR

FOCUS/TRACKING/SLED

40 41 39 43

FE

TE

SE

RFDC

A/D

CONVERTER

FOCUS/

TRACKING/SLED

SERVO DSP

SSTP

26

CD A+5V

MIRR,

DFCT, FOK

DETECTOR

SERVO

INTERFACE

SERVO AUTO

SEQUENCER

TO CPU INTERFACE

S101

(LIMIT)

FOK

MIRR

DFCT

COUT

SCLK

3 5 4 1 18 36 37 10

SCOR

SENSE

DSP CLK

DSP DATA

DSP LATCH

LDON

SENSE CLK

28 2

DISC IN DETECT

LEVEL SHIFT

22
20
21

19

8

SUBQ CLK

SUBQ DATA

CD MECHANISM CONTROLLER

IC502 (1/2)

DISC TRAY

SENSOR

IC703

Q701

60 61 71 70 69 68 59

DISC-SENS

TBL-L

TBL-R

65 63 67

SENSOR

IC702

LOAD-OUT

LOAD-IN

66

DISC TRAY SLIDE MOTOR DRIVE

10

2

DISC TRAY TURN MOTOR DRIVE

3
6

TBL-SENS

FIN
RIN

IN1
IN2

(OPEN/CLOSE DET)

CLOSE

OUT-OPEN

IC801

MOTOR

DRIVE

IC701

MOTOR

DRIVE

S801

OPEN

SYSTEM CONTROLLER

IC501 (1/4)

OUT1

7

OUT2

4

OUT1

7

OUT2

2

DSP MUTE

DEVICE RESET

DISC TRAY

ADDRESS DETECT

ROTARY

ENCODER

S811

4 2 3

ENC1

ENC2

M

(DISC TRAY SLIDE)

M

(DISC TRAY TURN)

CTRL1
CTRL2

XRESET

ENC3

M801

M701

XRST

CTL1
CTL2

RESET

C

(Page 24)

11
27

77
12

• SIGNAL PATH
: CD PLAY
: DIGITAL OUT

– 21 – – 22 –

7-2. BLOCK DIAGRAM – AUDIO/VIDEO CD Section –

MCLK 33.8MHz

A

(Page 22)

B

(Page 22)

DATA, BCK,
LRCK, C2PO

DATA

BCK

LRCK

C2PO

LEVEL
SHIFT

IC501

MPEG VIDEO/AUDIO DECODER,

VIDEO SIGNAL PROCESSOR

IC505

CD-DATA

4

CD-BCK

3

CD-LRCK

5

CD-C2PO

6

MA0 – MA10

58 – 56, 54, 52 – 50, 48, 46 – 44 10 – 15, 17, 19, 21, 23 – 29

ADDRESS BUS

CD-ROM

INTERFACE

CIRCUIT

A0 – A10

MPEG

SYSTEM

DECODER

D-RAM/ROM INTERFACE

MD0 – MD15

MPEG
AUDIO

DECODER

MPEG
VIDEO

DECODER

D0 – D15

MCE

37

38 42 40

PROCESS

CIRCUIT

RAS0

MWE

VIDEO

CAS

AUDIO

INTERFACE

CIRCUIT

PGIO2/VSYNC/CSYNC

HRDY

RESET

60

113

DA-DATA

DA-BCK

DA-LRCK

DA-XCLK

Y-OUT
C-OUT

VCK-IN

CPU INTERFACE

HSEL

HD-OUT

HD-IN

HINT

114 121

112

119

HCD-VX5A/VX5AJ/VX7A

DIGITAL FILTER,
D/A CONVERTER

IC509

(Page 27)

CD-L

• SIGNAL PATH

(Page 22)

RESET

E

: CD PLAY (AUDIO)
: CD PLAY (VIDEO)

C

XT1

DIGITAL

FILTER,

NOISE
SHAPER
CIRCUIT

D/A

CONVERTER

MODE

CONTROL

MC

MD
9 724 1

8

VOUTL

LOW-PASS

FILER

ML

RSTB
10

VOUTR

14

11

LOW-PASS

FILER
IC101

R-CH

CT503

(27MHz)

DATA

18

BCK

17

LRCK

19

768FSO

21

384FSO

20

MCKO

4

INPUT

INTERFACE

CIRCUIT

TIMING CONTROL/

CLOCK GENERATOR

XT2

X503

27MHz

110
111
108

86

69
75

106

93

HCK

117

BUFFER

Q502

DATA

CLK

OSC

BUFFER

IC504

VIDEO FREQUENCY

16 – 19, 22 – 26

D-RAM

IC507

D

(Page 29 )

A0 – A8

A0 – A8

DATA, CLK

UCAS

LCAS

14 132928

RAS

DQ1 – DQ16

WE

D0 – D15

DATA BUS

PROGRAM ROM

A0 – A10

12 – 5, 27, 26, 23

A0 – A10

IC506

13 – 15, 17 – 212 – 5, 7 – 10, 31 – 34, 36 – 39

D0 – D7

O0 – O7

D8 – D14

25, 4, 28, 29, 3, 2, 30

A11 – A17

CE

22

NTSC

AUTO

PAL

S501

SYSTEM SELECT

(SELF DIAGNOSIS)

DATA

CLK

D502

BUS

45

CLK1

33

DATA1O

31
32

DATA1I

CL680 SEL

21
20

CL680 HINT
CL680 HRDY

23

24

CL680 RESET

CD MECHANISM CONTROLLER

IC502 (2/2)

93

NT/PAL

TEST LED

73

29

CLK
DATA

30

DF LATCH

22

J301

S VIDEO OUT

B.P.F.

B.P.F.

VIDEO

BUFFER

Q301

VIDEO

BUFFER

Q304

VIDEO

BUFFER

Q303

SHARPNESS

FILTER

Q302

VIDEO

BUFFER

Q307

VIDEO

BUFFER

Q308

Y/C MIX

Q310

VIDEO AMP
IC401 (1/2)

VIDEO AMP
IC401 (2/2)

C

Y

13

VIDEO
MUTE

Q453

75

VIDEO
MUTE

Q454

1

3
4

2

J302

VIDEO OUT

SHARPNESS

CONTROL SWITCH

Q306

– 24 –

VMUTE

XOUT

34

65

SHARPNESS

05

XIN

X501

10MHz

1315

– 23 –

HCD-VX5A/VX5AJ/VX7A

7-3. BLOCK DIAGRAM – TAPE DECK Section –

HP101

(PLAYBACK)

L-CH

R-CH R-CH

HRPE101 (1/2)

(RECORD/PLAYBACK)

L-CH

R-CH R-CH

DECK PROCESS

DECK A/B SELECT, PB/REC EQ AMP,

DOLBY NR AMP, ALC, AMS

IC301

DOLBY PASS

NORM/HIGH

PB A/B

70

120

R-CH

NR ON/OFF

BIAS ON/OFF

RM ON/OFF

L.P.F.

BUFFER

28

27

AMS

CIRCUIT

REC/PB/PASS

LM ON/OFF

26

+

MAOUT

MSIN

MSOUT

RIN (L)

43

ALC (L)

44

DOLBY NR

ALC

ROUT (L)

ALC

35 34

AMP

CIRCUIT

IN (L)

REC OUT (L)
39

RV301

REC LEVEL (L)

(DECK B)

EQ IN (L)

38

PB EQ AMP

(DECK A)

IC611

PB EQ AMP

(DECK B)

IC601

REC/PB SWITCHING

IC602

1

3

R-CH

R-CH

RV311

PB LEVEL (L)

(DECK A)

RV301

PB LEVEL (L)

(DECK B)

4

AIN (L)

48

BIN (L)

46

BIAS (N)

33

BIAS (C)

32

BIAS (M)

31

S1004

(DECK A 120/70)

S1008

(DECK B 120/70)

BIAS

CONTROL

CIRCUIT

B NORM/CROM

ALC ON/OFF

A 120/70

1516182022 23242517

19

REC

EQ AMP

PB OUT (L)

EQ OUT

40

(L)

36

PB-L

REC-L

F

(Page 27)

G

(Page 28)

• SIGNAL PATH
: PLAYBACK (DECK A)

: PLAYBACK (DECK B)
: RECORD

RV441

REC BIAS (R)

(DECK B)

HRPE101 (2/2)

(ERASE)

R-CH

05

2

RV341

REC BIAS (L)

(DECK B)

BIAS OSC

T621

BIAS OSC

Q621, 622

REC BIAS

SWITCH

Q623

C331, L331

BIAS

TRAP

B+

(A+7V)

D+5V

100

TC-RELAY

8584838281 807978

ALC-ON/OFF

A-PLAY-SW

87

S1001

(DECK A PLAY)

BIAS

PB-A/B

EQ-H/N

REC-MUTE

B-PLAY-SW

86

S1002

(DECK B PLAY)

TC-MUTE

R/P-PASS

NR-ON/OFF

(DECK A HALF)

S1003

77

AMS-IN

A-HALF

88

ROTATION

DETECT SENSOR

(DECK A)

IC1001

91

A-SHUT

S1006

(DECK B HALF)

S1005

(DECK A REC)

S1009

(DECK B REC)

ROTATION

DETECT SENSOR

(DECK B)

IC1002

90

B-SHUT

SYSTEM CONTROLLER

B-HALF

89

IC501 (2/4)

TRIGGER PLUNGER

DECK A

TRIGGER

PLUNGER DRIVE

(DECK A)

Q333, 334

73

A-TRG

TRIGGER PLUNGER

DECK B

TRIGGER

PLUNGER DRIVE

(DECK B)

Q331, 332

72

B-TRG

Q335

76

CAP-M-H/L

RV1001

TAPE SPEED

(HIGH)

CAPM-CNT1
CAPM-CNT2

CAPSTAN MOTOR

CONTROL SWITCH

Q1001

75
74

RV1002

TAPE SPEED

(NORMAL)

CAPSTAN

MOTOR DRIVE

Q336 – 343

M

M1

(CAPSTAN)

– 25 –

– 26 –

7-4. BLOCK DIAGRAM – MAIN Section –

DIGITAL ECHO

IC711

RV711

ECHO

LEVEL

HCD-VX5A/VX5AJ/VX7A

REC-L

G

(Page 26)

J711

MIC 2

J712
MIC 1

(Page 24)

(Page 26)

VIDEO

(AUDIO) IN

FM

75Ω

MD IN

MIC AMP

IC712 (1/2)

RV712

MIC LEVEL

INPUT SELECT SWITCH,

CD-L

E

PB-L

F

J101 (1/2)

L

R

L

R

ANTENNA

R-CH

R-CH

FM/AM TUNER UNIT

FM ANT

FM ANT

GRAPHIC EQUALIZER CONTROL,

ELECTRICAL VOLUME

IC101

IN E2

65

IN D2

66
68
69
67

IN B2
IN A2
IN C2

ST-L
ST-R

INPUT

SELECT

SWITCH

R-CH

R-CH

MIC AMP

IC712 (2/2)

SOUND

CONTROL

CIRCUIT

KEY IN2

KEY IN1

60 5

R-CH

11

3

40

VC L+R/L–R

L-IN

R-CH

L+R/L–R

493-LATCH

BASS FREQ.

2 58 57

+

493-DATA

493-CLK

DBFB-H/L

MIC IN

+

+

KEY OUT 1
KEY OUT 2

L+R/L–R
MATRIX
CIRCUIT

47
48
38

7

44

L+R

23 24

REC A2

GRAPHIC EQUALIZER

R-CH

30

6

R-CH

59

ADM L.P.F.

OSC

LC-INELC-INB

OSC

CONTROL CIRCUIT

L/R+DELAY

S-RAM

D607
D644

CIRCUIT

REC B2

F OUT2

42 41

+

EFFECT/
BYPASS

SURROUND

PROCESSOR

IC1201

VOL
IN2

COMMAND

L-OUT

14

VOLUME

CONTROL

R-CH

+

CPU

INTERFACE

DATA

CLOCK

LATCH

34

BASS BOOST

CONTROL

CIRCUIT

BB B2,

BB A2

38, 39

DBFB CONTROL

SWITCH

Q111

CONTROL SWITCH

SUPER

WOOFER

BUF IN2

373233

BASS FREQUENCY

Q201

R-CH

BUF

OUT2

FEED BACK

R-CH

72

36

SWITCH

Q112

R-CH

D141

R-CH

+

D191

PROTECT

SWITCH

R-CH

Q192

R-CH

MUTING

Q191

–1

–2

SPEANA

J101 (2/2)

SUPER WOOFER

FAN MOTOR

Q401, 402

SURROUND SPEAKER
IMPEDANCE USE 16Ω

L

MD OUT

R

J191

DRIVE

TM402

+
–

+
–

TM401

SPEAKER

IMPEDANCE

USE 8 – 16Ω

+
–

+
–

H

(Page 29)

M501
(FAN)

L

R

L

R

M

AM

• SIGNAL PATH
: TUNER (FM/AM)

: CD PLAY
: TAPE PLAY

: RECORD
: MIC INPUT

(Page 29)

I

RESET

AM ANT

AM ANT

ST-MUTE

STEREO

TUNED
ST-DIN

ST-DOUT

ST-CLK

ST-CE

49

ST-MUTE
STEREO

50

TUNED

51

ST-DOUT

53
54

ST-DIN
ST-CLK

55

ST-CE

52

SYSTEM CONTROLLER

IC501 (3/4)

AC-CUT

RESET

F-RELAY

RY-SW

1

MUTING CONTROL

6

22

12

27

3

36

RESET SWITCH

Q501

STK-MUTE

LINE-MUTE

XC-OUT

X601

32.768kHz

X613

16MHz

05

11

XC-IN

10

13

X-OUT

X-IN

15

PROTECTOR

SWITCH

Q508, 509

MUTING

Q113

R-CH

– 27 –

POWER AMP

STANDBY SWITCH

Q803, 804, 881

+5V

RESET SIGNAL

GENERATOR

IC502

IC801

R-CH

TH831

TEMPERATURE

DETECT SWITCH

Q831, 832

MUTING CONTROL

SWITCH

Q412

R-CH

OVER LOAD

DETECT

Q801

DC DETECT

+

SWITCH

Q433, 434

D803

+

PROTECT SWITCH

OVER LOAD

DETECT SWITCH

Q439

Q432

– 28 –

R-CH

OVER LOAD

DETECT SWITCH

Q437

PROTECT SWITCH

Q435, 436

MUTING

Q411, 471

RELAY
DRIVE

Q431

J701

PHONES

RY401

HCD-VX5A/VX5AJ/VX7A

7-5. BLOCK DIAGRAM – DISPLAY/KEY CONTROL/POWER SUPPLY Section –

(Page 27)(Page 28)

H

I

GRID DRIVE

Q607 – 612

FL601

FLUORESCENT INDICATOR TUBE

GRID DRIVE

Q613

S611 – 630, 632 – 635,

S638 – 651, 751 – 757

REMOTE CONTROL

RECEIVER

IC602

05

DATA, CLK

ROTARY

ENCODER

S601

ROTARY

ENCODER

S602

S601

(JOG DIAL)

S602

VOLUME

D

(Page 23)

FLUORESCENT INDICATOR TUBE DRIVER,

45

10

78
79

46 – 67

S1 – S22

32 – 27

G13 – G18

G2 – G12

44 – 42, 40 – 33

G1

11 – 14

KEY0 – KEY3

1

SIRCS

2

JOG-A

8

JOG-B

VOL-A

9

VOL-B

I2C DATA
I2C CLK

KEY CONTROL

IC601

S LOW FREQ (BPF0)

ALL BAND (L+R)

LED DATA

LED SCK
LED LAT

WAKE UP

XOUT

XIN

72 70

X601

12.5MHz

BPF1
BPF2

BPF3
BPF4

RESET

L SEL

16
17
18
19
20

21

73

22

BAND-PASS FILTER

IC603

F01

17

F02

16

F04

14

DET

F05

13

F06

12

L+R

11

7

LED DRIVER

IC604

5
3
4

DATA

13
14

CLK

15

STB

SYSTEM CONTROLLER

WAKE UP

18

30

IIC-DATA

29

IIC-CLK

B.P.F.

DET

P1 – P9, P11, P12, P15, P16

17, 19 – 23, 1 – 3, 5, 7, 10, 11

IC501 (4/4)

CD-POWER

POWER

STBY LED

TIMER LED

LINE

IN

REC IN

5

2

LED DRIVE

39

26

Q604, 605

LED DRIVE

4

6

B+ SWITCH

Q601, 602

D611 – 624,
D627 – 631,

D751 – 753

Q606

SPEANA

RESET

+5V (LED)

Q603

A+5V (SW)

D/A CONVERTER (IC509),

VIDEO AMP CIRCUIT B+

D+5V (SW)

M62493FP (IC101),

CD SENSOR CIRCUIT B+

D754

I/u

D632

TIMER SELECT

B+ SWITCH

Q907, 908

B+ SWITCH

Q904, 905

+5V

SYSTEM CONTROLLER

(IC501) B+

+5V

CD MECHANISM

CONTROLLER (IC502) B+

+5V (STBY)

(PANEL SECTION B+)

D+5V (UNSW)

(TAPE DECK SECTION B+)

+5V (LED)

(PANEL SECTION B+)

D925

D923

D501, 502

D507

D509

D922

D924

D+5V (SW)

CD SERVO/VIDEO CD

SECTION B+

+3.3V

MPEG VIDEO/AUDIO

DECODER (IC505) B+

REGULATOR

CONTROL SWITCH

Q903, 923

+3.3V

REGULATOR

Q531

TC, PANEL,

AUDIO

CD M+7V

(CD MOTOR SECTION B+)

TC M+12V

(TC MOTOR SECTION B+)

ST +10V

(FM/AM TUNER UNIT B+)

TO FLUORESCENT

INDICATOR TUBE

(FL601)

POWER AMP (IC801),
PROTECTOR CIRCUIT

–26V

(FL DRIVER (IC601) B–)

REGULATOR

B+ SWITCH

Q911, 912

A+7V

A–7V

REGULATOR

FAN MOTOR B–

+10V

REGULATOR

Q909

+5V

IC902

+5V

IC904

REGULATOR

Q901, 902, 913

REGULATOR

Q914, 951, 952

VF1
VF2

+VL
–VL

+VH
–VH

–26V REGULATOR

Q971

D918

+7V

–7V

D405 – 407

+7V

REGULATOR

IC901

+12V

REGULATOR

IC903

RECT
D832

RECT
D831

RECT
D971

RECT

D901 – 904

RECT

D907 – 910

POWER TRANSFORMER

T951

(Thai)

VOLTAGE

SELECTOR

S951

(EXCEPT Thai)

AC IN

– 29 –

– 30 –

7-6. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

• Circuit Boards Location

Note on Printed Wiring Board:

• X : parts extracted from the component side.

• p : parts mounted on the conductor side.

• b : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)

Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.

• Indication of transistor.

C
Q

B

B

B

E

These are omitted.

Q

CE

These are omitted.

Q

CE

These are omitted.

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

¢

•

• 2 : nonflammable resistor.

• 5 : fusible resistor.

• C : panel designation.

Note: The components identified by mark ! or dotted line

• U : B+ Line.

• V : B– Line.

• H : adjustment for repair.

• Voltages are taken with a VOM (Input impedance 10 MΩ).

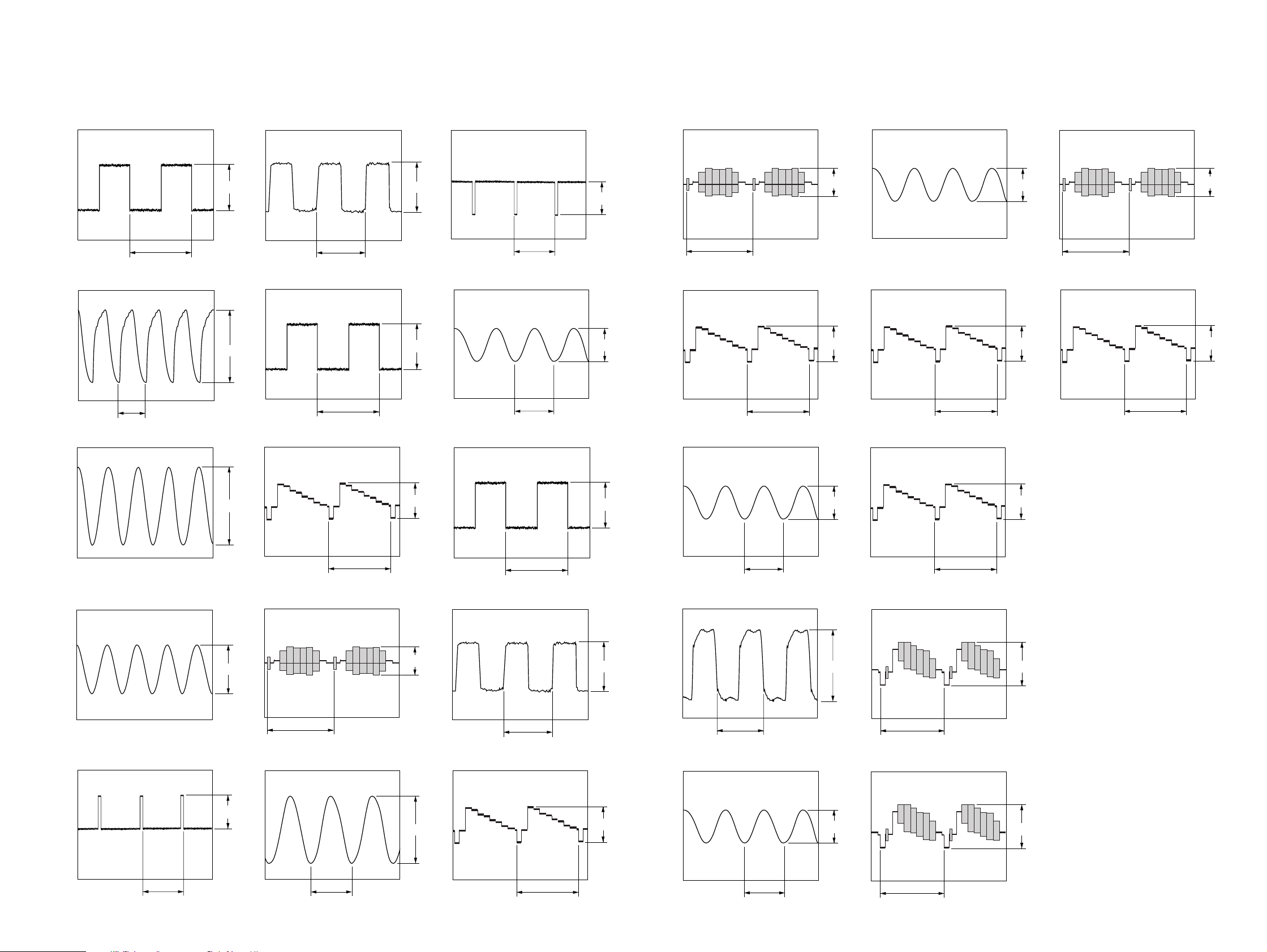

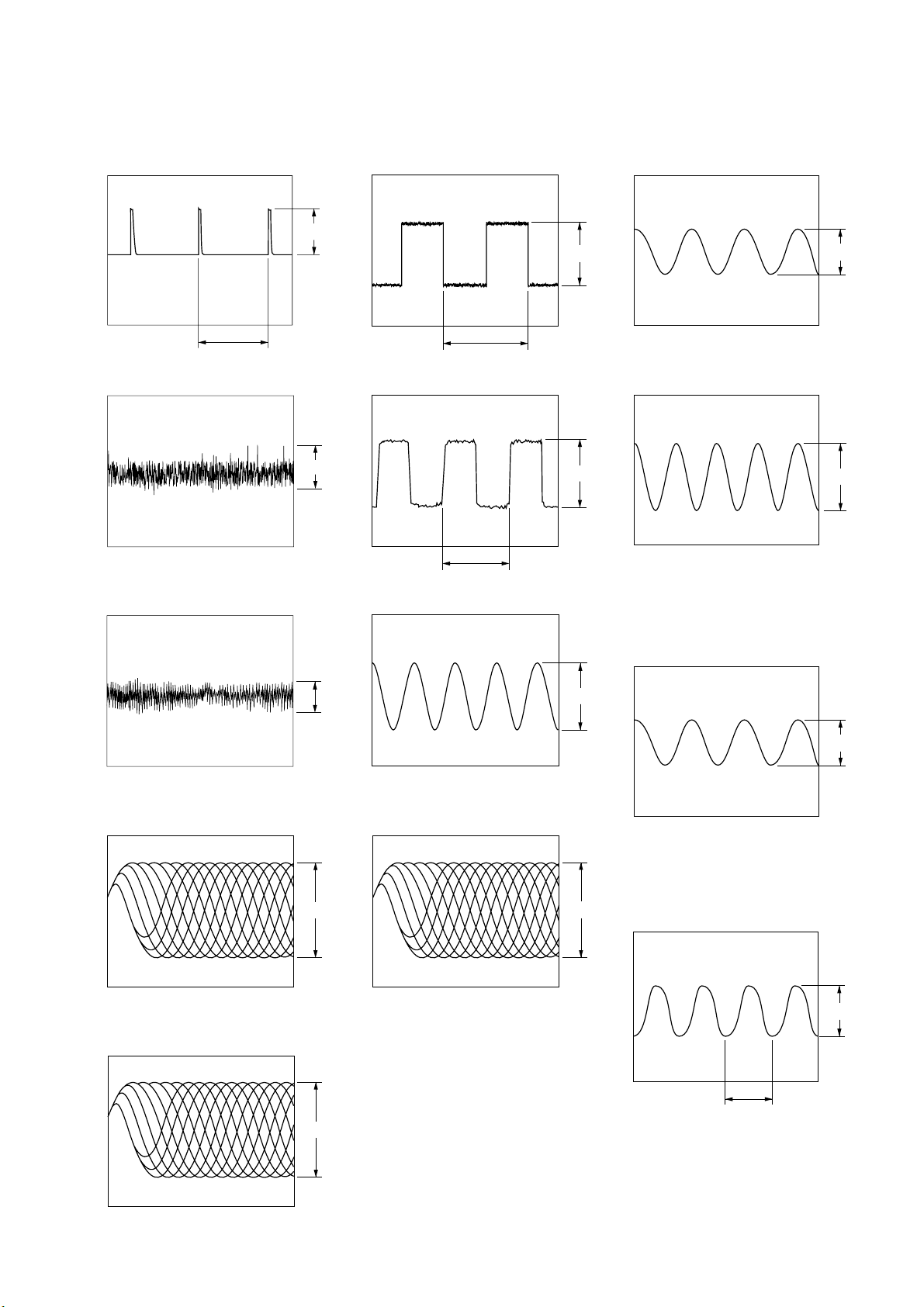

• Waveforms are taken with a oscilloscope.

• Circled numbers refer to waveforms.

• Signal path.

• Abbreviation

: internal component.

with mark ! are critical for safety.
Replace only with part number specified.

Voltage variations may be noted due to normal produc­tion tolerances.

Voltage variations may be noted due to normal produc­tion tolerances.

F : TUNER (FM/AM)
E : PLAYBACK (DECK A)
d : PLAYBACK (DECK B)
G : RECORD
L : CD PLAY (VIDEO)
J : CD PLAY (AUDIO)
c : DIGITAL OUT
N : MIC INPUT

EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesian model
JE : Tourist model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model

4

W or less unless otherwise

CD SW board

PANEL board

TRANS board

VIDEO board

TUNER PACK (Tourist)
TUNER (FM/AM) (Thai)
TUNER (FM/MW/SW)
(EXCEPT Thai, Tourist)

SURROUND board

MAIN board

MOTOR (TURN) board

SENSOR board

BD board

CONNECTOR board

AUDIO board

MOTOR (SLIDE) board

LEAF SW board

– 31 – – 32 –

HCD-VX5A/VX5AJ/VX7A

7-7. PRINTED WIRING BOARD – BD Board – • See page 32 for Circuit Boards Location.

• Semiconductor
Location
(Side A)

Ref. No. Location

IC104 F-3
Q101 F-6

(Page 42)

• Semiconductor
Location
(Side B)

Ref. No. Location

IC101 E-4
IC102 C-5
IC103 E-6

– 33 – – 34 –

7-8. SCHEMATIC DIAGRAM – BD Board – • See page 75 for Waveforms. • See page 76 for IC Block Diagrams.

HCD-VX5A/VX5AJ/VX7A

(Page 37)

– 35 –

• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
( ) : CD PLAY

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

– 36 –

HCD-VX5A/VX5AJ/VX7A

7-9. SCHEMATIC DIAGRAM – VIDEO Board (1/2) – • See page 43 for Waveforms. • See page 78 for IC Block Diagram.

(Page 35)

(Page 57)

– 37 –

(Page 39)

• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : VIDEO CD PLAY

– 38 –

7-10. SCHEMATIC DIAGRAM – VIDEO Board (2/2) – • See page 43 for Waveforms.

HCD-VX5A/VX5AJ/VX7A

(Page 38)

– 39 –

– 40 –

• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark :VIDEO CD PLAY

: Impossible to measure

∗

HCD-VX5A/VX5AJ/VX7A

7-11. PRINTED WIRING BOARD – VIDEO BOARD – • See page 32 for Circuit Boards Location.

• Semiconductor
Location
(Side A)

Ref. No. Location

D301 B-5
D501 D-2
D502 H-1

IC101 H-5
IC401 B-2
IC504 G-4
IC505 D-4
IC507 D-6
IC509 G-6

Q301 B-5
Q304 C-2
Q306 B-5
Q307 B-4
Q308 B-4
Q310 B-3
Q502 D-2

• Semiconductor
Location
(Side B)

Ref. No. Location

IC501 E-3
IC502 G-3
IC506 E-5

Q302 B-5
Q303 C-2
Q453 A-3
Q454 A-3
Q531 D-2

TP508

(27MHz)

J

(Page 34)

– 41 –

(Page 55)

– 42 –

• Waveforms

1 Vp-p

27 MHz

– VIDEO Board –

1 IC501 5 (LRCK)

22.8 µs

2 IC501 !£ (BCLK)

472 ns

3 IC502 !£ (XOUT)

5 Vp-p

4.4 Vp-p

6 IC505 3 (CD-BCK) !§ Q303, 304 (Base)

4.8 Vp-p

472 ns

7 IC505 5 (CD-LRCK)

4.8 Vp-p

22.8 µs

8 IC505 ^ª (Y-OUT)

!¡ IC505 (£ (PGIO2/VSYNK/CSYNK)

3.1 Vp-p

16.7 ms

!™ IC505 `⁄‚fl (VCK-IN)

4.3 Vp-p

8.7 ms

!£ IC505 `⁄‚° (DA-LRCK), IC509 !ª (LRCK)

H

!¶ Q308 (Base)

!• IC509 4 (MCKO)

@¡ IC509 @¢ (XT2)

1 Vp-p

@™ IC401 7

0.9 Vp-p

H

@£ IC401 5

H

1.8 Vp-p

@§ J301 3 (COUT)

1 Vp-p

H

@¶ J301 4 (YOUT)

1.7 Vp-p

H

10 MHz

4 IC502 !∞ (XIN)

10 MHz

5 IC502 $∞ (BUS)

4.1 Vp-p

3.3 Vp-p

4.8 Vp-p

9 IC505 &∞ (C-OUT)

H

0 IC505 *§ (DA-XCLK)

1.7 Vp-p

H

22.6 µs

!¢ IC505 `⁄⁄⁄ (DA-BCK), IC509 !¶ (BCK)

0.5 Vp-p

472 ns

!∞ Q301 (Base)

5.2 Vp-p

6 Vp-p

37 ns

!ª IC509 @º (384FSO)

4.8 Vp-p

59 ns

@º IC509 @¡ (768FSO)

1.8 Vp-p

4.9 Vp-p

H

@¢ IC401 3

5.1 Vp-p

H

@∞ IC401 1

4.8 Vp-p

1 Vp-p

1 Vp-p

2 Vp-p

16.7 ms

60 ns

– 43 –

H

30 ns

H

– 44 –

HCD-VX5A/VX5AJ/VX7A

7-12. PRINTED WIRING BOARDS – CD MOTER Section – • See page 32 for Circuit Boards Location.

(Page 55)

B

DISC TRAY

SLIDE

DISC TRAY

TURN

1-658-577-

(DISC TRAY ADDRESS DETECT)

– 45 –

05

C

(Page 55)

– 46 –

7-13. SCHEMATIC DIAGRAM – CD MOTOR Section – • See page 77 for IC Block Diagrams.

DISC TRAY

ADDRESS DETECT

DISC TRAY SLIDE

CLOSE

OPEN

HCD-VX5A/VX5AJ/VX7A

DISC IN DETECT

SENSOR

DISC TRAY

SENSOR

(DISC TRAY SLIDE)

DISC
TRAY
TURN

DISC TRAY TURN

MOTOR DRIVER

B

(Page 57)

C

(Page 57)

– 47 –

LEVEL SHIFT

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : CD STOP

– 48 –

HCD-VX5A/VX5AJ/VX7A

7-14. PRINTED WIRING BOARD – AUDIO Board – • See page 28 for Circuit Boards Location.

(

)

05

D

(Page 55)

– 49 –

– 50 –

7-15. SCHEMATIC DIAGRAM – AUDIO Board – • See page 79 for IC Block Diagram.

HCD-VX5A/VX5AJ/VX7A

(PLAYBACK)

PB EQ AMP

(DECK A)

PB EQ AMP

(DECK B)

PB LEVEL (L)

(DECK A)

PB LEVEL (R)

(DECK A)

PB LEVEL (L)

(DECK B)

PB LEVEL (R)

(DECK B)

D

(Page 61)

REC BIAS (R)

(DECK B)

BIAS OSC

REC BIAS (L)

(DECK B)

SWITCHING

REC BIAS

-6.8

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

– 51 –

– 52 –

HCD-VX5A/VX5AJ/VX7A

7-16. PRINTED WIRING BOARD – LEAF SW Board – • See page 32 for Circuit Boards Location.

05

7-17. SCHEMATIC DIAGRAM – LEAF SW Board –

(DECK A PLAY)

(CAPSTAN)

DECK B

PLUNGER

4

1

3

2

DECK A

PLUNGER

(DECK A 120/70)

(DECK A HALF)

(DECK A REC)

(DECK B HALF)

(DECK B REC)

(DECK B 120/70)

(DECK A HALF)

DECK A

PLUNGER

(DECK A 120/70)

ROTATION DETECT SENSOR

(DECK A)

(

)

(DECK A REC)

CONTROL SWITCH

ROTATION DETECT
SENSOR (DECK B)

E

(Page 55)

(DECK B PLAY)

4

1

(DECK B HALF)

• Semiconductor Location

DECK B

PLUNGER

D141 E-10

3

2

(DECK B 120/70)

(DECK B REC)

21

21

D191 D-12
D331 E-1
D333 F-1
D334 E-1
D335 F-1
D401 G-11
D403 F-12
D405 H-6
D406 I-4
D407 I-2
D411 G-1
D501 D-7
D502 E-6
D503 D-6
D504 D-7
D505 D-7
D506 D-7
D507 E-6
D509 F-2
D607 E-5
D644 C-8
D801 I-11
D802 G-9
D803 G-11
D831 I-6
D832 I-7
D851 I-10
D852 G-9
D881 H-9
D901 I-4
D902 I-4
D903 I-4
D904 I-4
D905 I-1
D906 H-1
D907 I-5
D908 I-5
D909 I-5
D910 I-5
D915 I-4
D917 F-4
D918 H-3
D919 H-3
D921 H-4
D922 G-4
D923 G-4
D924 F-2
D925 G-4

IC101 C-10
IC301 B-3
IC381 A-12
IC501 D-5
IC502 D-7

E

(Page 61)

IC801 H-10
IC901 G-6
IC902 G-4
IC903 H-4
IC904 H-3

Ref. No. LocationRef. No. Location

Q111 D-10
Q112 D-10
Q113 E-9
Q161 C-9
Q162 C-9
Q163 E-9
Q191 D-12
Q192 E-10
Q201 D-9
Q251 C-9
Q331 C-1
Q332 C-2
Q333 C-2
Q334 C-2
Q335 D-1
Q336 F-1
Q337 F-1
Q338 F-1
Q339 F-1
Q340 E-1
Q341 E-1
Q342 F-1
Q343 E-1
Q401 F-12
Q402 E-12
Q411 G-1
Q412 G-1
Q431 G-12
Q432 G-11
Q433 F-11
Q434 F-11
Q435 F-11
Q436 F-11
Q437 G-12
Q439 F-12
Q471 F-2
Q501 D-7
Q508 D-7
Q509 E-7
Q801 H-10
Q803 G-10
Q804 G-9
Q831 G-10
Q832 G-10
Q851 I-10
Q881 I-9
Q901 H-2
Q902 I-1
Q903 H-1
Q904 G-4
Q905 G-4
Q907 G-5
Q908 G-4
Q909 I-4
Q911 G-3
Q912 G-4
Q913 H-1
Q914 G-2
Q923 H-1
Q951 G-2
Q952 H-1

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD

: Impossible to measure

∗

– 53 – – 54 –

(DECK A PLAY)

(DECK B PLAY)

7-18. PRINTED WIRING BOARD – MAIN Board – • See page 32 for Circuit Boards Location.

(Page 45) (Page 45) (Page 42)

(Page 50)

HCD-VX5A/VX5AJ/VX7A

(Page 53)

(Page 65)

(Page 71)

(Page 73)

(Page 71)

– 56 –– 55 –

HCD-VX5A/VX5AJ/VX7A

7-19. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • See page 75 for Waveforms.

(Page 74)

(Page 37)

(Page 48)

(Page 59)

(Page 63)

(Page 48)

– 57 –

(Page 62)

– 58 –

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY

7-20. SCHEMATIC DIAGRAM – MAIN Board (2/4) – • See page 75 for Waveforms.

HCD-VX5A/VX5AJ/VX7A

(Page

58)

(Page

62)

(Page 64)

(Page 71)

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

– 59 –

– 60 –

HCD-VX5A/VX5AJ/VX7A

7-21. SCHEMATIC DIAGRAM – MAIN Board (3/4) – • See page 75 for Waveforms.

(Page 58)

(Page 59)

(Page 63)

(Page 71)

(Page 52)

(Page 68)

(Page 63)

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY
{ } : PLAYBACK (DECK A)
[ ] : PLAYBACK (DECK B)
〈〈 〉〉 : RECORD

– 61 –

(Page 54)

– 62 –

7-22. SCHEMATIC DIAGRAM – MAIN Board (4/4) – • See page 75 for Waveforms.

(Page

58)

(Page

62)

HCD-VX5A/VX5AJ/VX7A

(Page 60)

(Page

62)

– 63 –

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY
{ } : PLAYBACK (DECK A)
[ ] : PLAYBACK (DECK B)
〈〈 〉〉 : RECORD

– 64 –

HCD-VX5A/VX5AJ/VX7A

7-23. PRINTED WIRING BOARD – PANEL Board – • See page 32 for Circuit Boards Location.

• Semiconductor
Location

Ref. No. Location

D610 C-2
D611 E-1
D612 C-2
D613 C-5
D614 C-6
D615 C-7
D616 C-8
D617 B-1
D618 B-1
D619 B-2
D620 A-2
D621 B-9
D622 A-9
D623 A-1
D624 D-4
D627 E-7
D628 E-4
D629 D-5
D630 F-7
D631 F-4
D632 F-8
D701 C-9

IC601 B-5
IC602 B-10
IC603 B-7
IC604 C-3
IC711 C-9
IC712 F-8

(Page 55)

(Page 69)

Q601 C-2
Q602 C-1
Q603 C-1
Q604 A-3
Q605 A-2
Q606 B-3
Q607 A-9
Q608 A-9
Q609 A-9
Q610 B-9
Q611 B-8
Q612 B-8
Q613 B-8

– 65 –

– 66 –

7-24. SCHEMATIC DIAGRAM – PANEL Board – • See page 75 for Waveform. • See page 79 for IC Block Diagrams.

(Page

70)

HCD-VX5A/VX5AJ/VX7A

(Page 62)

– 67 –

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)

– 68 –

HCD-VX5A/VX5AJ/VX7A

7-25. PRINTED WIRING BOARD – CD SW Board – • See page 32 for Circuit Boards Location.

(Page 66)

7-26. SCHEMATIC DIAGRAM – CD SW Board –

(Page 67)

– 69 –

– 70 –

7-27. PRINTED WIRING BOARD – TRANSFORMER Board – • See page 32 for Circuit Boards Location.

• Semiconductor
Location

Ref. No. Location

D971 A-2
D972 A-1
D973 A-1

Q971 A-1

(Page 55)

(Page 55)

HCD-VX5A/VX5AJ/VX7A

7-28. SCHEMATIC DIAGRAM – TRANSFORMER Board –

(Page 60)

(Page 62)

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

– 71 –

– 72 –

HCD-VX5A/VX5AJ/VX7A

7-29. PRINTED WIRING BOARD – SURROUND Board –

• See page 32 for Circuit Boards Location.

7-30. SCHEMATIC DIAGRAM – SURROUND Board –

• See page 75 for Waveform. • See page 78 for IC Block Diagrams.

(Page 57)

(Page 56)

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)

– 73 –

– 74 –

• Wavef orms

1.8 Vp-p

32.768 kHz

– BD Board –

– MAIN Board –

1 IC101 @∞ (MDP)

µ

s

7.5

2 IC101 #ª (FE) (CD Play mode)

3 IC101 $¡ (TE) (CD Play mode)

2.6 Vp-p

0.2 mVp-p

6 IC101 ^∞ (LRCK)

22.7 µs

7 IC101 ^¶ (BCLK)

474 ns

8 IC101 &¡ (XTAI)

5.2 Vp-p

5.2 Vp-p

1 IC501 0 (XC-IN)

2 IC501 !∞ (XIN)

2.2 Vp-p

16 MHz

– PANEL Board –

4 IC101 $£ (RFDC) (CD Play mode)

5 IC101 %º (RFAC) (CD Play mode)

0.5 mVp-p

1.3 Vp-p

16.9344 MHz

9 IC103 !§ (RFO) (CD Play mode)

5.2 Vp-p

1.3 Vp-p

1 IC601 &™ (XOUT)

4.7 Vp-p

12.5 MHz

– SURROUND Board –

1 IC1201 @£ (LC-INB)

5.9 Vp-p

105 ns

1.3 Vp-p

– 75 –

• IC Block Diagrams
– BD Board –

IC101 CXD3008Q

DVDD2

61

ASYE

62

MD2

63

DOUT

LRCK

PCMD

BCK

EMPH

XTSL

DVSS2

XTAI

XTAO

SOUT
SOCK

XOLT

SQSO

SQCK
SCSY
SBSO

EXCK

DIGITAL

64

OUT

65
66
67

68
69
70
71
72

73
74
75

76
77
78
79
80

D/A DIGITAL

INTERFACE

60

CLOCK

GENERATOR

CPU

INTERFACE

VPCO

32K

RAM

SERVO INTERFACE

SERVO

AUTO

SEQUENCER

AVDD0

IGEN

FOCUS
SERVO

DSP

TRACKING

SERVO

DSP

SLED

SERVO

DSP

AVSS0

AVSS1

RFAC

ASYI

ASYMMETRY
CORRECTOR

ASYO

BIAS

AVDD1

PCO

FILI

FILO

DIGITAL

PLL

EFM

CLTV

V16M

VCTL

59 58 57 56 55 54 53 52 51 50 49 48 474645 44 43 42 41

OSC

DEMODULATOR

ERROR

CORRECTOR

SUBCODE

PROCESSOR

ADIO

A/D

CONVERTER

RFDCCETE

AMPLIFIER &

OPERATIONAL

ANALOG SWITCH

FOCUS

PWM

GENERATOR

TRACKING

PWM

GENERATOR

SLED
PWM

GENERATOR

DIGITAL

CLV

PROCESSOR

MIRR, DFCT,

FOK

DETECTOR

40

SE

39

TE

38

VC

37

TES1

36

TEST1

35

DVSS1
FRDR

34

FFDR

33

TRDR

32

TFDR

31

SRDR

30

SFDR

29

DVDD1

28

FSTO

27

SSTP

26

MDP

25

LOCK

24

PWMI

23

FOK

22

DFCT

21

1 2 3 4 5 6 7 8 9

XLAT

MUTE

DATA

CLOK

SENS

DVDD0

XRST

12 13 14 15 16 17 18 19 20

10 11

ATSK

SCLK

XUGF

XPCK

WFCK

GFS

C2PO

SCOR

C4M

WDCK

COUT

DVSS0

MIRR

– 76 –

IC103 CXA2568M-T6

HOLD

AGC VTH

VEE

+
–

VC

VCC

APC LD AMP

50µA

+
–

+
–

VEE

RF SUMMING AMP

VC

+
–

FOCUS ERROR AMP

+
–

VCC

+
–

VCC

VC

+
–

VC

RF EQ AMP

+
–

+
–

1

VEE

2

LD

3
4

PD

5

A

6

B

7

C

D

8

9

VC

10

F

APC PD AMP

+
–

+
–

VEE

–
+

VC

VEE

VC

+
–

24
23
22

21
20

19

18
17
16

15

14

VCC
LC/PD
LD ON

HOLD SW
AGC CONT

RF BOT

RFTC
RF I
RF O

RFE

FE

VC BUFFER

VC

–
+

+
–

E

11

VC

12

VC

– MOTOR (TURN) Board –
IC701 M54641L

VCC

1
2

OUT2

REG

IN1

GND

INPUT

3

AMP.

CONTROL

INPUT

AMP.

4

POWER AMP.

POWER AMP.

VC

VCC

8

OUT1

7

IN2

6

REFERENCE

5

VEE
VCC

VC

–
+

TRACKING

ERROR AMP

TE

13

– MOTOR (SLIDE) Board –
IC801 BA6286N

TSD

POWER

SAVE

CONTROL

LOGIC

GND

RIN

VREF

OUT2

RNF

GND

OUT1

VM

VCC

FIN

1
2
3

4

5
6

7
8
9

10

– 77 –

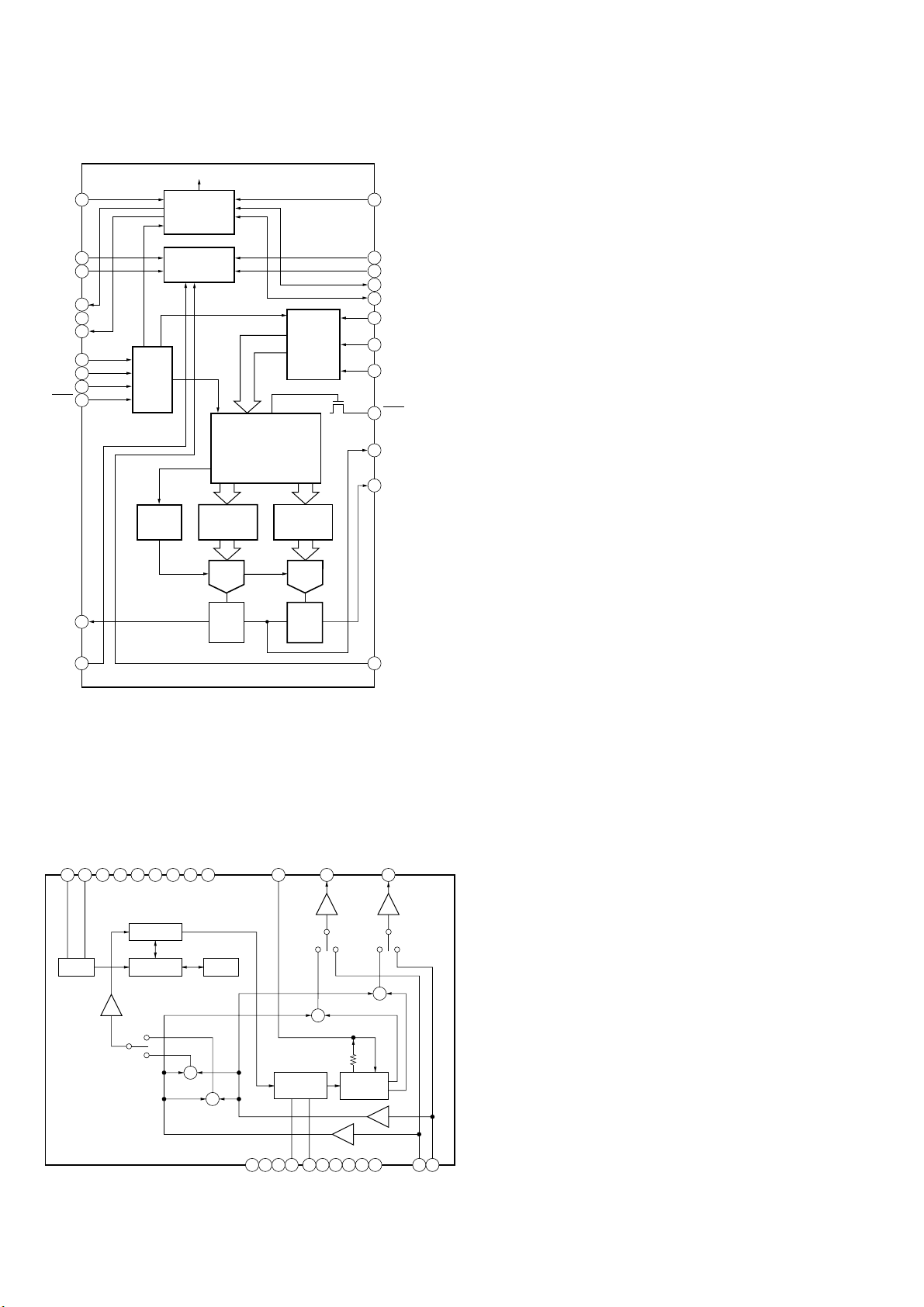

– VIDEO Board –
IC509 PCM1727E-2/T2

384fs

XT1

PGND

VCP

NCKO

RSV

SCKO3

ML
MC
MC

RSTB

VOUTR

MODE

CONTROL

BPZ

CONTROL

CLOCK MANAGER

•

DUAL PLL

POWER
SUPPLY

MULTI LEVEL
MODULATOR

5 LEVEL

DAC

CR LPF

OUTPUT

AMP

8 TIME OVER

SAMPLING DIGITAL

FILTER

•

FUNCTION

CONTROL

∆Σ

•

MULTI LEVEL

MODULATOR

AUDIO

DATA INPUT

INTERFACE

∆Σ

5 LEVEL

DAC

CR LPF

•

OUTPUT

AMP

OPEN

24

23
22
21
20

19

18

17

16

15

14

XT2

DGND
VDD
SCKO1
SCKO2

LRCK

DATA

BCK

ZERO

CAP

VOUTL

1

2
3

4
5
6

7
8

9

10

11

12

AGND

– SURROUND Board –
IC1201 LV1150

LC-INE

LC-INB

VDD

A/DNSD/A

24 23 22 21 20 19 18 17 16 15 14 13

ADM

ADM-CONT

DC-CUT

AGND

S-RAMOSC

VREF

EF-VOL

L-OUT

+

L+DELAY

L–R

–

+

L+R

LOW-PASS

FILTER

13

R+DELAY

VIRTUAL

VCA

R-OUT

+

VSS

SW1

SW2

LPF1

LPF2

LS-CUT

R-PS-IN

VCC

L-PS-IN

RS-OUT

11 124321 5 6 7 8 9 10

L-IN

R-IN

– 78 –

– AUDIO Board –
IC602 µPC1330HA

2

1

SW R1 GND SW P1

3

– PANEL Board –
IC603 BA3830F

4

CONT

INVERTER

COMPARATER

5

VCC

GND

6

SW P2 GND

7 8 9

SW R2

IC604 NJU3716M-T2

R02

R01

LINE NF

LINE IN

REC NF

REC IN

RESET C

BIAS C

GND

2

3
4

5
6

7
8
9

CURRENT

REFERENCE

CURRENT

–
+

–
+

REFERENCE

1

IC711 M65850FP

BAND
PASS

FILTER

RESET

DET

18

17
16
15
14
13
12

11
10

RESET

F01
F02
F03
F04
F05
F06

REC LEVEL
VCC

VDDP6P5P4P3P2VSSP1CLR

2021 192324 22 18 17 16 15 14 13

CONTROL

CIRCUIT

SHIFT REGISTER

LATCH CIRCUIT

OUTPUT CIRCUIT

P11

8

6

7

P12

P13

VSS

21

P7P8P9

43

P10

STB

CLK

DATA

9

11

10

125

P15

P16

SO

P14

1

LPF1IN

VCC

1/2 VCC

AUTO

RESET

LPF1

OSCILLATOR

CLOCK

RESET

2 3

LPF1OUT

CLOCK

REF

DO1

MAIN

CONTROL

D1

DO0

A/D

5 6 7

4

CC1

OP1IN

OP1OUT

OP2IN

D/A

MO

MI

OP2OUT

LPF2IN

20KBIT

CC2

LPF2OUT

891014 13 12 11

LPF2

SRAM

GND

– 79 –

7-31. IC PIN FUNCTION DESCRIPTION

• MAIN BOARD IC501 M30622MA-A09FP (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Description

1 STK-MUTE O

2 POWER O

3 F-RELAY O
4 R-RELAY O

5 CD-POWER O

6 LINE-MUTE O

7 DBFB-H/L O

8

9 CNVSS —
10 XC-IN I
11 XC-OUT O

12 RESET I

13 X-OUT O
14 VSS —
15 X-IN I
16 VCC —
17
18 WAKE UP I
19 SCOR
20 RDS-INT I
21 RDS-DATA I
22 AC-CUT I
23 PL-CLK O
24 PL-DATA O
25 PL-LAT O
26 TIMER LED O

27 PROTECTOR I

28

29 IIC-CLK I/O

30 IIC-DATA I/O

31 NCO O
32
33
34 SW MODE O
35

36 RY-SW I

37 CD-CLK O
38 493-LATCH O
39 STBY LED O

BYTE

NMI

NCO

SQ-DATA

SQ-CLK

CD-DATA

Power amplifier on/off selection signal output terminal “L”: standby mode, “H”: on
Power on/off control signal output for the audio system (+5V) and deck, panel, audio system

(+7V) “L”: standby mode, “H”: power on
Relay drive signal output for the speaker protect “H”: relay on
Relay drive signal output for the speaker protect “H”: relay on Not used (open)
Power on/off control signal output for the CD/video CD section

“L”: standby mode, “H”: power on
Line muting on/off control signal output terminal “L”: muting on
DBFB normal/high selection signal output to the M62493FP (IC101)

“L”: DBFB high, “H”: DBFB low

I

External data bus line byte selection signal input terminal Fixed at “L” in this set
Ground terminal
Sub system clock input terminal (32.768 kHz)
Sub system clock output terminal (32.768 kHz)
System reset signal input from the reset signal generator (IC502) “L”: reset

For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
Main system clock output terminal (16 MHz)
Ground terminal
Main system clock input terminal (16 MHz)
Power supply terminal (+5V)

I

Non-maskable interrupt input terminal Fixed at “H” in this set
Wakeup control signal input from the fluorescent indicator tube driver (IC601) “H” active

I Subcode sync (S0+S1) detection signal input terminal Not used (fixed at “L”)

Serial data transfer clock signal input terminal Not used (fixed at “L”)
Serial data input terminal Not used (fixed at “L”)
AC off detection signal input from the reset signal generator (IC502) “L”: AC cut checked
Serial data transfer clock signal output to the pro-logic circuit Not used (open)
Serial data output to the pro-logic circuit Not used (open)
Serial data latch pulse output to the pro-logic circuit Not used (open)
LED drive signal output of the TIMER SELECT indicator (D632) “H”: LED on
Protect on/off detection signal input from the speaker protect circuit

“L”: protect on, “H”: protect off

O

Not used (open)
Communication data reading clock signal input or transfer clock signal output with the CD

mechanism controller (IC502) and fluorescent indicator tube driver (IC601)
Communication data bus with the CD mechanism controller (IC502) and fluorescent indicator

tube driver (IC601)
Not used (open)

I

Subcode Q data input terminal Not used (fixed at “L”)

O

Subcode Q data reading clock signal output terminal Not used (open)
Not used (open)

O

Serial data output terminal Not used (open)
Connection detect signal input of the headphone jack (J701)

“L”: no connected, “H”: headphone connected
Serial data transfer clock signal output terminal Not used (open)
Serial data latch pulse output to the M62493FP (IC101)
LED drive signal output of the I/u indicator (D754) “H”: LED on (standby mode)

– 80 –

Pin No. Pin Name I/O Description

40 VC L+R/L–R O
41 VC BYPASS O

42 FL SW O

43 STBY RELAY O

44 BASS FREQ. O

45, 46 NCO O

47 493-DATA O
48 493-CLK O
49 ST-MUTE O
50 STEREO I
51 TUNED I
52 ST-CE O
53 ST-DOUT O
54 ST-DIN I
55 ST-CLK O
56

SENSE I Internal status detection monitor input terminal Not used (fixed at “L”)
57 HOLD
58 XLT
59 XRST
60 DISC-SENS I
61 TBL-SENS I
62 VCC —
63 TBL-L O
64 VSS —
65 TBL-R O
66 LOAD-OUT O
67 LOAD-IN O

68 to 70 ENC3 to ENC1 I

71 OUT-OPEN I

72 B-TRG O
73 A-TRG O
74 CAPM-CNT2 O
75 CAPM-CNT1 O

Virtual cinema L+R/L–R selection signal output to the LV1150 (IC1201)
Virtual cinema bypass control signal output terminal Not used (open)
Filament on/off selection signal output for the fluorescent indicator tube

“L”: on, “H”: off Not used in this set
Main power on/off control signal output terminal “L”: standby mode, “H”: power on

Not used in this set
Sync bass frequency normal/high selection signal output to the M62493FP (IC101)

“L”: sync bass off (normal), “H”: sync bass high
Not used (open)
Serial data output to the M62493FP (IC101)
Serial data transfer clock signal output to the M62493FP (IC101)
Tuner muting control signal output to the FM/AM tuner unit “H”: muting on
FM stereo detection signal input from the FM/AM tuner unit “L”: stereo
Tuning detection signal input from the FM/AM tuner unit “L”: tuned
PLL chip enable signal output to the FM/AM tuner unit
PLL serial data output to the FM/AM tuner unit
PLL serial data input from the FM/AM tuner unit
PLL serial data transfer clock signal output to the FM/AM tuner unit

O Laser power control signal output terminal Not used (open)
O Serial data latch pulse output terminal Not used (open)
O Reset signal output to the CD mechanism controller (IC502) “L”: reset

Disc status detection signal input from the disc sensor (IC703)
Disc tray status detection signal input from the disc tray sensor (IC702)
Power supply terminal (+5V)
Motor drive signal output to the disc tray turn motor driver (IC701) “L” active *1
Ground terminal
Motor drive signal output to the disc tray turn motor driver (IC701) “L” active *1
Motor drive signal output to the disc tray slide motor driver (IC801) “H” active *2
Motor drive signal output to the disc tray slide motor driver (IC801) “H” active *2
Detection signal input from the disc tray address detect rotary encoder (S811)
Detection signal input from the disc tray open/close detect switch (S801)

“L”: open, “H”: close
Deck-B side trigger plunger drive signal output terminal “H”: plunger on
Deck-A side trigger plunger drive signal output terminal “H”: plunger on
Capstan motor (M1) drive signal output terminal “H” active *3
Capstan motor (M1) drive signal output terminal “H” active *3

*1 Disc tray turn motor (M701) control *2 Disc tray slide motor (M801) control

Mode

Terminal

TBL-L (pin ^£)
TBL-R (pin ^∞)

*3 Capstan motor (M1) control

Mode

Terminal

CAPM-CNT1 (pin &∞)
CAPM-CNT2 (pin &¢)

Stop

“H” “L” “H” “L”
“H” “H” “L” “L”

Stop

“L” “L” “H” “H”
“L” “H” “L” “H”

Counter-

clockwise

Forward

Direction

Clockwise Brake Stop Table In Table Out Brake

Reverse

Direction

Brake

Terminal

LOAD-OUT (pin ^§)

LOAD-IN (pin ^¶)

Mode

“L” “L” “H” “H”
“L” “H” “L” “H”

– 81 –

Pin No. Pin Name I/O Description

76 CAP-M-H/L O

77 AMS-IN I

78 TC-MUTE O

79 R/P-PASS O

80 NR-ON/OFF O

81 REC-MUTE O

82 BIAS O

83 EQ-H/N O

84 PB-A/B O
85 ALC-ON/OFF O
86 B-PLAY-SW I
87 A-PLAY-SW I

88 A-HALF I

89 B-HALF I
90 B-SHUT I
91 A-SHUT I
92 SOFT-TEST O
93
94 KEY/CD-ADJ I
95 MODEL-IN I
96 AVSS —
97 SPEC-IN I
98 AVREF I
99 AVCC —

100 TC-RELAY O

KEY/CD-ADJ

High/normal speed selection signal output of the capstan motor (M1)
“L”: normal speed, “H”: high speed

Whether a music is present or not from HA12215F (IC301) is detected at automatic music sensor
“L”: music is present, “H”: music is not present

Line muting on/off selection signal output to the HA12215F (IC301)
“L”: muting off, “H”: muting on

Recording/playback/pass selection signal output to the HA12215F (IC301)
“L”: recording mode, “H”: pass, “Hi-z”: playback mode

Dolby NR on/off selection signal output to the HA12215F (IC301)
“L”: dolby off, “H”: dolby on

Recording muting on/off selection signal output to the HA12215F (IC301)
“L”: muting on, “H”: muting off

Recording bias on/off selection signal output to the HA12215F (IC301)
“L”: bias off, “H”: bias on

Normal/high speed selection signal output to the HA12215F (IC301)
“L”: normal speed, “H”: high speed

Deck-A/B selection signal output to the HA12215F (IC301) “L”: deck-A, “H”: deck-B
Automatic limiter control signal output to the HA12215F (IC301) “L”: limiter on
Detection input from the deck- B play detect switch (S1002) “H”: deck-B play
Detection input from the deck- A play detect switch (S1001) “H”: deck-A play
Detection input from the deck-A cassette detect switch (S1003)

“L”: cassette in, “H”: no cassette
Detection input from the deck-B half detect switch (S1006)
Shut off detection signal input from the deck-B side reel pulse detector (IC1002)
Shut off detection signal input from the deck-A side reel pulse detector (IC1001)
Output terminal for the software test (open)

I

Setting terminal for the CD adjustment mode
Setting terminal for the CD adjustment mode
Destination setting terminal
Ground terminal (for A/D conversion)
Setting terminal for the version
Reference voltage (+5V) input terminal (for A/D conversion)
Power supply terminal (+5V) (for A/D conversion)
Recording/playback select signal output to the REC/PB switch (IC602)

“L”: playback, “H”: recording

– 82 –

• VIDEO BOARD IC502 M30620MC-A05FP (CD MECHANISM CONTROLLER)

Pin No. Pin Name I/O Description

1 SENSE I
2 SENSE CLK O
3 DSP DATA O
4 DSP LATCH O
5 DSP CLK O
6 TSENS I
7 REMOTE IN I
8 BYTE I
9 VSS —

10 DSP MUTE O

11 CTRL1 O

12 XRESET I

13 XOUT O
14 VSS —
15 XIN I
16 VCC —
17 NMI I
18 SCOR I
19 DSENS I
20 CL680 HINT I
21 CL680 SEL O
22 DF LATCH O
23 CL680 HRDY I
24 CL680 RESET O
25 JOG1 I
26 JOG2 I
27 CTRL2 O
28 LDON O

29 CLK I/O

30 DATA I/O

31 DATA1O O
32 DATA1I I

33 CLK1 O

34 SHARPNESS O

XVLEVEL. DOWN

35
36 SUBQ DATA I
37
38 P.ON O
39 BUS XRDY I
40 BUS O
41 BUS XHOLD I

SUBQ CLK

Internal status (SENSE) signal input from the CXD3008Q (IC101)
Sense serial data reading clock signal output to the CXD3008Q (IC101)
Serial data output to the CXD3008Q (IC101)
Serial data latch pulse output to the CXD3008Q (IC101)
Serial data transfer clock signal output to the CXD3008Q (IC101)
Disc tray status detection signal input terminal Not used
Remote control signal input terminal Not used (open)
External data bus line byte selection signal input “L”: 16 bit, “H”: 8 bit (fixed at “L”)
Ground terminal
Muting on/off control signal output to the CXD3008Q (IC101) “H”: muting on
Clock selection signal output to the CXD3008Q (IC101)

“L”: 16.9344 MHz (double speed), “H”: 33.8688 MHz
Reset signal input from the system controller (IC501) “L”: reset

For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
Main system clock output terminal (10 MHz)
Ground terminal
Main system clock input terminal (10 MHz)
Power supply terminal (+5V)
Non-maskable interrupt input terminal (fixed at “H” in this set)
Subcode sync (S0+S1) detection signal input from the CXD3008Q (IC101)
Disc status detection signal input terminal Not used
Interrupt request signal input from the MPEG video/audio decoder (IC505)
Command selection signal output to the MPEG video/audio decoder (IC505)
Serial data latch pulse output to the D/A converter (IC509) “L” active
Ready status detection signal input from the MPEG video/audio decoder (IC505)
Reset signal output to the MPEG video/audio decoder (IC505) “L”: reset
Rotary encoder jog dial pulse input terminal Not used (fixed at “H”)
Rotary encoder jog dial pulse input terminal Not used (fixed at “H”)
Laser power selection signal output to the CXA2568M (IC103) “H”: double speed
Laser on/off selection signal output to the CXA2568M (IC103) “H”: laser on
Communication data reading clock signal input or transfer clock signal output with the system

controller (IC501) and fluorescent indicator tube driver (IC601)
Communication data bus with the system controller (IC501) and fluorescent indicator tube driver

(IC601)
Serial data output to the MPEG video/audio decoder (IC505) and D/A converter (IC509)
Serial data input from the MPEG video/audio decoder (IC505)
Serial data transfer clock signal output to the MPEG video/audio decoder (IC505) and D/A

converter (IC509)
Sharpness control signal output of the video signal (Y signal) “H” active (“L”: normal)

O

Not used (open)
Sub-code Q data input from the CXD3008Q (IC101)

O

Sub-code Q data reading clock signal output to the CXD3008Q (IC101)
Power on/off control signal output terminal Not used (open)
Ready signal input terminal Not used (fixed at “H”)
Not used (open)
Hold signal input terminal Not used (fixed at “H”)

– 83 –

Pin No. Pin Name I/O Description

42, 43 BUS O

44 SHIMUKE I
45 BUS I
46 BUS XWRL O
47 LO.BOOST O
48 AUDIO MUTE O
49 LOAD OUT O
50 LOAD IN O
51 INSW I
52 OUTSW I
53 MODEL1 I
54 MODEL2 I
55 TBLL O
56 TBLR O

57 to 59 ENC1 to ENC3 I

60, 61 NCO O

62 VCC —
63 NCO O
64 VSS —
65 VMUTE O

66 to 71 A6 to A1 O

72 UTOI O
73 TEST LED O

74 TEST1 I

75 TEST2 I

76 TEST3 I

77 DEVICE RESET O

78 STANDBY O
79 FL CS O
80 FLBLK O

81 to 88 D7 to D0 I/O

89 MIC CTRL O

90 to 92 KEY1 to KEY3 I

93 NT/PAL I

94 MUSIC VOL I
95 KEY4 I
96 AVSS —
97 MODE. SW I
98 VREF I
99 AVCC —

100 AMP. ON O

Not used (open)
Destination setting terminal “L”: Chinese, “H”: English (fixed at “H” in this set)
Vertical synchronized signal input from the MPEG video/audio decoder (IC505) “L” active
Not used (open)
Low boost control signal output terminal Not used (open)
Audio muting on/off control signal output terminal “L”: muting on Not used (open)
Loading motor drive signal output terminal Not used (open)
Loading motor drive signal output terminal Not used (open)
Disc detection (load in) switch input terminal Not used (fixed at “H”)
Disc detection (load out) switch input terminal Not used (fixed at “H”)
Destination setting terminal (fixed at “L”)
Destination setting terminal (fixed at “L”)
Table motor drive signal output terminal Not used (open)
Table motor drive signal output terminal Not used (open)
Disc tray address detection signal input terminal Not used
Not used (open)
Power supply terminal (+5V)
Not used (open)
Ground terminal
Video muting on/off control signal output terminal “L”: muting on
Address signal output for the external device Not used (open)
Not used (open)
LED drive signal output for the self diagnosis indicator (D502) Normally: “L” (LED on)
Setting terminal for the test mode 1 (for VCD check)

Normally: fixed at “H” (“L”: test mode)
Setting terminal for the test mode 2 (for SERVO check)

Normally: fixed at “H” (“L”: test mode)
Setting terminal for the test mode 3 Normally: fixed at “H” (“L”: test mode)

Not used (fixed at “H”)
System reset signal output to the CXD3008Q (IC101), BA5974FP (IC102) and D/A converter

(IC509) “L”: reset
Standby on/off control signal output terminal Not used (open)
Chip select signal output terminal Not used (open)
Blank control signal output terminal Not used (open)
Two-way data bus with the external device Not used (open)
Mic control signal output terminal Not used
Key input terminal Not used (fixed at “H”)
Video system select switch (S501) input terminal

“L”: PAL, “H”: NTSC, Center voltage: AUTO
Volume input terminal Not used (fixed at “H”)
Key input terminal Not used (fixed at “H”)
Ground terminal (for A/D conversion)
Mode switch input terminal Not used
Reference voltage (+5V) input terminal (for A/D conversion)
Power supply terminal (+5V) (for A/D conversion)
Power amplifier on/off selection signal output terminal Not used (open)

– 84 –

• VIDEO BOARD IC505 CL680T-D1 (MPEG VIDEO/AUDIO DECODER, VIDEO SIGNAL PROCESSOR)

Pin No. Pin Name I/O Description

1NCO
2 VSS —
3 CD-BCK I
4 CD-DATA I
5 CD-LRCK I
6 CD-C2PO I

7 to 9 NC O

10 to 15 MD0 to MD5 I/O

16 VSS —
17 MD6 I/O
18 VDD3 —
19 MD7 I/O
20 VSS —
21 MD8 I/O
22 VDD3 —

23 to 28 MD9 to MD14 I/O

29 MD15 I/O

30 to 36 NC O

37 MCE O
38 MWE O
39 VSS —
40 CAS O
41 VDD3 —
42 RAS0 O
43 RAS1 O

44, 45 MA10, MA9 O

46 MA8 O
47 VSS —
48 MA7 O
49 VDD3 —

50 to 52 MA6 to MA4 O

53 VSS —
54 MA3 O
55 VDD3 —

56 to 58 MA2 to MA0 O

59 PGIO7 I/O
60 RESET I
61 VDDMAX-IN I

62 to 64 NC O

65 AGND-DAC —
66 AVDD-DAC —
67 COMPOS OUT O
68 AGND-DAC —
69 Y-OUT O
70 AVDD-DAC —
71 AGND-DAC —

Not used (open)
Ground terminal
CD decode bit clock signal (2.8224 MHz) input from the CXD3008Q (IC101)
CD decode data input from the CXD3008Q (IC101)
CD decode L/R sampling clock signal (44.1 kHz) input from the CXD3008Q (IC101)
CD decode C2 error data input from the CXD3008Q (IC101)
Not used (open)
Two-way data bus with the D-RAM (IC507) Data input from the program ROM (IC506)
Ground terminal
Two-way data bus with the D-RAM (IC507) Data input from the program ROM (IC506)
Power supply terminal (+3.3V)
Two-way data bus with the D-RAM (IC507) Data input from the program ROM (IC506)
Ground terminal
Two-way data bus with the D-RAM (IC507) Data output to the program ROM (IC506)
Power supply terminal (+3.3V)
Two-way data bus with the D-RAM (IC507) Data output to the program ROM (IC506)
Two-way data bus with the D-RAM (IC507)
Not used (open)
Chip enable signal output to the program ROM (IC506)
Write enable signal output to the D-RAM (IC507)
Ground terminal
Column address strobe signal output to the D-RAM (IC507)
Power supply terminal (+3.3V)
Row address strobe signal output to the D-RAM (IC507)
Row address strobe signal output terminal Not used (open)
Address signal output to the program ROM (IC506)
Address signal output to the program ROM (IC506) and D-RAM (IC507)
Ground terminal
Address signal output to the program ROM (IC506) and D-RAM (IC507)
Power supply terminal (+3.3V)
Address signal output to the program ROM (IC506) and D-RAM (IC507)
Ground terminal
Address signal output to the program ROM (IC506) and D-RAM (IC507)
Power supply terminal (+3.3V)
Address signal output to the program ROM (IC506) and D-RAM (IC507)
Not used (open)
Reset signal input from the CD mechanism controller (IC502) “L”: reset
Fix the maximum input voltage each input terminal and in/out terminal
Not used (open)
Ground terminal (for D/A converter)
Power supply terminal (+3.3V) (for D/A converter)
Composite video signal output terminal Not used (open)
Ground terminal (for D/A converter)
Luminance video signal output terminal
Power supply terminal (+3.3V) (for D/A converter)
Ground terminal (for D/A converter)

– 85 –

Pin No. Pin Name I/O Description

72 RREF I
73 VREF O
74 AVDD-DAC —
75 C-OUT O
76 AGND-DAC —
77 CLK-SEL0 I
78 CLK-SEL1 I
79 CLK-SEL2 I
80 VSS —
81 RESERVED I
82 VDD3 —
83 DA-EMP O
84 RESERVED O
85 AGND-PLL —
86 DA-XCLK I
87 AVDD-PLL —
88 PGIO4 I/O
89 PGIO5 I/O
90 PGIO6 I/O
91 PGIO0 I/O
92 PGIO8 I/O

PGIO2/VSYNC/

93

94 AVDD-PLL —

95 to 97 NC O

98 AGND-PLL —

99 VSS —
100 NC O
101
102 VDD3 —
103
104 VSS —
105 GCK I
106 VCK-IN I
107
108 DA-LRCK O
109 VDDMAX-OUT O
110 DA-DATA O
111 DA-BCK O
112 HD-OUT O
113 HRDY O
114 HINT O
115 CDG-SCK I/O
116 VSS —
117 HCK I
118 VDD3 —
119 HD-IN I

CSYNC

PGIO3/HSYNC

PGIO1/VCK-OUT

GCKOUT/DA-EMP

Fix the video signal output level control
Reference voltage (+1.235V) output terminal
Power supply terminal (+3.3V) (for D/A converter)
Chrominance video signal output terminal
Ground terminal (for D/A converter)
GCK (pin `⁄‚fi) selection terminal “L”: external clock, “H”: internal clock (fixed at “H”)
DA-XCLK (pin *§) selection (1) terminal Fixed at “H” in this set
DA-XCLK (pin *§) selection (2) terminal Fixed at “H” in this set
Ground terminal
Selection the operation clock 42.336 MHz (fixed at “L”)
Power supply terminal (+3.3V)
Not used (open)
Not used (open)
Ground terminal (for PLL system)
Main reference clock signal (16.9344 MHz=384fs) from the D/A converter (IC509)
Power supply terminal (+3.3V) (for PLL system)
Not used (open)
Not used (open)
Not used (open)
Not used (open)
Not used (open)

O

Vertical synchronized signal output to the CD mechanism controller (IC502)

Power supply terminal (+3.3V) (for PLL system)
Not used (open)
Ground terminal (for PLL system)
Ground terminal
Not used (open)

I/O

Not used (open)
Power supply terminal (+3.3V)

I/O

Not used (open)
Ground terminal
Not used (open)
Main clock for video signal processor input from the D/A converter (IC509) (27 MHz)

O

Not used (open)
Digital audio L/R sampling clock signal (44.1 kHz) output to the D/A converter (IC509)
Fix the maximum output voltage (+5V) certain output terminal
Digital audio data output to the D/A converter (IC509)
Digital audio bit clock signal (2.8224 MHz) output to the D/A converter (IC509)
Serial data output to the CD mechanism controller (IC502)
Ready signal output to the CD mechanism controller (IC502)
Interrupt request signal output to the CD mechanism controller (IC502)
Not used (open)
Ground terminal
Serial data transfer clock signal input from the CD mechanism controller (IC502)
Power supply terminal (+3.3V)
Serial data input from the CD mechanism controller (IC502)

– 86 –

Pin No. Pin Name I/O Description

120 VDD3 —
121 HSEL I
122 CDG-SDATA I
123 CDG-VFSY I
124 CDG-S0S1 I

125 to 128 NC O

Power supply terminal (+3.3V)
Command selection signal input from the CD mechanism controller (IC502)
Not used (fixed at “L”)
Not used (fixed at “L”)
Not used (fixed at “L”)
Not used (open)

– 87 –

• PANEL BOARD IC601 TMP88CS76F-6005 (FLUORESCENT INDICATOR TUBE DRIVER, KEY CONTROL)

Pin No. Pin Name I/O Description

1 SIRCS I
2 JOG-A I
3 LED SCK O
4 LED LAT O
5 LED DATA O
6 PAD LAT O
7 L SEL O
8 JOG-B I
9 VOL-A I

10 VOL-B I

11 KEY0 I

12 KEY1 I

13 KEY2 I

14 KEY3 I

15 GRAD L2 O

16

17 BPF1 I

18 BPF2 I

19 BPF3 I

20 BPF4 I

21

22 WAKE UP O
23 VSS —
24 VASS —
25 VAREF I

26 VDD —
27 to 32 G18 to G13 O
33 to 40

41 VDD —
42 to 44

45
46 to 67

68 VKK —

S LOW FREQ

(BPF0)

ALL BAND

(L+R)

G12 to G5

G4 to G2

G1

S1 to S22

Remote control signal input from the remote control receiver (IC602)
Jog dial pulse input from the rotary encoder (S601 JOG) (A phase input)
Serial data transfer clock signal output to the LED driver (IC604)
Serial data latch pulse signal output to the LED driver (IC604)
Serial data output to the LED driver (IC604)
Not used (open)
LED selection signal output terminal
Jog dial pulse input from the rotary encoder (S601 JOG) (B phase input)
Jog dial pulse input from the rotary encoder (S602 VOLUME) (A phase input)
Jog dial pulse input from the rotary encoder (S602 VOLUME) (B phase input)
Key input terminal (A/D input) (S625 to S630 and S632 to S635)

REC PAUSE/START, HI-DUB, CD SYNC, CD LOOP, DISPLAY, SPECTRUM ANALYZER,
SELECT, RETURN, PREV, NEXT keys input

Key input terminal (A/D input) (S611 to S624) SYNC BASS, SYNC EQ, KARAOKE
PON/MPX, CD NON-STOP, CINEMA SPACE SURROUND, DBFB, ENTER/NEXT, + ), –
0, GROOVE, CD FLASH, REPEAT STEREO/MONO, PLAY MODE DOLBY NR, EDIT
DIRECTION TUNER MEMORY keys input

Key input terminal (A/D input) (S638 to S642 and S751 to S757)
TIMER SELECT, P FILE MEMORY, GEQ CONTROL, FILE SELECT, EFFECT, I/u,
(STANDBY) POWER SAVE DEMO, DISC 1/2/3, DISC SKIP EX-CHANGE, § keys input

Key input terminal (A/D input) (S643 to S651)
TUNER/BAND, ( P CD, p, ( TAPE B, 9 TAPE B, ( TAPE A, 9 TAPE A,
FUNCTION, CLOCK/TIMER SET keys input

Not used (open)
Spectrum analyzer drive (super low frequency) signal input from the spectrum analyzer band-

I

pass filter (IC603) (for 40 Hz)
Spectrum analyzer drive (low frequency) signal input from the spectrum analyzer band-pass filter

(IC603) (for 100 Hz)
Spectrum analyzer drive (low and middle frequency) signal input from the spectrum analyzer

band-pass filter (IC603) (for 400 Hz)
Spectrum analyzer drive (middle and high frequency) signal input from the spectrum analyzer

band-pass filter (IC603) (for 2 kHz)
Spectrum analyzer drive (high frequency) signal input from the spectrum analyzer band-pass filter

(IC603) (for 6 kHz)
Spectrum analyzer drive signal input from the spectrum analyzer band-pass filter (IC603)

I

(for VACS, non-stop signal)
Wakeup control signal output to the system controller (IC501) “H” active
Ground terminal
Ground terminal (for A/D conversion)
Reference voltage (+5V) input terminal (for A/D conversion)
Power supply terminal (+5V)
Grid drive signal output to the fluorescent indicator tube (FL601)

O

Grid drive signal output to the fluorescent indicator tube (FL601)
Power supply terminal (+5V)

O

Grid drive signal output to the fluorescent indicator tube (FL601)

O

Grid drive signal output to the fluorescent indicator tube (FL601)

O

Segment drive signal output to the fluorescent indicator tube (FL601)
Power supply terminal (–30V) (for fluorescent indicator tube drive)

– 88 –

Pin No. Pin Name I/O Description

69 VDD —
70 XIN I
71 VSS —
72 XOUT O

73 RESET I

74 CH O
75 BUSY I
76 TEST I
77 GRAD R1 O

78 I2C DATA I/O

79 I2C CLK I/O

80 GRAD R2 O

Power supply terminal (+5V)
System clock input terminal (12.5 MHz)
Ground terminal
System clock output terminal (12.5 MHz)
System reset signal input from the reset signal generator (IC502) “L”: reset

For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
Not used (open)
Not used (fixed at “L”)
Connected to ground
Not used (open)
Communication data bus with the system controller (IC501) and CD mechanism controller

(IC502)
Communication data reading clock signal input or transfer clock signal output with the system

controller (IC501) and CD mechanism controller (IC502)
Not used (open)

– 89 –

SECTION 8

2

EXPLODED VIEWS

NOTE:

• -XX and -X mean standardiz ed parts, so they
may have some difference from the original
one.

• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)

• Abbreviation
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesian model
JE : Tourist model

↑↑

Parts Color Cabinet's Color

MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model

(1) COVER SECTION

3

front panel section

• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

• The mechanical parts with no reference num­ber in the exploded views are not supplied.

• Hardware (# mark) list is given in the last of
the electrical parts list.

6

5

4

The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.

#1

5

11

2

10

#4

not supplied

#3

#4

not supplied

7

#3

4

7

8

#5

not supplied

1

#3

10

#5

#6

8

TCM-230AWR

9

Ref. No. Part No. Description Remark

1 X-4950-832-1 HOLDER (R) ASSY, CASSETTE (SILVER)
1 X-4950-971-1 HOLDER (R) ASSY, CASSETTE (GRAY)
2 X-4950-828-1 HOLDER (L) ASSY, CASSETTE (SILVER)
2 X-4950-970-1 HOLDER (L) ASSY, CASSETTE (GRAY)
3 X-4950-961-1 PANEL ASSY, LOADING (VX5A) (GRAY)

3 X-4950-963-1 PANEL ASSY, LOADING (VX7A) (GRAY)
3 X-4951-026-1 PANEL ASSY, LOADING (VX5A) (SILVER)
3 X-4951-027-1 PANEL ASSY, LOADING (VX7A) (SILVER)
3 X-4951-577-1 PANEL ASSY, LOADING (VX5AJ)
4 3-363-099-01 SCREW (CASE 3 TP2) (3X8) (GRAY)

Ref. No. Part No. Description Remark

4 3-363-099-11 SCREW (CASE 3 TP2) (3X8) (SILVER)
5 3-363-099-41 SCREW (CASE 3 TP2) (3X12)(GRAY)
5 3-363-099-71 SCREW (CASE 3 TP2) (3X12)(SILVER)
6 4-215-179-01 COVER (SILVER)

* 6 4-215-752-61 COVER (GRAY)

7 4-951-620-01 SCREW (2.6X8), +BVTP
8 4-215-062-01 DAMPER
9 4-985-642-01 CUSHION
10 4-219-087-01 SPRING, TENSION
11 4-991-781-01 EMBLEM (VCD)

– 90 –

(2) FRONT PANEL SECTION

supplied with
S601

58

53

59

61

63

60

61

60

64

62

60

60

60

60

60

57

supplied with
S602

Ref. No. Part No. Description Remark

51 X-4951-029-1 PANEL ASSY, FRONT (VX7A) (SILVER)
51 X-4951-030-1 PANEL ASSY, FRONT (VX5A/VX5AJ) (SILVER)
51 X-4951-454-1 PANEL ASSY, FRONT (VX5A/VX5AJ) (GRAY)
51 X-4951-455-1 PANEL ASSY, FRONT (VX7A) (GRAY)
52 4-930-336-61 FOOT (FELT)

53 4-962-708-71 EMBLEM (4-A), SONY
54 4-214-775-11 SPRING, PUSH CATCHER RETURN
55 4-214-761-11 CATCHER (B), PUSH
56 4-214-760-11 CATCHER (A), PUSH
57 4-214-384-11 KNOB (VOL) (SILVER)

57 4-214-384-51 KNOB (VOL) (GRAY)
58 4-214-383-11 KNOB (JOG) (SILVER)
58 4-214-383-51 KNOB (JOG) (GRAY)

* 59 4-996-716-01 HOLDER (CDM)

60 4-951-620-01 SCREW (2.6X8), +BVTP

54

56

55

52

54

65

59

65

51

Ref. No. Part No. Description Remark

61 4-214-385-11 KNOB (MIC) (SILVER)
61 4-214-385-51 KNOB (MIC) (GRAY)
62 A-4419-160-A PANEL BOARD, COMPLETE

(VX7A: E, EA, MY, SP)

62 A-4419-152-A PANEL BOARD, COMPLETE

(VX7A: E, EA, MY, SP, HK, TW)

62 A-4426-093-A PANEL BOARD, COMPLETE (VX5AJ)

62 A-4426-139-A PANEL BOARD, COMPLETE (VX5A: IA)
62 A-4426-147-A PANEL BOARD, COMPLETE (VX7A: IA)
62 A-4426-156-A PANEL BOARD, COMPLETE (VX5A: TH)
62 A-4426-164-A PANEL BOARD, COMPLETE (VX7A: TH)
63 A-4419-984-A CD SW BOARD, COMPLETE

64 1-773-188-11 WIRE (FLAT TYPE) (23 CORE) (23cm)
65 1-674-232-11 PWB, PUSH CATCH STOP

– 91 –

(3) CHASSIS SECTION

CDM38L-5BD34L

114

#2

115

not supplied

not supplied

102

#10

#2

T951

#10

104

113

105

103

106

107

#2

#2

109

110

#9

M501

108

111

#2

not supplied

#2

#2

#2

VX7A

#3

#2

#2

#2

112

#2

not supplied

101

– 92 –

E, IA, JE

E, IA, TH, JE

EA, MY, SP, TW

111

EA, MY, SP, HK, TW

HK

112

112

Ref. No. Part No. Description Remark

101 4-965-822-01 FOOT

* 102 1-672-369-11 TRANSFORMER BOARD
* 103 3-703-244-00 BUSHING (2104), CORD (VX5A: EA, MY, SP,

HK, TW/VX5AJ: EA/VX7A: EA, MY, SP)

103 3-703-571-11 BUSHING (S) (4516), CORD

(VX5A: E, TH/VX5AJ: E, JE/VX7A: E, TH)

103 4-966-266-01 BUSHING (S) (FBS002), CORD

(VX5A: IA/VX7A: IA)

104 1-773-043-11 WIRE (FLAT TYPE) (17 CORE)
105 1-773-024-11 WIRE (FLAT TYPE) (15 CORE) (32cm)
106 1-783-949-11 WIRE (FLAT TYPE) (13 CORE) (17cm)
107 A-4419-156-A MAIN BOARD, COMPLETE

(VX5A: E, MY, SP, HK, TW)

107 A-4419-164-A MAIN BOARD, COMPLETE (VX7A: E, MY, SP)

107 A-4419-661-A MAIN BOARD, COMPLETE (VX5A: EA)
107 A-4419-663-A MAIN BOARD, COMPLETE (VX7A: EA)
107 A-4426-090-A MAIN BOARD, COMPLETE (VX5AJ: E)
107 A-4426-098-A MAIN BOARD, COMPLETE (VX5AJ: JE)
107 A-4426-100-A MAIN BOARD, COMPLETE (VX5AJ: EA)

107 A-4426-135-A MAIN BOARD, COMPLETE (VX5A: IA)
107 A-4426-143-A MAIN BOARD, COMPLETE (VX7A: IA)
107 A-4426-160-A MAIN BOARD, COMPLETE (VX5A: TH)
107 A-4426-167-A MAIN BOARD, COMPLETE (VX7A: TH)
108 4-215-639-01 PANEL, BACK (VX5A: EA)

108 4-215-639-11 PANEL, BACK (VX5A: MY, SP)
108 4-215-639-21 PANEL, BACK (VX5A: TW)
108 4-215-639-31 PANEL, BACK (VX5A: E)
108 4-215-639-41 PANEL, BACK (VX5A: TH)
108 4-215-639-51 PANEL, BACK (VX5A: HK)

108 4-215-639-61 PANEL, BACK (VX5A: IA)

Ref. No. Part No. Description Remark

108 4-215-639-71 PANEL, BACK (VX5AJ: EA)
108 4-215-639-81 PANEL, BACK (VX5AJ: JE)
108 4-215-639-91 PANEL, BACK (VX5AJ: E)
108 4-215-640-01 PANEL, BACK (VX7A: EA)
108 4-215-640-11 PANEL, BACK (VX7A: MY, SP)

108 4-215-640-41 PANEL, BACK (VX7A: E, IA, TH)
109 1-769-977-11 WIRE (FLAT TYPE) (13 CORE) (15cm)

(VX5A: TH/VX7A: TH)

109 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (15cm)

(VX5A: E, EA, MY, SP, IA, HK, TW/VX5AJ/

VX7A: E, EA, MY, SP, IA)
110 1-233-545-11 TUNER (FM/AM) (VX5A: TH/VX7A: TH)
110 1-233-546-11 TUNER (FM/MW/SW)

(VX5A: E, EA, MY, SP, IA, HK, TW/VX5AJ: E, EA/

VX7A: E, EA, MY, SP, IA)

110 1-693-465-11 TUNER (PACK) (VX5AJ: JE)

! 111 1-575-651-11 CORD, POWER (VX5A: EA, MY, SP, HK, TW/

VX5AJ: EA/VX7A: EA, MY, SP)

! 111 1-575-653-11 CORD, POWER (VX5A: E, IA, TH/VX5AJ: E, JE/

VX7A: E, IA, TH)

! 112 1-569-007-11 ADAPTOR, CONVERSION 2P (VX5A: E, IA/

VX5AJ: E, JE/VX7A: E, IA)

! 112 1-569-008-21 ADAPTOR, CONVERSION 2P (VX5A: EA, MY,

SP, TW/VX5AJ: EA/VX7A: EA, MY, SP)

! 112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (VX5A: HK)

113 A-4426-097-A SURROUND BOARD, COMPLETE
114 A-4724-823-A VIDEO BOARD, COMPLETE
115 1-775-212-11 WIRE (FLAT TYPE) (23 CORE) (18cm)
M501 1-698-792-11 FAN, DC

! T951 1-433-561-21 TRANSFORMER, POWER (VX7A)
! T951 1-433-565-11 TRANSFORMER, POWER (VX5A)
! T951 1-433-565-21 TRANSFORMER, POWER (VX5AJ)

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

– 93 –

(4) CD MECHANISM DECK SECITON-1

(CDM38L-5BD34L)

202

201

211

203

201

205

#8

209

204

M701

212

206

#2

207

208

210

#2

Ref. No. Part No. Description Remark

201 4-981-789-01 BRACKET (2), YOKE
202 4-977-945-63 TRAY (TURN)
203 X-4946-665-1 SHAFT ASSY, WORM
204 4-977-943-01 BELT (TURN) (1.2)
205 4-977-956-01 WHEEL, WORM

* 206 1-658-577-11 MOTOR (TURN) BOARD

207 4-988-162-01 ROLLER

Ref. No. Part No. Description Remark

208 4-977-941-01 BEARING (WORM)

* 209 1-658-576-11 SENSOR BOARD

210 4-934-376-01 SHAFT (ROLLER)
211 4-981-187-01 COLLAR (WORM)
212 4-998-503-01 TRAY (SLIDE)

M701 A-4672-004-A MOTOR ASSY (DISC TRAY TURN)

– 94 –

(5) CD MECHANISM DECK SECITON-2

(CDM38L-5BD34L)

251

267

268

266

261

BU-5BD34L

259

258

254

269

#2

251

261

256

253

252

255

257

not
supplied

270

260

M801

S811

263

263

265

251

Ref. No. Part No. Description Remark

251 4-981-789-11 BRACKET (2), YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)

256 X-4946-491-1 CAM ASSY, BU
257 1-452-925-21 MAGNET ASSY
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)

* 259 1-658-575-11 CONNECTOR BOARD
* 260 X-4950-020-2 CHASSIS (CDM) ASSY

262

#2

264

Ref. No. Part No. Description Remark
* 262 1-658-578-11 MOTOR (SLIDE) BOARD

263 4-982-447-01 SPRING (BU), COMPRESSION
264 4-951-620-41 SCREW (2.6), +BVTP
265 X-4949-570-1 HOLDER (BU) ASSY
266 4-989-494-01 SCREW (SLIDER), STEP

267 4-989-492-11 SLIDER (38)
268 4-989-819-02 SPRING, TENSION
269 4-989-491-11 COVER (2), LENS
270 4-993-142-21 PULLEY (L), PRESS
M801 A-4672-004-A MOTOR ASSY (DISC TRAY SLIDE)

261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING

S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)

– 95 –

(6) BASE UNIT SECTION

(BU-5BD34L)

301

302

309

303

305

M101

304

308

Ref. No. Part No. Description Remark
! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP

302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
303 4-917-567-01 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
305 4-917-565-01 SHAFT, SLED

M102

304

306

307

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

Ref. No. Part No. Description Remark

307 A-4724-640-A BD BOARD, COMPLETE
308 4-951-620-01 SCREW (2.6X8), +BVTP
309 3-713-786-51 SCREW +P 2X3
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)

306 4-917-564-01 GEAR (P), FLATNESS

– 96 –

(7) TAPE MECHANISM DECK SECTION-1

(TCM-230AWR2)

408

408

HP101

403

410

404

HRPE101

411

403

407

405

406

404

402

407

405

412

406

413

409

Ref. No. Part No. Description Remark

401 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
402 3-036-914-01 RIVET
403 3-016-574-11 SPRING (HEAD), TENSION
404 X-3374-156-4 PINCH LEVER (REV) ASSY
405 X-3374-155-4 PINCH LEVER (FWD) ASSY

406 3-016-564-01 BASE (PINCH LEVER FWD)
407 3-016-565-01 BASE (PINCH LEVER REV)
408 3-026-892-01 SPRING (CASSETTE), LEAF

402

401

Ref. No. Part No. Description Remark
* 409 A-2007-731-A AUDIO BOARD, COMPLETE

410 3-032-809-02 SPRING (L), TORSION
411 3-016-572-01 LEVER (EJECT PREVENTION L)
412 3-032-810-02 SPRING (R), TORSION
413 3-016-573-01 LEVER (EJECT PREVENTION R)

HP101 A-2056-681-A DECK (A) ASSY, HEAD
HRPE101A-2056-682-A DECK (B) ASSY, HEAD

– 97 –

(8) TAPE MECHANISM DECK SECTION-2

(TCM-230AWR2)

452

455

#7

461

458

454

456

#10

459

#10

460

#10

458

462

#12

#10

451

463

#11

460

459

464

455

452

M1

453

Ref. No. Part No. Description Remark
* 451 X-3374-214-3 CHASSIS ASSY, MAIN

452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3376-497-1 FLYWHEEL (FWD) ASSY

456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR2)

456

457

Ref. No. Part No. Description Remark

459 A-2004-629-A MECHANICAL BLOCK ASSY
460 3-016-566-01 SLIDER, REVERSE

* 461 A-2007-732-A LEAF SW BOARD, COMPLETE

462 3-016-575-11 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER

464 3-027-453-01 SPRING (GROUND), TENSION
465 3-030-823-01 SCREW (+BVTT) (2X3.5)
M1 A-2004-628-A MOTOR ASSY, CAPSTAN

– 98 –

SECTION 9

ELECTRICAL PARTS LIST

AUDIO

NOTE:

• Due to standardization, replacements in the
parts list may be different from the parts speci­fied in the diagrams or the components used
on the set.

• -XX and -X mean standardized parts, so they
may have some difference from the original
one.

• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable

• Abbreviation
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesian model
JE : Tourist model

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* A-2007-731-A AUDIO BOARD, COMPLETE

C301 1-162-289-31 CERAMIC 390PF 10% 50V
C302 1-126-968-11 ELECT 100uF 20% 6.3V
C303 1-162-282-31 CERAMIC 100PF 10% 50V
C304 1-130-483-00 MYLAR 0.01uF 5% 50V
C305 1-107-715-11 ELECT 22uF 20% 16V

C311 1-162-289-31 CERAMIC 390PF 10% 50V
C313 1-162-282-31 CERAMIC 100PF 10% 50V
C314 1-130-487-00 MYLAR 0.022uF 5% 50V
C315 1-126-233-11 ELECT 22uF 20% 50V
C331 1-137-427-11 FILM 120PF 5% 50V

MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model

**********************

< CAPACITOR >

• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order­ing these items.

• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .

• CAPACITORS
uF: µF

• COILS
uH: µH

CN601 1-568-834-11 SOCKET, CONNECTOR 15P

IC601 8-759-111-44 IC uPC4570C-1
IC602 8-759-143-54 IC uPC1330HA
IC611 8-759-111-44 IC uPC4570C-1

L331 1-410-780-11 INDUCTOR 27mH
L431 1-410-780-11 INDUCTOR 27mH
L601 1-414-193-41 INDUCTOR 220uH
L602 1-414-193-41 INDUCTOR 220uH

The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.

When indicating parts by reference
number, please include the board.

< CONNECTOR >

< IC >

< COIL >

C332 1-162-288-31 CERAMIC 330PF 10% 50V
C333 1-162-209-31 CERAMIC 27PF 5% 50V
C401 1-162-289-31 CERAMIC 390PF 10% 50V
C402 1-126-968-11 ELECT 100uF 20% 6.3V
C403 1-162-282-31 CERAMIC 100PF 10% 50V

C404 1-130-483-00 MYLAR 0.01uF 5% 50V
C405 1-107-715-11 ELECT 22uF 20% 16V
C411 1-162-289-31 CERAMIC 390PF 10% 50V
C413 1-162-282-31 CERAMIC 100PF 10% 50V
C414 1-130-487-00 MYLAR 0.022uF 5% 50V

C415 1-126-233-11 ELECT 22uF 20% 50V
C431 1-137-427-11 FILM 120PF 5% 50V
C432 1-162-288-31 CERAMIC 330PF 10% 50V
C433 1-162-209-31 CERAMIC 27PF 5% 50V
C601 1-104-396-11 ELECT 10uF 20% 16V

C602 1-104-396-11 ELECT 10uF 20% 16V
C611 1-104-396-11 ELECT 10uF 20% 16V
C612 1-104-396-11 ELECT 10uF 20% 16V
C621 1-137-150-11 FILM 0.01uF 5% 100V
C622 1-126-961-11 ELECT 2.2uF 20% 50V

C623 1-136-155-00 FILM 0.015uF 5% 50V
C624 1-130-481-00 MYLAR 0.0068uF 5% 50V
C625 1-130-481-00 MYLAR 0.0068uF 5% 50V
C627 1-124-903-11 ELECT 1uF 20% 50V
C628 1-136-153-00 FILM 0.01uF 5% 50V

C642 1-104-664-11 ELECT 47uF 20% 16V

< TRANSISTOR >

Q621 8-729-142-46 TRANSISTOR 2SC2001-LK
Q622 8-729-142-46 TRANSISTOR 2SC2001-LK
Q623 8-729-801-93 TRANSISTOR 2SD1387

< RESISTOR >

R301 1-247-881-00 CARBON 120K 5% 1/4W
R302 1-249-409-11 CARBON 220 5% 1/4W
R303 1-249-433-11 CARBON 22K 5% 1/4W
R304 1-247-889-00 CARBON 270K 5% 1/4W
R305 1-247-858-11 CARBON 13K 5% 1/4W

R311 1-247-881-00 CARBON 120K 5% 1/4W
R312 1-247-807-31 CARBON 100 5% 1/4W
R314 1-247-882-11 CARBON 130K 5% 1/4W
R315 1-247-850-11 CARBON 6.2K 5% 1/4W
R331 1-249-430-11 CARBON 12K 5% 1/4W

R401 1-247-881-00 CARBON 120K 5% 1/4W
R402 1-249-409-11 CARBON 220 5% 1/4W
R403 1-249-433-11 CARBON 22K 5% 1/4W
R404 1-247-889-00 CARBON 270K 5% 1/4W
R405 1-247-858-11 CARBON 13K 5% 1/4W

R411 1-247-881-00 CARBON 120K 5% 1/4W
R412 1-247-807-31 CARBON 100 5% 1/4W
R414 1-247-882-11 CARBON 130K 5% 1/4W
R415 1-247-850-11 CARBON 6.2K 5% 1/4W
R431 1-249-430-11 CARBON 12K 5% 1/4W

– 99 –

R601 1-249-409-11 CARBON 220 5% 1/4W

AUDIO BD

Ref. No. Part No. Description Remark

R602 1-249-409-11 CARBON 220 5% 1/4W
R608 1-249-409-11 CARBON 220 5% 1/4W
R609 1-249-433-11 CARBON 22K 5% 1/4W
R611 1-249-409-11 CARBON 220 5% 1/4W

R612 1-249-409-11 CARBON 220 5% 1/4W

! R621 1-212-851-00 FUSIBLE 5.6 5% 1/4W F
! R622 1-212-851-00 FUSIBLE 5.6 5% 1/4W F

R623 1-249-432-11 CARBON 18K 5% 1/4W
R624 1-249-432-11 CARBON 18K 5% 1/4W

R625 1-249-429-11 CARBON 10K 5% 1/4W

< VARIABLE RESISTOR >

RV301 1-238-598-11 RES, ADJ, CARBON 2.2K
RV311 1-238-598-11 RES, ADJ, CARBON 2.2K
RV341 1-241-768-11 RES, ADJ, CARBON 220K
RV401 1-238-598-11 RES, ADJ, CARBON 2.2K
RV411 1-238-598-11 RES, ADJ, CARBON 2.2K

RV441 1-241-768-11 RES, ADJ, CARBON 220K

< TRANSFORMER >

T621 1-423-980-11 TRANSFORMER, BIAS OSCILLATION

************************************************************

A-4724-640-A BD BOARD, COMPLETE

*******************

Ref. No. Part No. Description Remark

C157 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C159 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C161 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C162 1-128-065-11 ELECT CHIP 68uF 20% 10V
C170 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C171 1-163-038-00 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN101 1-770-706-11 CONNECTOR, FFC/FPC 23P
CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P

< IC >

IC101 8-752-397-42 IC CXD3008Q
IC102 8-759-549-28 IC BA5974FP-E2
IC103 8-752-085-51 IC CXA2568M-T6
IC104 8-759-398-25 IC TC7SH04F (TE85L)

< COIL >

L101 1-414-234-22 INDUCTOR CHIP 0uH
L102 1-410-377-31 INDUCTOR CHIP 4.7uH

< TRANSISTOR >

Q101 8-729-049-31 TRANSISTOR 2SB710-RTX

< RESISTOR >

< CAPACITOR >

C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C102 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C105 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C106 1-164-346-11 CERAMIC CHIP 1uF 16V

C107 1-164-346-11 CERAMIC CHIP 1uF 16V
C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C109 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C110 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C112 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C113 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C115 1-126-607-11 ELECT CHIP 47uF 20% 4V
C116 1-126-607-11 ELECT CHIP 47uF 20% 4V
C117 1-126-209-11 ELECT CHIP 100uF 20% 4V

C118 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C119 1-163-110-00 CERAMIC CHIP 51PF 5% 50V
C120 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C121 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C122 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C124 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C126 1-124-779-00 ELECT CHIP 10uF 20% 16V
C130 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C140 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C141 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C151 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C153 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C154 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C156 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

R101 1-216-077-00 METAL CHIP 15K 5% 1/10W
R102 1-216-097-91 RES, CHIP 100K 5% 1/10W
R103 1-216-077-00 METAL CHIP 15K 5% 1/10W
R104 1-216-085-00 METAL CHIP 33K 5% 1/10W
R105 1-216-073-00 METAL CHIP 10K 5% 1/10W

R106 1-216-049-11 RES, CHIP 1K 5% 1/10W
R107 1-216-073-00 METAL CHIP 10K 5% 1/10W
R108 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R109 1-216-121-00 RES, CHIP 1M 5% 1/10W
R110 1-216-295-00 SHORT 0

R112 1-216-049-11 RES, CHIP 1K 5% 1/10W
R123 1-216-073-00 METAL CHIP 10K 5% 1/10W
R124 1-216-097-91 RES, CHIP 100K 5% 1/10W
R125 1-216-037-00 METAL CHIP 330 5% 1/10W
R126 1-216-037-00 METAL CHIP 330 5% 1/10W

R127 1-216-037-00 METAL CHIP 330 5% 1/10W
R131 1-216-037-00 METAL CHIP 330 5% 1/10W
R135 1-216-295-00 SHORT 0
R136 1-216-295-00 SHORT 0
R137 1-216-295-00 SHORT 0

R138 1-216-295-00 SHORT 0
R143 1-216-103-00 METAL CHIP 180K 5% 1/10W
R144 1-216-103-00 METAL CHIP 180K 5% 1/10W
R145 1-216-121-00 RES, CHIP 1M 5% 1/10W
R146 1-216-121-00 RES, CHIP 1M 5% 1/10W

R147 1-216-041-00 METAL CHIP 470 5% 1/10W
R148 1-216-001-00 METAL CHIP 10 5% 1/10W
R149 1-216-003-11 RES, CHIP 12 5% 1/10W
R150 1-216-073-00 METAL CHIP 10K 5% 1/10W
R154 1-216-025-00 RES, CHIP 100 5% 1/10W

R155 1-216-025-00 RES, CHIP 100 5% 1/10W
R156 1-216-025-00 RES, CHIP 100 5% 1/10W

– 100 –

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

BD CD SW CONNECTOR LEAF SW

Ref. No. Part No. Description Remark

R157 1-216-025-00 RES, CHIP 100 5% 1/10W
R158 1-216-111-00 METAL CHIP 390K 5% 1/10W
R159 1-216-089-00 RES, CHIP 47K 5% 1/10W

R161 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R162 1-216-101-00 METAL CHIP 150K 5% 1/10W
R171 1-216-025-00 RES, CHIP 100 5% 1/10W
R172 1-216-025-00 RES, CHIP 100 5% 1/10W
R173 1-216-025-00 RES, CHIP 100 5% 1/10W

R175 1-216-025-00 RES, CHIP 100 5% 1/10W
R203 1-216-025-00 RES, CHIP 100 5% 1/10W
R204 1-216-025-00 RES, CHIP 100 5% 1/10W
R205 1-216-025-00 RES, CHIP 100 5% 1/10W
R206 1-216-295-00 SHORT 0

< SWITCH >

S101 1-572-085-11 SWITCH, LEAF (LIMIT)

**************************************************************

A-4419-984-A CD SW BOARD, COMPLETE

**********************

< LED >

D751 8-719-056-13 LED SML79423C-TP15 (DISC 1)
D752 8-719-056-13 LED SML79423C-TP15 (DISC 2)
D753 8-719-056-13 LED SML79423C-TP15 (DISC 3)
D754 8-719-063-93 LED SLR325VC-N-T32 (1/u)

Ref. No. Part No. Description Remark

CN702 1-785-550-11 CONNECTOR, FFC/FPC 8P

< TRANSISTOR >

Q701 8-729-900-80 TRANSISTOR BA1A4M-TP

< RESISTOR >

R703 1-249-435-11 CARBON 33K 5% 1/4W
R704 1-249-429-11 CARBON 10K 5% 1/4W
R705 1-249-417-11 CARBON 1K 5% 1/4W

**************************************************************

* A-2007-732-A LEAF SW BOARD, COMPLETE

************************

< CAPACITOR >

C1001 1-107-716-11 ELECT 33uF 20% 10V

< CONNECTOR >

CN1001 1-568-860-11 SOCKET, CONNECTOR 17P

< DIODE >

D1001 8-719-911-19 DIODE 1SS119
D1002 8-719-911-19 DIODE 1SS119

< CONNECTOR >

< RESISTOR >

R751 1-249-417-11 CARBON 1K 5% 1/4W
R752 1-249-418-11 CARBON 1.2K 5% 1/4W
R753 1-249-420-11 CARBON 1.8K 5% 1/4W
R754 1-249-422-11 CARBON 2.7K 5% 1/4W
R755 1-247-843-11 CARBON 3.3K 5% 1/4W

R756 1-249-425-11 CARBON 4.7K 5% 1/4W
R757 1-249-427-11 CARBON 6.8K 5% 1/4W
R758 1-247-804-11 CARBON 75 5% 1/4W
R759 1-249-407-11 CARBON 150 5% 1/4W
R760 1-247-804-11 CARBON 75 5% 1/4W

R761 1-249-407-11 CARBON 150 5% 1/4W
R762 1-247-804-11 CARBON 75 5% 1/4W
R763 1-249-407-11 CARBON 150 5% 1/4W
R764 1-249-414-11 CARBON 560 5% 1/4W

< SWITCH >

S751 1-762-875-21 SWITCH, KEYBOARD (1/u)
S752 1-762-875-21 SWITCH, KEYBOARD

( (STANDBY) POWER SAVE DEMO)
S753 1-762-875-21 SWITCH, KEYBOARD (DISC 1)
S754 1-762-875-21 SWITCH, KEYBOARD (DISC 2)
S755 1-762-875-21 SWITCH, KEYBOARD (DISC 3)

S756 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP EX-CHANGE)
S757 1-762-875-21 SWITCH, KEYBOARD (§)

**************************************************************

* 1-658-575-11 CONNECTOR BOARD

*****************

< CONNECTOR >

* DM1001 1-784-581-11 HOLDER, CABLE (2.5MM PITCH) 4P

< PHOTO INTERRUPTER >

IC1001 8-749-014-38 PHOTO INTERRUPTER SG-264
IC1002 8-749-014-38 PHOTO INTERRUPTER SG-264

< TRANSISTOR >

Q1001 8-729-029-56 TRANSISTOR DTA144ESA

< RESISTOR >

R907 1-247-879-11 CARBON 100K 5% 1/4W
R1001 1-249-409-11 CARBON 220 5% 1/4W
R1002 1-249-409-11 CARBON 220 5% 1/4W
R1003 1-249-414-11 CARBON 560 5% 1/4W
R1004 1-247-834-11 CARBON 1.3K 5% 1/4W

R1005 1-247-818-11 CARBON 300 5% 1/4W
R1006 1-247-864-11 CARBON 24K 5% 1/4W
R1007 1-247-856-00 CARBON 11K 5% 1/4W
R1008 1-249-417-11 CARBON 1K 5% 1/4W

< VARIABLE RESISTOR >

RV1001 1-241-785-11 RES, ADJ, CARBON 10K
RV1002 1-241-785-11 RES, ADJ, CARBON 10K

< SWITCH >

S1001 1-570-953-11 SWITCH, PUSH (1 KEY) (DECK A PLAY)
S1002 1-570-953-11 SWITCH, PUSH (1 KEY) (DECK B PLAY)
S1003 1-771-333-11 SWITCH, LEAF (DECK A HALF)
S1004 1-771-205-11 SWITCH, LEAF (DECK A 120/70)
S1005 1-771-205-11 SWITCH, LEAF (DECK A REC)

* CN701 1-568-946-11 PIN, CONNECTOR 8P

S1006 1-771-333-11 SWITCH, LEAF (DECK B HALF)

– 101 –

LEAF SW MAIN

Ref. No. Part No. Description Remark

S1008 1-771-205-11 SWITCH, LEAF (DECK B 120/70)
S1009 1-771-205-11 SWITCH, LEAF (DECK B REC)

************************************************************

A-4419-156-A MAIN BOARD, COMPLETE

(VX5A: E, MY, SP, HK, TW)
A-4419-164-A MAIN BOARD, COMPLETE (VX7A: E, MY, SP)
A-4419-661-A MAIN BOARD, COMPLETE (VX5A: EA)
A-4419-663-A MAIN BOARD, COMPLETE (VX7A: EA)
A-4426-090-A MAIN BOARD, COMPLETE (VX5AJ: E)

A-4426-098-A MAIN BOARD, COMPLETE (VX5AJ: JE)
A-4426-100-A MAIN BOARD, COMPLETE (VX5AJ: EA)
A-4426-135-A MAIN BOARD, COMPLETE (VX5A: IA)
A-4426-143-A MAIN BOARD, COMPLETE (VX7A: IA)
A-4426-160-A MAIN BOARD, COMPLETE (VX5A: TH)

A-4426-167-A MAIN BOARD, COMPLETE (VX7A: TH)

*********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

< CAPACITOR >

C104 1-164-159-11 CERAMIC 0.1uF 50V
C111 1-137-195-11 FILM 0.56uF 5% 50V
C112 1-136-158-00 FILM 0.027uF 5% 50V
C113 1-136-167-00 FILM 0.15uF 5% 50V

(VX7A)

C114 1-130-480-00 MYLAR 0.0056uF 5% 50V

(VX7A)

C115 1-136-159-00 FILM 0.033uF 5% 50V
C116 1-130-473-00 MYLAR 0.0015uF 5% 50V
C117 1-136-153-00 FILM 0.01uF 5% 50V

(VX7A)

C118 1-162-288-31 CERAMIC 330PF 10% 50V

(VX7A)

C119 1-130-479-00 MYLAR 0.0047uF 5% 50V

C120 1-130-477-00 MYLAR 0.0033uF 5% 50V
C121 1-126-964-11 ELECT 10uF 20% 50V
C122 1-162-291-31 CERAMIC 560PF 10% 50V
C123 1-136-169-00 FILM 0.22uF 5% 50V
C124 1-136-169-00 FILM 0.22uF 5% 50V

C125 1-126-964-11 ELECT 10uF 20% 50V
C131 1-104-664-11 ELECT 47uF 20% 16V
C132 1-104-664-11 ELECT 47uF 20% 16V
C135 1-126-964-11 ELECT 10uF 20% 50V
C141 1-126-959-11 ELECT 0.47uF 20% 50V

C161 1-137-195-11 FILM 0.56uF 5% 50V
C162 1-136-158-00 FILM 0.027uF 5% 50V
C163 1-136-167-00 FILM 0.15uF 5% 50V

(VX7A)

C164 1-130-480-00 MYLAR 0.0056uF 5% 50V

(VX7A)

C165 1-136-159-00 FILM 0.033uF 5% 50V

C166 1-130-473-00 MYLAR 0.0015uF 5% 50V
C167 1-136-153-00 FILM 0.01uF 5% 50V

(VX7A)

C168 1-162-288-31 CERAMIC 330PF 10% 50V

(VX7A)
C169 1-130-479-00 MYLAR 0.0047uF 5% 50V
C170 1-130-477-00 MYLAR 0.0033uF 5% 50V

C171 1-126-964-11 ELECT 10uF 20% 50V

Ref. No. Part No. Description Remark

C172 1-162-291-31 CERAMIC 560PF 10% 50V
C173 1-136-169-00 FILM 0.22uF 5% 50V
C174 1-136-169-00 FILM 0.22uF 5% 50V
C175 1-126-964-11 ELECT 10uF 20% 50V

C176 1-136-495-11 FILM 0.068uF 5% 50V
C177 1-136-153-00 FILM 0.01uF 5% 50V
C193 1-126-964-11 ELECT 10uF 20% 50V
C197 1-164-159-11 CERAMIC 0.1uF 50V
C301 1-126-960-11 ELECT 1uF 20% 50V

C302 1-130-479-00 MYLAR 0.0047uF 5% 50V
C303 1-136-165-00 FILM 0.1uF 5% 50V
C304 1-136-165-00 FILM 0.1uF 5% 50V
C305 1-126-964-11 ELECT 10uF 20% 50V
C306 1-126-960-11 ELECT 1uF 20% 50V

C307 1-126-959-11 ELECT 0.47uF 20% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
C309 1-137-194-81 FILM 0.47uF 5% 50V
C310 1-162-290-31 CERAMIC 470PF 10% 50V
C311 1-126-964-11 ELECT 10uF 20% 50V

C312 1-126-959-11 ELECT 0.47uF 20% 50V
C313 1-162-294-31 CERAMIC 0.001uF 10% 50V
C314 1-126-964-11 ELECT 10uF 20% 50V
C315 1-126-963-11 ELECT 4.7uF 20% 50V
C316 1-104-665-11 ELECT 100uF 20% 10V

C317 1-104-665-11 ELECT 100uF 20% 10V
C320 1-162-290-31 CERAMIC 470PF 10% 50V
C333 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C334 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C351 1-126-960-11 ELECT 1uF 20% 50V

C352 1-130-479-00 MYLAR 0.0047uF 5% 50V
C353 1-136-165-00 FILM 0.1uF 5% 50V
C354 1-136-165-00 FILM 0.1uF 5% 50V
C355 1-126-964-11 ELECT 10uF 20% 50V
C356 1-126-960-11 ELECT 1uF 20% 50V

C357 1-126-959-11 ELECT 0.47uF 20% 50V
C358 1-126-964-11 ELECT 10uF 20% 50V
C359 1-137-194-81 FILM 0.47uF 5% 50V
C382 1-104-665-11 ELECT 100uF 20% 10V
C390 1-104-656-11 ELECT 2200uF 20% 6.3V

C391 1-161-494-00 CERAMIC 0.022uF 25V
C392 1-126-916-11 ELECT 1000uF 20% 6.3V
C393 1-161-494-00 CERAMIC 0.022uF 25V
C394 1-126-925-11 ELECT 470uF 20% 10V
C396 1-126-961-11 ELECT 2.2uF 20% 50V

C397 1-126-961-11 ELECT 2.2uF 20% 50V
C410 1-126-963-11 ELECT 4.7uF 20% 50V
C411 1-162-306-11 CERAMIC 0.01uF 30% 16V
C412 1-107-717-11 ELECT 47uF 20% 50V
C432 1-104-665-11 ELECT 100uF 20% 10V

C433 1-126-961-11 ELECT 2.2uF 20% 50V
C437 1-126-968-11 ELECT 100uF 20% 50V
C501 1-126-964-11 ELECT 10uF 20% 50V
C502 1-164-159-11 CERAMIC 0.1uF 50V
C503 1-136-165-00 FILM 0.1uF 5% 50V

C504 1-126-926-11 ELECT 1000uF 20% 10V
C508 1-109-889-11 ELECT 1uF 20% 50V
C610 1-102-953-00 CERAMIC 18PF 5% 50V
C611 1-102-951-00 CERAMIC 15PF 5% 50V

– 102 –

MAIN

Ref. No. Part No. Description Remark

C614 1-162-306-11 CERAMIC 0.01uF 30% 16V

C616 1-104-665-11 ELECT 100uF 20% 10V
C662 1-162-306-11 CERAMIC 0.01uF 30% 16V
C664 1-104-665-11 ELECT 100uF 20% 10V
C698 1-162-306-11 CERAMIC 0.01uF 30% 16V
C699 1-104-665-11 ELECT 100uF 20% 10V

C801 1-126-963-11 ELECT 4.7uF 20% 50V
C802 1-162-290-31 CERAMIC 470PF 10% 50V
C803 1-162-282-31 CERAMIC 100PF 10% 50V
C804 1-104-665-11 ELECT 100uF 20% 10V
C807 1-136-495-11 FILM 0.068uF 5% 50V

C808 1-136-495-11 FILM 0.068uF 5% 50V
C809 1-128-560-11 ELECT 22uF 20% 100V
C810 1-128-578-11 ELECT 1uF 20% 100V
C811 1-162-306-11 CERAMIC 0.01uF 30% 16V
C812 1-162-306-11 CERAMIC 0.01uF 30% 16V

C841 1-127-751-11 ELECT 3300uF 20% 50V
C842 1-127-754-11 ELECT 3300uF 20% 80V
C843 1-136-165-00 FILM 0.1uF 5% 50V
C844 1-130-777-00 FILM 0.1uF 10% 100V
C851 1-126-963-11 ELECT 4.7uF 20% 50V

C852 1-162-290-31 CERAMIC 470PF 10% 50V
C853 1-162-282-31 CERAMIC 100PF 10% 50V
C854 1-104-665-11 ELECT 100uF 20% 10V
C857 1-136-495-11 FILM 0.068uF 5% 50V
C858 1-136-495-11 FILM 0.068uF 5% 50V

C859 1-128-560-11 ELECT 22uF 20% 100V
C881 1-126-967-11 ELECT 47uF 20% 50V
C891 1-127-751-11 ELECT 3300uF 20% 50V
C892 1-127-754-11 ELECT 3300uF 20% 80V
C893 1-136-165-00 FILM 0.1uF 5% 50V

C894 1-130-777-00 FILM 0.1uF 10% 100V
C901 1-136-165-00 FILM 0.1uF 5% 50V
C902 1-126-939-11 ELECT 10000uF 20% 16V
C903 1-126-933-11 ELECT 100uF 20% 16V
C904 1-104-664-11 ELECT 47uF 20% 16V

C905 1-104-665-11 ELECT 100uF 20% 10V
C906 1-136-165-00 FILM 0.1uF 5% 50V
C907 1-128-548-11 ELECT 4700uF 20% 25V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-104-665-11 ELECT 100uF 20% 10V

Ref. No. Part No. Description Remark

< CONNECTOR >

CN303 1-784-776-11 CONNECTOR, FFC 15P
CN304 1-784-778-11 CONNECTOR, FFC 17P
CN371 1-784-774-11 CONNECTOR, FFC 13P (VX5A: TH/VX7A: TH)
CN371 1-784-776-11 CONNECTOR, FFC 15P

(EXCEPT VX5A: TH/VX7A: TH)
CN391 1-750-745-11 CONNECTOR, FFC/FPC 13P
CN392 1-785-334-11 PIN, CONNECTOR (LIGHT ANGLE) 8P
CN393 1-785-335-11 PIN, CONNECTOR (LIGHT ANGLE) 9P

* CN403 1-564-518-11 PLUG, CONNECTOR 3P

CN501 1-784-784-11 CONNECTOR, FFC 23P

< DIODE >

D141 8-719-911-19 DIODE 1SS133T-72
D191 8-719-911-19 DIODE 1SS133T-72
D331 8-719-911-19 DIODE 1SS133T-72
D333 8-719-911-19 DIODE 1SS133T-72
D334 8-719-911-19 DIODE 1SS133T-72

D335 8-719-911-19 DIODE 1SS133T-72
D401 8-719-911-19 DIODE 1SS133T-72
D403 8-719-911-19 DIODE 1SS133T-72
D405 8-719-024-99 DIODE 11ES2-NTA2B
D406 8-719-024-99 DIODE 11ES2-NTA2B

D407 8-719-024-99 DIODE 11ES2-NTA2B
D411 8-719-911-19 DIODE 1SS133T-72
D501 8-719-024-99 DIODE 11ES2-NTA2B
D502 8-719-911-19 DIODE 1SS133T-72
D503 8-719-911-19 DIODE 1SS133T-72

D504 8-719-911-19 DIODE 1SS133T-72
D505 8-719-911-19 DIODE 1SS133T-72
D506 8-719-911-19 DIODE 1SS133T-72
D507 8-719-024-99 DIODE 11ES2-NTA2B
D509 8-719-911-19 DIODE 1SS133T-72

D607 8-719-911-19 DIODE 1SS133T-72
D644 8-719-911-19 DIODE 1SS133T-72
D801 8-719-911-19 DIODE 1SS133T-72
D802 8-719-118-97 DIODE RD16F-T7B2
D803 8-719-991-19 DIODE 1SS133T-72

D831 8-719-302-38 DIODE RBV-602-01
D832 8-719-302-38 DIODE RBV-602-01
D851 8-719-911-19 DIODE 1SS133T-72
D852 8-719-160-64 DIODE RD16F-T7B1

C911 1-126-964-11 ELECT 10uF 20% 50V
C912 1-126-926-11 ELECT 1000uF 20% 10V
C913 1-126-964-11 ELECT 10uF 20% 50V
C914 1-126-767-11 ELECT 1000uF 20% 16V
C915 1-104-664-11 ELECT 47uF 20% 16V

C916 1-162-306-11 CERAMIC 0.01uF 30% 16V
C917 1-126-933-11 ELECT 100uF 20% 16V
C921 1-104-656-11 ELECT 2200uF 20% 6.3V
C922 1-126-964-11 ELECT 10uF 20% 50V
C923 1-126-926-11 ELECT 1000uF 20% 10V

C951 1-136-165-00 FILM 0.1uF 5% 50V
C952 1-126-768-11 ELECT 2200uF 20% 16V
C953 1-126-933-11 ELECT 100uF 20% 16V
C955 1-104-665-11 ELECT 100uF 20% 10V
C956 1-136-165-00 FILM 0.1uF 5% 50V

D881 8-719-911-19 DIODE 1SS133T-72
D901 8-719-975-85 DIODE 21DQ04N-TA2
D902 8-719-975-85 DIODE 21DQ04N-TA2
D903 8-719-975-85 DIODE 21DQ04N-TA2
D904 8-719-975-85 DIODE 21DQ04N-TA2

D905 8-719-933-36 DIODE HZS6B1LTA
D906 8-719-911-19 DIODE 1SS133T-72
D907 8-719-024-99 DIODE 11ES2-NTA2B
D908 8-719-024-99 DIODE 11ES2-NTA2B
D909 8-719-024-99 DIODE 11ES2-NTA2B

D910 8-719-024-99 DIODE 11ES2-NTA2B
D915 8-719-935-69 DIODE HZS11B1LTA
D917 8-719-911-19 DIODE 1SS133T-72
D918 8-719-024-99 DIODE 11ES2-NTA2B
D919 8-719-911-19 DIODE 1SS133T-72
D921 8-719-911-19 DIODE 1SS133T-72

– 103 –

MAIN

Ref. No. Part No. Description Remark

D922 8-719-911-19 DIODE 1SS133T-72
D923 8-719-911-19 DIODE 1SS133T-72
D924 8-719-024-99 DIODE 11ES2-NTA2B
D925 8-719-024-99 DIODE 11ES2-NTA2B

< FERRITE BEAD >

FB391 1-412-473-21 FERRITE 0uH
FB392 1-412-473-21 FERRITE 0uH

< IC >

IC101 8-759-571-55 IC M62493FP-A
IC301 8-759-495-26 IC HA12215F
IC381 8-749-923-04 IC TOTX178A (CD DIGITAL OUT OPTICAL)
IC501 8-759-588-91 IC M30622MA-A09FP

IC502 8-759-635-63 IC M51943BSL-TP
IC801 8-749-015-37 IC STK411-240E
IC901 8-759-604-86 IC M5F7807L
IC902 8-759-231-53 IC M5F7805L
IC903 8-759-088-08 IC uPC7812AHF

IC904 8-759-231-53 IC M5F7805L

< JACK >

J101 1-774-411-11 JACK, PIN 6P (VIDEO (AUDIO) IN, MD IN/OUT)
J191 1-774-785-11 JACK, PIN 1P (SUPER WOOFER)

< COIL >

L381 1-410-521-11 INDUCTOR 100uH
L392 1-410-521-11 INDUCTOR 100uH
L501 1-410-509-11 INDUCTOR 10uH

< TRANSISTOR >

Q111 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q112 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q113 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q161 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q162 8-729-119-78 TRANSISTOR 2SC2785TP-HFE

Q163 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q191 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q192 8-729-900-63 TRANSISTOR BN1F4M-TP
Q201 8-729-900-36 TRANSISTOR BA1F4M-TP
Q251 8-729-900-36 TRANSISTOR BA1F4M-TP

Q331 8-729-118-00 TRANSISTOR 2SB1116-TP-LK
Q332 8-729-900-80 TRANSISTOR BA1A4M-TP
Q333 8-729-118-00 TRANSISTOR 2SB1116-TP-LK
Q334 8-729-900-80 TRANSISTOR BA1A4M-TP
Q335 8-729-900-80 TRANSISTOR BA1A4M-TP

Q336 8-729-116-59 TRANSISTOR 2SB1068TP
Q337 8-729-045-21 TRANSISTOR 2SD1513TP-LK
Q338 8-729-422-57 TRANSISTOR BN1A4M-TP
Q339 8-729-900-80 TRANSISTOR BA1A4M-TP
Q340 8-729-116-59 TRANSISTOR 2SB1068TP

Q341 8-729-045-21 TRANSISTOR 2SD1513TP-LK
Q342 8-729-422-57 TRANSISTOR BN1A4M-TP
Q343 8-729-900-80 TRANSISTOR BA1A4M-TP
Q401 8-729-119-77 TRANSISTOR 2SA1175TP-FEK
Q402 8-729-111-29 TRANSISTOR 2SD1616-TP-LK

Q411 8-729-141-30 TRANSISTOR 2SC3623ATP-LK

Ref. No. Part No. Description Remark

Q412 8-729-900-63 TRANSISTOR BN1F4M-TP
Q431 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q432 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q433 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

Q434 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q435 8-729-900-36 TRANSISTOR BA1F4M-TP
Q436 8-729-119-77 TRANSISTOR 2SA1175TP-FEK
Q437 8-729-119-79 TRANSISTOR 2SC2785TP-FEK
Q439 8-729-119-79 TRANSISTOR 2SC2785TP-FEK

Q471 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q501 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q508 8-729-900-63 TRANSISTOR BN1F4M-TP
Q509 8-729-900-63 TRANSISTOR BN1F4M-TP
Q801 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

Q803 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q804 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q831 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q832 8-729-119-79 TRANSISTOR 2SC2785TP-FEK
Q851 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

Q881 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q901 8-729-209-15 TRANSISTOR 2SD2012
Q902 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q903 8-729-900-36 TRANSISTOR BA1F4M-TP
Q904 8-729-900-36 TRANSISTOR BA1F4M-TP

Q905 8-729-040-20 TRANSISTOR RT1P137L-TP
Q907 8-729-141-83 TRANSISTOR 2SB1375
Q908 8-729-900-36 TRANSISTOR BA1F4M-TP
Q909 8-729-026-68 TRANSISTOR 2SD2525 (TP)
Q911 8-729-141-83 TRANSISTOR 2SB1375

Q912 8-729-900-36 TRANSISTOR BA1F4M-TP
Q913 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q914 8-729-119-77 TRANSISTOR 2SA1175TP-FEK
Q923 8-729-900-36 TRANSISTOR BA1F4M-TP
Q951 8-729-141-83 TRANSISTOR 2SB1375

Q952 8-729-119-77 TRANSISTOR 2SA1175TP-FEK

< RESISTOR >

R101 1-249-417-11 CARBON 1K 5% 1/4W
R102 1-249-417-11 CARBON 1K 5% 1/4W
R103 1-249-417-11 CARBON 1K 5% 1/4W
R111 1-249-429-11 CARBON 10K 5% 1/4W
R112 1-247-895-00 CARBON 470K 5% 1/4W

R113 1-247-894-11 CARBON 430K 5% 1/4W
R114 1-249-415-11 CARBON 680 5% 1/4W
R115 1-249-433-11 CARBON 22K 5% 1/4W
R116 1-247-887-00 CARBON 220K 5% 1/4W
R117 1-249-429-11 CARBON 10K 5% 1/4W

R118 1-249-437-11 CARBON 47K 5% 1/4W
R119 1-249-421-11 CARBON 2.2K 5% 1/4W
R120 1-249-441-11 CARBON 100K 5% 1/4W
R121 1-249-429-11 CARBON 10K 5% 1/4W
R124 1-249-433-11 CARBON 22K 5% 1/4W

R125 1-247-843-11 CARBON 3.3K 5% 1/4W
R126 1-249-421-11 CARBON 2.2K 5% 1/4W
R130 1-249-433-11 CARBON 22K 5% 1/4W
R131 1-247-807-31 CARBON 100 5% 1/4W
R132 1-247-807-31 CARBON 100 5% 1/4W

– 104 –

MAIN

Ref. No. Part No. Description Remark

R133 1-247-807-31 CARBON 100 5% 1/4W
R141 1-249-433-11 CARBON 22K 5% 1/4W
R142 1-249-433-11 CARBON 22K 5% 1/4W
R143 1-249-417-11 CARBON 1K 5% 1/4W
R144 1-249-441-11 CARBON 100K 5% 1/4W

R145 1-247-903-00 CARBON 1M 5% 1/4W
R151 1-249-417-11 CARBON 1K 5% 1/4W
R152 1-249-417-11 CARBON 1K 5% 1/4W
R153 1-249-417-11 CARBON 1K 5% 1/4W
R161 1-249-429-11 CARBON 10K 5% 1/4W

R162 1-247-895-00 CARBON 470K 5% 1/4W
R163 1-247-894-11 CARBON 430K 5% 1/4W
R164 1-249-415-11 CARBON 680 5% 1/4W
R165 1-249-433-11 CARBON 22K 5% 1/4W
R166 1-247-887-00 CARBON 220K 5% 1/4W

R167 1-249-429-11 CARBON 10K 5% 1/4W
R168 1-249-437-11 CARBON 47K 5% 1/4W
R169 1-249-421-11 CARBON 2.2K 5% 1/4W
R170 1-249-441-11 CARBON 100K 5% 1/4W
R171 1-249-429-11 CARBON 10K 5% 1/4W

R178 1-249-421-11 CARBON 2.2K 5% 1/4W
R190 1-249-441-11 CARBON 100K 5% 1/4W
R196 1-249-417-11 CARBON 1K 5% 1/4W
R197 1-249-441-11 CARBON 100K 5% 1/4W
R198 1-249-417-11 CARBON 1K 5% 1/4W

R199 1-249-429-11 CARBON 10K 5% 1/4W
R201 1-247-888-11 CARBON 240K 5% 1/4W
R202 1-247-903-00 CARBON 1M 5% 1/4W
R211 1-249-441-11 CARBON 100K 5% 1/4W
R212 1-249-441-11 CARBON 100K 5% 1/4W

R251 1-247-888-11 CARBON 240K 5% 1/4W
R252 1-247-903-00 CARBON 1M 5% 1/4W
R261 1-249-441-11 CARBON 100K 5% 1/4W
R262 1-249-441-11 CARBON 100K 5% 1/4W
R301 1-249-435-11 CARBON 33K 5% 1/4W

R302 1-249-421-11 CARBON 2.2K 5% 1/4W
R303 1-247-807-31 CARBON 100 5% 1/4W
R304 1-247-807-31 CARBON 100 5% 1/4W
R305 1-249-421-11 CARBON 2.2K 5% 1/4W
R306 1-249-428-11 CARBON 8.2K 5% 1/4W

R307 1-249-428-11 CARBON 8.2K 5% 1/4W
R308 1-249-425-11 CARBON 4.7K 5% 1/4W
R309 1-249-433-11 CARBON 22K 5% 1/4W
R311 1-247-903-00 CARBON 1M 5% 1/4W
R312 1-247-884-11 CARBON 160K 5% 1/4W

R313 1-249-441-11 CARBON 100K 5% 1/4W
R315 1-249-429-11 CARBON 10K 5% 1/4W
R316 1-249-432-11 CARBON 18K 5% 1/4W
R317 1-249-429-11 CARBON 10K 5% 1/4W
R318 1-249-429-11 CARBON 10K 5% 1/4W

R319 1-247-893-11 CARBON 390K 5% 1/4W
R321 1-249-422-11 CARBON 2.7K 5% 1/4W
R322 1-249-428-11 CARBON 8.2K 5% 1/4W
R324 1-247-876-11 CARBON 75K 5% 1/4W
R325 1-247-876-11 CARBON 75K 5% 1/4W

R326 1-249-437-11 CARBON 47K 5% 1/4W
R327 1-249-437-11 CARBON 47K 5% 1/4W
R328 1-249-437-11 CARBON 47K 5% 1/4W

Ref. No. Part No. Description Remark

R329 1-249-417-11 CARBON 1K 5% 1/4W
R330 1-249-425-11 CARBON 4.7K 5% 1/4W

R331 1-249-425-11 CARBON 4.7K 5% 1/4W
R332 1-249-415-11 CARBON 680 5% 1/4W
R333 1-249-421-11 CARBON 2.2K 5% 1/4W
R334 1-249-415-11 CARBON 680 5% 1/4W
R335 1-249-421-11 CARBON 2.2K 5% 1/4W

R336 1-249-437-11 CARBON 47K 5% 1/4W
R337 1-249-417-11 CARBON 1K 5% 1/4W
R338 1-249-411-11 CARBON 330 5% 1/4W
R339 1-249-437-11 CARBON 47K 5% 1/4W
R340 1-249-437-11 CARBON 47K 5% 1/4W

R341 1-249-411-11 CARBON 330 5% 1/4W
R342 1-249-437-11 CARBON 47K 5% 1/4W
R343 1-249-417-11 CARBON 1K 5% 1/4W
R351 1-249-435-11 CARBON 33K 5% 1/4W
R352 1-249-421-11 CARBON 2.2K 5% 1/4W

R353 1-247-807-31 CARBON 100 5% 1/4W
R354 1-247-807-31 CARBON 100 5% 1/4W
R355 1-249-421-11 CARBON 2.2K 5% 1/4W
R356 1-249-428-11 CARBON 8.2K 5% 1/4W
R357 1-249-428-11 CARBON 8.2K 5% 1/4W

R358 1-249-425-11 CARBON 4.7K 5% 1/4W
R359 1-249-435-11 CARBON 33K 5% 1/4W
R391 1-249-422-11 CARBON 2.7K 5% 1/4W
R392 1-249-422-11 CARBON 2.7K 5% 1/4W
R393 1-249-426-11 CARBON 5.6K 5% 1/4W

R394 1-249-426-11 CARBON 5.6K 5% 1/4W
R395 1-249-435-11 CARBON 33K 5% 1/4W
R406 1-249-437-11 CARBON 47K 5% 1/4W
R407 1-249-437-11 CARBON 47K 5% 1/4W
R408 1-249-425-11 CARBON 4.7K 5% 1/4W

R409 1-249-441-11 CARBON 100K 5% 1/4W
R410 1-249-421-11 CARBON 2.2K 5% 1/4W

! R411 1-215-894-11 METAL OXIDE 2.2K 5% 2W F

R413 1-249-402-11 CARBON 56 5% 1/4W
R414 1-249-417-11 CARBON 1K 5% 1/4W

R415 1-249-429-11 CARBON 10K 5% 1/4W
R416 1-249-437-11 CARBON 47K 5% 1/4W
R417 1-249-417-11 CARBON 1K 5% 1/4W
R421 1-260-089-11 CARBON 150 5% 1/2W
R422 1-260-089-11 CARBON 150 5% 1/2W

R431 1-249-438-11 CARBON 56K 5% 1/4W
R432 1-249-437-11 CARBON 47K 5% 1/4W
R434 1-249-433-11 CARBON 22K 5% 1/4W
R435 1-249-435-11 CARBON 33K 5% 1/4W
R437 1-249-429-11 CARBON 10K 5% 1/4W

R438 1-249-429-11 CARBON 10K 5% 1/4W
R439 1-249-425-11 CARBON 4.7K 5% 1/4W
R440 1-249-433-11 CARBON 22K 5% 1/4W
R441 1-249-435-11 CARBON 33K 5% 1/4W
R443 1-249-417-11 CARBON 1K 5% 1/4W

R471 1-260-089-11 CARBON 150 5% 1/2W
R472 1-260-089-11 CARBON 150 5% 1/2W
R473 1-249-402-11 CARBON 56 5% 1/4W
R474 1-249-417-11 CARBON 1K 5% 1/4W
R481 1-260-089-11 CARBON 150 5% 1/2W

– 105 –

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

MAIN

Ref. No. Part No. Description Remark

R482 1-260-089-11 CARBON 150 5% 1/2W
R483 1-260-089-11 CARBON 150 5% 1/2W
R484 1-260-089-11 CARBON 150 5% 1/2W
R501 1-249-413-11 CARBON 470 5% 1/4W
R502 1-249-425-11 CARBON 4.7K 5% 1/4W

R503 1-249-437-11 CARBON 47K 5% 1/4W
R504 1-249-437-11 CARBON 47K 5% 1/4W
R505 1-249-429-11 CARBON 10K 5% 1/4W
R508 1-249-417-11 CARBON 1K 5% 1/4W
R509 1-249-441-11 CARBON 100K 5% 1/4W

R521 1-249-425-11 CARBON 4.7K 5% 1/4W
R522 1-249-407-11 CARBON 150 5% 1/4W

(VX5A/VX5AJ)

R522 1-249-411-11 CARBON 330 5% 1/4W

(VX7A)

R523 1-249-425-11 CARBON 4.7K 5% 1/4W

R524 1-249-407-11 CARBON 150 5% 1/4W

(E, MY, SP, IA, HK, TW)

R524 1-249-415-11 CARBON 680 5% 1/4W

(TH)

R524 1-249-419-11 CARBON 1.5K 5% 1/4W

(JE)

R524 1-249-425-11 CARBON 4.7K 5% 1/4W

(EA)

R527 1-249-429-11 CARBON 10K 5% 1/4W
R536 1-249-429-11 CARBON 10K 5% 1/4W
R550 1-247-843-11 CARBON 3.3K 5% 1/4W
R551 1-249-429-11 CARBON 10K 5% 1/4W
R567 1-247-807-31 CARBON 100 5% 1/4W

R568 1-249-429-11 CARBON 10K 5% 1/4W
R569 1-249-429-11 CARBON 10K 5% 1/4W
R570 1-249-429-11 CARBON 10K 5% 1/4W
R571 1-249-429-11 CARBON 10K 5% 1/4W
R577 1-249-429-11 CARBON 10K 5% 1/4W

R610 1-247-891-00 CARBON 330K 5% 1/4W
R617 1-249-429-11 CARBON 10K 5% 1/4W
R618 1-247-807-31 CARBON 100 5% 1/4W
R622 1-249-425-11 CARBON 4.7K 5% 1/4W
R626 1-247-807-31 CARBON 100 5% 1/4W

Ref. No. Part No. Description Remark

R666 1-247-807-31 CARBON 100 5% 1/4W
R667 1-247-807-31 CARBON 100 5% 1/4W
R668 1-247-807-31 CARBON 100 5% 1/4W
R669 1-247-807-31 CARBON 100 5% 1/4W
R670 1-247-807-31 CARBON 100 5% 1/4W

R671 1-247-807-31 CARBON 100 5% 1/4W
R686 1-247-807-31 CARBON 100 5% 1/4W
R687 1-247-807-31 CARBON 100 5% 1/4W
R688 1-247-807-31 CARBON 100 5% 1/4W
R689 1-247-807-31 CARBON 100 5% 1/4W

R690 1-247-807-31 CARBON 100 5% 1/4W
R691 1-247-807-31 CARBON 100 5% 1/4W
R801 1-249-417-11 CARBON 1K 5% 1/4W
R802 1-249-438-11 CARBON 56K 5% 1/4W
R803 1-247-822-11 CARBON 430 5% 1/4W

(VX5AJ/VX7A)

R803 1-249-413-11 CARBON 470 5% 1/4W

(VX5A)
R804 1-249-438-11 CARBON 56K 5% 1/4W
R805 1-249-417-11 CARBON 1K 5% 1/4W
R806 1-249-431-11 CARBON 15K 5% 1/4W
R807 1-249-441-11 CARBON 100K 5% 1/4W

! R808 1-220-893-11 METAL 0.22 10% 5W F

R809 1-260-076-11 CARBON 10 5% 1/2W
R810 1-260-105-11 CARBON 3.3K 5% 1/2W

! R811 1-212-881-11 FUSIBLE 100 5% 1/4W F
! R812 1-202-972-61 FUSIBLE 1 5% 1/4W F

R813 1-249-435-11 CARBON 33K 5% 1/4W
R814 1-249-421-11 CARBON 2.2K 5% 1/4W
R815 1-249-433-11 CARBON 22K 5% 1/4W
R816 1-249-429-11 CARBON 10K 5% 1/4W
R817 1-249-421-11 CARBON 2.2K 5% 1/4W

R818 1-249-435-11 CARBON 33K 5% 1/4W
R819 1-249-439-11 CARBON 68K 5% 1/4W
R831 1-249-441-11 CARBON 100K 5% 1/4W
R832 1-249-441-11 CARBON 100K 5% 1/4W
R833 1-249-436-11 CARBON 39K 5% 1/4W

(VX5AJ/VX7A)

R627 1-247-807-31 CARBON 100 5% 1/4W
R629 1-247-807-31 CARBON 100 5% 1/4W
R630 1-247-807-31 CARBON 100 5% 1/4W
R636 1-247-807-31 CARBON 100 5% 1/4W
R639 1-247-807-31 CARBON 100 5% 1/4W

R640 1-247-807-31 CARBON 100 5% 1/4W
R642 1-247-807-31 CARBON 100 5% 1/4W
R643 1-247-807-31 CARBON 100 5% 1/4W
R649 1-247-807-31 CARBON 100 5% 1/4W
R650 1-247-807-31 CARBON 100 5% 1/4W

R651 1-247-807-31 CARBON 100 5% 1/4W
R652 1-247-807-31 CARBON 100 5% 1/4W
R653 1-247-807-31 CARBON 100 5% 1/4W
R654 1-247-807-31 CARBON 100 5% 1/4W
R655 1-247-807-31 CARBON 100 5% 1/4W

R659 1-247-807-31 CARBON 100 5% 1/4W
R660 1-247-807-31 CARBON 100 5% 1/4W
R661 1-247-807-31 CARBON 100 5% 1/4W
R663 1-247-807-31 CARBON 100 5% 1/4W
R665 1-247-807-31 CARBON 100 5% 1/4W

R833 1-249-437-11 CARBON 47K 5% 1/4W

R842 1-249-441-11 CARBON 100K 5% 1/4W
R851 1-249-417-11 CARBON 1K 5% 1/4W
R852 1-249-438-11 CARBON 56K 5% 1/4W
R853 1-247-822-11 CARBON 430 5% 1/4W

R853 1-249-413-11 CARBON 470 5% 1/4W

R854 1-249-438-11 CARBON 56K 5% 1/4W
R855 1-249-417-11 CARBON 1K 5% 1/4W
R856 1-249-431-11 CARBON 15K 5% 1/4W
R857 1-249-441-11 CARBON 100K 5% 1/4W

! R858 1-220-893-11 METAL 0.22 10% 5W F

R859 1-260-076-11 CARBON 10 5% 1/2W
R860 1-260-105-11 CARBON 3.3K 5% 1/2W

! R861 1-212-881-11 FUSIBLE 100 5% 1/4W F

R881 1-249-435-11 CARBON 33K 5% 1/4W

R882 1-249-435-11 CARBON 33K 5% 1/4W
R892 1-249-441-11 CARBON 100K 5% 1/4W

The components identified by mark ! or dotted
line with mark ! are critical for safety.

– 106 –

Replace only with part number specified.

(VX5A)

(VX5AJ/VX7A)

(VX5A)

MAIN MOTOR (SLIDE) MOTOR (TURN) PANEL

Ref. No. Part No. Description Remark

R901 1-247-843-11 CARBON 3.3K 5% 1/4W
R902 1-249-415-11 CARBON 680 5% 1/4W
R903 1-249-419-11 CARBON 1.5K 5% 1/4W

R904 1-249-414-11 CARBON 560 5% 1/4W
R905 1-249-425-11 CARBON 4.7K 5% 1/4W
R906 1-247-843-11 CARBON 3.3K 5% 1/4W
R907 1-249-415-11 CARBON 680 5% 1/4W
R908 1-249-429-11 CARBON 10K 5% 1/4W

R909 1-249-430-11 CARBON 12K 5% 1/4W
R911 1-249-409-11 CARBON 220 5% 1/4W
R916 1-249-421-11 CARBON 2.2K 5% 1/4W
R917 1-260-087-81 CARBON 100 5% 1/2W
R918 1-249-421-11 CARBON 2.2K 5% 1/4W

R919 1-249-409-11 CARBON 220 5% 1/4W
R920 1-249-383-11 CARBON 1.5 5% 1/6W
R921 1-249-383-11 CARBON 1.5 5% 1/6W
R931 1-249-429-11 CARBON 10K 5% 1/4W

< VARIABLE RESISTOR >

RV301 1-238-600-11 RES, ADJ, CARBON 10K
RV351 1-238-600-11 RES, ADJ, CARBON 10K

< RELAY >

RY401 1-755-168-11 RELAY

< THERMISTOR >

TH831 1-807-796-11 THERMISTOR

< TERMINAL >

TM401 1-537-240-31 TERMINAL BOARD (CHECKER PIN) (SPEAKER)
TM402 1-537-240-31 TERMINAL BOARD (CHECKER PIN)

(SURROUND SPEAKER) (VX7A)

< VIBRATOR >

X601 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)
X613 1-781-107-21 VIBRATOR, SERAMIC (16MHz)

**************************************************************

* 1-658-578-11 MOTOR (SLIDE) BOARD

*******************

Ref. No. Part No. Description Remark

< RESISTOR >

R801 1-249-401-11 CARBON 47 5% 1/4W

< SWITCH >

S801 1-762-527-11 SWITCH, ROTARY (OPEN/CLOSE DET)

**************************************************************

* 1-658-577-11 MOTOR (TURN) BOARD

*******************

< CAPACITOR >

C701 1-162-306-11 CERAMIC 0.01uF 30% 16V
C702 1-126-964-11 ELECT 10uF 20% 50V
C705 1-162-306-11 CERAMIC 0.01uF 30% 16V

< CONNECTOR >

CN703 1-785-550-11 CONNECTOR, FFC/FPC 8P
CN704 1-506-469-11 PIN, CONNECTOR 4P

< DIODE >

D701 8-719-983-66 DIODE MTZJ-T-72-3.6B

< IC >

IC701 8-759-633-65 IC M54641L

< RESISTOR >

R706 1-249-411-11 CARBON 330 5% 1/4W
R707 1-249-401-11 CARBON 47 5% 1/4W

**************************************************************

A-4419-160-A PANEL BOARD, COMPLETE

(VX7A: E, EA, MY, SP)

A-4419-152-A PANEL BOARD, COMPLETE

(VX5A: E, EA, MY, SP, HK, TW)
A-4426-093-A PANEL BOARD, COMPLETE (VX5AJ)
A-4426-139-A PANEL BOARD, COMPLETE (VX5A: IA)
A-4426-147-A PANEL BOARD, COMPLETE (VX7A: IA)

A-4426-156-A PANEL BOARD, COMPLETE (VX5A: TH)
A-4426-164-A PANEL BOARD, COMPLETE (VX7A: TH)

**********************

< CAPACITOR >

C801 1-162-306-11 CERAMIC 0.01uF 30% 16V
C804 1-162-306-11 CERAMIC 0.01uF 30% 16V
C805 1-126-964-11 ELECT 10uF 20% 50V

< CONNECTOR >

* CN801 1-568-947-11 PIN, CONNECTOR 9P

< DIODE >

D801 8-719-921-48 DIODE MTZJ-T-72-5.6C
D804 8-719-911-19 DIODE 1N4148M-TP
D805 8-719-911-19 DIODE 1N4148M-TP

< IC >

IC801 8-759-274-09 IC BA6286N

* 4-214-439-11 HOLDER, FL TUBE
* 4-949-935-81 CUSHION (FL)

< CAPACITOR >

C601 1-124-589-11 ELECT 47uF 20% 16V
C602 1-126-163-11 ELECT 4.7uF 20% 50V
C603 1-162-306-11 CERAMIC 0.01uF 30% 16V
C604 1-162-294-31 CERAMIC 0.001uF 10% 50V
C606 1-126-160-11 ELECT 1uF 20% 50V

C607 1-126-160-11 ELECT 1uF 20% 50V
C610 1-124-589-11 ELECT 47uF 20% 16V
C611 1-162-306-11 CERAMIC 0.01uF 30% 16V
C612 1-162-306-11 CERAMIC 0.01uF 30% 16V
C614 1-162-306-11 CERAMIC 0.01uF 30% 16V

C615 1-162-306-11 CERAMIC 0.01uF 30% 16V
C616 1-126-157-11 ELECT 10uF 20% 16V
C617 1-162-303-11 CERAMIC 0.0033uF 30% 16V

– 107 –

PANEL

Ref. No. Part No. Description Remark

C618 1-126-157-11 ELECT 10uF 20% 16V
C619 1-126-157-11 ELECT 10uF 20% 16V

C620 1-126-163-11 ELECT 4.7uF 20% 50V
C625 1-126-157-11 ELECT 10uF 20% 16V
C627 1-162-306-11 CERAMIC 0.01uF 30% 16V
C628 1-126-157-11 ELECT 10uF 20% 16V
C630 1-162-306-11 CERAMIC 0.01uF 30% 16V

C651 1-162-282-31 CERAMIC 100PF 10% 50V
C652 1-162-282-31 CERAMIC 100PF 10% 50V
C653 1-162-282-31 CERAMIC 100PF 10% 50V
C654 1-162-282-31 CERAMIC 100PF 10% 50V
C655 1-162-282-31 CERAMIC 100PF 10% 50V

C656 1-162-282-31 CERAMIC 100PF 10% 50V
C657 1-162-282-31 CERAMIC 100PF 10% 50V
C658 1-162-282-31 CERAMIC 100PF 10% 50V
C659 1-162-282-31 CERAMIC 100PF 10% 50V
C660 1-162-282-31 CERAMIC 100PF 10% 50V

C661 1-162-282-31 CERAMIC 100PF 10% 50V
C662 1-162-282-31 CERAMIC 100PF 10% 50V
C663 1-162-282-31 CERAMIC 100PF 10% 50V
C664 1-162-282-31 CERAMIC 100PF 10% 50V
C665 1-162-282-31 CERAMIC 100PF 10% 50V

C666 1-162-282-31 CERAMIC 100PF 10% 50V
C667 1-162-282-31 CERAMIC 100PF 10% 50V
C668 1-162-282-31 CERAMIC 100PF 10% 50V
C701 1-162-294-31 CERAMIC 0.001uF 10% 50V
C702 1-162-294-31 CERAMIC 0.001uF 10% 50V

C703 1-164-159-11 CERAMIC 0.1uF 50V
C711 1-162-294-31 CERAMIC 0.001uF 10% 50V
C712 1-162-305-11 CERAMIC 0.0068uF 30% 16V
C713 1-126-160-11 ELECT 1uF 20% 50V
C714 1-136-495-11 FILM 0.068uF 5% 50V

Ref. No. Part No. Description Remark

C747 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN601 1-784-745-11 CONNECTOR, FFC 23P

< DIODE >

D610 8-719-050-84 DIODE RB441Q-40T-72
D611 8-719-073-47 LED SML72923C-TP15 (REC PAUSE/START)
D612 8-719-056-13 LED SML79423C-TP15 (^ CD)
D613 8-719-058-03 LED SEL5423E-TP15 (( TAPE B)
D614 8-719-058-03 LED SEL5423E-TP15 (9 TAPE B)

D615 8-719-058-03 LED SEL5423E-TP15 (( TAPE A)
D616 8-719-058-03 LED SEL5423E-TP15 (9 TAPE A)
D617 8-719-057-97 LED SEL5923A-TP15 (PBC OFF)
D618 8-719-057-97 LED SEL5923A-TP15 (PBC)
D619 8-719-057-97 LED SEL5923A-TP15 (SYNC BASS L)

D620 8-719-057-97 LED SEL5923A-TP15 (SYNC BASS H)
D621 8-719-057-97 LED SEL5923A-TP15 (SYNC EQ)
D622 8-719-063-93 LED SLR325VC-N-T32 (EFFECT)
D623 8-719-057-97 LED SEL5923A-TP15 (VIDEO CD)
D624 8-719-063-93 LED SLR325VC-N-T32 (CD NON-STOP)

D627 8-719-057-97 LED SEL5923A-TP15 (GROOVE)
D628 8-719-063-93 LED SLR325VC-N-T32 (ENTER/NEXT)
D629 8-719-063-93 LED SLR325VC-N-T32 (JOG DIAL)
D630 8-719-057-97 LED SEL5923A-TP15 (- 0)
D631 8-719-057-97 LED SEL5923A-TP15 (+ ))

D632 8-719-063-93 LED SLR325VC-N-T32 (TIMER SELECT)
D701 8-719-109-85 DIODE MTZJ-T-72-5.1B

< EARTH TERMINAL >

* EP601 1-537-738-21 TERMINAL, EARTH

C715 1-124-465-00 ELECT 0.47uF 20% 50V
C716 1-124-465-00 ELECT 0.47uF 20% 50V
C717 1-136-167-00 FILM 0.15uF 5% 50V
C718 1-162-294-31 CERAMIC 0.001uF 10% 50V
C719 1-126-160-11 ELECT 1uF 20% 50V

C720 1-161-494-00 CERAMIC 0.022uF 25V
C721 1-162-305-11 CERAMIC 0.0068uF 30% 16V
C722 1-136-495-11 FILM 0.068uF 5% 50V
C723 1-124-589-11 ELECT 47uF 20% 16V
C724 1-136-165-00 FILM 0.1uF 5% 50V

C725 1-124-589-11 ELECT 47uF 20% 16V
C731 1-162-306-11 CERAMIC 0.01uF 30% 16V
C732 1-124-257-00 ELECT 2.2uF 20% 50V
C733 1-162-294-31 CERAMIC 0.001uF 10% 50V
C734 1-162-215-31 CERAMIC 47PF 5% 50V

C735 1-124-261-00 ELECT 10uF 20% 50V
C736 1-162-290-31 CERAMIC 470PF 10% 50V
C737 1-124-463-00 ELECT 0.1uF 20% 50V
C738 1-124-257-00 ELECT 2.2uF 20% 50V
C739 1-162-215-31 CERAMIC 47PF 5% 50V

C741 1-124-261-00 ELECT 10uF 20% 50V
C742 1-162-282-31 CERAMIC 100PF 10% 50V
C743 1-124-257-00 ELECT 2.2uF 20% 50V
C744 1-162-306-11 CERAMIC 0.01uF 30% 16V
C745 1-124-257-00 ELECT 2.2uF 20% 50V

< FERRITE BEAD >

FB601 1-412-473-21 FERRITE 0uH
FB602 1-412-473-21 FERRITE 0uH

< FLUORESCENT INDICATOR TUBE>

FL601 1-517-831-31 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 8-759-589-14 IC TMP88CS76F-6005
IC602 8-749-011-05 IC GP1U28X (REMOTE CONTROL RECEIVER)
IC603 8-759-083-77 IC BA3830F
IC604 8-759-342-19 IC NJU3716M-T2
IC711 8-759-496-40 IC M65850FP

IC712 8-759-636-55 IC M5218AFP-T1

< JACK >

J701 1-785-569-11 JACK (SMALL TYPE) (PHONES)
J711 1-785-569-11 JACK (SMALL TYPE) (MIC 2)
J712 1-785-569-11 JACK (SMALL TYPE) (MIC 1)

< COIL >

L601 1-410-509-11 INDUCTOR 10uH
L602 1-410-517-11 INDUCTOR 47uH

– 108 –

PANEL

Ref. No. Part No. Description Remark

< TRANSISTOR >

Q601 8-729-118-00 TRANSISTOR 2SB1116-TP-LK
Q602 8-729-118-00 TRANSISTOR 2SB1116-TP-LK
Q603 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q604 8-729-422-57 TRANSISTOR BN1A4M-TP
Q605 8-729-422-57 TRANSISTOR BN1A4M-TP

Q606 8-729-900-80 TRANSISTOR BA1A4M-TP
Q607 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q608 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q609 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q610 8-729-900-74 TRANSISTOR BA1L3Z-TP

Q611 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q612 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q613 8-729-900-74 TRANSISTOR BA1L3Z-TP

< RESISTOR >

R600 1-247-903-00 CARBON 1M 5% 1/4W
R601 1-247-807-31 CARBON 100 5% 1/4W
R602 1-249-429-11 CARBON 10K 5% 1/4W
R603 1-247-807-31 CARBON 100 5% 1/4W
R604 1-247-807-31 CARBON 100 5% 1/4W

R605 1-249-429-11 CARBON 10K 5% 1/4W
R606 1-249-401-11 CARBON 47 5% 1/4W
R607 1-247-893-11 CARBON 390K 5% 1/4W
R608 1-247-893-11 CARBON 390K 5% 1/4W
R609 1-249-441-11 CARBON 100K 5% 1/4W

Ref. No. Part No. Description Remark

R639 1-249-413-11 CARBON 470 5% 1/4W

R640 1-249-414-11 CARBON 560 5% 1/4W
R641 1-249-415-11 CARBON 680 5% 1/4W
R642 1-249-417-11 CARBON 1K 5% 1/4W
R643 1-249-418-11 CARBON 1.2K 5% 1/4W
R644 1-249-420-11 CARBON 1.8K 5% 1/4W

R645 1-249-422-11 CARBON 2.7K 5% 1/4W
R646 1-247-843-11 CARBON 3.3K 5% 1/4W
R647 1-249-425-11 CARBON 4.7K 5% 1/4W
R650 1-249-429-11 CARBON 10K 5% 1/4W
R651 1-249-410-11 CARBON 270 5% 1/4W

R652 1-249-411-11 CARBON 330 5% 1/4W
R653 1-249-413-11 CARBON 470 5% 1/4W
R654 1-249-414-11 CARBON 560 5% 1/4W
R655 1-249-415-11 CARBON 680 5% 1/4W
R656 1-249-429-11 CARBON 10K 5% 1/4W

R657 1-249-410-11 CARBON 270 5% 1/4W
R658 1-249-411-11 CARBON 330 5% 1/4W
R659 1-249-413-11 CARBON 470 5% 1/4W
R660 1-249-414-11 CARBON 560 5% 1/4W
R661 1-249-415-11 CARBON 680 5% 1/4W

R662 1-249-417-11 CARBON 1K 5% 1/4W
R663 1-249-418-11 CARBON 1.2K 5% 1/4W
R664 1-249-420-11 CARBON 1.8K 5% 1/4W
R665 1-249-422-11 CARBON 2.7K 5% 1/4W
R666 1-249-417-11 CARBON 1K 5% 1/4W

R610 1-249-429-11 CARBON 10K 5% 1/4W
R611 1-249-441-11 CARBON 100K 5% 1/4W
R612 1-249-401-11 CARBON 47 5% 1/4W
R613 1-249-435-11 CARBON 33K 5% 1/4W
R614 1-247-895-00 CARBON 470K 5% 1/4W

R615 1-249-429-11 CARBON 10K 5% 1/4W
R616 1-249-441-11 CARBON 100K 5% 1/4W
R617 1-249-441-11 CARBON 100K 5% 1/4W
R618 1-249-441-11 CARBON 100K 5% 1/4W
R619 1-249-441-11 CARBON 100K 5% 1/4W

R620 1-249-441-11 CARBON 100K 5% 1/4W
R621 1-249-429-11 CARBON 10K 5% 1/4W
R622 1-249-410-11 CARBON 270 5% 1/4W
R623 1-249-411-11 CARBON 330 5% 1/4W
R624 1-249-413-11 CARBON 470 5% 1/4W

R625 1-249-414-11 CARBON 560 5% 1/4W
R626 1-249-415-11 CARBON 680 5% 1/4W
R627 1-249-417-11 CARBON 1K 5% 1/4W
R628 1-249-418-11 CARBON 1.2K 5% 1/4W
R629 1-249-420-11 CARBON 1.8K 5% 1/4W

R630 1-249-422-11 CARBON 2.7K 5% 1/4W
R631 1-247-843-11 CARBON 3.3K 5% 1/4W
R632 1-249-425-11 CARBON 4.7K 5% 1/4W
R633 1-249-427-11 CARBON 6.8K 5% 1/4W

(VX7A)

R634 1-249-429-11 CARBON 10K 5% 1/4W

(VX7A)

R635 1-249-431-11 CARBON 15K 5% 1/4W

(VX7A)
R636 1-249-429-11 CARBON 10K 5% 1/4W
R637 1-249-410-11 CARBON 270 5% 1/4W
R638 1-249-411-11 CARBON 330 5% 1/4W

R667 1-249-417-11 CARBON 1K 5% 1/4W
R668 1-249-441-11 CARBON 100K 5% 1/4W
R669 1-249-441-11 CARBON 100K 5% 1/4W
R670 1-249-414-11 CARBON 560 5% 1/4W
R671 1-249-437-11 CARBON 47K 5% 1/4W

R672 1-249-417-11 CARBON 1K 5% 1/4W
R673 1-249-437-11 CARBON 47K 5% 1/4W
R674 1-249-417-11 CARBON 1K 5% 1/4W
R675 1-249-437-11 CARBON 47K 5% 1/4W
R676 1-249-429-11 CARBON 10K 5% 1/4W

R678 1-249-407-11 CARBON 150 5% 1/4W
R679 1-249-407-11 CARBON 150 5% 1/4W
R680 1-247-804-11 CARBON 75 5% 1/4W
R681 1-249-407-11 CARBON 150 5% 1/4W
R682 1-247-804-11 CARBON 75 5% 1/4W

R683 1-247-804-11 CARBON 75 5% 1/4W
R684 1-247-804-11 CARBON 75 5% 1/4W
R685 1-247-804-11 CARBON 75 5% 1/4W
R686 1-249-407-11 CARBON 150 5% 1/4W
R687 1-249-407-11 CARBON 150 5% 1/4W

R688 1-249-402-11 CARBON 56 5% 1/4W
R689 1-249-402-11 CARBON 56 5% 1/4W
R690 1-249-402-11 CARBON 56 5% 1/4W
R691 1-249-407-11 CARBON 150 5% 1/4W
R692 1-249-407-11 CARBON 150 5% 1/4W

R693 1-249-407-11 CARBON 150 5% 1/4W
R696 1-249-402-11 CARBON 56 5% 1/4W
R697 1-249-407-11 CARBON 150 5% 1/4W
R698 1-249-407-11 CARBON 150 5% 1/4W
R699 1-247-807-31 CARBON 100 5% 1/4W

R700 1-247-807-31 CARBON 100 5% 1/4W

– 109 –

PANEL SENSOR SURROUND

Ref. No. Part No. Description Remark

R701 1-249-429-11 CARBON 10K 5% 1/4W
R702 1-249-429-11 CARBON 10K 5% 1/4W
R703 1-249-429-11 CARBON 10K 5% 1/4W
R704 1-249-429-11 CARBON 10K 5% 1/4W

R705 1-249-429-11 CARBON 10K 5% 1/4W
R710 1-249-401-11 CARBON 47 5% 1/4W
R711 1-249-433-11 CARBON 22K 5% 1/4W
R712 1-249-433-11 CARBON 22K 5% 1/4W
R713 1-249-433-11 CARBON 22K 5% 1/4W

R714 1-249-437-11 CARBON 47K 5% 1/4W
R715 1-249-433-11 CARBON 22K 5% 1/4W
R716 1-249-431-11 CARBON 15K 5% 1/4W
R717 1-249-433-11 CARBON 22K 5% 1/4W
R718 1-249-433-11 CARBON 22K 5% 1/4W

R719 1-247-881-00 CARBON 120K 5% 1/4W
R721 1-249-429-11 CARBON 10K 5% 1/4W
R722 1-249-417-11 CARBON 1K 5% 1/4W
R723 1-249-441-11 CARBON 100K 5% 1/4W
R724 1-249-417-11 CARBON 1K 5% 1/4W

R725 1-249-437-11 CARBON 47K 5% 1/4W
R726 1-249-429-11 CARBON 10K 5% 1/4W
R727 1-249-431-11 CARBON 15K 5% 1/4W
R728 1-247-885-00 CARBON 180K 5% 1/4W
R729 1-247-807-31 CARBON 100 5% 1/4W

R731 1-249-440-11 CARBON 82K 5% 1/4W
R732 1-249-435-11 CARBON 33K 5% 1/4W
R733 1-249-438-11 CARBON 56K 5% 1/4W
R734 1-249-417-11 CARBON 1K 5% 1/4W
R735 1-249-420-11 CARBON 1.8K 5% 1/4W

R741 1-249-421-11 CARBON 2.2K 5% 1/4W
R742 1-249-421-11 CARBON 2.2K 5% 1/4W
R743 1-249-421-11 CARBON 2.2K 5% 1/4W
R768 1-249-417-11 CARBON 1K 5% 1/4W
R769 1-249-429-11 CARBON 10K 5% 1/4W

Ref. No. Part No. Description Remark

S624 1-762-875-21 SWITCH, KEYBOARD

(EDIT, DIRECTION, TUNER MEMORY) (VX7A)
S625 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START)
S626 1-762-875-21 SWITCH, KEYBOARD (HI-DUB)
S627 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)
S628 1-762-875-21 SWITCH, KEYBOARD (CD LOOP)

S629 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S630 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM ANALYZER)
S632 1-762-875-21 SWITCH, KEYBOARD (SELECT)
S633 1-762-875-21 SWITCH, KEYBOARD (RETURN)
S634 1-762-875-21 SWITCH, KEYBOARD (PREV)

S635 1-762-875-21 SWITCH, KEYBOARD (NEXT)
S638 1-762-875-21 SWITCH, KEYBOARD (TIMER SELECT)
S639 1-762-875-21 SWITCH, KEYBOARD (P FILE MEMORY)
S640 1-762-875-21 SWITCH, KEYBOARD (GEQ CONTROL)
S641 1-762-875-21 SWITCH, KEYBOARD (FILE SELECT)

S642 1-762-875-21 SWITCH, KEYBOARD (EFFECT)
S643 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)
S644 1-762-875-21 SWITCH, KEYBOARD (^ CD)
S645 1-762-875-21 SWITCH, KEYBOARD (p)
S646 1-762-875-21 SWITCH, KEYBOARD (( TAPE B)

S647 1-762-875-21 SWITCH, KEYBOARD (9 TAPE B)
S648 1-762-875-21 SWITCH, KEYBOARD (( TAPE A)
S649 1-762-875-21 SWITCH, KEYBOARD (9 TAPE A)
S650 1-762-875-21 SWITCH, KEYBOARD (FUNCTION)
S651 1-762-875-21 SWITCH, KEYBOARD (CLOCK TIMER SET)

< VIBRATOR >

X601 1-781-312-11 VIBRATOR, CERAMIC (12.5MHz)

**************************************************************

* 1-658-576-11 SENSOR BOARD

*************

< PHOTO INTERRUPTER >

< VARIABLE RESISTOR >

RV711 1-225-739-11 RES, VAR 50K (ECHO LEVEL)
RV712 1-225-739-11 RES, VAR 50K (MIC LEVEL)

< SWITCH >

S601 1-473-534-11 ENCODER, ROTARY (JOG DIAL)
S602 1-473-392-11 ENCODER, ROTARY (VOLUME)
S611 1-762-875-21 SWITCH, KEYBOARD (SYNC BASS)
S612 1-762-875-21 SWITCH, KEYBOARD (SYNC EQ)
S613 1-762-875-21 SWITCH, KEYBOARD (KARAOKE/PON MPX)

S614 1-762-875-21 SWITCH, KEYBOARD (CD NON-STOP)
S615 1-762-875-21 SWITCH, KEYBOARD

(CINEMA SPACE/SURROUND)
S616 1-762-875-21 SWITCH, KEYBOARD (DBFB)
S617 1-762-875-21 SWITCH, KEYBOARD (ENTER/NEXT)
S618 1-762-875-21 SWITCH, KEYBOARD (+ ))

S619 1-762-875-21 SWITCH, KEYBOARD (- 0)
S620 1-762-875-21 SWITCH, KEYBOARD (GROOVE)
S621 1-762-875-21 SWITCH, KEYBOARD (CD FLASH)
S622 1-762-875-21 SWITCH, KEYBOARD

(REPEAT, STEREO/MONO) (VX7A)

S623 1-762-875-21 SWITCH, KEYBOARD

(PLAY MODE, DOLBY NR) (VX7A)

IC702 8-749-924-18 PHOTO INTERRUPTER RPI-1391

< PHOTO REFLECTOR >

IC703 8-749-924-30 PHOTO REFLECTOR GP2S28

< RESISTOR >

R701 1-249-416-11 CARBON 820 5% 1/4W
R702 1-249-407-11 CARBON 150 5% 1/4W

**************************************************************

A-4426-097-A SURROUND BOARD, COMPLETE

**************************

< CAPACITOR >

C1201 1-162-203-31 CERAMIC 15PF 5% 50V
C1202 1-162-216-31 CERAMIC 51PF 5% 50V
C1203 1-162-282-31 CERAMIC 100PF 10% 50V
C1204 1-162-283-31 CERAMIC 120PF 10% 50V
C1205 1-162-279-31 CERAMIC 75PF 10% 50V

C1206 1-136-165-00 FILM 0.1uF 5% 50V
C1207 1-162-306-11 CERAMIC 0.01uF 30% 16V
C1208 1-126-934-11 ELECT 220uF 20% 10V
C1209 1-136-165-00 FILM 0.1uF 5% 50V
C1210 1-126-964-11 ELECT 10uF 20% 50V

– 110 –

SURROUND TRANSFORMER VIDEO

Ref. No. Part No. Description Remark

C1211 1-126-964-11 ELECT 10uF 20% 50V
C1212 1-162-306-11 CERAMIC 0.01uF 30% 16V
C1213 1-126-934-11 ELECT 220uF 20% 10V
C1214 1-136-167-00 FILM 0.15uF 5% 50V
C1215 1-162-303-11 CERAMIC 0.0033uF 30% 16V

C1216 1-136-167-00 FILM 0.15uF 5% 50V
C1217 1-124-252-00 ELECT 0.33uF 20% 50V
C1218 1-126-934-11 ELECT 220uF 20% 10V
C1219 1-126-964-11 ELECT 10uF 20% 50V
C1220 1-126-964-11 ELECT 10uF 20% 50V

C1221 1-162-216-31 CERAMIC 51PF 5% 50V

< CONNECTOR >

* CN1201 1-564-788-11 PIN, CONNECTOR 8P

< IC >

IC1201 8-759-579-61 IC LV1150

< COIL >

L1201 1-410-509-11 INDUCTOR 10uH

< RESISTOR >

R1201 1-247-807-31 CARBON 100 5% 1/4W
R1203 1-249-441-11 CARBON 100K 5% 1/4W
R1204 1-249-441-11 CARBON 100K 5% 1/4W
R1205 1-249-417-11 CARBON 1K 5% 1/4W
R1206 1-249-441-11 CARBON 100K 5% 1/4W

R1207 1-249-441-11 CARBON 100K 5% 1/4W

**************************************************************

* 1-672-369-11 TRANSFORMER BOARD

*******************

1-533-217-31 HOLDER, FUSE

< CAPACITOR >

C952 1-162-306-11 CERAMIC 0.01uF 30% 16V
C971 1-128-563-11 ELECT 100uF 20% 100V
C972 1-126-960-11 ELECT 1uF 20% 50V
C973 1-126-948-11 ELECT 100uF 20% 35V

< CONNECTOR >

CN951 1-564-321-00 PIN, CONNECTOR 2P

* CN952 1-564-527-11 PLUG, CONNECTOR 12P

CN953 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P

< DIODE >

D971 8-719-024-99 DIODE 11ES2-NTA2B
D972 8-719-986-60 DIODE HZS27-3LTA
D973 8-719-109-63 DIODE MTZJ-T-72-3.0B

< FUSE >

! F951 1-532-506-31 FUSE T6.3AL/250V

(EXCEPT VX5A: TH/VX7A: TH)

! F961 1-532-505-31 FUSE T5AL/250V
! F962 1-532-505-31 FUSE T5AL/250V
! F963 1-532-506-31 FUSE T6.3AL/250V

Ref. No. Part No. Description Remark
! F964 1-532-506-31 FUSE T6.3AL/250V

< TRANSISTOR >

Q971 8-729-048-52 TRANSISTOR 2SA1932 (TP)

< RESISTOR >

! R951 1-219-122-91 FUSIBLE 0.33 5% 1/4W F
! R952 1-219-122-91 FUSIBLE 0.33 5% 1/4W F
! R953 1-219-119-81 FUSIBLE 0.1 5% 1/4W F
! R971 1-216-456-00 METAL OXIDE 820 5% 2W F

R972 1-249-429-11 CARBON 10K 5% 1/4W

R973 1-249-429-11 CARBON 10K 5% 1/4W
R974 1-247-807-31 CARBON 100 5% 1/4W
R975 1-247-807-31 CARBON 100 5% 1/4W

< SWITCH >

! S951 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR)

(EXCEPT VX5A: TH/VX7A: TH)

< TRANSFORMER >

! T951 1-433-561-21 TRANSFORMER, POWER (VX7A)
! T951 1-433-565-11 TRANSFORMER, POWER (VX5A)
! T951 1-433-565-21 TRANSFORMER, POWER (VX5AJ)

**************************************************************

A-4724-823-A VIDEO BOARD, COMPLETE

**********************

< CAPACITOR >

C101 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C102 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V
C103 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C104 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C201 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C202 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V
C203 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C301 1-163-127-00 CERAMIC CHIP 270PF 5% 50V
C302 1-163-127-00 CERAMIC CHIP 270PF 5% 50V
C303 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C304 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C305 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C306 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C310 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C311 1-216-295-00 SHORT 0

C313 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C314 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C318 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C319 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C401 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C402 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C403 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C404 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C405 1-110-530-11 ELECT CHIP 1000uF 20% 6.3V
C406 1-110-530-11 ELECT CHIP 1000uF 20% 6.3V

C409 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C410 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C411 1-165-319-11 CERAMIC CHIP 0.1uF 50V

– 111 –

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

VIDEO

Ref. No. Part No. Description Remark

C412 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C413 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C452 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C501 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C502 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C503 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C504 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C505 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C506 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C507 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C509 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C510 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C531 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C532 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C536 1-126-193-11 ELECT 1uF 20% 50V
C537 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C539 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C540 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C541 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C542 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C543 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C544 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C545 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C546 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C547 1-126-193-11 ELECT 1uF 20% 50V
C548 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C549 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C550 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C551 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C552 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C553 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C555 1-124-779-00 ELECT CHIP 10uF 20% 16V
C556 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C559 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C560 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C561 1-163-233-11 CERAMIC CHIP 18PF 5% 50V

C562 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C563 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C564 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C565 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C566 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C568 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C569 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C570 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C571 1-128-065-11 ELECT CHIP 68MF 20% 10V
C573 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C574 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C576 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C577 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

< CONNECTOR >

Ref. No. Part No. Description Remark

CT503 1-141-539-11 CAP, ADJ 10PF

< DIODE >

D301 8-719-054-23 DIODE RB706D-40-T146
D501 8-719-422-12 DIODE UDZ-TE-17-3.9B
D502 8-719-018-51 LED CL-170R-CD-T (SELF DIAGNOSIS)

< IC >

IC101 8-759-701-39 IC NJM3404AM
IC401 8-759-262-00 IC MC14576CFEL
IC501 8-759-269-92 IC SN74HCU04ANSR
IC502 8-759-587-67 IC M30620MC-A05FP
IC504 8-759-269-92 IC SN74HCU04ANSR

IC505 8-759-535-48 IC CL680T-D1
IC506 8-759-573-23 IC LC372100PM-J48-TLA
IC507 8-759-342-01 IC MSM514260C-60JS
IC509 8-759-535-62 IC PCM1727E-2/T2

< JACK >

J301 1-537-943-11 TERMINAL, S (S VIDEO OUT)
J302 1-774-227-11 JACK, PIN 1P (VIDEO OUT)

< SHORT >

JW101 1-216-295-00 SHORT 0
JW201 1-216-295-00 SHORT 0
JW401 1-216-295-00 SHORT 0
JW402 1-216-295-00 SHORT 0
JW403 1-216-295-00 SHORT 0

JW404 1-216-295-00 SHORT 0
JW405 1-216-295-00 SHORT 0
JW413 1-216-295-00 SHORT 0
JW421 1-216-295-00 SHORT 0
JW422 1-216-295-00 SHORT 0

JW502 1-216-295-00 SHORT 0
JW503 1-216-295-00 SHORT 0
JW504 1-216-295-00 SHORT 0
JW505 1-216-295-00 SHORT 0

< COIL/SHORT >

L301 1-410-372-21 INDUCTOR CHIP 1.8uH
L302 1-410-372-21 INDUCTOR CHIP 1.8uH
L501 1-216-296-00 SHORT 0
L502 1-216-296-00 SHORT 0
L503 1-216-296-00 SHORT 0

L504 1-410-375-11 INDUCTOR CHIP 3.3uH
L505 1-216-296-00 SHORT 0
L506 1-216-296-00 SHORT 0
L507 1-216-296-00 SHORT 0
L508 1-216-296-00 SHORT 0

L509 1-216-296-00 SHORT 0
L510 1-216-296-00 SHORT 0

CN501 1-770-706-11 CONNECTOR, FFC/FPC 23P
CN503 1-779-416-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P

< TRIMMER >

– 112 –

< TRANSISTOR >

Q301 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q302 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q303 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q304 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

VIDEO

Ref. No. Part No. Description Remark

Q306 8-729-027-44 TRANSISTOR DTC114TKA-T146

Q307 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q308 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q310 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q453 8-729-920-72 TRANSISTOR 2SA1037K-T-146-QR
Q454 8-729-920-72 TRANSISTOR 2SA1037K-T-146-QR

Q502 8-729-024-91 TRANSISTOR 2SC2712-GL-TE85L
Q531 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK

< RESISTOR >

R101 1-216-073-00 METAL CHIP 10K 5% 1/10W
R102 1-208-441-61 RES, CHIP 1.5K 2% 1/10W
R103 1-208-441-61 RES, CHIP 1.5K 2% 1/10W
R105 1-216-295-00 SHORT 0
R201 1-216-073-00 METAL CHIP 10K 5% 1/10W

R202 1-208-441-61 RES, CHIP 1.5K 2% 1/10W
R203 1-208-441-61 RES, CHIP 1.5K 2% 1/10W
R205 1-216-295-00 SHORT 0
R301 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R302 1-216-624-11 METAL CHIP 75 0.5% 1/10W

R305 1-216-049-11 RES, CHIP 1K 5% 1/10W
R306 1-216-073-00 METAL CHIP 10K 5% 1/10W
R307 1-216-049-11 RES, CHIP 1K 5% 1/10W
R308 1-216-049-11 RES, CHIP 1K 5% 1/10W
R309 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R312 1-216-073-00 METAL CHIP 10K 5% 1/10W
R313 1-216-049-11 RES, CHIP 1K 5% 1/10W
R314 1-216-049-11 RES, CHIP 1K 5% 1/10W
R315 1-216-047-00 RES, CHIP 820 5% 1/10W
R316 1-216-657-11 METAL CHIP 1.8K 0.5% 1/10W

R317 1-216-683-11 METAL CHIP 22K 0.5% 1/10W
R318 1-216-033-00 METAL CHIP 220 5% 1/10W
R319 1-216-049-11 RES, CHIP 1K 5% 1/10W
R320 1-216-651-11 METAL CHIP 1K 0.5% 1/10W
R321 1-216-049-11 RES, CHIP 1K 5% 1/10W

R324 1-216-022-00 METAL CHIP 75 5% 1/10W
R325 1-216-295-00 SHORT 0
R327 1-216-049-11 RES, CHIP 1K 5% 1/10W
R328 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W
R329 1-216-649-11 METAL CHIP 820 0.5% 1/10W

R332 1-216-651-11 METAL CHIP 1K 0.5% 1/10W
R333 1-216-046-00 METAL CHIP 750 5% 1/10W
R335 1-216-073-00 METAL CHIP 10K 5% 1/10W
R336 1-216-073-00 METAL CHIP 10K 5% 1/10W
R340 1-216-022-00 METAL CHIP 75 5% 1/10W

R341 1-216-121-00 RES, CHIP 1M 5% 1/10W
R342 1-216-022-00 METAL CHIP 75 5% 1/10W
R403 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R404 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R405 1-216-065-00 RES, CHIP 4.7K 5% 1/10W

R406 1-216-081-00 METAL CHIP 22K 5% 1/10W
R407 1-216-073-00 METAL CHIP 10K 5% 1/10W
R408 1-216-073-00 METAL CHIP 10K 5% 1/10W
R409 1-216-049-11 RES, CHIP 1K 5% 1/10W
R410 1-216-049-11 RES, CHIP 1K 5% 1/10W

R411 1-216-073-00 METAL CHIP 10K 5% 1/10W
R412 1-216-073-00 METAL CHIP 10K 5% 1/10W

Ref. No. Part No. Description Remark

R414 1-216-081-00 METAL CHIP 22K 5% 1/10W
R415 1-216-081-00 METAL CHIP 22K 5% 1/10W
R423 1-216-073-00 METAL CHIP 10K 5% 1/10W

R424 1-216-073-00 METAL CHIP 10K 5% 1/10W
R425 1-216-073-00 METAL CHIP 10K 5% 1/10W
R426 1-216-073-00 METAL CHIP 10K 5% 1/10W
R457 1-216-025-00 RES, CHIP 100 5% 1/10W
R458 1-216-025-00 RES, CHIP 100 5% 1/10W

R459 1-216-025-00 RES, CHIP 100 5% 1/10W
R461 1-216-025-00 RES, CHIP 100 5% 1/10W
R462 1-216-025-00 RES, CHIP 100 5% 1/10W
R463 1-216-025-00 RES, CHIP 100 5% 1/10W
R464 1-216-025-00 RES, CHIP 100 5% 1/10W

R501 1-216-025-00 RES, CHIP 100 5% 1/10W
R502 1-216-025-00 RES, CHIP 100 5% 1/10W
R503 1-216-025-00 RES, CHIP 100 5% 1/10W
R504 1-216-025-00 RES, CHIP 100 5% 1/10W
R505 1-216-025-00 RES, CHIP 100 5% 1/10W

R506 1-216-025-00 RES, CHIP 100 5% 1/10W
R507 1-216-073-00 METAL CHIP 10K 5% 1/10W
R508 1-216-081-00 METAL CHIP 22K 5% 1/10W
R509 1-216-081-00 METAL CHIP 22K 5% 1/10W
R510 1-216-081-00 METAL CHIP 22K 5% 1/10W

R511 1-216-081-00 METAL CHIP 22K 5% 1/10W
R512 1-216-081-00 METAL CHIP 22K 5% 1/10W
R513 1-216-081-00 METAL CHIP 22K 5% 1/10W
R514 1-216-081-00 METAL CHIP 22K 5% 1/10W
R516 1-216-073-00 METAL CHIP 10K 5% 1/10W

R517 1-216-073-00 METAL CHIP 10K 5% 1/10W
R518 1-216-073-00 METAL CHIP 10K 5% 1/10W
R519 1-216-025-00 RES, CHIP 100 5% 1/10W
R520 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R523 1-216-013-00 METAL CHIP 33 5% 1/10W

R530 1-216-081-00 METAL CHIP 22K 5% 1/10W
R531 1-216-025-00 RES, CHIP 100 5% 1/10W
R532 1-216-025-00 RES, CHIP 100 5% 1/10W
R533 1-216-025-00 RES, CHIP 100 5% 1/10W
R534 1-216-073-00 METAL CHIP 10K 5% 1/10W

R535 1-216-073-00 METAL CHIP 10K 5% 1/10W
R536 1-216-033-00 METAL CHIP 220 5% 1/10W
R537 1-216-025-00 RES, CHIP 100 5% 1/10W
R538 1-216-073-00 METAL CHIP 10K 5% 1/10W
R542 1-216-049-11 RES, CHIP 1K 5% 1/10W

R543 1-216-685-11 METAL CHIP 27K 0.5% 1/10W
R544 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W
R545 1-216-025-00 RES, CHIP 100 5% 1/10W
R546 1-216-049-11 RES, CHIP 1K 5% 1/10W
R547 1-216-295-00 SHORT 0

R548 1-216-049-11 RES, CHIP 1K 5% 1/10W
R549 1-216-025-00 RES, CHIP 100 5% 1/10W
R550 1-216-025-00 RES, CHIP 100 5% 1/10W
R551 1-216-025-00 RES, CHIP 100 5% 1/10W
R552 1-216-025-00 RES, CHIP 100 5% 1/10W

R554 1-216-025-00 RES, CHIP 100 5% 1/10W
R555 1-216-121-00 RES, CHIP 1M 5% 1/10W
R556 1-216-025-00 RES, CHIP 100 5% 1/10W
R557 1-216-025-00 RES, CHIP 100 5% 1/10W
R558 1-216-073-00 METAL CHIP 10K 5% 1/10W

– 113 –

VIDEO

Ref. No. Part No. Description Remark

R559 1-216-073-00 METAL CHIP 10K 5% 1/10W
R560 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R561 1-216-049-11 RES, CHIP 1K 5% 1/10W
R562 1-216-025-00 RES, CHIP 100 5% 1/10W
R563 1-216-025-00 RES, CHIP 100 5% 1/10W

R564 1-216-025-00 RES, CHIP 100 5% 1/10W
R565 1-216-025-00 RES, CHIP 100 5% 1/10W
R566 1-216-025-00 RES, CHIP 100 5% 1/10W
R567 1-216-073-00 METAL CHIP 10K 5% 1/10W
R568 1-216-073-00 METAL CHIP 10K 5% 1/10W

R569 1-216-073-00 METAL CHIP 10K 5% 1/10W
R572 1-216-073-00 METAL CHIP 10K 5% 1/10W
R573 1-216-073-00 METAL CHIP 10K 5% 1/10W
R574 1-216-073-00 METAL CHIP 10K 5% 1/10W
R577 1-216-081-00 METAL CHIP 22K 5% 1/10W

R578 1-216-081-00 METAL CHIP 22K 5% 1/10W
R579 1-216-073-00 METAL CHIP 10K 5% 1/10W
R580 1-216-073-00 METAL CHIP 10K 5% 1/10W

< SWITCH >

S501 1-571-395-11 SWITCH, SLIDE (SYSTEM SELECT)

< VIBRATOR >

X501 1-767-510-41 VIBRATOR, CERAMIC (10MHz)
X503 1-767-519-11 VIBRATOR, CRYSTAL (27MHz)

************************************************************

MISCELLANEOUS

**************

Ref. No. Part No. Description Remark

HRPE101A-2056-682-A DECK (B) ASSY, HEAD
M1 A-2004-628-A MOTOR ASSY, CAPSTAN
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
M501 1-698-792-11 FAN, DC

M701 A-4672-004-A MOTOR ASSY (DISC TRAY TURN)
M801 A-4672-004-A MOTOR ASSY (DISC TRAY SLIDE)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)

! T951 1-433-561-21 TRANSFORMER, POWER (VX7A)
! T951 1-433-565-11 TRANSFORMER, POWER (VX5A)

! T951 1-433-565-21 TRANSFORMER, POWER (VX5AJ)

************************************************************

**************

HARDWARE LIST

**************

#1 7-685-872-09 SCREW +BVTT 3X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-685-852-04 SCREW +BVTT 2X5 (S)

#6 7-685-861-01 SCREW +BVTT 2.6X5 (S)
#7 7-685-851-04 SCREW +BVTT 2X4 (S)
#8 7-621-775-10 SCREW +B 2.6X4
#9 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#10 7-685-872-09 SCREW +BVTT 3X8 (S) (VX5A: HK, TW/VX5AJ)

#10 7-685-880-09 SCREW +BVTT 4X6 (S)

(VX5A: E, EA, MY, SP, IA, TH/VX7A)
#11 7-628-254-15 SCREW +PS 2.6X6
#12 7-628-254-50 SCREW +PS 2.6X16

64 1-773-188-11 WIRE (FLAT TYPE) (23 CORE) (23cm)
104 1-773-043-11 WIRE (FLAT TYPE) (17 CORE)
105 1-773-024-11 WIRE (FLAT TYPE) (15 CORE) (32cm)
106 1-783-949-11 WIRE (FLAT TYPE) (13 CORE) (17cm)
109 1-769-977-11 WIRE (FLAT TYPE) (13 CORE) (15cm)

(VX5A: TH/VX7A: TH)

109 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (15cm)

(VX5A: E, EA, MY, SP, IA, HK, TW/VX5AJ/

VX7A: E, EA, MY, SP, IA)
110 1-233-545-11 TUNER (FM/AM) (VX5A: TH/VX7A: TH)
110 1-233-546-11 TUNER (FM/MW/SW)

(VX5A: E, EA, MY, SP, IA, HK, TW/VX5AJ: E, EA/

VX7A: E, EA, MY, SP, IA)
110 1-693-465-11 TUNER (PACK) (VX5AJ: JE)

! 111 1-575-651-11 CORD, POWER (VX5A: EA, MY, SP, HK, TW/

VX5AJ: EA/VX7A: EA, MY, SP)

! 111 1-575-653-11 CORD, POWER (VX5A: E, IA, TH/VX5AJ: E, JE/

VX7A: E, IA, TH)

! 112 1-569-007-11 ADAPTOR, CONVERSION 2P (VX5A: E, IA/

VX5AJ: E, JE/VX7A: E, IA)

! 112 1-569-008-21 ADAPTOR, CONVERSION 2P (VX5A: EA, MY,

SP, TW/VX5AJ: EA/VX7A: EA, MY, SP)

! 112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (VX5A: HK)

115 1-775-212-11 WIRE (FLAT TYPE) (23 CORE) (18cm)

257 1-452-925-21 MAGNET ASSY
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)

! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP

302 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
HP101 A-2056-681-A DECK (A) ASSY, HEAD

The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

Sony Corporation

Home Audio Company9-928-874-11

– 114 –

Printed in Singapore © 1999. 5

99E057025-1

Published by Quality Assurance Dept.
