Sony HCD-LX9AV, HCD-LX10AV, HCD-LX90AV Service manual

HCD-LX9AV/LX10AV/LX90AV

SERVICE MANUAL

• HCD-LX9AV/LX10AV/LX90AV are the
Amplifier, CD player, Tape Deck adn Tuner
section in LBT-LX9AV/LX10AV/LX90AV

Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol ; are trade­marks of Dolby Laboratories Licensing Corporation.

Photo: HCD-LX9AV

CD

Section

Tape deck

Section

US Model

HCD-LX90AV

AEP Model

UK Model

HCD-LX9AV

E Model

Australian Model

HCD-LX10AV

Model Name Using Similar Mechanism HCD-DR8AV/

W900AV

CD Mechanism Type CDM37M-5BD32L

Base Unit Name BU-5BD32L

Optical Pick-up Name KSS-213D/Q-NP

Model Name Using Similar Mechanism HCD-DR8AV/

W900AV

Tape Transport Mechanism Type TCM-230PWR1

SPECIFICATIONS

COMPACT HI-FI STEREO SYSTEM

— Continued on next page —

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

2

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

TABLE OF CONTENTS

SECTION 1

SERVICE NOTES

1. SERVICING NOTES .................................................. 3

2. GENERAL ...................................................................... 5

3. DISASSEMBLY............................................................. 8

4. SERVICE MODE .......................................................... 12

5. MECHANICAL ADJUSTMENTS............................ 15

6. ELECTRICAL ADJUSTMENTS ............................. 15

7. DIAGRAMS

7-1. Circuit Board Locations.................................................... 20

7-2. Block Diagrams

Display/Power Section...................................................... 21

Main Section ..................................................................... 22

Display/Power Section...................................................... 23

7-3. Printed Wiring Board – BD Board –................................. 24

7-4. Schematic Diagram – BD Board – .................................. 25

7-5. Printed Wiring Boards – CD MOTOR Section –............. 26

7-6. Schematic Diagram – CD MOTOR Section –................. 27

7-7. Printed Wiring Board – AUDIO Board –......................... 28

7-8. Schematic Diagram – AUDIO Board – ........................... 29

7-9. Printed Wiring Board – LEAF SW Board – .................... 30

7-10.Schematic Diagram – LEAF SW Board –....................... 30

7-11.Printed Wiring Board – MAIN Board – .......................... 31

7-12.Schematic Diagram – MAIN Board (1/3) – .................... 32

7-13.Schematic Diagram – MAIN Board (2/3) – .................... 33

7-14.Schematic Diagram – MAIN Board (3/3) – .................... 34

7-15.Printed Wiring Board – PANEL FL Board –................... 36

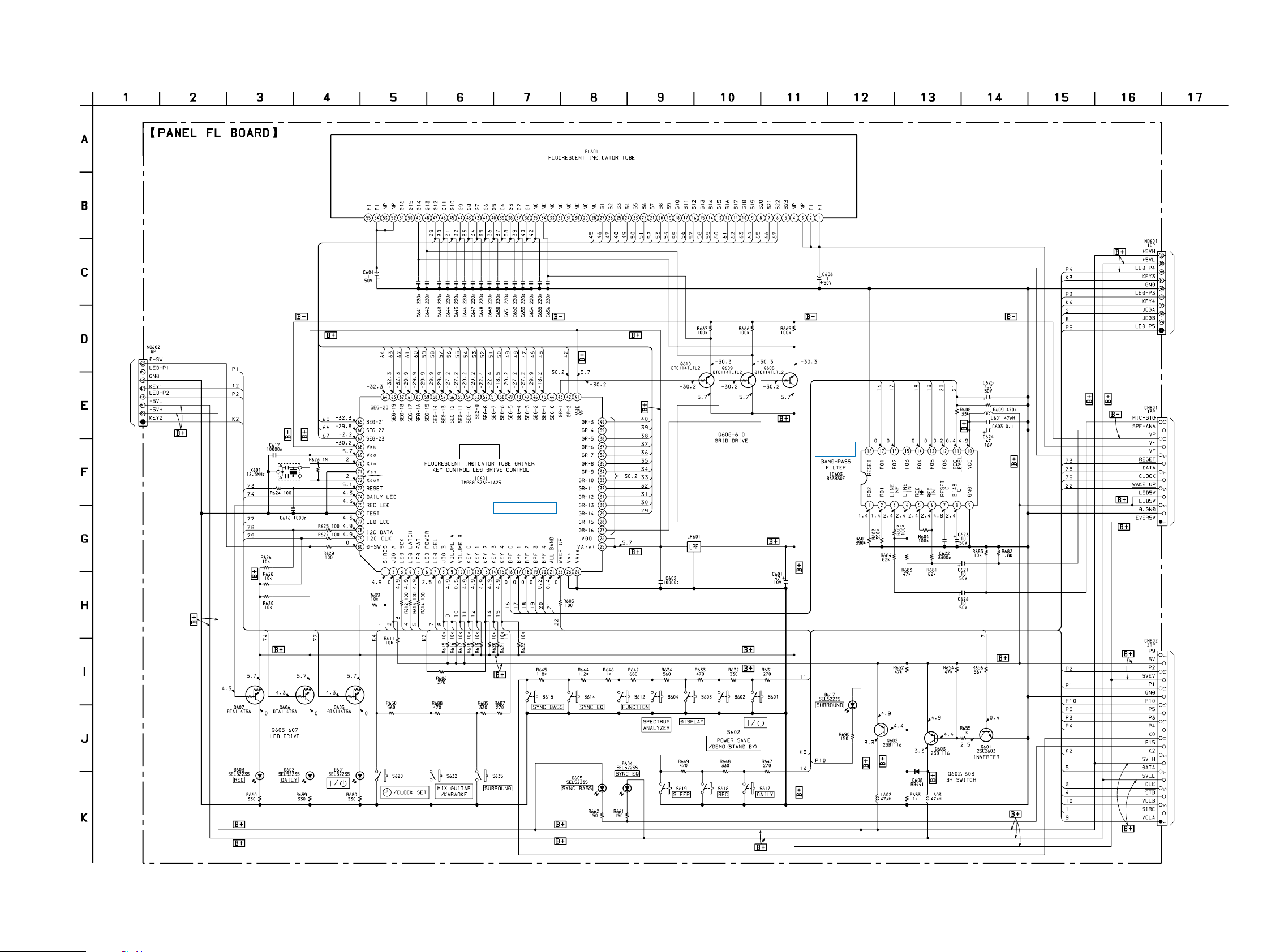

7-16.Schematic Diagram – PANEL FL Board – ...................... 37

7-17.Printed Wiring Board – PANEL VR Board – .................. 38

7-18.Schematic Diagram – PANEL VR Board – ..................... 39

7-19.Printed Wiring Boards – TC-A/TC-B/CD-L/

CD-L2/CD-R/CD-R2 Boards – ........................................ 40

7-20.Schematic Diagram – TC-A/TC-B/CD-L/

CD-L2/CD-R/CD-R2 Boards – ........................................ 41

7-21.Printed Wiring Boards – FRONT INPUT/

HEADPHONE/MIC Boards – .......................................... 42

7-22.Schematic Diagram – FRONT INPUT/

HEADPHONE/MIC Boards – .......................................... 43

7-23.Printed Wiring Board – PA Board – ................................ 44

7-24.Schematic Diagram – PA Board – ................................... 45

7-25.Printed Wiring Board – SURROUND Board – ............... 46

7-26.Schematic Diagram – SURROUND Board –.................. 47

7-27.Printed Wiring Boards

– TRANS/SUB TRANS Boards – ................................... 48

7-28.Schematic Diagram – TRANS/SUB TRANS Boards – .. 49

SAFETY CHECK-OUT

After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.

LEAKAGE

The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT -540A. Follo w the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC v oltmeter . The “limit” indication
is 0.75 V, so analog meters must have an accurate lo w-v oltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)

T o Exposed Metal

Parts on Set

AC

0.15

µ

F

Fig. A. Using an AC voltmeter to check AC leakage.

1.5 k

Ω

Earth Ground

Voltmeter
(0.75 V)

8. EXPLODED VIEWS ................................................... 55

9. ELECTRICAL PARTS LIST ................................... 63

3

This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.

Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.

The following caution label is located inside the unit.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick­up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270 ˚C dur­ing repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

4

LOCATION OF CONTROLS
– Front Panel –

SECTION 2

GENERAL

1

wf

wd

ws

wa

w;

ql

234

qk

Photo: HCD-LX9AV

5

6

7

8

9

0

qa
qs

qd

qfqgqhqj

1 ?/1 (POWER) button
2 DAILY button

REC button

SLEEP button
c/CLOCK SET button

3 TUNER/BAND button

TUNING +/– button

ENTER/NEXT button

TUNER MEMORY button

STEREO/MONO button

TUNING MODE button

PTY button

4 Display
5 v/B/V/b button
6 SYNC EQ button

SYNC BASS button

SURROUND button

MIX GUITAR/KARAOKE button

7 FUNCTION button
8 VOLUME control
9 PHONES jack
0 DECK B operating button

g button G button x button
m button M button X button
z REC button HI SPEED DUB button

CD SYNC button

qa . AMS > control
qs CD operating button

G X button x button m button
M button DISC SKIP button

qd VIDEO 2 INPUT jack
qf PLAY MODE button

REPEAT button

qg DECK B
qh Z A EJECT

Z B EJECT

qj DECK A
qk DISC1-5 button
ql LOOP button

FLASH button

NON-STOP button

EDIT button

w; SUPPER WOOFER MODE button

MIC LEVEL control

GUITAR LEVEL contro

wa DECK A operating button

g button G button x button
m button M button

DIRECTION button

DOLBY NR button

ws MIC MIX jack

GUITAR jackl

wd EFFECT button

GROOVE button

SUPER WOOFER button

wf POWER SAVE/DEMO (STAND BY) button

DISPLAY button

SPECTRUM ANALYZER button

5

– Rear Panel –

2

1
qs
qa
0

9
8
7

6

5

43

Photo: HCD-LX9AV

1 DJ MIX jack
2 ANTENNA terminal
3 SURROUND SPEAKER terminal
4 FRONT SPEAKER terminal
5 CD DIGITAL OUT terminal
6 DVD INPUT FRONT jack

DVD INPUT REAR jack

DVD INPUT WOOFER jack

DVD INPUT CENTER jack

7 DVD INPUT VIDEO jack
8 VIDEO OUT jack
9 VIDEO 1 jack
0 MD IN/OUT jack
qa PHONO IN jack
qs WOOFER OUT jack

6

This section is extracted
from instruction manual.

7

SECTION 3

)

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

3-1. UPPER CASE

1 Three screws

(CASE3 TP2)

5 Upper case

(Remove in the direction of the arrows)

4Three screws

(BVTT 3 × 6)

3 Four screws
(BVTP3 × 8

2 Three screws
(CASE3 TP2)

3-2. FRONT PANEL SECTION

3

7

Two screws

(BVTP3 × 8)

Lug

1

2

Wire (flat type)
(17 core) (CN304)

Wire (flat type)
(13 core) (CN431)

Wire (flat type)
(15 core) (CN303)

5

4

Two connectors

(CN452, 702)

Connector
(CN802)

Screw

6

(BVTP3 × 8)

Two lugs

8

Screw (BVTP3 × 8)

Claw

0

Front panel section
(Be careful in has claws)

9

Four screws

(BVTP3 × 8)

8

3-3. TAPE MECHANISM DECK (TCM-230PWR1)

Two screws

1

(BVTP3 × 8)

Two screws

2

(BVTP3 × 8)

Tape mechanism deck

3

(TCM-230PWR1)

3-4. MAIN BOARD

8

Wire (flat type)

(19 core) (CN411)

6

5

Eleven screws

(BVTP3 × 8)

Back panel

7

Connector

(CN102)

1

Wire (flat type) (CN441)

qs

Main board

0

Two screws

(BVTP3 × 8)

4

Five screws

(BVTP3 × 8)

3

Two screws

(BVTP3 × 8)

2

Connector

(CN903)

LX10AV Model

9

Connector

(CN412)

qa

Two connector

(CN803, CN804)

9

3-5. CD MECHANISM DECK (CDM37M-5BD32L)

5

Eeven screws

(BVTP3 × 8)

9

Five screws

(BVTP3 × 8)

7

Wire (flat type)

(19 core) (CN411)

qd

8

Connector

(CN412)

1

Wire (flat type) (CN441)

6

qa

Open the two

cable clamps

0

Two screws

(BVTP3 × 8)

4

Five screws

(BVTP3 × 8)

3

Two screws

(BVTP3 × 8)

2

Connector

(CN903)

LX10AV Model

qs

Two screws

(BVTP3 × 8)

CD mechanism deck

2

(CDM37M-5BD32L)

1

Five screws

(BVTP3 × 8)

10

3-6. BASE UNIT (BU-5BD32L)

3 Base unit

(BU-5BD32L)

2 Boss

1 BU fitting screw

3-7. DISC TABLE

Note: When the disc table is installed, adjust the positions of roller cam

and mark as shown in the figure, then set to the groove of disc
table.

A

1 Two screws (BVTP3 ¥ 8)

2 Two brackets (BU)

3 Step screw

4 Disc table

A

11

SECTION 4

SERVICE MODE

MC Cold Reset

• The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to
the customer.

Procedure:

1. Press three buttons c/CLOCK SET , ENTER , and ?/1 simultaneously.

2. “COLD RESET” is displayed on the fluorescent display tube and reset is executed.

CD Delivery Mode

• This mode moves the pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Press LOOP button and ?/1 button simultaneously.

3. A message “LOCK” is displayed on the fluorescent indicator tube, and the CD delivery mode is set.

MC Hot Reset

• This mode resets the set with the preset data kept stored in the memory. The hot reset mode functions same as if the power cord is
plugged in and out.

Procedure:

1. Press three buttons c/CLOCK SET , ENTER , and DISC 1 simultaneously.

2. The fluorescent indicator tube becomes blank instantaneously, and the set is reset.

Sled Servo Mode

• This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pick-up.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Press three buttons c/CLOCK SET , ENTER , and DISC 5 simultaneously.

3. The Sled Servo mode is selected, if “CD” is blanking on the fluorescent indicator tube.

4. With the CD in stop status, When the . AMS > knob is rotated in the clockwise direction, the pick-up moves outside. When

rotated counterclockwise, it moves inside.

5. To exit from this mode, perform as follows:

1) Move the pick-up to the most inside track.

2) Execute MC cold reset. (Press the three buttons c/CLOCK SET , ENTER , and ?/1 button simultaneously.)

Note:

• Always move the pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded.

• Do not run the sled motor excessively, otherwise the gear can be chipped.

Change-over of AM Tuner Step between 9kHz and 10kHz (DR8AV Only)

• A step of AM channels can be changed over between 9kHz and 10kHz.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select the function “TUNER”, and press TUNER/BAND button to select the BAND “AM”.

3. Press ?/1 button to turn the set OFF.

4. Press ENTER and ?/1 buttons simultaneously, and the display of fluorescent indicator tube changes to “AM 9k STEP” or “AM 10k

STEP”, and thus the channel step is changed over.

LED and Fluorescent Indicator Tube All Lit, Key Check Mode

Procedure:

1. Press three buttons c/CLOCK SET , ENTER , and DISC 2 simultaneously.

2. LEDs and fluorescent indicator tube are all turned on.

Press DISC 2 button, and the key check mode is activated.

3. In the key check mode, the fluorescent indicator tube displays “K @ V0 J0”. Each time a button is pressed, “K”value increases.

However, once a button is pressed, it is no longer taken into account.
“J” Value increases like 1, 2, 3 ... if rotating . AMS > knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in “-”
direction.
“V” Value increases like 1, 2, 3 ... if rotating VOLUME knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in “-” direction.

4. To exit from this mode, press three buttons in the same manner as step 1, or disconnect the power cord.

12

AMS Test Mode

• This mode is used for checking the AMS operations of the tape deck.

JIG
7-819-039-12 Alignment tape, AMS-110A

Procedure:

1. Press the ?/1 button to turn the set ON.

2. Set the tape (AMS-110A).

3. Press the three buttons c/CLOCK SET , ENTER , and DISC 3 button simultaneously.

4. “TEST MODE” is displayed on the fluorescent display tube.

5. Press the FUNCTION button and switch the function to the deck with the tape (AMS-110A).

6. Press the CD SYNCHRO button. “AMS CHECK” is displayed on the fluorescent display tube and the tape is rewound.

7. AMS starts in the normal direction. If the AMS count is 2 at shut down, proceed to step 8.
“NG” is displayed at other times, and the deck stops.

8. AMS starts in the opposite direction. If the AMS count is 2 at shut down again, “OK” is displayed.
“NG” is displayed at other times.

Aging Mode

During the aging mode, both the CD player and tape deck are executed together.

• If an error occurs:

Aging stops, and the error state is displayed on the fluorescent display tube.

• If no error occurs:

Aging is repeated.

Procedure:

1. Press the ?/1 button to turn the set ON.

2. Load 10 minute tapes with unbent rec-proof tabs in decks A and B.

3. Set CDs on the DISC 1 and DISC 4 tables.

4. Set the CD mode REPEAT to OFF and PLAY MODE to ALL DISCS.
(Press the PLAY MODE and REPEAT buttons to set these modes.)

5. Press the FUNCTION button to switch the function to “CD”.

6. Press the three buttons c/CLOCK SET , ENTER , and DISC 4 button simultaneously.

7. Aging starts.

8. To end aging, press the ?/1 button to turn the set OFF.

Aging Sequence:

Aging is performed in the following sequence.

• Tape Deck

1. The tape in deck A is rewound. “TAPE A AG-1” is displayed.

2. The FWD side of deck A is played for two minutes.
“TAPE A AG-2” is displayed.

3. The tape in deck A is fast forwarded. “TAPE A AG-3” is displayed. Fast forward is carried out for 20 seconds or to the tape end.

4. The RVS side of deck A is played for two minutes.
“TAPE A AG-4” is displayed.

5. The tape in deck A is rewound. “TAPE A AG-5” is displayed.

6. The FWD side of deck B is played for two minutes.
“TAPE B AG-2” is displayed.

7. The tape in deck B is fast forwarded. “TAPE B AG-3” is displayed. Fast forward is carried out for 20 seconds or to the tape end.

8. The RVS side of deck B is played for two minutes.
“TAPE B AG-4” is displayed.

9. The tape in deck A is rewound. “TAPE A AG-5” is displayed.

10. Repeated from step 2.

• CD

1. The tray rotates.

2. DISC 1 is chucked.

3. The TOC is read.

4. The first track is played for 2 seconds.

5. The last track is played for 2 seconds.

6. The tray rotates.

7. DISC 4 is chucked.

8. The TOC is read.

9. The first track is played for 2 seconds.

10. The last track is played for 2 seconds.

11. Repeated from step 1.

13

• Display when ended abnormally
When the tape deck is abnormal:

The state when ended abnormally is displayed.
The contents of display are the same as that during aging.

When the CD player is abnormal:

A message indicating that errors such as “CD MEC ERR” have occurred.
Check the error contents in the following error history display mode.

Error History Display Mode

Mode which enables the history of error occurring in the CD player to be checked.
Execute this mode after ending the aging mode.

Procedure:

1. Press the ?/1 button to turn the set ON.

2. Press the three buttons c/CLOCK SET , ENTER , and CD SYNCHRO simultaneously.

3. A message such as “EMC@@EDC**” is displayed.
@@ : Number of mechanical errors (Up to three past errors)
** : Number of errors (NO DISC ERROR) which occurs after chucking (Up to three past errors)

4. When checking the history of mechanical errors, press the PLAY MODE button. When checking errors after chucking, press the

REPEAT button to switch the display.

5. Press the ?/1 button to end and turn the set OFF.

6. To erase the error history, perform COLD reset.

(Press the three buttons c/CLOCK SET , ENTER , and DISC 1 simultaneously.

• Viewing the mechanical error history display

(Switch the history by pressing the PLAY MODE button.)

Display
E@@M#*****

@@ : Error number. 00 is the newest.

# : Operating state of table

0 : Currently in the INITIAL mode
7 : Currently rotating to the right
8 : Currently rotating to the left
A : Currently chucking down
B : Currently chucking up

* : Invalid

• Viewing the NO DISC ERROR history display
(Switch the history by pressing the REPEAT button.)

Display
E@@D##$$%*

@@ : Error number. 00 is the newest

## : Error contents

01: Focus error
02: GFS error
03: Setup error

$$ : Retries

00: NO DISC is determined without attempting chucking

retry

02: NO DISC is determined after chucking retry.

% : State when determined as NO DISC
1 : When stopped
2 : At setup
3 : At TOC READ
4 : When accessing
5 : When playing
6 : When pausing
7 : When manual searching (during play)
8 : When manual searching (during pausing)
* : Invalid

14

SECTION 5

MECHANICAL ADJUSTMENTS

SECTION 6

ELECTRICAL ADJUSTMENTS

Precaution

1. Clean the following parts with a denatured alcohol­moistened swab:

record/playback heads pinch rollers
erase head rubber belts
capstan idlers

2. Demagnetize the record/playback head with a head
demagnetizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to
the parts adjusted.

5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.

Torque Measurement

Mode

FWD

FWD

back tension

REV

REV

back tension

FF/REW

FWD tension

REV tension

Torque meter

CQ-102C

CQ-102C

CQ-102RC

CQ-102RC

CQ-201B

CQ-403A

CQ-403R

Meter reading

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.02 – 0.08 oz • inch)

31 to 71 g • cm

(0.43 – 0.98 oz • inch)

2 to 6 g • cm

(0.02 – 0.08 oz • inch)

71 to 143 g • cm

(0.98 – 1.99 oz • inch)

100 g or more

(3.53 oz or more)

100 g or more

(3.53 oz or more)

DECK SECTION 0 dB=0.775V

1. Demagnetize the record/playback head with a head
demagnetizer.

2. Do not use a magnetized screwdriver for the adjustments.

3. After the adjustments, apply suitable locking compound to
the parts adjusted.

4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.

5. The adjustments should be performed in the order given
in this service manual. (As a general rule, playback circuit
adjustment should be completed before performing
recording circuit adjustment.)

6. The adjustments should be performed for both L-CH and
R-CH.

7. Switches and controls should be set as follows unless
otherwise specified.

Tape Signal Used for

P-4-A100

WS-48B

P-4-L300

Record/Playback Head Azimuth Adjustment
(Deck A, Deck B)

Note: Perform this adjustments for both decks.

Procedure:

1. Mode : Playback

test tape
P-4-A100
(10kHz, –10dB)

10 kHz, –10 dB

3 kHz, 0 dB

315 Hz, 0 dB

MD OUT

Azimuth Adjustment

Tape Speed Adjustment

Level Adjustment

level meter

set

+

–

2. Turn the adjustment screw and check output peaks. If the
peaks do not match for L-CH and R-CH, turn the
adjustment screw

L-CH
peak

screw
position

R-CH
peak

so that outputs match within 1 dB of peak.

output

within

level

1 dB

L-CH
peak

R-CH
peak

within 1dB

screw
position

15

3. Mode: Playback Tape Speed Adjustment (Deck A)

)

test tape
P-4-A100
(10kHz, –10dB)

oscilloscope

MD OUT

Note: Set the test mode using the following method and begin

tape speed adjustment.
In the test mode, the speed will switch to double speed or
normal speed each time the HI-SPEED DUB button is pressed.

set

Waveform of oscilloscope

in phase 45°

good

90°

135°

180°

wrong

4. After the adjustments, apply suitable locking compound to
the parts adjusted.

Adjustment Location: Playback Head (Deck A)

Record/Playback/Erase Head (Deck B)

Procedure:

With the power turned ON, press the c/CLOCK SET button,
ENTER button, and DISC 3 button simultaneously.
(The “VOLUME” on the fluorescent display tube will blink while
in the test mode.)
To exit the test mode, press the ?/1 button.

1. Insert the WS-48B into deck B.

2. Press the H button of deck B.

3. Press the HI-SPEED DUB button and play the tape at double speed.

4. Adjust RV1001 of the LEAF SW board so that the reading
of the frequency counter becomes 6000 ± 180 Hz.

5. Press the HI-SPEED DUB button and play the tape at normal speed.

6. Adjust RV1002 of the LEAF SW board so that the reading
of the frequency counter becomes 3000 ± 90 Hz.

Adjustment Location: LEAF SW board

Sample Value of Wow and flutter

W.RMS (JIS) less than 0.3%
(test tape: WS-48B)

Playback Level Adjustment (Deck A, Deck B)

Procedure:

Mode: Playback

test tape
P-4-L300
(315Hz, 0dB)

set

MD OUT

level meter

Deck A is RV311 (L-CH) and RV411 (R-CH), deck B is RV301
(L-CH) and RV401 (R-CH)
so that adjustment within the following adjustment level.

Adjustment level:

CN301 playback level: 301.5 to 338.3 mV (–8.2 to –7.2 dB)
level difference between the channels: within ± 0.5 dB
Adjustment Location: AUDIO board

Adjustment Location
[LEAF SW BOARD]

RV1001(High Speed)
RV1002(Normal Speed

16

RV1002 RV1001

Record Bias Adjustment (Deck B)

AF OSC

VIDEO 1 (AUDIO) IN
315Hz 50 mV (–23.8 dB)

blank tape
CS-123

set

attenuator

600 Ω

Record Level (Lch)
RV301

RV351
Record Level (Rch)

IC301

56

43

42

29

28

15

14

1

1
3

Record Level Adjustment (Deck B)

Procedure:

INTRODUCTION

When set to the test mode performed in Tape Speed

Adjustment,

when the tape is rewound after recording, the “REC memory
mode” which rewinds only the recorded portion and playback
is set.
This “REC memory mode” is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO 1.
(After recording, press the m button without stopping will
return to the position where recording was started.)

1. Press FUNCTION button to select VIDEO 1. (This step is
not necessary if the above test mode has already been set.)

2. Insert a tape into deck B, press the z REC button, and
then press the H button to start recording.

3. Mode: Record

4. Mode: Playback

VIDEO 1 (AUDIO) IN

1) 315 Hz

2) 10 kHz

AF OSC

attenuator

600 Ω

} 50 mV (–23.8 dB)

blank tape
CS-123

set

Procedure:

INTRODUCTION

When set to the test mode performed in Tape Speed Adjustment
when the tape is rewound after recording, the “REC memory
mode” which rewinds only the recorded portion and playback
is set.
This “REC memory mode” is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO 1.
(After recording, press the m button without stopping will
return to the position where recording was started.)

1. Press FUNCTION button to select VIDEO 1. (This step is
not necessary if the above test mode has already been set.)

2. Insert a tape into deck B, press the z REC button, and
then press the H button to start recording.

3. Mode: Record

4. Mode: Playback

,

5. Confirm playback the signal recorded in step 2 become
adjustment level as follows.

recorded
position

set

MD OUT

level meter

If these levels do not adjustment level, adjust the RV341 (L­CH) and RV441 (R-CH) on the AUDIO board to repeat steps 3
and 4.

Adjustment level: The playback output of 10 kHz level difference

against 315 Hz reference should be ± 1.0 dB.

Adjustment Location: AUDIO board

Adjustment Location:

[AUDIO BOARD] (Conductor Side)

RV341(Lch),RV441(Rch)
Record Bias

RV311(Lch),RV411(Rch)
Playback Level (Deck A)

5. Confirm playback the signal recorded in step 2 become
adjustment level as follows.

recorded
position

set

MD OUT

level meter

If these levels do not adjustment level, adjust the RV301 (L­CH) and RV351 (R-CH) on the MAIN board to repeat steps 3
and 4.

Adjustment level:

CN403 playback level: 47.2 to 53.0 mV (–24.3 to –23.3 dB)

Adjustment Location: MAIN board

[MAIN BOARD] (Conductor Side)

RV301 RV401

RV441 RV341

RV301(Lch),RV401(Rch)
Playback Level (Deck B)

RV311

RV411

17

CD SECTION

Note:

1. CD Block is basically constructed to operate without
adjustment. Therefore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.

Note: Clear RF signal waveform means that the shape “◊” can be

clearly distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV : 200mV
TIME/DIV : 500ns

level : 1.45 ± 0.25 Vp-p

S Curve Check

BD board

TP (FE)
TP (VC)

oscilloscope

+

–

Procedure :

1. Connect the oscilloscope to test points TP (FE) and TP (VC).

2. Connect TP (FEI) and GND, and TP (AGCCON) and GND of

the BD board with lead wires.

3. Press the ?/1 button to turn the set ON.

4. With the disc (YEDS-18) loaded, press the HX button and

perform focus search. (Focus search will be performed in the
same way even while the disc table is pushed in and out.)

5. Check the symmetry and peak to peak level of the oscilloscope

waveform (S curve) at this time.

S-curve waveform

symmetry

A

Within 4 ± 1 Vp-p

B

E-F Balance (1 Track Jump) check

oscilloscope

BD board

TP (TE)
TP (VC)

+

–

Procedure:

1. Connect oscilloscope to test point TP (TE) on BD board.

2. Press the ?/1 button to turn the unit ON.

3. Put disc (YEDS-18) in to play the number five track.

4. Press the HX button.

5. Check the level B of the oscilloscope's waveform and the A
(DC voltage) of the center of the Traverse waveform.
Confirm the following:

• A/B x 100 = less then ± 22 (%)

• B = 1.3 ± 0.6 Vp-p

1 track jump waveform

0V

Center of the waveform

B

A (DC voitage)

6. After check, remove the lead wire connected in step 2.
Note: • Try to measure several times to make sure than the ratio

of A : B or B : A is more than 10 : 7.

• Take sweep time as long as possible and light up the
brightness to obtain best waveform.

RF Level Check

oscilloscope

BD board

TP (RF)
TP (VC)

+

–

Procedure :

1. Connect oscilloscope to test point TP (RF) and TP (VC) on
BD board.

2. Connect TP (AGCCON) and GND of the BD board with lead
wires.

3. Press the ?/1 button to turn the set ON.

4. Put disc (YEDS-18) in and playback 5 track.

5. Confirm that oscilloscope waveform is clear and check RF
signal level is correct or not.

6. After check, remove the lead wire connected in step 2.

level : 1.3 ± 0.6 Vp-p

Adjustment Location :

[ BD BOARD ] — SIDE A —

TP
(VC)

TP
(RF)

TP
(AGCCON)

TP (FE)

TP
(TE)

TP
(FE1)

Symmetry

18

SECTION 7

DIAGRAMS

NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)

Note on Printed Wiring Board:

• X : parts extracted from the component side.

f

•

• b : Pattern from the side which enables seeing.

Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.

• Indication of transisitor.

: internal component.

Q

B

CE

These are omitted.

Q

B

CE

These are omitted.

C

Q

B

E

These are omitted.

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

f

•

• 2 : nonflammable resistor.

• 5 : fusible resistor.

• C : panel designation.

• U : B+ Line.

• V : B – Line.

• H : adjustment for repair.

• Voltages are taken with a VOM (Input impedance 10 MΩ).

• Waveforms are taken with a oscilloscope.

• Circled numbers refer to waveforms.

• Signal path.

• Abbreviation

: internal component.

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

Voltage variations may be noted due to normal produc­tion tolerances.

Voltage variations may be noted due to normal produc­tion tolerances.

F : TUNER (FM/AM)
E : PLAYBACK (DECK A)
d : PLAYBACK (DECK B)
G : RECORD
J : CD PLAY (ANALOG OUT)
c : CD PLAY (DIGITAL OUT)
N : MIC INPUT

AUS : Australian model
AR : Argentine model
EA : Saudi Arabia model
MY : Malaysia model
MX : Mexican model
SP : Singapore model

4

W or less unless otherwise

19

7-1. CIRCUIT BOARDS LOCATION

d

SUB TRANS board

TRANS board

MIC board

TC-A board

CD-L board

PANEL FL board

PANEL VR board

CD-R board

TUNER UNIT (FM/AM)

SURROUND board

MAIN board

PA board

HEADPHONE board

TC-B board

FRONT INPUT board

CD MOTOR board

LEAF SW board

TABLE SENSOR board

BD boar

AUDIO board

LED board

20

HCD-LX9AV/LX10AV/LX90AV

7-2. BLOCK DIAGRAMS

TUNER/CD/DECK SECTION

LX10AV:EA MODEL

COAXIAL
FM 75Ω

ANTENNA

OPTICAL PICK-UP

(KSS-213D/Q-NP)

16

FM 75Ω

AM

BLOCK

VR

FOCUS

COIL

TRACKING

COIL

• RCH is omitted

• Signal Path

TUNER UNIT

ST-L

ST-R

ST DOUT

ST DIN

ST CLK

STCE

TUNED

STEREO

MUTE

RDS DATA

RDS INT

VC

D+5V

A

B

C

D

E

F

LD

GND

PD

F-

F+

T-

T+

M102

SLED

MOTOR

M101

SPINDLE

MOTOR

Q101

LD

DRIVE

: FM

: CD

: DIGITAL OUT

: PB (DECK A)

: PB (DECK B)

: REC (DECK B)

R-CH

DO

DI

CL

CE

TUNED

STEREO

ST MUTE

RDS DATA

RDS INT

LX9AV MODEL

13

14

11

12

18

M

17

16

M

15

ST-L

A

RF AMP

IC103

12

VC

5

RFO

A

6

7

8

11

10

3

4

RFI

B

C

FE

D

E

F

LD

HOLD SW

PD

IC102

MOTOR/COIL DRIVE

CH1RI

CH1RO

CH1FI

CH1FO

CH2RI

CH2RO

CH2FI

CH2FO

CH3RO

CH3FO

CH4INS

CH4RO

CH4FO

MUTE

MAIN

SECTION

(Page 22)

16

17

14

13TE

22LD ON

21

3

2

6

5

23CH3RI

24CH3FI

25

20

DIGITAL SERVO

DIGITAL SIGNAL PROC.

D/A CONV.

IC101

D OUT

51

RFAC

43

RFDC

FE

TE

SE

XLON

FRDR

FFDR

TRDR

TFDR

SRDR

SFDR

MDP

L OUT

XLAT

SQCK

SCLK

SCOR

SQSO

SSTP

XTAI

XRST

39

41

40

14

33

32

31

30

29

28

26

DECK-A

HP101

PB

HEAD

R-CH

DECK-B

HRPE101

REC/PB
HEAD

R-CH

R-CH

ERASE

HEAD

IC781

CD-L

S101
LIMIT

IN SW

DIGITAL

OUT

B

60

72

R-CH

75R OUT

5DATA

7CLOK

6

2

9

20

1

27

66

67XTAO

3

X101

16.9344MHz

DIGITAL OUT

MAIN

SECTION

(Page 22)

CD

OPTICAL

PB EQ

AMP

IC611

PB EQ

AMP

IC601

RV341

BIAS

REC

T621

L331,C332

BIAS
TRAP

DO

DI

CL

CE

TUNED

STEREO

ST MUTE

RDS DATA

RDS INT

RV311

RV301

1

2

3

BIAS

OSC

Q621,622

53

54

55

52

51

50

49

21

20

35

37

42

33

19

32

59

57

PB(L)

LEVEL

PB(L)

LEVEL

REC/PB SWITCH

IC602

Q623

MASTER CONTROL

IC501(1/3)

ST DOUT

TC RELAY

ST DIN

ST CLK

ST CE

TUNED

REC MUTE

STEREO

NR ON/OFF

ST MUTE

R/PB PAS

RDS DATA

TC MUTE

RDS INT

CD DATA

CD CLK

XLT

SQ CLK

SCOR

SQ DATA

CAP M H/L 76

CAP M CONT2

CAP M CONT1

XRST

HOLD

DISC LED

R CH

+7V

PB A/B

EQ H/N

ALC

BIAS

AMS IN

A PLAY

B PLAY

A HALF

B HALF

A SHUT

B SHUT

A TRIG

B TRIG

TBL-L

TBL-R

T SENS

100

REC

PB

B NORM/CROM/METAL

LM ON/OFF

A120/70

MS OUT

26

17

19

Q335

DRIVE

43

40

Q333,334

Q331,332

RV1002

NORM S

RV1001
HIGH S

A TRIG
DRIVE

B TRIG
DRIVE

Q1001

MOTOR

CONT

48

A

B

46

DECK A/B SELECT

PB/REC EQ AMP

4

REC

36

EQ

NORM

33

32

84

83

85

82

81

80

79

78

77

87

86

88

89

91

90

73

72

74

75

IC201

9

63

65

61

69

MOTOR

DRIVE

1

IC202

DISC

SENSOR

LED DRIVE

Q201

BIAS

CROM

SW

7

M201

M

TURN

MOTOR

3

D201
DISC

70

120

IC301

38

RV301

REC(L)
LEVEL

REC

DOLBY

PB A/B

16

NORM/HIGH

ALC ON/OFF

15

18

B

DOL

PAS

BIAS ON/OFF

RM ON/OFF

20

22

NR ON/OFF

23

24

REC /PB/PASS

25

Q336-339

CAP MOTOR

SPEED CONT

Q340-343

CAP MOTOR

PB

39

+5V

TC REC-L

IC1001

A REEL

DET

IC1002

B REEL

DET

M

TC PB-L

+5V

A TRG M+

B TRG M+

M1

CAPSTAN

MOTOR

C

D

S1004

A 120/70

S1008

B 120/70

S1001

A PLAY

S1002

B PLAY

S1003

A HALF

S1006

B HALF

S1005
REC A

S1009
REC B

MAIN

SECTION

(Page 22)

MAIN

SECTION

(Page 22)

ENC3/UP SW

68

S201

UP SW

2121

HCD-LX9AV/LX10AV/LX90AV

MAIN SECTION

TUNER

SECTION

(Page 21)

CD

SECTION

(Page 21)

DECK

SECTION

(Page 21)

DECK

SECTION

PHONO IN

VIDEO 1 IN

DVD

INPUT

CD OUT

CD IN

(AUDIO)

MD IN

MD OUT

AUDIO

VIDEO

VIDEO 1 IN

(VIDEO)

VIDEO IN

(Page 21)

FRONT

REAR

CENTER

WOOFER

DVD

VIDEO

OUT

LX9AV/LX10AV:MX/LX90AV

DJ

MIX

VIDEO 2

INPUT

MODEL

L

L

L

L

L

L

L

J705

J701

J804

J703

J702

R CH

MUTE
Q805

LX10AV MODEL

INPUT SELECT/

GRAPHIC EQ CONT/

ELECTRICAL VOLUME

ST-L

A

LX10AV: E,EA,MY,S,AR,AUS

CD-L

B

TC REC-L

C

TC PB-L

D

PHONO AMP

IC601

6

1

4

10

JW704

VIDEO SELECT

IC191

IN3

IN1

A

B

IN2

C

VD OUT

AUDIO SELECT

IC181

12

14

15

11

10

A

2

3

5

28

13

9

B

A

B

AB

46

V MUTE

FUNC SEL045FUNC SEL1

DATA

CLK

LAT

DATA

24

PL DATA

CLK

23

LAT

25

PL CLK

PL LAT

DOLBY

SURROUND PROCESSOR

IC201

80

VR SW IN

74

77

76

79

22

23

24

LT IN

SL IN

C IN

SW IN

DATA

SCK

REQ

SL OUT

C OUT

SW OUT

9

3

17

DATA

47

48

DATA

CLOCK

38

CLK

DATA

CLOCK

LATCH

LATCH

LAT

68

66

58

61

69

65

57

64

60

72

75

33

32

34

INB2

IND2

RECA2

INC2

INA2

INE2

RECB2

INF2

KEYIN2

SW

SWNF

DATA

CLOCK

LATCH

IC101

OUT2

BB A2

BB B2

L+R

36

37IN2

39

38

30

2MIC IN

6

LINE MUTE

Q115

MUTE CONT

Q803

34

SW MODE

MUTE
Q113

Q111

MASTER CONTROL

IC501(2/3)

DBFB CONT

Q112

7

27

DBFB H/L

PROTECT

POWER AMP

IC901

18

17

PROTRCT

Q431,432
Q437,439

10

MUTE
Q281

MUTE
Q271

11

22

OVER LOAD

DETECT

Q801

D803

D401

93

HP MUTE

R-CH

DC DET

Q433,434

OVER HEAT

DETECT

Q831,832

MUTE CONT

Q833

32.768kHz

10

TH831

X501

XC IN

11

+7V

XC OUT

15

X502

16MHz

X IN

13

X OUT

3

F RELAY

4

RELAY
DRIVE

Q401,402

RELAY
DRIVE

Q403,407

RELAY
DRIVE

Q404,406

MUTE
CONT

Q804

REAR RELAY

RY401

RY402

RY403

D807

MUTE
Q731

36

HP IN

FAN DRIVE

Q961,962

R CH

R CH

SPA SIG

MIC SIG

TA MUTE

FAN

TM401

L

R

L

R

TM402

L

R

L

R

L

R

J704

• RCH is omitted

• Signal Path

: FM

: CD

: PB (DECK A)

: PB (DECK B)

: REC (DECK B)

HEADPHONS

FRONT

SPEAKER

REAR SURROUND

SPEAKER

CENTER

SPEAKER

WOOFER

OUT

DISPLAY
SECTION

E

(Page 23)

DISPLAY
SECTION

F

(Page 23)

POWER

SECTION

G

(Page 23)

J803

16

: VIDEO

2222

DISPLAY/POWER SECTION

HCD-LX9AV/LX10AV/LX90AV

MAIN

SECTION

(Page 22)

MAIN

SECTION

(Page 22)

MAIN

SECTION

(Page 22)

E

F

J801

MIC 1

J802

MIC 2

G

SPA SIG

MIC SIG

TA MUTE

MASTER CONTROL

IC501(3/3)

IIC DATA

WAKE UP

CD POWER

POWER

AC CUT

STK POWER

STBY RELAY

IC850

IC850

RV750

MIC

VOL

IC852

IC852

RV751

LX10AV/LX90AV MODEL

30

29

IIC CLK

18

5

2

RESET

12

22

1

43

MUTE CONT

Q802

RESET

SWITCH

Q801

STBY

SWITCH

Q803,804

DISPLAY CONTROL

IC601

EVER +5V

16

17

18

19

20

21

11

12

13

14

15

80

9

10

2

8

1

78

79

22

73

BPF0

BPF1

BPF2

BPF3

BPF4

ALL BAND

KEY0

KEY1

KEY2

KEY3

KEY4

DSW

VOL A

VOL B

JOG A

JOG B

SIRCS

I2C DATA

I2CCLOCK

WAKE UP

RESET

SEG1

SEG23

GR2

GR14

GR1

GR15

GR16

ECO LED

DAILY LED

REC LED

LED SCK

LED LATCH

XOUT

F1 F2

45

67

42

.

40

29

JW605

43

28

27

Q605-607
77

74

75

5LED DATA

13

3

14

4

15

7LED SEL

XIN

70

X601

12.5MHz

72

VP

68VKK

6

17

SPEANA

5

16

BPF

14

IC603

4

13

3

12

11

LX9AV ONLY

S601-604, 605

S606-615

FUCTION

KEY

S641-647
S651-658

FUCTION

KEY

S621-624,626-630

S633,634,636,637,659

FUCTION

KEY

S617-619,654-659

S676-682

FUCTION

KEY

S620,632,635

S651-653

FUCTION

KEY

S691

DOOR

S701

VOLUME

S701

CD JOG

IC702

EVR +5V

REMOTE

3

IC801

RESET

3

1

CONTROL
RECEIVER

D803

D805

1

JW606

LED

DRIVER

LED DRIVER

IC701

DATA

CLK

STB

Q601

FL601

FLOURESCENT

INDICATOR TUBE

LX10AV/LX90AV

MODEL

GRID BUFF

Q608-610

GRID BUFF

Q608

D601-603

D631,632,635-638,641,700

.

17

.

P1

19

P5

22

1

5

P7

.
7

P16

11

LED +B

SWITCH

Q602,603

LED +5V

A+7V

A-7V

LX9AV MODEL

LX10AV/LX90AV

D604-607,611-613 614

D616-621,623-627

MODEL

D671-677

ST +10V

PL A+10V

CD M+7V

FAN +B

TC M+12V

EVER +5V

EVER +5V

µCOM +B

CD A+5V SW

CD A+5V SW

D+5V SW

AU D+5V

CD +5V

RDS D+5V UNSW

D+5V UNSW

LED +5V

AU +7V

ST A+7V

TC +7V

MIC +7V

LED +7V

AU -7V

ST A-7V

TC -7V

MIC -7V

LED -7V

LX9AV/LX90AV

MODEL

D802

LX10AV MODEL

JW904

LX10AV MODEL

JR910

JR907

Q914

3

LX10AV MODEL

JW229

CD +B SW

Q913

Q906

TUNER +B

SWITCH

Q931,932

IC933

+7V

REG

+B SW

Q911,912

+B SW

Q901,902

-B SW

Q903,904

1

D913

D931

D912

Q905

IC931

+10V

3

1

REG

Q834

JW807

JW808

D913

D833-836

D841-844

D832

D831

3

IC901

+5.6V

REG

-B SW
Q902

IC932

+12V

3

1

REG

IC911

+5V

3

1

REG

+VL

IC901

+7V

3

1

REG

POWER

AMP

-VL

-VH

+VH

+VCC

IC951

-7V

3

2

REG

EVER +5V

DISPLAY
VP(-35V)

-VCC

NEGATIVE

VOL REG

Q903

F1

F2

1

T951

MAIN TRANS

RELAY
DRIVE

Q901

D902-905

D907-910

240V

230V

120V

0V

RY901

F951

LX9AV/LX10AV: MX
LX90AV MODEL

LX9AV/LX90AV MODEL

T901

SUB TRANS

LX10AV:AR,AUS,E,MY,SP

JW952

JW953

MODEL

S901

VOLTAGE

SELECTOR

240V

230V

120V

AC
IN

AC
IN

FL OFF

Q907

Q906

42

F1

Q904,905

F2

2323

HCD-LX9AV/LX10AV/LX90AV

7-3. PRINTED WIRING BOARD – BD Board – • See page 20 for Circuit Boards Location.

)(

TP(GND)

TP(VC)

TP(RF)

TP

(AGCCON)

TP(FE)

TP(TE)

TP(FE1)

21

31

31,,

21

16

16

)(

)(

(Page 31)

19

21

21

31

31,,

• Semiconductor
Location
(Side A)

Ref. No. Location

Q101 C-3

KSS-213D/Q-NP

• Semiconductor
Location
(Side B)

Ref. No. Location

IC101 C-2
IC102 B-1
IC103 B-1

2424

7-4. SCHEMATIC DIAGRAM – BD Board – • See page 35 for Waveforms. • See page 50 for IC Block Diagrams.

`

3

HCD-LX9AV/LX10AV/LX90AV

6

A

(Page 33)

2

4

1

5

IC102

16

• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
( ) : CD PLAY

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

2525

HCD-LX9AV/LX10AV/LX90AV

7-5. PRINTED WIRING BOARDS – CD MOTOR Section – • See page 20 for Circuit Boards Location.

TABLE SENSOR BOARD

TO

D

16

C

TO

CD MOTOR BOARD

16

C

LED BOARD

B

(Page 31)TO

16

D

TO

CD MOTOR BOARD

2626

7-6. SCHEMATIC DIAGRAM – CD MOTOR Section – • See page 50 for IC Block Diagrams.

HCD-LX9AV/LX10AV/LX90AV

B



(Page 33)

16

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : CD STOP

2727

HCD-LX9AV/LX10AV/LX90AV

7-7. PRINTED WIRING BOARD – AUDIO Board – • See page 20 for Circuit Boards Location.

(

)

16

E

(Page 31)

2828

7-8. SCHEMATIC DIAGRAM – AUDIO Board – • See page 50 for IC Block Diagrams.

HCD-LX9AV/LX10AV/LX90AV

(PLAYBACK)

PB EQ AMP

(DECK A)

PB EQ AMP

(DECK B)

SWITCHING

PB LEVEL (L)

(DECK A)

PB LEVEL (R)

(DECK A)

PB LEVEL (L)

(DECK B)

PB LEVEL (R)

(DECK B)

NC

A +7.5V

APB–LCH

APB–RCH

AGND

BPB–LCH

BPB–RCH

A –7.5V

–VBIAS (–7.5V)

+VBIAS (+7.5V)

B–REC–RCH

B–REC–LCH

TC–HEAD–GND

E

(Page 33)

BIAS OSC

REC BIAS (L)

(DECK B)

REC BIAS

-6.8

REC BIAS (R)

(DECK B)

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD

16

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

2929

HCD-LX9AV/LX10AV/LX90AV

7-9. PRINTED WIRING BOARD – LEAF SW Board – • See page 20 for Circuit Boards Location.

4

3

1

2

(DECK A PLAY)

16

(DECK A HALF)

7-10. SCHEMATIC DIAGRAM – LEAF SW Board –

DECK A

PLUNGER

(DECK A 120/70)

(

)

(DECK A REC)

CONTROL SWITCH

F

(Page 31)

(DECK B PLAY)

4

1

(DECK B HALF)

DECK B

PLUNGER

3

2

(DECK B 120/70)

(DECK B REC)

12

12

(CAPSTAN)

DECK B

PLUNGER

DECK A

PLUNGER

(DECK A 120/70)

(DECK A HALF)

(DECK A REC)

(DECK B HALF)

(DECK B REC)

(DECK B 120/70)

ROTATION DETECT SENSOR

(DECK A)

ROTATION DETECT
SENSOR (DECK B)

CAPM–

CAPM+

CAPM–H/L

A–TRGM

TRGM–GND

B–TRGM

A–SHUT

DGND

A–HALF

+5V

A–120/70

B–SHUT

A PLAY

B–HALF / REC–A / REC–B

B–120/70

B PALY

NC

F

(Page 33)

(DECK A PLAY)

(DECK B PLAY)

• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD

16

: Impossible to measure

∗

3030

HCD-LX9AV/LX10AV/LX90AV

7-11. PRINTED WIRING BOARD – MAIN Board – • See page 20 for Circuit Boards Location.

J704

WOOFER

OUT

R733

Q731C731

E

R734

C776

C732

R732

C733

R731

N201

R283

1

5

(Page 42)

R273

Q281

R282

E

Q291

R293

E

R291

Q271

R723

R281

R292

C210

C723

R272

C212

R271

E

C207

C208

D201

C261

C203

R214

C211

R761

C761

C209

C202

R762

R213

C204

C213

C711

C260

C259

C201

FRONT

IN

R712

C266

C258

R711

C257

80

1

R764

FL201

R201

R763

C762 C763C712

C255

C256

R212

65

IC201

R203

R202

C246

J703
REAR

C775

R713

C252

C214

IN

R714

64

24

C215

C216

CENTERINWOOFER

R765

R715

R766

L201

C250

C246

C247

C249

R208

C248

R210

C236

41

40

25

C218

C217

R716
C713

C237

C230

C253

C219

IN

R207

R204

C245

C242

R211

C244

C224

C222

C220

R205

R209

C251

R206

C234

C231

C228

C241

C243

C225

C221

C240

C239

C238

C235

C232

C233

C223

C229

C227
C226

• Semiconductor
Location

Ref. No. Location

D191 B-7
D192 B-7
D193 A-6
D194 B-6
D201 E-7
D334 I-3
D501 I-6
D534 G-7
D801 I-6
D802 H-7
D803 H-8
D804 I-7
D805 H-8
D806 H-7
D807 H-8
D808 I-6
D911 E-10
D912 F-9
D913 F-10
D931 G-10
D951 B-10

IC101 D-3
IC181 B-5
IC191 B-7
IC201 C-9
IC301 G-2
IC501 H-6
IC601 B-1
IC781 A-12
IC801 I-7
IC901 C-11
IC911 E-10
IC931 G-10
IC932 G-11
IC932 G-12
IC933 H-11
IC951 B-11

(Page 38)

(Page 28)

(Page 30)

R504

R525

R524

R523

(Page 44)

(Page 44)

Q111 D-5
Q112 D-5
Q113 D-5
Q115 D-4
Q161 E-5
Q162 E-5
Q163 E-5
Q165 E-3
Q331 I-2
Q332 I-2
Q333 I-2
Q334 I-2
Q336 I-3
Q339 I-4
Q342 I-3
Q801 H-7
Q802 H-9
Q803 H-8
Q804 I-8
Q901 C-11
Q902 B-11
Q903 B-11
Q904 B-11
Q905 B-11
Q906 B-11
Q911 F-9
Q912 F-9
Q913 F-9
Q914 F-9
Q931 G-10
Q932 G-9
Q961 A-10
Q962 A-10

(Page 26)(Page 24)(Page 46)(Page 36)

3131

HCD-LX9AV/LX10AV/LX90AV

7-12. SCHEMATIC DIAGRAM – MAIN Board (1/3) –

(Page 34)

(Page 43)

(Page 33)

(Page 33)

(Page 33)

(Page 34)

(Page 47)

• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.

3232

no mark : TUNER (FM/AM)

7-13. SCHEMATIC DIAGRAM – MAIN Board (2/3) – • See page 35 for Waveforms. • See page 52 for Pin Function Description.

(Page 32)

(Page 29) (Page 30) (Page 34) (Page 32)

(Page 32)

(Page 34)

(Page 34)

(Page 37)

(Page 25)

(Page 27)

(Page 34)

HCD-LX9AV/LX10AV/LX90AV

PIN FUNCTION

• Voltages are dc with respect to ground under no­signal (detuned) conditions.
no mark : TUNER (FM/AM)
( ) : CD PLAY
{ } : TAPE PLAYBACK (DECK A)
[ ] : TAPE PLAYBACK (DECK B)
〈〈 〉〉 : RECORD

3333

HCD-LX9AV/LX10AV/LX90AV

7-14. SCHEMATIC DIAGRAM – MAIN Board (3/3) –

(Page 33)

(Page 39)

(Page 32)

(Page 33)

(Page 33)

(Page 32)

(Page 33)

(Page 45)

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

(Page 45)

3434

• Waveforms
– BD Board –

– MAIN Board –

1 IC101 yj (XTAO)

16.9344 MHz

2 IC101 ta (RF AC) (CD Play Mode)

3.1 Vp-p

1.2 Vp-p

5 IC101 wh (MDP) (CD PLAY MODE)

2.5 Vp-p

7.8 µs

6 IC102 qh (RFO) (CD Play Mode) 2 IC501 qg (XIN)

1.3 Vp-p

1 IC501 0 (XC-IN)

32.768 kHz

16 MHz

1.5 Vp-p

2.1 Vp-p

3 IC101 ra (TE) (CD Play Mode)

4 IC101 el (FE) (CD Play Mode)

– PANEL FL Board –

1 IC601 us (XOUT)

0.2 Vp-p

4.5 Vp-p

12.5 MHz

0.5 Vp-p

3535

HCD-LX9AV/LX10AV/LX90AAV

7-15. PRINTED WIRING BOARD – PANEL FL Board –• See page 20 for Circuit Boards Location.

16

(Page 40)

• Semiconductor Location

Ref. No. Location

D601 A-13
D602 A-10
D603 B-10
D604 A-3
D605 B-3
D608 B-12
D617 B-3

IC601 C-7
IC603 C-9

Ref. No. Location

Q601 B-12
Q602 B-12
Q603 B-12
Q605 A-13
Q606 A-11
Q607 B-11
Q608 B-9
Q609 B-8
Q610 B-6

(Page 31)

(Page 38)

(Page 40)

3636

7-16. SCHEMATIC DIAGRAM – PANEL FL Board – • See page 35 for Waveforms. • See page 50 for IC Block Diagrams. • See page 52 for IC Pin Function Description.

HCD-LX9AV/LX10AV/LX90AV

S

(Page 41)

R

(Page 41)

1

IC601

IC603

J

(Page 33)

PIN FUNCTION

Q

(Page 39)

16

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

3737

HCD-LX9AV/LX10AV/LX90AAV

7-17. PRINTED WIRING BOARD – PANEL VR Board –• See page 20 for Circuit Boards Location.

(Page 31)

• Semiconductor Location

Ref. No. LocationRef. No. Location

D606 A-10
D607 A-7
D611 B-12
D612 C-12
D613 C-5
D614 C-7
D616 C-8
D618 A-12
D619 B-6
D620 B-6
D621 C-6

D623 B-7
D624 B-8
D625 B-8
D626 B-9
D627 B-10
D698 C-6
D699 C-7

IC701 C-7
IC702 A-3

D613 D698 D614 D699

S630

S629

PRO

LOGIC

R779

R780

DVD

5.1CH

(Page 36) (Page 42)

3838

7-18. SCHEMATIC DIAGRAM – PANEL VR Board – • See page 50 for IC Block Diagrams.

DVD

5.1CH

PRO

LOGIC

HCD-LX9AV/LX10AV/LX90AV

(Page 37)

D699

SEL5923

D614

SEL5923

R780

68

DVD

5.1CH

R779

68

PRO LOGIC

D613

SEL5923

D698

SEL5923

(Page 43)

(Page 34)

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

3939

HCD-LX9AV/LX10AV/LX90AAV

7-19. PRINTED WIRING BOARDS – TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards –• See page 20 for Circuit Boards Location.

(Page 36)

16

TO

CD-L BOARD

(Page 36)

U

TO

TC-A BOARD

V

TO

TC-B BOARD

16

16

16

TO

CD-R 2 BOARD

4040

7-20. SCHEMATIC DIAGRAM – TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards –

HCD-LX9AV/LX10AV/LX90AV

R

(Page 37)

S

(Page 37)

16

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

4141

HCD-LX9AV/LX10AV/LX90AAV

7-21. PRINTED WIRING BOARDS – FRONT INPUT/HEADPHONE/MIC Boards –• See page 20 for Circuit Boards Location.

(Page 31)

16

(Page 44)

16

16

(Page 38)

4242

7-22. SCHEMATIC DIAGRAM – FRONT INPUT/HEADPHONE/MIC Boards –

L

(Page 32)

HCD-LX9AV/LX10AV/LX90AV

M

(Page 45)

T

(Page 39)

16

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

4343

HCD-LX9AV/LX10AV/LX90AAV

7-23. PRINTED WIRING BOARD – PA Board –• See page 20 for Circuit Boards Location.

• Semiconductor
Location

Ref. No. Location

D401 G-4
D402 C-2
D403 E-8
D404 E-7
D405 A-1
D406 B-1
D407 B-4
D408 B-4
D409 C-5
D410 G-4
D801 F-4
D802 E-5
D803 E-6
D804 G-2
D805 E-3
D831 I-8
D833 I-5
D834 I-5
D835 I-5
D836 I-5
D841 I-3
D842 I-2
D843 I-3
D844 I-3
D851 F-4
D852 E-5
D853 I-7
D902 F-9
D903 G-9
D904 G-9
D905 G-9
D906 H-10
D907 G-8
D908 G-9
D909 G-9
D910 G-8
D911 I-9
D912 I-8
D913 I-10

IC801 D-4
IC901 I-10

Q401 C-1
Q402 C-1
Q403 E-7
Q404 E-7
Q406 E-7
Q407 E-7
Q431 F-8
Q432 G-8
Q433 G-8
Q434 G-7
Q437 G-8
Q439 G-8
Q801 F-3
Q803 F-6
Q804 F-6
Q805 H-3
Q831 F-2
Q832 F-2
Q833 G-2
Q834 F-3
Q851 F-4
Q855 H-3
Q901 G-10
Q902 H-9
Q903 I-10
Q904 I-8
Q905 I-8
Q906 I-10
Q907 I-10
Q908 I-9

(Page 31)

(Page 31)

R409

D408

C408

C409

D410

R408

D407

C415

R423

CN805

R419

R418

D409

L404

R450

C416

R417

R416

C414

L403

R424

C410C411

R422

C406

L405

C407

RY403

R421

R403

R420

D404

R444

Q406

E

R430

Q407

E

R425

Q404

EE

Q403

R402

RY402

D403

(Page 48)

R443

R442

(Page 48)(Page 48)(Page 46)(Page 42)

4444

7-24. SCHEMATIC DIAGRAM – PA Board –

(Page 47)

(Page 49)

(Page 49)

(Page 34)

(Page 34)

(Page 43)

(Page 49)

HCD-LX9AV/LX10AV/LX90AV

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM

4545

HCD-LX9AV/LX10AV/LX90AAV

7-25. PRINTED WIRING BOARD – SURROUND Board –• See page 20 for Circuit Boards Location.

A

B

C

12

3456

(Page 31)

(Page 44)

4646

7-26. SCHEMATIC DIAGRAM – SURROUND Board –

HCD-LX9AV/LX10AV/LX90AV

STK443-050

(Page

32)
(Page 45)

4747

HCD-LX9AV/LX10AV/LX90AAV

7-27. PRINTED WIRING BOARDS – TRANS/SUB TRANS Boards –• See page 20 for Circuit Boards Location.

TO

SUB TRANS

BOARD

(Page 44)

(Page 44)

TO

TRANS BOARD

(Page 44)

4848

7-28. SCHEMATIC DIAGRAM – TRANS/SUB TRANS Boards –

HCD-LX9AV/LX10AV/LX90AV

(LX10AV: E, EA, MY, SP,

AR, AUS, MX)

(Page 45)

(Page 45)

(Page 45)

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

4949

• IC Block Diagrams
– BD Board –

IC101 CXD2587Q

IC103 CXA2568M-T6

LRCK

PCMD

BCK

EMPH

XVDD

XTAI
XTAO
XVSS

AVDD1
AOUT1

AIN1

LOUT1

AVSS1
AVSS2

LOUT2

AIN2

AOUT2
AVDD2

RMUT

LMUT

VDD

AVDD3

DOUT

60

DIGITAL

OUT

61

62

63

64

65

66
67
68
69
70
71

72

73
74

75

76

77
78

79
80

D/A

INTERFACE

TIMING

LOGIC

1

2

SQCK

SQSO

PWM

3rd ORDER

NOISE SHAPER

OVER SAMPLING

DIGITAL FILTER

SERIAL IN

INTERFACE

3

4

XRST

SYSM

59

58

INTERNAL BUS

PWM

VSS

57

ERROR

CORRECTOR

16K

RAM

SUBCODE

PROCESSOR

FILI

PCO

54

56

55

DIGITAL

PLL

EFM

DEMODULATOR

SERVO

INTERFACE

SERVO AUTO

SEQUENCER

CPU

INTERFACE

7

8

5

6

XLAT

CLOK

DATA

FILO

53

SENS

CLTV

AVSS3

52

9

SCLK

RFAC

51

50

ASYMMETRY
CORRECTION

10

11 12

VDD

ATSK

BIAS

49

SPOA

ASYI

13

AVDD0

ASYO

47

48

14

1516171819

XLON

SPOB

WFCK

46

XUGF

IGEN

XPCK

AVSS0

45

GFS

ADIO

44

SERVO DSP

FOCUS
SERVO

TRACKING

SERVO

SLED

SERVO

20

C2PO

SCOR

CE

TE

RFDC

43

41

42

OPERATIONAL

AMPLIFIER

ANALOG SWITCH

A/D

CONVERTER

PWM GENERATOR

CLOCK

GENERATOR

FOCUS PWM

GENERATOR

TRACKING

PWM GENERATOR

SLED PWM

GENERATOR

DIGITAL

CLV

MIRR, DFCT,

FOK

DETECTOR

+
–

VC

VEE

VCC

VCC

APC LD AMP

50µA

+
–

+
–

VEE

RF SUMMING AMP

VC

+
–

FOCUS ERROR AMP

+
–

VC

+
–

+
–

–
+

ERROR AMP

VCC

VC

TRACKING

VCC

+
–

VC

RF EQ AMP

+
–

1

HOLD

SE

40

FE

39

VC

38

AGC VTH

LD

XTSL

37

TES1

36

TEST

35

VSS

34
33

FRDR

32

FFDR
TRDR

31

TFDR

30

SRDR

29
28

SFDR

SSTP

27

MDP

26
25

LOCK

FOK

24

DFCT

23
22

MIRR

COUT

21

PD

A

B

C

D

VEE

F

E

VC

VEE

2

3

4

5

6

7

8

9

VC

10

11

VC

12

VEE

VEE

VC

APC PD AMP

+
–

–
+

VC BUFFER

+
–

+
–

–
+

VC

VC

VC

+
–

24

23

22

21
20

19

18

17

16

15

14

13

VCC

LC/PD

LD ON

HOLD SW
AGC CONT

RF BOT

RFTC

RF I

RF O

RFE

FE

TE

5050

– CD MOTOR Board –

IC201 TA8409S

STANDBY

BLOCK

HEAT

CUT OFF

BLOCK

2 3

1

VCC OUT2 NC GND

IN2

– AUDIO Board –

IC602 µPC1330HA

VREF

BLOCK

5 6

4

7

VS

OUT1 VREF IN1

8

9

2

1

SW R1 GND SW P1

3

– MAIN Board –

IC181 MC14052BF

1

2X0

2X2

2

3

2XCOM

2X3

4

5

2X1

6

INH

7

VEE

VSS

8

4

CONT

INVERTER

COMPARATER

5

VCC

GND

16

VDD

15

X2

X1

14

XCOM

13

X0

12

X3

11

A

10

9

B

6

SW P2 GND

7 8 9

SW R2

– PANEL FL Board –

IC603 BA3830F

REFERENCE

1

R02

R01

LINE NF

LINE IN

REC NF

REC IN

RESET C

BIAS C

GND

2

3

4

5

7
8
9

6

CURRENT

REFERENCE

CURRENT

–
+

–
+

BAND
PASS

FILTER

RESET

DET

18

17
16
15
14
13
12

11

10

RESET

F01
F02
F03
F04
F05
F06

REC LEVEL

VCC

51

7-23. IC PIN FUNCTION DESCRIPTION

• MAIN BOARD IC501 M30622MA-A26FP

Pin No. Pin Name I/O Function

1 POWER O Power amp ON/OFF signal output

2 POWER O Power ON/OFF signal output

3 F-RELAY O Front speaker relay control output

4 REAR-RELAY O Rear speaker relay control output (Not used)

5 CD-POWER O CD power on signal output

6 LINE-MUTE O Line mute signal output

7 DBFB-H/L O DBFB H/L select signal output

8 — — Connected to ground

9 — — Connected to ground

10 XC-IN I

11 XC-OUT O

12 RESET I System reset signal input

13 X-OUT O X’tal (16MHz) (MAIN SYSTEM CLOCK)

14 VSS — Ground

15 X-IN I X’tal (16MHz) (MAIN SYSTEM CLOCK)

16 VDD — Power supply (+5V)

17 NMI I Not used

18 WAKE UP I WAKE UP signal input

19 SCOR I CD Q-data request signal input

20 RDS-INT I RDS data interrupt input

21 RDS-DATA I RDS data interrupt input

22 AC-CUT I AC cut ON (L)/OFF (H) check

23 PL-CLK O Clock output to pro-logic (Not used)

24 PL-DATA O Data output to pro-logic (Not used)

25 PL-LAT O Latch signal output to pro-logic (Not used)

26 TIMER LED O Not used

27 PROTECT I Speaker protect signal input

28 V MUTE O Video mute signal output

29 IIC-CLK O I2C SCL

30 IIC-DATA O I2C SDA

31 — — Not used

32 SQ-DATA I Subcode Q data clock input (CD data)

33 SQ-CLK O Subcode Q data clock output (CD data clock)

34 SW-MODE O SW-MODE music/movie select signal output

35 CD-DATA O CD data output

36 H/P IN I Head phone detect

37 CD-CLK O CD clock output

38 493-LAT O Latch signal output for IC101 (M62493FP)

39 CLOCK-OUT O Clock out signal check

40 NO-USE — Not used

41 NO-USE — Not used

42 FL OFF O Fluorescent indicator tube filament on/off signal output

43 STBY RELAY O Main POWER on/off signal output

44 BASS FREQ O FREQ high/low signal output (Not used)

45 FUNC SEL 1 O Function select signal output

46 FUNC SEL 0 O Function select signal output

47 493-DATA O Data signal output for IC101 (M62493FP)

48 493-CLK O Clock signal output for IC101 (M62493FP)

49 ST-MUTE O Tuner mute signal output

50 STEREO I Stereo detection for tuner

X’tal (32.768 KHz) (SUB CLOCK)

52

Pin No. Pin Name I/O Function

51 TUNED I Tuned detection for tuner

52 ST-CE O Tuner chip enable output

53 ST-DOUT O Tuner data output

54 ST-DIN I Tuner data input

55 ST-CLK O Tuner clock output

56 SENS I BD Condition signal input

57 HOLD O MODE signal output

58 XLT O CD latch signal output

59 XRST O CD reset signal output

60 DISC-SENS I Slit sensor of disc table input (Connected to ground)

61 T-SENS I CD table detection signal input

62 VDD — Power supply (+5V)

63 TBL-L O Table motor control output

64 VSS I Ground

65 TBL-R O Table motor control output

66 LOAD-OUT O Loading motor control signal output (Not used)

67 LOAD-IN O Loading motor control signal input (Not used)

68 ENC 3/UP-SW I Disc tray UP signal input.

69 ENC 2/DISC-LED I Disc LED signal output

70 ENC 1 I (Connected to ground)

71 OUT-OPEN O (Connected to ground) Loading out detection signal output

72 B-TRG O B deck trigger motor control output

73 A-TRG O A deck trigger motor control output

74 CAP-M-COT2 O Capstan motor REW/FWD/STOP signal output

75 CAP-M-COT1 O Capstan motor REW/FWD/STOP signal output

76 CAP-M-H/L O Capstan motor High/Low speed select signal output

77 AMS-IN I AMS signal input

78 TC-MUTE O TC line mute ON/OFF selection output

79 R/PB/PAS O REC/PB/PASS selection output

80 NR-ON/OFF O DOLBY NR ON/OFF signal output

81 REC-MUTE O REC mute ON/OFF selection output

82 BIAS O Bias ON/OFF signal output

83 EQ-H/N O Equalizer High/Normal select output

84 PB-A/B O PB A deck/B deck select output

85 ALC O ALC ON/OFF output signal

86 B-PLAY-SW I B deck play detect

87 A-PLAY-SW I A deck play detect

88 A-HALF I A Deck half detector signal input

89 B-HALF I B Deck half detector signal input

90 B-SHUT I B Deck reel pulse detector

91 A-SHUT I A Deck reel pulse detector

92 SOFT-TEST O Software test port (Not used)

93 HP-MUTE O Head phone mute signal output

94 KEY/CD-ADJ I KEY (use the jig)/CD adjust point port

95 MODEL IN I MODEL input

96 AVSS — Analog ground

97 SPEC-IN I Specifications input

98 VREF I Analog reference voltage input

99 AVCC — Analog power supply (+5V)

100 TC-RELAY O REC/PB head selection output for IC602

53

• PANEL BOARD IC601 TMP88CC76F-1A25 (FLUORESCENT INDICATOR TUBE DRIVE, LED DRIVE,

KET CONTROL)

Pin No. Pin Name I/O Function

1 SIRCS I Remote commander signal input

2 JOG A I Rotary encoder (S702) pulse input

3 LED SCK O LED clock signal output

4 LED LATCH O LED latch signal output

5 LED DAT O LED serial data output

6 LED POWER — Not used

7 LED SEL O LED select signal output

8 JOG B I Rotary encoder (S702) pulse input

9 VOLUME A I

10 VOLUME B I

11 to 15 KEY 0 to KEY 4 I Key input

16 to 20 BPF 0 to BPF 4 I Rec level signal input

21 ALL BAND O Rec level signal output for auto DBDF

22 WAKE UP O Gradation right/WAKE UP signal output

23 Vss —

24 VAss —

25 VAref I Analog reference voltage input

26 VDD – Power supply (+5V)

27 to 40 GR 3 to GR 16 O FL gride signal output

41 VDD VFT — Power supply (+5V) for VFT

42, 43 GR 1, GR 2 O FL gride signal output

44 SEG 0 O FL segment signal output (Not used)

45 to 67 SEG 1 to SEG 23 O FL segment signal output

68 Vkk — Power supply (-25V) for FL segment signal output

69 Vdd — Power supply (+5V)

70 X in I X’tal (12.5MHz)

71 Vss — Ground

72 X out O X’tal (12.5MHz)

73 RESET I Reset signal input from main controller

74 DAILY LED O

75 REC LED O

76 TEST I Connected ground

77 LED-ECO O LED driver output

78 I2C DATA I I2C SDA input from master controller

79 I2C CLK I I2C SCL input from master controller

80 D-SW I Door switch signal input

Rotary encoder (S701) pulse input

Ground

LED driver output

54

SECTION 8

EXPLODED VIEWS

NOTE:

• -XX and -X mean standardized parts, so they
may have some difference from the original
one.

• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)

• Abbreviation
AR : Argentine model
AUS : Australian model
EA : Saudi Arabia model

↑↑

Parts Color Cabinet's Color

MX : Mexican model
MY : Malaysia model
SP : Singapore model

(1) CASE, BACK PANEL SECTION

1

• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

• The mechanical parts with no reference num­ber in the exploded views are not supplied.

• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.

#1

not
supplied

#3

3

#3

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

LX9AV: UK/
LX10AV: US

#2

5

LX9AV/LX10AV:
MX/LX90AV

#3

#3

6

4

2

Front panel

not
supplied

#3

#3

LX10AV

#3

#3

#3

#3

7

LX10AV

2

M901

#3

Ref. No. Part No. Description Remark

1 4-214-777-51 UPPER CASE
2 3-363-099-01 SCREW(CASE 3 TP2)
3 1-773-009-11 WIRE(FLAT TYPE) (15 CORE
4 1-693-484-11 TUNER(FM/AM) (LX10AV:E)
4 1-693-486-11 TUNER(FM/AM) (LX90AV)

4 1-693-488-11 TUNER(FM/AM)

(LX10AV:EA,MX,AR,MY,SP,AUS)
4 1-693-490-11 TUNER(FM/AM) (LX9AV)
5 4-956-370-12 BAND,PLUG FIXED (LX9AV:UK/LX10AV:AUS)

Ref. No. Part No. Description Remark

6 1-535-706-21 PLUG,JUMPER (LX9AV/LX10AV:MX,LX90AV)
7 4-225-530-01 PANEL, BACK (LX90AV)
7 4-225-530-11 PANEL, BACK (LX9AV)
7 4-225-530-21 PANEL, BACK (LX10AV:E,AR)
7 4-225-530-31 PANEL, BACK (LX10AV:MY,SP)

7 4-225-530-51 PANEL, BACK (LX10AV:AUS)
7 4-225-530-61 PANEL, BACK (LX10AV:EA)
7 4-225-530-41 PANEL, BACK (LX10AV:MX)
M901 1-763-072-11 FAN, D.C.(LX10AV)

55

(2) FRONT PANEL SECTION-1

66

72

TCM-230PWR1

#3

67

70

73

60

58

57

59

61

62

64

63

supplied with
S701

52

68

65

#3

71

not
supplied

68

62

52

69

52

52

#3

62

not
supplied

52

64

52

55

52

52

51

Ref. No. Part No. Description Remark

51 4-225-516-61 PLATE, ORNAMENTAL

(LX10AV:E,MX,AR,MY,SP)
51 4-225-516-71 PLATE, ORNAMENTAL (LX10AV:EA,AUS)
51 4-225-516-81 PLATE, ORNAMENTAL (LX9AV)
51 4-225-516-51 PLATE, ORNAMENTAL (LX90AV)
52 4-951-620-01 SCREW (2.6X8), +BVTP

53 1-676-276-11 FRONT INPUT BOARD
54 X-4952-504-1 LID(TC) ASSY
55 A-4428-176-A CD-R BOARD, COMPLETE
56 4-225-521-01 SPRING (TC-LID)
57 A-4428-176-A CD-L BOARD, COMPLETE

58 X-4952-462-1 PANEL (CD) ASSY, SUB
59 4-040-472-01 LATCH, D.C.
60 X-4952-466-1 LID(CD) ASSY

54

52

56

53

Ref. No. Part No. Description Remark

61 4-225-524-01 SPRING (CD)
62 4-224-104-21 DAMPER
63 4-225-503-01 KNOB(CD)
64 4-225-517-01 HOLDER (CASE)
65 4-225-522-01 SPRING (DECK-A)

66 X-4952-464-1 HOLDER (DECK-A) ASSY
67 4-225-509-01 HOLDER (DECK-A)
68 4-959-229-11 DETENT, CASSETTE
69 4-225-523-01 SPRING (DECK-B)
70 X-4952-465-1 HOLDER (DECK-B) ASSY

71 4-225-510-01 HOLDER (DECK-B)
72 1-773-056-11 WIRE(FLAT TYPE) (17 CORE)
73 1-773-032-11 WIRE(FLAT TYPE) (15 CORE)

56

(3) FRONT PANEL SECTION-2

105

104

supplied with
J801, J802

108

109

109

not
supplied

not supplied

109

111

#3

114

112

110

not
supplied

113

115

119

109

109

109

116

109

109

109

117

supplied with
J803

109

109

118

120

109

107

106

103

Ref. No. Part No. Description Remark

101 X-4952-443-1 PANEL ASSY, FRONT (LX90AV)
101 X-4952-444-1 PANEL ASSY, FRONT

101 X-4952-445-1 PANEL ASSY, FRONT (LX9AV)
101 X-4952-446-1 PANEL ASSY, FRONT (LX10AV:EA,AUS)
102 4-948-236-21 CUSHION (107)

103 4-225-501-01 KNOB (VOL)
104 4-226-888-01 LEVER (EJECT-B)
105 4-226-887-01 LEVER (EJECT-A)
106 4-225-500-01 RING (VOL)
107 4-225-502-01 KNOB (MIC)

107 4-225-502-11 KNOB (MIC) (LX9AV/LX10AV:EA,AUS)
108 1-676-274-11 TC-A BOARD
109 4-951-620-01 SCREW (2.6X8), +BVTP

101

(LX10AV:E,MX,AR,MY,SP)

(LX10AV:E,MX,AR,MY,SP,LX90AV)

not
supplied

109

121

102

Ref. No. Part No. Description Remark

110 A-4428-180-A MIC BOARD, COMPLETE
111 4-226-883-01 COVER (EJECT)
112 4-226-882-01 LEVER (EJECT-C)
113 4-226-881-01 LEVER (EJECT-B)
114 4-226-880-01 LEVER (EJECT-A)

115 4-226-889-01 SPRING (LEVER)
116 A-4428-215-A PANEL FL BOARD, COMPLETE
117 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
118 A-4428-130-A PANEL VR BOARD, COMPLETE

(LXLX10AV,LXLX90AV)

118 A-4428-142-A PANEL VR BOARD, COMPLETE (LX9AV)
119 1-773-150-11 WIRE (FLAT TYPE) (21 CORE)
120 1-676-281-11 HEADPHONE BOARD
121 1-676-275-11 TC-B BOARD

57

(4) CHASSIS SECTION

#3

161

#2

not
supplied

US

152

#3

#5

153

#5

#3

T951

#2

154

#4

#3

not
supplied

not
supplied

155

#4

#3

156

not
supplied

#3

not
supplied

157

#3

159

E

E, MX

EA, MY, SP

159

AEP, UK, CIS, EA,
MY, SP

AUS

159

AR

UK

159

160

160

159

CDM37M-5BD32L

151

not
supplied

Ref. No. Part No. Description Remark

151 1-790-287-11 WIRE (FLAT TYPE) (19 CORE)
152 1-676-267-11 TRANS BOARD
153 1-676-268-11 SUB TRANS BOARD (LX9AV,LXLX90AV)
154 A-4428-148-A PA BOARD, COMPLETE (LX9AV)
154 A-4428-151-A PA BOARD, COMPLETE (LXLX10AV:E,MX,AR)

154 A-4428-938-A PA BOARD, COMPLETE

(LXLX10AV:EA,MY,SP,AUS)
154 A-4428-140-A PA BOARD, COMPLETE (LXLX90AV)
155 3-703-244-00 BUSHING (FBS001), CORD

(LX9AV/LX10AV:EA,AR,MY,SP,AUS,LX90AV)

155 4-966-266-01 BUSHING (S) (FBS002), CORD (LX10AV:E,MX)

* 156 4-988-533-01 HOLDER, PWB

157 A-4428-133-A MAIN BOARD, COMPLETE (LXLX90AV)
157 A-4428-147-A MAIN BOARD, COMPLETE (LX9AV)
157 A-4428-150-A MAIN BOARD, COMPLETE (LXLX10AV:E,AR)
157 A-4428-937-A MAIN BOARD, COMPLETE (LXLX10AV:MX)

#3

not
supplied

158

#3

Ref. No. Part No. Description Remark

157 A-4428-940-A MAIN BOARD, COMPLETE (LXLX10AV:AUS)
157 A-4428-955-A MAIN BOARD, COMPLETE

(LXLX10AV:EA,MY,SP)

158 X-4941-228-1 FOOT (F22125H-M)

0 159 1-777-071-51 CORD, POWER (AEP,UK,CIS,MY,EA)
0 159 1-783-820-11 CORD, POWER (US)

0 159 1-783-941-11 CORD, POWER (AR)
0 159 1-696-847-11 CORD, POWER (AUS)
0 159 1-791-901-11 CORD, POWER (E,MX)
0 160 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
0 160 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,MY,SP)

0 160 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)

161 A-4428-132-A SURROUND AMP BOARD, COMPLETE

0 T951 1-435-247-11 TRANSFORMER, POWER (LX9AV)
0 T951 1-435-248-11 TRANSFORMER, POWER (LX90AV)
0 T951 1-435-249-11 TRANSFORMER, POWER (LX10AV)

160

58

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

(5) TAPE MECHANISM DECK SECTION-1

(TCM-230PWR1)

407

408

408

HP101

403

404

HRPE101

403

405

406

404

407

406

405

409

402

402

Ref. No. Part No. Description Remark

401 3-376-464-11 SCREW(+PTT 2.6X6),GROUND POINT
402 3-911-116-42 RIVET, PUSH
403 3-016-574-01 SPRING (HEAD), TENSION
404 X-3374-156-4 PINCH LEVER (REV) ASSY
405 X-3374-155-4 PINCH LEVER (FWD) ASSY

406 3-017-365-01 BASE (PINCH LEVER FWD)

401

Ref. No. Part No. Description Remark

407 3-017-366-01 BASE (PINCH LEVER REV)
408 3-026-892-01 SPRING (CASSETTE), LEAF
409 A-2007-799-A AUDIO BOARD, COMPLETE
HP101 A-2056-683-B DECK (A) ASSY, HEAD
HRPE101A-2056-684-B DECK (B) ASSY, HEAD

59

(6) TAPE MECHANISM DECK SECTION-2

(TCM-230PWR1)

452

455

461

#11

458

454

456

465

459

465

458

460

465

465

462

#13

451

#12

459

463

460

464

455

452

M1

453

Ref. No. Part No. Description Remark

451 X-3374-214-1 CHASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)

* 454 3-016-568-01 BRACKET (MOTOR)

455 X-3374-075-5 FLYWHEEL (FWD) ASSY

456 X-3374-076-1 FLYWHEEL (REV) ASSY
457 X-3374-157-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR2)

456

457

Ref. No. Part No. Description Remark

459 A-2004-630-A MECHANICAL BLOCK ASSY
460 3-016-566-01 SLIDER, REVERSE
461 A-2007-800-A LEAF SW BOARD, COMPLETE
462 3-016-575-01 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER

464 3-027-453-01 SPRING (GROUND), TENSION
465 3-030-823-01 SCREW (+BVTT) (2X3.5)
M1 A-2004-628-A MOTOR ASSY, CAPSTAN

60

(7) CD MECHANISM DECK SECTION

507

509

#3

#3

#3

not
supplied

not
supplied

#3

#3

#3

M201

502

513

514

516

515

517

511

518

518

519

519

520

521

510

511

505

501

501

506

508

504

501

503

510

510

525

524

523

522

512

(CDM37M-5BD32L)

Ref. No. Part No. Description Remark

501 4-987-976-01 SCREW, STEP
502 4-944-490-01 BELT (TIMING)
503 A-4660-978-A GEAR (PULLEY) ASSY
504 4-978-421-01 GEAR (MID)
505 4-978-425-01 ROLLER (CAM)

506 4-978-420-01 CAM (HOLDER)
507 1-452-925-21 MAGNET ASSY
508 4-978-417-01 TABLE, DISC
509 4-993-142-03 PULLEY (L), PRESS
510 X-4947-960-1 ROLLER ASSY

* 511 4-978-583-01 BRACKET (BU)

512 4-978-418-01 CHASSIS

* 513 4-980-385-01 HOLDER (SW)

Ref. No. Part No. Description Remark

* 514 A-4673-765-A CD MOTOR BOARD, COMPLETE

515 4-978-426-01 INDICATOR (NO.)

* 516 1-659-059-13 LED BOARD
* 517 1-659-058-13 TABLE SENSOR BOARD

518 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING\

519 4-958-593-01 SPRING (BU), COMPRESSION

* 520 4-978-419-01 HOLDER (BU-5)

521 4-998-716-01 SCREW, BU FITTING
522 4-989-493-01 SLIDER (37)
523 4-989-494-01 SCREW (SLIDER), STEP

524 4-989-819-21 SPRING, TENSION
525 4-989-491-01 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)

61

(8) BASE UNIT SECTION

(BU-5BD32L)

601

602

609

603

605

604

M101

M102

604

606

607

608

Ref. No. Part No. Description Remark
0 601 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-NP

602 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
603 4-917-567-21 GEAR (M)
604 4-951-940-01 INSULATOR (BU)
605 4-917-565-01 SHAFT, SLED

606 4-917-564-01 GEAR (P), FLATNESS

62

Ref. No. Part No. Description Remark

607 A-4724-486-A BD BOARD, COMPLETE
608 4-951-620-01 SCREW (2.6X8), +BVTP
609 3-713-786-51 SCREW +P 2X3
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

AUDIO

SECTION 9

ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the
parts list may be different from the parts speci­fied in the diagrams or the components used
on the set.

• -XX and -X mean standardized parts, so they
may have some difference from the original
one.

• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable

• Abbreviation
AR : Argentine model
AUS : Australian model
EA : Saudi Arabia model

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

A-2007-799-A AUDIO BOARD, COMPLETE

C301 1-162-289-31 CERAMIC 390PF 10% 50V
C302 1-126-968-11 ELECT 100uF 20% 6.3V
C303 1-162-282-31 CERAMIC 100PF 10% 50V
C304 1-130-483-00 MYLAR 0.01uF 5% 50V
C305 1-107-715-11 ELECT 22uF 20% 16V

C311 1-162-289-31 CERAMIC 390PF 10% 50V
C313 1-162-282-31 CERAMIC 100PF 10% 50V
C314 1-130-487-00 MYLAR 0.022uF 5% 50V
C315 1-126-233-11 ELECT 22uF 20% 50V
C331 1-137-427-11 MYLAR 120PF 5% 50V

MX : Mexican model
MY : Malaysia model
SP : Singapore model

**********************

< CAPACITOR >

• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order­ing these items.

• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .

• CAPACITORS
uF: µF

• COILS
uH: µH

CN601 1-695-338-11 PIN, CONNECTOR (PC BOARD) 15P

IC601 8-759-111-44 IC uPC4570C-1
IC602 8-759-143-54 IC uPC1330HA
IC611 8-759-111-44 IC uPC4570C-1

L331 1-410-780-11 INDUCTOR 27uH
L431 1-410-780-11 INDUCTOR 27uH
L601 1-414-193-41 INDUCTOR 220uH
L602 1-414-193-41 INDUCTOR 220uH

The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

When indicating parts by reference
number, please include the board.

< CONNECTOR >

< IC >

< COIL >

C332 1-162-288-31 CERAMIC 330PF 10% 50V
C333 1-162-209-31 CERAMIC 27PF 5% 50V
C401 1-162-289-31 CERAMIC 390PF 10% 50V
C402 1-126-968-11 ELECT 100uF 20% 6.3V
C403 1-162-282-31 CERAMIC 100PF 10% 50V

C404 1-130-483-00 MYLAR 0.01uF 5% 50V
C405 1-107-715-11 ELECT 22uF 20% 16V
C411 1-162-289-31 CERAMIC 390PF 10% 50V
C413 1-162-282-31 CERAMIC 100PF 10% 50V
C414 1-130-487-00 MYLAR 0.022uF 5% 50V

C415 1-126-233-11 ELECT 22uF 20% 50V
C431 1-137-427-11 MYLAR 120PF 5% 50V
C432 1-162-288-31 CERAMIC 330PF 10% 50V
C433 1-162-209-31 CERAMIC 27PF 5% 50V
C601 1-104-396-11 ELECT 10uF 20% 16V

C602 1-104-396-11 ELECT 10uF 20% 16V
C611 1-104-396-11 ELECT 10uF 20% 16V
C612 1-104-396-11 ELECT 10uF 20% 16V
C621 1-137-150-11 FILM 0.01uF 5% 100V
C622 1-126-961-11 ELECT 2.2uF 20% 50V

C623 1-136-155-00 FILM 0.015uF 5% 50V
C624 1-130-481-00 MYLAR 0.0068uF 5% 50V
C625 1-130-481-00 MYLAR 0.0068uF 5% 50V
C627 1-124-903-11 ELECT 1uF 20% 50V
C628 1-136-153-00 FILM 0.01uF 5% 50V

C642 1-104-664-11 ELECT 47uF 20% 16V

< TRANSISTOR >

Q621 8-729-142-46 TRANSISTOR 2SC2001TP-LK
Q622 8-729-142-46 TRANSISTOR 2SC2001TP-LK
Q623 8-729-801-93 TRANSISTOR 2SD1387-34-TP

< RESISTOR >

R301 1-247-881-00 CARBON 120K 5% 1/4W
R302 1-249-409-11 CARBON 220 5% 1/4W
R303 1-247-863-11 CARBON 22K 5% 1/4W
R304 1-247-889-00 CARBON 270K 5% 1/4W
R305 1-247-858-11 CARBON 13K 5% 1/4W

R311 1-247-881-00 CARBON 120K 5% 1/4W
R312 1-247-807-31 CARBON 100 5% 1/4W
R314 1-247-882-11 CARBON 130K 5% 1/4W
R315 1-247-850-11 CARBON 6.2K 5% 1/4W
R331 1-249-430-11 CARBON 12K 5% 1/4W

R401 1-247-881-00 CARBON 120K 5% 1/4W
R402 1-249-409-11 CARBON 220 5% 1/4W
R403 1-247-863-11 CARBON 22K 5% 1/4W
R404 1-247-889-00 CARBON 270K 5% 1/4W
R405 1-247-858-11 CARBON 13K 5% 1/4W

R411 1-247-881-00 CARBON 120K 5% 1/4W
R412 1-247-807-31 CARBON 100 5% 1/4W
R414 1-247-882-11 CARBON 130K 5% 1/4W
R415 1-247-850-11 CARBON 6.2K 5% 1/4W
R431 1-249-430-11 CARBON 12K 5% 1/4W

R601 1-249-409-11 CARBON 220 5% 1/4W

63

AUDIO BD

Ref. No. Part No. Description Remark

R602 1-249-409-11 CARBON 220 5% 1/4W
R608 1-249-409-11 CARBON 220 5% 1/4W
R609 1-247-863-11 CARBON 22K 5% 1/4W
R611 1-249-409-11 CARBON 220 5% 1/4W

R612 1-249-409-11 CARBON 220 5% 1/4W

0 R621 1-212-851-00 FUSIBLE 5.6 5% 1/4W F
0 R622 1-212-851-00 FUSIBLE 5.6 5% 1/4W F

R623 1-249-432-11 CARBON 18K 5% 1/4W
R624 1-249-432-11 CARBON 18K 5% 1/4W

R625 1-249-429-11 CARBON 10K 5% 1/4W

< VARIABLE RESISTOR >

RV301 1-238-598-11 RES, ADJ, CARBON 2.2K
RV311 1-238-598-11 RES, ADJ, CARBON 2.2K
RV341 1-241-768-11 RES, ADJ, CARBON 220K
RV401 1-238-598-11 RES, ADJ, CARBON 2.2K
RV411 1-238-598-11 RES, ADJ, CARBON 2.2K

RV441 1-241-768-11 RES, ADJ, CARBON 220K

< TRANSFORMER >

T621 1-423-980-11 TRANSFORMER, BIAS OSCILLATION

**************************************************************

Ref. No. Part No. Description Remark

C143 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C151 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C153 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C154 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V
C156 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C157 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
C161 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C162 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C163 1-126-206-11 ELECT CHIP 100uF 20% 6.3V

C165 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C167 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C168 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C171 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C172 1-163-123-00 CERAMIC CHIP 180PF 5% 50V

C181 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C182 1-163-123-00 CERAMIC CHIP 180PF 5% 50V

< CONNECTOR >

CN101 1-778-874-11 CONNECTOR, FFC (LIF (NON-ZIF)) 19P
CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P

< FERRITE BEAD >

A-4724-486-A BD BOARD, COMPLETE

*******************

< CAPACITOR >

C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C102 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C104 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C109 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V
C110 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V
C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C112 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C113 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C114 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C115 1-126-607-11 ELECT CHIP 47uF 20% 4V
C116 1-126-607-11 ELECT CHIP 47uF 20% 4V
C117 1-126-209-11 ELECT CHIP 100uF 20% 4V
C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C119 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C121 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C122 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C124 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C125 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C126 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C127 1-128-065-11 ELECT CHIP 68uF 20% 10V
C128 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C129 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C130 1-164-346-11 CERAMIC CHIP 1uF 16V
C131 1-124-779-00 ELECT CHIP 10uF 20% 16V
C133 1-164-346-11 CERAMIC CHIP 1uF 16V
C140 1-164-346-11 CERAMIC CHIP 1uF 16V
C141 1-164-346-11 CERAMIC CHIP 1uF 16V

FB101 1-500-445-21 FERRITE 0UH
FB103 1-500-445-21 FERRITE 0UH

< IC >

IC101 8-752-386-85 IC CXD2587Q
IC102 8-759-549-28 IC BA5974FP-E2
IC103 8-752-085-51 IC CXA2568M-T6

< TRANSISTOR >

Q101 8-729-010-08 TRANSISTOR MSB710-RT1

< RESISTOR >

R101 1-216-077-00 RES, CHIP 15K 5% 1/10W
R102 1-216-097-00 RES, CHIP 100K 5% 1/10W
R103 1-216-077-00 RES, CHIP 15K 5% 1/10W
R104 1-216-085-00 METAL CHIP 33K 5% 1/10W
R105 1-216-073-00 METAL CHIP 10K 5% 1/10W

R106 1-216-049-11 RES, CHIP 1K 5% 1/10W
R107 1-216-073-00 METAL CHIP 10K 5% 1/10W
R108 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R109 1-216-121-00 RES, CHIP 1M 5% 1/10W
R110 1-216-025-00 RES, CHIP 100 5% 1/10W

R111 1-216-121-00 RES, CHIP 1M 5% 1/10W
R113 1-216-121-00 RES, CHIP 1M 5% 1/10W
R114 1-216-073-00 METAL CHIP 10K 5% 1/10W
R116 1-216-001-00 METAL CHIP 10 5% 1/10W
R117 1-216-049-11 RES, CHIP 1K 5% 1/10W

R119 1-216-041-00 METAL CHIP 470 5% 1/10W
R123 1-216-073-00 METAL CHIP 10K 5% 1/10W
R124 1-216-097-00 RES, CHIP 100K 5% 1/10W
R131 1-216-033-00 METAL CHIP 220 5% 1/10W
R143 1-216-103-00 METAL CHIP 180K 5% 1/10W

R144 1-216-103-00 METAL CHIP 180K 5% 1/10W
R147 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

64

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

BD CD MOTOR

CD-L CD-R

CD-L2 CD-R2

Ref. No. Part No. Description Remark

R148 1-216-001-00 METAL CHIP 10 5% 1/10W
R149 1-216-001-00 METAL CHIP 10 5% 1/10W
R158 1-216-111-00 METAL CHIP 390K 5% 1/10W

R159 1-216-101-00 METAL CHIP 150K 5% 1/10W
R161 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R162 1-216-101-00 METAL CHIP 150K 5% 1/10W
R171 1-216-078-00 RES, CHIP 16K 5% 1/10W
R172 1-216-073-00 METAL CHIP 10K 5% 1/10W

R173 1-216-077-00 RES, CHIP 15K 5% 1/10W
R181 1-216-078-00 RES, CHIP 16K 5% 1/10W
R182 1-216-073-00 METAL CHIP 10K 5% 1/10W
R183 1-216-077-00 RES, CHIP 15K 5% 1/10W

< NETWORK RESISTOR >

RN101 1-233-576-11 RES, CHIP NETWORK 100
RN102 1-233-576-11 RES, CHIP NETWORK 100

< SWITCH >

S101 1-572-085-11 SWITCH, LEAF (LIMIT)

< VIBRATOR >

X101 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)

**************************************************************

* A-4673-765-A CD MOTOR BOARD, COMPLETE

**************************

Ref. No. Part No. Description Remark

A-4428-176-A CD-L BOARD

***********

CD-L2 BOARD

< CAPACITOR >

C691 1-162-306-11 CERAMIC 0.01uF 30% 16V

< CONNECTOR >

CN812 1-785-332-11 PIN, CONNECTOR (LIGHT ANGLE) 6P

< DIODE >

D641 8-719-058-04 LED SEL5223S-TP15 (NON-STOP)

< RESISTOR >

R729 1-249-420-11 CARBON 1.8K 5% 1/4W
R730 1-249-422-11 CARBON 2.7K 5% 1/4W
R731 1-247-843-11 CARBON 3.3K 5% 1/4W
R732 1-249-425-11 CARBON 4.7K 5% 1/4W
R733 1-249-427-11 CARBON 6.8K 5% 1/4W

R734 1-249-429-11 CARBON 10K 5% 1/4W
R735 1-249-431-11 CARBON 15K 5% 1/4W
R736 1-249-434-11 CARBON 27K 5% 1/4W
R745 1-249-408-11 CARBON 180 5% 1/4W

< SWITCH >

* 4-980-385-01 HOLDER (SW)

< CAPACITOR >

C201 1-126-964-11 ELECT 10uF 20% 50V
C202 1-164-159-21 CERAMIC 0.1uF 50V
C203 1-126-964-11 ELECT 10uF 20% 50V

< CONNECTOR >

* CN201 1-568-947-11 PIN, CONNECTOR 9P

< IC >

IC201 8-759-365-94 IC TA8409S

< COIL >

L201 1-408-117-00 INDUCTOR 10uH

< RESISTOR >

R205 1-249-427-11 CARBON 6.8K 5% 1/4W
R206 1-249-425-11 CARBON 4.7K 5% 1/4W

< SWITCH >

S201 1-762-587-11 SWITCH, PUSH (1 KEY) (UP)

**************************************************************

S651 1-762-875-21 SWITCH, KEYBOARD (LOOP)
S652 1-762-875-21 SWITCH, KEYBOARD (NON-STOP)
S653 1-762-875-21 SWITCH, KEYBOARD (EDIT)
S654 1-762-875-21 SWITCH, KEYBOARD (DISC 1)
S655 1-762-875-21 SWITCH, KEYBOARD (DISC 2)

S656 1-762-875-21 SWITCH, KEYBOARD (DISC 3)
S657 1-762-875-21 SWITCH, KEYBOARD (DISC 4)
S658 1-762-875-21 SWITCH, KEYBOARD (DISC 5)
S659 1-762-875-21 SWITCH, KEYBOARD (FLASH)
S691 1-762-587-11 SWITCH, PUSH (1 KEY)

(LID (CD) OPEN/CLOSE)

**************************************************************

A-4428-177-A CD-R BOARD

***********

CD-R2 BOARD

< CAPACITOR >

C613 1-162-306-11 CERAMIC 0.01uF 30% 16V
C614 1-162-306-11 CERAMIC 0.01uF 30% 16V

< CONNECTOR >

CN703 1-785-333-11 PIN, CONNECTOR (LIGHT ANGLE) 7P

< DIODE >

D700 8-719-056-13 LED SML79423C-TP15 (G X)

< RESISTOR >

R751 1-247-843-11 CARBON 3.3K 5% 1/4W
R752 1-249-425-11 CARBON 4.7K 5% 1/4W
R753 1-249-427-11 CARBON 6.8K 5% 1/4W

65

CD-R

CD-R2

FRONT INPUT HEADPHONE LEAF SW

Ref. No. Part No. Description Remark

R754 1-249-429-11 CARBON 10K 5% 1/4W
R755 1-249-431-11 CARBON 15K 5% 1/4W

R756 1-249-434-11 CARBON 27K 5% 1/4W
R757 1-249-438-11 CARBON 56K 5% 1/4W
R758 1-249-403-11 CARBON 68 5% 1/4W
R759 1-249-403-11 CARBON 68 5% 1/4W

< SWITCH >

S676 1-762-875-21 SWITCH, KEYBOARD (M)
S677 1-762-875-21 SWITCH, KEYBOARD (G X)
S678 1-762-875-21 SWITCH, KEYBOARD (m)
S679 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP)
S680 1-762-875-21 SWITCH, KEYBOARD (x)

S681 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE)
S682 1-762-875-21 SWITCH, KEYBOARD (REPEAT)
S701 1-473-534-11 ENCODER, ROTARY (. AMS >)

**************************************************************

1-676-276-11 FRONT INPUT BOARD

******************

< CAPACITOR >

C801 1-162-294-31 CERAMIC 0.001uF 10% 50V
C802 1-162-294-31 CERAMIC 0.001uF 10% 50V
C811 1-162-282-31 CERAMIC 100PF 10% 50V
C812 1-164-159-21 CERAMIC 0.1uF 50V
C813 1-126-960-11 ELECT 1uF 20% 50V

Ref. No. Part No. Description Remark

< RESISTOR >

R810 1-247-807-31 CARBON 100 5% 1/4W

**************************************************************

A-2007-800-A LEAF SW BOARD, COMPLETE

************************

< CAPACITOR >

C1001 1-107-716-11 ELECT 33uF 20% 10V

< CONNECTOR >

CN1001 1-784-459-11 CONNECTOR, FFC/FPC 17P

< DIODE >

D1001 8-719-991-33 DIODE 1SS133T-77
D1002 8-719-991-33 DIODE 1SS133T-77

< CABLE HOLDER >

* DM1001 1-784-581-11 HOLDER, CABLE (2.5mm PITCH) 4P

< IC >

IC1001 8-749-014-38 PHOTO INTERRUPTER SG-264
IC1002 8-749-014-38 PHOTO INTERRUPTER SG-264

< TRANSISTOR >

< GROUND PLATE >

EPT801 4-870-539-41 PLATE, GROUND

< FILTER >

FL803 1-424-228-11 FILTER, NOISE

< JACK >

J804 1-764-592-41 JACK 3P (VIDEO 2 INPUT)

< RESISTOR >

R801 1-249-417-11 CARBON 1K 5% 1/4W
R802 1-249-437-11 CARBON 47K 5% 1/4W
R803 1-249-417-11 CARBON 1K 5% 1/4W
R804 1-249-437-11 CARBON 47K 5% 1/4W
R805 1-247-804-11 CARBON 75 5% 1/4W

**************************************************************

1-676-281-11 HEADPHONE BOARD

*****************

< CAPACITOR >

C891 1-162-294-31 CERAMIC 0.001uF 10% 50V
C892 1-162-294-31 CERAMIC 0.001uF 10% 50V
C893 1-164-159-21 CERAMIC 0.1uF 50V

< CONNECTOR >

CN802 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P

Q1001 8-729-029-56 TRANSISTOR DTA144ESA-TP

< RESISTOR >

R907 1-249-441-11 CARBON 100K 5% 1/4W
R1001 1-249-409-11 CARBON 220 5% 1/4W
R1002 1-249-409-11 CARBON 220 5% 1/4W
R1003 1-249-414-11 CARBON 560 5% 1/4W
R1004 1-247-834-11 CARBON 1.3K 5% 1/4W

R1005 1-247-818-91 CARBON 300 5% 1/4W
R1006 1-247-864-11 CARBON 24K 5% 1/4W
R1007 1-247-856-00 CARBON 11K 5% 1/4W
R1008 1-249-417-11 CARBON 1K 5% 1/4W

< VARIABLE RESISTOR >

RV1001 1-241-785-11 RES, ADJ, CARBON 10K
RV1002 1-241-785-11 RES, ADJ, CARBON 10K

< SWITCH >

S1001 1-570-953-11 SWITCH, PUSH (1 KEY) (DISC APLAY)
S1002 1-570-953-11 SWITCH, PUSH (1 KEY) (DISC B PLAY)
S1003 1-771-333-11 SWITCH, LEAF (DISC A HALF)
S1004 1-771-205-11 SWITCH, LEAF (DISC A 120/70)
S1005 1-771-205-11 SWITCH, LEAF (DISC A REC)

S1006 1-771-333-11 SWITCH, LEAF (DISC B HALF)
S1008 1-771-205-11 SWITCH, LEAF (DISC B 120/70)
S1009 1-771-205-11 SWITCH, LEAF (DISC B REC)

**************************************************************

< JACK >

J803 1-770-226-41 JACK (LARGE TYPE) (PHONES)

66

LED MAIN

Ref. No. Part No. Description Remark

* 1-659-059-13 LED BOARD

**********

< DIODE >

D201 8-719-032-98 LED SEL5820A-TP15 (DISC No.)

< TRANSISTOR >

Q201 8-729-119-78 TRANSISTOR 2SC2785TP-HFE

< RESISTOR >

R201 1-247-863-11 CARBON 22K 5% 1/4W
R202 1-249-411-11 CARBON 330 5% 1/4W
R203 1-249-437-11 CARBON 47K 5% 1/4W

**************************************************************

A-4428-147-A MAIN BOARD, COMPLETE (LX9AV)

*********************

A-4428-133-A MAIN BOARD, COMPLETE (LX90AV)

*********************

A-4428-955-A MAIN BOARD, COMPLETE (LX10AV:EA,MY,SP)

*********************

A-4428-150-A MAIN BOARD, COMPLETE (LX10AV:E,AR)

*********************

A-4428-937-A MAIN BOARD, COMPLETE (LX10AV:MX)

*********************

A-4428-940-A MAIN BOARD, COMPLETE (LX10AV:AUS)

*********************

4-875-327-31 HEATSINK
7-685-646-79 SCREW+BVTP 3X8 TYPE2 N-S

< CAPACITOR >

C111 1-137-195-11 MYLAR 0.56uF 5.00% 50V
C112 1-130-488-00 MYLAR 0.027uF 5% 50V
C113 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C114 1-130-480-00 MYLAR 0.0056uF 5% 50V
C115 1-130-489-00 MYLAR 0.033uF 5% 50V

C116 1-130-473-00 MYLAR 0.0015uF 5% 50V
C117 1-130-483-00 MYLAR 0.01uF 5% 50V
C118 1-163-129-00 CERAMIC CHIP 330PF 5% 50V
C119 1-130-479-00 MYLAR 0.0047uF 5% 50V
C120 1-130-477-00 MYLAR 0.0033uF 5% 50V

C121 1-126-964-11 ELECT 10uF 20.00% 50V
C122 1-163-006-11 CERAMIC CHIP 560PF 10.00% 50V
C123 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C124 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C125 1-126-964-11 ELECT 10uF 20.00% 50V

C131 1-104-664-11 ELECT 47uF 20.00% 16V
C132 1-104-664-11 ELECT 47uF 20.00% 16V
C135 1-126-964-11 ELECT 10uF 20.00% 50V
C161 1-137-195-11 MYLAR 0.56uF 5.00% 50V
C162 1-130-488-00 MYLAR 0.027uF 5% 50V

C163 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C164 1-130-480-00 MYLAR 0.0056uF 5% 50V
C165 1-130-489-00 MYLAR 0.033uF 5% 50V
C166 1-130-473-00 MYLAR 0.0015uF 5% 50V
C167 1-130-483-00 MYLAR 0.01uF 5% 50V

C168 1-163-129-00 CERAMIC CHIP 330PF 5% 50V
C169 1-130-479-00 MYLAR 0.0047uF 5% 50V
C170 1-130-477-00 MYLAR 0.0033uF 5% 50V

Ref. No. Part No. Description Remark

C171 1-126-964-11 ELECT 10uF 20.00% 50V
C172 1-163-006-11 CERAMIC CHIP 560PF 10.00% 50V

C173 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C174 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C175 1-126-964-11 ELECT 10uF 20.00% 50V
C176 1-130-493-00 MYLAR 0.068uF 5% 50V
C177 1-130-483-00 MYLAR 0.01uF 5% 50V

C181 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C182 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C183 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C191 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C192 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C193 1-126-964-11 ELECT 10uF 20.00% 50V
C201 1-126-964-11 ELECT 10uF 20.00% 50V
C202 1-126-964-11 ELECT 10uF 20.00% 50V
C203 1-126-959-11 ELECT 0.47uF 20.00% 50V
C204 1-126-959-11 ELECT 0.47uF 20.00% 50V

C207 1-126-959-11 ELECT 0.47uF 20.00% 50V
C208 1-126-959-11 ELECT 0.47uF 20.00% 50V
C209 1-126-959-11 ELECT 0.47uF 20.00% 50V
C210 1-126-959-11 ELECT 0.47uF 20.00% 50V
C211 1-126-959-11 ELECT 0.47uF 20.00% 50V

C212 1-126-959-11 ELECT 0.47uF 20.00% 50V
C213 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C214 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C215 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C216 1-126-960-11 ELECT 1uF 20.00% 50V

C217 1-130-479-00 MYLAR 0.0047uF 5% 50V
C218 1-130-471-00 MYLAR 0.001uF 5% 50V
C219 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C220 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C221 1-136-169-00 MYLAR 0.22uF 5.00% 50V

C222 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C223 1-130-479-00 MYLAR 0.0047uF 5% 50V
C224 1-130-471-00 MYLAR 0.001uF 5% 50V
C225 1-126-960-11 ELECT 1uF 20.00% 50V
C226 1-130-480-00 MYLAR 0.0056uF 5% 50V

C227 1-136-161-00 MYLAR 0.047uF 5.00% 50V
C228 1-136-175-00 MYLAR 0.68uF 5.00% 50V
C229 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C230 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C231 1-126-963-11 ELECT 4.7uF 20.00% 50V

C232 1-126-963-11 ELECT 4.7uF 20.00% 50V
C233 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C234 1-136-169-00 MYLAR 0.22uF 5.00% 50V
C235 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C236 1-136-161-00 MYLAR 0.047uF 5.00% 50V

C237 1-136-161-00 MYLAR 0.047uF 5.00% 50V
C238 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C239 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C240 1-136-157-00 MYLAR 0.022uF 5.00% 50V
C241 1-136-157-00 MYLAR 0.022uF 5.00% 50V

C242 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C243 1-130-469-00 MYLAR 680PF 5% 50V
C244 1-136-153-00 FILM 0.01uF 5% 50V
C245 1-136-153-00 FILM 0.01uF 5% 50V
C246 1-130-469-00 MYLAR 680PF 5% 50V

67

MAIN

Ref. No. Part No. Description Remark

C247 1-136-153-00 FILM 0.01uF 5% 50V
C248 1-136-153-00 FILM 0.01uF 5% 50V
C249 1-104-664-11 ELECT 47uF 20.00% 16V
C250 1-130-481-00 MYLAR 0.0068uF 5% 50V
C251 1-126-963-11 ELECT 4.7uF 20.00% 50V

C252 1-126-934-11 ELECT 220uF 20.00% 16V
C253 1-126-934-11 ELECT 220uF 20.00% 16V
C255 1-126-964-11 ELECT 10uF 20.00% 50V
C256 1-126-964-11 ELECT 10uF 20.00% 50V
C257 1-126-964-11 ELECT 10uF 20.00% 50V

C258 1-126-964-11 ELECT 10uF 20.00% 50V
C259 1-126-964-11 ELECT 10uF 20.00% 50V
C260 1-126-964-11 ELECT 10uF 20.00% 50V
C261 1-126-964-11 ELECT 10uF 20.00% 50V
C262 1-126-964-11 ELECT 10uF 20.00% 50V

C264 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C301 1-126-960-11 ELECT 1uF 20.00% 50V
C302 1-130-479-00 MYLAR 0.0047uF 5% 50V
C303 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C304 1-136-165-00 MYLAR 0.1uF 5.00% 50V

C305 1-126-964-11 ELECT 10uF 20.00% 50V
C306 1-126-960-11 ELECT 1uF 20.00% 50V
C307 1-126-959-11 ELECT 0.47uF 20.00% 50V
C308 1-126-964-11 ELECT 10uF 20.00% 50V
C309 1-137-194-81 MYLAR 0.47uF 5.00% 50V

C310 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C311 1-126-964-11 ELECT 10uF 20.00% 50V
C312 1-126-959-11 ELECT 0.47uF 20.00% 50V
C313 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C314 1-126-964-11 ELECT 10uF 20.00% 50V

C315 1-126-963-11 ELECT 4.7uF 20.00% 50V
C316 1-104-665-11 ELECT 100uF 20.00% 10V
C317 1-104-665-11 ELECT 100uF 20.00% 10V
C320 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C333 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V

C334 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C351 1-126-960-11 ELECT 1uF 20.00% 50V
C352 1-130-479-00 MYLAR 0.0047uF 5% 50V
C353 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C354 1-136-165-00 MYLAR 0.1uF 5.00% 50V

C355 1-126-964-11 ELECT 10uF 20.00% 50V
C356 1-126-960-11 ELECT 1uF 20.00% 50V
C357 1-126-959-11 ELECT 0.47uF 20.00% 50V
C358 1-126-964-11 ELECT 10uF 20.00% 50V
C359 1-137-194-81 MYLAR 0.47uF 5.00% 50V

C401 1-126-961-11 ELECT 2.2uF 20.00% 50V
C411 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C412 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C413 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C414 1-126-916-11 ELECT 1000uF 20.00% 6.3V

C415 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C416 1-126-925-11 ELECT 470uF 20.00% 10V
C431 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C451 1-126-961-11 ELECT 2.2uF 20.00% 50V
C510 1-163-233-11 CERAMIC CHIP 18PF 5.00% 50V

C511 1-163-235-11 CERAMIC CHIP 22PF 5.00% 50V
C516 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C562 1-163-038-91 CERAMIC CHIP 0.1uF 25V

Ref. No. Part No. Description Remark

C564 1-104-665-11 ELECT 100uF 20.00% 10V
C598 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C599 1-104-665-11 ELECT 100uF 20.00% 10V
C601 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C602 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C603 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C604 1-126-961-11 ELECT 2.2uF 20.00% 50V

(LX10AV)

C604 1-126-963-11 ELECT 4.7uF 20.00% 50V

(LX9AV,LX90AV)
C605 1-130-479-00 MYLAR 0.0047uF 5% 50V
C606 1-130-473-00 MYLAR 0.0015uF 5% 50V
C607 1-136-159-00 MYLAR 0.033uF 5.00% 50V

(LX10AV)

C607 1-136-165-00 MYLAR 0.1uF 5.00% 50V

(LX9AV,LX90AV)

C608 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C609 1-126-933-11 ELECT 100uF 20.00% 16V
C651 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C652 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C653 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V

C654 1-126-961-11 ELECT 2.2uF 20.00% 50V

(LX10AV)

C654 1-126-963-11 ELECT 4.7uF 20.00% 50V

(LX9AV,LX90AV)
C655 1-130-479-00 MYLAR 0.0047uF 5% 50V
C656 1-130-473-00 MYLAR 0.0015uF 5% 50V
C657 1-136-159-00 MYLAR 0.033uF 5.00% 50V

(LX10AV)

C657 1-136-165-00 MYLAR 0.1uF 5.00% 50V

(LX9AV,LX90AV)
C658 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C659 1-126-933-11 ELECT 100uF 20.00% 16V
C701 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C702 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C703 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C704 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

(LX9AV,LX10AV:MX,LX90AV)

C705 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

(LX9AV,LX10AV:MX,LX90AV)
C711 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C712 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C713 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C721 1-126-960-11 ELECT 1uF 20.00% 50V
C722 1-126-926-11 ELECT 1000uF 20.00% 10V
C723 1-126-960-11 ELECT 1uF 20.00% 50V
C724 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C731 1-126-964-11 ELECT 10uF 20.00% 50V
C732 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C733 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C751 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C752 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

C753 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C761 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C762 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C763 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C772 1-163-038-91 CERAMIC CHIP 0.1uF 25V

C774 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C775 1-163-038-91 CERAMIC CHIP 0.1uF 25V

68

MAIN

Ref. No. Part No. Description Remark

C776 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C777 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C782 1-104-665-11 ELECT 100uF 20.00% 10V

C803 1-126-964-11 ELECT 10uF 20.00% 50V
C804 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C805 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C806 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C808 1-109-953-11 ELECT 2.2uF 20.00% 50V

C902 1-126-937-11 ELECT 4700uF 20.00% 16V
C903 1-126-964-11 ELECT 10uF 20.00% 50V
C904 1-126-964-11 ELECT 10uF 20.00% 50V
C905 1-126-924-11 ELECT 330uF 20.00% 10V
C911 1-126-964-11 ELECT 10uF 20.00% 50V

C912 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C913 1-104-665-11 ELECT 100uF 20.00% 10V
C914 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C932 1-126-964-11 ELECT 10uF 20.00% 50V
C933 1-126-933-11 ELECT 100uF 20.00% 16V

C934 1-126-964-11 ELECT 10uF 20.00% 50V
C935 1-126-767-11 ELECT 1000uF 20.00% 16V
C936 1-126-964-11 ELECT 10uF 20.00% 50V
C937 1-104-665-11 ELECT 100uF 20.00% 10V
C938 1-126-933-11 ELECT 100uF 20.00% 16V

C952 1-126-943-11 ELECT 2200uF 20.00% 25V
C953 1-126-964-11 ELECT 10uF 20.00% 50V
C954 1-126-964-11 ELECT 10uF 20.00% 50V
C955 1-126-924-11 ELECT 330uF 20.00% 10V
C961 1-163-038-91 CERAMIC CHIP 0.1uF 25V

(LX10AV)

< CONNECTOR >

CN303 1-784-776-11 CONNECTOR, FFC 15P
CN304 1-784-778-11 CONNECTOR, FFC 17P
CN411 1-784-780-11 CONNECTOR, FFC 19P
CN412 1-785-321-11 PIN, CONNECTOR (STRAIGHT) 9P
CN431 1-784-774-11 CONNECTOR, FFC 13P

CN441 1-750-745-11 CONNECTOR, FFC/FPC 13P (LX10AV,LX90AV)
CN441 1-750-747-11 CONNECTOR, FFC/FPC 15P (LX9AV)
CN452 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P
CN702 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
CN901 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P

CN902 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P

(LX9AV,LX10AV:E,MX,AR,LX90AV)

* CN902 1-770-729-11 CONNECTOR, BOARD TO BOARD 10P

(LX10AV:EA,MY,SP,AUS)

* CN903 1-564-506-11 PLUG, CONNECTOR 3P (LX10AV)

Ref. No. Part No. Description Remark

D803 8-719-988-61 DIODE 1SS355TE-17
D804 8-719-988-61 DIODE 1SS355TE-17
D805 8-719-988-61 DIODE 1SS355TE-17
D806 8-719-988-61 DIODE 1SS355TE-17
D807 8-719-988-61 DIODE 1SS355TE-17

D808 8-719-210-33 DIODE EC10DS2-TE12L5
D911 8-719-988-61 DIODE 1SS355TE-17
D912 8-719-210-33 DIODE EC10DS2-TE12L5
D913 8-719-210-33 DIODE EC10DS2-TE12L5
D931 8-719-210-33 DIODE EC10DS2-TE12L5

D951 8-719-988-61 DIODE 1SS355TE-17

< GROUND >

EP901 4-870-539-41 PLATE, GROUND

< FERRITE BEAD >

FB412 1-414-772-11 FERRITE 0UH
FB413 1-414-551-11 FERRITE 0UH
FB415 1-414-772-11 FERRITE 0UH

< FILTER >

FL201 1-233-289-21 FILTER, EMI (SMD)
FL501 1-233-289-21 FILTER, EMI (SMD)
FL502 1-233-289-21 FILTER, EMI (SMD)
FL503 1-233-289-21 FILTER, EMI (SMD)

< IC >

IC101 8-759-571-54 IC M62493FP
IC181 8-759-009-06 IC MC14052BFEL
IC191 8-759-571-53 IC BA7615N
IC201 8-759-571-51 IC M62464FP
IC301 8-759-495-26 IC HA12215F

IC501 8-759-653-44 IC M30622MA-A26FP
IC601 8-759-636-55 IC M5218AFP-T1
IC781 8-749-923-04 IC TOTX178A (CD DIGITAL OUT OPTICAL)
IC801 8-759-635-63 IC M51943BSL-TP
IC901 8-759-604-86 IC M5F7807L

IC911 8-759-231-53 IC M5F7805L
IC931 8-759-604-38 IC M5F78M10L
IC932 8-759-701-79 IC NJM7812FA (LX9AV,LX10AV)
IC932 8-759-604-39 IC M5F78M12L (LX90AV)
IC933 8-759-604-86 IC M5F7807L

IC951 8-759-604-90 IC M5F7907L

< JACK >

< DIODE >

D191 8-719-988-61 DIODE 1SS355TE-17
D192 8-719-988-61 DIODE 1SS355TE-17
D193 8-719-988-61 DIODE 1SS355TE-17
D194 8-719-988-61 DIODE 1SS355TE-17
D201 8-719-988-61 DIODE 1SS355TE-17

D334 1-216-295-91 SHORT 0
D501 8-719-988-61 DIODE 1SS355TE-17
D534 8-719-988-61 DIODE 1SS355TE-17
D801 8-719-988-61 DIODE 1SS355TE-17
D802 8-719-988-61 DIODE 1SS355TE-17

J701 1-794-148-21 JACK, PIN 8P (PHONO IN/MD IN/MD OUT/

VIDEO)(AUDIO IN))
J702 1-770-337-11 JACK, PIN 3P (VIDEO 1(VIDEO IN),VIDEO OUT)
J703 1-779-380-11 JACK, PIN 6P (FRONT/REAR/CENTER IN)
J704 1-770-377-31 JACK, PIN 1P (WOOFER OUT)
J705 1-573-028-31 JACK, PIN 4P (DJ MIX)

(LX9AV,LX10AV:MX,LX90AV)

< JUMPER RESISTOR >

JR1 1-216-295-91 SHORT 0
JR2 1-216-296-91 SHORT 0
JR3 1-216-296-91 SHORT 0
JR4 1-216-295-91 SHORT 0

69

MAIN

Ref. No. Part No. Description Remark

JR5 1-216-295-91 SHORT 0

JR6 1-216-296-91 SHORT 0
JR7 1-216-296-91 SHORT 0
JR8 1-216-296-91 SHORT 0
JR9 1-216-295-91 SHORT 0
JR10 1-216-296-91 SHORT 0

JR11 1-216-296-91 SHORT 0
JR191 1-216-295-91 SHORT 0
JR594 1-216-295-91 SHORT 0
JR703 1-216-295-91 SHORT 0
JR901 1-216-295-91 SHORT 0

JR907 1-216-295-91 SHORT 0 (LX10AV)
JR910 1-216-296-91 SHORT 0 (LX9AV,LX90AV)

< COIL >

L201 1-412-032-11 INDUCTOR CHIP 100uH
L781 1-412-032-11 INDUCTOR CHIP 100uH

< TRANSISTOR >

Q111 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q112 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q113 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q115 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q161 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Q162 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q163 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q165 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q271 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q281 8-729-141-30 TRANSISTOR 2SC3623ATP-LK

Q291 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q331 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q332 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q333 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q334 8-729-029-66 TRANSISTOR DTC114ESA-TP

Q335 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q336 8-729-116-59 TRANSISTOR 2SB1068TP
Q339 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q731 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q801 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Q802 8-729-029-21 TRANSISTOR DTA114ESA-TP
Q803 8-729-029-21 TRANSISTOR DTA114ESA-TP
Q804 8-729-029-40 TRANSISTOR DTA124ESA-TP
Q901 8-729-040-20 TRANSISTOR RT1P137L-TP
Q902 8-729-029-40 TRANSISTOR DTA124ESA-TP

Q903 8-729-040-19 TRANSISTOR RT1N137L-TP
Q904 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q905 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q906 8-729-029-68 TRANSISTOR DTC114TSA-TP
Q911 8-729-040-20 TRANSISTOR RT1P137L-TP

Q912 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q913 8-729-040-20 TRANSISTOR RT1P137L-TP
Q914 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q931 8-729-040-20 TRANSISTOR RT1P137L-TP
Q932 8-729-029-86 TRANSISTOR DTC124ESA-TP

Q961 8-729-620-05 TRANSISTOR 2SC2603TP-EF

(LX10AV)

Q962 8-729-140-04 TRANSISTOR 2SB1116-TP-LK (LX10AV)

Ref. No. Part No. Description Remark

< RESISTOR >

R111 1-216-073-00 METAL CHIP 10K 5% 1/10W
R112 1-216-121-91 RES-CHIP 1M 5% 1/10W
R113 1-216-103-00 METAL CHIP 180K 5% 1/10W
R114 1-216-043-91 RES-CHIP 560 5% 1/10W
R115 1-216-073-00 METAL CHIP 10K 5% 1/10W

R116 1-216-091-00 METAL CHIP 56K 5% 1/10W
R117 1-216-073-00 METAL CHIP 10K 5% 1/10W
R118 1-216-089-91 RES-CHIP 47K 5% 1/10W
R119 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R120 1-216-097-91 RES-CHIP 100K 5% 1/10W

R121 1-216-073-00 METAL CHIP 10K 5% 1/10W
R122 1-216-295-91 SHORT 0
R123 1-216-107-00 METAL CHIP 270K 5% 1/10W
R124 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R125 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

R126 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R127 1-216-111-00 METAL CHIP 390K 5% 1/10W
R129 1-216-121-91 RES-CHIP 1M 5% 1/10W
R131 1-216-025-91 RES-CHIP 100 5% 1/10W
R132 1-216-025-91 RES-CHIP 100 5% 1/10W

R133 1-216-025-91 RES-CHIP 100 5% 1/10W
R161 1-216-073-00 METAL CHIP 10K 5% 1/10W
R162 1-216-121-91 RES-CHIP 1M 5% 1/10W
R163 1-216-103-00 METAL CHIP 180K 5% 1/10W
R164 1-216-043-91 RES-CHIP 560 5% 1/10W

R165 1-216-073-00 METAL CHIP 10K 5% 1/10W
R166 1-216-091-00 METAL CHIP 56K 5% 1/10W
R167 1-216-073-00 METAL CHIP 10K 5% 1/10W
R168 1-216-089-91 RES-CHIP 47K 5% 1/10W
R169 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R170 1-216-097-91 RES-CHIP 100K 5% 1/10W
R171 1-216-073-00 METAL CHIP 10K 5% 1/10W
R172 1-216-295-91 SHORT 0
R173 1-216-107-00 METAL CHIP 270K 5% 1/10W
R174 1-216-073-00 METAL CHIP 10K 5% 1/10W

R175 1-216-097-91 RES-CHIP 100K 5% 1/10W
R177 1-216-111-00 METAL CHIP 390K 5% 1/10W
R178 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R179 1-216-121-91 RES-CHIP 1M 5% 1/10W
R201 1-216-025-91 RES-CHIP 100 5% 1/10W

R202 1-216-025-91 RES-CHIP 100 5% 1/10W
R203 1-216-041-00 METAL CHIP 470 5% 1/10W
R204 1-216-109-00 METAL CHIP 330K 5% 1/10W
R205 1-216-089-91 RES-CHIP 47K 5% 1/10W
R206 1-216-101-00 METAL CHIP 150K 5% 1/10W

R207 1-216-094-00 RES-CHIP 75K 5% 1/10W
R208 1-216-089-91 RES-CHIP 47K 5% 1/10W
R209 1-216-101-00 METAL CHIP 150K 5% 1/10W
R210 1-216-094-00 RES-CHIP 75K 5% 1/10W
R211 1-216-097-91 RES-CHIP 100K 5% 1/10W

R212 1-216-097-91 RES-CHIP 100K 5% 1/10W
R213 1-216-097-91 RES-CHIP 100K 5% 1/10W
R214 1-216-097-91 RES-CHIP 100K 5% 1/10W
R271 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R272 1-216-097-91 RES-CHIP 100K 5% 1/10W

R273 1-216-073-00 METAL CHIP 10K 5% 1/10W

70

MAIN

Ref. No. Part No. Description Remark

R281 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R282 1-216-097-91 RES-CHIP 100K 5% 1/10W
R283 1-216-073-00 METAL CHIP 10K 5% 1/10W
R291 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R292 1-216-097-91 RES-CHIP 100K 5% 1/10W
R293 1-216-073-00 METAL CHIP 10K 5% 1/10W
R301 1-216-085-00 METAL CHIP 33K 5% 1/10W
R302 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R303 1-216-025-91 RES-CHIP 100 5% 1/10W

R304 1-216-025-91 RES-CHIP 100 5% 1/10W
R305 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R306 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R307 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R308 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R309 1-216-081-00 METAL CHIP 22K 5% 1/10W
R311 1-216-121-91 RES-CHIP 1M 5% 1/10W
R312 1-216-102-00 RES-CHIP 160K 5% 1/10W
R313 1-216-097-91 RES-CHIP 100K 5% 1/10W
R315 1-216-073-00 METAL CHIP 10K 5% 1/10W

R316 1-216-079-00 METAL CHIP 18K 5% 1/10W
R317 1-216-073-00 METAL CHIP 10K 5% 1/10W
R318 1-216-073-00 METAL CHIP 10K 5% 1/10W
R319 1-216-111-00 METAL CHIP 390K 5% 1/10W
R321 1-216-059-00 METAL CHIP 2.7K 5% 1/10W

R322 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R332 1-216-045-00 METAL CHIP 680 5% 1/10W
R333 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R334 1-216-045-00 METAL CHIP 680 5% 1/10W
R335 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R340 1-216-089-91 RES-CHIP 47K 5% 1/10W
R343 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R344 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R345 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R351 1-216-085-00 METAL CHIP 33K 5% 1/10W

R352 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R353 1-216-025-91 RES-CHIP 100 5% 1/10W
R354 1-216-025-91 RES-CHIP 100 5% 1/10W
R355 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R356 1-216-071-00 METAL CHIP 8.2K 5% 1/10W

R357 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R358 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R359 1-216-085-00 METAL CHIP 33K 5% 1/10W
R371 1-216-089-91 RES-CHIP 47K 5% 1/10W
R372 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R373 1-216-049-91 RES-CHIP 1K 5% 1/10W
R374 1-216-089-91 RES-CHIP 47K 5% 1/10W
R375 1-216-094-00 RES-CHIP 75K 5% 1/10W
R376 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R377 1-216-089-91 RES-CHIP 47K 5% 1/10W

R378 1-216-094-00 RES-CHIP 75K 5% 1/10W
R401 1-216-025-91 RES-CHIP 100 5% 1/10W
R402 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R413 1-216-295-91 SHORT 0
R414 1-216-295-91 SHORT 0

R451 1-216-025-91 RES-CHIP 100 5% 1/10W
R452 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R501 1-216-025-91 RES-CHIP 100 5% 1/10W
R503 1-216-025-91 RES-CHIP 100 5% 1/10W

Ref. No. Part No. Description Remark

R504 1-216-025-91 RES-CHIP 100 5% 1/10W

R505 1-216-025-91 RES-CHIP 100 5% 1/10W
R511 1-216-109-00 METAL CHIP 330K 5% 1/10W
R513 1-216-295-91 SHORT 0
R517 1-216-073-00 METAL CHIP 10K 5% 1/10W
R518 1-216-025-91 RES-CHIP 100 5% 1/10W

R519 1-216-025-91 RES-CHIP 100 5% 1/10W
R520 1-216-025-91 RES-CHIP 100 5% 1/10W

(LX9AV)

R521 1-216-025-91 RES-CHIP 100 5% 1/10W

(LX9AV)
R522 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R523 1-216-025-91 RES-CHIP 100 5% 1/10W

R524 1-216-025-91 RES-CHIP 100 5% 1/10W
R525 1-216-025-91 RES-CHIP 100 5% 1/10W
R526 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R527 1-216-025-91 RES-CHIP 100 5% 1/10W
R528 1-216-025-91 RES-CHIP 100 5% 1/10W

R529 1-216-025-91 RES-CHIP 100 5% 1/10W
R530 1-216-025-91 RES-CHIP 100 5% 1/10W
R532 1-216-025-91 RES-CHIP 100 5% 1/10W
R533 1-216-025-91 RES-CHIP 100 5% 1/10W
R535 1-216-025-91 RES-CHIP 100 5% 1/10W

R536 1-216-025-91 RES-CHIP 100 5% 1/10W
R537 1-216-025-91 RES-CHIP 100 5% 1/10W
R538 1-216-025-91 RES-CHIP 100 5% 1/10W
R540 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R541 1-216-073-00 METAL CHIP 10K 5% 1/10W

R542 1-216-025-91 RES-CHIP 100 5% 1/10W
R543 1-216-025-91 RES-CHIP 100 5% 1/10W
R545 1-216-025-91 RES-CHIP 100 5% 1/10W
R546 1-216-025-91 RES-CHIP 100 5% 1/10W
R547 1-216-025-91 RES-CHIP 100 5% 1/10W

R548 1-216-025-91 RES-CHIP 100 5% 1/10W
R549 1-216-041-00 METAL CHIP 470 5% 1/10W
R550 1-216-025-91 RES-CHIP 100 5% 1/10W
R551 1-216-025-91 RES-CHIP 100 5% 1/10W
R552 1-216-025-91 RES-CHIP 100 5% 1/10W

R553 1-216-025-91 RES-CHIP 100 5% 1/10W
R554 1-216-025-91 RES-CHIP 100 5% 1/10W
R555 1-216-025-91 RES-CHIP 100 5% 1/10W
R556 1-216-025-91 RES-CHIP 100 5% 1/10W
R557 1-216-025-91 RES-CHIP 100 5% 1/10W

R558 1-216-025-91 RES-CHIP 100 5% 1/10W
R559 1-216-025-91 RES-CHIP 100 5% 1/10W
R561 1-216-025-91 RES-CHIP 100 5% 1/10W
R563 1-216-025-91 RES-CHIP 100 5% 1/10W
R565 1-216-025-91 RES-CHIP 100 5% 1/10W

R567 1-216-073-00 METAL CHIP 10K 5% 1/10W
R568 1-216-025-91 RES-CHIP 100 5% 1/10W
R569 1-216-025-91 RES-CHIP 100 5% 1/10W
R570 1-216-089-91 RES-CHIP 47K 5% 1/10W
R572 1-216-025-91 RES-CHIP 100 5% 1/10W

R573 1-216-025-91 RES-CHIP 100 5% 1/10W
R574 1-216-025-91 RES-CHIP 100 5% 1/10W
R575 1-216-025-91 RES-CHIP 100 5% 1/10W
R576 1-216-025-91 RES-CHIP 100 5% 1/10W
R577 1-216-025-91 RES-CHIP 100 5% 1/10W

71

MAIN

Ref. No. Part No. Description Remark

R578 1-216-025-91 RES-CHIP 100 5% 1/10W
R579 1-216-025-91 RES-CHIP 100 5% 1/10W
R580 1-216-025-91 RES-CHIP 100 5% 1/10W
R581 1-216-025-91 RES-CHIP 100 5% 1/10W
R582 1-216-025-91 RES-CHIP 100 5% 1/10W

R583 1-216-025-91 RES-CHIP 100 5% 1/10W
R584 1-216-025-91 RES-CHIP 100 5% 1/10W
R585 1-216-025-91 RES-CHIP 100 5% 1/10W
R586 1-216-025-91 RES-CHIP 100 5% 1/10W
R587 1-216-025-91 RES-CHIP 100 5% 1/10W

R588 1-216-025-91 RES-CHIP 100 5% 1/10W
R589 1-216-025-91 RES-CHIP 100 5% 1/10W
R590 1-216-025-91 RES-CHIP 100 5% 1/10W
R591 1-216-025-91 RES-CHIP 100 5% 1/10W
R593 1-216-025-91 RES-CHIP 100 5% 1/10W

R594 1-216-073-00 METAL CHIP 10K 5% 1/10W
R595 1-216-089-91 RES-CHIP 47K 5% 1/10W
R596 1-216-295-91 SHORT 0 (LX90AV)
R596 1-216-081-00 METAL CHIP 22K 5% 1/10W

(LX10AV:E,MX,AR)

R596 1-216-089-91 RES-CHIP 47K 5% 1/10W

(LX10AV:EA,MY,SP,AUS)

R596 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

(LX9AV)

R597 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

(LX10AV:EA,MY,SP,AUS)

R597 1-216-089-91 RES-CHIP 47K 5% 1/10W

(LX9AV,LX10AV:E,MX,AR,LX90AV)
R600 1-216-025-91 RES-CHIP 100 5% 1/10W
R601 1-216-049-91 RES-CHIP 1K 5% 1/10W

R602 1-216-049-91 RES-CHIP 1K 5% 1/10W
R603 1-216-089-91 RES-CHIP 47K 5% 1/10W
R604 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX10AV)

R604 1-216-047-91 RES-CHIP 820 5% 1/10W

(LX9AV,LX90AV)

R605 1-216-115-00 METAL CHIP 560K 5% 1/10W

R606 1-216-089-91 RES-CHIP 47K 5% 1/10W
R607 1-216-049-91 RES-CHIP 1K 5% 1/10W
R608 1-216-097-91 RES-CHIP 100K 5% 1/10W
R609 1-216-033-00 METAL CHIP 220 5% 1/10W
R651 1-216-049-91 RES-CHIP 1K 5% 1/10W

R652 1-216-049-91 RES-CHIP 1K 5% 1/10W
R653 1-216-089-91 RES-CHIP 47K 5% 1/10W
R654 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX10AV)

R654 1-216-047-91 RES-CHIP 820 5% 1/10W

(LX9AV,LX90AV)

R655 1-216-115-00 METAL CHIP 560K 5% 1/10W

R656 1-216-089-91 RES-CHIP 47K 5% 1/10W
R657 1-216-049-91 RES-CHIP 1K 5% 1/10W
R658 1-216-097-91 RES-CHIP 100K 5% 1/10W
R659 1-216-033-00 METAL CHIP 220 5% 1/10W
R701 1-216-049-91 RES-CHIP 1K 5% 1/10W

R702 1-216-097-91 RES-CHIP 100K 5% 1/10W
R703 1-216-049-91 RES-CHIP 1K 5% 1/10W
R704 1-216-097-91 RES-CHIP 100K 5% 1/10W
R705 1-216-049-91 RES-CHIP 1K 5% 1/10W
R706 1-216-097-91 RES-CHIP 100K 5% 1/10W

Ref. No. Part No. Description Remark

R707 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)

R708 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)

R709 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)

R710 1-216-049-91 RES-CHIP 1K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)

R711 1-216-071-00 METAL CHIP 8.2K 5% 1/10W

R712 1-216-073-00 METAL CHIP 10K 5% 1/10W
R713 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R714 1-216-073-00 METAL CHIP 10K 5% 1/10W
R715 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R716 1-216-073-00 METAL CHIP 10K 5% 1/10W

R717 1-216-097-91 RES-CHIP 100K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)

R718 1-216-097-91 RES-CHIP 100K 5% 1/10W

(LX9AV,LX10AV:MX,LX90AV)
R721 1-216-022-00 METAL CHIP 75 5% 1/10W
R722 1-216-015-00 METAL CHIP 39 5% 1/10W
R723 1-216-022-00 METAL CHIP 75 5% 1/10W

R724 1-216-073-00 METAL CHIP 10K 5% 1/10W
R731 1-216-073-00 METAL CHIP 10K 5% 1/10W
R732 1-216-049-91 RES-CHIP 1K 5% 1/10W
R733 1-216-097-91 RES-CHIP 100K 5% 1/10W
R734 1-216-049-91 RES-CHIP 1K 5% 1/10W

R751 1-216-049-91 RES-CHIP 1K 5% 1/10W
R752 1-216-097-91 RES-CHIP 100K 5% 1/10W
R753 1-216-049-91 RES-CHIP 1K 5% 1/10W
R754 1-216-097-91 RES-CHIP 100K 5% 1/10W
R755 1-216-049-91 RES-CHIP 1K 5% 1/10W

R756 1-216-097-91 RES-CHIP 100K 5% 1/10W
R761 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R762 1-216-073-00 METAL CHIP 10K 5% 1/10W
R763 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R764 1-216-073-00 METAL CHIP 10K 5% 1/10W

R765 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R766 1-216-073-00 METAL CHIP 10K 5% 1/10W
R801 1-216-049-91 RES-CHIP 1K 5% 1/10W
R802 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R803 1-216-025-91 RES-CHIP 100 5% 1/10W

R804 1-216-089-91 RES-CHIP 47K 5% 1/10W
R805 1-216-089-91 RES-CHIP 47K 5% 1/10W
R806 1-216-073-00 METAL CHIP 10K 5% 1/10W
R807 1-216-073-00 METAL CHIP 10K 5% 1/10W
R808 1-216-049-91 RES-CHIP 1K 5% 1/10W

R809 1-216-097-91 RES-CHIP 100K 5% 1/10W
R810 1-216-033-00 METAL CHIP 220 5% 1/10W
R811 1-216-097-91 RES-CHIP 100K 5% 1/10W
R901 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R902 1-216-081-00 METAL CHIP 22K 5% 1/10W

R903 1-216-049-91 RES-CHIP 1K 5% 1/10W
R961 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

(LX10AV)

R962 1-216-079-00 METAL CHIP 18K 5% 1/10W

(LX10AV)

R963 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

(LX10AV)

72

MAIN MIC PA

Ref. No. Part No. Description Remark

< VARIABLE RESISTOR >

RV301 1-238-600-11 RES, ADJ, CARBON 10K
RV351 1-238-600-11 RES, ADJ, CARBON 10K

< VIBRATOR >

X501 1-567-098-41 VIBRATOR, CRYSTAL 32.768KHz
X502 1-781-107-21 VIBRATOR, SERAMIC 16MHz

**************************************************************

A-4428-180-A MIC BOARD, COMPLETE

********************

< CAPACITOR >

C801 1-162-306-11 CERAMIC 0.01uF 30% 16V
C802 1-162-215-31 CERAMIC 47PF 5% 50V
C803 1-126-960-11 ELECT 1uF 20% 50V
C804 1-126-959-11 ELECT 0.47uF 20% 50V
C805 1-162-294-31 CERAMIC 0.001uF 10% 50V

C806 1-162-215-31 CERAMIC 47PF 5% 50V
C810 1-162-286-21 CERAMIC 220PF 10% 50V
C813 1-137-370-11 MYLAR 0.01uF 5% 50V
C814 1-162-215-31 CERAMIC 47PF 5% 50V
C815 1-162-215-31 CERAMIC 47PF 5% 50V

C816 1-126-961-11 ELECT 2.2uF 20% 50V
C817 1-126-961-11 ELECT 2.2uF 20% 50V
C818 1-162-215-31 CERAMIC 47PF 5% 50V
C819 1-162-282-31 CERAMIC 100PF 10% 50V
C821 1-104-664-11 ELECT 47uF 20% 16V

C822 1-104-664-11 ELECT 47uF 20% 16V
C836 1-162-306-11 CERAMIC 0.01uF 30% 16V

< CONNECTOR >

CN813 1-785-320-11 PIN, CONNECTOR (STRAIGHT) 8P

< EARTH TERMINAL >

* EPT802 1-537-738-21 TERMINAL, EARTH

< FILTER >

FL801 1-424-228-11 FILTER, NOISE

< IC >

IC850 8-759-634-50 IC M5218AL
IC852 8-759-634-50 IC M5218AL

< JACK >

Ref. No. Part No. Description Remark

R855 1-249-429-11 CARBON 10K 5% 1/4W
R856 1-247-891-00 CARBON 330K 5% 1/4W
R857 1-249-417-11 CARBON 1K 5% 1/4W

R869 1-249-434-11 CARBON 27K 5% 1/4W
R870 1-247-903-00 CARBON 1M 5% 1/4W
R871 1-249-417-11 CARBON 1K 5% 1/4W
R872 1-249-421-11 CARBON 2.2K 5% 1/4W
R873 1-249-417-11 CARBON 1K 5% 1/4W

R874 1-249-417-11 CARBON 1K 5% 1/4W

**************************************************************

A-4428-148-A PA BOARD, COMPLETE (LX9AV)

******************

A-4428-151-A PA BOARD, COMPLETE (LX10AV:E,MX,AR)

******************

A-4428-938-A PA BOARD, COMPLETE

(LX10AV:EA,MY,SP,AUS)

******************

A-4428-140-A PA BOARD, COMPLETE (LX90AV)

******************

< CAPACITOR >

C401 1-126-963-11 ELECT 4.7uF 20.00% 50V

(LX10AV,LX90AV)

C402 1-164-159-21 CERAMIC 0.1uF 50V

(LX9AV)

C403 1-164-159-21 CERAMIC 0.1uF 50V

(LX9AV)

C404 1-164-159-21 CERAMIC 0.1uF 50V

(LX9AV)

C405 1-164-159-21 CERAMIC 0.1uF 50V

(LX9AV)

C406 1-164-159-21 CERAMIC 0.1uF 50V
C407 1-164-159-21 CERAMIC 0.1uF 50V
C408 1-164-159-21 CERAMIC 0.1uF 50V
C409 1-164-159-21 CERAMIC 0.1uF 50V
C410 1-164-159-21 CERAMIC 0.1uF 50V

C411 1-164-159-21 CERAMIC 0.1uF 50V
C412 1-161-494-00 CERAMIC 0.022uF 25V
C413 1-161-494-00 CERAMIC 0.022uF 25V
C414 1-161-494-00 CERAMIC 0.022uF 25V
C415 1-161-494-00 CERAMIC 0.022uF 25V

C416 1-161-494-00 CERAMIC 0.022uF 25V
C432 1-104-665-11 ELECT 100uF 20.00% 10V
C433 1-126-962-11 ELECT 3.3uF 20.00% 50V

(LX10AV)

C433 1-126-961-11 ELECT 2.2uF 20.00% 50V

(LX9AV,LX90AV)

C801 1-128-582-11 ELECT 10uF 20.00% 100V

J801 1-770-226-41 JACK (LARGE TYPE) (MIX MIC)
J802 1-770-226-41 JACK (LARGE TYPE) (GUITAR)

< RESISTOR >

R806 1-247-903-00 CARBON 1M 5% 1/4W
R807 1-249-429-11 CARBON 10K 5% 1/4W
R809 1-249-417-11 CARBON 1K 5% 1/4W
R850 1-249-417-11 CARBON 1K 5% 1/4W
R852 1-249-441-11 CARBON 100K 5% 1/4W

R853 1-249-417-11 CARBON 1K 5% 1/4W
R854 1-249-437-11 CARBON 47K 5% 1/4W

C802 1-162-292-31 CERAMIC 680PF 10% 50V
C803 1-162-286-21 CERAMIC 220PF 10.00% 50V
C804 1-126-967-11 ELECT 47uF 20.00% 50V
C807 1-128-560-11 ELECT 22uF 20.00% 100V
C808 1-130-777-00 MYLAR 0.1uF 10.00% 100V

C809 1-130-777-00 MYLAR 0.1uF 10.00% 100V
C810 1-128-562-11 ELECT 47uF 20.00% 100V

(LX10AV)

C810 1-128-578-11 ELECT 1uF 20.00% 100V

(LX9AV,LX90AV)
C811 1-130-493-00 MYLAR 0.068uF 5% 50V
C812 1-130-493-00 MYLAR 0.068uF 5% 50V

73

PA

Ref. No. Part No. Description Remark

C813 1-161-494-00 CERAMIC 0.022uF 25V
C814 1-162-294-31 CERAMIC 0.001uF 10% 50V
C815 1-126-959-11 ELECT 0.47uF 20.00% 50V
C830 1-107-714-11 ELECT 10uF 20.00% 50V
C831 1-126-964-11 ELECT 10uF 20.00% 50V

C832 1-126-967-11 ELECT 47uF 20.00% 50V
C841 1-127-811-11 ELECT 3300uF 20% 50V
C842 1-127-754-11 ELECT 3300uF 20% 80V
C844 1-130-777-00 MYLAR 0.1uF 10.00% 100V
C845 1-126-943-11 ELECT 2200uF 20.00% 25V

C847 1-164-159-21 CERAMIC 0.1uF 50V
C848 1-164-159-21 CERAMIC 0.1uF 50V
C849 1-164-159-21 CERAMIC 0.1uF 50V
C850 1-107-721-11 ELECT 4.7uF 20.00% 100V
C851 1-128-582-11 ELECT 10uF 20.00% 100V

C852 1-162-292-31 CERAMIC 680PF 10% 50V
C853 1-162-286-21 CERAMIC 220PF 10.00% 50V
C854 1-126-967-11 ELECT 47uF 20.00% 50V
C857 1-128-560-11 ELECT 22uF 20.00% 100V
C858 1-164-159-21 CERAMIC 0.1uF 50V

C859 1-164-159-21 CERAMIC 0.1uF 50V
C861 1-130-493-00 MYLAR 0.068uF 5% 50V
C862 1-130-493-00 MYLAR 0.068uF 5% 50V
C863 1-126-961-11 ELECT 2.2uF 20.00% 50V

(LX9AV,LX90AV)

C891 1-127-811-11 ELECT 3300uF 20% 50V

C892 1-127-754-11 ELECT 3300uF 20% 80V
C894 1-130-777-00 MYLAR 0.1uF 10.00% 100V
C895 1-107-721-11 ELECT 4.7uF 20.00% 100V
C902 1-164-159-21 CERAMIC 0.1uF 50V

(LX9AV,LX90AV)

C903 1-126-933-11 ELECT 100uF 20.00% 16V

(LX9AV,LX90AV)

C904 1-126-964-11 ELECT 10uF 20.00% 50V
C905 1-126-968-11 ELECT 100uF 20.00% 50V
C906 1-126-943-11 ELECT 2200uF 20.00% 25V

(LX9AV,LX90AV)
C909 1-164-159-21 CERAMIC 0.1uF 50V
C910 1-104-665-11 ELECT 100uF 20.00% 10V

(LX9AV,LX90AV)

C962 1-128-563-11 ELECT 100uF 20.00% 100V

(LX9AV,LX90AV)

Ref. No. Part No. Description Remark

D410 8-719-991-33 DIODE 1SS133T-77

D801 8-719-991-33 DIODE 1SS133T-77
D802 8-719-110-39 DIODE MTZJ-T-77-15A

(LX9AV,LX90AV)
D803 8-719-991-33 DIODE 1SS133T-77
D804 8-719-991-33 DIODE 1SS133T-77
D805 8-719-991-33 DIODE 1SS133T-77

D831 8-719-510-68 DIODE D5SBA204101
D833 8-719-200-82 DIODE 11ES2-NTA1B
D834 8-719-200-82 DIODE 11ES2-NTA1B
D835 8-719-200-82 DIODE 11ES2-NTA1B
D836 8-719-200-82 DIODE 11ES2-NTA1B

D841 8-719-200-82 DIODE 11ES2-NTA1B
D842 8-719-200-82 DIODE 11ES2-NTA1B
D843 8-719-200-82 DIODE 11ES2-NTA1B
D844 8-719-200-82 DIODE 11ES2-NTA1B
D851 8-719-991-33 DIODE 1SS133T-77

D852 8-719-110-39 DIODE MTZJ-T-77-15A

(LX9AV,LX90AV)

D853 8-719-991-33 DIODE 1SS133T-77

(LX9AV,LX90AV)
D902 8-719-210-21 DIODE 11EQS04-NTA1B

(LX9AV,LX90AV)
D903 8-719-210-21 DIODE 11EQS04-NTA1B

(LX9AV,LX90AV)
D904 8-719-210-21 DIODE 11EQS04-NTA1B

(LX9AV,LX90AV)

D905 8-719-210-21 DIODE 11EQS04-NTA1B

(LX9AV,LX90AV)
D906 8-719-991-33 DIODE 1SS133T-77

(LX9AV,LX90AV)
D907 8-719-200-82 DIODE 11ES2-NTA1B

(LX9AV,LX90AV)
D908 8-719-200-82 DIODE 11ES2-NTA1B

(LX9AV,LX90AV)
D909 8-719-200-82 DIODE 11ES2-NTA1B

(LX9AV,LX90AV)

D910 8-719-200-82 DIODE 11ES2-NTA1B

(LX9AV,LX90AV)
D911 8-719-982-37 DIODE MTZJ-T-77-39C
D912 8-719-109-89 DIODE MTZJ-T-77-5.6
D913 8-719-991-33 DIODE 1SS133T-77

(LX9AV,LX90AV)

< CONNECTOR >

CN803 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
CN804 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
CN904 1-785-320-11 PIN, CONNECTOR (STRAIGHT) 8P

< DIODE >

D401 8-719-991-33 DIODE 1SS133T-77
D402 8-719-991-33 DIODE 1SS133T-77
D403 8-719-991-33 DIODE 1SS133T-77
D404 8-719-991-33 DIODE 1SS133T-77
D405 8-719-991-33 DIODE 1SS133T-77

D406 8-719-991-33 DIODE 1SS133T-77
D407 8-719-991-33 DIODE 1SS133T-77
D408 8-719-991-33 DIODE 1SS133T-77
D409 8-719-991-33 DIODE 1SS133T-77

74

(LX9AV,LX90AV)

< GROUND >

EPT801 4-870-539-41 PLATE, GROUND
EPT802 4-870-539-41 PLATE, GROUND

< IC >

IC801 8-749-017-05 IC STK412-040 (LX10AV)
IC801 8-749-017-03 IC STK412-020 (LX9AV,LX90AV)
IC901 8-759-450-47 IC BA05T (LX9AV,LX90AV)

< COIL >

L401 1-420-872-00 COIL, AIR-CORE (LX9AV)
L402 1-420-872-00 COIL, AIR-CORE (LX9AV)
L403 1-420-872-00 COIL, AIR-CORE
L404 1-420-872-00 COIL, AIR-CORE
L405 1-420-872-00 COIL, AIR-CORE

PA

Ref. No. Part No. Description Remark

< TRANSISTOR >

Q401 8-729-029-21 TRANSISTOR DTA114ESA-TP
Q402 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q403 8-729-029-21 TRANSISTOR DTA114ESA-TP
Q404 8-729-029-21 TRANSISTOR DTA114ESA-TP
Q406 8-729-029-86 TRANSISTOR DTC124ESA-TP

Q407 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q431 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q432 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q433 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q434 8-729-620-05 TRANSISTOR 2SC2603TP-EF

Q437 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q439 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q801 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q803 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q804 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

Q805 8-729-231-55 TRANSISTOR 2SC2878AB-TPE2
Q831 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q832 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q833 8-729-029-40 TRANSISTOR DTA124ESA-TP
Q834 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

Q851 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q855 8-729-231-55 TRANSISTOR 2SC2878AB-TPE2
Q901 8-729-620-05 TRANSISTOR 2SC2603TP-EF

(LX9AV,LX90AV)

Q902 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

(LX9AV,LX90AV)

Q903 8-729-118-01 TRANSISTOR 2SB1014TP-34

Q904 8-729-119-76 TRANSISTOR 2SA1115TP-EF
Q905 8-729-048-13 TRANSISTOR 2SC3616-KLM-T

1(LX9AV,LX90AV)

Q906 8-729-029-21 TRANSISTOR DTA114ESA-TP

(LX9AV,LX90AV)

Q907 8-729-029-21 TRANSISTOR DTA114ESA-TP

(LX9AV,LX90AV)

Q908 8-729-119-76 TRANSISTOR 2SA1115TP-EF (LX10AV)

< RESISTOR >

Ref. No. Part No. Description Remark

R413 1-249-389-11 CARBON 4.7 5% 1/4W F

(LX9AV)

R414 1-260-076-11 CARBON 10 5% 1/2W

(LX9AV)

R415 1-260-076-11 CARBON 10 5% 1/2W

(LX9AV)
R416 1-249-389-11 CARBON 4.7 5% 1/4W F
R417 1-249-389-11 CARBON 4.7 5% 1/4W F
R418 1-249-389-11 CARBON 4.7 5% 1/4W F
R419 1-249-389-11 CARBON 4.7 5% 1/4W F

R420 1-249-389-11 CARBON 4.7 5% 1/4W F
R421 1-249-389-11 CARBON 4.7 5% 1/4W F
R422 1-260-076-11 CARBON 10 5% 1/2W
R423 1-260-076-11 CARBON 10 5% 1/2W
R424 1-260-076-11 CARBON 10 5% 1/2W

R425 1-249-437-11 CARBON 47K 5% 1/4W
R429 1-249-437-11 CARBON 47K 5% 1/4W
R430 1-249-437-11 CARBON 47K 5% 1/4W
R431 1-249-438-11 CARBON 56K 5% 1/4W
R432 1-249-437-11 CARBON 47K 5% 1/4W

R434 1-247-863-91 CARBON 22K 5% 1/4W
R435 1-249-425-11 CARBON 4.7K 5% 1/4W F

(LX10AV)

R437 1-249-429-11 CARBON 10K 5% 1/4W

0 R439 1-249-425-11 CARBON 4.7K 5% 1/4W F

R440 1-247-863-91 CARBON 22K 5% 1/4W

(LX10AV)

R440 1-249-437-11 CARBON 47K 5% 1/4W

(LX9AV,LX90AV)
R441 1-249-435-11 CARBON 33K 5% 1/4W
R442 1-249-435-11 CARBON 33K 5% 1/4W
R443 1-249-434-11 CARBON 27K 5% 1/4W
R444 1-249-439-11 CARBON 68K 5% 1/4W

R446 1-249-429-11 CARBON 10K 5% 1/4W
R447 1-249-437-11 CARBON 47K 5% 1/4W
R450 1-249-437-11 CARBON 47K 5% 1/4W
R801 1-249-417-11 CARBON 1K 5% 1/4W F
R802 1-249-437-11 CARBON 47K 5% 1/4W

0 R401 1-216-430-11 METAL OXIDE 390 5% 1W

(LX10AV)

0 R401 1-215-863-11 METAL OXIDE 100 5% 1W

(LX9AV,LX90AV)

R402 1-216-430-11 METAL OXIDE 390 5% 1W

(LX10AV)

R402 1-215-863-11 METAL OXIDE 100 5% 1W

(LX9AV,LX90AV)

R403 1-216-430-11 METAL OXIDE 390 5% 1W

LX10AV)

R403 1-215-863-11 METAL OXIDE 100 5% 1W

(LX9AV,LX90AV)
R406 1-249-437-11 CARBON 47K 5% 1/4W
R407 1-249-437-11 CARBON 47K 5% 1/4W
R408 1-249-440-11 CARBON 82K 5% 1/4W
R409 1-249-437-11 CARBON 47K 5% 1/4W

R410 1-249-389-11 CARBON 4.7 5% 1/4W F

(LX9AV)

R411 1-249-389-11 CARBON 4.7 5% 1/4W F

(LX9AV)

R412 1-249-389-11 CARBON 4.7 5% 1/4W F

(LX9AV)

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

R803 1-249-415-11 CARBON 680 5% 1/4W F
R804 1-249-435-11 CARBON 33K 5% 1/4W

0 R805 1-216-436-00 METAL OXIDE 3.9K 5% 1W
0 R806 1-216-436-00 METAL OXIDE 3.9K 5% 1W
0 R807 1-212-881-11 FUSIBLE 100 5% 1/4W

0 R808 1-220-893-11 METAL 0.22 10% 5W

R809 1-260-076-11 CARBON 10 5% 1/2W
R810 1-249-437-11 CARBON 47K 5% 1/4W
R811 1-249-417-11 CARBON 1K 5% 1/4W F
R812 1-249-431-11 CARBON 15K 5% 1/4W

R813 1-249-441-11 CARBON 100K 5% 1/4W
R814 1-249-421-11 CARBON 2.2K 5% 1/4W F
R815 1-247-863-91 CARBON 22K 5% 1/4W
R816 1-249-429-11 CARBON 10K 5% 1/4W
R817 1-249-421-11 CARBON 2.2K 5% 1/4W F

R818 1-249-417-11 CARBON 1K 5% 1/4W F
R819 1-249-439-11 CARBON 68K 5% 1/4W

0 R820 1-202-972-61 FUSIBLE 1 5% 1/4W

R821 1-249-435-11 CARBON 33K 5% 1/4W
R822 1-247-863-91 CARBON 22K 5% 1/4W

75

PA

PANEL FL

Ref. No. Part No. Description Remark

R823 1-247-863-91 CARBON 22K 5% 1/4W
R824 1-249-416-11 CARBON 820 5% 1/4W F

0 R825 1-215-891-11 METAL OXIDE 680 5% 2W

R827 1-249-441-11 CARBON 100K 5% 1/4W
R828 1-247-903-00 CARBON 1M 5% 1/4W

R831 1-249-441-11 CARBON 100K 5% 1/4W
R832 1-249-441-11 CARBON 100K 5% 1/4W
R833 1-247-858-11 CARBON 13K 5% 1/4W
R834 1-249-429-11 CARBON 10K 5% 1/4W
R835 1-249-437-11 CARBON 47K 5% 1/4W

R836 1-249-417-11 CARBON 1K 5% 1/4W F
R837 1-249-435-11 CARBON 33K 5% 1/4W
R838 1-249-435-11 CARBON 33K 5% 1/4W

0 R839 1-215-877-11 METAL OXIDE 22K 5% 1W

R840 1-249-402-11 CARBON 56 5% 1/4W F

R851 1-249-417-11 CARBON 1K 5% 1/4W F
R852 1-249-437-11 CARBON 47K 5% 1/4W
R853 1-249-415-11 CARBON 680 5% 1/4W F

0 R855 1-215-891-11 METAL OXIDE 680 5% 2W
0 R857 1-212-881-11 FUSIBLE 100 5% 1/4W

0 R858 1-220-893-11 METAL 0.22 10% 5W

R859 1-260-076-11 CARBON 10 5% 1/2W
R860 1-249-437-11 CARBON 47K 5% 1/4W
R861 1-249-417-11 CARBON 1K 5% 1/4W F
R862 1-249-431-11 CARBON 15K 5% 1/4W

Ref. No. Part No. Description Remark

< THERMISTOR >

TH831 1-807-796-11 THERMISTOR

< TERMINAL >

TM401 1-537-842-11 TERMINAL BOARD
TM402 1-537-510-31 TERMINAL BOARD (SPEAKER) (6P)

**************************************************************

A-4428-215-A PANEL FL BOARD, COMPLETE

***********************

4-225-511-01 HOLDER(FL)

* 4-949-935-81 CUSHION (FL)

< CAPACITOR >

C601 1-124-589-11 ELECT 47uF 20% 16V
C602 1-162-306-11 CERAMIC 0.01uF 30.00% 16V
C603 1-164-159-21 CERAMIC 0.1uF 50V
C604 1-126-960-11 ELECT 1uF 20.00% 50V
C606 1-126-960-11 ELECT 1uF 20.00% 50V

C616 1-162-294-31 CERAMIC 0.001uF 10% 50V
C617 1-162-306-11 CERAMIC 0.01uF 30.00% 16V
C621 1-126-964-11 ELECT 10uF 20.00% 50V
C622 1-162-303-11 CERAMIC 0.0033uF 30.00% 16V
C623 1-126-964-11 ELECT 10uF 20.00% 50V

R863 1-249-441-11 CARBON 100K 5% 1/4W
R864 1-249-425-11 CARBON 4.7K 5% 1/4W F

(LX9AV,LX90AV)

R865 1-247-863-91 CARBON 22K 5% 1/4W

(LX9AV,LX90AV)
R868 1-249-417-11 CARBON 1K 5% 1/4W F
R880 1-249-402-11 CARBON 56 5% 1/4W F

0 R888 1-220-893-11 METAL 0.22 10% 5W
0 R889 1-215-877-11 METAL OXIDE 22K 5% 1W

R901 1-249-429-11 CARBON 10K 5% 1/4W

(LX9AV,LX90AV)
R902 1-249-441-11 CARBON 100K 5% 1/4W

(LX9AV,LX90AV)
R903 1-249-429-11 CARBON 10K 5% 1/4W

R904 1-249-417-11 CARBON 1K 5% 1/4W F
R905 1-249-429-11 CARBON 10K 5% 1/4W
R906 1-247-807-31 CARBON 100 5% 1/4W
R907 1-247-807-31 CARBON 100 5% 1/4W
R908 1-247-807-31 CARBON 100 5% 1/4W

(LX9AV,LX90AV)

R911 1-249-429-11 CARBON 10K 5% 1/4W

(LX9AV,LX90AV)
R912 1-249-429-11 CARBON 10K 5% 1/4W

(LX9AV,LX90AV)
R915 1-247-791-91 CARBON 22 5% 1/4W

(LX10AV)

0 R916 1-215-915-11 METAL OXIDE 470 5% 3W

(LX10AV)

< RELAY >

RY401 1-755-168-11 RELAY
RY402 1-515-920-11 RELAY (24V)
RY403 1-515-920-11 RELAY (24V)

C624 1-104-664-11 ELECT 47uF 20.00% 16V
C625 1-126-963-11 ELECT 4.7uF 20.00% 50V
C626 1-126-964-11 ELECT 10uF 20.00% 50V
C641 1-162-286-21 CERAMIC 220PF 10.00% 50V
C642 1-162-286-21 CERAMIC 220PF 10.00% 50V

C643 1-162-286-21 CERAMIC 220PF 10.00% 50V
C644 1-162-286-21 CERAMIC 220PF 10.00% 50V
C645 1-162-286-21 CERAMIC 220PF 10.00% 50V
C646 1-162-286-21 CERAMIC 220PF 10.00% 50V
C647 1-162-286-21 CERAMIC 220PF 10.00% 50V

C648 1-162-286-21 CERAMIC 220PF 10.00% 50V
C649 1-162-286-21 CERAMIC 220PF 10.00% 50V
C650 1-162-286-21 CERAMIC 220PF 10.00% 50V
C651 1-162-286-21 CERAMIC 220PF 10.00% 50V
C652 1-162-286-21 CERAMIC 220PF 10.00% 50V

C653 1-162-286-21 CERAMIC 220PF 10.00% 50V
C654 1-162-286-21 CERAMIC 220PF 10.00% 50V
C655 1-162-286-21 CERAMIC 220PF 10.00% 50V
C656 1-162-286-21 CERAMIC 220PF 10.00% 50V

< CONNECTOR >

CN601 1-784-735-11 CONNECTOR, FFC 13P
CN602 1-784-782-11 CONNECTOR, FFC 21P

< DIODE >

D601 8-719-071-44 DIODE SELS5223C-TP15 (POWER)
D602 8-719-058-04 DIODE SEL5223S-TP15 (DALLY)
D603 8-719-058-04 DIODE SEL5223S-TP15 (REC)
D604 8-719-058-04 DIODE SEL5223S-TP15 (SYNC EQ)
D605 8-719-058-04 DIODE SEL5223S-TP15

(SYNC BASS)

D608 8-719-050-84 DIODE RB441Q-40T-77

76

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

PANEL FL

Ref. No. Part No. Description Remark

D617 8-719-058-04 DIODE SEL5223S-TP1

(SURROUND)

< FILTER >

FL601 1-517-940-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 8-759-653-43 IC TMP88CS76F-1A25
IC603 8-759-083-77 IC BA3830F

< COIL >

L601 1-410-517-11 INDUCTOR 47uH
L602 1-410-517-11 INDUCTOR 47uH
L603 1-410-517-11 INDUCTOR 47uH

< LINE FILTER >

LF601 1-424-228-11 FILTER, NOISE

< TRANSISTOR >

Q601 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q602 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q603 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q605 8-729-029-23 TRANSISTOR DTA114TSA-TP
Q606 8-729-029-23 TRANSISTOR DTA114TSA-TP

Q607 8-729-029-23 TRANSISTOR DTA114TSA-TP
Q608 8-729-047-58 TRANSISTOR DTC114TLTL2
Q609 8-729-047-58 TRANSISTOR DTC114TLTL2
Q610 8-729-047-58 TRANSISTOR DTC114TLTL2

< RESISTOR >

R601 1-247-893-11 CARBON 390K 5% 1/4W
R602 1-247-893-11 CARBON 390K 5% 1/4W
R603 1-249-441-11 CARBON 100K 5% 1/4W
R604 1-249-441-11 CARBON 100K 5% 1/4W
R605 1-247-807-31 CARBON 100 5% 1/4W

R608 1-249-435-11 CARBON 33K 5% 1/4W
R609 1-247-895-91 CARBON 470K 5% 1/4W
R611 1-249-429-11 CARBON 10K 5% 1/4W
R612 1-247-807-31 CARBON 100 5% 1/4W
R613 1-247-807-31 CARBON 100 5% 1/4W

R614 1-247-807-31 CARBON 100 5% 1/4W
R615 1-249-429-11 CARBON 10K 5% 1/4W
R616 1-249-429-11 CARBON 10K 5% 1/4W
R617 1-249-429-11 CARBON 10K 5% 1/4W
R618 1-249-429-11 CARBON 10K 5% 1/4W

R619 1-249-429-11 CARBON 10K 5% 1/4W
R620 1-249-429-11 CARBON 10K 5% 1/4W
R621 1-249-429-11 CARBON 10K 5% 1/4W
R622 1-249-429-11 CARBON 10K 5% 1/4W
R623 1-247-903-00 CARBON 1M 5% 1/4W

R624 1-247-807-31 CARBON 100 5% 1/4W
R625 1-247-807-31 CARBON 100 5% 1/4W
R626 1-249-429-11 CARBON 10K 5% 1/4W
R627 1-247-807-31 CARBON 100 5% 1/4W
R628 1-249-429-11 CARBON 10K 5% 1/4W

R629 1-247-807-31 CARBON 100 5% 1/4W
R630 1-249-429-11 CARBON 10K 5% 1/4W

Ref. No. Part No. Description Remark

R631 1-249-410-11 CARBON 270 5% 1/4W F
R632 1-249-411-11 CARBON 330 5% 1/4W
R633 1-249-413-11 CARBON 470 5% 1/4W F

R634 1-249-414-11 CARBON 560 5% 1/4W F
R642 1-249-415-11 CARBON 680 5% 1/4W F
R644 1-249-418-11 CARBON 1.2K 5% 1/4W F
R645 1-249-420-11 CARBON 1.8K 5% 1/4W F
R646 1-249-417-11 CARBON 1K 5% 1/4W F

R647 1-249-410-11 CARBON 270 5% 1/4W F
R648 1-249-411-11 CARBON 330 5% 1/4W
R649 1-249-413-11 CARBON 470 5% 1/4W F
R650 1-249-414-11 CARBON 560 5% 1/4W F
R652 1-249-437-11 CARBON 47K 5% 1/4W

R653 1-249-417-11 CARBON 1K 5% 1/4W F
R654 1-249-437-11 CARBON 47K 5% 1/4W
R655 1-249-417-11 CARBON 1K 5% 1/4W F
R656 1-249-438-11 CARBON 56K 5% 1/4W
R659 1-249-411-11 CARBON 330 5% 1/4W

R660 1-249-411-11 CARBON 330 5% 1/4W
R661 1-249-407-11 CARBON 150 5% 1/4W F
R662 1-249-407-11 CARBON 150 5% 1/4W F
R665 1-249-441-11 CARBON 100K 5% 1/4W
R666 1-249-441-11 CARBON 100K 5% 1/4W

R667 1-249-441-11 CARBON 100K 5% 1/4W
R680 1-249-411-11 CARBON 330 5% 1/4W
R681 1-249-440-11 CARBON 82K 5% 1/4W
R682 1-249-420-11 CARBON 1.8K 5% 1/4W F
R683 1-249-437-11 CARBON 47K 5% 1/4W

R684 1-249-440-11 CARBON 82K 5% 1/4W
R685 1-249-429-11 CARBON 10K 5% 1/4W
R686 1-249-410-11 CARBON 270 5% 1/4W F
R687 1-249-410-11 CARBON 270 5% 1/4W F
R688 1-249-413-11 CARBON 470 5% 1/4W F

R689 1-249-411-11 CARBON 330 5% 1/4W
R690 1-249-407-11 CARBON 150 5% 1/4W F
R699 1-249-429-11 CARBON 10K 5% 1/4W

< SWITCH >

S601 1-762-875-21 SWITCH, KEYBOARD (POWER)
S602 1-762-875-21 SWITCH, KEYBOARD

(POWER SAVE/DEMO (STAND BY))
S603 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)
S604 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM ANALYZER)
S612 1-762-875-21 SWITCH, KEYBOARD (FUNCTION)

S614 1-762-875-21 SWITCH, KEYBOARD (SYNC EQ)
S615 1-762-875-21 SWITCH, KEYBOARD (SYNC BASS)
S617 1-762-875-21 SWITCH, KEYBOARD (DAIL)
S618 1-762-875-21 SWITCH, KEYBOARD (REC)
S619 1-762-875-21 SWITCH, KEYBOARD (SLEEP)

S620 1-762-875-21 SWITCH, KEYBOARD (CLOCK SET)
S632 1-762-875-21 SWITCH, KEYBOARD (MIX GUITAR/KARAOKE)
S635 1-762-875-21 SWITCH, KEYBOARD (SURROUND)

< VIBRATOR >

X601 1-781-312-11 VIBRATOR, CERAMIC 12.5MHz

**************************************************************

77

PANEL VR

Ref. No. Part No. Description Remark

A-4428-142-A PANEL VR BOARD, COMPLETE (LX9AV)

*************************

A-4428-130-A PANEL VR BOARD, COMPLETE

(LX10AV,LX90AV)

*************************

< CAPACITOR >

C701 1-162-600-11 CERAMIC 0.0047uF 30.00% 16V
C702 1-162-301-11 CERAMIC 0.0015uF 30.00% 16V
C703 1-162-302-11 CERAMIC 0.0022uF 30.00% 16V
C704 1-104-664-11 ELECT 47uF 20.00% 16V
C708 1-104-665-11 ELECT 100uF 20.00% 10V

C709 1-162-294-31 CERAMIC 0.001uF 10% 50V
C710 1-162-306-11 CERAMIC 0.01uF 30.00% 16V
C711 1-162-306-11 CERAMIC 0.01uF 30.00% 16V

< CONNECTOR >

* CN701 1-568-864-11 SOCKET, CONNECTOR 21P

< DIODE >

D606 8-719-058-03 DIODE SEL5423E-TP15

(TUNER/BAND)

D607 8-719-058-04 DIODE SEL5223S-TP15

(ENTER/NEXT)
D611 8-719-058-04 DIODE SEL5223S-TP15 (GROOVE)
D612 8-719-058-04 DIODE SEL5223S-TP15

(SUPER WOOFER)

D613 8-719-057-97 DIODE SEL5923A-TP15

(PRO LOGIC)

D614 8-719-057-97 DIODE SEL5923A-TP15

(DVD 5.1CH)
D616 8-719-058-04 DIODE SEL5223S-TP15 (ENTER)
D618 8-719-058-04 DIODE SEL5223S-TP15 (EFFECT)
D619 8-719-301-60 DIODE SEL2910A-C-TP2 (MEUN 2)
D620 8-719-301-60 DIODE SEL2910A-C-TP2 (MENU 1)

D621 8-719-301-60 DIODE SEL2910A-C-TP2 (P.FILE)
D623 8-719-301-60 DIODE SEL2910A-C-TP2 (FILE 5)
D624 8-719-301-60 DIODE SEL2910A-C-TP2 (FILE 4)
D625 8-719-301-60 DIODE SEL2910A-C-TP2 (FILE 3)
D626 8-719-301-60 DIODE SEL2910A-C-TP2 (FILE 2)

D627 8-719-301-60 DIODE SEL2910A-C-TP2 (FILE 1)
D698 8-719-057-97 DIODE SEL5923A-TP15

(PRO LOGIC)

D699 8-719-057-97 DIODE SEL5923A-TP15

(DVD 5.1CH)

< IC >

Ref. No. Part No. Description Remark

R728 1-249-429-11 CARBON 10K 5% 1/4W

R729 1-249-431-11 CARBON 15K 5% 1/4W
R730 1-249-434-11 CARBON 27K 5% 1/4W
R731 1-249-438-11 CARBON 56K 5% 1/4W
R732 1-247-804-11 CARBON 75 5% 1/4W
R733 1-249-407-11 CARBON 150 5% 1/4W F

R734 1-249-429-11 CARBON 10K 5% 1/4W
R735 1-249-393-11 CARBON 10 5% 1/4W F
R736 1-249-393-11 CARBON 10 5% 1/4W F
R737 1-249-393-11 CARBON 10 5% 1/4W F
R738 1-247-807-31 CARBON 100 5% 1/4W

R739 1-247-807-31 CARBON 100 5% 1/4W
R740 1-247-807-31 CARBON 100 5% 1/4W
R741 1-249-393-11 CARBON 10 5% 1/4W F
R742 1-249-393-11 CARBON 10 5% 1/4W F
R743 1-249-393-11 CARBON 10 5% 1/4W F

R744 1-249-401-11 CARBON 47 5% 1/4W F
R750 1-249-393-11 CARBON 10 5% 1/4W F
R751 1-249-393-11 CARBON 10 5% 1/4W F
R761 1-249-411-11 CARBON 330 5% 1/4W
R762 1-249-413-11 CARBON 470 5% 1/4W F

R763 1-249-414-11 CARBON 560 5% 1/4W F
R764 1-249-415-11 CARBON 680 5% 1/4W F
R765 1-249-429-11 CARBON 10K 5% 1/4W
R766 1-249-427-11 CARBON 6.8K 5% 1/4W F
R767 1-249-425-11 CARBON 4.7K 5% 1/4W F

R768 1-249-417-11 CARBON 1K 5% 1/4W F
R769 1-249-418-11 CARBON 1.2K 5% 1/4W F
R772 1-249-420-11 CARBON 1.8K 5% 1/4W F
R773 1-249-422-11 CARBON 2.7K 5% 1/4W F
R775 1-249-431-11 CARBON 15K 5% 1/4W

R776 1-247-843-11 CARBON 3.3K 5% 1/4W
R777 1-249-407-11 CARBON 150 5% 1/4W F
R778 1-249-407-11 CARBON 150 5% 1/4W F
R779 1-249-403-11 CARBON 68 5% 1/4W F
R780 1-249-403-11 CARBON 68 5% 1/4W F

R782 1-249-407-11 CARBON 150 5% 1/4W F
R784 1-249-407-11 CARBON 150 5% 1/4W F
R785 1-249-407-11 CARBON 150 5% 1/4W F
R786 1-249-407-11 CARBON 150 5% 1/4W F
R787 1-249-407-11 CARBON 150 5% 1/4W F

R789 1-249-407-11 CARBON 150 5% 1/4W F
R790 1-249-407-11 CARBON 150 5% 1/4W F
R791 1-249-407-11 CARBON 150 5% 1/4W F
R792 1-249-407-11 CARBON 150 5% 1/4W F
R793 1-249-407-11 CARBON 150 5% 1/4W F

IC701 8-759-567-59 IC NJU3716L
IC702 8-759-459-86 IC NJL64H400A

< COIL >

L704 1-410-509-11 INDUCTOR 10uH

< RESISTOR >

R724 1-249-422-11 CARBON 2.7K 5% 1/4W F
R725 1-247-843-11 CARBON 3.3K 5% 1/4W
R726 1-249-425-11 CARBON 4.7K 5% 1/4W F
R727 1-249-427-11 CARBON 6.8K 5% 1/4W F

78

R794 1-249-417-11 CARBON 1K 5% 1/4W F
R795 1-249-417-11 CARBON 1K 5% 1/4W F

< VARIABLE RESISTOR >

RV750 1-225-739-11 RES, VAR CARBON 50K (MIC LEVEL)
RV751 1-225-739-11 RES, VAR CARBON 50K (GUITAR LEVEL)

< SWITCH >

S605 1-762-875-21 SWITCH, KEYBOARD (PTY) (LX9AV)
S606 1-762-875-21 SWITCH, KEYBOARD (TUNING MODE)
S607 1-762-875-21 SWITCH, KEYBOARD (STEREO/MONO)

PANEL VR SUB TRANS TABLE SENSOR TC-A TC-B

Ref. No. Part No. Description Remark

S608 1-762-875-21 SWITCH, KEYBOARD (ENTER/NEXT)
S609 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND)

S610 1-762-875-21 SWITCH, KEYBOARD (TUNING +)
S611 1-762-875-21 SWITCH, KEYBOARD (TUNING -)
S613 1-762-875-21 SWITCH, KEYBOARD (TUNER MEMORY)
S621 1-762-875-21 SWITCH, KEYBOARD (DOWN)
S622 1-762-875-21 SWITCH, KEYBOARD (RIGHT)

S623 1-762-875-21 SWITCH, KEYBOARD (UP)
S624 1-762-875-21 SWITCH, KEYBOARD (LEFT)
S626 1-762-875-21 SWITCH, KEYBOARD (GROOVE)
S627 1-762-875-21 SWITCH, KEYBOARD (SUPER WOOFER)
S628 1-762-875-21 SWITCH, KEYBOARD (SUPER WOOFER MODE)

S629 1-762-875-21 SWITCH, KEYBOARD (PRO LOGIC)
S630 1-762-875-21 SWITCH, KEYBOARD (DVD 5.1CH)
S633 1-762-875-21 SWITCH, KEYBOARD (ENTER)
S634 1-762-875-21 SWITCH, KEYBOARD (GEQ CTRL)
S636 1-762-875-21 SWITCH, KEYBOARD (EFFECT)

S637 1-762-875-21 SWITCH, KEYBOARD (P FILE MEMORY)
S701 1-473-392-11 ENCODER, ROTARY (VOLUME)

**************************************************************

1-676-268-11 SUB TRANS BOARD (LX9AV,LX90AV)

****************

< CAPACITOR >

Ref. No. Part No. Description Remark

D632 8-719-058-03 LED SEL5423E-TP15 (G)

< RESISTOR >

R700 1-249-410-11 CARBON 270 5% 1/4W
R701 1-249-411-11 CARBON 330 5% 1/4W
R702 1-249-413-11 CARBON 470 5% 1/4W
R703 1-249-414-11 CARBON 560 5% 1/4W
R704 1-249-415-11 CARBON 680 5% 1/4W

R705 1-249-417-11 CARBON 1K 5% 1/4W
R706 1-249-418-11 CARBON 1.2K 5% 1/4W
R707 1-247-804-11 CARBON 75 5% 1/4W
R708 1-247-804-11 CARBON 75 5% 1/4W

< SWITCH >

S641 1-762-875-21 SWITCH, KEYBOARD (g)
S642 1-762-875-21 SWITCH, KEYBOARD (G)
S643 1-762-875-21 SWITCH, KEYBOARD (x)
S644 1-762-875-21 SWITCH, KEYBOARD (. AMS > m)
S645 1-762-875-21 SWITCH, KEYBOARD (. AMS > M)

S646 1-762-875-21 SWITCH, KEYBOARD (DOLBY NR)
S647 1-762-875-21 SWITCH, KEYBOARD (DIRECTION)

**************************************************************

1-676-275-11 TC-B BOARD

**********

0 C901 1-113-925-11 CERAMIC 0.01uF 20.00% 250V

< CONNECTOR >

CN901 1-564-321-00 PIN, CONNECTOR 2P

* CN902 1-564-321-21 PIN, CONNECTOR 2P

< DIODE >

D901 8-719-991-33 DIODE 1SS133T-77

< RELAY >

0 RY901 1-755-276-11 RELAY, POWER

< TRANSFORMER >

0 T901 1-435-240-11 TRANSFORMER, POWER (LX9AV)
0 T901 1-435-241-11 TRANSFORMER, POWER (LX90AV)

*************************************************************

* 1-659-058-13 TABLE SENSOR BOARD

*******************

< IC >

IC202 8-749-924-18 PHOTO INTERRUPTER RPI-1391

< RESISTOR >

R207 1-249-416-11 CARBON 820 5% 1/4W

**************************************************************

< DIODE >

D635 8-719-058-03 LED SEL5423E-TP15 (g)
D636 8-719-058-03 LED SEL5423E-TP15 (G)
D637 8-719-057-97 LED SEL5923A-TP15 (X)
D638 8-719-058-04 LED SEL5223S-TP15 (z REC)

< RESISTOR >

R711 1-249-415-11 CARBON 680 5% 1/4W
R712 1-249-417-11 CARBON 1K 5% 1/4W
R713 1-249-418-11 CARBON 1.2K 5% 1/4W
R714 1-249-414-11 CARBON 560 5% 1/4W
R715 1-249-415-11 CARBON 680 5% 1/4W

R716 1-249-417-11 CARBON 1K 5% 1/4W
R717 1-249-418-11 CARBON 1.2K 5% 1/4W
R718 1-249-420-11 CARBON 1.8K 5% 1/4W
R719 1-249-422-11 CARBON 2.7K 5% 1/4W
R720 1-247-804-11 CARBON 75 5% 1/4W

R721 1-247-804-11 CARBON 75 5% 1/4W
R722 1-247-807-31 CARBON 100 5% 1/4W
R723 1-249-407-11 CARBON 150 5% 1/4W

< SWITCH >

S651 1-762-875-21 SWITCH, KEYBOARD (G)
S652 1-762-875-21 SWITCH, KEYBOARD (g)
S653 1-762-875-21 SWITCH, KEYBOARD (x)
S654 1-762-875-21 SWITCH, KEYBOARD (. AMS > m)
S655 1-762-875-21 SWITCH, KEYBOARD (. AMS > M)

1-676-274-11 TC-A BOARD

**********

< DIODE >

D631 8-719-058-03 LED SEL5423E-TP15 (g)

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

S656 1-762-875-21 SWITCH, KEYBOARD (X )
S657 1-762-875-21 SWITCH, KEYBOARD (z REC)
S658 1-762-875-21 SWITCH, KEYBOARD (H SPEED DUB)
S659 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)

**************************************************************

79

TRANS

SURROUND AMP

Ref. No. Part No. Description Remark

1-676-267-11 TRANS BOARD

************

1-533-233-31 HOLDER, FUSE
7-685-646-79 SCREW+BVTP 3X8 TYPE2 N-S

< CAPACITOR >

C834 1-130-777-00 MYLAR 0.1uF 10.00% 100V
C893 1-130-777-00 MYLAR 0.1uF 10.00% 100V
C961 1-162-306-11 CERAMIC 0.01uF 30.00% 16V
C963 1-162-306-11 CERAMIC 0.01uF 30.00% 16V

< CONNECTOR >

CN905 1-564-321-00 PIN, CONNECTOR 2P (LX10AV)

* CN951 1-564-214-11 PIN, CONNECTOR (B3PS-VH) 3P
* CN952 1-564-524-11 PLUG, CONNECTOR 9P(LX9AV,LX90AV)
* CN952 1-564-526-11 PLUG, CONNECTOR 11P (LX10AV)

< DIODE >

D832 8-719-510-68 DIODE D5SBA204101

< FUSE >

0 F951 1-532-505-31 FUSE 5.0A (LX10AV:SP,MY,EA,AUS)
0 F951 1-532-506-31 FUSE 6.3A (LX10AV:E,MX,AR)
0 F961 1-532-506-31 FUSE 6.3A (LX9AV)
0 F961 1-533-310-11 FUSE 6.3A, GLASS CYLINDRICAL(DIA.5)

(LV90AV)

0 F961 1-533-949-31 FUSE 8.0A, CYLINDERICAL (TIME LUG)

(LX10AV)

0 F962 1-532-506-31 FUSE 6.3A (LX9AV)

0 F962 1-533-310-11 FUSE 6.3A, GLASS CYLINDRICAL(DIA.5)

(LV90AV)

0 F962 1-533-949-31 FUSE 8.0A, CYLINDERICAL (TIME LUG)

(LX10AV)

0 F963 1-532-505-31 FUSE 5.0A (LX9AV)
0 F963 1-532-506-31 FUSE 6.3A (LX10AV)
0 F963 1-533-420-11 FUSE 5.0A, GLASS CYLINDRICAL(DIA.5)

(LX90AV)

0 F964 1-532-505-31 FUSE 5.0A (LX9AV)
0 F964 1-532-506-31 FUSE 6.3A (LX10AV)
0 F964 1-533-420-11 FUSE 5.0A, GLASS CYLINDRICAL(DIA.5)

(LX90AV)

< RESISTOR >

0 R951 1-219-122-91 FUSIBLE 0.33 5% 1/4W
0 R952 1-219-122-91 FUSIBLE 0.33 5% 1/4W
0 R953 1-219-119-81 FUSIBLE 0.1 5% 1/4W

Ref. No. Part No. Description Remark

C103 1-162-286-21 CERAMIC 220PF 10.00% 50V
C104 1-126-967-11 ELECT 47uF 20.00% 50V
C105 1-136-165-00 MYLAR 0.1uF 5.00% 50V

C106 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C107 1-128-560-11 ELECT 22uF 20.00% 100V
C108 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C109 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C113 1-161-494-00 CERAMIC 0.022uF 25V

C114 1-162-294-31 CERAMIC 0.001uF 10% 50V
C151 1-128-582-11 ELECT 10uF 20.00% 100V
C152 1-162-292-31 CERAMIC 680PF 10% 50V
C153 1-162-286-21 CERAMIC 220PF 10.00% 50V
C154 1-126-967-11 ELECT 47uF 20.00% 50V

C157 1-128-560-11 ELECT 22uF 20.00% 100V
C158 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C159 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C181 1-128-582-11 ELECT 10uF 20.00% 100V
C182 1-162-292-31 CERAMIC 680PF 10% 50V

C183 1-162-286-21 CERAMIC 220PF 10.00% 50V
C184 1-126-967-11 ELECT 47uF 20.00% 50V
C188 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C189 1-136-495-11 MYLAR 0.068uF 5.00% 50V
C801 1-162-306-11 CERAMIC 0.01uF 30.00% 16V

C802 1-162-215-31 CERAMIC 47PF 5% 50V
C803 1-126-960-11 ELECT 1uF 20.00% 50V
C804 1-126-959-11 ELECT 0.47uF 20.00% 50V
C805 1-162-294-31 CERAMIC 0.001uF 10% 50V
C806 1-162-215-31 CERAMIC 47PF 5% 50V

C810 1-162-286-21 CERAMIC 220PF 10.00% 50V
C813 1-137-150-11 MYLAR 0.01uF 5.00% 50V
C814 1-162-215-31 CERAMIC 47PF 5% 50V
C815 1-162-215-31 CERAMIC 47PF 5% 50V
C816 1-126-961-11 ELECT 2.2uF 20.00% 50V

C817 1-126-961-11 ELECT 2.2uF 20.00% 50V
C818 1-162-215-31 CERAMIC 47PF 5% 50V
C819 1-162-282-31 CERAMIC 100PF 10% 50V
C821 1-104-664-11 ELECT 47uF 20.00% 16V
C822 1-104-664-11 ELECT 47uF 20.00% 16V

C836 1-162-306-11 CERAMIC 0.01uF 30.00% 16V

< CONNECTOR >

CN101 1-691-772-11 PLUG (MICRO CONNECTOR) 10P
CN813 1-785-320-11 PIN, CONNECTOR (STRAIGHT) 8P

< DIODE >

< SWITCH >

0 S901 1-771-291-11 SWITCH, POWER (VOLTAGE SELECTOR)

(LX10AV:E,EA,AR,MY,SP)

**************************************************************

A-4428-132-A SURROUND AMP BOARD, COMPLETE

*****************************

< CAPACITOR >

C101 1-128-582-11 ELECT 10uF 20.00% 100V
C102 1-162-292-31 CERAMIC 680PF 10% 50V

80

D101 8-719-991-33 DIODE 1SS133T-77
D151 8-719-991-33 DIODE 1SS133T-77
D191 8-719-991-33 DIODE 1SS133T-77

< EARTH >

* EPT802 1-537-738-21 TERMINAL, EARTH

< FILTER >

FL801 1-424-228-11 FILTER, NOISE

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

SURROUND AMP

Ref. No. Part No. Description Remark

< IC >

IC101 8-749-017-19 IC STK443-050
IC850 8-759-634-50 IC M5218AL
IC852 8-759-634-50 IC M5218AL

< JACK >

J801 1-770-226-41 JACK (LARGE TYPE)
J802 1-770-226-41 JACK (LARGE TYPE)

< TRANSISTOR >

Q101 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q103 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q104 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q151 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q181 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA

< RESISTOR >

R101 1-249-417-11 CARBON 1K 5% 1/4W F
R102 1-249-437-11 CARBON 47K 5% 1/4W
R103 1-249-411-11 CARBON 330 5% 1/4W

0 R107 1-212-881-11 FUSIBLE 100 5% 1/4W
0 R108 1-220-755-11 METAL 0.22 10% 2W

R109 1-260-076-11 CARBON 10 5% 1/2W
R110 1-249-437-11 CARBON 47K 5% 1/4W
R111 1-249-417-11 CARBON 1K 5% 1/4W F
R112 1-249-431-11 CARBON 15K 5% 1/4W
R113 1-249-441-11 CARBON 100K 5% 1/4W

R114 1-249-421-11 CARBON 2.2K 5% 1/4W F
R115 1-247-863-91 CARBON 22K 5% 1/4W
R116 1-249-429-11 CARBON 10K 5% 1/4W
R117 1-249-421-11 CARBON 2.2K 5% 1/4W F
R119 1-249-439-11 CARBON 68K 5% 1/4W

0 R120 1-217-637-00 FUSIBLE 1 5% 1/4W

R121 1-247-863-91 CARBON 22K 5% 1/4W

0 R128 1-220-755-11 METAL 0.22 10% 2W

R130 1-249-435-11 CARBON 33K 5% 1/4W

0 R138 1-220-755-11 METAL 0.22 10% 2W

R151 1-249-417-11 CARBON 1K 5% 1/4W F
R152 1-249-437-11 CARBON 47K 5% 1/4W
R153 1-249-410-11 CARBON 270 5% 1/4W F

0 R157 1-212-881-11 FUSIBLE 100 5% 1/4W
0 R158 1-220-755-11 METAL 0.22 10% 2W

R159 1-260-076-11 CARBON 10 5% 1/2W
R160 1-249-437-11 CARBON 47K 5% 1/4W
R161 1-249-417-11 CARBON 1K 5% 1/4W F
R162 1-249-431-11 CARBON 15K 5% 1/4W
R163 1-249-441-11 CARBON 100K 5% 1/4W

0 R168 1-220-755-11 METAL 0.22 10% 2W

R181 1-249-417-11 CARBON 1K 5% 1/4W F
R182 1-249-437-11 CARBON 47K 5% 1/4W
R183 1-249-411-11 CARBON 330 5% 1/4W

0 R188 1-220-755-11 METAL 0.22 10% 2W

R189 1-260-076-11 CARBON 10 5% 1/2W
R190 1-249-437-11 CARBON 47K 5% 1/4W
R191 1-249-417-11 CARBON 1K 5% 1/4W F
R192 1-249-431-11 CARBON 15K 5% 1/4W
R193 1-249-441-11 CARBON 100K 5% 1/4W

Ref. No. Part No. Description Remark

R806 1-247-903-00 CARBON 1M 5% 1/4W
R807 1-249-429-11 CARBON 10K 5% 1/4W
R809 1-249-417-11 CARBON 1K 5% 1/4W F
R850 1-249-417-11 CARBON 1K 5% 1/4W F
R852 1-249-441-11 CARBON 100K 5% 1/4W

R853 1-249-417-11 CARBON 1K 5% 1/4W F
R854 1-249-437-11 CARBON 47K 5% 1/4W
R855 1-249-429-11 CARBON 10K 5% 1/4W
R856 1-247-891-00 CARBON 330K 5% 1/4W
R857 1-249-417-11 CARBON 1K 5% 1/4W F

R869 1-249-434-11 CARBON 27K 5% 1/4W
R870 1-247-903-00 CARBON 1M 5% 1/4W
R871 1-249-417-11 CARBON 1K 5% 1/4W F
R872 1-249-421-11 CARBON 2.2K 5% 1/4W F
R873 1-249-417-11 CARBON 1K 5% 1/4W F

R874 1-249-417-11 CARBON 1K 5% 1/4W F

**************************************************************

MISCELLANEOUS

***************

3 1-773-009-11 WIRE(FLAT TYPE) (15 CORE
4 1-693-484-11 TUNER(FM/AM) (LX10AV:E)
4 1-693-486-11 TUNER(FM/AM) (LX90AV)
4 1-693-488-11 TUNER(FM/AM)

(LX10AV:EA,MX,AR,MY,SP,AUS)

4 1-693-490-11 TUNER(FM/AM) (LX9AV)

6 1-535-706-21 PLUG,JUMPER (LX9AV,LX10AV:MX,LX90AV)
M901 1-763-072-11 FAN, D.C.(LX10AV)
72 1-773-056-11 WIRE(FLAT TYPE) (17 CORE)
73 1-773-032-11 WIRE(FLAT TYPE) (15 CORE)
117 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)

119 1-773-150-11 WIRE (FLAT TYPE) (21 CORE)
151 1-790-287-11 WIRE (FLAT TYPE) (19 CORE)

0 159 1-777-071-51 CORD, POWER (AEP,UK,CIS,MY,EA)
0 159 1-783-820-11 CORD, POWER (US)
0 159 1-783-941-11 CORD, POWER (AR)

0 159 1-696-847-11 CORD, POWER (Australian)
0 159 1-791-901-11 CORD, POWER (E,MX)
0 160 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
0 160 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,MY,SP)
0 160 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)

0 T951 1-435-247-11 TRANSFORMER, POWER (LX9AV)
0 T951 1-435-248-11 TRANSFORMER, POWER (LX90AV)
0 T951 1-435-249-11 TRANSFORMER, POWER (LX10AV)

**************************************************************

**************

HARDWARE LIST

**************

#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)

#11 7-685-851-04 SCREW +BVTT 2X4 (S)
#12 7-628-254-15 SCREW +PS 2.6X6
#13 7-628-254-50 SCREW +PS 2.6X16

The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

81

HCD-LX9AV/LX10AV/LX90AV

9-929-201-11

82

Sony Corporation

Home Audio Division Company

Printed in Japan © 2000.3

2000C1681-1

Published by Quality Assurance Dept.
