KV-29AL40/KV-29AL40A/KV-29AL40C

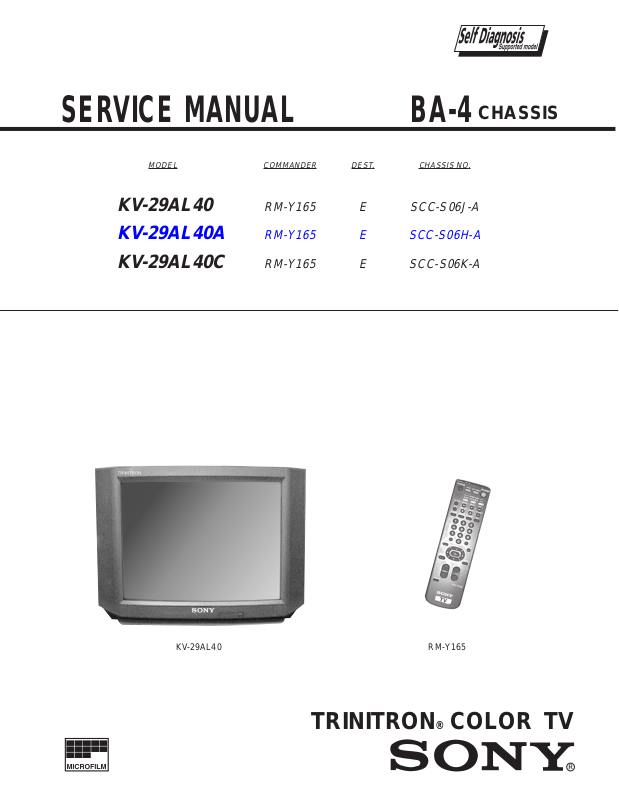

SERVICE MANUAL

MODEL COMMANDER DEST. CHASSIS NO.

KV-29AL40

KV-29AL40A

KV-29AL40C

RM-Y165 E SCC-S06J-A

RM-Y165ESCC-S06H-A

RM-Y165 E SCC-S06K-A

BA-4

CHASSIS

KV-29AL40

RM-Y165

TRINITRON® COLOR TV

— 1 —

KV-29AL40/KV-29AL40A/KV-29AL40C

Power requirements 120V,60Hz 220V, 50/60Hz Number of inputs/outputs:

Video S Video Audio Audio Out

Monitor Out – – Speaker output (W) 10W x 2 10W x 2

Power Consumption (W):

In use (max.) 170W 170W In standby 2W 3W

Dimensions (W/H/D):

(mm) 660.4 x 598 660.4 x 598 (in.) 26 x 23

Mass:

(kg.) 42kg 42kg (lbs.) 92 lbs. 8 oz. 92 lbs. 8 oz

SPECIFICATIONS

KV29AL40A

KV29AL40 KV-29AL40C

22 –– 22 11

x 505.5mm x 505.5mm

1/2

26 x 23

1/2

x 20in x 20in

1 Vp-p 75 ohms unbalanced, sync negative

Y: 1 Vp-p 75 ohms unbalanced, sync negative C: 0.286 Vp-p (Burst signal), 75 ohms

500 mVrms (100% modulation), Impedance: 47 kilohms

More than 408 mVrms at the maximum volume setting (variable)

Television system

American TV standard (all models except KV-29AL40A) PAL-M, PAL-L, NTSC (KV-29AL40A only)

Channel coverage

VHF:2-13/UHF:14-69/CATV:1-125

Visible screen size

29-inch picture measured

Actual screen size

29-inch picture measured

Antenna

75 ohm external terminal for VHF/UHF

Supplied Accessories

Remote commander (including 2 size AA (R6) batteries)

RM-Y165

Optional Accessory

Connecting Cables:

VMC-810S/820S, VMC-720M, YC-15V/30V TV Stand SU-27A3 VHF, UHF Mixer EAC-66

( l )  SRS (SOUND RETRIEVAL SYSTEM)

The ( l ) SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license from SRS Labs,

Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S. and foreign patents pending.

The word ‘SRS’ and the SRS symbol ( l ) areregistered trademarks of SRS Labs, Inc.

BBE and BBE symbol are trademarks of BBE Sound, Inc. and are licensed by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and 4,482,866.

Design and specifications are subject to change without notice.

— 2 —

Section Title PageSection Title Page

KV-29AL40/KV-29AL40A/KV-29AL40C

Warnings and Caution ............................................................ 4

Self-Diagnostic Function........................................................ 4

Safety Check Out Instructions................................................ 7

1. GENERAL (in Spanish)

Connecting and Installing the TV....................................... 8

Using the Remote Control .................................................. 8

Programming the Channels ................................................ 9

Watching the TV................................................................. 9

Other Functions .................................................................. 9

Using the Audio Menu ..................................................... 11

Troubleshooting................................................................ 11

2. DISASSEMBLY

2-1. Rear Cover Removal ................................................. 12

2-2. Control Switch Removal ........................................... 12

2-3. Chassis Assembly Removal ....................................... 12

2-4. Service Position ......................................................... 12

2-5. Picture Tube Removal ............................................... 13

3. SET-UP ADJUSTMENTS

3-1. Beam Landing ........................................................... 14

3-2. Convergence .............................................................. 15

3-3. Focus ......................................................................... 16

3-4. Screen (G2)................................................................ 16

3-5. Method of Setting the Service Adjustment Mode ..... 16

3-6. White Balance Adjustments ...................................... 16

4. SAFETY RELATED ADJUSTMENTS .........................17

5. CIRCUIT ADJUSTMENTS

5-1. Electrical Adjustment by Remote Commander ......... 19

5-2. A Board Adjustments................................................. 22

6. DIAGRAMS

6-1. Block Diagrams ......................................................... 25

6-2. Circuit Boards Location ............................................ 28

6-3. Printed Wiring Boards and Schematic Diagrams ...... 28

• A Board...................................................................... 29

• CV Board ................................................................... 37

• K Board ..................................................................... 38

• E Board ...................................................................... 40

• HT Board ................................................................... 40

• HV Board................................................................... 41

• HZ Board ................................................................... 42

6-4. Semiconductors ......................................................... 43

7. EXPLODED VlEWS

7-1. Chassis ....................................................................... 44

7-2. Main Power Switch ................................................... 45

(KV-29AL40A only)

8. ELECTRICAL PARTS LIST ........................................ 46

— 3 —

KV-29AL40/KV-29AL40A/KV-29AL40C

WARNINGS AND CAUTIONS

CAUTION!

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT, AFTER REMOVING THE ANODE.

WARNING!!

AN ISOLATION TRANSFORMER SHOULD BE USED DURING ANY SERVICE TO AVOID POSSIBLE SHOCK HAZARD, BECAUSE OF LIVE CHASSIS.THE CHASSIS OF THIS RECEIVER IS DIRECTLY CONNECTED TO THE AC POWER LINE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK

ON THE SCHEMA TIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERA TION ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE PROCEDURES WHENEVER CRITICAL COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS SUSPECTED.

SELF-DIAGNOSTIC FUNCTION

ATTENTION

APRES AVOIR DECONNECTE LE CAP DE L'ANODE, COURT-CIRCUITER L'ANODE DU TUBE CATHODIQUE ET CELUI DE L'ANODE DU CAP AU CHASSIS METALLIQUE DE L'APPAREIL, OU AU COUCHE DE CARBONE PEINTE SUR LE TUBE CATHODIQUE OU AU BLINDAGE DU TUBE CATHODIQUE.

ATTENTION!!

AFIN D'EVITER TOUT RESQUE D'ELECTROCUTION PROVENANT D'UN CHÁSSIS SOUS TENSION, UN TRANSFORMATEUR D'ISOLEMENT DOIT ETRE UTILISÉ LORS DE TOUT DÉPANNAGE. LE CHÁSSIS DE CE RÉCEPTEUR EST DIRECTEMENT RACCORDÉ À L'ALIMENTATION SECTEUR.

ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET PAR UNE MARQUE

SUR LES SCHEMAS DE PRINCIPE, LES VUES EXPLOSEES ET LES LISTES DE PIECES SONT D'UNEIMPORTANCE CRITIQUE POUR LA SECURITE DU FONCTIONNEMENT. NE LES REMPLACER QUE PAR DES COMPOSANTS SONY DONT LE NUMERO DE PIECE EST INDIQUE DANS LE PRESENT MANUEL OU DANS DES SUPPLEMENTS PUBLIES P AR SONY. LES REGLAGES DE CIRCUIT DONT L'IMPORT ANCE EST CRITIQUE POUR LA SECURITE DU FONCTIONNEMENT SONT IDENTIFIES DANS LE PRESENT MANUEL. SUIVRE CES PROCEDURES LORS DE CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU'UN MAUVAIS FONTIONNEMENT SUSPECTE.

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically begin to flash. The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER l amp flash indicators is listed in the instruction manual for the user's knowledge and reference. If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an error occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the problem. If there is more than one error, the lamp will identify the first of the problem areas.

Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a "0".

Diagnostic Item No. of times Self-diagnostic display/ Probable Cause Detected Symptoms

Description STANDBY/TIMES Diagnostic result Location

• Power does not turn on Does not light • Power cord is not plugged in. • Power does not come on.

• +B overcurrent (OCP) 2 times 2:0 or 2:1 • H.OUT (Q502) is shorted. (A Board) • Power does not come on.

• Vertical deflection stopped 4 times 4:0 or 4:1 • +13V is not supplied. (A Board) • Has entered standby state after

• White balance failure 5 times 5:0 or 5:1 • Video OUT (Q306, Q307, Q308) is • No raster is generated. (not balanced) faulty. (A Board) • CRT cathode current detection

lamp flashes

• Fuse is burned out (F5050). (E Board) • No power is supplied to the TV.

• AC power supply is faulty.

• IC1701, Q946, Q947 is shorted. (C Board) • Load on power line is shorted.

• IC 541 is faulty (A Board) horizontal raster.

• Vertical deflection pulse is stopped.

• Power line is shorted or power supply is stopped.

• IC301 is faulty. (A Board)

• G2 is improperly adjusted. (Note 2)

Note 1: If a +B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to Screen (G2) Adjustment in Section 3-4 of this manual.

— 4 —

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

2 times 4 times

5 times

KV-29AL40/KV-29AL40A/KV-29AL40C

Lamp ON 0.3 sec. Lamp OFF 0.3 sec.

Lamp OFF

STANDBY/SLEEP

lamp

3 sec.

Diagnostic Item Flash Count* +B overcurrent 2 times Vertical deflection stopped 4 times White balance failure 5 times

* One flash count is not used for self-diagnostic.

3. STOPPING THE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp from flashing.

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as "power sometimes shuts off" or "screen sometimes goes out" that cannot be confirmed, it is possible to bring up past occurrences of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

Screen display /

Channel

Self-Diagnostic screen display:

/ Sound volume – / Power ON

Note that this differs from entering the service mode (sound volume + ).

SELF DIAGNOSTIC 2: 0 <-------------

Numeral "0" means that no fault has been detected.

3: N/A 0 4: 0 5: 1 <-------------

Numeral "1" means a fault has been detected one time only.

101: N/A 0

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen during repairs. When you have completed the repairs, clear the result display to "0".

Unless the result display is cleared to "0", the self-diagnostic function will not be able to detect subsequent faults after completion of the repairs.

[Clearing the result display]

To clear the result display to "0", press buttons on the remote commander sequentially as shown below when the diagnostic screen is being displayed.

Channel

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

8 / ENTER

— 5 —

KV-29AL40/KV-29AL40A/KV-29AL40C

6. SELF-DIAGNOSTIC CIRCUIT

IC001

SYSTEM

O-LED

I-PROT

SDAT

MEMORY

B-DATIO-BDAT

FROM

CRT

FROM

IC521 PIN 7

IC301

Y/CHROMA JUNGLE

IK IN

HP/PROTECT

SDA

IC541

V.OUT

REF

+B overcurrent (OCP) Occurs when an overcurrent on the +B(115V) line is detected by pin 18 of IC301. If the

voltage to pin 18 of IC301 is less than 1V when V.SYNC is more than seven verticals in a period, the unit will automatically turn off.

Vertical deflection stopped Occurs when an absence of the vertical deflection pulse is detected by pin 17 of IC001.

Power supply will shut down when waveform interval exceeds 2 seconds.

White balance failure If the RGB levels* do not balance within 2 seconds after the power is turned on, this

error will be detected by IC301. TV will stay on, but there will be no picture.

IC003

*(Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

— 6 —

SAFETY CHECK-OUT

KV-29AL40/KV-29AL40A/KV-29AL40C

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorlysoldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the B+ and HV to see if they are specified values. Make sure your instruments are accurate; be suspicious of your HV meter if sets always havE low HV.

8. Check the antenna terminals, metal trim, “metallized" knobs, screws, and all other exposed metal parts for AC Leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampere). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers' instructions to use these instructions.

2. A battery-operated AC milliammeter. The Data PrecisioN 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The "limit" indication is 0.75 V, so analog meters must have an accurate low voltage scale. The Simpson's 250 and Sanwa SH-63Trd are examples of passive VOMs that are suitable. Nearly all battery operated digital multimeters that hav e a 2V AC range are suitable. (See Fig. A)

HOW TO FIND A GOOD EARTH GROUND

A cold-water pipe is guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also at earth ground. If the retaining screw is to be used as your earth-ground, verify that it is at ground by measuring the resistance between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms. If a coldwater pipe is not accessible, connect a 60-l00 watts trouble light (not a neon lamp) between the hot side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side of the line, the lamp should light at normal brilliance if the screw is at ground potential. (See Fig. B)

To Exposed Metal Parts on Set

1.5 k Ω0.15 µF

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

AC Voltmeter (0.75 V)

— 7 —

Trouble Light

AC Outlet Box

Ohmmeter

Cold-water Pipe

Fig. B. Checking for earth ground.

KV-29AL40/KV-29AL40A/KV-29AL40C

SECTION 2

DISASSEMBLY

2-1. REAR COVER REMOVAL 2-2. CONTROL SWITCH REMOVAL

Four Claws

NINE SCREWS

(BVTP 3x12)

Control Switch

2-3. CHASSIS ASSEMBL Y REMOV AL 2-4. SERVICE POSITION

— 12 —

2-5. PICTURE TUBE REMOVAL

WARNING: BEFORE REMOVING ANODE CAP

H.V. remains in the CRT even after the power is disconnected. Discharge the CRT before attempting to remove the anode cap to avoid electrical shock. Short between the anode and CRT coating the earth ground strap.

T ension Spring

Degaussing Coil

Deflection Y oke

E board

A board

KV-29AL40/KV-29AL40A/KV-29AL40C

Coating earth ground strap

Two DGC holders (M) Four Screws

(T apping screw 7)

Anode Cap

CV board

K board

HV board

Picture tube

Cushion

ANODE-CAP REMOVAL

NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after removing the anode.

REMOVAL PROCEDURES

1 Turn up one side of the rubber cap in

the direction indicated by the arrow

2 Use your thumb to pull the rubber cap

firmly in the direction indicated by the

arrow

HOW TO HANDLE AN ANODE-CAP

1 Do not use sharp objects which may cause damage to the surface

of the anode-cap.

2 Do not squeeze the rubber covering too hard to avoid damaging the

anode-cap. A material fitting called a shatter-hook terminal is built into the rubber.

3 Do not force turn the foot of the rubber cover. This may cause the

shatter-hook terminal to protrude and damage the rubber.

— 13 —

Anode Button

3 When one side of the rubber cap separates

from the anode button, the anode-cap can be removed by turning the rubber cap and pulling it in the direction of the arrow

KV-29AL40/KV-29AL40A/KV-29AL40C

Purity Control

SECTION 3

SET-UP ADJUSTMENTS

The following adjustments should be made when a complete realignment is required or a new picture tube is installed. These adjustments should be performed with rated power supply voltage unless otherwise noted.

The controls and switch should be set as follows unless otherwise noted:

PICTURE control ................. normal

BRIGHTNESS control ......... normal

3-1. BEAM LANDING

Preparation:

• Feed in the white pattern signal.

• Before starting, degauss the entire screen.

1. Input a raster signal with the pattern generator.

2. Loosen the deflection yoke mounting screw, and set the purity control to the center as shown in Fig.2.

Perform the adjustments in order as follows:

1. Beam Landing

2. Convergence

3. Focus

4. Screen (G2) and White Balance

Note: Test Equipment Required

1. Color Bar Pattern Generator

2. Degausser

3. DC Power Supply

4. Digital Multimeter

Fig. 2

3. Turn the raster signal of the pattern generator to green.

4. Move the deflection yoke backward, and adjust with the purity control so that green is in the center and red and blue are at the sides evenly. (Fig.3)

5. Move the deflection yoke forward, and adjust so that the entire screen becomes green. (Fig.1)

6. Switch over the raster signal to red and blue and confirm the condition.

7. When the position of the deflection yoke is determined, tighten it with the deflection yoke mounting screw.

8. When landing at the corner is not right, adjust by using the disk magnets. (Fig.4)

Blue Red

Green

Fig. 3

Purity control

corrects this area.

Deflection yoke positioning

corrects these areas.

Disk magnets or

rotatable disk

magnets correct

these areas(a-d).

Fig. 1

Fig. 4

— 14 —

KV-29AL40/KV-29AL40A/KV-29AL40C

BMC magnet

3-2. CONVERGENCE

Preparation:

• Before starting, perform FOCUS, V. LIN and V. SIZE adjustments.

• Set BRIGHTNESS control to minimum.

• Feed in dot pattern.

Vertical Static Convergence

(1)

Center dot

G B

R G B

V. STAT magnet

Fig. 5

If the blue dot does not converge with red and green dots, perform the following steps:

• Move BMC magnet (a) to correct insufficient H. Static convergence.

• Rotate BMC magnet (b) to correct insufficient V. Static convergence.

In either case, repeat Beam Landing Adjustment.

BMC magnet

Fig. 6

Purity

V. STAT

BMC magnet

1. Adjust V. STAT magnet to converge red, green and blue dots in the center of the screen. (Vertical movement)

Tilt the V. STAT magnet and adjust static convergence to open or close the V. STAT magnet.

2. When the V. STAT magnet is moved in the direction of arrow a and b, red, green, and blue dots move as shown below:

RG B

BG R

a B G

b B G

Fig. 7

( 2 )

Dynamic Convergence Adjustment

Preparation:

• Before starting, perform Horizontal and Vertical Static Convergence Adjustment.

1. Slightly loosen deflection yoke screw.

2. Remove deflection yoke spacers.

3. Move the deflection yoke for best convergence as shown below. ( Fig. 8)

4. Tighten the deflection yoke screw.

5. Install the deflection yoke spacers.

BGR

RGB

BGR

R G B

RGB

B G R

RGB RG B

B G R

RGB

BGR

R G B

Fig. 8

— 15 —

KV-29AL40/KV-29AL40A/KV-29AL40C

(3) Screen-corner Convergence

a-b : screen-corner misconvergence

Fig. 9

Affix a permalloy assembly corresponding to the misconverged areas:

Permalloy assembly

3-3. FOCUS

1. Adjust FOCUS control for best picture.

3-5. METHOD OF SETTING THE SERVICE

ADJUSTMENT MODE

(1) SERVICE MODE PROCEDURE

1. Standby mode. (Power off)

2. on the Remote Commander. (Press each button within a second.)

(2) SERVICE ADJUSTMENT MODE IN

Disp.

Item

(Item)

data

SERVICE AFC 0

3. The CRT displays the item being adjusted.

4. Press 1 or 4 on the Remote Commander to select the item.

5. Press 3 or 6 on the Remote Commander to change the data.

6. Press

then to write into memory.

FOCUS

SCREEN

Fig. 10

3-4. SCREEN (G2)

1. Input a dots pattern.

2. Set the PICTURE and BRIGHT controls at minimum and COLOR control at normal.

3. Adjust SBRT, GCUT, BCUT in service mode with an

oscilloscope as shown in Fig. 11 so that voltages on the red, green, and blue cathodes are 170Vdc.

170 V dc

GND

170 V dc

Fig. 11

pedestal

(3)

SERVICE ADJUSTMENT MODE MEMORY

SERVICE WRITE

Green

Red

7. Turn set off and on to exit.

3-6. WHITE BALANCE ADJUSTMENTS

1. Input an entire white signal.

2. Set to Service adjustment Mode.

3. Set DCOL to "0"

4. Set the PICTURE and BRIGHT to minimum.

5. Adjust with SBRT if necessary.

6. Select GCUT and BCUT with 1 and 4 .

7. Adjust with 3 and 6 for the best white balance.

8. Set the PICTURE and BRIGHT to maximum.

9. Select GDRV and BDRV with 1 and 4 .

10. Adjust with 3 and 6 for the best white balance.

11. Reset DCOL to "1".

12. Write into the memory by pressing

then .

4. Observe the screen and adjust SCREEN (G2) VR to obtain the faintly visible background of dot signal.

— 16 —

KV-29AL40/KV-29AL40A/KV-29AL40C

SECTION 4

SAFETY RELATED ADJUSTMENTS

A BOARD

R584 CONFIRMATION METHOD (HV HOLD-DOWN CONFIRMATION) AND READJUSTMENTS

The following adjustments should always be performed when replacing the following components which are marked with ] on

the schematic diagram:

DY, C511, C572, C573, C574, C575, D573, D574, R582, R583, R585, R586, R578, R579, T504, IC301, IC521, IC603, C507, C508, C509, C515, C520, L591, L501

(1) Preparation before Confirmation

Using Variac, apply AC input voltage: 120+2VAC

+ 2 VAC for KV-29AL40A/C)

(or 220

1) Turn the POWER switch ON.

2) Input a white signal and set the PICTURE and BRIGHT controls to maximum.

3) Confirm that the voltage between C574 (+) or TP503 and ground is more than: 105VDC.

(2) Hold-down Operation Confirmation

1) Connect the current meter between Pin 11 of the FBT (T504) and the PCB land where Pin 11 would normally attach. (see figure 1.0 on next page)

2) Input a dot signal and set PICTURE and BRIGHTNESS to minimum: IABL = 100

3) Confirm the voltage of A board TP-600 is 135 ± 3VDC

4) Connect the Digital Voltmeter and the DC power supply via diode 1SS119 to C574 (+). (See figure 1.0 on next page.)

5) Increase the DC power voltage gradually until the picture blanks out.

6) Turn DC power source off immediately.

7) Read the digital voltmeter indication.

STANDARD Less than or equal to: 141.3 VDC

+100µA

(3) Hold-down Readjustment

If the current setting indicated in step 2-2 cannot be met, readjustment should be performed by altering the resistance value of R584, a component marked with

T504

FBT

ammeter

3.0 mA DC range

ABL

I ABL

B+ VOLTAGE CONFIRMATION AND ADJUSTMENT

The following adjustments should always be performed when replacing the following components which are marked with ] on the schematic diagram:

IC603, IC601, R699

1) Using Variac, apply AC input voltage: 130 + 2.0 VAC (or 220.0 ± 2.0 VAC for KV-29AL40A/C).

2) Input a dot signal.

3) Set the PICTURE control and the BRIGHT control to minimum.

4) Set to service adjustment mode.

5) Select PADJ with

6) Adjust with

and .

to the 0 level.

7) Confirm the voltage of A BOARD TP-600 is less than 138 VDC.

8) If step 7 is not satisfied, replace the components, repeat the above steps.

9) Adjust with

and for: 135 ± 3 VDC

10) Write into the memory by pressing

then

8) Input a white signal and set PICTURE and BRIGHTNESS to maximum: IABL = 1750

+100µA

9) Repeat steps from (4) to (7).

STANDARD Less than or equal to: 141.3 VDC

— 17 —

KV-29AL40/KV-29AL40A/KV-29AL40C

DIGITAL

MULTIMETER

TP600

C574

R584

ABL 11

AMMETER

3mA dc range

T504

FBT

[A BOARD]

POWER SUPPLY

DIGITAL

MULTIMETER

1SS119

— 18 —

SECTION 5

CIRCUIT ADJUSTMENTS

5-1. ELECTRICAL ADJUSTMENT BY REMOTE COMMANDER

KV-29AL40/KV-29AL40A/KV-29AL40C

Use Remote Commander (RM-Y165) to perform circuit adjustments on this model.

NOTE: Test Equipment Required:

1. Pattern Generator

2. Frequency Counter

3. Digital Multimeter

4. Audio OSC

(1)

Method of Setting the Service

Adjustment Mode

SERVICE MODE PROCEDURE

1. Standby mode. (Power off)

2. on the Remote Commander. (Press each button within a second.)

SERVICE ADJUSTMENT MODE IN

Disp.

Item

(Item)

data

SERVICE SYS 0

3. The CRT displays the item being adjusted.

4. Press

or on the Remote Commander to select the item.

5. Press or on the Remote Commander to change the data.

6. Press then to write into memory.

SERVICE ADJUSTMENT MODE MEMORY

7. Press then on the Remote Commander to initialize.

SERVICE RESET

Carry out step 7 when adjusting IDs 0 to 4 and when replacing and adjusting IC003.

8. Turn set off and on to exit.

(2) Memory Write Confirmation Method

1. After adjustment, pull out the plug from the AC outlet, then replace the plug in the AC outlet again.

2. Turn the power switch ON and set to service mode.

3. Call the adjusted items again to confirm they were adjusted.

(3) Adjust Buttons and Indicator

DBS/CABLE

FUNCTION

DBS/CABLE

SWAP

AUDIO

5 6

ENTER

POWER

PIP

TV/VIDEO

POWER

ENTER

MUTING

DISPLAY

muting

VTR

TV/VTR

FREEZE

POSITION

–

SLEEP

DISPLAY TV/VIDEO

1 2

4 7 8

JUMP

MTS

TV DBS

GUIDE

Green

SERVICE WRITE

Red

— 19 —

VOLUME

RESET MENU

CHVOL

CODE SET

RM-Y165

KV-29AL40/KV-29AL40A/KV-29AL40C

(4) Item of Adjustments

NO. ITEM FUNCTION

1 HSIZ HORIZONTAL AMP. ADJ. 0-63 4 5 45 4 5 48 2 HPOS HORIZONTAL POS. ADJ. 0-63 10 10 10 10 3 VBOW VRT LINE BOWING ADJ. 0-15 6 6 4 VANG VRT LINE BOW SLANT ADJ. 0-15 9 5 5 TRAP HORIZ. TRAPEZOID ADJ. 0-15 7 5 6 PAMP HORIZ. PIN DISTORTION ADJ. 0-63 21 20 20 30 7 CPIN SAME AS PAMP-SCRN TP/BTM 0-63 40 40 40 30 8 VSIZ VERTICAL AMP. ADJUST 0-63 39 31 38 35

9 VPOS VERTICAL POSITION ADJ. 0-63 37 35 35 35 10 VLIN VERTICAL LINEARITYADJ. 0-15 7 6 6 6 11 SCOR VERTICAL AMOUNT ADJ. 0-15 8 8 8 8 12 VZOM 16:9 CRT Z MODE ON/OFF 0,1 0 0 13 EHT VRT Hl-VOLT. CORRECTION 0-15 4 4 14 ASP ASPECT RATIO CONTROL 0-63 47 47 15 SCRL 16:9 CRT Z MODE TRAN SCRL 0-63 31 3 1 16 HBLK RGB OUT WIDTH CONTROL 0,1 1 1 17 LBLK LEFT SCREEN HBLK CONTRO 18 RBLK RGT SCREEN HBLK CONTROL 0-15 3 3 19 VUSN V SAW WAVEFORM COMPRES 0,1 0 0 20 HDW H. DRIVE PULSE WIDTH 0,1 0 0 21 EWDC EW/DC ADJUST 0,1 0 0 22 LVLN SCREEN BTM VRT LIN ADJUST 0-15 0 0 23 UVLN SCREEN TOP VRT LIN ADJUST 0-15 0 0 24 RDRV R OUTPUT DRIVE CONTROL 0-63 42 40 25 GDRV G OUTPUT DRIVE CONTROL 0-63 32 3 5 26 BDRV B OUTPUT DRIVE CONTROL 0-63 28 3 5 27 RCUT R OUTPUT CUTOFF CONTROL 0-15 9 7 28 GCUT G OUTPUT CUTOFF CONTROL 0-15 4 5 29 BCUT B OUTPUT CUTOFF CONTROL 0-15 4 5 30 DCOL DYNAMIC COLOR ON/OFF 0,1 0 1 3 1 SHUE SUB HUE 0-31 14 8 32 SCOL SUB COLOR 0-31 18 14 14 14 33 SBRT SUB BRIGHTNESS 0-31 14 12 34 RON R OUTPUT ON/OFF 0,1 1 1 35 GON G OUTPUT ON/OFF 0,1 1 1 36 BON B OUTPUT ON/OFF 0,1 1 1 37 AXPL AXIS PAL 0,1 0 0 38 AXNT AXIS NTSC 0,1 0 0 39 CBPF CHROMA BPF ON/OFF 0,1 0*, 1** 40 CTRP Y TRAP FILTER ON/OFF 0,1 1* , 0 * * 41 COFF COLOR ON/OFF 0,1 0 0 42 KOFF SET COLOR KILLER 0,1 0 0 43 SSHP SUB SHARPNESS 0-15 7 6 44 SHPF SHARPNESS CIRCUIT F0 0,1 1 1 1 45 PREL PRE/OVR SHOOT SWITCHING 0,1 1 1 46 Y-DC DC TRANS RATIO SWITCHING 0,1 1 1 47 GAMM GAMMA CORRECTION AMNT 0-3 0 0 48 ABLM ABL MODE SWITCHING 0,1 1 1 49 VTH ABL C D VTH SWITCHING 0,1 1 1 50 YDEL Y DELAY TIME CONTROL 0-15 7 7 5 1 NCOL NO COLOR ID 0,1 1 1 52 FSC FSC OUT ON/OFF 0,1 1*, 0** 53 K-ID KILLER ID CONTROL SW 0,1 0 0 54 HOSC H VCO OSCILLATION FREQ 0-15 7 7 55 VSS V SYNC SLICE LEVEL 0,1 0 0 56 HSS H SYNC SLICE LEVEL 0,1 0 0 57 HMSK 0,1 1 1 5 8 VTMS SELECT SIGNAL VTIM PIN 0-3 0 0 59 CDMD V CNT DWN MODE SWITCHING 0-3 0 1 60 AFC AFC LOOP GAIN SWITCHING 0-3 0 0

INITIAL DATA

DATA

RANGE NTSC PAL-M PAL-N VIDEO

0-15 15 15

AVERAGE

DATA

— 20 —

+ 36 hidden pages

SONY HCD F50, 10003, 1001RB II Diagram

SPECIFICATIONS

TABLE OF CONTENTS

DISASSEMBLY

SET-UP ADJUSTMENTS

SAFETY RELATED ADJUSTMENTS

CIRCUIT ADJUSTMENTS
