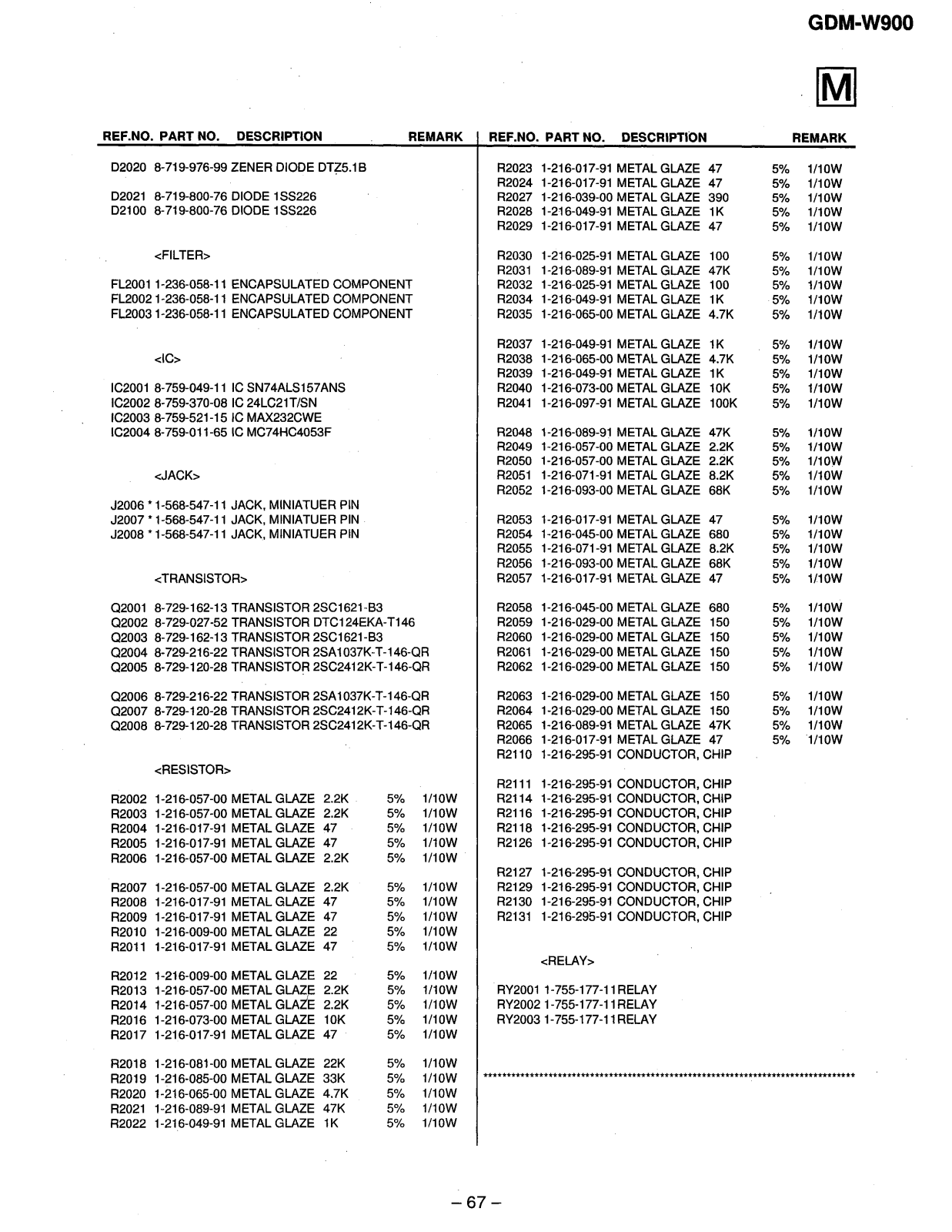

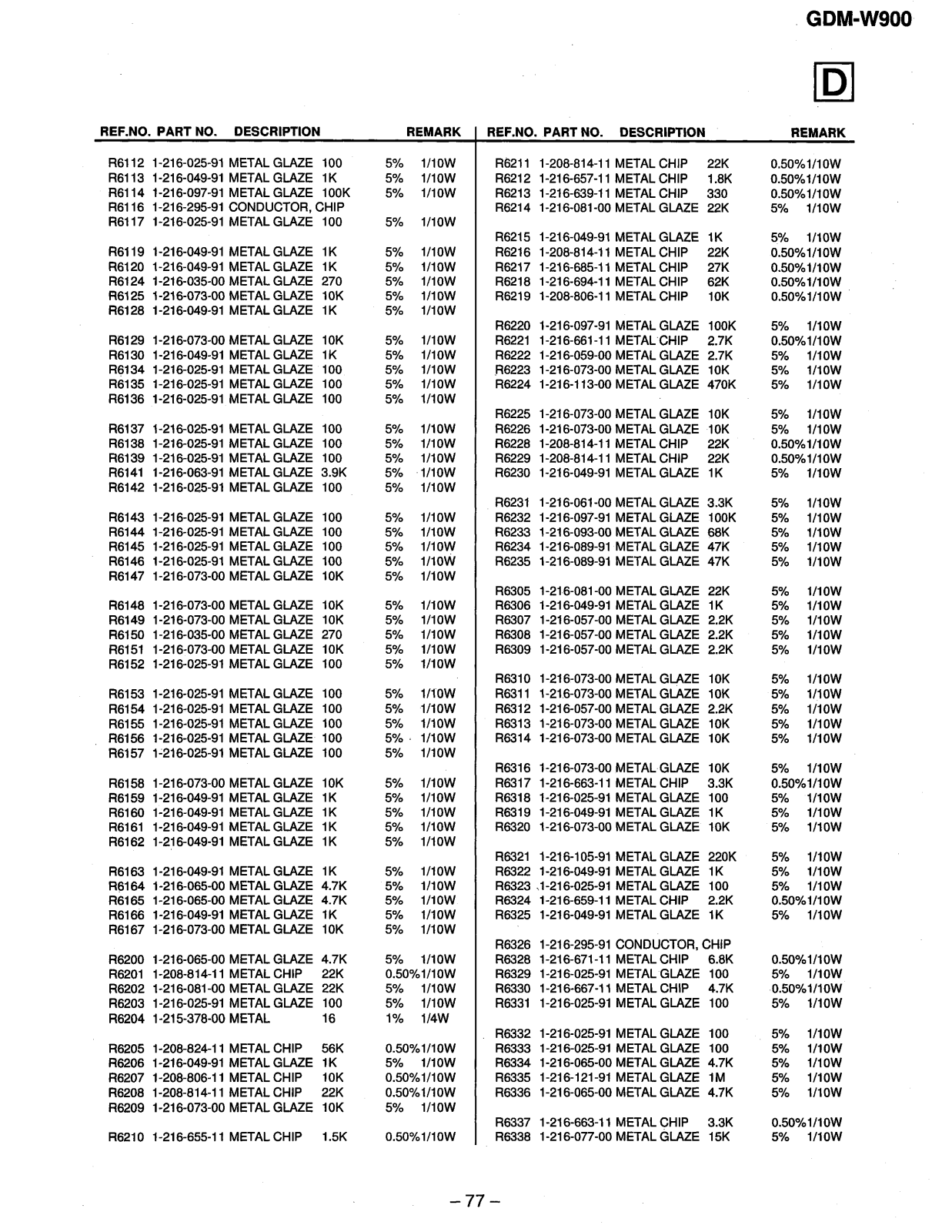

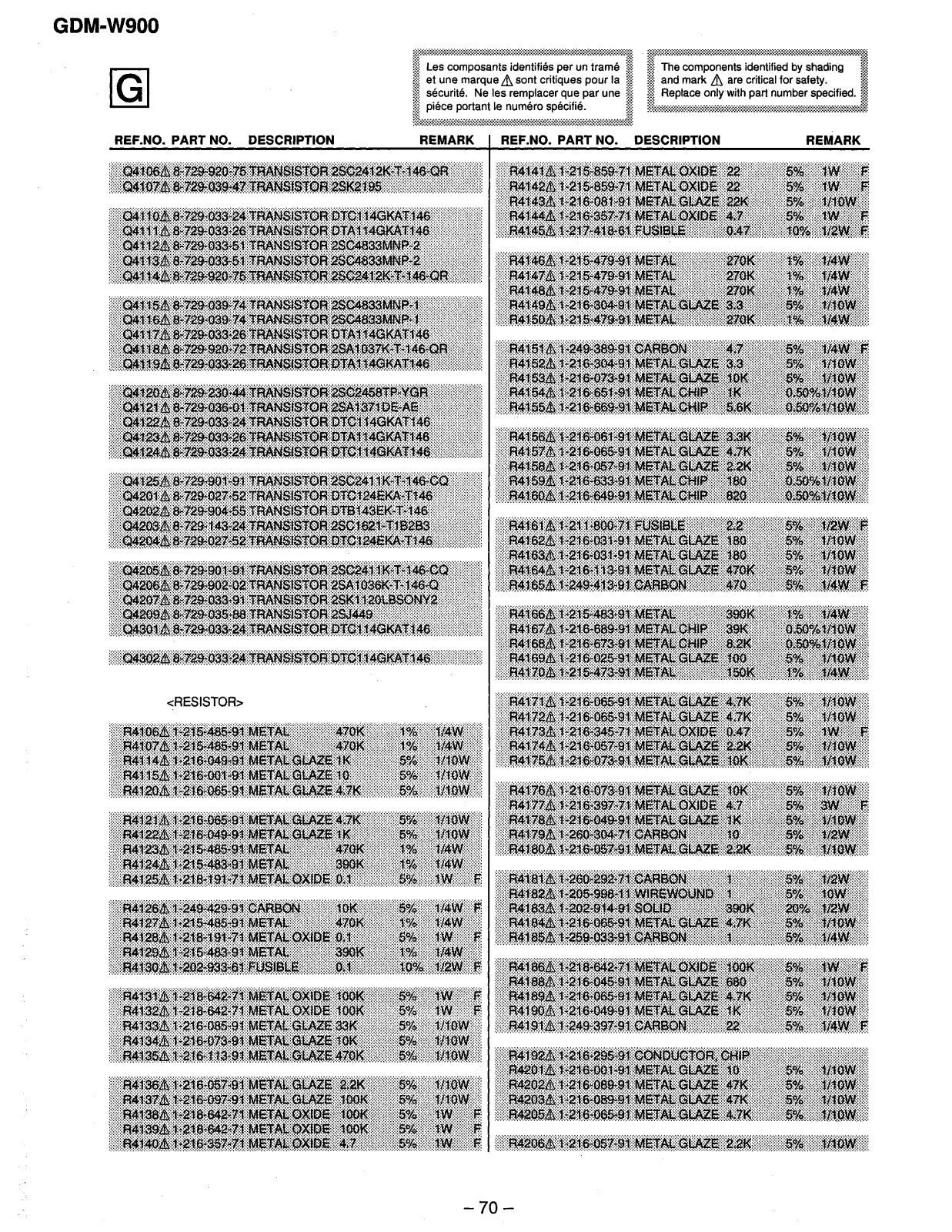

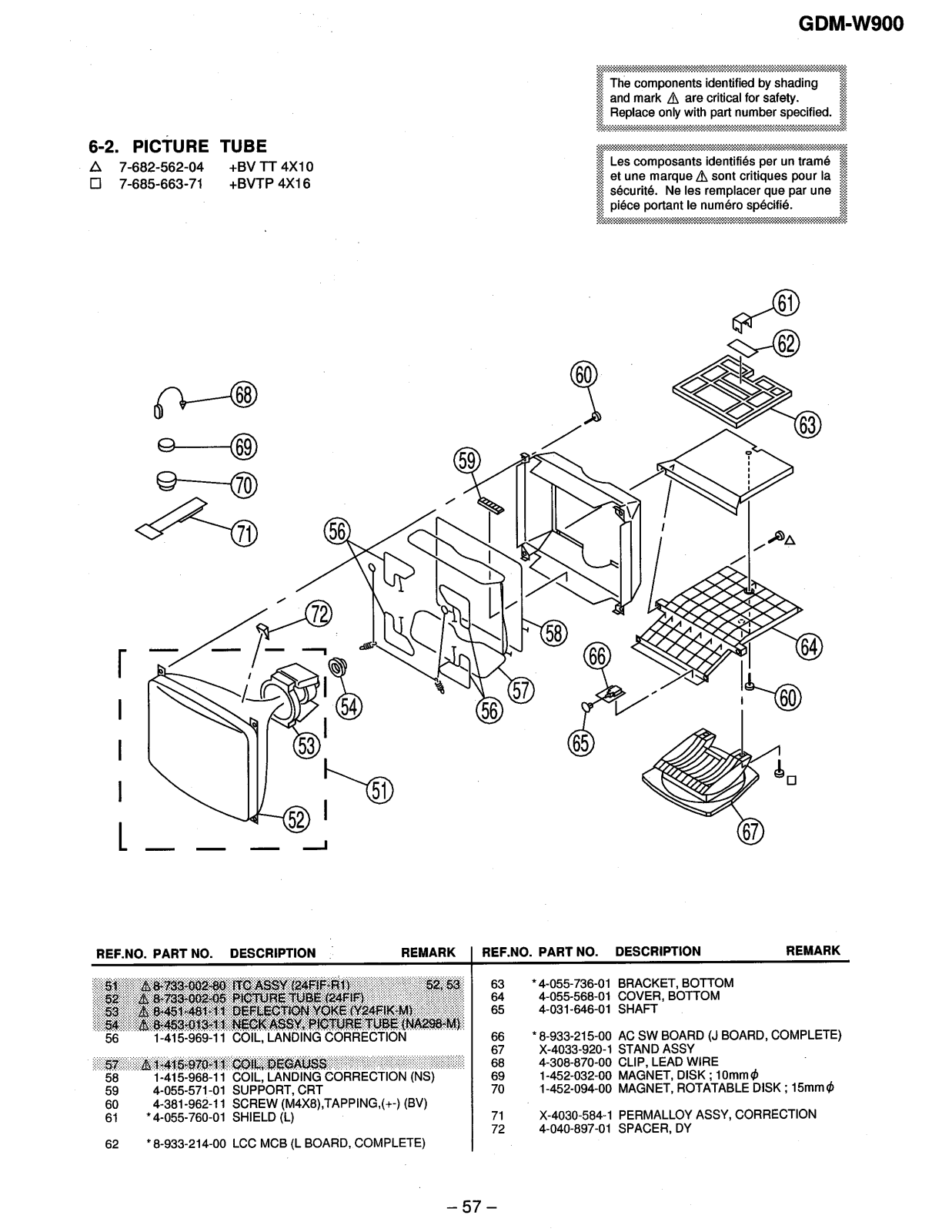

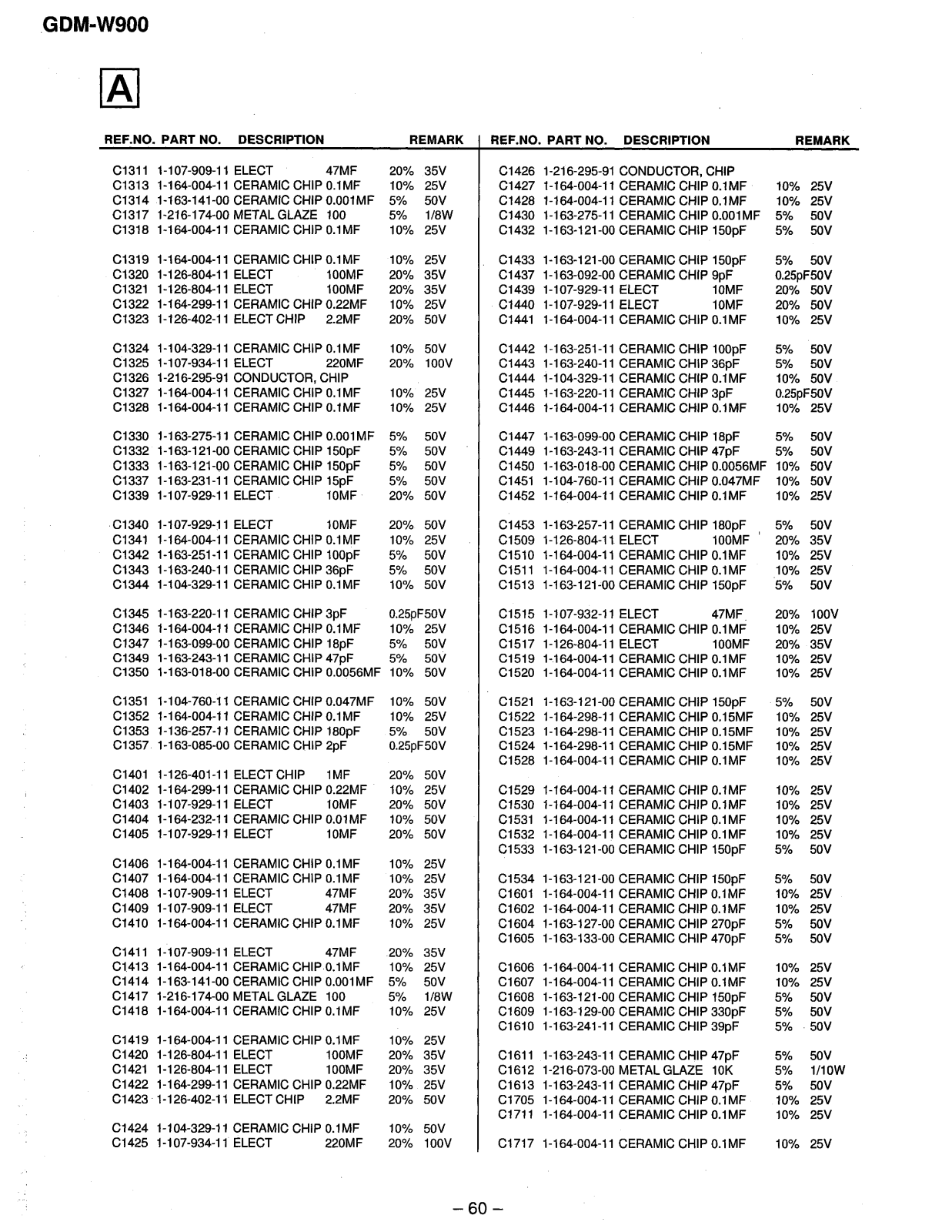

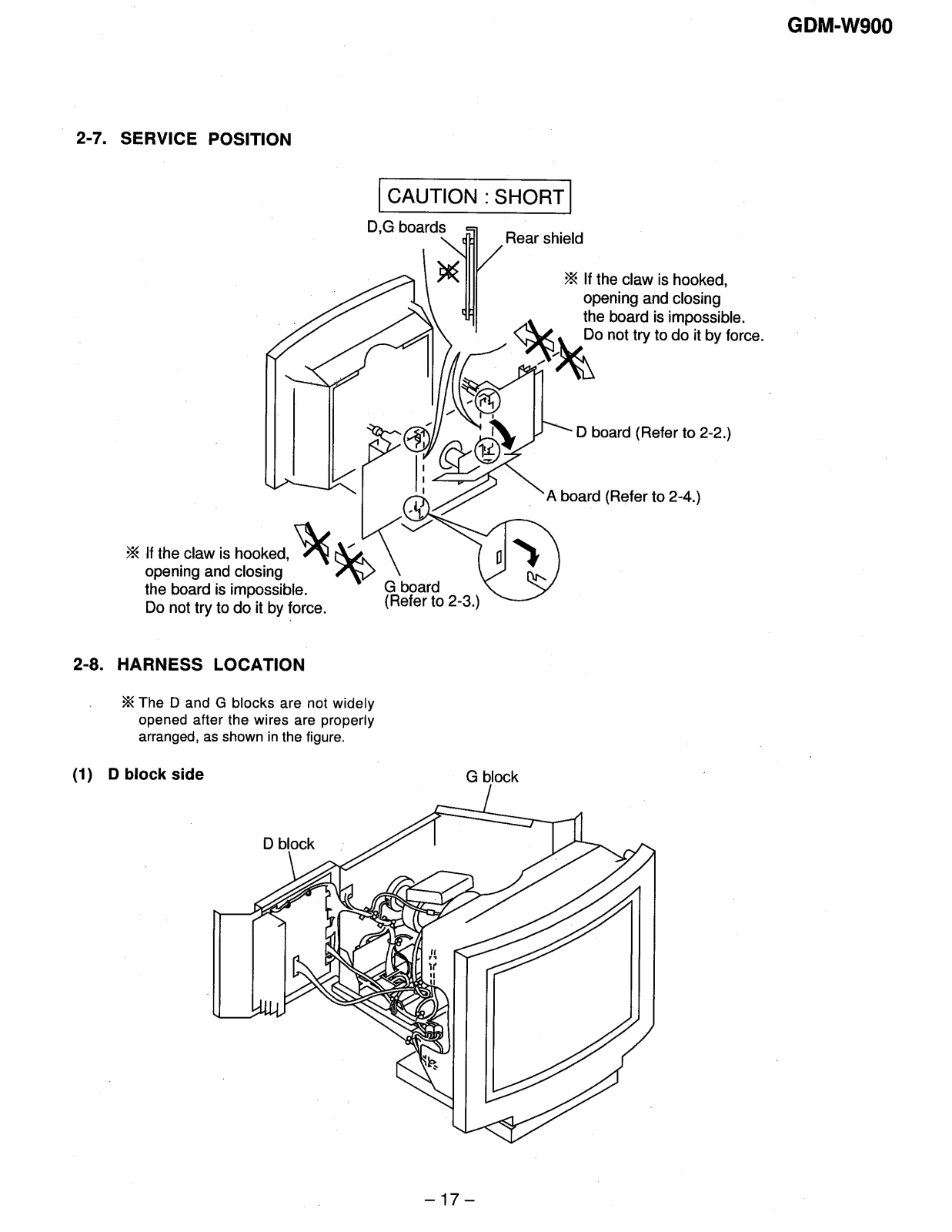

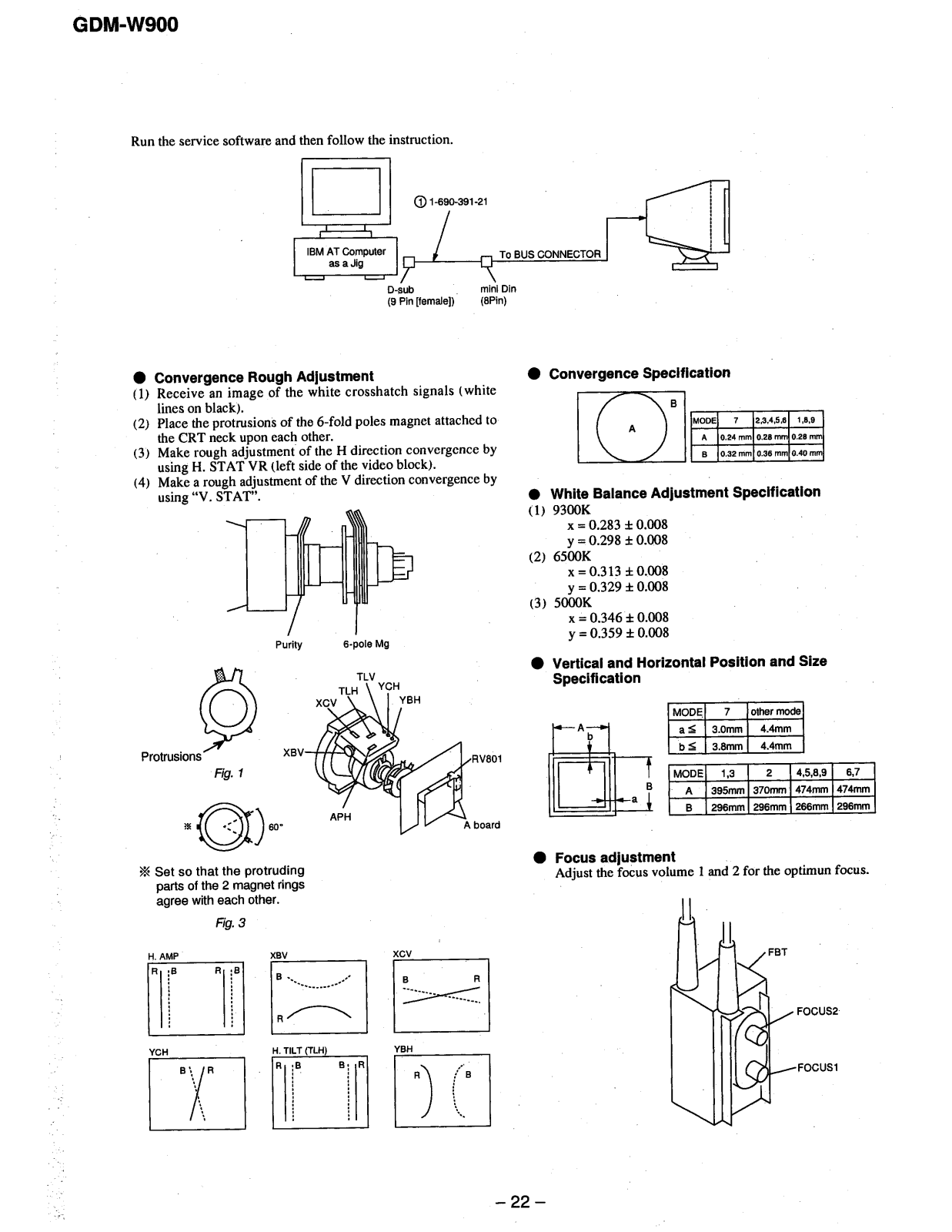

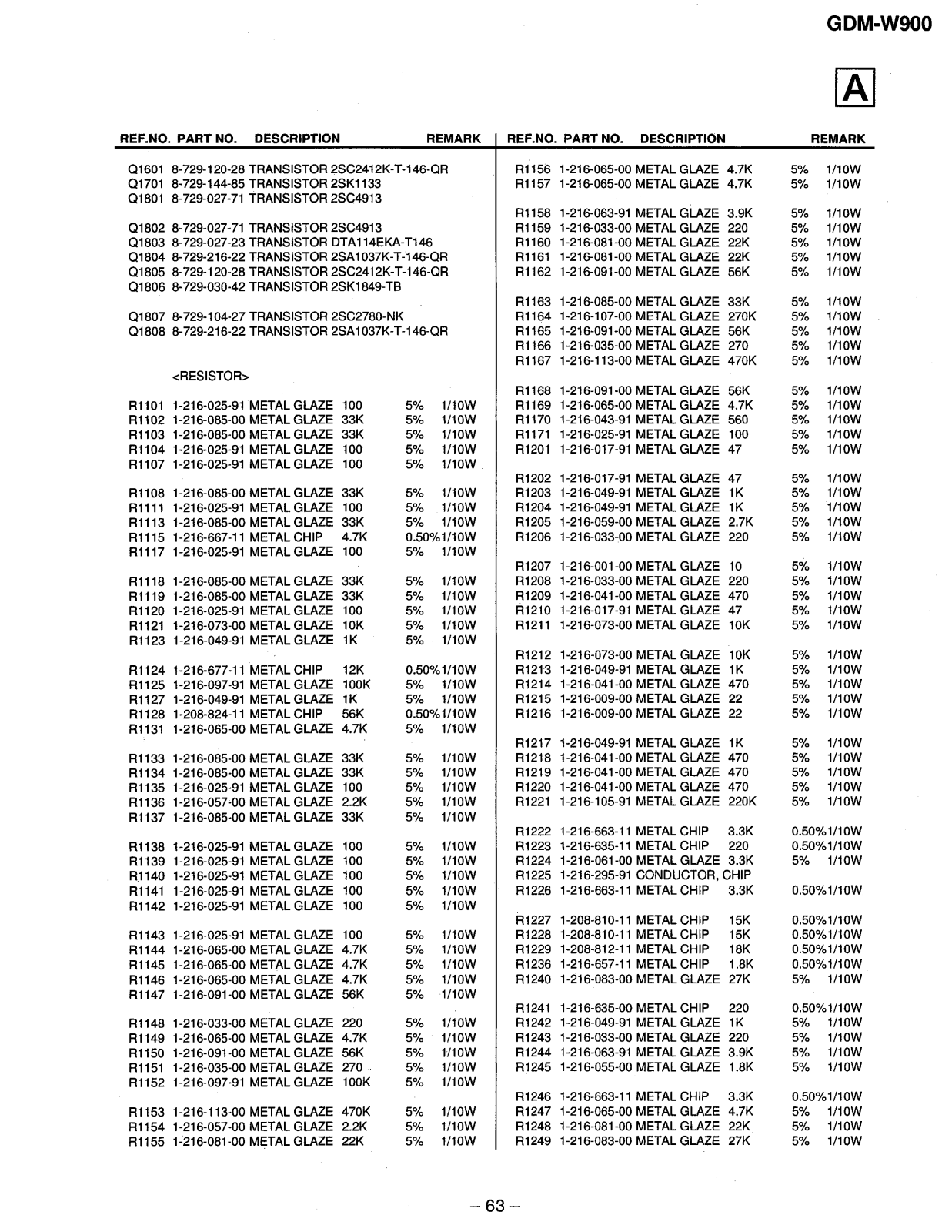

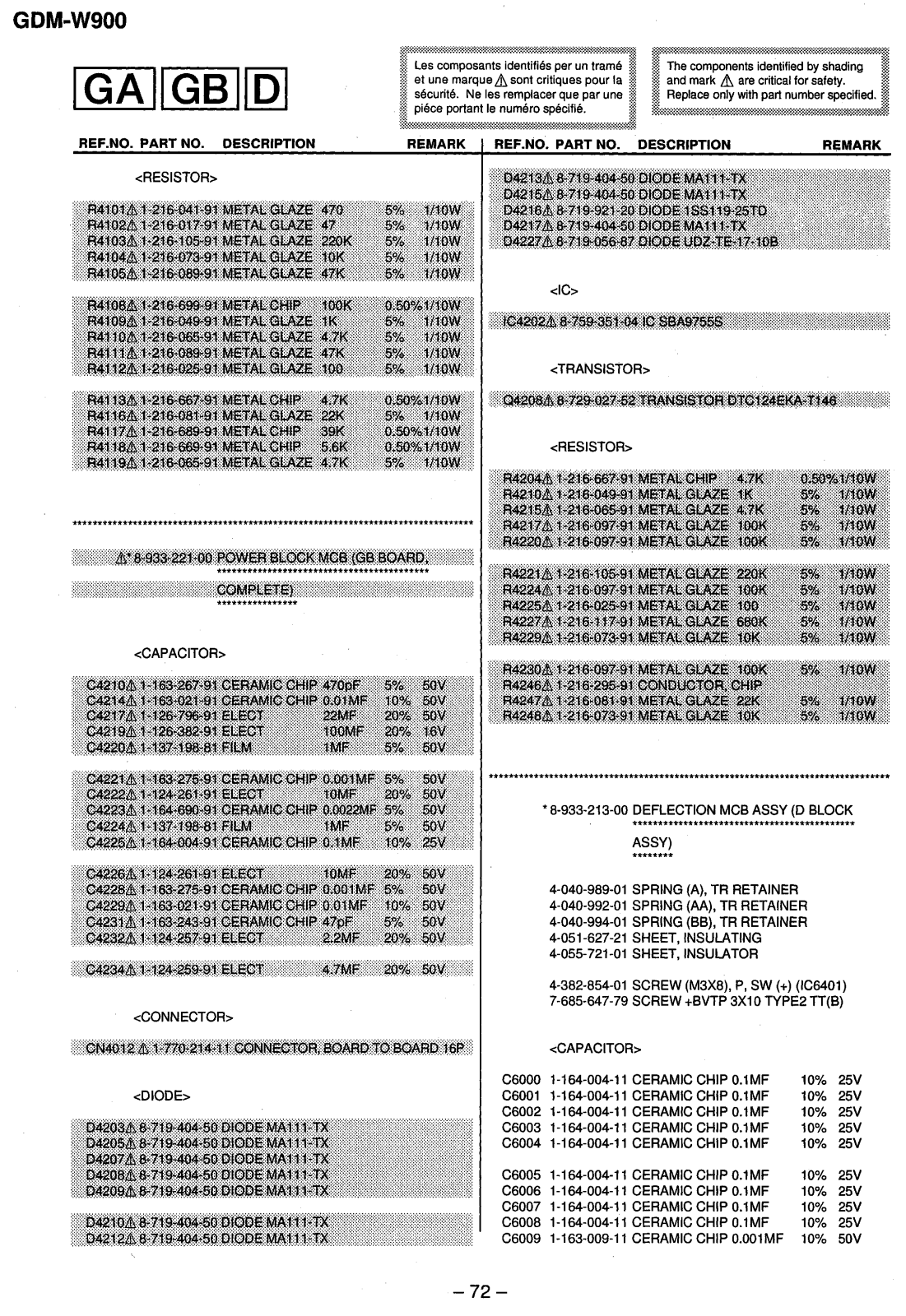

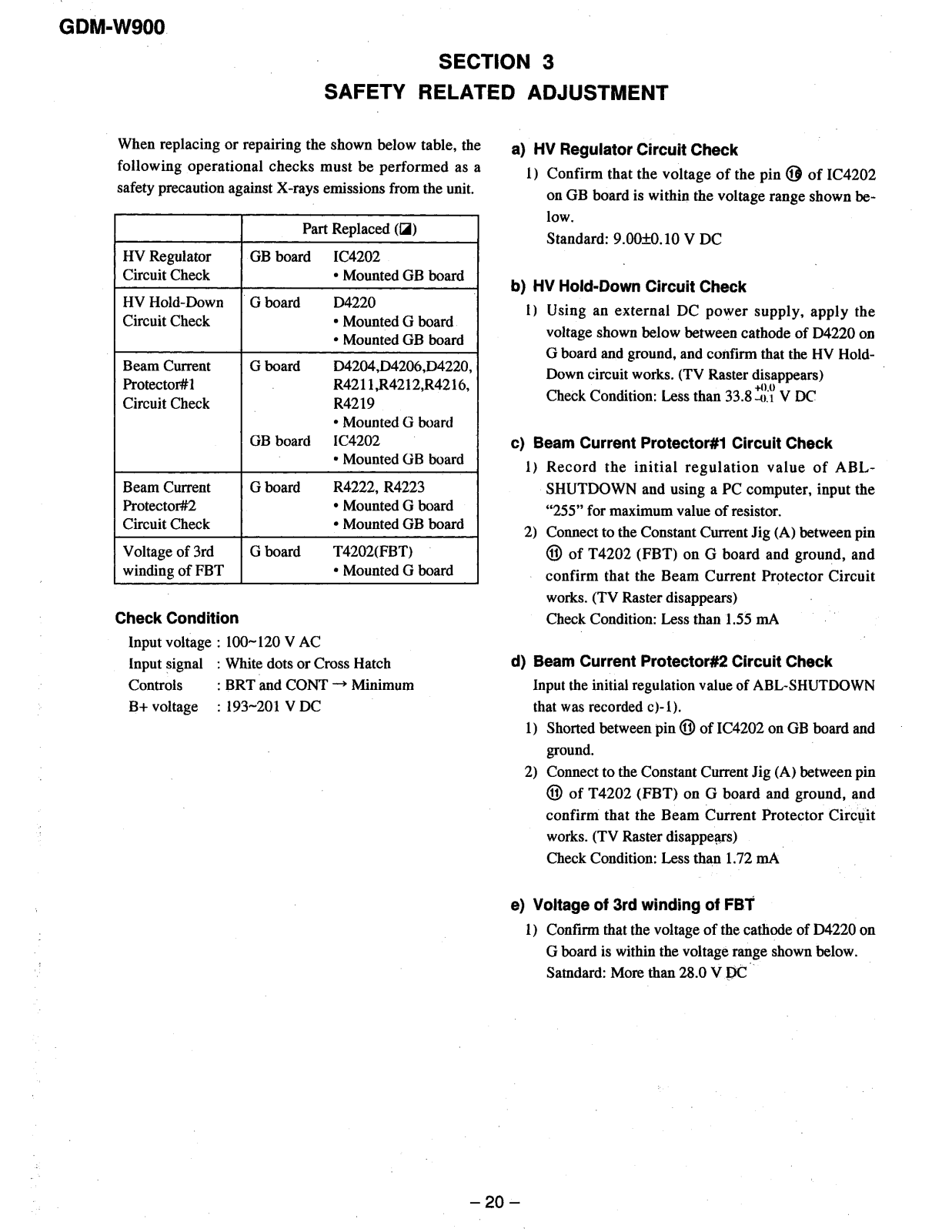

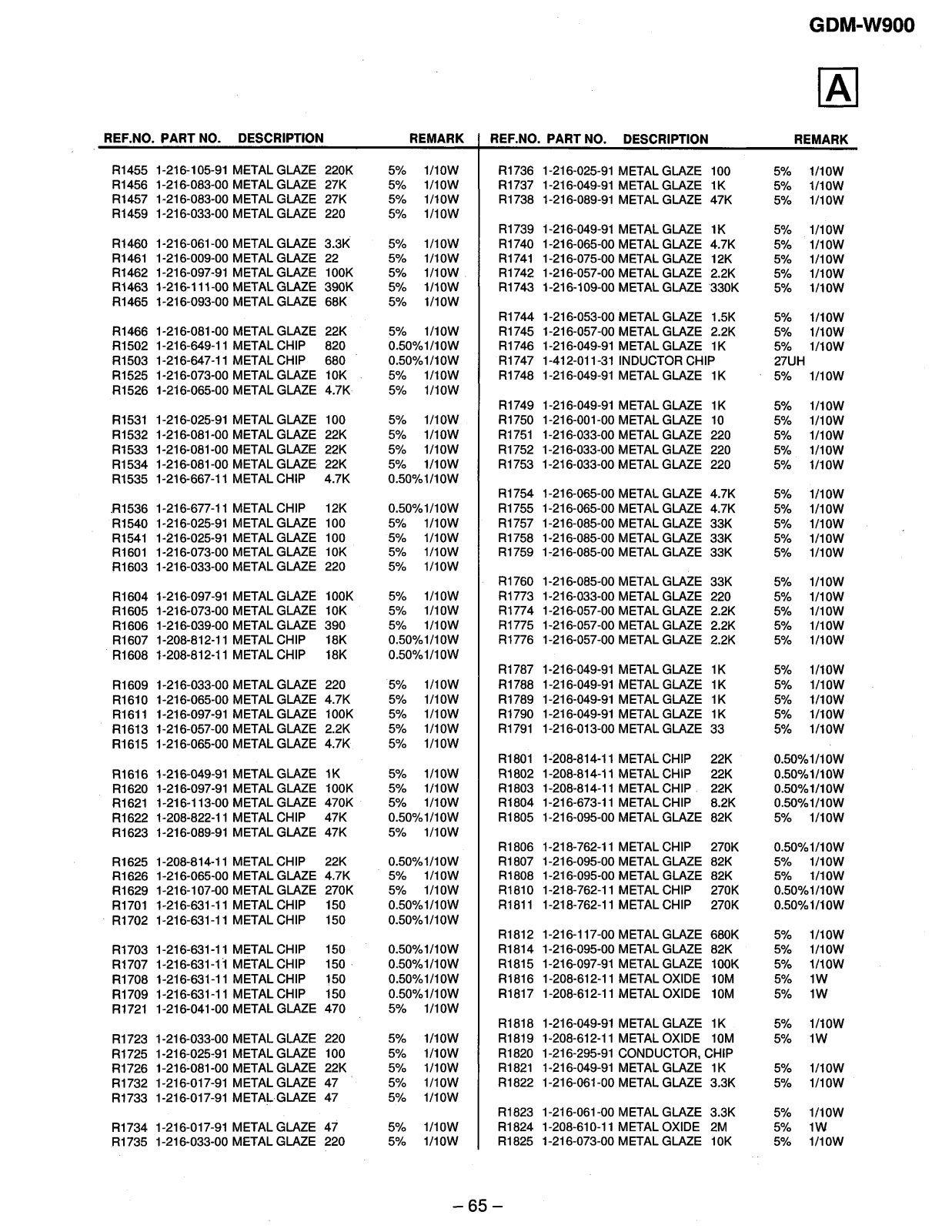

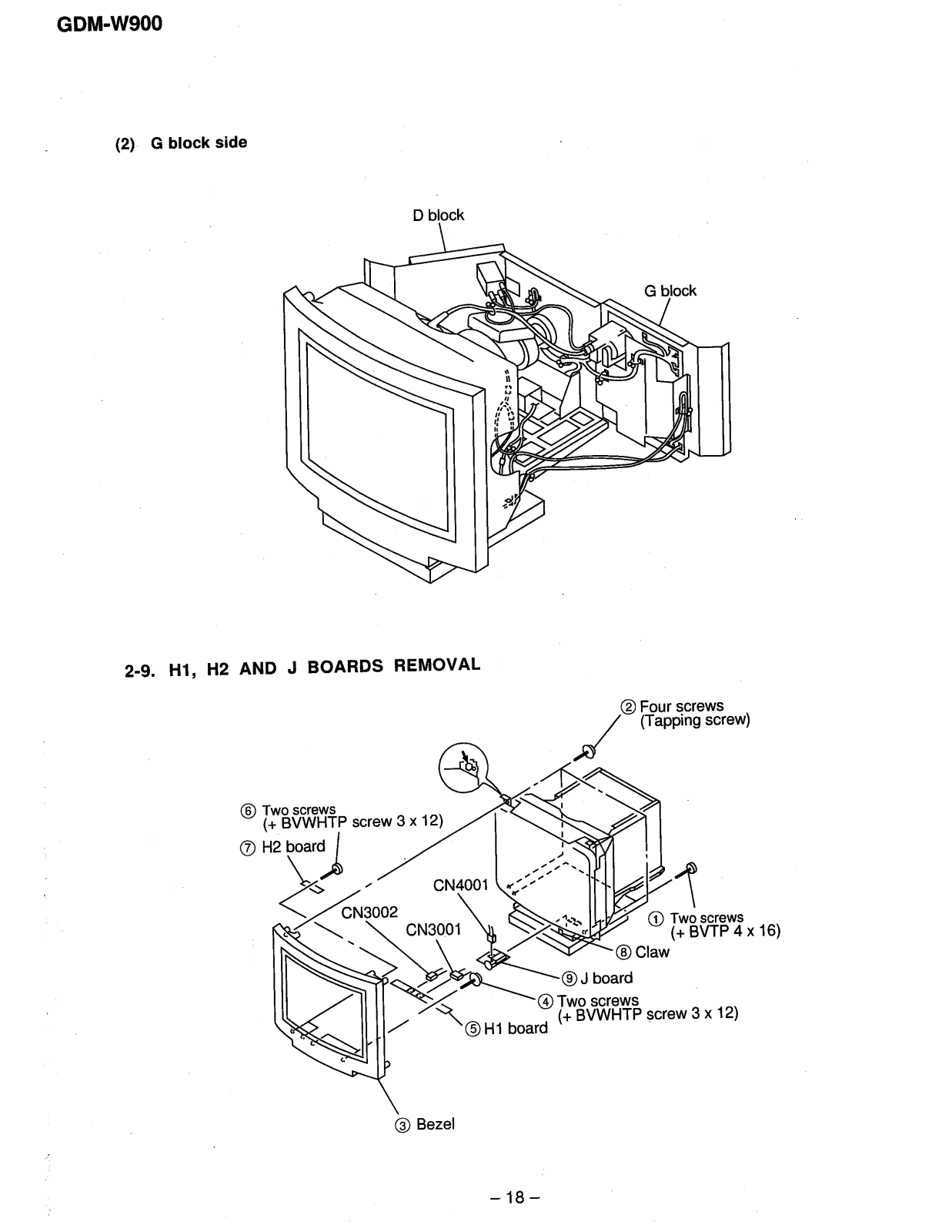

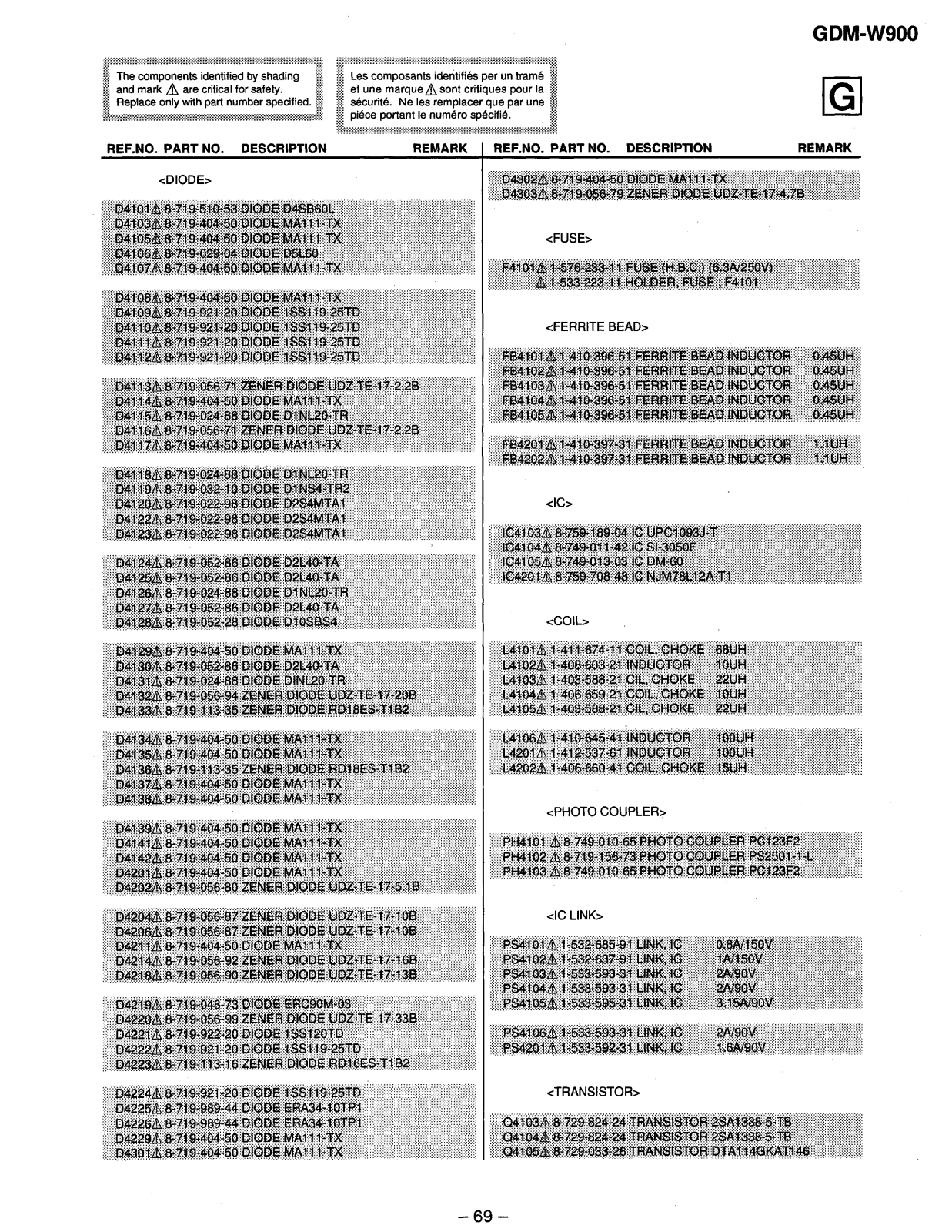

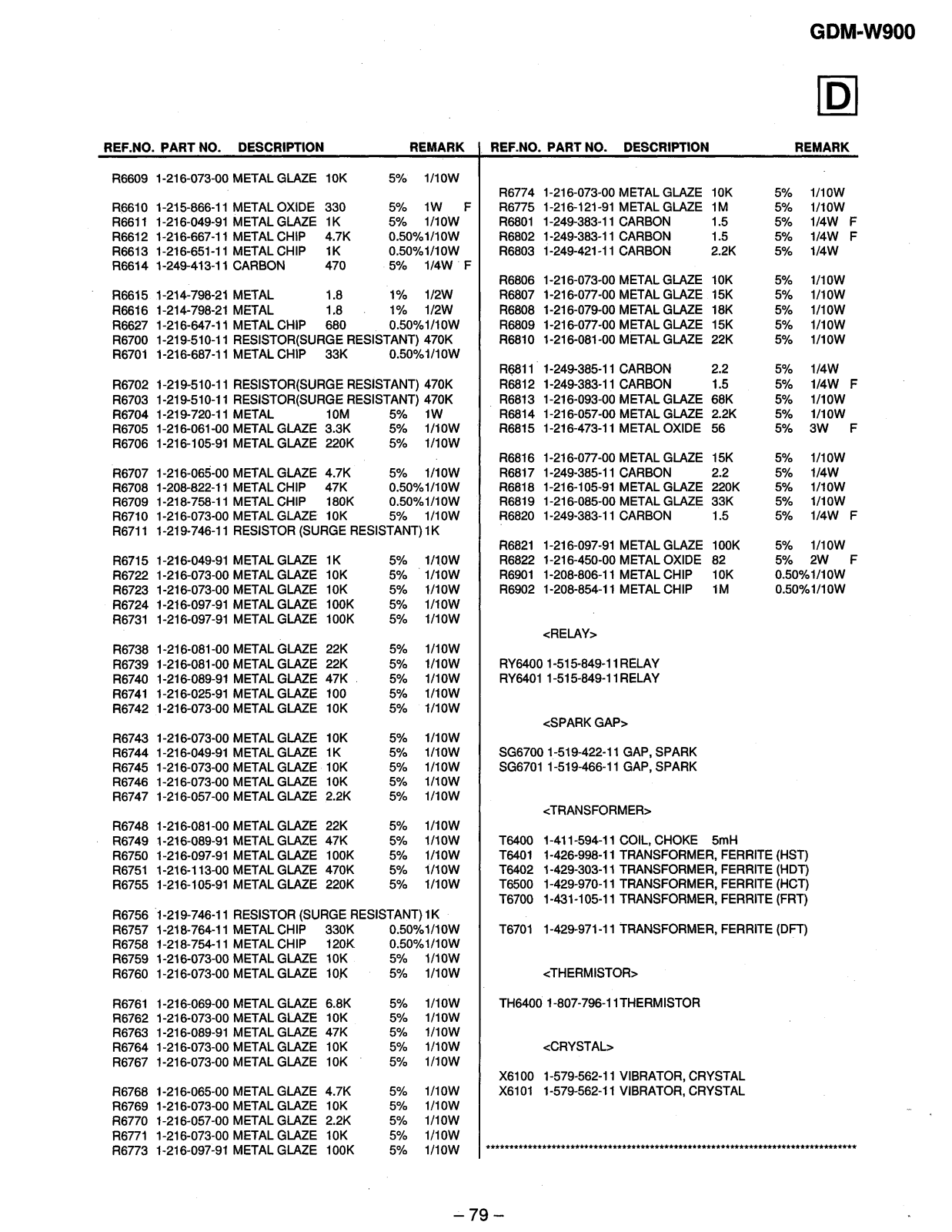

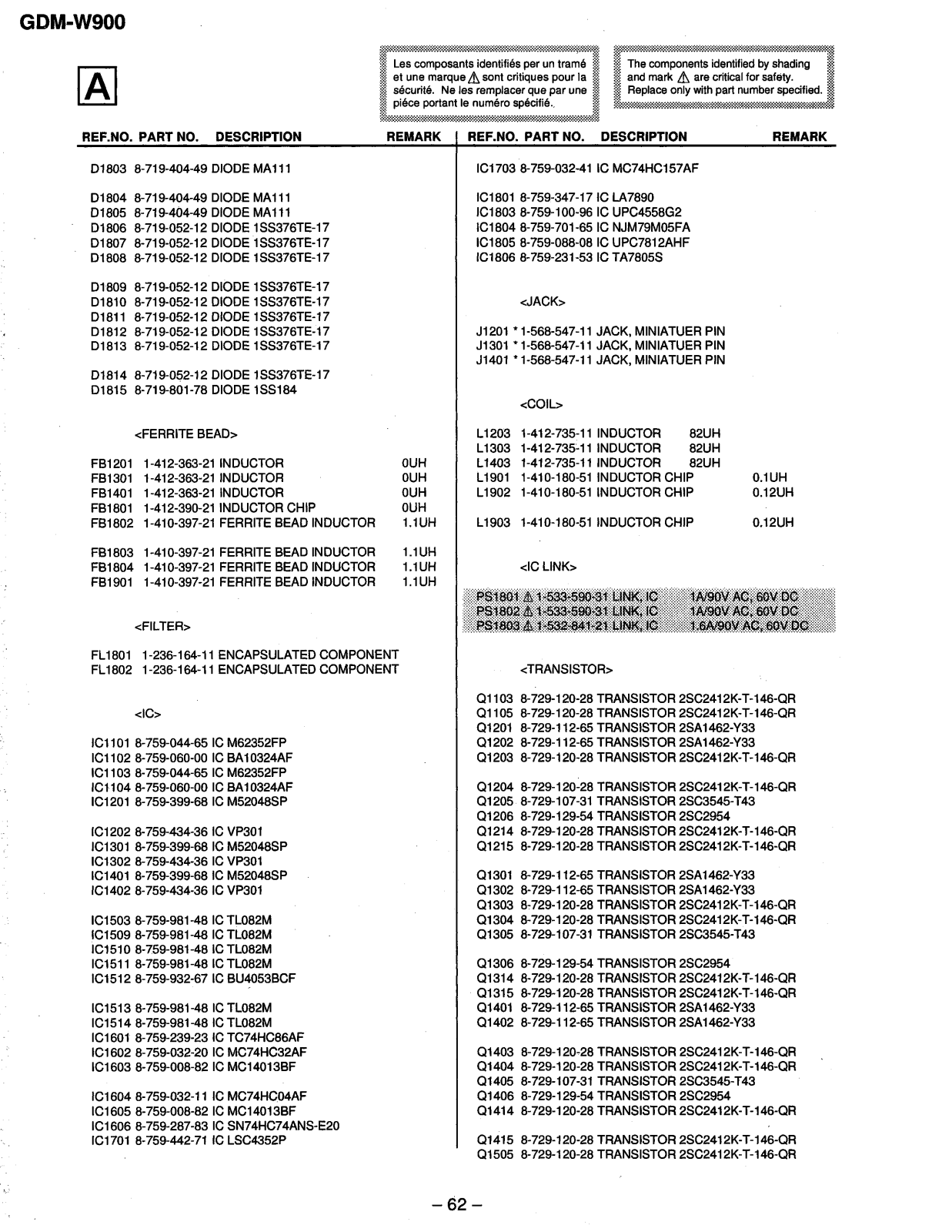

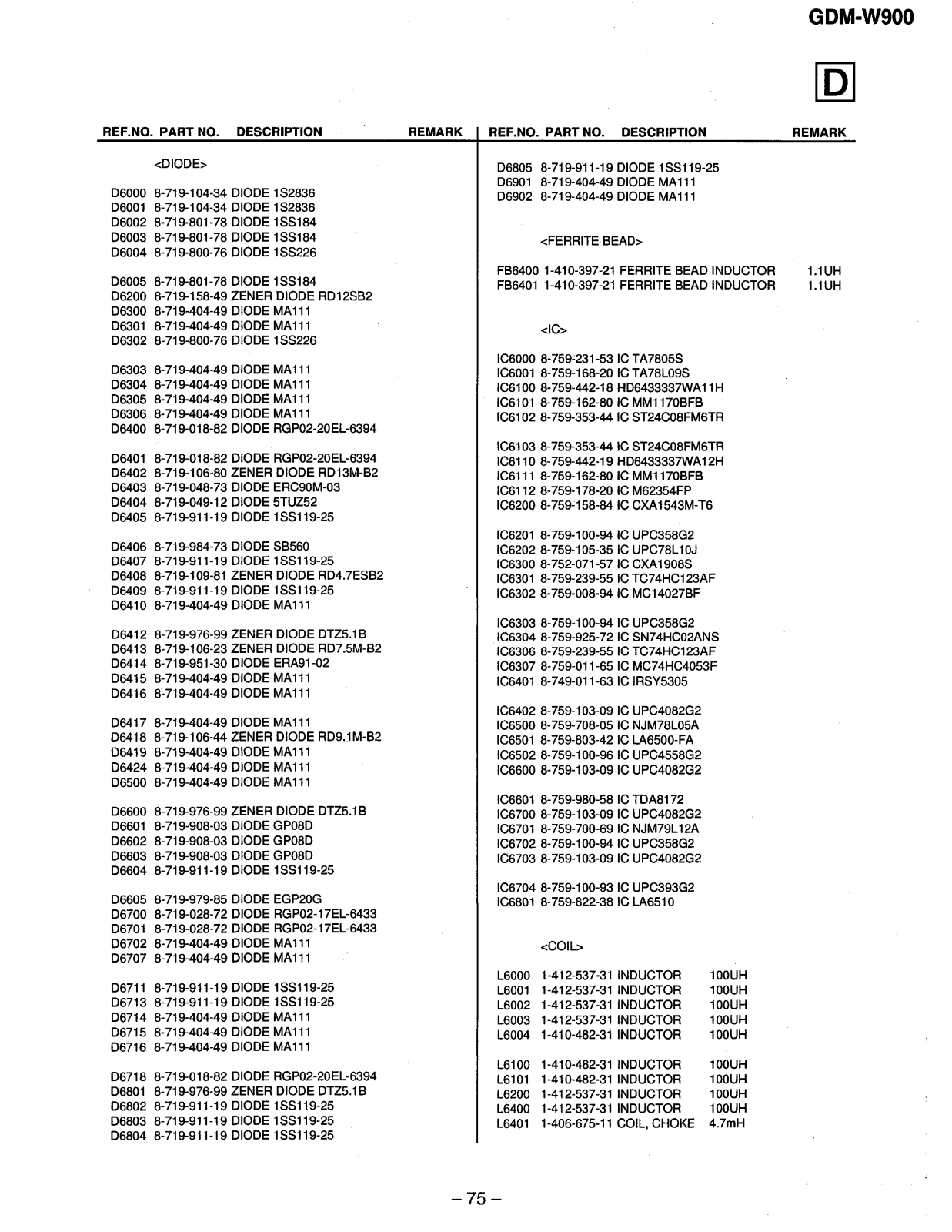

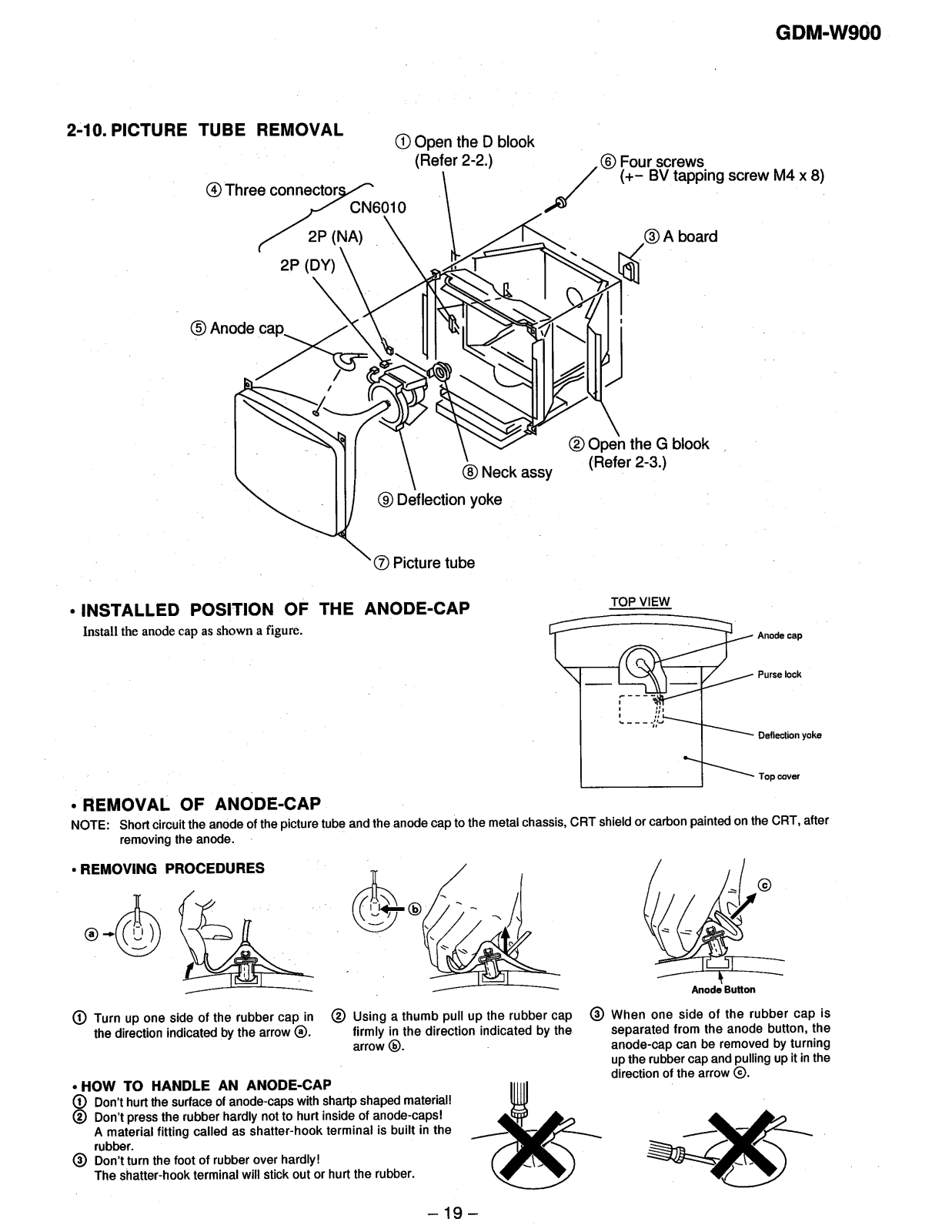

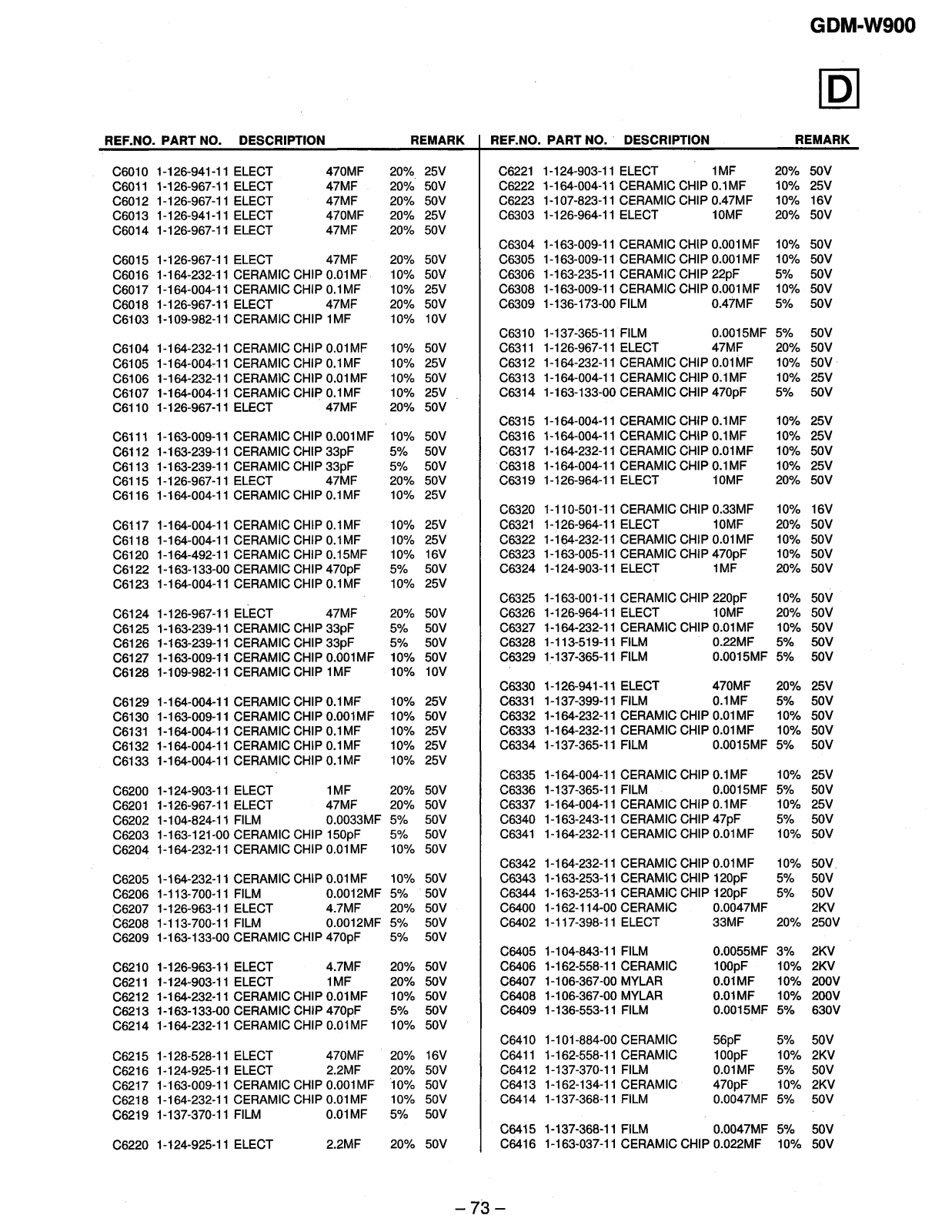

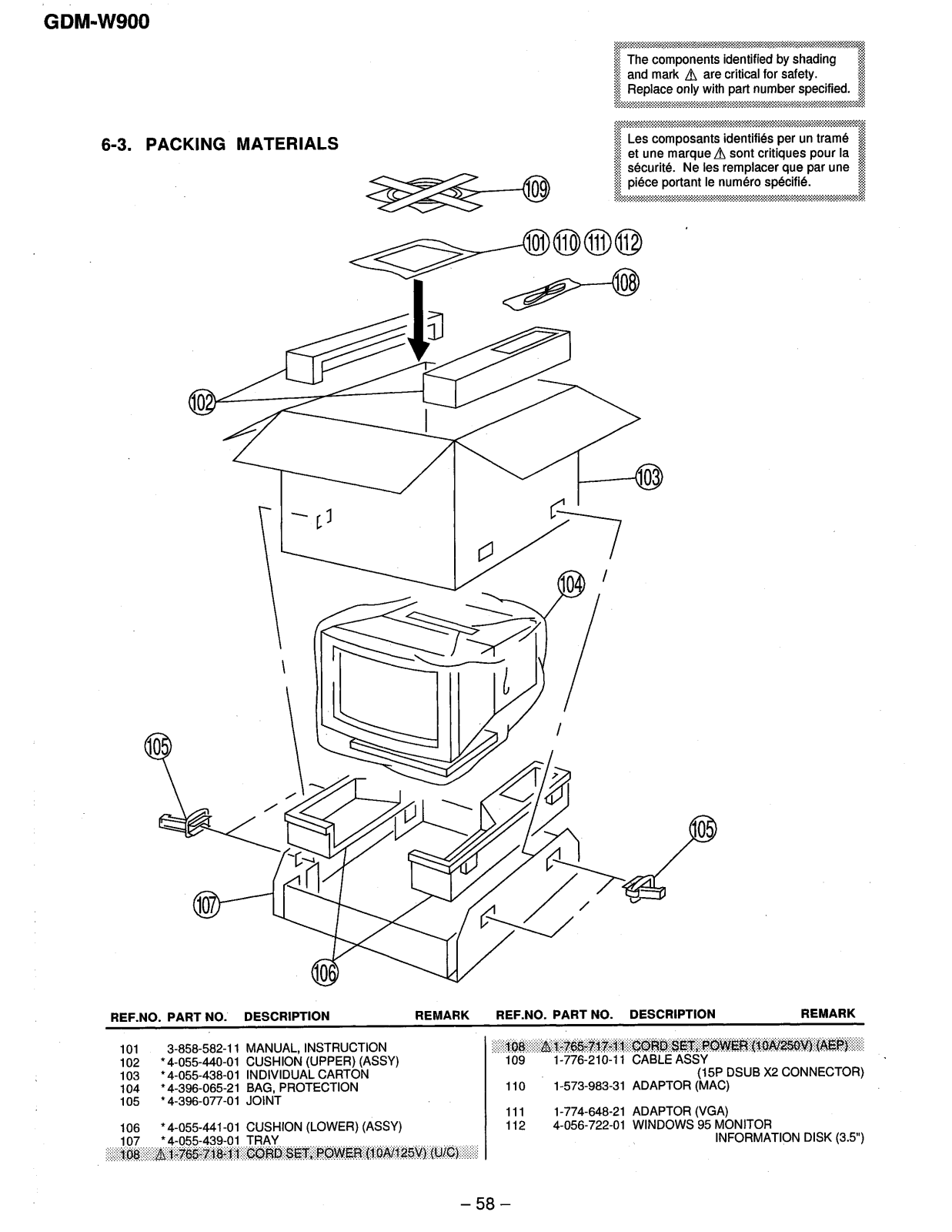

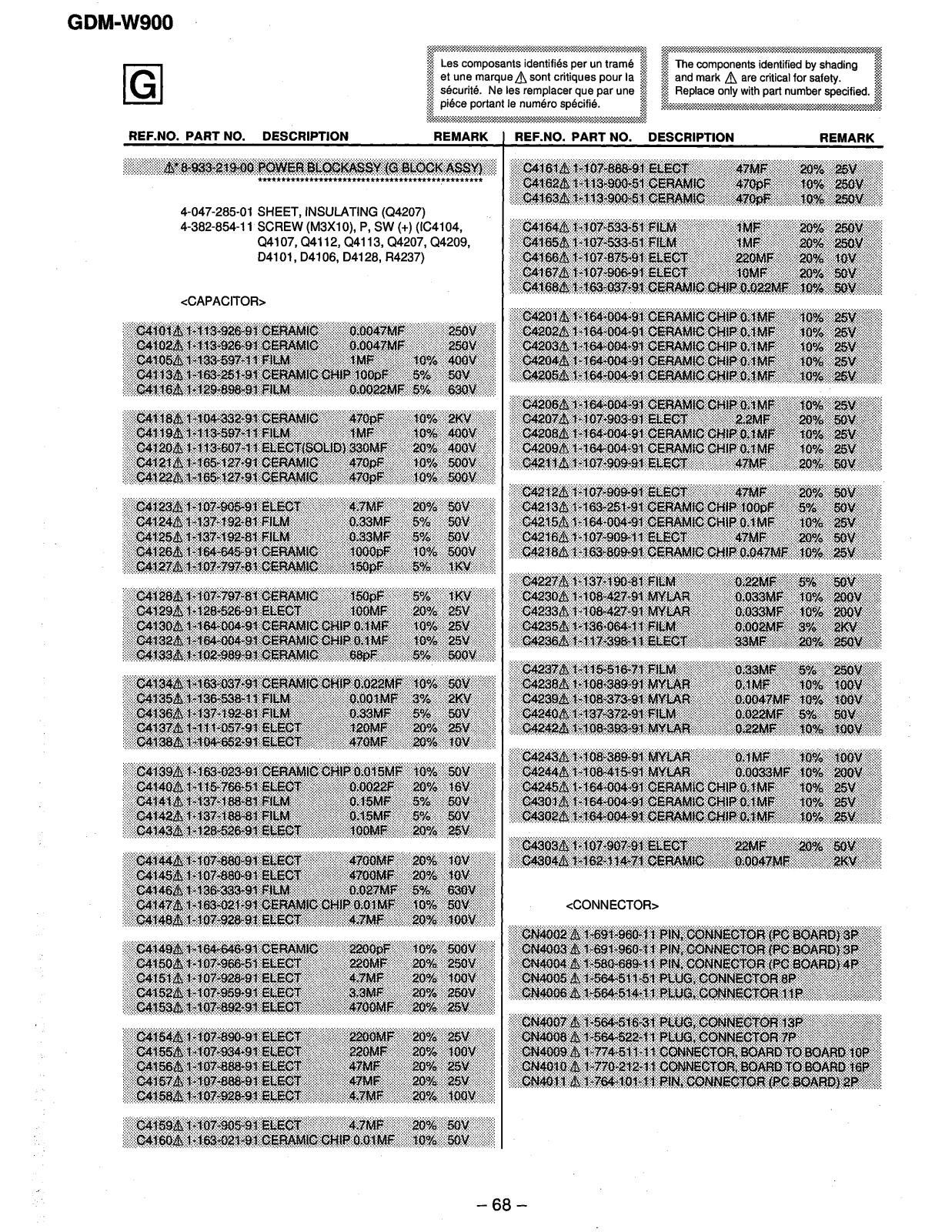

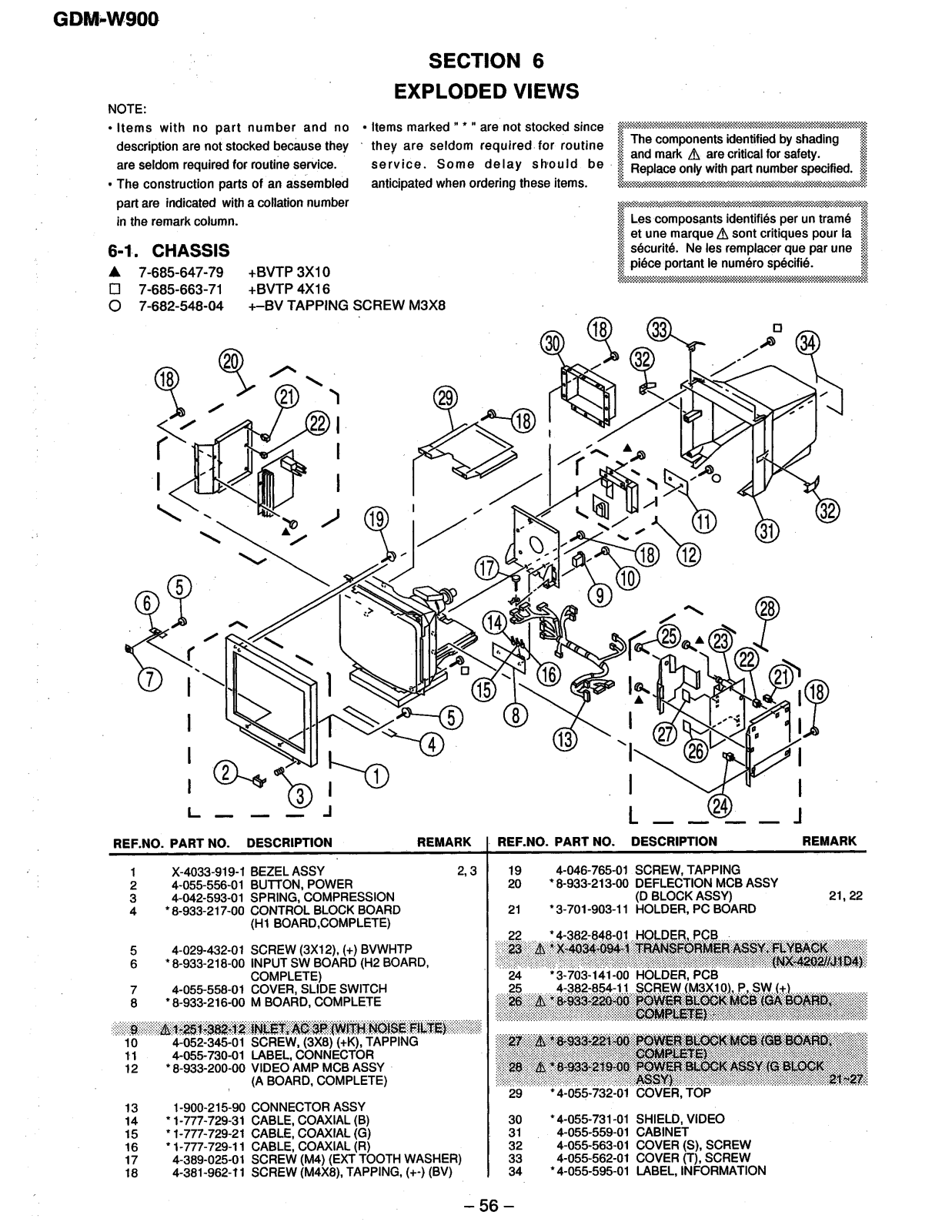

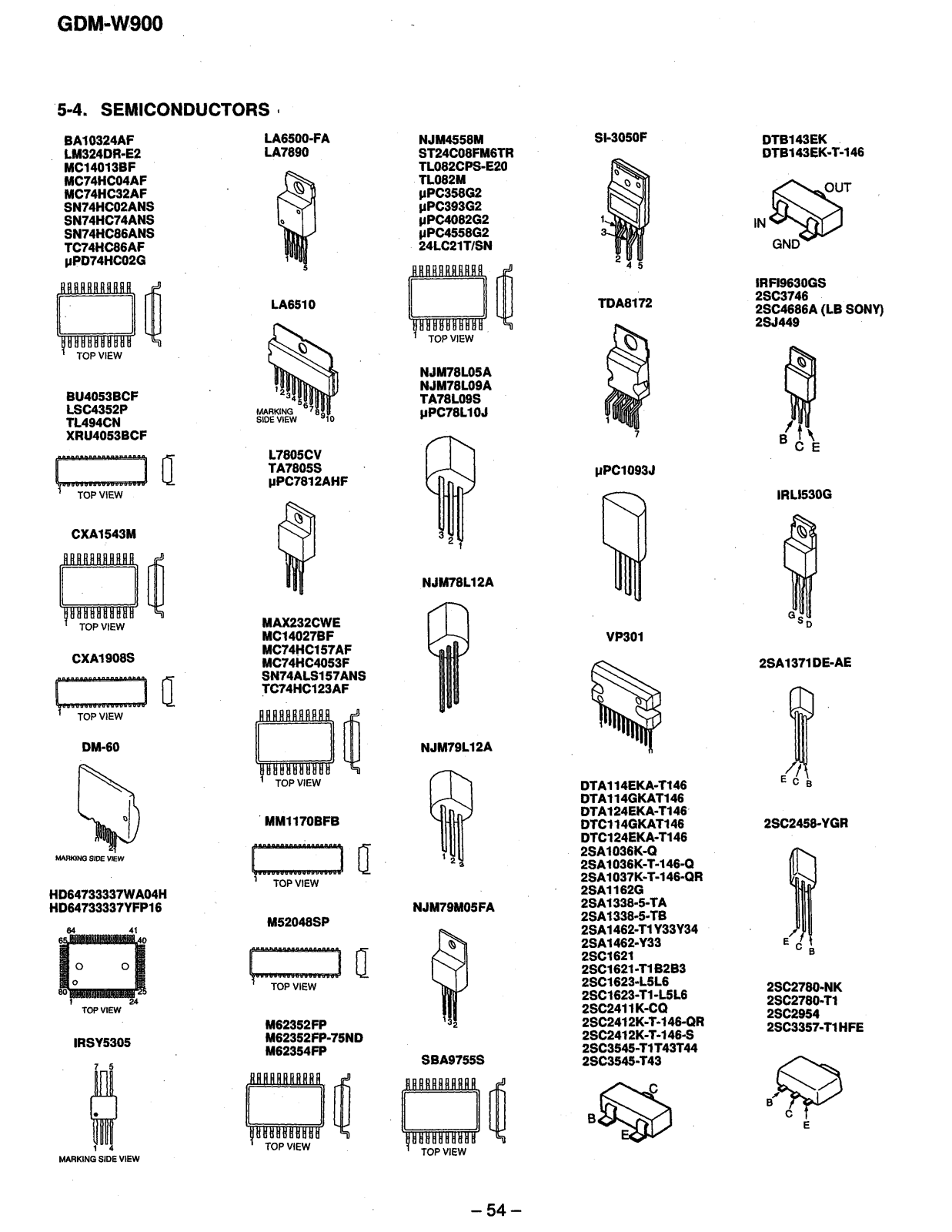

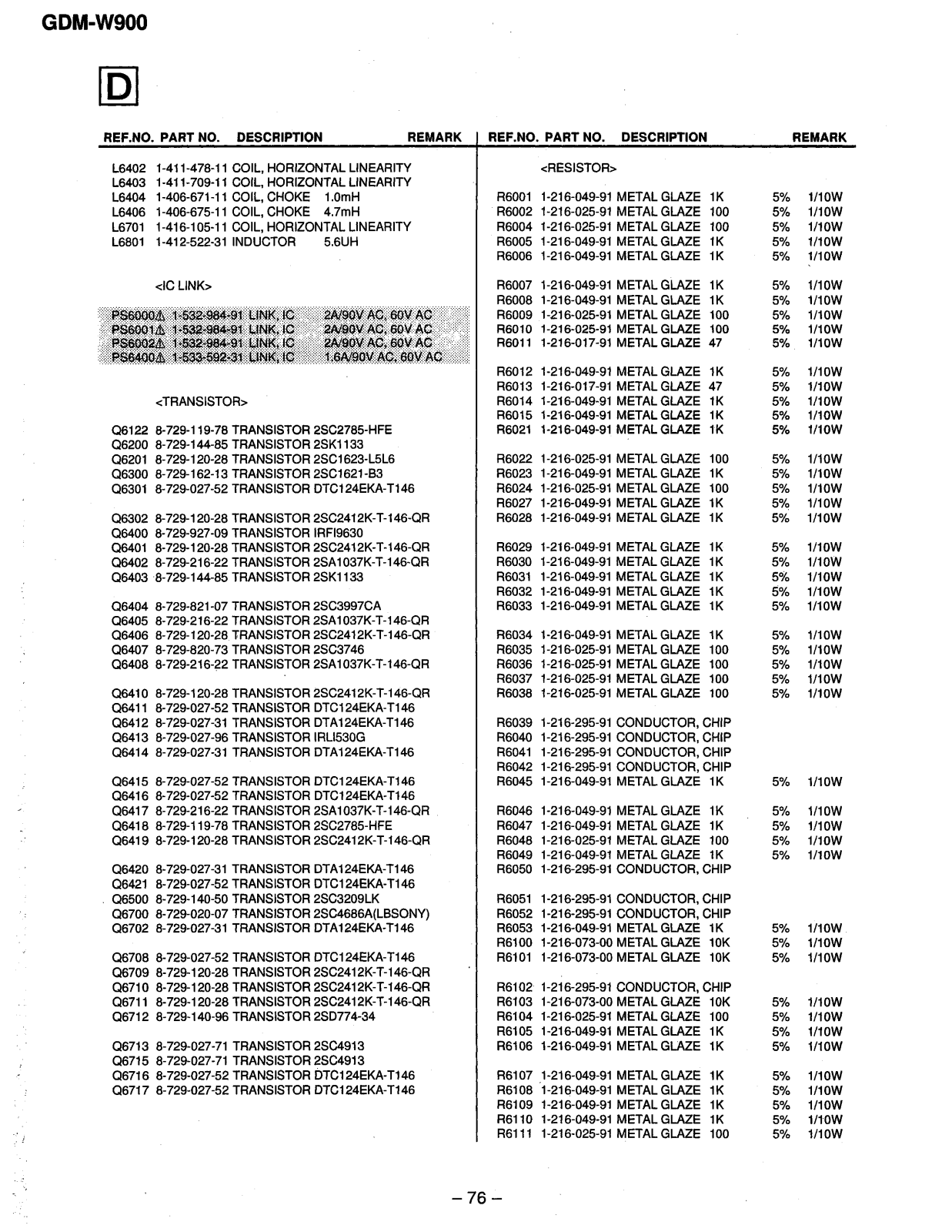

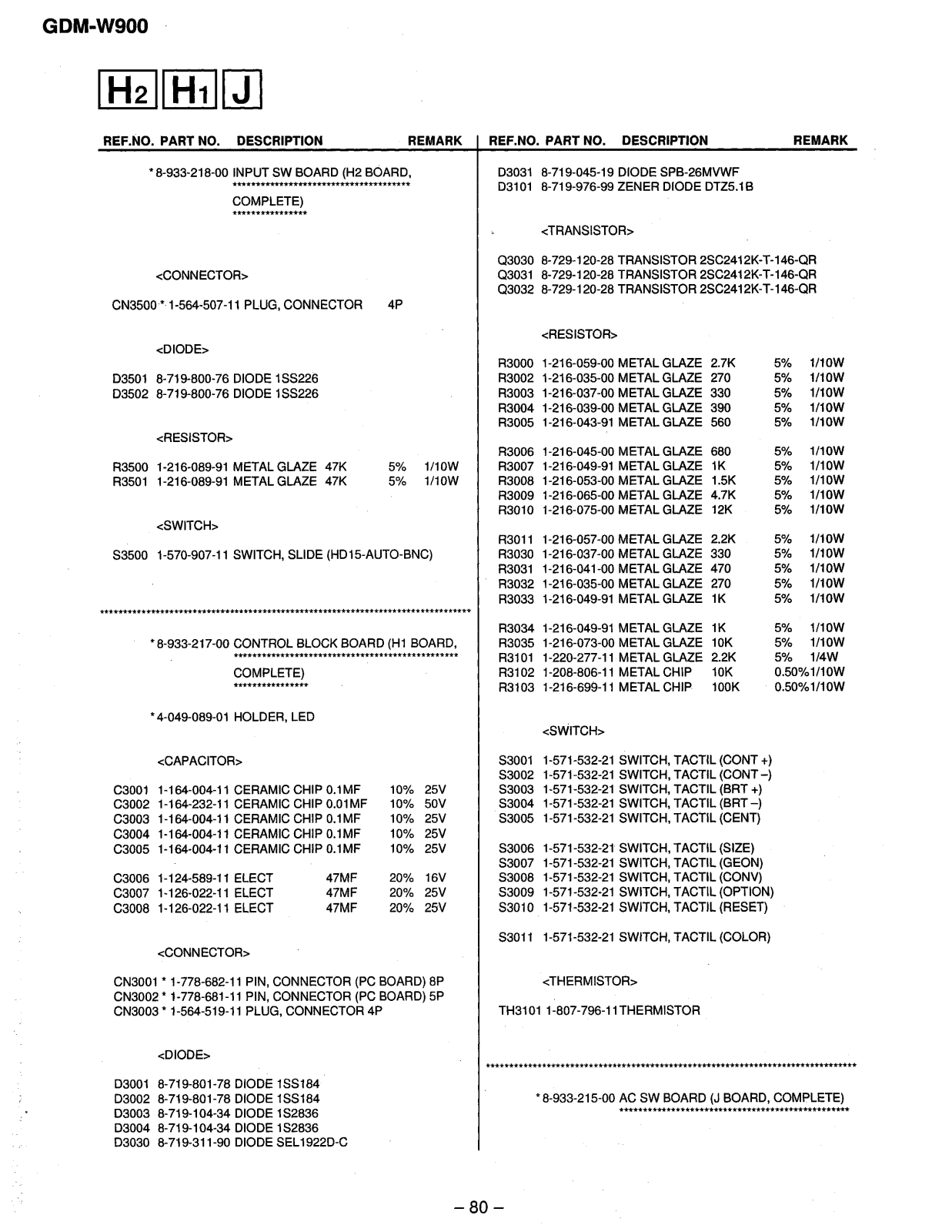

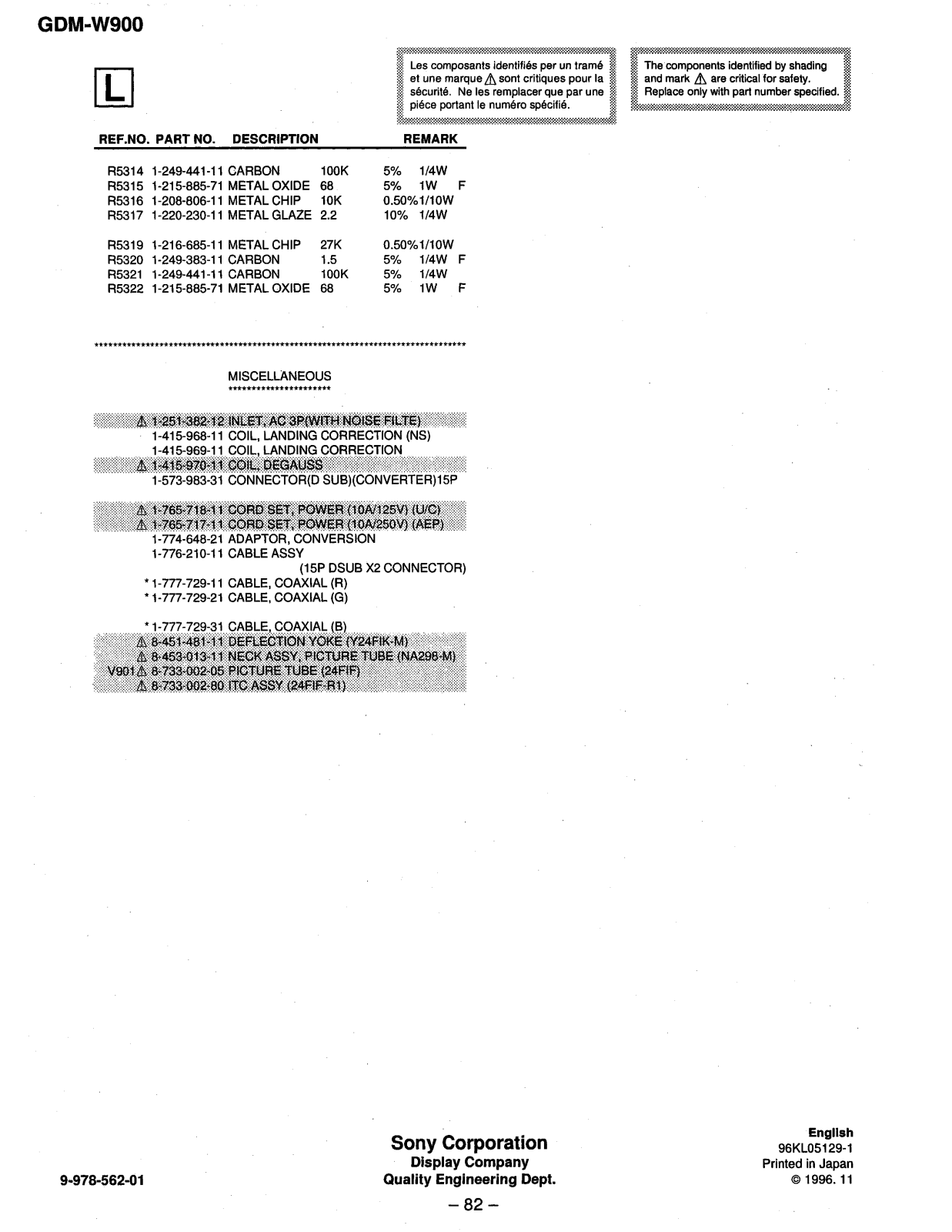

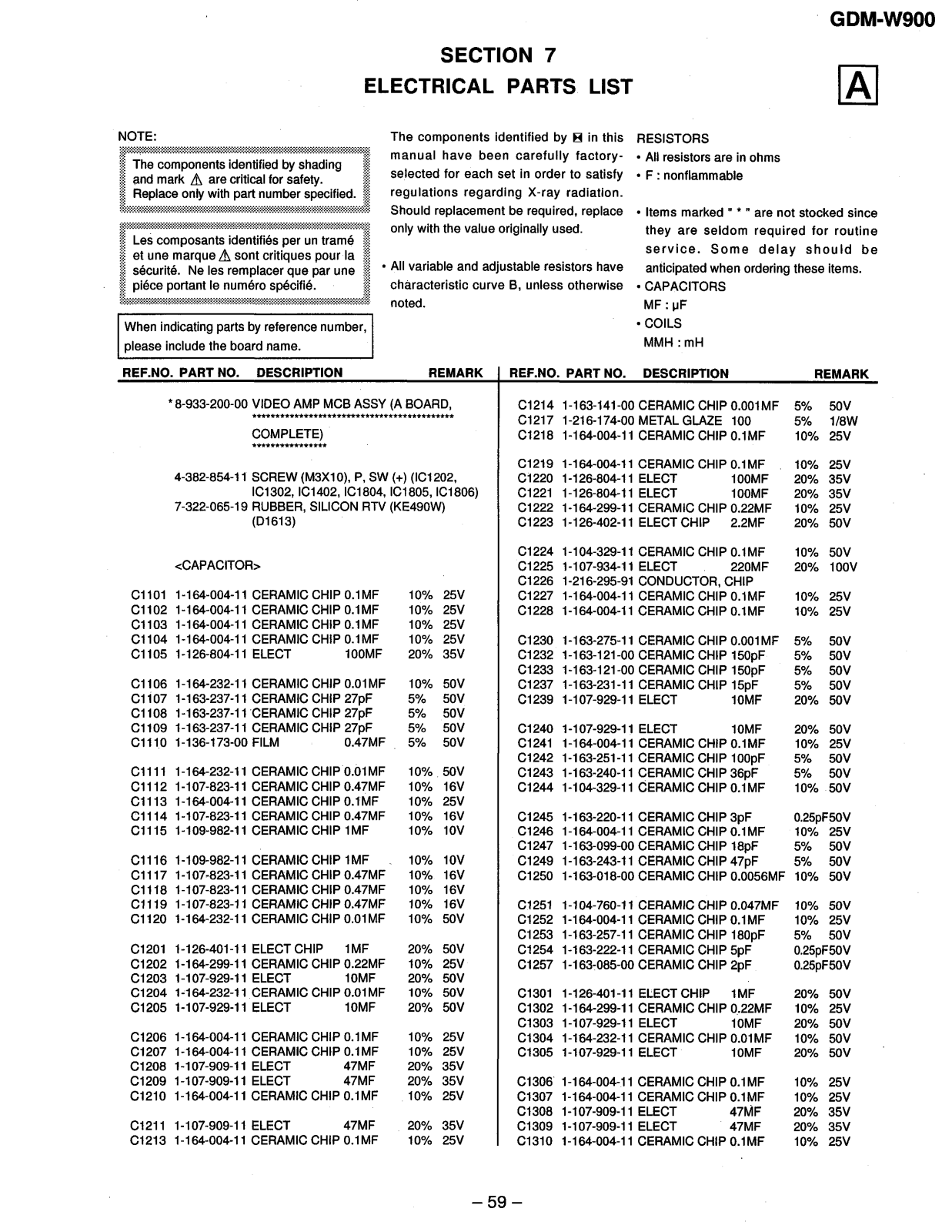

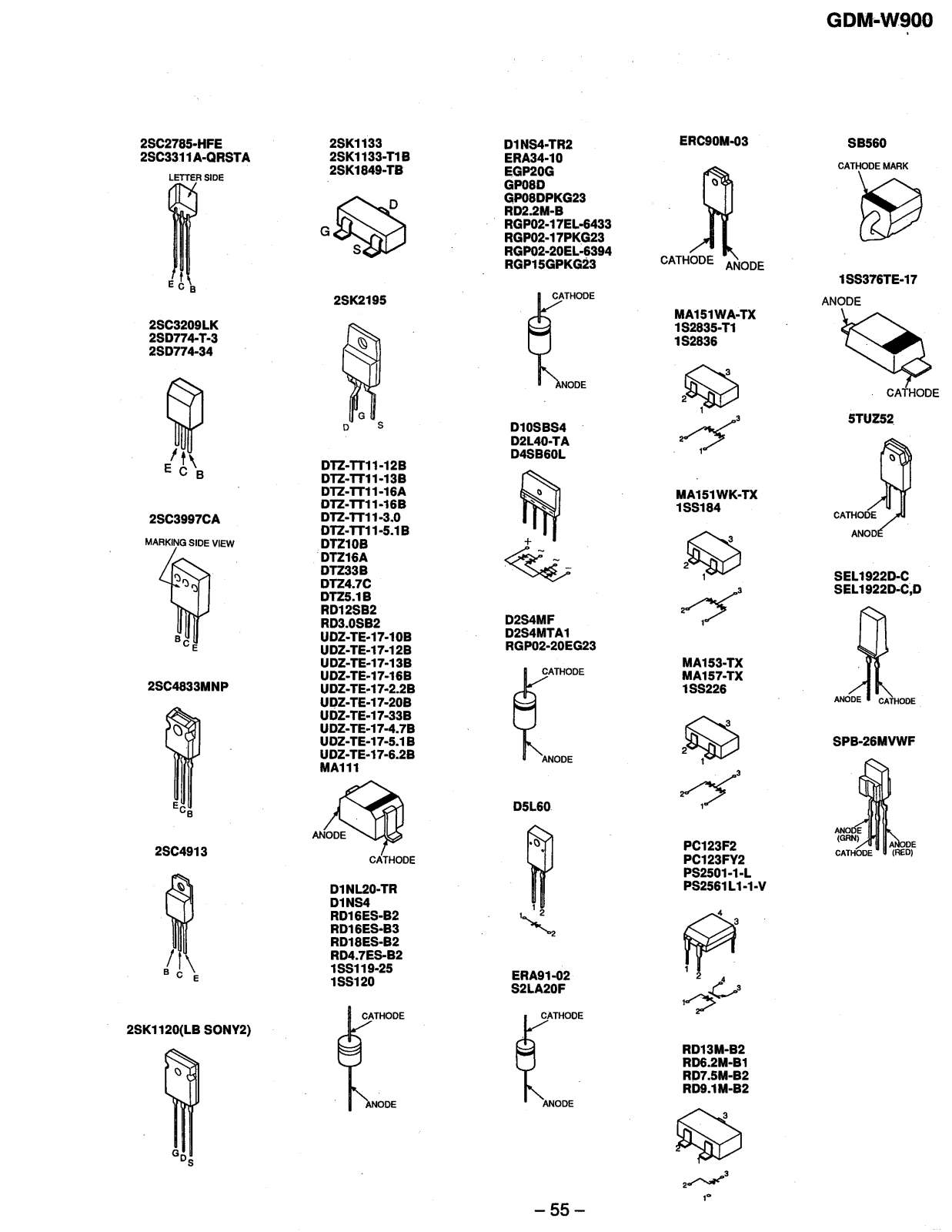

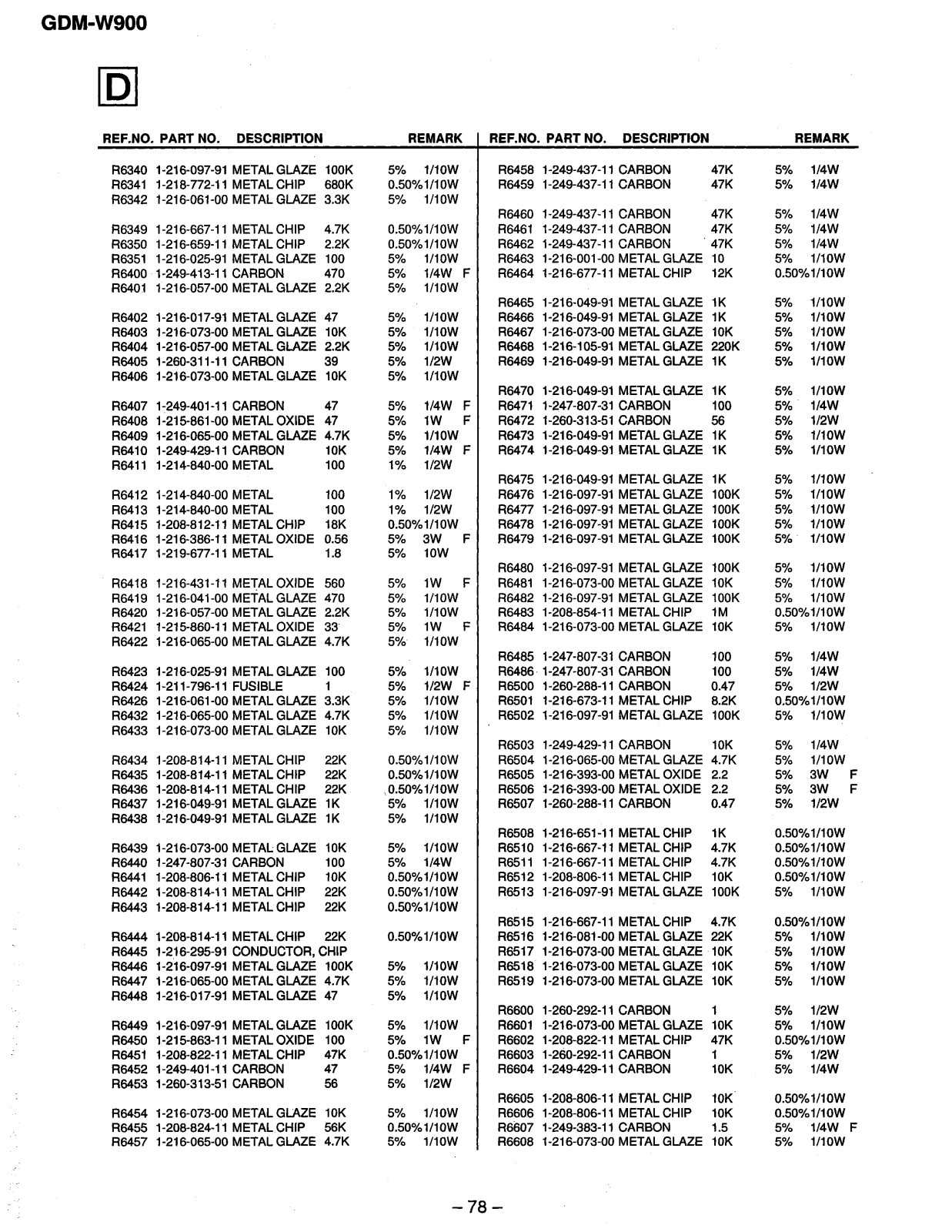

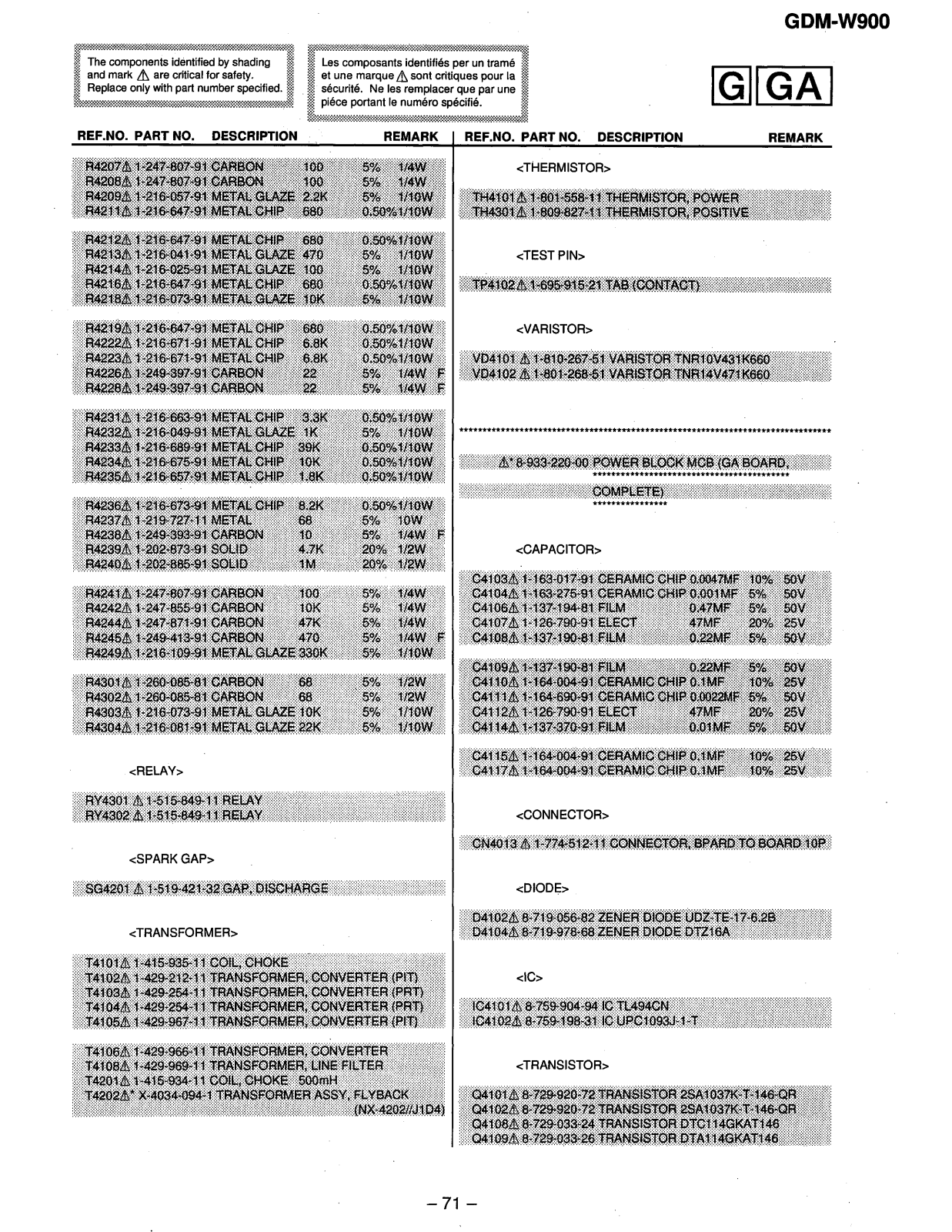

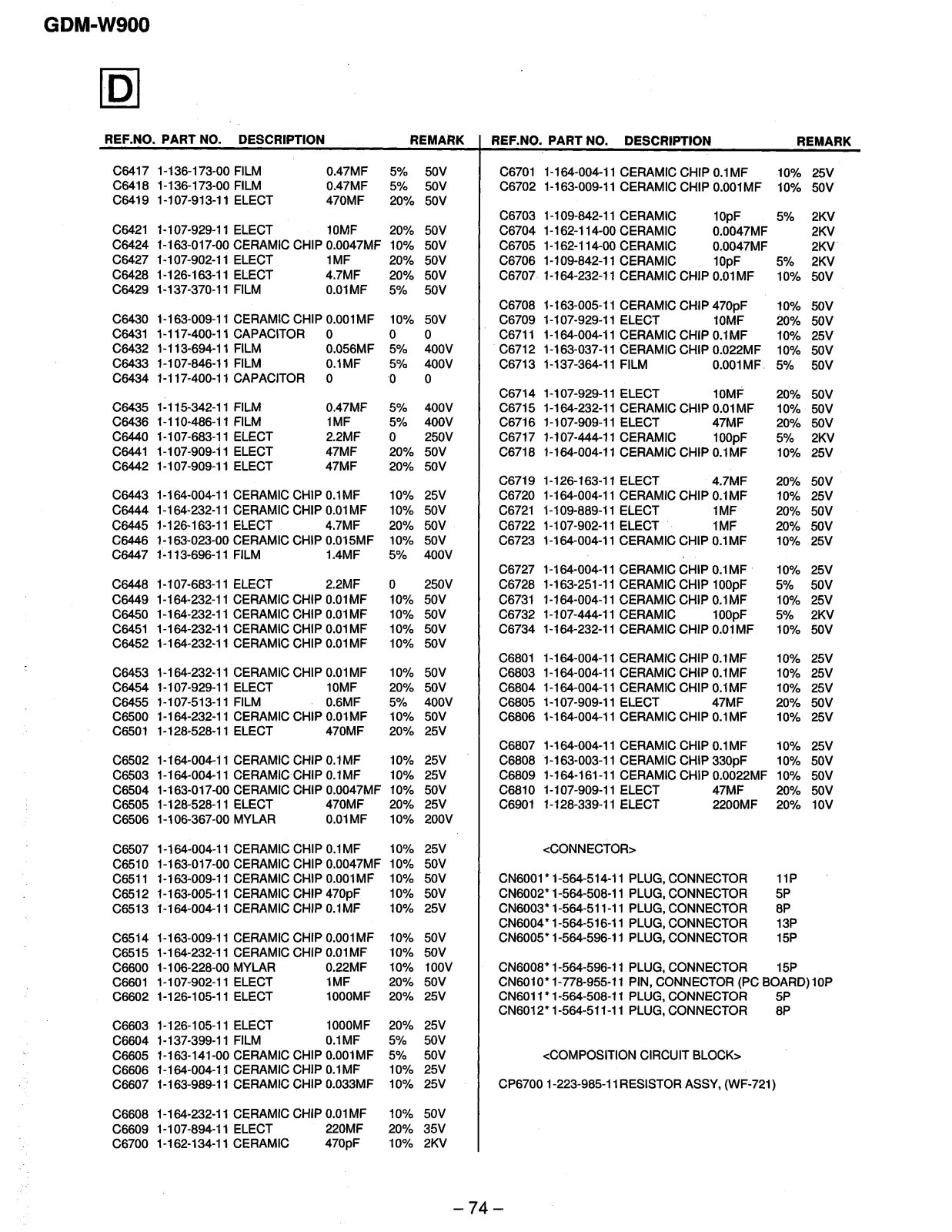

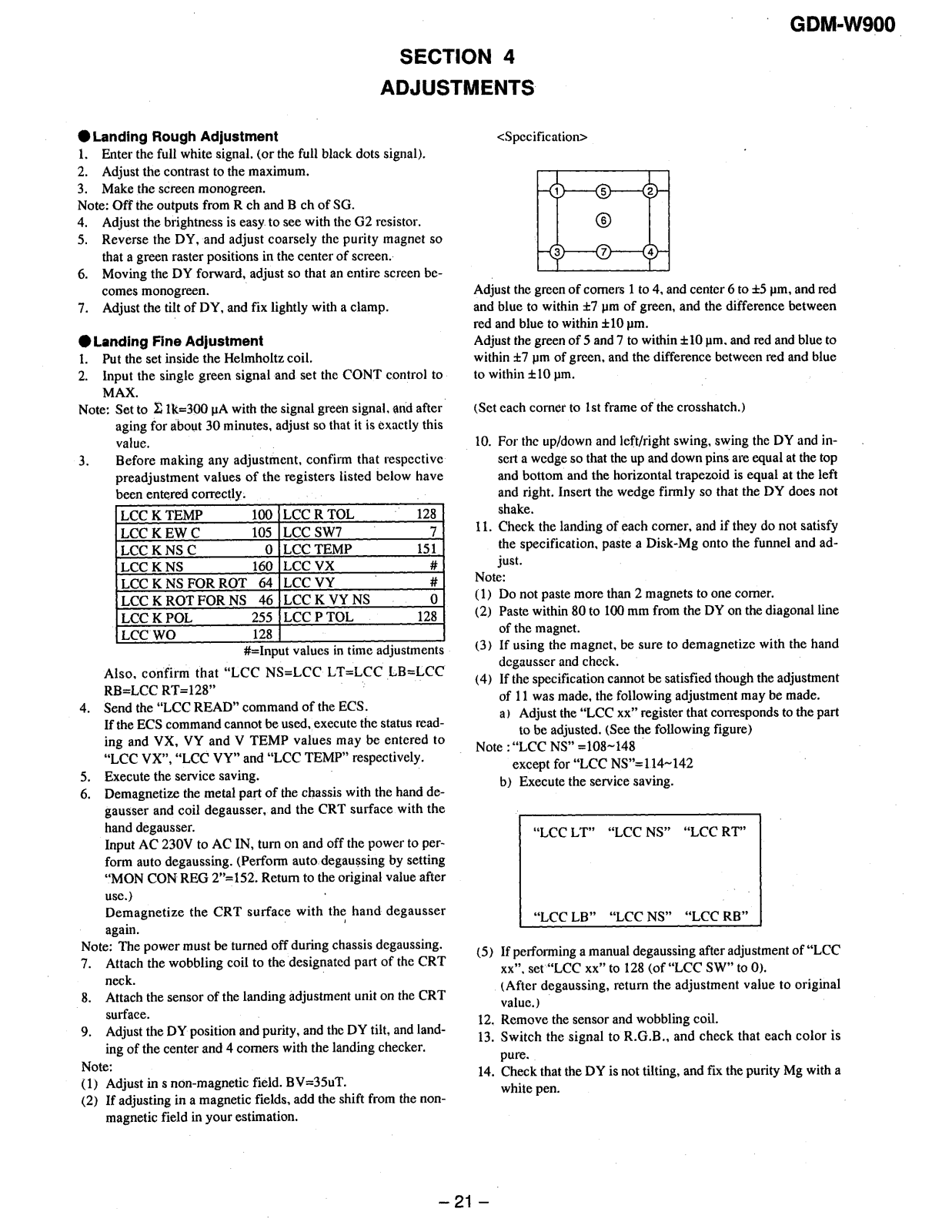

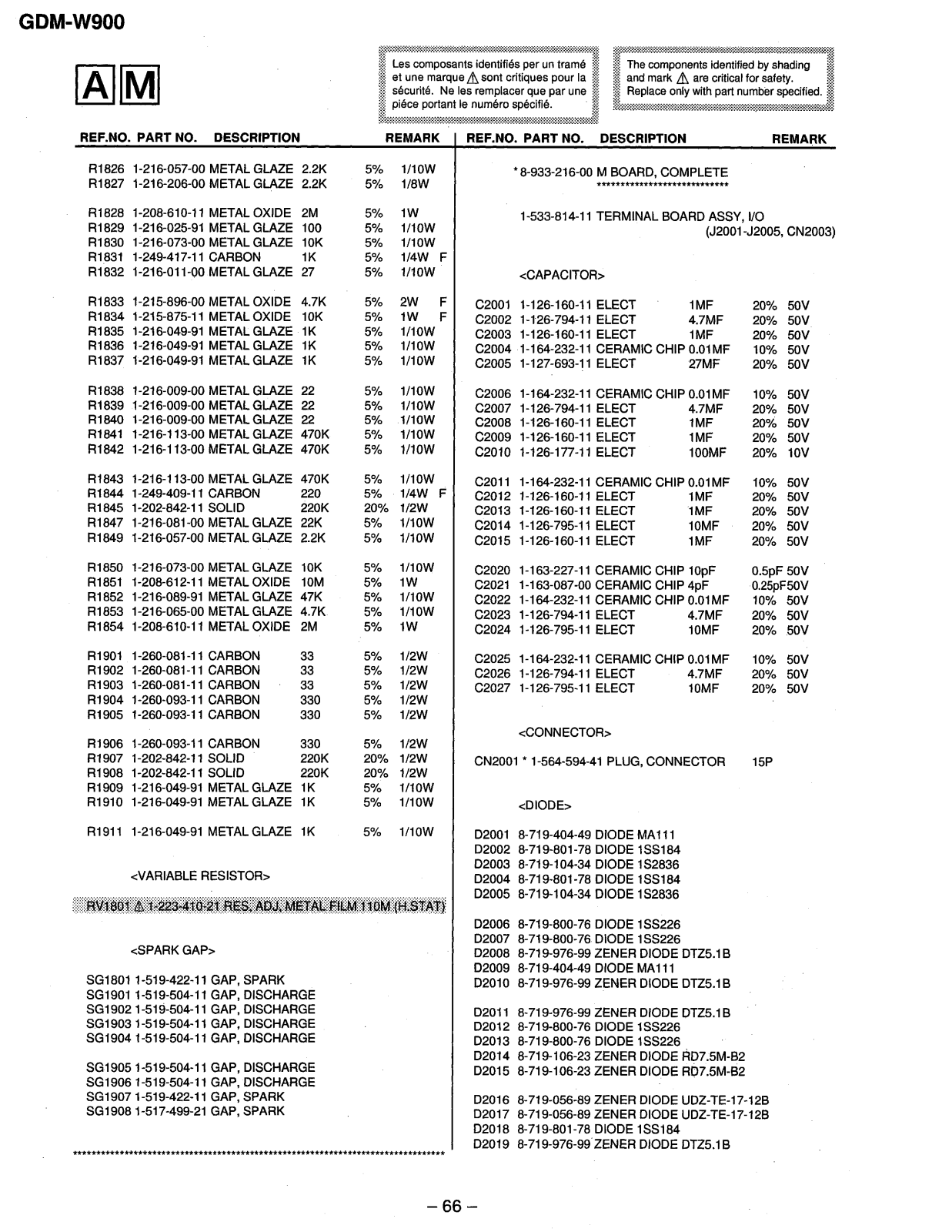

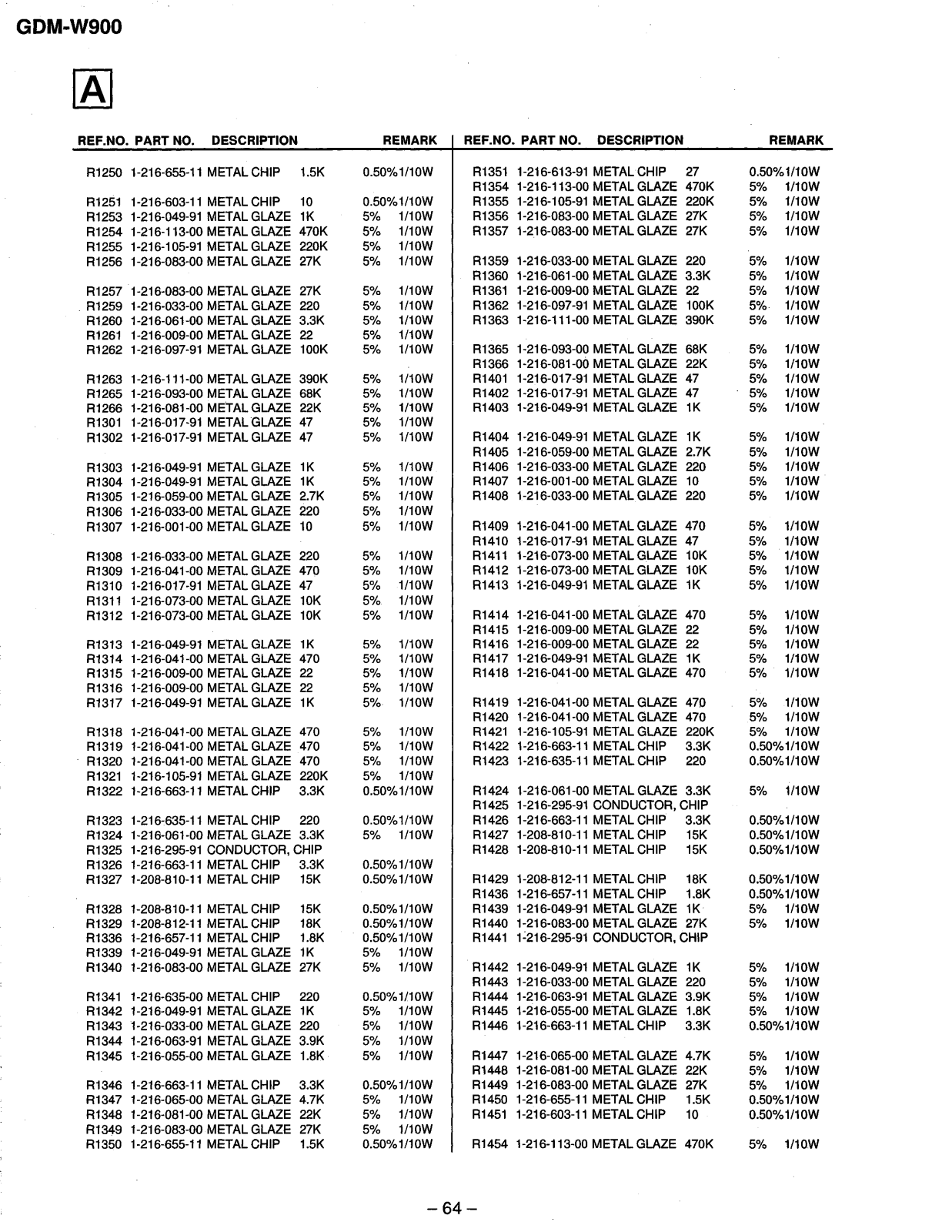

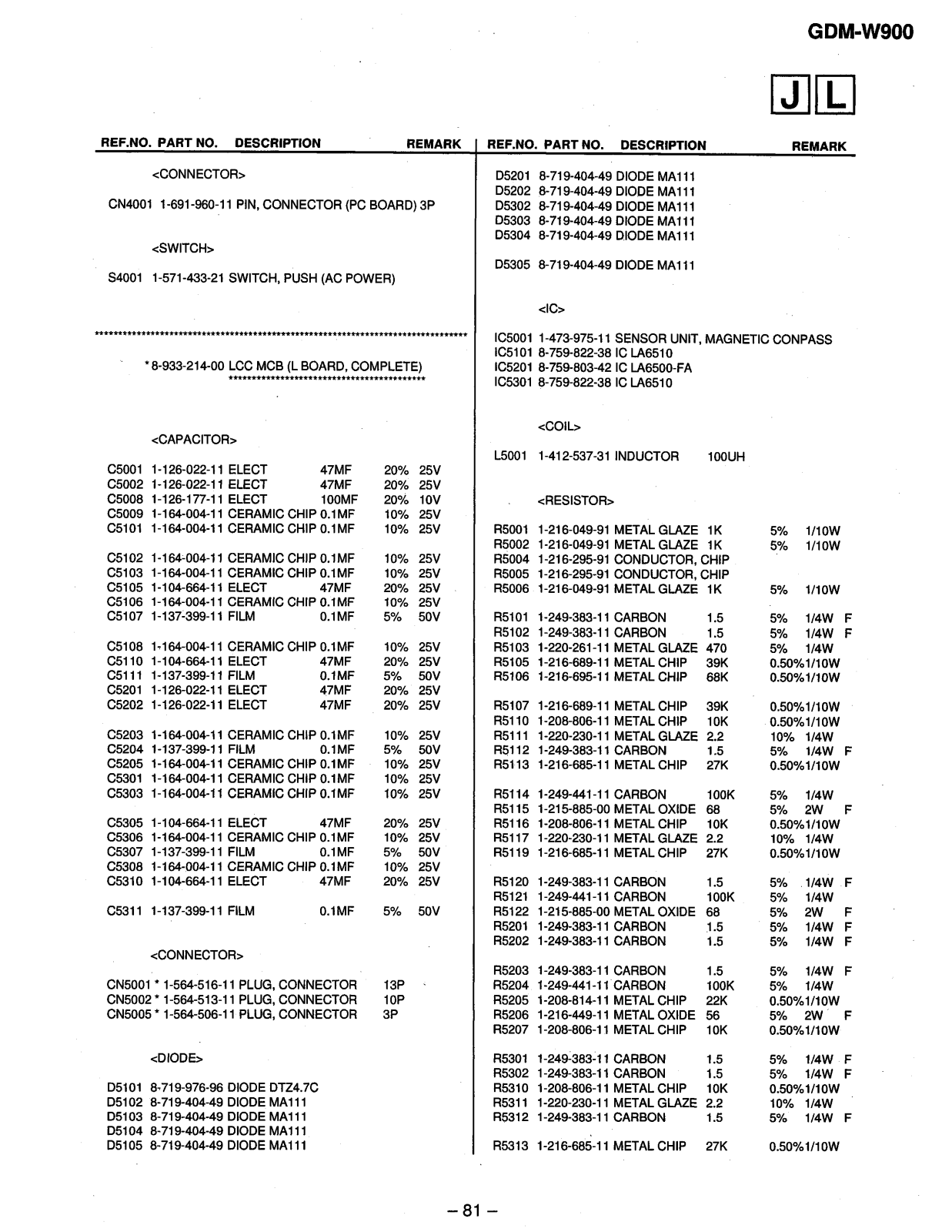

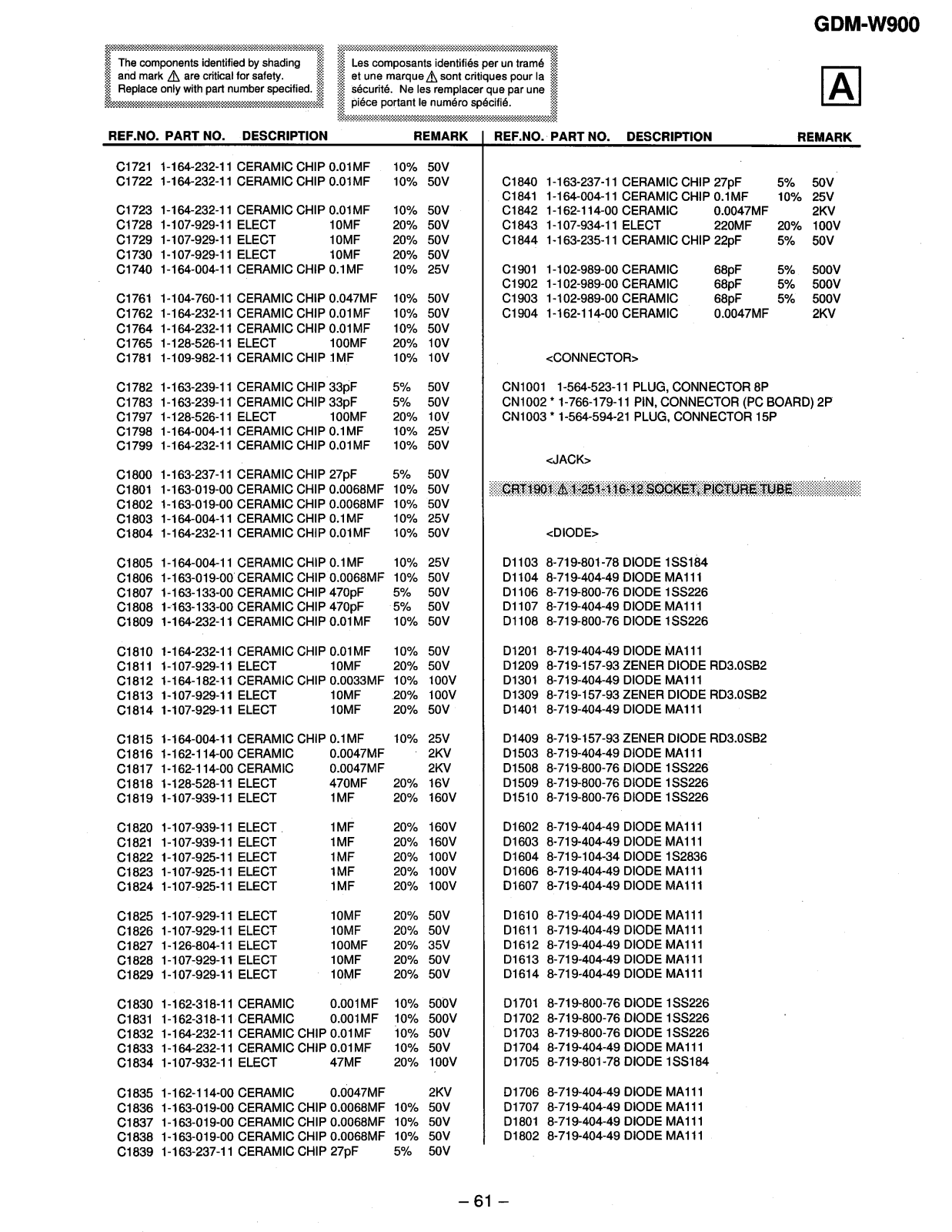

Sony GDM-W900 Service Manual
Specifications and Main Features
- External Image Address: 0.25 - 0.28 mm Screen Grid Aperture, 24 inches (Measuring Diagonally)
- Visible Image Area: About 19 inches by 12 inches or 482 mm x 304 mm
- Final Output: Approximately 1,920 dots in Horizontal and 1,200 lines in Vertical
- Regular Image Area: 18 5/8 by 11 9/4 inches approximately or Standard Image Area: 473 x 296mm
- Deflection Frequency: Horizontal: 30 ול96kHz, Vertical: 50 – 160Hz
- Input Items: One HD15, one five BNC
- Red, Green, Blue Inputs: As negative and active 75 Ohms at 0.714 Vp-p with HD/VD or Composite Synch
- Sync-on-Green: 0.286 Vp-p negative
- Power Input (in V/A): For 100 to 120 V: 50/60Hz 2.2 A; 200 to 240 V: 50-60 Hz 14 A
- Wastage of Power: Maximum 200W
- Dimensions: 580 x 500 x 548 mm (22 7/8 x 19 5/8 x 21 5/8 inches)
- Their Weight: Around 41 kg (or 90 lb 6 oz)
Frequently Asked Questions
Q1: Maximum Size Supported By GDM-W900.
Answer: GDM-W900’s largest size is 1920 pixels Wide by 1200 pixels Tall.
Q2: Describe the Input Connections on GDM-W900.
Answer: On GDM-W900 there is an input for HD15 and for five BNC inputs.
Q3: GDM W900 operational working and power consumption?
A3: While working, the GDM W900 uses 200 Watts as the maximum limit.
Q4: With regard to the GDM W900, what is the picture latitude?
A4: In the case of GDM W900, the picture latitude is about 482 x 304 mm with a 19 x 12 inch screen size.
Q5: What is the GDM W900 weight?
A5: The GDM W900 weighs, in total, around 90 lbs 6 ozs which means it is around 41 Kgs.
Q6: GDM W900 at varying Voltage levels, does it operate effectively?
A6: To answer the questions, yes the GDM W900 can effectively work at 100 to 120 Volts alongside, 200 - 240 Volts of Ac input.
