Sony DF70P User Manual

Download

Page 1

Network Camera

3-869-484-11 (1)

User’s Guide

Software Version 1.0

SNC-DF70N/DF70P

Page 2

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Caution for other countries

CAUTION

Use a power supply rated 24 V AC or 12 V DC which meets the requirements for SEL V (Safety Extra Low Voltage) and complies with Limited Power Source according to IEC 60950.

Model No. Serial No.

WARNING

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WA R N I NG

This installation should be made by a qualified service person and should conform to all local codes.

WA R N I NG

A readily accessible disconnect device shall be incorporated in the building installation wiring.

WA R N I NG (For Installers only) Instructions for installing the equipment on the ceiling: After the installation, ensure the connection is capable of supporting four times the weight of the equipment downwards.

CAUTION

The rating label is located on the bottom.

CAUTION for LAN port

For safety reason, do not connect the LAN port to any network devices that might have excessive voltage. The LAN port of this unit is to be connected only to the devices whose power feeding meets the requirements for SELV (Safety Extra Low Voltage) and complies with Limited Power Source according to IEC 60950.

POWER REQUIREMENTS

The SNC-DF70N/DF70P operates on 24 V AC or 12 V DC. The SNC-DF70N/DF70P automatically detects the power.

Caution for U.S.A. and Canada

For customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION

Use a Class 2 power suply which is UL Listed (in the U.S.A.) or CSA-certified (in Canada).

ATTENTION

The electromagnetic fields at specific frequencies may influence the picture of the unit.

Page 3

If you have any questions about this product, you may call:

Sony's Business Information Center (BIC) at 1-800-686-SONY (7669)

or Write to: Sony Customer Information Services Center

6900-29, Daniels Parkway, PMB 330 Fort Myers, Florida 33912

Declaration of Conformity

Trade Name: SONY Model No: SNC-DF70N Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr, San

Diego, CA 92127 U.S.A.

Telephone No: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE TO USERS

© 2004 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.

SONY CORPORATION PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement.

• Microsoft, Windows, Internet Explorer and MS-DOS are registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Java is a trademark of Sun Microsystems, Inc. in the United States and other countries.

• Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

• Super HAD CCD® is a registered trademark of Sony Corporation.

• IP66 is a protection grade provided under JIS and IEC.

• “IPELA” and are trademarks of Sony Corporation.

All other company and product names are trademarks or registered trademarks of the respective companies or their respective makers.

Page 4

Table of Contents

Overview

Features .................................................................. 6

Camera section ................................................... 6

Network section, Control section ....................... 6

Others ................................................................. 6

How to Use This User’s Guide .............................. 7

Precautions ............................................................. 7

Operating Precautions ........................................ 7

System Requirements ............................................ 8

Preparation

Assigning the IP Address to the Camera ............ 9

Assigning the IP Address Using the Setup

Program ............................................................ 9

Accessing the Camera Using the Web Browser 11

Basic Configuration by the Administrator ....... 12

Operating the Camera

Administrator and User ..................................... 13

Logging in to Homepage — Welcome Page ...... 14

Logging in as a User ........................................ 14

Displaying the setting window for the

administrator directly ..................................... 15

About Viewers .................................................. 15

Configuration of Main Viewer ........................... 16

Main menu ....................................................... 16

Camera Control Section ................................... 16

Monitor Image .................................................. 17

Controlling the Monitor Image .......................... 17

Monitoring the camera image .......................... 17

Zooming in the monitor image ......................... 18

Capturing a Monitor Image ............................... 18

Capturing a monitor image .............................. 18

Saving the captured image ............................... 19

Sending an Image File ......................................... 19

Sending a Monitor Image via e-Mail ............... 19

Sending a Monitor Image to an FTP Server ..... 19

Recording a Still Image in the Built-in Memory of

the Camera ........................................................... 20

Controlling Alarm output ................................... 20

Controlling Day/Night Function ........................ 21

Switching TCP/UDP Transmission Mode ......... 21

Administrating the Camera

Basic Operations of Administrator Menu ......... 23

How to set Administrator menu ....................... 23

Configuration of Administrator Menu ..............24

Configuring the System

— System setting menu .......................................25

System Tab ........................................................25

Date & time Tab ................................................26

Initialize Tab .....................................................27

System log Tab .................................................27

Access log tab ...................................................27

Setting the Camera Image and Audio

— Camera setting Menu .....................................28

Common Tab ....................................................28

Picture Tab ........................................................29

Day/Night Tab ..................................................30

MPEG4 Tab ......................................................31

JPEG Tab ..........................................................31

Reset Tab ..........................................................32

Configuring the Network — Network setting

Menu .....................................................................32

Network Tab ..................................................... 32

PPPoE Tab - Setting of PPPoE Connection ......33

Dynamic IP address notification Tab — Notifying

the IP Address .................................................34

Setting the User — User setting Menu ...............36

Setting the Security — Security setting Menu ..37 Sending an Image via mail

— e-Mail (SMTP) setting Menu .........................38

Common Tab — Setting the SMTP Function ...38 Alarm sending Tab — Setting the mail sending

mode when detecting the alarm ......................39

Periodical sending Tab — Setting the periodical

mail sending mode ..........................................40

Sending Images to FTP Server

— FTP client setting Menu .................................41

Common Tab

— Setting the FTP Client Function ................41

Alarm sending Tab — Setting the FTP client

action when detecting the alarm .....................41

Periodical sending Tab — Setting the Periodical

FTP Client Activity ........................................42

Recording Images in Memory

— Image memory setting Menu .........................43

Common Tab — Setting the Image memory

Function ..........................................................43

Alarm recording Tab — Setting the Image

Memory Function when Detecting the Alarm 44

Periodical recording Tab — Setting the Periodical

recording mode ...............................................45

Directory Structure of Image Memory .............46

Downloading Images from the Camera

— FTP server setting Menu ................................47

Setting the Alarm Output

— Alarm output setting Menu ............................47

Alarm out 1, 2 Tab ............................................47

Setting the Operations from the Viewer Page

— Trigger setting Menu ......................................48

Table of Contents

Page 5

Setting the Schedule

— Schedule setting Menu ................................... 50

Setting the Alarm Buffer — Alarm buffer setting

Menu ..................................................................... 51

Setting the Motion Detection Function — Motion

detection setting Menu ........................................ 52

Setting the Motion Detection Area, Sensitivity and

Threshold level ............................................... 52

Others

Using the Supplied Setup Program .................... 54

Starting the Setup Program .............................. 54

Bandwidth Control Tab .................................... 54

Date time Tab ................................................... 55

PPPoE Tab ........................................................ 55

Rebooting the Camera ...................................... 56

Using the SNC audio upload tool

— Transmitting Audio to Camera ..................... 56

Installing the SNC audio upload tool ............... 56

Connecting the Camera to the Computer ......... 57

Using the SNC audio upload tool .....................57

Using the SNC video player — Playing Video/

Audio File Recorded on Camera ........................ 58

Download the SNC video player ...................... 58

Using the SNC video player ............................. 58

Using the Custom Homepage Installer .............. 59

Uploading the Custom Homepage Installer to the

Camera ........................................................... 59

Assigning the IP Address to the Camera Using

ARP Commands .................................................. 61

Using the SNMP ...................................................62

1. Inquiry Commands ...................................... 62

2. Setting Commands ...................................... 62

Specifications ........................................................ 64

Index ..................................................................... 66

Table of Contents

Page 6

Overview

• The Network Camera system and related service is not a security service. When monitoring the image and audio of the purchased Network Camera, there is a risk that the monitoring image or audio may be viewed or used by a third-party via the network. It is provided only as a convenience for people to easily access their cameras via the internet. When you use the Network Camera, please take into account and ensure the privacy and portrait right of the object at your own responsibility.

• Access to the camera or system is limited to the user setting up a user name and password only. No further authentication is provided nor should the user presume that such filtering is done by the service.

• Sony assumes no liability should the service related to the Network Camera goes down or interrupted for whatever reason.

• MPEG4 video compression allows smooth streaming of motion pictures with 30 fps (QVGA size). Motion JPEG video streaming is also available by selecting the JPEG video compression format.

• The commercially available microphone can be connected to the plug-in power type microphone input (standard voltage 2.5 V) terminal (mini jack, monaural).

• The motion detection function (in MPEG4 mode) has one sensor input terminal and two alarm output terminals. You can send image as an attached file of a mail or send to FTP server. You can also control the peripheral equipments connected to the alarm output terminals.

• The equipped pre-alarm function and the post-alarm function forwards the image and audio of before/after the moment alarm detection went off.

• Multicast streaming is equipped.

Overview

Features

This is dome-shaped color video camera adopting 1/4 type Super HAD CCD

Camera section

• Day/Night function automatically switches between color and monochrome modes. You can also control this function through an external source also.

• Includes the Vari-focal auto iris lens as the standard equipment. The focal length of the lens is from 3.0 mm to 8.0 mm.

• The best picture quality is available in the lowest light degree (0.9 lux) to the object (in the color mode).

• High quality CCD and the clear dome cover enable to get high sensitivity.

• IP 66 sealed enclosure (sturdy and weatherproof structure) suitable for outdoor installation

• You can manually set the camera direction – panning, tilting and rotating.

• This camera has backlight compensation through the center measurement.

• Various exposure modes (Auto iris lens, CCD iris, Manual).

. It has the following features.

Others

• Corresponding to PoE (Power of Ethernet).

• The camera is supplied with the IP Setup Program for easy performance of the network setting.

Network section, Control section

• Real-time monitoring of the image and sound from the camera is possible using the Web browser on the computer.

Features

Page 7

How to Use This User’s

Precautions

Guide

This User’s Guide explains how to operate the SNCDF70N/DF70P Network Camera from a computer. The User’s Guide is written to be read on the computer display. As this section gives tips on using the User’s Guide, read it before you operate the camera.

Jumping to the related page

When you read the User’s Guide on the computer display, click on the sentence to jump to the related page.

Software display examples

Note that the displays shown in the User’s Guide are explanatory examples. Some displays may be different from the ones which appear as you operate the application software.

Printing the User’s Guide

Depending on your system, certain displays or illustrations in the User’s Guide, when printed out, may differ from those as portrayed on your screen.

Installation Manual (printed matter)

The supplied Installation Manual describes the names and functions of parts and controls of the Network Camera, connecting examples and how to set up the camera. Be sure to read the Installation Manual before operating.

This Sony product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operating Precautions.”

In case of a breakdown

In case of system breakdown, discontinue the use and contact your authorized Sony dealer.

In case of abnormal operation

• If the unit emits smoke or an unusual smell,

• If water or other foreign objects enter the cabinet, or

• If you drop the unit or damage the cabinet:

Disconnect the camera cable and the connecting cables.

Contact your authorized Sony dealer or the store where you purchased the product.

Operating Precautions

Operating or storage location

Avoid operating or storing the camera in the following locations:

• Extremely hot or cold places

• Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

• Close to sources of strong magnetism

• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

• Locations subject to strong vibration or shock

Overview

Ventilation

To prevent heat buildup, do not block air circulation around the camera.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.

Cleaning

• Use a blower to remove dust from the lens or optical filter.

• Use a soft, dry cloth to clean the external surfaces of the camera. Stubborn stains can be removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

• Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface finishes.

How to Use This User’s Guide / Precautions

Page 8

Overview

System Requirements

These are the requirements for the computer that displays the image or controls the camera.

Processor

Pentium III, 1 GHz or higher (Pentium 4, 2 GHz or higher recommended)

RAM

256 MB or more

Windows 2000/XP

Web browser

Internet Explorer Ver. 5.5 or Ver.6.0

System Requirements

Page 9

Preparation

The Preparation section explains what the administrator has to prepare for monitoring the images after installation and connection of the camera.

Assigning the IP Address to the Camera

To connect the camera to a network, you need to assign a new IP address to the camera when installing the camera for the first time. You can assign an IP address in two ways:

• Using the setup program stored in the supplied CDROM (see page 9)

• Using the ARP (Address Resolution Protocol) commands (see page 61)

This section explains how to assign an IP address to the camera using the supplied setup program and how to configure the network.

Install the IP Setup Program to your computer following the wizard displayed. If the Software License Agreement is displayed, read it carefully and accept the agreement to continue the installation.

Start the IP Setup Program. The program detects the SNC-DF70N/DF70P cameras connected to the local network and lists them on the Network tab window.

Preparation

Before starting, connect this camera to a local network, referring to “Connecting this Unit to a Local Network” in the supplied Installation Manual. Consult the administrator of the network about the assigned IP address.

Assigning the IP Address Using the Setup Program

Insert the supplied CD-ROM disc into your CDROM drive. After a short time a window will open displaying the files on the CD-ROM.

Click the Setup icon of IP Setup Program. The “File Download” dialog opens.

Click Open.

Note

If you click “Save this program to disk” on the “File Download” dialog, you cannot install correctly. Delete the downloaded file, and click Setup icon again.

Click on the camera to which you want to assign a new IP address in the list.

The network settings for the selected camera are displayed.

Set the IP address.

To obtain the IP address automatically from a DHCP server:

Select Obtain an IP address automatically.

The IP address, Subnet mask and Default gateway are assigned automatically.

Assigning the IP Address to the Camera

Page 10

Preparation

To specify the IP address manually:

Select Use the following IP address, and type the IP address, Subnet mask and Default gateway in the relevant boxes.

Set the DNS server address.

To obtain the DNS server addresses automatically: Select Obtain DNS server address automatically.

To specify the DNS server addresses manually:

Select Use the following DNS server address, and type the Primary DNS server address and Secondary DNS server address in the relevant boxes.

Note

You cannot change the Administrator name and Administrator password in this step. To change these items, See “Setting the User — User setting Menu” on page 36.

Confirm that all items are correctly set, then click OK.

If “Setting OK” is displayed, the IP address is correctly assigned.

To access the camera directly, double-click the camera name on the list.

The welcome page of the network camera SNC-DF70N/ DF70P is displayed.

Note

The Third DNS server address and Fourth DNS server address are invalid for this camera.

Set the HTTP port No.

For usual cases, select 80 for the HTTP port No. To use another port number, type the port number between 1024 and 65535 in the text.

Type the Administrator name and Administrator password.

The default settings of both items are “admin.”

Note

If the IP address is not set correctly, the welcome page does not appear after step 12. In this case, try to set the IP address again.

Assigning the IP Address to the Camera

Page 11

Accessing the Camera Using the Web Browser

When the IP address has been assigned to the camera, check that you can actually access the camera using the Web browser installed in your computer. Use Internet Explorer as the Web browser.

Start the Web browser on the computer and type the IP address of the camera in the URL box.

The welcome page of “Network Camera SNCDF70N” or “Network Camera SNC-DF70P” is displayed.

Click Enter. The main viewer is displayed.

Preparation

Notes

• If Automatic configuration is enabled in the Local

Area Network (LAN) Settings on Internet Explorer, the image may not be displayed. In this case, disable Automatic configuration and set the Proxy server manually. For setting the Proxy server, consult your network administrator.

• When you install ActiveX viewer on Windows 2000 or Windows XP, you should have logged in the computer as the Administrator.

Tip

Every page of this software is optimized as display character size Medium for Internet Explorer.

To display the Welcome page correctly

To operate the welcome page correctly, set the security level of the Internet Explorer to Medium or lower, as follows:

When the main viewer is correctly displayed, the IP address assignment is completed.

When the main viewer of the camera is displayed for the first time

When you click Enter, “Security warning” is displayed. When you click OK, the ActiveX control is installed and the main viewer is displayed.

Select Too l from the menu bar for Internet Explorer, then select Internet Options and Security tab in sequence.

Click the Internet icon (when using the camera via the Internet) or Local intranet icon (when using the camera via a local network).

Set the slider to Medium or lower. (If the slider is not displayed, click Default Level.)

When using antivirus software in the computer

• When you use antivirus software in your computer, the camera performance may be reduced, for example, the frame rate for displaying the image may be lower.

• The Web page displayed when you log in to the camera uses Java Script. The display of the Web page may be affected if you use antivirus software in your computer.

Accessing the Camera Using the Web Browser

Page 12

Preparation

Basic Configuration by the Administrator

You can monitor the image of the camera by logging in with the initial condition of this network camera. You can also set various functions according to the install position, network condition or purpose of the camera. We recommend you configure the following items before monitoring the image from the camera.

Setting contents Setting menu

Set the camera function suitable for the installation place. Exposure mode (page 29)

Set the format of the image sent from the camera (MPEG 4 or JPEG). Video mode (page 28)

Select the brightness of the image sent from the camera. Brightness (page 30)

Select the quality of the image sent from the camera. MPEG4 Tab (page 31)

JPEG Tab (page 31)

Select the size of the image sent from the camera. Image size (page 28)

Select weather the audio from the camera microphone is sent or not. Microphone (page 29)

Accord date and time of the camera with those of the computer. Date & time Tab (page 26)

Make the setting for sending the monitor image attached to a mail. e-Mail (SMTP) setting Menu (page 38)

Set the access right of the user for the camera. Security setting Menu (page 37)

Basic Configuration by the Administrator

Page 13

Operating the Camera

The Operating the Camera section explains how to monitor the image from the camera using the Web browser. Use Internet Explorer as the Web browser. The functions of the camera should be set by the Administrator. For setting the camera, see “Administrating the Camera” on page 23.

Function Administrator

Switch the TCP/ UDP transmission mode (Available in MPEG4 mode only)

Control the audio z zzz

Control the setting menu

z Usable function

zz––

z –––

Full Light View

User

– Not usable function

Administrator and User

This network camera classifies the people who log in as the Administrator and the User. The Administrator can use all functions of this network camera including camera setting. The functions the User can use are monitoring the image and audio from the camera, and controlling the camera. The Viewer mode setting restricts the user's access right, and the user is classified as the one of three types.

Each type of the user can use the following functions.

Function Administrator

Monitor a live image

Watch date and time

Control the frame rate (Usable only when JPEG mode is selected)

Control the image view size

Zoom a image by the digital zoom

Save the still image in the computer

Send an image file to the FTP server

Send an image attached to a mail

Record an image on the inside memory of the camera

Control the Alarm out of the I/O port on the camera main unit

z zzz

zz––

zzz–

zz––

Full Light View

User

The access rights of the administrator and the user can be set in “Setting the User — User setting Menu” on the Administrator menu for the administrator on page 36.

Operating the Camera

Administrator and User

Page 14

Logging in to Homepage

— Welcome Page

Select the viewer language. Click English or Japanese at the bottom of the welcome page.

Click Enter. The main viewer appears.

Logging in as a User

Start the web browser on the computer and type the IP address of the camera you want to monitor.

Operating the Camera

The welcome page of Network Camera SNCDF70N/DF70P is displayed.

With the ActiveX viewer

With the Java applet viewer

Select the viewer. The usable viewers differ depending on the video mode (page 28) of the camera. When the video mode is set to MPEG4, you can only select ActiveX viewer, and may not select other viewers. (MPEG4 is default. See illustration on Step 1 above.) When the video mode is set to JPEG, you can select ActiveX viewer or Java applet viewer. For details, see “About Viewers” on page 15.

Welcome page when the video mode is JPEG

Control the camera from the main viewer.

Note

If the Welcome page does not activate correctly, the security level of the Internet Explorer may be set to Medium or higher. See “To display the Welcome page correctly” on page 11 and check the security level.

Logging in to Homepage — Welcome Page

Page 15

Displaying the setting window for the administrator directly

When the administrator sets the camera functions, the setting window can be displayed directly from the welcome page.

Click Setting on the welcome page. The following dialog appears.

Enter the user name and password for Administrator, then click OK.

The user name “admin” and the password “admin” are set at the factory for the Administrator. You can change them in the User setting menu of the Administrator menu (see page 36).

The Administrator menu appears.

When you display the main viewer of the camera for the first time

When you log in the network camera using ActiveX viewer for the first time (clicking Enter to enter the main viewer), the Security Warning appears. Click Yes and install ActiveX Control. You can use all the functions of the viewer by using ActiveX Control.

Java applet viewer

You can select this viewer when the camera video mode is set to JPEG. The frame rate is lower than the ActiveX viewer. The Java applet viewer operates only when Java is installed and Java (Sun) is enabled. If it does not operated correctly, check if the specified Java version has been installed successfully and Java (Sun) is enabled.

To check the Java version

Select Tool from the menu bar of Internet Explorer, then select Internet Option and the Advanced mode tab in sequence, and check the version of Java displayed in Java (Sun) is one of the versions specified below. If the item Java (Sun) is not displayed, Java is not installed. You need to install Java.

Java Plug-in Ver. 1.4.2_01, Ver. 1.4.2_02, Ver. 1.4.2_03, Ver. 1.4.2_04

To enable Java Plug-in

Check “Use Java2v1.4.2_xx for <applet> (requires restart)” in “Java (Sun)”.

Operating the Camera

About Viewers

You can use the following viewer according to the Video mode setting in the camera setting menu of the

Administrator menu (page 28).

ActiveX viewer

This viewer can monitor the image in both MPEG4 and JPEG video modes.

You must install this viewer when you access to the main viewer for the first time.

To install Java Plug-in

Download Java 2 Runtime Environment, Standard Edition (JRE) from the homepage of Sun Microsystems, Inc., and install it by following the instructions on the installer.

Notes

• If Automatic configuration is enabled in the Local Area Network (LAN) Settings of Internet Explorer, the image may not be displayed. In this case, disable Automatic configuration and set the Proxy server manually. For setting the Proxy server, consult your network administrator.

• When you install ActiveX viewer on Windows 2000 or Windows XP, you should have logged in to the computer as the Administrator.

Tip

Every page of this software is optimized to display character in Medium size for Internet Explorer.

Logging in to Homepage — Welcome Page

Page 16

Configuration of Main

Camera Control Section

Viewer

This section explains the functions of the parts and controls of the main viewer. For a detailed explanation on each part or control, see the specified pages.

Main viewer

Frame rate

(Displayed only when the camera Video mode (page 28) is set to JPEG.)

Selects the frame rate to transmit images.

View size

Operating the Camera

Selects the view size to be displayed. (page 18)

Camera control section

Monitor image section

Main menu

Click to change the size of the digital zoom. (page 18)

Digital zoom

Main menu

Setting

Click to display the Administrator menu. You can operate this function only when logging in as the administrator.

Home

Displays the Welcome page.

Player

Click to download the “SNC video player” application program built in the camera. The SNC video player allows you to play video/audio data recorded on the camera with your computer. (See “Using the SNC video player — Playing Video/Audio File Recorded on Camera” on page 58.)

Capture

Click to capture a still image shot by the camera and to store it in the computer. (See “Capturing a Monitor Image” on page 18.)

Trigg er

(Displayed only when the camera Viewer mode (page 36) is set to Full and one or more triggers are enabled on the Trigger Setting menu (page 48).)

Select the function you want to use from the list box and click the icon. Then you can send the monitor image of the camera to an FTP server (page 19), send it attached to a mail (page 19), record the image on the built-in memory (page 20), switch the Alarm output to On/Off (page 20) and switch the day/night function to On/Off (page 21).

Transmission (Switching the TCP/

UDP transmission mode)

(Displayed only when the camera Video mode (page 28) is set to MPEG4 and using the ActiveX viewer.)

Configuration of Main Viewer

Each click switches the transmission mode of the video/ audio data among TCP mode, UDP (Unicast) mode and UDP (Multicast) mode. (page 21)

Page 17

The last selected mode is saved in the computer, and it will stay selected for the next starting.

Controlling the Monitor

(Volume)

(Displayed when the Microphone (page 29) is set to On.) Drag the bar of icon to adjust the volume. When you click icon, the icon changes to and the audio output stops. To output the audio, click again.

Note

If the volume icon is not displayed due to the use of Java applet viewer, Audio codec may not be set G.711(64kbps) (page 29) or Java may not be installed correctly. To check if Java is installed correctly, refer to “Java applet viewer” of “About Viewers” on page 15.

Monitor Image


You can monitor the camera image on the monitor window of the main viewer.

Monitoring the camera image

Operating the Camera

The image shot by the camera is shown here. Date and time is displayed at the top of the window.

Select the frame rate (only when the camera Video mode is set to JPEG).

Click the Frame rate list box to select the frame rate for transmitting the image. The selectable frame rates are the following: SNC-DF70N: 1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25, 30 SNC-DF70P: 1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25 The numbers indicate “fps” (the number of frames transmitted per second).

Note

The frame rate options indicate the maximum number of frames that can be transmitted. The number of frames actually transmitted may vary depending on network environments and camera settings (image size and image quality settings).

Controlling the Monitor Image

Page 18

Select the view size.

Capturing a Monitor Image

You can capture a monitoring image as a still image and

Click View size list box to select the view size from among Auto, 640 × 480, 320 × 240 and 160 × 120. Aut o is determined by the image size specified in the Camera setting menu (page 28).

Zooming in the monitor image

Operating the Camera

Click Digital zoom icon.

Click the point you want to zoom in. The image is expanded by about 1.5 times with the clicked point at the center.

save it in the computer.

Capturing a monitor image

Monitor the camera image in the monitor window.

Click Capture icon. The still image of the moment you click is captured, and the still image is displayed in the monitor window.

With the ActiveX viewer

The digital zoom icon changes to .

To cancel zooming in, click icon.

With the Java applet viewer

Capturing a Monitor Image

To cancel the still image, click Cancel or Close.

Page 19

Saving the captured image

Sending an Image File

With the ActiveX viewer

Capture the monitor image.

Click Save. Save As dialog appears.

Select JPEG or Bit map as Save as type.

Type on File name and specify Save in, then click Save.

You can send a captured still image with an attached mail or to the FTP server. To use this function, you need to make the e- Mail(SMTP) and FTP client active, and set the address properly in the Trigger setting menu on the Administrator menu (page 48).

Sending a Monitor Image via e-Mail

Monitor the image on the monitor window.

Select e-Mail from the Trigger list box.

Click Trigger icon. The still image of the moment you click is captured, and the mail attached with the image file is sent to the mail address you have set.

Operating the Camera

With the Java applet viewer

Capture the monitor image.

Right-click the mouse to display the menu and select Save with a new name. Save Picture dialog appears.

Select JPEG or Bit map as Save as type.

Sending a Monitor Image to an FTP Server

Monitor the image on the monitor window.

Select FTP from the Trigger list box.

Click Trigger icon. The still image of the moment you click is captured, and the image file is sent to the FTP server.

Type in File name and specify Save in, then click Save.

Sending an Image File

Page 20

Recording a Still Image

Controlling Alarm output in the Built-in Memory of the Camera

You can capture a camera image as a still image and record it in the built-in memory of the camera. To use this function, you need to make Image memory active and set details of the image memory in the trigger setting menu of the Administrator menu (page 48).

Monitor the image on the monitor window.

Operating the Camera

Select Image memory from the Trigger list box.

Click Trigger icon. The still image of the moment you click is captured, and the image file is recorded in the built-in memory of the camera.

You can control the Alarm output On (short-circuit) and

Off (open).

To use this function, you need to make Alarm output

active in the Trigger setting menu on the Administrator

menu (page 48).

Monitor the image on the monitor window.

Select Alarm output 1 or Alarm output 2 from the Trigger list box.

Click Trigger icon. Each click switches the Alarm output between On (short-circuit) and Off (open) alternately.

Tip

For the connection of peripheral devices to the Alarm

output of the I/O port, see the supplied Installation

Manual.

Recording a Still Image in the Built-in Memory of the Camera / Controlling Alarm output

Page 21

Controlling Day/Night

Switching TCP/UDP

Function

You can control the Day/Night On (night mode) and Off (day mode). To use this function, you need to make Day/ Night active in the Trigger setting menu on the Administrator menu (page 48).

Monitor the image on the monitor window.

Select Day/Night from the Trigger list box.

Click Trigger icon. Each click switches the Day/Night On (night mode) and Off (day mode) alternately.

Transmission Mode

You can select the communication port of the video/ audio data as TCP or UDP. This function can be used when the Video mode (page 28) is set to MPEG4 and the ActiveX viewer is used.

Display the main viewer.

Click TCP/UDP transmission selector icon. Transmission mode selector dialog appears.

Click one of the buttons TCP, UDP (Unicast) or UDP (Multicast).

Operating the Camera

TCP: This is normally selected. When TCP is selected as the communication port, HTTP communication is adopted for video/audio communication. HTTP is the protocol used for reading a usual Web page. In an environment capable of reading Web page, you can watch or listen to the video/audio by selecting TCP port.

UDP (Unicast): When UDP (Unicast) is selected as the communication port, RTP (Real-time Transport Protocol) is adopted for video/audio communication. As RTP is the protocol for running video/audio data, video/audio can be played smoother than when TCP (HTTP) is selected. If the fire-wall is installed between the camera and the computer, or depending on the network environment, the video/audio may not play properly when UDP (Unicast) is selected. In this case, select TCP.

UDP (Multicast): This is selectable when the multicast streaming (page 28) is On. When UDP (Multicast) is selected as the transmission port, RTP (Real-time Transport Protocol) and UDP multicast techniques are adopted for video/audio transmission. By selecting it, the network transmission load of the camera can be reduced. If

Controlling Day/Night Function / Switching TCP/UDP Transmission Mode

Page 22

a router which does not correspond to the multicast or the fire-wall is installed between the camera and the computer, the video/audio may not played properly. In this case, select TCP or UDP (Unicast).

Click OK to close the dialog.

If you decide not change the transmission setting, click Cancel.

Operating the Camera

Switching TCP/UDP Transmission Mode

Page 23

Administrating the Camera

Basic Operations of

The Administrating the Camera section explains how to set the functions of the camera by the Administrator. For monitoring the camera image, see “Operating the Camera” on page 13.

This section explains the basic operations and each option.

Administrator Menu

You can set all functions to suit the user's condition in the Administrator menu. Click Setting in the welcome page to display the Administrator menu.

How to set Administrator menu

Click Setting in the welcome page. The authentication dialog appears. Enter the user name and password for Administrator. The user name “admin” and password “admin” are set at the factory for the Administrator.

Administrator menu appears.

Administrating the Camera

The following steps also display the Administrator menu.

1 Click Enter in the welcome page to display the main

viewer.

2 Click Setting icon in the main viewer to display

the Administrator menu.

Click the menu name (example: System) on the left side of the Administrator menu. The clicked setting menu appears.

Basic Operations of Administrator Menu

Page 24

Example: System setting menu

General note on setting menus

After changing a setting on a setting menu, wait at least

10 seconds before immediately turning off the power of

the camera.

If the power is turned off immediately, the changed

setting may not be stored correctly.

Configuration of Administrator

Select the tab above the setting menu, and set each setting option in the tab.

Example: “System” setting menu “Date & time” tab

Administrating the Camera

See page 25 to 52 for details of setting menu tabs and setting options.

After setting, click OK. The setting contents become active.

Click Cancel to invalidate the set values and return to the previous settings.

Buttons common to every setting menu

The following buttons are displayed on the setting menus where they are necessary. The functions of the buttons are the same on every setting page.

Click this button to validate the settings.

System

Displays the System setting menu.

(“Configuring the System — System setting menu” on

page 25).

Camera

Displays Camera setting menu for setting the camera

image and audio. (“Setting the Camera Image and Audio

— Camera setting Menu” on page 28)

Network

Displays the network setting menu for setting the

network connection. (“Configuring the Network —

Network setting Menu” on page 32)

User

Displays the user setting menu for setting the user name

and the password to log in. (“Setting the User — User

setting Menu” on page 36)

Security

Displays the security setting menu for specifying the

computer allowed to connect to the camera. (“Setting the

Security — Security setting Menu” on page 37)

Click this button to invalidate the set values and return to the previous settings.

Basic Operations of Administrator Menu

e-Mail (SMTP)

Displays the e-Mail (SMTP) setting menu for sending an

e-Mail. (“Sending an Image via mail — e-Mail (SMTP)

setting Menu” on page 38)

Page 25

FTP client

Displays the FTP client setting menu for sending an image file to FTP server. (“Sending Images to FTP Server — FTP client setting Menu” on page 41)

Configuring the System

— System setting menu

Image memory

Displays the image memory setting menu for recording a video/audio file in the built-in memory of the camera. (“Recording Images in Memory — Image memory setting Menu” on page 43)

FTP server

Displays the FTP Server menu for setting the FTP server function of the camera. (“Downloading Images from the Camera — FTP server setting Menu” on page 47)

Alarm output

Displays the alarm out setting menu for the alarm out terminal of the camera. (“Setting the Alarm Output — Alarm output setting Menu” on page 47)

Trigger

Displays the trigger setting menu for the operations when you click the trigger button in the main viewer. (“Setting the Operations from the Viewer Page — Trigger setting Menu” on page 48)

Schedule

Displays the schedule setting menu for FTP client function, e-Mail (SMTP) function, Image memory function and Alarm out function and so on. (“Setting the Schedule — Schedule setting Menu” on page 50)

When you click System on the Administrator menu, the System setting menu appears. Use this menu to perform the principal settings of the software. The System setting menu is composed of five tabs which are System, Date & time, Initialization, System Log and Access Log.

System Tab

Administrating the Camera

Title bar name

Type a name to display on the title bar up to 32 characters. The characters typed here are displayed on the title bar of the Web browser.

Alarm buffer

Displays the alarm buffer setting menu for the buffer which records the image and audio on the alarm detection. (“Setting the Alarm Buffer — Alarm buffer setting Menu” on page 51)

Motion detection

Displays the Motion detection setting menu for the motion detection function built into the camera. (“Setting the Motion Detection Function — Motion detection setting Menu” on page 52)

Welcome text

Type a text to show on the welcome page with up to 1,024 characters in HTML format. Use the <BR> tag for a line break. (A line break is equivalent to 2 characters.)

Serial number

Displays the serial number of the camera.

Software version

The software version of this camera is displayed.

Default URL

Select the homepage to be displayed when you enter the IP address of the camera in the web address box of the browser.

To display the homepage built in the camera

Select /index.html.

Configuring the System — System setting menu

Page 26

To display your individual homepage

You can display your favorite homepage. Store the HTML file in the built-in flash memory using the Custom Homepage Installer included in the supplied CD-ROM. For use of the Custom Homepage Installer, see page 59.

Select User Setting/user/.

Type the path of the HTML file in the text box up to 64 characters.

Tip

Even when you select User Setting/user/, the home page inside the camera can be displayed by typing the following URL in the address box of the browser. Example: When the IP address of the camera is set to

192.168.0.100 http://192.168.0.100/en/index.html

dd-mm-yyyy hh:mm:ss (day-month-year

hour:minute:second).

Adjust

Select to set the day and time.

Keep current setting: Select when you do not need to

set the date and time.

Synchronize with PC: Select when synchronizing the

camera's date and time with those of the computer.

Manual setting: Select when you want to set the

camera's date and time manually. Select the lower 2-digits of year, month, date, hour, minutes and seconds from each drop-down list.

Synchronize with NTP: Select when synchronizing the

camera's date and time with those of the time sever called NTP server (Network Time Protocol). Set the NTP server name and the Interval.

OK/Cancel

Administrating the Camera

See “Buttons common to every setting menu” on page

24.

Date & time Tab

NTP server name

Type the host name or IP address of the NTP server, up

to 64 characters.

Interval

Select the interval at which you want to adjust the

camera's time referring to the NTP server' time, between

1 and 24 hours. The set interval is a guide, and does not

indicate the exact time.

Note

The setting time may not accord with the exact time

according to the network environment.

Time zone

Set the time difference from Greenwich Mean Time in

the area where the camera is installed.

Select the time zone where the camera is installed from

the drop-down list.

Automatically adjust clock for daylight saving

Current date & time

Displays the date and time set on the camera.

Note

After you have purchased the camera, be sure to check the date and time of the camera and set them if necessary.

PC clock

Displays the date and time set on your computer.

Date & time format

Select the format of date and time to be displayed on the main viewer from the drop-down list. You can select from among yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second), mm-dd-yyyy hh:mm:ss (month-day-year hour:minute:second), and

time changes

When you select it, the clock is automatically adjusted

according to the daylight saving time of the selected

time zone.

Note

If the time zone selected on the Time zone menu is

different from that set on the computer, the time is

adjusted using the time zone difference and set on the

camera.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Configuring the System — System setting menu

Page 27

Initialize Tab

Reboot

Reboots the camera. Click Reboot, and the message “The SNC-DF70 will be rebooted. Are you sure?” appears. Click OK to reboot the camera. It takes about two minutes to start again.

Factory default

Resets the camera to the factory settings. Click Factory default, and the message “Set up data will be initialized. Are you sure?” appears. When you click OK, the Network indicator and the Power indicator on the camera start to blink. After adjustments of the default settings have finished, the camera reboots automatically. Do not turn off the camera until the camera reboots.

Tip

Firmware upgrade

Use this when upgrading the camera software. Click

Browse and specify the file for upgrading, then click OK. The message “Upgrade firmware? Are you sure?”

is displayed. Click OK and upgrading starts. After completion, the camera starts again.

Notes

• Use only the upgrade file special to this camera. If not, a problem may occur.

• Do not turn off the camera until the upgrading is completed.

System log Tab

Administrating the Camera

System log

The data of the software activity of the camera are recorded in this log. It includes data that are useful when a problem occurs. Click Reload to reload to the latest data.

The camera can also be reset to the factory settings by turning the power on of this unit while pressing the reset switch on the camera. For details, see the supplied Installation Manual.

Backup setting data

Saves the setting data of the camera in a file. Click Save, and follow the instructions on the browser to specify the folder and save the setting data of the camera. The file name preset at the factory is “sncdf70.cfg.”

Restore setting

Loads the stored setting data of the camera. Click Browse and select the file in which the setting data is stored. Then, click OK, and the camera is adjusted according to the loaded data and restarted.

Note

With Restore setting, some items in the Network setting menu (page 32) cannot be restored.

Access log tab

Access log

The access record of the camera is displayed. Click Reload to reload the latest data.

Configuring the System — System setting menu

Page 28

Multicast address: Type the multicast address used on

Setting the Camera Image and Audio

— Camera setting Menu

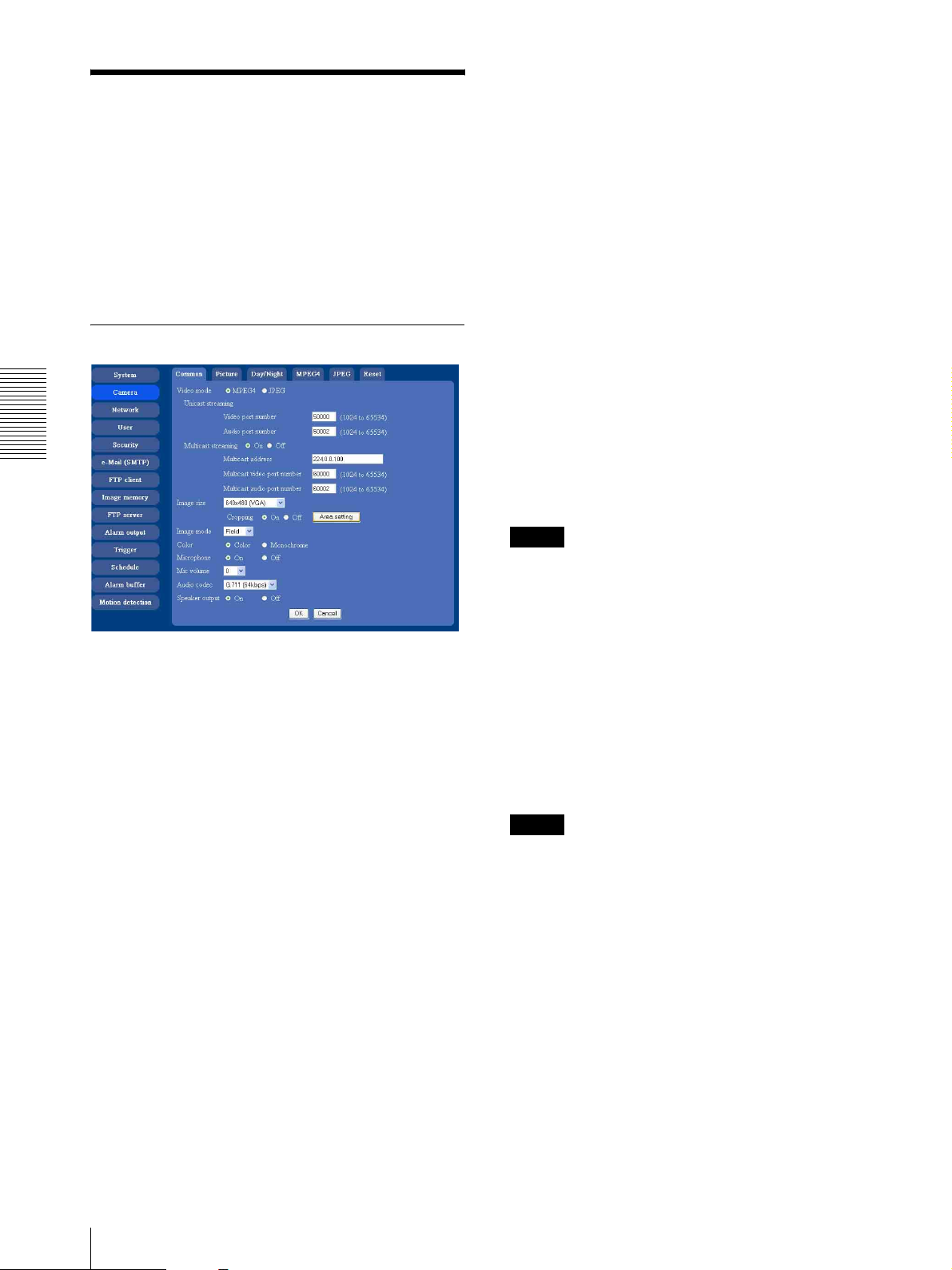

When you click Camera on the Administrator menu, the Camera setting menu appears. Use this menu to set the functions of the camera. The Camera setting menu consists of 6 tabs: Common, Picture, Day/Night, MPEG4, JPEG and Reset.

Common Tab

the Multicast streaming.

Multicast video port number: Specify the video

transmission port number used for the Multicast streaming.

Multicast audio port number: Specify the audio

transmission port number used for the Multicast streaming.

Image size

You can select the image size sent from the network camera.

640 × 480 (VGA), 480 × 360, 384 × 288, 320 × 240 (QVGA), 256 × 192 or 160 × 120 (QQVGA) can be

selected.

Image mode

The image output from the camera can be selected from Field mode or Frame mode. When Frame mode is

Administrating the Camera

selected, resolution level goes up. However, an edge portion will become notched if shooting object is moving.

Notes

Video mode

Select the output format of the camera image. MPEG4 or JPEG can be selected.

Unicast streaming

Specify the transmission port number of the video data and audio data used when UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer Video port number: Specify the transmission port

number of the video data. It is initially set to 50000. Specify an even number from 1024 to 65534.

Audio port number: Specify the transmission port

number of the audio data. It is initially set to 50002. Specify an even number from 1024 to 65534.

Multicast streaming

Set whether the camera uses the Multicast streaming or not. It reduces sending load on the camera by making the computer of the same segment network (not above the router) receive the same transmitting data. Select On to allow the multicast sending or Off . When select On, set Multicast address, Multicast video port number and Multicast audio port number properly.

If you set the Image size to 320 × 240 (QVGA), 256 × 192 or 160 × 120 (QQVGA), the Image mode is fixed in the Field mode.

Cropping

When the image size is set to 640 × 480 (VGA), you can crop a portion of the image and display the cropped image on the computer. With the cropping, the transmitting data size, and thus, the network load is reduced and a higher frame rate is obtained.

Select On to crop the image, or Off.

Notes

• When Cropping is set to On, Motion detection

function does not work.

• While Cropping is set to On, the image of the

composite video signal output from the video output connector of the camera may be distorted.

To crop an image

Set the Image size to 640 × 480(VGA). The Cropping is displayed.

Set the Cropping to On and click the Area setting button. The “Area setting” display appears.

Setting the Camera Image and Audio — Camera setting Menu

Page 29

Specify the cropping area. Click the left button of the mouse on the still image and drag it diagonally. The red frame that appears as you drag indicates the cropping area.

Still image

Red trimming frame

Click OK at the bottom of the window. The cropped image is displayed on the main viewer.

To close the image, click in the upper-right corner.

Click the left button of the mouse on the still image and drag it.

Speaker output

Set whether you output the audio sent from the computer connected with the audio input connectors to the speaker (active speaker for example) of the camera connected via line output connectors using SNC audio upload tool included in the supplied CD-ROM. Select On to accept the audio data transmission from SNC audio upload tool.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Picture Tab

You can set the color condition, exposure, etc. of the camera.

Administrating the Camera

Color

Select Color or Monochrome for the image.

Microphone

Select whether you send the audio from the microphone input connector. Select On to send the audio from this network camera.

Note

When you change the Microphone setting, click Refresh on the browser to reflect the change when opening main viewer page.

Mic volume

Set the volume level of the audio input from the microphone input connector. It is adjustable from –10 to +10.

Audio codec

Select the bit rate when you send the audio from the microphone input connector. G.711 (64kbps), G.726

(40kbps), G.726 (32kbps), G.726 (24kbps) or G.726 (16kbps) can be selected.

Exposure mode

Select the exposure adjustment mode from among Auto iris lens, CCD iris, and Manual.

The setting items required for each setting appear. Auto iris lens: Select this option when you use an auto

iris lens.

CCD iris: Select this option when you use a fixed-iris

lens to adjust the exposure using the electronic shutter and AGC (Automatic Gain Control).

Manual: Adjust the electronic shutter and gain

manually.

Note

When the bit rate is set to other than G.711(64bps), the audio is not output in case of using Java applet viewer.

Setting the Camera Image and Audio — Camera setting Menu

Page 30

Auto Gain Control

Adjusts the gain automatically according to the lighting conditions of the subject.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Backlight compensation

Select On to activate the backlight compensation, or Off to deactivate it.

Lens adjust

Select the iris convergence level for the auto-iris lens from 0 to 255.

Shutter mode

Select the electronic shutter mode, Auto or Manual. The setting items required for each setting appear.

Shutter speed

Select the electronic shutter speed from among the following:

Administrating the Camera

SNC-DF70N:

1/10000, 1/4000, 1/2000, 1/1000, 1/500, 1/250, 1/100, 1/60 (seconds).

SNC-DF70P:

1/10000, 1/4000, 1/2000, 1/1000, 1/500, 1/250, 1/120, 1/50 (seconds).

Tip

Flicker from fluorescent lamps or similar can be reduced by setting the

speed

Gain

Select the gain (dB) from among the following:

0 dB, 6 dB, 12 dB, 18 dB

Shutter mode

1/100

Manual

and

Shutter

User preset

You can save the present settings in the camera as the custom, or you can load the settings saved in the camera. Save: Click to save the present settings of the Picture

tab.

Load: Click to load the saved settings. To use them,

click OK.

Day/Night Tab

Use this tab to set the day/night function of the camera.

The day/night function consists of five tabs.

Disable

Always works in day mode.

Brightness

Tweaks the exposure set in the exposure mode. It is brighter when a large value is selected, and it is darker when a small value is selected. The value among –5 to 5 can be set.

Saturation

Select the saturation in 7 steps, from –3 to 3. Selecting 3 gives the image with the highest saturation.

Sharpness

Select the sharpness in 7 steps, from –3 to 3. Selecting 3 gives the image with the highest sharpness.

Contrast

Select the contrast in 7 steps, from –3 to 3. Selecting 3 gives the image with the highest contrast.

Auto

Normally works in day mode. It switches automatically to night mode in a dark place. The switching timing can be adjusted by the following parameters. When the auto gain control is set to Off, the camera does not switch to the night mode.

Level: High or Low indicates a brightness level. Time: Select invalid time so that the camera does not

react to changes in light and darkness.

Manual

Switch the day/night mode manually. When you select

Manual, On and Off are displayed. When you select On, the camera works in night mode. When you select Off, it works in day mode.

Timer

Normally works in day mode. It switches to night mode at the time you set in the Schedule setting menu. The day/night function normally works in day mode.

Setting the Camera Image and Audio — Camera setting Menu

Page 31

Sensor

Controls day/night mode by synchronizing with the sensor input. The camera works in night mode while the sensor input is being detected.

Note

When a signal is input from the 1 pin (sensor input +) and 2 pin (sensor input - (GND)) of the I/O cable, the camera works in night mode regardless of the set mode.

For pin assignment, see the supplied Installation Manual. When you select the day/night function in Trigger setting menu after selecting Auto, Timer or Sensor in the Day/ Night tab, you can switch the day/night mode from the Trigger on the main viewer.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

MPEG4 Tab

Note

The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition.

I-picture interval

Set the I-picture inserting interval of MPEG4. I-picture is the compression data serving the basic point when the data compressed by MPEG4 is depressed. In the condition that errors tends to occur, such as the network environment variation, the distortion of the image is reduced by selecting a small value. The selectable values are 1, 2, 3, 4 and 5 seconds.

Auto rate control

This function adjusts the frame rate and the bit rate automatically so that the camera plays a smooth image to suit the connected computer environment. If On is selected, the rate of MPEG4 image is automatically adjusted.

Note

Administrating the Camera

Frame rate

Set the frame rate of the MPEG image. The selectable frame rates are the following: SNC-DF70N: 1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25, 30 SNC-DF70P: 1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25 The numbers indicate “fps” (the number of frames transmitted per second).

The maximum transmission rate will be the values set in Frame rate and Bit rate.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

JPEG Tab

Bit rate

Set the bit rate of MPEG image transmission for a line. Selectable values are 64, 128, 256, 384, 512, 768, 1024, 1536 and 2048 kbps.

Frame rate

Set the maximum frame rate of JPEG image that can be monitored on the computer. The selectable frame rates are the following: SNC-DF70N: 5, 6, 8, 10, 15, 20, 25, 30

Setting the Camera Image and Audio — Camera setting Menu

Page 32

SNC-DF70P: 5, 6, 8, 10, 15, 20, 25 The numbers indicate “fps” (the number of frames transmitted per second).

Configuring the Network

— Network setting Menu

Image quality

Set the quality of JPEG image. Selectable values are from Level 1 to Level 5. Selecting level 5 gives the image with the highest quality.

When you click Network on the Administrator menu, the Network setting menu appears. Use this menu to configure the network to connect the camera and the computer. The Network setting menu consists of 3 tabs: Network, PPPoE and Dynamic IP address notification.

Bandwidth control

When the video mode is set to JPEG, the network bandwidth can be limited. Selectable bandwidths are

0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 2.0, 3.0, 4.0, and Unlimited Mbps. When you do not wish to limit the bandwidth, select Unlimited.

Network Tab

This section provides the menus for connecting the camera through the network cable.

OK/Cancel

Administrating the Camera

See “Buttons common to every setting menu” on page

24.

Reset Tab

Reset camera menu

Click Reset, and the message “Camera menu setting is reset to default. Are you sure?” is displayed. To reset to default, click OK.

MAC address

Displays the MAC address of the camera.

Obtain an IP address automatically (DHCP)

DHCP server is installed on the network. Select it when the IP address is assigned by DHCP server. IP address is assigned automatically.

Note

When you set Obtain an IP address automatically (DHCP), make sure that DHCP server is working on the

internet.

Use the following IP address

Select this when a fixed IP address is set.

IP address

Type the IP address of the camera.

Subnet mask

Type the subnet mask.

Configuring the Network — Network setting Menu

Page 33

Default gateway

Type the default gateway.

PPPoE Tab - Setting of PPPoE Connection

Obtain DNS server address automatically

Select this to obtain the address of DNS server automatically. It can be set only when Obtain an IP address automatically (DHCP) is selected.

Note

When you select “Obtain DNS server address automatically”, make sure that DHCP server is active on the network.

Use the following DNS server address

Select this when you set the fixed address as the IP address of DNS server.

Primary DNS server

Type the IP address of the primary DNS server.

Secondary DNS server

Type the IP address of the secondary DNS server, if necessary.

HTTP port number

Normally select 80. If you want to use a port number other than 80, select the text box and type a port number between 1024 and 65535.

Note

Use this function to connect the camera with PPPoE (Point-to-Point Protocol over Ethernet). PPPoE connection is the protocol that is widely used in xDSL (digital affiliate line such as ADSL, VDSL or SDSL) as the authentication and connection system.

Administrating the Camera

PPPoE

Set whether you connect the camera using PPPoE function or not. When On is selected, PPPoE connection is used.

IP address

When you connect to the network by PPPoE function, IP address obtained at PPPoE connection is displayed.

When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the camera by typing the IP address of the camera on the web browser, as follows:

Example: when HTTP port number is set to 8000

OK/Cancel

See “Buttons common to every setting menu” on page

24.

User ID

Type the user ID for the authentication necessary for PPPoE connection. Type it up to 64 characters.

Password

Type the password for the authentication necessary for PPPoE connection. Type it from 1 to 32 characters.

Re-type password

To confirm the password, re-type the password typed in the password box.

Obtain DNS server address automatically

Select to obtain the address of DNS server automatically.

Use the following DNS server address

Select to set the fixed address as the IP address of DNS server.

Configuring the Network — Network setting Menu

Page 34

Primary DNS server

Type the IP address of the primary DNS server.

Dynamic IP address notification Tab — Notifying the IP Address

Secondary DNS server

Type the IP address of the secondary DNS server.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrating the Camera

When the DHCP setting is set to On or PPPoE setting is set to On on the Network tab, you can send notification of the completion of the network settings using the SMTP or HTTP protocol.

e-Mail (SMTP) notification

Select On to send an e-Mail when the DHCP setting is completed.

SMTP server name

Type the name or IP address of the SMTP server to use for sending an e-Mail, up to 64 characters.

Authentication

Select the authentication required when you send an eMail. Off: Select if no authentication is required when an e-

Mail is sent.

On: When authentication is necessary an e-Mail is sent,

select one of the authentication methods from the followings.. SMTP: Select if authentication is required when an e-Mail is sent.

POP before SMTP: Select when POP before SMTP is required when an e-Mail is sent.

Note

When you set to On, make sure to select either or both SMTP or/and POP before SMTP.

POP server name

It is necessary when the POP before SMTP is selected in Authentication. Type the POP (receiving mail) server name up to 64 characters. Or type the IP address of the POP server. This setting is necessary when the SMTP server which sends e-Mails performs authentication using the POP user account.

Configuring the Network — Network setting Menu

Page 35

User name, Password

Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-Mails performs authentication.

Recipient e-Mail address

Type the recipient e-Mail address up to 64 characters. You can specify only one recipient e-Mail address.

Administrator e-Mail address

Type the e-Mail address of the camera administrator, up to 64 characters. This is used as the reply address or the address for a system mail from the mail server.

Subject

Type the subject/title of the e-Mail up to 64 characters.

Message

Type the text of the e-Mail up to 384 characters. (A line break is equivalent to 2 characters.) You can describe the information of the acquired IP address, etc. using the special tags mentioned below.

HTTP notification

Select On to output a command to the HTTP server when the DHCP setting is completed. Using this function, you can configure a useful system, for example, to view the access log stored in the HTTP server or start an external CGI program.

Proxy port number

Specify the port number when you send HTTP commands via the proxy server. Set a port number between 1024 and 65535.

Method

Select the HTTP method GET or POST.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

About the special tags

You can use the following five special tags to allow the notification of the settings acquired by the DHCP, such as an IP address. Type the tags in the parameter section of the URL that you described in the Message field of the HTTP.

<IP>

Use this tag to embed the IP address acquired by the DHCP in the text or parameter.

Use this tag to embed the specified HTTP server port number in the text or parameters.

Use this tag to embed the MAC address of the interface whose IP address you have acquired by the DHCP, in the text or parameter.

Administrating the Camera

URL

Specify the URL to send HTTP commands, up to 256 characters. The URL is normally composed as follows:

http://ip_address[:port]/path?parameter

ip_address: Type the IP address or host name of the host

to which you want to connect.

:port: Specify the port number to which you want to

connect. If you want to use the well-known port number 80, you do not need to input this value.

path: Type the command name. parameter: Type the command parameter if necessary.

You can use the special tags mentioned below for the parameters.

Proxy server name

When you send HTTP commands via a proxy server, type the name or IP address of the proxy server, up to 64 characters.

Use this tag to embed the camera's model name (SNCDF70N/P) in the text or parameter.

Use this tag to embed the camera's serial number in the text or parameter.

Configuring the Network — Network setting Menu

Page 36

Viewer authentication

Setting the User

— User setting Menu

When you click User on the Administrator menu, the User setting menu appears. Use this menu to set the user names and passwords of Administrator and up to 9 kinds of users (User 1 to User

9), and the access right of each user.

Administrating the Camera

Set whether the user is authenticated or not when the main viewer is displayed. When you select On, the main viewer is displayed to suit the authenticated user. When you select Off, select the view mode of the main viewer page which is displayed without authentication from Full, Light or View.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrator, User 1 to 9

Specify User name, Password, Re-type password, FTP user and Viewer mode for each user ID.

User name

Type a user name between 5 and 16 characters.

Password

Type a password between 5 and 16 characters.

Re-type password

To confirm the password, re-type the password typed in the Password box.

FTP user

Set whether allowed to log in to FTP server or not. Check the box if allowed to log in to FTP server.

Viewer mode

If the user is authenticated when the main viewer is displayed, you can select the viewer mode displayed after authentication.

Full: You can operate all functions in this mode. Light: You can operate the functions other than the

trigger button on the main viewer, TCP/UDP switching button on the main viewer, and the frame rate setting.

View: You can monitor only the camera image.

Setting the User — User setting Menu

Page 37

Setting the Security

— Security setting Menu

When you click Security on the Advanced mode menu, the Security setting menu appears. Use this menu to limit the computers that can access the camera.

Note

You can access the camera even from a computer having an IP address whose access right is set to Deny, if you enter the user name and password set for the Administrator boxes in the User setting menu.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrating the Camera

Security function

To activate the security function, select On. If you do not wish to use the security function, select Off.

Default policy

Select the basic policy of the limit from Allow and Deny for the computers specified on the Network address/ Subnet 1 to Network address/Subnet 10 menus below.

Network address/Subnet 1 to Network address/Subnet 10

Type the IP addresses and subnet mask values you want to allow or deny access to the camera. You can specify up to 10 IP addresses and subnet mask values. For a subnet mask, type 8 to 32. Select Allow or Deny from the drop-down list on the right for each IP address/subnet mask .

Tip

The subnet mask value represents the bit number from the left of the network address. For example, the subnet mask value for “255.255.255.0” is 24. If you set “192.168.0.0/24” and “Allow,” you can allow access from the computers having an IP address between “192.168.0.0” and “192.168.0.255”.

Setting the Security — Security setting Menu

Page 38

Sending an Image via mail

When you click SMTP on the Administrator menu, the SMTP setting menu appears. By using Mail (SMTP) function, you can send a mail with attached image which has been shot linked with the external sensor input or with the built-in motion detection function. The image file can also be sent periodically. e-Mail (SMTP) setting menu is composed of three tabs: Common, Alarm sending and Periodical sending.

— e-Mail (SMTP) setting

Authentication

Select the authentication required when you send an eMail. Off: Select if no authentication is required when an e-

Mail is sent.

On: When authentication is required an e-Mail is sent,

select one of the authentication methods from the followings. SMTP: Select if authentication is required when an e-Mail is sent.

POP before SMTP: Select when POP before SMTP is necessary when an e-Mail is sent.

Note

When you set to On, make sure to select either or both SMTP or/and POP before SMTP.

Common Tab — Setting the SMTP Function

Administrating the Camera

POP server name

It is necessary when the POP before SMTP is selected in Authentication. Type the POP (receiving mail) server name up to 64 characters, or type the IP address of the POP server. This setting is necessary when the SMTP server which sends e-Mails performs authentication using the POP user account.

User name, Password

Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-Mails performs authentication.

Recipient e-Mail address

Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient e-Mail addresses.

e-Mail (SMTP)

Select On when you use the e-Mail (SMTP) function. The common setting options are displayed below. If you do not wish to use the e-Mail (SMTP) function, select Off and click OK.

Notes

Administrator e-Mail address

Type the Administrator e-Mail address up to 64 characters. This address is used to reply mail and sending system messages from the SMTP server.

Subject

• During transmission of an image file via mail, the frame rate and operation performance of the monitor image of the main viewer decline.

• While the camera video mode is set to MPEG4, the image of the composite video signal output from the video output connector of the camera may be distorted during mail transmission.

• You cannot send an audio file by using the mail sending function.

Type the subject/title of the e-Mail up to 64 characters. When Alarm sending of the alarm tab is set to On, the mail sent due to the alarm detection will indicate the type of alarm in the subject. SI is added for sensor input detection, and MD is added for motion detection.

Message

Type the text of the e-Mail up to 384 characters. (A line break is equivalent to 2 characters.)

SMTP server name

Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.

Sending an Image via mail — e-Mail (SMTP) setting Menu

Page 39

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Alarm sending Tab — Setting the mail sending mode when detecting the alarm

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name.

Tip

A consecutive number added to Date & time and Sequence number is used to identify each of multiple

files created with one alarm event.

Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function.

Alarm sending

Select On to set to send mail with connection to the alarm detection.

File attachment

Set whether an image file is to be attached to the mail or not. When On is selected, the image file made by the settings below is attached. When Off is selected, only the message is sent.

Image file name

Type the file name you want to assign to the image to attach a mail. You can use up to 10 alphanumeric, (hyphen) and _ (underscore) for naming.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the connected alarm. Sensor input: The external sensor which is connected to

the sensor input of the camera I/O port.

Motion detection: Click Motion detection button, and

the Motion detection setting menu is displayed. You can set the motion detection function (page 52).

Administrating the Camera

Note

Motion detection works only when the camera Video mode is set to MPEG4 and the Cropping is set Off.

Effective period

Set the period when the alarm detection is effective.

Always: The alarm detection is always effective. Schedule: You can specify the period when the alarm

detection is effective in the schedule setting in the other section. Click Schedule and the setting menu for the Effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Suffix

Select a suffix to add to the file name. None: No suffix is added. The Image file name is

assigned to the image to be sent via an e-Mail.

Date & time: The date & time suffix is added to the

Image file name. The date/time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name.

Sending an Image via mail — e-Mail (SMTP) setting Menu

Page 40

Periodical sending Tab — Setting the periodical mail sending mode

You can set to send mails periodically.

Effective period

Set the period when the periodical sending is effective.

Always: The periodical sending is always effective. Schedule: You can specify the period when the

periodical sending is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrating the Camera

Periodical sending

Select On when you want to send mails periodically. If you select Off, Periodical sending is not executed.

Image file name

Type the file name of the image attached to the mail up to 10 alphanumeric, - (hyphen) and _ (under score).

Suffix

Select a suffix added to the file name used when the mail is sent. None: The name of the sent file will be the Image file

name.

Date & time: The date & time suffix is added to the

Image file name. The date & time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name.

Sequence number clear

Click Clear and the suffix of the sequence number returns to 1.

Interval

Type the interval at which you want to send a mail periodically. You can set the hour (H) and minutes (M) between 30 minutes and 24 hours (one day).

Sending an Image via mail — e-Mail (SMTP) setting Menu

Page 41

Sending Images to FTP

Password

Type the password for the FTP server.

Server

— FTP client setting Menu

When you click FTP client on the Administrator menu, the FTP client setting menu appears. Use this menu to set up for capturing and sending still images to an FTP server. By using FTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server. The image file can also be sent periodically. FTP client setting menu is composed of three tabs Common, Alarm sending and Periodical sending.

Common Tab — Setting the FTP Client Function

Re-type password

To confirm the password, type the same characters as you typed in the Password box.

Passive mode

Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Alarm sending Tab — Setting the FTP client action when detecting the alarm

Set to forward the image and audio file to the specified FTP server linked with the alarm detection by the external sensor input or by the built-in motion detection function.

Administrating the Camera

FTP client function

To activate the FTP client function, select On. The FTP client setting page appears. When you do not wish to use the FTP client function, select Off.

Note

The frame rate and operability on the main viewer may decrease while a file is being transmitted by the FTP client function.

FTP server name

Type the FTP server name to upload still images up to 64 characters, or the IP address of the FTP server.

User name

Type the user name for the FTP server.

Alarm sending

Select On to send the image and audio file to FTP server linked with the alarm detection.

Remote path

Type the path to the destination up to 64 characters.

Image file name

Type the file name you want to assign to the images when sending to the FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming.

Sending Images to FTP Server — FTP client setting Menu

Page 42

Suffix

Select a suffix to add to the file name. Date & time: The date & time suffix is added to the

Image file name. The date/time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2 digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and an consecutive 2 digits number is added to the Image file name.

Tip

A consecutive number added to Date & time and Sequence number is used to identify each of multiple

files created with one alarm event.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Periodical sending Tab — Setting the Periodical FTP Client Activity

You can set to send an image file to FTP server periodically.

Administrating the Camera

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the connected alarm. Sensor input: The external sensor which is connected to

the sensor input of the camera I/O port.

Motion detection: Click Motion detection button, and

the Motion detection setting menu is displayed. You can set the motion detection function (page 52).

Periodical sending

Select On when you want to use periodical sending. If you select Off, Periodical sending is not executed.

Remote path

Note

Motion detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off.

Effective period

Set the period when the alarm detection is effective.

Always: The alarm detection is always effective. Schedule: You can specify the period when the alarm

Alarm buffer

Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select it, only the image of the moment of the alarm detection is forwarded.

Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm Buffer — Alarm buffer setting Menu” on page 51.

Type the remote path up to 64 characters.

Image file name

Type the file name of the image sent to FTP server up to 10 alphanumeric characters, - (hyphen) and _ (under score).

Note

You cannot send the audio file by using the periodical sending function of FTP.

Suffix

Select a suffix to be added to the file name sent to FTP server. None: The name of the sent file will be the Image file

name.

Date & time: The date & time suffix is added to the

Sending Images to FTP Server — FTP client setting Menu

Page 43

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name.

Sequence number clear

Click Clear and the suffix of the sequence number returns to 1.

Interval

Type the interval at which you want to send images to the FTP server periodically. You can set the hour (H), minutes (M) and seconds (S) between 1 second and 24 hours (one day).

Note

The actual interval may be longer than the set value, depending on the image size, image quality setting, bit rate and the network environments.

Effective period

Set the period when the periodical sending is effective.

Always: The periodical sending is always effective. Schedule: You can specify the period when the

Recording Images in Memory

— Image memory setting Menu

When you click Image memory on the Advanced mode menu, the Image memory setting menu appears. By using the image memory function, you can record the image and audio file, which has been shot being linked with the external sensor input or with the built-in motion detection function, to the built-in memory (about 8 MB) of the camera. The image file can also be recorded periodically. You can also record a still image periodically. The recorded image and audio files can be found or downloaded to the computer using the FTP server function. (See “Sending an Image via mail — e-Mail (SMTP) setting Menu” on page 38.) Image memory setting menu is composed of three tabs Common, Alarm recording and Periodical recording.

Notes

• The image and audio files recorded in the built-in memory will be erased when the power of the camera is turned off.

• The frame rate and operability on the main viewer may decrease during image storage in the built-in memory.

• When the Overwrite is set to On, a warning mail is not sent to the Administrator.

Administrating the Camera

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Common Tab — Setting the Image memory Function

Image memory

Set whether you use the Image memory function or not. When you select On, the Common setting options are displays in the below. If you do not use it, select Off and click OK.

Free space

Shows the current free space of the built-in memory.

Recording Images in Memory — Image memory setting Menu

Page 44

Overwrite

Select to overwrite the file or not when there is insufficient memory space to record the image. Select On to overwrite from the oldest file or folder. Select Off to prohibit overwriting. In this case, a new file cannot be stored.

Capacity warning

Select On to send a warning mail to the Administrator when the built-in memory space is low or the memory is full. Select Off if you do not want to send a warning mail.

Administrator e-Mail address

Type the e-Mail address of the recipient of the warning mail (e-Mail address of the camera Administrator), up to 64 characters.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Alarm recording Tab — Setting the Image Memory Function when

Note

When the Overwrite is set to On, a warning mail is not sent to the Administrator.

Detecting the Alarm

You can set to record the image and audio file to the built-in memory linked with the external sensor input or with the built-in motion detection function.

SMTP server name

Administrating the Camera

Type the name of the SMTP server to use for sending an e-Mail, up to 64 characters. Otherwise type the IP address of SMTP mail server.

Authentication

Select the authentication required when you send an eMail. Off: Select if no authentication is required when an e-

Mail is sent.

On: When authentication is required an e-Mail is sent,

select one of the authentication methods from the followings.. SMTP: Select if authentication is required when an e-Mail is sent.

POP before SMTP: Select when POP before SMTP is required when an e-Mail is sent.

Note

When you set to On, make sure to select either or both SMTP or/and POP before SMTP.

POP server name

This is necessary when POP before SMTP is selected in Authentication. Type POP (receiving mail) server name up to 64 characters. Otherwise type the IP address of POP server. This setting is necessary when SMTP server that sends a mail authenticates using the account of POP user.

User name, password

Type the user name and the password of the user who has the mail account. This setting is necessary when SMTP server that sends a mail authenticates.

Alarm recording

Select On to set to record the image and audio file to the built-in memory linked with the external sensor input or with the built-in motion detection function.

Image file name

Type the file name you want to assign to the images when saving in the built-in memory. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming.

Suffix

Select a suffix to add to the file name. Date & time: The Date & time suffix is added to the

Image file name. The Date & time suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits) and consecutive number (2 digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and an

Recording Images in Memory — Image memory setting Menu

Page 45

consecutive 2 digits number is added to the Image file name.

Tip

A consecutive number added to Date & time and Sequence number is used to identify each of multiple

files created with one alarm event.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the connected alarm. Sensor input: The external sensor which is connected to

the sensor input of the camera I/O port.

Motion detection: Click Motion detection button, and

the Motion detection setting page is displayed. You can set the motion detection function (page 52).

Periodical recording Tab — Setting the Periodical recording mode

You can set to record the image file to the built-in memory periodically.

Note

Motion detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off.

Effective period

Set the period when the alarm detection is effective.

Always: The alarm detection is always effective. Schedule: You can specify the period when the alarm

detection is effective in the schedule setting in the other section. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

Alarm buffer

Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm). If you do not select, only the image of the moment of the alarm detection is forwarded.

Click Alarm buffer to display the Alarm buffer setting menu. For details, see “Setting the Alarm Buffer — Alarm buffer setting Menu” on page 51.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrating the Camera

Periodical recording

Select On when you want to use periodical recording. If you select Off, the Periodical recording is not executed.

Image file name

Type the file name of the image recorded to the built-in memory up to 10 alphanumeric, - (hyphen) and _ (under score).

Note

You cannot send the audio file by using the periodical recording function.

Suffix

Select a suffix to add to the file name. None: The recording file name will be the Image file

name.

Date & time: The date & time suffix is added to the

Sequence number: A consecutive number of 10 digits

between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name.

Sequence number clear

Click Clear and the suffix of the sequence number returns to 1.

Recording Images in Memory — Image memory setting Menu

Page 46

Interval

Type the interval at which you want to record an image in the built-in memory periodically. You can set the hour (H), minutes (M) and seconds (S) between 1 second and 24 hours (one day).

About the extension of a file

A file to be recorded/sent using the image memory function or the FTP client function has one of the following three extensions depending on the video mode setting and the recording/sending settings of the camera.

Note

.m4f: Represents the MPEG4 video mode. .jpf: Represents the JPEG video mode when Use alarm

The actual interval may be longer than the set value, depending on the image size or the network environments.

buffer is checked in the alarm recording/alarm sending menu. This file includes audio data.

.jpg: Represents the JPEG video mode when Use

alarm buffer is not checked in the alarm recording/

Effective period

Set the period when the periodical recording is effective.

alarm sending menu. This file can be viewed with a normal image viewer.

Always: The periodical recording is always effective. Schedule: You can specify the period when the

periodical recording is effective in the schedule

The SNC video player (page 58) allows playing of “.m4f” and “.jpf” files.

setting in the other section.

Click Schedule and the setting menu for the effective

Administrating the Camera

period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Directory Structure of Image Memory

The images are recorded in the memory with the following directory structure.

FTP root

Date_No.

xxxxxxx.m4f yyyyyyy.m4f


bbbbbbb.jpf

ccccccc.mf4

zzzzzzz.mf4 qqqqqqq.mf4

A represents a directory created automatically. The Date_No. directory has a 7-digit name consisting of the last two digits of year (2 digits), month (2 digits), underscore and sequence number (2 digits). A directory can contain video files of up to approximately 1 MB, and a new directory will be created automatically if the size of the video files in the current directory exceeds the maximum size, and recording will continue.

Recording Images in Memory — Image memory setting Menu

Page 47

Downloading Images

Setting the Alarm Output

from the Camera

— FTP

server setting Menu

When you click FTP server on the Administrator menu, the FTP server setting menu appears. Use this menu to set up for the FTP server function which finds a specified image and audio file stored in the built-in memory of the camera (about 8 MB) or download the still image file from the camera.

— Alarm output setting Menu

When you click Alarm output on the Administrator menu, the Alarm output setting menu appears. You can set in this menu to control the alarm out of I/O port on the rear of the camera linked to the alarm detection, the timer and day/night.

Alarm out 1, 2 Tab

Administrating the Camera

FTP server function

To activate the FTP server function, select On and click OK.

When you do not use the FTP server function, select Off and click OK.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Note

Note the followings when you log in to the FTP server of the camera using the FTP client software on the computer.

• The frame rate and the operativity of the monitor window in the main viewer will decline.

• While recording the image using the Image memory function, you cannot delete the recording directory.

• When the recorded image or audio file is deleted, the camera counts the free space of the built-in memory again when logging off.

Alarm output

To activate the Alarm output function, select On. The basic setting options are displayed below. When you do not use the Alarm output function, select Off.

Mode

Select the mode of the Alarm output function.

Alarm: Controls alarm output by synchronizing with an

external sensor input or the built-in activity detection function.

Timer: Controls alarm output by the timer. Day/Night: Controls the alarm output linked to the day/

night function.

Alarm

This item is displayed when Mode is set to Alarm. Select the alarm to link the alarm output function. If the selected alarm is detected, the alarm output status changes. Sensor input: External sensor connected to sensor input

of the camera I/O port

Motion detection: To set the motion detection function,

click Motion detection. The Motion detection setting menu appears (see page 52).

Downloading Images from the Camera — FTP server setting Menu / Setting the Alarm Output — Alarm output setting Menu

Page 48

Note

The motion detection function can activate or be set only when the Video mode of the camera is set to MPEG4 and the Cropping is set Off.

Setting the Operations from the Viewer Page

—

Trigger setting Menu

Alarm duration

Select the duration for which the alarm output is shortcircuited between 1 and 60 sec.

Effective period

This item is displayed when Mode is set to Alarm. Set the period while the alarm detection is effective.

Always: The alarm detection is always effective. Schedule: You can specify the period when the alarm

detection is effective in the schedule setting in the other section.

Click Schedule and the setting menu for the effective

Administrating the Camera

period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

Schedule

This item is displayed when Mode is set to Timer. Click Schedule and the setting menu for the effective period is displayed. (“Setting the Schedule — Schedule setting Menu” on page 50)

Click Tri gger on the Administrator menu to display the Trigger Setting menu. In this menu, you will select the activities when Trigger icon is clicked on the main viewer.

e-Mail (SMTP)

By checking this box, it will allow you to select e-Mail in the Trigger setting menu. You can send mail with attached image file by selecting e-Mail and clicking the Trigger icon.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

When you click e-Mail (SMTP) button, the Trigger (e - Mail) setting menu is displayed. You can set necessary options here. The setting options and setting procedures are the same as those of the e-Mail (SMTP) setting menu (page 38).

Setting the Operations from the Viewer Page — Trigger setting Menu

Page 49

Note

While the Video mode is set to MPEG4, the image of the composite video signal output from the video output connector of the camera may be distorted during mail transmission.

Image memory

By checking this box, it will allow you to select Image memory in the Trigger setting menu. You can record an image file to the built-in memory by selecting Image memory and clicking the Trigger icon.

When you click Image memory button, the Trigger (setting) Image memory menu is displayed. You can

set necessary options here. The setting options and setting procedures are the same as those of the Image Memory setting menu (page 43).

Administrating the Camera

FTP client

By checking this box, it will allow you to select FTP client in the Trigger setting menu. You can send an

image file to FTP server by selecting FTP and clicking the Trigger icon.

When you click FTP client button, the Trigger (setting) FTP client menu is displayed. You can set necessary options here. The setting options and setting procedures are the same as those of the FTP client setting menu (page 41).

Alarm output 1, 2

By checking this box, it will allow you to select Alarm output 1 or Alarm output 2 in the Trigger setting menu.

You can control On (short circuit ) or Off (open) by selecting Alarm output and clicking the Trigger icon.

Day/Night

By checking this box, it will allow you to select day/ night in the Trigger setting menu. You can control On (night mode) or Off (day mode) of the day/night function by clicking the Trigger icon.

When you click the day/night button, the day/night setting (Trigger) menu is displayed. You can set the necessary options here. The setting options and setting

Setting the Operations from the Viewer Page — Trigger setting Menu

Page 50

procedures are the same as those of the Camera setting menu (page 28).

Setting the Schedule

— Schedule setting Menu

When you click Schedule on the Administrator menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Image memory setting menu, Alarm output 1, 2 setting menu and so on.

Example: When setting e-Mail (SMTP) (the alarm sending) in the Schedule setting menu

Note

The day/night function is invalid when its mode is set to Disable or Auto in the day/night tab even when you

Administrating the Camera

select day/night in the Trigger setting menu.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Schedule selection

Select the list box to specify the schedule you want to set. e-Mail (SMTP) – Alarm, e-Mail (SMTP) –

Periodical, FTP – Alarm, FTP – Periodical, Image memory – Alarm, Image memory – Periodical, Alarm output 1 – Alarm, Alarm output 1 – Timer, Alarm output 2 – Alarm or Alarm output 2 – Timer, Day/Night mode – Timer can be selected.

The time period on the right of the checked day is the effective period of the schedule.

Mon (Monday) to Sun (Sunday)

The time period on the right of the checked day is the effective period of the schedule.

Start time, End time

Specify the Start time and the End time.

Use the same time schedule every day

When this is checked, the Start time and End time set to Mon (Monday) are applied to all days. In this case, the Start time and End time of the other days than Mon (Monday) cannot be input.

Setting the Schedule — Schedule setting Menu

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Page 51

Setting the Alarm Buffer

— Alarm buffer setting Menu

When you click Alarm buffer on the Administrator menu, the Alarm buffer Setting menu appears. You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post alarm image and audio. These can be set when Alarm sending or Alarm recording of FTP client setting menu or Image memory setting menu is set to On, and besides when Use alarm buffer is selected.

Note

The value of Recording capacity differs depending on Image size, Bit rate (for MPEG4) and Image quality (for JPEG) in the camera setting menu.

OK/Cancel

See “Buttons common to every setting menu” on page

24.

Administrating the Camera

Video mode

The Video mode setting in the Common tab of the Camera setting menu is displayed. MPEG4: Shows the present output format of the camera

is MPEG4.

JPEG: Shows the present output format of the camera is

JPEG.

Recording capacity

Displays the maximum recording capacity of alarm buffer in the present camera setting of the video mode, image size, bit rate and frame rate. Pre-alarm period: Displays the maximum recording

capacity of image/audio before the alarm detection.

Post-alarm period: Displays the maximum recording

capacity of image/audio after the alarm detection.

Recording time

Set the recording time for the Pre-alarm image/audio and Post alarm image/audio. Pre alarm period: Type the recording time of the

image/audio before the alarm detection.

Post alarm period: Type the recording time of the

image/audio after the alarm detection.

Setting the Alarm Buffer — Alarm buffer setting Menu

Page 52

Setting the Motion Detection Function

Motion detection setting Menu

—

Motion detection indicator

The moving level of the present shooting image inside the specified Window is shown in the graph. The even line shows the threshold level for Motion detection which will be a guide to set the sensitivity properly.

When you click Motion detection on the Administrator menu, the Motion detection setting menu appears. You can set the conditions to activate the built-in motion detection function in this menu. This is the same menu with the setting menu which is displayed when you click Motion detection in Alarm sending of e-Mail (SMTP) setting menu, Alarm sending of FTP client setting menu, Alarm recording of Image memory setting menu and so on.

Sensitivity slider bar

Use it to set the detection sensitivity of the monitoring image. When the slider bar is moved to the left end, the sensitivity will be 0 and any motion will not be detected. The right end is the maximum sensitivity.

Setting the Motion Detection Area, Sensitivity and Threshold level

Note

The motion detection function can activate or be set only when the Video mode of the camera is set to MPEG4

Administrating the Camera

and the Cropping is set Off.

Set the motion detection working area, the sensitivity and the threshold level as follows:

Check Window 1 check box. Window 1 is shown on the monitor display.

Settle Window 1 in the area you want to set Motion detection. Click and drag Window 1 to move it or change the size of it.

Set the Sensitivity of Motion detection. Adjust it referring to the level indicator of Motion detection. To increase the sensitivity, move the Sensitivity slider bar to the right. To decrease, move it to the left. When you release the mouse, the new setting is applied to the level of motion detection indicator.

The Motion detection setting menu is composed of the following five parts.

Monitor display

You can monitor the moving image and sets the detection window.

Window 1 to 4 check box

When you check this box, the specified Window is displayed on the monitor display.

Threshold slider bar

Set the Threshold level so as to judge whether there has been any motion in the camera image or not. You can change the Threshold level displayed in the Motion detection indicator.

Setting the Motion Detection Function — Motion detection setting Menu

Set the Threshold level of Motion detection. Adjust the Threshold slider bar in the same way of step 3 to set the level the camera executes motion detection.

If necessary, set the Motion detection working areas, the sensitivities and the Threshold level of the other Windows 2, 3, 4 by following steps 1 to 4.

After all settings, click OK.

Notes

• While motion detection setting menu is displayed, motion detection e-Mail (SMTP) notification, FTP client, Image memory and Alarm output function will not work. Make sure to close Motion detection setting menu after setting.

• Before using the Motion detection, perform the operation test to confirm correct operation.

Page 53

• The Motion detection may not operate correctly in the following cases: – while changing a setting on the Camera setting

menu – when the object is dark – when the camera is installed in an unstable place

that causes vibration to the camera – when a small bit rate (64 kbps, 128kbps) is selected

in Bit rate setting of MPEG4

Administrating the Camera

Setting the Motion Detection Function — Motion detection setting Menu

Page 54

The current bandwidth is displayed in Current

Others

This section explains how to use the application software and commands, including the supplied CDROM.

bandwidth.

Using the Supplied Setup Program

Explains the functions except the Network tab in the Setup Program.

To install the Setup Program, to assign the IP address and to set the network, see “Assigning the IP address to the Camera” on page 9 in “Preparations”.

Starting the Setup Program

Select Program from Start menu of Windows, then select Program, IP Setup Program and IP Setup

Others

Program in sequence. The IP Setup Program starts. Network tab appears. The IP Setup Program detects cameras connected to the local network and lists them on the Network tab window.

Bandwidth Control Tab

The communication bandwidth can be set when the Video mode of the camera is set to JPEG.

Note

Click to select the camera to set the bandwidth from the list box.

Click to select the desired bandwidth from the Setting bandwidth list box.

Type t he Administrator name and Administrator password in each box.

Click OK. If “Setting OK” is displayed, the bandwidth setting is completed.

When the Video mode of the camera is set to MPEG4, the bandwidth cannot be changed.

Click the Bandwidth control tab to display the bandwidth setting window.

Using the Supplied Setup Program

Page 55

Date time Tab

Note

You can set the date and time on the camera.

Click the Date time tab to display the date/time setting window.

Due to network properties, there may be a slight difference between the displayed computer's date and time and those set on the camera.

PPPoE Tab

PPPoE is used to connect to an ISP (Internet Service Provider) via the Internet. Using PPPoE, you can automatically obtain an IP address to connect to the Internet from the ISP.

The following PPPoE setting items are provided for the SNC-DF70N/DF70P.

• User ID assigned by your ISP

• Password for the user ID

• DNS setting (automatic/manual setting)

Click the PPPoE tab to display the PPPoE setting window.

Others

Click to select the camera you want to set the date and time for.

You can select multiple cameras and set the date and time simultaneously.

Select the date/time format from the Date time format drop-down list.

Select the area where the camera is installed from the Time zone selecting drop-down list.

Set the date and time.

You can set the date and time in two ways.

Manual current date time setting

Set the current date and time on the Manual current date time setting boxes, and click OK.

The setting boxes are for the year (last two digits), month, date, hour, minutes and seconds from left to right.

PC current date time setting

The date and time set on the computer is displayed in the PC current date time setting box. Click OK on the right to set the camera’s date and time to the displayed computer's date and time.

Click to select the camera you want to make the PPPoE settings for.

Select On below the list to enable the PPPoE setting. To disable the PPPoE setting, select Off.

Type the user ID assigned by the ISP in the User ID box.

Type the password for the user ID in the Password box.

Using the Supplied Setup Program

Page 56

Retype the password for the user ID in the Re-type password box.

Set the DNS server address.

Using the SNC audio upload tool

— Transmitting

To obtain the DNS server addresses automatically: Select Obtain DNS server address automatically.

To specify the DNS server addresses manually:

Select Use the following DNS server address, and type the Primary DNS server address and Secondary DNS server address in each box.

Type the Administrator name and Administrator password in each box.

Click OK. If “Setting OK” is displayed, the PPPoE setting is completed.

Rebooting the Camera

Click Reboot on the Network tab to reboot the camera. It will take about two minutes to start again.

Others

Audio to Camera

The supplied SNC audio upload tool allows you to transmit sound from the computer to the camera. This section explains the setup and operations of the SNC audio upload tool.

The SNC audio upload tool supports the following audio data to be transmitted.

Audio CODEC Transmission rate

G711 (µ-LAW) 64 kbps

G.726 40 kbps

G.726 32 kbps

G.726 24 kbps

G.726 16 kbps

Note

Only one administrator can transmit sound to the camera. Meanwhile, other users with administrator ID and a password will not be able to transmit sound to the camera.

Installing the SNC audio upload tool

Insert the supplied CD-ROM disc into your computer CD-ROM drive. After a short time a window will open displaying the files on the CD-ROM.

Click the Setup icon of SNC audio upload tool. The “File Download” dialog opens.

Click Open.

Note

If you click “Save this program to disk” on the “File Download” dialog, you cannot install correctly. Delete the downloaded file, and click Setup icon again.

Install the SNC audio upload tool following the wizard displayed. If the Software License Agreement is displayed, read it carefully and accept the agreement to continue the installation.

Using the SNC audio upload tool — Transmitting Audio to Camera

Page 57

Connecting the Camera to the

Using the SNC audio upload tool

Computer

Connect a speaker to the line output jack on the camera.

Connect a microphone to the microphone input jack on the computer.

Note

If the microphone input jack of the computer is not set correctly, no sound is transmitted from the computer and nothing is output from the speaker connected to the camera. Set the microphone input jack from the control panel of Windows.

On Windows 2000

1 Select Sounds and Multimedia from Control Panel.

2 Click Vo l um e in the Sound Recording section on

the Audio tab. The Recording Control window opens

3 Check Select in the Microphone section.

When you start the SNC audio upload tool, the following window is displayed.

Menu tab

Others

On Windows XP

1 Select Sounds and Audio Device from Control

Panel.

2 Click Vo l um e in the Sound Recording section on

the Audio tab. The Recording Control window opens.

3 Check Select in the Microphone section.

N (start)/x(stop)

Click N (start) to start sound transmission. The transmission speed is displayed in the Bitrate box during transmission. You can adjust the microphone volume and enable/disable the muting, if necessary. To stop the sound transmission, click x(stop).

Note

If you change IP Address, Proxy Port, CODEC on the Setting tab during the sound transmission, the changed settings will be effective after the transmission.

Sound adjustment and indicators

Adjust the microphone input volume by moving the

slider bar. You can adjust the volume even during the transmission. Click the microphone icon to enable/disenable the sound muting. The transmission rate is displayed in the Bitrate box. The microphone input volume is displayed at the Level.

Using the SNC audio upload tool — Transmitting Audio to Camera

Page 58

Setting tab

Using the SNC video player

— Playing Video/ Audio File Recorded on Camera

The supplied SNC video player allows you to play video/audio data recorded on the camera with your computer. This section explains the setup and operations of the SNC video player.

Download the SNC video player

To download the SNC video player, click the Player icon located on the upper part of the main viewer of the camera. Input the Administrator name and Administrator password on the download dialog.

User

Others

Set the User ID and Password for the administrator. The default setting of the User ID for the Administrator is “admin,” and the Password is “admin.”

Note

To operate the SNC video player, a special DLL file is necessary. This file is automatically installed in the computer when you view camera images with the ActiveX viewer.

Camera address

Type the IP address or host name of the camera you want to transmit sound.

Camera port

Set the port of the camera you want to transmit sound to. The default port is “HTTP” (80).

CODEC

Select the audio mode (CODEC) from the drop-down list.

Using the SNC video player

Double-click the SNC video player downloaded from the camera to start this application.

Click the icon. The Select File dialog opens.

Using the SNC video player — Playing Video/Audio File Recorded on Camera

Select the file you want to play.

Page 59

Information boxes on the selected file are displayed on the left side of the window as follows: Each click on the (information) icon switches between “display” and “Not to display” of the file information. Model name: Model name of the camera with

which the file is recorded.

IP address: IP address of the camera with which

the file is recorded.

Serial number: Serial number of the camera with

which the file is recorded.

Record event: Type of event used for the

recording: Sensor input, Periodical, Motion

detection or Manual. Date&time: Recording date and time Movie: Video CODEC Audio: Audio CODEC

Playing a video/audio file

Click (start) to start playing from the beginning of the selected file. To freeze the movie temporarily, click (pause). Click again to restart playing. To stop playing, click (stop). To restart playing, click (start) again. Play stops when the file is played to the end.

To play from a specified point

Move the slider bar below the image display, and the file will play according to the position of the slider bar.

Adjusting the sound

Adjust the playing sound volume by moving the

slider bar. Move it to the left end for the minimum volume, and to the right end for the maximum volume. Click the speaker icon to enable/disable the sound muting. When the sound muting is on, no sound is heard even if you move the slider bar to the right.

Using the Custom Homepage Installer

You can store the homepage that you have created in the camera and watch it.

Notes on creating the homepage

When you are creating the homepage, note the following points.

• The file name should be typed up to 24 characters including the extension.

• The file size of the homepage should be 2.4 MB or less.

• To watch the created homepage, set the Default URL in the System setting menu.

Uploading the Custom Homepage Installer to the Camera

After a short time a window will open displaying the files on the CD-ROM.

Click the Setup icon of Custom Homepage Installer.

The “File Download” dialog opens.

Click Open. The installer starts and notes are displayed.

Others

Saving an image

Click (capture) icon during playing or pause and the captured image is displayed on a pop-up dialog. To save the image, click Save on the dialog. You can specify the destination to which the image is to be stored and select the JPEG or Bitmap format.

Note

If you click “Save this program to disk” on the “File Download” dialog, the CustomHomepageInstaller.exe file will be saved on the computer. Double-click the saved file to start it.

Using the Custom Homepage Installer

Page 60

Read the notes carefully, and click Next>. The Software License Agreement is displayed.

Read the agreement carefully, select Agree if you accept it, then click Next.

When using an HTTP proxy server:

Select Use HTTP proxy server, and type your settings in the Proxy server address and Proxy server port No. boxes.

When using an FTP proxy server:

Select Use FTP proxy server, and type your settings in the Proxy server address and Proxy server port No. boxes.

Note

If you cannot establish communication with the camera with the proxy server being used, connect the camera to the local network and run the installer without using the proxy server.

Type the Administrator name and Administrator password of the camera to be uploaded.

Confirm that all items are correct, then click Next.

Others

Type the path for the folder in which your homepage is stored in the Source folder box, then click Next.

Type the IP address of the camera to be uploaded in the IP address box.

Specify the HTTP port No. of the camera. Initial HTTP port No is set to 80.

When you use a proxy server, set the following: For the proxy server of your environments, consult your network administrator.

Using the Custom Homepage Installer

Click OK. Uploading of the homepage file starts.

Page 61

Note

Do not turn off the camera until the camera is rebooted after uploading the homepage file.

The following page will appear after a while.

Assigning the IP Address to the Camera Using ARP Commands

This section explains how to assign an IP address to the camera using ARP (Address Resolution Protocol) commands without using the supplied setup program.

Note

When you turn on the camera, enter the ARP commands within 5 minutes.

Open the DOS window on the computer.

Enter the IP address and the MAC address of the camera to assign a new IP address, using the following ARP commands.

arp -s <Camera's IP address> <Camera's MAC address> ping -t <Camera's IP address>

Example:

After displaying this page, the camera will be adjusted and rebooted automatically in two minutes.

Click Finish to exit the program.

arp -s 192.168.0.100 08-00-46-21-00-00 ping -t 192.168.0.100

When the following line is displayed on the DOS window, hold down Ctrl and press C.

Reply from 192.168.0.100:bytes=32 time...

You will normally receive a reply after about 5 repetitions of "Request time out."

Note

If you do not receive a reply, check the following: – Did you enter the ARP commands within 5 minutes

after it was turned on? If not, turn off the camera and restart the operation.

– Is the NETWORK indicator on the camera flashing?

If the indicator goes off, the network connection has a problem. Connect the network correctly.

– Did you enter the IP address previously used for

another device? Assign a new IP address to the camera.

– Do the computer and the camera have the same

network address? If not, set the same network address on the computer and the camera.

Others

Assigning the IP Address to the Camera Using ARP Commands

Page 62

Using the SNMP

This unit supports SNMP (Simple Network Management Protocol). You can read MIB-2 objects and write some MIB-2 objects using software such as SNMP manager software. This unit also supports the coldStart trap which occurs when the power is turned on or the unit restarts, and the Authentication failure trap which informs of an illegal access using SNMP. Using CGI commands, you can set community name and access limitation, reading/writing right, host to send traps, and some MIB-2 objects. To allow these settings, you need authentication by the camera administrator.

4 describes the case of “mib-2.system. sysContact.0”.

This field is used to describe the information on administrator of this camera. Nothing is set at the factory.

5 describes the case of “mib-2.system. sysName.0”.

This field is used to describe administration mode of this camera. Nothing is set at the factory.

6 describes the case of “mib-2.snmpEnable

AuthenTraps.0”. This example shows when “1” (enable) is set. With this setting, a trap occurs when there is an Authentication failure. When “2” (disable) is set, no Authentication failure trap occurs.

1. Inquiry Commands

You can check the SNMP Agent settings using the following CGI commands.

GET, POST

http://ip_adr/snmpdconf/inquiry.cgi?inqjs=snmp (JavaScript parameter format)

Others

http://ip_adr/snmpdconf/inquiry.cgi?inq=snmp (standard format)

With the above inquiry, you can obtain the following setting information. The following explains the setting information using the inqjs=snmp (JavaScript parameter) format.

var sysDescr=“\“SONY Network Camera SNCDF70\”” ...1 var sysObjectID=“1.3.6.1.4.1.122.8501” ...2 var sysLocation=“\“\”” ...3 var sysContact=“\“\”” ...4 var sysName=“\“\”” ...5 var snmpEnableAuthenTraps=“1” ...6 var community=“public,0.0.0.0,read,1” ...7 var community=“private,192.168.0.101,write,2” ...8 var trap=“public,192.168.0.101.1” ...9

1 describes the case of “mib-2.system. sysDescr.0”.

You cannot change this parameter.

7 describes the community name and the reading/

writing attributes. This example shows the identification number “ID=1”, the community name public, and enables read from any IP address (0.0.0.0).

8 describes the community name and the reading/

writing attributes, similarly to 7. This example shows the identification number ID=2, the community name “private”, and enables “read/ write” by the SNMP request packet from the host “192.168.0.101”.

9 describes the host name to send a trap. This

example shows the identification number “ID=1”, the community name “public”, and enables sending of traps to the host having the IP address “192.168.0.101”.

2. Setting Commands

The unit supports the following setting commands of SNMP.

GET, POST

http://ip_adr/snmpdconf/snmpdconf.cgi? <parameter>=<value>&<parameter>=...&...

First, perform the settings of the following parameters.

2 describes the case of “mib-2.system.

sysObjectID.0”. You cannot change this parameter.

3 describes the case of “mib-2.system.

sysLocation.0”. This field is used to describe information on the location of this camera. Nothing is set at the factory.

Using the SNMP

1) sysLocation=<string> Set the case of “mib-2.system.sysLocation.0” in the <string> position. The maximum length of <string> is 255 characters.

2) sysContact=<string> Set the case of “mib-2.system.sysContact.0” in the <string> position. The maximum length of <string> is 255 characters.

Page 63

3) sysName=<string> Set the case of “mib-2.system.sysName.0” in the <string> position. The maximum length of <string> is 255 characters.

4) enaAuthTraps=<value> Set the case value of “mib-2.snmp.snmp EnableAuthenTraps.0”. Type “1” (enable) or “2” (disable) in the <value> position.

5) community=<ID>,<rwAttr>, <communityName>,<IpAddressString> Set the community name and the reading/writing attributes. <ID> describes the setting identification number (1 to 8), <rwAttr> describes a character representing the reading/writing attribute (“r”, “R”, “w or “W”), <communityName> describes the community name to be set, and <IpAddressString> describes the IP address of the host you allow access (0.0.0.0 for any host).

Example: To allow reading/writing by any host in the

“private” community and having the ID number “2”.

community=2,w,private,0.0.0.0

6) trap=<ID>,<communityName>, <IpAddressString> Set the host you want to send traps to. <ID> describes the setting identification number (1 to 8), <communityName> describes the community name to send traps to, and <IpAddressString> describes the IP address of the host to send traps to.

Example: To specify the destination of traps as the

private community and the ID number “1”. trap=1,public,192.168.0.101

Others

7) delcommunity=<ID> This parameter is used to delete the previous community setting. <ID> describes the community setting identification number (1 to 8).

8) deltrap=<ID> This parameter is used to delete the previous setting of the host to send traps to. <ID> describes the trap setting identification number (1 to 8).

When you have finished changing the SNMP setting information using the above parameters 1) to 8), check the changed settings using an inquiry commands. If the changed settings are OK, restart the SNMP using the following CGI command.

SNMP restart command

GET, POST

http://ip_adr/snmpdconf/snmpdconf.cgi? snmpd=restart

Using the SNMP

Page 64

Camera

Specifications

System/network

Protocol TCP/IP, ARP, ICMP, HTTP, FTP

(server/client), SMTP (client), DHCP (client), DNS (client), NTP (client), SNMP (MIB-2), RTP/ RTCP, PPPoE

Compression

Video compression format

MPEG4/JPEG (selectable)

Audio compression format

G.711/G.726 (40, 32, 24, 16 kbps)

Image size 640 × 480, 480 × 360, 384 × 288, 320

× 240, 256 × 192, 160 × 120

Maximum frame rate

MPEG4:30 fps (QVGA) JPEG:30 fps (QVGA)

Web browser Internet Explorer Ver. 5.5 or 6.0

(Available OS: Windows 2000/ XP)

Others

Computer environments

CPU: Pentium III, 1GHz or higher

(Pentium 4, 2 GHz or higher

recommended) RAM: 256 MB or more Display size: 1024 × 768

Maximum user access

MPEG4 mode: 10 users JPEG mode: 20 users

Network security

Password (basic authentication), IP

filtering

Other functions

Motion detection, Image cropping,

Built-in clock, etc.

Image device NTSC

1/4 type interline transfer (Super HAD CCD), 380,000 picture elements

PAL

1/4 type interline transfer (Super HAD CCD), 440,000 picture elements

Effective picture elements

NTSC

768 (horizontal) × 494 (vertical)

PAL

752 (horizontal) × 582 (vertical) Lens mount CS mount Signal format NTSC/PAL

VBS: within 1.0 Vp-p ±5%, 75 ohms,

sync negative Scanning NTSC

525 lines, 2:1 interlace

PAL

625 lines, 2:1 interlace Synchronization

INT only

Horizontal resolution

480 TV lines (analog video)

Signal-to-noise ratio

50 dB (AGC OFF, Weight On) (analog

video) Minimum illumination

0.9 lux (AGC ON, F1.0) AGC On/Off switchable Exposure control

AUTO iris

Electronic shutter

CCD Iris White balance ATW BLC On/Off switchable

Interface

Network port 10BASE-T/100BASE-TX (RJ-45) I/O port 9 pin Mini DIN connector

Sensor input : make contact

Alarm output 1 and 2: 24 V AC/DC,

max., 1 A (mechanical relay outputs electrically isolated from the camera)

Day/Night control input: ×1, 5 V DC

input

Day/Night control output: ×1, 5 V DC

output

Auto iris lens connector

DC servo

Specifications

Page 65

Video output BNC connector, 1.0 Vp-p,

75 ohms, unbalanced, sync negative

Monitor output

2 Pin connector, 1.0 Vp-p, 75 ohms,

unbalanced, sync negative

Microphone input

Sensitivity: -40 ±3.5dB Freguency range: 50-15,000Hz Plug: φ3.5mm (

/32 inches), Mini-plug,

plug-in power system

Line output Type: Active speaker

Input impedence: 4.7 kohms or more Plug: φ3.5mm (

/32 inches), Mini-plug

Others

Power supply 24 V AC ±10% 50/60 Hz, 12 V DC

±10%, PoE

Power consumption

8 W max.

Operating temperature

–10 °C to +50 °C (14 °F to 122 °F)

Storage temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating humidity

20 to 80 %

Storage humidity

20 to 95 %

Dimensions 135 × 164.5 × 166.1 mm

Mass Approx. 1.8 kg (3 lb 11 oz) Supplied accessories

/8 × 6 1/2 × 6 5/8 inches)

CD-ROM (setup program and User’s

Guide) (1) Monitor cables (1) Screws (4) Wrench (1) I/O extension cable (1) Wire rope (1) Installation Manual (this document)

(1) B&P Warranty Booklet (for SNC-

DF70N only) (1)

Others

Design and specifications are subject to change without notice.

Regular parts replacement

Some of the parts that make up this product (electrolytic condenser, for example) need replacing regularly depending on their life expectancies. The lives of parts differ according to the environment or condition in which this product is used and the length of time it is used, so we recommend regular checks. Consult the dealer from whom you bought it for details.

Specifications

Page 66

Default policy.................................37

Index

Access log ......................................27

access right .....................................37

ActiveX viewer...............................15

activity detection function.............. 52

Administrator ..................... 13

administrator ............................ 13

Administrator Menu.......................23

administrator menu page................24

Alarm..............................................42

alarm................................... 41

Alarm buffer....................... 25

alarm buffer........................ 25

Alarm buffer setting Menu.............51

Alarm output ...................... 20

alarm output ....................... 20

Alarm output setting Menu ............47

Others

Alarm recording .............................44

Alarm sending ..........................39

ARP commands..............................61

Backup setting data ........................ 27

Bandwidth ......................................54

Brightness.......................................30

brightness .......................................30

Camera ...........................................24

camera setting.................................28

Camera setting Menu ..................... 28

Cancel button.................................. 24

Capture ..................................... 16

capture ......................................16

CGI commands...............................62

communication bandwidth.............54

contrast ........................................... 30

Cropping.........................................28

cropping..........................................28

Custom Homepage Installer........... 26

, 23, 36

, 36

, 42, 47

, 42, 51

, 25, 47

, 41

, 18

DHCP .............................................32

Digital zoom.............................16

digital zoom.............................. 16

DNS server .....................................33

Dynamic IP address notification ....34

, 18

e-Mail .............................................24

e-Mail (SMTP) ...............................24

e-Mail (SMTP) setting Menu ......... 38

e-Mail address ................................35

Exposure mode...............................29

Factory default................................27

factory settings ...............................27

flash memory..................................25

format of date and time ..................26

Frame rate.................................16

frame rate..................................16

free space........................................44

FTP client .................................25

FTP client setting Menu .................41

FTP server ................................25

FTP server setting Menu ................47

, 17

, 49

, 41

Home ..............................................16

Homepage Custom Tool .................59

HTTP..............................................35

HTTP port number .........................10

Image memory..........................20, 25

image memory..........................20

Image memory setting Menu..........43

Image size.......................................28

image size.......................................28

Internet Explorer ............................11

IP Address ........................................9

IP address ............................. 9

IP address notification....................34

, 25

, 14, 32

Date & time ....................................26

date and time ............................26

default gateway...............................33

, 55

Java applet viewer ..........................15

JPEG.........................................28

, 31

loading the setting data...................27

logging in........................................14

MAC address..................................32

main viewer ..............................11, 16

main viewer page............................16

memory...........................................43

menu section...................................16

monitor Image ................................17

monitor image section ....................17

Motion detection.......................25

motion detection.......................25

Motion detection setting Menu.......52

MPEG4.....................................28

, 52

, 31

Network....................................24, 32

network.....................................24

network configuration ....................32

Network setting Menu....................32

, 32

OK button .......................................24

overwrite.........................................44

Password.........................................36

password.........................................36

Periodical recording .......................45

periodical recording........................45

Periodical sending ....................40

periodical sending.....................40

Picture.............................................29

Player..............................................16

port number ....................................33

PPPoE.............................................55

proxy server....................................35

, 42

Reboot ...................................... 27, 56

reboot........................................27

recording images ............................43

reset ................................................ 32

, 56

saves the setting data ......................27

Index

Page 67

Schedule................................... 25, 50

schedule ................................... 25

Schedule setting Menu................... 50

Security ..........................................24

security........................................... 24

security setting ............................... 37

Security setting Menu .................... 37

sending images............................... 41

Serial number................................. 25

serial number.................................. 25

Setting ............................................ 16

Setup Program............................ 9

sharpness........................................ 30

SMTP server .................................. 34

SNC audio upload tool................... 56

SNC video player........................... 58

SNMP............................................. 62

Software version ............................ 25

software version............................. 25

special tags..................................... 35

subnet mask.................................... 32

System...................................... 24

system configuring......................... 25

System log...................................... 27

, 50

, 54

, 25

User name ...................................... 36

user name .......................................36

user setting .....................................36

User setting Menu .......................... 36

View size .................................. 16, 18

view size................................... 16

viewer.............................................15

Viewer mode .................................. 36

viewer mode................................... 36

volume............................................ 17

, 18

welcome page......................11, 14, 25

TCP ................................................ 21

TCP/UDP ................................. 16

time difference ............................... 26

Time zone....................................... 26

time zone........................................ 26

title ................................................. 35

title bar ...........................................25

Title bar name ................................ 25
