Page 1

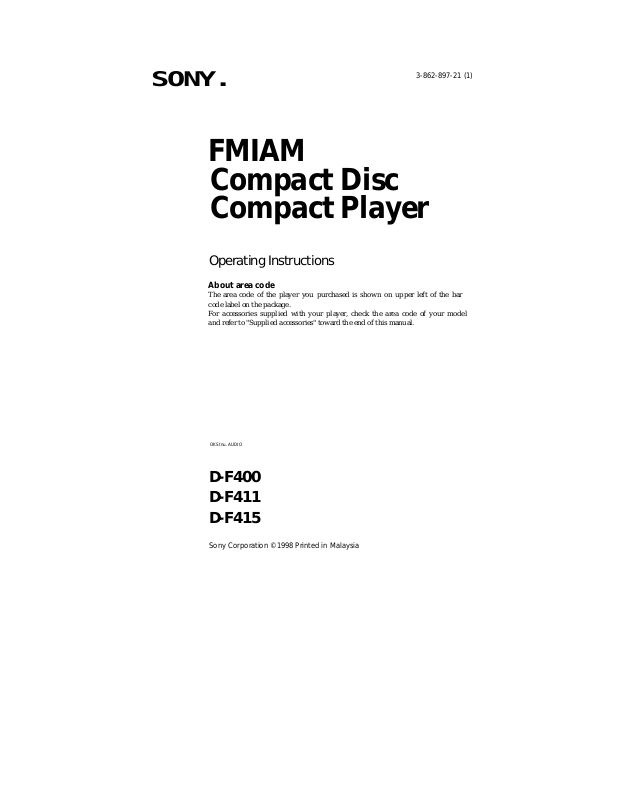

SONY.
FMIAM
Compact Disc
Compact Player
Operating Instructions
About area code
The area code of the player you purchased is shown on upper left of the bar
code label on the package.
For accessories supplied with your player, check the area code of your model
and refer to "Supplied accessories" toward the end of this manual.
3-862-897-21 (1)
OKS tnu. AUDIO
D-F400
D-F411
D-F415
Sony Corporation ©1998 Printed in Malaysia
Page 2
Welcome!
Thank you for purchasing the Sony
Compact Disc Compact Player.
Before operating your player, please
read this manual and retain it for
future reference.
About this manual
The instructions in this manual are for the
D-F400, D-F411 and D-F415. Before you start
reading, check your model number.
The D-F415 is the model used for illustration
purposes.
Owner's Record
The model and the serial numbers are located at
the bottom. Record these numbers in the spaces
provided below. Refer to them whenever you
call upon your Sony dealer regarding this
product.
Model No.
Serial No.
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
To avoid electrical
shock, do hot open the
cabinet. Refer servicing
to qualified personnel
only.
CAUTION
The use of optical instruments with this product
will increase eve hazard.
I I
For the customers in the USA
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
1 heso limits are designed to prov ide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the receiv er
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
For the customers in Australia
The supply cord of the AC power adaptor cannot
be replaced; if the cord is damaged, the AC
power adaptor should be discarded.
For the customers not in Poland
The mark on the unit is valid only for
products marketed in Poland.
For the customers not in Europe
^ The CE mark on the unit is valid
f H only for products marketed in the
----------
European Union.
For the customers not in Russia
The mark on the unit and package is valid
only for products marketed in Russia.
Page 3
To
Press
Playing a CD right away!
If you want to play a CD right now, choose to use your player on house
current. Other choices are the following three: rechargeable battery, dry
batteries (see "Power Sources" on the reverse side) and car battery.
F' P
Connect
Paust.’ (m.un unit
onlv)
Kesunu' pla\ alter
pause (main unit
oitlv)
Find the beginning
ot the current track
(AMS")
Find the beginning
of previous tracks
(AMS)
Find the beginning
of the next track
(AMS)
Find the beginning
of .succeeding
trucks (AMS)
C'jO forward
quickly
Go backwards
quickly
*AMS = Automatic Music Sensor
**These operations are possible during both
play and pause.
► II
► II
once**
repeatedly**
► ► 1 once**
► ► 1 repeatedly**
Hold down
Hold down
!◄ ◄ **
For models supplied with the AC plug adaptor
If the AC power adaptor does not fit the wall outlet, use the AC plug adaptor.
For models supplied with the remote control
• Connect the microplug of the earphones/headphones to the remote control, not to the C/
REMOTE jack of the player.
• Connect the earphones/headphones to the remote control firmly. A loose connection may
cause noise during playback.
To remove the CD
Remove the CD while pressing the pivot.
Note on controlling the volume with the
remote control (D-F400 and D-F415)
Set the VOL (volume) control on the remote
control to MAX. Then adjust the volume on the
player to the level that you want to be the
maximum volume of the remote control.
Page 4
Q
Place a CD
Notes on display
• When you press Ml or ► (when RESUME
is set to OFF), the total number of tracks in
the CD and the total playing time appear for
about 2 seconds.
• During play, the track number and the
elapsed playing time of the current track
appear.
• During pause, the elapsed playing time
flashes in the display.
• Between tracks, the time to the beginning of
the next track will appear with the
indication.
Notes on handling CDs
• To keep the CD clean, handle it by its edge.
Do not touch the surface.
• Do not stick paper or tape onto the CD.
• Do not expose the CD to direct sunlight or
heat sources such as hot air ducts. Do not
leave the CD in a car parked under direct
sunlight.
(3) Press OPEN to open the lid.
El Play
(D Fit the CD to the pivot. @ Close the lid.
(l) Press ►!!.
To stop play, press I
Page 5
mother Operations
Playing tracks repeatedly
(Repeat Play)
You can play tracks repeatedly in normal,
INTRO PGM, shuffle or RMS (Random Music
Sensor) play modes. Repeat all the tracks or
only one track.
To repeat all the tracks
Press REPEAT/ENTER during play.
The " ^ " indication appears.
n <
n n. n
<
UU-U 1
U 1
To cancel repeat play, press REPEAT/ENTER
again.
Playing tracks in random order (Shuffle Play)
You can play the tracks in a CD in random
order.
During play, press PLAY MODE repeatedly
until "SHUF" appears.
The tracks play in random order.
To cancel shuffle play, press PLAY MODE
repeatedly until the play mode indication
disappears from the display.
Note
• During shuffle play, you cannot return to
previous tracks by pressing .
Using other functions
To minimize skipping (ESP^)
The ESP (Electronic Shock Protection)
function minimize skipping by using a buffer
memory that stores music data and plays it
back in the event of a shock.
The new ESP' (ESP Squared) system uses a
new DSP (Digital Signal Processor) which can
read and store music data more efficiently,
providing a level of continuous skip
protection not found in traditional buffer
memory units. This decreases the frequency
of sound skipping and the need to utilize the
buffer memory. Use this function when
listening in a car or while walking.'*
■ * Although ESP^ provides excellent protection
against skipping, it will not prevent skipping
while jogging or running.
Press ESP.
The ESP indication appears.
To repeat a single track
1 Press REPEAT/ENTER while the track you
want to repeat is playing.
The " " indication appears.
m c
n 1. 1
U f 1
U
2 Press PLAY MODE repeatedly until "1"
appears.
- - i ^ I ^ V y , \
r<C n i.jic
U J U IL J
To repeat another track, press or I
To cancel repeat play, press REPEAT/ENTER
again.
•
Jl
f
n c rt
U Jl u
To release the ESP function, press ESP again.
Notes
• Playing may stop when the player gets a strong
shock even with the ESP function on.
• You may hear a noise or sound skip when;
— listening to a dirty or scratched CD,
— listening to an audio test CD or,
— the player receives continuous shock.
• Sound may drop for a while if you press ESP
during play.
I I
Page 6
Playing only the tracks you want (INTRO PGM Play)
You can choose and play your favorite tracks
by scanning through the beginning of each
track in a CD.
Playing tracks in the order you want (RMS Play)
You can program up to 22 tracks to play in
anv order vou cluK^se.
1 During play, press PLAY MODE
repeatedly until "RMS’^" flashes.
-'m
nn n t
UU U •
*RMS = Random Music Sensor
Press or to choose a track.
The track number and the playing order
appear.
' r
Flashing
To enjoy more powerful bass sound (Sound function)
You can enjoy a powerful bass-boosted
sound.
Press SOUND to select "BASS" or "GROOVE .
"GROOVE" is more effective.
Note
• If the sound is distorted when emphasizing
bass, turn down the volume.
During play, press PLAY MODE
repeatedly until "INTRO PGM" flashes.
Flashing
-------
^ t 1 tli i i ^
- INTRO PGU -
» TI I T i
n i n n. n C
U I UUU^t
^ Press ► !! to start scanning .
The player plays about the first 15
seconds of each track and "INTRO PGM"
flashes-faster.
----------
3 Press REPEAT/ENTER while the track
you want is playing. To skip the track,
press or just wait for the next track.
After you have gone through the CD, "INTRO
PGM" stops flashing and the tracks you have
chosen play automatically.
To finish programming before going through
the whole CD, press ► !!. The selected tracks
will be played.
If you press H, the program will be erased. To
prevent accidental erasure, set the RESUME
switch to ON.
To cancel INTRO PGM play, press PLAY
MODE repeatedly until the play mode
indication disappears from the display.
Track number Flashing
> tl‘,
niz n t
U _< U I
Playing order
3
Press REPEAT/ENTER to program the
track.
4
Repeat steps 2 and 3 to program the
remaining tracks.
5
Press ► !!.
"RMS" stops flashing and the tracks you
have chosen play in the order you
specified.
If you press
To prevent accidental erasure, set the
RESUME switch to ON.
To cancel RMS play, press PLAY MODE until
"RMS" disappears.
I,
the program will be erased.
To check the program
During programming:
Press REPEAT/ENTER before step 5.
During RMS play:
Press PLAY MODE repeatedly until "RMS"
flashes, then press REPEAT/ENTER.
Each time you press REPEAT/ENTER, the
track number and the playing order appear in
the order you specified.
Wote
• If you program another track after the 22nd
track, the first track programed is cleared and
the new' track is programed instead.
To lock the buttons
You can lock your player against any
accidental operations.
You can still operate the player with the
remote control.
Slide HOLD in the direction of the arrow.
When you press any button, "Hal d" appears in
the display and you cannot operate the player.
To unlock, slide HOLD back.
Page 7
To protect your hearing (AVLS)
Tho AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your ears.
Sot AVLS to LIMIT.
The AVLS indication appears.
X * ^ ✓
Note
• If you use the SOUND function and the AVLS
function at the same time, sound may bo
distorted. If this happens, turn down the
volume.
To resume playing from the point you stopped the CD (Resume Play)
Normally, every time you stop and play,
playing starts from the beginning of the CD.
The resume play function, however, lets you
listen to from the point where you last turned
off the player.
Connecting to other stereo equipment
You can listen to the CD through other steret^
equipment or record a CD on a cassette tape.
Refer to the instruction manual of the other
equipment for details. Before making
connections, turn off each piece of equipment.
Notes
• When you use a connecting cord, the SOUND
function will be disabled.
• Before you play the CD, turn down the volume
of the connected equipment so as not to
damage the connected speakers.
• The beep sound is not output from the LINE
OUT jack.
• When you cormect other equipment to the
LINE OUT jack of this player, adjust the
volume on the connected equipment.
• When you record a CD on a cassette tape using
a tape recorder that has the blank search
function, release the ESP function. If the ESP
function is on, the blank search function does
not work.
Set RESUME to ON.
To cancel resume play, set RESUME to OFF.
Notes
• Even if RESUME is set to ON, playing starts
from the beginning when you open the lid.
• The resume point may be inaccurate by about
30 seconds.
To turn off the beep
You can turn off the beep that sounds as you
operate your player.
Disconnect the power source (AC power
adaptor, rechargeable battery or alkaline
batteries). While you press and hold down ■ ,
connect the power source again. To make the
beep sound again, disconnect the power
source, and then connect it without pressing
Continue to the reverse side
Page 8
Playing a CD in a car
P^Radio operations
You can use vour player in a car as illustrated
below.
To connect your player to a car cassette deck,
you need the following accessories:
• Car connecting pack
• Car battery cord
or,
• Mount kit CPM-300PC (Mount plate + Car
connecting pack + Car battery cord)
• Car battery cord with car connecting pack
DCC-E26CP
Refer to the instruction manual of each
accessory for details.
When you use the CPM-300PC mount kit/CPM-300P mount plate
Attach the car mount adaptor supplied to the
CPM-300PC/300P before installing the
player.
Notes
• Do not put the player on the dashboard.
• Do not leave the player in a car parked under
sunlight.
• Use a Sony car chnnecting pack for reducing
noise.
• Use only the car battery cord listed in the
recommended accessories. If you use any other
car battery cord, smoke, fire or malfunction
may occur.
Switched ignition function (when using the car battery cord)
With this feature, your player stops
automatically when you turn off the engine of
the car. (This function is not possible with
some cars depending on the model.)
Listening to the radio
Press RADIO/BAND (RADIO ON/
OFF«BAND on the remote control) to
turn on the radio.
Z Press RADIO/BAND (RADIO ON/
OFF* BAND on the remote control)
repeatedly until the band you w’ant
appears in the display.
Each time you press the button, the
display changes: FMl —*■ FM2 —♦ FM3
FM4—^ AM.
3 Press TUNING + or - to tune in the
station you want and adjust the volume.
ГЗ]
To turn off the radio
Press RADIO OFF. (On the remote, hold
down RADIO ON/OFF*BAND.)
To tune in the station quickly
Hold down TUNING + or - in step 3 until the
frequency digits begin to change in the
display. The player automatically scans the
radio frequencies and stops when it finds a
clear station.
To improve broadcast reception
For FM, extend the headphones/earphones
cord.
Headphones
or
Earphones
О О WHz
JU.UU
Page 9
Using the remote control
(D-F400 and D-F415)
You can use the remote control as the wired
remote control.
■ (stop)/
RADIO ON/OFF*
BAND ---------------------s t
^(play)»
(AMS*/
search) /
PRESET +
* Automatic Music Sensor
** When you are not using the remote control,
slide HOLD in the direction of the arrow to
prevent any accidental operations.
To unlock, slide HOLD hack.
Note
• Use only the supplied remote control. You
cannot operate this player with the remote
control supplied with other models.
------------
VOL (volume)
HOLD**
For AM, reorient the player itself.
Note
• Keep the headphones/earphones connected to
the 0/REMOTE jack of the player even when
listening to the FM program through the
speakers connected to the LINE OUT jack of
the player. The headphones/earphones cord
works as the FM antenna.
If it is hard to hear the FM broadcast
For the modeis equipped with the DX/
LOCAL switch:
Set the DX/LOCAL switch to LOCAL.
Under the normal conditions, set to DX.
DX/LOCAL -
For the modeis equipped with the
STEREO/MONO switch:
Set the STEREO/MONO switch to MONO.
The noise will be reduced but the radio will
play in monaural.
Page 10
Presetting radio stations
To change the AM tuning
interval
You can store radio stations into the player's
memory. You can preset up to 30 stations, 6
for each band (FMl, FM2, FM3, FM4 and AM)
in any order. Once you've preset the stations,
use PRESET + or - to tune in your favorite
stations.
Press RADIO/BAND (RADIO ON/
OFF*BAND on the remote control) to
select the band.
Press PRESET + or - until the preset
number you want for the station appears
in the display.
Press MEMORY.
When using the player abroad, change the
AM tuning interval, if necessary. Slide the
STEP switch in the battery compartment to
"9 kHz" or "10 kHz" using a pointed
material.
9 kHz area; Asia and Europe
10 kHz area: the U.S.A., Canada and South
America
Notes
• The interval will not change until you once turn
off the radio and then turn it on again.
• After changing the tuning interval, you need to
preset radio stations again.
4 Tune in the station you want.
5 Press MEMORY again.
The new station replaces the old one.
PHtSt!
(fm (it n n n»
( IJ t Znj,uu
PRESET
AM t I fUkHz
D < U U
Page 11
To cancel all preset stations
1 Disconnect the power source (AC power
adaptor, rechargeable battery or alkaline
batteries).
2 While you press and hold down RADIO/
BAND, connect the AC power adaptor
again.
The display flashes until all preset stations
are cleared, then stops and disappears.
- PRESET^ iiii
' r T T 1 I ^
---------
T T M ^
Playing preset radio stations
1 Press RADIO/BAND to select the band.
2 Press PRESET + or - to tune in the stored
station.
Page 12
►Power Sources
Using dry batteries
Using rechargeable battery
Charge the rechargeable battery before using it
for the first time.
Use only BP-DMIO or BP-DM20 rechargeable
battery for this player. Do not use any other
rechargeable batteries.
You can use BP-DMlO and BP-DM20 in the
same way, but their charging time and battery
life are different. Check the model number of
your rechargeable battery before using it.
1 Open the lid of the battery compartment.
2 Insert the rechargeable battery so that the
word "SONY" is facing the same
direction as illustrated inside the lid, and
close the lid.
1 open the lid of the battery compartment.
Insert two LR6 (size AA) alkaline
batteries by matching the © and © to the
diagram inside the battery compartment
and close the lid.
• Do not use manganese batteries for this player.
To take out the dry batteries
Press the © side of the battery as shown.
Connect the AC power adaptor.
The indication "CHG" lights up and the
"number 1" shifts position in succession
until the battery isiully charged.
Charging time is about 2 hours for BPDMIO and 3.5 hours for BP-DM20.
AC power adaptor
to a wall outlet
When to replace the dry batteries
When the battery becomes weak, <Xi
indication flashes in the display. If the
"l o bdit" appears in the display, replace all
the batteries with new ones, because the
batteries are used up.
Notes
• Do not charge the dry batteries.
• Do not mix new batteries with old ones.
• Do not use different types of batteries together.
• When the batteries are not to be used for a long
time, remove them.
• If the battery leakage occurs, wipe off any
deposit’in the battery compartment, and install
new batteries.
Page 13
4 When fully charged, "CHG" disappears.
Disconnect the AC power adaptor.
When to charge the battery
When the battery becomes weak, <Xi
indication flashes in the display. If the
"L o b(3tt" appears in the display, charge the
rechargeable battery, because the battery is
used up.
To keep the battery life long, recharge the
battery when the battery is used up
(discharged).
Notes
• Charging time varies depending on how the
rechargeable battery is used.
• If the battery is new or has not been used for a
long time, it may not be charged completely
until you charge and discharge it several times.
• If the battery life becomes shorter by about half,
replace it with Sony BP-DMIO or BP-DM20
rechargeable battery. Do not use any other
rechargeable battery (R6 type rechargeable
battery, etc.).
Battery life (approx. hours)(EIAJ*)
When using ESP function Radio
BP-DMlO 3.5
(charged for
about 2 hours”)
Two Sony alkaline 14
batteries LR6SG
BP-DM20 7
(charged for
about 3.5 hours**)
^Measured value by the standard of EIAJ
(Electronic Industries Association of Japan)
(When the unit is used on a flat and stable place)
**Charging time varies depending on how the
rechargeable battery is used.
off
on on
3
12
6
6
23
12
How to attach the battery compartment lid
If the battery compartment lid is detached by
an accidental drop, excessive force, etc., attach
it as illustrated in the numbered order.
Page 14
^■Additional Information
Maintenance
Precautions
On safety
• Should A11V solid objects or liquid idll into the
unit, unplug it and lia\e it eliecked bv qiialitied
personnel betöre operating it any further.
• Do nt't put any foreign objects in the DC IN
4-f> V (external pou er input) jack.
On power sources
• Wlien you are mit using the pfS^yer for a long
time, disconnect all power sources from the
player.
• The nameplate indicating operating voltage,
power consumption, etc. is located at the
bottom of the AC power adaptor (for EA3
only).
On the AC power adaptor
• Use only the supplied AC power adaptor. If
your player is not supplied with it, use ACE45HG AC power adaptor. Do not use any
other AC power adaptor.
Polarity of the plug
• To unplug the AC power adaptor from the W'all
outlet, grasp the adaptor itself, do not pull its
cord.
Dn dry and rechargeable batteries
» Do not throw’ the batteries into fire.
• Do not carry the rechargeable battery with
coins or other metallic objects. It can generate
heat if the positive and negative terminals of
the battery are accidentally contacted by a
metallic object.
3n the player
■ Keep the lens of the player clean and do not
touch it. If you do so, the lens may be damaged
and the ptayer will not operate properly.
■ Do not put any heavy object on top of the
player. The unit and the CD may be damaged.
Do not leave the player in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or sand, moisture, rain,
mechanical shock, unlcveled surface, or in a car
with its window's closed.
If the player causes interference to radio or
television reception, turn off the player or move
it away from the radio or television.
Do not wrap the player in a cloth or blanket
during use as it may cause malfunction or
serious accidents.
To clean the lens
Clean the lens W'ith a lens cleaning kit KK-DM1.
To clean the casing
Use a soft cloth slightly moistened in water or a
mild detergent solution. Do not use alcohol,
benzine or thinner.
Troubleshooting
Sliouid anv problem persist after you have made
these checks, consult your nearest Sony dealer.
The CD does not play or "no dl SC" appears in the display though a CD is placed in the unit.
The CD is dirty or defective.
Insert the CD with the label side up.
Moisture condensation has occurred.
Leave the unit aside for several hours until
the moisture evaporates.
The lens is dirty.
Close the lid of the unit and the battery
compartment firmly.
Make sure the batteries are inserted
correctly.
Connect the AC power adaptor to a wall
outlet securely.
When you press Ml, "00" appears in the display for a moment, and disappears. The CD does not play.
Rechargeable battery or dry batteries are
used up. Charge the rechargeable battery
or replace dry batteries with new ones.
Page 15
On headphones/earphones
Road safety
Do not use hoadphonos/oarphonos while
dri\ ing, ew'ling, operating an\’ motorized
vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be potentially
dangerous to play your headsets at liigh volume
while walking, especially at pedestrian crossings.
You should exercise extreme caution or
discontinue use in potentially hazardous
situations.
Preventing hearing damage
Avoid using headphones/earphones at high
volume. Hearing experts advise gainst
continuous, loud and extended play. If you
experience a ringing in your ears, reduce volume
or discontinue use.
Caring for others
Keep the volume at a moderate level. This will
allow you to hear outside sounds and to he
considerate to the people around you.
"HI dc I n" appears in the display.
Use only the supplied AC power adaptor
or recommended AC power adaptor AC-
(not supplied).
“Hoi d" appears in the display when
you press a button.
The buttons are locked. Slide HOLD back.
"L o bdit" appears in the display
when you press a button.
The rechargeable battery is used up
completely. Connect the AC power
adaptor and charge the battery.
The dry batteries are used up. Replace
them with new ones.
The battery life is short.
Manganese batteries are used. Use alkaline
batteries.
■ > Replace the batteries with new ones.
The volume is limited to a certain
level even if you attempt to turn it
up.
AVLS selector is set to LIMIT. Set it to
NORM.
When listening to the radio, the
audio is weak or has poor quality.
Replace the batteries with new ones.
Move the unit away from the TV.
Page 16
Specifications
CD player
System
Ci>mpact disc digital audio svstoiii
Laser diode properties
Material; CaAlAs
Wavelength; X = 780 nni
Hmission duration; Continuous
Laser output; Less than 44.6 pW (This output
is the value measured at a distance of 200 mm
from the objectix e lens surface on the optical
pick-up block with 7 mm aperture.)
Error correction
Sciny Super Strategy Cross Interleave Reed
Solomon Code
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20,000 Hz 'I dB (measured by EJAJ CP-
307)
Output (at 4.5 V input level)
Headphones (stereo minijack)
Approx. 15 mW + approx. 15 mW at
16 ohms
Line output (stereo minijack)
Output level 0.7 V rms at 47 kilohms
Recommended load impedance over 10
kilohms
Radio section
Frequency range (STEP switch)
9 kHz step;
FM: 87,5 - 108.0 MHz
AM; 531 - 1,710 kHz
10 kHz step;
FM: 87.5 -108,0 MHz
AM: 530-1,710 kHz
Antenna
FM: Headphones/earphones cord antenna
AM: Built-in ferrite bar antenna
For US customers
AC power adaptor supplied is n<it intended to be
serx'iced. Should the AC power adaptor cease to
function in its intended nxanner, during the
warranty period, the adaptor should be returned
to your nearest S<mi\ Ser\ ice Center or Sons
Authorized Repair Center for replacement, or
after warranty period, it should be discarded.
Recommended accessories
Mount plate CPM-300F
Mount kit CPM-450PC*‘
Mount kit CPM-3Ü0PC
Car connecting pack CPA-9
Car battery cord with car connecting pack
DCC-E26CP
Car battery cord DCC-E245
Active speaker system SRS-A15, SRS-A35,
SRS-A71,SRS-T1
Rechargeable battery BP-DM1Ü, BP-DM2Ü
Connecting cord RK-G129HG, RK-G136HG
AC power adaptor AC-E45HG
Stereo headphones MDR-A44L, MDR-301LP,
MDR-E848LP, MDR-35^'
*' Sold in Japan onlv
For the customers supplied with the
headphones with remote control:
When connecting optional headphones to
the supplied remote control, use only
headphones with stereo mini plugs. You
cannot use headphones with micro plugs.
Your dealer may not handle some of the above
listed accessories. Please ask the dealer for
detailed information about the accessories in
your country.
General
Power requirements
For the area code of the model you purchased,
check the upper left side of the bar code on the
package.
• Sony BP-DMIO Rechargeable battery:
2.4 V DC, Ni-Cd, 650 mAh
Sony BP-DM20 Rechargeable battery;
2.4 V DC, Ni-MH, 1,200 mAh
• Two LR6 (size A A) batteries; 3 V DC
• AC power adaptor (EX7 IN 4.5 V jack);
U2/CA2/E92 model: 120 V, 60 Hz
CED/CEX/EE1/E13/AR1 model;
220 - 230 V, 50/60 Hz
CEK model: 230 - 240 V, 50 Hz
EA3 model: 110 - 240 V, 50/60 Hz
AU2 model: 240 V, 50 Hz
JE.W/E33 model: 100 - 240 V, 30/60 Hz
HK2 model; 220 V, 50/60 Hz
CN2 model; 220 V, 50 Hz
• Sony CPM-300P mount plate for use on car
battery: 4.5 V DC
Page 17
Dimensions (w/h/d) (without projecting parts
and controls)
Approx. 133 X 33 X 152 mm
(5 ’/i X 1 Mf, X 6 in.)
Mass (without rechargeable bei^ry)
Approx. 260 g (9.2 oz)
Operating temperature
5°C-35‘^C (4rF-95°F)
Supplied accessories
For the area code of the model you purchased,
check the upper left side of the bar code on the
package.
D-F400
AC power adaptor (1)
Earphones with remote control (1)
Rechargeable battery (1)
AC plug adaptor (1)
D-F411
AC power adaptor (1)
Headphones (1)*’
Earphones (1)’"^
Connecting cord (Phono plug x 2 stereo
miniplug) (1)*'^
AC plug adaptor (1)*^
Supplied with U2 model
Not supplied with U2 model
Not supplied with CED, CEX and CEK
models
Supplied with E33, E13 and EA3 models
D-F415
AC power adaptor (1)
Headphones with remote control (1)*’
Earphones with remote control (1)*^
Connecting cord (Phono plug x 2 stereo
miniplug) (1)*'
Rechargeable battery (1)
AC plug^adaptor (l)"^^
Supplied with U2 model
Not supplied with U2 model
Supplied with E13 model
Design and specifications are subject to change
kvithout notice.
Loading...
