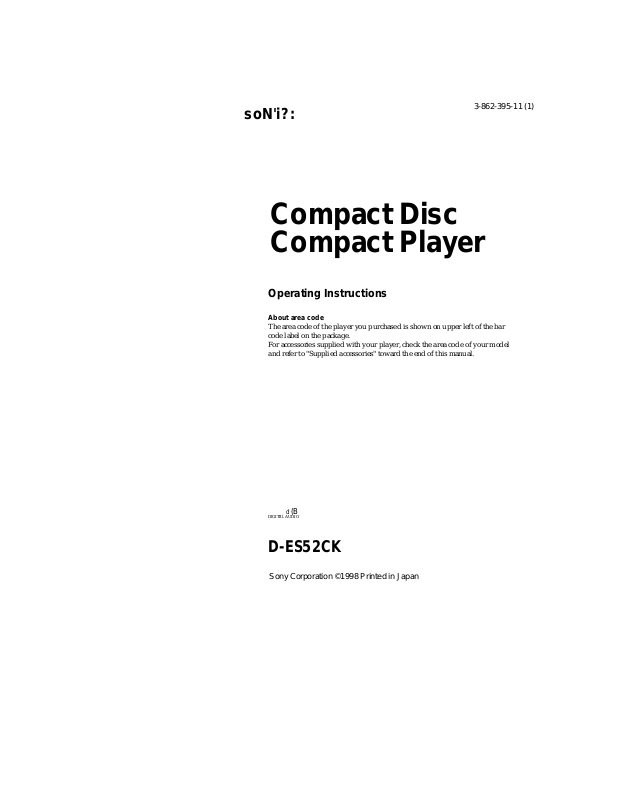

Sony D-ES52CK User Manual

soN'i?:

Compact Disc Compact Player

Operating Instructions

About area code

The area code of the player you purchased is shown on upper left of the bar
code label on the package.
For accessories supplied with your player, check the area code of your model
and refer to "Supplied accessories" toward the end of this manual.

3-862-395-11 (1)

d(B

DIGITftl. AUDIO

D-ES52CK

Sony Corporation ©1998 Printed in Japan

Welcome!

INFORMATION

Thank you for purchasing the Sony
Compact Disc Compact Player.

Before operating your player, please

read this manual and retain it for

future reference.,

Owner's Record

The model and the serial numbers are located at

the bottom. Record the serial number in the

space prox'ided below. Refer to these numbers

whence er you call upon vour Son\ dealer
regarding this product.

Model No. D-ES52CK Serial No._____________

WARNING

To prevent fire or shock

hazard, do not expose

the unit to rain or

moisture.

To avoid electrical

shock, do not open the
cabinet. Refer servicing
to qualified personnel
only.

Listening for many hours at maximum
volume may damage your hearing.

For the customers in the USA

This equipment lias been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to pro\ ide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, ma\ cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment
and receiver.

- Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected,

- Consult the dealer or an experienced radio/TV
technician for help.

You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.

CAUTION

The use of optical instruments with this product
will increase eye hazard.

For the customers in Australia

The supply cord of the AC power adaptor cannot
be replaced; if the cord is damaged, the AC
power adaptor should be discarded.

For the customers not in Poland

mark on the unit is valid only for

products marketed in Poland.

For the customers not in Europe

, I The CE mark on the unit is valid

only for products marketed in the
European Union.

For the customers not in Russia

The mark on the unit and package is

valid only for products marketed in Russia.

Playing a CD right

away!

. If you want to play a CD right now, choose to use your player on liouse

current. Other choices are the following three: rechargeable battery, dry

^ • batteries (see "Power Sources" on the reverse side) and car battery.

Connect

Car cassette deck

»-.i

I.

Note -. ^

Turn doen the volume of the car cassette deck before inserting the car connecting pack.

Place a CD

■

m

(1) Unfasten the buckle.
(2) Open the lid.

lid.

(4) Fasten the buckle securely by

pressing both sides of the buckle.

Play

(D Press ► !!.

To

r.ui.so

Kosumo pln\ after
pause

Press

► II

► II .

Find tho boginning
of tho ounont trnok
(.AMS*)

Find tho hoginning
of pro\'ious tracks
(AMS)

Find the beginning

of tho next track
(AMS)

Find the beginning

of succeeding

tracks (AMS)

Co forward
quickly

Go backwards
quickly

*AMS = Automatic Music Sensor
**These operations are possible during both

play and pause.

To remove the CD

Remove the CD while pressing the pivot.

once**

1« ropoatediv**

► ► ) once*’.

► ► ! repeatedly**

Hold down
► ► !**

Hold down
!◄ ◄ **

Notes on handling CDs

• To keep the CO dean, handle it by \ts edge.
Do n<,>t touch tlio sui tace.

• Do not stick paper or tape onto the CD.

• Do not expose the CD to direct sunlight or
iieat sources suclr as hot air ducts. Dt> not

lea\ e the CD iii a car parked under direct
SLinlight-

Notes on display

• When you press Ml (when RESUME is set
to OFF), the total number of tracks in the

CD and the total playing time appear for

about 2 seconds.

• During play, the track number and the
elapsed playing time of the current track
appear.

• During pause, the elapsed playing time
flashes in the display.

• Between tracks, the time to the beginning of
tile next track v\’ill appear with the
indicatlt)ii.

>^Other Operations

Playing tracks repeatedly

(Repeat Play)

^ ou can pla\ tracks ivpcatcdh in normal,
ÍNTRO I\;M, slniitlc or l\MS (Random Music
Si'nsor’) plav modes. Repeat all the tracks or
onlv one track.

PLAY

----------

MODE

REPEAT/
ENTER Z

f-

To repeat ail the tracks

Press REPEAT/ENTER during play.

The " " indication appears.

O N,

w

U I uu^uu

Playing only the tracks you want (INTRO PGM Play)

^'ou can choose and pla\' \ our ta\ orite tracks
bv scanning through the beginning ot each
track in a CD.

1 During plav, press PLAY MODP

repeatedly until "INTRO PGM" flashes

Flashing

- INTRO PGM -

n

n n. n C

u

u u • U J

2 Press Ml to start scanning .

The player plays about the first 15
seconds of each track and "INTRO PGM"
flashes faster.

^■ 1,

3 Press REPEAT/ENTER while the track

you want is playing. To skip the track,
press or just wait for the next track.

■ Ml

To cancel repeat play, press REPEAT/ENTER
again.

To repeat a single track

1 Press REPEAT/ENTER while the track you

want to repeat is playing.
The " " indication appears.

'Wt n I,

UJ u Í*

2 Press PLAY MODE repeatedly until "1"

appears.

- ► -Í ►

^ WC n I'riC

U J U f'L J

To repeat another track, press or .

To cancel repeat play, press REPEAT/ENTER
again.

I ”1

I f

After you have gone through the CD,

"INTRO PGM" stops flashing and the tracks

you have chosen play automaticalh’.

€-

To finish programming before going through
the whole CD, press Ml. The selected tracks
will be played.

If you press ■ , the program will be erased. To
prevent accidental erasure, set the RESUME
switch to ON.

To cancel INTRO PGM play, press PLAY
MODE repeatedly until the play mode

indication disappears from the display.

Playing tracks in random order (Shuffle Play)

Playing tracks in the order

you want (RMS Play)

You om proj;r<im up to 22 tnicks to pla\ in
i)n\‘ order vou choose.

Ml

You can play the tracks in a CD in random
order:

PLAY
MODE

CKiring play, press PLAY MODE repeatedly
until "SHUF" appears.

The tracks play in random order.

nr n I. ¡ T

UJ u

To cancel shuffle play, press PLAY MODE
repeatedly until the play mode indication
disappears from the display.

Note

• During shuffle f^ay, yotr cannot return to
previous tracks by pressing .

1 During play, press PLAY MODE

repeatedly until “RMS'" flaslies.

Flashing

- RUS -

nn n I

UU U t

*RMS = Random Music Sensor

The track number and the playing order
appear.

Press or to choose a track.

Track number Flashing

n c n I

U Jl .U I.

Playing order

''ill''

- AMS ►

'ill''

3 Press REPEAT/ENTER to program the

track.

4 Repeat steps 2 and 3 to program the

remaining tracks.

5 Press ► !!.

"RMS" stops flashing and the tracks you
have chosen play in the order you
specified.

If you press

To prevent accidental erasure, set the

RESUME switch to ON.

To cancel RMS play, press PLAY MODE until
"RMS" disappears.

To check the program

During* programming:

During RMS play:

Each time you press REPEAT/ENTER, the
track number and the playing order appear in

the order you specified.

Note

• If you program another track after the 22nd

track, the first track programed is cleared and
the new track is programed instead.

I,

the program will be erased.

Press REPEAT/ENTER before step 5.

Press PLAY. MODE repeatedly until "RMS""

flashes, then press REPEAT/ENTER.

Using other functions

To minimize skipping (ESP^)

The ESP (Electronic Shock Protection)
function minimize skipping by using a buffer
memory that stores music data and plays it
back in the event of a shock.
The new ESP- (ESP Squared) system uses a
new DSP (Digital Signal Processor) which can
read and store music data more efficiently,
providing a level of continuous skip

protection not found in traditional buffer
memory units. This decreases the frequency
of sound skipping and the need to utilize the
buffer memory. Use this function when
listening in a car or while walking.* *

• Although ESP- provides excellent protection
against skipping, it will not prevent skipping
while jogging or running.

ESP

To enjoy more powerful bass sound (Sound function)

You can enjoy a powerful bass-boosted sound.

SOUND

Press SOUND to select "BASS" or "GROOVE.'
"GROOVE" is more effective.

Note

• If the sound is distorted when emphasizing

bass, turn down the volume.

To lock the buttons

You can lock your player against any
accidental operations.

HOLD

Press HOLD until 0*Ti appears in the
display and you cannot operate the player.

To unlock, press HOLD until
disappears from the display.

Press ESP.

The ESP indication appears.

To release the ESP function, press ESP again.

nc n I.

I I

UJ U f

Notes

• Playing may stop when the player gets a strong

shock even with the ESP function on.

• You may hear a noise or sound skip when:
— listening to a dirty or scratched CD,
— listening to an audio test CD or,
— the player receives continuous shock.

• Sound may drop for a while if you press ESP
during play.

To protect your hearing (AVLS)

The AVLS (Automatic Volume Umiter
System) (unction keeps down the maximum
volume to protect your cars.

Set AVLS to LIMIT.
The AVLS indication appears.

If you turn up the volume to " 5 ^ ti*®
AVLS indication flashes and you caimot turn

up the volume any more.

r

\

________________

If you want to turn up ttw volume to more than
" 6 f set AVLS to NORMAL. The AVLS

indication disappear from the display.

_ _ ■'m l'

O' J

To turn off the beep

You can turn off the beep that sounds as you
operate your player.

Disconnect the power source (AC power
adaptor, rechargeable battery or alkaline
batteries). While you press and hold down ■ ,
connect the power source again. To make the
beep sound again, disconnect the power
source, and then connect it without pressing

Note

• If you use the SOUND function and the AVLS

function at the same time, sound may be
distort. If this happens, turn down the
volume.

To resume playing from the point you stopped the CD (Resume Play)

Normally, every time you stop and play,
playing starts from the beginning of the CD.
The resume play function, however, let you
listen to from the point at which you last
turned off the player.

Set RESUME to ON.
To cancel resume play, set RESUME to OFF.

Notes

• Even if RESUME is set to ON, playing starts

from the beginning when you open the lid.

• The resume point may be inaccurate by about
30 seconds.

^Installing in a car

Where to place your player

• Install the player in a location which:

- does not interfere with your driving.

- is not dangerous fdfpassengers.

- does not interfere with the glove box lid
or ashtray.

- is stable, and where nothing around it may
interfere with installation.

• Do not install the player near heat sources or
where subject to direct sunlight, excessive
dust, or moisture (especially on a dashboard.)

Please understand that we will not incur any
obligations for troubles caused by incorrect
installation.

If you have any questions or problems
concerning your unit, please contact your
nearest Sony dealer.

Replacing the fuse of the car battery cord

If the player does not operate, check the fuse.
If it is blown, replace it as follows:

1 Turn off the placer and remove the

cigarette lighter plug from the cigarette
lighter socket.

2 Remove the plug end by turning it

counterclockwise.

3 Remove the defective fuse from the plug.
4 Insert the supplied spare fuse into the

plug.

5 Replace the plug end by turning it

clockwise.

Mounting your player

Attach the player to the console box with the
supplied Velcro tapes.

Bottom of the player

Notes

• Do not affix Velcro tapes to the name plate or

the lid of the battery compartment.

• When you are going to park your car for a long
period of time, remove the player from the
Velcro tapes so that it will not be exposed to
direct sunlight.

To route the cord

Use the supplied spiral tube to route the cords
so that they do not interfere with your
driving.

Plug end Cigarette lighter plug

Notes

• Be sure to use the supplied spare fuse. Never

use a piece of wire as a substitute for the fuse.

• If the fuse is blown again after replacing it,
contact your nearest Sony dealer. In such a case,
bring the supplied spare fuse to the dealer with
you.

Notes on the car connecting pack

• If no sound is heard or the car connecting
pack is ejected, change the direction of
playback on the car cassette deck.

• Never insert the cord end of the car connecting
pack into the cassette insertion door. Otherwise,
the cord may break or the car cassette deck may
be damaged.

• You cannot use the car connecting pack with
some car cassette deck.

• The cord should be placed so that it does not
hinder drivjng.

• To disconnect the cord from the player, pull

it out by grasping the plug. Never pull the plug
out by the cord.

• With some car cassette decks, you may hear
some rattling noise from the car connecting
pack. However, this is not a sign of

malfunction.

Note on the car battery cord

The 4.5V DC plug supplied with car battery cord
conforms to the proposed standards of the
Electronic Industries Association of japan (EIAj).
Do not connect it to other players.

Polarity of the plug
(EIAJ standards)

>-Power Sources

Using AC power adaptor

Connect the supplied AC power adaptor to
the DC IN 4.5 V jack and a wall outlet,

to a walheutlet

3 Connect the AC power adaptor.

The indication "CHG" lights up. Charge

for about 2 hours.
(If the battery has been already charged,
"CHG" and eg flash.)

For models supplied with the AC plug
adaptor

If the AC power adaptor does not fit the wall
outlet, use the AC plug adaptor.

Using rechargeable battery

Charge the rechargeable battery before using it
for the first time.
Use only BP-DMIO rechargeable battery for this
player. Do not use any other rechargeable
batteries.

1 Open the lid oî the battery compartment.

AC power adaptor

U
4-

to a wall outlet

4 When fully charged, "CHG" disappears.

Disconnect the AC power adaptor.

2 Insert the rechargeable battery so that the

word "SONY" is facing the same
direction as illustrated on the lid.

When to charge the rechargeable battery

When the rechargeable battery becomes
weak, d indication appears in the display.

If the "L a bdti" appears in the display,
charge the rechargeable battery, because the

battery is used up.
To keep the original battery capacity for a
long time, recharge the batteries when the

batteries are used up (discharged).

Notes

• Charging time varies depending on how the

rechargeable battery is used,

• If the battery is new or has not been used for a
long time, it may not be charged completely
until you charge and discharge it several times.

• If the battery life becomes shorter by about
half, replace if with Sony BP-DMIO

rechargeable battery. Do not use any other
rechargeable battery (R6 type rechargeable
battery, etc.).

Using dry batteries

1 Disconnect the AC power adaptor and

open the lid of the battery compartment.

When to replace the dry batteries

When the battery becomes weak,
indication appears in the display. If the
batteries are used up, "L o b3tt" appears in
the display. Replace all the batteries with
new ones.

Notes

• Do not charge the dry batteries.

• Do not rttix new batteries with old ones.

• Do not use different types of batteries together.

• When the batteries are not to be used for a
long time, remove them.

• If the battery leakage occurs, wipe off any

deposit in the battery compartment, and install
new batteries.

Insert two LR6 (size AA) alkaline
batteries by matching the @ and © to the
diagram inside the battery compartment
arid close the lid.

• Do not use manganese batteries for this player.

To take out the dry batteries

Press the 0 side of the battery as shown.

Battery life (approx, hours) (EIAJ*)

When using ESP function

BP-DMIO 4
(charged for about
2 hours**)

Two alkaline batteries
LR6SG

'Measured value by the starvdard of EIA]
(Electroidc Industries Association of Japan)
(When you use the player on a flat and stable
place)

**Charging time varies depending on how the
rechargeable battery is used.

off on

3.5

14 13

How to attach the battery

compartment lid

If the battery compartment lid is detached by
an accidental drop, excessive force, etc.,
attach it as illustrated in the numbered order.

>-Additional Information

Precautions

On safety

• Should any solid objects or liquid fall into the
player, unplug it and have it checked by
qualified personnel before operating it any
further.

• Do not put any foreign objects in the DC IN

4.5 V (external power input) jack.

On power sources

• When you are not using the player for a long

time, disconnect all power sources from the

player.

On the AC power adaptor

• Use only the supplied AC power adaptor. If
your player is not supplied with it, use AC­E45HG AC power adaptor. Do not use any
other AC power adaptor.

Polarity of the plug

• To unplug the AC power adaptor from the wall
outlet/ grasp the adaptor itself, do not pull its
cord.

On dry and rechargeable batteries

• Do not throw the batteries into fire.

• Do not carry the batteries with coins or other
metallic objects. It can generate heat if the
positive and negative terminals of the battery
are accidentally contacted by a metallic object.

On the player

• Keep tt\e lens on the player clean and do not
touch it. If you do so, the lens may be
damaged and the player will not operate
properly.

• Do not put any heavy object on top of the

player. The player and the CD may be

' ’damaged.

• Do not leave the player in a location near heat

sources, or in a place subject to direct sunlight,
excessive dust or sand, moisture, rain,

, mechanical shock, unleveled surface, or in a car

with its windows closed.

• If the player causes interference to the radio or
television recepticm, turn off the player or move
it away from the radio or television.

• Do not wrap the player in a cloth or blanket
during use as it may cause malfunction or

serious accidents.

On headphones

Road safety

Do not use headphones while driving, cycling, or
operating any motorized vehicle. It may create a
traffic hazard and is illegal in some areas. It can
also be potentially dangerous to play your
headsets at high volume while walking,
especially at pedestrian crossings. You should
exercise extreme caution or discontinue use in
potentially hazardous situations.

Preventing bearing damage

Avoid using headphones at high volume.
Hearing experts advise against continuous, loud
and extended play. If you experience a ringing in
your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will
allow you to hear outside sounds and to be
considerate to the people around you.

On the water resistance

• Before unfastening the buckle to open the lid,
be sure to wipe off water, dust or sand on the
exterior of the unit. Open and close the lid
where water or sand cannot fall in the unit, and
make sure that your hands are diy. If water or
sand falls in the unit, trouble may occur.

• When closing the lid, check that there is no dust
or sand on the rubber packing around the lid.
Then close the lid firmly with the buckle.

• The supplied headphones are not meant to be
immersed in water or come in continuous
contact with water. If they are accidentally

dropped into water or get wet, dry them with a
soft cloth. Never use an electric hair dryer.

• The supplied AC power adaptor is not water
resistant. To prevent shock hazard, avoid using
the player near water during AC opetation.

• Cover the DC IN 4.5 V jack and 0 jack with the
attached rubber caps when nothing is
connected to these jacks. If the inside of the
jacks are contaminated with water or sand, rust
may develop and caused trouble.

Specifications

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wavelength: X = 780 nm

Emission duratio^_Continuous
Laser output: Less than 44.6 pW (This output
is the value measured at a distance of 200
mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)

Error correction

Sony Super Strategy Cross Interleave Reed
Solomon Code

D-A conversion

1-bit quartz time-axis control

Frequency response

20 - 20,000 Hz *JdB (measured by EIAJ CP-

307)

Output (at 4.5 V Input level)

Headphones (stereo minijack)

15 mW + 15 mW at 16 ohms

General

Power requirem ents

For the area code of the model you purchased,

check the upper left side of the bar code on the

package.

• Sony BP-DMIO Rechargeable battery:

2.4 V DC, Ni-Cd, 650 mAh

• Two LR6 (size AA) batteries: 3 V DC

• AC power adaptor (DC IN 4.5 V jack):
U2/CA2/E92 model; 120 V, 60 Hz
CED/CEF/CEX/EE1/E13 model:
220 - 230 V, 50/60 Hz
CEK model: 230 - 240 V, 50 Hz
EA3 model: 110 - 240 V, 50/60 Hz
AU2 model: 240 V, 50 Hz
JE.W/E33 model: 100 - 240 V, 50/60 Hz
CN2 model: 220 V, 50 Hz

Hf;2 model: 220 V, 50/60 Hz

Dimensions (w/h/d) (without projecting parts
and controls)

Approx. 138.3j< 34.3 X 145.8 mm
(5 '/2 X i y. X 5 V4 in.)

Mass (without rechargeable batteries)

Approx. 312 g (11.1 oz)

Operating temperature

5“C - 35°C (41 “F ■ 95°F)

Car accessories

Car connecting pack
Frequency response

50 - 20,000 Hz‘

• Differs depending on your car cassette deck.

Dimensions

Approx. 102.4 X 12.1 X 63.8 mm
(4 Vs X '/1 X 2Vs in.) (w/h/d) including
projecting parts

Mass

Approx. 42 g (1.5 oz.)

Cord length

Approx. 1.5 m

Car battery cord

Input voltage

DC 12 V/24 V (ottly for negative © grounded

cars)

Rated output voltage

DC 4.5 V

Rated output current

500 mA

Dimensions

Approx. 32 X 28.1 X 95.5 mm
(1 Vis X 1 '/s X 3 V« in.) (w/h/d) including
projecting parts

Mass

Approx. 53 g (1.9 oz.)

Cord length

Approx. 1.5 m

Supplied accessories

For the area code of the model you purchased,
check the upper left side of the bar code on the
package.

AC power adaptor (1)
Stereo headphones (1)
Rechargeable battery (1)*
Car battery cord (1)
Car connecting pack (1)
Velcro tapes (2)
Spiral tube (1)
Spare fuse (1)

•Supplied with U2 model only

Design and specifications are subject to change
without notice.

For OS customers

AC power adaptor supplied is not intended to be
serviced. Should the AC power adaptor cease to
function in its intended manner, during the
warranty period, the adaptor should be returned
to your nearest Sony Service Center or Sony
Authorized Repair Center for replacement, or
after warranty period, it should be discarded.

Recommended accessories

Car connecting pack CPA-9
Car battery cord with car connecting ç
DCC-E26CP
Car battery cord DCC-E245
Active speaker system SRS-A15, SRS-A35,
SRS-A71, SRS-Tl
Rechargeable battery BP-DMlO
Connecting cord RK-G129HC, RK-G136HG

AC power adaptor AC-E45HG
Stereo headphones MDR-A44L, MDR-30ÎLP,
MDR-E848LP, MDR-35, MDR-G51, MDR-G61

Your dealer may not handle some of the above
listed accessories. Please ask the dealer for
detailed information about the accessories in
your country.
